PROTOTYPE PROCESS
from Final Folio

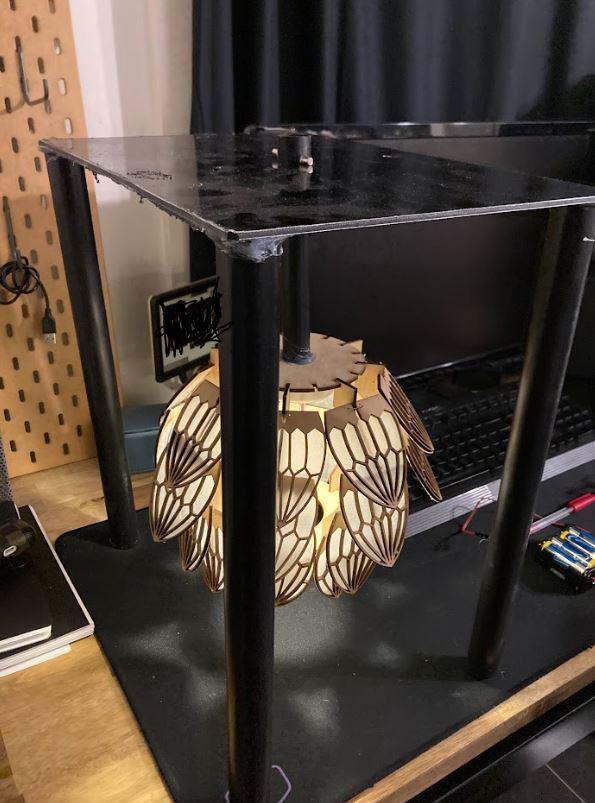

cutting a rectangular piece from the aligloss sheet and installing the plastic legs to create the holder.
Advertisement

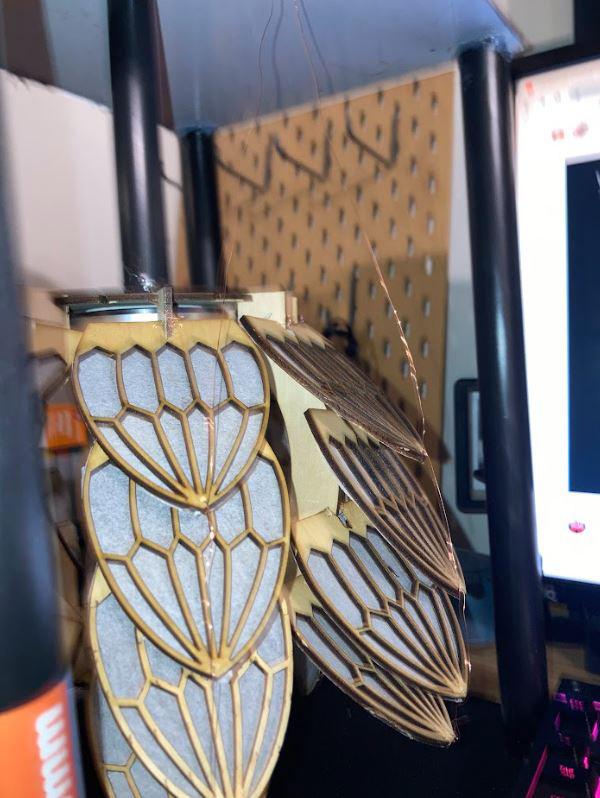

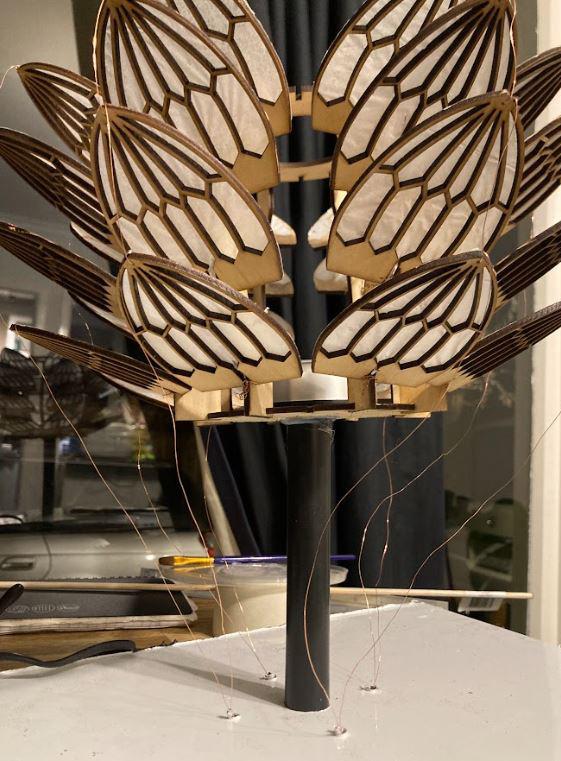

Threading wire through shades from holes made previously to enable the shades to move. Then threading the wires through the Aligloss sheet to meet the Motor.

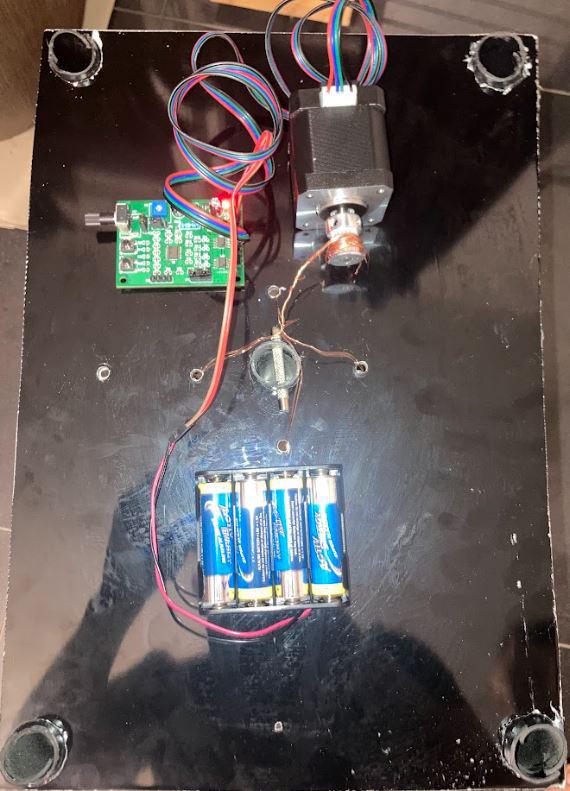

Closer look of the wiring. Positioning the stepper motor on top of the Model’s holder and attatching the wires to the stepper motor.

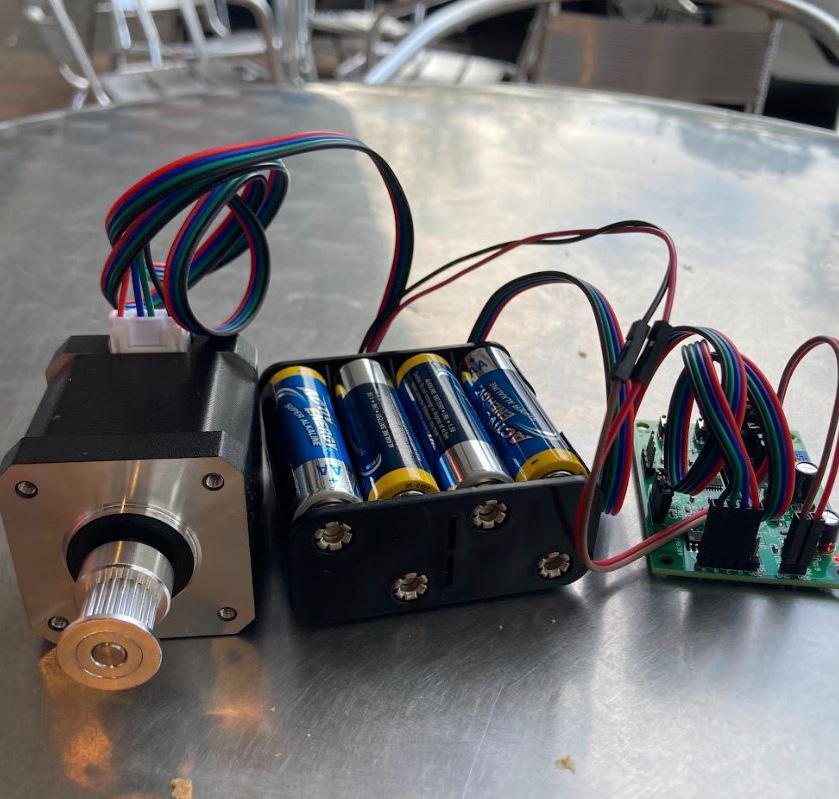

Setting up the stepper motor: Attaching pulley at the end of motor to attach wires to. Using a 12V battery holder to power the motor and using a controller board to control the motor’s function.
