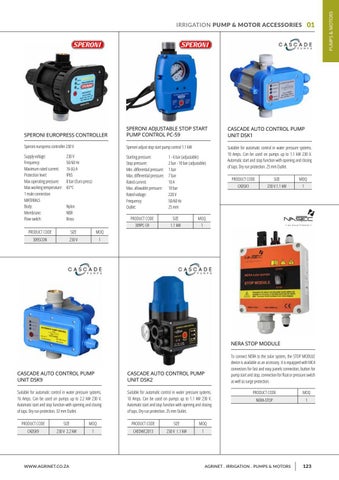

SPERONI EUROPRESS CONTROLLER
SPERONI ADJUSTABLE STOP START PUMP CONTROL PC-59
CASCADE AUTO CONTROL PUMP UNIT DSK1
Speroni europress controller 230 V
Speroni adjust stop start pump control 1.1 kW
Supply voltage: Frequency: Maximum rated current: Protection level: Max operating pressure: Max working temperature: 1 male connection MATERIALS Body: Membrane: Flow switch:
Starting pressure: Stop pressure: Min. differential pressure: Max. differential pressure: Rated current: Max. allowable pressure: Rated voltage: Frequency: Outlet:
Suitable for automatic control in water pressure systems. 10 Amps. Can be used on pumps up to 1.1 kW 230 V. Automatic start and stop function with opening and closing of taps. Dry run protection. 25 mm Outlet.
230 V 50/60 Hz 16 (6) A IP65 8 bar (Euro press) 65°C
Nylon NBR Brass
PRODUCT CODE
SIZE
MOQ
309SCON
230 V
1
1 - 6 bar (adjustable) 2 bar - 10 bar (adjustable) 1 bar 7 bar 10 A 10 bar 220 V 50/60 Hz 25 mm
PRODUCT CODE
SIZE
MOQ
309PC-59
1.1 kW
1
PRODUCT CODE
SIZE
MOQ
CADSK1
230 V 1.1 kW
1
NERA STOP MODULE To connect NERA to the solar system, the STOP MODULE device is available as an accessory. It is equipped with MC4 connectors for fast and easy panels connection, button for pump start and stop, connection for float or pressure switch as well as surge protection.
CASCADE AUTO CONTROL PUMP UNIT DSK9
CASCADE AUTO CONTROL PUMP UNIT DSK2
Suitable for automatic control in water pressure systems. 16 Amps. Can be used on pumps up to 2.2 kW 230 V. Automatic start and stop function with opening and closing of taps. Dry run protection. 32 mm Outlet.
Suitable for automatic control in water pressure systems. 10 Amps. Can be used on pumps up to 1.1 kW 230 V. Automatic start and stop function with opening and closing of taps. Dry run protection. 25 mm Outlet.
PRODUCT CODE
SIZE
MOQ
PRODUCT CODE
SIZE
MOQ
CADSK9
230 V 2.2 kW
1
CAEDWC2013
230 V 1.1 kW
1
WWW.AGRINET.CO.ZA
PRODUCT CODE
MOQ
NERA-STOP
1
AGRINET . IRRIGATION . PUMPS & MOTORS
123
PUMPS & MOTORS
01
IRRIGATION PUMP & MOTOR ACCESSORIES
