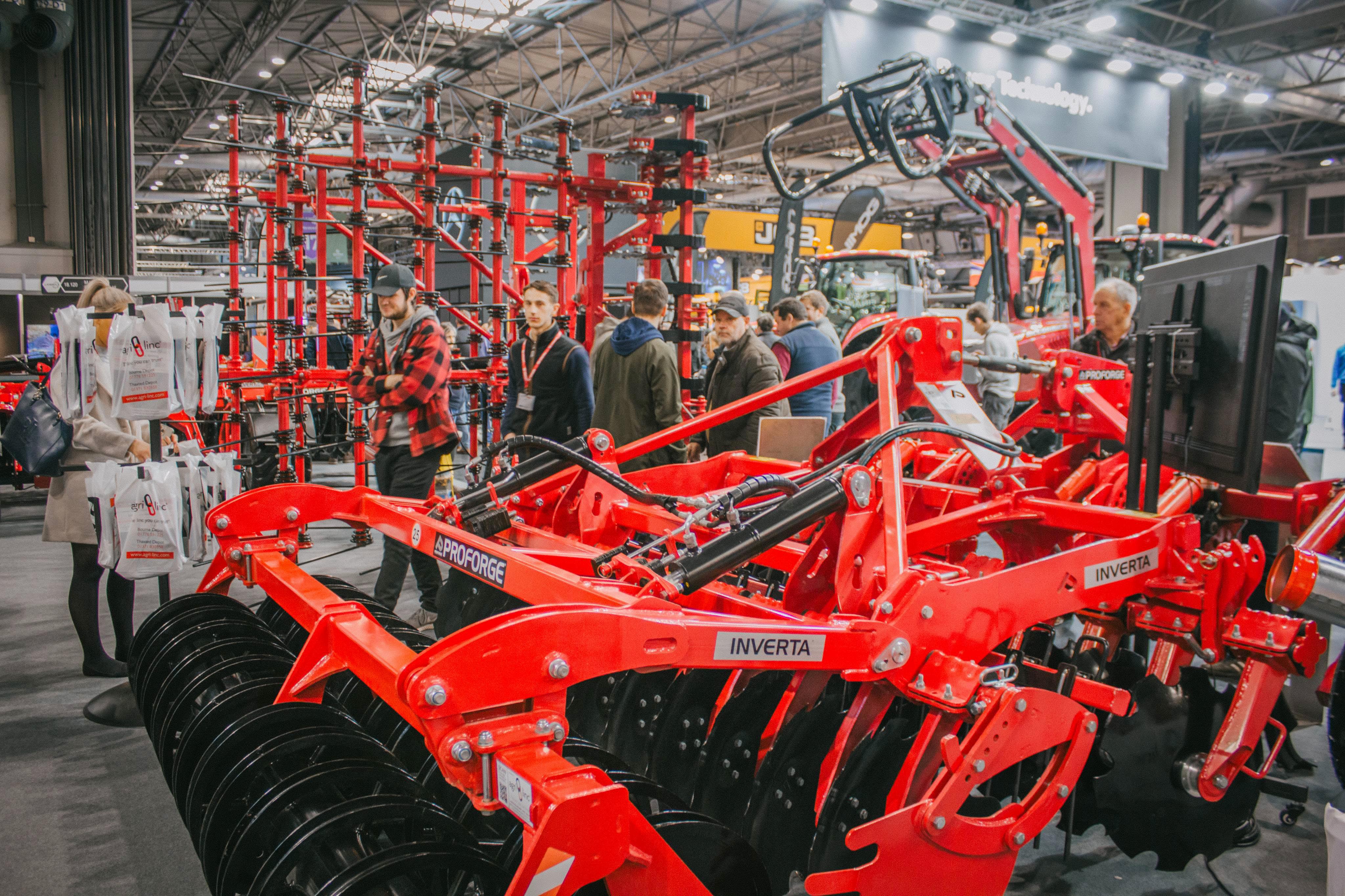

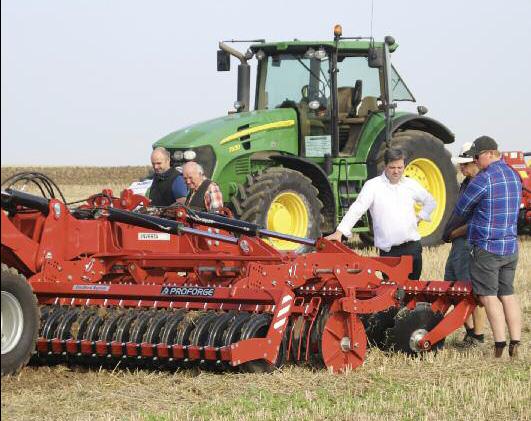

Agricultural shows and live testimonials are a vital part of our marketing strategy to promote the PROFORGE range and an ideal opportunity to discuss the current market needs and requirements with all those in the farming industry.
SHOWS & DEMONSTRATIONS
Strategically Strong
CULTIVATORS
MOLEDRAINERS
InvertaMax
InvertaMax-Pro
InvertaMin
Maxtilla

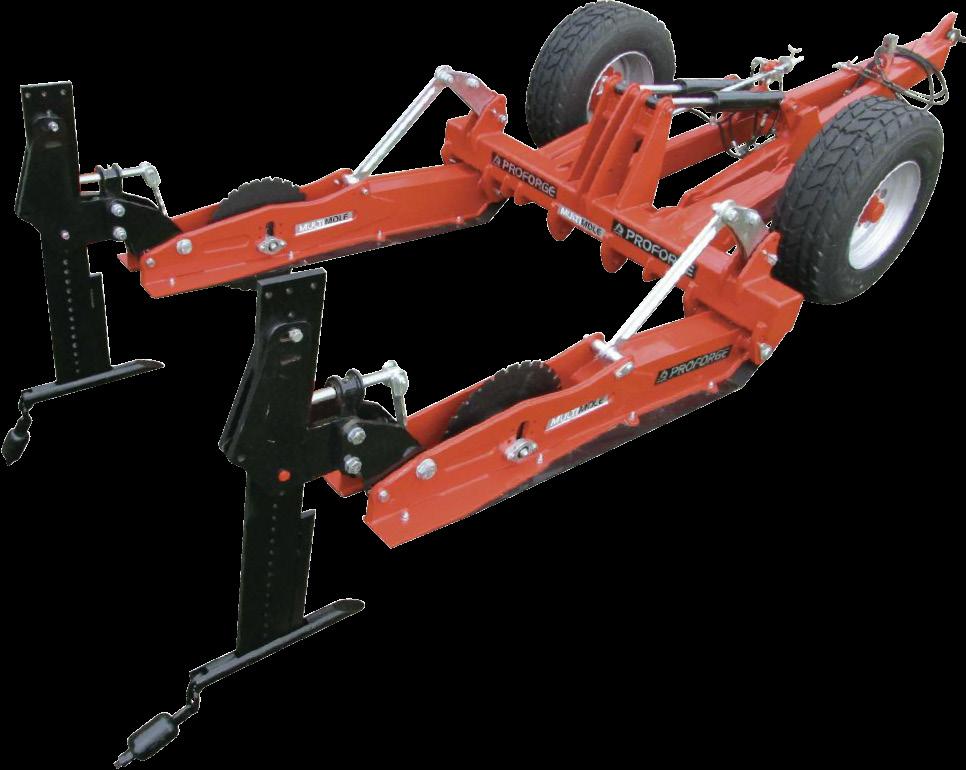

Multimole - Trailed

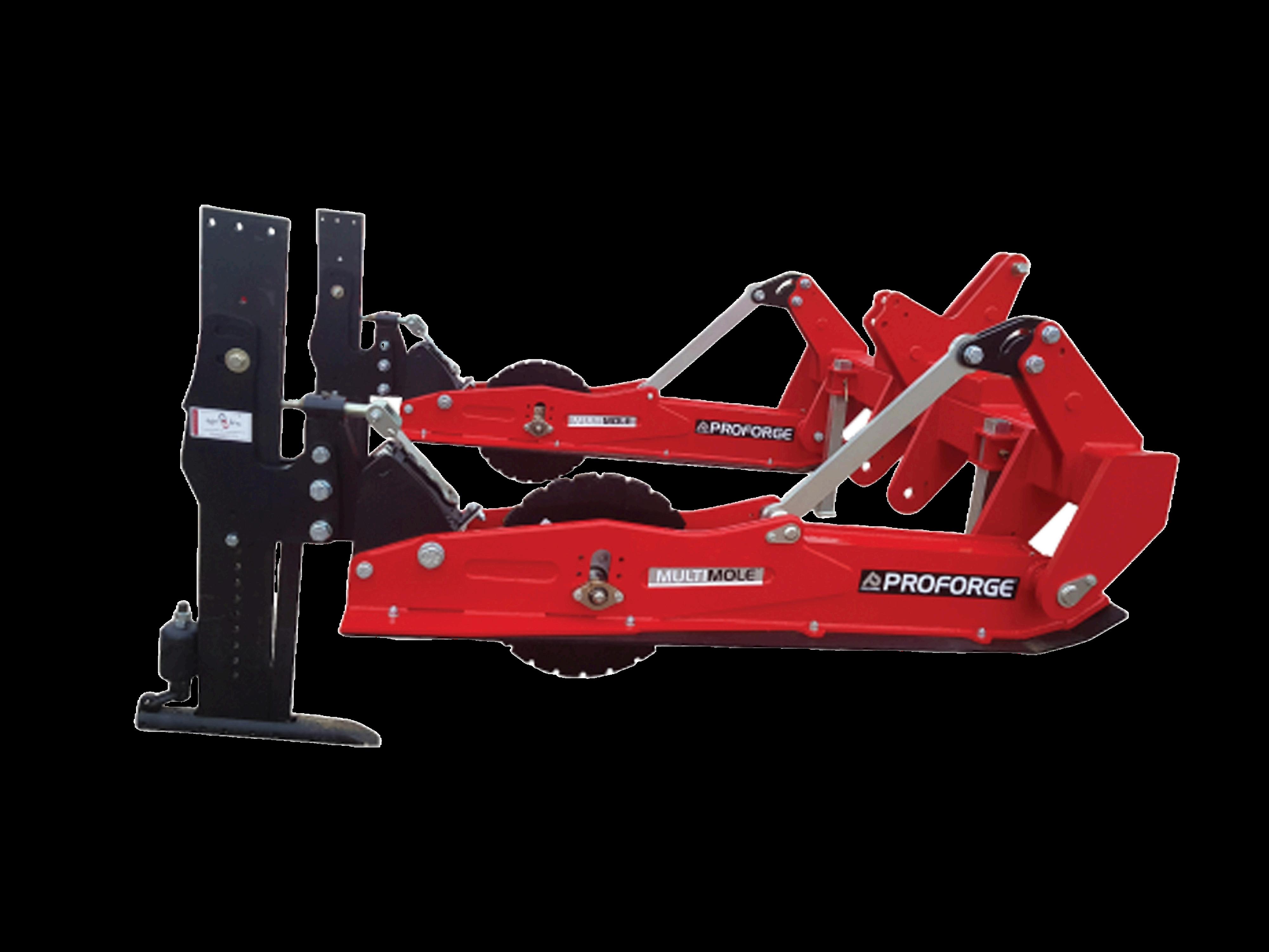

Multimole Mounted

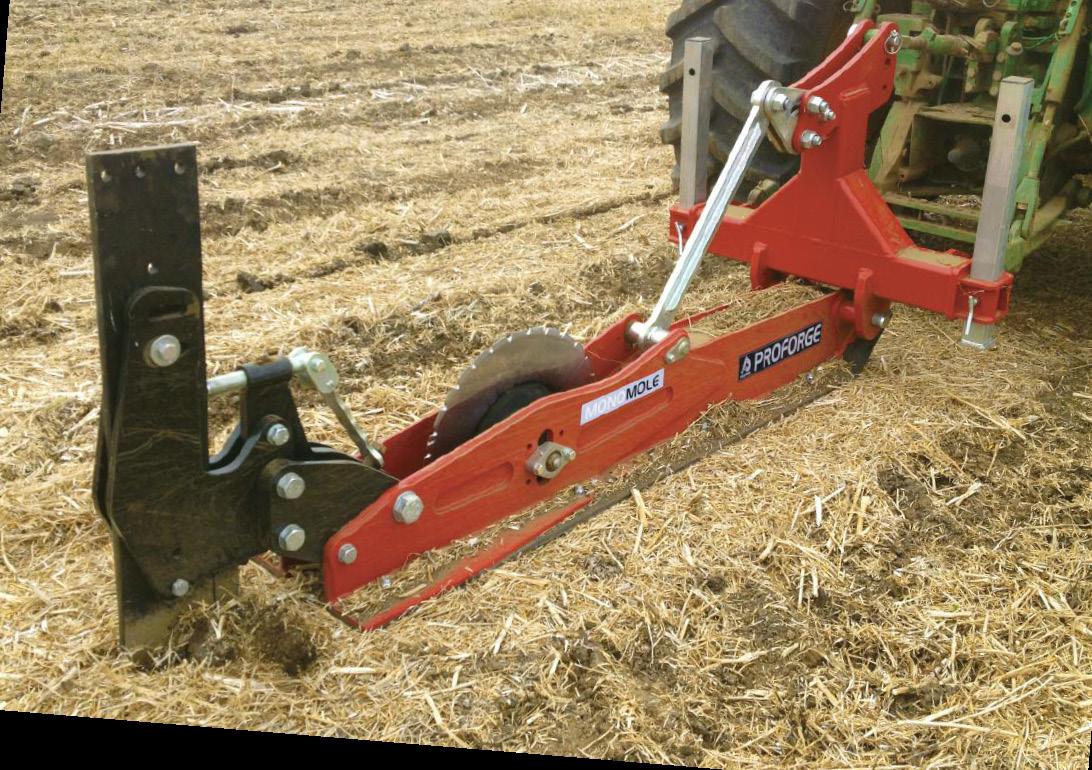

Monomole - Mounted

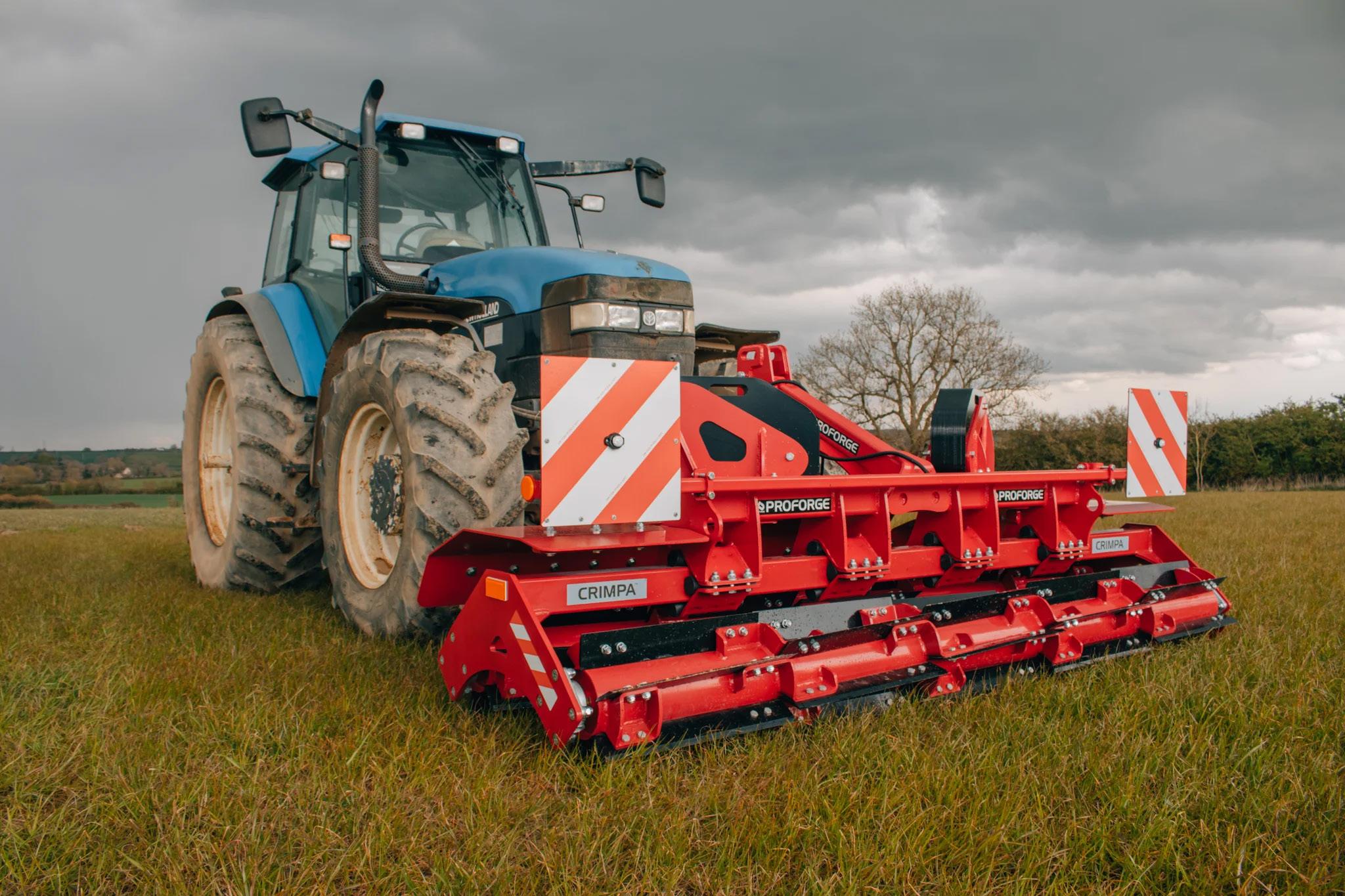

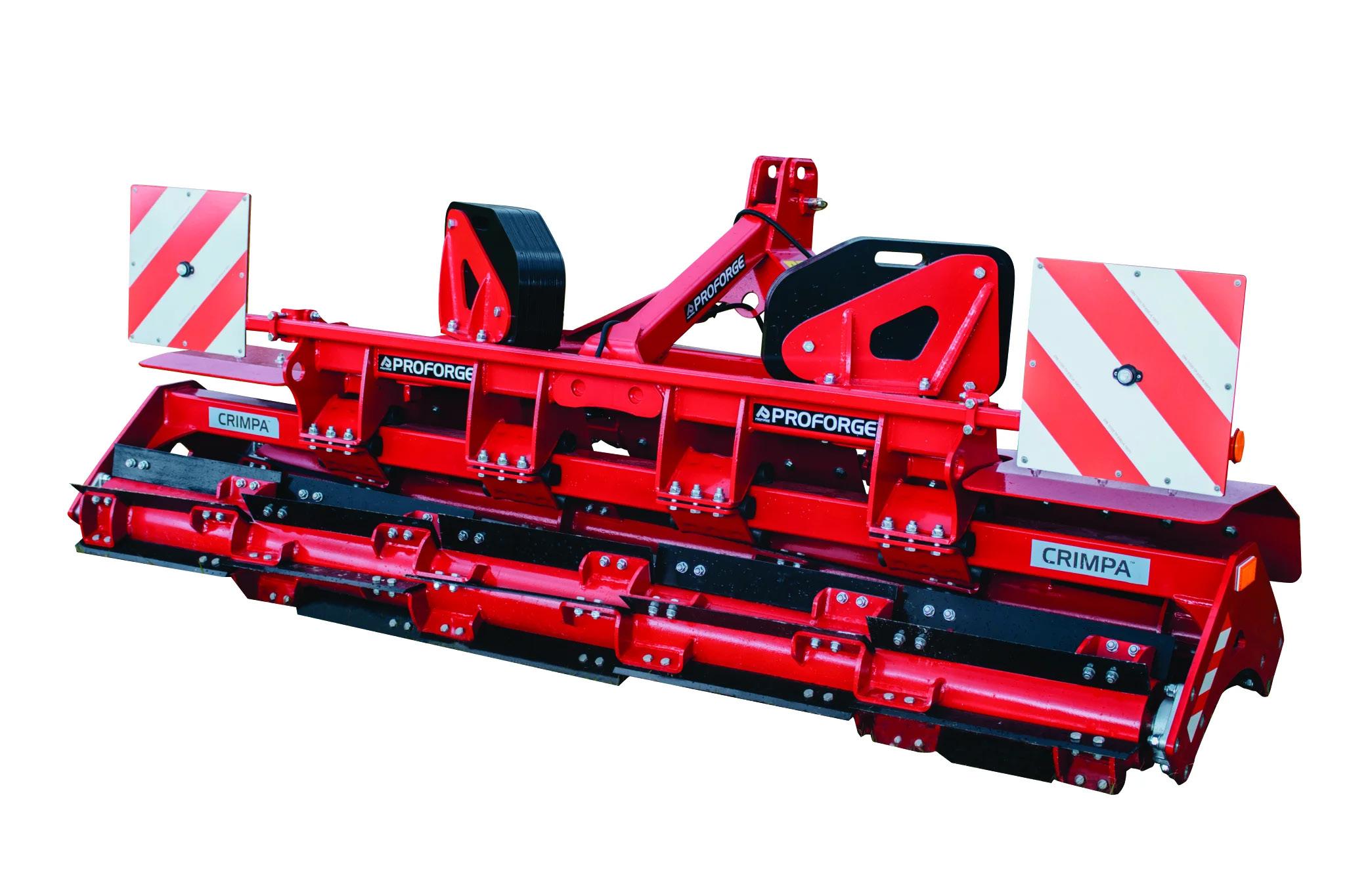

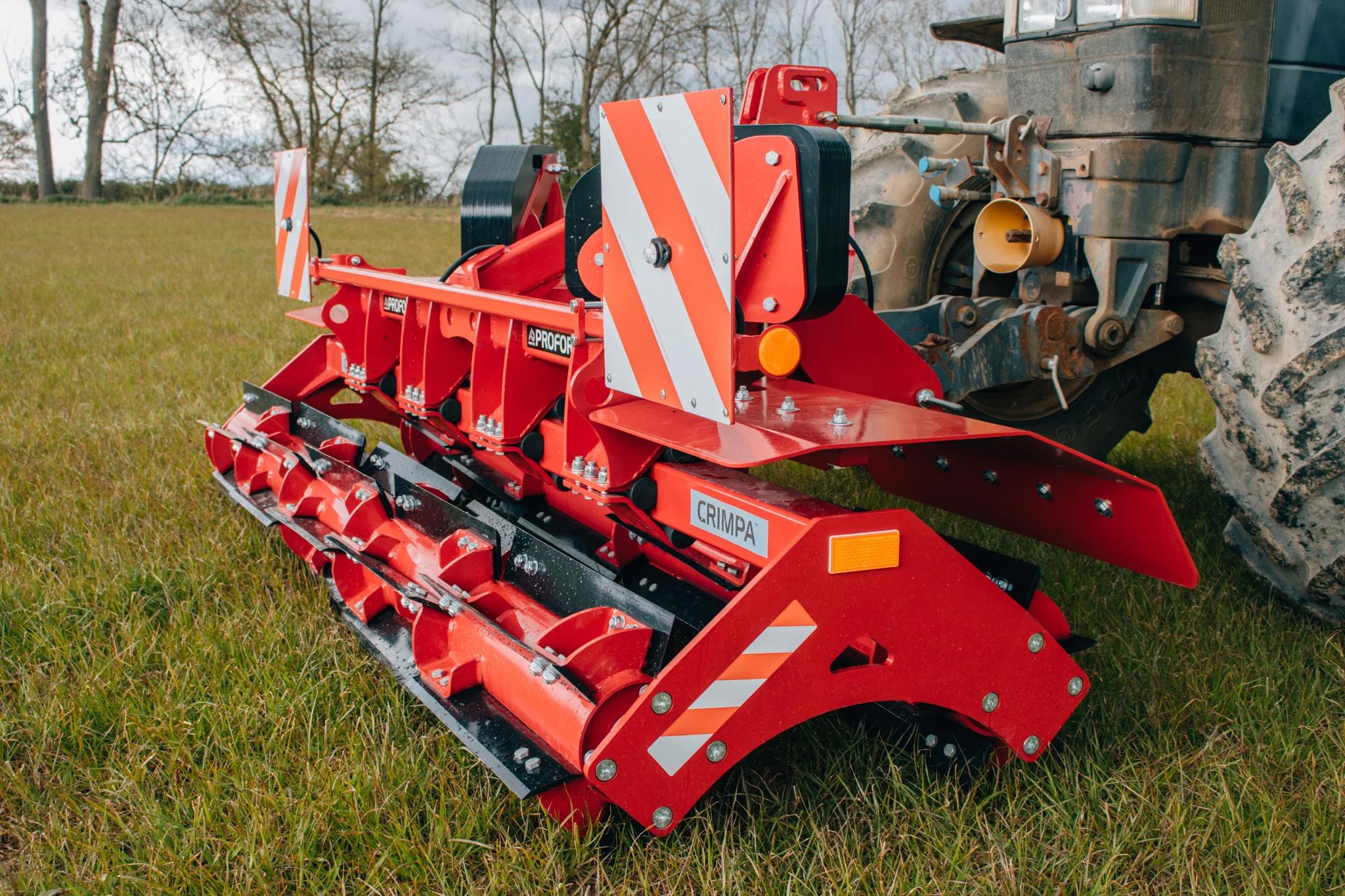

Crimpa
Disrupta

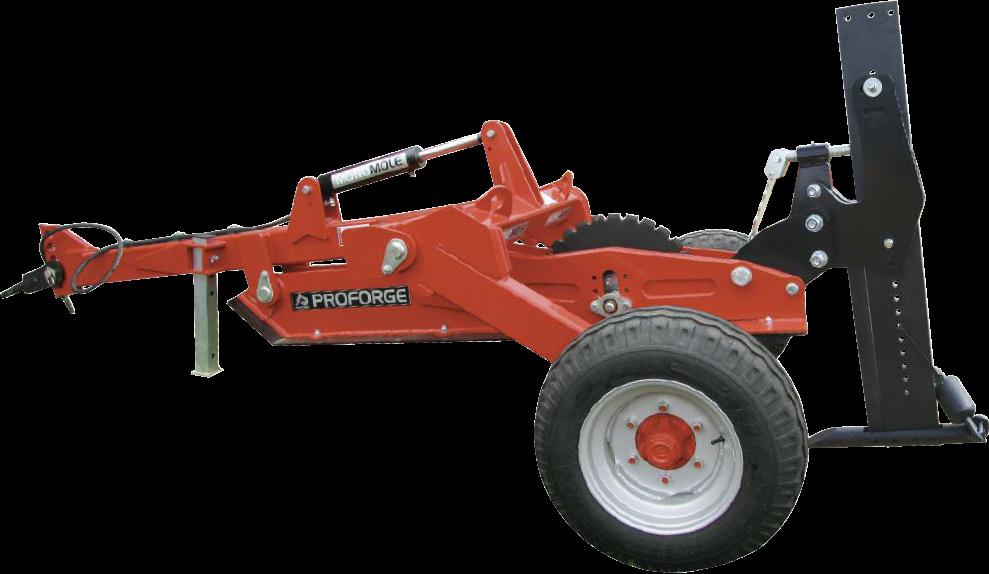

Monomole - Trailed

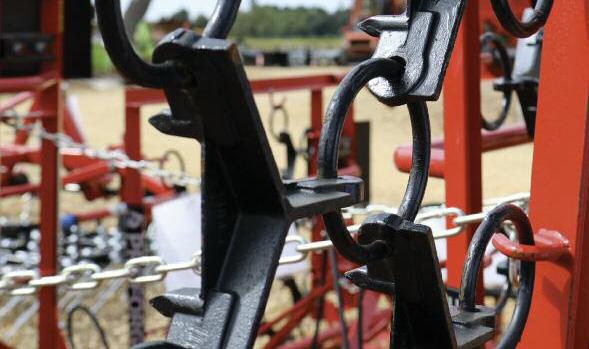

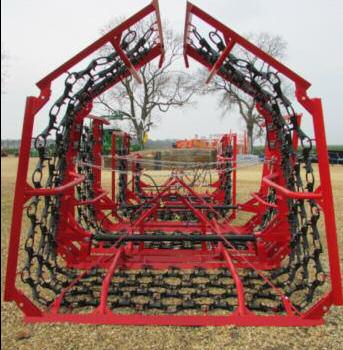

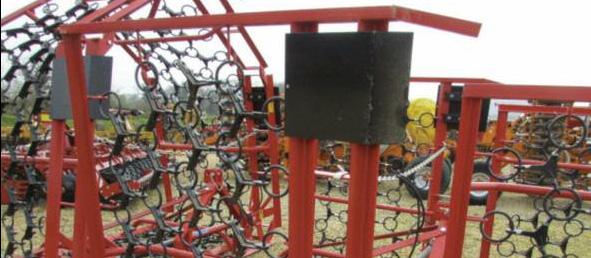

Chain Harrow
Inverta-Pro

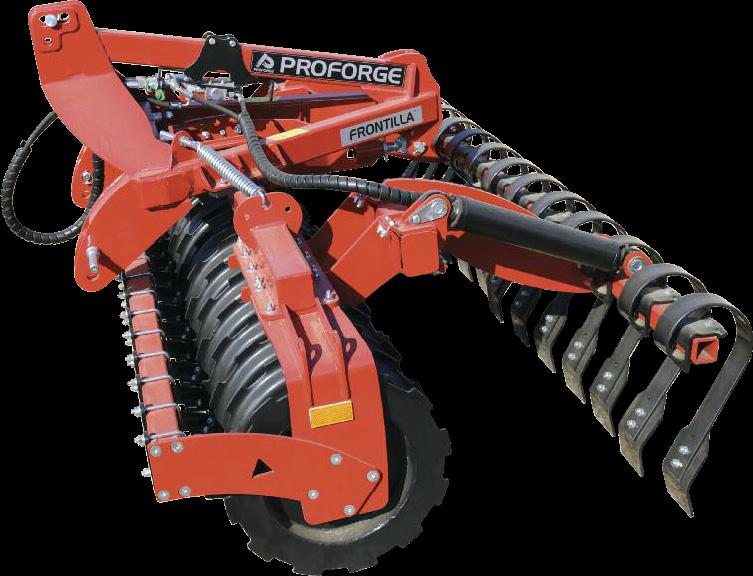

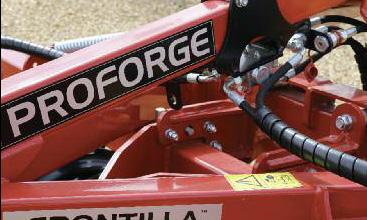

Frontilla
DisruptaMax

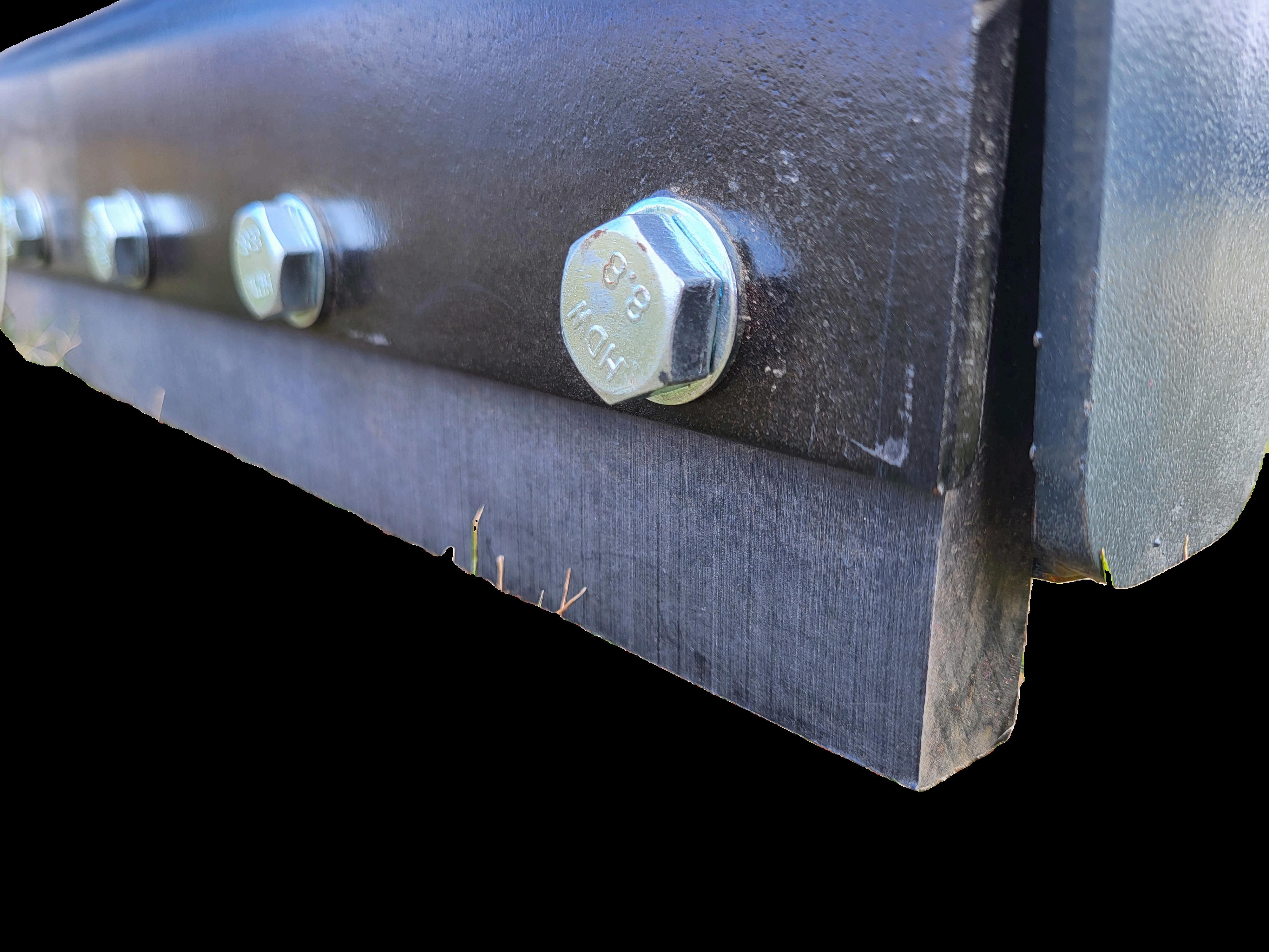

WEARING PARTS

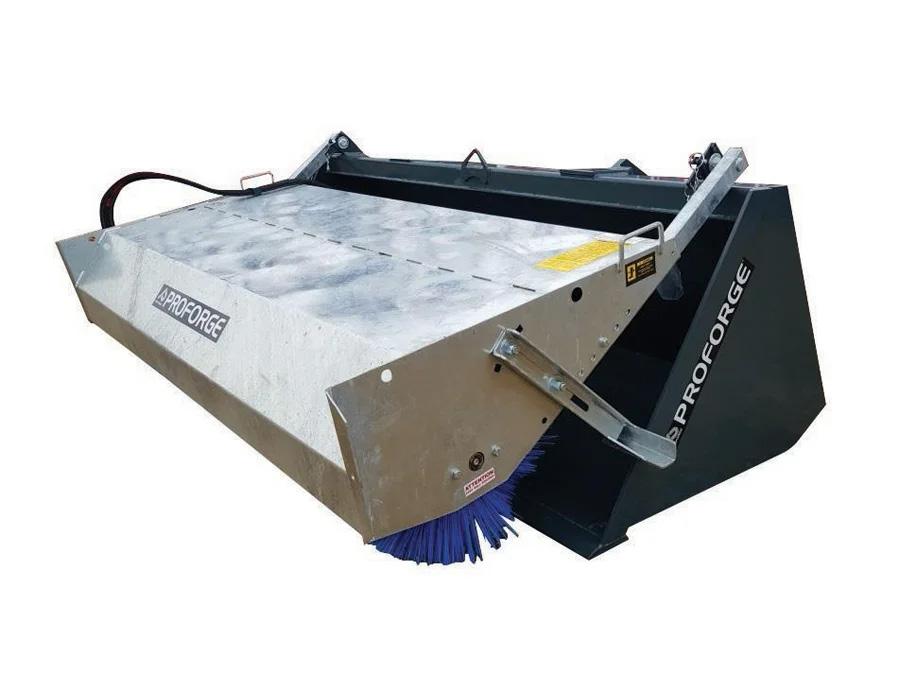

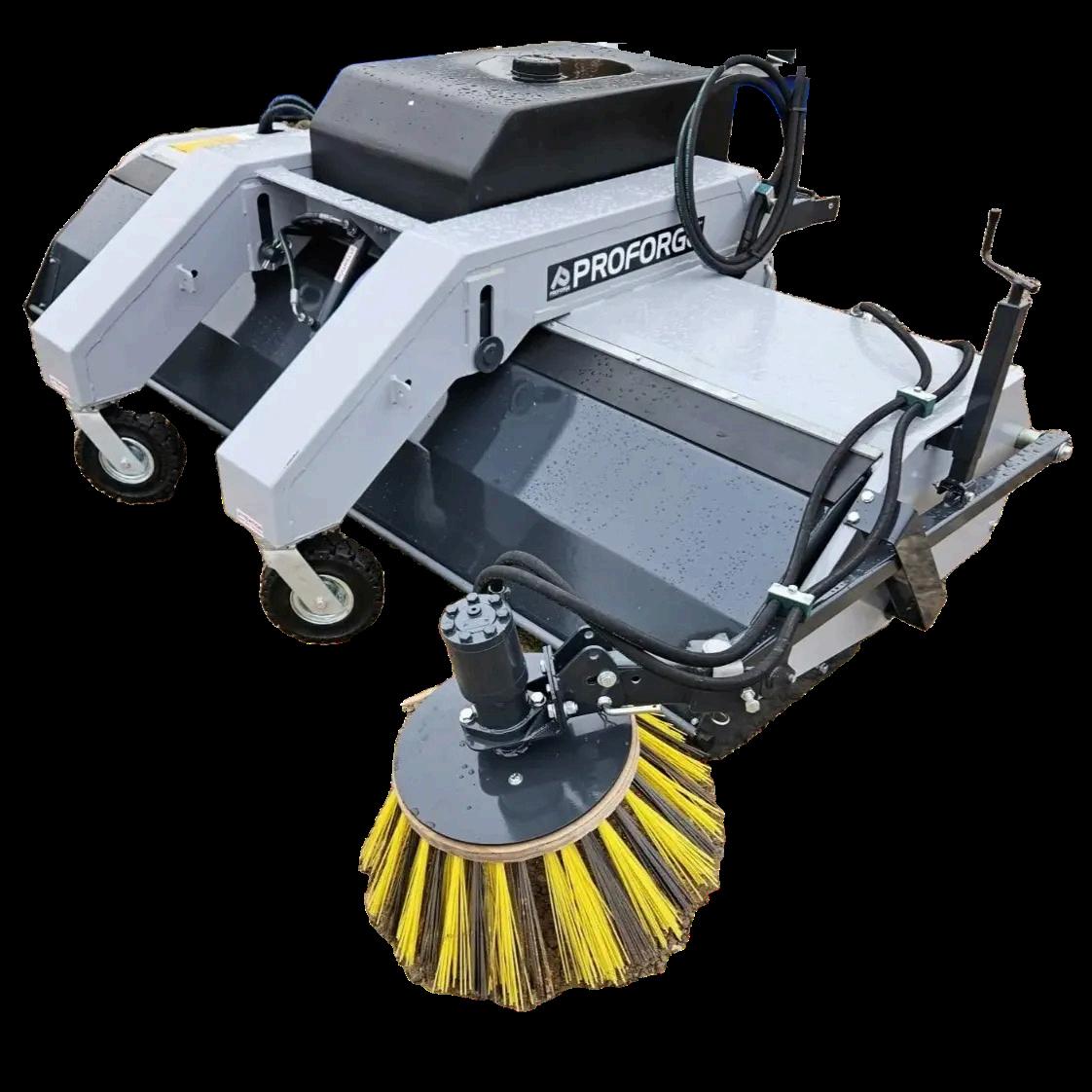

Brushes & Sweepers

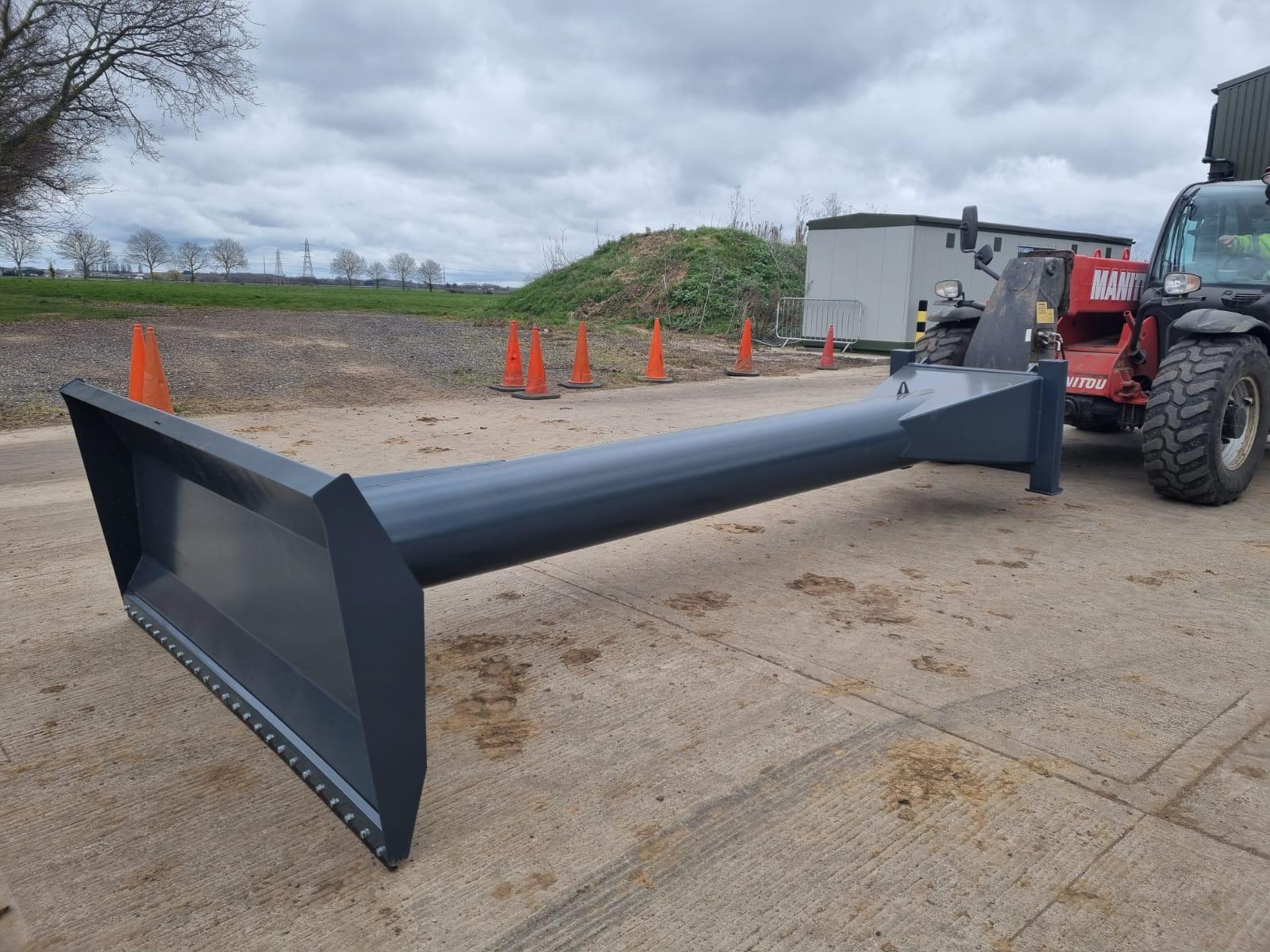

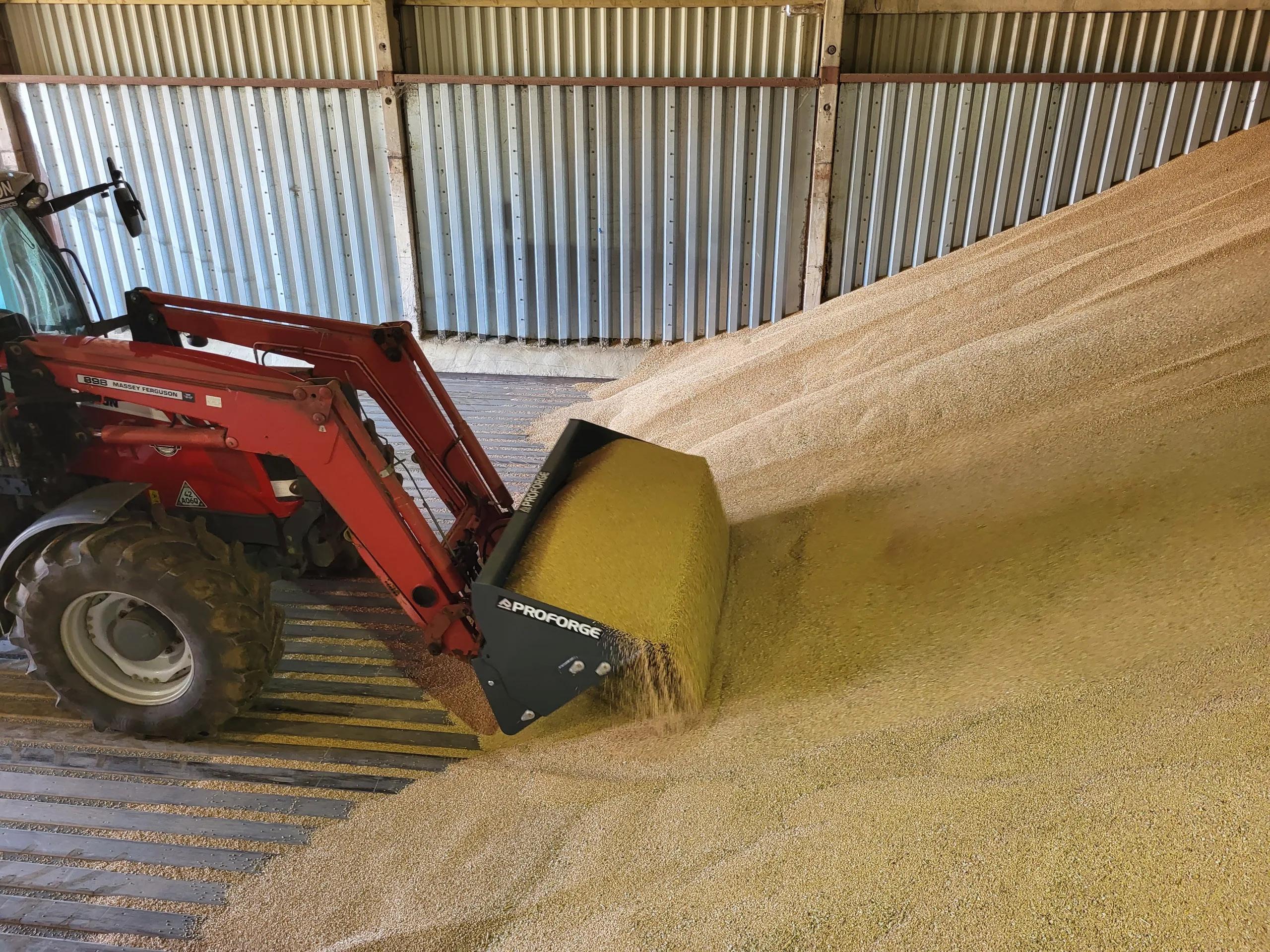

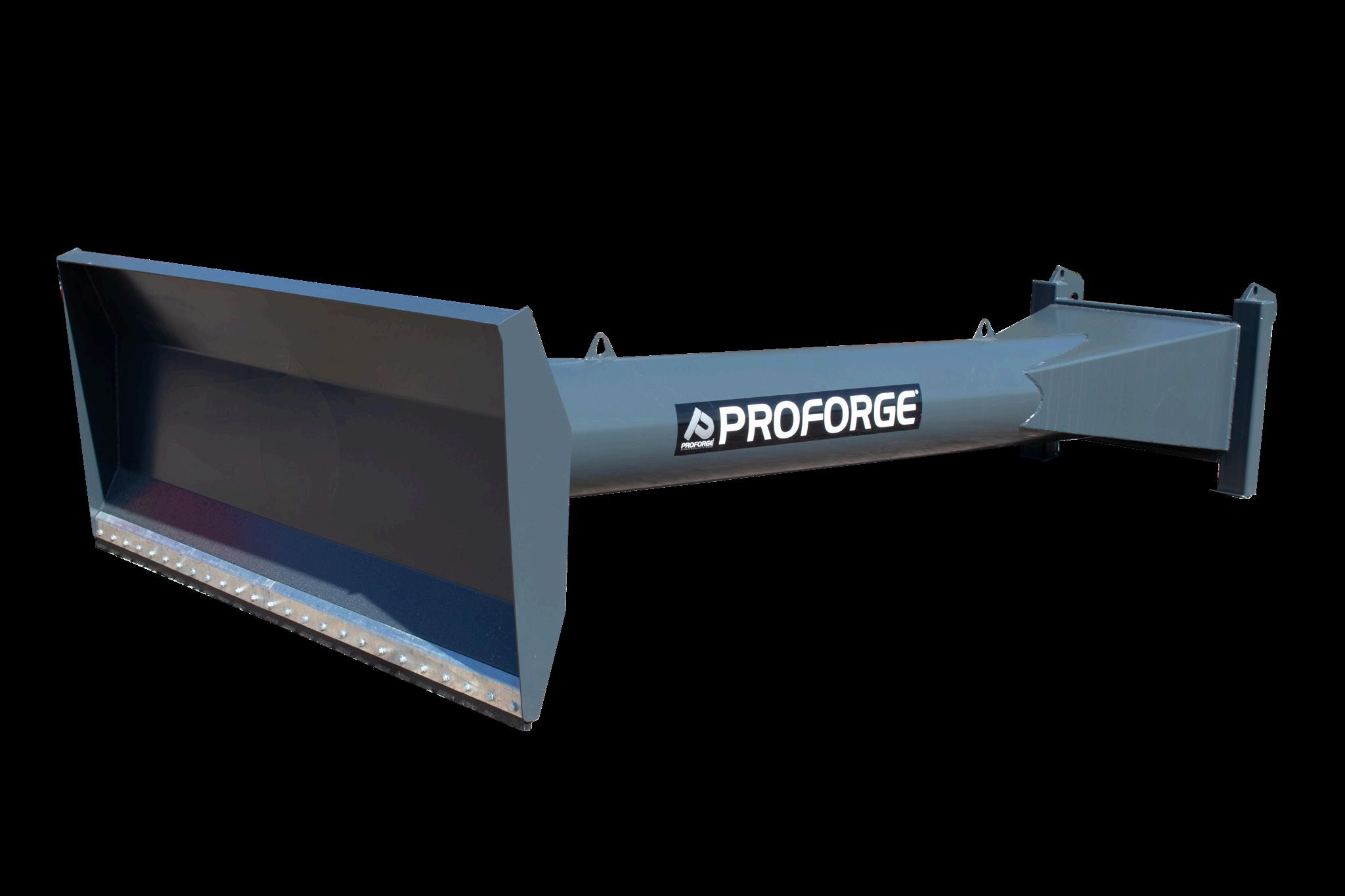

Grain Pusher
Access Platform

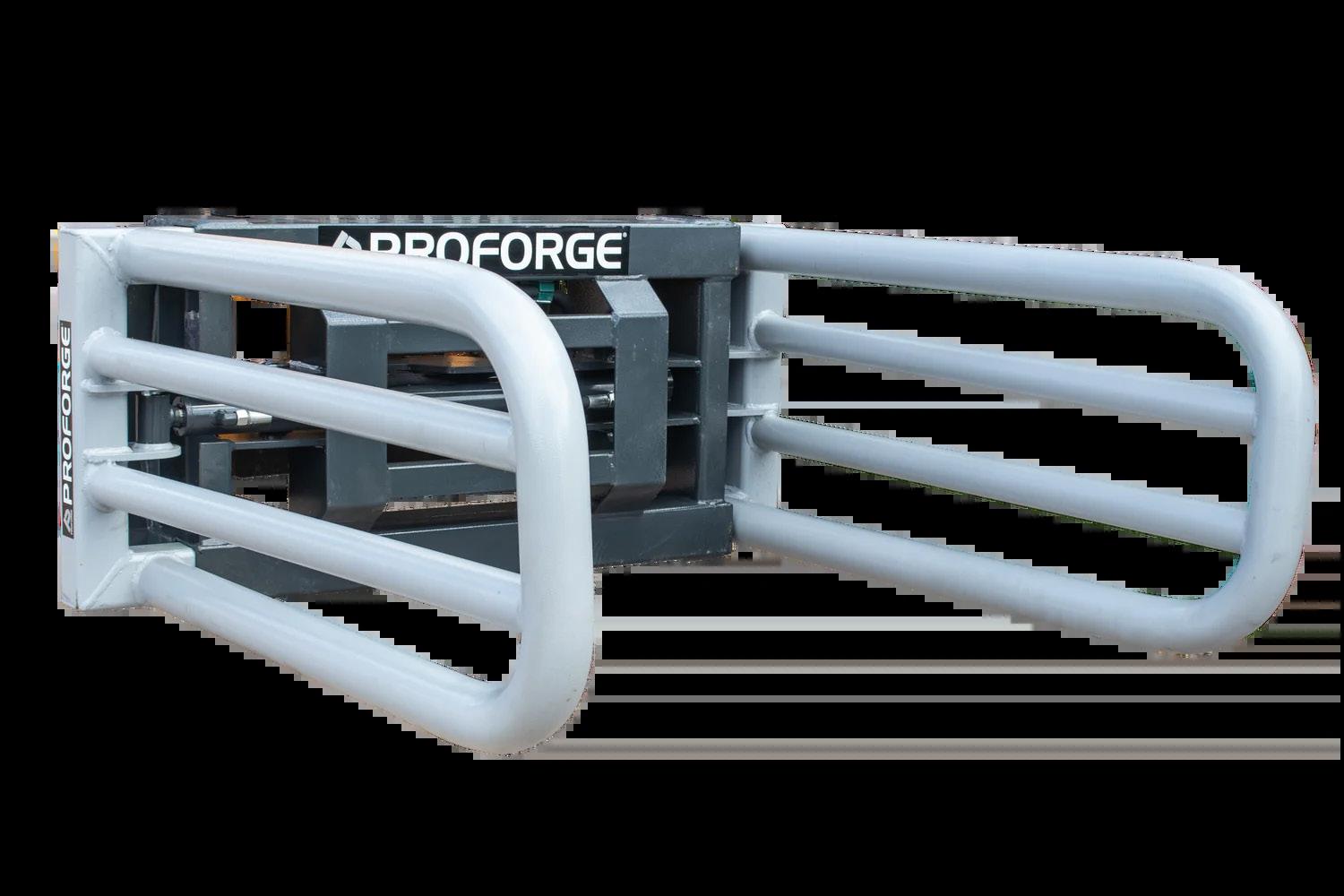

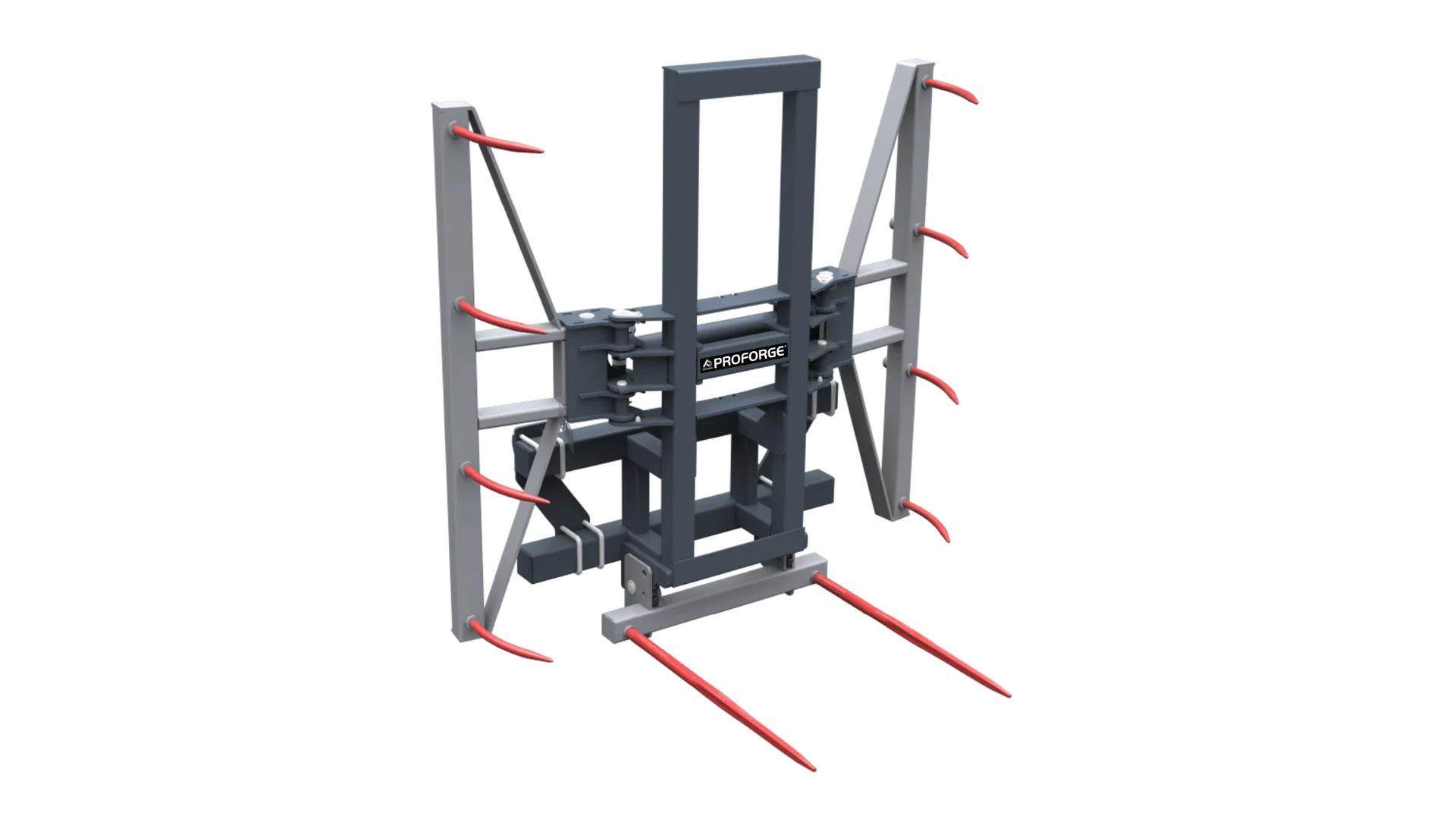

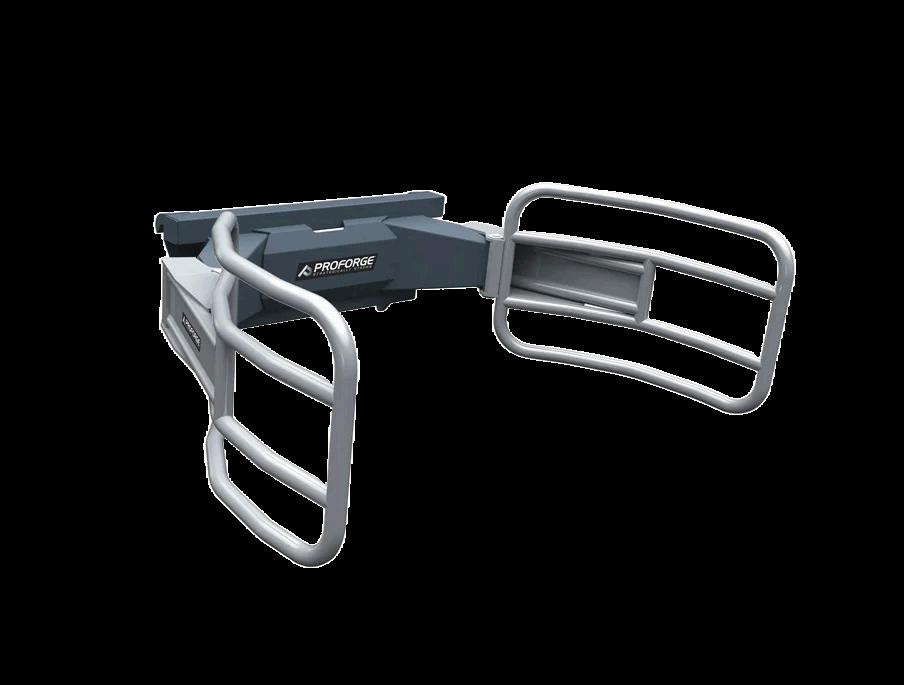

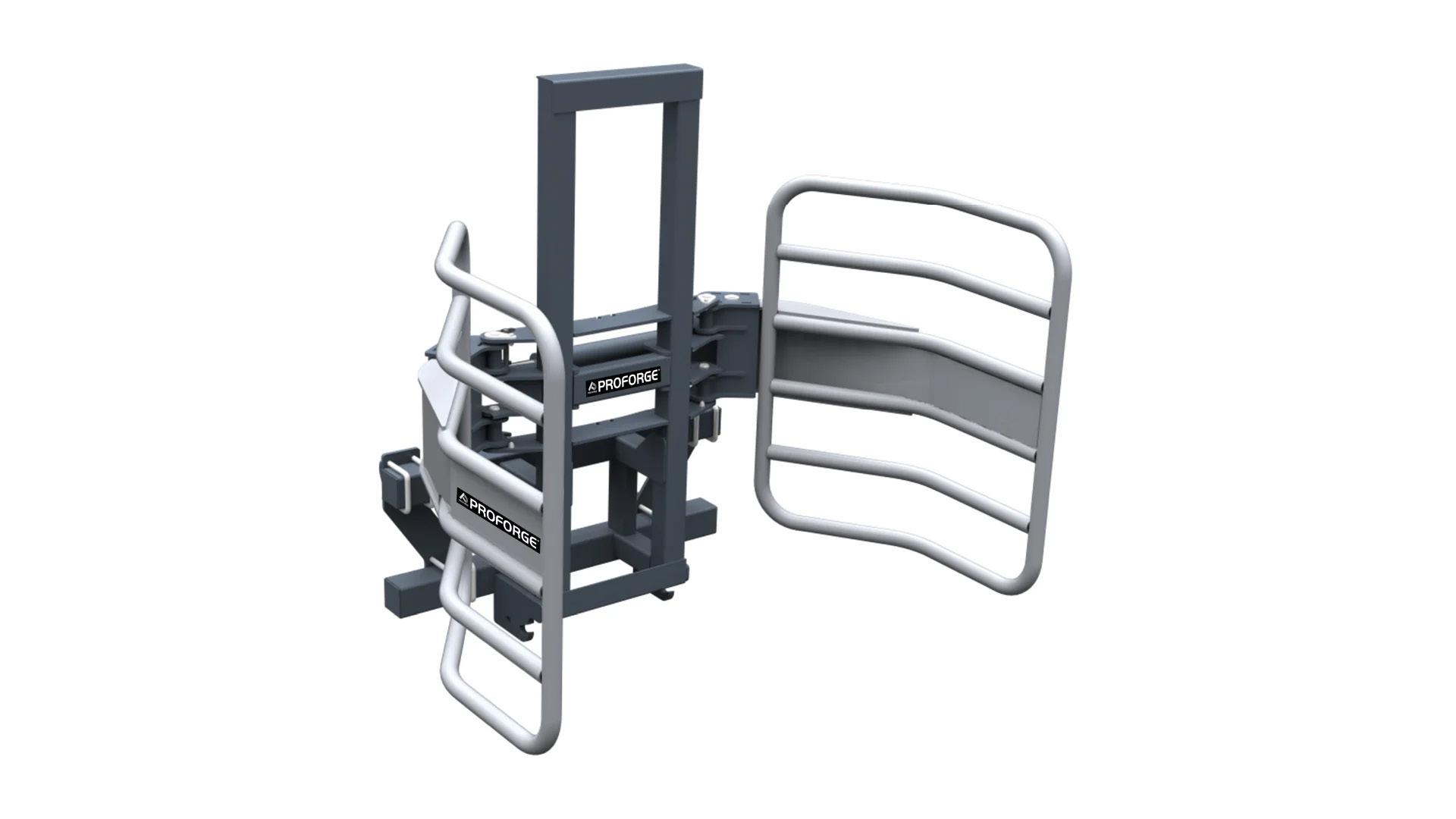

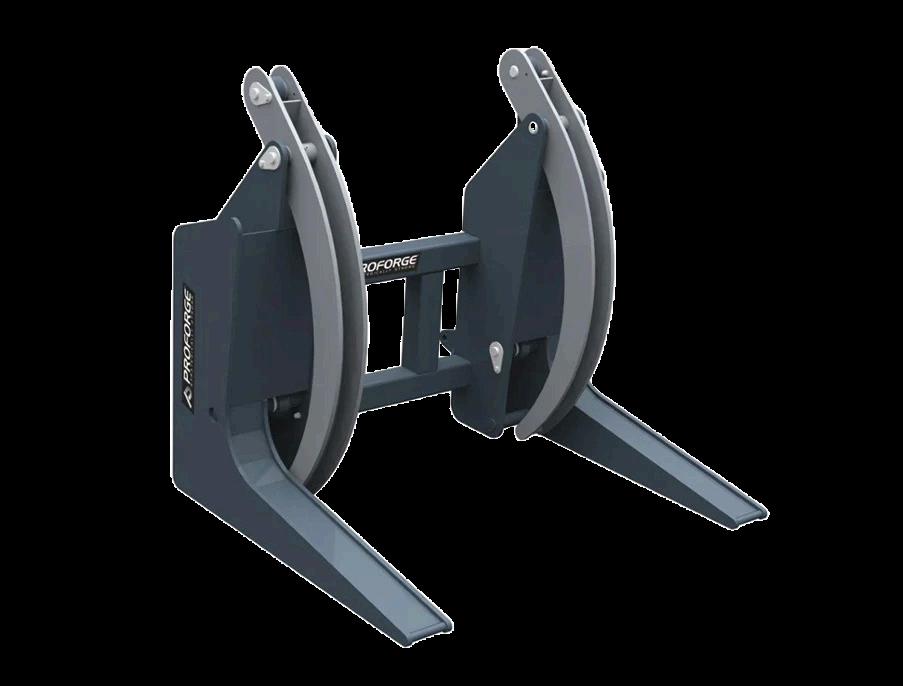

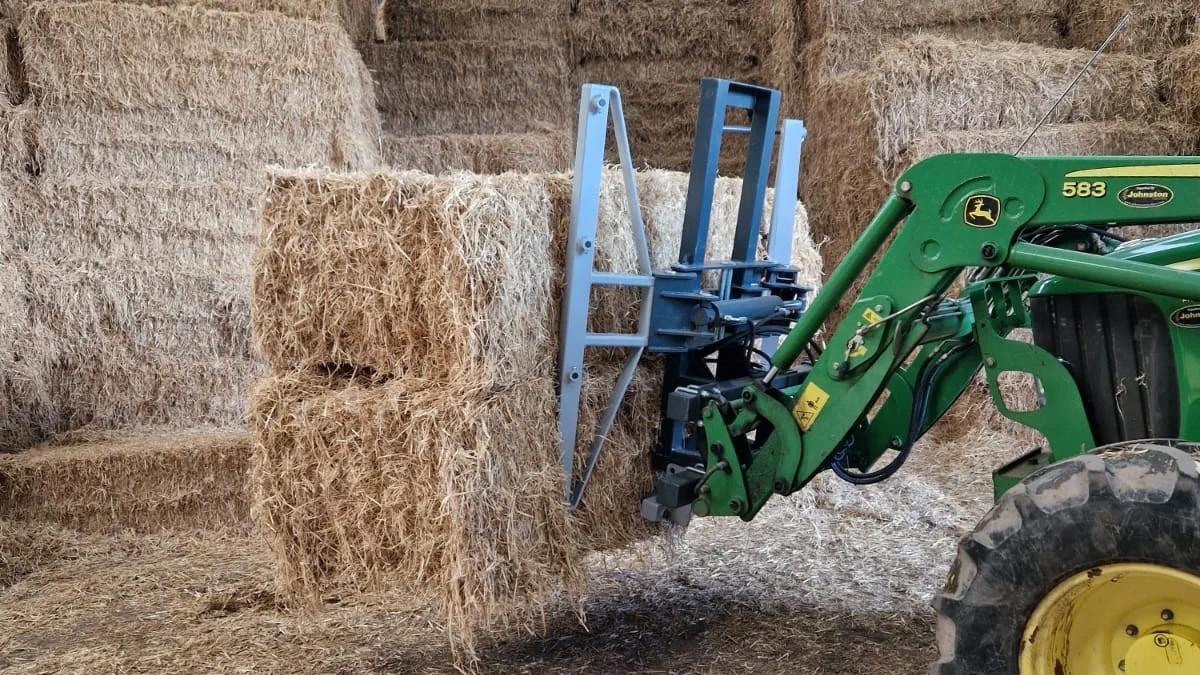

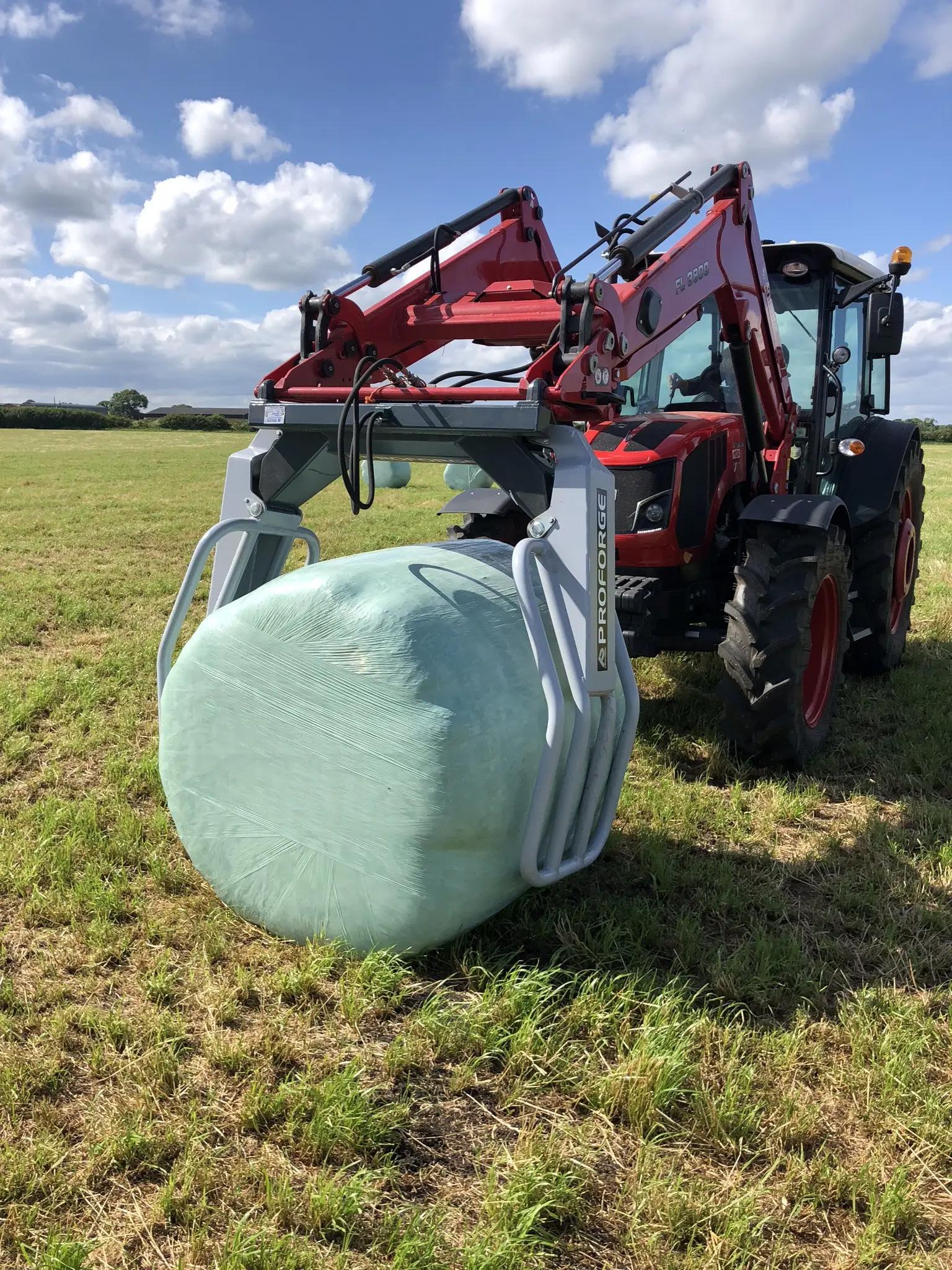

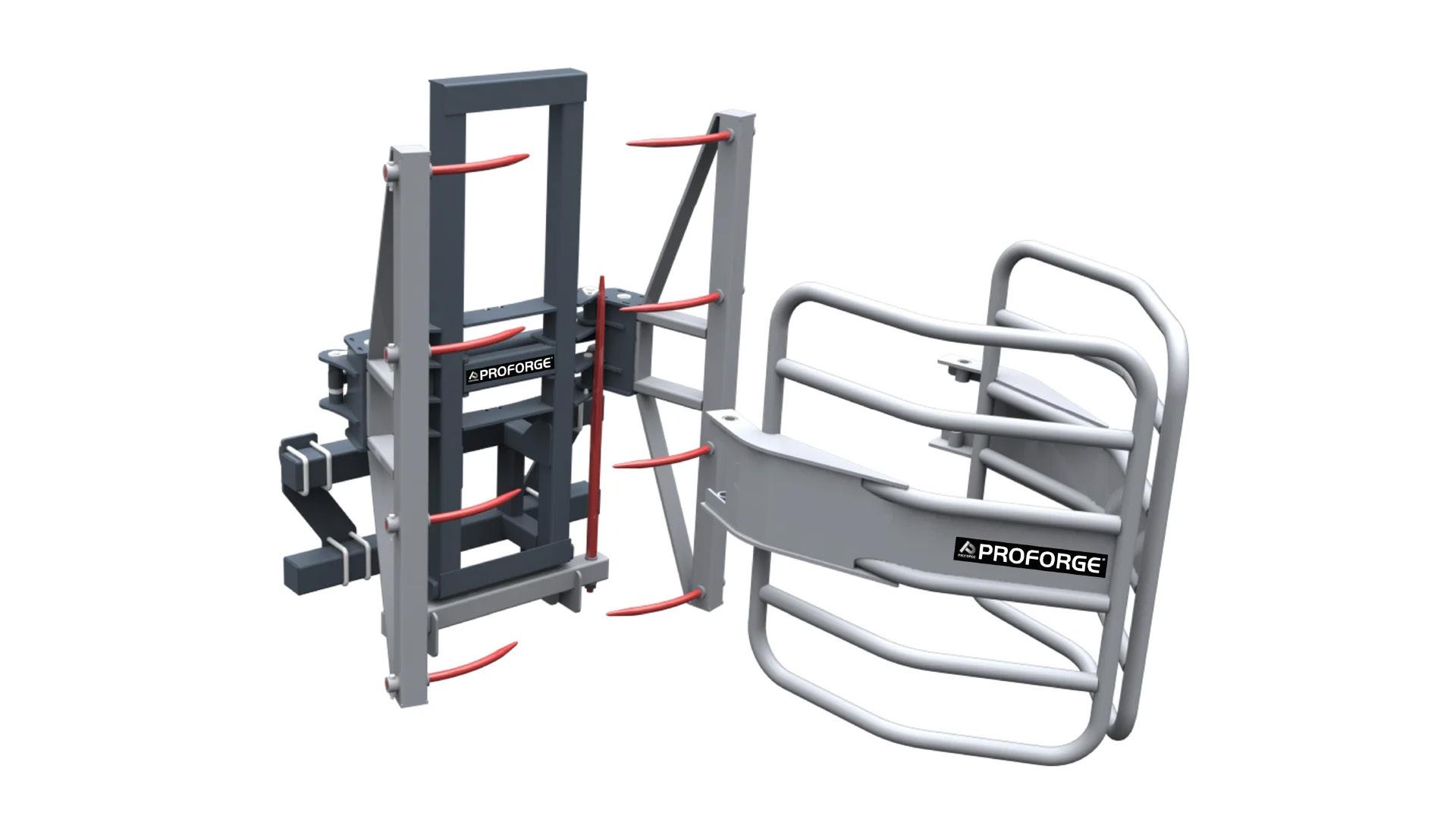

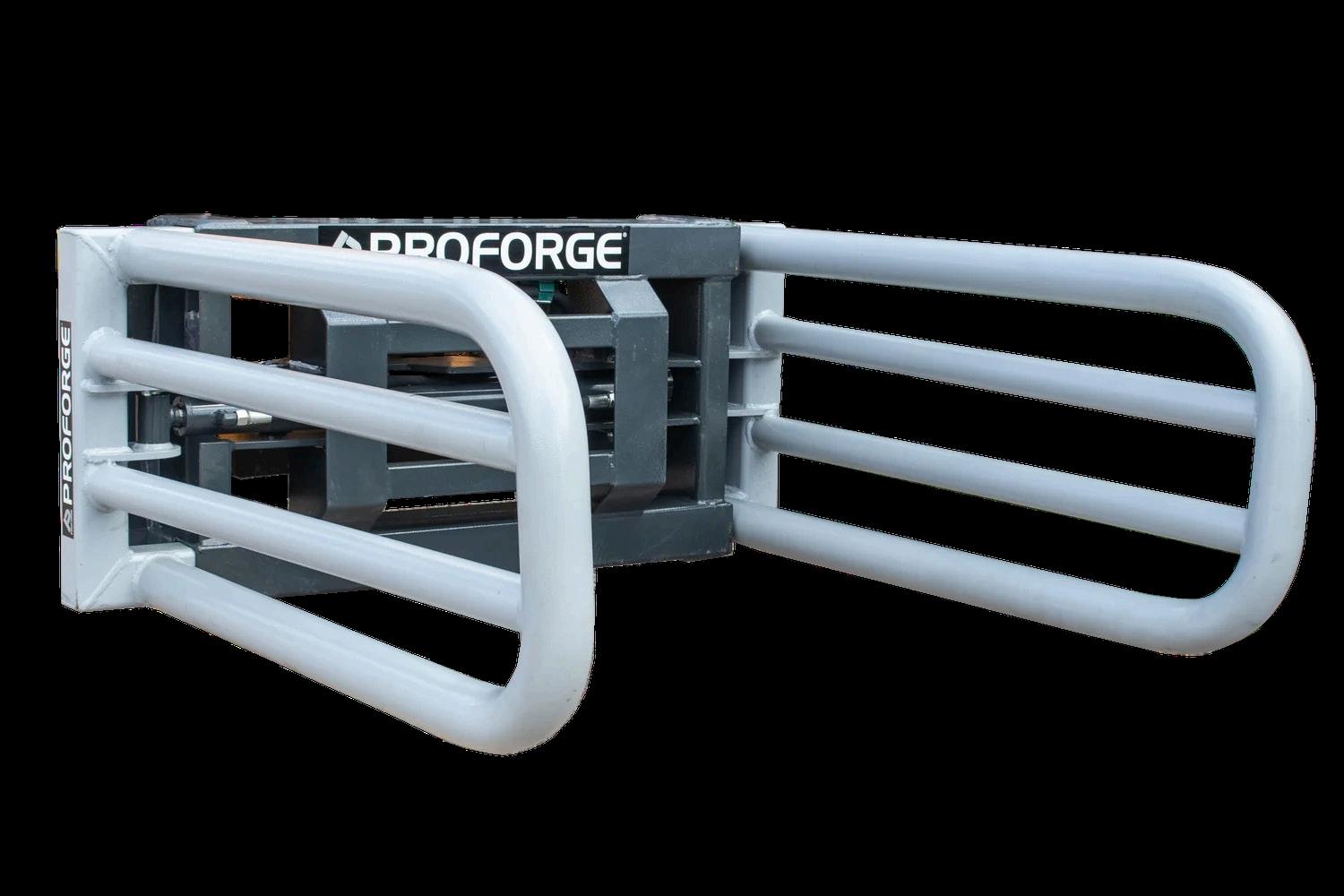

Bale Grabs

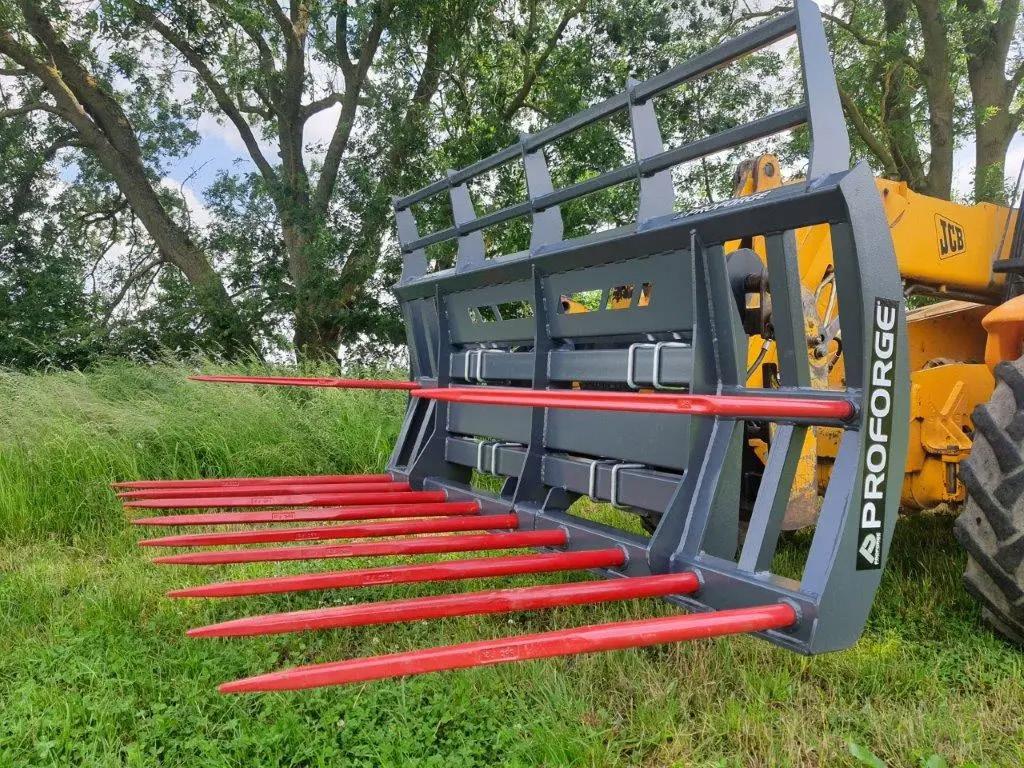

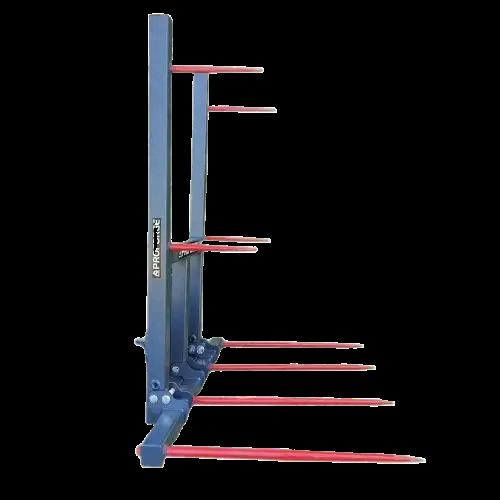

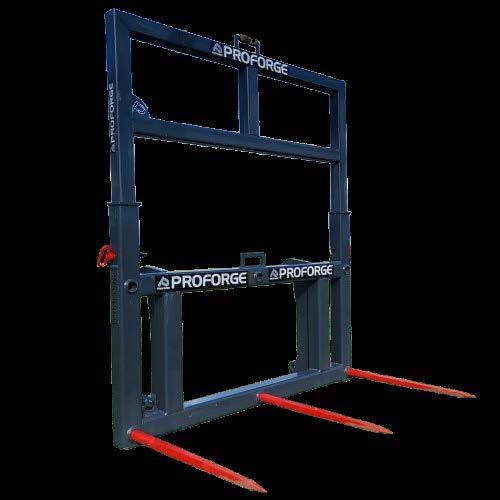

Bale Spikes
Forks - Silage, Pallet & Manure

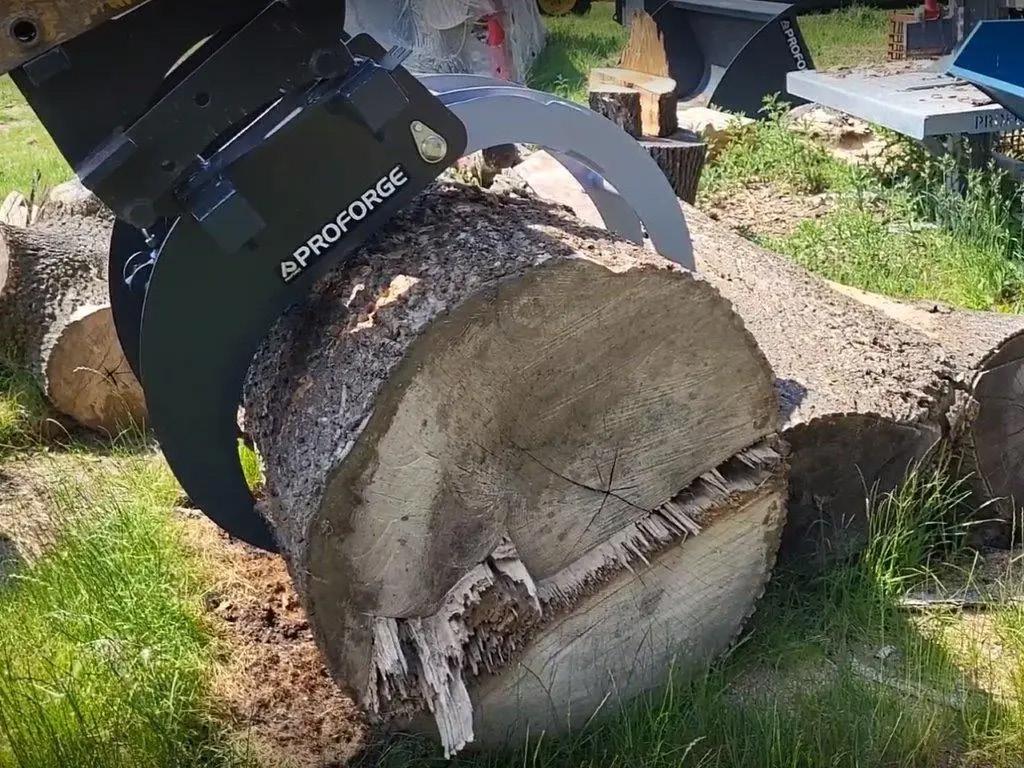

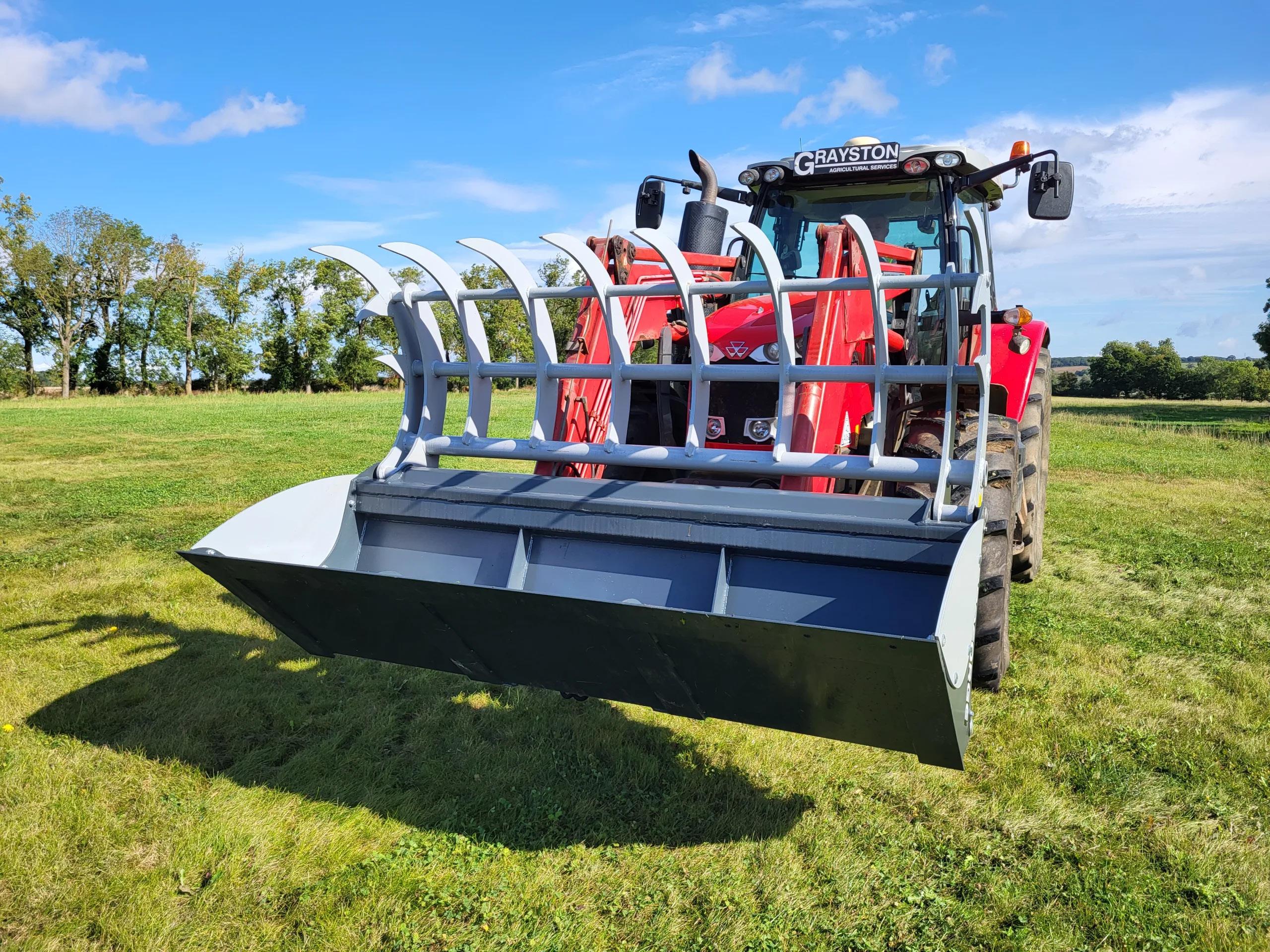

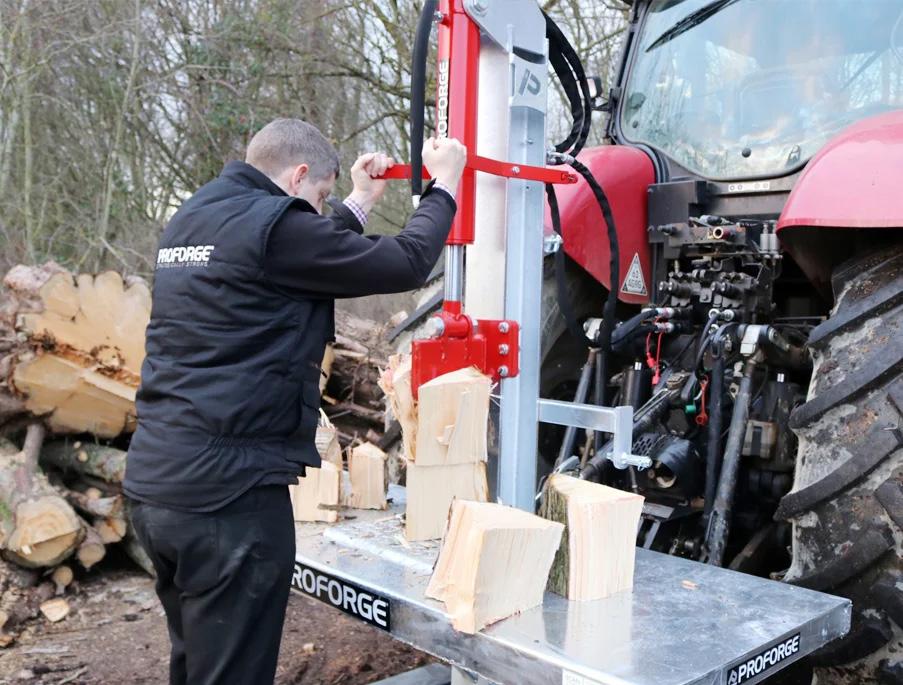

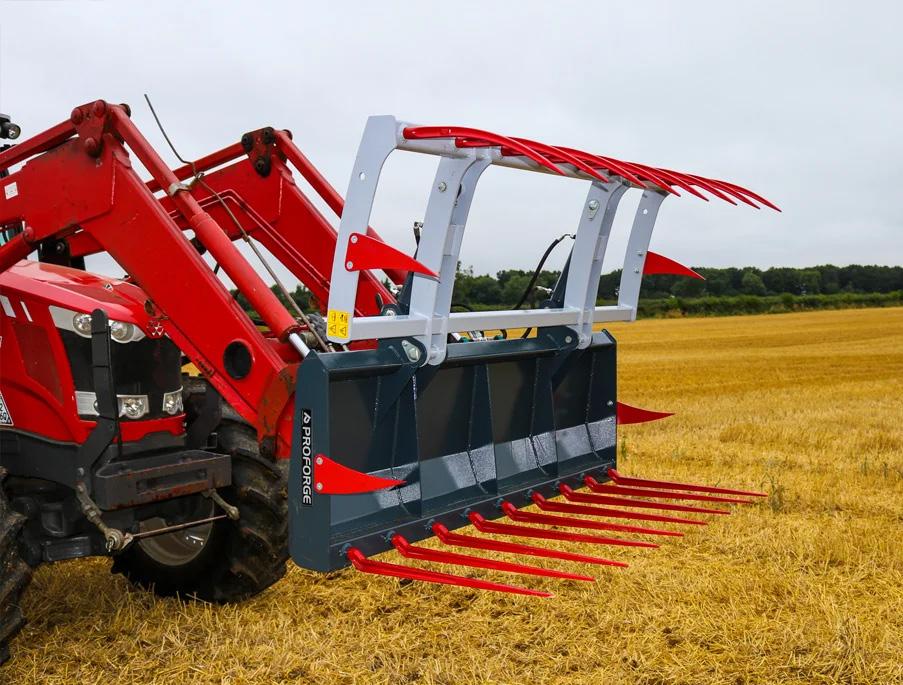

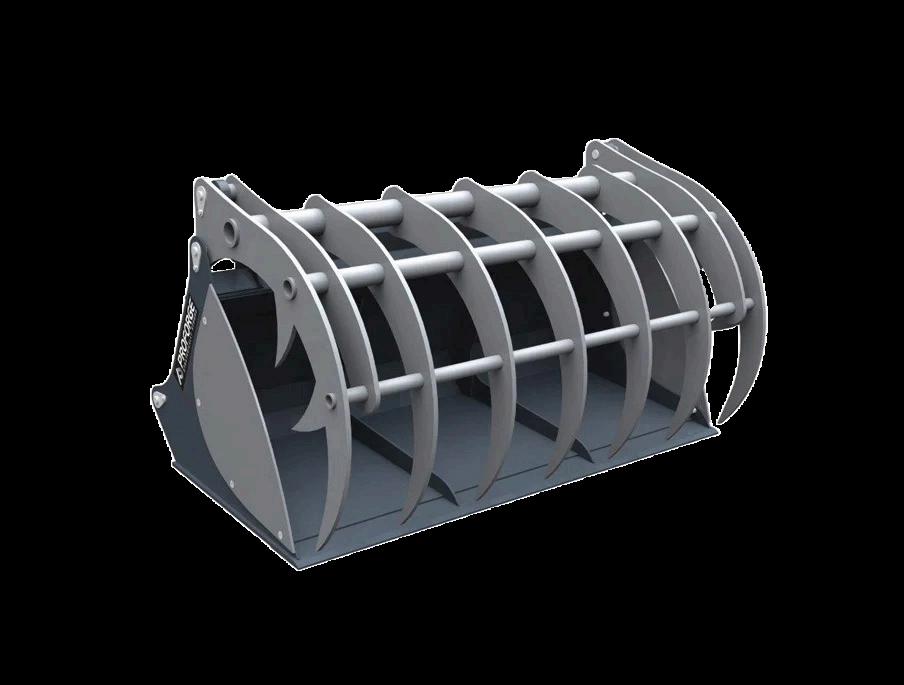

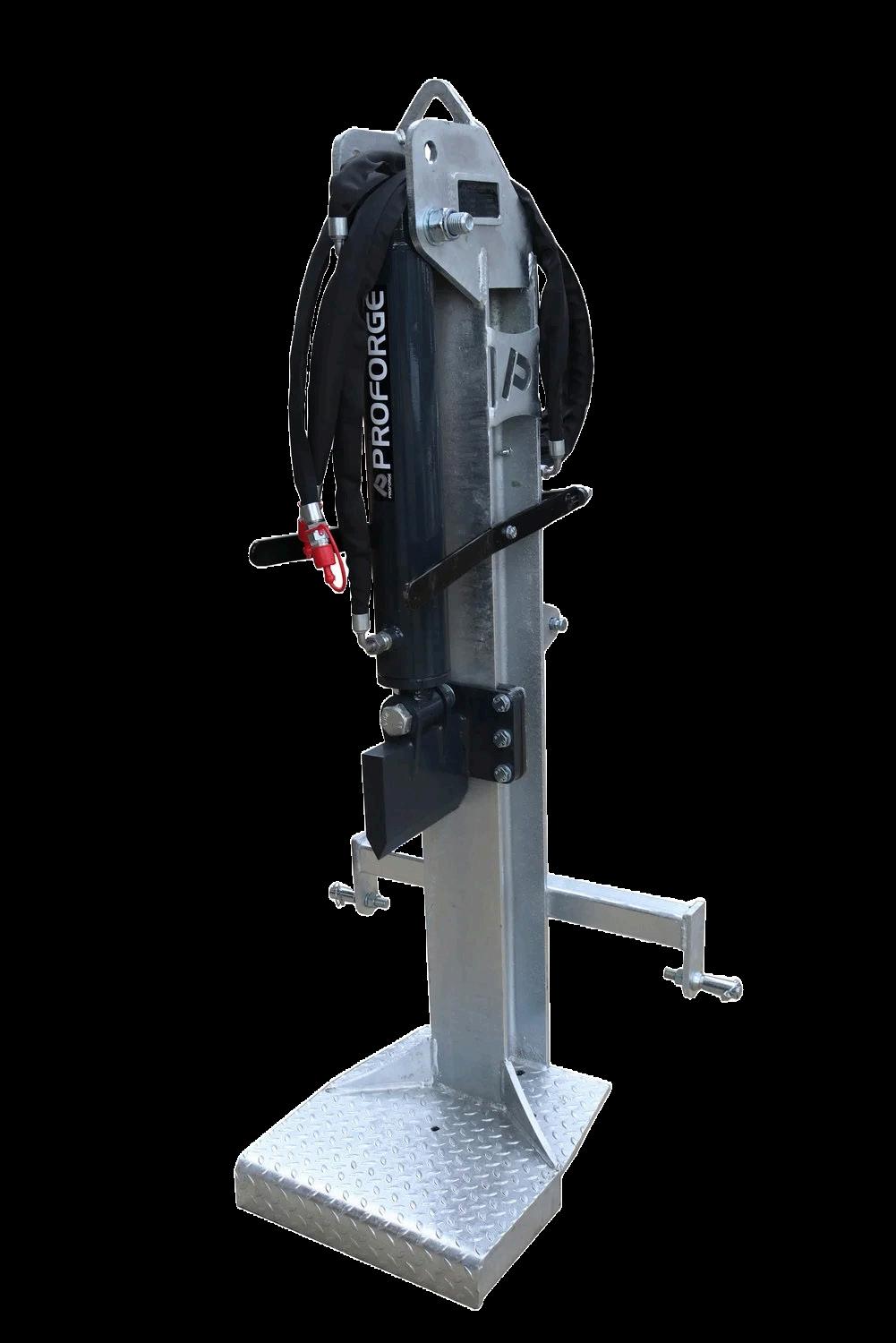

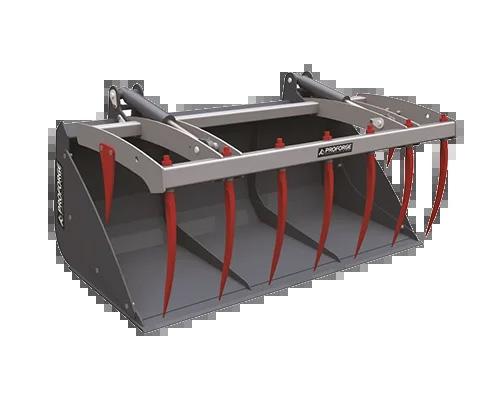

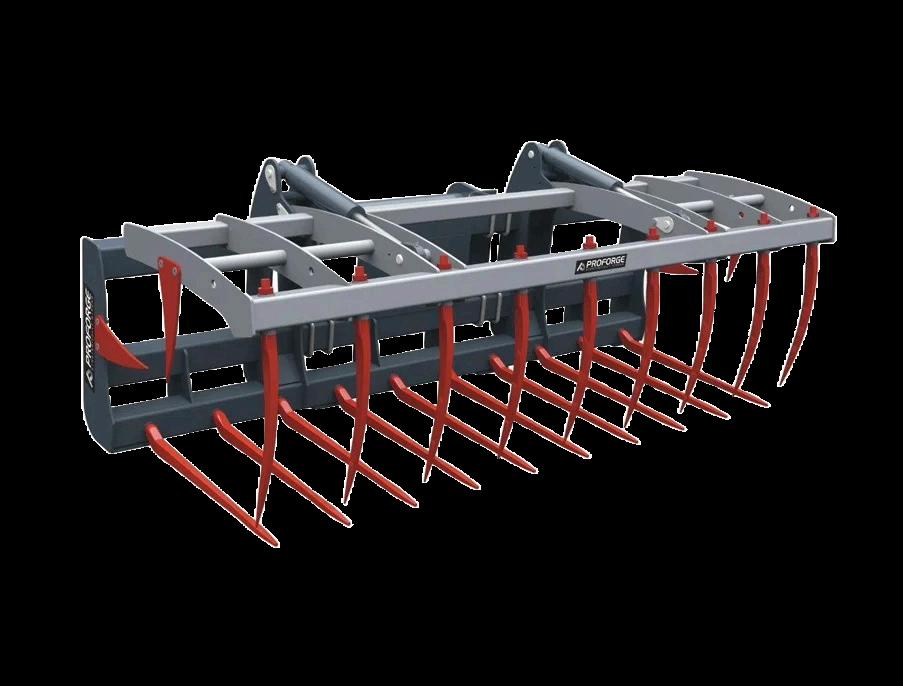

Muck Grabs & Silage Grab Logsplitter & Table

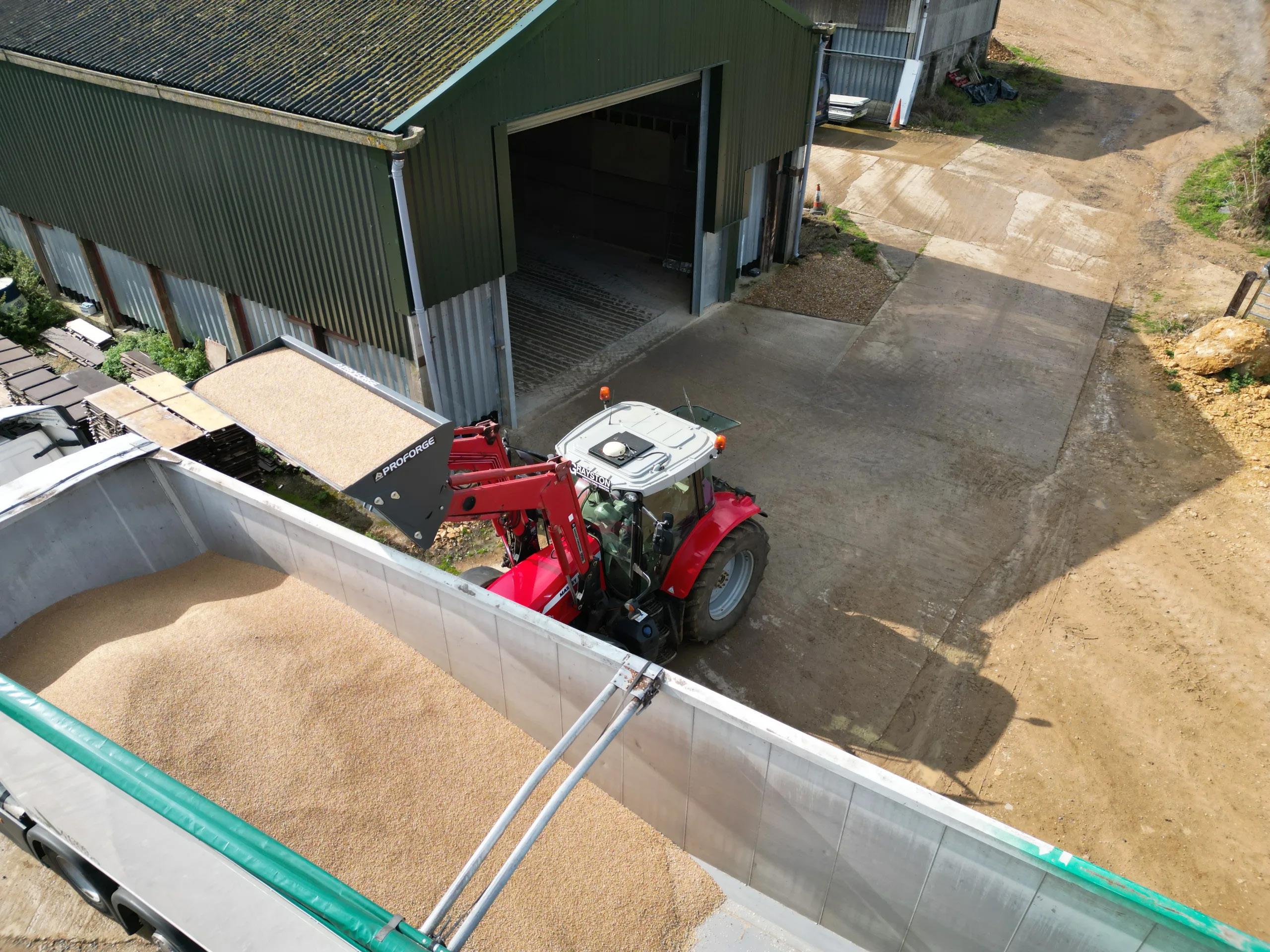

Grainpusher
CULTIVATORS
PROFORGE CULTIVATION
Proforge are pleased to offer a select range of compact disc harrows and cultivators designed to meet many demanding conditions at home and abroad. From primary stubble tillage to seedbed creation, we have it covered with a versatile range of equipment.

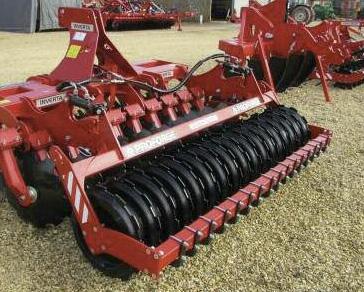

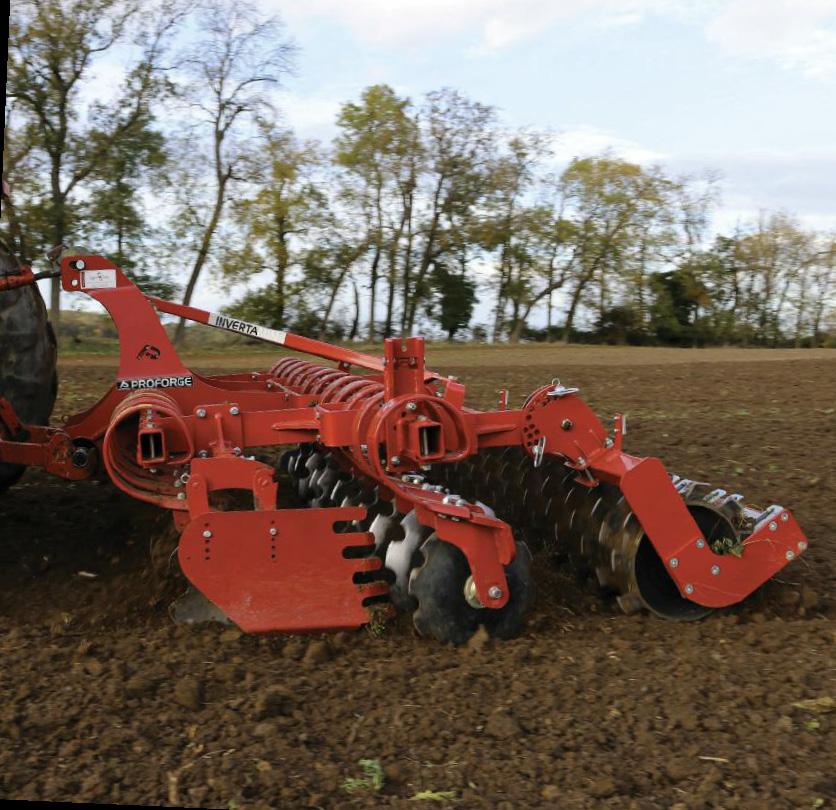

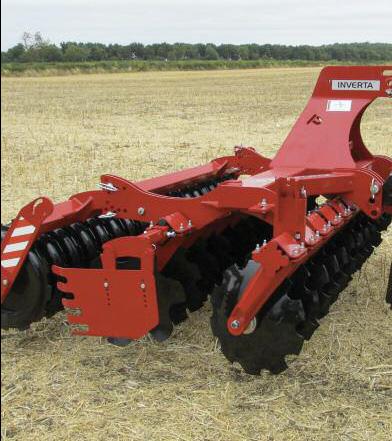

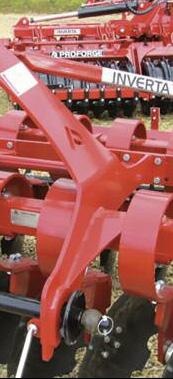

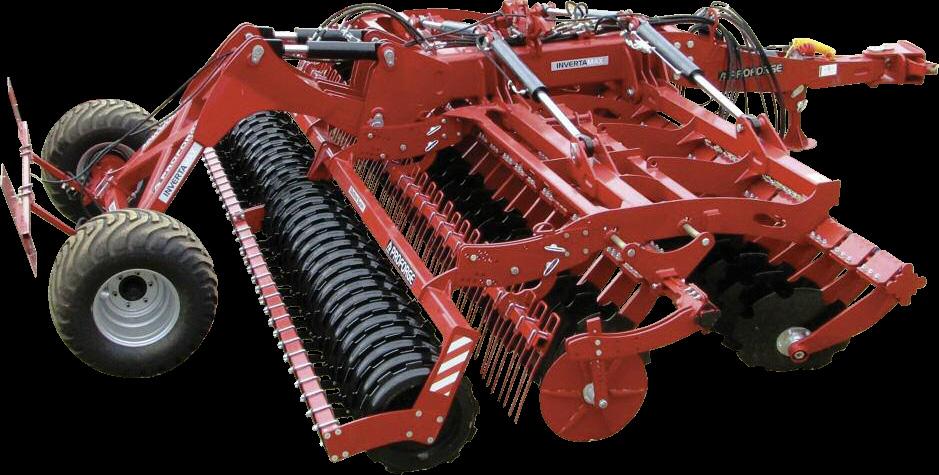

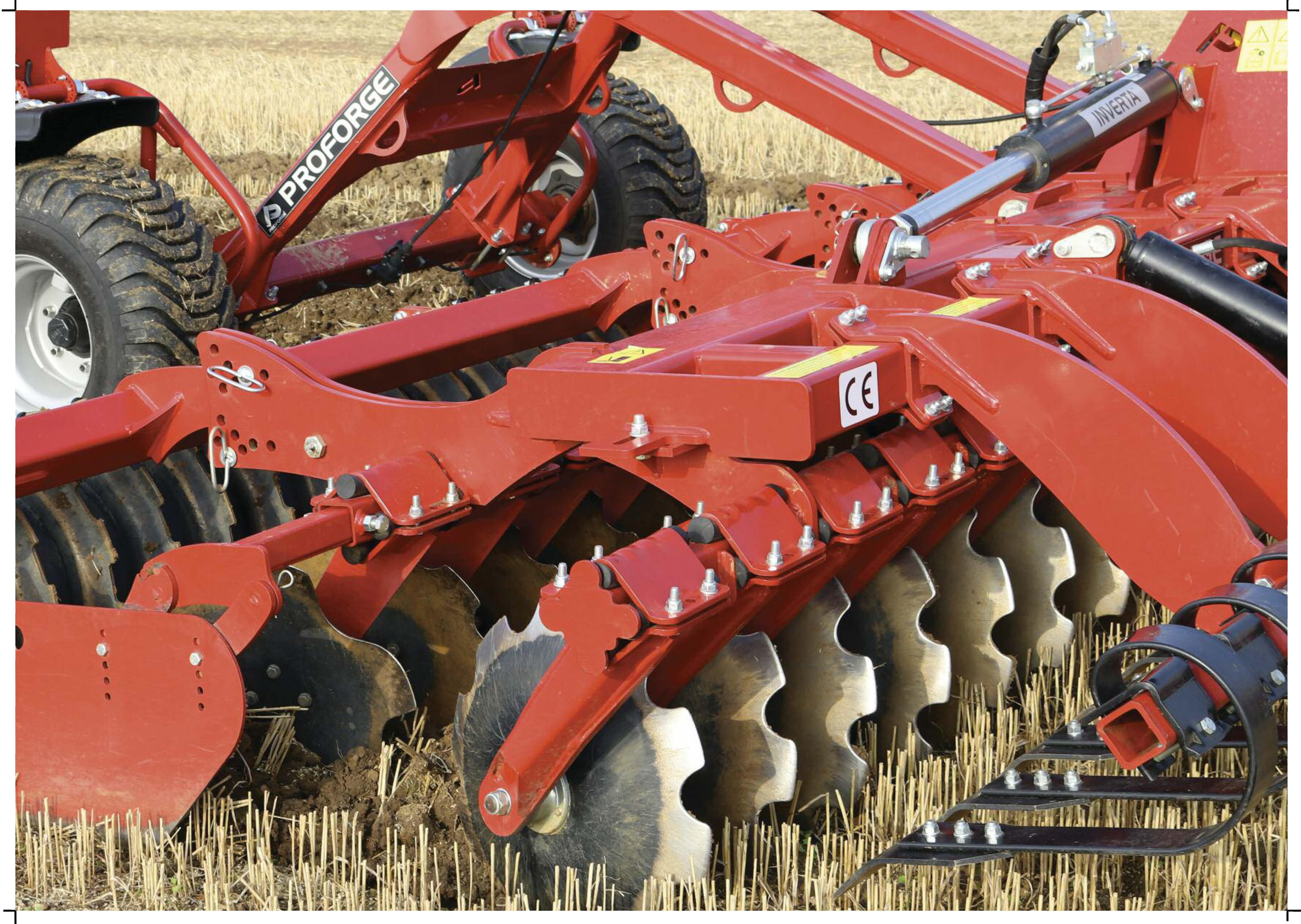

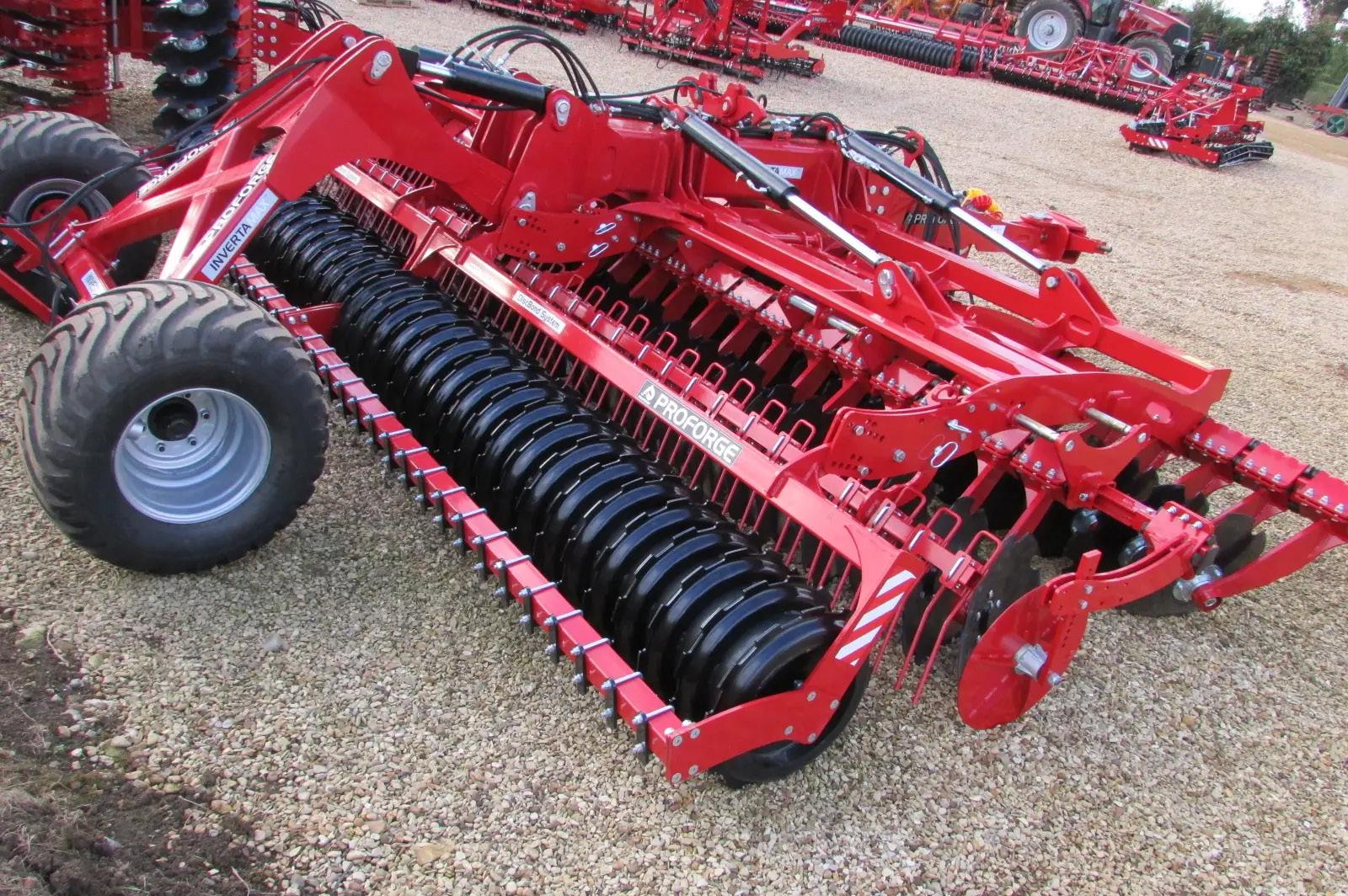

INVERTA®
Compact Disc Cultivator
THE CONCEPT
The Inverta® is intended for high-speed, low cost residue inversion, or stale seedbed creation as an efficient short disc cultivator maximising productivity on many soil types and working conditions. Many years of development and refinement has brought about this very versatile machine.
OVERALL KEY STRENGTHS
• High operating speeds 10-15km/h with low horsepower requirement
• Robust construction using selected profiles
• Choice of 1 machine widths
• All widths from 3.0mtr available mounted or trailed
• All folding machines have a transport width of 3.0mtr
• Versatile headstock – choose between mounted or trailed with our combi hitch
• Hydraulic lock down wings for even penetration.
• Sealed for life maintenance-free bearing hubs
• 2 rows of high quality 22” (560mm) Italian discs. (48-52 HRC Hardness)
• Option of hydraulic front levelling paddles on trailed versions
• Lighting kit as standard on all hydraulic folding models
“Had a close inspection yesterday of the Inverta - amazing machine.”
Testimonial from a New Zealand Farmer and Machinery Dealer

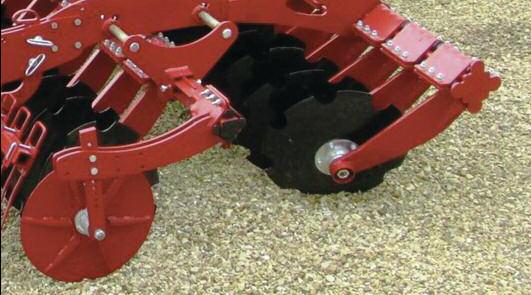

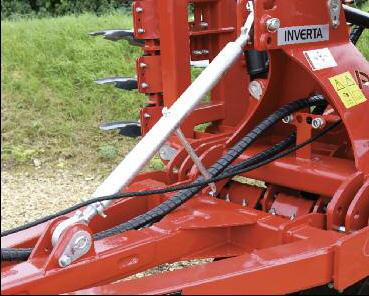

01 Mounted or trailed combi hitch for 3mtr+ models

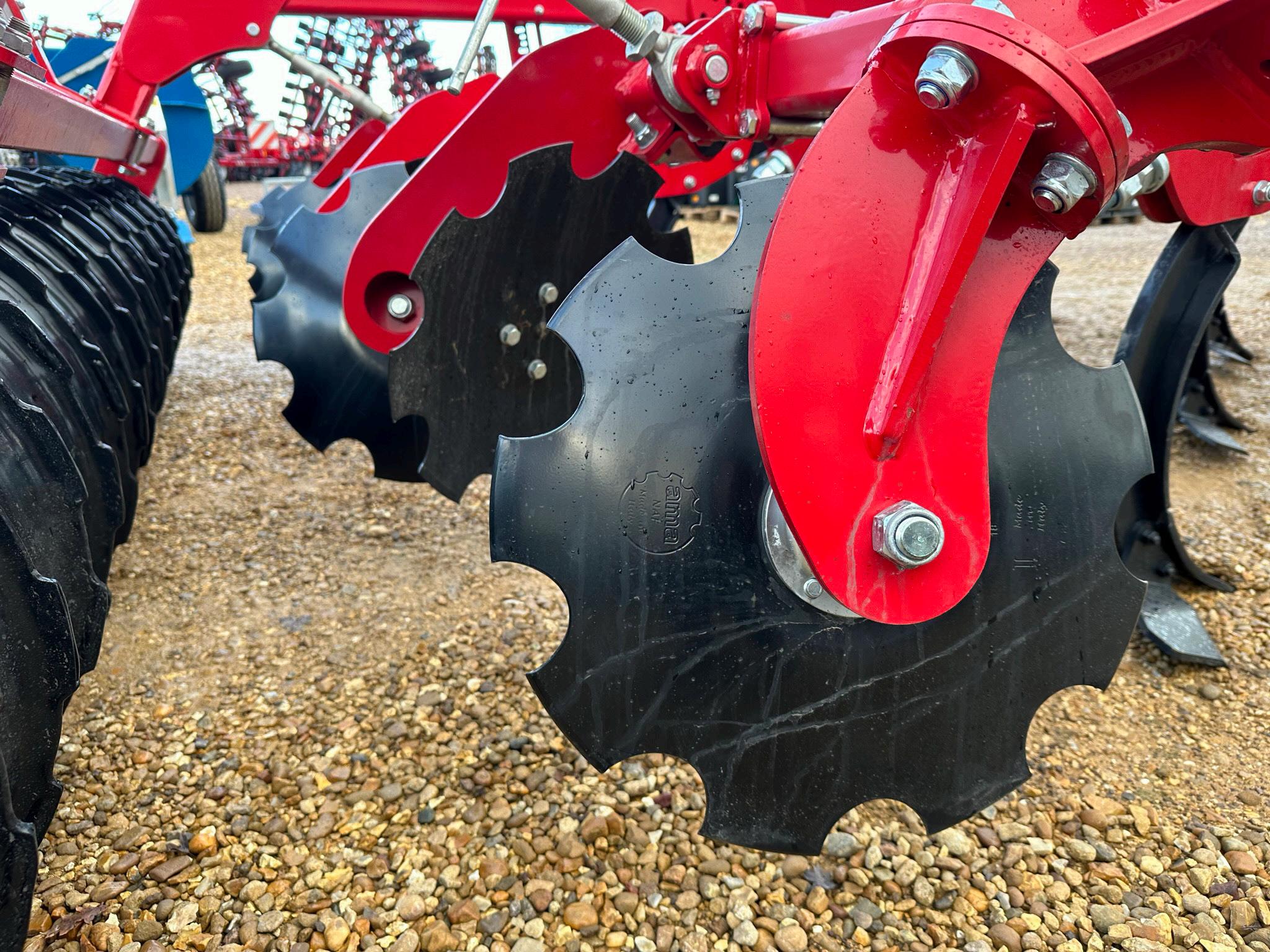

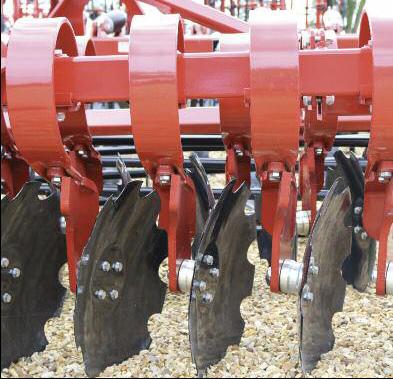

02 2 rows of 22” (560mm) Italian cutaway discs
(48-52 HRC Hardness). With a specific distance of 125mm between the discs it allows for 8 discs per metre/working width
03 Option of hydraulic front levelling paddles on trailed versions
04 Hydraulic lock down wings for even penetration

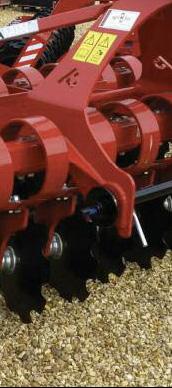

Class leading SKF® sealed for life maintenancefree bearing hubs
Adjustable side shift on the front row of discs for best soil tillage
Rubber shock absorbers and overload protection (4 x 40x180mm absorbers per arm)
Lighting kit as standard on all hydraulic folding models
Side soil deflectors

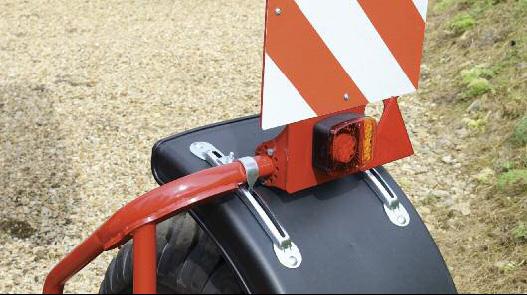

Rear wheel mudguard and lighting kit on trailed models
Strong central frame construction 200x100x10mm steel profile

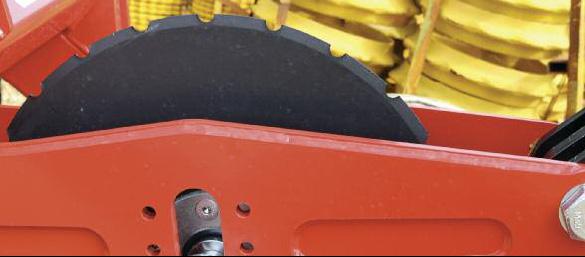

Outer edge scalloped disc to provide level conditions between passes
TECHNICAL INFORMATION
TESTIMONIAL
“Had a close inspection yesterday of the Inverta - amazing machine for the money. Great idea with the Category 2 and 3 link holes with the same pins. Wasn't expecting to be able to shift the front row of discs sideways-great. Easy adjustment of depth via the pins on the rear packer. Easy adjustment of scrapers on the packer. Like the baffles for stopping soil being thrown outside the width of the machine. And of course the extra disc at either end depending on where you have the front row set. Very easy to un-containerise! And of course a heavy and very well built machine!!”
Testimonial from a New Zealand Farmer and Machinery Dealer
FURTHER OPTIONS
• Mounted drill hitch
• Optional plain or new TopStir™ Wavy disc
• More depth adjustable packer options including tyre, crumbler roller, crosskill are available to meet your specific requirements

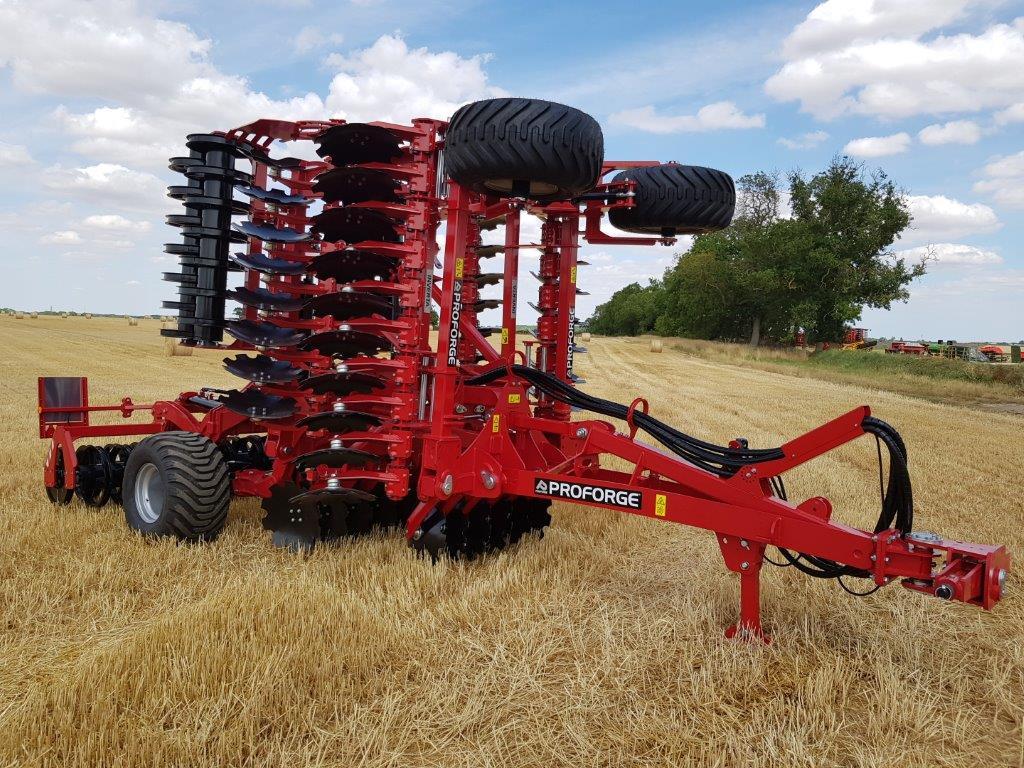

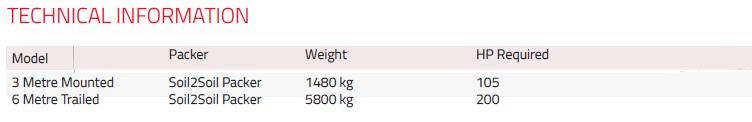

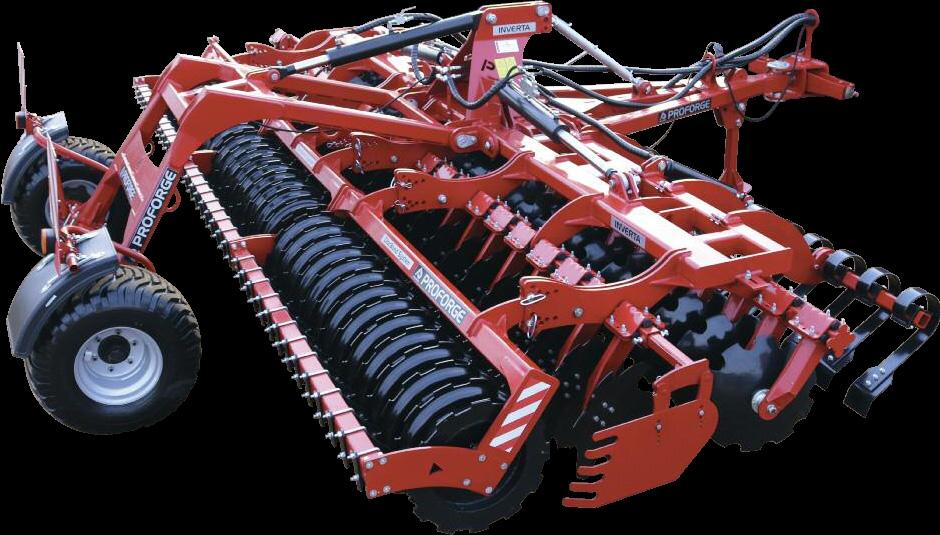

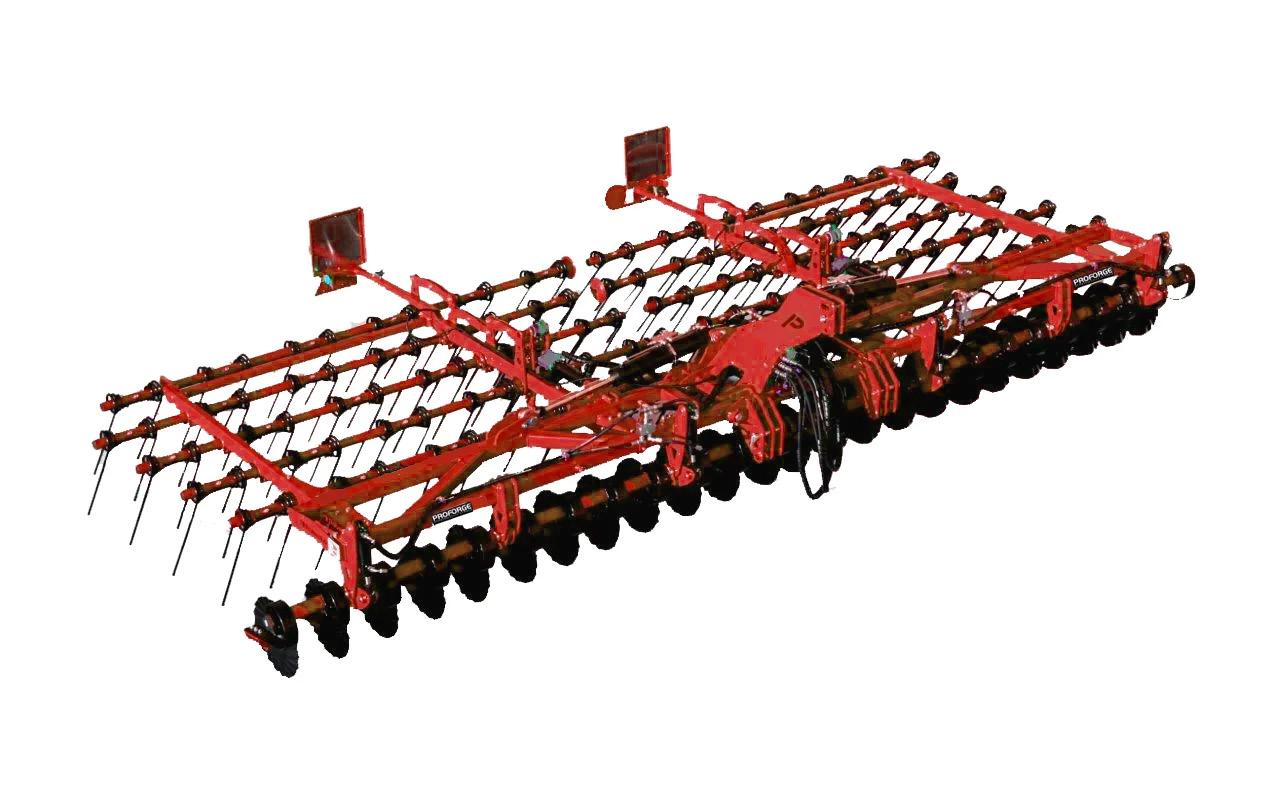

INVERTA-PRO
Speed-Disc Harrow Cultivator
Based on the Best-Selling Inverta Model, with the same size discs and maintenance-free bearings; the InvertaPro offers the Double Soil 2 Soil Packer and hydraulic depth control.
OVERALL KEY STRENGTHS
•560mm (22") Cutaway Discs
Maintenance Free Bearings
High operating speeds between 10 – 15km/h with low horsepower requirement
540mm Double Row U-Channel Soil2Soil Packer
Hydraulic Depth Adjustment
90cm between Front and Rear Discs
Optional front levelling boards for the trailed models.
Harrow tines in front of second row of discs (on 3metre models)
8, 10 & 12m Models now available....

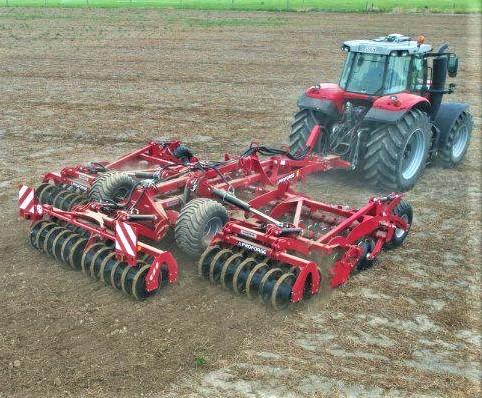

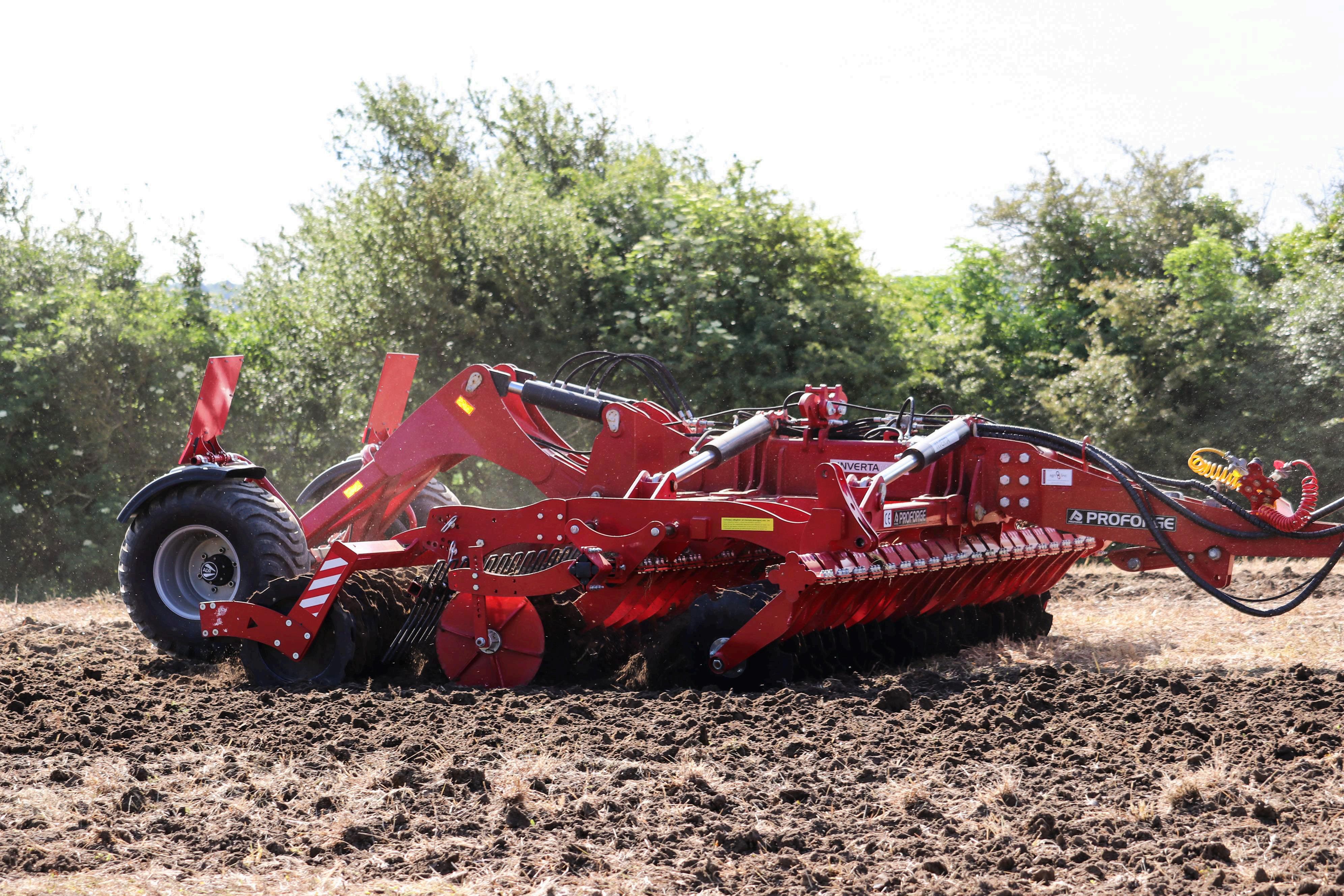

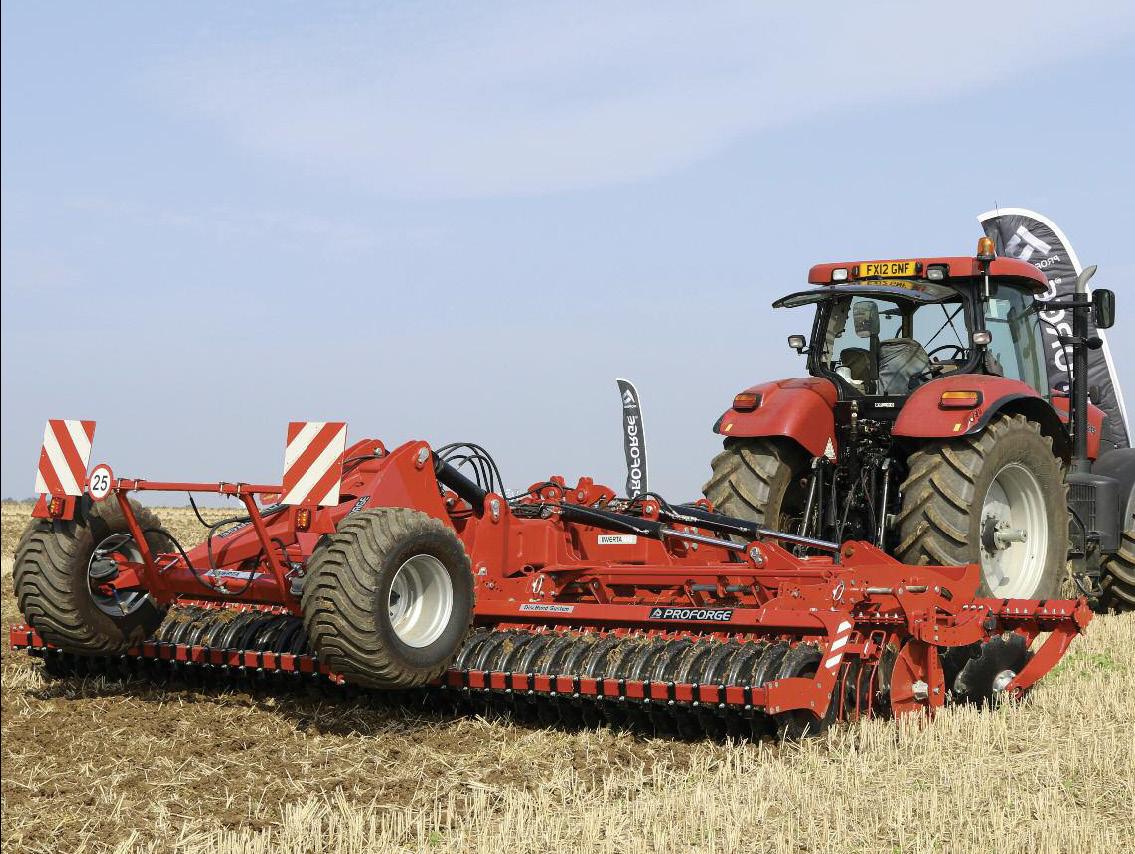

INVERTAMAX
Heavy Disc Cultivator
THE CONCEPT
The Invertamax is the flagship Heavy Disc Cultivator. An ideal primary cultivator for heavy stubble tillage, as an effective substitute for ploughing. Thanks to the benefit of the heavy frame and large 25” (620mm) discs it is possible to till tough and hard soils in one pass saving time and costs.
OVERALL KEY STRENGTHS
• High operating speeds 10-15km/h with low horsepower requirement.
•Robust construction using selected profiles
•Choice of 6 machine widths (3.0 – 6.0mtr)
•Mounted or trailed options
•All folding machines have a transport width of 3.0mtr
• Twin hydraulic lock down wings for even penetration.
•Adjustable rear beam for best soil tillage in varying soil conditions
•Sealed for life maintenance-free bearing hubs
•2 rows of large 25” (620mm) Italian cutaway discs (48-52 HRC Hardness)
•Aggressive angle of discs for maximum performance in hard and harsh conditions
•High ground clearance
•Rear levelling finger harrow
• Lighting kit and rear mudguard kit as standard on all trailed models
•
Choice of depth adjustable rear packers for different soil conditions
•Air brakes as standard
01 Mounted or trailed models
02 Twin hydraulic lock down wings for even penetration
03 Strong central frame construction
300x300x12mm steel profile
04 Sealed for life maintenance-free bearing hubs
05 The 2 rows of discs are spaced apart at 1050mm to allow maximum through flow of soil and trash
06 2 rows of large 25” (620x6mm) Italian cutaway discs (48-52 HRC Hardness)
07 Aggressive angle of discs for maximum performance in hard and harsh conditions 08 Side soil deflectors
Adjustable rear beam for best soil tillage in varying soil conditions
(4x50x210mm absorbers per arm).
Lighting kit and rear mudguard kit as standard on all trailed models
Air brakes as standard
TECHNICAL INFORMATION
*Weight of machine is based on the standard specification. **Due to differing soil and weather conditions these figures are only intended as a guide.

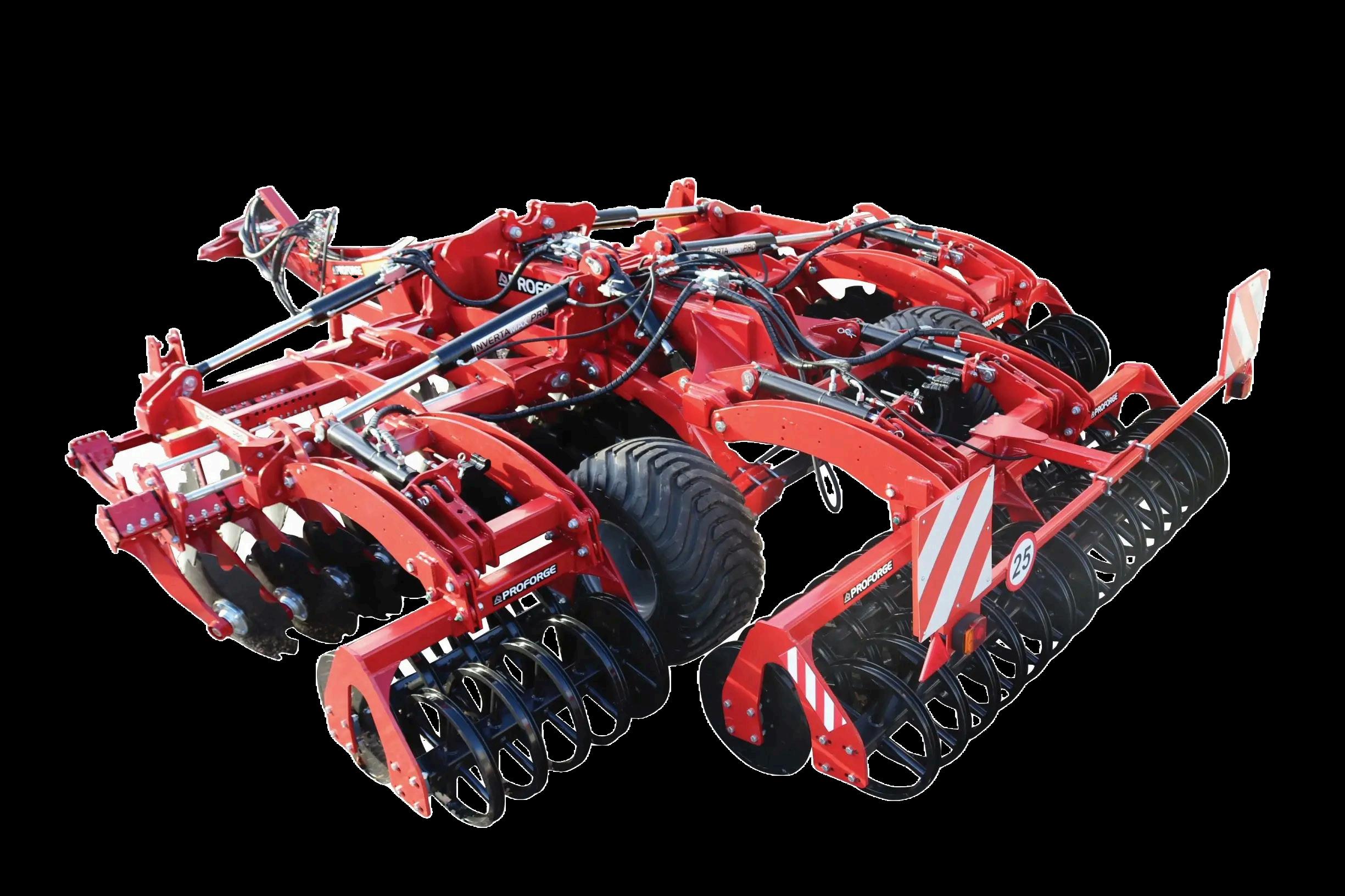

INVERTAMAX- PRO TM
Heavy Disc Cultivator
THE CONCEPT

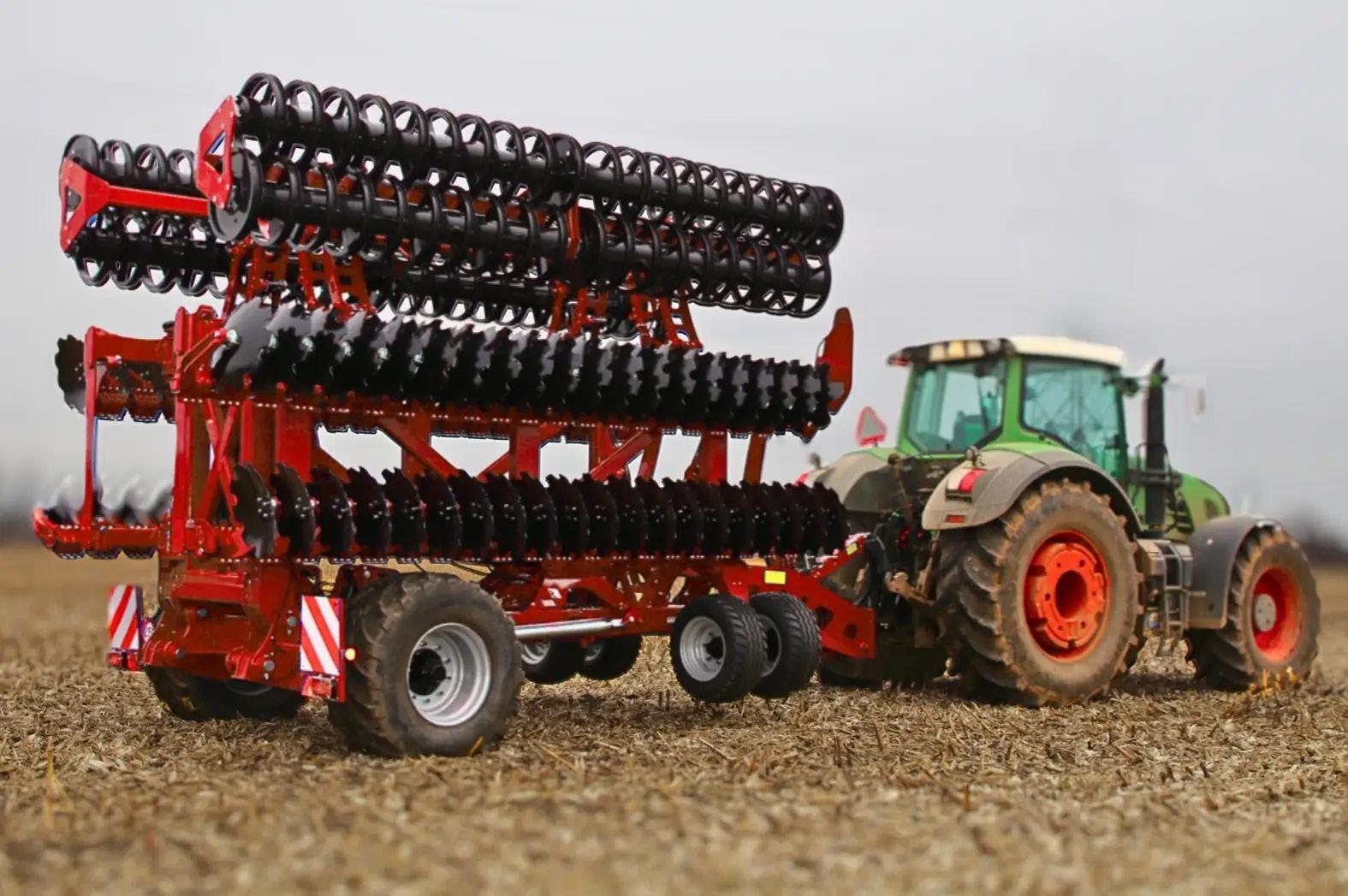

Our Flagship Heavy Duty Cultivator, the latest and largest disc harrow in the range developed from our INVERTA and INVERTAMAX machines. Reviewed by one customers as "The Best set of Discs we've ever had!"
The build quality of the INVERTAMAXPRO® lives up to its name. The INVERTAMAXPRO® is an affordable and reliable heavy speed disc cultivator solution, for those with heavy arable soils.
OVERALL KEY STRENGTHS
• Large 620mm Discs with large maintenance-free disc hubs
• Class-leading SKF bearings
• Agressive Disc angle for maximum performance
• High operating speeds, 10 – 15km/h with low horsepower requirement
• High ground clearance, allowing operation even with high crop residues
• 3-Part machine creates less stress on the frame, eliminating jamming
• Twin hydraulic lock down wings for even penetration
• Double Soil2soil Packer
• 3-part machine creates less pressure on the drawbar, but stronger pressure on the land
• Brakes and lighting kit fitted as standard
• Front Depth Wheel kit extra
INVERTAMINTM
Compact Light Disc Cultivator
THE CONCEPT

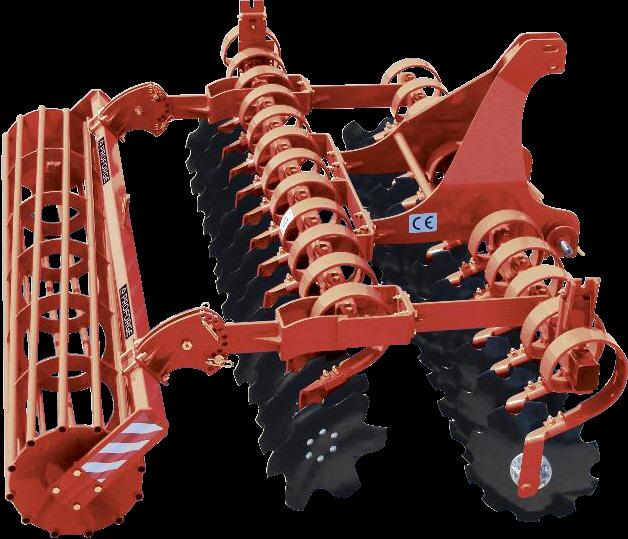

The Invertamin™ is a 3pt linkage mounted Light Disc Cultivator designed as a lighter version of the popular Inverta® - An ideal tool for low and medium soil types. Constructed from a robust frame design with a powerful disc spring protection allows the 510mm discs to cut well in to the soil whilst only using a low level of horse power. The Invertamin™ also carries the benefits of key wearing parts as used on the Inverta and Invertamax.
OVERALL KEY STRENGTHS
•3 point linkage mounted with rigid frame design
•High operating speeds 7-15km/h with low horsepower requirement
•Robust construction
•Powerful spring arm assembly with good shock absorbency
•Sealed for life maintenance-free bearing hubs
•Up to a maximum operating working depth of 6” (150mm)
•Choice of depth adjustable rear packers for different soil conditions
The INVERTA-MAX is the flagship Heavy Disc Cultivator. An ideal primary cultivator for heavy stubble tillage, as an effective substitute f ploughing. Thanks to the benefit of the heavy frame and large 620mm 25” Discs it is possible to till tough and hard soils in one pass saving time and costs. The Inverta® is intended f
TECHNICAL INFORMATION
Invertamin - with Crumber Roller
Invertamin - Non Folding with Tooth Packer Roller 550mm
KEY FEATURES
01 Robust construction 02 Powerful 13x100mm spring arm assembly with good shock absorbency 03 Sealed for life maintenance-free bearing hubs 04 2 rows of high quality 20” (510mm)
Outer edge scalloped disc to provide level conditions between passes Up to a maximum operating working depth of 6” (150mm)
cutaway Italian discs. (48-52 HRC Hardness) 07 Choice of depth adjustable rear packers for different soil conditions

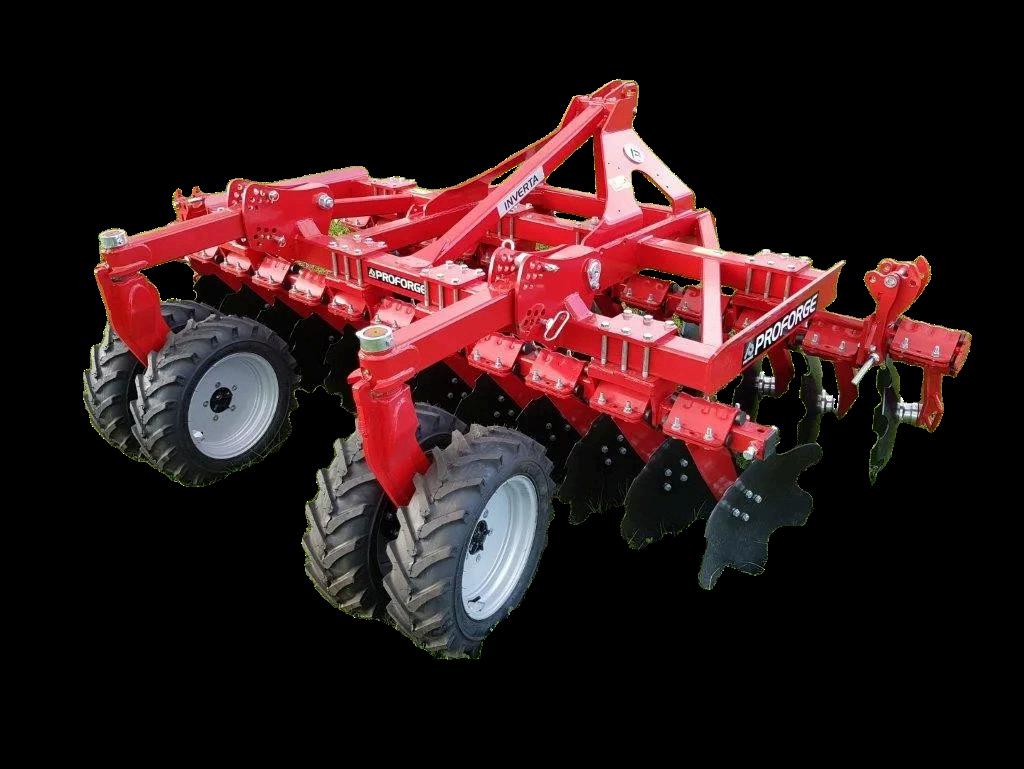

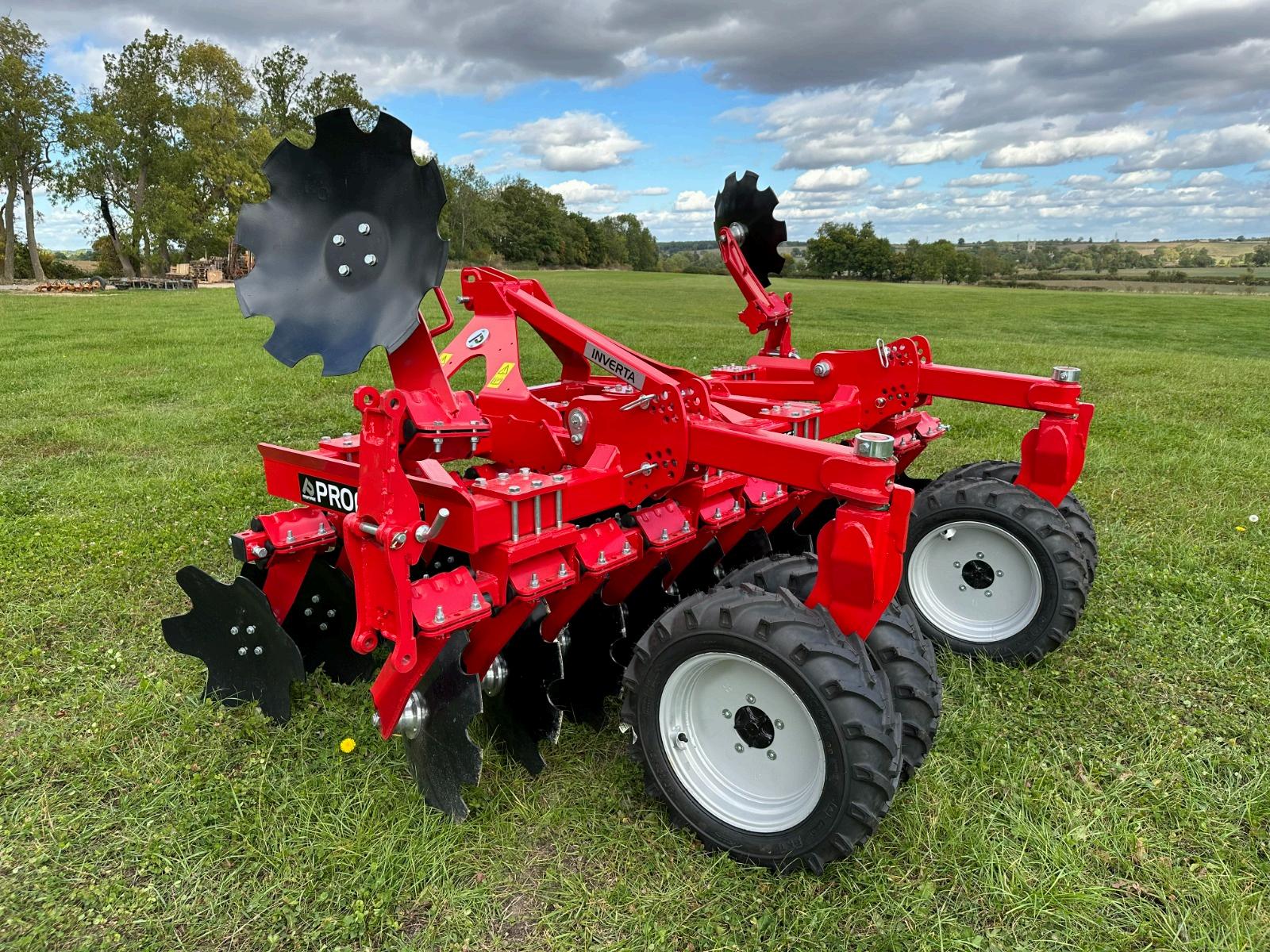

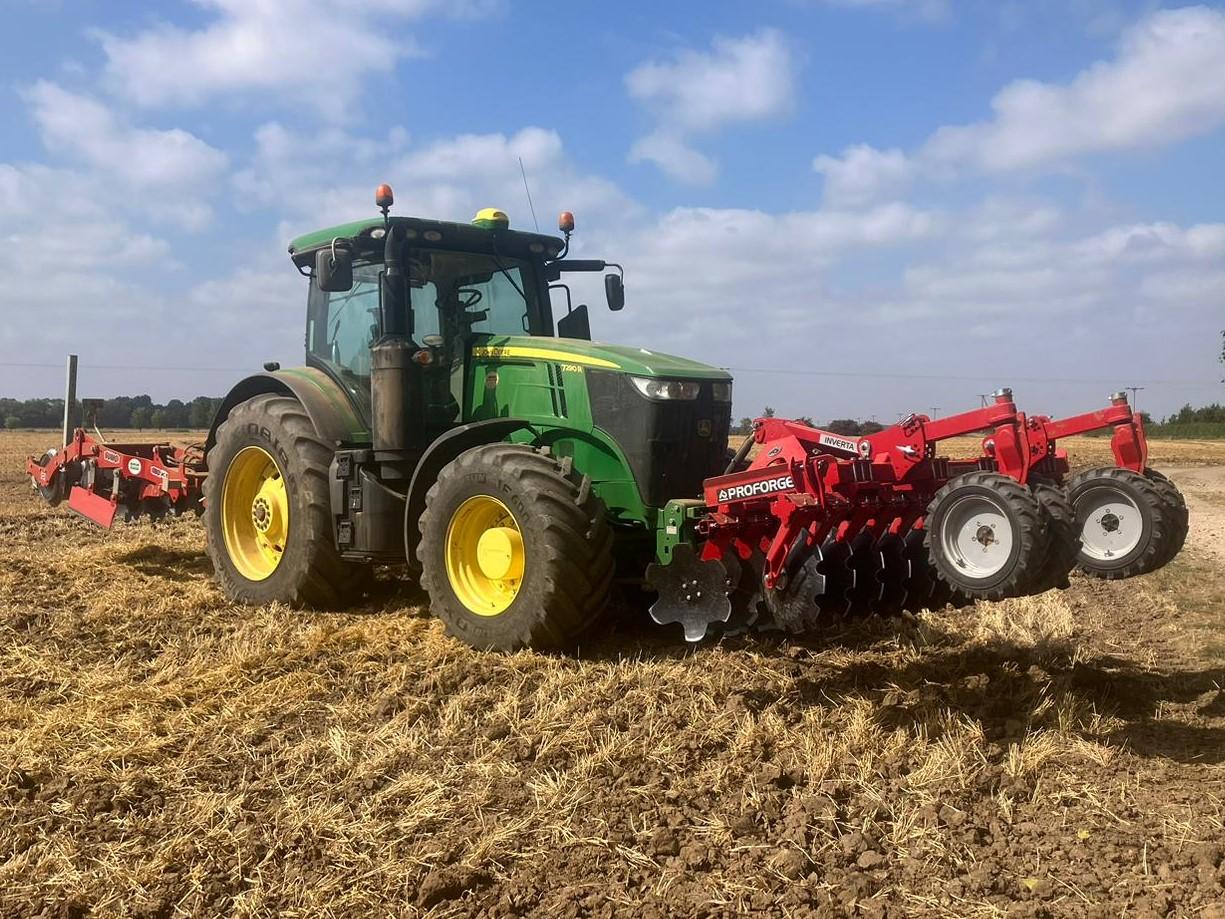

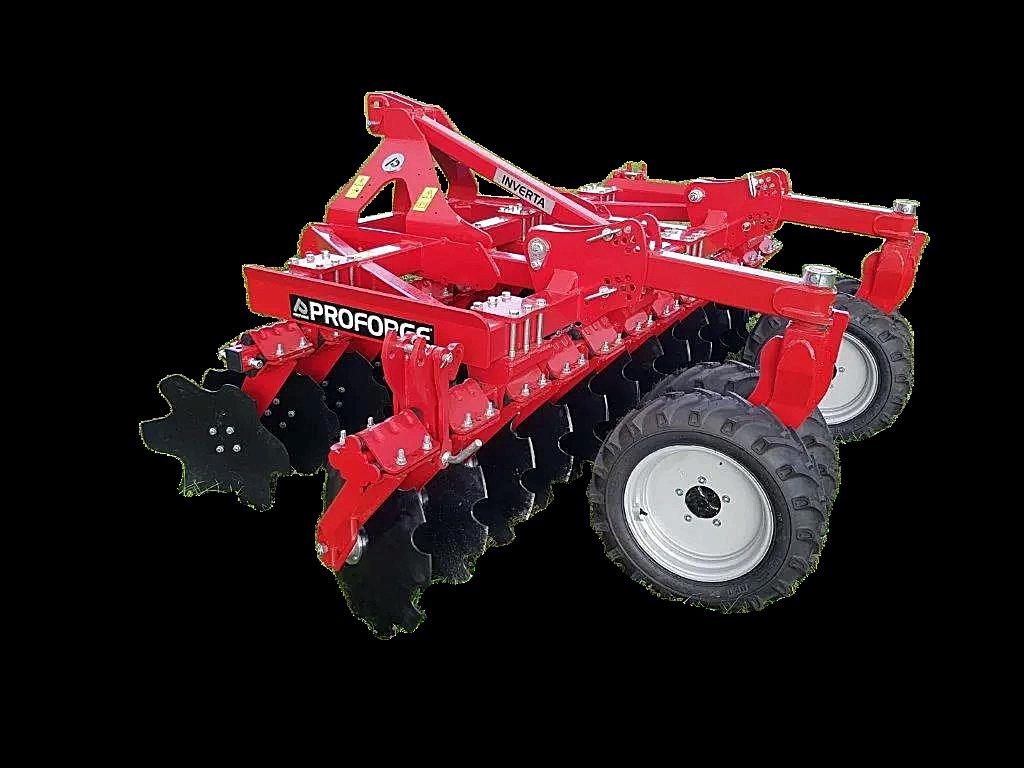

INVERTA TM
Front Mounted
THE CONCEPT
PROFORGE Front Mounted Inverta 3 metre front mounted disc cultivator with swivelling twin depth wheels.
OVERALL KEY STRENGTHS
• This Flagship universal combination tillage tool is available in a 3m working width and has been developed for both primary stubble cultivation and secondary cultivation on dry, heavy land.
• 560mm OFAS Cutaway Discs on rubber suspension mounts, with maintenance free sealed bearings
• Long Life rubber shock-absorbing suspension on the disc arms ensures good contour following
• Working depth is set via the front depth wheels and pitch adjustment via the top link
• Outer Discs fold up to facilitate a narrow transport width
• Ideal to be used in conjunction with a rear mounted implement such as the Inverta, Disrupta, Stoka and many other 3m implements.
• It makes a great combination cultivator optimising tillage operations in a single pass for efficient seedbed preparation.
• It has also been proven effective in levelling ridges after potato lifting

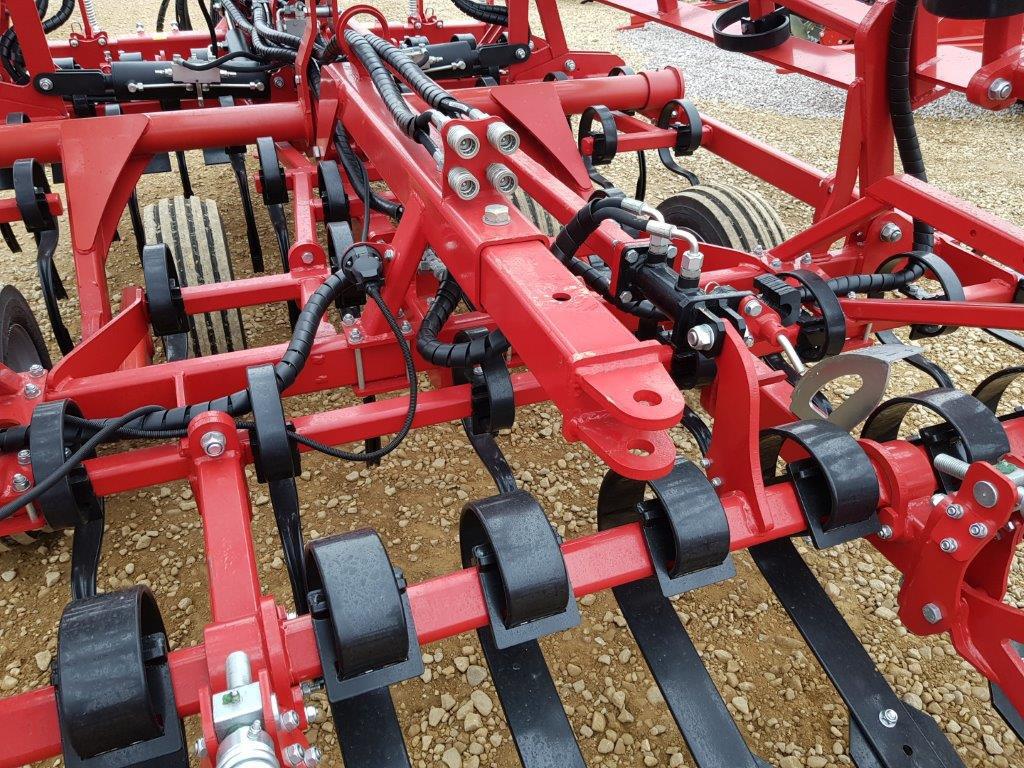

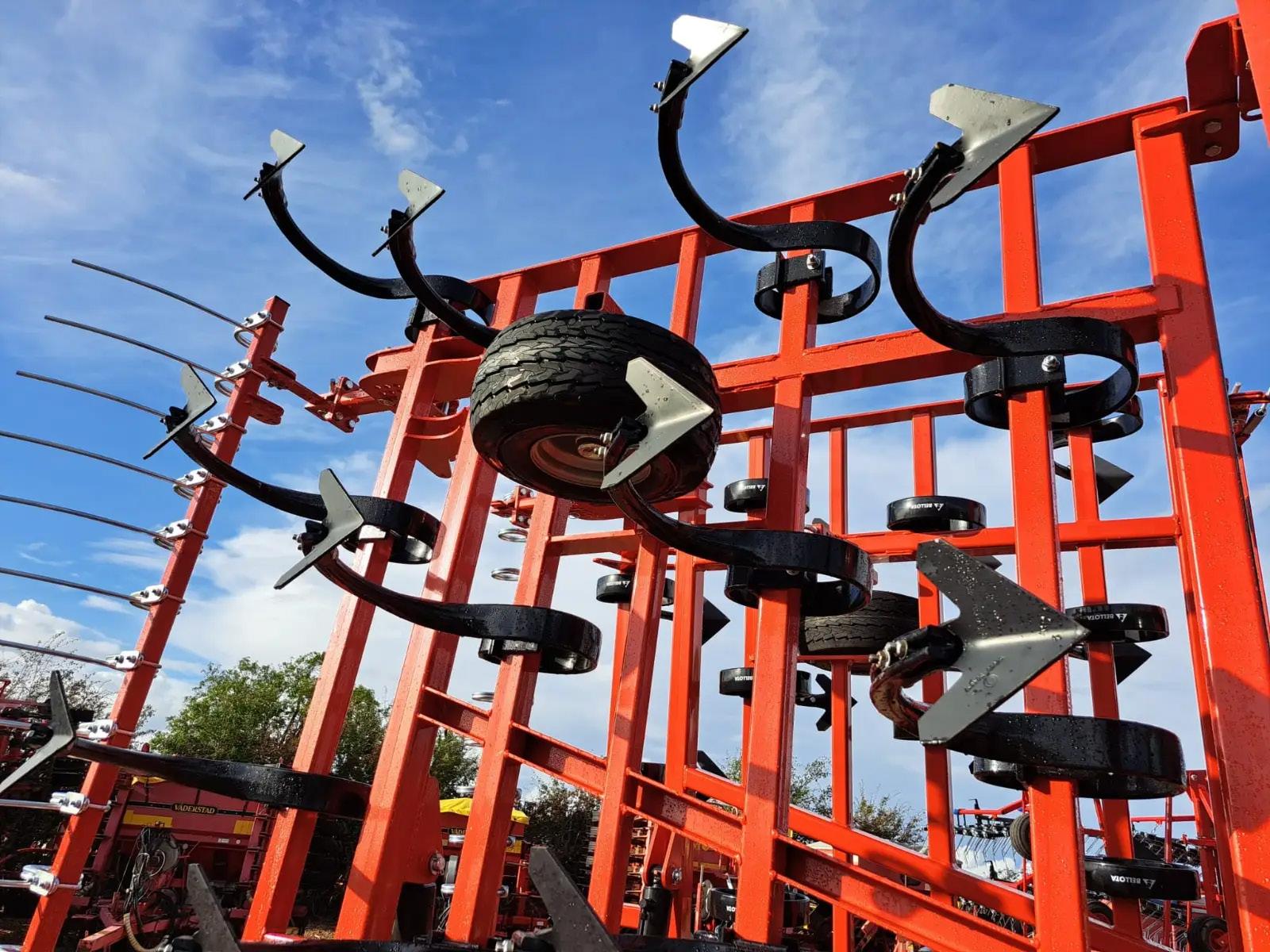

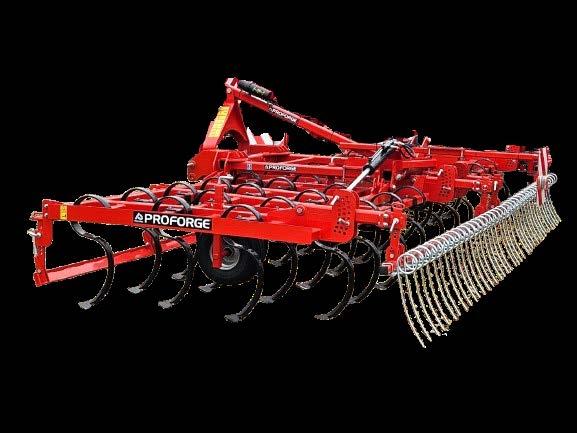

TOPTILLA TM
Aggressive Seedbed Cultivator
THE CONCEPT
PROFORGE
TOPTILLA
Trailed Aggressive Seedbed Cultivator. Designed for both primary and secondary tillage. Ideal for aerating and levelling compacted soil or for preparing a seedbed after initial cultivations but before drilling. Excellent levelling effect with both front and rear levelling boards as well as a following harrow.
OVERALL KEY STRENGTHS
• Front & Rear Hydraulic Levelling Paddles
• 5 Rows of 45 x 10mm Heavy Duty Springtines
• Wheel Eradicators
• 8 Depth Wheels with 200/60 x 14.5 Tyres
• Rear Drawbar with 2 DSV Hydraulics
• Following Harrow and Lights
• Max working Depth: 120mm
• Spare Wheel

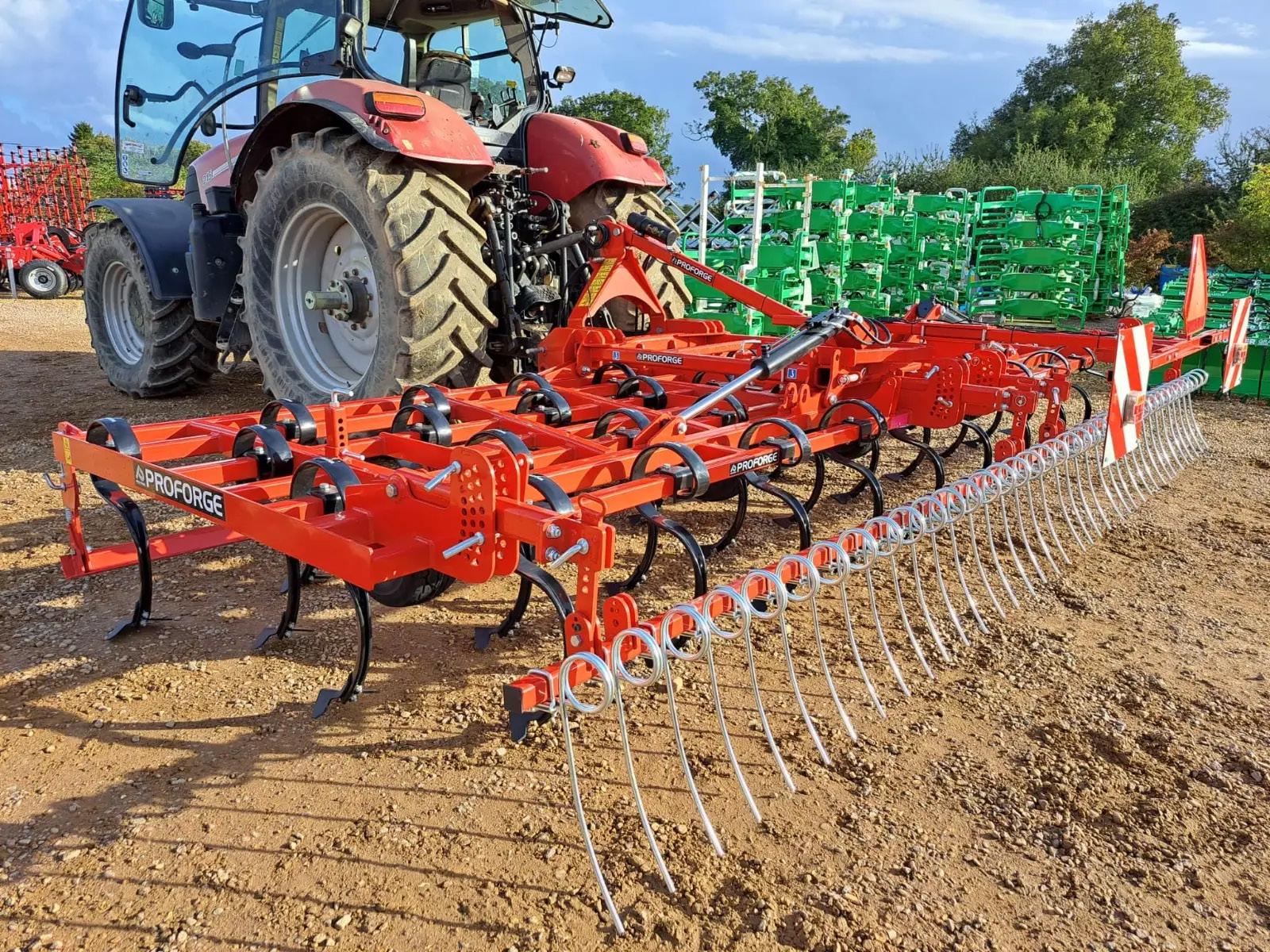

RIPTILLA
THE CONCEPT
The Riptilla is the latest cultivator addition to the Proforge Family. With depth wheels as standard fitment, it does not rely on a rear packer for depth control. The heavy duty 70 x 12mm tines are capable of the heaviest and driest of conditions and can be fitted with either the 175mm A-share as shown, or a 50mm reversible point. The number of tines means it can be used as secondary cultivator, but note they are spread over 4 rows with a massive underbeam clearance to minimise the chance of clogging in trashy conditions.
OVERALL KEY STRENGTHS
• 40 qty 70 x 12mm tines over 4 Rows
• 175mm A share points with optional 50mm wide reversible point
• Pin Adjust Depth Wheels
• Pin Adjust 12mm Following harrow
• Hydrulic folding to 2.75 metre Transport width
• 580mm Underbeam clearance

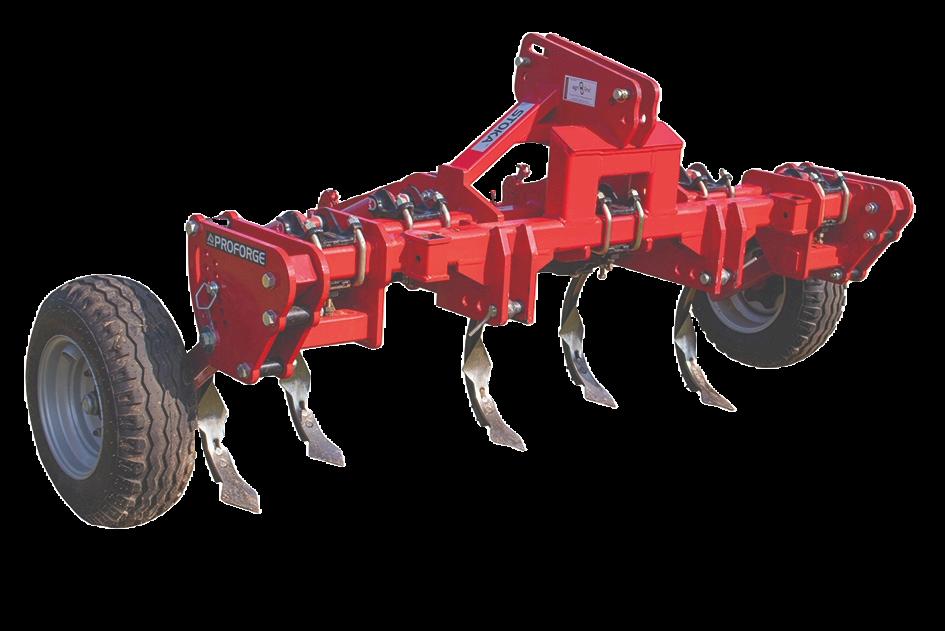

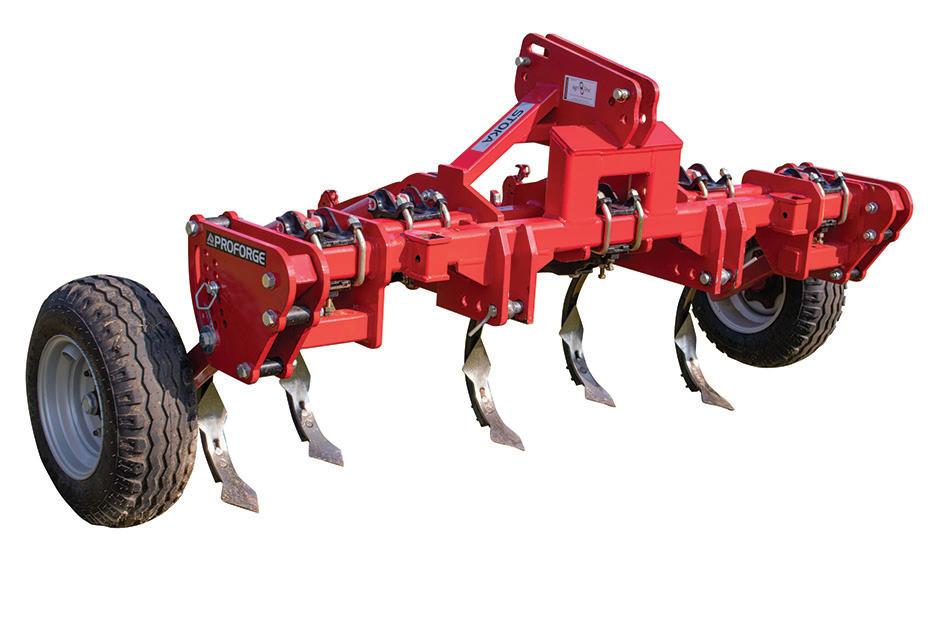

STOKA PRO
5 Leg Auto Rest Tine Bar
THE CONCEPT

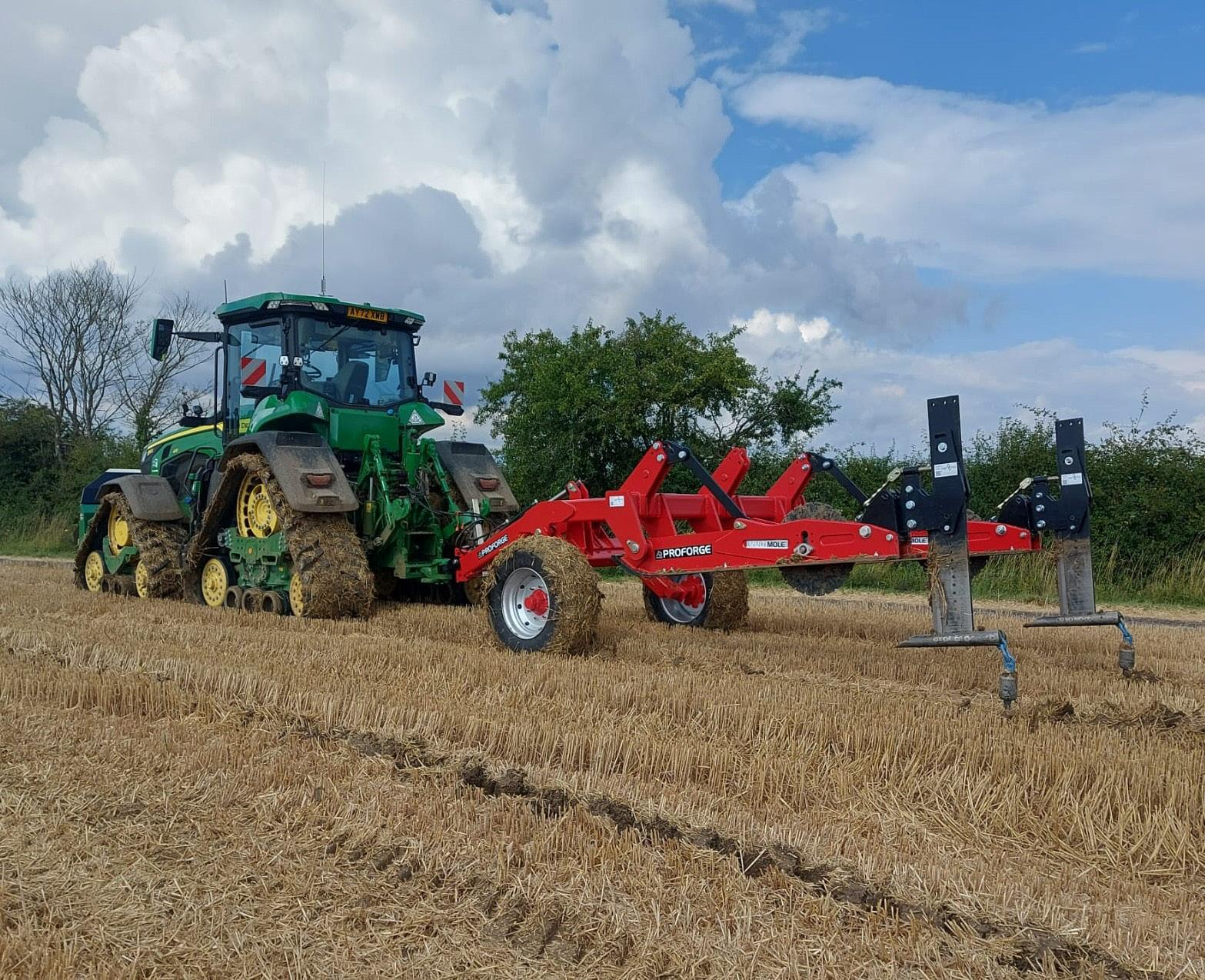

The New Auto-Reset Stoka Front Tine Bar is designed to couple up in front of a 3 Metre Mounted Inverta as an ideal duo combination for deep loosening of hard and compacted soil ahead of the Inverta disc system.
OVERALL
• Close couple main frame
• Cat 3 tractor linkage
• Frame suitable for 130-300hp tractors
• Pin Adjust Depth Wheels for positive depth control enabling high forward speeds
• 5 x Heavy Duty Spring Auto Reset Tines create a ground shattering action
• Staggered tine spacing copes with high trash density
• Tines work successfully in a depth of 50-300mm
• • Universal Double heart share point fitted as standard (very low running cost) other points options available on request
Can be used very successfully on its own as a deep chisel plough – ideal for busting up compacted headlands or tramlines
• New alternative to existing Stoka bar Shear-bolt design
• Designed to couple to a 3 Metre PROFORGE® Inverta® machine
TECHNICAL INFORMATION

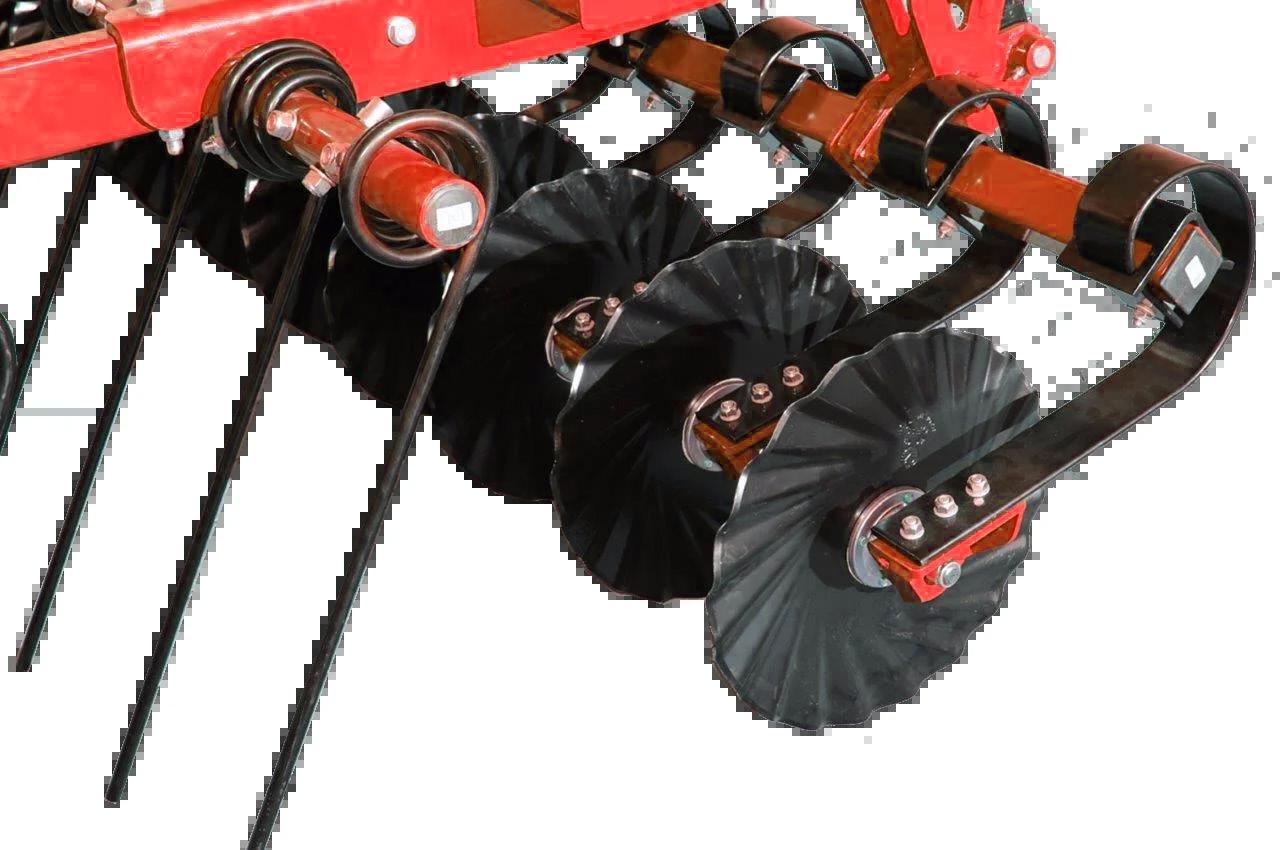

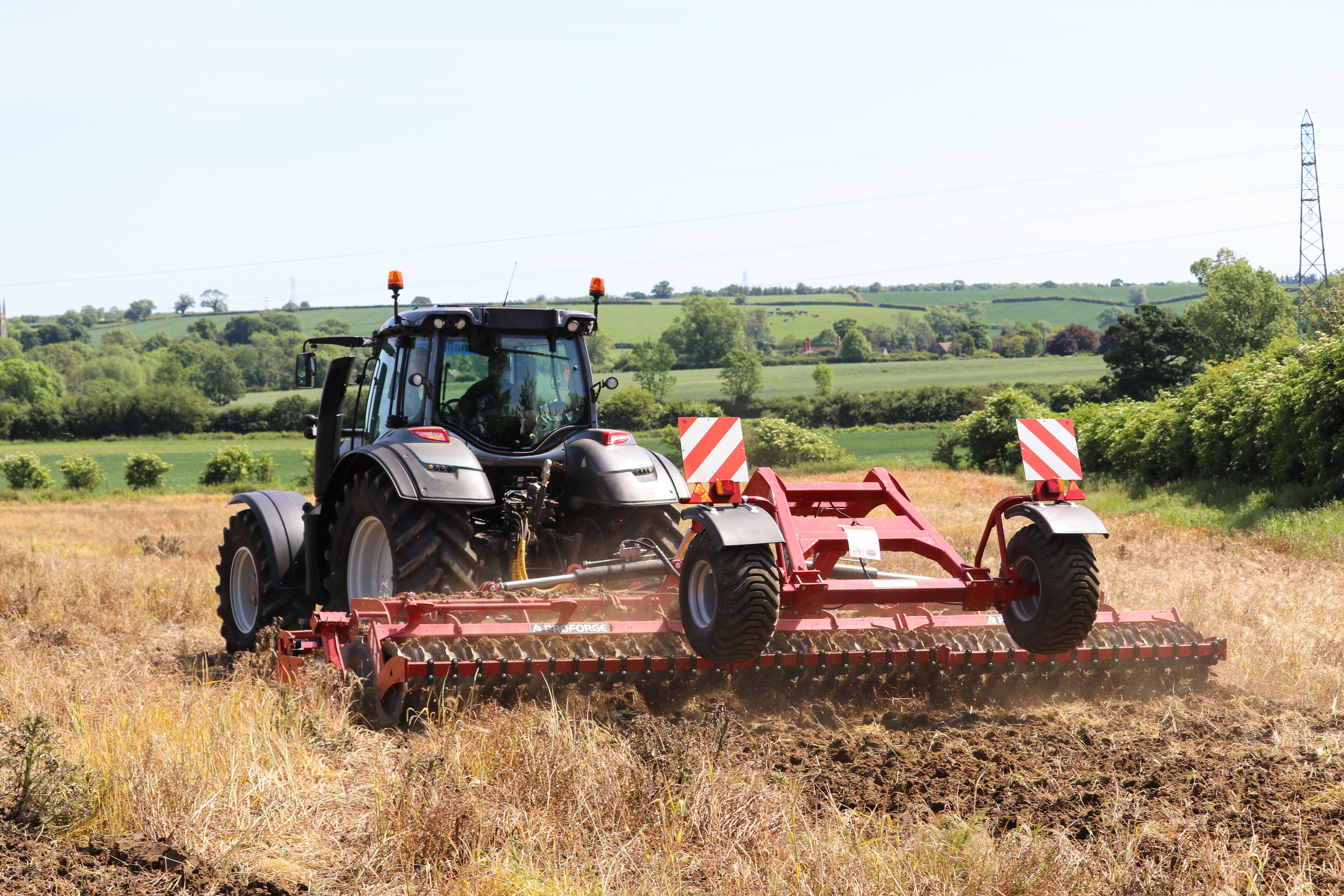

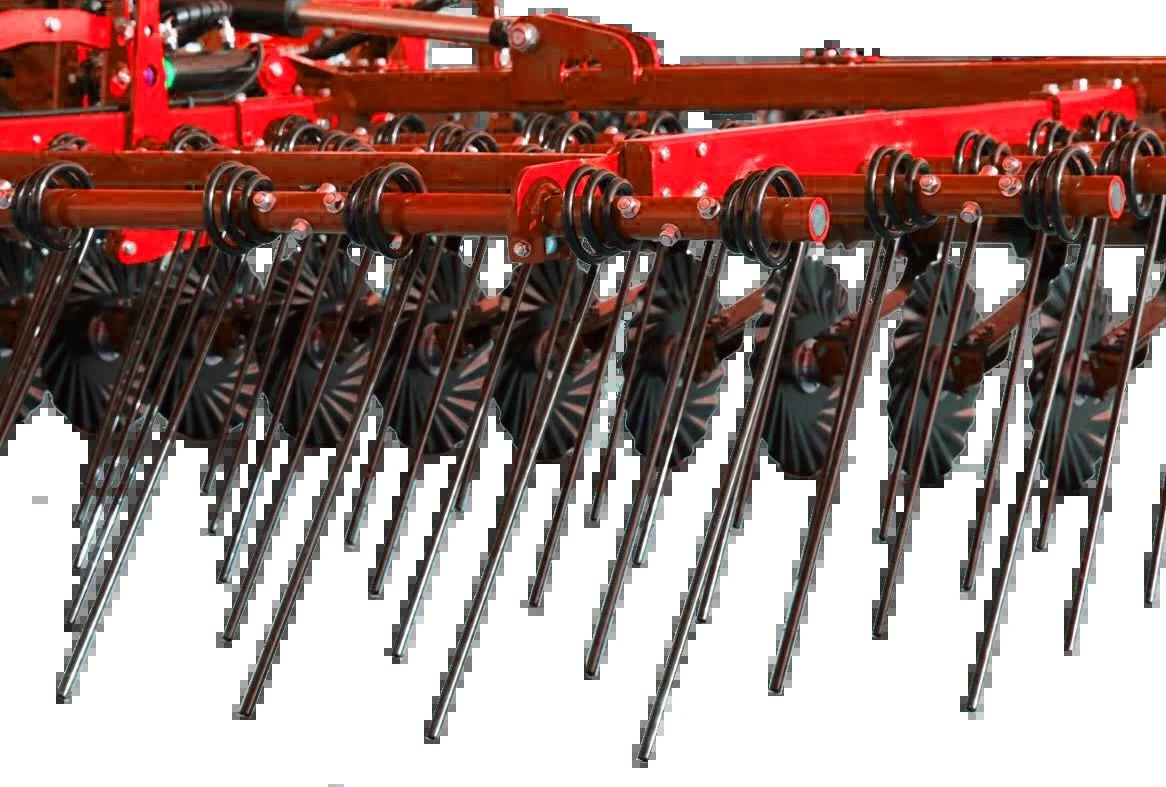

PACER™
Straw Rake
THE CONCEPT

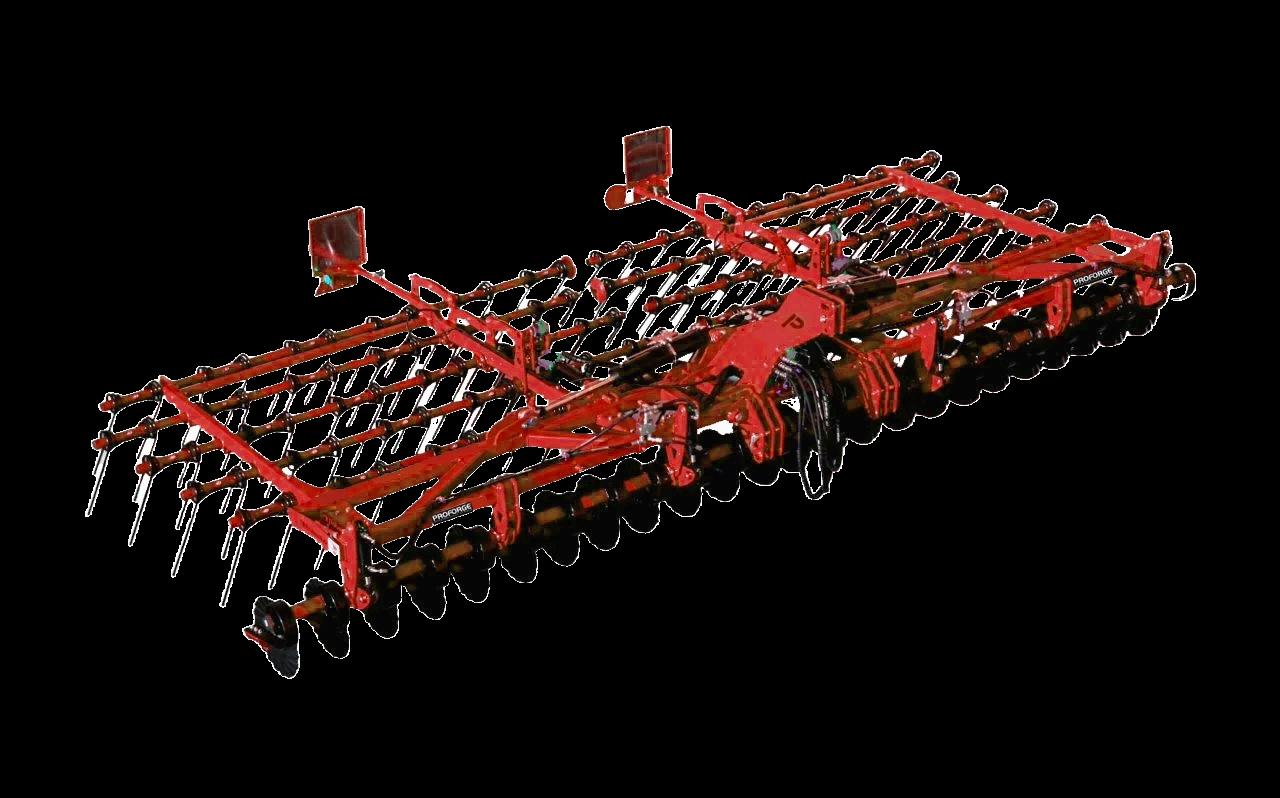

A high-speed straw rake that redistributes harvest residues and creates a micro tilth in the top layer of soil. This results in an even weed germination which can then be destroyed before drilling. It can also break up slug nests and desiccate their eggs by mixing up and exposing damp chaff and straw to sunlight. It’s an useful tool in both strip-till and direct drill crop establishment regimes and can be used before or after cultivations to level soil and create a fine tilth.
TECHNICAL INFORMATION
OVERALL KEY STRENGTHS
• Hydraulic Adjusting Front 460mm OFAS wavy disc
• SKF Maintenance Free Bearing Hubs
• 5 rows of hydraulic adjusting 16mm x 750mm long tines
• Low HP requirement with operating speeds of up to 20 KMH
• Available in 6.0 metre, 7.5 metre and 9 metre widths
*Approximate weight of the machine is based on the standard specification.
**Due to differing soil and weather conditions these figures are only intended as a guide.

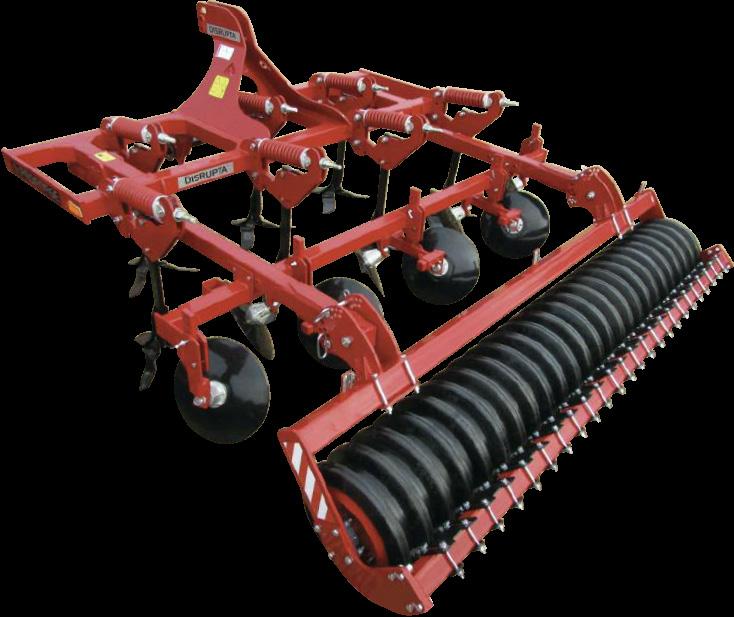

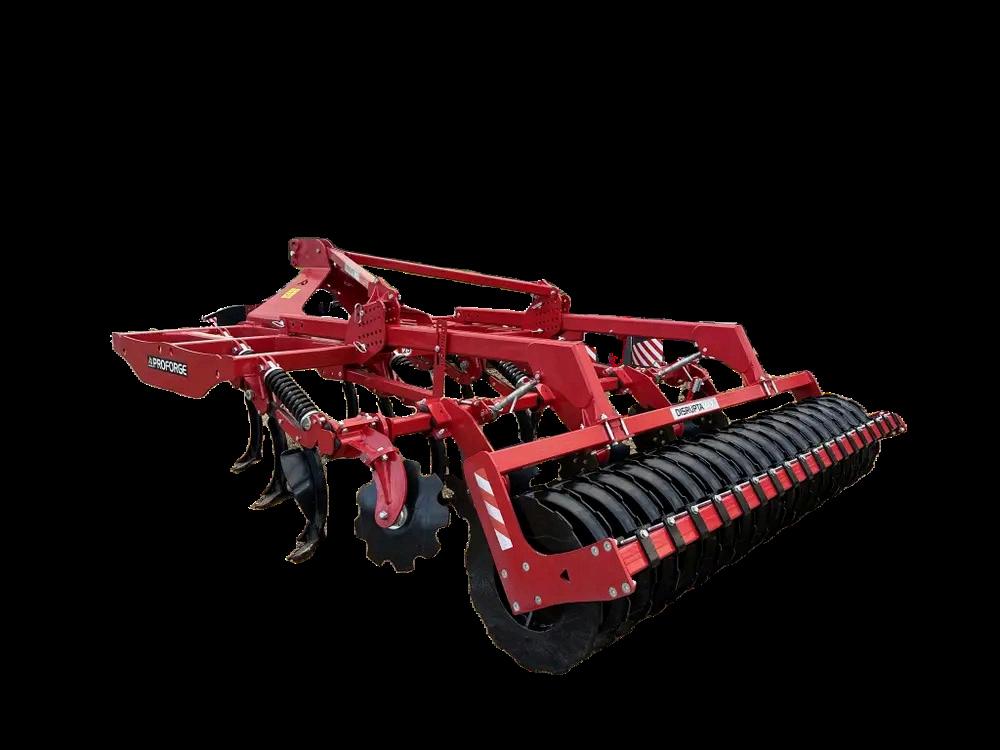

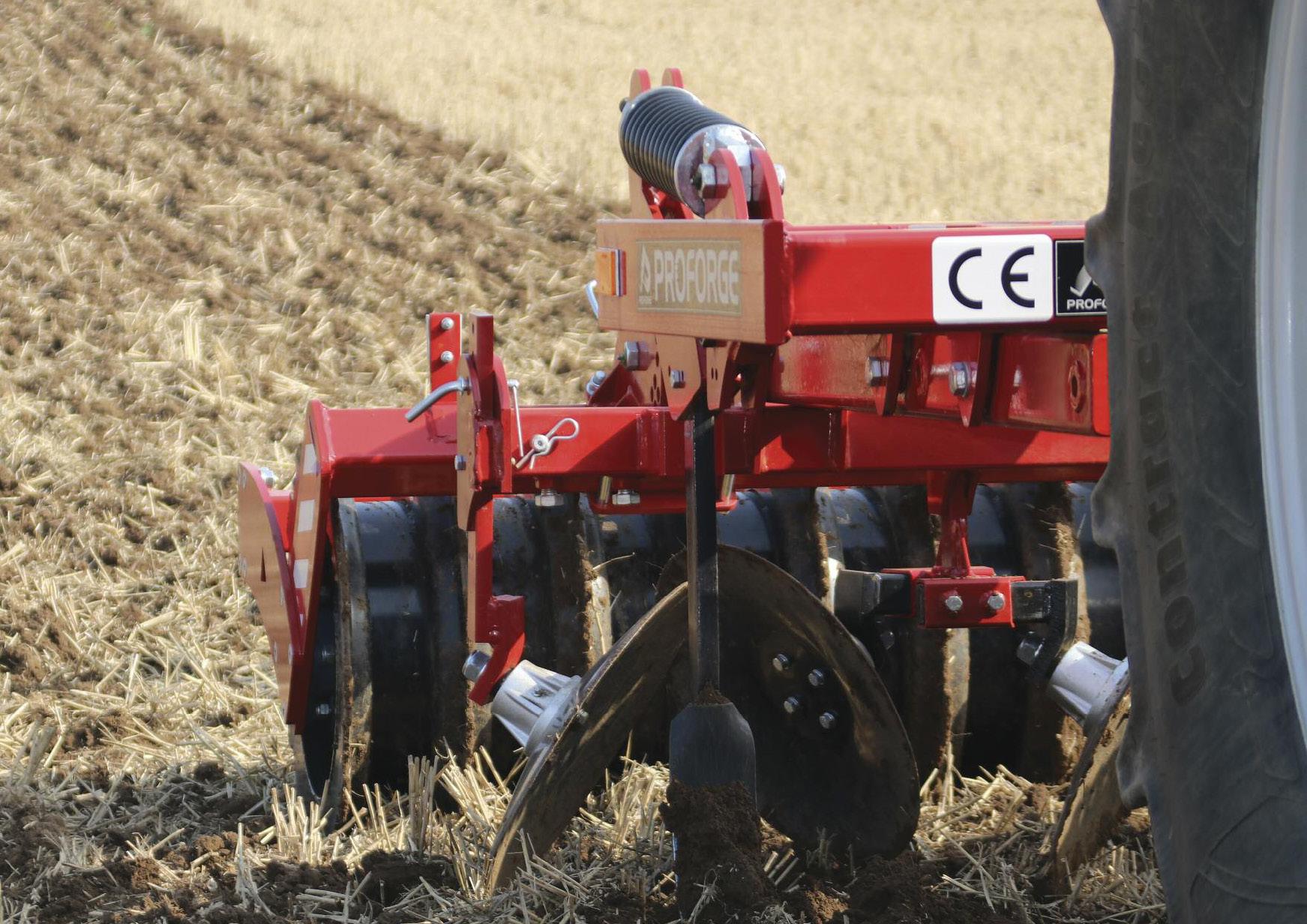

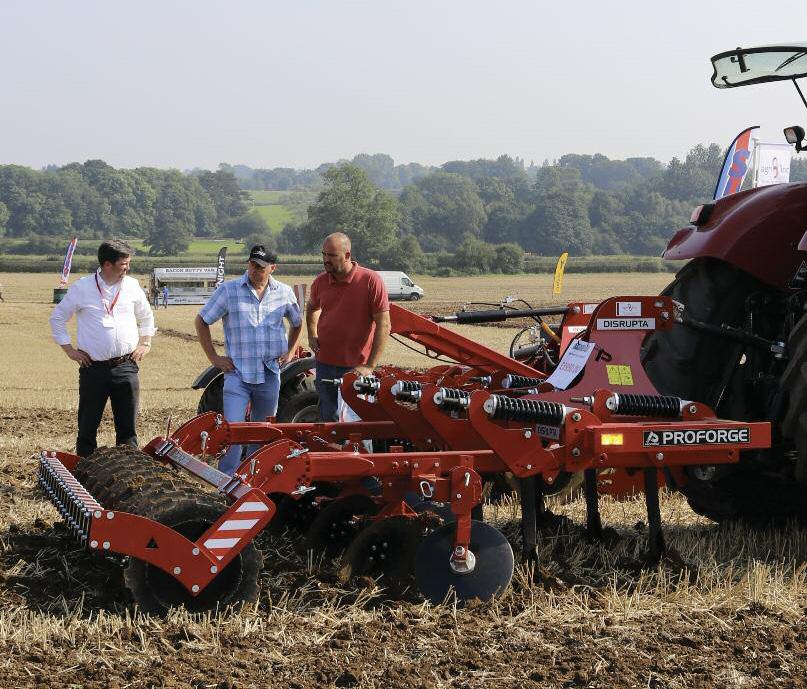

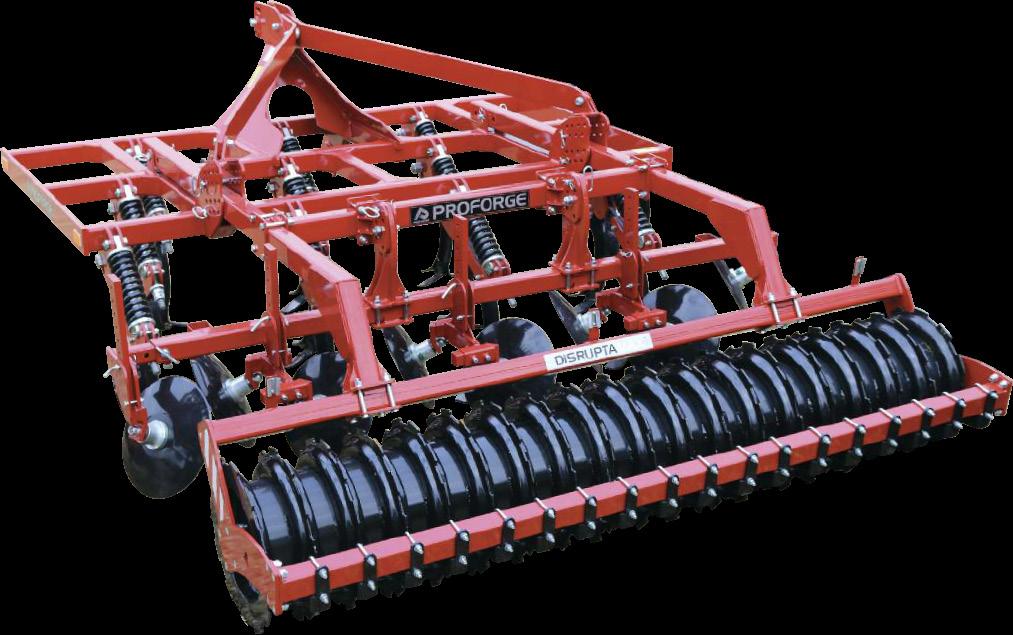

DISRUPTA®
Stubble Cultivator
OVERALL KEY STRENGTHS
THE CONCEPT
The Disrupta is your modern stubble cultivator for shallow and deep loosening of compacted soils and cutting through mixed crop residues. Also effective over previously ploughed land for breaking, skimming and levelling many types of soil.
• High operating speeds 10-15km/h with low horsepower requirement
• 3 point linkage system for rigid close coupling to the machine
• Heavy duty frame design
• Auto reset or shear bolt leg options
• Deep cultivation up to 200mm
• Compact design with large leg and disc spacing for maximum trash flow
• 7 tine, 8 disc combination
• Low horse power requirement – Min 120HP
TESTIMONIAL
“The job it did was staggering! At 150-200mm depth, the wide sweep shares moved, boiled and mixed everything, leaving an excellent tilth for drilling, in one pass... it was a real eye-opener to see how much can be achieved on heavy land with one pass, by such an affordable tractor and cultivator.”
(Demonstration of 3mtr Disrupta & McCormick 120HP wheeled tractor)
Ben Whyles – Agri-Linc
TECHNICAL INFORMATION
*Weight of machine is based on the standard specification.
to differing soil and weather conditions these figures are only intended as a guide.

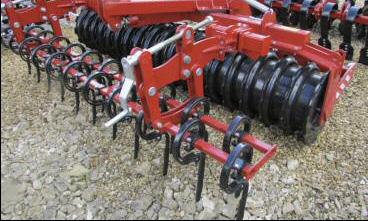

KEY FEATURES
01 3 point linkage system for rigid close coupling to the machine
02 Heavy duty frame design
03 Auto reset or shear bolt leg options
04 Adjustable disc beam to increase the distance from the packer roller especially on high stubble
05 Adjustable depth and angle control on leg and packer roller
06 460mm diameter levelling discs
07 Large tine and disc spacing for maximum trash flow (425mm spacing between tines)
08 835mm high ground clearance
09 Proven heart shaped foot design for maximum soil disruption

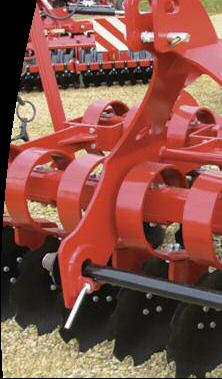

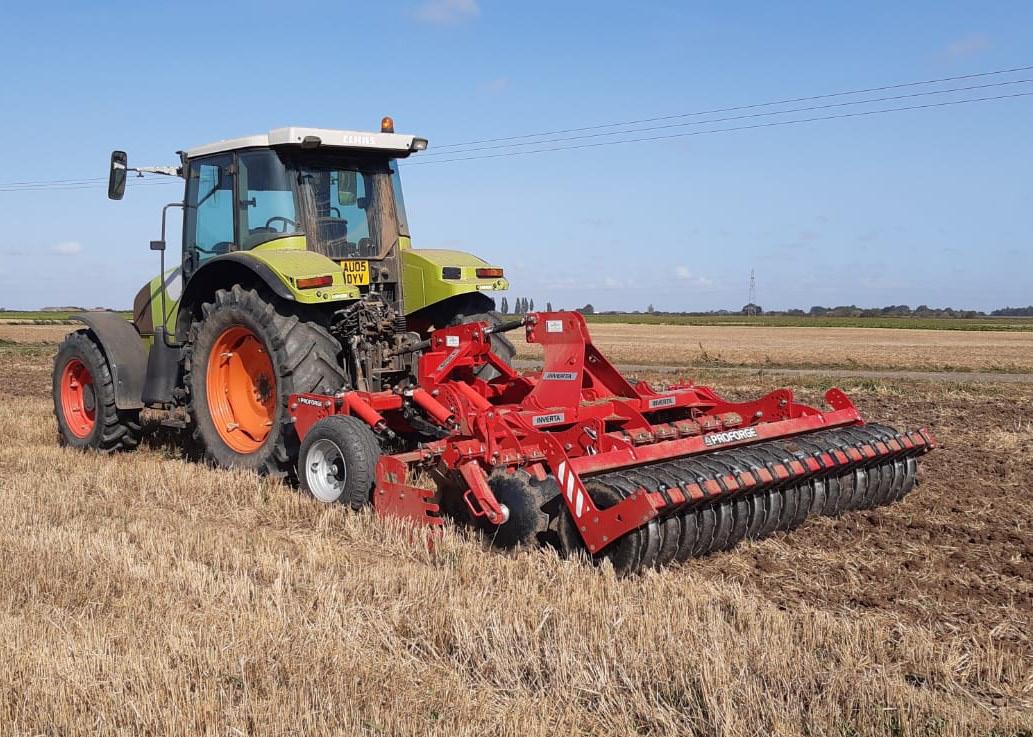

Built on the popular DISRUPTA, the DISRUPTAMAX is a heavy duty multifunctional tillage cultivator as an alternative to traditional ploughing and adaptable for a whole range of tillage, including mixing stubble, seedbed preparation, soil aeration and
OVERALL KEY STRENGTHS
High operating speeds with low horsepower requirement
Mounted Rigid Heavy Duty Frame
3 rows of working tines for fast and aggressive tillage

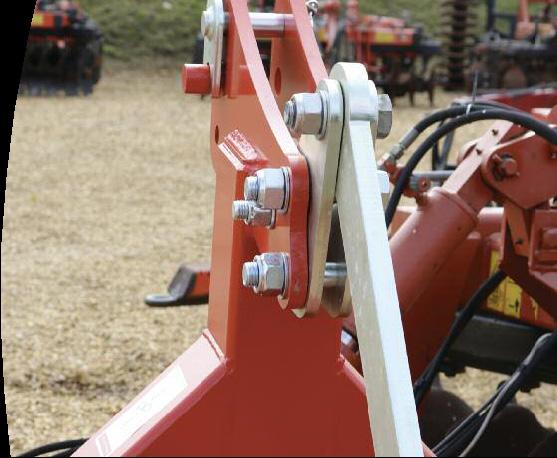

Auto reset or shear bolt leg options
Deep cultivation up to 250mm
Large leg and disc spacing for maximum trash flow
Steel Discbond Rear Packer
Adjustable depth and angle control on leg and packer roller
460mm diameter levelling discs
Large tine and disc spacing for maximum trash flow (800 mm spacing between tines)
950 mm high ground clearance
KEY FEATURES
01 Choose between mounted or trailed
02 Heavy duty frame design
03 Auto reset or shear bolt leg options
04 Adjustable depth and angle control on leg and packer roller
05 460mm diameter levelling discs
06 Large tine and disc spacing for maximum trash flow (800mm spacing between tines)
07 950mm high ground clearance
08 DiscBond standard depth adjustable rear 600mm Ring for different soil conditions.
• *More depth adjustable packer options including tyre, crumbler roller, crosskill are available to meet your specific requirements
• Lighting beam (standard on trailed machines)

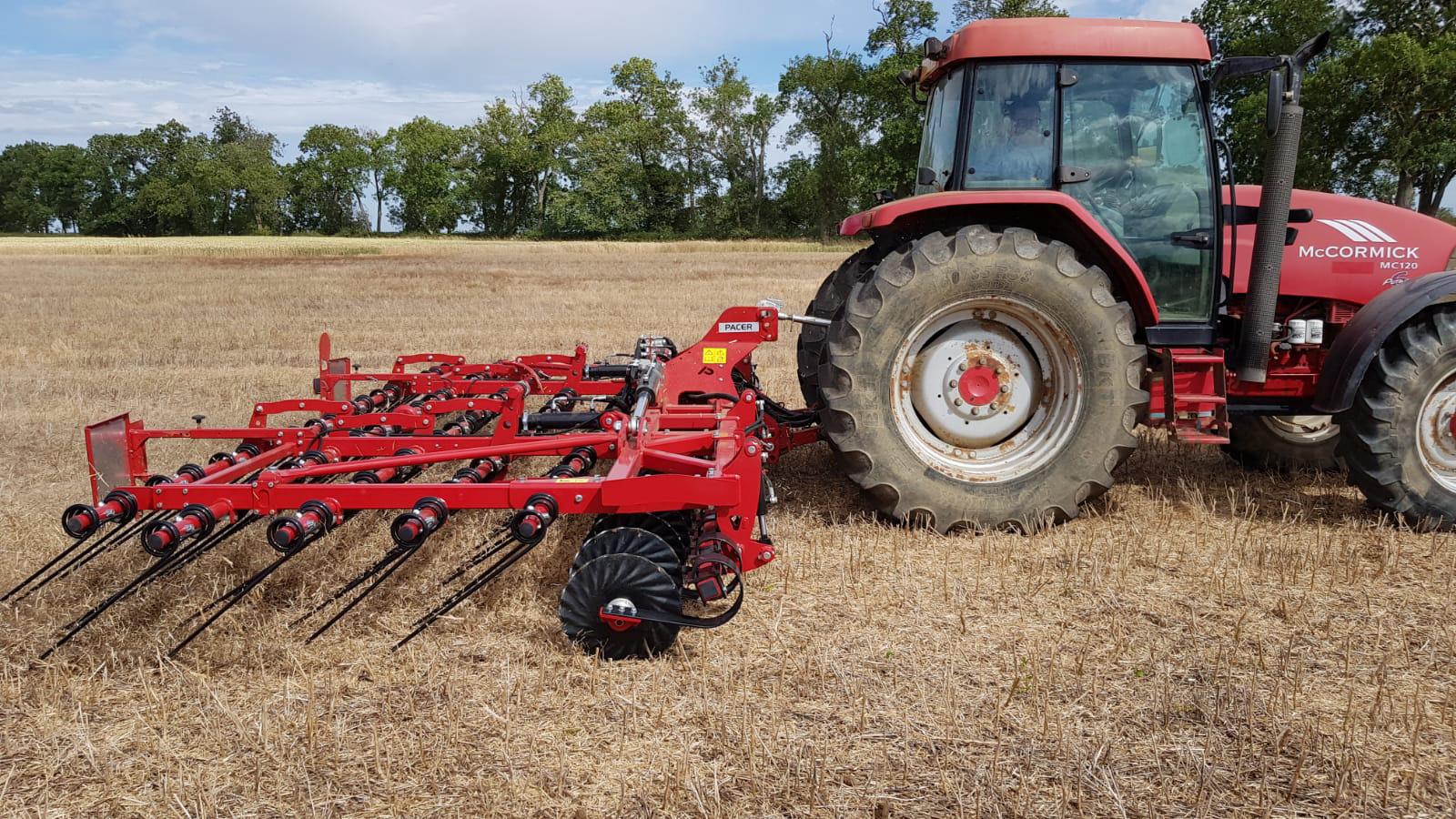

MAXTILLA™

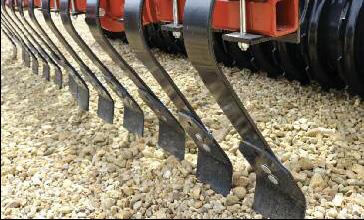

Spring Tine Cultivator
KEY STRENGTHS & FEATURES
• Heavy duty frame
• Low horsepower requirement
• Choice of rear packer kits and crumblers
• Cost effective
THE CONCEPT
The Maxtilla is a heavy duty spring tine cultivator, designed for intensive primary and secondary cultivation, causing excellent soil mixing, levelling and preparation for sowing. The cultivator can be used on many types of soils working to depths of 150mm with a choice of breaking and compacting rear rollers.
OPTIONAL EXTRAS
• 60x12mm, & 70 x12mm reinforced tines
• V-ring roller, 600mm in diameter
01 Four rows of reinforced tines, 45x12mm with helpers as standard
02 Standard open crumbler roller for crushing and pressing, 540mm in diameter, with single-point depth control
03 Pin adjust depth control
04 Spring tensioned following tine harrow; – 12mm diameter
05 540mm under frame ground clearance
TECHNICAL INFORMATION
CRIMPA™
Front Mounted
KEY STRENGTHS & FEATURES
• Capable of High Speeds
• Hardened Steel Replacement Blades
• Optional Variable Extra Weight Kit, 320 kg, in pictures
• comes with Reflector Markers and LED sidelights
THE CONCEPT
PROFORGE CRIMPA 3 Metre Double Rotor Front Crimper, ideal tool in front of a direct drill i.e. Moore Unidrill into cover crops
“High quality steel blades used in this front press.”
TECHNICAL INFORMATION
FRONTILLA™
Front Tillage Press
OVERALL KEY STRENGTHS
• Versatile frame design to carry tooling combinations
• Steering headstock
• Heavy duty frame
• Adds weight to the front end of the tractor for better traction
KEY FEATURES
01 Front end accessories :-
- Heavy duty hydraulic levelling paddles –80x10mm spring with 150mm paddle
- 2 rows of 32x12mm SU tines, reinforced with helpers as standard
02 Steering headstock
03 Heavy duty frame
THE CONCEPT
The Frontilla is an ideal tillage front press with the benefit of a versatile frame with optional tooling combinations to support a wide range of tillage. Primary and secondary stubble work, clod breaking or seedbed tilling are achievable depending on the type of tooling combination.
TECHNICAL INFORMATION

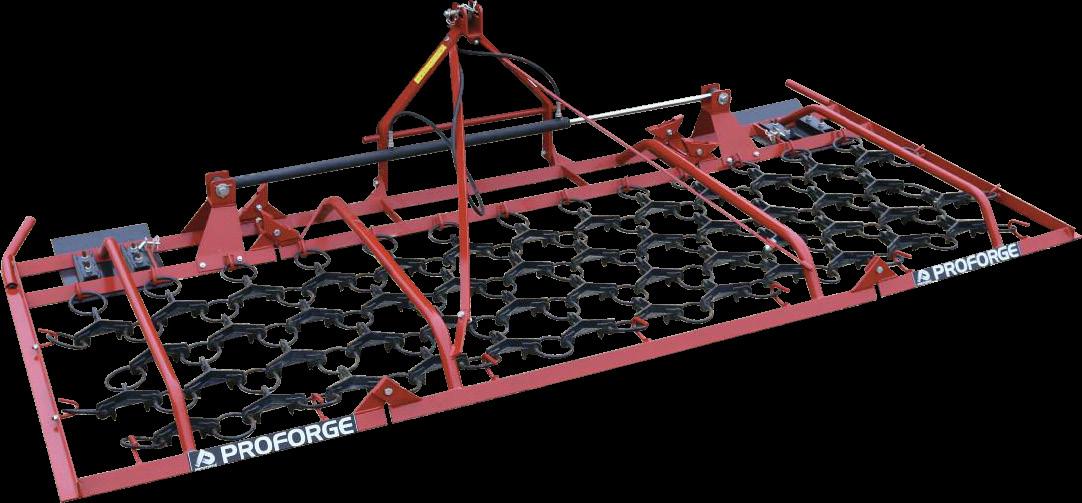

CHAIN HARROW™
Grassland Harrow
THE CONCEPT
A heavy duty chain harrow for pasture and meadow maintenance, field levelling, grading and surface levelling.
TECHNICAL INFORMATION
KEY STRENGTHS & FEATURES
01 Mounted for good stability
02 Reversible 4 row harrow chains
03 Combi reversible tine for aggressive or passive use
04 Wing skids as standard
05 Hydraulic fold on options over 3mtr
MOLEDRAINERS
MOLEDRAINING
Mole drainage is widely used in England, New Zealand and Europe on heavy soils to improve productivity of pastures and crops. To further assist the drainage of your land, a mole drainage system can be installed to guide excess water into your open drains or into subsurface drains using the fall of the land.
Mole drainage, on the right soil type and done properly will help reduce waterlogging problems and is one of the most cost effective ways of draining.
An ideal zero till/direct drill companion tool as there is minimum top disturbance, especially when using the unique Proforge Disc design. Also can be used through standing crops to assist in acute waterlogged areas.
MONOMOLE®
Mounted Beam Mole Plough
THE CONCEPT
The Monomole single leg mounted version is a compact and versatile machine, making it an ideal choice for farmers needing to provide drainage in a cost effective way. Manufactured in the UK to a high standard and designed to withstand the rigours of heavy arable land and grasslands the Monomole has also become a leading machine for zero-till or min-till farming.
OVERALL KEY STRENGTHS
• Large 26” (660mm) Diameter Notched Disc A unique and amazing part of the moledrainer. Seriously reduces surface heave, and minimises top surface damage. Also benefits from adjustable depth control. Reversible Exposed leg Completely exposed leg for the best trash clearance. Allows the trash to flow round the leg/under the beam reducing undue lift and tilt to the main beam. Ideal for maximum depth start when dropped into dyke banks.

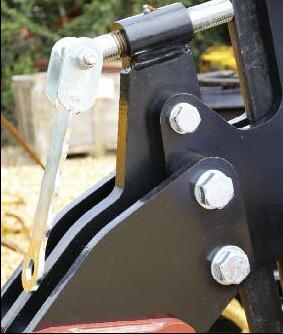

Pitch adjuster This assists penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander. Depth adjustable 60” (1520mm) leg Adjustment in 1” (25mm) increments allows for precise depth control. Reversible for longevity.
Under-beam replaceable wear skid Floating top-link design
Floating arc with pins allows for consistent mole draining over undulating land.
OPTIONAL EXTRAS
• Ceramic expander for longevity in hard ground
TECHNICAL INFORMATION
KEY FEATURES
01 Large 26” (660mm) diameter notched disc -depth adjustable
02 Exposed reversible leg

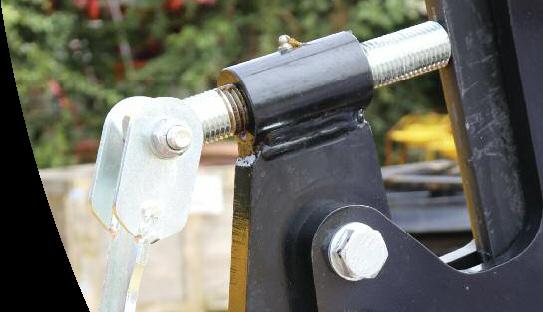

03 Pitch adjuster
04 Depth adjustable 60” (1520mm) leg
05 High-chromium replaceablefront bevel platelasting 5-7 times longer than original spec
06 Floating top-link design
07 4” (100mm) expander
08 Replaceable wear shin
09 High-chromium Patented unique ProMole point.
MONOMOLE®

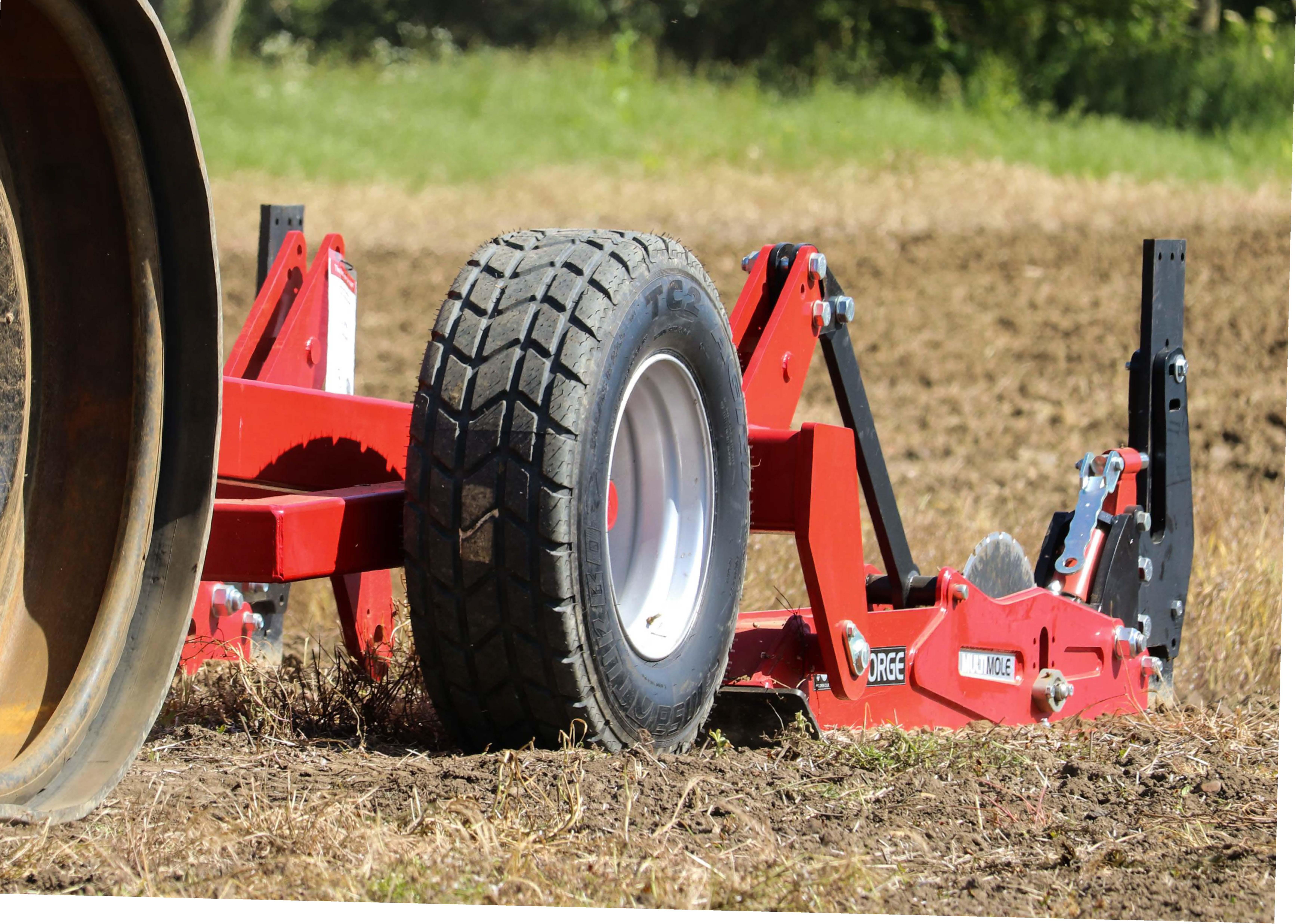

Single Leg Trailed Moledrainer
THE CONCEPT
The Monomole trailed single leg version is an excellent universal machine, making it a perfect choice for farmers and contractors needing to provide drainage in a cost effective way. Manufactured in the UK to a high standard and designed and to withstand the rigours of heavy arable land and grassland, this trailed version allows the machine to follow the contours of uneven land and added stability with the benefit of transport wheels.
OVERALL KEY STRENGTHS
•
• Large 26” (660mm) Diameter Notched Disc A unique and amazing part of the moledrainer. Seriously reduces surface heave, and minimises top surface damage. Also benefits from adjustable depth control.
Reversible Exposed leg Completely exposed leg for the best trash clearance. Allows the trash to flow round the leg/under the beam reducing undue lift and tilt to the main beam.
• Pitch adjuster This assists penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander.
• Depth adjustable 60” (1520mm) leg Adjustment in 1” (25mm) increments allows for precise depth control. Reversible for longevity.
• Under-beam replaceable wear skid
• Adjustable height draw bar eye Flexi-eye for greater flotation in work.
TECHNICAL INFORMATION
01 Large 26” (660mm) diameter notched disc -depth adjustable
02 Exposed reversible leg with Promole point
03 Pitch adjuster
04 Depth adjustable 60” (1520mm) leg
05 High-chromium replaceablefront bevel platelasting 5-7 times longer than original spec 06
Adjustable height draw bar eye
07 4” (100mm) expander
08 Transport and support wheels
09 Replaceable wear shin
OPTIONAL EXTRAS
• Ceramic expander for longevity in hard ground KEY FEATURES
A field moledrained using a Proforge Monomole
MULTIMOLE®
Trailed Twin Leg Moledrainer
THE CONCEPT
The Multimole twin leg trailed version is the ultimate mole draining machine, for serious contractors and farmers; manufactured in the UK to a high standard and designed to withstand the rigours of heavy arable land and grasslands. All the features of the single trailed design have been developed in this model and more, such as the wide wheel base design of the wheels which increases stability and can be used as a wheel press for loose soils and a central leg bracket to turn the machine into a single trailed version.
KEY FEATURES
1.Proven Large Diameter 26” Notched Discs, seriously reduce surface heave and minimise top surface damage. This also benefits from adjustable depth control
2.Pitch Adjustment assists penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander
3.High-chromium replaceable front bevel plate -lasting 5-7 times longer than original spec
4.Category 4 linkage
5.Pivoting Legs
6.Easily manoeuvrable, no rams, wheels or axles
TECHNICAL INFORMATION
A field moledrained using a Proforge Monomole
•
OVERALL KEY STRENGTHS
• Large 26” (660mm) diameter notched disc A unique and amazing part of the moledrainer. Seriously reduces surface heave, and minimises top surface damage. Also benefits from adjustable depth control. Exposed leg Completely exposed leg for the best trash clearance. Allows the trash to flow round the leg/ under the beam reducing undue lift and tilt to the main beam. Ideal for maximum depth start when dropped into dyke banks.
• Pitch adjuster This assists penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander.
• Depth adjustable 60” (1520mm) leg Adjustment in 1” (25mm) increments allows for precise depth control. Reversible for longevity.
• Under-beam replaceable wear skid
• Adjustable height draw bar eye Flexi-eye for greater flotation in work.
• Wide wheel base The wide position of the wheels increases stability whilst being directly in front of the beams so that with a touch of weight transferred any loose soil created by the Tractor tyres/tracks is compacted again ahead of the beam skid.
• Central leg bracket The added feature of the central leg bracket enables the user to convert a twin leg into a single for smaller tractors.
KEY FEATURES
01 Large 26” (660mm) diameter notched discs
- depth adjustable
02 Exposed reversible leg
03 Pitch adjuster
04 Depth adjustable 60” (1520mm) leg
05 High-chromium replaceablefront bevel plate
- lasting 5-7 times longer than original spec
06 Adjustable height draw bar eye
07 Wide wheel base
08 Central leg bracket
09 Replaceable wear shin
10 4” expander with ProMole patented foot
OPTIONAL EXTRAS
• Ceramic expander for longevity in hard ground
TECHNICAL INFORMATION
MULTIMOLE
Mounted Twin Leg Moledrainer
THE CONCEPT
The PROFORGE Mounted Multimole twin leg mole plough/mole drainer presents a more cost-effective mole-draining option for farmers and contractors.
This mounted model can claim all the standard features of our trailed Multimole, but without the need for support wheels, hydraulic rams and axles. This makes it more manoeuvrable for the machine to be reversed into tight corners and ditches. The Mole-Drainer can cut through heavy and loose trash without congesting.
At a very competitive price, the PROFORGE Mounted Multimole is certainly in a class of its own.
Strong built machine with the added ease of setting up - we have doubled the output coming from a single leg
Trailed mole plough to the double leg mounted. When it comes to changing wearing metal the proforge moleplough is a quick and easy machine to work on making it easier in the field.''
KEY FEATURES
• Proven Large Diameter 26” Notched Discs, seriously reduce surface heave and minimise top surface damage. This also benefits from adjustable depth control
• Pitch Adjustment assists penetration in some conditions and allows for compensation to be made to ensure even wear on the bullet and expander
• High-chromium replaceablefront bevel plate -lasting 5-7 times longer than original spec
• Category 4 linkage
• Pivoting Legs
• Easily manoeuvrable, no rams, wheels or axles
TECHNICAL INFORMATION
Model HP Required**
Multimole Mounted
*Weight of machine is based on the standard specification. **Due to differing soil and weather conditions these figures are only intended as a guide.
You talk ... we listen You talk ... we act You talk ... we provide
ATTACHMENTS
PROFORGE ATTACHMENTS
We are pleased to present a quality built range of attachments from the modern Handiweight with excellent storage space to a select range of sweepers and maintenance brushes for tractors and handlers.

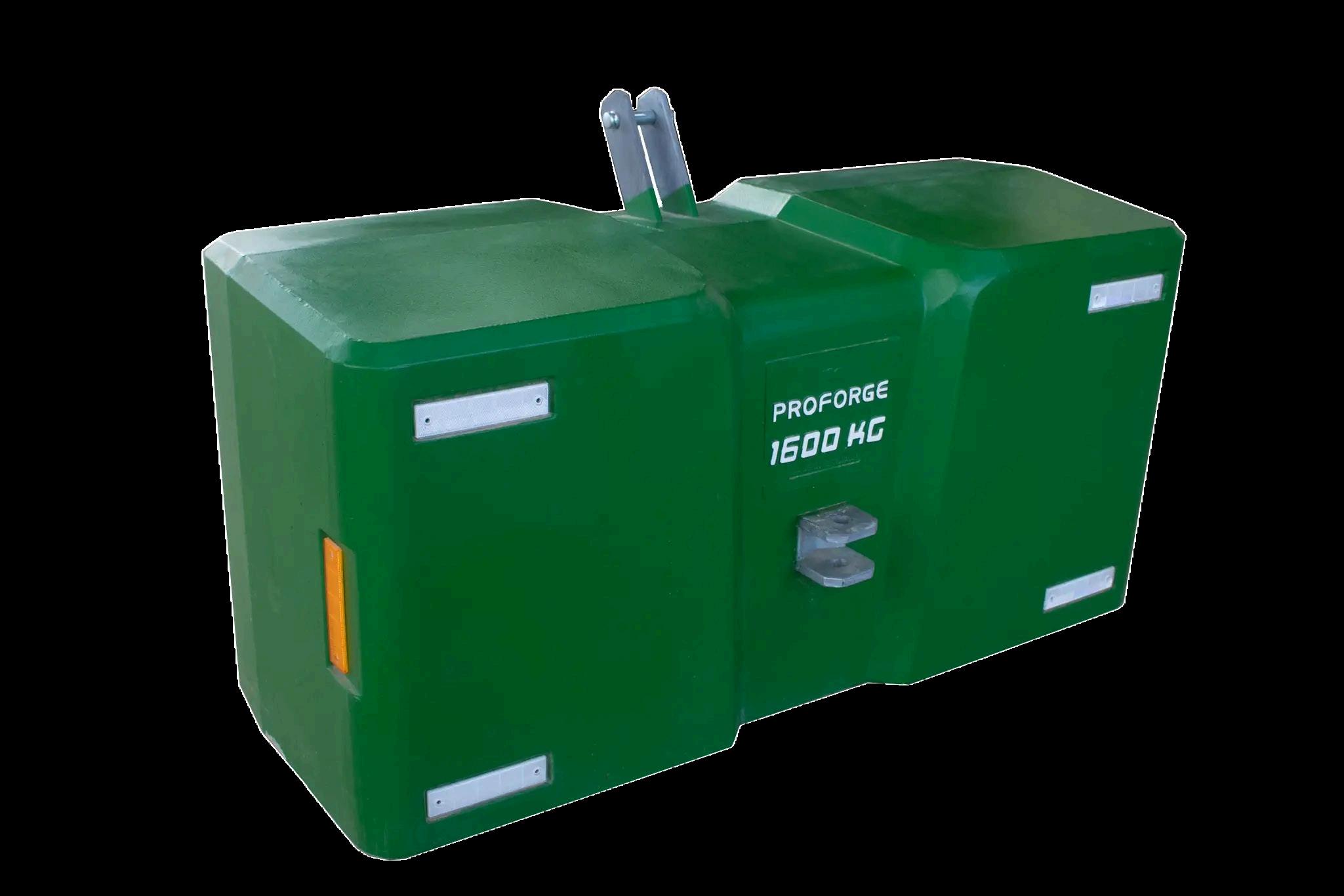

WEIGHT BLOCKS
Bespoke Moulded
KEY STRENGTHS & FEATURES
•Suitable for front or rear mounting
•Reinforced internal cage construction
•Weather resistant finish
•Modern design

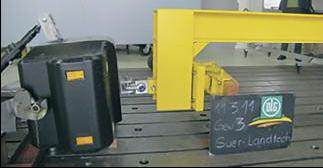

Reinforced internal cage construction and quality tested by DLG
TECHNICAL INFORMATION
C NEW Combi Version

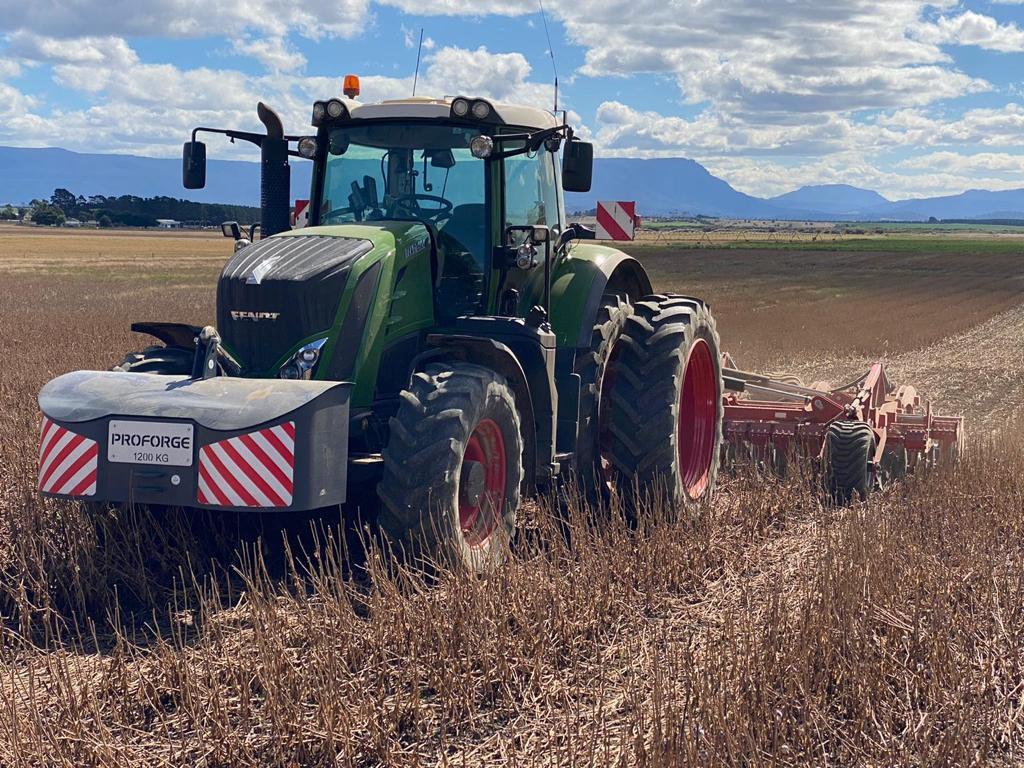

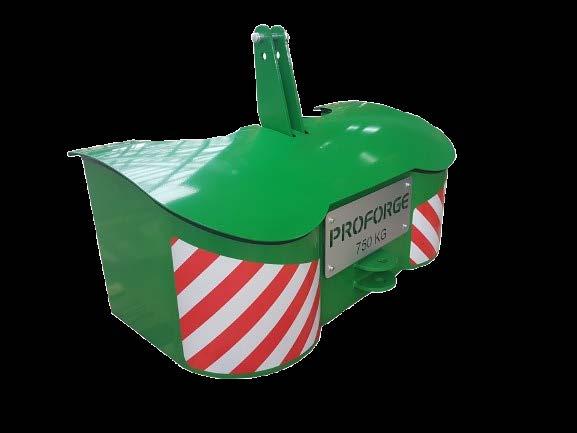

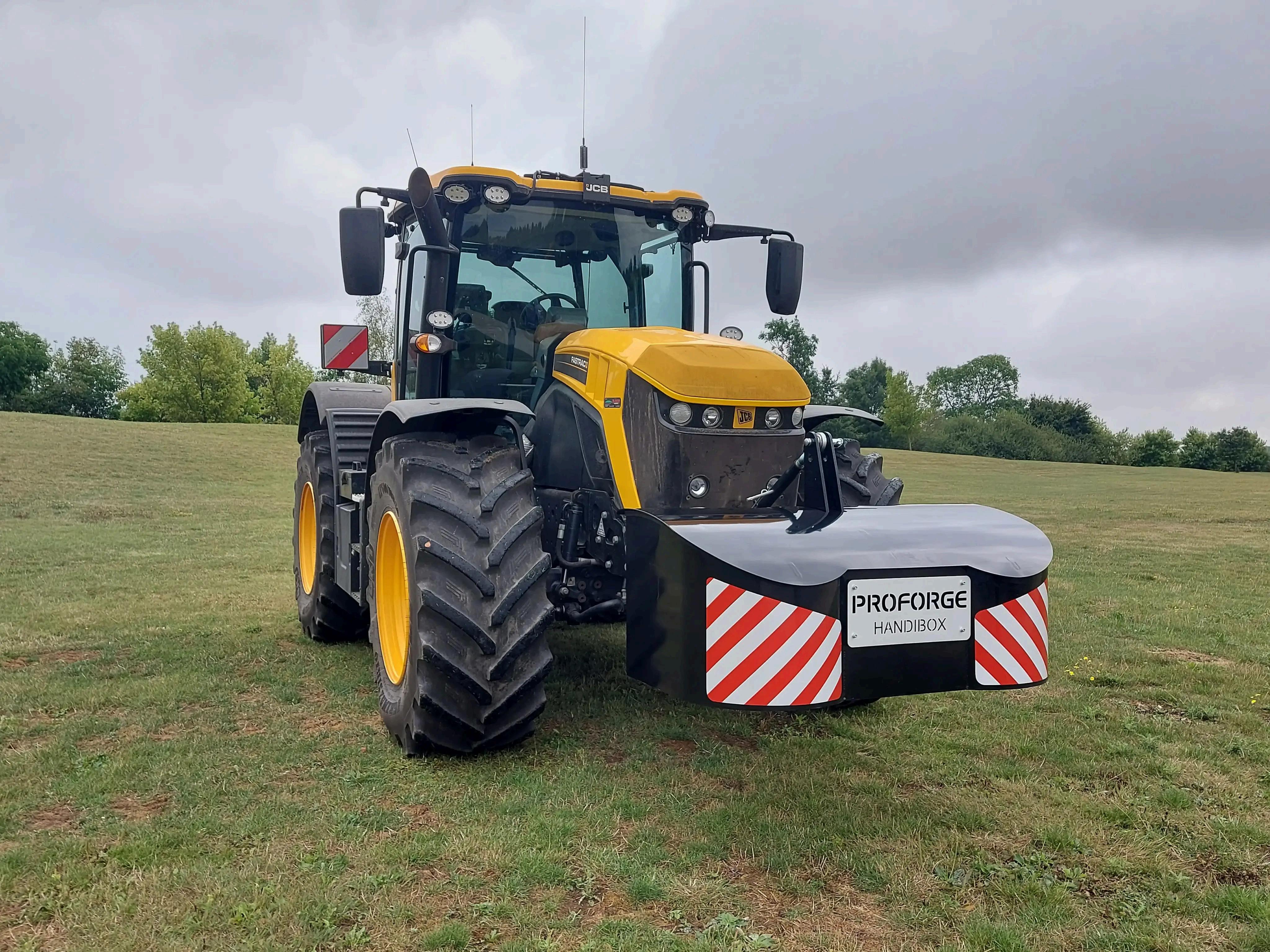

HANDIWEIGHT
Weight Blocks with Storage
T H E CONCEPT
A steel tractor weight to maximise traction in the field and assist the overall balance of the tractor when towing heavy machinery. Incorporating a handy storage area for tools, parts and equipment.
model
TECHNICAL INFORMATION
All sizes are approximate
Black, Grey, Green
Black, Grey, Green
Black, Grey, Green
Black, Grey, Green
Black, Green
Black, Green
Black, Green
Black, Grey, Green
KEY STRENGTHS & FEATURES
• Lockable lid
• Green, Black and Grey colour options
• 3 point Linkage
• Streamlined design for visibility
• Hinged lid with weather seal
• Towing pintle
• Large Corner Warning Signs
1200kg
BRUSHES
Tractor or Handler Sweepers
THE CONCEPT
A select range of sweepers and brushes to maintain yards, roads and grainstores. Manufactured in the UK to the highest standards.
UNIBRUSH
• The very latest model of fork mounted brushes
• Simple and effective with specially formulated bristles for optimum sweeping
• Full length fork pockets with heel pins for a rigid fix
• Parking stands to protect bristles
• Replaceable 350mm long ProBristles
• Removable side panel for easy bristle replacement
OPTIONAL EXTRAS
• Bolt on Quick hitch system available on request - Matbro, JCB, Merlo etc)
BUCKETBRUSH
With or Without Bucket
An excellent universal bucket brush with high performance motor. Designed to fit most buckets.
•Adjustable arms designed to fit most standard buckets
•PolyTwist Probrush – 560mm dia for long life and maximum sweep
•Compact high performing motor.
•Quick hitch to bucket
•Reversible brush rotation
•Free standing for easy storage
•Hydraulic requirement –30-76 LPM @ max 200
•Galvanised finish for long life bar
OPTIONAL EXTRAS
•Further widths and bucket sizes available 3.0m
TRACSWEEP
Tractor mounted sweeper
THE CONCEPT
New tractor mounted sweeper for general purpose with optional hopper collector.
TRACSWEEP
New tractor mounted sweeper for general purpose with optional hopper collector.
• Galvanised Brush body
• PolyTwist ProBrush – 560 mm diameter for long life and maximum sweep
• Sweeps straight ahead
• Angles left and right
• Heavy duty castor wheels – 200 mm diameter
• Front Debris Flap
• Suits Category 1 and Category 2 Three Point Linkage
• Parking stand
• Hydraulic requirement – 30 – 60 LMP @ max 170 bar
“Great economical brush suited to a variety of uses including muck, manure, trash, aggregate etc.”
TECHNICAL INFORMATION
2.3m (7'6") without hopper Hopper Only
CONTRACTOR
Tractor mounted sweeper
THE CONCEPT
PROFORGE CONTRACTOR CH230 2.3 Metre Heavy Duty Rotary Sweeper Brush - To fit 3
Point Linkage or for Fork Sleeve Mounting
CONTRACTOR
New tractor mounted sweeper for general purpose with optional hopper collector.
• Can be Front or Rear Tractor mounted.
• Galvanised finish with heavy duty hydraulic motor for versatile and robust operation
• Reversible linkage frame for rear and front mounting - CAT 2
• Sweeps straight ahead or angles/offsets to the left and right. Simple manual adjustment.
• Heavy Duty Poly Ultra 610mm brush segments
• Heavy duty 250mm castor wheels c/w screw-jack adjustment
• Parking legs
TECHNICAL INFORMATION
PRO-SWEEP
Tractor mounted sweeper
THE CONCEPT
PROFORGE PRO-SWEEP Telehandler Brush Attachment 2.4mtr (8ft)
PRO-SWEEP
• With Hydraulic Emptying Collector and Gravity Water Tank
• Universal Pallet Tine Fitting for quick-attach to most forklifts
• Heavy Duty Impact Resistant Castor Wheels Front and Rear
• Hyd emptying - enclosed collector
• Gravity Water Tank with Sprinkler Bar
• Optional Kerb Brush - Hyd Drive
• Single Point Brush Height Adjustment for easy setting
• 560mm Poly Ultrabrush Bristles
• Fully Floating Body for Optimum Performance on Undulating Ground Surfaces
Note - photos show the Kerb brush - available with or without this feature...
TECHNICAL INFORMATION
Model
2.4 Metre (8ft) wide
GRAIN PUSHER
THE CONCEPT
The Proforge Grain pusher is designed to be both extremely robust and light weight. A single large diameter tube offers the best strength to weight ratio making it suitable for pushing grain, salts, gravels and all other bulk materials. The tube and folded design eliminates ledges and traps that hold grain
ALL FEATURES
• Sizes from 4.2 – 6 mtr lengths.
• 2.5 mtr width blade as standard with nylon edge, which is easier on grain floors
• Complete with brackets of your choice.
Note: standard colour now grey
HD Plastic Reversible Wear Edge / Blade to Suit Proforge Grain Pusher

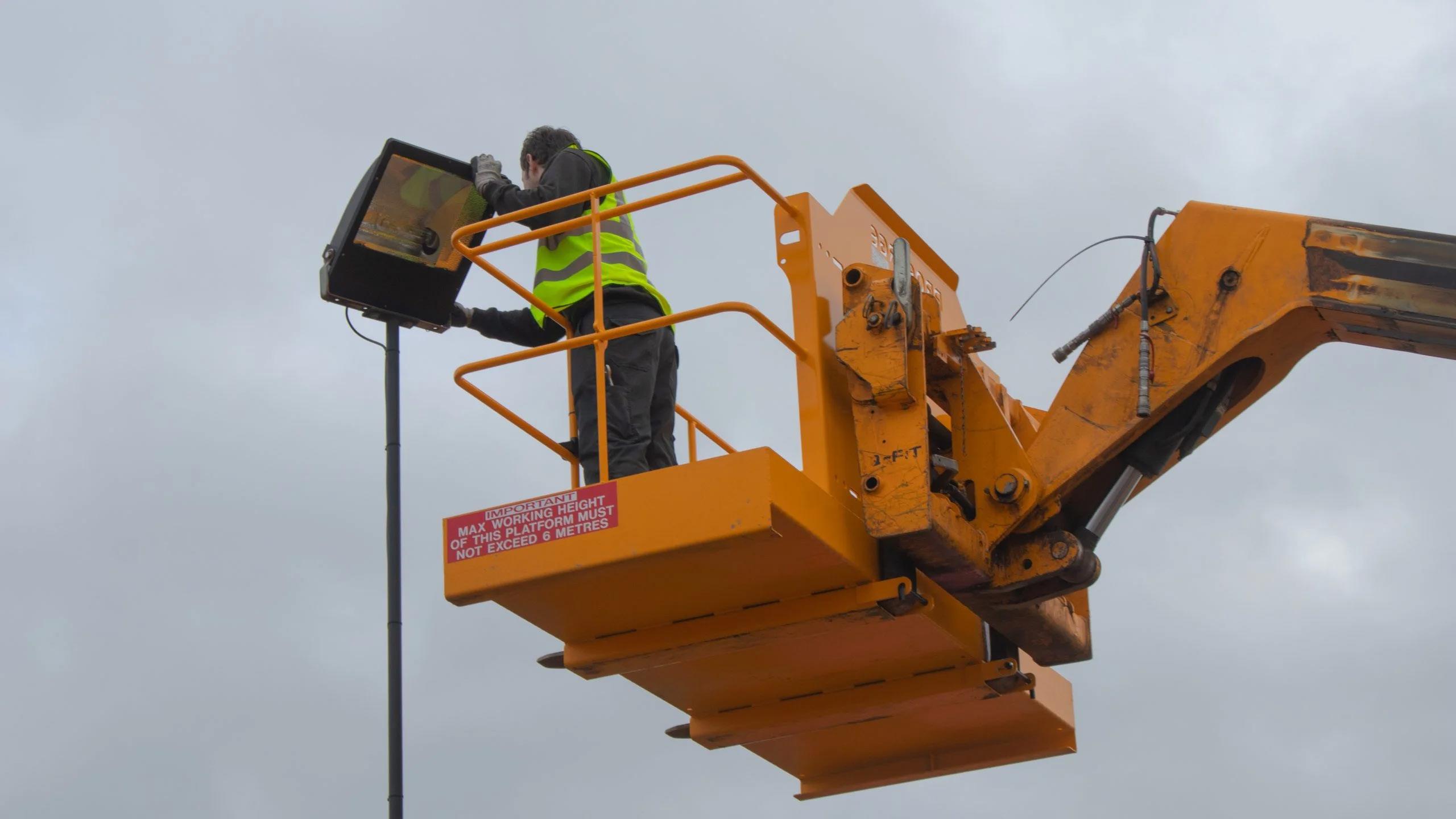

ACCESS PLATFORM
Heavy Duty
FEATURES
• Internal grab rails
• Antislip chequerplate floor with drainage
• Complete with lift up bar
• Conforms to latest regulations
• Fork mounted as standard or bracket mounted
• Tool tray – optional extra
THE CONCEPT
The PROFORGE Work Platforms are uniquely designed and fabricated to take either handler brackets or come with the option of being fork mounted and secured by heel pin. The bolt on option offers gives greater versatility when either changing your machine or when you run a varied fleet of telehandlers or tractor loaders.
“The platform provides a safe and secure environment for a wide range of maintenance and inspection applications. As standard it comes with safety lift up bar and safety harness rings
TECHINCAL INFORMATION
Fork Mounted
JCB Q-Fit Brackets Manitou
Brackets Matbro/Pin & Cone
Brackets Merlo Brackets
Euro Brackets
Fork Mounted
JCB Q-Fit Brackets Manitou
Brackets Matbro/Pin & Cone
Brackets Merlo Brackets
Euro Brackets
935 x 1830mm
935 x 1830mm
935 x 1830mm
935 x 1830mm
935 x 1830mm
935 x 1830mm
935 x 2770mm
935 x 2770mm
935 x 2770mm
935 x 2770mm
935 x 2770mm
935 x 2770mm
4 TINE SQUEEZE BALE GRAB
With Euro Brackets
FEATURES
• The PROFORGE 4 Tine Side Squeeze Bale Clamp is your simple solution to various dangerous, messy and slow jobs. Its innovative design allows the operator to drop bales into a mixer from the safety and comfort of their seat. With this attachment, you’ll never have to lean over your mixer wagon to cut the strings again. The strings can be cut on the ground, before lifting the bale and dropping it into the mixer wagon. This eliminates the need for an operator to lean over the mixer wagon to cut the strings and reduces the potentially fatal risk of falling into the mixer.
• The roller arms are removable; leaving two bale spikes for transporting two
THE CONCEPT
This unique bale grab has many benefits over standard bale grabs but the main one; it can handle part bales, soggy/soft bales, broken string bales! Can also handle; round, square or rectangle bales, wrapped or unwrapped bales.

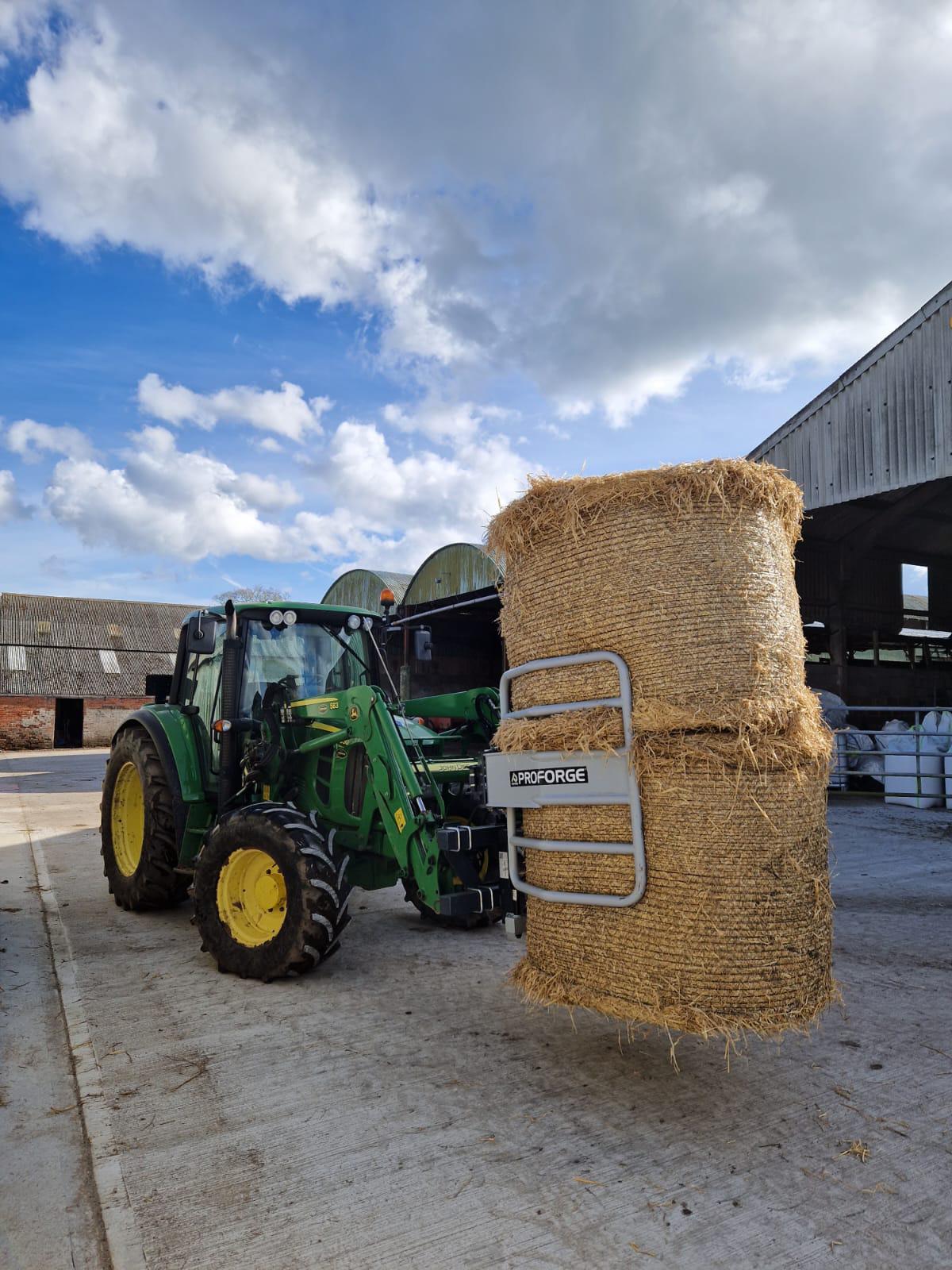

COMBI BALE GRAB
THE CONCEPT
PROFORGE Combi Bale Grab Vertical Stack Mover for Round/Square Bales
FEATURES
The Combi Bale Grab with Spikes:
• Suitable for square and round bales
• Minimum round bale diameter ready for handling: 800mm
• Two symmetric bale grab arms are 1620mm in height with each carrying four cold-bent spikes spaced every 500mm
• The folding bottom fork features two straight 1100mm long spikes with a spacing of 725mm
• Can be operated with the bottom spikes folded out or away
•
• Overall height: 1800mm
• Width unfolded: 1750 mm – Gap between spikes when open 1746mm
• Weight: 330kg
• SWL: 1200kg
The Combi Bale Grab with Soft Hands:
• Intended for round bales wrapped in plastic film.
• The bottom forks do not have to be removed: just fold them in so they will not strike the handled bales.
• Bale grab arm opening widths: Widest opening width of 2800mm; the opening width can be reduced to 1652mm with lock pins as required for the job.
• Two symmetric bale grab arms are 1144mm in height and 960mm long and made from 48.3mm diameter tubes
• Overall height: 1715mm
• Maximum length: 1300mm
• Weight: 323kg
• SWL: 800kg

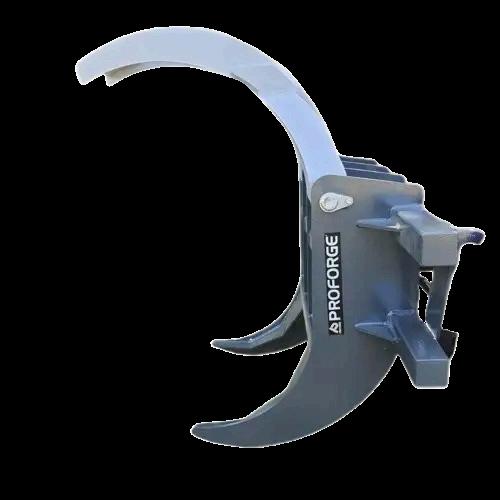

LOG GRAB
with Euro Brackets
THE CONCEPT
PROFORGE® Log Grab with Euro Brackets, for safe transportation of timber
ALL FEATURES
• Complete with brackets, hoses and couplings
• Twin Hydraulic Arms
• Durable Powder coated finish
THE CONCEPT
PROFORGE Compact Log Grab Attachment, 1000kg SWL (with Euro Brackets)
ALL FEATURES
Complete with hoses & couplings
Endurable powder coated finish
Single hydraulic arm
Standard with Euro Brackets
TECHINCAL INFOMATION
ROUND BALE GRAB
Soft hands
THE CONCEPT
PROFORGE Round Bale Grab works with loaders for stacking, transporting, loading and unloading of silage, hay, straw and bales.
ALL FEATURES
• Round Bale Grab comes complete with brackets (choice of brackets available)
• Comes complete with hoses and couplings
• Opens to 1700 mm diameter

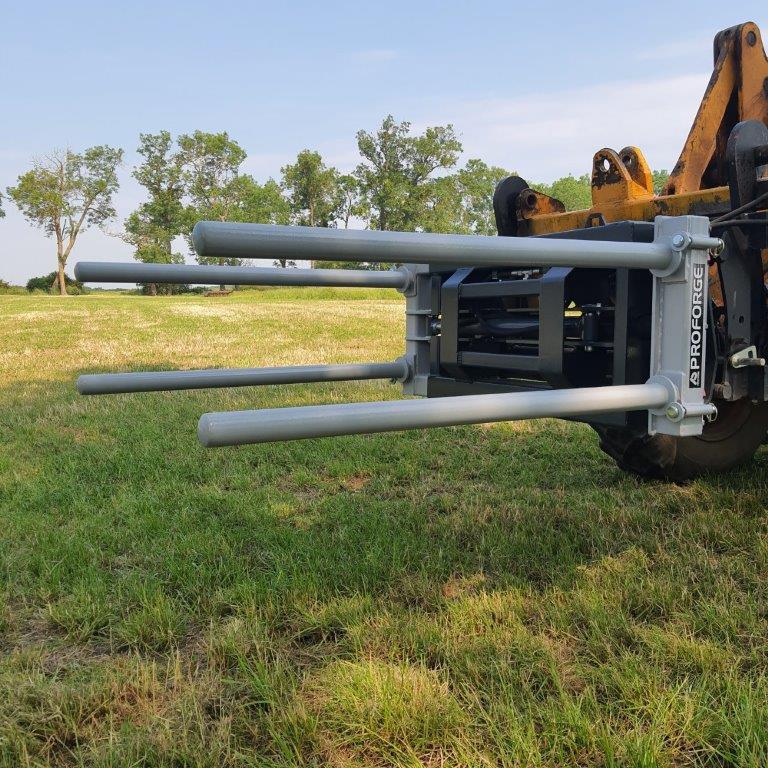

WRAPPED ROUND BALE LIFTER
Universal
THE CONCEPT
Designed for handling wrapped round bales. The Proforge Universal Wrapped Round Bale Handler works well with silage, haylage, hay and straw bales. Wrapped or unwrapped, square or round; this bale handler can handle it.
ALL FEATURES
• Roller design suits wrapped bales
• Tubes can be removed to expose spikes for square or round straw bales
• Heavy Duty Design
• It cradles the bale to protect it from any damage to the plastic.
• The roller arms are removable; leaving two bale spikes for transporting two bales of straw at a time.
• When the grab is not fully closed or open; the two arms will float from side to side making it easier to line up your bale in the field
• Can be fitted to 3 point linkage or front end loader with euro brackets
• Comes complete with hydraulic pipes & 1/2 quick release couplings
• Each roller is secured with a simple bolt, washer and linch pin mechanism
• Unladen Weight: 237kg
• Arm Length: 1250mm
• Distance between open arms: 1375mm
• Distance between closed arms: 770mm
SIDE SQUEEZE BALE GRAB/CLAMP
With Euro Brackets
THE CONCEPT
PROFORGE Side squeeze Bale Grab works with loaders for stacking, transporting, loading and unloading of silage, hay, straw and bales.
ALL FEATURES
• Max Width 2300mm, Load Capacity 900 kg, Weight of device 270 kg
• Arms can be opened/closed at variable speed
"Great multi-purpose item to have, particularly at harvest time.”
INFORMATION TECHNICAL INFORMATION
BUCKET GRAB HEAVY DUTY
THE CONCEPT
Tempered Tines Bucket Grab to work with loaders for transportation of silage, hay and straw, manure, debris, wood etc.
ALL FEATURES
• Complete with Hoses and Couplings
• Fully formed bucket allows for secure transportation of materials
• Blade of the bucket fabricated from abrasion –resistant steel
• Specially profiled steel tines
• Abrasion resistant zinc – plated pins and sleeves
• Heavy Duty forged tine frame
• Durable powder coated finish
• Twin Hydraulic arms
BUCKET GRAB
THE CONCEPT
Works with loaders for transportation of materials around the farm
ALL FEATURES
• Solid and durable structure made of high – resistance steel
• Comes with Hoses and Couplings
• Bucket allows for material to be collected, keeping it contained throughout transportation
• Bucket blade constructed from increased resistance steel
• High – Resistance tines especially suited to the design of the device
• Tines in thick walled turned cone sleeves ensure their stability and durability
TECHNICAL INFORMATION
• Thick walled beam ensures thick frame that doesn’t deform in heavy loads
• Zinc – plated pin and sleeves made of C45 steel that is resistant to abrasion ensure high quality and reliability
"“Grab arrived, very
Durable powder coated finish applied using modern spray techniques
H – type Conus 1 replaceable forged tines for ease of access into muck
“Great for use in agricultural and livestock environments for collection and storage of muck.”
BALE SPIKE
Triple Spike
THE CONCEPT
Perfect choice for safe handling and stacking of large bales and multi bale stacks.
ALL FEATURES
• 100 X 100 X 6mm Heavy Duty Box Section
• Wear plates on underside for increased strength
• Choice of common brackets
• Bale spikes fitted are SHW brand
THE CONCEPT
Suitable for most tractors, loaders & telehandlers. Ideal for when you have to go on the road with your bale spike attachment as the spike folds up for transport.
ALL FEATURES
Supplied with 4 long tines at the bottom & 4 short tines at the top
Simple folding mechanism with 2 pins and linch pins.
Fitted with Euro loader brackets (use an adapter plate if fitting on to a telehandler)
Depth unfolded: 1300mm, Depth folded; 680mm
TECHNICAL INFORMATION

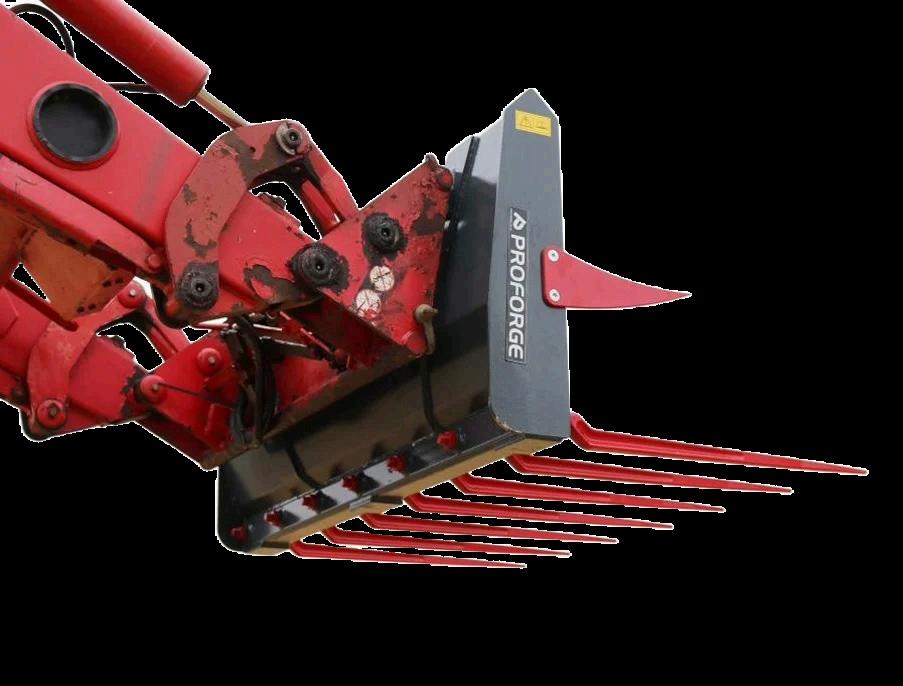

GRASS SILAGE FORK
THE CONCEPT
The PROFORGE Grass Silage Fork is designed to utilize smaller machines when handling grass or maize silage. It is designed to be used with your Tractor Loader, Telehandler or Small Articulated Loader.
ALL FEATURES
• Standard with bolt-on Euro
Brackets (simple flat box section easy to weld on JCB, Manitou or other brackets instead of Euro)
• Top spill frame as standard to increase volume and prevent spillage onto the loader headstock carriage
PALLET CARRIAGE & FORK
Combi Lifter
• The open back frame with vertical bars gives excellent vision of the material that's being handled THE CONCEPT
ALL FEATURES
Size of the fork: 80 x 40 x 1200mm
Removeable Back Guard/Frame
2 x Conus 1 Bush Sleeves fitted into frame, so this can also be used as a bale spikes (Bale
Spikes as extra)
Durable powder coated finish
“Highly versatile piece of equipment.”
Pallet Carriage and Forks Combi Lifter comes complete with Euro Brackets

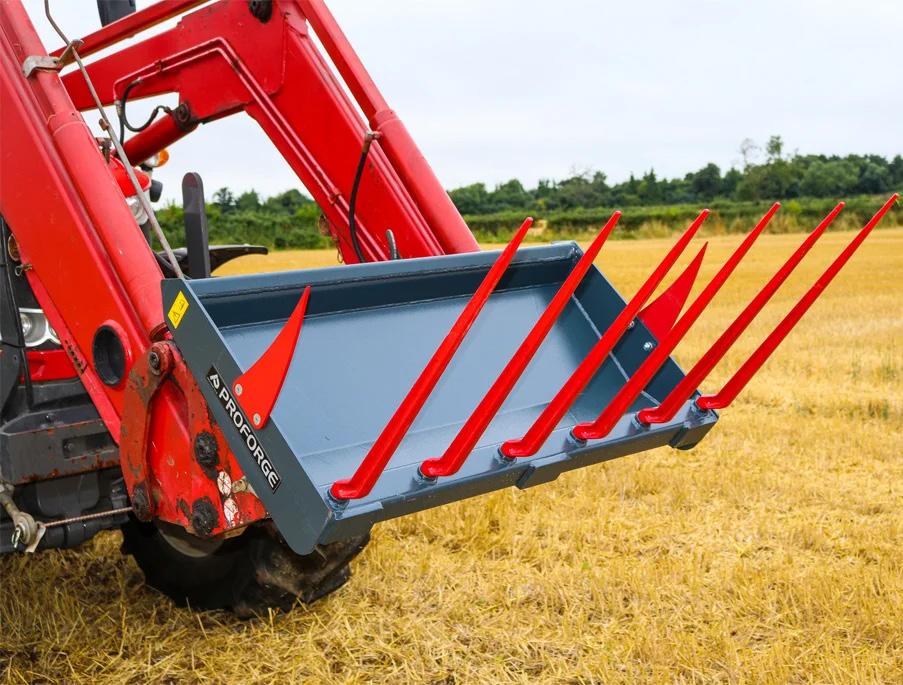

MANURE FORK
THE CONCEPT
PROFORGE® Manure Fork for transportation of manure.
ALL FEATURES
• Endurable powder coated finish
• Streamline Solid back
• H – type replaceable forged tines for ease of access into muck
• Side
PROFORGE Muck Grab for easy transportation of muck on the farm
ALL FEATURES
• Complete with hoses and couplings
TECHNICAL INFORMATION
"Very efficient for muck collection and storage on the farm.”
LOG SPLITTER
Tractor mounted Hydraulic
THE CONCEPT
New Heavy Duty Tractor Mounted Logsplitter for safe and effective log splitting
ALL FEATURES
• 3 point linkage,
• Twin Lever Safe Operation,
• Heavy Duty Industrial specification.
• 500mm Clearance as standard, 600mm Clearance if the ram is moved to the top hole.
• Logsplitter Table also available
• Please note main logsplitter colour is now grey
TECHNICAL INFORMATION
"Makes a practical combination when Logsplitter Table."
ALL FEATURES
• Table Only
THE CONCEPT
This Logsplitter Table provides the perfect accompaniment to the PROFORGE® Logsplitter.
• Compatible with any PROFORGE® Logsplitter
• Fully galvanised for maximum endurance
• 3 Point Linkage
• Practical & Efficient Design
“Maximising efficiency, this new Logsplitter Table takes the hard graft out of Timber processing!”
TECHNICAL INFORMATION
4 IN 1 BUCKET

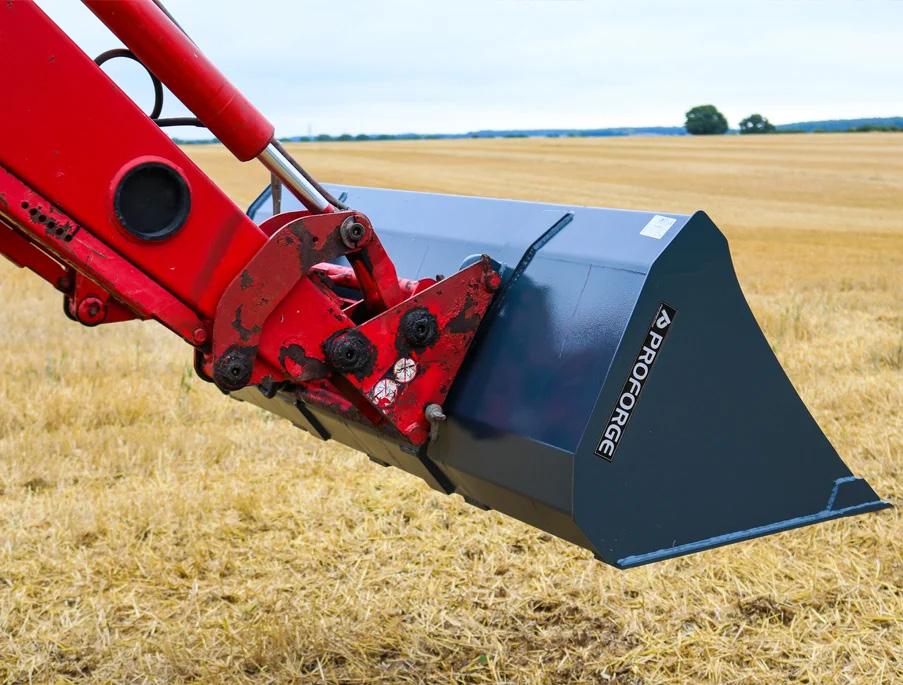

LOADER REHANDLING BUCKET
THE CONCEPT
PROFORGE 4 in 1 All – purpose bucket with replaceable bolt – on teeth
ALL FEATURES
• Comes Complete with Euro Brackets
• Replaceable bolt on teeth
• Complete with hoses and couplings
THE CONCEPT
Loader Rehandling bucket with bracket options, for daily activity on the farm, loading and unloading
ALL FEATURES
• Durable power – coated finish materials around the yard.”
"A very handy bucket, especially in farm and plant environments.”
TECHNICAL INFORMATION
TECHNICAL INFORMATION
TOE TIP BUCK BUCKETETET
Euro Brackets
THE CONCEPT
PROFORGE TOE TIP - Hi-Tip Bucket for Loader with Euro Brackets
PROFORGE TOE TIP Bucket – Hi-Tip Bucket for
Choice of 2 sizes: 1800mm wide (.7m3 capacityweight empty 395kg) or 2200mm wide (0.86m3-
INFORMATION

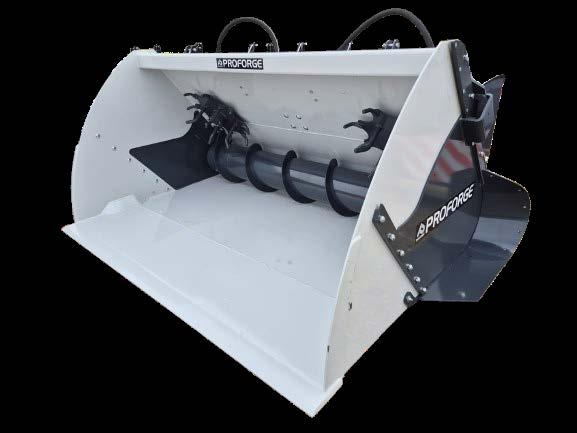

FEEDER BUCKET
THE CONCEPT
Hydraulic Auger Feed Bucket with Either-Side Discharge for Maize
Silage, Meal, Cake, Grain Feeding
ALL FEATURES

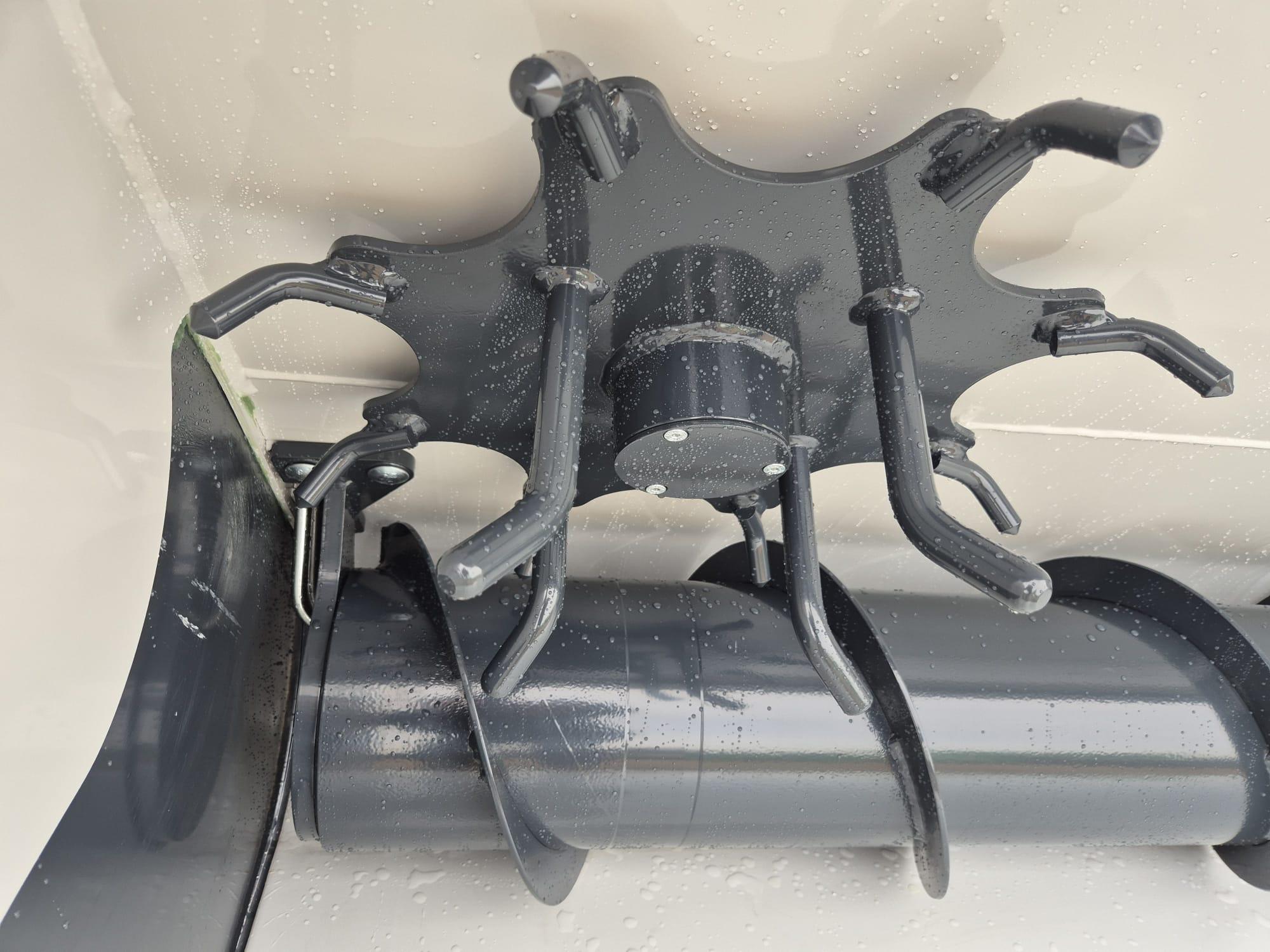

• Twin Agitators
• Hydraulic Drive Auger - Reversible flow for Left or Right Hand Delivery
• Hydraulic Guillotine Chute for discharge rate-control
• Wide Feed Discharge Chute for free-flowing emptying
• 6mm Sides and Hardox Bucket edge
• Choice of Brackets available for Front Loaders and Telehandlers
• Please note, there are no chopper/knives, so it is not to be confused with a Root Chopping Bucket
TECHNICAL

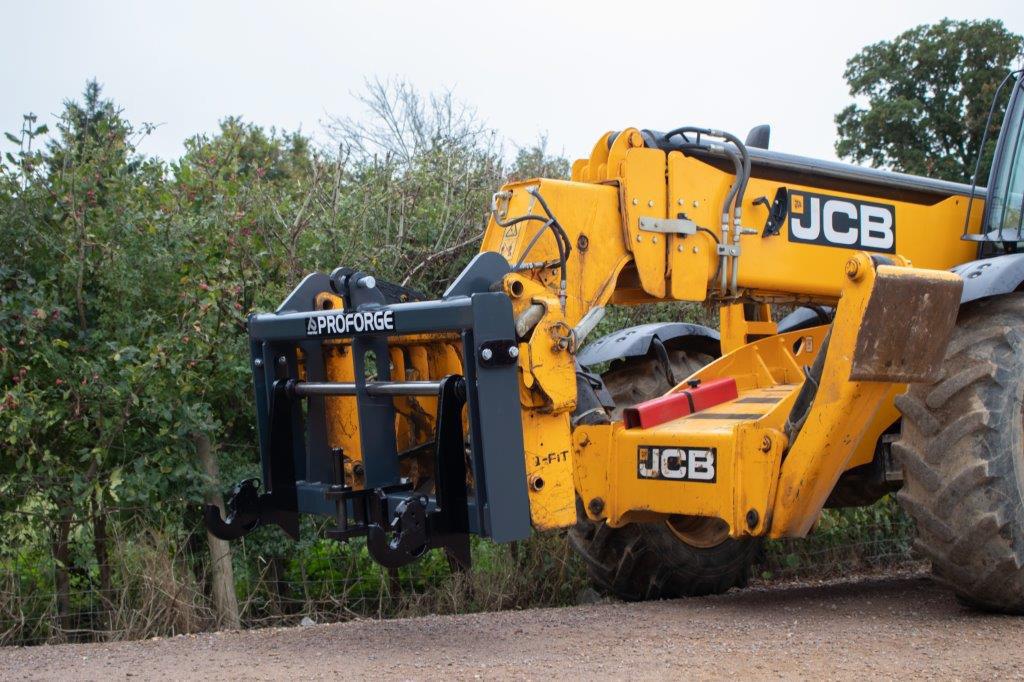

3 POINT LINKAGE HOOK-UP CARRIAGE
c/w brackets
THE CONCEPT
Allows you to pick up 3 point linkage implements with your existing headstock for easy handling around the yard.
ALL FEATURES
• All common bracket combinations available for your host machine
• 3 Point Linkage adaptors also available
• Centre Trailer Hitch optional extra
• Please note – image shows extra central trailer clevis and pin which is an optional extra
"This attachment makes transportation of attachments/implements around the yard significantly easier.”

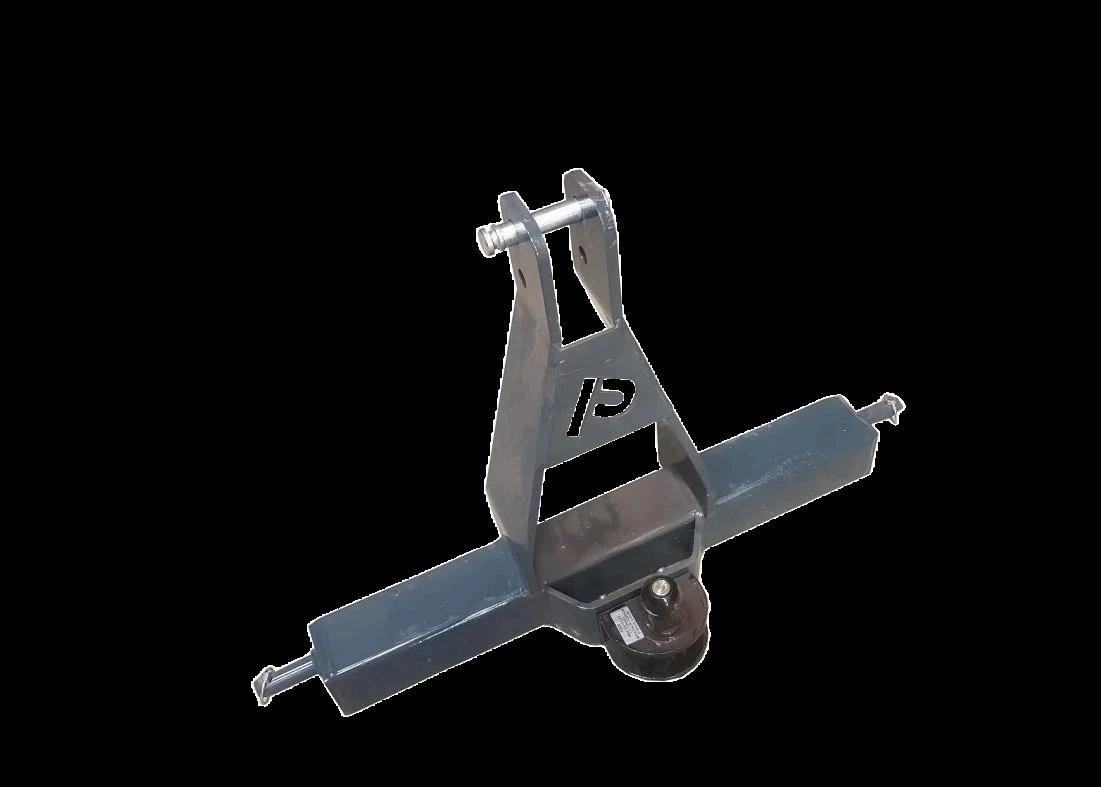

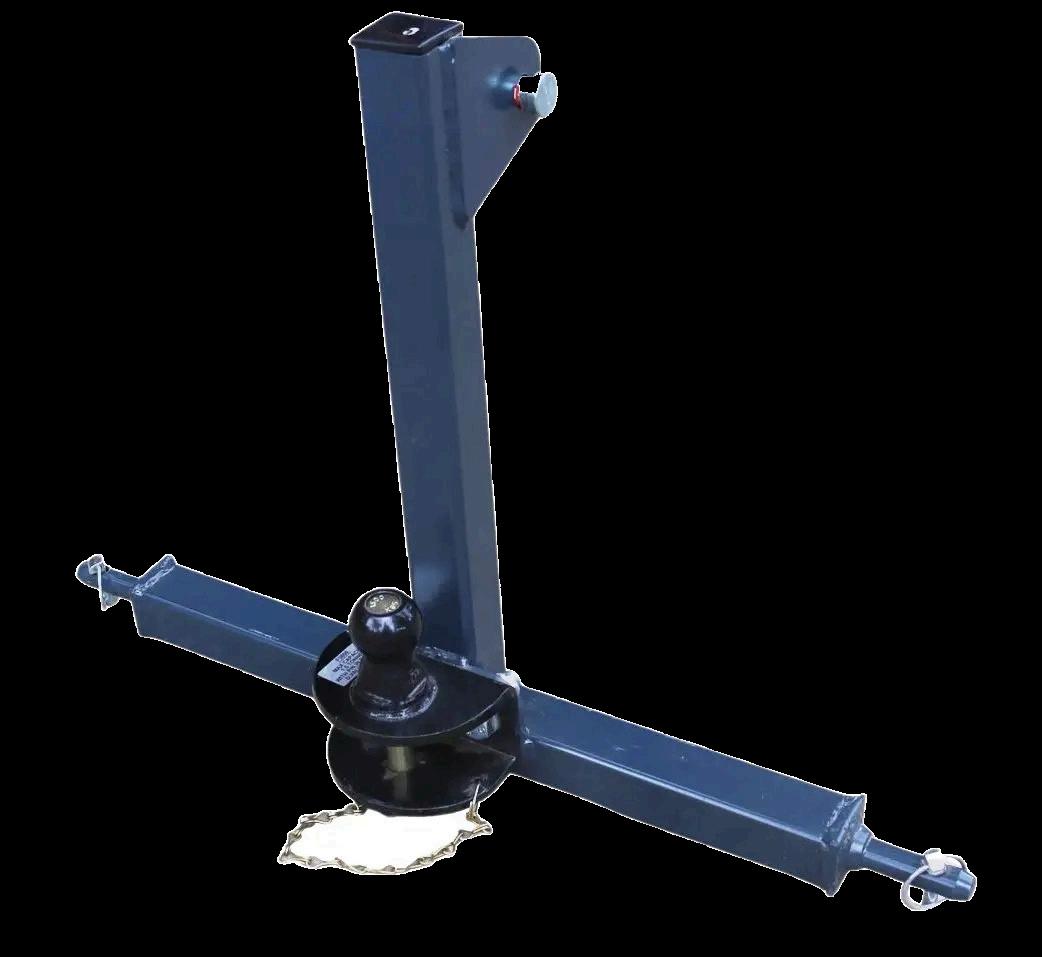

3 POINT LINKAGE HEADSTOCK
Category 1 & 2
THE CONCEPT
The concept of this attachment is to adapt a 3 Point Linkage connection to a towball hitch, for easy transportation of equipment around the farm
ALL FEATURES
TECHNICAL INFORMATION
“Simplifies towhook attachment to a tractor, making farmers lives easier.”

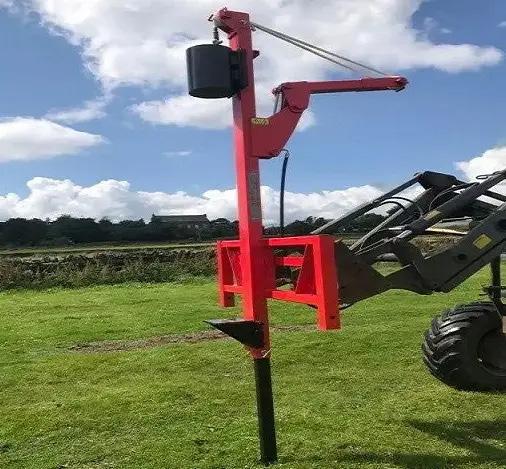

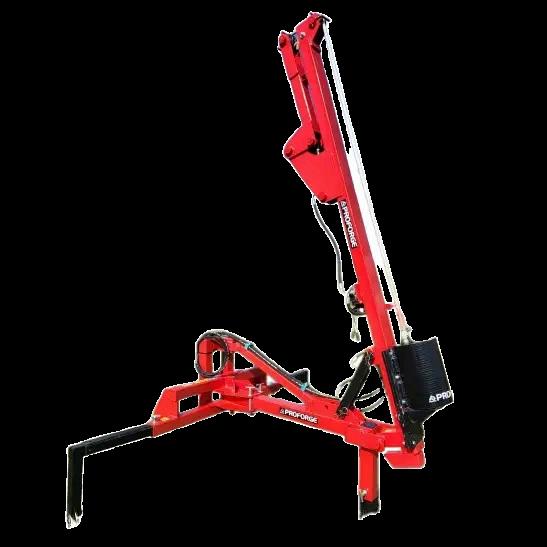

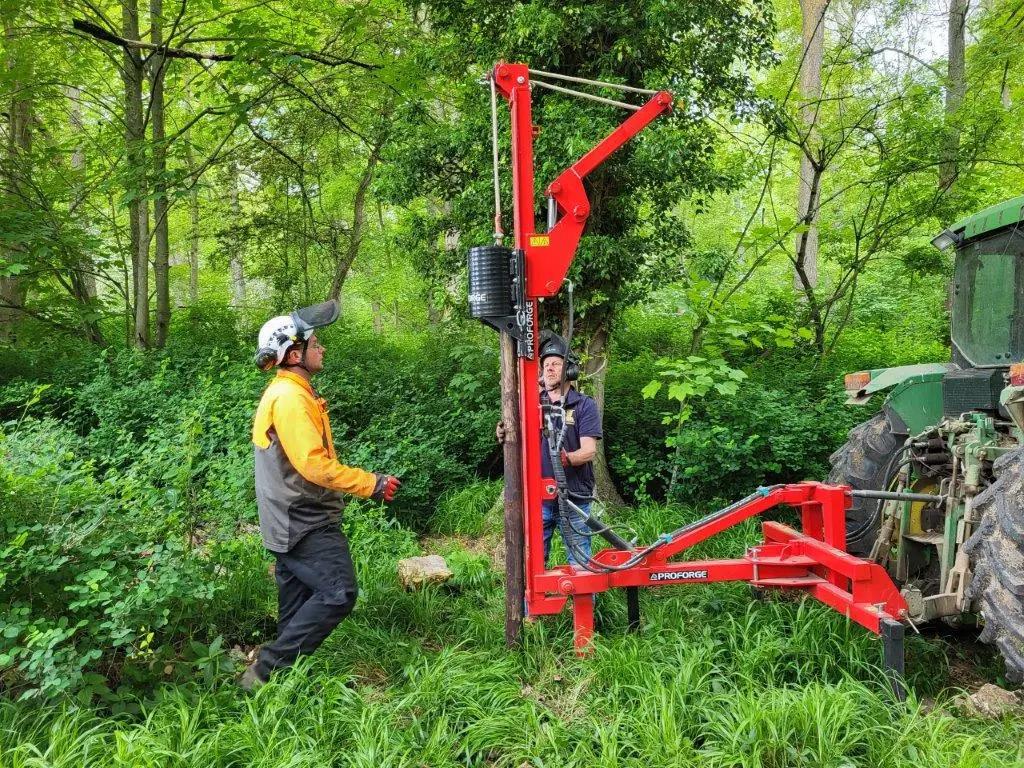

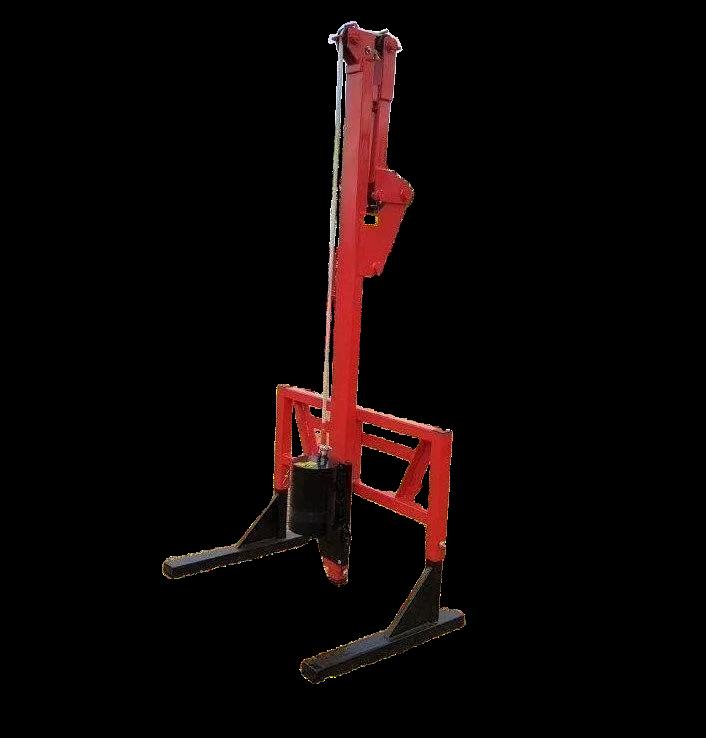

FENCE POST KNOCKER
Swing Round
FEATURES
• 3 Point Linkage
• Hydraulic Mast Levellin
• 20mm diameter braided rope
• Quick release post cap plate
• Adjustable Stands
• Manual Swing Round for Left, right or rear operation
• Greasable Pivot Points
• Independent Safe Operation Lever spool valve - only 1 Double Acting Spool Valve required from tractor
THE CONCEPT
PROFORGE Swing Round Fence Post Knocker/Post Rammer3 Point Linkage
POST KNOCKER
Loader/Telehandler Mounted
THE CONCEPT
PROFORGE Post Knocker - Loader/Telehandler Mountedounted
FEATURES
• 20mm diameter braided rope
• Quick release post cap plate
• Adjustable Stands
• Simple Mast Type
• Uses loader/telehandler hydraulics for the Hammer Lift,
INFORMATION
SHEAR GRAB
3 in 1 Combi-Cutter
THE CONCEPT
The PROFORGE Shear Grab Combi Cutter 3-in-1 is three implements in one: a Shear Grab, Bucket Grab and a Bale Cutter/ Slice/Unwrapper with a plastic film or net holder.
ALL FEATURES
• The robust and durable structure is made from HS (high strength) steel preserved by powder coating.
• Heavy-duty hydraulic cylinders are designed specifically for high performance and a long life.
• The thick-gauge cross-beam which holds the tine sockets braces the implement frame to prevent deformation at high loads.
• The top jaw is made of HS (high strength) steel with side and front (replaceable) prongs made from hardened steel, which provide cuts with smooth edges. The structure and operation of the implement are designed not to break up heaps when cutting to prevent accelerated festering of the material.
• The bucket blade is made of Hardox 500 alloy for high wear resistance.
• A highlight of the implement is the hydraulically-operated clamp to hold the plastic film and/or net of the bale being cut; this prevents manual intervention to remove the film / net while feeding animals.
• Opening height is 1480 mm
TECHNICAL INFORMATION
After Sales & Service Wearing Parts
HERE TO HELP
At PROFORGE our care for the customer does not stop at the time of the machine purchase. Our experienced support team are here to attend to your needs throughout the working life of the machine. Whether it be operation, application or maintenance, we are here to help.
Scan here to see full range of parts
GENUINE & APPROVED PARTS
To get maximum performance out of your machine we only recommend using PROFORGE genuine and approved parts. Most wearing parts are stocked and available for dispatch and next day delivery here in the UK or from strategic stockists globally.
WEARING PARTS
The PROFORGE brand is recognised in the market for quality parts. Many years of development, knowledge and design has gone into the Proforge range bringing parts from specialist bearings through to quality wearing metal such as the renowned PROFORGE500 bucket cutting edges manufactured from specialist heat treated boron.
With a focus on agriculture, construction and heavy industries, we aim to offer a select range of wear parts to fulfil many industry needs worldwide
See full range of parts available online....
We're Strong – Strategically Strong
