RECOVERPOINT OPERATIONS

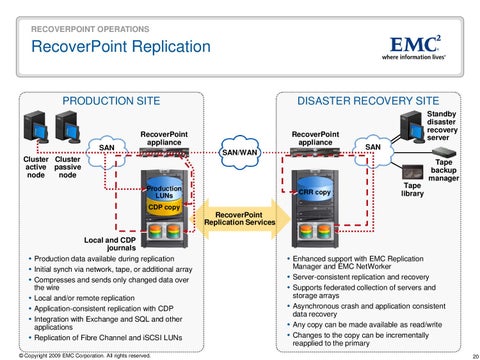

RecoverPoint Replication
PRODUCTION SITE
SAN
DISASTER RECOVERY SITE
RecoverPoint appliance
RecoverPoint appliance SAN/WAN
Cluster Cluster active passive node node
Standby disaster recovery server SAN Tape backup manager
Production LUNs
CRR copy
Tape library
CDP copy
RecoverPoint Replication Services
Local and CDP journals Production data available during replication Initial synch via network, tape, or additional array Compresses and sends only changed data over the wire Local and/or remote replication Application-consistent replication with CDP Integration with Exchange and SQL and other applications Replication of Fibre Channel and iSCSI LUNs
© Copyright 2009 EMC Corporation. All rights reserved.
Enhanced support with EMC Replication Manager and EMC NetWorker Server-consistent replication and recovery Supports federated collection of servers and storage arrays Asynchronous crash and application consistent data recovery Any copy can be made available as read/write Changes to the copy can be incrementally reapplied to the primary 20
