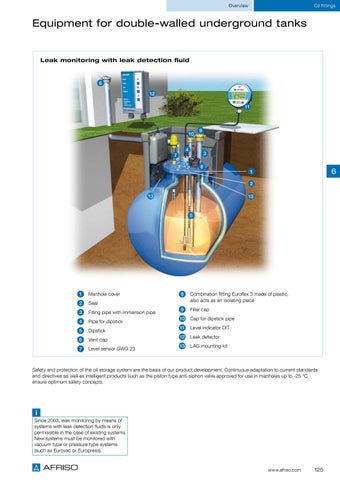

Equipment for double-walled underground tanks
Leak monitoring with leak detection fluid
6 12 11
10
9
4
7
3 8
6
1 2
13
13
5
1 Manhole cover 2 Seal 3 Filling pipe with immersion pipe 4 Pipe for dipstick 5 Dipstick 6 Vent cap 7 Level sensor GWG 23
8 Combination fitting Euroflex 3 made of plastic, also acts as an isolating piece 9 Filler cap
10 Cap for dipstick pipe 11 Level indicator DIT 12 Leak detector 13 LAG mounting kit
Safety and protection of the oil storage system are the basis of our product development. Continuous adaptation to current standards and directives as well as intelligent products such as the piston type anti-siphon valve approved for use in manholes up to -25 °C ensure optimum safety concepts.
i Since 2003, leak monitoring by means of systems with leak detection fluids is only permissible in the case of existing systems. New systems must be monitored with vacuum type or pressure type systems (such as Eurovac or Europress).
