CLICK CLACK HOTELMEDELLIN CONSTRAINTS NETWORK

VC. Perforated block. Our client purchased two adjacent lots on the same block: the first one crossing in a southnorth direction, and the second one shaping the northeast corner. By demolishing the existing buildings, the possibility of generating urban connections within the square became evident. Our client proposed a hotel that offered open spaces to the city (in a controlled manner), that also functioned as a center for cultural events (musical, gastronomic, artistic, and festive events). Therefore, we proposed a system of porous urban spaces on the ground floor: passage, patio, stands, terraces, stage, and lobbies, accompanied by restaurants, art gallery, cafe, and a basement for loud parties.

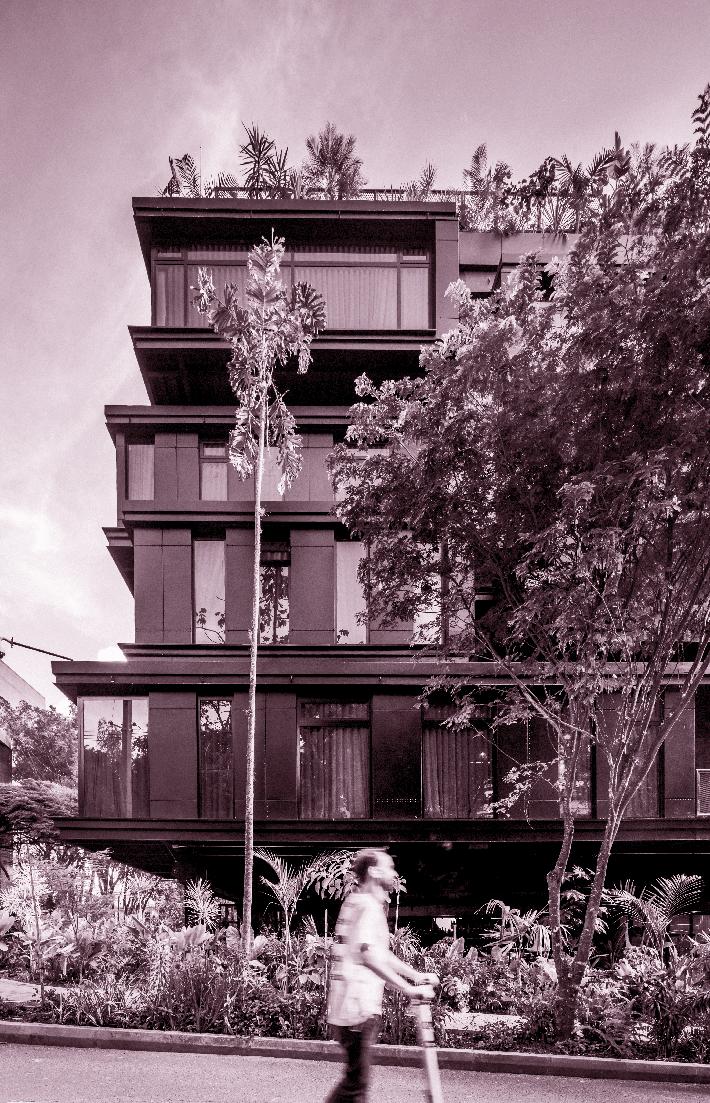

SC. Regulations. Two similar urban regulations defined the general shape of the building. For the whole block, a maximum ground floor height of 5 meters and a 70% maximum construction area of the lot. The south side block allowed a maximum height of 8 stories and an 11-meter setback separating the road axis to the facade. The north side of the block had a 5-story maximum height restriction and 9.50-11-meter setbacks to the road axis. In this way, we designed a building with different overhangs depending on the height and position.

Client: Monkey Business S.A.S.

Opening: 2019

Program: Hotel

Location: Medellin

Built area: 8,723 m2

Ecosystem: Montane forest

Altitude above sea level: 1,600 m

Cost per m2: USD 1,300

SC. No Ceiling. Budget cuts did not allow the construction of a metal ceiling we designed inside all the roof strips. This situation forced us to accept an industrial appearance that reveals the operation of the building in a simple way.

SC. Tripodes. The upper trusses’ structural forces and the big concrete foundations led us to design tripod-shaped columns. Two metal elements, one vertical and the other at an angle perpendicular to the facade withstand the horizontal forces of the trusses. A third element also at an angle but parallel to the facade, stiffens the structure in the longitudinal direction, carrying the drain pipes without touching the foundations.

VC. Green. For the color choice and the design of the perforations of the facades, we worked in partnership with our friend and graphic designer Juan David Diez, who chose the green tones of the roof membranes, the concrete floor, and the metal facades. He created the facade design taking photographs of small leaves that had fallen to the ground, which he organized in patterns to control the amount of airflow.
