2025 TONJIN Catalog

Page 1


In 1984, Bill went into the Bicycle Industry.

From being a welding engineer to designing a framearound 35 years, he had accummulated abundant experiences and mature technique.

In the summer of 2005,to realize his ideal of frame building, Bill decided to establish TONJIN technology Co.Ltd.

1984年,BILL進入自行車產業從焊接工程師到設計車架

35年來,他累積了豐富的經驗和成熟的技術

2005年夏天,為了實現框架建設的理想,BILL決定成立TONJIN

Insistence of TONJIN

Specialty of TONJIN

With our senior welding engineers and strict QC system, we always offer our customers superior quality.

With our staunch R&D and Marketing department, we always offer our customers the best service.

We devoted to present the craft and beauty of handmade frame to maximum production.

Prospect of TONJIN

We specialized in OEM & ODM frames and development for variety of models. TONJIN not only manufactures common models but also particular models, such as tricycle, recumbent, and hand bike, etc.

To build frames with variety of materials: In addition to CR-MO frames, we also devote to the application and decelopmment that use other materials, such as Aumimum,Stainless Steel and Titanim, So that to achieve the goal that use variety of mmaterials on mass production.

Faith of TONJIN

TNDA003

Material : AL6061

Motor System : SHIMANO E8000

Ba�ery : SHIMANO BT-E8010

Tire :

Front wheel 26”

Rear wheel 24”

1. IS mount disc brake seat is compa�ble with various specifica�ons of discs.

2. Hydraulically formed down tube is used to facilitate the installa�on of the SHIMANO BT-E8010 ba�ery.

3. Due to the long body, the central parking frame design is adopted to facilitate the parking of the frame and prevent dumping.

4. Length of the rear body is lengthened to increase the cargo space, and the truss structure design is adopted to enhance the load-bearing strength

5. Le� and right sides of the rear body are equipped with pedal racks, which are designed to be convenient for carrying goods and children to ride and step on.

6. Tail end of the rear shelf is designed with a lamp locking hole to facilitate the assembly of lamps.

7. An aluminum alloy motor protec�on cover is a�ached to protect the motor motor system.

8. Low-slung design makes it easy for riders to get on and

1. IS mount disc brake seat is compa�ble with various specifica�ons of discs.

2. Hydraulically formed down tube is used to facilitate the installa�on of the SHIMANO BT-E8010 ba�ery.

3. Due to the long body, the central parking frame design is adopted to facilitate the parking of the frame and prevent dumping.

4. Length of the rear body is lengthened to increase the cargo space, and the truss structure design is adopted to enhance the load-bearing strength

5. Le� and right sides of the rear body are equipped with pedal racks, which are designed to be convenient for carrying goods and children to ride and step on.

6. Tail end of the rear shelf is designed with a lamp locking hole to facilitate the assembly of lamps.

7. An aluminum alloy motor protec�on cover is a�ached to protect the motor motor system.

8. Low-slung design makes it easy for riders to get on and off frequently, increasing the mobility and convenience of users.

:

BT-E8010 Tire : Front wheel 26” Rear wheel 20” C-T :15” Weight : 5.40KGS (FRAME)

Material : CR-MO 4130

H / T : Ø42* Ø52.1 (1-1/8" & 1.5"), making the fork more stable.

B / B : T47 (M47*P1.0), making pedaling more stable.

Seatpost : 27.2

Rear brake : Flat mount 160 &180

M12*P1.5 THROUGH AXLE dropout

Tire : 700C*45C

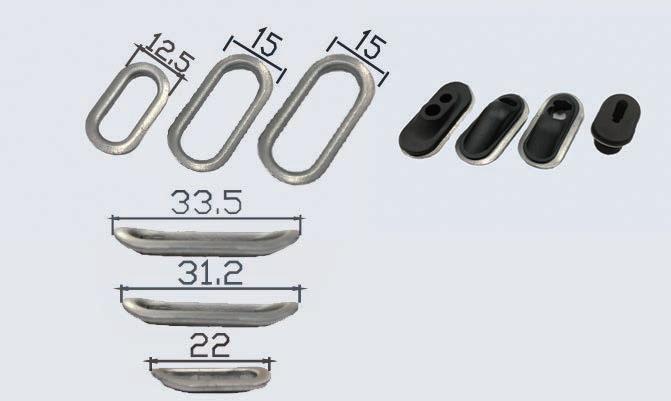

Full internal cable rou�ng

Weight : 2.43KGS

Material : CR-MO 4130

Seat Post : Ø31.6

H / T : Ø44* Ø55.95 1-1/8" & 1.5", making the fork more stable

B / B : BSA 73 BC1.37*24T ( English thread )

Rear brake : post mount 180 diameter disc

SRAM UDH ,Transmission hanger

M12*P1.0 THROUGH AXLE

One piece C/S YOKE : lost wax cas�ng

Tire : 29"*2.6"

Weight : 3.14KGS

Tire : 27.5

Rear Travel : 130 mm

Post mount : rear disc 180

Adjustment interval : 4 bar linkage

Weight : 4.98KGS

Material : AL6061

Motor System : SHIMANO E8000

Ba�ery : SHIMANO BT-E8035

Rear Shock : 200 / 57

Rear Travel : 160mm

Tire : All moun�on 650 x 18"

Weight : 4.85KGS (FRAME)

Material : AL6061

Ba�ery : SHIMANO BT-E8020

Motor System : SHIMANO E8000

Rear Shock : 200 / 57

Rear Travel : 160mm

Tire : All moun�on 650 x 18"

Weight : 5.0KGS (FRAME)

1984年,紀秉富先生投入了自行車產業。從焊接技師到車架的設計,

累積了近30年的豐富經驗與成熟技術。在2001年夏天,決定成立東侲科技 有限公司,來實現他對車架生產的理想。

Material : AL6061

System : Fazua Eva�on

東侲的堅持

提供客戶到位的服務。

致力於將手工車架的工藝技術及美感呈現在一般量產車架上。

Frame Type : Racing Frame

Weight : 2.18KGS (FRAME)

資深的焊接技師與嚴格的品管系統,提供給客戶優良的品質;堅強的研發團隊及業務部門, 東侲的專長

製造三輪車、斜躺車、傷殘車...等的特殊車種。

用與開發,已達成各種材質車架量產化為目標。

從事OEM及ODM的生產,並配合開發各式的車款。除一般常見的車款,同時東侲也專長於

多元材質的車架製造:除了CR-MO車架,我們也致力於鈦合金、不鏽鋼及Carbon等材質的應

Material : AL6061

System : Shimano

Du: Shimano E8000

BT: Shimano E8010

Weight : 1.85KGS (FRAME)

Material : AL6061

System : Shimano

Du: Shimano E8000

BT: Shimano E8010

Rear Shock : 200 / 57

Rear Travel : 160mm

Weight : 3.64KGS (FRAME)

Material : AL6061

Rear Shock : 200 / 57

Rear Travel : 160mm

Weight : 3.64KGS (FRAME)

Material : CR-MO 4130

Headtube : 1-1/8"- 1-1/2"

System : Shimano

Du : Shimano E8000

BT : Shimano E8010

M12 x Through Axle dropout

Tire : 700c x 40c

Weight : 3.38KGS

Material : CR-MO 4130

Headtube : 1-1/8"- 1-1/2"

Falt mount 160 dropout

Tire : 700c x 40c

Axle : M12 x P1.5 x 155L E-THRU

Material : CR-MO 4130

System : Shimano

Du : Shimano E8000

BT : Shimano E8010

M12 x Through Axle dropout

Weight : 3.16KGS

Material : Columbus Thron

Fillet Brazed Handmade

Headtube : 1-1/8"

QR-Type dropout

Tire : 700c x 25c

Weight : 1.8KGS

Material : Columbus Thron

Fillet Brazed Handmade

Headtube : 1-1/8"

QR-Type dropout

Tire : 700c x 25c

Weight : 1.8KGS

Material : Columbus Thron

Fillet Brazed Handmade

Material : Reynolds 725

Fillet Brazed LUG

Headtube : 1-1/8"

QR-Type dropout

Tire : 700c x 25c

Weight : 1.87KGS

Material : CR-MO 4130

Welding : LUG

Size : 46~62cm

Tire : 700c

Weight : 1.74KGS

Weight : 1.82KGS

Material : CR-MO 4130

Welding : LUG

Size : To order

Tire : 700c Disc Road

Weight : 1.76KGS

Material : CR-MO 4130

Size : 15" 17" 19"

Throu - axle type 12mm

Tire : 29er / 650B

Weight : 2.3KGS

Material : CR-MO 4130

Size : 15" - 21"

Tire : 29er / 650B

Weight : 2.26KGS

Material : Reynolds 725

Size : 15" - 21"

Tire : 29er / 650B

Weight : 2.56KGS

Material : CR-MO 4130

Size : 17" - 21"

Tire : 29er / 650B

Weight : 2.32KGS

Size : To order

Tire : 29er / 650B Weight : 2.90KGS

Material : CR-MO 4130

Size : To order

Tire : 29er / 650B Weight : 1.95KGS

Material : CR-MO 4130

Size : To order Weight : 2.38 KGS

Material : CR-MO 4130

Size : 12" Weight : 1.98KGS

TJD-002

Material : CR-MO 4130

Size : To order

: 1.43 KGS

Material : KVA - MS2

Size : To order

Weight : 1.96KGS

Fillet Brazing Brown-Rose gold or polished Sandblas�ng decal

Size : To order

Material : Columbus XCR

Material : Reynolds 931

Size : To order

: 1.53KGS

Material : KVA MS3 / CR-MO 4130

Size : 15" 17" 19"

Weight : 2.56KGS

Material : KVA - MS2

Polishhed or Scotchbrite

Size : To order

Weight : 2.57KGS

Brown-Rose gold Size : To order

: 1.51KGS

E-ROAD

1-1/8” ~ 1-1/2” Headtube / BAFANG M800 / M12 E-THRU Axle / Flat mount140 dropout

E-ROAD

1-1/8” ~ 1-1/2” Headtube / BAFANG M800 / M12 E-THRU Axle / Flat mount140 dropout
