Hyster J007 (H190HD2, H210HD2, H230HD2, H230HDS2, H250HD2, H280HD2) Forklift Service Repair Manual

Page 25

2200 SRM 1481

General Functions of the Interface

Load Moment Interrupt Screen

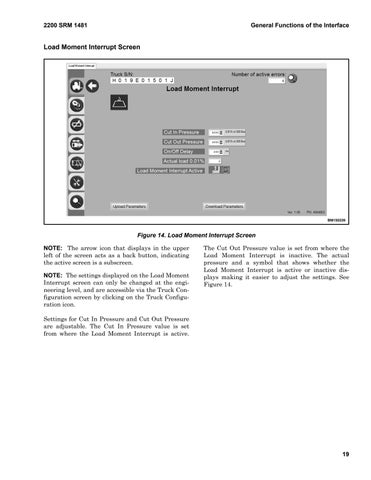

Figure 14. Load Moment Interrupt Screen NOTE: The arrow icon that displays in the upper left of the screen acts as a back button, indicating the active screen is a subscreen. NOTE: The settings displayed on the Load Moment Interrupt screen can only be changed at the engineering level, and are accessible via the Truck Configuration screen by clicking on the Truck Configuration icon.

The Cut Out Pressure value is set from where the Load Moment Interrupt is inactive. The actual pressure and a symbol that shows whether the Load Moment Interrupt is active or inactive displays making it easier to adjust the settings. See Figure 14.

Settings for Cut In Pressure and Cut Out Pressure are adjustable. The Cut In Pressure value is set from where the Load Moment Interrupt is active.

19
