Hyster J007 (H190HD2, H210HD2, H230HD2, H230HDS2, H250HD2, H280HD2) Forklift Service Repair Manual

Page 24

General Functions of the Interface

2200 SRM 1481

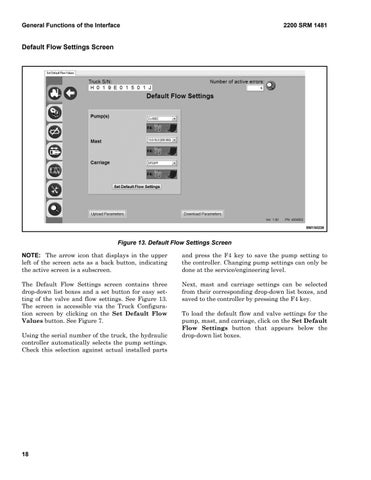

Default Flow Settings Screen

Figure 13. Default Flow Settings Screen NOTE: The arrow icon that displays in the upper left of the screen acts as a back button, indicating the active screen is a subscreen.

and press the F4 key to save the pump setting to the controller. Changing pump settings can only be done at the service/engineering level.

The Default Flow Settings screen contains three drop-down list boxes and a set button for easy setting of the valve and flow settings. See Figure 13. The screen is accessible via the Truck Configuration screen by clicking on the Set Default Flow Values button. See Figure 7.

Next, mast and carriage settings can be selected from their corresponding drop-down list boxes, and saved to the controller by pressing the F4 key.

Using the serial number of the truck, the hydraulic controller automatically selects the pump settings. Check this selection against actual installed parts

18

To load the default flow and valve settings for the pump, mast, and carriage, click on the Set Default Flow Settings button that appears below the drop-down list boxes.
