General
2200 SRM 1632

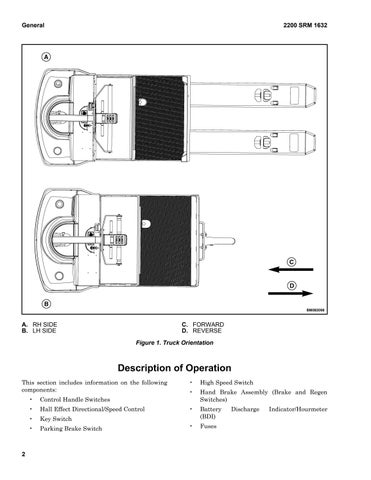

A. RH SIDE B. LH SIDE
C. FORWARD D. REVERSE Figure 1. Truck Orientation
Description of Operation This section includes information on the following components:
2
•
Control Handle Switches
•
Hall Effect Directional/Speed Control
•
Key Switch
•
Parking Brake Switch
•
High Speed Switch
•
Hand Brake Assembly (Brake and Regen Switches)
•
Battery (BDI)
•
Fuses
Discharge
Indicator/Hourmeter
