Control Handle (Standard)
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.
2200 SRM 1640
LOWER HALF UPPER HALF CONTROL HANDLE CARD ASSEMBLY SHAFT BUSHING LH BUTTERFLY KNOB WASHER SCREW SPRING RH BUTTERFLY KNOB SWITCH COVER
12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22.
SPRING SWITCH HORN SWITCH COVER SWITCH ASSEMBLY LABEL LABEL LABEL ACTUATOR ACTUATOR SPRING MICROSWITCH

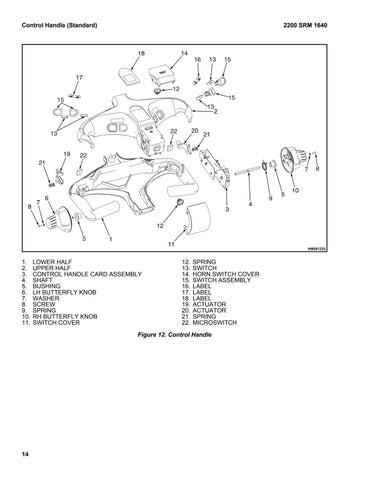

Figure 12. Control Handle
