OPTCHAIN™ IS AN OUTCOME-DRIVEN INTELLIGENT SUPPLY CHAIN (ISC)

SOLUTION SUITE POWERED BY OPTEL TRACEABILITY TECHNOLOGIES PROVIDING THE RIGHT INSIGHT, AT THE RIGHT TIME.

The Optchain™ platform acts as a supply chain control tower. Granular data is captured along the supply chain and connected, providing visibility and transparency

Optchain™ boasts industry-leading traceability capabilities to help businesses have more performant and sustainable supply chains while complying with local regulations and international standards.

No matter the supply chain complexity or the maturity of your business digitalization, Optchain™ is the ally you need to enable your digital transformation.

KEY BENEFITS

• Optimizes operations and supply chain performance with real-time visibility

• Increases transparency

• Monitors the impact of a product’s journey through the supply chain

• Helps manage risk

• Generates rapid and maximized ROI once implemented

• Provides businesses, their partners and their consumers with information they can trust to make better decisions

• Offers a configurable, agile and modular approach to best address customer needs

• Integrates with any system, is highly interoperable and vendor-agnostic.

KEY FEATURES

• Dynamic supply chain mapping tools, alerts and reports

• AI capabilities

•

Accurate real-time inventory geolocation, level and expiry date

• Product flow tracking for inventory control

• Validation of product origin, authenticity and integrity

• Compliance readiness and connection with external partners (audit data, gov)

• Management of reusable/recycled assets

• Sustainability monitoring and improvement programs

• Socioeconomic and environmental impact evaluation

• Accurate and verified data captured across the entire supply chain.

© 2022 by OPTEL GROUP. All rights reserved.

SUSTAINABILITY

Solutions for visibility of supply chain environmental and social impact: Responsible Sourcing

Engage with smallholders and supply chain participants to get environmental and sociodemographic analytics at the source.

Carbon Footprint Tracking

Track GHG emissions from your supply chain through the visibility of verified product-level emissions data, improve and accelerate your decarbonization efforts.

Recycling

Track your reusable packaging from manufacturing sites to the end user and back or monitor the level of recycled material in your products.

PERFORMANCE

Real-time production and supply chain efficiency solutions for better operational intelligence:

Inventory Tracking Planning

Instant visibility on your supply chain inventory flow allows you to improve forecasting and be more agile with your inventory.

Product Quality

Control product and material integrity on manufacturing lines, across distribution, and in the field with this low maintenance highaccuracy solution.

Product Authentication

Trace and authenticate your products along the supply chain with cutting-edge traceability capabilities and innovative artificial intelligence (AI) algorithms.

COMPLIANCE

Solutions for product identification and tracking for traceability and compliance: Track and Trace

Your business can comply with all worldwide regulations through the help of our full-stack track-and-trace technologies.

Tax Management

Comply with regulations and mitigate counterfeiting. Mark, inspect, track, trace and validate your products throughout your supply chain.

Food Safety

Deploy precise and efficient recalls, monitor supply chain data such as cold chain conditions, trace raw materials and comply with local regulations.

2022 by OPTEL GROUP. All rights reserved.

WE ARE

O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . P R E S E N C E I N M O R E T H A N 3 0 C O U N T R I E S O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 5 0 0+ T H O U S A N D P R O D U C E R S C O N N E C T E D O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . 2 5+ B I L L I O N P R O D U C T S T R A C K E D P E R Y E A R O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 6 , 0 0 0+ S Y S T E M S I N S T A L L E D W O R L D W I D E O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . M I L L I O N S O F C O N S U M E R S E N G A G E D O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . P R E S E N C E I N M O R E T H A N 3 0 C O U N T R I E S O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . 5 0 0+ T H O U S A

N D P R O D U C E R S C O N N E C T E D O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 2 5+ B I L L I O N P R O D U C T S T R A C K E D P E R Y E

A R O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . 6 , 0 0 0+ S Y S T E M S I N S T A L L E D W O R L D W I D E O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . M I L L I O N S O F C O N S U M E R S E N G A G E D O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . P R E S E N C E I N M O R E T H A N 3 0 C O U N T R I E S O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 5 0 0+ T H O U S A N D P R O D U C E R S C O N N E C T E D O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s .

OPTEL

2 5+ B I L L I O N P R O D U C T S T R A C K E D P E R Y E A R O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 6 , 0 0 0+ S Y S T E M S I N S T A L L E D W O R L D W I D E O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . M I L L I O N S O F C O N S U M E R S E N G A G E D O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . P R E S E N C E I N M O R E T H A N 3 0 C O U N T R I E S O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . 5 0 0+ T H O U S A N D P R O D U C E R S C O N N E C T E D O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 2 5+ B I L L I O N P R O D U C T S T R A C K E D P E R Y E A R O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . 6 , 0 0 0+ S Y S T E M S I N S T A L L E D W O R L D W I D E O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . M I L L I O N S O F C O N S U M E R S E N G A G E D O U R

© 2022 by OPTEL GROUP. All rights reserved.

P R E S E N C E I N M O R E T H A N 3 0 C O U N T R I E S O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b

M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . P R E S E N C E I N M O R E T H A N 3 0 C O U N T R I E S O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 5 0 0+ T H O U S A N D P R O D U C E R S C O N N E C T E D O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . 2 5+ B I L L I O N P R O D U C T S T R A C K E D P E R Y E A R O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y . 6 , 0 0 0+ S Y S T E M S I N S T A L L E D W O R L D W I D E O U R M I S S I O N T o b e a s o c i a l l y a n d e n v i r o n m e n t a l l y r e s p o n s i b l e l e a d e r t h a t i n f l u e n c e s a n d h e l p s c i t i z e n s , b u s i n e s s e s a n d p u b l i c i n s t i t u t i o n s g l o b a l l y t o b u i l d a b e t t e r w o r l d t o g e t h e r b y l e v e r a g i n g t r a n s f o r m a t i v e t e c h n o l o g i e s . M I L L I O N S O F C O N S U M E R S E N G A G E D O U R V I S I O N A c o n n e c t e d w o r l d , p o w e r e d b y O P T E L ’ s I n t e l l i g e n t S u p p l y C h a i n ( I S C ) p l a t f o r m , t h a t p r o v i d e s f u l l t r a n s p a r e n c y a n d o p t i m i z e d p e r f o r m a n c e , e a r n i n g t h e t r u s t o f c o n s u m e r s w h i l e e n c o u r a g i n g s o c i a l a n d e n v i r o n m e n t a l r e s p o n s i b i l i t y a n d a c c o u n t a b i l i t y .

OPTEL is a global company with manufacturing sites on four continents and 600 employees around the globe. The company has 30 years of proven expertise in developing and deploying track-and-trace, vision and traceability systems for the world’s leading pharmaceutical, food and beverage, and agrochemical brands. OPTEL is a Certified B Corporation and co-founder of the Canadian AI supercluster for supply chains (Scale AI).

© 2022 by OPTEL GROUP. All rights reserved.

Ireland

Germany

ASIA OPTEL India 2016

SOUTH AMERICA OPTEL Brazil 2017

OPEN SITEMASTER TM

POWERFUL, SCALABLE AND RELIABLE SERIALIZATION DATA MANAGEMENT

OWN YOUR PROCESSES WITH OPTEL’S FLEXIBLE SERIALIZATION SOFTWARE SOLUTION

OPTEL’s Open SiteMasterTM (OSM) provides superior information exchange management between the various systems involved in serialization. While coordinating site-level activities, the OSM gathers data from the packaging lines and reports it back to enterprise platforms, such as ERP, as well as to L4 serialization managers.

The OSM encapsulates all of OPTEL’s expertise in serialization and aggregation, complying with numerous laws and regulations around the world, as well as supporting industry standards and best practices.

RECENT

• Enhanced UI interface

• Script automation

- Conditions verification

- Script prioritization in tasks

- Scheduled tasks

Notification service

• More trails information available

• Material master copy

• Support for preprinted serialization

• Shipping event reports to L4 Business locations now support complete address

• Extended serial number support

- NTIN, GTIN, SSCC, PPN and ACS

• Significant EPC storage capacity increase to 64-bit

• Ability to add EPC-related master data attributes

• Ability to create EPC and product ID from Kompano™

• Support for new market regulations

SCALABILITY THROUGH MIDDLEWARE

• Scripting capability provides reliable integration

• OPTEL Bridge scripts enable infinite flexibility and scalability by extending OSM functionalities

• Python scripts can be built for the OSM to run according to your organization’s infrastructure

• Unlimited number of connections are permitted, allowing you to interface with all your existing corporate systems

WITH

THIRD-PARTY PLATFORM

TRACELINK

VERIFY PLATFORM RFXCEL AXWAY ARVATO

Custom integration available

OSM LICENSING, MAINTENANCE AND SUPPORT

SOFTWARE TYPE

LICENSE TYPE

NUMBER OF END USERS

SUPPORT

Web-based server software, offering an HTML-based graphical user interface (GUI) and a machine interface interacting via Web services.

Installed on licensee premises, on licensee hardware.

Server license allowing use of the Web-based application interface to an unlimited number of end users with the appropriate access rights.

Basic remote technical assistance between 8 a.m. and 5 p.m. EST. Premium support plan (24/5 or 24/7) available for an annual subscription fee.

LOOKING AHEAD

With its three decades of expertise, OPTEL continues to enhance its product offering, and the OSM is no exception. Here are just a few initiatives our dedicated team is currently investigating:

• Multi-lot order management

• Open SCS

• Cloud-based deployment

• Public API

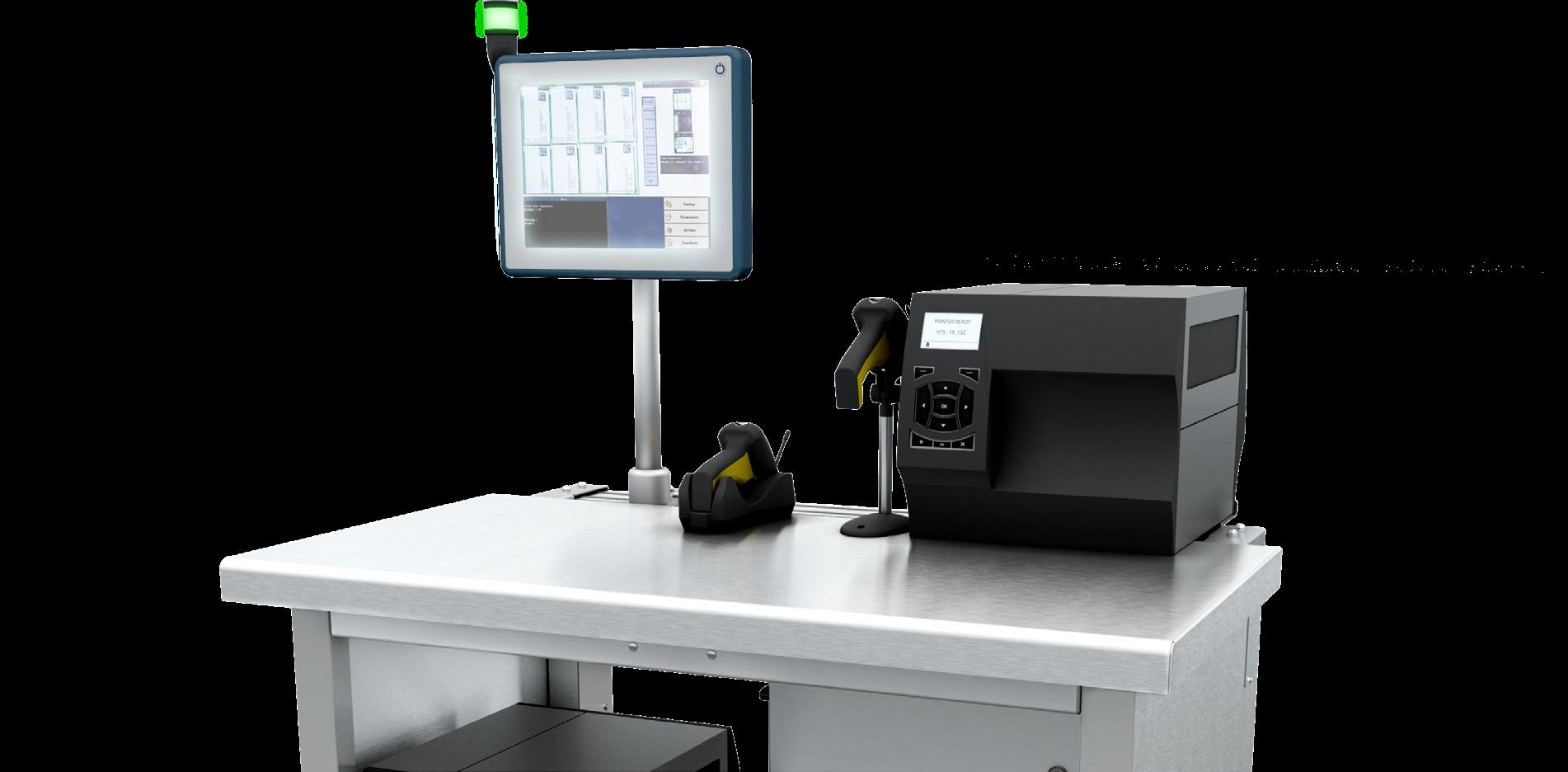

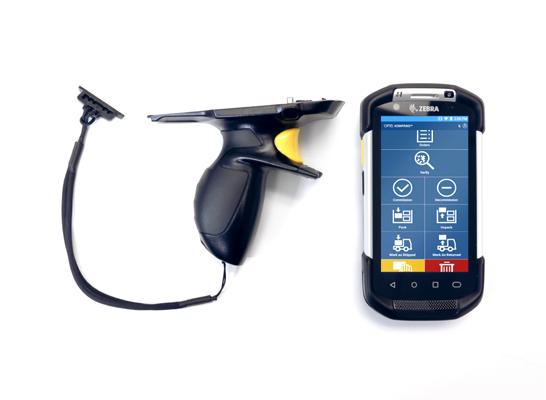

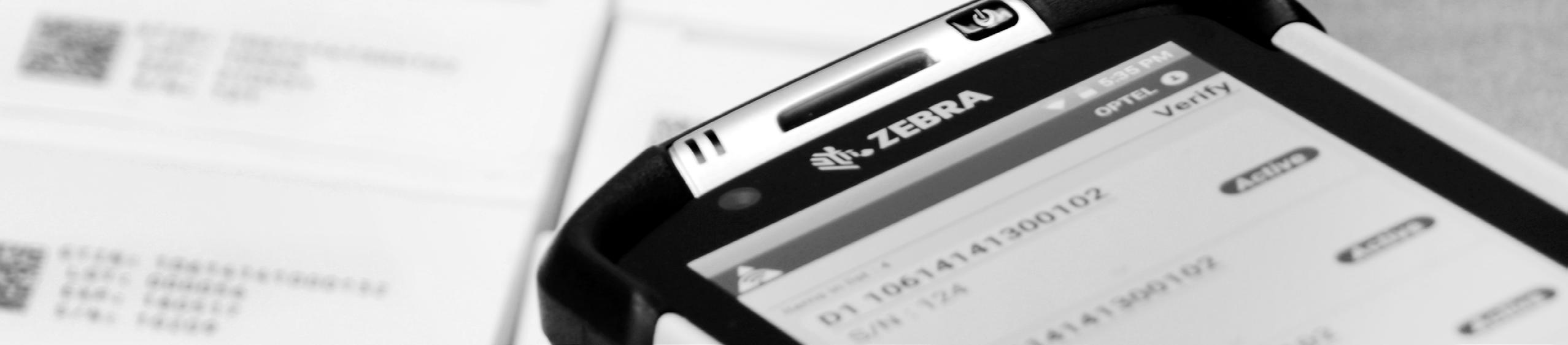

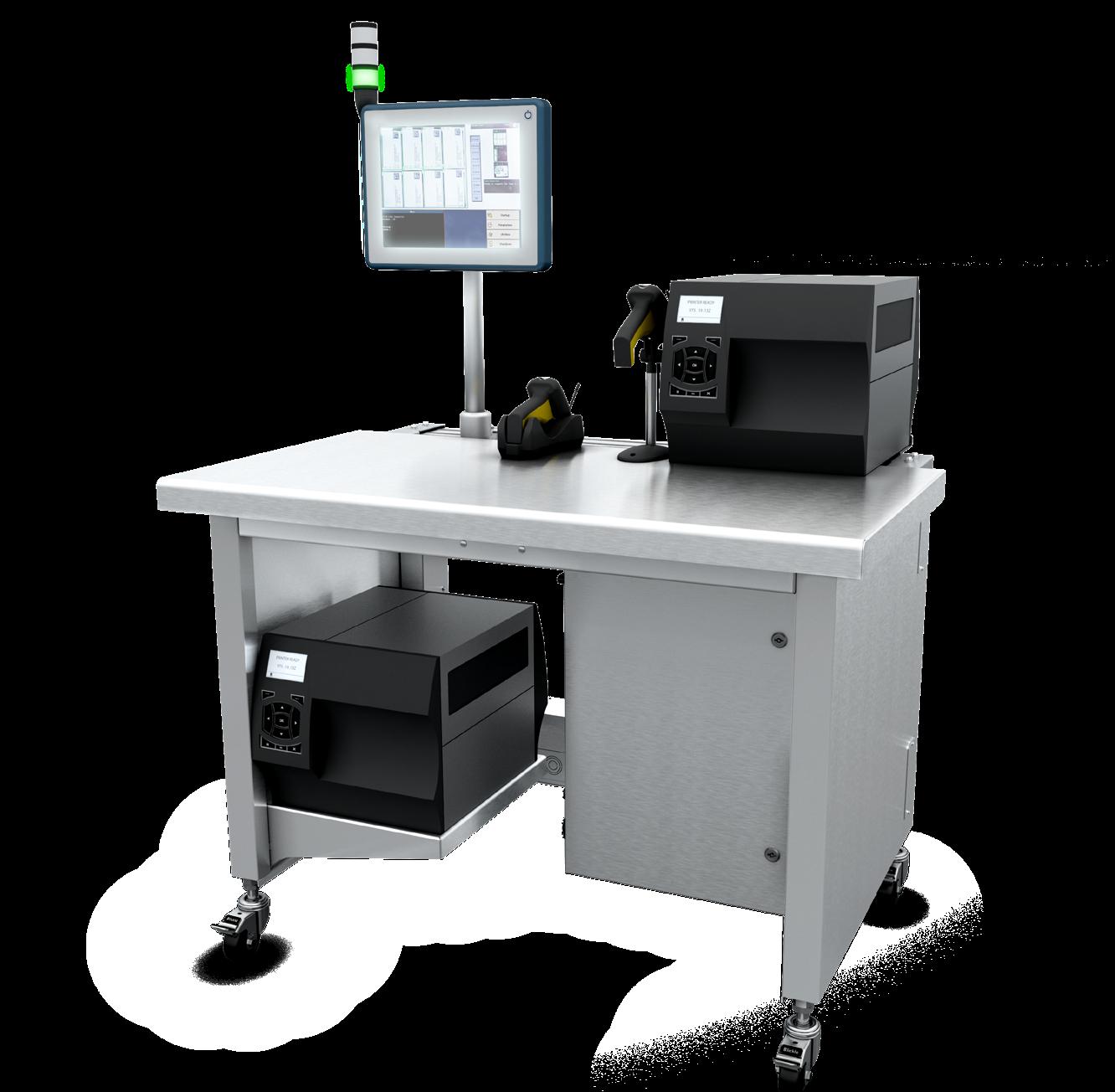

OPTEL’s Kompano™ brings serialization capability to the warehouse.

•

Heterogeneous

Shipping

Targeted rework

EU FMD compliant

Tag replacement

EPC data capture and management

L3 return management

ENTIRELY AUTOMATED SERIALIZATION STATION, TO ACCURATELY AND EFFICIENTLY PRINT AND INSPECT CARTONS

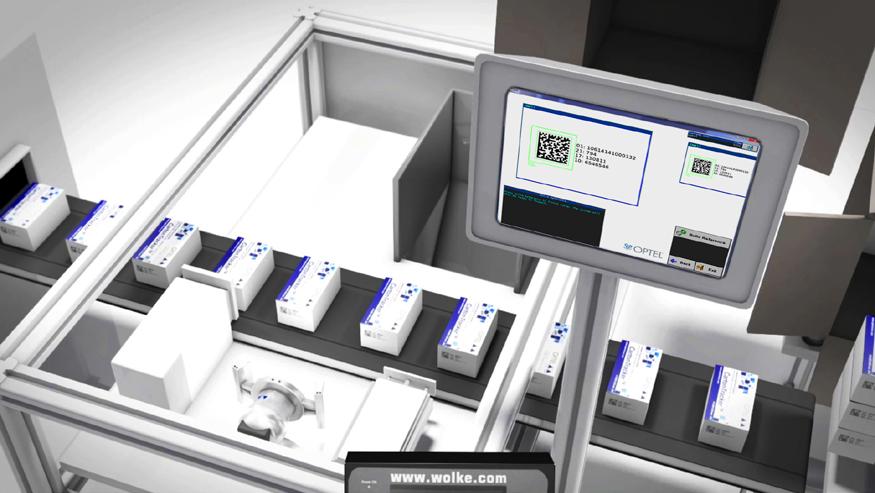

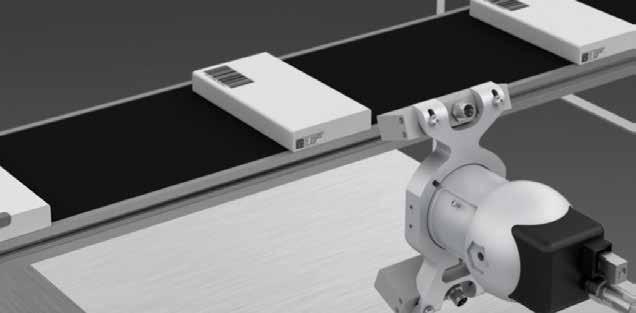

OPTEL’s CartonTracker™ handles the printing and verification of each carton and ensures accurate serialization identification.

The CartonTracker is built with an scalable configuration, enabling item-level serialization and converting to serialization and aggregation. As part of OPTEL’s TrackSafe™ product family, the CartonTracker™ connects in real time with the OPTEL LineMaster™ to verify and report serial numbers.

The CartonTracker™ is part of OPTEL’s open architecture, which connects to various IT systems or third-party equipment. We understand that modifying your process can be challenging. To overcome this challenge, we’ve leveraged all the experience and expertise that comes with more than 30 years of expertise and thousands of successful serialization integration projects around the world.

TRACKING PROCESS OVERVIEW

Tracking is used to ensure products can be located at any time on the production line to prevent defective products from reaching the next step of the production process.

The illustration below depicts the CartonTracker™ and other usual peripherals used within a typical tracking process.

1

2

3

INFEED

Start and control carton entry to ensure proper transition to the CartonTracker™.

PRINTING

Product-specific information is printed on the carton print area (lot number, expiration date, EPC, etc.).

4 EJECTION

Defective cartons are ejected, with confirmation that the carton is no longer on the conveyor belt beyond the ejection zone.

5 OUTFEED

Ensure proper transition to next downstream station and control carton accumulation.

6

TRACKSAFE™ SERIALIZATION

The CartonTracker™ can be connected to the OPTEL TrackSafe™ LineMaster™, which distributes serial number information to each packaging level and validates this information at every inspection station.

INFEED

1 An image of the codes printed on the carton is inspected and verified by comparing it to a reference image.

VISUAL CONTROL

3 CARTON INPECTION AND VERIFICATION

EJECTION

OUTFEED

C ARTON T RACKER™ 5 CARTON INSPECTION AND VERIFICATION

LineMaster™

SERIALIZATION

ORDERING INFORMATION –STANDARD SOLUTION CONFIGURATION

Encompassing all of OPTEL’s expertise and legacy, this standard CartonTracker™ configuration is a predesigned hardware and software solution that meets your carton tracking needs quickly and cost-effectively, while conforming to current industry standards.

To obtain a quote, contact your Account Director, who will work with our quote department to provide you with accurate pricing for your solution. Should these options not fit your specific requirements, feel free to discuss your needs with your Account Director, as we also provide custom solutions upon request.

ADDITIONAL INFORMATION REQUIRED FOR QUOTE

• Carton samples

• User Requirements Specifications (URS)

• Product matrix

• Floor layout

CARTONTRACKER™

SRR001 – STANDARD SOLUTION SPECIFICATIONS

• Medium-sized CartonTracker™

• Left-to-right product flow

• 32-inch or 36-inch conveyor height with pads

• 4 available printing positions (FT/FS/RT/RS)

• OPTEL HMI

• Multi-segment LED tower light indicator

• Bypass key

• Camera for carton inspection area (FOV < 85 mm x 45 mm)

• OP300 software

• OCV analyzer

• Barcode analyzer

• Pneumatic pusher

• Domino Gx150i coder

• Serialization-ready

• Emergency stop

NOTES

:

• Preliminary lead time: 18-22 weeks

• Refer to limitations table

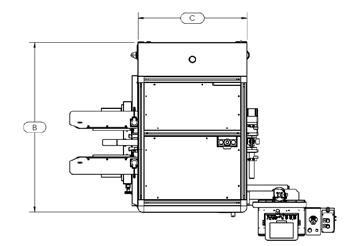

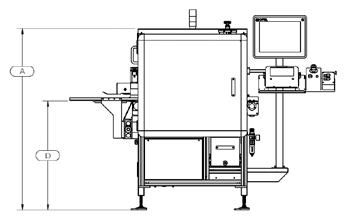

• Refer to machine dimensions table

• Refer to printing position table

ITEM # OPTIONS

SRR001 CartonTracker™

SPECIFICATIONS

Refer to the specifications on the preceding page

ITEM # OPTIONS SPECIFICATIONS

SRR002 Right-to-Left Flow

• Right-to-left product flow

SRR003 Narrow CartonTracker™ Refer to machine dimensions table

SRR004 Large CartonTracker™ Refer to machine dimensions table

SRR005 Pneumatic Pusher Ejection

SRR006 Videojet Wolke m610 touch

SRR007 Print Size Higher than 12 mm for Wolke m610 Touch

SRR008 Print Size Higher than 12 mm for Domino Gx-Series

SRR009 CO2 Laser Printer (Domino D320i)

• Pneumatic cylinder for ejection

• Outfeed guarding

• Infeed guarding

• Videojet Wolke m610 touch with 1 print head (code height < 12 mm)

• Additional print head (code height < 24 mm)

• Additional print head (code height < 24 mm)

• Domino D320i

• Domino fume extractor

• Infeed and outfeed guarding (medium and large sizes only)

Requires sample testing by Domino to confirm the coder model and configuration Not available for narrow sizes

SRR010 CO2 Laser Printer (Domino D620i)

• Domino D620i

• Domino fume extractor

• Infeed guarding (medium and large sizes only)

Requires sample testing by Domino to confirm the coder model and configuration Not available for narrow sizes

SRR011 Infeed Side Belts

SRR012 Infeed Conveyor

• Improves carton transfer from infeed conveyor to CartonTracker™

• Infeed conveyor, 10-inch width

• 32-inch or 36-inch heights available

• Mounting support

• Pads or casters available

• 24-inch or 36-inch lengths available

• Emergency stop

SRR013 Outfeed Conveyor

• Outfeed conveyor, 10-inch width

• 32-inch or 36-inch heights available

• Mounting support

• Pads or casters available

• 24-inch or 36-inch lengths available

• Emergency stop

SRR014 Casters for Mobile Station

• Casters with adjustable leveling pads

SOUTH AMERICA

OPTEL Brazil +55 19 3113 2570

optelgroup.com © 2021 by OPTEL GROUP. All rights reserved.

CL TRACKER™ TE

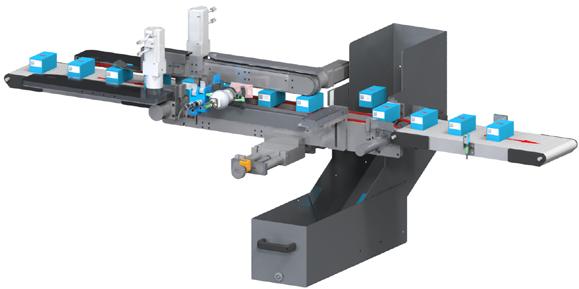

The CLTracker™ TE handles the printing and verification of each carton and ensures accurate serialization identification. The CLTracker TE was developed to be installed in any tamper-evident carton-labeling unit. Select the unit that best fits your line requirements, and we will integrate the CLTracker TE into it.

The CLTracker TE also automatically manages serial number status. If a carton is ejected due to a defect in the tamper-evident feature, the CLTracker TE will automatically change the status of the serial number.

The CLTracker TE is part of OPTEL’s open architecture, which greatly facilitates connectivity to various IT systems or other third-party equipment.

INDUSTRIES

OPTEL GROUP’s Fast Series products are preconfigured to enable existing pharmaceutical packaging lines to meet compliance, fast. They are the perfect solution to meet tight regulation deadlines — plus, they are easy to operate and require only minimal training. To offer products delivered in matter of weeks, we have expanded our production facilities and developed a streamlined, dedicated manufacturing process specifically for Fast Series units.

BENEFITS

- Easy to install and operate

- Minimal training required

- Simple user interface

- Serialized and non-serialized capability

KEY FEATURES

- Complete reporting tool to LineMaster™

- Up to 400 cartons per minute

- Automatic serial number status management

- 21 CFR Part 11 and European Annex 11 compliance

TRACK

TRACE

OPTEL’s Fast Series is also designed to be scalable, which will allow you to build on these units in the future, as your serialization operations expand. We understand that modifying your process can be challenging and, to overcome this challenge, we’ve leveraged all the experience and expertise that comes with 27 years and thousands of successful serialization integration projects around the world.

Our Fast Series incorporates all this know-how to provide you with all the necessary features to scale up your serialized production and therefore main tain and generate additional revenues when you’re ready.

The CLTracker TE is part of OPTEL’s Fast Series, and each product includes hardware and software, IQ/OQ documentation, operator manual, integration and on-site training.

PERFORMANCE

PRODUCTION RATE

PRINTING SPECIFICATIONS

PRINT AREA

PRINT TECHNOLOGY

to

PRINT LOCATION Rear /

PRINT RESOLUTION

VISION SPECIFICATIONS

FIELD OF VIEW 85 mm x 45 mm

DATA MATRIX MODULE SIZE from 0.25 mm

HUMAN-READABLE CHARACTER HEIGHT from 1.3 mm

LINEAR BARCODE LINE WIDTH from 0.15 mm

INSPECTION SPECIFICATIONS

UTILITIES

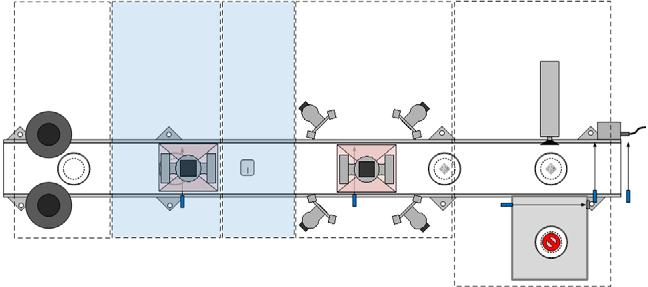

The figures above illustrate an example of a typical installation.

OPTEL has a wide range of solutions to fit the particularities of your specific packaging lines. Contact us for details.

Other modules and options are also available; contact your Regional Sales Representative for more information. Find the location closest to you at: optelgroup.com

NORTH AMERICA OPTEL Canada — HEADQUARTERS +1 418 688 0334

BASIC FUNCTIONS

DESIGNED FOR Cartons

PERFORMS Serialization REQUIRES No operator, fully automated unit

OPTEL is proud to be a Certified B Corporation, a group of companies that redefines success in business and strives to not only be the best in the world, but also the best for the world.

NORTH AMERICA OPTEL USA +1 763 235 1400

EUROPE OPTEL Ireland +353 61480965

ASIA OPTEL India +91 832 669 9600

SOUTH AMERICA OPTEL Brazil +55 19 3113 2570

optelgroup.com © 2018 by OPTEL GROUP. All rights reserved

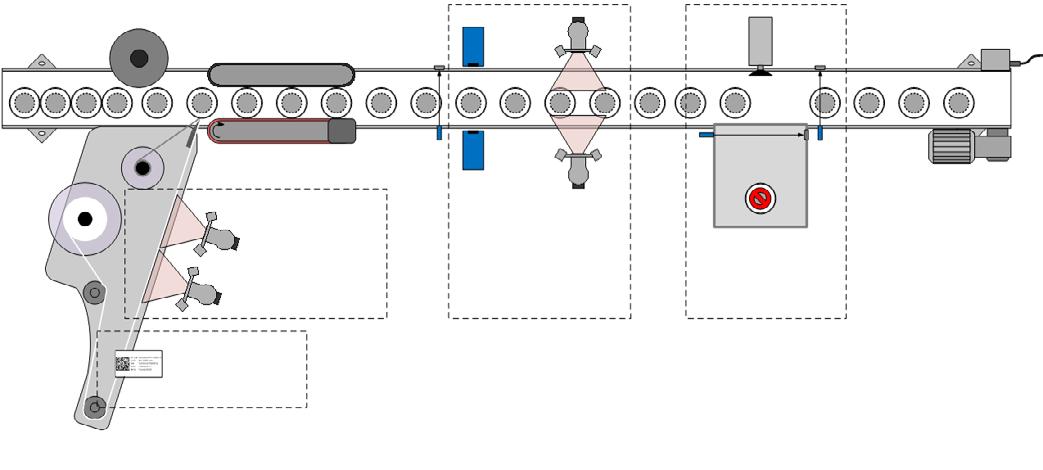

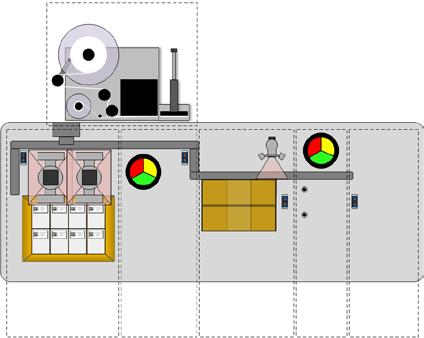

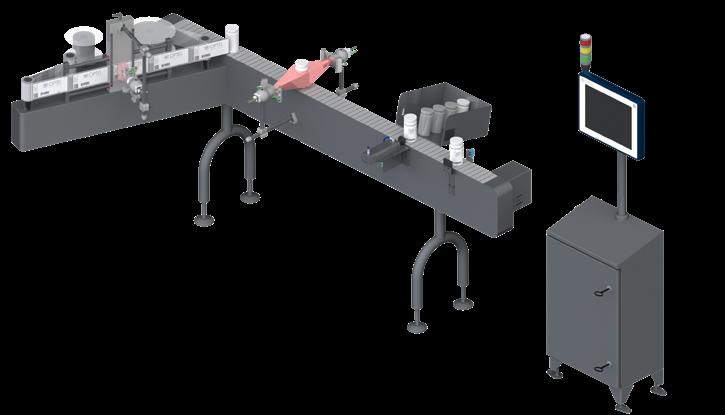

A FULLY AUTOMATED LABEL SERIALIZATION STATION FOR IDENTIFICATION AND VERIFICATION OF UNIT LEVEL PRODUCTS

OPTEL’s LabelTracker™ is a complete automated station, that allows the identification and verification of unitlevel products for serialization. The LabelTracker™ ensures accurate serialization identification to meet product authentication and traceability requirements in the pharmaceutical industry.

The LabelTracker™ is the most advanced technology for unit-level serialization on a labeler. It features serial number verification and commissioning. As with all of OPTEL’s TrackSafe™ products, LabelTracker™ supports any coding standard and serialization requirement. Combined with TrackSafe™, it can generate serial numbers locally or download them from any centralized serial number provider. It also transfers the serialization data ownership with all major IT solution providers such as SAP-AII and other compliant EPCIS services.

of

figures above illustrate an example of a typical

to be

Other

to fit the particularities of

during engineering process. Contact

and options are also

OPTEL has a wide

Mechanical

TRACKING PROCESS OVERVIEW

Tracking is used to ensure that products can be located at any time on the production line in order to prevent defective products from reaching the next step of the production process. It can be handled by OPTEL (using hardware sensors and encoders), the OEM (through signal exchanges) or a combination of both.

The illustration below depicts the LabelTracker™ and other usual elements used within a typical tracking process, which in this case includes these main steps.

1

PRINTING

Product-specific information is printed on the label’s print area (lot number, expiration date, EPC, etc.)

WEB INSPECTION AND VERIFICATION

An image of the printed label is inspected and verified by comparing it to a reference image.

LABEL PRESENCE VERIFICATION

Label presence verification can be performed using different types of vision analyzers (label presence, label orientation)

4 EJECTION

Ejection of faulty products is performed, with confirmation that the product is no longer on the conveyor belt beyond the ejection zone.

5

TRACKSAFE™ SERIALIZATION

The LabelTracker™ can be connected to the OPTEL TrackSafe™ LineMaster™, which distributes serial number information to each packaging level and validates this information at every inspection station.

ORDERING INFORMATION –STANDARD SOLUTION CONFIGURATION

Encompassing all of OPTEL’s expertise and legacy, this standard LabelTracker™ configuration is a predesigned hardware and software solution that meets your label tracking needs quickly and cost-effectively, while conforming with current industry standards.

To obtain a quote, contact your Account Director, who will work with our quote department to provide you with accurate pricing for your solution. Should these options not fit your specific requirements, feel free to discuss your needs with your Account Director, as we also provide custom solutions upon request.

ADDITIONAL INFORMATION REQUIRED FOR QUOTE

• Make and model of customer OEM being integrated

• Label and product samples

• User requirements specifications (URS)

• Product Matrix and label samples

• Floor layout

SLA001

SLA002

OR

LABELTRACKER™

SLA001 – STANDARD SOLUTION SPECIFICATIONS

• Floor-mounted electrical enclosure

• OPTEL HMI on enclosure

• Multi-segment LED tower light indicator

• Bypass key

• Camera for size of web inspection area (FOV < 85 mm x 45 mm)

• Mounting plate for web inspection

• OP300 software

• OCV analyzer

• Barcode analyzer

• Inspection “good result“ and “data valid“ signals for labeler

NOTES:

• Preliminary lead time: 8-12 weeks

• Coder is supplied by OEM or customer

• If OEM requires modifications, variances may be charged

• Software tracking is managed by OEM

• No validation documentation included (FAT/SAT/IOQ)

Camera Field of View Inspection Frames

NOTE:

1. Subject to vision study analysis

GROUP.

reserved.

SALES ITEM SOLUTION

SLA001 LabelTracker™

SPECIFICATIONS

Refer to the specifications on the preceding page

SALES ITEM OPTIONS SPECIFICATIONS

SLA002

SLA003

Size of Web Inspection Area 2C > 85 mm x 45 mm

UV Label Presence Verification

SLA004 Label Presence and Orientation Verification

SLA005

Hardware Components for Tracking

• Additional camera for larger web inspection area (FOV > 85 mm x 45 mm)

• 2x UV sensors with mounting kits

• Presence sensor with mounting kits

• UV label presence analyzer

• 2x additional cameras on bottle conveyor with mounting kit

• Presence sensor with mounting kits

• Presence and orientation analyzer

• Encoder with mounting kit

• Pneumatic ejector with mounting brackets

• Ejection bin with ejection confirmation sensor

• Resynchronization sensor

• “Good product” confirmation sensor

SLA006 TrackSafe™ and LineMaster™ Ready

SLA007 Manual Feeding Mode

SLA008 Software Tracking

• OP300 Tracksafe-ready software configuration

• Additional Ethernet switch

Domino V-series and D-series coder support

Videojet Dataflex coder support

• Software configuraton handles manual label feeding in setup mode

Requires OEM output

• OP300 manages tracking of products with software configuration

Tracking is used to ensure that products can be located at any time on the production line in order to prevent defective products from reaching the next step of the production process.

NORTH AMERICA

OPTEL Canada — HEADQUARTERS +1 418 688 0334

EUROPE OPTEL Ireland +353 61480965

ASIA OPTEL India +91 832 669 9600

SOUTH AMERICA OPTEL Brazil +55 19 3113 2570

optelgroup.com © 2021 by OPTEL GROUP. All rights reserved.

PREPARE YOUR SERIALIZED BOTTLES FOR AGGREGATION TO FACILITATE TRACKING

The Association Station handles the verification of serial numbers and facilitates bottle aggregation into secondary packages without affecting the production flow.

This station allows various inspections such as presence and placement verification of labels and leaflets. It is specially designed to increase your quality and compliance with labeling regulations while improving your line efficiency by creating a leaner operation.

To facilitate the tracking of a bottle going into a secondary package such as a bundle or case, this solution is built to print and inspect a temporary unique identifier (tracking code) on the bottle cap using UV ink, or to inspect a tracking code on a topsert.

It has a unique 2D-reading technology that supports various sizes and product shapes. As part of OPTEL’s TrackSafe™ product family, the Association Station connects in real time with OPTEL’s LineMaster™ to verify and report serial numbers.

overall Data Matrix size varies

on the exact

of

TRACKING PROCESS OVERVIEW

Tracking is used to ensure products can be located at any time on the production line to prevent defective products from reaching the next step of the production process.

The illustration below depicts the Association Station and other usual peripherals used within a typical tracking process.

1

INFEED

The bottle flow is controlled to ensure proper spacing to the Association Station.

2

TRACKING CODE PRESENCE VERIFICATION*

A camera verifies if a tracking code is already present on the bottle cap by comparing the acquired image to the reference image.

3 PRINTING*

If no UV tracking code was detected, a tracking code is printed on the bottle cap.

4INSPECTION, VERIFICATION AND ASSOCIATION

A 360° camera setup inspects and verifies the EPC on the bottle label and another camera inspects the tracking code. If both inspections are successful, the tracking code is associated to the bottle EPC.

5

EJECTION

If the EPC or tracking code inspection failed, the bottle is ejected, with confirmation that the bottle is no longer on the conveyor belt beyond the ejection zone.

CODE

VERIFICATION*

PRINTING*

INSPECTION, VERIFICATION AND ASSOCIATION

EJECTION

* Applicable only when UV option is selected.

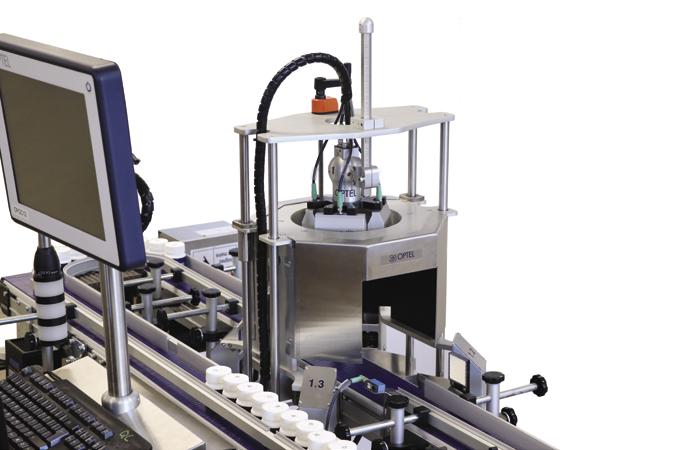

ASSOCIATION STATION

SSS001 – STANDARD SOLUTION SPECIFICATIONS

• Prepare your serialized bottles for aggregation to facilitate tracking

• Tracking managed by OPTEL

• Quad-camera station for inspection, verification and association on preprinted topserts

• Small bottle diameter (22 to 75 mm)

• Serialization-ready

• Encoder with mounting kit

• Pneumatic ejector with mounting brackets

• Ejection bin with ejection confirmation sensor

• “Good product“ confirmation sensor

• Backup sensors

NOTES:

• Preliminary lead time: 12-16 weeks

• Preprinted tracking codes or coder are supplied by OEM or customer.

• The Association Station acts as a virtual system add-on to a LabelTracker solution.

• Stand-alone PharmaProof™ system options may be needed if limitation applies.

ITEM # SOLUTION SPECIFICATIONS

ORDERING INFORMATION –STANDARD SOLUTION CONFIGURATION

Encompassing all of OPTEL’s expertise and legacy, this standard Association Station configuration is a predesigned hardware and software solution that meets your bottle association needs quickly and cost-effectively, while conforming with current industry standards.

To obtain a quote, contact your Account Director, who will work with our quote department to provide you with accurate pricing for your solution. Should these options not fit your specific requirements, feel free to discuss your needs with your Account Director, as we also provide custom solutions upon request.

ADDITIONAL INFORMATION REQUIRED FOR QUOTE

• Bottle/label samples

• User Requirements Specifications (URS)

• Product matrix

• Floor layout

SSS001 Association Station Refer to the specifications above

# OPTIONS SPECIFICATIONS

SSS002 Stand-Alone PharmaProof™ System

• Floor-mounted electrical enclosure

• OPTEL HMI on enclosure

• Multi-segment LED tower light indicator

• Bypass key

• OP300 software

• Barcode analyzer

SSS003 Large Bottle Diameter (32 to 114 mm)

SSS004 UV Tracking Code Printing

• 360° quad-camera station for large bottles

• Ejection bin for larger bottles

• Domino AX350i for tracking-code printing with UV ink

• Camera for tracking-code inspection

• 2 UV filter and UV LED lighting upgrade for tracking code verification and inspection

• Camera for tracking-code inspection

SSS005

Spacing Wheel

SSS006 Conveyor

• Spacing wheel with adjustable speed for spacing bottles

• Mounting support

• Conveyor, 4-inch width

• 24-inch to 36-inch conveyor height

• Mounting support

• Pads or casters available

• Emergency stop

NOTE: Ultraviolet tracking codes will be invisible to the consumer. Requires an additional camera and a continuous inkjet printer (see Tracking Process Overview).

NORTH AMERICA

OPTEL Canada — HEADQUARTERS +1 418 688 0334

EUROPE OPTEL Ireland +353 61480965

ASIA OPTEL India +91 832 669 9600

SOUTH AMERICA OPTEL Brazil +55 19 3113 2570

optelgroup.com © 2021 by OPTEL GROUP. All rights reserved.

KOMPANO

KOMPANO is OPTEL’s ultimate serialization solution for complete management of serialized products for warehouses, distribution centers and third-party logistics providers.

Easy to integrate and user-friendly, KOMPANO will help you comply with worldwide regulations.

The perfect companion for any fulfillment operations, it allows operators to perform essential actions using handheld terminals such as printing labels, QA sampling, picking, reworking, shipping and receiving. The solution can bridge with your warehouse management system (WMS) or enterprise resource planning (ERP) system to automate shipping events and keep inventory levels constantly updated.

medical devices healthcare food and beverage

MAIN FEATURES

DEVICE SPECIFICATIONS

KOMPANO MANAGER

SOFTWARE TYPE

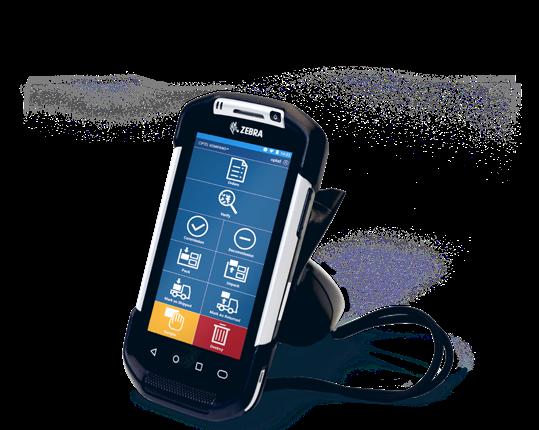

KOMPANO DEVICE

SOFTWARE TYPE

Web-based server software offering an HTML-based graphical user interface (GUI) and a machine interface to call and use Web services.

Embedded proprietary software including device interface and graphical user interface

CONNECTION Wireless connection to allow operation anywhere

WATER RESISTANCE IP65 and 1P67 certified water resistance

SHOCK RESISTANCE Resistant to maximum 8-foot drops

MODULES

Kompano MANUFACTURERS Warehouse and Rework For non-government-legislated warehouses: EU and US Manufacturers

KOMPANO FEATURES INFORMATION OSM

Verify Consult product information, expiration, lot, parent-child association and more 2.22

Commission Change product status to active 2.22

Decommission

Hybrid Packing Mode

Change product status to inactive 2.22

Allows operator to print and select a label type (layout) for packing once all the children have been scanned or to associate the children to an existing printed label 2.22

Pack Heterogeneous 2.22

Pack Homogeneous 2.22

Unpack 2.22

Replace Tag 2.22

Print Label 2.22

Print label with real unit level quantity for container label

Inform and correct the quantity when value on the label does not match value in the system of record

Kompano 1.8

List of printable fields: Refer to Table 1: Print Service Layout Input Field Q42020

2.22

Kompano 1.8 2.22

QA Sample 2.22

Sample Available and optional for Kompano 1.9.0 and OSM 2.22.6.200 Q42020 2.22

Destroy 2.22

Return Sets “in transit” items to “active” status in EPC repository via OSM 2.22

Language Support English, Spanish

Kompano DISTRIBUTORS Warehouse and Rework

DISTRIBUTOR MODE (CONNECTED TO VP) INFORMATION VP

Verify

Commission

Decommission

Pack Heterogeneous

Pack Homogeneous

Unpack

Replace Tag (Label)

Sample

Destroy

SSCC, Logistics Unit Label Only No Batch

SSCC, Logistics Unit Label Only No Batch

SSCC, Logistics Unit Label Only No Batch

K OMPANO Received, Sending a Receiving Event Specific to Distribution Module Compatible with Work Orders

WORK ORDER INFORMATION OSM VP

Picking Order 2.22

Shipping Order 2.22

Return Order

Receiving Order

On-demand feature upon customer need and official request

Specific to the Distributor module

Inventory Update Events Custom connectors with customer ERP or WMS required 2.22

Shipping Events Connectors required 2.22

Receiving Events Specific to the Distributor module

Create Work Order 2.22

Modify Work Order 2.22

Cancel Work Order 2.22

Link Product Item to Work Order Will be prioritized upon customer need and official request 2.22

Unlink Product Item to Work Order 2.22

Register User to a Work Order 2.22

Unregister User to a Work Order 2.22

Complete Work Order 2.22

Pick and Pack 2.22

Non-serialized Picking 2.22

Print Field From Work Order For logistics unit label such as Destination, PO, Ship From, etc. 2.22

KOMPANO NMVS – EU DISTRIBUTOR Market – Add-on/Options Available for Both Modules 18-24 weeks delivery upon receipt of PO

ADD-ON/OPTION

Commission Pack

Unpack

NMVS Verify

NMVS Decommission Single Item

NMVS Decommission Bulk Items (Limited by VB/GI)

NOTE: Development required to fully manage this feature. Adaptation of GI services required.

NMVS Undo Operation Single Item

NMVS Undo Operation Bulk Items (Limited by VB/GI)

• Supplied (Dispensed)

• Sampled

• Supplied (Dispensed)

• Sampled

• Supplied (Dispensed)

• Sampled

• Supplied (Dispensed)

• Sampled

• Free Sampled

• Exported

Locked

• Free Sampled

• Exported

• Locked

• Free Sampled

• Exported

Locked

• Free Sampled

• Exported

Locked

• Stolen

Destroyed

• Stolen

• Destroyed

• Stolen

• Destroyed

Stolen

Destroyed

To be announced

To be announced

To be announced

OSM OR VP

Voluntary Aggregation Supported through an EPC Repository (OSM)

Status synchronization with EPC repository NMVO Certifications

• Spain

• UK

KOMPANO WORK ORDERS – Add-on to Manufacturer and Distributor Modules

SALES ITEM SOLUTION SPECIFICATIONS

KOP010

Kompano Rework for Manufacturer

Kompano WiFi rework functionality

• Verify (acquires product information from OSM such as status, child and parent etc.)

• Comissioned

• Decomissioned

• Pack (aggregate)

• Unpack (disaggregate)

• Sample

• Destroyed

• Print and replace label

Services and software included:

• Android Kompano APK

• Kompano server

• Print service

Configuration of maximum 4 layouts for additional layout use KOP400

• Identity provider, Auth Service deploy without security certficate. Security certificate SSL deployment sold has an option.

*OSM 2.22 compatible only.

* Tested on TC70X Scanner

* Android 7 and above; tested only on Android 9

*Engineering documents included: Middleware Engineering Document (MED) and user’s manual

*No validation documentation included (FAT, SAT, IOQ); for validation document add KOP003

*Need proper WiFi coverage to use Kompano on a mobile computer.

*4 layouts configured in the print service, 2 case layouts, 1 partial and 1 complete and 2 pallet layouts, 1 partial and 1 complete. For any additional layout, please select SKU KOP210 for any additional layouts.

KOP020 Kompano Work Orders Module

• Kompano Work Order

• Work Order Admin Console

• Picking Order

• Shipping Order

*Does not include Shipping Report Bridge to L4

*Also needs KOP010

KOMPANO OPTIONS AND HW

SALES ITEM OPTIONS

KOP200 Zebra ZQ520 Mobile Barcode Printer

KOP201 Zebra ZT411 Desktop Barcode Printer

KOP202 Zebra ZT421 Desktop Barcode Printer

KOP203 Additonnal Layout Configurations (4)

KOP300 Validation

NORTH AMERICA

OPTEL Canada — HEADQUARTERS +1 418 688 0334

SPECIFICATIONS

*WiFi coverage required

• Zebra TC70X Scanner Manufactured by: Zebra Technologies Corp.

Model: TC700k

P/N: TC700k-02B22B0-##

OS: Android 7 minimum Power: 5.4VDC 3A

• TC7X Snap-On Trigger Handle Manufactured by: Symbol Technologies Inc. Model: TRG-TC7X-SNP1

• ZEBRA TC7X 4620 mAh Li-Ion Battery Manufactured by: Zebra Technologies Corp. Model: BT-000318

Power: 3.7 VDC 4720 mAh

*WiFi coverage required

• Zebra TC70X Scanner Manufactured by: Zebra Technologies Corp. Model: TC700k P/N: TC700k-02B22B0-##

OS: Android 7 minimum Power: 5.4 VDC 3A

• TC7X Snap-On Trigger Handle Manufactured by: Symbol Technologies Inc. Model: TRG-TC7X-SNP1

• ZEBRA TC7X 4620 mAh Li-Ion Battery Manufactured by: Zebra Technologies Corp. Model: BT-000318

Power: 3.7 VDC 4720 mAh

• 5 slot scanner charger for Zebra TC7x

• Power supply: 9A, 12V, 100-240V, 50-60Hz, 108W, 1 output, Zebra TC7x, charger

• Cable: 4 cond., male/male, straight, DC cable for Zebra TC7x multi slot charger, 1.6 m

• Printer: TTOD, Zebra ZQ520, 203 dpi, 4-inch print width

• Power supply: 2A, 12V, 110V, 60Hz, 24W, 1 output, Zebra ZQ520, with 6-ft cable, US/CAD

• Engineering labor included

• Zebra ZT411 printer for 4-inch labels

• Engineering labor included

• Zebra ZT421 printer for 6-inch labels

• Engineering labor included

• 4 additional layouts configured in the print service

• No customization of the validation package

• IOQ documentation for standard solution and identified as per customer

• PDF version supplied via electronic transfer

EUROPE OPTEL Ireland +353 61480965

ASIA OPTEL India +91 832 669 9600

SOUTH AMERICA OPTEL Brazil +55 19 3113 2570

optelgroup.com © 2021 by OPTEL GROUP. All rights reserved.

KOP100 Kompano TC70X Scanner Bundle

KOP101 Kompano TC70X Scanner and 5-slots Charger Bundle

A FULLY MANUAL PACKING STATION ENSURING THE IDENTIFICATION AND VERIFICATION OF MANUALLY PACKED PRODUCTS WITH BARCODE SCANNERS

The PackStation™ FMP is a fully manual packing station that ensures the identification and verification of manually packed products with barcode scanners. The PackStation™ FMP is designed to record the serial numbers encoded in the GS1 Data Matrix code of the manually packed items (aggregation).

Operated by one or multiple operators, the PackStation FMP optimizes the packing process with or without aggregation in order to ensure accurate serialization identification and meet product authentication and traceability requirements in the pharmaceutical industry.

The PackStation FMP allows operators to scan children and/or parent labels of any packaging level such as bottles, cartons, bundles, cases or pallets to manualy perform the verification of barcode data, as well as the modification of the EPC status for serialization and aggregation requirements without slowing the packing process. Equipped with a dedicated HMI and with complete coder control, the PackStation FMP allows operators to manually request the label printing of predetermined packaging levels for manual application, perform rework operations and view serialization data.

BENEFITS

Easy to install and operate Minimal training required

OPTEL GROUP ’s Fast Series products are preconfigured to enable existing pharmaceutical packaging lines to meet compliance, fast. They are the perfect solution to meet tight regulation deadlines — plus, they are easy to operate and require only minimal training. To offer products delivered in matter of weeks, we have expanded our production facilities and developed a streamlined, dedicated manufacturing process specifically for Fast Series units.

KEY FEATURES

21 CFR Part 11 and European Annex 11 compliance Carton/bottle to bundle

Simple user interface

Portable unit

Carton/bottle/bundle to case Case to pallet

optelgroup.com P ACK S TATION™ FMP

pharma medical devices other

INDUSTRIES

The PackStation™ FMP is part of OPTEL’s open architecture, which greatly facilitates connectivity to various IT systems or other third-party equipment.

OPTEL’s Fast Series is also designed to be scalable, which will allow you to build on these units in the future, as your serialization operations expand. We understand that modifying your process can be challenging and, to overcome this challenge, we’ve leveraged all the experience and expertise that comes with nearly 27 years and thousands of successful serialization integration projects around the world.

Our Fast Series incorporates all this know-how to provide you with all the necessary features to scale up your serialized production and therefore maintain and generate additional revenues when you’re ready.

The PackStation FMP is part of OPTEL’s Fast Series and each product includes hardware and software, IQ/OQ documentation, operator manual, integration and on-site training.

PRINTING SPECIFICATIONS

PRINT WIDTH Up to 152

PRINT TECHNOLOGY Thermal transfer

PRINTING RESOLUTION 300 DPI

CODER Zebra

INSPECTION SPECIFICATIONS

DECODING

DATA

LINEAR BARCODE

UTILITIES

BASIC FUNCTIONS

The figures above illustrate an example of a typical installation.

OPTEL has a wide range of solutions to fit the particularities of your specific packaging lines. Contact us for details.

Other modules and options are also available; contact your Regional Sales Representative for more information. Find the location closest to you at: optelgroup.com

NORTH AMERICA OPTEL Canada — HEADQUARTERS +1 418 688 0334

NORTH AMERICA OPTEL USA +1 763 235 1400

EUROPE OPTEL Ireland +353 61480965

ASIA OPTEL India +91 832 669 9600

OPTEL is proud to be a Certified B Corporation, a group of companies that redefines success in business and strives to not only be the best in the world, but also the best for the world.

SOUTH AMERICA OPTEL Brazil +55 19 3113 2570

optelgroup.com

© 2018 by OPTEL GROUP. All rights reserved.

VERIFICATION

The PackStation™ SAP (Semi-Automated Packing) allows efficient aggregation of serialized items to a serialized parent in accordance with GS1 standards.

Items are inspected at the first station to ensure they are valid before packing them in a case. After the item inspection is successful, an integrated Print-and-Apply system automatically applies a label on the parent container and this newly printed label is inspected to complete the aggregation.

Visual indicators are present for both children and parent inspection stations to confirm the inspections are successful or defects have been identified. If defects are found, the PackStation™ SAP has features to prevent the operator from sending the defects to the next step of the production process.

With this setup, the PackStation™ SAP increases your manual packing speed and connects to OPTEL’s LineMaster™ in real time in order to verify and report the serial number. OPTEL’s unique barcode-reading technology gives you the most efficient reading, ensuring maximum performance of your packing operations. The station supports both GS1 serial number formats.

TRACKING PROCESS OVERVIEW

Tracking is used to ensure products can be located at any time on the production line to prevent defective products from reaching the next step of the production process.

The illustrations below depict the PackStation™ SAP in two common configurations. The first configuration is on a table and the second is full integration with case erector, case taper and conveyor.

1

CHILDREN VERIFICATION*

An image of the codes printed on individual items or layered items is inspected and verified by comparing it to a reference image.

2

VISUAL CONTROL (CHILDREN)

A visual indicator alerts the operator to defects on individual items or on each layer. If defects are found, no parent label is printed and the children verification must be redone.

3

PRINTING

A label is printed when the children verification is successful. The label is applied when the parent reaches the appropriate sensor.

4

PARENT INSPECTION AND AGGREGATION*

The label is inspected by comparing it to a reference image once the case reaches the appropriate sensor. If the inspection is successful, the children are associated to the parent.

5

VISUAL CONTROL (PARENT)

A visual indicator will alert the operator to defects on the parent label. If defects are found, a pneumatic blocker or an ejection station handles the product.

6

EXIT CONFIRMATION

Before starting a new case, the appropriate sensor must confirm that the valid parent has left the PackStation™ SAP.

* Cameras can be replaced by barcode scanners

SPK001, SPK002E, SPK003C, SPK004B, SPK006, SPK007

SPK001, SPK002E, SPK003C, SPK004B

ORDERING INFORMATION –STANDARD SOLUTION CONFIGURATION

Encompassing all of OPTEL’s expertise and legacy, this standard PackStation™ SAP configuration is a predesigned hardware and software solution that meets your label tracking needs quickly and cost-effectively, while respecting current industry standards.

To obtain a quote, contact your Account Director, who will work with our quote department to provide you with accurate pricing for your solution. Should these options not fit your specific requirements, feel free to discuss your needs with your Account Director, as we also provide custom solutions upon request.

ADDITIONAL INFORMATION REQUIRED FOR QUOTE

• Make and model of customer OEM being integrated

P ACK S TATION™ SAP • Product Matrix, label and product samples

• User Requirements Specifications (URS)

• Floor layout

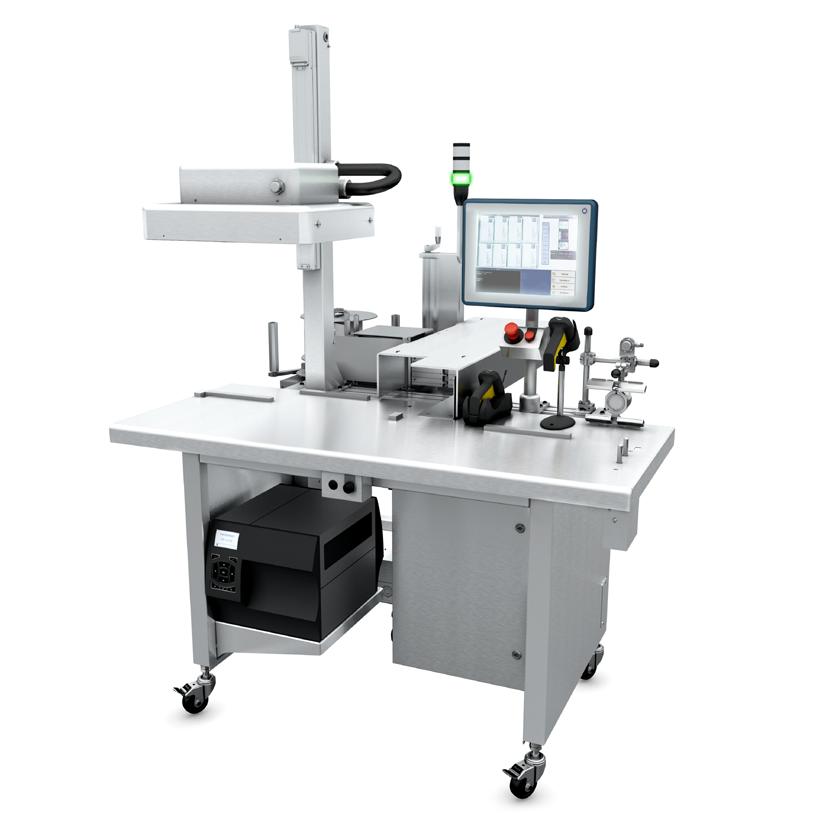

PACKSTATION™ SAP SPK001 – STANDARD SOLUTION SPECIFICATIONS

• Packing workstation with stainless steel countertop

• Integrated electrical enclosure

• OPTEL HMI on table

• Multi-segment LED tower light indicator

• Left-to-right product flow

• OP300 software

• Barcode analyzer

• Pneumatic blocker to prevent defective products from reaching next step

NOTES:

• Need option SPK002 for children verification

• Need option SPK003 for case printing

• Need option SPK004 for case parent inspection

• Preliminary lead time: 12-16 weeks

TRACKING OPTIONS

CHILDREN VERIFICATION OPTIONS

Inspected Product Inspection Method Result Matching Option

Valid items are packed one by one

LAYERS OF ITEMS

SINGLE ITEM OR

Valid layers are packed one by one

Valid layers are packed one by one

SPK002A SPK002B/SPK002D SPK002C/SPK002E

PARENT INSPECTION OPTIONS

Inspected Product Inspection Method Result Matching Option

Case is serialized and aggregated

CASE LABEL

by OPTEL GROUP. All

OR

reserved.

Case is serialized and aggregated

SPK004A SPK004B

SALES ITEM SOLUTION SPECIFICATIONS

SPK001 Packstation™ SAP Refer to the specifications on the preceding page

SALES ITEM OPTIONS

SPK002A Handheld Scanner for Children Verification

SPK002B Single-Layer Pack-and-Scan Children Verification (350 x 350)

SPECIFICATIONS

• Scan-and-pack configuration

• Handheld barcode scanner for manual packing (Datalogic PowerScan PM9501)

• Pack-and-scan configuration

• Camera for children case content verification (FOV < 350 mm x 350 mm)

• Manually adjustable camera height for single-layer

• Sensor for automatic verification

• LED indicator

SPK002C Single-Layer Pack-and-Scan Children Verification (600 x 350)

• Pack-and-scan configuration

• Camera for children case content verification (FOV < 600 mm x 350 mm)

• Manually adjustable camera height for single-layer

• Sensor for automatic verification

• LED indicator

SPK002D Multi-Layer Pack-and-Scan Children Verification (350 x 350)

• Pack-and-scan configuration

• Camera for children case content verification (FOV < 350 mm x 350 mm)

• Camera height adjusted automatically for multi-layer

• Sensor for automatic verification

• LED indicator

SPK002E Multi-Layer Pack-and-Scan Children Verification (600 x 350)

• Pack-and-scan configuration

• Camera for children case content verification (FOV < 600 mm x 350 mm)

• Camera height adjusted automatically for multi-layer

• Sensor for automatic verification

• LED indicator

SPK003A ZT410 Printer

SPK003B ZT420 Printer

SPK003C Integrated Print-and-Apply

SPK004A Handheld for Case Parent Inspection

SPK004B Camera for Case Parent Inspection

SPK005 Casters for Mobile Station

SPK006

Case Labeling Conveyor

• Zebra ZT410 desktop label printer

Label needs to be manually applied at appropriate position to be inspected by camera

• Zebra ZT420 desktop label printer

Label needs to be manually applied at appropriate position to be inspected by camera

• Domino M400 corner-wrap label applicator

• Zebra ZE500 print engine

• Full integration of print-and-apply labeler on workstation

• Available for pack-and-scan or scan-and-pack configuration

• Handheld scanner for case parent inspection

• Camera for case parent inspection (FOV < 160 mm x 134 mm)

• Can inspect either label from deskptop printer or print-and-apply

• Casters installed on workstation

• Outfeed conveyor, 16 in wide by 7 ft long

• 32-inch or 36-inch heights available

• Mounting support

• Pads or casters available

• Emergency stop

SPK007 Ejection Gravity Conveyor for Case Labeling

• Gravity ejection conveyor for cases

• Pneumatic ejector with mounting brackets

19

optelgroup.com

© 2021 by OPTEL GROUP. All

reserved.

OPTEL’S VERIFY PLATFORM SOFTWARE

POWERFUL SERIALIZATION AND TRACEABILITY SOLUTION FOR L4-L5

For more than a decade, OPTEL’s L4-L5 serialization software, a patented, enterprise-level serialization and traceability solution, has been helping the world’s best-known brands protect their assets. Called Verify Platform, this software is an essential tool to comply with most international pharmaceutical regulations.

Adding value to your compliance process, the cloud-based Verify Platform software is the missing link to provide full visibility over your entire supply chain.

LAYER 5

Government Regulations and Authorities

LAYER 4 Corporate level

ERP

Brazil ChinaEU RussiaUS

OPTEL’S VERIFY PLATFORM

• EPCIS Repository

• Serial Number Generator

• Partner Network Connectivity

• Verification Module

PLANT 1 PLANT 2

3RD PARTY SYSTEMS

WHY YOU NEED OPTEL’S VERIFY PLATFORM SOFTWARE

REGULATORY COMPLIANCE : OPTEL’s Verify Platform is a one-stop shop to connect to all regulators, coordinating compliance between plants (MAH, CMO, CPO, 3PL) and sending relevant data directly to government authorities.

SUPPLY CHAIN VISIBILITY : We help brands make their supply chains more secure by increasing visibility over every detail of a product’s life cycle. From materials and suppliers to manufacturing and distribution all the way up to the end user, our solution generates rich data insights to create track-and-trace data points, alerts and customized reports.

EASE OF USE: OPTEL’s Verify Platform is easy to learn and use, with less IT involvement, lower costs and very little maintenance required.

WHY CHOOSE OPTEL’S L4-L5 SOFTWARE?

OPTEL’s customizable and scalable approach means that you can pick and choose the modules and add-ons that are right for your organization. We focus on solving your specific business challenges.

FIXED-COST INVESTMENT: The Verify Platform pricing structure is among the most competitive on the market and completely transparent, with no hidden fees or costs. OPTEL adds no additional charges for serial numbers. Our offering also includes:

• Full platform validation (I/Q, O/Q, Production I/Q) for the duration of our engagement with you

• Authoring of URS documents—IT, CMO integration and 3PL integration

• Managed services: Master data upload and management if needed, alert monitoring support if needed/requested, ongoing platform administrative support, ongoing validation support of the platform and existing trading partner connections

EXTENDABLE, MODULAR PLATFORM: Verify Platform is highly configurable, which lets us quickly integrate into your business operations without disruption. This flexibility means we configure our platform to work with your existing systems, and it also allows you to expand your data sets at any time. In addition, our solution reduces validation resources and efforts—you only upgrade the software if and when you need to. By contractual agreement, we produce upgrades as required to keep you up to date with your country-specific regulations.

Our extendable platform provides a full set of APIs to enable you to customize Verify Platform to your specific integration needs.

ANALYTICS REPORTING: The software is designed to help improve business operations and comes with built-in, advanced reporting tools. These tools allow you to quickly identify and report on regulatory compliance requirements as well as to report on the “health” of your supply chain. We provide the most relevant, contextual data and easy-to-use dashboards, providing real-time insights designed to support your specific business needs.

BENEFITS OF CHOOSING ONE PROVIDER FOR ALL YOUR COMPLIANCE NEEDS

OPTEL’s Verify Platform is a full-stack track-and-trace solution for all compliance requirements, including serialization, VRS, Russian crypto code, aggregation and more. Building a long-term partnership is beneficial for both parties.

Our serialization software solution is the starting point for building a secure and transparent supply chain. Integrating compliance requirements into greater strategic planning for the digitization of your supply chain is a great challenge that starts with choosing the right partner. OPTEL’s Verify Platform can help your business comply with all worldwide regulations and get you on board for the next step toward the Intelligent Supply Chain.

OPTEL’S FULL-STACK SOLUTION FOR COMPLIANCE AND EFFICIENCY:

• Cost-efficient turnkey solutions

• Long-term partnership built on trust

• Added value at every step of your supply chain and increased operational efficiency

• Supply chain visibility and transparency

• Scalable solutions toward the Intelligent Supply Chain

• Data optimization of multiple manufacturing and distribution sites

• Data intelligence with context

• Reporting and analytics

NORTH AMERICA

OPTEL Canada — HEADQUARTERS +1 418 688 0334

EUROPE OPTEL Ireland +353 61480965

ASIA OPTEL India +91 832 669 9600

SOUTH AMERICA OPTEL Brazil +55 19 3113 2570

optelgroup.com © 2021 by OPTEL GROUP. All rights reserved.
