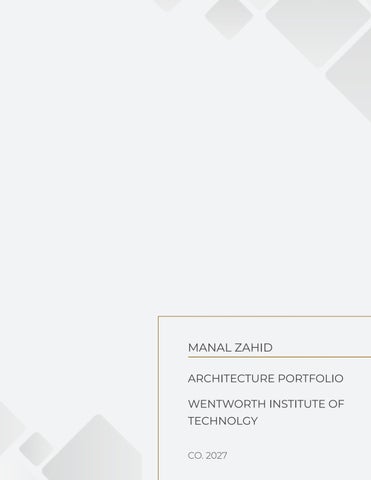

MANAL ZAHID ARCHITECTURE PORTFOLIO

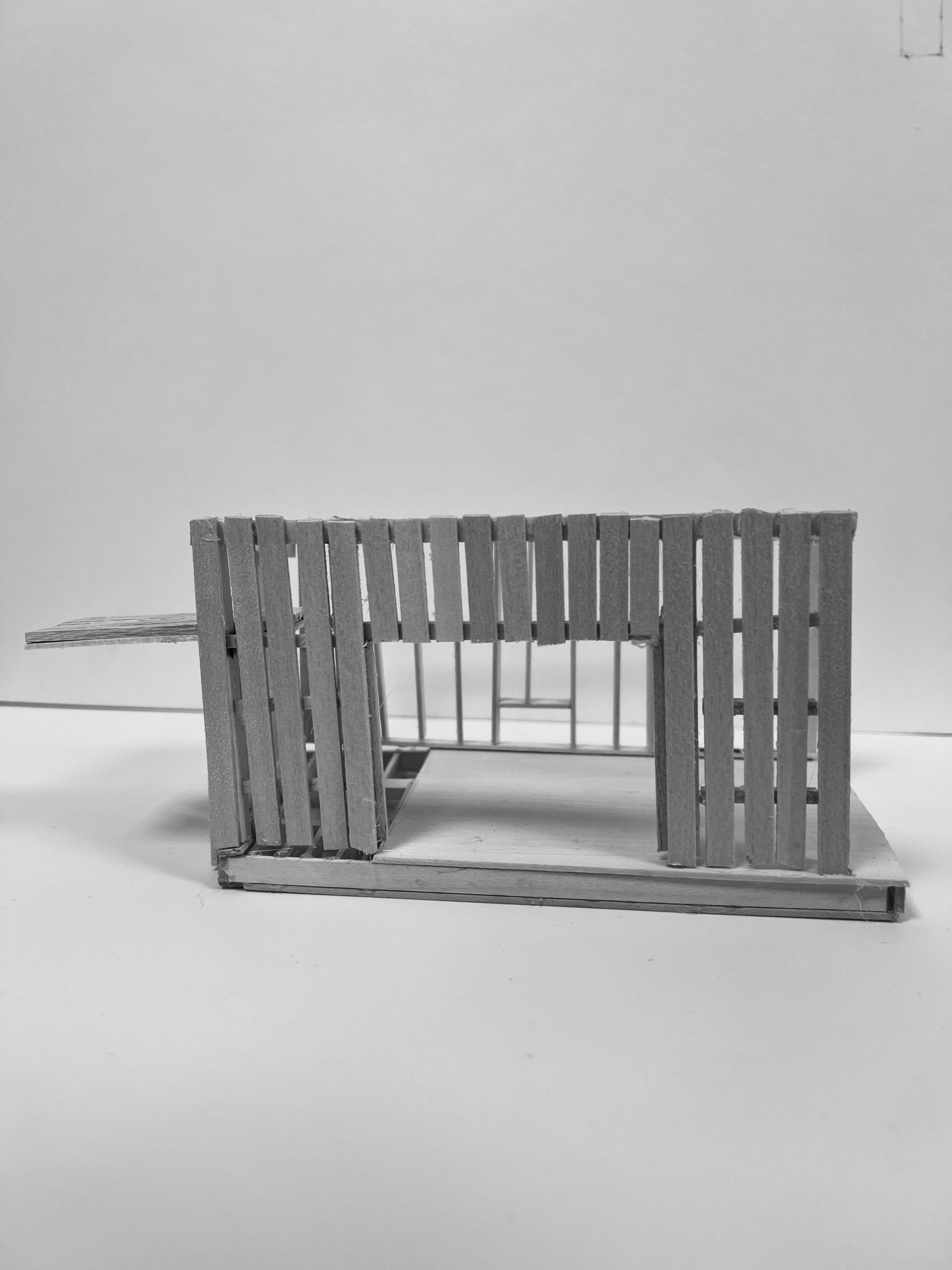

BOAT BUILDING CENTER

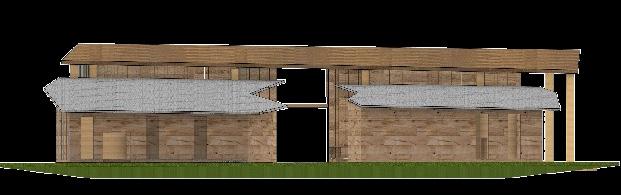

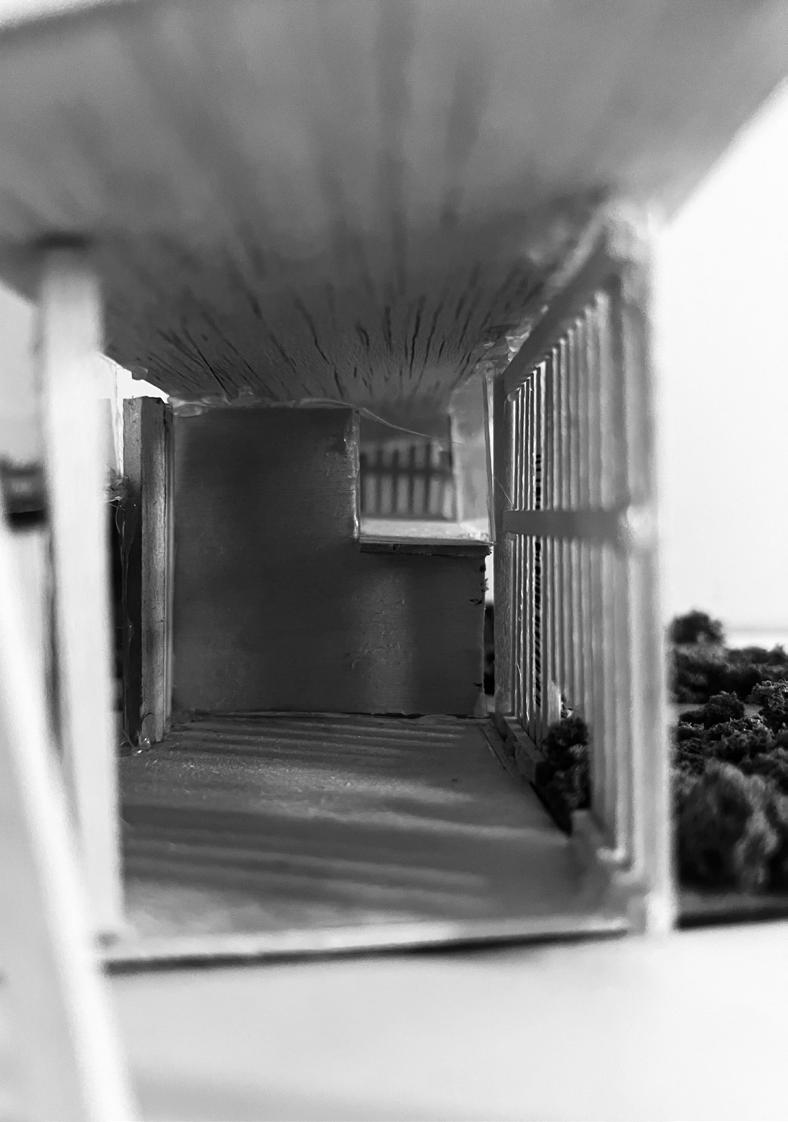

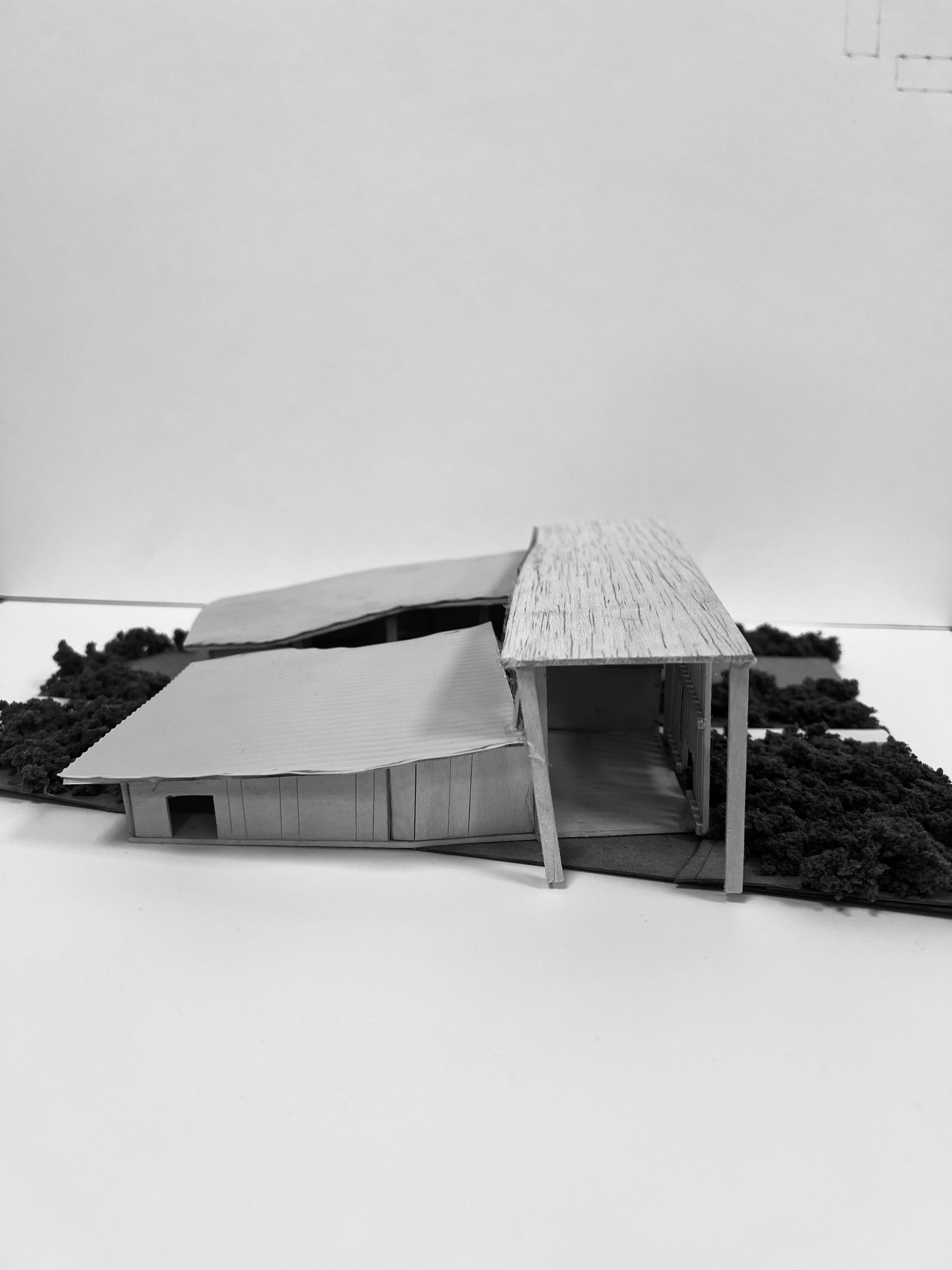

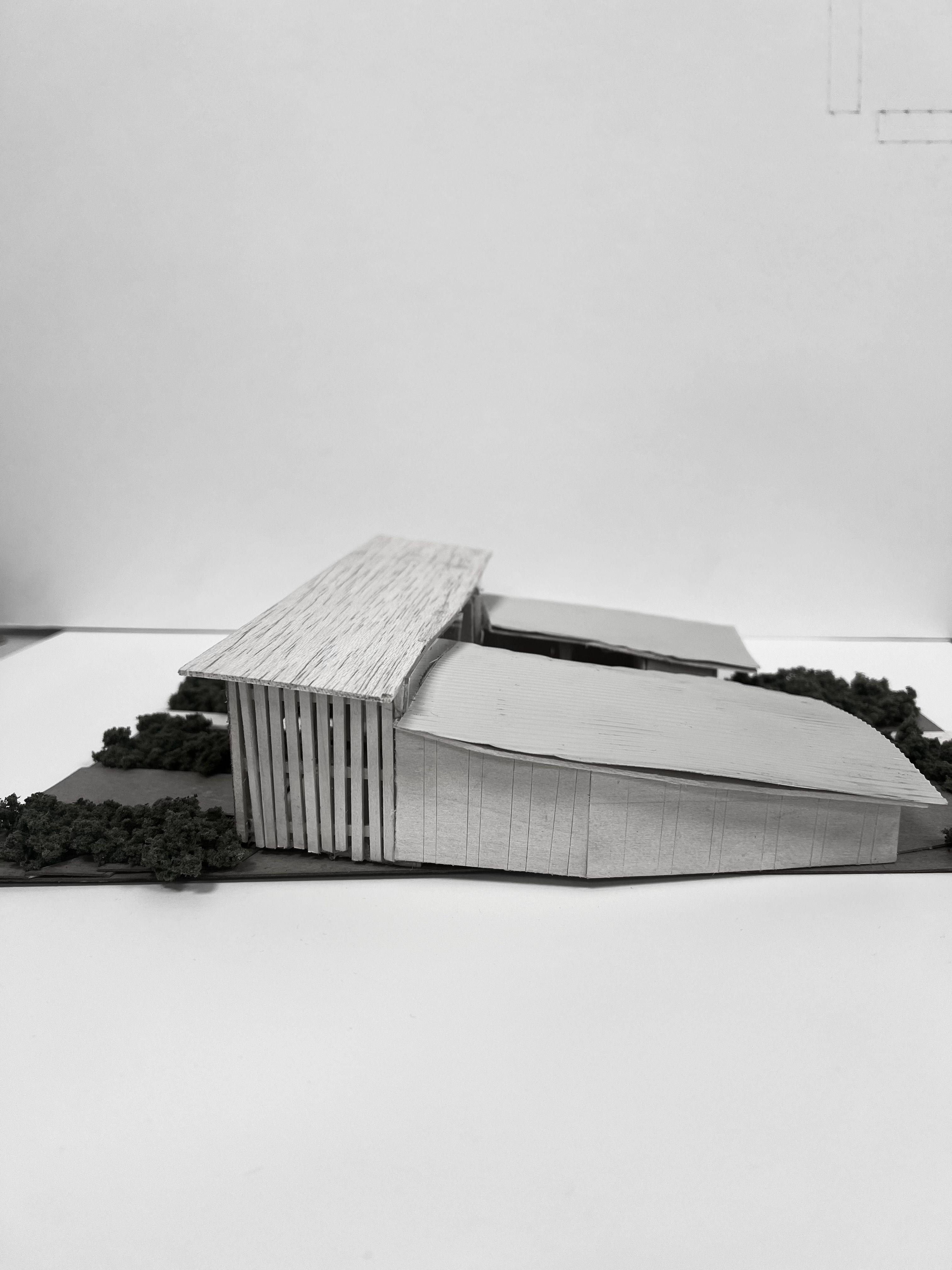

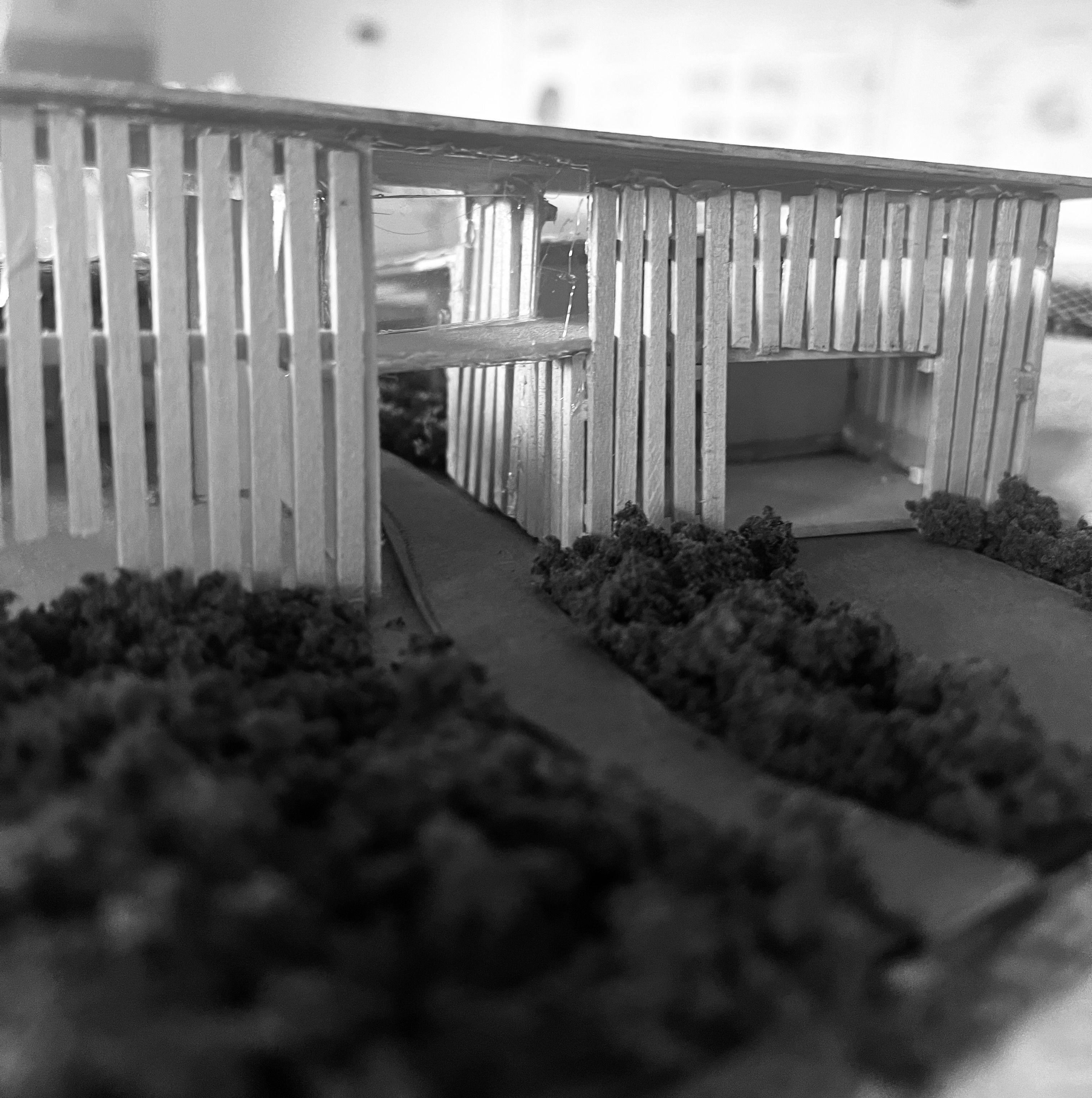

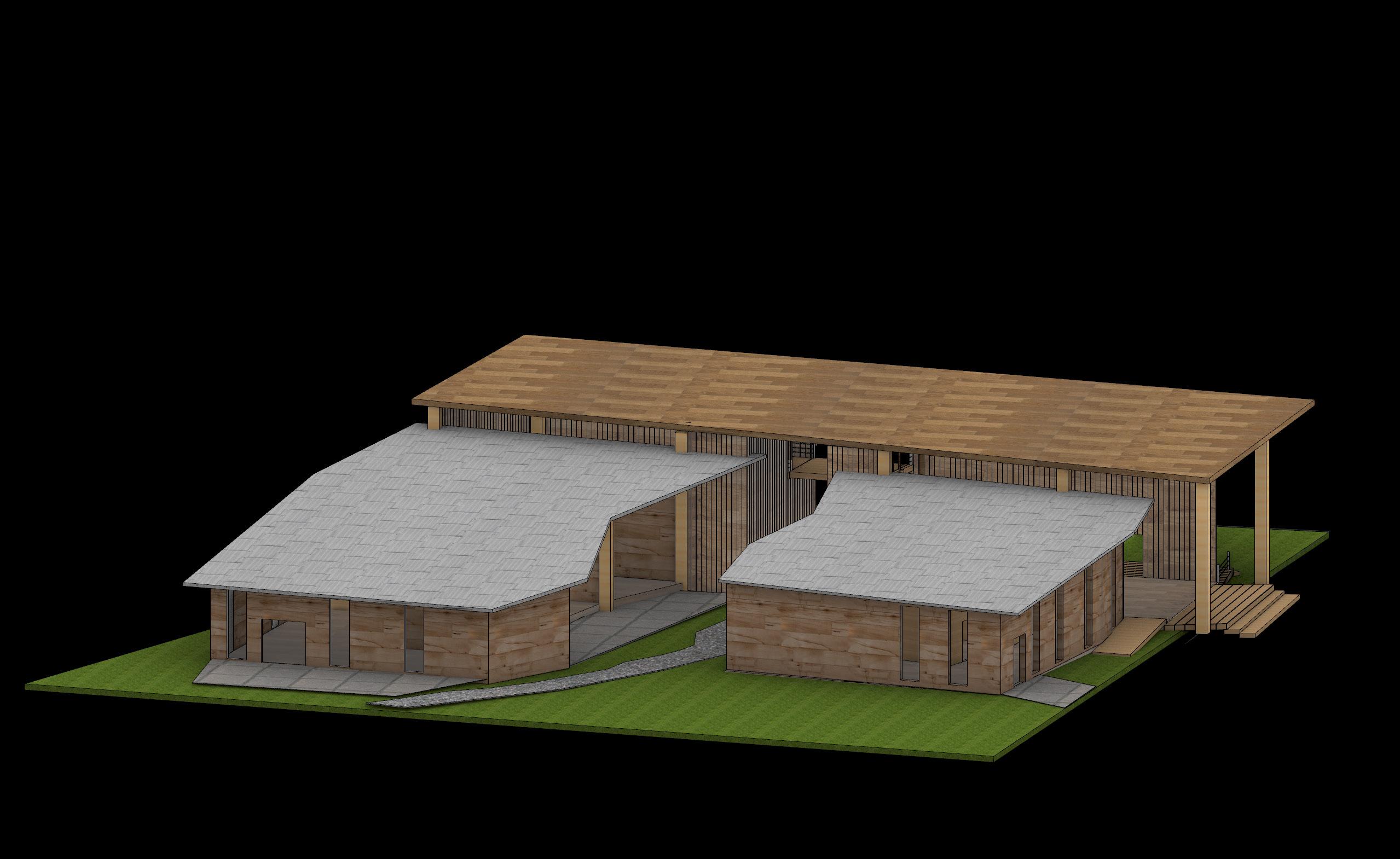

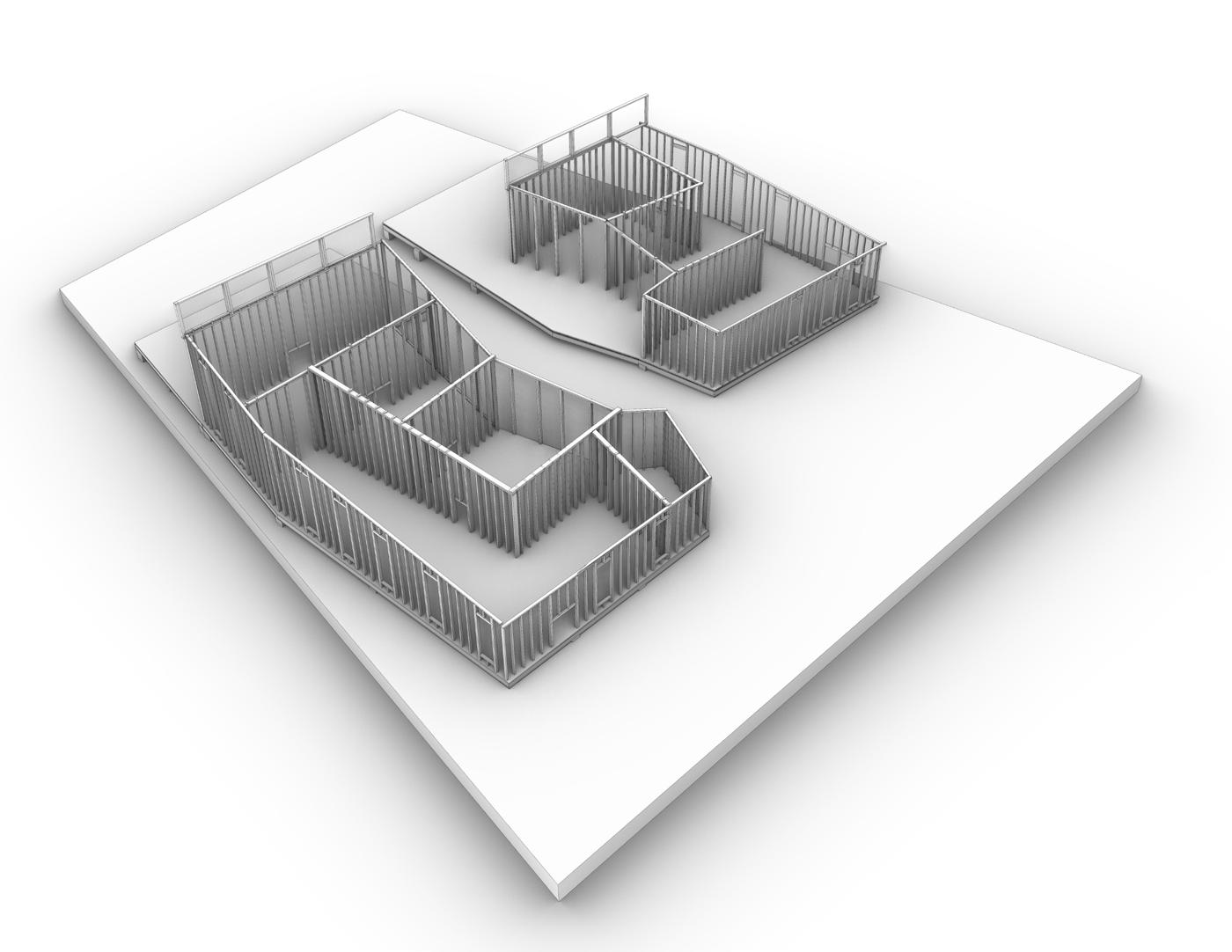

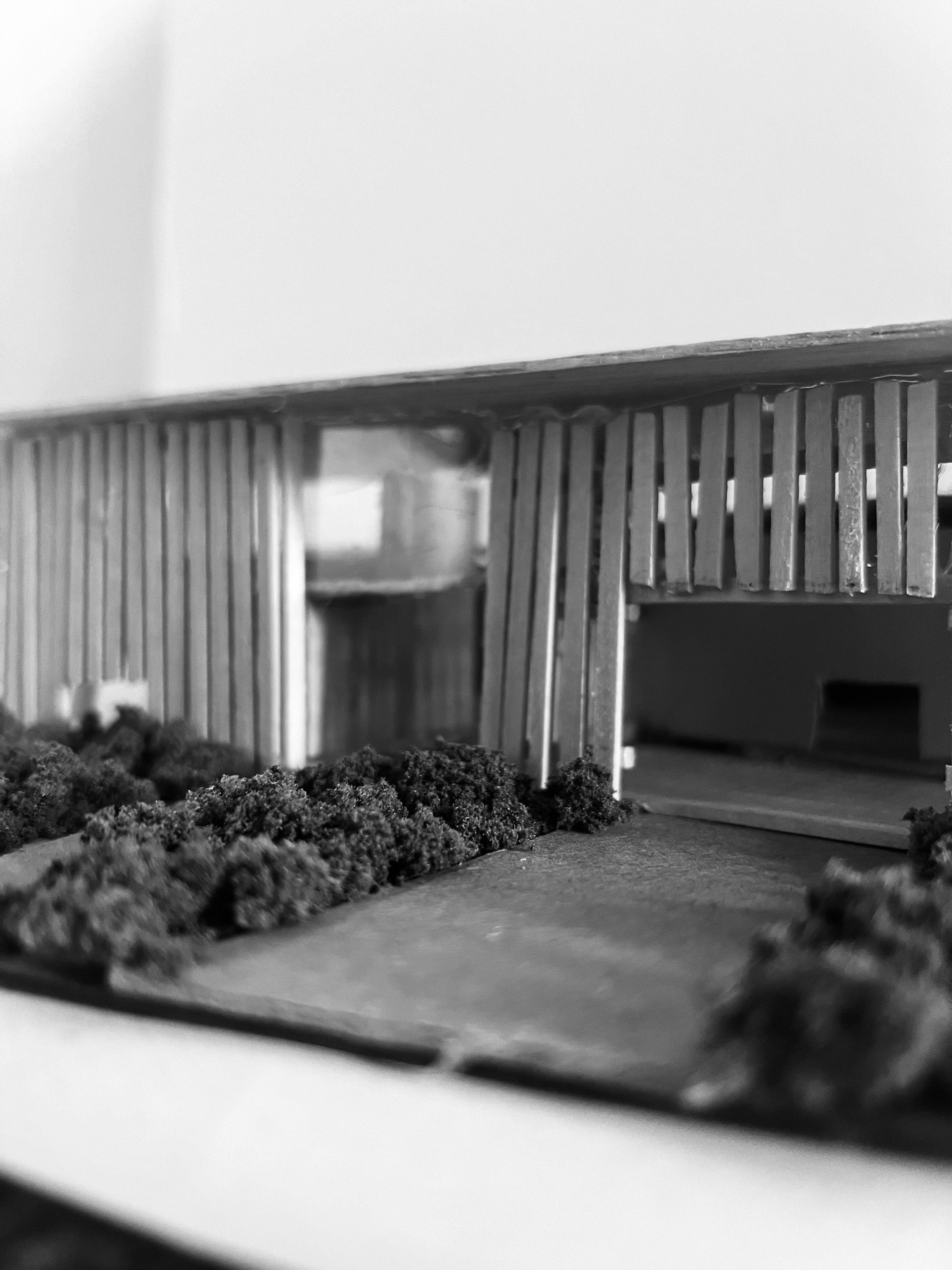

The Charles River Wooden Boat Building School is designed around the concept of craft and community, fostering a connection between middle school students and the public through the craft of wooden boat building. Two buildings—one, for public use and one for student programs—are linked by a glass and wooden bridge, symbolizing the flow of knowledge and collaboration. A central pathway invites the community to engage with the space, offering views into student studios and their progress. Inspired by the river’s cultural and recreational significance, the design celebrates transparency, shared learning, and the artistry of wooden boat craftsmanship.

Conditioned

Unconditioned

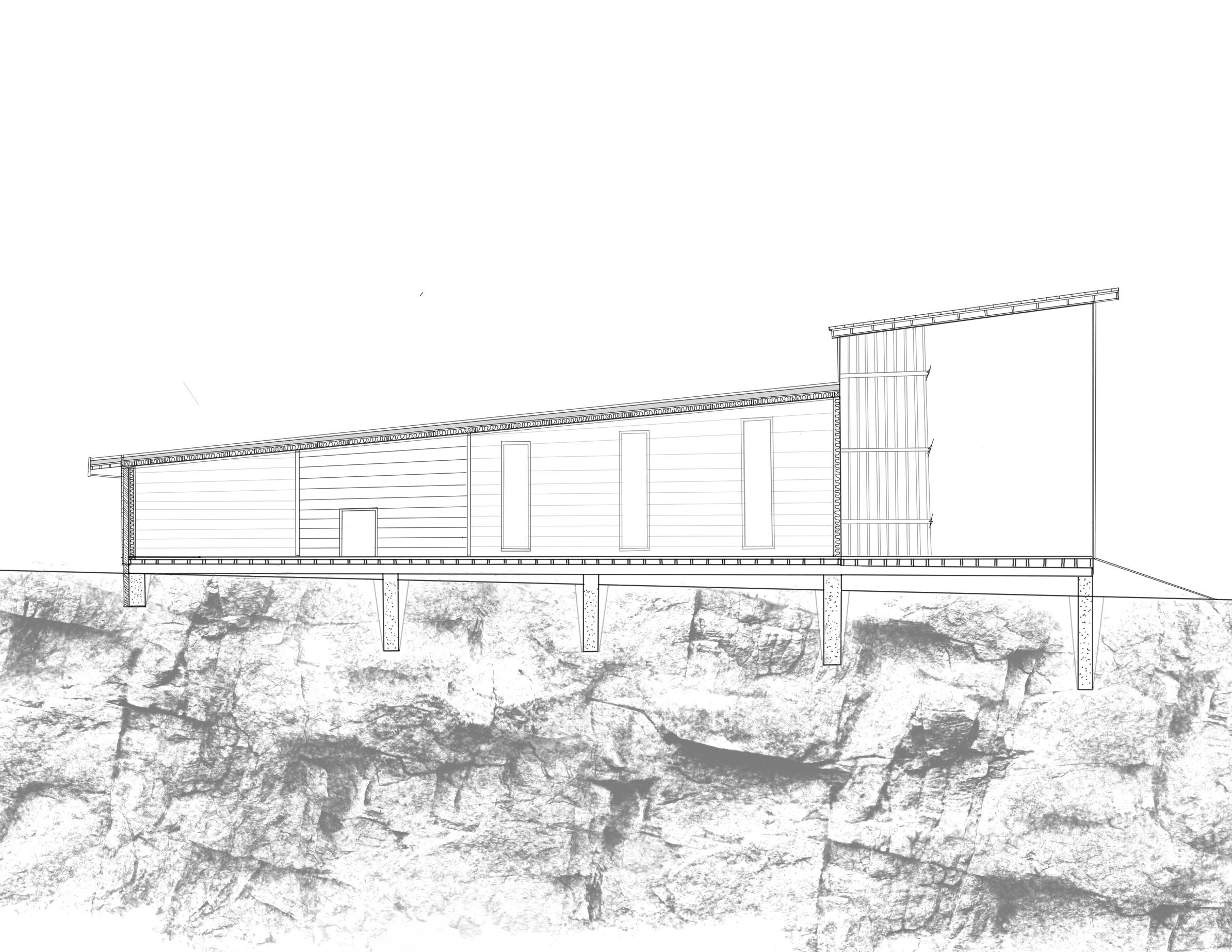

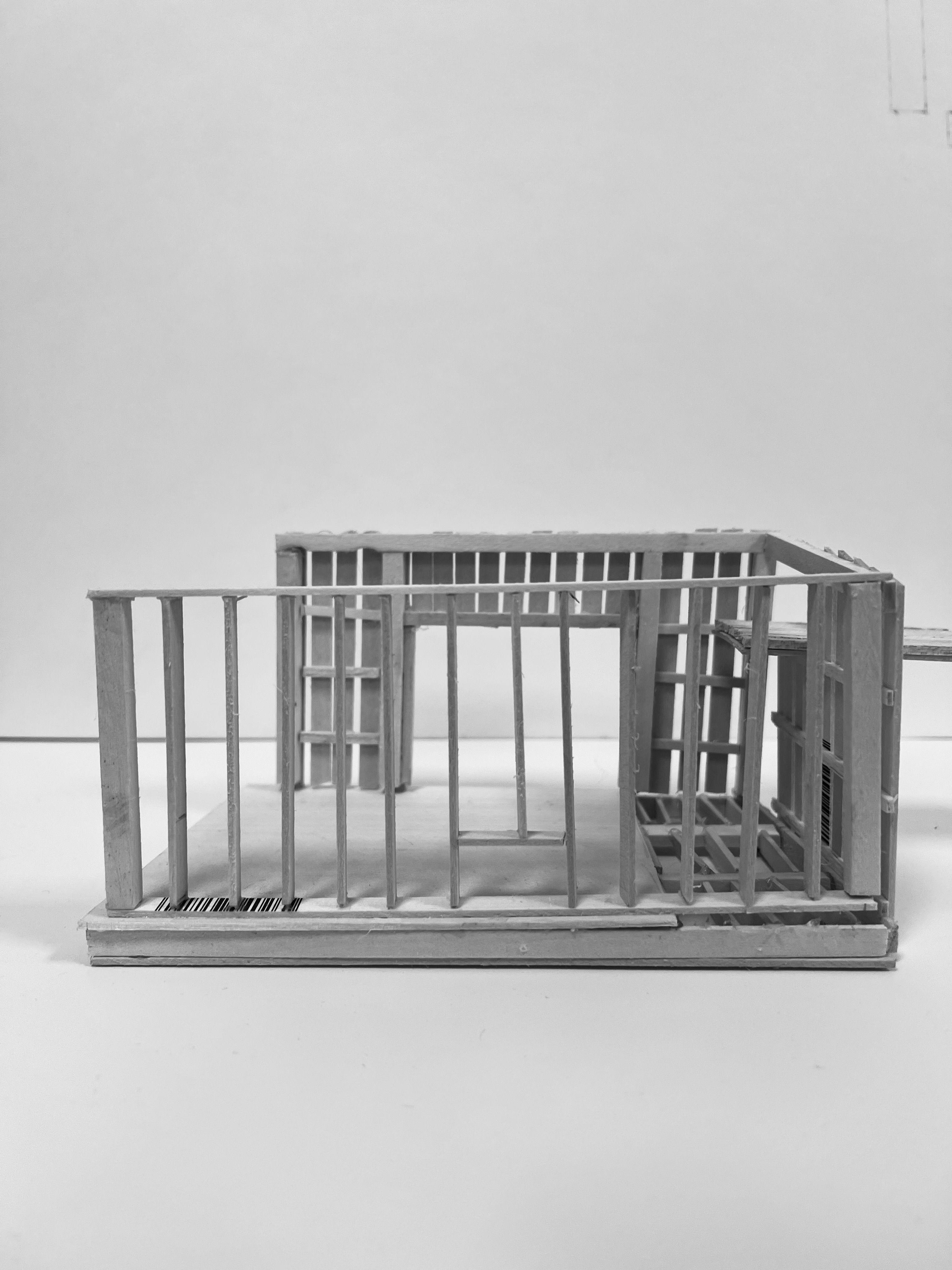

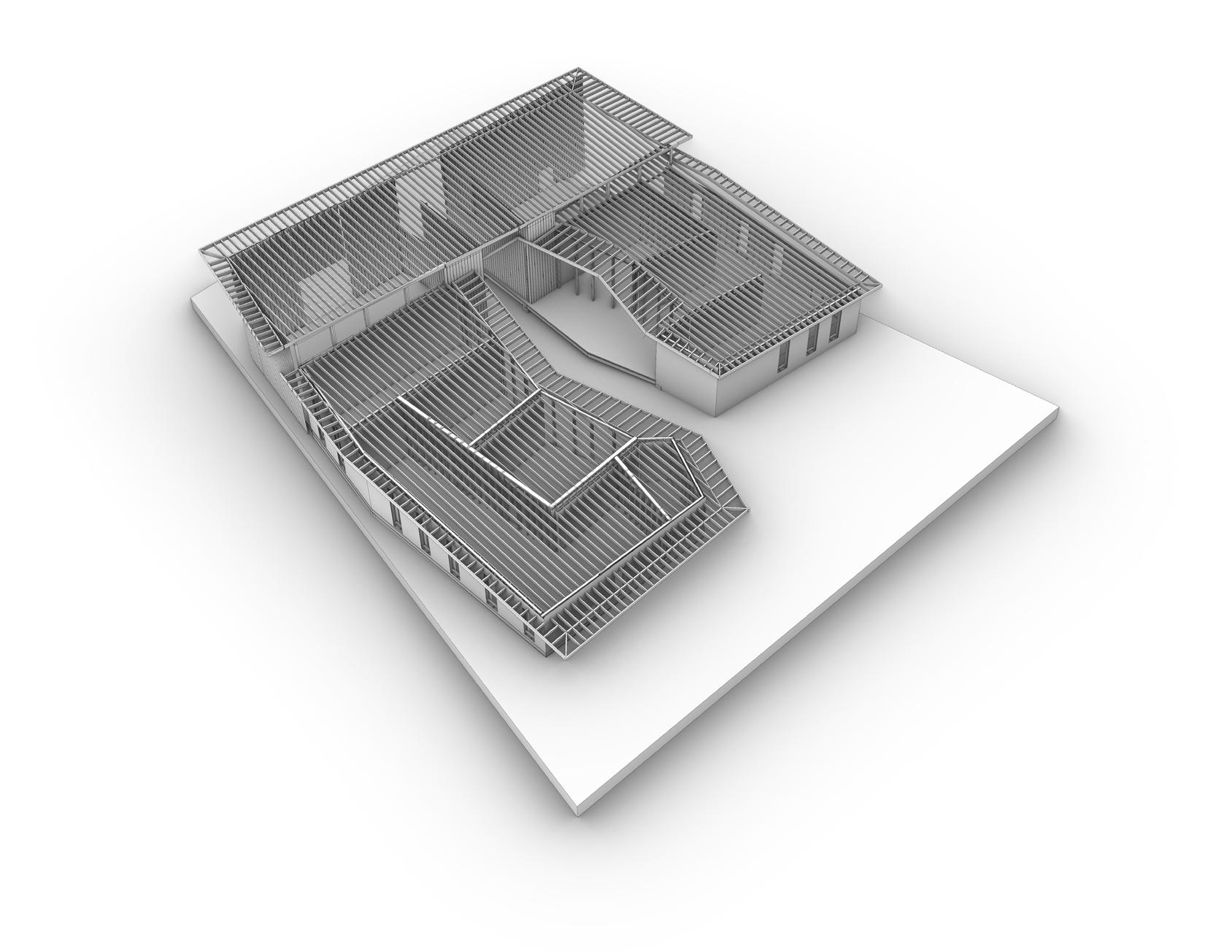

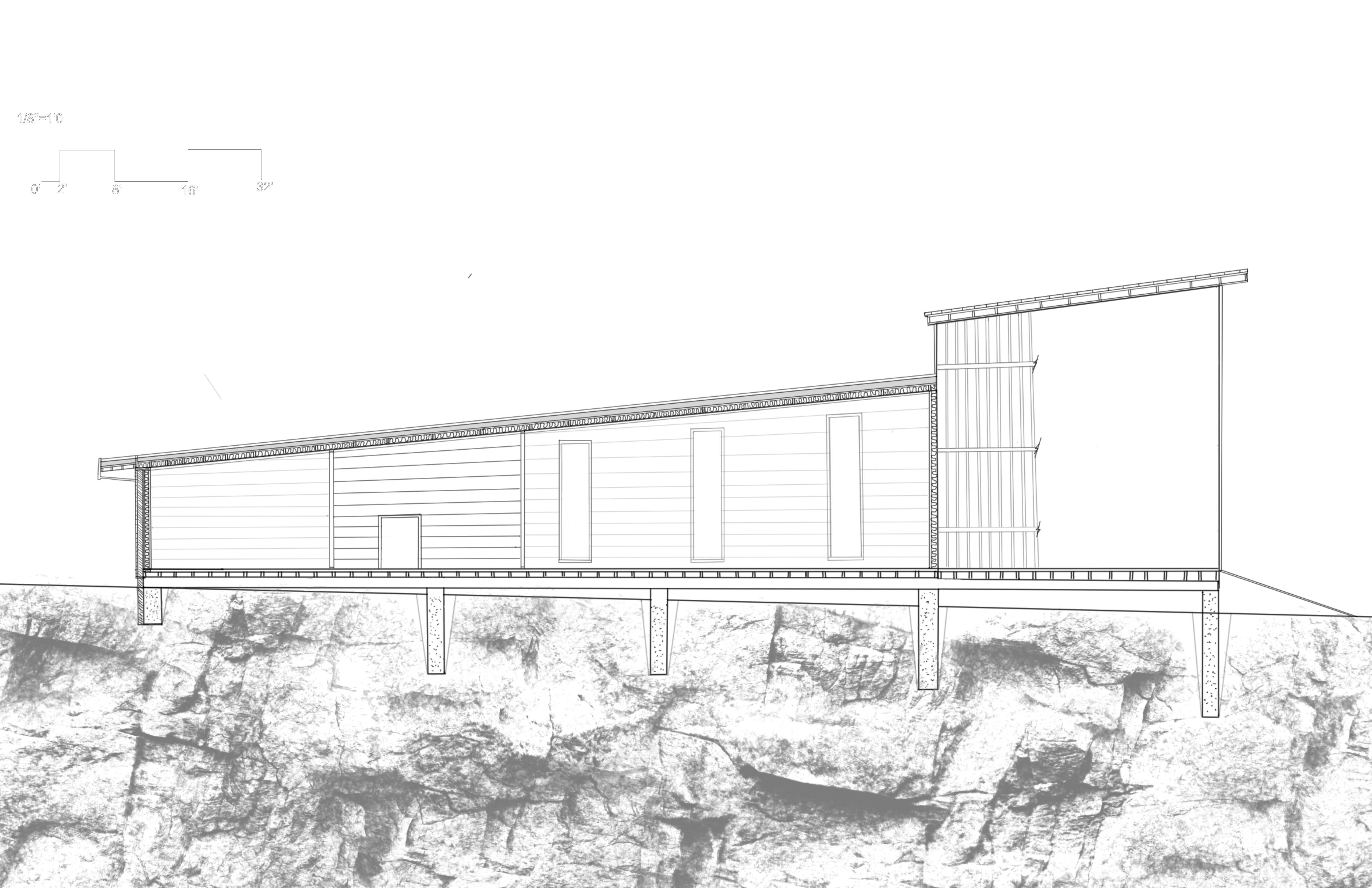

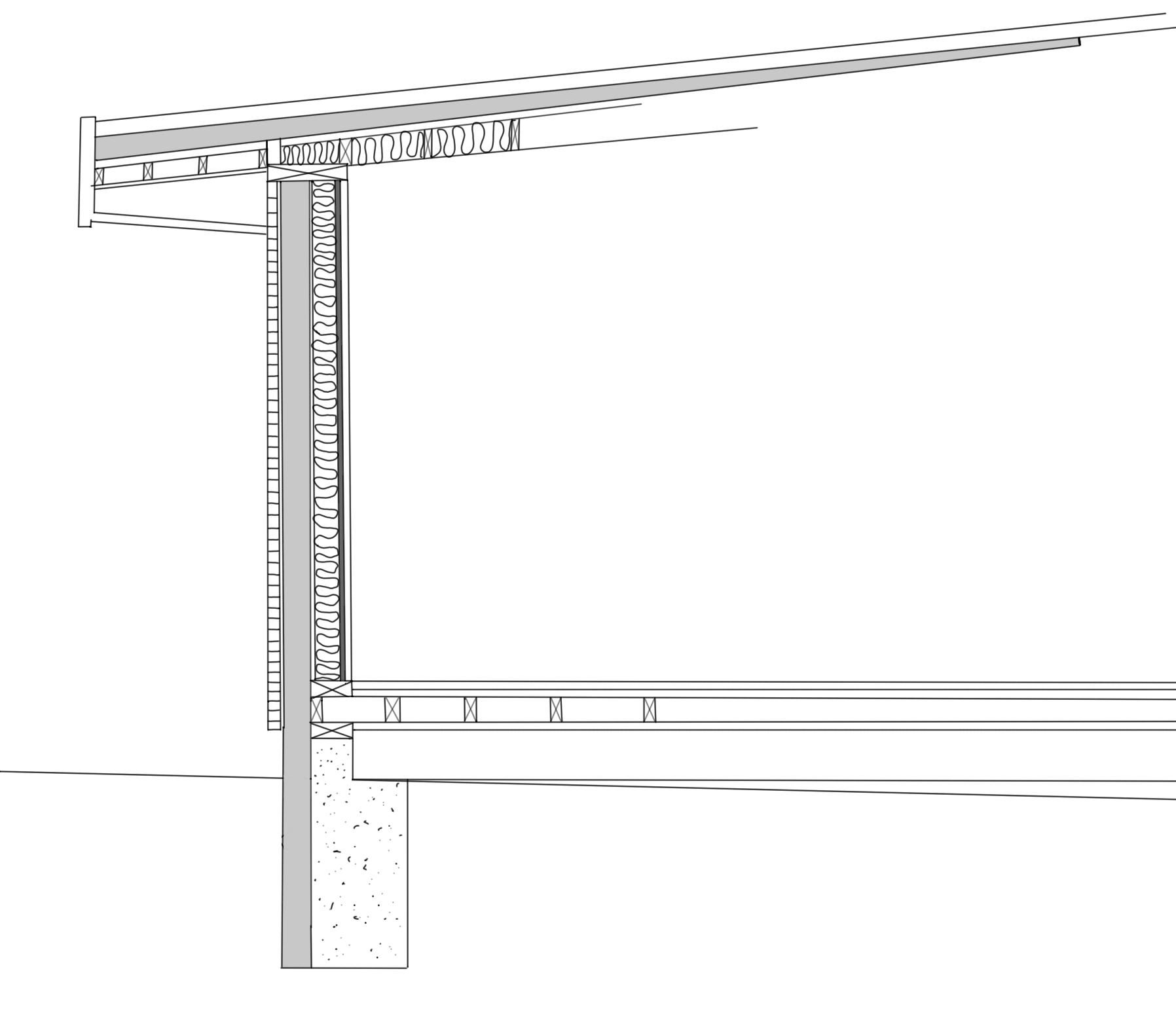

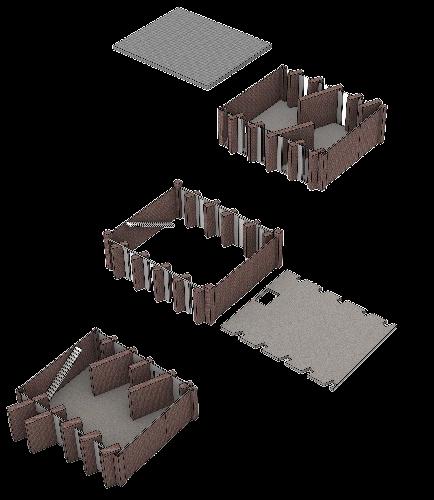

Wooden Roof Frame: 2x12’ joists and rafters

Plywood

Cavity Insulation

Vapor Barrier

Interior Wall

Exterior Wood Seathing

Wood Cladding on top

Wooden Stud Wall Frame 2x8”

(Before insulation inbetween the studs)

Floor Seathing

Wooden Floor Frame 2x12’ joists 24’ apart o.c

Roof Sheathing

Insulation within the joists

Exterior Insulation

Airspace

Roof Finishing

OUTDOOR SEATING/ BOAT LAUNCH WATCHING CELEBRATION

WOODSHOP

STUDIO

OUTDOOR STUDENT WORK AREA

DESIGN STUDIO

BATHROOM AND MECHANICAL ROOM

BATHROOM

ADMIN OFFICE

STUDENT LOUNGE

CLASSROOM

GALLERY

BIG SHED

MAIN STUDENT CIRCULATION

MAIN PUBLIC CIRCULATION

PARTIAL "BIG SHED"

AND FRAME

MFA COMMUNITY CENTER

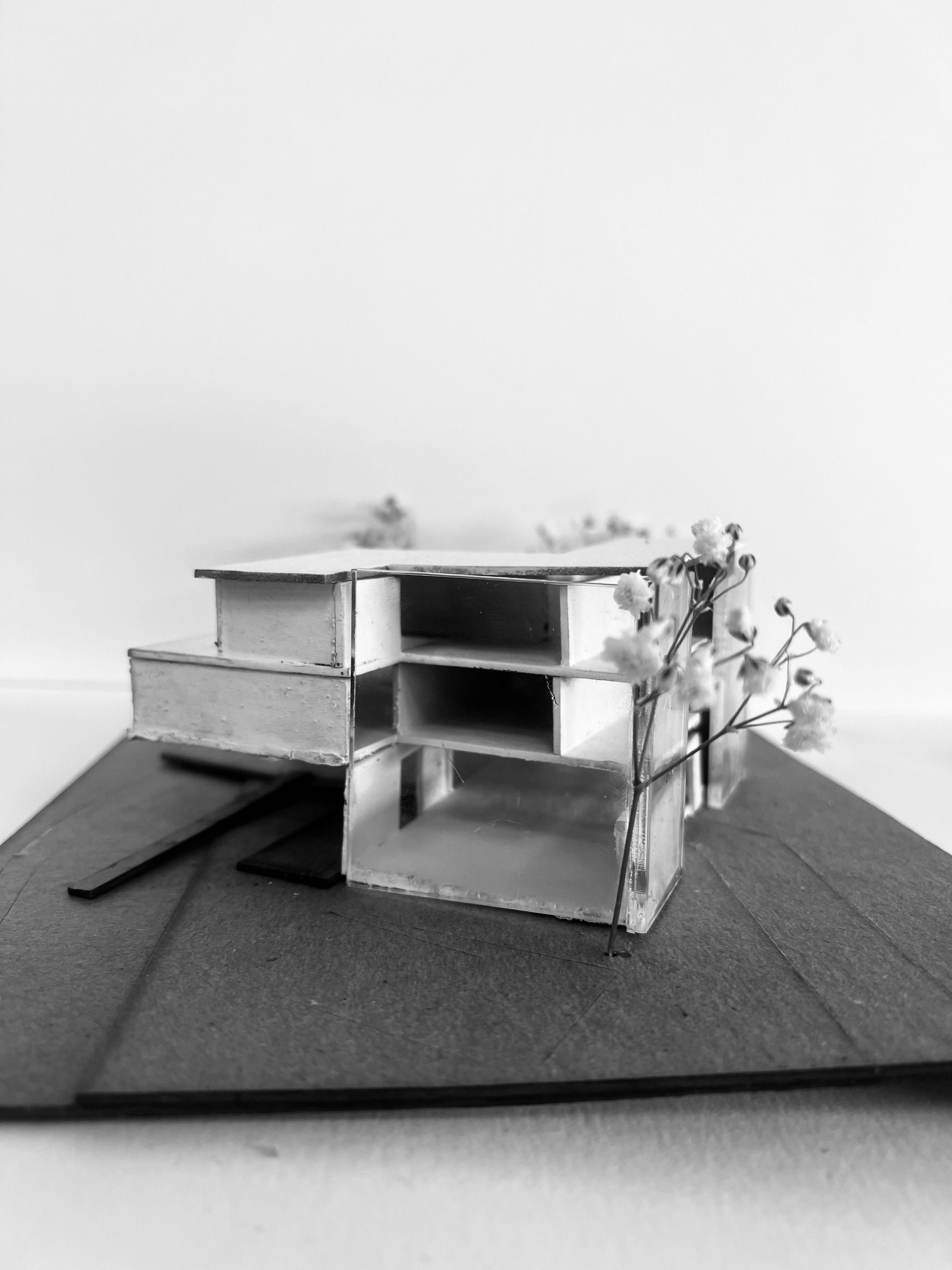

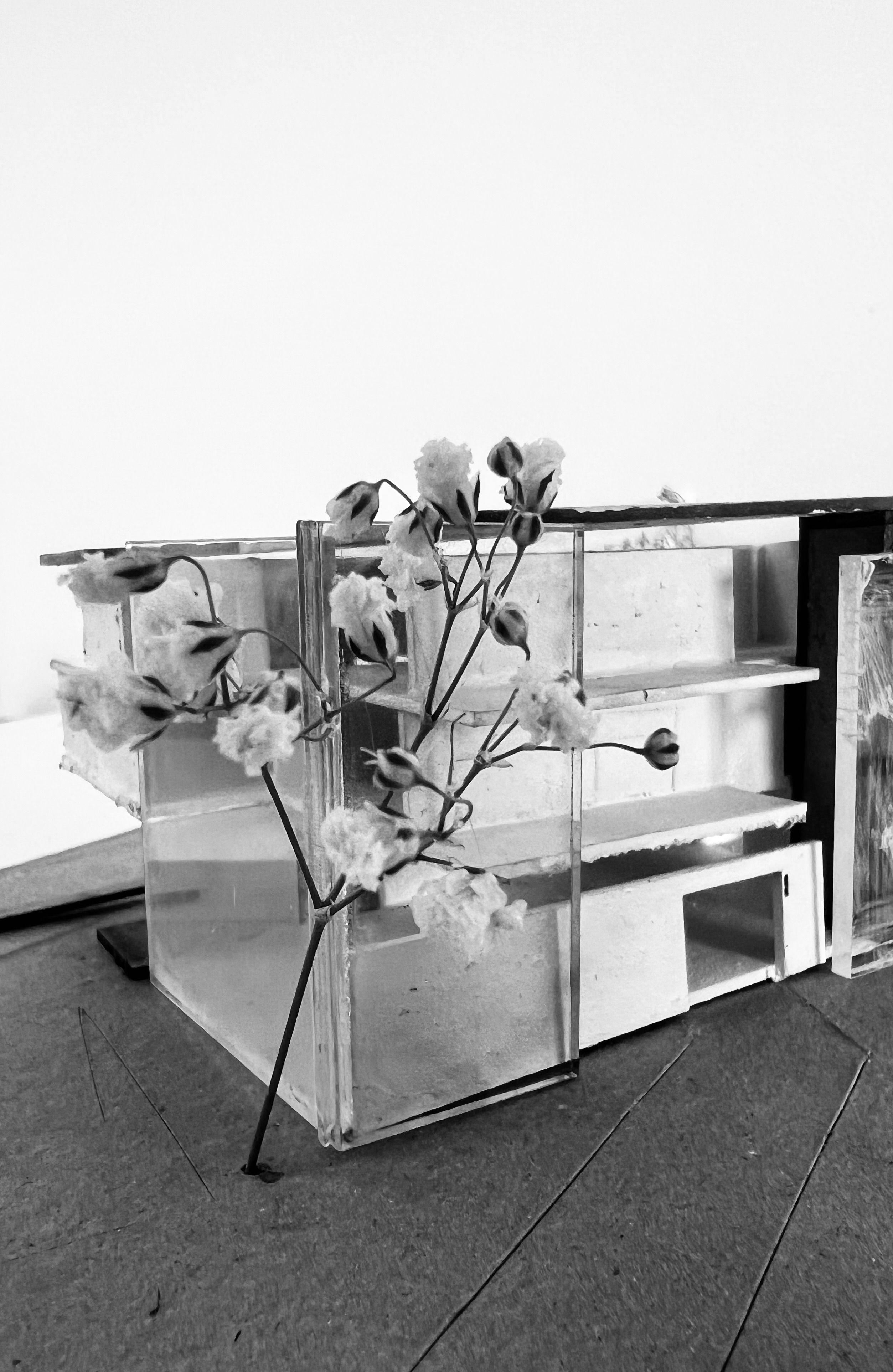

The MFA Teen Center is a multi-level space designed to inspire high school seniors exploring architecture. The ground floor features a flexible exhibition space for student work and public exhibits. Upstairs, students will find studio spaces for architectural exploration, alongside administrative offices and a library for quiet study. A smaller, intimate studio on the third floor provides space for focused work. The design ensures seamless accessibility and connection between levels, offering a collaborative environment for students to experiment, learn, and showcase their creativity.

GENERAL PUBLIC CIRCULATION

FACULTY CIRCULATION

General Public Circulation Student Circulation Faculty Circulation

STUDENT CIRCULATION

MFA: Center for Habitat for Humanity

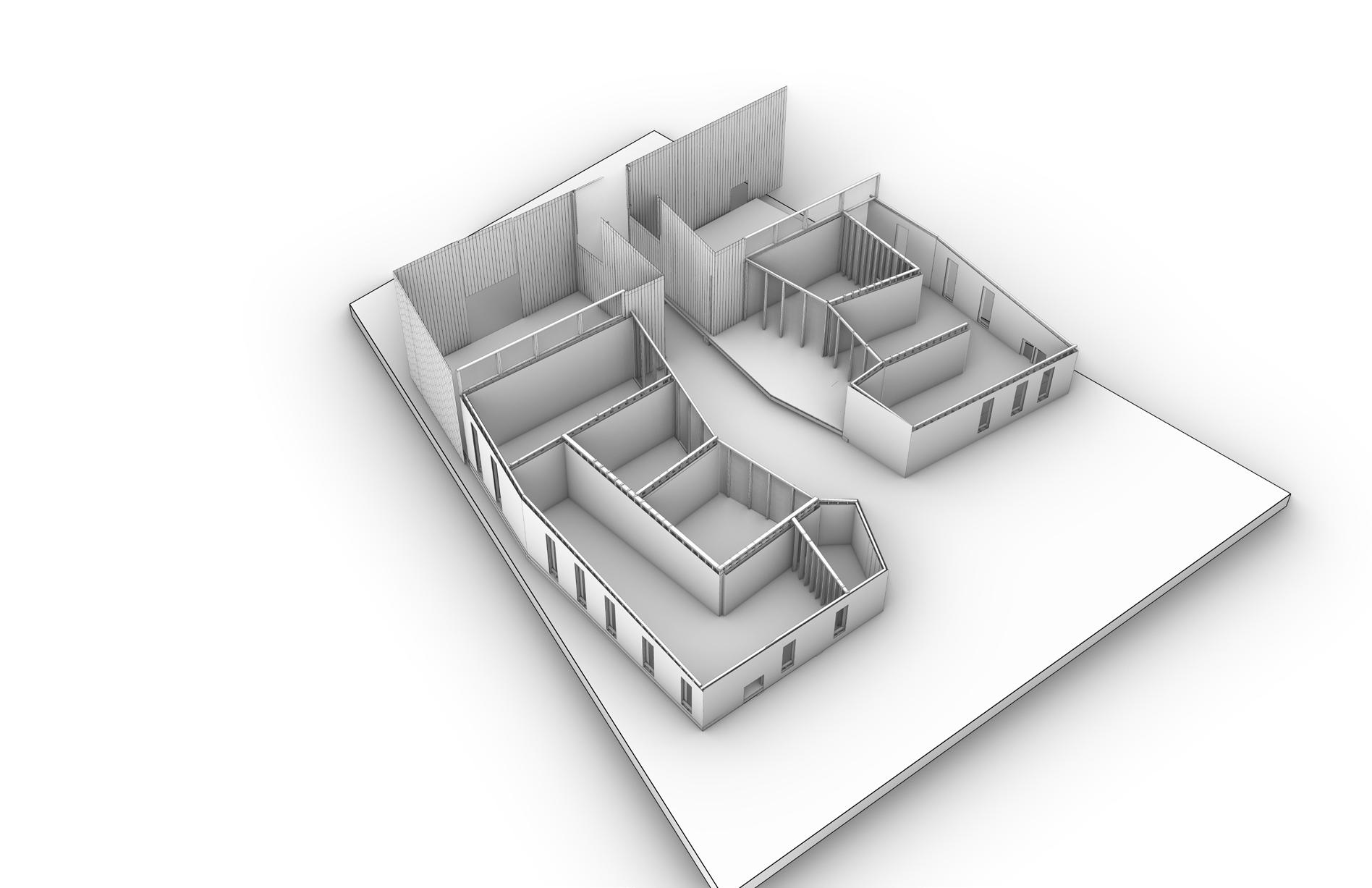

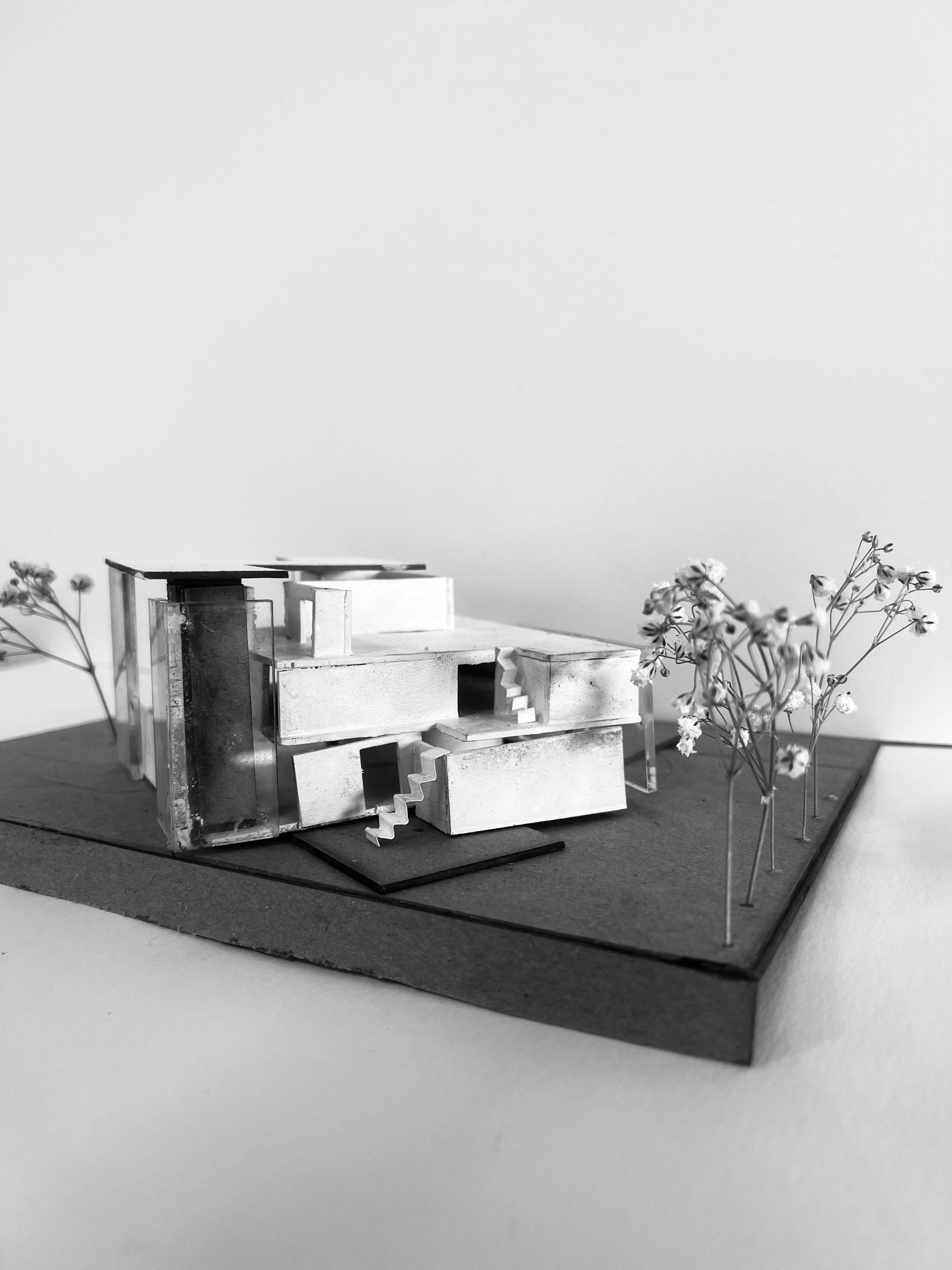

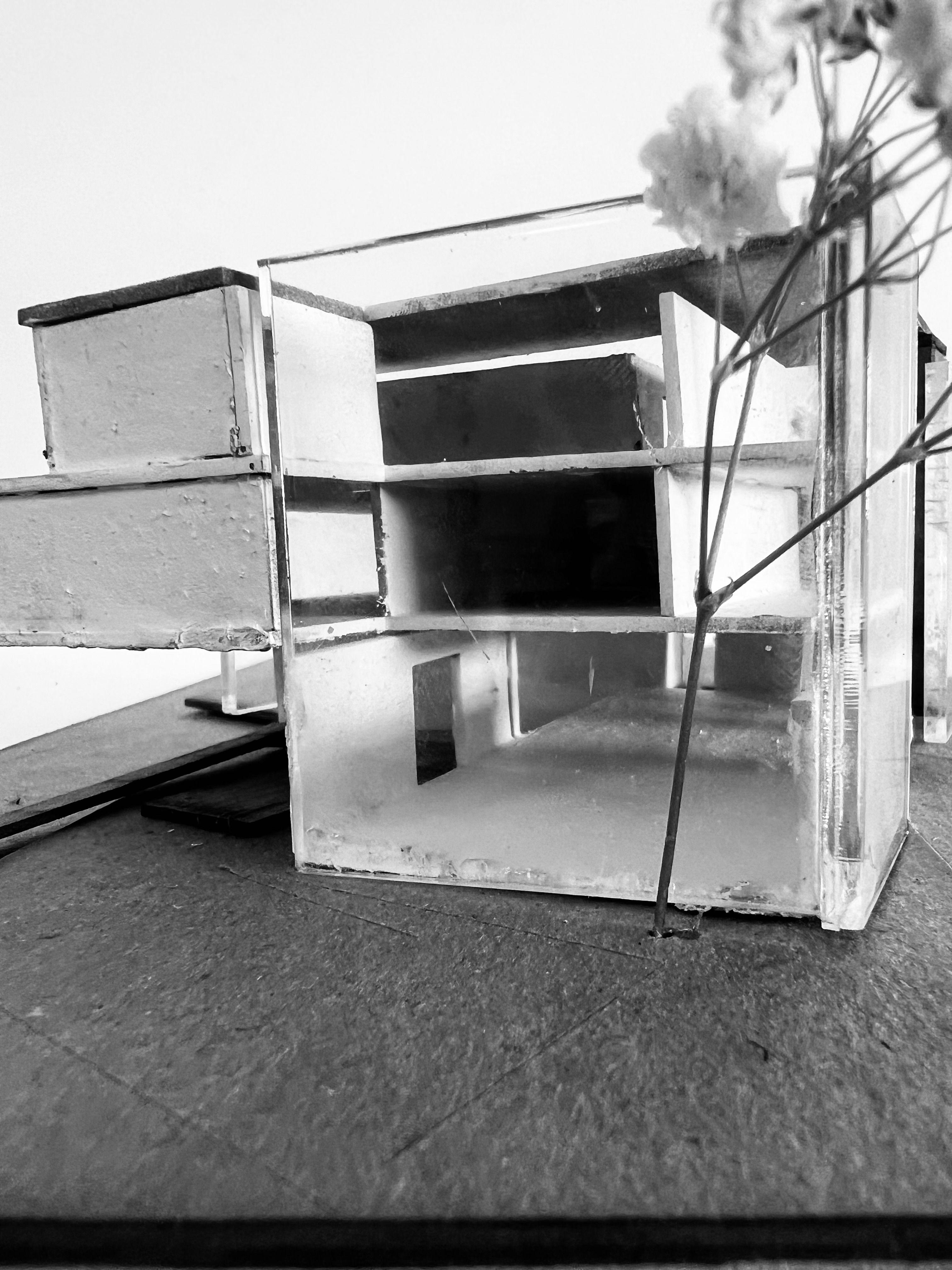

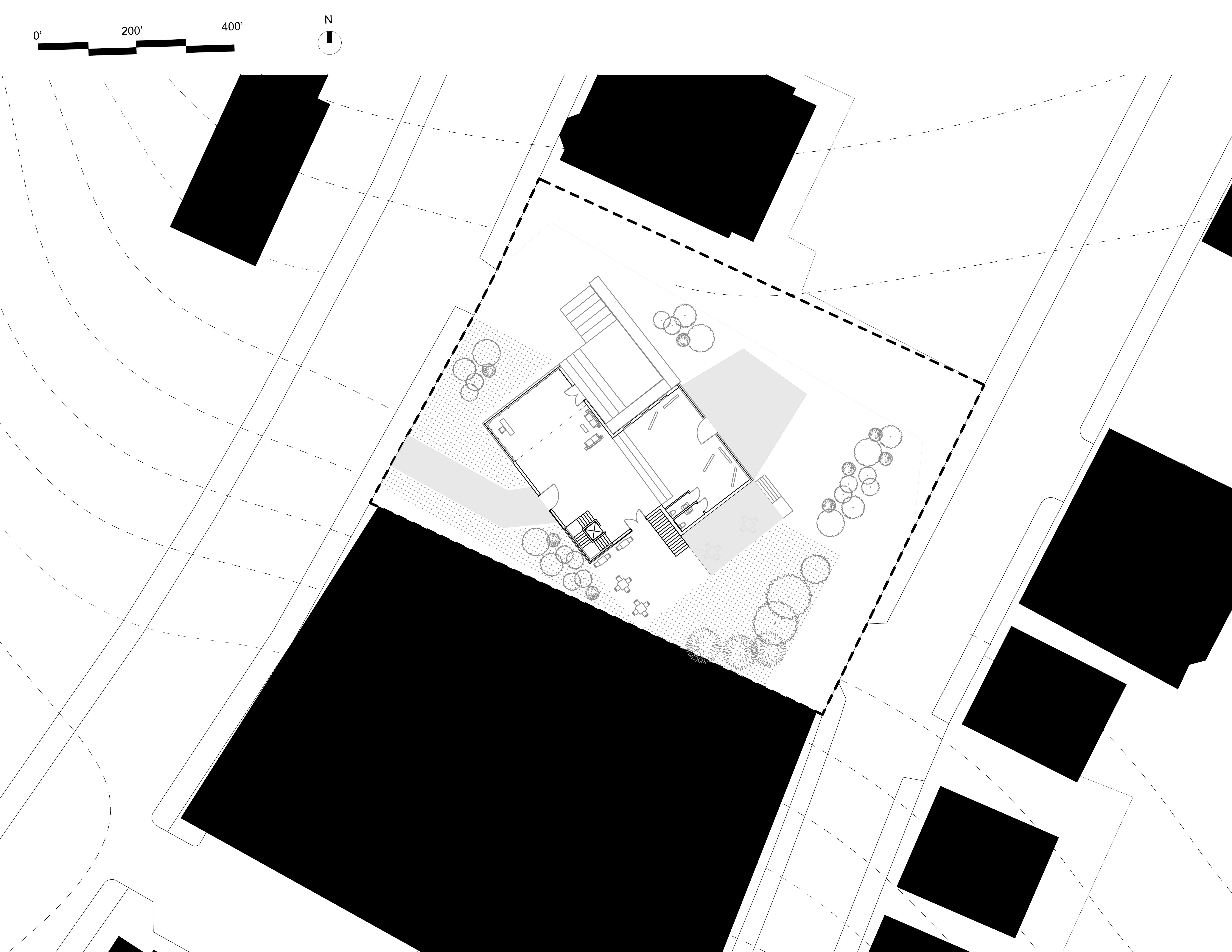

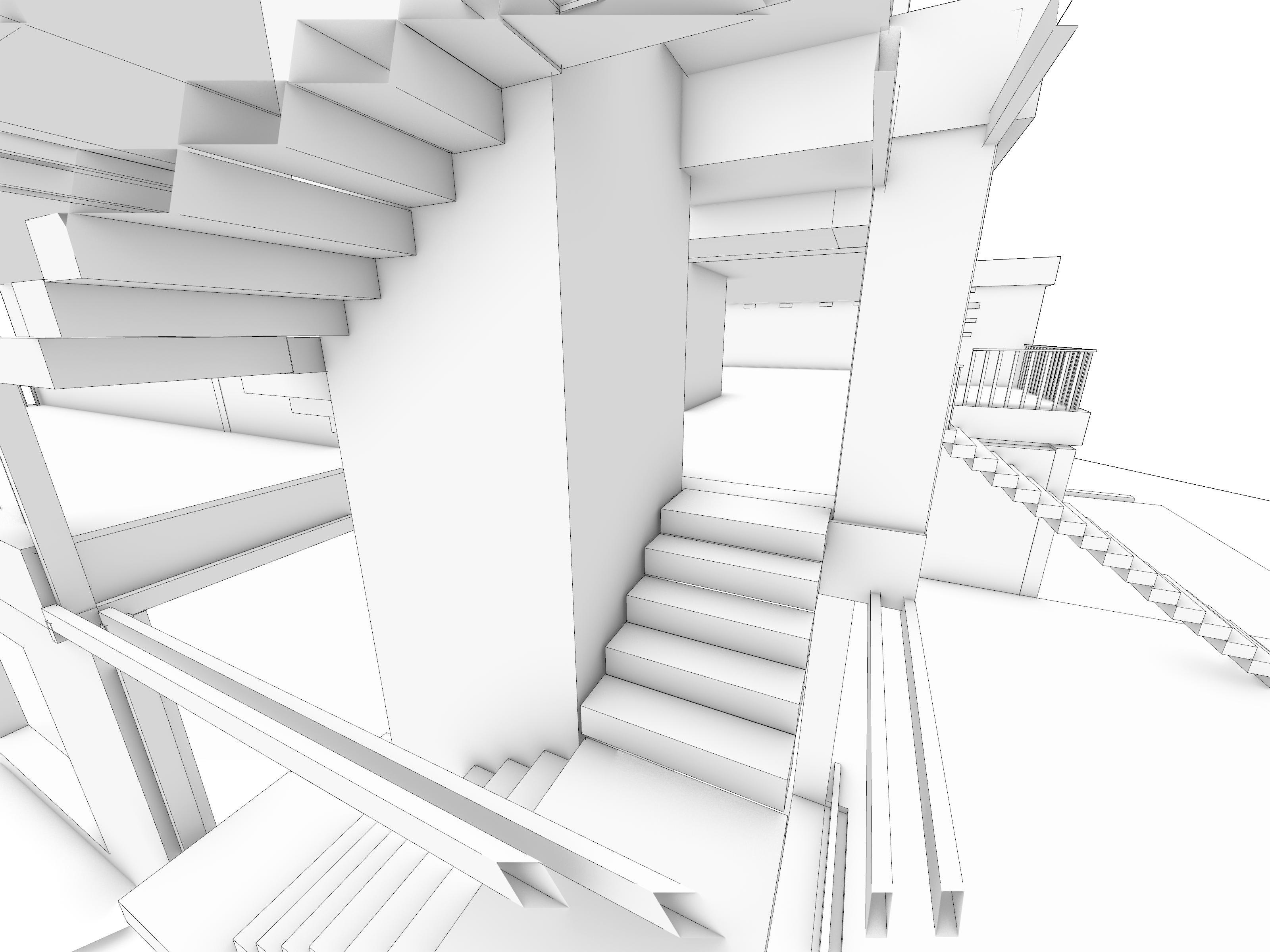

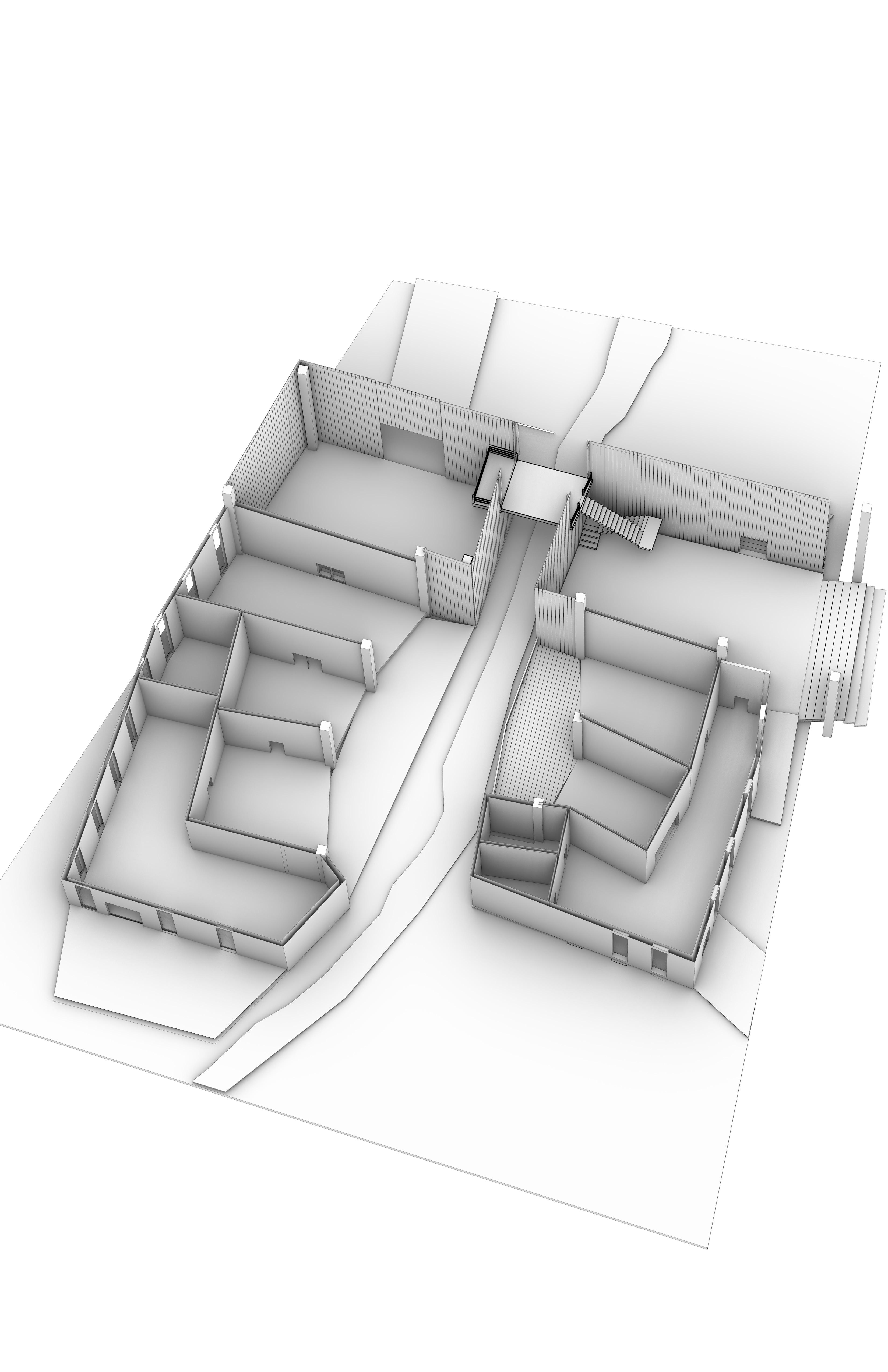

Given an empty lot between two old breweries on Station Street, we were given the task to create a building for sbhared space between Habitat for Humanity and Wentworth Architecture students in whcih they can collaborate in ways to create affordable housing.The idea of my design is to seamlessly blend tradition with modernity. The building’s exterior is show these sleek, slanted brick walls that not only define its facade but also extend inward into the building, serving as partitions for the interior spaces and the main structure of the building. Along side the arranged slanted bricks, I placed floor to ceiling glass panels that fill the indoors with sunlight, resulting in an open and welcoming ambiance.

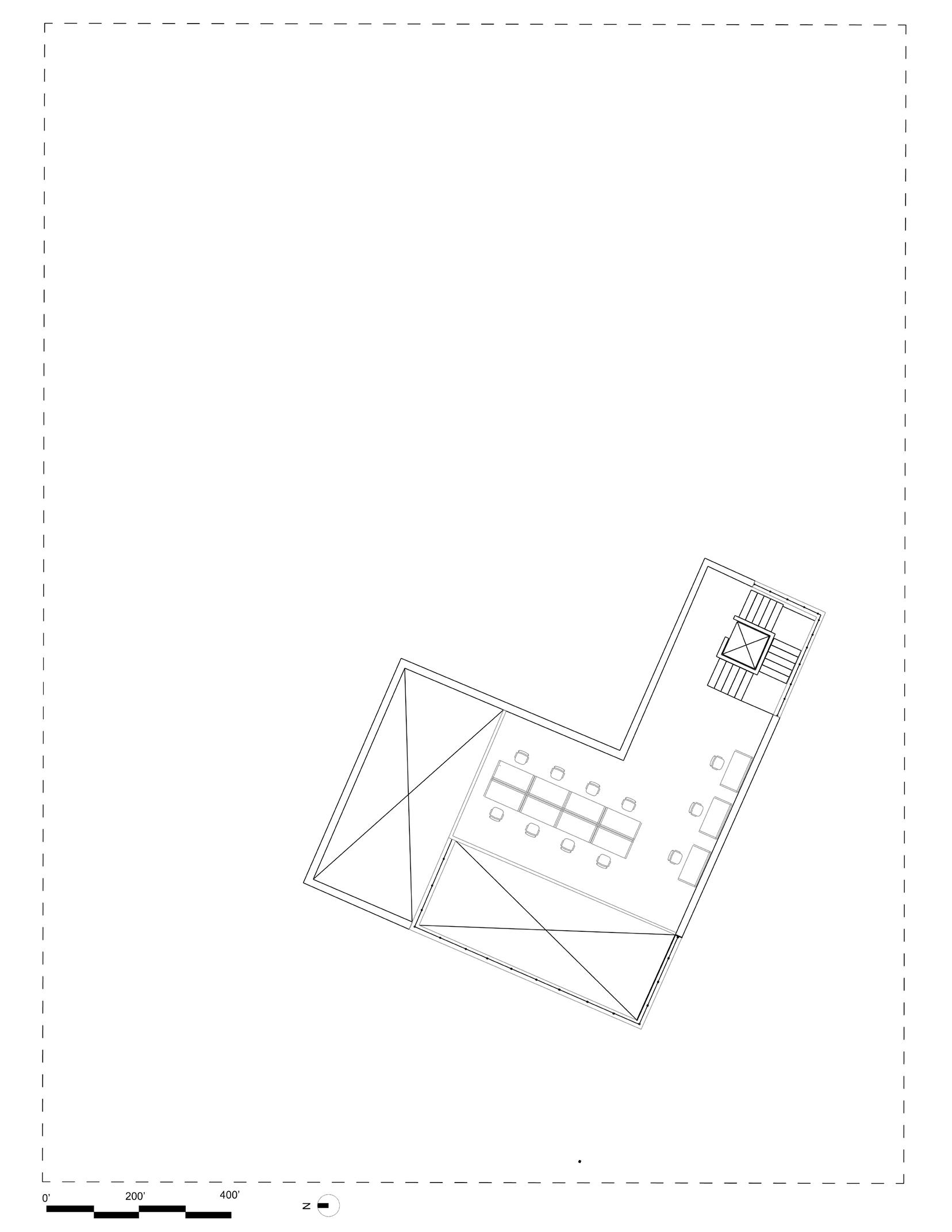

FLOOR 3

FLOOR 2

FLOOR 1

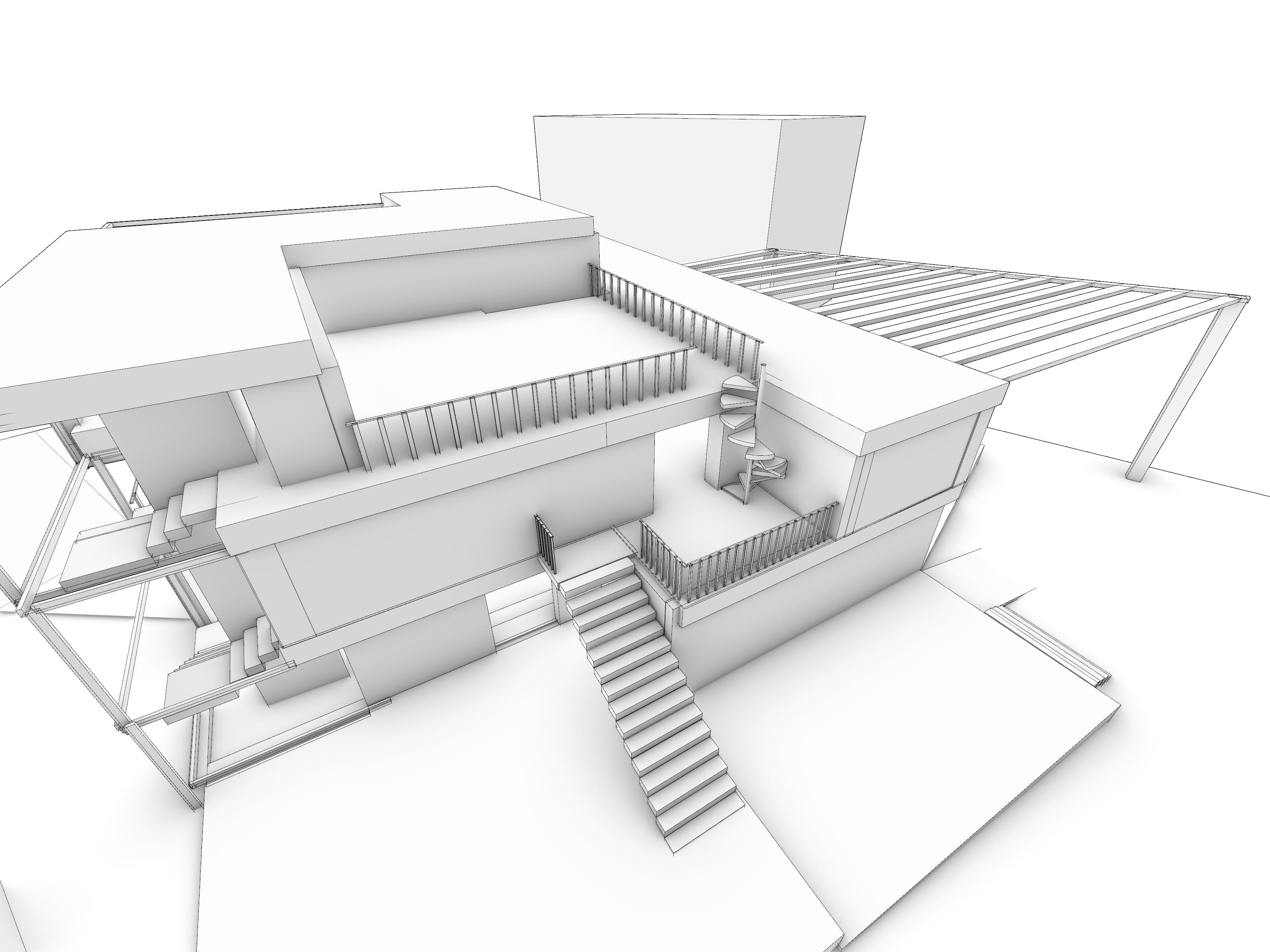

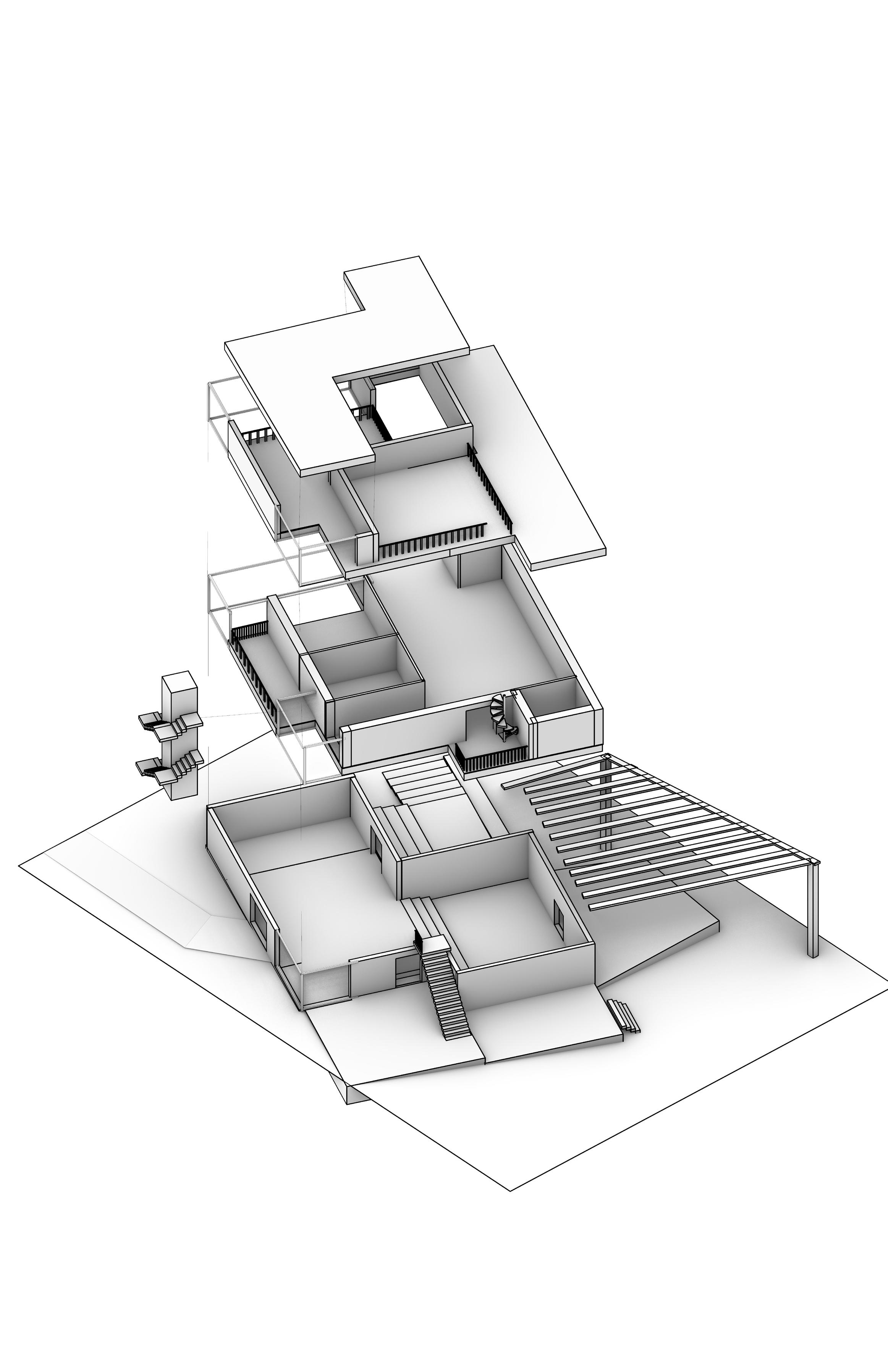

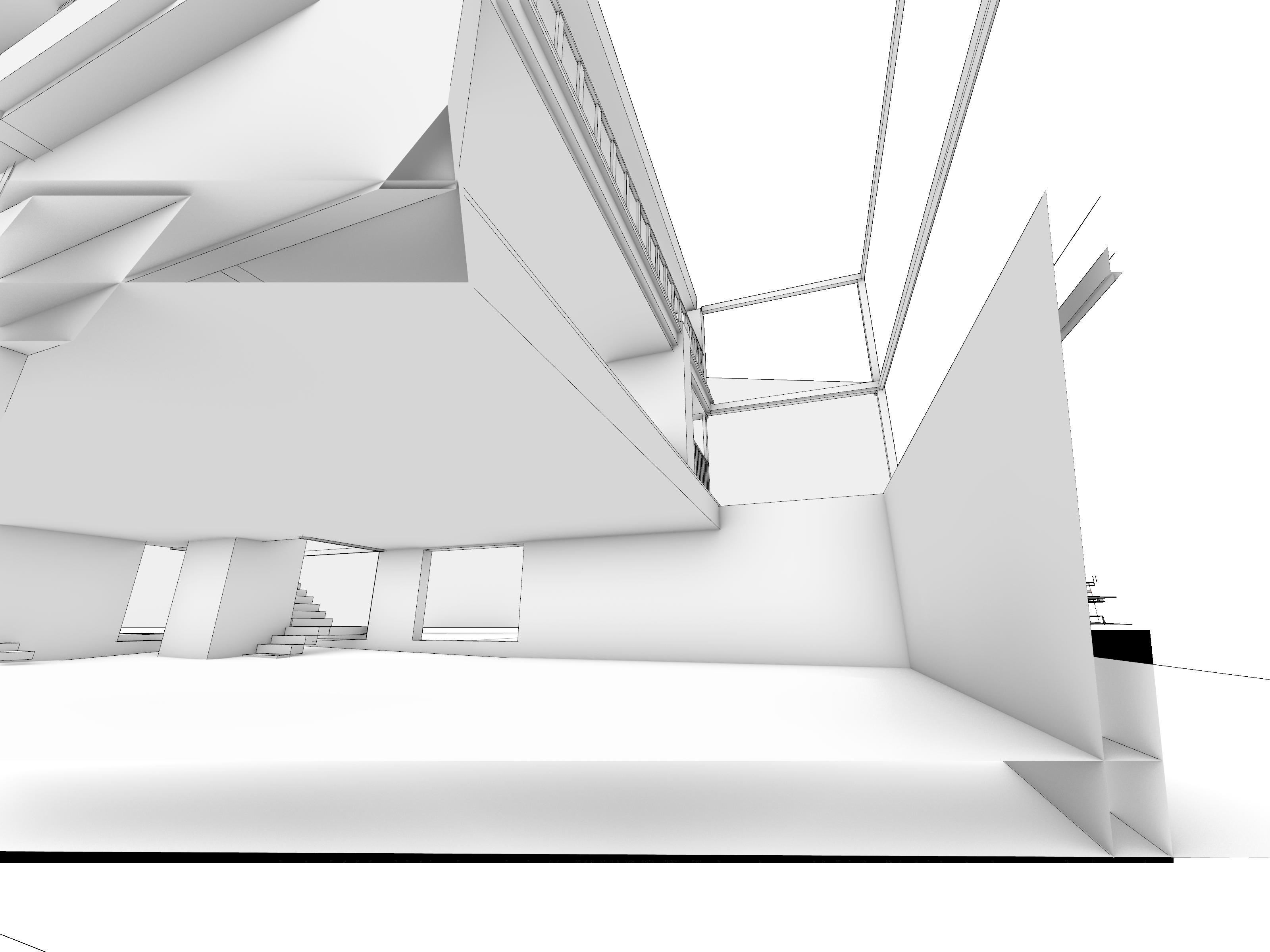

SECTIONAL PERSPECTIVE

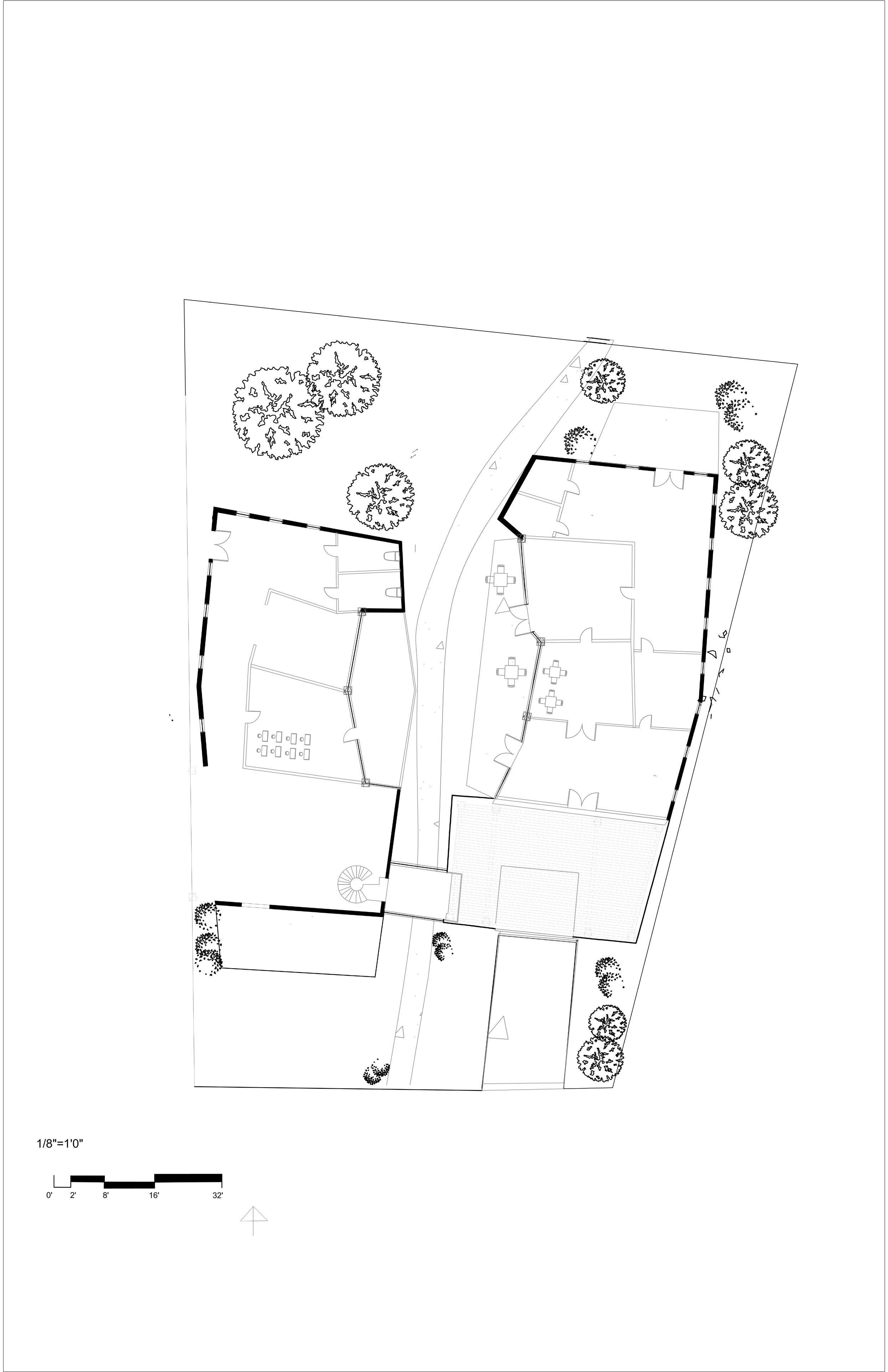

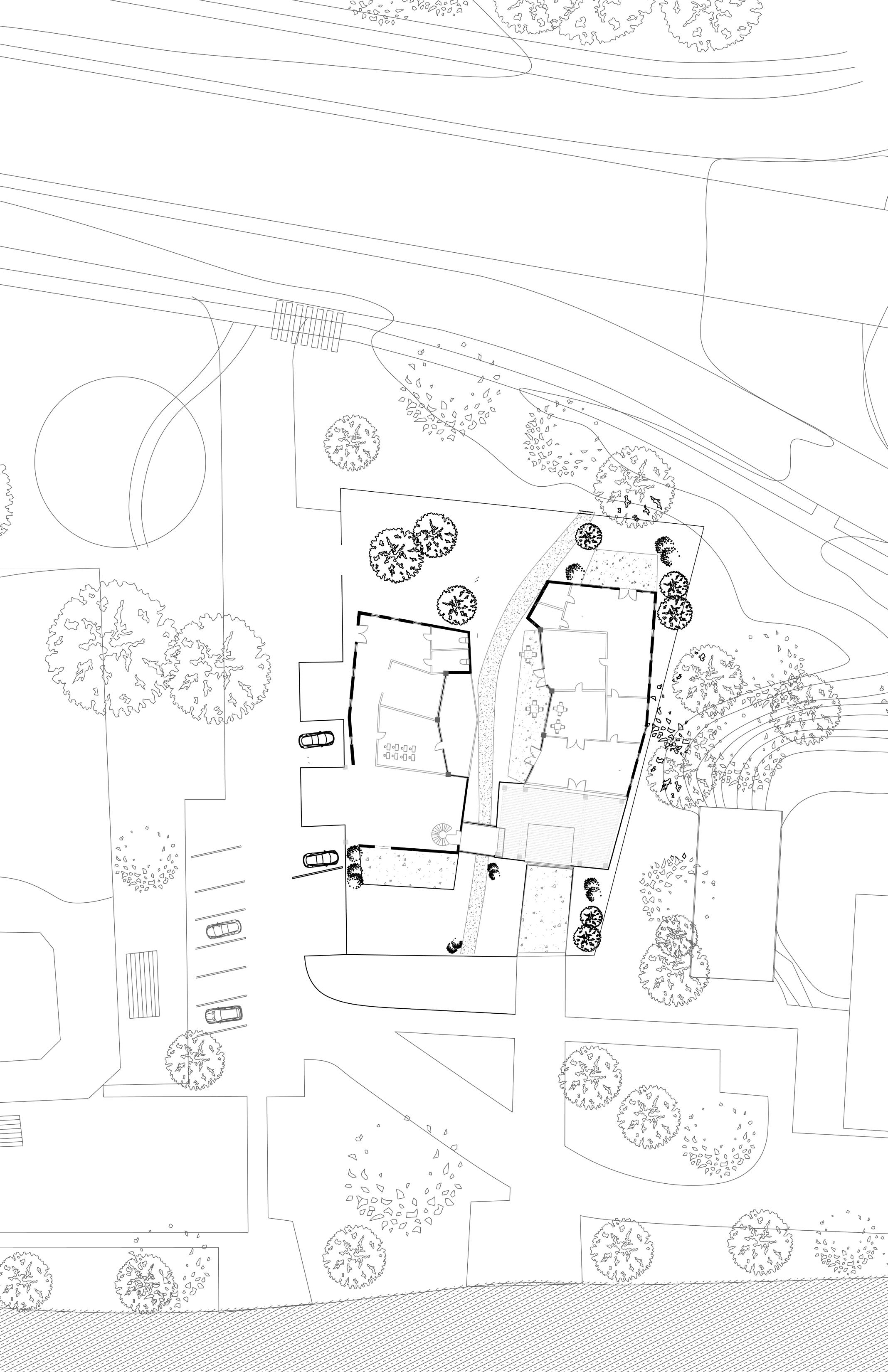

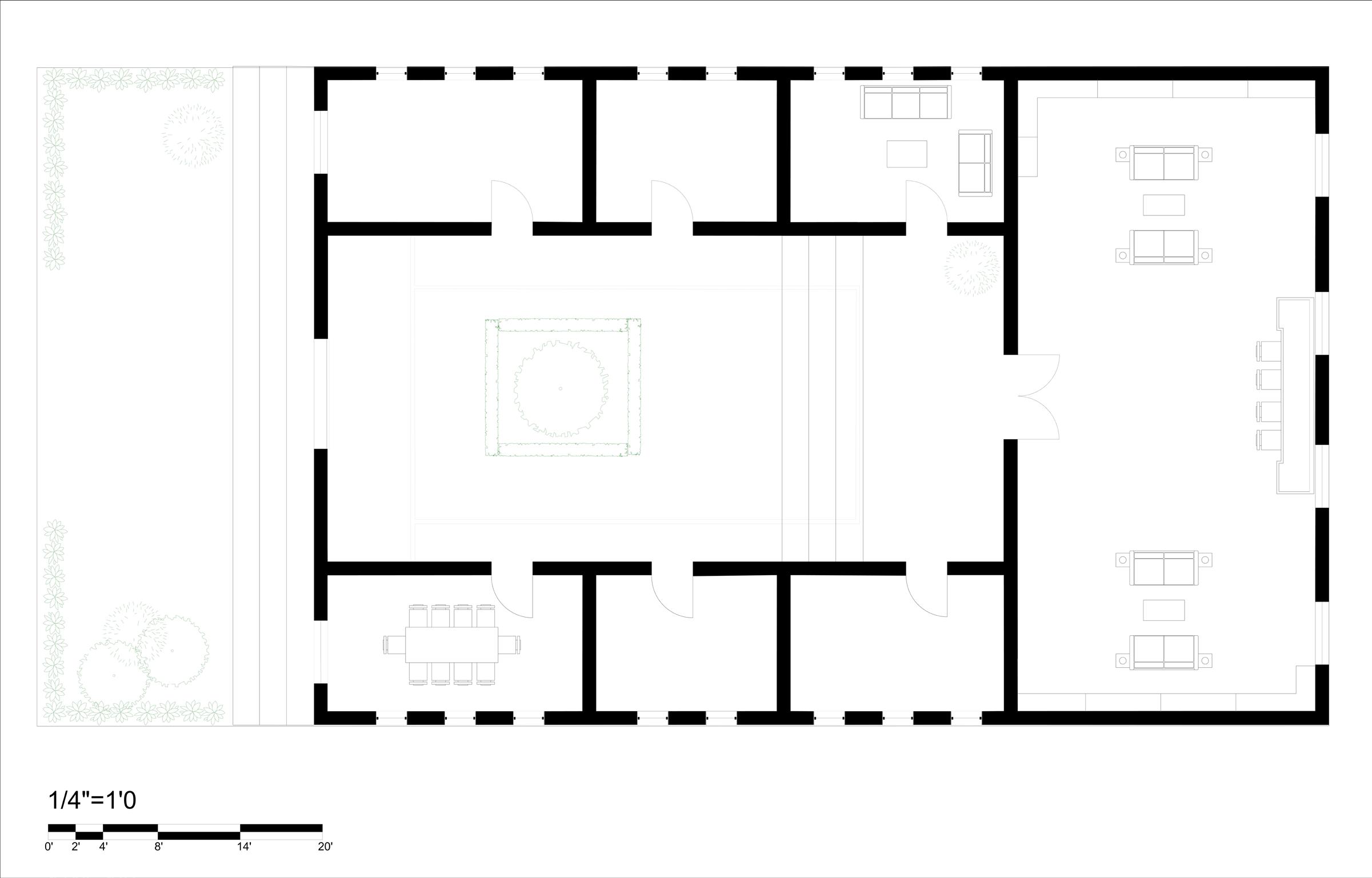

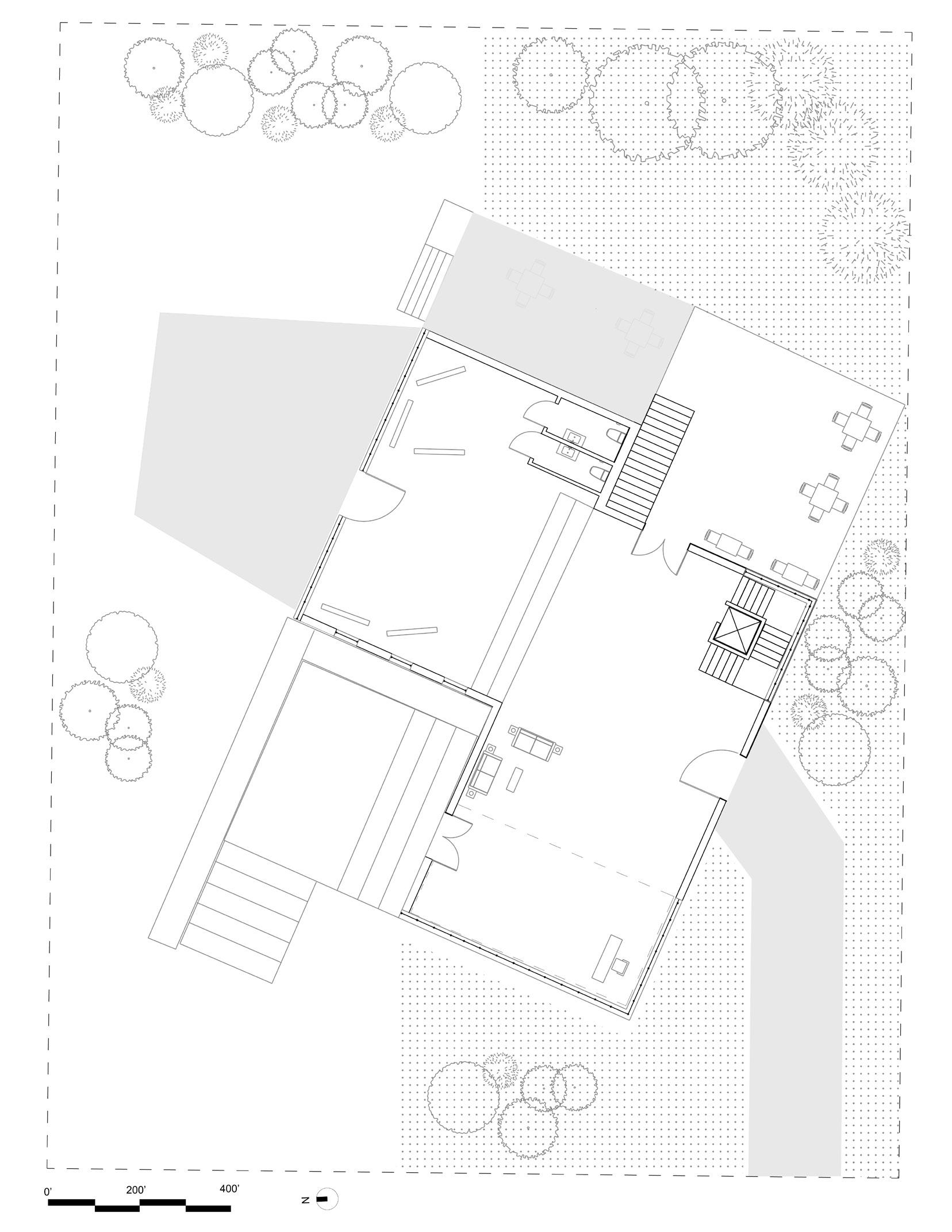

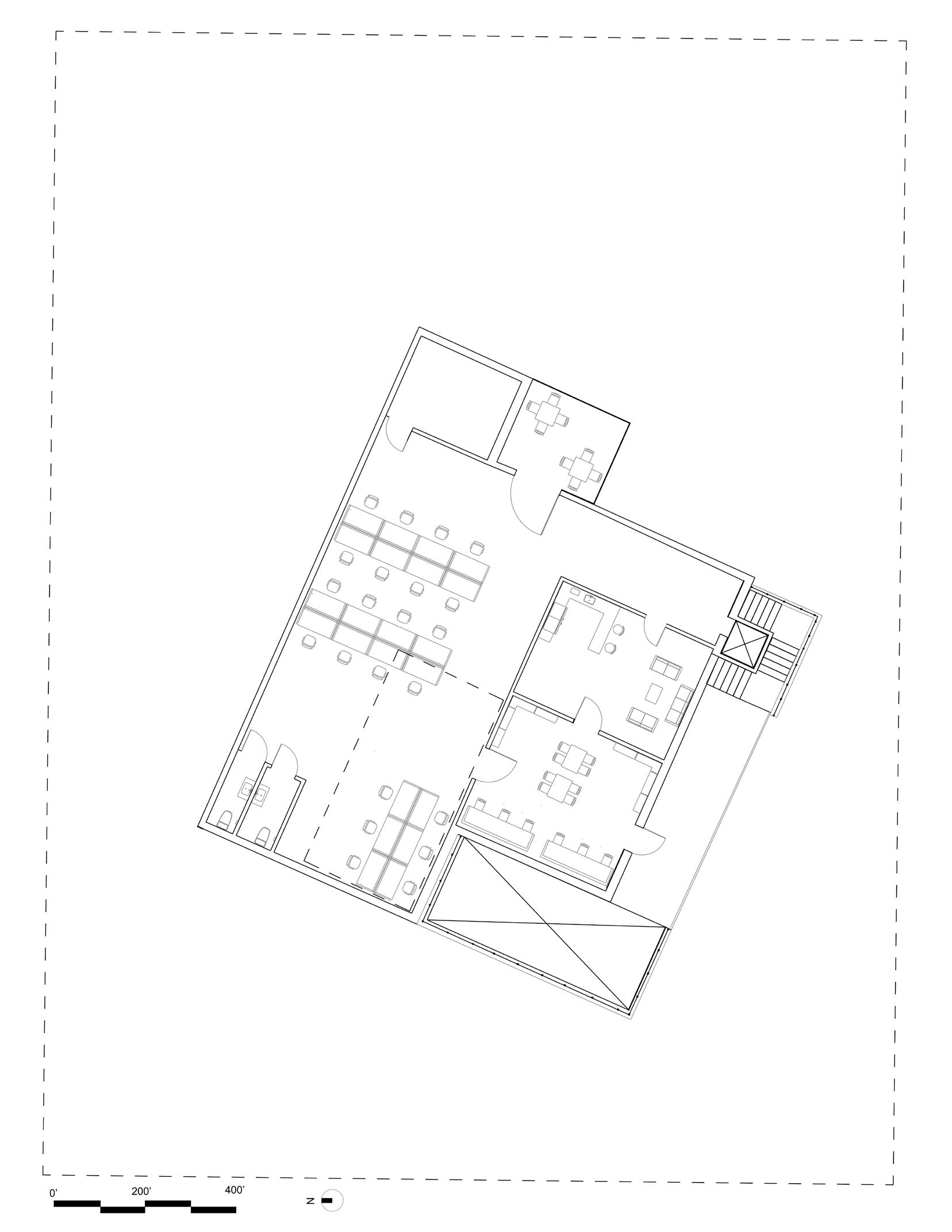

FLOOR PLAN

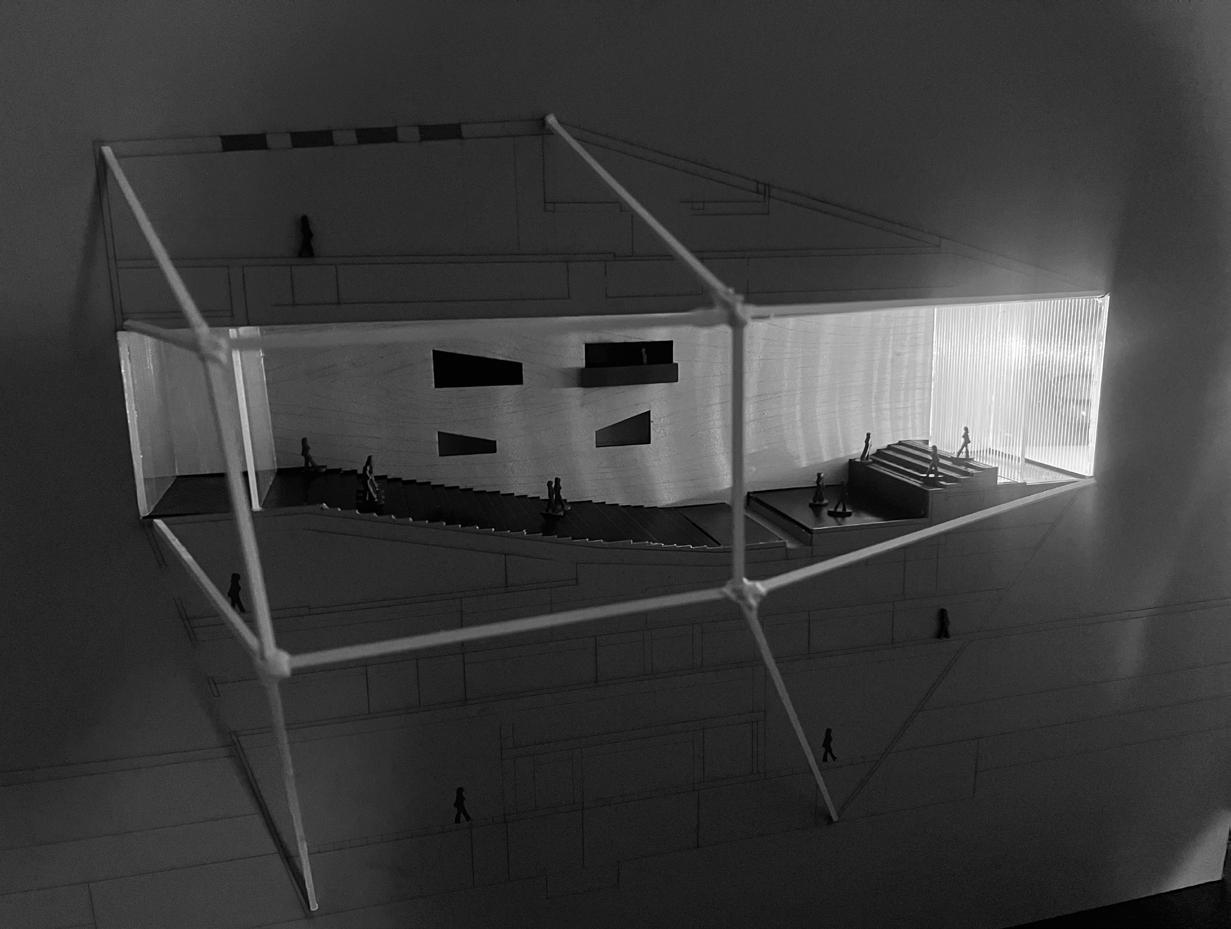

CASA DA MUSICA

Architect: Rem Koolhaas and OMA

PORTO, PORTUFAL 2005

CIRCULATION PARTI

STRUCTURE

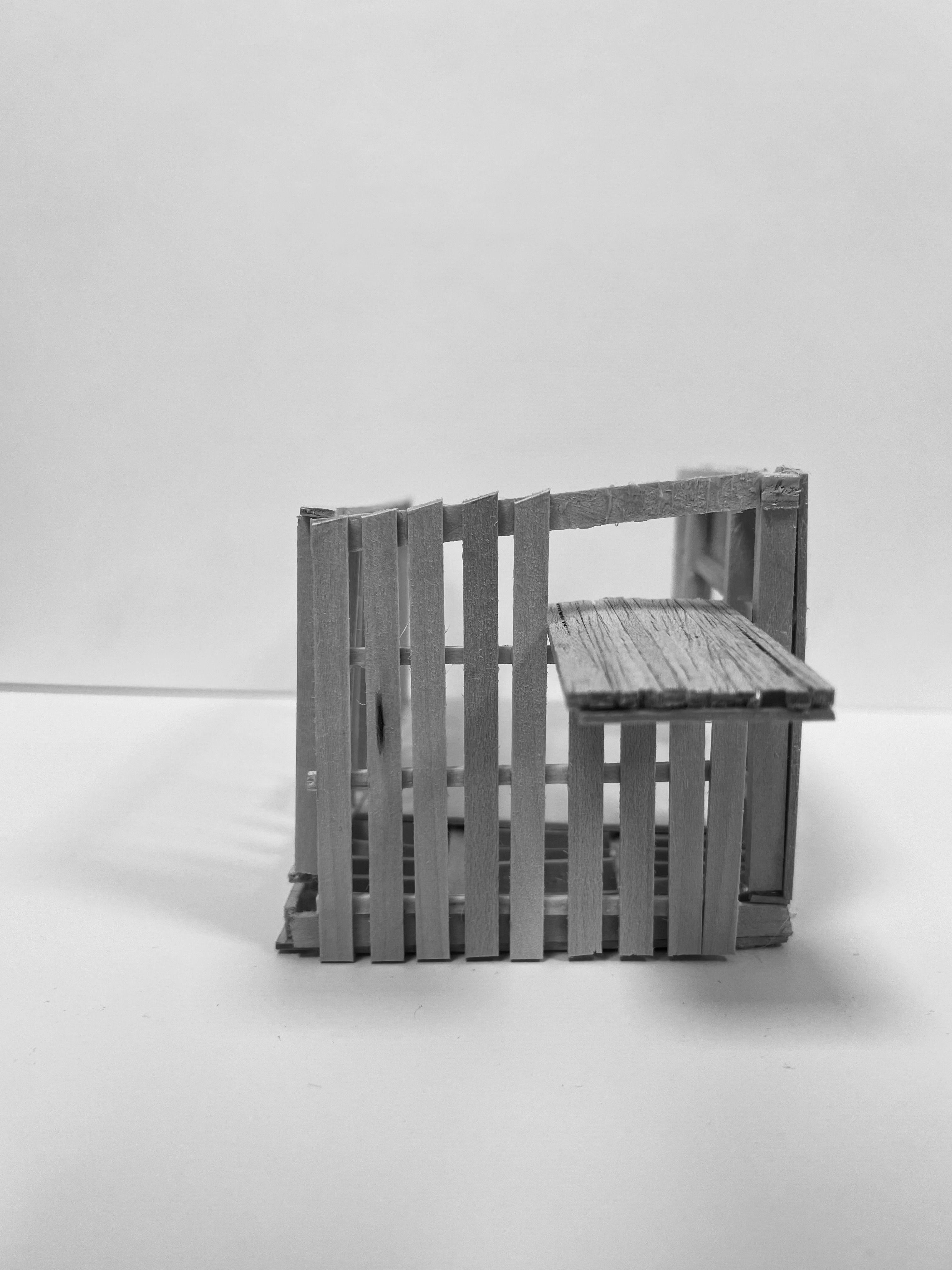

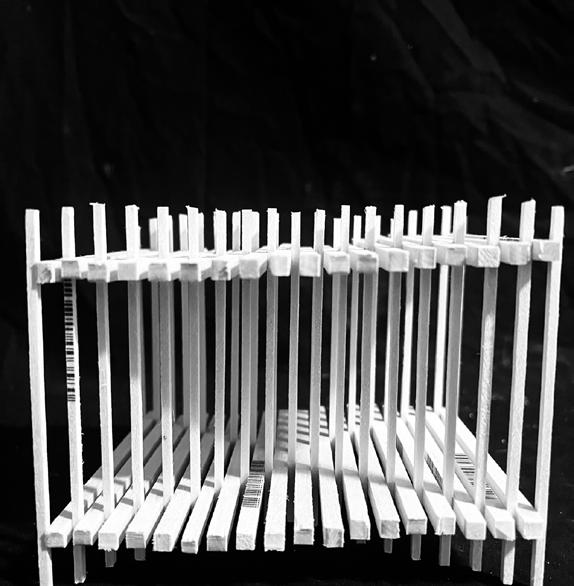

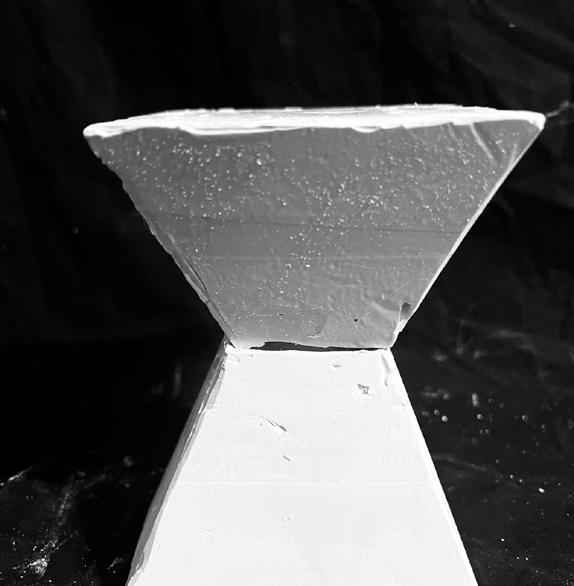

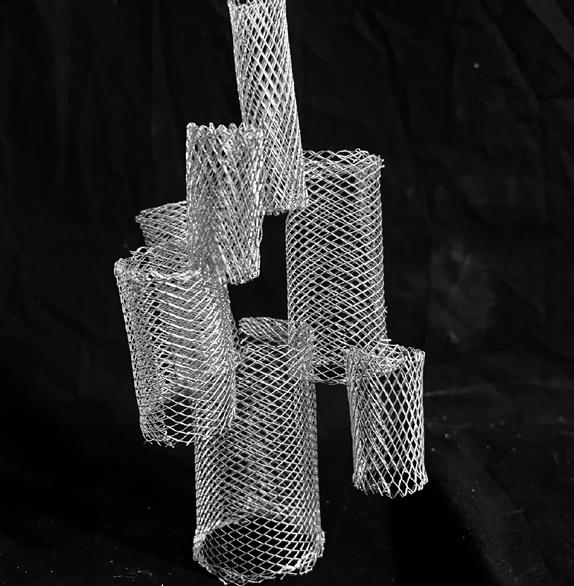

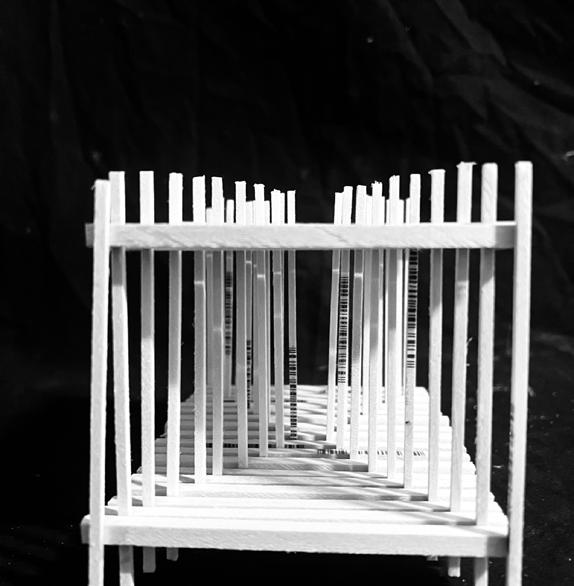

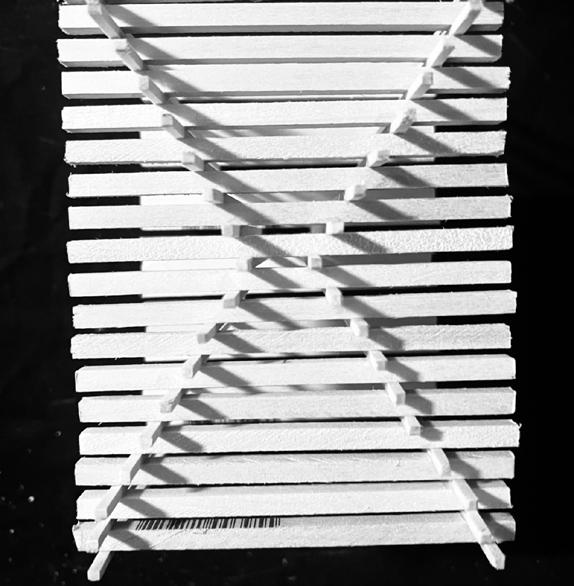

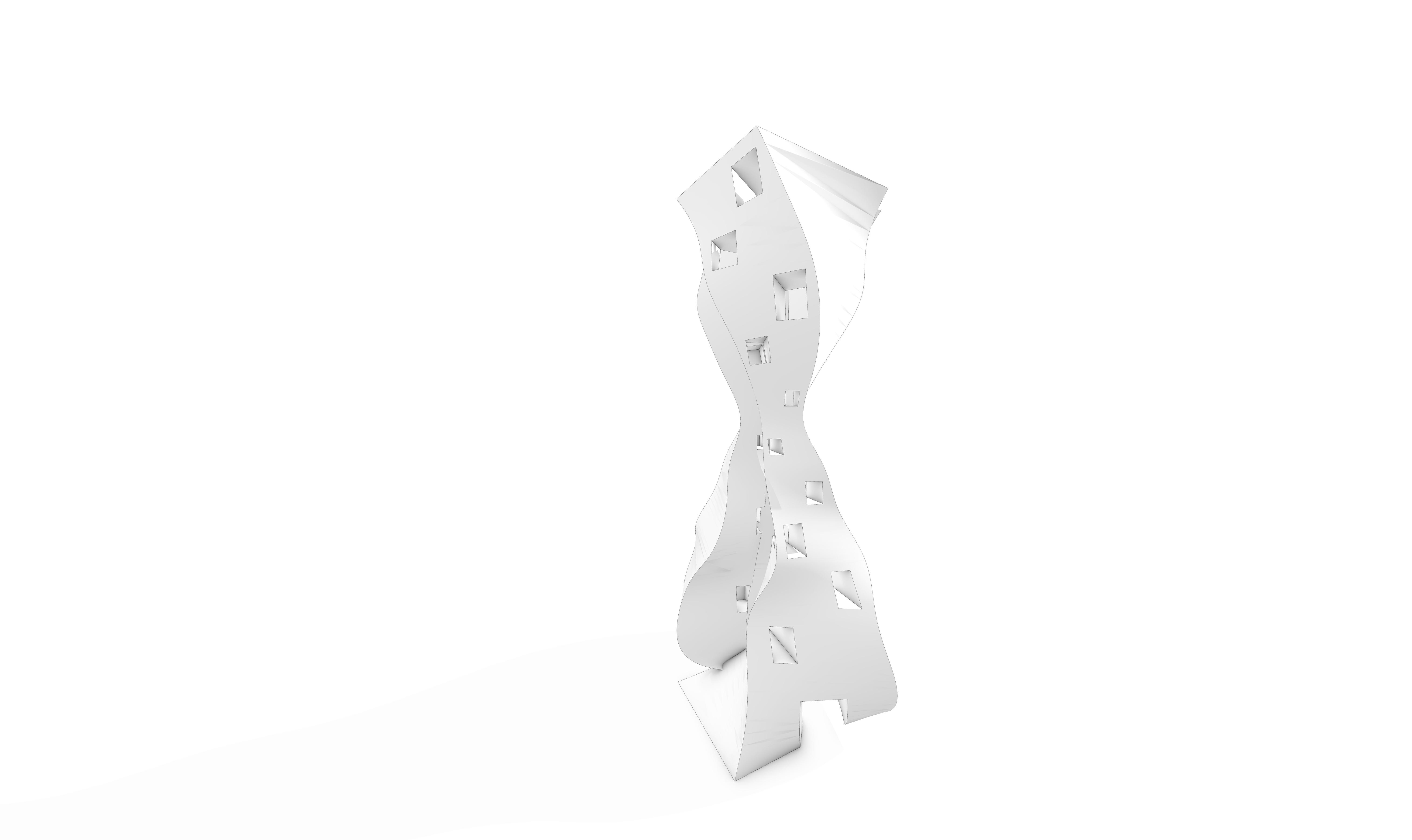

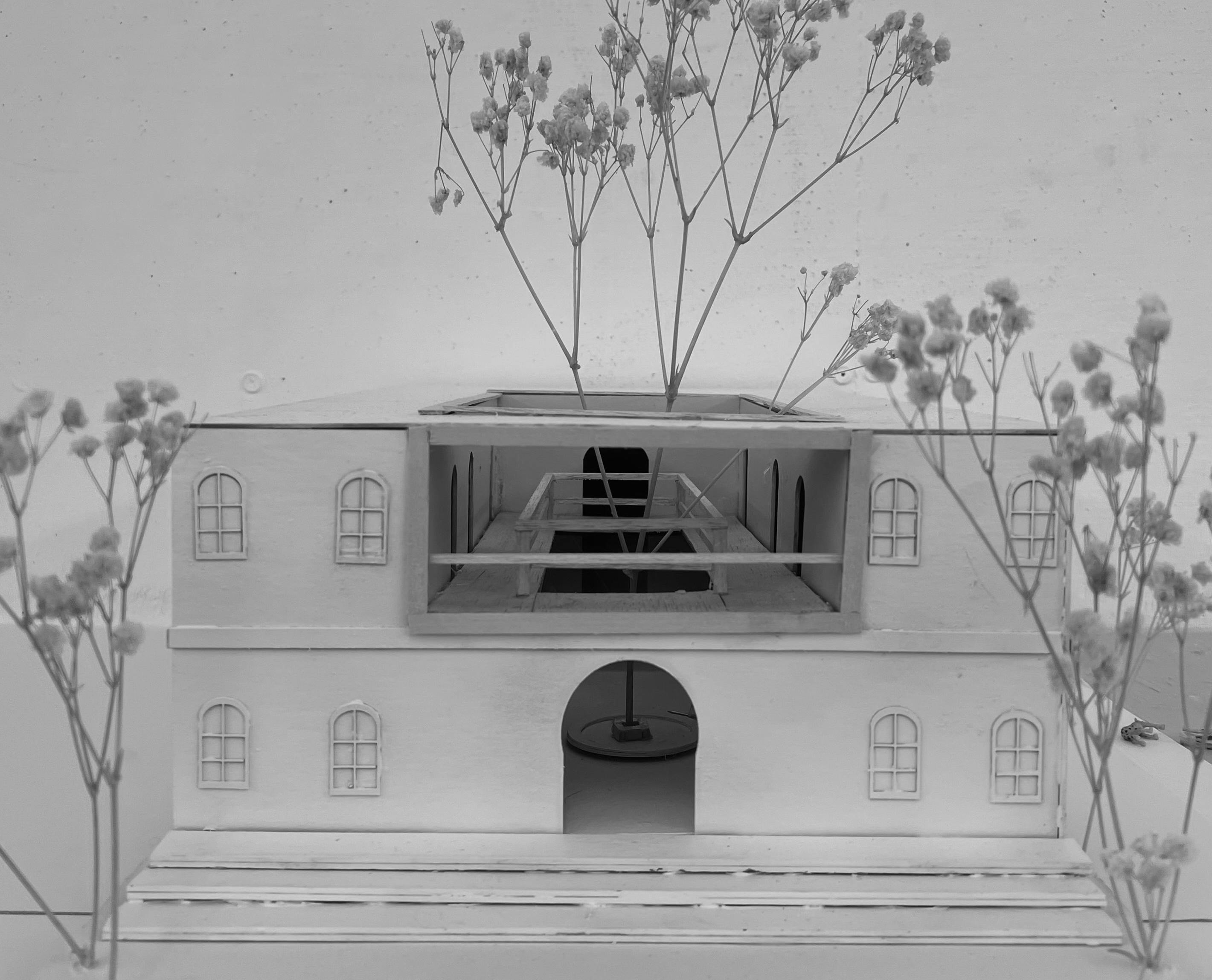

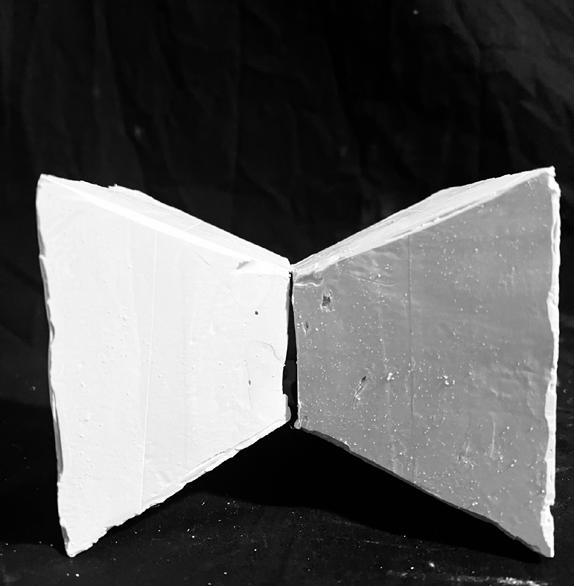

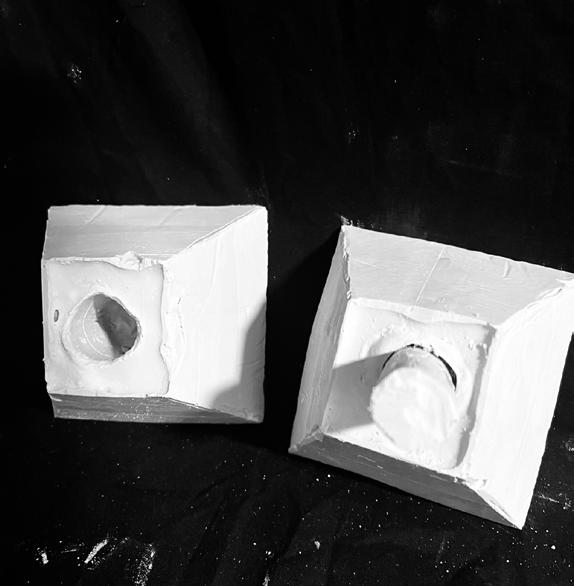

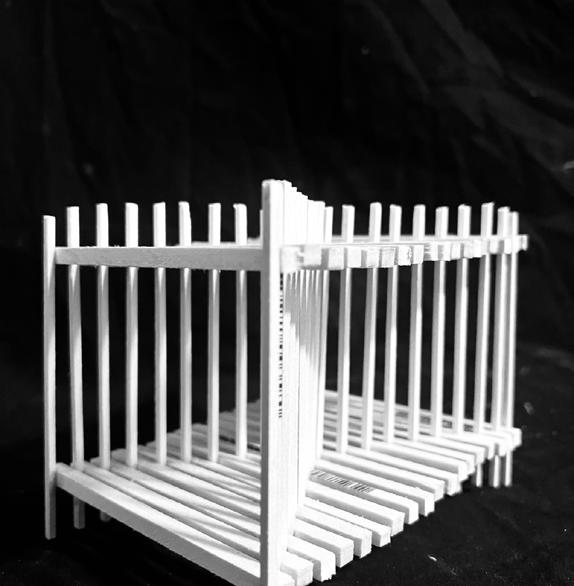

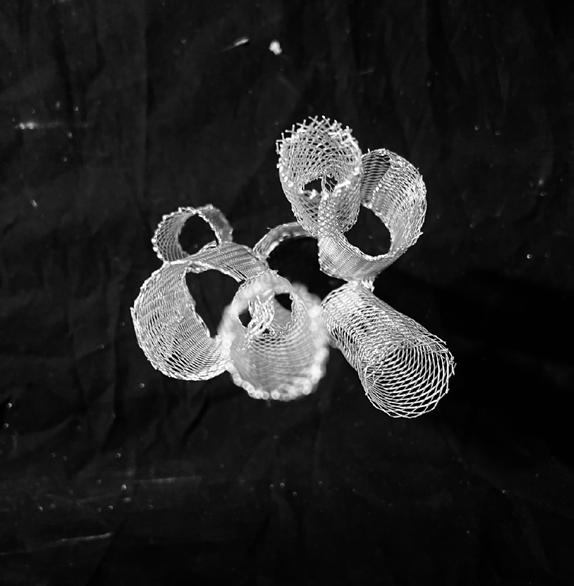

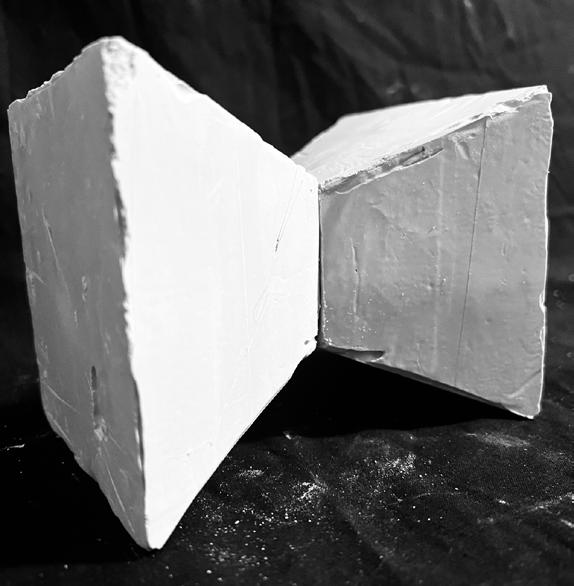

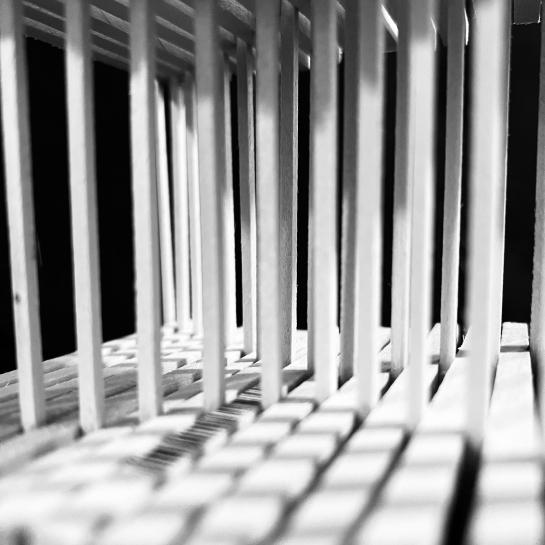

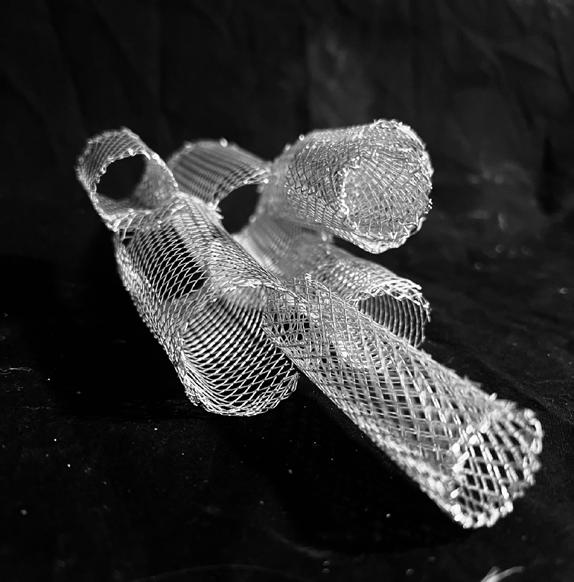

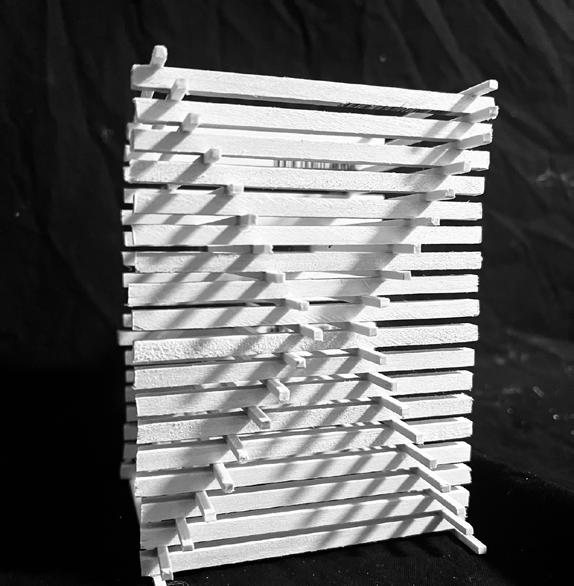

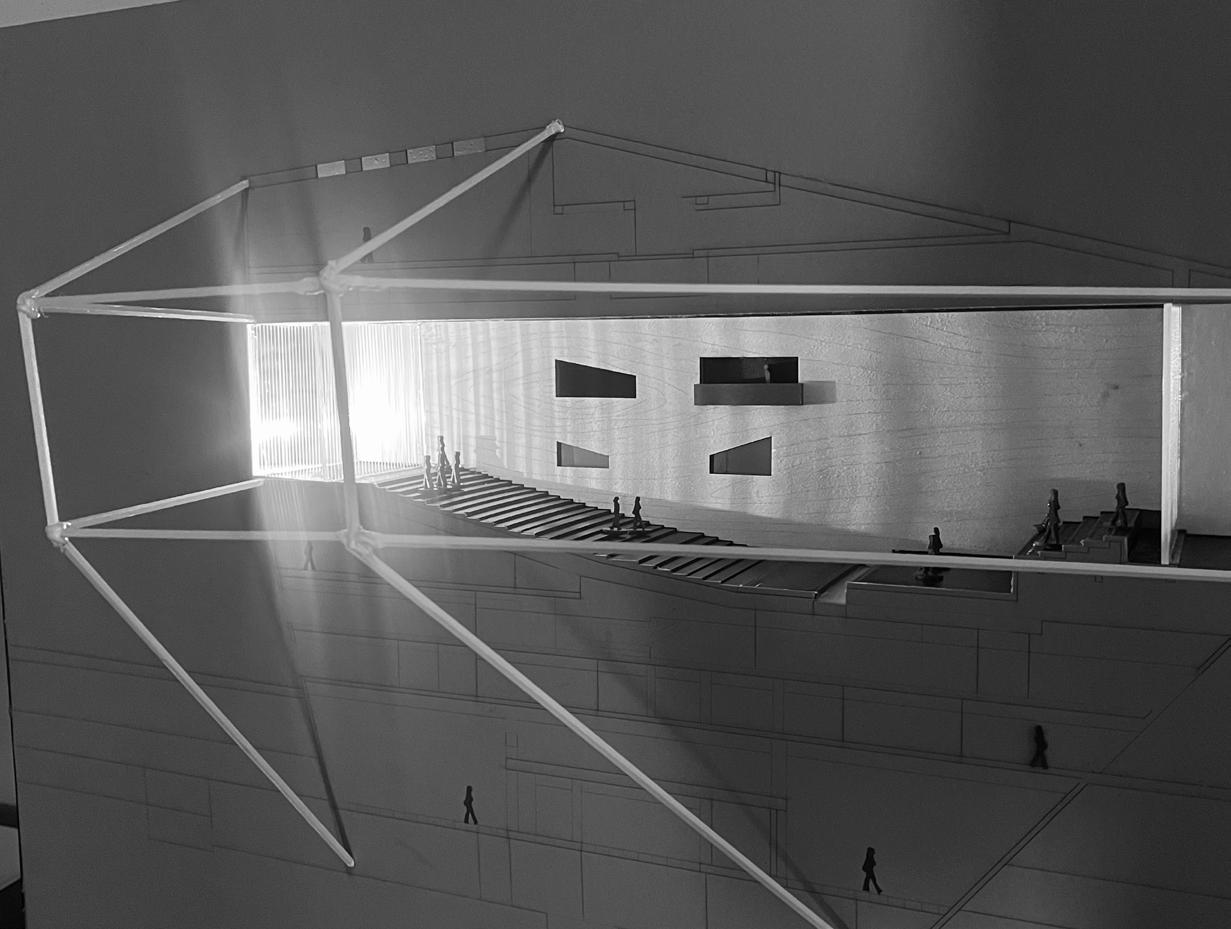

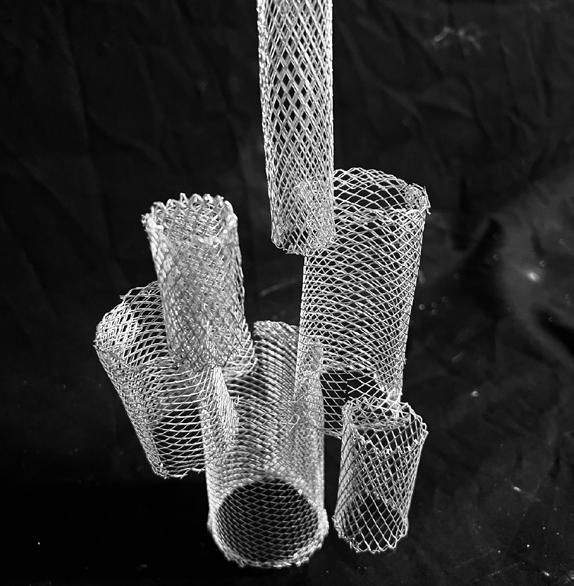

"CUBES": EXPLORING LIGHT, AIR, AND STRCUTURE

LIGHT "CUBE"

AIR "CUBE"

FUN MOD: TOWER CONSTRUCT

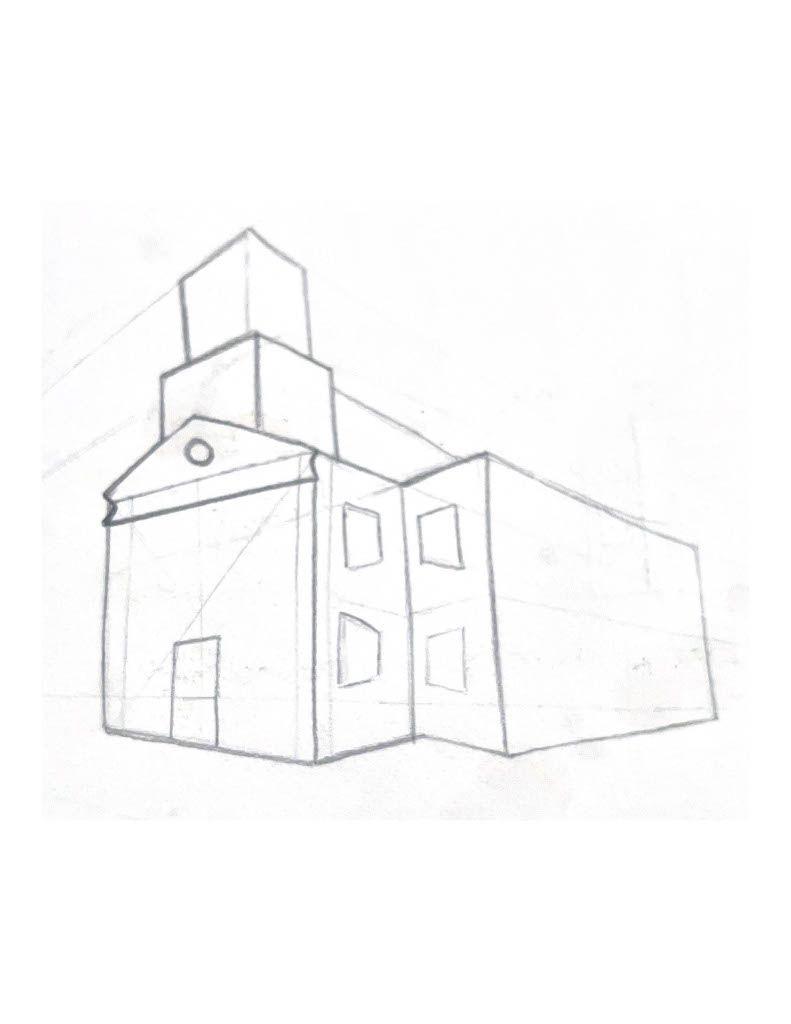

PERSPECTIVES:

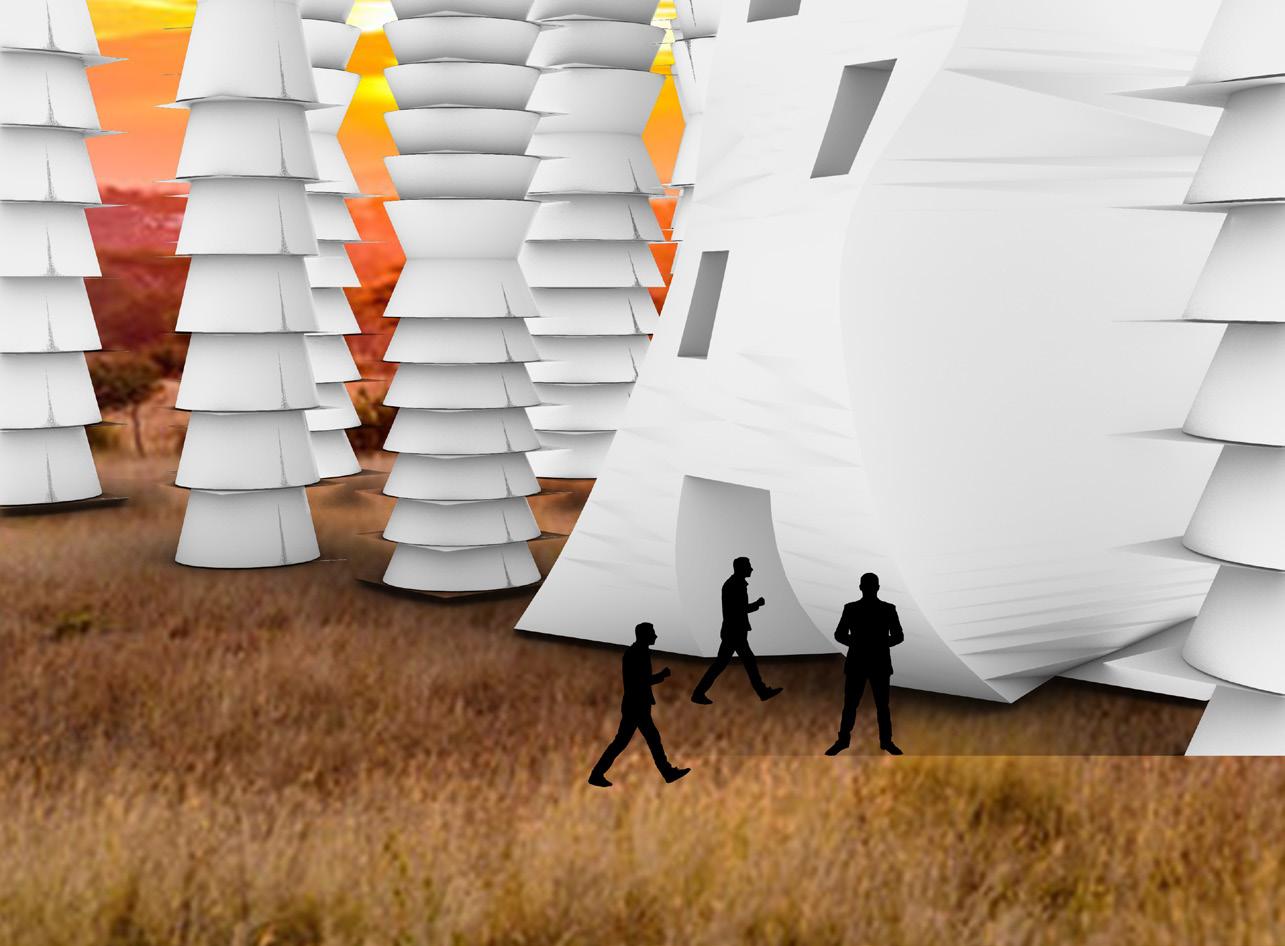

The story illustrates scenes of an unforgettable experience on a safari. Walking to the tall tower hidden between tall trees, you see elephants and giraffes from afar. As you enter the tall animal museum, you ascend the tall tower, rising above the animals below. Each level you go on, you can sit and look out the different windows, experiencing different views. You see the elephants and giraffes peacefully roaming below, creating a scene of natural and wild beauty.

P2: COMPOSITE PERSPECTIVES

The story illustrates scenes of an unforgettable experience on a safari. Walking to the tall tower hidden between tall trees, you see elephants and giraffes from afar. As you enter the tall animal museum, you ascend the tall tower, rising above the animals below. Each level you go on, you can sit and look out the different windows, experiencing different views. You see the elephants and giraffes peacefully roaming below, creating a scene of natural and wild beauty.
