Internship Work 44

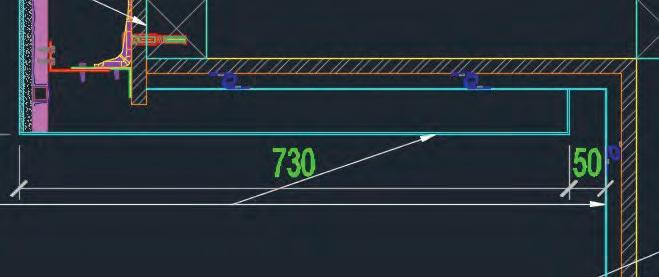

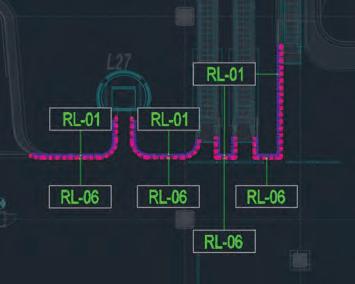

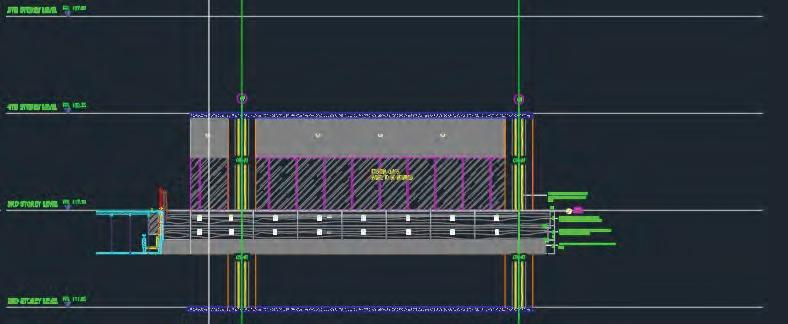

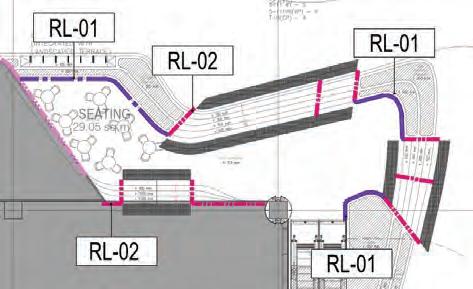

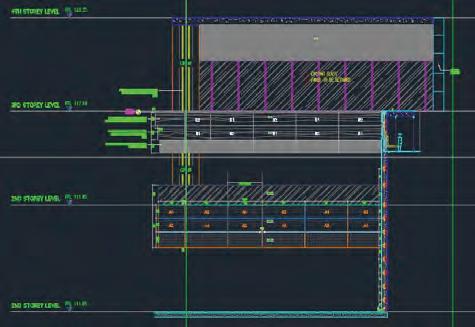

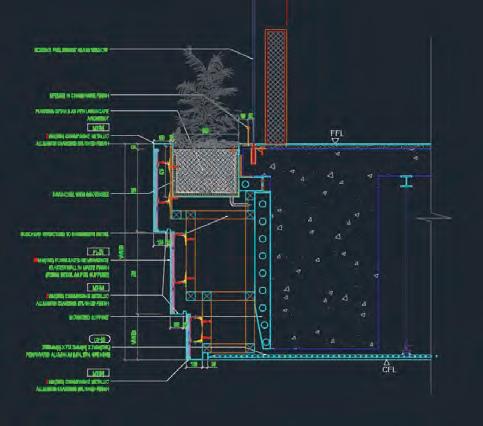

I did a lot of detail work for internship. Here are some detail drawings that I come out with during my internship.

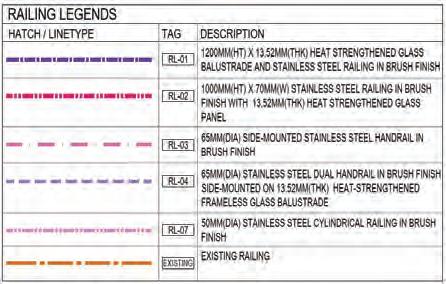

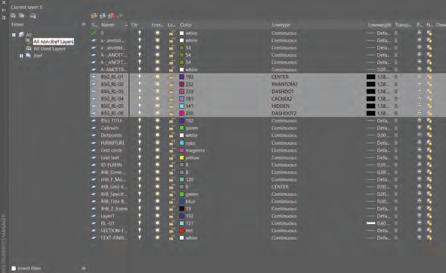

Organise and knowing how the layers and groupings work.

Be organise so that when mistakes happen, it is easy to fix them.

GREEN BUILDING STRATEGIES L - Shape Campus

2019 Year 2 Semester 1

Green and Sustainable Design Strategies Done By : Muhammad Ziyad and Muhammad Nazrul

Mentor: Anthony Szeto

No. CONTENT PAGE No.

1 PURPOSE OF PROJECT 50 2 GREEN DESIGN STRATEGIES 51 - 53

SUBTOTAL : $ 41 . 51 SALE TAX : $ 3 . 10

*** THANK YOU ***

AMOUNT $ 44 . 61

To build a building that respond to site and use as much green and sustainable strategies as possible.

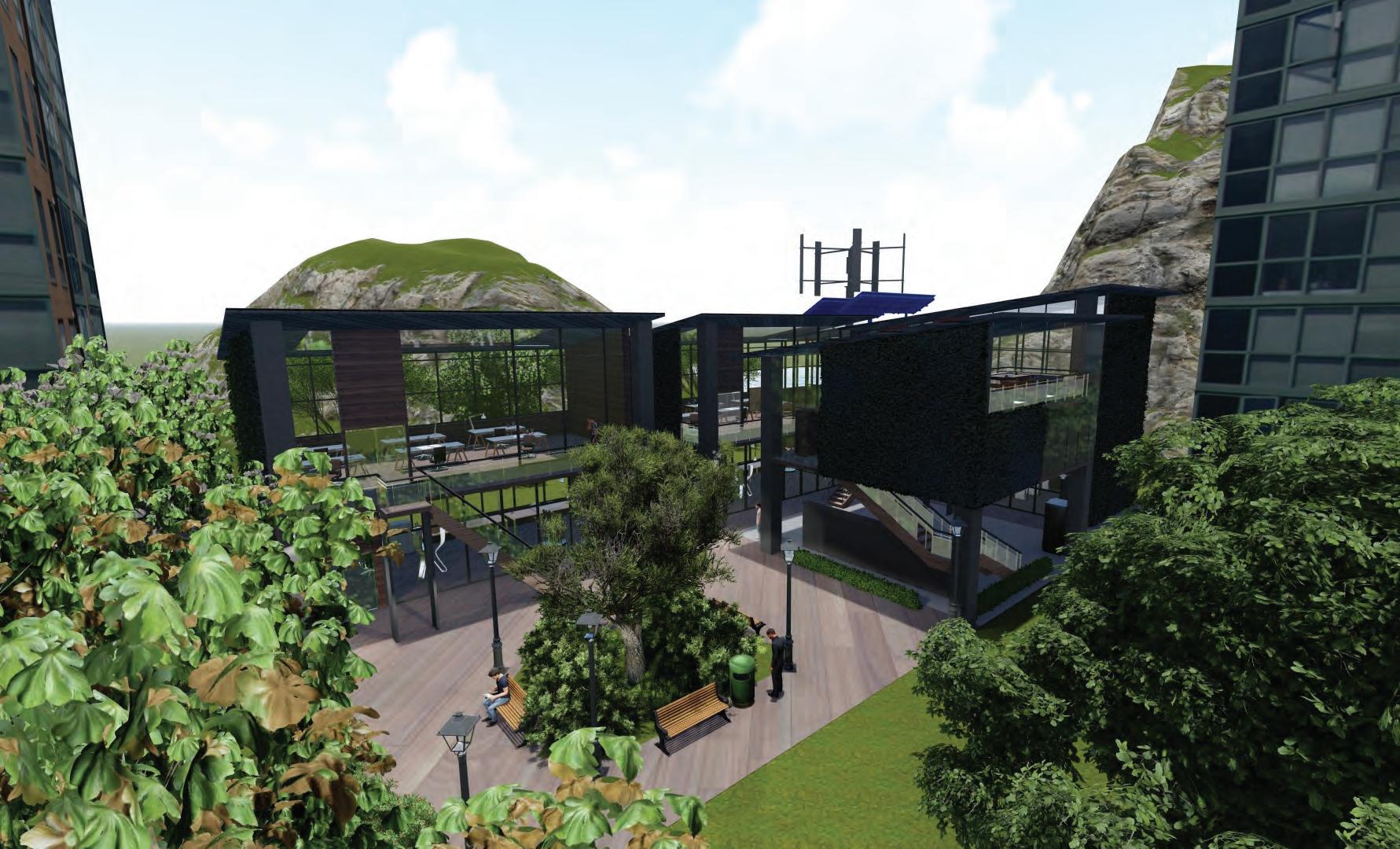

How the design respond to the site?

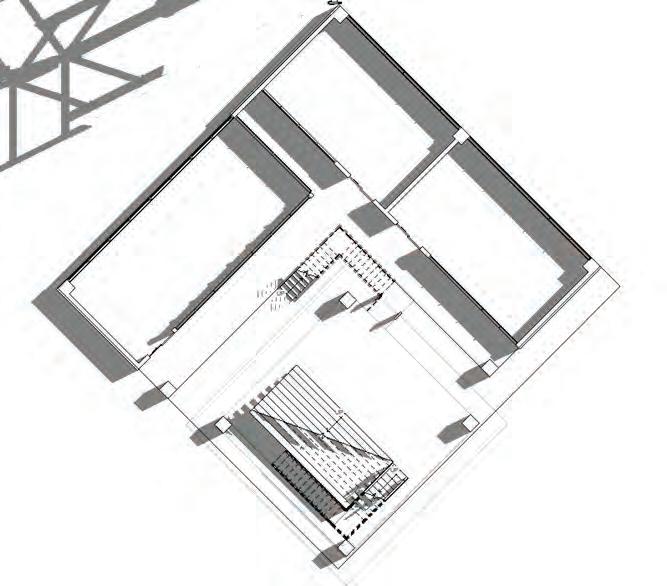

The hill - at sunrise and sunset, the building gets shade from it. In the morning, the classroom gets covered, preventing direct sunlight to the users of the classroom . In the evening, the art room gets partially covered. In the afternoon, the art room gets to use the sunlight through the building’s skylight

Air circulates from the classroom then to the art room, then to the amphitheater. The computer lab doesn’t need natural air circulation as it uses air conditioning.

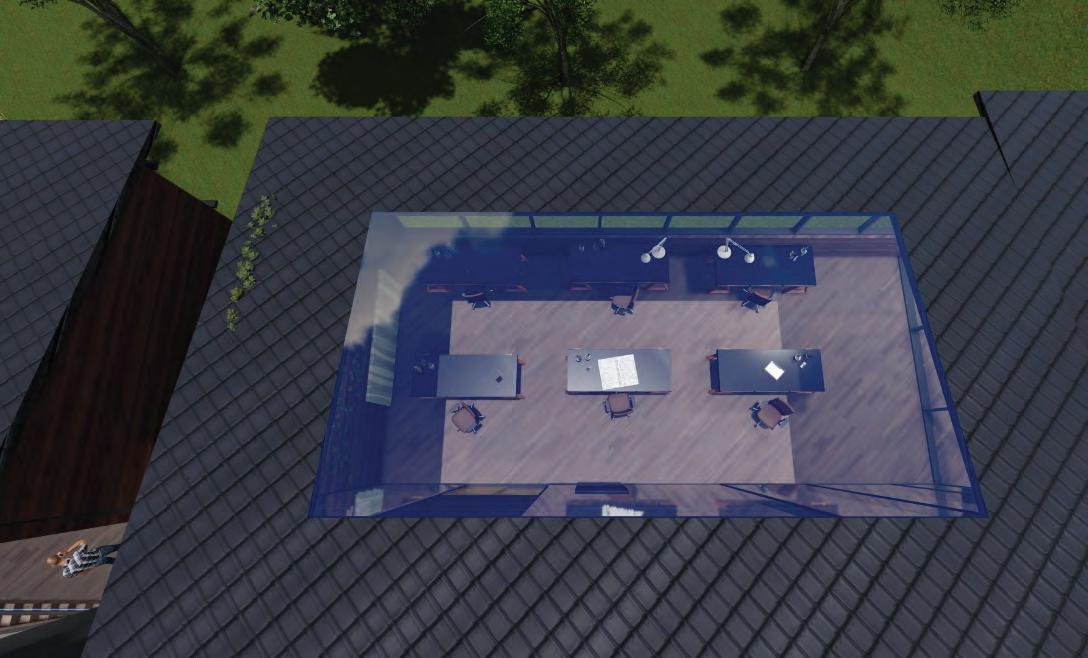

Skylight Benefits

The biggest benefit of skylights is how they let natural light into the Art studio. And with that light comes solar heat. Natural light is known to improve mood and even help with performance in workplaces. And heating the Art studio with sunlight can save on heating costs during the chilly seasons. Saving on energy costs (electric and heating) Sunlight can heat up your spaces and cross ventilation can cool them down. Each can cut down on your energy costs. Natural views and “adding space” to a room Similar to adding mirrors on the walls, skylights can make the art studios “feel bigger” and more spacious. Plus, you can get a view of night sky or nature during the day.

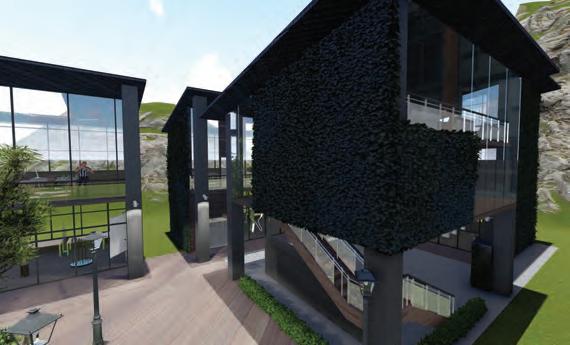

Green space: By increasing any green space in the urban environment it helps to reduce the Urban Heat Island Effect this occurs when buildings and hard surfaces absorb the sun's heat and then emit it to their surroundings. Urban areas often are 5-10 degrees warmer than the surrounding countryside. Energy cost reduction: The interior and exterior living green walls function to cool the air in the warmer summer months by a process known as “evapotranspiration.” The winter months see the added advantage of building insulation thus reducing energy costs for heating the building. Exterior living green walls can reduce wall surface temperatures by as much as 10 degrees °C, resulting in significant energy savings and air conditioning costs.

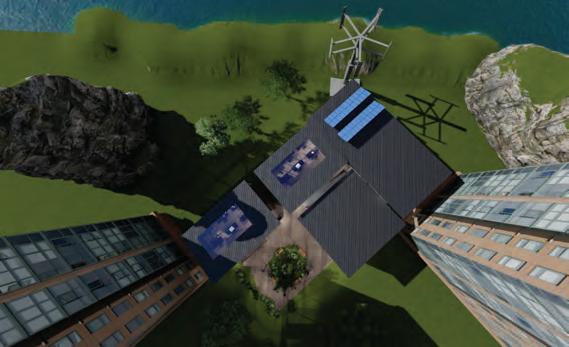

Why is solar panel is positioned in a certain way?

The solar panel is placed in certain way is to maximize the sunlight area to the building. The solar panel will be placed in the centre of the building so that no shade will be covering the panel throughout the day time. This will then allow the solar panel system to absorb as much sunlight to convert it into energy.
