Architecture Portofolio Ziad Amr
The Stepped Dorms
House Of Light
El Moezz Intervention
Creative Projects
Azbakeya Book Market
Integerated Community Architecture
Bachelor Project
The main purpose of this project is to create a relaxing and soothing Hammam experience in the heart of Cairo to bring back the long lost beauty of public bathing, while providing the opportunity for the community to participate in all the phases of the project, including the design, construction, and functions of the Cultural Hub.

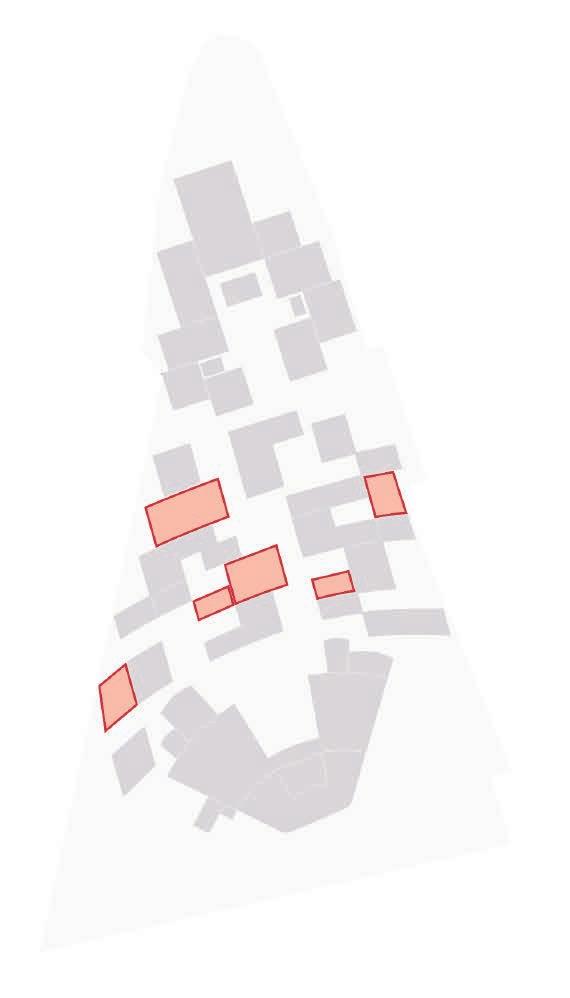

The southern side of the plot that has the abandoned building is dominated by the community and starts to form a more flexible grid, which slowly transforms into a more rigid form ending on the northern part with the Hammam which is dominated more by outsiders.

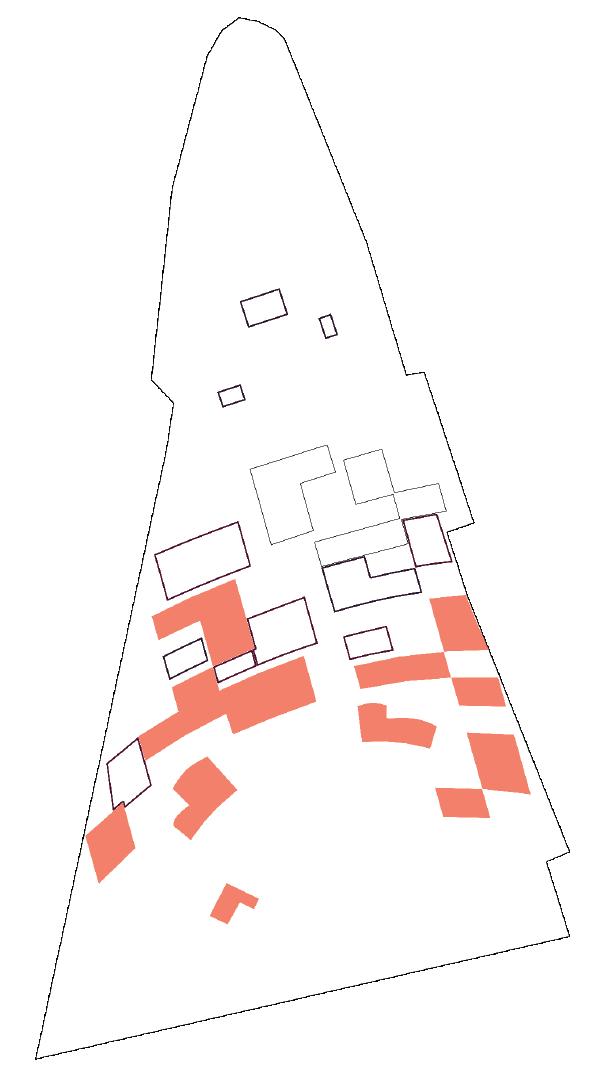

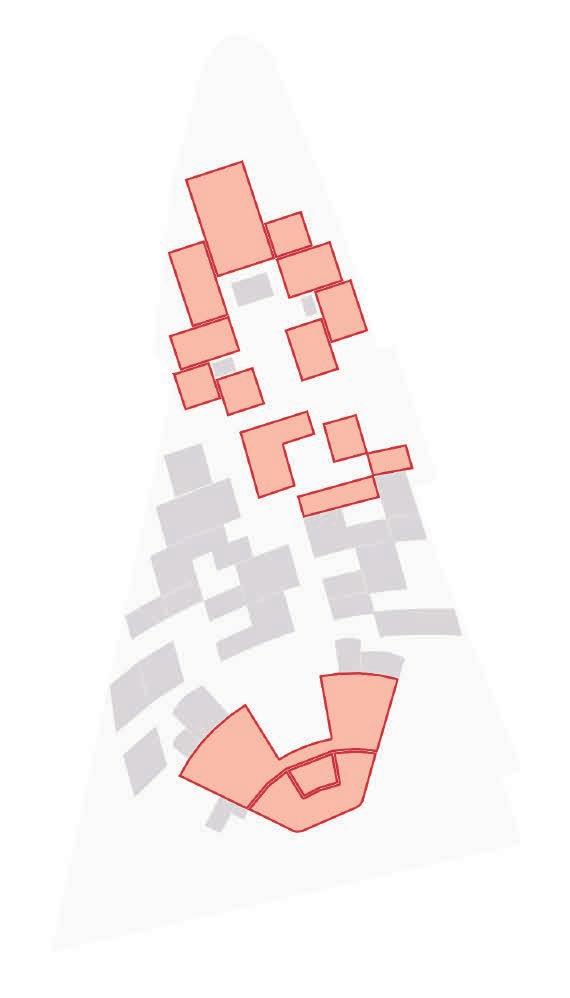

Those two big masses at opposite parts hold the space for the communities participatory activities happening in between.
Year: 2024
Semester: 8th Semester
Supervision: Prof. Christian Schmitt
Collaboration: Individual

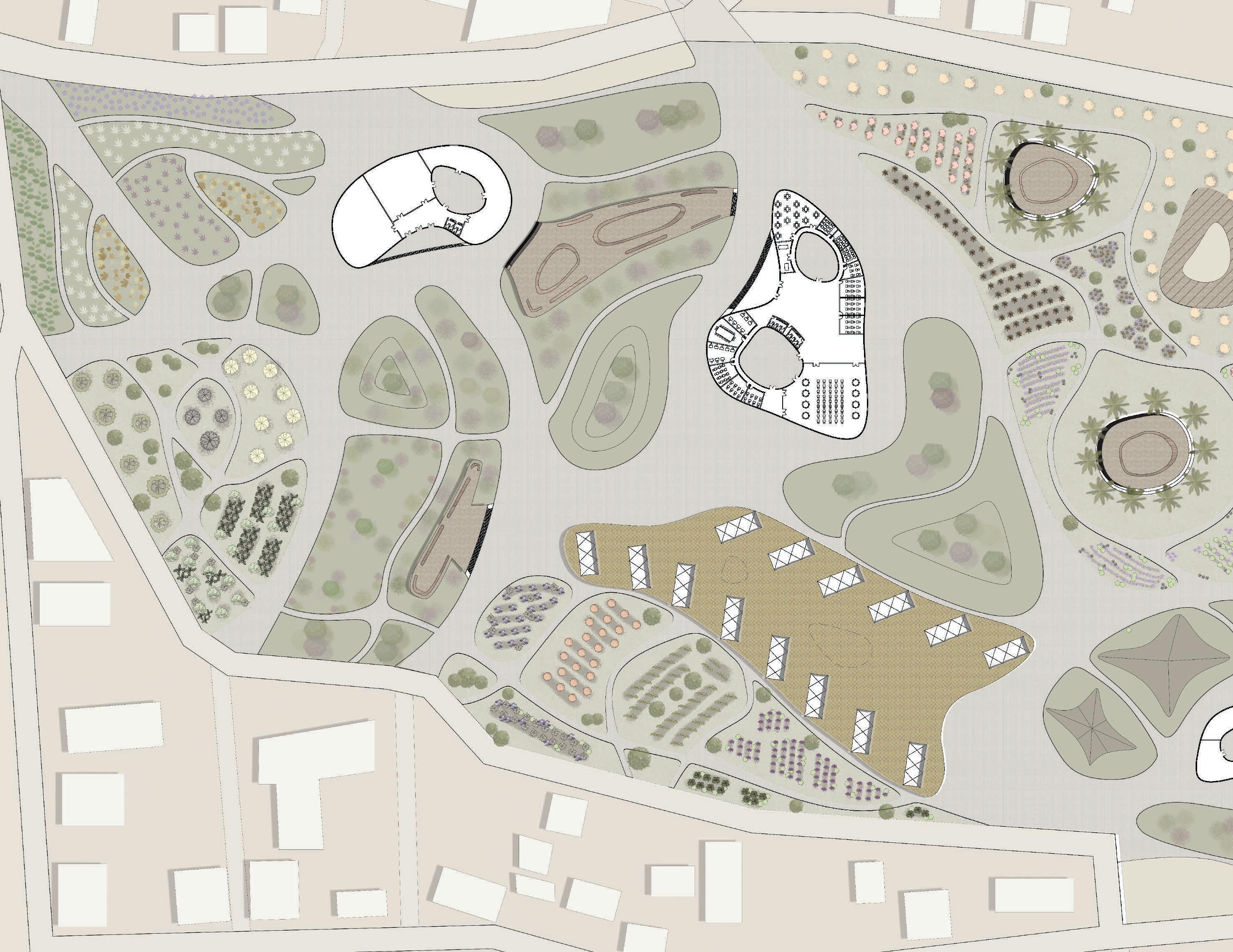

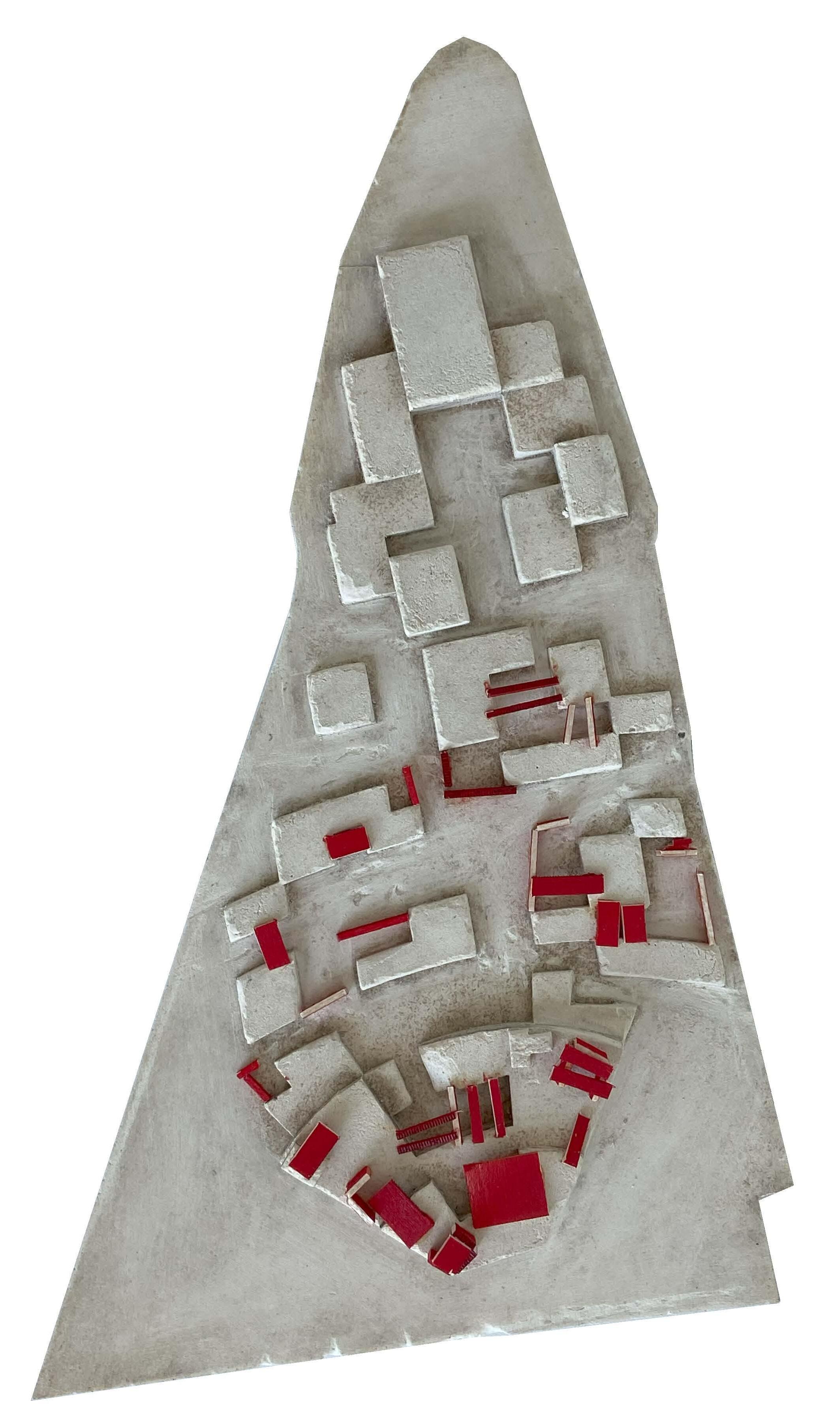

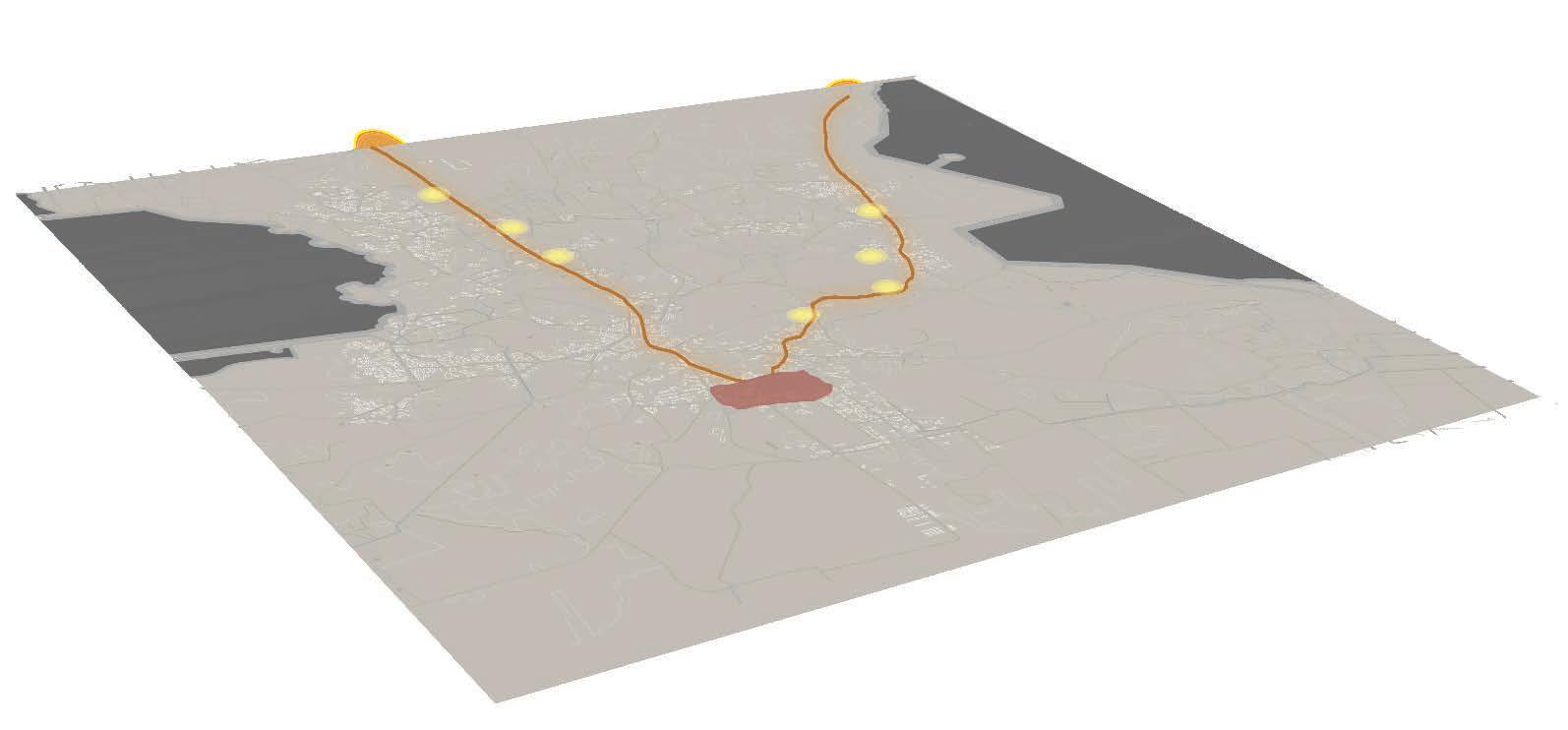

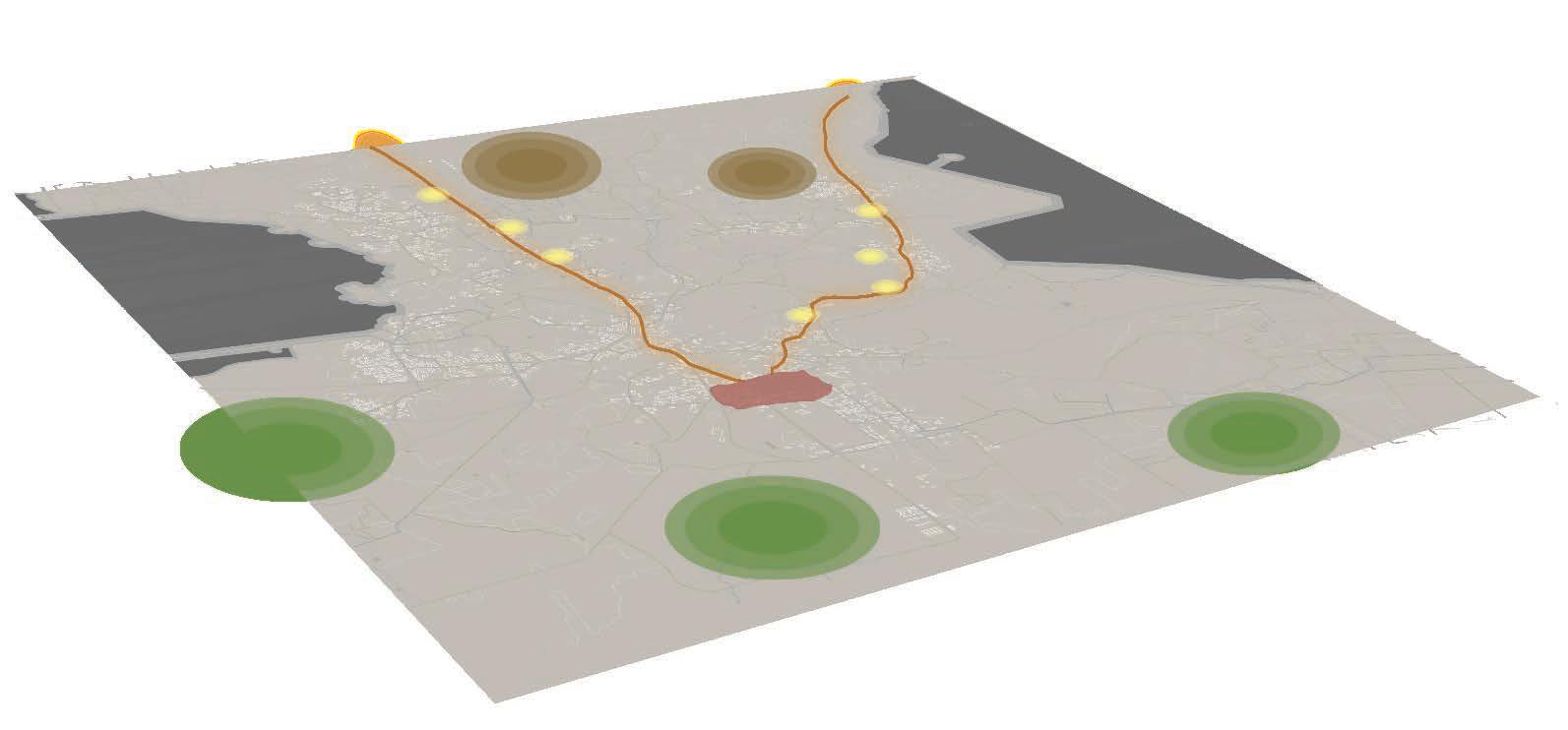

Island Plan

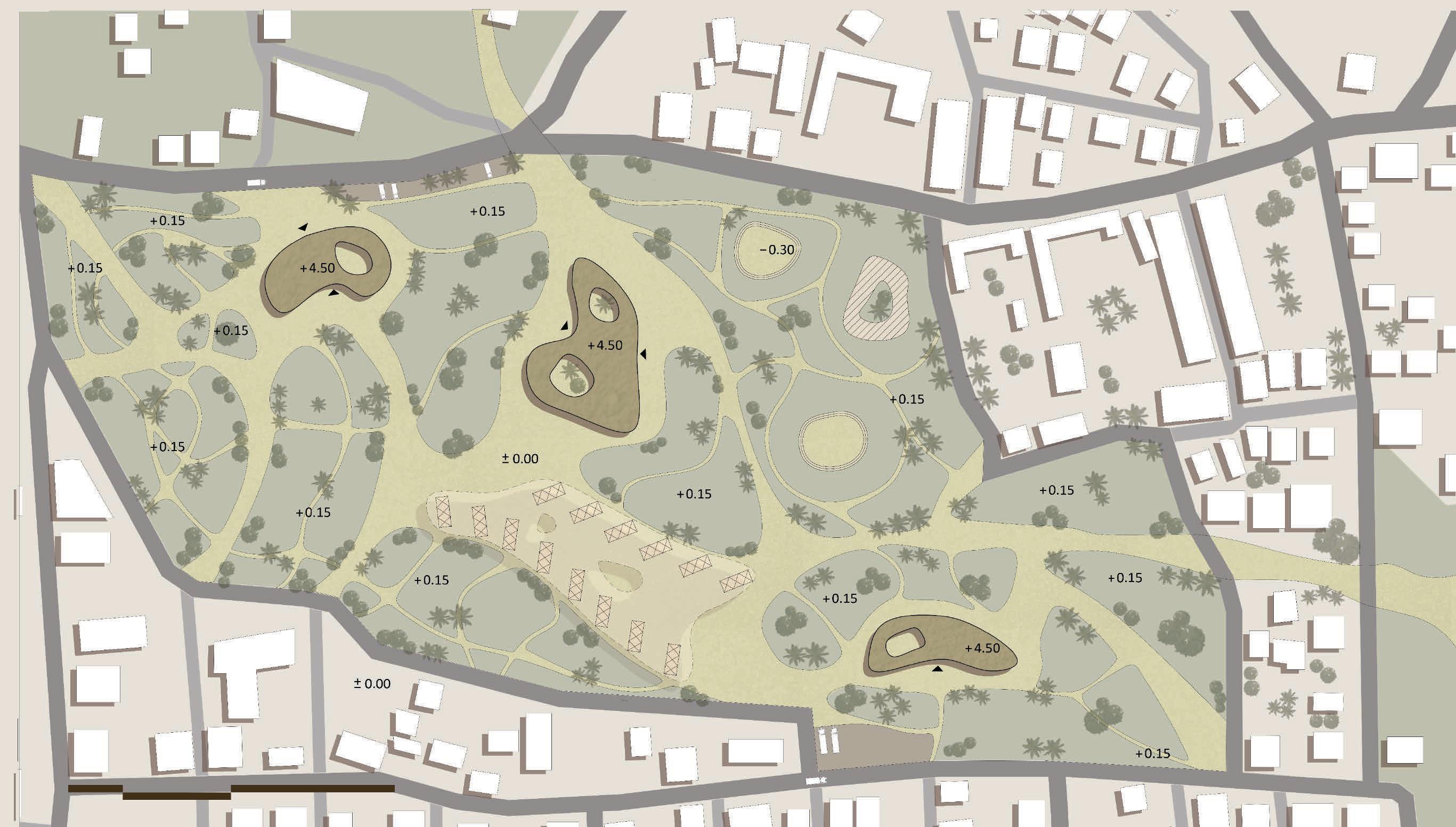

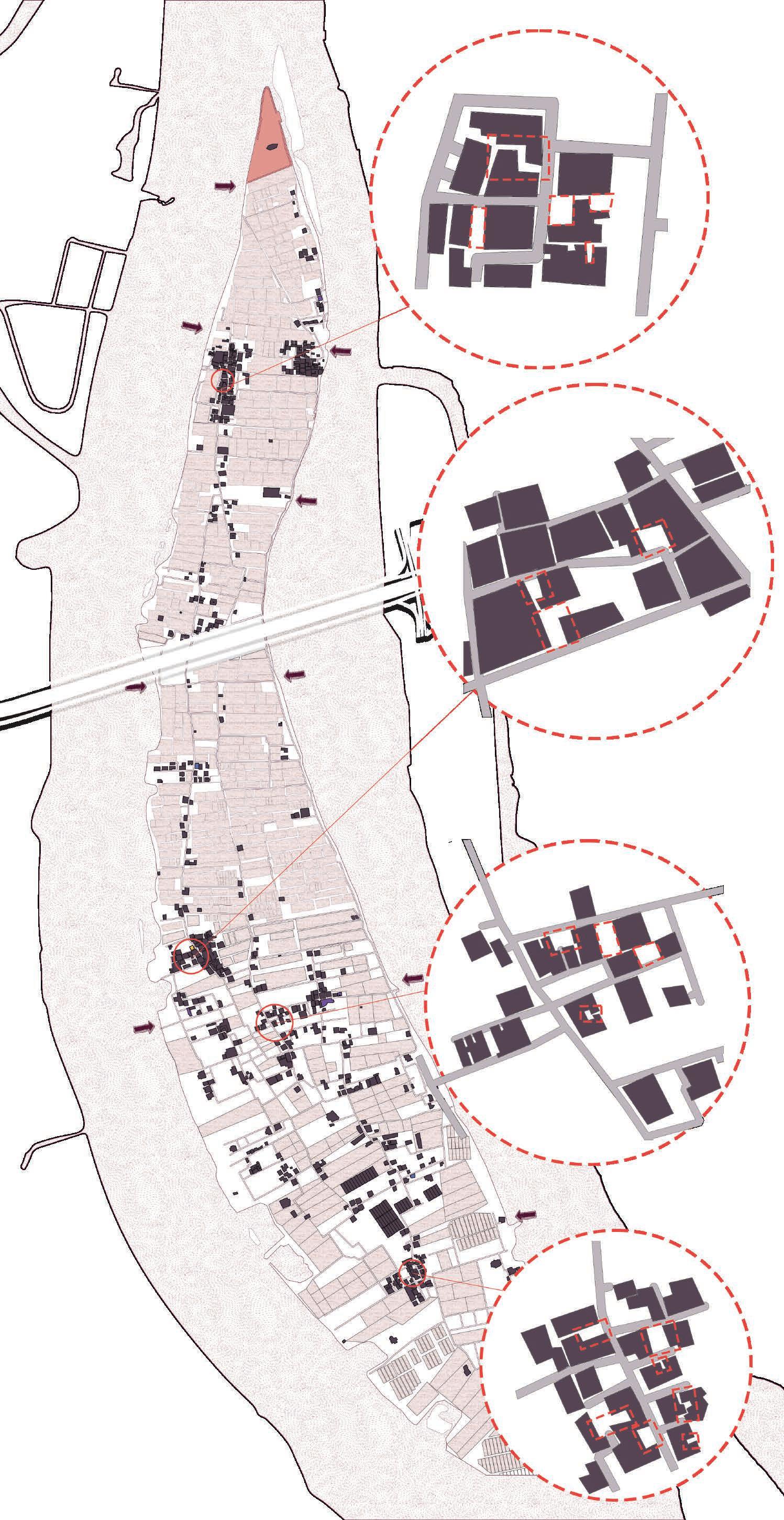

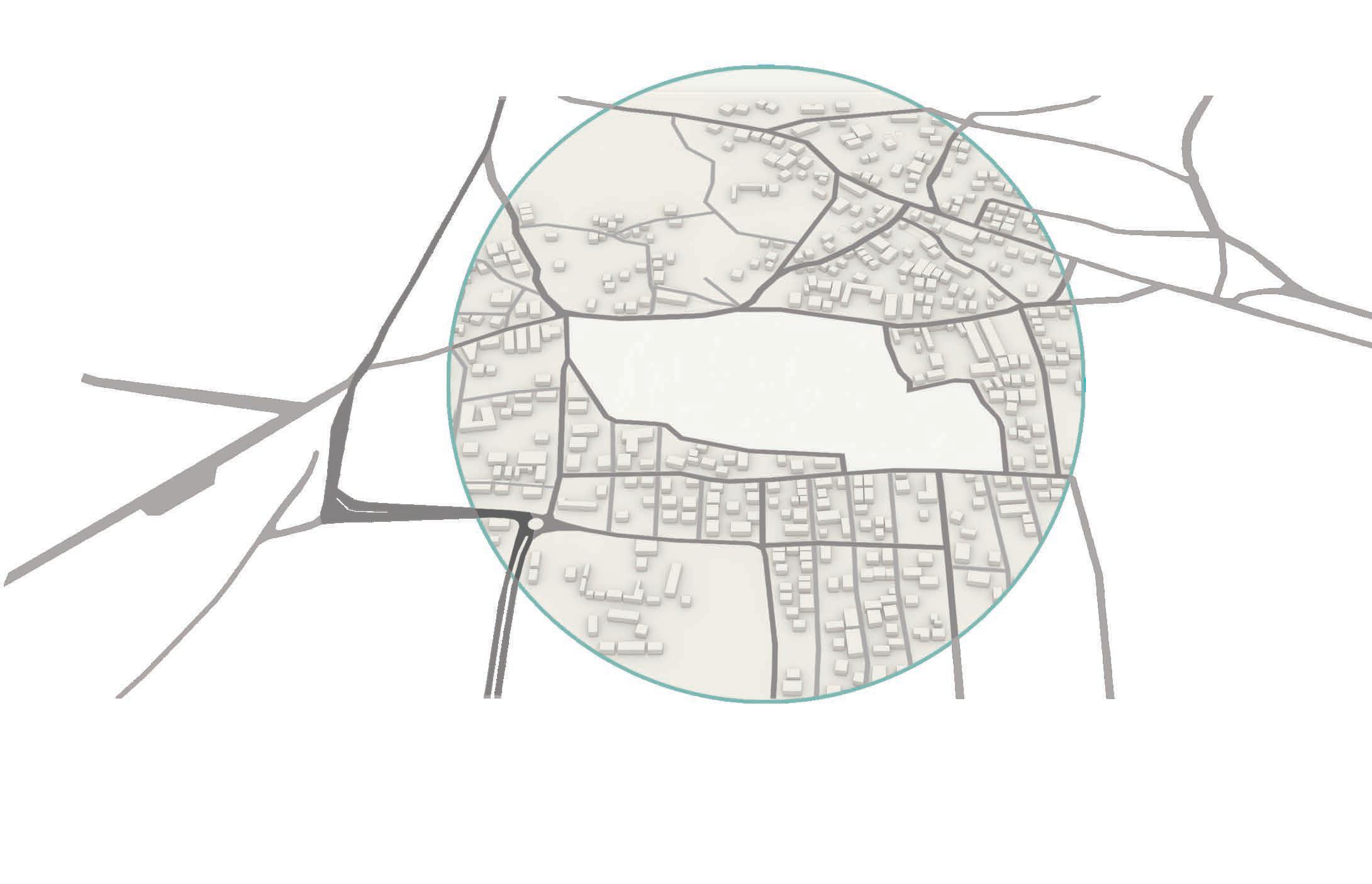

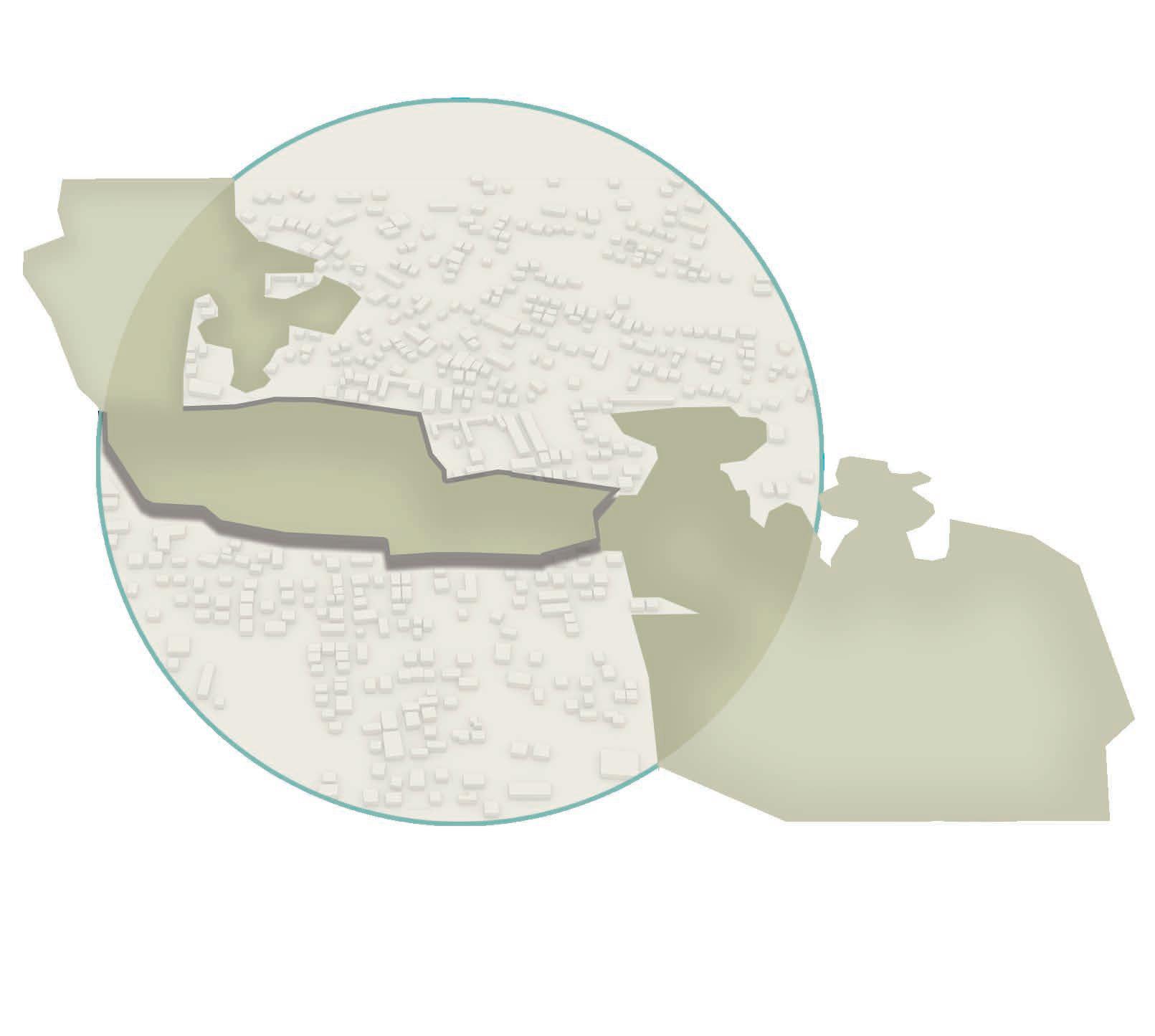

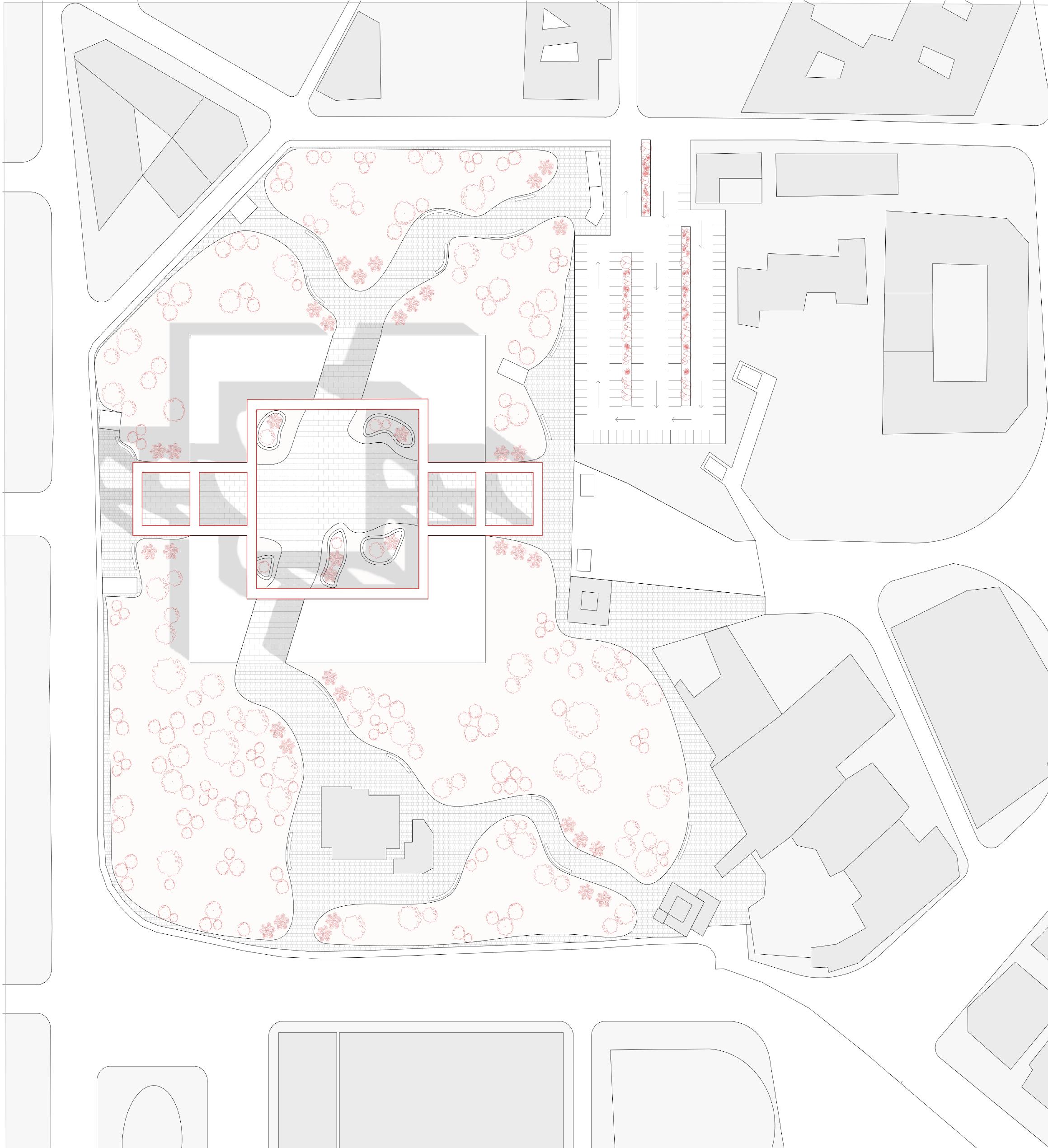

Site plan 1:5000 scale. (not drawn to scale) this scale shows the whole island and it's Urban Fabric identity.

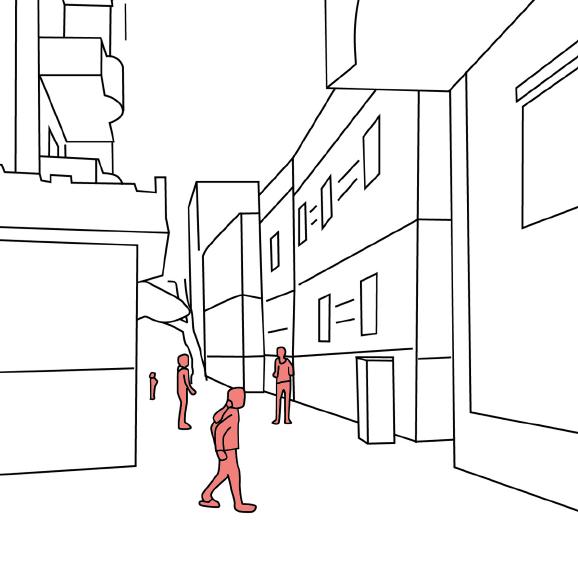

Urban Livingroom Activities

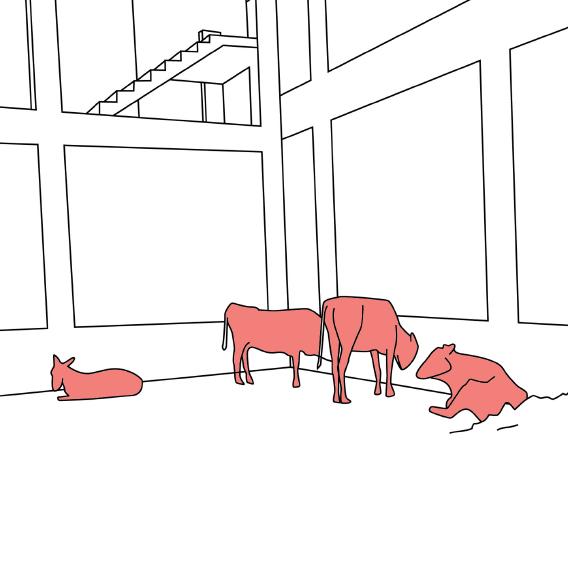

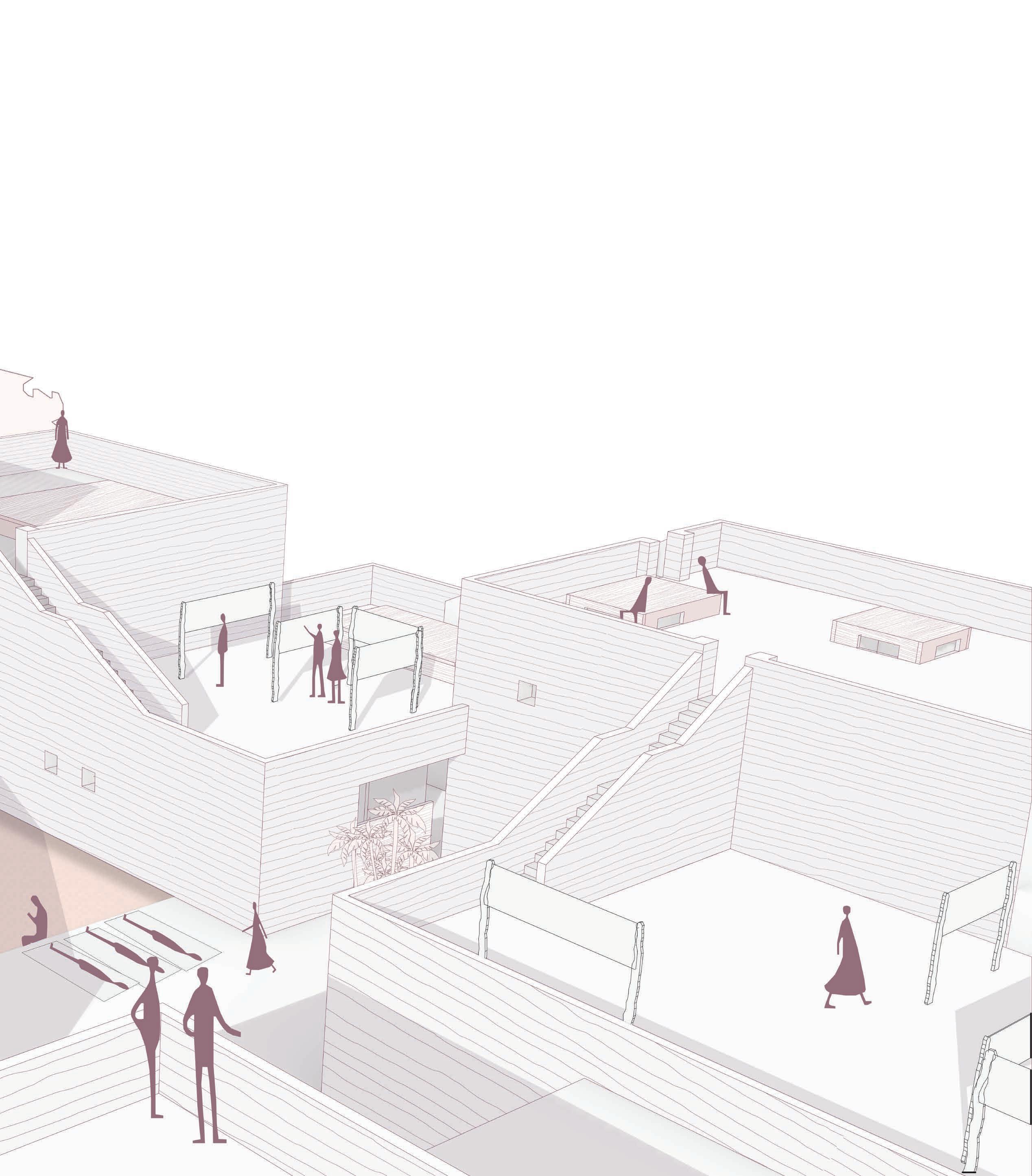

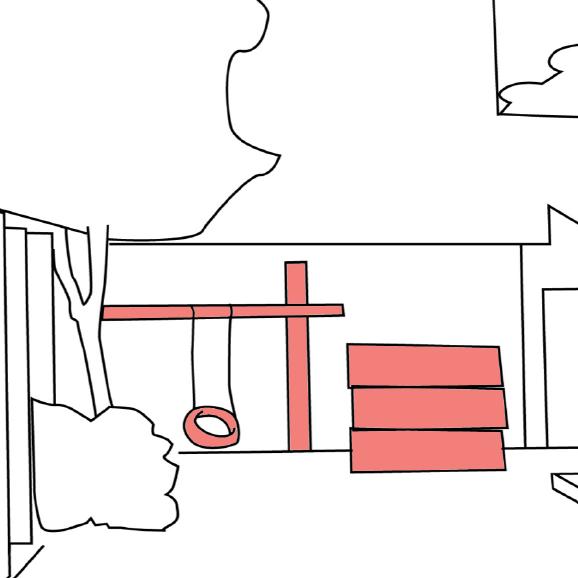

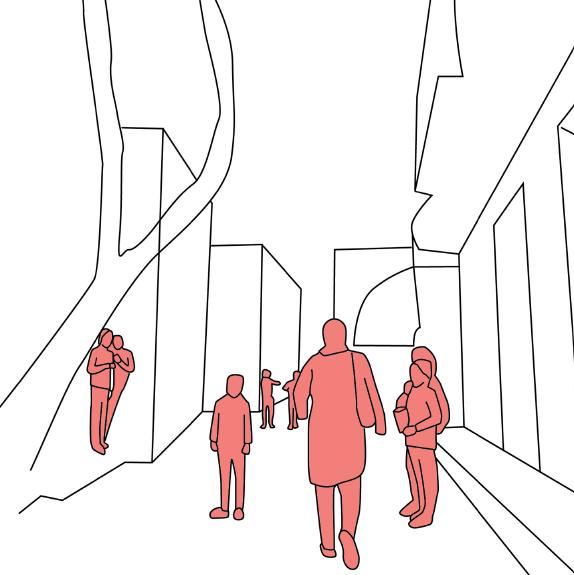

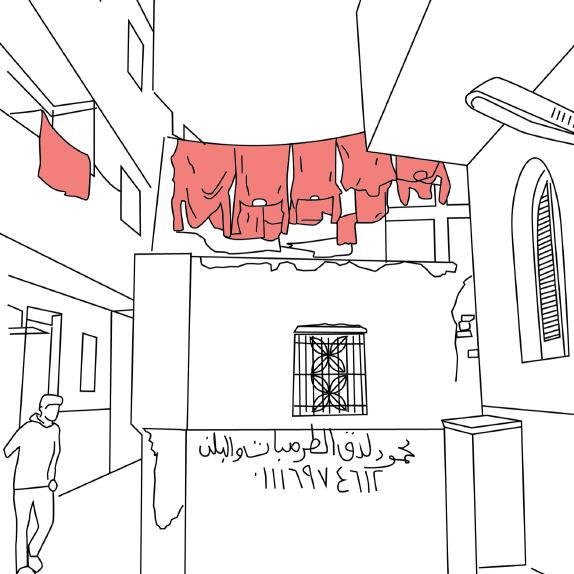

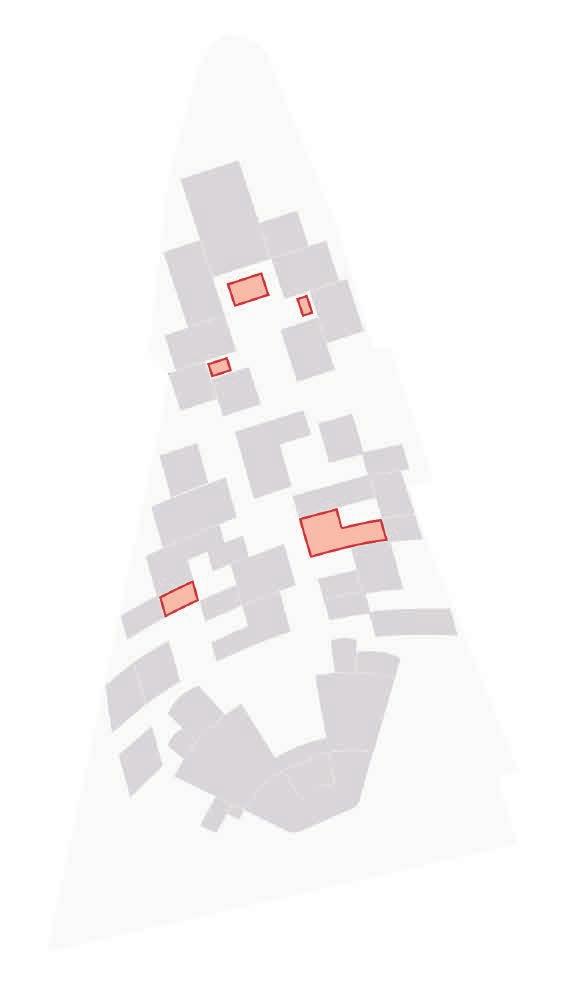

Illustrations showing the different activities happening in the urban pockets of the island.

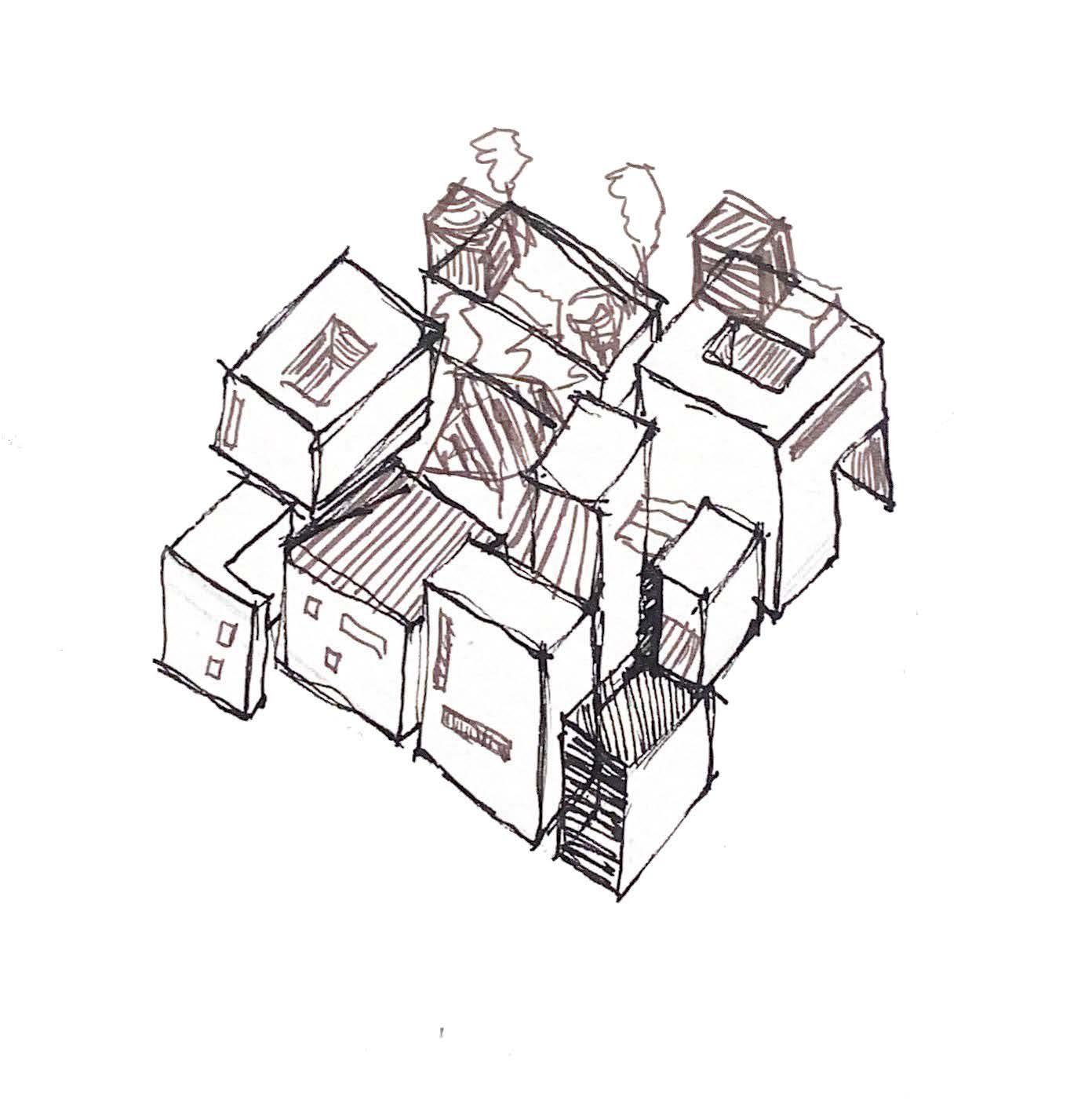

The rules in which are applied to the community as they design their spaces with informality.

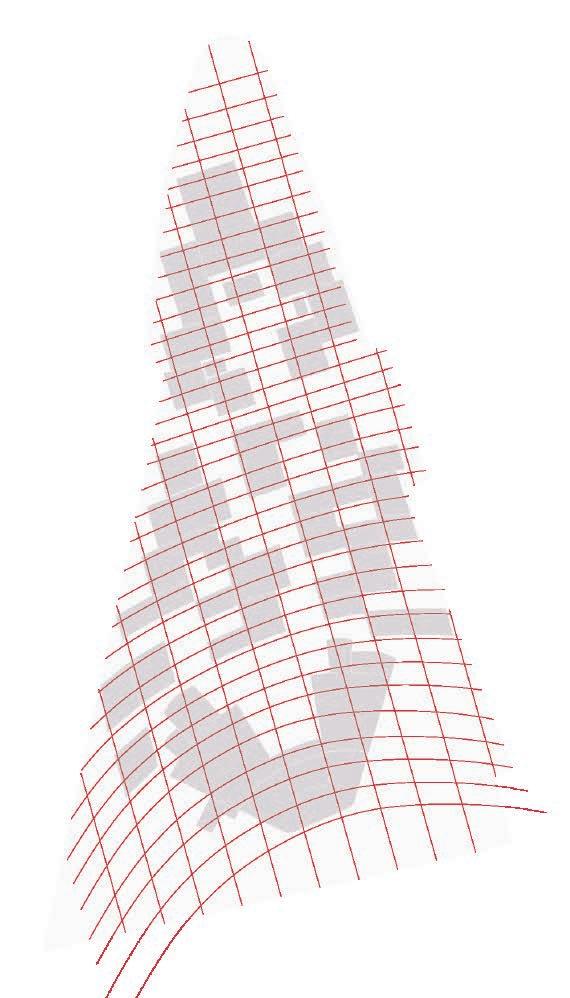

Rule 1: Moving Within the Grid
Rule 2: Fixed Farm Layout
Rule 3: Fixed Water Sources
Rule 4: Fixed Functions

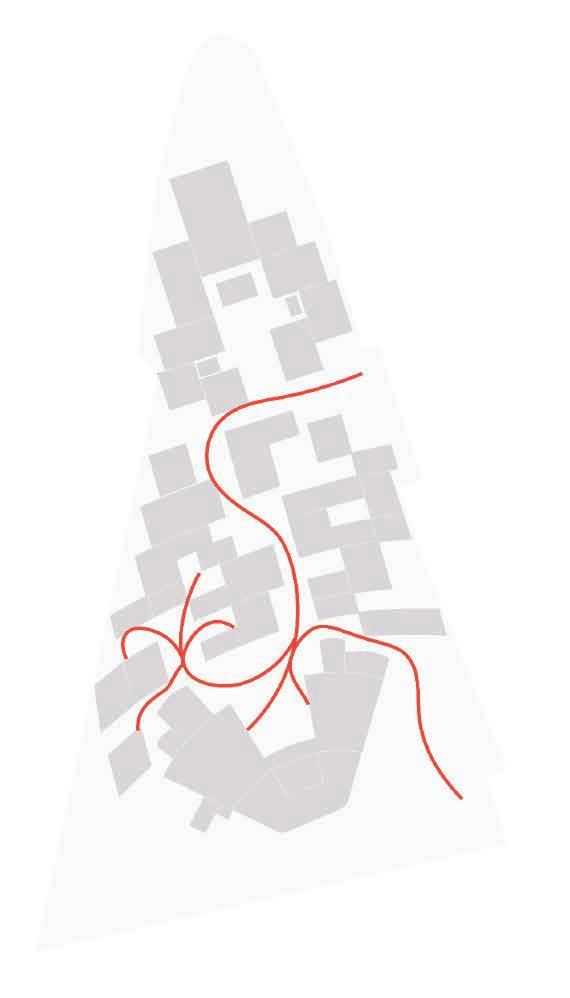

Rule 5: Never blocking Pathways

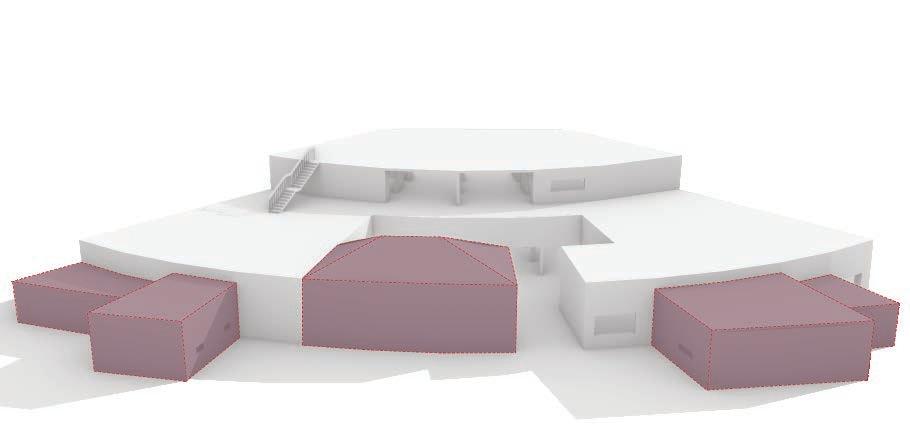

Casino As Vocational School Phases
Showing how the community can slowly start to take over the casino and redesigning it as their needs develop.

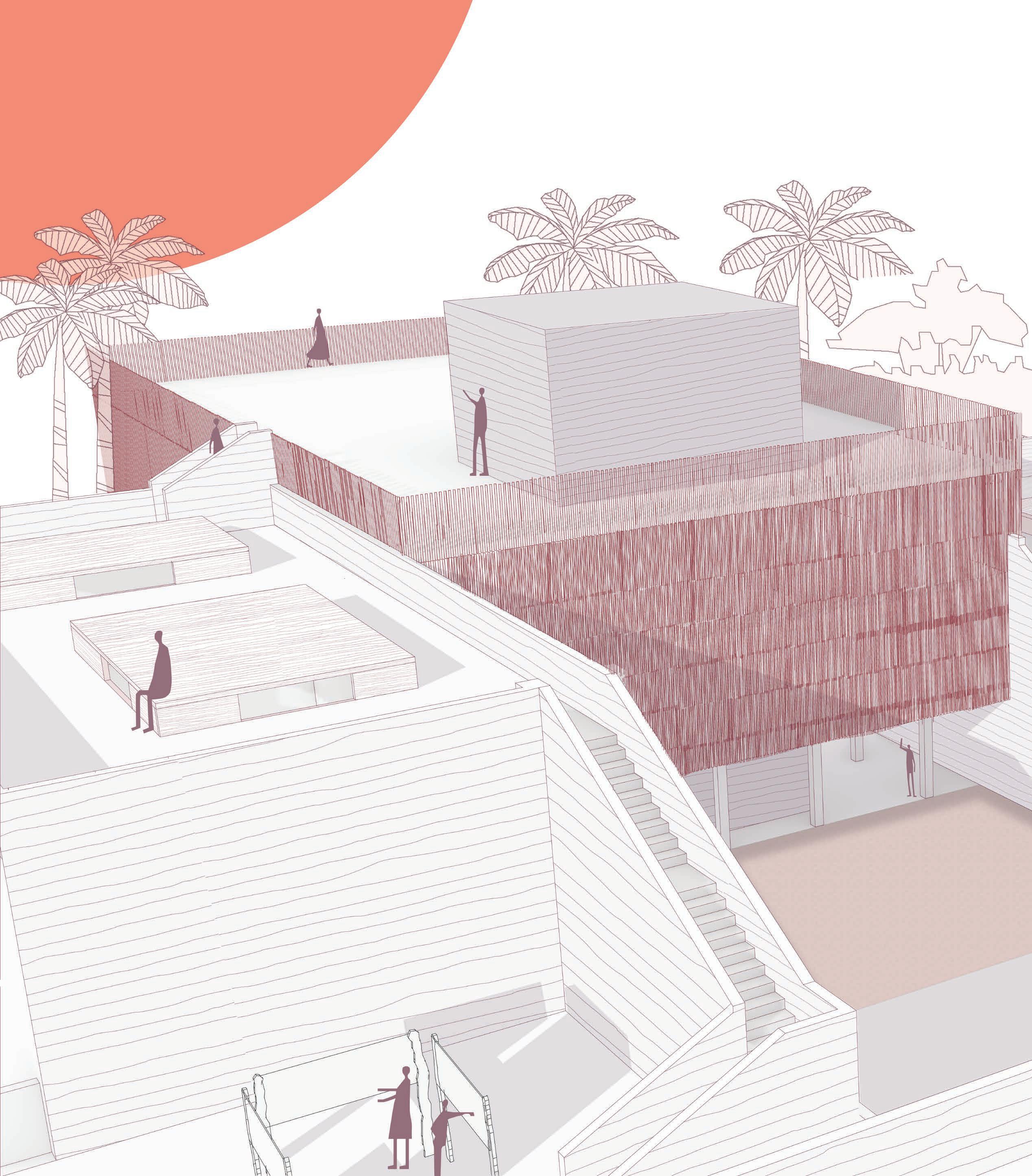

Masterplan Urban Perspective

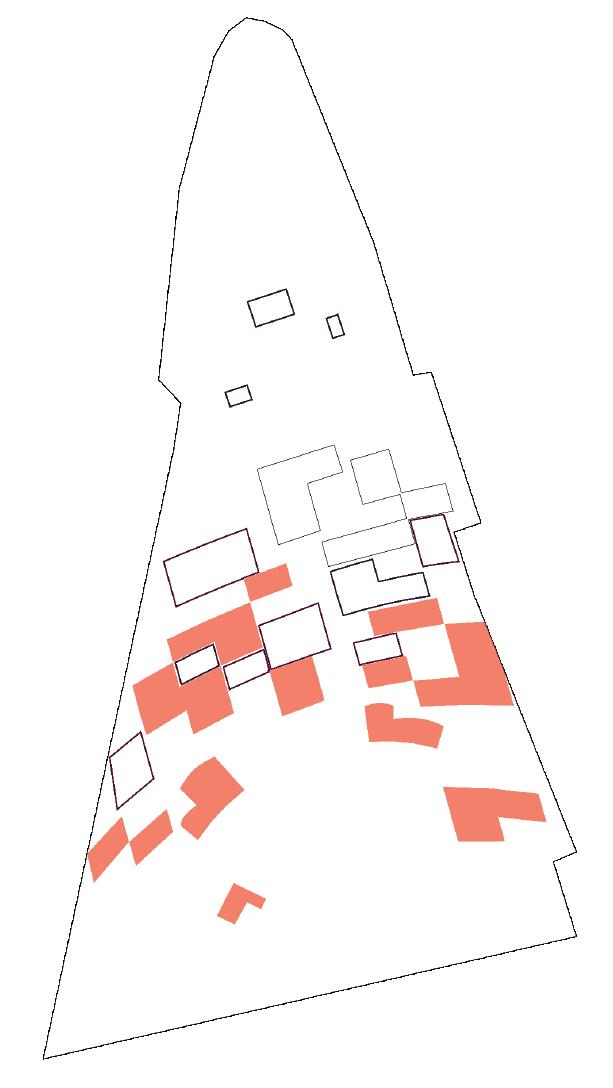

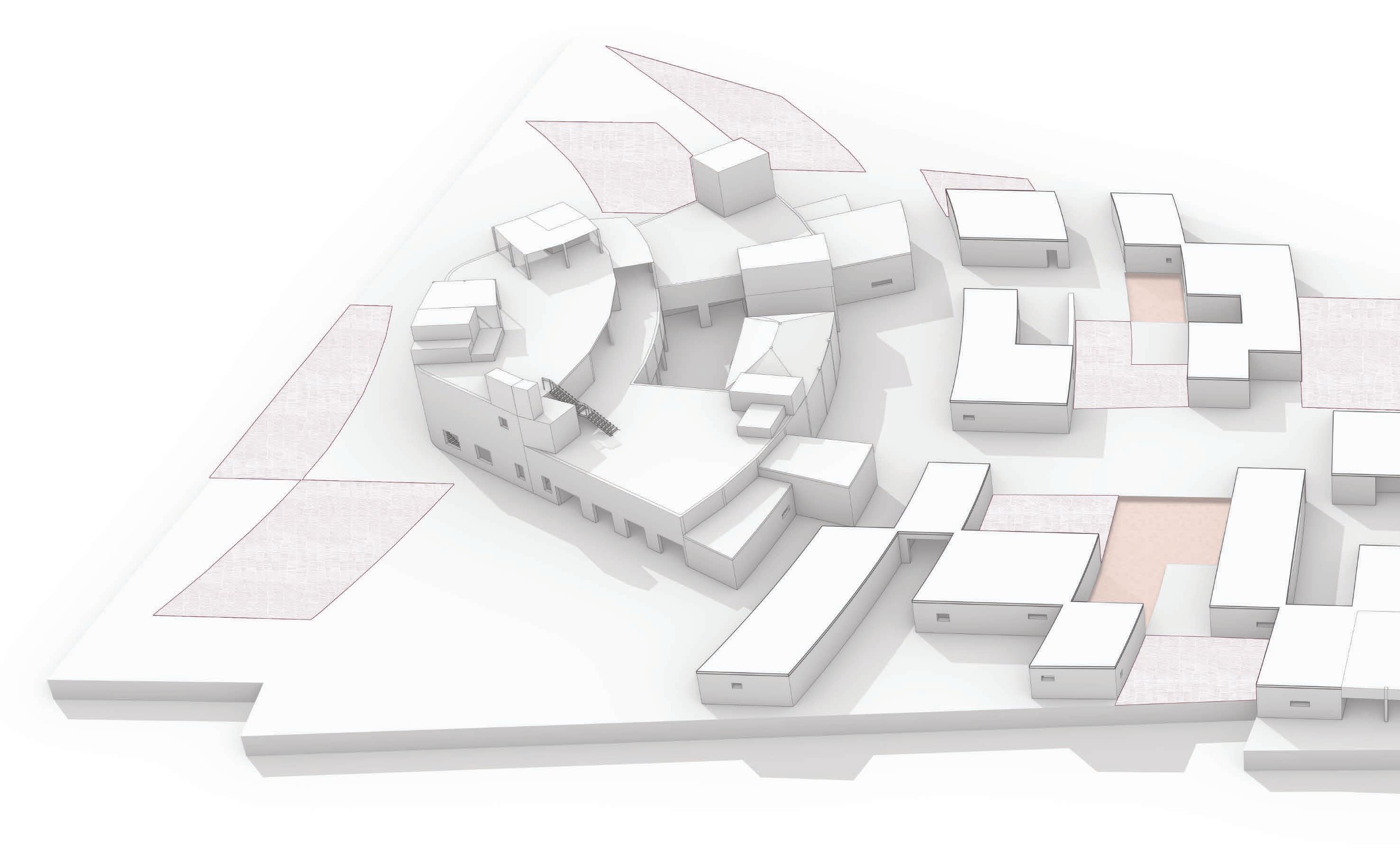

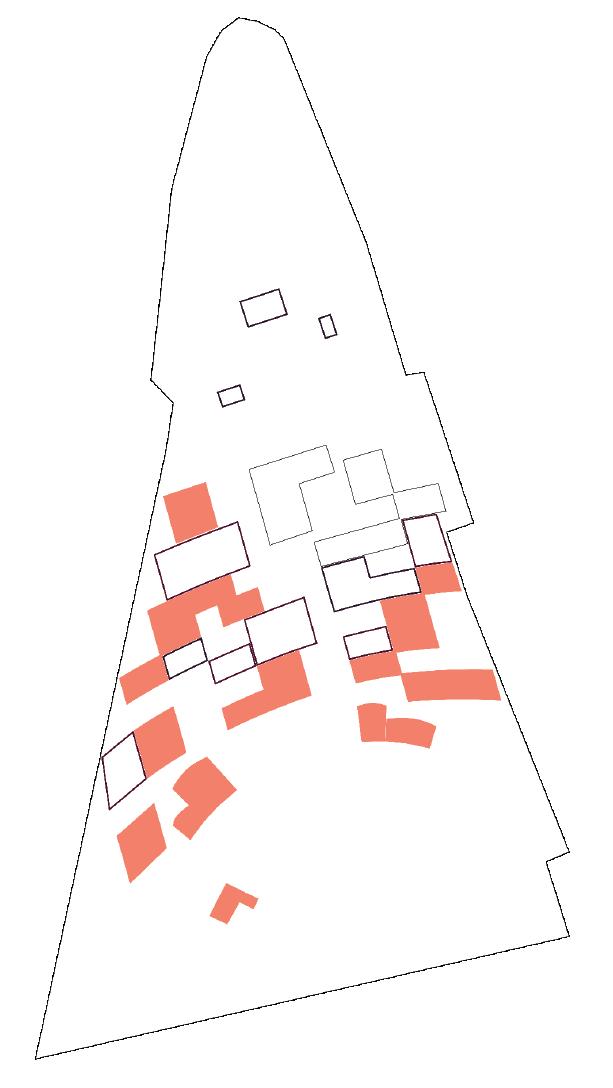

When applying the Spacial Rules, there are infinite solutions that the community can come up with. Here are four different variations of different layouts.

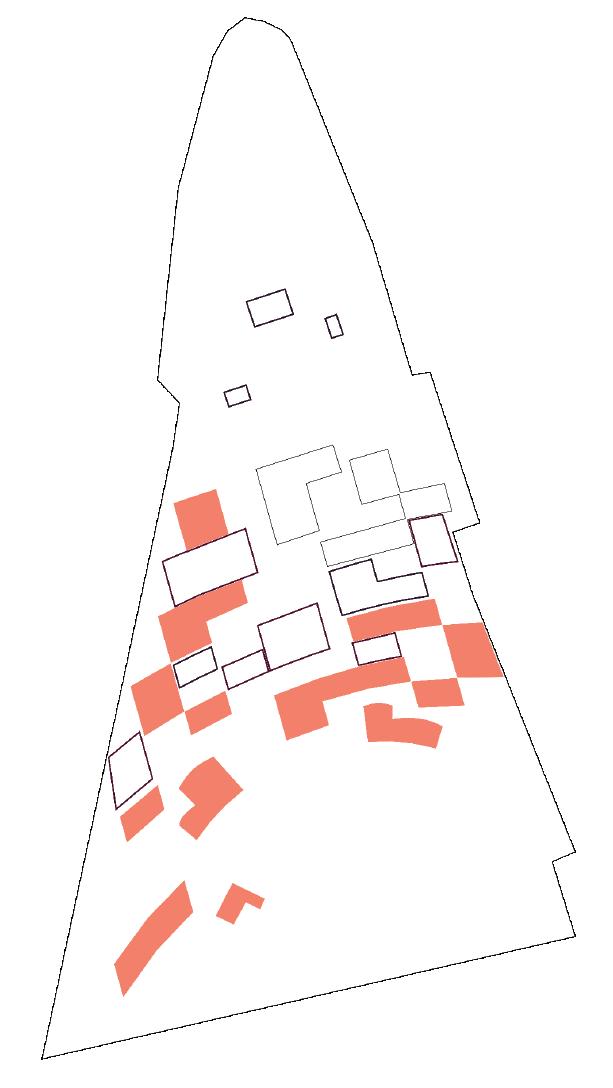

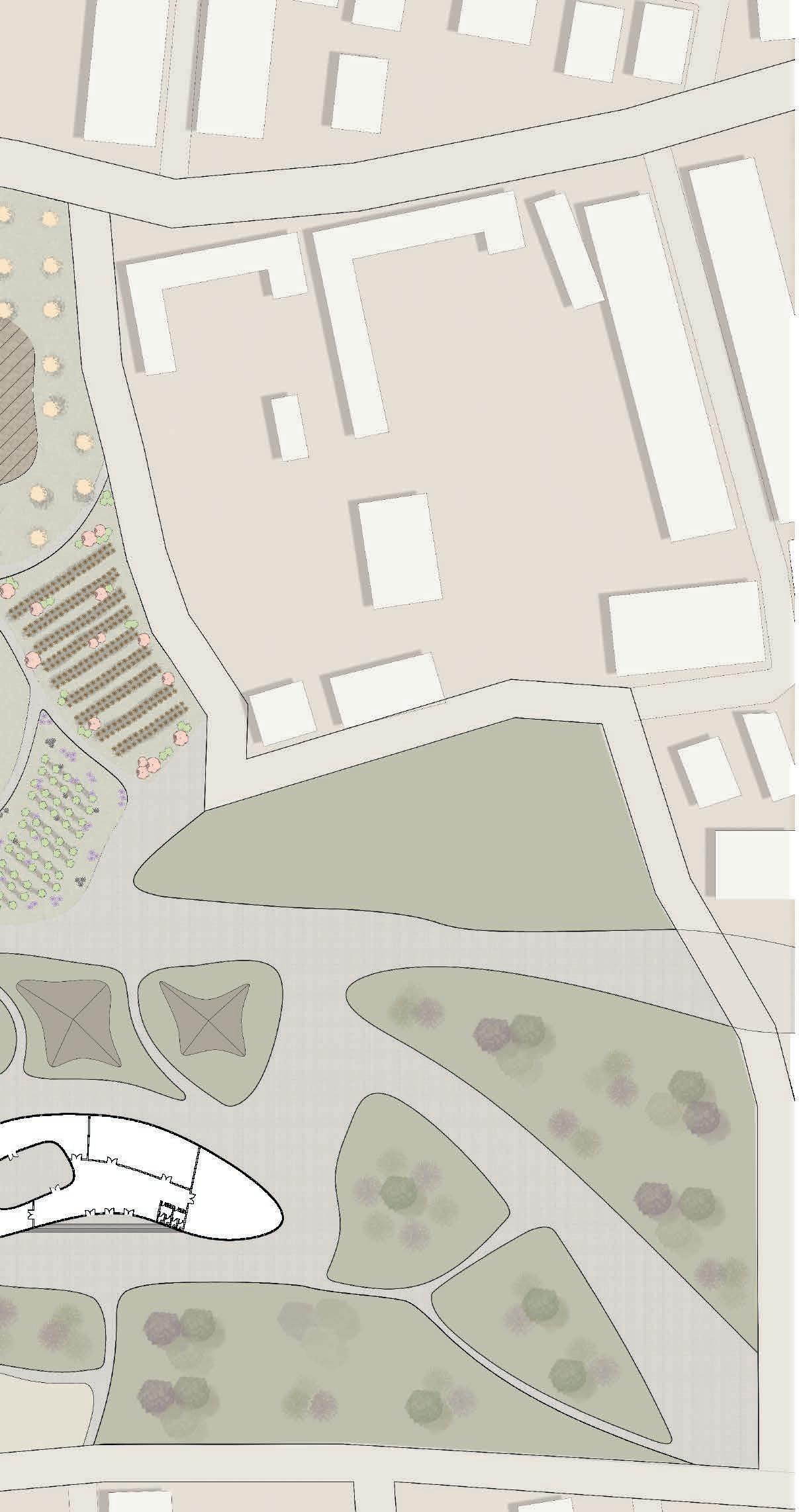

Site plan 1:500 scale. (not drawn to scale)
Layout 2
Layout 1
Perspective Cross-Section

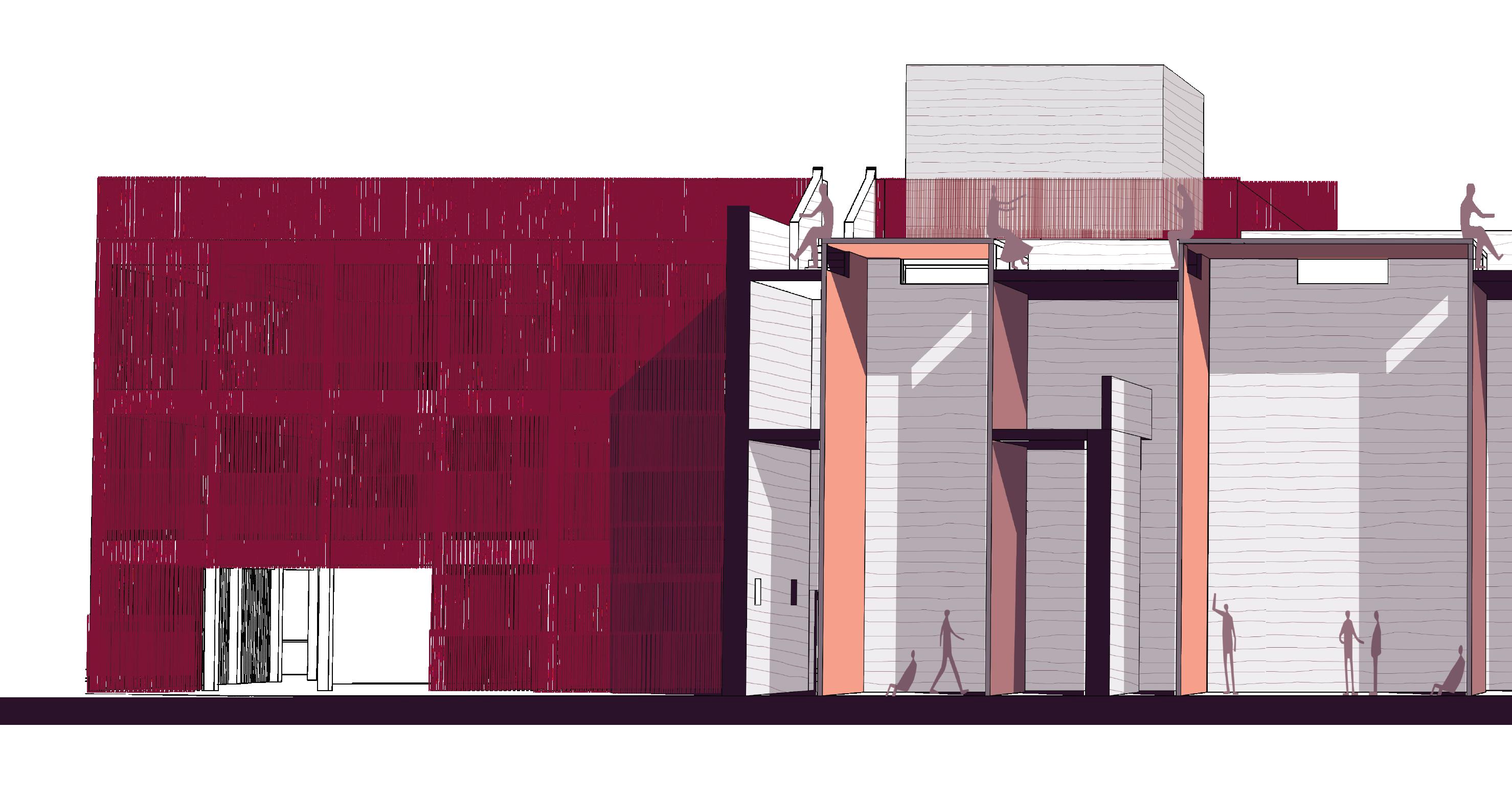

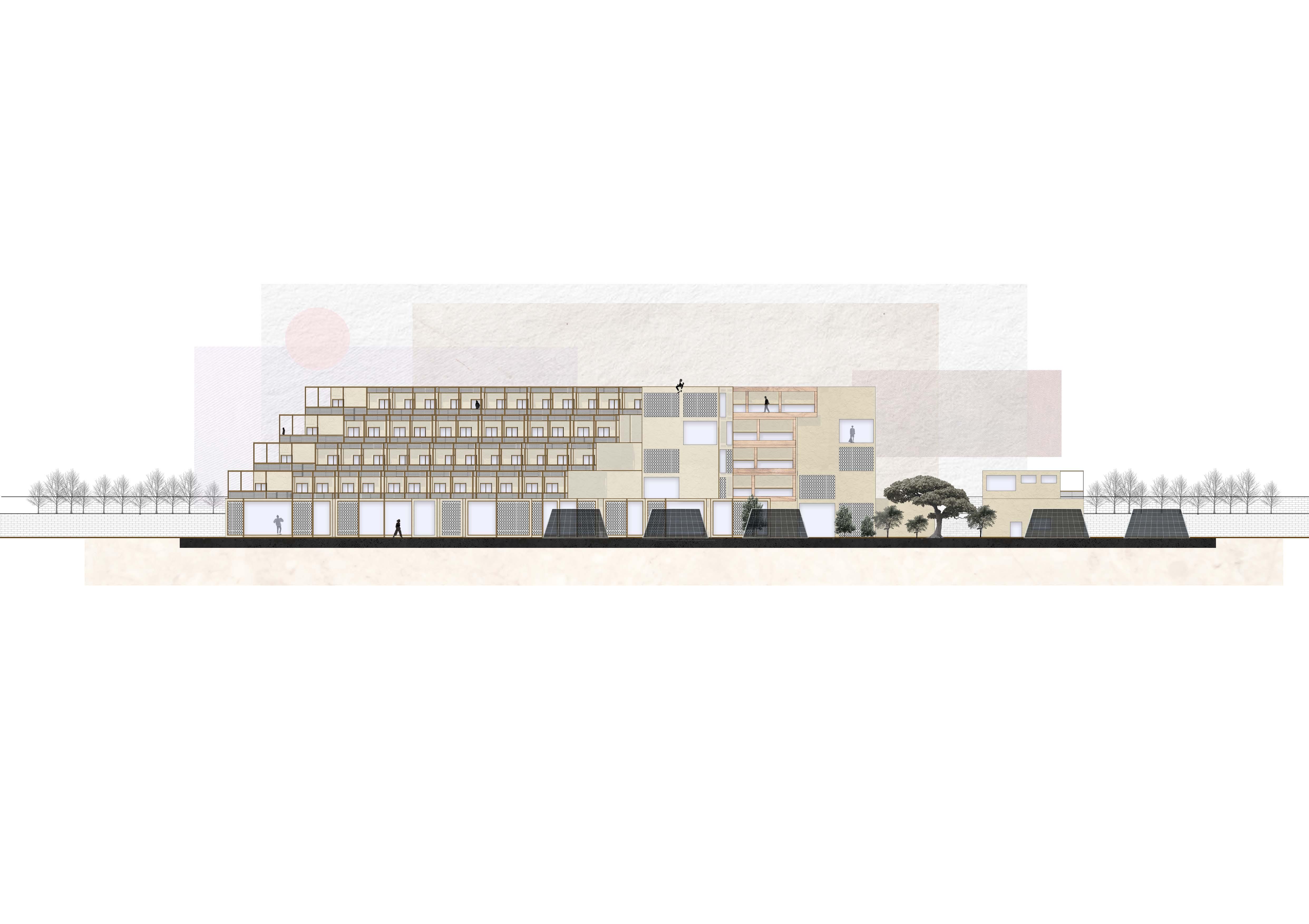

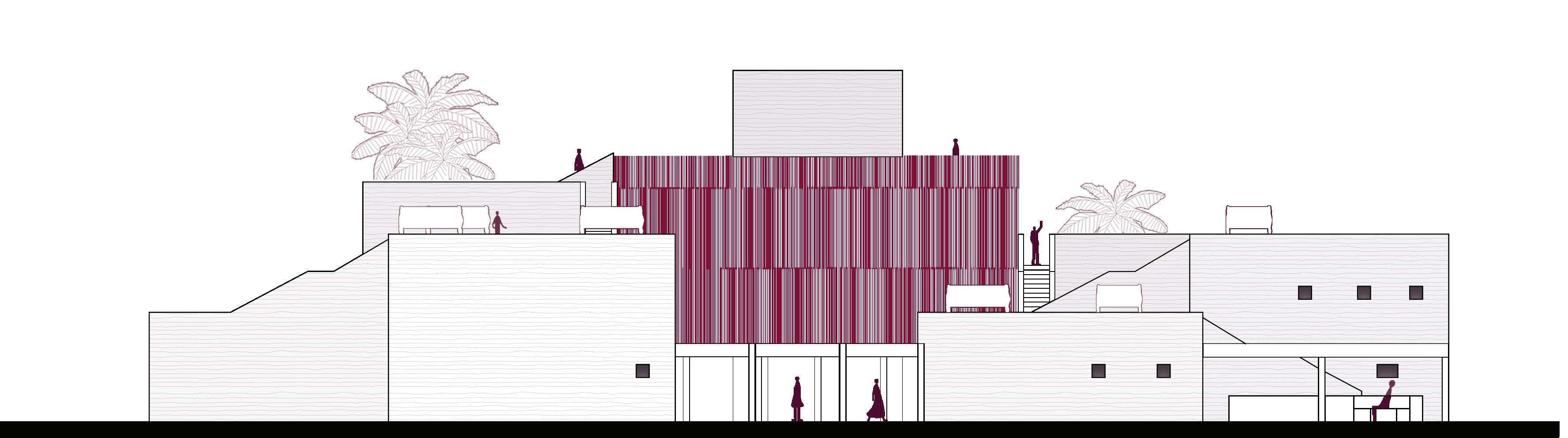

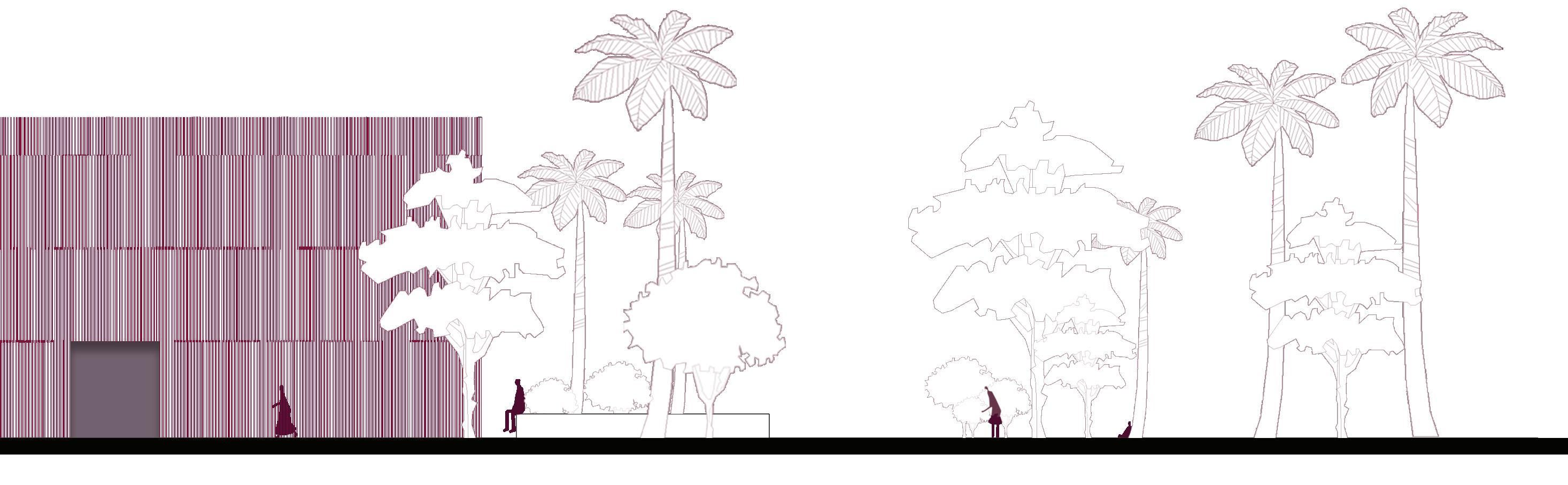

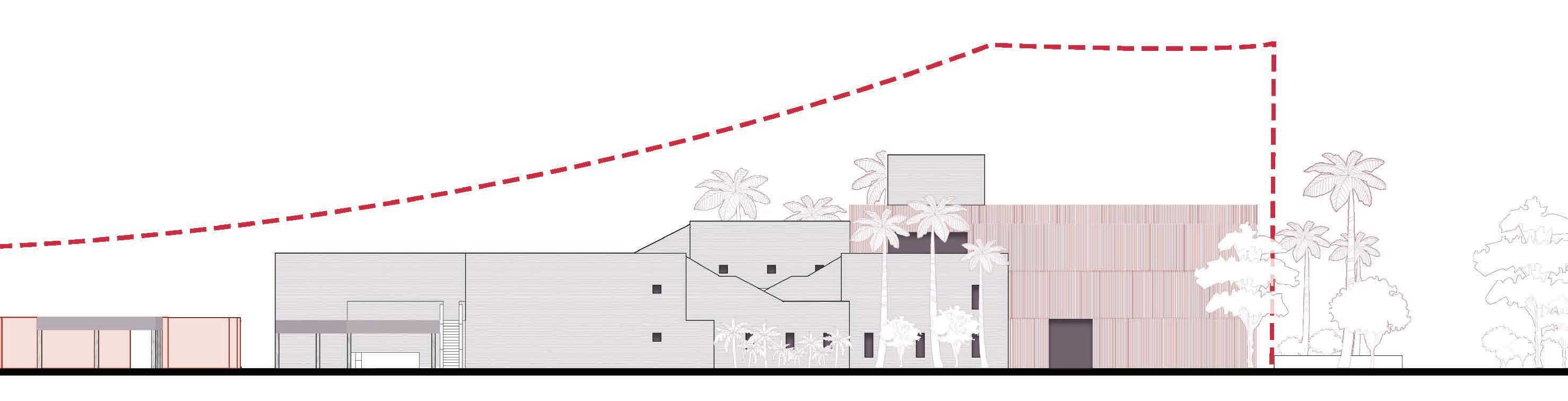

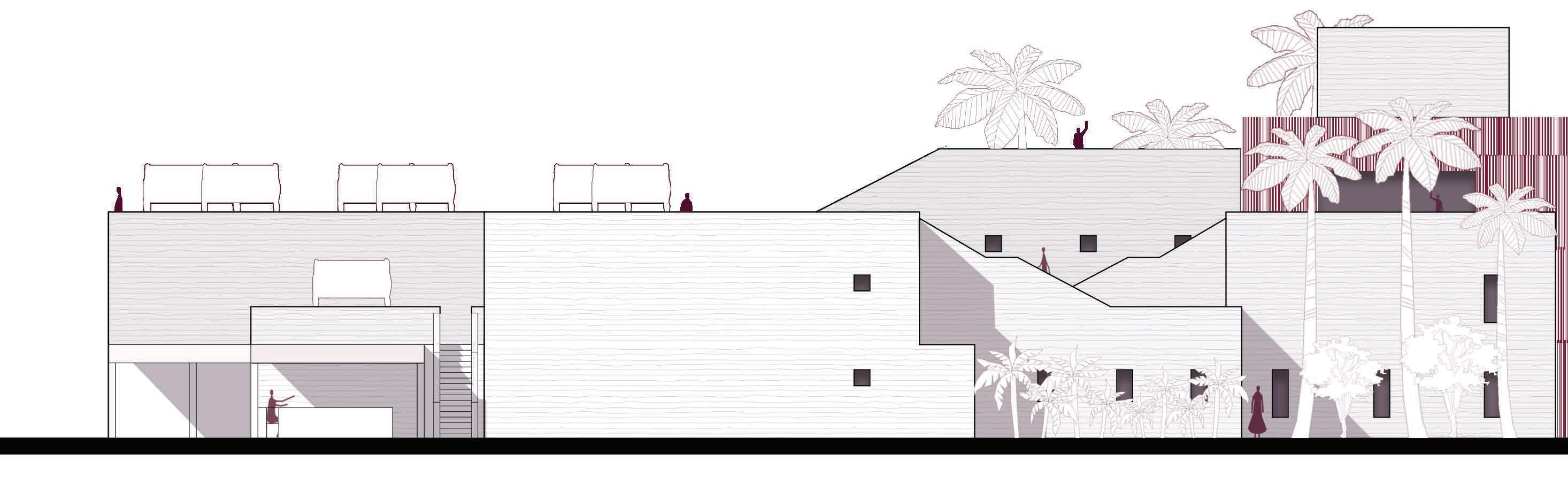

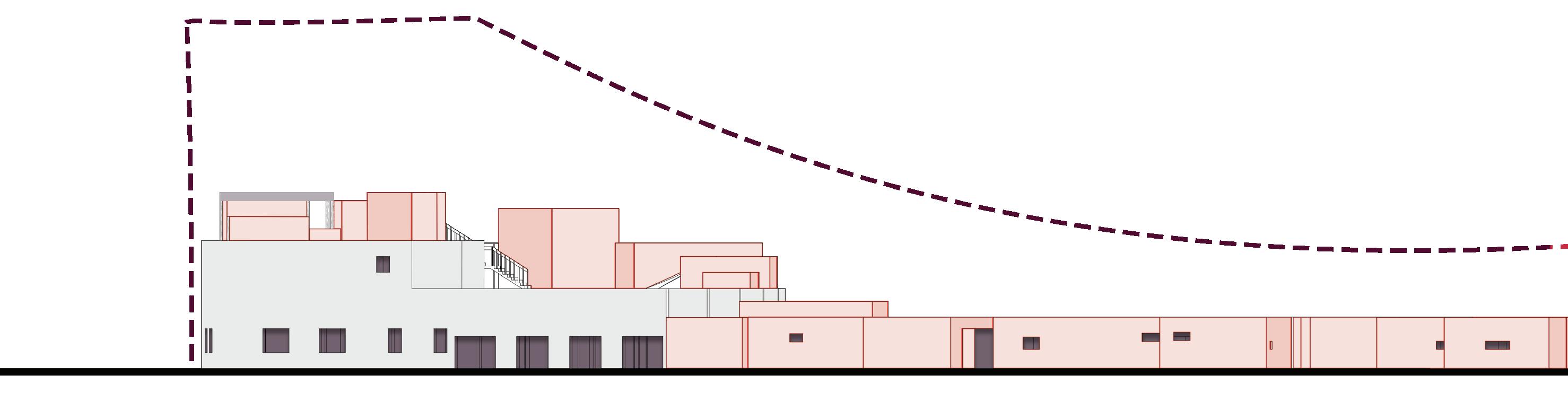

South Elevation

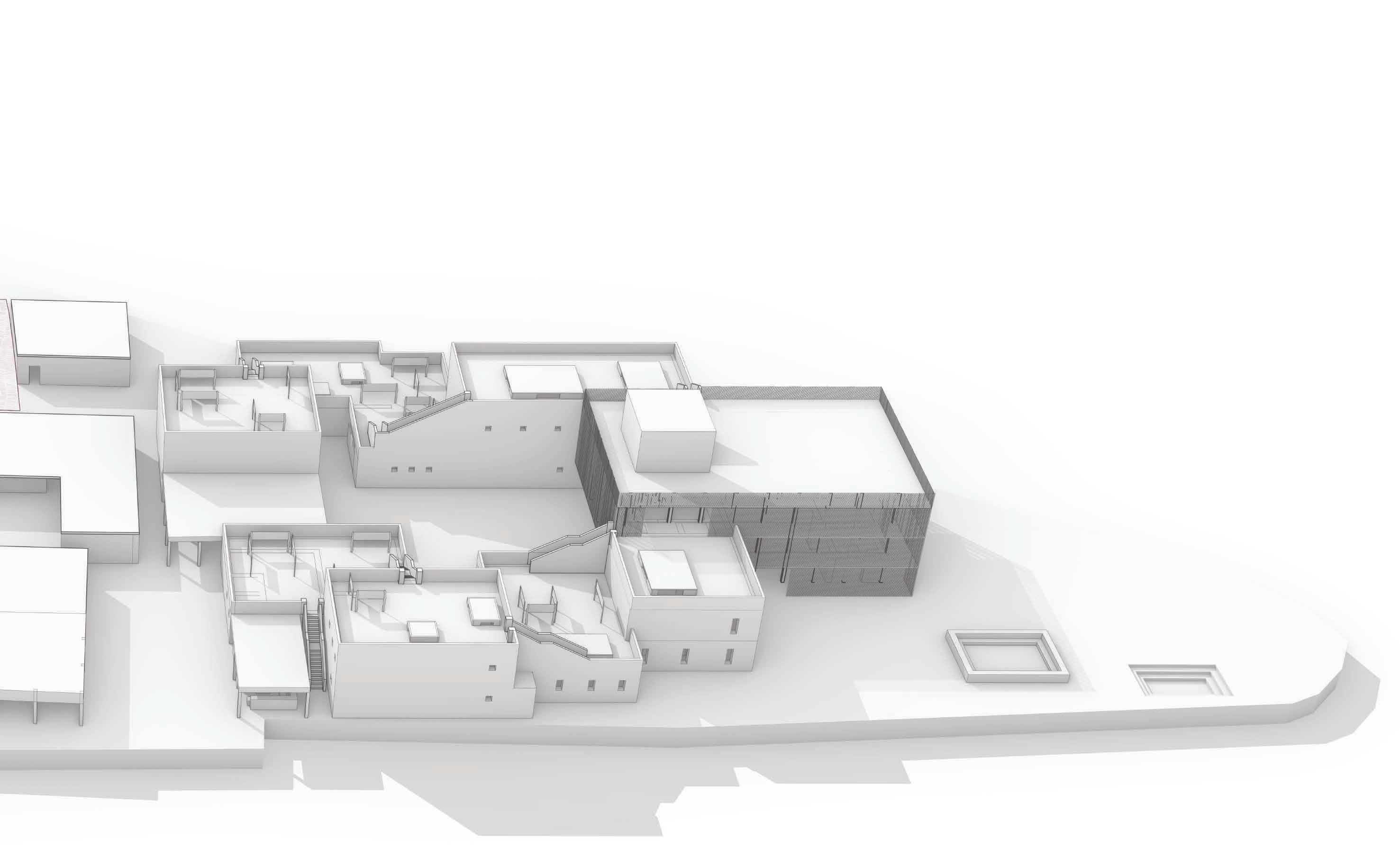

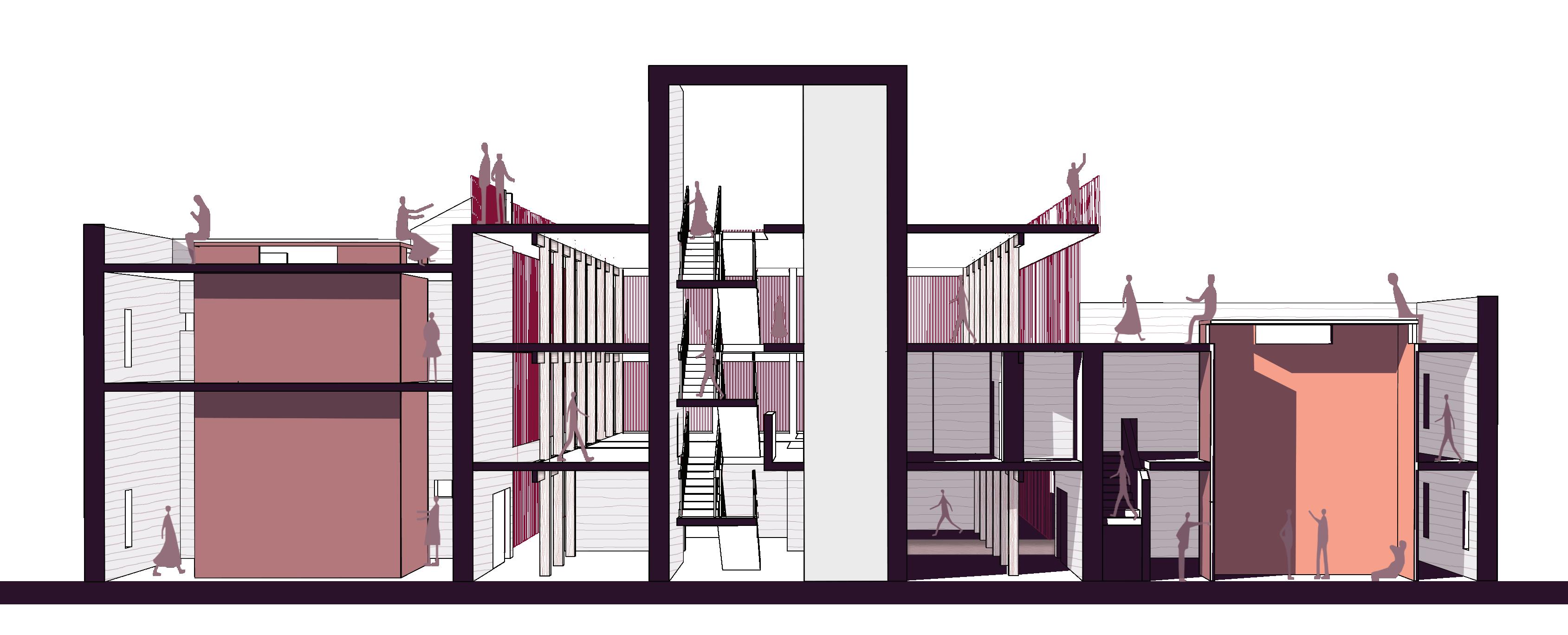

Perspective Section

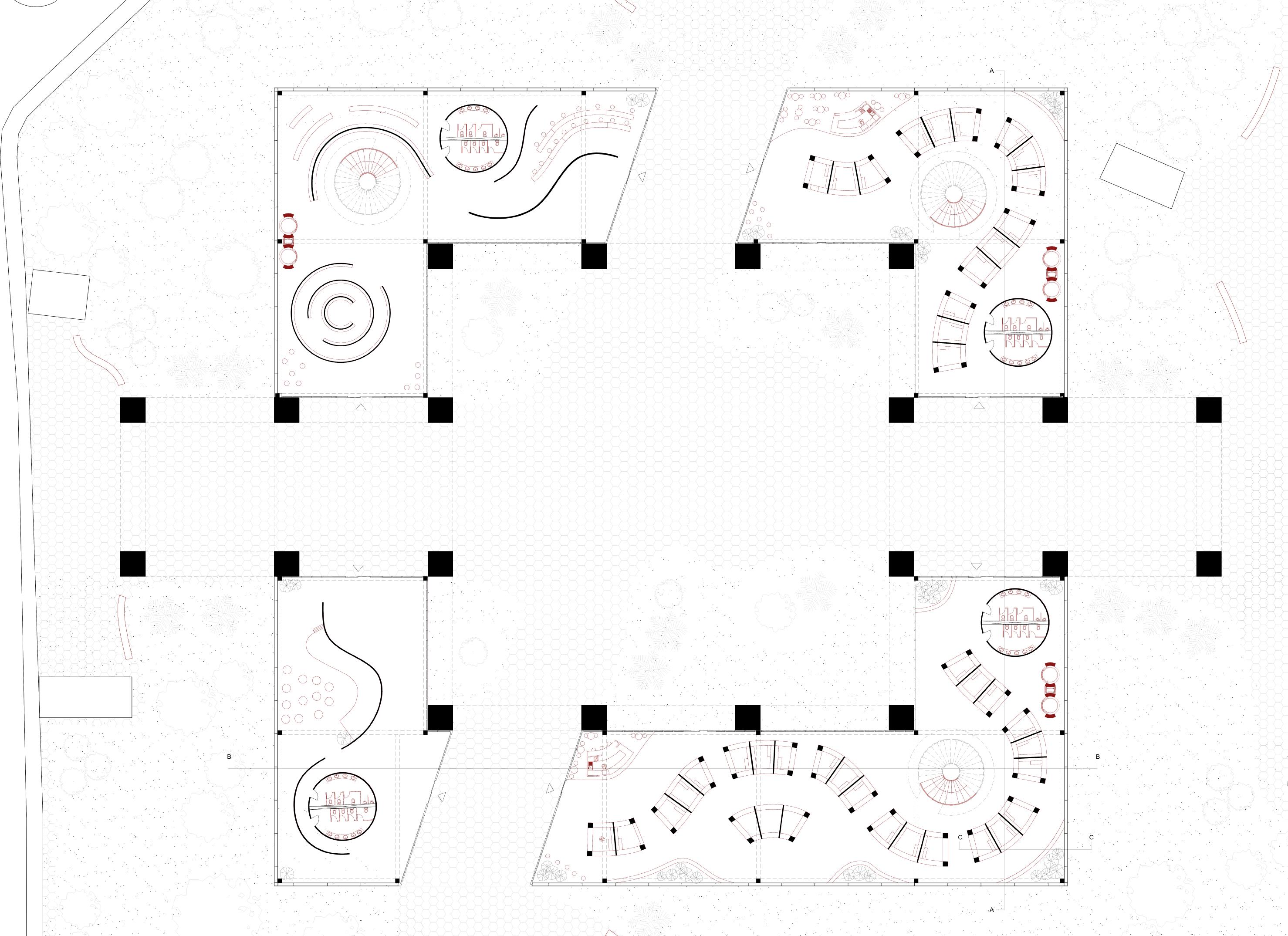

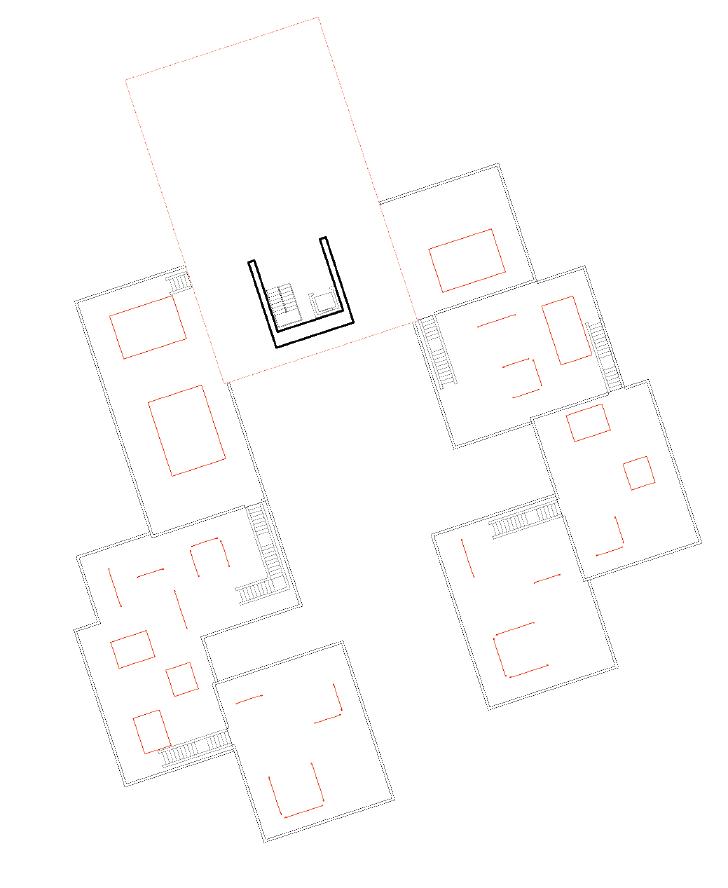

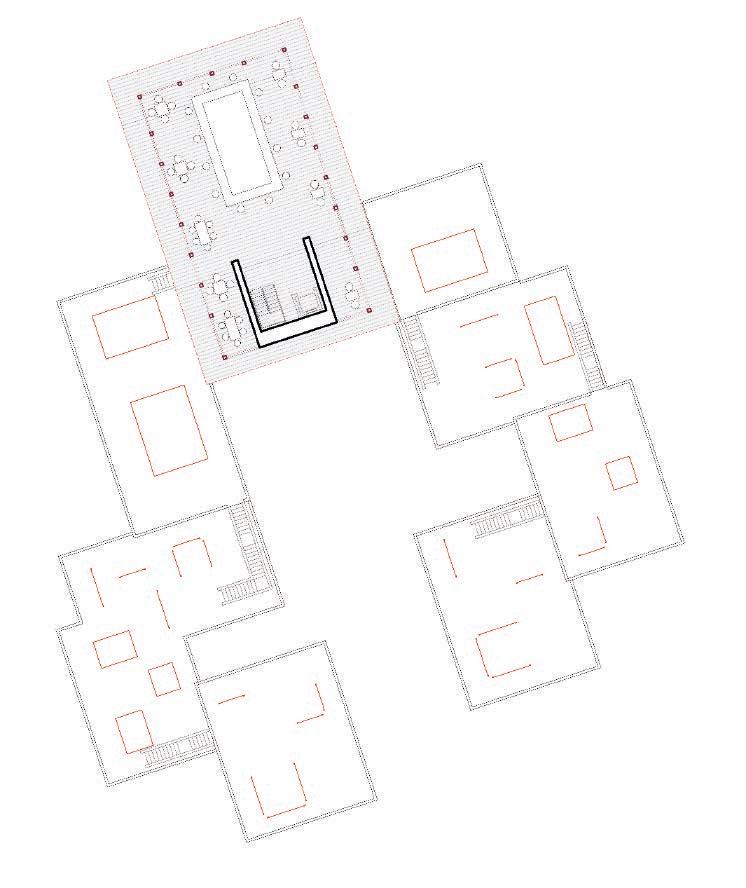

2nd Floor Plan 1:200 (not to scale)

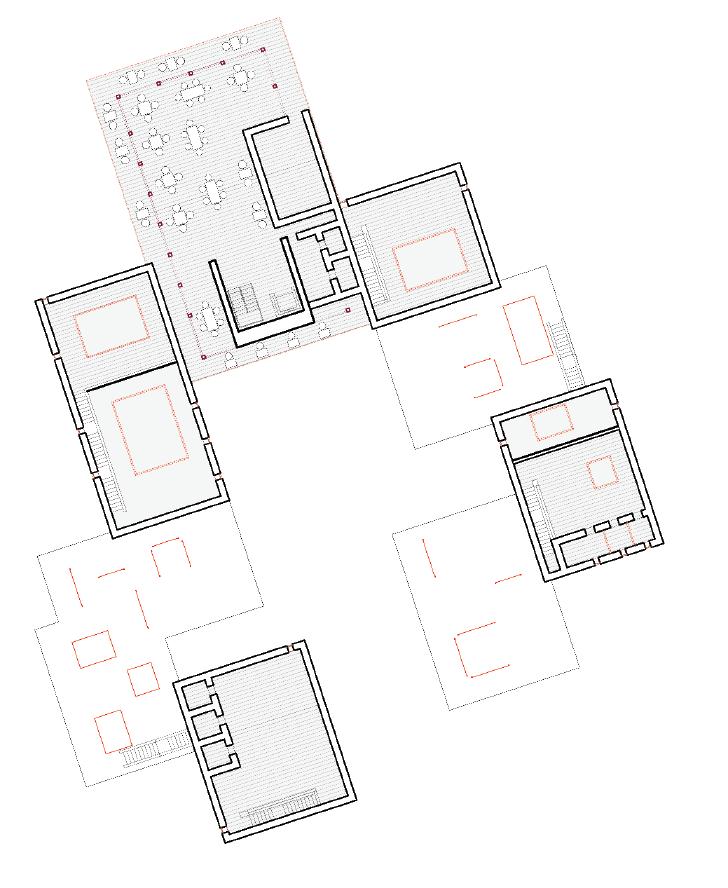

1st Floor Plan 1:200 (not to scale)

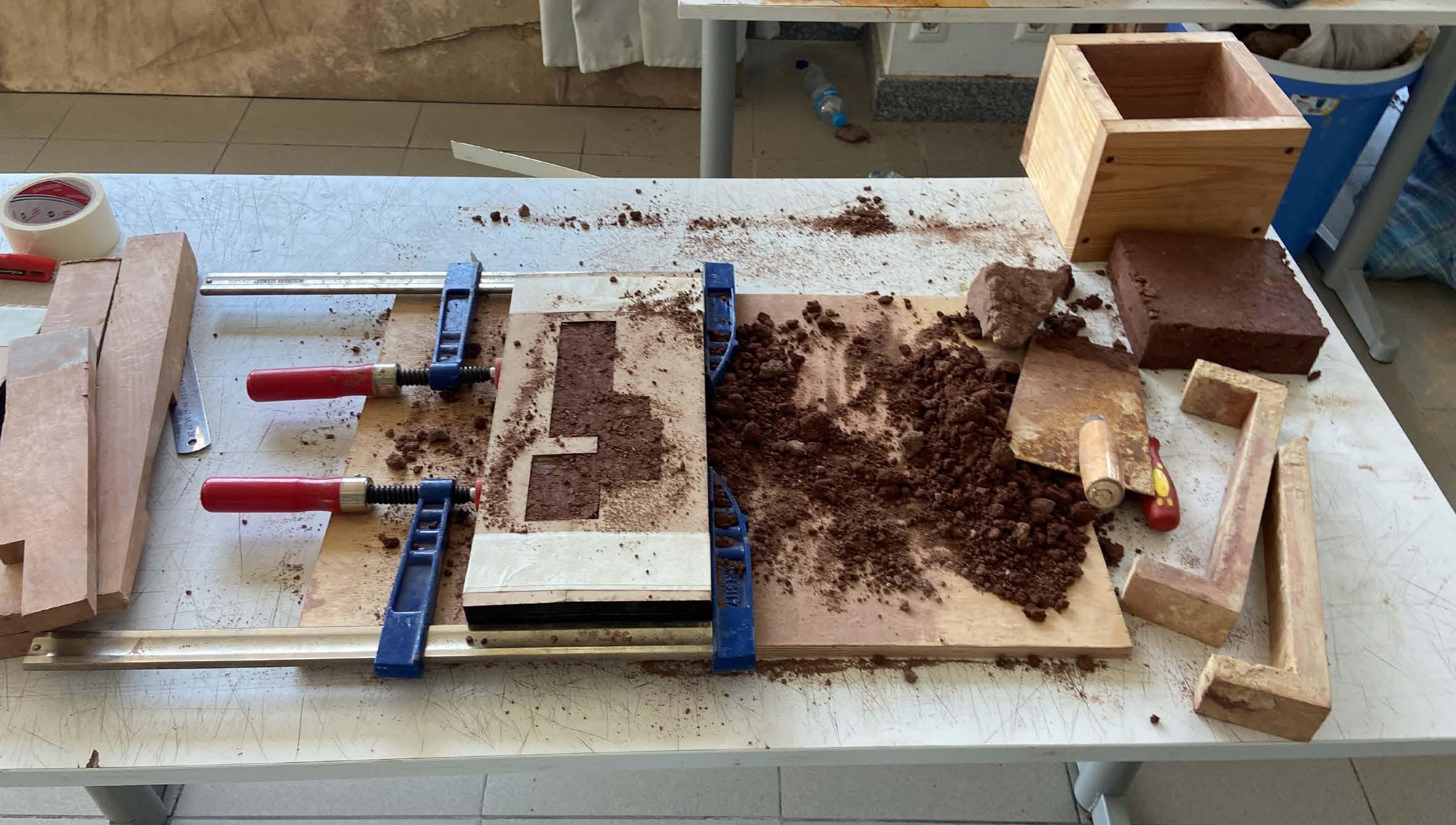

Construction Detail

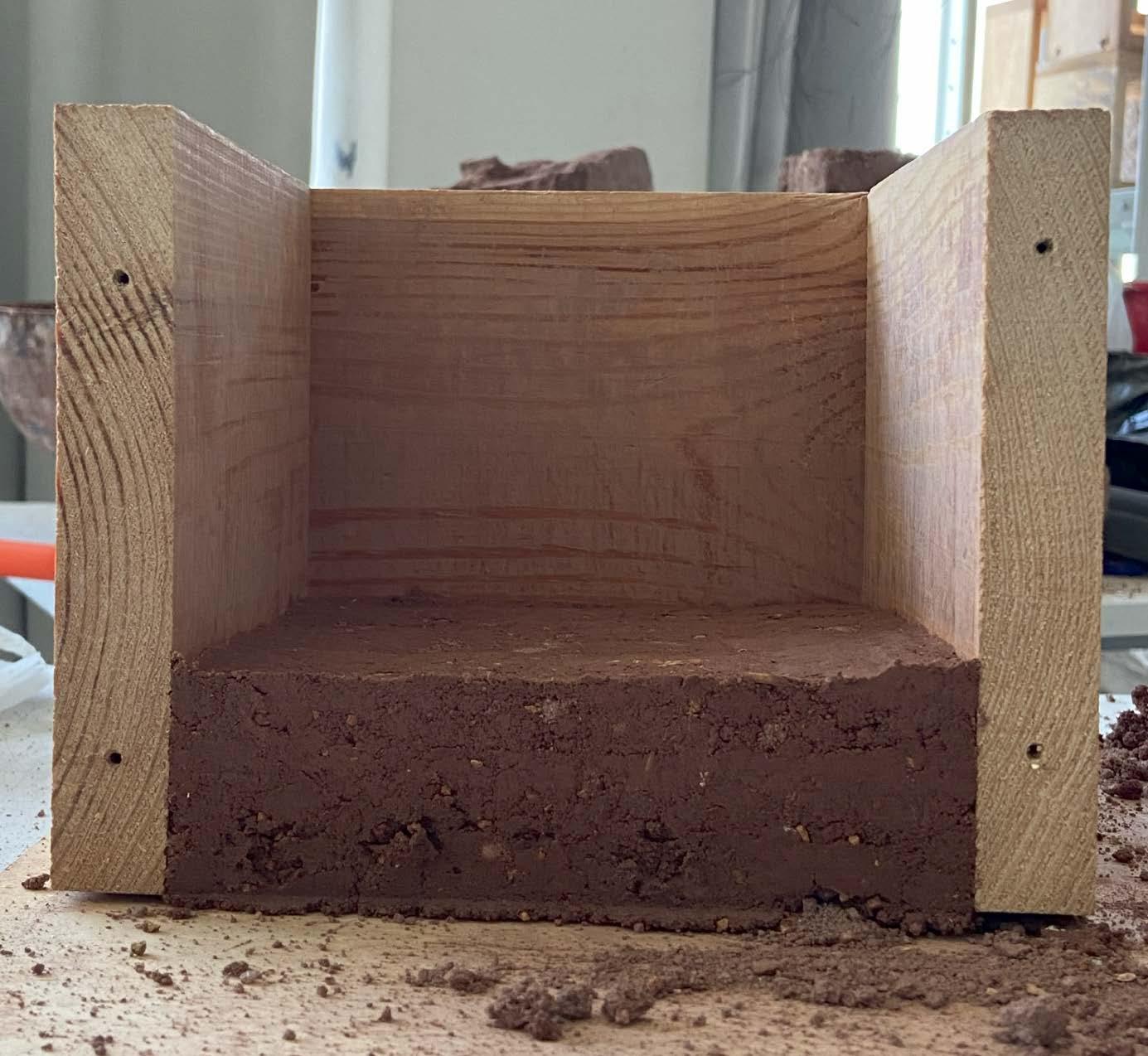

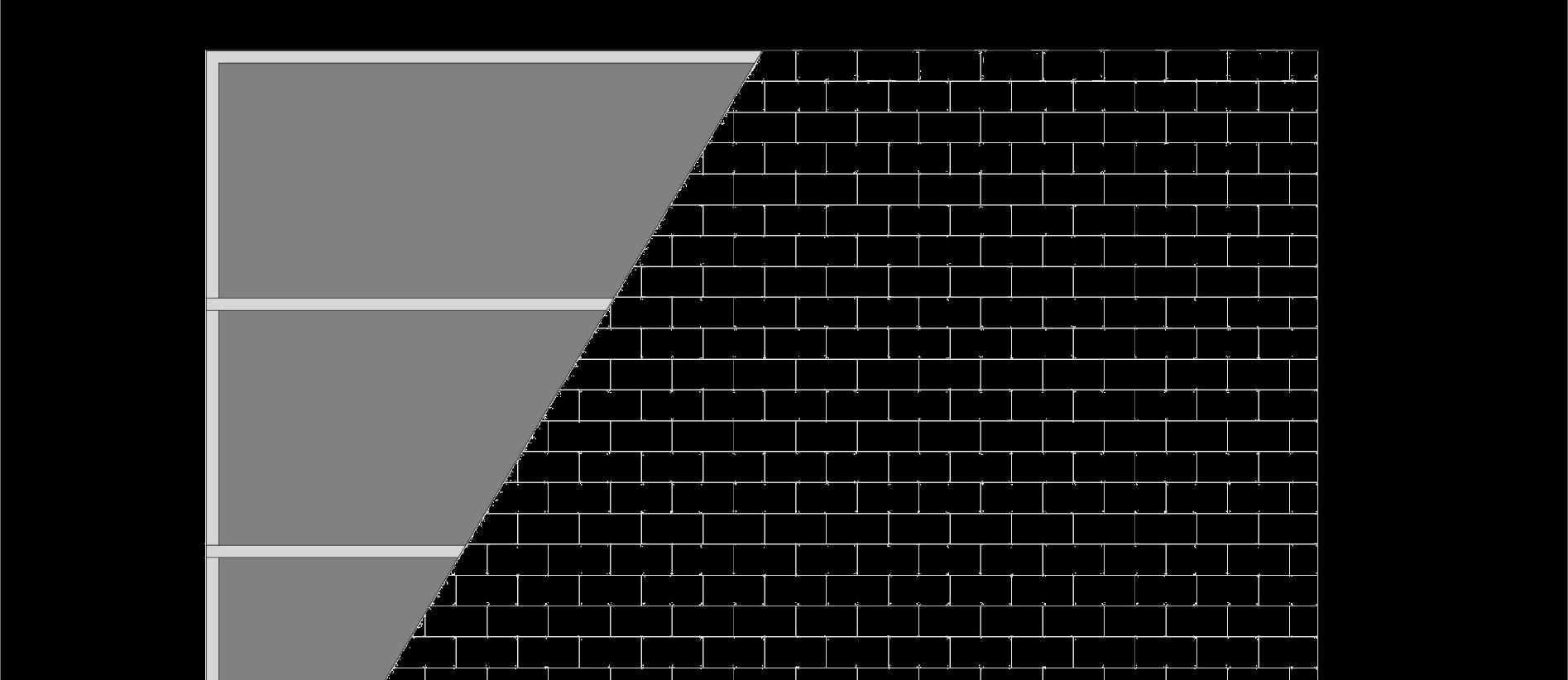

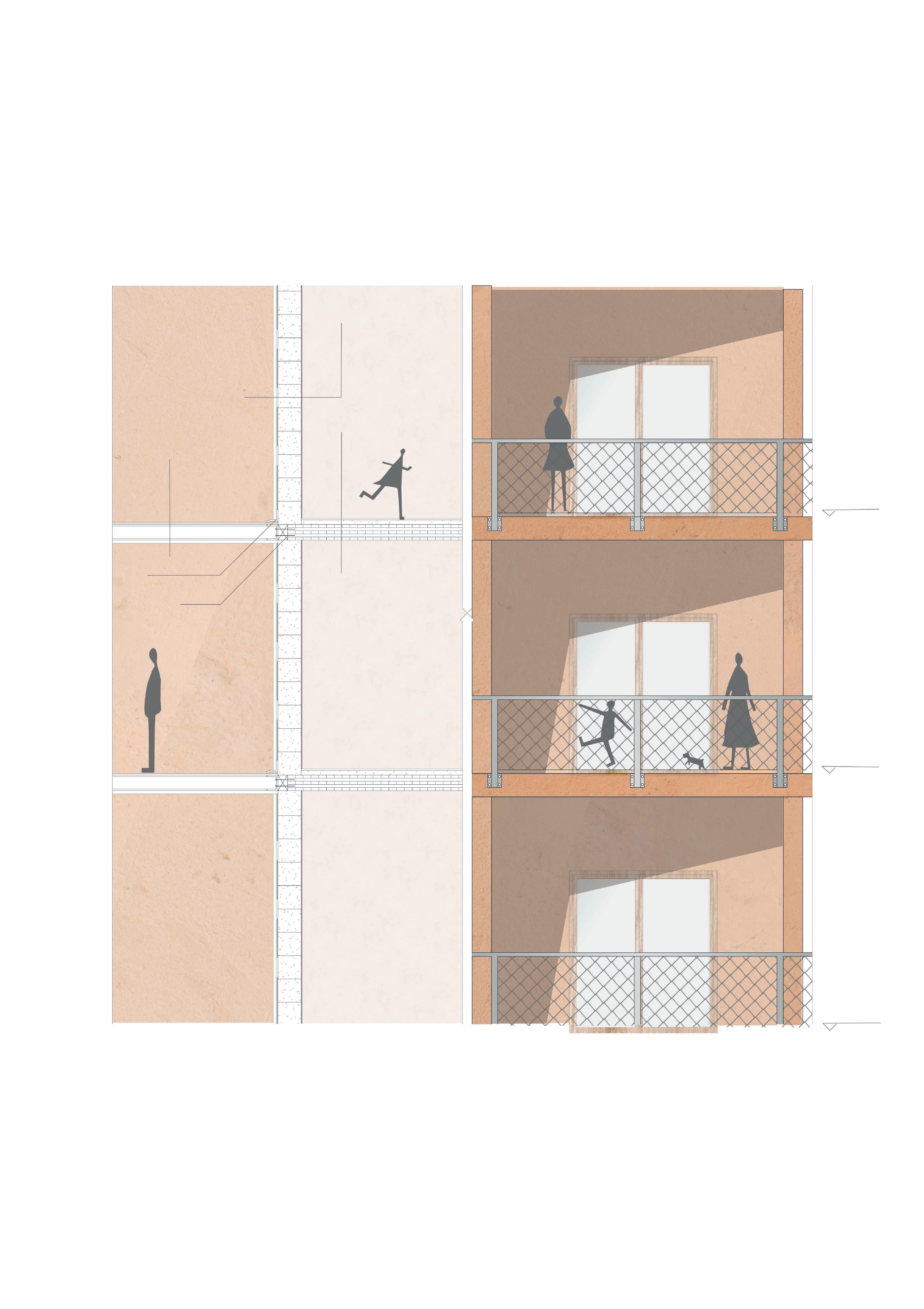

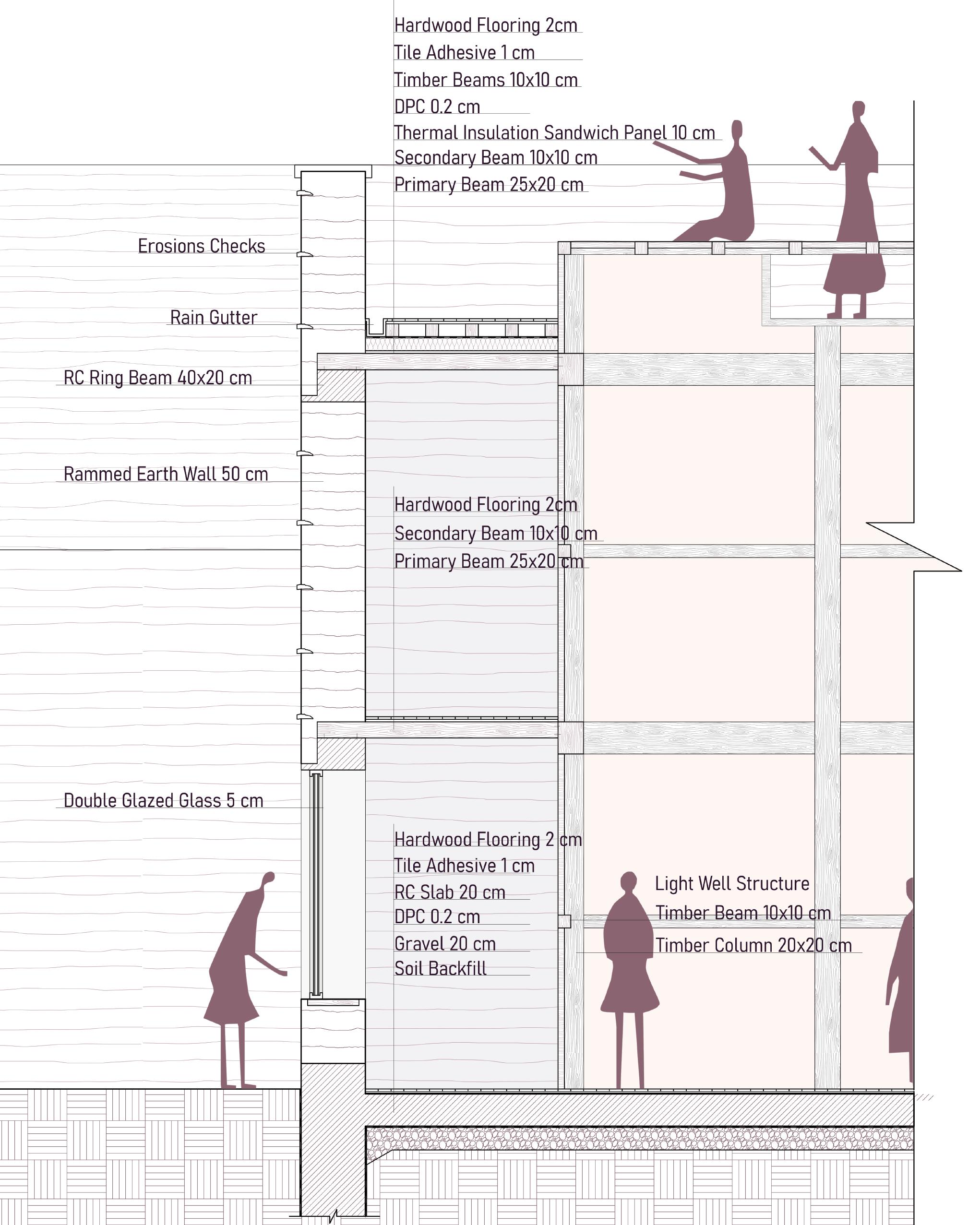

Section Detail Scale 1:20 (not drawn to scale) Illustrating the construction of the Rammed Earth and the Timber beams.
As well as showing the construction of the 'Light Wells'
02

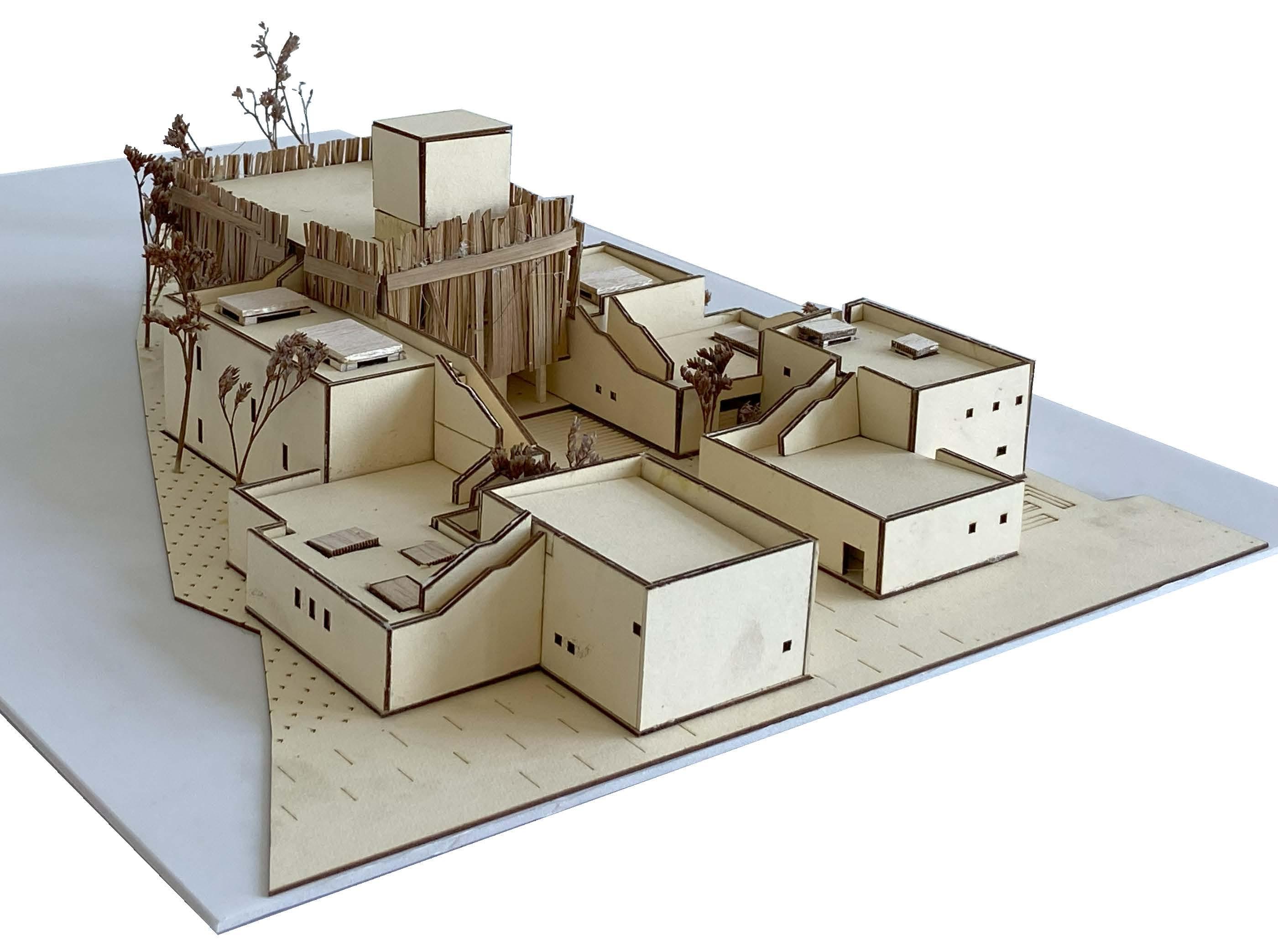

Design with Perma[Culture] In Siwa
Immersed in the vast nature of Siwa, one can only work with nature and it's rules not against it. This is where Permaculture fits perfectly. Permacuture is an approach to land management and settlement design that adopts arrangements observed in flourishing natral ecosystems.

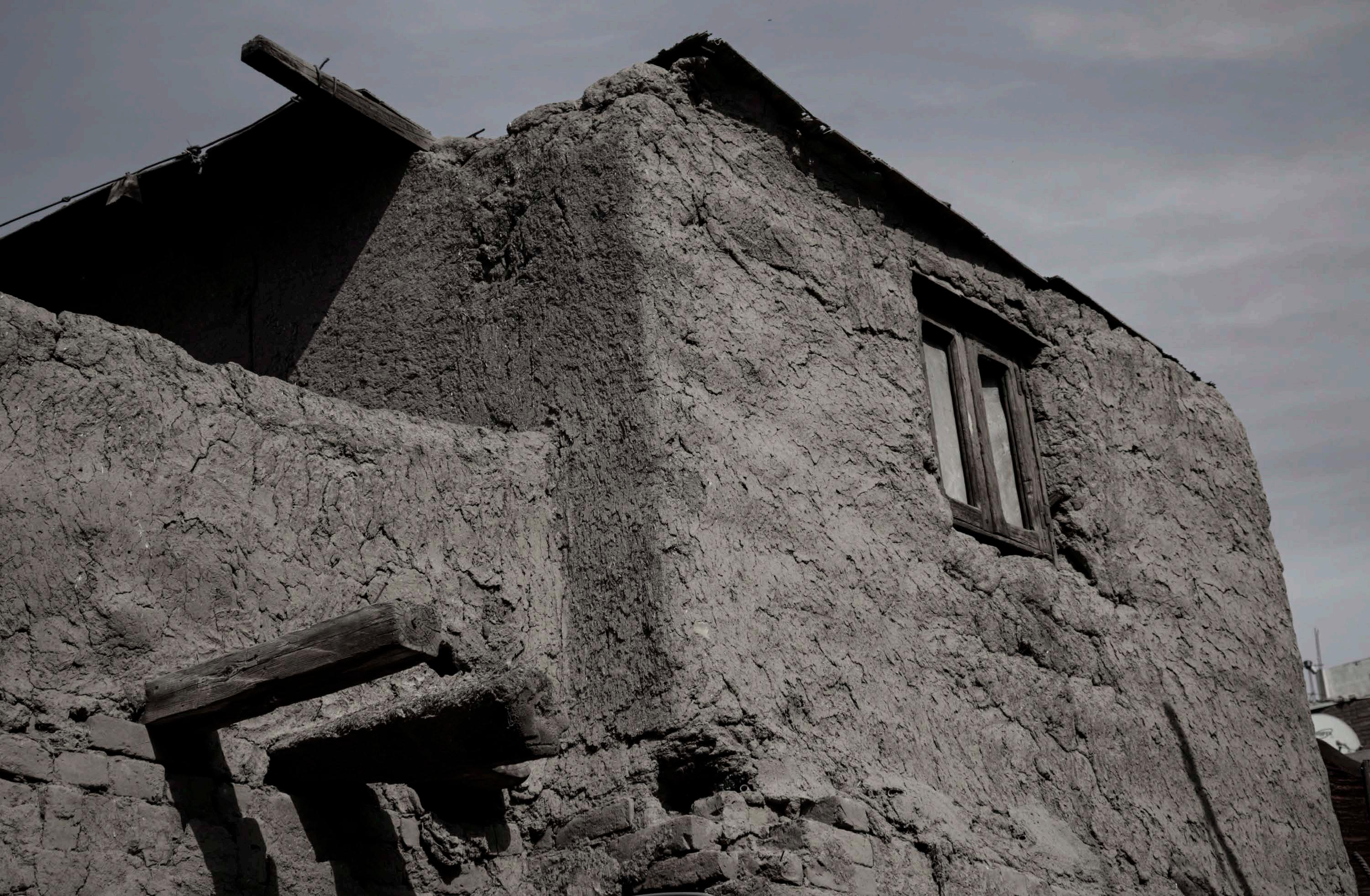

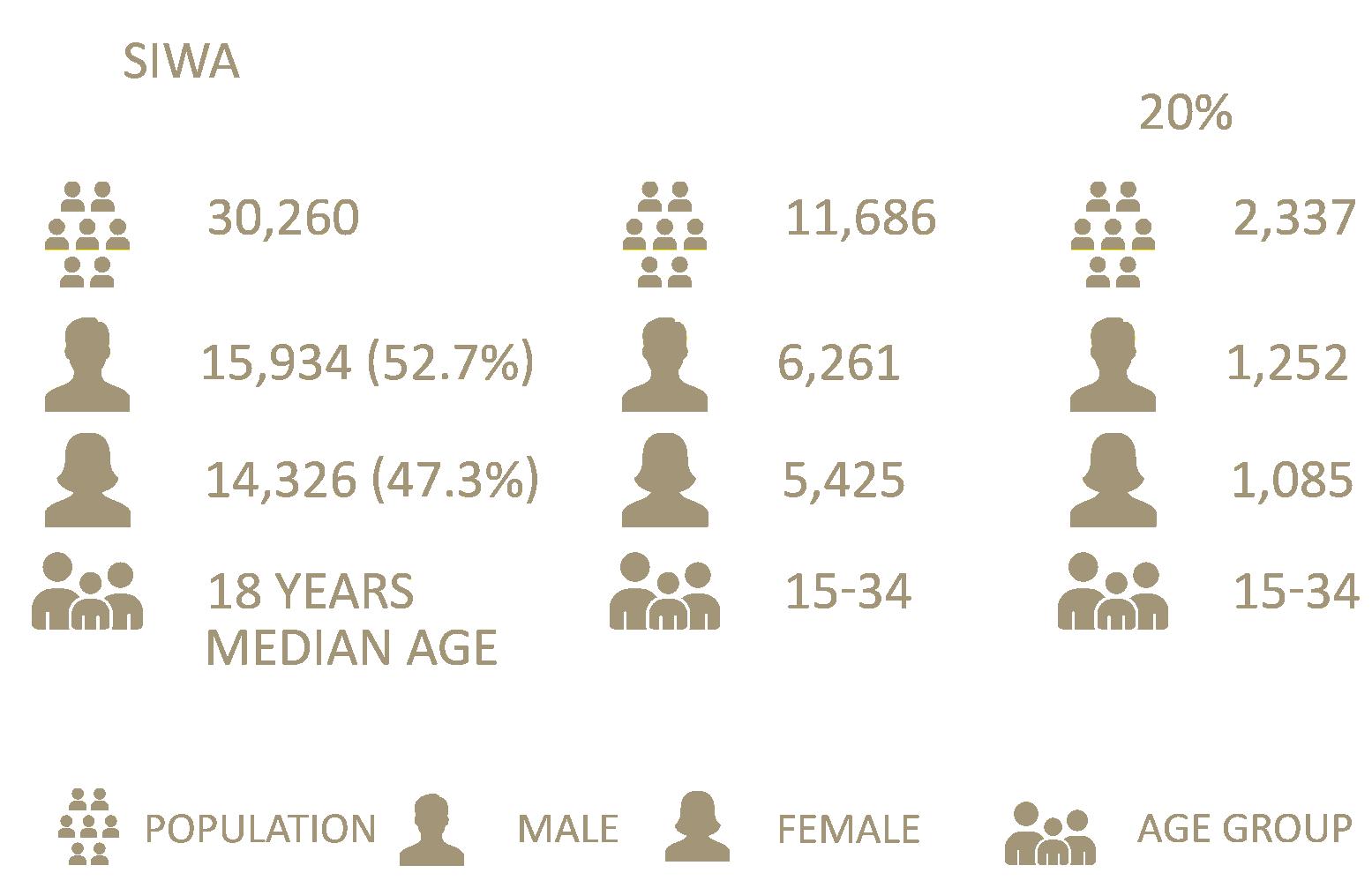

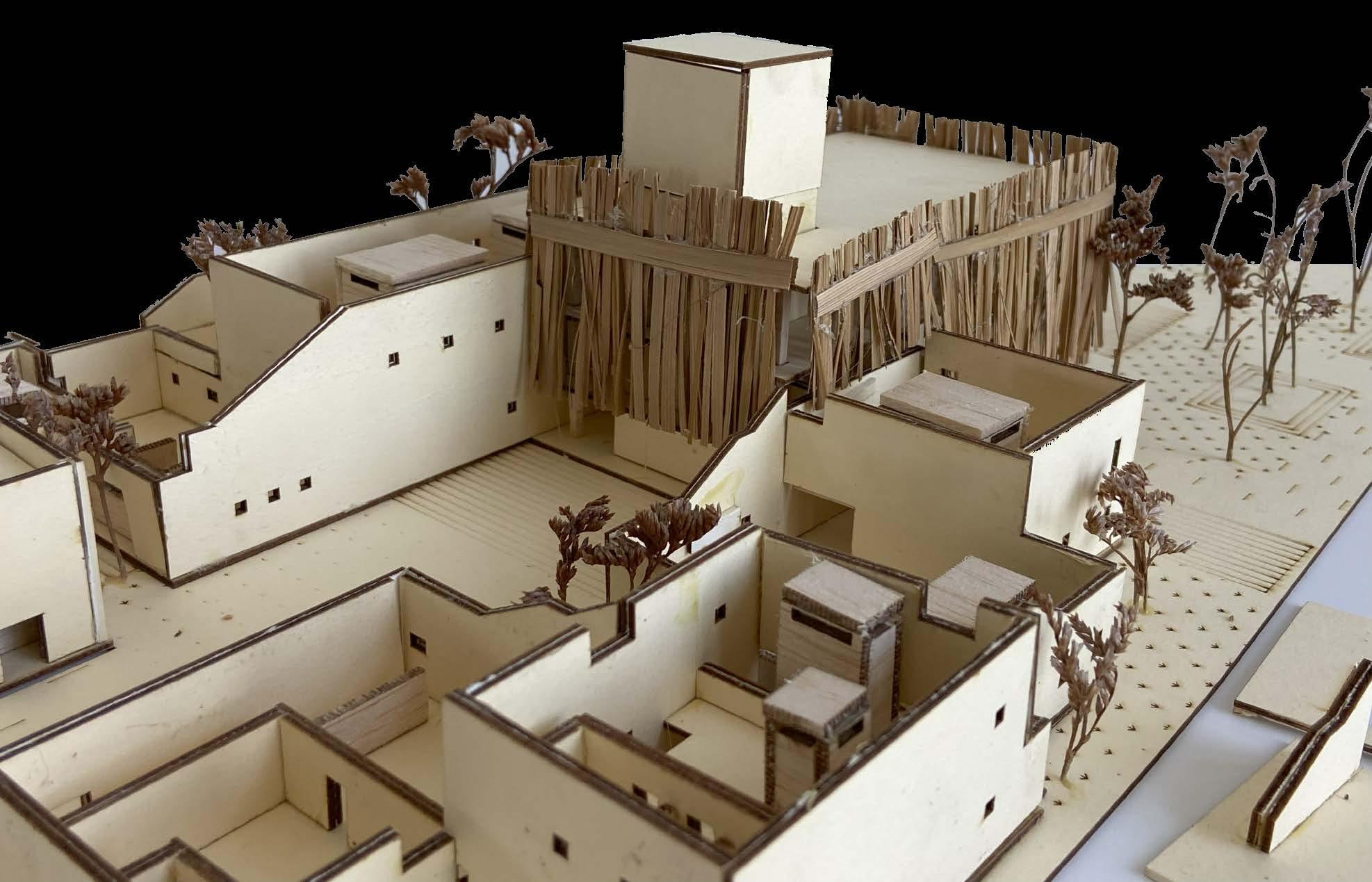

With the rich history of Siwa, Karsheef hold an important role in the identity and history of Siwa, as it is the only place in the world where karsheef is used as construction material.
In this way, this Project focuses on applying Permacutlure design to help reintroduce karsheef as construction material to preserve the heritage of Siwa and to bring the Community together.
Year: 2023
Semester: 7th Semester
Supervision: Prof. Silvia Covarino
Collaboration: Farida Fathy

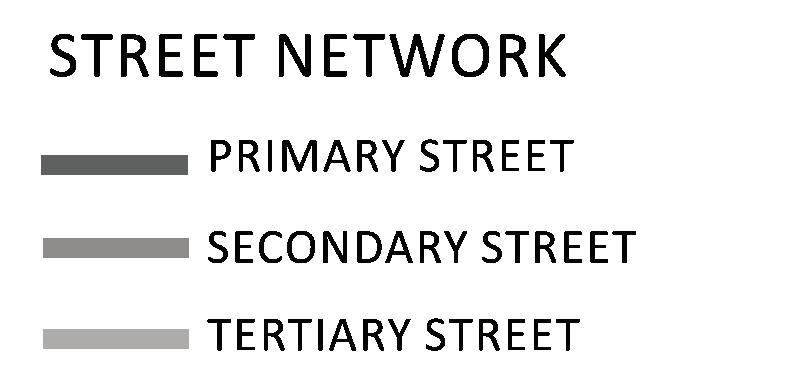

Street Hierarchy
Greenery Connection
Future Plans:
2030 - Exhibition Expansion
2040 - Site for building with Karsheef
2050 - Further Karsheef Expansion

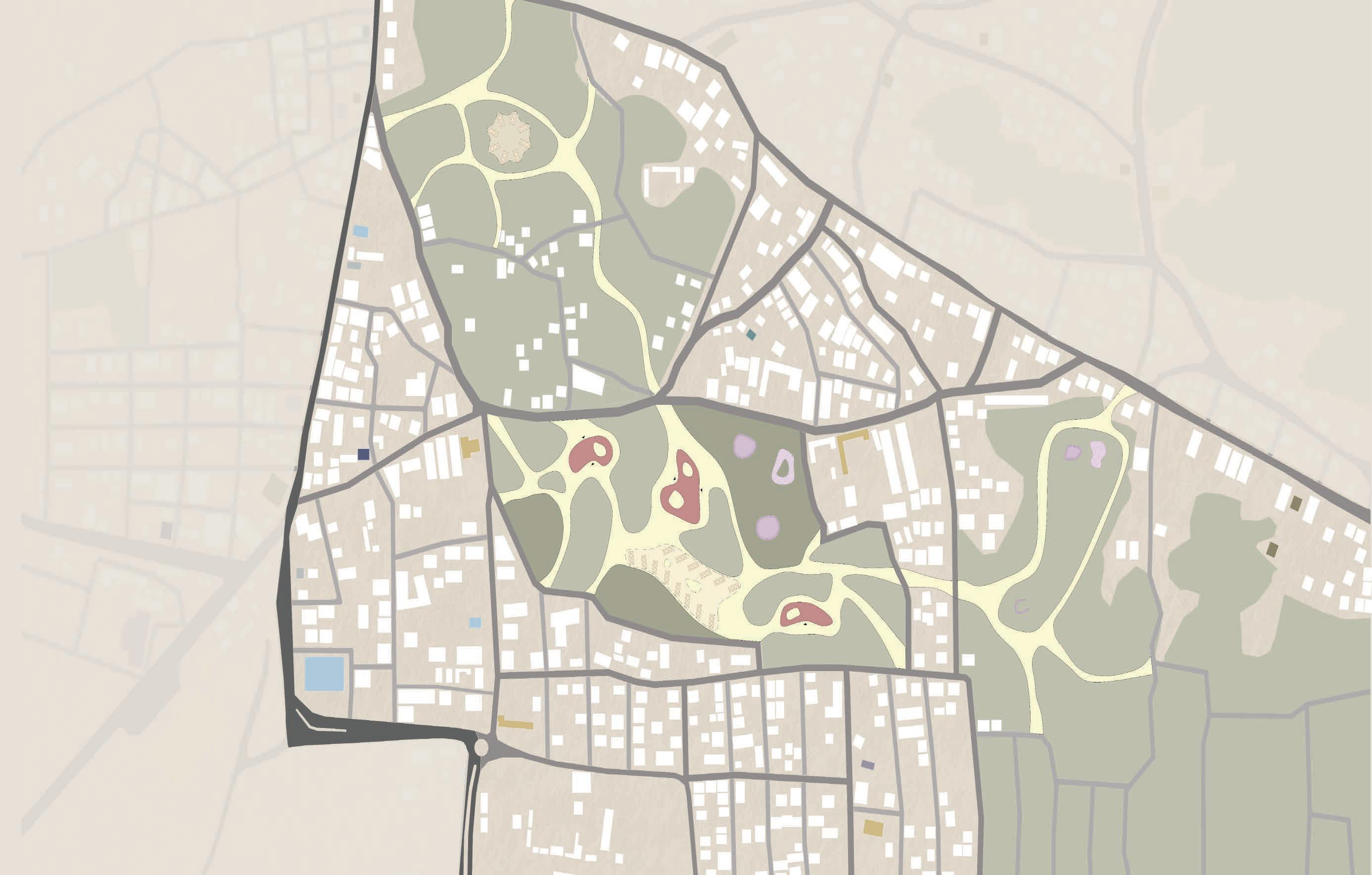

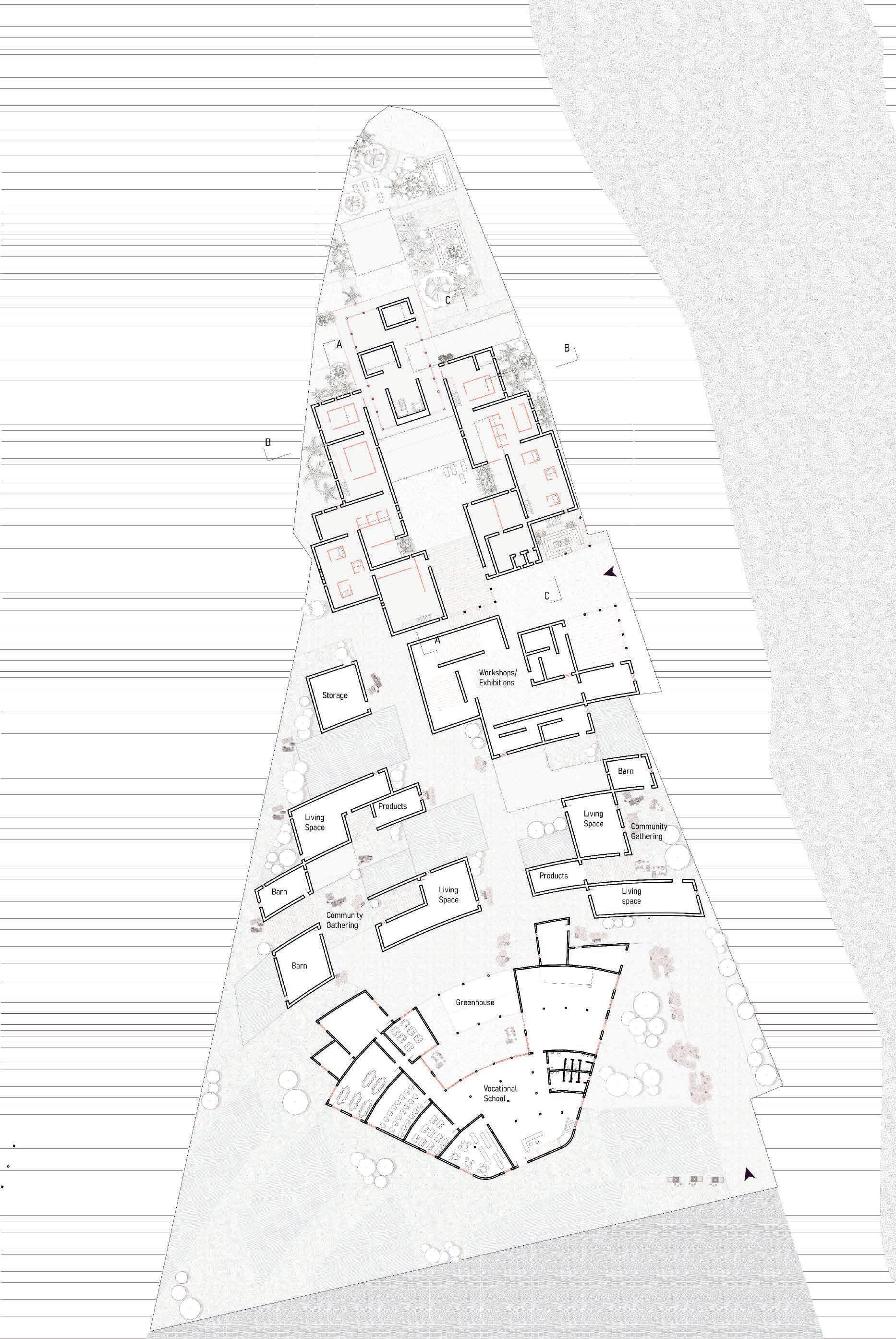

Site Plan Scale 1:2000 (not to scale)
Urban Section 1:2000 (not to scale)

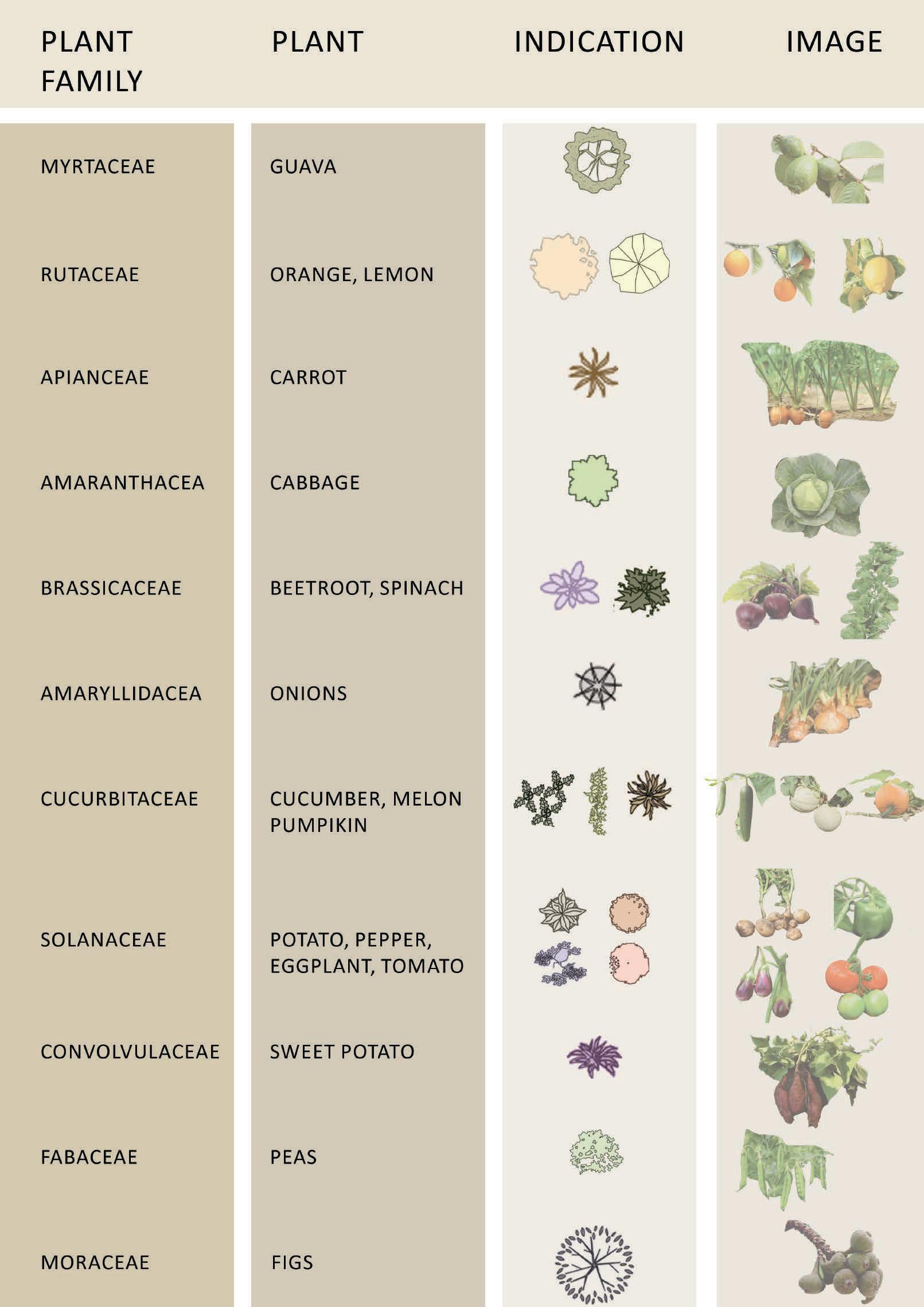

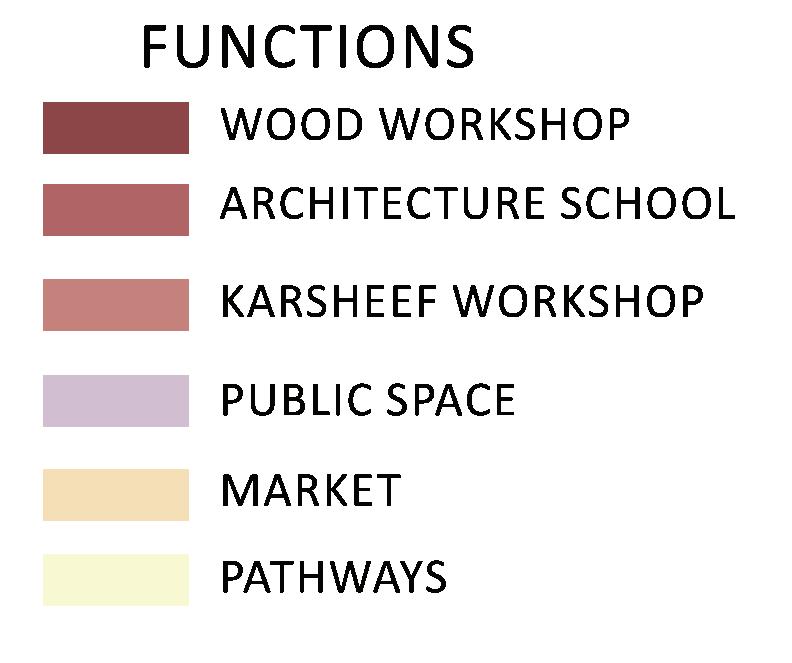

Plants Legend

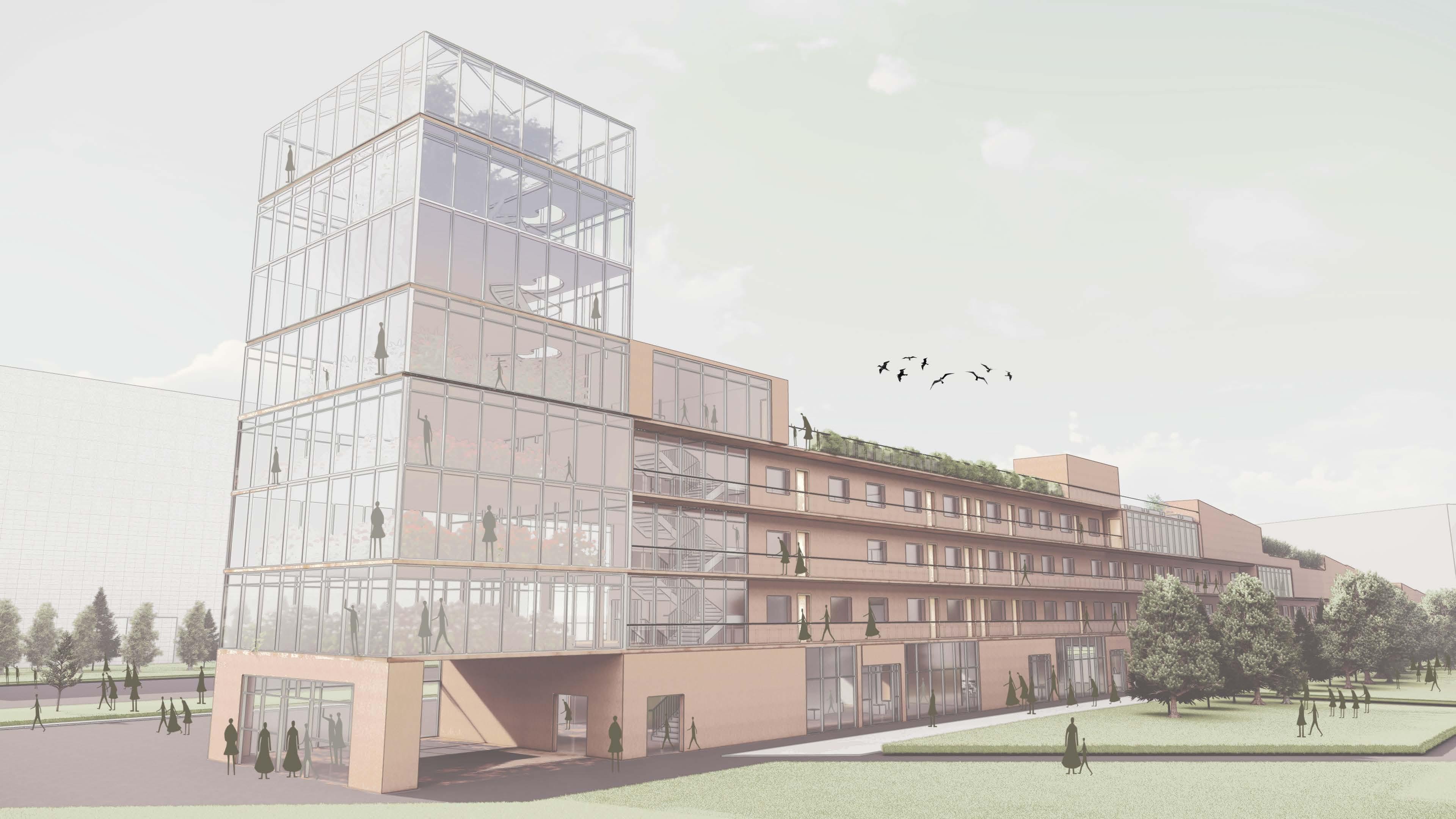

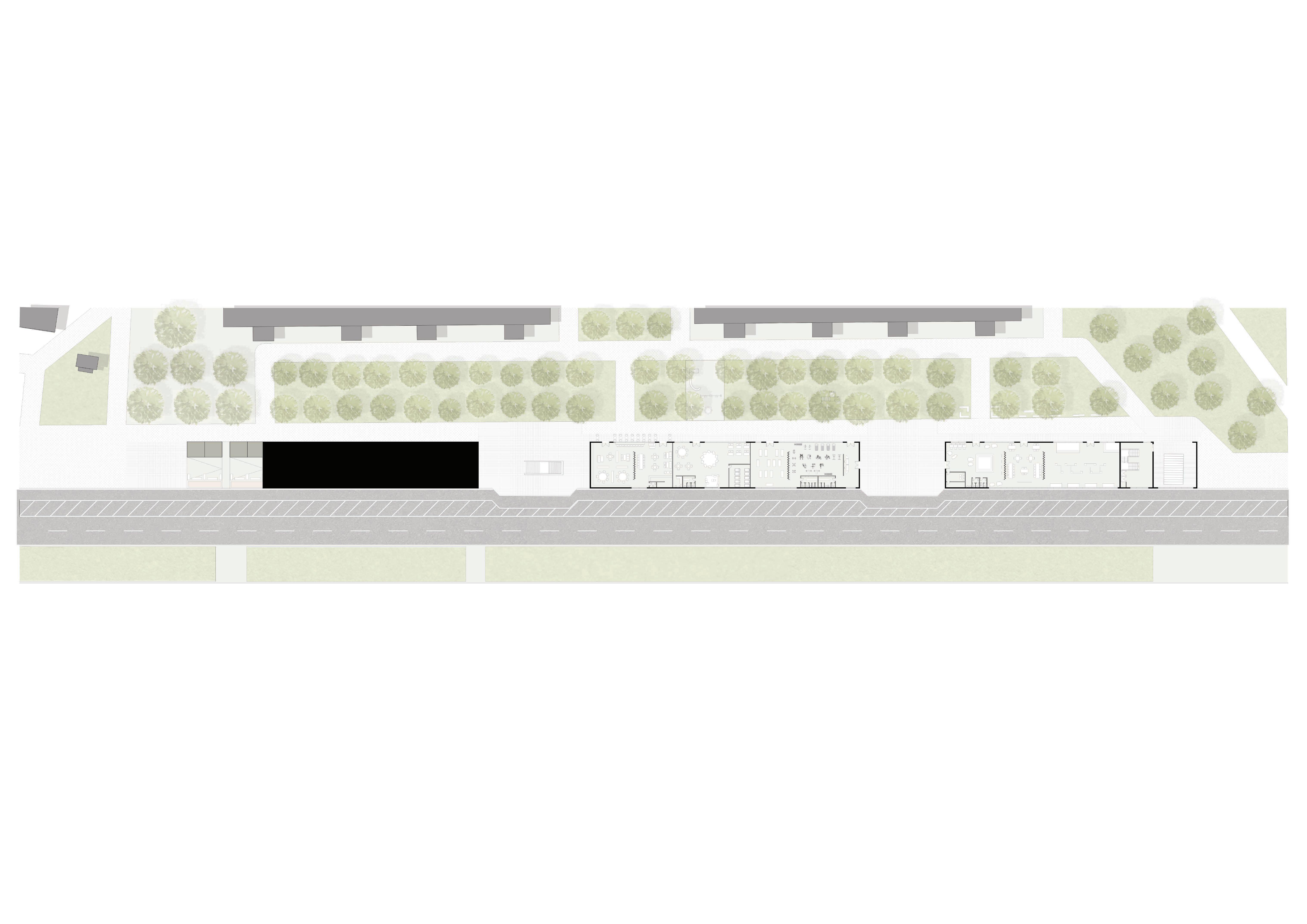

Ascendance
Design Studio 4

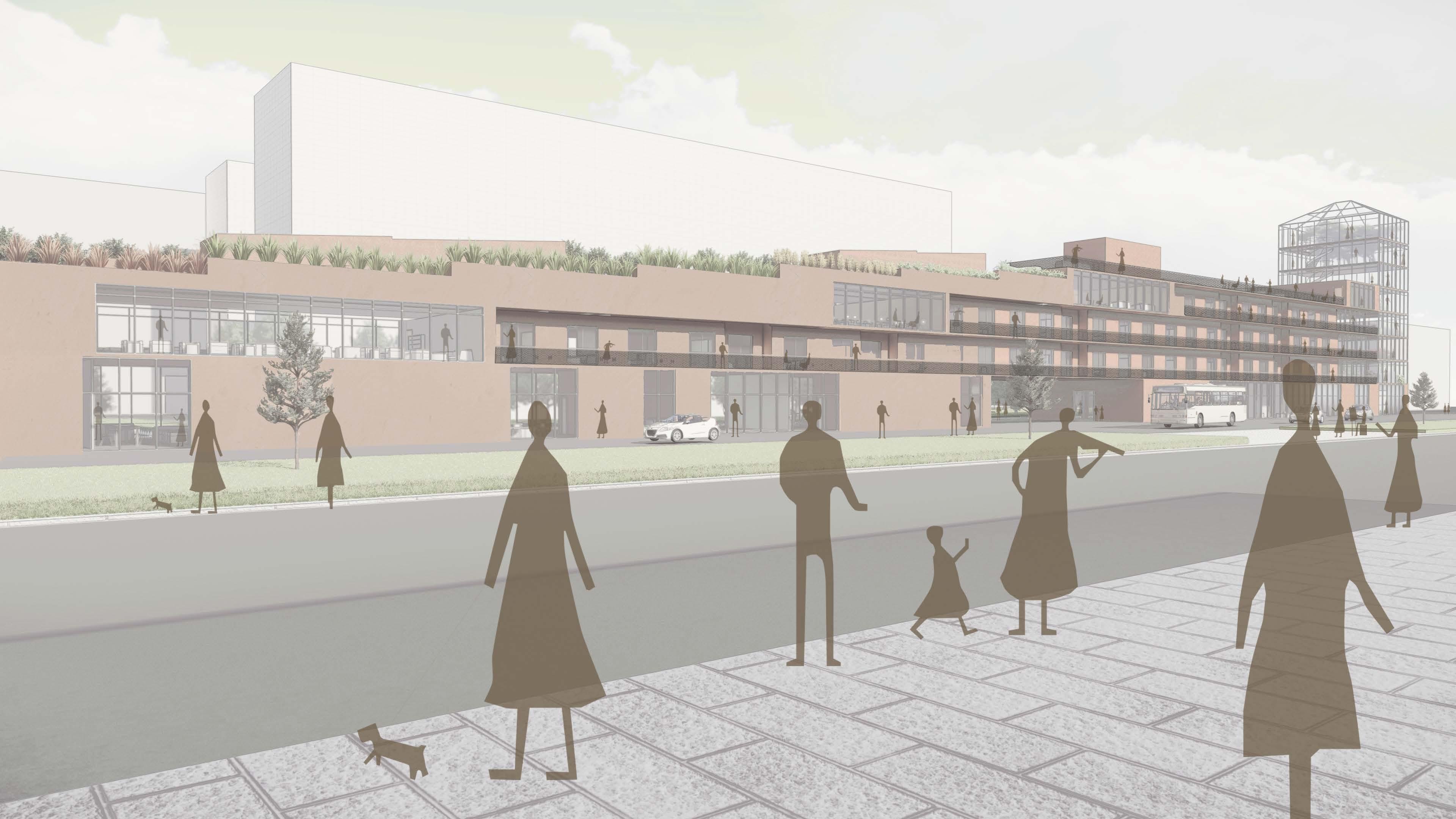

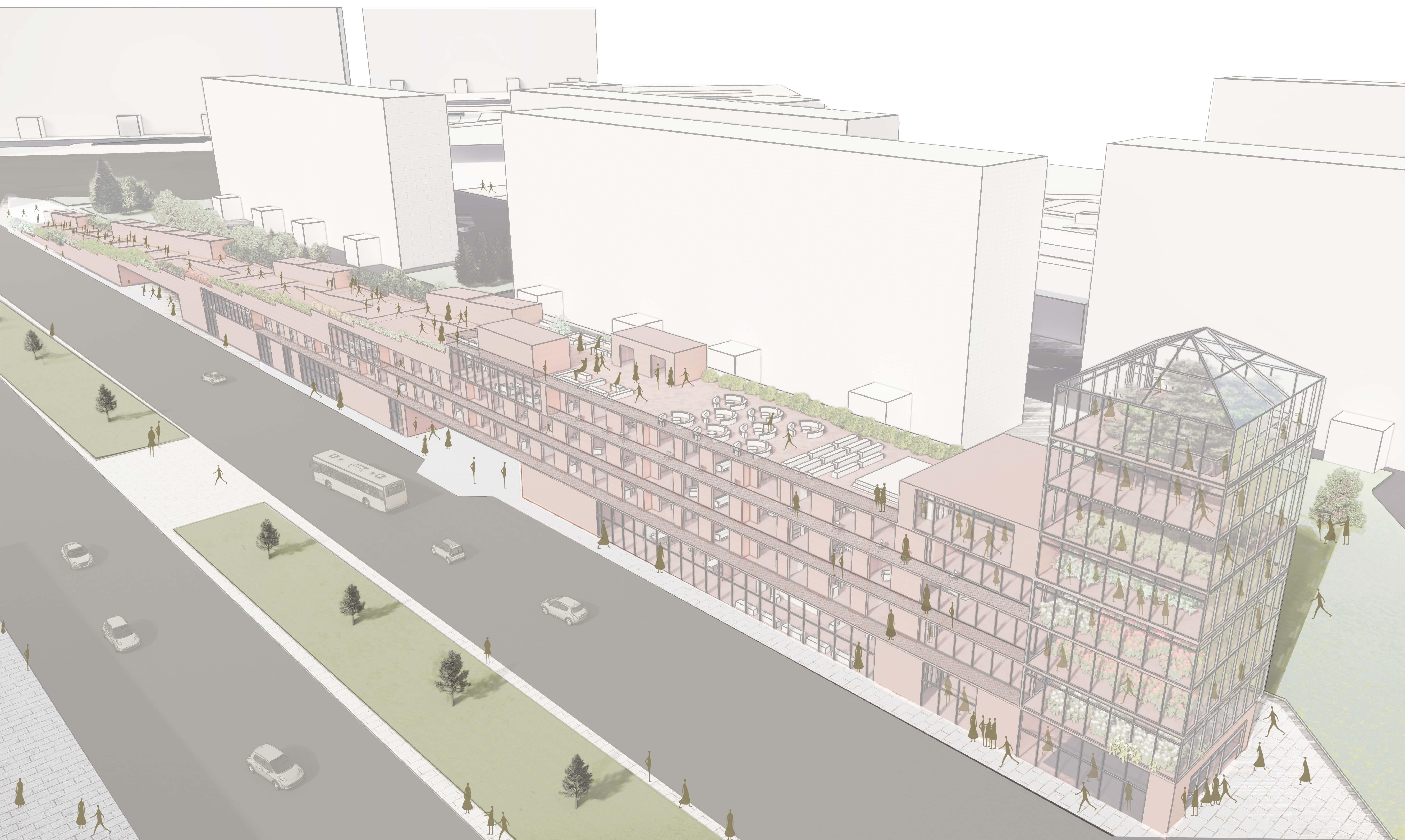

In an area with no designed humanity, Karl Marx Allee felt vast and imposing on ones self. Berlin is the city of artists, by creating a space for them to exhibit their work, we not only support the artists and motivate them, but also influence the residents who use it to broaden their horizons and incorporate art into their daily routine. By creating the ramp, we are slowly introducing public functions throughout all floors. We elevate the users and create a welcoming experience where the building engulfs them in an embrace. From an urban perspective we kept the main axis present in the site and incorporated it in the ground level to avoid disturbing the accessibility and the flow of people.
Year: 2023
Semester: 6th Semester
Supervision: Prof. David
Collaboration: Hana Ayman, Karen Boctor, Mariam Elsherbiny
Clay Plaster Finish 40mm
Weather-Resistant Barrier 20mm
Hempcrete Insulation 300x300x600mm
DryWall 2x12.5mm
Plaster 20mm
Paint 2mm
Wooden Floor Tiles 20mm
Hempcrete 60mm
CLT Slab 200mm
Clay Plaster 40mm
Flackig to prevent water entry
Steel C-channel bolted to wooden beam
Parquet Finsih 20mm
Hempcrete 60mm
CLT Slab 200mm
FFL +10.00
FFL +7.00
Ground Floor Public Functions

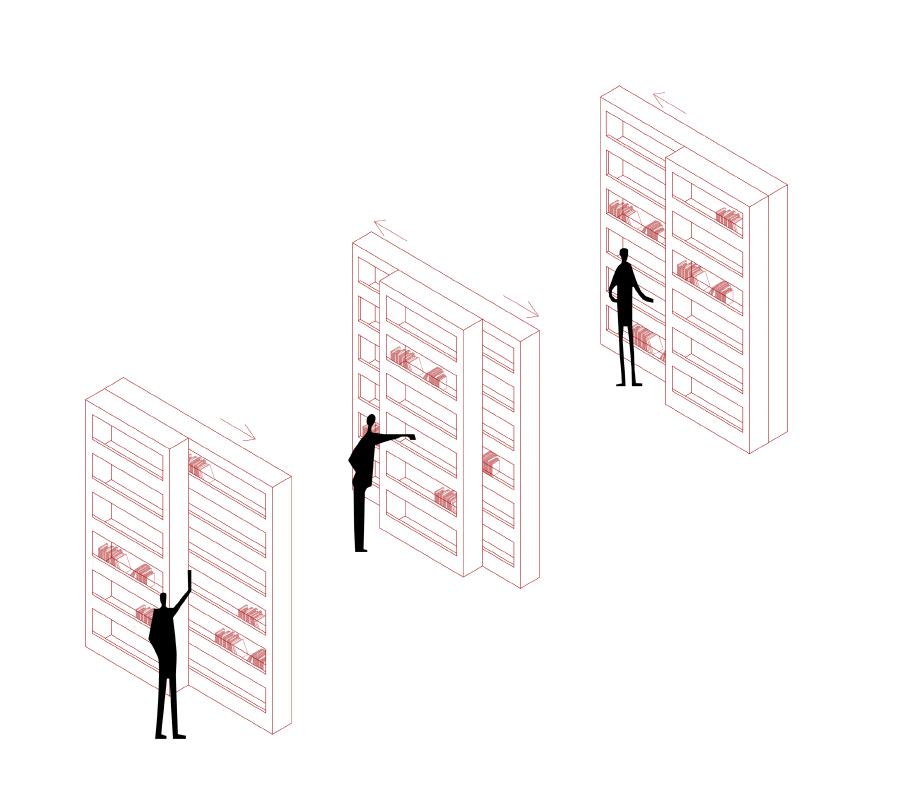

Azbakeya Book Market Hall

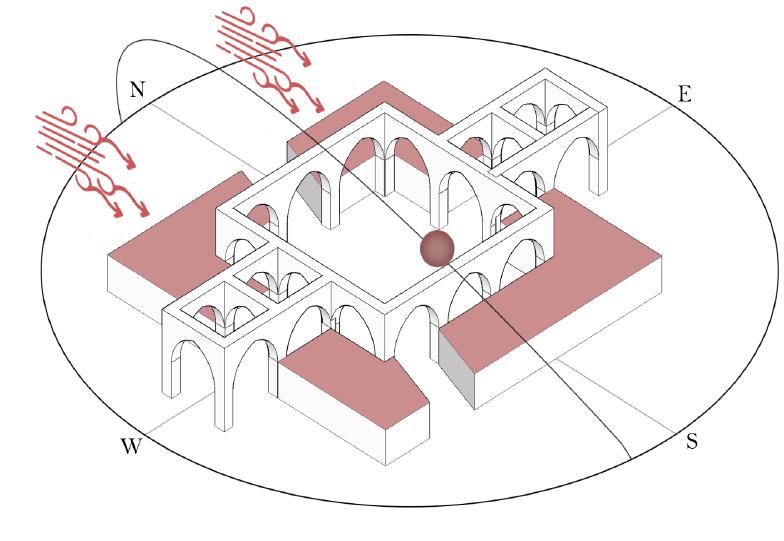

Our Concept breaks down to 3 keywords: Monumentality, Dichotomy, and 'walk through timeline'.

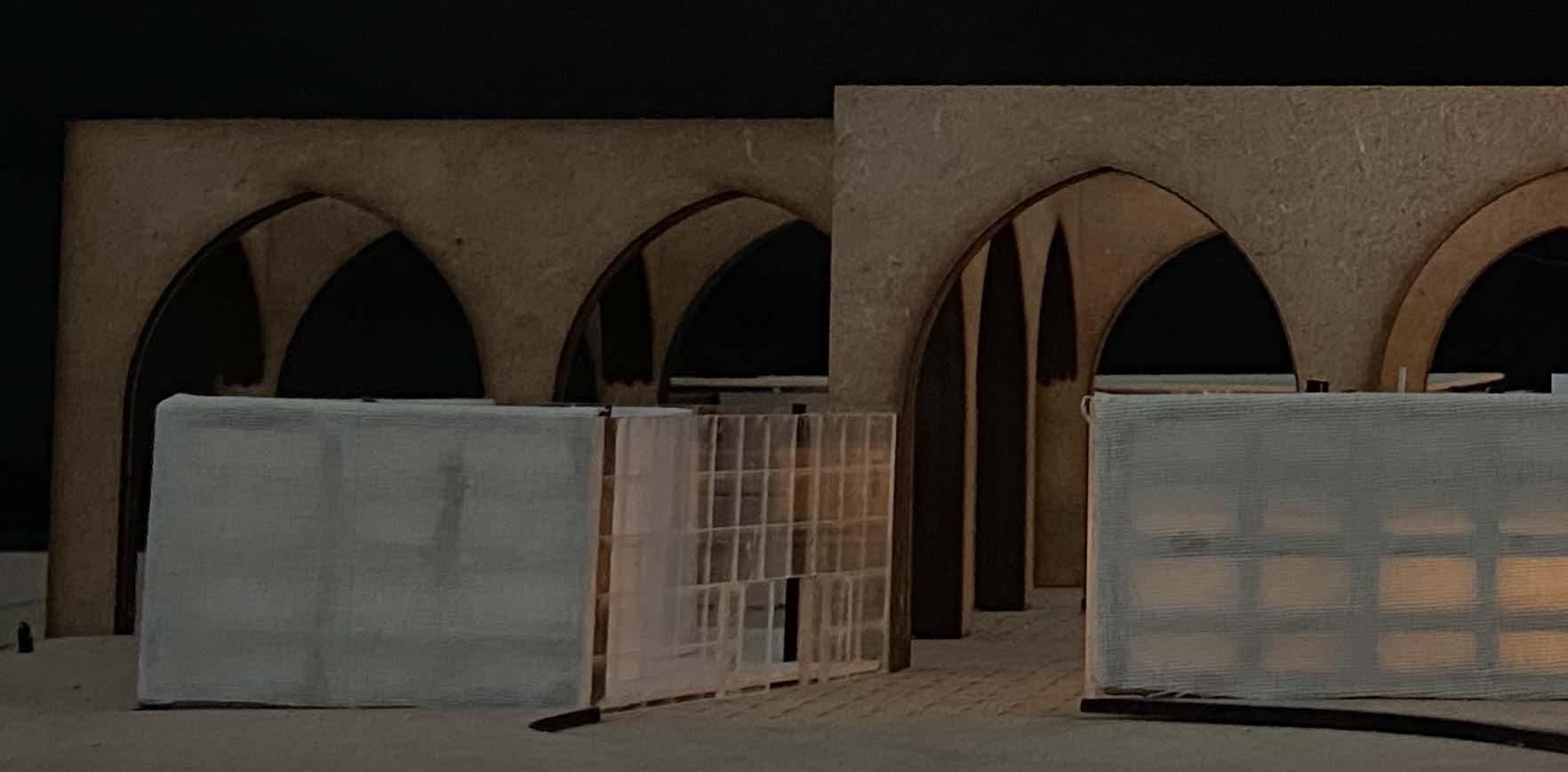

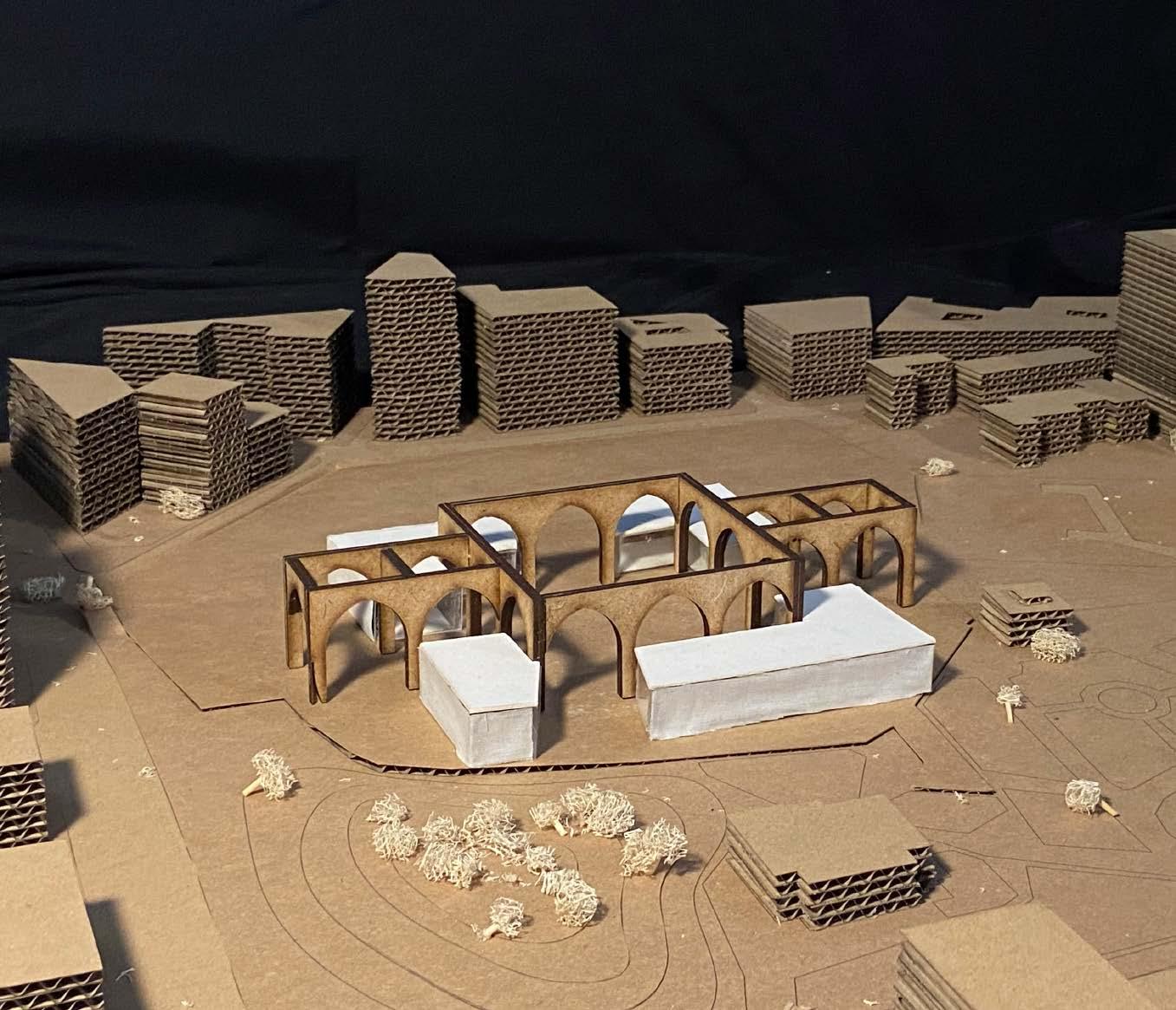

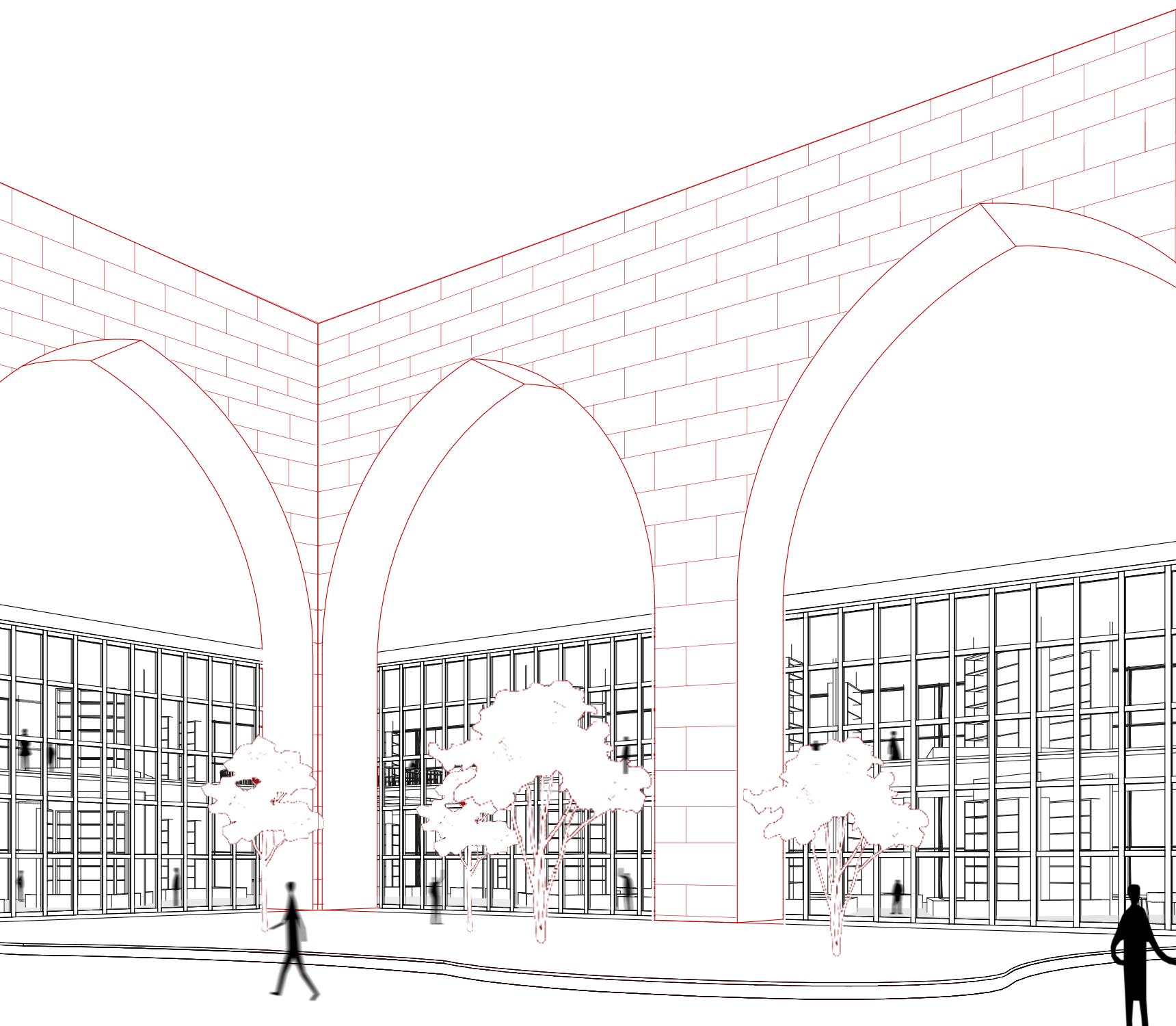

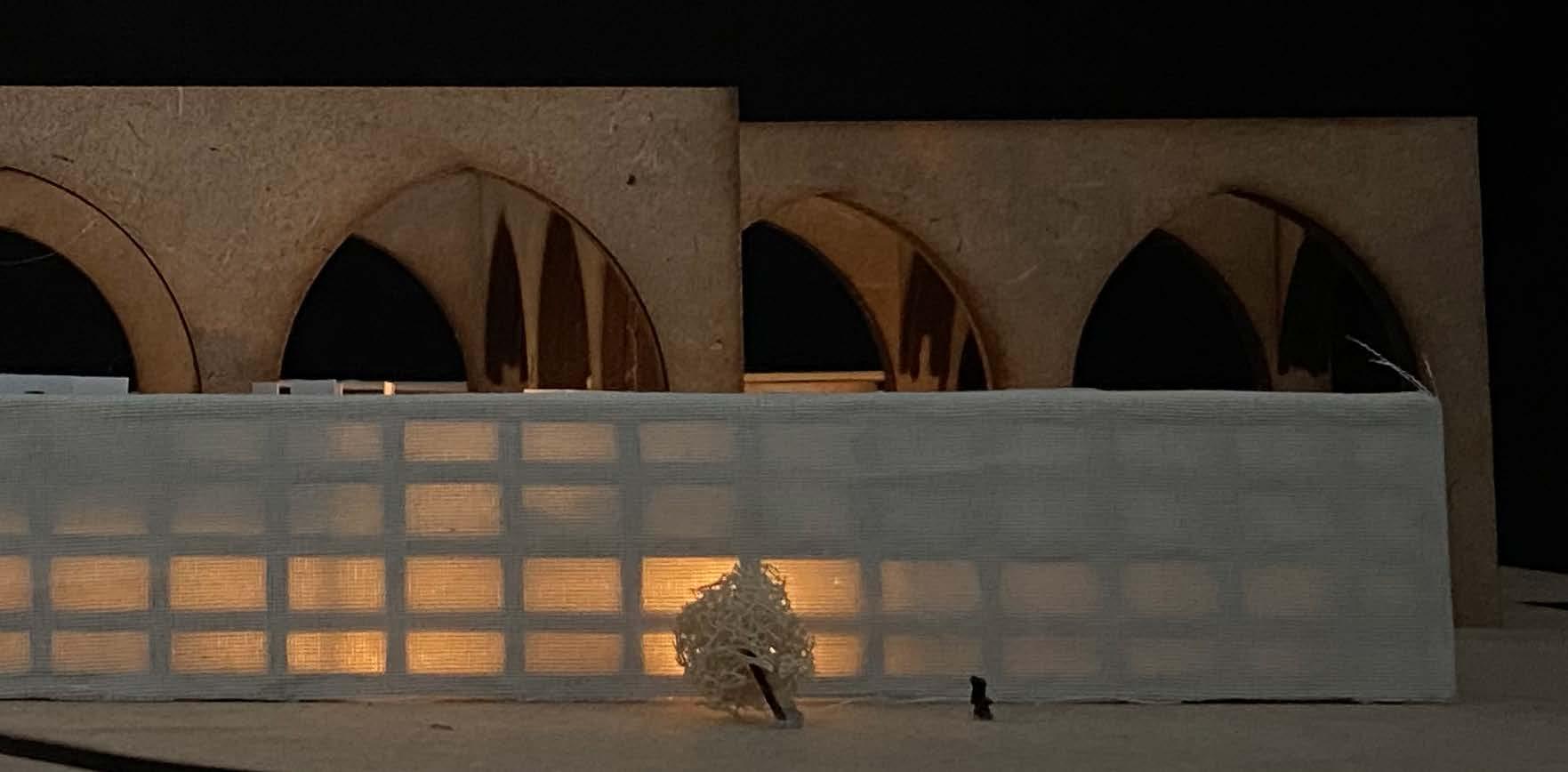

We wanted to create an experience that would fit the hisroty of Cairo and our location (center of Cairo) yet it would still be monumental and majestic. That's why we designed the heavy monumental Islamic stone arches, cutting through a light transparent modern building.
Year: 2022
Semester: 5th Semester
Supervision: Prof. Manlio Michieletto
Collaboration: Sarah Tarek, Sama Yehia
Site: Azbakeya Park, Cairo, Egypt.

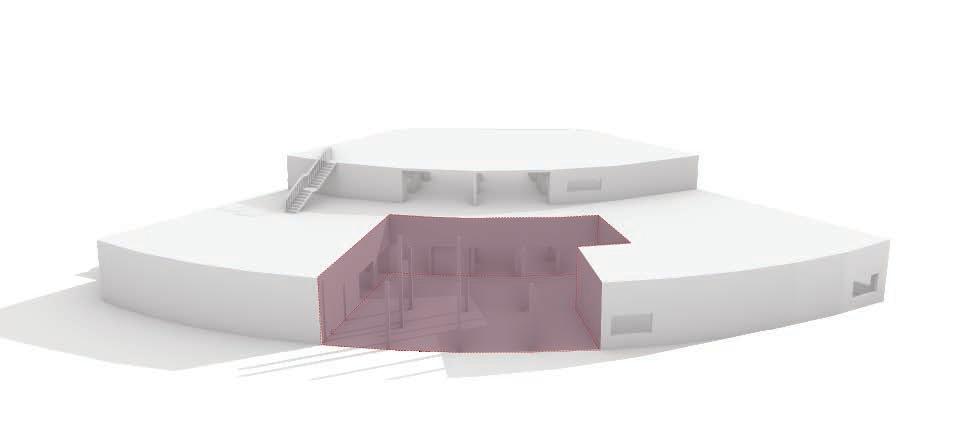

3D Section Expressing the scale and Monumentality
AHMED HEGAZY|

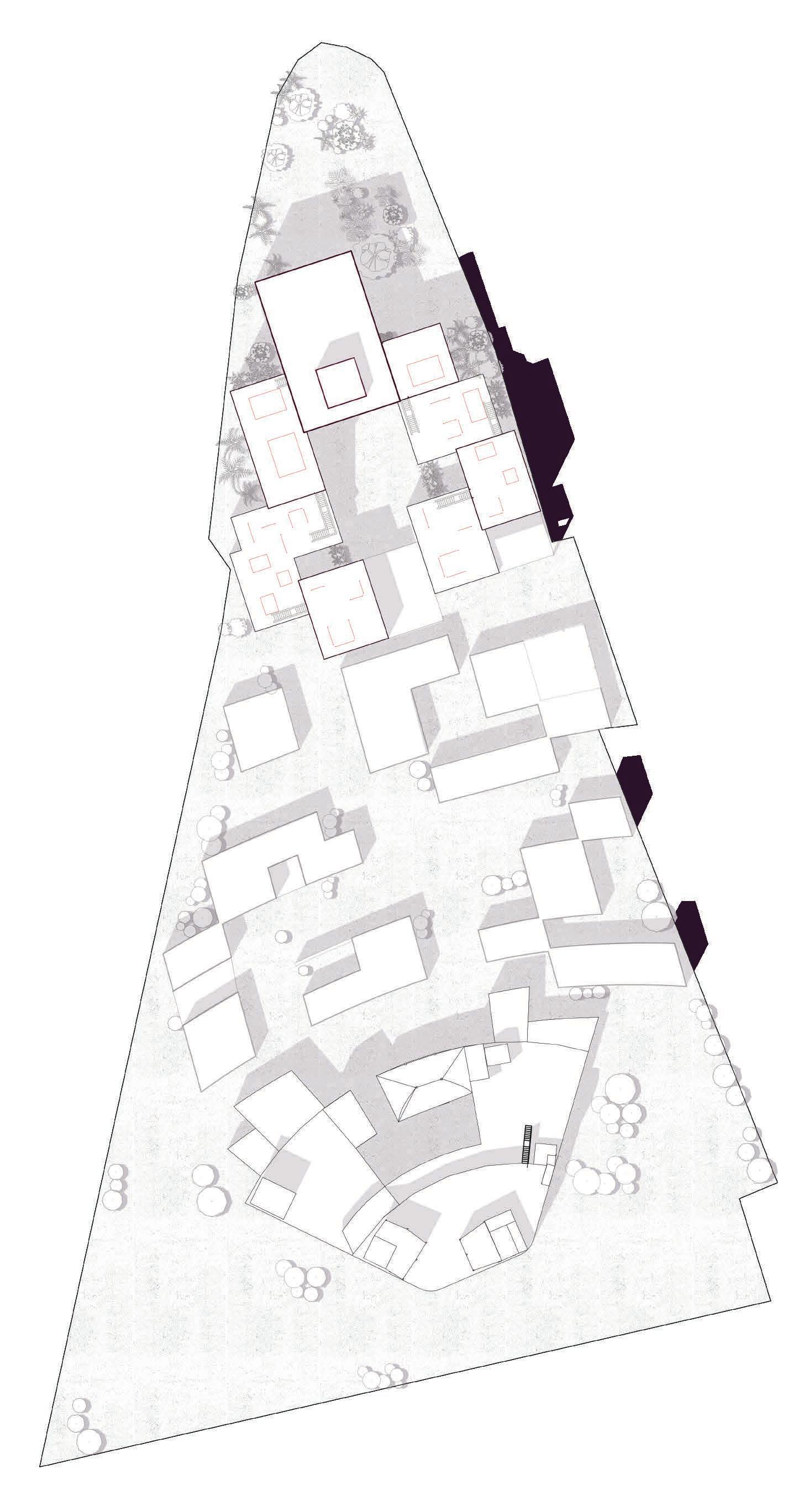

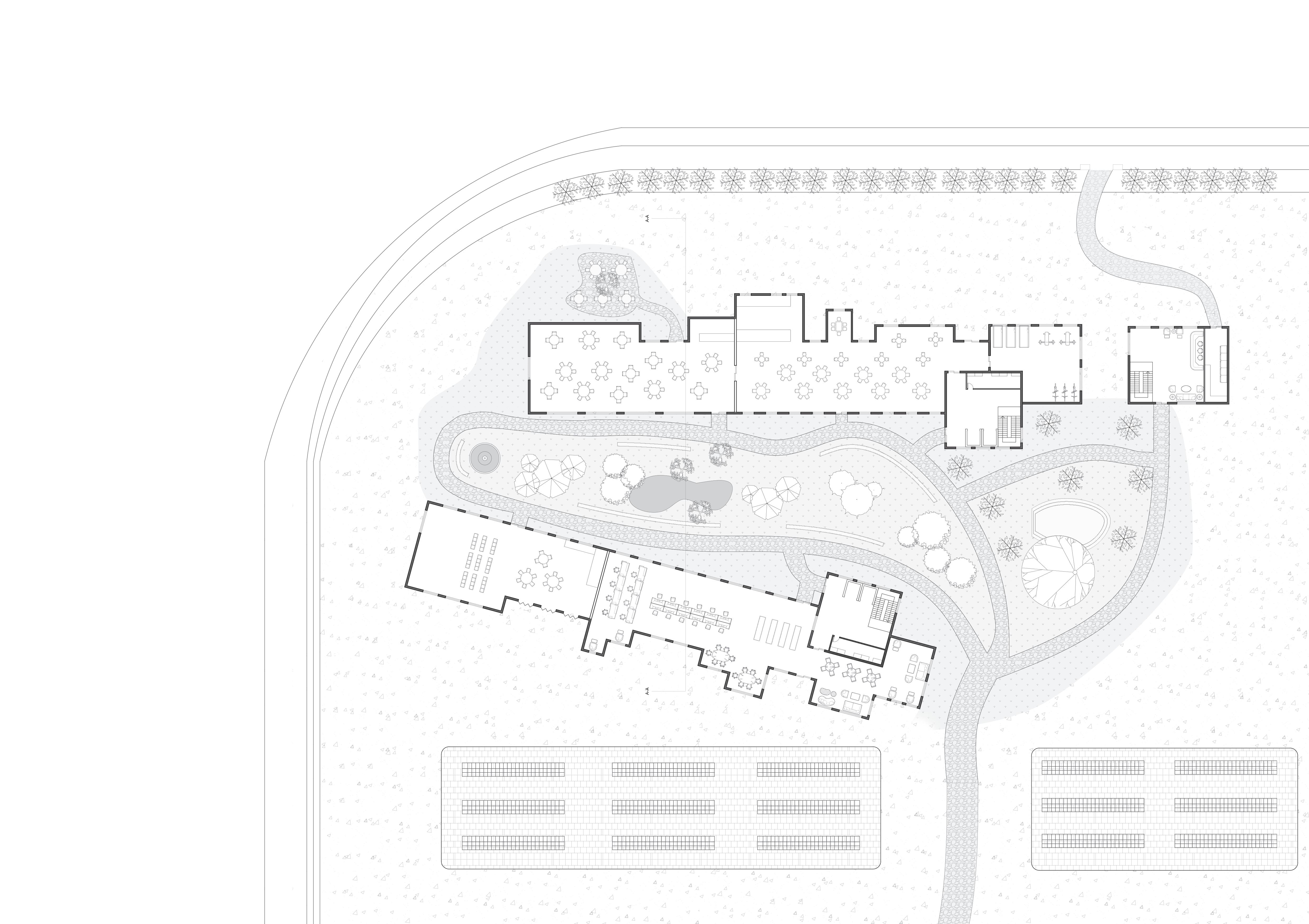

Diagram Site plan scale 1:500

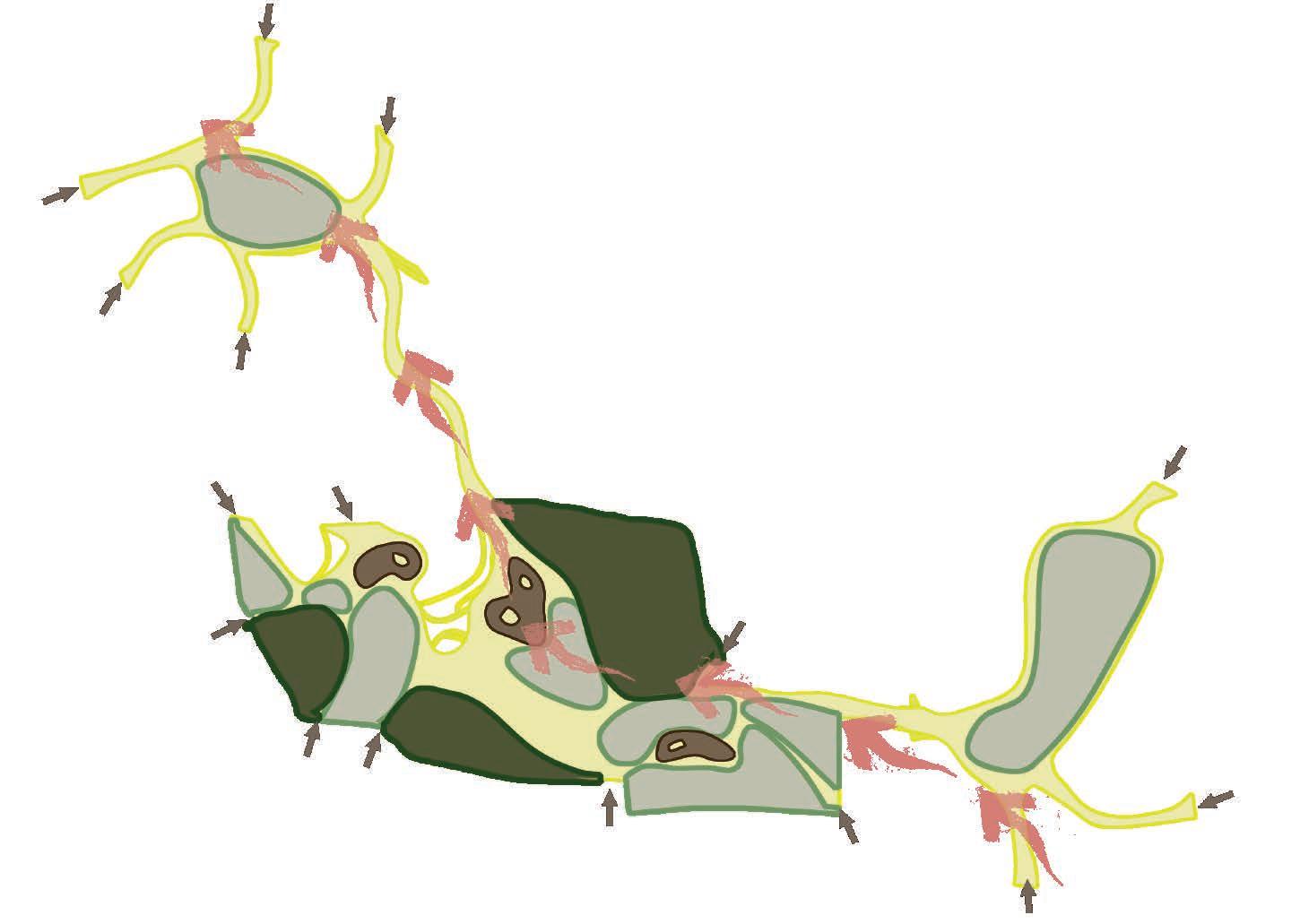

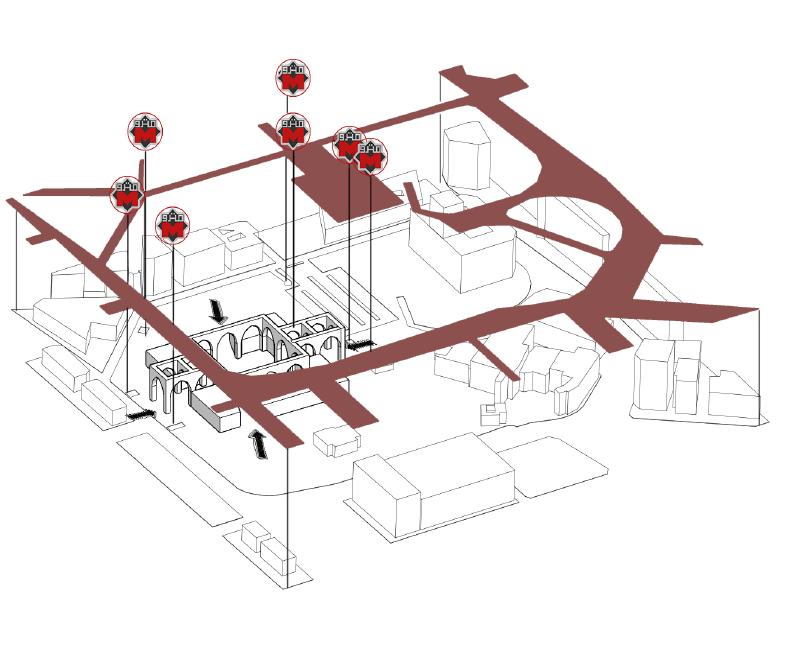

The site has a very strong axis: from the 26th of July going to the Azbakeya existing book market, and that is where the arches are directed. Another cut through the building connects from the exisiting Azbakeya forrest to the new one, enhancing the accessability from the north ans south and strengthening our concept.
Accesbility

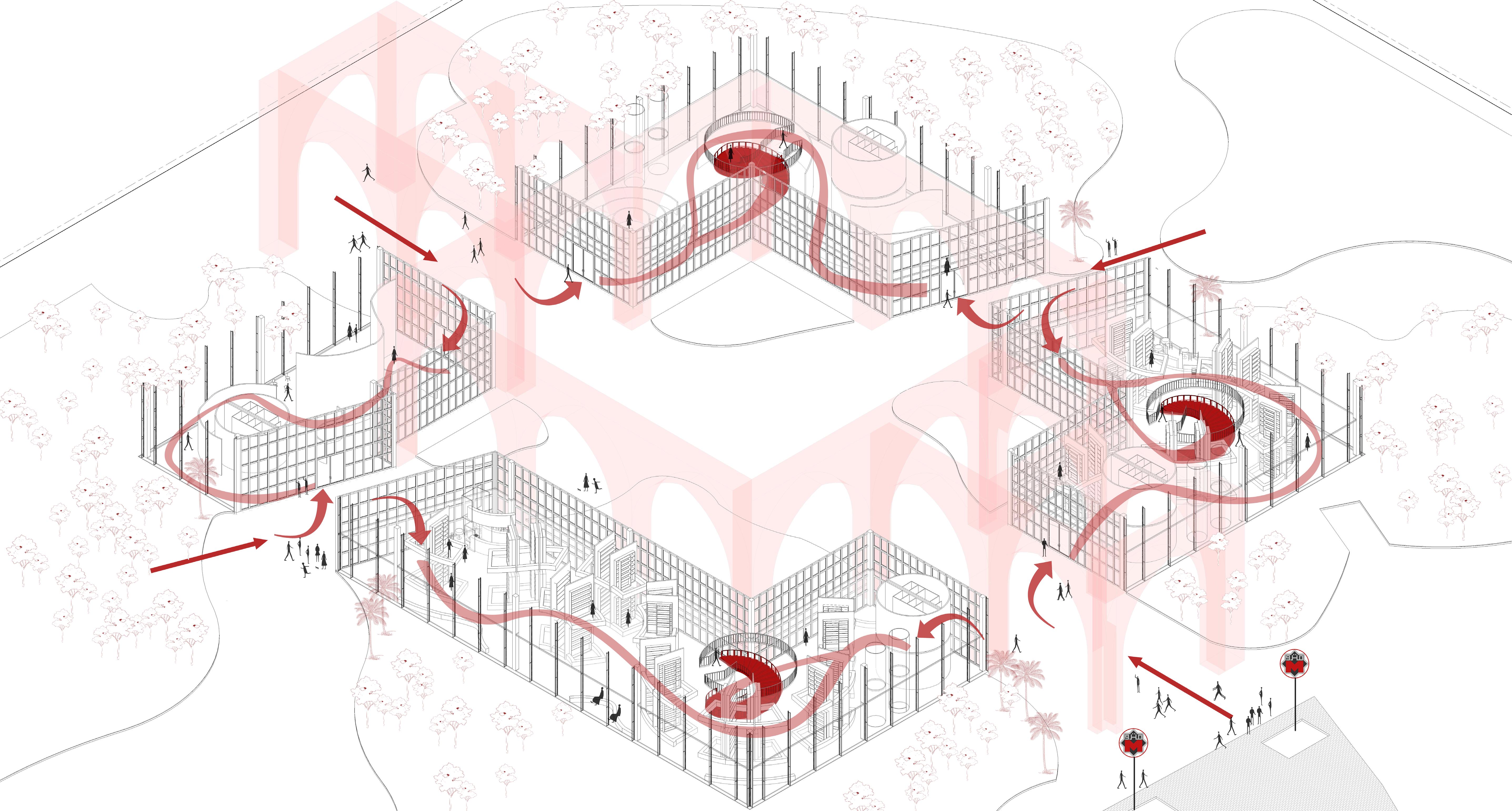

Horizontal and Vertical Circulation

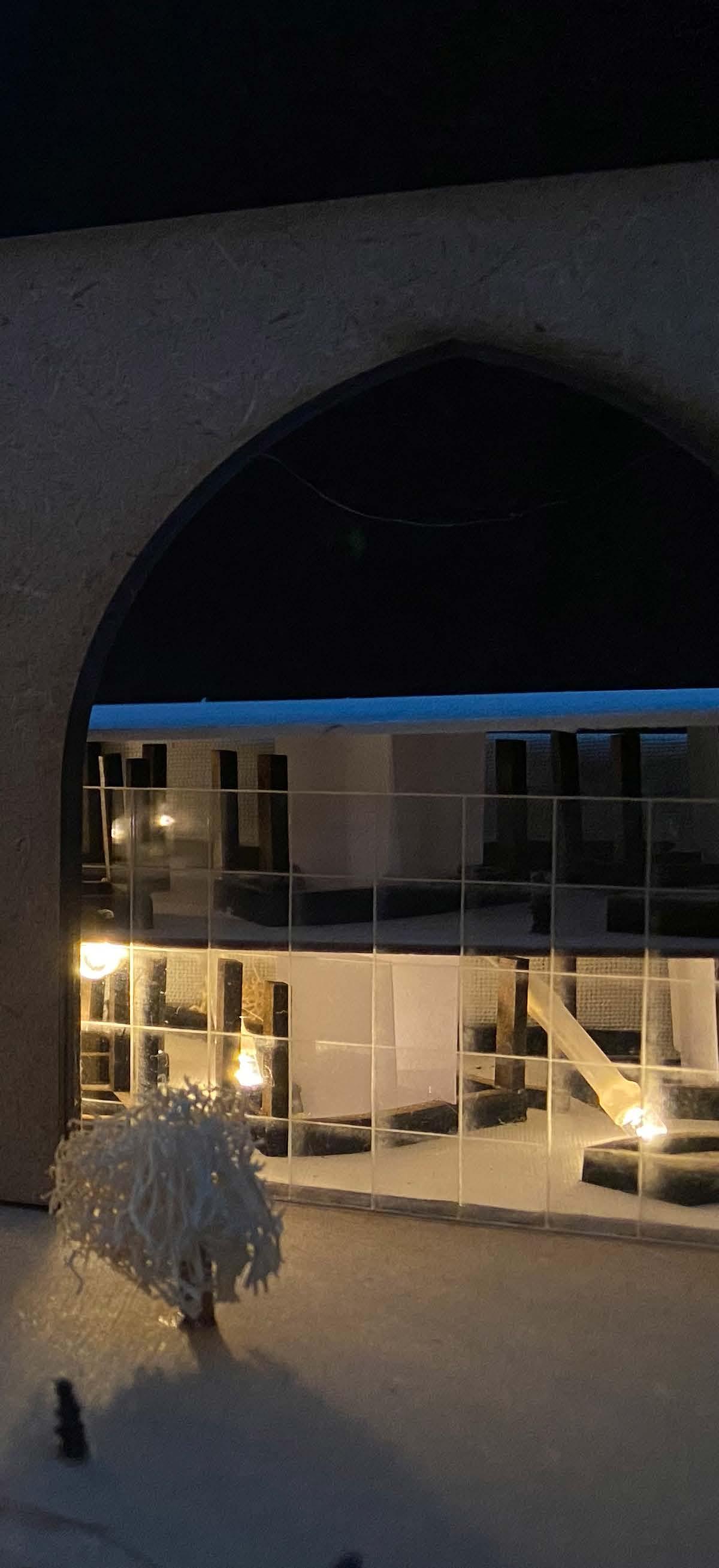

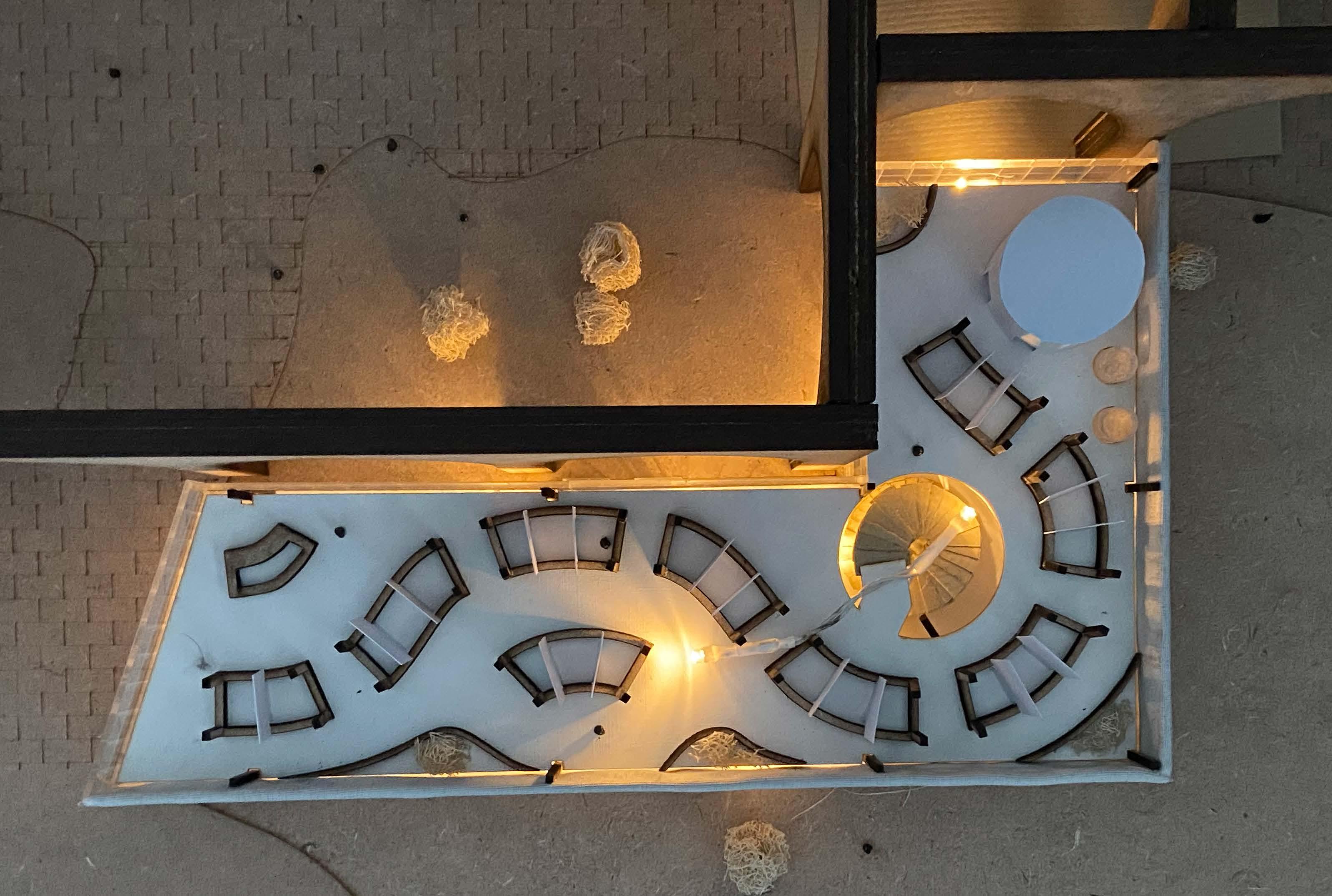

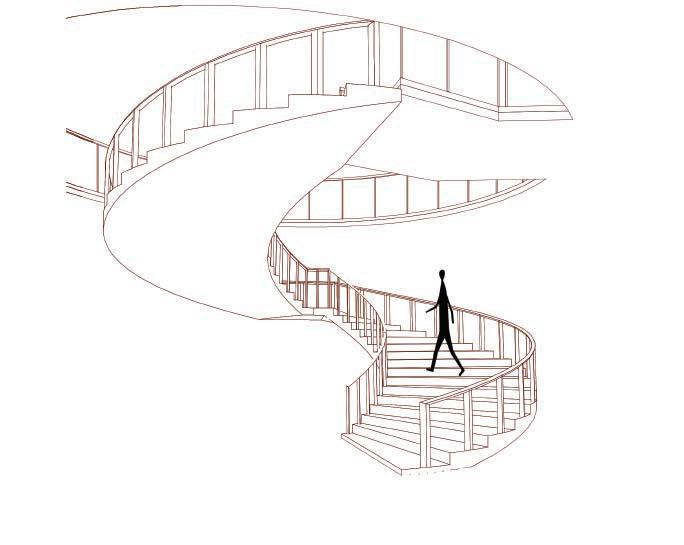

The plan strategy was to emphasize the dichotomoy of the project, having a this flowy plan and spiral stairs in contrast with the box like exterior.

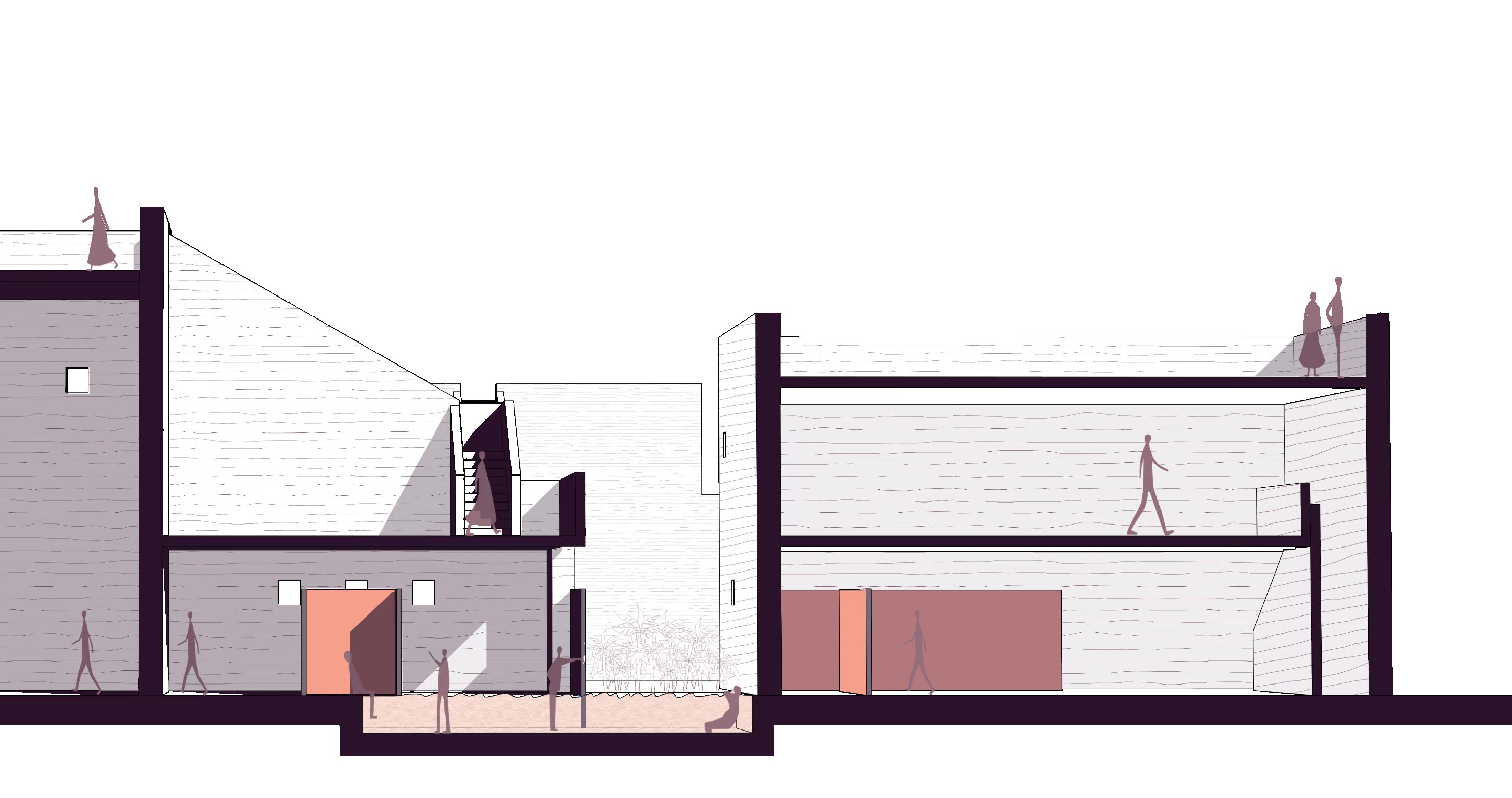

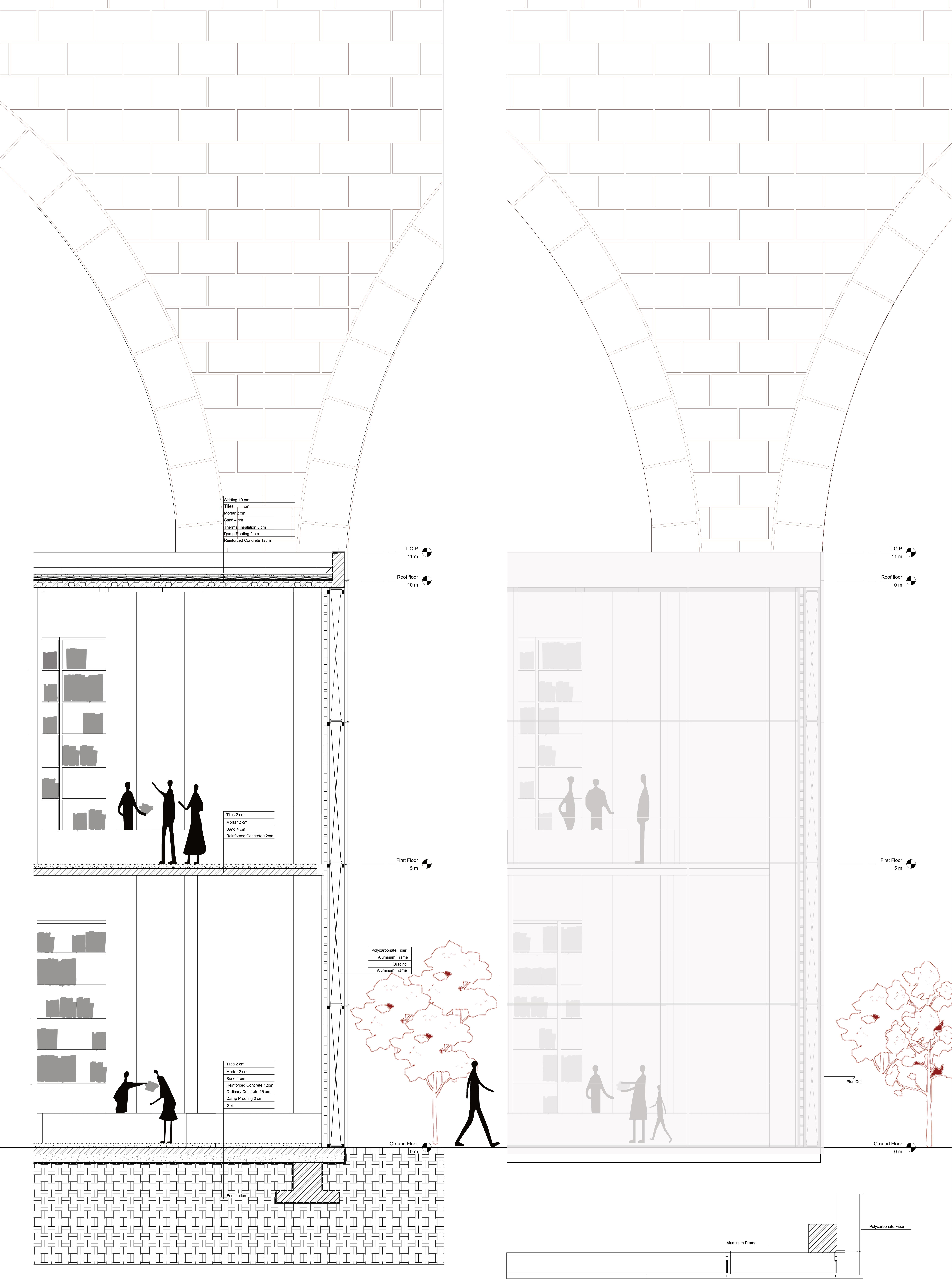

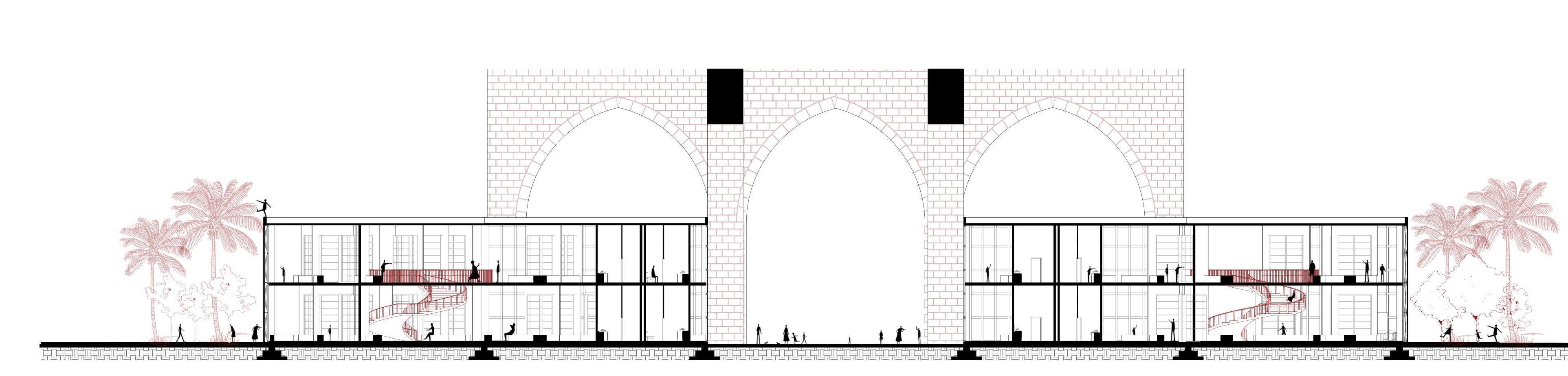

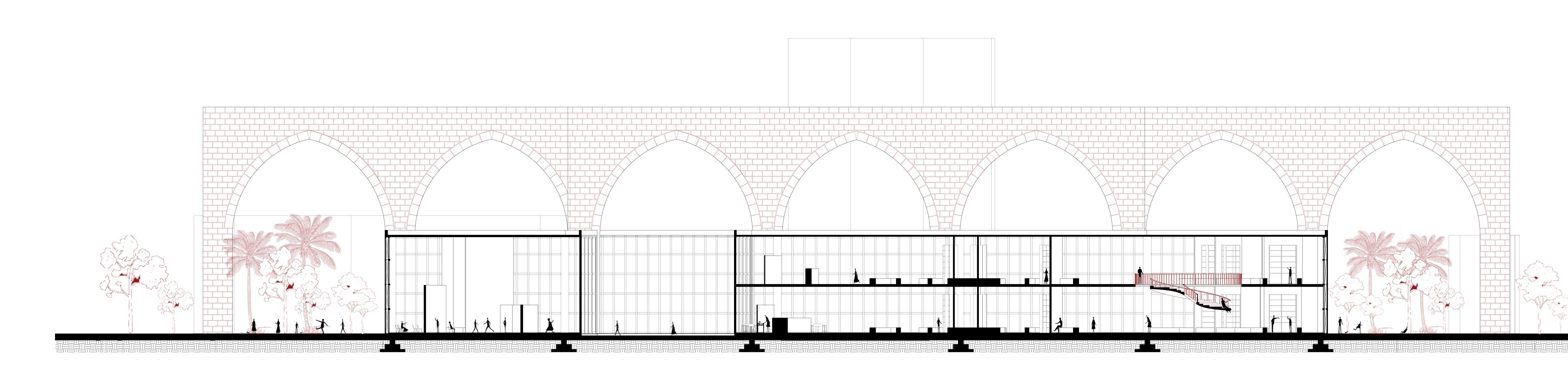

The longitudinal section is showing the conversation and contrast between the light building and the heavy monumental stone arches.

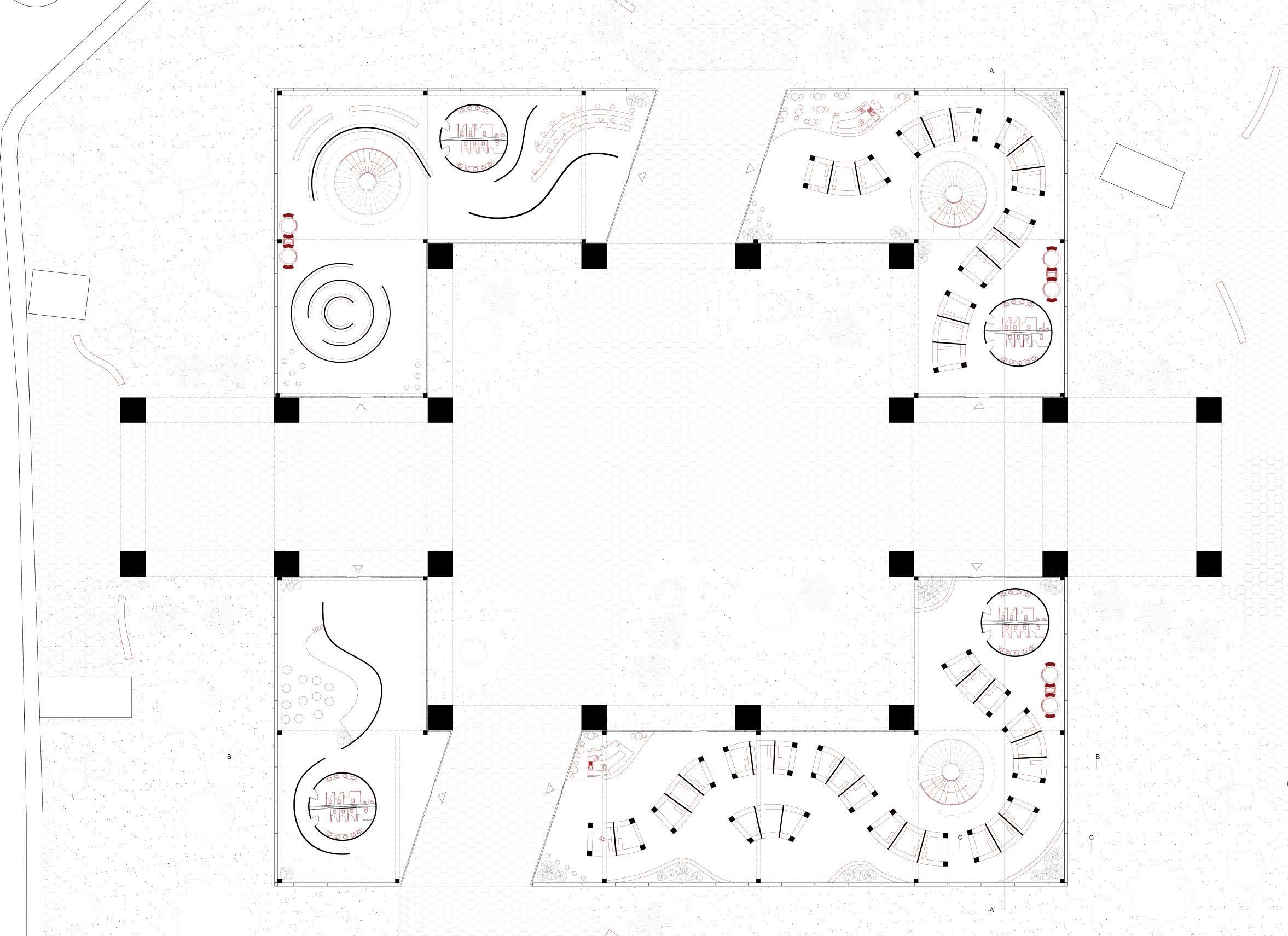

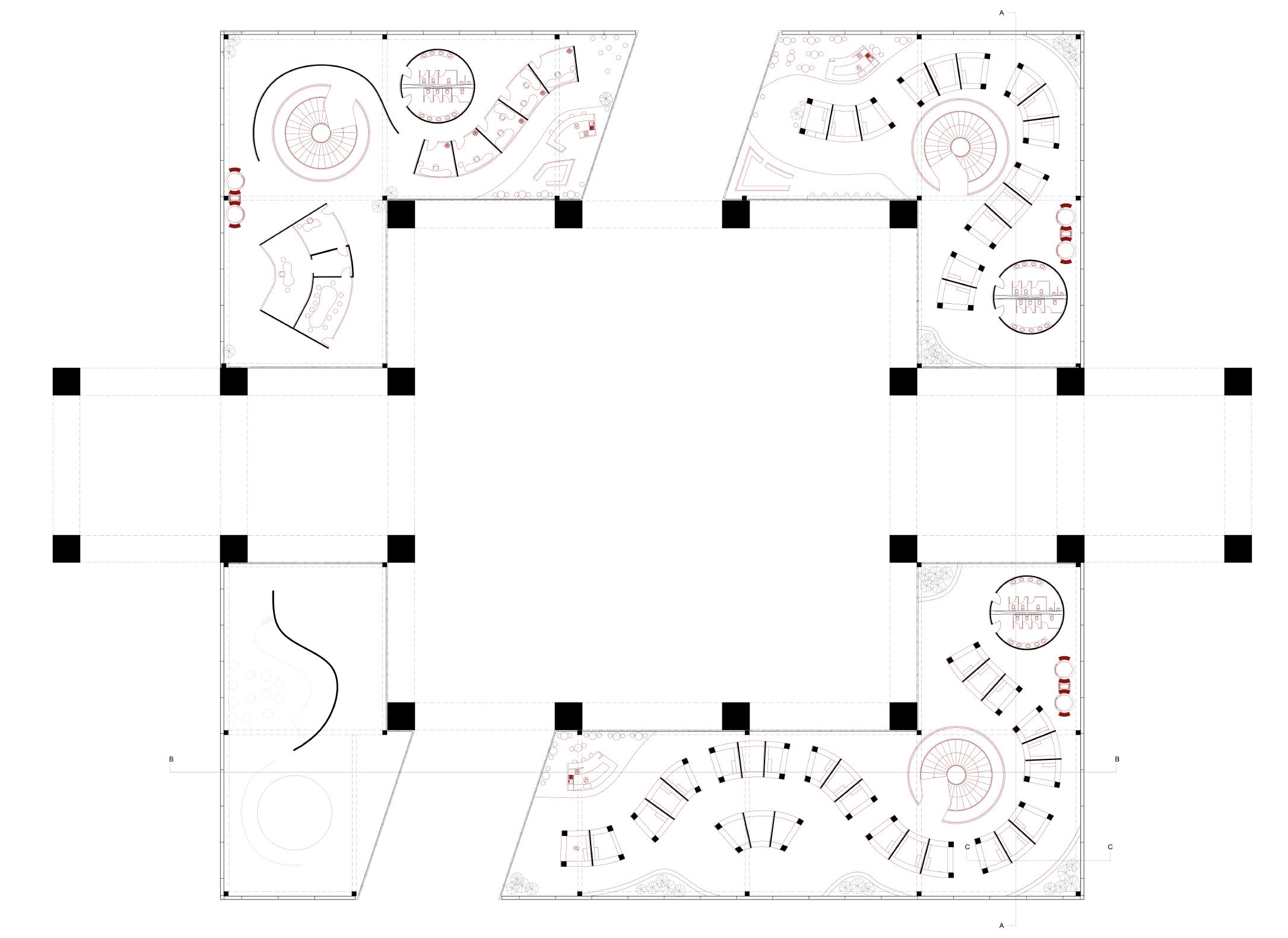

First floor plan Scale 1:200

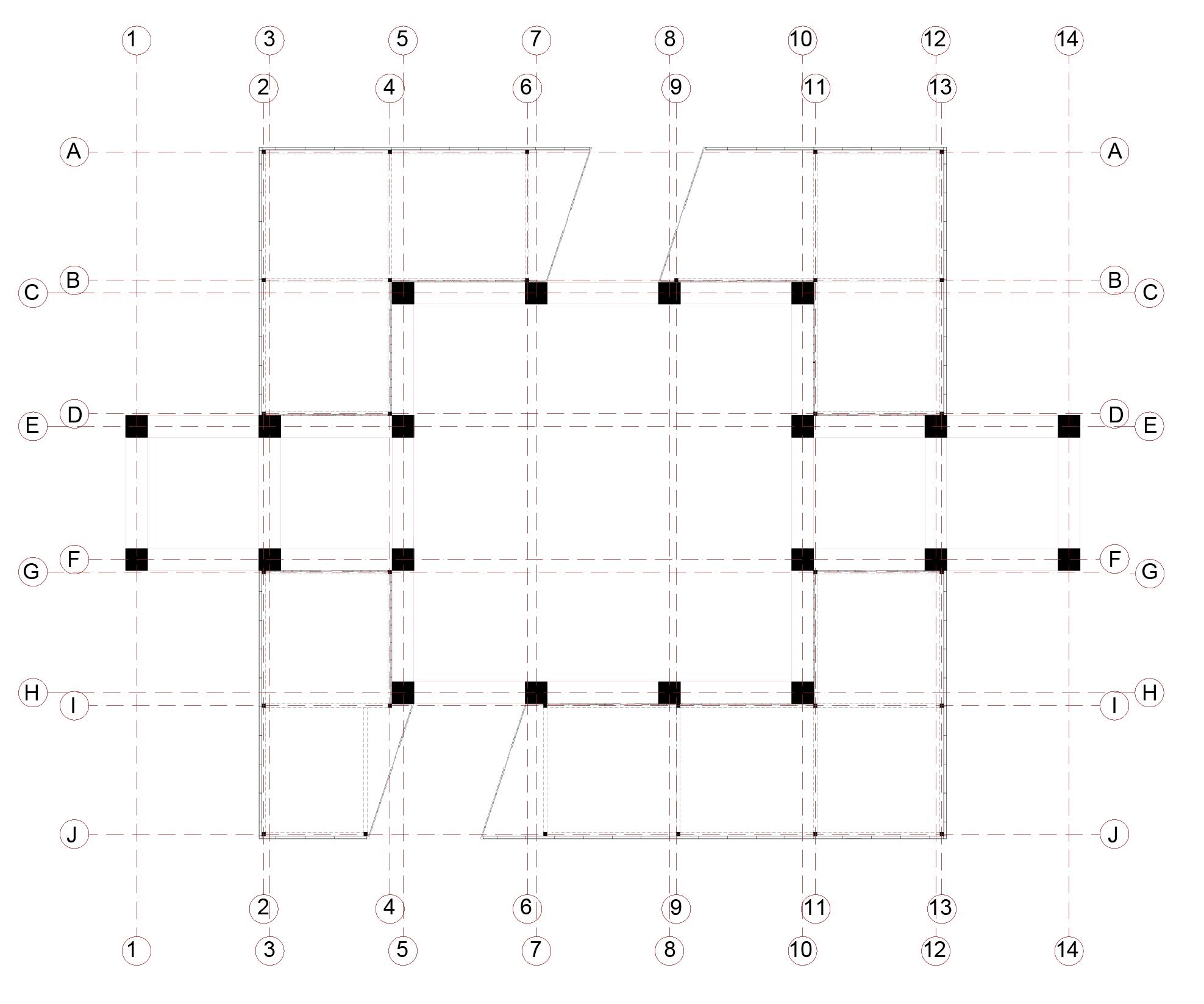

Structural plan Scale 1:500

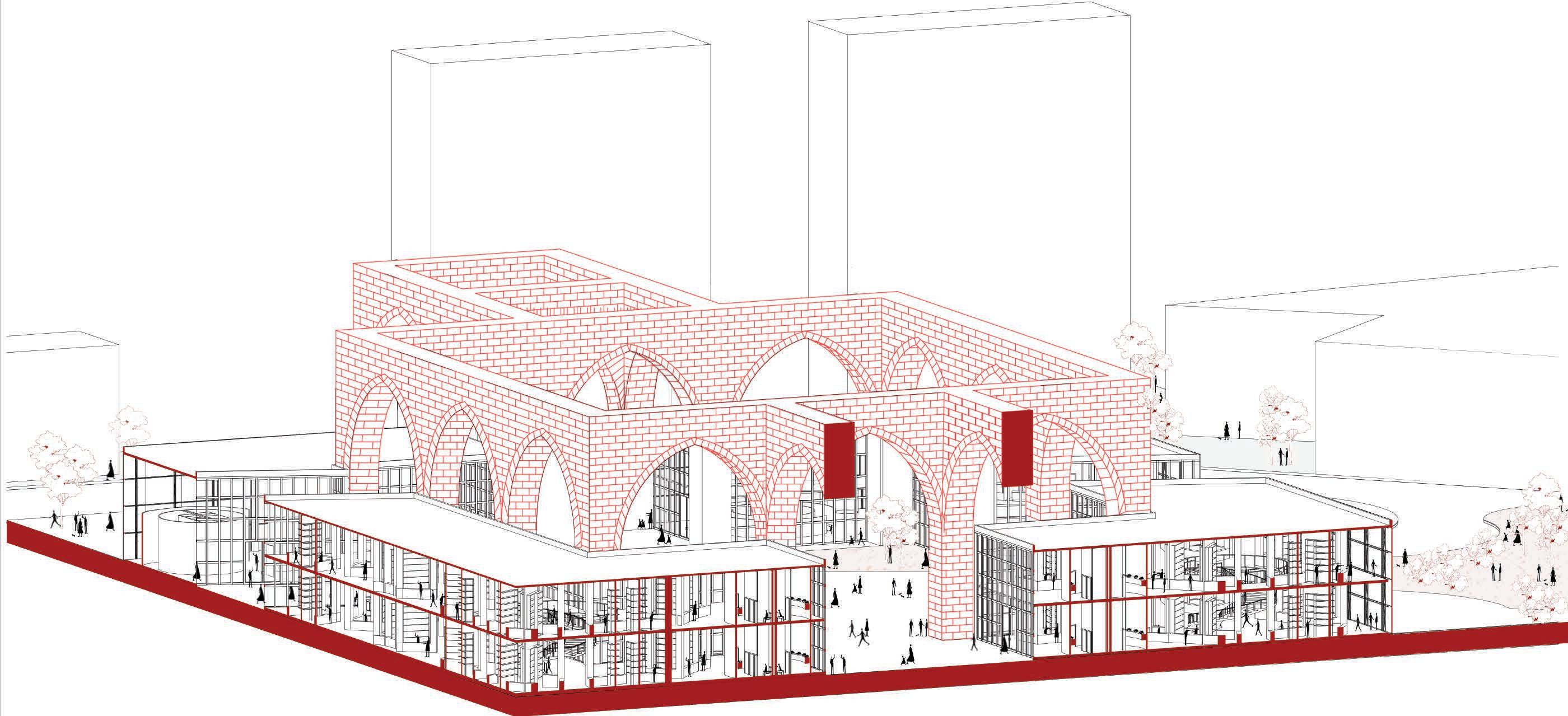

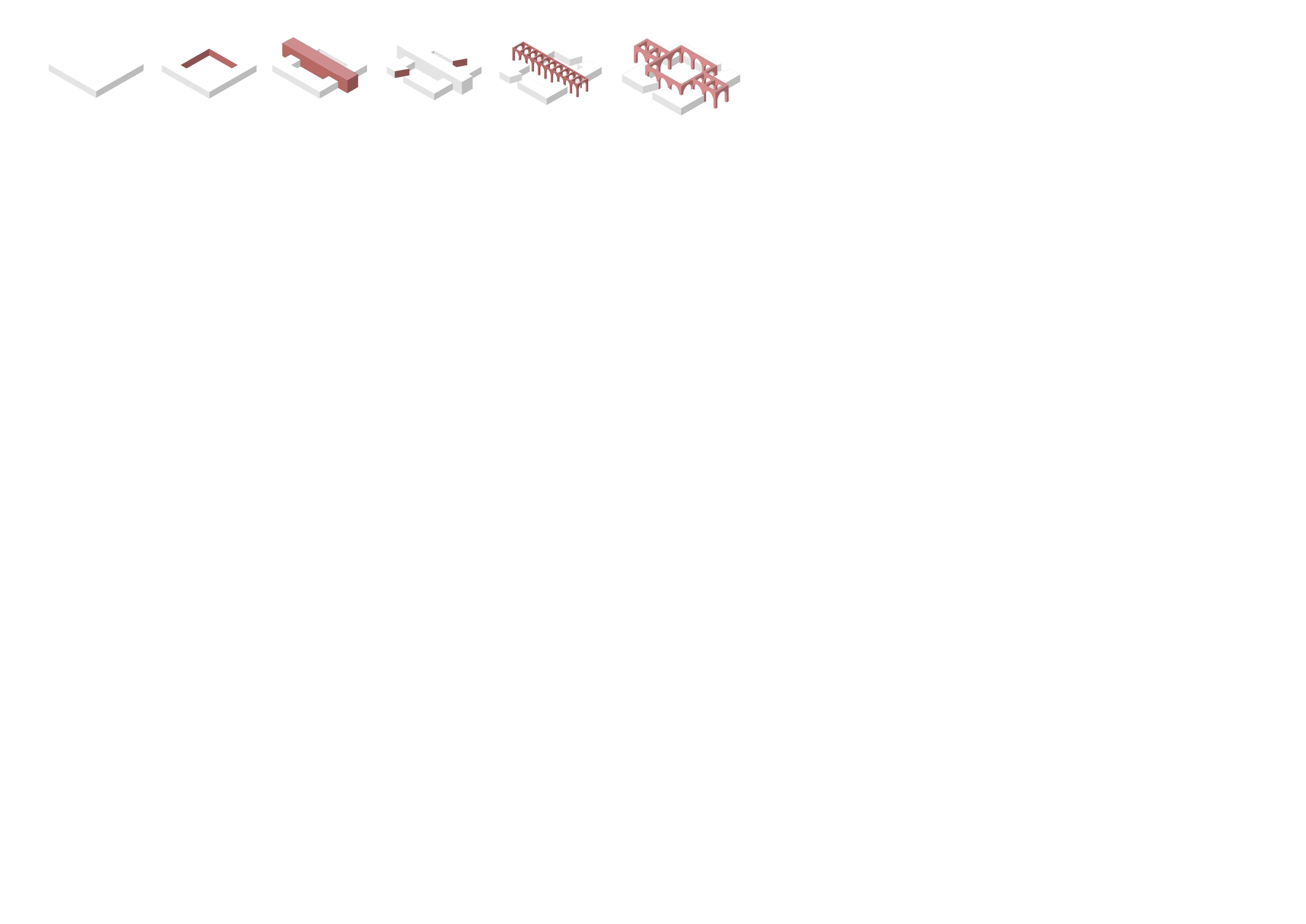

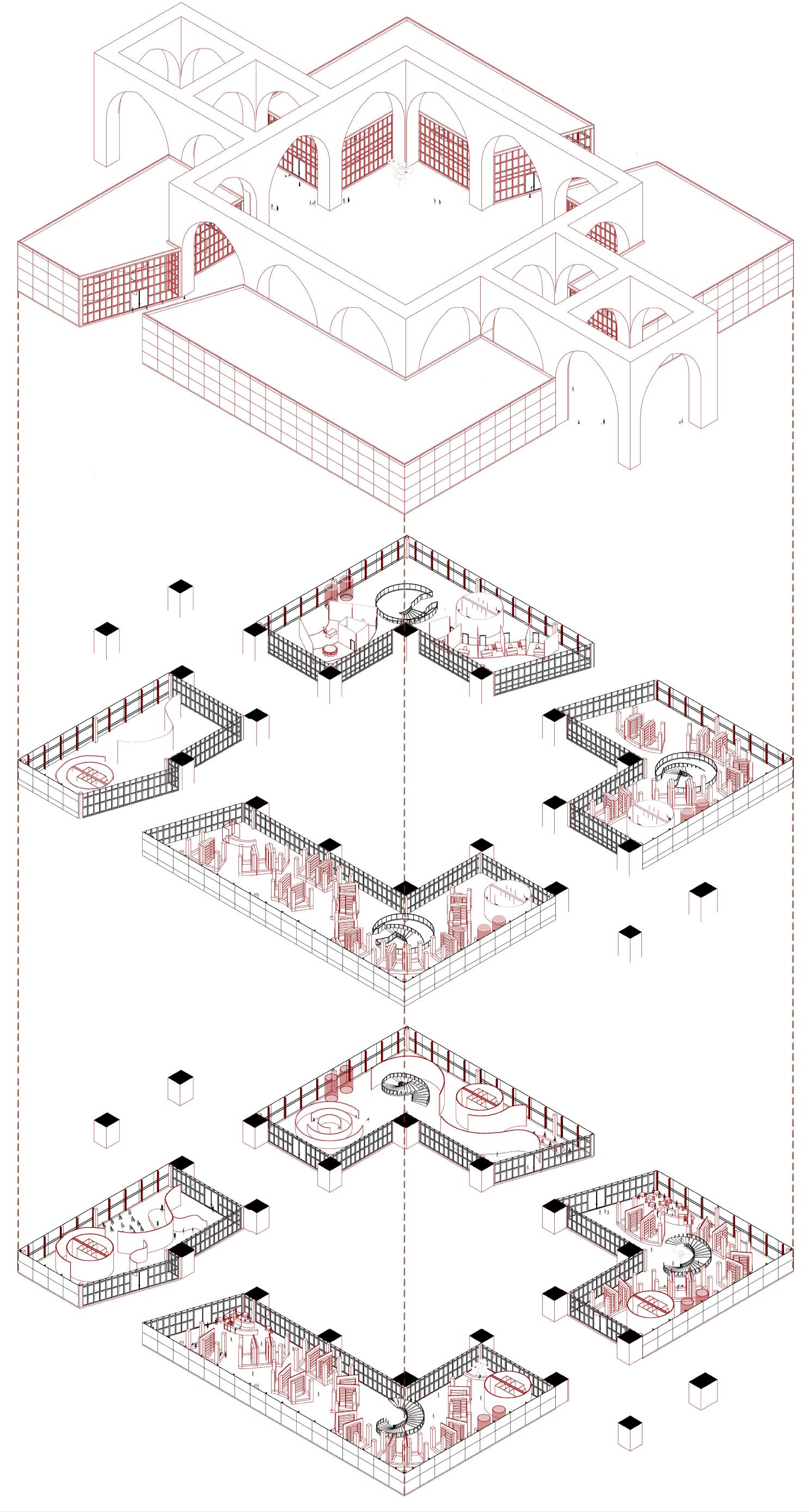

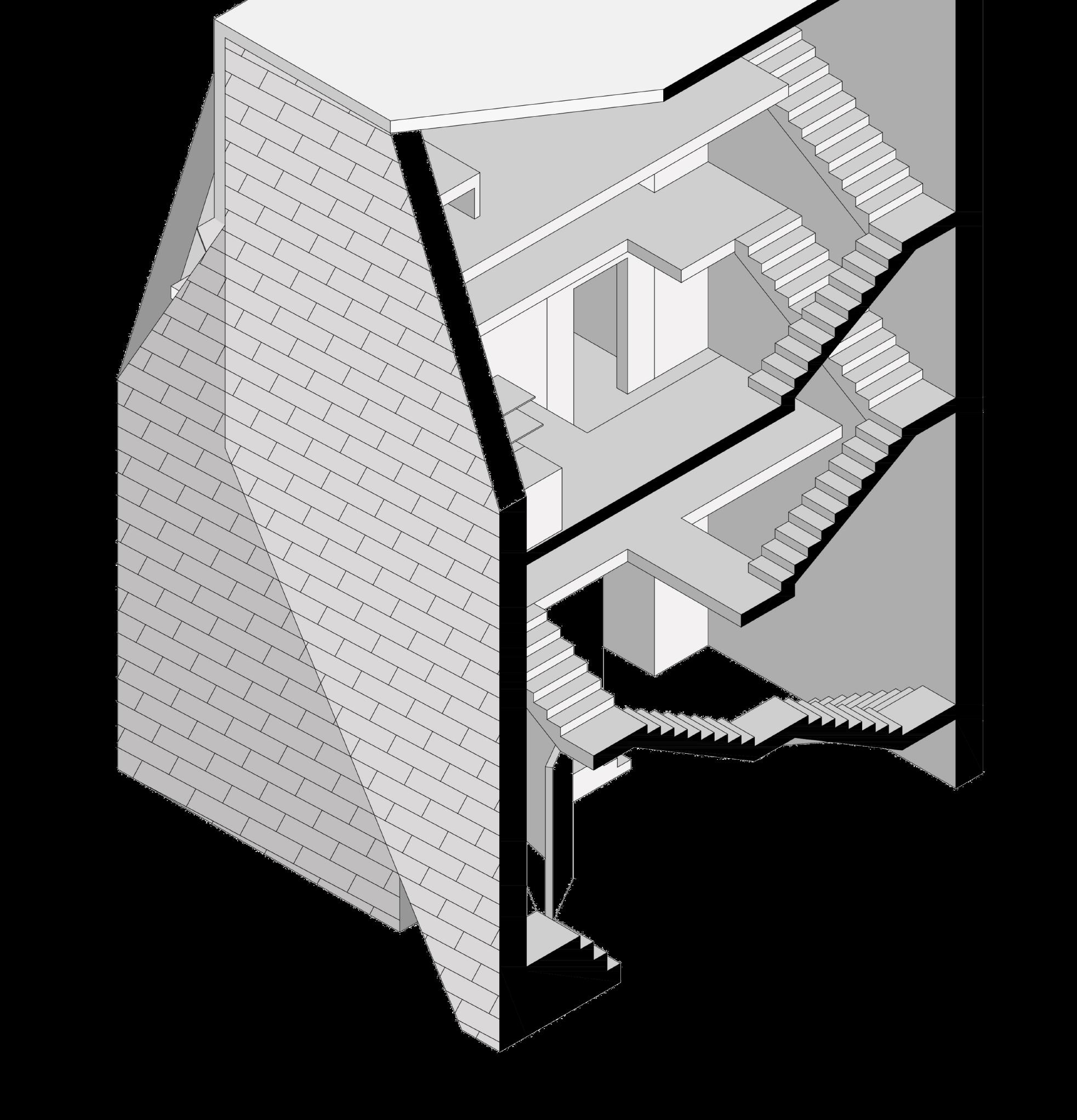

3D Exploaded Structure

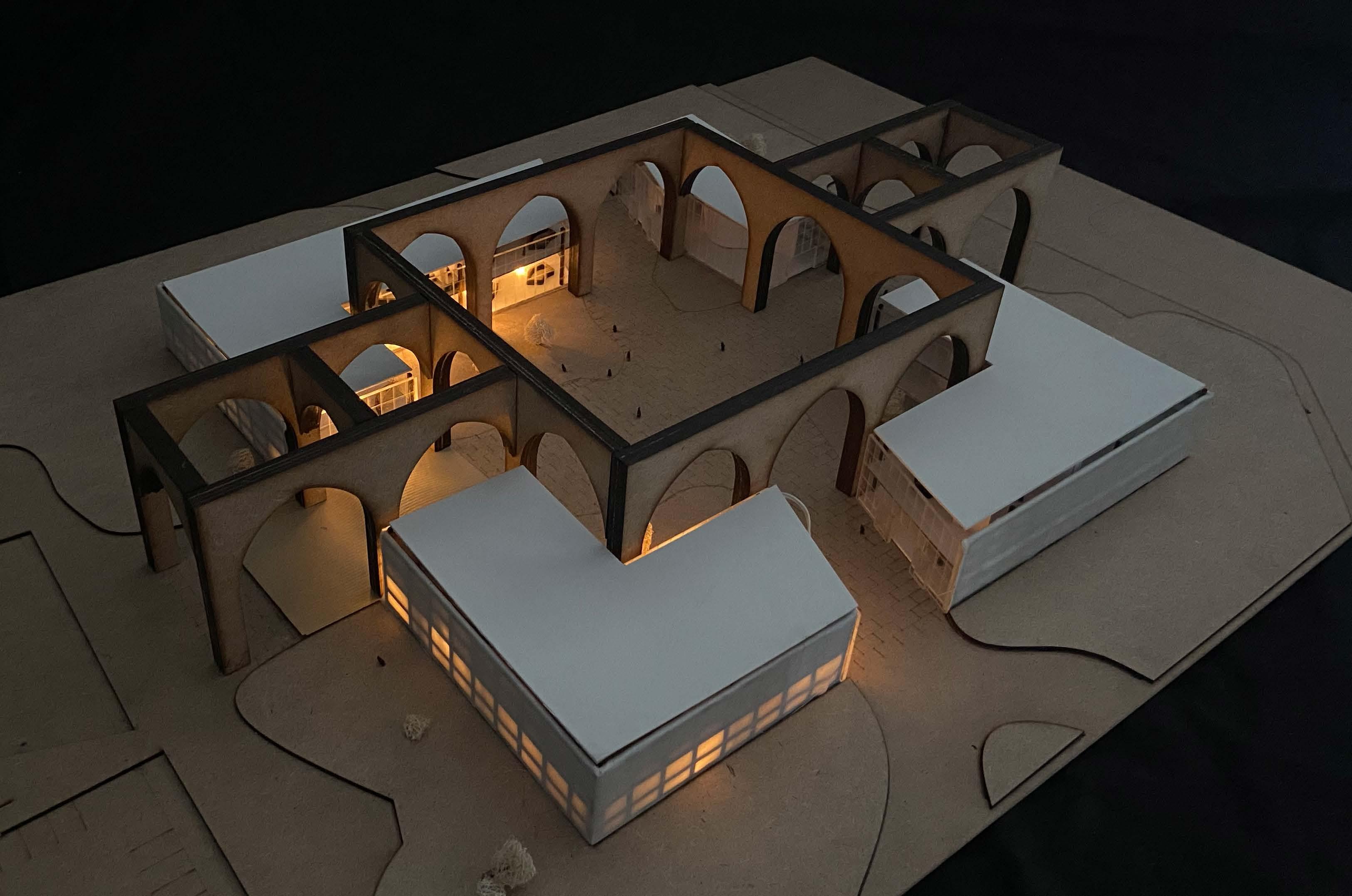

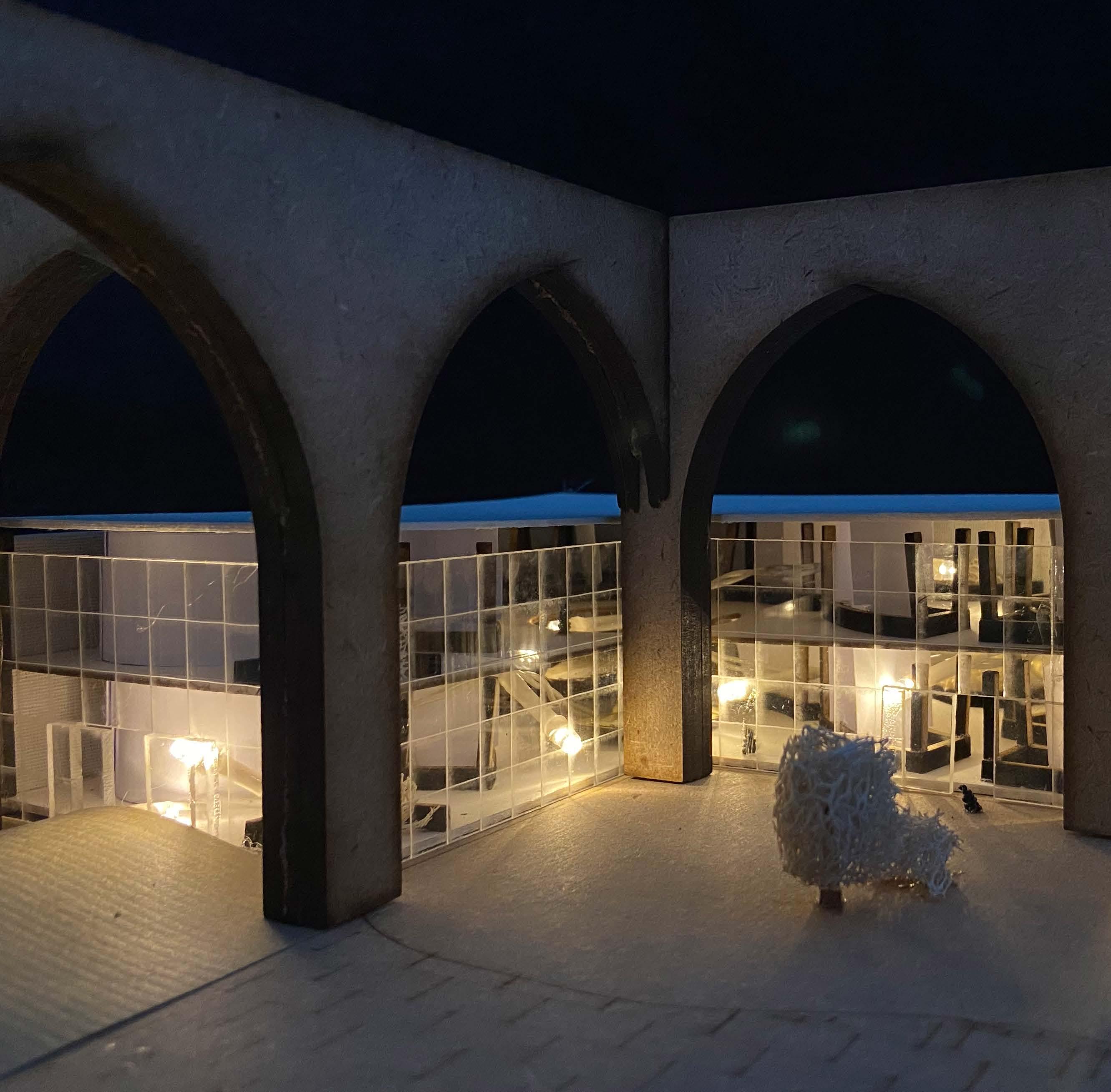

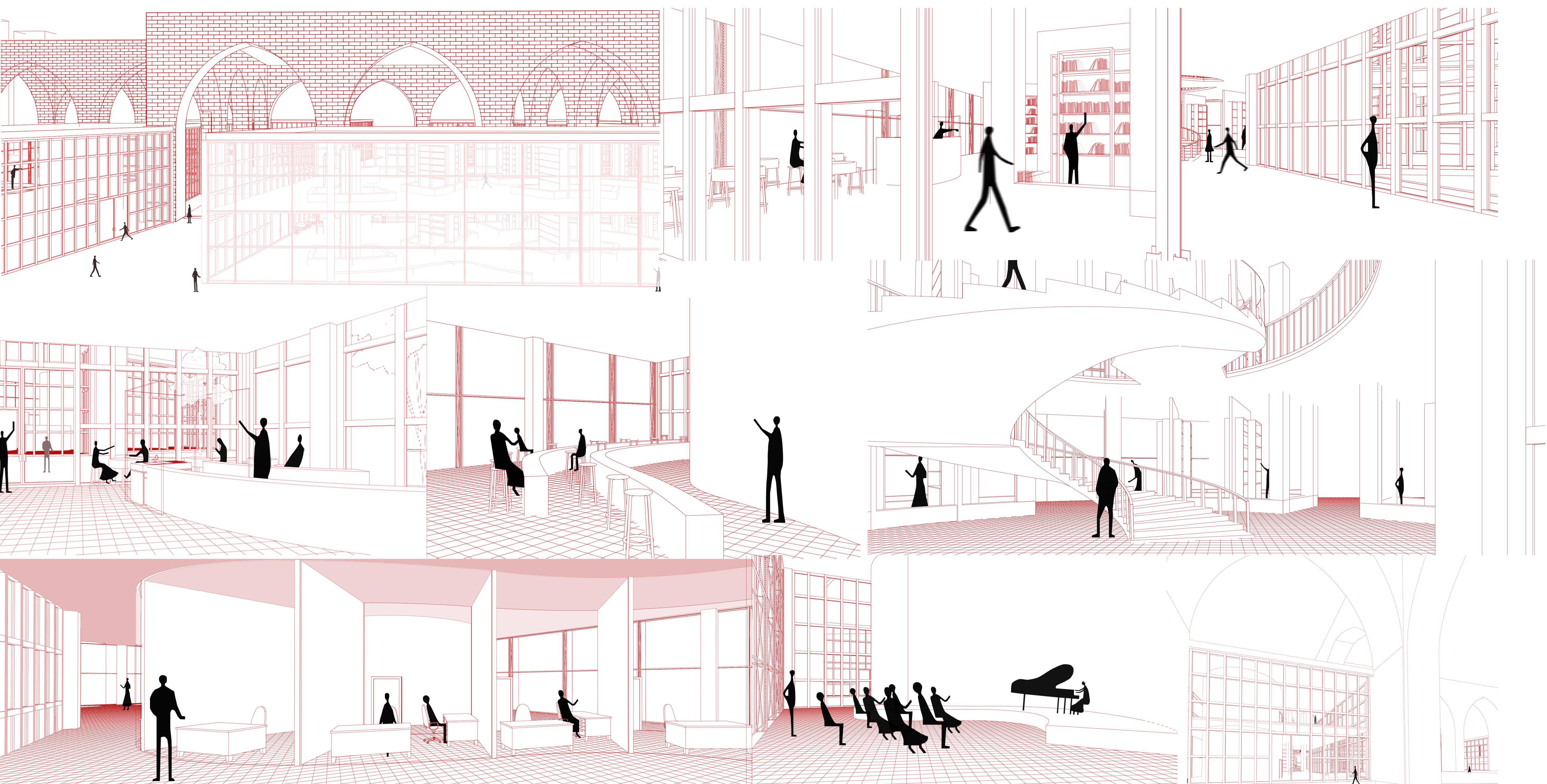

Prespective shot
Connection of Roof with The Arches
Horizontal and Vertical Circulation

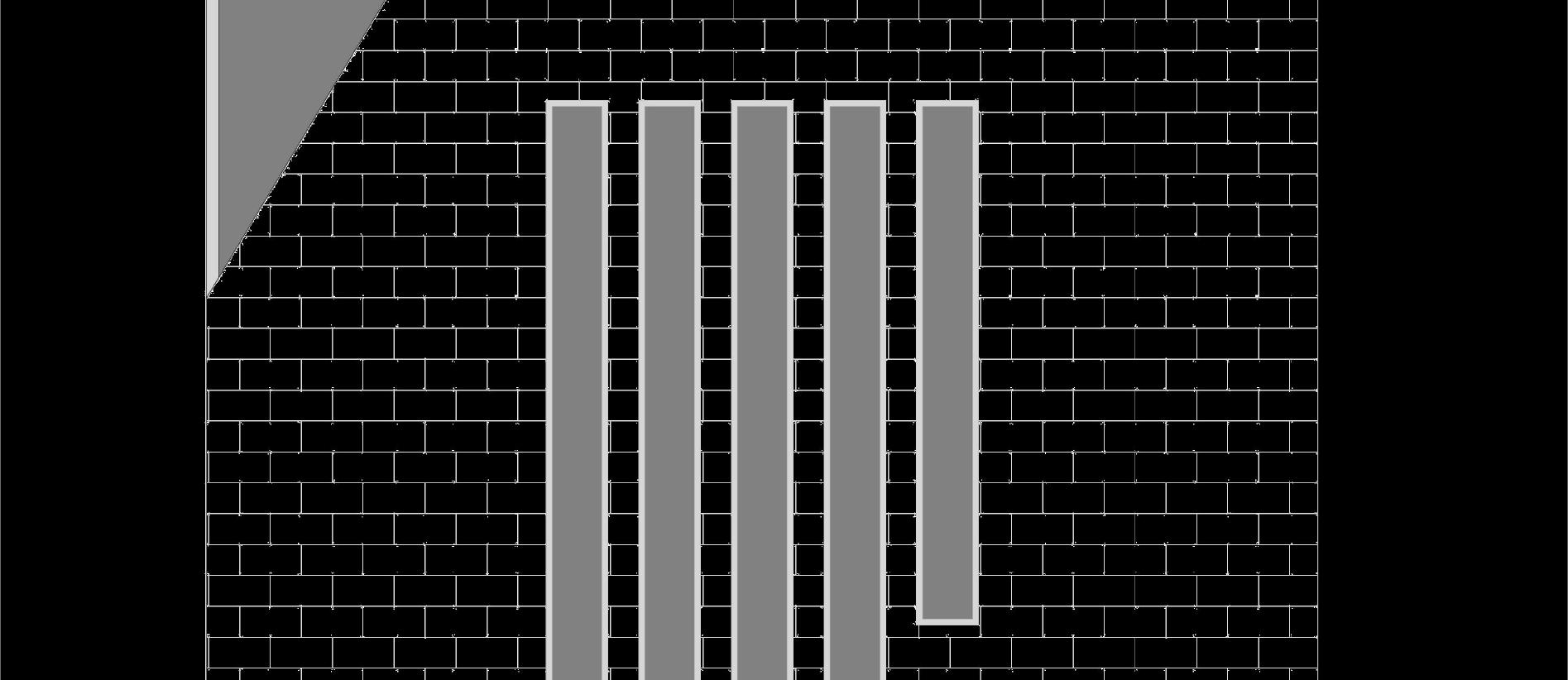

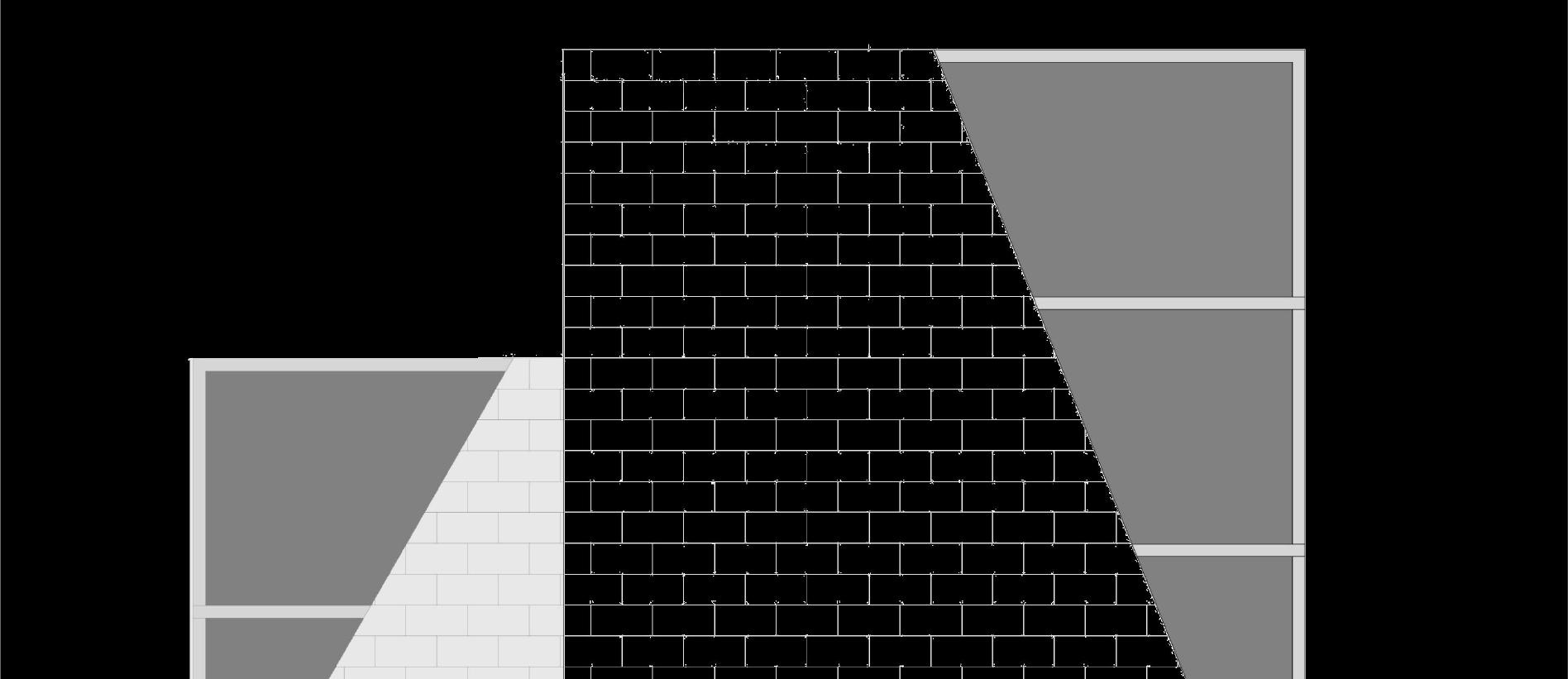

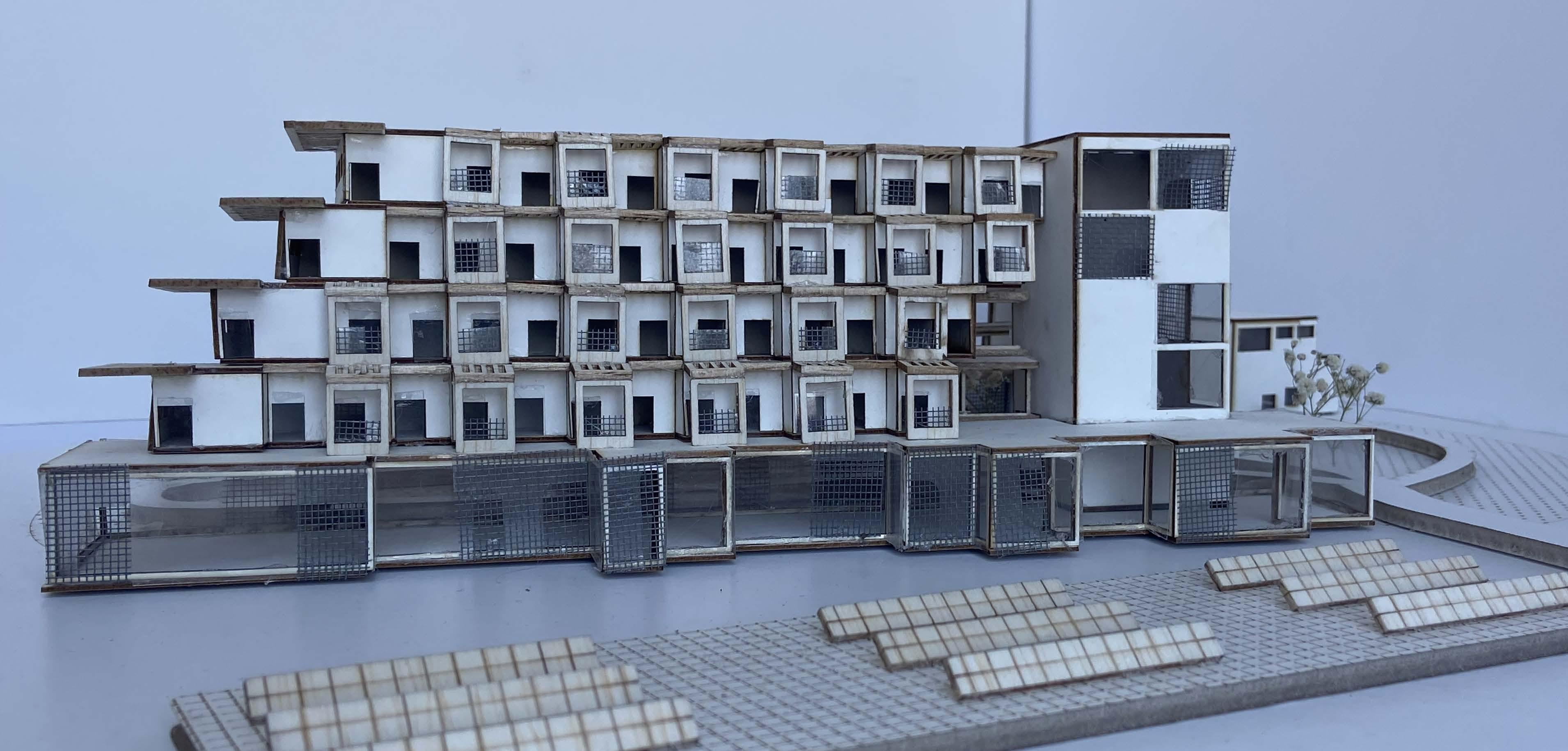

The Stepped Dorms
Design Studio 2

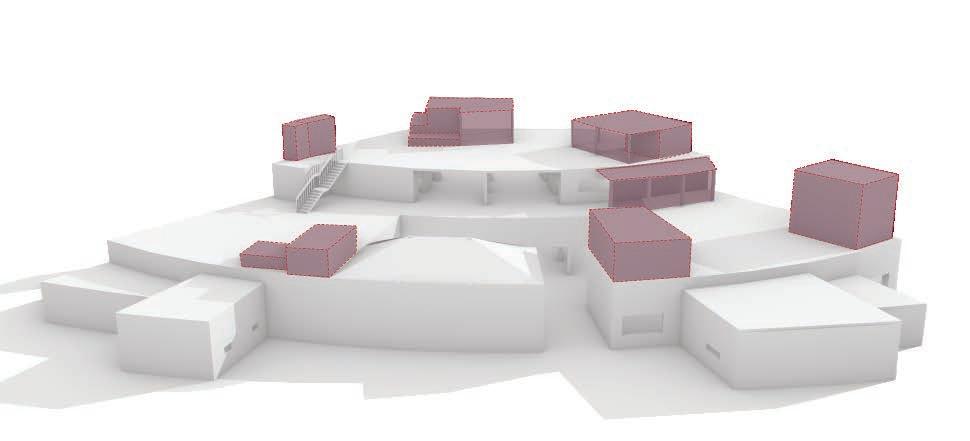

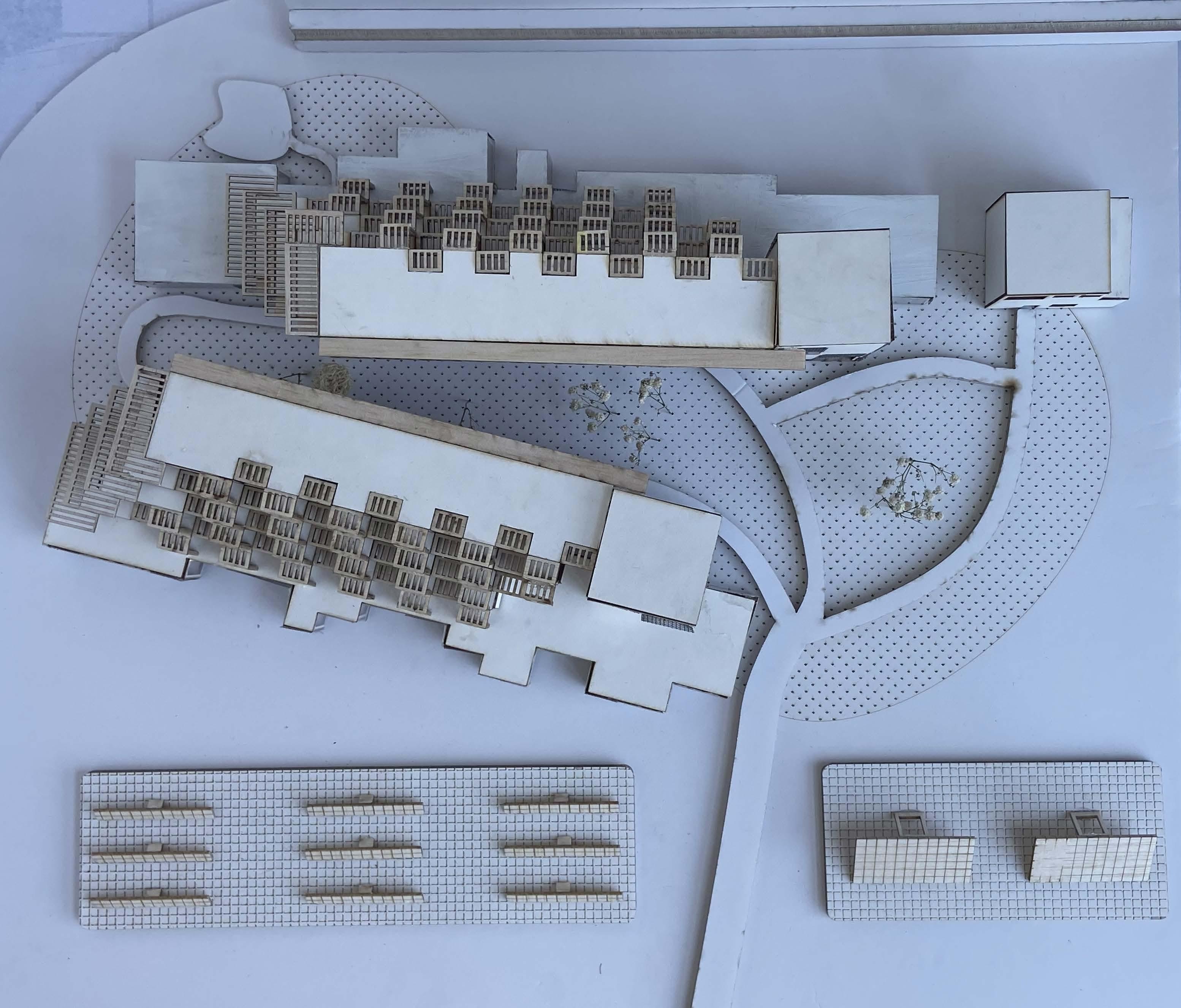

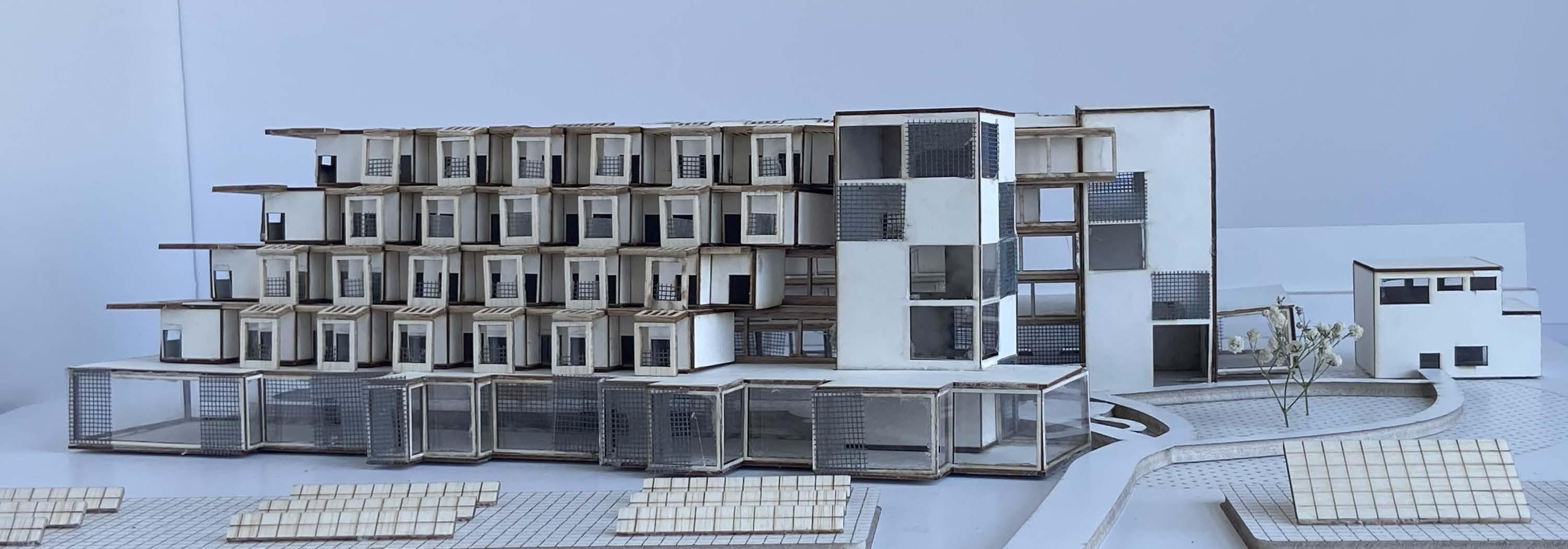

The concept of the Stepped Dorms is to have as much outer spaces as possible; as a students like to spend most of their times outdoors wether hanging out with friends or studying in nice fresh air. The shading is done by having wood elements around the balcony. All the public and common areas are found in the ground floor, as the dorms are divided into two, males and female units. Shifting the bottom unit with an angle, creates a dramatic opening for the semi public outdoor garden in the middle.
Year: 2022
Semester: 4th Semester
Supervision: Prof. Archer
Collaboration: Independant
Site: University Campsus, Cairo, Egypt

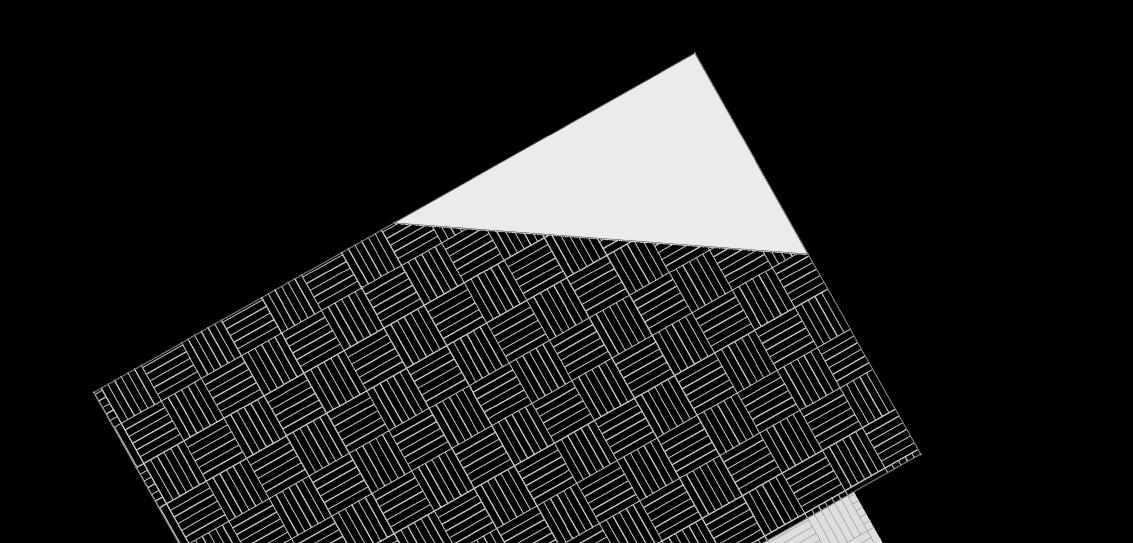

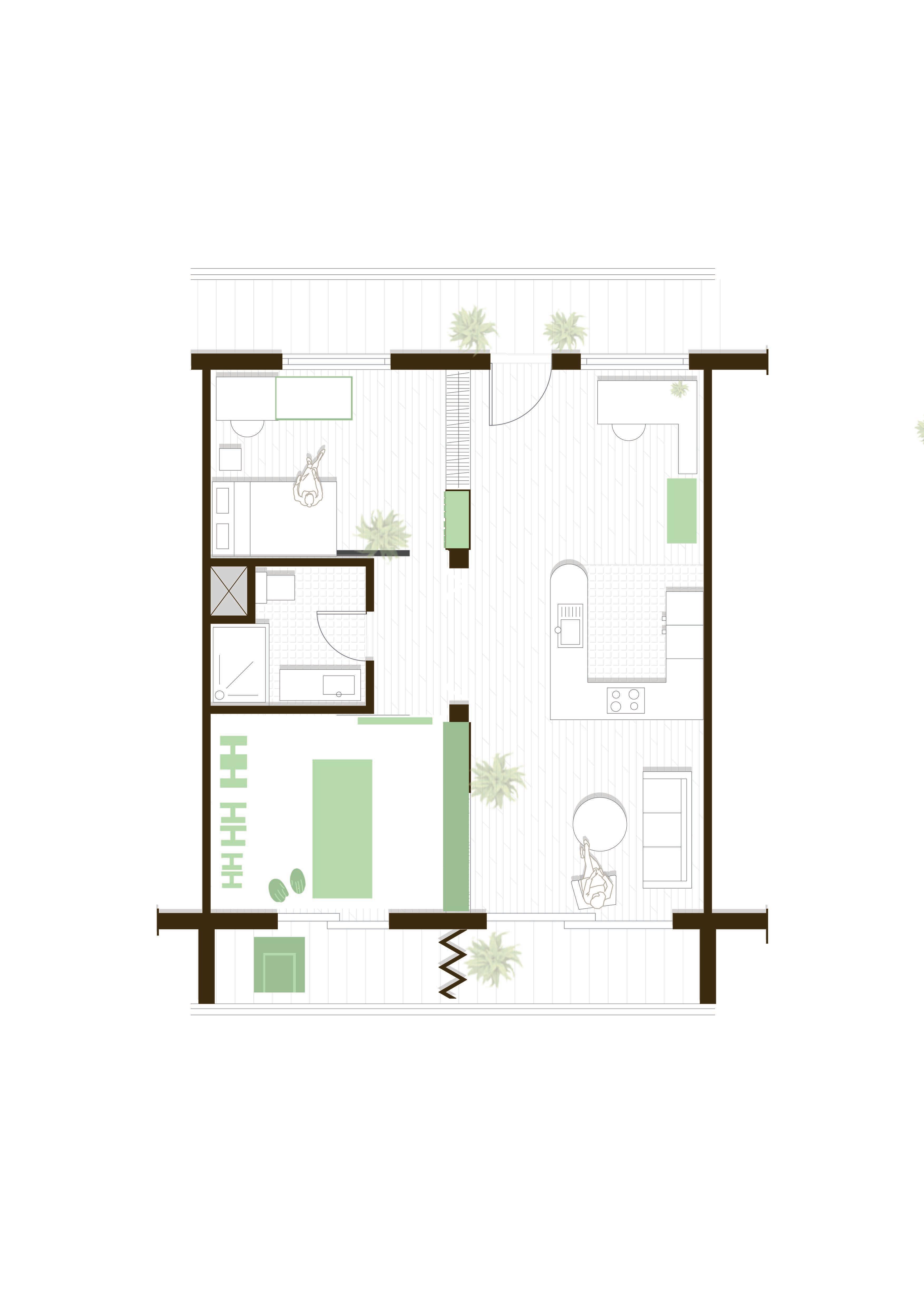

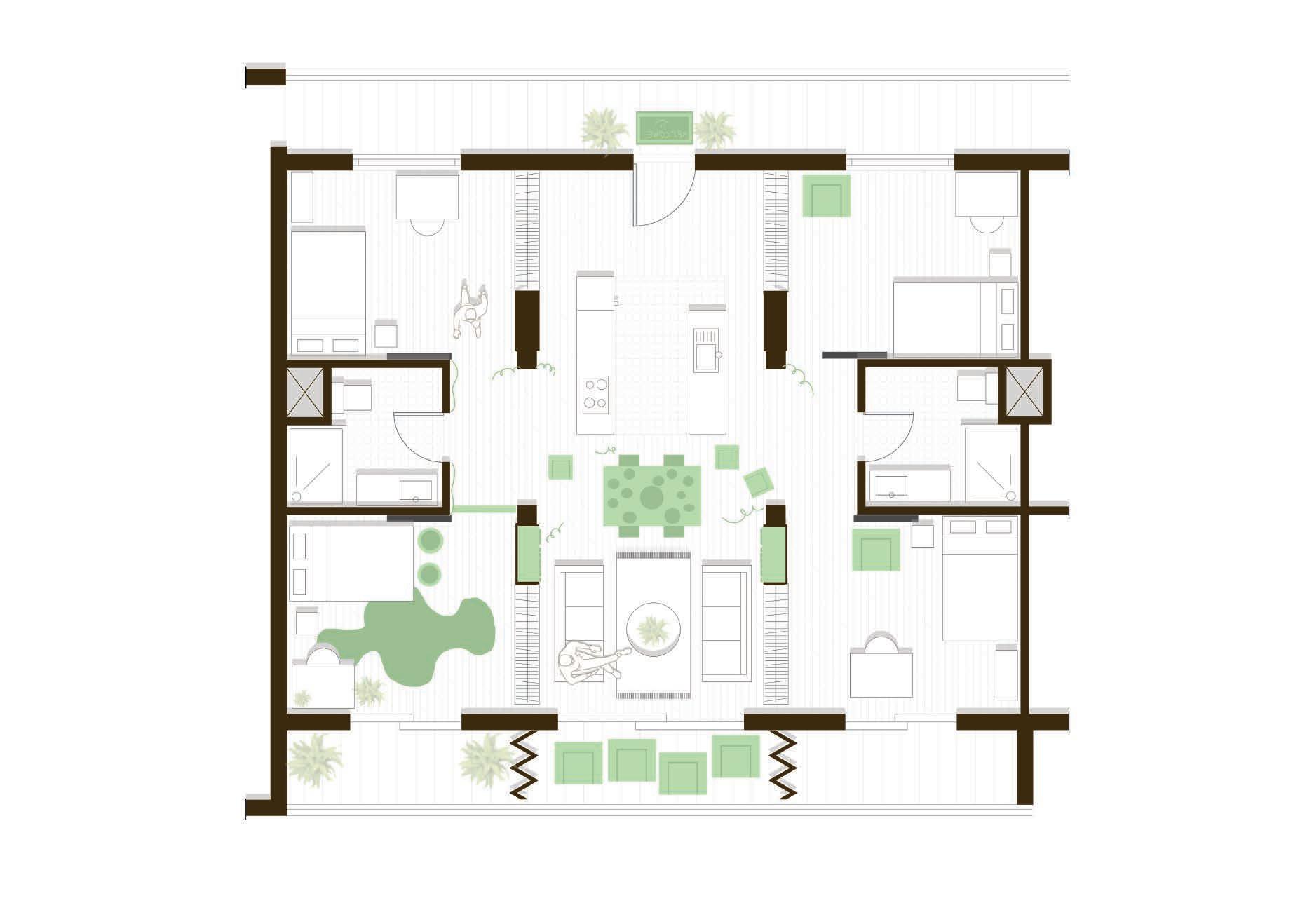

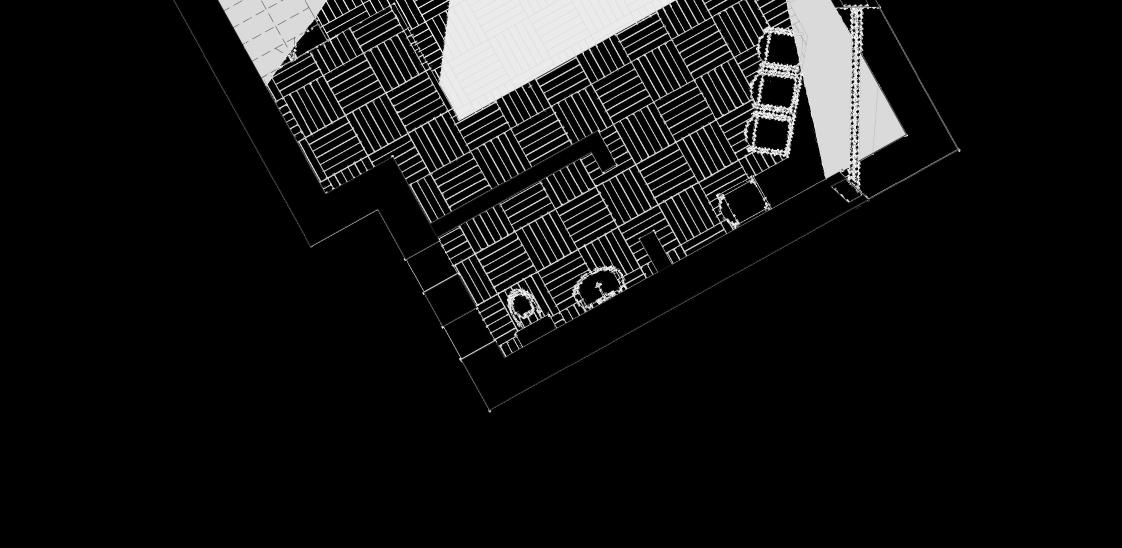

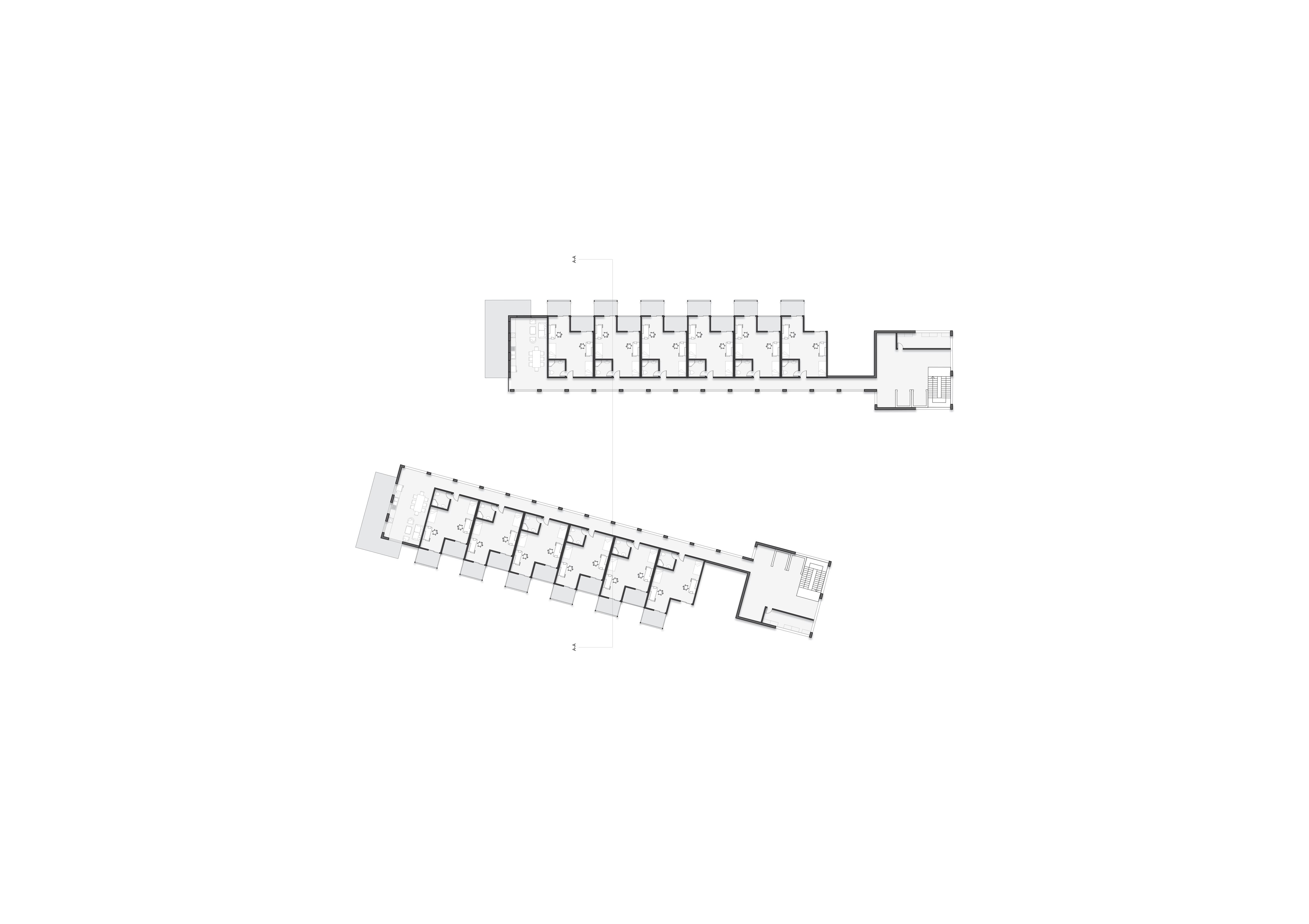

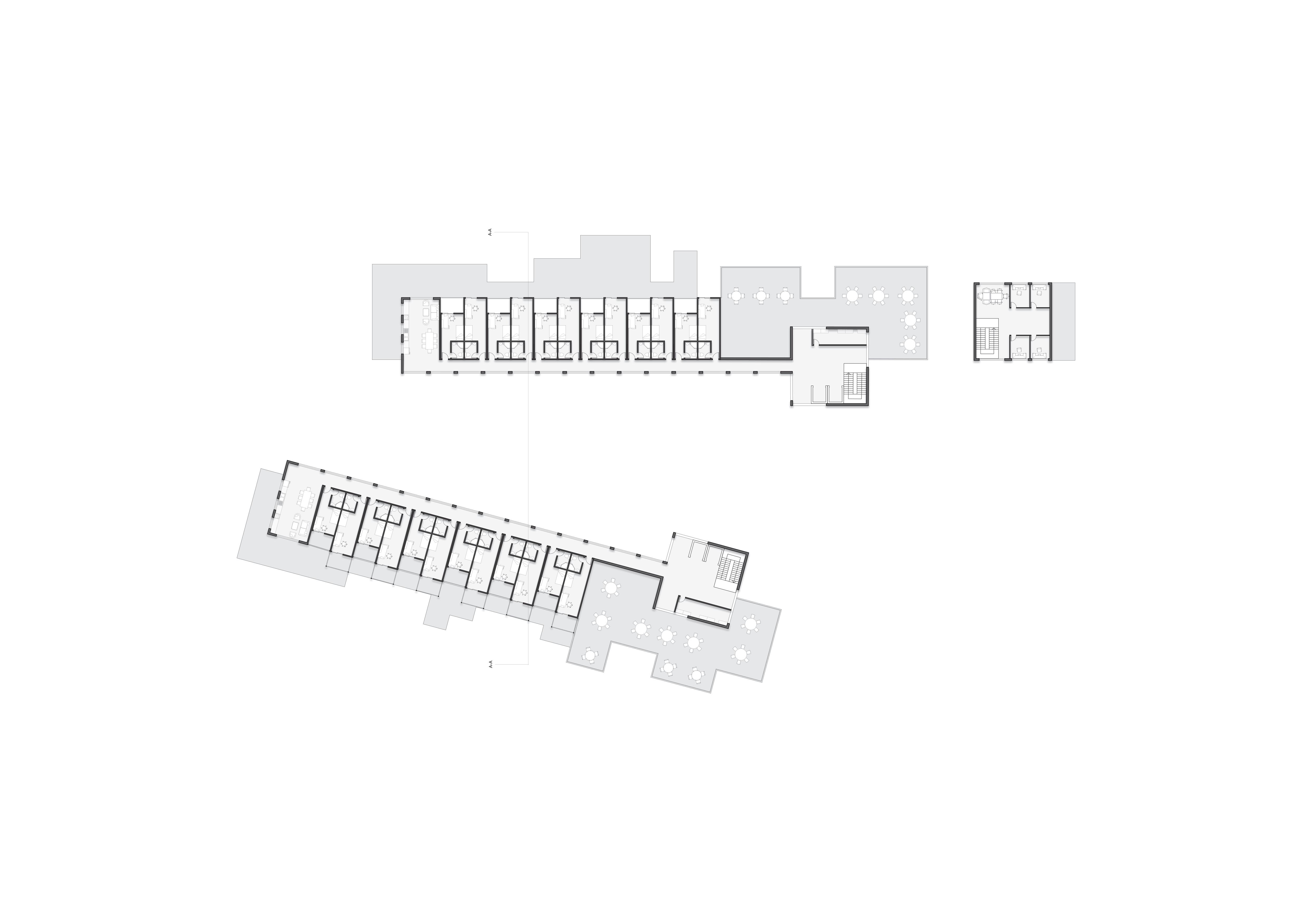

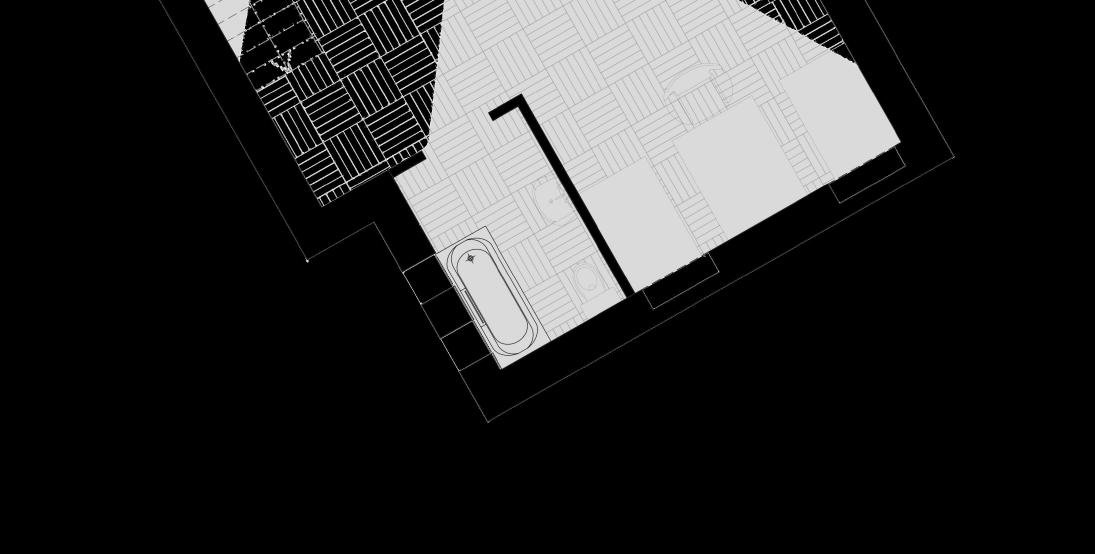

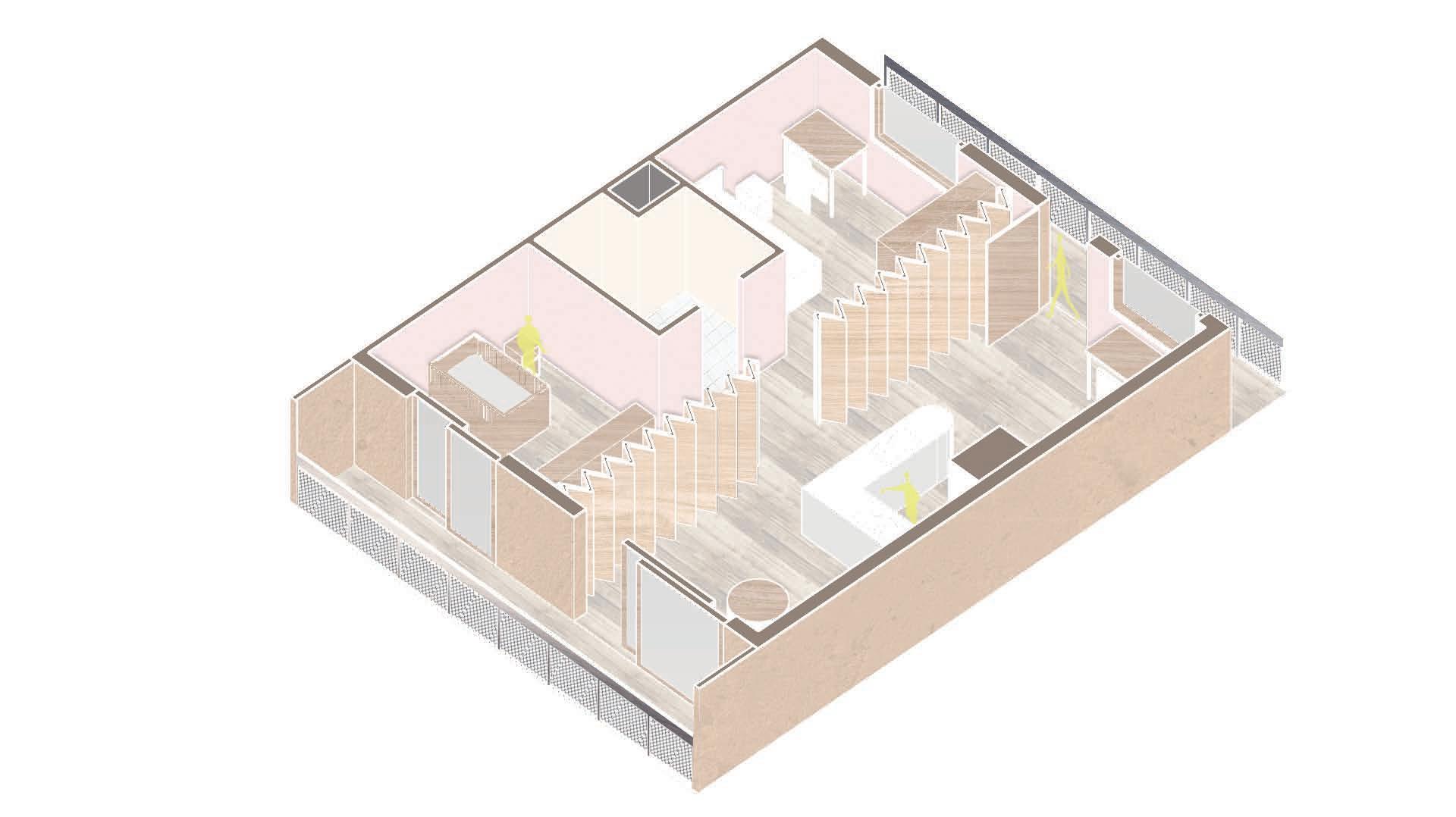

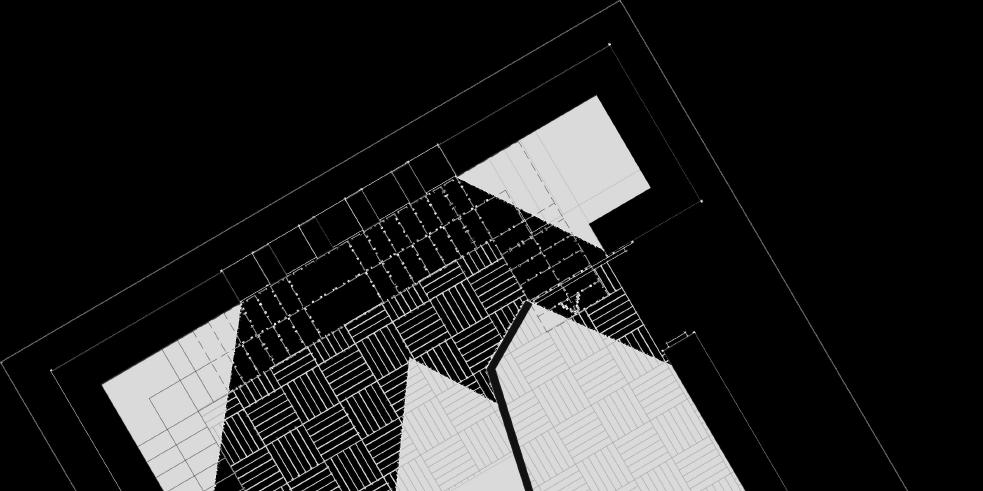

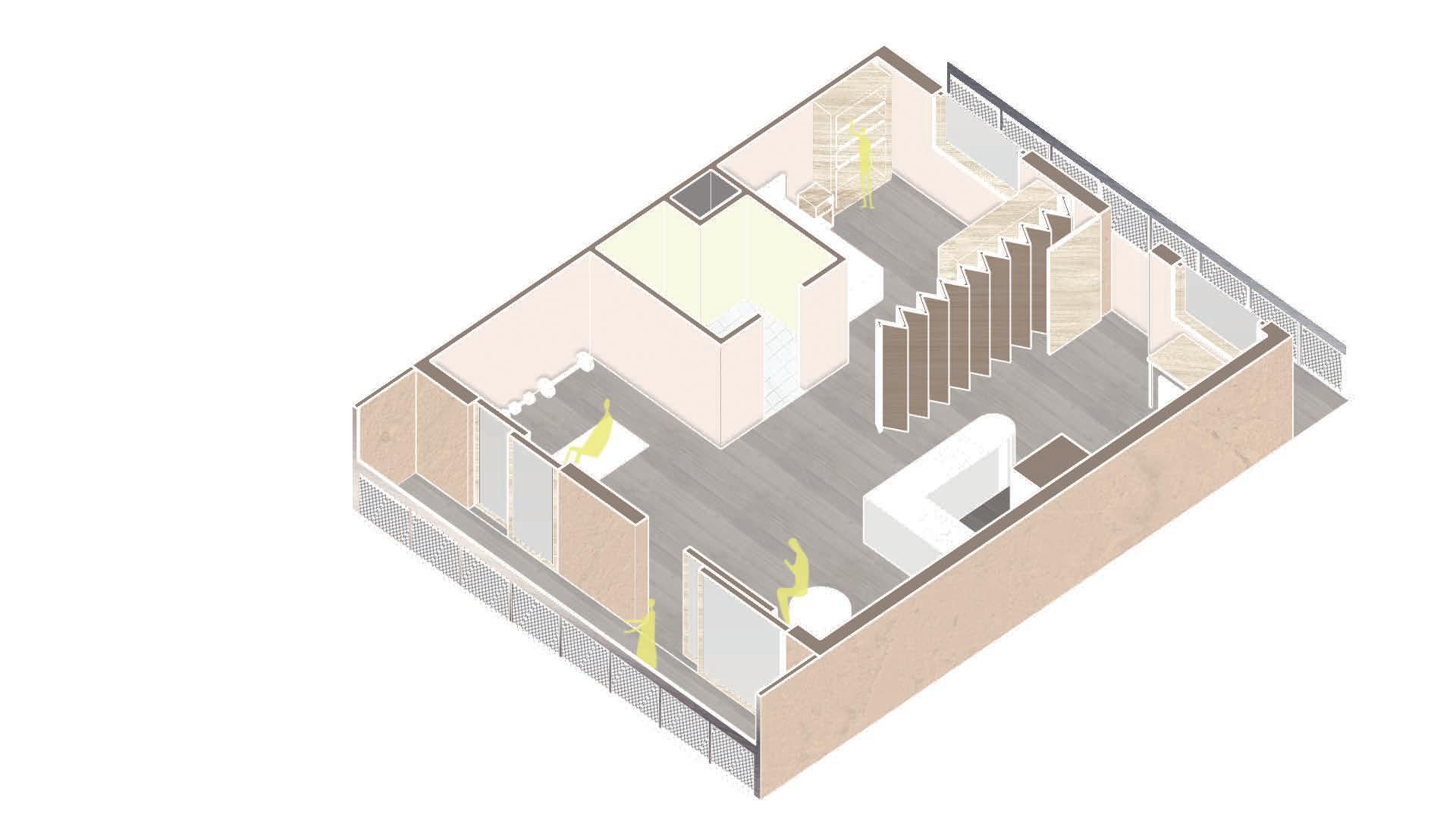

Typical Floor Plan: Single Rooms

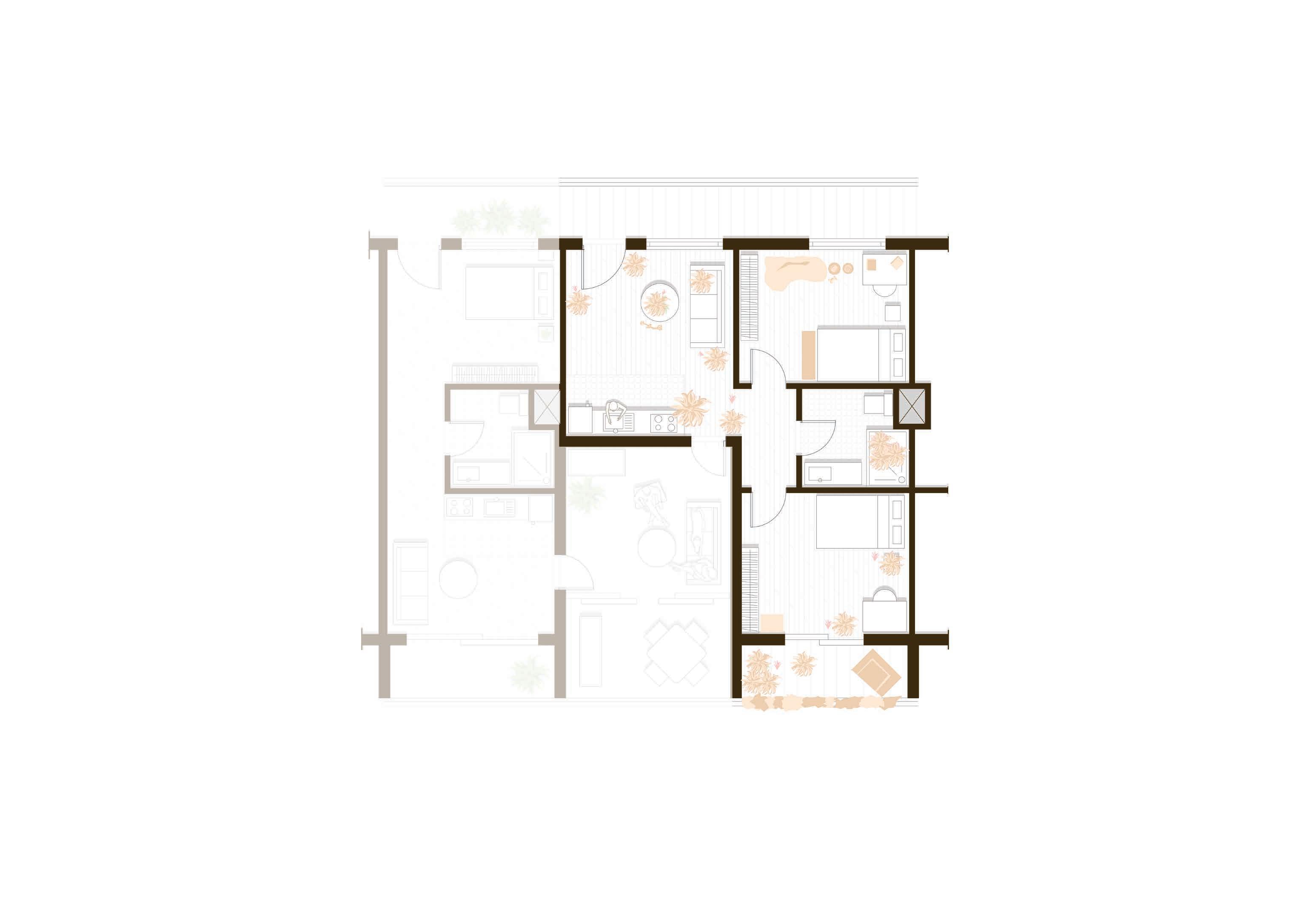

Typical Floor Plan: Double Rooms

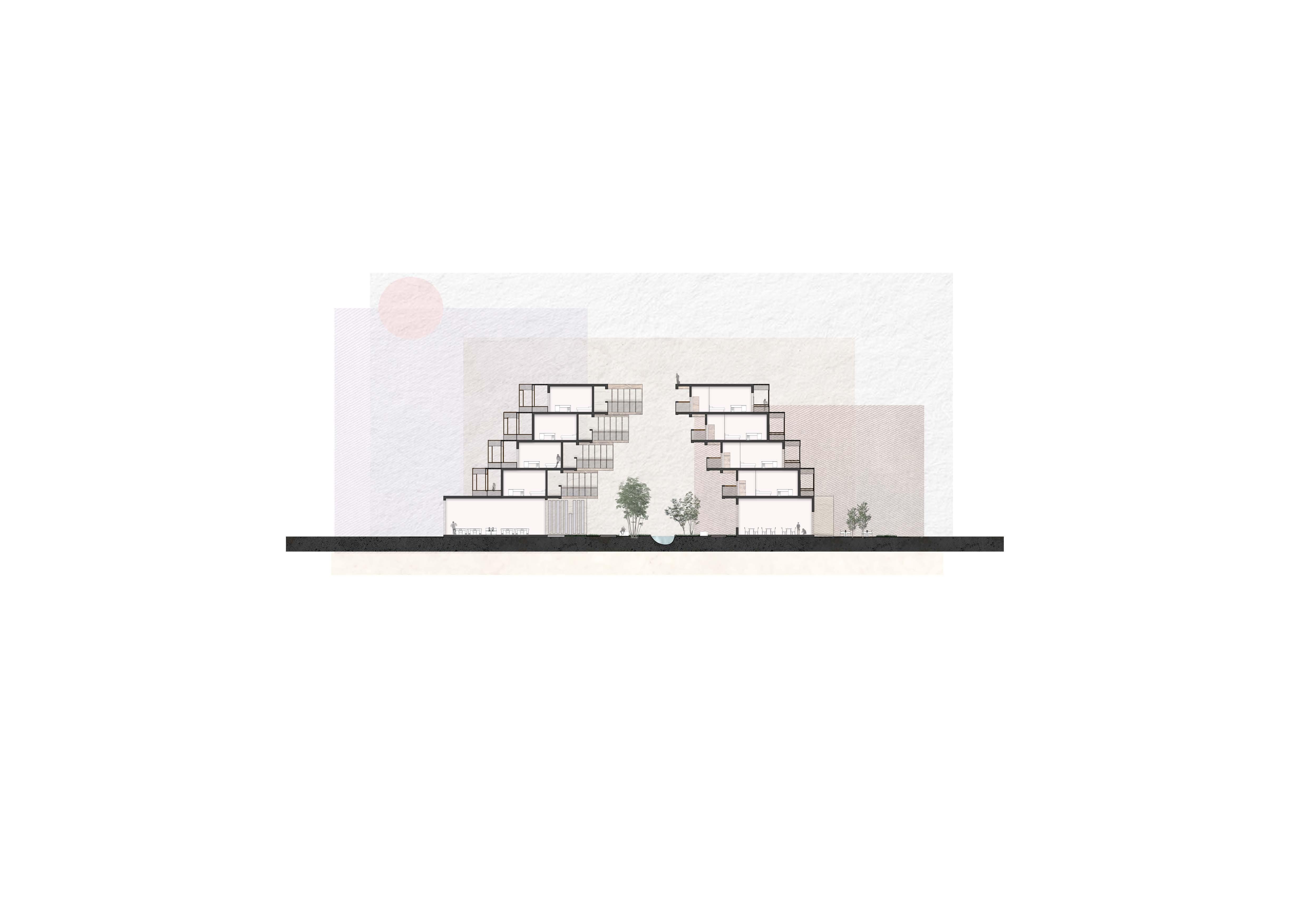

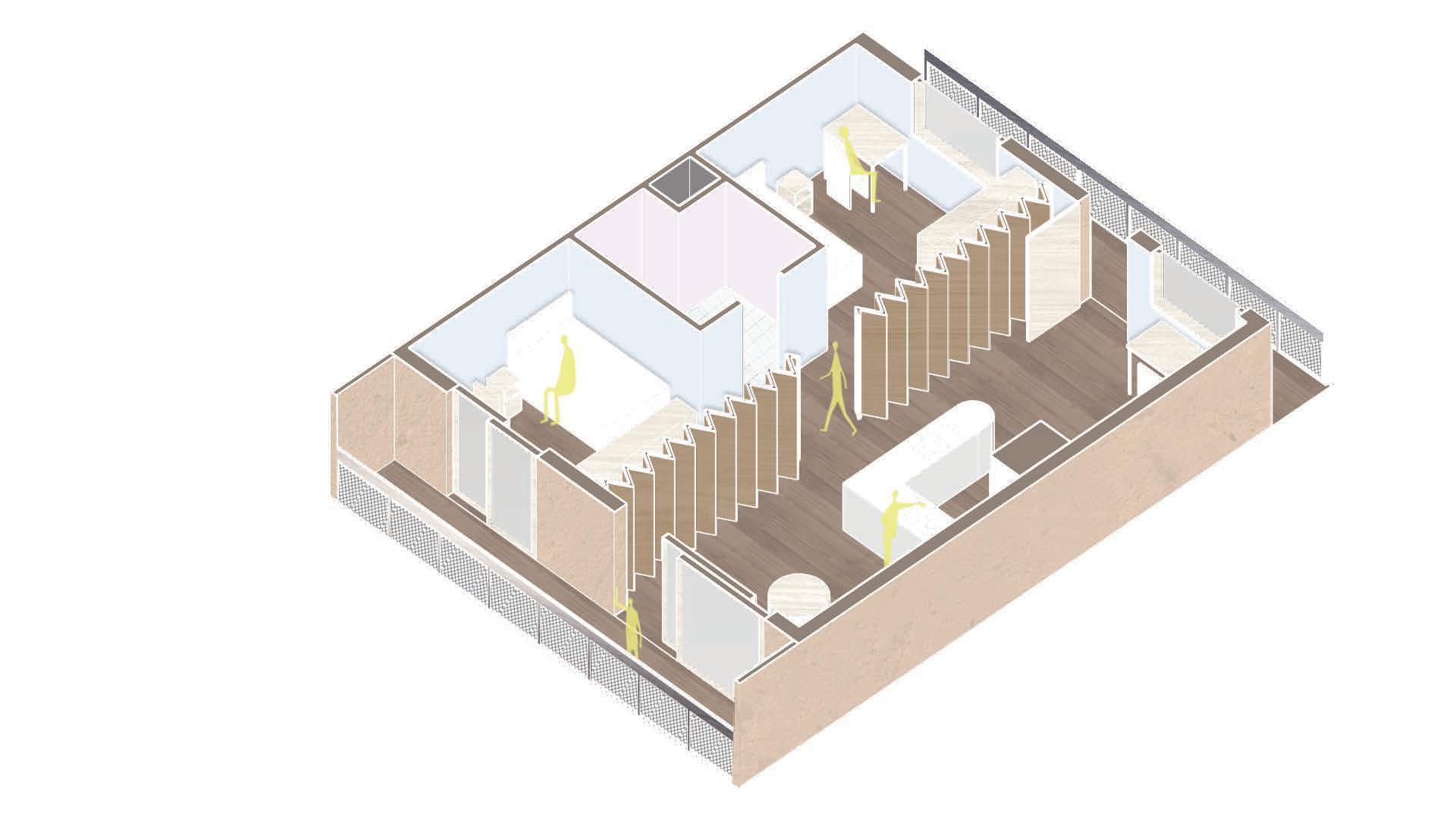

Cross Section of Both Units

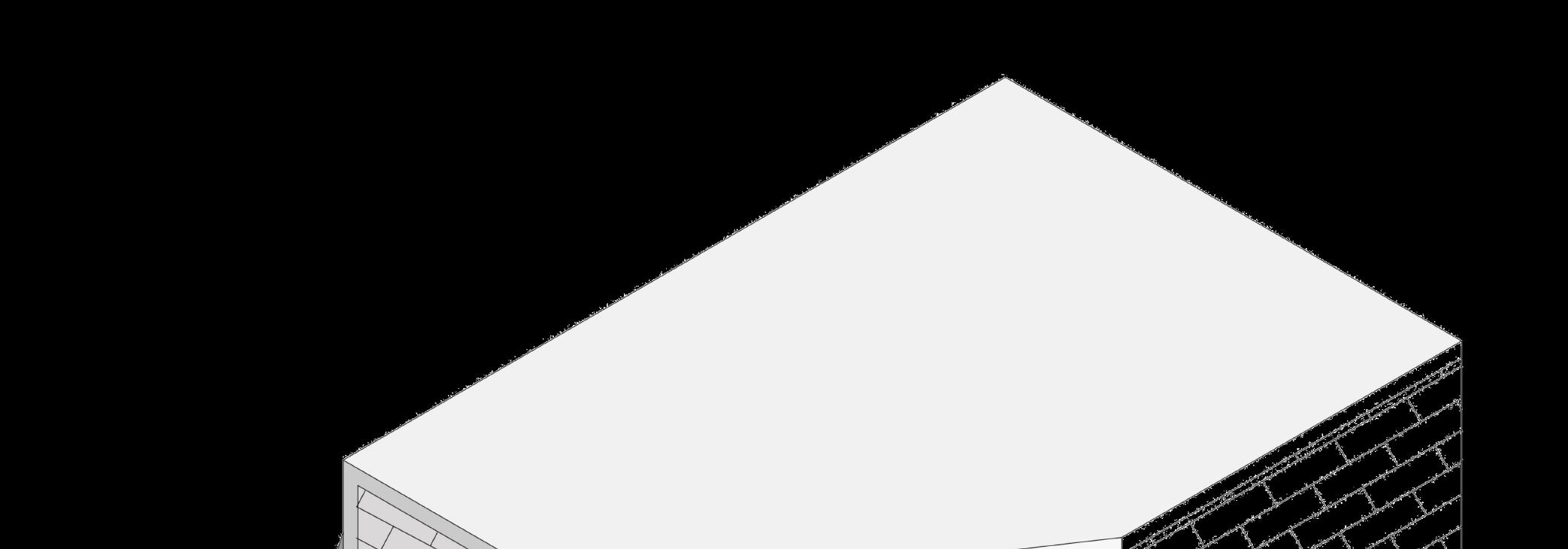

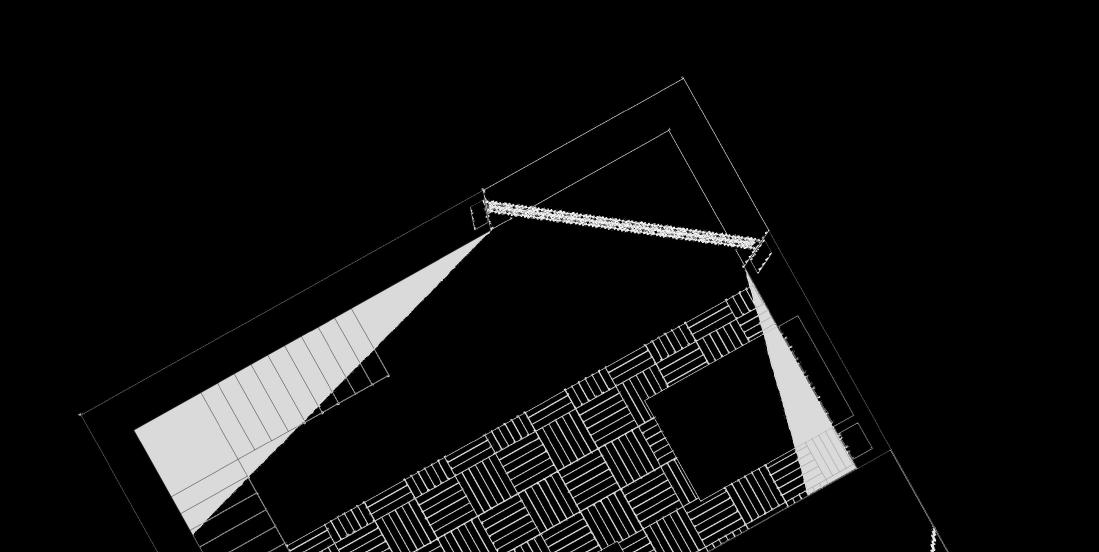

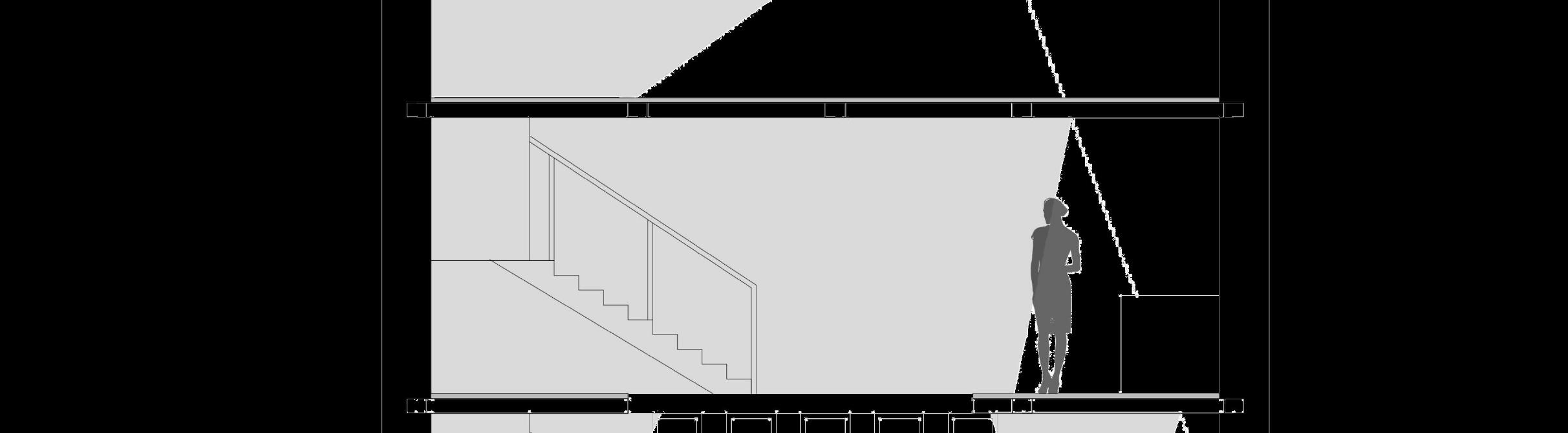

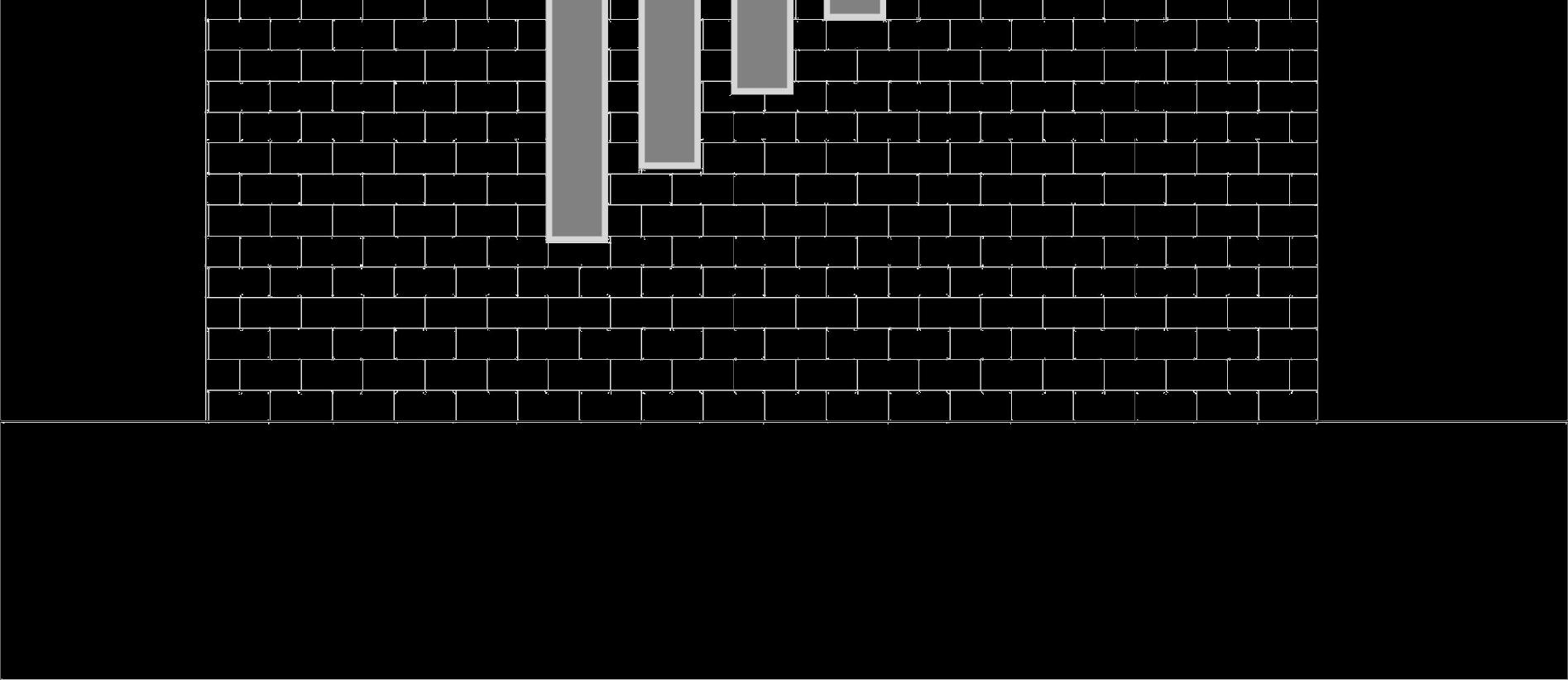

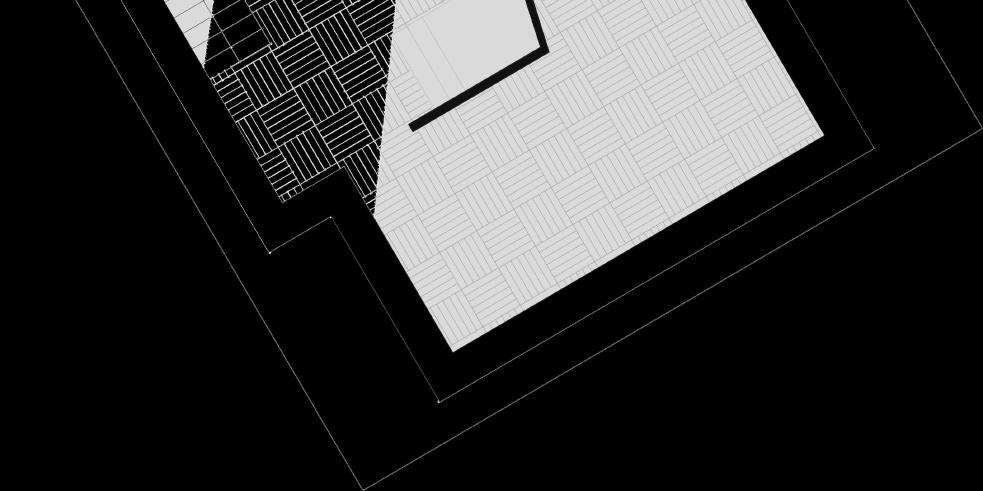

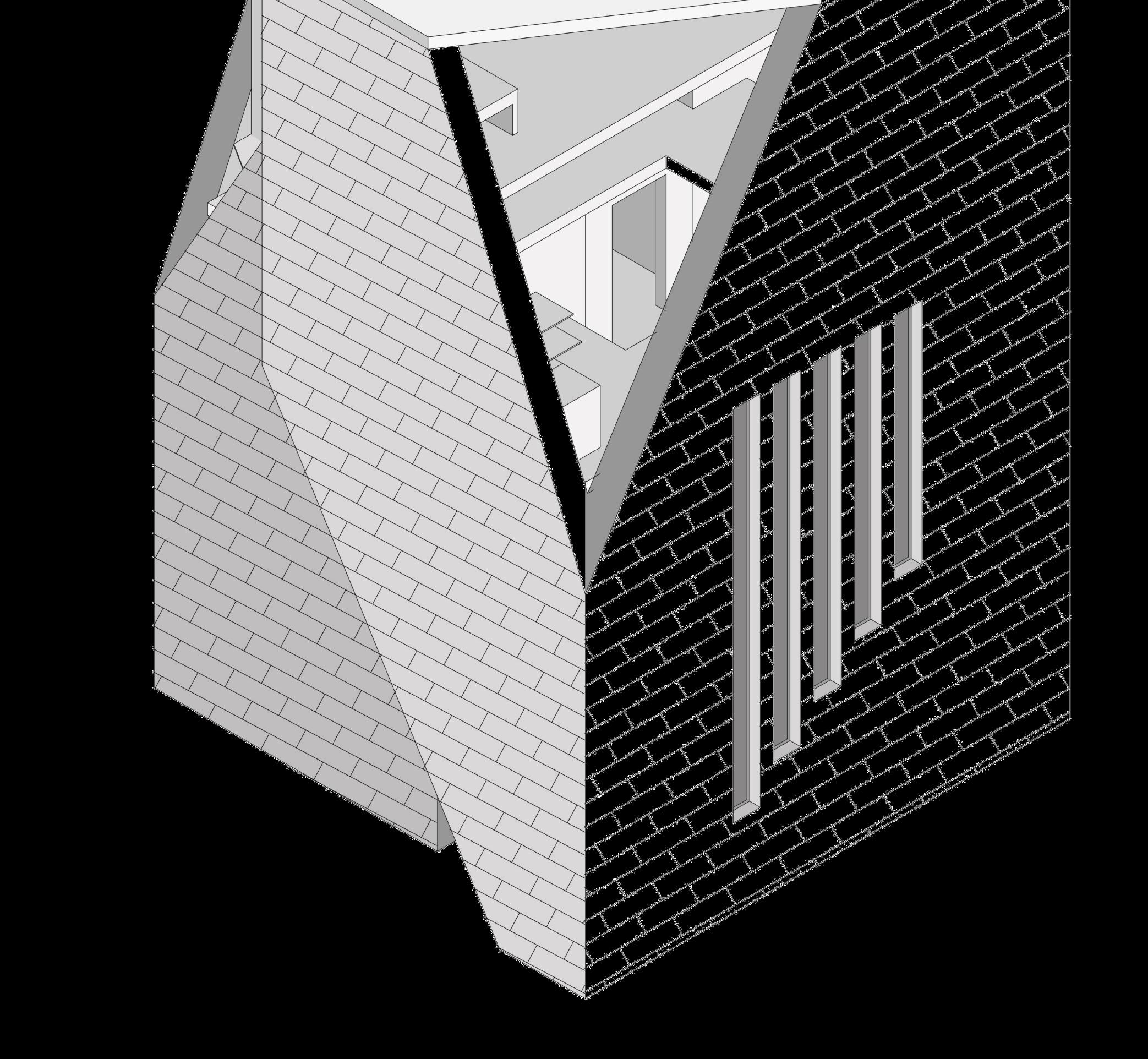

House Of Light
Design Studio 1

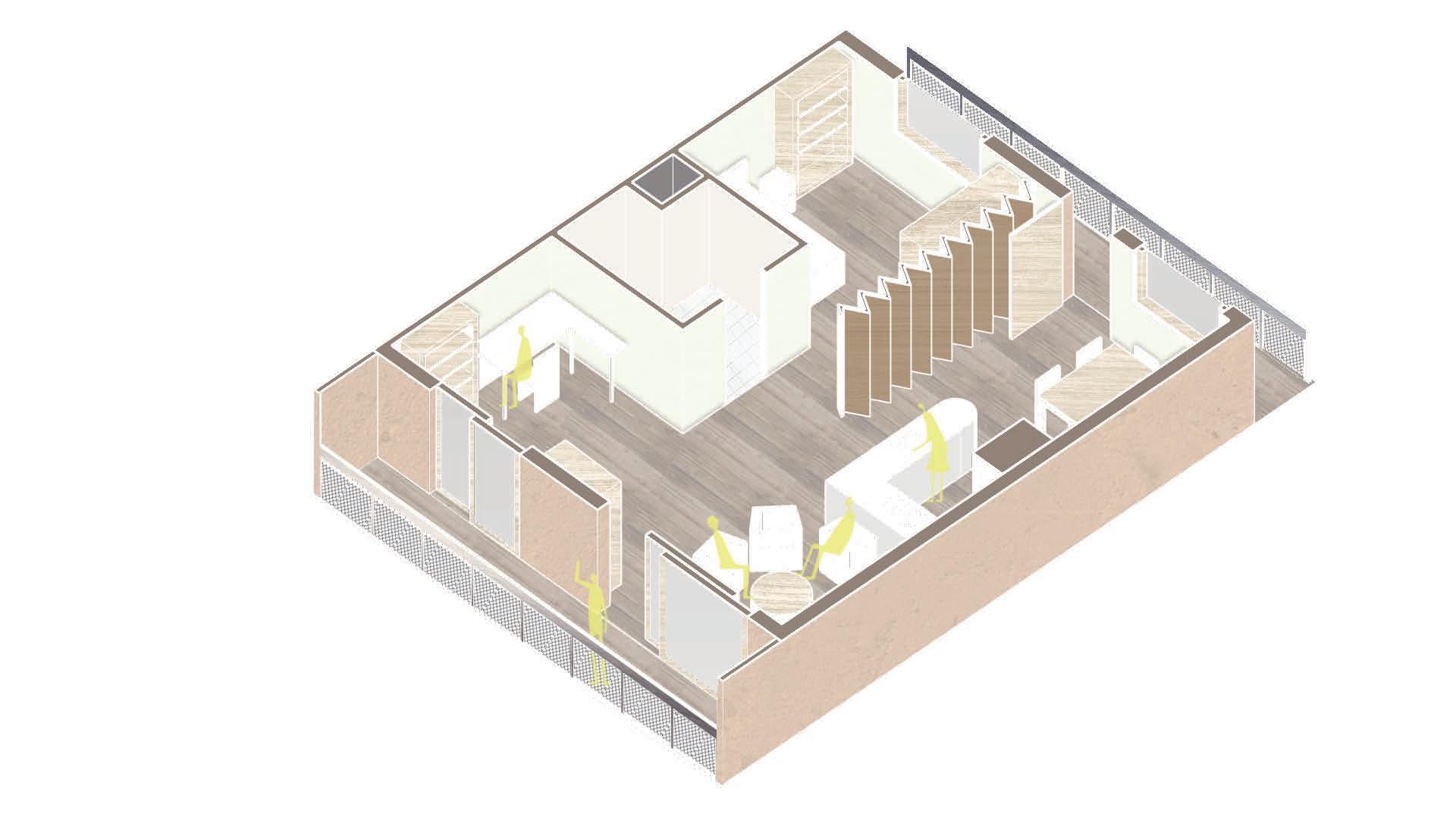

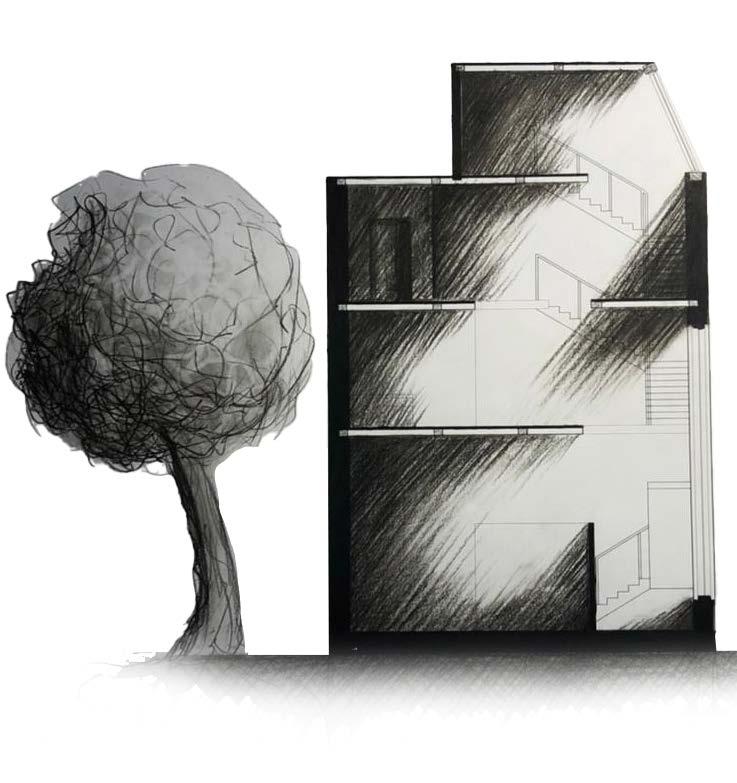

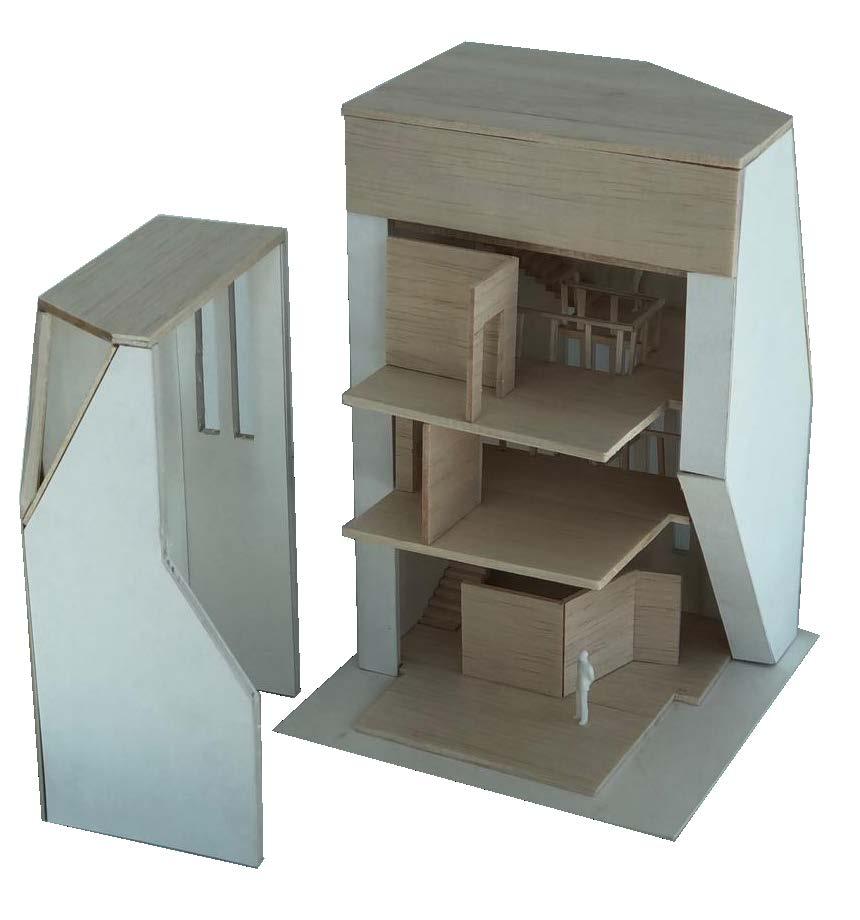

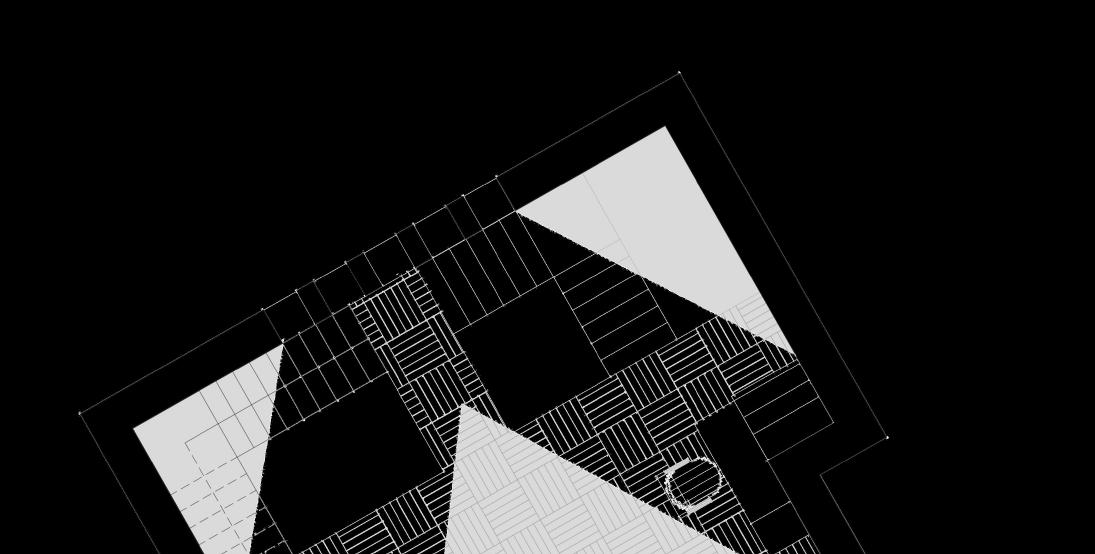

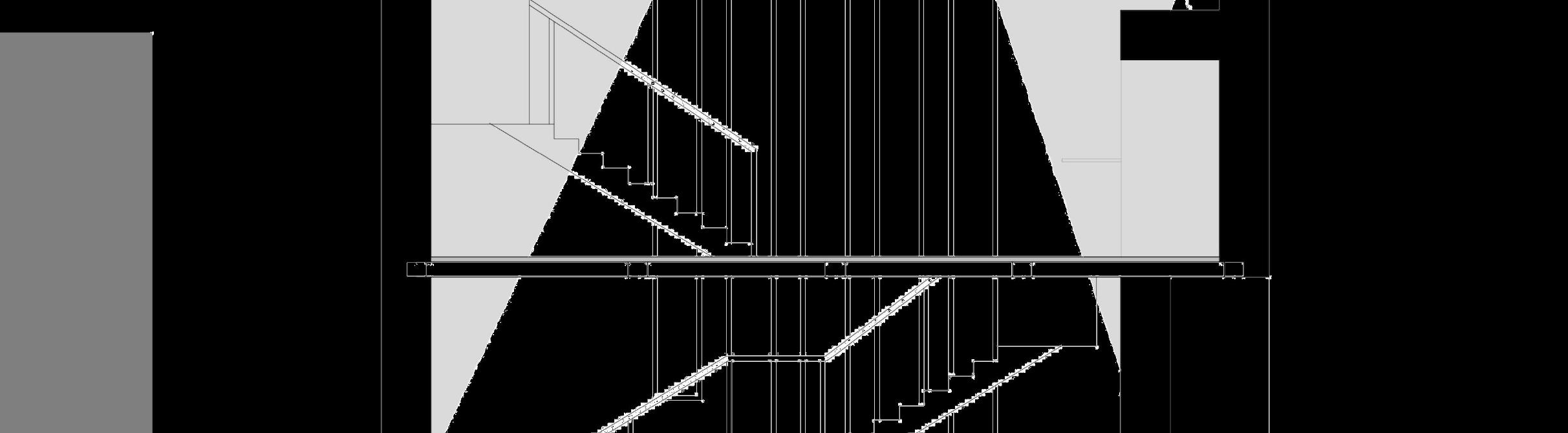

A house for a light artist; the this house is designed to have the main light coming from above to have poetic lighting. Every story gets smaller as we go higher in the house to allow most light to fall down straight to the ground floor where there is an exhibition for the artist; this also enhances the visual connectivity. Not only do the floors get smaller, but as we go up we move from the space becomes more private and personal.
Year: 2021
Semester: 3rd Semester
Supervision: Prof. Rauri O'Brian
Collaboration with: Sarah Tarek
Site: Maadi, Cairo, Egypt
EL MOEZZ ST. INTERVENTION
Introduction to Urban Design

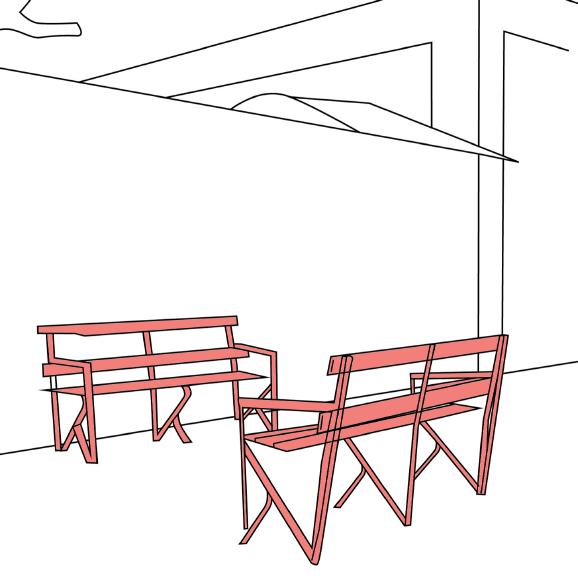

Our concept was to design an intervention to enhance the economical flow for the small business owners and craftsmen in El Moezz. We carefully mapped the area and designed a seating unit, where craftsmen will be able to advertise their products by displaying them and adding a design element to the seating units. There will be a mini map installed in the unit to guide the tourist from the famous touristic areas to the empty ones where no one can see those craftsmen; therefore enhancing the flow of people in the area.
Year: 2021
Semester: 3rd Semester
Supervision: Dr. Husam Husain
Collaboration with: Farida Samy & Salma Oraby
Site: El Moezz St., Cairo, Egypt

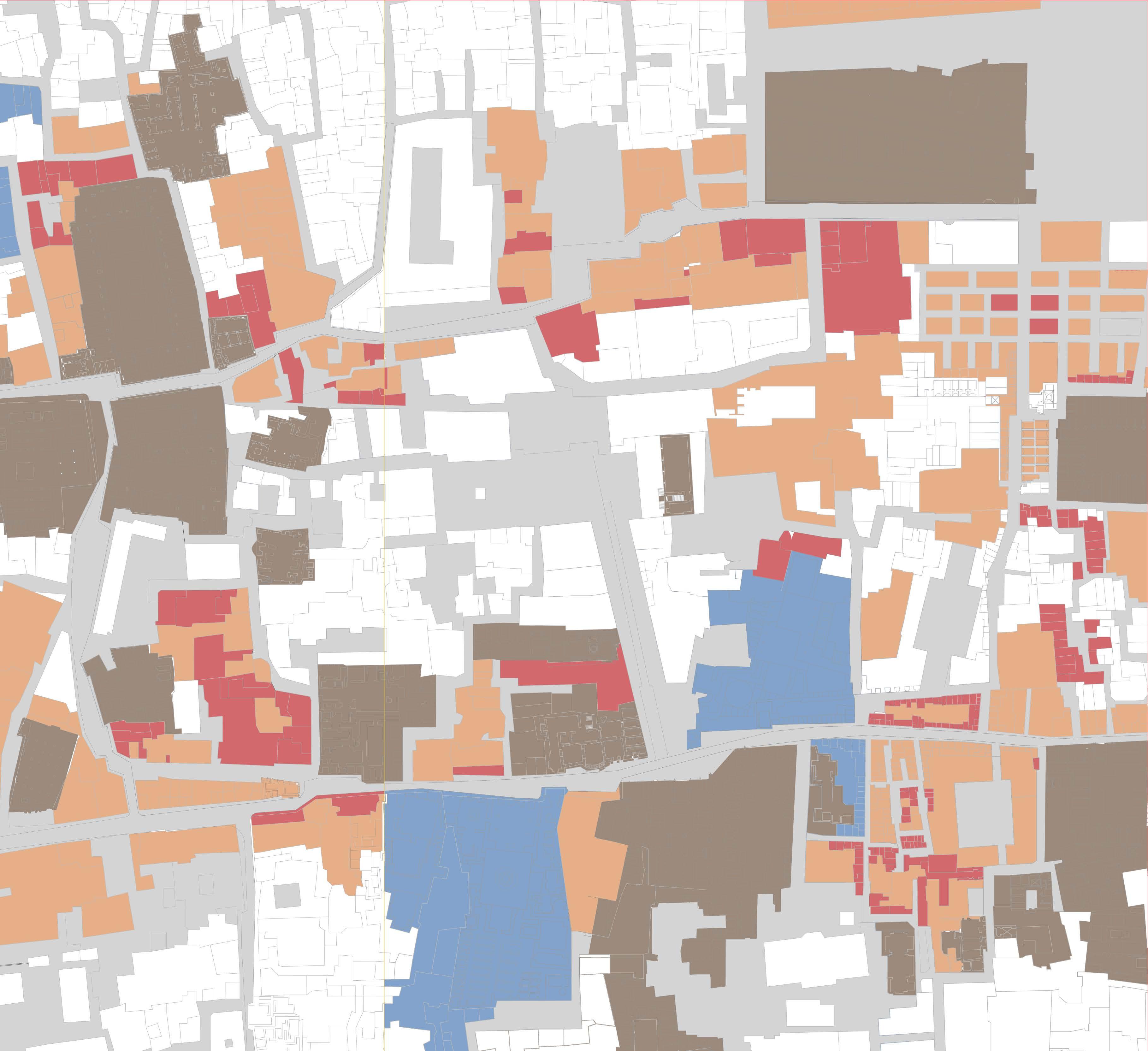

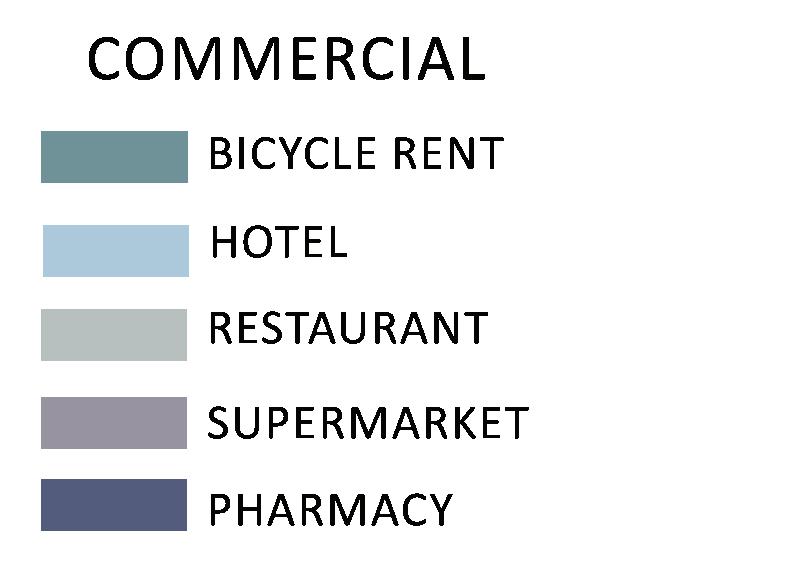

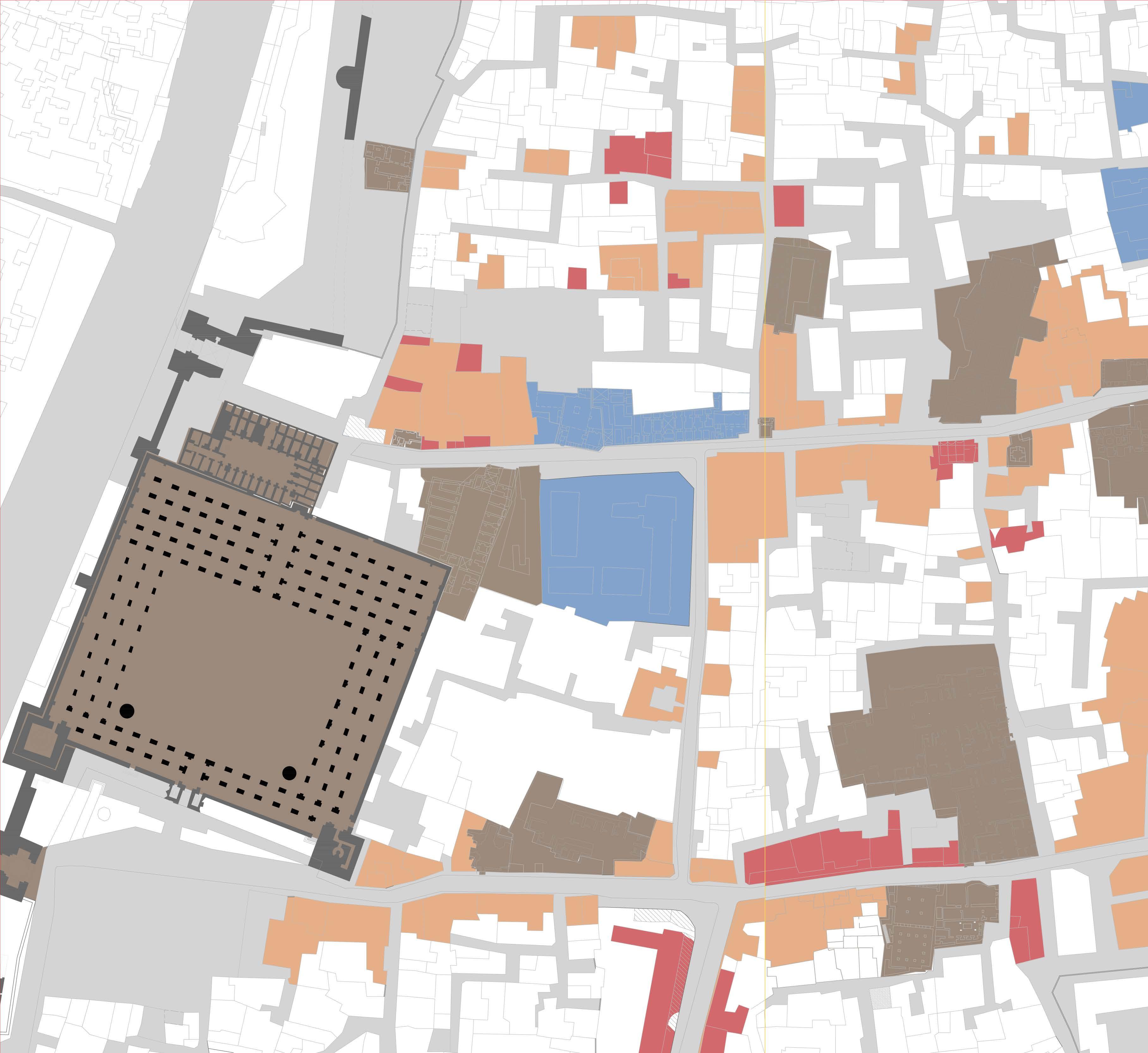

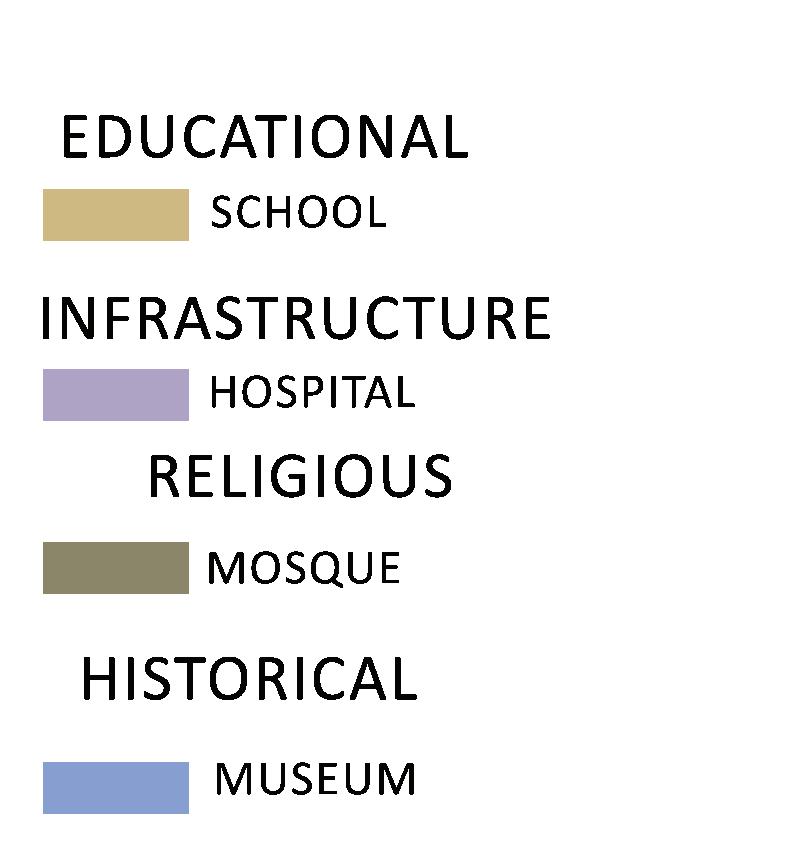

Mixed use: Commerical: Infrastructure: Cultural: Void:

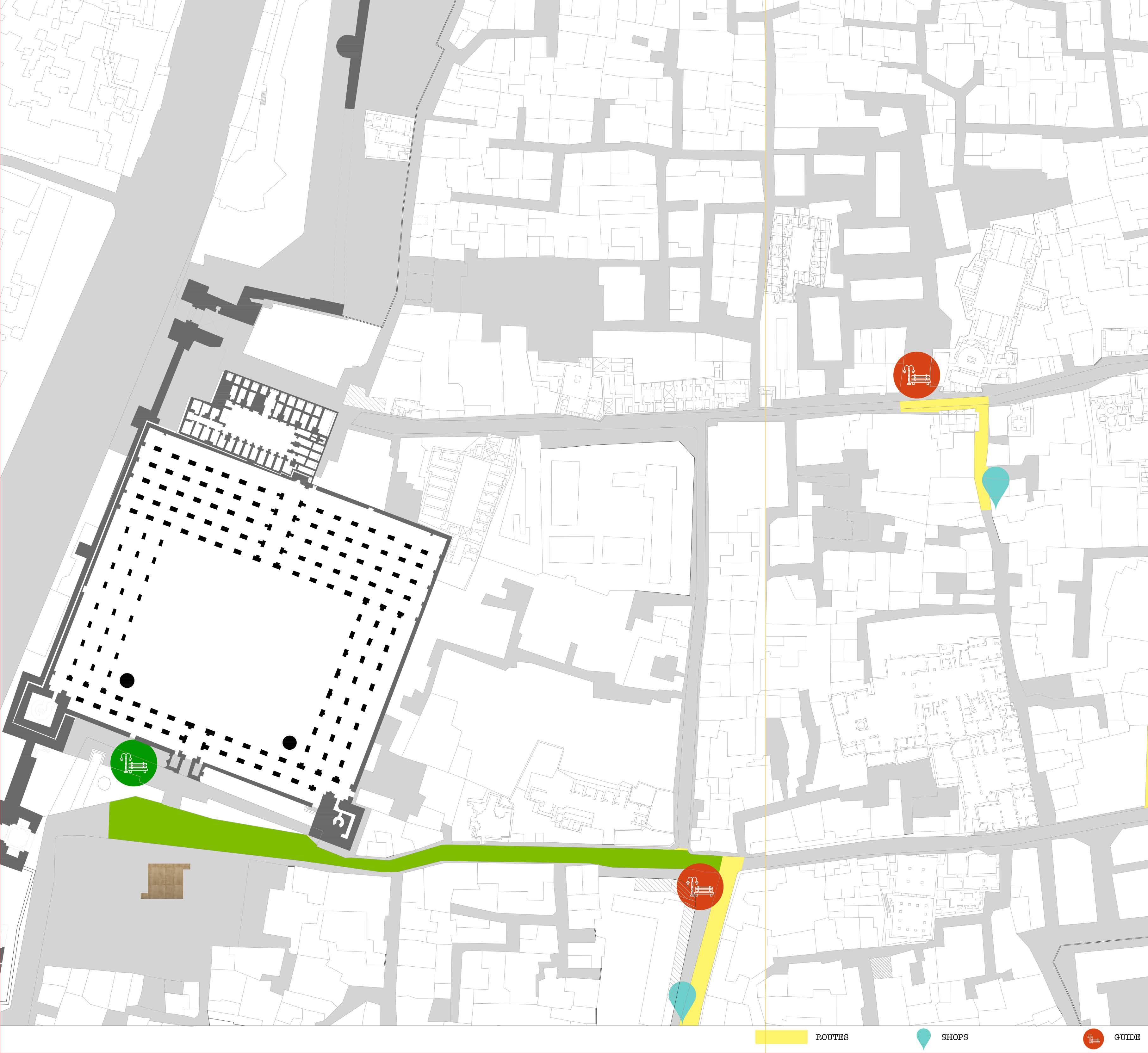

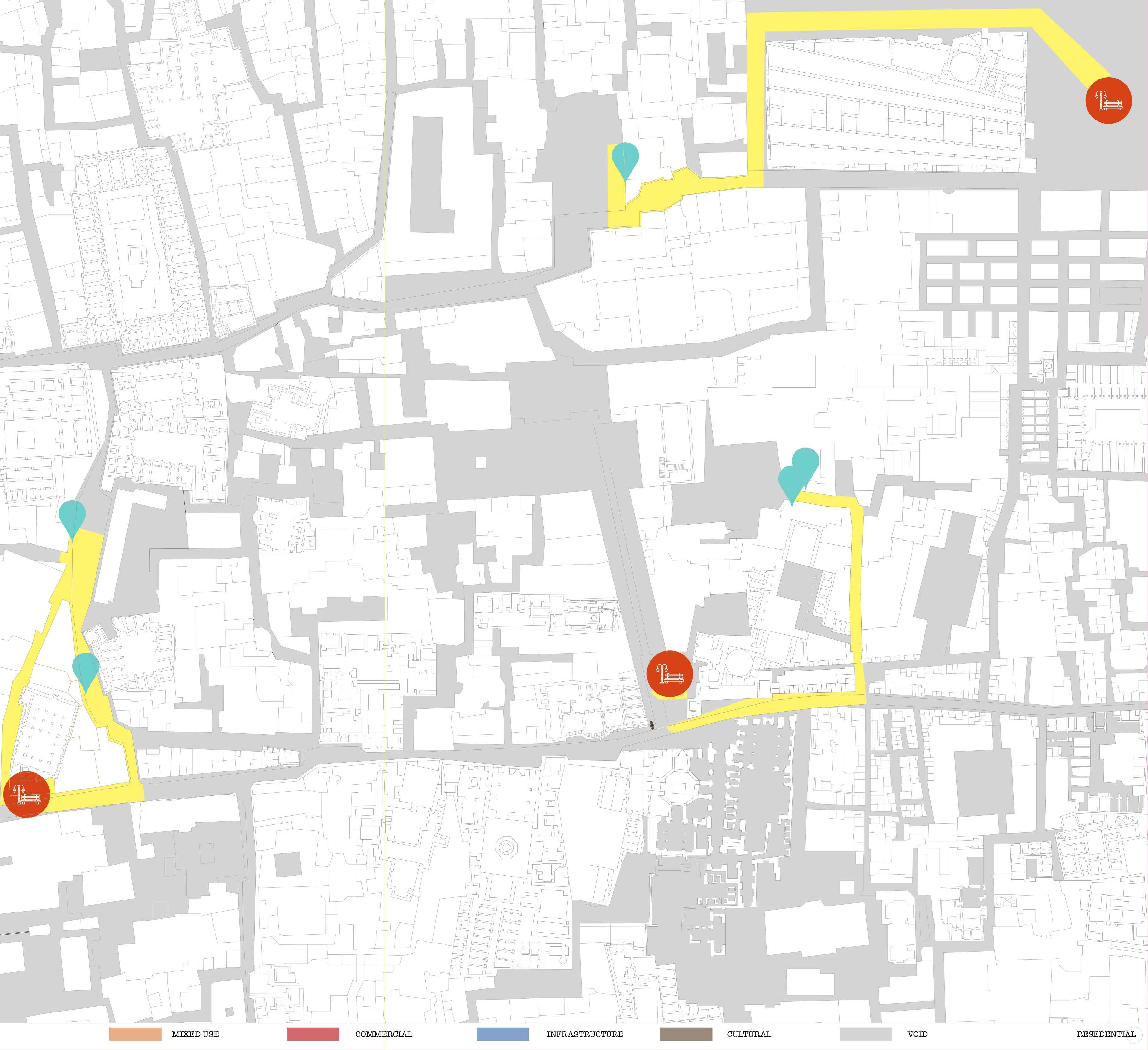

Map showing the location of all the seating units leading the user to different hidden stores.
First Year 3D Model Making Creativity courses

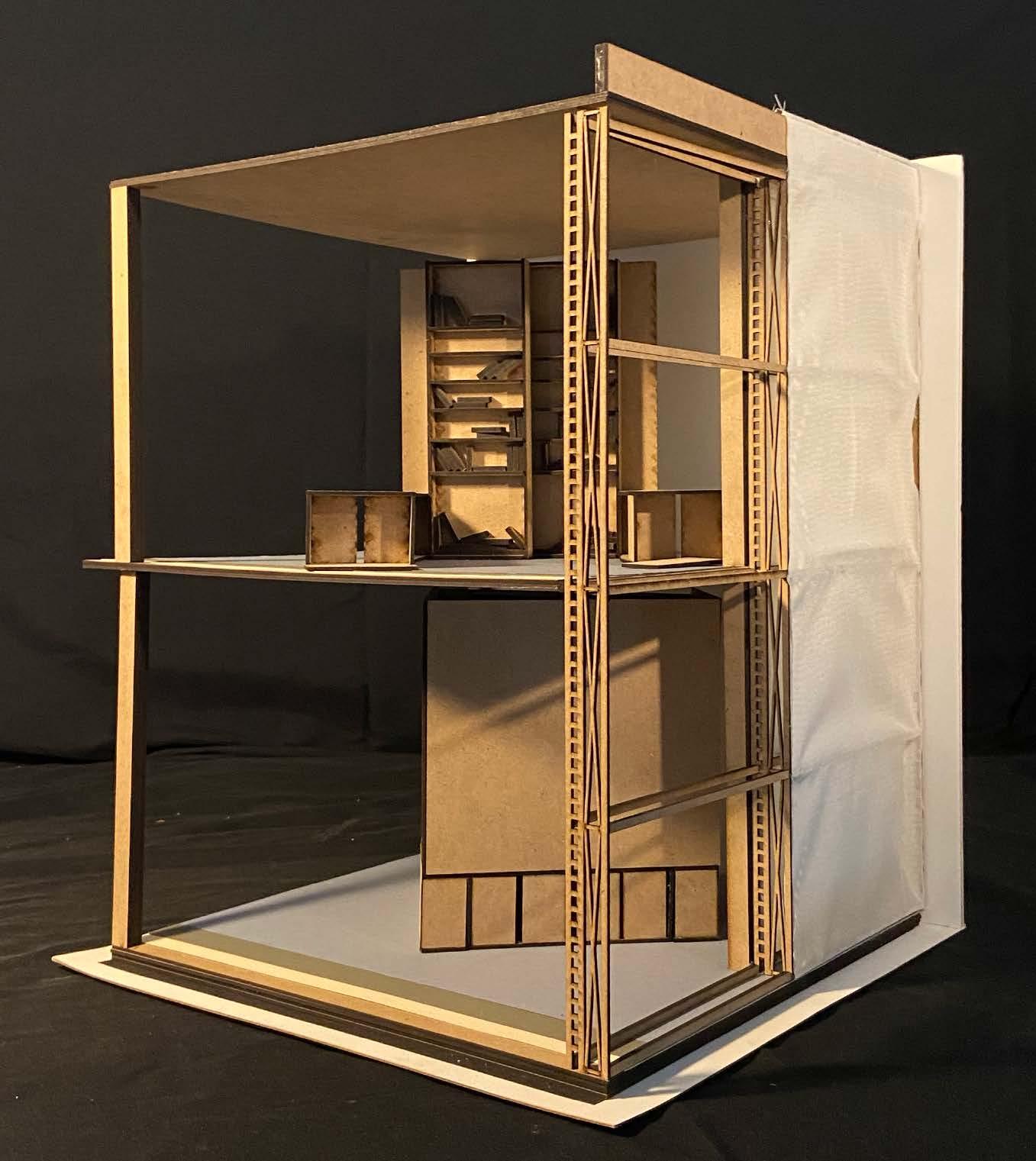

Experimentation with different materials, and thinking within the 3D space are important skills to have as an Architect. The introductory courses of the first and second semesters helped a lot to develop these skills.

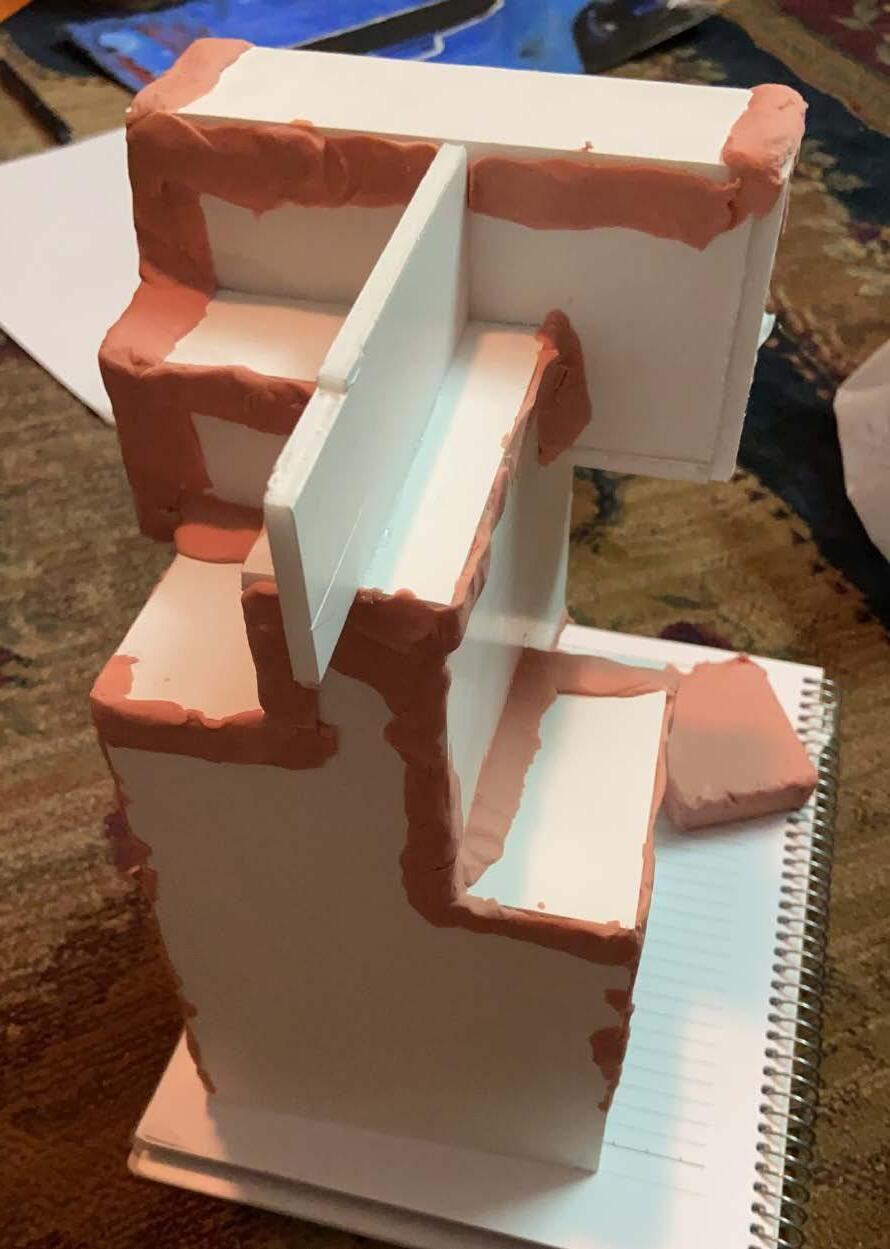

Creating a 2d template of lines and dotted lines, that when you follow the instructions, it builds a model that is architecturely interesting.

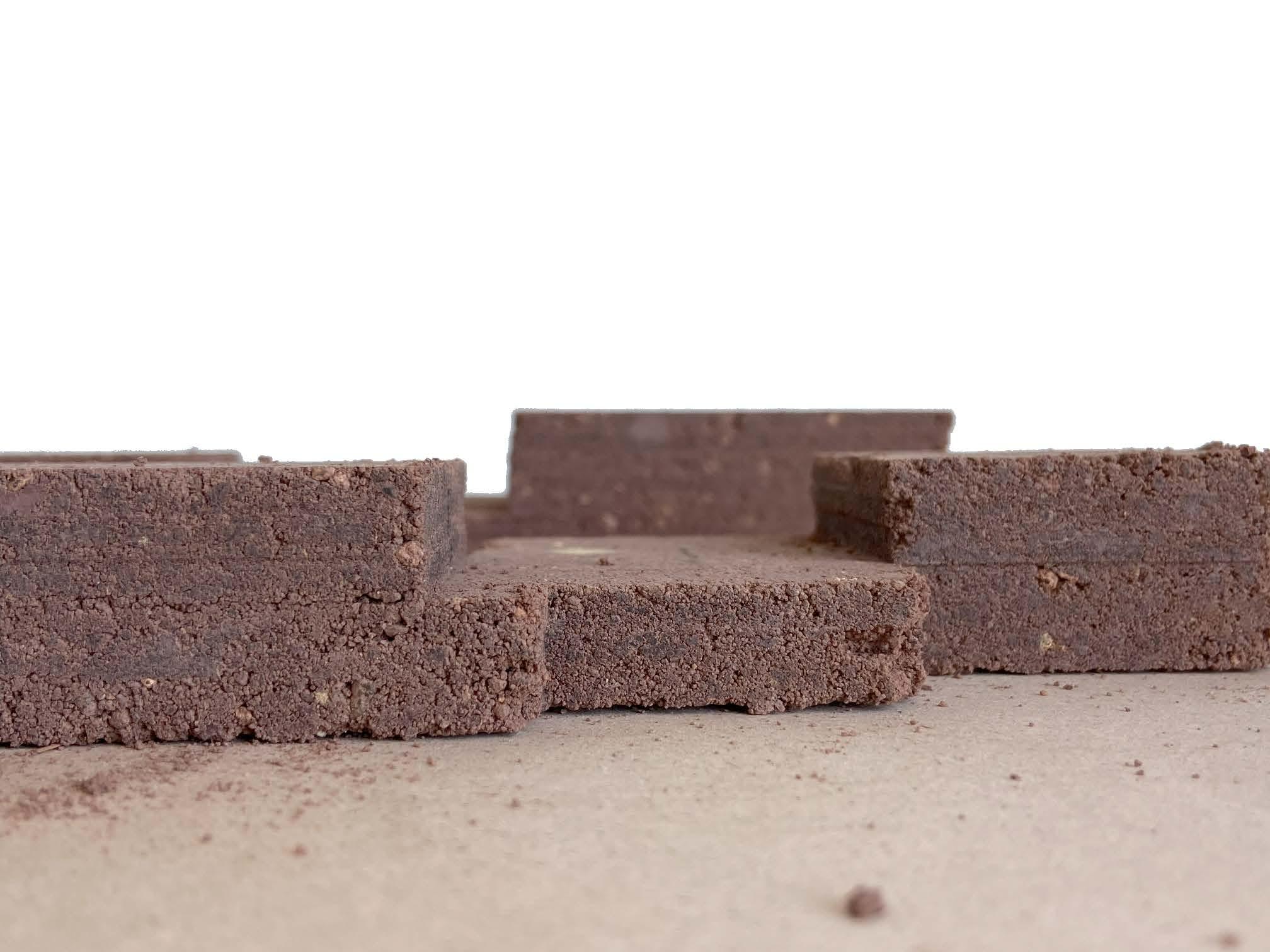

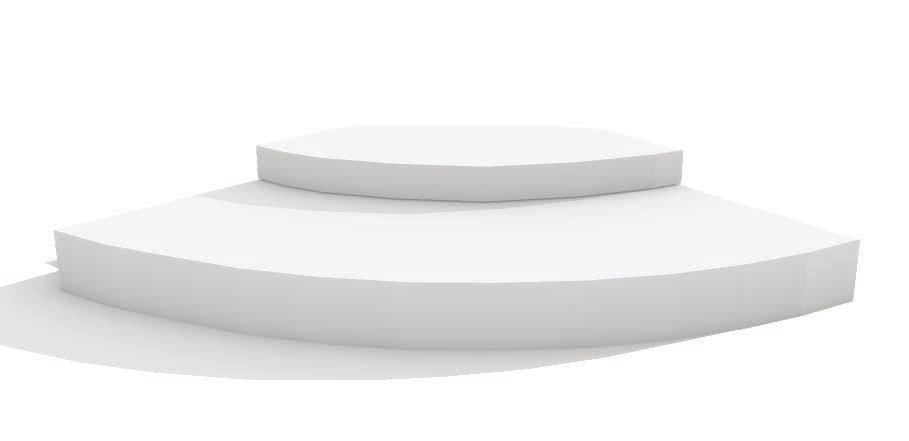

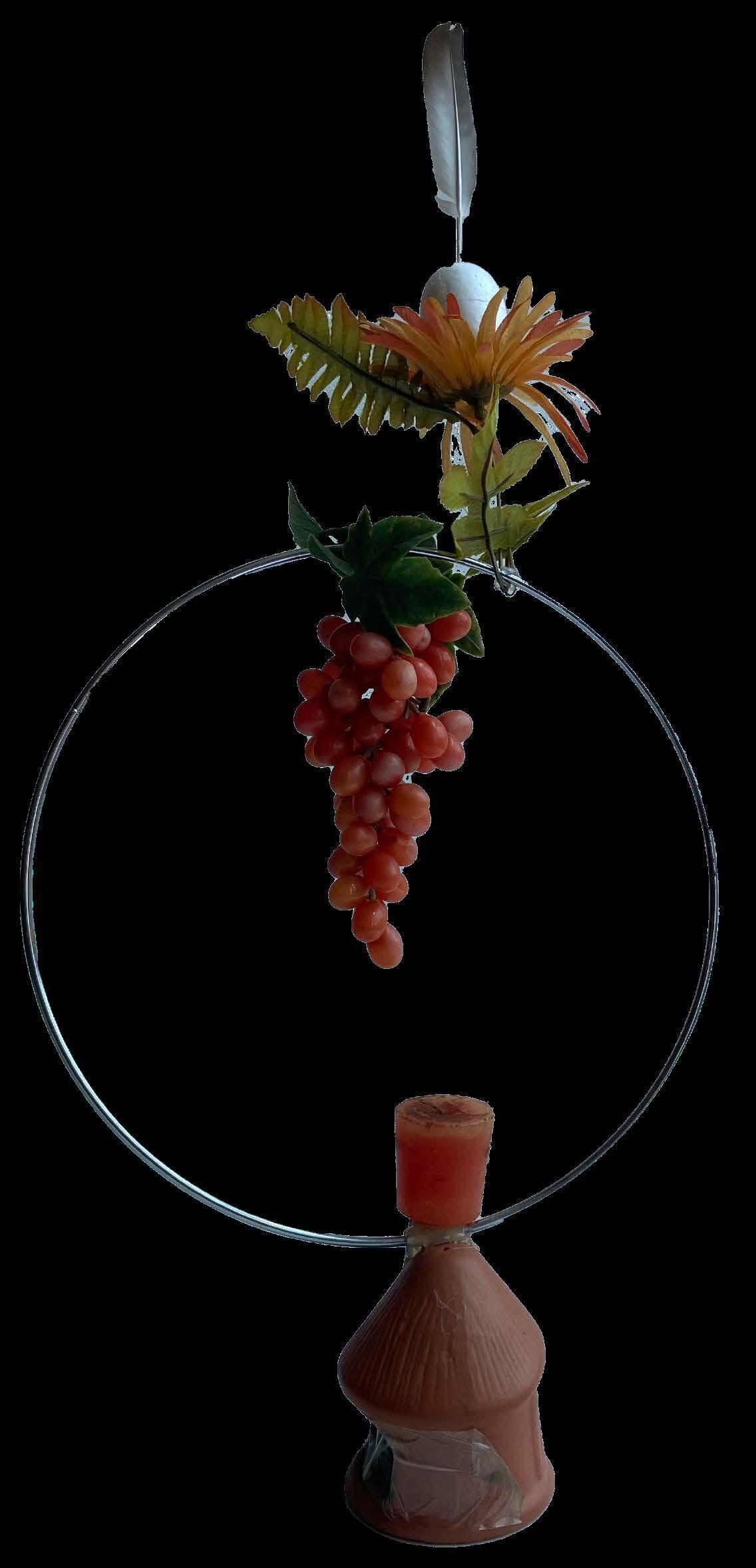

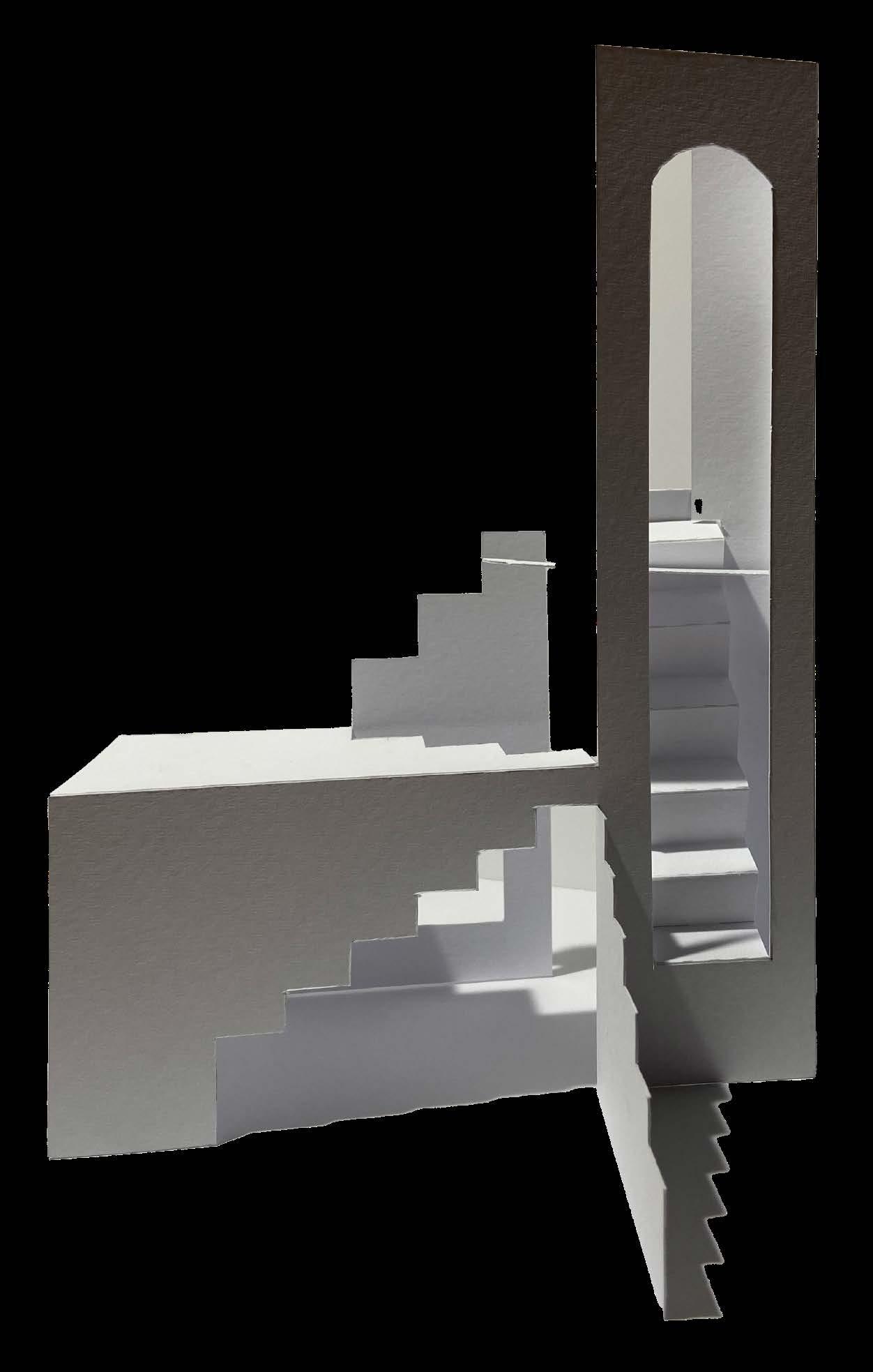

Model built from random objects found home, expressing an imaginary planet

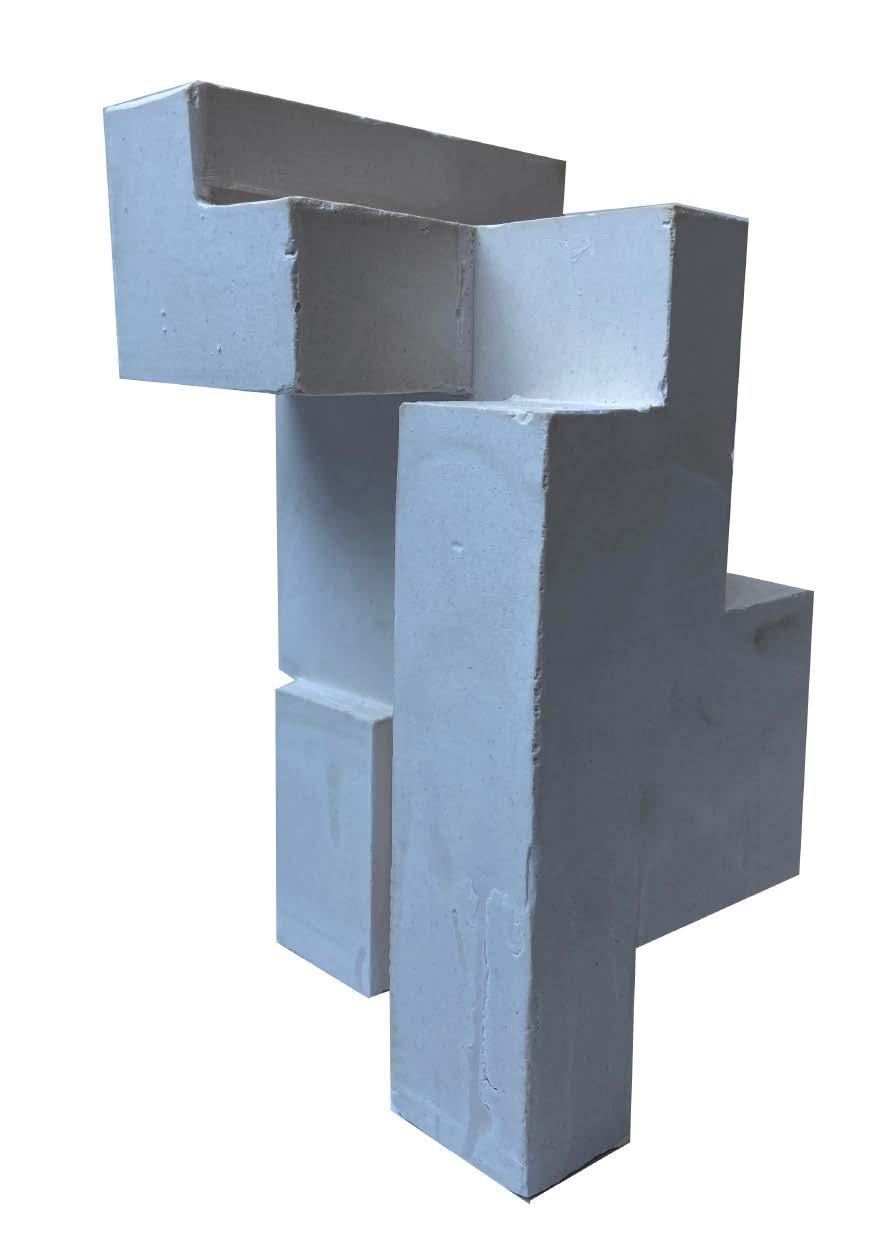

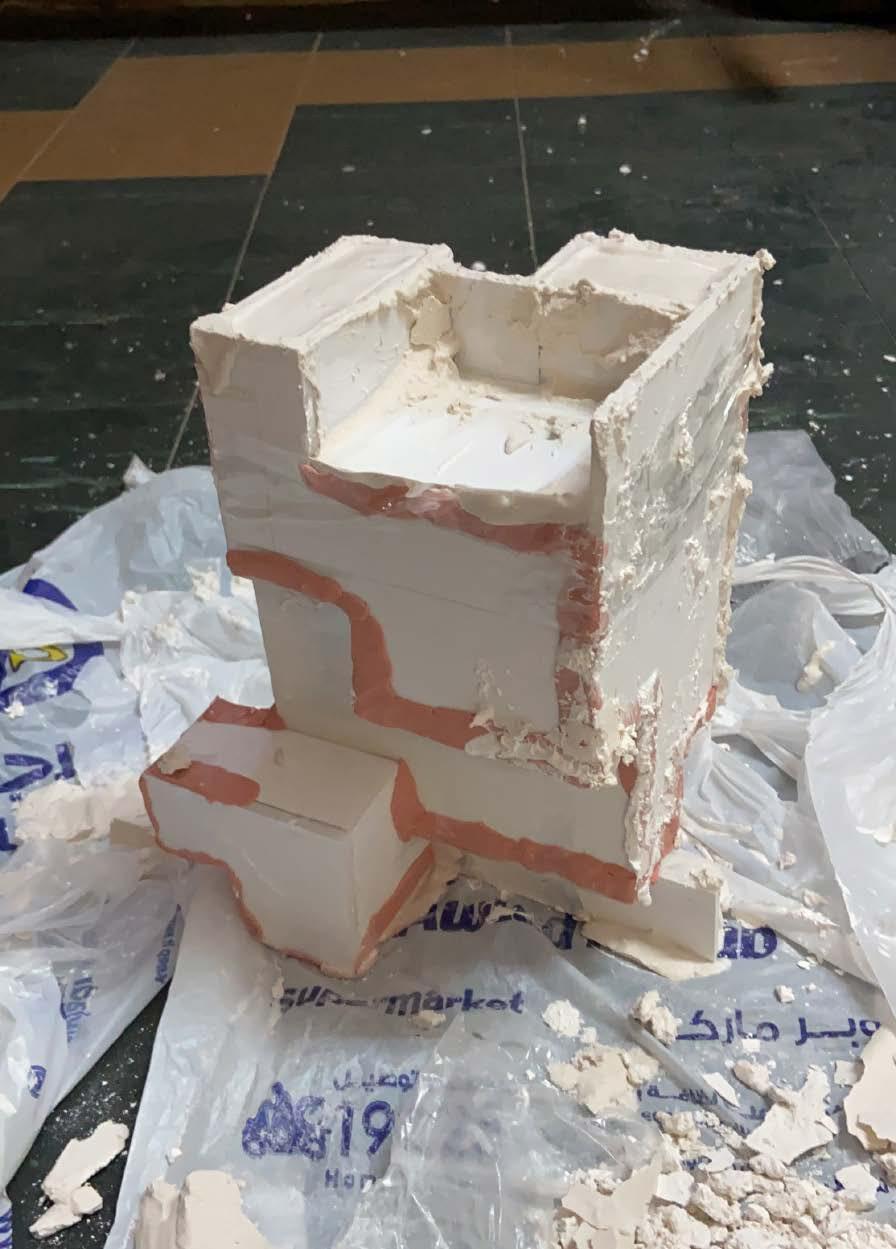

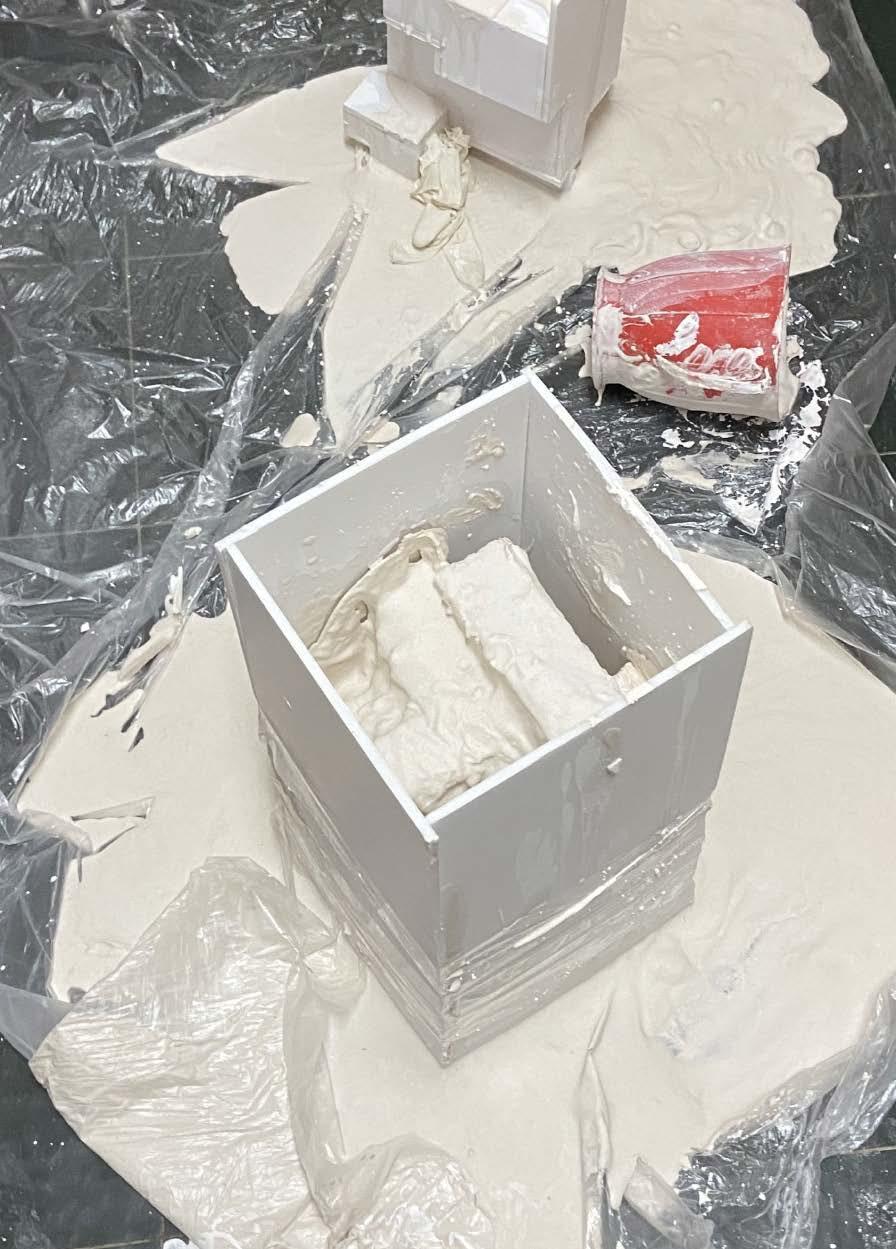

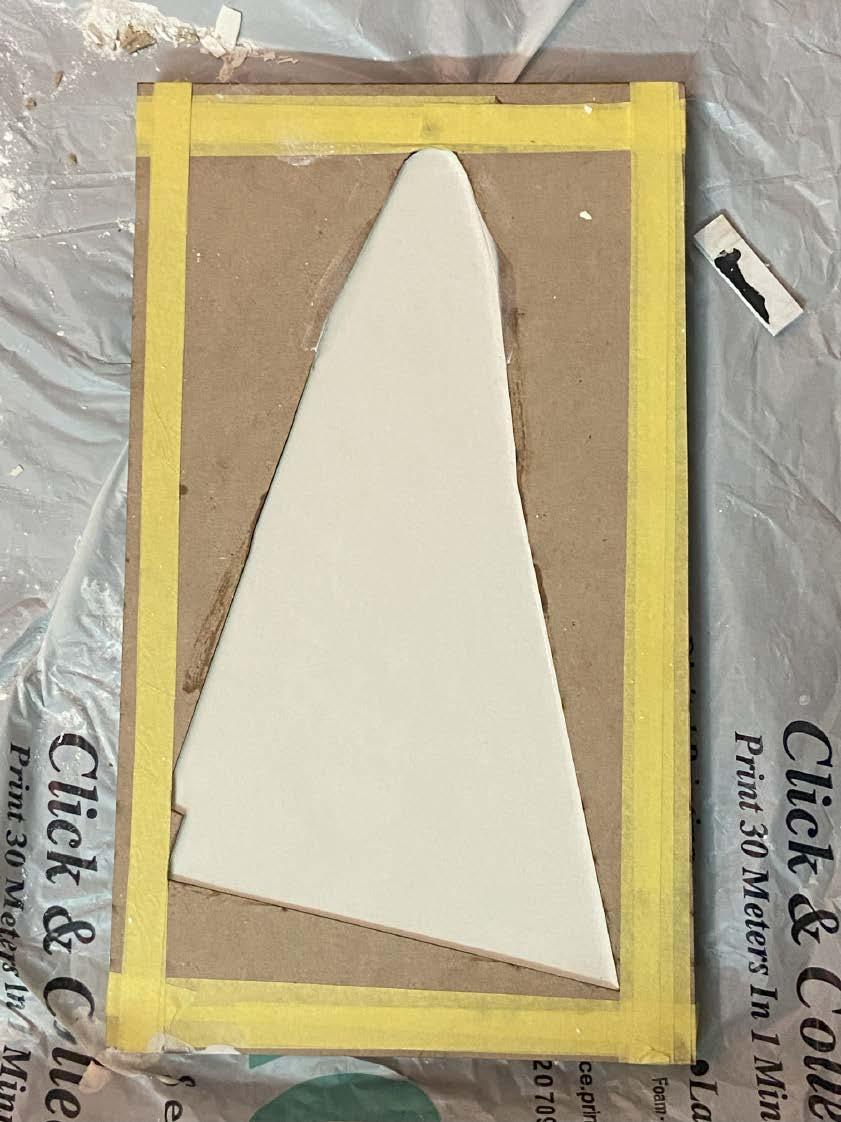

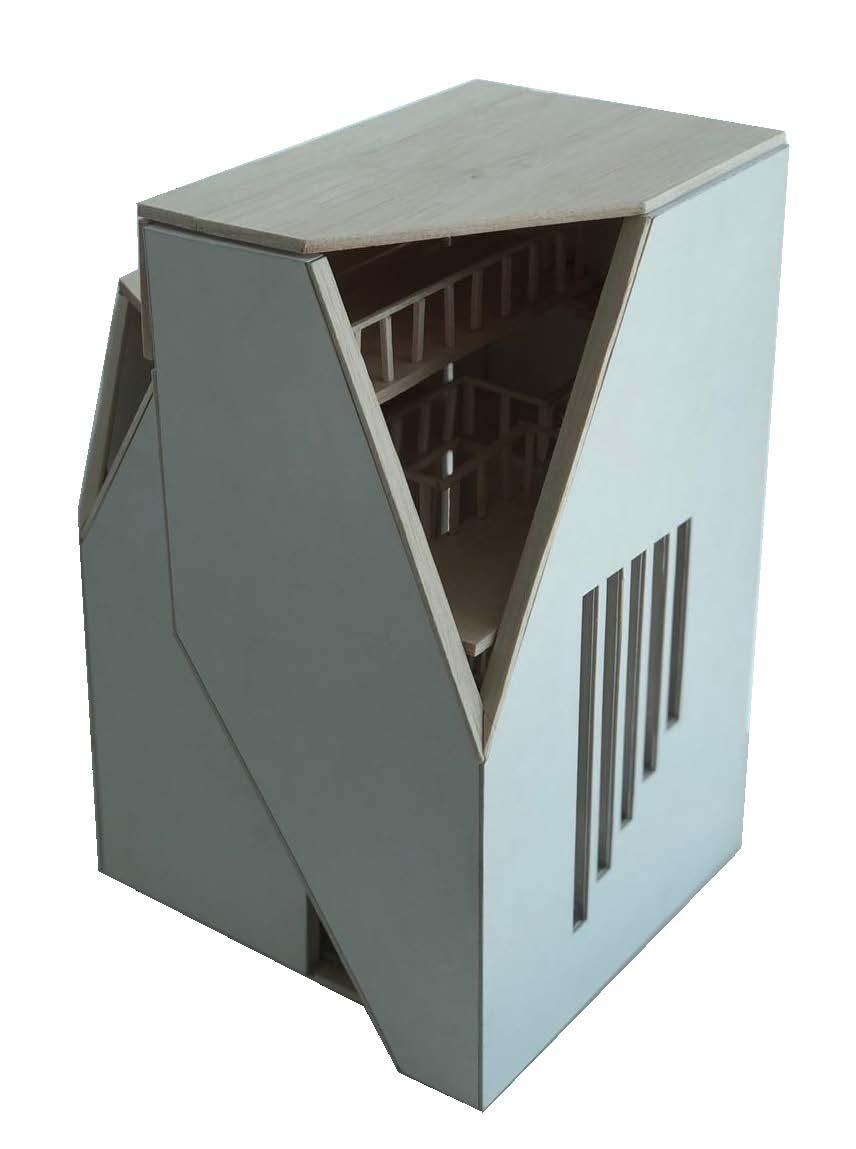

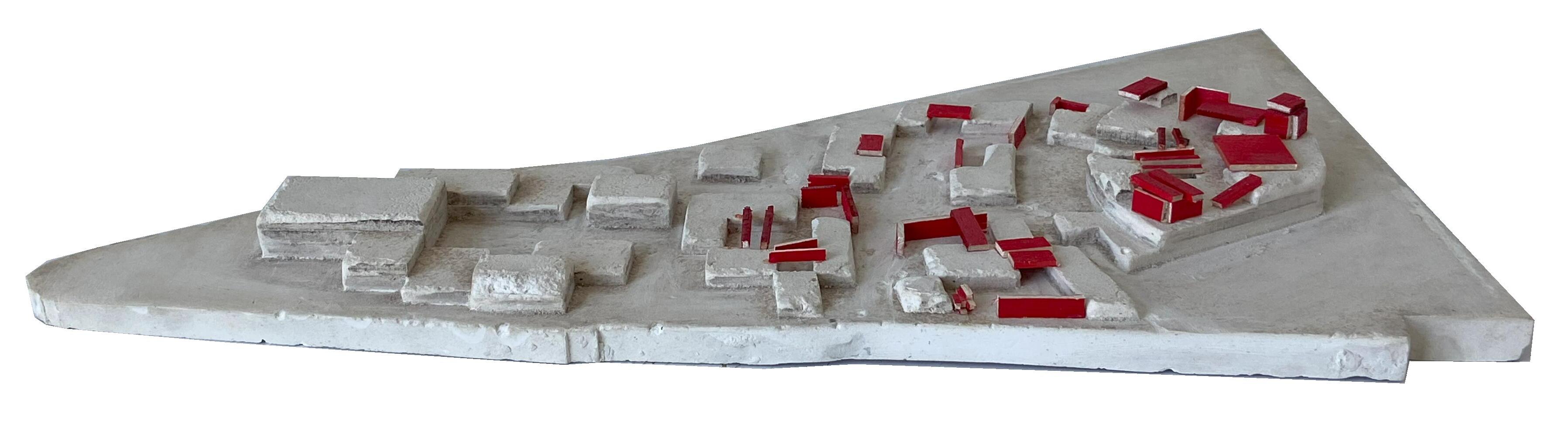

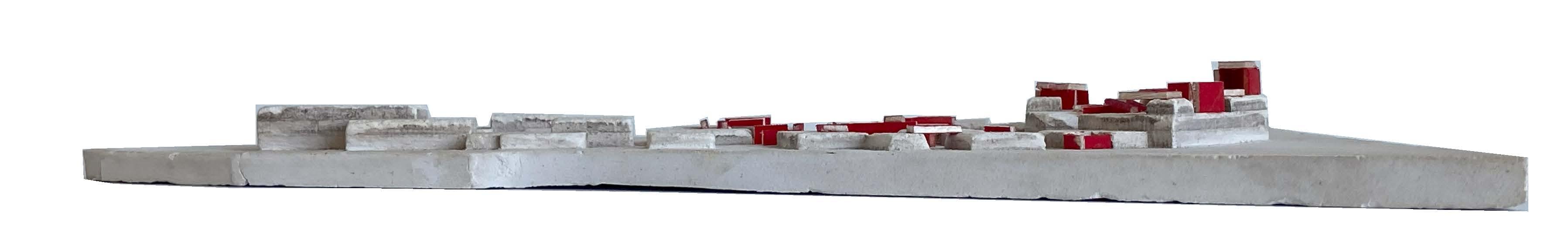

This project was based on the past project of the alternative planet, we kept abstracting the model and the final one was built with gypsum.

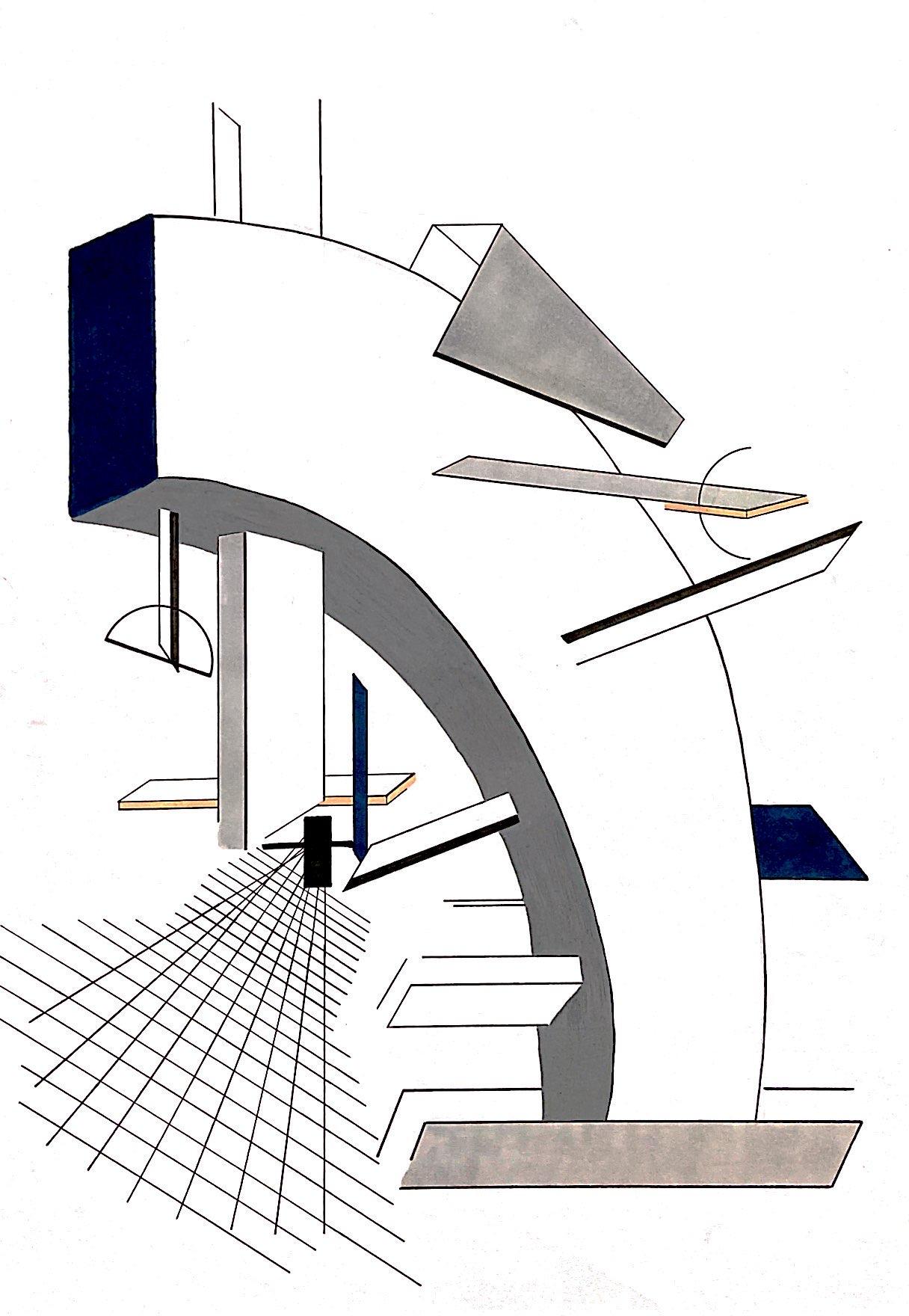

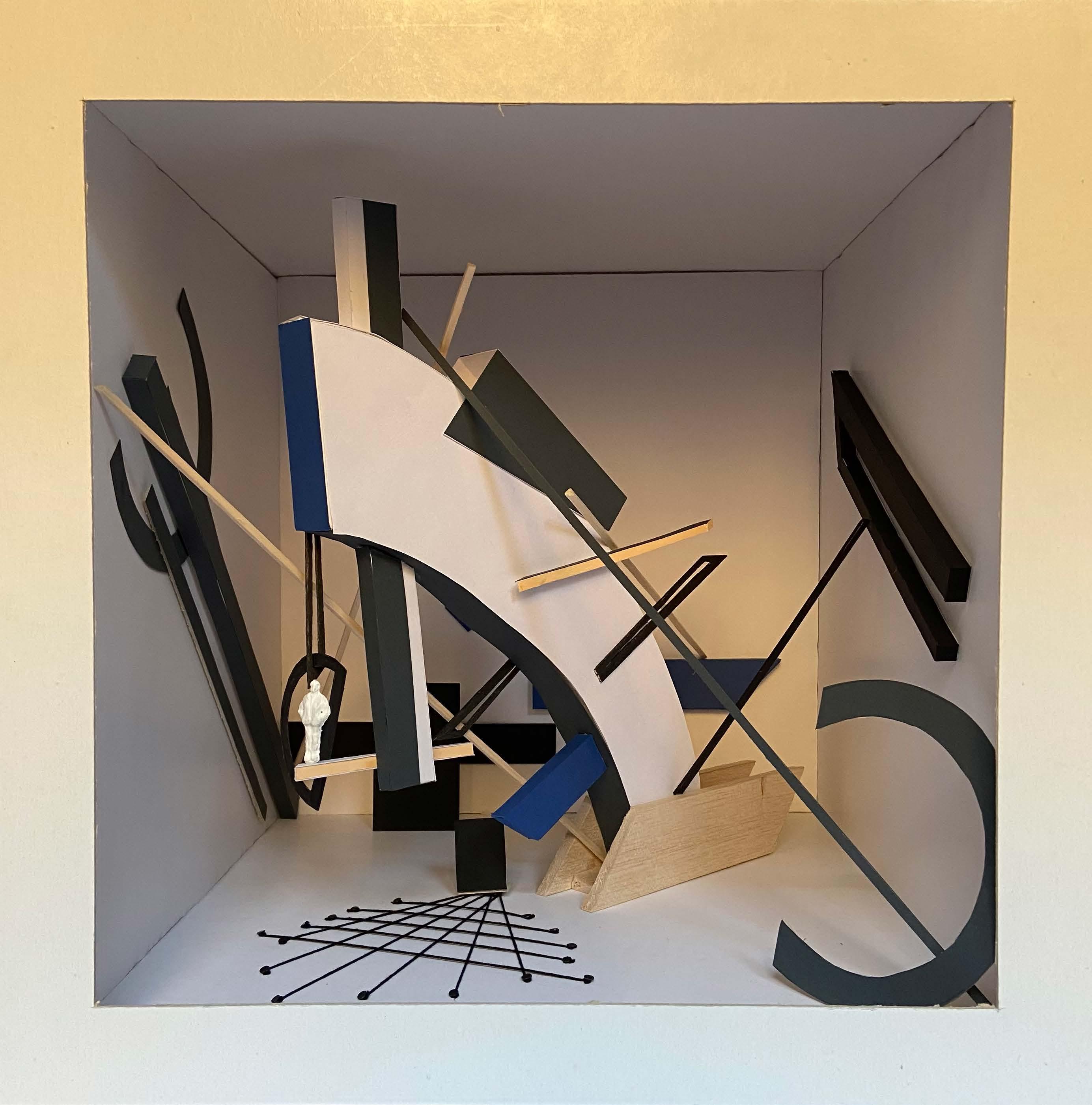

Turning a poster of abstractions that we designed into a physical space in a box.

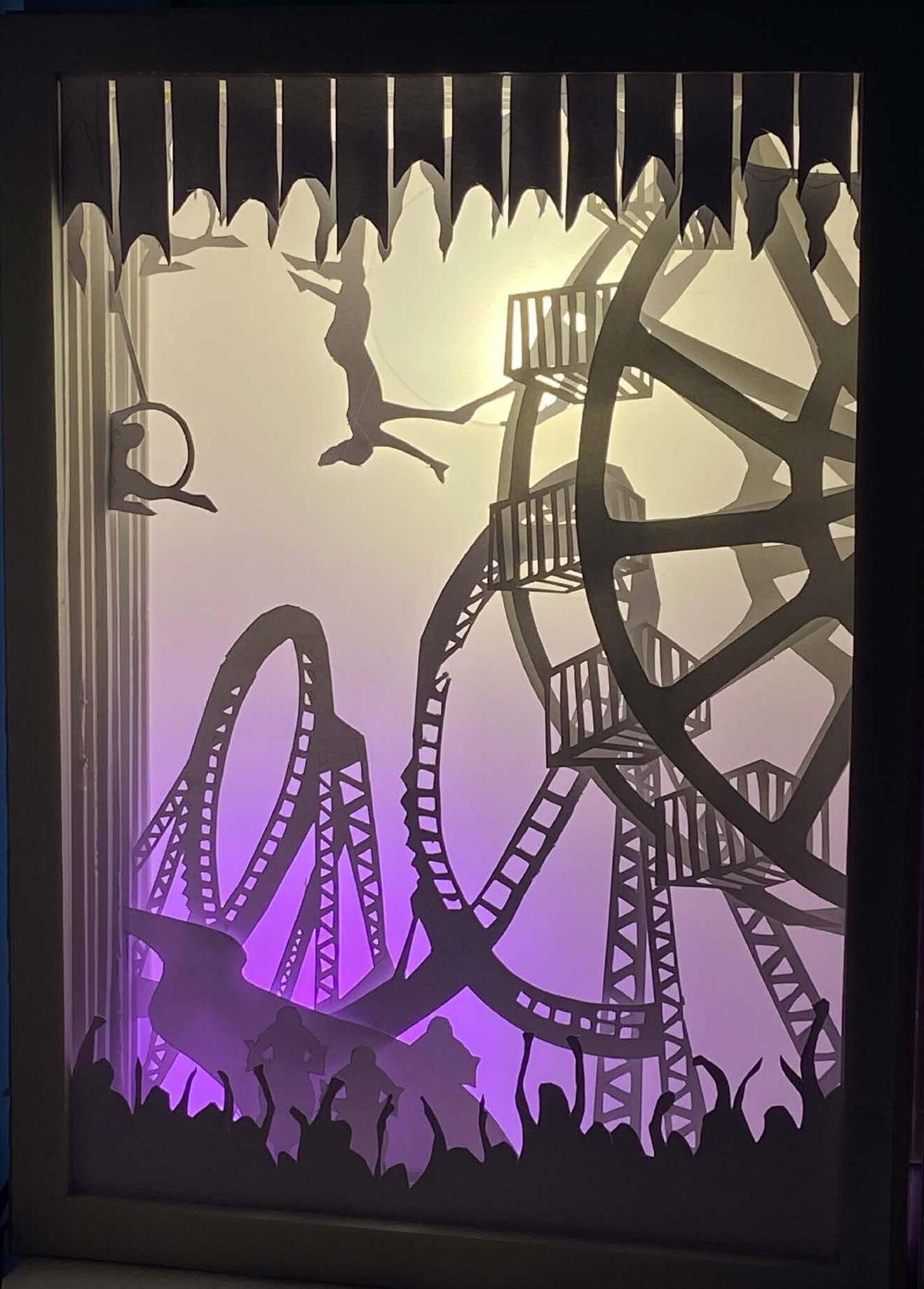

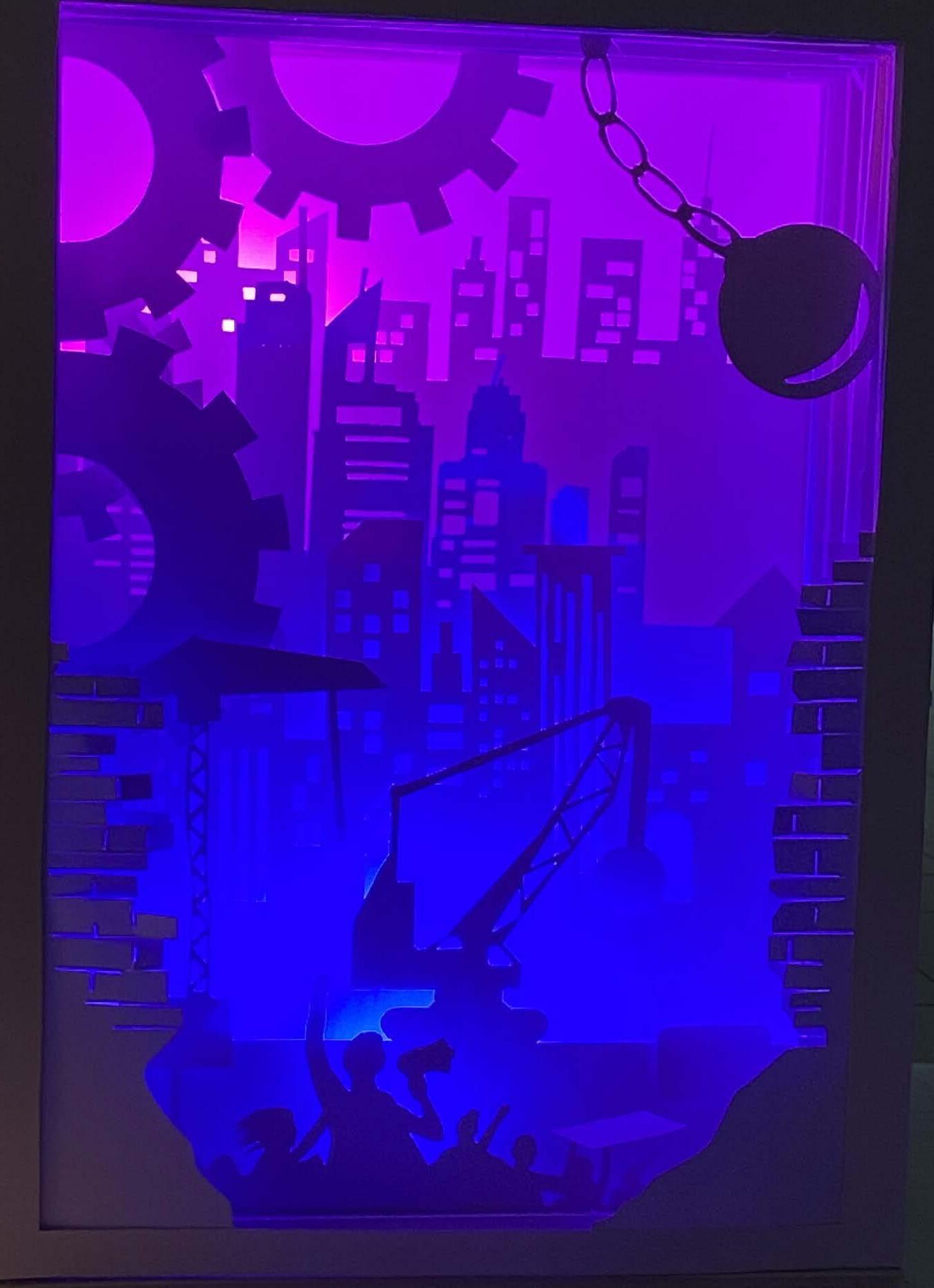

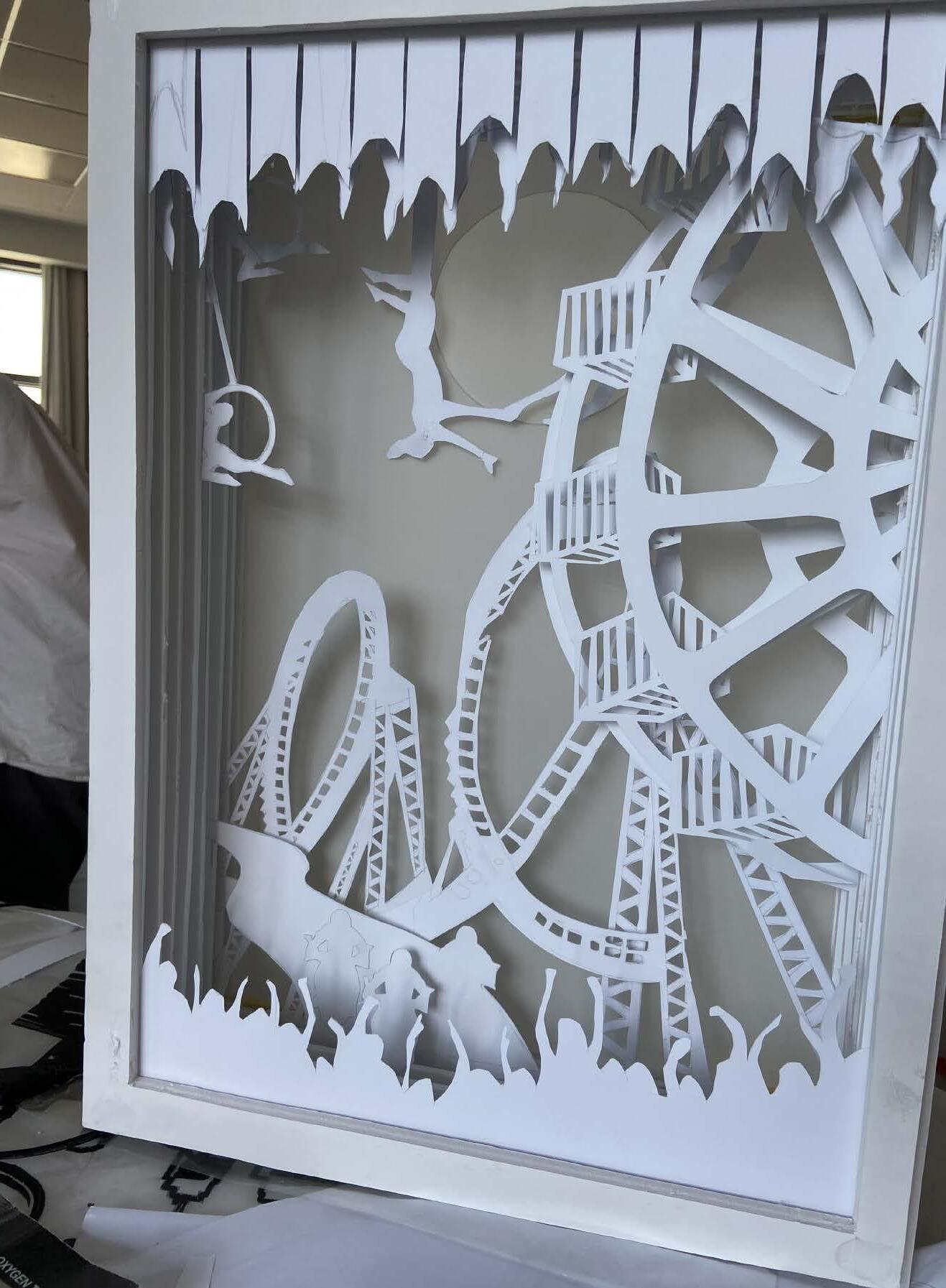

In this project we recieved a text that told a story, we were to design a scene according to this story. After designing it, we modeled it and placed different layers with different spacings to create this 'shadow box'
