Architecture Portofolio Ziad Amr
House Of Light
Azbakeya Book Market
Integerated Community Architecture
Bachelor Project
The main purpose of this project is to create a relaxing and soothing Hammam experience in the heart of Cairo to bring back the long lost beauty of public bathing, while providing the opportunity for the community to participate in all the phases of the project, including the design, construction, and functions of the Cultural Hub.

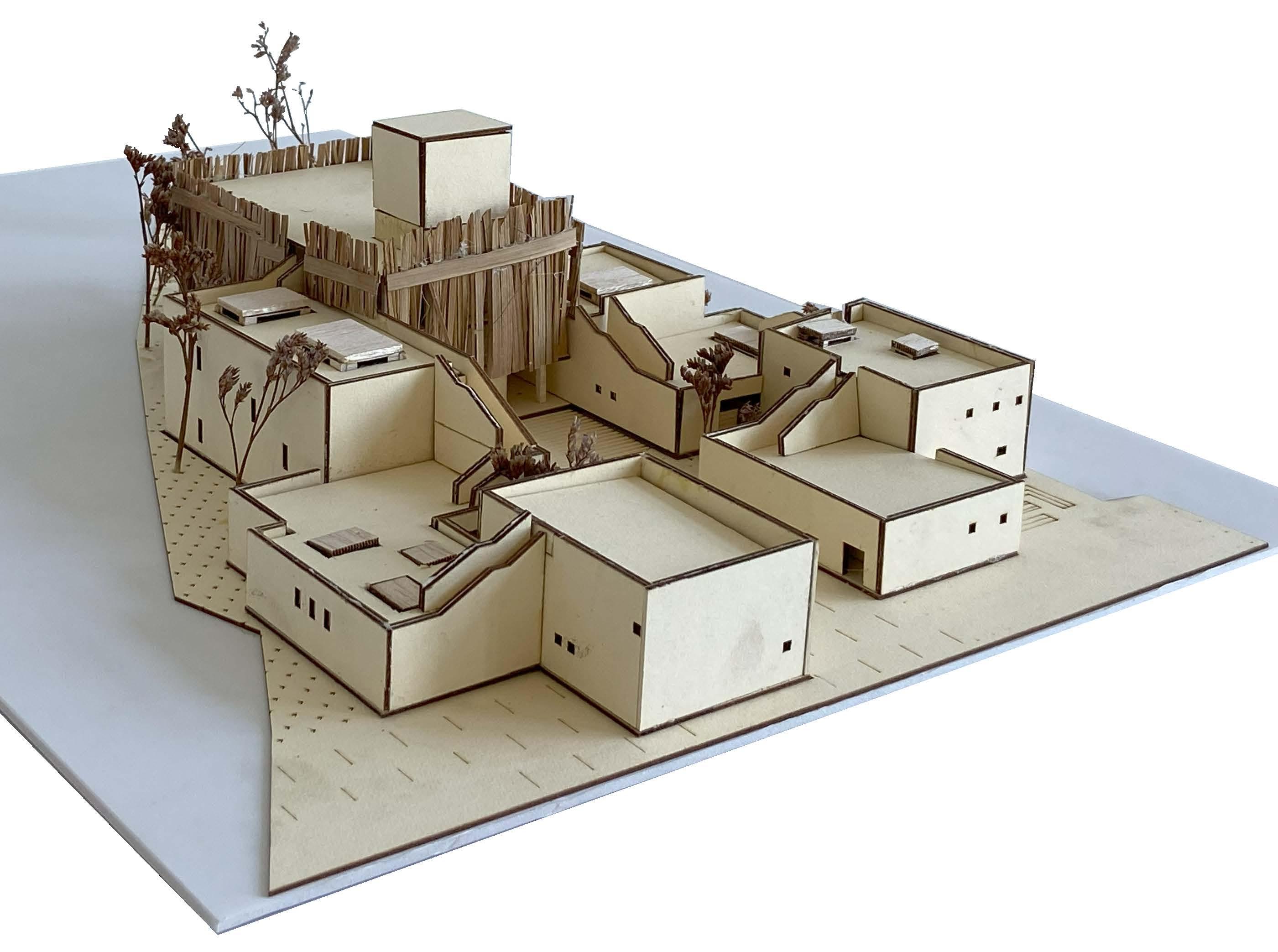

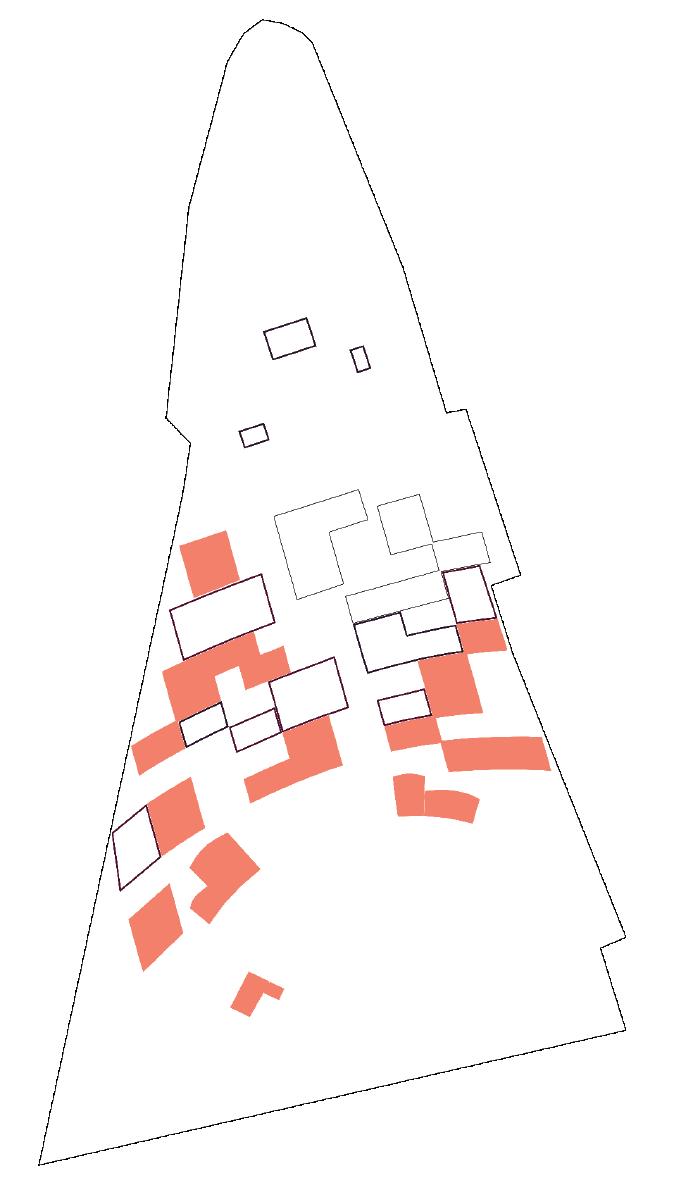

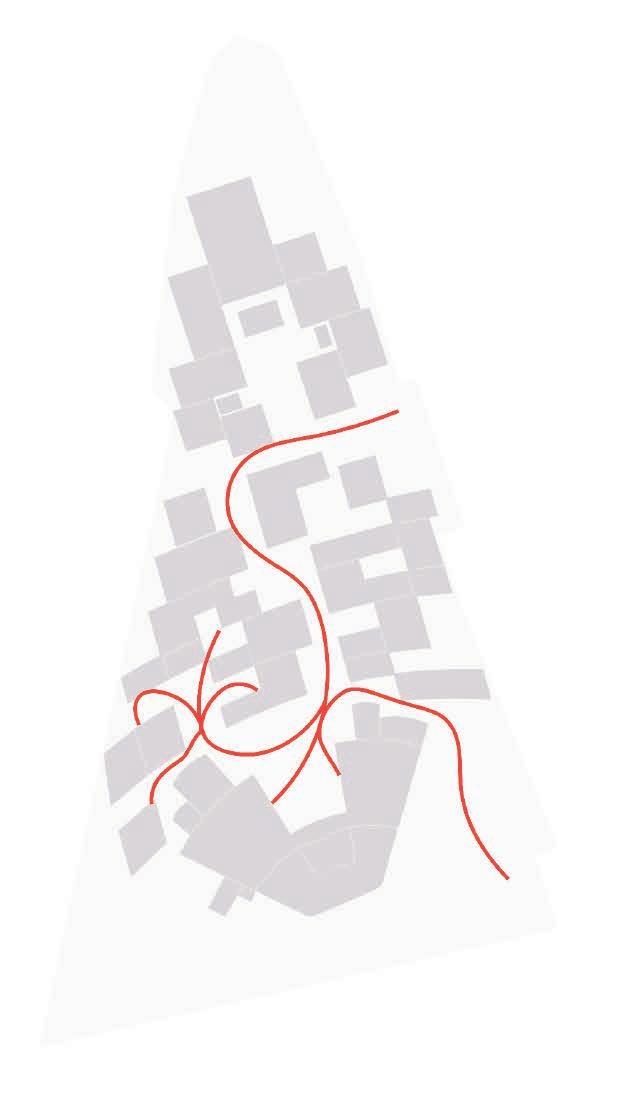

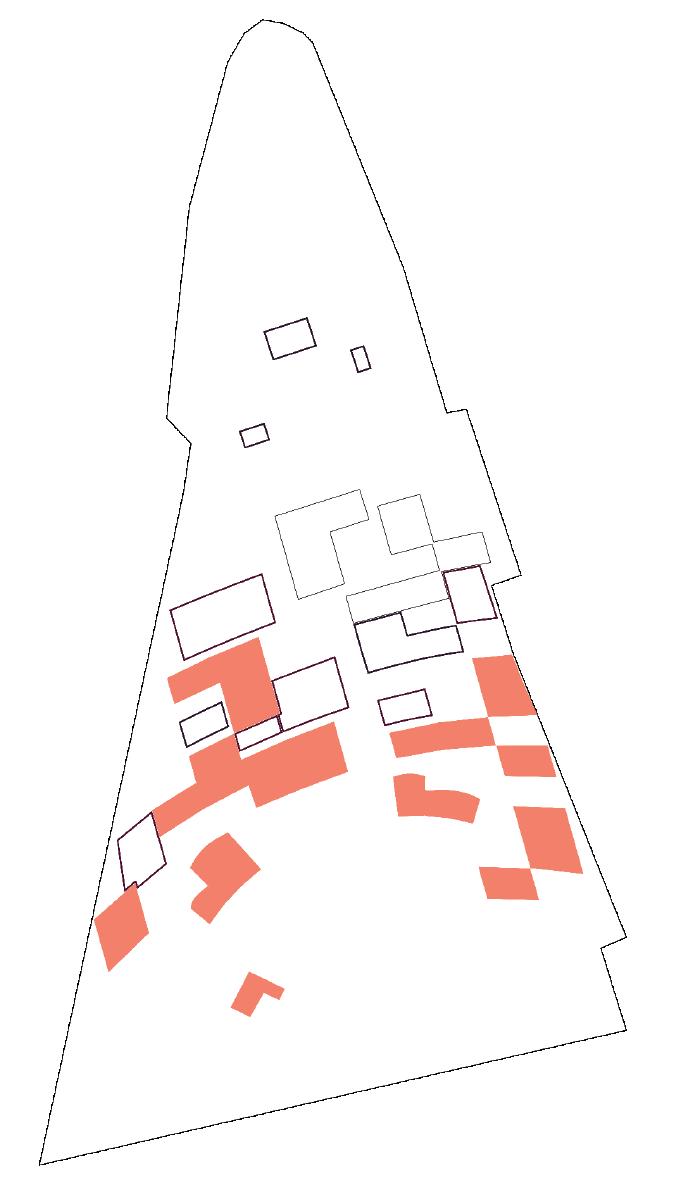

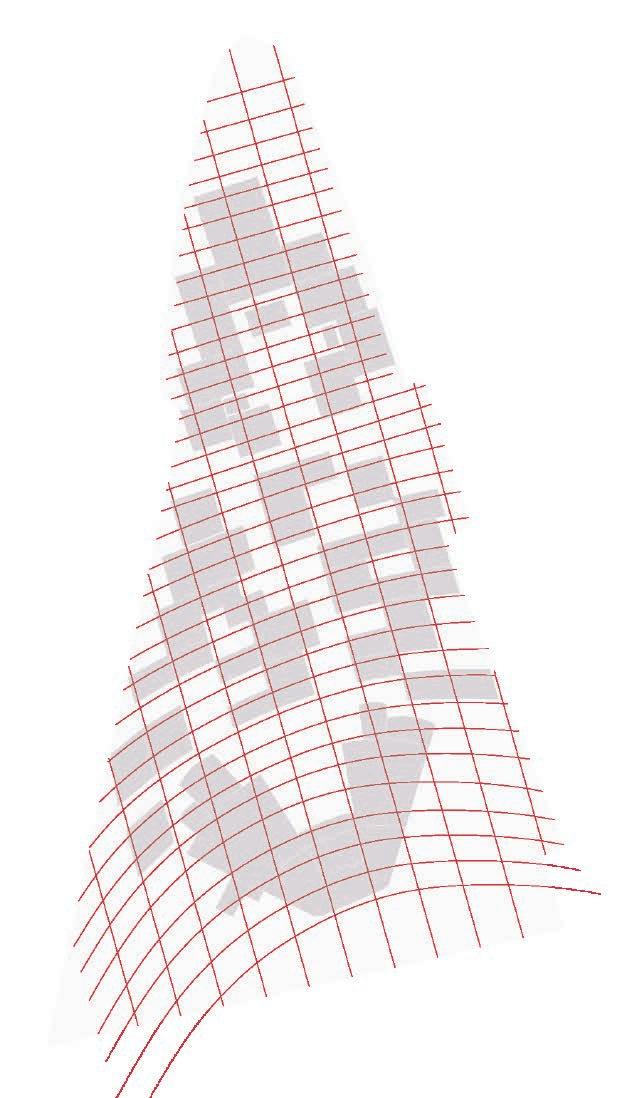

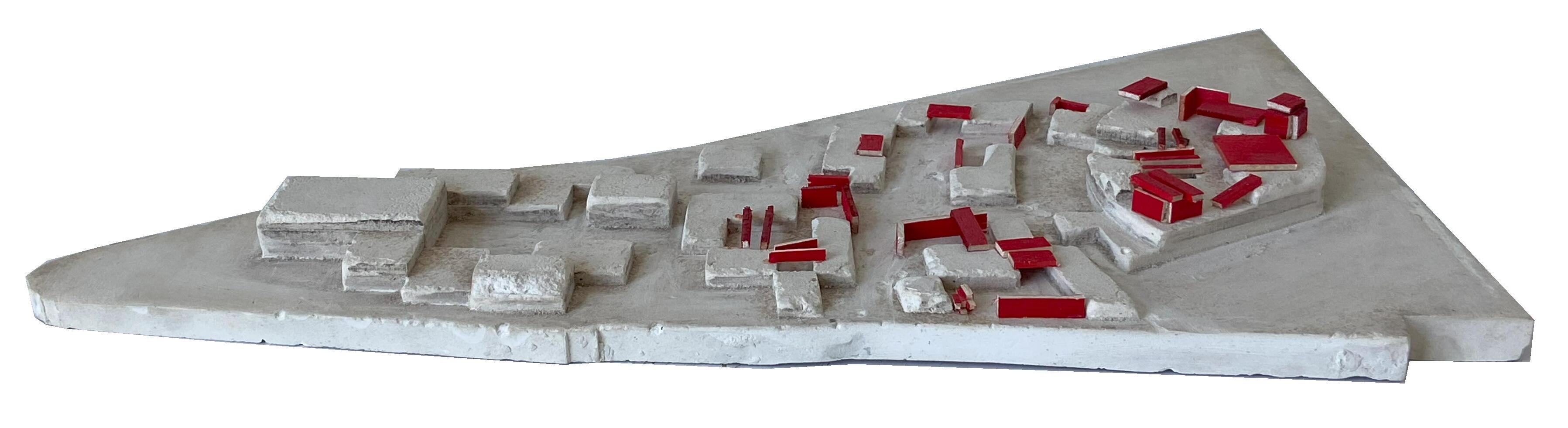

The southern side of the plot that has the abandoned building is dominated by the community and starts to form a more flexible grid, which slowly transforms into a more rigid form ending on the northern part with the Hammam which is dominated more by outsiders.

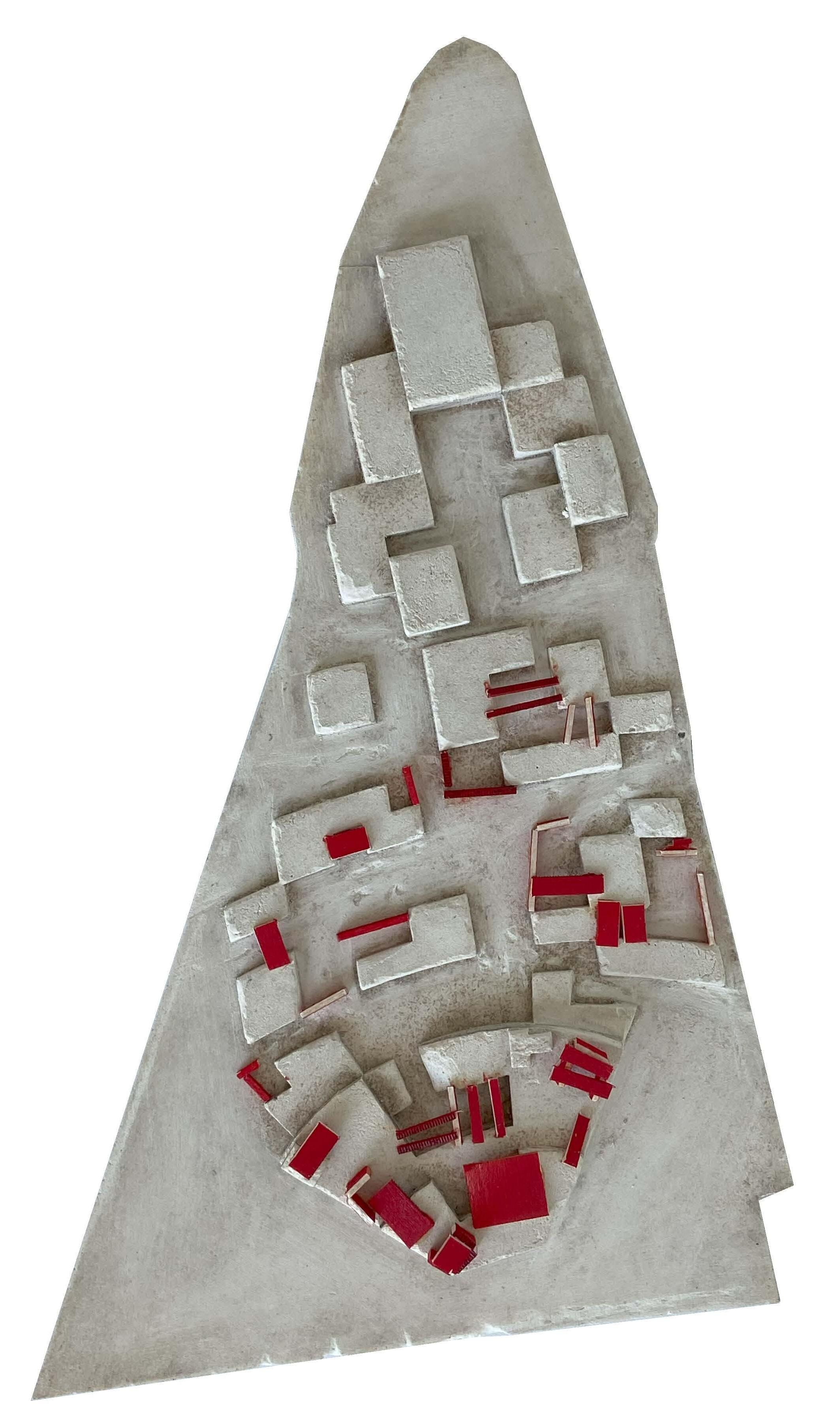

Those two big masses at opposite parts hold the space for the communities participatory activities happening in between.
Year: 2024
Semester: 8th Semester
Supervision: Prof. Christian Schmitt
Collaboration: Individual

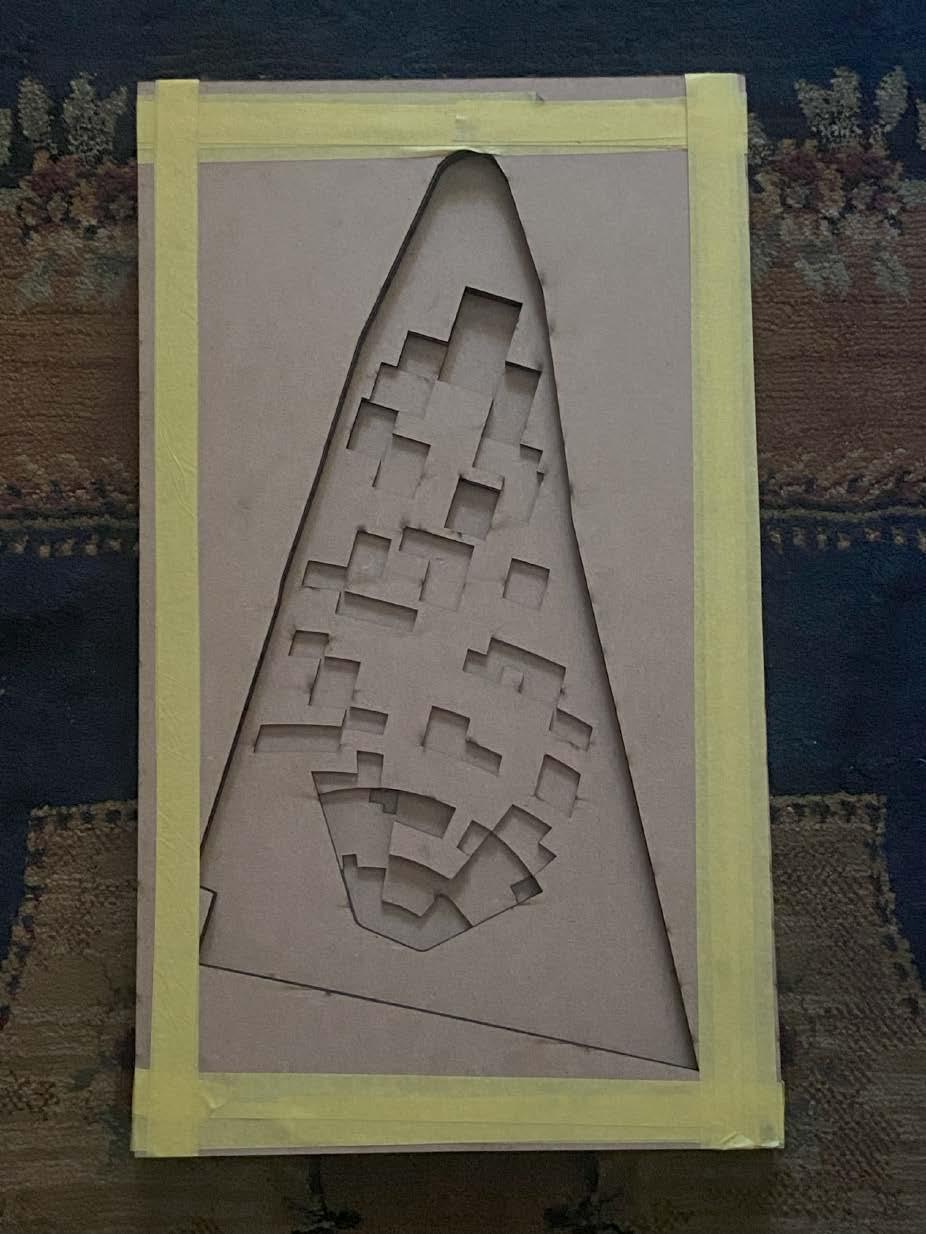

Island Plan

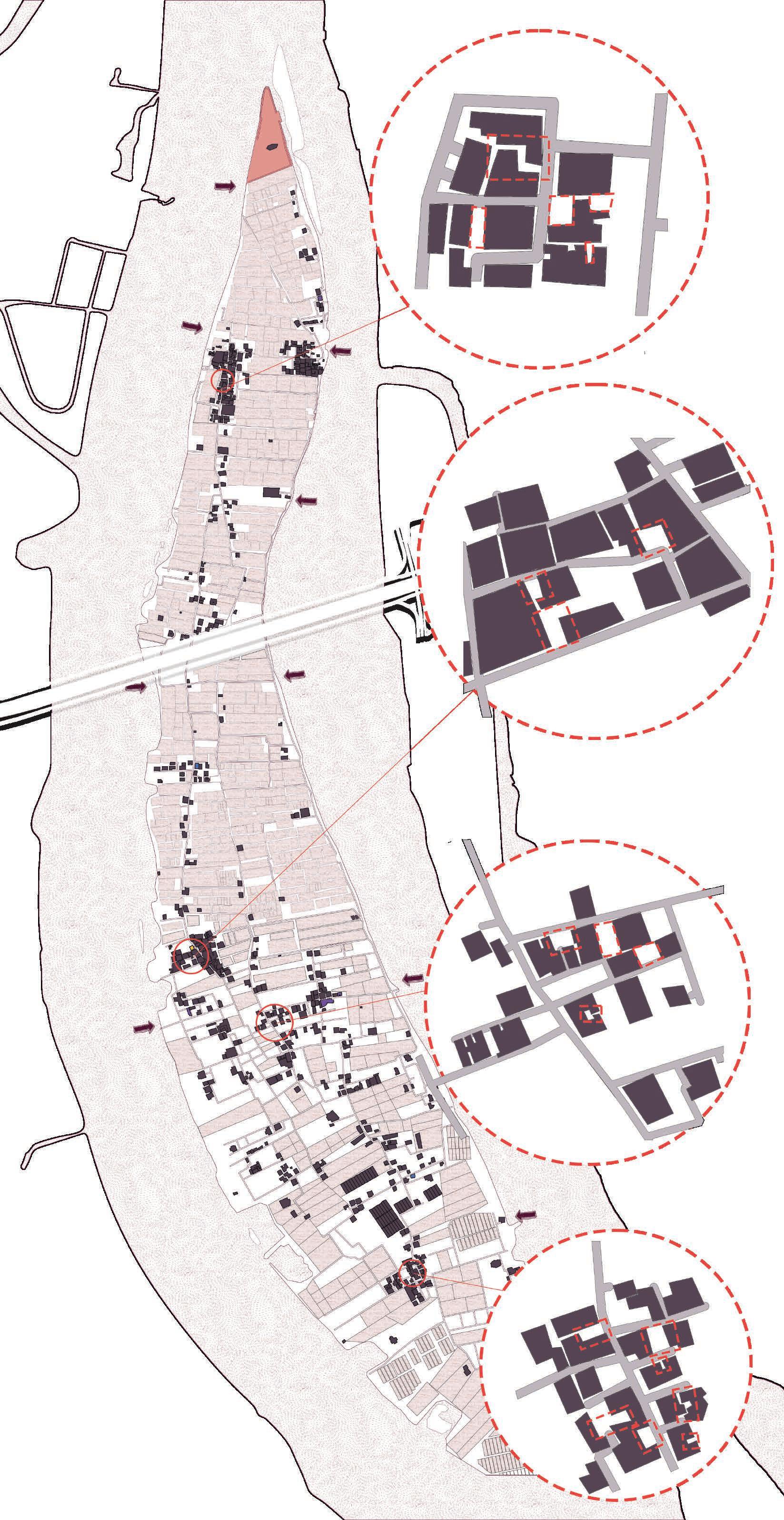

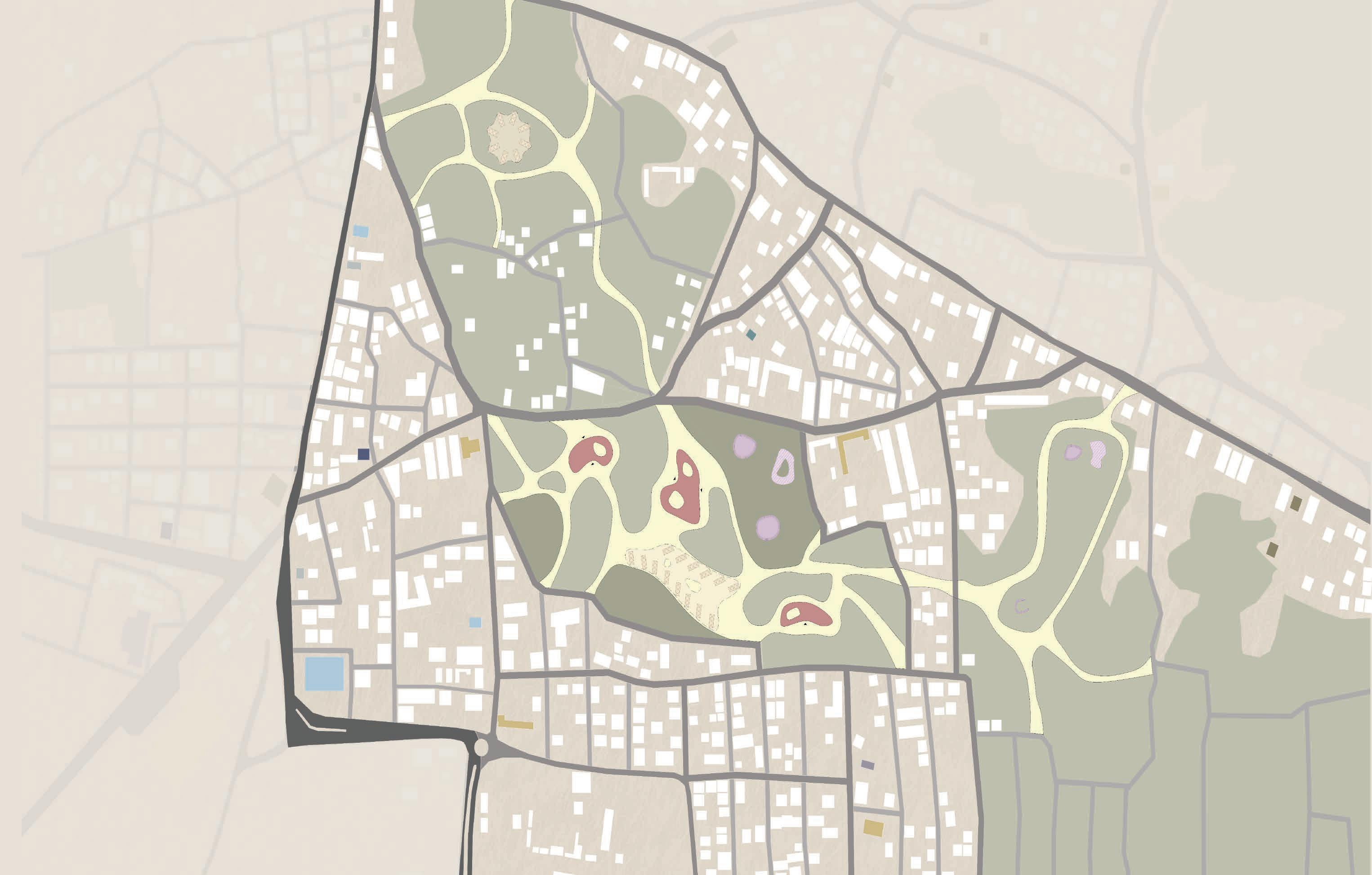

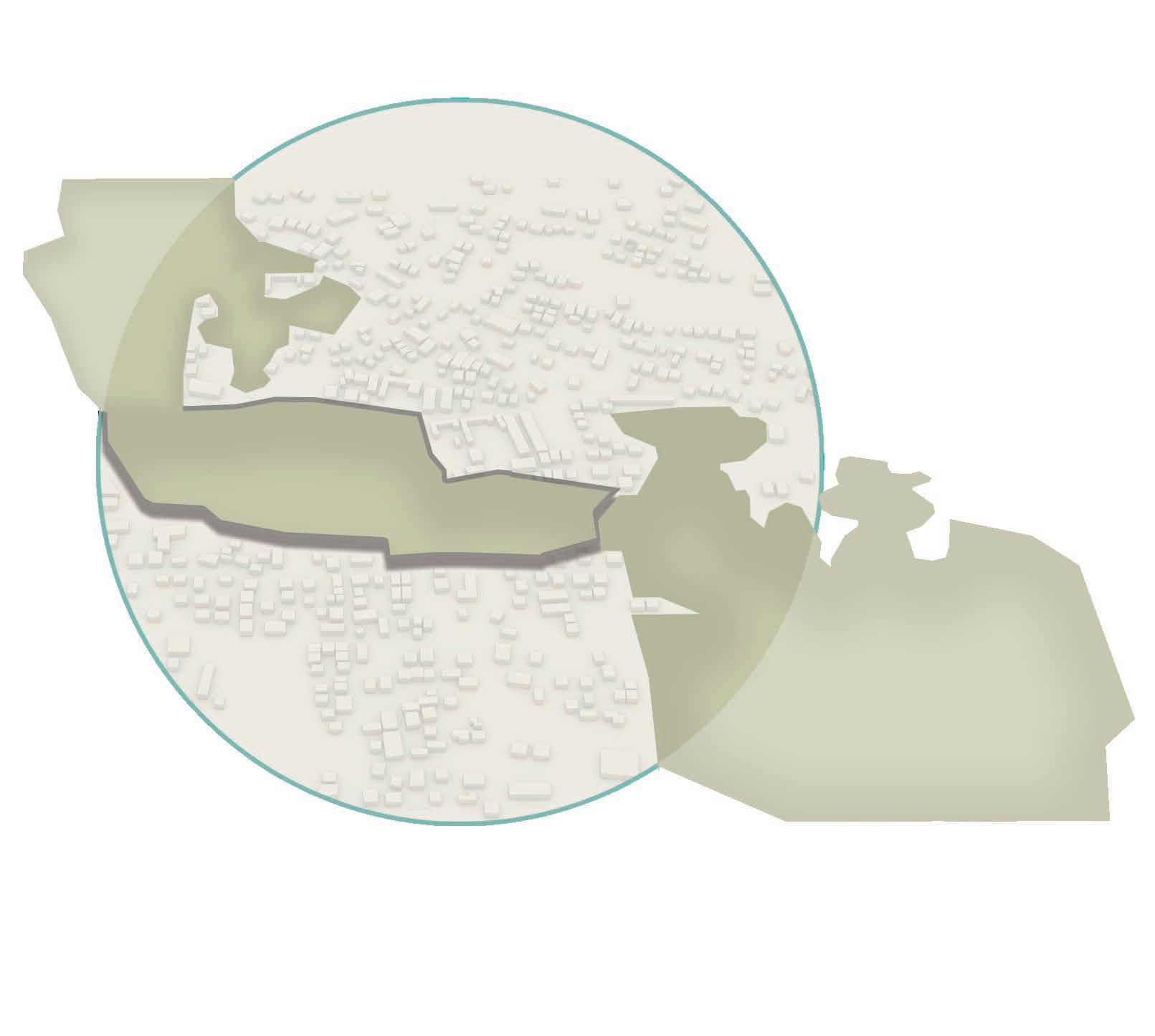

Site plan 1:5000 scale. (not drawn to scale) this scale shows the whole island and it's Urban Fabric identity.

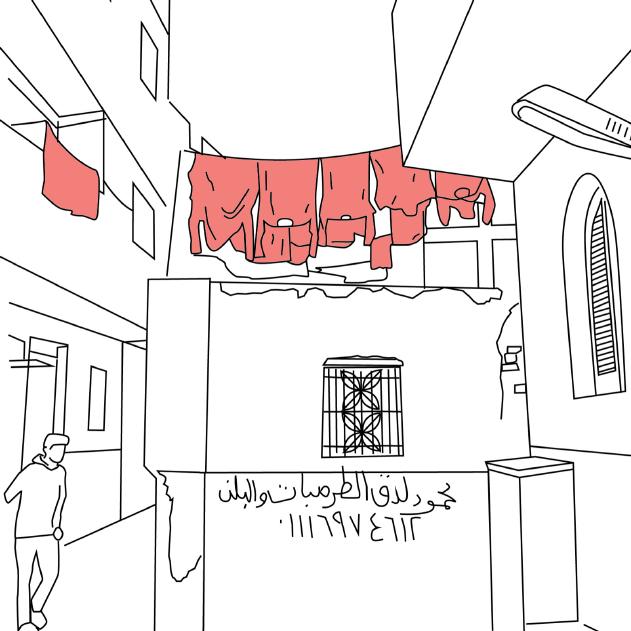

Urban Livingroom Activities

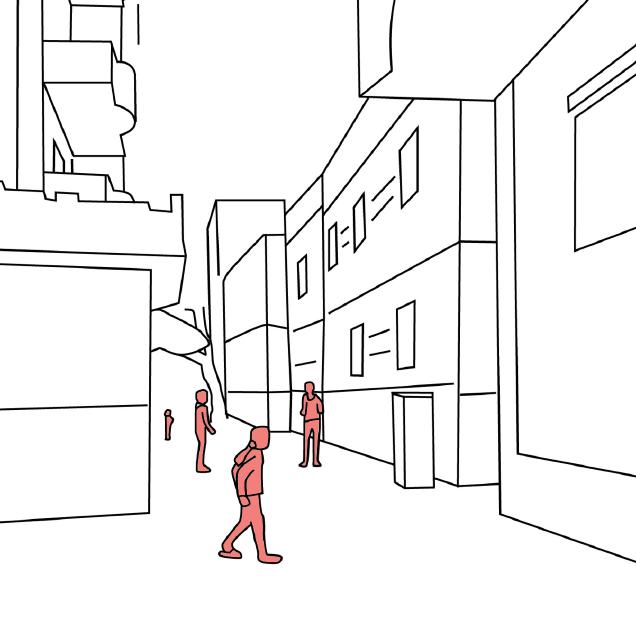

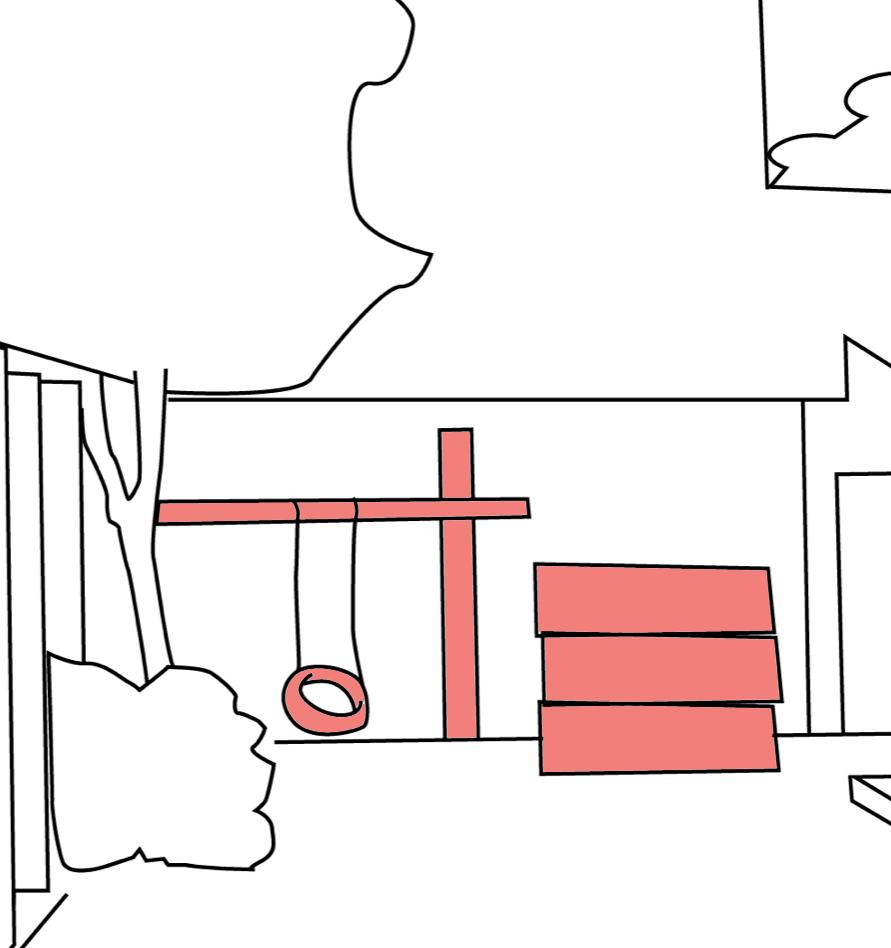

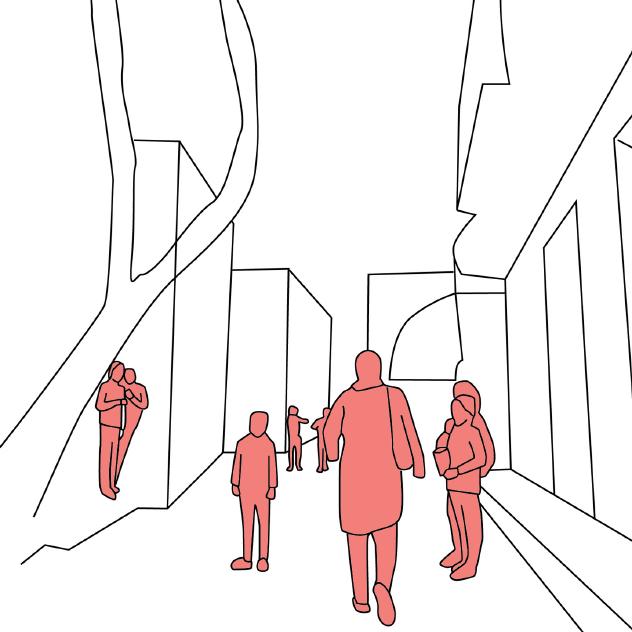

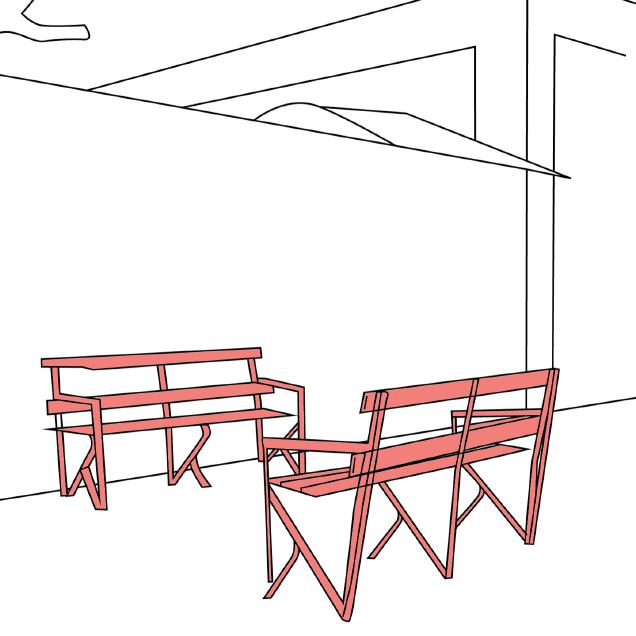

Illustrations showing the different activities happening in the urban pockets of the island.

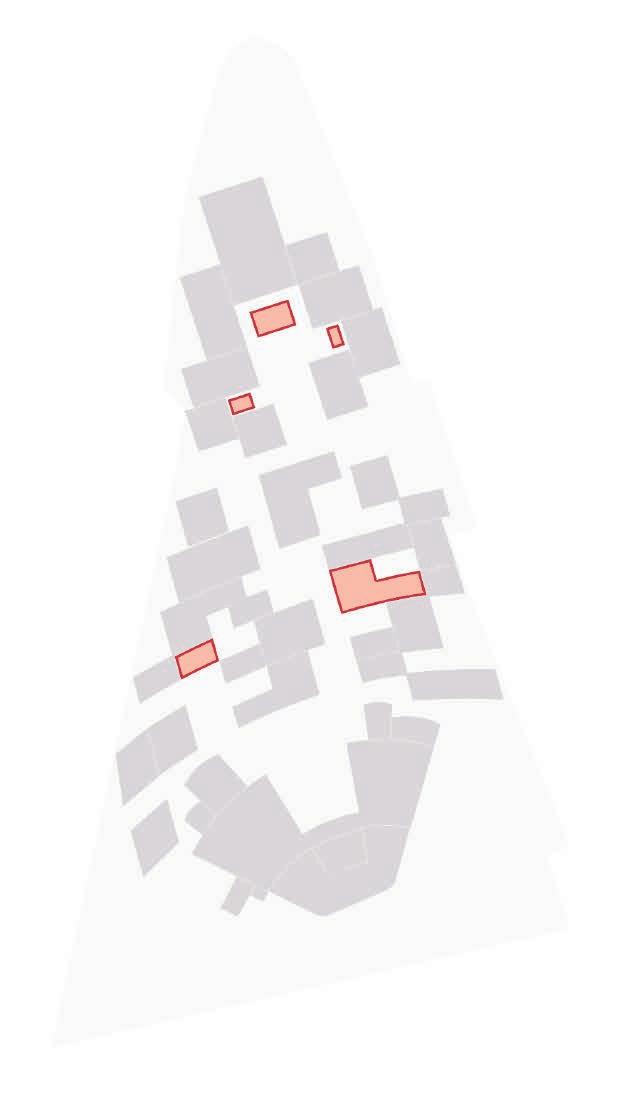

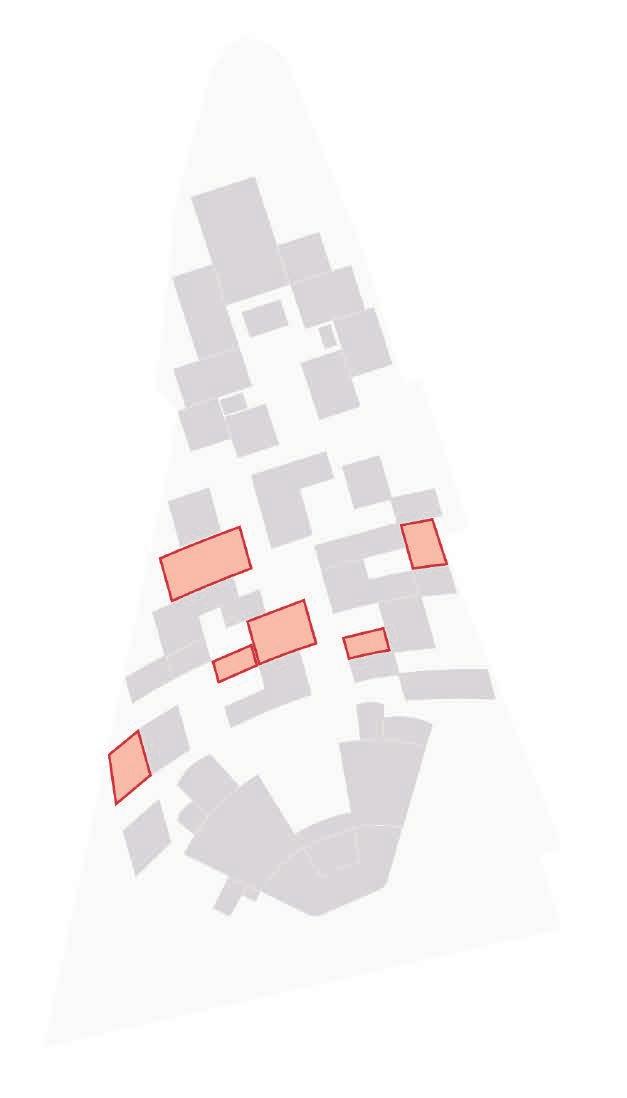

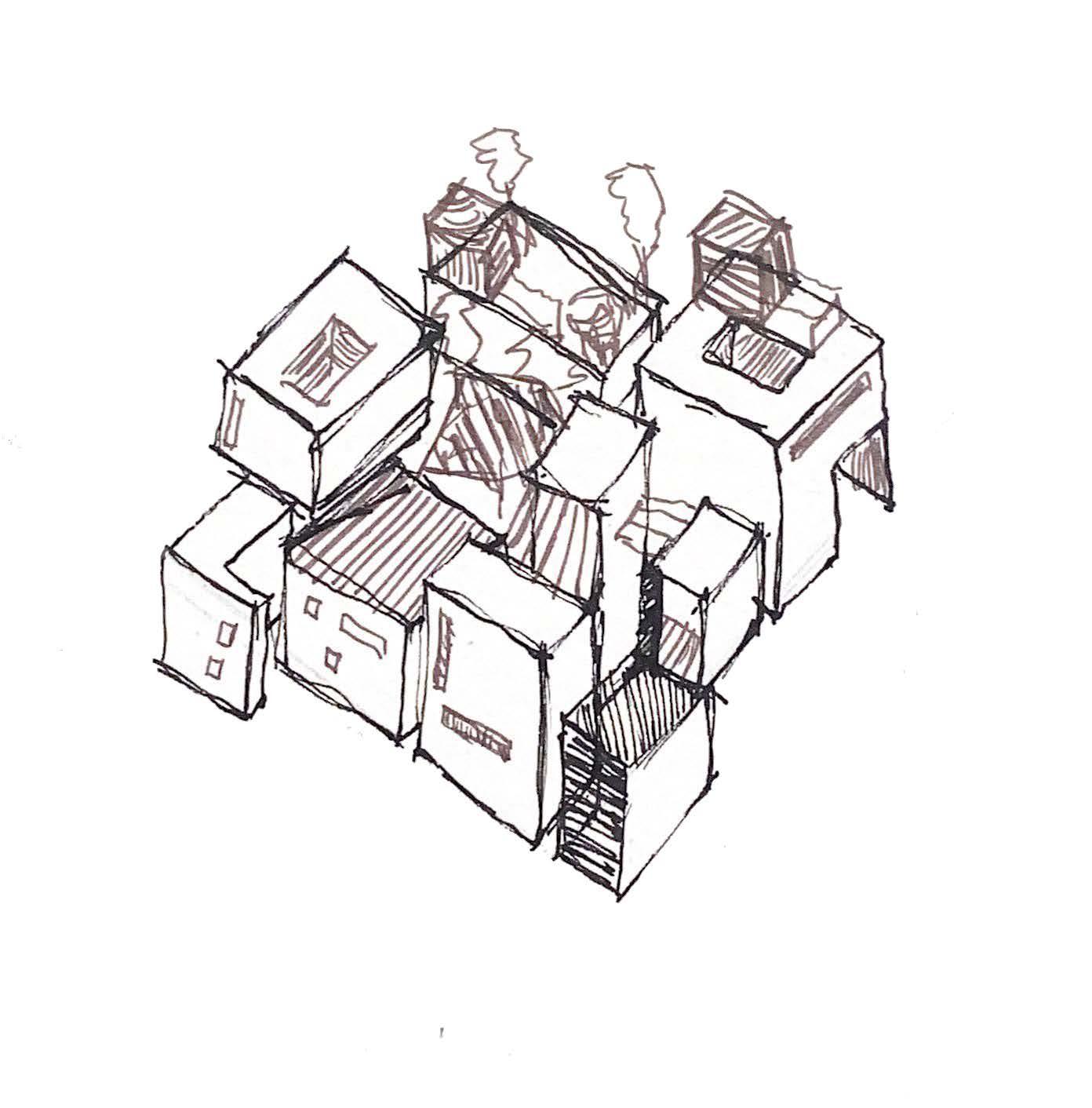

The rules in which are applied to the community as they design their spaces with informality.
Rule 1: Moving Within the Grid
Rule 2: Fixed Farm Layout
Rule 3: Fixed Water Sources
Rule 4: Fixed Functions
Rule 5: Never blocking Pathways

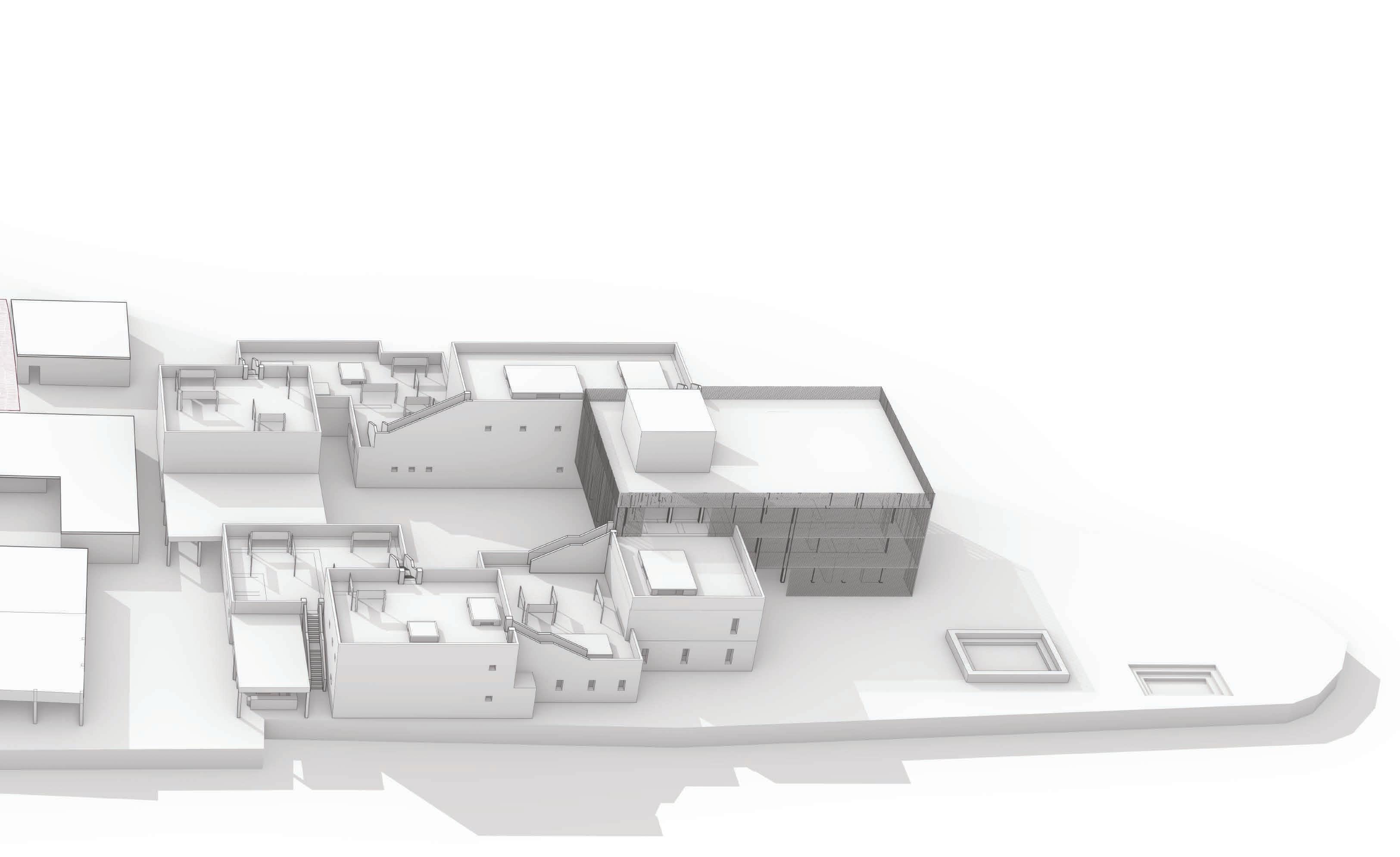

Casino As Vocational School Phases

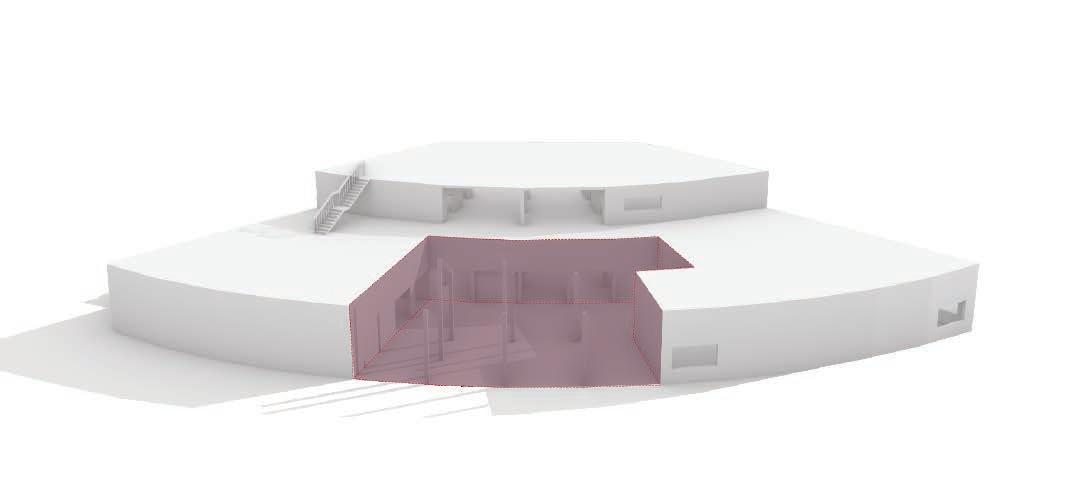

Showing how the community can slowly start to take over the casino and redesigning it as their needs develop.

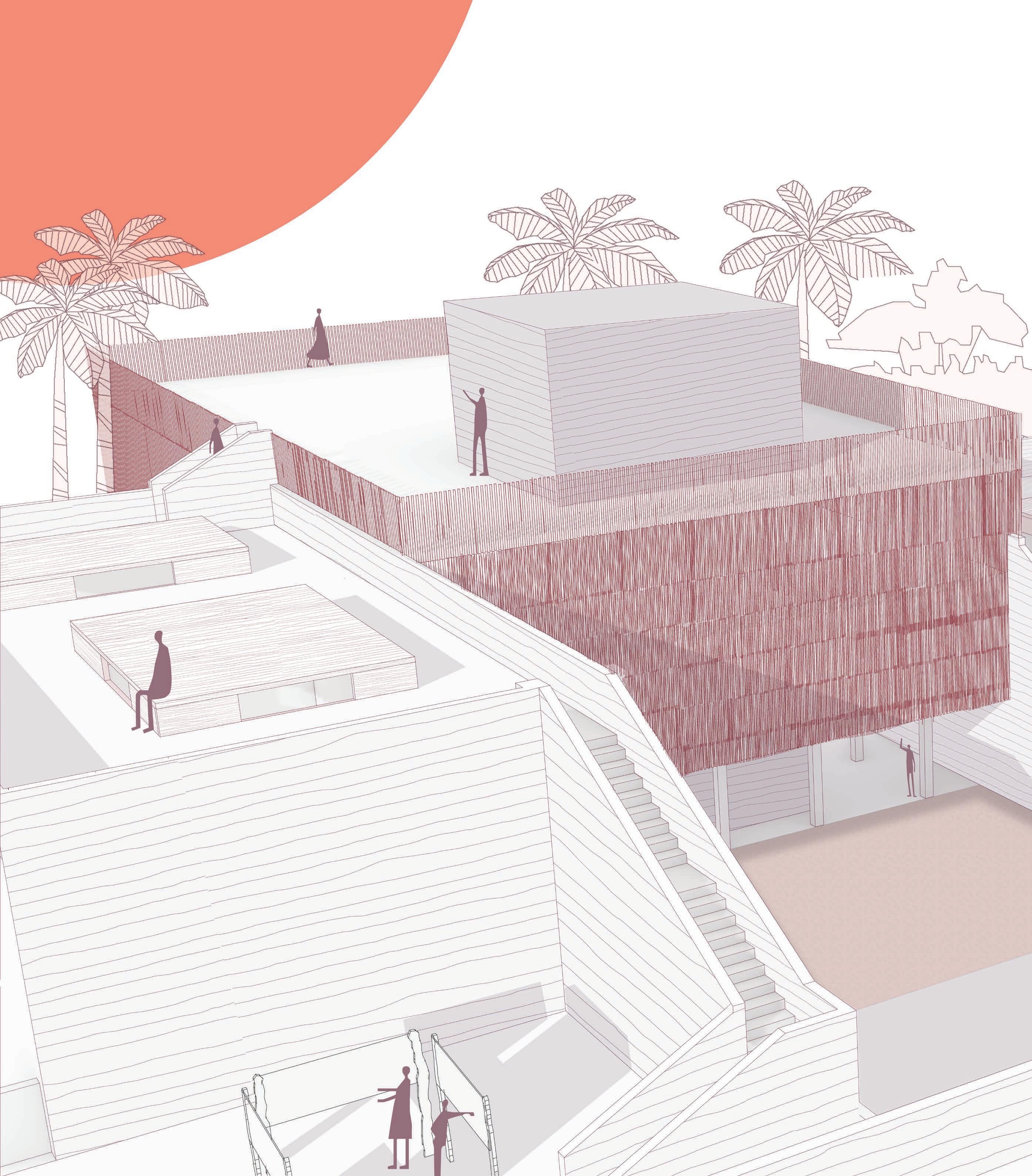

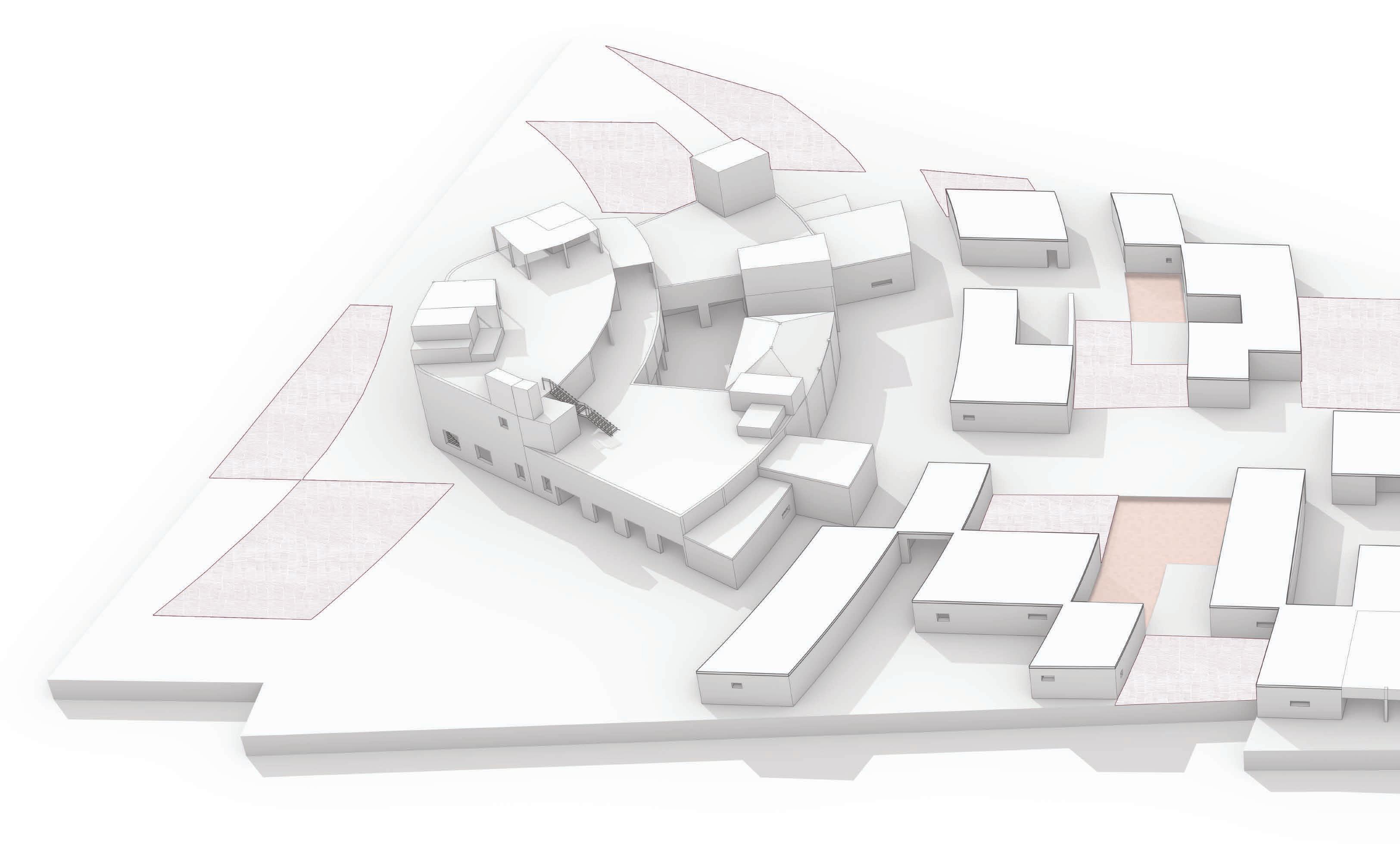

Masterplan Urban Perspective

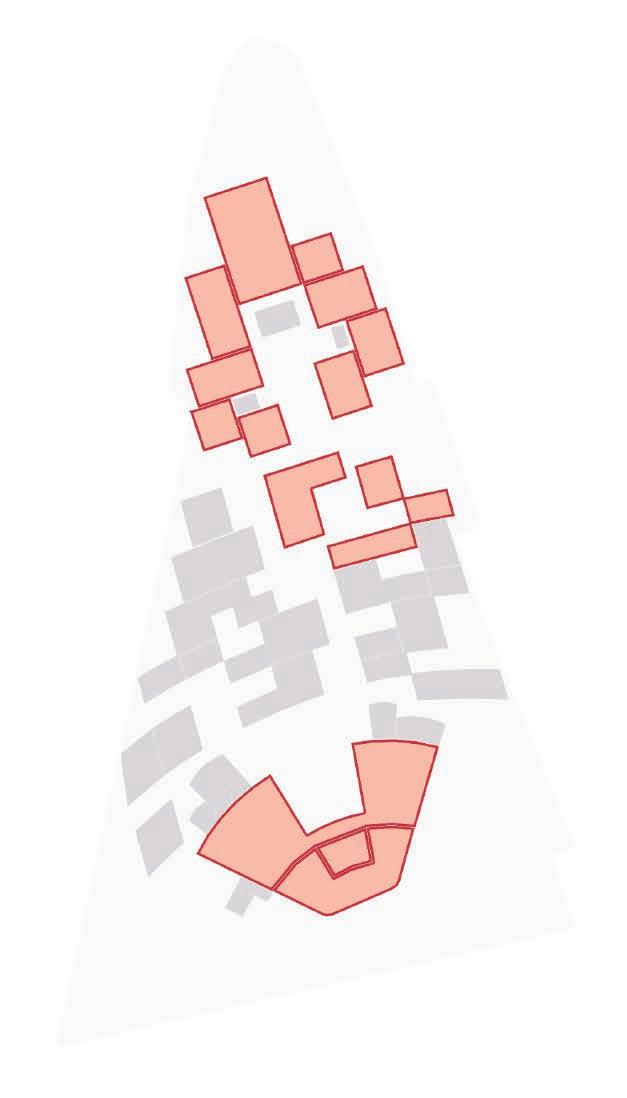

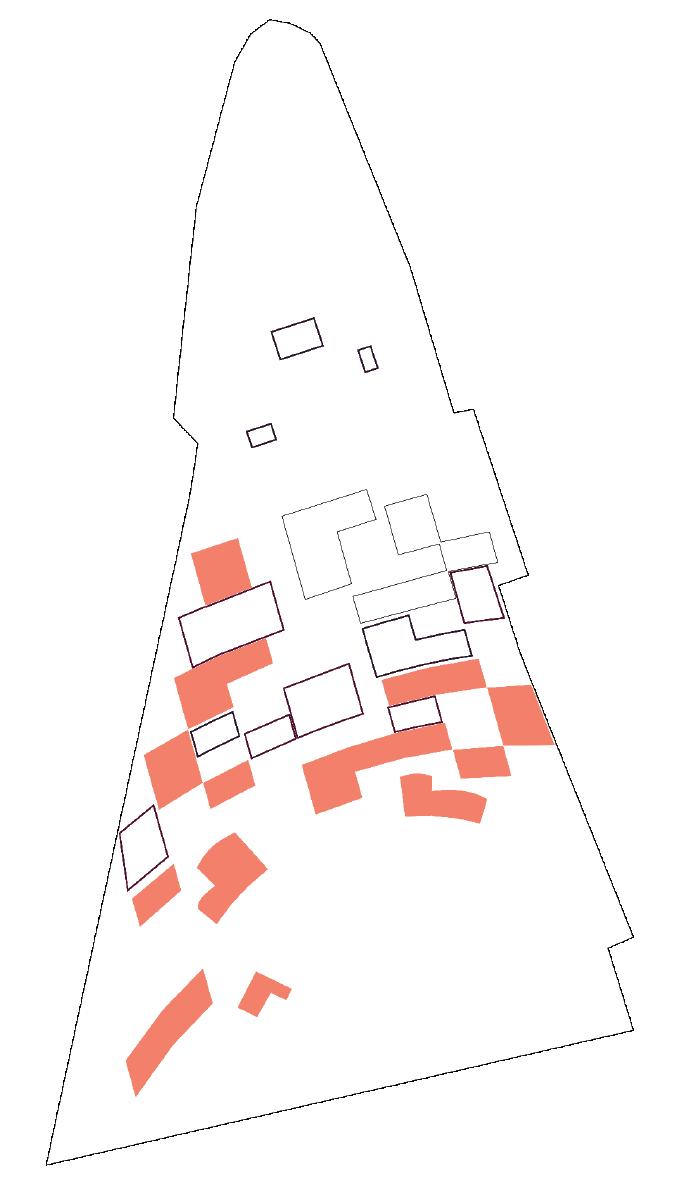

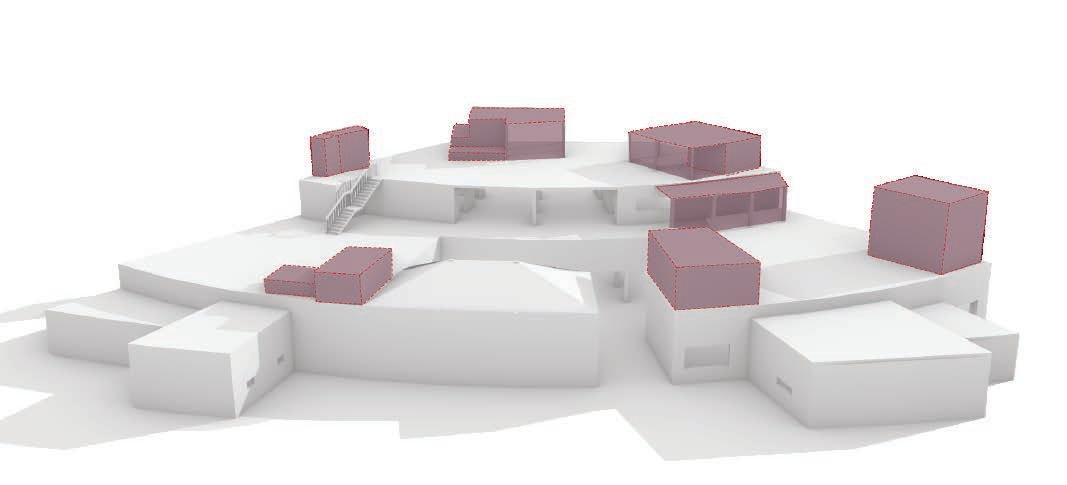

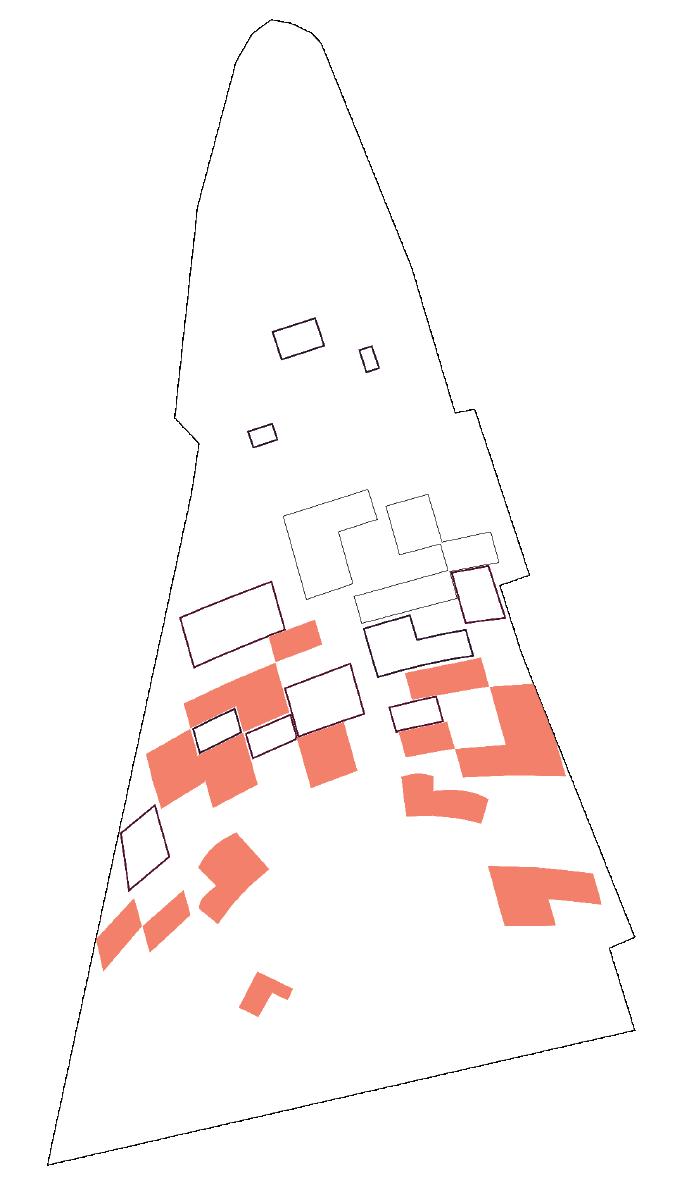

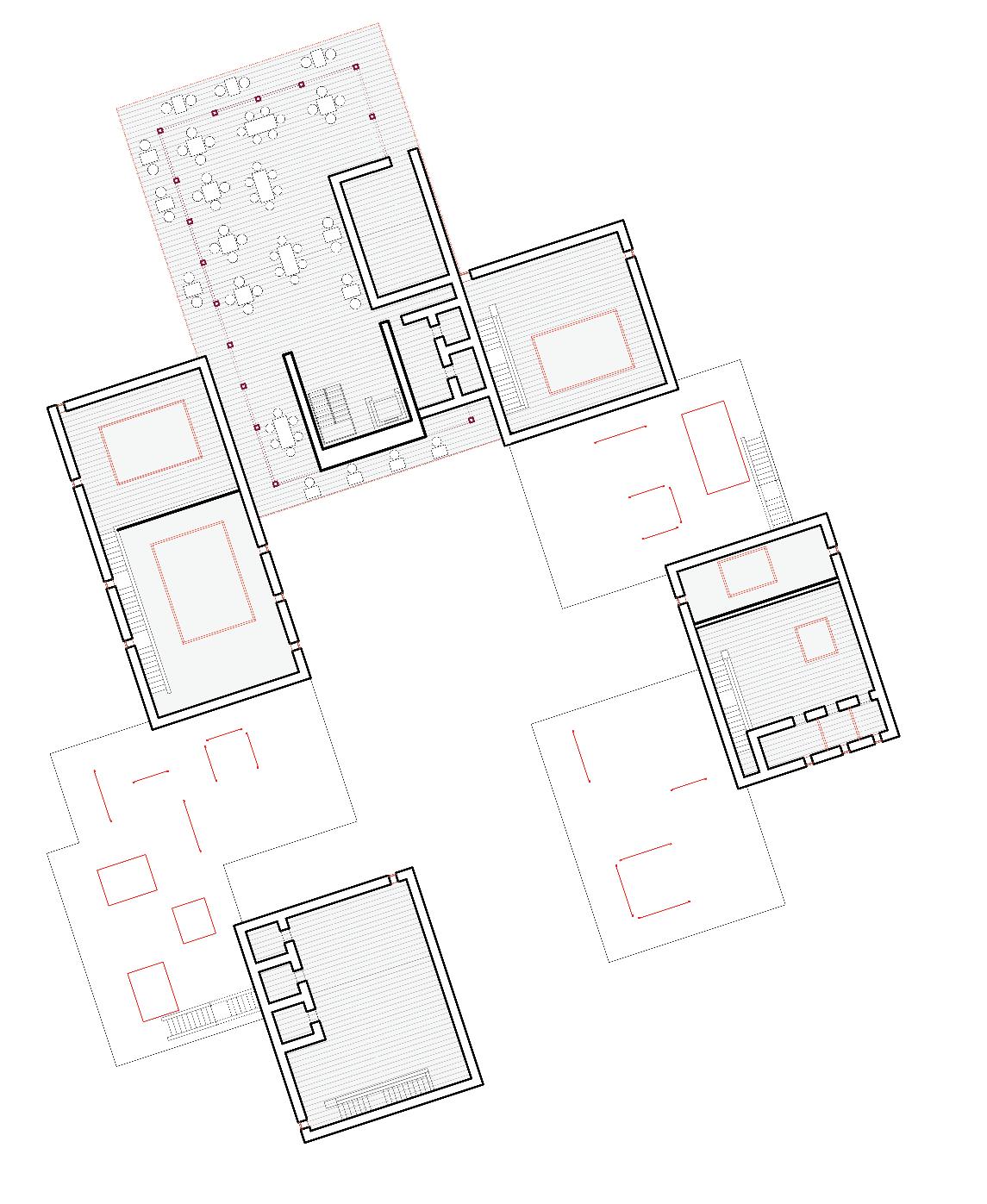

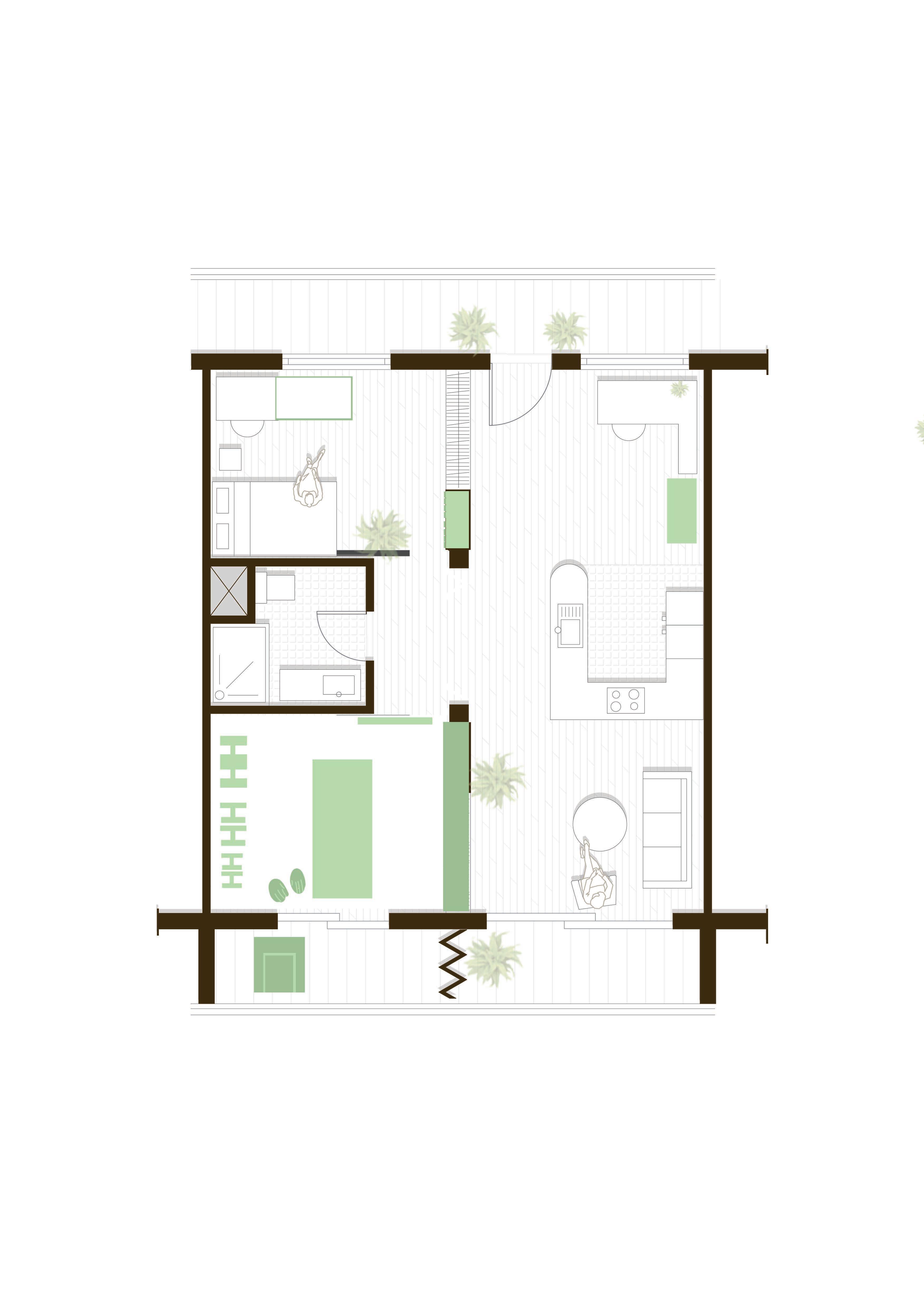

When applying the Spacial Rules, there are infinite solutions that the community can come up with. Here are four different variations of different layouts.

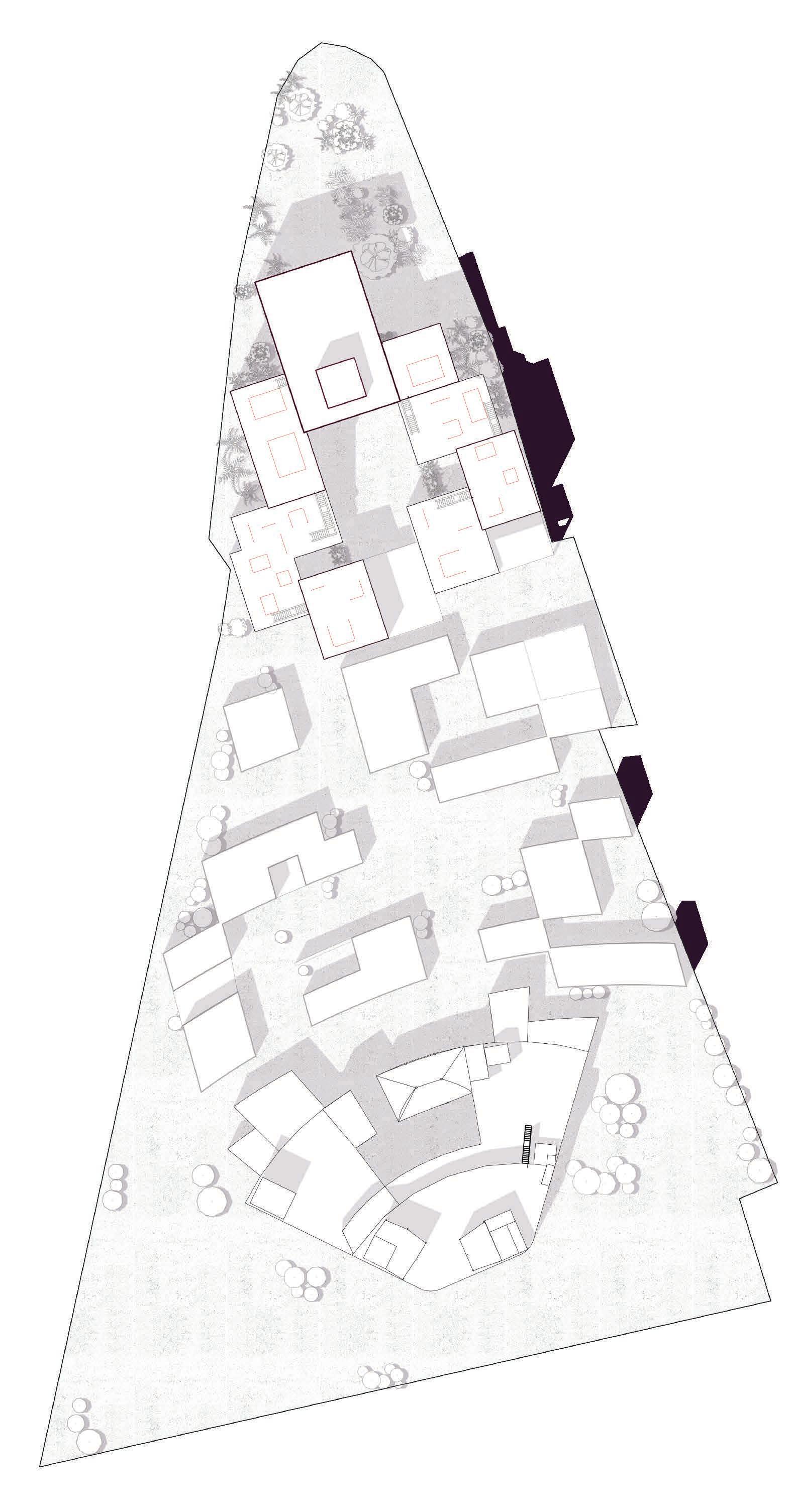

Site plan 1:500 scale. (not drawn to scale)

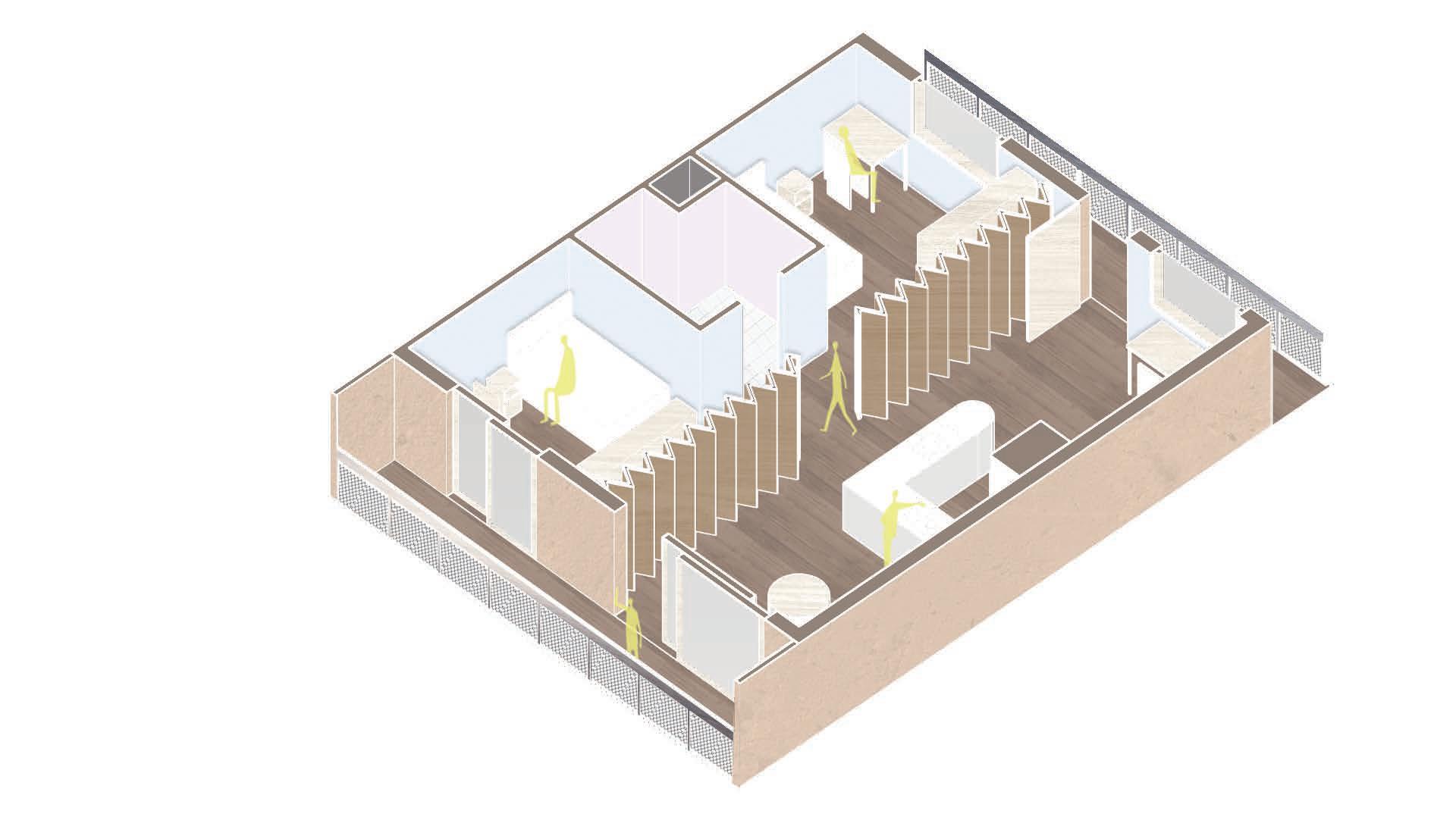

Layout 2

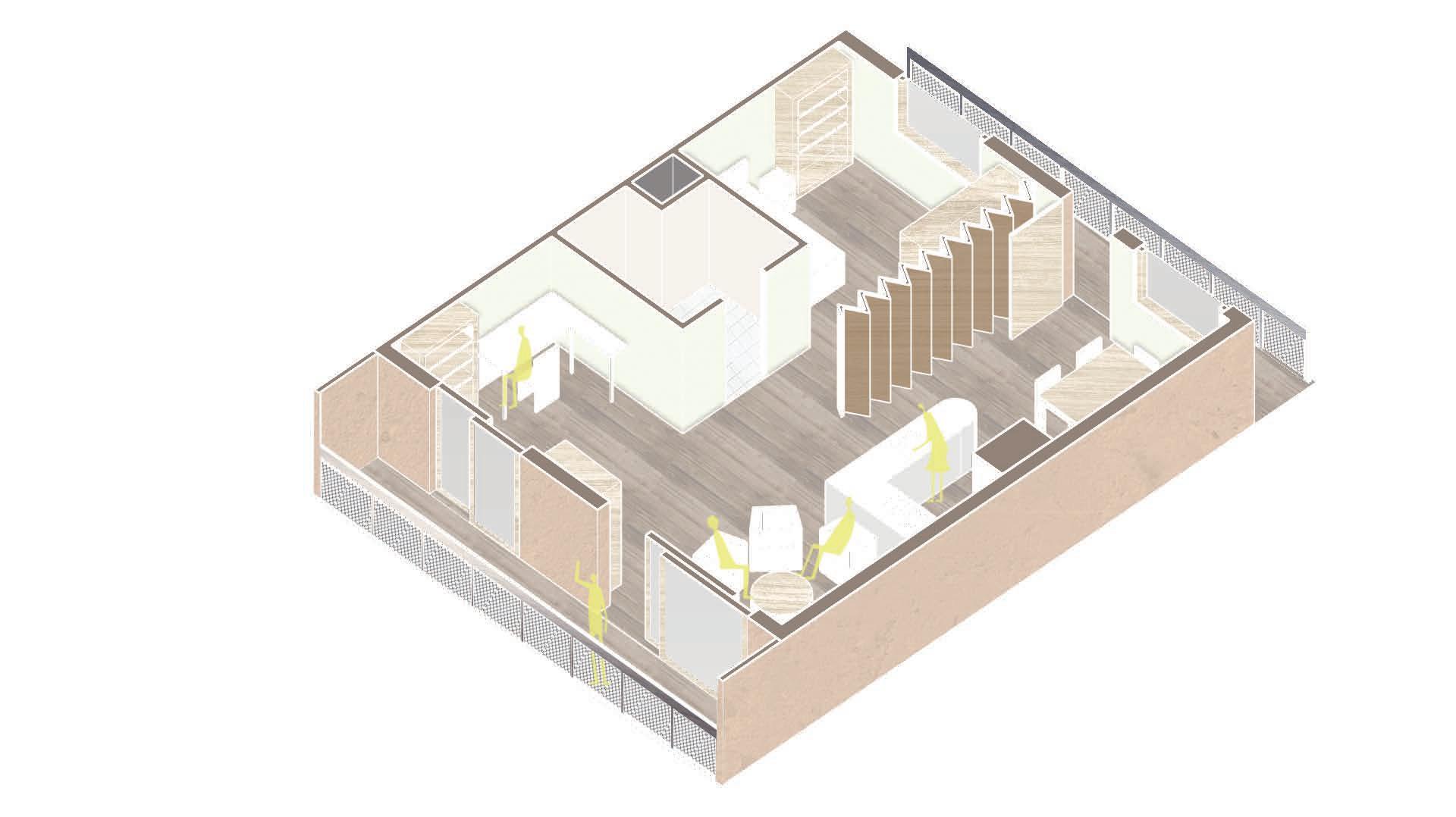

Layout 1
Perspective Cross-Section

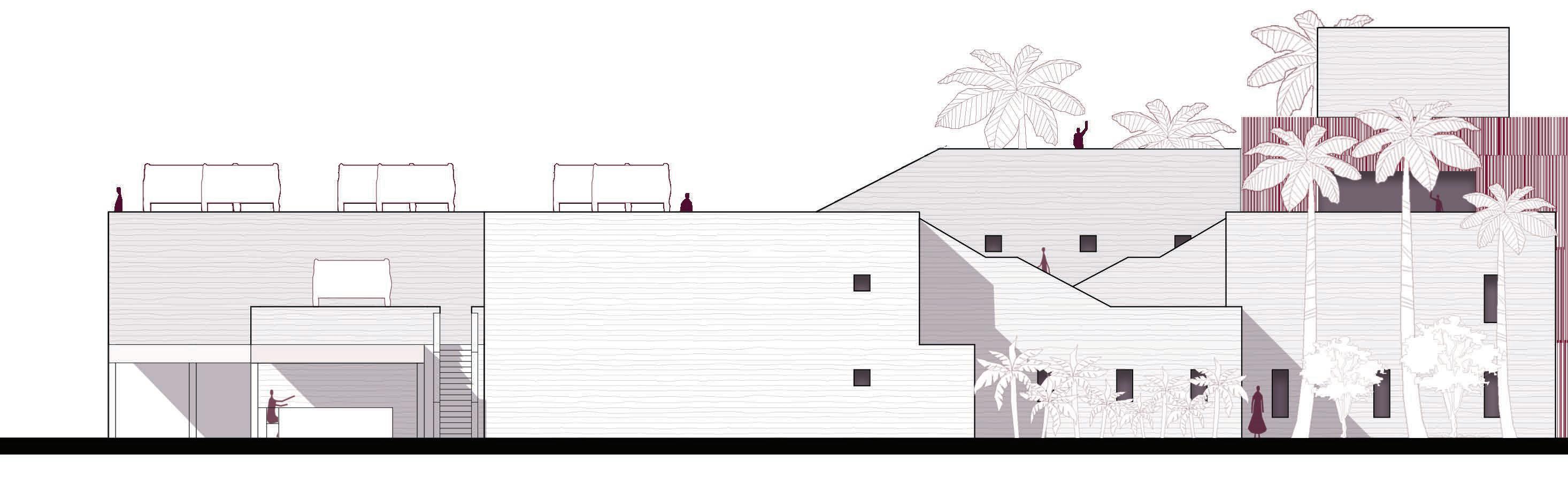

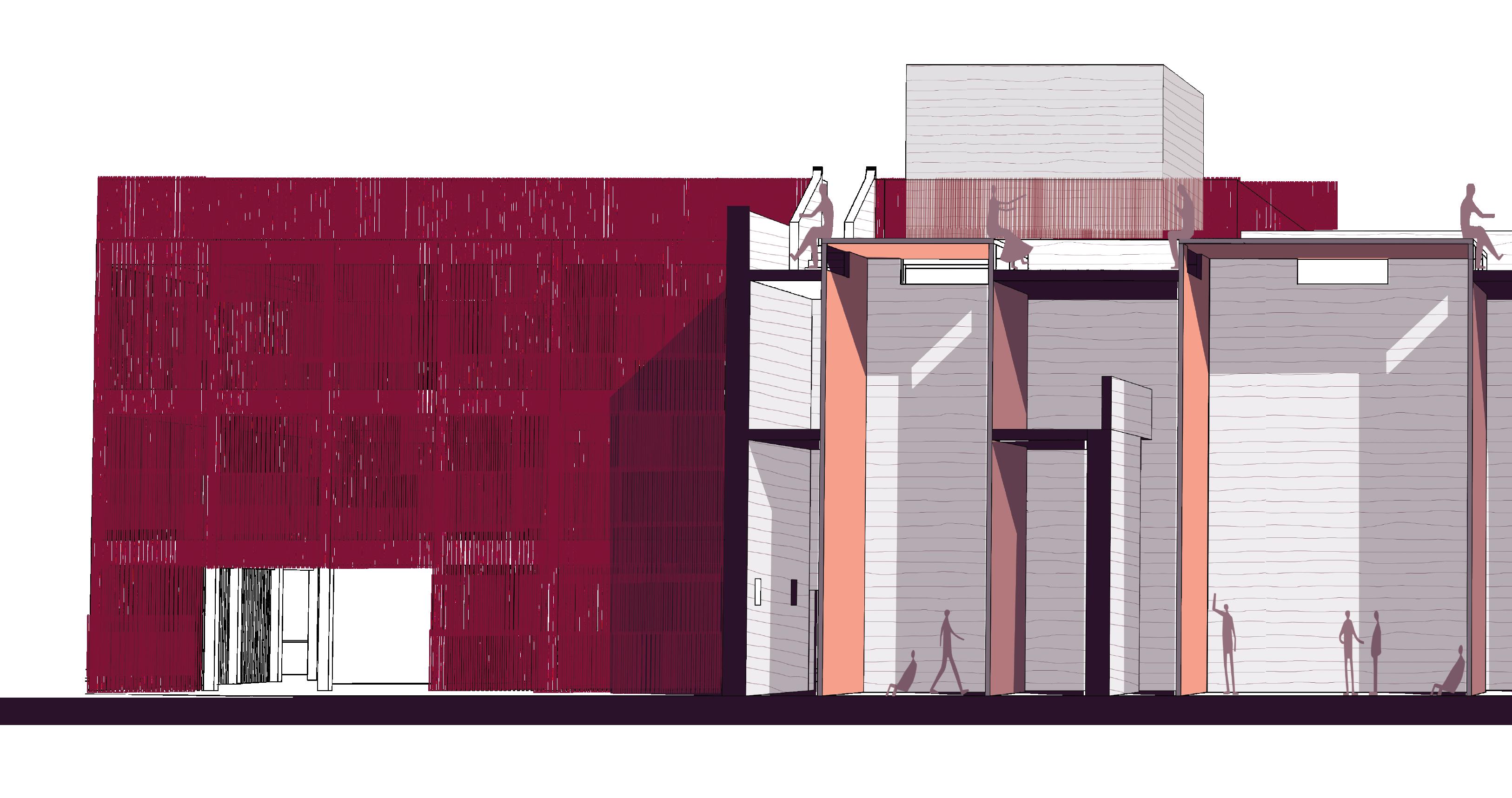

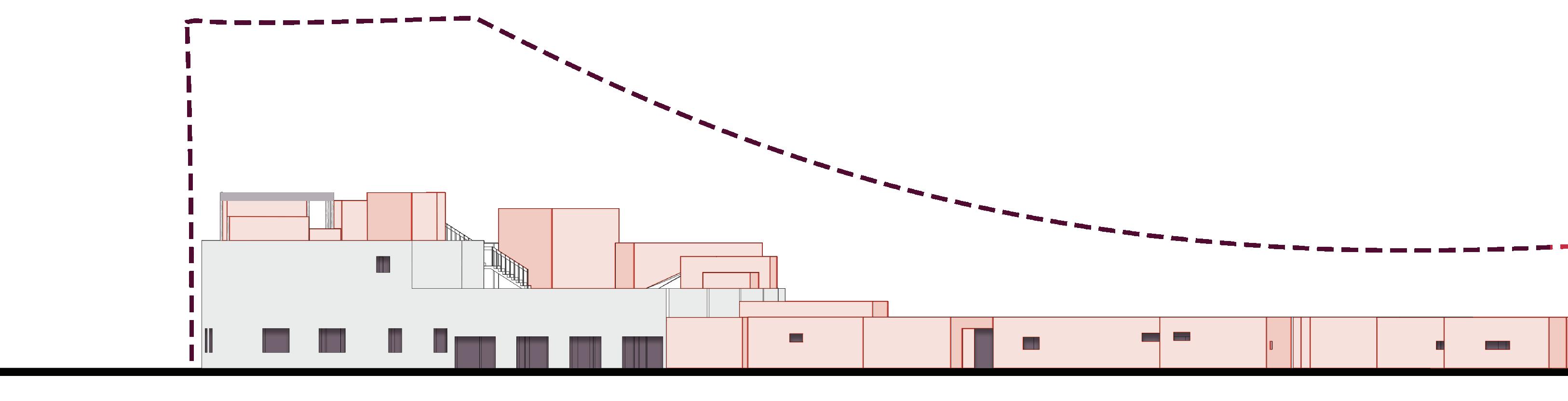

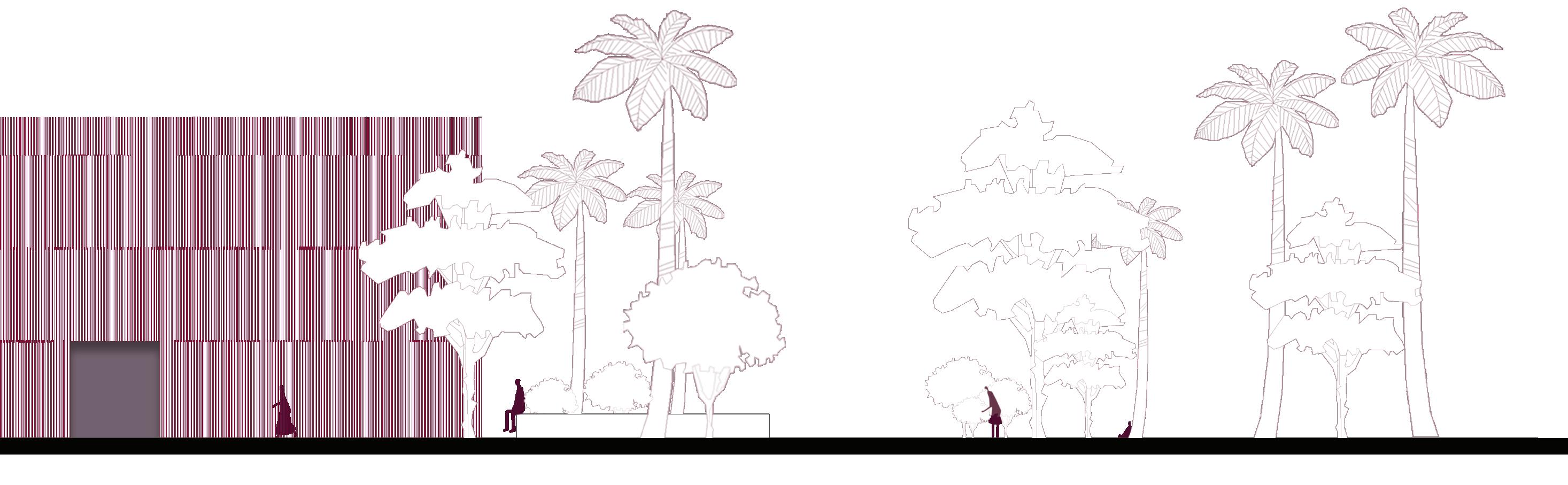

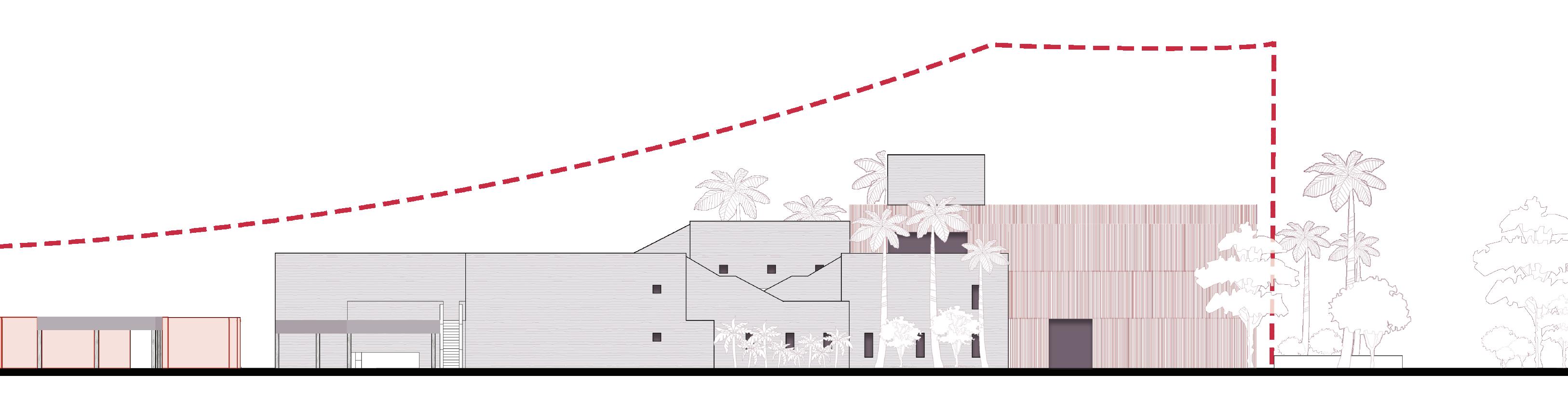

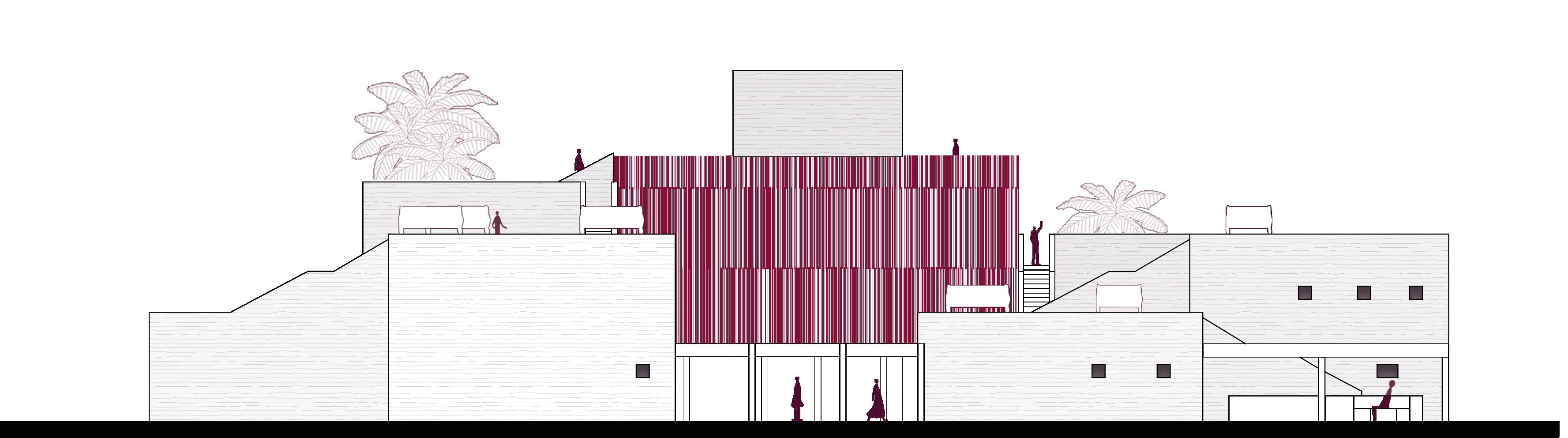

South Elevation

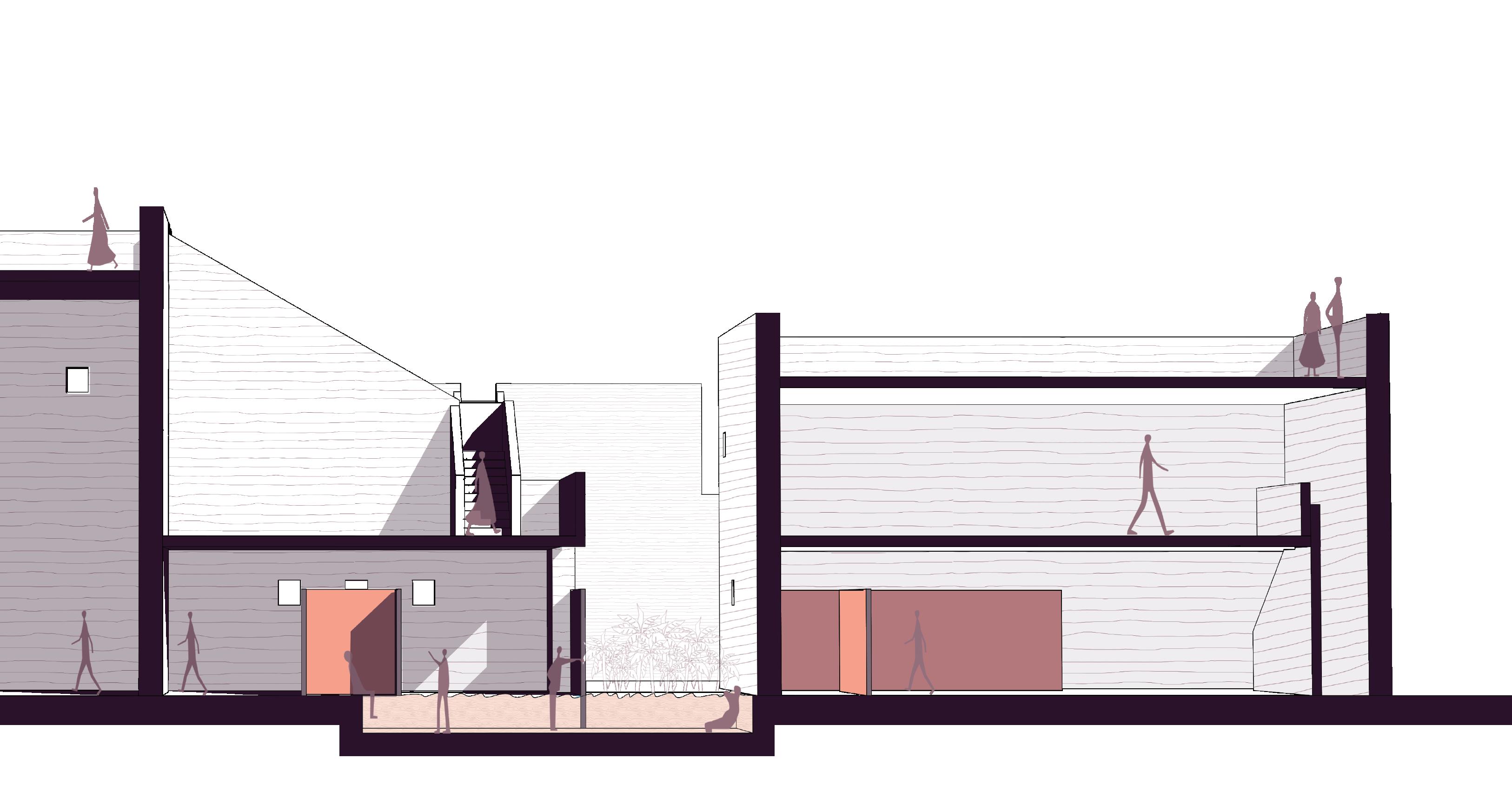

Perspective Section

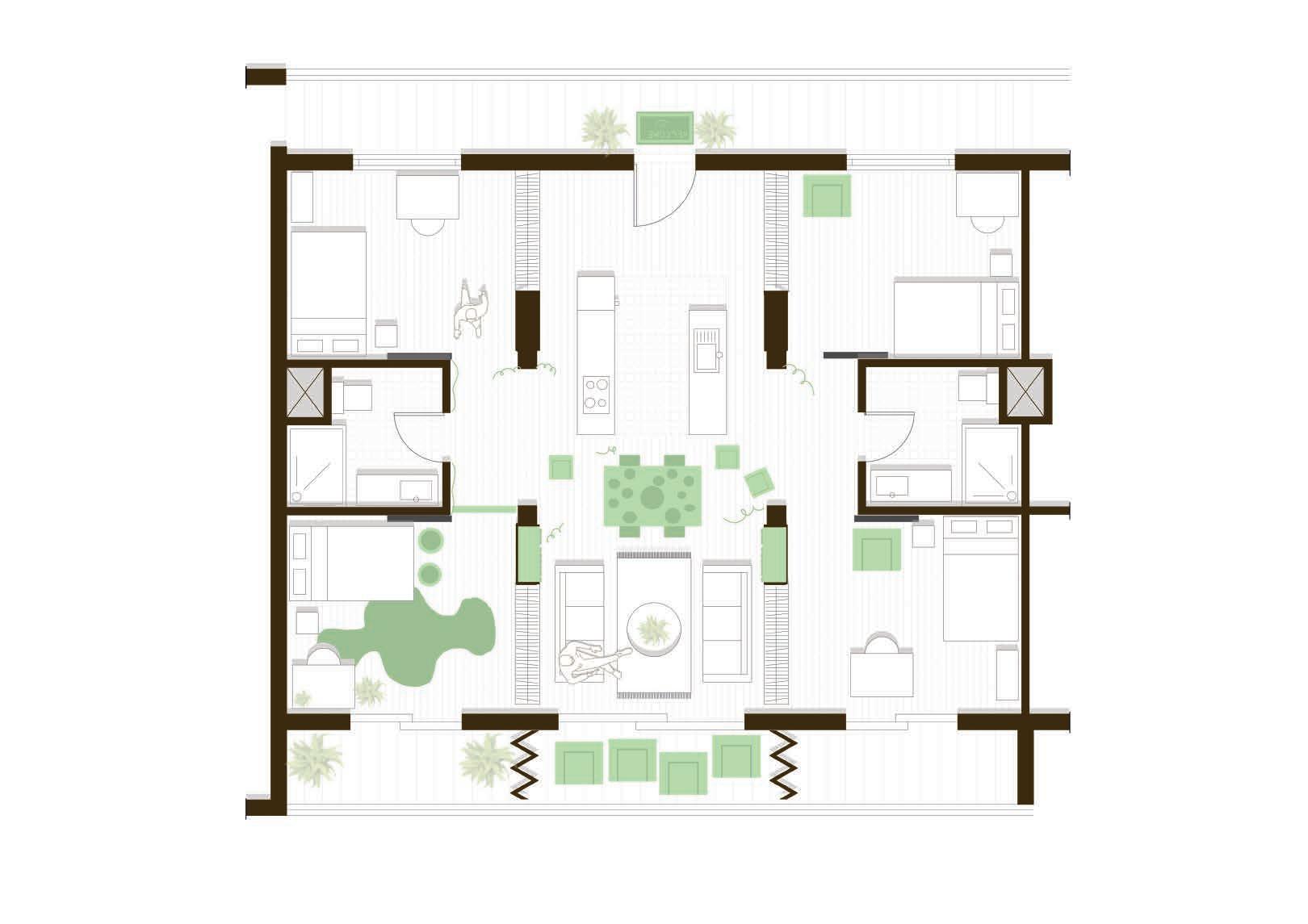

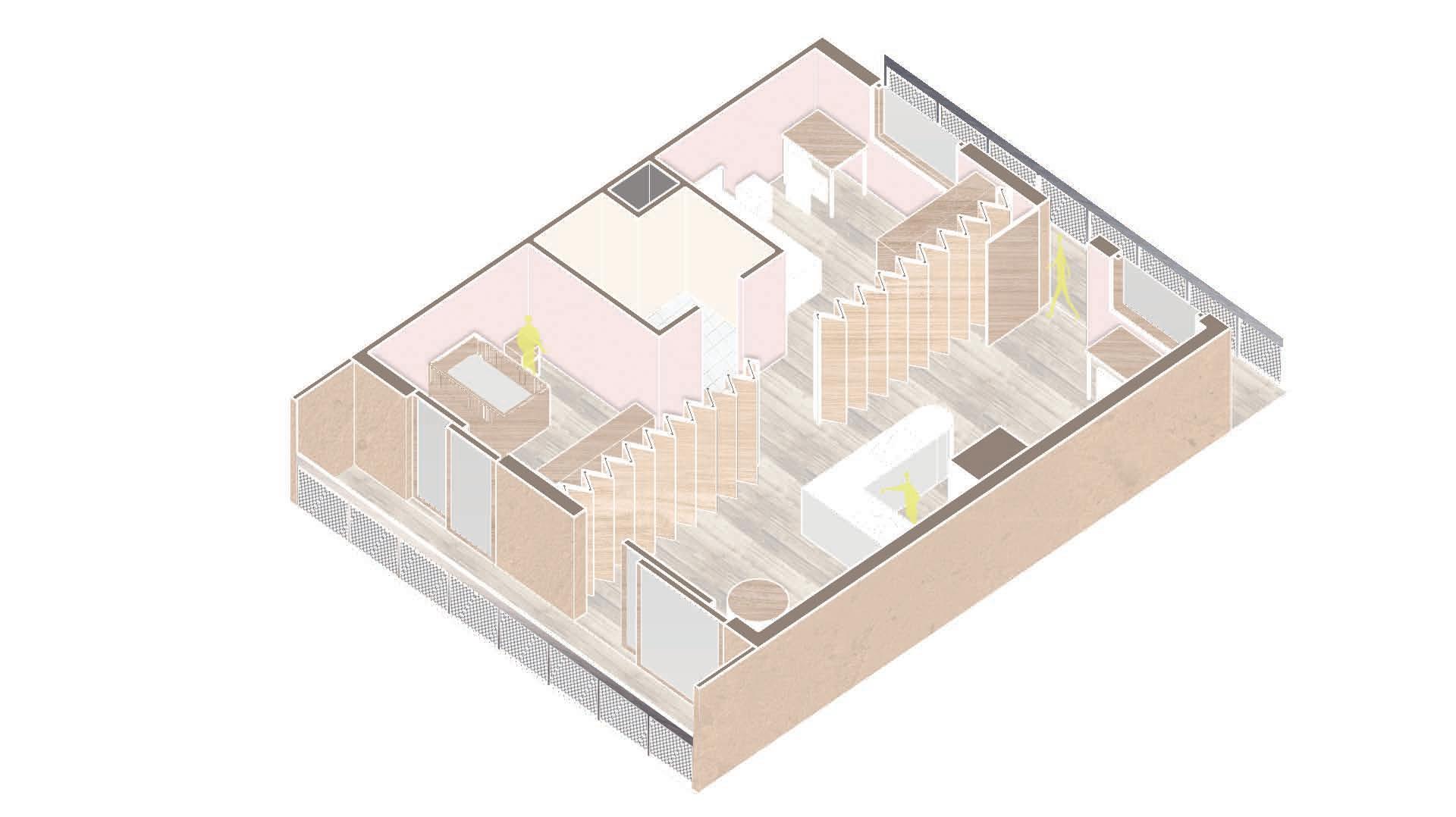

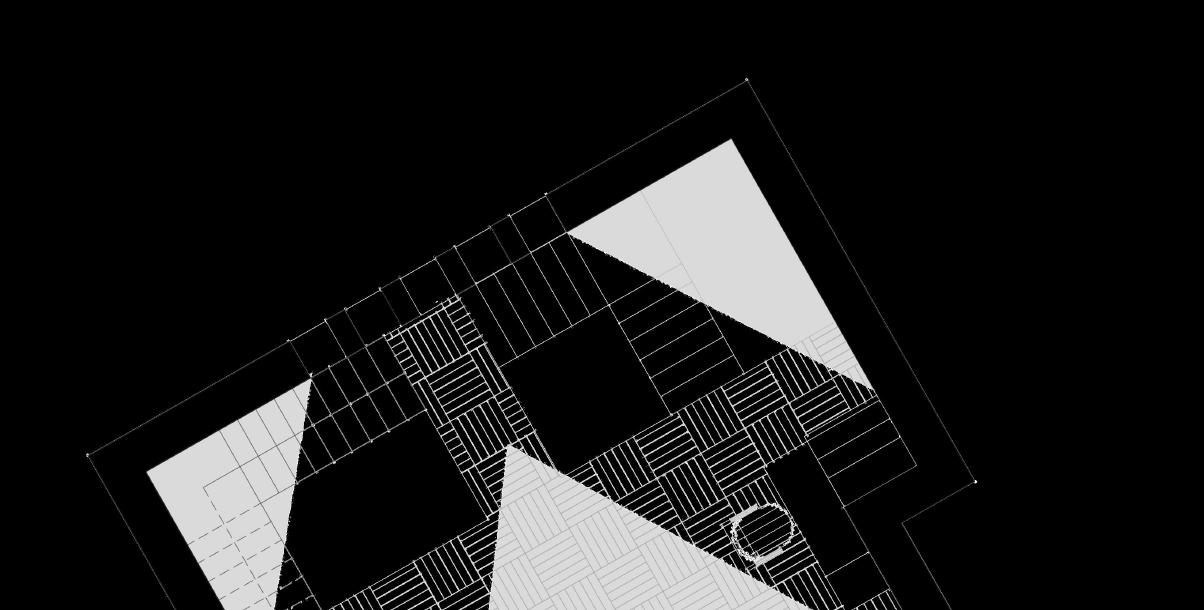

2nd Floor Plan 1:200 (not to scale)
1st Floor Plan 1:200 (not to scale)

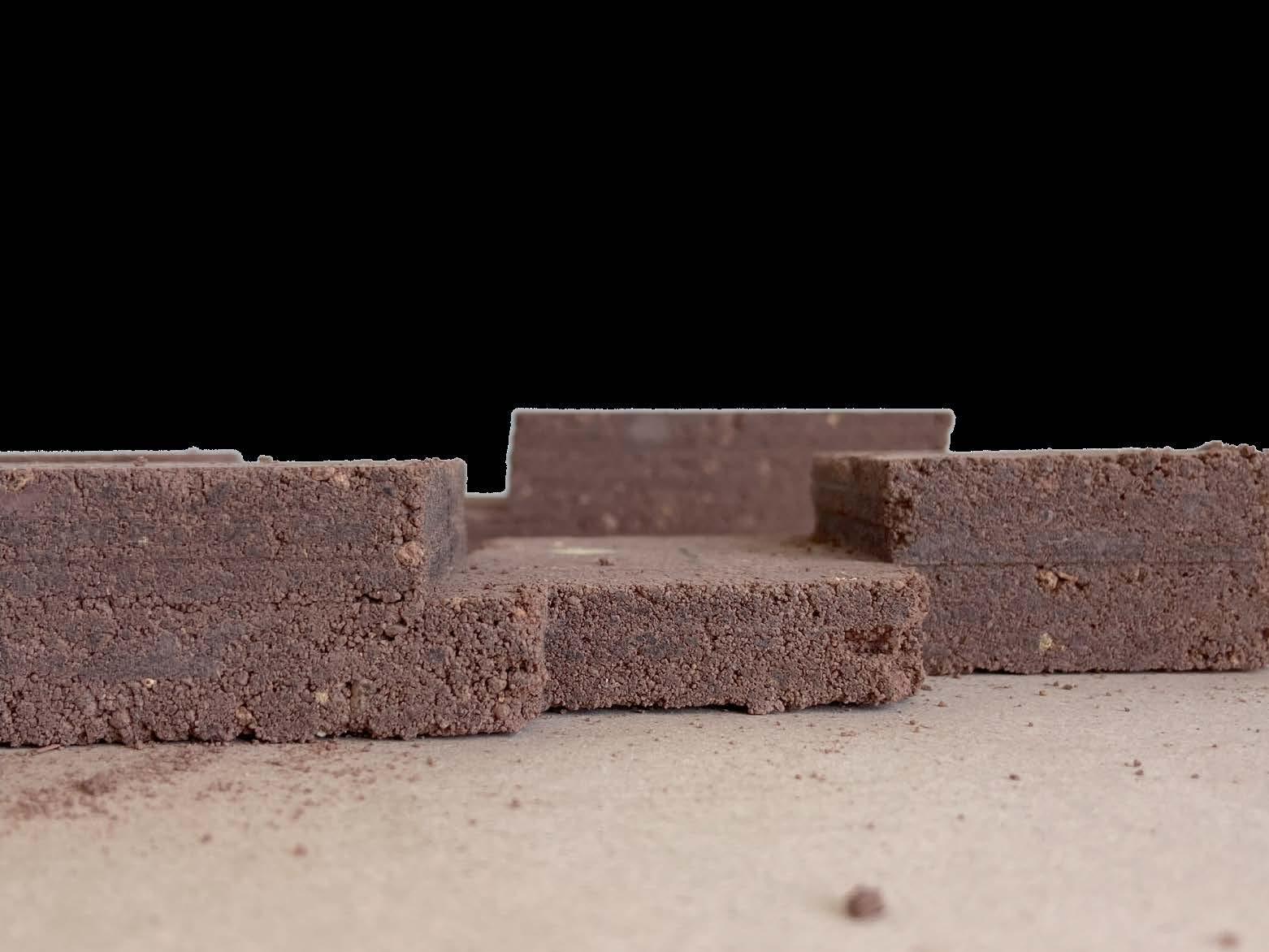

Construction Detail

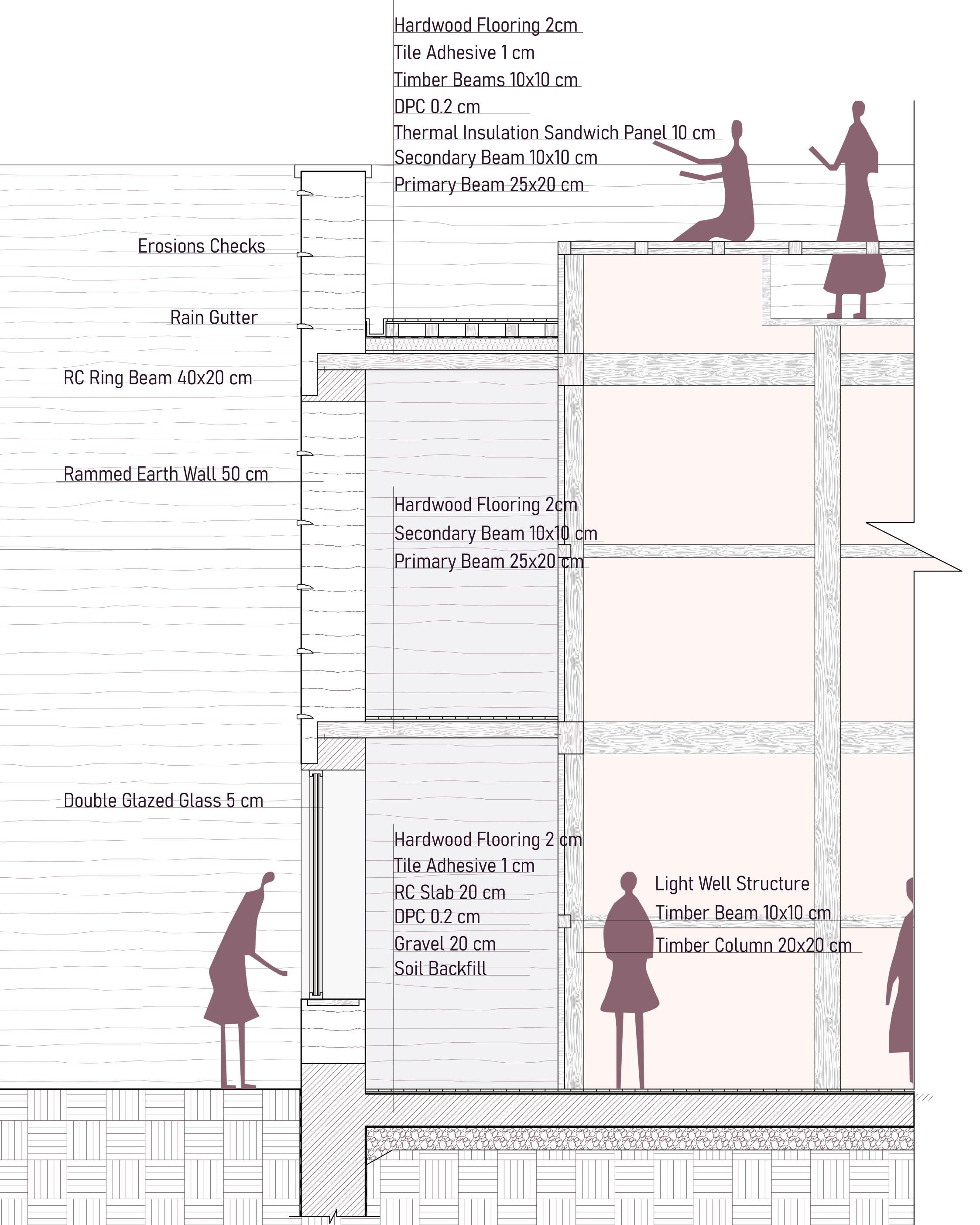

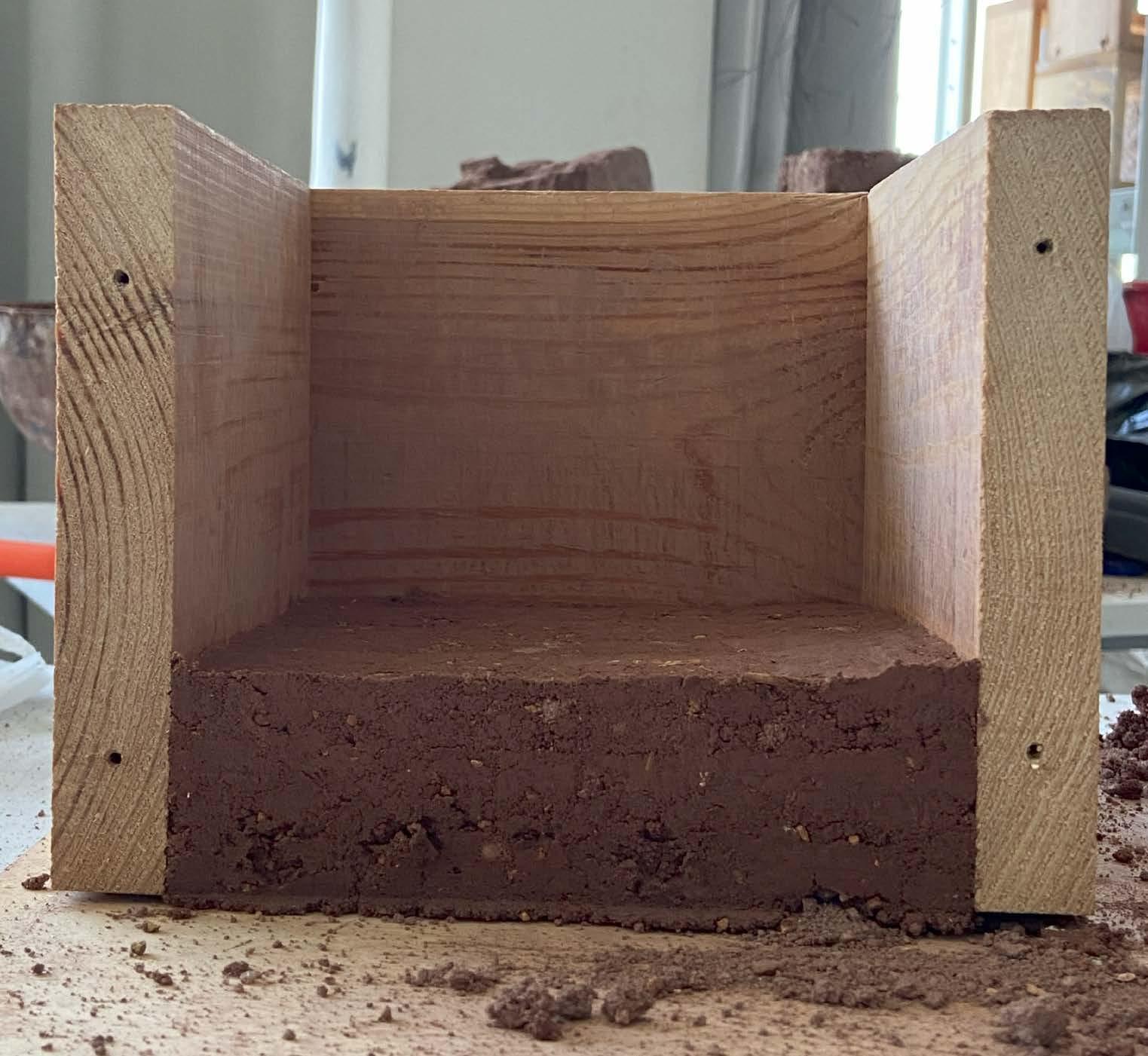

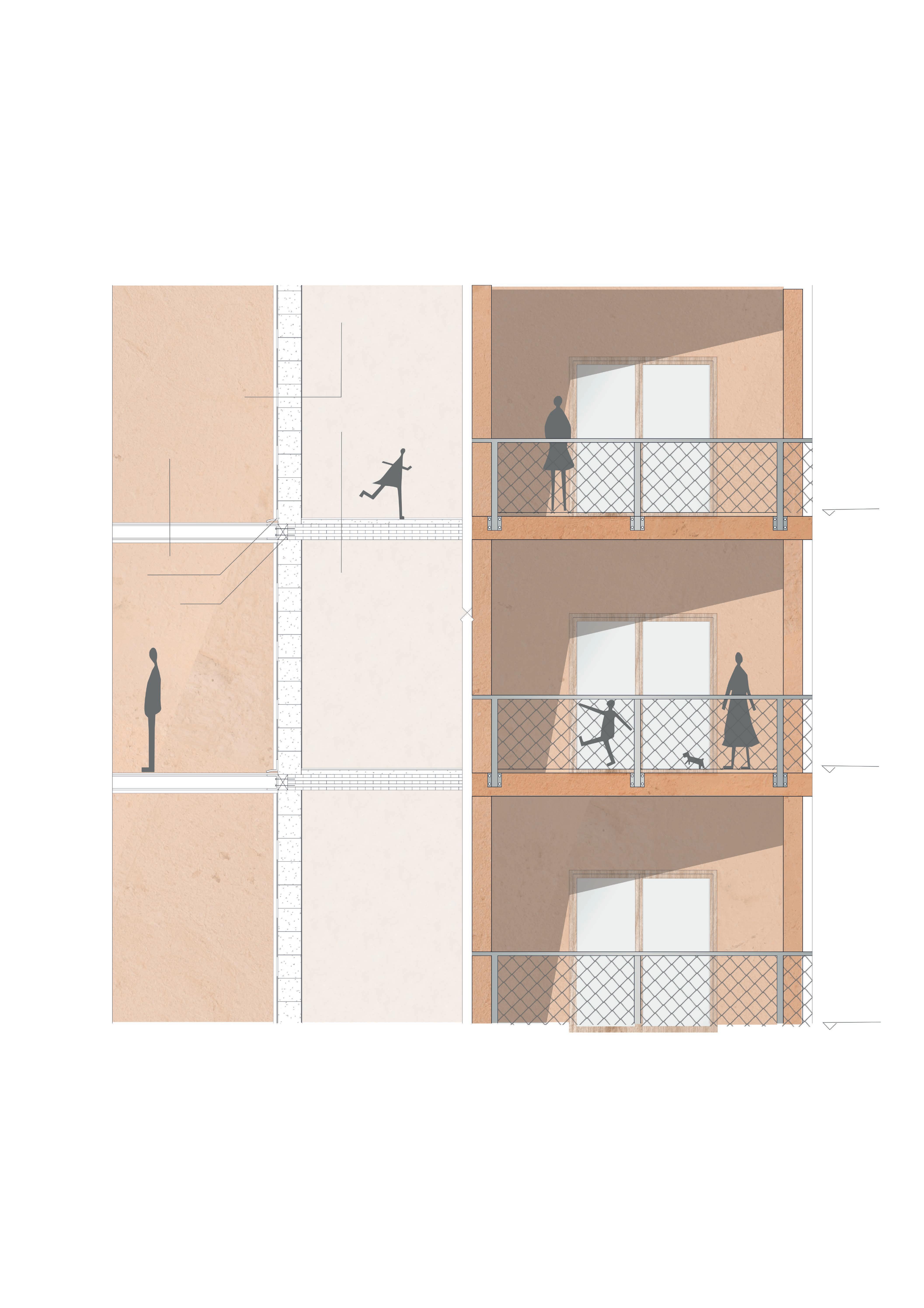

Section Detail Scale 1:20 (not drawn to scale) Illustrating the construction of the Rammed Earth and the Timber beams.
As well as showing the construction of the 'Light Wells'
02
Design with Perma[Culture] In Siwa

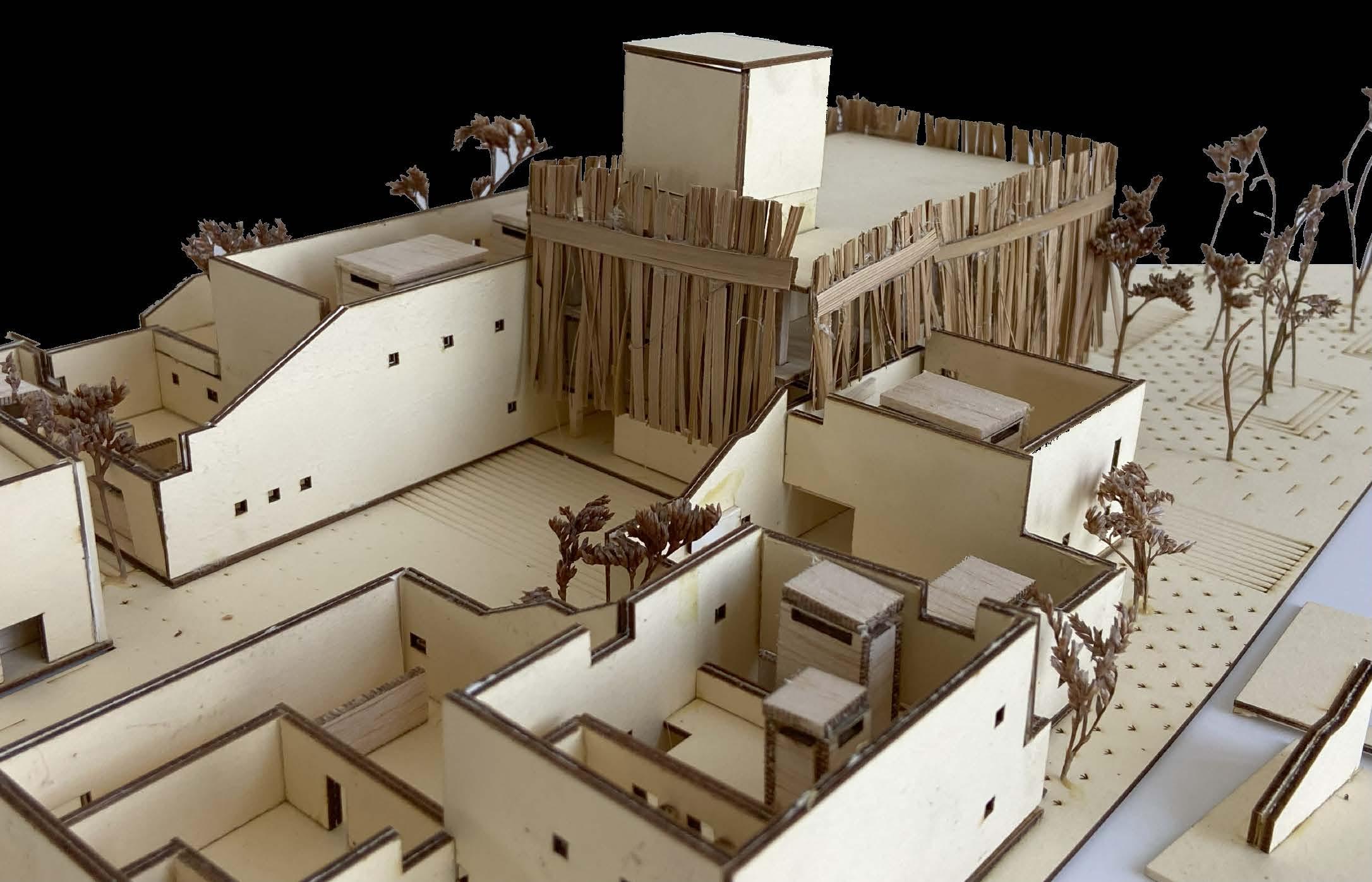

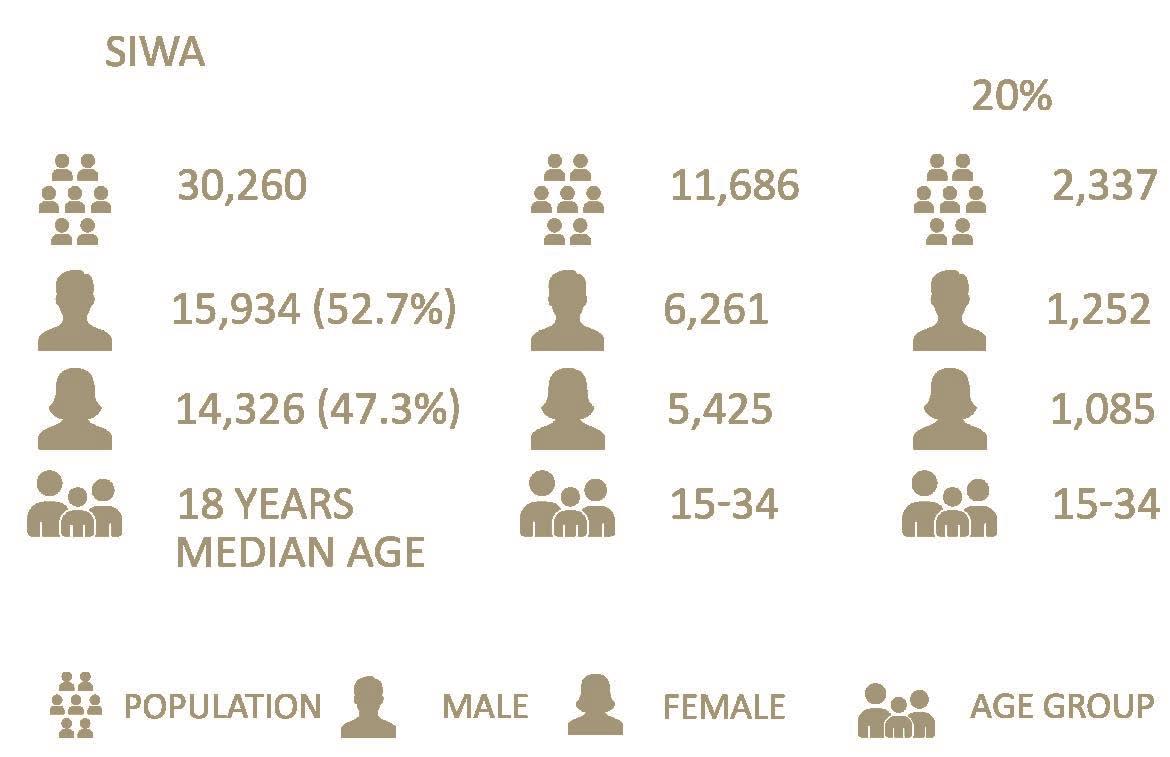

Immersed in the vast nature of Siwa, one can only work with nature and it's rules not against it. This is where Permaculture fits perfectly. Permacuture is an approach to land management and settlement design that adopts arrangements observed in flourishing natral ecosystems.

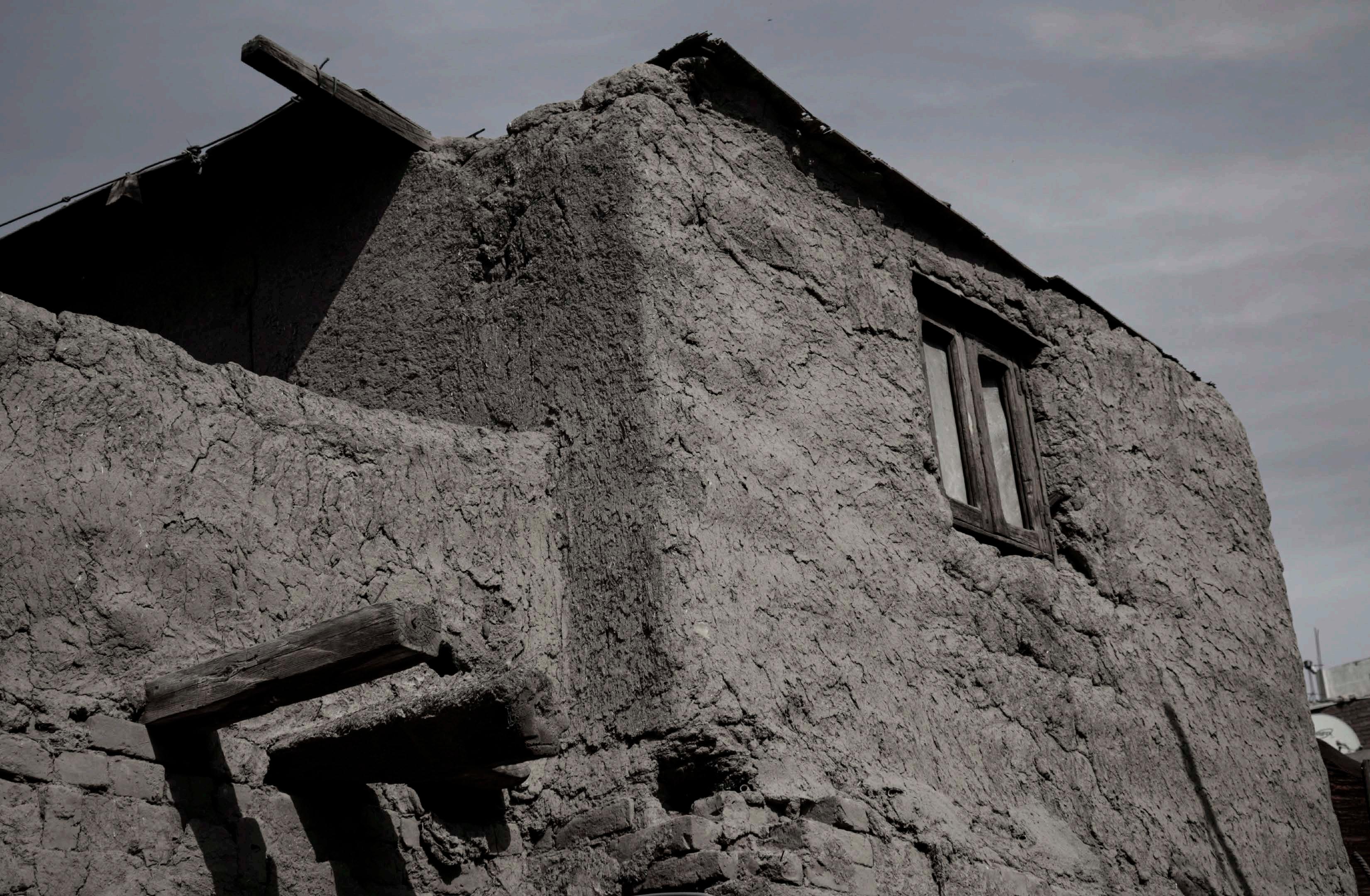

With the rich history of Siwa, Karsheef hold an important role in the identity and history of Siwa, as it is the only place in the world where karsheef is used as construction material.
In this way, this Project focuses on applying Permacutlure design to help reintroduce karsheef as construction material to preserve the heritage of Siwa and to bring the Community together.
Year: 2023
Semester: 7th Semester
Supervision: Prof. Silvia Covarino
Collaboration: Farida Fathy

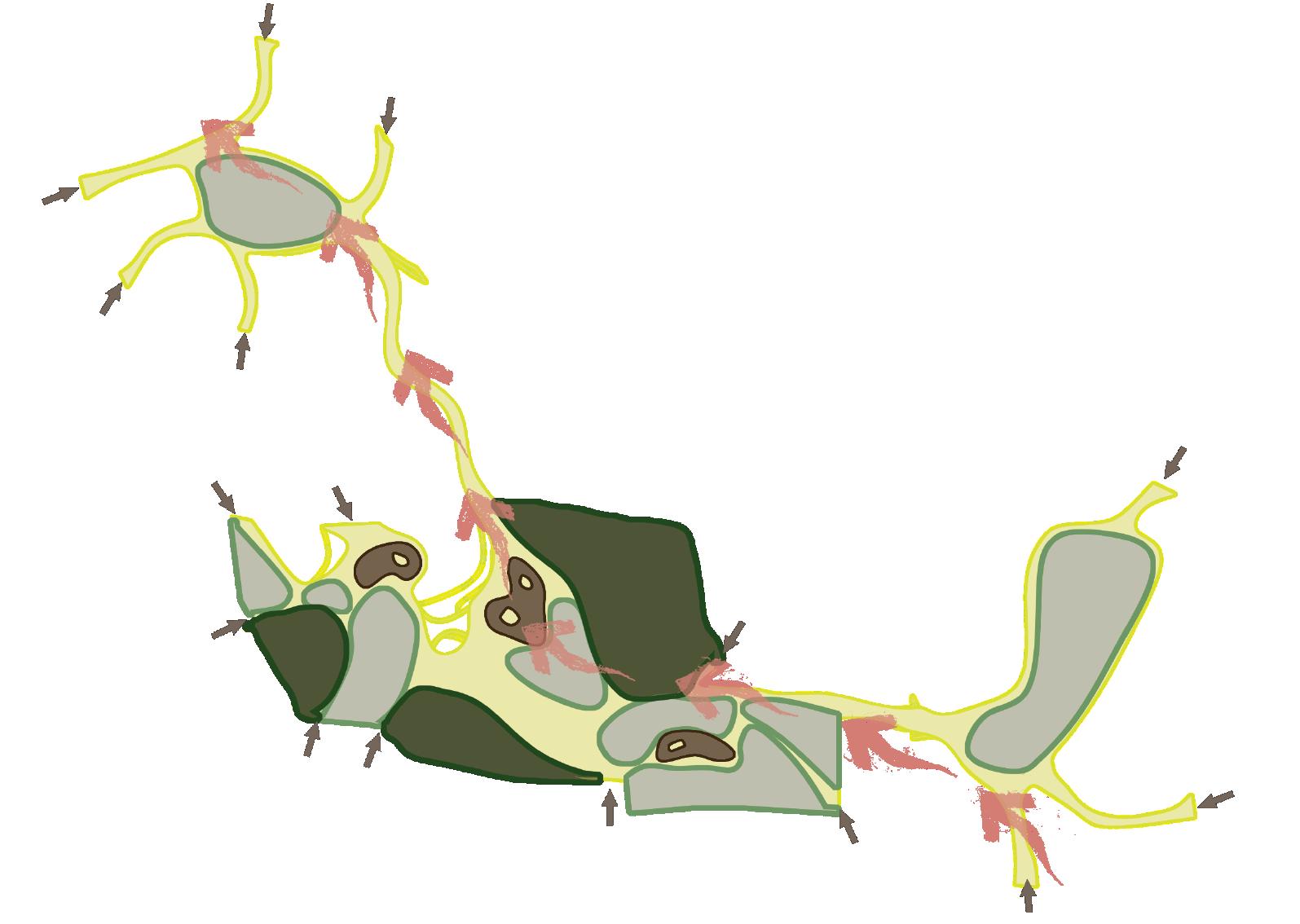

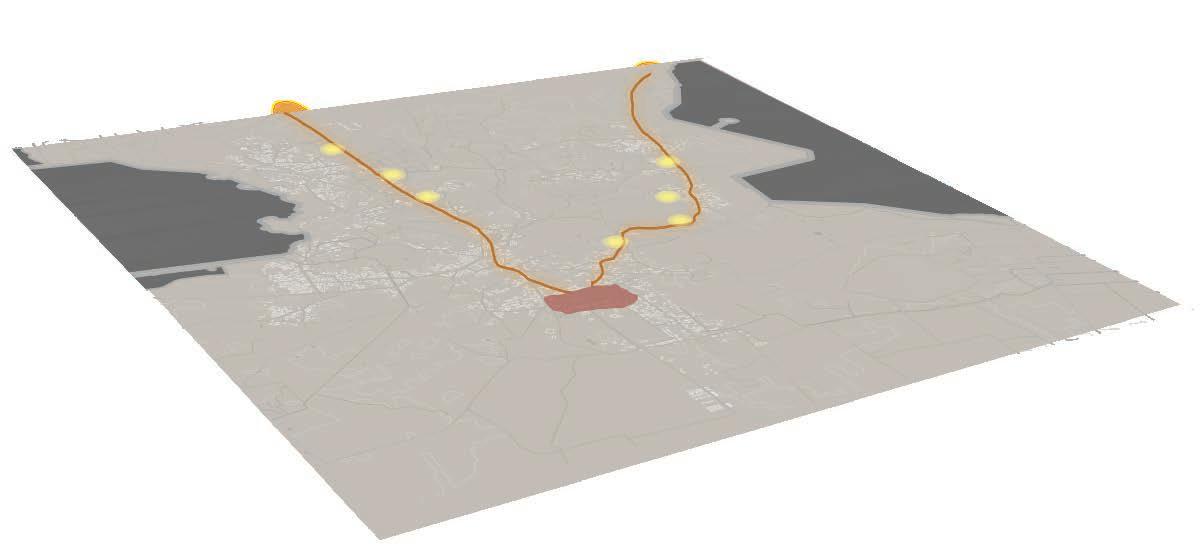

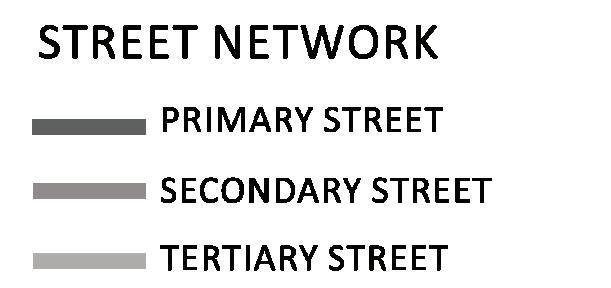

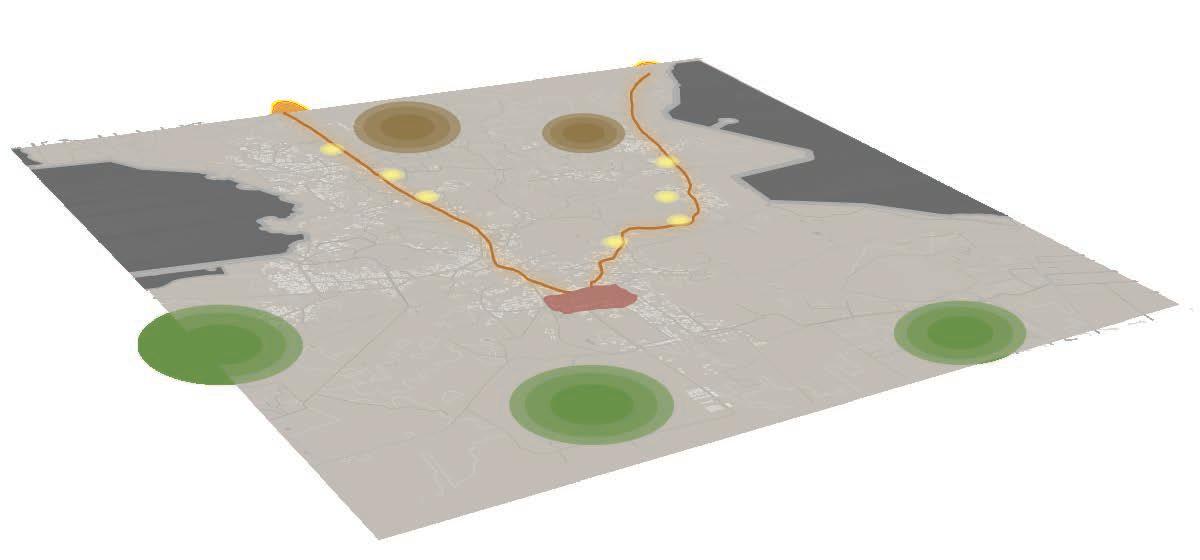

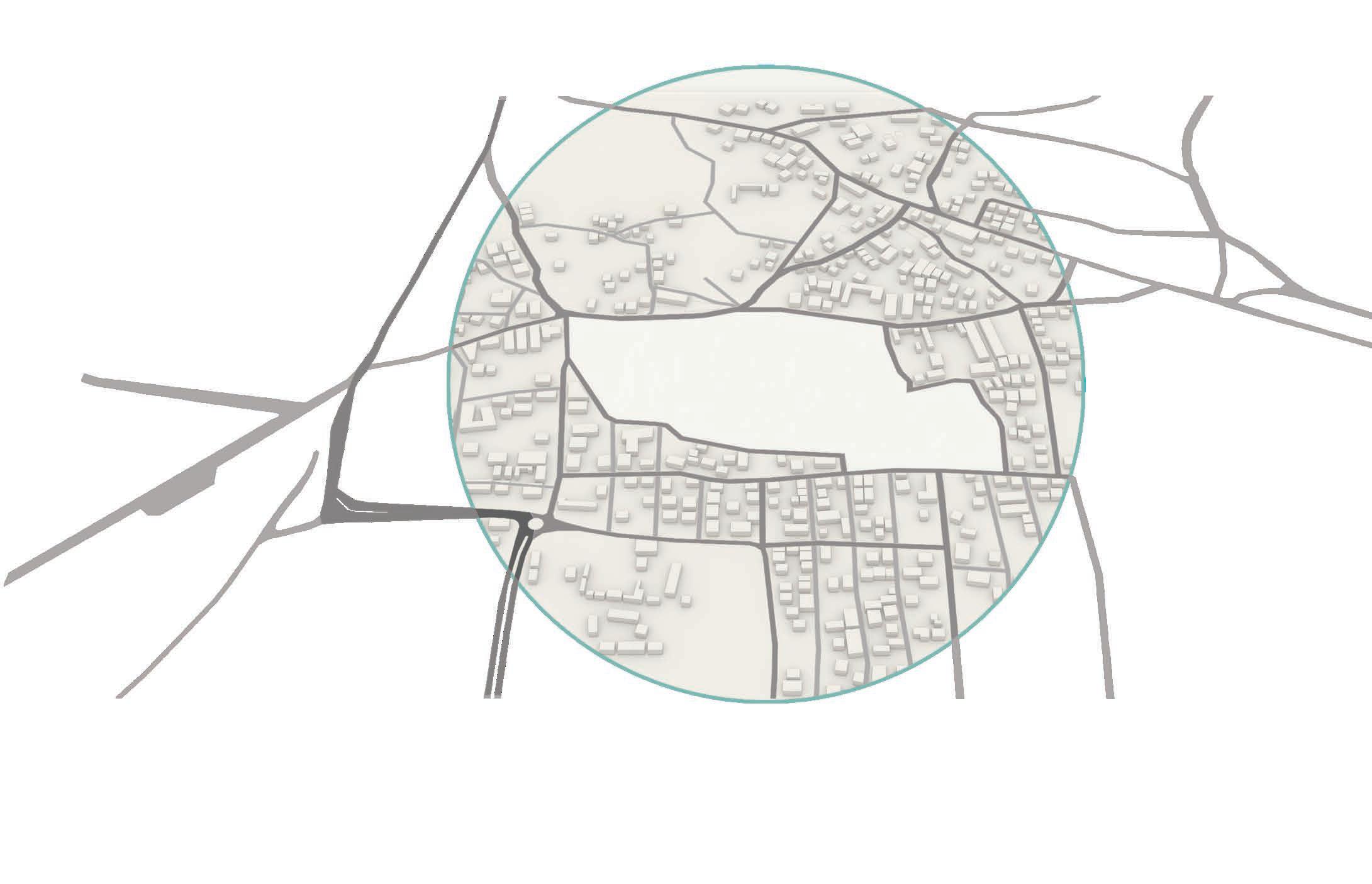

Street Hierarchy
Greenery Connection
Future Plans:
2030 - Exhibition Expansion
2040 - Site for building with Karsheef
2050 - Further Karsheef Expansion

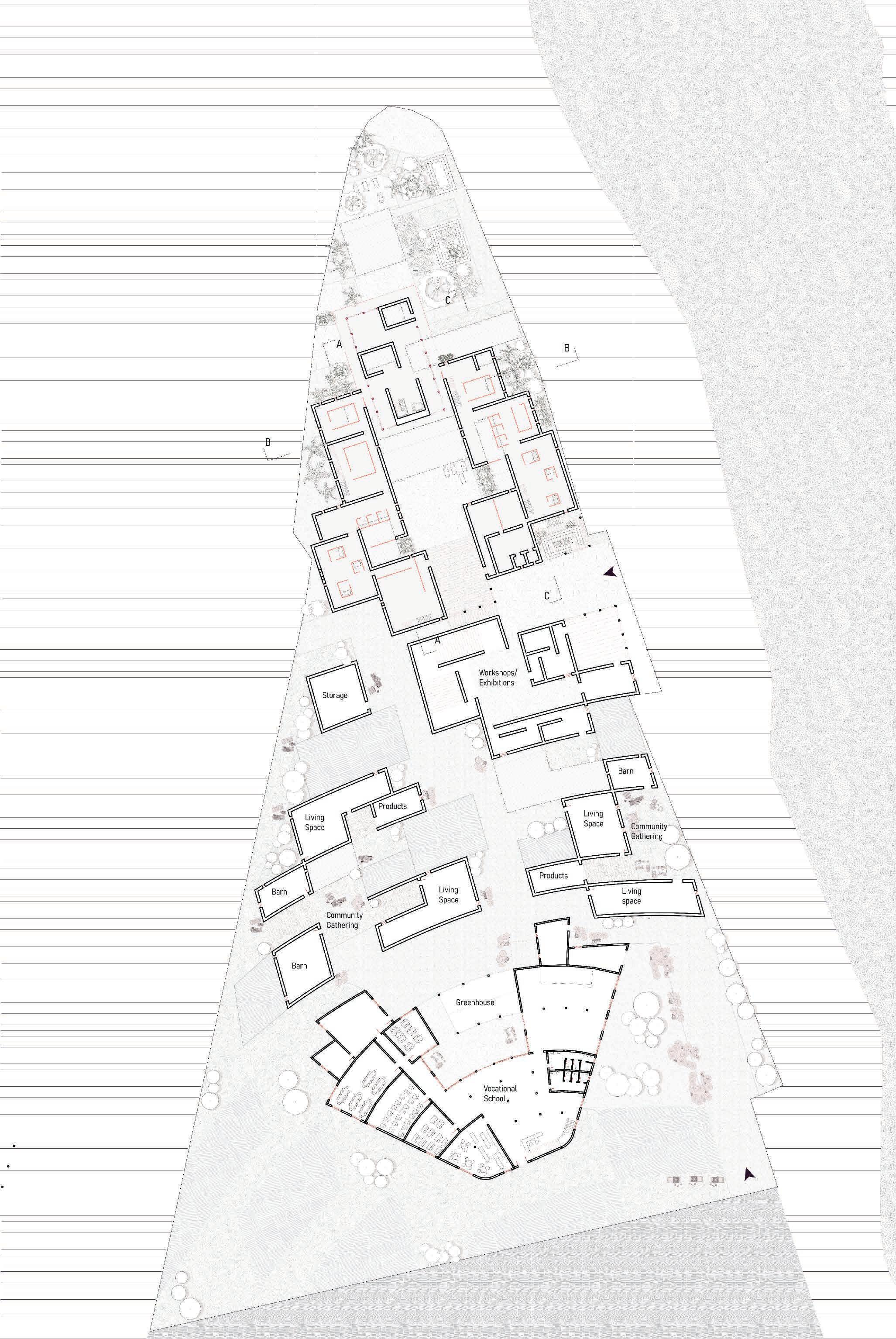

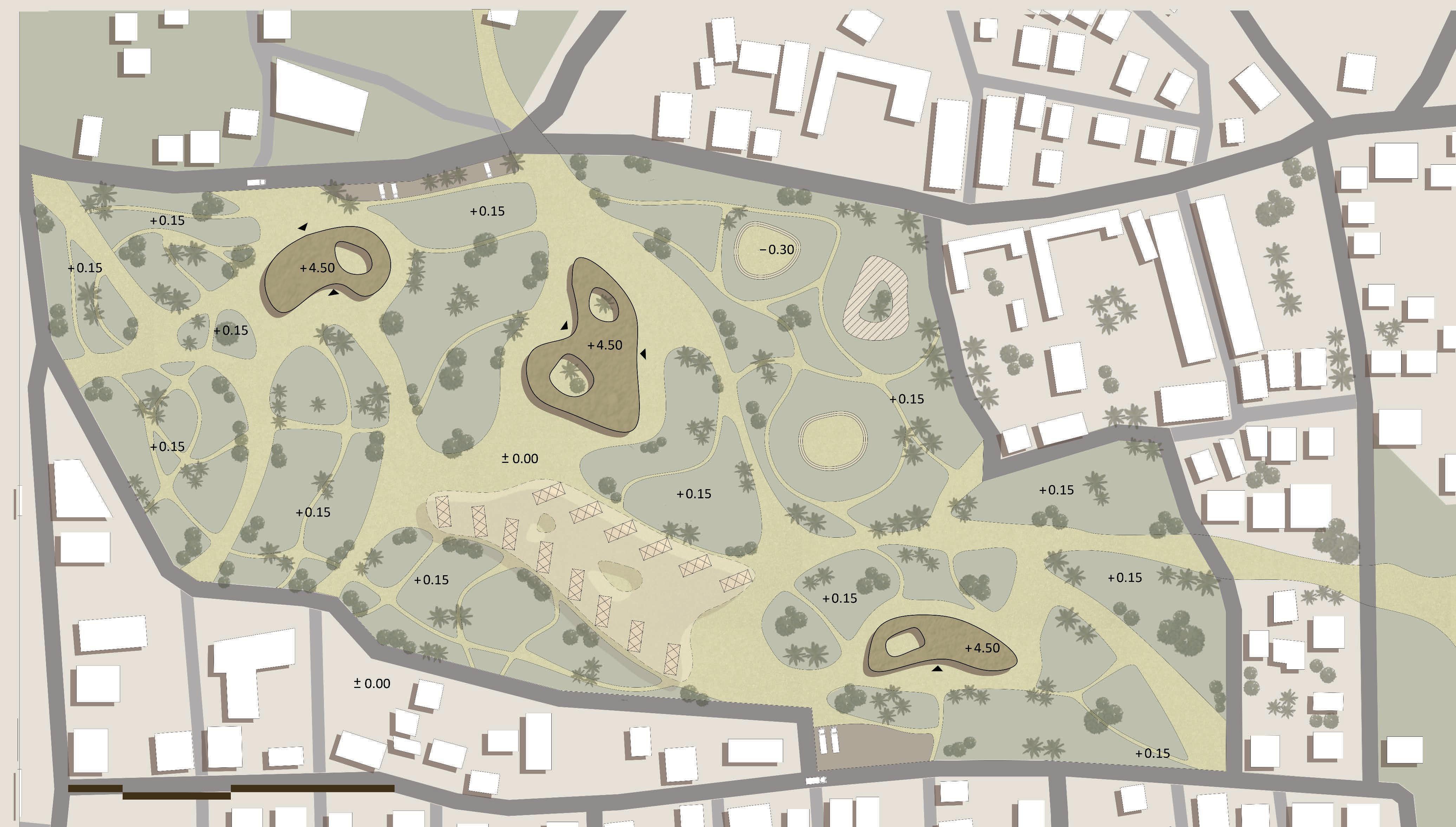

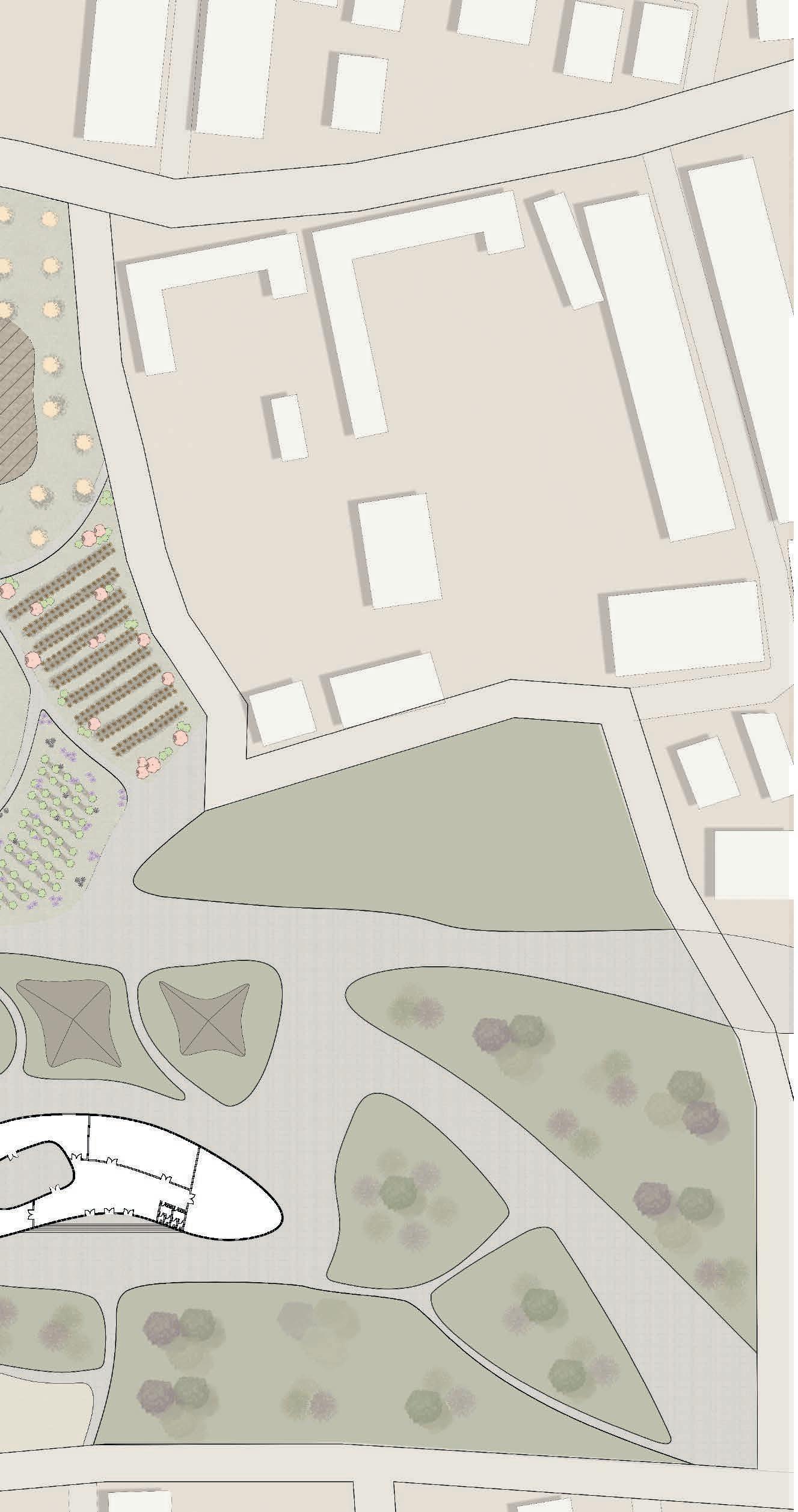

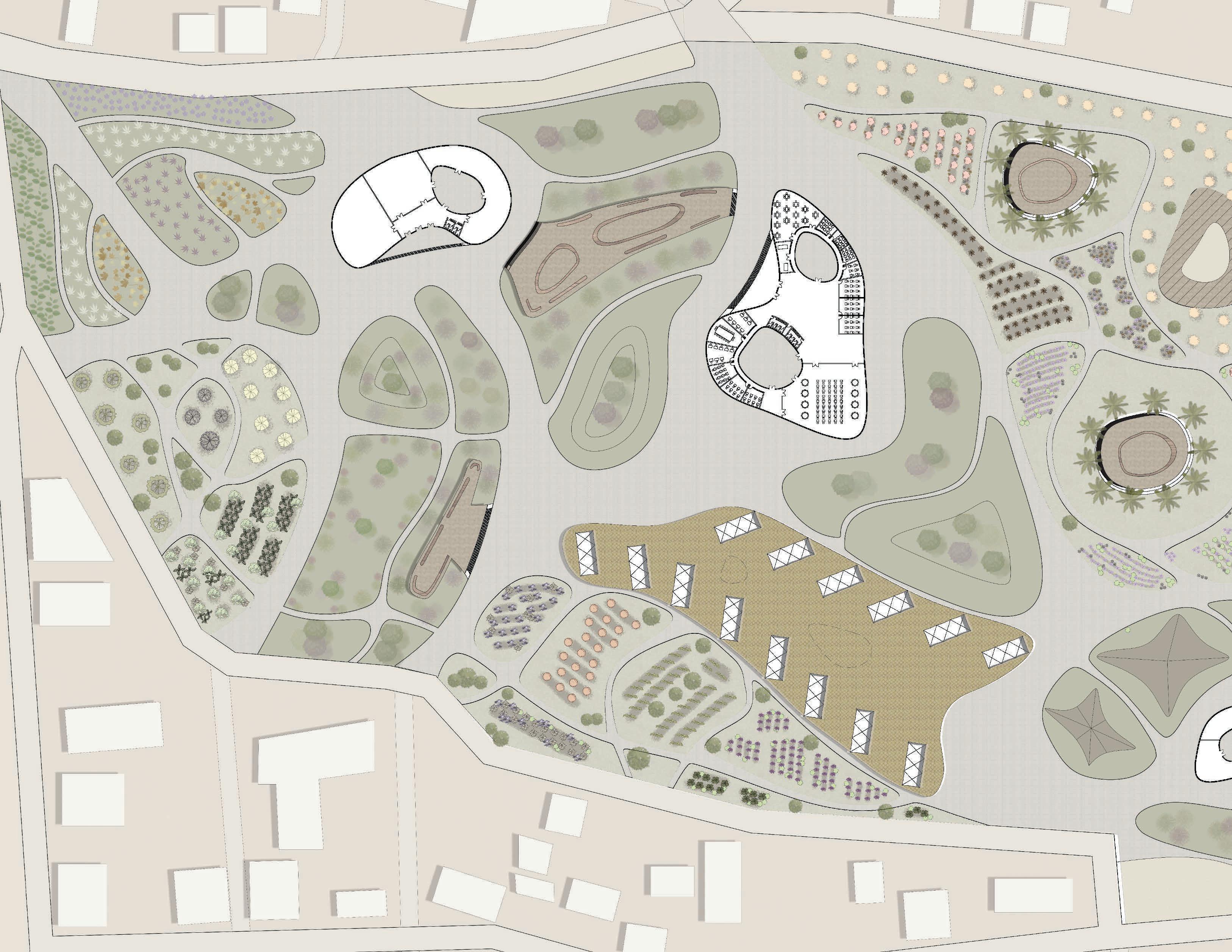

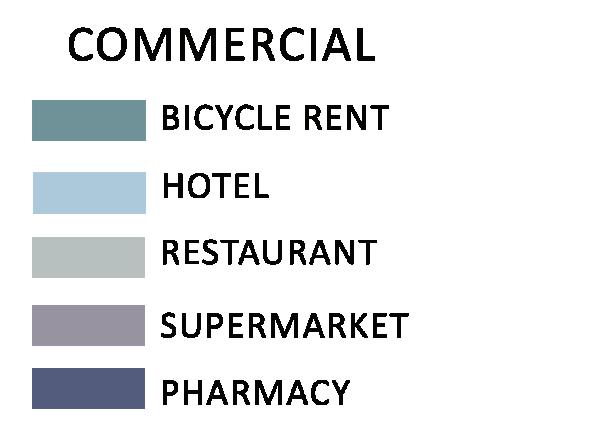

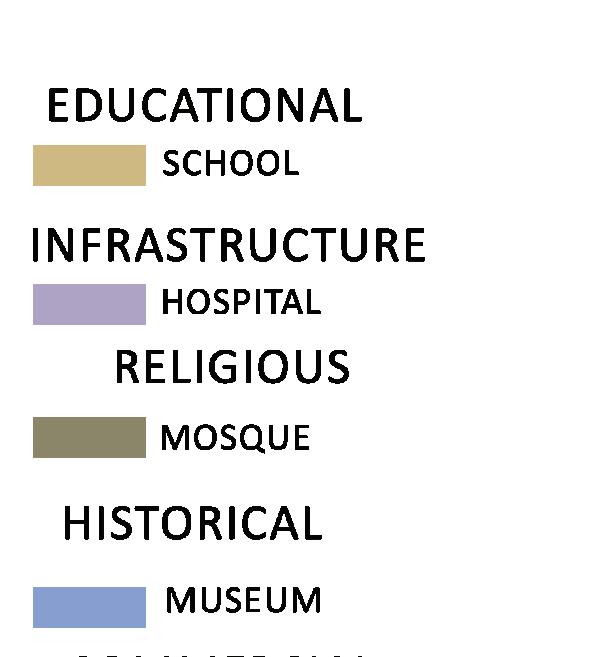

Site Plan Scale 1:2000 (not to scale)

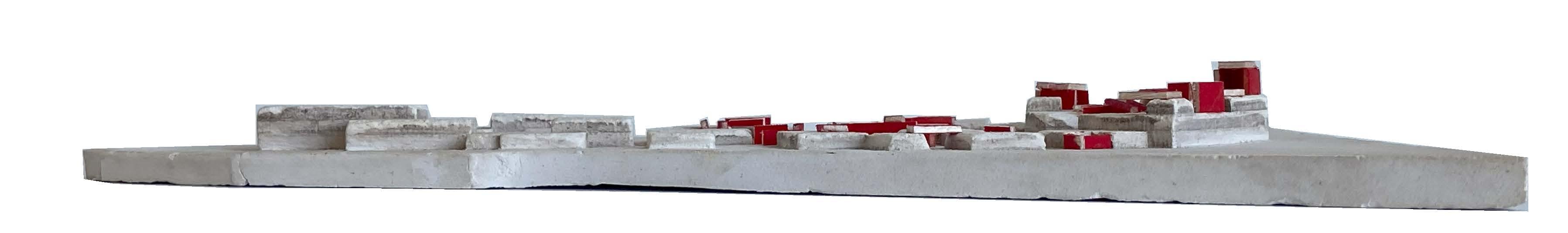

Urban Section 1:2000 (not to scale)

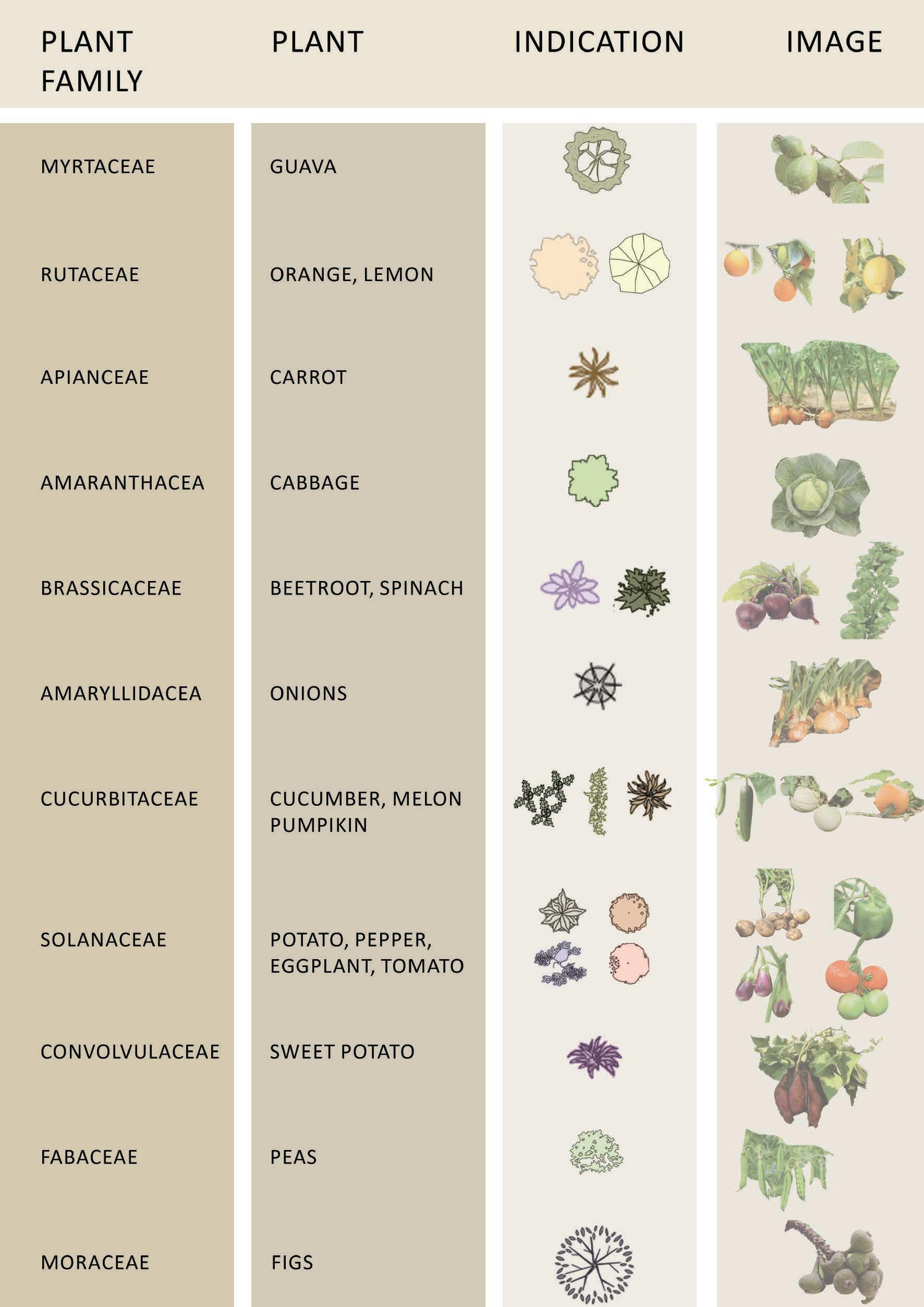

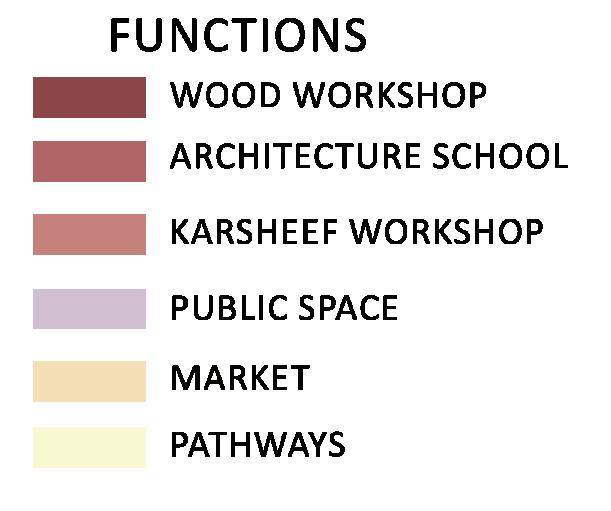

Plants Legend

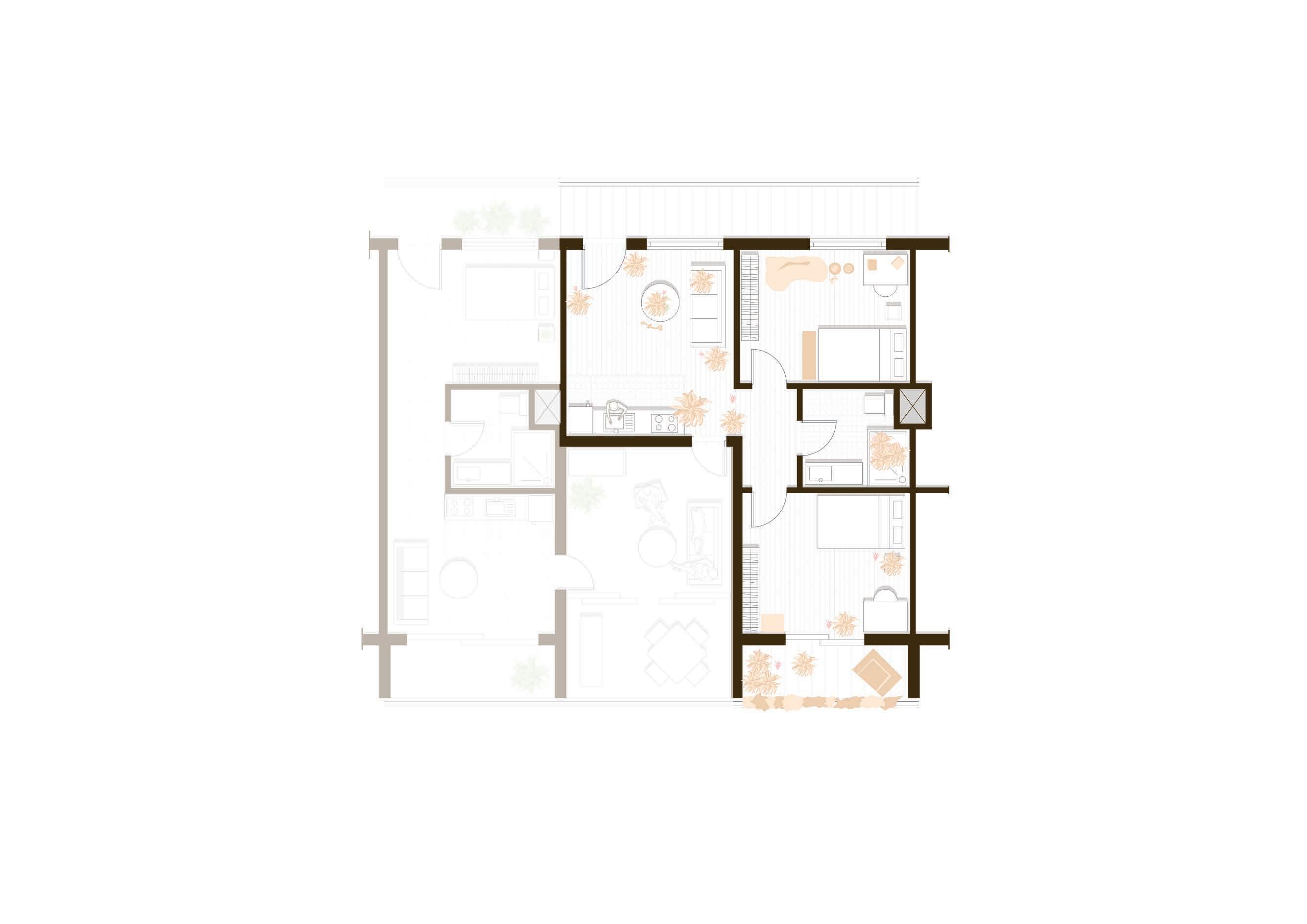

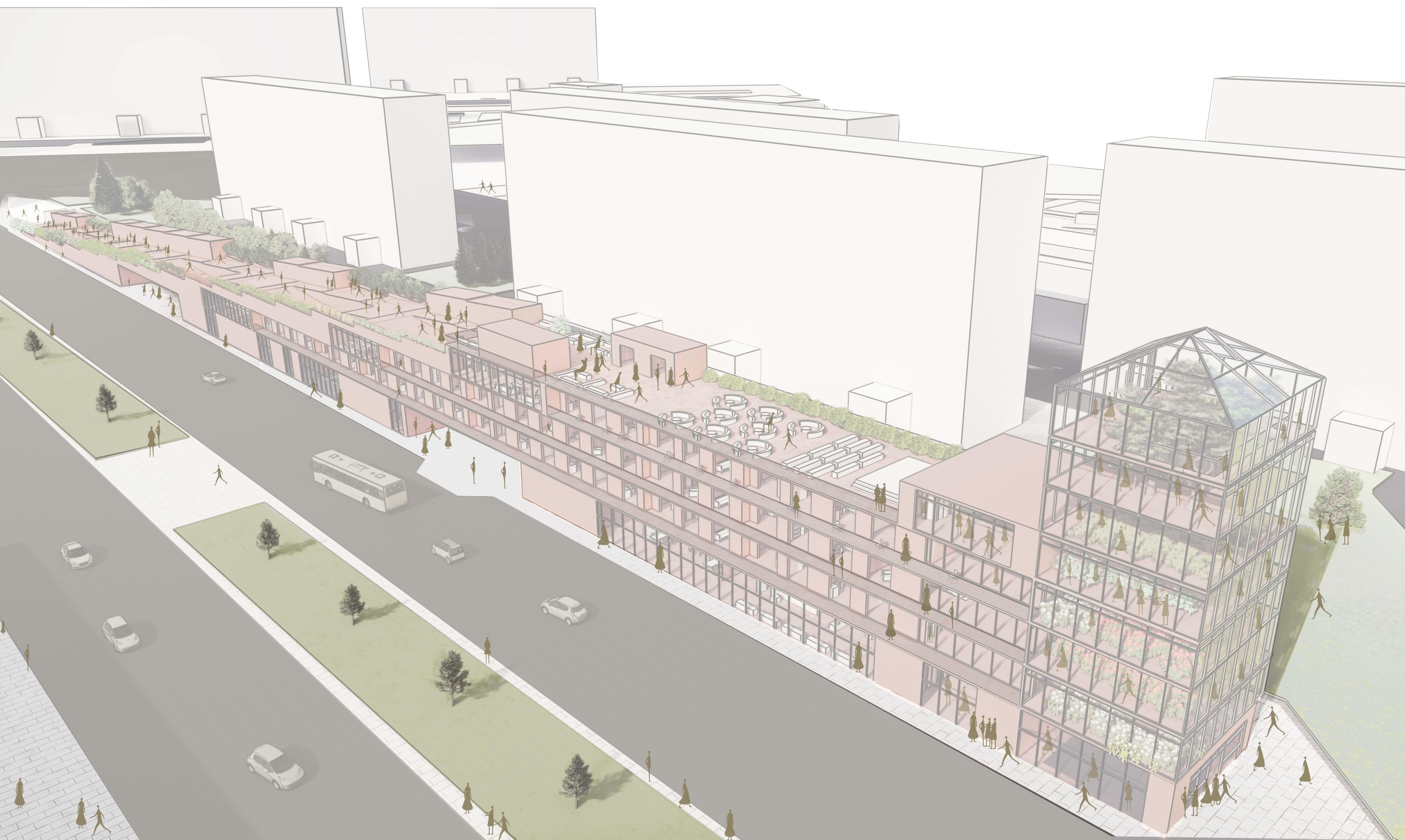

Ascendance
Design Studio 4
In an area with no designed humanity, Karl Marx Allee felt vast and imposing on ones self. Berlin is the city of artists, by creating a space for them to exhibit their work, we not only support the artists and motivate them, but also influence the residents who use it to broaden their horizons and incorporate art into their daily routine. By creating the ramp, we are slowly introducing public functions throughout all floors. We elevate the users and create a welcoming experience where the building engulfs them in an embrace. From an urban perspective we kept the main axis present in the site and incorporated it in the ground level to avoid disturbing the accessibility and the flow of people.
Year: 2023
Semester: 6th Semester
Supervision: Prof. David
Collaboration: Hana Ayman, Karen Boctor, Mariam Elsherbiny
Clay Plaster Finish 40mm
Weather-Resistant Barrier 20mm
Hempcrete Insulation 300x300x600mm
DryWall 2x12.5mm
Plaster 20mm
Paint 2mm
Wooden Floor Tiles 20mm
Hempcrete 60mm
CLT Slab 200mm
Clay Plaster 40mm
Flackig to prevent water entry
Steel C-channel bolted to wooden beam
Parquet Finsih 20mm
Hempcrete 60mm
CLT Slab 200mm
FFL +10.00
FFL +7.00
Ground Floor Public Functions

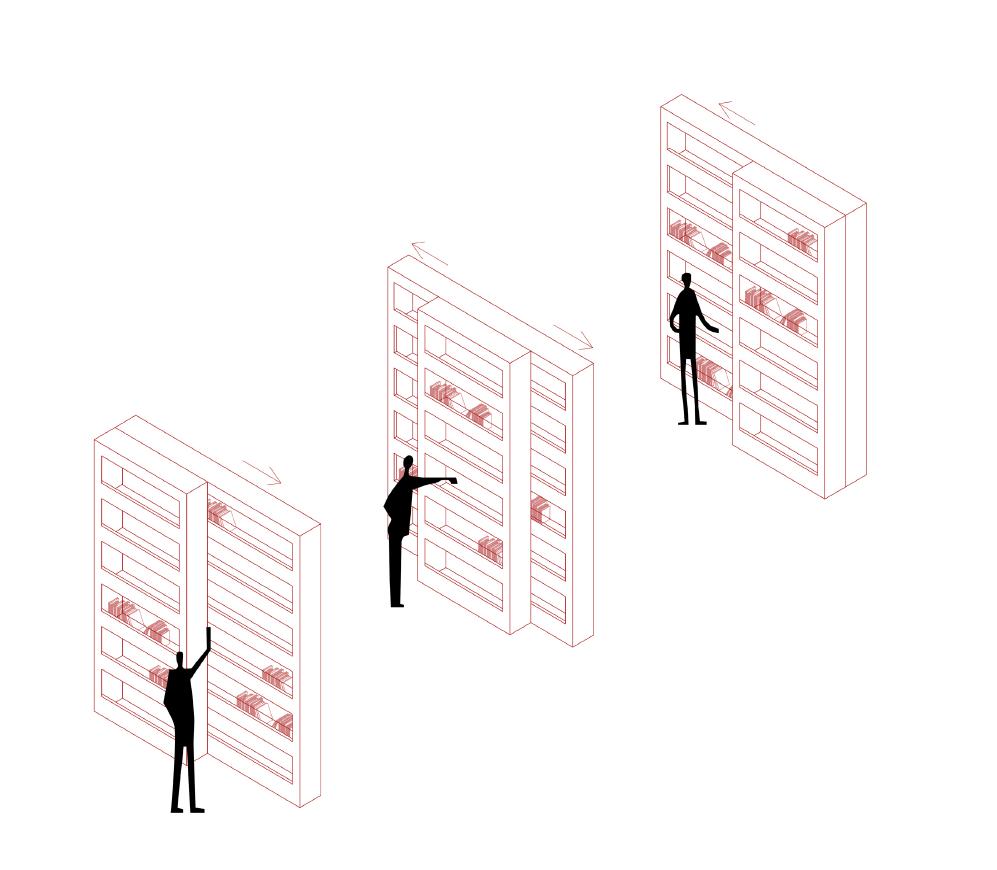

Azbakeya Book Market Hall
Our Concept breaks down to 3 keywords: Monumentality, Dichotomy, and 'walk through timeline'.

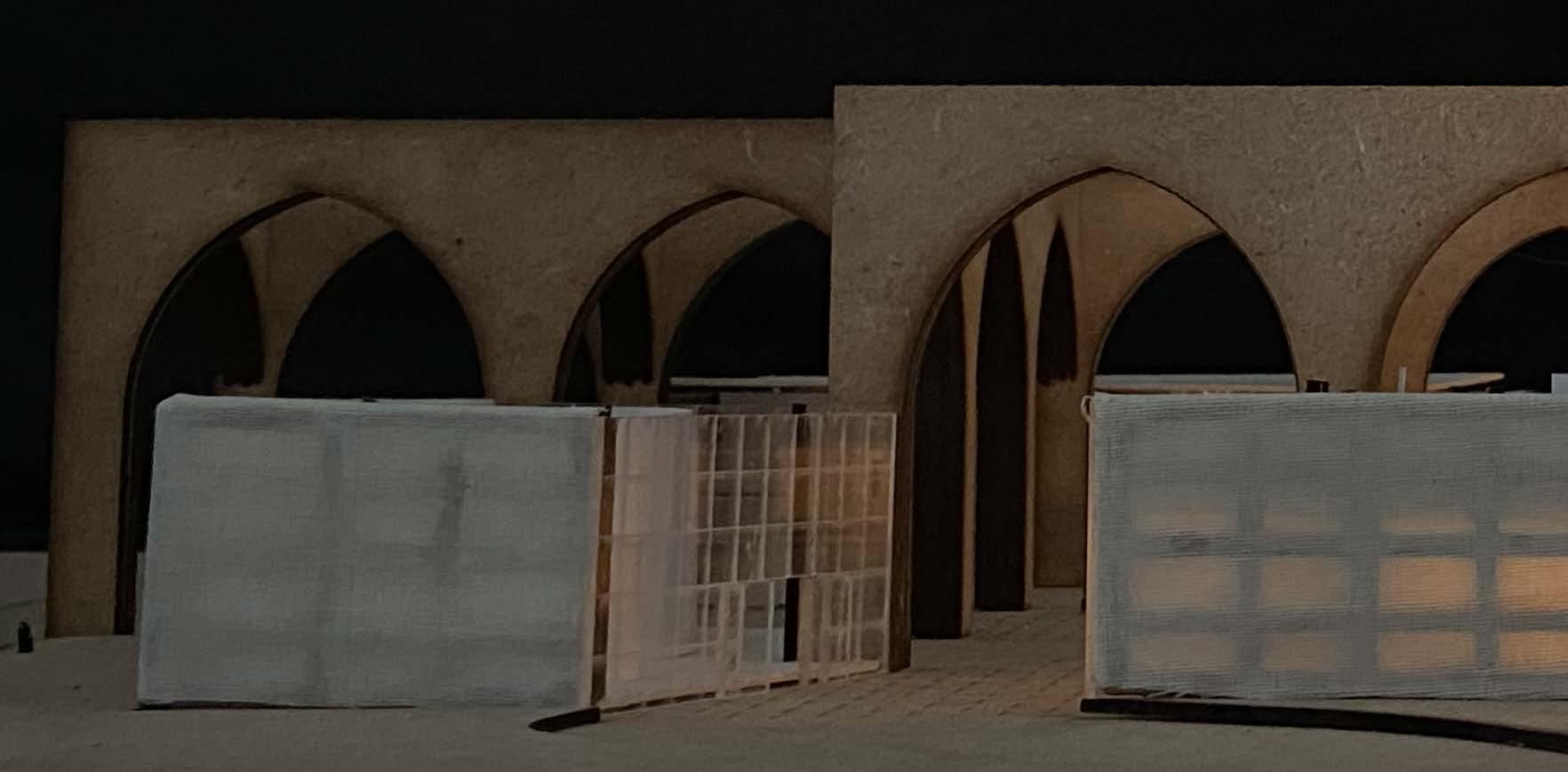

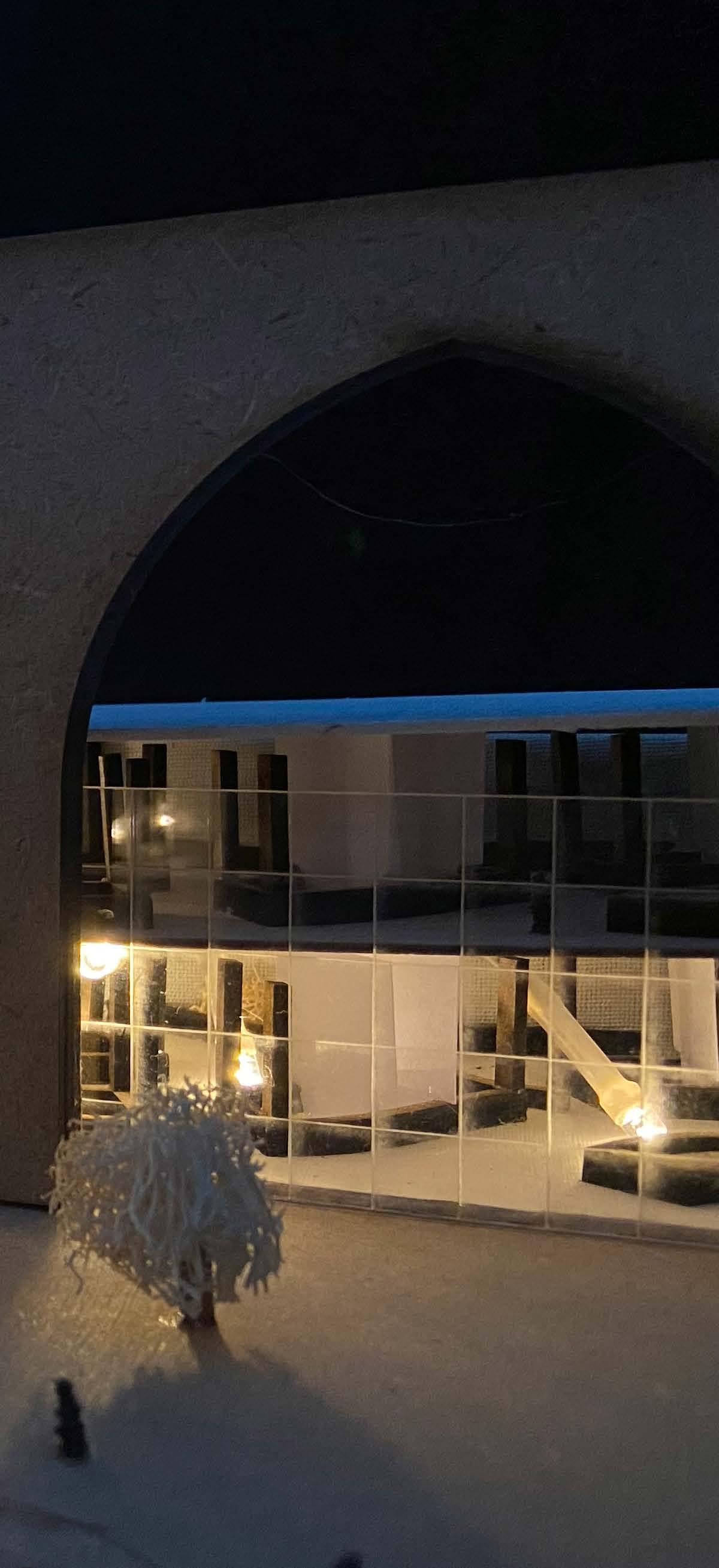

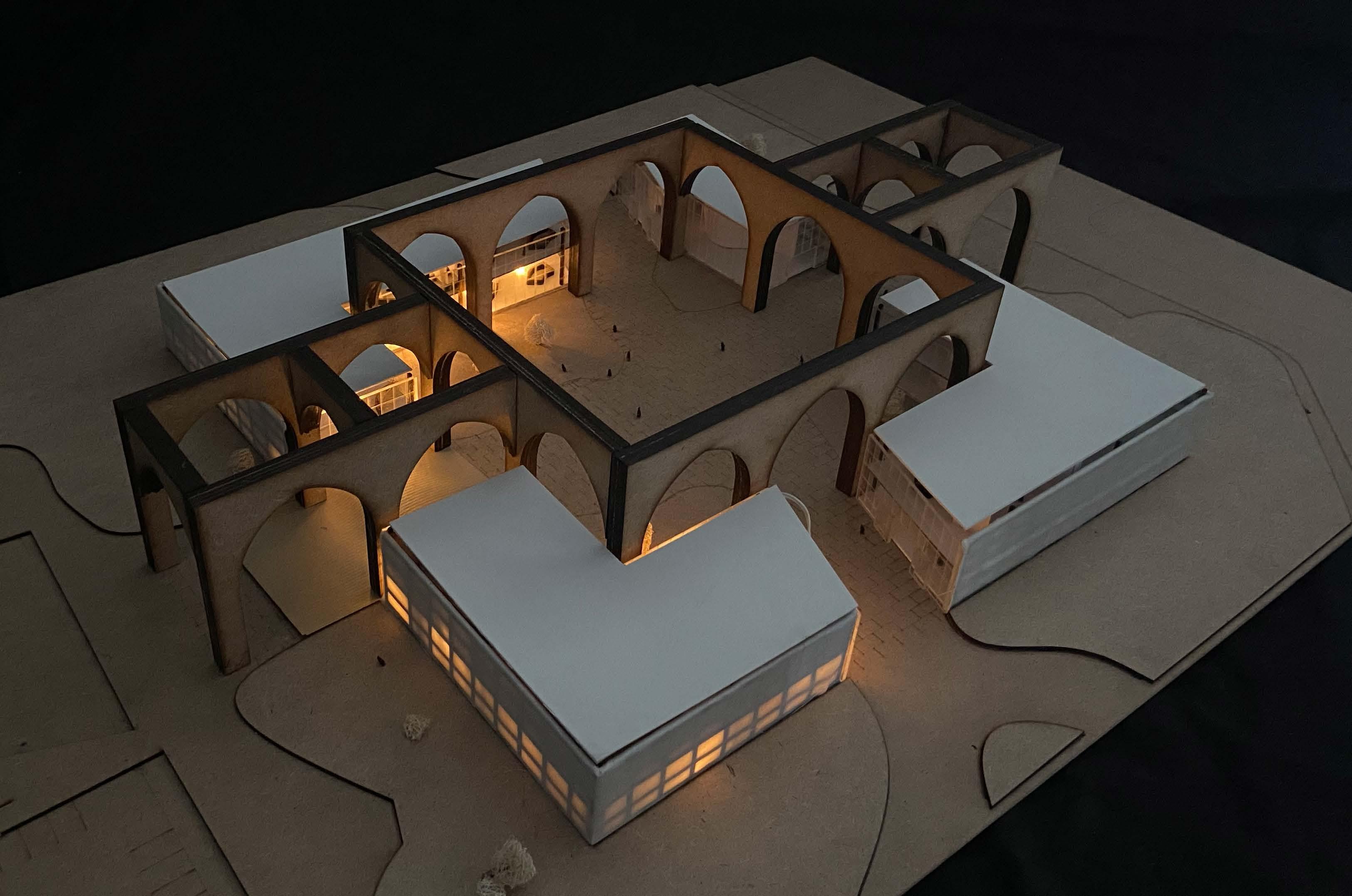

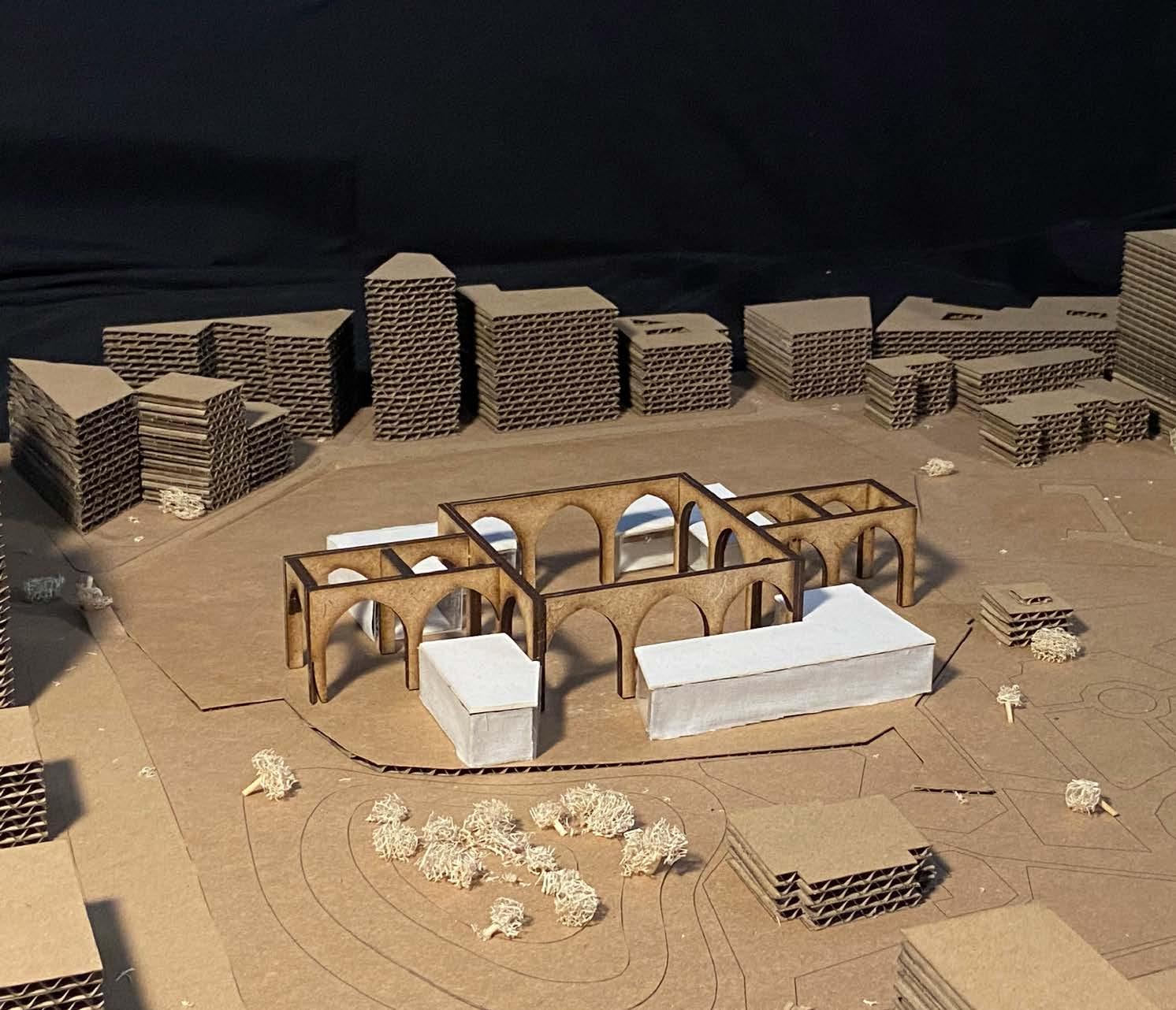

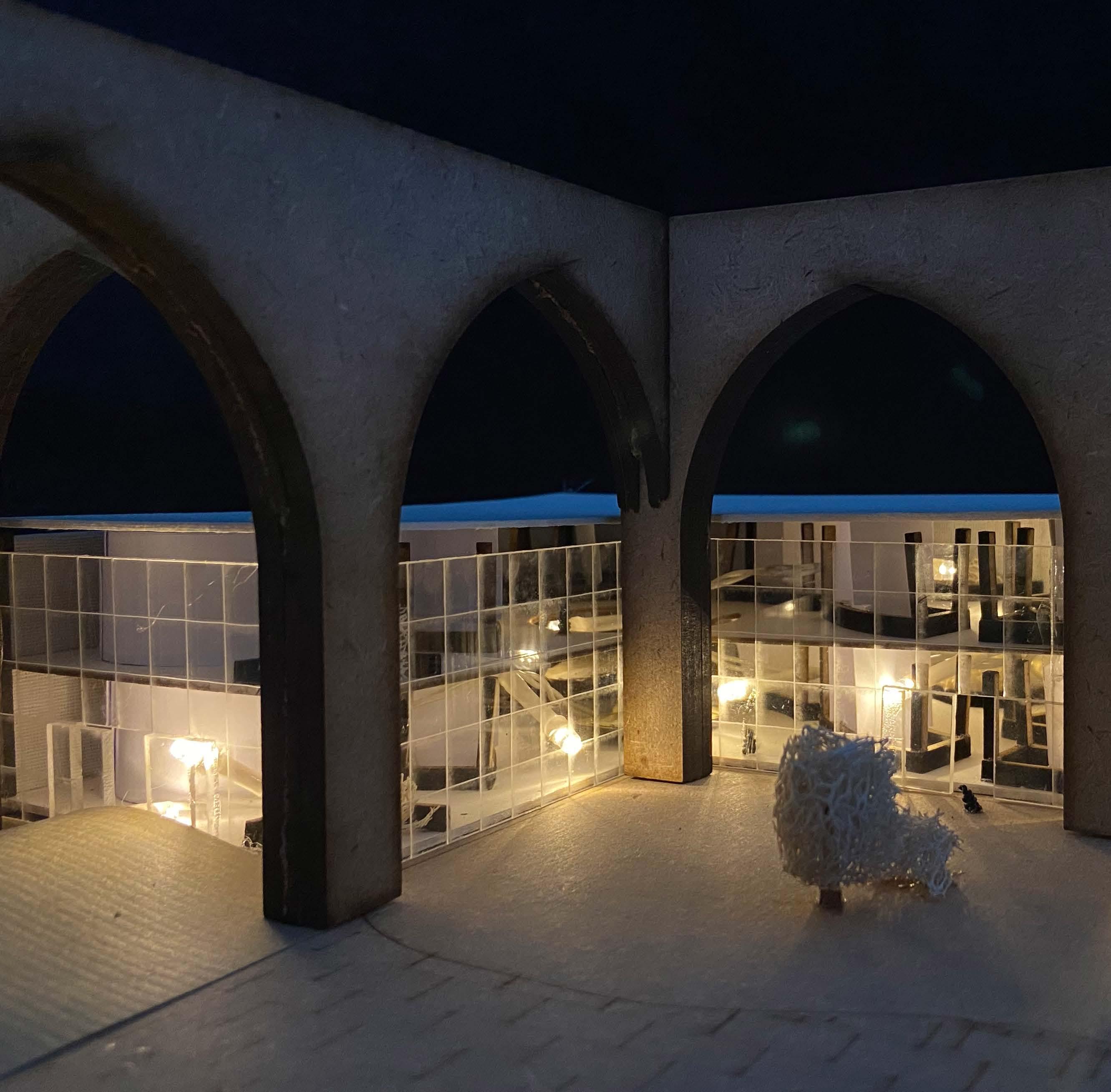

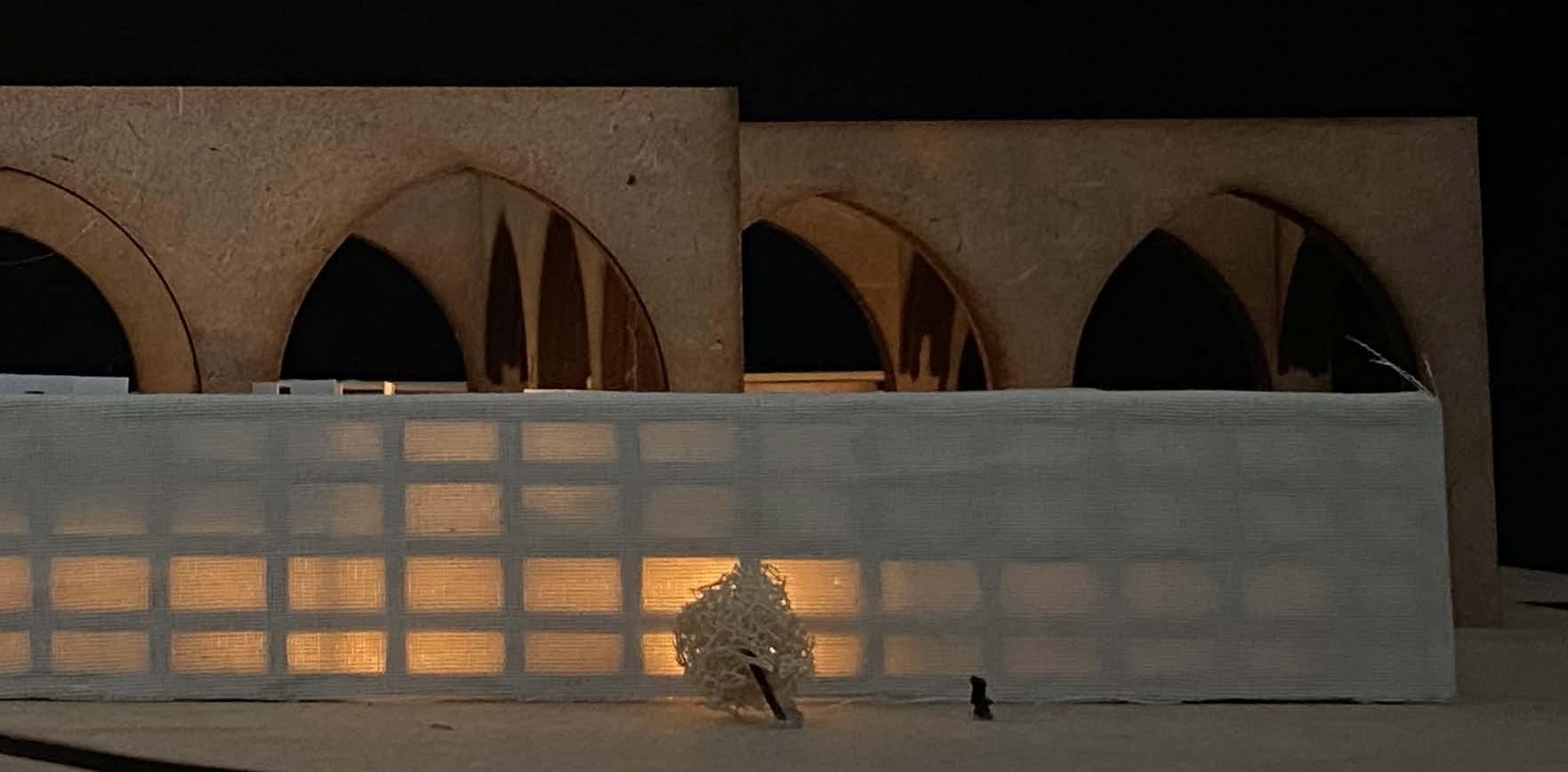

We wanted to create an experience that would fit the hisroty of Cairo and our location (center of Cairo) yet it would still be monumental and majestic. That's why we designed the heavy monumental Islamic stone arches, cutting through a light transparent modern building.
Year: 2022
Semester: 5th Semester
Supervision: Prof. Manlio Michieletto
Collaboration: Sarah Tarek, Sama Yehia
Site: Azbakeya Park, Cairo, Egypt.

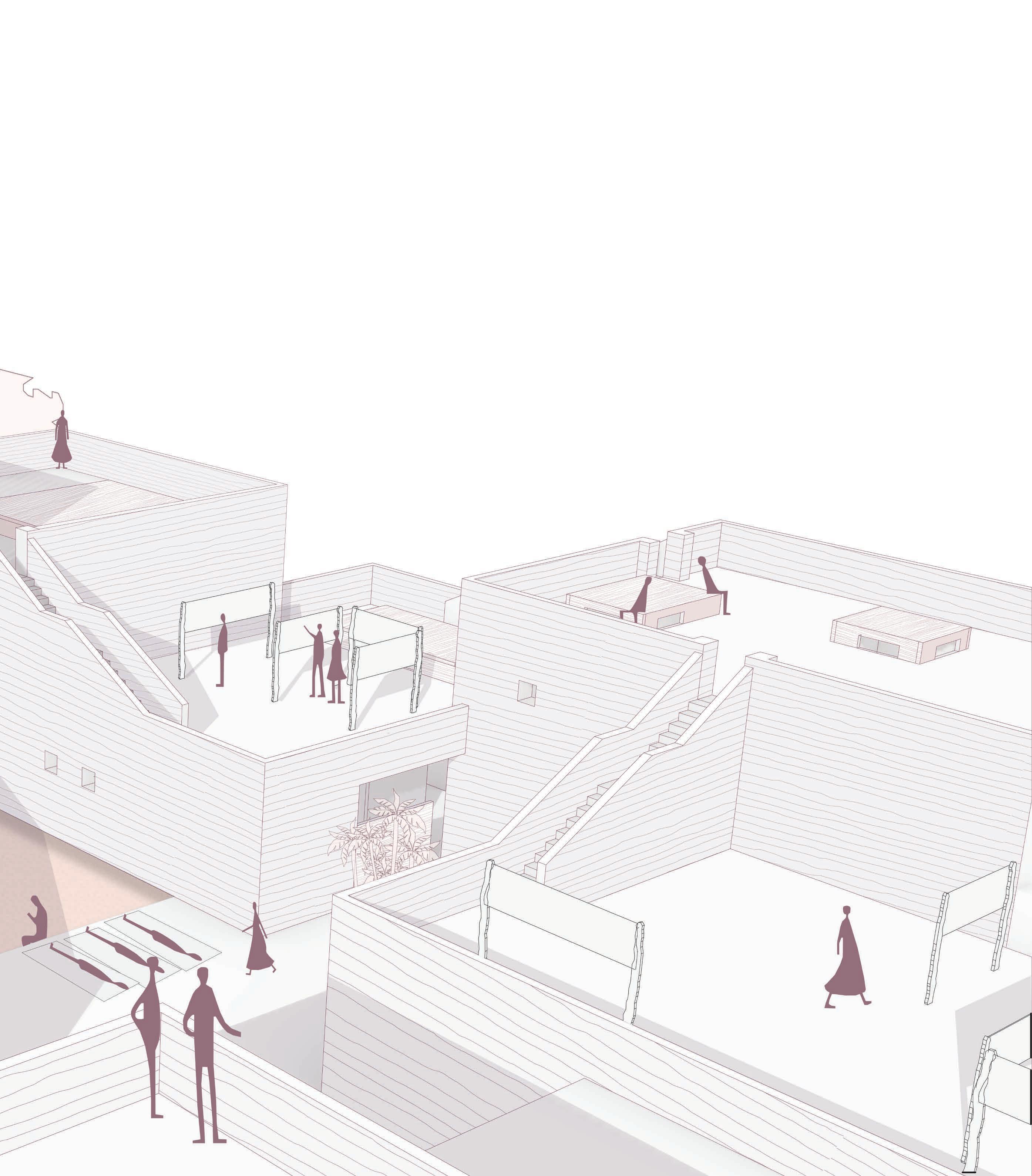

3D Section Expressing the scale and Monumentality
AHMED HEGAZY|

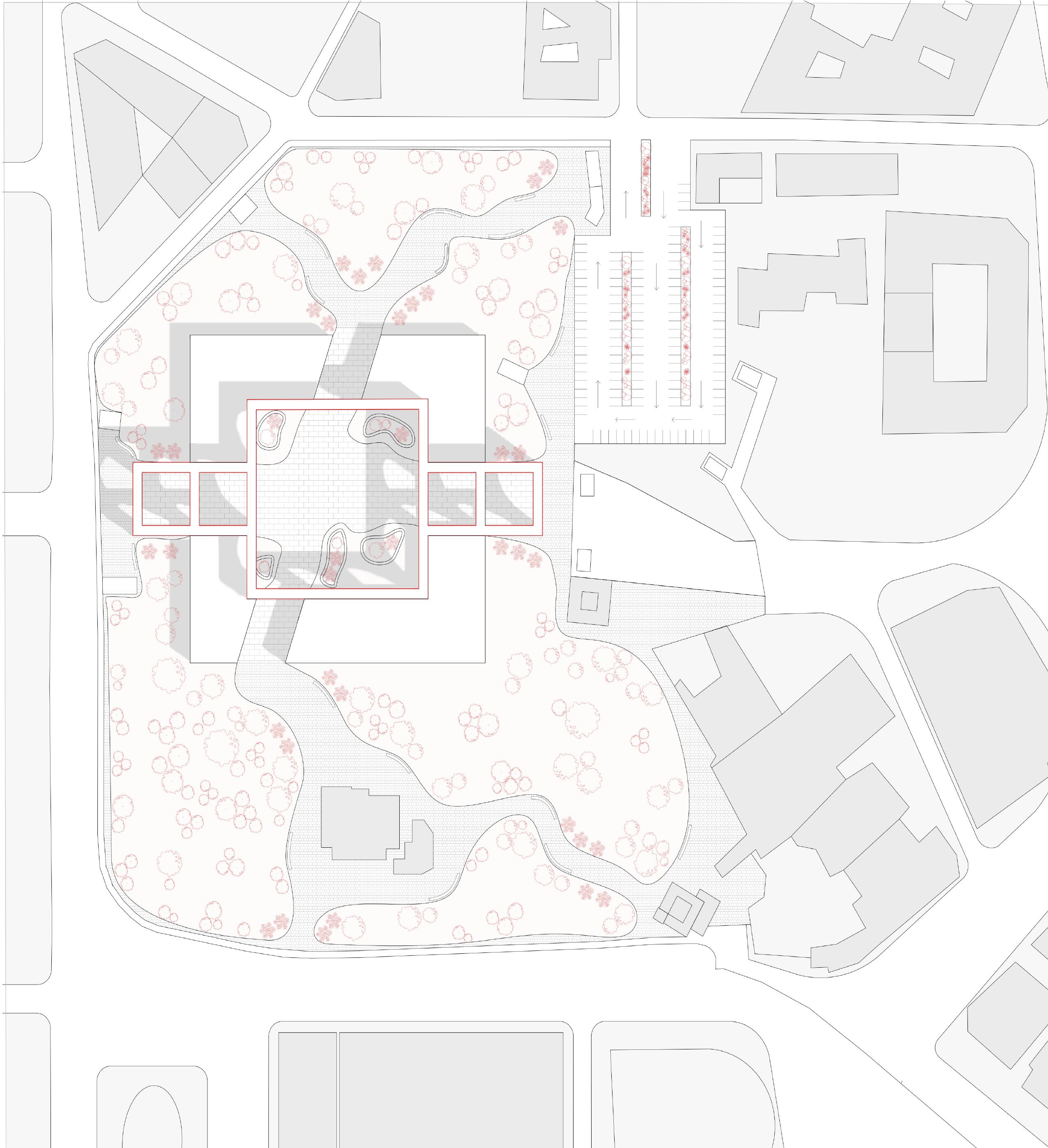

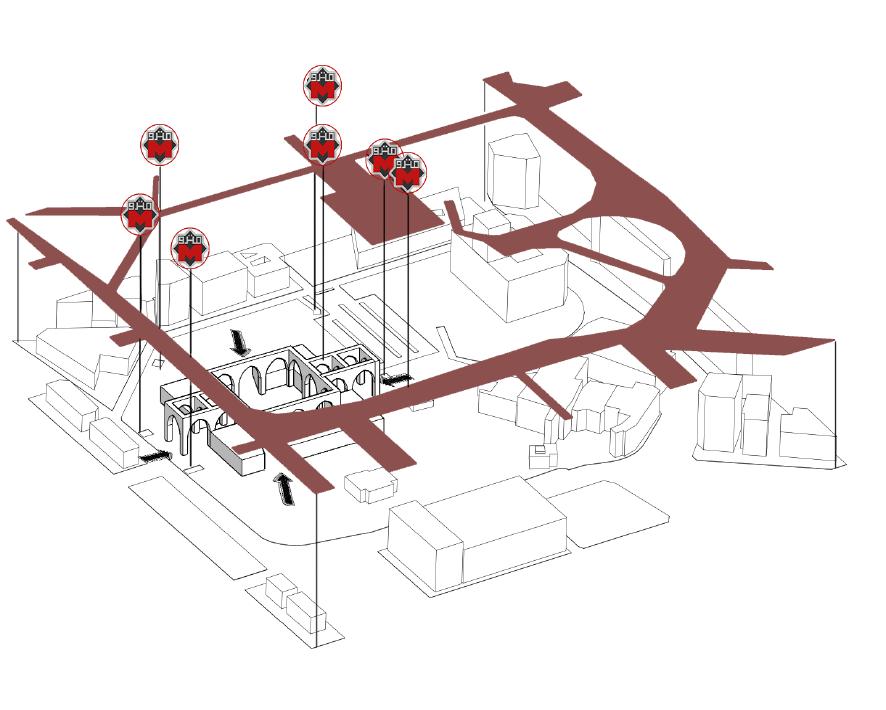

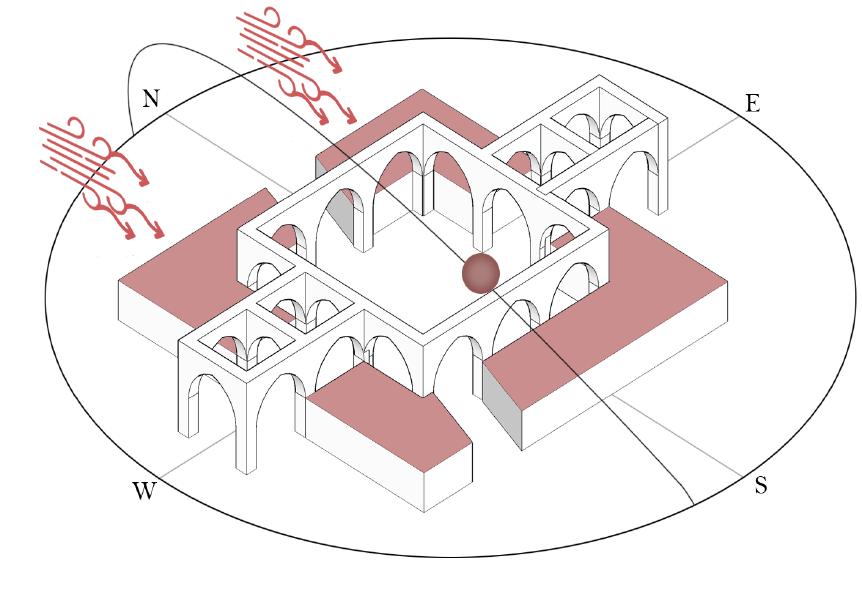

Diagram Site plan scale 1:500
The site has a very strong axis: from the 26th of July going to the Azbakeya existing book market, and that is where the arches are directed. Another cut through the building connects from the exisiting Azbakeya forrest to the new one, enhancing the accessability from the north ans south and strengthening our concept.
Accesbility

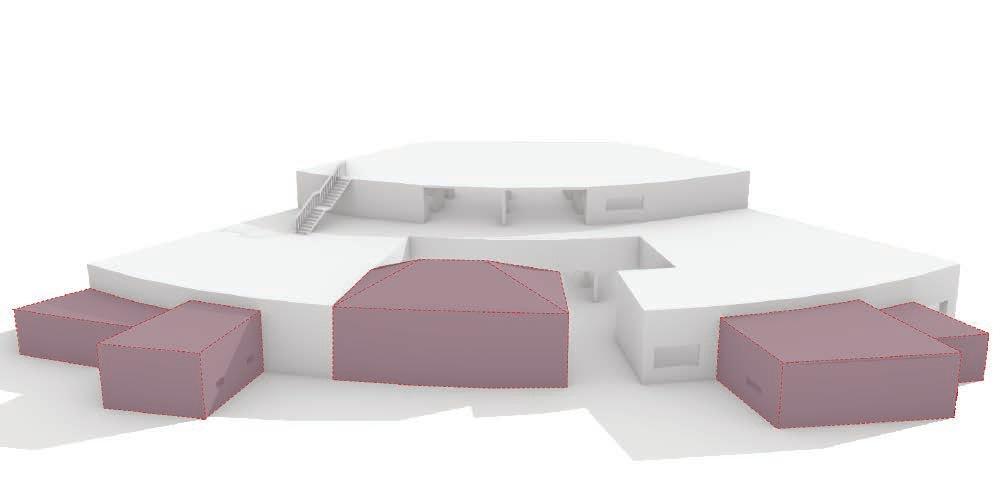

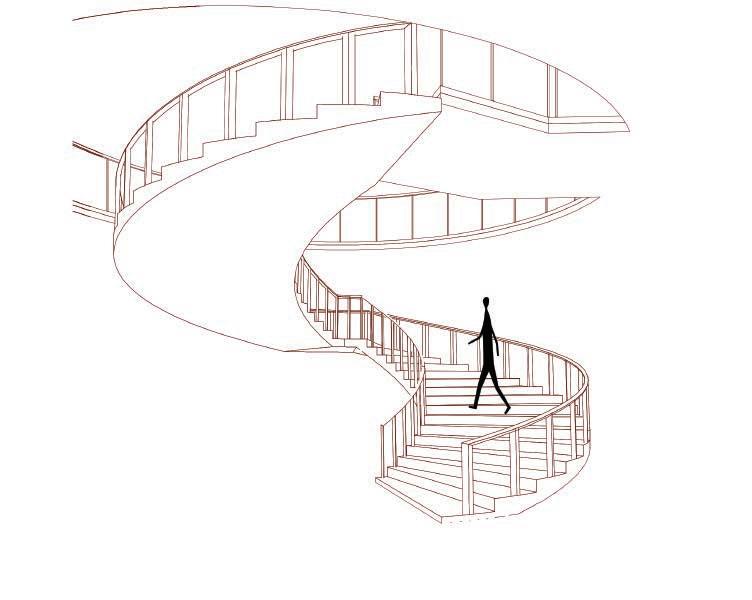

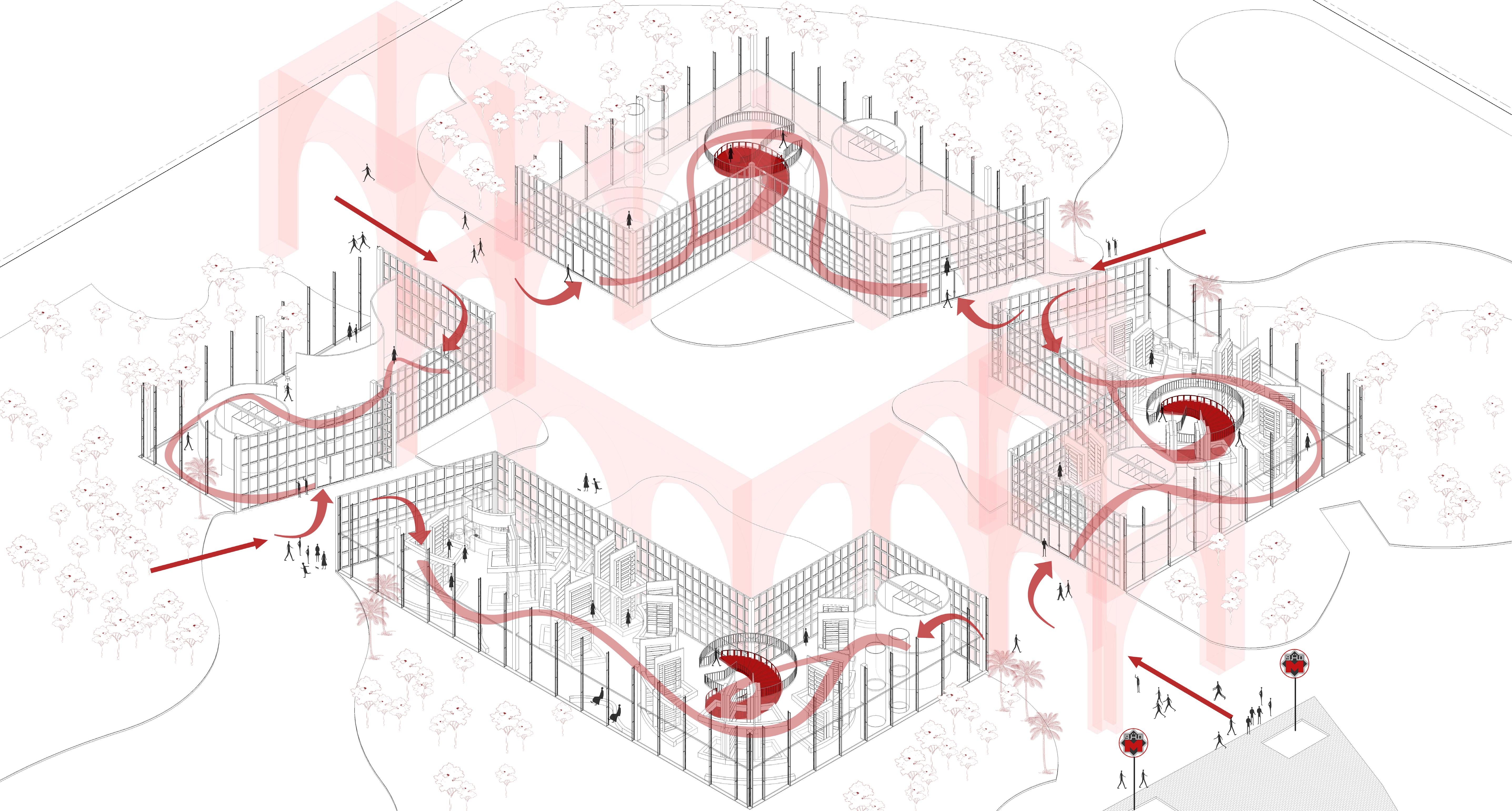

Horizontal and Vertical Circulation

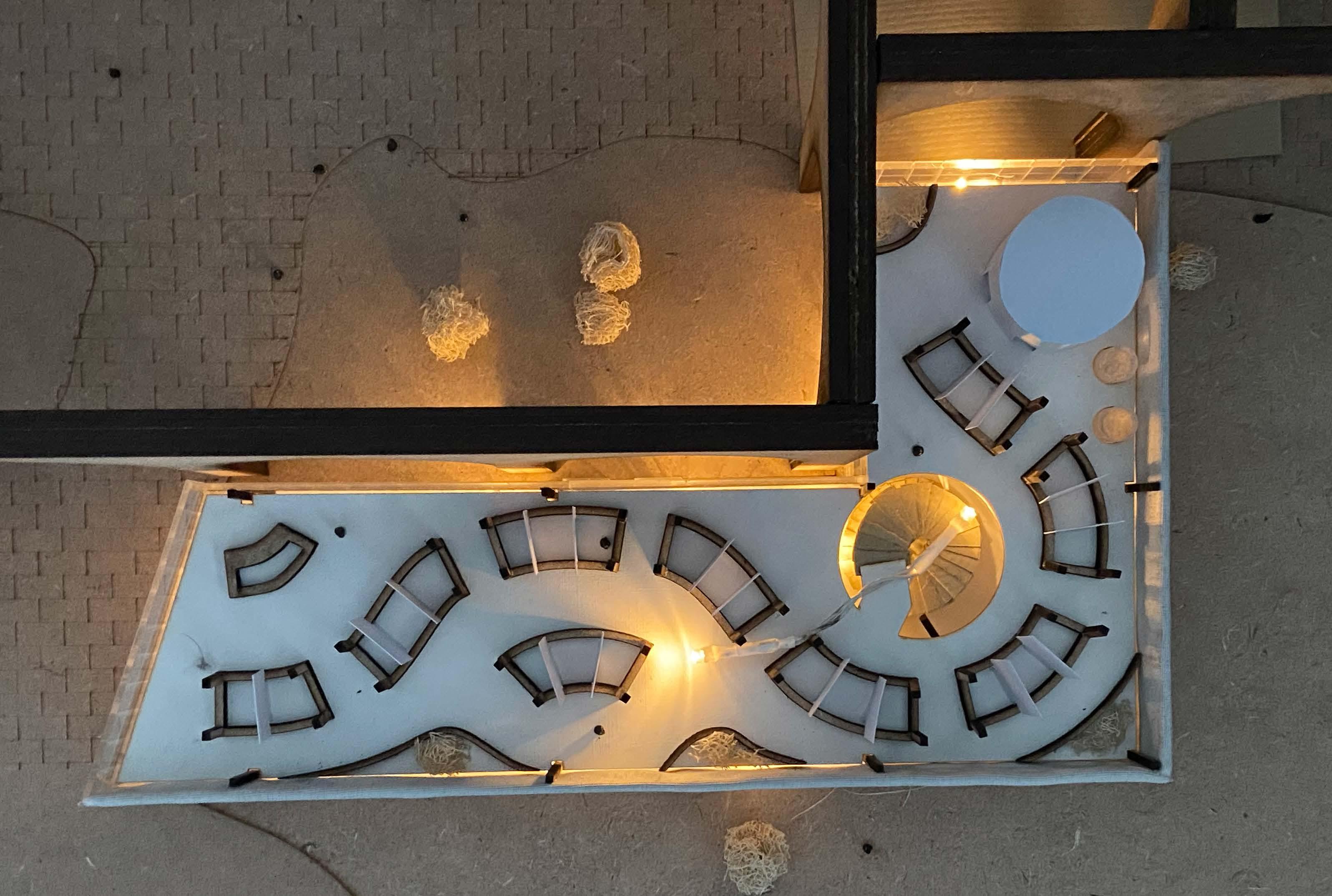

The plan strategy was to emphasize the dichotomoy of the project, having a this flowy plan and spiral stairs in contrast with the box like exterior.

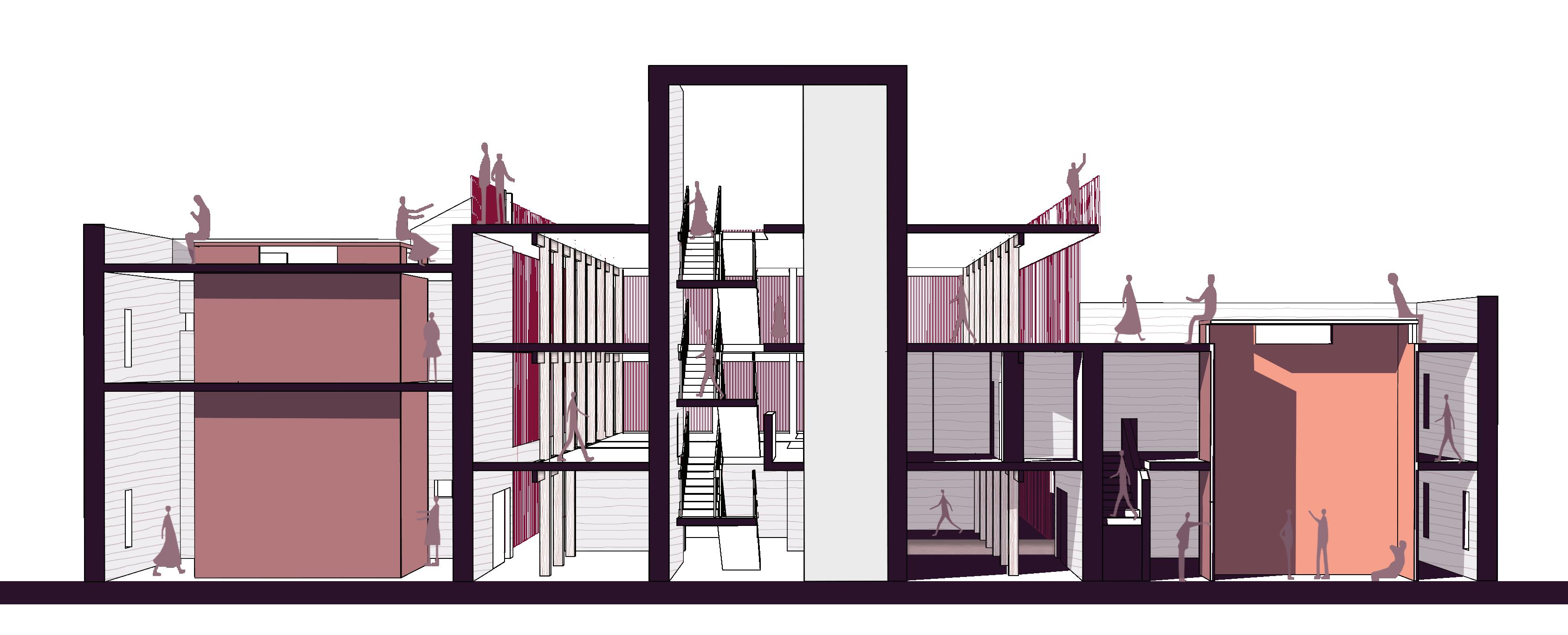

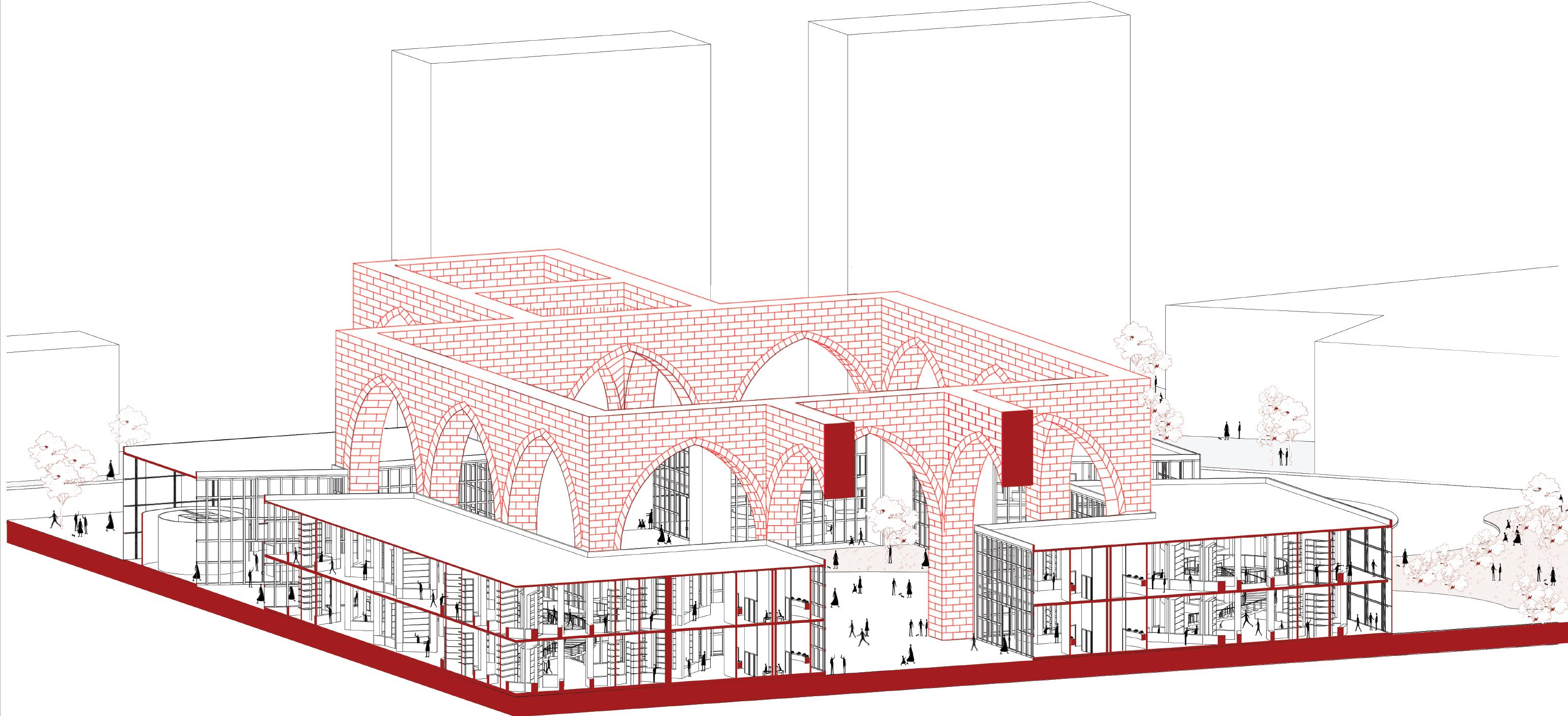

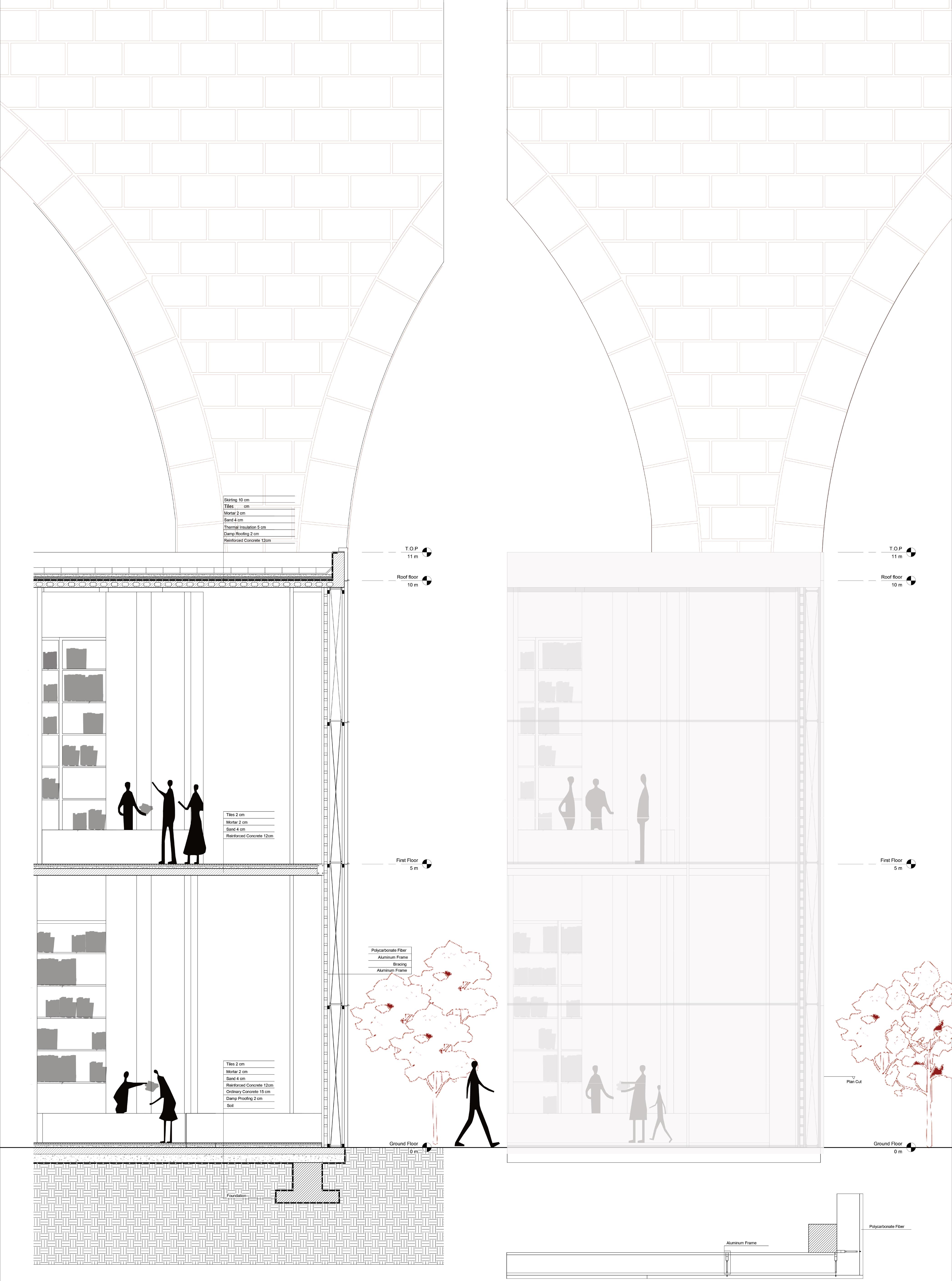

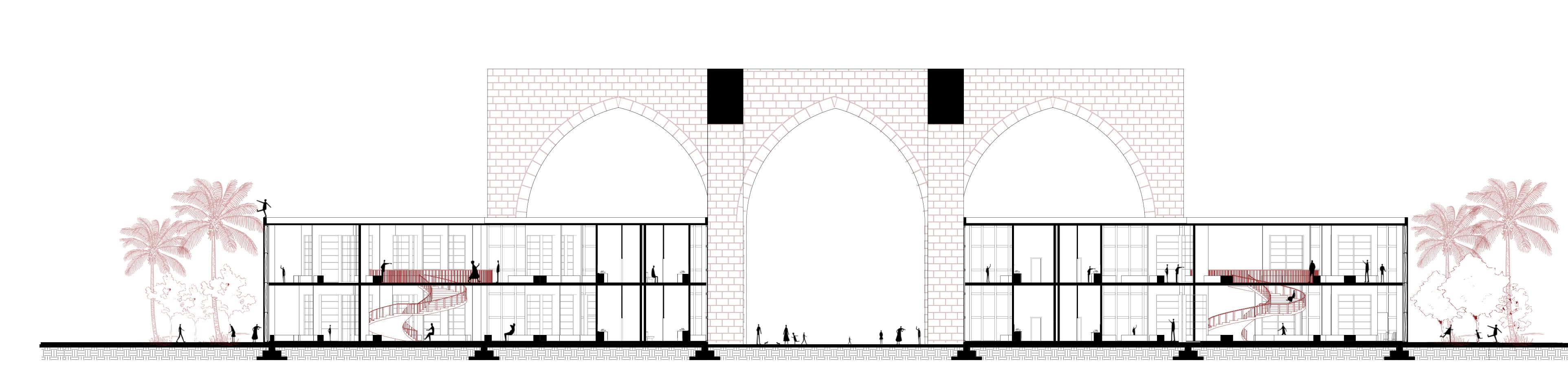

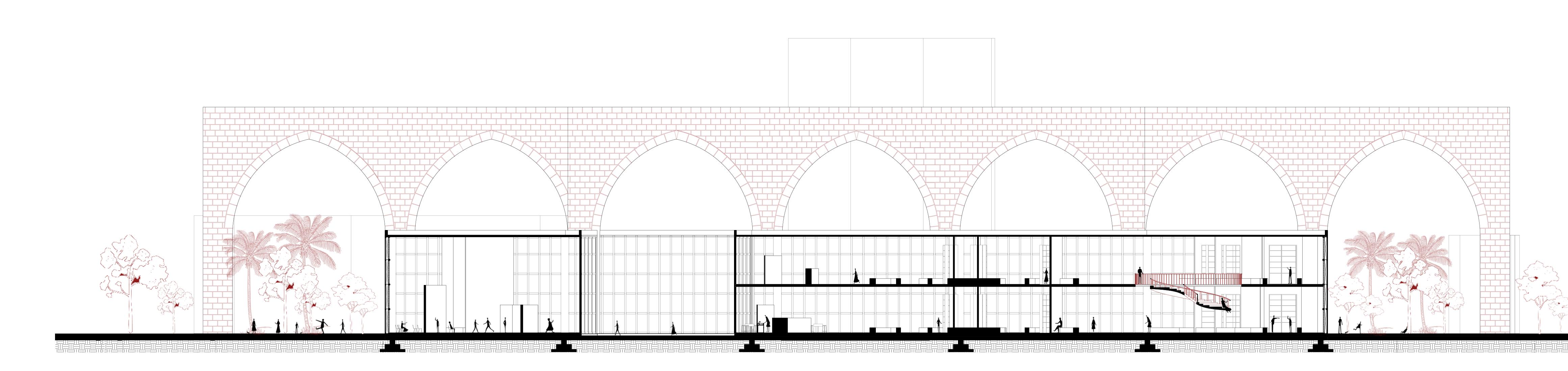

The longitudinal section is showing the conversation and contrast between the light building and the heavy monumental stone arches.

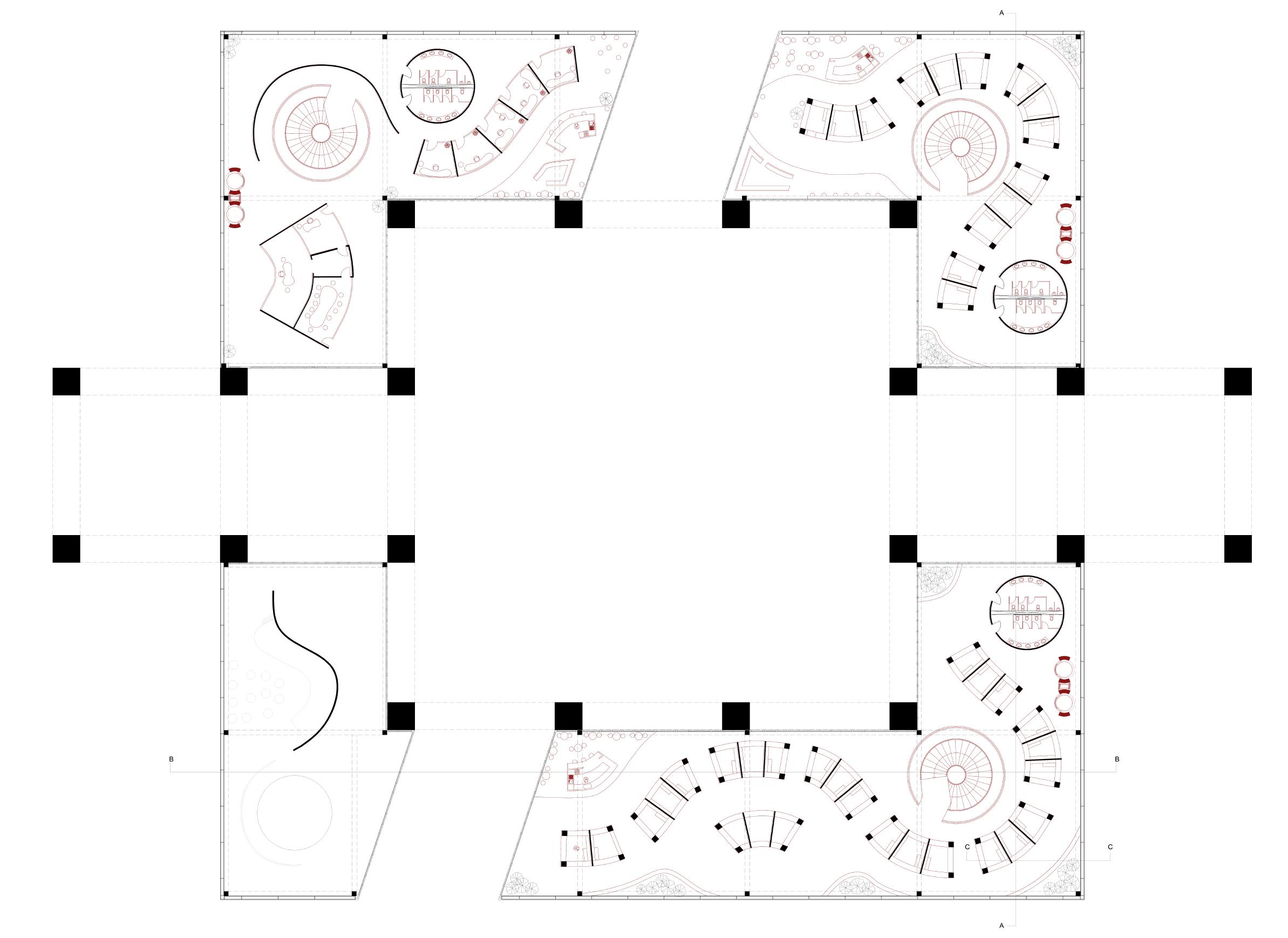

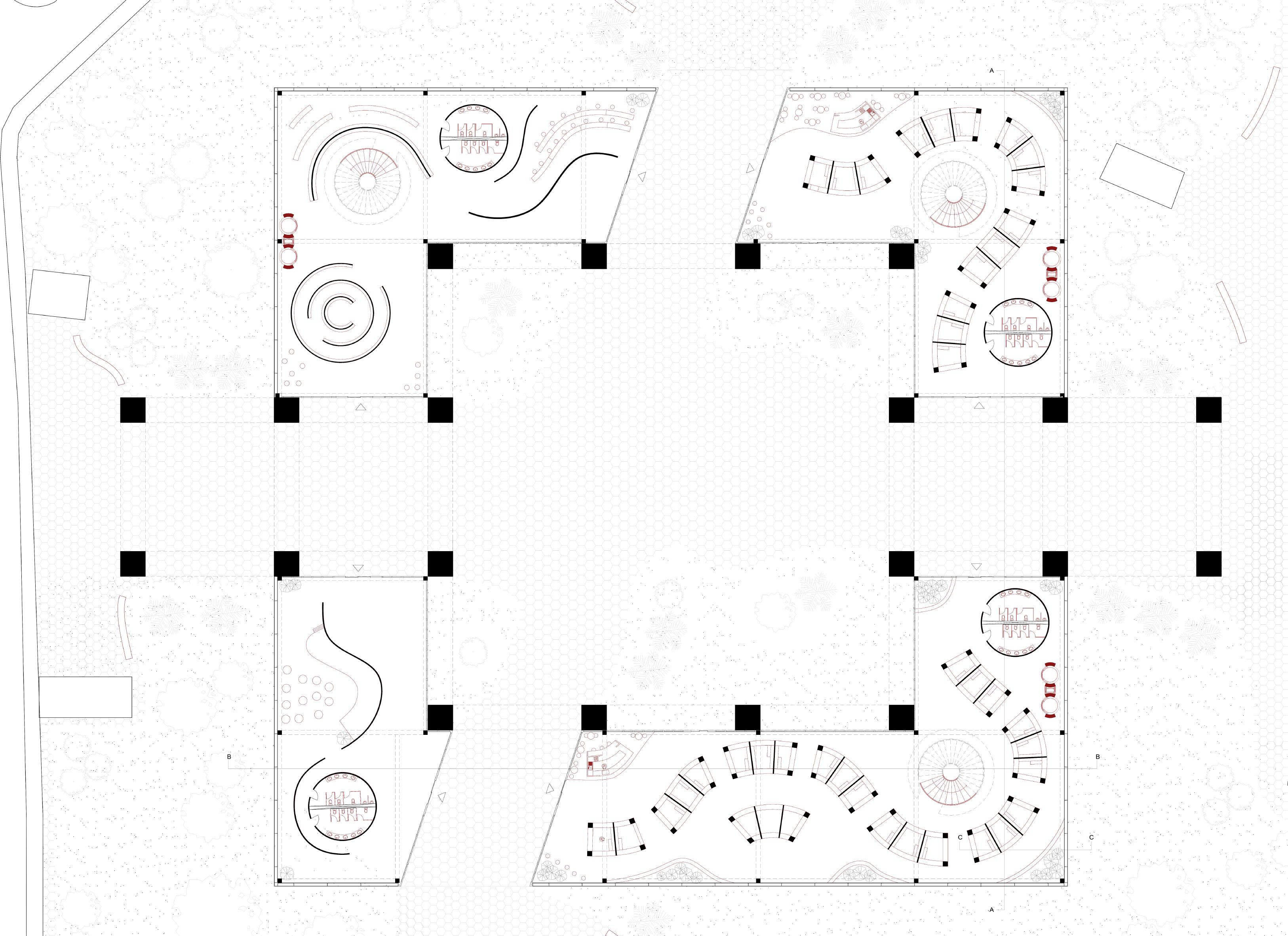

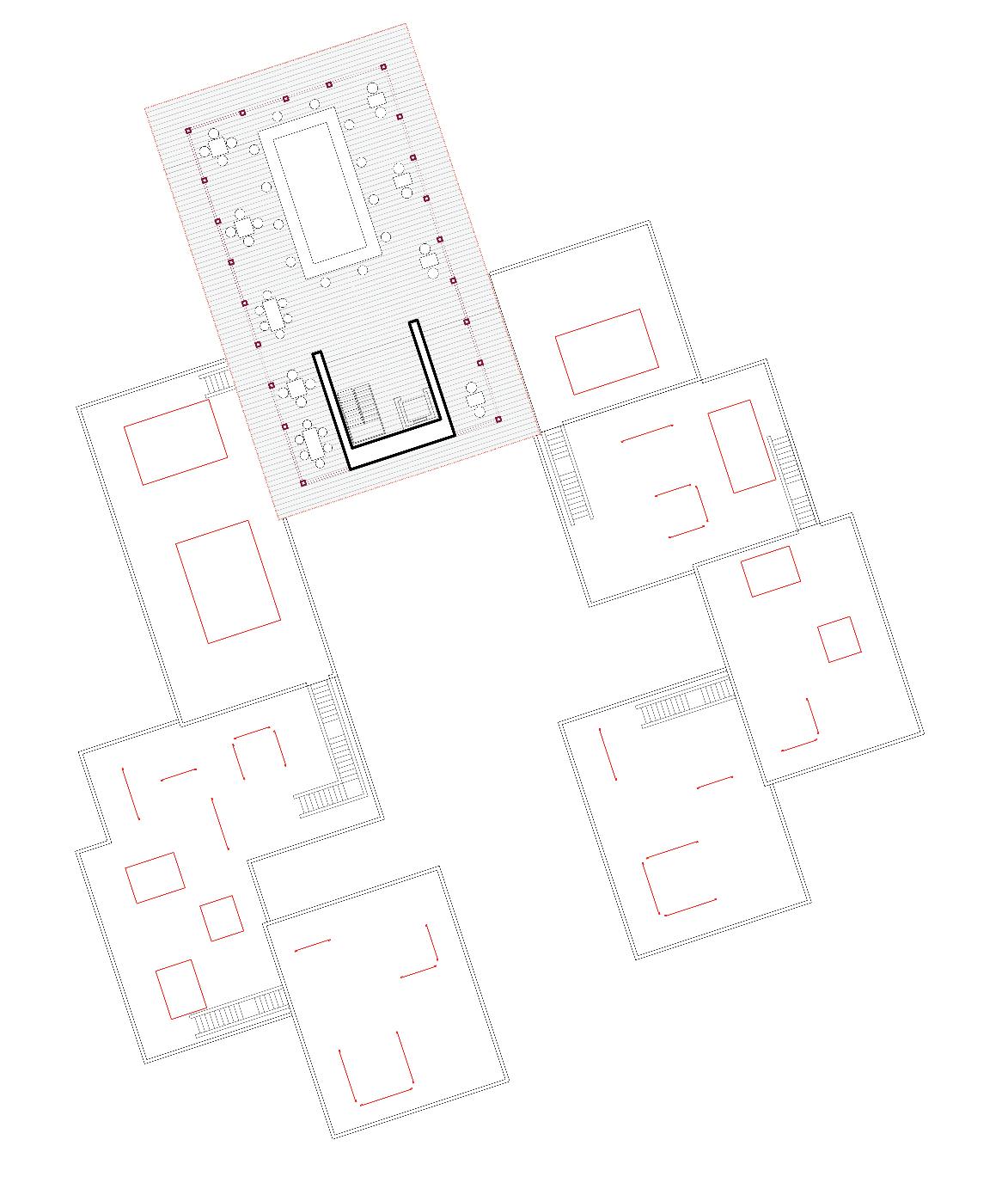

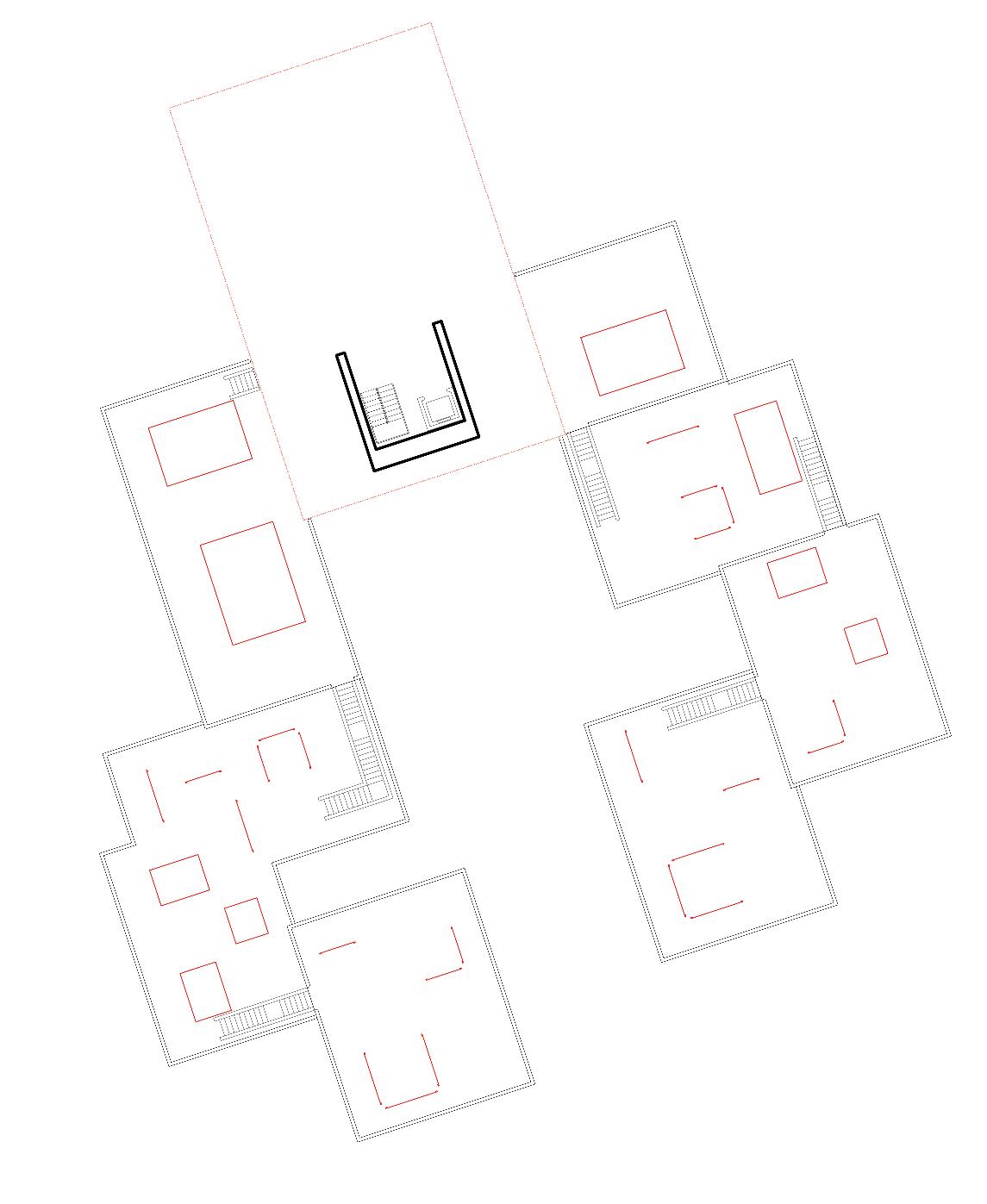

First floor plan Scale 1:200
Structural plan Scale 1:500

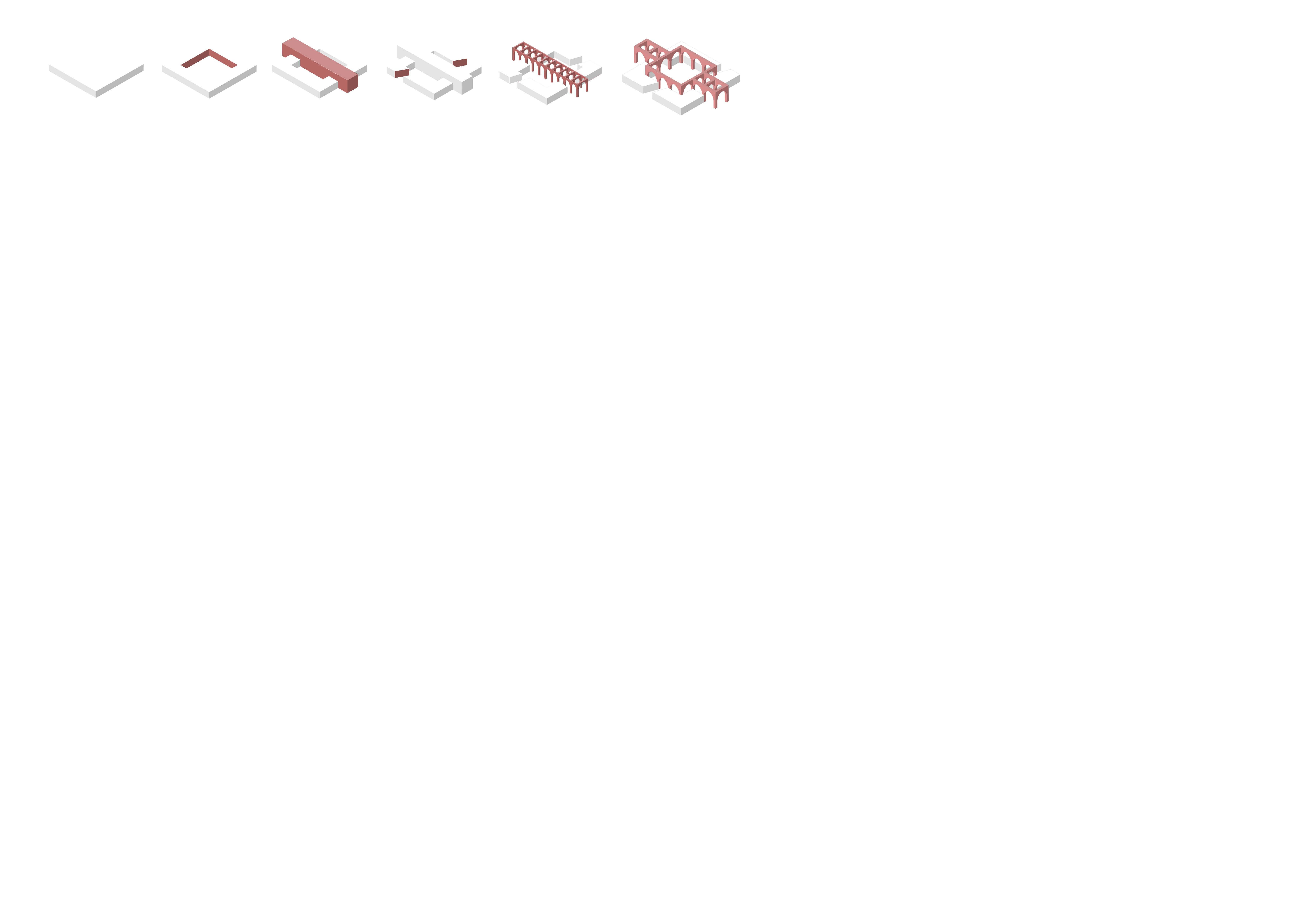

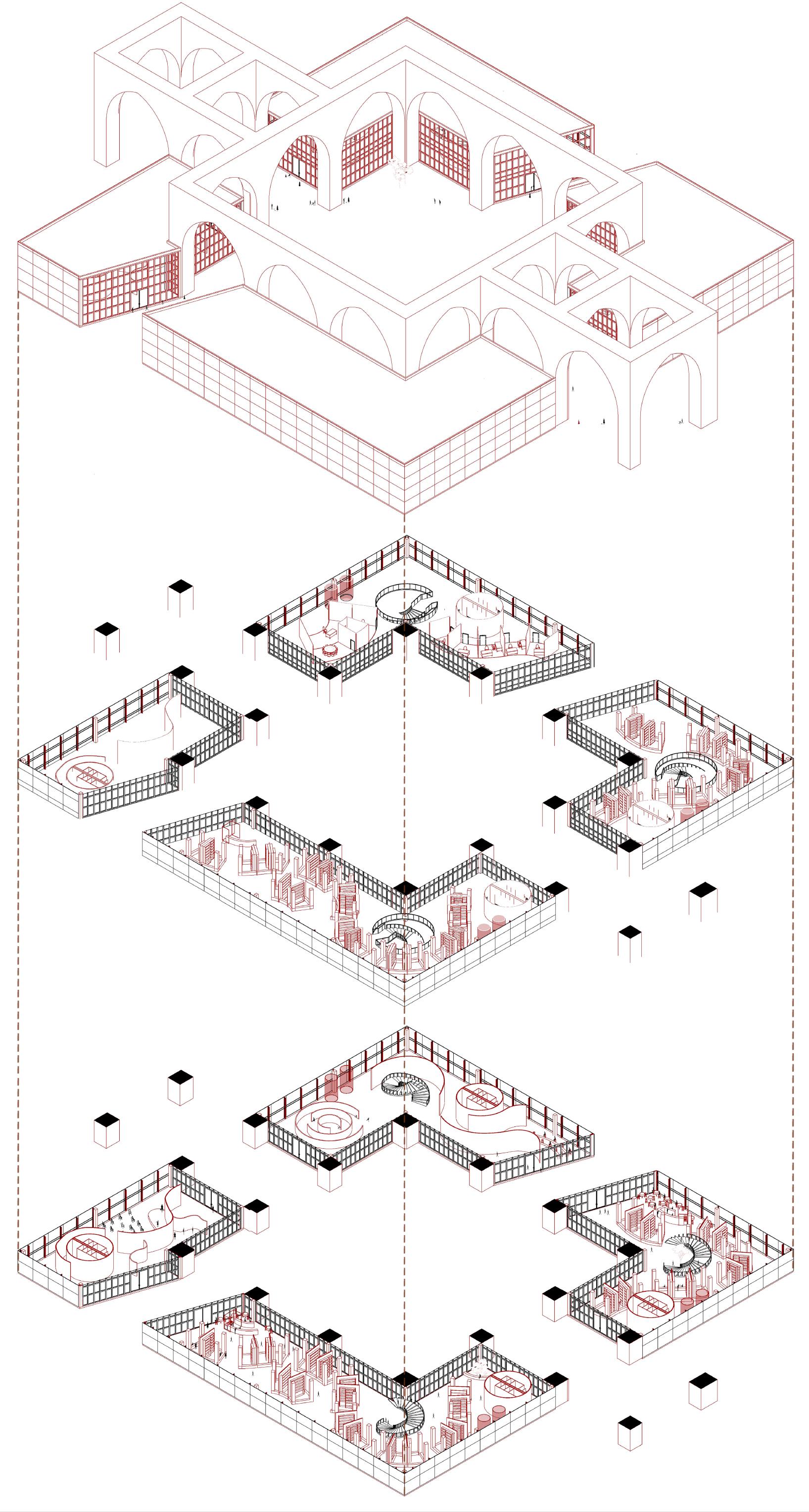

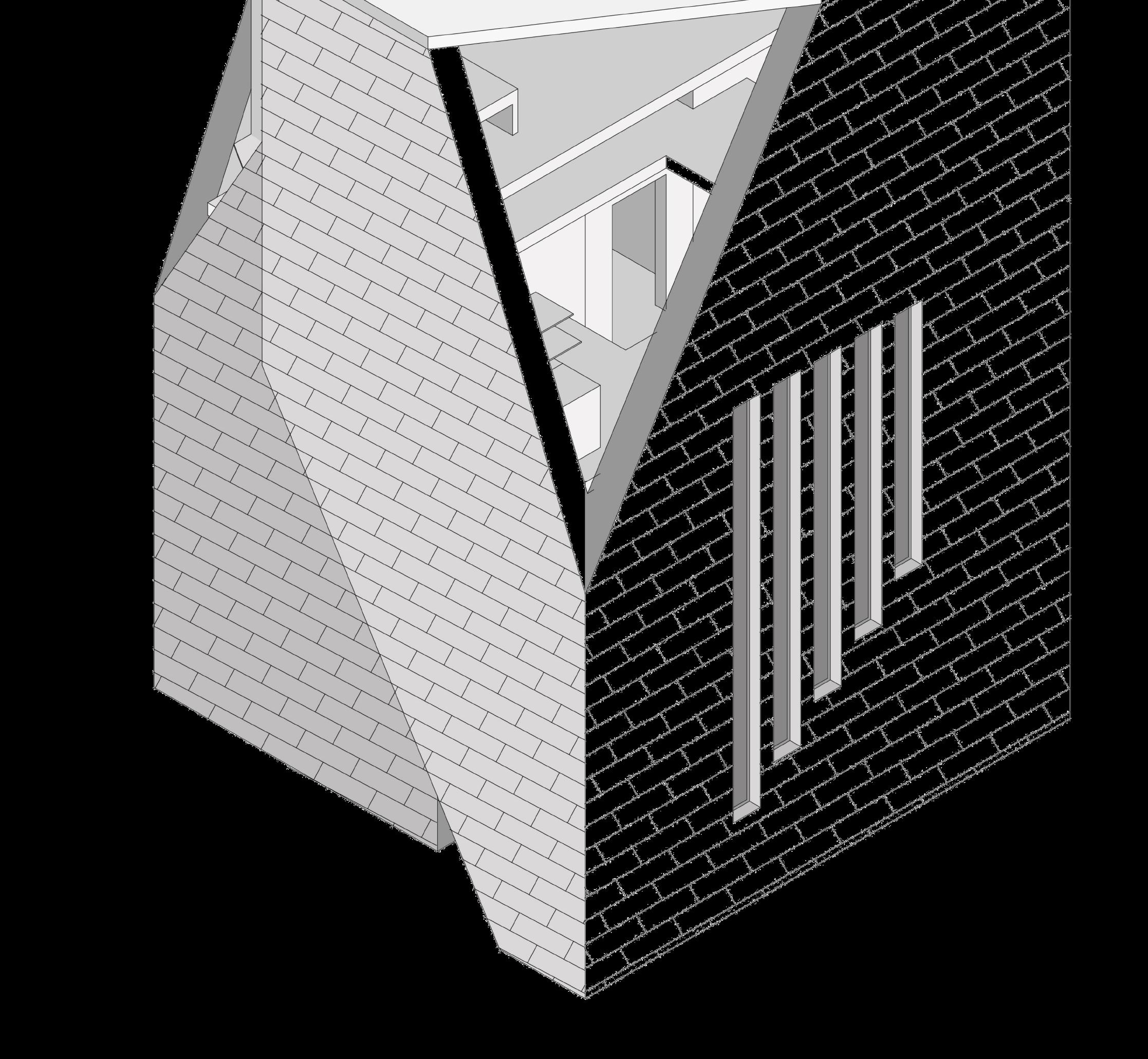

3D Exploaded Structure

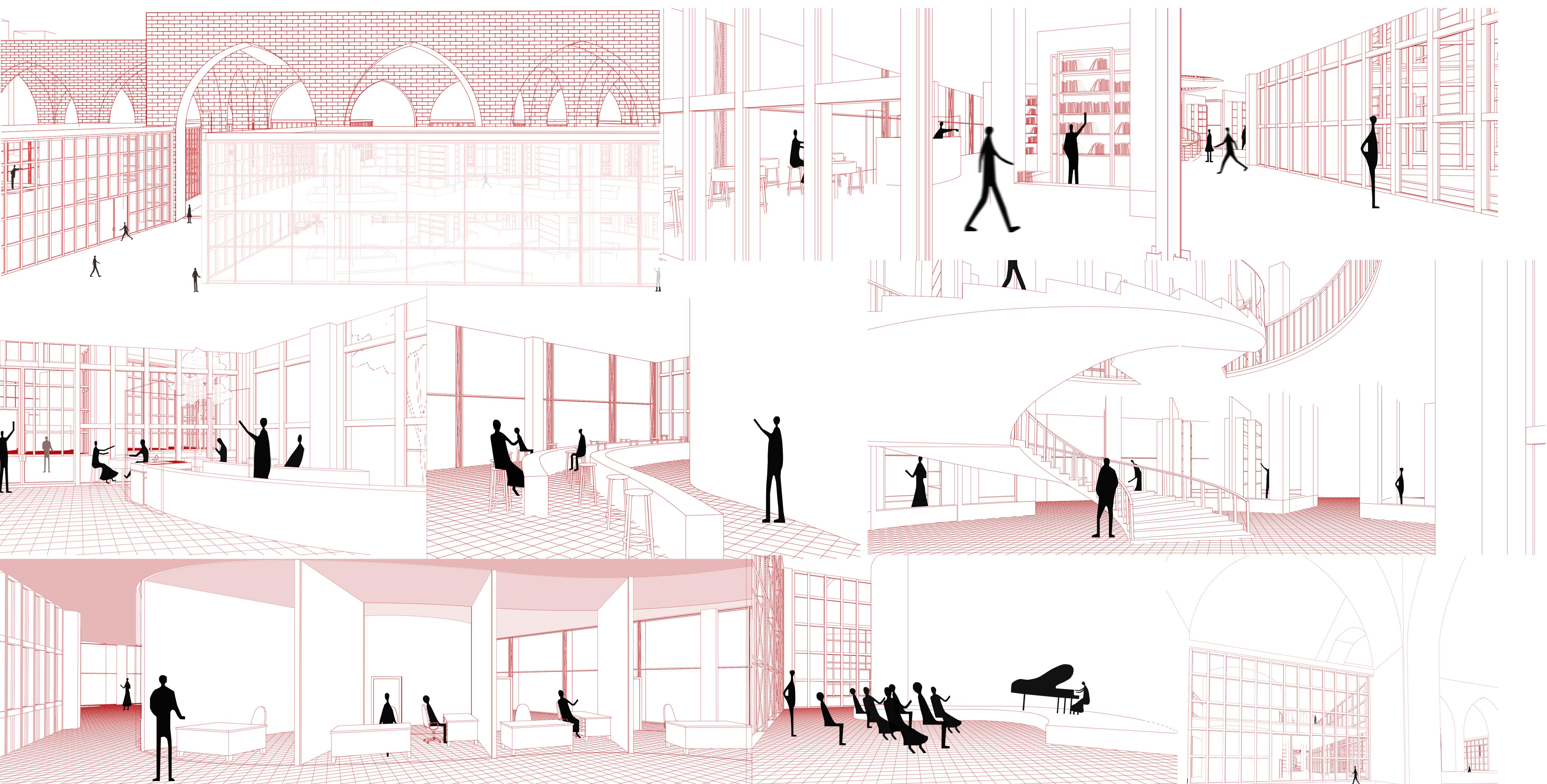

Prespective shot
Connection of Roof with The Arches
Horizontal and Vertical Circulation

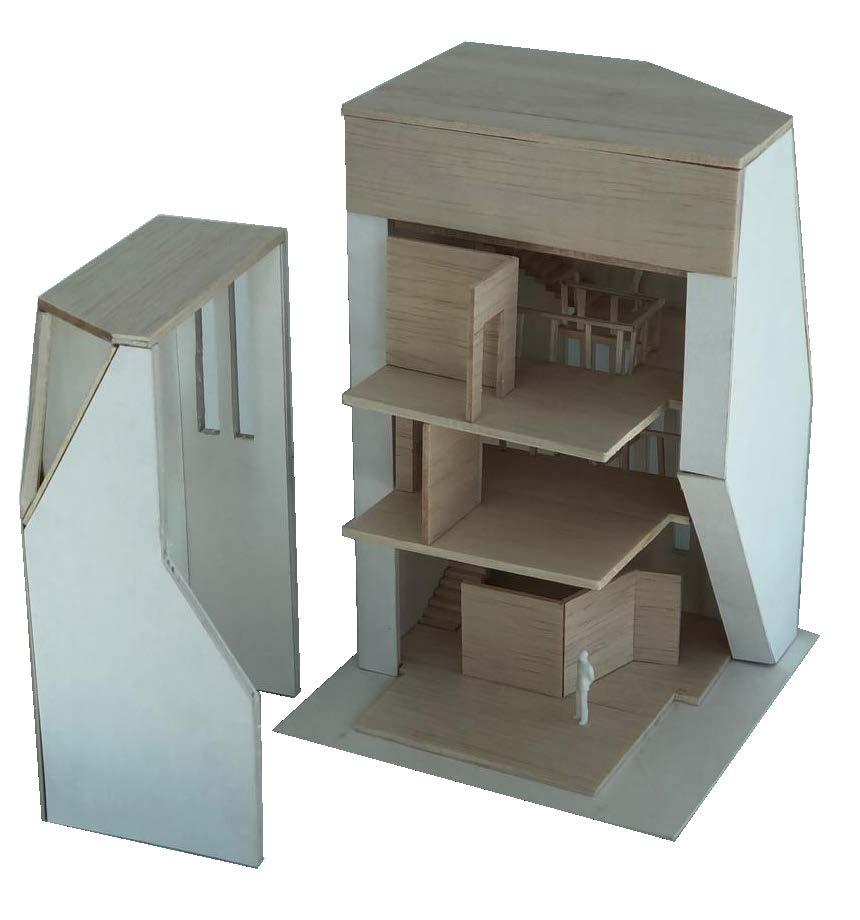

House Of Light
Design Studio 1

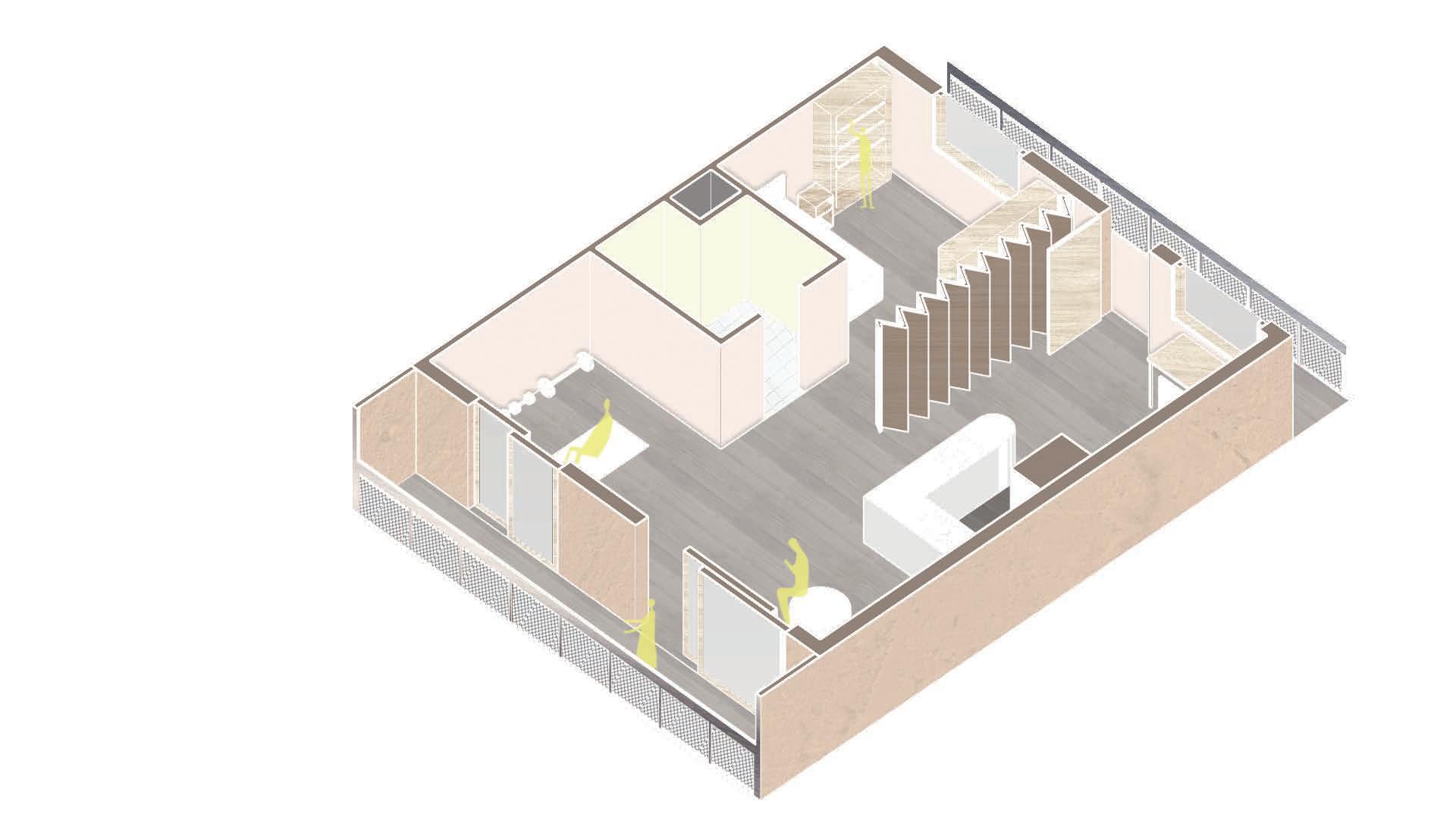

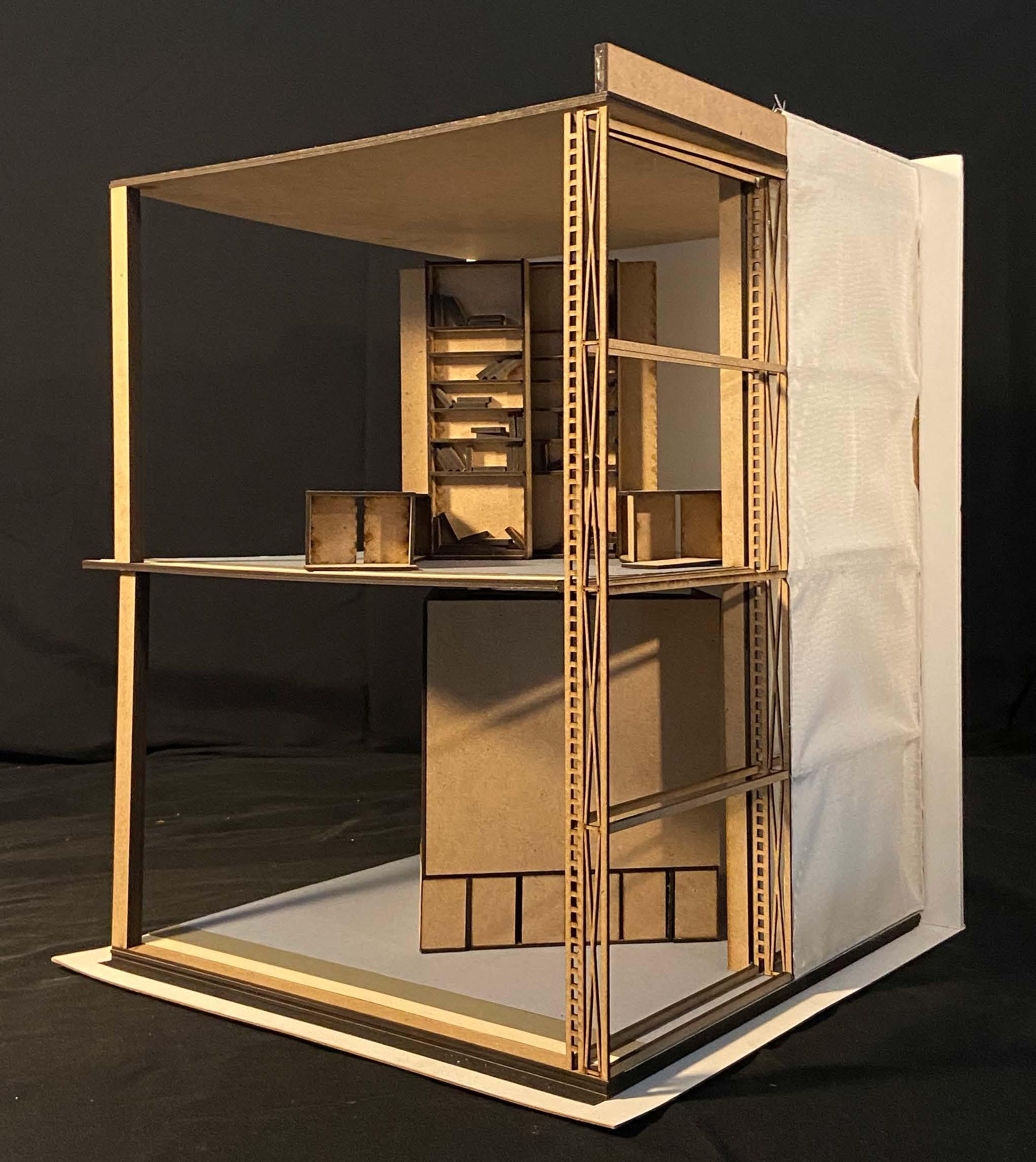

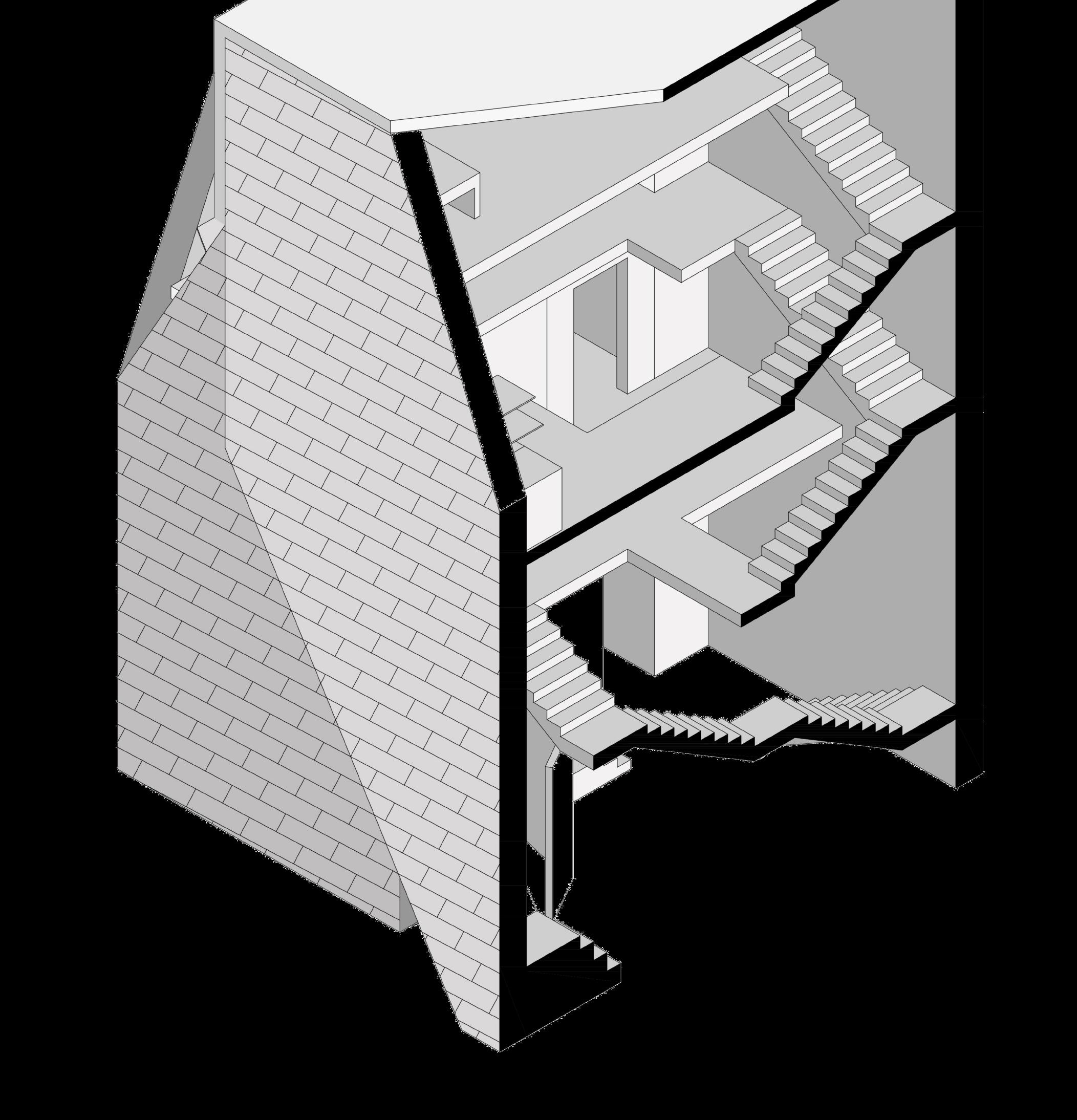

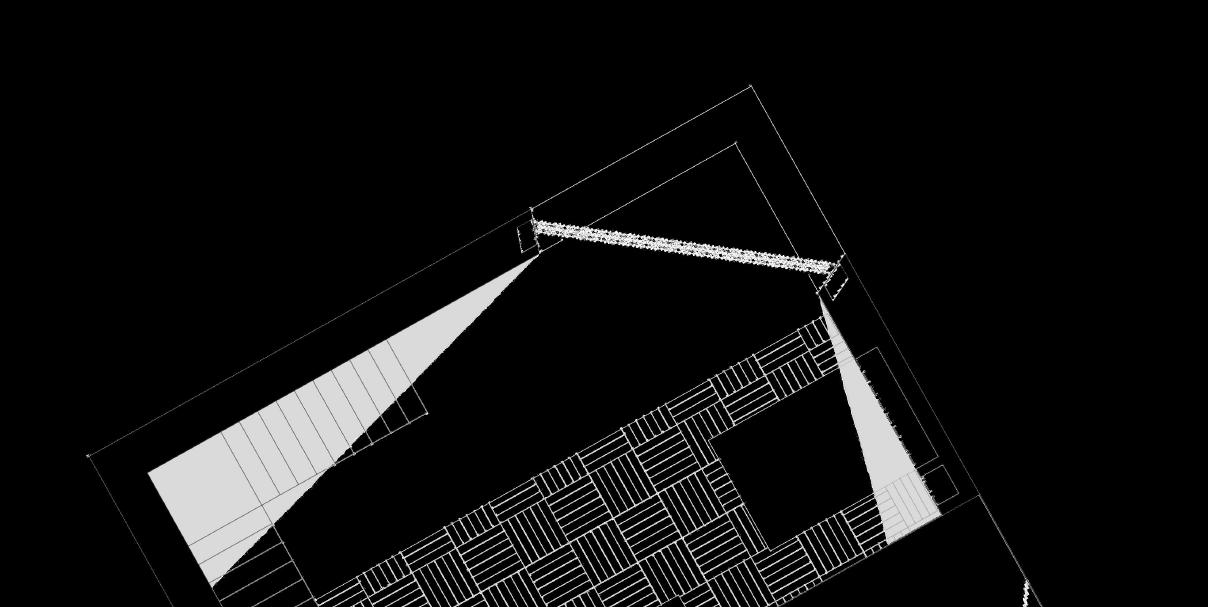

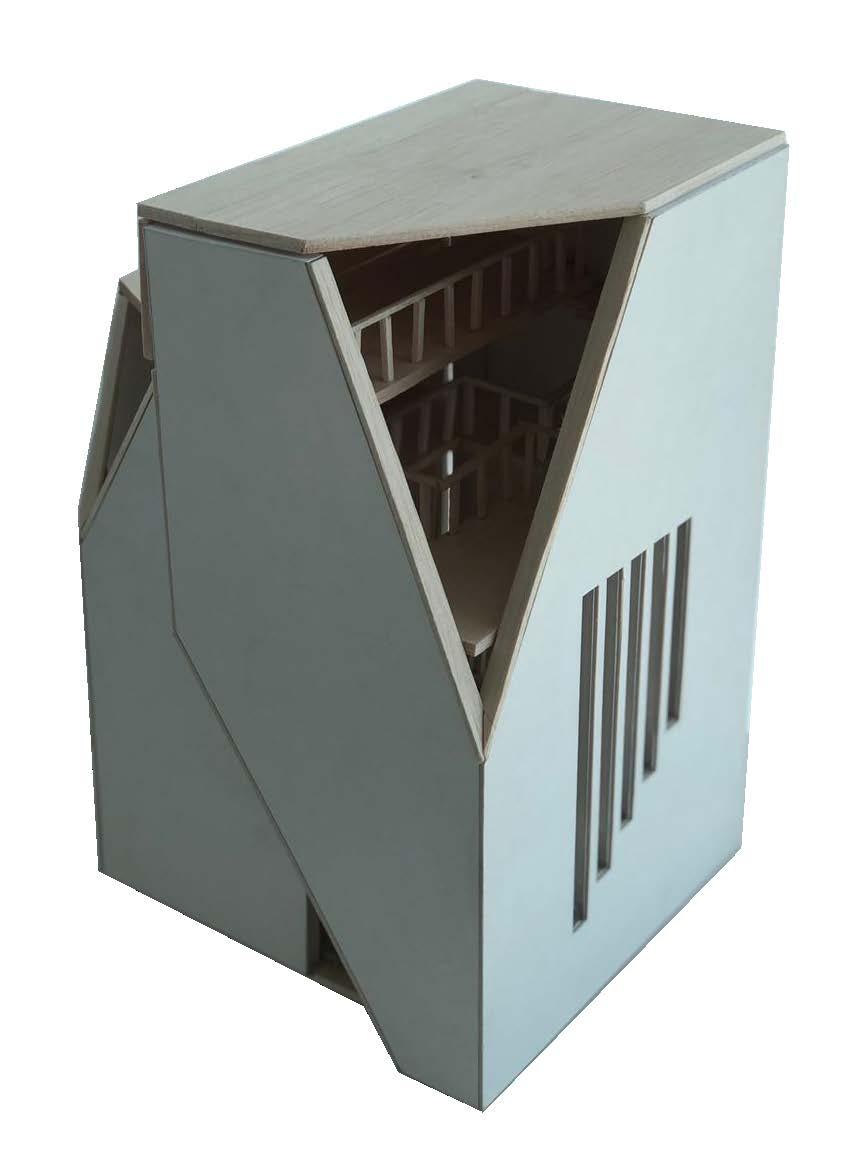

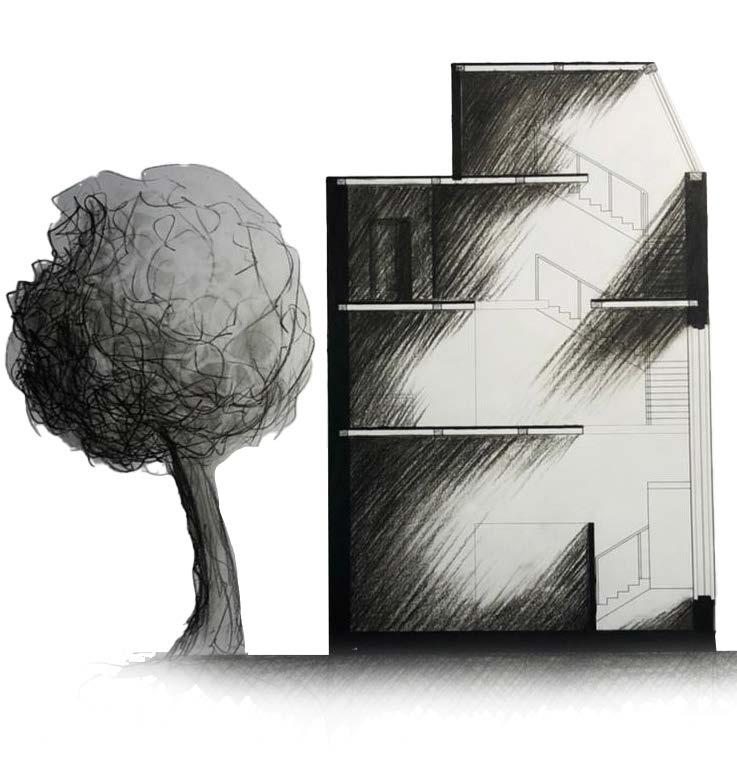

A house for a light artist; the this house is designed to have the main light coming from above to have poetic lighting. Every story gets smaller as we go higher in the house to allow most light to fall down straight to the ground floor where there is an exhibition for the artist; this also enhances the visual connectivity. Not only do the floors get smaller, but as we go up we move from the space becomes more private and personal.
Year: 2021
Semester: 3rd Semester
Supervision: Prof. Rauri O'Brian
Collaboration with: Sarah Tarek
Site: Maadi, Cairo, Egypt
