PROFESSIONAL HOSE REELS
EXTENSION REELS BALANCERS
STATIC DISCHARGE REELS
INDUSTRIAL CABLE REELS
BATTERY CHARGER REELS
OUR company
Since 1929, ZECA has been supplying products of the highest quality to the automotive, industrial and construction industries.
Our plant is based in Feletto, in the outskits of Turin, where we manufacture hose reels, cable reels, lamps, extension reels and a wide range of garage tools.
The manufacturing quality, the durability and above all the safety of all our products are widely recognized and appreciated by all industry leaders.
ZECA has undoubtedly been the undisputed leader in the manufacturing of reels since its inception, but it is in our nature to never stop and always look at future developments and opportunities. Therefore, over the years, our range has greatly expanded in order to cater to an ever-growing customer base.
4 Production plants
Total indoor space + 183.000 sqfeet
Total area
1.800.000 sqfeet
The Zeca production plants, logistics warehouses and offices have been expanded several times over the years, in parallel with the constant growth of the company.
Today they occupy 4 interconnected plants, with more than 183 thousand sqfeet (17.000m²) total indoor space.
A good 3200 sqfeet (300m²) are dedicated to our exclusive research and development laboratory, where we perform numerous in-house quality and durability tests.
OUR mission
To be the industry’s leader by continuously supplying our customers with the highest quality products and make work environments tidier, safer and more efficient.
A customer-focused team fully dedicated to constanty deliverying products of the highest quality & safety
Our products are delivered to and used in 90 countries worldwide, across 5 continents
OUR values
INNOVATION
Every single day, we aim to develop innovative and effective solutions to support a world in constant transformation
QUALITY
We make sure that every product we manufacture meets with the highest standards of quality. It’s our way to repay the trust of those who choose us
CUSTOMER CENTRICITY
We listen carefully to the needs of those who, every day, work with our products
EXCELLENCE TEAMWORK
Excellence is a true obsession for us: both in the manufaturing process and in the development of long term relationship with our partners
People have always been our most valuable resource. We promote collaboration, we value skills and we reward merit
WHY use reels?
They significantly enhance hose handling efficiency, durability and safety.
Adopting the use of reels can extend the lifespan of your hoses, cables, and cords by up to five times, resulting in reduced labor expenses.
Additionally, reels considerably reduce the risks of injuries caused by tripping hazards, leading to major savings on lost work hours, medical expenses, and higher insurance premiums.
Furthermore, you'll save both time and money by not having to repeatedly replace costly hoses, cables, and cords that might be accidentally run over by forklifts and other vehicles
WHY choose Zeca?
since 1929 we are focused on workshops and industrial plants.
MADE IN ITALY SINCE 1929
5YEARS WARRANTY
5 years Zeca warranty
30K CYCLES TESTED FOR OVER
100% FULLY SERVICEABLE
Main spring made of Texture Rolled Carbon steel, tested for over 30.000 cycles*. Fully serviceable
FIVE key reasons why reels
1 2 3 4 5
Improve safety standards: reduce the risk of tripping accidents, reducing downtime and reduce injury-related expenses
Enhance Operational Efficiency: Keep hoses, cables, and cords conveniently located where you need them.
Minimize Air and Water Leakages: reduce the costs associated with leaks in both air and water systems Boost Productivity: Eliminate the hassle of tangled hoses to improve overall productivity.
Prolong Hose and Cord Lifespan: hose and cord stored on a reel can extend their lifespan by up to fivefold

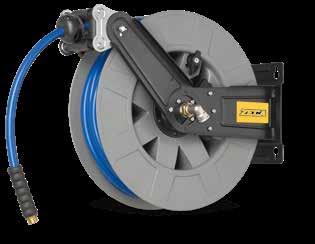

• Gray polyurethane hose.
• Technopolymer casing.
• Complete with pivot bracket.
• Provided with hose ratchet stop device, easily removable if constant traction is required.
TECHNICAL FEATURES
• Gray polyurethane hose.
• Technopolymer casing.
• Complete with pivot bracket.
AM85/AM70 2023
• Provided with hose ratchet stop device, easily removable if constant traction is required.
Safety Return slows the retraction of the hose, preventing kickback should the hose accidentally slip out of the user’s hand. Safety Return is an optional braking device for AM85 series.
AM85 SAFE
The SAFE version has been recently added to the AM85 hose reel family. Its highly visible, vibrantly colored lime green hose stands out and can be easily detected even in low-light environments, majorly reducing the risk of tripping.
In situations where it is necessary to leave the hose unwound, it ensures order and minimizes the risk of wear and damage to the hose.
TECHNICAL FEATURES
• Technopolymer casing.
• Complete with pivot bracket.
• Provided with hose ratchet stop device, easily removable if constant traction is required.
• KPU hose.
■ OPTIONAL
CODE AL83-AM85/SR
Safety Return slows the retraction of the hose, preventing kickback should the hose accidentally slip out of the user’s hand. Safety Return is an optional braking device for AM85 series.
AM85 FLEX SERIES
Suitable for intensive daily use in “crash & repair” bodyshops, as well as any environments where a flexible, lightweight hose is essential. The zero-memory effect minimizes the risk of accidental collision with object, and the antistatic compound does not attract dust and paint particles.
TECHNICAL FEATURES
• Technopolymer casing.
• Complete with pivot bracket.
• Provided with hose ratchet stop device, easily removable if constant traction is required.
QUICK FIT
■ OPTIONAL
CODE AL83-AM85/SR
Safety Return slows the retraction of the hose, preventing kickback should the hose accidentally slip out of the user’s hand. Safety Return is an optional braking device for AM85 series.
EXTRA-FLEXIBLE HOSE FOR BODYSHOPS
ULTRA-FLEXIBLE HOSE
THERE ARE RISKS ONE CAN AVOID
Safety Return slows the retraction of the hose, preventing kickback should the hose accidentally slip out of the user’s hand. Safety Return is an optional braking device for AM85 and AM86series
TECHNICAL FEATURES
• Technopolymer casing.
• Complete with pivot bracket.
• Provided with hose ratchet stop device, easily removable if constant traction is required.
• KPU hose. ■ OPTIONAL ART. AM86/SR
Safety Return slows the retraction of the hose, preventing kickback should the hose accidentally slip out of the user’s hand.
Safety Return is an optional braking device for the AM86 series.
REFUELLING AVIATION
8400 SERIES
CHEMICAL C AR REPAIR WORKSHOP
MILITARY SHIPPING
Brackets in steel, painted with epoxy resin powders.
Standard joint
End pipe fitting in brass/steel
·Screws and bolts in steel
8400
Bracket in stainless steel inox AISI 304
Rotating joint and incoming fitting in stainless steel
End pipe fitting in stainless steel
• Screws and bolts in stainless steel inox
SWIVELING BRACKET to adapt to any type of installation
Self-lubricated ROLLER GUIDE
Adjustable hose stopper
RECOIL SPRING with maximo process technology.
ADJUSTABLE HOSE STOPPER
DRUM SUPPORTING BUSHINGS made with self-lubrificating material.
Hose ratched stop device for the hose at the required length.
ROTATING JOINT
• with low friction
• without narrowing
HOSE REELS
ADJUSTABLE HOSE STOPPER
ABS DRUM
Brackets in steel, painted with epoxy resin powder
Steel screws and bolts
End pipe fitting in brass/steel
Steel coil shaft
FPM Gasket
Stainless steel AISI 304 rotating shaft (in brass for low pressure models)
Brass bushing
incoming fitting in brass
PTFE Rod guide ring
PTFE Rod guide ring
Axial roller bearing
Brass ring nut
FULL INOX FULL INOX
Incoming fitting in brass
Brass ring nut
Steel coil shaft
Bracket in stainless steel AISI 304
stainless steel AISI 316L screws and bolts
End pipe fitting in brass/steel
PTFE Rod guide ring
PTFE Rod guide ring
FPM Gasket
Axial roller bearing
Bushing in brass
Stainless steel AISI 304 rotating shaft (in brass for low pressure models)
TECHNICAL FEATURES
Full STAINLESS STEEL reels are the ideal for transport of fluids such as oil, AdBlue® , air and water, for industrial cleaning and blowing operations. They are perfect for different applications: food and drink industry, boating industry, chemical sector, heavy duty work environments. and corrosive atmosphere.
INDUSTRIAL CA BLE REELS
A COMPLETE RANGE OF PRODUCTS TO FULFILL ALL OF YOUR PROFESSIONAL NEEDS.
In this section you will find the complete range of our Industrial Cable Reels. Some models are available with socket plugs (p.34)
On our webpage www.zeca.it, a search tool will guide you through our extensive range and recommend the most suited product for your application, based on your specific requirements – i.e. coiled meters, number of conductors, conductors section, IP protection degree, etc. Should you have a particular requirement, a non-standard cable, etc., our Technical Department will be delighted to discuss your needs in greater detail and find the right solution for you! Just send us an e-mail!
Please feel free to discuss any needs you may have with our sales network or our in-house technical department. We’ll find the right solution together. usa@zeca.it
TECHNICAL
• Technopolymer external case.
• Ratchet stop device every 19,5 inc (50 cm) easily removed if constant traction of cables is required.
• Protection degree IP42.
• Higher electrical contact stability through the use of special high-conductivity alloys and contact geometries
• Working temperature:23°F/ 122°F · -5°C/+50°C.
• Double earth contact.
The customer, installer and end user will provide to install an amperometric protector which breaks all the phases and whose characteristics coincide with the maximum load shown on the label.
• Technopolymer external case
• Cable roller guide
• Ratchet stop device every 19,5 inc (50 cm) easily removed if constant traction of cables is required.
• Double earth contact
• Collector insulating power 2,5 KV.
• Higher electrical contact stability through the use of special high-conductivity alloys and contact geometries
• Working temperature23°F/ 122°F · -5°C/+50°C
• Delivered without cable at feeding side
• Available both with PVC cable and rubber cable.
The customer, installer and end user will provide to install an amperometric protector which breaks all the phases and whose characteristics coincide with the maximum load shown on the
AM70 SERIES
• Technopolymer external case
• Cable roller guide
• Ratchet stop device every 19,5 inc (50 cm) easily removed if constant traction of cables is required.
• Double earth contact
• Collector insulating power 2,5 KV.
• Higher electrical contact stability through the use of special high-conductivity alloys and contact geometries
• Working temperature23°F/ 122°F · -5°C/+50°C
• Delivered without cable at feeding side
• Available both with PVC cable and rubber cable.
The customer, installer and end user will provide to install an amperometric protector which breaks all the phases and whose characteristics coincide with the maximum load shown on the label.
■ OPTIONAL CODE AL71-AM70/SR AN EXTRA GUARANTEE WITH SAFETY RETURN
Braking system enables a slowed down rewinding of the cable back into theshell, preventing kickback should the cable accidentally get out of the operator’s hand. Available for the AM series
6000 PRC SERIES
TECHNICAL FEATURES
• Die-cast aluminium case
• Cable roller guide
• Ratchet stop device every 19,5 inc (50 cm). All cable reels are supplied with predisposition for cable-stop device off.
• It can be easily inserted.
• Double earth contact
• Collector insulating power 2,5 Kv.
• Brass-rings collector and special brushes with minimum impedance drop
• Slipring with brass rings and brushes
• Working temperature 23°F/ 122°F · -5°C/+50°C
• Delivered without cable at feeding side
The customer, installer and end user will provide to install an amperometric protector which breaks all the phases and whose characteristics coincide with the maximum load shown on the label.
(**) For these models the dimensions in the reel axis direction should be increased by 2,9 inc (75 mm).
■ OPTIONAL ACCESSORIES
CODE 953
Roller cable-guide for cable reels PR series. Essential for ceiling applications.
• Epoxy-painted and technopolymer steel case.
• Collectors with power: 20-50-100 A.
• Steel springs suitable to grant a long life.
• Suitable to recoil cables from 1 to 12 conductors
• Working temperature:23°F/ 122°F · -5°C/+50°C.
TECHNICAL FEATURES
• Max. recoiling speed: 30 m./minute.
• Collector insulating power 2,5 Kv.
Cable reel suitable for the installation according to methods 1, 2, 3, 7 at page 30.
■ SWIVELLING BRACKET CODE 1401
Suitable only if the cable reel is manually used. To be installed with arm with roller cable guide CODE 1406.
REEL INSTALLATION GUIDELINES
• For correct operation of the cable reels, it is necessary to consider how they will be installed and how they will have to work
• The cable or hose must always enter centered with reference to the reel outlet; with no sharp edges, and without scraping against walls or edges.
• These cable reels are to be considered components of a larger assembly. Consider a suitable amperometric protection at the top of the reel, in the most unfavorable condition, with the cable completely wound. This protection must interrupt all the phases, but earth (in case of anomaly or extra electrical input). Unipolar models are suitable for earthing.
Manual use
reel on mobile application
Reel installation methods
TECHNICAL FEATURES
• Painted aluminium and steel case;
• Side fastening aluminium bracket;
• Roller cable-guide and ratchet delivered only for the models shown in the table (these cable reels are delivered with disconnected ratchet, and it can be easily inserted by user before the installation);
• Collectors with power: 32-60-100 A;
• Steel springs suitable to grant the optimum cable traction ad a long life;
• Protection degree NEMA4 - IP65;
• The reels delivered by us with cable are equipped with cable fastening socks suitable to the installed cable;
• Suitable to recoil cables from 1 to 24 conductors, with max. length 173 ft - (53 m),
• Delivered with 2,5 m. incoming cable;
• Working temperature: 23°F/ 122°F · -5°C/+50°C;
• Max. recoiling speed: 100 ft (30 m) /minute;
• Collector insulating power 2,5 KV.
OPTIONAL ACCESSORIES
1701
1704 - 1708
SWIVELLING ARM
For installation with middle travel feeding. Installation methods 3,4 at page 30. Impossible to install the swivelling arm with other optionals. Check on the table at pages 33 the models on which the optional arm can be installed. It is possible to install this optional only during the assembly of the cable reel, so this part cannot be bought separately.
CAUTION: It is NOT possible to install the ratchet on reels with swivelling arm CODE 1704 - 1708 ■
SWIVELLING BRACKET
THIS OPTIONAL IS DELIVERED UNASSEMBLED
Check on the table at pages 33 the models on which the optional bracket can be installed. This bracket is suitable only if the cable reel is manually used.
EXTENSION REEL AM SERIES
• Technopolymer external case.
• Ratchet stop device every 19,5 inc (50 cm) easily removed if constant traction of cables is required.
• Protection degree IP42.
• Slipring with brass rings and brushes.
• Working temperature:23°F/ 122°F · -5°C/+50°C.
• Double earth contact.
44 The customer, installer and end user will provide to install an amperometric protector which breaks all the phases and whose characteristics coincide with the maximum load shown on the label.
TECHNICAL FEATURES inc 14x12x7 - libs. 5,5 mm 360x310x185 - Kg 2,5 1
CODE. 6216
CODE. 1425
CABLE REELS FOR BATTERY CHARGER
Cable reels designed to facilitate the connection between the battery charger and the battery being charged.
TECHNICAL FEATURES
• Max voltage 48V
• All reels are provided with insulated clips, black and red, capacity 200A and length 6,3 inc (160 mm).
BALANCERS
WITH ZECA,WORK IS EASIER.
TECHNICAL FEATURES

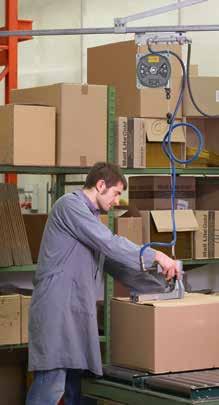

Balancers to support the weight of manual tools, torque wrenches, etc. An essential aid for repetitive jobs, assembly, mass production, packaging, etc. The balancers are made of top-quality materials and withstand particularly heavy-duty work cycles.
• Die-cast aluminium case.
• Continuous load adjustment from maximum to minimum value.
• Easily adjustable cable length to suit every need.
• Four suspension points.
• Three fastening points.
STATIC DISCHARGE REELS
GROUNDING REELS
SUITABLE TO DISCHARGE ELECTROSTATIC ENERGY
STANDARD APPLICATIONS
CODE 9006
CODE 4106
CODE 4116
CODE 6195/PRC/IP65
CODE 6193/PRC/IP65
CODE 7116
CODE 6198/PRC
CODE 6195/PRC
CODE 6193/PRC
FIELDS OF USE
These reels are fitted with a single-pole, yellow/green cable. They are used to eliminate electrostatic charges (e.g. tankers transferring fuel, carbides, flammable materials, etc.). The choice between the various models must be made by the customer, according to where it will be used.
The user is responsible for making sure that the model is suitable for his work environment.
Figure 1: installation diagram with cable reel mounted on the grounding pole and Clamp connected to the tanker.
Figure 2: installation diagram with cable reel mounted on the tanker and Clamp connected to the grounding pole.
BATTERIES 100% CHARGED, COMPRESSED AIR ALWAYS AVAILABLE
ENERGY + AIR
This combination system is ideal for keeping emergency/ rescue vehicles always powered, by feeding both battery and compressed air.
CABLE / HOSE FEATURES
VEHICLES
CABLE REEL FEATURES
• Polymer-painted steel case
• Side fastening aluminium bracket
• Long durability steel springs
• Protection degree NEMA4 - IP65
• Working temperature: 23°F/ 122°F · -5°C/+50°C
• Collector insulating power 2,5KV
• Maximum working pressure 15 bar
• Maximum working depression 0,95 bar
ETHERNET NETWORKS
(mod. CAT 5E and CAT 6 also suitable for Gigabit networks)
BUS FOR AUTOMATION (specific cables available on request).
DISPLAY RACK
(supplied without products)
ITEM 005/09
Code 005/09 DISPLAY RACK
THE PACKAGE CONTAINS
- 1 DISPLAY UNIT
- 1 REEL HOLDER PLATE - 1 SHELF
>>> OPTIONALS
code 005/09A REEL HOLDER PLATE
max 3 TRAYS can be mounted on a display unit can be mounted by removing the shelf provided in the original packaging
code 005/09B BALANCER BRACKET
max. 2 BRACKETS can be mounted on a display unit
SAFETY IS OUR PRIORITY
PLEASE REVIEW ALL SAFETY INFORMATION BEFORE CHOOSING AND USING ANY OF OUR EQUIPMENT
SERIOUS INJURY OR DEATH can result from improper selection or improper use of the products described in this catalog. Since Zeca has no control over the type of use/application for which our products are purchased, nor over the conditions under which they may be used, Zeca liability on any claim shall not exceed the price paid for the product.
However, the information contained in this catalogue shall be considered sufficient to allow customers to select the right product and bear all responsibility for application suitability.
As always Zeca technical assistance and support is available for your convenience.
WARNING USER’S RESPONSIBILITIES
Customers, installers and end users shall, through evaluation and testing, bear sole responsibility in choosing the right products for their application.
Training, routine inspections, maintenance and safety preventive measures are to be enforced at all times. Zeca is not responsible for misuse of products, use under wrong conditions, etc.
CAUTION
PROPER SELECTION OF ACCESSORIES
lt is the end user’s, customer’s, installer’s etc., sole responsibility to ensure that the proper items and features have been selected to fit the application. Our Sales & Technical staff (Usa@zeca.it) is at your full disposal to provide any information and suggestions that may be needed during installation.
WARNING FOLLOW INSTRUCTIONS
Customers, installers, and end users shall ensure that all potential users of Zeca products receive appropriate training and access to all relevant product manuals and safety instructions. This information should be thoroughly reviewed prior to installation, duly stored and continuously reviewed during the use of the product
IMP0RTANT
GOOD MAINTENANCE PRACTICES
Upon receiving your products, we recommend that a regular inspections & testing program is setup. Only properly trained stasff should perform these duties. Update training periodically.
Document the maintenance, inspections, and testing of products.
Do not use products that have not been properly tested. Documented inspections shall include parts, pressurized units, swivel joints, hose, hose filings, cable, mounting hardware, roller guides and any such moving parts. Never allow the use of hoses or cables other than what is intended in the design of the reel.
Changes in diameter, weight, length, or flexibility can affect the functionality and may cause damage or personal injury.
Always read specific production/factory manuals/instructions.
The use of any replacement components other than those provided by Zeca is prohibited.
Zeca shall not be hold responsible for any malfunctions/ injuries resulting from the use of such components
NOTE: All designs, specifications, and dimensional data contained in this book are subject to change without notice. No additional warranties, express or implied, including warranties of merchantability for fitness for a particular purpose, are created by the descriptions and depictions of the products on in this book.
TERMS OF SALE CONDITIONS
Our general selling conditions, valid for all legal purposes, can be found on our website www.zeca.it
Pictures, guidelines and technical details available in this catalogue are for indicative purposes only. ZECA has the right to make changes to any part of this catalogue, at any time, without any notice (for product and or commercial purpose)
PRODUCT LIABILITY:
ZECA products are insured for “PRODUCT LIABILITY” worldwide coverage.
DIRECTIVE 2002/95/EC (1) - 27/01/2003 (ROHS): We Zeca SpA DECLARE that all our products, when affected by RoHS Directive 2011/65/UE and any further changes, meet the RoHS requirements.
WARRANTY:
·5 years from the date of purchase, unless otherwise stated.
·The warranty of 5 years refers to defects on new products delivered by us, used in a proper way. Parts subjected to wear and tear (cables, springs, hoses, collectors, etc.) or damaged by users are therefore excluded.
·The warranty consists in the free of charge replacement of the malfunctioning product, or – alternatively - in the repair of the defective parts.
·Any other indemnity form remains obviously excluded.
·All transport costs are purchaser’s responsibility.
·The warranty will not be applied when goods have been damaged due to misuse
Our goods are packed in strong cartons. Every item has individual package ready for sales, containing directions for use, where necessary.
When shipments are made, depending on the type of order, each article is individually packed and protected for transport.
CAUTION: single package is not suitable for an one-item shipments. For deliveries of single cartons, it will necessary to use additional protection.
Zeca products are well known all over the world for quality and technology and they all strictly conforms to the rules.
Technical features are clearly shown at the side of each item. Products, if required, conform to EEC rules and are regularly CE marked.
The selection of the required model should be made by customer according to the specific use. User has the responsibility to check that the selected model is suitable for the working place.
