The new generation of Zehnder immersion heaters Product brochure

always the best climate

Zehnder immersion heaters

We will make you fit for the future With our new generation of immersion heaters, Zehnder is setting standards that go far beyond heating.

Easy to install and with intuitive controls, these immersion heaters provide the maximum user comfort.

There is also a wide range of control options to suit every need.

Targeted radiator controls are another impressive feature, helping to reduce energy costs while reducing the environmental impact at the same time.

Comfort and variety to suit every need.

Clear advantages ■

■

Get ready for the future with the new generation of immersion heaters.

This icon is displayed alongside all of our designer radiators that can be used with our new range of immersion heaters.

2

■

■

Simple and intuitive – with up to three control options The perfect solution for a wide range of individual needs Modern and elegant design Planet friendly and money saving too, through targeted energy use

State-of-the-art technology ■

■

■

■

■

Adjustable surface temperature Temperature controls for each room Timer function Daily and weekly programming via the app Integrated energy efficiency in line with ecodesign requirements

Immersion heater IHD

4–5

Immersion heater IHC

6–7

Immersion heater IHE

8–9

Electric heating element integrated into the radiator

10 – 13

3

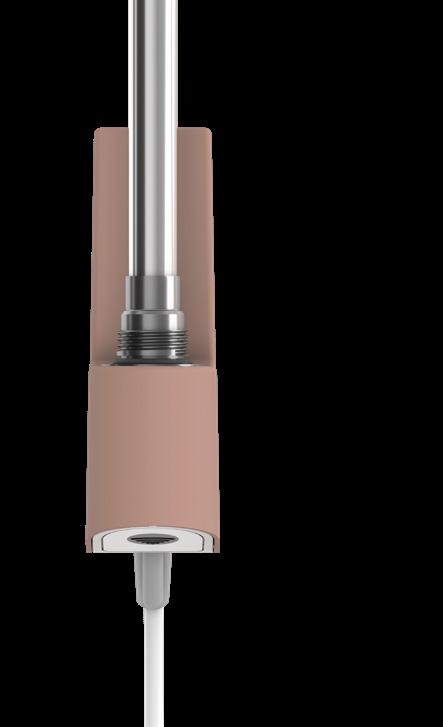

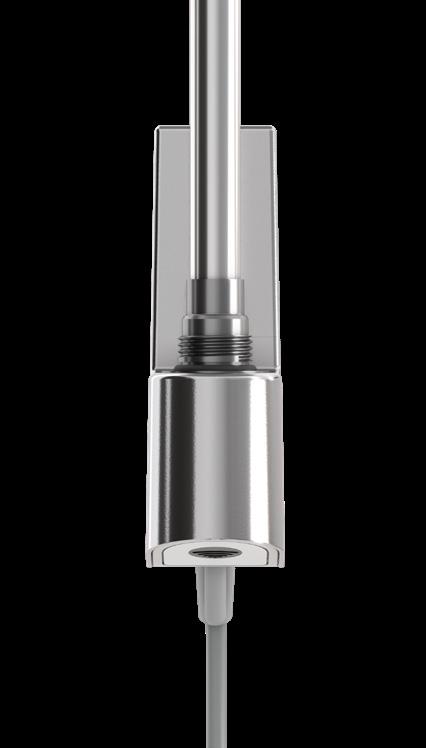

Zehnder Immersion Heater Design (IHD)

Freedom, Simplicity, Individuality – Perfectly tailored to your lifestyle.

Zehnder Immersion Heater Design (IHD)

1

Wall bracket

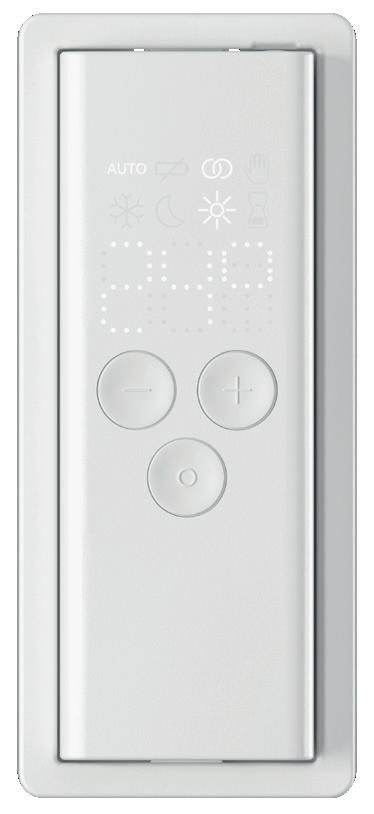

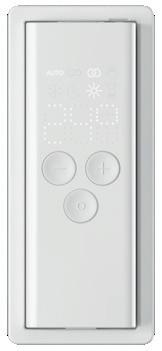

Easy remote control

The Easy remote control is supplied with the IHD product variants, and is designed to manage basic functions used on a daily basis, such as switching the unit on or off and adjusting the room temperature. A wall mount is provided for installation at a convenient height, and the remote control can be taken out of the mount for use. The remote control can also be used without a base mount.

LED matrix display Plus/minus button Mode button

Comfortable control at a convenient height

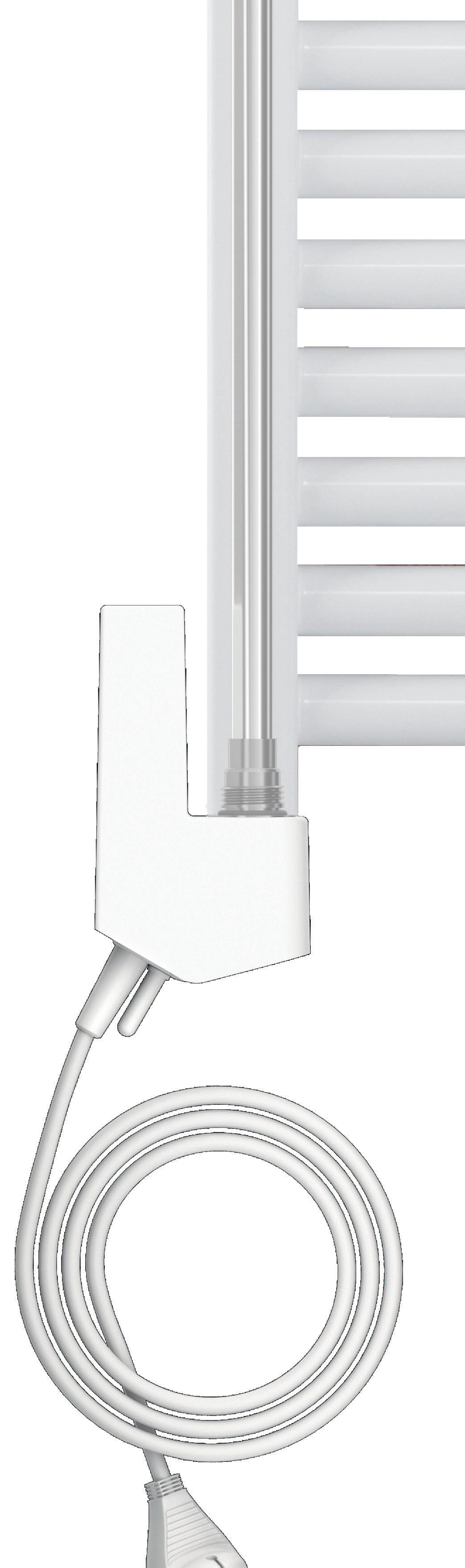

The Zehnder Immersion Heater Design (IHD) Immersion Heater

The Immersion Heater Design (IHD) is a modern heating solution, either integrated into your towel radiator or available as a retrofit accessory (kit).

Designed for versatility, it seamlessly matches your radiator’s colour and design. With features like surface temperature adjustment, the IHD offers comfort and ease of use. Operate it effortlessly using the Remote Control Easy (RCE), the Zehnder Connect app on your smartphone, or both together for even greater flexibility and comfort. A quick guide is included for fast setup. If purchased separately, professional installation is required.

Enjoy intelligent heating with the IHD, enhancing both functionality and style in your home.

Modus Zeitplan-Modus

2

Wochenplan Arbeitswoche IST-TEMP.

ABWESEND

JETZT

BOOST

Startbildschirm

Temperaturen

Pläne

Einstellungen

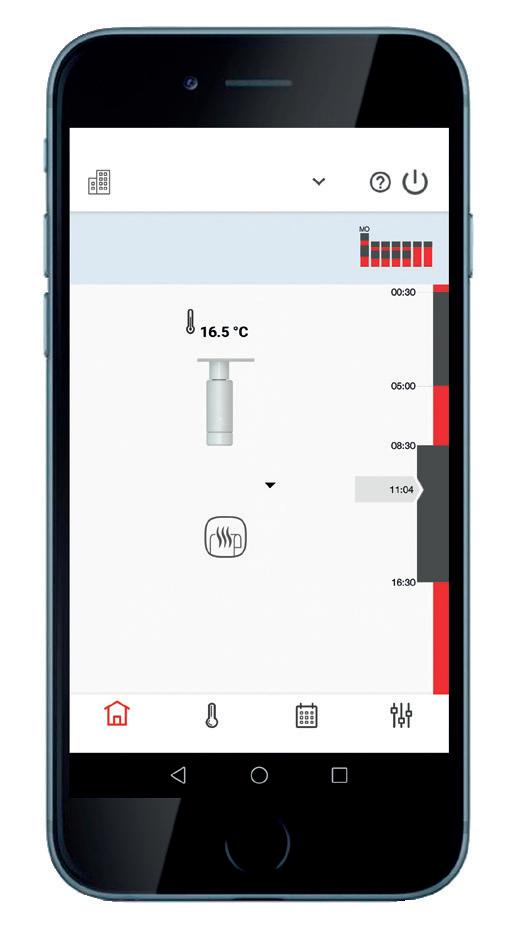

Zehnder Connect app

With the Zehnder Connect app, you can control radiators via a Bluetooth-enabled smartphone and set up additional functions, such as daily or weekly programmes and other advanced features.

Smart controls with precise settings

Seamless Design Integration – With its compact build and a range of colour-matching options, the IHD immersion heater blends discreetly into your radiator’s design.

Flexible Fit for Any Space – The IHD offers a complete heating solution with customizable finishes – ensuring seamless adaptation to your room’s layout and style. This flexibility makes it ideal for a wide range of building types and renovation scenarios across diverse markets.

Comfort & Safety through Temperature Control – Adjustable surface temperature for enhanced user comfort. Users can set the desired surface temperature to suit individual comfort levels and seasonal needs. This ensures a comfortable indoor climate and promotes a sense of well-being.

#ZehnderIHD #HarmonizedDesign #IntegratedAesthetics #DiscreetHeating #SmartComfort #FlexibleHeating 4

Available in the radiator colour and in a chrome version

5

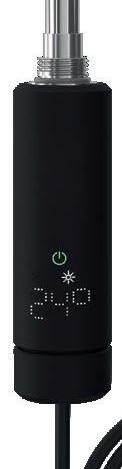

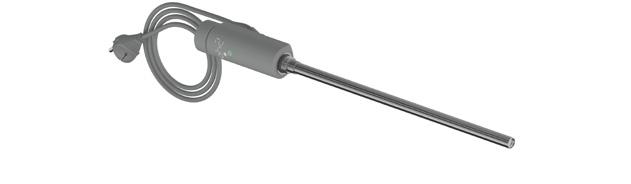

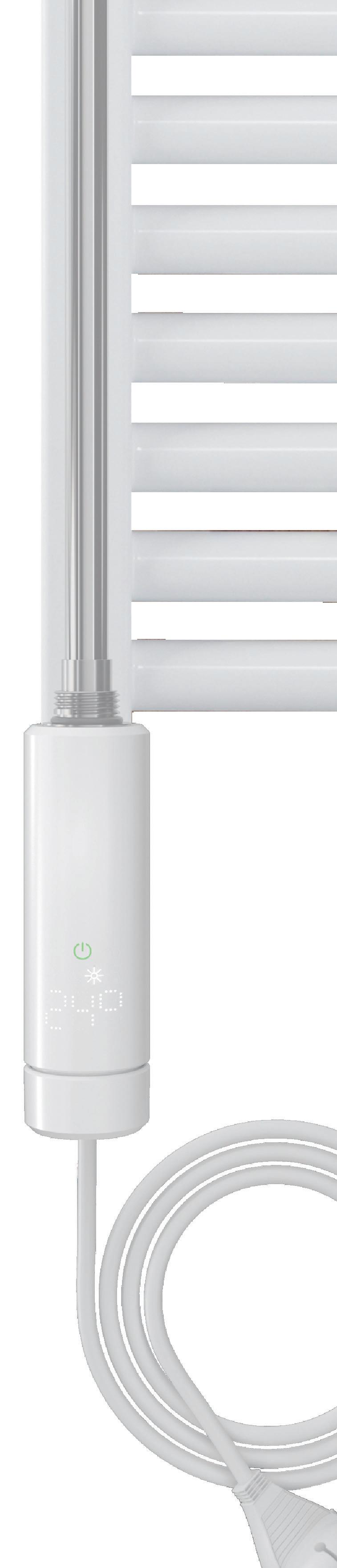

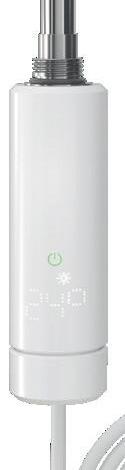

Zehnder Immersion Heater Control (IHC)

Zehnder Immersion Heater Control (IHC)

Easy to use in every way

1

ontrol directly from C the immersion heater

Press and rotate the base to switch between the various heating modes and adjust temperatures and configurations.

Simple, intuitive control without additional devices

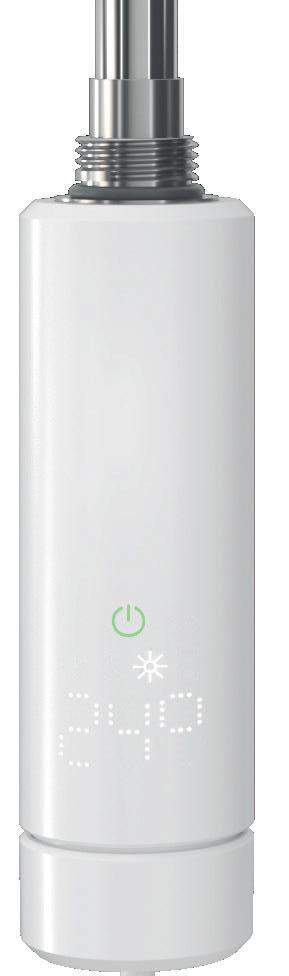

The Zehnder Immersion Heater Control (IHC) The Immersion Heater Control (IHC) is the all-rounder among the new Zehnder immersion heaters. Thanks to its modular operating concept, it suits a wide range of needs and is extremely user friendly.

2

Wall bracket

Choose how to control the radiator: directly using the dial, with a remote control or using the handy Zehnder Connect app.

The Easy remote control, which can be ordered separately, is designed to manage basic functions used on a daily basis, such as “On/Off” and “Adjust room temperature”.

A wall mount is provided for installation at a convenient height, and the remote control can be taken out of the mount for use.

The remote control can also be used without a base mount.

LED matrix display Plus/minus button

Every option is intuitive and self-explanatory. The LED matrix display shows the current operating status in a clear and simple way.

In addition to its easy, comfortable range of controls, the IHC is also sustainable, as the electronic control unit can be replaced independently from the immersion heater.

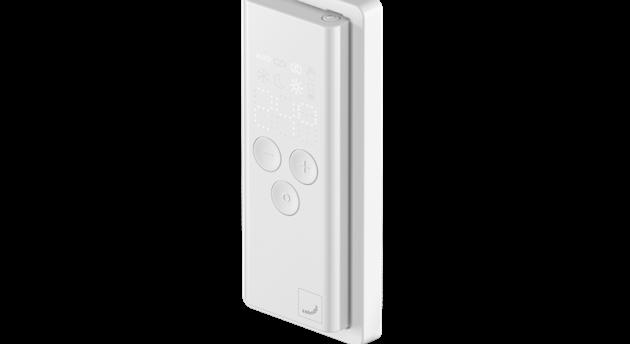

Easy remote control

Mode button

Comfortable control at a convenient height

#ZehnderIHC #UserFriendly #SmartControl #Modular #Sustainable

LED matrix display

Rotary dial

Immersion Heater Modus Zeitplan-Modus

3

Wochenplan Arbeitswoche IST-TEMP.

ABWESEND

JETZT

BOOST

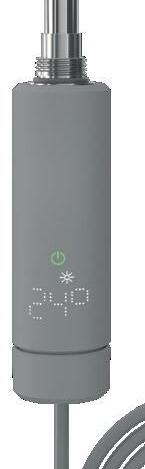

Available in three different colours (black, white and grey) with a modern design featuring an LED matrix display

6

Startbildschirm

Temperaturen

Pläne

Einstellungen

Zehnder Connect app

Use the Zehnder Connect app to control radiators via a Bluetooth-enabled smartphone, with options to set up additional functions such as a weekly programme.

Smart controls with precise settings

7

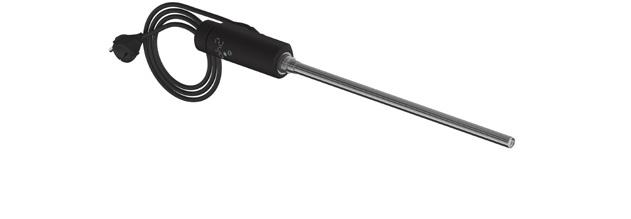

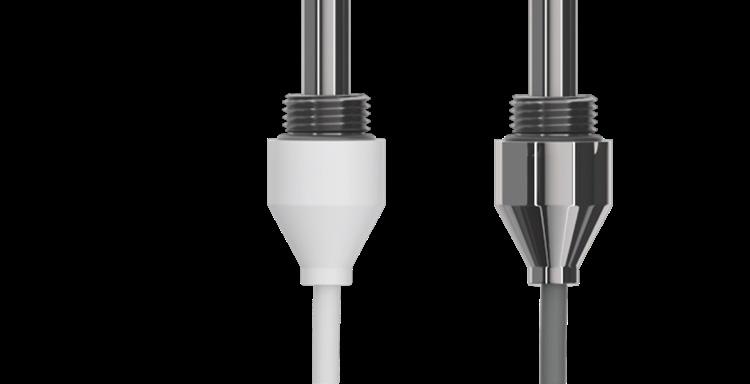

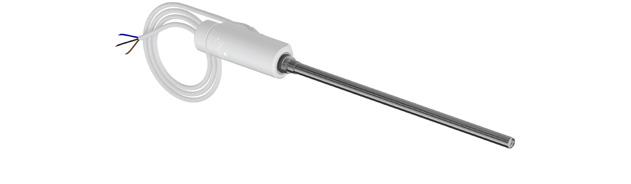

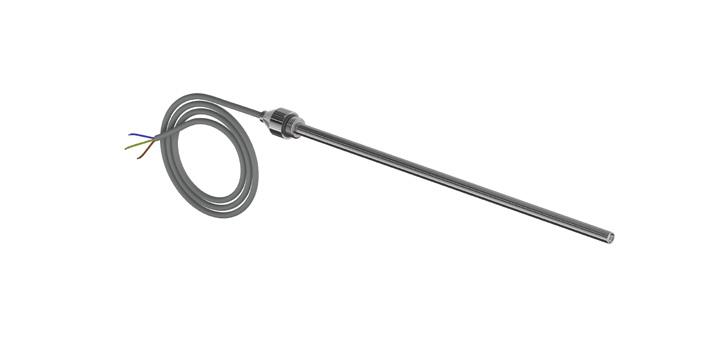

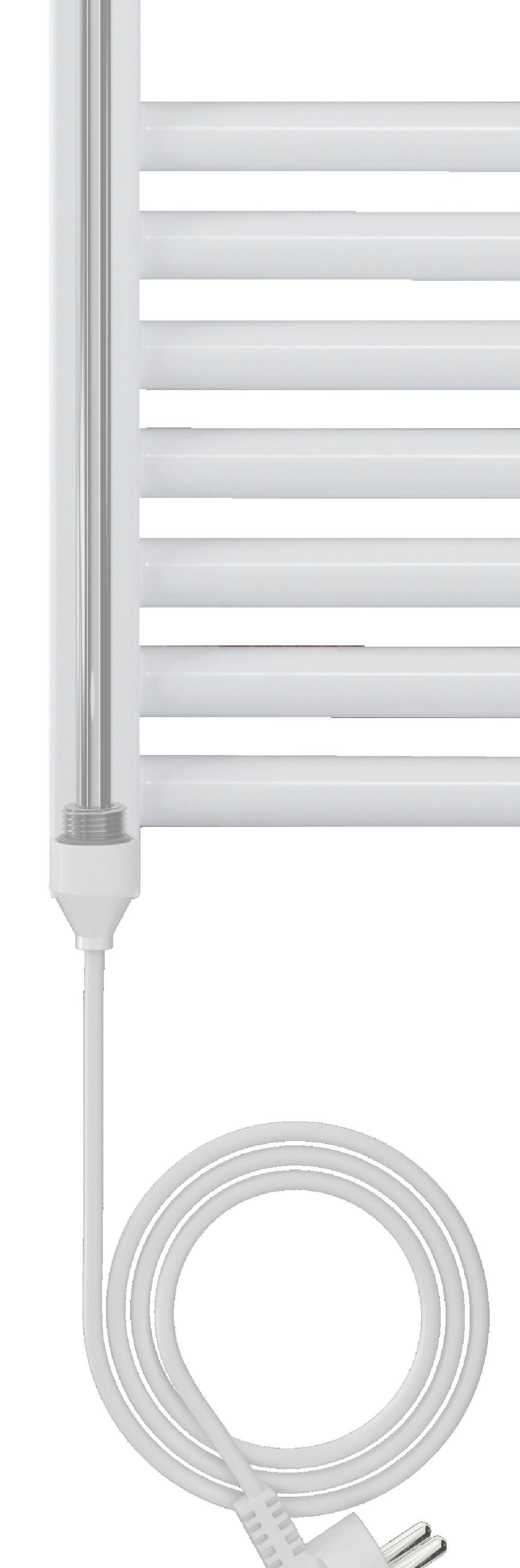

Zehnder Immersion Heater Easy (IHE)

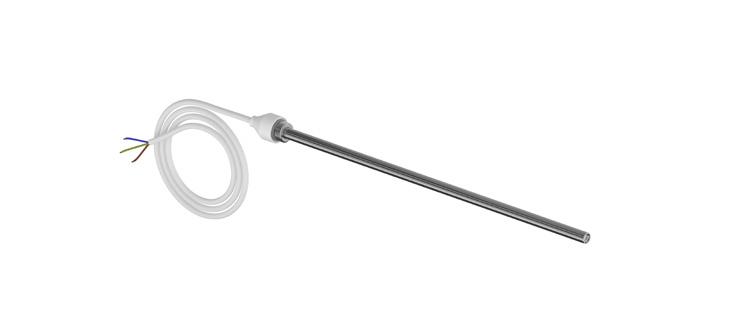

Sustainable and easy to integrate The Zehnder Immersion Heater Easy (IHE) The Immersion Heater Easy (IHE) is an integrated option for smart home systems with on-site control.

The new technical Zehnder patented solution reduces output in the upper temperature range to 50%, limiting temperature fluctuations and saving energy. This also extends the immersion heater’s service life, making your bath more sustainable.

#ZehnderIHE #Sustainability #EnergyEfficiency #LongerLifecycle #EasyIntegration

Easily compatible with external control options.

Immersion Heater Easy IHE – a simple and integrative solution with a fixed temperature limit, ideal for use with external control systems (e.g. building management systems).

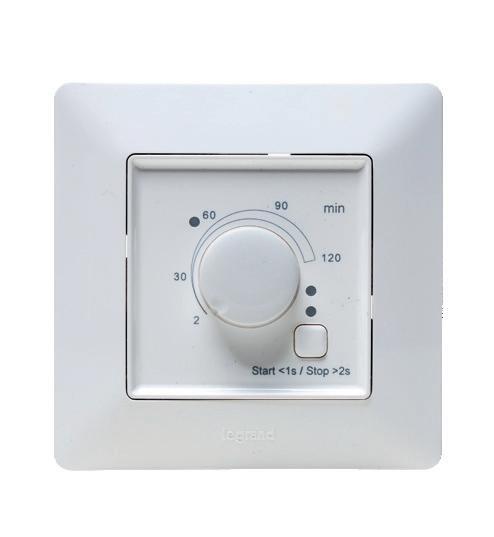

Example of an external control option: Timer switch with rotary dial for time setting.

8

Colour Options Available in white or chrome.

9

Model

Height (mm)

Scan for the complete compliant technical specifications

Width (mm)

Finish

Output ΔT=50ºC (watts/btu)

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

Zehnder Metropolitan Spa Dual Energy METSS080040MAZK METSS080050MAZK METSS080060MAZK METSS120040MAZK METSS120050MAZK METSS120060MAZK METSS150040MAZK METSS150050MAZK METSS150060MAZK METSS180040MAZK METSS180050MAZK METSS180060MAZK

805 805 805 1225 1225 1225 1540 1540 1540 1750 1750 1750

400 500 600 400 500 600 400 500 600 400 500 600

white* white* white* white* white* white* white* white* white* white* white* white*

327/1116 388/1324 445/1518 474/1617 561/1914 645/2201 582/1986 690/2354 792/2702 654/2231 775/2644 889/3033

300 300 400 400 600 600 600 600 900 600 900 900

£480 £504 £527 £543 £577 £611 £578 £616 £655 £615 £663 £711

£576.00 £604.80 £632.40 £651.60 £692.40 £733.20 £693.60 £739.20 £786.00 £738.00 £795.60 £853.20

Model

Height (mm)

Width (mm)

Finish

Output ΔT=50ºC (watts/btu)

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

400 500 600 400 500 600 400 500 600 400 500 600

white* white* white* white* white* white* white* white* white* white* white* white*

327/1116 388/1324 445/1518 474/1617 561/1914 645/2201 582/1986 690/2354 792/2702 654/2231 775/2644 889/3033

300 300 400 400 600 600 600 600 900 600 900 900

£580 £604 £627 £643 £677 £711 £678 £716 £755 £715 £763 £811

£696.00 £724.80 £752.40 £771.60 £812.40 £853.20 £813.60 £859.20 £906.00 £858.00 £915.60 £973.20

Zehnder Metropolitan Spa Dual Energy METSS080040MCZF METSS080050MCZF METSS080060MCZF METSS120040MCZF METSS120050MCZF METSS120060MCZF METSS150040MCZF METSS150050MCZF METSS150060MCZF METSS180040MCZF METSS180050MCZF METSS180060MCZF

805 805 805 1225 1225 1225 1540 1540 1540 1750 1750 1750

Model

Height (mm)

Bathroom & kitchen radiators

Zehnder Metropolitan Spa

Width (mm)

Finish

Output ΔT=50ºC (watts/btu)

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

400 500 600 400 500 600 400 500 600 400 500 600

white* white* white* white* white* white* white* white* white* white* white* white*

327/1116 388/1324 445/1518 474/1617 561/1914 645/2201 582/1986 690/2354 792/2702 654/2231 775/2644 889/3033

300 300 400 400 600 600 600 600 900 600 900 900

£625 £649 £672 £688 £722 £756 £723 £761 £800 £760 £808 £856

£750.00 £778.80 £806.40 £825.60 £866.40 £907.20 £867.60 £913.20 £960.00 £912.00 £969.60 £1,027.20

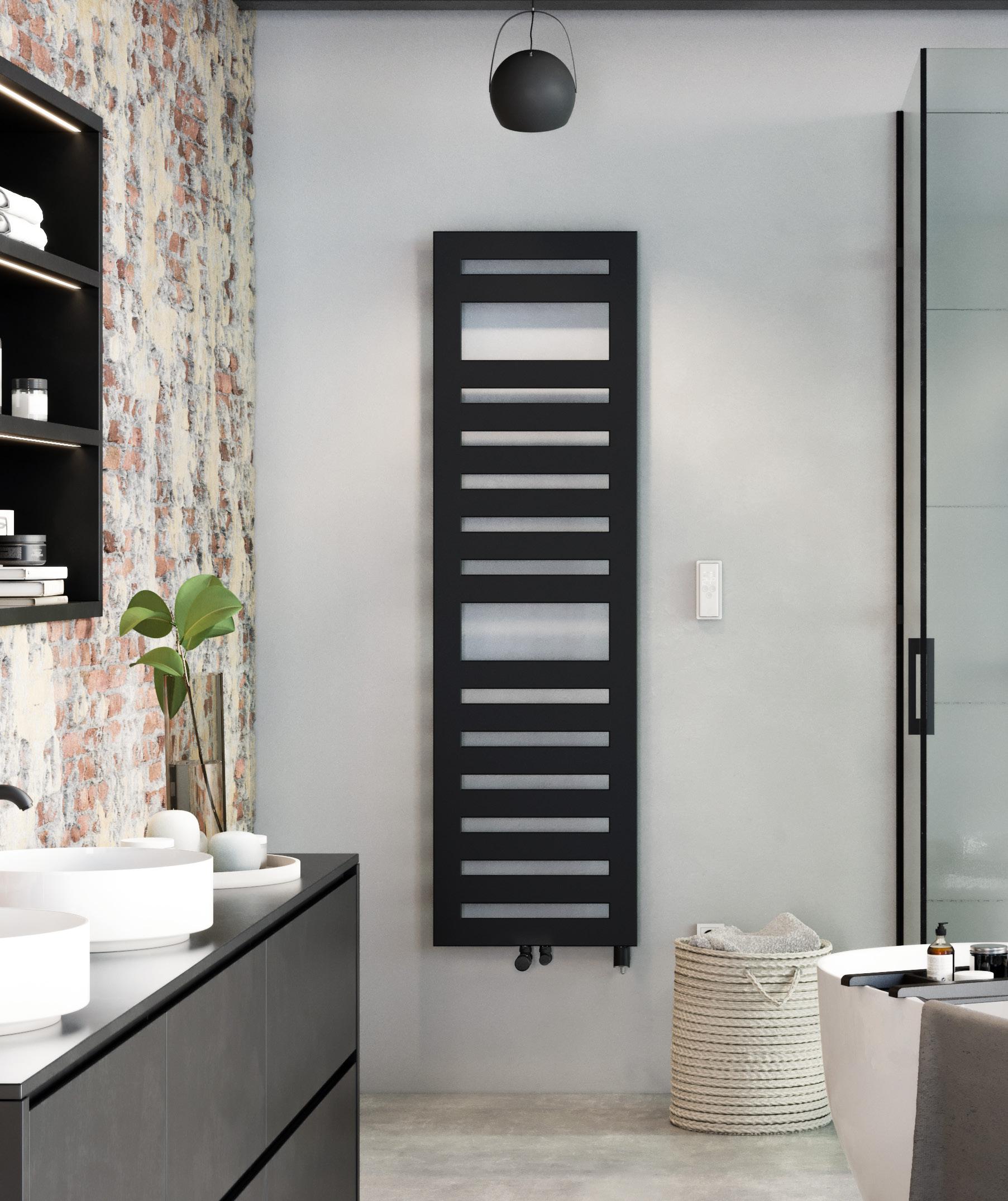

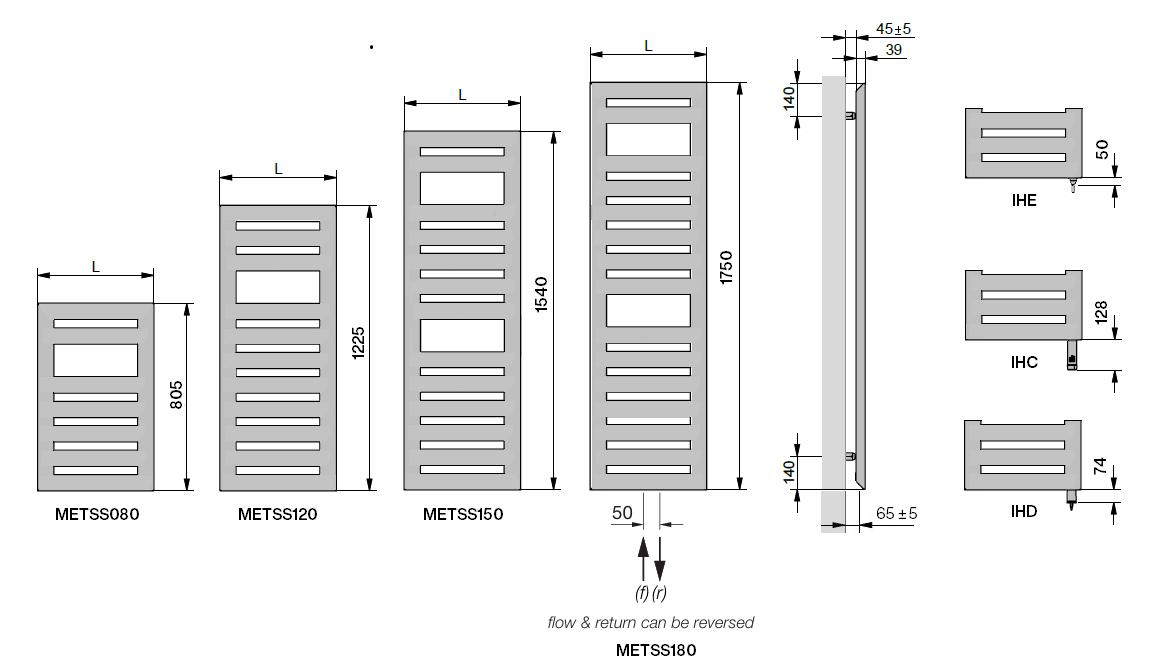

The Metropolitan Spa towel radiator brings an elegant, spa-like style to any modern bathroom. Connections and air vents are neatly hidden to maintain the formality and purity of the design. Geometric cut-outs create an attractive shape with plenty of space for towels to dry.

Easy remote control (optional accessory for IHC) See page 32 for more information

METSS180050MDAF BLACK MATT 0557 (IHD)

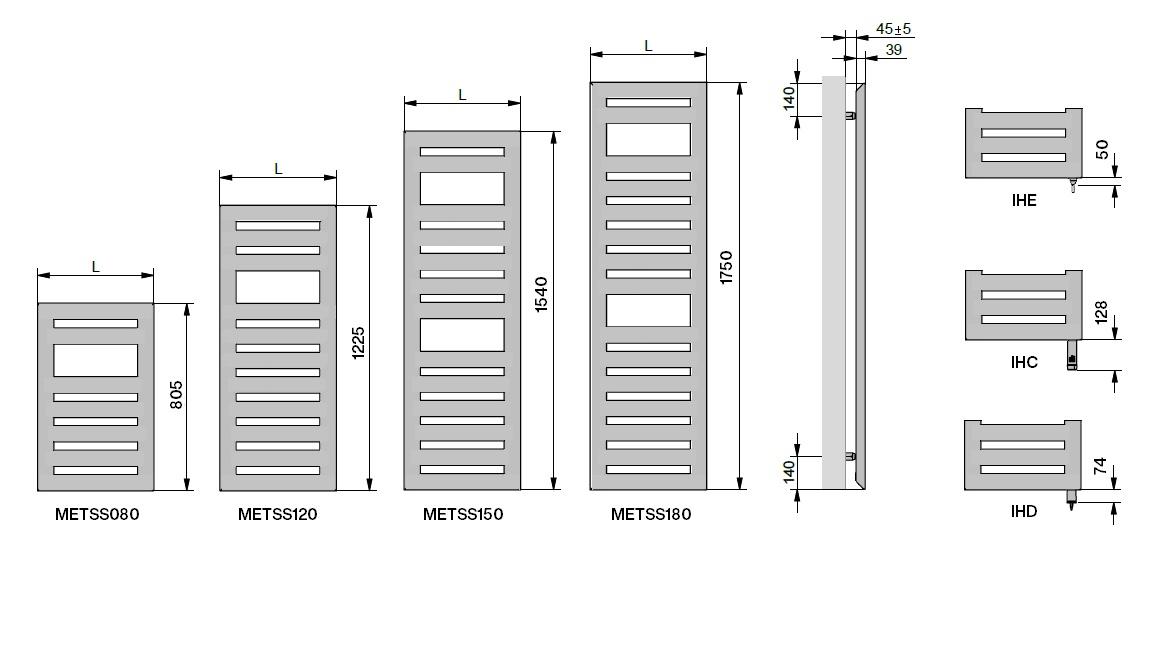

Tube frame: 70mm x 39mm triangular Horizontal tubes: 70mm x 8mm flat All dimensions in mm

Zehnder Metropolitan Spa Dual Energy METSS080040MDAF METSS080050MDAF METSS080060MDAF METSS120040MDAF METSS120050MDAF METSS120060MDAF METSS150040MDAF METSS150050MDAF METSS150060MDAF METSS180040MDAF METSS180050MDAF METSS180060MDAF

805 805 805 1225 1225 1225 1540 1540 1540 1750 1750 1750

* white RAL9016 Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

10

11

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

METSS080040EAZK METSS080050EAZK METSS080060EAZK METSS120040EAZK METSS120050EAZK METSS120060EAZK METSS150040EAZK METSS150050EAZK METSS150060EAZK *Traffic White (RAL 9016) METSS180040EAZK METSS180050EAZK METSS180060EAZK

805 805 805 1225 1225 1225 1540 1540 1540 1750 1750 1750

400 500 600 400 500 600 400 500 600 400 500 600

white* white* white* white* white* white* white* white* white* white* white* white*

300 300 400 400 600 600 600 600 900 600 900 900

£480 £504 £527 £543 £577 £611 £578 £616 £655 £615 £663 £711

£576.00 £604.80 £632.40 £651.60 £692.40 £733.20 £693.60 £739.20 £786.00 £738.00 £795.60 £853.20

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

METSS080040ECZF METSS080050ECZF METSS080060ECZF METSS120040ECZF METSS120050ECZF METSS120060ECZF METSS150040ECZF METSS150050ECZF METSS150060ECZF METSS180040ECZF METSS180050ECZF METSS180060ECZF

805 805 805 1225 1225 1225 1540 1540 1540 1750 1750 1750

400 500 600 400 500 600 400 500 600 400 500 600

white* white* white* white* white* white* white* white* white* white* white* white*

300 300 400 400 600 600 600 600 900 600 900 900

£580 £604 £627 £643 £677 £711 £678 £716 £755 £715 £763 £811

£696.00 £724.80 £752.40 £771.60 £812.40 £853.20 £813.60 £859.20 £906.00 £858.00 £915.60 £973.20

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with (IHD) with remote conrol (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

805 805 805 1225 1225 1225 1540 1540 1540 1750 1750 1750

400 500 600 400 500 600 400 500 600 400 500 600

white* white* white* white* white* white* white* white* white* white* white* white*

300 300 400 400 600 600 600 600 900 600 900 900

£625 £649 £672 £688 £722 £756 £723 £761 £800 £760 £808 £856

£750.00 £778.80 £806.40 £825.60 £866.40 £907.20 £867.60 £913.20 £960.00 £912.00 £969.60 £1,027.20

Model

Bathroom & kitchen radiators

Zehnder Metropolitan Spa Electric Zehnder Metropolitan Electric

The Metropolitan Spa Electric transforms any interior. With its generous cut-outs, this alternative version of the Metropolitan offers ample space for towels, adding practicality and convenience to bathrooms and kitchens. Innovative hybrid welding technology guarantees maximum quality and high-end design.

Zehnder Metropolitan Electric

Easy remote control (optional accessory for IHC) See page 32 for more information

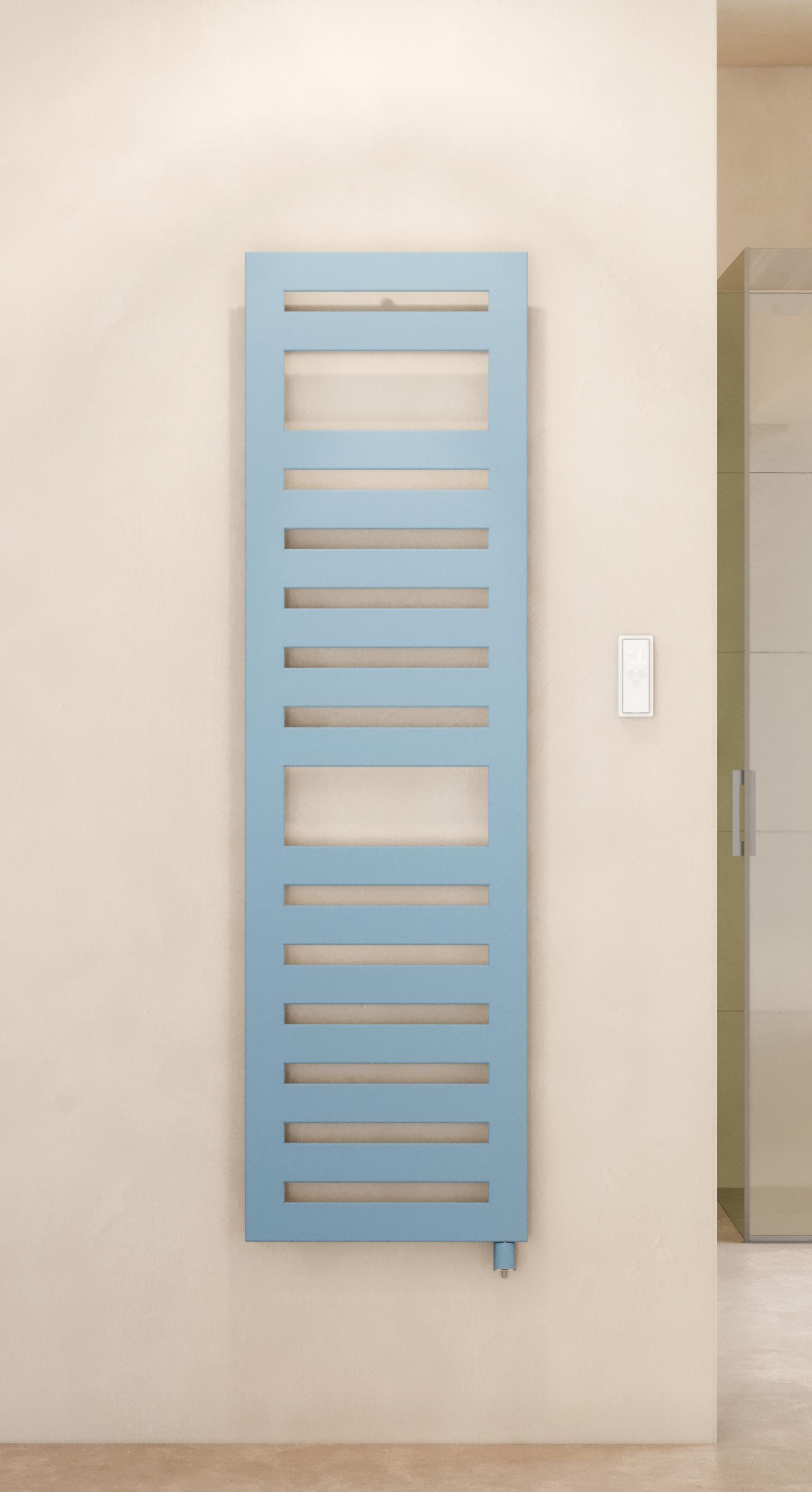

METSS150050EDAF PASTEL BLUE 5224 (IHD)

Tube frame: 70mm x 39mm triangular Horizontal tubes: 70mm x 8mm flat All dimensions in mm

Zehnder Metropolitan Electric METSS080040EDAF METSS080050EDAF METSS080060EDAF METSS120040EDAF METSS120050EDAF METSS120060EDAF METSS150040EDAF METSS150050EDAF METSS150060EDAF METSS180040EDAF METSS180050EDAF METSS180060EDAF

Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

12

13

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

QSZSS075045EAZK QSZSS120045EAZK QSZSS120055EAZK QSZSS150045EAZK QSZSS150055EAZK QSZSS180055EAZK

833 1281 1281 1537 1537 1857

450 450 550 450 550 550

white* white* white* white* white* white*

300 400 600 600 600 900

£372 £396 £433 £455 £489 £542

£446.40 £475.20 £519.60 £546.00 £586.80 £650.40

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

833 1281 1281 1537 1537 1857

450 450 550 450 550 550

white* white* white* white* white* white*

300 400 600 600 600 900

£472 £496 £533 £555 £589 £642

£566.40 £595.20 £639.60 £666.00 £706.80 £770.40

Model

Bathroom & kitchen radiators

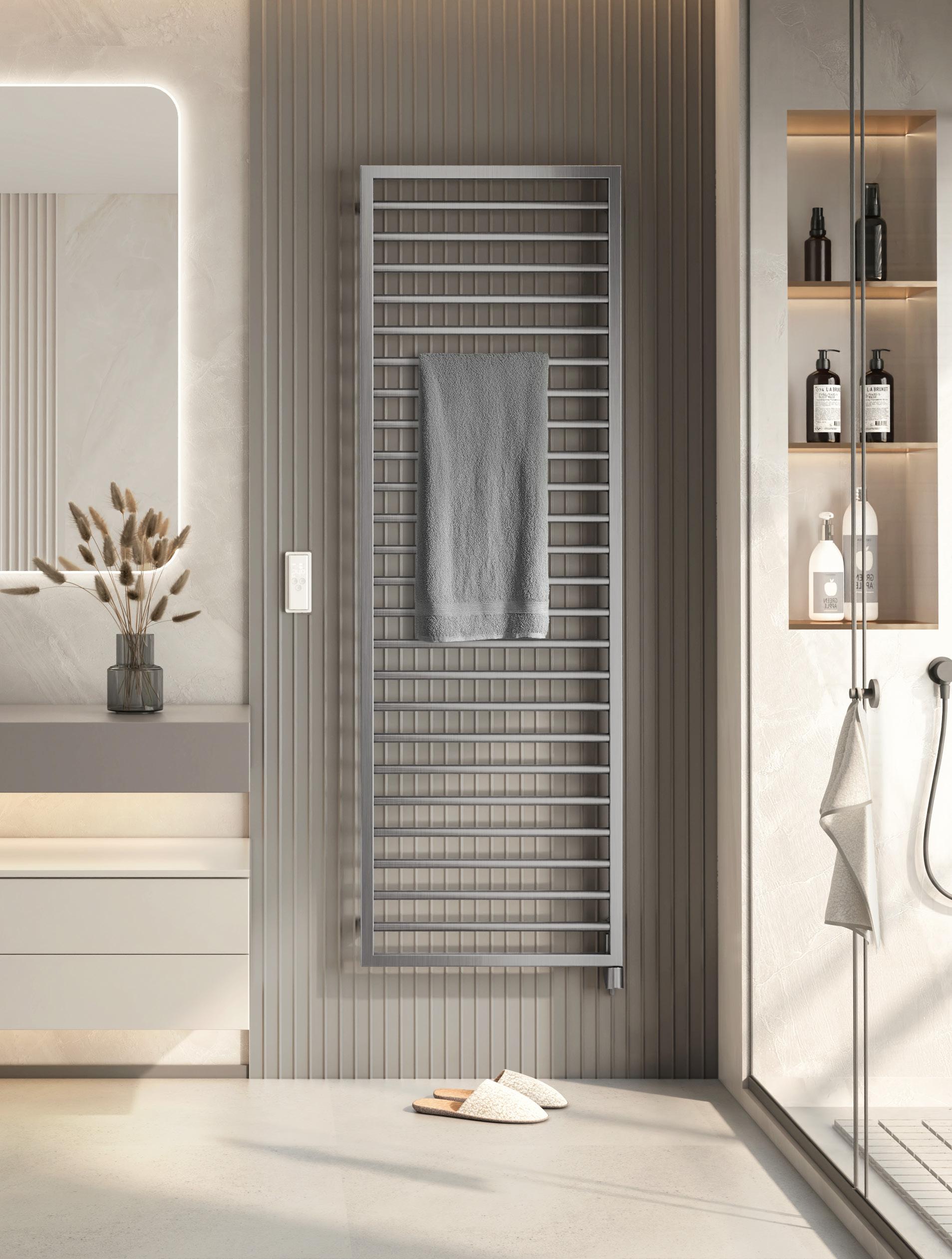

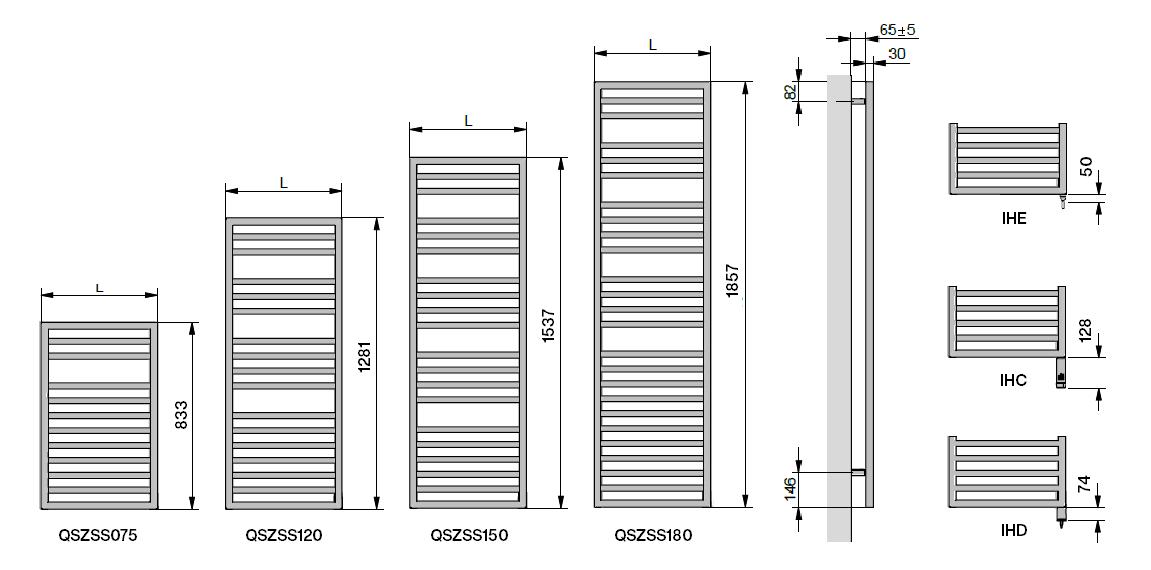

Zehnder Quaro Spa Electric Zehnder Quaro Spa Electric

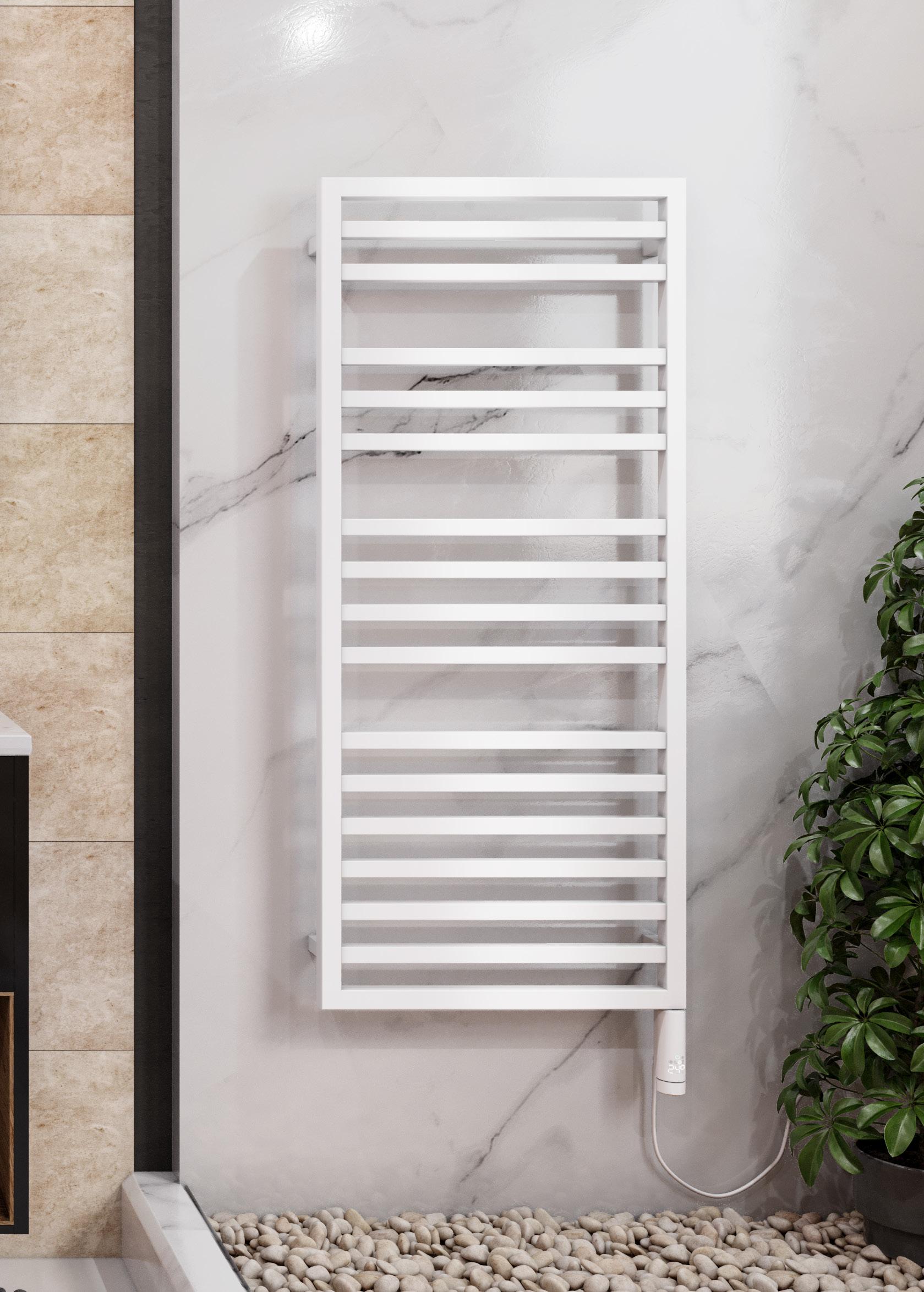

The Quaro Spa Electric radiates an air of sophistication with its sleek and contemporary design.

Its clean lines and surface offers a perfect balance of functionality and style.

Zehnder Quaro Spa Electric QSZSS075045ECZF QSZSS120045ECZF QSZSS120055ECZF QSZSS150045ECZF QSZSS150055ECZF QSZSS180055ECZF

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

833 1281 1281 1537 1537 1857

450 450 550 450 550 550

white* white* white* white* white* white*

300 400 600 600 600 900

£517 £541 £578 £600 £634 £687

£620.40 £649.20 £693.60 £720.00 £760.80 £824.40

Zehnder Quaro Spa Electric QSZSS075045EDAF QSZSS120045EDAF QSZSS120055EDAF QSZSS150045EDAF QSZSS150055EDAF QSZSS180055EDAF

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

14

Easy remote control (optional accessory for IHC) See page 32 for more information QSZSS120055ECZF TRAFFIC WHITE 9016 (IHC)

Tube frame: 30mm x 30mm square Tube horizontal: 25mm x 25mm square All dimensions in mm

15

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

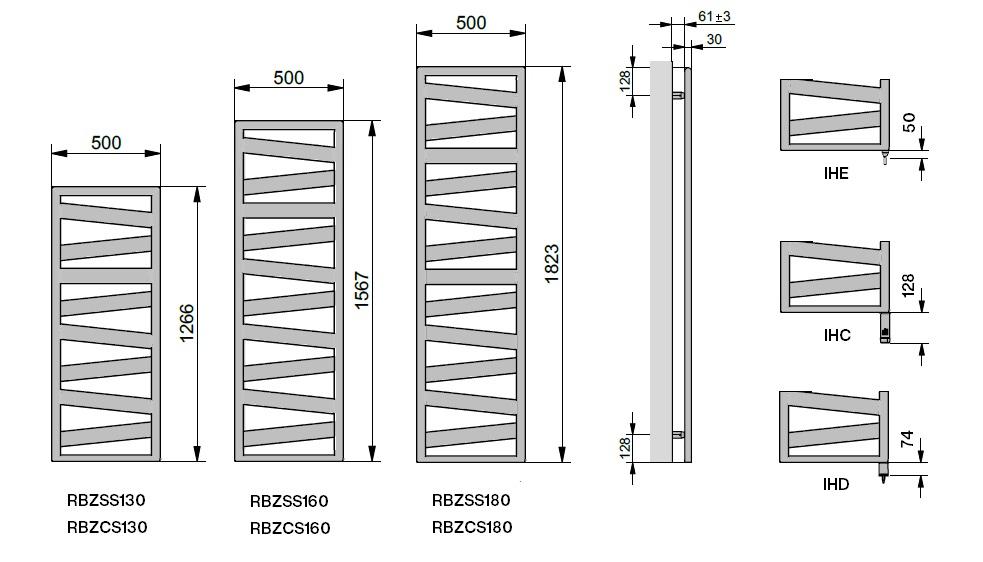

RBZSS130050EAZK RBZSS160050EAZK RBZSS180050EAZK RBZCS130050EAZK RBZCS160050EAZK RBZCS180050EAZK

1266 1567 1823 1266 1567 1823

500 500 500 500 500 500

white* white* white* chrome chrome chrome

600 600 600 300 400 400

£450 £503 £550 £1,056 £1,214 £1,371

£540.00 £603.60 £660.00 £1,267.20 £1,456.80 £1,645.20

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

RBZSS130050ECZF RBZSS160050ECZF RBZSS180050ECZF RBZCS130050ECZF RBZCS160050ECZF RBZCS180050ECZF

1266 1567 1823 1266 1567 1823

500 500 500 500 500 500

white* white* white* chrome chrome chrome

600 600 600 300 400 400

£550 £603 £650 £1,156 £1,314 £1,471

£660.00 £723.60 £780.00 £1,387.20 £1,576.80 £1,765.20

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

1266 1567 1823 1266 1567 1823

500 500 500 500 500 500

white* white* white* chrome chrome chrome

600 600 600 300 400 400

£595 £648 £695 £1,201 £1,359 £1,516

£714.00 £777.60 £834.00 £1,441.20 £1,630.80 £1,819.20

Model

Bathroom & kitchen radiators

Zehnder Ribbon Electric Zehnder Ribbon Electric

Like a steel band that wraps around the bathroom radiator, Zehnder Ribbon impresses with its modern design and practicality. Large spaces provide the whole family with plenty of room to hang several towels.

This linking of form and function transforms Zehnder Ribbon into a radiator that invites comfort and class into the bathroom.

Zehnder Ribbon Electric

Zehnder Ribbon Electric RBZSS130050EDAF RBZSS160050EDAF RBZSS180050EDAF RBZCS130050EDAF RBZCS160050EDAF RBZCS180050EDAF

Easy remote control (optional accessory for IHC) See page 32 for more information

RBZSS180050EAZK BLACK MATT 0557 (IHE)

Tube frame: 30mm x 40mm D profile Tube horizontal: 70mm x 8mm flat All dimensions in mm

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

16

17

Zehnder Subway Electric Model

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

613 973 973 1261 1261 1549 1549 1837 1837 973 973 1261 1261 1549 1549 1837 1837

450 450 600 450 600 450 600 450 600 450 600 450 600 450 600 450 600

white* white* white* white* white* white* white* white* white* chrome chrome chrome chrome chrome chrome chrome chrome

200 300 400 400 600 600 600 600 900 200 300 300 400 400 400 400 600

£365 £384 £409 £414 £451 £468 £510 £516 £561 £839 £935 £937 £1,028 £1,089 £1,197 £1,204 £1,329

£438.00 £460.80 £490.80 £496.80 £541.20 £561.60 £612.00 £619.20 £673.20 £1,006.80 £1,122.00 £1,124.40 £1,233.60 £1,306.80 £1,436.40 £1,444.80 £1,594.80

Zehnder Subway Electric SUBSS060045EAZK SUBSS100045EAZK SUBSS100060EAZK SUBSS130045EAZK SUBSS130060EAZK SUBSS150045EAZK SUBSS150060EAZK SUBSS180045EAZK SUBSS180060EAZK SUBCS100045EAZK SUBCS100060EAZK SUBCS130045EAZK SUBCS130060EAZK SUBCS150045EAZK SUBCS150060EAZK SUBCS180045EAZK SUBCS180060EAZK

Height (mm)

Width (mm)

Finish

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

SUBSS100045ECZF SUBSS100060ECZF SUBSS130045ECZF SUBSS130060ECZF SUBSS150045ECZF SUBSS150060ECZF SUBSS180045ECZF SUBSS180060ECZF SUBCS100045ECZF SUBCS100060ECZF SUBCS130045ECZF SUBCS130060ECZF SUBCS150045ECZF SUBCS150060ECZF SUBCS180045ECZF SUBCS180060ECZF

973 973 1261 1261 1549 1549 1837 1837 973 973 1261 1261 1549 1549 1837 1837

450 600 450 600 450 600 450 600 450 600 450 600 450 600 450 600

white* white* white* white* white* white* white* white* chrome chrome chrome chrome chrome chrome chrome chrome

400 400 400 600 600 600 600 900 200 300 300 400 400 400 400 600

£484 £509 £514 £551 £568 £610 £616 £661 £939 £1,035 £1,037 £1,128 £1,189 £1,297 £1,304 £1,429

£580.80 £610.80 £616.80 £661.20 £681.60 £732.00 £739.20 £793.20 £1,126.80 £1,242.00 £1,244.40 £1,353.60 £1,426.80 £1,556.40 £1,564.80 £1,714.80

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

£510 £529 £554 £559 £596 £613 £655 £661 £706 £984 £1,080 £1,082 £1,173 £1,234 £1,342 £1,349 £1,474

£612.00 £634.80 £664.80 £670.80 £715.20 £735.60 £786.00 £793.20 £847.20 £1,180.80 £1,296.00 £1,298.40 £1,407.60 £1,480.80 £1,610.40 £1,618.80 £1,768.80

Model Zehnder Subway Electric

The pure design of Zehnder Subway Electirc is simple pleasure. The radiator impresses with a clear design aesthetic that refuses to compromise. Its distinctive square frame and delicate round tubes combine to create a designer piece that also doubles as a multiple towel rail.

Easy remote control (optional accessory for IHC) See page 32 for more information

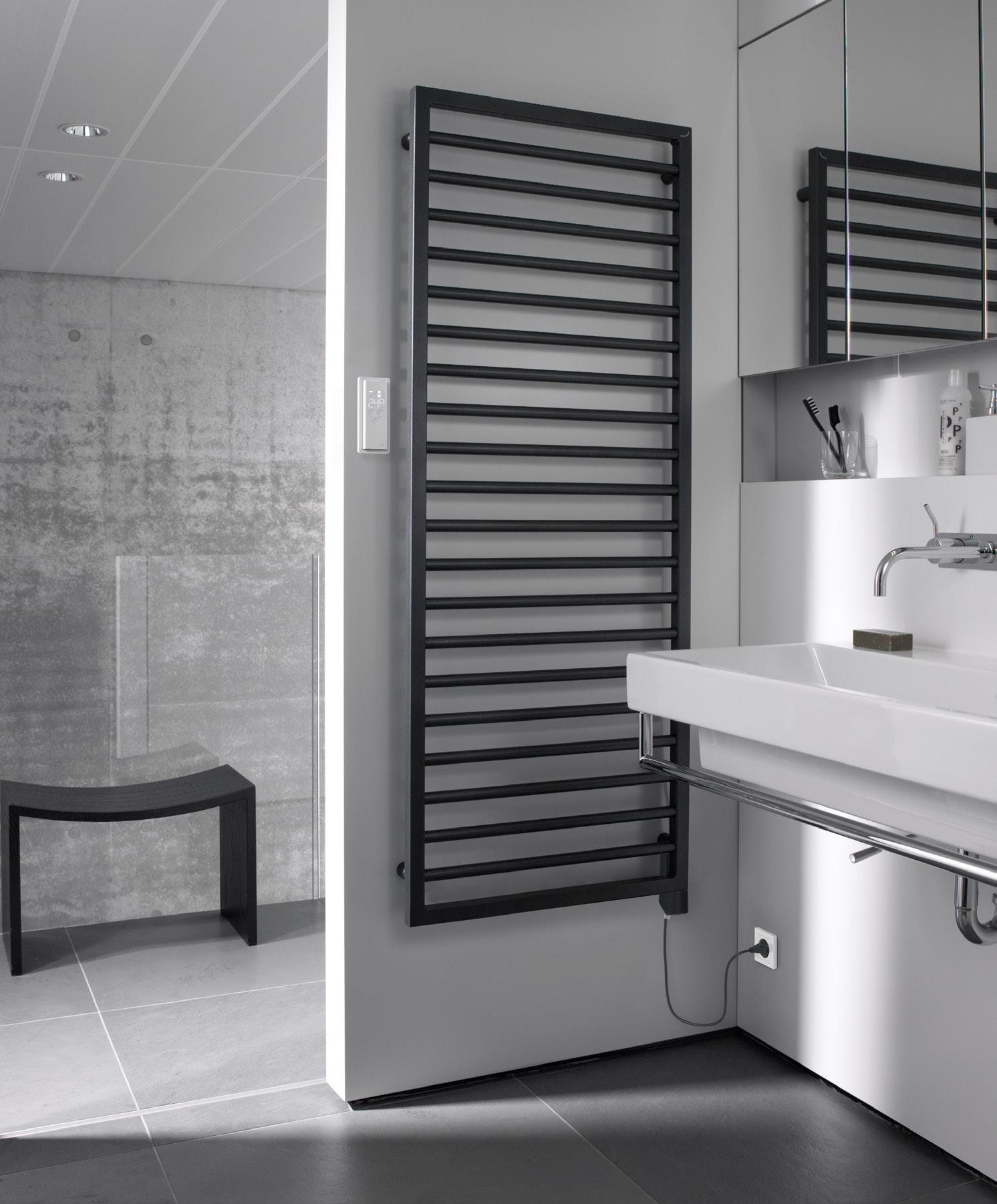

SUBSS150060EDAF VOLCANIC 0336 (IHD)

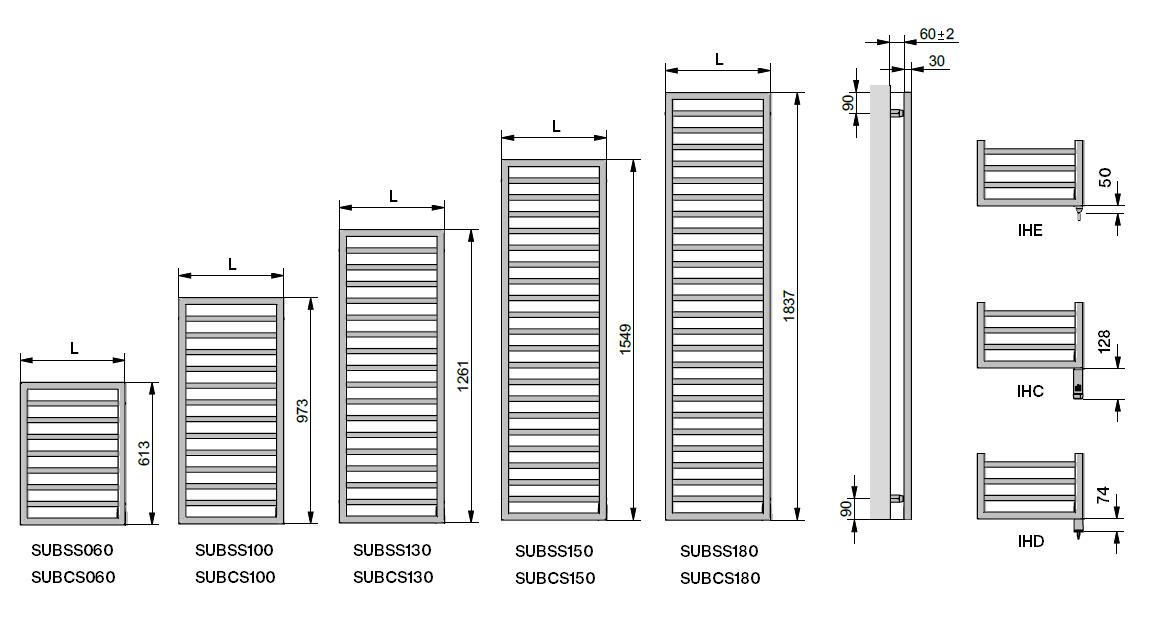

Tube frame: 30mm x 30mm square Tube horizontal: Ø23mm round All dimensions in mm

Zehnder Subway Electric SUBSS060045EDAF 613 450 white* 200 SUBSS100045EDAF 973 450 white* 400 SUBSS100060EDAF 973 600 white* 400 SUBSS130045EDAF 1261 450 white* 400 SUBSS130060EDAF 1261 600 white* 600 SUBSS150045EDAF 1549 450 white* 600 SUBSS150060EDAF 1549 600 white* 600 SUBSS180045EDAF 1837 450 white* 600 SUBSS180060EDAF 1837 600 chrome 900 SUBCS100045EDAF 973 450 chrome 200 SUBCS100060EDAF 973 600 chrome 300 SUBCS130045EDAF 1261 450 chrome 300 SUBCS130060EDAF 1261 600 chrome 400 SUBCS150045EDAF 1549 450 chrome 400 *Traffic White (RAL 9016) SUBCS150060EDAF 1549 600 chrome 400 Colour finish: Colours from the World are priced at: Traffic White (RAL 9016)400 + 25%.

SUBCS180045EDAF 1837of Colours 450 chartchrome Colour finish and non-stock products 3–5 weeks.

SUBCS180060EDAF 1837 delivery: 600 chrome 600 *Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

18

19

Zehnder Subway Stainless Steel Electric Model

Height (mm)

Width (mm)

Scan for the complete compliant technical specifications

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed

200 300 300 400 300 500 400 600

£766 £843 £919 £1,008 £1,065 £1,173 £1,180 £1,299

£919.20 £1,011.60 £1,102.80 £1,209.60 £1,278.00 £1,407.60 £1,416.00 £1,558.80

Zehnder Subway Stainless Steel Electric SUBIS100045EAZK SUBIS100060EAZK SUBIS130045EAZK SUBIS130060EAZK SUBIS150045EAZK SUBIS150060EAZK SUBIS180045EAZK SUBIS180060EAZK

973 973 1261 1261 1549 1549 1837 1837

450 600 450 600 450 600 450 600

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed

200 300 300 400 400 400 400 600

£866 £943 £1,019 £1,108 £1,165 £1,273 £1,280 £1,399

£1,039.20 £1,131.60 £1,222.80 £1,329.60 £1,398.00 £1,527.60 £1,536.00 £1,678.80

A sleek and versatile heating solution that combines modern design with efficient functionality, the Subway Stainless Steel Electric is crafted from highquality stainless steel, offering durability and a contemporary aesthetic which is ideal for bathrooms and kitchens.

Zehnder Subway Stainless Steel Electric SUBIS100045ECZF SUBIS100060ECZF SUBIS130045ECZF SUBIS130060ECZF SUBIS150045ECZF SUBIS150060ECZF SUBIS180045ECZF SUBIS180060ECZF

973 973 1261 1261 1549 1549 1837 1837

Model

Height (mm)

450 600 450 600 450 600 450 600

Width (mm)

Finish

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

Zehnder Subway Stainless Steel Electric SUBIS100045EDAF SUBIS100060EDAF SUBIS130045EDAF SUBIS130060EDAF SUBIS150045EDAF SUBIS150060EDAF SUBIS180045EDAF SUBIS180060EDAF

20

973 973 1261 1261 1549 1549 1837 1837

450 600 450 600 450 600 450 600

stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed stainless steel brushed

200 300 300 400 400 400 400 600

£911 £988 £1,064 £1,153 £1,210 £1,318 £1,325 £1,444

£1,093.20 £1,185.60 £1,276.80 £1,383.60 £1,452.00 £1,581.60 £1,590.00 £1,732.80

Easy remote control (optional accessory for IHC) See page 32 for more information

SUBIS180060EDAF STAINLESS STEEL BRUSHED (IHD)

Tube frame: 30mm x 30mm square Tube horizontal: Ø23mm round All dimensions in mm

21

Zehnder Tetris Model

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Output ΔT=50ºC (watts/btu)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

Zehnder Tetris Dual Energy TETSS062050MAZK

620

500

white*

252/860

300

£373

£447.60

TETSS090050MAZK

860

500

white*

351/1198

400

£438

£525.60

TETSS090060MAZK

860

600

white*

401/1368

400

£455

£546.00

TETSS110050MAZK

1100

500

white*

418/1426

400

£500

£600.00

TETSS110060MAZK

1100

600

white*

477/1628

600

£523

£627.60

TETSS150050MAZK

1460

500

white*

551/1880

600

£584

£700.80

TETSS150060MAZK

1460

600

white*

625/2133

600

£614

£736.80

TETSS170050MAZK

1700

500

white*

639/2180

600

£654

£784.80

TETSS170060MAZK

1700

600

white*

726/2477

900

£690

£828.00

Model

Height (mm)

Width (mm)

Finish

Output ΔT=50ºC (watts/btu)

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20%VAT)

860

500

white*

351/1198

400

£538

£645.60

TETSS090060MCZF

860

600

white*

401/1368

400

£555

£666.00

TETSS110050MCZF

1100

500

white*

418/1426

400

£600

£720.00

TETSS110060MCZF

1100

600

white*

477/1628

600

£623

£747.60

TETSS150050MCZF

1460

500

white*

551/1880

600

£684

£820.80

TETSS150060MCZF

1460

600

white*

625/2133

600

£714

£856.80

TETSS170050MCZF

1700

500

white*

639/2180

600

£754

£904.80

TETSS170060MCZF

1700

600

white*

726/2477

900

£790

£948.00

Model

Height (mm)

Width (mm)

Finish

Output ΔT=50ºC (watts/btu)

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

252/860

300

£518

£621.60

The rhythm of warmth – creating a fusion between nature and architecture, the latest towel radiator design by renowned design studio King & Miranda exclusively for Zehnder, the Tetris is inspired by the flow of a river and the rhythm of flight.

This philosophy translates into a product which balances it proportions and has space to breath. The clean lines are accentuated by precision manufacturing techniques, creating an almost seamless construction.

Zehnder Tetris Dual Energy TETSS090050MCZF

Zehnder Tetris Dual Energy TETSS062050MDAF

620

500

white*

TETSS090050MDAF

860

500

white*

351/1198

400

£583

£699.60

TETSS090060MDAF

860

600

white*

401/1368

400

£600

£720.00

TETSS110050MDAF

1100

500

white*

418/1426

400

£645

£774.00

TETSS110060MDAF

1100

600

white*

477/1628

600

£668

£801.60

TETSS150050MDAF

1460

500

white*

551/1880

600

£729

£874.80

TETSS150060MDAF

1460

600

white*

625/2133

600

£759

£910.80

TETSS170050MDAF

1700

500

white*

639/2180

600

£799

£958.80

TETSS170060MDAF

1700

600

white*

726/2477

900

£835

£1,002.00

Easy remote control (optional accessory for IHC)

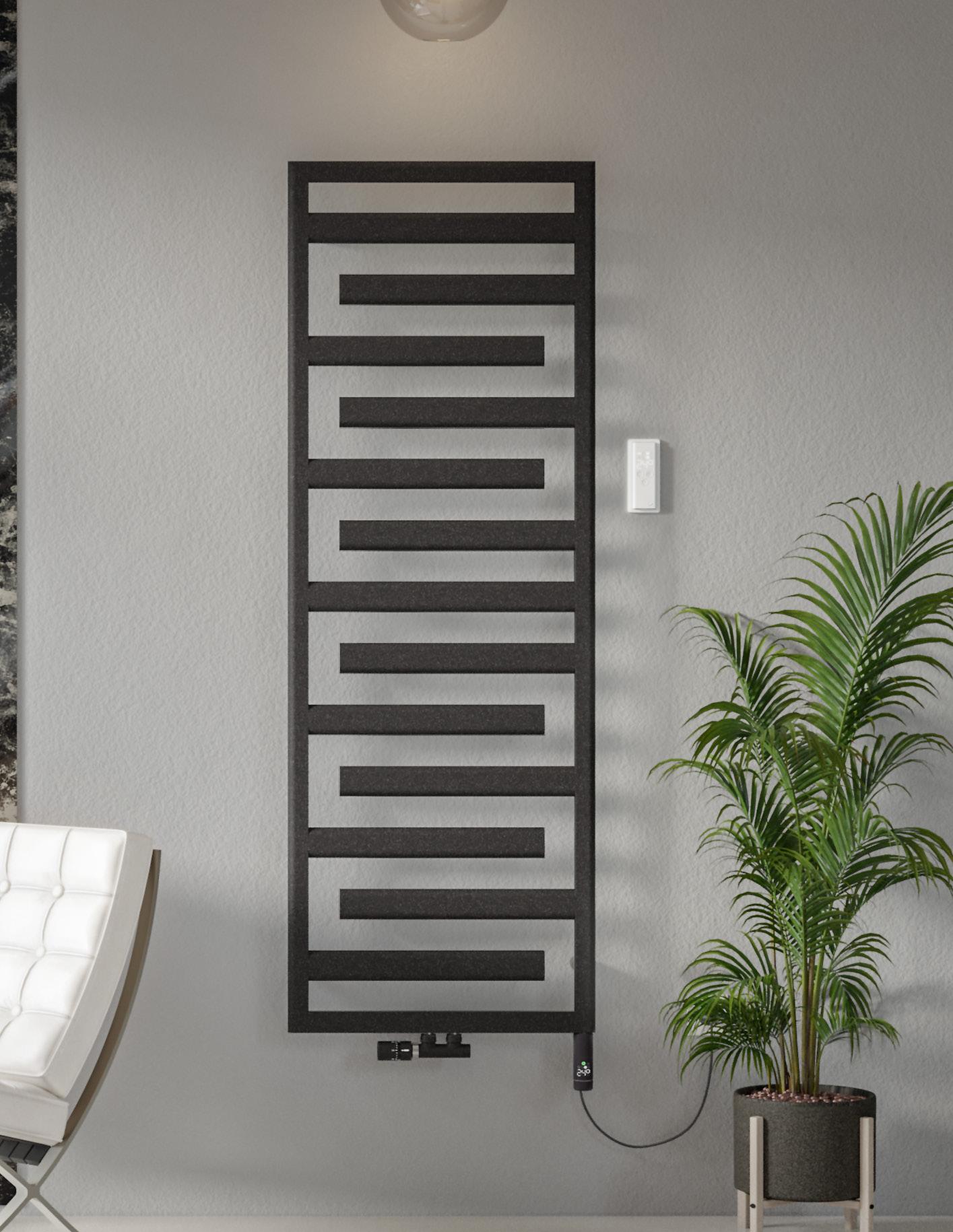

TETSS170050MCZF BLACK QUARTZ 0550 (IHC)

See page 32 for more information

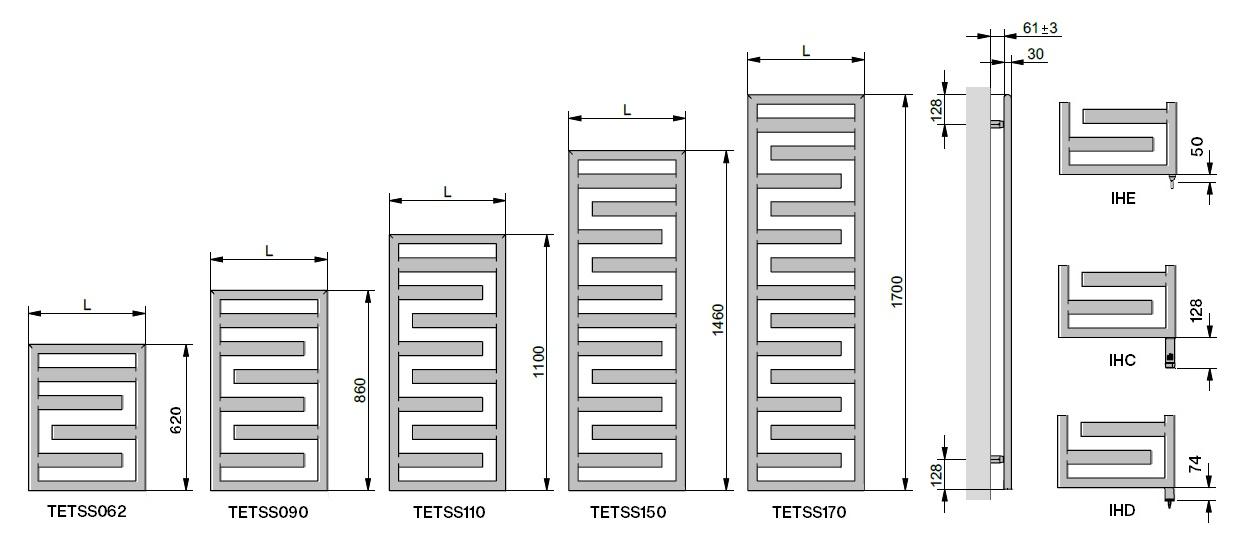

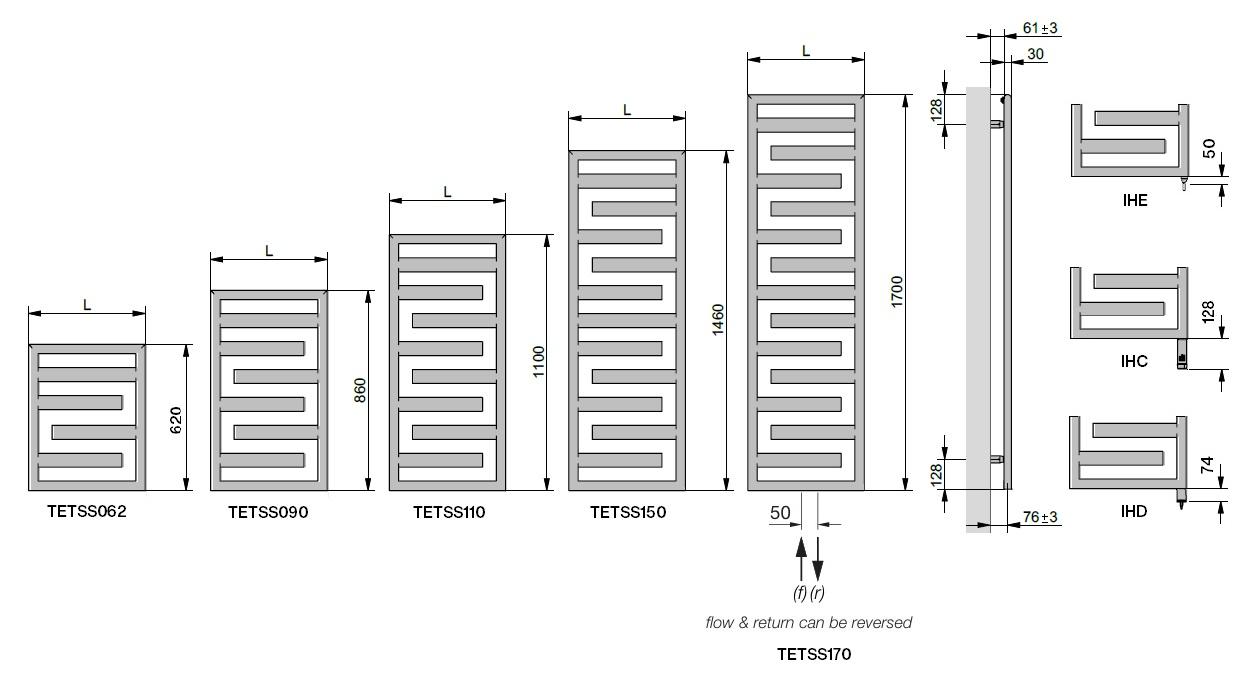

Tube frame: 40mm x 30mm D profile Tube horizontal: 60mm x 30mm oval All dimensions in mm

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

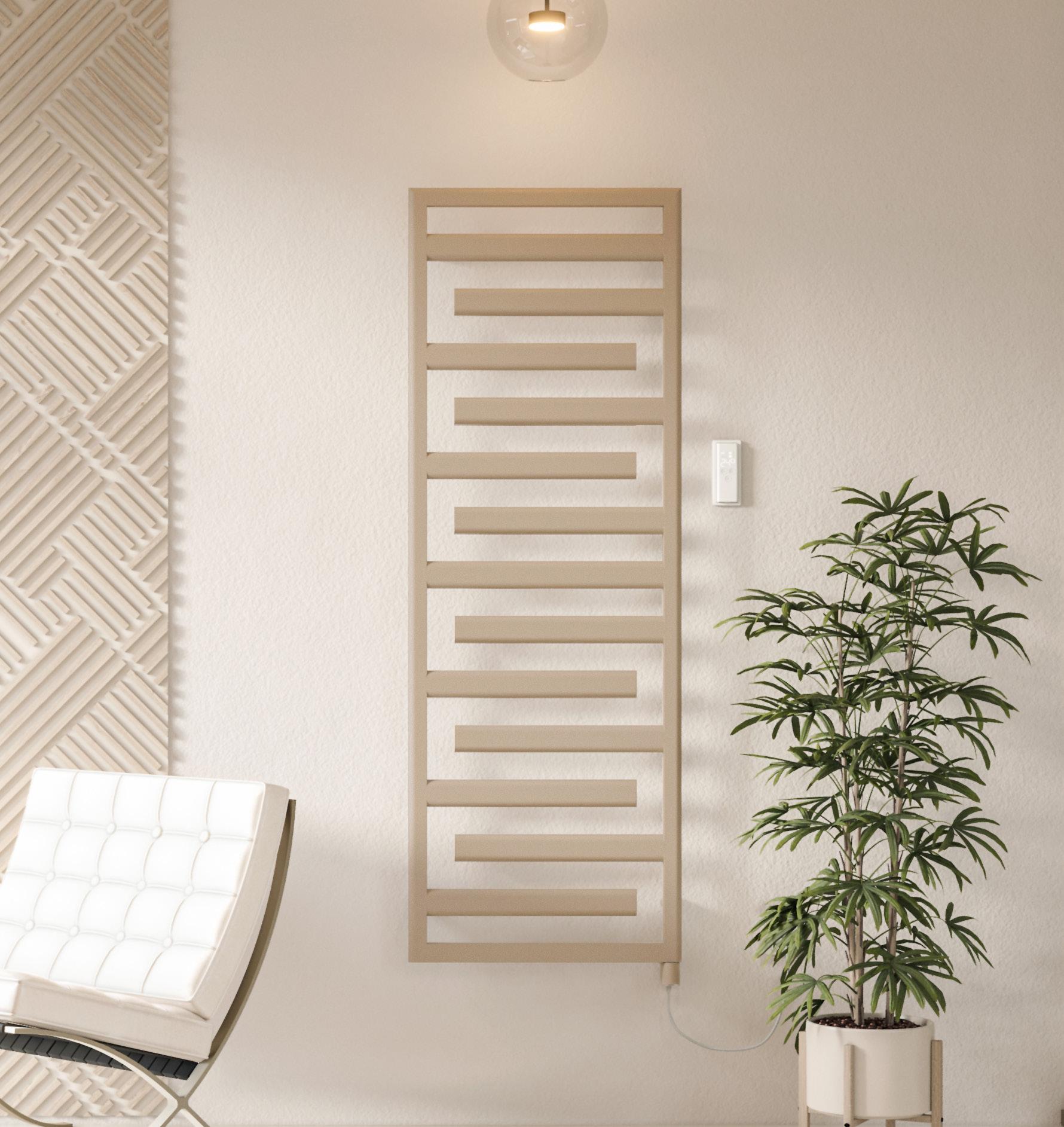

TETSS150050WZZZ GOLDEN SAND 0258

22

23

Zehnder Tetris Electric

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

TETSS062050EAZK

620

500

white*

300

£373

£447.60

TETSS090050EAZK

860

500

white*

400

£438

£525.60

TETSS090060EAZK

860

600

white*

400

£455

£546.00

TETSS110050EAZK

1100

500

white*

400

£500

£600.00

TETSS110060EAZK

1100

600

white*

600

£523

£627.60

TETSS150050EAZK

1460

500

white*

600

£584

£700.80

TETSS150060EAZK

1460

600

white*

600

£614

£736.80

TETSS170050EAZK

1700

500

white*

600

£654

£784.80

TETSS170060EAZK

1700

600

white*

900

£690

£828.00

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

TETSS090050ECZF

860

500

white*

400

£538

£645.60

TETSS090060ECZF

860

600

white*

400

£555

£666.00

TETSS110050ECZF

1100

500

white*

400

£600

£720.00

TETSS110060ECZF

1100

600

white*

600

£623

£747.60

TETSS150050ECZF

1460

500

white*

600

£684

£820.80

TETSS150060ECZF

1460

600

white*

600

£714

£856.80

TETSS170050ECZF

1700

500

white*

600

£754

£904.80

TETSS170060ECZF

1700

600

white*

900

£790

£948.00

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

TETSS062050EDAF

620

500

white*

300

£518

£621.60

TETSS090050EDAF

860

500

white*

400

£583

£699.60

TETSS090060EDAF

860

600

white*

400

£600

£720.00

TETSS110050EDAF

1100

500

white*

400

£645

£774.00

TETSS110060EDAF

1100

600

white*

600

£668

£801.60

TETSS150050EDAF

1460

500

white*

600

£729

£874.80

TETSS150060EDAF

1460

600

white*

600

£759

£910.80

TETSS170050EDAF

1700

500

white*

600

£799

£958.80

TETSS170060EDAF

1700

600

white*

900

£835

£1,002.00

Model

RRP (ex VAT)

RRP (inc 20% VAT)

Zehnder Tetris Electric

Sleek and modern, the Tetris Electric is available in nine sizes, making it an ideal radiator for a range of bathroom designs. With plenty of room to hang and dry all your towels, Tetris Electric sets a vibrant accent into all bathroom spaces.

Easy remote control (optional accessory for IHC) See page 32 for more information

Zehnder Tetris Electric

Zehnder Tetris Electric

TETSS170060EAZK PASTEL BLUE 5224 (IHE)

Tube frame: 40mm x 30mm D profile Tube horizontal: 60mm x 30mm oval All dimensions in mm

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

Please note: Electric element is installed on the right hand side as standard. Element can be ordered on left hand side as made to order on request. Please specify when ordering.

24

25

Zehnder Yucca Asym Electric

Scan for the complete compliant technical specifications

Height (mm)

Width (mm)

Finish

Simple immersion heater (IHE) Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

YAZSL090040EAZK

872

378

white*

300

£289

£346.80

YAZSL090050EAZK

872

478

white*

300

£312

£374.40

YAZSL090060EAZK

872

578

white*

400

£333

£399.60

YAZSL130040EAZK

1304

378

white*

400

£346

£415.20

YAZSL130050EAZK

1304

478

white*

400

£378

£453.60

YAZSL130060EAZK

1304

578

white*

600

£414

£496.80

YAZSL170040EAZK

1736

378

white*

600

£405

£486.00

YAZSL170050EAZK

1736

478

white*

600

£449

£538.80

YAZSL170060EAZK

1736

578

white*

900

£495

£594.00

YAZSR090040EAZK

872

378

white*

300

£289

£346.80

YAZSR090050EAZK

872

478

white*

300

£312

£374.40

YAZSR090060EAZK

872

578

white*

400

£333

£399.60

YAZSR130040EAZK

1304

378

white*

400

£346

£415.20

YAZSR130050EAZK

1304

478

white*

400

£378

£453.60

YAZSR130060EAZK

1304

578

white*

600

£414

£496.80

YAZSR170040EAZK

1736

378

white*

600

£405

£486.00

YAZSR170050EAZK

1736

478

white*

600

£449

£538.80

YAZSR170060EAZK

1736

578

white*

900

£495

£594.00

YAZCL090040EAZK

872

378

chrome

200

£753

£903.60

YAZCL090050EAZK

872

478

chrome

200

£799

£958.80

YAZCL090060EAZK

872

578

chrome

300

£845

£1,014.00

YAZCL130040EAZK

1304

378

chrome

300

£949

£1,138.80

YAZCL130050EAZK

1304

478

chrome

300

£1,090

£1,308.00

YAZCL130060EAZK

1304

578

chrome

400

£1,232

£1,478.40

YAZCL170040EAZK

1736

378

chrome

400

£1,201

£1,441.20

YAZCL170050EAZK

1736

478

chrome

400

£1,391

£1,669.20

YAZCL170060EAZK

1736

578

chrome

600

£1,576

£1,891.20

YAZCR090040EAZK

872

378

chrome

200

£753

£903.60

YAZCR090050EAZK

872

478

chrome

200

£799

£958.80

YAZCR090060EAZK

872

578

chrome

300

£845

£1,014.00

YAZCR130040EAZK

1304

378

chrome

300

£949

£1,138.80

YAZCR130050EAZK

1304

478

chrome

300

£1,090

£1,308.00

YAZCR130060EAZK

1304

578

chrome

400

£1,232

£1,478.40

YAZCR170040EAZK

1736

378

chrome

400

£1,201

£1,441.20

YAZCR170050EAZK

1736

478

chrome

400

£1,391

£1,669.20

YAZCR170060EAZK

1736

578

chrome

600

£1,576

£1,891.20

Model

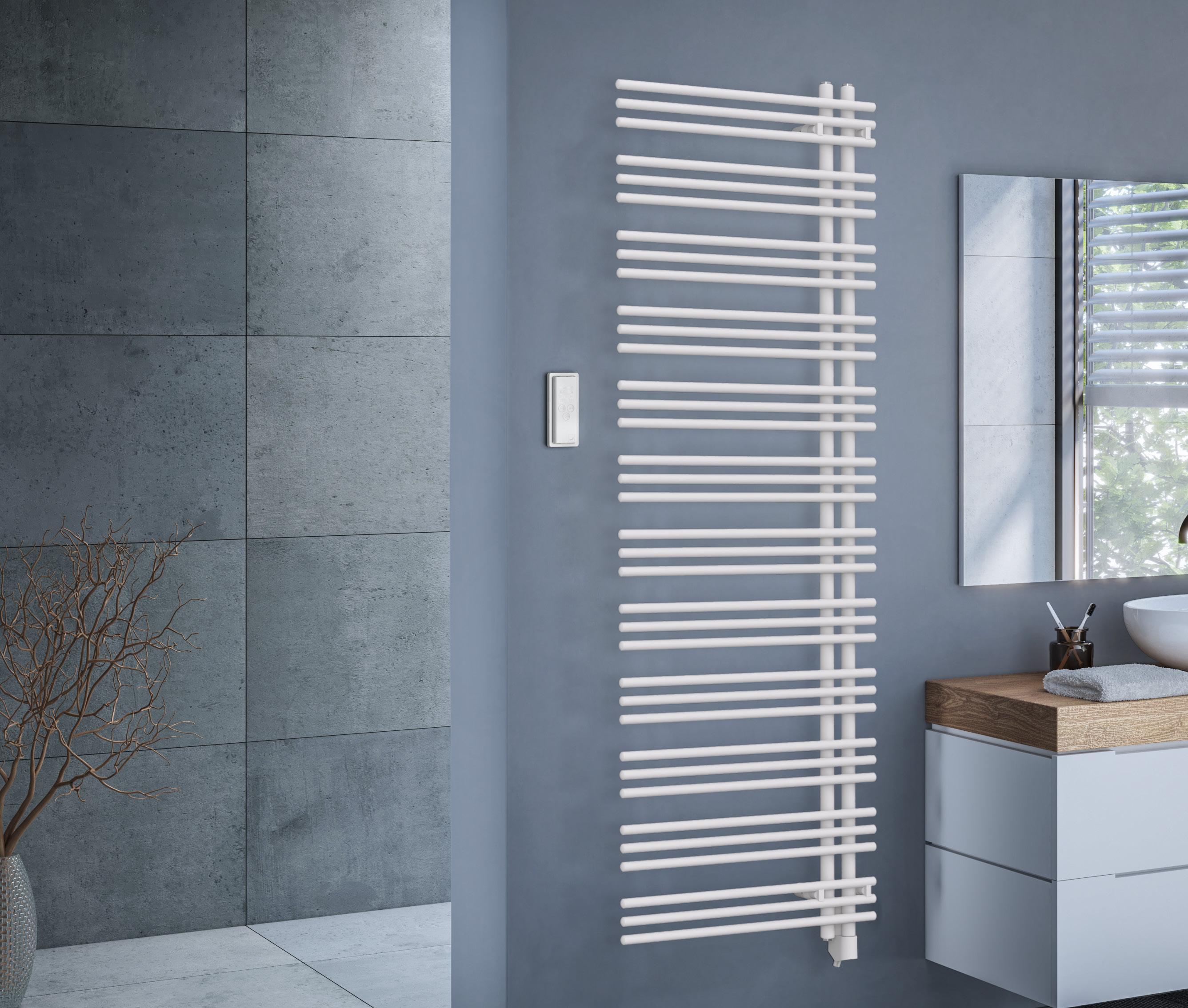

Zehnder Yucca Asym Electric

The Yucca Asym Electric is a beautiful but practical towel rail.

Available in either left or right handed versions, the Yucca Asym Electric creates a relaxed bathroom environment. Large towels can be conveniently hung from one side. This decorative radiator is also suitable as a room divider.

YAZSL170060EDAF WHITE MATT 0556 (IHD)

Tube horizontal: Ø20mm round Tube vertical: Ø30mm round All dimensions in mm

More models listed on the next page Where space is restricted the Zehnder Yucca Asym is available with a room divider bracket option. To order this version please stipulate on your purchase order at the time of ordering.

Additional price: White finish: £61 Colour finish: £76 Chrome finish: £79

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

26

YA-170-040 TRAFFIC WHITE 9016

27

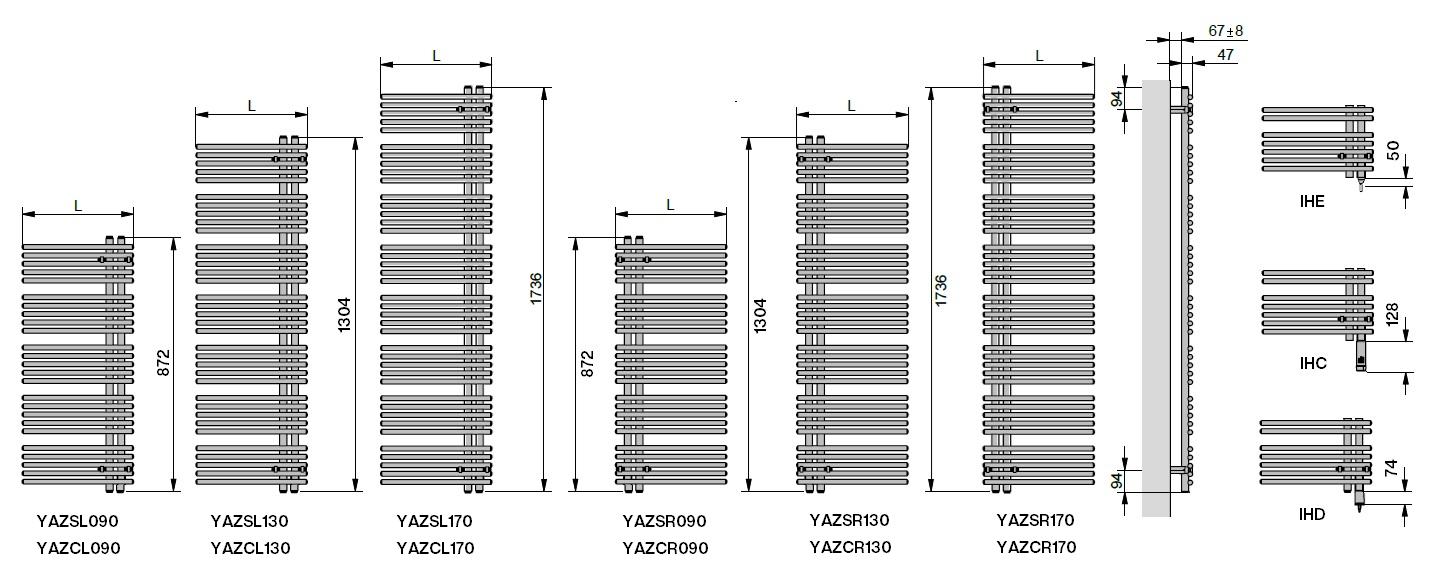

Zehnder Yucca Asym Electric Height (mm)

Model

Width (mm)

Finish

Scan for the complete compliant technical specifications

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater with (IHD) with remote control (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

Zehnder Yucca Asym Electric

Zehnder Yucca Asym Electric YAZSL090040ECZF

872

378

white*

300

£389

£466.80

YAZSL090040EDAF

872

378

white*

300

£434

£520.80

YAZSL090050ECZF

872

478

white*

300

£412

£494.40

YAZSL090050EDAF

872

478

white*

300

£457

£548.40

YAZSL090060ECZF

872

578

white*

400

£433

£519.60

YAZSL090060EDAF

872

578

white*

400

£478

£573.60

YAZSL130040ECZF

1304

378

white*

400

£446

£535.20

YAZSL130040EDAF

1304

378

white*

400

£491

£589.20

YAZSL130050ECZF

1304

478

white*

400

£478

£573.60

YAZSL130050EDAF

1304

478

white*

400

£523

£627.60

YAZSL130060ECZF

1304

578

white*

600

£514

£616.80

YAZSL130060EDAF

1304

578

white*

600

£559

£670.80

YAZSL170040ECZF

1736

378

white*

600

£505

£606.00

YAZSL170040EDAF

1736

378

white*

600

£550

£660.00

YAZSL170050ECZF

1736

478

white*

600

£549

£658.80

YAZSL170050EDAF

1736

478

white*

600

£594

£712.80

YAZSL170060ECZF

1736

578

white*

900

£595

£714.00

YAZSL170060EDAF

1736

578

white*

900

£640

£768.00

YAZSR090040ECZF

872

378

white*

300

£389

£466.80

YAZSR090040EDAF

872

378

white*

300

£434

£520.80

YAZSR090050ECZF

872

478

white*

300

£412

£494.40

YAZSR090050EDAF

872

478

white*

300

£457

£548.40

YAZSR090060ECZF

872

578

white*

400

£433

£519.60

YAZSR090060EDAF

872

578

white*

400

£478

£573.60

YAZSR130040ECZF

1304

378

white*

400

£446

£535.20

YAZSR130040EDAF

1304

378

white*

400

£491

£589.20

YAZSR130050ECZF

1304

478

white*

400

£478

£573.60

YAZSR130050EDAF

1304

478

white*

400

£523

£627.60

YAZSR130060ECZF

1304

578

white*

600

£514

£616.80

YAZSR130060EDAF

1304

578

white*

600

£559

£670.80

YAZSR170040ECZF

1736

378

white*

600

£505

£606.00

YAZSR170040EDAF

1736

378

white*

600

£550

£660.00

YAZSR170050ECZF

1736

478

white*

600

£549

£658.80

YAZSR170050EDAF

1736

478

white*

600

£594

£712.80

YAZSR170060ECZF

1736

578

white*

900

£595

£714.00

YAZSR170060EDAF

1736

578

white*

900

£640

£768.00

YAZCL090040ECZF

872

378

chrome

200

£853

£1,023.60

YAZCL090040EDAF

872

378

chrome

200

£898

£1,077.60

YAZCL090050ECZF

872

478

chrome

200

£899

£1,078.80

YAZCL090050EDAF

872

478

chrome

200

£944

£1,132.80

YAZCL090060ECZF

872

578

chrome

300

£945

£1,134.00

YAZCL090060EDAF

872

578

chrome

200

£990

£1,188.00

YAZCL130040ECZF

1304

378

chrome

300

£1,049

£1,258.80

YAZCL130040EDAF

1304

378

chrome

300

£1,094

£1,312.80

YAZCL130050ECZF

1304

478

chrome

300

£1,190

£1,428.00

YAZCL130050EDAF

1304

478

chrome

300

£1,235

£1,482.00

YAZCL130060ECZF

1304

578

chrome

400

£1,332

£1,598.40

YAZCL130060EDAF

1304

578

chrome

400

£1,377

£1,652.40

YAZCL170040ECZF

1736

378

chrome

400

£1,301

£1,561.20

YAZCL170040EDAF

1736

378

chrome

400

£1,346

£1,615.20

YAZCL170050ECZF

1736

478

chrome

400

£1,491

£1,789.20

YAZCL170050EDAF

1736

478

chrome

400

£1,536

£1,843.20

YAZCL170060ECZF

1736

578

chrome

600

£1,676

£2,011.20

YAZCL170060EDAF

1736

578

chrome

600

£1,721

£2,065.20

YAZCR090040ECZF

872

378

chrome

200

£853

£1,023.60

YAZCR090040EDAF

872

378

chrome

200

£898

£1,077.60

YAZCR090050ECZF

872

478

chrome

200

£899

£1,078.80

YAZCR090050EDAF

872

478

chrome

200

£944

£1,132.80

YAZCR090060ECZF

872

578

chrome

300

£945

£1,134.00

YAZCR090060EDAF

872

578

chrome

200

£990

£1,188.00

YAZCR130040ECZF

1304

378

chrome

300

£1,049

£1,258.80

YAZCR130040EDAF

1304

378

chrome

300

£1,094

£1,312.80

YAZCR130050ECZF

1304

478

chrome

300

£1,190

£1,428.00

YAZCR130050EDAF

1304

478

chrome

300

£1,235

£1,482.00

YAZCR130060ECZF

1304

578

chrome

400

£1,332

£1,598.40

YAZCR130060EDAF

1304

578

chrome

400

£1,377

£1,652.40

YAZCR170040ECZF

1736

378

chrome

400

£1,301

£1,561.20

YAZCR170040EDAF

1736

378

chrome

400

£1,346

£1,615.20

YAZCR170050ECZF

1736

478

chrome

400

£1,491

£1,789.20

YAZCR170050EDAF

1736

478

chrome

400

£1,536

£1,843.20

YAZCR170060ECZF

1736

578

chrome

600

£1,676

£2,011.20

YAZCR170060EDAF

1736

578

chrome

600

£1,721

£2,065.20

Easy remote control (optional accessory for IHC) See page 32 for more information

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

28

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

29

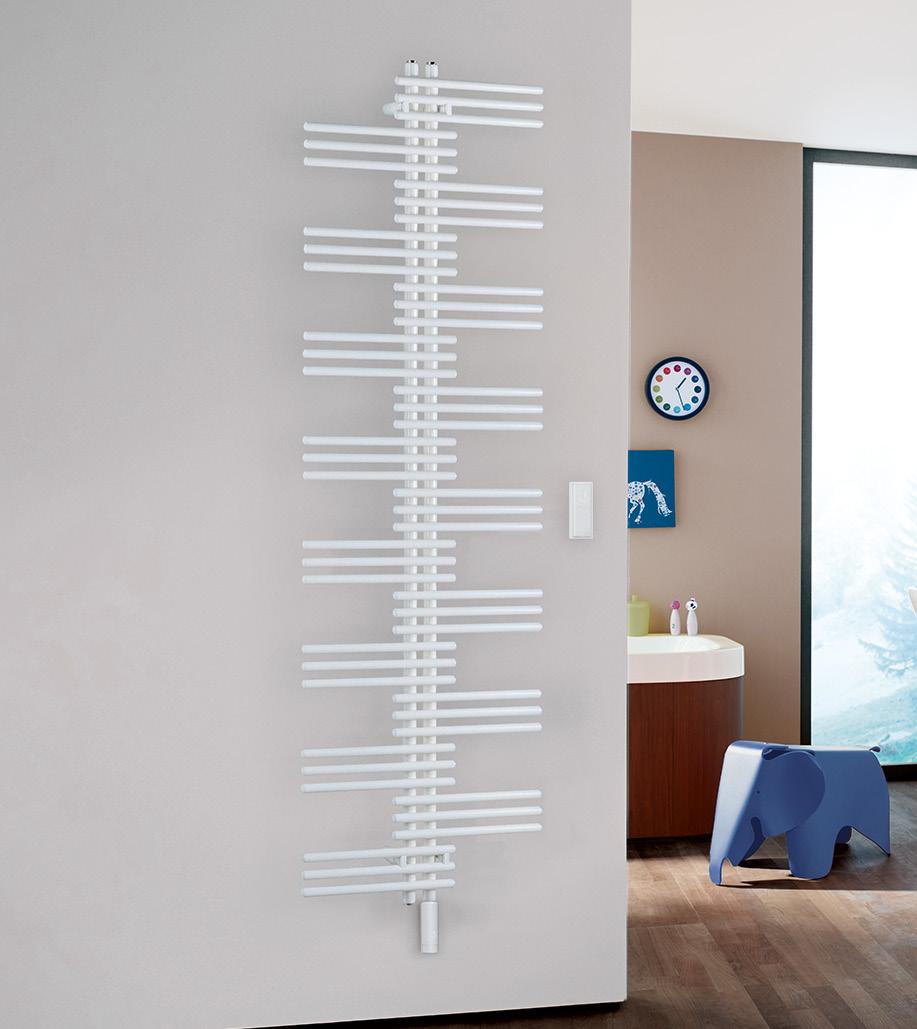

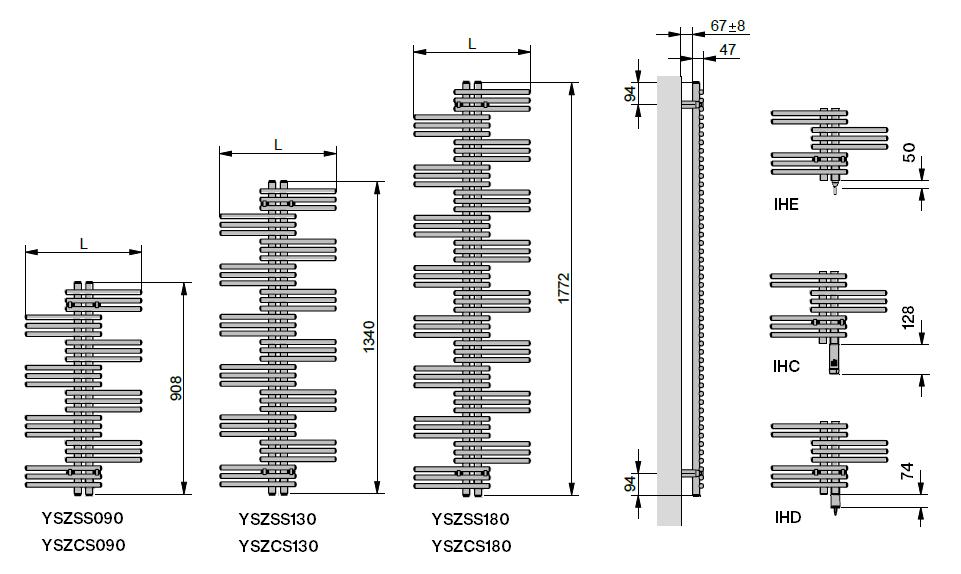

Zehnder Yucca Symm Electric Model

Height (mm)

Scan for the complete compliant technical specifications

Width (mm)

Finish

Simple immersion heater Class I IP65 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

500 600 800 500 600 800 500 600 800 500 600 800 500 600 800 500 600 800

white* white* white* white* white* white* white* white* white* chrome chrome chrome chrome chrome chrome chrome chrome chrome

300 300 400 400 600 600 600 600 900 200 200 300 300 400 400 400 400 600

£303 £319 £351 £361 £382 £427 £423 £451 £507 £768 £793 £843 £1,052 £1,144 £1,335 £1,332 £1,455 £1,712

£363.60 £382.80 £421.20 £433.20 £458.40 £512.40 £507.60 £541.20 £608.40 £921.60 £951.60 £1,011.60 £1,262.40 £1,372.80 £1,602.00 £1,598.40 £1,746.00 £2,054.40

Smart immersion heater with integrated controls (IHC) Class 2 IP44 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

Zehnder Yucca Symm Electric YSZSS090050EAZK YSZSS090060EAZK YSZSS090080EAZK YSZSS130050EAZK YSZSS130060EAZK YSZSS130080EAZK YSZSS180050EAZK YSZSS180060EAZK YSZSS180080EAZK YSZCS090050EAZK YSZCS090060EAZK YSZCS090080EAZK YSZCS130050EAZK YSZCS130060EAZK YSZCS130080EAZK YSZCS180050EAZK YSZCS180060EAZK YSZCS180080EAZK Model

908 908 908 1340 1340 1340 1772 1772 1772 908 908 908 1340 1340 1340 1772 1772 1772 Height (mm)

Width (mm)

Finish

white* white* white* white* white* white* white* white* white* chrome chrome chrome chrome chrome chrome chrome chrome chrome

300 300 400 400 600 600 600 600 900 200 200 300 300 400 400 400 400 600

£403 £419 £451 £461 £482 £527 £523 £551 £607 £868 £893 £943 £1,152 £1,244 £1,435 £1,432 £1,555 £1,812

£483.60 £502.80 £541.20 £553.20 £578.40 £632.40 £627.60 £661.20 £728.40 £1,041.60 £1,071.60 £1,131.60 £1,382.40 £1,492.80 £1,722.00 £1,718.40 £1,866.00 £2,174.40

Zehnder Yucca Symm Electric YSZSS090050ECZF YSZSS090060ECZF YSZSS090080ECZF YSZSS130050ECZF YSZSS130060ECZF YSZSS130080ECZF YSZSS180050ECZF YSZSS180060ECZF YSZSS180080ECZF YSZCS090050ECZF YSZCS090060ECZF YSZCS090080ECZF YSZCS130050ECZF YSZCS130060ECZF YSZCS130080ECZF YSZCS180050ECZF YSZCS180060ECZF YSZCS180080ECZF

908 908 908 1340 1340 1340 1772 1772 1772 908 908 908 1340 1340 1340 1772 1772 1772

500 600 800 500 600 800 500 600 800 500 600 800 500 600 800 500 600 800

Model

Height (mm)

Width (mm)

Finish

Smart immersion heater (IHD) with remote conrol (RCE) Class 2 IP54 Zones 1 & 2 Electric rating (watts)

RRP (ex VAT)

RRP (inc 20% VAT)

500 600 800 500 600 800 500 600 800 500 600 800 500 600 800 500 600 800

white* white* white* white* white* white* white* white* white* chrome chrome chrome chrome chrome chrome chrome chrome chrome

300 300 400 400 600 600 600 600 900 200 200 300 300 400 400 400 400 600

£448 £464 £496 £506 £527 £572 £568 £596 £652 £913 £938 £988 £1,197 £1,289 £1,480 £1,477 £1,600 £1,857

£537.60 £556.80 £595.20 £607.20 £632.40 £686.40 £681.60 £715.20 £782.40 £1,095.60 £1,125.60 £1,185.60 £1,436.40 £1,546.80 £1,776.00 £1,772.40 £1,920.00 £2,228.40

Yucca Symm Electric delivers a striking vertical form with the convenience of electric heating.

Designed for drying and warming textiles, its balanced layout allows use from either side with effortless reach. The Yucca Symm Electric adds practical warmth and character to contemporary interiors.

Easy remote control (optional accessory for IHC) See page 32 for more information

YSZSS180050ECZF TRAFFIC WHITE 9016 (IHC)

Tube horizontal: Ø20mm round Tube vertical: Ø30mm round All dimensions in mm

Zehnder Yucca Symm Electric YSZSS090050EDAF YSZSS090060EDAF YSZSS090080EDAF YSZSS130050EDAF YSZSS130060EDAF YSZSS130080EDAF YSZSS180050EDAF YSZSS180060EDAF YSZSS180080EDAF YSZCS090050EDAF YSZCS090060EDAF YSZCS090080EDAF YSZCS130050EDAF YSZCS130060EDAF YSZCS130080EDAF YSZCS180050EDAF YSZCS180060EDAF YSZCS180080EDAF

30

908 908 908 1340 1340 1340 1772 1772 1772 908 908 908 1340 1340 1340 1772 1772 1772

*Traffic White (RAL 9016) Colour finish: Colours from the World of Colours chart are priced at: Traffic White (RAL 9016) + 25%.

Colour finish and non-stock products delivery: 3–5 weeks.

31

Accessories and Valves

Immersion Heaters and Dual Energy Elements

Model

Watts

Finish

RRP (Exc VAT)

RRP (inc 20% VAT)

Immersion Heater Easy (IHE) IP65 rating

In stock items highlighted in bold below

Finish

RRP (Exc VAT)

RRP (inc 20% VAT)

White

£95

£114.00

Zehnder Remote Control Easy (RCE)

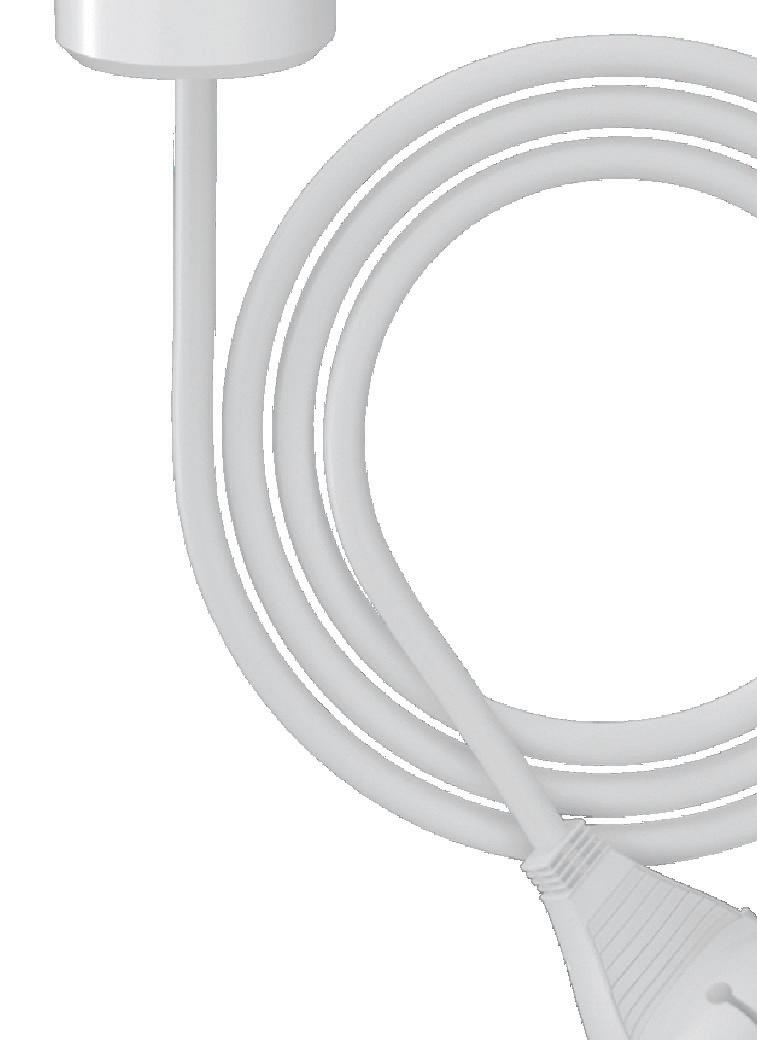

Simple immersion supplied with white cable and cap 858801

200

White

£100

£120.00

858811

300

White

£100

£120.00

858821

400

White

£100

£120.00

858831

600

White

£100

£120.00

858841

900

White

£100

£120.00

858808

200

Chrome

£100

£120.00

(optional accessory for use in conjuction with IHC element for dual fuel application)

887970

Simple immersion supplied with grey cable and chrome cap

858818

300

Chrome

£100

£120.00

858828

400

Chrome

£100

£120.00

858838

600

Chrome

£100

£120.00

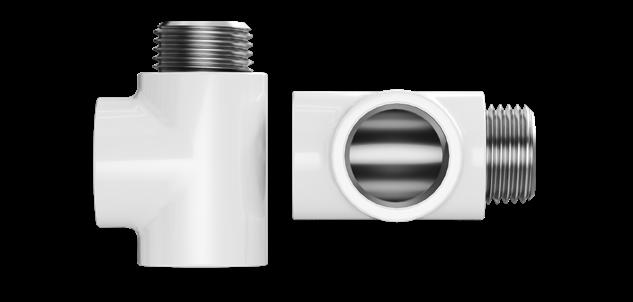

T-Piece

858848

900

Chrome

£100

£120.00

(order in conjuction with IHC & IHE elements for dual fuel application)

Finish

RRP (Exc VAT)

RRP (inc 20% VAT)

White

£16

£19.20

853129

Grey

£20

£24.00

853139

Black

£20

£24.00

Immersion Heater Control (IHC) IP44 rating

853118

Chrome

£18

£21.60

Smart immersion white supplied with white cable

853119

Colour

£20

£24.00

In stock items highlighted in bold below

853111 Model

Watts

Finish

RRP (Exc VAT)

RRP (inc 20% VAT)

857901

300

White

£200

£240.00

857911

600

White

£200

£240.00

857921

900

White

£200

£240.00

857949

300

Grey

£200

£240.00

857959

600

Grey

£200

£240.00

857969

900

Grey

£200

£240.00

857909

300

Black

£200

£240.00

857919

600

Black

£200

£240.00

857929

900

Black

£200

£240.00

Smart immersion grey supplied with grey cable

Smart immersion black supplied with black cable

32

33

Zehnder immersion heaters

Compare the new generation of Zehnder immersion heaters

Zehnder immersion heaters

Immersion Heater IHD

Immersion Heater IHC

Immersion Heater IHE

Immersion heater colour options

Available in the radiator colour; also available in a chrome version

white, black, grey

white or chrome

Power cable colour options

white, black, grey

white, black, grey

white or grey

Manual control directly from the immersion heater Control using the Easy remote control (RCE)

*

Control using the Zehnder Connect app** Surface temperature limitation

(fixed, max. 70 °C)

Open Window Detection

Timer mode

Room temperature Control

Suitable for BMS systems Particularly suitable for use in B2B environments (e.g. hotels)

(Special hotel mode available)

Available as KIT version

Control unit can be interchanged separately

Ingress Protection Rating

IP54 ** must be purchased separately

34

IP44

IP65 = available = not available

35

Immersion heaters in combination with radiators

Immersion heaters in combination with radiators

Immersion Heater IHD

Overview of Electric Solutions with Zehnder Towel Radiators

Immersion Heater IHC

Immersion Heater IHE

Other*

Zehnder Alban

Simple immersion

Zehnder Archibald

Simple immersion

Zehnder Ax Spa

Radio frequency remote programmer

Zehnder Balmoral

Simple immersion

Zehnder Buckingham

Simple immersion

Zehnder Chime

Simple immersion

Zehnder Deline

This table provides an overview of compatible heating elements and control options for each product in electric-only operation.

Zehnder Deseo Verso

Touchpanel + Control Unit model 4

Zehnder Folio Belt

Radio frequency remote programmer

Folio Glass

Touchpanel + Control Unit model 4

Zehnder Klaro Zehnder Metropolitan Spa Zehnder Osbourne

Simple immersion

Zehnder Ovida/Ovida Bow Zehnder Pera

Simple Immersion

Zehnder Quaro Spa Zehnder Ribbon Zehnder Roda Spa/Roda Spa Asym

Radio frequency remote programmer

Zehnder Subway Zehnder Tetris Zehnder Vitalo Bar

Radio frequency remote programmer

Zehnder Yucca/Yucca Symm Zehnder Zeno

Touchpanel +App Zehnder Connect * A dditional control options are described in the product-specific documentation for each radiator.

36

= available = not available

37

Next-Gen Comfort.

The Zehnder Way. Discover the new generation of Zehnder immersion heaters - smart, efficient, and ready for tomorrow.

Scan for more info

Zehnder Group UK Limited. Concept House, Watchmoor Point, Camberley, GU15 3AD, UK T +44 1276 605800 • enquiries@zehnder.co.uk • www.zehnder.co.uk Company Registration: 02296696 • VAT: GB918397190 • EORI: GB918397190000

Z-EN-V0426-RAD-UK, subject to change without notice

Come and see for yourself.
