EXTERIOR DOOR REPLACEMENT

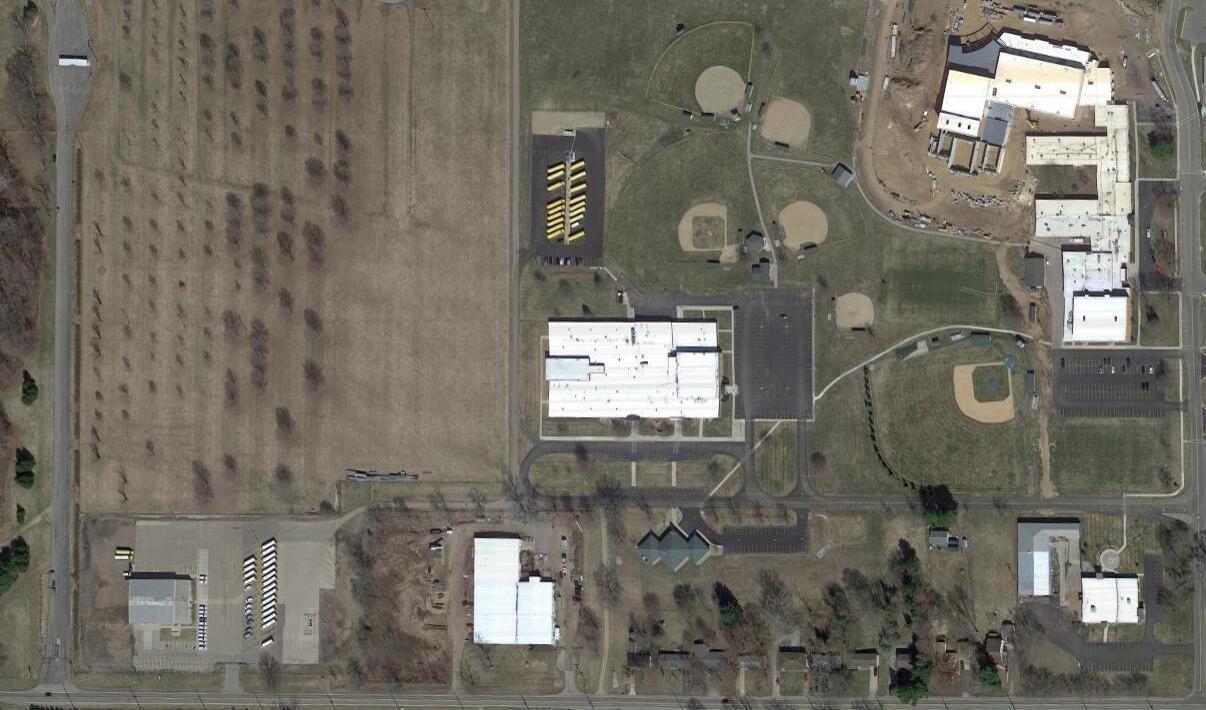

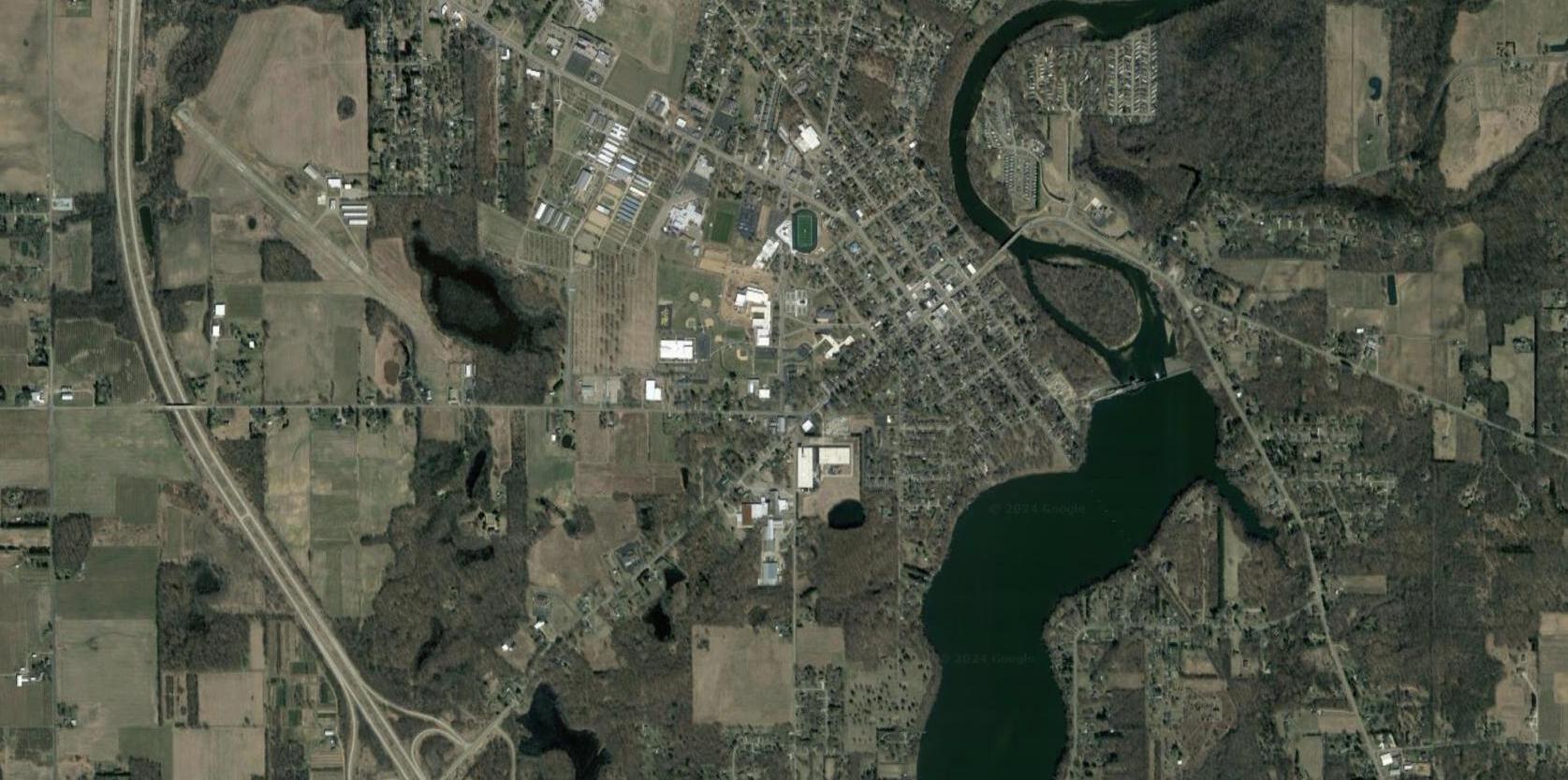

4333 EAST SHAWNEE ROAD BERRIEN SPRINGS, MI 49103

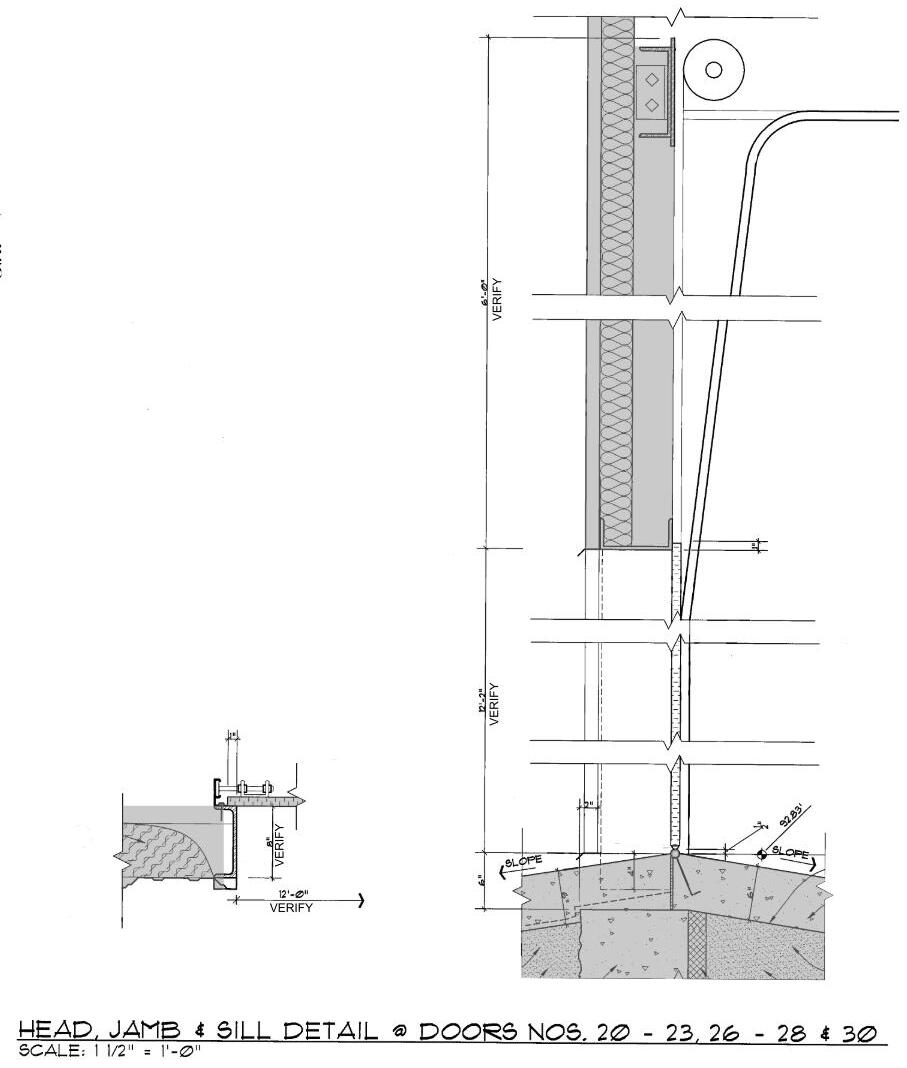

20SERVICE012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1
21SERVICE012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1
22SERVICE012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1
23SERVICE012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1

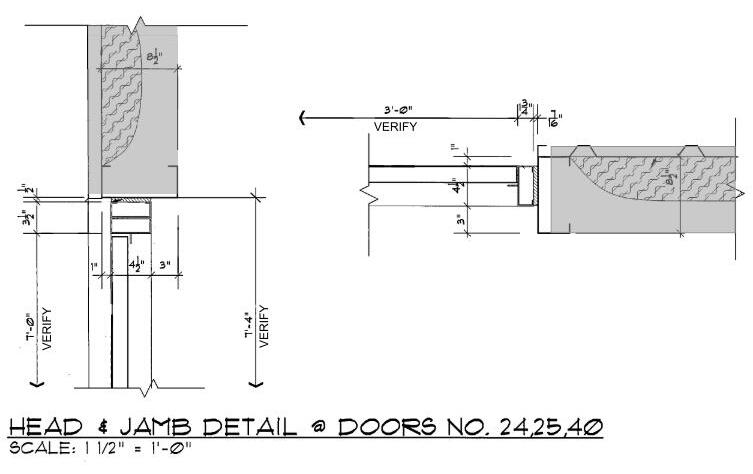

24SERVICE13'0"7'0"0'1 3/4"ALUMA5 3/4"ALUMF114B/A5.14B/A5.14B/A5.14B/A5.1
25SERVICE13'0"7'0"0'1 3/4"ALUMA5 3/4"ALUMF114B/A5.14B/A5.14B/A5.14B/A5.1
26SERVICE012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1
27SERVICE012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1
28WASH BAY012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1
30WASH BAY012'0"12'2"0'1 3/4"ALUMOH10"ALUMOH14E/A5.14E/A5.14E/A5.14E/A5.1

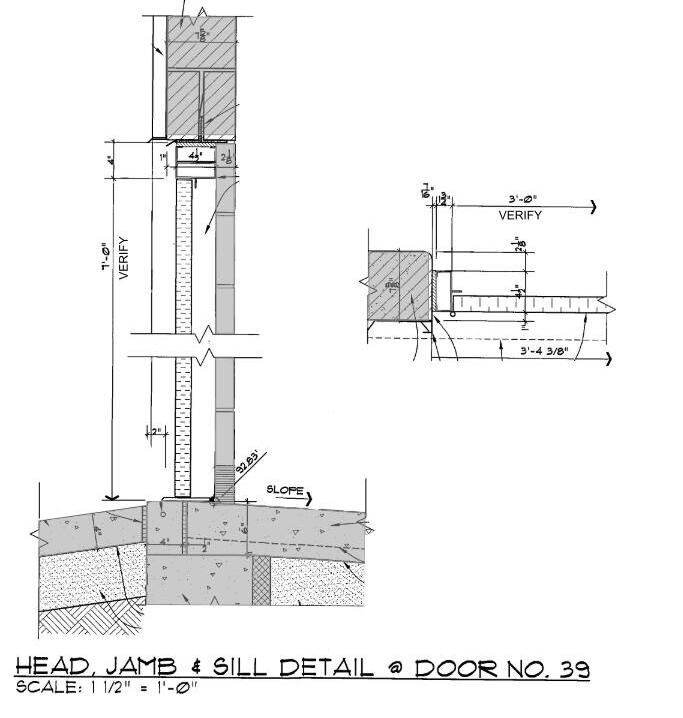

39MECH/ELECT.13'0"7'0"0'1 3/4"ALUMA5 3/4"ALUMF111E/A5.11E/A5.11E/A5.11E/A5.1
40SERVICE13'0"7'0"0'1 3/4"ALUMA5 3/4"ALUMF114B/A5.14B/A5.14B/A5.14B/A5.1
NOTE: ALL EXISTING DOORS AND OPENINGS TO BE FIELD MEASURED AND VERIFIED PRIOR TO FABRICATION OF REPLACEMENT DOORS/FRAMES
SUBSTRATE AT EXISTING OPENING. SEE DOOR SCHEDULE FOR MORE INFORMATION.
NEW PREFINISHED ALUMINUM TRIM TYP. AT ALL NEW DOORS. TRIM TO MATCH EXISTING ADJACENT.
EXISTING EXTERIOR WALL TO REMAIN. REPAIR AND PATCH AS REQUIRED TO MATCH EXISTING ADJACENT FINISH.
NEW INSULATED DOOR DOOR FRAME, AND JAMB SUBSTRATE AT EXISTING OPENING. SEE DOOR SCHEDULE FOR MORE INFORMATION.

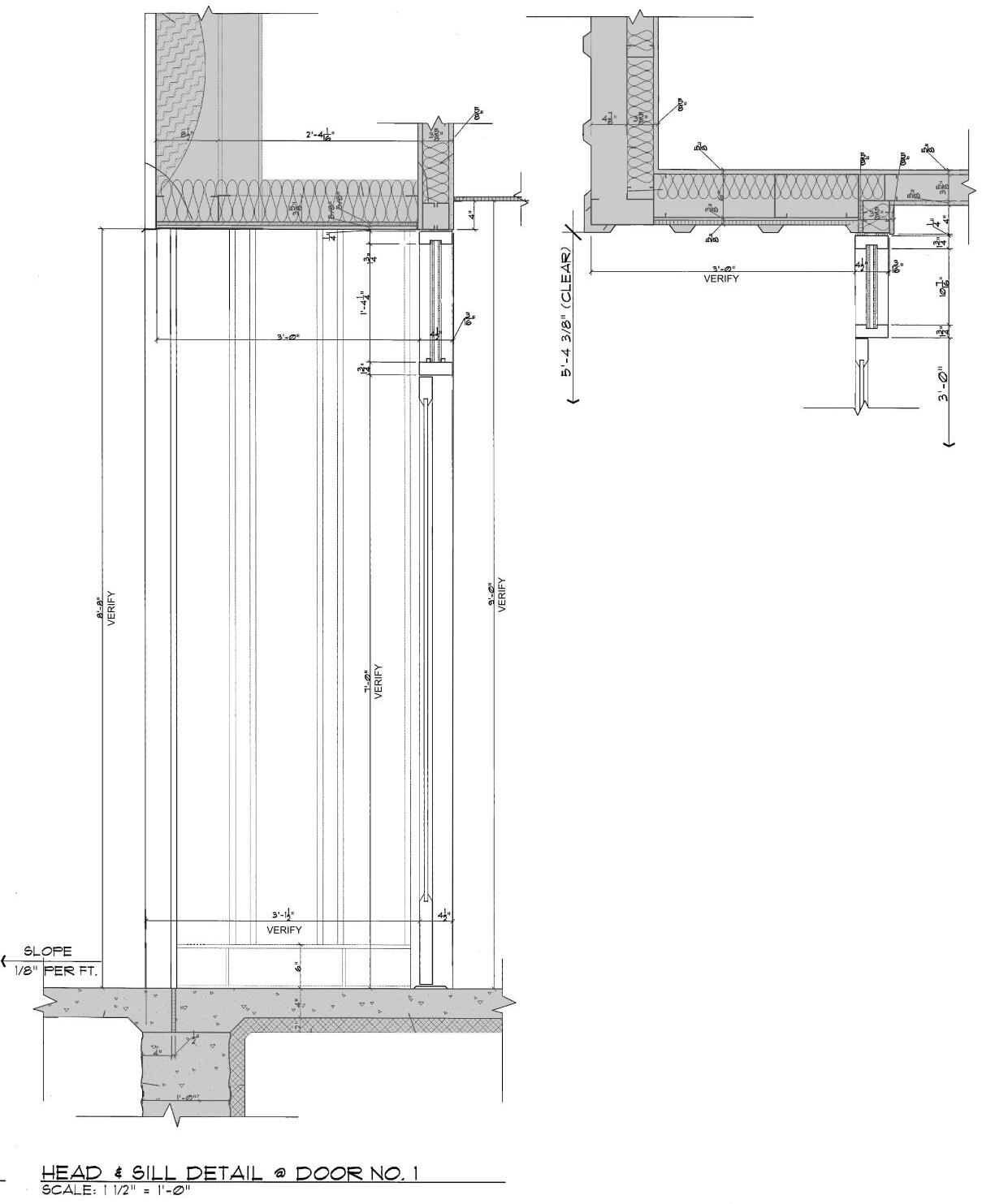

EXISTING FLOOR SLAB TO REMAIN. PATCH AND REPAIR AS REQUIRED TO MATCH EXISTING ADJACENT FINISH. NEW ADA COMPLIANT THRESHOLD, WEATHER STRIPPING, CAULK, AND DOOR SEALS.
