Portfolio

ZACK WIENERS

ARCHITECTURE PORTFOLIO

CONTENTS

Introduction

A brief introduction, contact Information, and a QR Code to provide quick access to additional work, professional social medias, as well as a digital version of this document.

Design Studio Projects

4-25

BOSTON MEDIA FACTORY - Multimedia production facility in Boston, MA

6-11

PRESENCE - Contemporary art museum in Takasaki, Japan

12-17

52ND STREET PROJECT - Children’s performing arts theater in Providence, RI

18-21

MINDFUL ROTATION - Multigenerational housing complex in Phoenix, AZ

22-25

The design studios at RWU are structured in a very hands on, student driven way (inspired by the Bauhaus). Typically taking the whole semester, these projects focus on function & program, site & context, and related conceptual expressions. Each project is unique.

FALL 2024

FALL 2023

SPRING 2022 FALL 2022

Fabrication Projects

These projects explore how the freedom of digital modeling and the limitations of material properties or construction methods can influence eachother, informing design decisions as a project moves from 3D model space to the physical world.

26-37

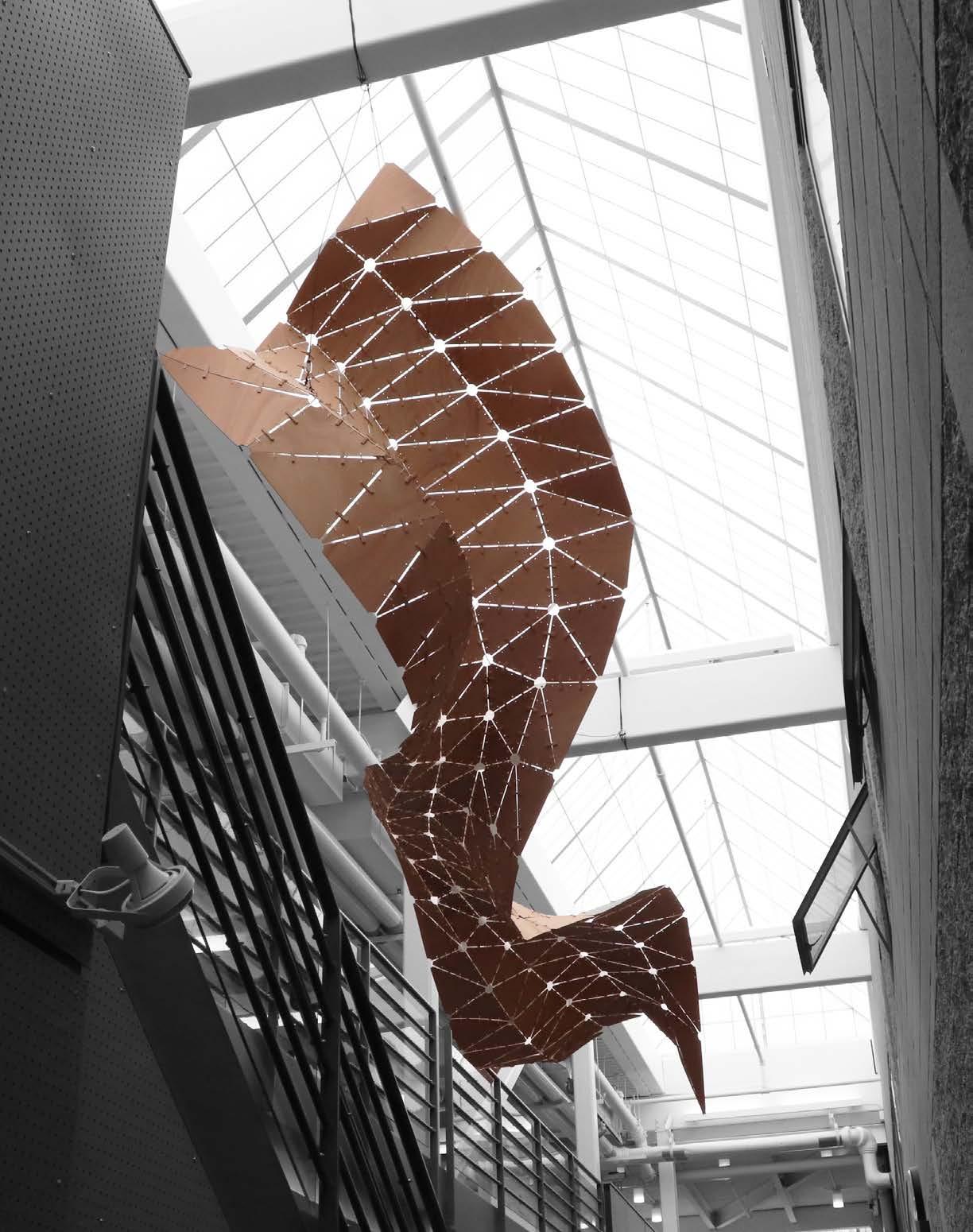

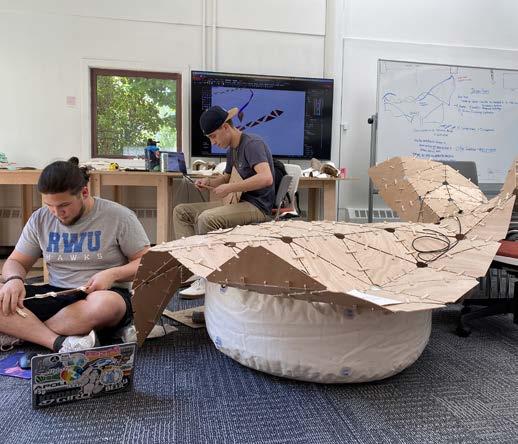

TECTONIC REINVENTIONS - Collaborative fabrication project, built

28-31

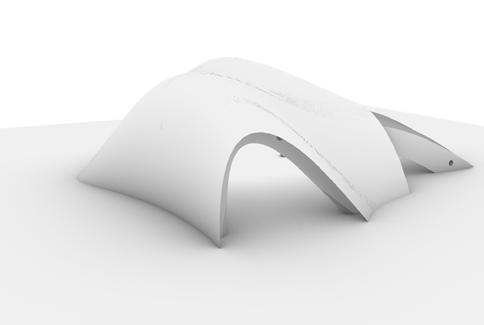

JOINERY AND SURFACE DEVELOPMENT - Exploring space

32-35

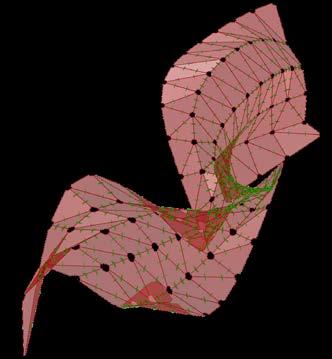

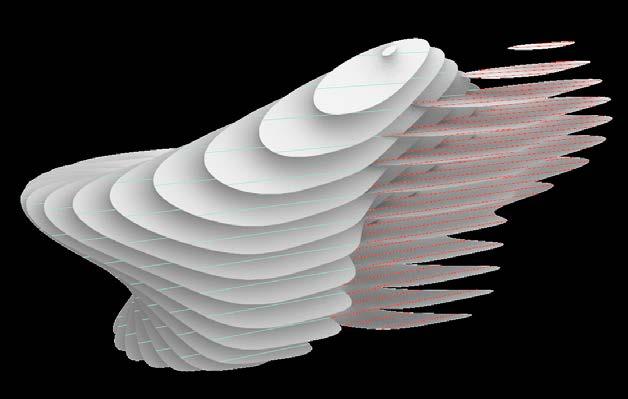

SLICING, FOLDING, WAFFLING - Early digital fabrication explorations

36-37

SPRING 2023

SPRING 2023

SPRING 2022

Supplemental Work

A collection of additional exemplary work. Specific dates and project titles provided on the respective pages.

TECHNICAL DRAWINGS - plans & detail work ANIMATIONS - Digital media production to represent architectural spaces GRASSHOPPER DEFINITIONS - Personally developed for various purposes

2

3

38-47 40-43 44-45 46-47

HELLO I’m Zack, I graduated Magna Cum Laude from Roger Williams University in the spring of 2024 with a B.S. in Architecture and minors in Structural Engineering and Mathematics. I am on track to obtain my M.Arch from RWU this spring.

Through the entirety of my academic life, I have been driven by curiosity and the desire to learn as much as possible.

My experience at RWU early on helped me realize my true passions for creativity, problem solving, and design. By the end of my first year, I’d decided officially to pursue architecture, and by the end of my second year I’d confidently added the two minors to my track.

I am constantly finding ways to challenge myself, allowing me to discover new capabilities and passions by applying my strengths and addressing my weaknesses. I am thankful to have found Architecture, which is one of the few fields that bridges the gap between creativity and expression, and technical thinking. You will find that this collection of my work largely exemplifies my efforts and abilities to integrate the creative with the technical. With that, all I can say is that I am excited to keep learning.

Thank you for taking the time -

CONTACT ME

Zack Wieners 1+(413) 654 - 7171 zack.wieners@gamil.com

3

DESIGN STUDIO PROJECTS BOSTON MEDIA FACTORY - Multimedia production facility in Boston, MA, FALL 2024 NOTE: The full project is accessible through the link in the QR code provided on the previous page.

PRESENCE - Contemporary art museum in Takasaki, Japan, FALL 2023 52ND STREET PROJECT - Children’s performing arts theater in Providence, RI, SPRING 2022 MINDFUL ROTATION - Multigenerational housing complex in Phoenix, AZ FALL 2022

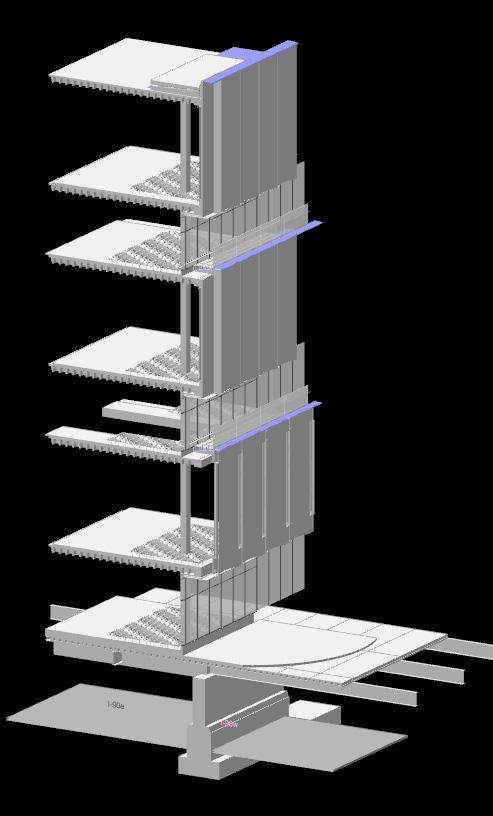

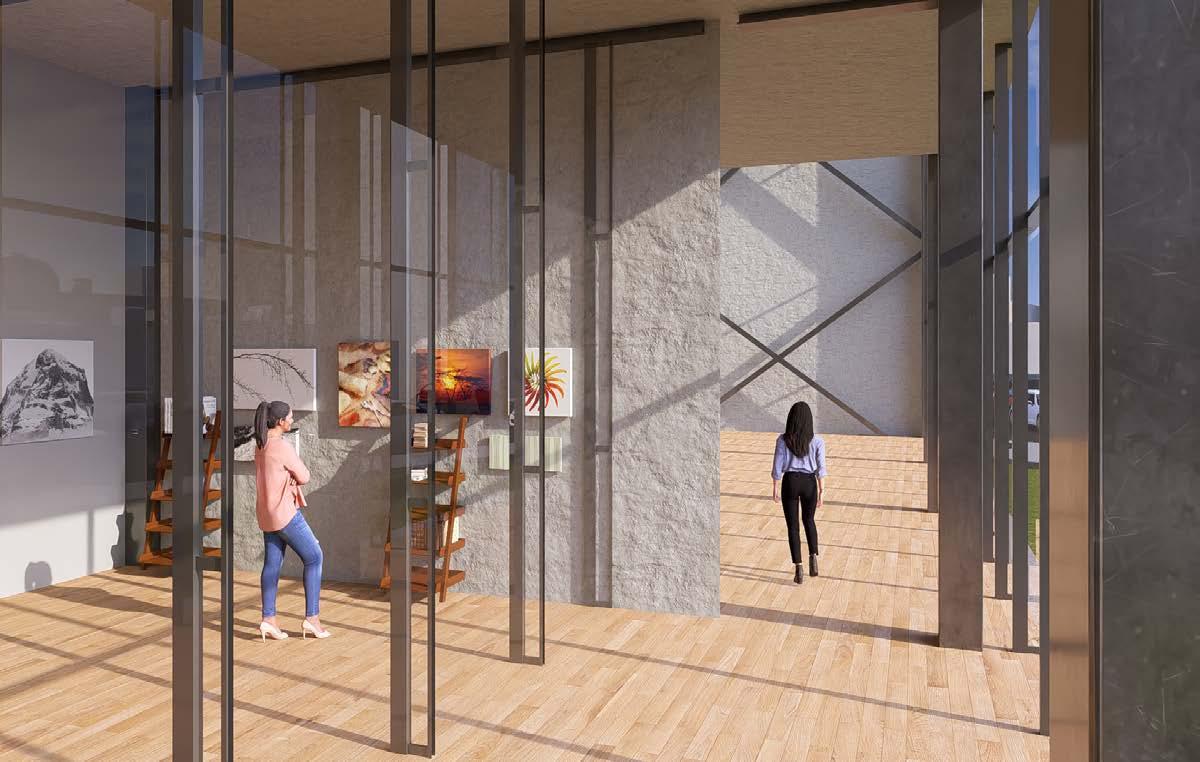

BOSTON MEDIA FACTORY

MULTIMEDIA PRODUCTION FACILITY Integrated Design Studio - Fall 2024 Professor Myound Kim

On an air rights development site over the Massachusetts Turnpike (Interstate 90) in Boston MA there is a perfect opportunity for the introduction of a Multimedia Production Facility. This location offers the ability to respond to the closing of the New England School of Photography, as well as offer an engaging intervention that works to re-knit this portion of Boston that has been divided by the construction of I-90 in the first place.

The site had many challenges that had to be addressed. Clearance heights for the highway below, as well as for the bisecting access road, Cambria Street were influential. And structurally the project had to directly respond to the site’s existing conditions, otherwise the proposal would be impossible. Neighboring buildings cast shadows, busy roads surround 3 sides, and a sloping topography to the southern portion of the site. All of these conditions were considered throughout the design and development processes.

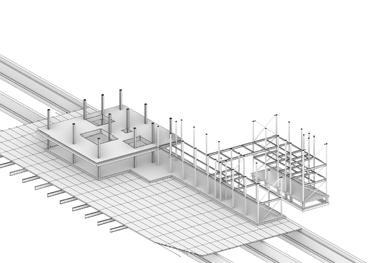

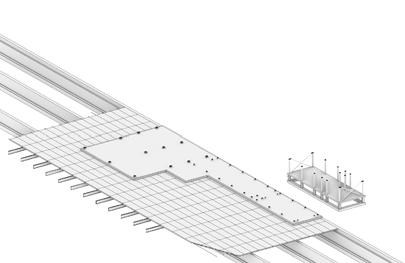

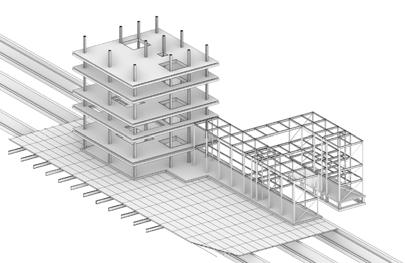

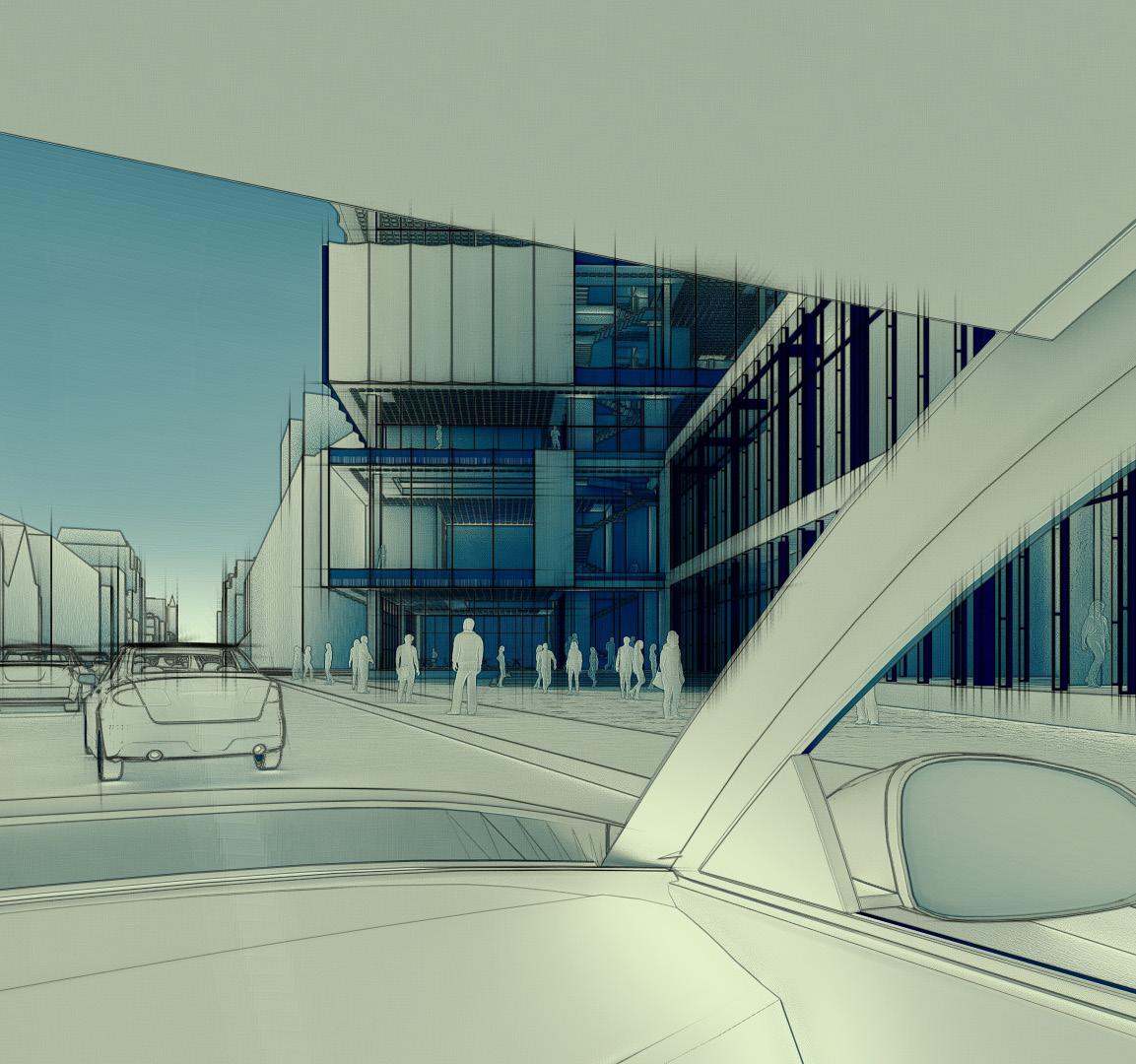

VEHICLE APPROACH

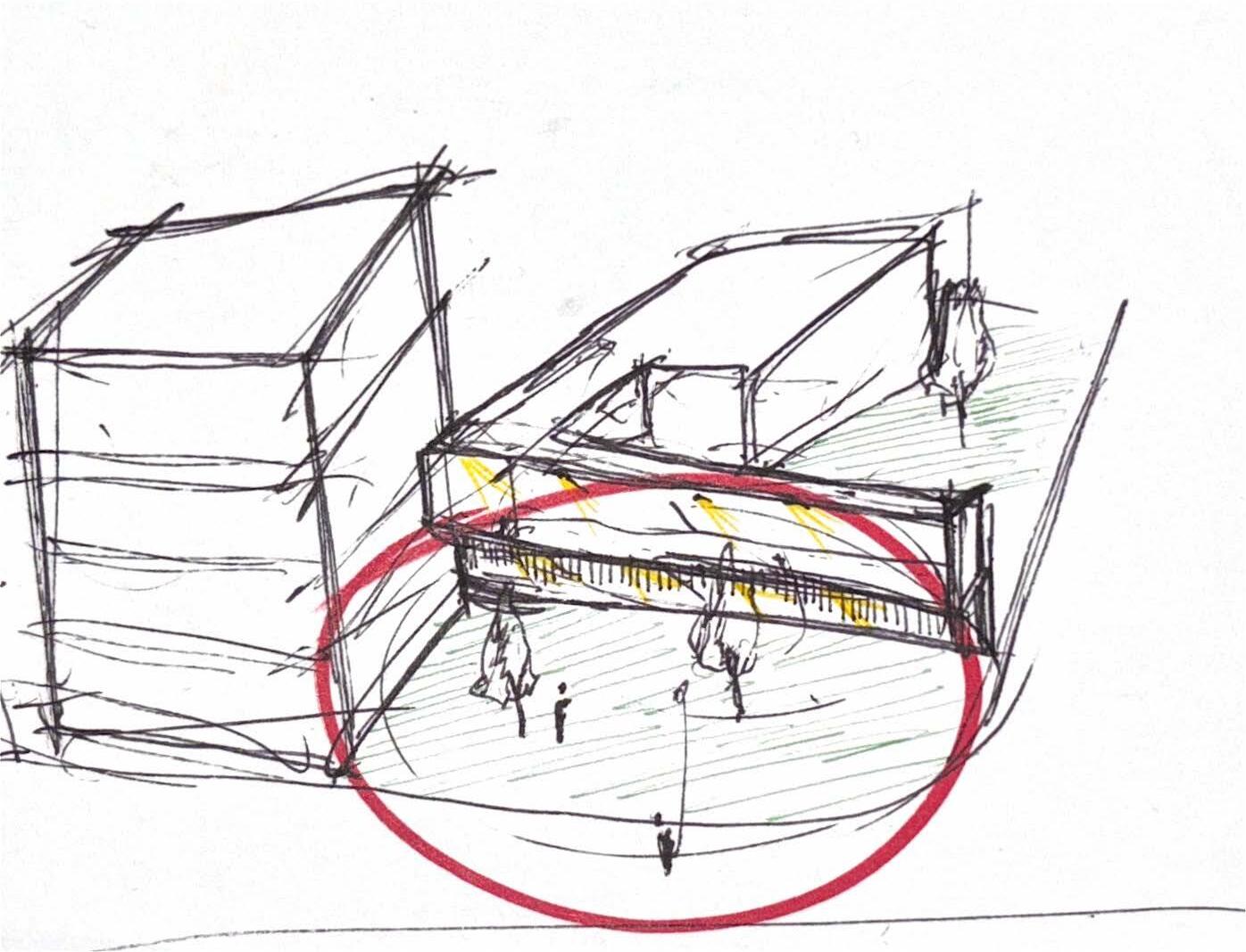

This project’s design approach responds to the site’s dire need for pedestrian acknowledgment by employing a compact organizational strategy, allowing the building to ascend vertically giving much of the site back to the city for the use of public engagement at the human scale.

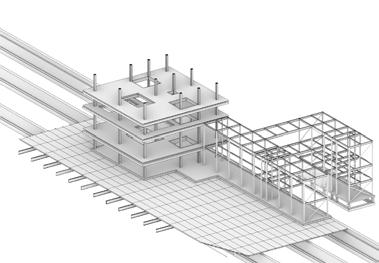

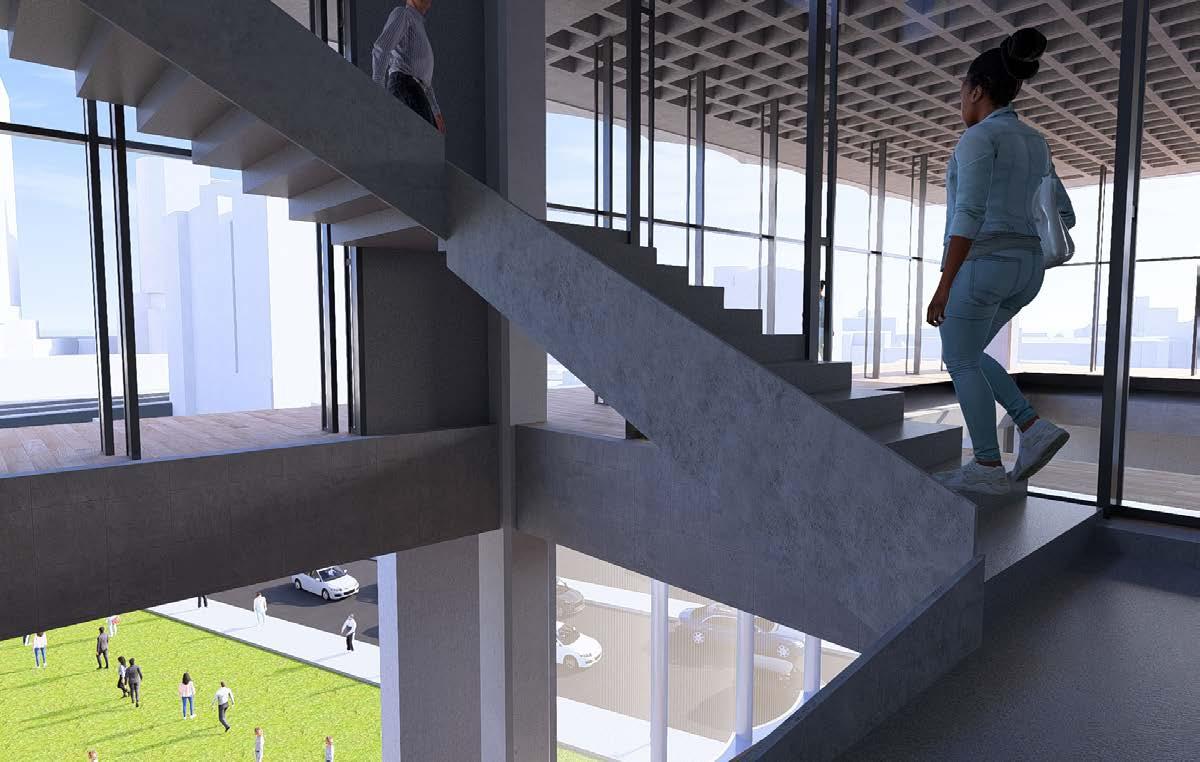

This verticality promoted an emphasis to be placed on the vertical circulation, in response to the needs of a collaborative program type.

The rest of the project responds accordingly, maintaining simple structural solutions and an intentional program organization that allows the spaces, occupants, and public to interact and engage with one another, while still functioning as a media center.

The images shown in this booklet are but a small excerpt of the work produced during this process. I would sincerely appreciate it if you could look into the rest of the project, which is accessible via the QR code I provided at the beginning of this booklet. There, you will find a robust design narrative that goes through the entirety of the process, as well as a black and white set of the finalized architectural, structural, mechanical, and detail drawings.

6

DESIGN STUDIO PROJECTS

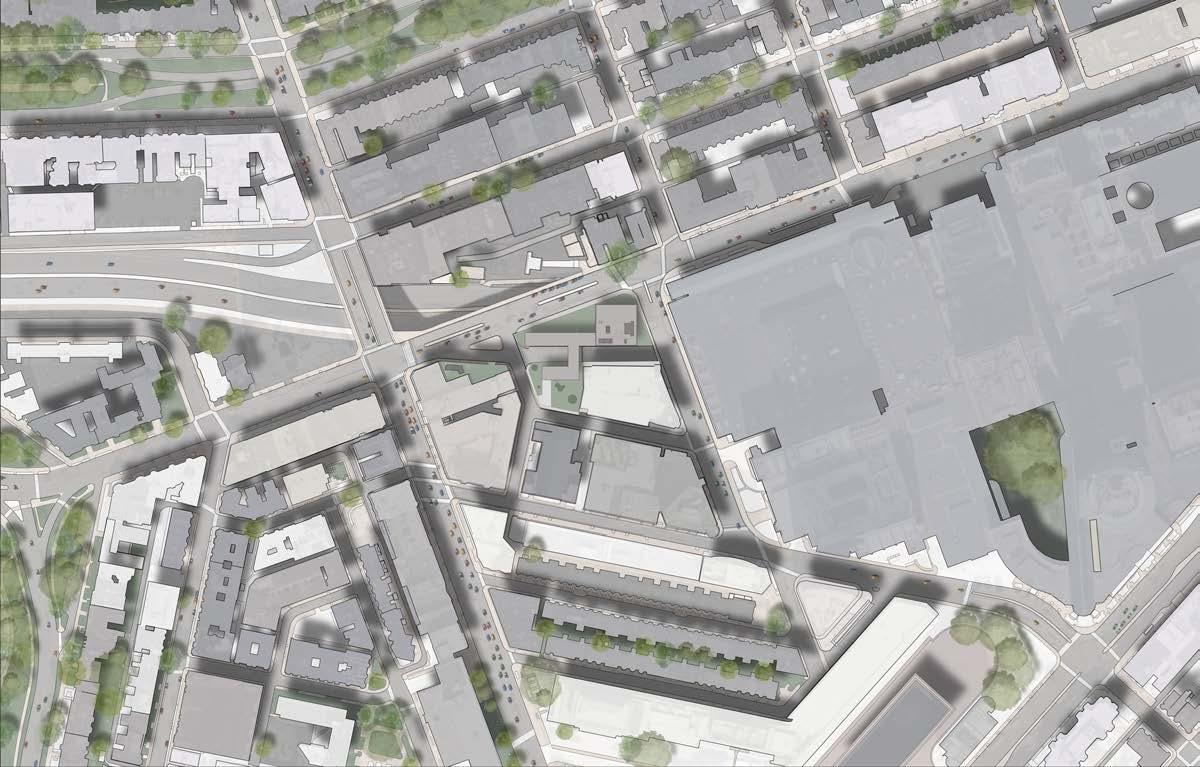

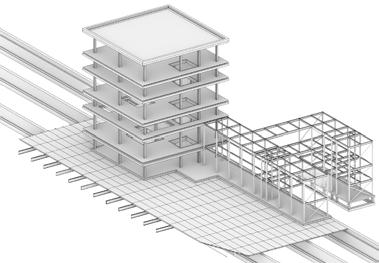

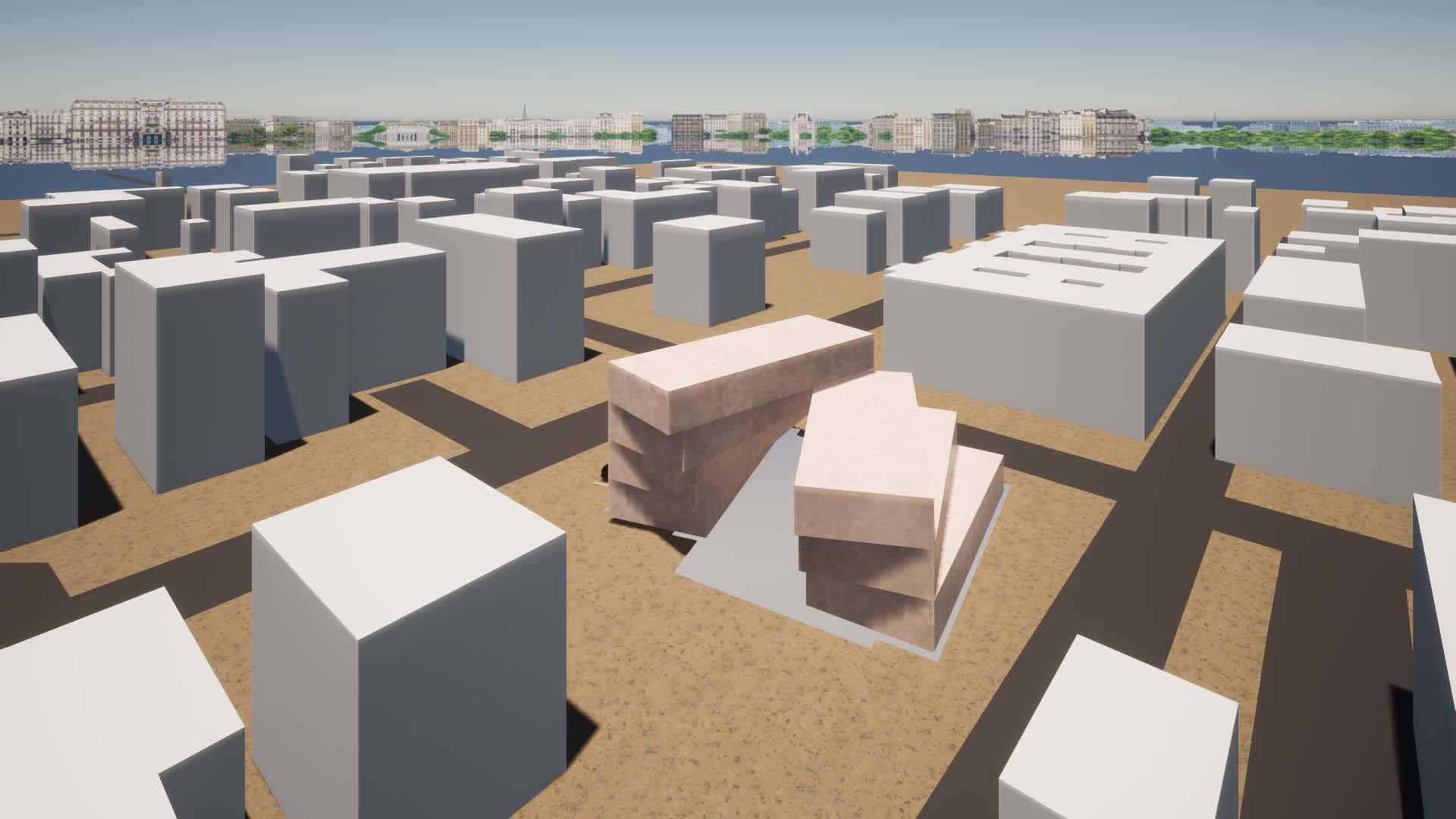

SITE STRATEGY

SITE PLAN

ZACK WIENERS

7

1

20'-0"

2

20'-0"

3

20'-0"

4

10'-0"

5

10'-0"

6

10'-0"

7

10'-0"

8

20'-0"

9

20'-0"

10

20'-0"

11

8'-9"

12

40'-0"

13

40'-0"

14

20"X20" CAST IN PLACE REINFORCED CONCRETE COLUMN

A

40'-0"

A

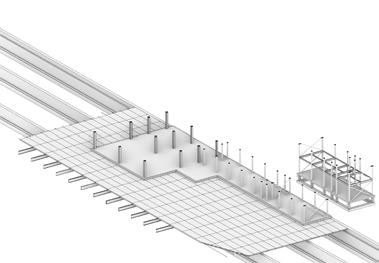

CAST IN PLACE POST TENSIONED REINFORCED CONCRETE WAFFLE SLAB VERTICAL SHAFT OPENING

B

B

CONCRETE SHEAR WALLS AROUND BUILDING CORE

VERTICAL SHAFT OPENING

20'-0"

6" ROOF DRAIN PIPE

C

E F

EXPANSION JOINT

HSS12X12X COLUMN

VERTICAL SHAFT OPENING

C D

LATERAL BRACING

E

6'-0"

14'-0"

D

6'-0"

E.O.S WITH CUSTOM METAL ANGLES

F LATERAL BRACING

52'-0"

EXPANSION JOINT

G

G 3" CORRUGATED METAL DECKING WITH 4" CONCRETE SLAB

20'-0"

LATERAL BRACING

LATERAL BRACING

HSS12X12X COLUMN

I

H

6'-0"

H

I

1

BOSTON MEDIA FACTORY

8

2

3

4

5

6

7

8

9

10

11

12

13

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ZACK WIENERS

DESIGN STUDIO PROJECTS

14

SCALE :

DATE :

3/32" = 1' 0" 12/22/2024

FOURTH FLOOR STRUCTURE PLAN

S1-04

ZACK WIENERS

9

N A2-1

1

2

20'-0"

20'-0"

3

4

20'-0"

5

10'-0"

6

10'-0"

7

10'-0"

8

10'-0"

20'-0"

9

20'-0"

10

20'-0"

11

8'-9"

12

2

13

40'-0"

14

A2-4

40'-0"

SCALLOPED GLASS FACADE WITH INTERMITTENT OPERABLE VENTILATION LOUVERS (TYP.)

CUSTOM GFRC PANEL (TYP.)

51'-3"

A

A ARCHIVE

40'-0"

304

1 A2-3

MULTIMEDIA PRODUCTION STUDIO

ACTION ROOM

303

305

FLOOR MOUNTED FIXTURES PLUMBING IN CHASE WALL

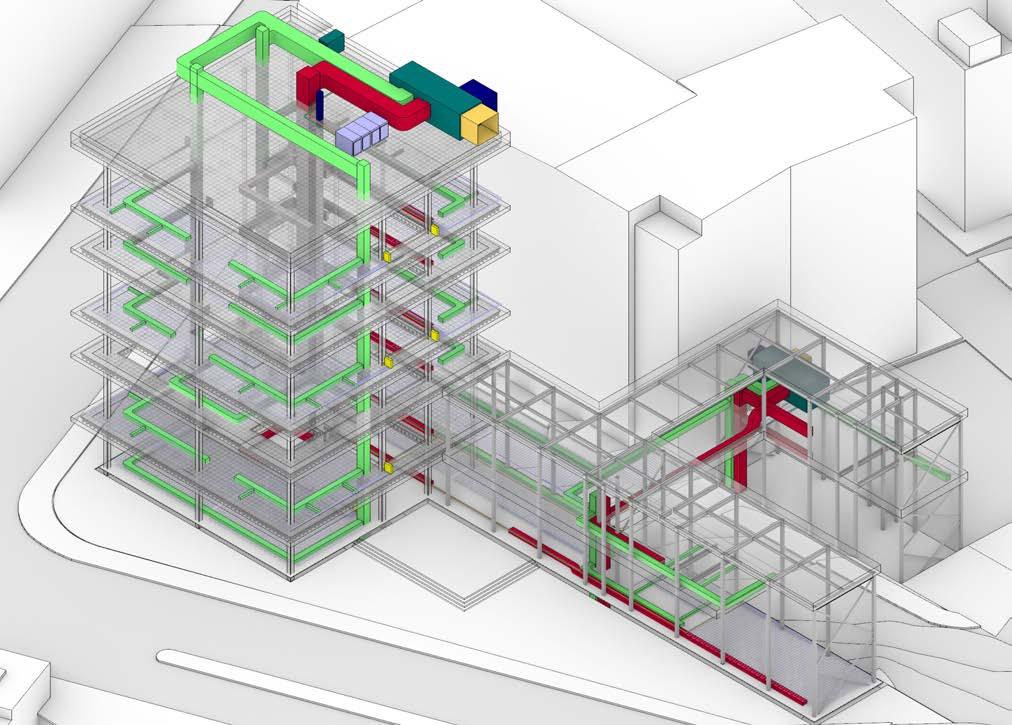

SYSTEM_2 SA SHAFT

30'-0"

SYSTEM_2 SA SHAFT

SYSTEM_1 MANIFOLD

32'-7/8"

SYSTEM_1 MANIFOLD

B

B

20'-0"

2 81" PYROSTOP 2HR GLAZING FIXED WITH HEAT BARRIER SERIES FIREFRAME (TYP. AROUND STAIR)

CURTAIN WALL

6" ROOF DRAIN PIPE IN TECHNICAL FLOOR

SYSTEM_3 SA AND RA SHAFTS

2 1/8" PYROSTOP 2HR GLAZING FIXED WITH HEAT BARRIER SERIES FIREFRAME (TYP. AROUND STAIR)

SYSTEM_1 MANIFOLD

UP

C

51'-3"

D

14'-0"

DN 32'-7/8"

SYSTEM_2 SA SHAFT

51'-3"

CAFE

MULTISPACE EXHIBITION

301

306

E

6'-0"

E

UP SYSTEM_1 MANIFOLD

6'-0"

C D

F

F 6" ROOF DRAIN PIPE

SYSTEM_1 BRANCH SELECTION UNIT

SYSTEM_3 RA SHAFT

E

52'-0"

A2-2

6" ROOF DRAIN TO GROUND

26'-0"

SYSTEM_3 SA AND RA SHAFTS

G

G

20'-0"

FLAT GFRC CONCRETE PANEL

DN

51'-3"

MECHANICAL

SYSTEM_3 AHU

307

SYSTEM_3 HVAC

H

6'-0"

H I

I

20'-0"

1

BOSTON MEDIA FACTORY

4

3

5

7

6

8

9

10

11

12

13

12

14

SCALE : 3/32" = 1' - 0"

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ZACK WIENERS

13

14

2

11

10

9

8

7

6

5

4

3

2

1

I

H

DATE :

F

G

A1-03

THIRD FLOOR PLAN

12/22/2024

E

D

A

B

C

TOP OF PARAPET 157' 9"

TOP OF PARAPET 157' 9"

B.O. ROOF 152' 2 1/8"

B.O. ROOF 152' 2 1/8"

MACHINE PLASTICS STUDIO

WORKSHOP / MODEL SHOP

MACHINE PLASTICS STUDIO

702

701

701

FIN. SEVENTH FLOOR 131' 3"

FIN. SEVENTH FLOOR 131' 3"

B.0. SEVENTH FLOOR 128' 2 1/8"

B.0. SEVENTH FLOOR 128' 2 1/8"

ARCHIVE

ARCHIVE

OFFICES

PRODUCTION STUDIO

604

603

602

606

PRODUCTION STUDIO

PRODUCTION STUDIO

SOUND ROOM

LIBRARY

504

503

502

505

FIN. SIXTH FLOOR 115' 3"

FIN. SIXTH FLOOR 115' 3"

B.O. SIXTH FLOOR 112' 2 1/8"

B.O. SIXTH FLOOR 112' 2 1/8"

FIN. FIFTH FLOOR 91' 3

FIN. FIFTH FLOOR 91' 3

B.O. FIFTH FLOOR 88' 2 1/8"

B.O. FIFTH FLOOR 88' 2 1/8"

PROFESSIONAL CREATOR SPACE

PROFESSIONAL CREATOR SPACE

PRODUCTION STUDIO

403

403

402

FIN. FOURTH FLOOR 75' 3"

FIN. FOURTH FLOOR 75' 3"

B.O. FOURTH FLOOR 72' 2"

B.O. FOURTH FLOOR 72' 2"

ACTION ROOM

MULTIMEDIA PRODUCTION STUDIO

305

303

MULTISPACE EXHIBITION

ARCHIVE

306

304

FIN. THIRD FLOOR

FIN. THIRD FLOOR 51' 3"

51' 3" B.O. THIRD FLOOR 48' 2 1/8"

B.O. THIRD FLOOR 48' 2 1/8"

MULTISPACE EXHIBITION

CREATION ATELIER

CREATION ATELIER

205

206

206

FIN SECOND FLOOR 32' 7/8"

FIN SECOND FLOOR 32' 7/8"

Cambria I-90w

1

10

Precast Concrete Beam

2

DESIGN STUDIO PROJECTS

Precast Concrete Beam

I-90e

I-90w

SECTION 2 3/32" = 1' 0"

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ZACK WIENERS

Precast Concrete Beam

I-90e

MBTA

SECTION 1 3/32" = 1' 0"

BOSTON MEDIA FACTORY

Precast Concrete Beam

SCALE : 3/32" = 1' 0" DATE :

12/22/2024

BUILDING SECTIONS

A2-02

1

20'-0"

2

20'-0"

3

20'-0"

4

10'-0"

5

10'-0"

6

10'-0"

7

10'-0"

8

20'-0"

9

20'-0"

10

20'-0"

11

8'-9"

12

13

40'-0"

14

40'-0"

A

A

CURTAIN WALL (TYP.)

RAISED TILE EXT. FIN. FLOOR WITH GUTTER (TYP.)

40'-0"

GLASS SAFETY RAIL W/ STEEL HAND RAIL (TYP.) FLOOR MOUNTED FIXTURES PLUMBING IN CHASE WALL

SYSTEM_2 SA SHAFT

E.O.S

SYSTEM_2 SA SHAFT

SYSTEM_1 MANIFOLD

B

20'-0"

B

2 81" PYROSTOP 2HR GLAZING FIXED WITH HEAT BARRIER SERIES FIREFRAME (TYP. AROUND STAIR)

2 1/8" PYROSTOP 2HR GLAZING FIXED WITH HEAT BARRIER SERIES FIREFRAME (TYP. AROUND STAIR)

6" ROOF DRAIN PIPE

UP

UP SYSTEM_1 MANIFOLD

6'-0"

C

SYSTEM_2 SA SHAFT

E

6'-0"

E F

C D

14'-0"

D

F SYSTEM_1 BRANCH SELECTION UNIT

SYSTEM_3 RA SHAFT

52'-0"

6" ROOF DRAIN PIPE

6" ROOF DRAIN PIPE

G

20'-0"

G

I

H

6'-0"

H

I

1

BOSTON MEDIA FACTORY

2

4

3

5

7

6

8

9

10

11

12

13

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ZACK WIENERS

1

20'-0"

14

2

20'-0"

3

20'-0"

4

10'-0"

5

10'-0"

6

10'-0"

7

10'-0"

8

20'-0"

9

20'-0"

10

20'-0"

11

8'-9"

12

13

40'-0"

SCALE : 3/32" = 1' - 0" DATE :

12/22/2024

MECHANICAL PLAN 4A SYSTEM_1 RADIANT

M1-06

MECHANICAL PLAN 4B SYSTEM_2,3 AIR

M1-07

14

40'-0"

A

A

CURTAIN WALL (TYP.)

RAISED TILE EXT. FIN. FLOOR WITH GUTTER (TYP.)

GLASS SAFETY RAIL W/ STEEL HAND RAIL (TYP.)

PROFESSIONAL CREATOR SPACE

40'-0"

403 FLOOR MOUNTED FIXTURES PLUMBING IN CHASE WALL

SYSTEM_2 SA SHAFT

E.O.S

SYSTEM_2 SA SHAFT

SYSTEM_1 MANIFOLD

B

20'-0"

B

2 81" PYROSTOP 2HR GLAZING FIXED WITH HEAT BARRIER SERIES FIREFRAME (TYP. AROUND STAIR)

2 1/8" PYROSTOP 2HR GLAZING FIXED WITH HEAT BARRIER SERIES FIREFRAME (TYP. AROUND STAIR)

6" ROOF DRAIN PIPE

UP

SYSTEM_1 MANIFOLD

C D

PRODUCTION STUDIO

401

402

14'-0"

PROFESSIONAL OFFICES

SYSTEM_2 SA SHAFT

E

6'-0"

E F

UP

6'-0"

C D

F SYSTEM_1 BRANCH SELECTION UNIT

SYSTEM_3 RA SHAFT

52'-0"

6" ROOF DRAIN PIPE

6" ROOF DRAIN PIPE

G

20'-0"

G

I

H

6'-0"

H

I

1

BOSTON MEDIA FACTORY

2

3

4

5

6

7

8

9

10

11

12

13

14

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ZACK WIENERS

ZACK WIENERS

SCALE : 3/32" = 1' - 0" DATE :

12/22/2024

11

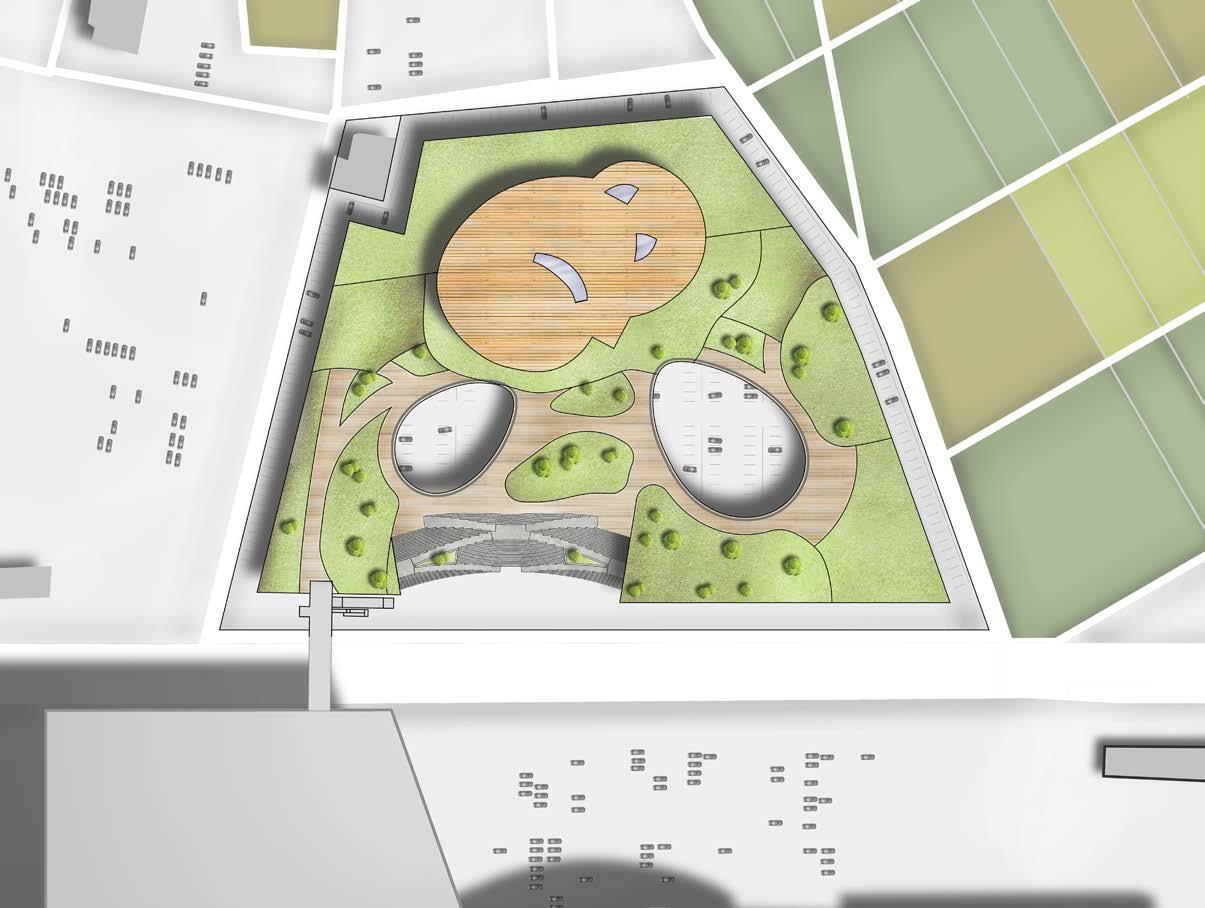

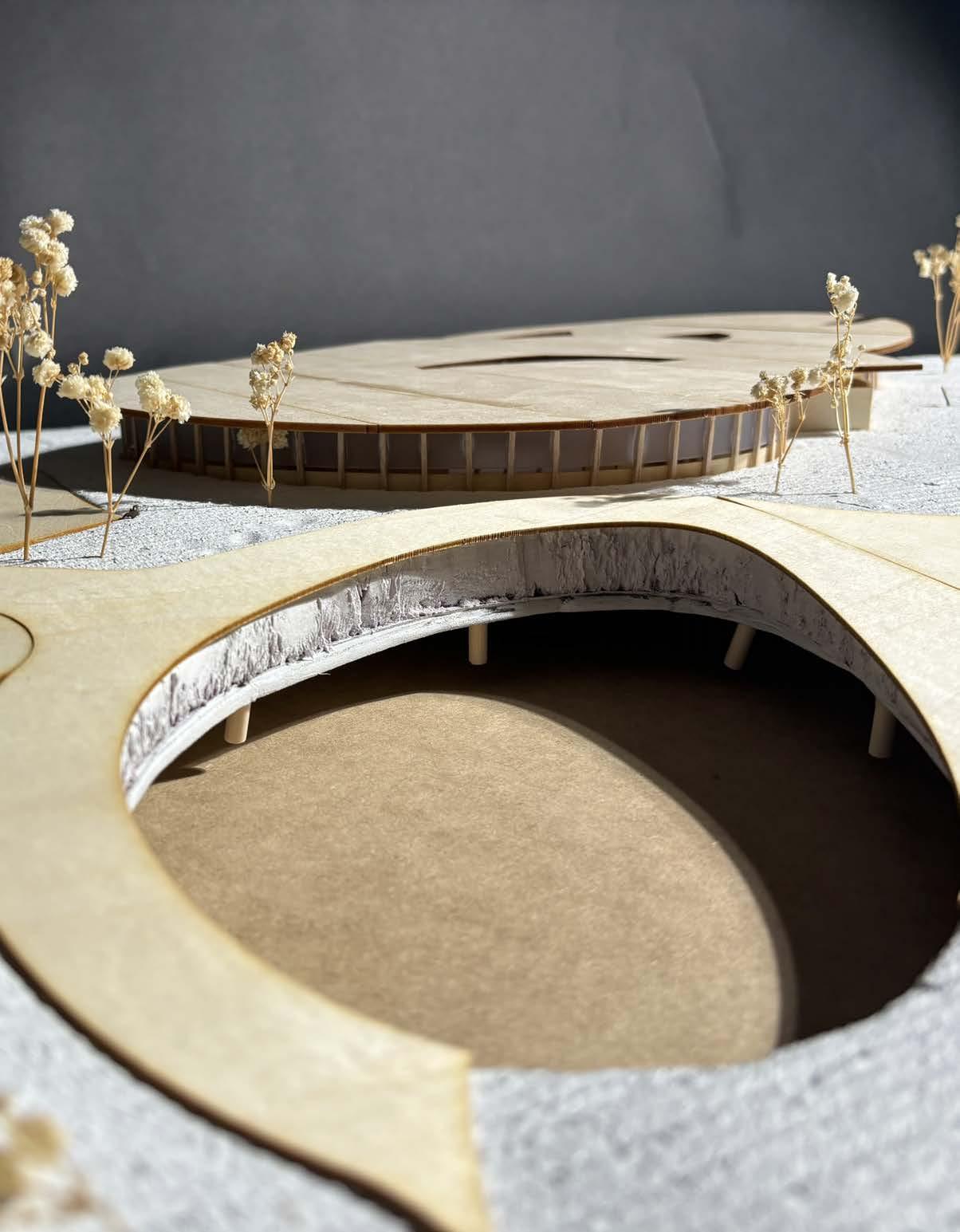

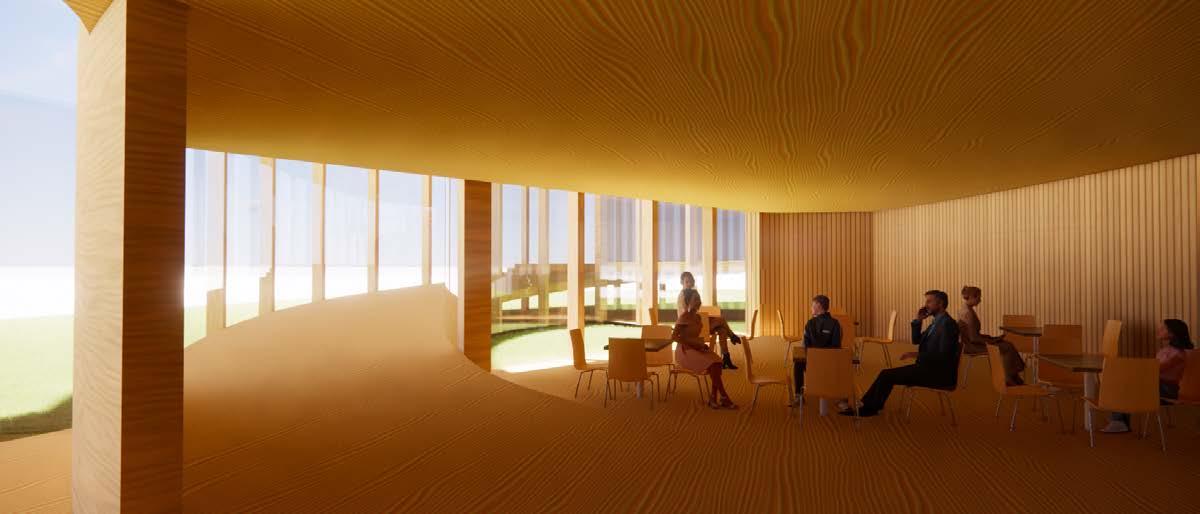

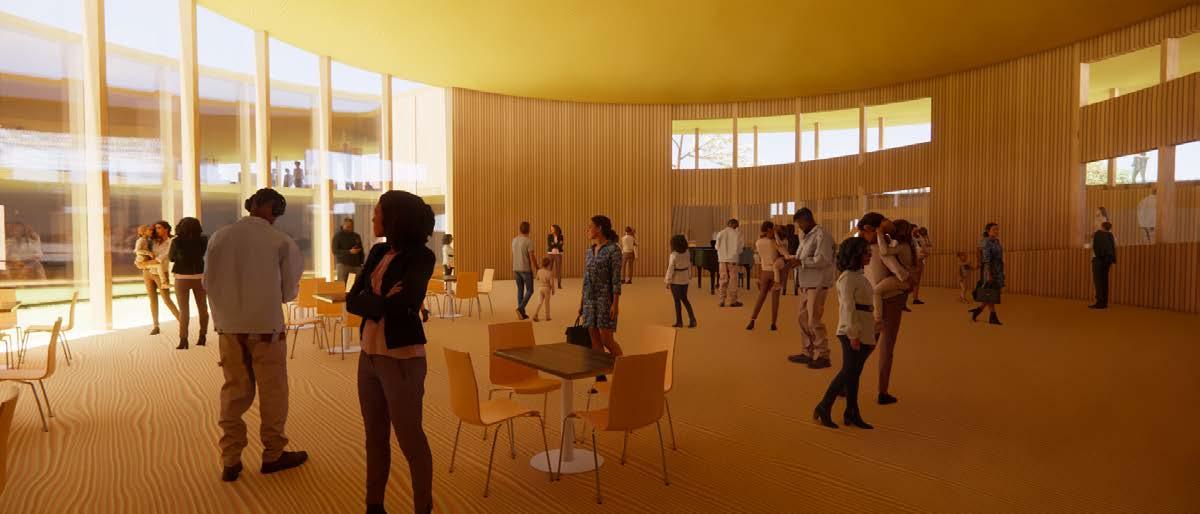

PRESENCE

A CONTEMPORARY ART MUSEUM AND CENTER FOR COMMUNITY ENGAGEMENT Advanced Architectural Design Studio - Fall 2023 Professor Junko Yamamoto

The proposed site is an existing parking lot in Takasaki, Japan, adjacent to residential houses, farm land, and the large AEON mall.

The city of Takasaki lacks green space, is vehicle dominated, and neighbors the busy city of Maebashi.

In this project, I chose to respond to the busyness. The proposal entirely aims to reinforce, facilitate, and support the maintenance of the present mind. This is achieved through a comfortable contrast in typical surroundings, a continuous circulation representative of the continuity of time, and spaces that elicit senses of safety and security.

NOTE: Additional animations and renderings of this project can be found on my YouTube, linked through the QR code at the beginning and end of this booklet.

12

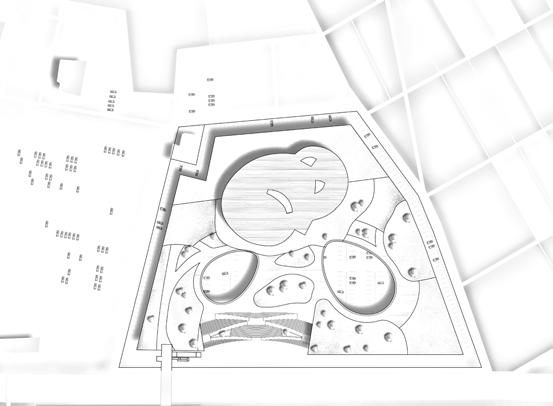

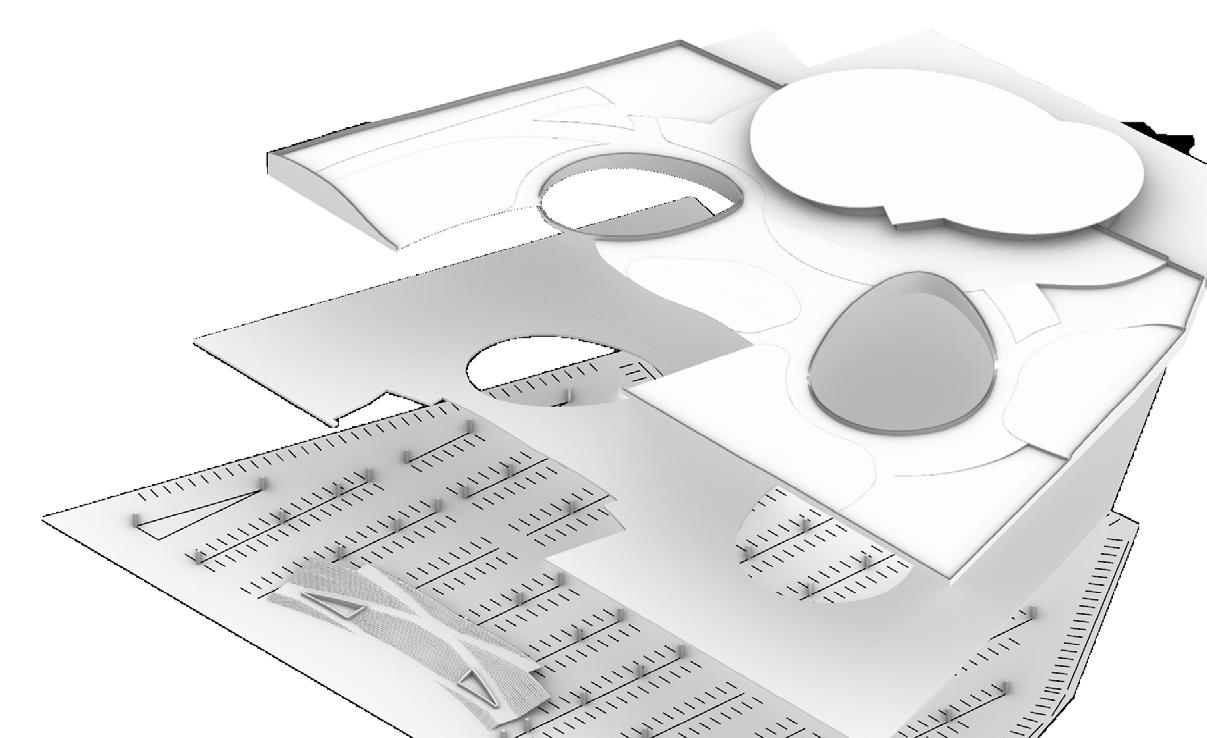

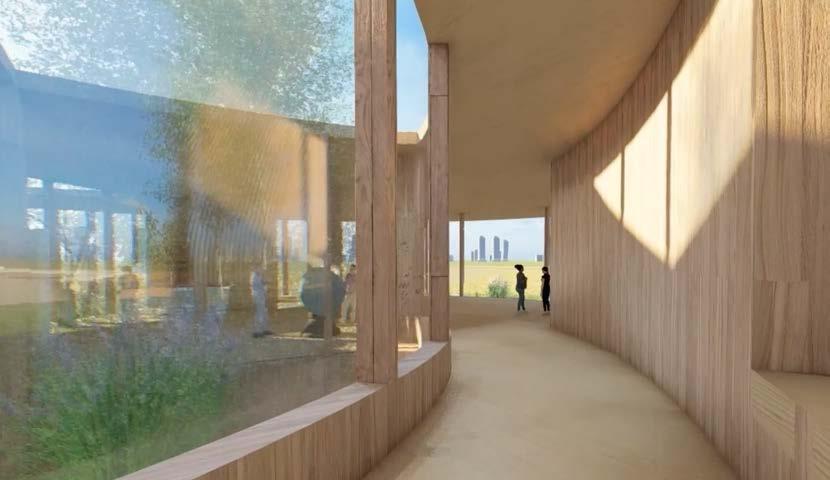

CIRCULATION CONCEPT

DESIGN STUDIO PROJECTS

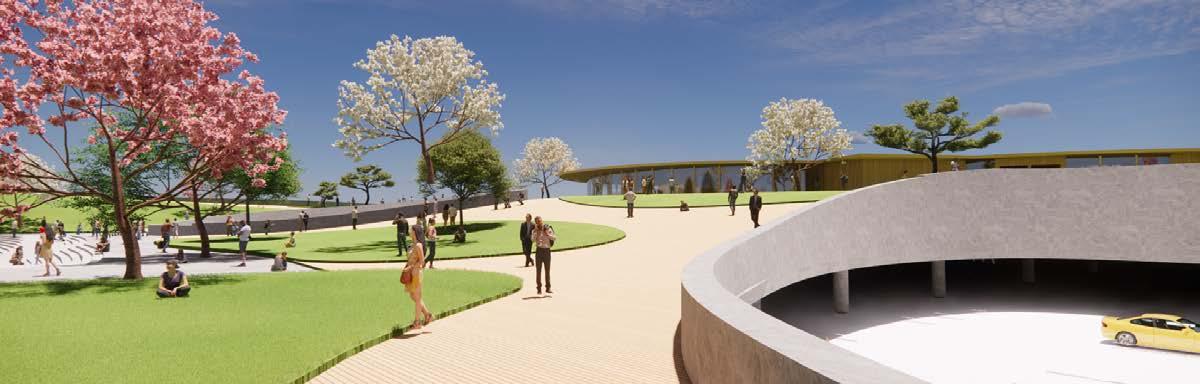

Elevating the occupied site over the existing parking conditions immediately evokes a change in scenery while mitigating the changes to the parking.

1 MUSEUM ENTRY 2 ADDED SITE 3 1/2m CONCRETE RAILS 4 1/2m REINFORCED CONCRETE SLAB 5 .8m DIAMETER CONCRETE COLUMNS 6 CONCRETE STAIR/RAMP SYSTEM 7 EXISTING GRADE

3

2

3

4 2

5 6 7 ZACK WIENERS

13

14

DESIGN STUDIO PROJECTS

B

A

A

B

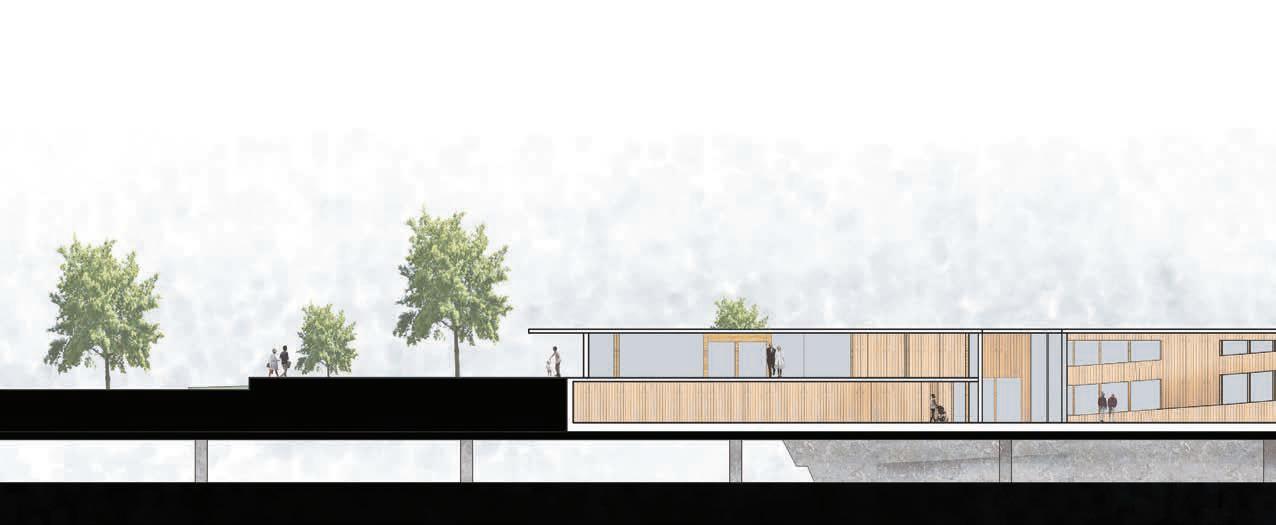

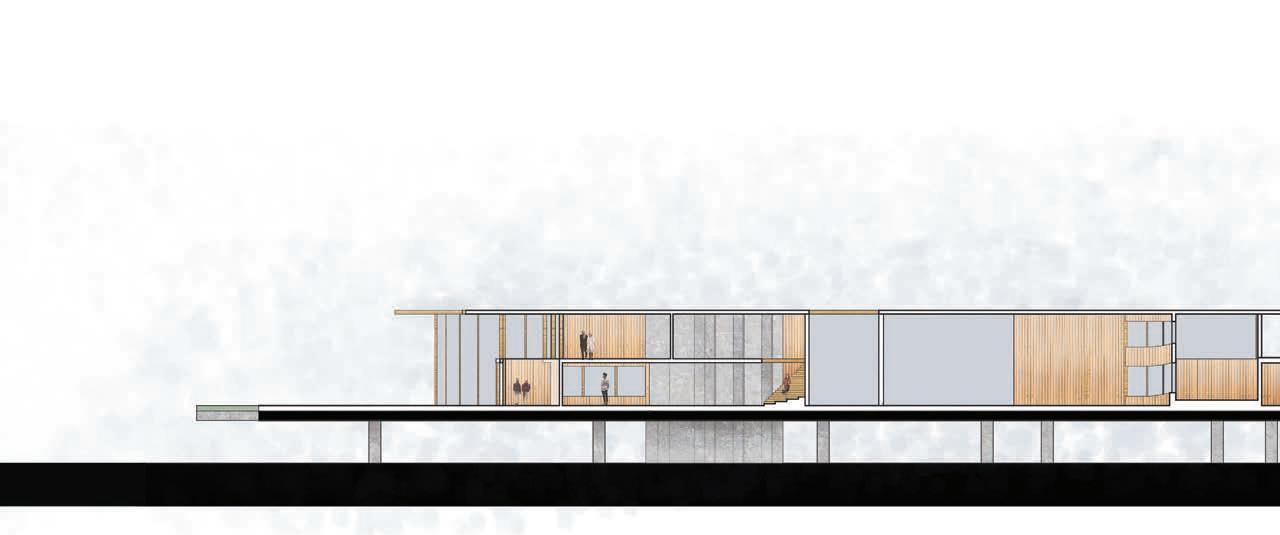

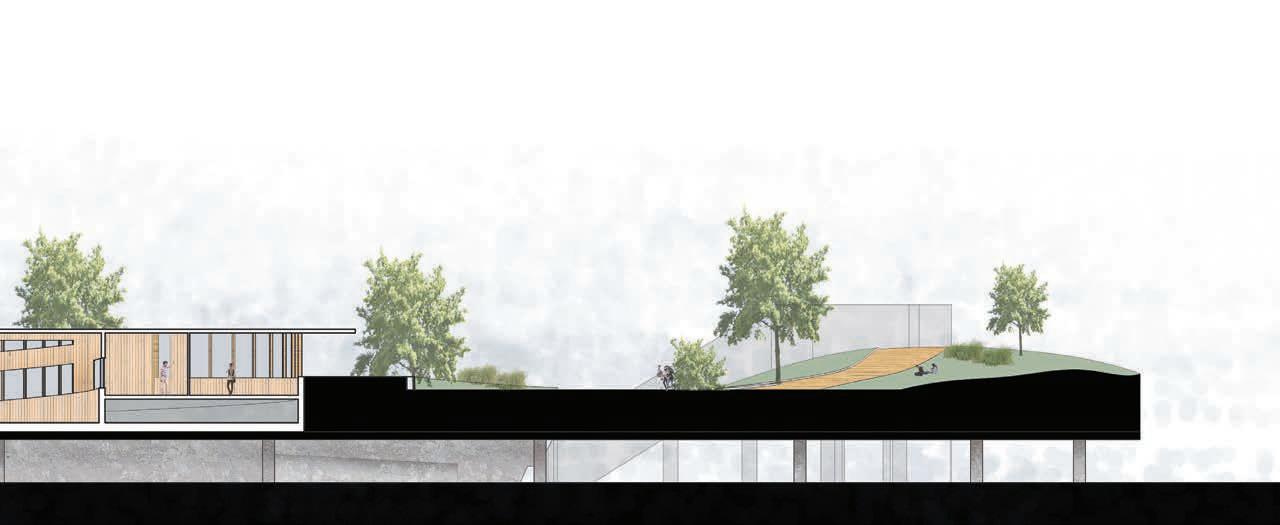

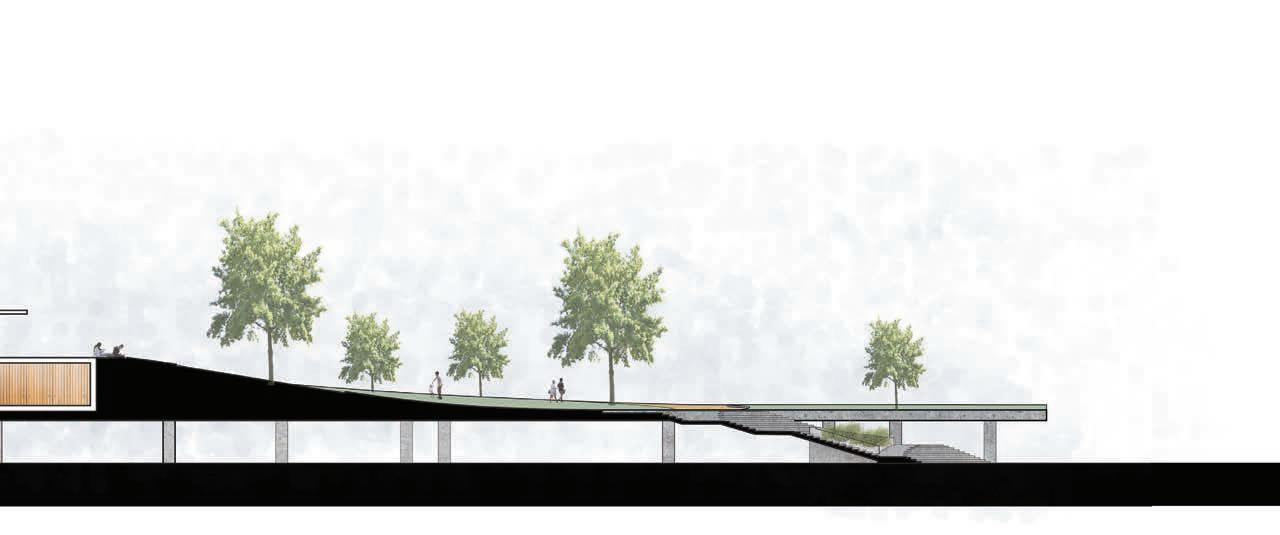

SECTION A

SECTION B ZACK WIENERS

15

16

DESIGN STUDIO PROJECTS

ZACK WIENERS

17

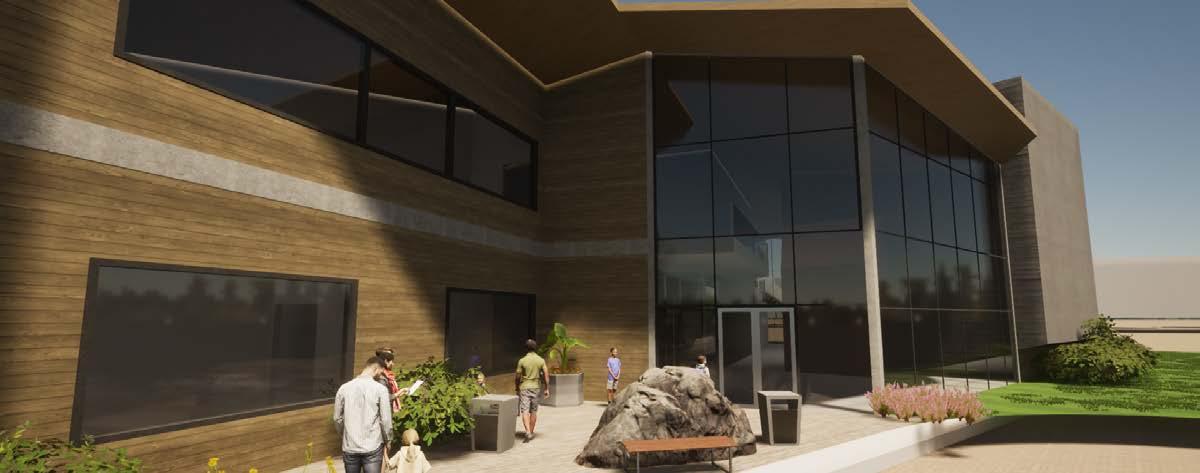

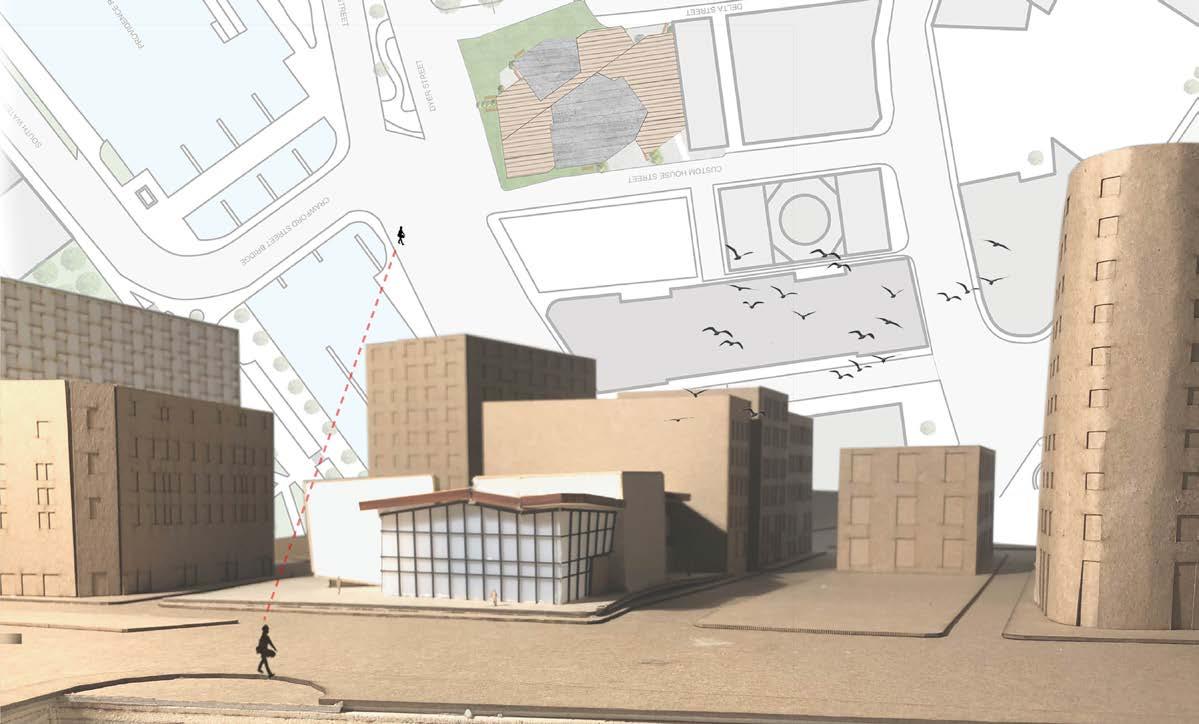

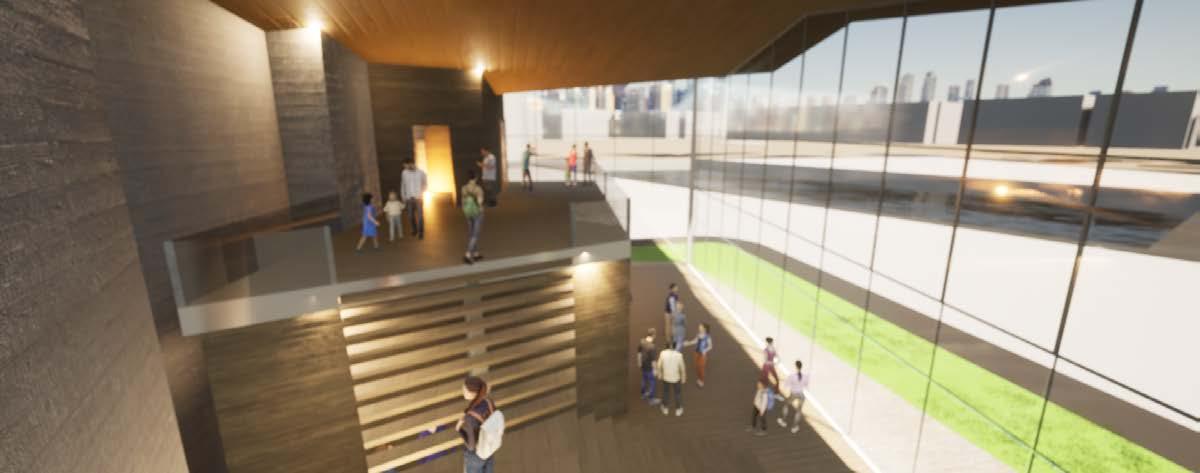

THE 52ND STREET PROJECT

A CHILDREN’S PERFORMING ARTS THEATER Architectural Design CORE Studio 5 - Spring 2022 Professor Aaron Brode

Theaters’ spaces are carefully constructed to absorb and redirect sound and light, to maintain good views of the stage regardless of the seat, and to offer opportunities for a variety (preferably infinite) number of performances.

This rigidity is essential. It gives the space the capacity to facilitate the freedom and expression that comes with the art of performance.

In this project, I am focusing on the deep contrast between a theater’s physical restrictions and a performance’s flexibility.

Experientially achieved through material choices and organizational strategies.

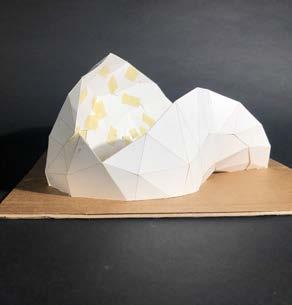

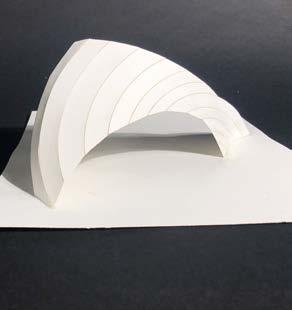

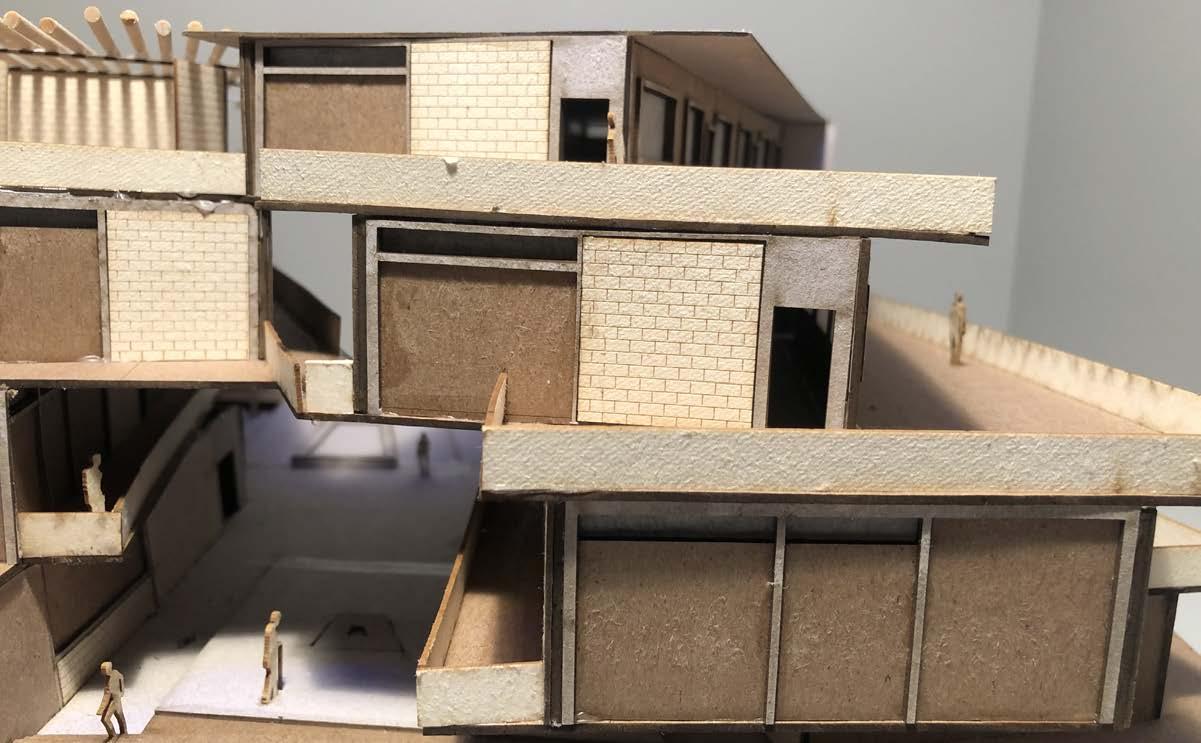

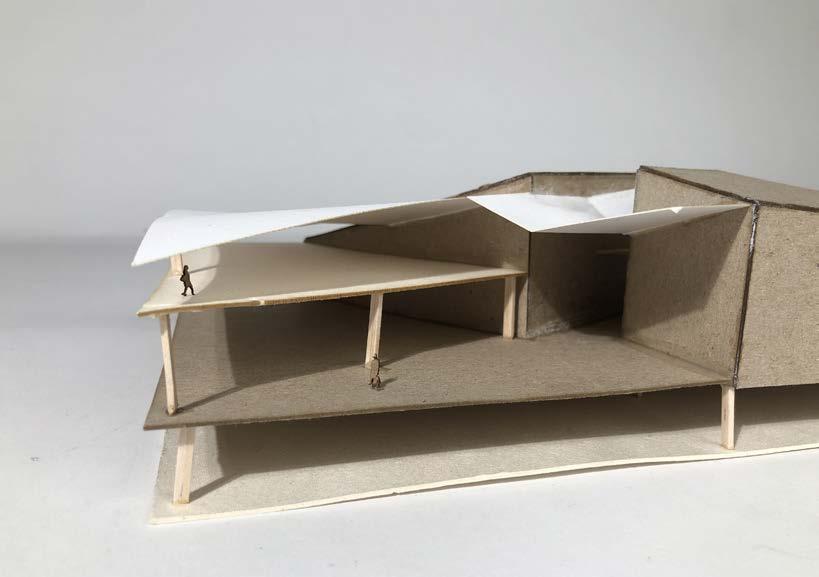

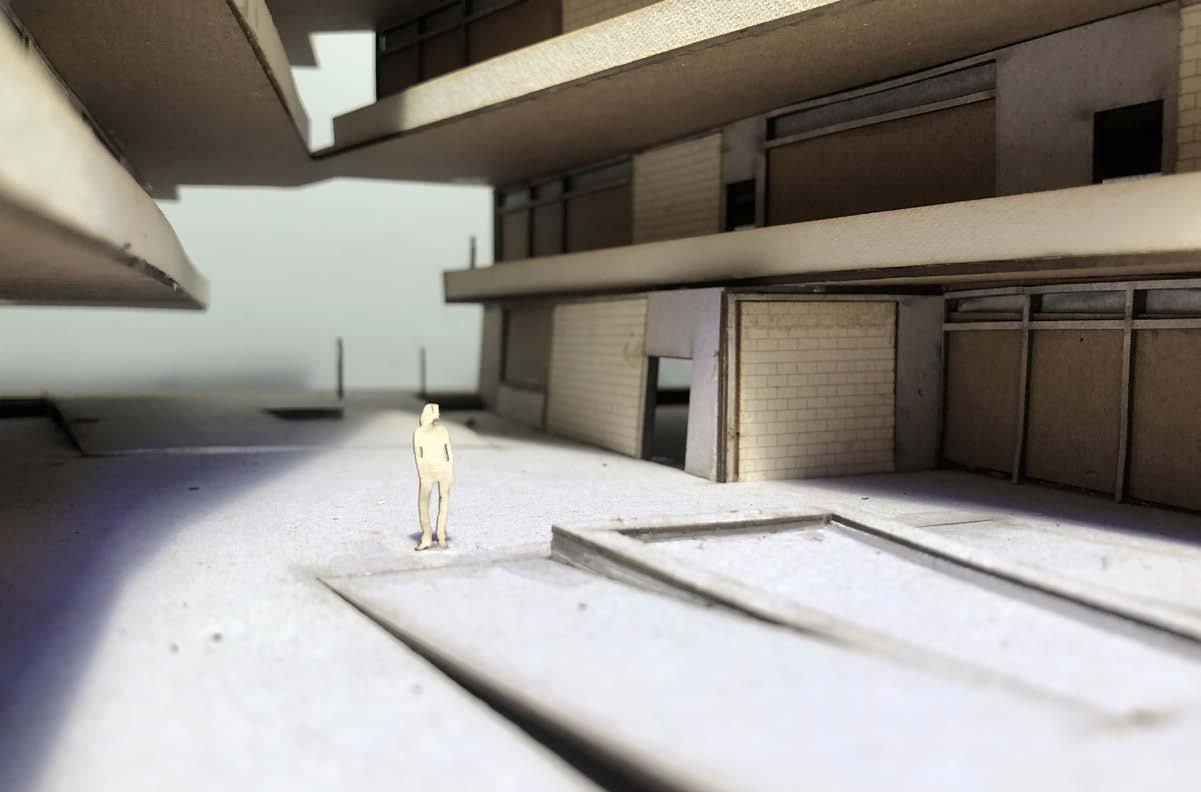

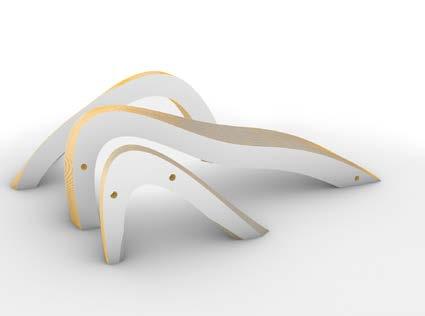

CONCEPT MODEL

18

DESIGN STUDIO PROJECTS

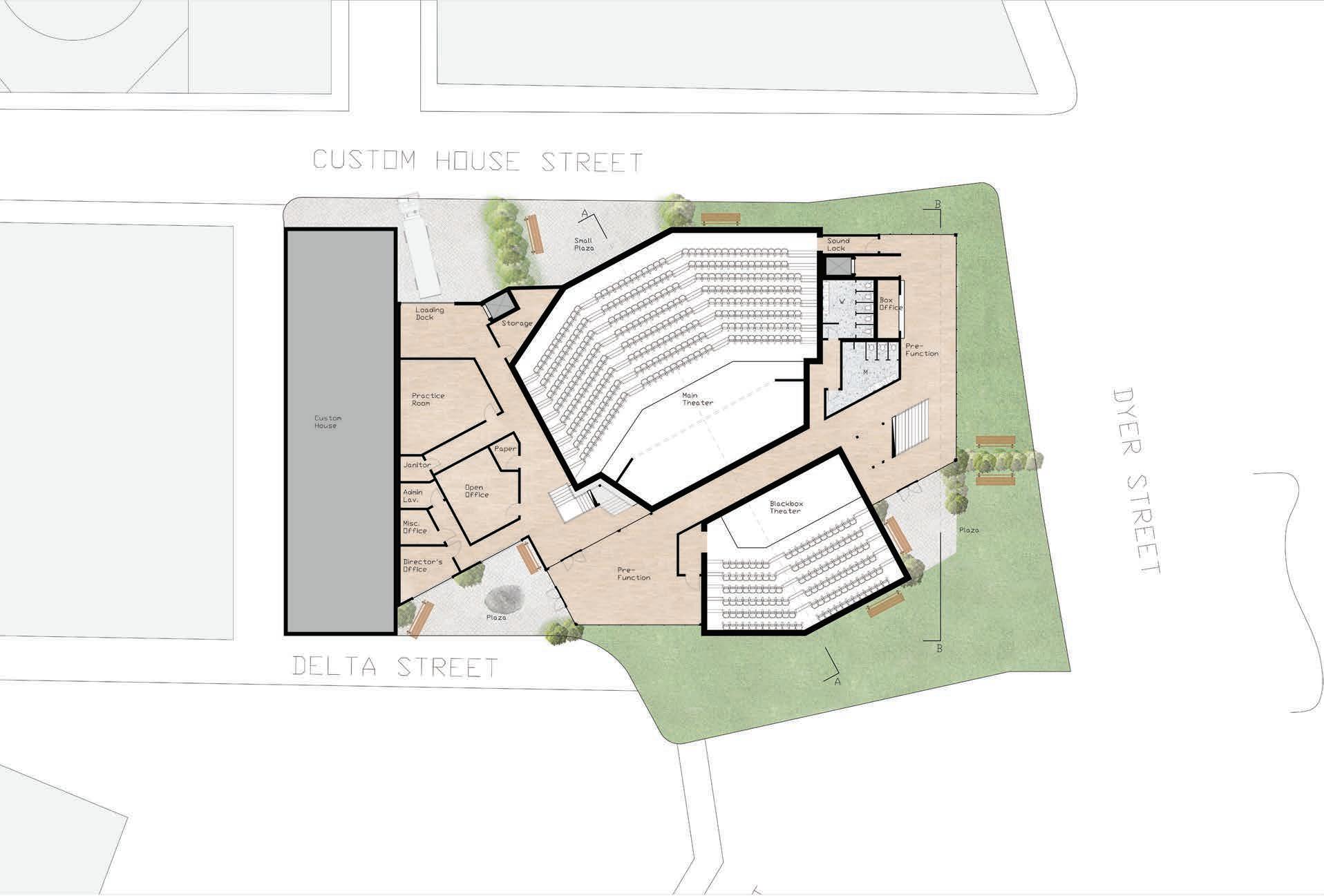

GROUND FLOOR PLAN

ZACK WIENERS

19

20

DESIGN STUDIO PROJECTS

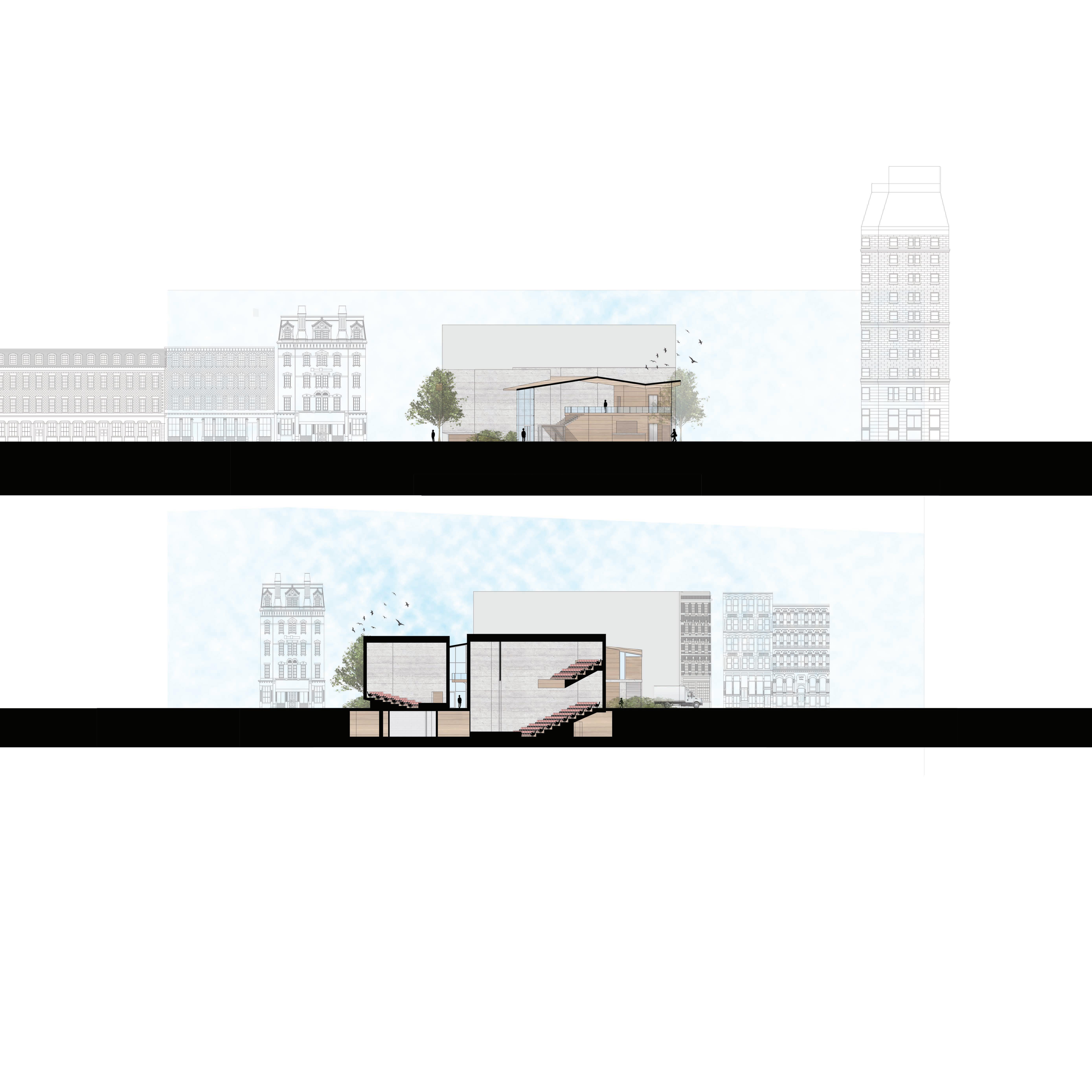

SECTION AA

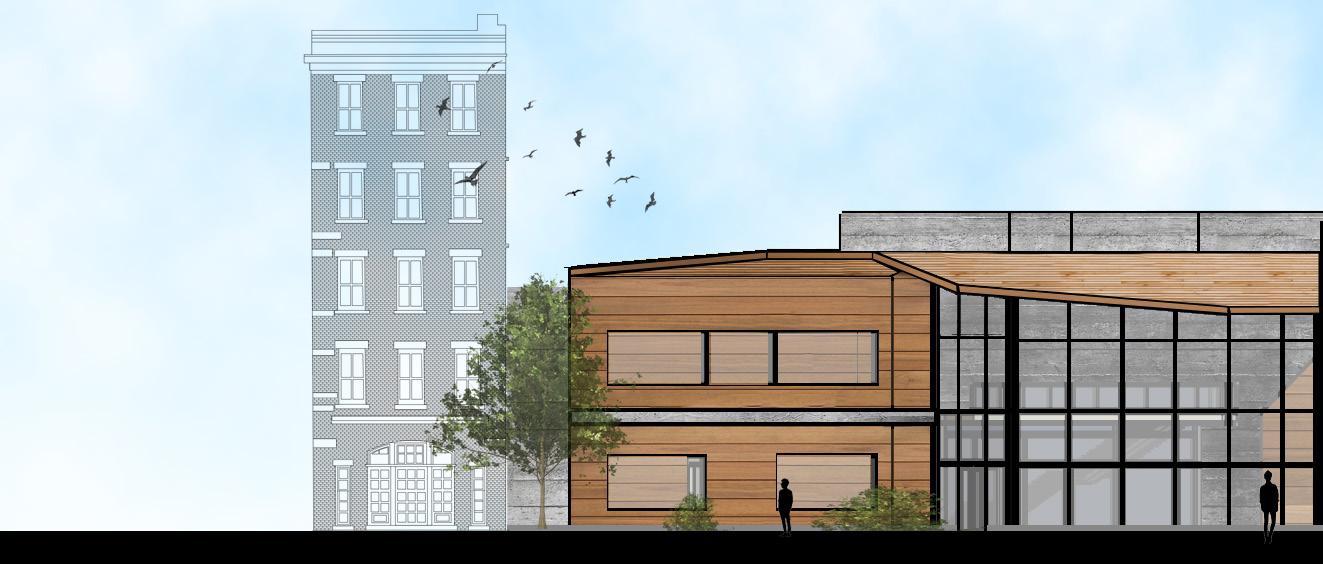

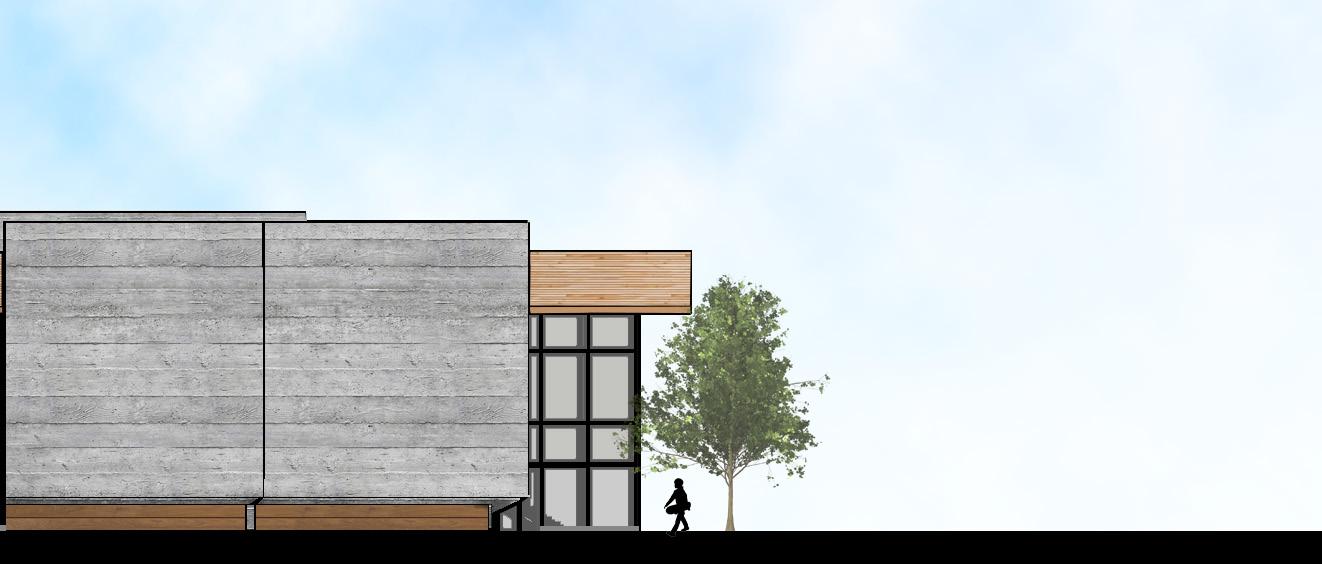

SOUTH ELEVATION

ZACK WIENERS

21

MINDFUL ROTATION A MULTIGENERATIONAL HOUSING COMPLEX Architectural Design CORE Studio 4 - Spring 2022 Professor Hanisha Thirth Bennabhaktula

This project is located in Phoenix, Arizona.

The design of this building is site specific. Its form, orientation, organization, and materiality work together to mitigate the harshness of the arid climate of Phoenix, while also offering opportunities for mindful connection for its occupants. The structure is oriented towards the direction of the prevailing winds.

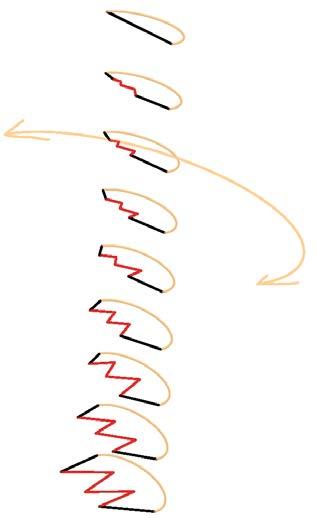

The rotation generates moments of shade throughout while offering a connection to the human scale. Further, thoughtful choices in materiality and organization provide opportunities for passive cooling and thermal comfort.

OPEN PLAN FOR CROSS VENTILATION

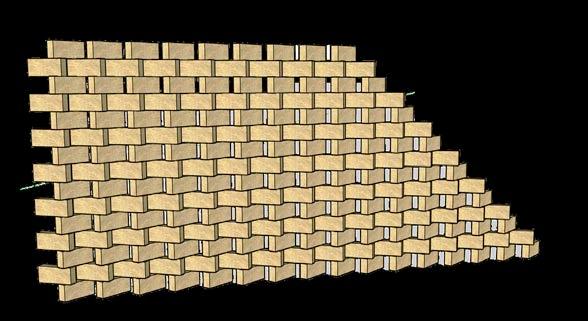

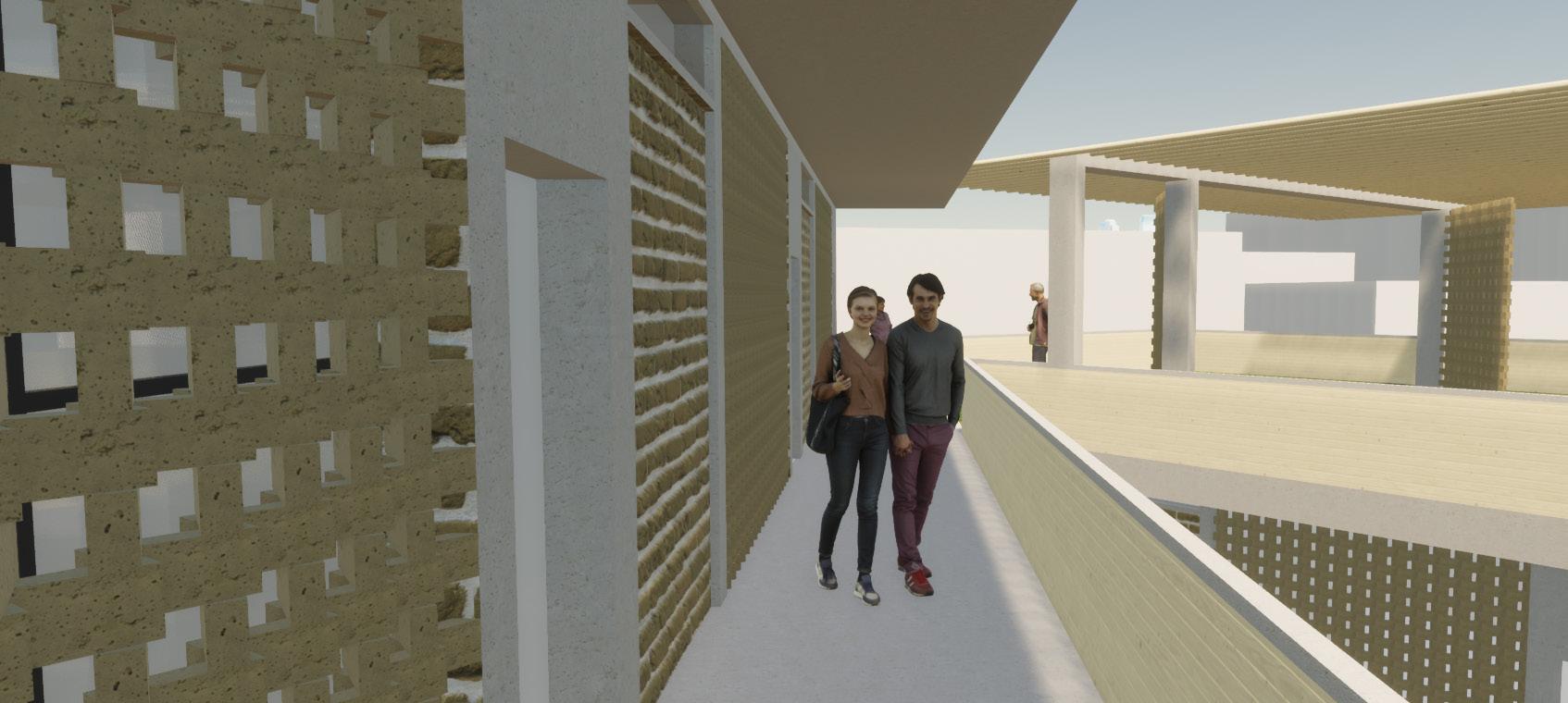

JALI WALL CONCEPT FOR PASSIVE COOLING

CONNECTION TO HUMAN SCALE`

CONNECTION TO HUMAN SCALE 22

DESIGN STUDIO PROJECTS

ZACK WIENERS

RESPONSE TO PREVAILING WIND 23

24

DESIGN STUDIO PROJECTS

ZACK WIENERS

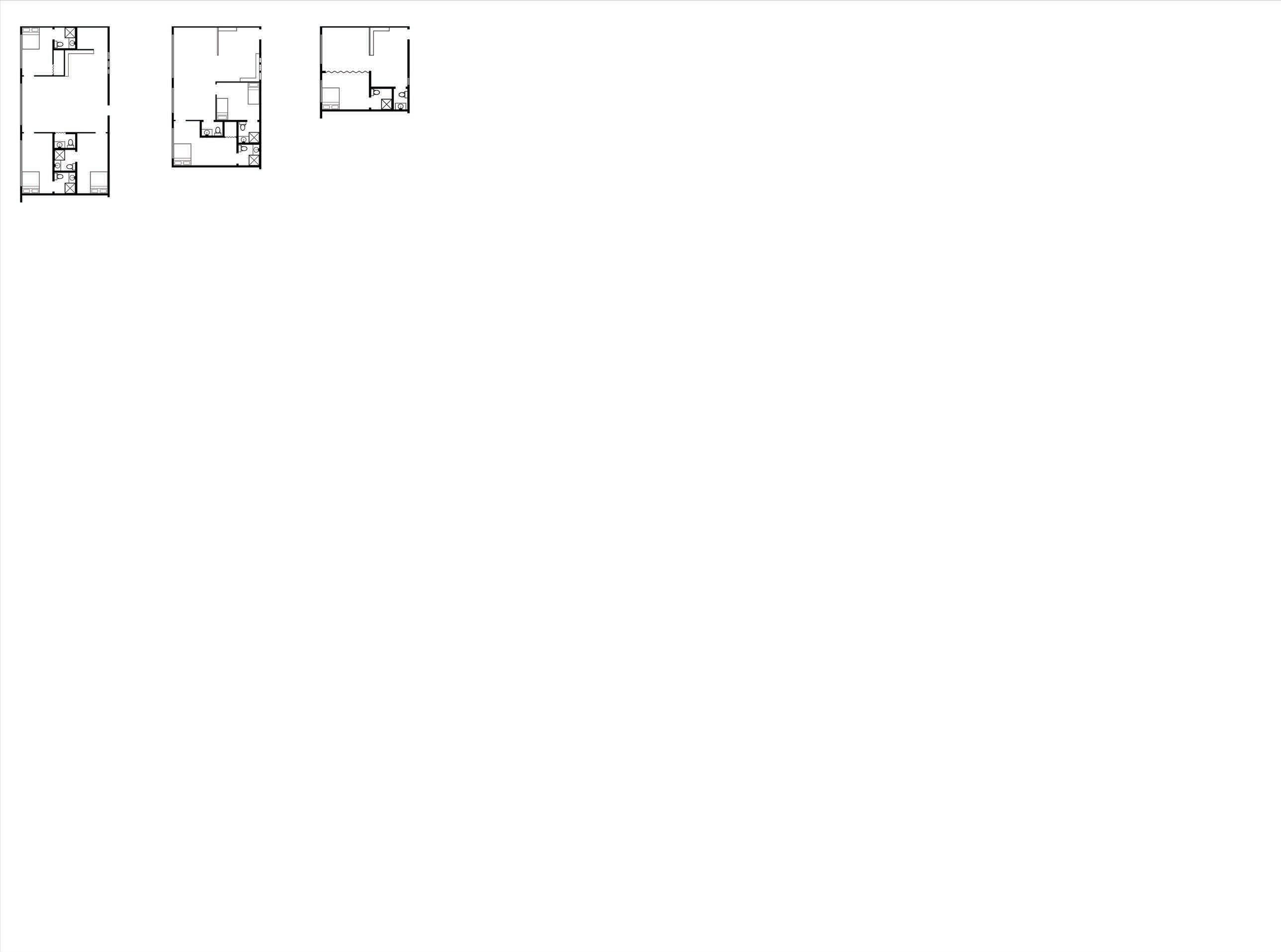

2ND FLOOR PLAN 25

FABRICATION PROJECTS TECTONIC REINVENTION - Collaborative fabrication project, built, SPRING 2023 JOINERY AND SURFACE DEVELOPMENT - Exploring space, SPRING 2023 SLICING, FOLDING, WAFFLING - Early digital fabrication explorations, SPRING 2022

TECTONIC REINVENTION A SPATIAL INTERVENTION IN THE SCHOOL OF ARCHITECTURE AT RWU Advanced Architectural Design Studio - Spring 2023 Professor Bob Pavlik

This project was done with a studio of 11 students.

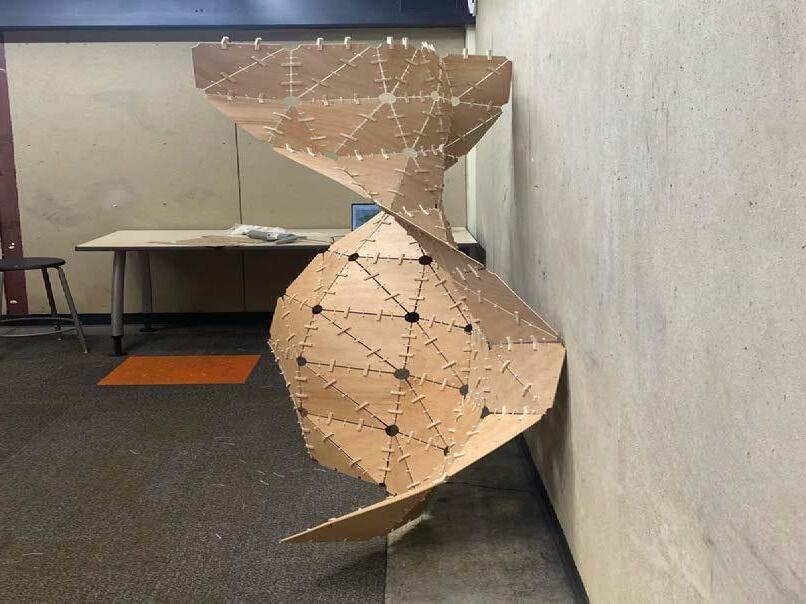

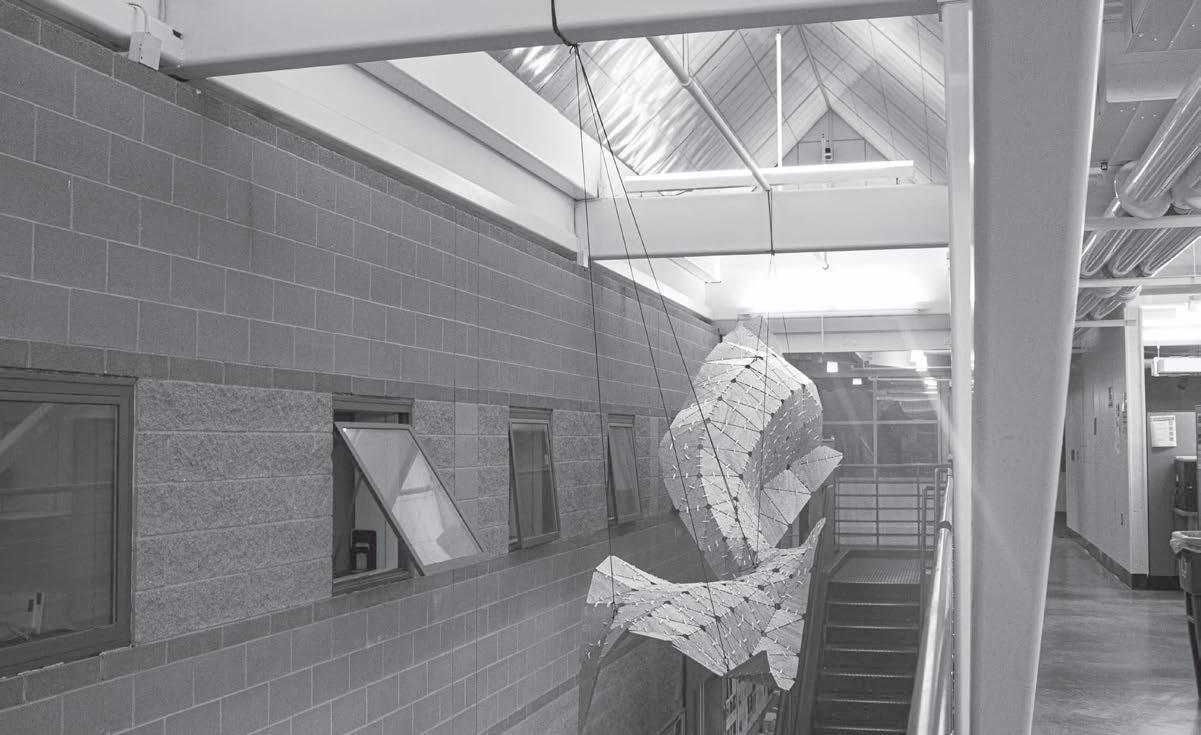

Placed over a commonly used stair in the Cummings School of Architecture at RWU, the doubly curved installation enhances and guides the vertical ascension of the stair. It is built of a combination 210 completely unique 3mm Okoume plywood panels, 570 9mm Birch plywood connecting joints, and loads of zip-tie reinforcement. It spans approximately 15 ft and weighs less than 25lbs. Full scale prototyping and material testing was performed, and the joinery method was completely developed by the students in the studio alongside me. A Grasshopper definition for the whole system was developed to quickly make adjustments based on the testing, and Kangaroo was used to simulate hanging prior to the full scale installation.

This project was extremely fun to work on, and it still makes me smile whenever I walk into the Architecture Building!

JASON TEIXEIRA (right) AND I ORGANIZING AND ASSEMBLING PARTS

RESIN PRINTS TESTING DISCRETIZATION OF POTENTIAL SURFACES

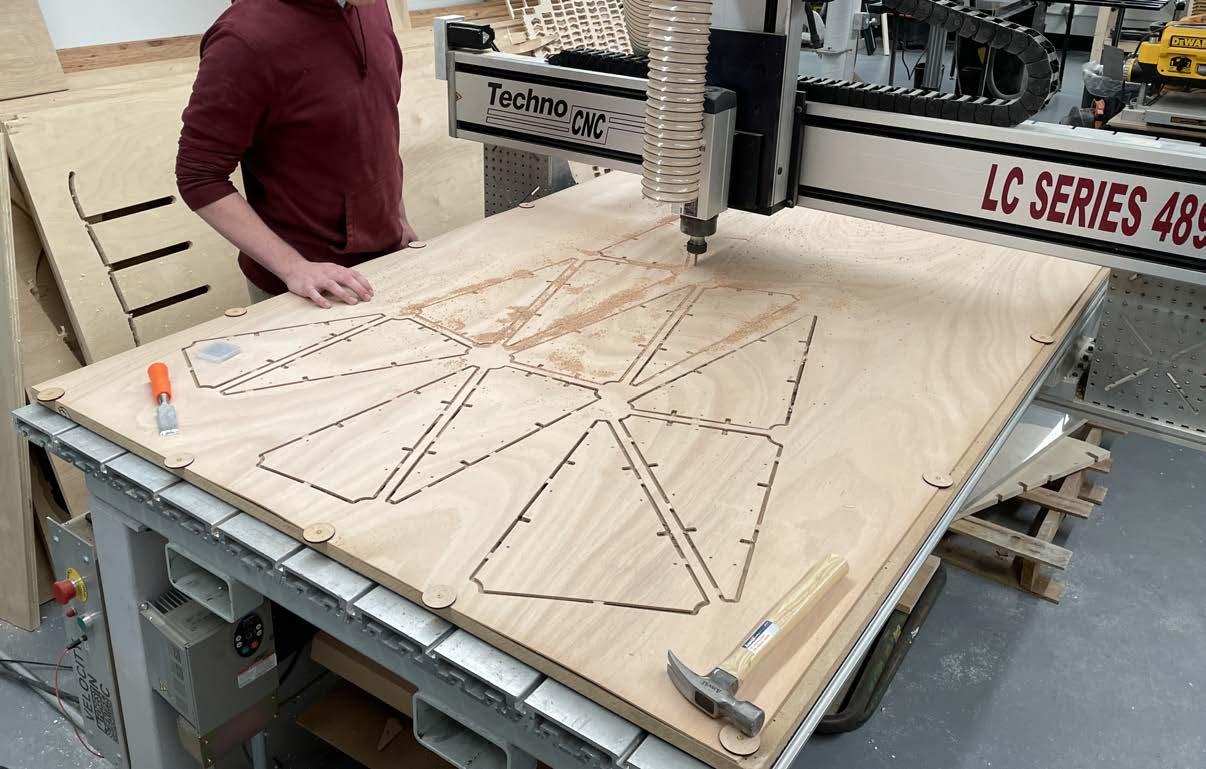

DAVID STEWART MONITORING THE CNC ROUTER AS IT CUTS A SET OF PANELS 28 FABRICATION PROJECTS

A GROUP OF PARTS ORGANIZED AND ASSEMBLED.

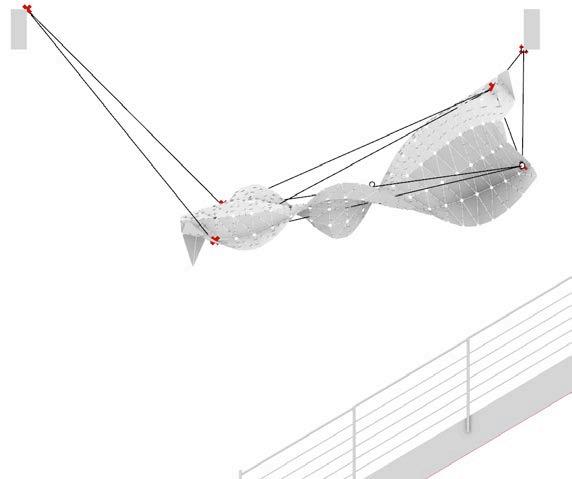

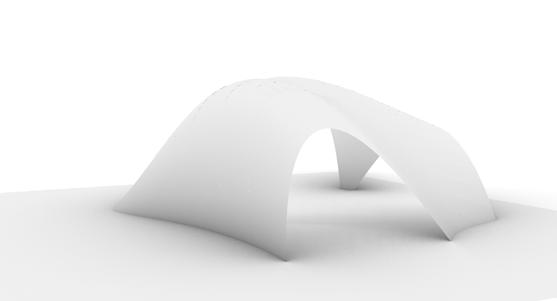

KANGAROO SIMULATIONS

ZACK WIENERS

ASSEMBLY PROCESS

29

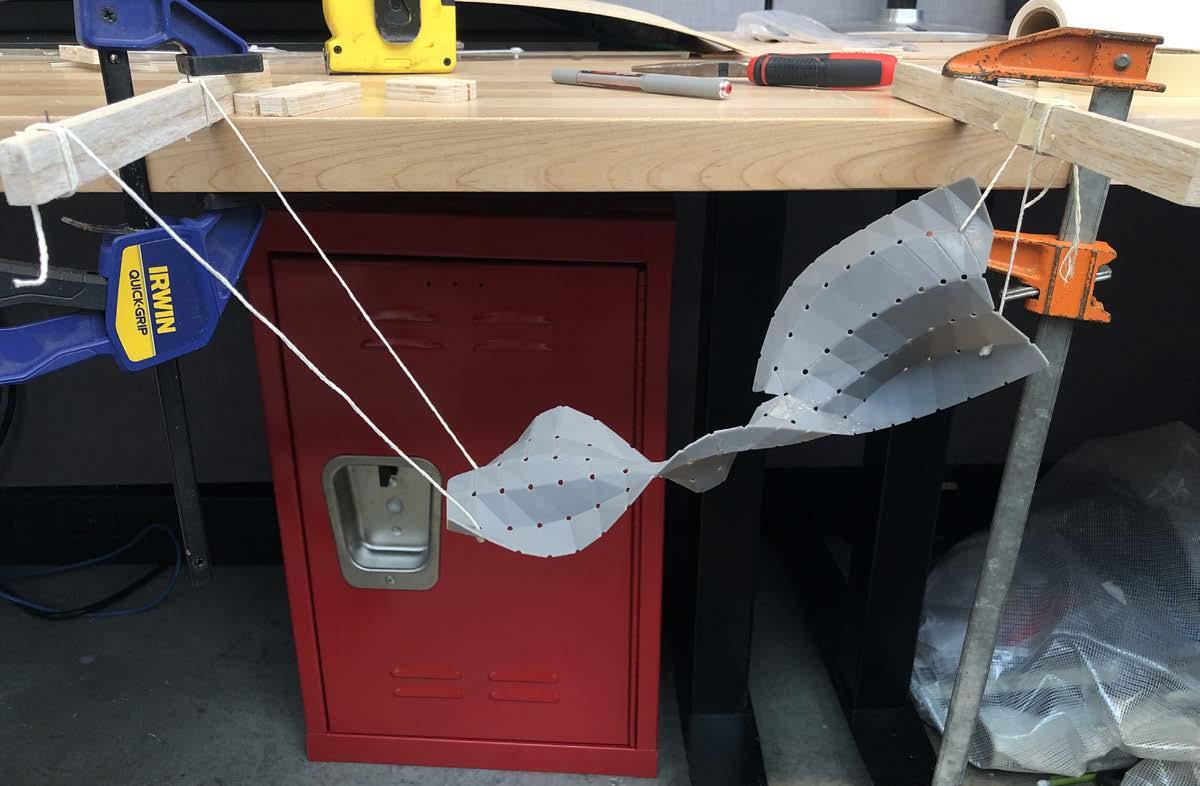

SMALL SCALE HANGING TEST

GRASSHOPPER DEFINITION EXPLANATION 30

FABRICATION PROJECTS

ZACK WIENERS

31

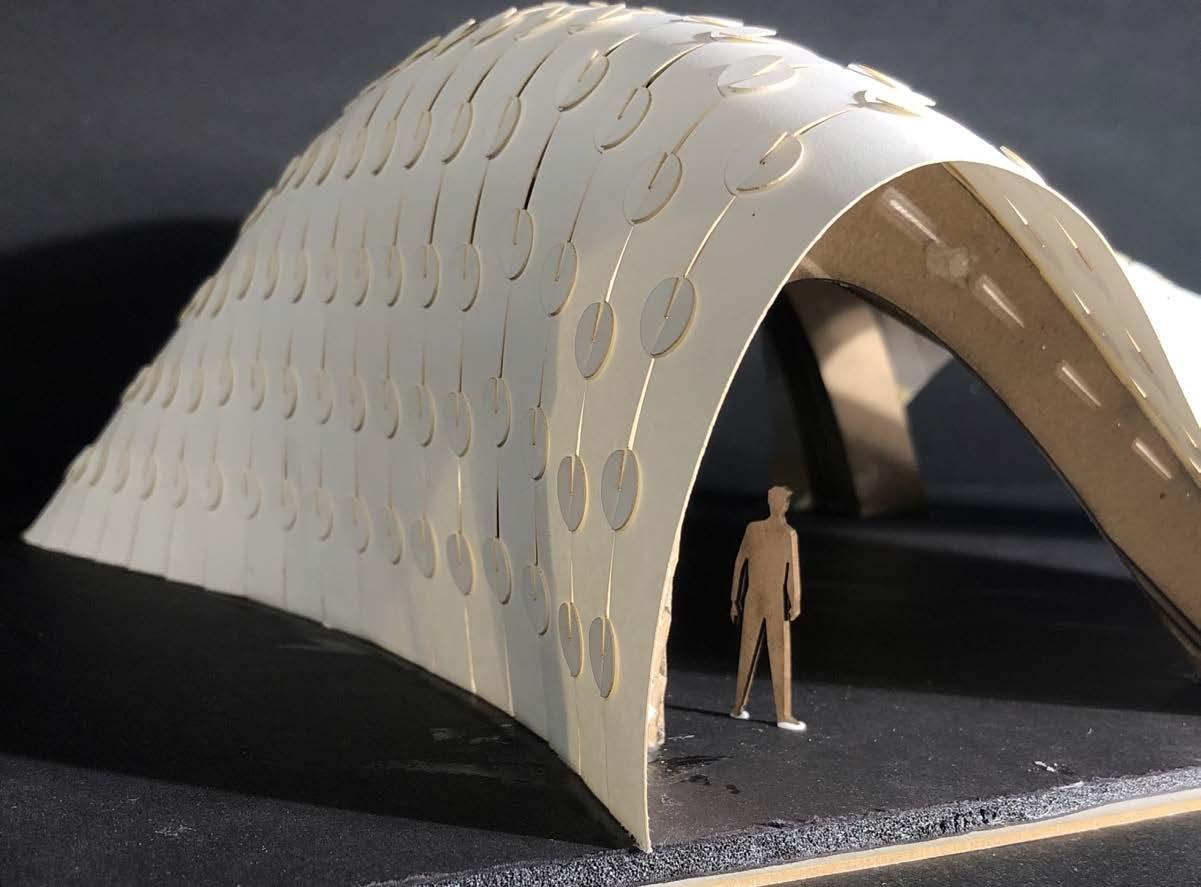

JOINERY AND SURFACE DEVELOPMENT FABRICATION EXPLORATIONS

Advanced Architectural Design Studio - Spring 2023 Professor Bob Pavlik

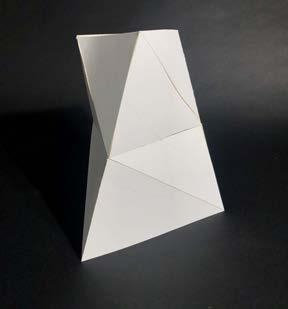

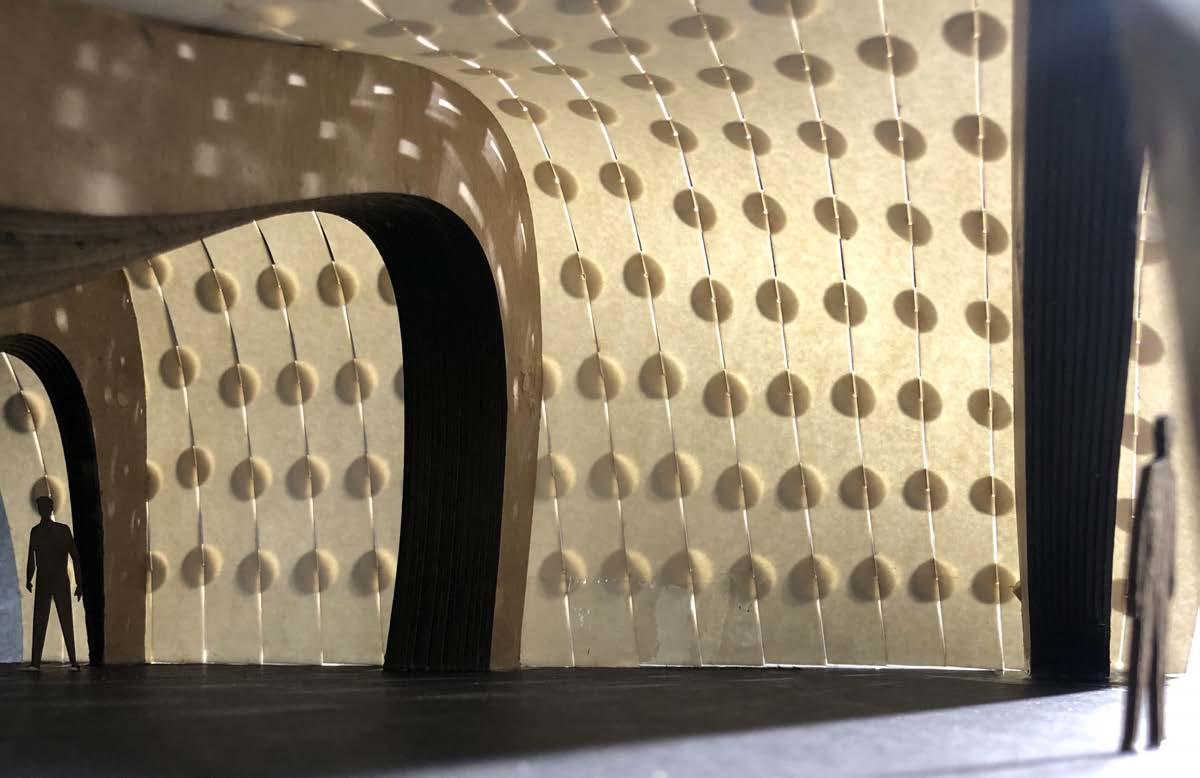

These forms were preliminary spatial explorations intended to prepare for the transition from digital to physical. The materiality being explored is Bristol Board.

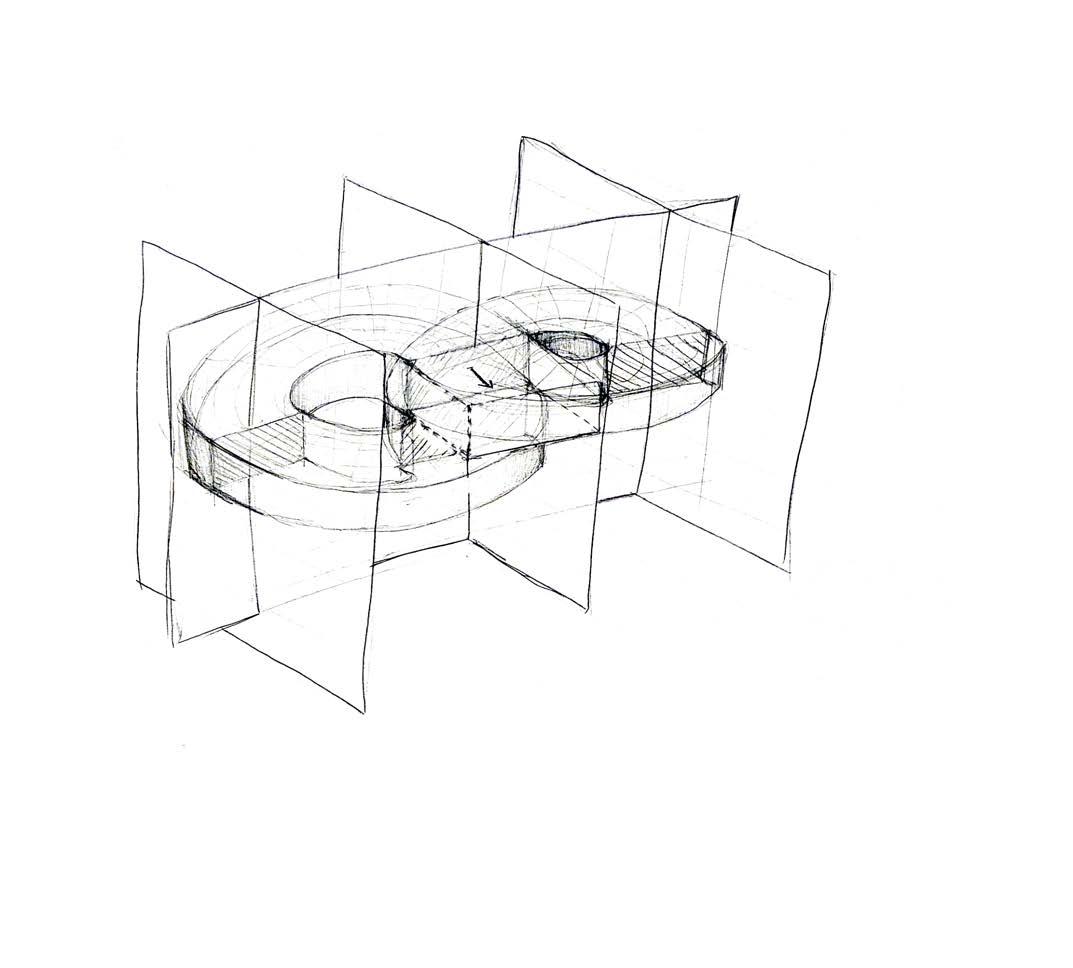

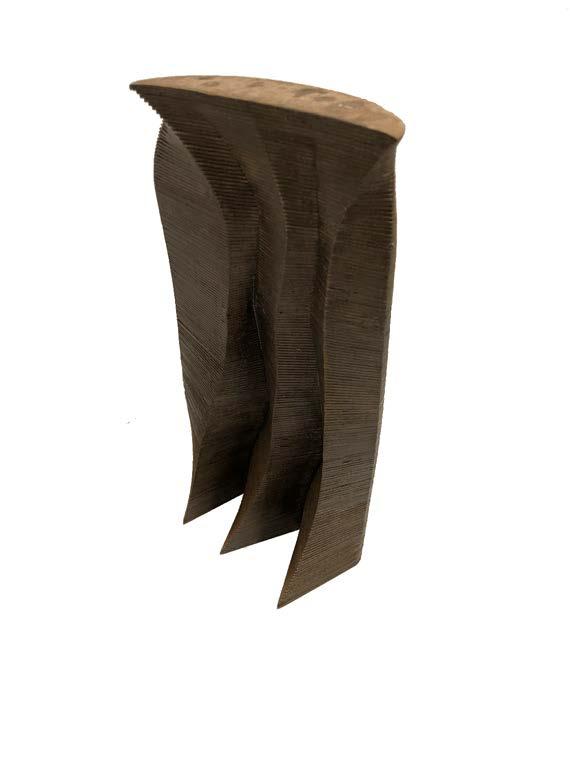

Initial exploration of generating unique forms is shown below, by utilizing numerous techniques and tools from Rhino7. These first examples are joined with glue or tape.

SEWN

TABS

NOTCHES

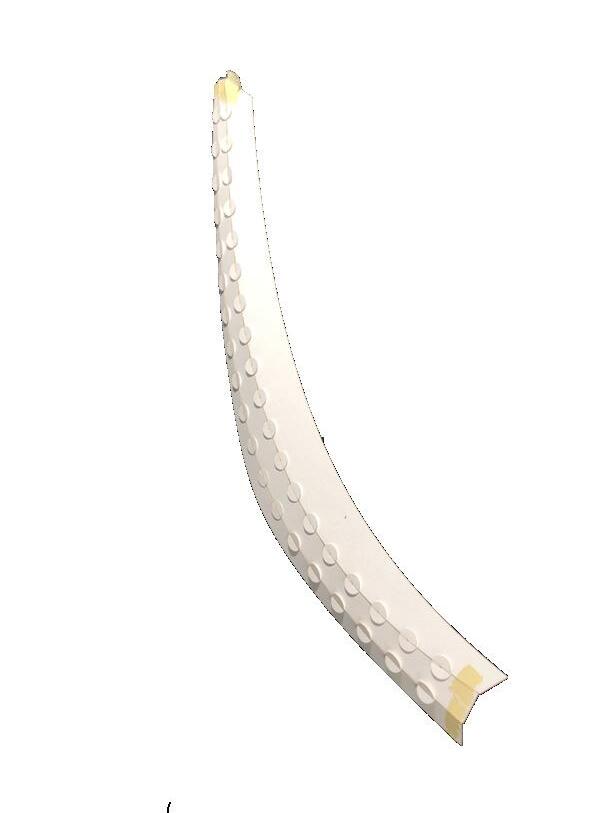

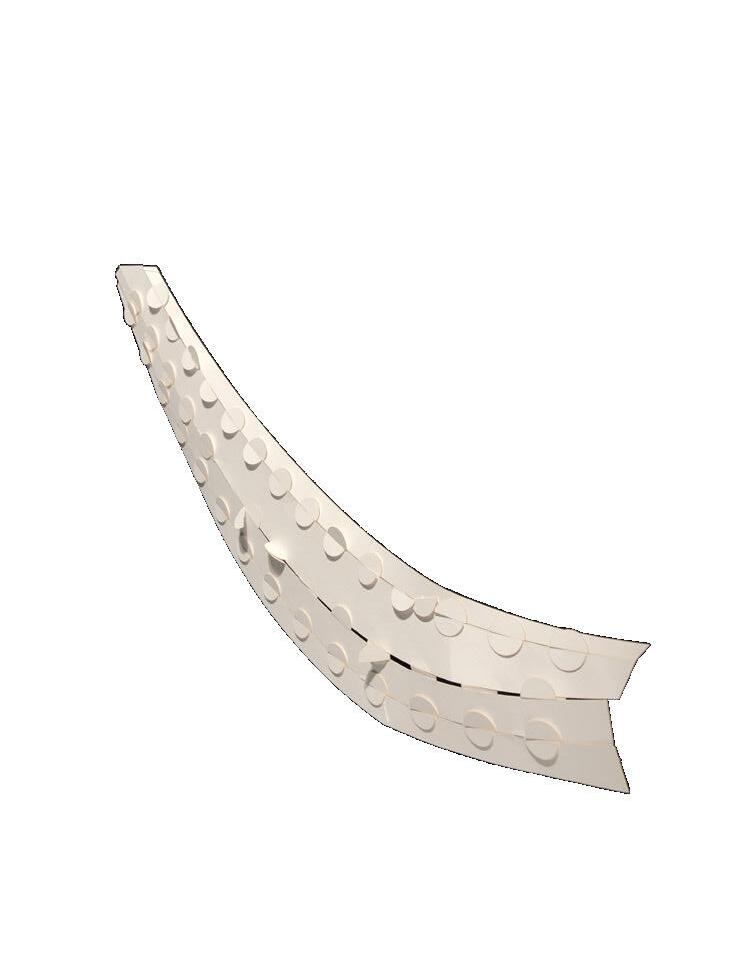

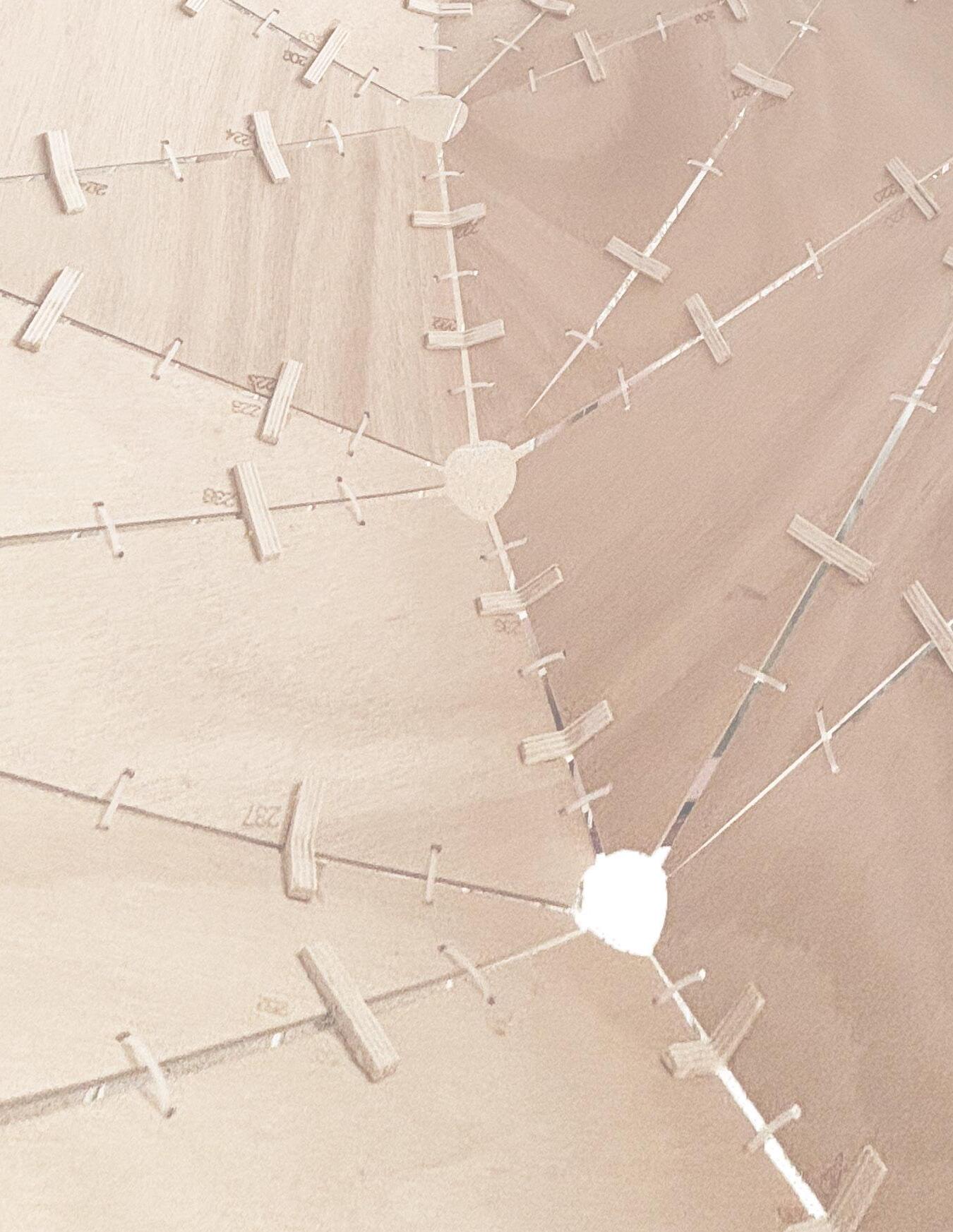

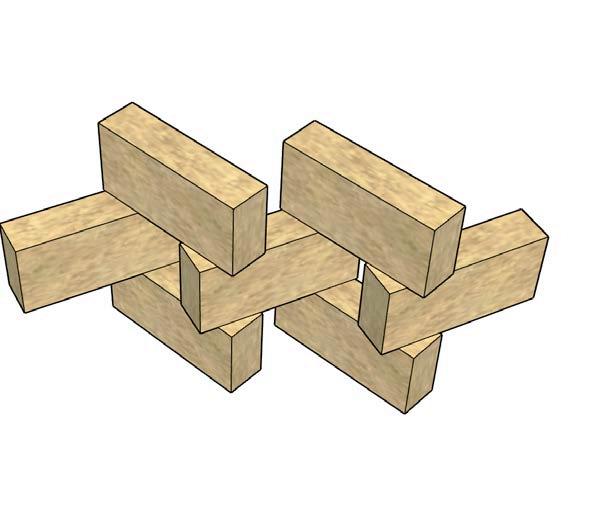

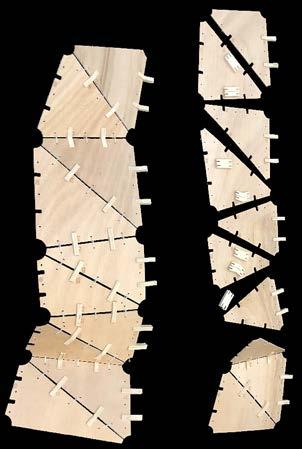

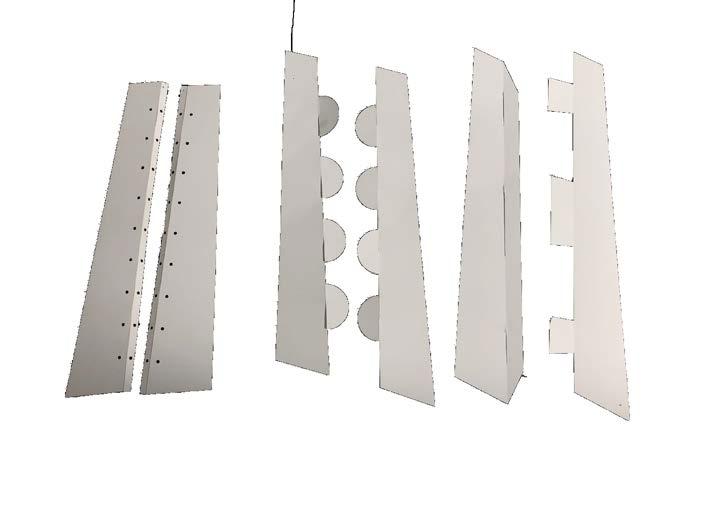

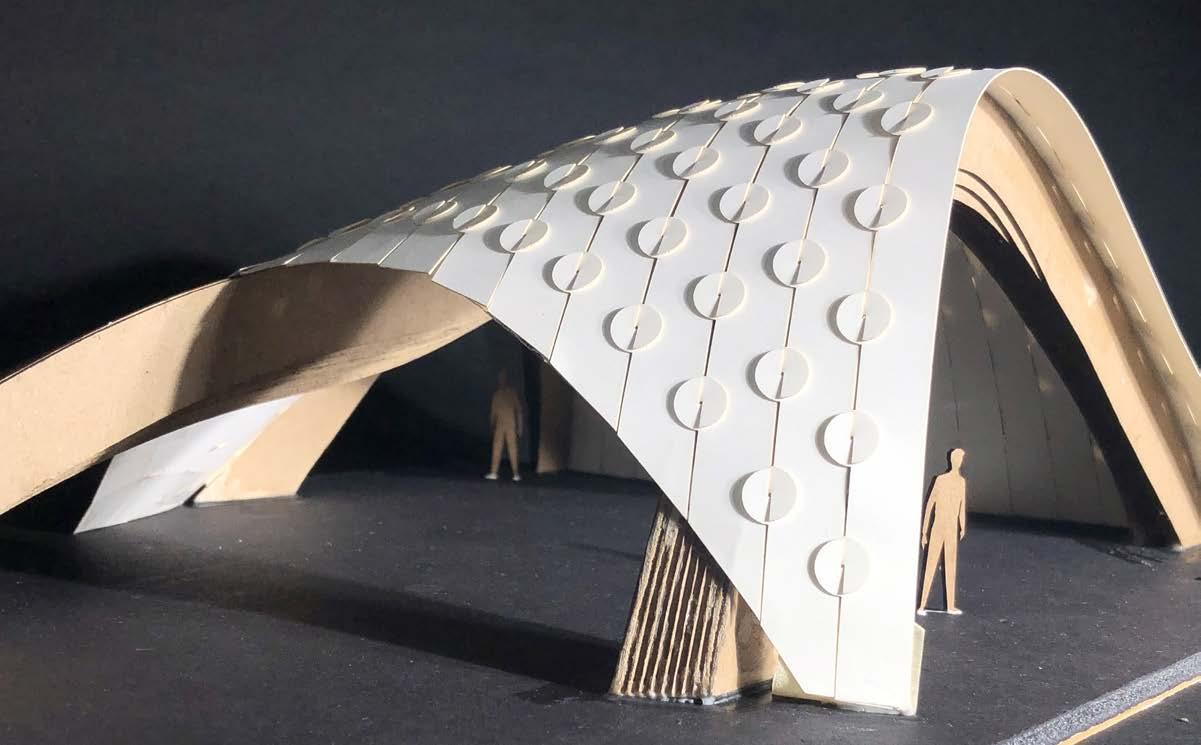

The series of images on the right show the development of a joinery technique. Using Grasshopper, I developed what I called the tab method that was most functional, delivering an additional aesthetic quality spatially, which prompted this method to be explored further.

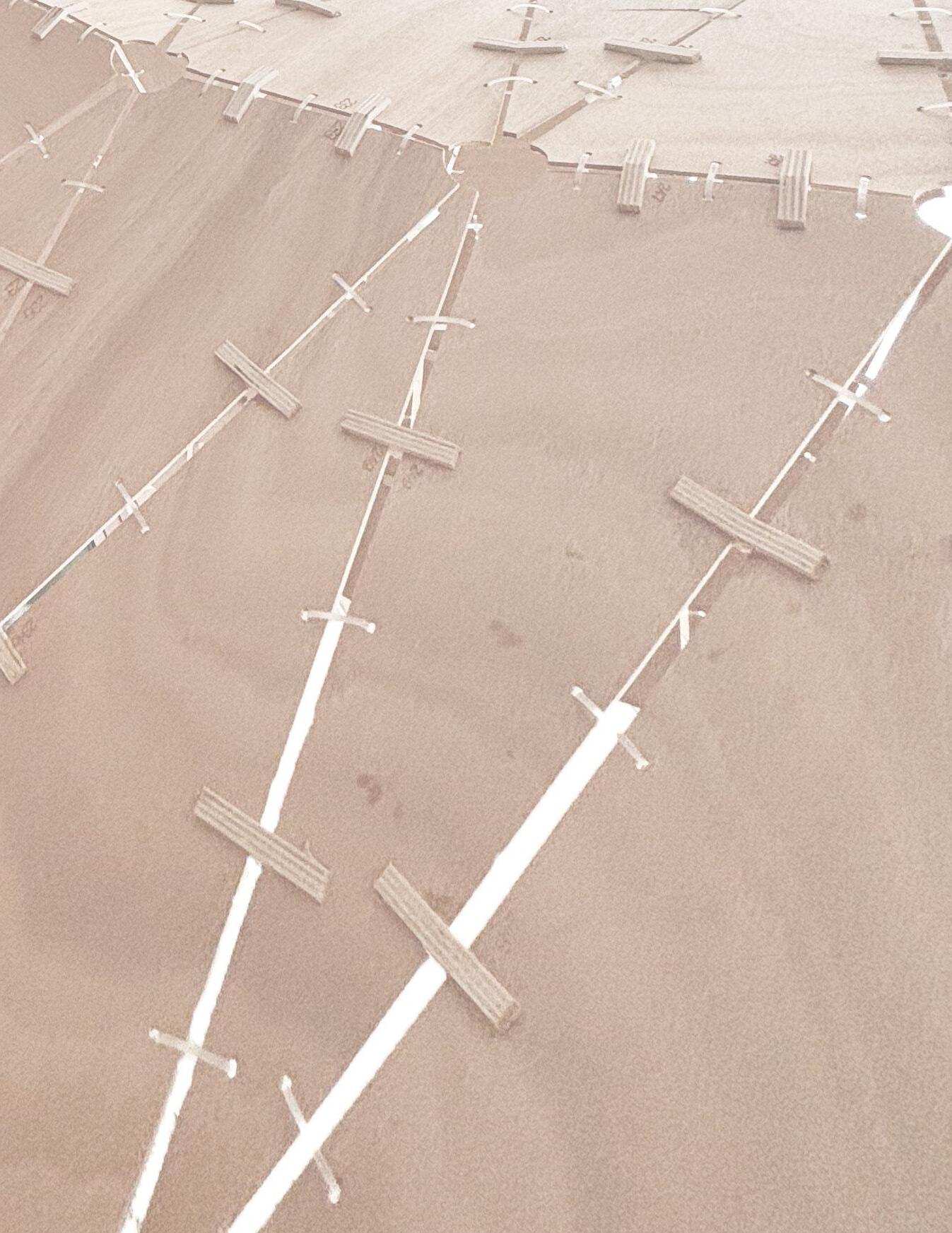

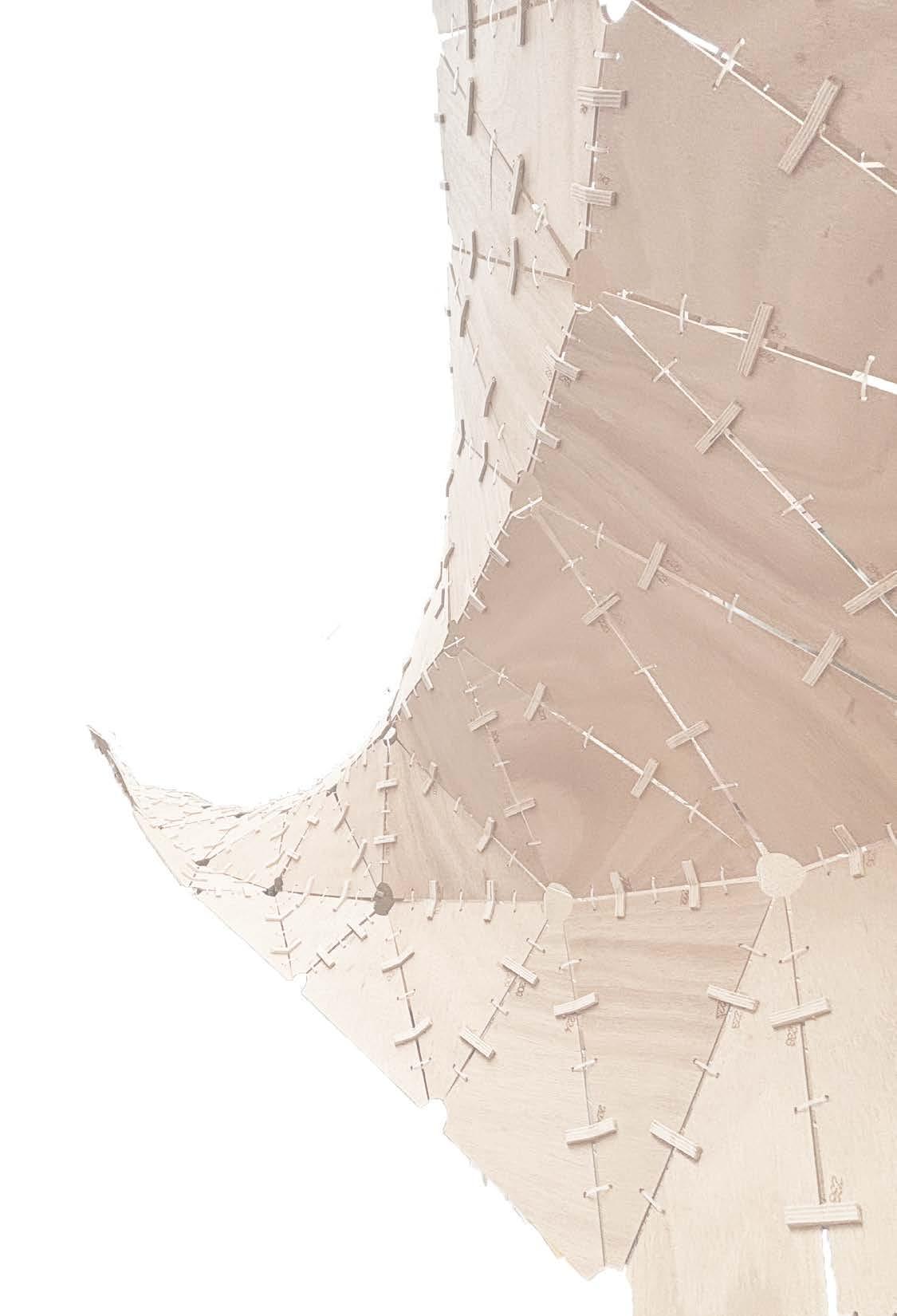

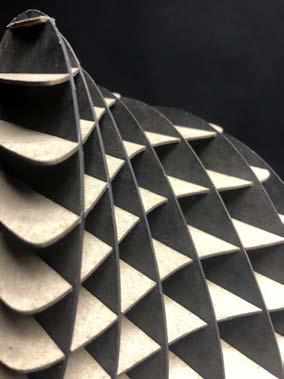

The tab method was used in the final model which also employed a structural frame to guide the form into place. At this stage, adhesives were only used for the structure and its connection to the base.

TAB METHOD DEVELOPMENT

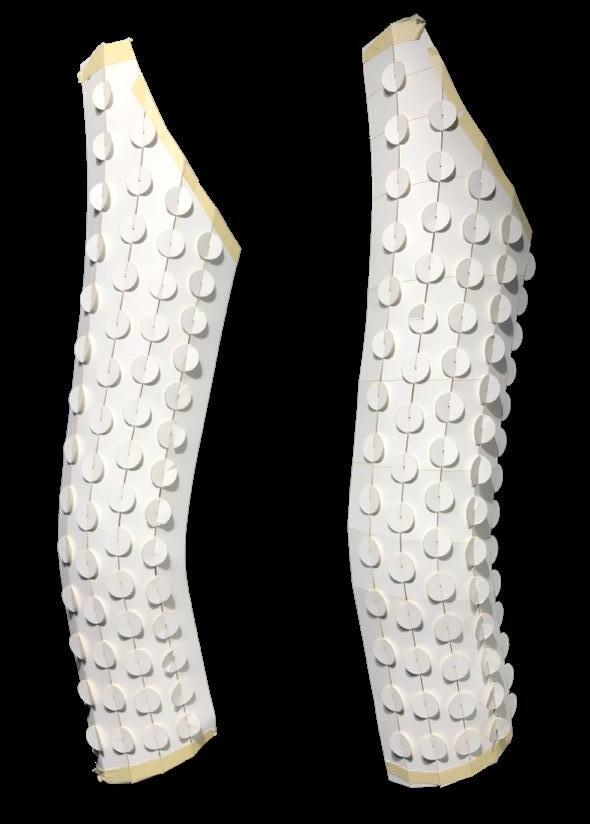

3D MODEL 32

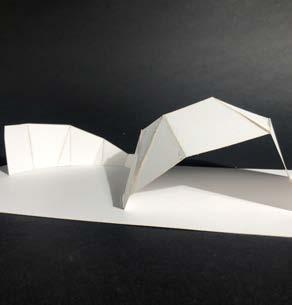

PHYSICAL MODEL, PRELIMINARY EXPLORATIONS

FABRICATION PROJECTS

TESTING JOINERY

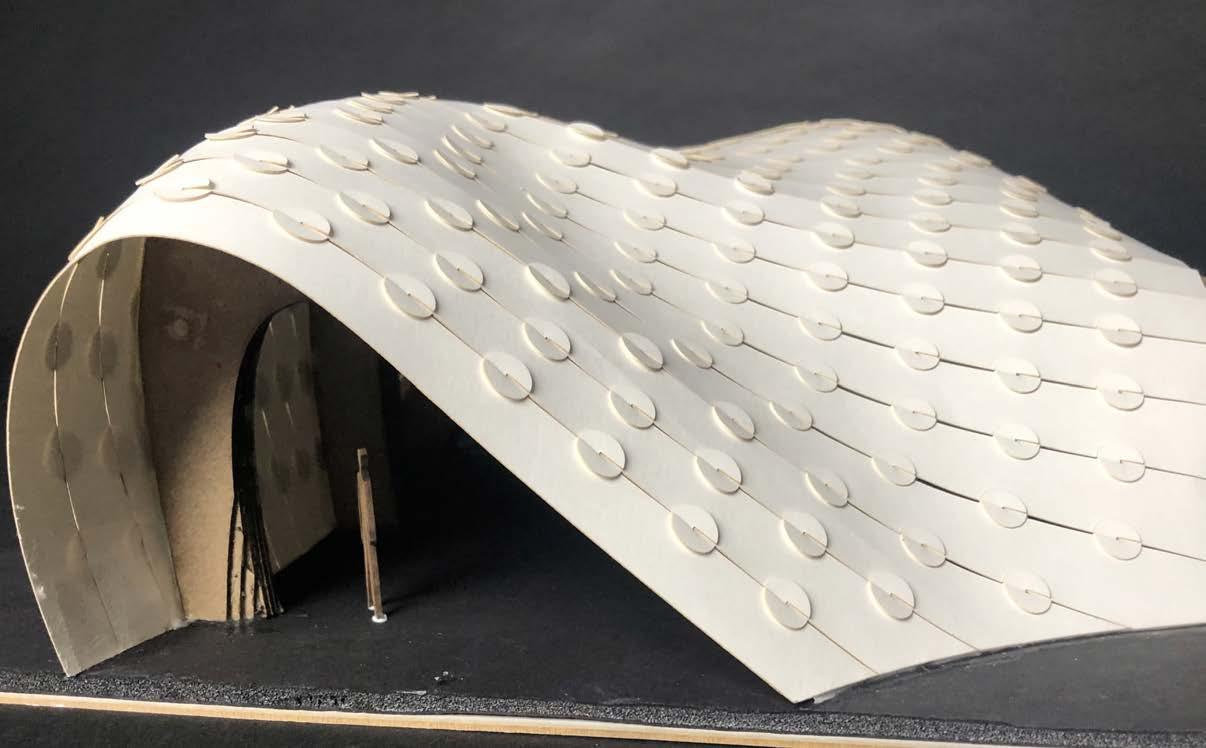

FINAL MODEL

ZACK WIENERS

SMOOTH RHINO MODEL 33

34

FABRICATION PROJECTS

ZACK WIENERS

35

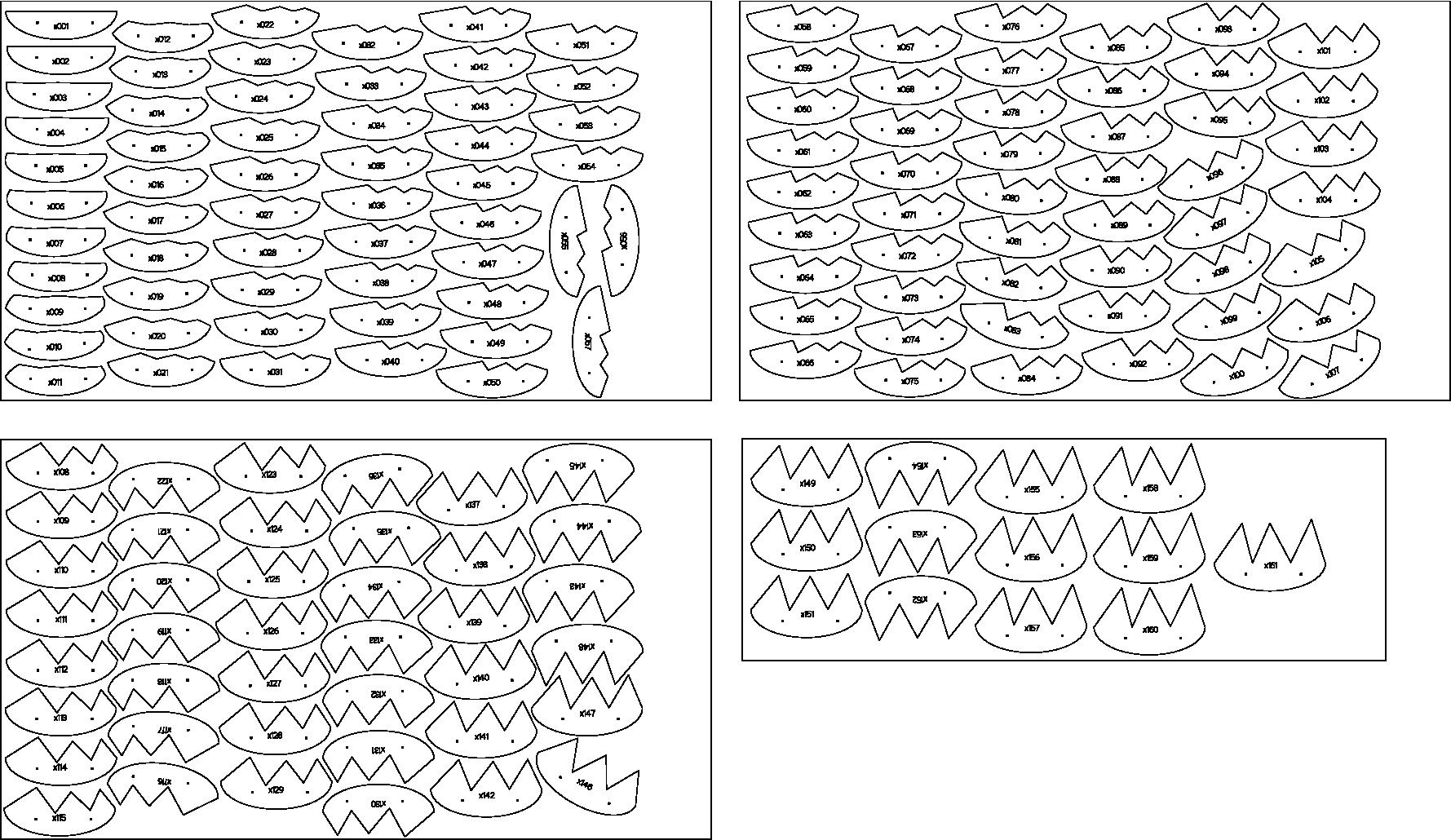

Laser Cutter Fabrication Sheets

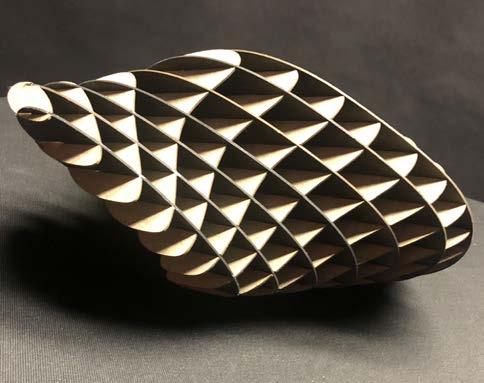

SLICING, FOLDING, WAFFLING UTILIZING RHINO TOOLS Architectural Analysis 2 - Spring 2022 Professor Olga Mesa

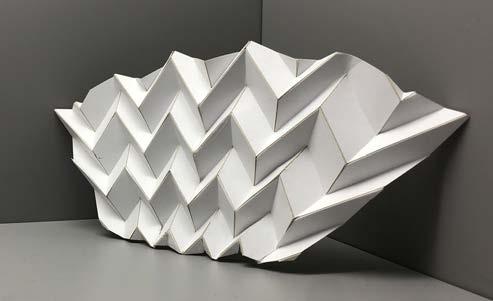

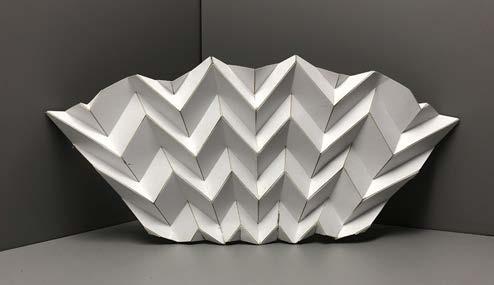

These projects went through a two step process. Generating a form using a certain tool, and then constructing a model using a different set of tools.

The first example involved designing an unconventional form using the tween command in rhino, and then constructing that form by slicing contours based on the thickness of the material used; in this case, 1/16” Chipboard

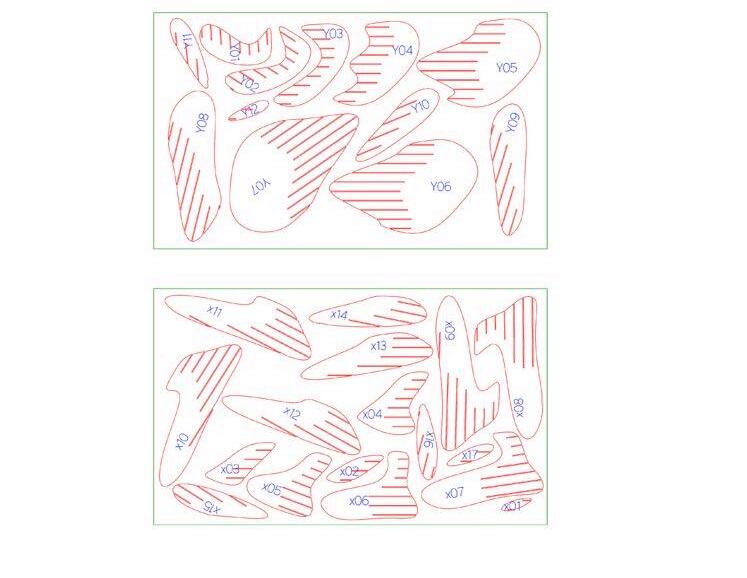

Laser Cutter Fabrication Sheets

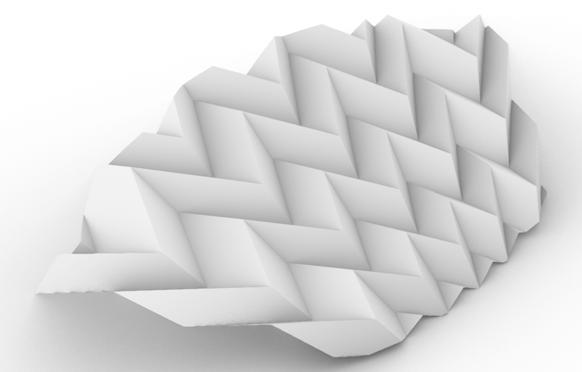

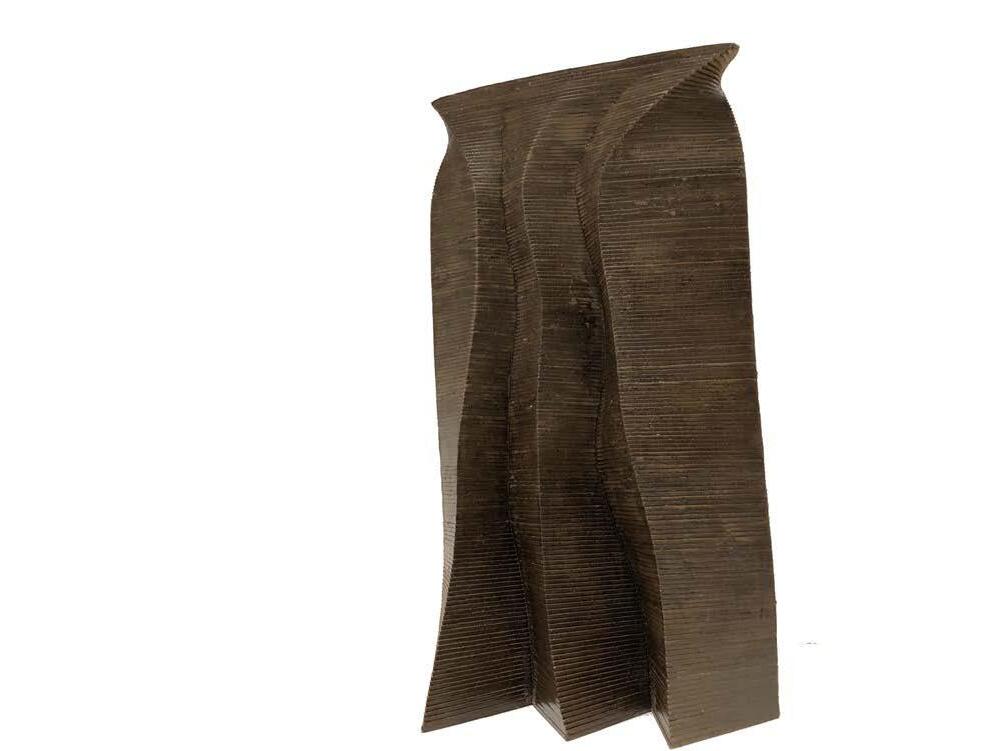

The next was to generate an organic form using SubD tools in rhino, and then constructing the model by contouring in the U and V directions, intersecting the parts to make notches. Once the parts were cut, one set of parts was painted for additional contrast.

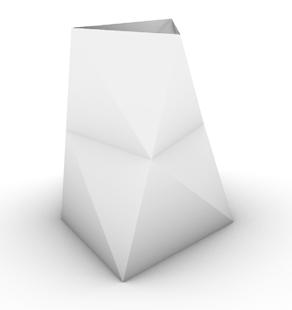

The last example was made in rhino using the mirror command. This generated a folded form. It was constructed by etching fold seams into bristol paper on two sides, and then manually folded after cutting to generate the folded form in physical space.

LASER CUT SHEET

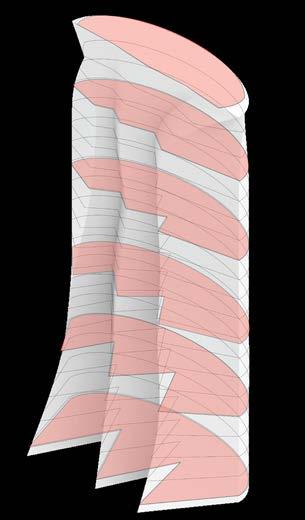

Diagramming Form and Intent

Zack Wieners Arch282.02 - Project 2.1

Zack Wieners Arch282.02 - Project 2.1

FORM DIAGRAM 36

FABRICATION PROJECTS

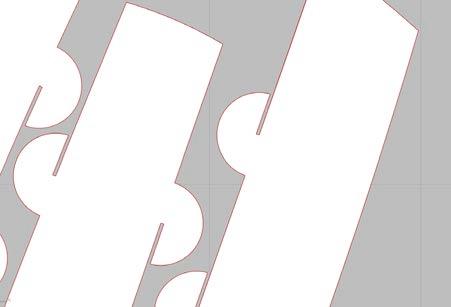

CUT SHEETS FOR U AND V DIRECTIONS

CUT SHEET WITH ETCHES FOR FOLDING

ZACK WIENERS

37

SUPPLEMENTAL WORK TECHNICAL DRAWINGS - Working with details ANIMATIONS - Digital media production to represent architectural spaces; QR codes to videos GRASSHOPPER DEFINITIONS - Personally developed for various purposes

TECHNICAL DRAWINGS WORKING WITH DETAILS

Drawings on this spread are all from Integrated Design Studio, Fall 2024, Professor Myoung Kim. NOTE: The full project includes a robust design narrative and a black and white set with architectural, structural, mechanical, and detail drawings. Both documents are accessible through the QR code at the beginning of this booklet

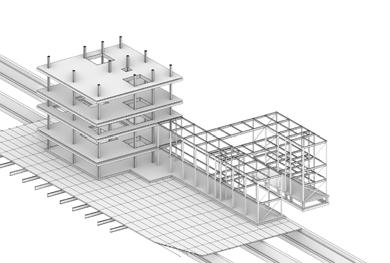

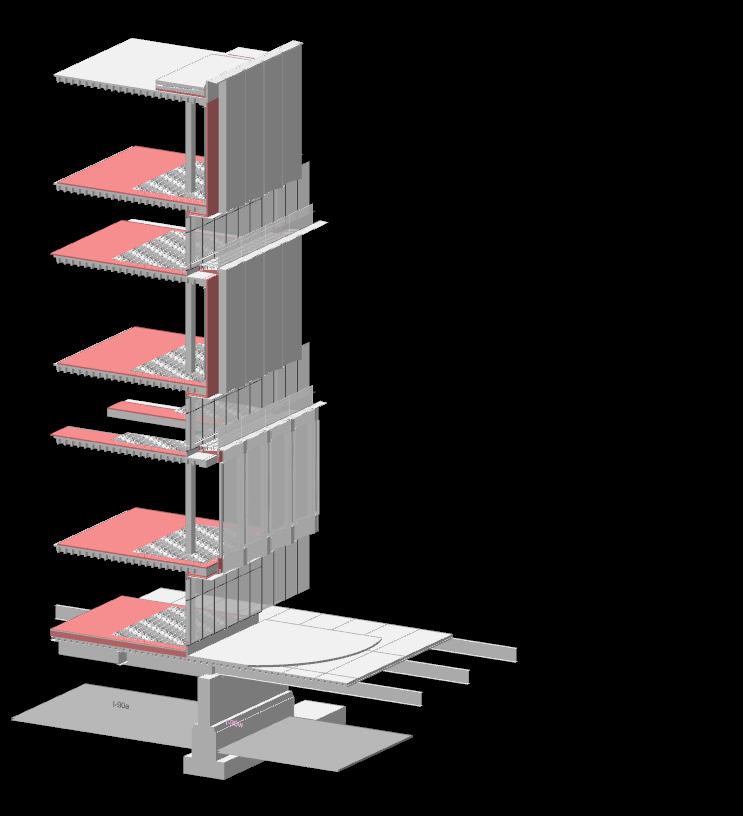

COMPOSITE ASSEMBLY MODEL 40

SUPPLEMENTAL WORK

1

TOP OF PARAPET 157' 9"

TOP OF PARAPET 157' 9"

5'-67 8"

1

1

4&5 A3-01

B.O. ROOF 152' 2 1/8"

TOP OF PARAPET 157' 9"

2

20'-111 8"

7" 5'-68

7" 5'-68 B.O. ROOF 152' 2 1/8"

B.O. ROOF 152' 2 1/8"

3

4 FIN. SEVENTH FLOOR 131' 3"

3'-07 8"

B.0. SEVENTH FLOOR 128' 2 1/8"

2

2

5 12'-111 8"

3

6 FIN. SIXTH FLOOR 115' 3"

3'-07 8"

2 A3-01

B.O. SIXTH FLOOR 112' 2 1/8"

5

4

TYP. PARAPET CONDITION GFRC PANEL 1/2" = 1' 0"

TYP. PARAPET CONDITION SCALLOPED GLASS 1/2" = 1' 0"

7

20'-111 8"

3

6

4 FIN. FIFTH FLOOR 91' 3

3'-07 8"

6

B.O. FIFTH FLOOR 88' 2 1/8"

FIN. FOURTH FLOOR 75' 3" 12'-111 8"

3'-07 8"

3'-1"

FIN. SIXTH FLOOR 115' 3"

3

B.O. FOURTH FLOOR 72' 2"

(1) GREEN ROOF ASSEMBLY (SEE DETAILS 4 AND 5 FOR TYP. PARAPET CONDITIONS

6

6" MIN. SOIL GEOTEXTILE MEMBRANE GREEN ROOF SYSTEM W/ DRAINAGE BOARD WATERPROOFING CONCRETE (SLOPE TO DRAIN) VAPOR BARRIER 6" RIGID INSULATION EXPOSED CONCRETE WAFFLE SLAB W/ RADIANT COILS

FIN. FOURTH FLOOR 75' 3"

3'-1"

B.O. SIXTH FLOOR 112' 2 1/8"

3

B.O. FOURTH FLOOR 72' 2"

A3-01

2

2

(2) SCALLOPED WINDOW FACADE ASSEMBLY: (SEE DETAIL 2) 1 21" TRIPLE LAYERED SCALLOP GLASS WITH PVB SHATTER PROTECTION INSULATION ALUMINUM CHANNEL SHAPED TO GLASS AND FIXED TO CONCRETE SLAB FLOOR TO CEILING ALUMINUM FINS SUPPORTING GLASS

7 20'-11"

(3) TYP. INTERIORFLOOR ASSEMBLY

3

4

1" FINISH FLOOR TILES WITH RADIANT COILS 14" RAISED ACCESS FLOOR 1" SOUND IMPACT INSULATION 3" INSULATION EXPOSED CONCRETE WAFFLE SLAB WITH RADIANT COILS

FIN. THIRD FLOOR 51' 3"

3'-07 8"

1" 20'-118

B.O. THIRD FLOOR 48' 2 1/8"

(4) TYP. CANTILEVER CONDITION

16'-01 4"

1" FINISH FLOOR TILES WITH RADIANT COILS 14" RAISED ACCESS FLOOR 1" SOUND IMPACT INSULATION 3" INSULATION CONCRETE WAFFLE SLAB 2" CFM STUDS FIXED TO 2" RIGID INSULATION AIR GAP 2" INSULATION GFRC EXTERIOR FINISH PANEL

20'-11"

(5) TYP. SELF SUPPORTING MULLION SYSTEM FIXED TO CONCRETE SLAB

8 FIN SECOND FLOOR 32' 7/8"

(6) TYP. EXTERIOR CONDITION AT BALCONY SPACES

4

4

FIN. THIRD FLOOR 51' 3"

I-90w

7" 3'-08

7" 3'-08

FIN. FIFTH FLOOR 91' 3

LAMMINATED SAFETY GLASS WITH HANDRAIL STONE PAVING ON ADJUSTABLE VINYL PEDESTALS WATERPROOFING MEMBRANE INSULATION WITH TAPERING TOP EXPOSED CONCRETE WAFFLE SLAB WITH RADIANT COILS (7) TYP. GFRC FACADE PANEL ASSEMBLY (SEE DETAIL 3) CUSTOM CONCAVE GFRC PANELS TO MATCH SCALLOPED GLASS CURVATURE 3" ROCKWOOL SOUNDPROOFING INSULATION 1" GYPSUM WALL BOARD 3" CFM STUD WALL FINISH INTERIOR WALL

B.O. THIRD FLOOR 48' 2 1/8"

B.O. FIFTH FLOOR 88' 2 1/8"

(8) ASSEMBLY CONDITION OVER INTERSTATE 90

3

2

TYP. GFRC PANEL CONDITION 1/2" = 1' 0"

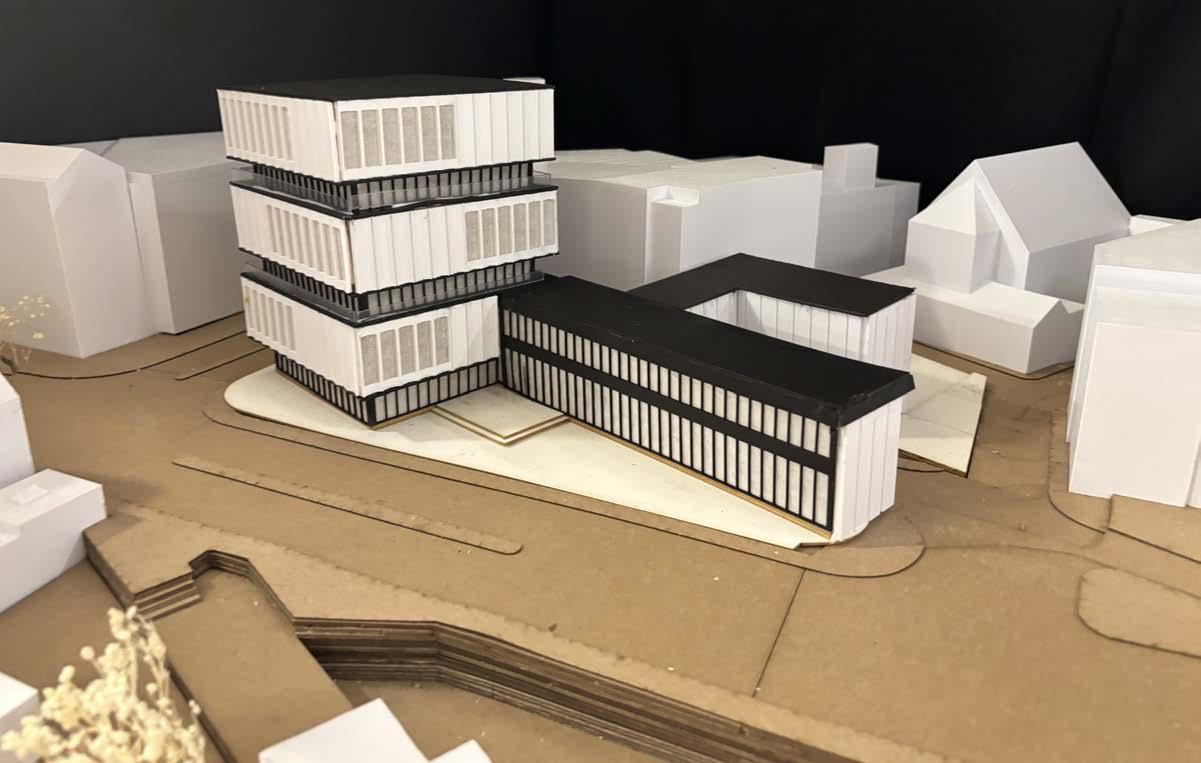

BOSTON MEDIA FACTORY

ZACK WIENERS

BOSTON MEDIA FACTORY

ZACK WIENERS

TYP. SCALLOPED GLASS CONDITION 1/2" = 1' 0"

1

4' LATERALLY BRACED PRECAST CONCRETE BEAM FIXED TO EXISTING FOUNDATION WALL 12" HOLLOW CORE COMPOSITE CONCRETE DECKING 16" INSULATION CONCRETE SCREED 1" SOUND IMPACT INSULATION 14" RAISED ACCESS FLOOR 1" FINISH FLOOR TILES WITH RADIANT COILS

COMPOSITE DETAIL 3/16" = 1' 0"

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ARCH 513 INTEGRATED PROJECT DESIGN STUDIO FALL 2024 Prof. MYOUNG KIM

ZACK WIENERS

SCALE : BY DRAWING DATE :

DETAIL ASSEMBLIES

12/22/2024

SCALE : NTS DATE :

12/22/2024

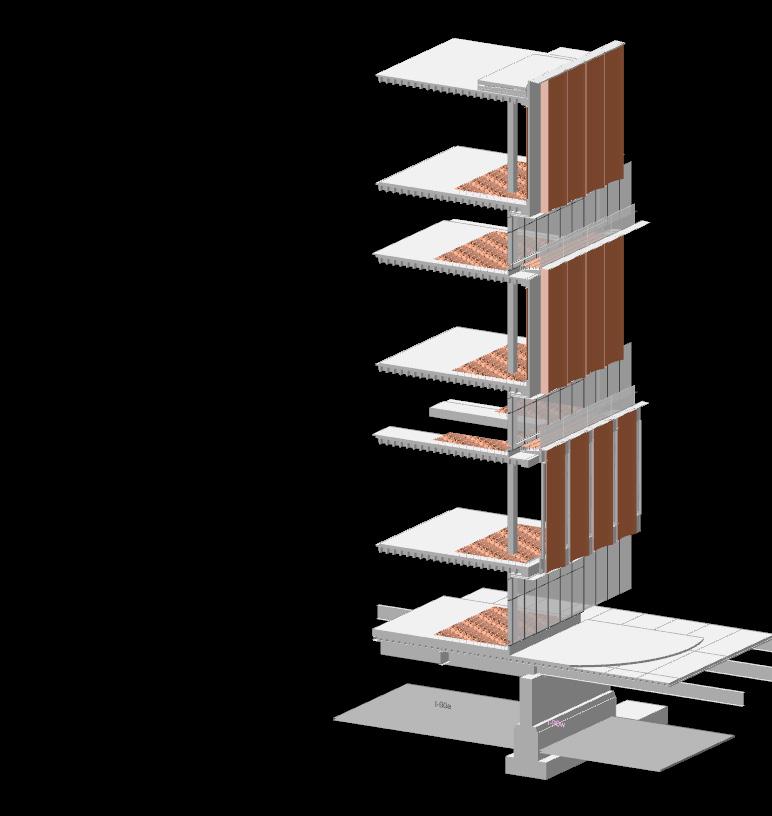

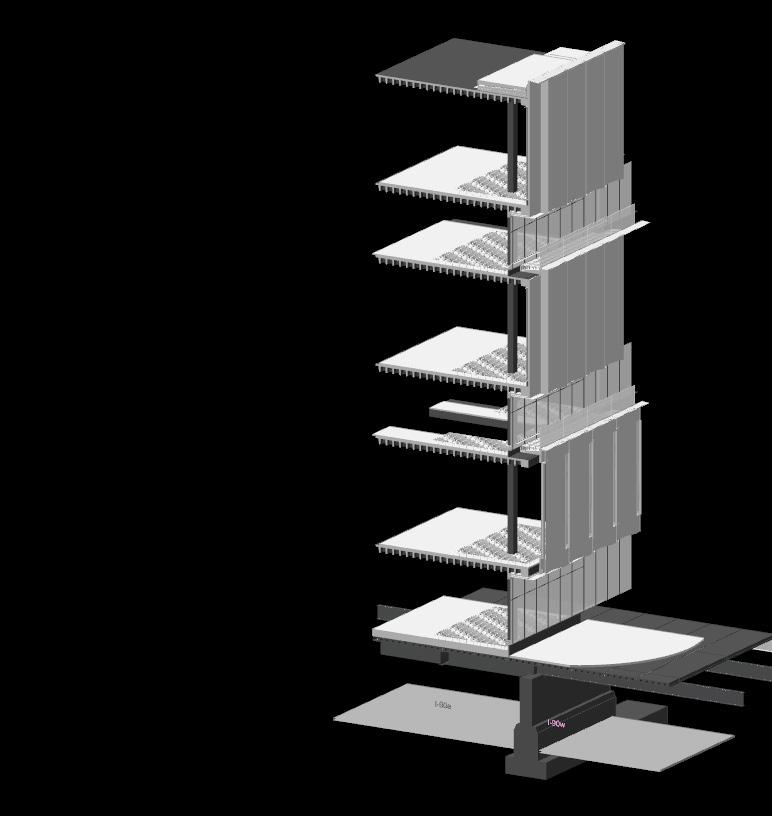

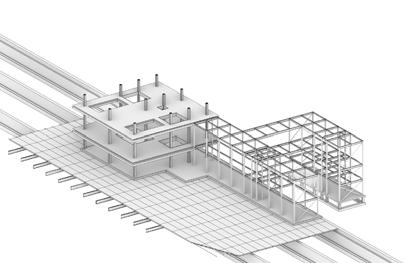

MECHANICAL SYSTEMS AXON

A3-01

M2-02

41

TECHNICAL DRAWINGS WORKING WITH DETAILS

Drawings on this spread are all from Computer Applications for the Professional Practice, Fall 2023, Professor Chris Winkler. These drawings are from my first exposure to Revit. The project included researching the existing drawings, building the model, and organizing the drawings.

www.autodesk.com/revit

Consultant Address Address Address Phone Consultant Address Address Address Phone Consultant Address Address Address Phone Consultant Address Address Address Phone Consultant Address Address Address Phone

No.

1

Description

Date

Axon

Owner Farnsworth House

Project Number Date Drawn By Checked By

Assignment 1 October 16, 2023 Zack Wieners Checker

A.901 Scale

E

D

2

C

1

B

A.301

A.401

A

10/16/2023 2:52:21 AM

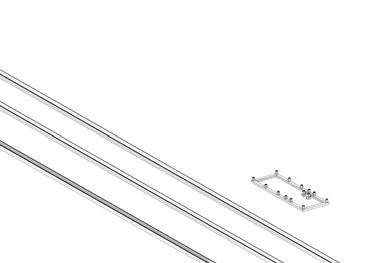

Axonometric

www.autodesk.com/revit

Consultant Address Address Address Phone Consultant Address Address Address Phone

Roof 9' - 6"

Consultant Address Address Address Phone First Floor 0' - 0"

Consultant Address Address Address Phone

2 A.501

Ground -4' - 8 1/2"

Consultant Address Address Address Phone

T.O. Footing -9' - 3"

B.O. Footing -10' - 3"

1

Section 1 1/4" = 1'-0"

No. 19

1 A.402

18

17

16

15

1 A.301

14

13

12

11

10

9

8

7

6

5

4

3

2

Description

Date

1

Roof 9' - 6"

Owner First Floor 0' - 0"

Farnsworth House

Ground -4' - 8 1/2"

Building Sections

B.O. Footing -10' - 3"

Project Number Date Drawn By Checked By

2

A.301

Section 2 1/4" = 1'-0" Scale

42

SUPPLEMENTAL WORK

Assignment 1 October 16, 2023 Zack Wieners Checker

1/4" = 1'-0"

10/16/2023 2:52:18 AM

T.O. Footing -9' - 3"

PITCH AND GRAVEL PLASTIC ELASTIGUM 2" X 2" STEEL GUARD ANGLE ROOFING FELT WITH LEAD FLASHING 2" FOAM GLASS IMBEDDED IN ASPHALT FACIA CUT FROM 5" WIDE FLANGE LIGHTWEIGHT CONCRETE FILL

www.autodesk.com/revit

PRECAST CONCRETE CHANNEL SLAB

Consultant Address Address Address Phone

6" X 3 1/2" STRUCTURAL STEEL ANGLE AT 12" O.C. 15" STRUCTURAL STEEL GIRDER 2" CORK BOARD

Consultant Address Address Address Phone

8" X 3" BENT STEEL PLATE 3/4" STEEL BAR

Consultant Address Address Address Phone

PLUG WELD 5/16" X 7/8" SCREW AT 12" O.C.

Consultant Address Address Address Phone

1 1/4" X 5/8" STEEL BAR CEILING ASSEMBLAGE HANGER 1 1/2" STEEL CHANEL

Consultant Address Address Address Phone

PLASTER HANGER METAL LATH AND PLASTER CEILING 1

East Wall Section Detail 3" = 1'-0"

15" X 15" STRUCTURAL STEEL GIRDER TERRACE DRAIN

No.

Description

Date

TRAVERTINE STAIR AND STRINGER BAR

SUPPORT PIN AND THREADED ROD ADDED TO SUPPORT HEAVIER MUSEUM TRAFFIC

Owner Farnsworth House

Ground -4' - 8 1/2"

Project Number Date Drawn By Checked By

2

18

17

16

15

1 A.301

14

13

Assignment 1 October 16, 2023 Zack Wieners Checker

A.501

Section 1 - Callout 1 3" = 1'-0"

Scale

3" = 1'-0"

10/16/2023 2:52:19 AM

Detailed Sections

CONCRETE FOUNDATION CENTERED ON STAIR WIDTH

12

www.autodesk.com/revit Roof 9' - 6" Consultant Address Address Address Phone Consultant Address Address Address Phone Consultant Address Address Address Phone

1 A.402

Consultant Address Address Address Phone Consultant Address Address Address Phone

First Floor 0' - 0"

Ground -4' - 8 1/2"

No.

Description

Date

T.O. Footing -9' - 3" B.O. Footing -10' - 3"

Owner 1

Section 3 3/4" = 1'-0"

Farnsworth House

Project Number Date Drawn By Checked By

Assignment 1 October 16, 2023 Zack Wieners Checker

A.401 Scale

ZACK WIENERS

3/4" = 1'-0"

10/16/2023 2:52:18 AM

Enlarged Section

43

ANIMATIONS

Digital media production to represent architectural spaces.

These projects were done in an Advanced Computer Applications course taught by Olga Mesa in Fall of 2024 The code to the right will take you to my YouTube channel where I post the final videos The codes adjacent each image will take you to the respective projects

All Projects

Dynamic Viewpoints

44

SUPPLEMENTAL WORK

Dynamic Environments

Scale and Attract

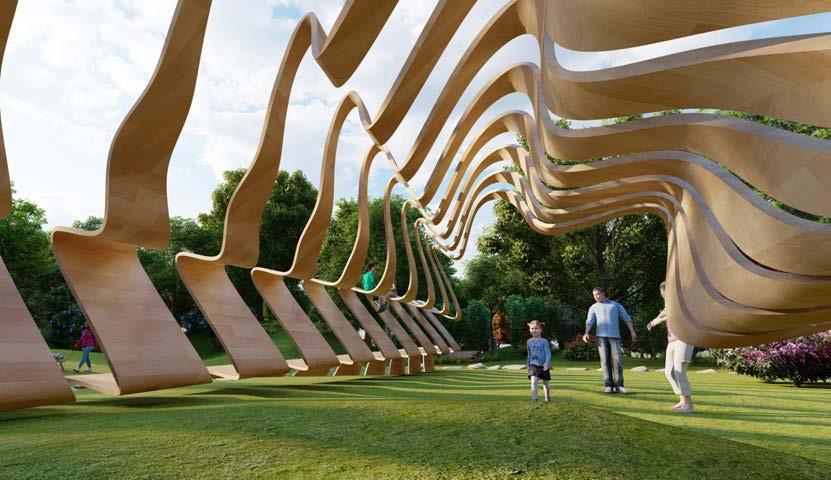

Grasshopper Pavilion

VR Dreamscapes

ZACK WIENERS

45

GRASSHOPPER DEFINITIONS

Personally developed for various purposes

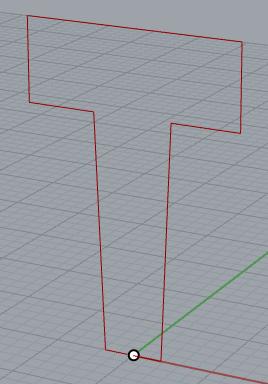

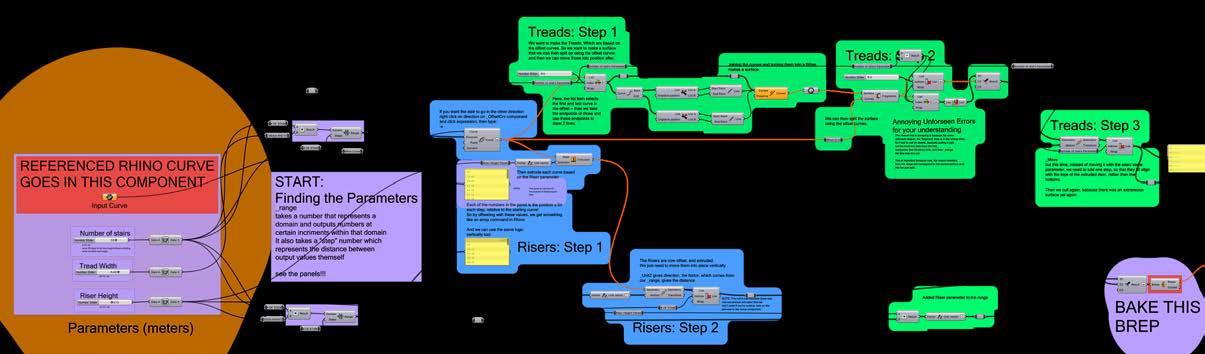

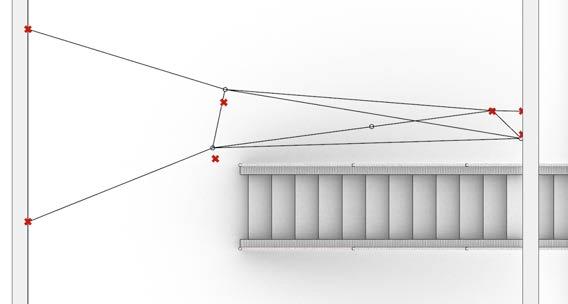

PARAMETRIC STAIRS This definition only requires a 2D line, curve, or polyline.

The definition generates a stair system based on the offset of that curve. It is extremely helpful if there is a dynamic stair component in a project. Or even to just help visualize. Parameters include # of steps, tread depth, and riser height. I wrote and used this definition in Presence for the stair/ramp system.

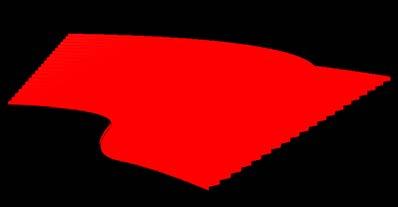

GENERATED USING A CURVALINEAR POLYLINE

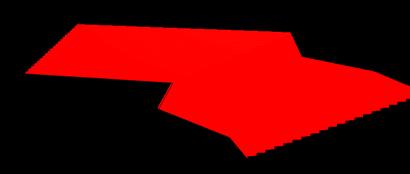

GENERATED USING A RECTILINEAR POLYLINE

PARAMETRIC MODULE

OUTPUT AFTER EXTRUDE, ARRAY, AND ROTATE

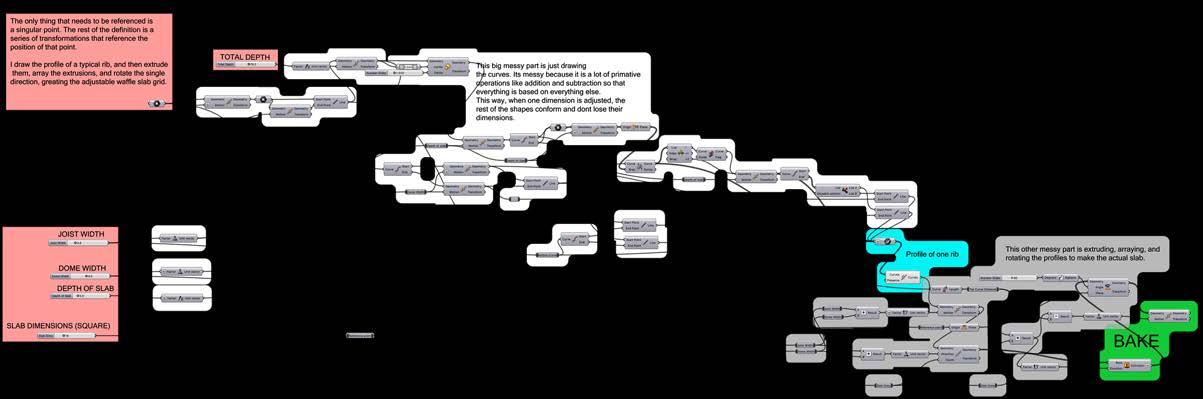

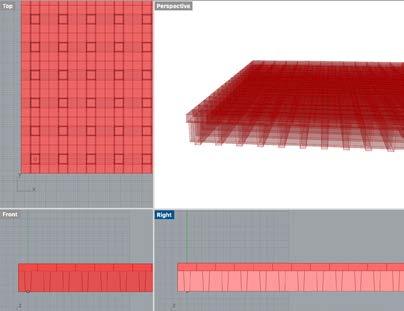

WAFFLE SLAB I was using a waffle slab for the structural system in the Boston Media Factory project, and realized it wouldn’t be too complicated to make a definition based on the variable dimensions of a waffle slab. The definition looks a lot more complicated than it is, as it is mainly addition and subtraction. Parameters include depth of slab,total depth of the system, width of joist, width between joists (dome width), and slab dimensions (square).

46

SUPPLEMENTAL WORK

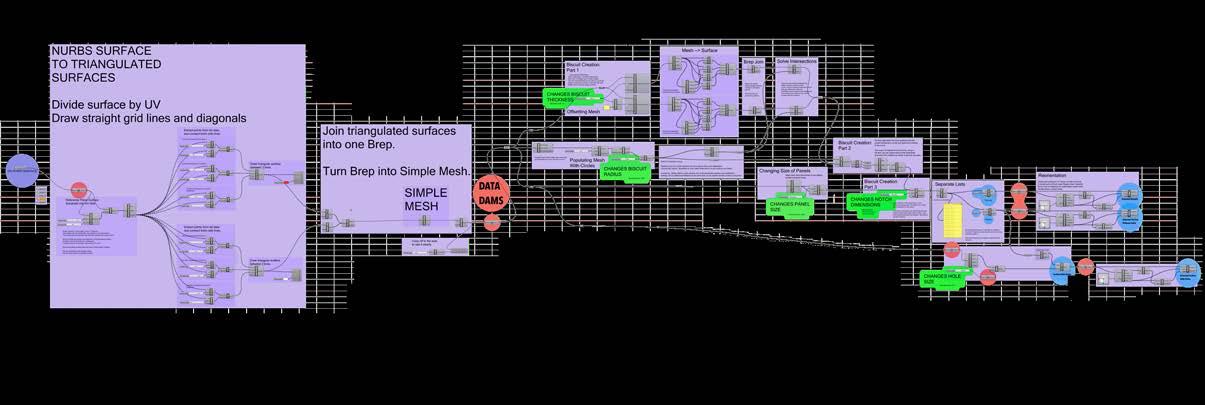

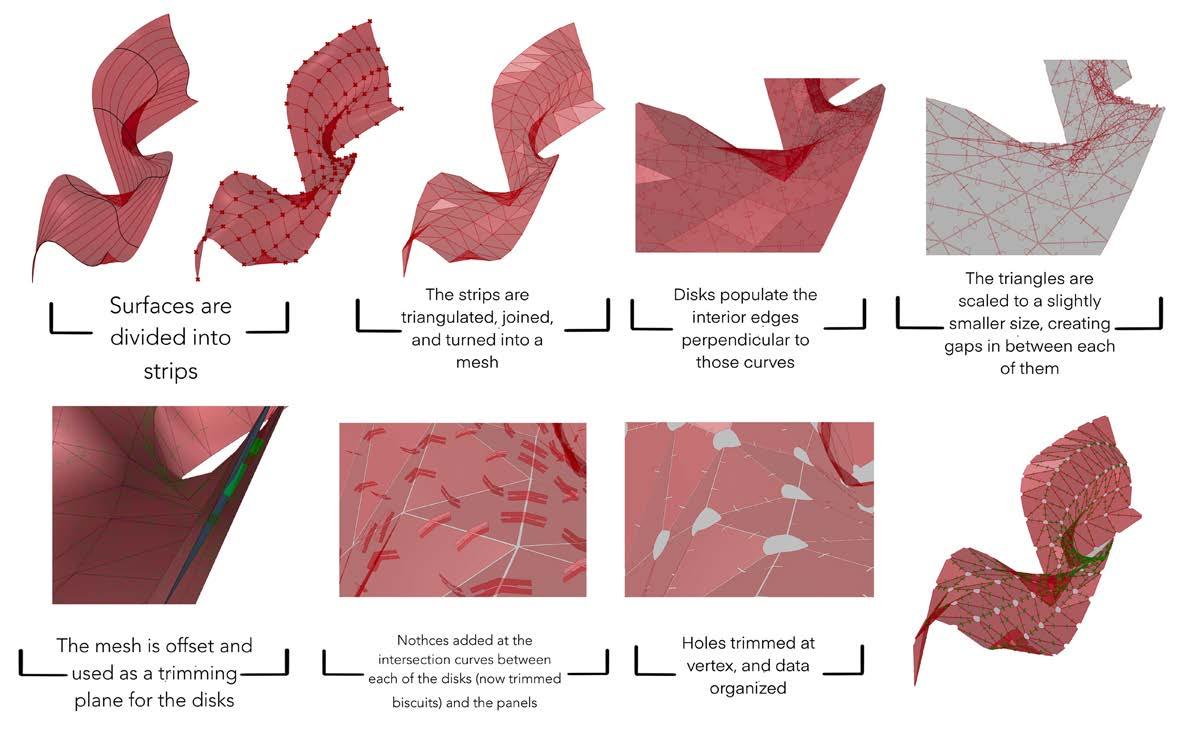

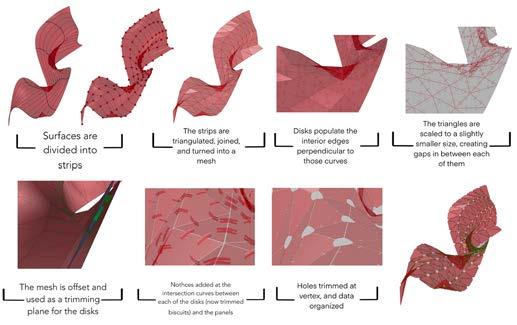

TECTONIC REINVENTION This definition takes any surface and applies the joinery method, and triangulation parameters used in the Tectonic Reinventions project. This definition is quite complicated, and deals with a lot of data management.

It ended up being worthwhile, as we were able to utilize the definition in the iterating process. This included everything from visual discretization, to the size and quantity of parts.

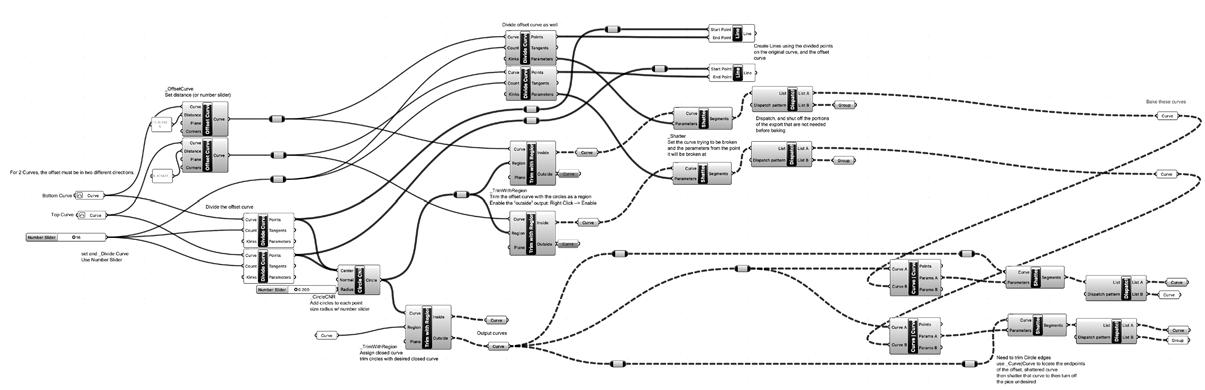

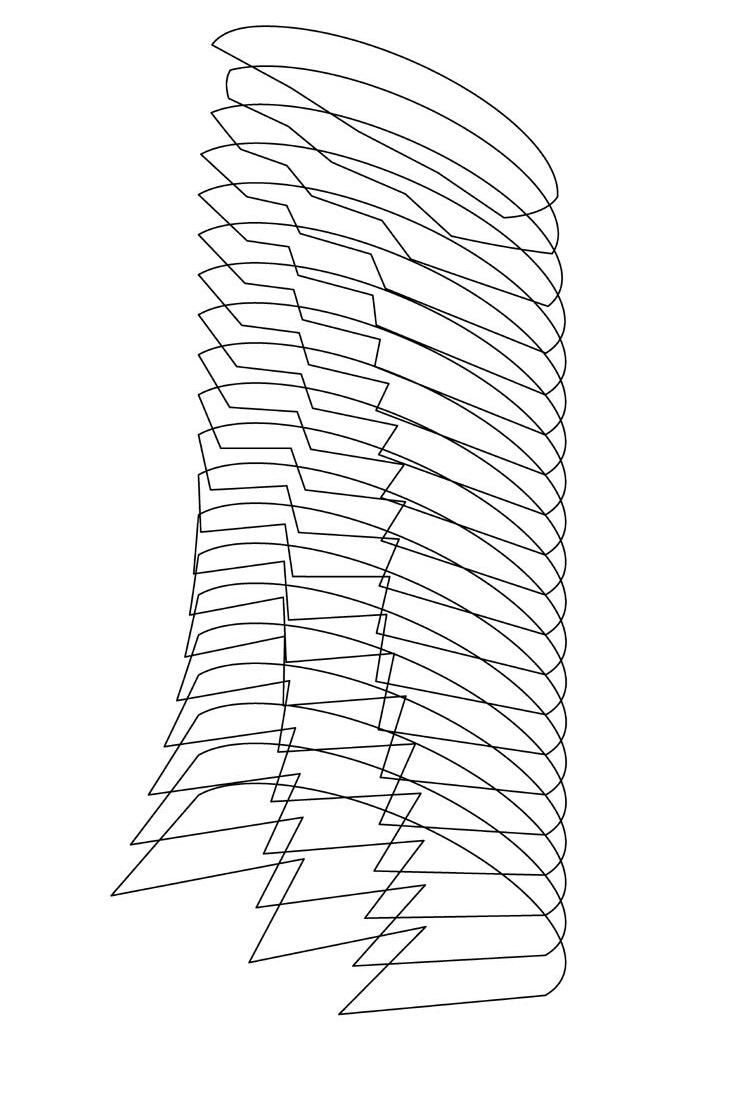

JOINERY SOLUTION This definition was one of my first explorations in grasshopper, and it was written for the project featured in the Joinery and Surface Development section. The definition populates 2D curves with circles and notches.

The curves came from unrolling strips from a surface in rhino. It made testing and the joinery method much more efficient, and of course came in handy to produce the final model.

ZACK WIENERS

47
