PORTFOLIO ARCHITECTURE selected competition Works | 2021
Yumna Hanun Andiani
Yumna Hanun Andiani, S.Ars
January, 25th 2000
Indonesian
Bumi Mutiara, Bojongkulur, Gunungputri, Kabupaten Bogor, Jawa Barat, Indonesia, 16969.
Jabodetabek, Yogyakarta, Surakarta yumnahanunandiani@gmail.com
@yumnahanun
https://issuu.com/yumna_hanun
https://www.linkedin.com/in/ yumna-hanun-andiani
I am an architecture graduate from Sebelas Maret University, Surakarta. Through my recent studies and experiences, I understand that architecture isn't just about an aesthetic beautiful outlook design, but also how it can be a great solution to an architectural problem with structural thinking process. Furthermore, I believe architectural thinking can't be limited only by physical aspects but also includes nonphysical aspects in the form of humanity and life at the macro level. Therefore, i always become passionate to create a design that consider of increasing human well-being and environment. I also eager to learn various things in architecture to improve my architectural thinking skills to become a good professional architect.
EDUCATION
Universitas Sebelas Maret (UNS)
Bachelor of Architecture (GPA 3.88/4.00)
2018-2022 | 4.3 years
HIGHLIGHT
Highly motivation, passionate, fast learner and willing to learn, organized, responsible, good interpersonal skill, able to work individually or in team.
INTEREST
Architecture, urban design, green architecture, landscape, interior design.
SOFTWARE
Autocad 2D
Sketchup
Enscape
Inkscape
ORGANIZATION
2018 | Intern Staff
EVENT/ PROJECT COMMITTEE PROFESSIONAL WORK EXPERIENCE
2018 | Volunteer Staff of Architecture Event
Archevent UNS - Architecture for millenials (National Architecture Event of UNS architecture department )
2019 | Exhibition Staff of Architecture Event
Archevent UNS - Reforming demolished community (National Architecture Event of UNS architecture department )
2019 | Volunteer Staff of Social Project
Charity project in Tileng Village, Sukoharjo, Central Java by BEM FT UNS (Student Council of UNS Engineering Faculty)
2021 | Supervisor Architect Internship
PT Cakrawala Berdikari Mandiri
Project: Solo Urbana Residence
Scale project: Middle rise building apartment area
Internship duration: 4 months
2021-2022 | Junior Architect
Civilarch Company
Project: residential, commercial, and social building.
Scale project: low rise building
Duration: 1 year
Coreldraw Gimp Adobe photoshop Microsoft office
Student walfare department of HMA
Vastu Vidya (Student association of architecture UNS)
2019 | Department Vice Chief
Student walfare department of HMA
Vastu Vidya (Student association of architecture UNS)
2019 | General Secretary Staff
SKI FT UNS (islamic student community of engineering faculty).
2020 | Department Chief
Student walfare department of HMA
Vastu Vidya (Student association of architecture UNS)
2020 | Media & Graphic Design Staff
SKI FT UNS (islamic student community of engineering faculty).
2020 | Founder team of Social community Muslimarch.id (Social community for charity programs)
2020 | Project Coordinator
Arsosial - Baluwarti tourism development project (architecture design project, collaborate with UNS architecture lecturer)
COMPETITION
2019 | EXPORIVM 2019
"Ini rumahku" - Sustainability home design
UKDW - Department of Architecture
2020 | ARCHEVENT 2020
"Abandoned - Rediscovering the soul of space"
UNS - Department of Architecture
2021 | BOS 2021
"Abandoned - Rediscovering the soul of space"
Unika Soegijapranata University - Department of Architecture
2021 | Perumnas Competition 2022
MillenialHouseDesign
BUMN - Perumnas
2021-2022 | Graphic Designer
Civilarch Company
Bussiness development department
Duration: 1 year
2022-2023 | Freelance Architect
Project: Mrs. Tasha's house, AZ House,Pavilion&garden,Sambi Village Agrotourism.
COURSES
2020 | Webinar: Build It Green
Understanding the sustainability concept in architecture
UI - Department of Architecture
2020 | Webinar Archinesia #2.2#2.5: Pandemic & Architecture
2023 | BIM Courses: ARCHICAD
Architecture modelling in Archicad
KELAS ARSITEK
Apartment, Office, Hotel: Post Pandemic Design ARCHINESIA etc..
2021 | MILLENIAL HOUSE
Millenial House Design Perumnas Design Competition 2021 Perumnas (BUMN)
CONTENTS
2021 | IMAH BUMI
The Micro-housing Pasca Pandemic BOS 2021 | Unika Soegijapranata University
21
COMPETITION WORKS
(Undergraduate)
Yumna Hanun A, S.Ars https://issuu.com/yumna_hanun (For more project portfolio)

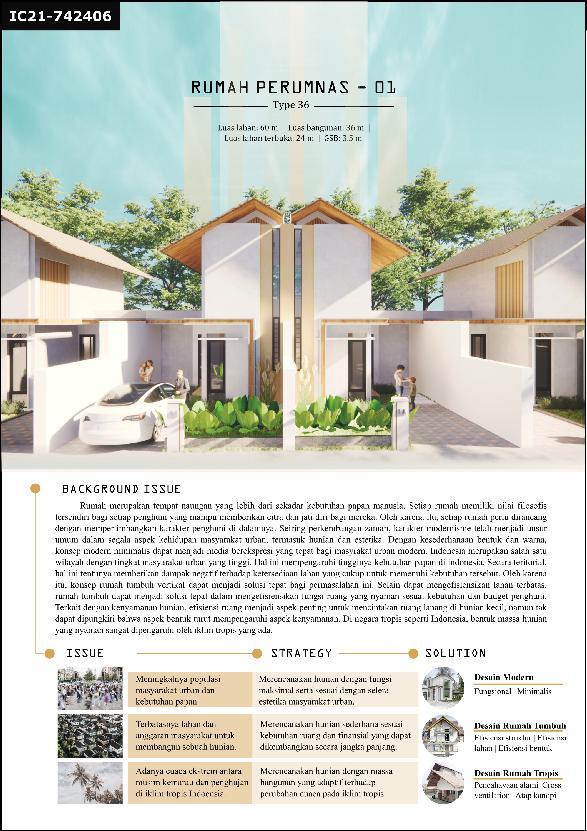

Design Competition by Perumnas | 2021
MILLENIAL HOUSE
House Design for Millenial Urban Society
Designed by: Yumna Hanun A & Ukhtiya Muthiah
Event organizer: Perumnas BUMN
Design theme: Millenial Home Design
Land Area: 72 m2
Building Area: 36 m2
BACKGROUND ISSUE
Home is a place that serves purposes beyond just meeting human's need for shelter. Every home has a unique philosophical value for each occupant that can help them create an image and an identity. As a result, it is essential to design every home with its occupants' personalities in mind. Along with the time, modernism has evolved and now permeates all facetsof urban life, including housing and aesthetics. The idea of modern minimalism can be a suitable medium of expression for contemporary urban society because of the simplicity of its shapes and colors. Indonesia is a region with a high number of population and it has an impact on Indonesia's strong demand for boards. Territorially, It certainly has a negative impact on the availability of sufficient land to meet these needs. Therefore, the conceptof a vertical growing house can be the right solution to the problem. In a tropical country like Indonesia, the shape of a comfortable residential mass is greatly influenced by the existing tropical climate. Because of this, an ideal house design should take tropical design concepts into the design to achievea passive design.
STRATEGY SOLUTION
The increasing population of urban civilization that affects on the rising demand for boards.
The Limited land area to accomodate human needs for living space in town and the limited budget to own property.
Global warming that affects an extreme weather change in the world, include Indonesia as tropical country.
MASS TRANSFORMATION
Planning occupancy with maximum function and in accordance with the aesthetic tastes of millenial society.
Planning simple housing design according to space and financial needs that can be developed in a long term.
Planning occupancy with a mass of buildings that are adaptive to weather changes in a tropical climate.
FINAL MASS CONCEPT & MATERIALS
Modern House Design
Functional Minimalist
"Growing House" Design Structure efficiency Land area efficiency Building mass efficiency
MEZZANINE AREA
The mezzanine area is provided as the main bedroom with maximum openings on both sides of the wall. Mezzanine plays a role in maximizing the function of vertical space as a space efficiency solution on small land area.
WELCOMING AREA
The spacious welcoming area is intended as a living room with an outdoor concept so that guests do not need to enter the house to reduce the risk of spreading the Covid-19 virus.
MATERIAL FINISHING
Sand Metal Roofitile
Plywood plafond (indoor area)
Conwood plafond (outdoor area)
nishing Wheat brown wall finishing
White wall paint finishing
Tropical House Design Natural lighting Cross ventilation Transitional space Aims to be a parking area for vehicles.
FRONTYARD
CARPORT Green open space is used to collect rainwater and as void space to enhance natural lighting within the house.
FAMILY ROOM
A living room, kitchen, and dining room are designed with open plan concept to provide a spacious space inside the house.
C D E
B A E C D A B
2
26
BB SECTION
AA SECTION
SIDE ELEVATIONFRONT ELEVATION
7. Bedroom 1 8. Bedroom 2
TYPICAL FLOOR PLAN
DEVELOPMENT FLOOR PLAN RECOMMENDATION
/ SITE LOCATION /
/
PHILOSOPHY
POTENCY Sundanese Languange
Design Competition by Unika Soegijapranata | 2021
IMAH BUMI
/ r u m a h D u n i a - Inviting the outside world into the inside. Creating a 'world' in a 'shade'
/ BACKGROUND ISSUES /
The limited land area to accomodate human needs for shelter
Global issue: Covid-19 pandemic
1./ 2./ 3./
The
/ BACKGROUND ISSUE /
The presence of the Covid-19 pandemic phenomenon demandsthe emergence of various new needs in various aspects, including architecture. In order to realize a social distancing, 'Home' in this era is a place that cannot be abandoned and seems to have a new expression that is more than just a place to live. By bringing all 'outdoor' activities to 'indoor', it forces a 'house' to become a 'world' for an occupant which is able to give more purpose than just a dwelling space for humans, but also a workspace and recreation space.
Designed by Yumna Hanun A
Building Area : 36 m2
In the long term, the pandemic has reduced the economic empowerment of the community, especially the lower middle class, such as the people in Bogor Regency and its surroundings.
The increasing phenomenon of natural damage due to the ever-increasing disposal of non-renewable waste.
The meaning
/ SOLUTION IDEAS: 5R /
RUMAH MIKRO
is a Microhouse concept that prioritizes the function of space as a solution to overcome the limitations of residential land.
RUMAH INSPIRATIF
Bringing upbeat and peaceful atmosphere in the house by inviting "outside space" within to lessen the boredom of occupants.
RUMAH SEHAT
Planning a healthy home that response to the preventing of corona virus spreading.
RUMAH BERDAYA
Designing a home that could increase a community's ability to withstand economic shocks by incorporating several elements that can promote food security and the livelihood of local craftmen.
RUMAH HIJAU
Planning an environmental friendly home with 5 R (Reduce, Reuse, Recycle, Replace and Replant).
/ STRATEGY & CONCEPT / GOALS
Maximizing movement of people In compact homes by designing a multipurpose space with open plan concept.
Maximizing openings to invite 'nature' into the dwelling.
Minimizing the spread of the virus with partitioned zoning.
Using local materials from local craftsmen, as well as creating potential housing to increase food security
MICROHOUSE
Health
26 Mental Health Physical Health Economy Crisis
culture of staying at homeas a form
distancing is prone to causing
and stress for
people. Economy Social Culture Pheno menon Environ ment Human Needs Potency IMAH BUMI 5R Make a home as a world Inviting an outside world to the inside Delimiting 'outside space' and 'inside Embrace nature, decorate the environment Empowering local craftsmen and food security Flexible Space Permeability Space Green Construction Potential Design Cut the Droplets
of social
boredom
the
: Functional Inspirative
Using environmental friendly materials and utilizing natural energy for for sanitary, lighting, and ventilation system. Secure Green
The presence of the Covid-19 virus is a serous threat to society, especially in densely populated areas. Furthermore, the danger of a viraloutbreak increases when a family which has several members living in a tiny living space.
Home as a' world' reflects that home is not only a place to live and take shelter, but also as place to work, heal, and get a recreation. The Suhunan (the name of traditional Sundanese house ) is intended to respect the natural surroundings. The traditional house in Sundanese locality is very valuable in establishing peace with nature, self and fellow human beings.
BUMI /
HOMEBUMIDUNIA
VALUE: IMAH
Peta Kabupaten Bogor
Villa Nusa Indah III, Gunungputri, Bogor Subdis-trict, West Java, indonesia.
Natural Degradation
Event organizer : Unika Soegijapranata
Design theme Micro-housing pasca pandemic
Land Area : 72 m2
Site Information
KDB: 60%
5m U 2
St. Intan (local street)
60 m2
KLB: 3
Land area: 6 m x 10 m
Ground Floor area: 36 m2
The max. built up area: 180 m2
St. Intan (Local street))
Rd. Letda Natsir
Based on the shape of the site, the mass has a basic shape nes the solid block. The goal is to maximize the use of space on a limited land area
MODIFYING
The shape of the jolopong roof is modified in stages to maximize roof lighting and ventilation, as well as maximize the space under the roof as a storage attic.
PRIVATE: bedrooms
SEMI PRIVATE: living room and dining room.
ATTIC: Storage area
SERVICE: bathroom, laundry room.
SEMI PUBLIC: workspace, balcon.
PUBLIC: terrace and foyer
saddle-shaped roof is a modification of the Sundanese traditional house called the Jolopong roof
26 /SPATIAL/
Adding a trellis with reinforced bamboo poles to diffuse the sun glare and create transitional spaces to reduce the sun heat.
window to provide an accessibility for users and provide natural lighting and wind sirculation inside the building.
/ SITE LOCATION / IMAH BUMI HOSPITAL GAS STATION SUPER MARKET TOLL GATE 7 km 2.3 km 2 km 5.9 km PARK MINI MARKET MOSQUE GYMNASIUM 0.9km 2km 0.14km 0.08km GAS STATION UU 2 PRIVATE AREA NOT DOMINANT WIND FLOW DIRECTION OF VIEW
Perumahan Villa Nusa Indah III, Bojongkulur, Gunungputri, Kabupaten Bogor, Jawa Barat, indonesia.
/ SITE ANALYSIS / U FINAL ZONING

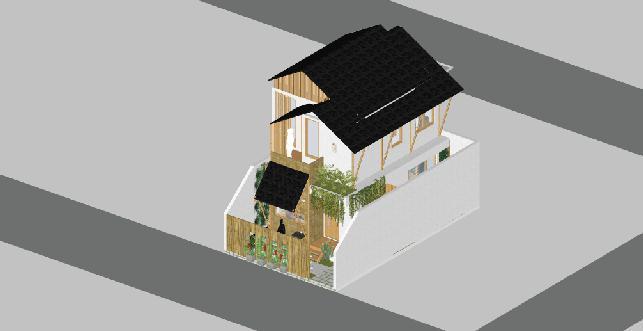

/FINAL DESIGN /
MINI FISH CULTIVATION POND
CHILD BEDROOM
A bedroom space that can be divided into 2 rooms with efficient placement of removable partition walls.
The inner court in the family room functions as a void element in the building to maximize lighting and natural ventilation in addition to being a dry garden that may be decorated as recreation space. The yard next to the building can be utilized for sports, gardening, or clothes drying area.

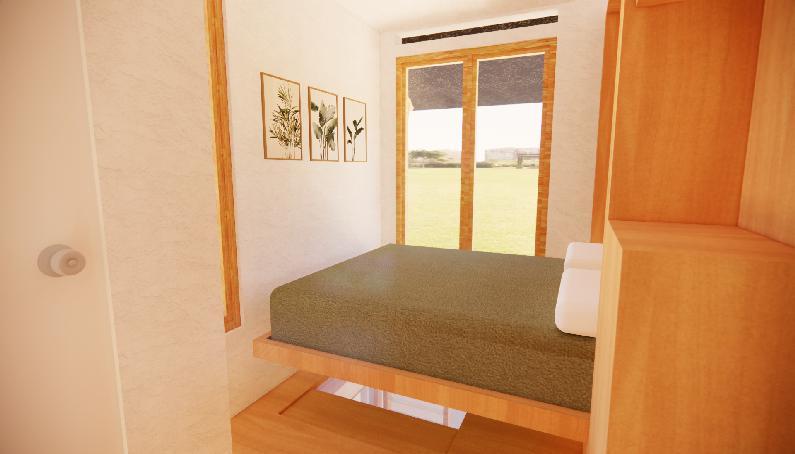

MASTER BEDROOM
Flexible master bedroom with efficient built-in furniture. The room also functions as an emergency isolation room for the treatment of Covid-19 patients. The room is equipped with a glass floor to remove boundaries so that patients will not feel alone in the isolation room.
LAUNDRY ROOM
Dry washing rooms are important for washing clothes effectively, quickly and neatly as a form of preventing the spread of viruses and diseases.
Styrofoam Wall Panel
This material is an environmentally friendly wall material that utilizes styrofoam waste produced by local industries. The material is reinforced with a steel wire frame and plaster and has been tested and applied to residential buildings.
Laminated Bamboo
Made with leftover bamboo from the local bamboo industry. The bamboo is then processed with further manufacturing to create laminated bamboo material, which can replace wood at a reduced cost and is termiteresistant.
Clay
A roof made of clay tiles effectively decreases heat inside tropical buildings.
BALCONY Used as relaxation andworkout space fortheoccupants.

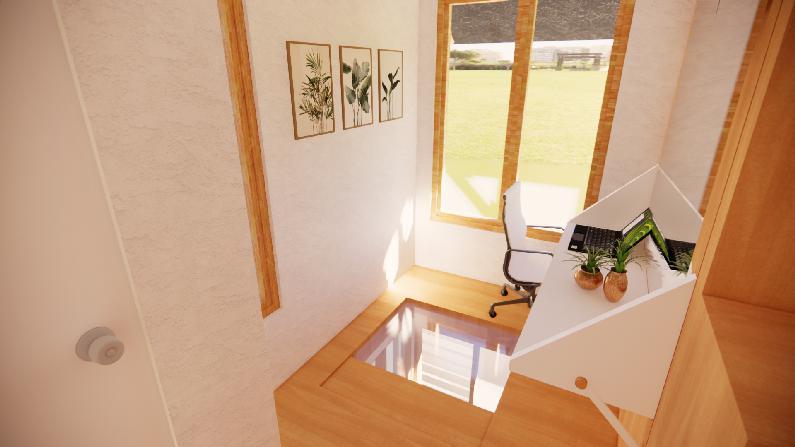

WORKSPACE
Workspaces that require a calm and comfortable atmosphere are placed in the front area by maximizing the view to the frontyard area. A flexible workspace can function as a living room if needed at any time.
HAND WASHING AREA
The area is eqquiped with wastafel and bench to place items to make it easier for users to wash their hands. To reduce the risk of the virus spreading inside the house, the area can also be utilized to meet visitors outside the room.
TERRACE
A space between indoor and outdoor. Serves as a temporary reception room to minimize the risk of spreading the virus within the residence.
FOYER
Serves as a sterilization room before occupants enter the dwelling. This room is equipped with hand sanitizers, chairs, and cupboards to store shoes and clothes after using them outside the room before being washed.
SAFETY ZONE
The area is in the form of a small cubicle between 4 rooms (foyer, workspace, kitchen and bathroom) surrounded by a sliding pocket door that functions as a safety shield between rooms.
KITCHEN
A dishwashing sink is available in the area, and it's easily accessible upon arrival. As a result, foods can be immediately washed and placed in the refrigerator.

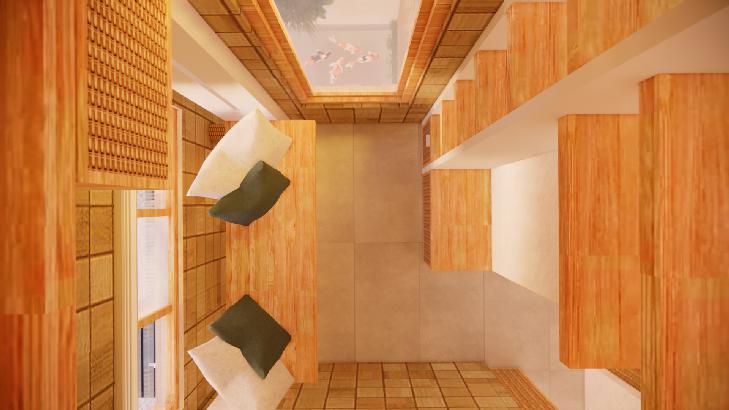

MINI INNERCOURT
Serves as an indoor void as well as a dry garden for ornamental plants.
VERTICAL GARDEN
The vertical concept aims to make efficient use of narrow land. The existenceof vegetation in the dwelling can reduce boredom in the dwelling and give a fresh air into the room
LIVING ROOM
To lessen the intensity of connection with outdoor activities, the living room, which serves as the primary activity area, is situated as far away from the public area as possible.
26 BB SECTION SIDE ELEVATION 300 60 300 300 160 200200200 100 Ceramic Rooftile Bamboo roster Kamar tidur 2 Ceramic Rooftile Ventilation Sliding door Bamboo roster Laminated bamboo (floor) Ventilation Laminated bamboo (wall) Louvre window Ceramic floor tile Stone foundation AA SECTION FRONT ELEVATION 200250150 100 60 300 90 210 60 Ceramic Rooftile Laminated bamboo board Styrofoam wall panel Monkey ladder stair Sliding pocket door Trellis Stair Ceramic floor tile Stone foundation Laminated bamboo plafond Kamar tidur 2 Loteng KMDAPUR
Kitchen Living Room Dining Room Laundry Room Dry garden up Bathroom Work space Foyer Terrace Terrace 11585250 400 150 200 200 200 100 415 185100 200 200100150150 Bath room Frontyard Bicycle parking area Holticulture Garden Master Bedroom down Bedroom 1 Bedroom 2 Balcon 285 315 200 200 100 235 165 100 200 200 1st FLOOR PLAN 2nd FLOOR PLAN 11585250150 200100150150 BACKYARD & INDOOR GARDEN
WATER RECYCLE /
A rainwater harvesting system is used to provide a clean water source. In order to supply water for residential homes, vertical gardens, and fish ponds for agriculture, rainwater is first filtered before being collected in water tanks. Automatic irrigation systems are utilized to water the plants in vertical gardens, and any waterleft over is purified and then reused.
26 / INTERIOR / Livingroom & Diningroom FOLDED PARTISION WALL FOLDED DINDING TABLE STORAGE SPACE INSIDE SOFA FOR 4 FOLDED DINING CHAIR 1 2 3 1 2 3
MODE 1: Living room
Family lounge area with openings on three sides to invite the outside to the inside. The partitions are flexible to divide the laundry room and family room.
The living area can be expanded by folding the partition wall that separates the family room from the laundry room. The dining area can also be created by laying out a folding dining table and folding chairs.
/
MODE 2: Dining room
MODE 1: Master Bedroom
MODE 2: Work space
SLIDING DOOR BUILT-IN FURNITURE (LONG CHAIR & WORK TABLE) BUILT-IN FURNITURE (BOOK SHELF & CHAIR) 2 1 2 1 3 2
plank which is integrated with the furniture.
Yumna Hanun A, S.Ars https://issuu.com/yumna_hanun (For more project portfolio)
