01 THE VILLA AURORA 02 THE ZENITH
03
04
05
CONTENT
THE BREEZY
WORJING DRAWING
MISCELLANEOUS

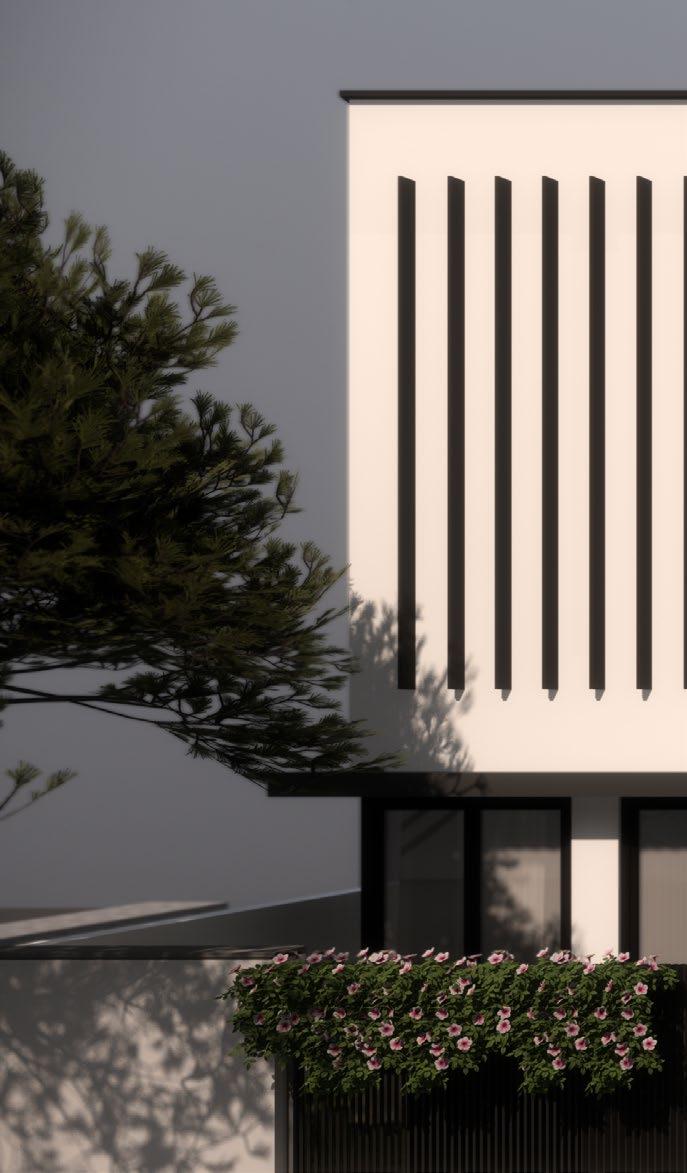

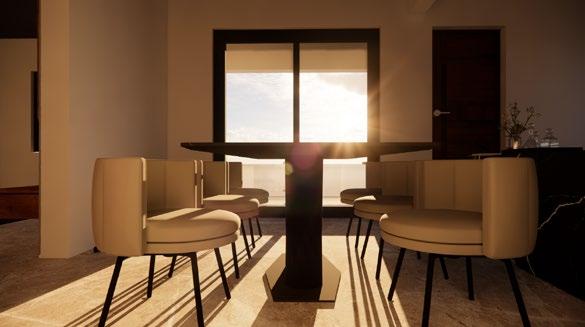

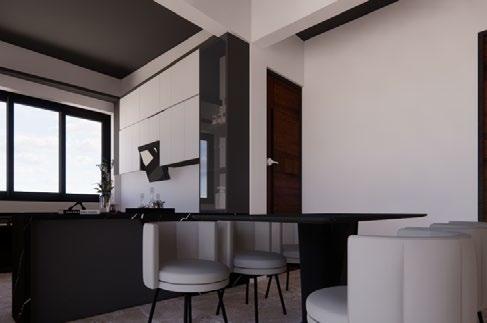

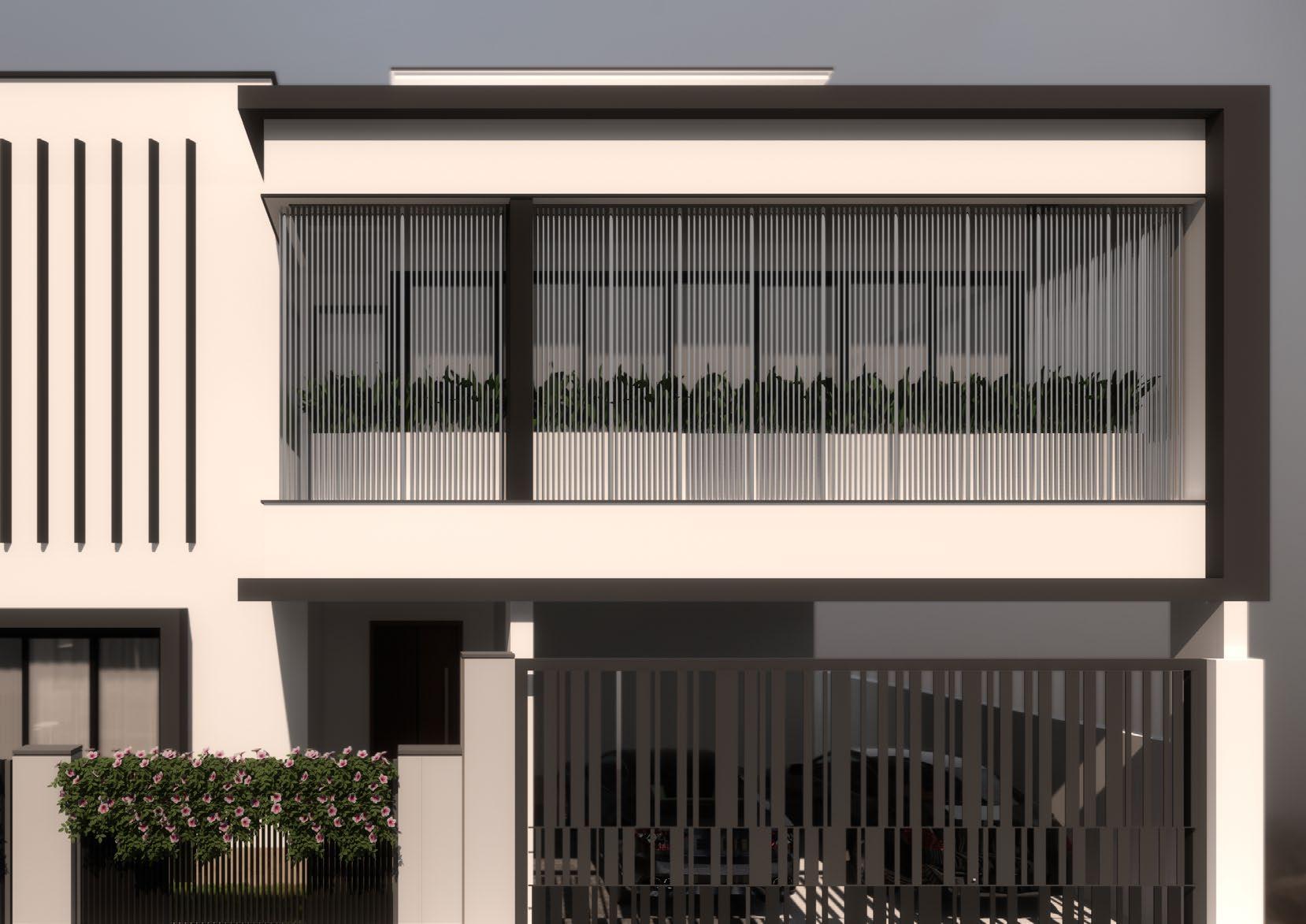

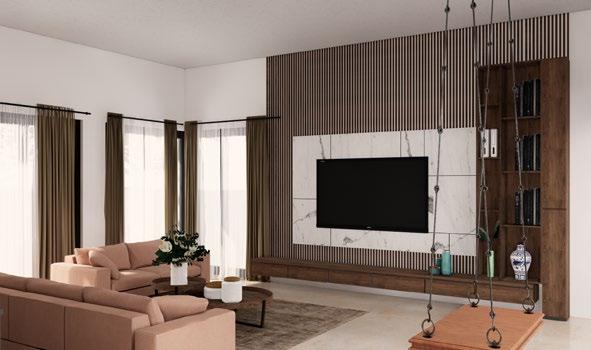

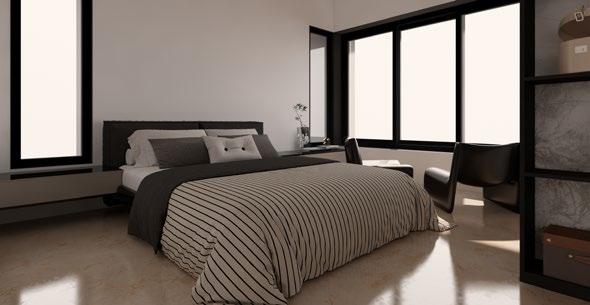

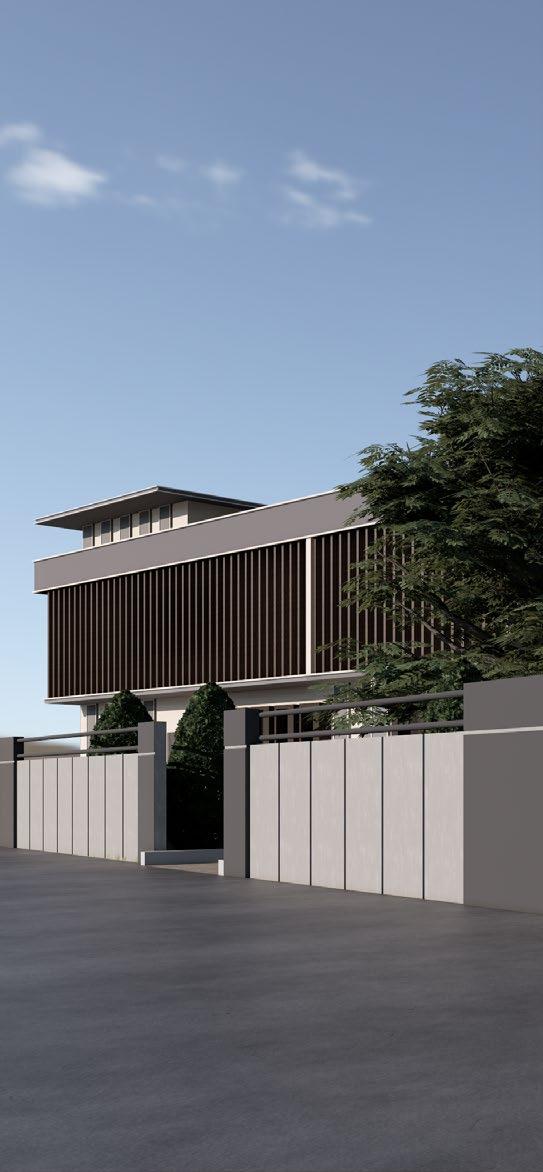

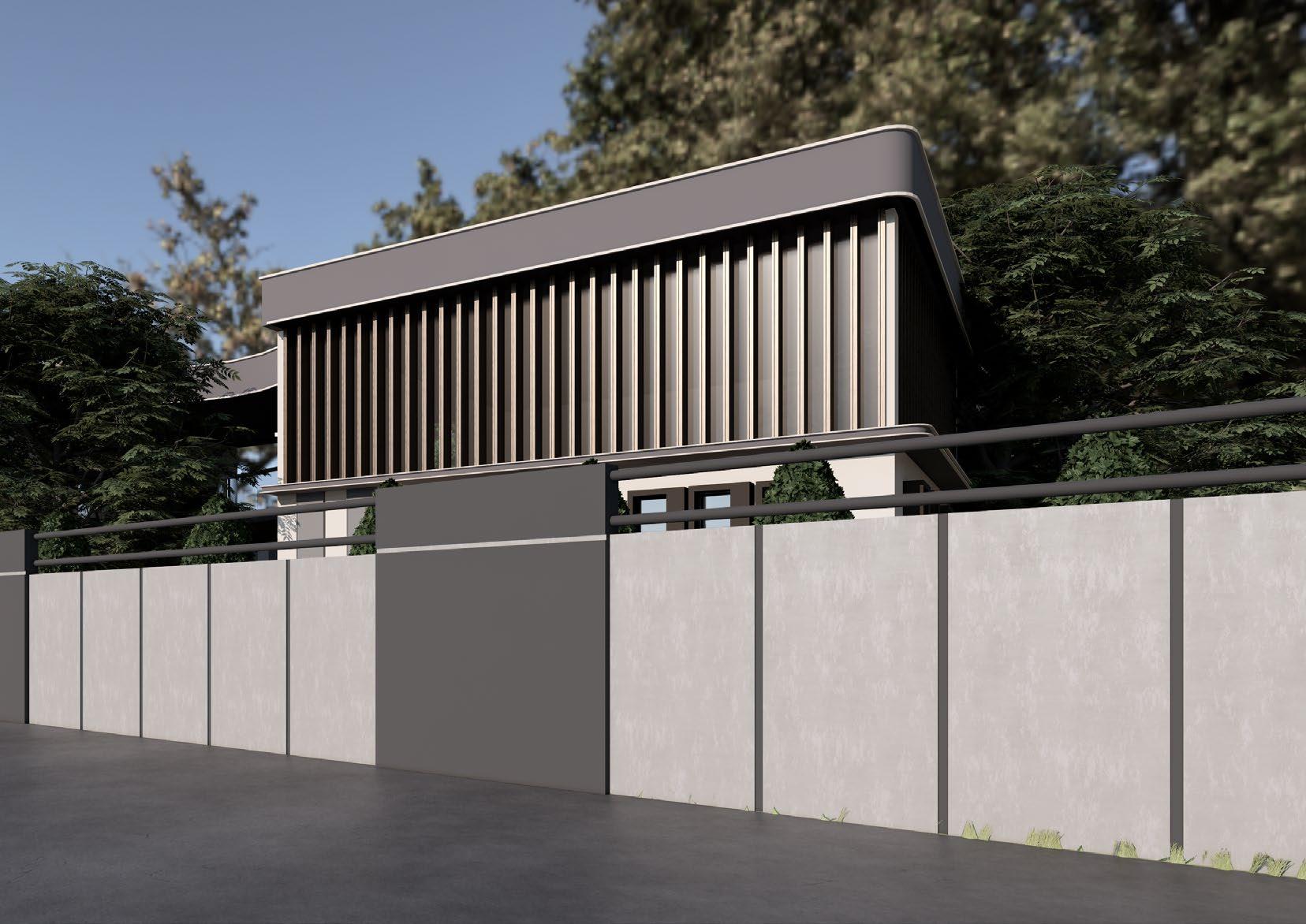

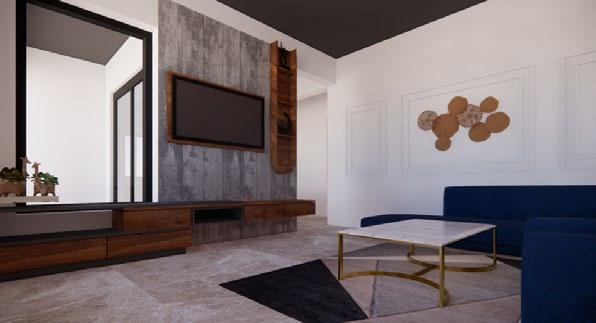

THE VILLA AURORA

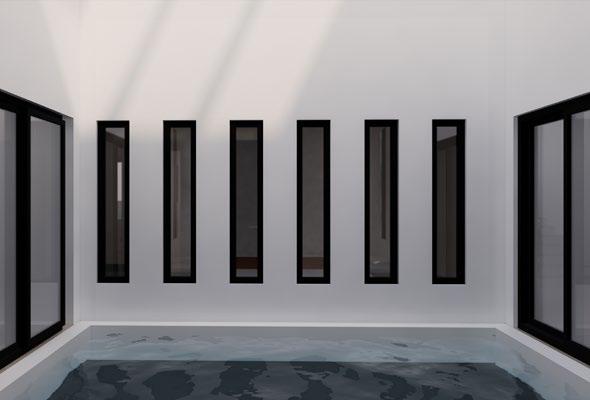

“I wanted to blend solid and void, light and shadow, and thoughtful transitions to create an ever-changing spatial experience. Dynamic volumes that seem to float or extend beyond the villa’s envelope add visual interest and craft unique experiences both inside and around the villa”
PLANS AND SECTIONS
The inclusion of a corridor was motivated by the aspiration to achieve both practical functionality and aesthetic appeal, delineating distinct zones within the villa. This elegant feature gracefully separates the tranquil bedrooms from the dynamic living area, kitchen, and courtyard. Such deliberate design enhances the villa’s spatial organization, ensuring a harmonious balance between private retreats and communal spaces, thereby enriching the overall living experience.
LIVING ROOM 6600 X 5800 GUEST BEDROOM 4400 4000 GRAND PARENT'S BEDROOM 4400 X 3800 PARENT'S BEDROOM 4400 3800 PARENT'S BEDROOM 3800 X 3900 3800 X 3900 KITCHEN 2800 X 2000 UTILITY KID'S BEDROOM 4400 X 4000 2800 X 1800 TOILET 2800 2000 TOILET 2800 1800 TOILET 2800 X 2000 TOILET HOME THEATRE 6600 5800 3650 X 8000 DINING 3150 450 3600 1200 ROAD ROAD 24000 16000 B B' C C' C C' FIRST FLOOR PLAN
PLAN
GROUND FLOOR
8850 2100 3600 3600 1200 450 3150 10800 4500 3150 SECTION BB’ SECTION CC’ LIVING ROOM 6600 X 5800 PARENT'S BEDROOM 4400 X 3800 PARENT'S BEDROOM 3800 3900 KID'S BEDROOM 4400 4000 2800 X 1800 TOILET 2800 X 2000 TOILET HOME THEATRE 6600 X 5800 450 3150 450 3600 1200 24000 16000 B' C SECTION AA’ FIRST FLOOR PLAN

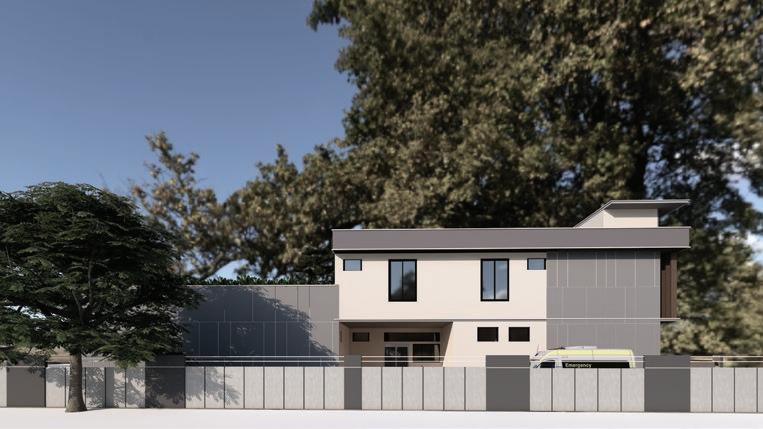

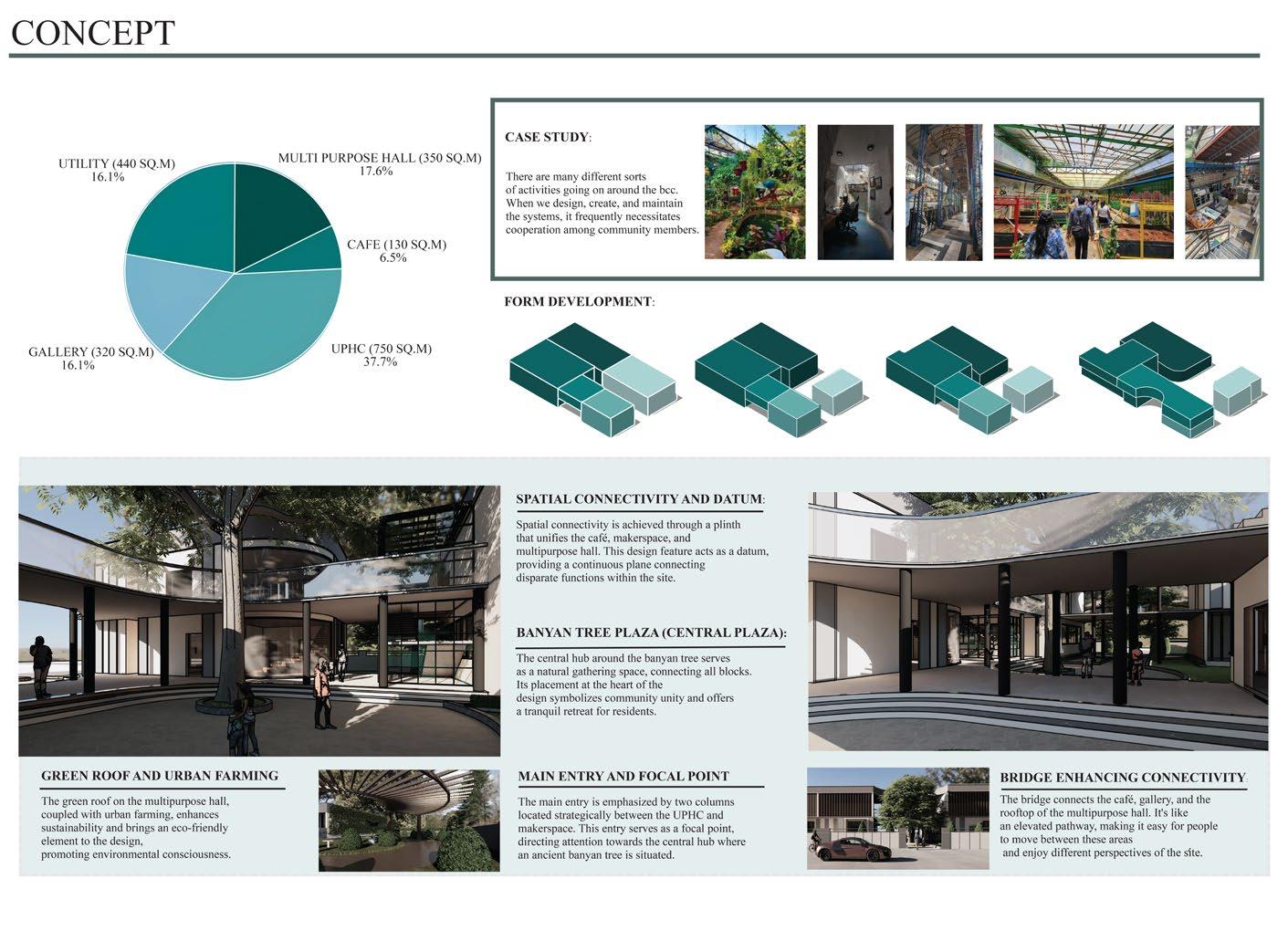

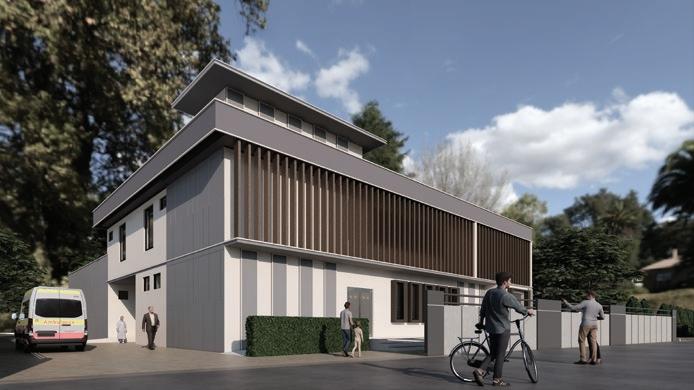

THE ZENITH
In this project, i tried achieving spatial connectivity through the use of plinth that connect various buildings, acting as a datum. These plinths not only provide a unifying structure but also facilitate seamless movement and interaction between different areas of the center. A central feature of this project is the Banyan Tree Plaza, which serves as a natural gathering space. This plaza, with its
OBJECTIVE
The goal of diverse workshops is to spark collaboration, nurture skills, and share knowledge, fostering a culture of lifelong learning and inclusivity in our community.
Providing green areas with engaging spaces and providing a healthcare centre
Elderly residents make up 30% of the area's population. They earn income by renting out their houses.
Students, aged 3 to 22, constitute 55% of the crowd.
Providing social gathering spaces like cafe,workshop spaces & exhibition area
Students from Kristu Jayanti University in the surrounding areas also contribute to the crowd 15% of the site's surroundings consist of working adults. Men work in construc�on, while women are house cleaners.
Providing social gathering spaces like cafe,workshop spaces & exhibition area

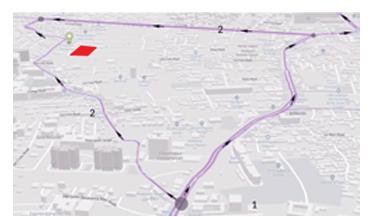

The site is located in kothnur. It is located in the northern idea of bangalore. Kothnur is a developing area which is 15.8km from the city center. These are few people from our user groups and of their needs The vegetation around the site consists of banyan, peepal and coconut trees. Our site features 2 banyan trees out of which one of them 35 years old.It has a quite huge foliage and is the focal point of our site.
centre keeps everyone healthy by identifying issues early.
ACTIVITIES
cultural
Makerspaces foster community innovation, skill-building.
Public art galleries display art, enriching communities through culture

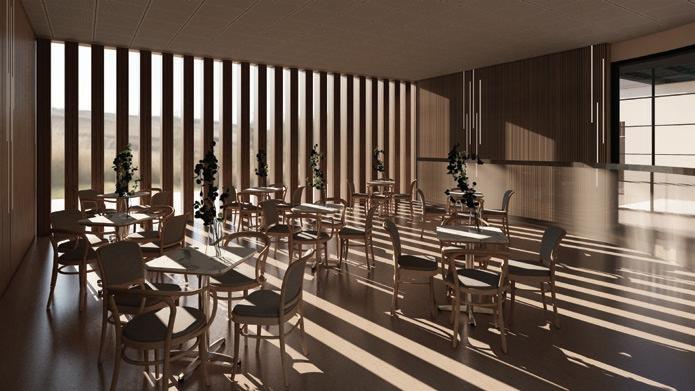

Cafe provides a social space for dining and conversation.
USER GROUP

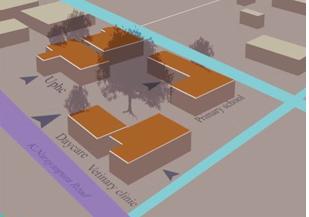

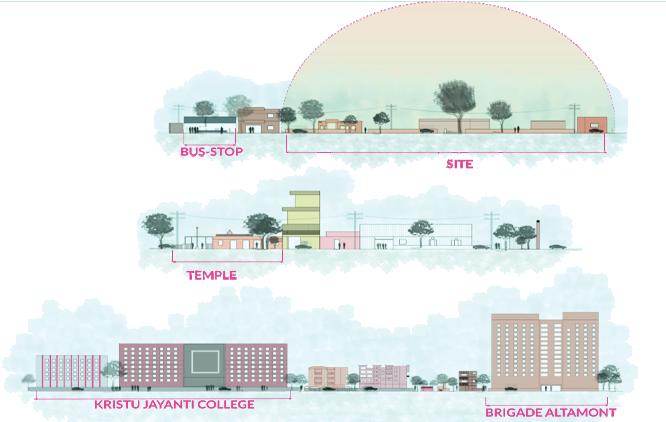

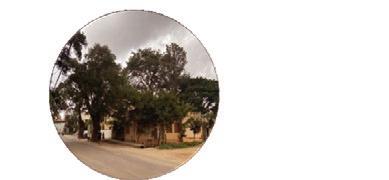

SITE ANALYSIS
This
Multipurpose halls host
activities fostering community engagement
MAJOR ACTIVITIES ACTIVITIES TAKEN FROM BCC ARCHITECTURAL DESIGN V YUKTA SUBHAM 21ABARCO17 21ABARC020 01
PLANS AND SECTIONS
LEGEND:

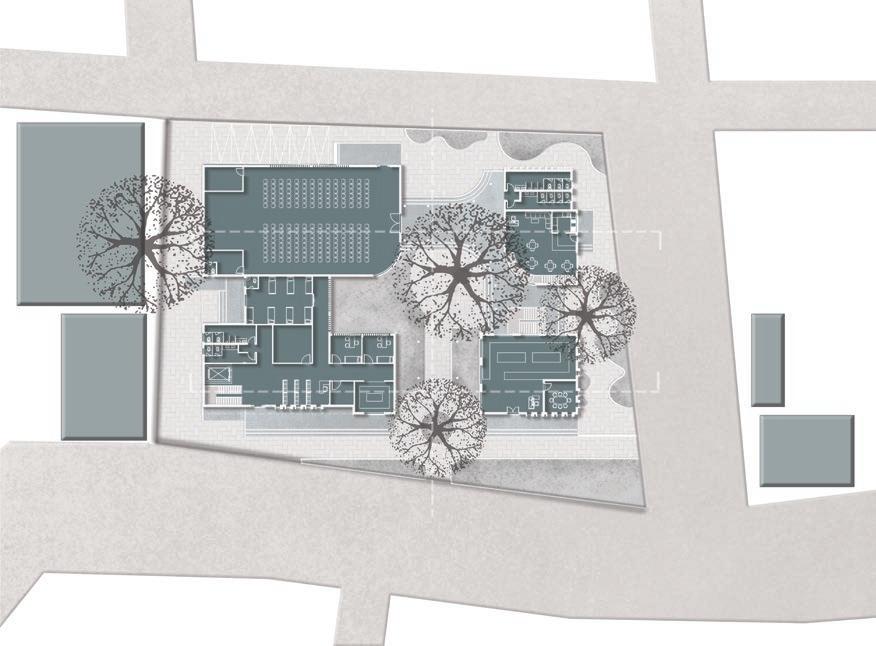

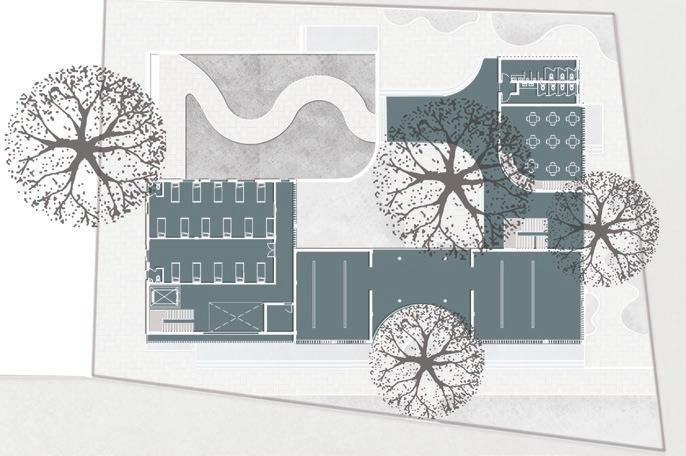

03 MASTER PLAN

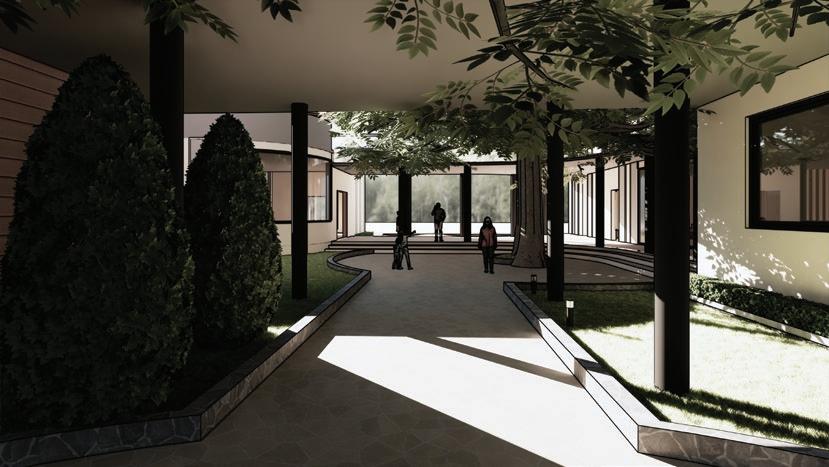

Existing trees act as natural frameworks, enhancing the site's character and providing shade and visual interest. The transition of spaces is carefully done, with pathways guiding users seamlessly from the openness of outdoor areas to the semi-open spaces and finally to more intimate enclosed areas. This natural flow encourages exploration and interaction while maintaining a sense of coherence and purpose throughout the site.
ARCHITECTURAL DESIGN V
1 2 3 4 4 5 6 7 8 9 10 11 12 13 LEGEND: 1. WAITING AND RECEPTION 2. STORAGE 3. PHARMACY 4. DOCTOR’S CABIN 5. LAB 6. TOILET 7. EMERGENCY ROOM 8. MULTI PURPOSE HALL 9. TOILET 10. KITCHEN 11. CAFE SEATING AREA 12. STUDIO AREA 13. STAFF AREA MASTER PLAN
A A’ B B’ C C’ N SCALE - 1 : 200 ALL DIMENSIONS ARE IN MM 9 10 11 12 13
1. WAITING AND RECEPTION 2. STORAGE 3. PHARMACY 4. DOCTOR’S CABIN 5. LAB 6. TOILET 7. EMERGENCY ROOM 8. MULTI - PURPOSE HALL 9. TOILET 10. KITCHEN 11. CAFE SEATING AREA 12. STUDIO AREA 13. STAFF AREA A’ B’ C C’ MASTER PLAN
ARCHITECTURAL DESIGN V
The bridge connecting the café gallery and rooftop of the multipurpose hall facilitates easy movement between these areas, enhancing accessibility and convenience for visitors.

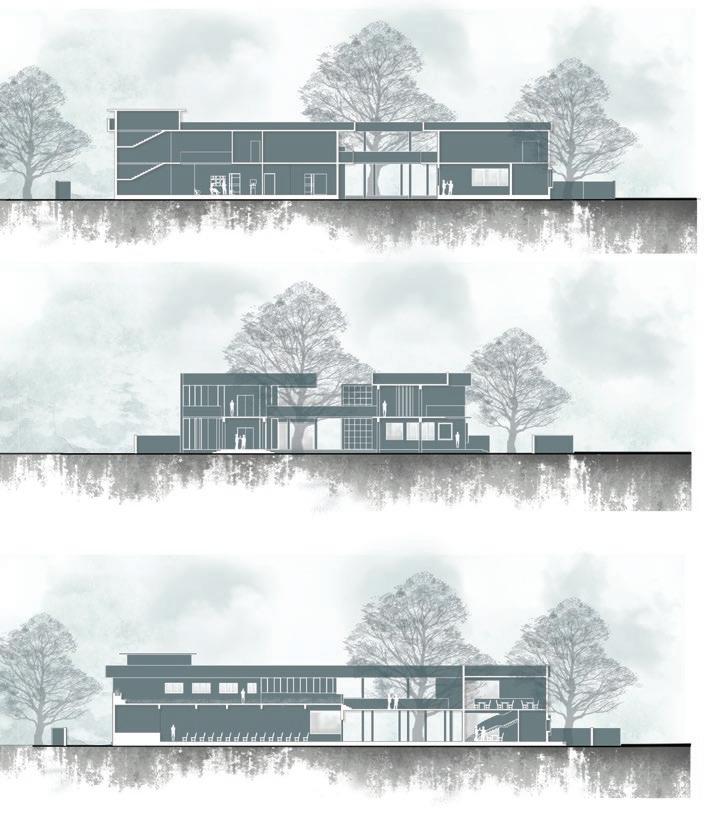

SECTIONS
ARCHITECTURAL
SUBHAM
YUKTA
21ABARCO17
FIRST FLOOR PLAN ROOF PLAN
21ABARC020
1200 3600 3600 45O SECTION AA’ SECTION BB’ SECTION CC’
FIRST FLOOR PLAN

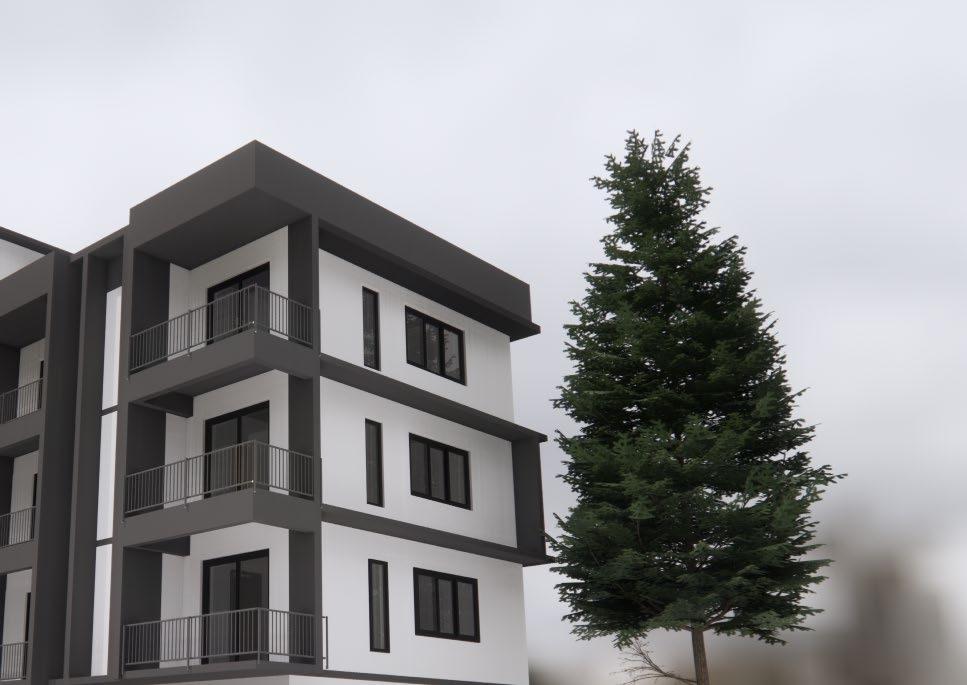

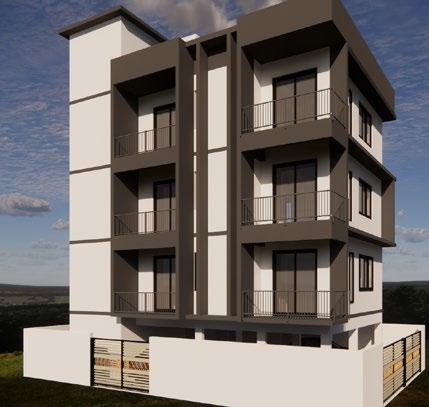

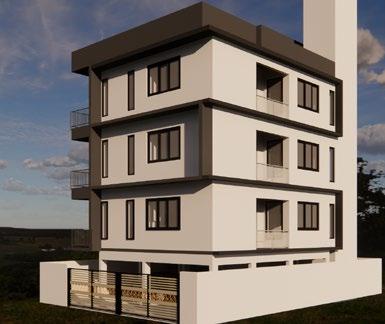

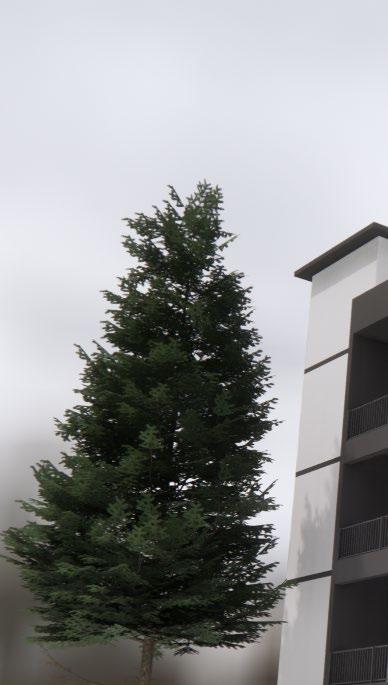

THE BREEZY
This apartment project showcases a combination of dynamic forms, projecting balconies, and colors that add depth, dimension, and visual interest to the facade. These balconies serve multiple purposes, providing private outdoor retreats for residents while enhancing the architectural aesthetics of the building
PLANS AND SECTIONS
The carefully planned grid layout, with private spaces on one side and communal areas on the other, combined with spacious balconies, creates a richly balanced and harmonious living environment. This design not only offers residents secluded retreats but also abundant opportunities for social interaction, significantly enhancing their overall quality of life within the villa.
UTILITY KITCHEN BALCONY DINING ROOM LIVING ROOM TOILET TOILET LIFT 3000 X 1500 3200 X 2600 3000 X 3860 4000 X 3400 2800 X 1400 4350 X 4000 2900 X 2700 3100 X 1590 BALCONY 4000 X 1650 ROOM 3000 X 3400 TOILET 2800 X 1400 BALCONY 3000 X 2040 LIFT 2900 X 2700 B B' A A' BASEMENT PLAN FLOOR PLAN BASEMENT PLAN SECTION BB’ SHEET NO 3 ARCHITECTURAL DESIGN IV APARTMENT DESIGN SCALE : 1:50 NAME
PATIL USN NO : 21ABARC020 SECTION BB’ SECTION CC’ SHEET NO 3 SECTION BB’
: YUKTA
ARCHITECTURAL DESIGN IV
APARTMENT DESIGN SCALE : 1:50
NAME : YUKTA PATIL
USN NO : 21ABARC020
BASEMENT PLAN FLOOR PLAN ROOF PLAN
SECTION CC’ B' FLOOR PLAN ROOF PLAN SECTION
PATIL 21ABARC020
SECTION BB’ SECTION CC’
CC’
SECTION CC’
WALL SECTIONS OF VILLA PROJECT
WORKING DRAWING SFL LVL+7650 FFL LVL+4050 LINTEL BEAM DEPTH 150 MM 200MM THK ALUMINIUM GRILL 10MM THK GROUND LVL+0.00 INTERIOR PLASTERING 10MM THK EXTERIOR PLASTERING 20MM THK SFL LVL+7650 FFL LVL+4050 GROUND LVL+0.00 PARAPET FLASHING PARAPET WALL CANT STRIP DRIP MOLD 600MM PROJECTION BOX CHAJJA LINTEL LVL+2850 SILL LVL+1650 SCREED 45MM THK MORTAR 20MM THK PLINTH LVL+450 KEY PLAN W3 A/400 KEY PLAN W3 A/400 4 WATER BODY
SFL LVL+7650 FFL LVL+4050 LINTEL BEAM DEPTH 150 MM 200MM THK ALUMINIUM GRILL 10MM THK GROUND LVL+0.00 INTERIOR PLASTERING 10MM THK EXTERIOR PLASTERING 20MM THK SFL LVL+7650 FFL LVL+4050 GROUND LVL+0.00 PARAPET FLASHING PARAPET WALL CANT STRIP DRIP MOLD 600MM PROJECTION BOX CHAJJA LINTEL LVL+2850 SILL LVL+1650 SCREED 45MM THK MORTAR 20MM THK PLINTH LVL+450 KEY PLAN W3 A/400 KEY PLAN W3 A/400 WORKING DRAWING 1 VILLA DETAIL SECTION W3 AND W4 18 A1 SFL LVL+7650 FFL LVL+4050 LINTEL BEAM DEPTH 150 MM 200MM THK ALUMINIUM GRILL 10MM THK GROUND LVL+0.00 INTERIOR PLASTERING 10MM THK EXTERIOR PLASTERING 20MM THK SFL LVL+7650 FFL LVL+4050 GROUND LVL+0.00 PARAPET FLASHING PARAPET WALL CANT STRIP DRIP MOLD 600MM PROJECTION BOX CHAJJA LINTEL LVL+2850 SILL LVL+1650 SCREED 45MM THK MORTAR 20MM THK PLINTH LVL+450 KEY PLAN W3 A/400 KEY PLAN W3
PARAPET FLASHING PARAPET WALL CANT STRIP BEAM DEPTH 450 MM AND 200 MM THK ALUMINIUM GRILL 10MM THK LINTEL BEAM DEPTH 150 MM 200MM THK INTERIOR PLASTERING 10MM THK SCREED 45MM THK MORTAR 20MM THK EXTERIOR PLASTERING 20MM THK PLINTH LVL+450 SILL LVL+900 GROUND LVL+0.00 LINTEL LVL+2850 FFL LVL+4050 SFL LVL+7650 W2 A/400 KEY PLAN FFL FFL 200 MM THK CONCRETE BLOCK WALL ALUMINIUM GRILL 10MM THK PARAPET FLASHING PARAPET WALL PLINTH INTERIOR PLASTERING 10MM THK SCREED 45MM THK MORTAR 20MM THK BEAM DEPTH 450 MM AND 200 MM THK RCC SLAB 15OMM THK LAMINATED GLASS 10MM THK 5
PLANTER BOX EXTERIOR PLASTERING 20MM THK FILTRATION TANK WOODEN DECK TILES 20 MM THK STEEL SQUARE BAR 50MM CANT STRIP W1 A/400 KEY PLAN FFL FFL 200 MM THK CONCRETE BLOCK WALL ALUMINIUM GRILL 10MM THK PARAPET FLASHING PARAPET WALL PLINTH INTERIOR PLASTERING 10MM THK SCREED 45MM THK MORTAR 20MM THK BEAM DEPTH 450 MM AND 200 MM THK RCC SLAB 15OMM THK LAMINATED GLASS 10MM THK 5 6 PLANTER BOX EXTERIOR PLASTERING 20MM THK FILTRATION TANK WATER BODY WOODEN DECK TILES 20 MM THK STEEL SQUARE BAR 50MM CANT STRIP W1 A/400 KEY PLAN PARAPET FLASHING PARAPET WALL CANT STRIP BEAM DEPTH 450 MM AND 200 MM THK ALUMINIUM GRILL 10MM THK LINTEL BEAM DEPTH 150 MM 200MM THK INTERIOR PLASTERING 10MM THK SCREED 45MM THK MORTAR 20MM THK EXTERIOR PLASTERING 20MM THK PLINTH LVL+450 SILL LVL+900 GROUND LVL+0.00 LINTEL LVL+2850 FFL LVL+4050 SFL LVL+7650 W2 A/400 KEY PLAN
6
GENERAL ARRANGMENT DRAWINGS OF VILLA PROJECT
LIVING ROOM 6580 X 5780 GUEST BEDROOM 4380 3980 GRAND PARENT'S BEDROOM 4380 X 3780 3780 X 3890 KITCHEN 2780 X 1980 UTILITY 2780 X 1780 TOILET 2780 X 1980 TOILET DINING B C' D E F G 1 2 4 5 6 C A' A 3 B B' A A' GROUND
DOOR OPENING SCHEDULE NAME ANNOTATION WIDTH HEIGHT SILL LINTEL TIMBER DOOR (MAIN DOOR) TIMBER DOOR TIMBER DOOR PVC DOOR SLIDING DOOR 1200 2400 0 900 1200 900 5400 2400 2400 2400 2400 2400 2400 2400 2400 2400 0 0 0 0 SLIDING DOOR 2400 0 2400 7200 WINDOW OPENING SCHEDULE NAME ANNOTATION WIDTH HEIGHT SILL LINTEL STEEL SLIDING WINDOW FIXED WINDOW 2400 450 3000 2400 1800 600 1950 1200 1200 2400 2400 2400 2400 2400 1200 STEEL SLIDING WINDOW STEEL SLIDING WINDOW STEEL SLIDING WINDOW VENTILATOR 450 450 1200 700 2400 1800 600 1950 1950 FIXED WINDOW 700 1200 450 2400 CORNER WINDOW 1675+1675 2400 0 2400 4100/A/100 WORKING DRAWING 1 GENERAL ARRANGEMENT PLAN
FLOOR PLAN
FIRST FLOOR PLAN
TERRACE
NAME TIMBER DOOR TIMBER DOOR TIMBER DOOR PVC DOOR SLIDING DOOR SLIDING DOOR NAME STEEL SLIDING FIXED WINDOW STEEL SLIDING STEEL SLIDING STEEL SLIDING VENTILATOR FIXED WINDOW CORNER WINDOW WORKING DRAWING 1 GENERAL ARRANGEMENT PARENT'S BEDROOM 3780 X 3880 KID'S BEDROOM 4380 X 3980 HOME THEATRE 6600 X 5800 TOILET PARENT'S BEDROOM TOILET 2780 X 1980 2780 X 1780 4380 X 3780 B C' D E F G 1 2 4 5 6 C A' A 3
DOOR OPENING SCHEDULE NAME ANNOTATION WIDTH HEIGHT SILL LINTEL TIMBER DOOR (MAIN DOOR) TIMBER DOOR TIMBER DOOR PVC DOOR SLIDING DOOR 1200 2400 0 900 1200 900 5400 2400 2400 2400 2400 2400 2400 2400 2400 2400 0 0 0 0 SLIDING DOOR 2400 0 2400 7200 WINDOW OPENING SCHEDULE NAME ANNOTATION WIDTH HEIGHT SILL LINTEL STEEL SLIDING WINDOW FIXED WINDOW 2400 450 3000 2400 1800 600 1950 1200 1200 2400 2400 2400 2400 2400 1200 STEEL SLIDING WINDOW STEEL SLIDING WINDOW STEEL SLIDING WINDOW VENTILATOR 450 450 1200 700 2400 1800 600 1950 1950 FIXED WINDOW 700 1200 450 2400 CORNER WINDOW 1675+1675 2400 0 2400 B B' A A' A2
BATHROOM DRAWINGS OF VILLA PROJECT
1 7 4 CL OF SHOWER CL OF WATER CLOSET CL OF WASH BASIN CL OF HEALTH FAUCET CL OF TOILET PAPER 15 MM DROP 12 MM DROP TYPICAL BATHROOM PLAN 1 A/100 SCALE 1:20 1 A/100 2 A/100 3 A/100 4 A/100 5 6 8 15 10 15 MM DROP 12 MM DROP
PLAN 2 A/100 SCALE 1:20 12 DRY AREA WET AREA FALSE CEILING AT 2900 FROM BEDROOM FLOORING CEILING LIGHT BATHROOM REFLECTED CEILING PLAN 3 A/100 SCALE 1:20 LEGEND: 10 5 3 2 4 6 7 WC FLUSH PLATE 8 HEALTH FAUCET 9 TOWEL RAIL TOWEL RING WASH BASIN BASIN MIXER TOILET PAPER HOLDER 1 S No. Description SINGLE LEVER SHOWER MIXER (TWO OUTLET) BATH SPOUT HEALTH FAUCET HOLDER 12 15 13 16 17 14 FLOOR TRAP SOAP DISH HOLDER BASIN OVERHEAD SHOWER 11 BOTTLE TRAP SOAP DISH HOLDER SHOWER LINEAR DRAIN 18 MIRROR
BATHROOM FLOORING
BATHROOM
BATHROOM SECTION 3
MIRROR (600 X 820) CL OF SHOWER CL OF WATER CLOSET BATHROOM FFL TILES FALSE CEILING COUNTER WC LEDGE WALL MIRROR LIGHT CL OF WASH BASIN CEILING WALL DISH 4 3 13 10 10 7 9 1 2 14 16 17
A/100 SCALE 1:20
SECTION 2 5
6 A/100 SCALE 1:20

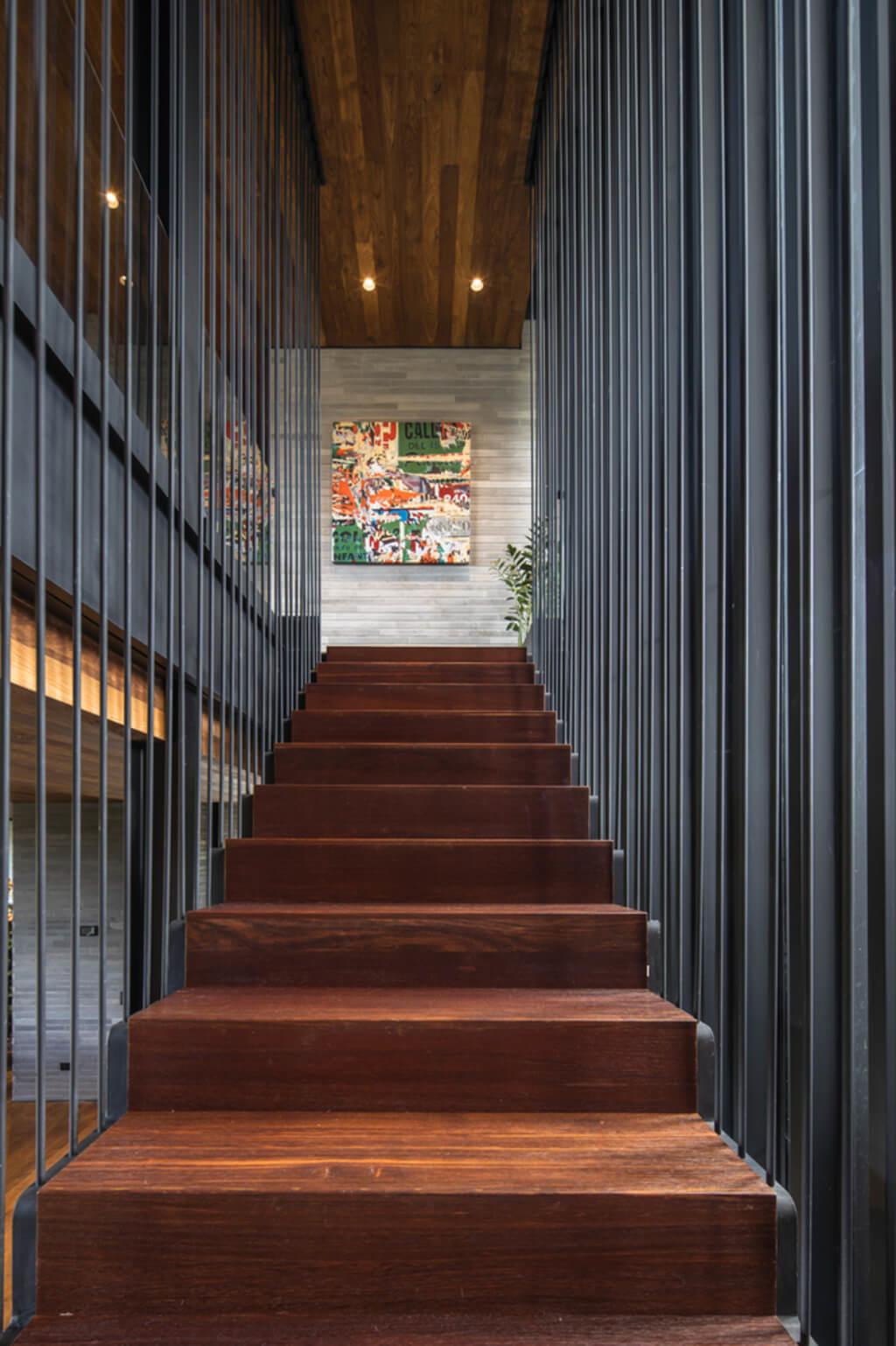

ALEJANDRO B33 HOUSE STAIRCASE

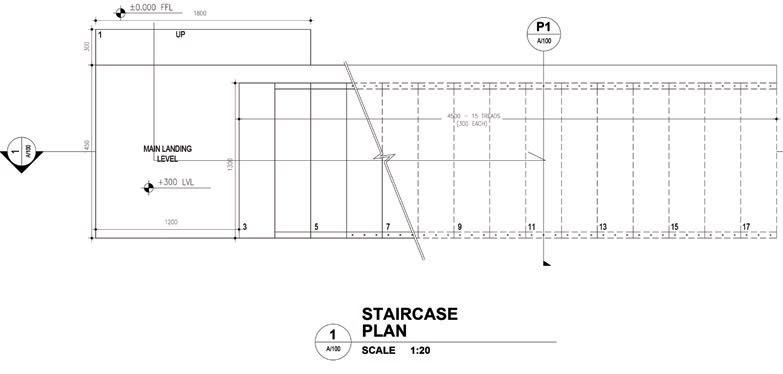

STAIRCASE PLAN
ALEJANDRO B33 HOUSE STAIRCASE

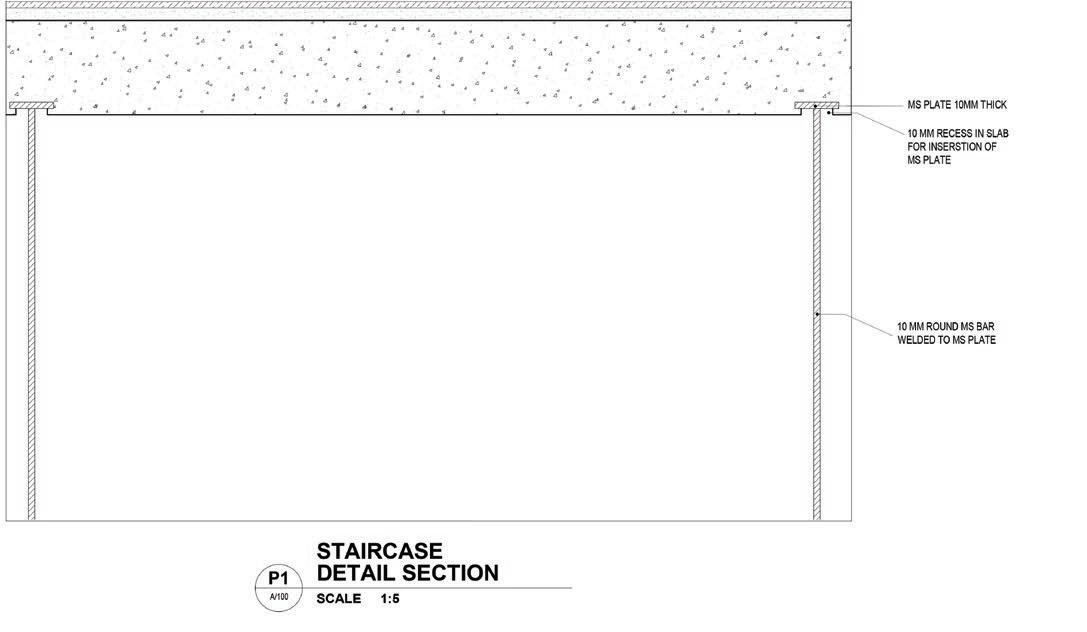

MAIN LANDING LEVEL 3 5 7 9 11 13 15 17 P2 A/100 P3 A/100 SCALE -1:20 All measurements in mm. STAIRCASE SECTION A WORKING DRAWING SEM VI STUDENT NAME YUKTA PATIL REG NO. - 21ABARC020 5 WOOD MS PLATE 10MM MS ROD 10MM STAIRCASE DETAIL SECTION P2 A/100 SCALE 1:5 SCALE -1:5 All measurements in mm. STAIRCASE WORKING DRAWING SEM VI STUDENT NAME YUKTA PATIL REG NO. 21ABARC020 17 MS PLATE 10MM 10MM THICK TILE FLOORING 25 MM THICK (CEMENT MORTAR RATIO 1:6) RCC SLAB 150 MM THICK RCC BEAM STAIRCASE DETAIL SECTION P3 A/100 SCALE 1:5 SCALE -1:5 All measurements in mm. STAIRCASE WORKING DRAWING SEM VI STUDENT NAME YUKTA PATIL REG NO. 21ABARC020 STAIRCASE SECTION STAIRCASE DETAIL 2 STAIRCASE DETAIL 3

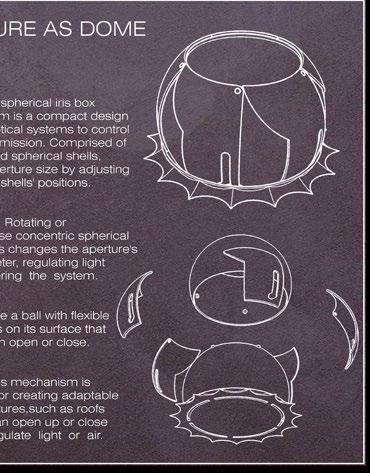

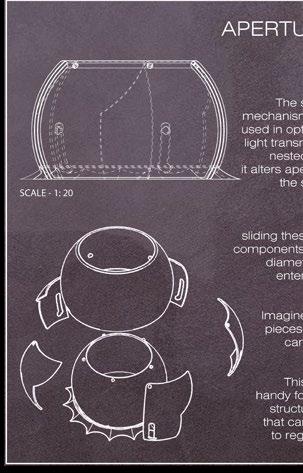

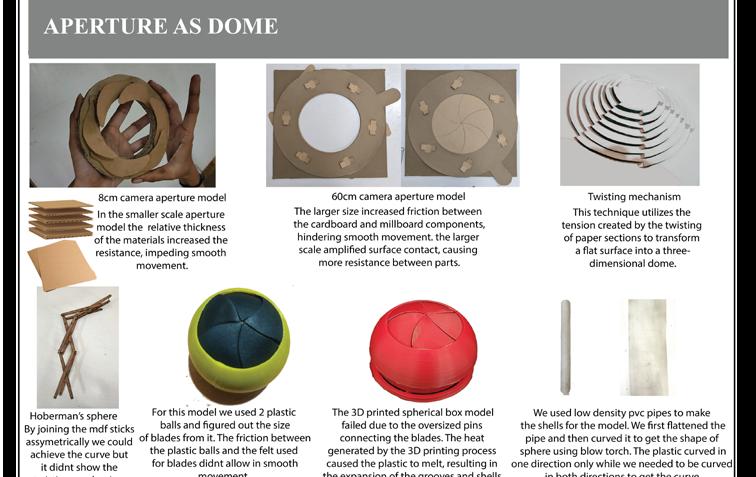

MISCELLANEOUS
‘ I here by declare that this document contains my own academic and personal works”
