01

HEALING OASIS

- SOCIAL HOUSING PROJECT

AUTUMN

21-22

Ningbo, China

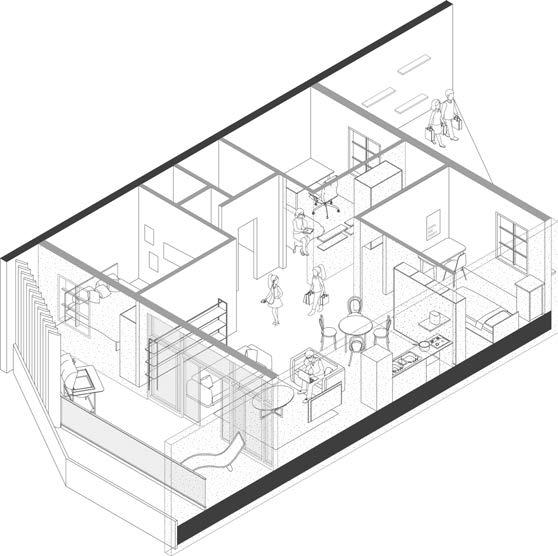

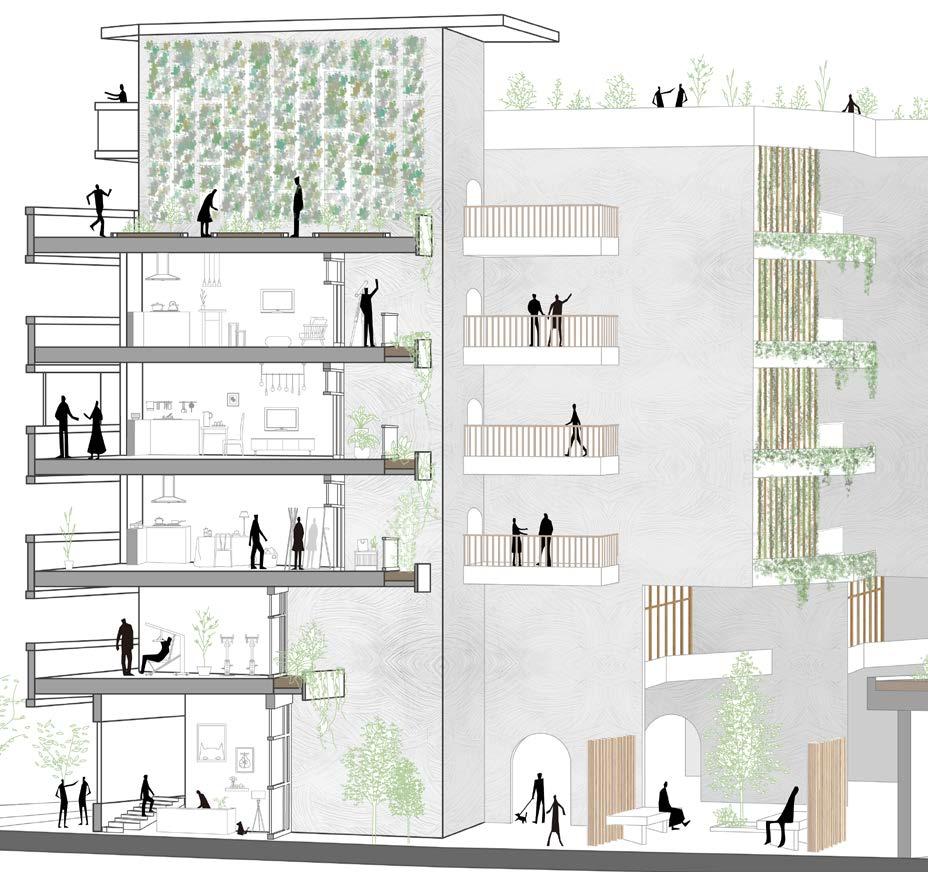

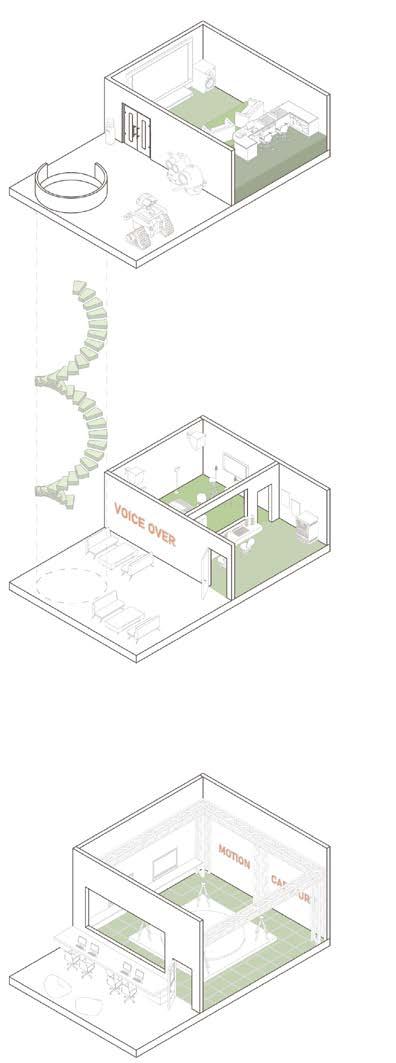

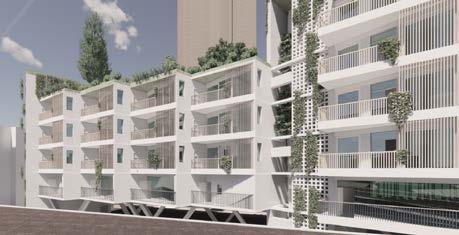

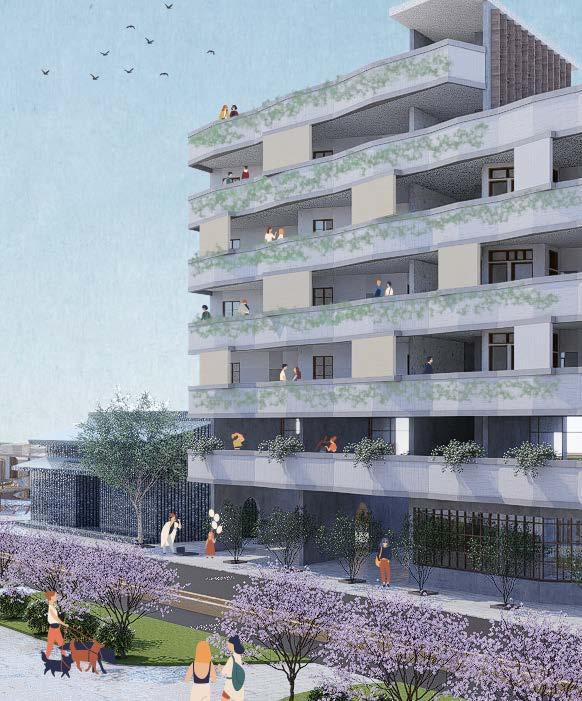

According to the social issue from this soceity: the pressure that fast-passed life in the city puts on young people, and the loneliness that elder people faced. This project creates a healing space with different functions and privacy for people with different requirements. Based on environmental psychology, it also provide a green sustainable community by having vertical greening and sharing gardens.

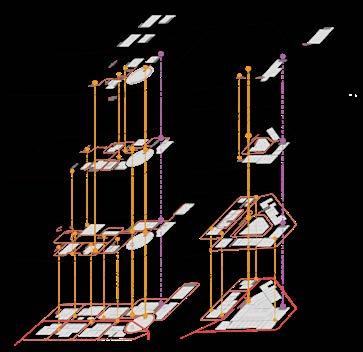

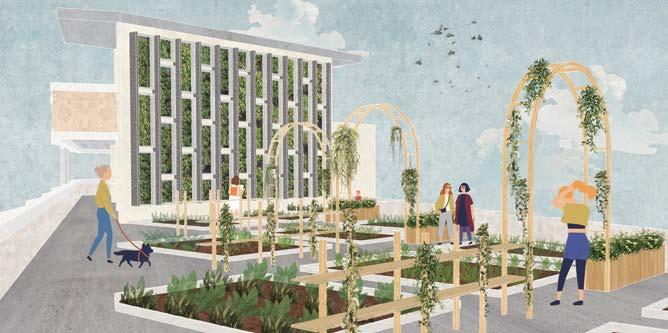

ROOF GARDEN

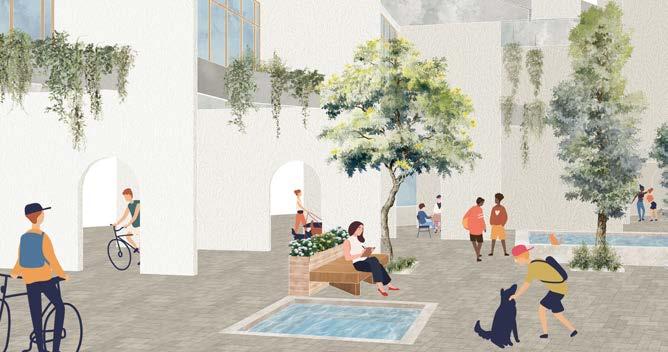

CORRIDOR GROUND

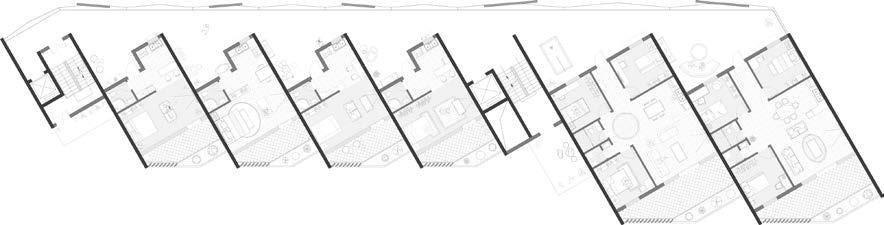

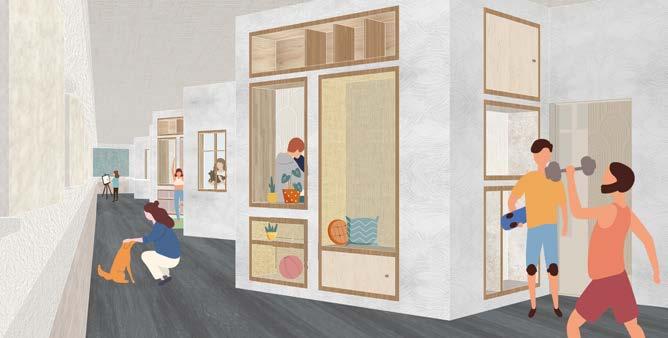

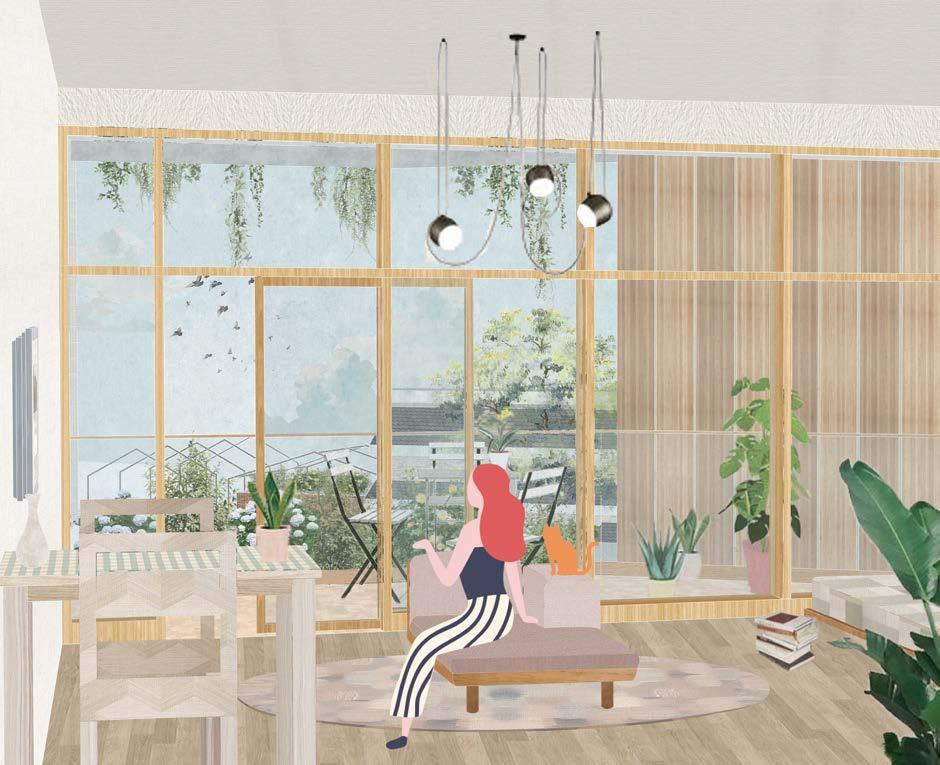

- Single Unit

Communication Area

Shading Slabs

Exchange Area

Communication Area

Urban Farming Area

Urban Farming Area

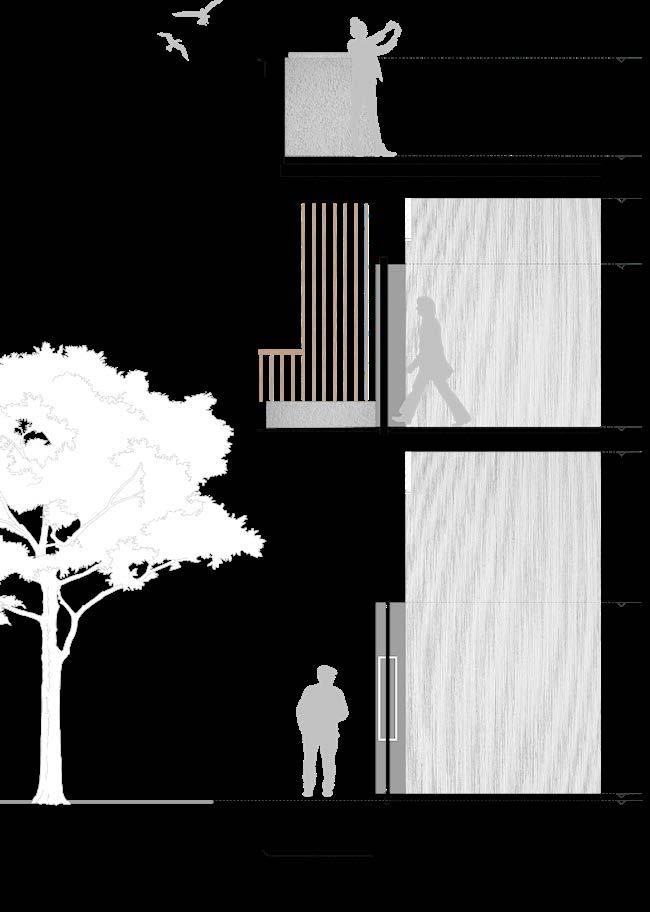

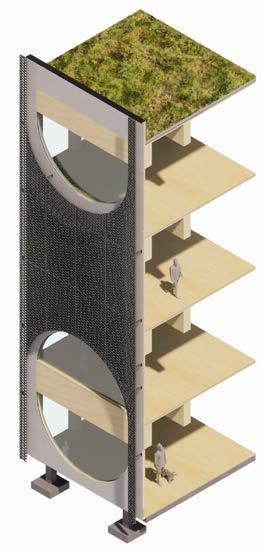

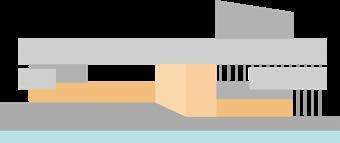

Tectonic

Parapet Construction

1. Cement slab cladding

2. Ventilation cavity (40×70 Vertical battens)

3. Thermal insulation

(2 layers 60mm, between grid of 60×60 battens)

4. Concnrete wall

5. Thermal insulation

6. Plaster

Total

20mm

40mm

120mm

135mm

40mm

10mm

365mm

Roof Construction

1. Topsoil

2. Drainage/protection mat

3. Calendered polymeric roofing, 2 layers

4. Thermal insulation

5. Vapour barrier

6. Screed laid to falls

7. Concrerte slab

8. Plaster

Total

60mm

35mm

4mm

150mm

2mm

60mm

240mm

10mm

561mm

Wall Construction

1. Cement slab cladding (Light grey)

2. Ventilation cavity (40×70 Vertical battens)

3. Thermal insulation (2 layers 60mm, between grid of 60×60 battens)

4. Clay masonry, 290×175×190mm

5. Plaster

Total

20mm

40mm

120mm

175mm

10mm

365mm

Material & Sustainable Design

Concret Fair-faced concrete slab with texture (Light grey)

Glass curtain wall (Double-layer glass) Timber

02

FEEL THE WORLD

- INCLUSIVE LEARNING SPACE

SPRING 21-22

Ningbo, China

Under the background of society’s increasing emphasis on inclusive design, this is a learning center focuses on the requirements of people with visual impairments, which providing a co- learning space for them and guide dogs. In order to facilitate the blind people, this building taking soft curves as design stratage and has simple spatial circulation which can help them to remember and use.

Number of Visually Impaired People in China

48.92

Million

Moderate Vision Impairment

4.67 Million

8.69

Severe Vision Impairment Blindness

Vision Loss in China 2019

Different Types of Visual Impairments & Eyesight

Interview Guide Dog

(*Interview with a blind school teacher)

How students in blind schools use different spaces on campus?

Guide students by using signs with special texture and help them remember frequently used routes.

What facilities does the school use to help students?

- Apply soft foam stickers to corners

- Most of the school facilities such as tables and chairs, are fixed to the floor and cannot be moved.

Macular degeneration Glaucoma Retinopathia diabetica Cataract Retinitis pigmentosa Normal Eyesight

200 Million

(Philipp Meuser, 2012)

Number of existing guide dogs in China:

Number of guide dogs needed in China:

How to Addapt a Guide Dog

1. Set a 4 Floor Volume

4. Create Entrance & Backyard

2. Program Seperation

3. Add Curve Circulation For Visualimpaired people

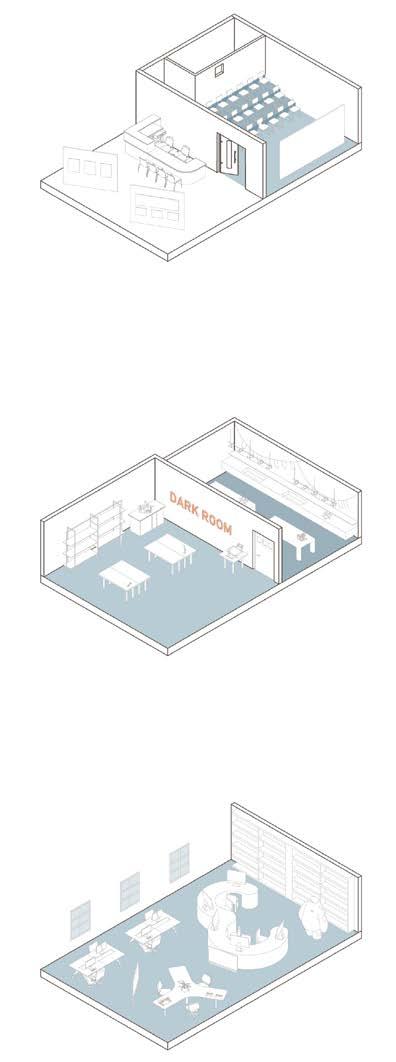

① Reception

② Center Garden

③ Dog Training Space

④ Outdoor Area

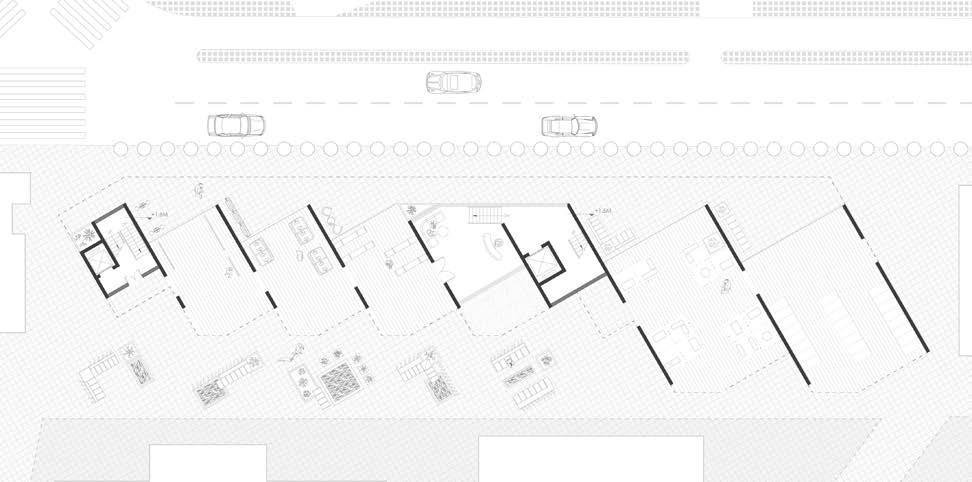

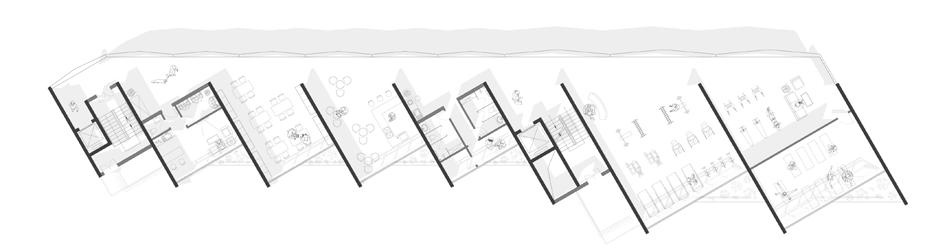

Ground Floor Plan

First Floor

① Office

② Discussion Area ③ Balcony

④ Pantry Room

⑤ Classroom

Second Floor

① Veterinary Support - Operating Room

② Veterinary Support

- Diagnostic Room ③ Dog Grooming Space

④ Multifunction Room

⑤ Lecture Space

Third Floor

① Entertainment Space + Cafe

② Self- learning space

③ Library

* Fixed Furniture

* Same Circulation

* Lit in a Glare and Shadow Free

Roof Top (Green Space)

- Garden

- Activity Space

Third floor (Self-learing)

- Entertainment space

- Library

Holl for green

Guide dog training space Architecture Drawing

Secondfloor (Guide Dog Support)

- Veterinary support

- Dog grooming space

- Multifunction room

- Lecture room

Firstfloor (Typical Learning)

- Group discussion area

- Normal Classroom

- Staff Office Groundfloor (Training)

Plants Frame

- Dog training area

- Small play garden

- Central courtyard

Central

Greenery Frame

Greenery Frame

Section BB'

Section AA'

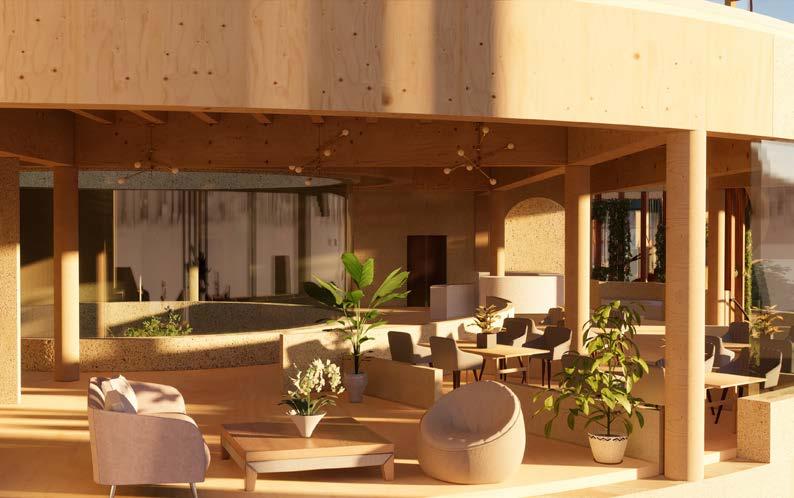

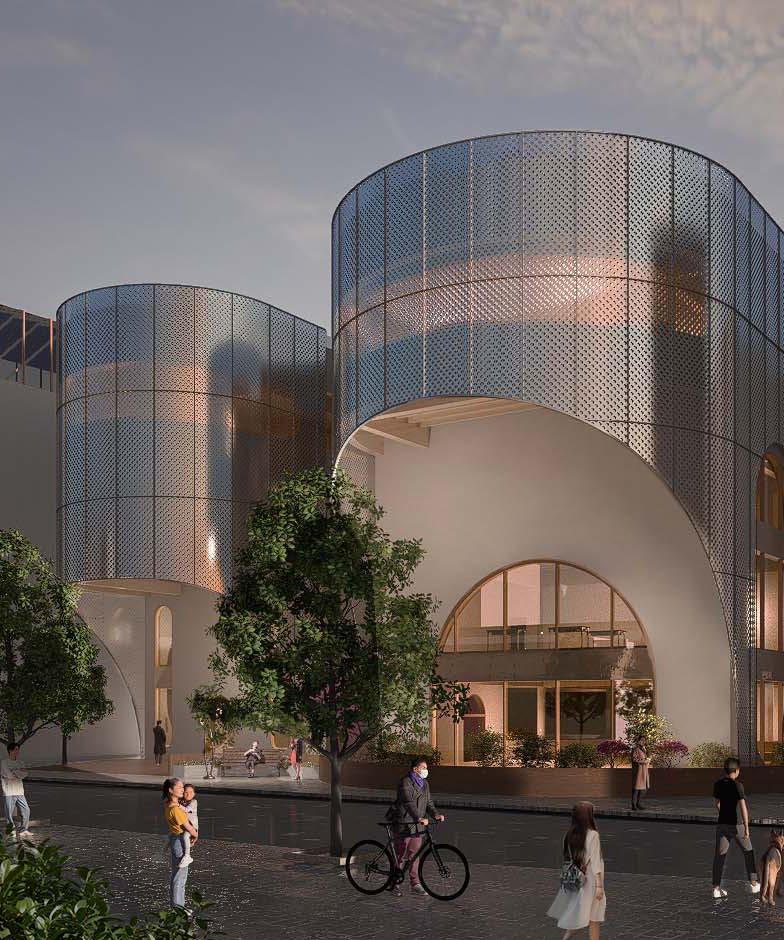

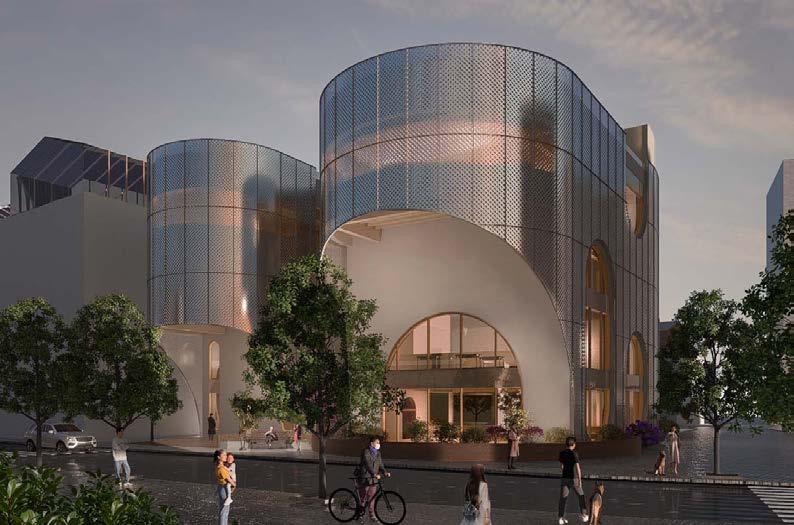

Outdoor Perspective

Tectonics

Roof Construction

- Topsoil

- Drainage mat

- Calendered polymeric roofing, 2 layers

- Thermal insulation

- Vapour barrier

- Screed laid to falls

- Cross-laminated timber 3layers

- Total

Parapet Construction

- Concrete decoration panel cladding

- Vertical battens (20x40)@400mm

- Rubber strips as separating layer

- Thermal insulation

- Cross-laminated timber 3layers

- Total

Wall Construction

- Mental facade

- Connection device & Cavity

- Concrete decoration panel cladding

- Vertical battens (20x40)@400mm

- Rubber strips as separating layer

- Thermal insulation

- Cross-laminated timber 3layers

- Total

Floor Construction

- Solid timber floorboards

- Mineral wool / Acoustic panels

- Vapour barrier

- Cross-laminated timber 3layers

- Total

Ground Floor Construction

- Solid timber floorboards

- Mineral wool / Acoustic panels

- Vapour barrier - Concrete

- Total

Physical Model

mm

mm

mm

mm

mm

mm

mm

mm

03

ANIMATION DREAMWORKS

- ANIMATION CREATIVE CENTER

SPRING 22-23

Ningbo, China

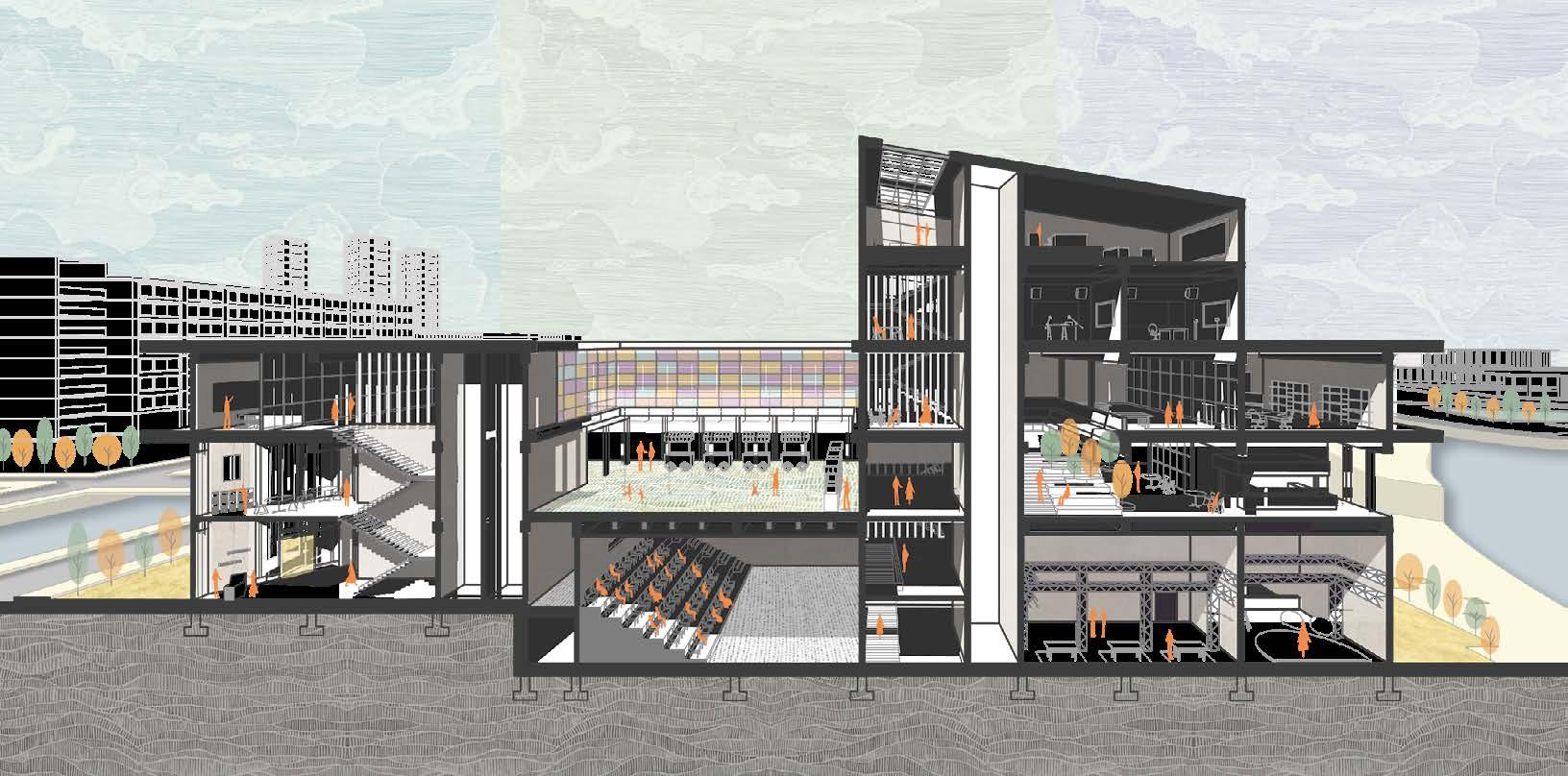

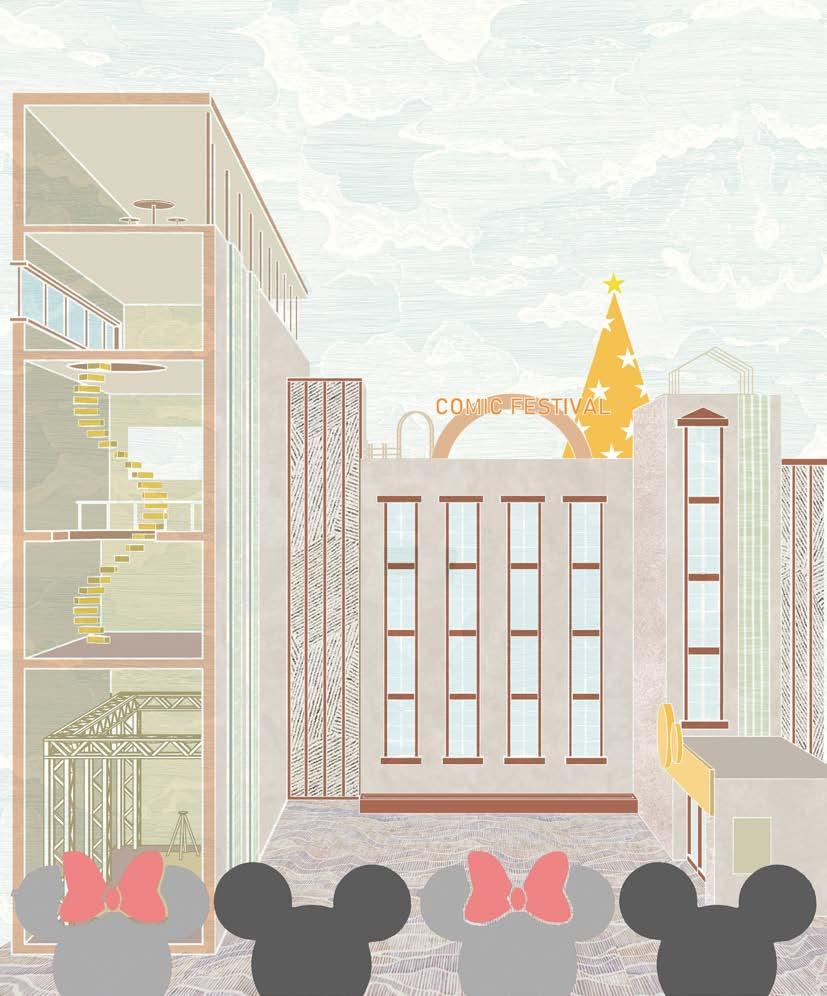

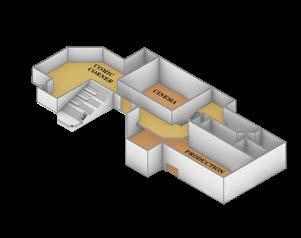

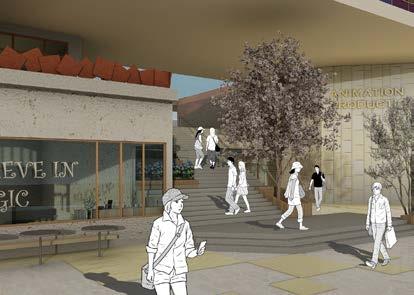

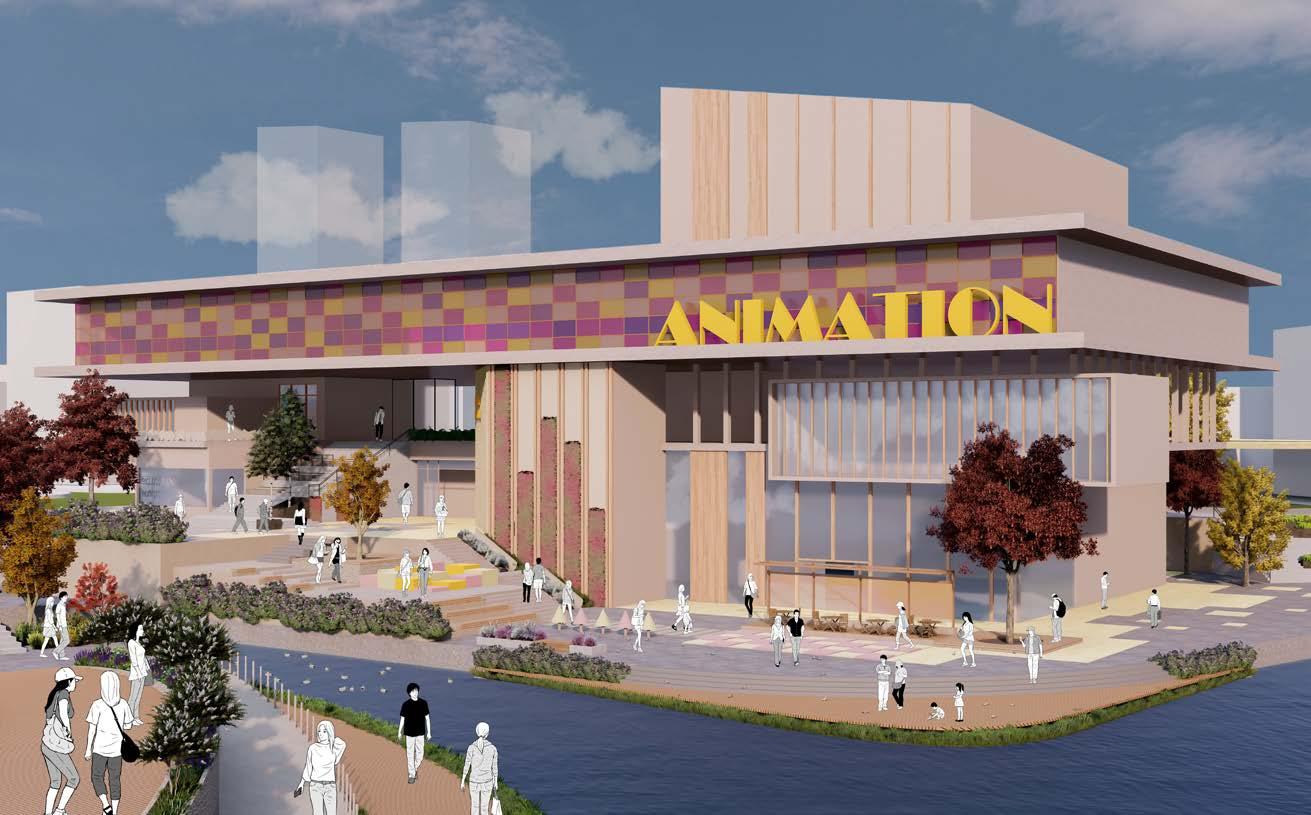

In order to improve the problem that Chinese animation is considered only suitable for children and provide creators with a better creative environment, with the aim of supporting Chinese animation creation, this building provides relevant functional space and equipment support. It also includes cinema, exhibition areas and other display spaces, providing opportunities for enthusiasts and creators to communicate.

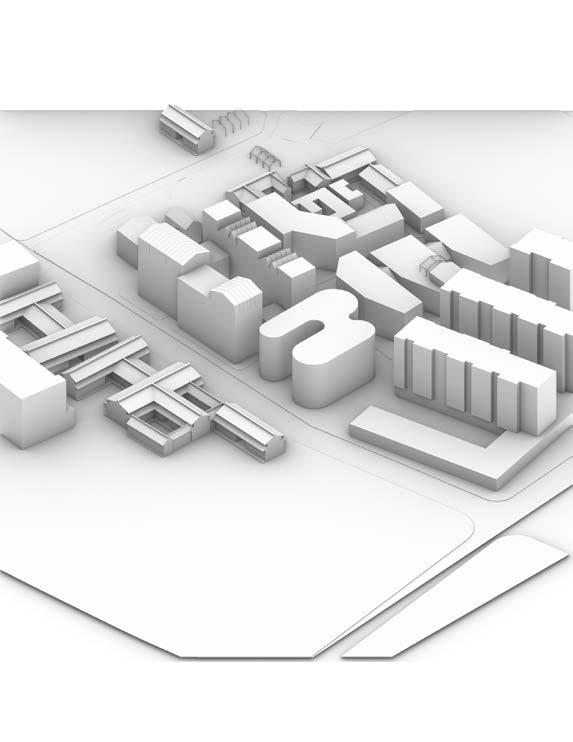

Site Shenzhen Shanghai Ningbo

Developed animation industry

AGRICULTURE

CULTURE

Animation Industry

China's first animation was born in 1922 and the first animation with sound in 1935. During the 1950s to 1960s, Chinese animation reached a peak. During this time China saw the emergence of new art forms such as puppet animation, paper-cut animation and ink animation, but then the turmoil of society brought the animation industry to a low point once again. After 1977, the Chinese animation industry was once again experiencing a creative boom, with faster production, a richer and more innovative range of subjects. However, around 1985, Chinese domestic animation began to suffer from the impact brought by imported animation. Under this impact, Chinese domestic animation began to suffer from under-aged content and shodd production until 2001.

Before 1985 221.2

Before 2020

2020 -Future

Flea Market

Electrical Appliance

Port

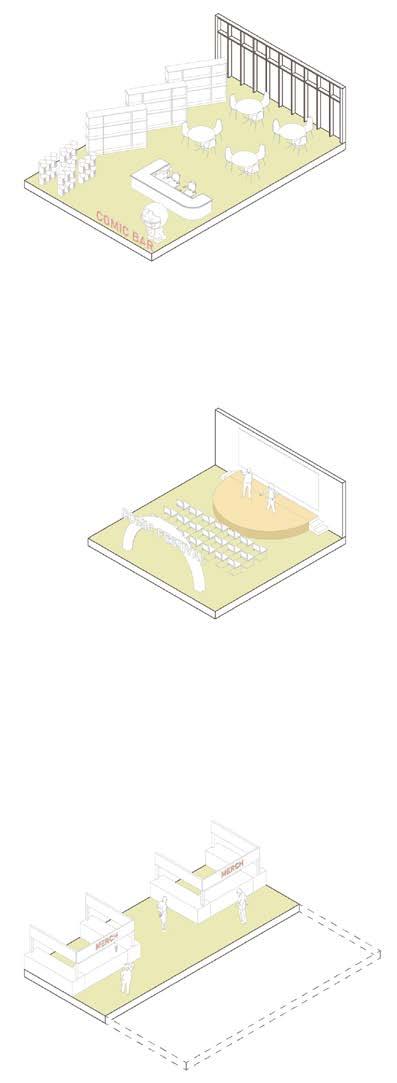

Work Flow

Creator

Investor Enthusiasts

Short Term

Animation Production Long Term Rent Visit

Test Screening

Cinema

Press conference

Financial Support

Lecture Room

Achievements Display

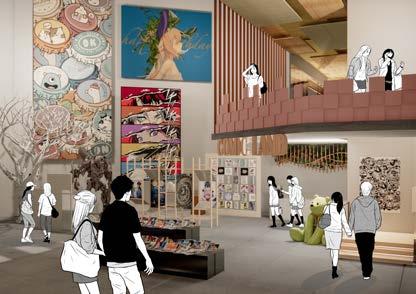

Animation Exhibition

Participate in Activity

Planning Enjoy

Animation Festival

Fitting tolerance

Wall Constrution

- Cladding board 300 x 600 x 5 mm

- Ventilated Cavity (40 x 70mm vertical battens)

- Thermal Insulation (1 layer 60mm+1 layer 60mm)

- Reinforced Concrete - Thermal Insulation - Plaster Total

Roof Constrution - Top soil - Drainage - Calendered polymeric roofing

- Thermal Insulation - Vapour barrier

- Screed laid to falls

- Concrete Slab

Floor Constrution (Normal)

- Terrazzo Flooring

- Screed - Thermal Insulation

Oligotrophic Grassland

Gravel

Waterproofing

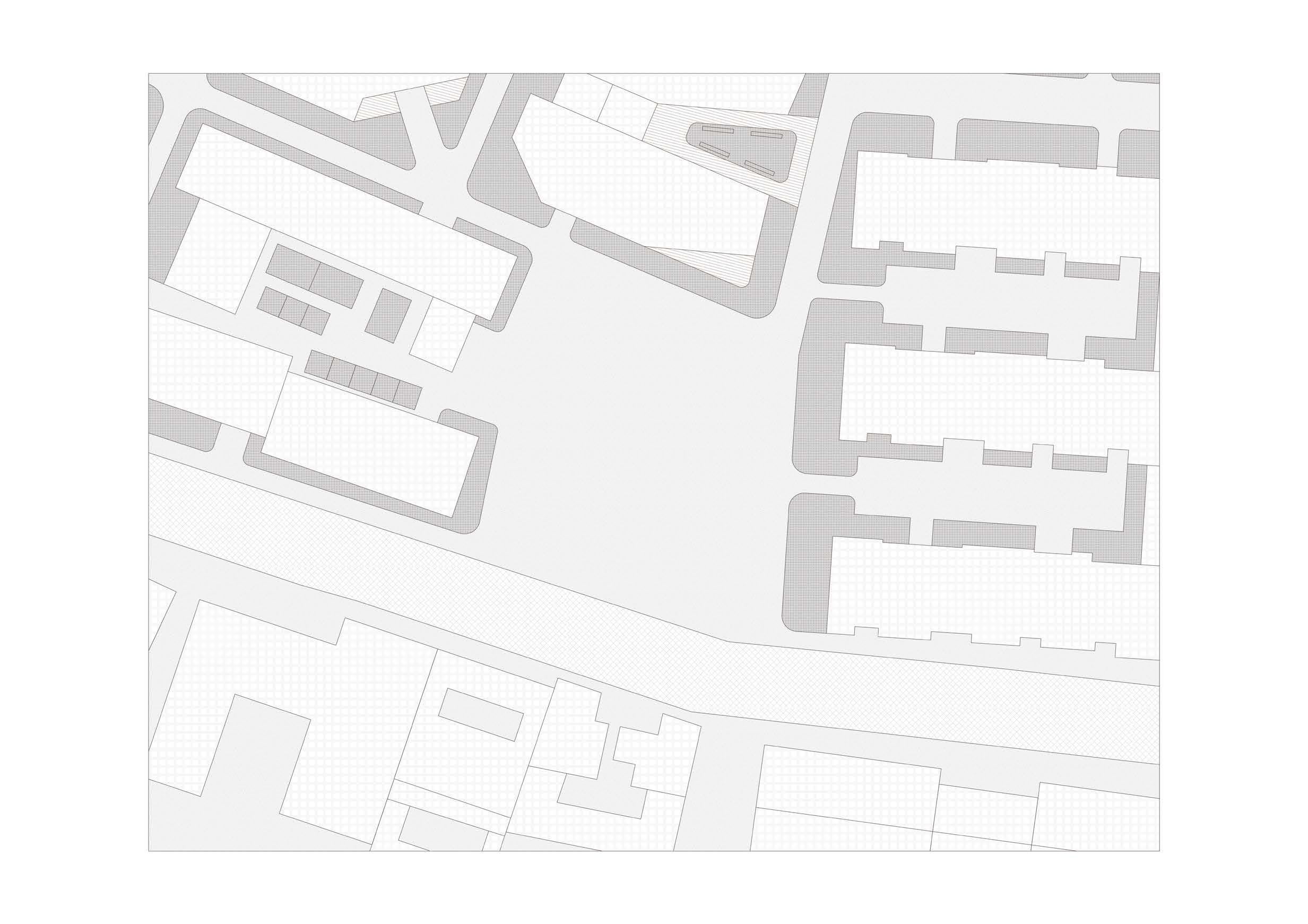

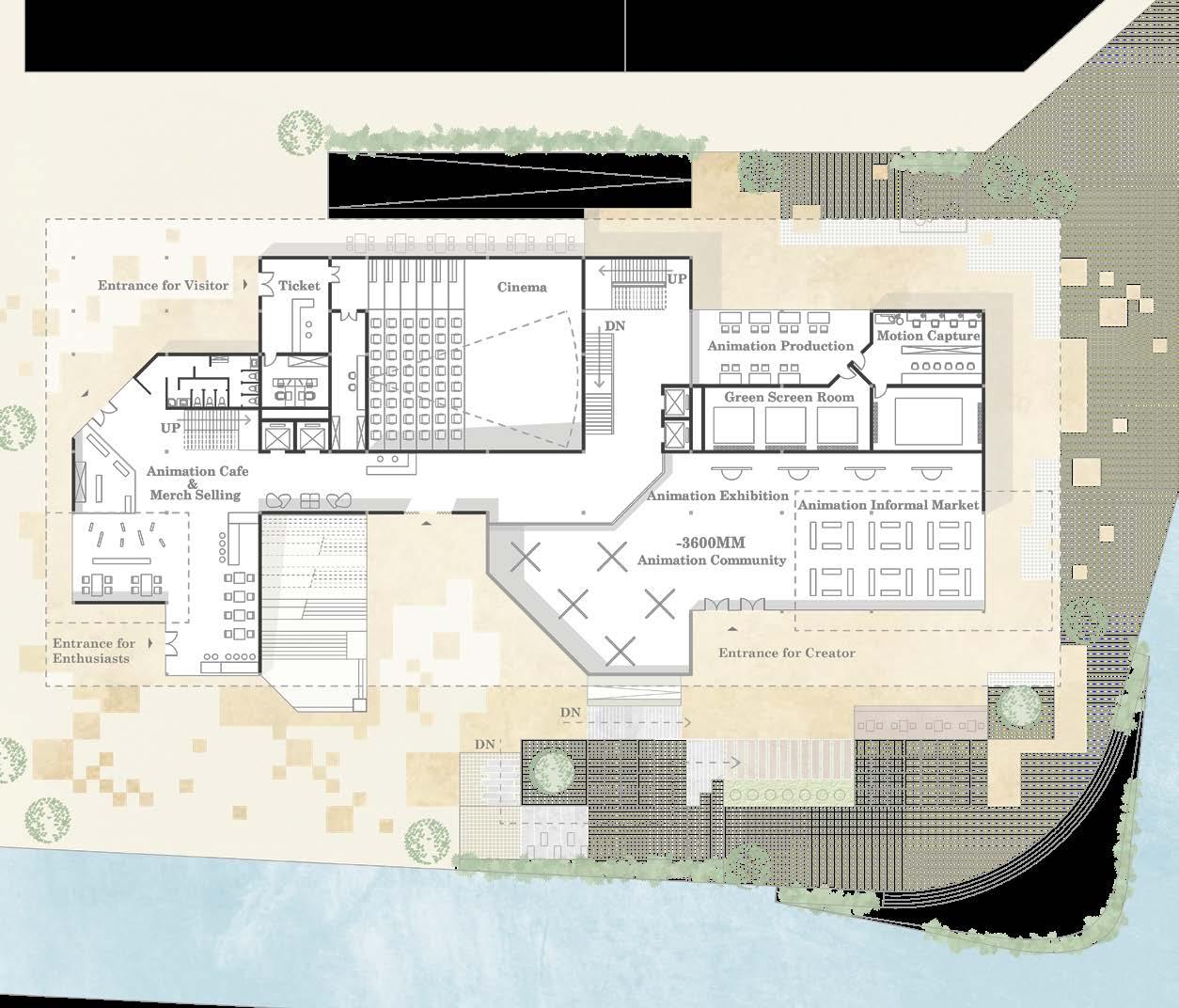

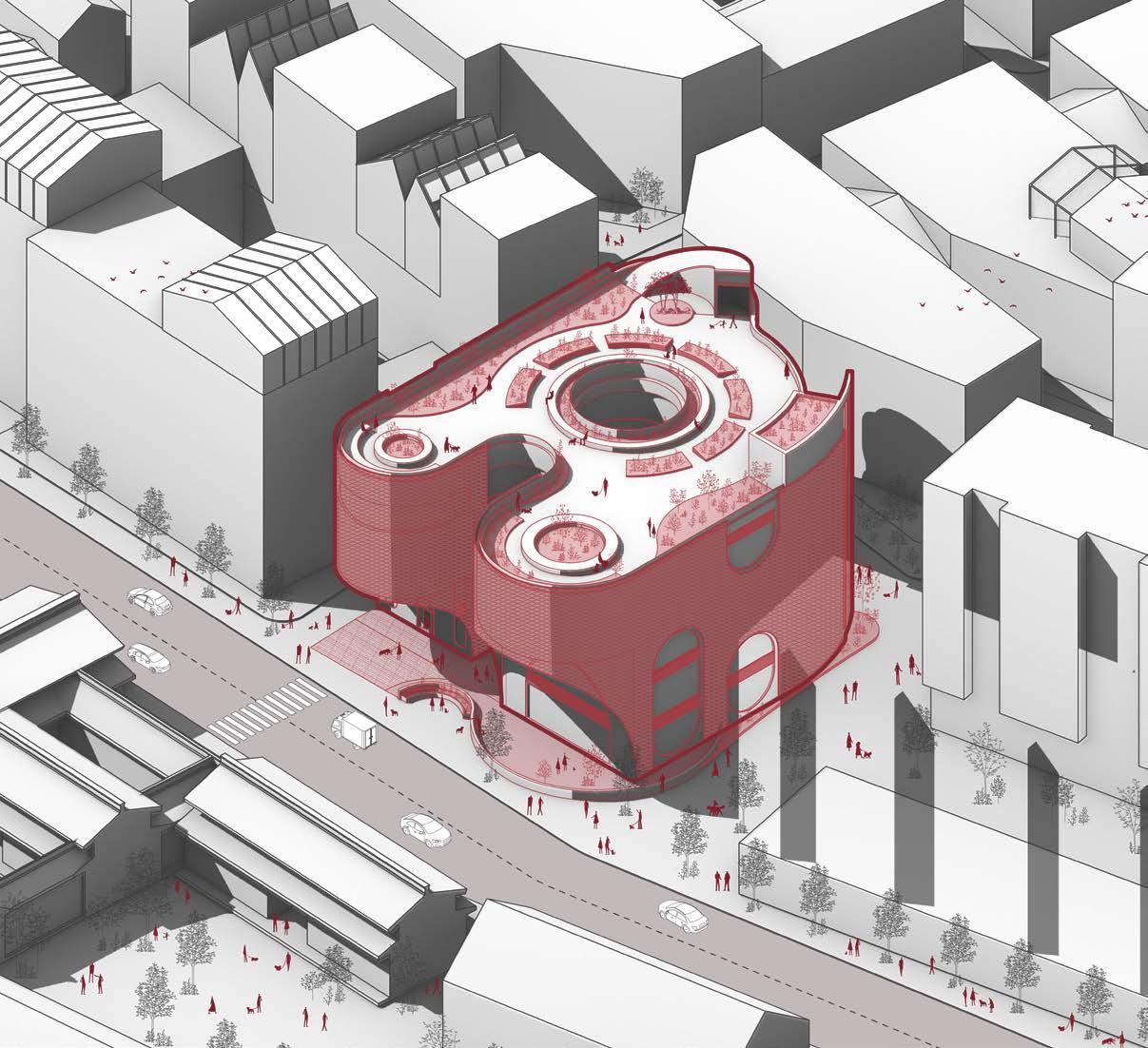

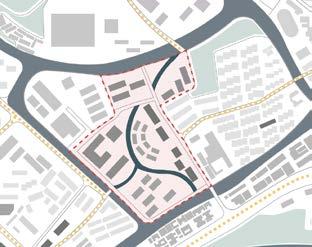

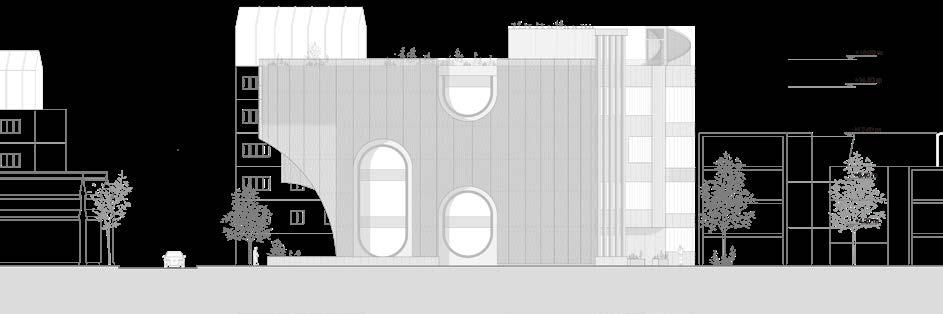

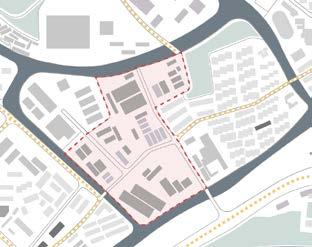

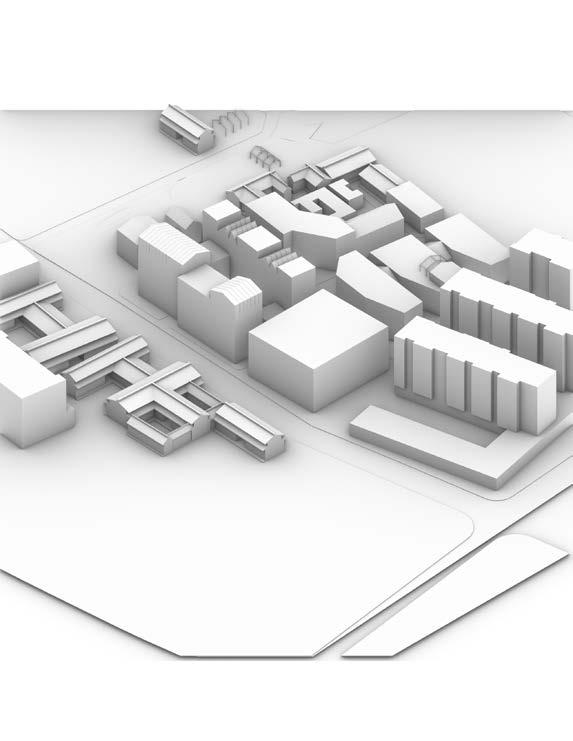

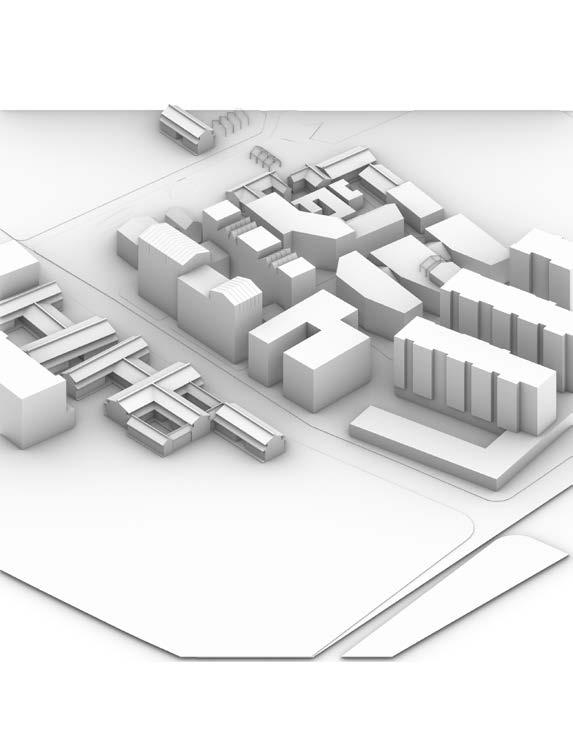

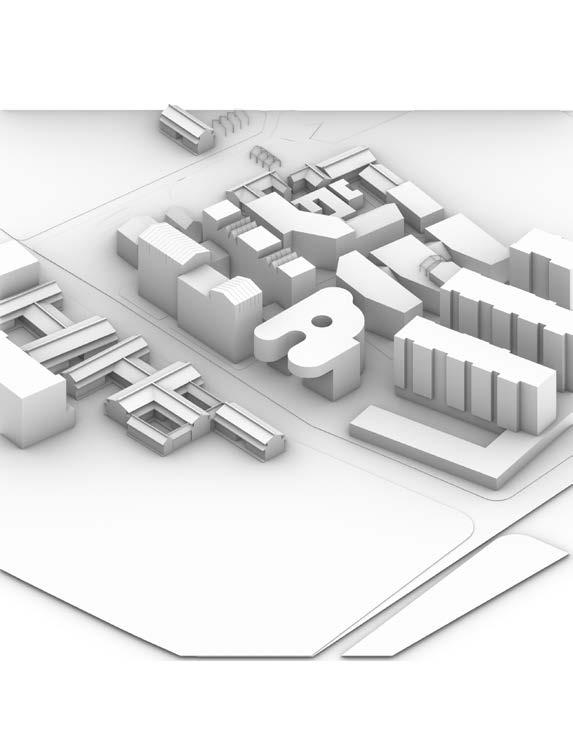

Animation Cultural Center, as a cultural building, is separated from the commercial food market by a canal and from the bustling market complex on the other side. This location provides the center with convenient access to basic services for users visiting the building.

Our research group took three cities in the Yangtze River Delta region as research objects to learn the topic of Horizontal Metropolis.

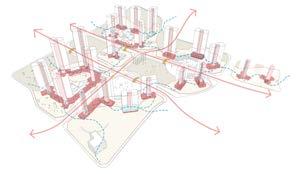

We started with mapping and explored the spatial relationship in these region, especially the agriculture and industry area. Our research results was first presented in three altas, and will be completed into physical models and displayed in the museum in the future

Taking the existing protected architectures in Ningbo as a starting point, our research group explored Ningbo's urban memory(include culture,history stories...) through literature searches, interviews and other methods.

We also organized a series of activities like city walks and exhibitions for the public to help citizens know their home city.

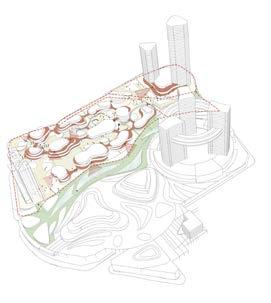

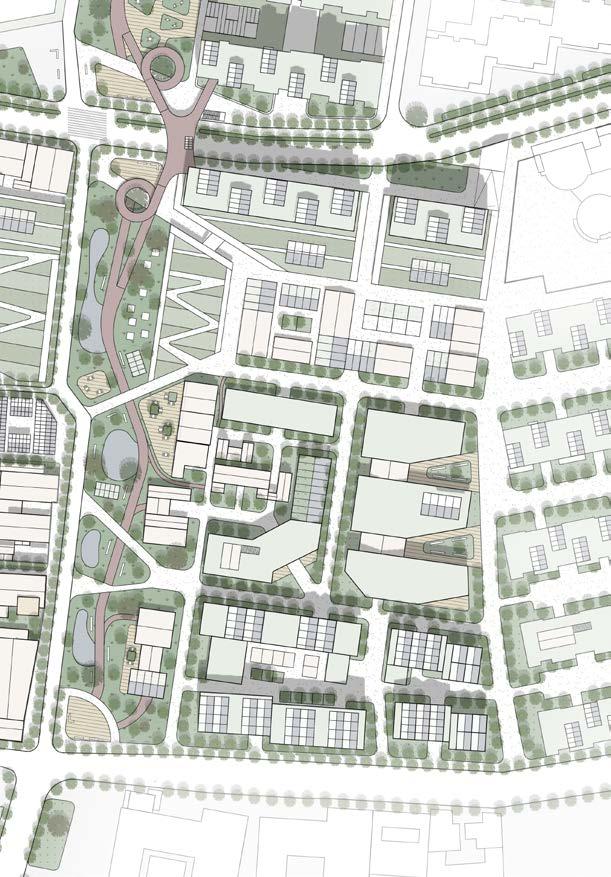

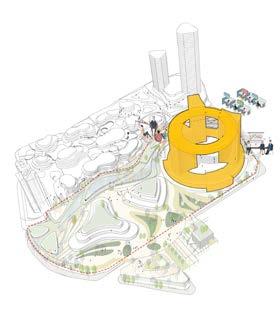

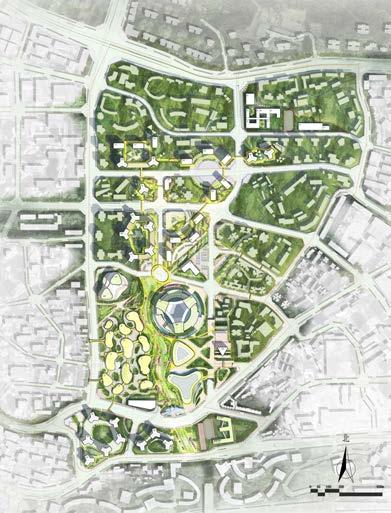

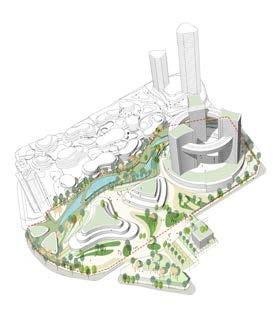

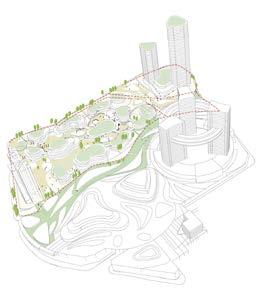

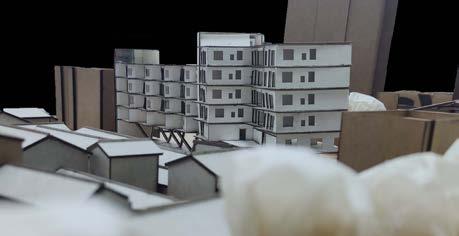

The site is located at the intersection of three business districts in city center of Chongqing. Taking the aim of sustainable city, our project group divided this area into four parts. Since I participated in the project as an intern, I was mainly responsible for the residential part and I have done typology research and analysis diagram drawing.

- Industrial Area - Floorplan - Commercial Area - Living Area

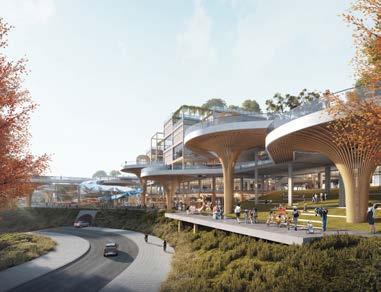

This is a community center located in the city suburb, mainly serving employees and their families who work in the local factories. During the design process, our group took the sky bridge as the concept after considering about employees' needs and the future transport development of this area.

As an intern, I was responsible for the drawing of floor plans, analysis drawings, display animations and portfolio layout in this project.

City Garden

City Balcony Sharing Community

' Maple Zoo ' Community Center
