• August 30 to September 8, 2022

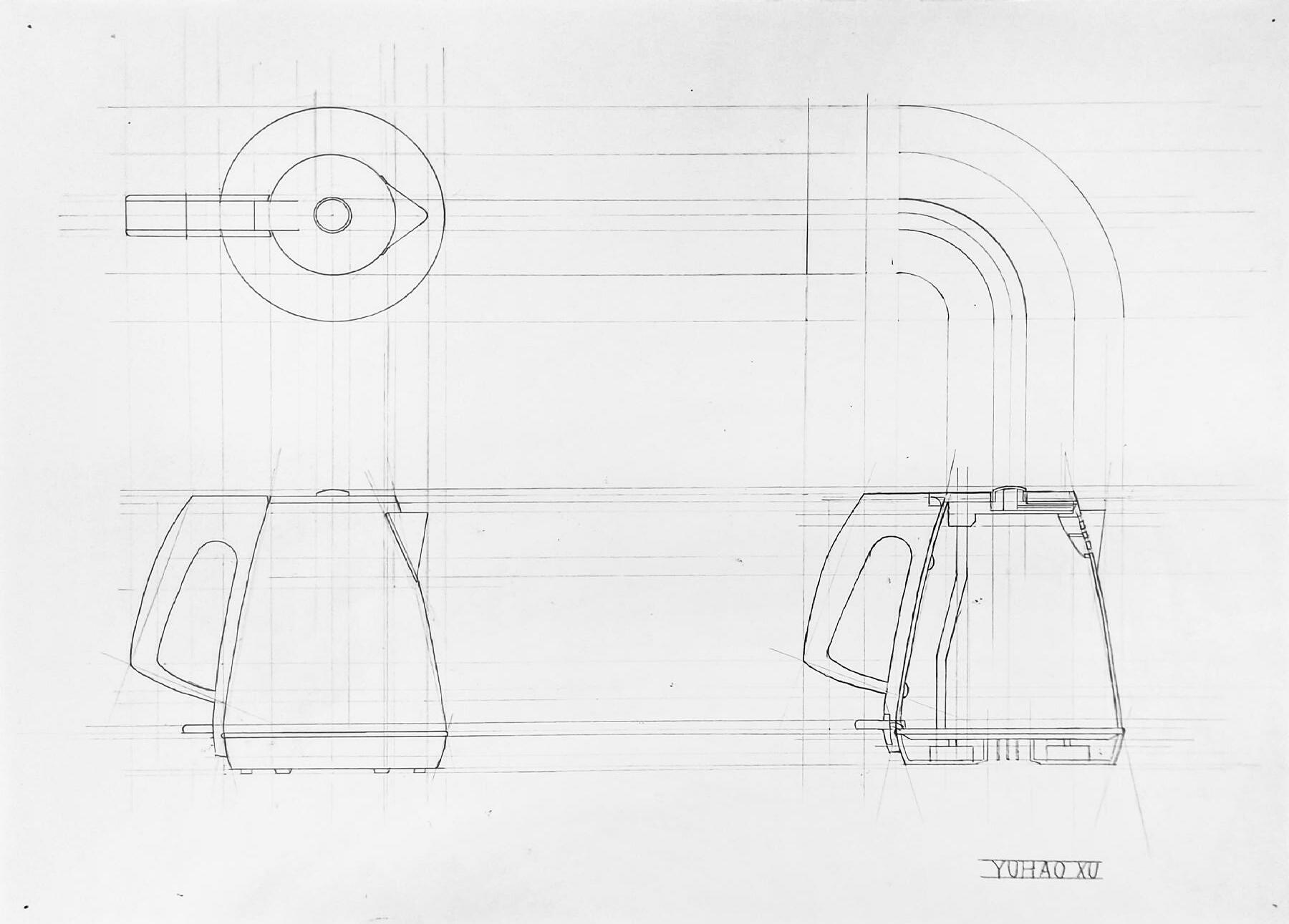

• Use techniques to draw top view, elevation view, and section view in a single page with same demantions

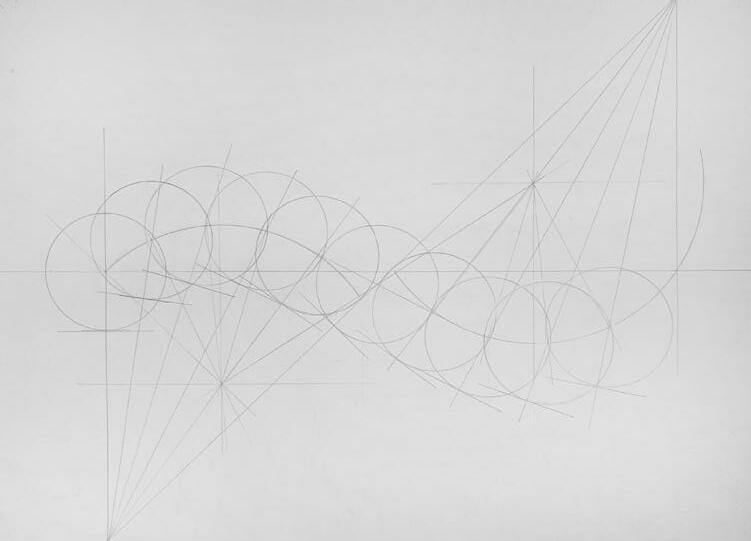

• Use construction line as an important tools to help drawing

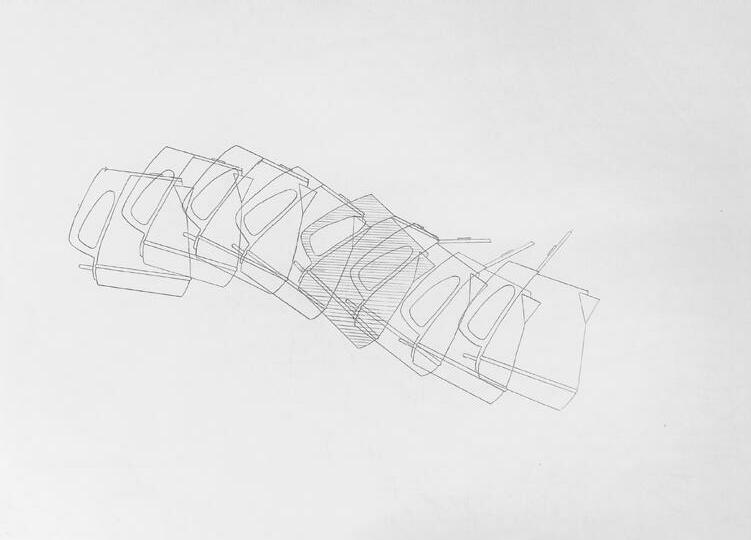

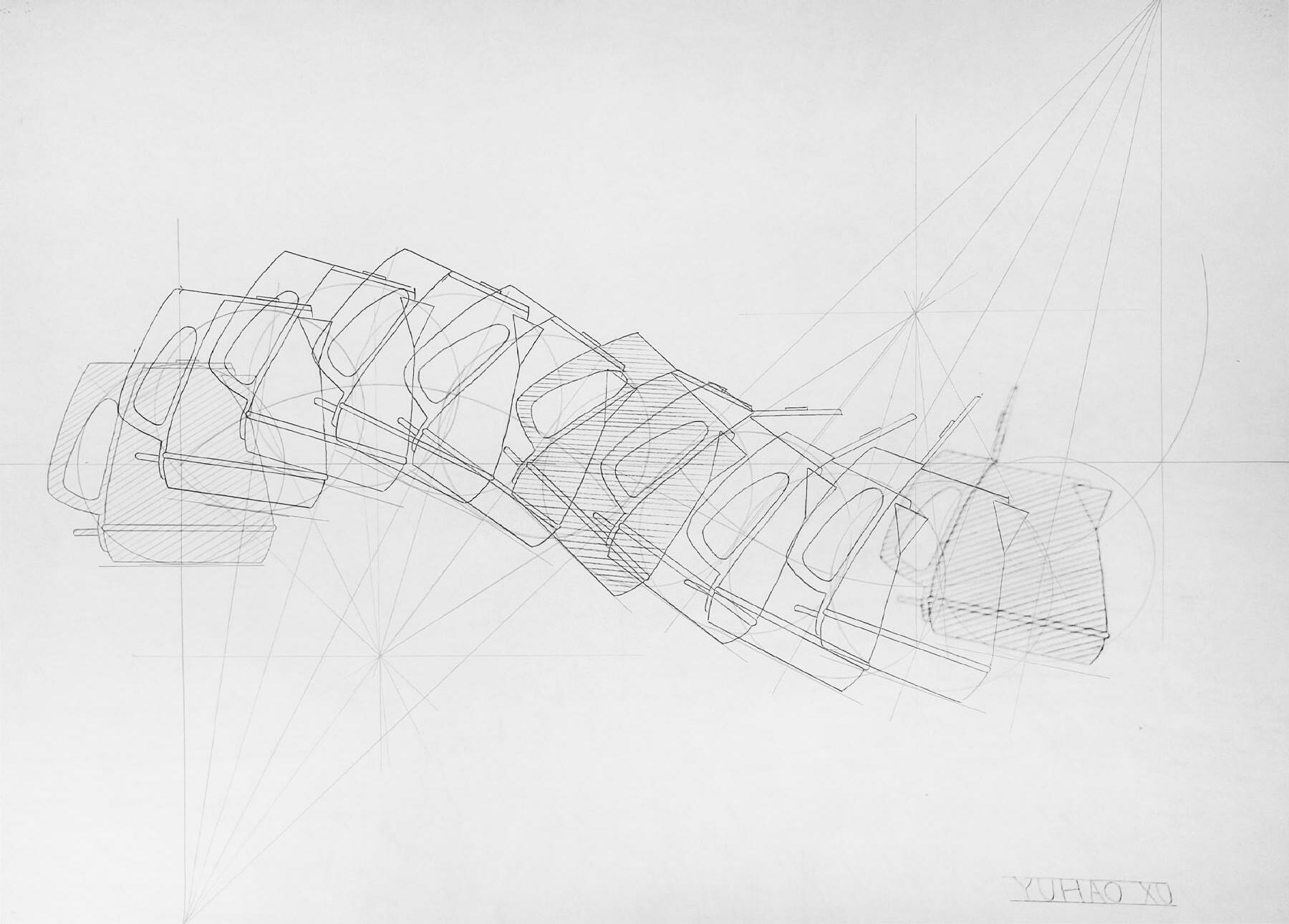

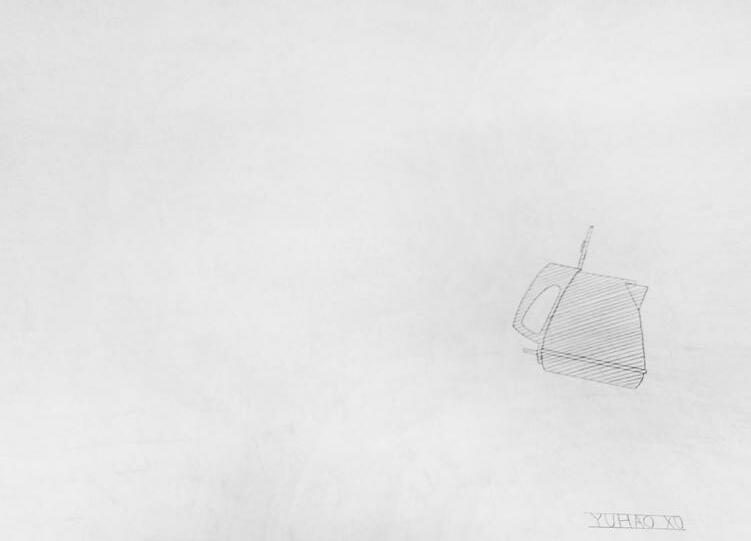

• Animated the object with motion in real life

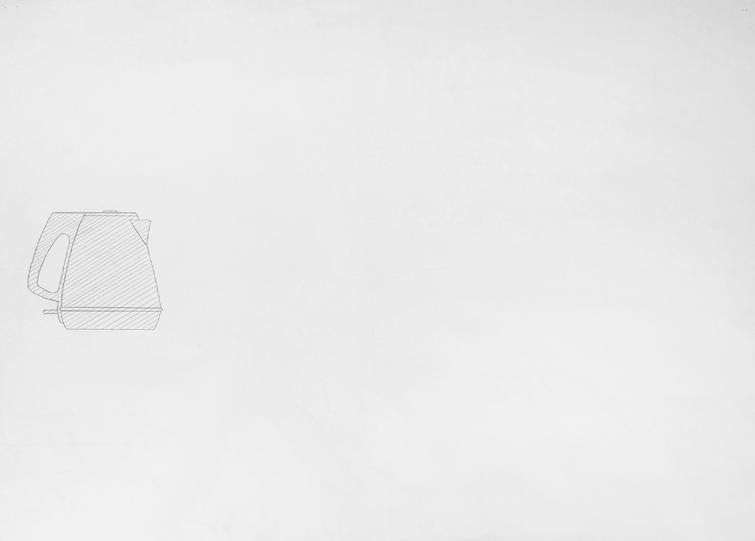

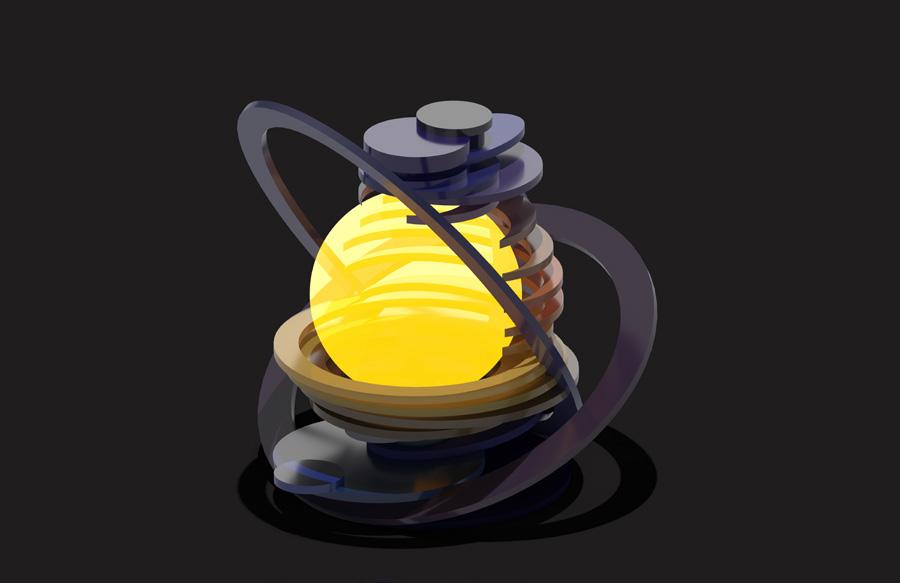

• Chose kettle as the obkect
Time
• Spectember 8 to Spetember 20, 2022

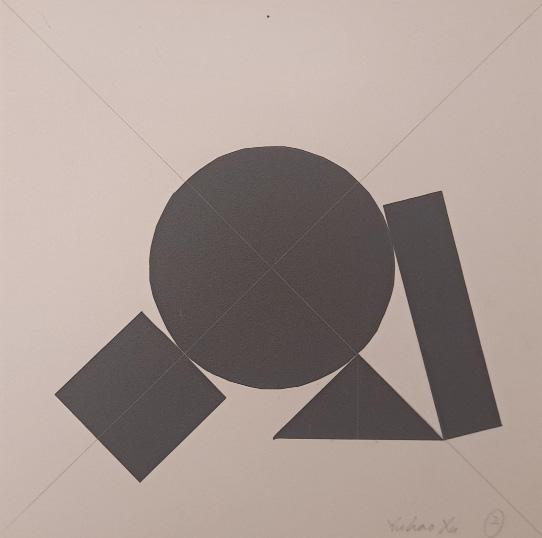

• Practice of using iterrations before design

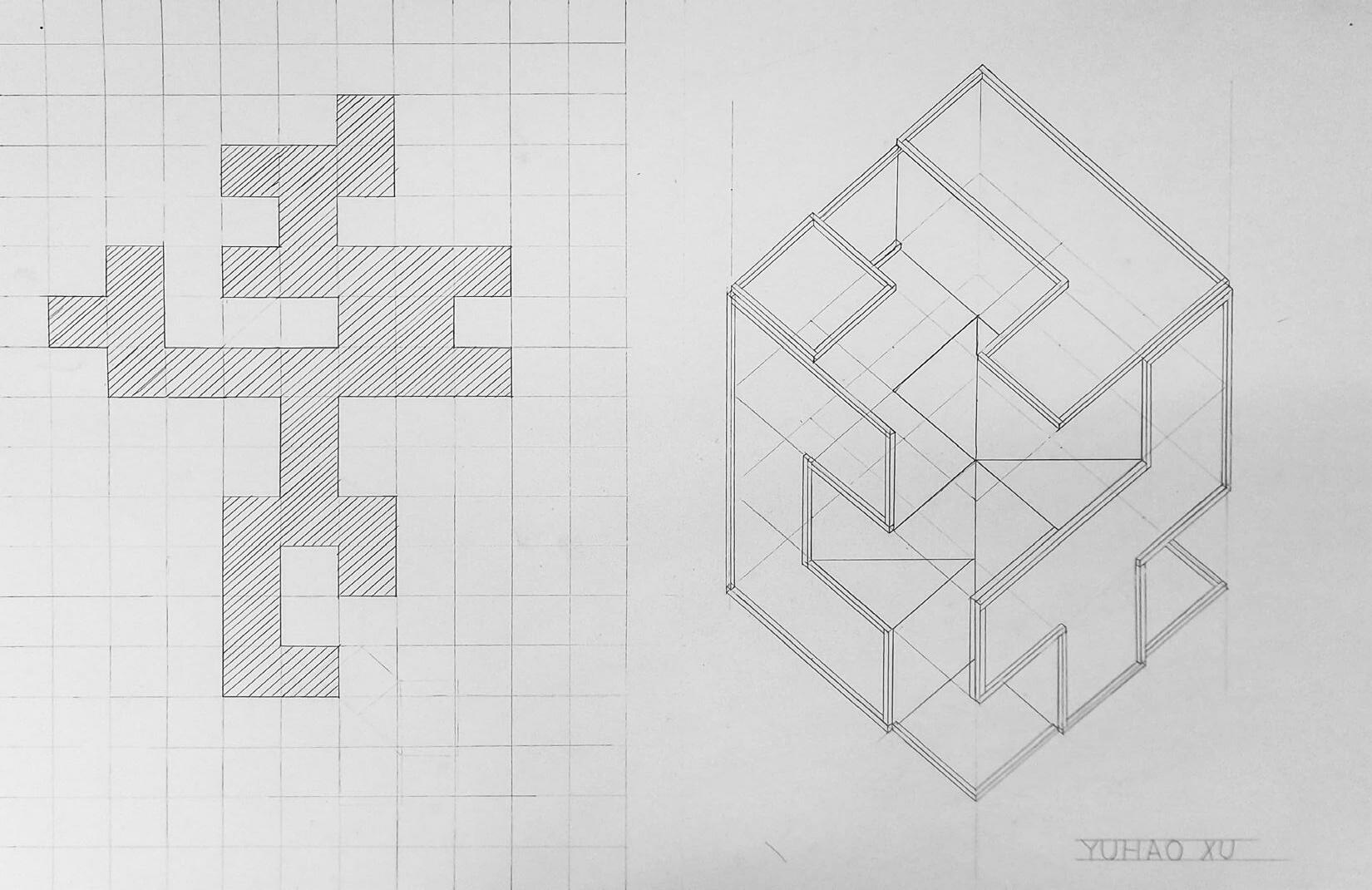

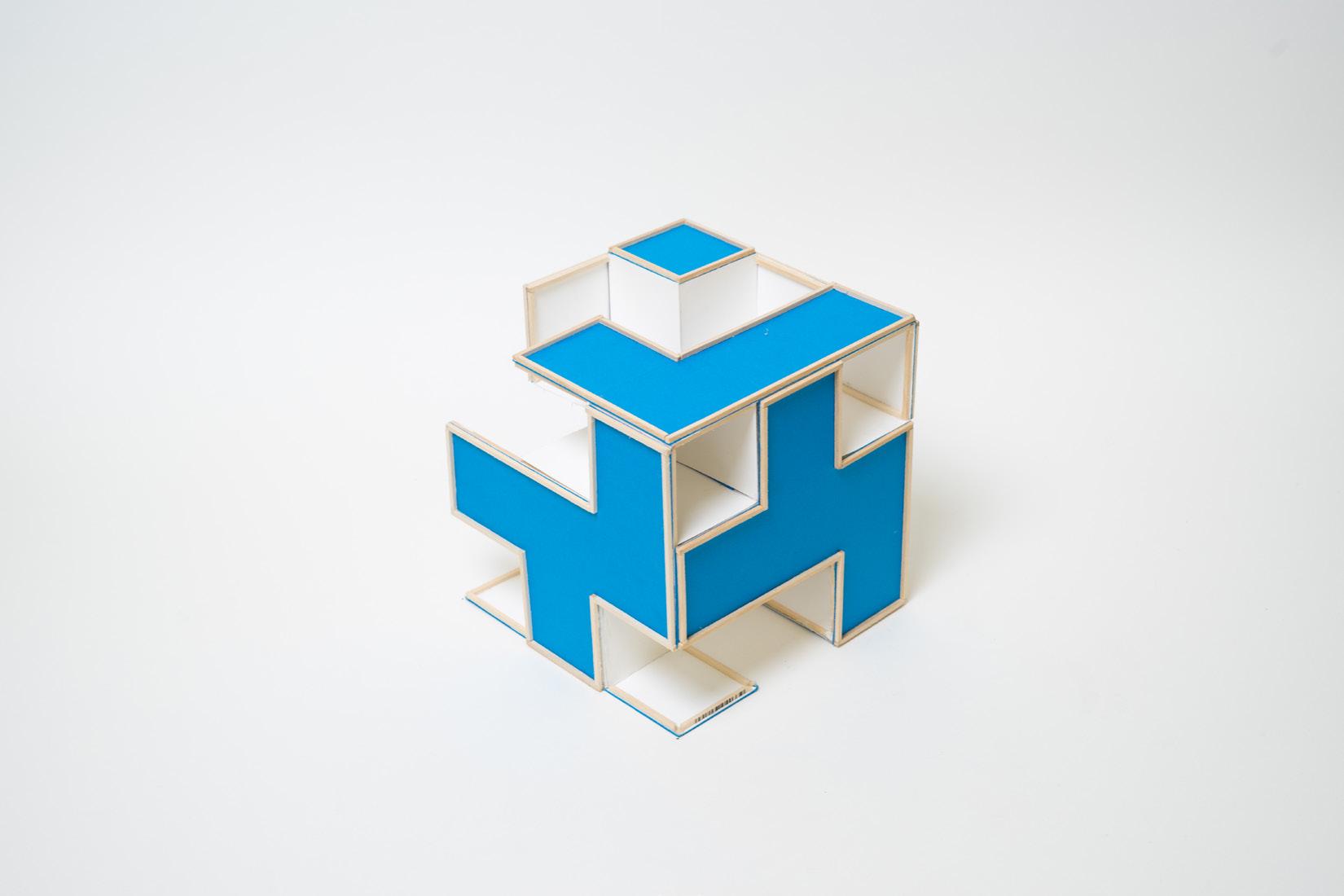

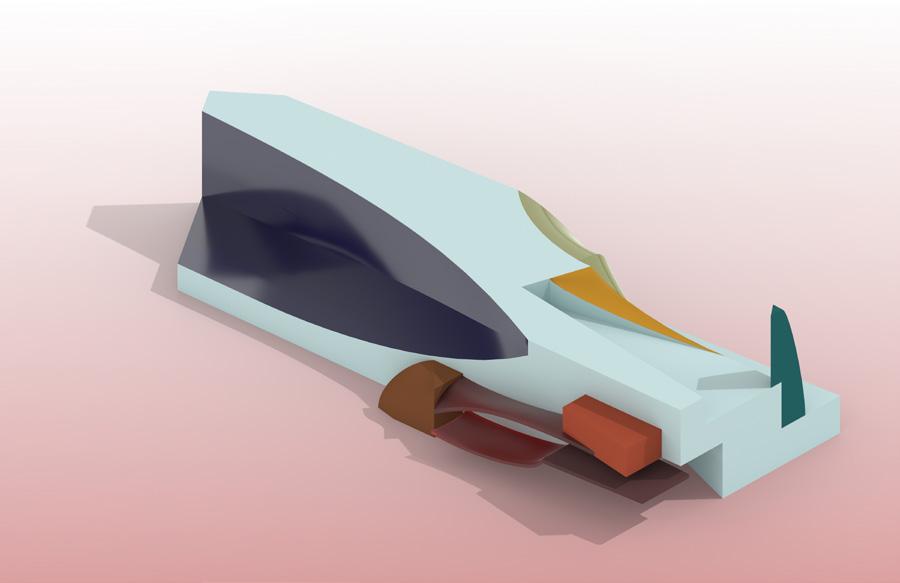

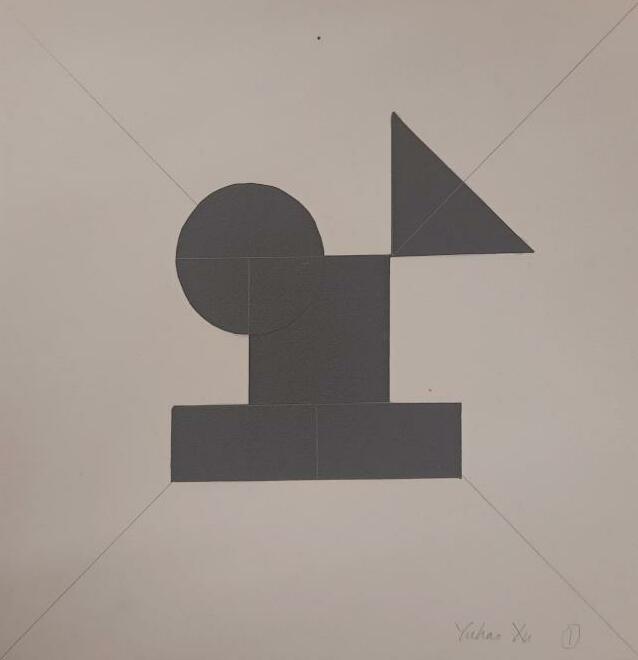

• Transform from 2d to 3d to 2d

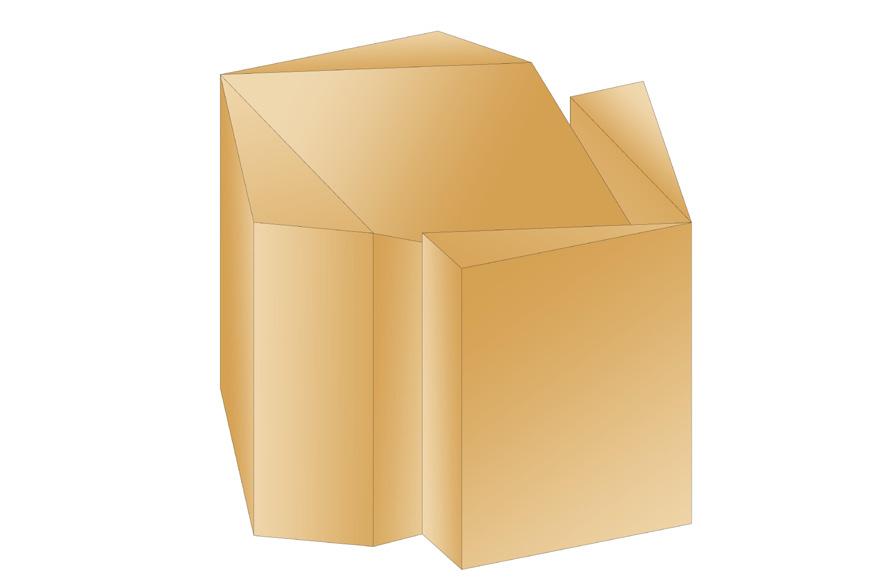

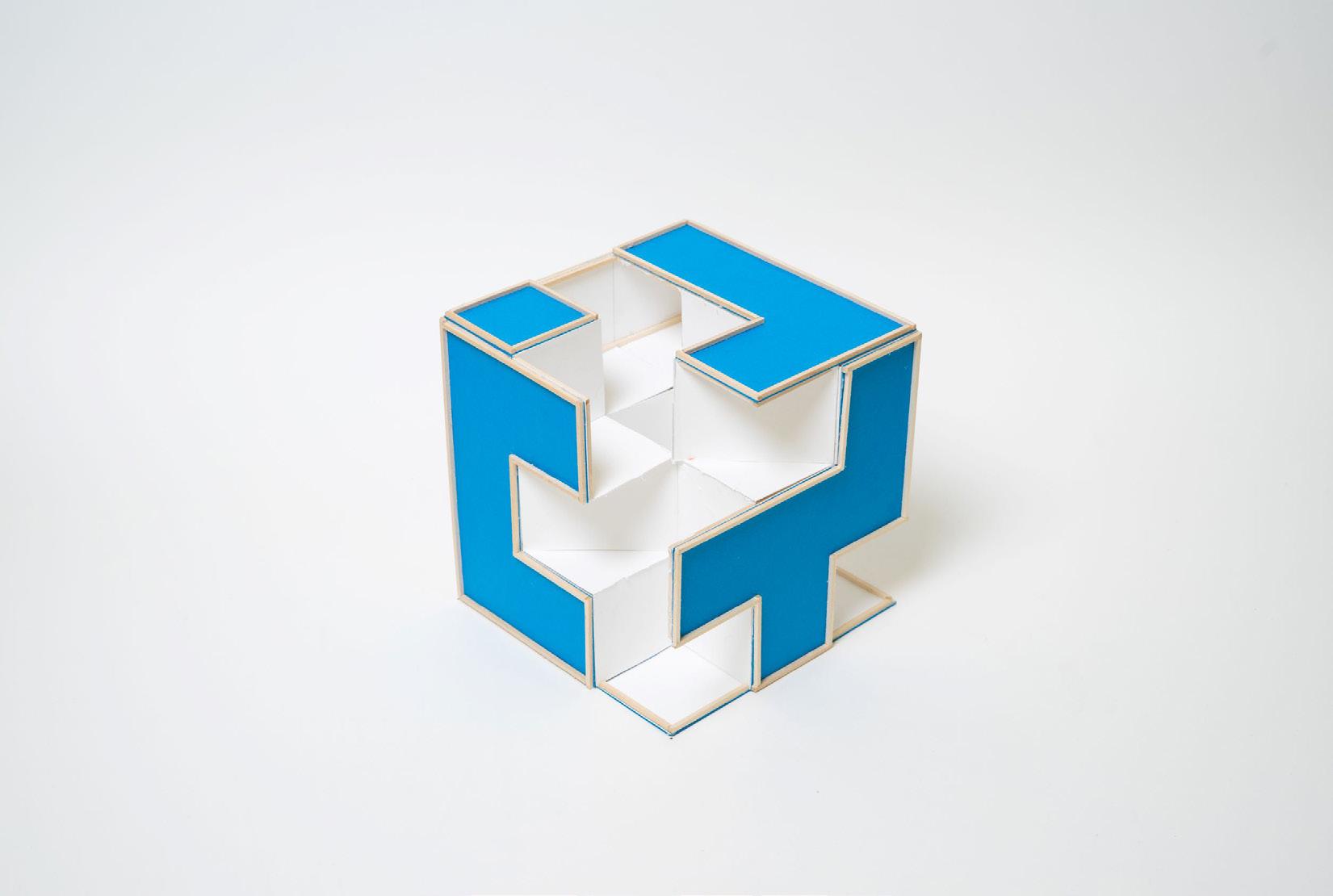

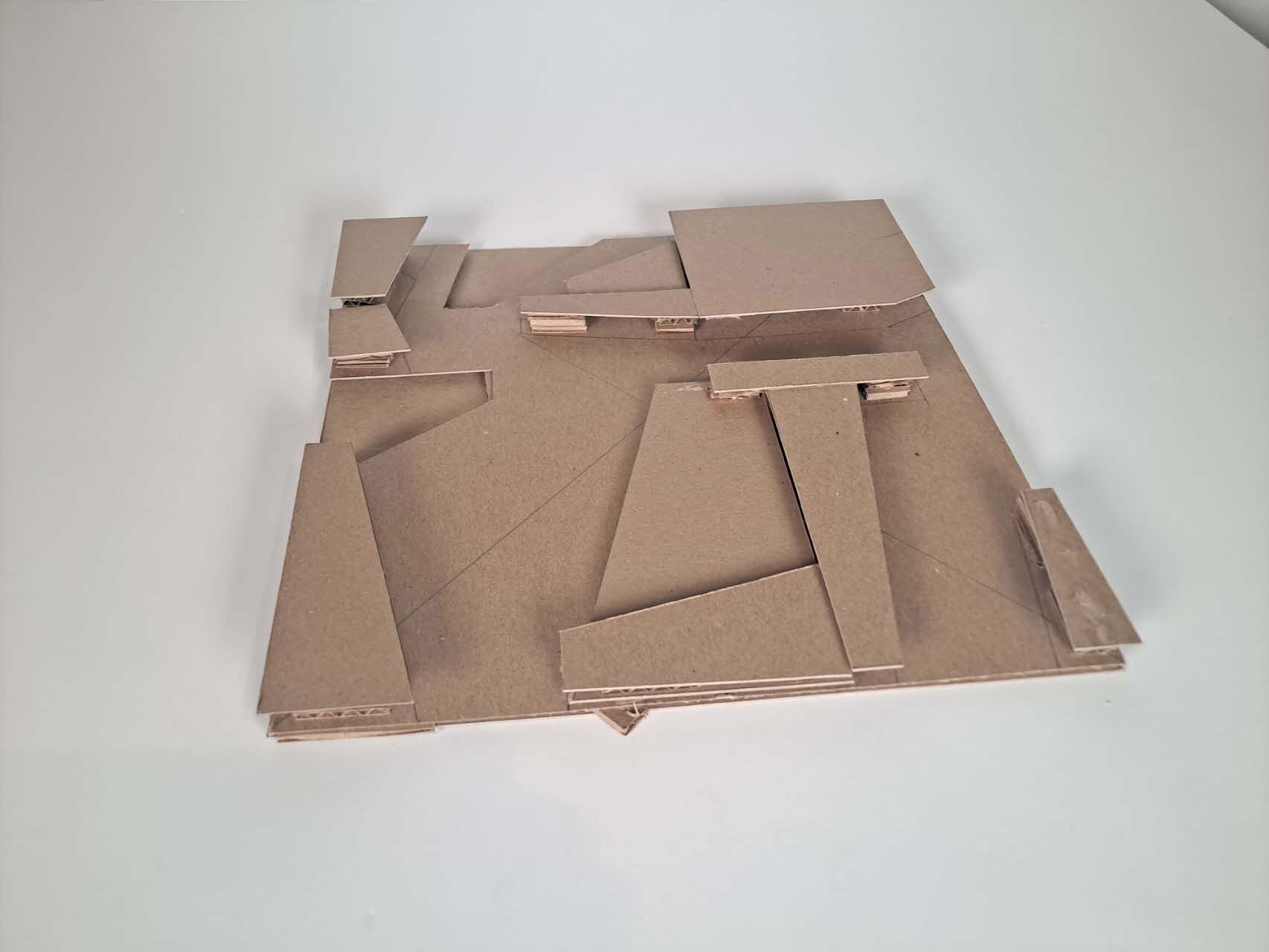

• Applied with rules, box take out of the cub are not random, it is based on air flow
• Steptember 20 to October 7, 2022

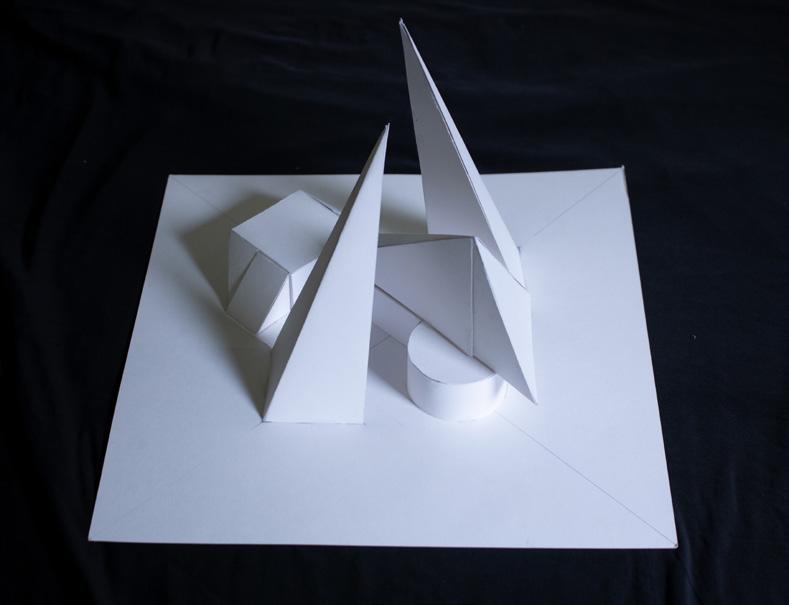

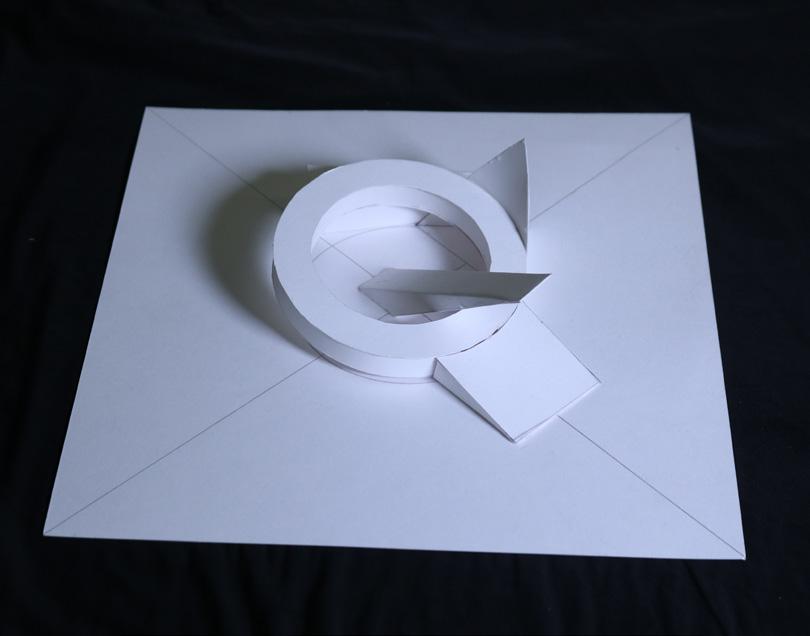

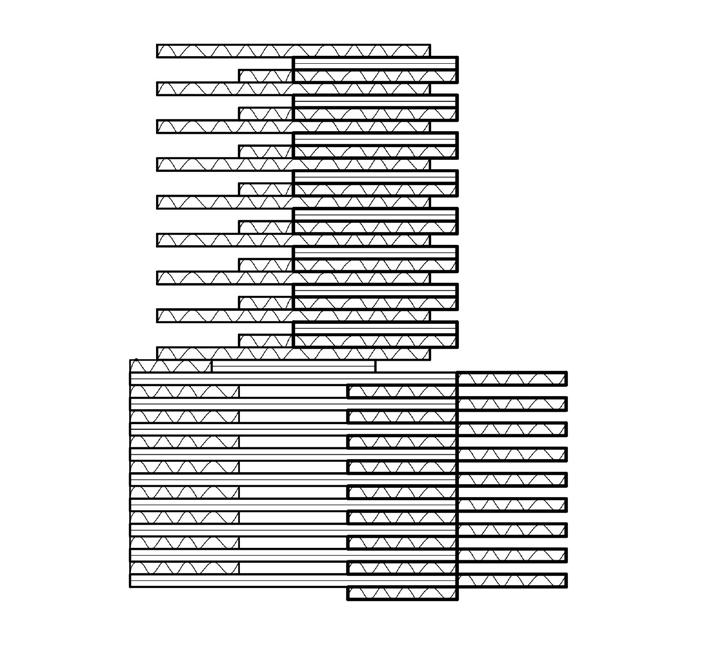

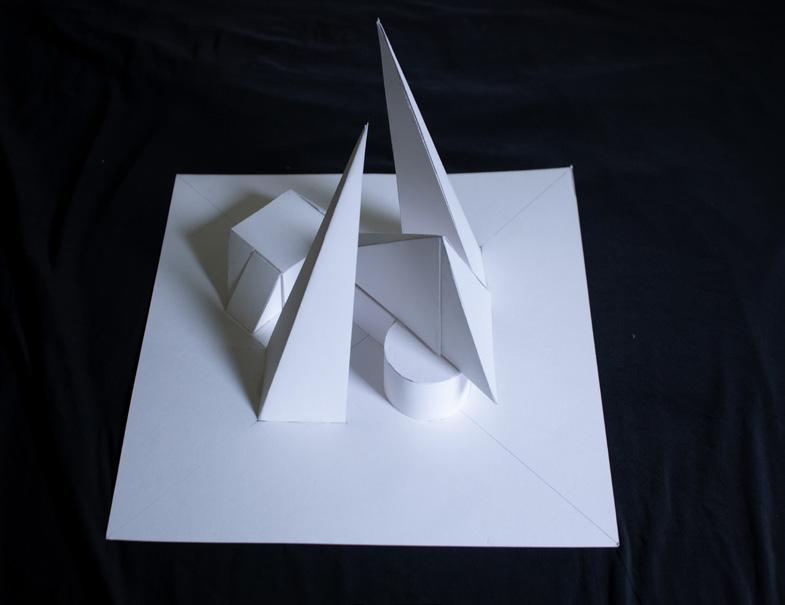

• Transformation from 2d to 3d to 2d to 3d

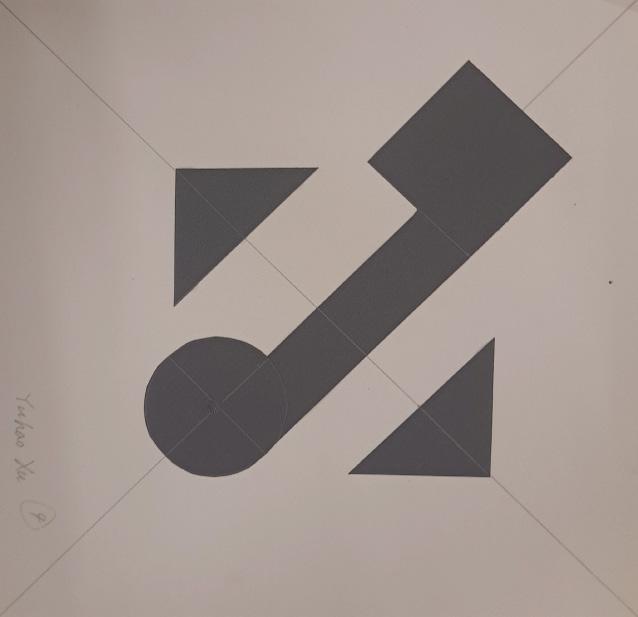

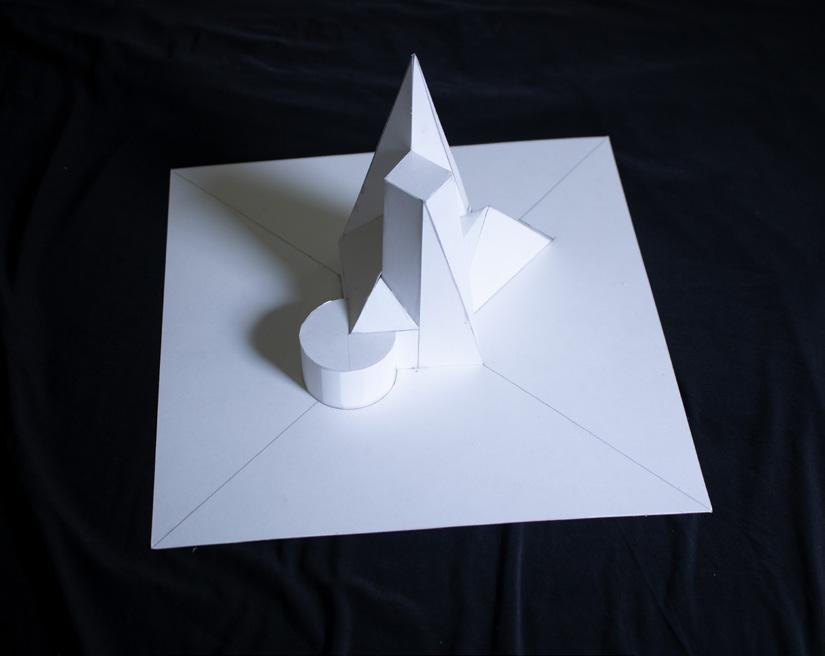

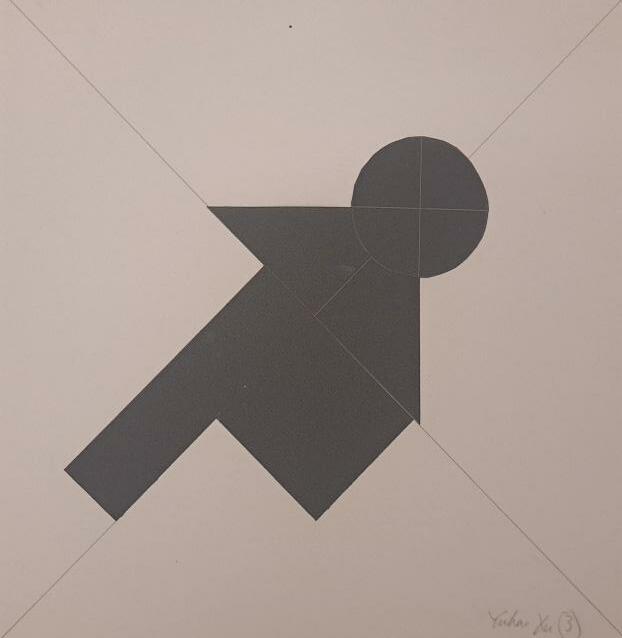

• Use our own 2d base to design a 3d physical model, than use other student’s 3d model’s elevation view as new base for 3d digital model

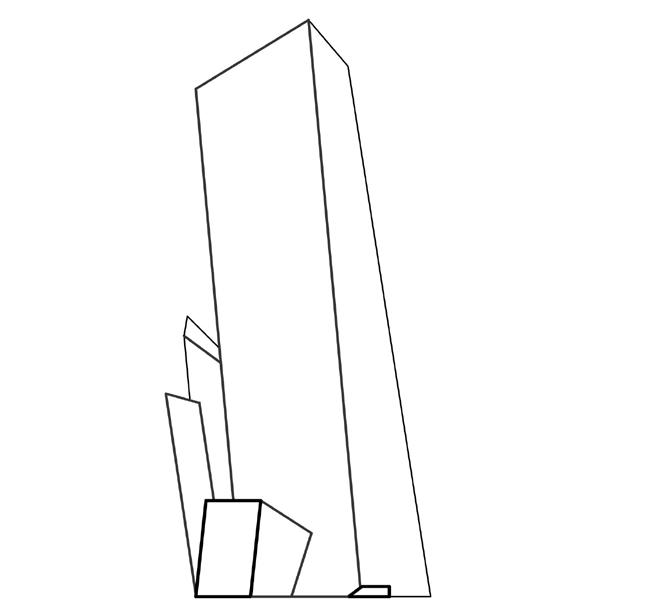

• Need contain 1 tower, 1 box, 1 pyramid, and 1 plate

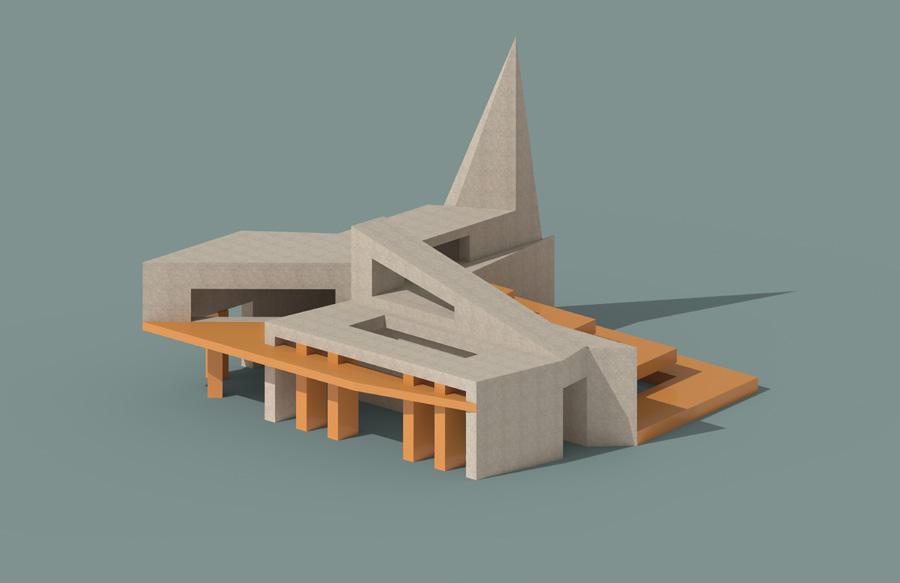

• Learning the skills of rhino 3d modeling and rendering
• October 11 to Noverber 18, 2022

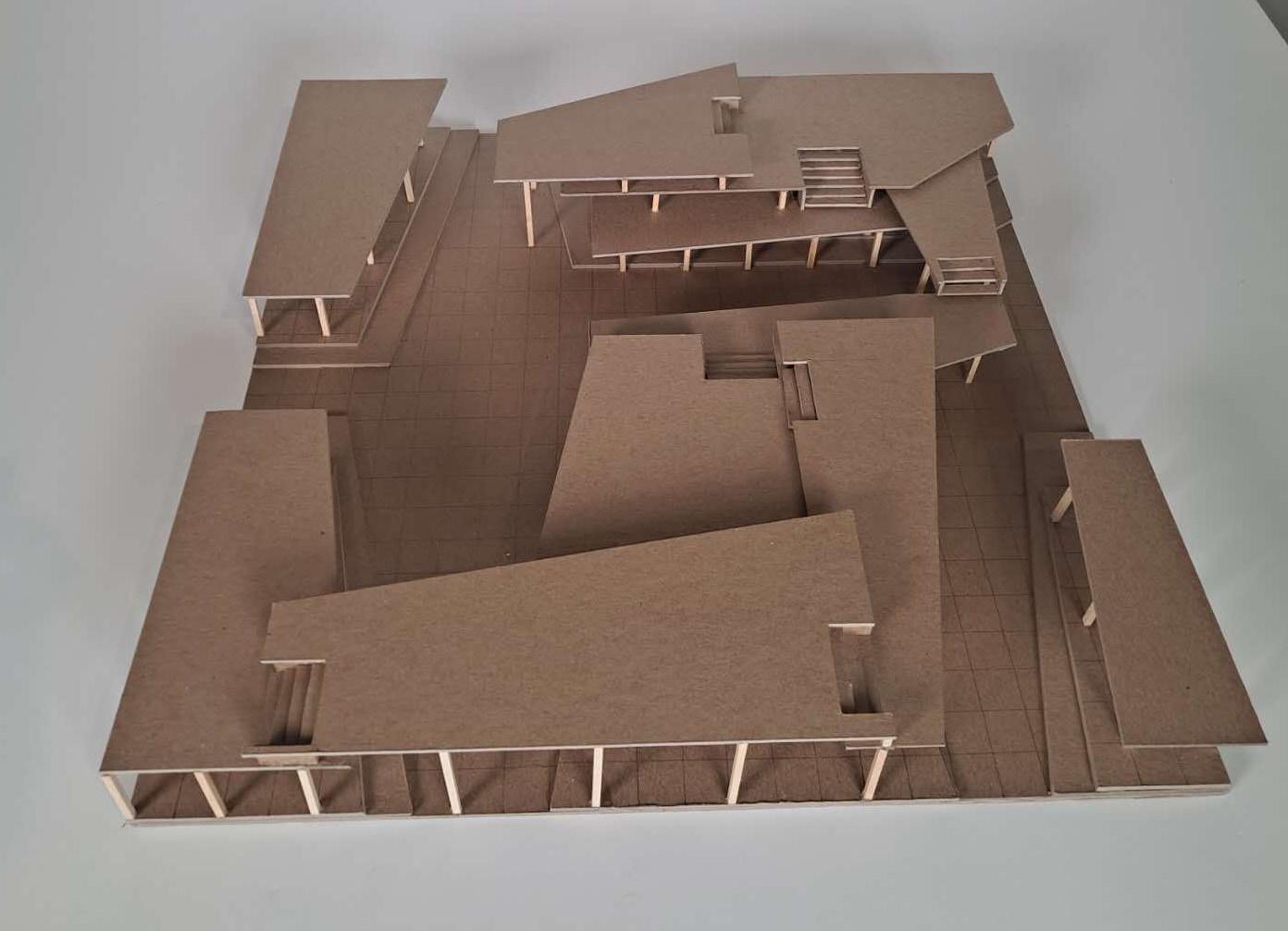

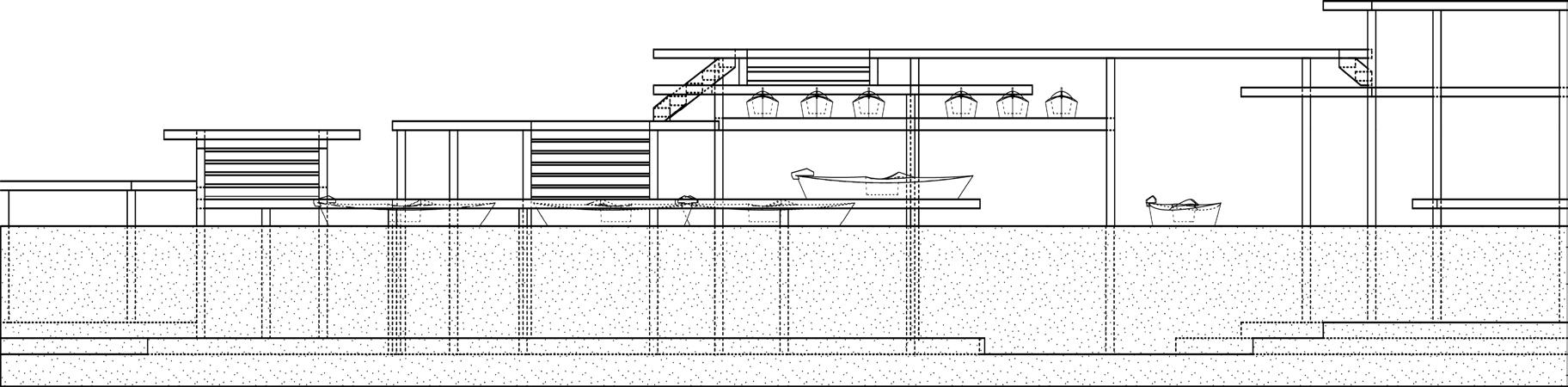

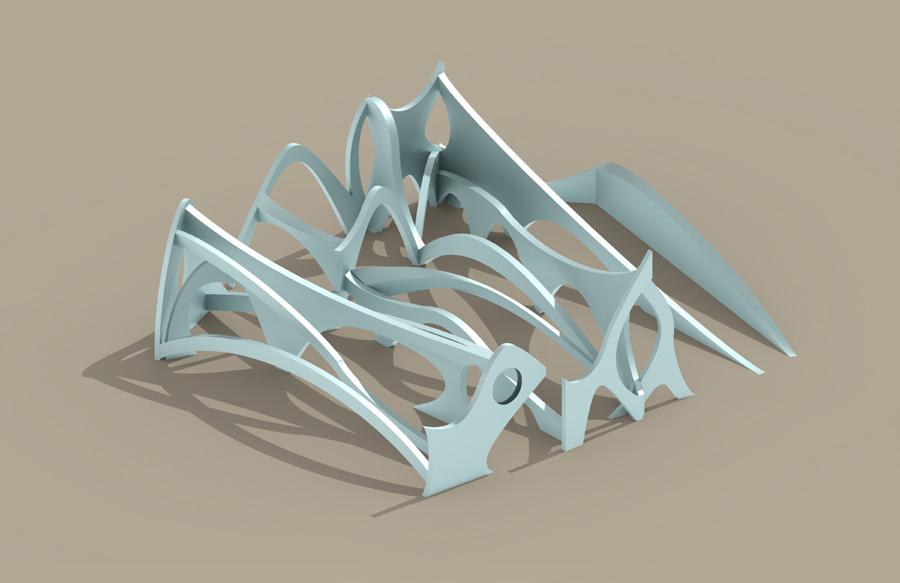

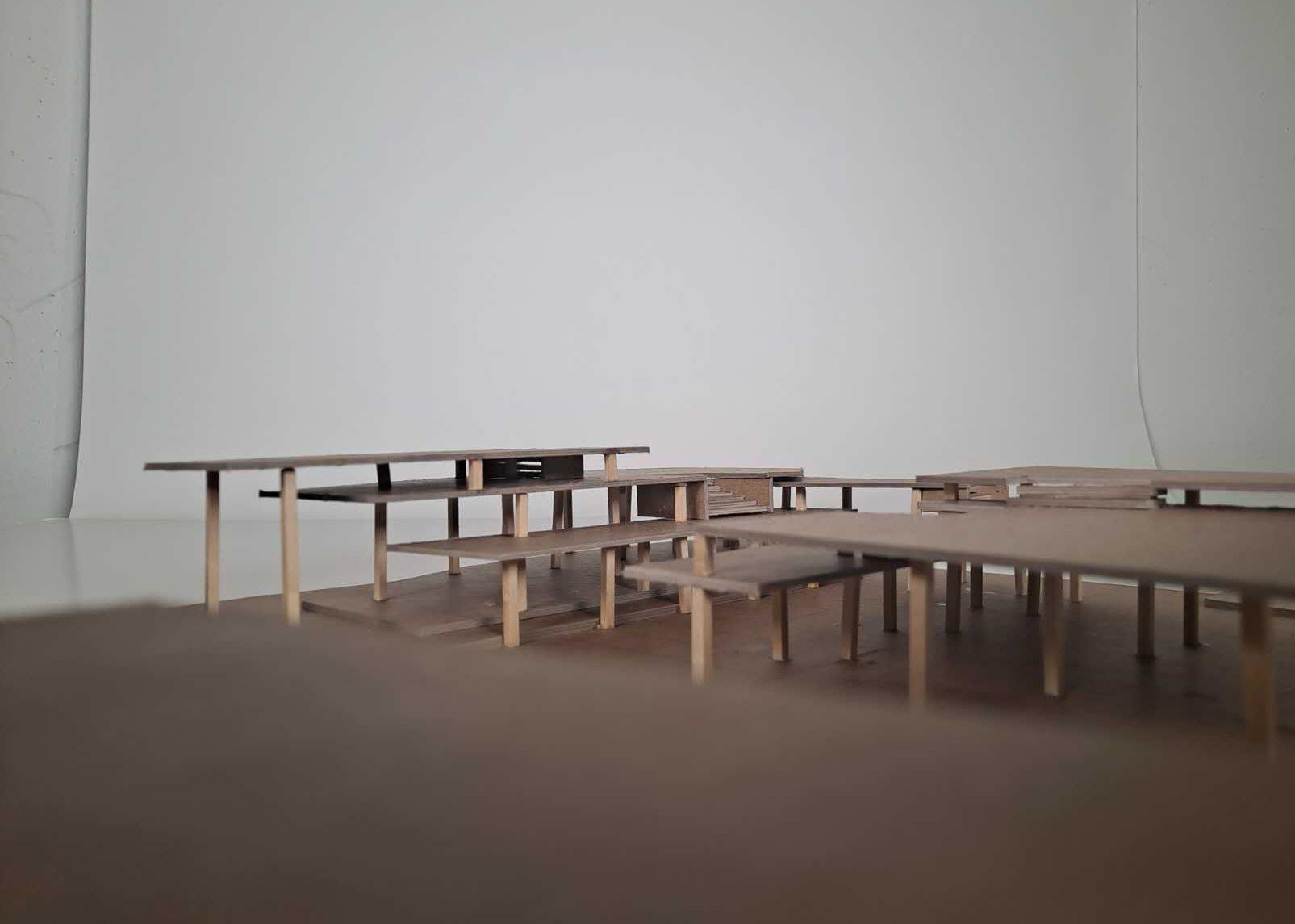

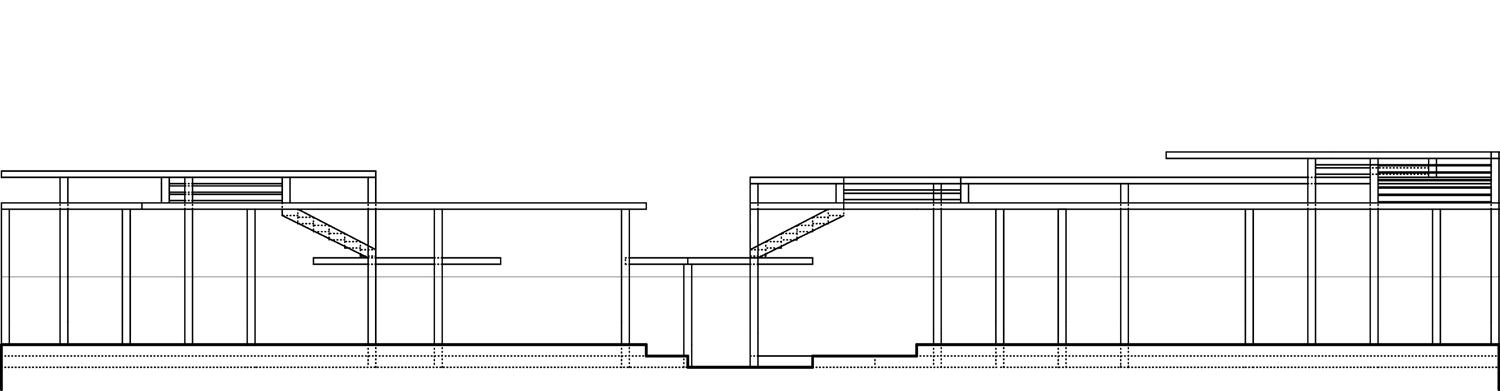

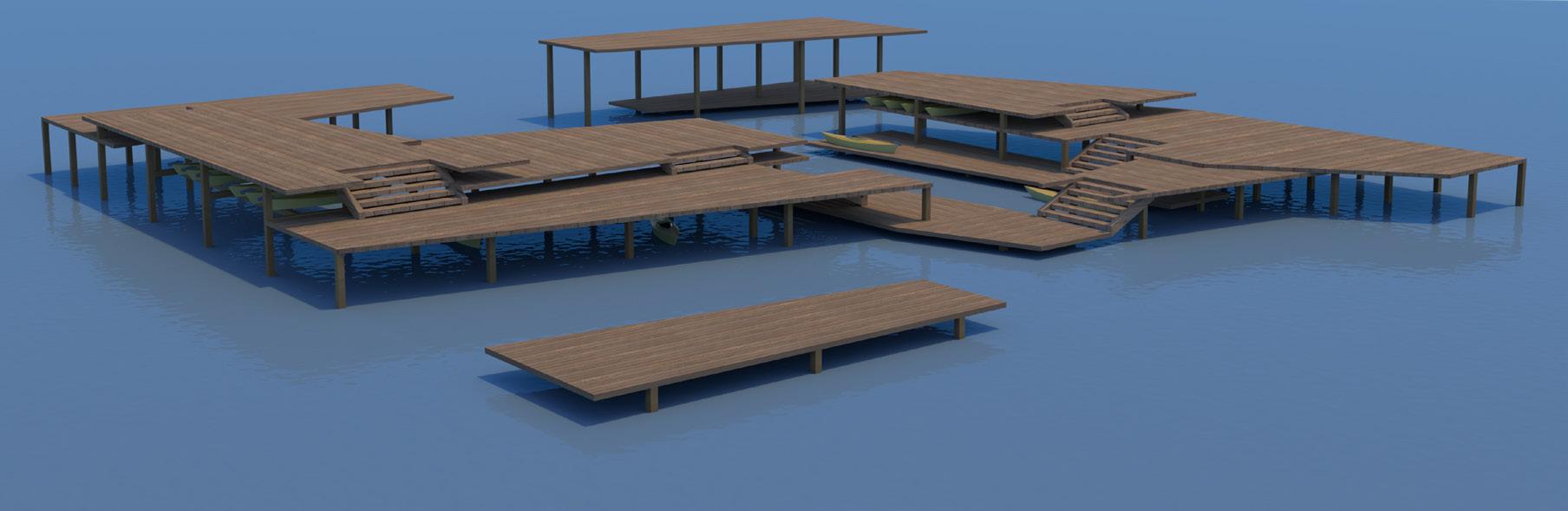

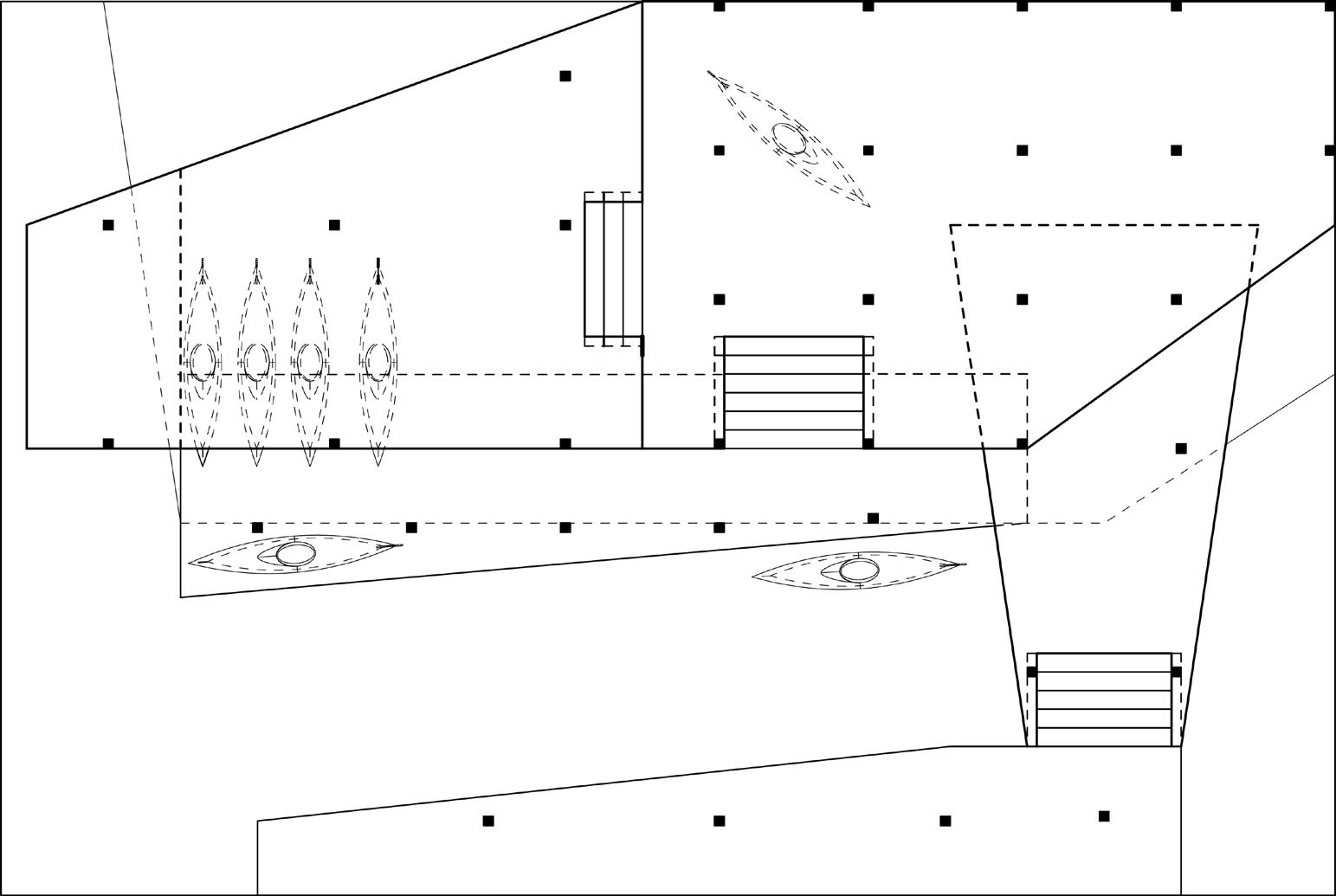

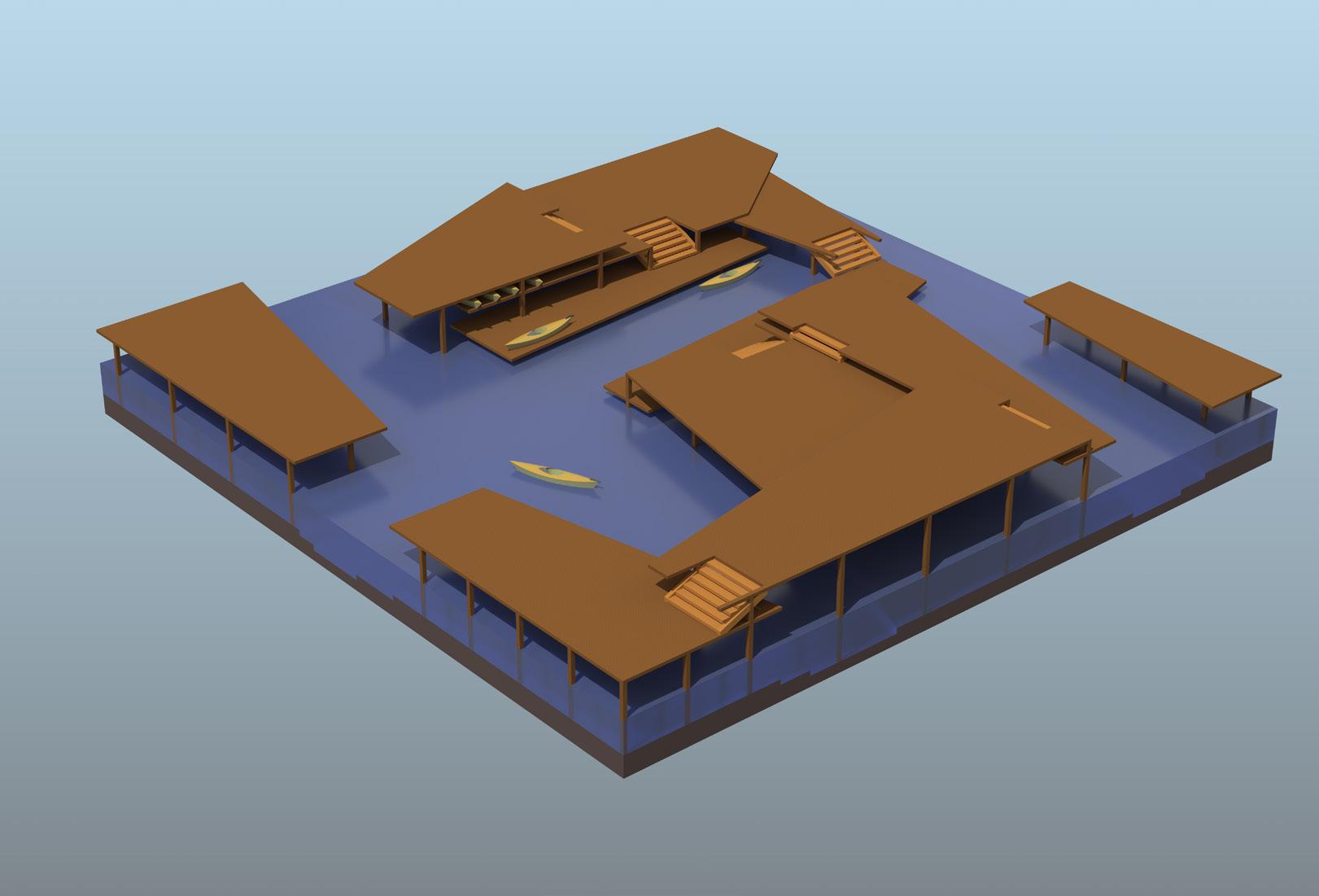

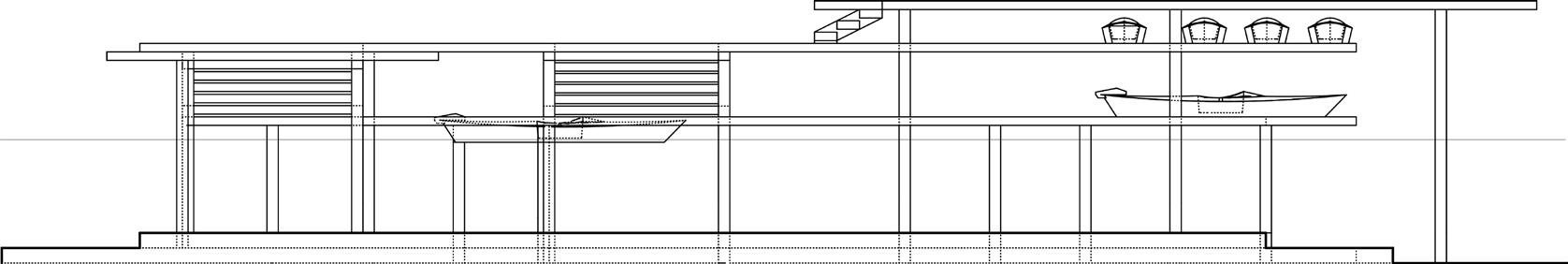

• Self design a structure that used to exhibit kayaks
• Focused on the interaction between the people and kayak, creating space that for people, for kayak, and both
• Focused on rule: shapes of each plate, hight of structure, placement, etc
• Site and structure sould be united

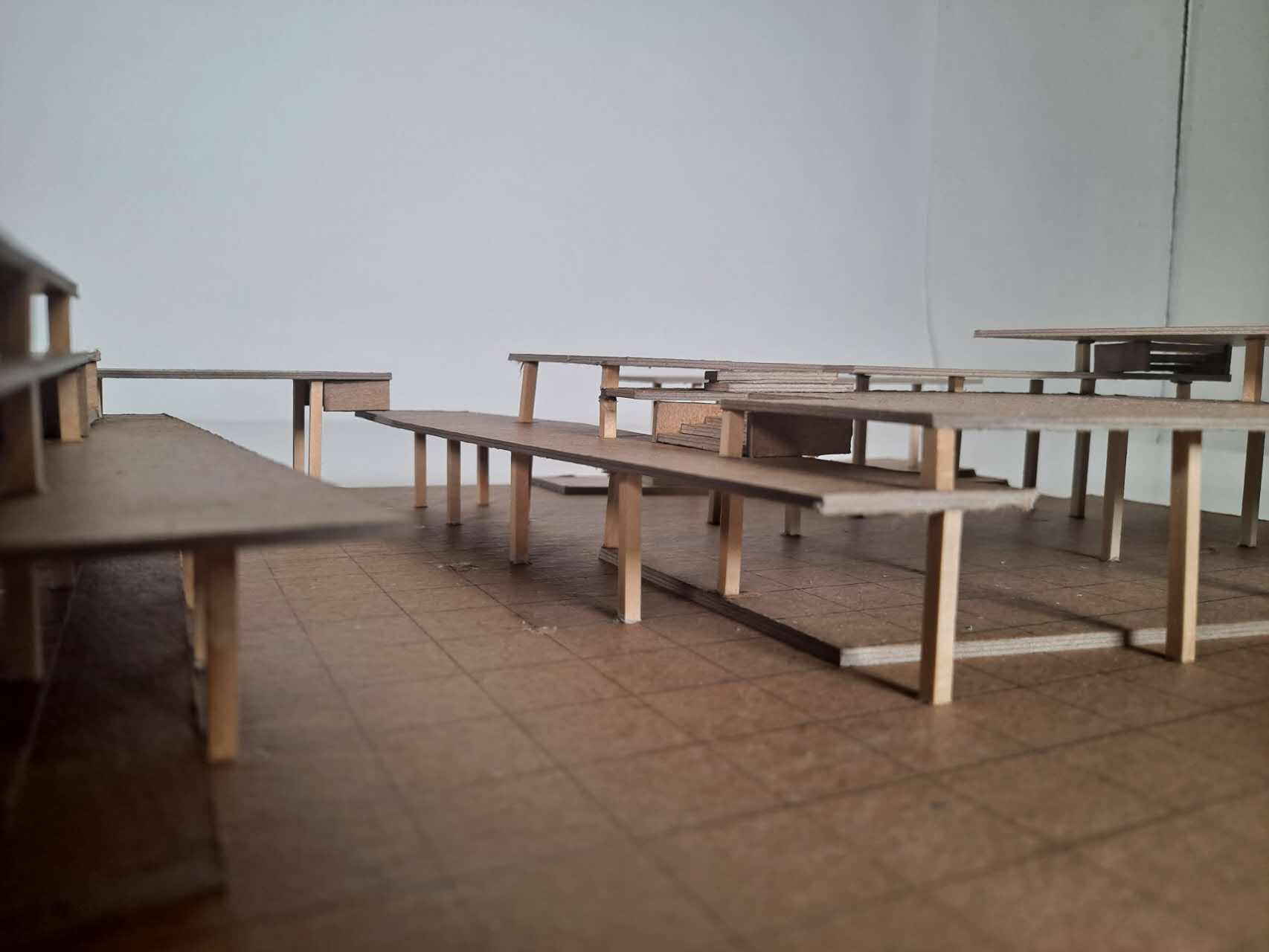

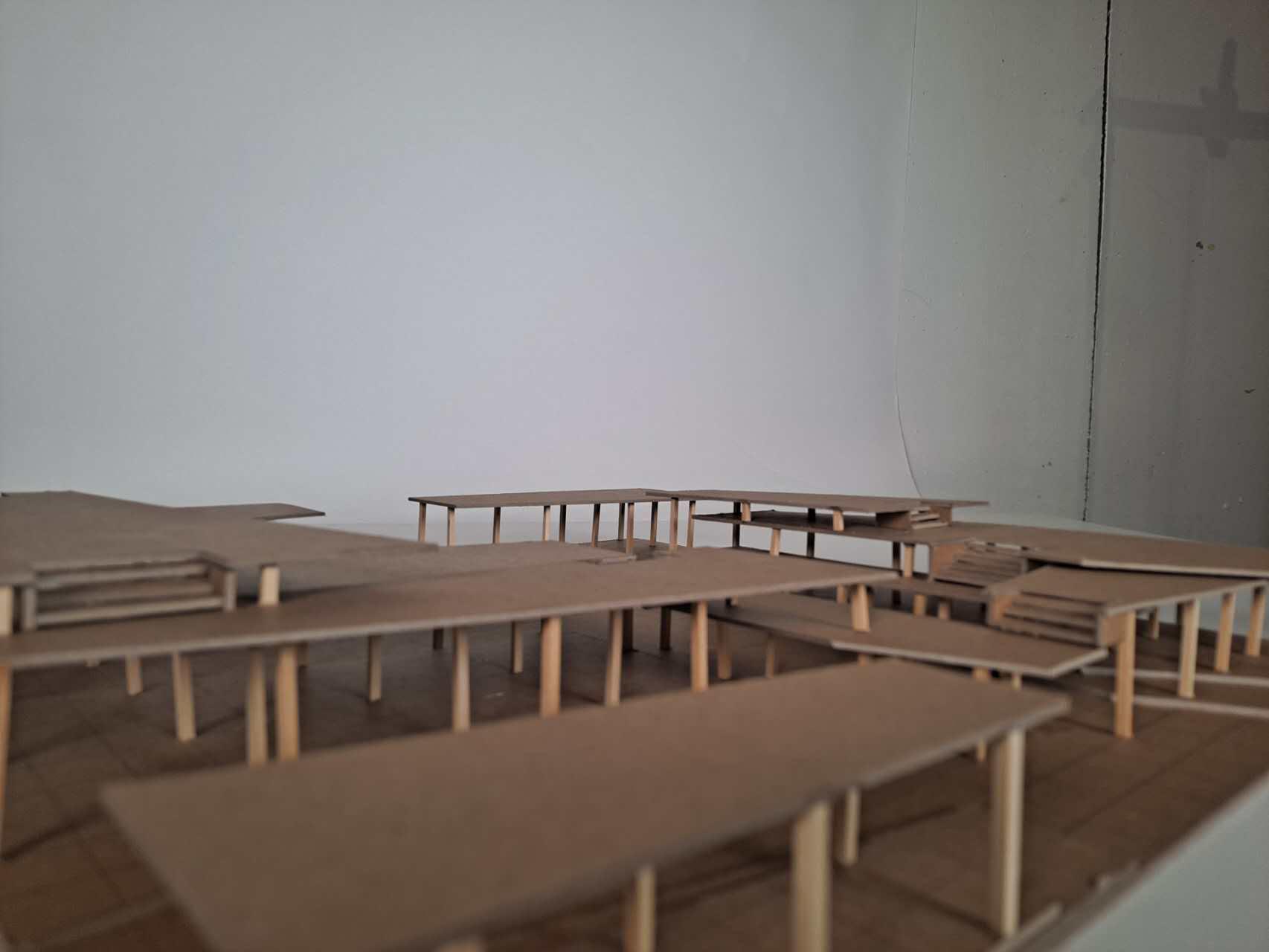

Draft Model
