YU GU

Architecture Portfolio

Architectural projects from 2019 - 2024

ygu414@gmail.com (+61) 0424381866

Working Projects 1, 2021

Allusion Wines Cellar Door and Camping Area (landscape design)

Experiential Studio Onshore 2019

Flinders Ranges camping pods research and design

Final Year Studio (M), 2020

The King's Head Hotel & Theatre (Multipleuse building)

Working Projects 2, 2024

SA Housing Affordable Housing at Underdale (For planing)

Working Projects 3, 2023

SA Housing Affordable Housing at Blair Athol (Working drawing)

Working Projects 4, 2023

Residentiral Interior Design For Town House(Interior design)

Working Projects 5, 2022

Farmstead Cheese Factory (Interior part)

Working Projects 1

SA Allusion Wines Cellar Door and Camping Area & landscape design

ALLUSION WINES, 127 SMITH HILL ROAD YANKALILLA SA 5203

PROPOSED

ALLUSION WINES, 127 SMITH HILL ROAD YANKALILLA SA 5203

CAMPING SITE

Experiential Studio Onshore 2019

Flinders Ranges camping pods research and design

Eutaxion microphlla

Red gum tree

small leaved mallee

pea

AERIAL VIEW RENDERING

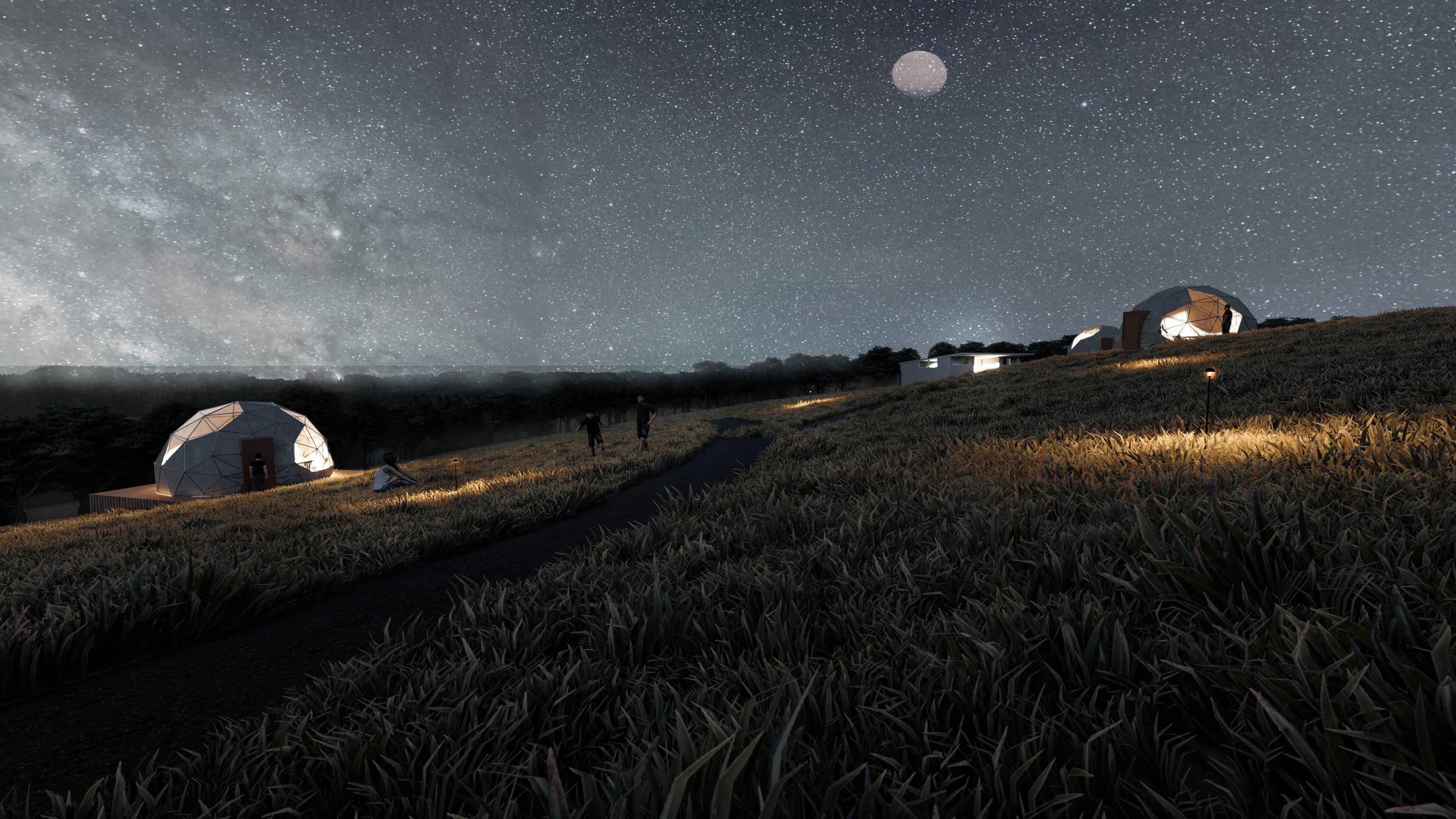

CAMPING POD CENTER AREA RENDERING

Final Year Studio (M), 2020

IHE EAEA'& HEAD HOTEL & THEATRE

THE PROJECT IS LOCATED IN CORNER OF STURT ST AND KING WILLIAMS ST. PROJECT EAST IS THE EXISTING BUILDING:OLD KINGS HEAD HOTEL. WHICH IS A TWO FLOOR HERITAGE BUILDING,THE PRESENT STRUCTURE DATES FROM 1876. THIS HOTEL IS AN IMPORTANT AND ORIGINAL PART OF THE CHARACTER OF THE CITY. THE GROUND FLOOR IS A PUB ,SERVE FOR FOOD,BEER WINE. UPPER FLOOR IS OLD HOTEL.

ADELAIDE IS A CAPITAL OF ART, EVERY YEAR THERE ARE MANY LARGE AND SMALL ART FESTIVALS, SUCH AS, OZASIA, FRINGE, ADELAIDE FESTIVAL, WOMADELAIDE,ROYAL ADELAIDE SHOW. THOSE SHOW ATTRACT A LARGE NUMBER OF LOCAL CITIZEN AND VISTOR TO STAY AND ENJOY HERE DURING THE HOLIDY. AFTER DEEPLY THOUGHT. I WILL BUILD A COMPREHENSIVE BUILDING. THIS COMPREHENSIVE BUILDING IS TO SOLVE THE PURPOSE OF ENTERTAINMENT AND LEISURE FOR THE LOCALS. IT IS A COMPREHENSIVE BUILDING INTEGRATING PUB, THEATER AND HOTEL. I WANT PEOPLE COME IN KINGS HEAD HOTEL AND TO STAY IN HERE LONG TIME TO ENJOY THE CULTURE AND FESTIVALS OF ADELAIDE.

LEISURE & ENTERTAINMENT

MAIN VERTICAL CHANNEL

LOBBY & SERVICE ZONE

THEATER & REHEARSAL ZONE

HOTEL ROOMS ZONE

PERSPECTIVEE SECION

THE WEST TOWER IS A NEW PROJECT. IT WILL CONNECT WITH EXISTING BUILDING.IT IS NEW TOWER AND EXISTING HERITAGE PUB.STURT ST AND JOHN ST. HOTEL MAIN ENTRANCE FOR BOUTIQUE HOTEL AND THEATERIT WILL BE OPEN AT JOHN ST.I RETAIN THE ORGIANL BLUE STONE WALL. TO KEEP THE FEELING ABOUT SENCE OF OLD AND NEW.

THE GROUND FLOOR IS HOTEL LOOBY, THERE ARE TWO RECEPTION, ONE FOR THEATRE, ANOTHER FOR HOTEL. THE LOBBY OCCUPIED DOUBLE FLOOR HIGHT SPACE. THE UPPER OF LOBBY IS THREE SPACE FLOOR HIGHT THEATRE. BECAUSE OF THE LIMITED SITE AREA, IN ORDER TO MEET THE THEATER'S DEMAND FOR SUFFICIENT SEATING AND THE NEED FOR FLY TOWER INSTALLATIONS, THE THEATER HAS DONE A HANDOVER TREATMENT

THEATRE HOTEL LOBBY

TO EXTEND THE LONG DISTANCE TO 7M.ABOVE OF THEATRE, THERE IS REHEARSAL FLOOR. THIS LEVEL HAVE DANCEING, MUSIC PRACTICE ROOM.

FOR BUILDING 6TH TO 13TH , WHICH IS HOTEL ROOM LEVEL. BUTIQUE HOTEL FORM 6TH-9TH FLOOR, 6 HOTEL ROOM FOR EACH FLOOR.

LUXURY HOTEL ROOM FLOOR FROM 10TH TO 13TH, EACH LEVEL HAVE 4 SUITS. IN TOP FLOOR, SWIMMING AND GYM ZONE WILL PROVIDE BY HOTEL SERVICE. THE ROOF HAVE A GARDEN WILL BE PROVIDE. CUSTOMER CAN ENJOY SUNSHINE AND LEISURE IN THIS ZONE.

VERTIAL PASSAGE, SCISSOR STAIR & ELEVATOR

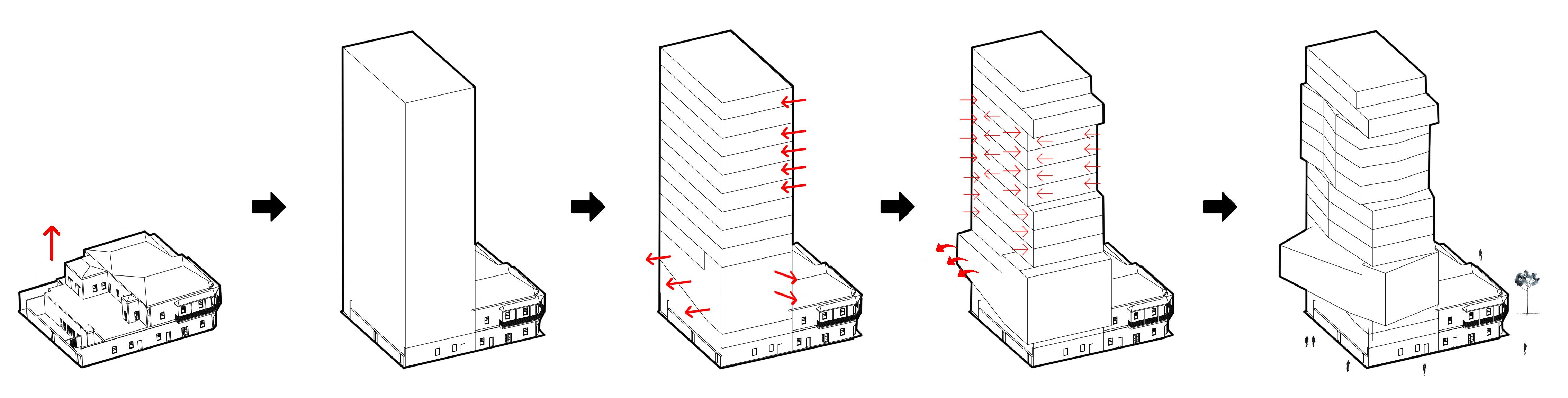

EXISTING BUILDING DRAG OUT THE NEW TOWER TOWER BE SEPARATED FOR LAYER DRAG OUT DIFFERENT FLOOR SHAPES FOR FUNCTIONALITY

REFINE THE BUILDING SURFACE FOR THE REQUIREMENTS OF LIGHTING AND SHADING,

THE RED LANE SHOWED INTERNAL WALK CIRCULATION OF THE BUILDING.

LOBBY INTERIOR

MAIN HOTEL GATE

Overhand construction for theatre design provide spacious insidespace. And It's like a giant Rubik's Cube, which has added agility and creativity to Adelaide's urban culture, attracting more tourists and consumers

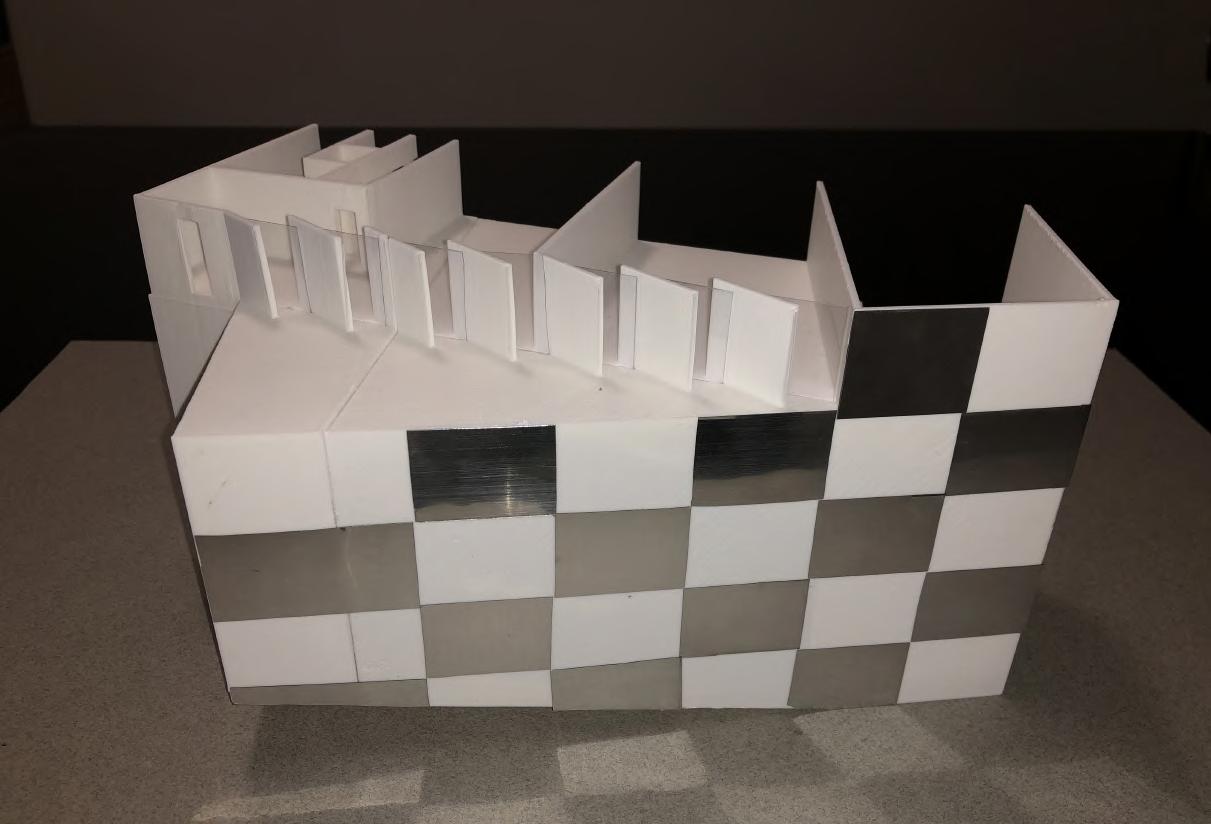

3D Printng model with facade design

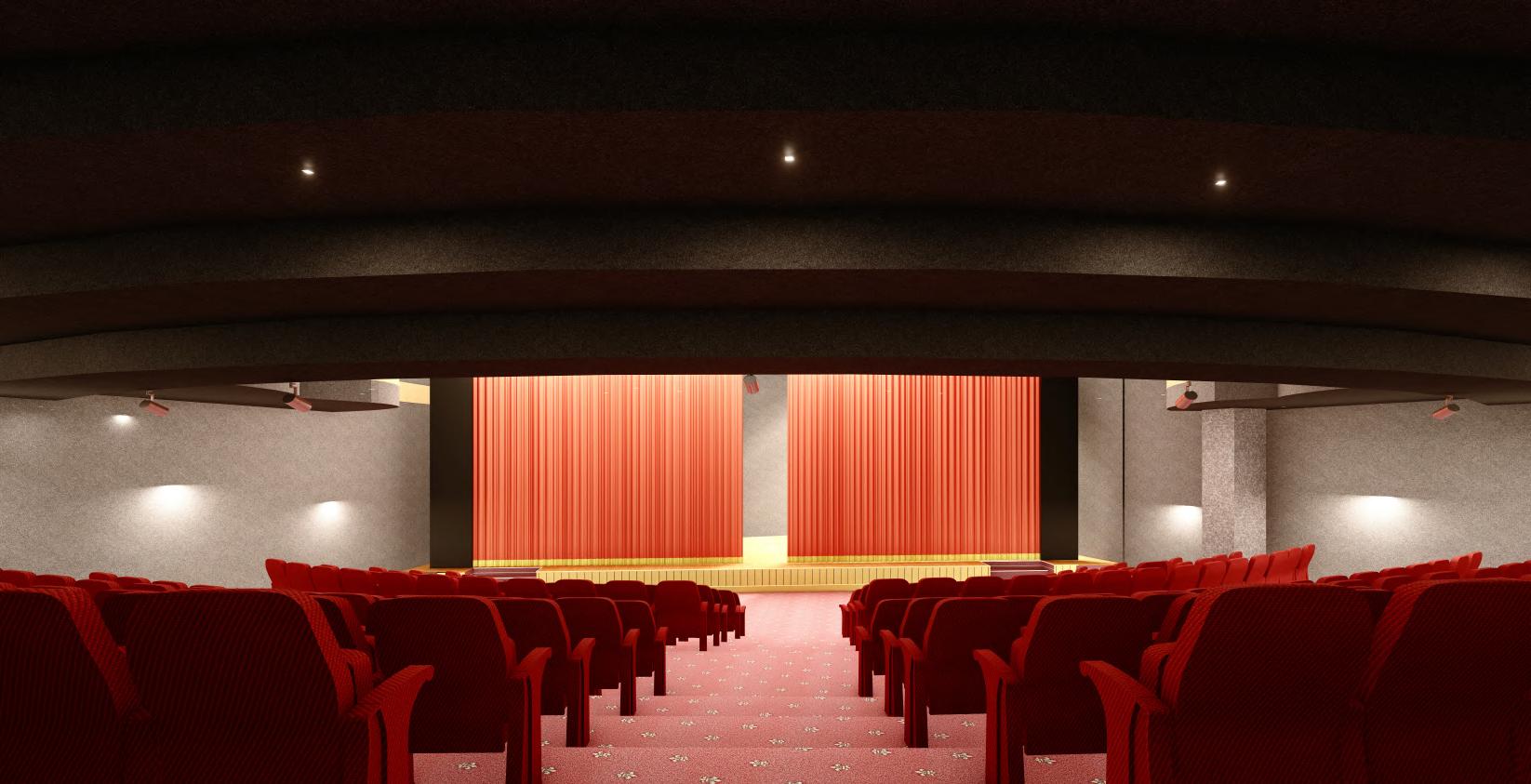

Double high level for theatre hall

The height of the person's sight in first theatre level last row

The height of the person's sight in theatre hallcorner

Upper level is rehearsal hall.

Left part of theatre level was established fly tower device.

PRACTICE

KITCHEN

HOTEL ROOM -LIVING ROOM

ROOF GARDEN

INSULATING THE METOPE

VERTICAL STAIR CASE CORE

KING'S HEAD HOTEL & THEATRE PROJECT

THEATRE: HANDOVER CONSTRUCTION

STEEL STRUCTURE: TRANSVERSE AND LONGITUDINAL REINFORCEMENT

DOUBLE GLAZING

SHEET LIST

REF NUMBER SHEET NAME

A01-1-01

A03-1-05

A03-1-06

A-04-1-02

A-04-1-03

A-06-1-04

A-07-1-01

A-07-1-02

A-07-1-03

A-07-1-04

TITLE/LOCATION

SITE D- SITE PLAN

SITE D - SITE PLAN (TRAFFIC)

FLOOR PLAN - TYPE 1 (TYP.)

FLOOR PLAN - TYPE 2 (TYP.)

ROOF PLAN - TYPE 1&2 (TYP.)

SITE ELEVATIONS

HOUSE MATERIALS

BUILDING ELEVATIONS TYPE 1

BUILDING ELEVATIONS TYPE 2

A-25-1-01 3D VIEW TYPE 1

A-25-1-02 3D VIEW TYPE 2

E.AC EXTERNAL AIR CONDITIONING UNIT - PROVISION ONLY

E.CL CLOTHESLINE

E.LB INDIVIDUAL LETTERBOX

E.LB2 GROUP LETTERBOXES

E.MB ELECTRIC METER CUPBOARD FOR UNITS 2-4

E.RW RAINWATER TANK - REFER TO ENGINEERING

E.WM ABOVE GROUND WATER METER MANIFOLD LOCATIONS

F.BIN BINS

PRELIMINARY

LIVABLE HOUSING DESIGN GUIDELINES

DWELLING ACCESS -PATH >/= 1.1m

-STEPLESS ENTRY & COMPLIANT REAMPS ACHIEVABLE

DWELLING ENTRANCE

-ENTRANCE DOOR CLEAR WIDTH >/= 820mm -A LEVEL LANDING AREA OF AT LEAST 1350MM X 1350MM

INTERNAL DOORS & CORRIDORS

-DOOR CLEAR WIDTH >/= 820mm

-CORRIDORS CLEAR WIDTH >/= 1.0m

TOILET

-WALL WIDTH >/= 900mm ->/= 1.2m X 1.2m CLEAR CIRCULATION SPACE

SHOWER

-900mm X 900mm SHOWER RECESS

-1.2m X 1.2m CLEAR CIRCULATION SPACE

REINFORCEMENT OF BATH. & TOILET WALLS

-WALLS AROUND TOILET, BATH & SHR. RECESSNOGGINGS >/= 25mm, SHEETING >/=12mm

KITCHEN SPACE

- 1.2m CLEARANCE IN FRONT OF FIXED BENCHES AND APPLIANCES

-SLIP RESISTANT FLOORING

-EXTENSION OF FLOOR FINISHES UNDER CUPBOARDS

LAUNDRY SPACE

- 1.2m CLEARANCE IN FRONT OF FIXED BENCHES AND APPLIANCES

-SLIP RESISTANT FLOORING

-EXTENSION OF FLOOR FINISHES UNDER CABINETRY

GROUND BEDROOM SPACE

- >/= 10 sqm CLEARANCE EXCLUSIVE OF ROBES, SKIRTINGS AND WALL LINING

-1000 mm >/=PATH OF TRAVEL ON ONE SIDE OF THE BED

SWITCHES & POWERPOINTS

- LIGHT SWITCHES

ABOVE FFL -GPOs >/=

DOOR & TAP HARDWARE

AUSTRALBRICKS -

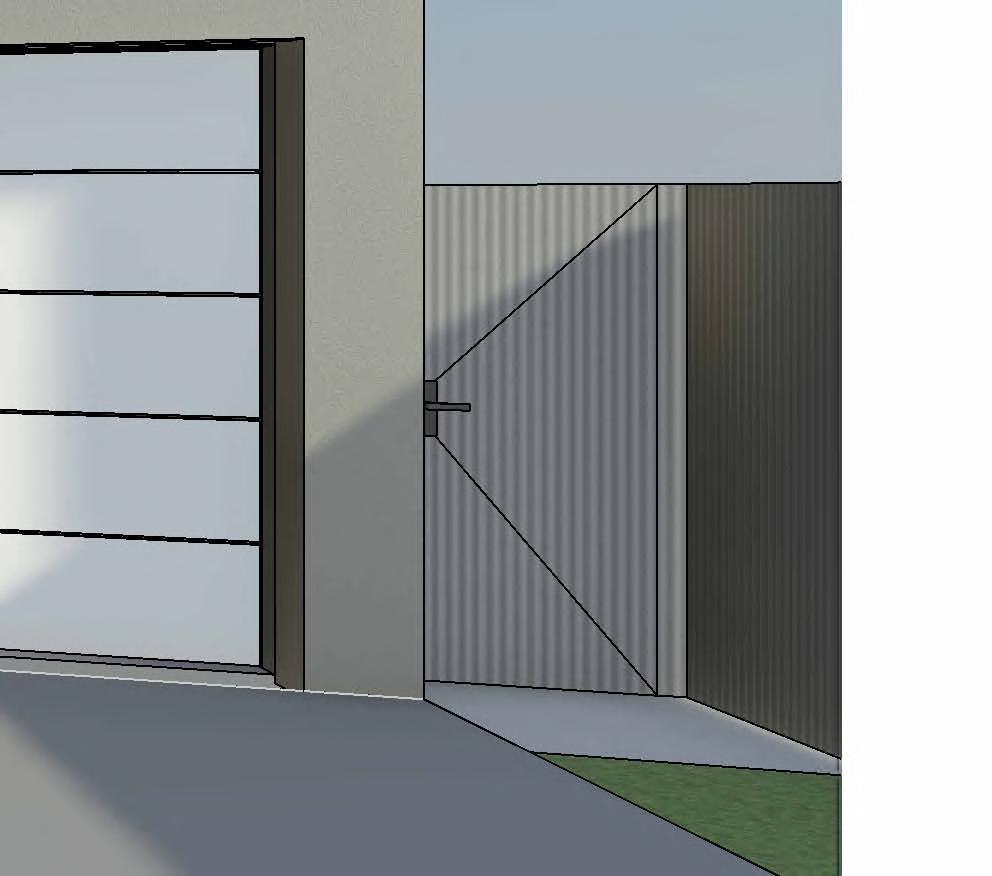

COLORBOND BLUEGUM - FASCIA

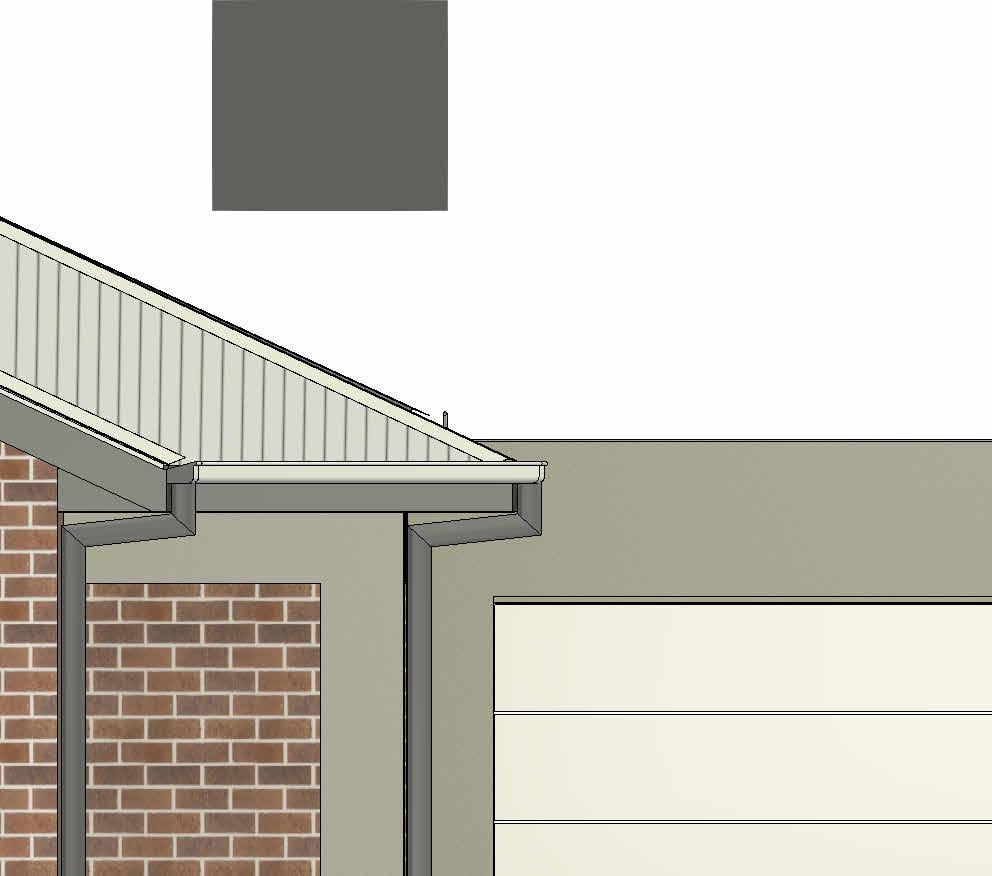

COLORBOND SOUTHERLY - ROOFING, GUTTER AND GARAGE DOOR

COLORBOND DUNE -

COLORBOND WOODLAND GREY - WINDOW, DOOR AND DOOR FRAME

COLORBOND DUNE - RENDER

21-28 RUSHWORTH STREET, BLAIR ATHOL SA 5084

ARCHITECTURAL DRAWING SCHEDULE DRAWING

COVER PAGE

LOCATION PLAN

LAND DIVISION

DOOR + WINDOW LEGEND / DOOR SCHEDULE

WINDOW SCHEDULE / FINISHES SCHEDULE

LEGEND + NOTES

SITE PLAN

FLOOR PLAN -HOUSE 01 (TYPE B)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 01 (TYPE B)

CEILING / ELECTRICAL PLAN -HOUSE 01 (TYPE B)

ELEVATIONS -HOUSE 01 (TYPE B)

FLOOR PLAN -HOUSE 02 (TYPE B)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 02 (TYPE B)

CEILING / ELECTRICAL PLAN -HOUSE 02 (TYPE B)

ELEVATIONS -HOUSE 02 (TYPE B)

FLOOR PLAN -HOUSE 03 (TYPE B)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 03 (TYPE B)

CEILING / ELECTRICAL PLAN -HOUSE 03 (TYPE B)

ELEVATIONS -HOUSE 03 (TYPE B)

FLOOR PLAN -HOUSE 04 (TYPE B)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 04 (TYPE B)

CEILING / ELECTRICAL PLAN -HOUSE 04 (TYPE B)

ELEVATIONS -HOUSE 04 (TYPE B)

WD28B

WD29

WD30A

WD31A

WD32

WD33B

WD34

WD35A

WD36A

WD37

WD38B

WD39

WD40A

WD41A

WD42

WD43B

WD44

WD45A

WD46A

WD47

WD48B

WD49

WD50A

WD51A

WD52

WD53B

WD54

WD55A

FLOOR PLAN-HOUSE 05 (TYPE C)

NOT REQUIRED FOR TENDER

ROOF PLAN-HOUSE 05 (TYPE C)

CEILING / ELECTRICAL PLAN -HOUSE 05 (TYPE C)

ELEVATIONS -HOUSE 05 (TYPE C)

FLOOR PLAN -HOUSE 06 (TYPE C)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 06 (TYPE C)

CEILING / ELECTRICAL PLAN -HOUSE 06 (TYPE C)

ELEVATIONS -HOUSE 06 (TYPE C)

FLOOR PLAN -HOUSE 07 (TYPE D)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 07 (TYPE D)

CEILING / ELECTRICAL PLAN -HOUSE 07 (TYPE D)

ELEVATIONS -HOUSE 07 (TYPE D)

FLOOR PLAN -HOUSE 08 (TYPE E)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 08 (TYPE E)

CEILING / ELECTRICAL PLAN -HOUSE 08 (TYPE E)

ELEVATIONS -HOUSE 08 (TYPE E)

FLOOR PLAN -HOUSE 09 (TYPE E)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 09 (TYPE E)

CEILING / ELECTRICAL PLAN -HOUSE 09 (TYPE E)

ELEVATIONS -HOUSE 09 (TYPE E)

FLOOR PLAN -HOUSE 10 (TYPE E)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 10 (TYPE E)

WD56A

WD57

WD58B

WD59

WD60A

WD61A

WD62

WD63B

WD64

WD65A

WD66A

WD67

WD68B

WD69

WD70A

WD71A

WD72

WD73

WD74A

WD75A

WD76A

WD77B

WD78A

WD79A

WD80

WD81A

WD82B

CEILING / ELECTRICAL PLAN -HOUSE 10 (TYPE E)

ELEVATIONS -HOUSE 10 (TYPE E)

FLOOR PLAN-HOUSE 11 (TYPE E)

NOT REQUIRED FOR TENDER

ROOF PLAN-HOUSE 11 (TYPE E)

CEILING / ELECTRICAL PLAN -HOUSE 11 (TYPE E)

ELEVATIONS -HOUSE 11 (TYPE E)

FLOOR PLAN -HOUSE 12 (TYPE F)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 12 (TYPE F)

CEILING / ELECTRICAL PLAN -HOUSE 12 (TYPE F)

ELEVATIONS -HOUSE 12 (TYPE F)

FLOOR PLAN -HOUSE 13 (TYPE F)

NOT REQUIRED FOR TENDER

ROOF PLAN -HOUSE 13 (TYPE F)

CEILING / ELECTRICAL PLAN -HOUSE 13 (TYPE F)

ELEVATIONS -HOUSE 13 (TYPE F)

TYPICAL ELEVATION DETAIL

SECTION DETAIL

SECTION DETAIL + TYPICAL SECTION DETAIL

PLAN DETAIL

COMMUNITY ENTRANCE WALL

PORCH: 4m2

ALFESCO:24m2

TOTAL:28m2

P.O.S: 91m2

LIVING:123m2

GARAGE:24m2

TOTAL:147m2

PORCH: 4m2

ALFESCO:24m2

TOTAL:28m2

P.O.S: 101m2

LIVING:123m2

GARAGE:24m2

TOTAL:147m2

PORCH: 4m2

ALFESCO:24m2

TOTAL:28m2 P.O.S: 102m2

PORCH: 4m2 ALFESCO:24m2 TOTAL:28m2

P.O.S: 128m2

LIVING:194m2

GARAGE:39m2

TOTAL:233m2

PORCH: 3m2

ALFESCO:20m2

TOTAL:23m2

P.O.S: 148m2

PORCH: 3m2

ALFESCO:20m2 TOTAL:23m2

P.O.S: 149m2

GENERAL NOTE: STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO NGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.

GENERAL NOTE: STRUCTURAL STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.

COMFORT PLUS GLAZING NOTE: HOUSE 5 & 8 HOUSE 5 8 COMFORT PLUS GLAZING TO BE INSTALLED TO WC.05, WC.06 (DINING / LIVING),WC.07 (KITCHEN), WC.08 (BATHROOM) & WE.03 (BATHROOM), WE.04 & WE.05 (BEDROOM 2) GLAZING TO REMAIN AS FROSTED GLASS. REFER TO SITE PLAN.

A19.07.23AMENDMENT FOR CERTIFICATION

GENERAL NOTE: NOGGINGS

FLOOR PLAN -HOUSE 13 (TYPE F)

REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.

PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.

GENERAL NOTE: INSULATION INSULATION

R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.

GENERAL NOTE: PENETRATIONS PENETRATIONS

ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.

GENERAL NOTE: WET AREAS ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.

GENERAL NOTE: FLOOR TILES FLOOR TILES TILES TILES FLOOR TILING IN WET AREAS SHALL CONTINUE UNDER ALL JOINERY (I.E. BROOM, VANITY ETC.).

GENERAL NOTE: TERMITE PROTECTION TERMITE PROTECTION ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGSAPPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.

GENERAL NOTE: FLOOR WASTES FLOOR WASTES WASTES WASTES ALL WET AREAS TO ACHEIVE A GRADIENT BETWEEN 1:80 MINIMUM AND 1:50 MAXIMUM.

GARAGE GARAGE GARAGE GARAGE

1 BEDROOM 1

AUSTRALIAN STANDARD EXCEEDED. PATH WIDTH 1100mm. ENTRANCE DOOR 850mm CLEAR, LANDING 1350x1350 DOORWAYS 850mm CLEAR PASSAGEWAYS 1200mm GROUND FLOOR TOILET 1200 WIDE WITH 1200 CLEAR IN FRONT OF PAN HOBLESS (STEP FREE) RECESS 900x900 WITH 1200X1200 CLEAR SPACE IN FRONT WALLS REINFORCED

STRAIGHT WITH CLEAR WIDTH 1000mm, ADJACENT LOAD BEARING WALL WITH CONTINUOUS HANDRAIL ON ONE SIDE 1200mm CLEAR BETWEEN BENCHES WHERE PRACTICABLE, FLOOR FINISHES EXTEND UNDER CABINETRY 1200mm CLEAR IN FRONT OF BENCHES & APPLIANCES 10m2 FLOOR AREA

WALL

LIGHT SWITCHES 900-1100mm

GENERAL NOTE: NOGGINGS

REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.

PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.

GENERAL NOTE: INSULATION

R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.

ROOF SARKING

90x45 MGP10 TIMBER BATTENS AT 900mm MAX. C/S

TIMBER ROOF TRUSSES TO MANUFACTURER'S DESIGN

200mm BULK INSULATION R4.0 ABOVE CEILING TO COMPLY WITH ENERGY RATING REPORT

GENERAL NOTE: PENETRATIONS PENETRATIONS ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR. B

GENERAL NOTE: STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.

GENERAL NOTE: WET AREAS AREAS

ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.

GENERAL NOTE: TERMITE PROTECTION TERMITE ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGSAPPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.

GENERAL NOTE: DOWNPIPES

100mm PVC DP. PAINT FINISH TO MATCH WALL IF LOCATION OF DP ARE ALONG RENDERED WALL OR PAINT FINISH TO MATCH ROOF COLOR (DUNE / WINDSPRAY) IF IN FRONT OF BRICK WALL. REFER TO CIVIL DOCUMENTATION FOR STORM WATER CONNECTION. B

10mm FLUSH PLASTERBOARD CEILING. PAINT FINISH

55mm PLAIN COVED CORNICE

90x45 TIMBER TOP PLATE

SELECTED FLOOR FINISH ABOVE CONCRETE SLAB

REINFORCED CONCRETE FLOOR SLAB TO STRUCTURAL ENGINEER'S DOCUMENTS

COMPACTED RUBBLE FILL WITH 50mm SAND TOPPING

FOOTING & WATERPROOF MEMBRANE TO ENGINEER'S DOCUMENTATION

CORRUGATED ROOF SHEETING (COLORBOND MONUMENT) AT 22.5° PITCH

D-GUTTER ON STRATCO CONTOUR FASCIA (COLORBOND FINISH) WITH CONNECTION TO DOWNPIPE

9mm CFC EAVES LINING FIXED ON TIMBER FRAMING AT 600mm MAX. C/S

COLORBOND BOX GUTTER INSTALLED AS SPEC. 850mm WIDE ON GUTTER BOARD SUPPORTED ON TIMBER SUPPORTS BETWEEN CANOPY RAFTERS AT 600mm C/S

150 PFC CANOPY BEAM WITH 65mm TAB WELDED

90mm BULK INSULATION R2.5 BETWEEN FRAMING (REFER TO ENERGY RATING REPORT)

10mm FLUSH PLASTERBOARD FIXED TO TIMBER STUD FRAMING. PAINT FINISH

19mm TIMBER TRIM INTERNAL WINDOW SURROUNDS (PREPRIMED PLANTATION PINE)

60x19 PRE-PRIMED PLANTATION PINE ARCHITRAVE

90x35 TIMBER STUD FRAMING AT 450mm C/S

90x45 TIMBER BOTTOM PLATE

70x19 PRE-PRIMED PLANTATION PINE FLOOR SKIRTING

BLACK POWDERCOATED ALUMINIUM FRAMED WINDOW 50mm SLAB REBATE

MIN. EXPOSED FOOTING

9mm CFC EAVES LINING FIXED ON TIMBER FRAMING AT 600mm MAX. C/S

BEYOND VERTICAL ENTRY SLATS WITH COLUMN 50x100mm ALUMINIUM MODINEX 'ALU BATTEN' (BLACK OR EQUIVALENT) LAID VERTICAL EQUALLY SPACED AND FIXED BETWEEN CFC TO FLOOR

BEYOND 100SHS -DURAGAL COLUMN PAINT TO MATCH MODINEX SLATS (BLACK)

STANDARD BRICKWORK WALL (BEYOND). RENDERED FINISH

BRICK-ON-EDGE SILL

FLASHING

CONCRETE PAVING WITH WOOD FLOAT FINISH

100mm DIA. PVC DOWNPIPE AS SPEC. WITH CONNECTION TO RAINWATER TANK. PAINT FINISH TO MATCH RENDERED WALL. PROVIDE STAINLESS STEEL STAND-OFF BRACKET FIXINGS BACK TO WALL (BRACKET AT EVERY 1200mm MAX.). ENSURE ALL PENETRATIONS ARE MADE WATERTIGHT & VERMIN PROOF

GENERAL NOTE: TERMITE PROTECTION TERMITE

ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGS -APPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.

GENERAL NOTE: NOGGINGS REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.

PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.

GENERAL NOTE: INSULATION INSULATION INSULATION INSULATION

R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.

GENERAL NOTE: PENETRATIONS

ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.

GENERAL NOTE: FLOOR TILES FLOOR TILES FLOOR TILING IN WET AREAS SHALL CONTINUE UNDER ALL JOINERY (I.E. BROOM, VANITY ETC.).

GENERAL NOTE: STRUCTURAL

ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.

GENERAL NOTE: WET AREAS WET AREAS

ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.

PASSAGE PASSAGE PASSAGE PASSAGE

90x45 MGP10 TIMBER BATTENS AT 900mm MAX. C/S

TIMBER ROOF TRUSSES TO MANUFACTURER'S DESIGN

ROOF SARKING

CORRUGATED ROOF SHEETING (COLORBOND MONUMENT) AT 22.5° PITCH

9mm CFC PAINT FINISH

300x150 BOX-GUTTER FALLS 1:80 TO DP

COLORBOND CORRUGATED ROOFING 5o PITCH

90x45 TIMBER TOP PLATE

COLORBOND CAPPING ON TIMBER BACKING
