- 1.2m CLEARANCE IN FRONT OF FIXED BENCHES AND APPLIANCES
-SLIP RESISTANT FLOORING
-EXTENSION OF FLOOR FINISHES UNDER CUPBOARDS
LAUNDRY SPACE
- 1.2m CLEARANCE IN FRONT OF FIXED BENCHES AND APPLIANCES
-SLIP RESISTANT FLOORING
-EXTENSION OF FLOOR FINISHES UNDER CABINETRY
GROUND BEDROOM SPACE
- >/= 10 sqm CLEARANCE EXCLUSIVE OF ROBES, SKIRTINGS AND WALL LINING
-1000 mm >/=PATH OF TRAVEL ON ONE SIDE OF THE BED
SWITCHES & POWERPOINTS
- LIGHT SWITCHES
ABOVE FFL -GPOs >/=
DOOR & TAP HARDWARE

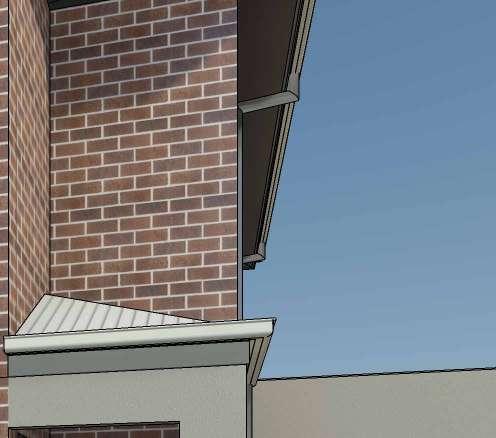

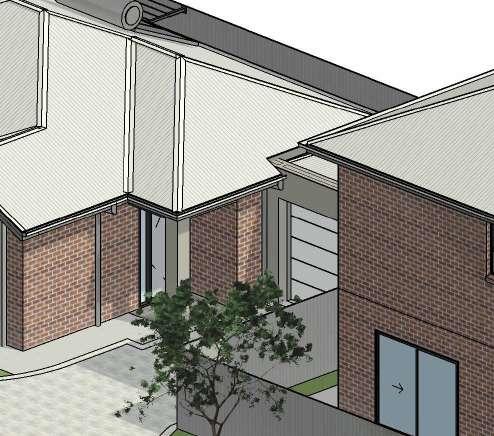

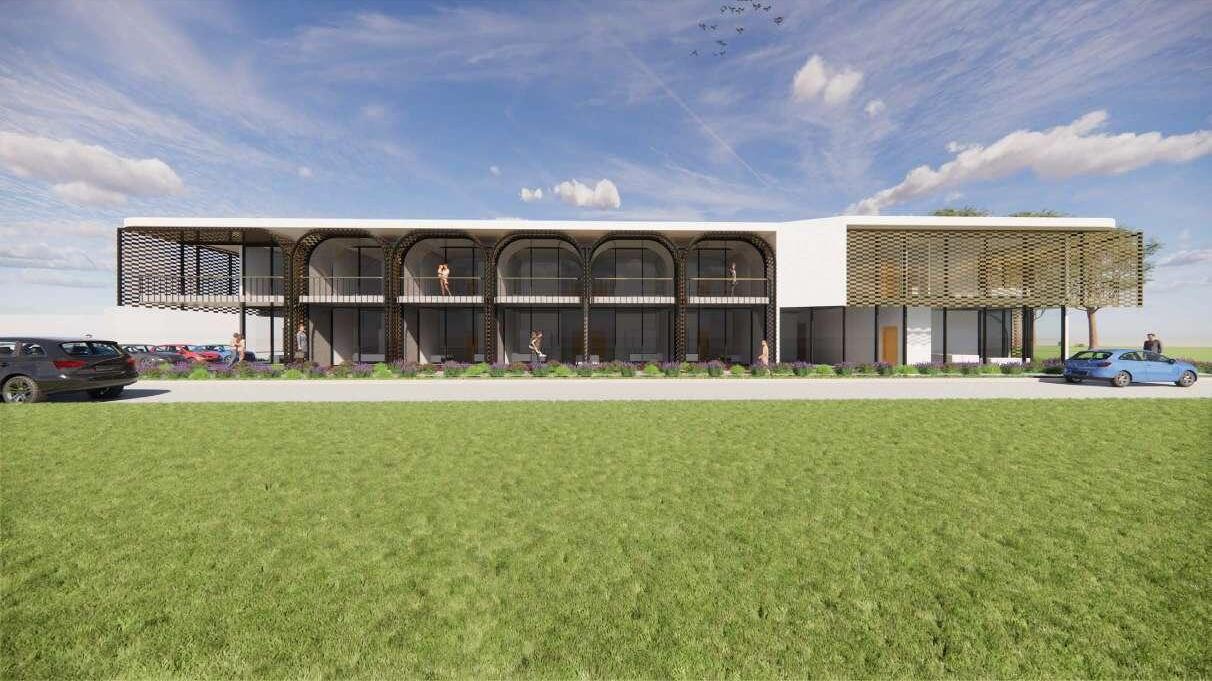

AUSTRALBRICKS -
COLORBOND BLUEGUM - FASCIA
COLORBOND SOUTHERLY - ROOFING, GUTTER AND GARAGE DOOR
COLORBOND DUNE -
COLORBOND WOODLAND GREY - WINDOW, DOOR AND DOOR FRAME
COLORBOND DUNE - RENDER
Final Year Studio (M), 2020
IHE EAEA'& HEAD HOTEL & THEATRE
THE PROJECT IS LOCATED IN CORNER OF STURT ST AND KING WILLIAMS ST. PROJECT EAST IS THE EXISTING BUILDING:OLD KINGS HEAD HOTEL. WHICH IS A TWO FLOOR HERITAGE BUILDING,THE PRESENT STRUCTURE DATES FROM 1876. THIS HOTEL IS AN IMPORTANT AND ORIGINAL PART OF THE CHARACTER OF THE CITY. THE GROUND FLOOR IS A PUB ,SERVE FOR FOOD,BEER WINE. UPPER FLOOR IS OLD HOTEL.
ADELAIDE IS A CAPITAL OF ART, EVERY YEAR THERE ARE MANY LARGE AND SMALL ART FESTIVALS, SUCH AS, OZASIA, FRINGE, ADELAIDE FESTIVAL, WOMADELAIDE,ROYAL ADELAIDE SHOW. THOSE SHOW ATTRACT A LARGE NUMBER OF LOCAL CITIZEN AND VISTOR TO STAY AND ENJOY HERE DURING THE HOLIDY. AFTER DEEPLY THOUGHT. I WILL BUILD A COMPREHENSIVE BUILDING. THIS COMPREHENSIVE BUILDING IS TO SOLVE THE PURPOSE OF ENTERTAINMENT AND LEISURE FOR THE LOCALS. IT IS A COMPREHENSIVE BUILDING INTEGRATING PUB, THEATER AND HOTEL. I WANT PEOPLE COME IN KINGS HEAD HOTEL AND TO STAY IN HERE LONG TIME TO ENJOY THE CULTURE AND FESTIVALS OF ADELAIDE.
LEISURE & ENTERTAINMENT
MAIN VERTICAL CHANNEL
LOBBY & SERVICE ZONE
THEATER & REHEARSAL ZONE
HOTEL ROOMS ZONE
PERSPECTIVEE SECION
THE WEST TOWER IS A NEW PROJECT. IT WILL CONNECT WITH EXISTING BUILDING.IT IS NEW TOWER AND EXISTING HERITAGE PUB.STURT ST AND JOHN ST. HOTEL MAIN ENTRANCE FOR BOUTIQUE HOTEL AND THEATERIT WILL BE OPEN AT JOHN ST.I RETAIN THE ORGIANL BLUE STONE WALL. TO KEEP THE FEELING ABOUT SENCE OF OLD AND NEW.
THE GROUND FLOOR IS HOTEL LOOBY, THERE ARE TWO RECEPTION, ONE FOR THEATRE, ANOTHER FOR HOTEL. THE LOBBY OCCUPIED DOUBLE FLOOR HIGHT SPACE. THE UPPER OF LOBBY IS THREE SPACE FLOOR HIGHT THEATRE. BECAUSE OF THE LIMITED SITE AREA, IN ORDER TO MEET THE THEATER'S DEMAND FOR SUFFICIENT SEATING AND THE NEED FOR FLY TOWER INSTALLATIONS, THE THEATER HAS DONE A HANDOVER TREATMENT
PUB
THEATRE HOTEL LOBBY
TO EXTEND THE LONG DISTANCE TO 7M.ABOVE OF THEATRE, THERE IS REHEARSAL FLOOR. THIS LEVEL HAVE DANCEING, MUSIC PRACTICE ROOM.
FOR BUILDING 6TH TO 13TH , WHICH IS HOTEL ROOM LEVEL. BUTIQUE HOTEL FORM 6TH-9TH FLOOR, 6 HOTEL ROOM FOR EACH FLOOR.
LUXURY HOTEL ROOM FLOOR FROM 10TH TO 13TH, EACH LEVEL HAVE 4 SUITS. IN TOP FLOOR, SWIMMING AND GYM ZONE WILL PROVIDE BY HOTEL SERVICE. THE ROOF HAVE A GARDEN WILL BE PROVIDE. CUSTOMER CAN ENJOY SUNSHINE AND LEISURE IN THIS ZONE.
VERTIAL PASSAGE, SCISSOR STAIR & ELEVATOR
EXISTING BUILDING DRAG OUT THE NEW TOWER
TOWER BE SEPARATED FOR LAYER
DRAG OUT DIFFERENT FLOOR SHAPES FOR FUNCTIONALITY
REFINE THE BUILDING SURFACE FOR THE REQUIREMENTS OF LIGHTING AND SHADING,
THE RED LANE SHOWED INTERNAL WALK CIRCULATION OF THE BUILDING.
LOBBY INTERIOR
Overhand construction for theatre design provide spacious insidespace. And It's like a giant Rubik's Cube, which has added agility and creativity to Adelaide's urban culture, attracting more tourists and consumers
3D Printng model with facade design
Double high level for theatre hall
The height of the person's sight in first theatre level last row
The height of the person's sight in theatre hallcorner
Upper level is rehearsal hall.
Left part of theatre level was established fly tower device.
PRACTICE
KITCHEN
HOTEL
TOP FLOOR - SWIMMING POOL
MAIN VERTIAL PASSAGE
TRANSVERSE GANGWAY
THEATRE TOILET
EXISTING ROOF
ACTOR TOILET MEETING ROOM
EDITOR ROMM
ROOF GARDEN
MAIN CONSTRUCTION
600MM FLOOR BOARD AND BEAM
INSULATING THE METOPE
KING'S HEAD HOTEL & THEATRE PROJECT
THEATRE: HANDOVER CONSTRUCTION
VERTICAL STAIR CASE CORE
SCISSOR STAIR AND ELEVATOR
STEEL STRUCTURE: TRANSVERSE AND LONGITUDINAL REINFORCEMENT
GENERAL NOTE: STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO NGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
GENERAL NOTE: STRUCTURAL STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
COMFORT PLUS GLAZING NOTE: HOUSE 5 & 8 HOUSE 5 8 COMFORT PLUS GLAZING TO BE INSTALLED TO WC.05, WC.06 (DINING / LIVING),WC.07 (KITCHEN), WC.08 (BATHROOM) & WE.03 (BATHROOM), WE.04 & WE.05 (BEDROOM 2) GLAZING TO REMAIN AS FROSTED GLASS. REFER TO SITE PLAN.
A19.07.23AMENDMENT FOR CERTIFICATION
KITCHEN KITCHEN KITCHEN KITCHEN
FLOOR PLAN -HOUSE 13 (TYPE F)
GENERAL NOTE: NOGGINGS
REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.
PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.
GENERAL NOTE: INSULATION INSULATION
R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.
GENERAL NOTE: PENETRATIONS PENETRATIONS ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.
GENERAL NOTE: WET AREAS ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.
GENERAL NOTE: FLOOR TILES FLOOR TILES FLOOR TILING IN WET AREAS SHALL CONTINUE UNDER ALL JOINERY (I.E. BROOM, VANITY ETC.).
GENERAL NOTE: TERMITE PROTECTION TERMITE PROTECTION TERMITE ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGSAPPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.
GENERAL NOTE: FLOOR WASTES FLOOR WASTES ALL WET AREAS TO ACHEIVE A GRADIENT BETWEEN 1:80 MINIMUM AND 1:50 MAXIMUM.
GARAGE GARAGE GARAGE GARAGE
AUSTRALIAN STANDARD EXCEEDED. PATH WIDTH 1100mm.
ENTRANCE DOOR 850mm CLEAR, LANDING 1350x1350
DOORWAYS 850mm CLEAR PASSAGEWAYS 1200mm
GROUND FLOOR TOILET 1200 WIDE WITH 1200 CLEAR IN FRONT OF PAN
HOBLESS (STEP FREE) RECESS 900x900 WITH 1200X1200 CLEAR SPACE IN FRONT WALLS REINFORCED
STRAIGHT WITH CLEAR WIDTH 1000mm, ADJACENT LOAD BEARING WALL WITH CONTINUOUS HANDRAIL ON ONE SIDE
1200mm CLEAR BETWEEN BENCHES WHERE PRACTICABLE, FLOOR FINISHES EXTEND UNDER CABINETRY 1200mm CLEAR IN FRONT OF BENCHES &
LIGHT SWITCHES 900-1100mm ABOVE FLOOR ALIGNED WITH DOOR HANDLES, POWERPOINTS 300mm ABOVE FLOOR DOOR
GENERAL NOTE: NOGGINGS
REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.
PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.
GENERAL NOTE: INSULATION
R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.
ROOF SARKING
90x45 MGP10 TIMBER BATTENS AT 900mm MAX. C/S
TIMBER ROOF TRUSSES TO MANUFACTURER'S DESIGN
200mm BULK INSULATION R4.0 ABOVE CEILING TO COMPLY WITH ENERGY RATING REPORT
GENERAL NOTE: PENETRATIONS PENETRATIONS ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR. B
GENERAL NOTE: STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
GENERAL NOTE: WET AREAS AREAS
ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.
GENERAL NOTE: TERMITE PROTECTION TERMITE ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGSAPPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.
GENERAL NOTE: DOWNPIPES
100mm PVC DP. PAINT FINISH TO MATCH WALL IF LOCATION OF DP ARE ALONG RENDERED WALL OR PAINT FINISH TO MATCH ROOF COLOR (DUNE / WINDSPRAY) IF IN FRONT OF BRICK WALL. REFER TO CIVIL DOCUMENTATION FOR STORM WATER CONNECTION. B
10mm FLUSH PLASTERBOARD CEILING. PAINT FINISH
55mm PLAIN COVED CORNICE
90x45 TIMBER TOP PLATE
SELECTED FLOOR FINISH ABOVE CONCRETE SLAB
REINFORCED CONCRETE FLOOR SLAB TO STRUCTURAL ENGINEER'S DOCUMENTS
COMPACTED RUBBLE FILL WITH 50mm SAND TOPPING
FOOTING & WATERPROOF MEMBRANE TO ENGINEER'S DOCUMENTATION
CORRUGATED ROOF SHEETING (COLORBOND MONUMENT) AT 22.5° PITCH
D-GUTTER ON STRATCO CONTOUR FASCIA (COLORBOND FINISH) WITH CONNECTION TO DOWNPIPE
9mm CFC EAVES LINING FIXED ON TIMBER FRAMING AT 600mm MAX. C/S
COLORBOND BOX GUTTER INSTALLED AS SPEC. 850mm WIDE ON GUTTER BOARD SUPPORTED ON TIMBER SUPPORTS BETWEEN CANOPY RAFTERS AT 600mm C/S
150 PFC CANOPY BEAM WITH 65mm TAB WELDED
90mm BULK INSULATION R2.5 BETWEEN FRAMING (REFER TO ENERGY RATING REPORT)
10mm FLUSH PLASTERBOARD FIXED TO TIMBER STUD FRAMING. PAINT FINISH
19mm TIMBER TRIM INTERNAL WINDOW SURROUNDS (PREPRIMED PLANTATION PINE)
60x19 PRE-PRIMED PLANTATION PINE ARCHITRAVE
90x35 TIMBER STUD FRAMING AT 450mm C/S
90x45 TIMBER BOTTOM PLATE
70x19 PRE-PRIMED PLANTATION PINE FLOOR SKIRTING
BLACK POWDERCOATED ALUMINIUM FRAMED WINDOW 50mm SLAB REBATE
MIN. EXPOSED FOOTING
9mm CFC EAVES LINING FIXED ON TIMBER FRAMING AT 600mm MAX. C/S
BEYOND VERTICAL ENTRY SLATS WITH COLUMN 50x100mm ALUMINIUM MODINEX 'ALU BATTEN' (BLACK OR EQUIVALENT) LAID VERTICAL EQUALLY SPACED AND FIXED BETWEEN CFC TO FLOOR
BEYOND 100SHS -DURAGAL COLUMN PAINT TO MATCH MODINEX SLATS (BLACK)
STANDARD BRICKWORK WALL (BEYOND). RENDERED FINISH
BRICK-ON-EDGE SILL
FLASHING
CONCRETE PAVING WITH WOOD FLOAT FINISH
100mm DIA. PVC DOWNPIPE AS SPEC. WITH CONNECTION TO RAINWATER TANK. PAINT FINISH TO MATCH RENDERED WALL. PROVIDE STAINLESS STEEL STAND-OFF BRACKET FIXINGS BACK TO WALL (BRACKET AT EVERY 1200mm MAX.). ENSURE ALL PENETRATIONS ARE MADE WATERTIGHT & VERMIN PROOF
GENERAL NOTE: TERMITE PROTECTION TERMITE
ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGS -APPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.
GENERAL NOTE: NOGGINGS REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.
PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.
GENERAL NOTE: INSULATION INSULATION INSULATION INSULATION
R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.
GENERAL NOTE: PENETRATIONS
ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.
GENERAL NOTE: FLOOR TILES FLOOR TILES FLOOR TILING IN WET AREAS SHALL CONTINUE UNDER ALL JOINERY (I.E. BROOM, VANITY ETC.).
GENERAL NOTE: STRUCTURAL
ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
GENERAL NOTE: WET AREAS WET AREAS
ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.
PASSAGE PASSAGE PASSAGE PASSAGE
90x45 MGP10 TIMBER BATTENS AT 900mm MAX. C/S
TIMBER ROOF TRUSSES TO MANUFACTURER'S DESIGN
ROOF SARKING
CORRUGATED ROOF SHEETING (COLORBOND MONUMENT) AT 22.5° PITCH
9mm CFC PAINT FINISH
300x150 BOX-GUTTER FALLS 1:80 TO DP
COLORBOND CORRUGATED ROOFING 5o PITCH
90x45 TIMBER TOP PLATE
COLORBOND CAPPING ON TIMBER BACKING
TIMBER FASCIA TRUSS TO ENGINEER'S DETAIL
9mm CFC FIXED TO TIMBER FRAMING. PAINT FINISH
STANDARD BRICKWORK WALL RENDERED EXTERNALLY
WEEP HOLES OPEN PERPS EVERY 2 BRICKS APART
CAVITY FLASHING
HEAD FLASHING
GALVANISED STEEL ANGLE LINTEL TO ENGINEER'S DOCUMENTATION
19x19(F) EXTERNAL BEAD
TIMBER DOOR FRAME EX 150x50 SEASONED HARDWOOD DOOR FRAME
ALUMINIUM SECURITY SCREEN DOOR (DASHED)
EXTERNAL WEATHER SEAL TO DOOR
SLOPING CONCRETE SILL
12mm DIA. GALVANISED STEEL DOWELS x 300mm LONG AT 300mm MAX. CTRS. TO SLIDING DOOR
