IHE EAEA'& HEAD HOTEL & THEATRE
THE PROJECT IS LOCATED IN CORNER OF STURT ST AND KING WILLIAMS ST. PROJECT EAST IS THE EXISTING BUILDING:OLD KINGS HEAD HOTEL. WHICH IS A TWO FLOOR HERITAGE BUILDING,THE PRESENT STRUCTURE DATES FROM 1876. THIS HOTEL IS AN IMPORTANT AND ORIGINAL PART OF THE CHARACTER OF THE CITY. THE GROUND FLOOR IS A PUB ,SERVE FOR FOOD,BEER WINE. UPPER FLOOR IS OLD HOTEL.
ADELAIDE IS A CAPITAL OF ART, EVERY YEAR THERE ARE MANY LARGE AND SMALL ART FESTIVALS, SUCH AS, OZASIA, FRINGE, ADELAIDE FESTIVAL, WOMADELAIDE,ROYAL ADELAIDE SHOW. THOSE SHOW ATTRACT A LARGE NUMBER OF LOCAL CITIZEN AND VISTOR TO STAY AND ENJOY HERE DURING THE HOLIDY. AFTER DEEPLY THOUGHT. I WILL BUILD A COMPREHENSIVE BUILDING. THIS COMPREHENSIVE BUILDING IS TO SOLVE THE PURPOSE OF ENTERTAINMENT AND LEISURE FOR THE LOCALS. IT IS A COMPREHENSIVE BUILDING INTEGRATING PUB, THEATER AND HOTEL. I WANT PEOPLE COME IN KINGS HEAD HOTEL AND TO STAY IN HERE LONG TIME TO ENJOY THE CULTURE AND FESTIVALS OF ADELAIDE.
LEISURE & ENTERTAINMENT
MAIN VERTICAL CHANNEL
LOBBY & SERVICE ZONE
THEATER & REHEARSAL ZONE
HOTEL ROOMS ZONE
PERSPECTIVEE SECION
THE WEST TOWER IS A NEW PROJECT. IT WILL CONNECT WITH EXISTING BUILDING.IT IS NEW TOWER AND EXISTING HERITAGE PUB.STURT ST AND JOHN ST. HOTEL MAIN ENTRANCE FOR BOUTIQUE HOTEL AND THEATERIT WILL BE OPEN AT JOHN ST.I RETAIN THE ORGIANL BLUE STONE WALL. TO KEEP THE FEELING ABOUT SENCE OF OLD AND NEW.
THE GROUND FLOOR IS HOTEL LOOBY, THERE ARE TWO RECEPTION, ONE FOR THEATRE, ANOTHER FOR HOTEL. THE LOBBY OCCUPIED DOUBLE FLOOR HIGHT SPACE. THE UPPER OF LOBBY IS THREE SPACE FLOOR HIGHT THEATRE. BECAUSE OF THE LIMITED SITE AREA, IN ORDER TO MEET THE THEATER'S DEMAND FOR SUFFICIENT SEATING AND THE NEED FOR FLY TOWER INSTALLATIONS, THE THEATER HAS DONE A HANDOVER TREATMENT
THEATRE HOTEL LOBBY
TO EXTEND THE LONG DISTANCE TO 7M.ABOVE OF THEATRE, THERE IS REHEARSAL FLOOR. THIS LEVEL HAVE DANCEING, MUSIC PRACTICE ROOM.
FOR BUILDING 6TH TO 13TH , WHICH IS HOTEL ROOM LEVEL. BUTIQUE HOTEL FORM 6TH-9TH FLOOR, 6 HOTEL ROOM FOR EACH FLOOR.
LUXURY HOTEL ROOM FLOOR FROM 10TH TO 13TH, EACH LEVEL HAVE 4 SUITS. IN TOP FLOOR, SWIMMING AND GYM ZONE WILL PROVIDE BY HOTEL SERVICE. THE ROOF HAVE A GARDEN WILL BE PROVIDE. CUSTOMER CAN ENJOY SUNSHINE AND LEISURE IN THIS ZONE.
VERTIAL PASSAGE, SCISSOR STAIR & ELEVATOR
EXISTING BUILDING DRAG OUT THE NEW TOWER TOWER BE SEPARATED FOR LAYER DRAG OUT DIFFERENT FLOOR SHAPES FOR FUNCTIONALITY
REFINE THE BUILDING SURFACE FOR THE REQUIREMENTS OF LIGHTING AND SHADING,
THE RED LANE SHOWED INTERNAL WALK CIRCULATION OF THE BUILDING.
LOBBY INTERIOR

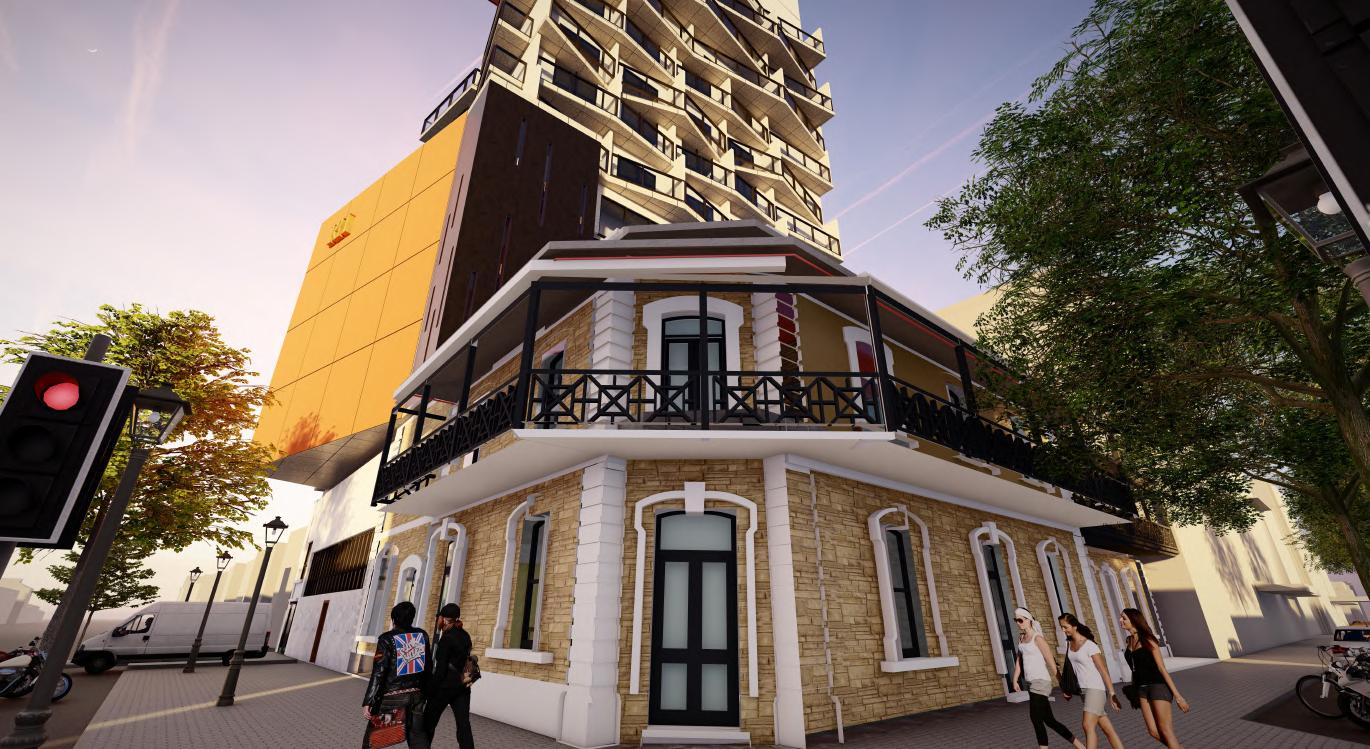

MAIN HOTEL GATE
Overhand construction for theatre design provide spacious insidespace. And It's like a giant Rubik's Cube, which has added agility and creativity to Adelaide's urban culture, attracting more tourists and consumers
3D Printng model with facade design
Double high level for theatre hall
The height of the person's sight in first theatre level last row
The height of the person's sight in theatre hallcorner
Upper level is rehearsal hall.
Left part of theatre level was established fly tower device.
PRACTICE
KITCHEN
HOTEL ROOM -LIVING ROOM
MAIN VERTIAL PASSAGE
TRANSVERSE GANGWAY
THEATRE TOILET

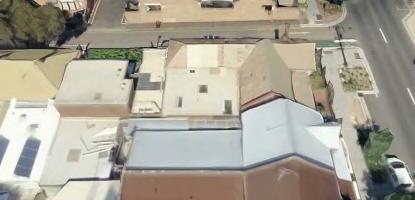

EXISTING ROOF
ACTOR TOILET
MEETING ROOM
EDITOR ROMM
ROOF GARDEN
INSULATING THE METOPE
VERTICAL STAIR CASE CORE
KING'S HEAD HOTEL & THEATRE PROJECT
THEATRE: HANDOVER CONSTRUCTION
STEEL STRUCTURE: TRANSVERSE AND LONGITUDINAL REINFORCEMENT
DOUBLE GLAZING
SHEET LIST
REF NUMBER SHEET NAME
A01-1-01
A03-1-05
TITLE/LOCATION
SITE D- SITE PLAN
A03-1-06 SITE D - SITE PLAN (TRAFFIC)
A-04-1-02 FLOOR PLAN - TYPE 1 (TYP.)
A-04-1-03
FLOOR PLAN - TYPE 2 (TYP.)
A-06-1-04 ROOF PLAN - TYPE 1&2 (TYP.)
A-07-1-01
SITE ELEVATIONS
A-07-1-02 HOUSE MATERIALS
A-07-1-03
BUILDING ELEVATIONS TYPE 1
A-07-1-04 BUILDING ELEVATIONS TYPE 2
A-25-1-01 3D VIEW TYPE 1
A-25-1-02 3D VIEW TYPE 2
E.AC EXTERNAL AIR CONDITIONING UNIT - PROVISION ONLY
E.CL CLOTHESLINE
E.LB INDIVIDUAL LETTERBOX
E.LB2 GROUP LETTERBOXES
E.MB ELECTRIC METER CUPBOARD FOR UNITS 2-4
E.RW RAINWATER TANK - REFER TO ENGINEERING
E.WM ABOVE GROUND WATER METER MANIFOLD LOCATIONS
F.BIN BINS
PRELIMINARY
LIVABLE HOUSING DESIGN GUIDELINES
DWELLING ACCESS -PATH >/= 1.1m
-STEPLESS ENTRY & COMPLIANT REAMPS ACHIEVABLE
DWELLING ENTRANCE
-ENTRANCE DOOR CLEAR WIDTH >/= 820mm -A LEVEL LANDING AREA OF AT LEAST 1350MM X 1350MM
INTERNAL DOORS & CORRIDORS
-DOOR CLEAR WIDTH >/= 820mm
-CORRIDORS CLEAR WIDTH >/= 1.0m
TOILET
-WALL WIDTH >/= 900mm ->/= 1.2m X 1.2m CLEAR CIRCULATION SPACE
SHOWER
-900mm X 900mm SHOWER RECESS
-1.2m X 1.2m CLEAR CIRCULATION SPACE
REINFORCEMENT OF BATH. & TOILET WALLS
-WALLS AROUND TOILET, BATH & SHR. RECESSNOGGINGS >/= 25mm, SHEETING >/=12mm
KITCHEN SPACE
- 1.2m CLEARANCE IN FRONT OF FIXED BENCHES AND APPLIANCES
-SLIP RESISTANT FLOORING
-EXTENSION OF FLOOR FINISHES UNDER CUPBOARDS
LAUNDRY SPACE
- 1.2m CLEARANCE IN FRONT OF FIXED BENCHES AND APPLIANCES
-SLIP RESISTANT FLOORING
-EXTENSION OF FLOOR FINISHES UNDER CABINETRY
GROUND BEDROOM SPACE
- >/= 10 sqm CLEARANCE EXCLUSIVE OF ROBES, SKIRTINGS AND WALL LINING
-1000 mm >/=PATH OF TRAVEL ON ONE SIDE OF THE BED
SWITCHES & POWERPOINTS
- LIGHT SWITCHES
ABOVE FFL -GPOs >/=
DOOR & TAP HARDWARE
AUSTRALBRICKS -
COLORBOND BLUEGUM - FASCIA
COLORBOND SOUTHERLY - ROOFING, GUTTER AND GARAGE DOOR
COLORBOND DUNE -
COLORBOND WOODLAND GREY - WINDOW, DOOR AND DOOR FRAME
COLORBOND DUNE - RENDER
21-28 RUSHWORTH STREET, BLAIR ATHOL SA 5084
ARCHITECTURAL DRAWING SCHEDULE DRAWING
COVER PAGE
LOCATION PLAN
LAND DIVISION
DOOR + WINDOW LEGEND / DOOR SCHEDULE
WINDOW SCHEDULE / FINISHES SCHEDULE
LEGEND + NOTES
LEGEND + NOTES
SITE PLAN
FLOOR PLAN -HOUSE 01 (TYPE B)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 01 (TYPE B)
CEILING / ELECTRICAL PLAN -HOUSE 01 (TYPE B)

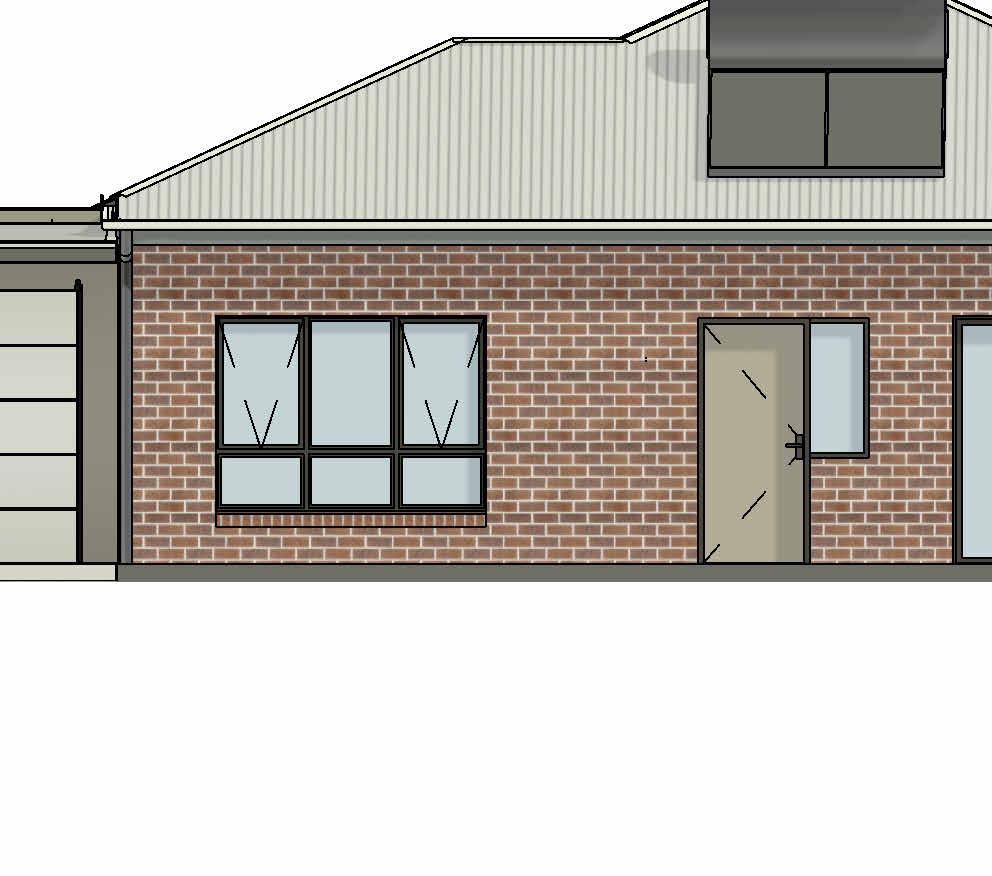

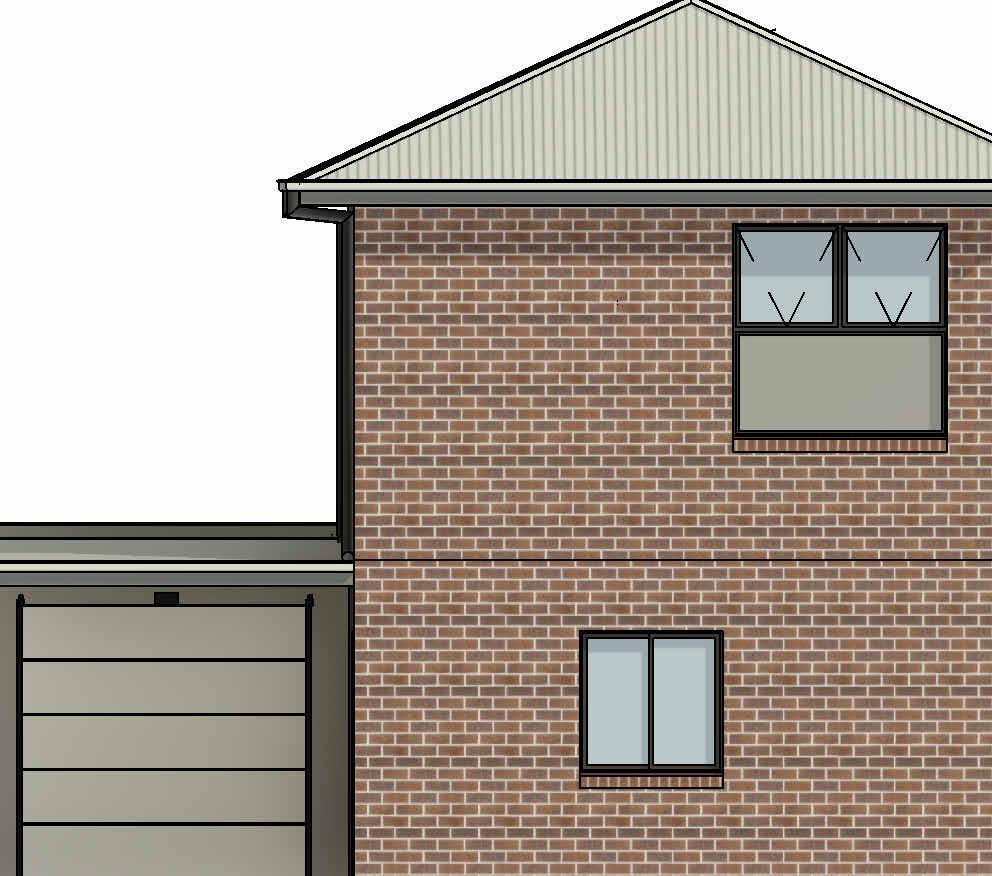

ELEVATIONS -HOUSE 01 (TYPE B)
FLOOR PLAN -HOUSE 02 (TYPE B)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 02 (TYPE B)
CEILING / ELECTRICAL PLAN -HOUSE 02 (TYPE B)
ELEVATIONS -HOUSE 02 (TYPE B)
FLOOR PLAN -HOUSE 03 (TYPE B)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 03 (TYPE B)
CEILING / ELECTRICAL PLAN -HOUSE 03 (TYPE B)
ELEVATIONS -HOUSE 03 (TYPE B)
FLOOR PLAN -HOUSE 04 (TYPE B)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 04 (TYPE B)
CEILING / ELECTRICAL PLAN -HOUSE 04 (TYPE B)
ELEVATIONS -HOUSE 04 (TYPE B)
WD28B
WD29
WD30A
WD31A
WD32
WD33B
WD34
WD35A
WD36A
WD37
WD38B
WD39
WD40A
WD41A
WD42
WD43B
WD44
WD45A
WD46A
WD47
WD48B
WD49
WD50A
WD51A
WD52
WD53B
WD54
WD55A
FLOOR PLAN-HOUSE 05 (TYPE C)
NOT REQUIRED FOR TENDER
ROOF PLAN-HOUSE 05 (TYPE C)
CEILING / ELECTRICAL PLAN -HOUSE 05 (TYPE C)
ELEVATIONS -HOUSE 05 (TYPE C)
FLOOR PLAN -HOUSE 06 (TYPE C)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 06 (TYPE C)
CEILING / ELECTRICAL PLAN -HOUSE 06 (TYPE C)
ELEVATIONS -HOUSE 06 (TYPE C)
FLOOR PLAN -HOUSE 07 (TYPE D)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 07 (TYPE D)
CEILING / ELECTRICAL PLAN -HOUSE 07 (TYPE D)
ELEVATIONS -HOUSE 07 (TYPE D)
FLOOR PLAN -HOUSE 08 (TYPE E)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 08 (TYPE E)
CEILING / ELECTRICAL PLAN -HOUSE 08 (TYPE E)
ELEVATIONS -HOUSE 08 (TYPE E)
FLOOR PLAN -HOUSE 09 (TYPE E)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 09 (TYPE E)
CEILING / ELECTRICAL PLAN -HOUSE 09 (TYPE E)
ELEVATIONS -HOUSE 09 (TYPE E)
FLOOR PLAN -HOUSE 10 (TYPE E)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 10 (TYPE E)
WD56A
WD57
WD58B
WD59
WD60A
WD61A
WD62
WD63B
WD64
WD65A
WD66A
WD67
WD68B
WD69
WD70A
WD71A
WD72
WD73
WD74A
WD75A
WD76A
WD77B
WD78A
WD79A
WD80
WD81A
WD82B
CEILING / ELECTRICAL PLAN -HOUSE 10 (TYPE E)
ELEVATIONS -HOUSE 10 (TYPE E)
FLOOR PLAN-HOUSE 11 (TYPE E)
NOT REQUIRED FOR TENDER
ROOF PLAN-HOUSE 11 (TYPE E)
CEILING / ELECTRICAL PLAN -HOUSE 11 (TYPE E)
ELEVATIONS -HOUSE 11 (TYPE E)
FLOOR PLAN -HOUSE 12 (TYPE F)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 12 (TYPE F)
CEILING / ELECTRICAL PLAN -HOUSE 12 (TYPE F)
ELEVATIONS -HOUSE 12 (TYPE F)
FLOOR PLAN -HOUSE 13 (TYPE F)
NOT REQUIRED FOR TENDER
ROOF PLAN -HOUSE 13 (TYPE F)
CEILING / ELECTRICAL PLAN -HOUSE 13 (TYPE F)
ELEVATIONS -HOUSE 13 (TYPE F)
TYPICAL ELEVATION DETAIL
SECTION DETAIL
SECTION DETAIL
SECTION DETAIL
SECTION DETAIL
SECTION DETAIL
SECTION DETAIL
SECTION DETAIL + TYPICAL SECTION DETAIL
PLAN DETAIL
COMMUNITY ENTRANCE WALL
PORCH: 4m2
ALFESCO:24m2
TOTAL:28m2
P.O.S: 91m2
LIVING:123m2
GARAGE:24m2
TOTAL:147m2
PORCH: 4m2
ALFESCO:24m2
TOTAL:28m2
P.O.S: 101m2
LIVING:123m2
GARAGE:24m2
TOTAL:147m2
PORCH: 4m2
ALFESCO:24m2
TOTAL:28m2 P.O.S: 102m2
PORCH: 4m2 ALFESCO:24m2 TOTAL:28m2
P.O.S: 128m2
LIVING:194m2
GARAGE:39m2
TOTAL:233m2
PORCH: 3m2
ALFESCO:20m2
TOTAL:23m2
P.O.S: 148m2
PORCH: 3m2
ALFESCO:20m2 TOTAL:23m2
P.O.S: 149m2
GENERAL NOTE: STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO NGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
GENERAL NOTE: STRUCTURAL STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
COMFORT PLUS GLAZING NOTE: HOUSE 5 & 8 HOUSE 5 8 COMFORT PLUS GLAZING TO BE INSTALLED TO WC.05, WC.06 (DINING / LIVING),WC.07 (KITCHEN), WC.08 (BATHROOM) & WE.03 (BATHROOM), WE.04 & WE.05 (BEDROOM 2) GLAZING TO REMAIN AS FROSTED GLASS. REFER TO SITE PLAN.
A19.07.23AMENDMENT FOR CERTIFICATION
GENERAL NOTE: NOGGINGS
FLOOR PLAN -HOUSE 13 (TYPE F)
REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.
PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.
GENERAL NOTE: INSULATION INSULATION
R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.
GENERAL NOTE: PENETRATIONS PENETRATIONS
ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.
GENERAL NOTE: WET AREAS ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.
GENERAL NOTE: FLOOR TILES FLOOR TILES TILES TILES FLOOR TILING IN WET AREAS SHALL CONTINUE UNDER ALL JOINERY (I.E. BROOM, VANITY ETC.).
GENERAL NOTE: TERMITE PROTECTION TERMITE PROTECTION ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGSAPPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.
GENERAL NOTE: FLOOR WASTES FLOOR WASTES WASTES WASTES ALL WET AREAS TO ACHEIVE A GRADIENT BETWEEN 1:80 MINIMUM AND 1:50 MAXIMUM.
GARAGE GARAGE GARAGE GARAGE
1 BEDROOM 1
AUSTRALIAN STANDARD EXCEEDED. PATH WIDTH 1100mm. ENTRANCE DOOR 850mm CLEAR, LANDING 1350x1350 DOORWAYS 850mm CLEAR PASSAGEWAYS 1200mm GROUND FLOOR TOILET 1200 WIDE WITH 1200 CLEAR IN FRONT OF PAN HOBLESS (STEP FREE) RECESS 900x900 WITH 1200X1200 CLEAR SPACE IN FRONT WALLS REINFORCED
STRAIGHT WITH CLEAR WIDTH 1000mm, ADJACENT LOAD BEARING WALL WITH CONTINUOUS HANDRAIL ON ONE SIDE 1200mm CLEAR BETWEEN BENCHES WHERE PRACTICABLE, FLOOR FINISHES EXTEND UNDER CABINETRY 1200mm CLEAR IN FRONT OF BENCHES & APPLIANCES 10m2 FLOOR AREA
WALL
LIGHT SWITCHES 900-1100mm
COLORBOND VALLEY
CORRUGATED METAL ROOFING (COLORBOND DUNE)
100mm PVC DP. PAINT FINISH WINDSPRAY. REFER TO CIVIL DOCUMENTATION FOR STORM WATER CONNECTION
COLORBOND VALLEY
BUILDING LINE BELOW SHOWN DASHED
COLORBOND RIDGE CAPPING
SOLAR PANELS SHOWN DASHED
SOLAR PANELS SHOWN DASHED
COLORBOND VALLEY
GENERAL NOTE: PENETRATIONS PENETRATIONS ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.
GENERAL NOTE: NOGGINGS
REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.
PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.
GENERAL NOTE: INSULATION
R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.
ROOF SARKING
90x45 MGP10 TIMBER BATTENS AT 900mm MAX. C/S
TIMBER ROOF TRUSSES TO MANUFACTURER'S DESIGN
200mm BULK INSULATION R4.0 ABOVE CEILING TO COMPLY WITH ENERGY RATING REPORT
GENERAL NOTE: PENETRATIONS PENETRATIONS ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR. B
GENERAL NOTE: STRUCTURAL ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
GENERAL NOTE: WET AREAS AREAS
ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.
GENERAL NOTE: TERMITE PROTECTION TERMITE ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGSAPPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.
GENERAL NOTE: DOWNPIPES
100mm PVC DP. PAINT FINISH TO MATCH WALL IF LOCATION OF DP ARE ALONG RENDERED WALL OR PAINT FINISH TO MATCH ROOF COLOR (DUNE / WINDSPRAY) IF IN FRONT OF BRICK WALL. REFER TO CIVIL DOCUMENTATION FOR STORM WATER CONNECTION. B
10mm FLUSH PLASTERBOARD CEILING. PAINT FINISH
55mm PLAIN COVED CORNICE
90x45 TIMBER TOP PLATE
SELECTED FLOOR FINISH ABOVE CONCRETE SLAB
REINFORCED CONCRETE FLOOR SLAB TO STRUCTURAL ENGINEER'S DOCUMENTS
COMPACTED RUBBLE FILL WITH 50mm SAND TOPPING
FOOTING & WATERPROOF MEMBRANE TO ENGINEER'S DOCUMENTATION
CORRUGATED ROOF SHEETING (COLORBOND MONUMENT) AT 22.5° PITCH
D-GUTTER ON STRATCO CONTOUR FASCIA (COLORBOND FINISH) WITH CONNECTION TO DOWNPIPE
9mm CFC EAVES LINING FIXED ON TIMBER FRAMING AT 600mm MAX. C/S
COLORBOND BOX GUTTER INSTALLED AS SPEC. 850mm WIDE ON GUTTER BOARD SUPPORTED ON TIMBER SUPPORTS BETWEEN CANOPY RAFTERS AT 600mm C/S
150 PFC CANOPY BEAM WITH 65mm TAB WELDED
90mm BULK INSULATION R2.5 BETWEEN FRAMING (REFER TO ENERGY RATING REPORT)
10mm FLUSH PLASTERBOARD FIXED TO TIMBER STUD FRAMING. PAINT FINISH
19mm TIMBER TRIM INTERNAL WINDOW SURROUNDS (PREPRIMED PLANTATION PINE)
60x19 PRE-PRIMED PLANTATION PINE ARCHITRAVE
90x35 TIMBER STUD FRAMING AT 450mm C/S
90x45 TIMBER BOTTOM PLATE
70x19 PRE-PRIMED PLANTATION PINE FLOOR SKIRTING
BLACK POWDERCOATED ALUMINIUM FRAMED WINDOW 50mm SLAB REBATE
MIN. EXPOSED FOOTING
9mm CFC EAVES LINING FIXED ON TIMBER FRAMING AT 600mm MAX. C/S
BEYOND VERTICAL ENTRY SLATS WITH COLUMN 50x100mm ALUMINIUM MODINEX 'ALU BATTEN' (BLACK OR EQUIVALENT) LAID VERTICAL EQUALLY SPACED AND FIXED BETWEEN CFC TO FLOOR
BEYOND 100SHS -DURAGAL COLUMN PAINT TO MATCH MODINEX SLATS (BLACK)
STANDARD BRICKWORK WALL (BEYOND). RENDERED FINISH
BRICK-ON-EDGE SILL
FLASHING
CONCRETE PAVING WITH WOOD FLOAT FINISH
100mm DIA. PVC DOWNPIPE AS SPEC. WITH CONNECTION TO RAINWATER TANK. PAINT FINISH TO MATCH RENDERED WALL. PROVIDE STAINLESS STEEL STAND-OFF BRACKET FIXINGS BACK TO WALL (BRACKET AT EVERY 1200mm MAX.). ENSURE ALL PENETRATIONS ARE MADE WATERTIGHT & VERMIN PROOF
GENERAL NOTE: TERMITE PROTECTION TERMITE
ALL TERMITE PROTECTION TO BE IN ACCORDANCE WITH AS3660 AND PART B ANNEXURE 2: MINIMUM DESIGN AND CONSTRUCTION SPECIFICATION FOR CLASS 1 BUILDINGS -APPENDIX A: TERMITE PROTECTIVE TREATMENT PROCEDURES.
GENERAL NOTE: NOGGINGS REINFORCE WALLS TO BATHROOM AND ENSUITE WITH NOGGINGS. FOR FIXING OF DISABILITY GRABRAILS REFER TO INTERNAL ELEVATION FOR LOCATION OF REINFORCEMENTS.
PROVIDE ADDITIONAL SUPPORT FRAMING TO BATHROOMS, LAUNDRY AND WC FOR FIXING OF FUTURE FIXTURES, IN ACCORDANCE WITH SAHA SPECIFICATIONS.
GENERAL NOTE: INSULATION INSULATION INSULATION INSULATION
R4.0 CEILING INSULATION AND R2.5 WALL INSULATIONS TO BE USED AS NECESSARY. ALL WALL INSULATIONS TO HAVE A MINIMUM DENSITY OF 14KG/M3.
GENERAL NOTE: PENETRATIONS
ALL PENETRATIONS THROUGH WALL MUST NOT DIMINISH THE ACOUSTIC RATING OF THE WALL AND TO BE CAULKED OR FILLED WITH MORTAR.
GENERAL NOTE: FLOOR TILES FLOOR TILES FLOOR TILING IN WET AREAS SHALL CONTINUE UNDER ALL JOINERY (I.E. BROOM, VANITY ETC.).
GENERAL NOTE: STRUCTURAL
ALL RETAINING WALL / CONCRETE UPSTAND DIMENSIONS AND CONCRETE FLOOR SLAB THICKNESSES TO ENGINEER'S SPECIFICATION. REFER TO ENGINEER'S DRAWINGS FOR FOOTING DETAILS.
GENERAL NOTE: WET AREAS WET AREAS
ALL WET AREA FIXTURES AND FITTINGS TO BE WATERPROOF IN ACCORDANCE WITH BCA PART 3.8.1 AND TABLE 3.8.1.1 AND TO COMPLY WITH AS3740-2010.
PASSAGE PASSAGE PASSAGE PASSAGE
90x45 MGP10 TIMBER BATTENS AT 900mm MAX. C/S
TIMBER ROOF TRUSSES TO MANUFACTURER'S DESIGN
ROOF SARKING
CORRUGATED ROOF SHEETING (COLORBOND MONUMENT) AT 22.5° PITCH
9mm CFC PAINT FINISH
300x150 BOX-GUTTER FALLS 1:80 TO DP
COLORBOND CORRUGATED ROOFING 5o PITCH
90x45 TIMBER TOP PLATE
COLORBOND CAPPING ON TIMBER BACKING
TIMBER FASCIA TRUSS TO ENGINEER'S DETAIL
9mm CFC FIXED TO TIMBER FRAMING. PAINT FINISH
STANDARD BRICKWORK WALL RENDERED EXTERNALLY
WEEP HOLES OPEN PERPS EVERY 2 BRICKS APART
CAVITY FLASHING
HEAD FLASHING
GALVANISED STEEL ANGLE LINTEL TO ENGINEER'S DOCUMENTATION
19x19(F) EXTERNAL BEAD
TIMBER DOOR FRAME EX 150x50 SEASONED HARDWOOD DOOR FRAME
ALUMINIUM SECURITY SCREEN DOOR (DASHED)
EXTERNAL WEATHER SEAL TO DOOR
SLOPING CONCRETE SILL
12mm DIA. GALVANISED STEEL DOWELS x 300mm LONG AT 300mm MAX. CTRS. TO SLIDING DOOR
CONCRETE PAVING TO ENGINEER'S DOCUMENTATION
90x45 MGP10 TIMBER BATTENS AT 600mm MAX. C/S 9mm CFCSOFFIT PAINT FINISH
RENDERED BRICK WALL BEYOND
PORCH PORCH
MARINE PLYWOOD GUTTER
SUPPORT BOARD WITH FRAMING AS REQUIRED
FLASHING INTO GUTTER
RENDERED BRICK PIER (BEYOND)

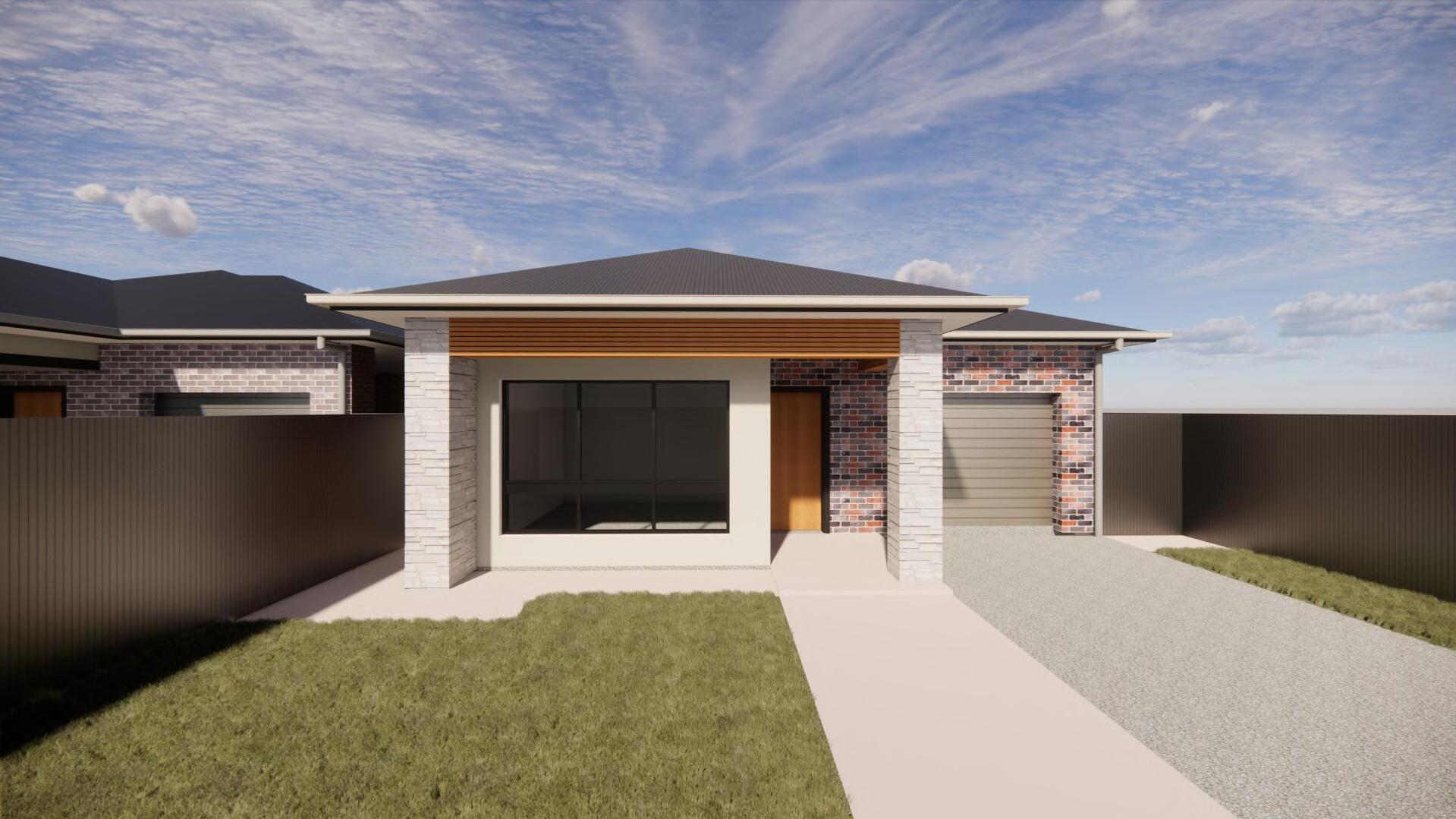

STREET VIEW (EAST)
STREET / INSIDE COMMUNITY BLOCK (NORTH)
Optic)
