Access Equipment

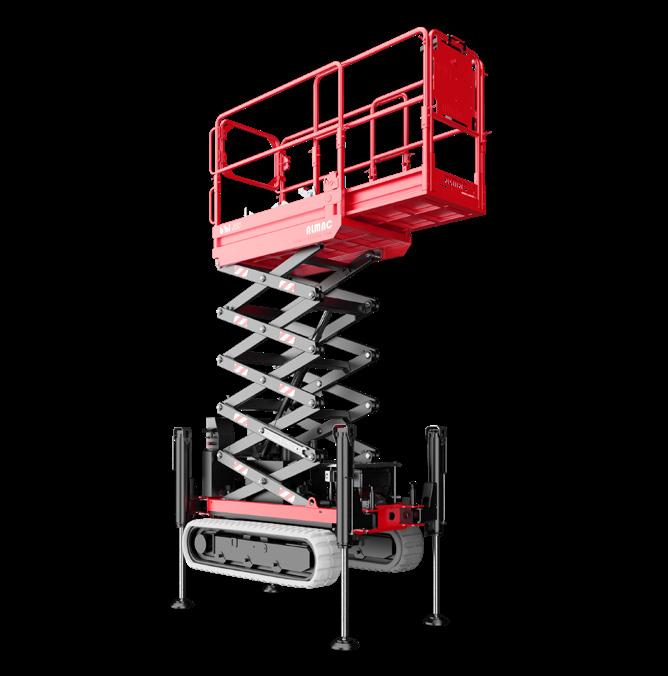

Athena HE-Line

The HE-Line range of tracked scissor lifts is capable of max working height 7.82-14m with a maximum capacity of up to 300kg.

Model: 850-HE Working height 7.8m Lift capacity 250kg Engine Honda IGX390 13 HP Weight 1781 Kg

Model: 1470-HE-EVO Working height 14.0m Lift capacity 300kg Engine Kubota Z602 Weight 3420 Kg

Athena BL-Line

The range of Building Line reaches between 7.9-10m with a maximum capacity of up to 300kg. EVO models can self-level while raised and move at height. There are also Bi-energy options.

Model: 850-BL* Working height 7.9m Lift capacity 250kg Engine Honda 13HP & Electric 240V Weight 1990 Kg

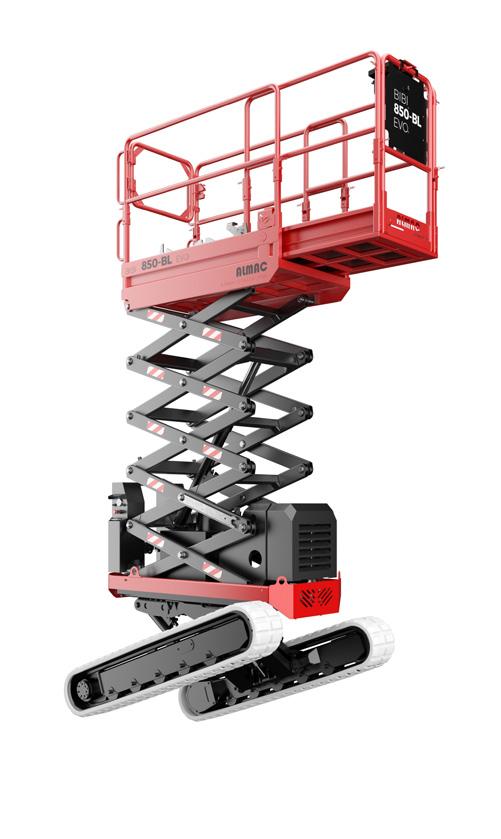

Model: 850-BL-EVO Working height 7.9m Lift capacity 250kg Engine Diesel 11HP & Electric 240V Weight 2200 Kg

Model: 870-BL-EVO Working height 7.9m Lift capacity 250kg Engine Diesel 11HP & Electric 240V Weight 2460 Kg

Model: 1090-BL-EVO* Working height 10.0m Lift capacity 300kg Engine Diesel 11HP & Electric 240V Weight 2830 Kg

*Bi energy option available

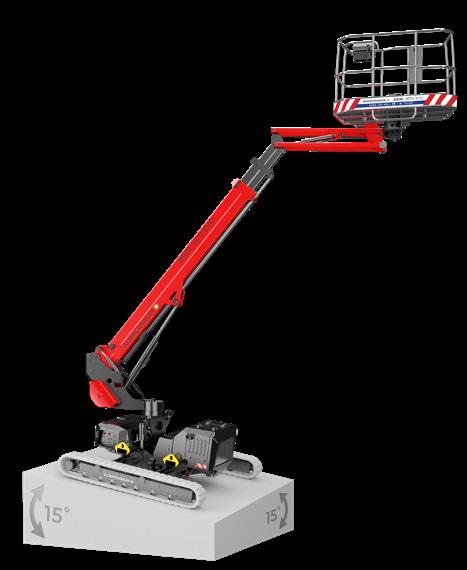

JT-Line

The JT-Line tracked self-propelled telescopic boom has +/- 15o longitudinal and lateral levelling. This unit also has an active dynamic bi-levelling chassis.

Model: JIBBI-1250-EVO Working height 12.2m Lift capacity 230kg Engine Diesel 19.2 HP Weight 2850 Kg

Model: JIBBI-1670-EVO Working height 16m Lift capacity 230kg Engine Diesel 19.2 HP Weight 3850 Kg

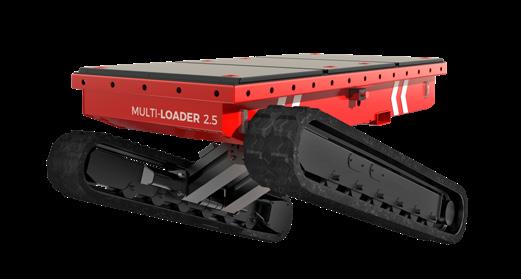

ML-Line

Multi-Loaders are a range of tracked loader with Bi-Levelling technology capable of transporting up to 6,000kg on slopes equal to 20º.

Model: MULTI LOADER 2.5 MULTI LOADER 6.0

Lift capacity 2500k 6000kg Engine Electric 240V Electric 240V Weight 1800 Kg 2250 Kg

* Optional crane attachment for 6.0 model.

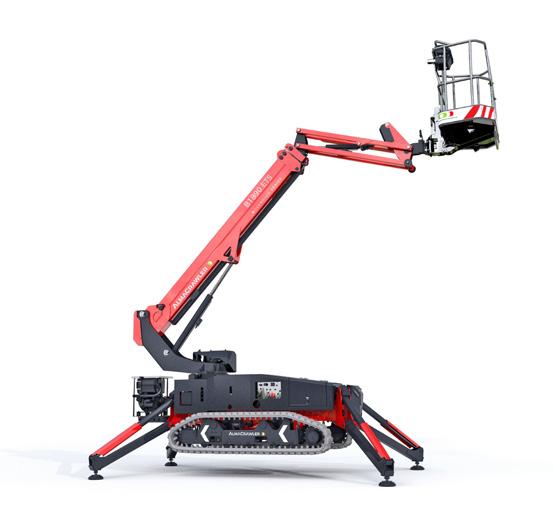

Tracked Spider Lift

The BT range of spider lifts combine the characteristics of tracked self-propelled aerial platforms with stabilised aerial platforms.

B 1570 ETS Visual Weight 2617kg Working Height 15m Capacity 230kg B 1890 ETS Visual Weight 2805kg Working Height 18m Capacity 250kg

Spider Lifts

Ideal for hard to reach places, lightweight and duel energy platform spiders will virtually go anywhere. Engine powered and electric.

Model: 13.80 Weight 1760kg Working Height 12.99m

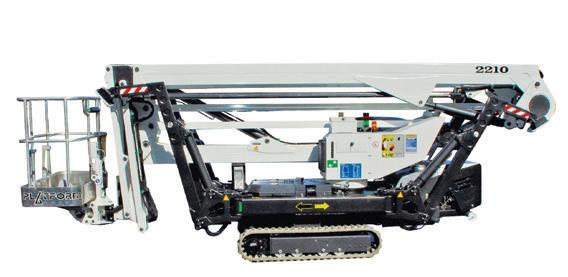

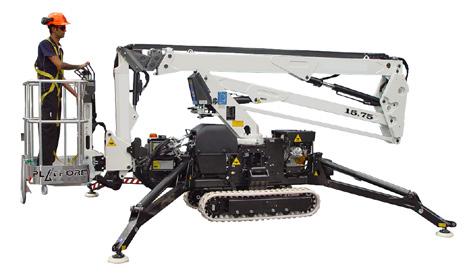

Model: 22.10 Weight 2980kg Working Height 21.7m Model: 15.75 Weight 2060kg Working Height 15m Model: 18.90 Weight 2457kg Working Height 17.6m Model: 20.95 Weight 2800kg Working Height 19.4m

Electric Runabouts

Self-propelled. Compact design and great manoeuvrability. Simple operation.

Model: GR15 GR20 Working height (max) 6.47m 8.02m Lift capacity (max) 227kg 159kg Power 4 x batteries, 6V Weight 1026kg 1148kg

Electric Scissors

Nothing beats a Genie scissor lift for performance and safety.

Model: GS1432m GS1932XH GS1932m Working height (max) 6.3m 7.8m 7.55m Lift capacity (max) 227kg 227kg 227kg Power Electric Electric Electric Weight 900kg 1500kg 1179kg

Model: GS2032 GS2632 GS3232 Working height (max) 8.1m 9.92m 11.75m Lift capacity (max) 363kg 227kg 227kg Power Electric Electric Electric Weight 1832kg 2145kg 2434kg

Model: GS2046 GS2646 Working height (max) 8.1m 9.92m Lift capacity (max) 544kg 454kg Power Electric Electric Weight 1775kg 1971kg

Model: GS3246 GS4046 GS4655 Working height (max) 11.75m 13.94m 15.95m Lift capacity (max) 318kg 350kg 350kg Power Electric Electric Electric Weight 2367kg 3117kg 3701kg

Rough Terrain Scissors

Superior gradeability, traction control and standard 4WD for diesel models.

Model: GS2669RTO GS3369RTO GS3384RTO Working height 9.70m 11.75m 12.06m Lift capacity 680kg 454kg 1134kg Power (Diesel) 24.8hp 24.8hp 49hp Weight 3739kg 3921kg 6743kg

Model: GS4069RTO GS4390RTO GS5390RTO Working height 14.12m 15.11m 18.15m Lift capacity 363kg 680kg 680kg Power (Diesel) 24.8hp 48hp 48hp Weight 5078kg 6934kg 7776kg

Telescopic Booms

The ultimate in reach and range. Fast set-up and state-of-the-art features.

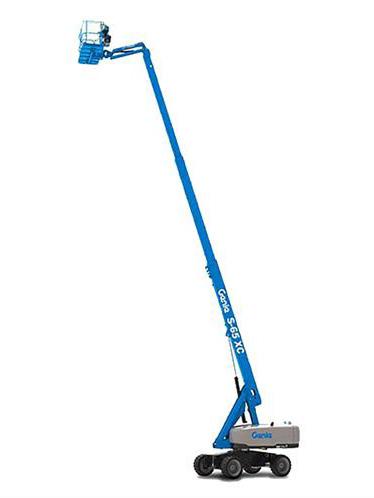

Model: S-45XC S-65TRAX S-65XC Working height 15.56m 21.8m 21.81m Lift capacity 300/454kg 227kg 300/454kg Power (Diesel) 48hp 48hp 48hp Weight 7282kg 12,519kg 11,673kg

Model: S-85XC SX-125XC SX-135XC Working height 27.91m 40.1m 43.15 Lift capacity 300/454kg 300/454kg 300/454kg Power (Diesel) 74hp 74hp 74hp Weight 18,126kg 20,700kg 21,636kg

Model: SX-150 SX-180 Working height 48.33 56.86m Lift capacity 340kg 340kg Power (Diesel) 74hp 74hp Weight 22,613kg 25,108kg

Articulating Booms

Self-propelled. Smaller models for tight access, up to large models with extended reach and jib options.

Model: Z30/20NRJ Z33/18AU Z34/22N Working height 10.89m 12m 12.52m Lift capacity 227kg 200kg 227kg Power Electric Electric Electric Weight 6622kg 3665kg 5216kg

Model: Z34/22IC Z40/23NRJ Z45XC Working height 12.62m 14.32m 15.87 Lift capacity 227kg 227kg 300/454kg Power Electric Electric Electric Weight 4854kg 6940kg 7421kg

Model: Z45/25JDC Z51/30J Z60/37FE Working height 15.92m 17.59m 20.16M Lift capacity 227kg 227kg 227 Power Electric/Diesel48hp Diesel Electric/Diesel Weight 7394kg 7404kg 7686kg

Model: Z62/40AU Z80/60 ZX135/70 Working height 20.87m 25.77m 43.15m Lift capacity 227kg 227kg 272kg Power (Diesel) 48hp 78hp 74hp Weight 10,886kg 17,010kg 20,267kg

*Weight will vary depending on options.
