Youngman Richardson Product Guide

2024 Product Guide

1

ACCESS EQUIPMENT SPECIALISTS

AUCKLAND

NATIONAL Mobile: 021 999 768

CONCRETE SPECIALISTS UPPER NORTH ISLAND Mobile: 021 501 143 Mobile: 021 813 706 LOWER NORTH ISLAND Mobile: 021 610 838

AUCKLAND SOUTH

SOUTH ISLAND Mobile: 021 877 384

CONSTRUCTION EQUIPMENT SALES AUCKLAND/NORTHLAND Mobile: 021 977 324 AUCKLAND Mobile: 021 616 875 WAIKATO / BAY OF PLENTY Mobile: 021 725 169

WAIKATO

WELLINGTON / HAWKES BAY Mobile: 021 729 005 WELLINGTON / TARANAKI Mobile: 021 630 701 CHRISTCHURCH NORTH Mobile: 021 503 683 CHRISTCHURCH SOUTH Mobile: 021 405 180

WELLINGTON

OTAGO / SOUTHLAND Mobile: 021 507 951

DIGGER & EARTHMOVING SPECIALISTS UPPER NORTH ISLAND Mobile: 021 820 096 LOWER NORTH ISLAND Mobile: 021 630 701 Mobile: 021 729 005

CHRISTCHURCH

SOUTH ISLAND Mobile: 021 456 418

NATIONAL BUSINESS DEVELOPMENT MANAGER Mobile: 021 708 099

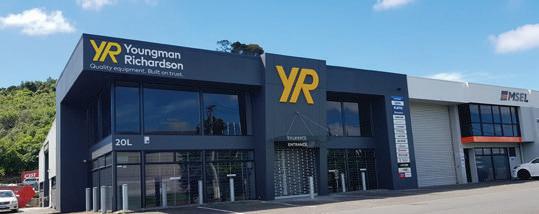

AUCKLAND (MT WELLINGTON) 20L Sylvia Park Road, Mt Wellington, Auckland 1060 Phone: (+64) 09 553 5470 Email: salesmtwell@yrco.co.nz

WAIKATO 3/31 Chafer Place, Te Rapa, Hamilton 3200 Phone: (+64) 07 595 0245 Email: saleswaikato@yrco.co.nz

WELLINGTON 8 Broken Hill Road, Kenepuru, Porirua 5022 Phone: (+64) 04 212 2456 Email: saleswell@yrco.co.nz

2

CHRISTCHURCH 20 Nga Mahi Road, Sockburn, Christchurch 8042 Phone: (+64) 03 341 6923 Email: saleschch@yrco.co.nz

YRCO.CO.NZ

APRIL 2024

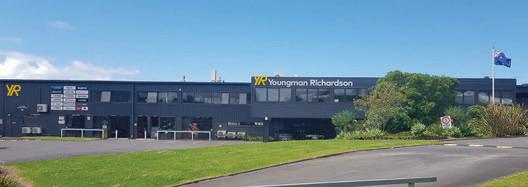

AUCKLAND (HEAD OFFICE) 6-10 Parkway Drive, Rosedale, Auckland 0632 PO Box 100-040, North Shore City 0745 Phone: (+64) 09 443 2436 Email: sales@yrco.co.nz

Compaction ................................. 4-6 Earthmoving ................................. 7-8 Earthmoving & Compressors ........ 9 Access Equipment ..................... 10-11 Material & Glass Handling ............ 12 Waterblasters ................................ 13 Pumps ......................................... 14-16 Generators ................................. 16-17 Blowers, Dehumidi�iers, Engines & Industrial ....................... 18

Youngman Richardson & Co Ltd is a fully New Zealand owned private company that has been serving the construction, hire and agricultural industries for over 40 years with a customer base throughout New Zealand.

We have a reputation for Quality, Service and Ethics. We pride ourselves on our commitment to customers, product knowledge and expertise with a spare parts service that’s “the best in the business”.

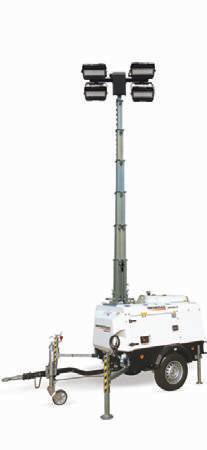

Lighting Towers, Dust Suppression & Tillers ........................................... 19 Concreting Equipment ........... 20-23 Concrete Cutting & Drilling ................................... 24-25 Surface Preparation ................ 26-27

YRCO.CO.NZ

After Sales Support powered by

Introducing YR’s cloud-based support to assist with the maintenance & servicing of your construction asset, and protect against theft – all from your computer, tablet or mobile phone.

Regular Servicing: • Reduces downtime • Minimises emergency repair costs • Increases equipment utilisation • Prolong asset life expectancy After Sales Department: • Provides additional assistance with service kits and service bookings • Technical support and advice on service milestones • Provides set-up and / or onboarding with YR Connect

Cloud-based asset monitoring & management

Multi-device access PC + Mobile App

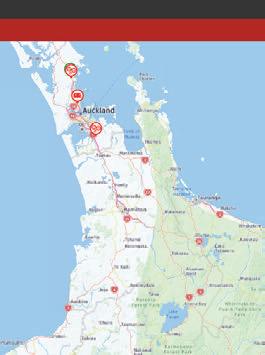

Asset location finder

Mobile servicing

3

Anti–theft

Automated service reminders

COMPACTION 3

Mikasa Forward Plate Compactors For base course

3 Year (36 Months) Warranty* on Mikasa Forward Plate Compactors.

material and asphalt. Models �itted with a ‘vibration absorbing system’ handle.

Water tank available for all models. From 50kg up.

Folding handle

YEAR WARRANTY

Fitted wheel kit

Folding handle

Folding handle MVC50H Weight 60kg Plate(mm) 460x345 Cent. force 9.8kN Honda GX120 4hp * Optional Watertank

MVC40H Weight 50kg Plate(mm) 420x292 Cent. force 7.2kN Honda GX100 3hp * Optional Watertank

MVCF60HVAS CART Weight 70kg Plate(mm) 570x350 Cent. force 10.1kN Honda GX120 4.0hp * Optional Watertank

*Optional Water tank Fitted wheel kit

NEW

MVCe60VAS (Battery) Weight 88kg (incl battery) Plate(mm) 570x350 Cent. force 10.1kN Honda GXE2.0 1.6kW

Fitted wheel kit

MVCT90HC Weight 91kg Plate(mm) 530x500 Cent. force 16.0kN Honda GX160 5.0hp

MVCF80HVAS CART Weight 81 kg Plate(mm) 570x450 Cent. force 13.7kN Honda GX160 5.0hp * Optional Watertank

Optional rubber mat

Mikasa Tamping Rammers With outstanding compaction ability and balance.

To suit: MVC40H MVC50H

To suit: MVCF60H MVCF80H MVCe60VAS

NEW

MTR40H (Petrol) Weight 46kg Plate (mm) 270x100 Impact force 5.4kN Honda GX100 3.0hp

MTX50H (Petrol) Weight 60kg Plate (mm) 340x265 Impact force 10.3kN Honda GX100 3.0hp

MTe55 (Battery) Weight 75kg (incl battery) Plate (mm) 340x265 Impact force 10.1kN Honda GXE2.0 1.6kW

Mikasa Vibration Rollers Double drum drive and double drum vibration. Built-in water tank, hydrostatic drive and spray bar.

MRH-700GS Weight 680kg Drum (mm) 355Dia 650W Cent. force 10.8kN Honda GX390 13hp

MTX60E (Petrol) Weight 64kg Plate (mm) 340x265 Impact force 13.6kN Honda GX100 3.0hp

MTX70E (Petrol) Weight 75kg Plate (mm) 340x285 Impact force 14.9kN Honda GX100 3.0hp

MTX85DY(Diesel) Weight 93kg Plate (mm) 340x285 Impact Force 15.7kN Yanmar L48N Diesel

Tracgrip Pedestrian Roller

Easi-load Tilt-deck Trailers

Single drum. Ef�icient performance & easy maintenance. Non-corrosive water tank.

Custom tilt trailer to suit Mikasa Reversing Plates.

TG45S Weight 430kg Drum (mm) 550Dia 750W Cent. force 12.5kN Honda GX270 9hp Petrol

4

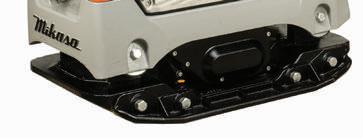

COMPACTION Mikasa Reversible Plate Compactors Ideally suited for civil

engineering, construction and drainage contractors as well as the hire industry. They offer a high compaction capacity, travel speed and feature a full hydraulic reversing mechanism.

FULL THROTTLE IDLE

STOP

Fold-up handle

3

2

1

POSITIVE THROTTLE ENGAGEMENT

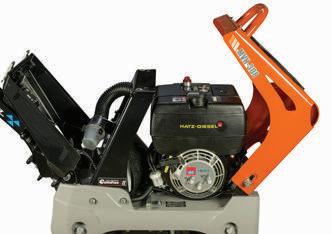

EASY SERVICE

Exclusively on diesel machines. Guarantees full throttle operation and maxmum compaction by eliminating midpoint RPM.

Serviceability with easy access to all maintenance points.

OPTIONAL FEATURE:

2

YEAR WARRANTY

2 Year (24 Months) Warranty* on Mikasa & HATZ Engines based on service & maintenance contract. * Conditions apply.

DIGITAL DISPLAY

COMPACTION METER

Hourmeter - allows accurate tracking of hours and maintenance intervals. Tachometer displays engine RPM while in operation.

The new Mikasa ‘Compass’ compaction meter is a measuring and display system for continuous compaction control - located in clear view of the operator. Available on 308,408 & 508 Models.

NEW

MVHeR60 (Battery) Weight 81kg (incl battery) Plate (mm) 480x350 Cent. force 12.0kN Honda GXE2.0H 1.8kW

MVH208 Series (Petrol or Diesel) Weight 240kg Plate (mm) 720X500 Cent. force 37.0kN Hatz/Yanmar 6.7hp Start Electric/Recoil

MVHR60H A (Petrol) Weight 68kg Plate (mm) 480x350 Cent. force 15.0kN Honda GX120 4hp Start Recoil *Comes with water tank

MVH128GH (Petrol) Weight 122kg Plate (mm) 590x400 Cent. force 23.5kN Honda GX160 5.0hp Start Recoil

MVH308 Series (Petrol or Diesel) Weight 325/360kg Plate (mm) 860x445/600 Cent. force 45.0kN Hatz/Yanmar 9.0hp Start Electric/Recoil

MVH408 Series (Diesel) Weight 423kg Plate (mm) 900x500/650 Cent. force 55.0kN Hatz/Yanmar 9.0hp Diesel Start Electric/Recoil

5

MVH158GH (Petrol) Weight 148kg Plate (mm) 700x430 Cent. force 27.0kN Honda GX200 6.5hp Start Recoil

MVH508 Series (Diesel) Weight 536kg Plate (mm) 900x500/650 Cent. force 65.0kN Hatz 11.9hp Diesel Start Electric/Recoil

COMPACTION ARX12-2 / ARX16-2 Working Width 820 - 900mm Operation Weight 1475 - 1520kg

Combination type pneumatic rear tyres

ARX23-2 / ARX26-2 ARX40-2 / ARX45-2 Working Width 1000 - 1380mm Operation Weight 2230 - 4690kg

ARX16K / ARX23-2C / ARX26-2C ARX40-2C / ARX45-2C Working Width 900 - 1380mm Operation Weight 1460 - 4320kg

Remote controlled

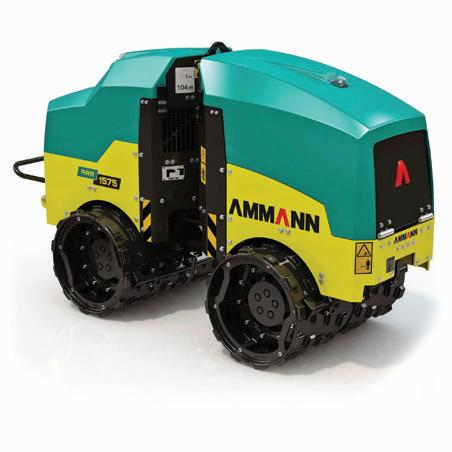

ARR 1575 Working Width 640 - 850mm Operation Weight Max 1450kg Remote Controlled

Rammax Trench Rollers

Light Tandem Articulated Vibratory Roller

The articulated trench rollers produced by Rammax are developed for various applications on heavy terrains. Can navigate around manholes without dif�icult steering.

Ammann tandem rollers in the 1-4.5 tonne class offer full-�lush compaction both sides of the machine, double drive front and rear as well as double vibration at front and rear. The dash-2 series of light tandem rollers features a quick drum adjustment from offset to in-line con�igurations. Rollers that are offset are able to work close to obstructions.

Ammann ARR 1575 Trench Roller has an optional extra intelligent compaction system.

The system, ACEecon, eliminates guesswork by measuring compaction progress in real time. The information is communicated to the operator via an LED display on top of the machine.

Heavy Articultated Tandem Roller

Infra-red remote control – machine automatically stops without direct visibility, automatically stops outside 2-20M.

Ammann ARX tandem rollers were developed to meet the demand of today’s road building projects worldwide to compact asphalt sub-layers and wearing courses as well as gravel and soil. The unique design re�lects the combination of high-performance compaction as well as operator-safety and comfort.

Paver The AFW150-2 is a unique machine that has no competitors in the market. The tight turning radius and clearance width make it ideal for paving footpaths and handling repair work in narrow surroundings. The paver is easy to transport and allows a fast set-up on the jobsite.

AV70X / ARX90 / ARX110 / AV130X Working Width 1450 - 2100mm Operation Weight 7365 - 13080kg

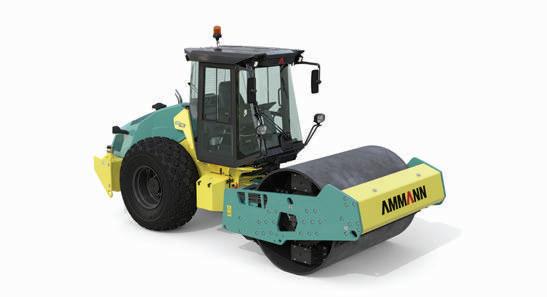

Heavy Single Drum Roller 7-22t The extraordinary safety, excellent compaction performance and modern design of heavy-weight Single Drum Rollers guarantee high ef�iciency and best results even under the toughest working conditions.

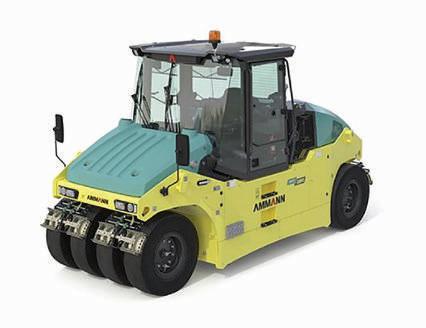

ART280 Ammann’s new tyred roller features a new cab and a unique ballasting system that can be quickly and signi�icantly adjusted.

ARS70 / ARS110 / ARS130 ARS150 / ARS170 / ARS200 ARS220 Working Width 1680 - 2240mm Operation Weight 6490 - 26060kg (max.)

6

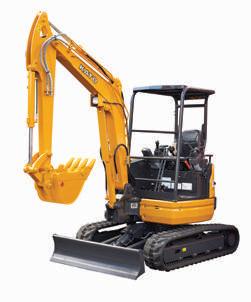

EARTHMOVING Mini Excavators Reliability, greater visibility, lower noise levels and ease of operation are key bene�its of the KATO Mini excavator range.

INCLUDES

INCLUDES INCLUDES

INCLUDES

HD12VXE Operating Weight Max Digging Force Engine

1180kg 11.86kN (1210kgf) YANMAR 3TNM68

HD17VXE Operating Weight Max Digging Force Engine

HD19VXT Operating Weight Max Digging Force Engine

1690kg 15.7kN (1600kgf) YANMAR 3TNV70

1745kg 15.7kN (1600kgf) YANMAR 3TNV70

HD19VXT Cabin Operating Weight Max Digging Force Engine

1905kg 15.7kN (1600kgf) YANMAR 3TNV70

INCLUDES

HD25V5 Operating Weight 2555kg Max Digging Force 19.6kN (2000kgf) Engine KUBOTA D1305 Options - Cabin or Rops Canopy

HD35V5 Operating Weight 3525kg Max Digging Force 29.1kN (2970kgf) Engine YANMAR 3TNV88 Options - Cabin or Rops Canopy - Steel or Rubber Tracks

HD30V5 Operating Weight 3105kg Max Digging Force 29.1kN (2970kgf) Engine YANMAR 3TNV88 Options - Cabin or Rops Canopy - Steel or Rubber Tracks

HD55V5 Operating Weight 5215kg Max Digging Force 31.0kN (3160kgf) Engine KUBOTA V2403-CR Options - Cabin or Rops Canopy - Steel or Rubber Tracks

HD60V5 Operating Weight 5575kg Max Digging Force 41.2kN (4800kgf) Engine KUBOTA V2403-DI Options - Cabin or Rops Canopy - Steel or Rubber Tracks

HD85V5 Operating Weight 8440kg Max Digging Force 55kN (5608kgf) Engine YANMAR 4TNV98C Options - Steel or Rubber Tracks

Hydraulic Breakers and Accessories

Digger & Trailer Packages In Stock Now

EXPANDING TRACKS INCLUDES Hydraulic expanding tracks �itted to the HD12VXE, HD17VXE, HD19VXT & HD35V4 models.

HD45V4 Operating Weight 4855kg Max Digging Force 31.0kN (3160kgf) Engine KUBOTA V2403-DI Options - Cabin or Rops Canopy - Steel or Rubber Tracks

Fine silenced “X” series and close type hydraulic breakers.

Fine number 1X – 23X Weight 120kg - 1760kg Suits Excavator 0.8-1.5 Tonnes - 22.0-28.0 Tonnes

FINE 3X Weight

7

145kg

EARTHMOVING Vac-Ex Vacuum Air Excavation Systems Vac-Ex tracked dry air excavation systems are ideal for safe exposure of live utilities beneath the ground. Soil can then be reused onsite or removed for safe disposal.

NEW

NEW

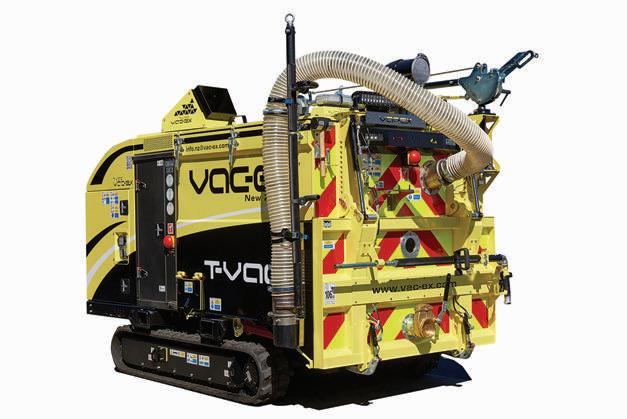

T-VAC Track 2 Skip Capacity 1.0 m3 Unit Weight 2750kg Max Tipping 2580mm Hose inlet 150mm / 6”

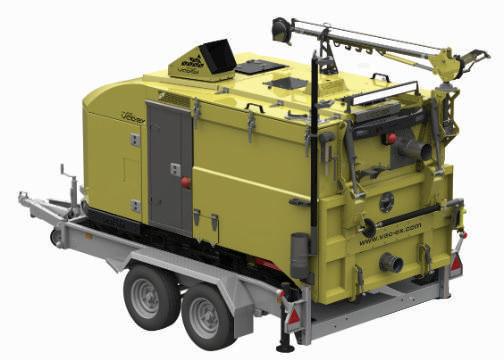

T-VAC Trailer Skip Capacity 1.0 m3 Unit Weight* 1950kg Max Tipping** 3150mm Hose inlet 150mm / 6”

Lightweight, manoeuvrable and simple to use. Capable of excavating most types of ground (wet or dry) by using compressed air or optional high-pressure water. Ideal for access where space is limited.

The T-VAC 2 is powerful, compact and is mounted on a trailer for �lexibility and affordability. It delivers more power with a host of additional features. *Including optional TV2-ARM-K2 **Can vary depending on support leg extension and towing hitch height.

NEW

NEW

360-VAC Skip Capacity Unit Weight Suits Excavator Weight Hose Inlet

0.35 m3 1800kg 15-25T 150mm / 6”

The versatile 360-VAC attachment is attached to an digger hitch to excavate with small narrow footprint, allowing access into the tightest environments.

NEW

AIR-EX Excavating Tool Length (mm) 755 – 1335 Effective ‘cut’ 100mm Compressor (cfm) 40-180

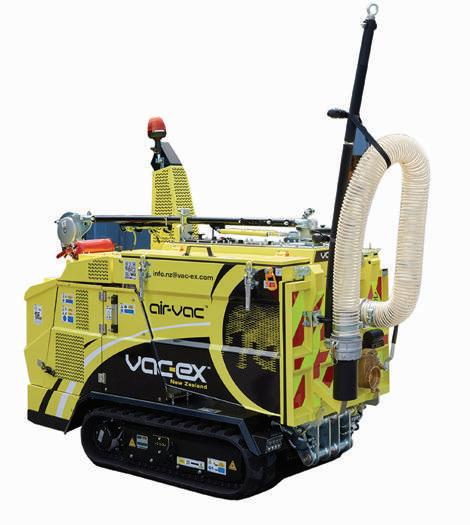

AIR-VAC Track Skip Capacity 0.2 m3 Unit Weight 1650kg Max Tipping 2540mm Hose inlet 125mm / 5”

Versatile, mobile and simple to use. Compact and powerful, ideal for tight urban working and is ideal for narrow trenching.

Leading tool for ground decompaction and clearance of soil from underground assets. Enables safe, effective excavation of buried �ibre optics, gas, water or electric.

8

EARTHMOVING & COMPRESSORS Kato Mini Dumpers

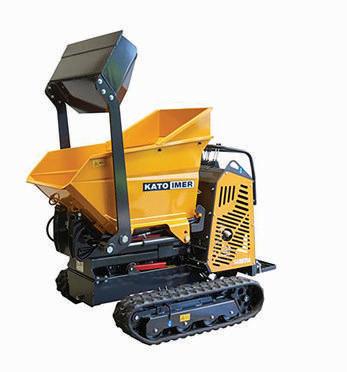

KATO Tracked Dumpers are ideal for transporting and moving various kinds of materials around the work yard and in places that are dif�icult to access.

CARRY 105.LS Capacity 500kg Unit Weight 345kg Honda GX200 6.5Hp C/w Loading shovel Available without loading shovel

CARRY 107.HTLS Capacity 700kg Unit Weight 665kg Honda GX390 13.0Hp C/w Loading shovel Available without loading shovel

NEW

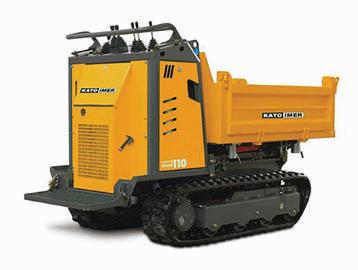

CARRY 110 Capacity 1000kg Unit Weight 930kg Yanmar Water Cooled 14kW

CARRY 150/230 Capacity 1500kg/ 2300kg Unit Weight 860kg/ 2285kg Kubota D902 20.0 Hp / V1505 24.8 Hp

Tufftruk Mini Dumpers

Tuf�belt Portable Conveyor

Tufftruk Wheeled Dumpers are very compact 4x4 mini dumpers with an articulated chassis to navigate bends and corners with ease.

Tuf�belt mini-maxi conveyor belts are excellent for transporting building materials and especially handy for areas with narrow access.

TUFEB500PNZ Capacity 500 kg Unit Weight 240 kg Battery powered 2x12v TUFEB500PPTNZ Capacity: 500 kg Unit Weight: 240 kg Battery powered 2x12v Electric tip

TUFMTB45 Weight 100 kg Motor Power 230V / 370W Belt Speed 24M / min

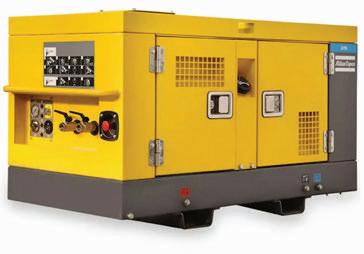

Atlas Copco

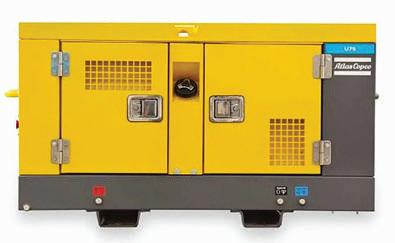

Atlas Copco single stage, silenced diesel compressors are ideal to use with the Vac-Ex air excavation systems.

U75 PSI 100 Compressor Air Delivery 75 cfm / 2.1m3/min Full load RPM 3400

U110 PSI 100 Compressor Air Delivery 100 cfm / 2.8m3/min Full load RPM 3600

9

ACCESS EQUIPMENT Electric Runabouts

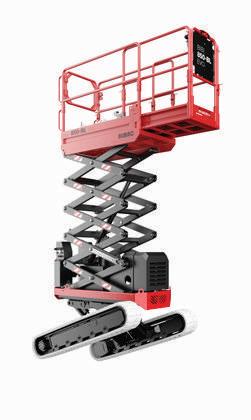

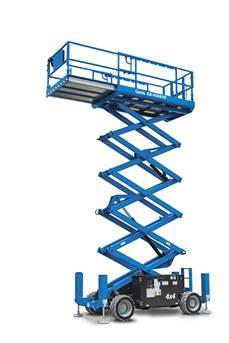

Rough Terrain Scissors

Self-propelled. Compact design and great manoeuvrability. Simple operation.

Model: Working height (max) Lift capacity (max) Power Weight

Superior gradeability, traction control and standard 4WD for diesel models.

GR15 GR20 6.47m 8.02m 227kg 159kg 4 x batteries, 6V 1026kg 1148kg

DIESEL

AWP Work Platforms Ideal for high ceiling lighting and general maintenance duties. Can work at height from 8.12m - 14.29m.

Model: Working height Platform height Lift capacity Power (Battery) Weight

AWP20ACS AWP25ACS 8.12m 9.57m 6.12m 7.57m 159kg 159kg 12V 12V 307kg 330kg

Model: Working height Platform height Lift capacity Power (Battery) Weight

AWP36ACS AWP40ACS 13.1m 14.29m 11.1m 12.29m 159kg 136kg 12V 12V 461kg 472kg

AWP30ACS 11m 9m 159kg 12V 352kg

GS1932m 7.55m 227kg Electric 1306kg

GS1932XH 7.8m 227kg Electric 1626kg

Model: Working height (max) Lift capacity (max) Power Weight

GS2032 8.1m 363kg Electric 1832kg

GS2632 9.92m 227kg Electric 2145kg

GS3232 11.75m 227kg Electric 2434kg

Model: Working height (max) Lift capacity (max) Power Weight

GS2046 8.1m 544kg Electric 1775kg

GS2646XH 9.96m 454kg Electric 2360kg

Model: Working height (max) Lift capacity (max) Power Weight

GS3246XH GS4046 11.75m 13.94m 318kg 350kg Electric Electric 2809kg 3117kg

GS3369RTO 11.75m 454kg 24.8hp 3447kg

GS3390RTO 12.06m 1134kg 49hp 5433kg

Model: Working height Lift capacity Power (Diesel) Weight

GS4069RTO 14.12m 363kg 24.8hp 5078kg

GS4390RTO GS5390RTO 15.11m 18.15m 680kg 680kg 48hp 48hp 6934kg 7776kg

The ultimate in reach and range.

Fast set-up and state-of-the-art features.

Nothing beats a Genie scissor lift for performance and safety.

GS1432m 6.3m 227kg Electric 900kg

GS2669RTO 9.70m 680kg 24.8hp 3243kg

Telescopic Booms

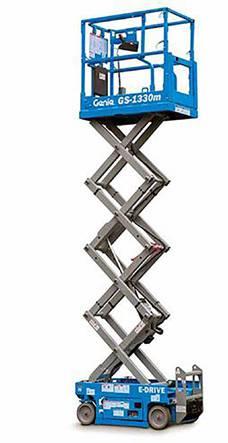

Electric Scissors Model: Working height (max) Lift capacity (max) Power Weight

Model: Working height Lift capacity Power (Diesel) Weight

Model: Working height Lift capacity Power (Diesel) Weight

S-45XC 15.56m 300/454kg 48hp 7282kg

S-65TRAX 21.8m 227kg 48hp 12,519kg

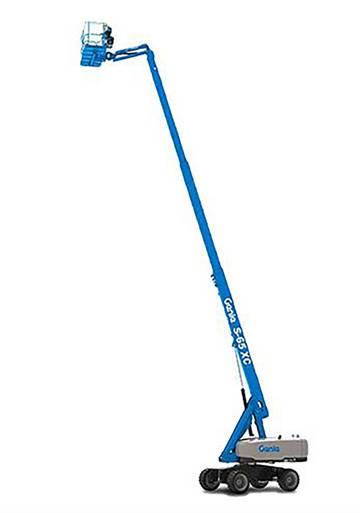

S-65XC 21.81m 300/454kg 48hp 11,673kg

Model: Working height Lift capacity Power (Diesel) Weight

S-85XC 27.91m 300/454kg 74hp 18,126kg

SX-125XC 40.1m 300/454kg 74hp 20,700kg

SX-135XC 43.15 300/454kg 74hp 21,636kg

Model: Working height Lift capacity Power (Diesel) Weight

SX-150 48.33 340kg 74hp 22,613kg

SX-180 56.86m 340kg 74hp 25,108kg

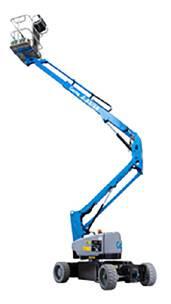

Articulating Booms

Self-propelled. Smaller models for tight access, up to large models with extended reach and jib options.

GS4655 15.95m 350kg Electric 3701kg

Model: Working height Lift capacity Power Weight

Z30/20NRJ 10.89m 227kg Electric 6622kg

Z33/18 12m 200kg Electric 3665kg

Z34/22N 12.52m 227kg Electric 5216kg

Model: Working height Lift capacity Power Weight

Z34/22IC 12.62m 227kg Electric 4854kg

Z40/23NRJ 14.32m 227kg Electric 6940kg

Z45XC 15.87 300/454kg Electric 7421kg

Model: Working height Lift capacity Power Weight

Z45/25JDC Z51/30J 15.92m 17.59m 227kg 227kg Electric/Diesel48hp Diesel 7394kg 7404kg

Z60/37FE 20.16M 227 Electric/Diesel 7686kg

Model: Working height Lift capacity Power (Diesel) Weight

Z62/40 20.87m 227kg 48hp 10,886kg

ZX135/70 43.15m 272kg 74hp 20,267kg

Z80/60 25.77m 227kg 78hp 17,010kg

*Weight will vary depending on options.

10

ACCESS EQUIPMENT

ALMAC-PACIFIC.COM.AU

Athena BL-Line

JT-Line

The range of Building Line reaches between 7.9-10m with a maximum capacity of up to 300kg. EVO models can self-level while raised and move at height. There are also Bi-energy options.

Model: Working height Lift capacity Engine Weight

850-BL* 7.9m 250kg Honda 13HP & Electric 240V 1990kg

Model: Working height Lift capacity Engine Weight

850-BL-EVO 7.9m 250kg Diesel 11HP & Electric 240V 2200kg

Model: Working height Lift capacity Engine Weight

870-BL-EVO 7.9m 250kg Diesel 11HP & Electric 240V 2460kg

Model: Working height Lift capacity Engine Weight

1090-BL-EVO* 10.0m 300kg Diesel 11HP & Electric 240V 2830kg

The JT-Line tracked self-propelled telescopic boom has +/- 15o longitudinal and lateral levelling. This unit also has an active dynamic bi-levelling chassis.

Model: Working height Lift capacity Engine Weight

JIBBI-1250-EVO 12.2m 230kg Diesel 19.2 HP 2850kg

JIBBI U-1570-EVO 15.4m 250kg Diesel 19.2 HP 2880kg

Model: Working height Lift capacity Engine Weight

JIBBI-1670-EVO 16m 230kg Diesel 19.2 HP 3850kg

JIBBI-1890-PRIMO 17.9m 250kg Battery Power Pack 5870kg

Tracked Spider Lift

The BT range of spider lifts combine the characteristics of tracked self-propelled aerial platforms with stabilised aerial platforms.

B 1570 ETS Visual Weight 2617kg Working Height 15m Capacity 230kg

*Bi energy option available

ML-Line

Multi-Loaders are a range of tracked loader with Bi-Levelling technology capable of transporting up to 6,000kg on slopes equal to 20º.

Model: Lift capacity Engine Weight

MULTI LOADER 2.5 2500kg Electric 240V 1800kg

MULTI LOADER 3.0 3000kg Electric 240V 810kg

MULTI LOADER 6.0 6000kg Electric 240V 2250kg

B 1890 QUICK-PRO EVO Weight 2930kg Working Height 18m Capacity 250kg

* Optional crane attachment for 6.0 model.

Spider Lifts

Ideal for hard to reach places, lightweight and duel energy platform spiders will virtually go anywhere. Engine powered and electric. Includes 43T with max. working height at 43.18m.

Model: 13.80 Weight 1760kg Working Height 12.99m

Model: 15.75 Weight 2060kg Working Height 15m

Model: 18.90 Weight 2457kg Working Height 17.6m

Model: 20.95 Weight 2800kg Working Height 19.4m

Model: 22.10 Weight 2980kg Working Height 21.7m

Model: 27.14 Weight 5000kg Working Height 27.0m

Model: 33.15 Weight 6980kg Working Height 32.4m

Model: RR14 EVO3 Rail Boom Weight 13400kg Working Height 14.4m

11

MATERIAL & GLASS HANDLING Load Lifter

An ideal hand truck or forklift for lifting heavy machinery or materials.

Model: Lift height Lift capacity Weight

LL5.5 1.7m 91kg 26kg

A one piece platform that is portable and compact lifting to 3.8m at 136kg and 5.6m at 113kg.

GH3.8 3.8m 136kg CO2 34kg

A heavy duty design with a patented telescopic mast system. Can lift from 2m to 7.94m and 295kg to 454kg.

SLA5 2.0m 454kg 98kg

Model: Working height Lift capacity Weight

SLA20 6.46m 363kg 84kg

SLA10 3.49m 454kg 118kg

SLA15 4.98m 363kg 151kg

SLA25 7.94m 295kg 204kg

A heavy duty design with interchangeable load handling attachments. Can lift up to 3.94m at 295kg and 7.32m at 295kg.

SLC12 3.94m 295kg Manual 102kg

SLC18 5.64m 295kg Manual 139kg

SLC24 7.32m 295kg Manual 157kg

Material Lifts

A counterbalance weight system capable of lifting weights over obstacles and directly up against walls.

Model: Working height Lift capacity Power (winch) Weight

GL4 1.8m 227kg 51kg

GL8 3.06m 181kg 66kg

Model: Lift height Lift capacity Weight

WLU/K1.7 1.7m 400kg 97kg

WLU/K2.8 2.85m 400kg 113kg

Model: Lift height Lift capacity Weight

WLU/K4 4.0m 400kg 129kg

WLU/K5.1 5.15m 360kg 145kg

Mini Floor Crane

GL10 3.56m 159kg reversible standard 68kg

Model: Lift height Lift capacity Weight

DC SERIES 7.90m 800kg 12V 352kg

750/K 2.9m 900kg 490kg

Panel Lift

Fast action, single stage drywall lifter.

Model: Lift height Lift capacity Weight

138.2 3.35m 68kg 49.9kg

Powered Hand Truck

A universal materials handling solution for one person to lift up to 140kgs.

PHT150 Lift Height Lift Capacity Weight

Powered by AC 240 volts, DC with battery packs or a manual winch. Up to 900kg to be lifted up to 3.5m or up to 800kg to a height of 7.9m.

AC SERIES 7.90m 800kg Elec Winch 352kg

SLK25 7.9m 300kg 204kg 128kg

WLU Premium

Wienold Lifts - GML800

Model: Lift height Lift capacity Power Weight

SLK20 6.5m 360kg 184kg 128kg

Classic counterweight with two long, rear-facing arms with counterweights.

900 kg static and 750 kg dynamic payload, which are brought to a hook height of 2.90m.

Superlift Contractor

Model: Working height Lift capacity Power Weight

SLK15 5m 360kg 144kg 128kg

Smaller more compact Wienold Material lift is suitable for tighter sites where larger space is an issue. The chassis is made from solid steel. Max lift height on the WLU/K5P is 5.15m with a capacity of 360kg.

GH5.6 5.6m 113kg CO2 37kg

Superlift Advantage

Model: Working height Lift capacity Weight

A counterbalance weight system capable of lifting weights over obstacles and directly up against walls. Can lift up to 450kg to 3.5m or 300kg up to 7.9m.

Model: Lift height Lift capacity Weight Counterbalance

Super Hoist

Model: Working height Lift capacity Power Weight

SLK Series

M SERIES 7.90m 800kg Manual 316kg

12

300mm-1900mm 140kg 44kg

WATERBLASTERS YRCO Pro Series Waterblasters - Petrol

Dual Pressure Washer

Pneumatic tyres.

14m of hose & gun.

COMES WITH 3 NOZZLES

15º

25º

40º

Fitted with Annovi Reverberi high pressure pumps

ELECTRIC START OPTION YR3000AR Pressure 2600psi Max �low 13.5 L/min Honda GX200 6.5hp

YR3500AR.HR Pressure 3000psi Max �low 15.5 L/min Honda GX270 9hp

YR4000AR.HR Pressure 3700psi Max �low 17.5 L/min Honda GX390 13hp

MAK.DCP-2200 Weight: 33kg Pressure: 2200psi Rotary Size: 450mm Honda GX200 6.5hp

YR4000ARE.HR Pressure 3700psi Max �low 17.5 L/min Honda GX390 13Hp Electric Start

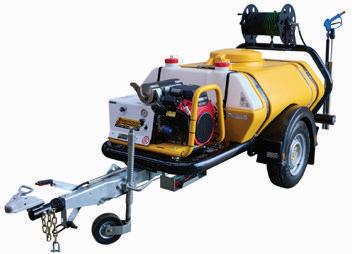

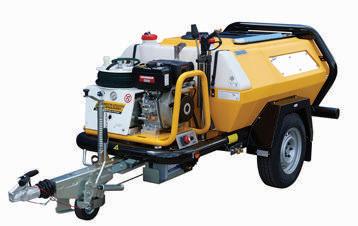

Trailerised

DPW-4000 Weight: 107kg Pressure: 4400psi (max) Rotary Size: 610mm Honda GX390 13.0hp

Choose your Engine and pressure options:

YRCO trailerised water blasters are available in a number of con�igurations.

Honda GX390 Recoil start Pressure 3700psi Max �low 17 L/min *High pressure hose reel only

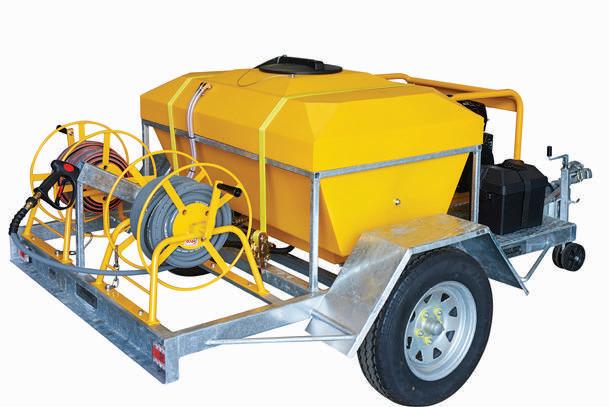

500 Litre single axle

fully galvanised trailer with low water cutout. Match up with one of 4 different engine options.

Honda GX390 Electric start Pressure 3700psi Max �low 17 L/min

Engine: Honda GX690 Electric start Pressure 4000psi Max �low 21 L/min

Engine: Honda IGX800 Electric start Pressure 3600psi Max �low 33 L/min

YRPRO Brendon Power Washers

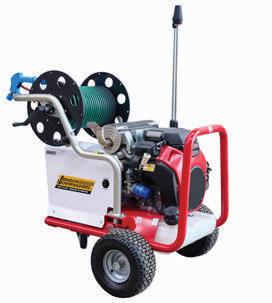

Trolley Mounted Units

Brendon Power Washers are versatile industrial mobile pressure washers and the ultimate in self-contained cleaning machines available in hot or cold water options.

NEW

YRHWBBW35KLN+ES Pressure 3500psi Max �low 12.5 L/min Tank capacity 700L Hot water

YRBBW50KPE+VT Pressure 5000psi Max �low 16 L/min Tank capacity 970L Cold water

YRBBW30KLN+ES Pressure 3000psi Max �low 15 L/min Tank capacity 960L Cold water

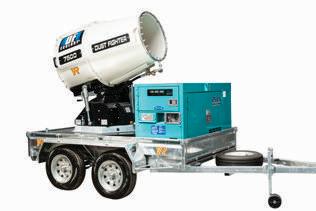

YRDT400.T Max pressure Coverage

250 Bar Up to 15m away x 8m height 25L/min @250bar Can be used as a dust�ighter attached to the Brendon Power Washer

13

NEW

NEW 50KPE-VT Pressure 5145psi Max �low 16 L/min Honda V Twin GX630 Engine

PUMPS Selwood Pumps FEATURES • Solids handling to 100mm • Inde�inite dry running • Vortex style pump

Selwood Solids Handling ‘S’Range Speci�ication

S160SS

S160SSTP S200

Capacity

m3/h 165

S100

335

335

635

Total Head

m

28

28

29

21.3

• Environmentally friendly Selprime automatic self priming

Solids Size

mm

75

100

100

100

• Emission compliant engines

Inlet / Outlet

mm

100

150

150

200

• Ease of operation & maintenance • Proven design

APPLICATIONS • Raw & screened sewage • Sludge / Slurry

FEATURES

Selwood Drainer ‘D’ Range

• Flows up to 600 m3/h • Inde�inite dry running

Speci�ication Capacity

m3/h

• Water with �ine & large solids • Water with rags & �ibres

D80

D100

D150WP

D160

D200

90

120

275

390

600

• Environmentally friendly Selprime automatic self priming

Total Head

m

23

26

21

48

37.5

• Emission compliant engines

Solids Size

mm

29

29

45

45

55

• Ease of operation & maintenance

Inlet / Outlet

mm

80

100

150

150

200

• Robust construction

FEATURES • Flows up to 59m3/h • Selwood self-priming system • Ease of operation & maintenance • Inde�inite dry running • Can be stacked 3 high

FEATURES • 50mm, 75mm and 100mm models available

APPLICATIONS • Clean water • Water with �ine solids

• Water with larger solids • Screened sewage

Selwood Drainer D75SS Speci�ication

D75SS

Capacity

m3/h 59

Total Head

m

23.5

Solids Size

mm

29

Inlet / Outlet

mm

75

Selwood PD75 Speci�ication

PD75

APPLICATIONS • Clean water • Water with �ine solids • Water with larger solids • Screened sewage

APPLICATIONS • Light and heavy oils • Sludge / Slurry • Water with �ine solids • Petroleum industry products

• Non turbulent �low

Capacity

m3/h 30

• Viscous liquids

Total Head

m

30.5

• Dry running

Solids Size

mm

6

• Choice of materials

Inlet / Outlet

mm

75

FEATURES

Selwood PD75E Electric Option

• 75mm • Non turbulent �low

Speci�ication

• Viscous liquids

Capacity

m3/h 30

• Dry running

Total Head

m

30.5

• Choice of materials

Solids Size

mm

6

Inlet / Outlet

mm

75

PD75E

APPLICATIONS • Light and heavy oils • Sludge / Slurry • C/W 3 Phase kW motor • Water with �ine solids • Petroleum industry products

Data Sheets are available at www.selwoodpumps.com

14

PUMPS

Our range of portable clean water pumps, trash pumps, diaphragm pumps and �lexi-drive pumps have been manufactured to be user-friendly and portable. Water pumps we stock are durable, reliable, and made with quality components for New Zealand’s tough working conditions, and are ideal as portable water pumps for contractors and hire companies.

Clean Water

General all-purpose pumps. Sizes 1”(25mm), 2” (50mm), 3” (75mm) and 4” (100mm). Petrol and diesel models available.

High-Head For sprinklers & �ire�ighting and water transfer to high places.

SERH-50Z Max �low 500 L/min Total head 90m SEH-25L 1” (25mm) Max �low 115 L/min Total head 32m

SEH-40H 1.5” (37.5mm) Max �low 280L/min Total head 43M

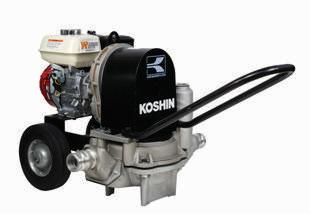

Diaphragm

Self-priming. Can be run dry.

KDP-50X 2”(50mm) Max �low 197 L/min Total head 7.6m SEH50X 2”(50mm) Max �low 640 L/min Total head 27m

SEH80X 3”(75mm) Max �low 1100 L/min Total head 27m

SE100XD 4”(100mm) Diesel Powered Max �low 1100 L/min Total head 24m Subaru Diesel Engine

SEY-50D 2”(50mm) Max �low 630L/min Total head 30m

SEY-80D 3”(80mm) Max �low 880L/min Total head 26m

SEY-100D 3”(100mm) Max �low 1250L/min Total head 28m

KDP-80X 3”(75mm) Max �low 333 L/min Total head 7.6m

Pump Accessories

Suction & lay�lat hose, ‘Camlock’ �ittings, PVC strainer and hose couplings.

Semi-Trash For solids up to 20mm diameter. Petrol and diesel models.

STH-50X 2”(50mm) Max �low 600 L/min Total head 29m

STH-80X 3”(75mm) Max �low 900 L/min Total head 26m

Full-Trash For solids 20mm up to 35mm. Petrol and diesel models.

KTH-50X 2”(50mm) Max �low 700 L/min Total head 30m

KTH-80X 3”(75mm) Max �low 1340 L/min Total head 27m

KTH-100X 4”(100mm) Max �low 1650 L/min Total head 26m

KTY-50D 2”(50mm) Max �low 650L/min Total head 24m

15

KTY-80D 3”(80mm) Max �low 1250L/min Total head 23m

KTY-100D 4”(100mm) Max �low 1600L/min Total head 27m

PUMPS & GENERATORS Submersibles Electric

Flexidrive Submersibles

Suitable for construction sites, underground utility maintenance, light industrial, farm and horticulture, landscaping and �lood dewatering uses.

Mikasa

Can reduce water level to 1mm.

PXL52522 1”(25mm) Max �low 120 L/min Total head 10m Single phase

Ideal for construction sites. Petrol & diesel models.

Standard �lexidrive shaft length 7m.

Drive Unit: GE5L (Petrol)

Float Switch is optional

Flexible Drive Pump: WP2L 2”(50mm) Max �low 500 L/min Total head 13m

PQ55022 2”(50mm) Max �low 220 L/min Total head 11m Single phase

Flexible Drive Pump: WP3LB 3”(75mm) Max �low 1200 L/min Total head 23.1m Pump and drive unit sold separately

PBX7-55022 2”(50mm) Max �low 330 L/min Total head 15m Single phase

Flextool Drive Unit: FDU-P1 : Petrol GX160 3 Dog Drive FDU-D2: Diesel Recoil Start FDU-DE2: Diesel Electric Start Flexible Drive Pump: 2” FT20180 Max �low 1050 L/min Total head 26.0m

P315W Max �low 690 L/min Total head 17m Single phase

P322D Max �low 700 L/min Total head 23m Three phase 2.2 kW

P437D Max �low 1400 L/min Total head 18.5m Three phase 3.7 kW

P455D Max �low 1900 L/min Total head 23m Three phase 5.5 kW

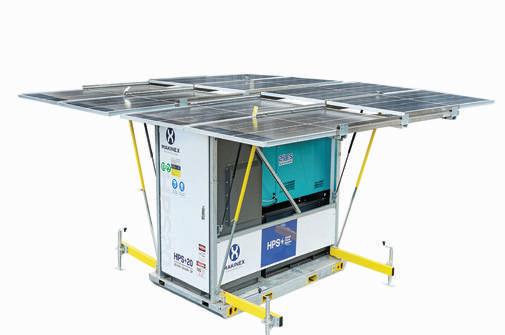

Makinex Hybrid Power System

Battery Energy Storage Systems

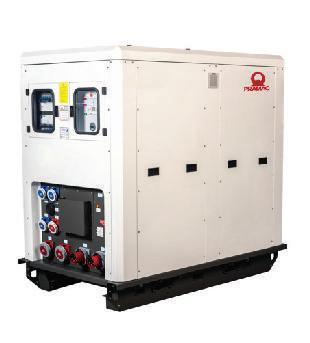

This Pramac unit allows the storage of energy from multiple sources including generator, solar or the grid.

MX Range Max Output 15kW-60kW Cont. Output 10kVA-30kVA 1 Phase/ 3 Phase Gel lead acid battery/Li-Ion

Consists of solar panels, batteries, inverters and a backup diesel generator for where long-term power is of the highest priority. The BESS range is for short term power supply or integrate with existing generator and / or solar systems.

LX Range Max Output 40kW-120kW Cont. Output 20kVA-60kVA 1 Phase/ 3 Phase Gel lead acid battery/Li-Ion

MKH-HPS-15 Engine: Yanmar diesel Generator 4 Pole 15kVA Battery 28kWh Inverter Power 15kVA Solar Power 4kW

SX Range Max Output 10kW-20kW Cont. Output 5kVA-10kVA 1 Phase AGM/Li-Ion

MKH-HPS-20 Engine: Yanmar diesel Generator 4 Pole 20kVA Battery 32kWh Inverter Power 20kVA Solar Power 4kW MKH-HPS-45 Engine: Yanmar diesel Generator 4 Pole 45kVA Battery 64kWh Inverter Power 45kVA Solar Power 8kW

Mobile Industry Generator

Pramac, reliable, durable and versatile three phase generators are fully bunded generators which are easy to handle and transport with simple servicing.

GPW20Y/FS3A Standby Power: 19.2 kVA Prime Power: 18.3 kVA Tank Capacity: 120L Weight: 985 kg GPW65P/FS3A Standby Power: 65.9 kVA Prime Power: 60.3 kVA Tank Capacity: 120L Weight: 1220 kg

BESS10 Lithium Battery 15kWh Inverter Power 12kVA 3x32 AMP Single Phase Socket Outlet

CTS5 Container Top Solar array 5kWp Wind rated for Category A and B AC coupled solar (integrated inverter system) (Container NOT included)

16

GPW36Y/FS3A Standby Power: 37.3 kVA Prime Power: 35.5 kVA Tank Capacity: 120L Weight: 989 kg

GPW45Y/FS3A Standby Power: 45.7 kVA Prime Power: 43.4 kVA Tank Capacity: 120L Weight: 1030 kg

GENERATORS YRPRO Series Petrol 2.4kVA to 11kVA. 3-phase model 12kVA.

Options: base plate, roll bar frame & pneumatic wheels. Diesel version available.

YRPRO Welder/Generator General arc welding, maintenance and farm use.

DC battery charging facility.

Comes complete with welding cables, earth clamp, hand piece and helmet.

A1BFX / A1CFX / A1DFX Max Output 2700W / 3300W / 4500W Cont Output 2500W / 3000W / 4100W

M1R Max Output 5500W Cont Output 5000W

All YRPRO Series Generators include an RCD (earth leakage and circut breaker) option.

ASI 200 Generator capacity 7kVA Weld capacity 200amps Weight 97kg

Makinex Petrol and Diesel Generators M1RW / SE20 Max Output 5500W / 7700W Cont Output 5000W / 7000W

SE20E40W.WS.HATZ Max Output 7700W Cont Output 7000W

SE20E40.3PH.HATZ Max Output 7600W Cont Output 6200W

Inverter Type - Super Silent

YRG2700I Max Output 3000W Cont Output 2100W

YRG4.5IE Max Output 4500W Cont Output 3700W

EU10IS Max Output 1000W Cont Output 900W

EU22I Max Output 2200W Cont Output 1800W

Plugging option

EU32I Max Output 3200W Cont Output 2600W

EU30IS Max Output 3000W Cont Output 2800W (Lift bar optional)

EU70IS Max Output 7000W Cont Output 5500W

MKX-10 (Petrol) Max Output 8000W Rated Output 6400W

MKX-16 (Petrol) Max Output 14000W Rated Output 12800W

MKX-23 (Petrol) Max Output 19000W Rated Output 18000W

MKX-32 Max Output 28000W Rated Output 25000W

Denyo Compressors Easy to transport, ef�icient to maintain, are weatherproof and environmentally friendly.

DU-190 Single Stage, Oil Injected Screw Compressor Compressor Rated Pressure Mpa(psi) Bar 7, Psi 100 Compressor Air Delivery m3/min(cfm) 4.87/ 172

32 AMP Single Phase

NEW

Denyo Soundproof Ideal for Construction and Hire Solutions

SINGLE PHASE

DA-6000SS Max Output 6.0kVA Cont Output 5.5kVA DCA-10ESXDA Max Output 8.8kVA Cont Output 8.0kVA

• Range 6kVA up to 400kVa • Single phase and 3-phase models • Easy starting and quick response • Weatherproof canopy • Three phase models suitable for building sites, outdoor events and standby/emergency

THREE PHASE SUPER SILENT

17

DCA-25M2 Max Output 22kVA Cont Output 20kVA DCA-45M2 Max Output 41-49kVA Cont Output 37-45kVA

THREE-PHASE DCA-15ESKDA Max Output 13.5kVA Cont Output 12.5kVA DCA-25ESKDA Max Output 22.0kVA Cont Output 20.0kVA DCA-35SPKDA Max Output 31.5kVA Cont Output 30.0kVA DCA-45ESI Max Output 38.9kVA Cont Output 37.0kVA DCA-60USH2 Max Output 55.0kVA Cont Output 50.0kVA

WELDER /GENERATOR

Soundproof, superior arc performance.

DLW-300LSW/400LSW Dual or single Generator 10kVA/15kVA Weld amps 300/400 Weight 384kg/460kg

BLOWERS, DEHUMIDIFIERS, ENGINES & INDUSTRIAL Electric and Hydraulic Breakers

Mobile Charging Pod

Jackhammer Trolley

Mobile powered cabinet to safely store power tool batteries and chargers while charging batteries.

Hydraulic Power Packs Petrol model shown

JHT 27.5kg Suits most 16Kg Jack hammers

BH051 Finishing 5.5kg

Size (WxDxH): 1480 x 430 x 1370mm Weight: 74kg Locker Dimensions (WxDxH): 580 x 330 x 370mm

BH163 Gen purpose 16kg BH112V Light work 11kg BH23K32EV High power 21.5kg

Biemmedue radiant heaters and space heaters

radiant infra-red, diesel and electric heaters.

Heaters Shizuoka Suitable for indoor/outdoor use.

VAL6.PH1 Heat 51,200Bthu/hr Power 120V single phase Weight 18kg

VAL6.KBE1S Heat 112,000Bthu/hr Power 230V single phase Weight 38kg

VAL6.FIR1300 Heat 52,000Bthu/hr Kerosene or Diesel fuel 21hr run time / 30L Tank

VAL6.FIR2000 (no frame) Diesel fuel infrared heat clean exhaust (OPPM) 24hr run time / 45L Tank

Hatz Industrial Engines

EC55 Heat 174,000Btu/hr Power Electrical 230V or 110V single phase Weight 81Kg

Floor sanders

These heavy-duty diesel engines are economical, robust, reliable and low noise. Safe starting even at extremely low temperatures.

Air-cooled, single and multi-cylinder 2.8kW to 48kW. Some models feature ‘Silent Pack’ sound proo�ing for extra quiet use.

SL7 Edger Disc pad 180mm Disc speed 3600rpm Weight 13.5kg

SL8 Drum Sander Drum 200mm Drum speed 1800rpm Weight 55.0kg

YRPRO Blowers & Dehumidi�iers Blowers

Carpet Dryer

SHT-30 Blade (cm) Air Volume (m3/min) Weight (kg) 9

30 65

SHT-50 Blade (cm) Air Volume (m3/min) Weight (kg) 19

35 82

AP220012 Blade (cm) Air Volume (CFM) Weight (kg) 12

30 2200

AP220013 Ducting in canister Weight (kg) 10

Dehumidi�iers A-ONE45LGR Dehumidifying capacity 45L/day Air Volume (CFM) 300 Weight (kg) 27

D22 Blade (cm) Air Volume (CFM) Weight (kg) 13.5

24 1200/1400/1600

300mm Industrial Blower with Ducting (AP220012 + AP220013) 4.5m

18

A-ONE90 Dehumidifying capacity 90L/day Air Volume (CFM) 410 Weight (kg) 46

LIGHTING TOWERS /DUST SUPPRESSION / OUTDOOR Trailerised Italian designed and manufactured. Portable and stationary models available. Strong and compact structure with stainless steel or galvanised masts.

Outrigger for stability.

V20 PRO Max height 8.2m Floodlights 4xLED Dry weight 1146kg Lift system Hydraulic Wind stability 110km/h Engine cooling Liquid Total run time max 471h (in hybrid mode) *Incorporates Hyper® LED Technology

VT HYBRID Max height Floodlights Dry weight Lift system Wind stability Engine Cooling Total Run Time

8.5m 4xLED 1230kg Hydraulic up to 110km/h Air Cooled 655h (in hybrid mode)

VT HYBRID

V20 PRO*

VT-SOLAR

Environmentally friendly

VT-SOLAR LIGHT TOWER Mast height 6.5m Floodlights 4xLED Dry wight 980kg Lift system Manual Wind stability Up to 80km/h AGM batteries 8 x 230Ah Battery run time 16h Battery charge time 6h

Stand Alone Towers

Tillers

Ideal for any application.

CUBE+ PRO Max height up to 8.1m Floodlights 4 x LED Dry weight 1175kg Lift system Hydraulic Wind stability up to 110km/h Engine Cooling Liquid Total run time max. 785h (in hybrid mode) *Incorporates Hyper® LED Technology

NEW

NEW CUBE+ PRO*

*HYPER® LED TECHNOLOGY

Designed to be daisy chained to provide �loodlighting for worksites that span long distances.

This range of tillers is premium quality, designed for the professional landscaper and landowner.

LINKLITE Max height 2.8m Floodlights 1x30W Weight 8kg Can be linked together RMT55H Tilling Width: 355mm – 660mm Tilling Depth: up to 254mm Honda GX160 Petrol recoil

LINKLITE stacked RT190H Tilling Width: 458mm Tilling Depth: 203mm Honda GX270 Petrol recoil

Dust Suppression Generac Dust Fighter

YRPRO Brendon Dust Suppression Unit

For demolition and quarry sites. Option of an on-board generator Automatic oscillation: 0º to 300º - Remote Control.

Model Motor Coverage WaterConsumption

DF5000 DF7500 5.5kW, 3-phase 7.5kW, 3-phase 20 - 30m 30 - 40m 18.3L/min@10 bar 34L/min@10 bar

DF15000 15.0kW, 3-phase 40 - 50m 43L/min@10 bar

DF Smart 2.2kW 13m 5.8L/min@1 bar

DF Duo Mini 2.6kW 33-83m2

Unique water powered dust & odour suppression system used with the YRPRO Brendon Powerwasher.

DT400 Max pressure 250 Bar Coverage Up to 15m away x 8m height 25L/min @250bar

NEW

DF7500 (TRAILERISED)

DF SMART

DF DUO MINI

19

CONCRETING EQUIPMENT Ride-On Power Trowels Ideal for �inishing large commercial jobs. Well balanced with a low centre of gravity for stability. Pneumatic tyred transport kit. Mechanical & Hydrostatic available.

LD6 Hydrostatic Trowels Dual 6 Width 1905mm Diesel 23hp Weight 392kg

HHNG5 Mechanical Trowels Dual 5 Width 2330mm Petrol 35hp Weight 491kg

HTX6H Hydrostatic Trowels Dual 6 Width 2330mm Diesel 70hp Weight 1063kg

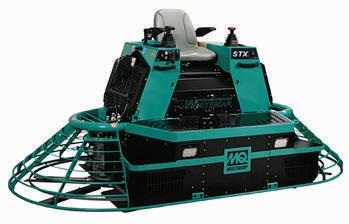

STX6H Hydrostatic Trowels Dual 6 Width 2970mm Diesel 55hp Weight 1158kg

LD6

HHNG5

HTX6H

STX6H

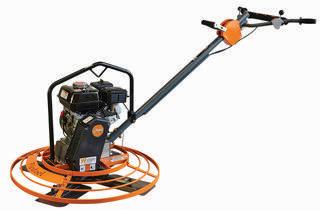

Walk-Behind Power Trowels MQ Whiteman

Flextool FT34.2 Width 865mm Weight 82kg Honda GX160 5hp

J3036H55 - 30”/36” Width 762 / 914mm Weight 81kg Honda GX160 5hp

J36.GX160 - 36” Width 914mm Weight 86kg Honda GX160 5hp

FT40.2 Width 1015mm Weight 90kg Honda GX160 5hp

*Edger model

B46.GX390 - 46” Width 1170mm Weight 110kg/113kg Honda GX390 11hp

B46H11H - 46” Width 1170mm Weight 126kg Honda GX340 11hp

HDA48413H - 48” Width 1219mm Weight 143kg Honda GX390 13hp

PortaTrowel

Magic Screed

Roller Screed

Flextool

Can level up to 4 times more concrete than traditional method.

Ideal for pervious concrete, and concrete laying jobs including wide, sloped or circular pours. Adjustable tube sizes.

HD7070 Engine Blade sizes

LELLS50P Engine 2.5hp, 50cc petrol Roller lengths 3’, 4’, 6’, 12’, 20’

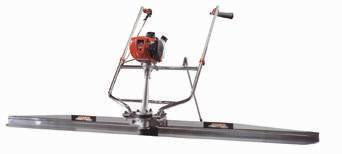

FT201898 Width 750mm Weight 20kg Honda GX35

35cc, 4-stroke 4’, 6’, 8’,10’, 12’, 14’, 16’

20

CONCRETING EQUIPMENT Trowel Blades

Float Pans

Top quality MQ Whiteman replacement blades and pans for your walk-behind or Ride-on trowel. Using high carbon, high performance tool steel allows MQ Whiteman to produce a very durable and long-lasting blade.

FINISH BLADES

for walk-behind and ride-on trowels, versatile, cost effective blade for all applications.

Float pans greatly increase the ability to achieve a �latter �loor. Multiquip offers a variety of �loat pan options ranging from Z-Clip to Latch Pin, Domed (Flat) to Super�lat.

COMBINATION BLADES for walk-behind and ride-on trowels when quick change ability can be a high priority.

11032 SUPERFLAT PAN

F400

F900

C464

Bull/Channel Floats

150mm 600mm, 900mm, 1200mm, 1800mm

2871 FLAT PAN

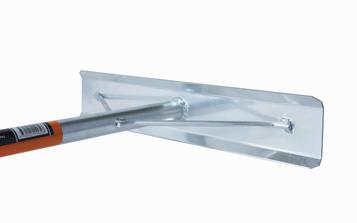

Concrete Placing Rakes

Suitable for use with clip together or telescopic handles.

Width Length

C844

NEW

12272 FLAT PAN

Light weight concrete placing rakes are ideal for spreading and placing concrete and any other soft landscaping mediums.

Hand Trowels

Edges The concrete edger trowel is used to create a smooth edge to slab edges.

NEW NEW

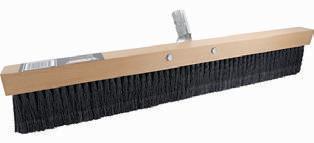

Finishing Brooms

This range of trowels is produced using high carbon steel to optimise blade �lexibility and durability and used for smooth �inishing of concrete. Available in ProSoft rubber grip and solid moulded plastic handles.

NEW NEW Bristle type medium Length 750mm / 900mm

Handscreed

NEW

Wheelbarrow

Flextool Concrete Screed

Walking trowels and walking tools enable the operator to trowel concrete in a standing position.

This aluminium concrete screed with a level vial comes with a clamp-on style handle.

Available in 9 lengths 1200mm (4”) / 1500mm (5”) / 1800mm (6”) 2100mm (7”) / 2400mm (8”) / 2700mm (9”) 3000mm (10”) / 3600mm (12”) / 4200mm (13.3”)

Walking Tools

NEW

WBLBRW Poly barrow Galvanised Frame

21

CONCRETING EQUIPMENT AND PRODUCTS Above and below the ground waterproo�ing products

Mortar Mixers Small and lightweight for mixing products that come in bags

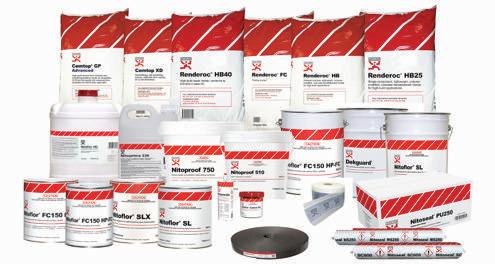

Fosroc provide a comprehensive range of above and below the ground waterproo�ing products and systems such as repair mortars, corrosion management, protective coatings and strengthening systems.

MIX-ALL Capacity 56L 220V / 50 HZ Weight: 30kg

Concrete Mixers Petrol & electric, portable & towable models

MIX80 Capacity 80L 220V / 1kw Weight: 106kg

Petrol & Electric Capacity 3 cu.ft / 85L Weight 62.6kg

YRA302TSB Capacity 100L Honda GX120 4hp Polythylene option: YRA302TPB Electric option

MIX120 Capacity 120L 220V / 1.4kw Weight: 130kg

YR350R (petrol) Capacity 350L Honda GX160 5hp Weight 232kg Road towable

Vibrators Petrol For footings, foundations & driveways

GE5L Flexible shafts 6m Head size 28, 38, 45 & 70mm Honda GX120 4hp

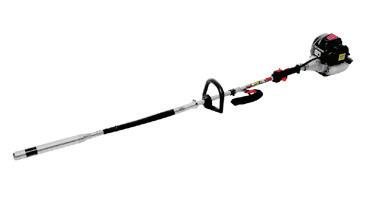

FT201889-UNIT Engine GX35 35cc Head size 44mm Weight 11kg Flexible shaft 540mm

FVE44-2 (Hand Held)

OZBP50 Back Pack 1.75hp/2.5hp 38mm/63mm 8.6kg/10.9kg

FT201857-UNIT Heavy Duty Lightweight Frame Quick Connect Honda GX35 C/w 2m/3m Shaft and 33mm/44mm steel head

BPX Heavy Duty Lightweight Frame Swivel Mounted Engine C/w 1M-6.4M Shaft and 35mm-67mm steel head

Vibrators Electric Mikasa MGX Series Double insulated

YRCO ‘Oztec’ Electric Series

Multiquip Electric

Lightweight. Adjustable shoulder strap.

For medium to high-slump concrete.

Rubber tips available

MGX28.1 Shaft 784mm Head 28mm

MGX32.2 Shaft 2m Head 32mm

OZ1.8 Motor 1.75hp OZ3.2 Motor 3.25hp

Shaft lengths 1m, 1.8m, 2.15m, 3.0m, 4.3m, 6.4m Steel heads (dia-mm) 20, 25, 30, 38, 45, 50, 62 Rubber heads (dia-mm) 50, 70

22

CV-2B Motor 2.0hp CV-3B Motor 3.0hp

Shaft lengths 1.0m, 2.1m, 4.3m, 6.4m Heads (dia-mm) 35, 43, 54, 67

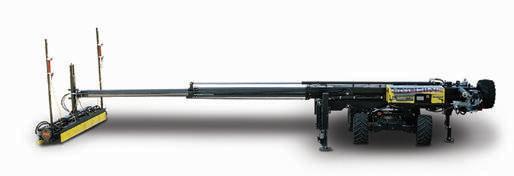

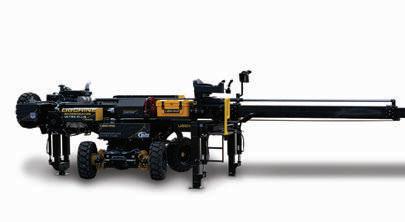

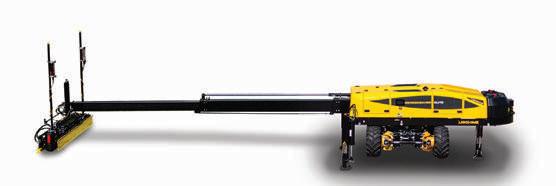

CONCRETING EQUIPMENT Laser Guided Concrete Screeds Ligchine innovative laser-guided and 3D GPS/LPS- guided concrete screeds are at the forefront of automated concrete screed machines that service �latwork companies from small owner-operated companies to large concrete contractors. With a square metre rate of 278-929m per hour depending upon the model used.

SCREEDSAVER.MAX.PLUS Weight 2177kg Length 4.8m Width 1.7m Screed coverage - 5.18m boom extension with 3m Performance Screed Head Coverage per screed pass: 15.79m2 Honda iGHX800 electronic fuel injection 24.9hp Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Topcon LS-B110 Optional: 3D Systems for Contoured concrete paving – Topcon 3D or LPS robotic.

Available with 100% lithium-ion electric power system

SCREEDSAVER.MAX Weight 1987kg Length 4.5m Width 1.97m Screed coverage: 5.5m boom extension with 3m Performance Screed Head Coverage per screed pass: 20.44m2 Kubota D902 diesel 25hp Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Trimble LR30 Eyes Optional: 3D Systems for Contoured concrete paving – Topcon 3D or LPS robotic.

SCREEDSAVER.ELITE Weight 2966kg Length 4.45m Width 1.79m Screed coverage: 5.5m boom extension with 3.4m Screed Head length Coverage per screed pass: 20.0m2 Kubota V1505 diesel 29hp Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Topcon LS-B110 Optional: Topcon 3D or LPS robotic.

SCREEDSAVER.PRO Weight 2209kg Length 4.5m Width 1.9m Screed coverage: 5.5m boom extension with 3.0m Screed Head length Coverage per screed pass: 18.6m2 Kubota V1505 diesel 29hp Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Trimble LR30 Eyes.

Optional: Topcon 3D or LPS robotic.

SCREEDSAVER.PRO.PLUS Weight 4164kg Length 5.5m Width 1.8m Screed coverage 5.5m boom extension with 3.4m Screed Head length Coverage per screed pass: 18.6m2 Yanmar 3TNV80F Comes with: 2D Laser levelling for Grade, Slope, Dual Slope Topcon LS-B110 Optional: Topcon 3D LPS Robotic

SCREEDSAVER.ULTRA.PLUS Weight 5307kg Length 5.73m Width 2.6m Screed coverage: 6.1m boom extension with 3.0m Screed Head length Coverage per screed pass: 22.3m2 Kubota V1505 diesel 29hp Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Topcon LS-B110.

Optional: Topcon 3D or LPS robotic.

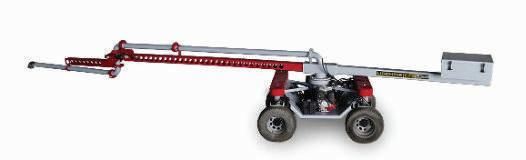

E-ZPLACER Weight 1814kg Length 11.1m (8.2m in trailer mode) Width 1.5m Overall placer boom reach: 8.2m 360º Delivery line 10.2cm Line pump connection 10.2 Rear or Side Honda GX390 13hp Main Boom 5.3m left-right 360º swivel Tip Boom 3.7m continuous 360º swivel

23

CONCRETE CUTTING / DRILLING Power Cutters - Battery

K535i Battery 1.2kW Blade size 230mm Cut depth 76mm Weight 3.5kg

Power Cutters - Petrol

NEW

NEW

K540i Battery Blade size 250mm Cut depth 100mm Weight 6kg

K 1 PACE 14” Battery Blade size 361mm Cut depth 145mm Weight 7.4kg *Use with PACE Battery System

NEW

K770.14 Engine Blade size Cut depth Weight

74cc 3.7kW 350mm 125mm 10kg

Power Cutters - Petrol

K970 Chain Engine 94cc 4.8kW Bar size 350mm Cut depth 400mm Weight 9.7kg

K970 Rescue Engine 94cc 4.8kW Blade size 350mm Cut depth 125mm Weight 11kg

NEW

K970.MKIII Ring Engine 94cc 4.8kW Blade size 370mm Cut depth 270mm Weight 13.8kg

K770 Cut-n-Break Engine 74cc 3.7kW Blade size 230mm (twin) Cut depth 400mm Weight 9.6kg

K4000 Wet/Vac Motor 230V, 2200W Blade size 350mm Cut depth 125mm Weight 9.9kg

K7000 Motor Blade size Cut depth Weight

5500W 400mm 155mm 9.8kg

WSC40 Cut depth 400mm No overcuts

Power Cutters - Rail

Hydraulic

K 1 PACE Rail Battery Blade size 361mm Cut depth 133mm Weight 9.7kg

K1270 Rail Engine Blade size Cut depth Weight

K2500 Flow rate 40L/min Blade size 400mm Cut depth 145mm Weight 8.3kg

119cc 5.8kW 400mm 145mm 21.1kg

*Use with PACE Battery System

K3600.II Flow rate 40L/min Blade size 370mm Cut depth 270mm Weight 8.3kg

K7000 Chain Motor 5500W Weight 9.1kg Cut depth 450mm

Demolition Robots & Tools

WS220 Power 6kW Max Cut 395mm Max Blade 900mm

CS10 Wire Saw Wire speed 24m/s Wire length 11m Magazine 10m Weight 100kg

DXR95 Forward Reach 2.67m Horizontal Reach 3.6m Power 9.8kW Weight 589kg

DXR145 Forward Reach 3.7m Horizontal Reach 3.7m Power 18.5kW Weight 985kg

DXR275 Forward Reach 4.5m Horizontal Reach 4.8m Power 24.0kW Weight 1750kg

Power Packs & Batteries

PP492 Use with PRIME™ product range Power 20kW Weight 25.8kg

119cc 5.8kW 400mm 145mm 13.7kg

NEW

K7000 Ring 14” K7000 HF RING 17” Motor 5500W 5500W Blade size 370mm 425mm Cut depth 270mm 325mm Weight 13.1kg 12.4kg

Wall Saws & Wire Saws

WS482 HF (High Frequency) Spindle output 13kW Blade size 600-1600mm Max. cut depth 730mm Weight 28kg

K1270.16 Engine Blade size Cut depth Weight

K970.MK3 14’’/16’’ Engine 94cc 4.8kW Blade size 350/400mm Cut depth 125/155mm Weight 11.0kg/11.6kg

High Frequency

Power Cutters - Electric

K4000 Cut-n-Break Motor 230V, 2200W Blade size 230mm (twin) Cut depth 450mm Weight 8.9kg

K770.OIL (C/W Oil Guard) Engine 74cc 3.7kW Blade size 350mm Cut depth 125mm Weight 9.8kg

PP220 Power 200-480V Weight 10.8kg Remote Control 3 phase or single phase

DXR305 Forward Reach Horizontal Reach Power Weight

PP70 Power 120-480V Weight 18kg Water Cooled 3 phase or single phase

24

4.9m 5.2m 27.0kW 1960kg

DXR310 Forward Reach Horizontal Reach Power Weight

5.2m 5.5m 27.0kW 2020kg

CONCRETE CUTTING / DRILLING Drill Systems NEW

DM 540i Battery Drill max 75mm Weight 4.9kg

NEW

DM 200 Power 2000W Drill max 100mm Weight 6.4kg

DM 220 Power 1850W Drill max 150mm Weight 7.5kg

DM 230 Power 1850W Drill max 150mm Weight 7kg

DM 1 PACE Battery Drill max 400mm Weight 12.3kg

DM 406H Power 9300W Drill max 650mm Weight 16kg

DM 430 Power 3300W Drill max 400mm Weight 14kg

DM 700HF Power 6000W Drill max 600mm Weight 14kg

Self Propelled Road & Floor Saws An extensive range suitable for large jobs such as airports and highways.

Smaller service and repair jobs, �loors, driveways, new concrete, old concrete and asphalt.

DS 250 Travel (L) 685mm Drill max 250mm Weight 16kg

NEW

FS 600e FS 524 series Power 15.5kW, 20.8hp Power Blade size Blade size 600mm Cut depth Cut depth 241mm Weight Weight 239kg

7.5kW 600mm 240mm 178kg

FS 3500.G Power Max blade size Max cut depth Weight

27.5kW, 36.8hp 750mm 312mm 450kg

FS 4800D Power Blade size Cut depth Weight

35kW, 48hp 900mm 381mm 680kg

FS 5000 Power Blade size Cut depth Weight

35kW, 48hp 650mm 374mm 771kg

FS 7000 Power Blade size Cut depth Weight

55kW, 73hp 1000mm 410mm 1032kg

DS 500 Travel (L) 706mm Drill max 500mm Weight 17.6kg

Brick Saws

DS 900 Travel (L) 950mm Drill max 900mm Weight 24kg TS 73 R Power 1000W, 230V Blade size 230mm Cut length 730mm Weight 47kg

TS 60 Power 1800W, 230V Blade size 250mm Cut length 700mm Weight 47kg

TS 300 E Power 2200W, 230V Blade size 300mm Cut depth 100mm Weight 82kg

TS 350 E Power Blade size Cut depth Weight

2700W, 230V 350mm 100mm 92kg

TS 400 F Power Blade size Cut depth Weight

2700W, 230V 400mm 230mm 96kg

Husqvarna Soff-Cut Early Entry Saws

Floor Saws

SOFF-CUT 150 Engine 3.2kW, 4.5hp Blade size 152mm Cut depth 30mm Weight 39kg

FS 309 series Power 6.3kW, 8.4hp Blade size 350mm Cut depth 117mm Weight 53kg

The best solution to minimise random cracking.

SOFF-CUT 2000e Engine 6.5kW, 9hp Blade size 254mm Cut depth 38mm Weight 144kg

SOFF-CUT 4000 Engine 15.3kW, 20hp Blade size 343mm Cut depth 70mm Weight 191kg

25

VP 200 Vacuum Pump Electric

FS 400LV series Power 8.7kW, 11.7hp Blade size 450mm Cut depth 162mm Weight 99kg

SURFACE PREPARATION Grinders Electric powered grinding/polishing machines.

Remote Control

PG280 Power Width Discs Weight

PG450 Power Width Discs Weight

2.2kW 280mm 1x280mm 70kg

PG510 Power Width Discs Weight

1.5kW 450mm 3x180mm 109kg

2.2kW 515mm 3x230mm 133kg

PG540 Power Width Discs Weight

2.2kW 560mm 3x230mm 169kg

Remote Control

PG690/PG690.RC Power 12.5kW Width 670mm Discs 3x270mm Weight 598kg

PG830/PG830.RC Power 16.5kW Width 830mm Discs 3x270mm Weight 652kg

Air Scrubbers NEW

HTC270EG Power 2.2 kW Width 270mm Discs 1x270mm Weight 103kg

HTC T5 5 hp (4 kw) 3 hp (2.2 kw) Power 2.2 / 4.0 kW Width 515mm Discs 230mm x 3 Weight 70-119kg

HTC 6/X6/RX6 Power 7.5 kW Width 600mm Discs 230mm 3 or 4 disc Weight 384-441kg

HTC X8/RX8 Power 12 / 15 kW Width 800mm Discs 270mm 3 or 4 disc Weight 499-574kg

A2000 Phase 1pH Air requirement 1000/2000m3/h Rated Input 0.75kW

A1000 Phase 1pH Air requirement 500/1000m3/h Rated Input 0.3kW

HTC Tooling & Accessories

Is a complete tool offering for the removal, grinding, polishing and edging of concrete �loors. Superprep Series for �loor removal and �loor preparation:

EZ PREP SERIES 0-2mm coatings removal

EZ T-REX SUPER 1-3mm coatings removall

EZ T-REX CLASSIC 1-3mm coatings removal

EZ T-REX DOME for over 3mm coatings removal

Cup wheels

T-REX RINGS 1-3mm coatings removal

HTC EZ change blocks

Polishing pads SF Series premium concrete polishing pads

SP Series concrete polishing tool

EZ Diamond Block Series

EZ Diamond Fenix

Brushing pads / cleaning pads

Edge Tools Grinding

Special Application Edge Series

Plates Edge Polishing Series

Edge Preparation Series

26

SURFACE PREPARATION Dust Collectors Powerful dust collector units.

NEW

S11 Phase 1pH Air 200m3/h Rated Input 1.2kW

DE110/DE110S/DE110i Phase 1pH Air 225m3/h / 200m3/h / 180m3/h Rated input 1.1kW / 0.9kW / 0.9kW

DE 120 H PACE Phase 1pH Air 220mbar Rated input 2.2kW

DE120 Phase 1pH Air 400mm3/h Rated input 2.2kW

S36 Phase 1pH Air 600m3/h Rated Input 3.6kW

T7500 Phase 3pH Air 600m3/h Rated Input 5.5kW

Pre Separators

T10000 Phase 3pH Air 900m3/h Rated Input 11kW

HTC D60 Phase 3pH Air 620m3/h Rated Input 5.5kW

Slurry Collectors Wet Vac

H - Classi�ied - in compliance with the highest international standard ‘H’.

HTC 80 iD II Phase 3pH Air 700m3/h Rated Input 7.5kW

C3000 Recommended as a supplement to your Hasqvarna dust extrator S26 and S36.

Concrete �inishes from:

W70P Air 200m3/h Rated Input 1.85kW Internal Slurry Pump System

W70 Air 200m3/h Rated Input 1.85kW

Scan the QR code to be taken to YR’s Archipro Pro�ile

Husqvarna Super�loor

Platinum Create a smooth, even, highly polished concrete �loor with a high level of aggregate exposure and unmatched resistance to wear. Platinum is the most popular surface �inish and is a good choice for most applications.

C5500 Recommended as a supplement to your Hasqvarna dust extrator T7500, T8600, T10000.

Gold Create a highly polished concrete �loor with a low to medium (“�ine) level of aggregate exposure. The �loor is not ground as deep as with Platinum but polished to the same gloss.

Is a good choice for concrete �loors that are already smooth and even.

Silver Create a matte concrete �loor with a high level of aggregate exposure and exceptional strength. Silver is a matte variant of Platinum with the same grinding depth for when you do not need or want a highly re�lective �loor �inish.

Satin Create a medium gloss concrete �loor with a low to medium (“�ine) level of aggregate exposure. The result is a �loor that offers functionality and low maintenance but is still aesthetically pleasing.

Blastrac Strippers Powerful range of �loor scrapers, shot blasters, �loor scari�iers and �loor shavers.

Floor Strippers NEW

NEW

Shot Blasters NEW

NEW

NEW

NEW

NEW

Floor Scari�ier NEW

BS110 Diameter 152mm Power 1.5kW Weight 170kg Single Phase

BS150 Diameter 152mm Power 2.2kW Weight 480kg Single Phase

BMS-220ADB Diameter 152mm Electric up to 23M/min Weight 1080kg Up to 10 hours running time

1-8DPS30 Diameter 203mm Power 3kW Weight 125kg Single Phase

1-8DPS55 Diameter 203mm Power 5.7kW Weight 145kg Three Phase

27

1-10DS Diameter 254mm Power 11kW Weight 395kg Three Phase

1-10DPS75 Diameter 254mm Power 7.5kW Weight 211kg Three Phase

BMP-265E Diameter 265mm Power 5.5kW Weight 175kg Three Phase

ACCESS EQUIPMENT & MATERIALS HANDLING

CONTRACTOR PUMPS

HEAVY COMPACTION

COMPACTION EQUIPMENT

ALMAC-PACIFIC.COM.AU

CONSTRUCTION PRODUCTS OUTDOOR EQUIPMENT

LIGHT TOWERS & DUST CONTROL

PUMPS

CHIPPERS & SHREDDERS

SURFACE PREPARATION & DUST CONTROL

CONSTRUCTION PRODUCTS

AERIAL WORK PLATFORMS

GENERATORS

GENERATORS & WELDERS

POWER TROWELS

CONCRETING EQUIPMENT

HAND TOOLS

EXCAVATION SYSTEMS

DEHUMIDIFIERS

BREAKERS & POWER PACKS

TILLERS

MINI DUMPERS

MINI EXCAVATORS & MINI DUMPERS

LASER-GUIDED CONCRETE SCREEDS & EQUIPMENT

DIESEL ENGINES

POWERWASHERS

POWER SCREED

MATERIALS HANDLING

GENERATORS & CONCRETE MIXERS & WATERBLASTERS

CONCRETE MIXERS

We are proud of the back-up service we offer to customers. The importance of stocking genuine spare parts for all the equipment we supply is a high company priority.

YRCO.CO.NZ 28

ACCESS EQUIPMENT

CONSTRUCTION EQUIPMENT

PORTABLE CONVEYORS

INDUSTRIAL HEATERS

ENGINES PUMPS GENERATORS

CONCRETE & MORTAR MIXERS
