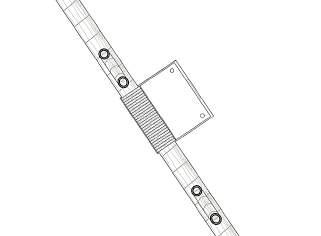

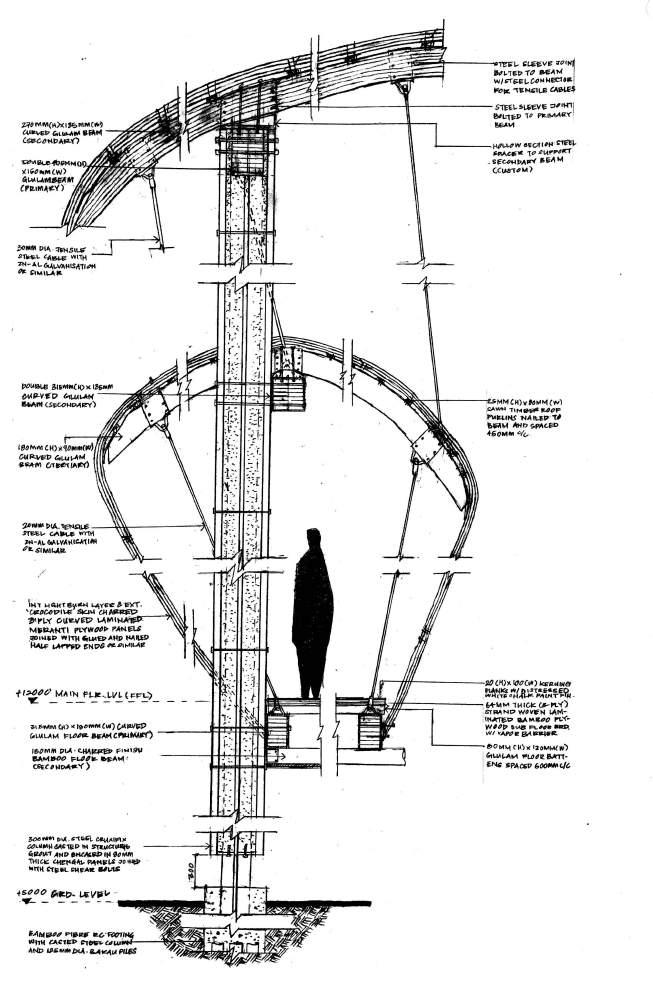

STEEL SLEEVE JOINT BOLTED TO BEAM W/ STEEL CONNECTOR FOR TENSILE CABLES
STEEL SLEEVE JOINT BOLTED TO PRIMARY GLULAM BEAM 270 (H) X 135 (W) CURVED GLULAM ROOF BEAM (SECONDARY) HOLLOW SECTION STEEL SPACER SUPPORT SECONDARY BEAM (CUSTOM)
TO
DOUBLE 405 (H) X 150 (W) GLULAM ROOF BEAM (PRIMARY)
30MM DIA. GALFAN TENSILE STEEL CABLE OR SIMILAR SELECTIVELY TO FLOOR BEAM OR LOWER FLOOR BRIDGE
DOUBLE 315 (H) X (135 (W) CURVED GLULAM BEAM (SECONDARY)
25 (H) X 80 (W) CURVED SAWN TIMBER ROOF PURLINS NAILED TO GLULAM BEAM AT 450MM C/C
180 (H) X 90 (W) CURVED GLULAM ROOF BEAM (TERTIARY)
20MM DIA. GALVANISED TENSILE STEEL CABLE OR SIMILAR TO SUSTAIN FLOOR LOAD FROM FLOOR BEAMS

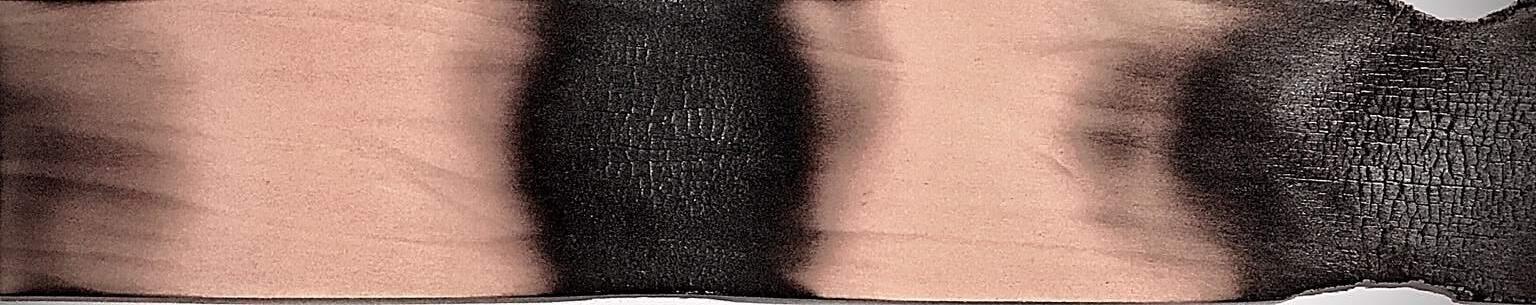

CROCODILE CHARRED EXT. FINISH AND LIGHT BURNT CHARRED INT. FINISHED CURVED LAMINATED MERANTI PLYWOOD PANELS W/ VAPOR BARRIER LAYER JOINED WITH GLUE AND NAILED HALF LAPPED ENDS OR SIMILAR
20 (H) X 100 (W) DESTRESSED WHITE CHALK PAINT FINISHED KERUING PLANKS NAILED TO FLOOR BOARDS
3-PLY STRAND WOVEN LAMINATED BAMBOO PLYWOOD SUB FLOOR BOARDS 315 (H) X 180 (W) CURVED GLULAM FLOOR BEAM (PRIMARY)
150MM DIA. CHARRED FINISHED BAMBOO FLOOR BRACING OR SIMILAR

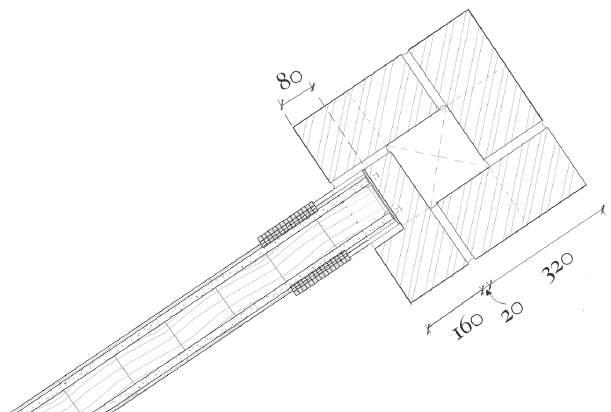

300 (W) X 300 (H) STEEL CRUXIFIX COLUMN CASTED IN STRUCTURAL GROUT AND SELECTIVELY ENCASED IN 80MM THICK CHENGAL PANELS JOINED WITH STEEL SHEAR BOLTS. COLUMN INCLINED TO SPECIFIC ANGLE FOR BEAMBEAM ALIGNMENT
RC FOOTING WITH CASTED STEEL COLUMN AND 125MM DIA. BAKAU PILES OR SIMILAR
80 (H) X 120 (W) GLULAM FLOOR BATTENS AT 600 C/C
