MASTER PORTFOLIO CONCEPT DERIVED “AartgalleryintheArtofNatureandPenang”
Penang, “The Pearl of the Orient”, is one of the most famous spots located on an island in Malaysia and as such you can enjoy beaches, sparkling waters, and a laid back island feel coupled with a big city experience. Penang is a melting pot of people and culture: Indian, Chinese, Malay, and some remnants of English colonialism. In this project, a art gallery is designed as an entry point to the culture and heritage. To celebrate the natural environment in front wa terfront of Penang, the art gallery is designed in a form that celebrating natural forms and materials. art gallery
MARITIME OASIS FOREST 01 penang
ANALYSIS
MASTER PORTFOLIO

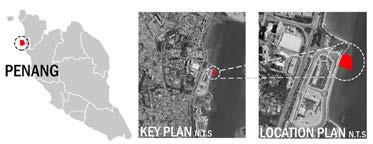

SITE

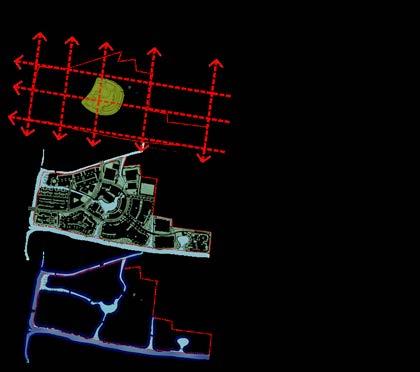

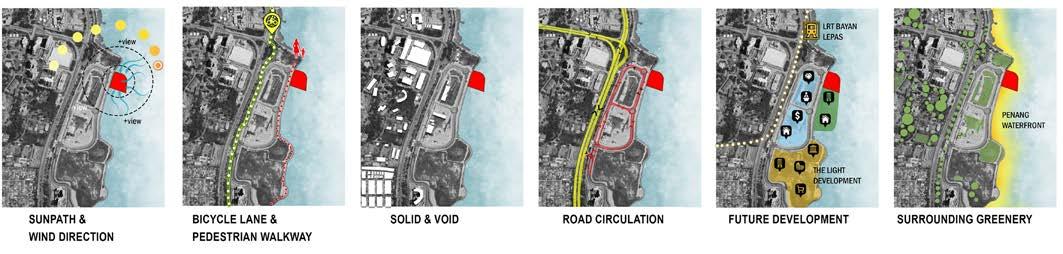

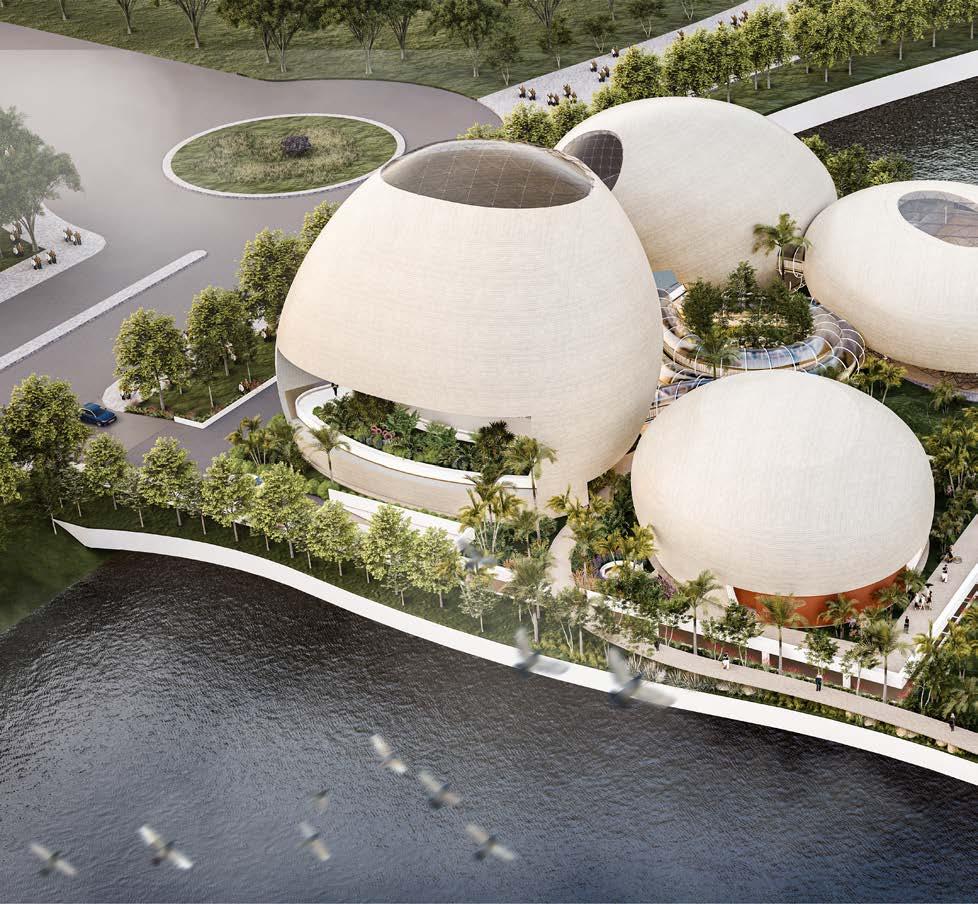

Leading directly from the city over to the gallery, pedestrian pathways connect the greater urban area to the public green space along the waterfront. Outside the art gallery serves as a land art park with floating decking and amphitheatre. Cultural performance can be done in the celebration with the water front. Bicycle lane and pedestrian walkway are continue from outside into the site leading to the open park of the art gallery. The art gallery creates a surreal atmosphere, so that the people who visit here have the possibility of engaging in a dialogue with the art and the nature. The use of sustain able material and the roof of this building is remarkable structure inspired by the nature of stone. Hence, the building form outside serves as the art of the nature whereas inside the building serves the art of the penang.

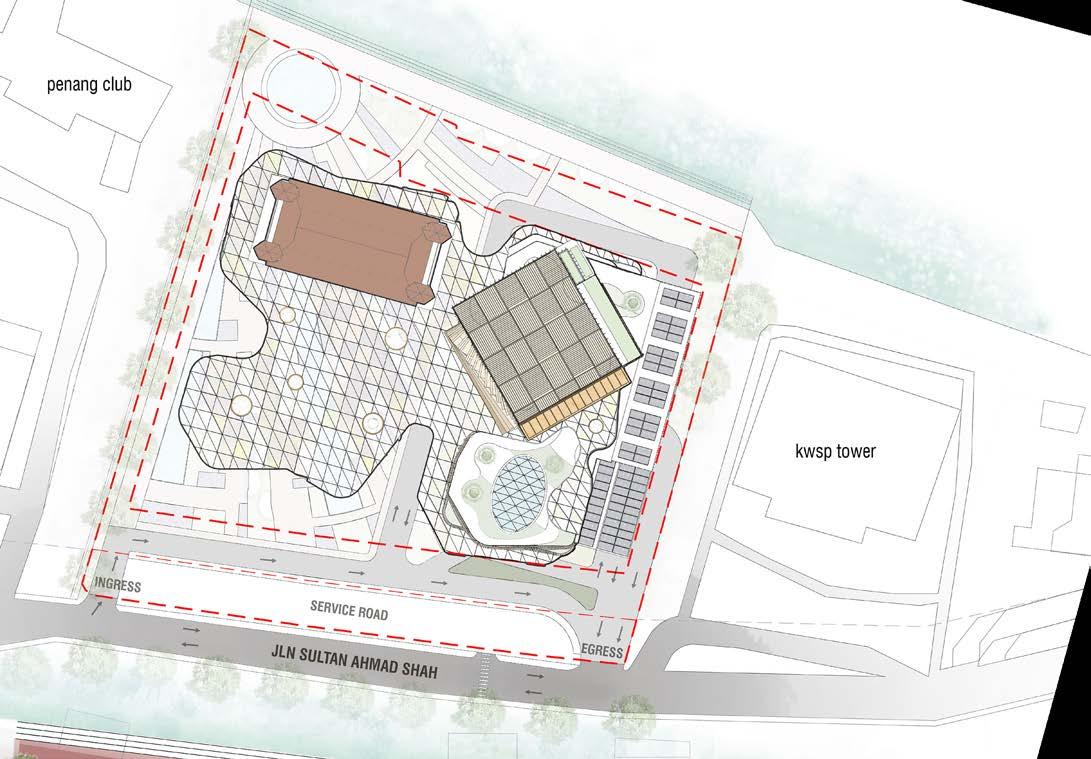

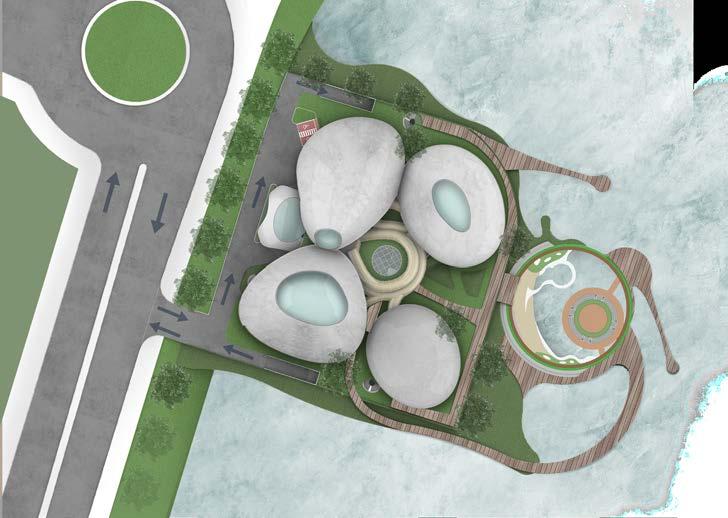

Site Plan Ground Floor Plan
MASTER PORTFOLIO
the penangINTERACTIVEsculpturesPUBLIC SPACE Act as civic park within the art gallery

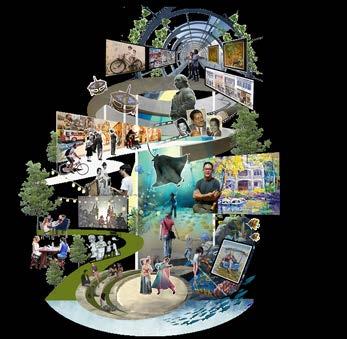

There are four blocks of building arranged accord ingly to grid with column with a cicular ramp in the middle that connected all the individual building. In order to provide the best information and art value for visitors, a journey is created to let visitors experience through space and organization, as well as the beautiful of the penang art.
West ElevationEast Elevation
SCULPTURE GARDEN garden to view
Open
MASTER PORTFOLIO

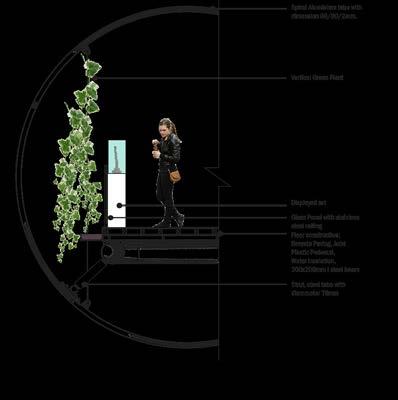

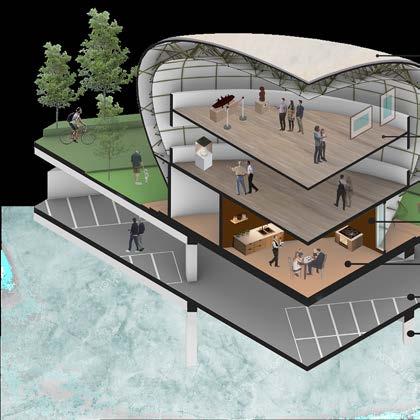

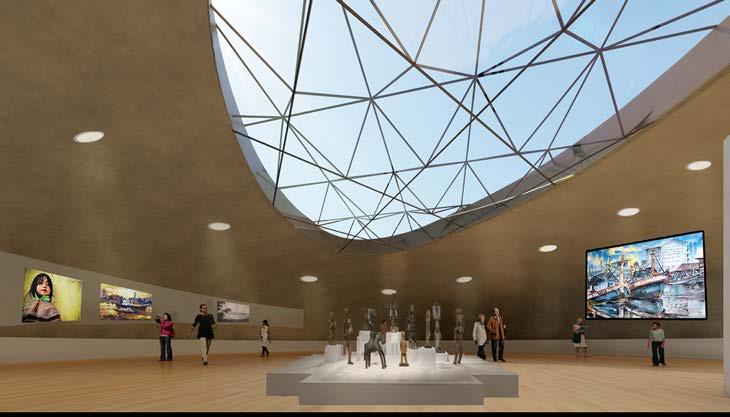

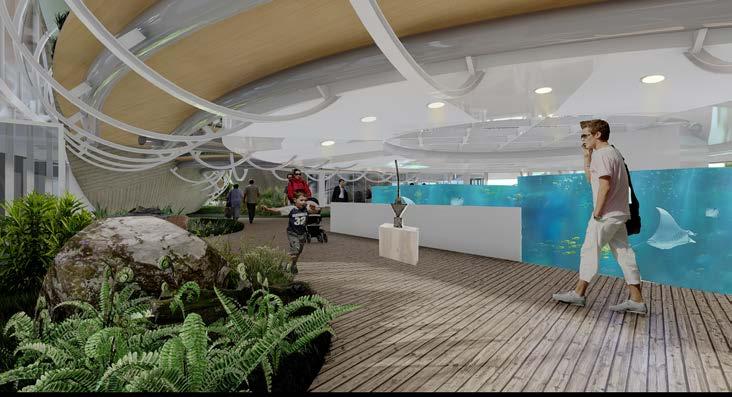

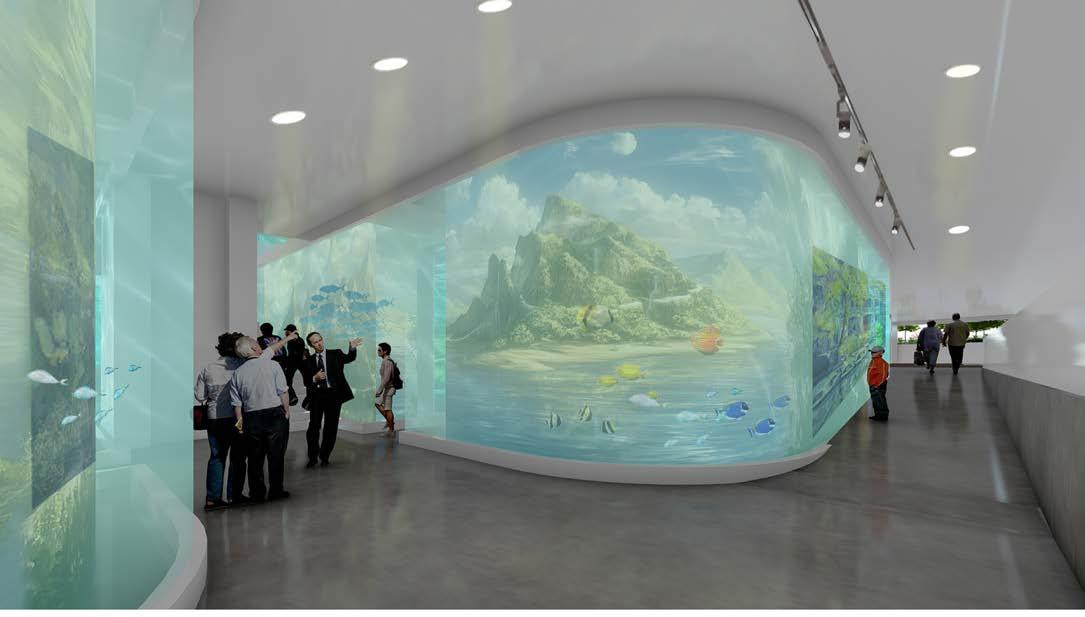

MASTER PORTFOLIO Transition Ramp Sectional Detail SUBBASEMENT AQUARIUM GALLERY An open gallery before visitor going to the paid gallery UNDER THE TRANSITION RAMP GALLERY Surrounded by the greenery, aquarium and temporary art ROOF TOP GALLERY Some less sensitive art are placed at the roof top
MASTER PORTFOLIO AXONOMETRICEXPLODED
MASTER PORTFOLIO
02
TWISS TWICE TOWER

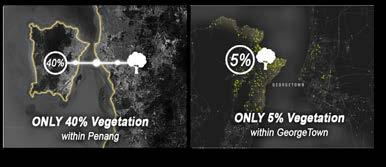

“ Let the buildings marry with nature, in a place with light and wind. As it should be integrated into nature through natural form where one can find time lessness of nature in this modern city.”
MASTER PORTFOLIO

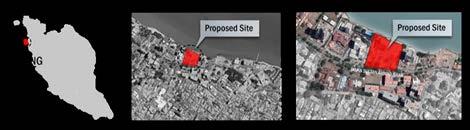

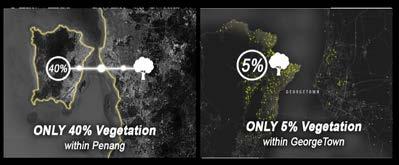

Twiss Twice Tower is a mixed-use de velopment with the sense of ambition workspace planning as well as foster social interaction which compelling civic space. The proposed site is located at the Runnymede Hotel, George Town, Penang. The tower is situated at Jln Sultan Ahmad Shah and projected at waterfront edges. With the aids of green spine by bringing it along the Jln Sultan Ahmad Shah until the rooftop of this tower become the main idea intention of this building.

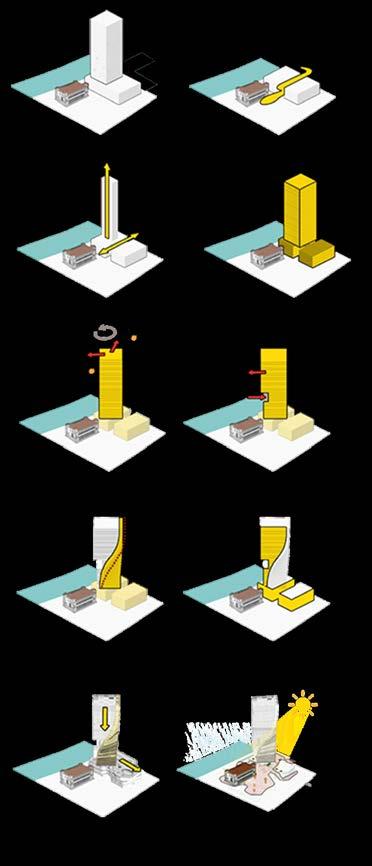

The design concept of the tower form is twisted based from existing Runny mede building on the proposed site historical is hotel and current became abandoned Runnymede building to the proposed design adaptive used banquet hall while continue twisted to the mixed-use commercial highrise tower function. The idea also bring the existing buildng element to modern element which is to blend the archi tectural tower in the proposed site while respect to the site.
StrategiesDesign
MASTER PORTFOLIO Ground Floor Plan
MASTER PORTFOLIO
y-y
A series of covered walkway is also created is a preliminary twist design element to the top of the tower. This shows the connec tivity merging the runnymede building with the office tower. The delivered archi tectural element is the fins facade of the tower inspired by part of louvred wooden window shutters element from existing runnymede building. Site Plan Section

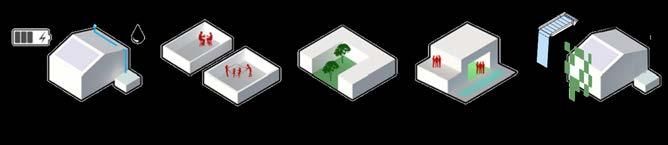

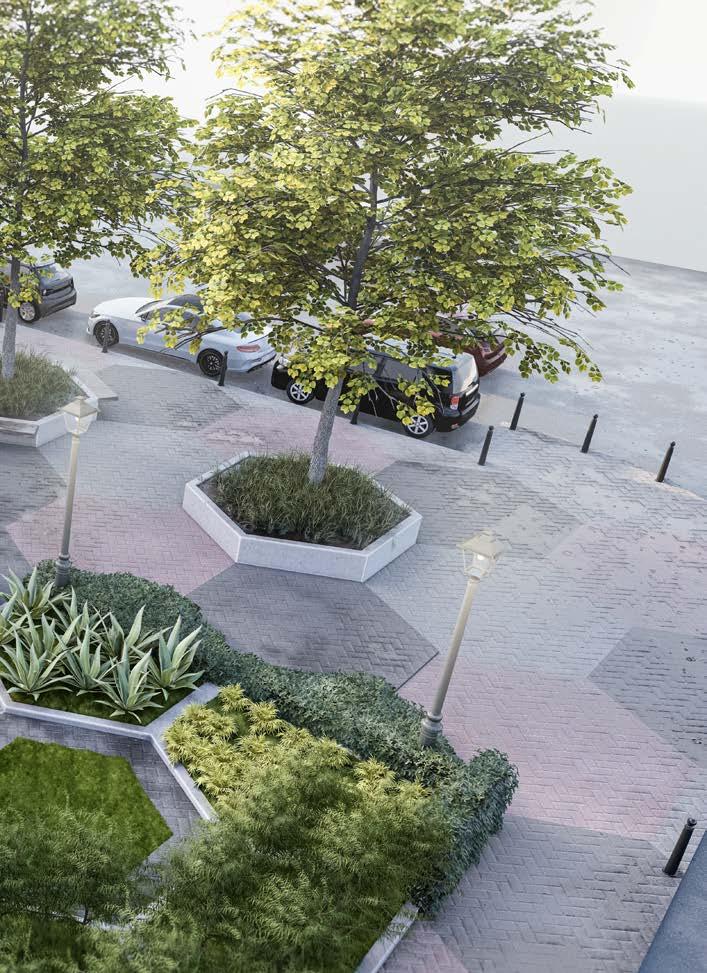

MASTER PORTFOLIO The Green Spine module design contain: - Balcony - Green wall - Planter Box - Green walk - Photovoltaic panel system Form Manipulation Green Spine Design

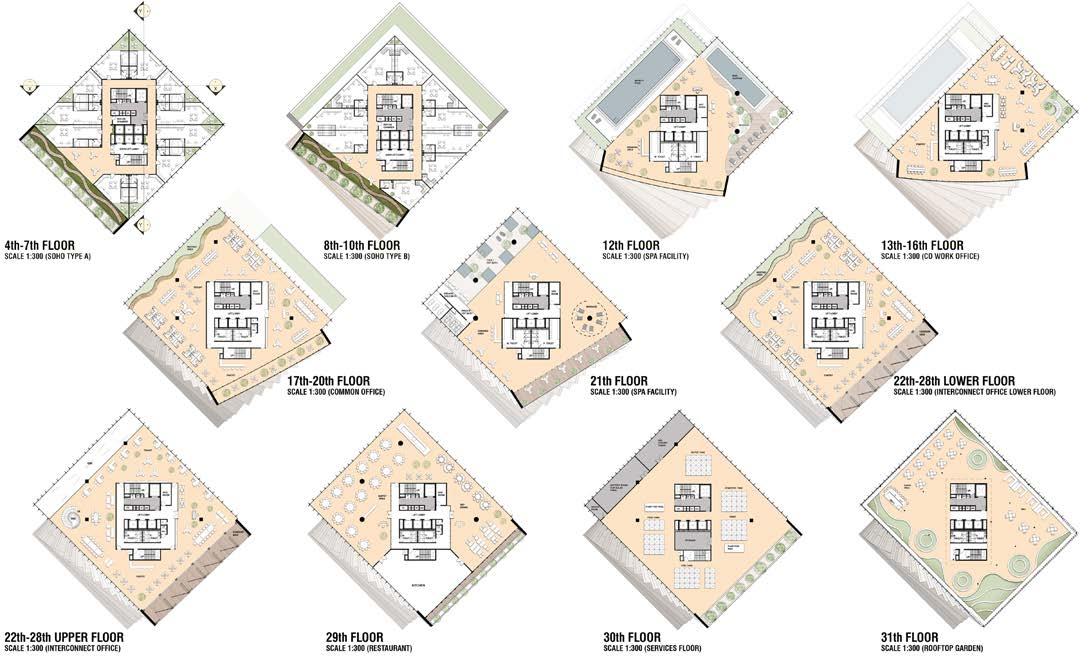

MASTER PORTFOLIO Typical Floor Plans

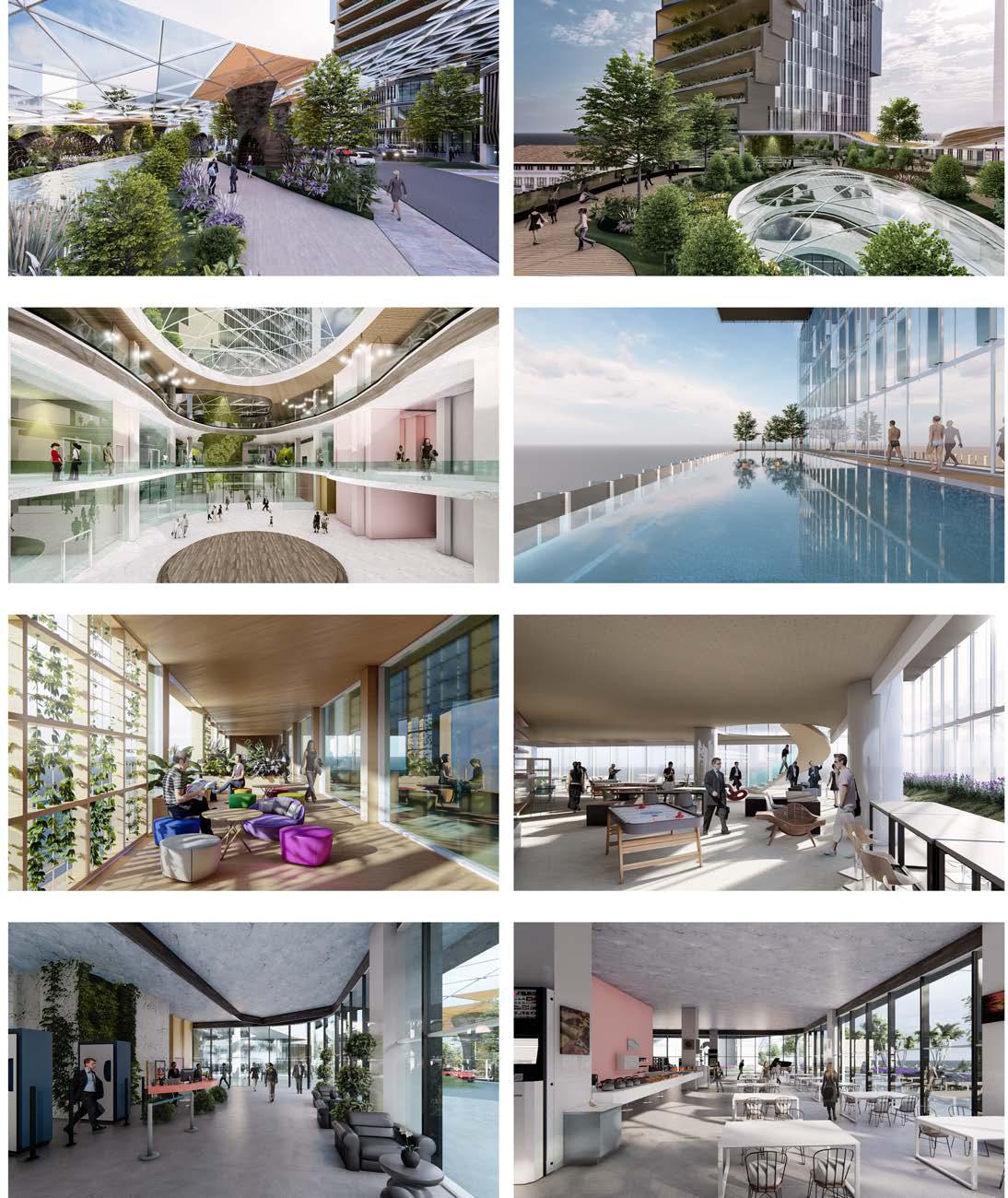

MASTER PORTFOLIO Green spine open market pavilion with twisted roof Mall with atrium skylight Charge and refresh area for office tenants Main Lobby Rooftop Garden with greenery Lap InterconnectedPool office type Cafe
From landed to highrise with connection of existing runnymede to the tower with inte gration of the nature surrounding. By con tinuing the green spine along the Jln Sultan Ahmad Shah, a green spine is connected from the Jln Sultan Ahmad Shah to the run nymede and finally follow all the way up to the rooftop garden. All the users will always have a view to the nature no matter where they are in the building.

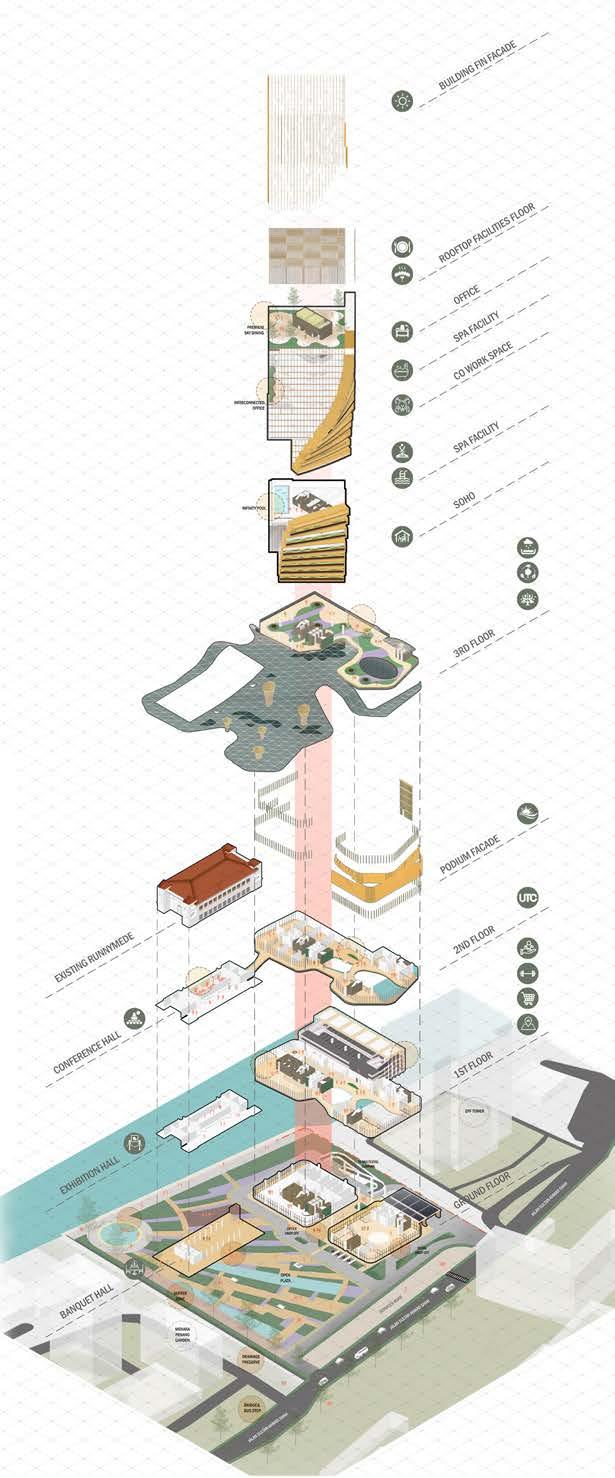

Exploded Axonometry
MASTER PORTFOLIO
MASTER PORTFOLIO

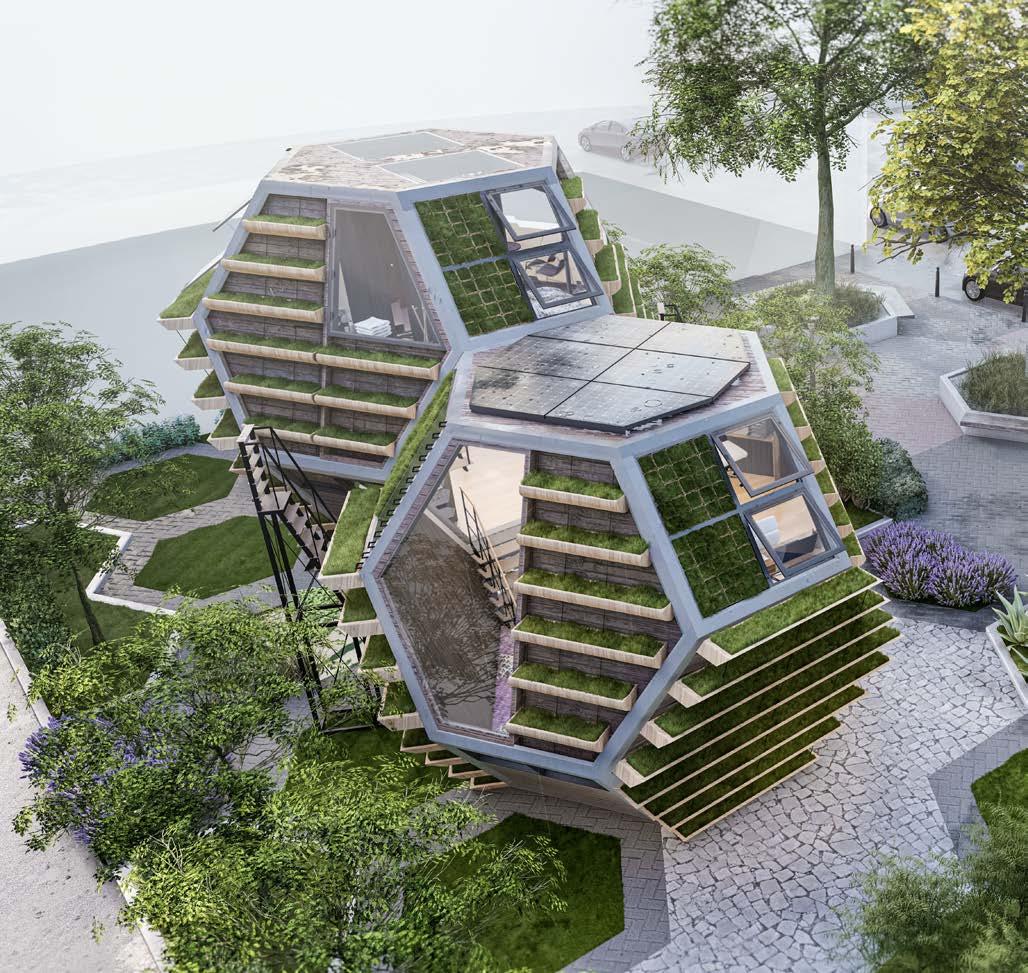

Farmhouse presented a sustainable housing solution: a modular house that made out of 2 single units. Farmhouse is a prefabricated housing solution consisting of a plywood, metal cladding, and corrugated polycarbonate on a series of simple frames.
MASTER PORTFOLIO MODULAR FARM HOUSE 03 sustainable housing solution
Ground Floor Plan First Floor Plan Second Floor Plan
MASTER PORTFOLIO

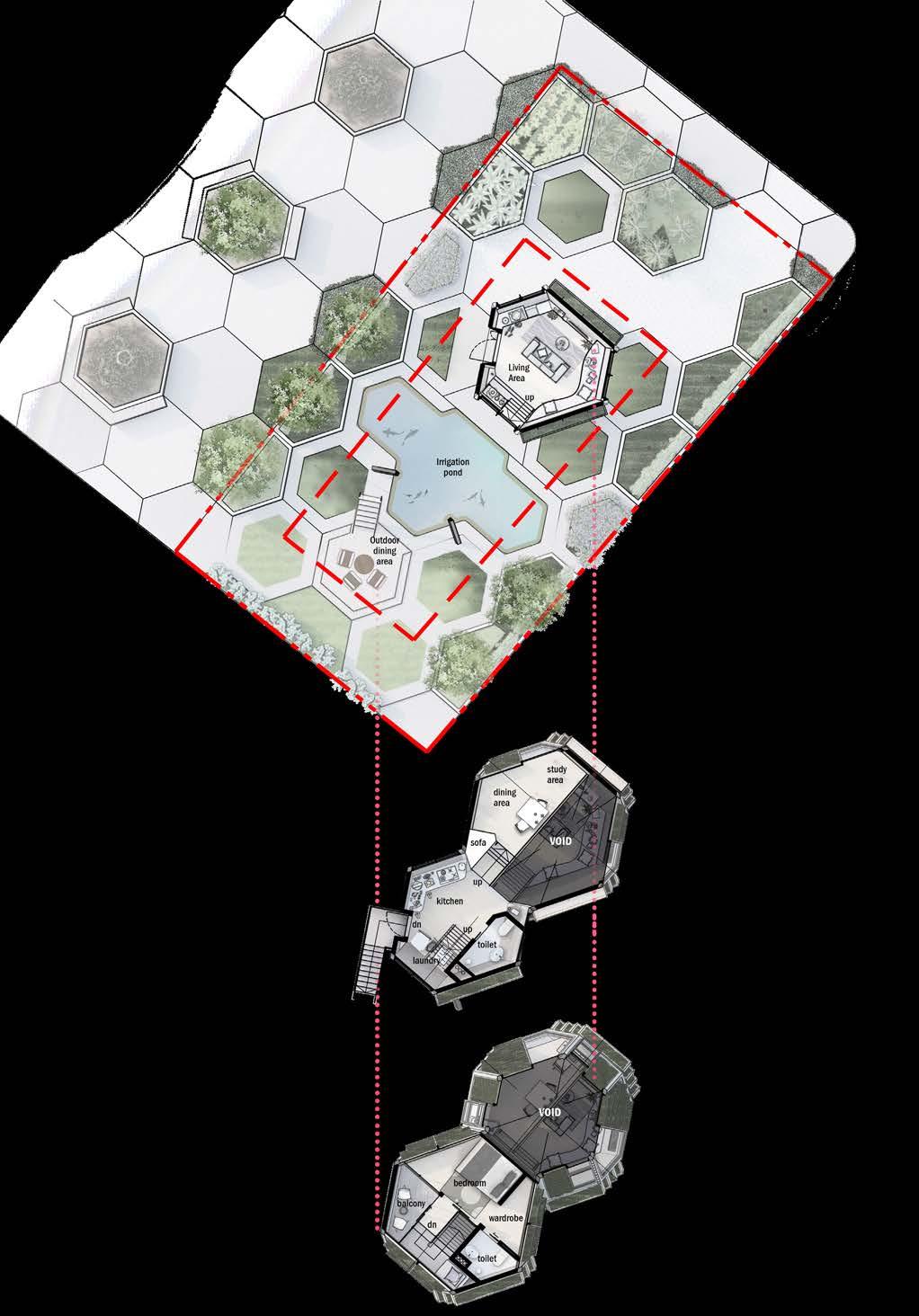

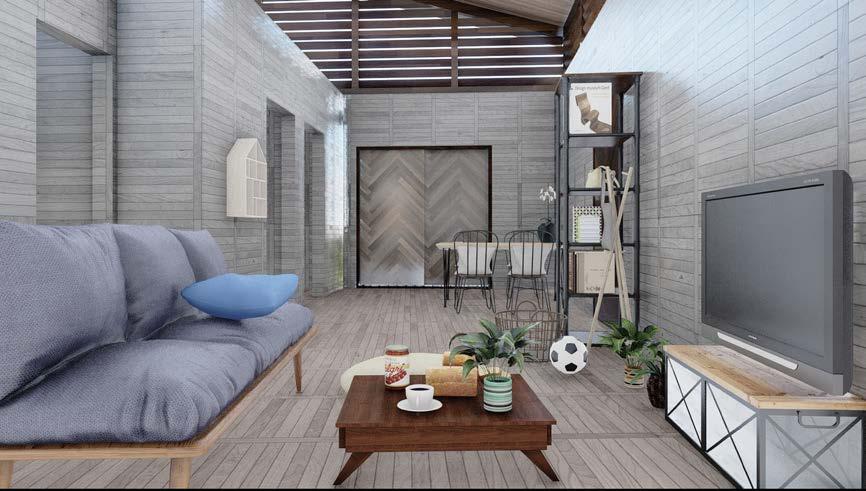

Farmhouse suits for single family with living room, bedroom, kitchen, bathroom and study area. The modular house gives residents the op portunities to farm and enjoy the edible food in the house as well as in the urban area. It also equipped with photovoltaic panels, a rainwater collection system and a composting toilet.

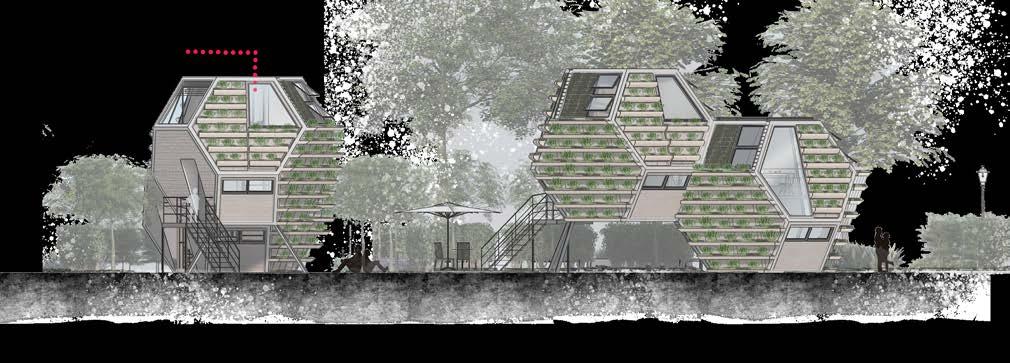

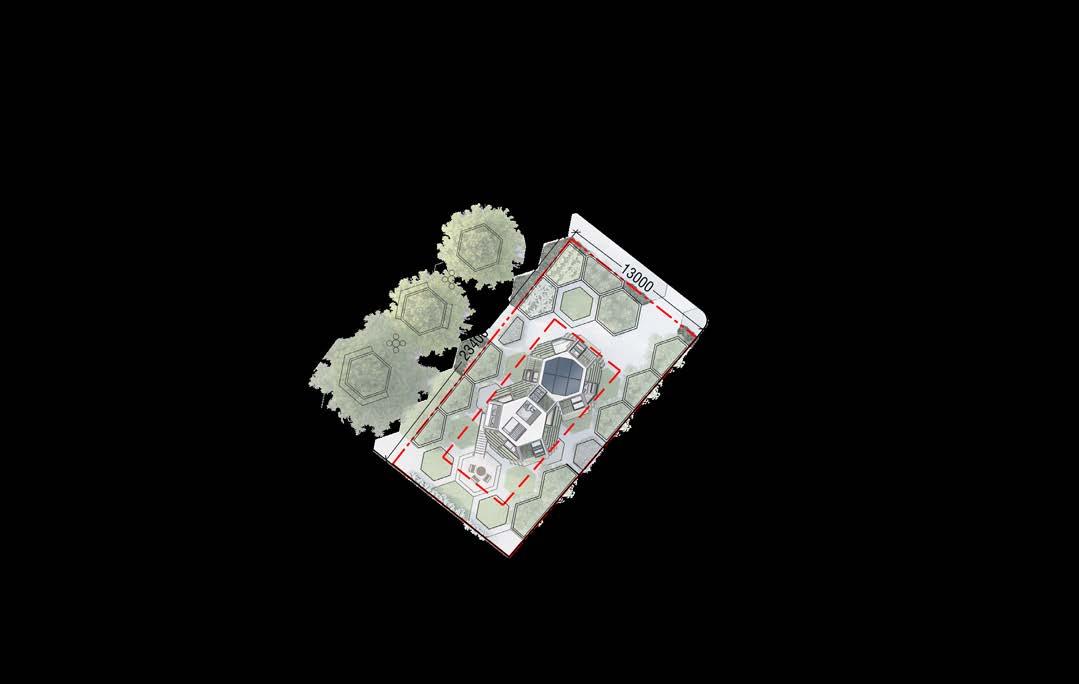

MASTER PORTFOLIO Site SectionPlanB-B

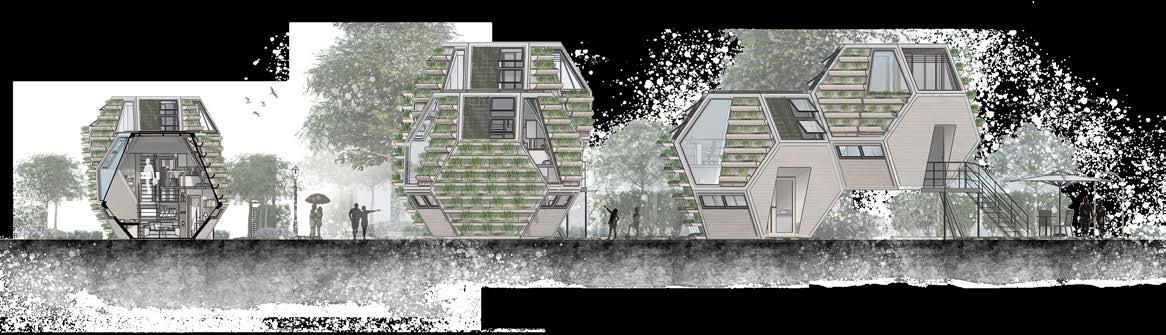

Section A-A Front
MASTER PORTFOLIO

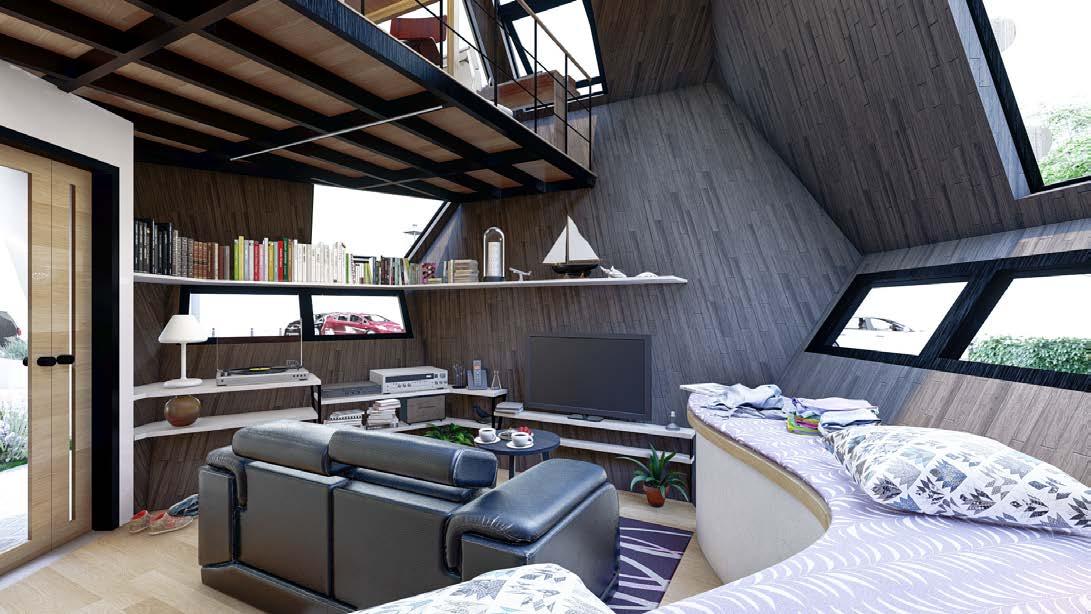

Bedroom with top hung windows to enjoy the star of the night. 2 units of module form a farming modular house with all the basic amenities which are the living room, kitchen, 1 bedroom, 2 toilets, dining and study area. This modular house express how farming being applied in the urban area through planter box and modular panels. An irrigation pond is designed as a landscape pond under one of the elevated module. Each surface of the module can be customised to be farming, window, openings or door for the future use. Negative space that fully utilised as a small storage Elevation Elevation
Right

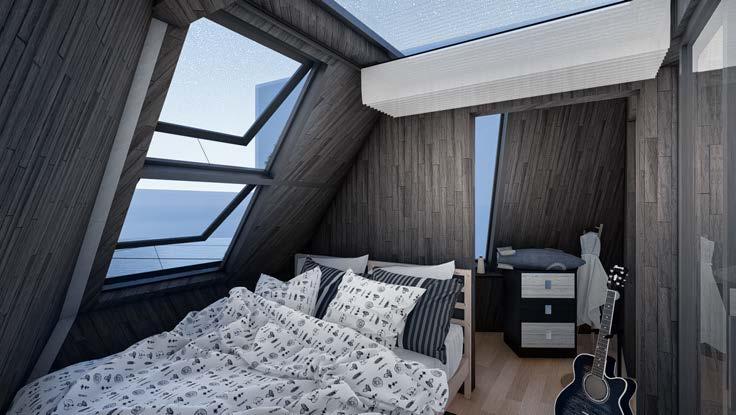

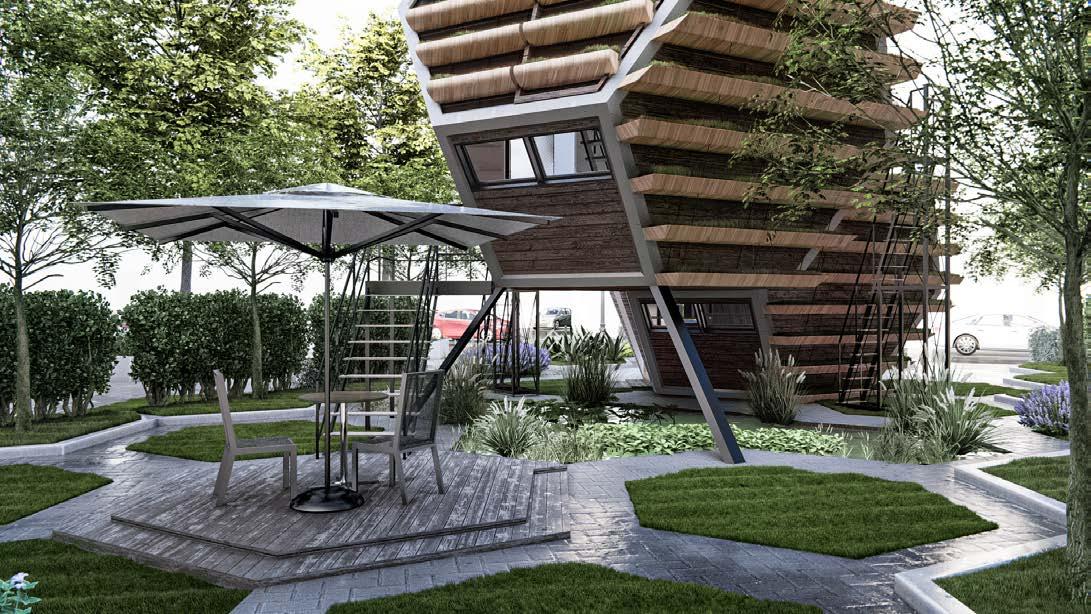

Bedroom with top hung windows to enjoy the star of the night Outdoor dining area with landscape pond surrounded by the greenery

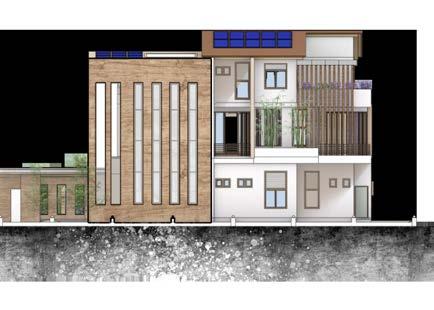

MASTER PORTFOLIO Rear Elevation Left Elevation
MASTER PORTFOLIO
AxonometryExploded
The modular house is possible to extend vertically or horizontally according to the user need. If there’s space available, modular Farmhouse offers such flexibility that the one sur faces of the building can be removed so that another modular unit can be stacked atop the existing home. 02 Example of modular houses that stacked horizontally Example of modular houses that stacked vertically
Expandability
MASTER PORTFOLIO
01.
02.
01
Farmhouse presented a sustainable housing solution: a modular house that made out of 2 single units. Farmhouse is a prefabricated housing solution consisting of a plywood, metal cladding, and corrugated polycarbonate on a series of simple frames.
MASTER PORTFOLIO
MASTER PORTFOLIO GARDEN BY THE RIVER 04 housing development design

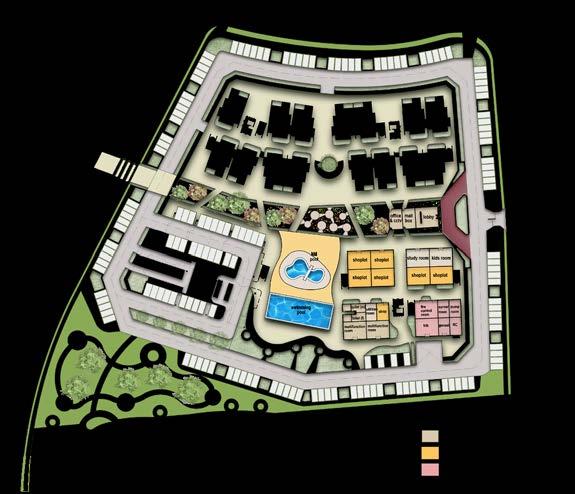

MASTER PORTFOLIO Masterplan
MASTER PORTFOLIO
MASTER PORTFOLIO Low Cost Housing Ground Floor Plan
MASTER PORTFOLIO

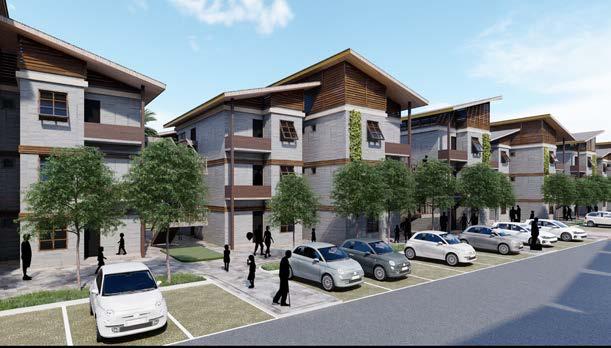

The 3 storey low cost townhouse is specially designed for the fishermen in Balik Pulau when they want to buy houses nearby. Being inspired by the traditional fisher man village, the townhouses are arranged in and out with own communal space towards the jetty. Gazebo is designed where the fisherman can fix their boat or net.Their boats can also park infront of the jetty. Open staircase is designed to enhance the social interaction between the fishermen as they can have more interac tion instead of straight going into a house.Living Room Open Area

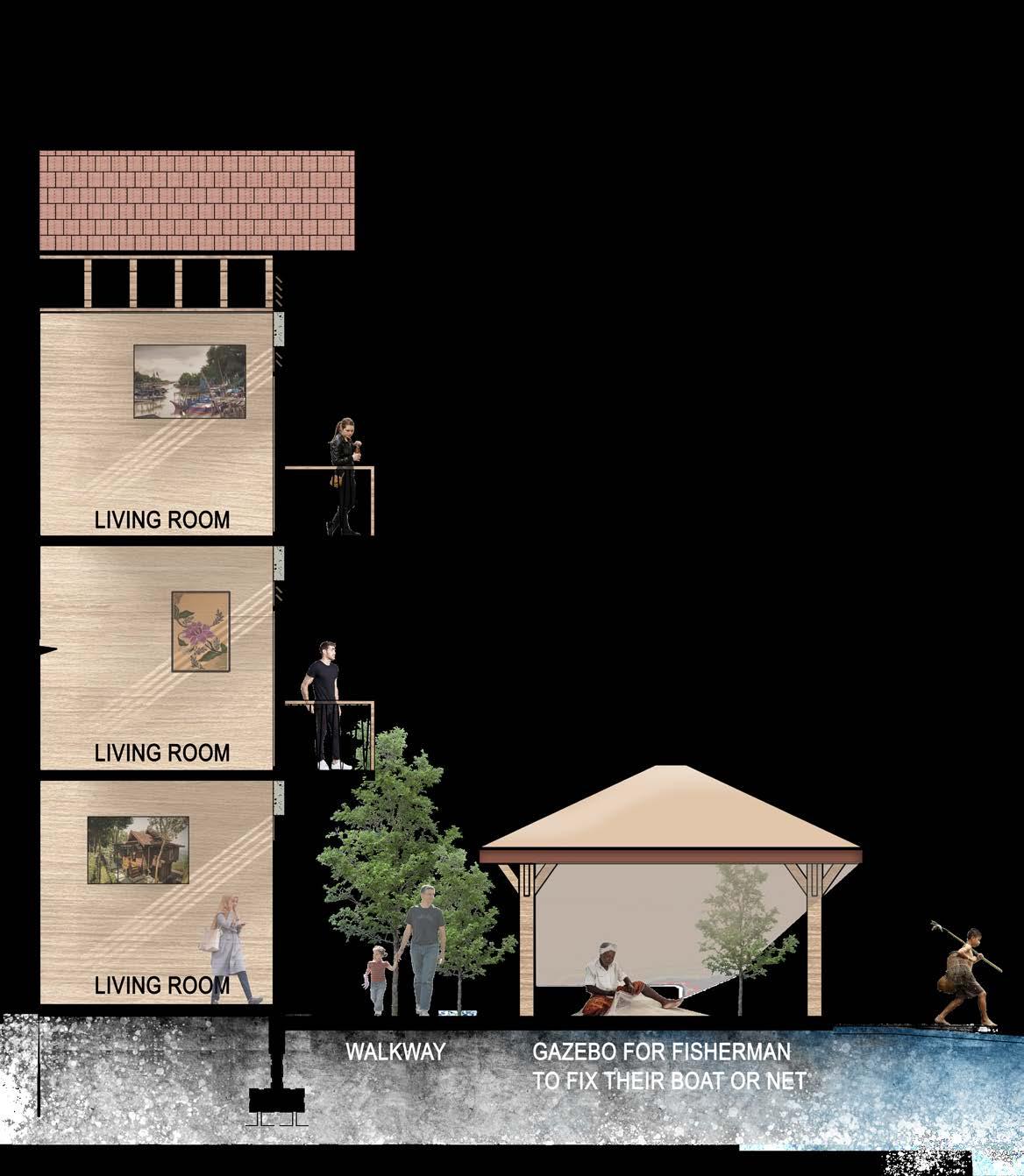

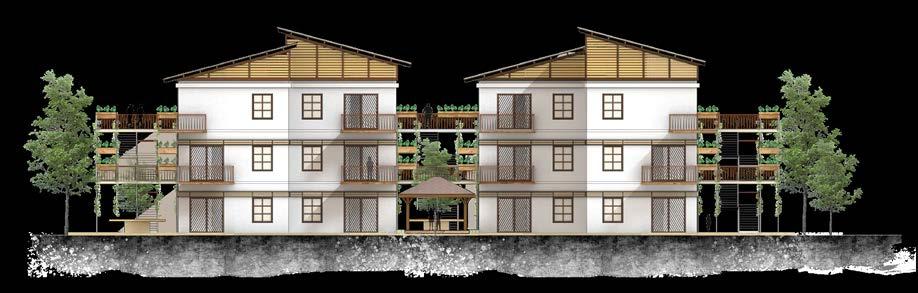

MASTER PORTFOLIO Strip Section Front Elevation Side Elevation

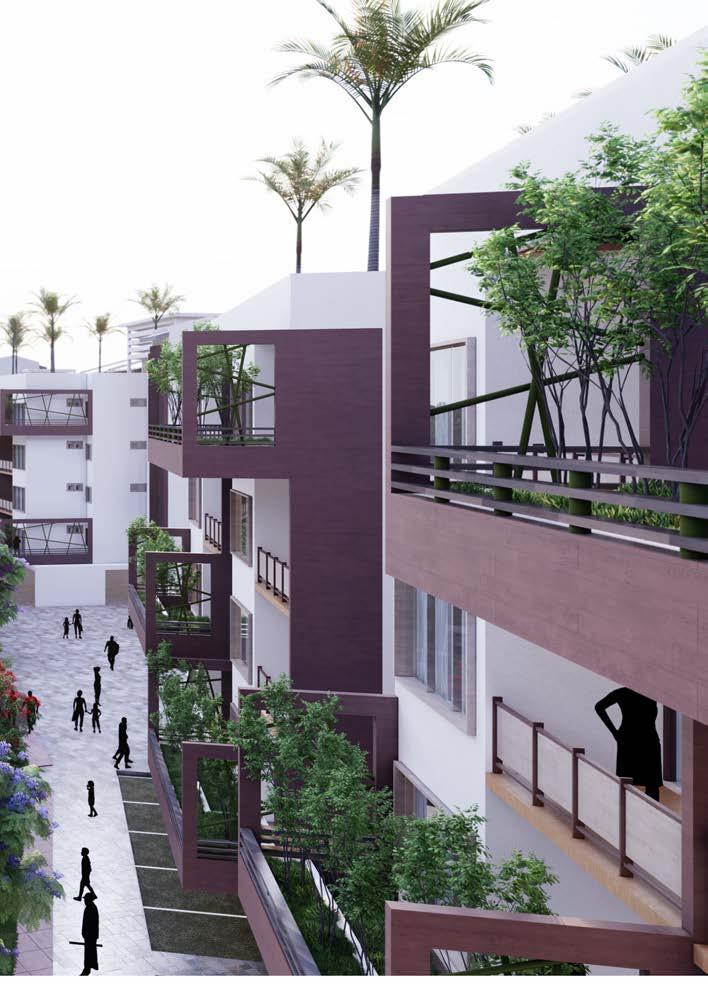

Green pocket spaces are designed to balance the ad vantage of being close to friends, family and the need for harmonious, serene spaces for living. Maintaining privacy is also being taking consideration in the design. Modular planter box is attached to the stair to allow small gardening at the same time beautify the living en vironment. All the floor has natural ventilation through window and louver.
MASTER PORTFOLIO AXONOMETRICEXPLODED Section
MASTER PORTFOLIO
Farmhouse presented a sustainable housing solution: a modular house that made out of 2 single units. Farmhouse is a prefabricated housing solution consisting of a plywood, metal cladding, and corrugated polycarbonate on a series of simple frames.
The concept of apartment design is to create a vertical garden village composed of pop out green layered in a playful formation. To create sense of garden by the river, lavish outdoor spaces, with breath taking views, public swimming pool and kid pool public spaces are provided in each parcel of medium cost apartment. There are also public spaces along the river. The fluidity of the space as well as its relationship to greenery and the exterior are qually present in this apartment.
MEDIUM COST HOUSING TYPOLOGY
MASTER PORTFOLIO
Vertical Social Apartment’ by the garden

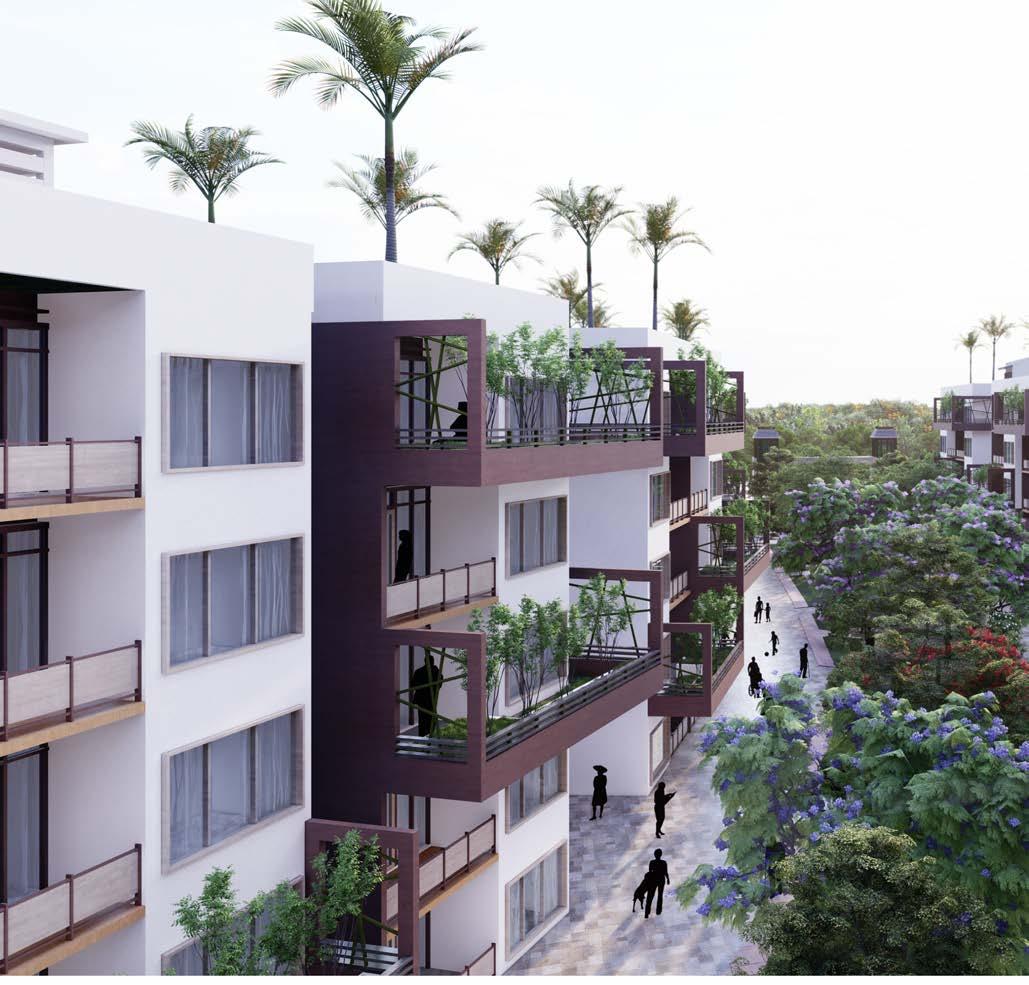

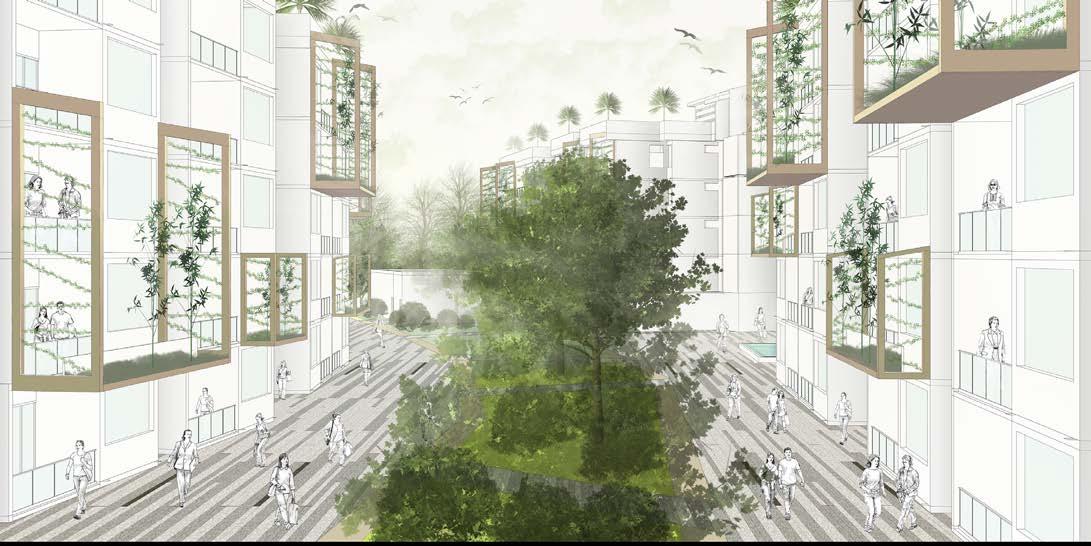

Green Lung Alley between apart ment Duplexesblocksarebuilt according to Passive House standards at the uppest part of the apartment. The rows od housing are also filled with a tropical ecosystem feeling for the local flora and fauna. The entire apartment is come with carbon neutral approaches and powered via a number of renewable energy sources. Power would be generated from solar photovoltaics on the rooftop and kinetic pavement along the green belt.

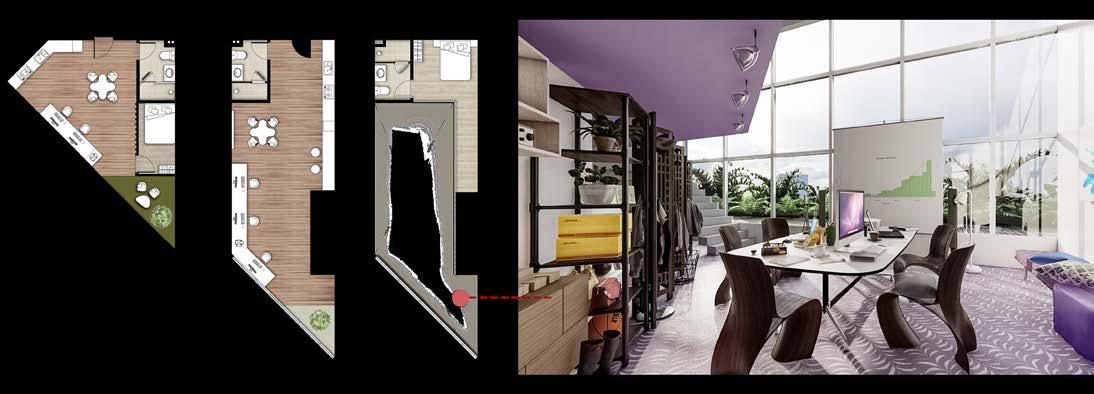

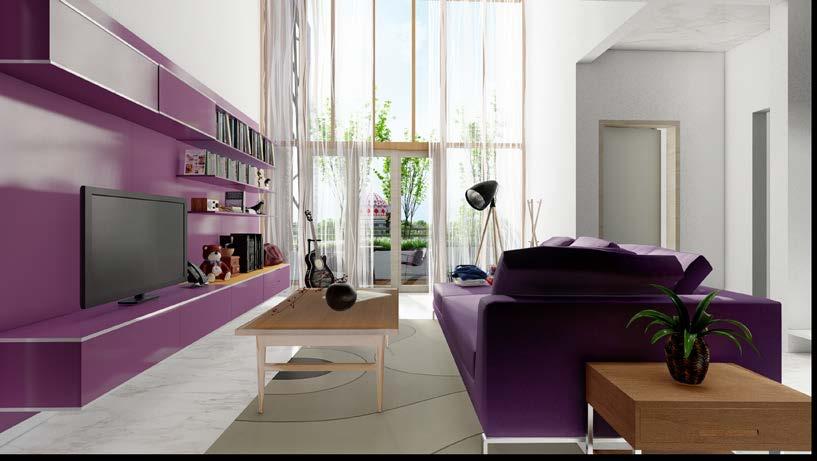

Duplex Unit with pop out green design
MASTER PORTFOLIO
Ground Floor Plan Typical Apartment Floor Plan
Green Lung alley with swimming pool and kid pool
MASTER PORTFOLIO
Ground Floor Unit Looking to the mosque
MASTER PORTFOLIO

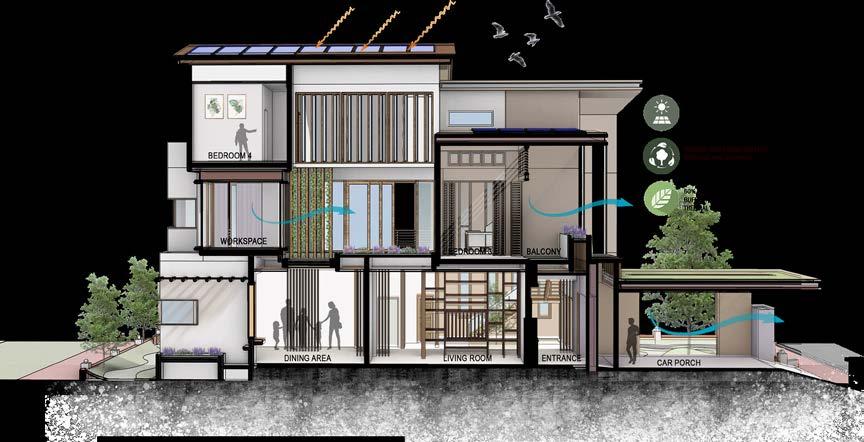

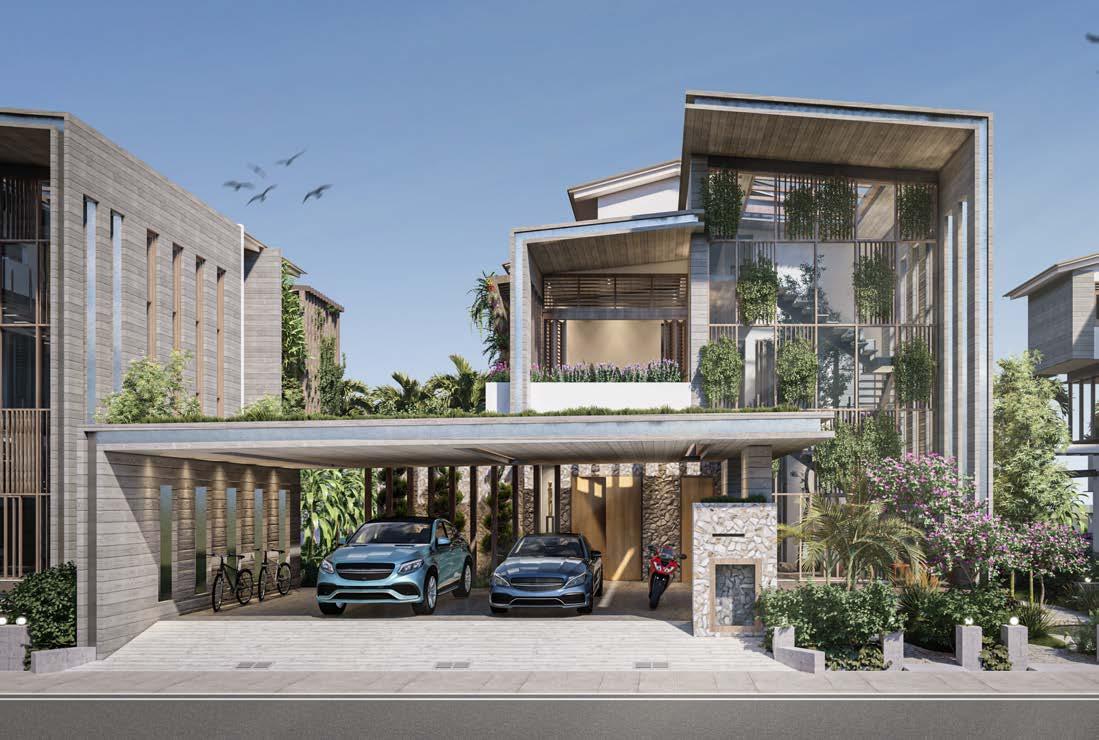

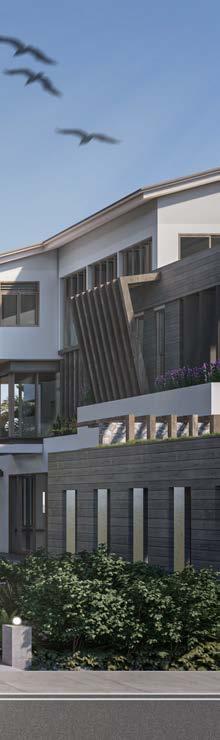

Bungalow in the garden
With the minimalist design language, the irreg ular interspersion of function, structure, and material makes the interior space more interest ing. Wood, glass, concrete, and other materials represent the mountain environment. In order to create a relaxed living atmosphere, large area of glass folding doors are used to enclose the ex isting verandas on the ground floor, which brings in plenty of sunlight, eliminates the boundary between inside and outside, and allows users to enjoy nature. When the glass folding doors are fully opened, the distance between the dining room, living room, teahouse and the outdoors disappears, and people could gain greater mobil ity and peace in the space.
Most of the furniture, main frame and walls of the house are made of reclaimed lumbers collected from the structure of old demolished buildings. Different types of stone, wood, concrete, glass, terracotta, textile, water, greenery…create a good color palette. Users can have a good sleep in this cozy and calming atmosphere. Operable timber screens and cladding provide relief to the heavy materials of the existing house and allow the inhabitants to adjust to changing light and climatic conditions.
MASTER PORTFOLIO

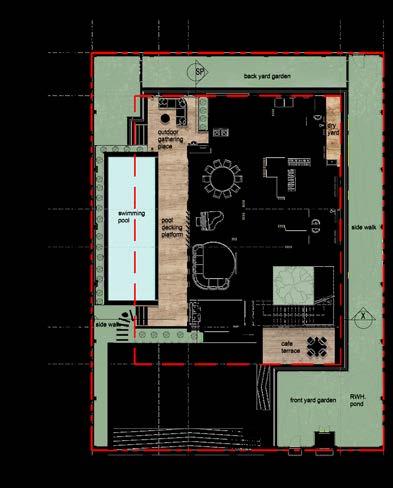

Innovation Design Ground Floor Plan First Floor Plan Second Floor Plan
All the bedrooms and restrooms offer privacy and calming atmosphere by a natural stone wall that wraps around, creating the inner gardens for each space. Throughout the house, framed views of a sequence of garden spaces further evoke the clients’ desired ambiance of tranquillity.

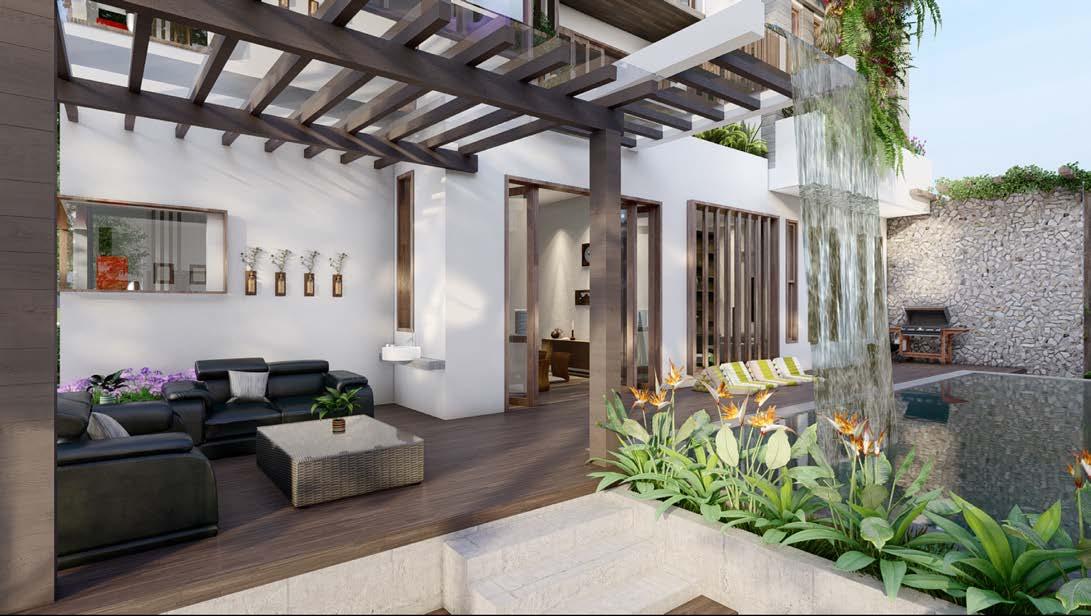

MASTER PORTFOLIO View To Patio & Pool Water FeatureThebungalow is designed to be sur rounded by greenery from every space. Cafe Terrace Front Elevation Left Elevation Rear Elevation

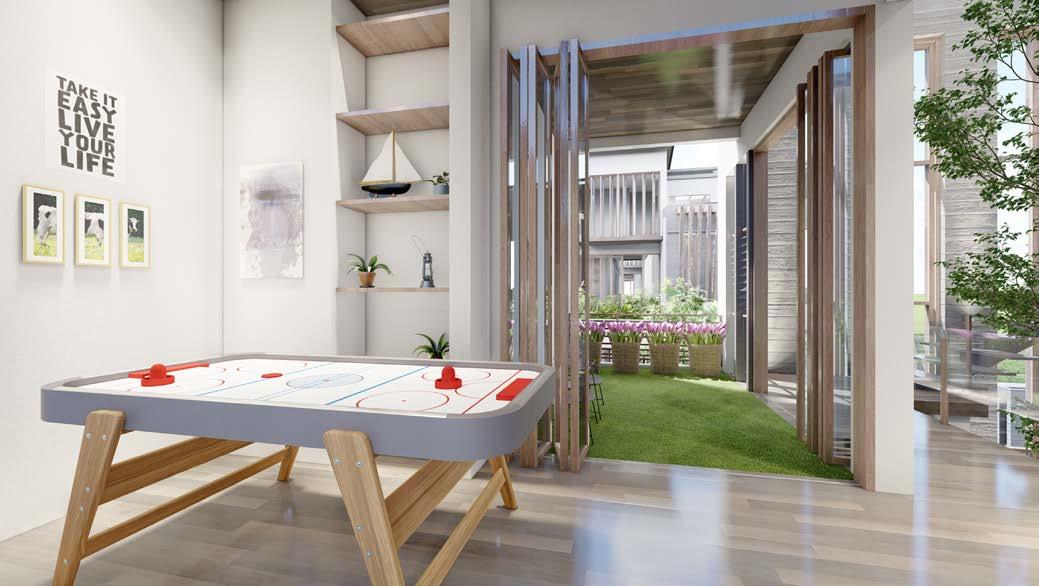

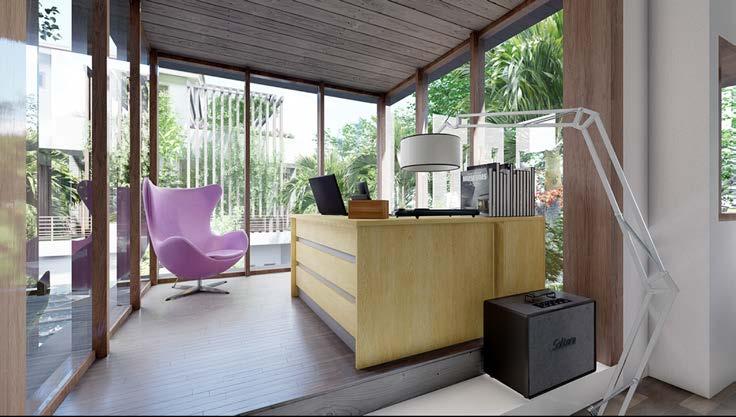

MASTER PORTFOLIO Right Elevation Bedroom 3 Leisure Area Workspace Platform

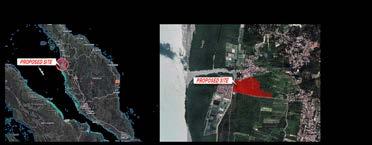

MASTER PORTFOLIO Melaka Gateway Area Proposal: 5 acres Location: Jalan Pulau Melaka 1, Taman Pulau Melaka, 75000 Melaka Mukim: Pengkalan Rama Daerah: Melaka Tengah Lot Number: 10370-10371 Poskod: 75000

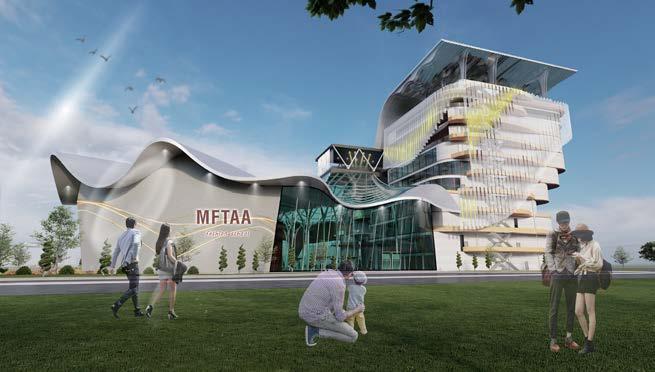

MASTER PORTFOLIO Malaysia’s Fashion, Textiles and Apparel Academy (MFTAA) 05 fashion academy
MASTER PORTFOLIO Ground Floor Plan
MASTER PORTFOLIO
Malaysia’s Fashion, Textiles and Apparel Academy (MFTAA) offers quality assured, flexible training at all levels from pre-entry traineeships to foundation degree equivalent programmes as well as support students, educators, consultants, policy makers, freelancers, management teams, brand and retail employees to address sustain ability from the ground up, develop and refine strategies, and leverage needed cross-depart mental dialogues.

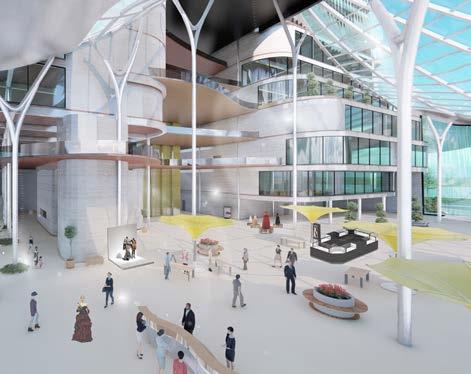

The atrium, as the ground surface; accessible to all urban fabric, rises to envelop an equally public interior space and define a sequence of event spaces dedicated to the collective celebration of con temporary and fashion culture.

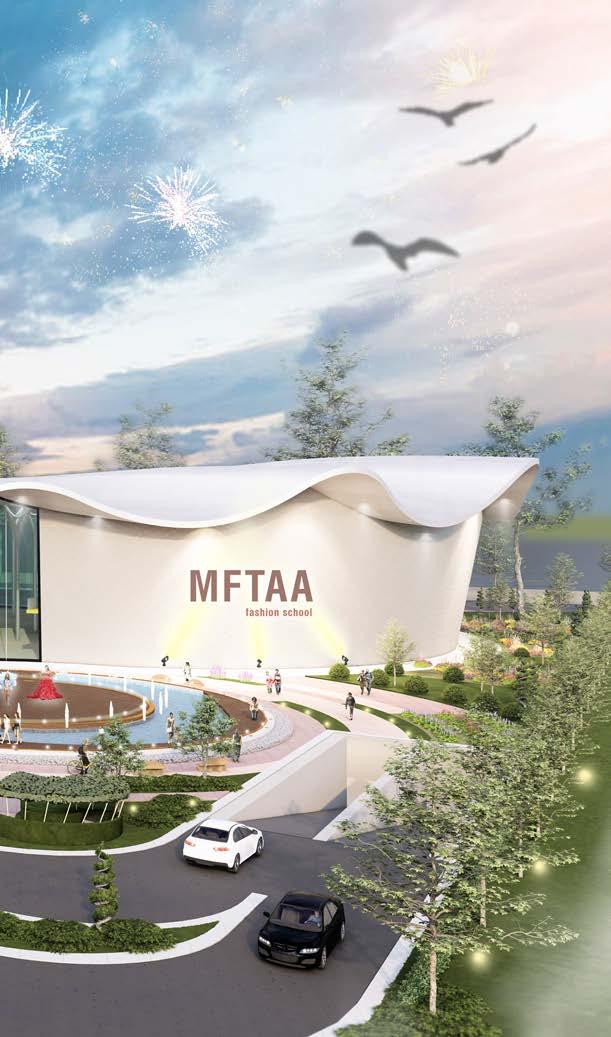

Malaysia’s Fashion, Textiles and Apparel Academy (MFTAA)

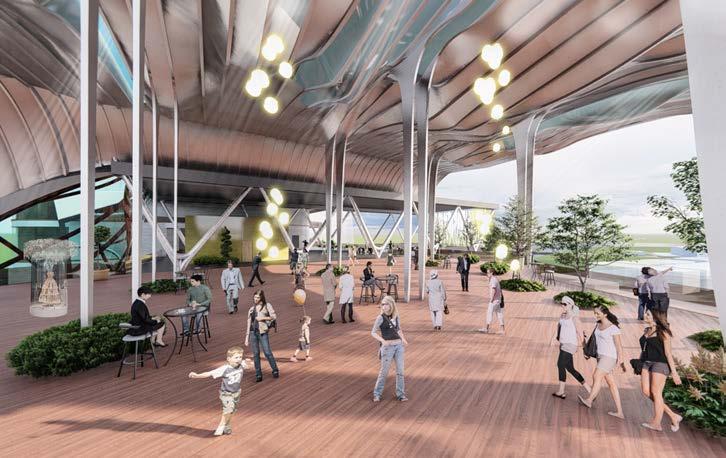

Rooftop Garden

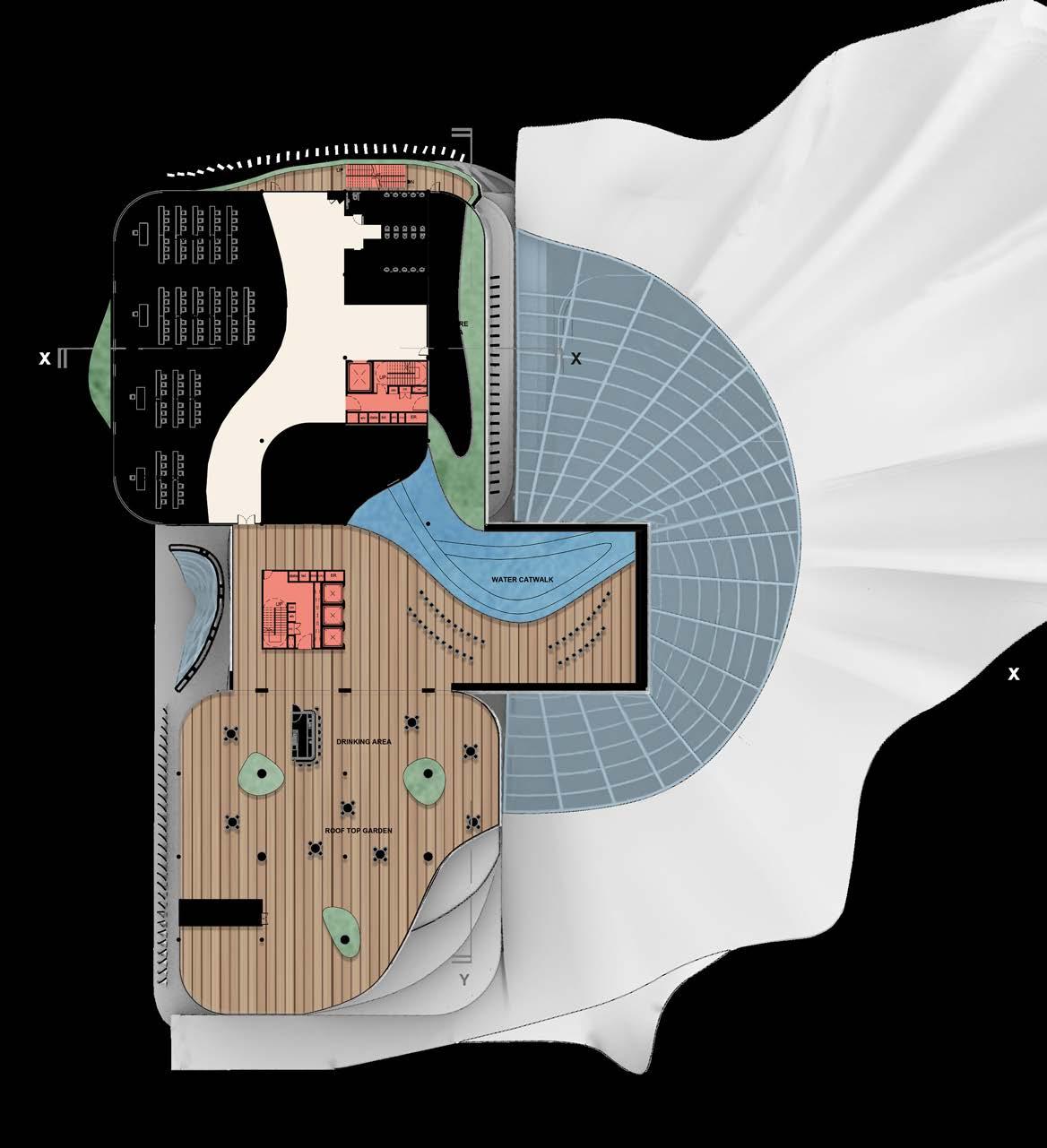

with water catwalk and rooftop garden Main Entrance 7th Floor Plan

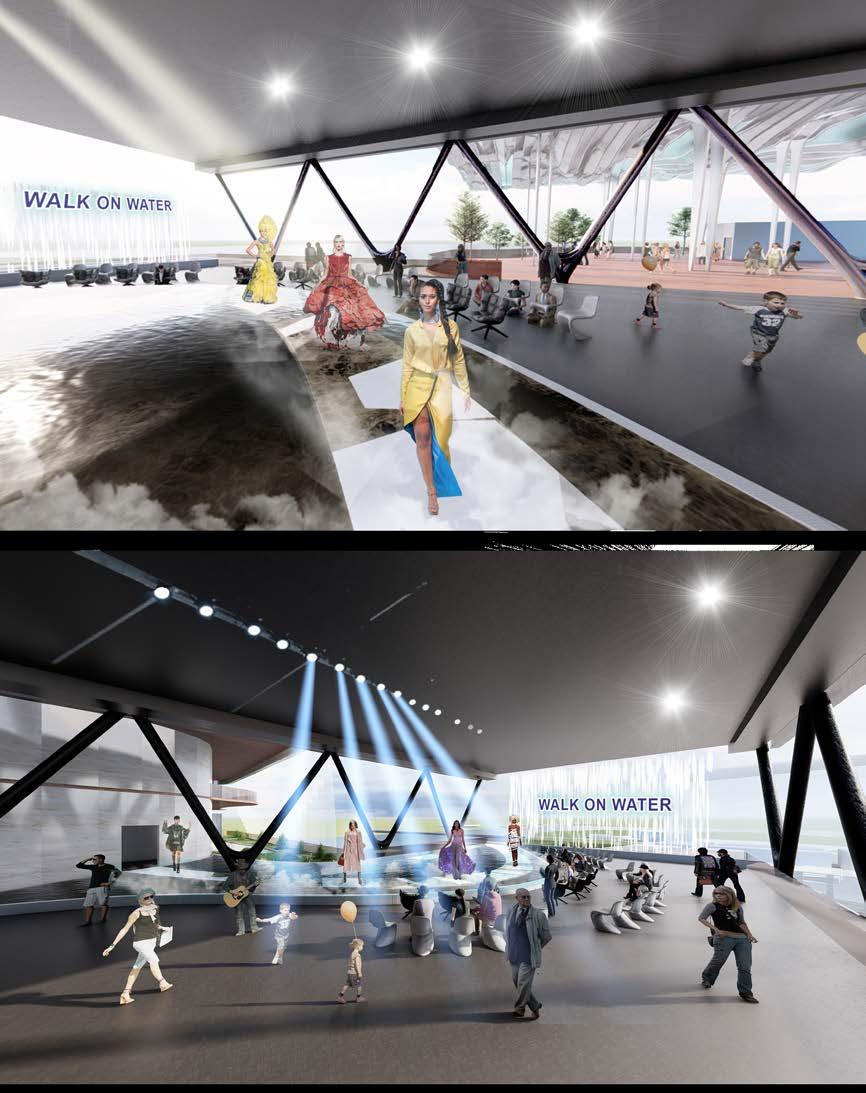

Water

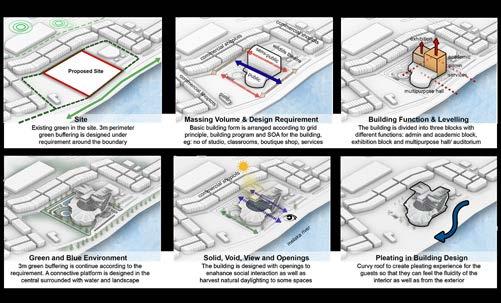

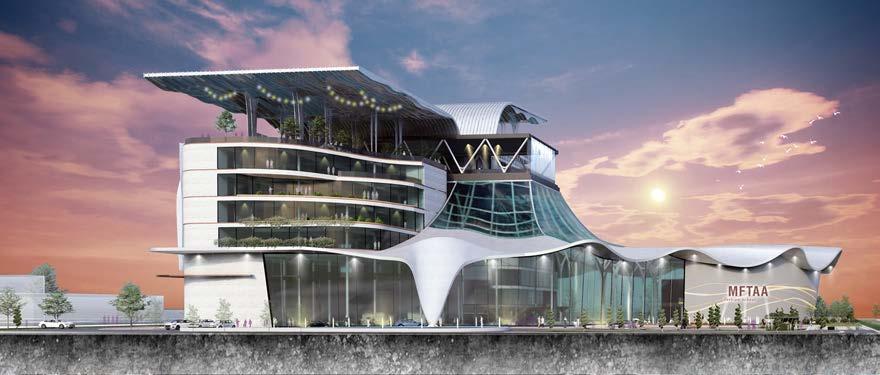

The building design is inspired by the pleating of the cloth and hence aims to offers a pleating of perspectives and connections between the academy and its surroundings. Three distinct program elements —academy, common spaces/conference center, and exhibition — are arranged around a 5 acre site. The academy incorporate key sustainability solutions such as shaded outdoor terraces, low water plantings, rainwater collection, and reduced heat island effect. CatwalkFashion
MASTER PORTFOLIO
Reception

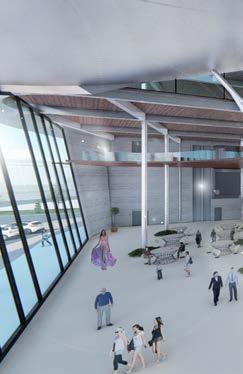

Second entrance along the Melaka RiverLobby

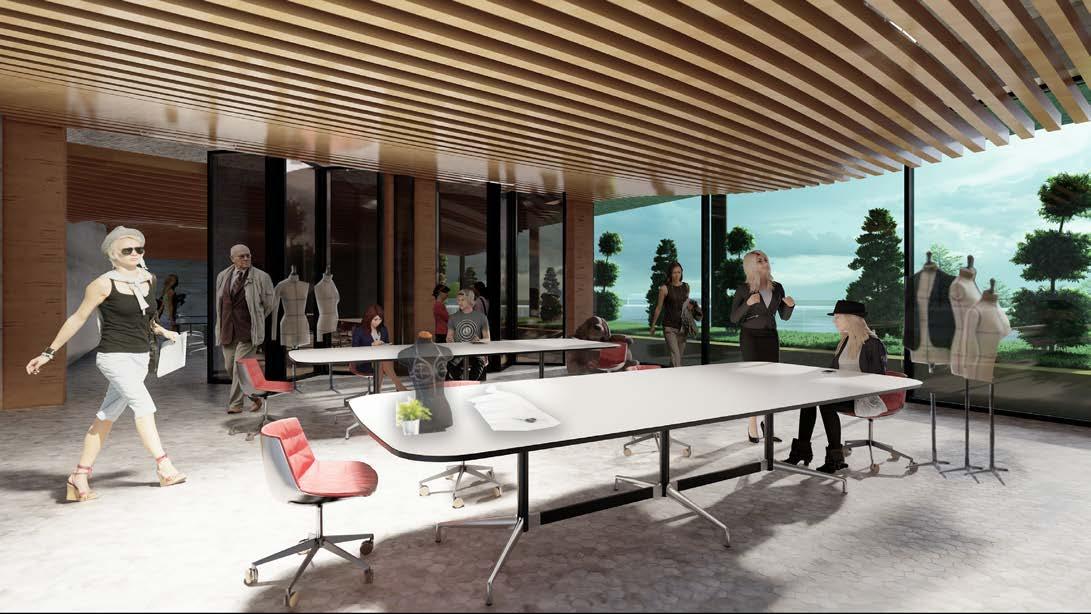

MASTER PORTFOLIO Fashion Studio Office Section Y-Y
MASTER PORTFOLIO
MASTER PORTFOLIO

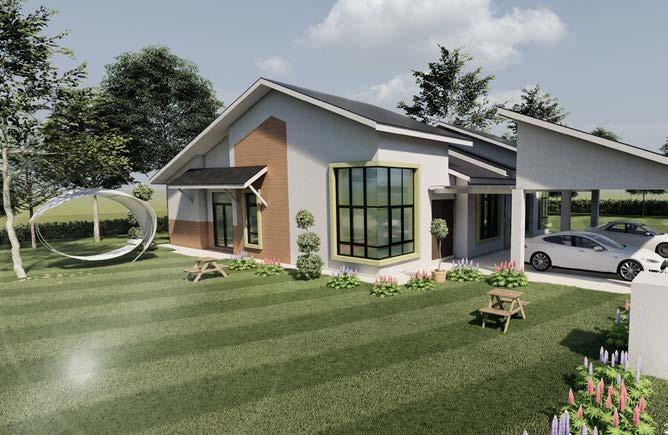

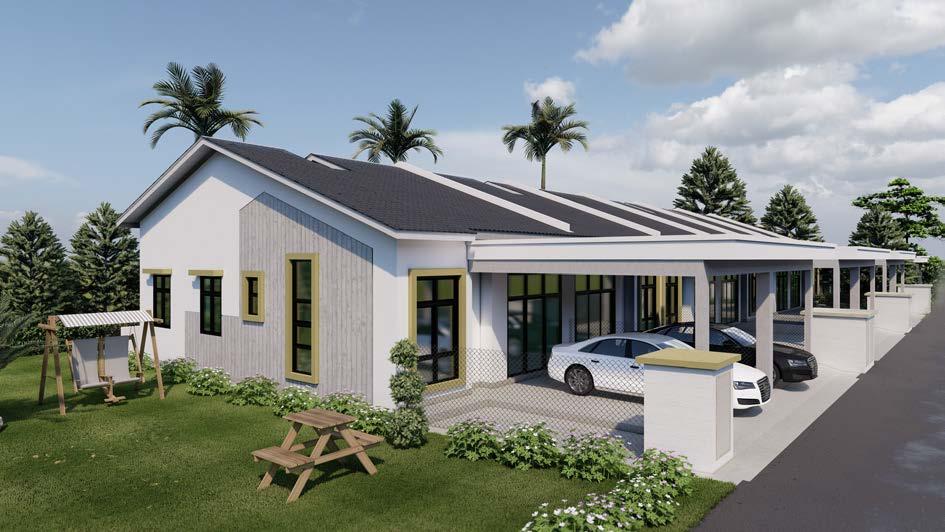

MASTER PORTFOLIO Housing Rendering in Melaka
SocietyReligionCulture
MASTER PORTFOLIO

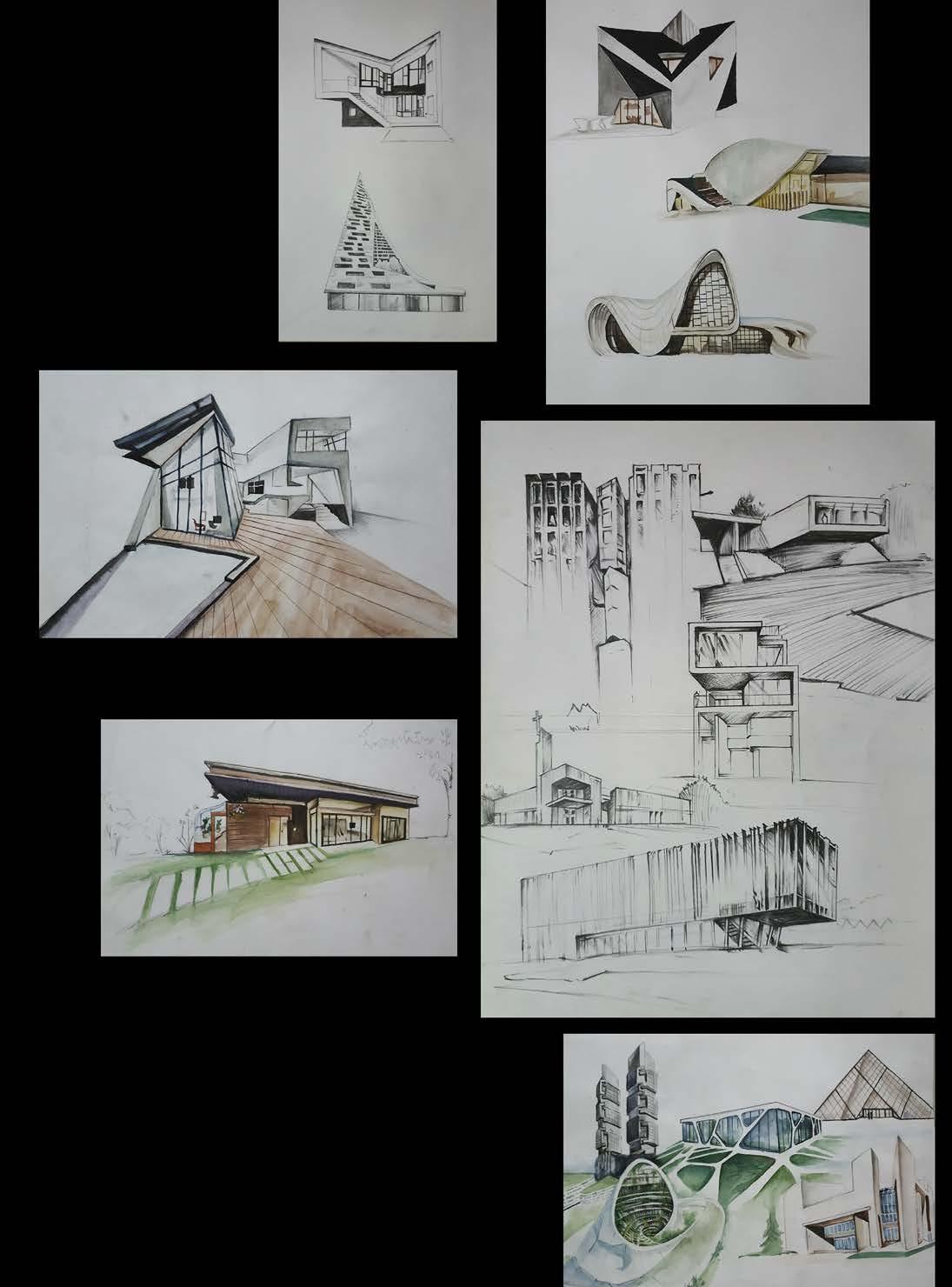

MASTER PORTFOLIO Architecture Photography & Drawing
