connexistence

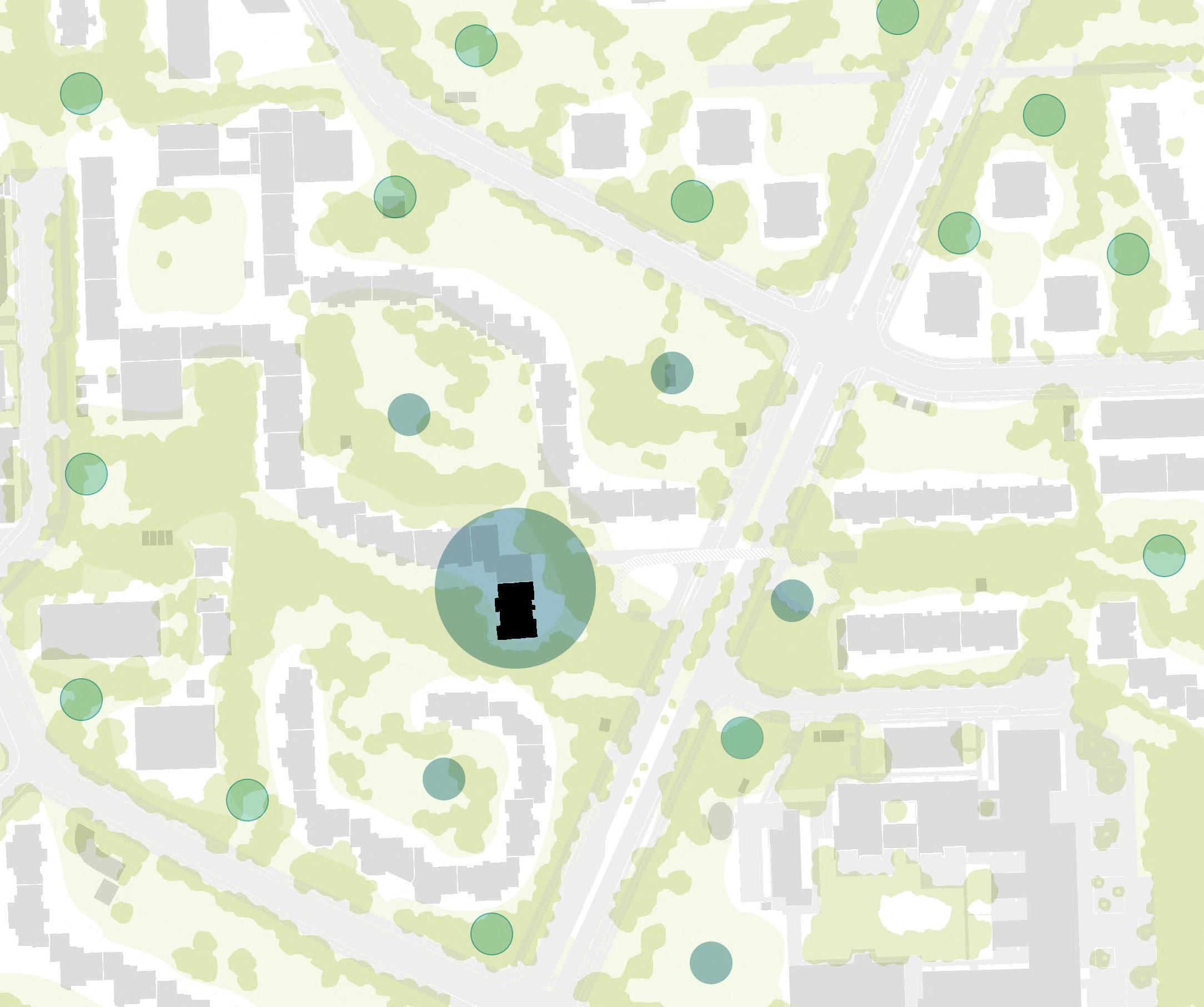

context and green conections

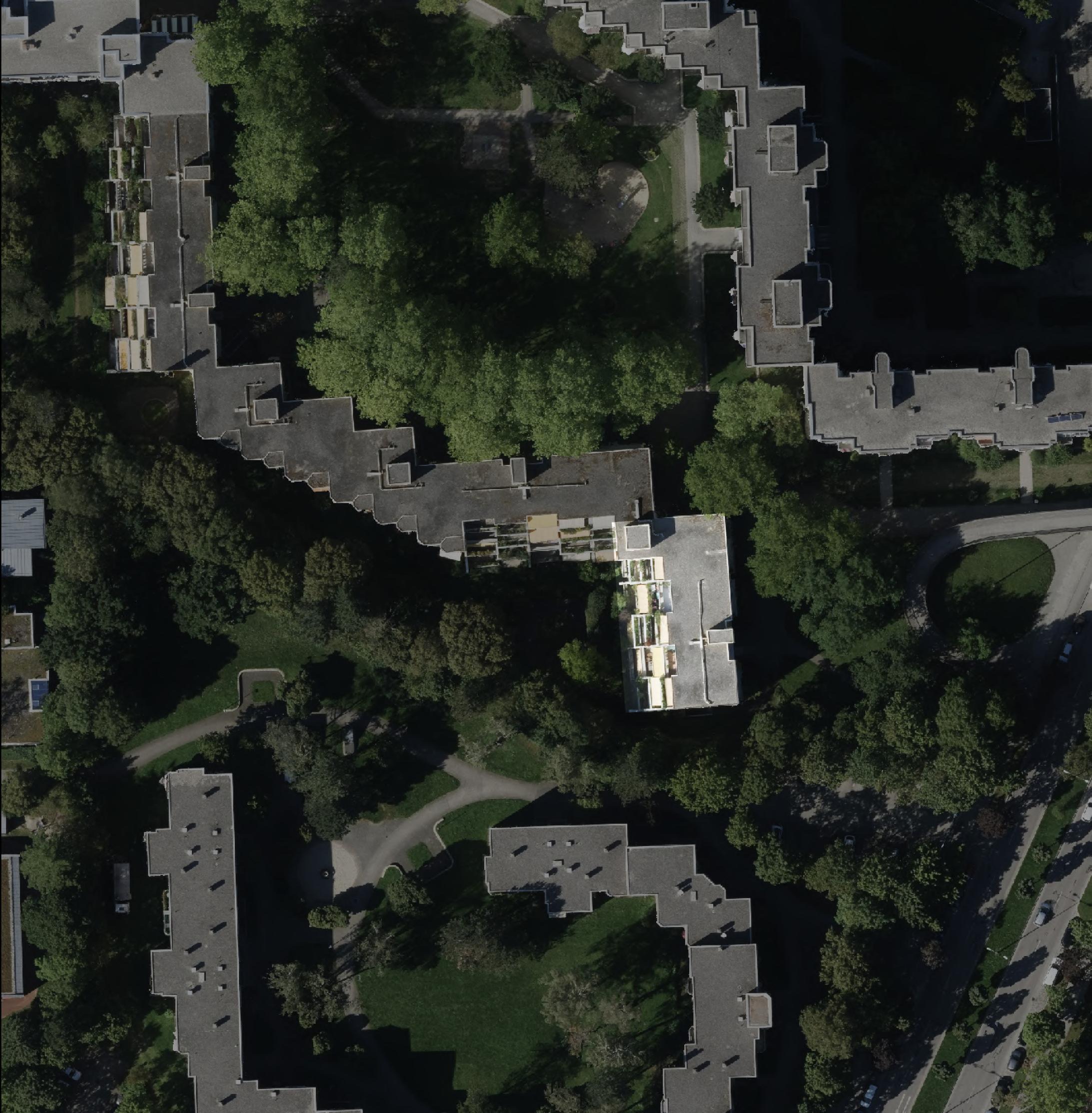

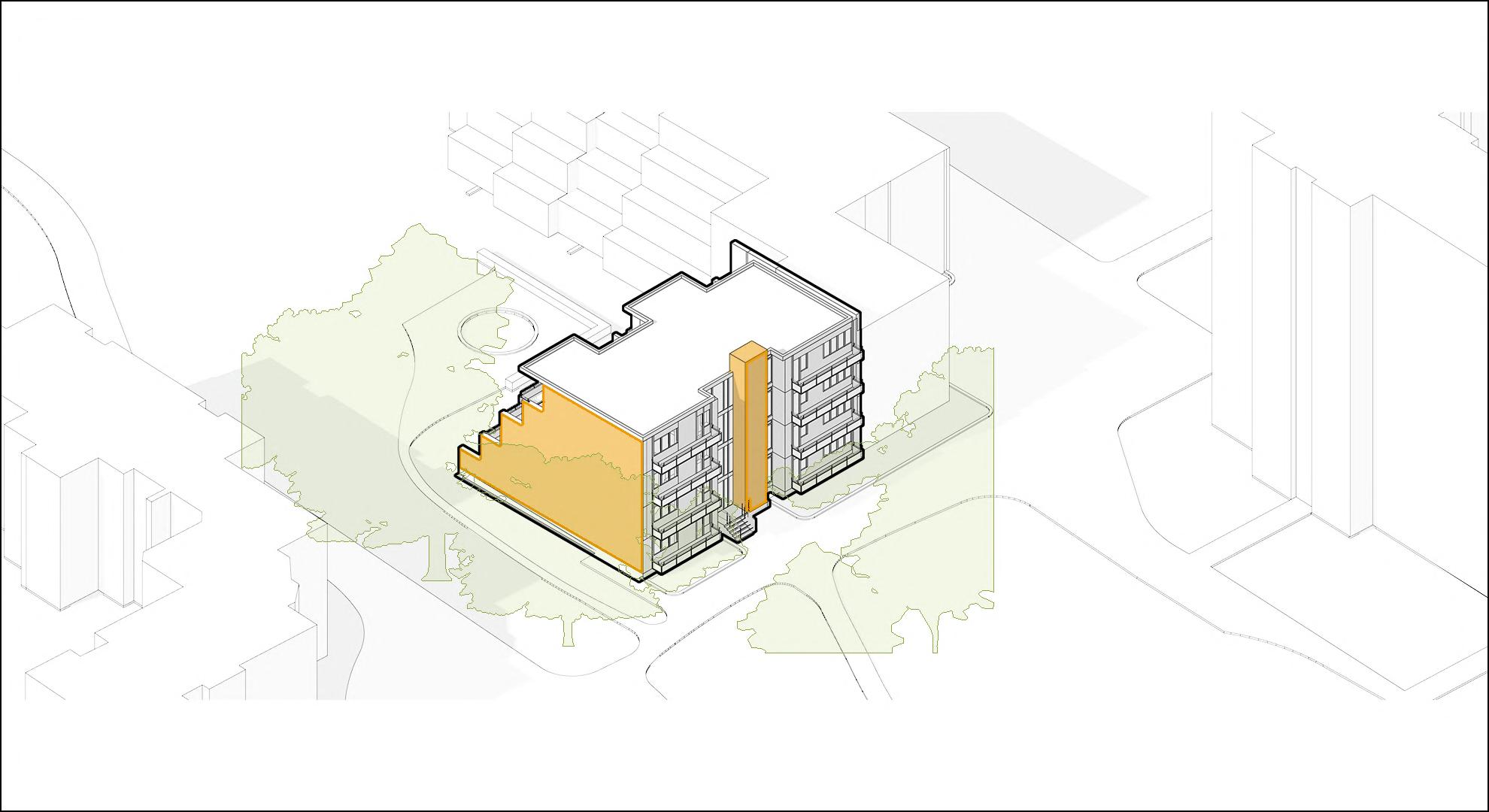

building analysis

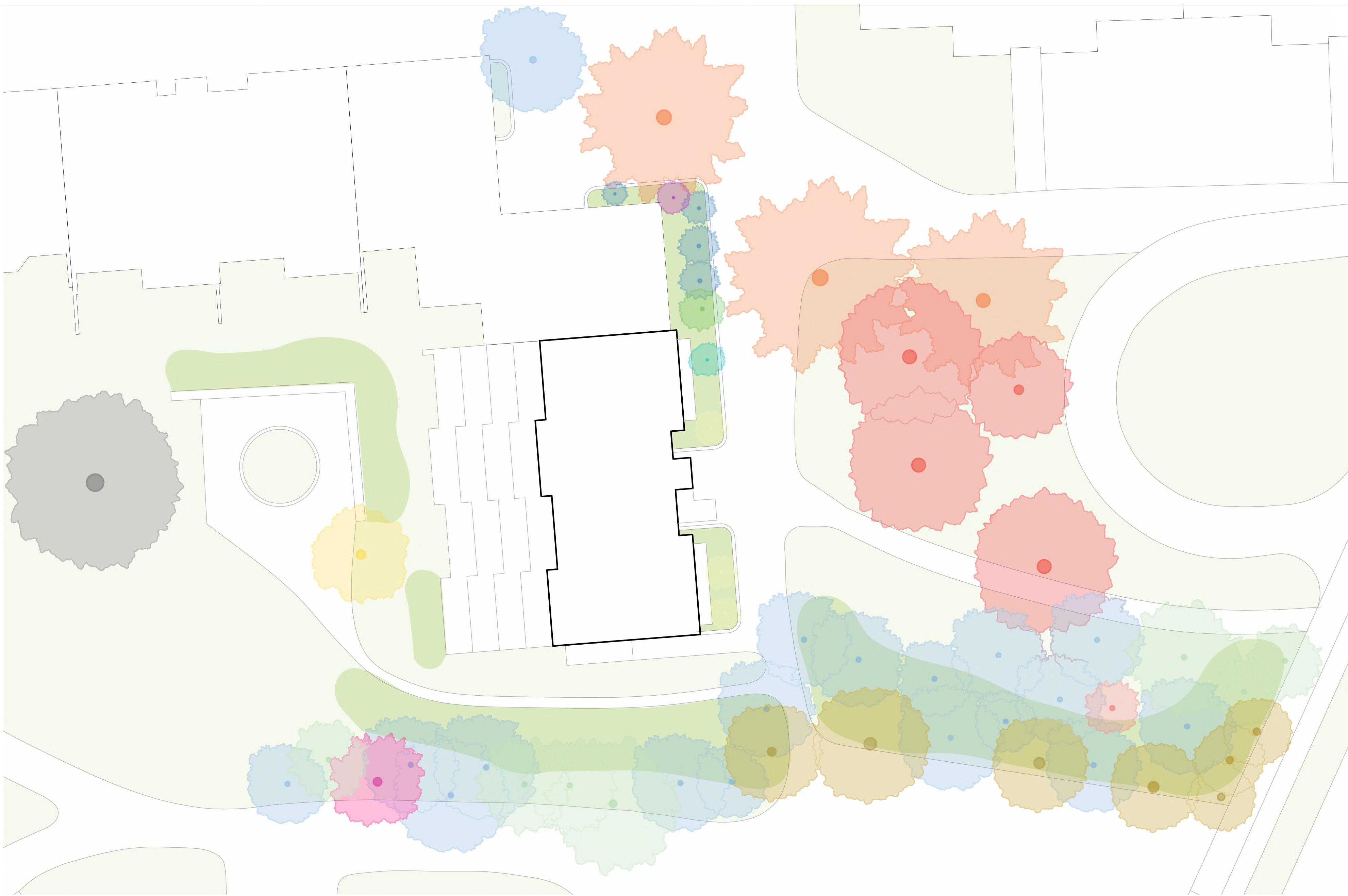

Trees
Green extension

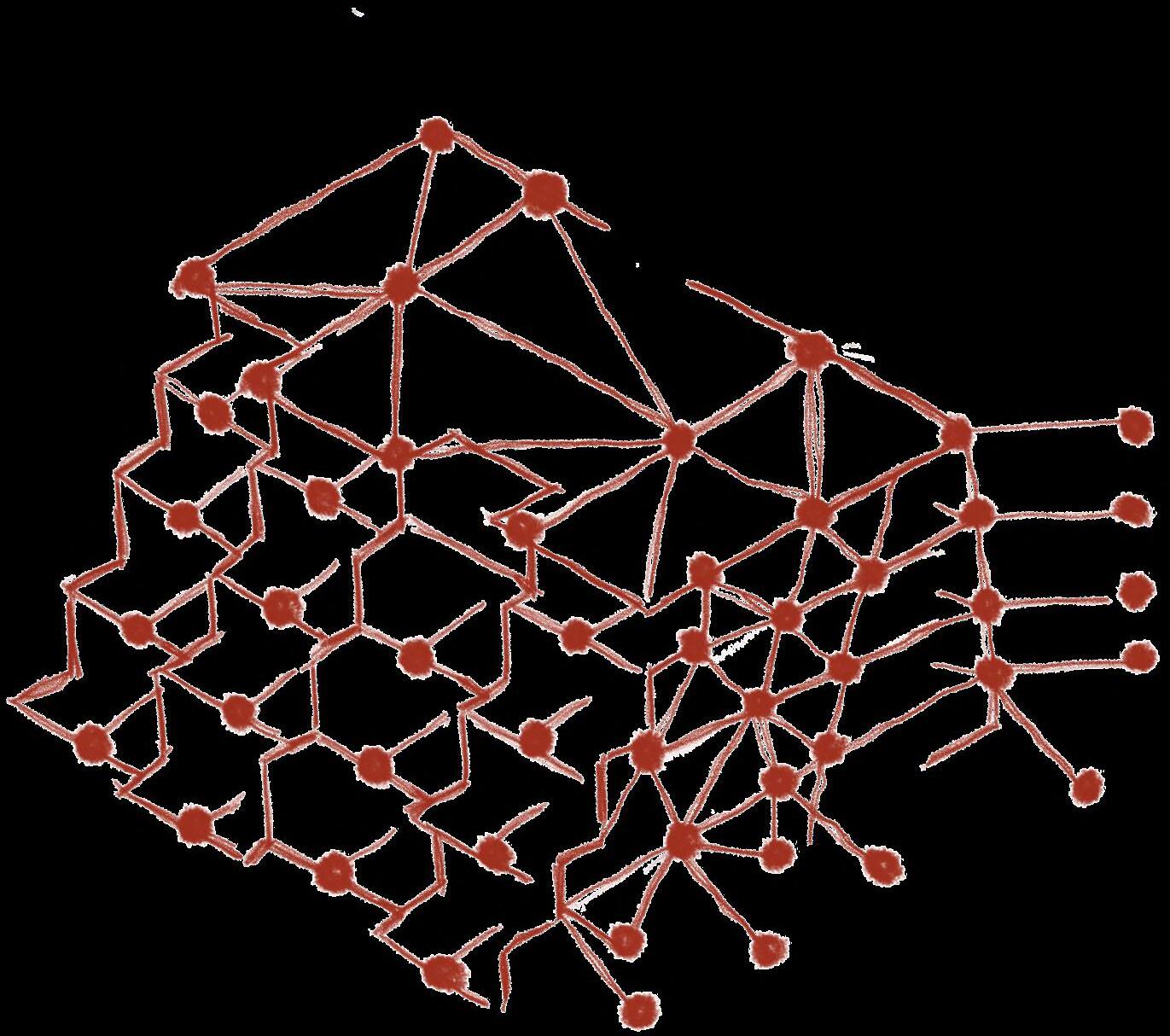

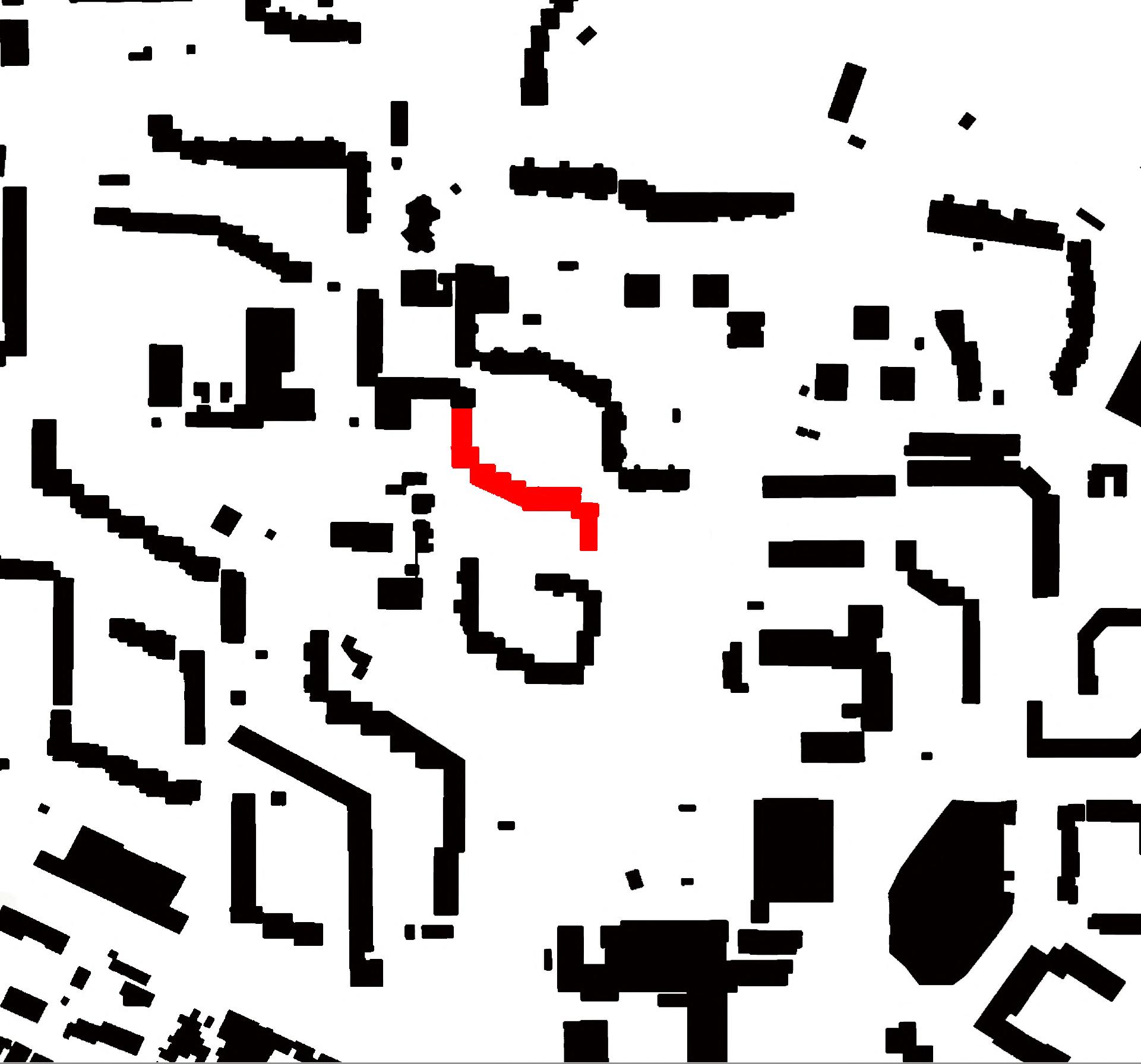

Existing connections

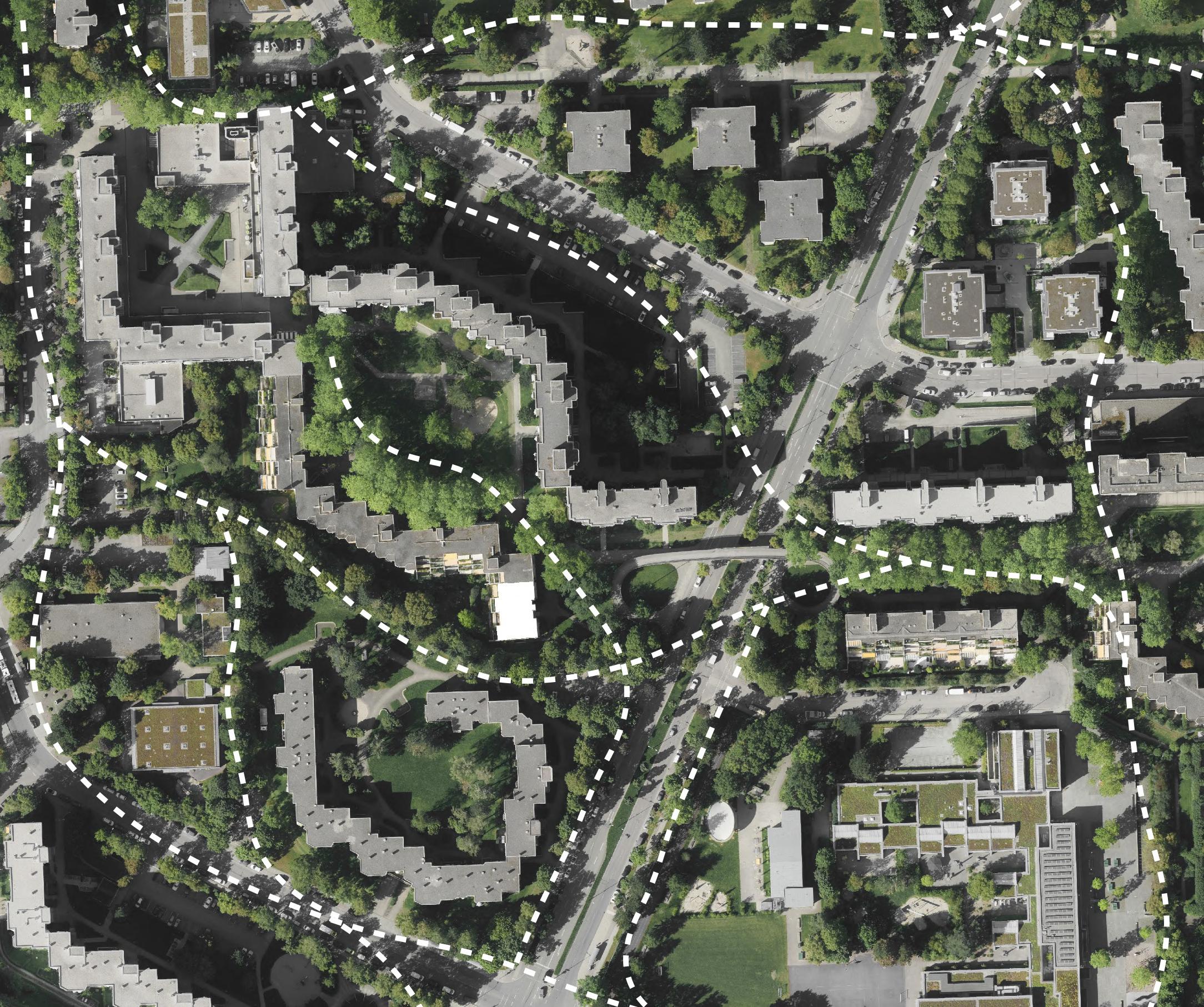

Possible / Interrupted connections
the
Survey of existing plants
Filtering and categorization
Research of native plants

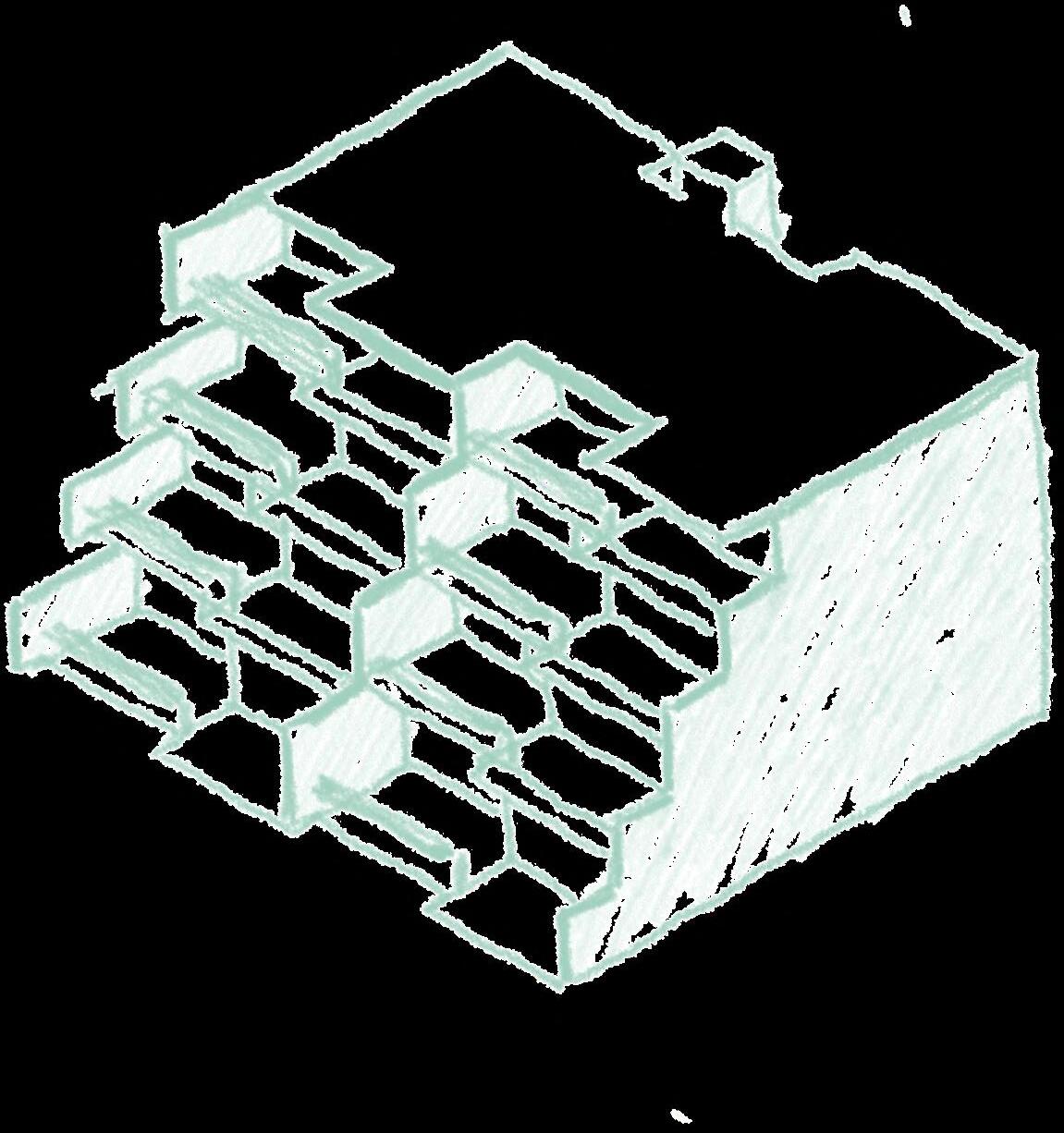

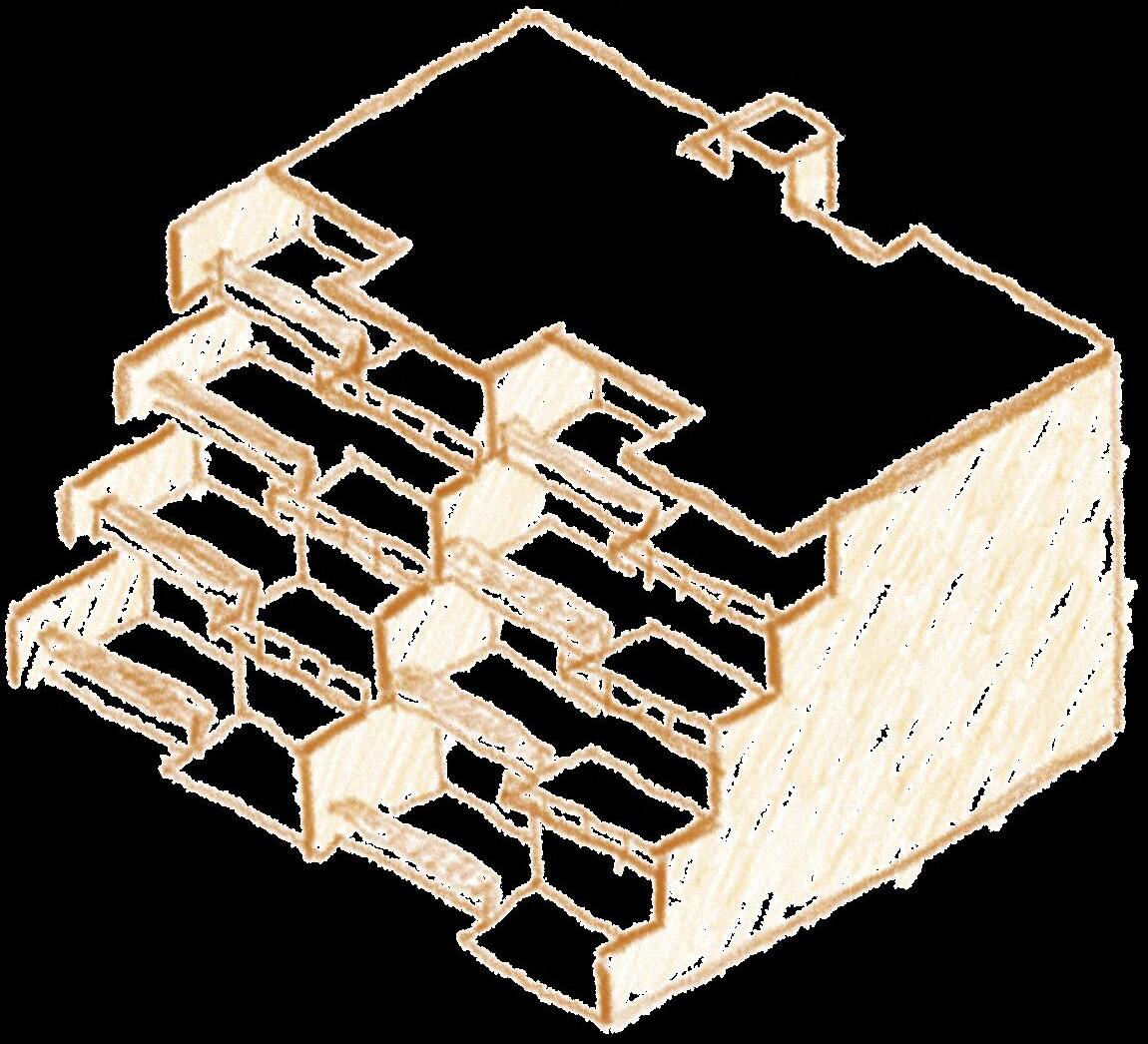

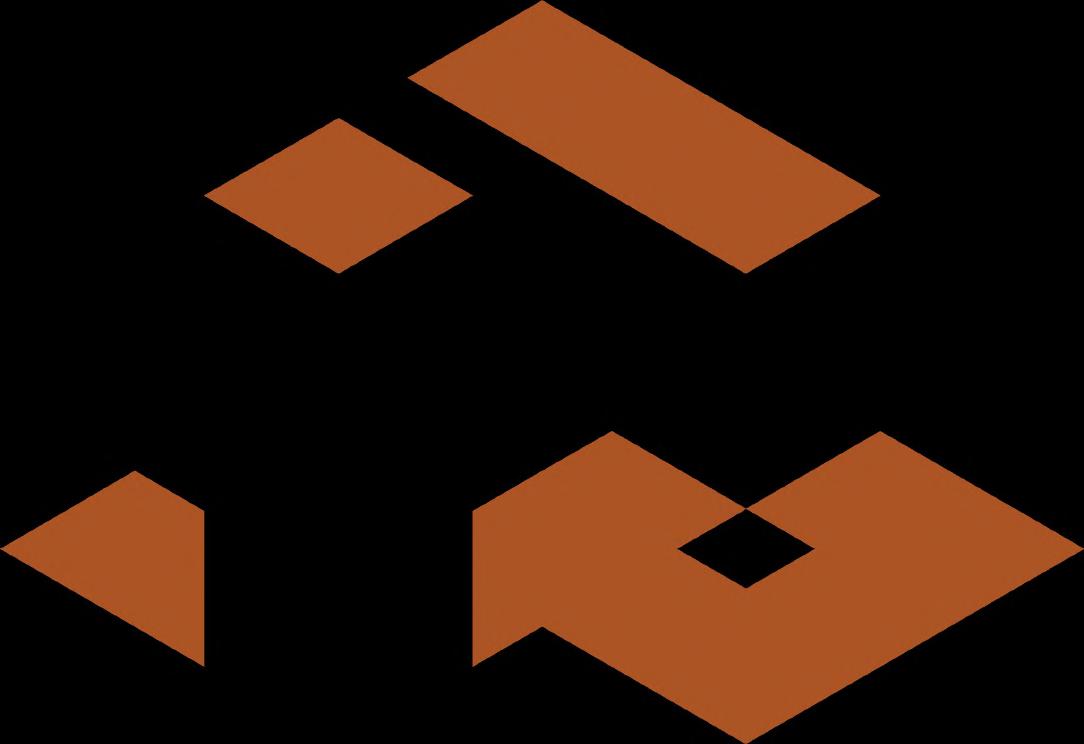

Basic concept of modularity
Consolidation of design concept
Analysis of possible volume minimizing shading
Review

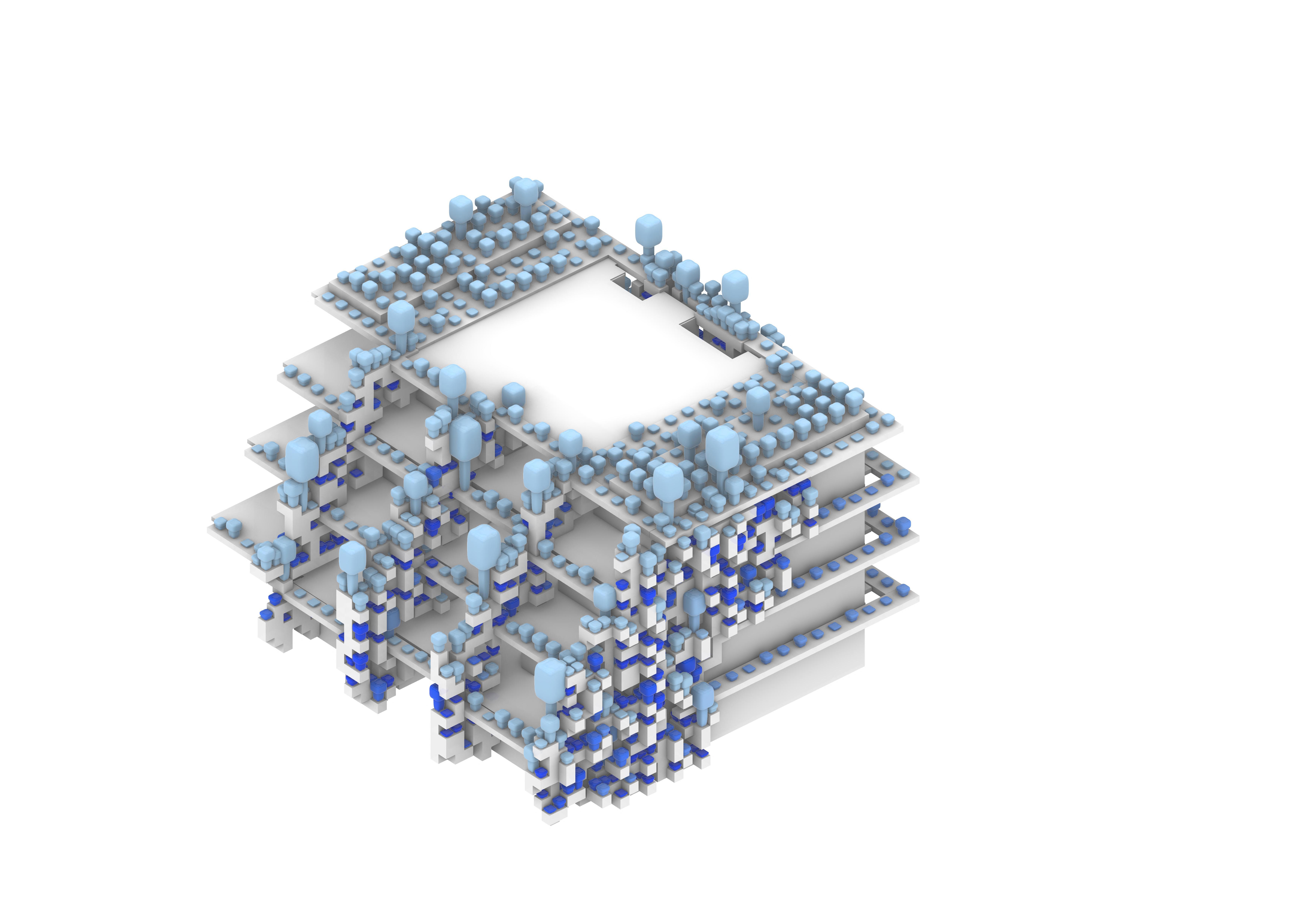

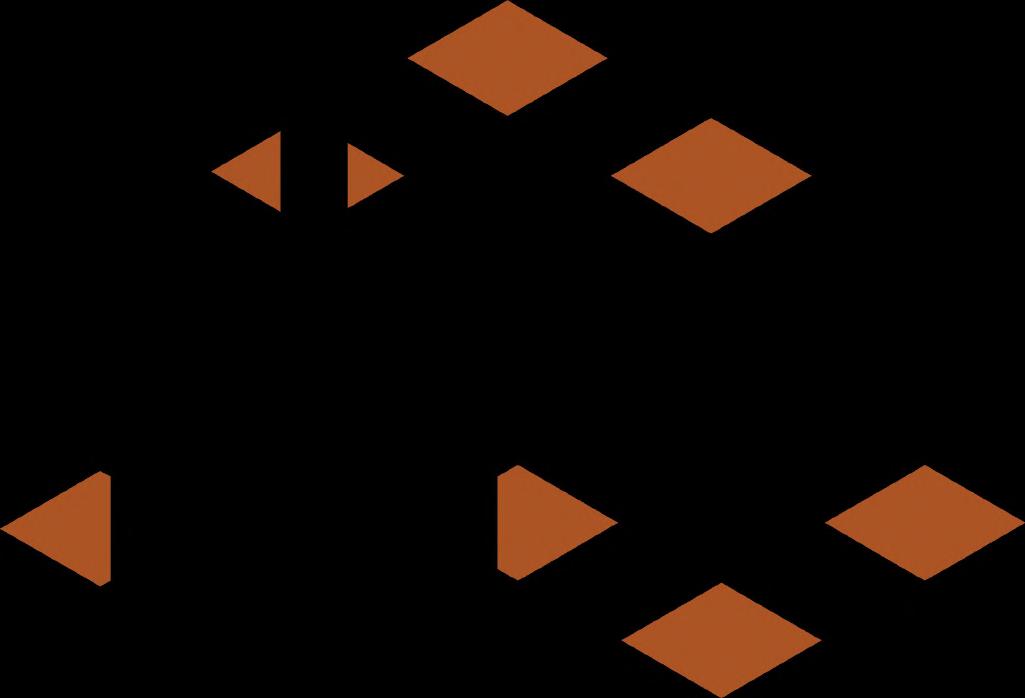

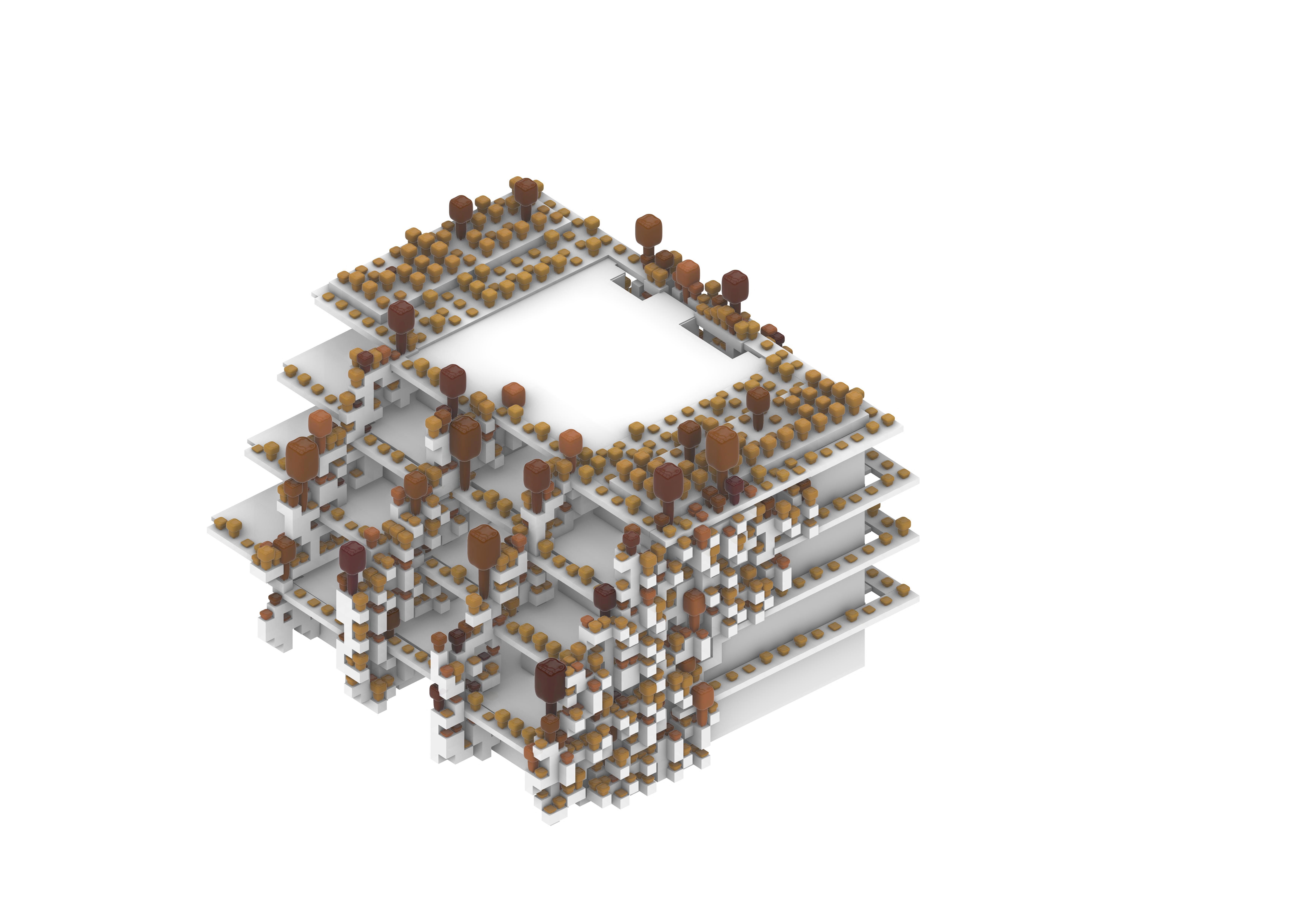

Optimized distribution of modules
Further development of modules and internal connections
Survey of existing animals
Selection of animals

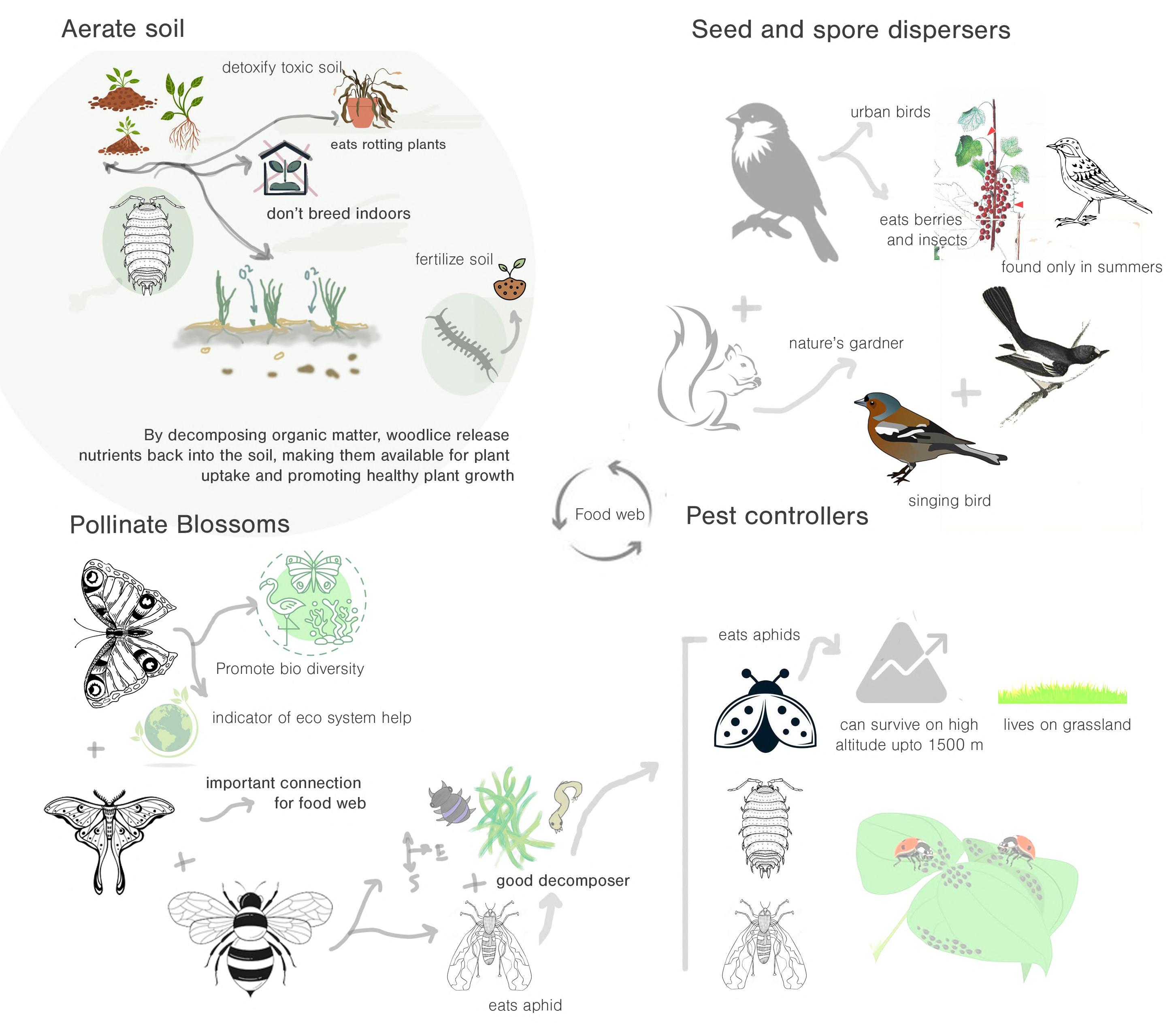

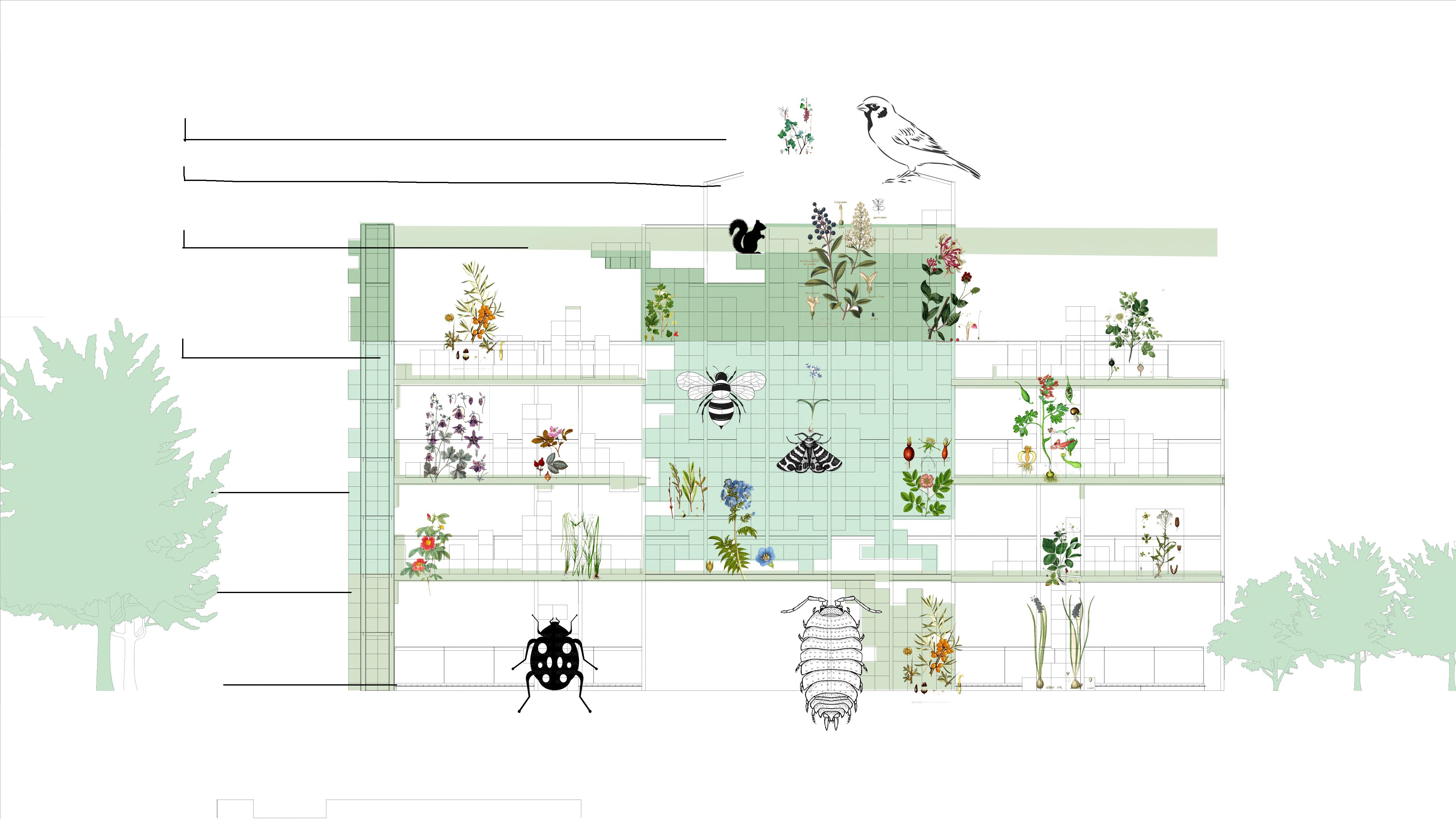

Survey of animals to attract, according to role in ecosystem
Categorization in relation with interaction with selected plants
Distribution of plants
Structure dimensioning
Selection of suitable plants

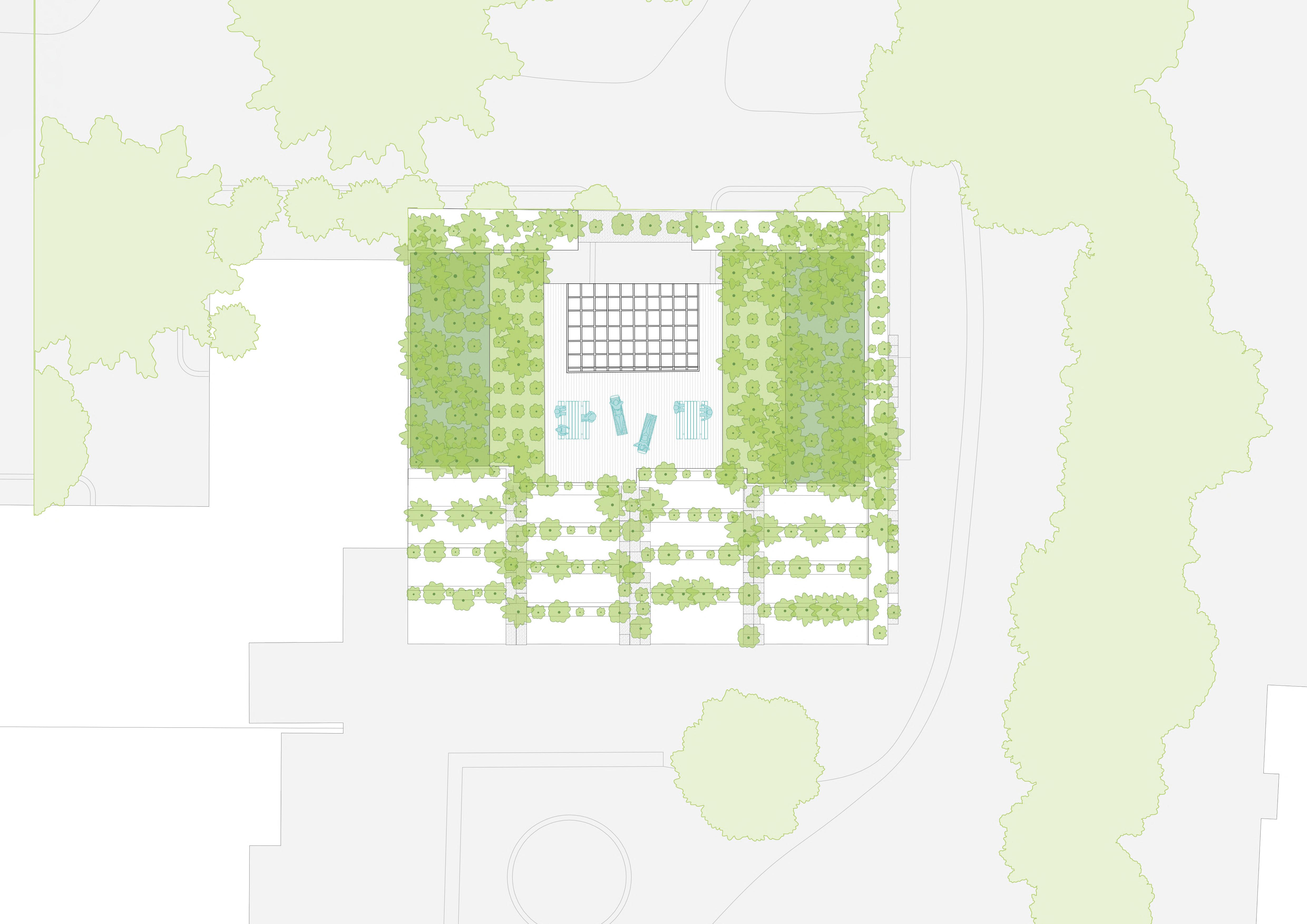

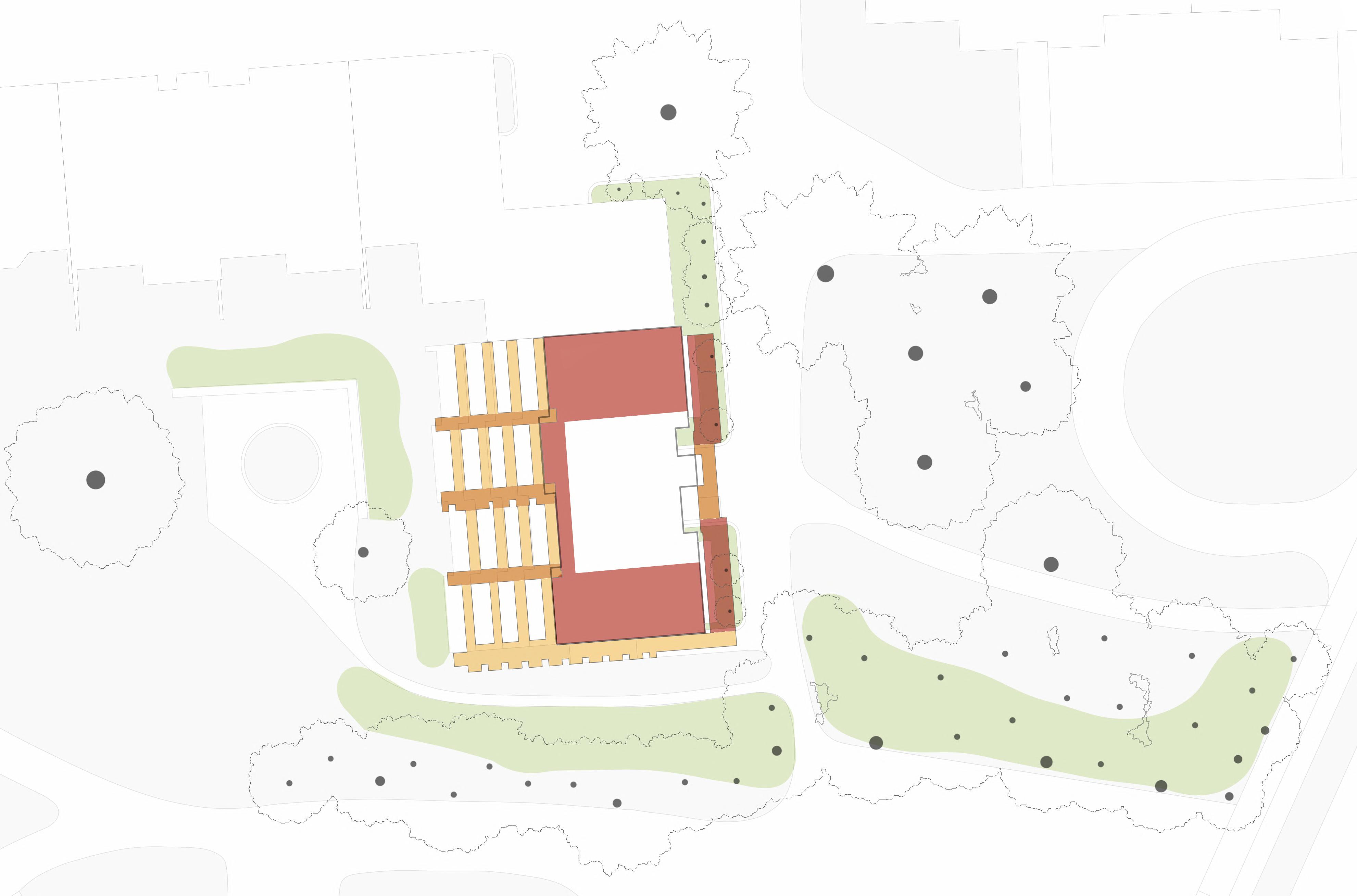

Landscape design

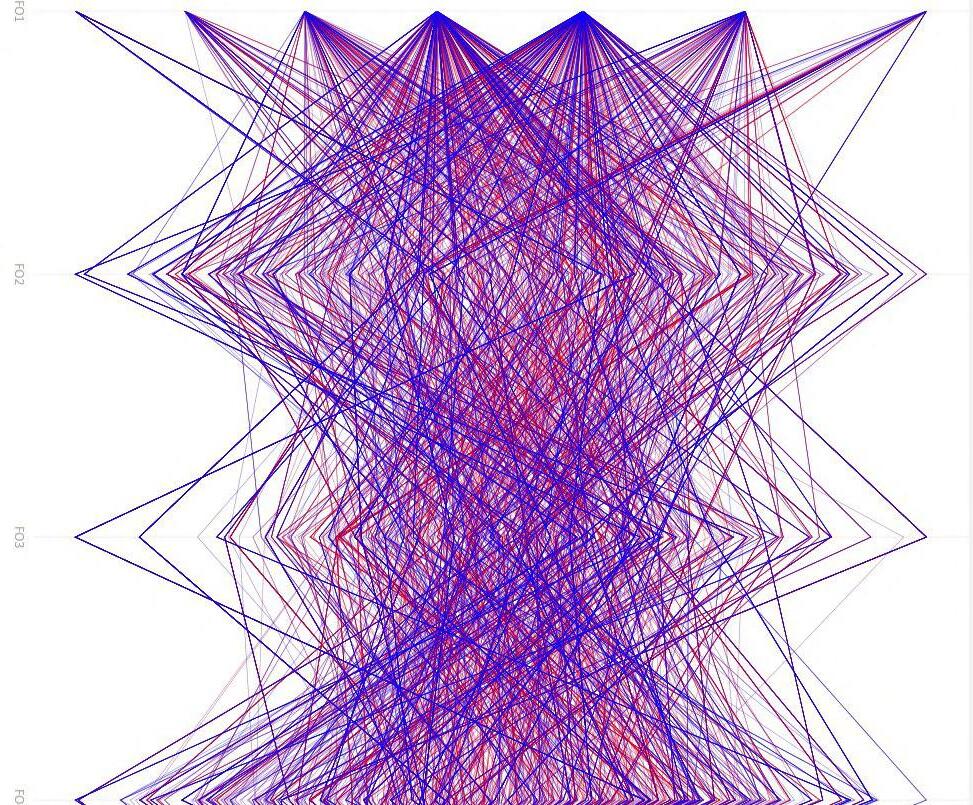

Architecture design Optimization process
the roof
GTLA

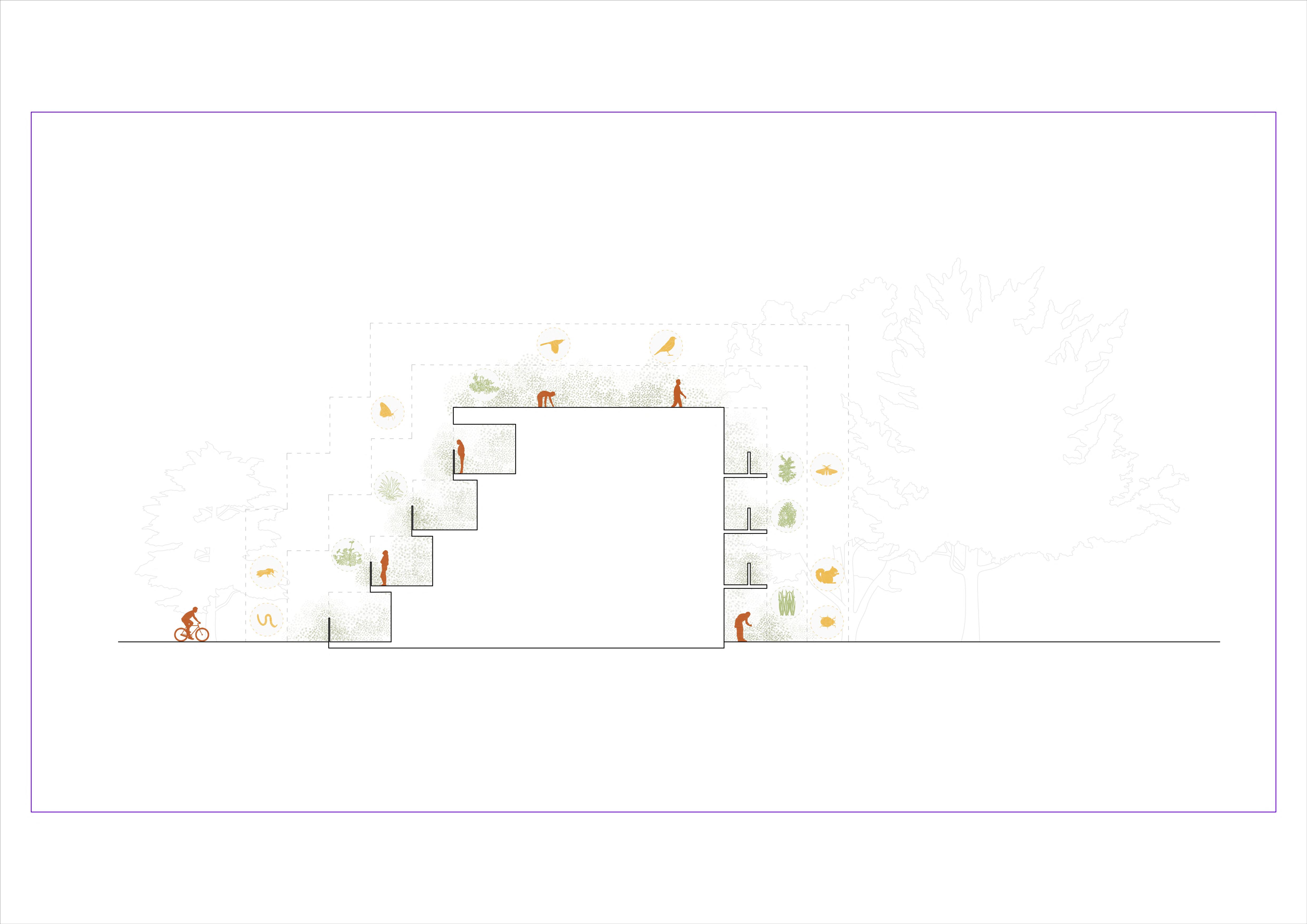

Roof and south façade section
concept and strategies: west façade
Allow vegetation to climb the building above the balconies
Qualify balconies and provide horizontal connectivity
concept and strategies: south façade

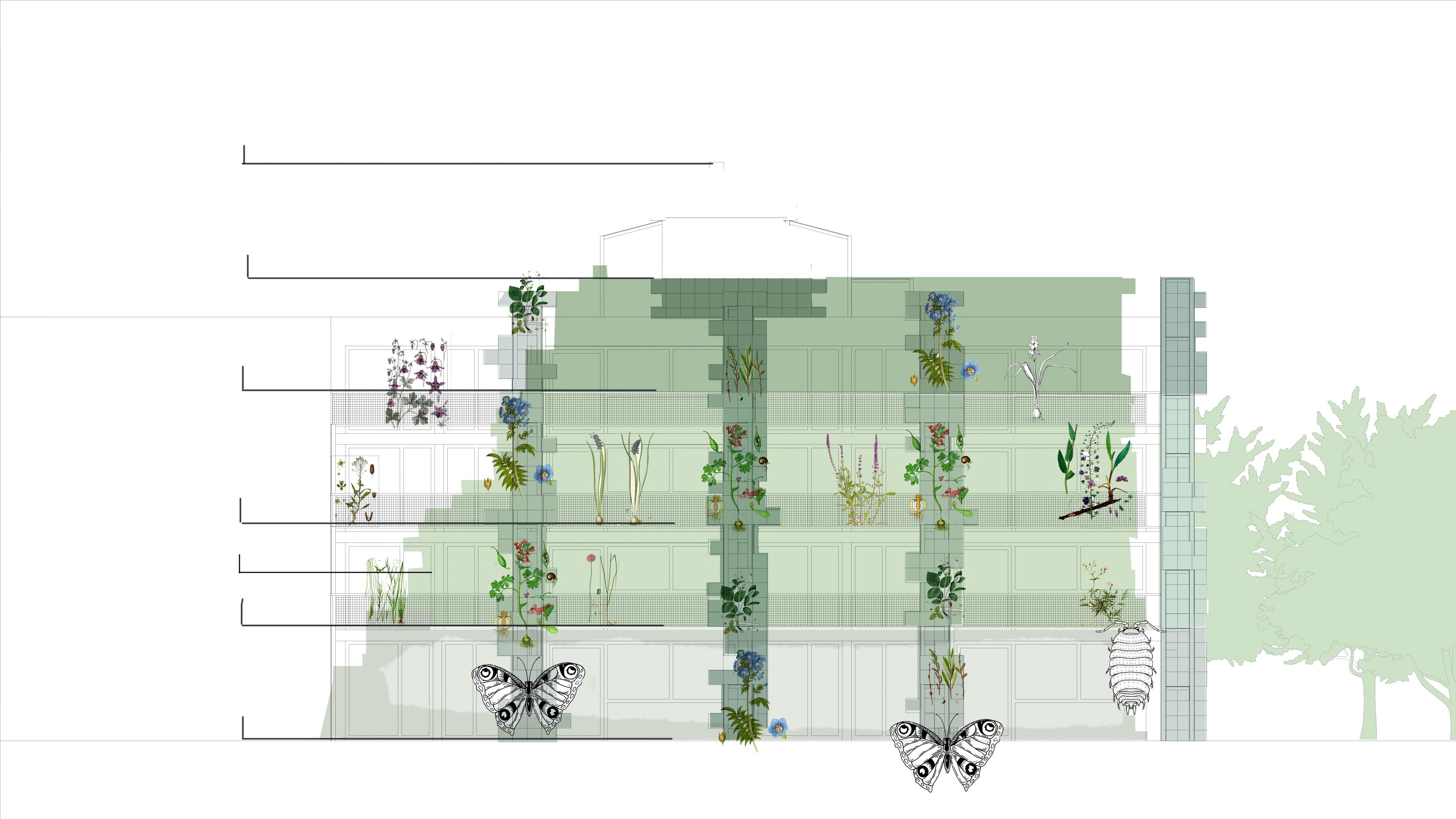

South façade elevation
3
4
Take advantage of the south façade to implement a more complex environment, biotically and abiotically, isolated from the human impact
Connect all surfaces through horizontal light structures
concept and strategies: east façade
Connect the building vertically without creating excessive shading

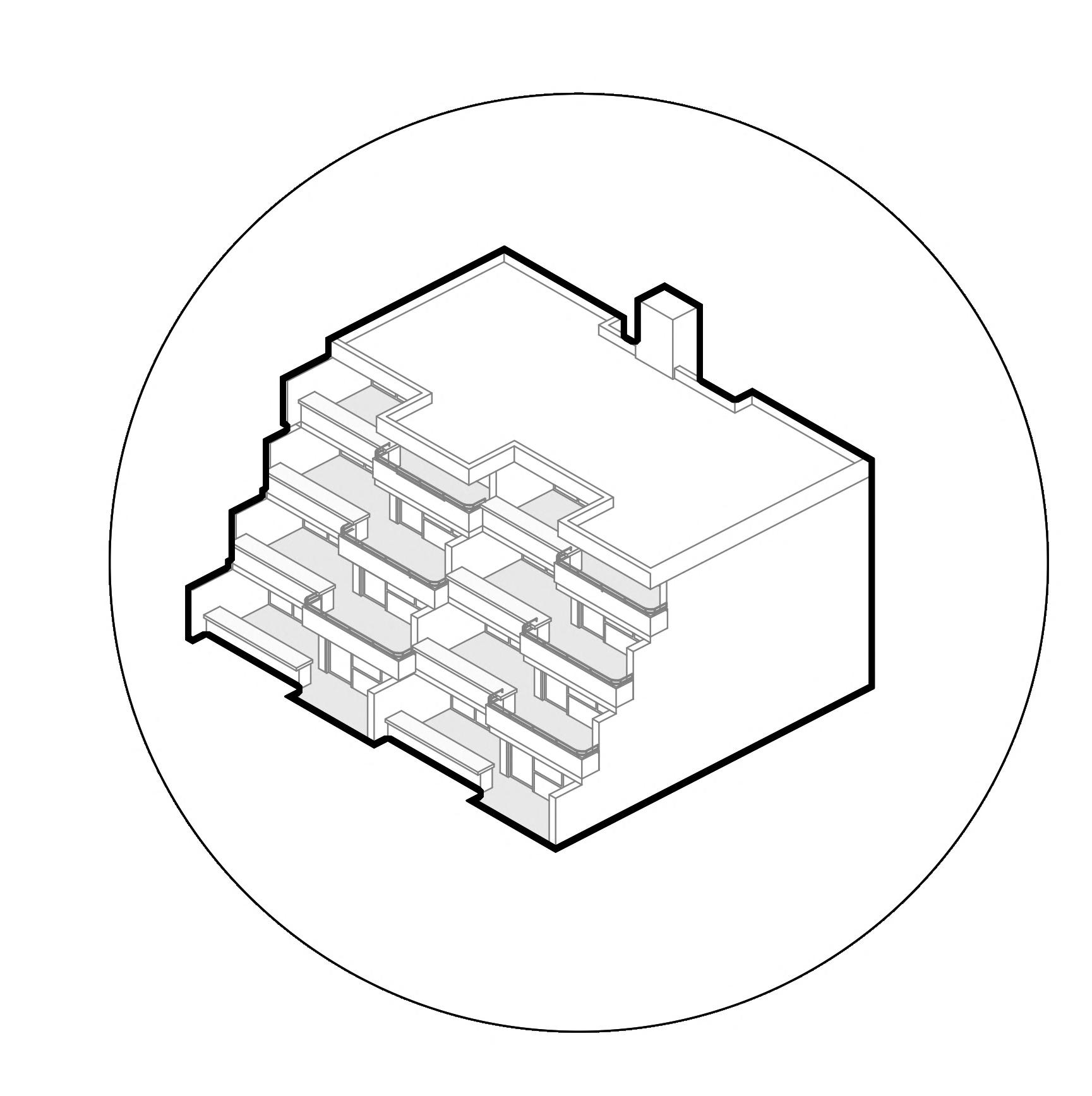

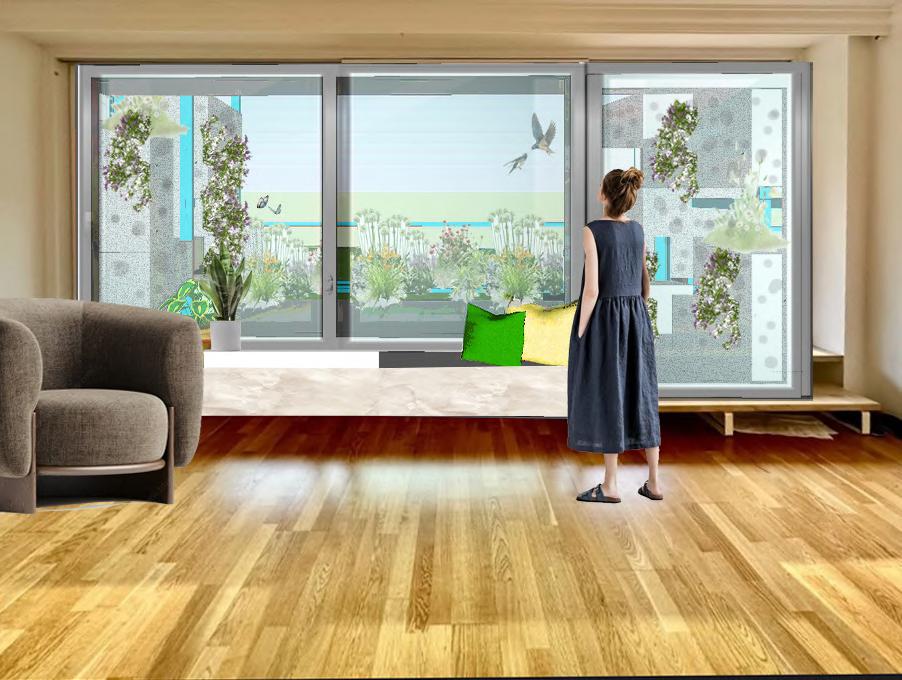

Expand the area of balconies, creating a greater area of integration between human spaces and green spaces
Railing and support for climber plants
T-beams holding ceramic pots
foam planter
façade
Perennial plants
Structural deck with vapour barrier
Layer of water proofing
Erosion control jute mesh
Drainage with side well gravels
Ceramic
the modules concept

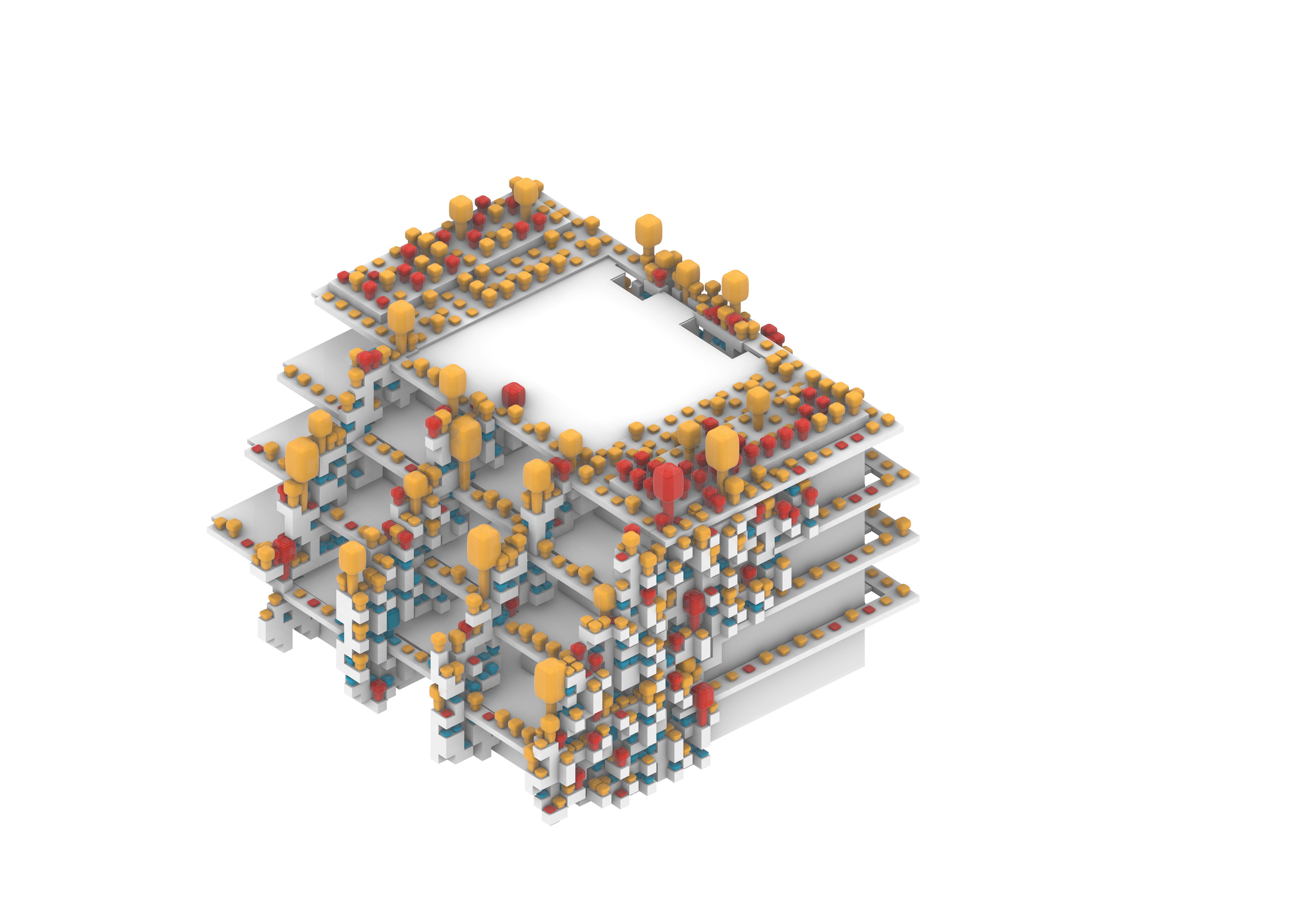

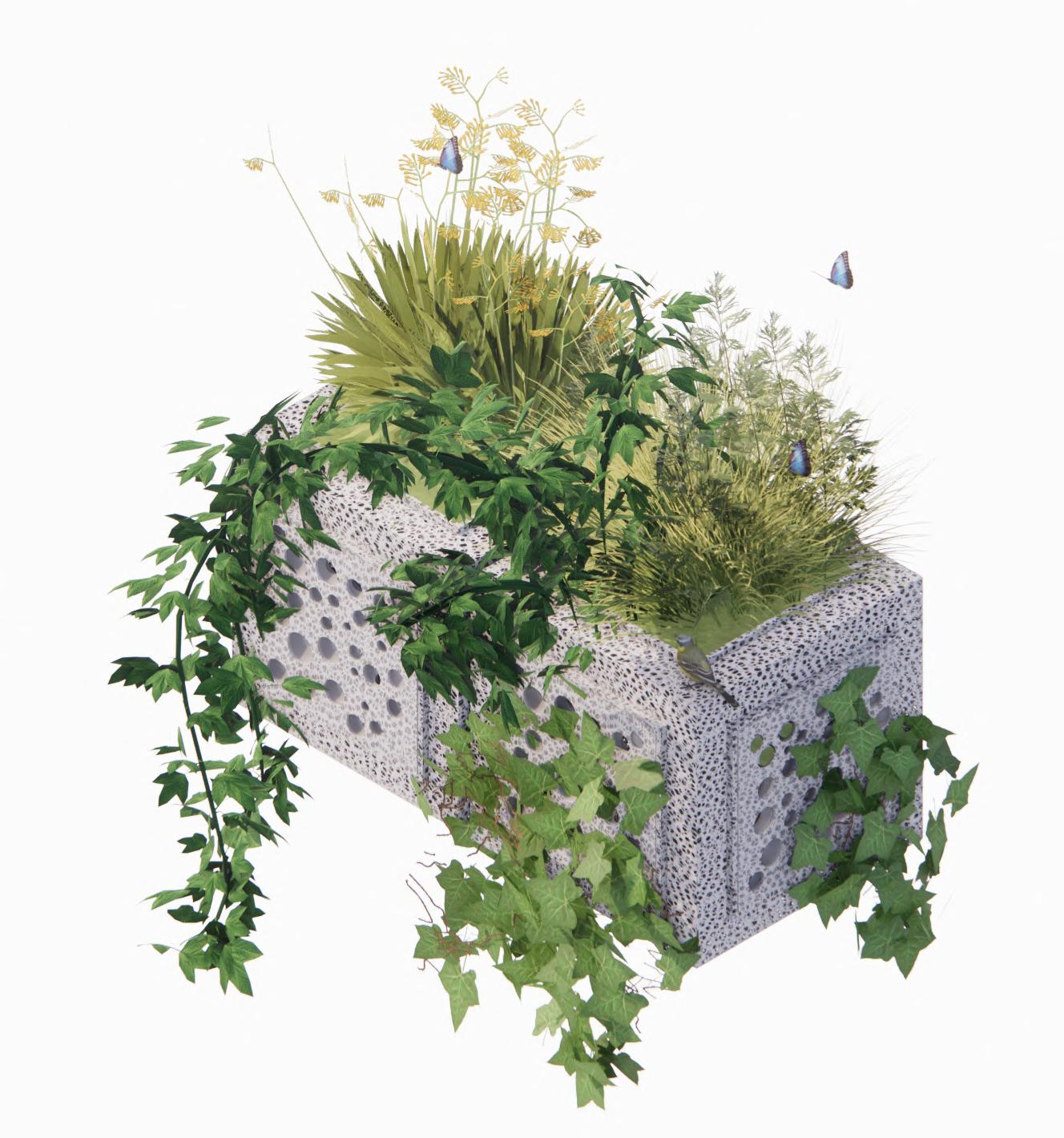

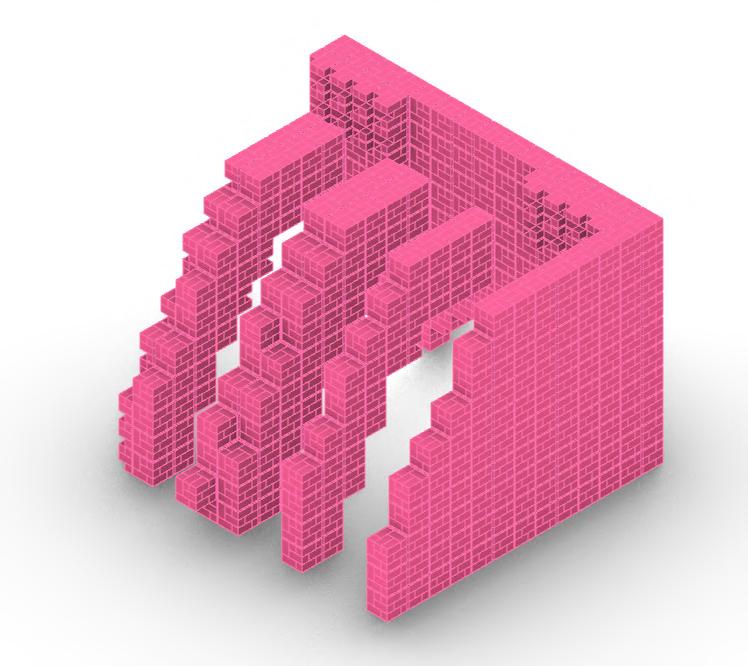

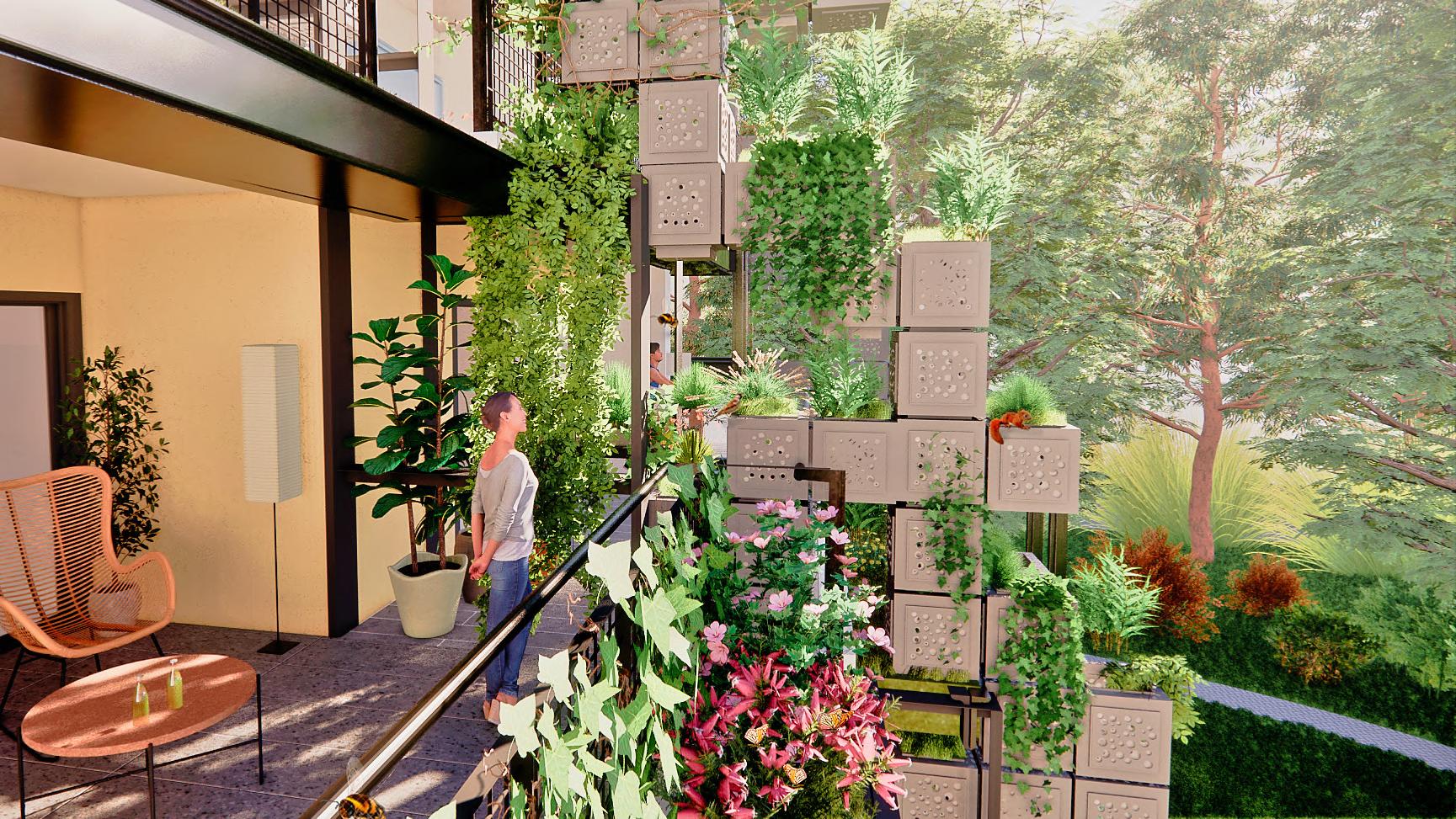

rendered image of the planting module

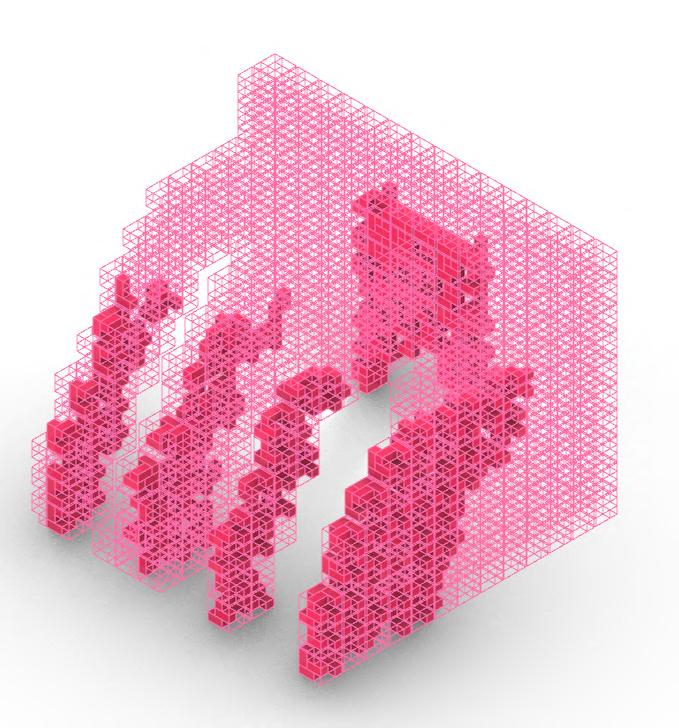

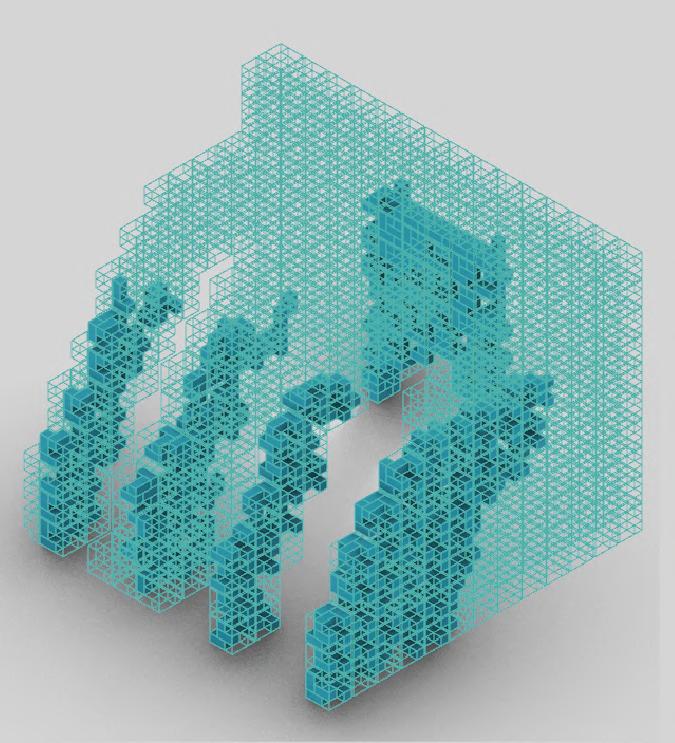

grid structure supporting modules and soil connection
GTLA
internal structure of the module

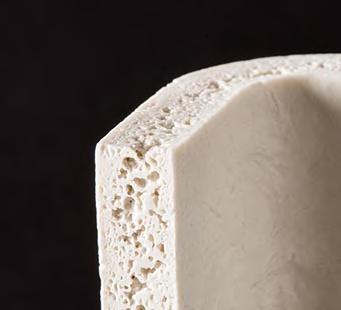

ceramic foam environmentally friendly light good insulator cheap non-toxic
jute mesh soil
perforated wall
bee shelters
bird shelters
animals: species selection
GTLA ECOLOPES
plants: species selection
Corydalis solida Geophyte
moschata
periclymenum
Polemonium caeruleum
Pulmonaria officinalis
Ribes nigrum phanerophyte
Ribes rubrum phanerophyte Perennial
Rosa majalis phanerophyte Perennial
Viburnum Lantana phanerophyte Perennial
Rosa villosa phanerophyte Perennial
Scilla bifolia Geophyte Perennial
Vinca minor Hemicryptophyte Biennial Perennial
Myosotis sylvatica Hemicryptophyte Biennial Perennial
Ribes alpinum phanerophyte Perennial
Rosa Pendulina phanerophyte Perennial
Rosa spinosissima Chamaephyte Biennial - Perennial
Aruncus dioicus Hemicryptophyte Perennial
Myrrhis odorata Hemicryptophyte Perennial
Achillea millefolium Geophyte
Geranium sanguineum Trifolium
Hippophae Rhamnoides
plants: species selection
Tilia europaea
Acer campestre
Acer platanoides
Cornus mas
Aeschzlus hippocastanum
Amelanchier x lamarckii
Kolkwityia amabilis
Amelanchier canadensis
Forsythia virdissima
Taxus baccata
Pterocarya fraxinifolia
Platanus occidentalis
Acer negundo
Viburnum rhytidophyllum
Bush area #1
Berberis thunbergii
Berberis julianae
Acer pseudoplatanus
Campanula portenschlagiana
Berberis thunbergii
Hedera hibernica
Fagus orientalis lipski
Ribes alpinum
Weigela florida
Philadelphus pebescens
Rhododendrum ferrugineum
Papaver orientale
Hosta plantaginea
Centaurea triumfetii
Hylotelephium telephium
Aruncus dioicus
Geranium pratense
Bush area #2
Spiraea trilobata
Bush area #3
Taxus canadensis
Cornus sanguinea
Ligustrum vulgare
Ribes alpinum
Carpinus betulus
Rosa multiflora
Viburnum thytidophyllum
Viburnum lantana
Spiraea trilobata
Bush area #4
Spiraea trilobata
Corylus cornuta
Hydrangea macrophylla
Symphoricarpus x chenaultii
Lonicera ligustrina
Thuja occidentalis
Silene flos jovis
Carpinus orientalis
Juniperus squamata
Bush area #5
Berberis julianae
Beim urbanum
Corylus cornuta
Bush area #6
Ribes Alpinum
Viburnum Lantana
Cornus sanguinea
Ligustrum vulgare
Prunus Spinosa
Existing bushes
Trifolio-Geranietea
Mixed communities
Rhamno-Prunetea
COMMUNITY SELECTION
NATIVE
27 plants
127 Plants
8000 Plants
CULTIVAR

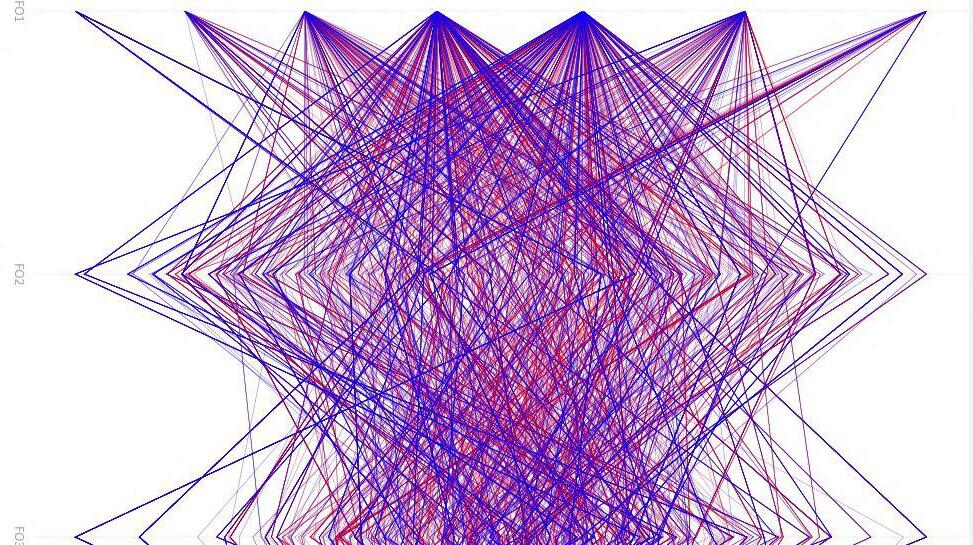

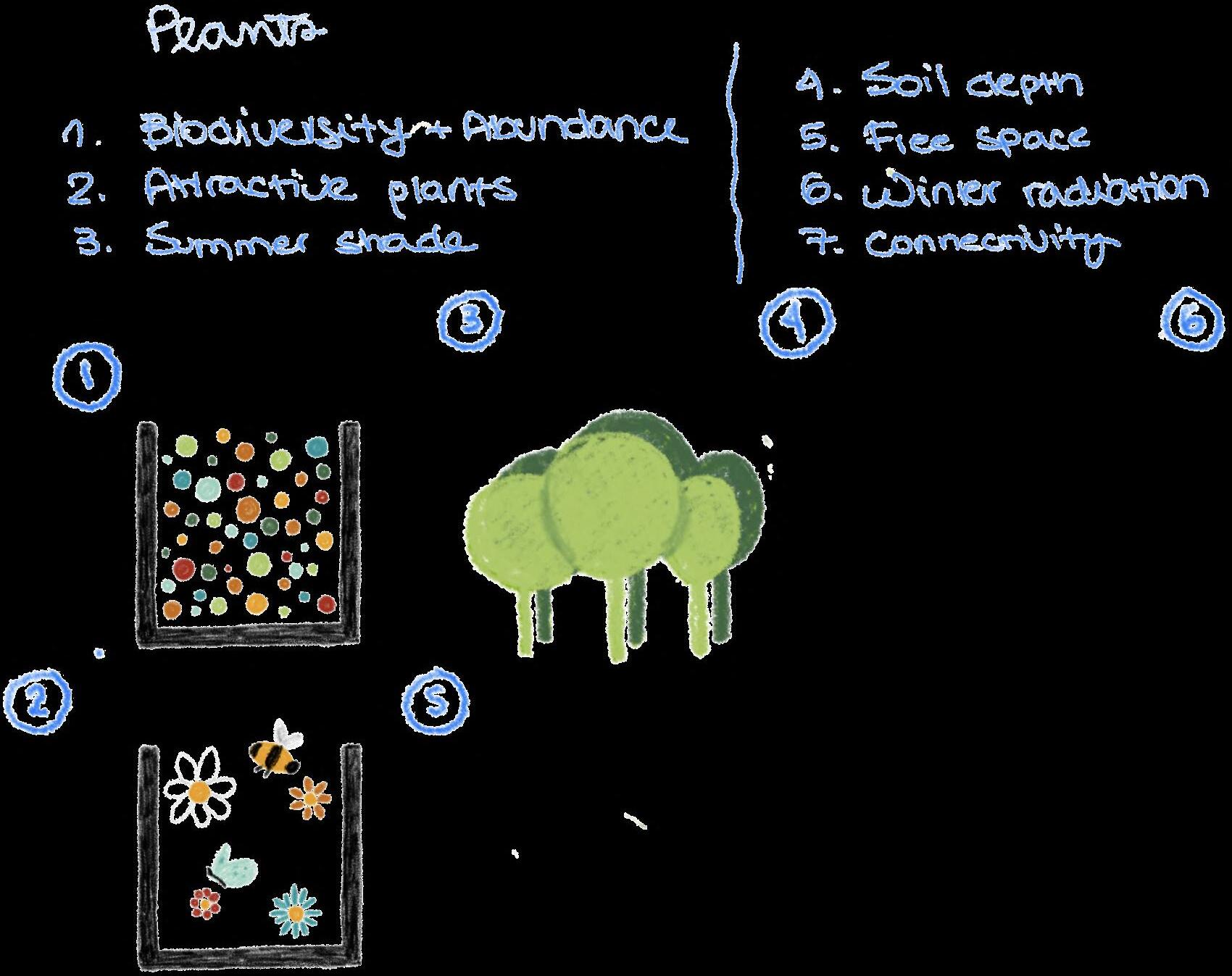

TRAITSIMULATION
CONNECTIVITY
HEIGHT
SOIL DEPTH
SHADOW
1.5 - 2.5 m
Full Light
BIODIVERSITY
CONNECTIVITY
Lonicera periclymenum
Myosotis sylvatica
Aquilegia vulgaris
Polemonium caeruleum
Rosa spinosissima
Scorzonera hispanica
Ribes alpinum
Achillea millefolium
Fragaria moschata
Isatis tinctoria
Verbascum phoeniceum
Trifolium medium
Geranium sanguineum
Pulmonaria officinalis
Vinca minor
Scilla bifolia
Asparagus officinalis
Iris germanica_x
Rosa majalis
Rosa villosa
Viburnum lantana
Corydalis solida
Aruncus dioicus
Corydalis solida
Cornus sanguinea
Rosa pendulina
Myrrhis odorata
Salix purpurea
Ribes nigrum
Ribes rubrum
Rosa villosa
existing

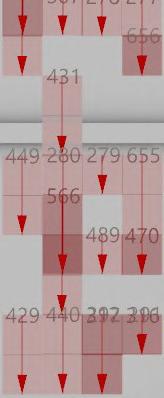

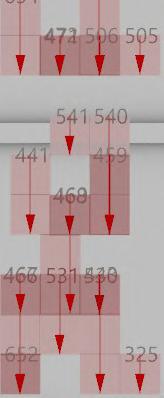

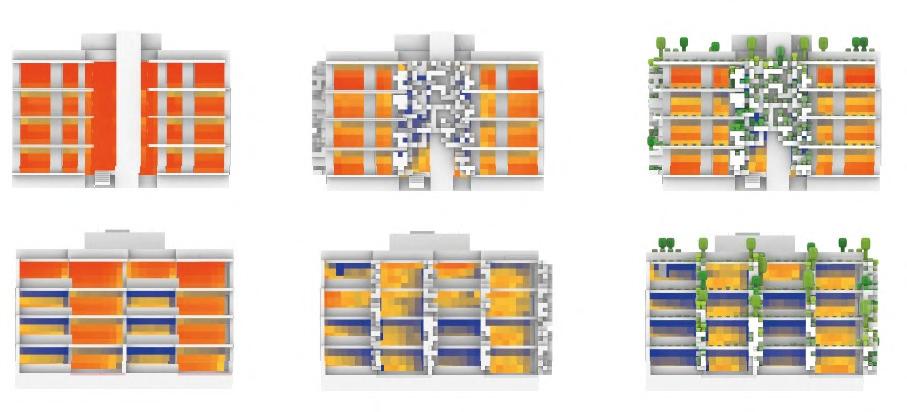

winter radiation + modules
summer radiation + plants
BRUNA MACHADO
GTLA ECOLOPES
BRUNA MACHADO
GTLA ECOLOPES
BRUNA MACHADO
GTLA ECOLOPES
GTLA ECOLOPES
