ARCHITECTURE PORTFOLIO by Yash Gupta

2019-23

ABOUT ME

Birth : 10 January 2002

Nationality : Indian

Residence : Bhopal, Madhya Pradesh

INTERESTS

Painting

Sketching

Music

Travelling

Sports

Photography

Automotive Enthusiast

PC-Gaming

YASH GUPTA

Architecture Student

EDUCATION

2019 : N.H Goel World School

Raipur

Present : School Of Architecture, IPS Academy

Indore

CONTACT

itzyash1800@gmail.com

+918959947599

www.linkedin.com/in/yashgupta10

WORK EXPERIENCE

Trainee

Devila Landscape | 2022-2023

SOFTWARE SKILLS

LANGUAGES

English

Hindi

01 02 03 04 05 HOSPITAL DESIGN HOTEL DESIGN HIGH RISE RESIDENCE RESIDENCE DESIGN & WORKING DRAWING MISCELLANEOUS WORKS CONTENT PORTFOLIO YASH GUPTA 2023

01 HOSPITAL DESIGN

PROJECT :ACADEMIC, 6TH SEM, 2022

TYPOLOGY :healthcare

LOCATION :near bypass, ab road,indore INVOLVEMENT :INDIVIDUAL ACADEMIC WORK

PORTFOLIO YASH GUPTA 2023 01

8. ZONE - 2 7. ZONE - 1 5. CORE BLOCK 14. FUTURE EXTENSION 10. GARDEN - 2 1. SITE ENTRANCE 6. EMERGENCY 9. GARDEN - 1 11. GARDEN - 3 12. GARDEN - 4 13. GARDEN - 5 3. AMBULANCE PARKING 4. PARKING

N PORTFOLIO YASH GUPTA 2023 02

2. HOSPITAL MAIN ENTRY

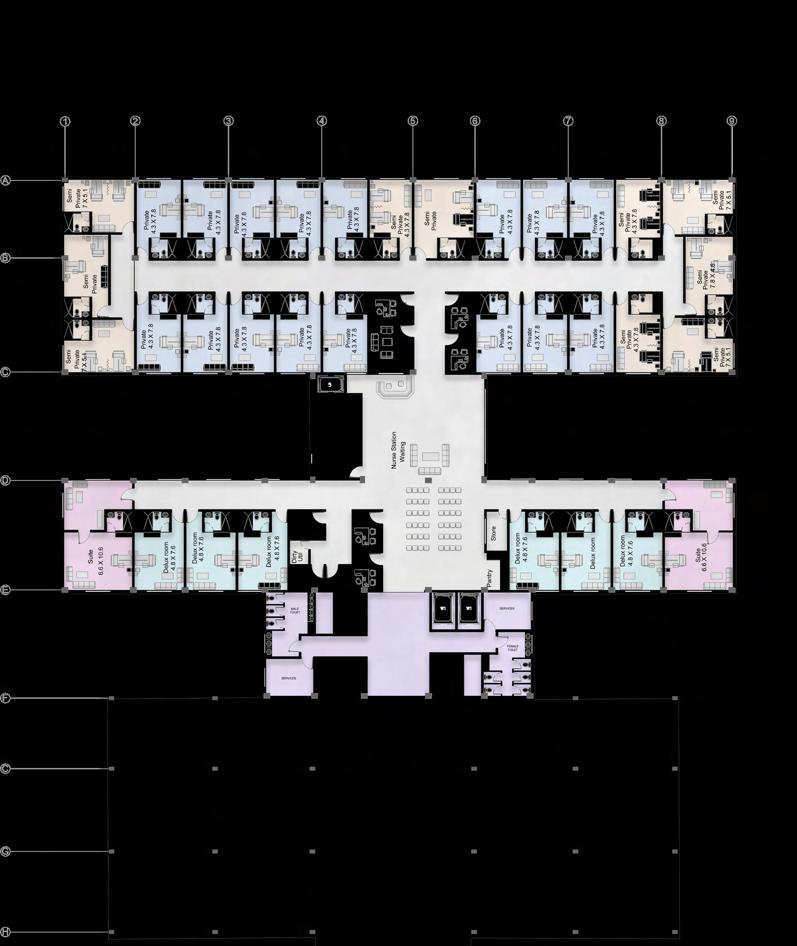

HOSPITAL ROOM LAYOUTS

Suite Private Semi 6.6 X 10.6 4.3 X 7.8 Private 4.3 X 7.8 Delux room 4.8 X 7.6 PORTFOLIO YASH GUPTA 2023 03

PORTFOLIO YASH GUPTA 2023 04

INPATIENT ZONE OUTPATIENT ZONE EMERGENCY CORE ZONING BUILDING FORM

PORTFOLIO YASH GUPTA

GROUND FLOOR PLAN

The 125-bedded Gynecology and Obstetrics healthcare facility in Indore has been successfully completed, incorporating technology and architecture to reshape the currentmedicalinfrastructure.

Key design objectives focused on efficiency, flexibility, cleanliness, circulation, security, and accessibility.

The facility’s layout optimizes workflow and ensures efficient delivery of healthcare services. Modular elements allow for future expansion and adaptability to changing healthcare needs. Emphasis was placed on maintaining a high standard of cleanliness and sanitation. Controlled circulation paths were designed to minimize cross-contamination.

Comprehensive security measures ensure the safety of everyone within the facility. The completion of the project showcases the successful integration of technology and architecture in reshaping the medical infrastructure.

FIRST FLOOR PLAN

1. RECEPTION 2.FEEDING ROOM 3.TOILET 4.NURSES STATION 5.DOCTORS CONSULTANCY 6.DOCTORS CONSULTANCY 7.DOCTORS CONSULTANCY 8.TREATMENT ROOM 9.NEBULIZATION ROOM PEDIATRIC OPD 1.AMBULANCE CONTROL ROOM 2.HR CABIN 3.HEAD DOCTORS CABIN 4.HEAD NURSES CABIN 5.PURCHASE OFFICER CABIN 6.DISCUSSION ROOM 7.DIRECTORS ROOM 8.STAFF ROOM 9.GM ROOM 10.CONFERENCE ROOM 11.TOILET 12.STORE ROOM 13.COMPUTER ROOM 14.SERVER ROOM 15.TELCOM ROOM 16.EPBX 17.STATIONARY 18.RECEPTION WAITING 19.CABIN 20.CABIN 21.CABIN 22.CABIN 23.SECURITY OFFICER CABIN ADMIN BLOCK 1.STAFF LOUNGE 2.SUPPLY ROOM 3.PROCEDURE ROOM 4.REFRIGERATED BLOOD SPECIMENS 5.ANATOMICAL FLUID STUDY 6.UTILITIES 7.STAFF CHANGE TOILET 8.UPS ROOM 9.URINAL AND FEASES 10.SPECIMEN SORTING ROOM 11.PATHOLOGY LAB 12.BLOOD BANK 13.BLOOD SAMPLE 14.REPORT COLLECTION ROOM 15.RECEPTION WAITING PATHOLOGY 1.UTILITIES 2.XRAY 1 3.XRAY 2 4.MAMMOGRAPHY 5.TOILET 6.ULTRA SONOGRAPHY 7.ULTRA SONOGRAPHY 8.DOCTORS CONSULTANCY 9.DOCTORS CONSULTANCY 10.NURSES STATION 11.RECEPTION + CASHIER + WAITING 12.REPORT COLLECTION ROOM RADIOOLOGY 1. LOUNGE 2.RECORD MANAGEMENT AREA 3.STORAGE 4.UPS ROOM 5.DARK ROOM 6.MEDICAL EQUIPMENT ROOM 7.CHANGING ROOM 8.PATIENT HOLDING ROOM 9.M.R.I. 10.C.T. SCAN 11.RECEPTION WAITING + CASHIER 12.RECORD COLLECTION ROOM RADIOOLOGY 1.TROLLY BAY 2.DOCTORS LOUNGE 3.MALE STAFF CHANGE 4.ELECTRICAL ROOM 5.FEMALE STAFF CHANGE 6.STAFF LOUNGE 7.GAS ROOM 8.EQUIPMENT ROOM 9.TECNICIAN ROOM 10.ELECTRICAL ROOM 11.WASTE DISPOSAL AND DIRTY UTILITY 12.STERILE STORE 13.MAJOR OT 14.MAJOR OT 15.MAJOR OT 16.MINOR OT 17.MINOR OT OPERATION THEATRE 1.NURSES STAION AND WAITING 2.DOCTORS LOUNGE 3.CHANGING ROOM 4.STAFF LOUNGE 5.STERILE STORE 6.DUTY DOCTORS ROOM 7.NURSERY AREA 8.DOCTORS CONSULTATION 9.ELECTRICAL ROOM 10.TROLLEY BAY 11.ULTRA SONOGRAOHY ROOM 12.DISPOSAL AREA DIRTY UTILITY 13.ANESTHESIA ROOM L.D.R FACILITY 1.NURSES STATION 2.MONITOR ROOM 3.FEDDING ROOM 4.FORMULA ROOM 5.UPS ROOM 6.CLEAN UTILITY 7.DIRTY UTILITY NICU

2023 05

SECOND FLOOR PLAN

THIRD FLOOR PLAN

1. DOCTORS CONSULTATION 2.DOCTORS CONSULTATION 3.U;TRA SONOGRAPHY 4.NURSES STATION 5.BLOOD BANK 6.CYRO + STORE 7.ANDRO 8.IUI ROOM 9.SPERM COLLECTION ROOM 10.STAFF TOILET 11.COMMON TOILET 12.IVF STORE 13.UPS ROOM 14.STERILE STORE 15.IVF LAB 16.MINOR OT 17.DOCTORS CHANGE 18.STAFF CHANGE 19.ANESTHESIA ROOM 20.LABORATORY 21.DOCTOR CONSULTANCY 22.DOCTORS CONSULTATION 23.COUNSELLING ROOM RADIOOLOGY 1.PANTRY 2.LOUNGE 3.NURSES STATION 4.ISOLATION ROOM 5.UPS ROOM SURGIRICAL ICU 1. DOCTORS CONSULTATION 2.DOCTORS CONSULTATION 3.U;TRA SONOGRAPHY 4.NURSES STATION 5.BLOOD BANK 6.CYRO + STORE 7.ANDRO 8.IUI ROOM 9.SPERM COLLECTION ROOM 10.STAFF TOILET 11.COMMON TOILET 12.IVF STORE 13.UPS ROOM 14.STERILE STORE 15.IVF LAB 16.MINOR OT 17.DOCTORS CHANGE 18.STAFF CHANGE 19.ANESTHESIA ROOM 20.LABORATORY 21.DOCTOR CONSULTANCY 22.DOCTORS CONSULTATION 23.COUNSELLING ROOM RADIOOLOGY 1.PANTRY 2.LOUNGE 3.NURSES STATION 4.ISOLATION ROOM 5.UPS ROOM 6.CLEAN UTILITY 7.DIRTY UTILITY SURGIRICAL ICU

PORTFOLIO YASH GUPTA 2023 06

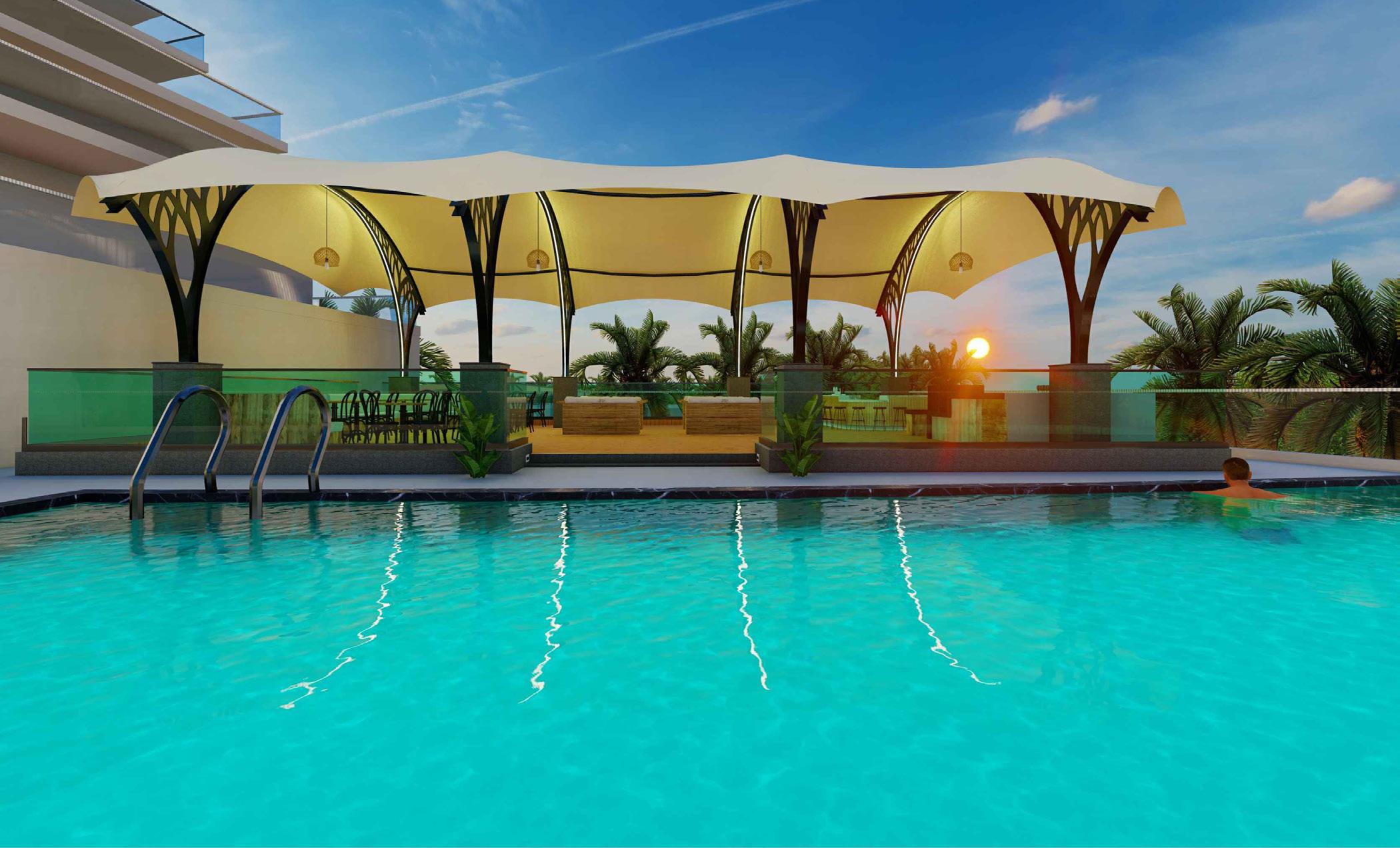

HOTEL DESIGN

PROJECT :ACADEMIC, 7TH SEM, 2022

TYPOLOGY :HOSPITALITY

LOCATION :Super corridor Indore, near TCS square

INVOLVEMENT :INDIVIDUAL ACADEMIC

vv 02 PORTFOLIO YASH GUPTA 2023 07

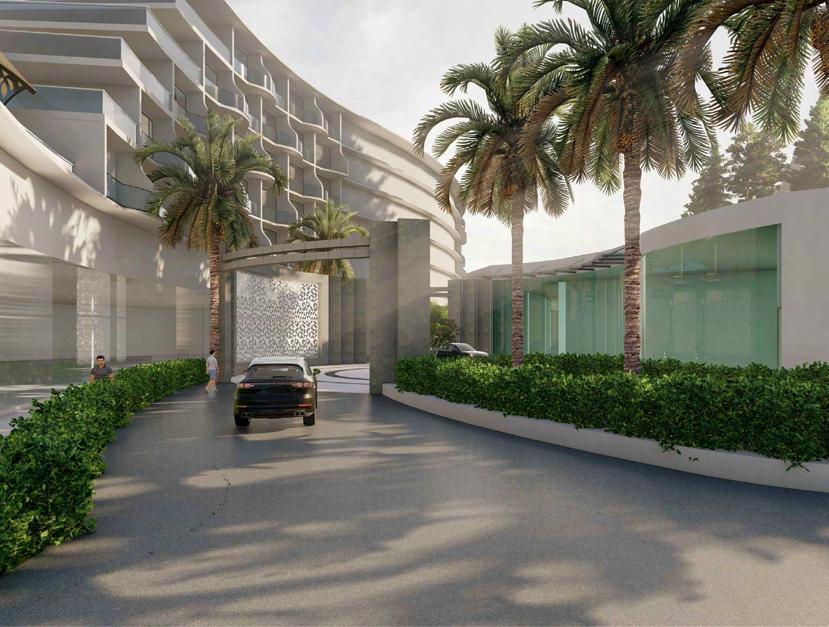

1. site entrance 2.hotel lobby/reception 3.cafe and restaurant 4.admin block 5.health and business centre lobby 6.gym and spa zone 7.hotel drop off zone 8.banquet drop off zone 9.entrance for banquet 10.banquet 11.banquet lawn 12.service entry PORTFOLIO YASH GUPTA 2023 08

PORTFOLIO YASH GUPTA

HOTEL ROOM LAYOUTS

The 5-star hotel in Indore effortlessly blends business and pleasure, located in the commercial zone of Super corridor Indore near TCS square. Reflecting the destination’s cultural heritage while meeting global standards, it offers 150 well-designed rooms, including suites, deluxe, and standard rooms. The hotel features versatile banquet facilities for corporate conferences and social events of various sizes. Guests can enjoy diverse dining options with cuisines from around the world and immerse themselves in local art and craft experiences. The design meticulously adheres to building codes and standards, considering airport proximity for convenient guest access. Spanning approximately 3.5-4 acres, the hotel allows for future expansion while integrating seamlessly into the ancient land and upcoming commercial hub of Indore.

FIRST FLOOR PLAN

SUITE ROOM LAYOUT INTERCONNECTED ROOM LAYOUT DELUXE ROOM LAYOUT TWIN DELUXE ROOM LAYOUT

2023 09

SUITE ROOM INTERCONNECTED ROOM DELUXE ROOM TWIN DELUXE ROOM SERVICES AND CORRIDOOR

FLOOR PLAN THIRD FLOOR PLAN PORTFOLIO YASH GUPTA 2023 10

SECOND

SUITE ROOM

INTERCONNECTED ROOM

DELUXE ROOM

TWIN DELUXE ROOM

SERVICES AND CORRIDOOR

SUITE ROOM

INTERCONNECTED ROOM

DELUXE ROOM

TWIN DELUXE ROOM

SERVICES AND CORRIDOOR

FOURTH FLOOR PLAN FIFTH FLOOR PLAN

2023 11

PORTFOLIO YASH GUPTA

PORTFOLIO YASH GUPTA 2023 12

03 HIGH RISE APPARTMENT

PROJECT :ACADEMIC, 8TH SEM, 2022

TYPOLOGY :residential

LOCATION :near phooti kothi, indore

INVOLVEMENT :INDIVIDUAL ACADEMIC WORK

PORTFOLIO YASH GUPTA 2023 13

SITE AREA 34740 SQ.M FAR PERMISSIBLE 2 69480 SQ.M GROUND COVERAGE 30% 10422 SQ.M MOS FRONT 15M SIDE 7.5M GREEN 10% 3474 SQ.M TYPE AREA FAR AREA NO OF UNITS AREA 2 BHK 122.4 106.3186 19771.8 SQ.M 3 BHK 178.2 159.3 186 29629.8 SQ.M 4 BHK 210.1 188.1 93 17493.3 SQ.M 66894.9 SQ.M COMMERCIAL(5%) 1023.05 SQ.M INSTITUTIONAL 2100 SQ.M EWS/LIG 309.15 SQ.M AREA STATEMENT N PORTFOLIO YASH GUPTA 2023 14

PORTFOLIO YASH GUPTA 2023

After an intensive design process, the high-rise residential building in Phooti Kothi, Indore, has been successfully completed. The 12-floor building offers a balanced mix of 2 BHK, 3 BHK, and 4 BHK units, with a ratio of 189:189:96 units, accommodating the diverse needs of residents. Situated on a site area of 35,000 square meters, the design reflects a thoughtful approach to create a modern and comfortable living environment.

Efficient space utilization was a key consideration throughout the project. Each unit was meticulously planned to optimize functionality, storage, and living space, ensuring residents can enjoy a comfortable and well-designed home. Natural light and ventilation were prioritized, with large windows, balconies, and open spaces incorporated into the design to maximize daylight exposure and fresh airflow.

2BHK UNIT FLOOR LAYOUT 3BHK UNIT FLOOR LAYOUT

PORTFOLIO YASH GUPTA 2023 16

4BHK UNIT FLOOR LAYOUT

4BHK BLOCKS PARKING LAYOUT BASEMENT

TOTAL PARKING = 70 CARS

LAYOUT BASEMENT ENTRY TO BASEMENT EXIT FROM BASEMENT TOTAL PARKING = 26 CARS

3BHK BLOCKS PARKING LAYOUT GROUND FLOOR

3BHK BLOCKS PARKING

ENTRY TO BASEMENT EXIT FROM BASEMENT

4BHK BLOCKS PARKING LAYOUT GROUND FLOOR

SECTION XX’ YASH GUPTA 2023 17

PORTFOLIO

ORTHOGRAPHIC SITE VIEW 2BHK UNIT FLOOR LAYOUT 3BHK UNIT FLOOR LAYOUT 4BHK UNIT FLOOR LAYOUT PORTFOLIO YASH GUPTA 2023 18

RESIDENCE DESIGN

PROJECT :non ACADEMIC,2022

2'-6" 7' 7' 3'-3" 3' 2'6"X7'0" 5"x2.5"(frame) Single patam No. 03 3'3"X7'0" 5"x2.5" (frame) Single patam No. 01 3'0"x7'0" 5"x2.5"(frame) Double patam No. 03 3' 4' 7' 4' 3' 4' 4' 8'-6" 4'0"X3'0" 5"x2.5"(frame) Double patam No. 01 8'6"X7'0" 5"x2.5"(frame) Double patam No. 01 Lintel level Floor level Aluminium Sliding Door 3' 3' 4' 5' 3' 4' 2'-2" 5'0"X4'0" Double patam No. 00 2'2"X4'0" Double patam No. 01 D3 D2 D4 W2 7'0"X4'0" 5"x2.5"(frame) Double patam No. 02 W3 W1 W5 W6 3' INNER SIDE OUTER SIDE 5" 1" 21 2 " 11 2 " Door frame section for D2 & D4 door INNER SIDE OUTER SIDE 11 2 " 21 2 " 1" Inner Door Rebeat 5" Door frame section for D3 door Door Frame 5"x2.5" Outer Door OUTER SIDE INNER SIDE 6" 3" Inner Door Door Frame 6"x3" Outer Door Rebeat Rebeat Door frame section for D1 door Lintel level Floor level Lintel level Floor level 3' 4' 4' W4 4'0"X4'0" 5"x2.5"(frame) Double patam No. 01 1'-6" 11' 11' 18'-10" 6'-2" 18'-10" 6' 18'-10" 7' 4' 1' 8'-6" PARAPET WALL PLANTATION BOX GROUND LEVEL PLINTH LEVEL FIRST FLOOR LEVEL SECOND FLOOR LEVEL STEP TO LAWN (6)" 3' 2'-10" 2" 1' 8" 4' 11' 10" 2" 3'-6" GROUND LEVEL PLINTH LEVEL FIRST FLOOR LEVEL SECOND FLOOR LEVEL 8'-6" 1'-10" 3'-6" 3'-6" ELEVATION OF BUNGLOW 4' 1'-10" 3'-6" 4" 8" 60' BEDROOM 13'0"X15'0" WASH 13'2"X5'0" PORCH 10'0"X18'0" LAWN 24'0"X12'0" DRAWING HALL 12'6"X13'0" UP LIVING/DINING 23'0"X12'8" GATE 12' 11'-6" 13'-2" 5'-4" TOILET 6'6"X5'4" STORE 7'0"X4'0" KITCHEN 10'4"X10'8" GARAGE/ROOM 9'4"X16'0" TOILET 5'0"X5'4" VERANDAH 5'0"X13'0" DRESS 4'0"X5'4" 10' TOILET 5'6"X8'0" 10'-4" 21'-4" 4' 35' Borewell 3' 6' 48' Platform PANTRY 4'0"X5'4" 1'-2" 2'-4" 4'-6" 04

FLOOR PLAN

LOCATION

INVOLVEMENT :INDIVIDUAL WORK PORTFOLIO YASH GUPTA 2023 21 19

GROUND

TYPOLOGY :residential

:kol

road,bhopal

35' HT HT WC WC WB WB 1'-4" 3'-4" 2' 4" 11'-4" 9' 1'-6" 9'-4" 1' 2'-2" 4" 4' 8" 8" 8" 6'-6" 13'-4" 8" 4" 8" 10'-1" 4" 9' 2'-2" 8" 2'-2" 8" 6'-8" 2'-6" 1'-4" 1'-4" 4" 4" 4" 2'-6" 10'-2" 4' 1' 10'-8" 7'-4" 12'-8" 1'-2" 2'-5" 1'-4" 4" 1' 1'-2" 6'-10" 2'-6" 3' 16'-10" 8" 1' 7'-4" 8" 1' 3' 4" 3'-3" 5'-2" 1' 4" 1' 5' 9' 1'-8" 4" 7' 8" 1'-4" 1'-4" 1' 13'-4" W5 5'-6" BALCONY 3'0"WD 4' pot Glass Railing 1' 1' 1'-10" 1'-6" 8" N E S W 1' 1'-4" 1'-4" D2 1' 4" 2'-2" 5' 2'-6" 1'-4" 4" 9' 1' D2 3'-3" 1' 1' D4 D4 W5 5' W5 8'-6" W3 DW0 V2 1'-1" D4 4" 1'-4" 4" Wooden partition as per required 8" 3'-3" MASTER BEDROOM 13'0"X15'0" UPPER LIVING 16'0"X12'8" ROOM 9'8"X14'8" STUDY ROOM 10'8"X10'4" KIDS ROOM 17'4"X13'0" TOILET 5'6"X7'0" DRESS 5'6"X6'0" TOILET 10'10"X5'4" 2'-6" 2'-6" V1 V1 W6 1'-4" 3' 12' Parapet wall up to 6" ht. 8" Floor Pot 35' 53'-6" 6'-6" 60' 3' Door Arch 4" 8" 1'-4" 8" 2'-7" 3' 3' 10" 4'-2" 8" 5' 7' 3'-6" 2'-6" 7' 7' 7' 3'-3" 3' 2' 2'-6" 7'-4" 3' 4' 7' 4' 3' 4' 4' 8'-6" 4'-3" 4'-3" 5' 2' 3' 12'0"X7'0" Sliding Door No. 01 3' 3' 3' 3' 12' 7' 3' 4' 5' 3' 4' 2'-2" DW4 W5 W6 INNER SIDE OUTER SIDE 5" 1" 21 2 " 11 2 " Door frame section for D2 & D4 door INNER SIDE OUTER SIDE 11 2 21 2 1" Inner Door Rebeat 5" Door frame section for D3 door Door Frame 5"x2.5" Outer Door OUTER SIDE INNER SIDE 6" 3" Inner Door Door Frame 6"x3" Outer Door Rebeat Rebeat Door frame section for D1 door 3'6"X7'0" 6"x3"(frame) Double patam No. 00 2'6"X7'0" 5"x2.5"(frame) Single patam No. 03 3'3"X7'0" 5"x2.5" (frame) Single patam No. 03 3'0"x7'0" 5"x2.5"(frame) Double patam No. 00 D3 D2 D4 D1 Lintel level Floor level Lintel level Floor level 2'6"X2'0" Aluminum No. 02 4'0"X3'0" 5"x2.5"(frame) Double patam No. 00 8'6"X7'0" 5"x2.5"(frame) Double patam No. 01 3'0"X2'0" Aluminum No. 01 V1 V2 W2 7'0"X4'0" 5"x2.5"(frame) Double patam No. 01 W3 W1 5'0"X4'0" Double patam No. 03 2'2"X4'0" Double patam No. 01 3' 9'-4" 12'-8" 1'-4" 1'-4" 1' 1'-4" 3'-10" 5" 1' 1' 1' 1 2 3 4 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 1'-6" 11'-6" 11'-6" 9' RCC (AS PER STRUCTURE DESIGN) FIRST FLOOR SECOND FLOOR TREAD RISER GROUND LEVEL PLINTH LEVEL TOWER TOP SLAB 1 2 3 4 5 6 9 10 11 12 13 14 15 16 17 18 19 20 21 8 5'-8" 3'-6" 3'-6" 5'-6" 3'-6" 3'-7" 11" 11" 11" 11" 11" 11" 3'-7" 3'-3" 1'-2" 11" 11" 11" 11" 11" 11" 6'-5" 3'-6" SECTION PLAN OF STAIR RISER HEIGHT 6.25" TREAD SIZE 3'6"X11" ROOF HEIGHT 11'6" 6.25" 11" RCC (AS PER STRUCTURE DESIGN) RISER TREAD 22 22 RCC (AS PER STRUCTURE DESIGN) 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 NUMBER OF RISER 22 NUMBER OF TREAD 21 8" 11" 11" 11" 11" 11" 11" 3'-6" 35' 60' MASTER BEDROOM 13'0"X15'0" TERRACE/ BALCONY 10'0"X18'0" KIDS ROOM 17'4"X13'0" UP UPPER LIVING 16'0"X12'8" 10'-4" 5'-4" DN ROOM 9'8"X14'8" POOJA 9'8"X6'0" STUDY ROOM 10'8"X10'8" TOILET 5'6"X7'0" DRESS 5'6"X6'0" BALCONY 3'0"WD TOILET 9'4"X5'4" TOILET 6'0"X5'4" DRESS 4'6"X5'4" Area 1128 Sq.ft Balcony Area 300 Sq.ft 13'-2" 11'-6" 4' partition wall in furniture Garage Area 270 Sq.ft pot Glass Railing 6'-2" 7' 35' 60' 10'-10" 5'-4" DN TOILET 6'0"X5'4" 12'-8" 11'-6" 48' YOGA ROOM 13'0"X15'0" 12' TERRACE 20'4"X25'8" TERRACE 23'8"X17'0" STORE 4'6"X5'4" pot FIRST FLOOR PLAN TERRACE FLOOR PLAN PORTFOLIO YASH GUPTA 2023 22 20

PORTFOLIO YASH GUPTA

GROUND FLOOR DIMENSION LAYOUT

GROUND FLOOR DOOR-WINDOW SCHEDULE

ELEVATION AND BALCONY SECTIONAL DETAILS

LAWN 24'0"X12'0" GATE Borewell 3' 6' HT HT WC WB HT 8" 1' 4'-8" 4" 8" 4" 8" 13'-4" 4" 4" 2'-6" 14'-8" 1' 9'-4" 2'-2" 1' 2'-2" 3'-2" 1'-6" 2' 8" 4' 14' 1'-4" 6'-4" 14' 1' 4" 1'-4" 2' 1'-4" 4" 8" 4" 8" 11'-4" 4" 1'-4" 1' 9'-9" 12'-8" 8" 7' 1'-5" 4" 9" 8'-4" 3'-10" 2'-6" 5' 8" 2'-3" 3' 8" 1'-5" 4'-2" 1'-1" 23'-8" 13'-4" 8" 1'-4" 11'-4" 1'-4" 1'-4" 1'-4" 12'-8" 11'-4" 35' 3'-8" 8" 4' 60' D2 D4 D4 V1 V1 W2 D3 D3 W3 V2 W1 D1 4' 1' N E S W 8" 3'-3" 9' 3' 8" 1' 4'-2" 8'-6" 7' 3' 8" 4' 3' 2'-6" 4" 4" 2'-10" 3'-8" 1' 1'-4" 1'-4" 1'-4" 12'-8" 1'-4" 11'-4" 1'-4" 5'-6" 5'-10" 8" 4' 8" 8" 7'-4" 8" 8" 9'-4" 8" 2'-6" 8" 8" 9' 60' 35' BEDROOM 13'0"X15'0" DRAWING HALL 12'6"X13'0" LIVING/DINING 23'0"X12'8" KITCHEN 10'4"X15'4" GARAGE/ROOM 9'4"X16'0" TOILET 10'10"X5'4" TOILET 5'6"X8'0" W6 Door Arch Platform PANTRY 4'0"X5'4" TOILET 5'0"X5'4" 2'-6" W1 W4 D3 2' 10'-2" 3' 3' 10" 4'-2" 7' 3'-6" 2'-6" 7' 7' 7' 3'-3" 3' 2' 3'6"X7'0" 6"x3"(frame) Double patam No. 01 2'6"X7'0" 5"x2.5"(frame) Single patam No. 03 3'3"X7'0" 5"x2.5" (frame) Single patam No. 01 3'0"x7'0" 5"x2.5"(frame) Double patam No. 03 2'-6" 7'-4" 3' 4' 7' 4' 3' 4' 4' 8'-6" 2'6"X2'0" Aluminum No. 02 4'0"X3'0" 5"x2.5"(frame) Double patam No. 01 8'6"X7'0" 5"x2.5"(frame) Double patam No. 01 Lintel level Floor level 5' 2' 3' 3'0"X2'0" Aluminum No. 01 12'0"X7'0" Aluminium Sliding Door No. 00 3' 3' 3' 3' 12' 7' 3' 4' 5' 3' 4' 2'-2" 5'0"X4'0" Double patam No. 00 2'2"X4'0" Double patam No. 01 D3 D2 D4 D1 V1 V2 W2 7'0"X4'0" 5"x2.5"(frame) Double patam No. 02 W3 W1 DW0 W5 W6 3' INNER SIDE OUTER SIDE 5" 1" 21 2 " 11 2 " Door frame section for D2 & D4 door INNER SIDE OUTER SIDE 11 2 " 21 2 " 1" Inner Door Rebeat 5" Door frame section for D3 door Door Frame 5"x2.5" Outer Door OUTER SIDE INNER SIDE 6" 3" Inner Door Door Frame 6"x3" Outer Door Rebeat Rebeat Door frame section for D1 door Lintel level Floor level Lintel level Floor level 3' 4' 4' W4 4'0"X4'0" 5"x2.5"(frame) Double patam No. 01 1'-6" 11' 11' 23'-6" 10' 18'-10" 6'-2" 1' 9' 1'-6" 1'-10" 6'-4" 18'-10" 1'-6" 12' 9'-8" 1'-10" 6' 18'-10" 7' 4' 1' 8'-6" PARAPET WALL BRICK BOX 1'6" GLASS RAILING PARAPET WALL GROUND SLAB PLANTATION BOX GROUND LEVEL PLINTH LEVEL FIRST FLOOR LEVEL SECOND FLOOR LEVEL STEP TO LAWN (6)" 3' 2'-10" 2" 1' 8" 4' 11' 10" 2" 3'-6" GROUND LEVEL PLINTH LEVEL FIRST FLOOR LEVEL SECOND FLOOR LEVEL 1'-6" 6" 8'-6" 1'-10" 3'-6" 3'-6" ELEVATION OF BUNGLOW 4' 1'-10" 3'-6" 4" 8"

2023 21

PORTFOLIO YASH GUPTA

FIRST FLOOR DIMENSION LAYOUT

FIRST FLOOR DOOR-WINDOW SCHEDULE

STAIR DETAILS

2023 22

35' 60' BEDROOM 13'0"X15'0" WASH 13'2"X5'0" PORCH 10'0"X18'0" LAWN 24'0"X12'0" DRAWING HALL 12'6"X13'0" UP LIVING/DINING 23'0"X12'8" GATE 12' 11'-6" 13'-2" 5'-4" TOILET 6'0"X5'4" STORE 7'0"X4'0" KITCHEN 10'4"X10'8" GARAGE/ROOM 9'4"X16'0" TOILET 5'0"X5'4" VERANDAH 5'0"X13'0" DRESS 4'6"X5'4" TOILET 5'6"X8'0" 10'-4" 21'-4" 4' 35' 48' Platform PANTRY 4'0"X5'4" 5' 5' 8'-2" 2'-4" 4' 4' 2'-4" 2' 4' 4' 5' 6'-6" 6'-6" 3'-6" 3'-6" 2' 1'-8" 5'-2" 5'-2" 8' 5'-2" 6' 6'-10" 6' 3' 1'-6" 2' 2' 2'-6" 2'-6" 2'-6" 4' 4' 5'-2" 2' 2'-8" 4' 2'-8" 2'-10" 3'-6" 2'-8" 7' 3' 2'-8" 4' 2'-8" 2' 3'-6" 3'-6" 5'-8" 4'-8" 4'-8" SPLIT AC 2'-10" 2'-6" 2' 2' M B 2'-4" 2'-4" 2'-9" 2'-9" 4' 2'-3" 2'-3" 2'-8" 2'-8" 3'-4" 2'-8" G G SPLIT AC 2'-6" 2'-7" 3'-2" 1'-8" 4' 2'-9" 2'-6" 4' 4' 2'-6" 6'-3" 6'-3" UP DN WC BALCONY 3'0"WD pot MASTER BEDROOM 13'0"X15'0" UPPER LIVING 16'0"X12'8" ROOM 9'8"X14'8" STUDY ROOM 10'8"X10'4" KIDS ROOM 17'4"X13'0" TOILET 5'6"X7'0" DRESS 5'6"X6'0" TOILET 6'0"X5'4" DRESS 4'6"X5'4" 35' 53'-6" 6'-6" 2' 4' 4' 5' 6'-6" 6'-6" SPLIT AC 2'-3" 2'-3" 2'-8" 2'-8" 3'-4" 2'-8" G 2' 4' 4' 5'-4" 4'-10" 4'-10" 5'-4" 5'-4" 2' 3'-6" 3'-6" 3'-8" 2'-8" 2'-8" 5' 4'-8" 6' 4' 2' 7' 7'-9" SPLIT AC 5'-6" 3'-3" 5'-6" 6'-6" 6'-6" 3'-3" 3'-8" 3' 3'-6" 3'-6" 2'-9" 2'-9" 4' 2'-8" 2'-8" 2'-8" 4'-10" 4'-10" 2'-8" 4'-8" 4'-8" 1'-6" 1'-6" 4' 1' 4'-8" 4'-9" 4'-9" 4'-8" 4'-6" 4'-6" 2'-10" 2'-6" 2'-4" GROUND FLOOR ELECTRICAL LAYOUT FIRST FLOOR ELECTRICAL LAYOUT

2023 23

PORTFOLIO YASH GUPTA

S.NO. LEGENDS DESCRIPTION

SOLID WASTE PIPE 6"

RAIN WATER PIPE 4"

WASTE WATER PIPE 4"

FLOOR TRAP

SEWAGE INSPECTION CHAMBER

WATER INSPECTION CHAMBER IC IC

RECHARGING PIT INSPECTION CHAMBER

RECHARGING PIT LINE

SEWAGE LINE

WASTE WATER LINE

SINGLE LEVER DIVERTOR @ 2'6"

SPOUT @ +2' SHOWER @ +7'4"

2 ANGLE COCK @ 1'6"(WC)

MONO BASIN MIXER TAP @ 4'

HOSE BIBB @ 2'

2 ANGLE COCK @ 4'(Boring and O/H ) (Kitchen Basin)

ELECTRICAL LEGENDS PLUMBING LEGENDS

BOUNDARY WALL DETAILS

PLUMBLING PLAN

35' 60' BEDROOM 13'0"X15'0" WASH 13'2"X5'0" PORCH 10'0"X18'0" LAWN 24'0"X12'0" DRAWING HALL 12'6"X13'0" UP LIVING/DINING 23'0"X12'8" 12' 11'-6" 13'-2"

TOILET 6'0"X5'4" STORE 7'0"X4'0" KITCHEN 10'4"X10'8" GARAGE /ROOM 9'4"X16'0" TOILET 5'0"X5'4" VERANDAH 5'0"X13'0" DRESS 4'6"X5'4" 10' TOILET 5'6"X8'0" 10'-4" 21'-4" 35' Borewell 3' 6' 48' Platform PANTRY 4'0"X5'4" way to inspection chamber way to inspection chamber way to inspection chamber way to inspection chamber IC IC IC IC IC IC IC IC IC IC IC IC way to inspection chamber way to inspection chamber way to inspection chamber way to inspection chamber way to inspection chamber GT GT GT way to recharging pit over flow pipe way to outer line way to sewage line way to sewage line way to recharging pit way to recharging pit way to recharging pit GT 8' 10'-6" 17' 18' 2'-6" 4'-4" 15'-8" 1'-10" 8" 8" 8" 6'-4" 9'-6" 4' 9'-6" 1'-6" 4' 4' 4' 4' 4' 1'-6" 1' 1' 1' 5'-6" 5'-6" 1'-2" 1'-2" 1'-3" 3'-9" 3'-6" 3'-6" 2" 1'-9" 4'-8" 4'-8" 5'-3" 3'-9" 8" 10'-4" 1' 1'-6" 4' 4' 4' 1'-6" 1'-6" 1' 4' 4' 1'-6" 1' 3" 3" 3" 3" ELEVATION OF BOUNDARY WALL PLAN OF BOUNDARY WALL S.No. SYMBOL ITEM HEIGHT 01 02 03 04 05 06 07 08 09 10 11 12 13 SWITCH BOARD SWITCH BOARD T.V.POINT & POWER PLUG SWITCH BOARD RECHARGING & LAMP FAN CEILING POINT POWER POINT BELL POINT METER BOARD M.C.B. ZUMMER POINT WALL POINT GYSER POINT TELEPHONE POINT G 4'0" 2'6" 1'9" 4'0" 5'0" 8'0" 7'0" 1'9" EXHAUST FAN 14 15 A.C. A.C.POINT 16 BELL SWITCH 5'0" ELECTRICAL SCHEDULE M B 12'

ROAD

1. 2. 3. 4.

7. 8. 9.

10.

13.

11. 12.

14.

15. 16.

2023 24

vvv PROJECT :non academic 2022 TYPOLOGY :residential l andscaping LOCATION :scheme no. -140, Indore residensial (landscape) miscellaneous PORTFOLIO YASH GUPTA 2023 25

farmhouse

PROJECT :non academic 2023

TYPOLOGY :interior design
