Lighting Portfolio 2022

PORTFOLIO

Light and Architecture

2019-2022

record the study journey 2019-2020

XIA YANGAN

CONTENT

Page 4

Art Hubs at St luke's bombed out church

BAR AND RESTAURANT MULTPLE FUNCTIONAL HALL

Page 15

Mysterious, traditional glass factory Redevelopment

SHOWROOM

EXTERIOR LANDSCAPE

Page 19

Sheep Sherd Private House Project

MY LIGHTING JOURNEY

•

A lighting lover during architectural study, always passionate to sketch and drawings to deliver lighting design idea, and self-motivitated to learn new things.

•

LIGHTING IN PUBLIC SPACE AND HISTORICS REDEVELOPMENT ARE GLAMOUS ANY INTERESTING TOPICS WE COULD THINK ABOUT?

Although she mainly worked on historic projects, Yangan was not limited to be familiar with antique luminaires and bespoke pendant design for churches. She is interesting in luminaire design when she worked on coursework to design Choop table light during UCL study in teamwork. She has a wide interest on new trends of lighting technology, luminaire design and like browsing different projects. Yangan has been building up a fitting database in Excel and updating with useful lighting product sfor potential future projects including hospitality, hotel, residential, landscape projects and some special projects include cruise and public transportation. The information is from lastest tradefairs and lighting magazine since Light + Built 2022, as she has a wide interest in browsing and receiving lastest manufacturers information and circular economy trends for future lighting industry. Yangan believes if an assistant lighting designer in the team could work as filter to collect this information from manufacturers and organize them properly, it would save whole team’s time to learn from new luminaire design trend and speed up design decisions.

Yangan was attracted by architectural and interior lighting design when she designed architectural space and lighting for her graduate design project, bombed-out St Luke’s church during Bachelor. When absorbing holistic knowledge system of light during study at UCL, she also assisted to do lighting calculations to verify reliability of historic lighting design ideas at Lighting Perceptions.Yangan believes lighting in urban corners and natural scenes was full of glamours for inspiring all lighting designers, she was self-commissioned as illustrator in free time and record attracting light scenes as most usual theme in her own artworks.

During the projects, Yangan has developed Indesign layout skills, CAD, and freehand drawings skills over the period. But Yangan is also partly self-taught in Revit and BIM software and has learned from sustainable building design - gained during her architectural studies in Liverpool. She is seeking to develop a career as a light designer and looking forwards to challenges from different lighting design projects which she haven’t tried before.

Yangan has been involved into a variety of historic regeneration projects, and in process of dealing with irregular interior shape of cathedral, churches, and halls. she develops a working flow to verify the lighting in complex architectural space from Autocad - Sketchup/Rhino - Dialux. She learned from strict lighting standards for protections of historic paintings, and techinical design of picture light like the cases in Old Royal Naval College nave, Liverpool metropolitan cathedral, and Draper’s Hall.

Yangan’s Self-description -

Heritage Related Design Studio

Art Hub at St Luke’s

Our client, the Bombed Out Church Garden Bar, have secured an extended lease for the site including permission for a permanent intervention in principle. In line with the requirements of our client, the Art Hub will have a focus on community engagement and learning via access to a multifunctional hall, workshop and café, as well as keeping the grounds open to the public. Studios will provide a space for local creatives to develop their ideas in the rich context of St Luke’s as a heritage asset and memorial. The project also includes a multifunctional hall serving the community by staging events such as talks, exhibitions, as well as wedding and other activities including yoga. Public and community access is further encouraged via a café and shop. The aspiration was for a high quality contemporary and contextual, low maintenance, low carbon, low energy building.

The church was bombed in 1941, suffer the loss of its historic roof.

But Now it could be... Rhino, grasshopper Lumion photoshop

Illustrations - to record and inspire my ideas

During the visit to Norwich Cathedral, the indirect light in hallway and lady chapel gave me some inspiration. Firstly, light sources could be unconsious. Visitor won observe the fittings, hidden using the existing locations of the pillar and lintel. Therefore there is no concious direct glare or hot spot from eye levels of visitors. The indrect light enrich the layers of this interior space. When the floodlight and pendants are set at right angle to uplight the vault and floor, indirect soft glow bounce back from vault and wall surfaces with around 100 lux on eye height, with 300 lux for fullfilling needs of reading task at the pulpit and stall. The indirect reflections from 3000k warm white light spots could create an poetic space in ambient white space in architecture. And spread of cool downlight on reader brought delicate contrast in CCT ( 5000K vs 3000K) stand out from warm white background. .

LS01 to LS74

Meyer lighting Monospot 3

vario optics 11°-57°

3000K

36w 2281 lm

LD01 to LD20

iGuzzini

BV43

Fixed Wide Flood 54°

31W 4500lm

1. ETFE inflated cushion

2. aluminium cliamping strip

3. sheet-metal gutter

4. 100/ 150mm laminated softwood double column with larch foot

5. 300/ 150mm laminated softwood double column with larch foot

6. slotted sheet-steel members with dowels

7. 50/300/100 mm laminated timtvvber edge beam

8. metal jointing

9. curved drain

Light up the structure

The architectural design concept is to memorize the world war II and lost historic structure. The column and church roof were regenerated by the alternatives in wooden and semi transparent ETFE cushions. During the day, generious daylight luminated the nave. To enhance this the night view of this architectural concept, was the start point of this lighting design.

7. 50/300/100 mm laminated timtvvber edge beam

8. metal jointing

Arch light testing process

Test different quantities options

- column uplight

- Vault downlight

Regeneration of Bombed Out Church Nave from concept sketch to Rhino modelling, CGI rendering

COURTYARD BAR OUTSIDE MULTIPLE FUNCTIONAL HALL

Two light scenarios: Amber - blue and ambient white light were set to adapt to a dark night show event and normal event needs. The light effect borrow some favour from musicial shows in theatre,

courtyard outside the nave was a restaurant and bar space. light scenrios with yellow-blue contrast and warm white illuminated this space for hospitality and leisure during the time.

FLOOR CEILING PLAN

SCALE 1:50

COURTYARD lIGHTING ARRAGEMENT

The courtyard outside the nave have a generous space for visitors to sit down and appearciate the historic structure. The controllable downlight system installed at first level in a grid of steel beams provide the functional light for the courtyard. The lighting system could be dimmable to provide soft modelling light in warm yellow color, whereas IThe Orange_Blue contrast is here when The LED spotlight at bar could turned into blue lights. And soft white sphere light with plants are decorative to the whole lighting environment.

REFLECTED CEILING PLAN

SCALE 1:200

FIRST FLOOR CEILING PLAN

Lighting for Tradition Production Introduction

Poland traditional mouth-blowing and hand painting of glass ornaments lie at the very heart of Mysteria. Like their highest standard for design and produce Christmas ornaments, client has high requirement on functional lighting for interior production. The showroom and manufacturing hall are space for showing the old-fashioned manufacturing cycle. From mouth-blowing, silvering with native silver, hand decorating, and packaging, each ornament is handled with care and given the special touch needed to produce a one-of-a-kind work of art.

This project has two part: internal and external design.

Concept Branding

The lighting design concept enhances Mysteria’s brand by adopting the brand red and white colours to the architectural lighting elements. Christmas elements are intergrated

Dynamic

The user has the flexibility to create different lighting scenes based on themes The lighting control system is utilised to schedule to turn off or dim down based on user behavior.

Social

The lighting design encourages social interaction for the people in both outdoor and indoor settings throughout the day. It evokes curiosity and exploration in bystanders.

Dark surface to reduce the reflection

1 Show room

Showroom concept: “Black box”

Light modelling direct to the object, not backlit light or strong reclection light from dark surface and soft modelling the object.

Current lighting issue:

• Glare from spotlight

• Illuminance not enough to model the products

Recessed downlights

This part involved group work, images use were permitted by group members

Surfaced-mounted linear light

Concept sketch

• Reflection light from glossy marble floor and white shelf

Current room

Luminaire Schedule

Glass shelf

Glass shelf

house · showroom · Room 15 (Showroom)

Glass shelf

R1

Refer

ImageManufacturer Erco Light source LED module: Beam angle

Product Starpoint Recesse d

Colour of light 3500K Control

house · showroom · Room 15 (Showroom)

Construction size 113mm Colour deviation 1.5 SDCM Dimming range

wooden shelf

color grey CRI CRI 92 Dimming method

DescriptionNo. of Lamps 28 Connected load 12.0W Standby

ERCO DALI control gear

Includes LED module.

Light distribution Wide flood Luminous flux of the luminaire

Lense Spherolit lens, wide

718lm

Luminaire efficacy 60lm/W

L0

Manufacturer dga Light source LED

Product Q8 LENTI 50 °

Colour of light 3000K

Construction size 8mmx8m mxL Colour deviation

Finish PMMA CRI >90

color Black Connected load 26 W/m(max)

DescriptionNo. of strips 27X0.5m Luminous flux of the 1600lm/m

Surfacedmounted linear LED with lenses

Concept section

Light distribution Symmetri cal Luminaire efficacy 44 lm/W

house · showroom · Room 15 (Showroom)

wooden shelf

Properties

Glass shelf

Perpendicular illuminance (adaptive)

Height: 0.710 m

Properties

Glass shelf

Perpendicular illuminance (adaptive)

Height: 0.710 m

Emin

484 lx 233 lx

Height: 0.710 m

Utilisation profile: Places of public assembly - Trade fairs, exhibition halls, General lighting

Properties

wooden shelf

Perpendicular illuminance (adaptive)

Height: 0.710 m

Utilisation profile: Places of public assembly - Trade fairs, exhibition halls, General lighting

Utilization profile: Places of public assembly - Trade fairs, exhibition halls, General lighting

“The nightscape design is an important part to welcome the visitors to Mysteria as well, which consists of three parts: car park,entrance and back yard, facade and green landscape...”

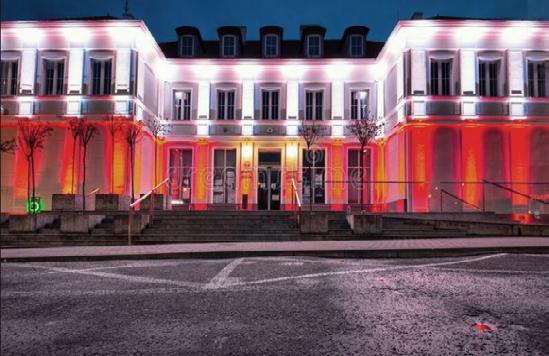

FACADE CONCEPT

1.Red and white as main hue of colour light

2. wallwasher enhance verticality of facade Turnable RGB floodlight create welcoming atmosphere

3.Lintel and

column lit by inground spotlight

4. Ground recessed uplight modelling chair and greens inside park

LANDSCAPE AREA CONCEPT LUMINIARE SCHEME

S10 In-ground Spotlight Manufacturer Iguzzini Light source LED Beam angle 24°

Product ER78 Colour of light 2700k Control Switchable

Construction size Ø70mm Colour deviation 2 Dimming range

Finish aluminium,poly mer CRI 80 Dimming method color Black Connected load 3.8W Standby power per control gear

Description No. of Lamps 4 Luminous flux 338lm Connection 240v

Shelf mounted 24V Linear LED

CAR PARK BBQ

Light distribution Symmetrical Luminaire efficacy 89.1lm/w Accessories

L3 Wall Grazing light Manufacturer Iguzzini Light source LED IP rate IP66

Product EG21 Colour of light 4000K Control DMX-RDM

Construction size L=611mm Colour deviation 2 Dimming range 1%-100%

Finish aluminium CRI 80 Dimming method Electronic control card included

Description color Black Connected load 24.7w Standby power per control gear 3.7w

wall-mounted grazing light

No. of Lamps 9 Luminous flux 2044lm Connection 48v Light distribution Wall grazing wide flood Luminaire efficacy 82.75lm/w Accessories wall-mounted arms

L9 Wall Grazing light Manufacturer Iguzzini Light source LED IP rate IP68

Product EG36 Colour of light RGBW Control DMX-RDM

Construction size L=1495mm Colour deviation Dimming range

Finish aluminium CRI 80 Dimming method

color sliver Connected load 23W Standby power per control gear 3.7w

Description No. of Lamps 6 Luminous flux 1450lm Connection 48V

Wall mounted grazing light Light distribution Wall grazing wide flood Luminaire efficacy 63lm/W Accessories wall-mounted arms

E Existing luminaire

FACADE FACADE

CONTINUE TO PAGE

CAR PARK

Lighting for open roof level car parks should be carefully planned to avoid visual domination of the skyline by the components used to mount the luminaries during the day and by the light sources at the night

LUMINIARE SCHEME CALCULATION

GARDEN & BBQ GARDEN & BBQ

LUMINIARE SCHEME LUMINIARE SCHEME

Recessed Linear LED Manufacturer iGuzzini Light source LED 5.9W 890lm Beam angle 50°

Product Linealuce  BW24 Colour of light 4000K Dimming Interface PWM

Construction size 552x55x74 mm CRI 80 Dimming range 10%-100%

Finish extruded aluminium Source Power (W) 7.1W Dimming method PWM

Description color Grey System Flux (lm) 303lm Standby power per control gear

1.2W No. of Lamps 4 Luminaire efficacy (system value)

42lm/W Connection 100-240V 50/60Hz Light distribution Flood IP rating IP65 IP67 Accessories 24V dc electronic ballasts

surface mounted or pole adjustable LED spotlight,Inseries constant wall-mounted luminaire with translucent ring,Optical cutoff 30°

power per control gear

No. of Lamps 5 System Flux (lm) 300lm Connection 220-240V 50/60Hz

Light distribution extra wide flood Luminaire efficacy 48 W/m Accessories

Surfaced mounted Linear LED

Manufacturer iGuzzini Light source LED 5.9W 890lm Beam angle 17°

Product BK37 Colour of light 3000K

Wall-/Ceilingmounted Warm White LED，IK05

LANDSCAPE DETAILS

Project Brief

This project is a residential project for our clients who is an Alzheimer’s disease patient. As bright and full spectrum light from 5000lux to 10000lux can be beneficial to reset the circadian rhythm for patients suffering from the Alzheimer disease. And bright light is helpful to treat sleep disorder. Natural light is the most viable light source that satisfies criteria. Increasing of illumination in daylighting, combining pre-set light scenes is one of main strategy of this design to create a sufficiently bright light space. .

With expectation to have a good daylight-lit space, architects adopt the ideas of natural daylighting, and maximize possible openings in loft levels and ground floor after considering overheat issue in summer sessions. Considering that our clients are inconvenient to moer around with wheelchair, another strategy is utilizing handrail light to guide them. Handrail light installed at sitting height is recessedunder handrail and the beam angles properly cover the corridors in this house. This ensures the user could easily move around in this house with illumination of handrail light.

Sheep Shed

A Special Residential Project for health caring

Dining area

Regular pool s of light from handrail to guide movemont toward dining area

Dining area

Dining table pendant illuminated

Dining area

Decorative light to shelving and displays

Dining area

Downlights to the major columns

Dining area

Additional downlight over dining table from high level spotlights

Our design idea at entrance hall is adding a uniform, continous wall washing light. Our client is an lover for artwork collections. An good illumination at entrance art gallery is important for her to appreaciate and gain joy. Consideration of sitting height at wheelchair, the wall need to be uniformly washed from bottom to top. We choose iGuzzini blader with 1 metre distance to uniformly wash the wall. With good optics to create uniform lighting on the wall, observers won’t see the glare directly.

Another design idea is to use downlight recessed hidden in the handrail to wash the floor all day, This is particular for needs of guiding wheelchair circulations for all day movement requirement.

Entrance hall

Entrance hall of building is the main area to connect other rooms of house. The most attractive lighting features are the basket shape pendants at the visual centre axis. The hive pendants have a natural shape like a weavebrid cave, and casually hanging above the entrance tables. This light provide additional ambient light over the tables. Recessed downlight create discrete pools over tables, both light are in 2700K and warmly wash the floor

At the end of entrance hall, additional light glow in the dinning area are illuminated from centrepiece pendants, which is selected from the Flos Noctambule pendants.
