Programming | MifareFlex 1. Create master cards (first time usage or when a reset is done): Programming of the first master card Hold the master card to the antenna field, the lock ticks for approx. 5 seconds (confirmation melody).

-> A master card has been programmed.

Program second and third master cards Hold the first master card to the antenna field, the lock ticks, a second and also a third master card can be programmed while it is ticking (confirmation melody).

-> Second and third master card have been programmed.

2. Program transponder/card:

One of the created master cards is held up to the antenna field, after which it ticks for approx. 5 seconds. While it is ticking, the transponder is held against the antenna field (confirmation melody).

-> Transponder has been programmed

3. Emergency opening:

The master card is held up to the antenna field, the lock ticks while the master card is held up to the antenna field two additional times while it is ticking.

-> the lock unlocks and remains unlocked.

Attention: Take the master card away from the antenna field immediately after unlocking. Otherwise all programmed transponders / master cards will be deleted (as described in point 5 and 6)

4. Delete transponder/cards individually: One master card is held up to the antenna field, after which it ticks for approx. 5 seconds. While it is ticking, the programmed transponder/card is held against the antenna field (short signal tone).

-> This transponder is deleted

5. Delete all transponder/cards:

One master card is held up to the antenna field, after which it ticks for approx. 5 seconds. While it is ticking, the master card is held up to the antenna field twice, the lock is unlocked. When unlocked the master card is held up to the antenna field two more times . Confirmation sound after approx. 1 second.

-> all transponder/cards have been deleted.

2

Programming | MifareFlex 6. Delete master card(s): One master card is held up to the antenna field, after which it ticks for approx. 5 seconds. While it is ticking, hold the master card against the antenna field twice and the lock unlocks. When unlocked, hold the master card four more times against the antenna field. A long sound arises.

-> all master cards are deleted.

Attention: After deleting the master cards, the lock waits for new programming cards - (see point 1) 7. Functions of the RESET button: • Switching the sound on and off (sound for transponder identification): Press the reset button once briefly for 1 second (2 short signal tones) -> The sound was switched off at the lock Press the reset button once briefly for 1 second (confirmation melody) -> The sound was switched on at the lock • Delete all transponders and all master cards Press the reset button for 3 seconds (1 long signal tone) -> All transponders and master cards have been deleted from the lock.

Important: The mode is not deleted by a RESET. Attention: After deleting all transponder and master cards, the lock waits for new master cards - (see point 1)

3

MifareFlex | Modes Special features of the MifareFlex electronics: FLEX = maximum flexibility in programming With this electronics it is possible to set 10 different operating modes. Programming and adjustment is easy and can be done at any time, even when installed. Programmed transponders and master cards will not be deleted during the changeover.

The following modes are available: Mode 01

Fix Code / NFC / 4 Seconds (NFC = DesFire + Mifare Classic)

Automatic locking after 4 seconds

Mode 02

Fix Code – NFC – Open/Close (NFC = DesFire + Mifare Classic)

Manuel unlocking/locking

Mode 03

Freelocker Sector 10 – 0 hours (Mifare Classic 4 Byte – Sector 10)

Mode 04

Freelocker Sector 10 – XX hours (Mifare Classic 4 Byte – Sector 10)

Mode 05

Freelocker NFC – 0 hours (NFC=DesFire + Mifare Classic)

Mode 06

Freelocker NFC + XX hours (NFC =DesFire + Mifare Classic)

Mode 07

Freelocker Sector 10 – 0 hours (Mifare Classic 4 Byte – Sector 10)

Mode 08

Freelocker Sector 10 – XX hours (Mifare Classic 4 Byte – Sector 10)

Mode 09

Freelocker NFC – 0 hours (NFC=DesFire + Mifare Classic)

Mode 10

Freelocker NFC – XX hours (NFC=DesFire + Mifare Classic)

Autmatic unlocking after XX hours

Automatic unlocking after XX hours

Automatic unlocking after XX hours

Automatic unlocking after XX hours

Mode 01 – 06: 3 master cards function as programming cards and emergency opening cards.

Mode 07 – 10: 3 master cards as programming cards with the possibility of programming 5 emergency opening cards.

The 5 emergency cards have the function to unlock and lock the lock again after an emergency opening. The transponder/card that locked the lock in Freelocker mode will after the emergency opening still have the possibility to unlock. The transponder can be deleted with a desk cleaner.

4

MifareFlex | Modes Which transponder can be used?

Mode 03, 04, 07 & 08: Mifare Classic 1K (4Byte) and Mifare Classic 4K (4Byte) with a free Sector10 Mode 01, 02, 05, 06, 09 & 10: Mifare Classic 1K (4+7 Byte) and Mifare Classic 4K (4+7 Byte), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a), LEGIC® CTC

5

Installation | Important instructions 1. Remove the battery strip = system active and the RFID field is activated.

2. Avoid overlapping reading fields on the locks, otherwise the battery will quickly discharge.

3. Do not activate batteries before installation.

4. Always isolate or remove batteries for transport!

Important! RFID reading distance Mifare key fobs up to 22 mm Mifare cards up to 25 mm Always check the reading distance before installation!

In some cases the antenna has to be recessed or even an external antenna is needed. (Depending on material and thickness of the furniture)

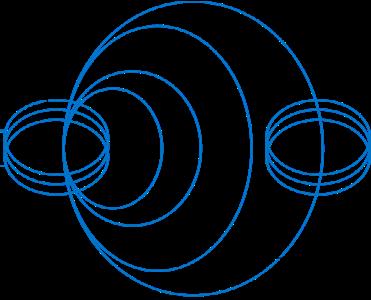

Inductive coupling (13,56 MHz) Transponder Antenna

min. 10 cm XLOCK10

min. 20 cm

Antenna field Important! Mounting distance for RFID signal (alternative - external antenna)

6

Mounting | Important instructions

• Low power consumption • No wake-ups in the RFID field

• High power consumption • Many wake-ups in the RFID field

Use door hinges without automatic closing with self-opening (ejector).

Always position the sticker on the front above the antenna.

7

Batteries | Important instructions

Film strip

The battery is isolated by a firm strip. To activate the lock, the film strip is pulled out. The system and the RFID field are now activated. The locks can discharge each other if they are too close to each other (see page 07).

Attention: It is essential to pull off the film strip before closing the cabinet door.

Battery change

Always use a new battery when changing.

Battery type Panasonic Industry CR123A (1550mA h) was tested with the lock. Insert the battery into the battery compartment with the correct polarity (see photo). The system and the RFID field are then activated. The locks can discharge each other if they are too close to each other (see page 07).

Attention: During transport, the lock should be unlocked and there should be no battery in the lock. Isolation with a film strip is also possible.

8

Master – and Service Cards | Master Cards & Fixcode Mode

The master cards are unique and are programmed to each lock per project/building. These cards are required to program service cards, emergency opening cards and user transponders and to delete them. Up to 3 master cards, 5 emergency opening cards and 47 user transponders can be programmed per lock.

With a master card and service card 01 the lock can be programmed into Mode 01.

In Mode 01, up to 47 transponders (Type ISO14443a / NFC) can be programmed per lock. This mode is also called "Personal Locker" or "Fixcode".

The type of locking is called the latch function: Only programmed data carriers can lock and unlock the lock. After an authorized data carrier has been identified, the bolt unlocks and automatically locks again after 4 seconds.

With a master card and service card 02 the lock can be witched to or programmed into Mode 02.

In Mode 02, up to 47 transponders (type ISO14443a / NFC) can. be programmed per lock. This mode is also called "Personal Locker" or "Fixcode".

The type of locking is called the locking function: After an authorized data carrier has been identified, the bolt moves into the open position and stays in this position. The next time an authorized data carrier is identified, the latch moves into the closed position and stays in this position.

9

Service Cards | Freelocker R/W with Master Cards Freelocker R/W principle (free choice of cabinet - read/write): The transponder/card that locks must unlock the lock again. Otherwise the lock remains blocked for other transponders. After an emergency opening with a master card, the Sector 10 is written on the transponder that has previously blocked. This means that this transponder can no longer lock a cabinet. The sector 10 on this transponder must be deleted by unlocking the lock or manually with an XLOCK segment cleaner or the smartphone APP. An info terminal can be installed in order for the users to find the right locker again. The locker number is written on the transponder on Sector 10 when locking.

With a master card and the service card 03 the Freelocker Mode 03 R/W - Sector 10 (free locker selection) can be activated. In addition, "Cabinet occupied" is written to the transponder.

The lock will not unlock automatically. The lock will stay locked. ! Only works with Mifare 4 Byte Type Classic 1K / Mifare and Classic 4 K transponders !

With a master card and the service card 04 the Freelocker mode 04 R/W - Sector 10 (free locker selection) can be activated. In addition, "Cabinet occupied" is written to the transponder.

The lock will unlock automatically XX hours after the last booking. ! Only works with Mifare 4 Byte Type Classic 1K / Mifare and Classic 4 K transponders !

10

Service Cards | Freelocker NFC / ISO 14443a with Master Cards Freelocker NFC / ISO 14443a (free choice of cabinet – no information written on transponder): The transponder/card that locks must unlock the lock again. Otherwise the lock remains blocked for other transponders. Should a transponder be lost, an emergency opening can be done with a master card. The locker is open again and ready for use for a new user.

With a master card and the service card 05 the Freelocker Mode 05 R/W can be activated. No information is written on the transponder.

The lock will not unlock automatically. The lock will stay locked. ! Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a) can be used !

With a master card and the service card 05 the Freelocker Mode 05 R/W can be activated. No information is written on the transponder.

The lock will unlock automatically XX hours after the last booking. ! Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a) can be used !

11

Service Cards | Freelocker R/W with Master Cards and Emergency opening Cards Freelocker R/W principle (free choice of cabinet - read/write): The transponder/card that locks must unlock the lock again. Otherwise the lock remains blocked for other transponders.

The master cards serve as programming cards should the current Mode of the lock be changed.

An emergency opening card is used to open a locker should a transponder be forgotten or lost. The emergency cards have the ability to unlock the lock and lock it again, if desired. The forgotten or lost transponder would then still be working. The transponder can be deleted by unlocking the locker, using a XLOCK segment cleaner or the smartphone APP. An info terminal can be installed in order for the users to find the right locker again. The locker number is written on the transponder on Sector 10 when locking.

07

With a master card and the service card 07 the Freelocker Mode 07 R/W - Sector 10 (free locker selection) can be activated. In addition, "Cabinet occupied" is written to the transponder.

The lock will not unlock automatically. The lock will stay locked. ! Only works with Mifare 4 Byte Type Classic 1K / Mifare and Classic 4 K transponders !

08

With a master card and the service card 08 the Freelocker mode 08 R/W - Sector 10 (free locker selection) can be activated. In addition, "Cabinet occupied" is written to the transponder.

The lock will unlock automatically XX hours after the last booking. ! Only works with Mifare 4 Byte Type Classic 1K / Mifare and Classic 4 K transponders !

12

Service Cards | Freelocker NFC / ISO 14443a with Master Cards Freelocker R/W principle (free choice of cabinet - read/write): The transponder/card that locks must unlock the lock again. Otherwise the lock remains blocked for other transponders.

The master cards serve as programming cards should the current Mode of the lock be changed.

An emergency opening card is used to open a locker should a transponder be forgotten or lost. The emergency cards have the ability to unlock the lock and lock it again, if desired.

09

With a master card and the service card 09 the Freelocker Mode 09 R/W can be activated. No information is written on the transponder.

The lock will not unlock automatically. The lock will stay locked. ! Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a) can be used !

10

With a master card and the service card 10 the Freelocker Mode 10 R/W can be activated. No information is written on the transponder.

The lock will unlock automatically XX hours after the last booking. ! Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a) can be used !

13

Programming Guide | All symbols negative sound

antenna field rattling sound

Reset button is pressed for a long time (ticking)

fast rattle

ticks for about 5 seconds

long/short confirming signal

¯

Confirmation sound Acoustic signals

Master Card

Transponder

short

long

Reset button

Lock unlocks

14

Installation | Insert batteries

1. Insert batteries / Pull out film strip

The battery is inserted with the correct polarity -> System and RFID field is activated

Film strip is pulled out -> System and RFID field is activated

¯

¯

15

Guidance | Programming Master Cards

2. Programming Master Cards

Hold the first master card to the antenna field ticks for about 5 seconds

While ticking, hold the second master card to the antenna field

While ticking, hold the third master card to the antenna field

16

Guidance | Programming of new Mode with the help of a service card

3. Programming a new Mode with a service card

Hold a master card to the antenna field ticks for about 5 seconds

While ticking hold the service card (with the wished mode) to the antenna field

¯

¯

17

Guidance | Programming Emergency opening Cards (possible in Mode 7, 8, 9 & 10)

4. Programming Emergency opening Cards

Hold a master card to the antenna field ticks for about 5 seconds

While ticking hold a Mifare card to the antenna field.

This is now an emergency opening card.

¯

*A total of 5 emergency opening cards can be programmed.

18

Guidance | Programming transponder (possible in Mode 1 & 2)

5. Programming transponder

Hold a master card to the antenna field ticks for about 5 seconds

While ticking hold a transponder / user card to the antenna field

¯

*Up to 47 transponder / user cards can be programmed per lock.

19

Guidance | Emergency opening (Mode 1, 2, 3, 4, 5 & 6)

6. Emergency opening with Master Card

Hold the master card to the antenna field

ticks for about 5 seconds

While ticking hold the master card two more times to the antenna field

The bolt retreats -> the lock unlocks.

Do no longer hold the card to the antenna field.

Attention: After the lock has unlocked, the master card must no longer be held up to the antenna field.

Otherwise all master cards will be deleted and have to be taught in again.

20

Guidance | Emergency opening (Mode 7, 8, 9, & 10)

7. Emergency opening with an Emergency opening Card

Hold a emergency opening card to the antenna field

¯

The bolt retreats -> the lock unlocks. *holding the emergency card to the antenna field a second time and the lock locks again.

*With the emergency opening card the lock can be unlocked and locked again.

21

Guidance | Deleting a transponder

8. Deleting a transponder

Hold a master card to the antenna field ticks for about 5 seconds

while ticking hold the transponder you wish to delte to the antenna field

22

Guidance | Deleting a transponder 8. Deleting all transponders

Hold a master card to the antenna field

ticks for about 5 seconds

While ticking hold the master card two more times to the antenna field

The bolt retreats -> the lock unlocks.

While ticking hold the master card two more times to the antenna field A confirmation sound arrises.

4 sec.

23

Guidance | Deleting all master cards 9. Deleting all Master Cards

Hold a master card to the antenna field

ticks for about 5 seconds

While ticking hold the master card two more times to the antenna field

The bolt retreats -> the lock unlocks.

While ticking hold the master card four more times to the antenna field A confirmation sound arrises.

24

Guidance | Sound on/off & Delete all 11. Sound on/off

Press the reset button one time for 1 second -> Sound ON

¯

Press the reset button one time for 1 second -> Sound OFF

12. Delete all

Press the reset button one time for 3 seconds

Attention: After the reset, the Mode of the lock will remain.

25

Freelocker | Principals & Possibilities Principle of the Freelocker (free choice of cabinet or swimming pool function):

"Free choice of lockers" refers to a procedure in which the user can freely choose any unlocked locker with his transponder/card. There is no fixed assignment between lock and transponder. When the lock is locked, the transponder is temporarily saved. Thanks to the "free choice of locker", the assignment is voluntary; every user chooses the locker he or she likes.

With "Freelocker 1: 1" and "Freelocker locker number", the lock writes information on the transponder using the read / write principal. As soon as the cabinet is locked, the locking system saves the occupancy identifier on the transponder. Further lockers can no longer be locked. A maximum time can be defined for the duration of the occupancy.

The following versions of the "free choice of cabinet" are available from MifareFlex: • Freelocker - with "write back on the transponder" "Freelocker 1: 1" = Mode 3, 4, 7 & 8 A lock can only be blocked with a Mifare Classic 4 byte, Mifare Classic 1K or 4K transponder (13.56 MHz - 4 byte UID). The locks write the occupied status on the transponder in Sector 10 of the Mifare Classic transponder. Each user can only lock a maximum of one cabinet at a time.

Optional: Segment cleaner, LED light as an accessory, shows that a cabinet is occupied, activation of an automatic self-unlocking in mode 04 and mode 08.

"Freelocker with locker number" = Mode 3, 4, 7 & 8 A lock can only be blocked with a Mifare Classic 4 byte, Mifare Classic 1K or 4K transponder (13.56 MHz - 4 byte UID). The locks write the locker number on the transponder in Sector 10 of the Mifare Classic transponder. Each user can only lock a maximum of one cabinet at a time.

Optional: segment cleaner, information terminal for the locker number display, LED light as an accessory, indicates that a locker is occupied, activation of an automatic self-unlocking in mode 04 and mode 08.

• Freelocker - without "writing back on the transponder" "Freelocker open" = Mode 5, 6, 9 & 10: Freelocker open to Mifare Classic 1K (4 + 7 bytes) and Mifare Classic 4K (4 + 7 bytes), Mifare DesFire EV1, Mifare light, LEGIC® advant ATC2048 and ATC4096, NFC (ISO 14443a). Every compatible transponder can lock a lock without programming (the UID of the transponder is temporarily saved).

Optional: LED light as an accessory, shows that a cabinet is occupied, activation of an automatic self-unlocking in mode 06 and mode 10.

26

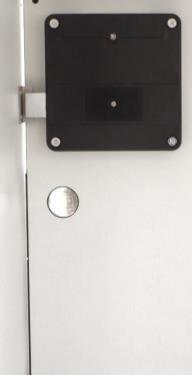

Freelocker | Locker with latch lock and bolt lock XLOCK Latch lock & Quick release catch – without LED light Cabinet occupied = door is closed, lock is locked.

Cabinet is free = door is ajar, lock is unlocked.

Lock plate with catapult

XLOCK10 mit S2 Exteriorview, occupied

available

Lock plate without catapult

XLOCK40 withS7

available

XLOCK60 mit S12

XLOCK30 mit S12

Interior view

XLOCK Bolt locks - with LED light Cabinet occupied = door is closed, lock locked, LED flashes red Cabinet free = door is closed, lock unlocked, LED is off

Exteriorview, occupied

Catapult in the lock

Interior view

Lock plate without catapult

XLOCK50 with S7

27

Freelocker | LED light

Blue light symbolizes the end position of bolt open / bolt closed

Red flashing (approx. every 5 seconds) symbolizes that the cabinet is occupied.

No signal means that the cabinet is free.

28

Freelocker | Segment Cleaner

Segment Cleaner - Function: If a lock is used in Freelocker Mode 3, 4, 7 or 8 the Segment Cleaner is an important accessory. The Freelocker lock programs the Mifare® Classic transponder on Sector 10 using the write / read principal. When the lock is locked, information is automatically written to the transponder. When the lock is unlocked, this information is automatically deleted from the transponder.

If the transponder does not unlock the locker again, the information "Locker locked" remains on the transponder. This can happen if the transponder is misplaced or lost. The lock is unlocked with a Master card or an Emergency opening card (emergency opening). If this transponder is found later, the information "Cabinet locked" must first be deleted with the help of a Segment Cleaner.

Delete the Freelocker segment on the transponder:

With the segment cleaner, the locker number and "locker locked" can be deleted from the transponder.

To do this, hold the transponder 2 times to the RFID field.

29

Freelocker | Info Terminal Info terminal - function: If a lock is used in Freelocker Mode 3, 4, 7 & 8 the information terminal is a smart accessory. The Freelocker lock programs the Mifare® Classic transponder on Sector 10 using the write / read principal. When the lock is locked, a locker number is automatically written to the transponder. When the lock is unlocked, this locker number is automatically deleted from the transponder.

Should the user have forgotten which locker he/she had locked, the locker number can be checked using the info terminal. To do this, a Mifare Classic transponder (Mifare Classic 1K / Mifare Classic 4K) is held against the RFID field on the info terminal (see picture).

No locker number on the transponder

The transponder is assigned the locker number 1

No locker

Locker number 1

Keinnumber Schrank Ist belegt. identified.

RFID field

30

Freelocker with locker number | Programming of numbering card Freelocker with locker number programming:

In order for locks to be programmed with a locker number, each lock must first be configured with a special "numbering card". To produce a lock number programming card, we need an original Mifare Classic transponder with an available Sector 10.

1. Open the MCT app on your Android smartphone.

(The app can be downloaded from the Google Play Store. The app is free of charge.)

For programming, only original Mifare Classic transponders work.

(Mifare Classic 1K and Mifare Classic 4K)

2. Hold a Mifare Classic transponder on the smartphone's NFC reading field until "New tag found (UID)" appears on your screen.

If the information "New tag found (UID)" does not appear, the transponder must be held in the NFC read field again. It is also possible that the NFC reading field only works reliably after restarting the smartphone.

Backside of an Android smartphone (Reading field)

„New tag found (UID)“

31

Freelocker with locker number | Programming of numbering card

3. Press Read Tag

4. Choose std.keys and press START MAPPING AND READ TAG

32

Freelocker with locker number | Programming of numbering card

5. Scroll to Sector 10 and replace the first 4 characters (Fig. 1) with F855 in the 2nd line (Fig. 2).

For the Mifare Flex electronics, this code F855 means that a cabinet number can be programmed. These four digits always stay the same for programming the locker numbers.

Figure 1

Figure 2

33

Freelocker with locker number | Programming of numbering card

Figure 4

6. The characters in the 5th and 6th position are decisive.

In this example, the locker number 1 is written on the numbering card (Figure 9).

The sequence of numbers for programming individual cabinets is available in a special Excel table (Figure 4). This table is only for trained Mifare Flex dealers.

Figure 3

34

Freelocker with locker number | Programming of numbering card

Press the Menu symbol 7. The coding of the numbering card must be saved on the Mifare transponder.

Please be aware that the Mifare Classic Transponder must be placed on the RFID field of the Android smartphone for the next process.

Choose Write Dump

• The saving process starts in the "Menu" at the top right corner (Figure 5).

• Press “Write Dump” (Figure 6) • Choose “Write Dump (Clone) (Figure 7) • Press "WRITE DUMP”

Figure 5 Figure 6

Choose Write Dump (Clone) and press WRITE DUMP

Figure 7

35

Freelocker with locker number | Programming of numbering card

Press SELECT NONE and choose Sector 10.

Then press OK.

Choose std.keys Press START MAPPING AND WRITE DUMP to write the new information on the transponder. ! Here the transponder has to be hold to the RFDI antenna field !

36

Freelocker with locker number | Programming of numbering card

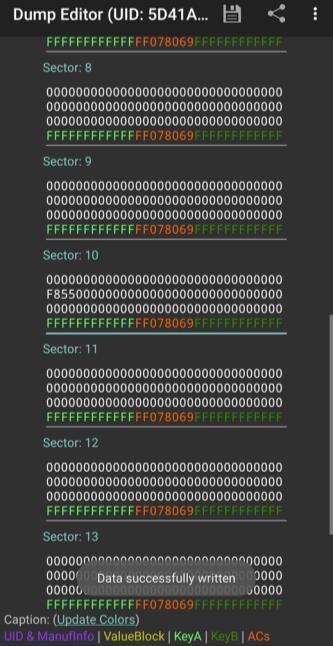

Locker number 1 was sucessfully written on the numbering card.

Figure 8

Data successfully written ( Data has been sucessfully written on the transponder)

37

Freelocker with locker number | Programming of the locker numbers on the locks The master card is to be held to the antenna field of the lock.

While ticking the numbering card is to be held to the antenna field. 2 short signals arrise. The locker number 1 is writte on the lock.

1.Hold the master card to the antenna field

The lock gives the numbering card a feedback saying that locker number 1 is used, and the next lock should get locker number 2.

No.1 The lock starts ticking…

2. While ticking hold the numbering card to the antenna field

Therefore, no app is required for numbering the following numbers because the numbering card automatically increments the locker number after each lock.

No.1

No.1 3. The lock writes the next locker number on the numbering card

4. Hold the master card to the antenna field

No.2

No locker number identified.

No.2

The lock starts ticking…

5. While ticking hold the numbering card to the antenna field

No.2

No.3

No.2 6. The lock writes the next locker number on the numbering card

contin ue

38

Freelocker with locker number | Reading the locker number at a info terminal Lock the locker/lock – locker number is written on the Mifare Classic transponder 1. Hold the transponder to the antenna field of the lock

2. On Sector 10 the locker number is saved

Reading the locker number on the info terminal

No.2

No locker number identified.

No.2 No.2

Hold the transponder to the info terminal.

The info terminal shows which locker was locked.

39

Freelocker with locker number | Reading the locker number at a info terminal Unlocking locker/lock – locker number is deleted from the transponder 1. Hold the transponder to the antenna field to unlock

No.2

2. Locker number is deleted on Sector 10 on the transponder

Reading locker number at the info terminal

The locker number is no longer saved on the transponder

No locker number identified.

No locker is occupied .

40

LET’S UNLOCK THE FUTURE TOGETHER! 41
