SOUTH-EAST ASIA - INDONESIA
JARDIN ATLAS
Hotel Art Direction - Concept Design
SITE INFORMATION
INTRODUCTION
LANDSCAPE & FACADE
PLANTATION
HANGING GATE

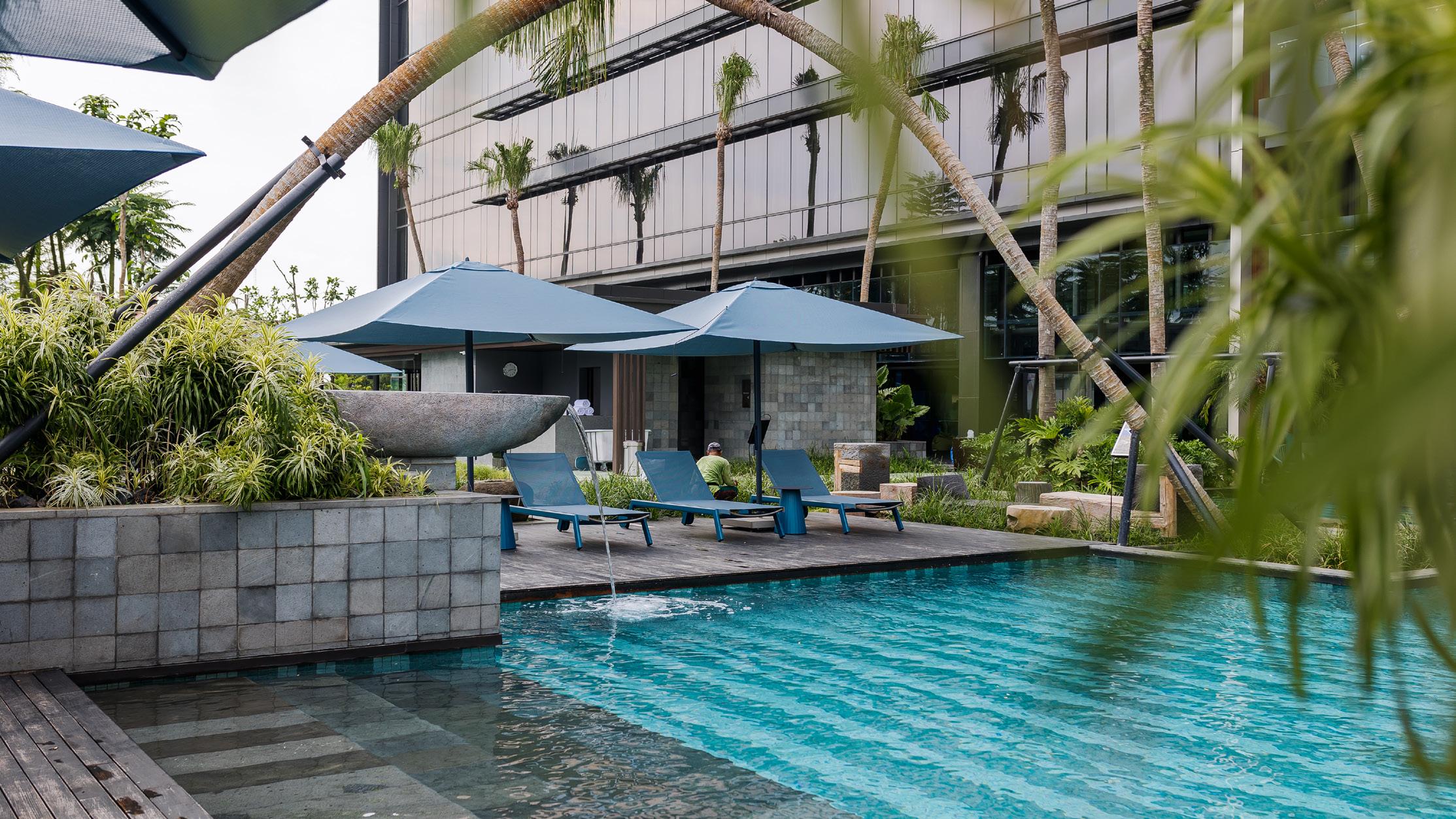

WATER FEATURE

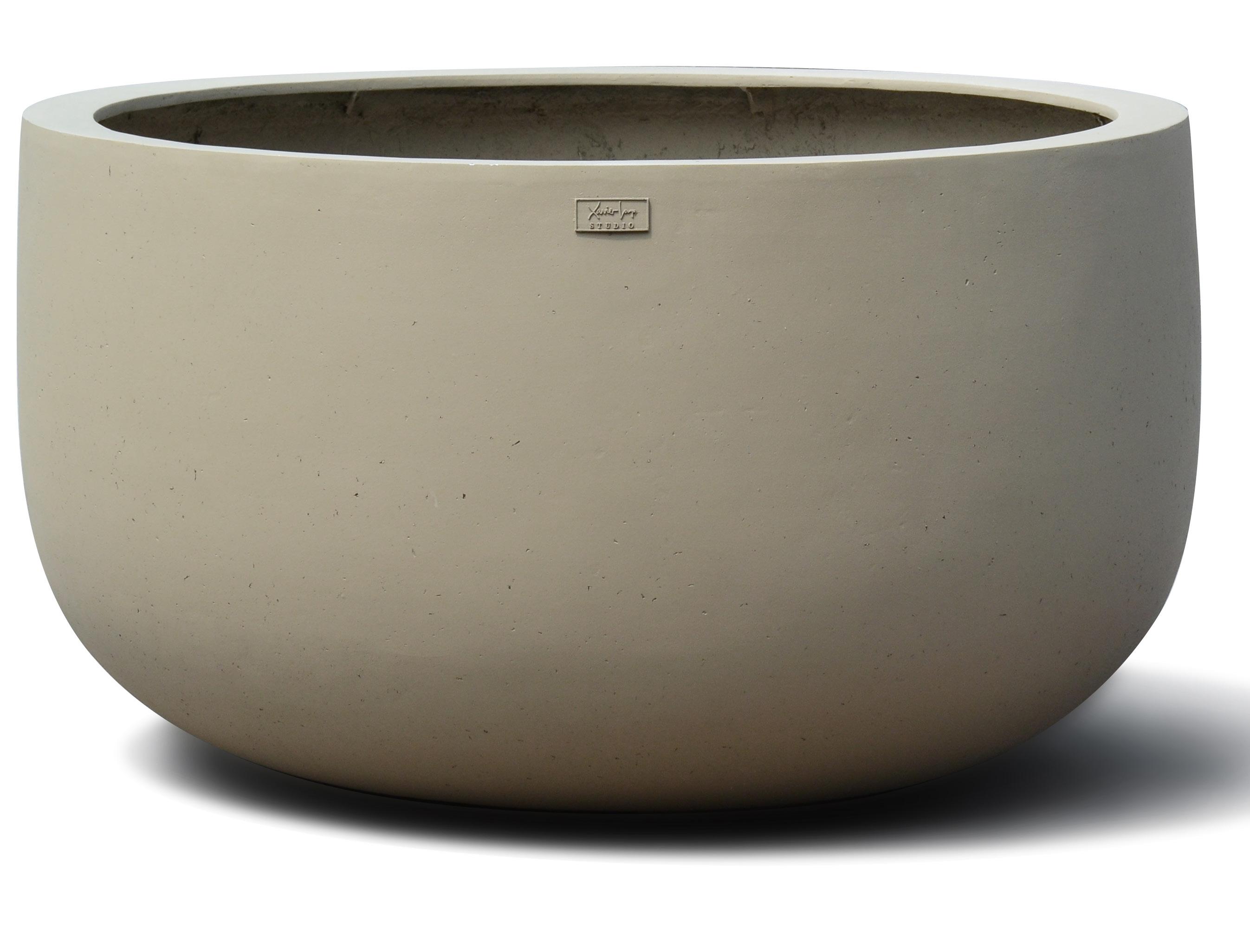

DECORATIVE POTS

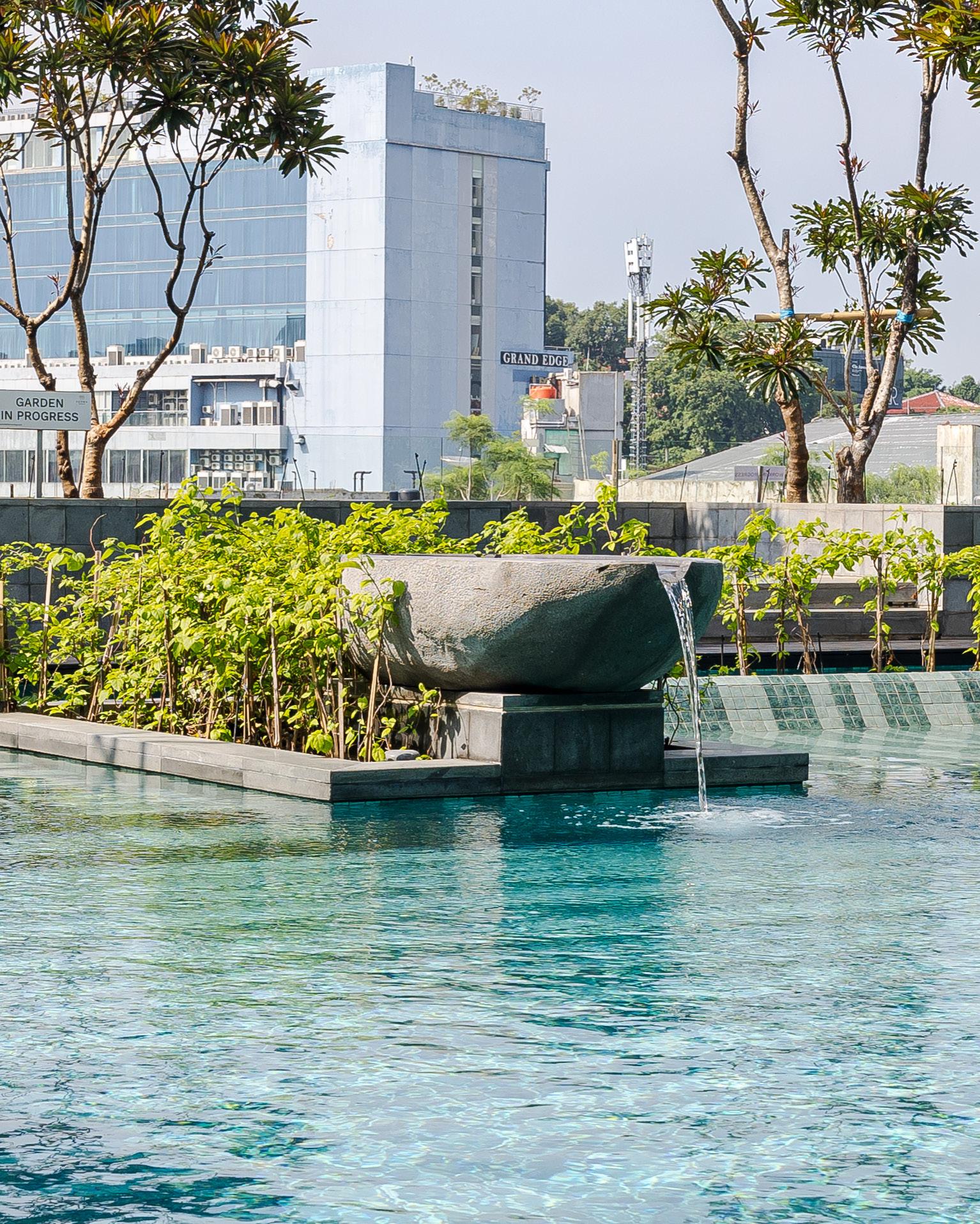

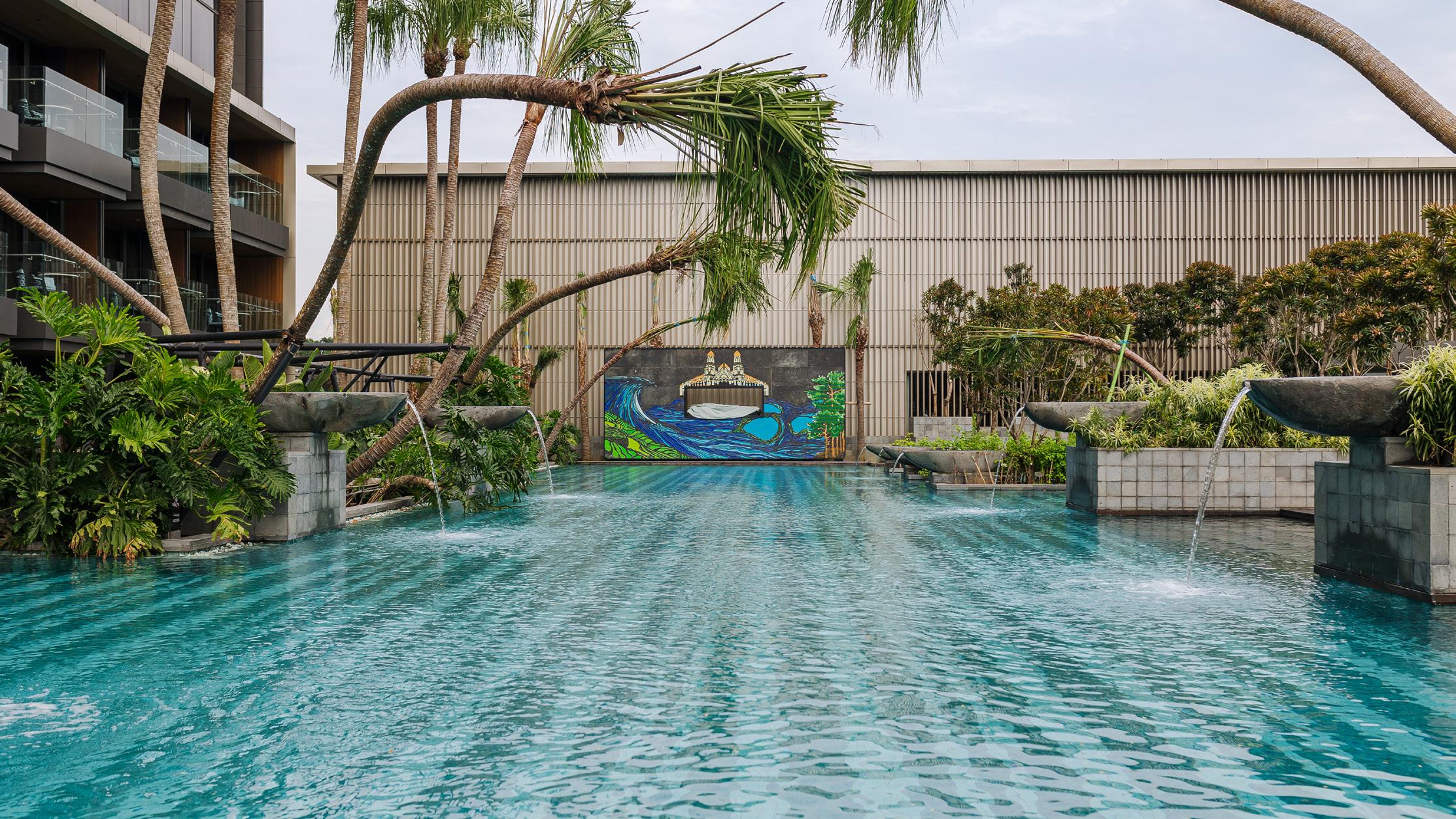

WATERSPOUT

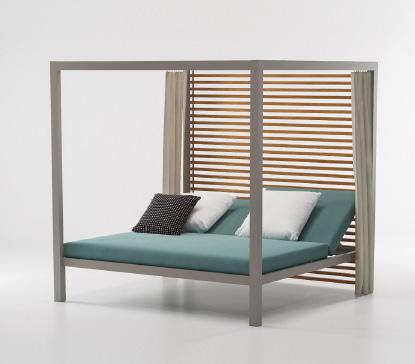

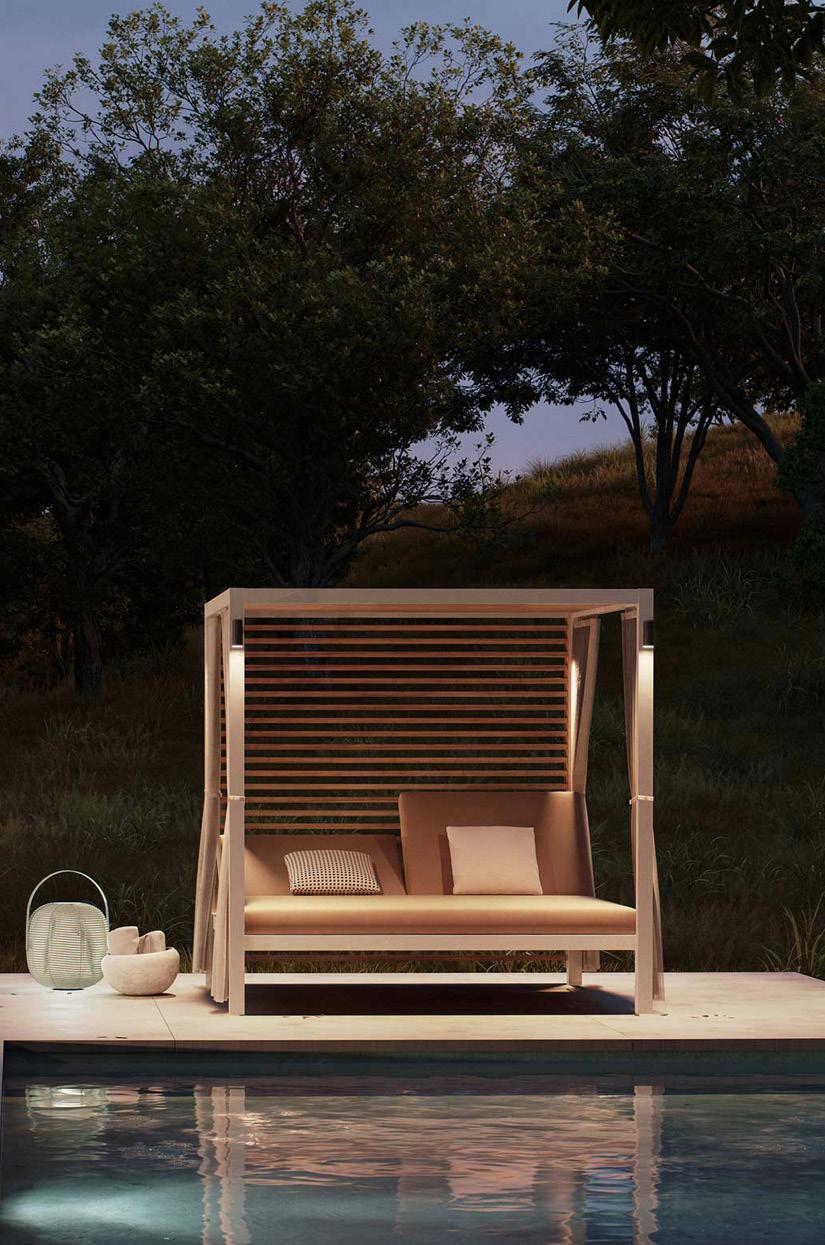

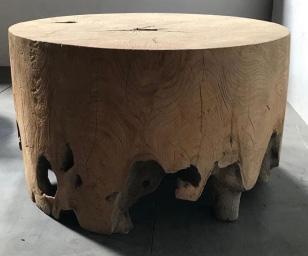

FURNITURE
NATURAL ACCENT

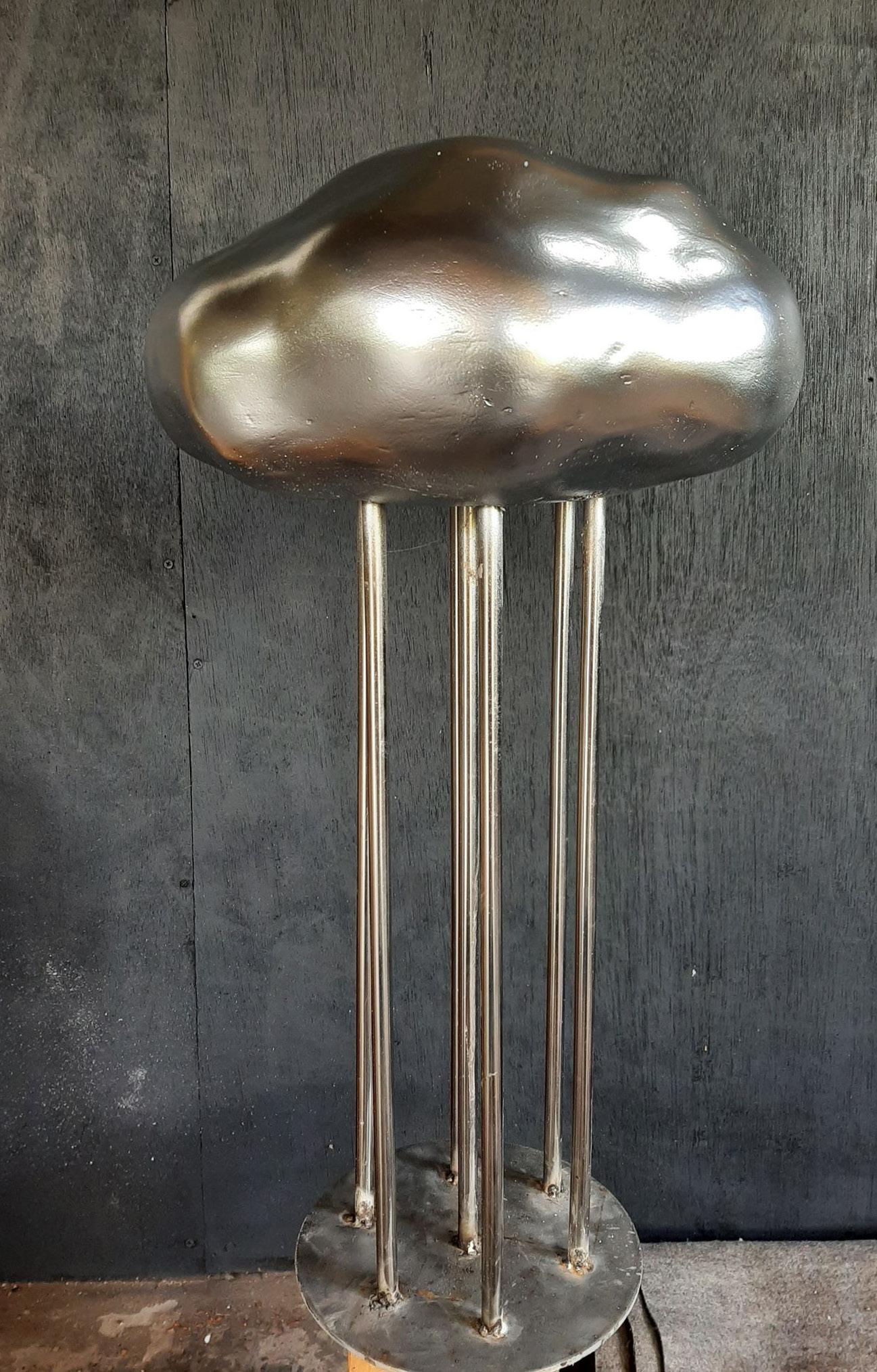

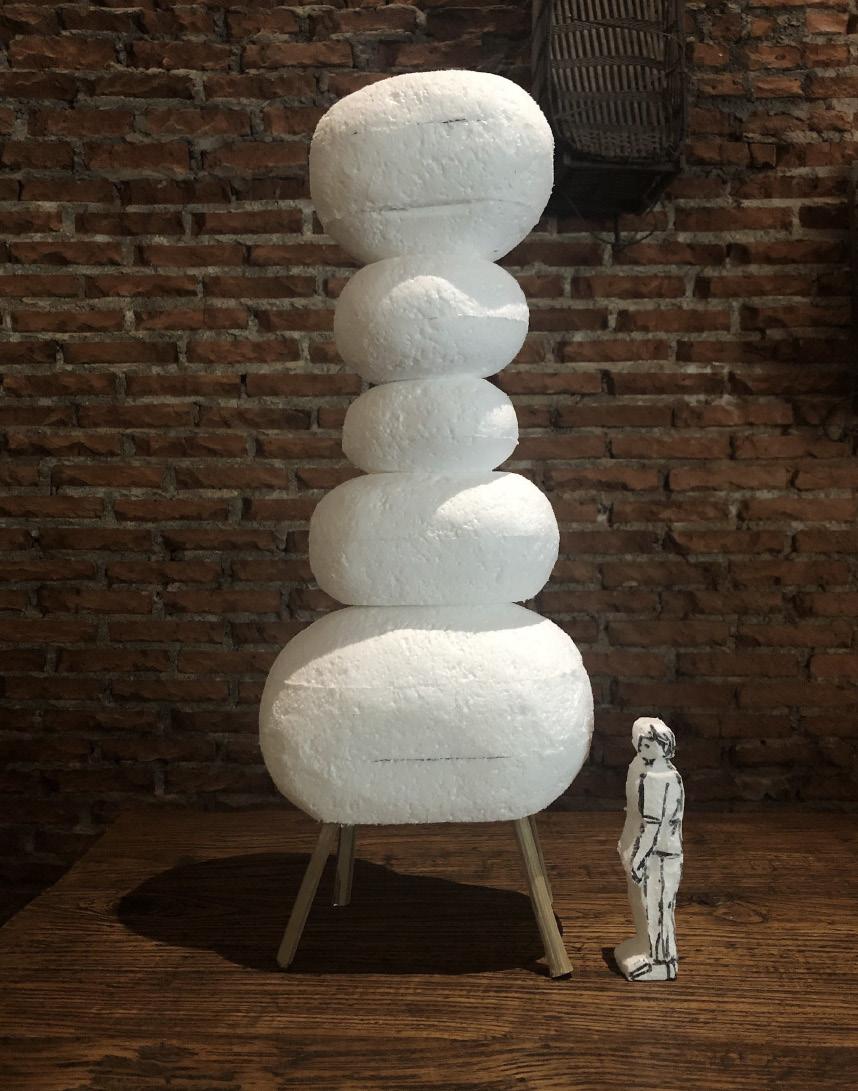

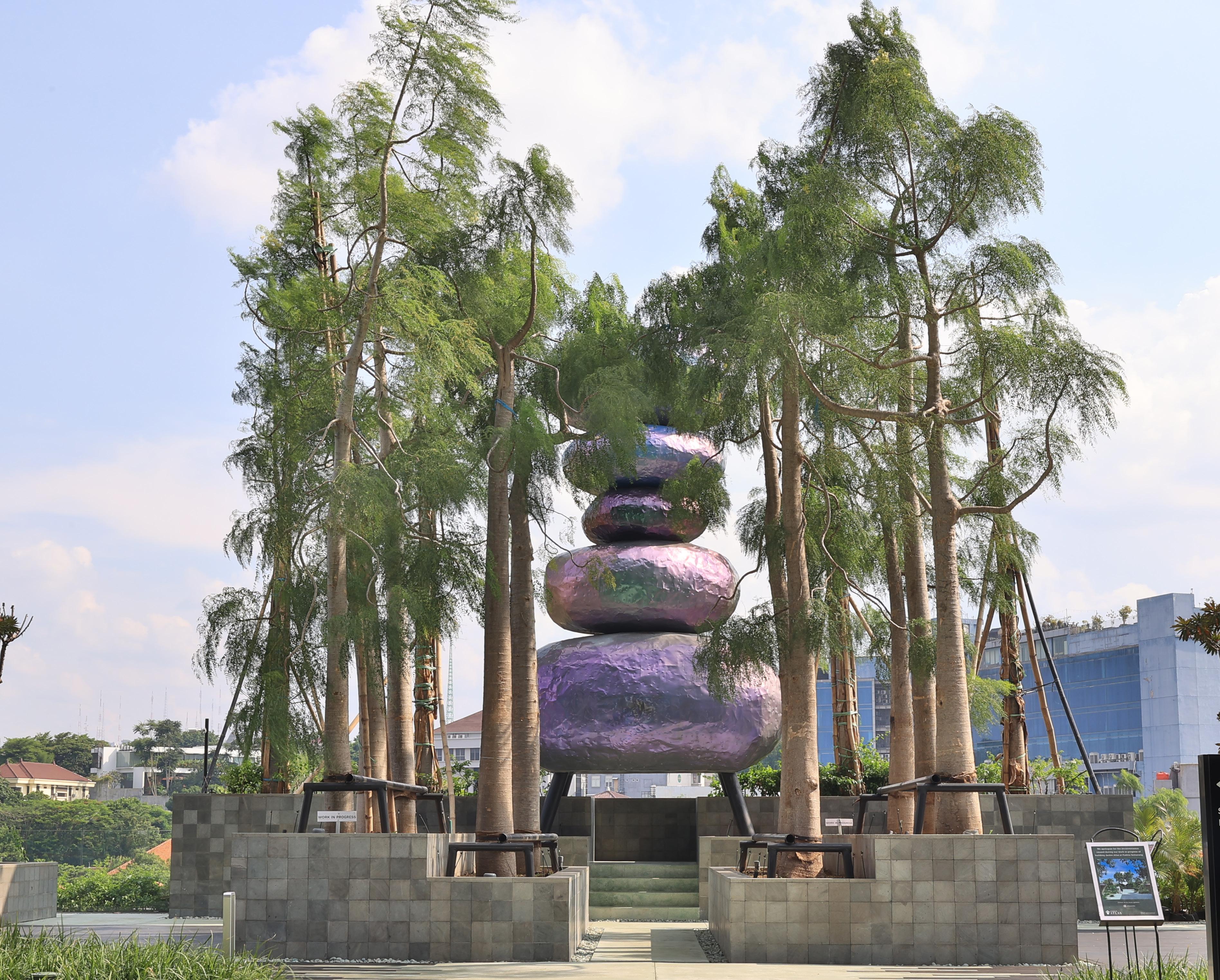

ARTWORKS
LIGHTING

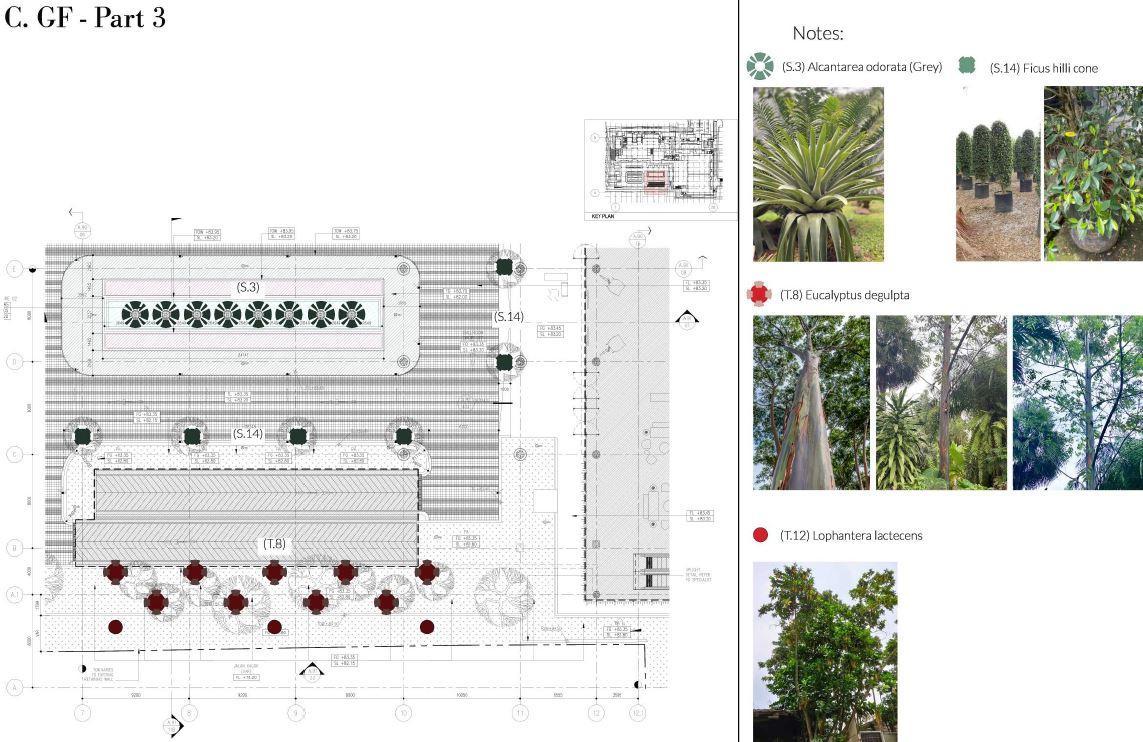

TECHNICAL DRAWING

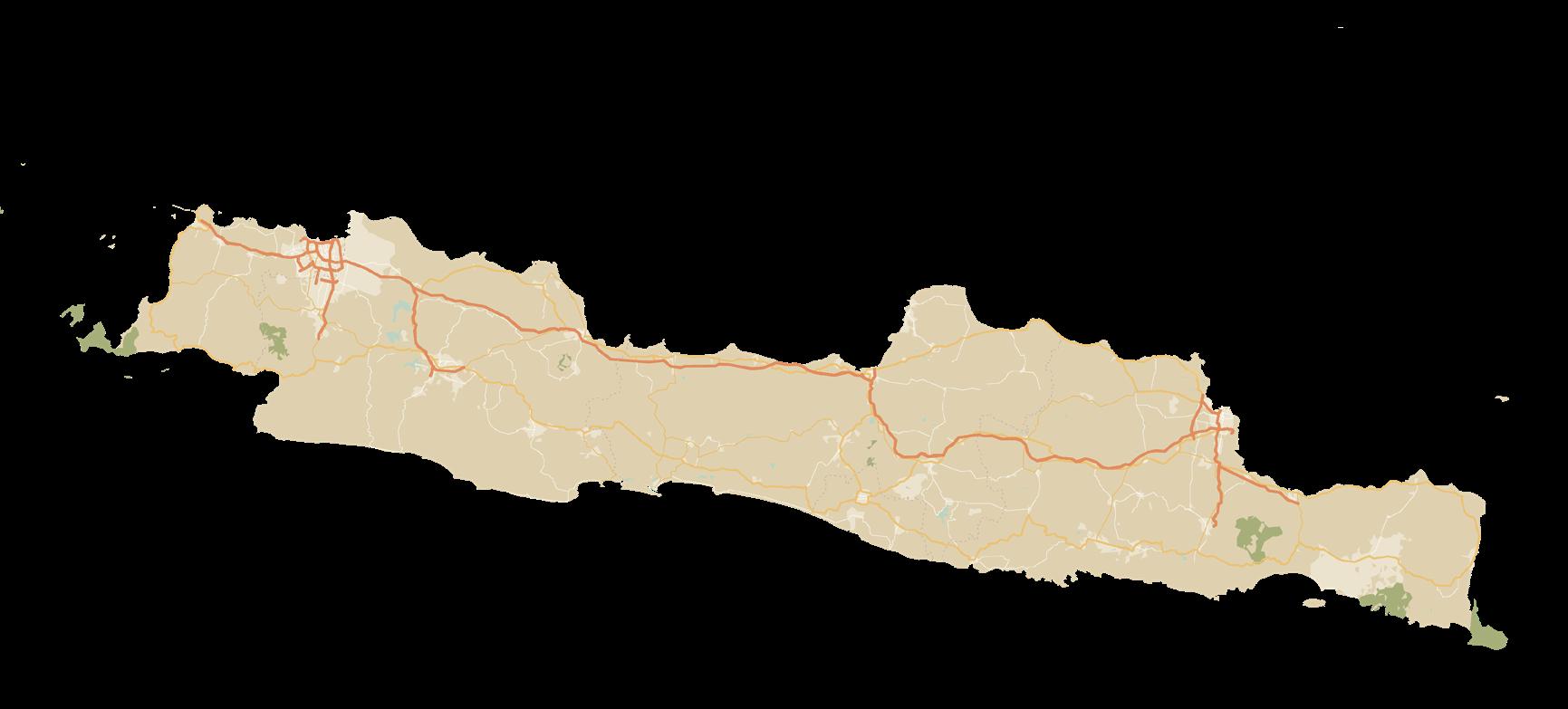

Java Sea
Indian Ocean
Java Island
Semarang
Semarang , an Old Harbor Town with a multicultural history. In the 15th century, the envoy of the Chinese Emperor, Zheng He, or better known as Admiral Cheng Ho, set foot in Java.
From the 17th century onwards, Semarang became a trading center for spices, as well as a busy port for trade and passenger activity, when most of the journey was by sea. The city of Semarang, the capital city of Central Java, is located right in the middle of the fertile and densely populated northern coast of the island of Java.
Semarang’s strategic position has become a melting pot of Chinese, Indian, Arabic, and European cultures. When touring the Chinatown area and the Dutch trading district, you can see different cultural influences everywhere. On the older side of the city near the harbor called the Old Town, or Oudstadt, the rows of historic old buildings that were once Europe’s commercial district are also interesting to explore.
SITE
I N F O R M A T I O N

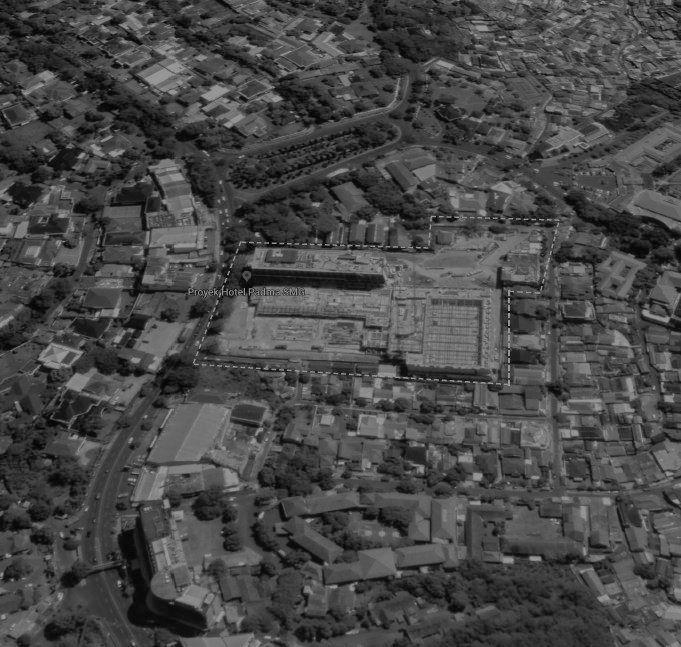

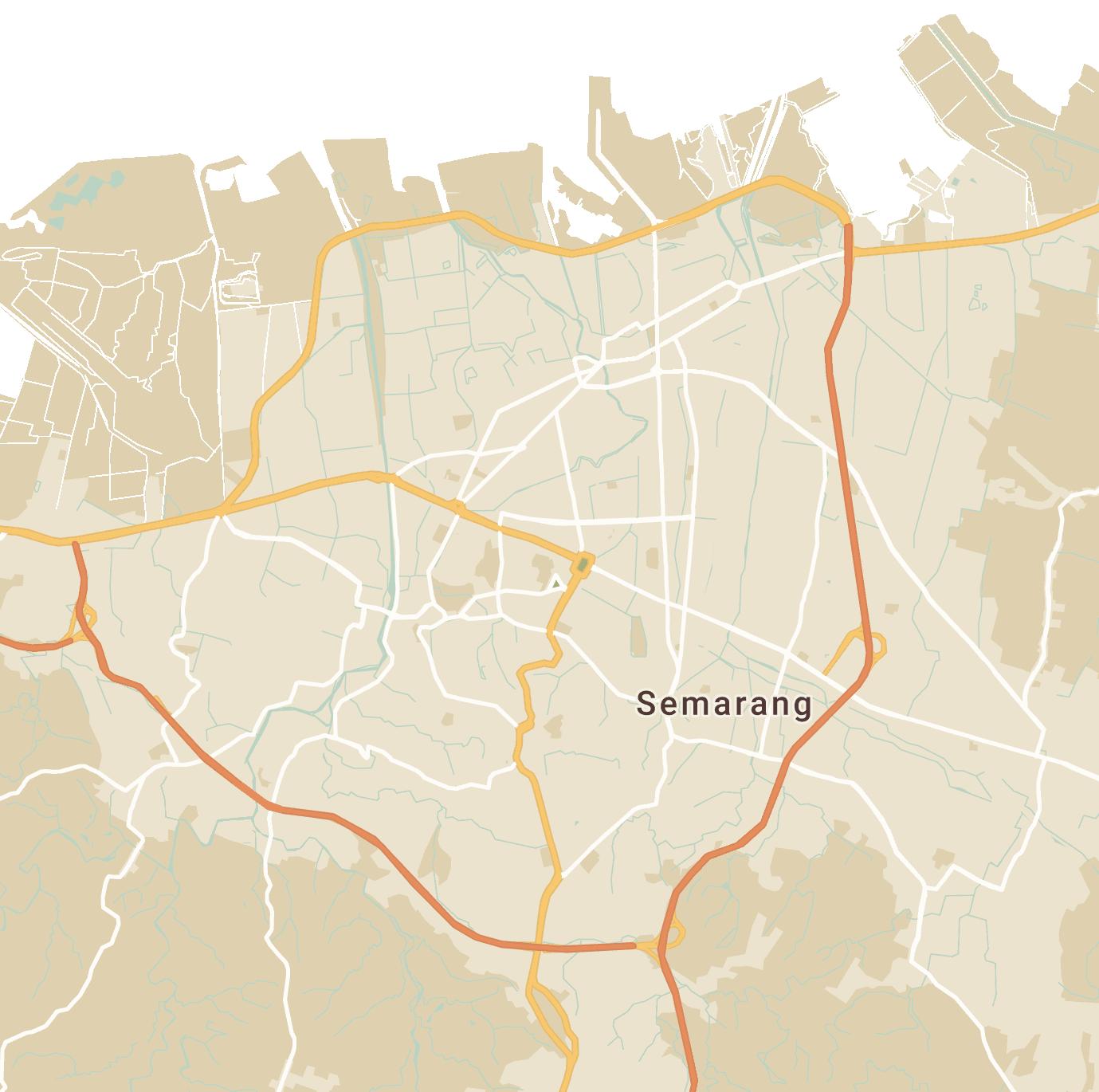

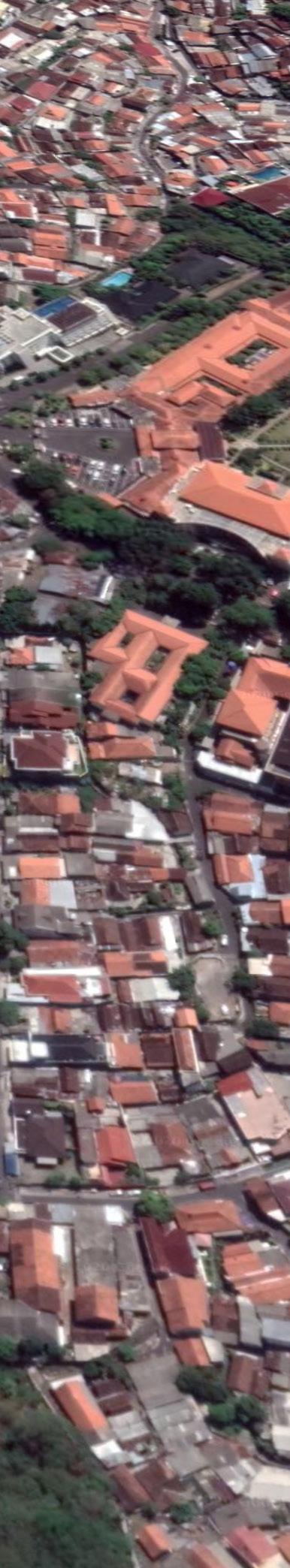

Location

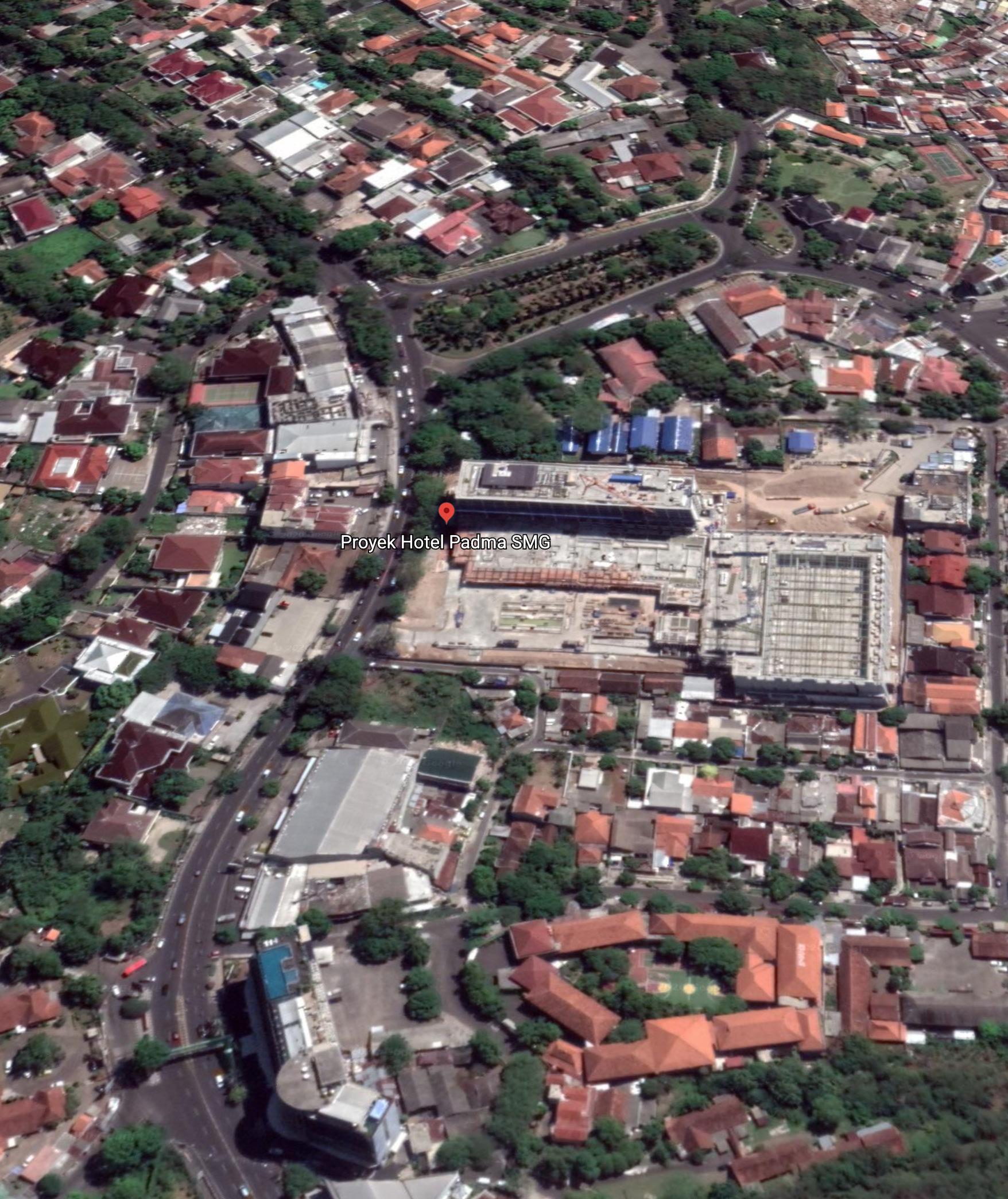

Jl. Sultan Agung No 86, Semarang, Central Java, INDONESIA
General
Semarang is the capital and largest city of Central Java province in Indonesia. It was a major port during the Dutch colonial era, and is still an important regional center and port today. The city has been named as the cleanest tourist destination in Southeast Asia by the ASEAN Clean Tourist City Standard (ACTCS) for 2020–2022.
The 3 popular landmarks nearby : 1. Simpang Lima, 3.1 km 2. Lawang Sewu , 4.1 km
3. Kota Lama , 7.1 km
Access
10.5 km from Ahmad Yani International Airport 7.3 km from Train Station
Living in Bali, picturing that Indonesia has other ways to manage landscapes, architecture, and construction is somewhat of a challenge. You tend to expect all cities, whatever their size, to be as chaotic as Denpasar or Jakarta. Semarang then comes as a very welcome surprise, with urbanism, city planning, landscaping. You get the distinctive feeling of wellorganized modern “Indonesia 2.0”, in terms of development and lifestyle.
Semarang is to us typical of this Javanese nouvelle-vague. With a unique way to inhabit a city, where luxury, arts, culture, and lifestyle hold a special place, especially in Candi Baru.
Padma’s location on the top of Jalan Sultan Agung offers a throve of true outdoors living occasions not limited to what the other high-end hotels are offering: classic “check the box” outdoors features. Padma, thanks to the indoors-outdoors opportunities can realistically become a new landmark destination. Outdoors and lifestyle experiences in Padma will not be mere required accessories to a hotel stay.
Local and international visitors, whether they travel for business or pleasure, rarely spend all their time in their bedrooms or conference rooms. They are always on the lookout for some lifestyle experiences especially in attractive areas like South-East Asia.
Padma brand, strong of its Kuta and Ubud resort experiences and its hillside Bandung site, has the opportunity here to connect its Semarang Hotel to the other locations making Padma-Semarang its flagship establishment with enhanced outdoors features coming as additions to the planned and existing building and landscaped parts. This new outdoor development will become an essential component providing maximum appeal to the 3 main functions of the Hotel: Padma for Business / Padma Resort / Padma Community. The design mix is an original blend of Asian and Moorish influences, visual and aesthetics.
Because a great hotel is always more than a place to sleep at for a few nights. Padma Semarang will offer 3 unique South-East Asian experiences designed and curated to put Padma Hotel and Semarang

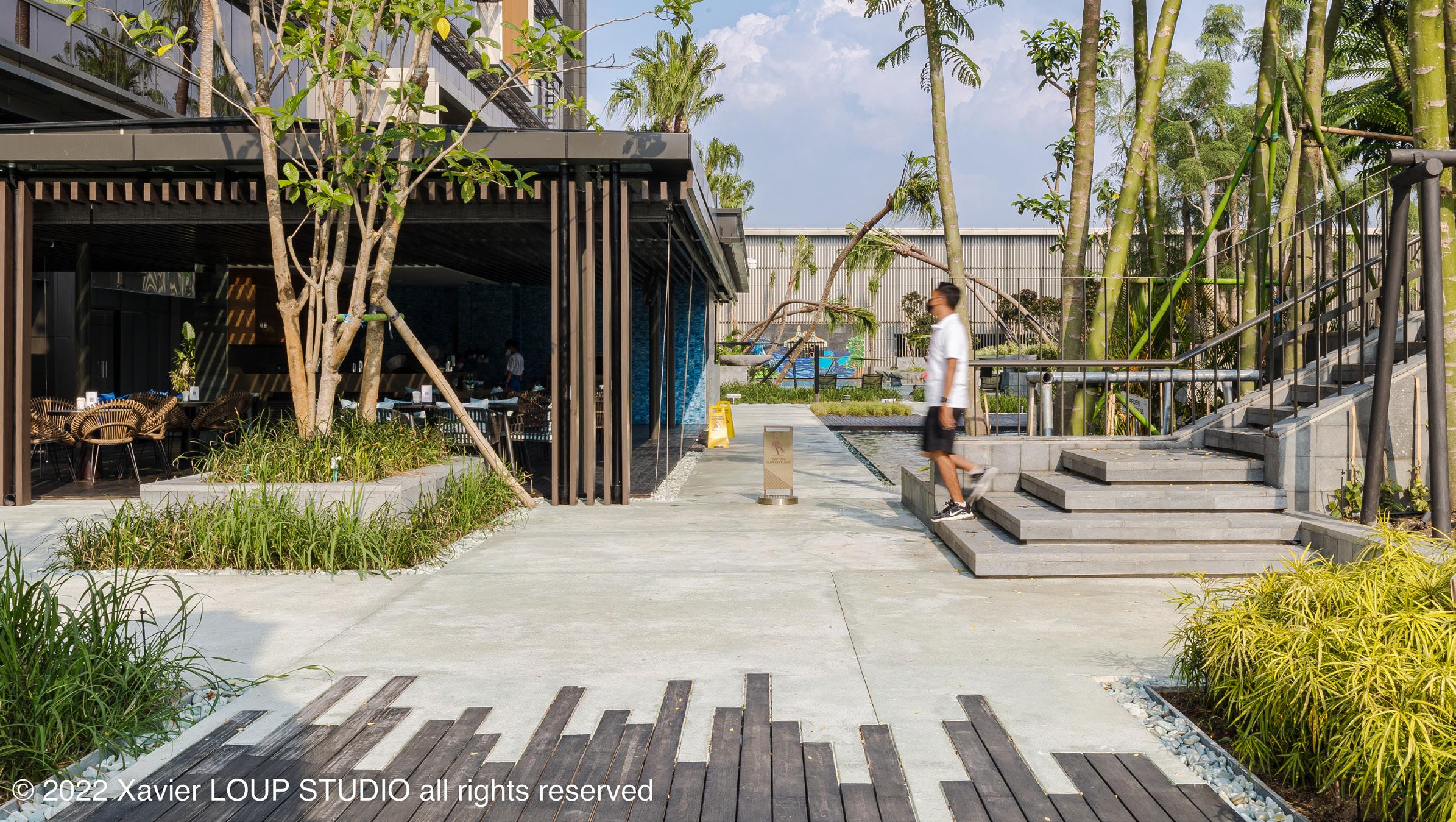

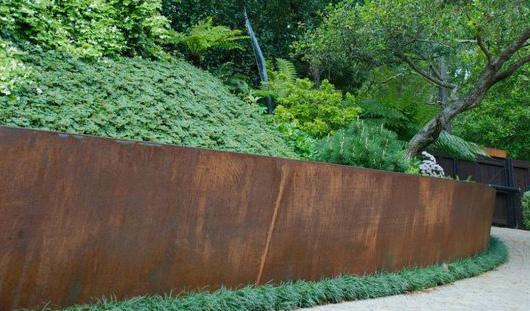

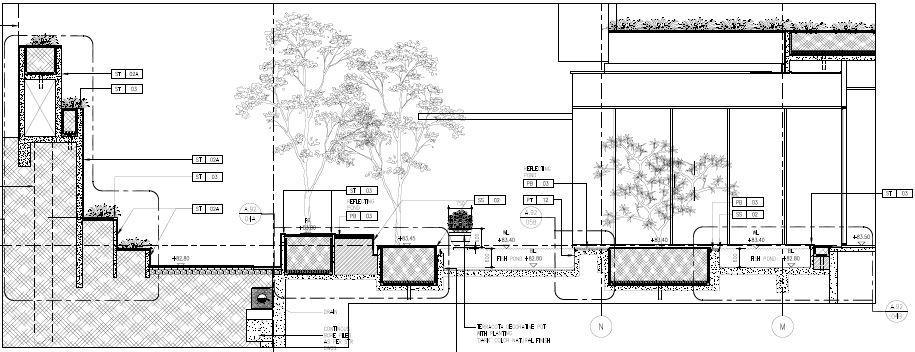

LANDSCAPE & FACADE

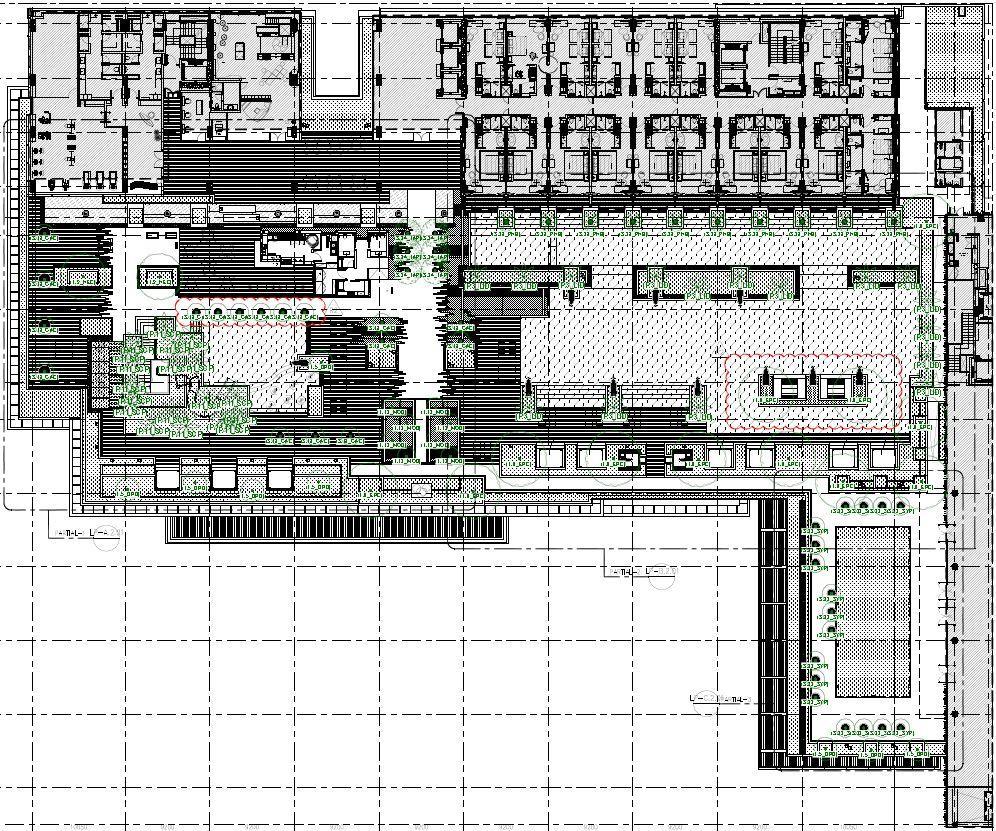

MASTER PLAN GROUND
A Pedestrian
Entrance Main Hotel
Drop Off
Backyard Garden

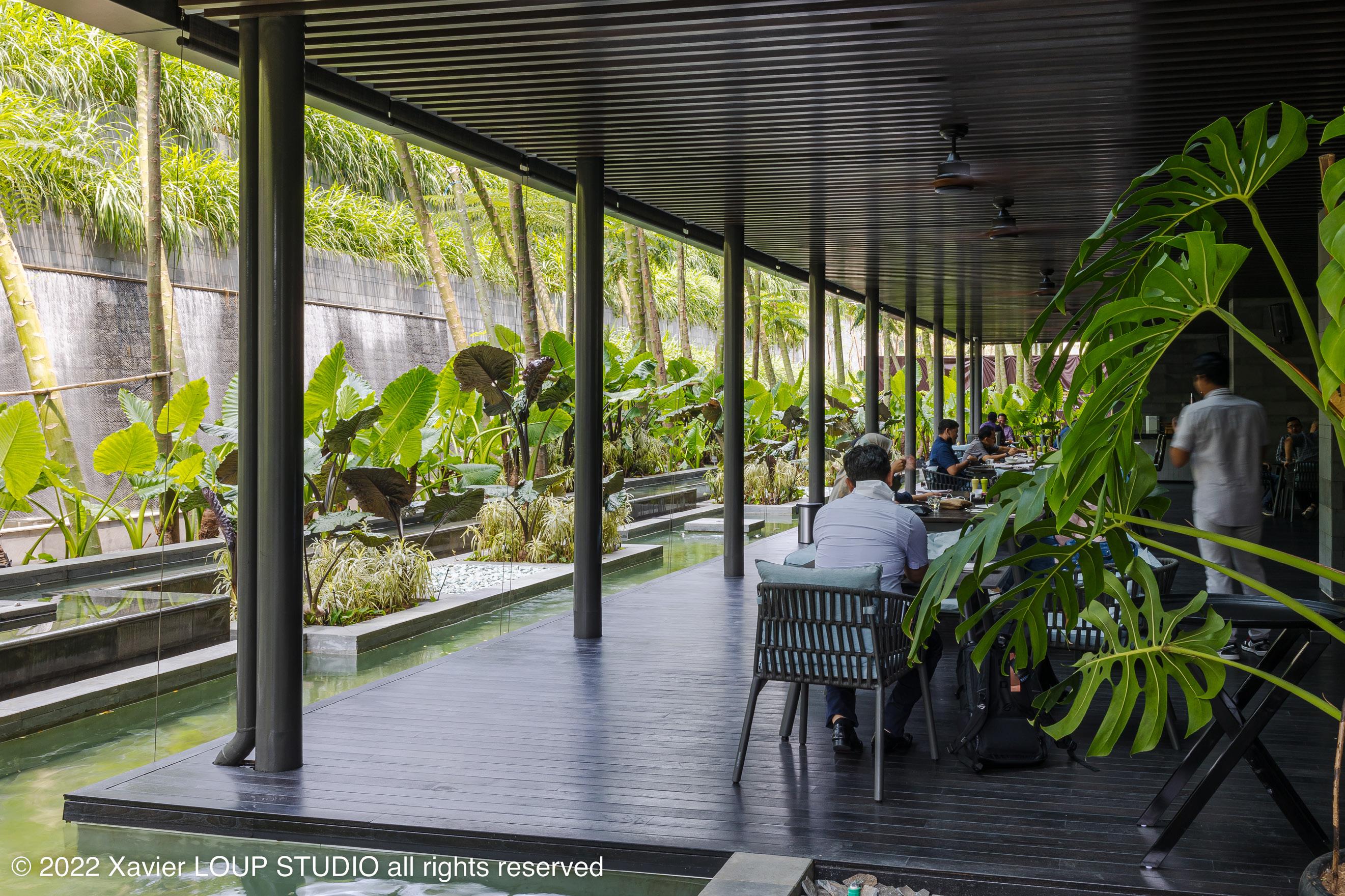

Semi-outdoor Restaurant
Entrance Garden 1st Floor
Yoga Area
Pool Cafe
Kids Pool Cabanas

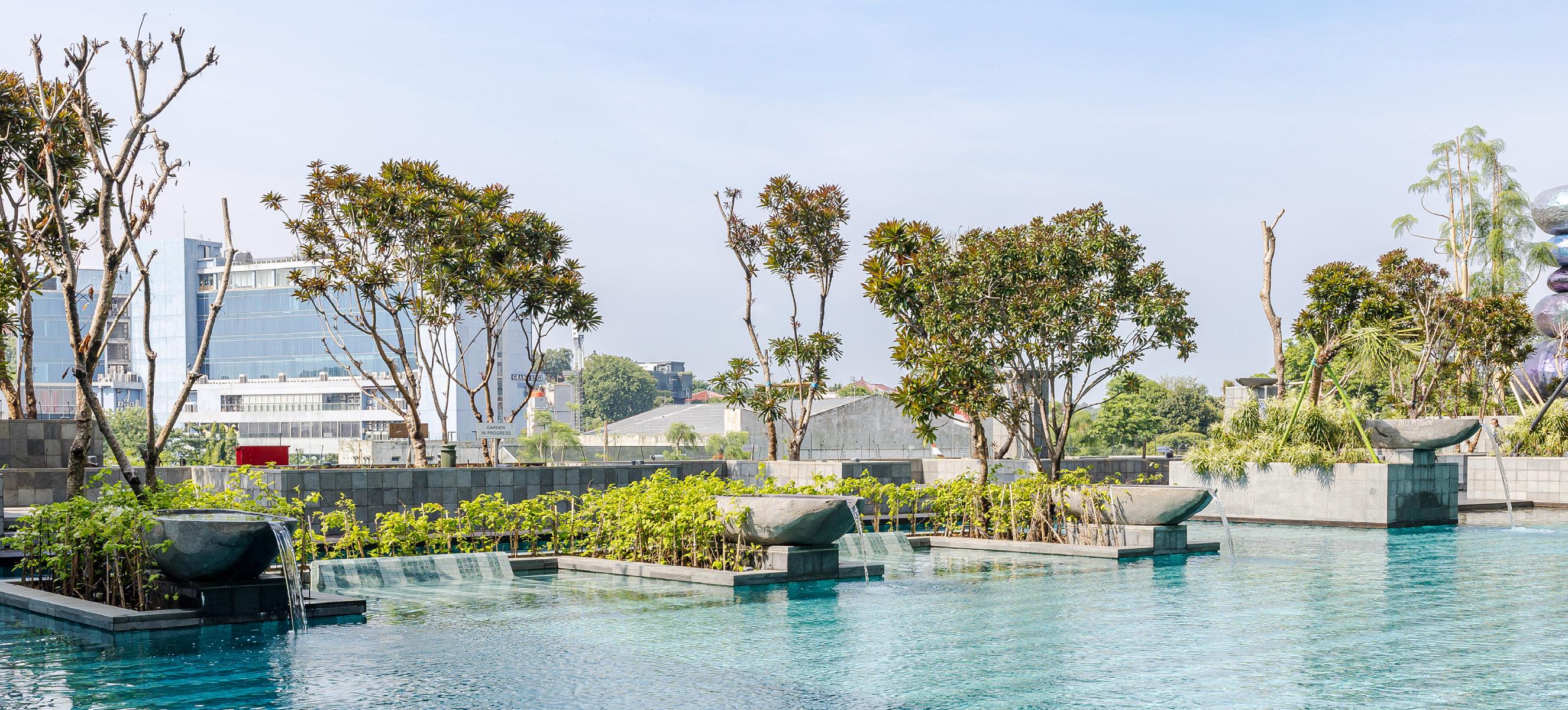

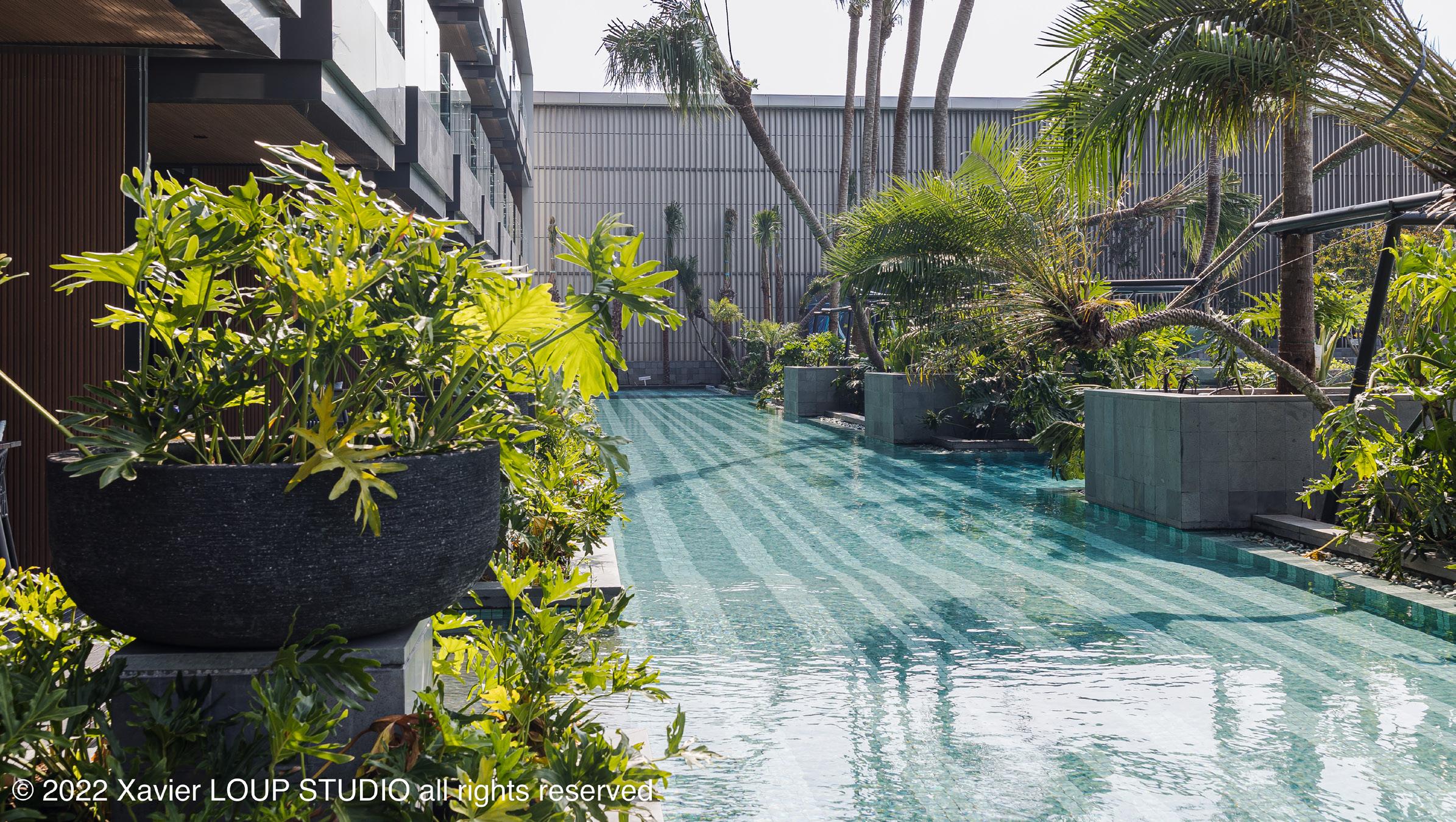

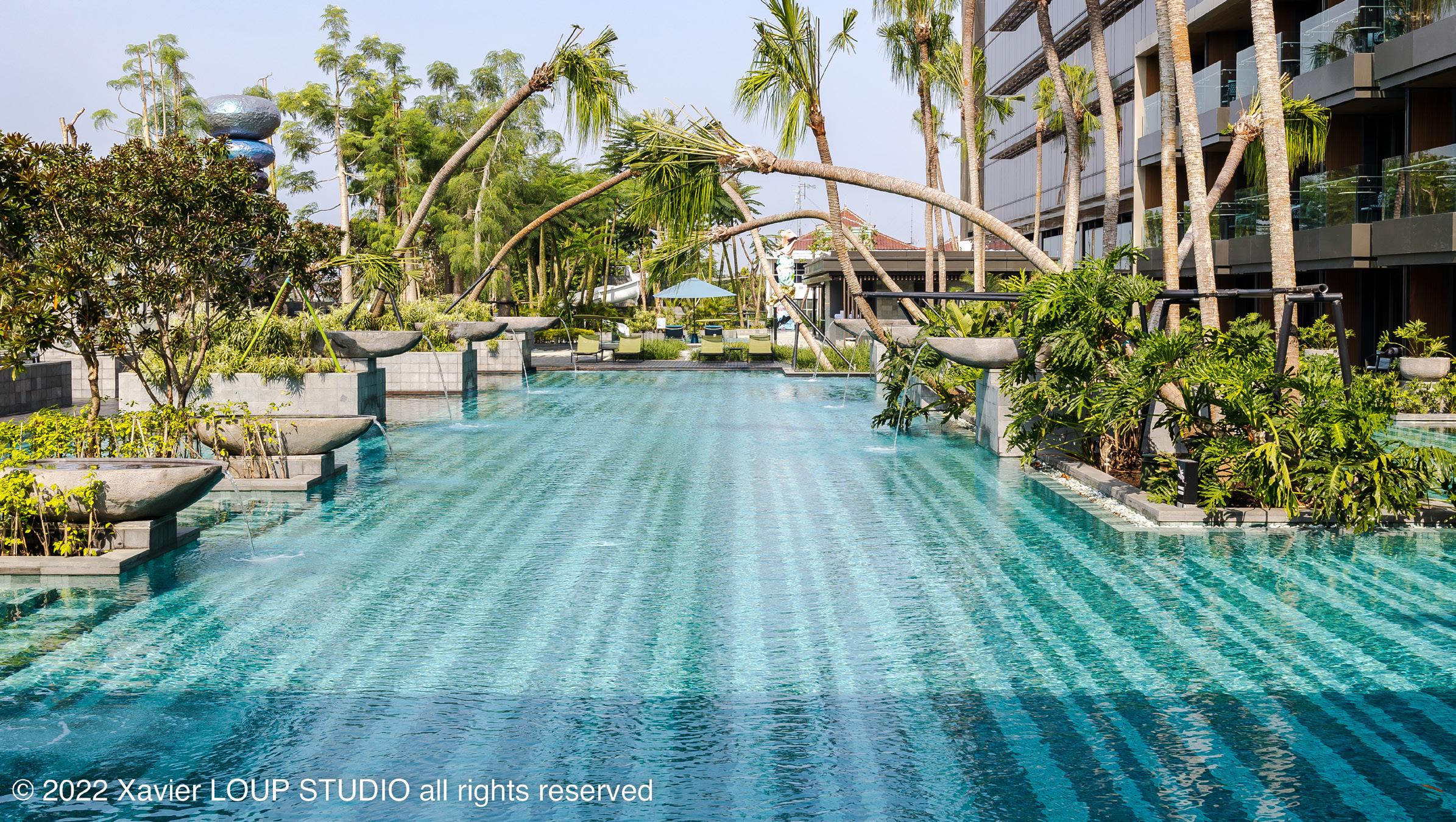

Main Pool & Lagoon
Convention Hall Yard
1ST FLOOR LAYOUT

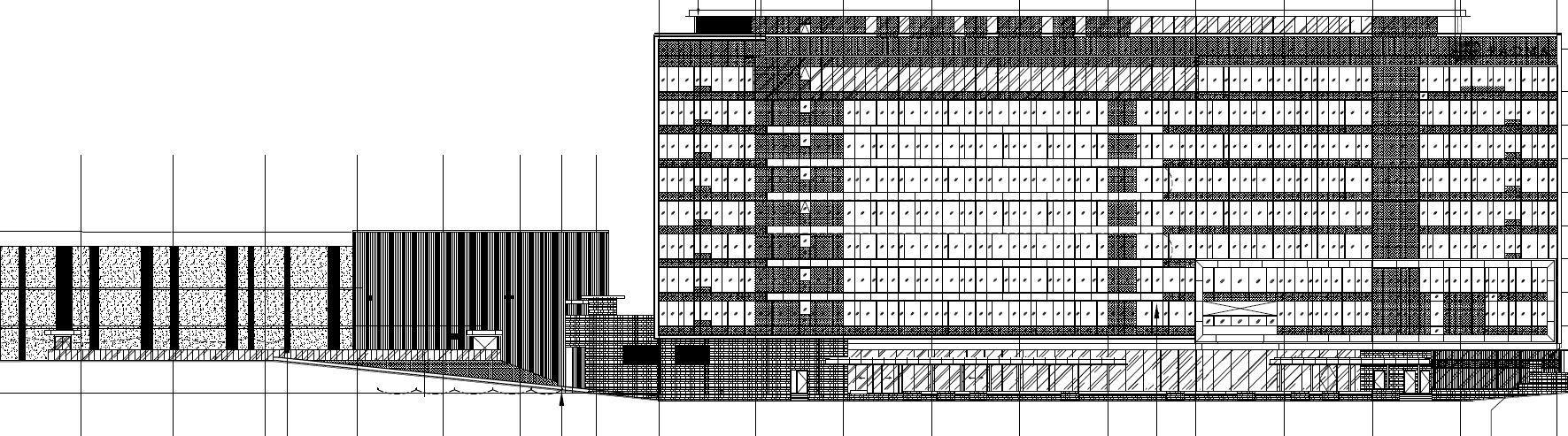

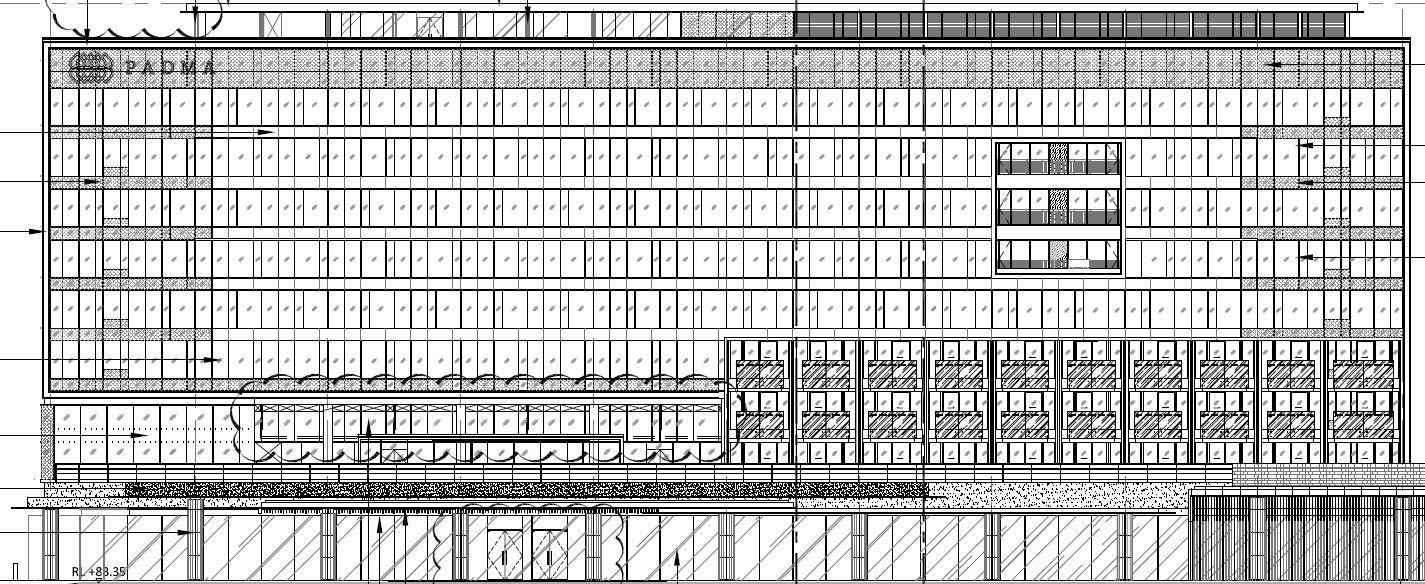

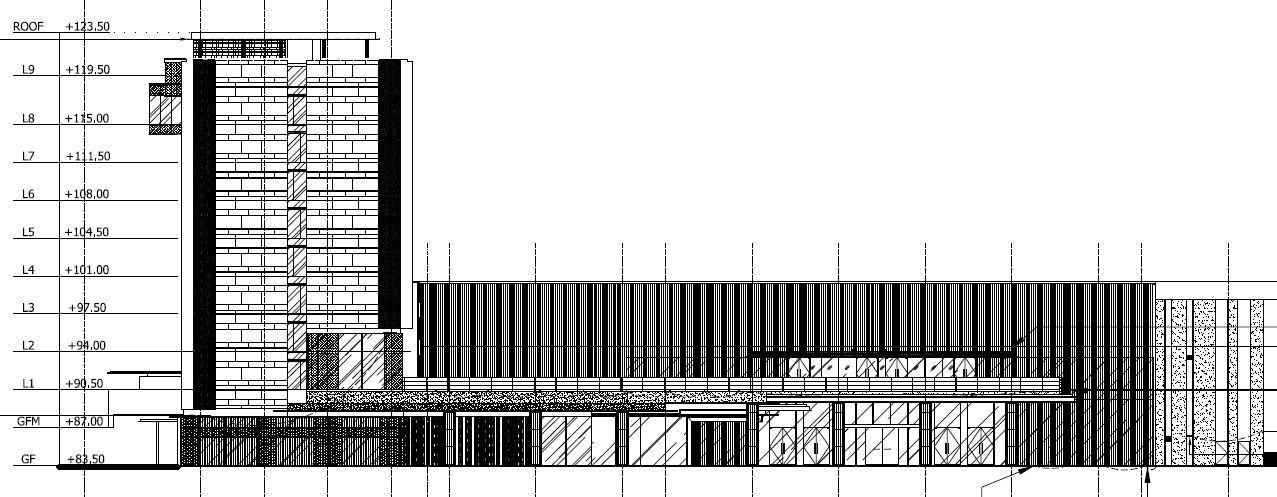

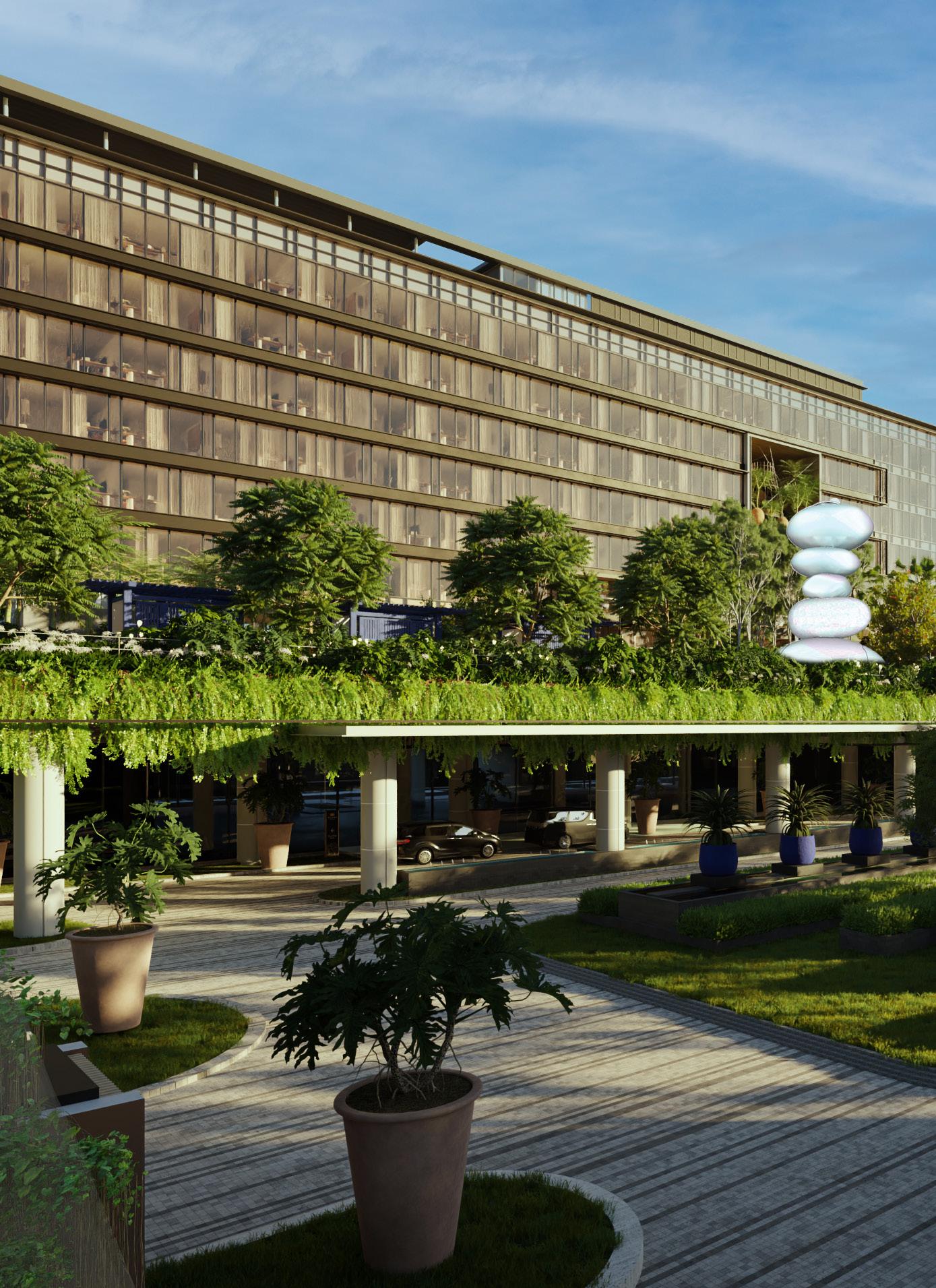

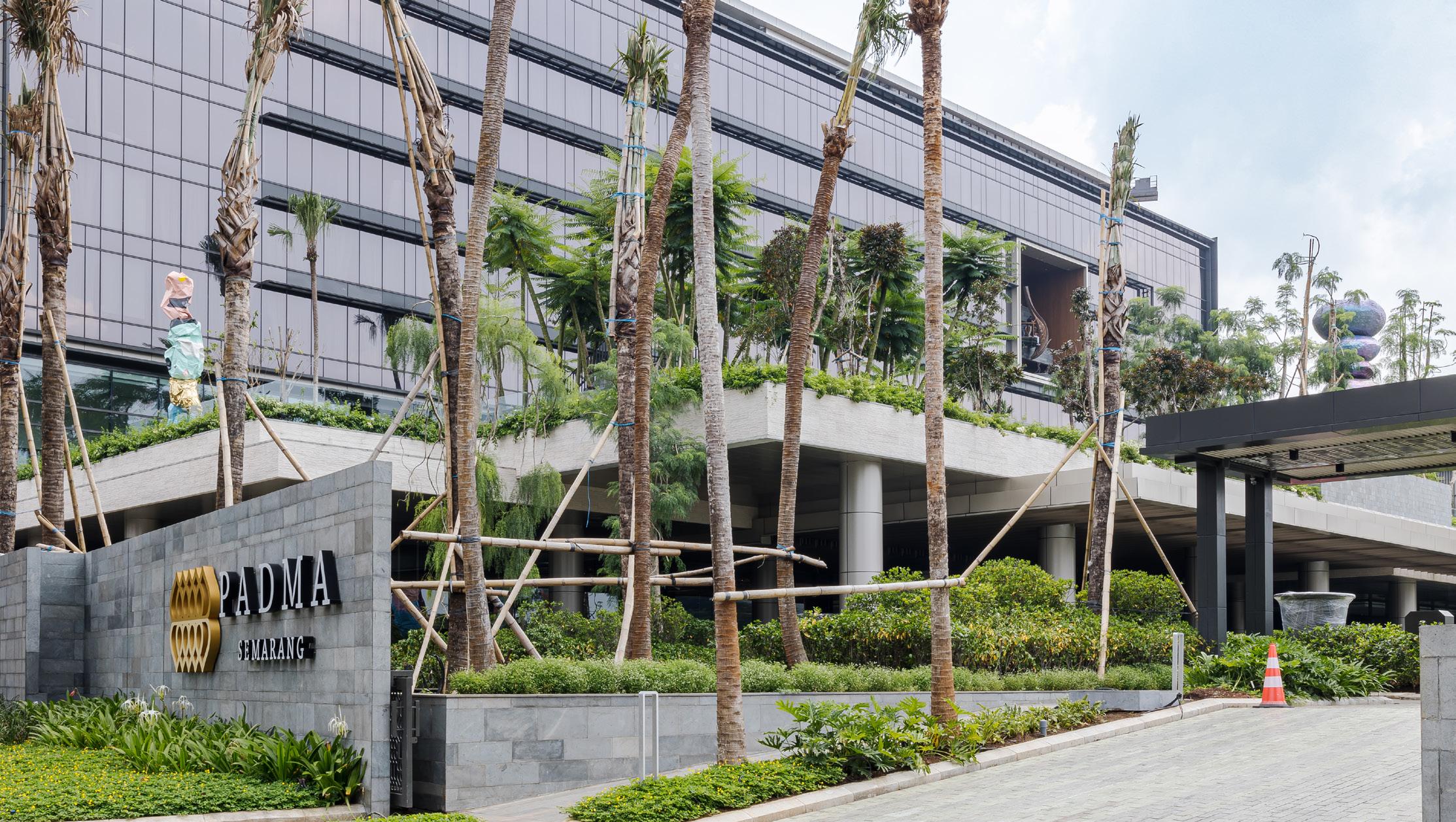

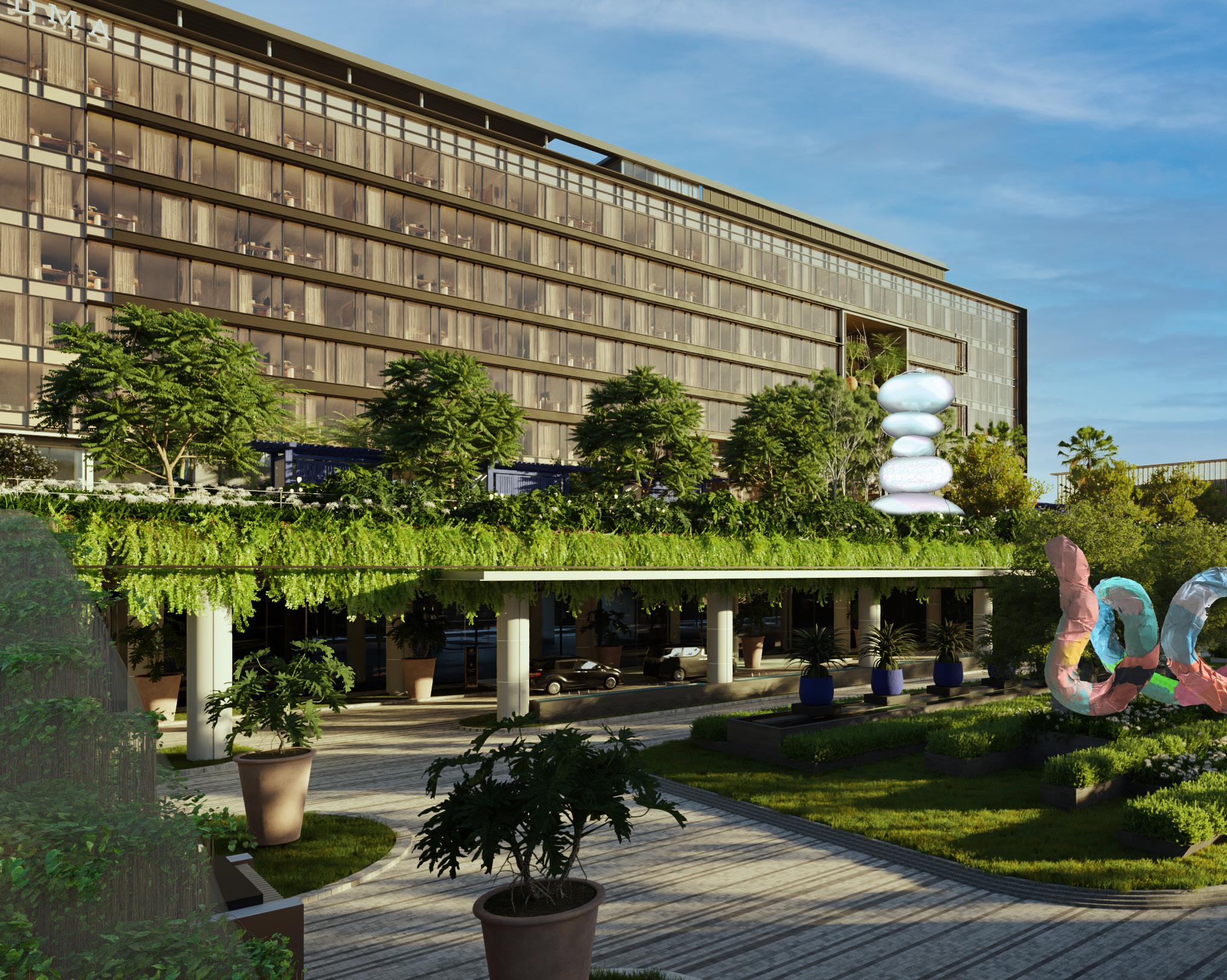

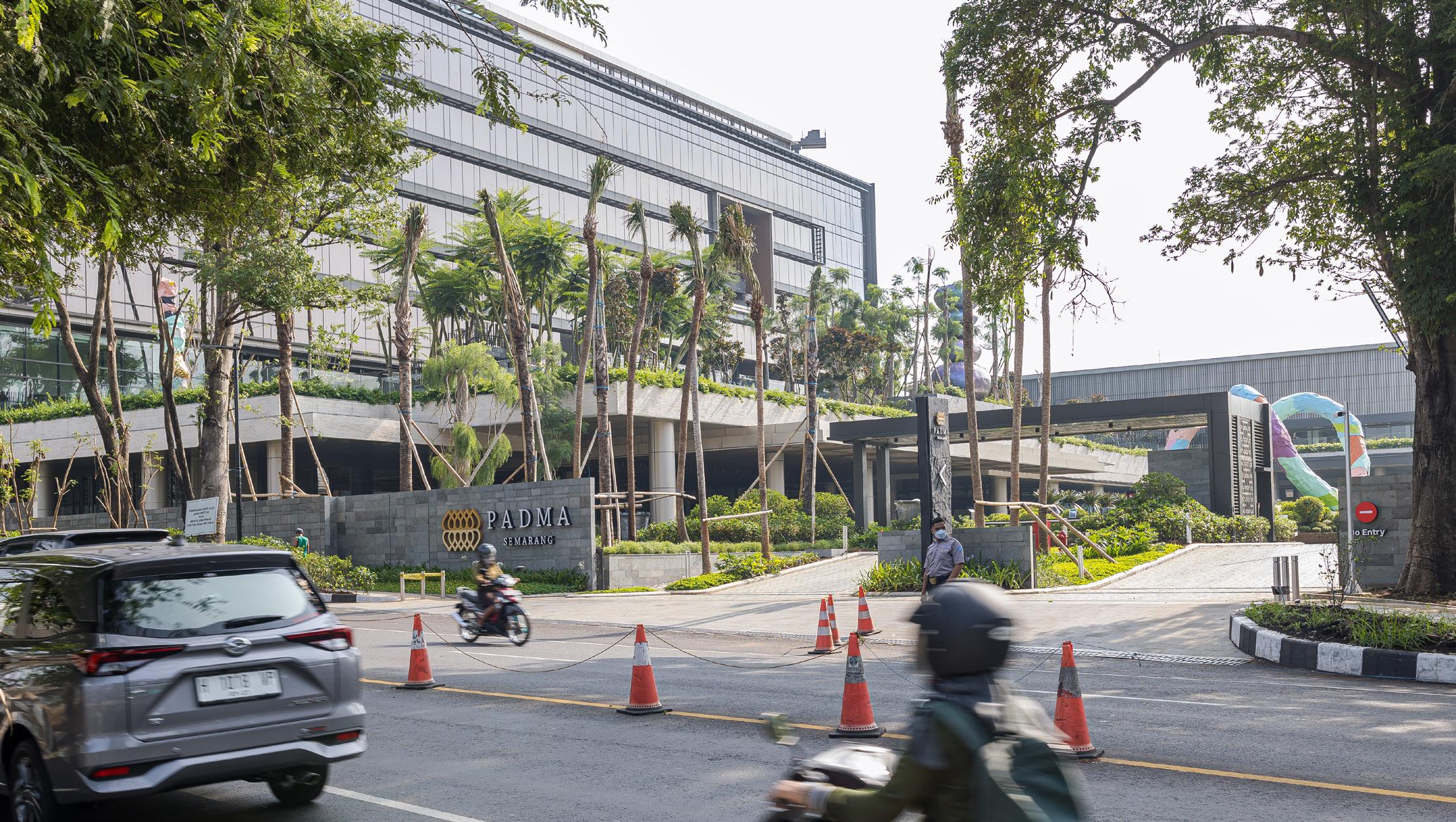

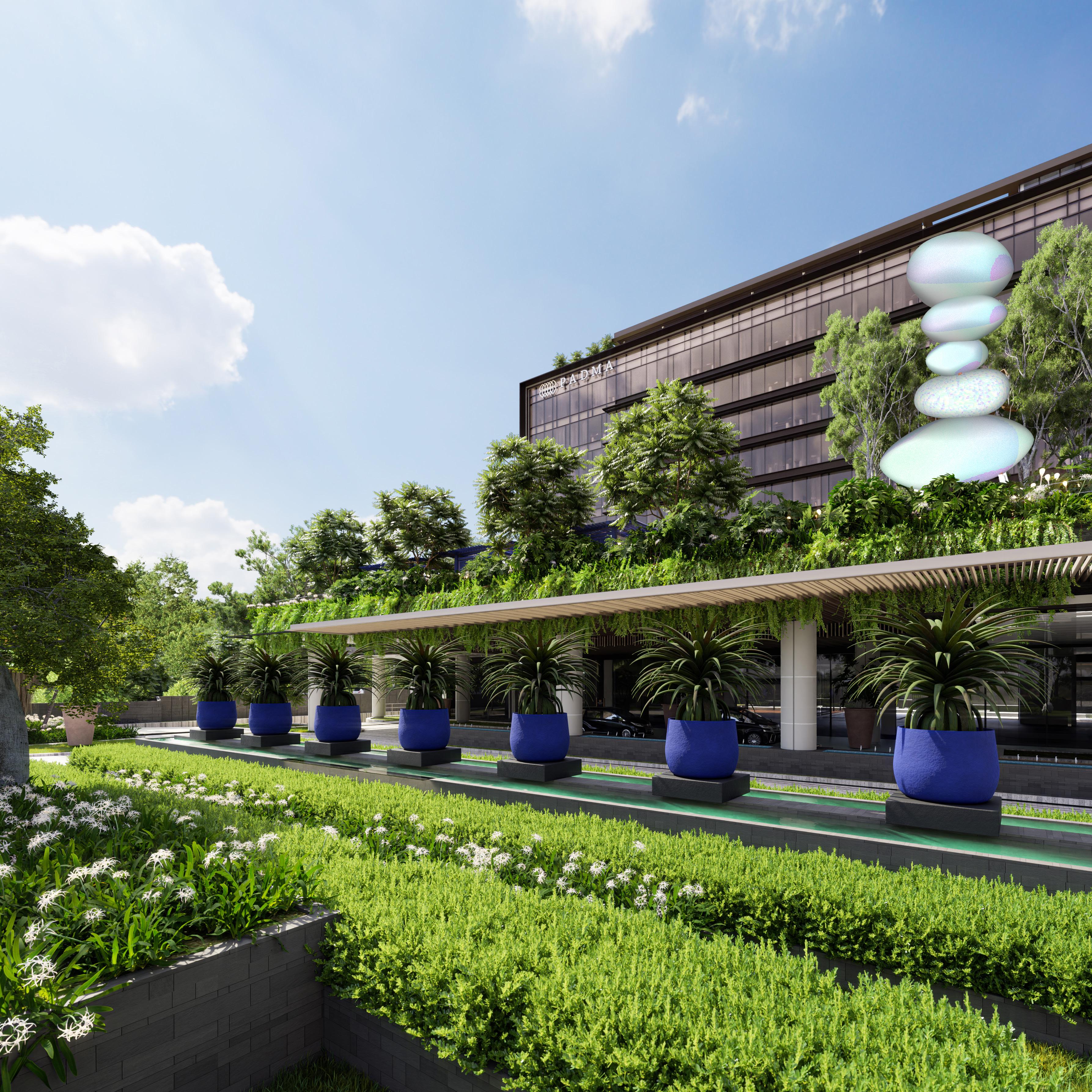

Fasade Main Hotel
PADMA HOTEL SEMARANG
Beauty, creativity, discoveries happen in many places and take many shapes, and in Padma Semarang has been directed to share with the community though experiences:
in NATURE. Semarang Botanical Experience will be a place to marvel at the diversity and splendor of the species present in their park and gardens.

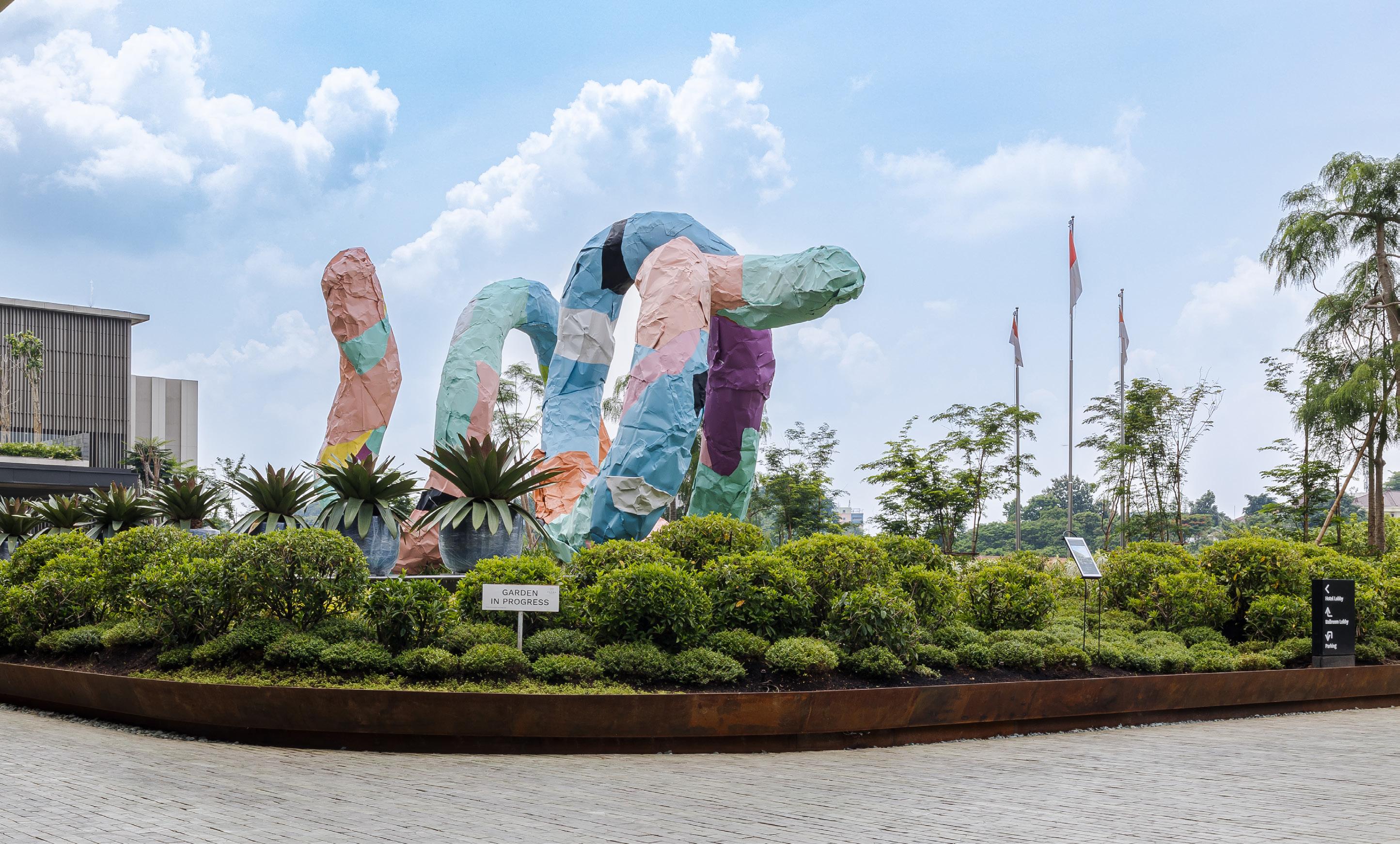

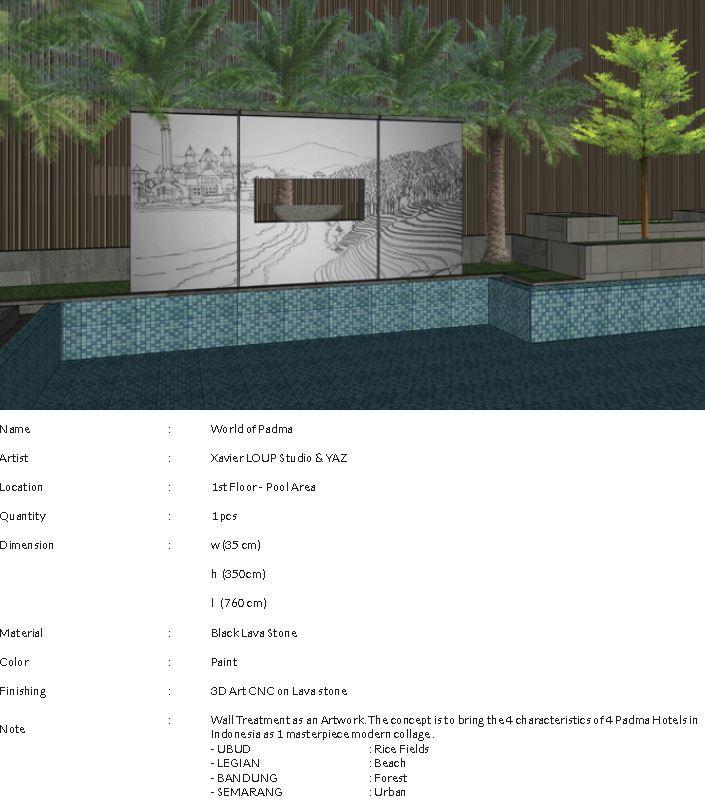

in ART. Semarang Contemporary Art Garden, a collaboration between Xavier Loup and TONYRAKA art gallery will showcase 4 major masterpieces by 2 young contemporary Indonesian artists to the widest audience possible. And another collaboration between Xavier LOUP with Internationally recognized, French mix-media Artist, Yaz: a masterpiece of modern artwork collage displayed in the lagoon pool. A 3D artwork carved in almost 8 m long lava stone and patched with custom handmade 12,000 colorful resin pieces and a special ‘Blue Klein’ finishing paint representing “The World of PADMA” story, sharing the beauty of Indonesia archipelago’s nature where all PADMA hotels are located.

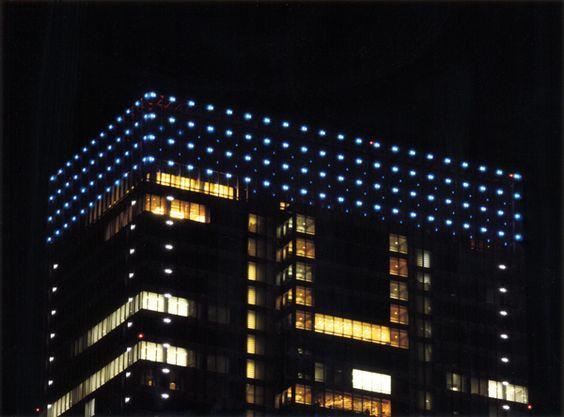

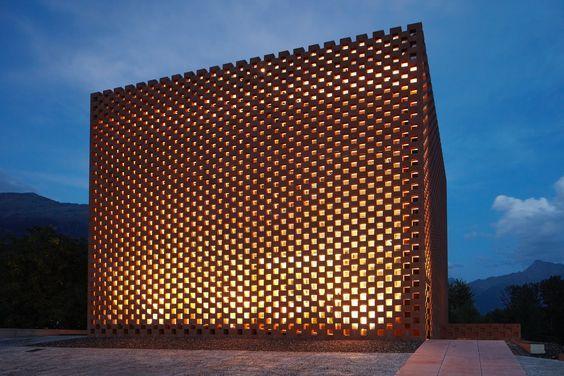

in LIGHT. Light, whether natural, changing from dawn till dusk and with the different seasons, or man-made plays a very important part in human perceptions and physiology. That’s why we always put special care in designing and planning lighting for our projects.

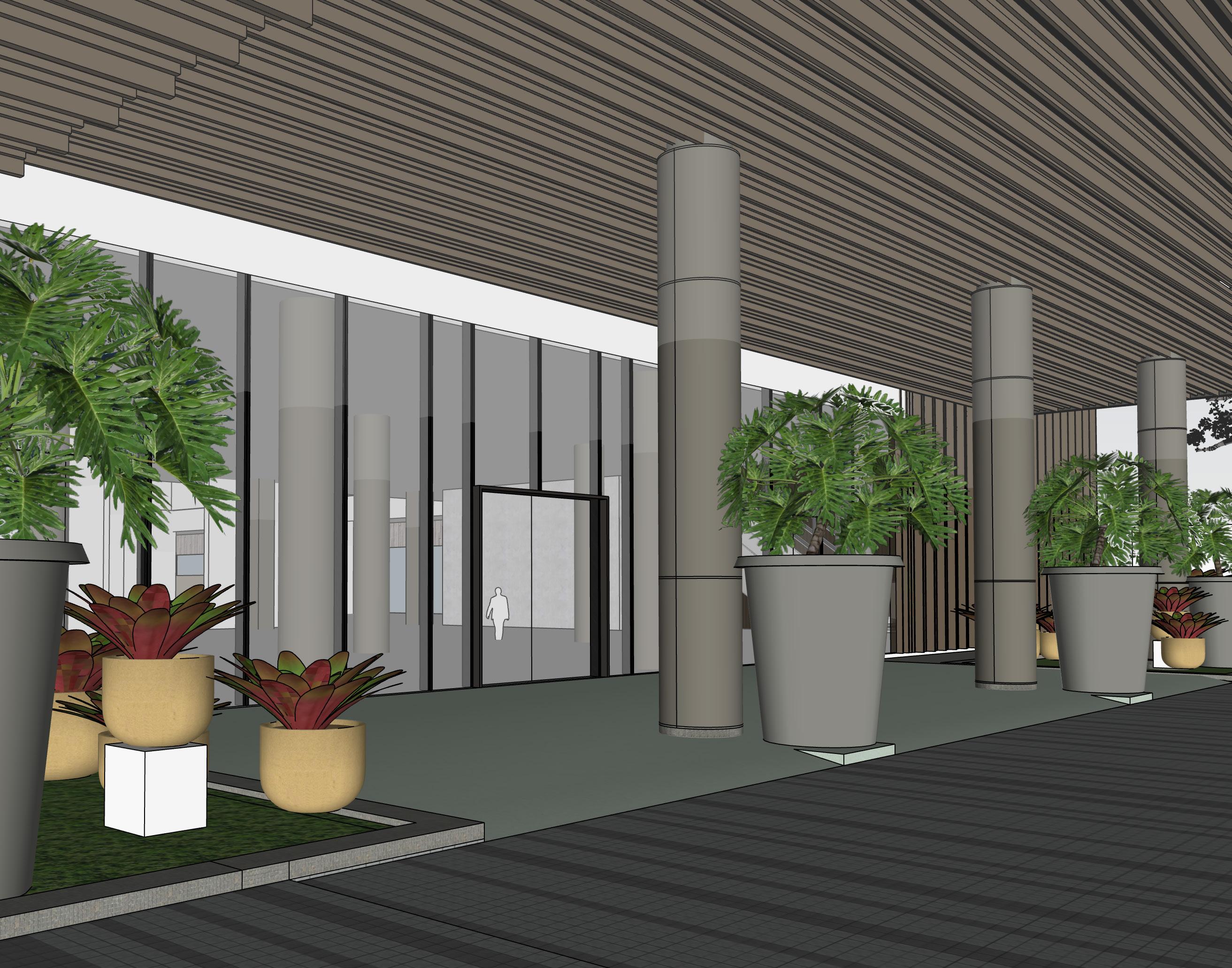

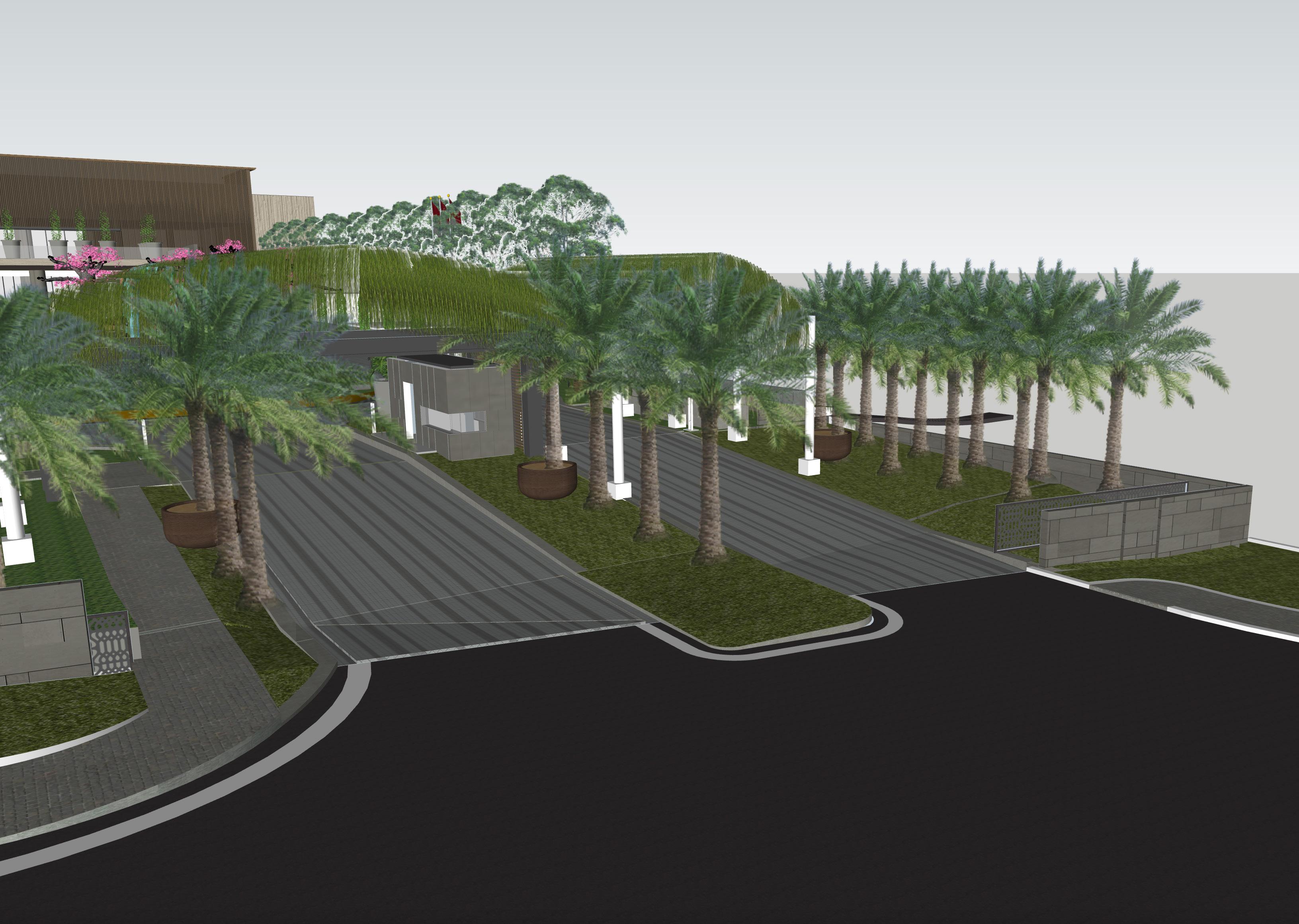

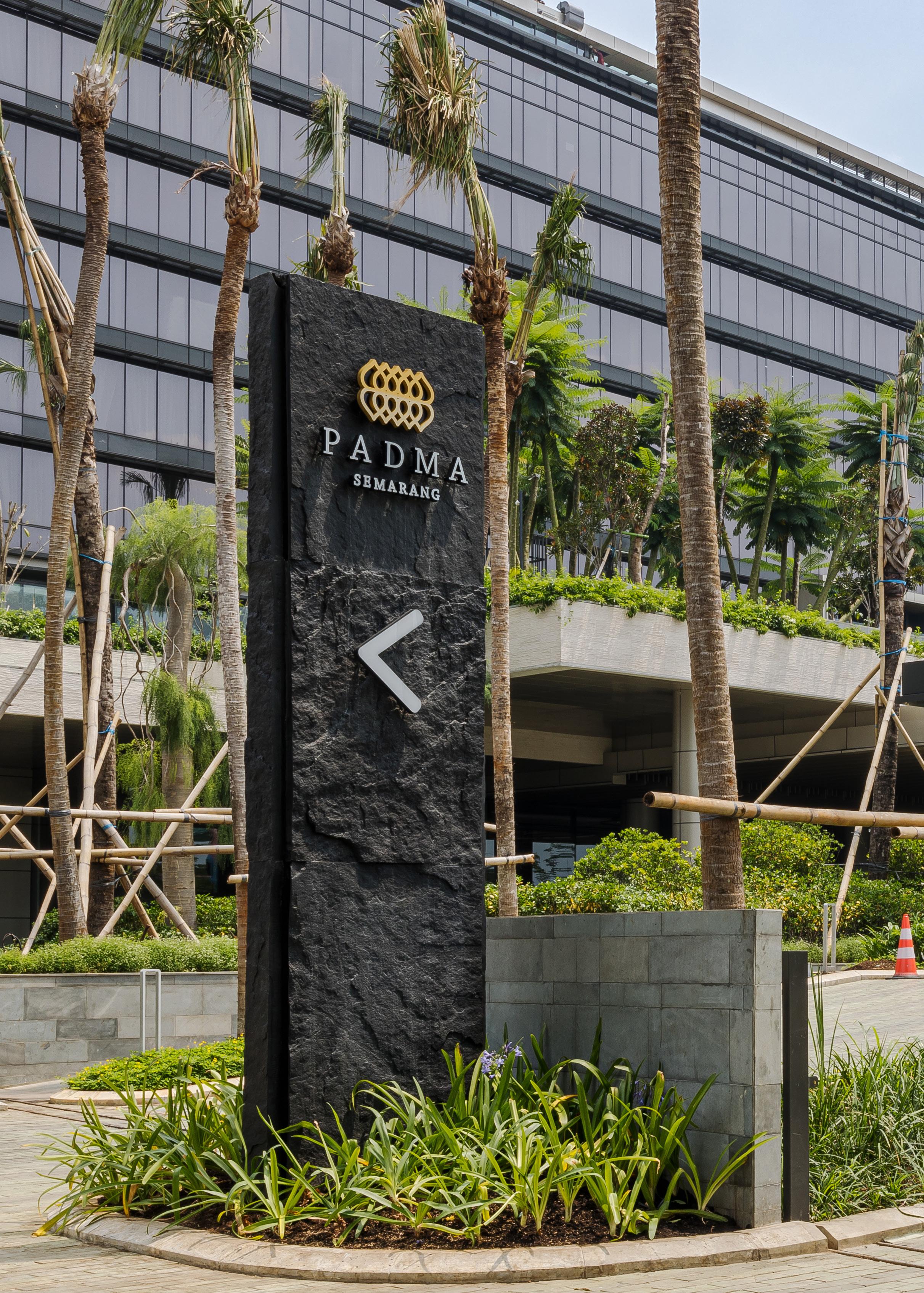

MAIN HOTEL ENTRANCE GROUND FLOOR

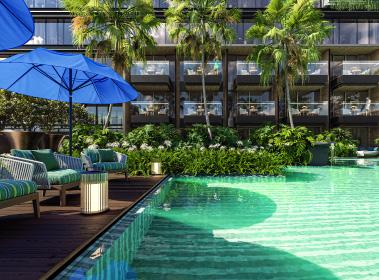

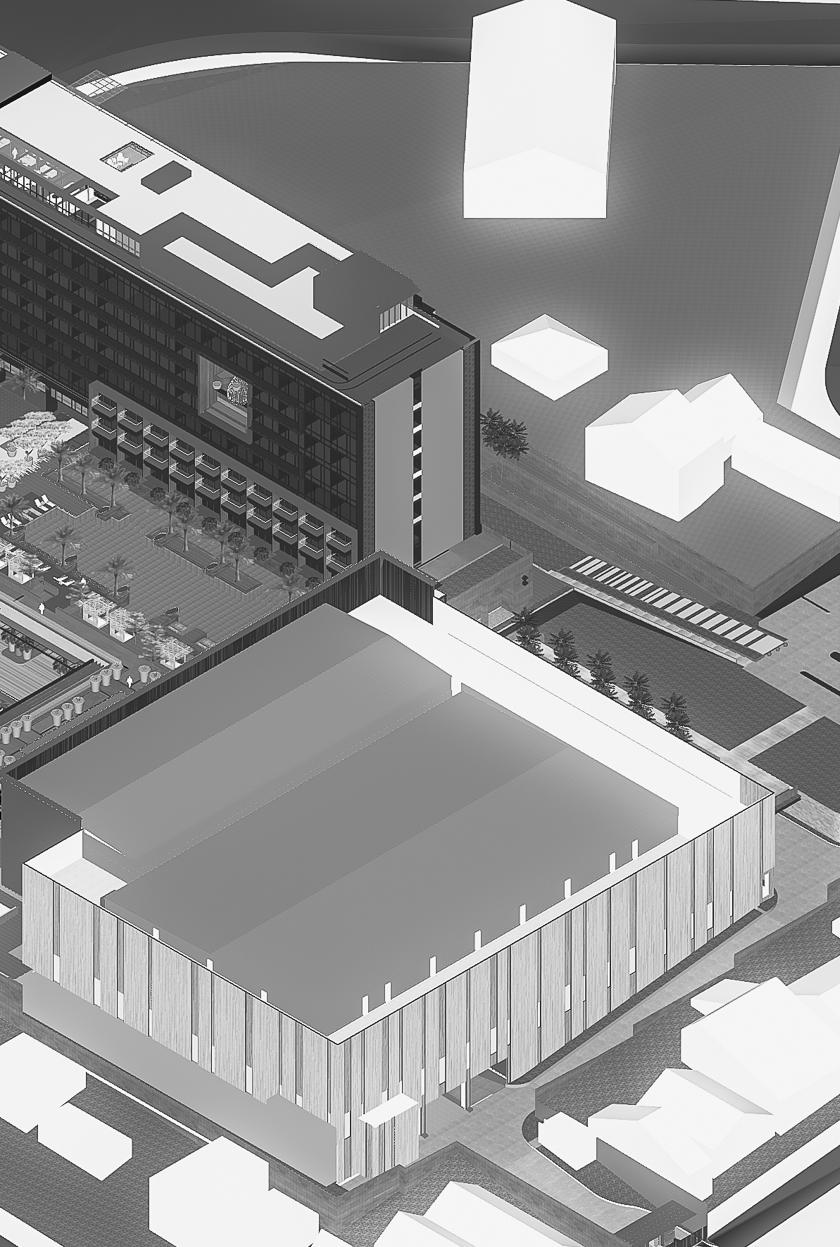

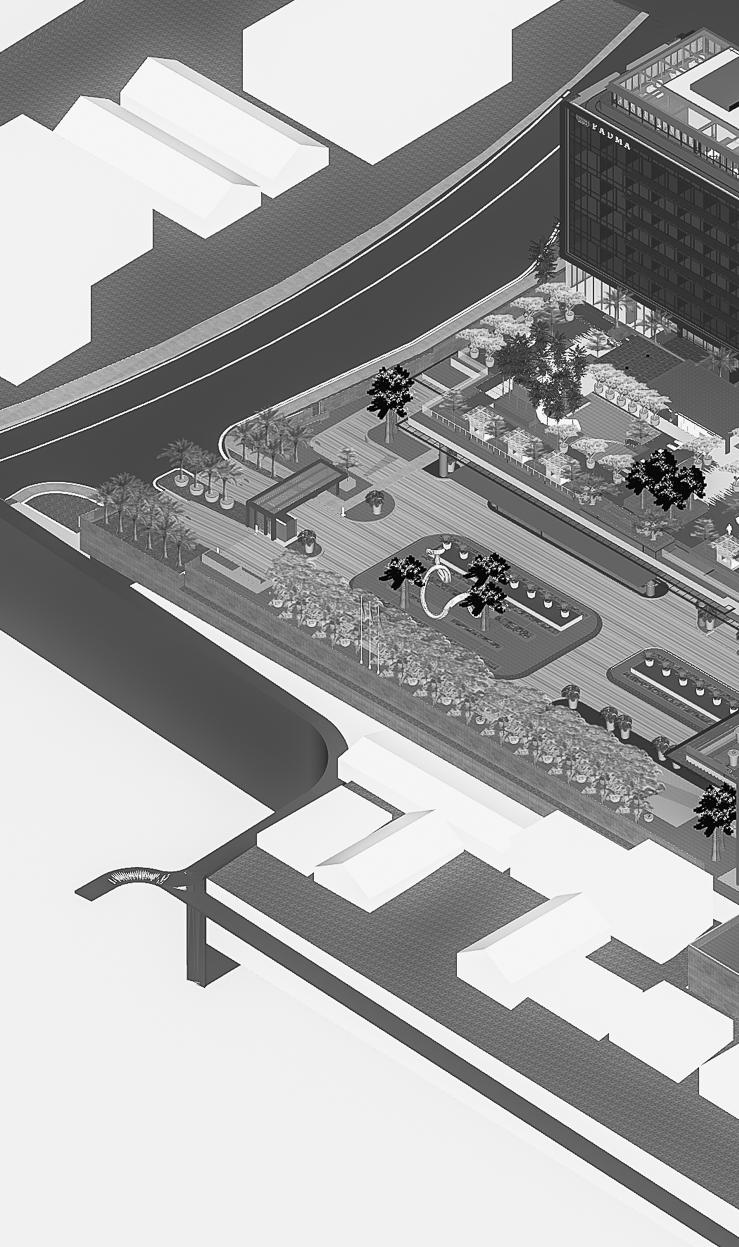

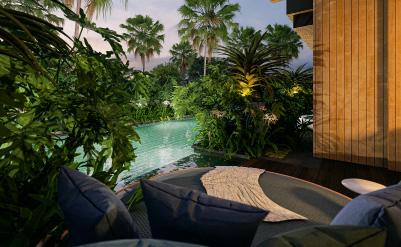

3D VIEW
PADMA HOTEL SEMARANG

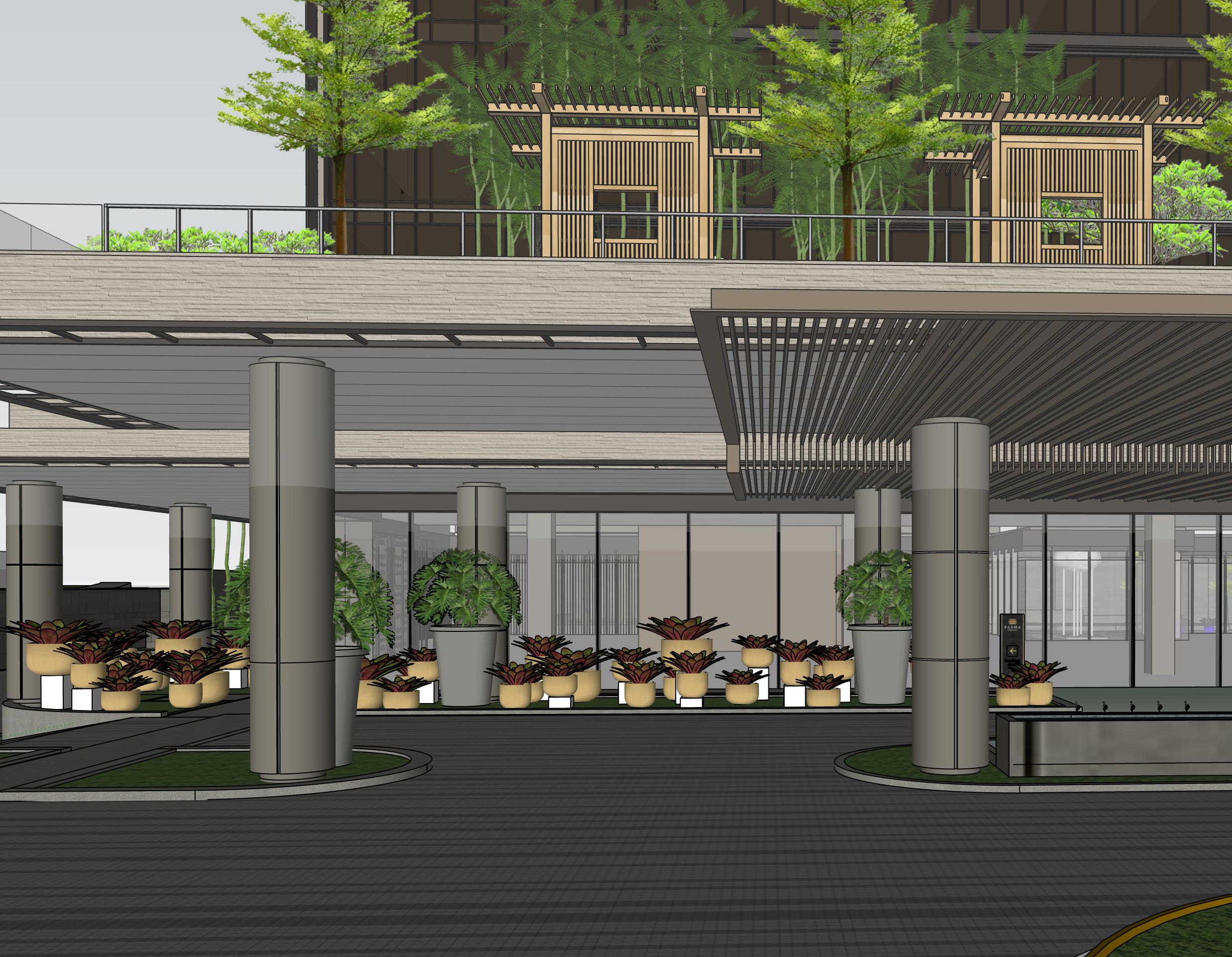

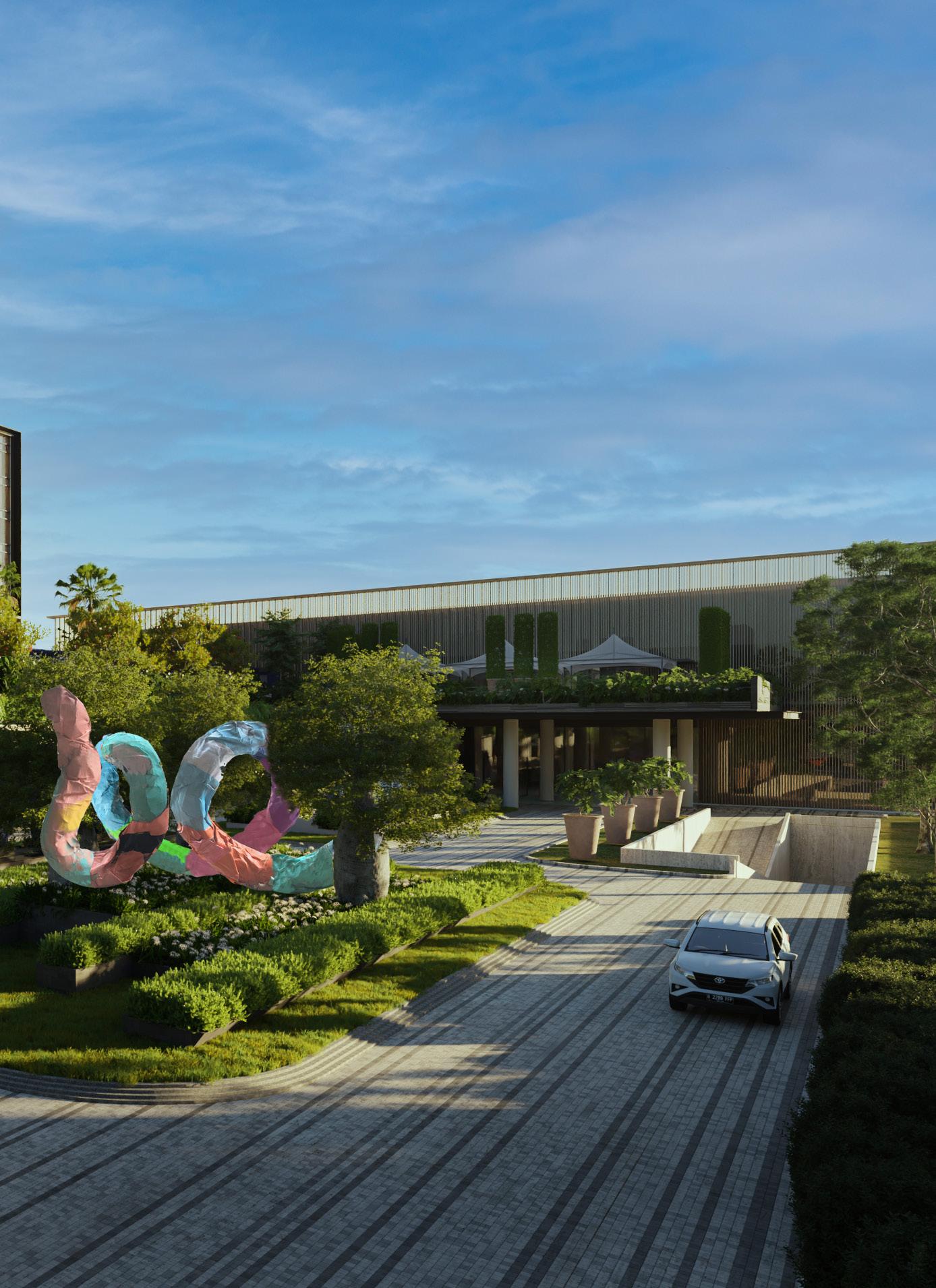

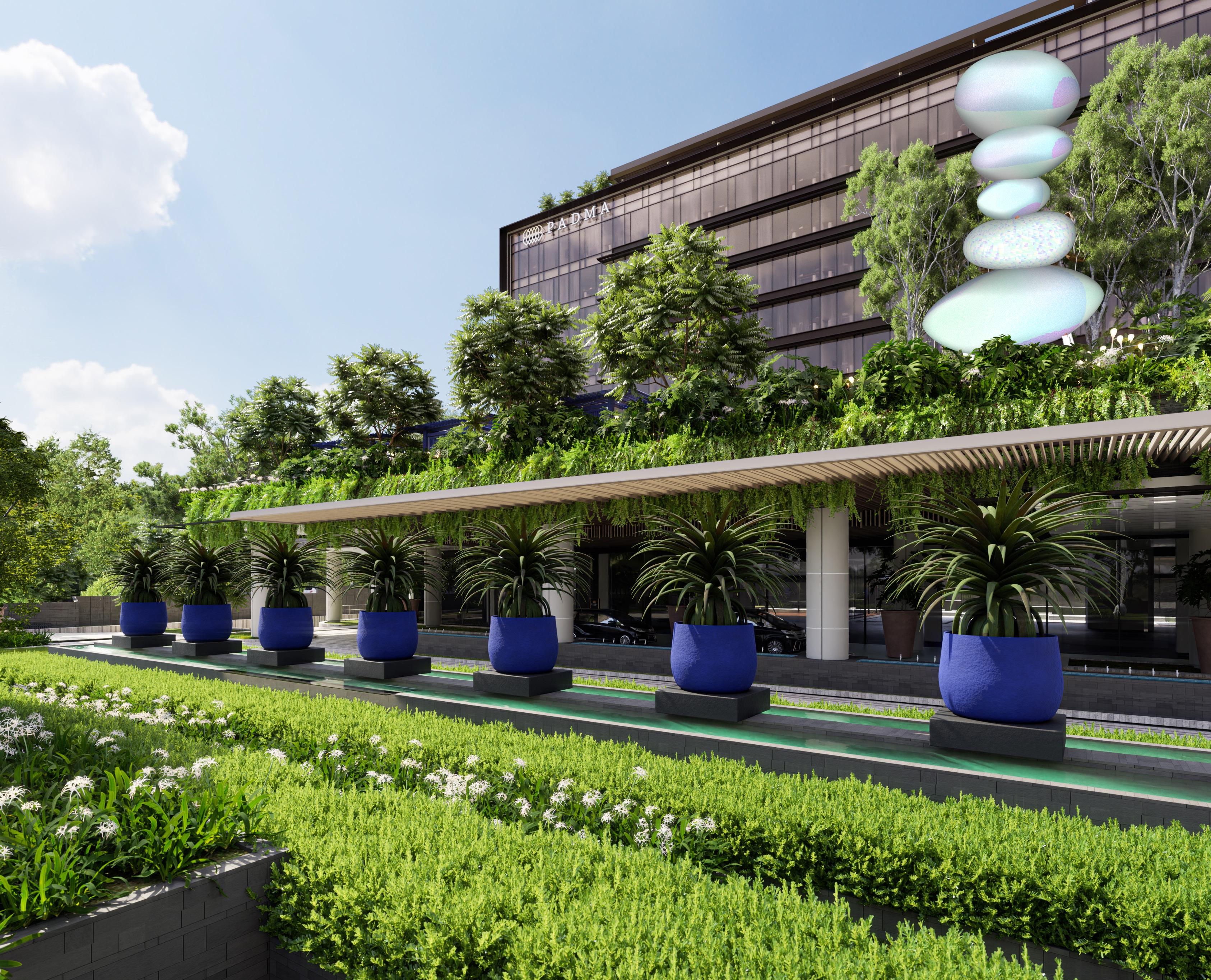

DROP OFF GROUND FLOOR

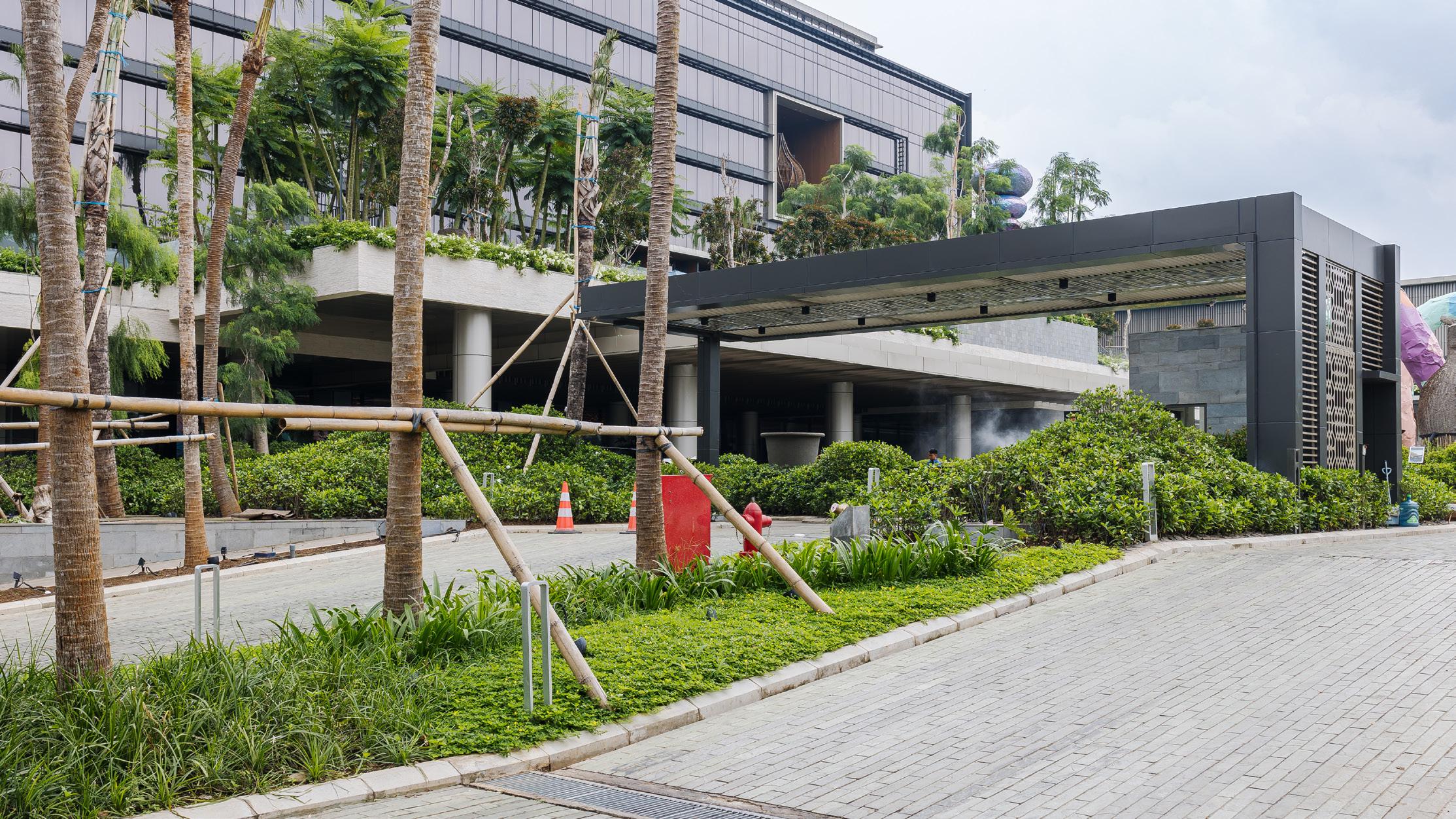

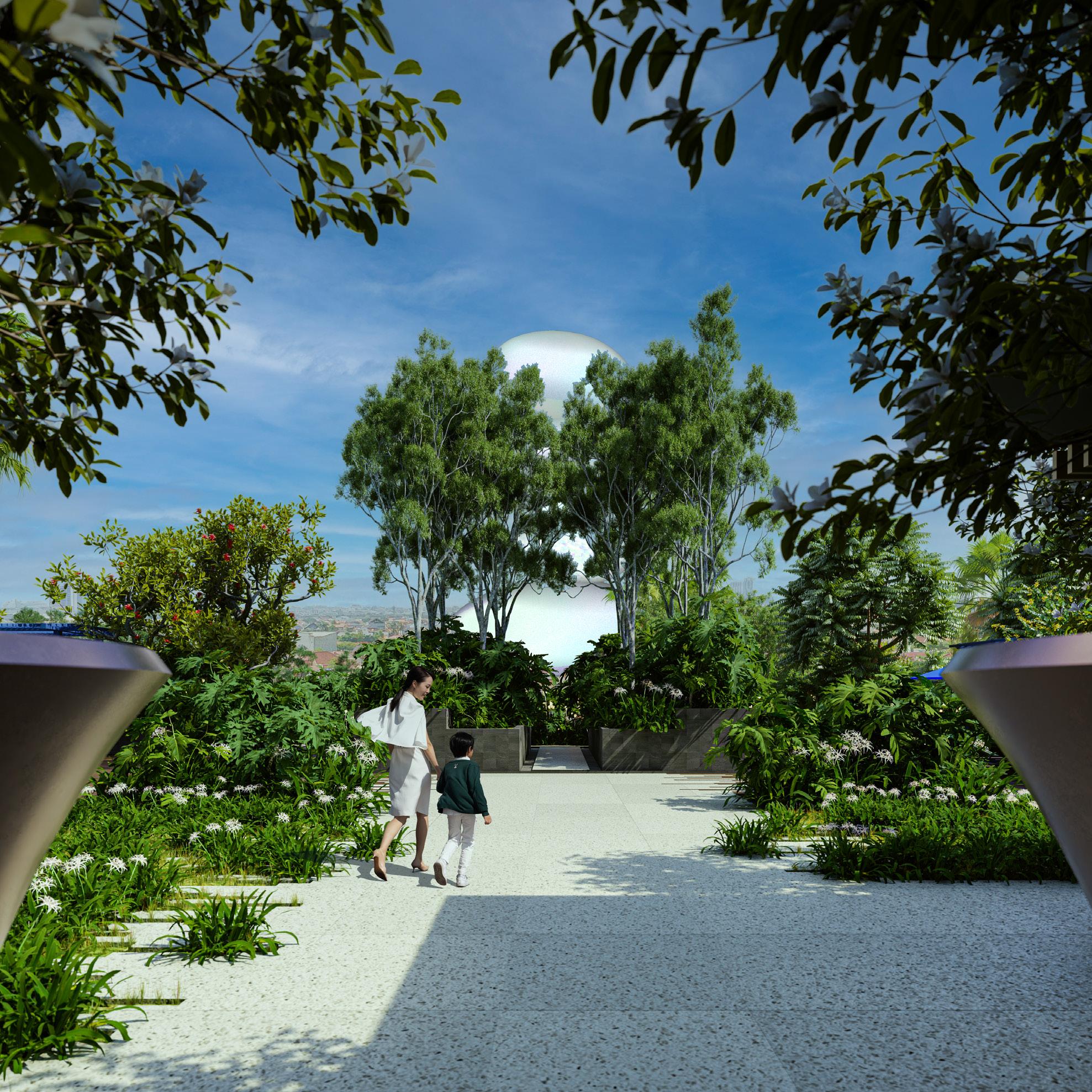

GARDEN ENTRANCE

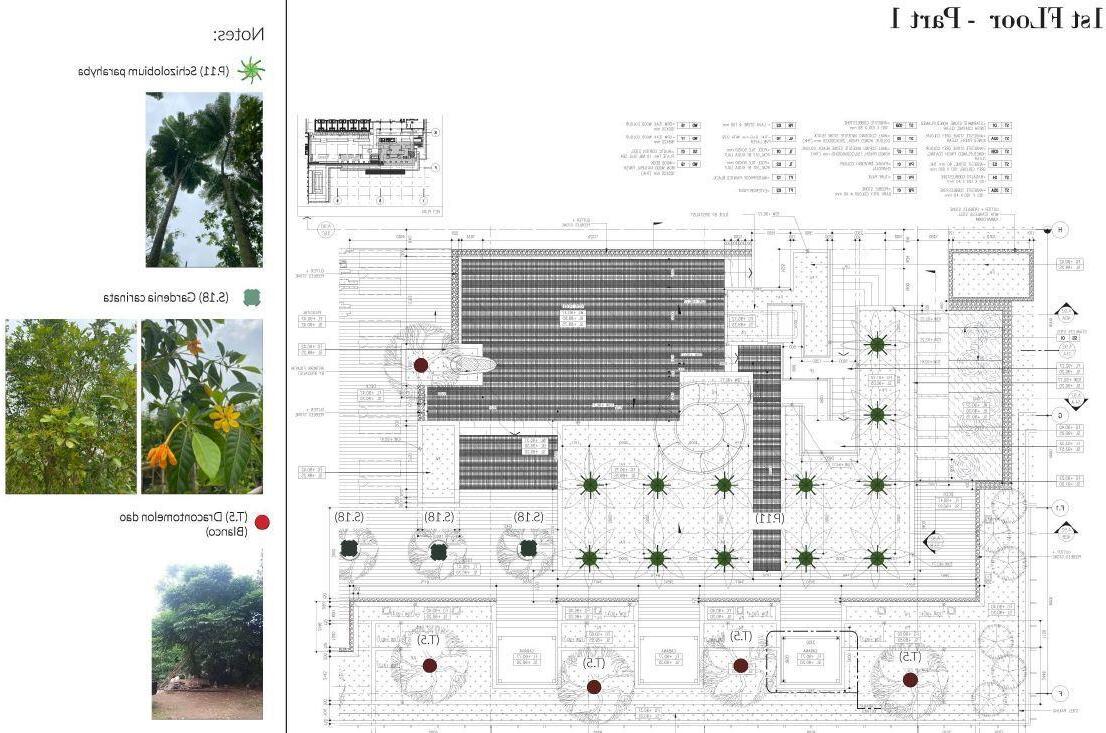

1ST FLOOR

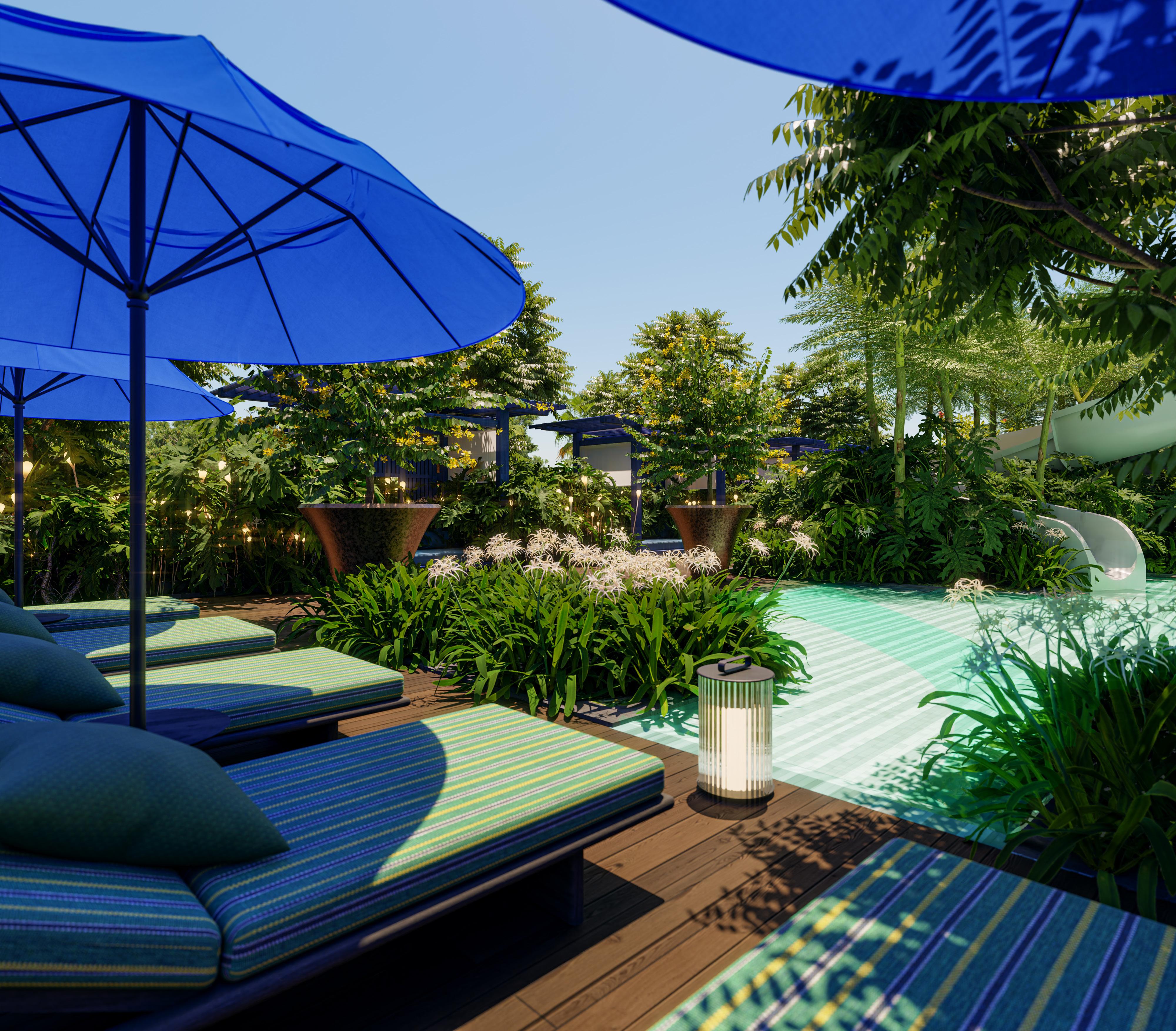

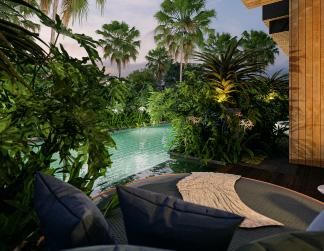

KIDS POOL
1ST FLOOR

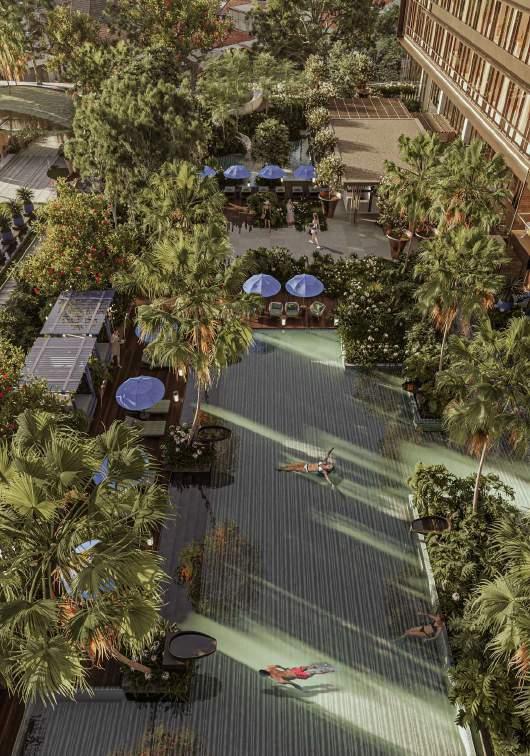

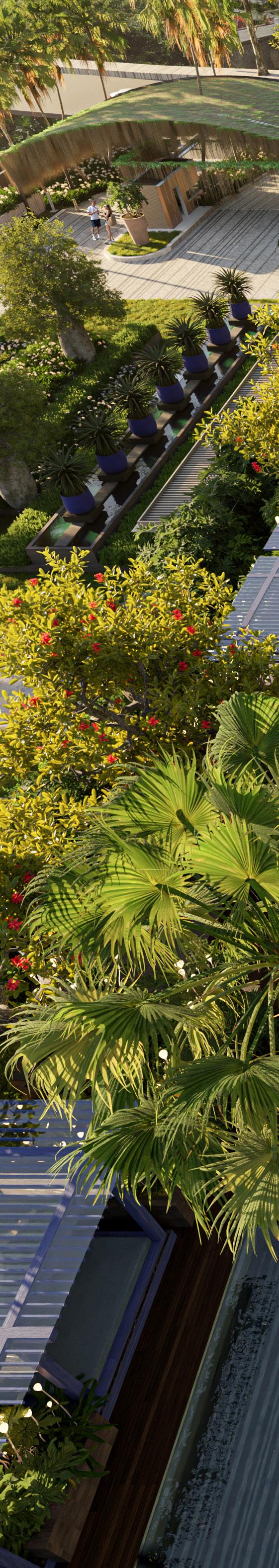

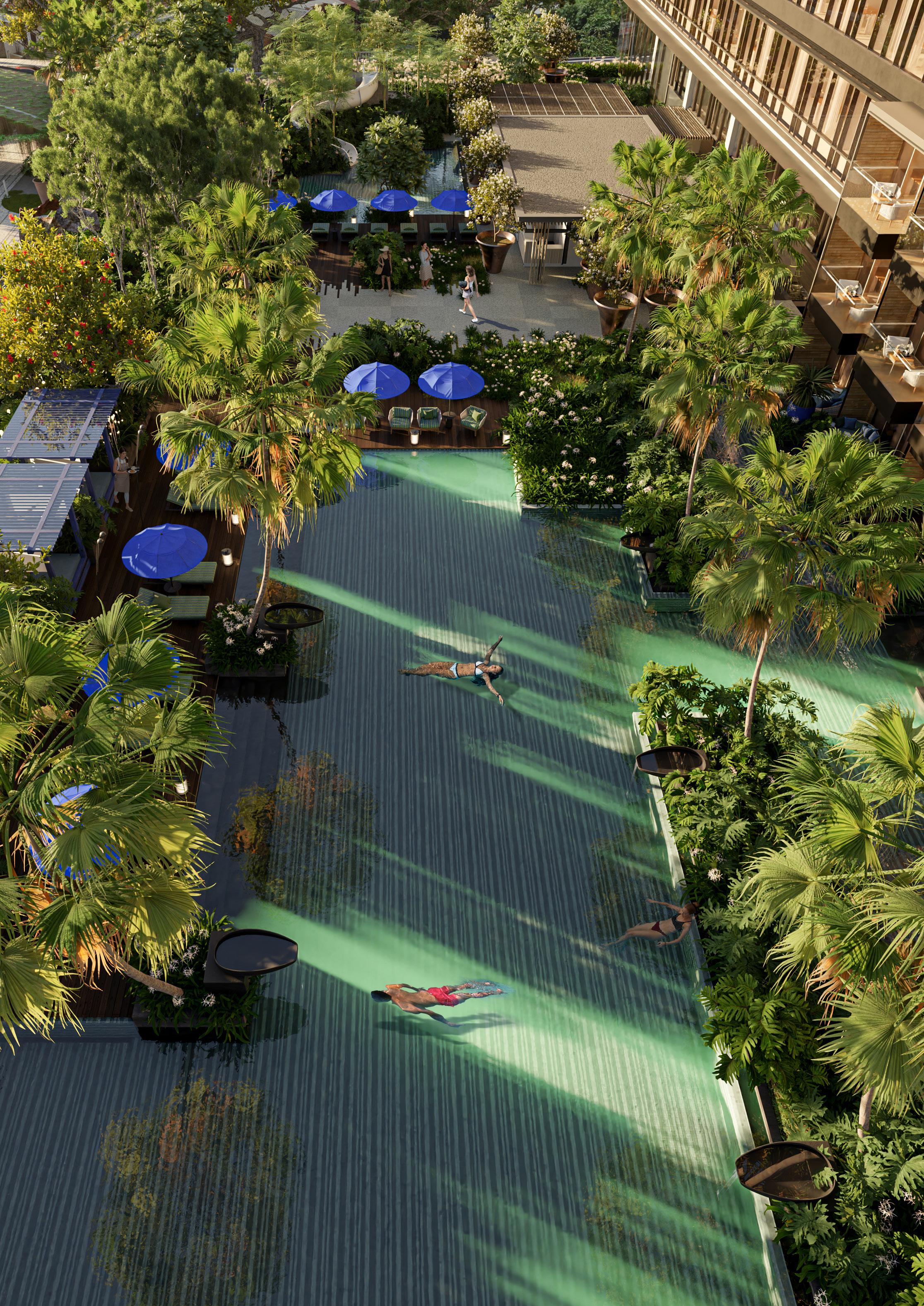

BIRD EYEVIEW 1ST FLOOR

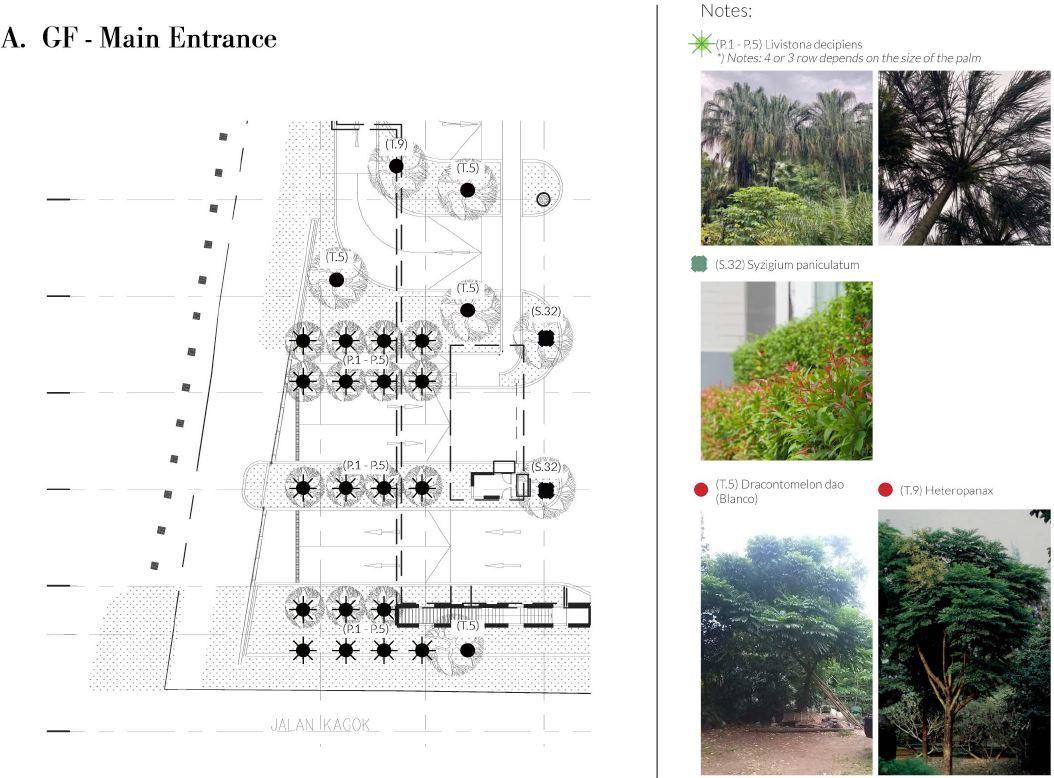

PLANTATION
TREE LEGENDS :
LIVISTONA DECIPIENS
(P.4_LID)
(P.11_SCP)
(P.11_SCP) (P.11_SCP)
(T.5_BIN)
(T.15_CAF)
(T.1_CHO) CHORISIA SP
MILINGTONIA HORTENSIS 3NOS/GROUP
(T.14_MIH)
EUCALYPTUS DELGUPTA (T.8_EUD)
SCHIZOLOBIUM PARAHYBA 2NOS/GROUP
SCHIZOLOBIUM PARAHYBA 3NOS/GROUP
SCHIZOLOBIUM PARAHYBA BISMARCKIA NOBILIS
CAESALPINIA FERREA 3NOS/GROUP
MORINGA DROUHARDII (T.9_MOD)
CITHAREXYLUM SPINOSUM 'ARUMDALU' 2NOS/GROUP (T.12_CIS)
(T.14_MIH) MILINGTONIA HORTENSIS
BROMELIA SP
CYRTOSPERMA MERKUSI
(S.9_CYM)
(S.16_GAC)
(S.3_BRO) (S.32_GAS) (S.28_PHB)

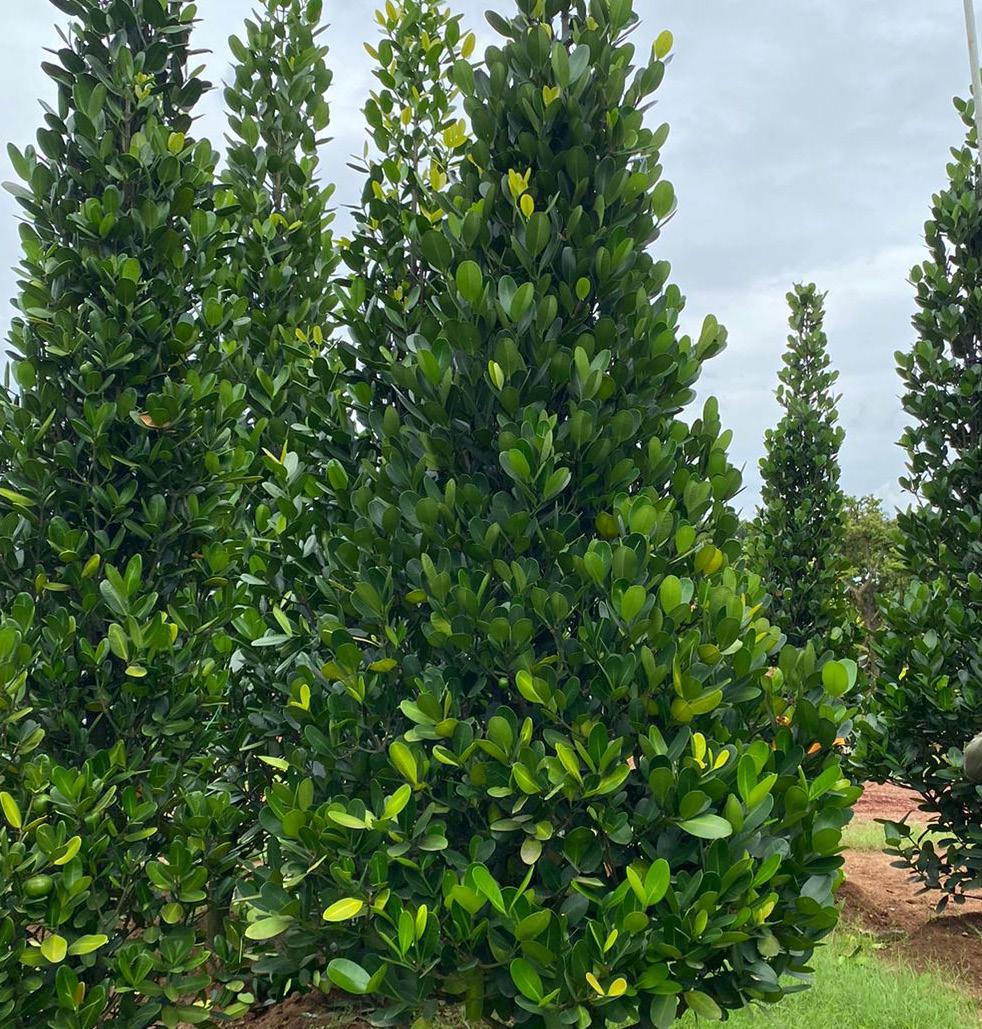

GARDENIA CARINATA
PHILODENDRON BIPINNATIFIDUM 3NOS/GROUP
GARCINIA SUBELLIPTICA (CYLINDER)

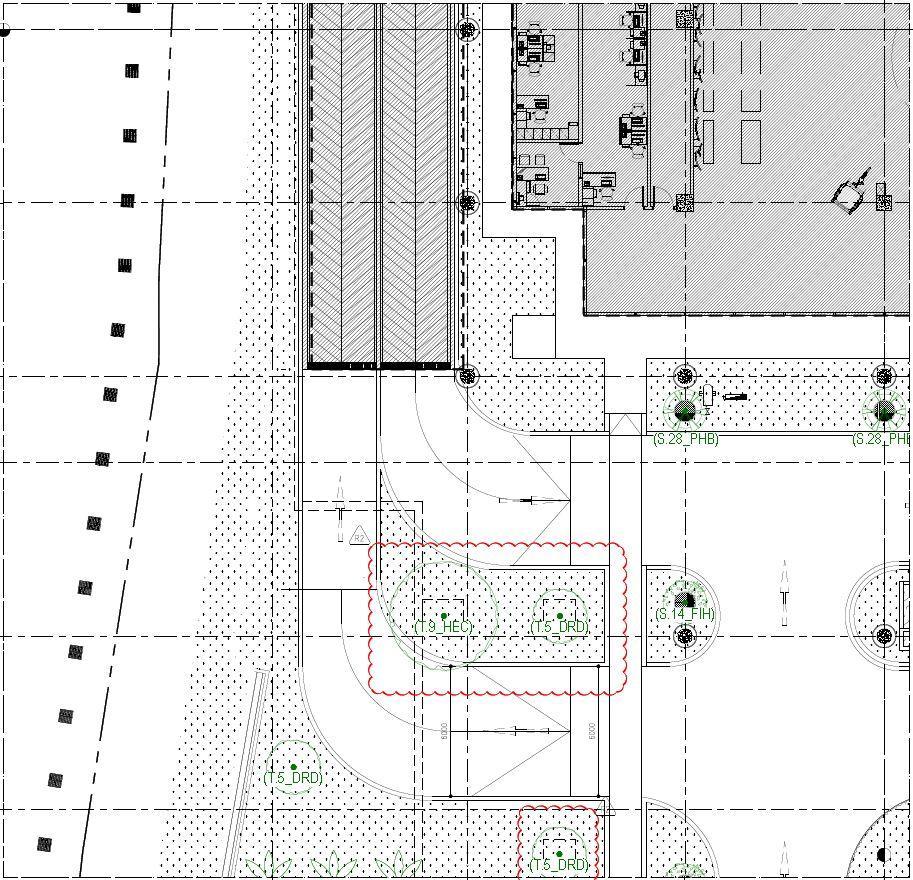

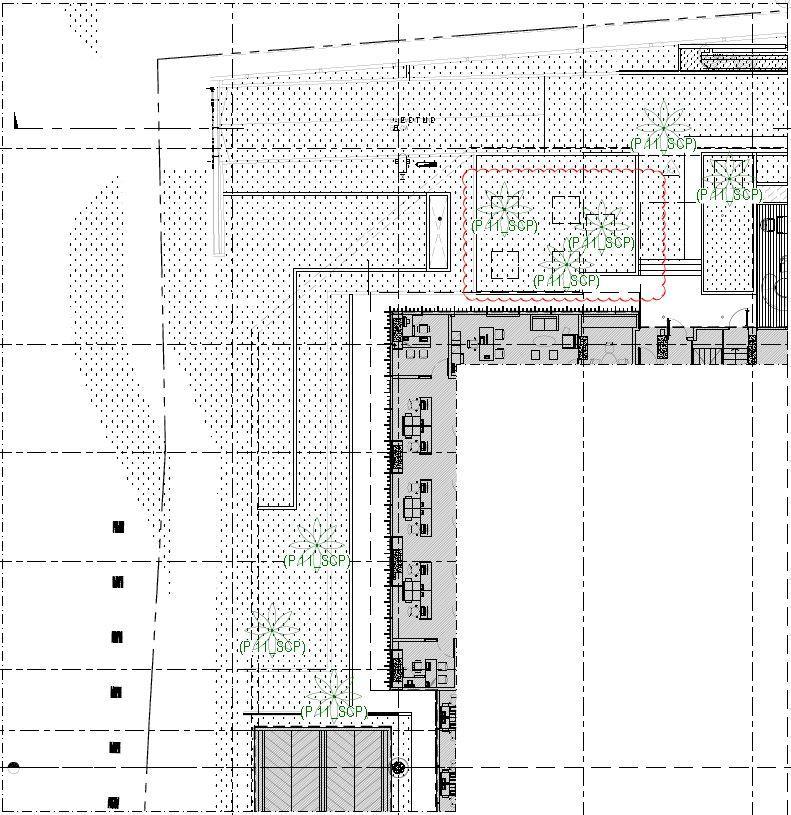

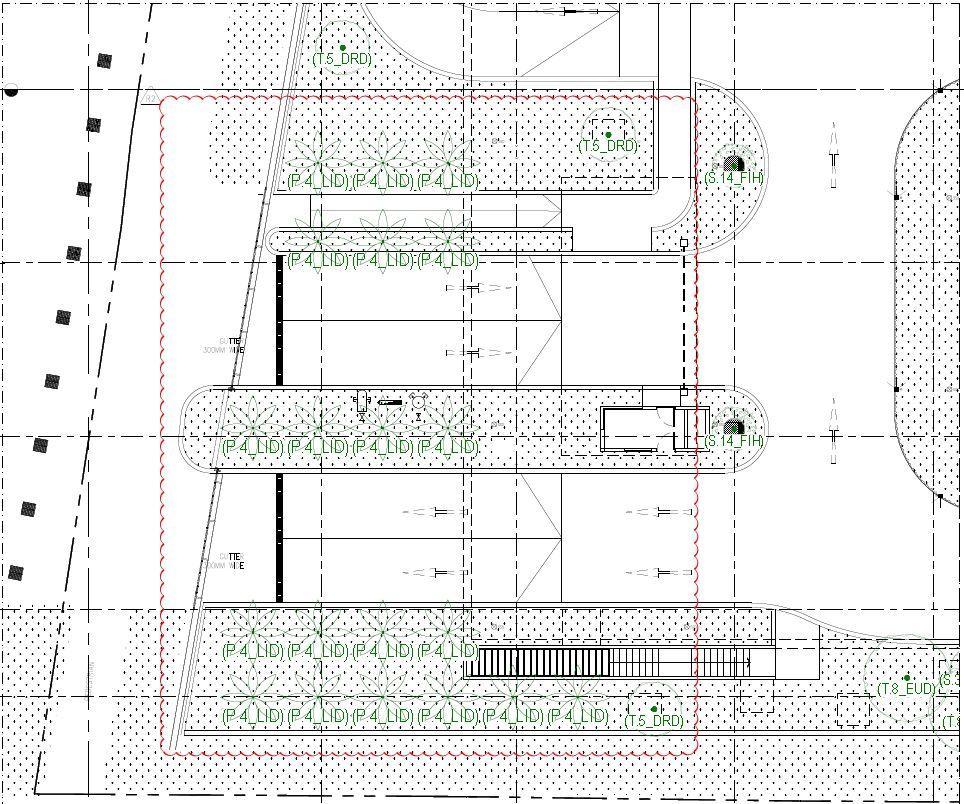

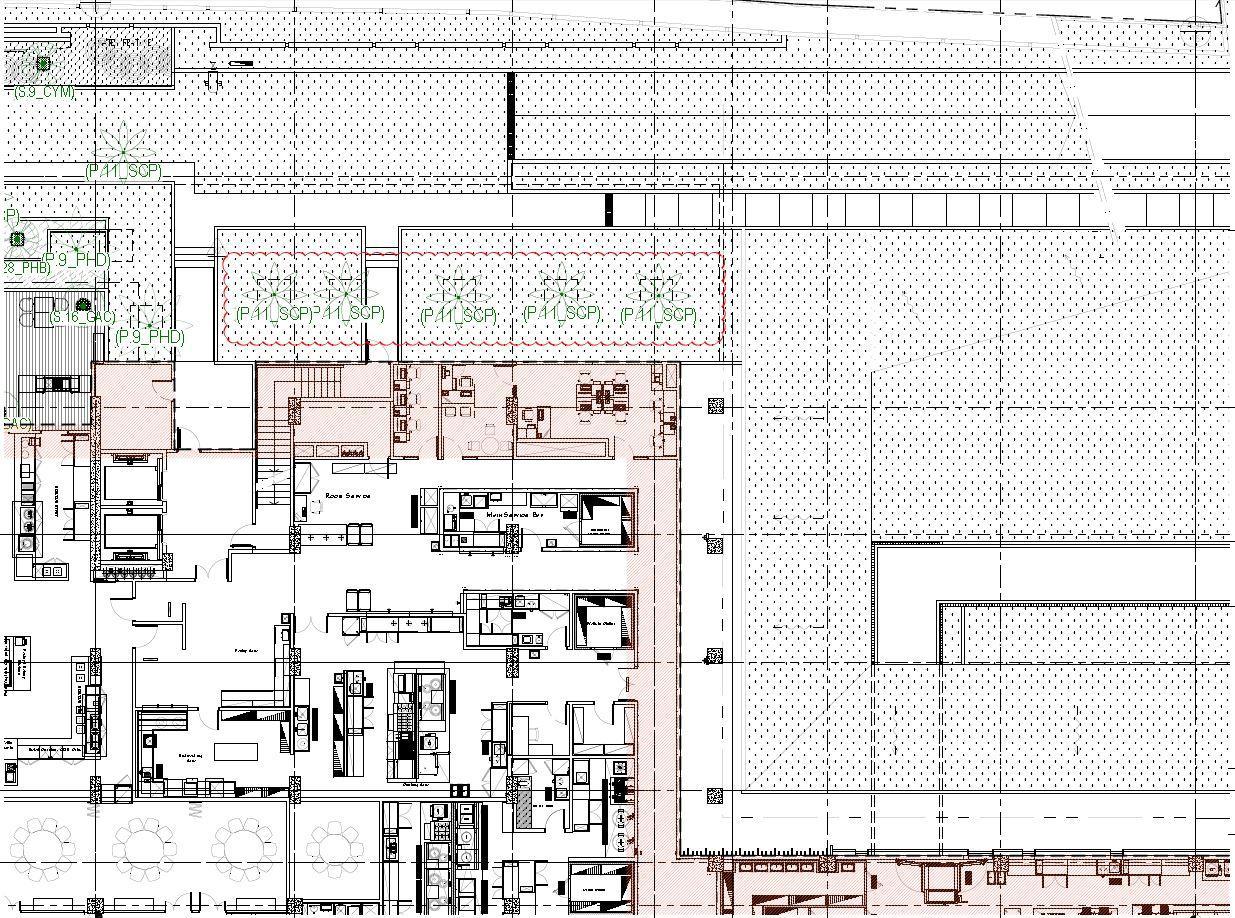

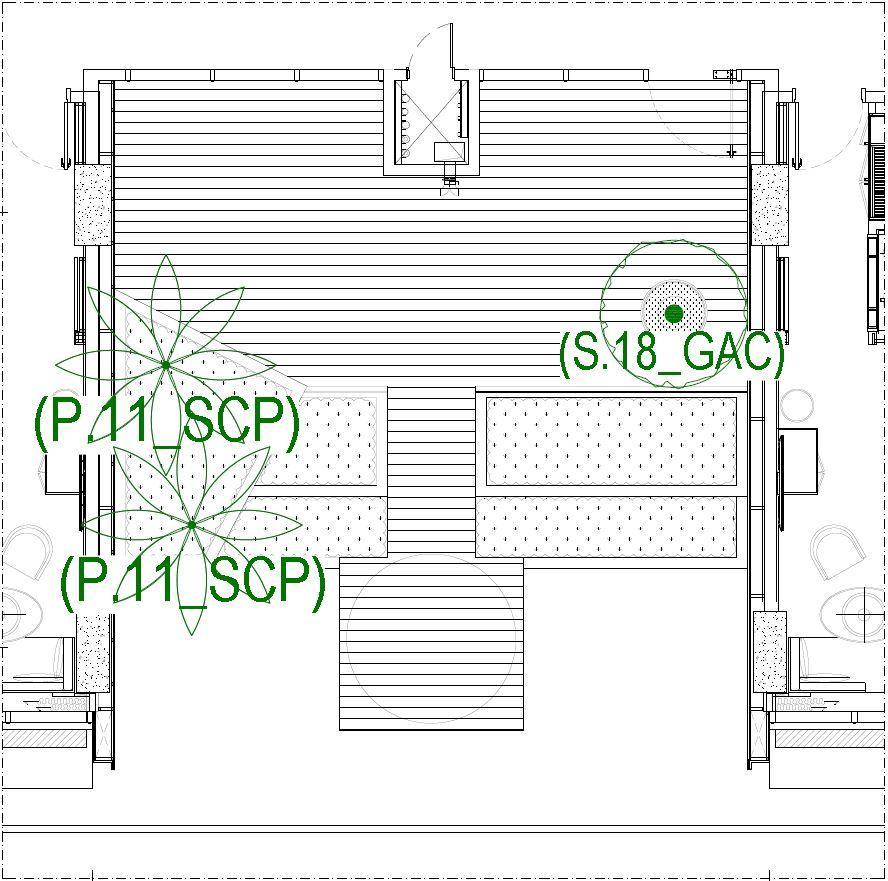

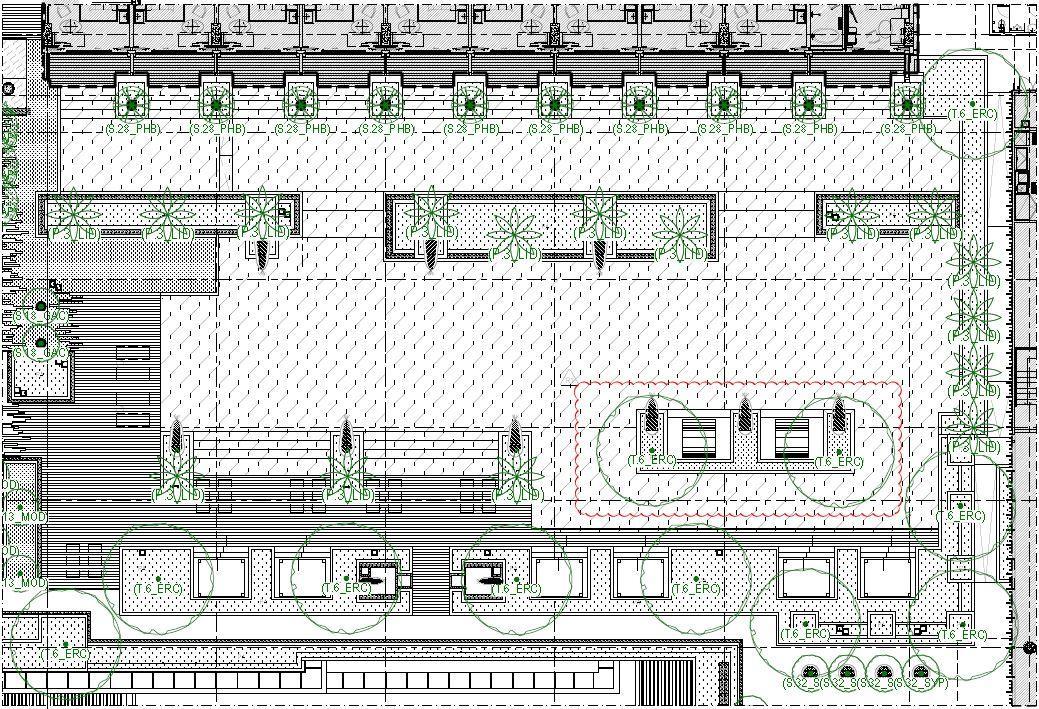

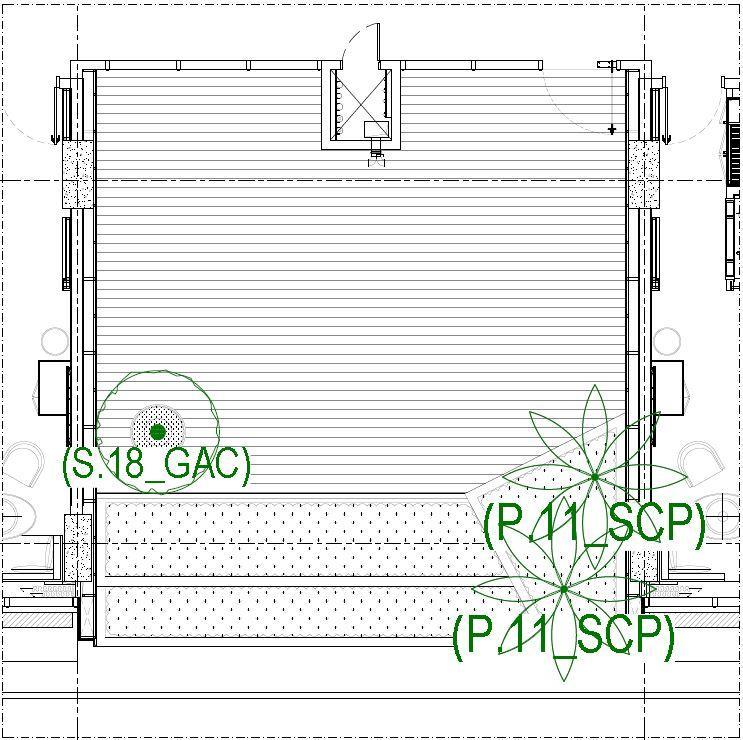

TREE PLANTING PLAN -
(S.18_GAC)
(P.11_SCP)(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)
(S.18_GAC) (S.18_GAC) (S.18_GAC)
(S.32_GAS)(S.32_GAS)(S.32_GAS)
TREE LEGENDS :
LIVISTONA DECIPIENS
(P.3_LID)
(P.11_SCP)
SCHIZOLOBIUM PARAHYBA
SCHIZOLOBIUM PARAHYBA 2NOS/GROUP
SCHIZOLOBIUM PARAHYBA 3NOS/GROUP (P.11_SCP) (P.11_SCP)
CERBERA MANGHAS
(S.32_GAS)(S.32_GAS)(S.32_GAS)(S.32_GAS)
(T.5_CEM) (S.18_GAC)
GARDENIA CARINATA 'BIG LEAVES' 2NOS/GROUP (GAC)
(S.32_GAS)
(T.13_MOD)
(S.28_PHB)
GARDENIA CARINATA 'SMALL LEAVES'

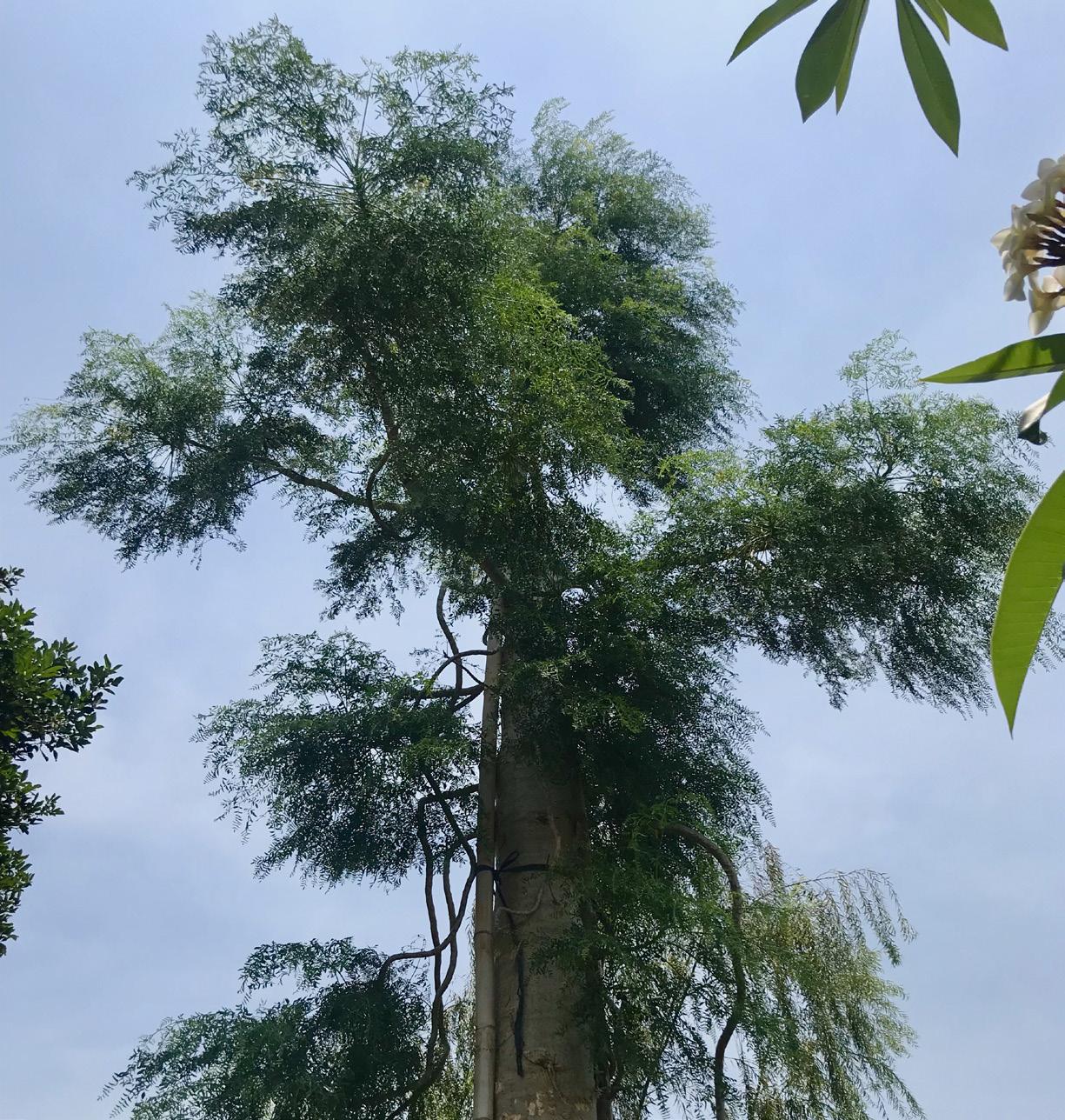

MORINGA DROUHADI
PHILODENDRON BIPINNATIFIDUM 3NOS/GROUP GARCINIA SUBELLIPTICA (CYLINDER)
PHOENIX ROEBELENII (PHR)
TABERNAEMONTANA PSCHYSIPHON
(S.34_TAP)
Livistona Decipiens
Location
Quantity
Specification
Trunks Height
Trunks Diameter
300-500cm 80-100cm : : :
Main Entrance Hotel, Main Pool & Kids Pool Area
45 pcs
700-800cm 15-20cm
Bismarckia Nobilis
Location Quantity
Specification
Trunks Height
Trunks Diameter
Main Entrance Hotel
7 pcs
80-120cm : : :
600-700cm 40-40cm
300-500cm
Pheonix Robelini
Location Quantity
Specification
Trunks Height
Trunks Diameter
Crown Rootball
Location Quantity
Specification
Trunks Height
Trunks Diameter
200-250cm 40cm : : :
Main Pool & Lagoon 9 pcs
200-250cm 8-10cm
Main Pool & Lagoon 20 pcs
Crown Rootball
Crown Rootball
Crown Rootball
TREE & PALM

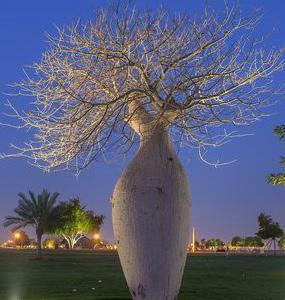

Chorisia Sp
Location Quantity
Specification
Trunks Height
Trunks Diameter
Crown Rootball Drop off area
Schizolobium Parahyba
Location
Quantity
Specification
Trunks Height
Trunks Diameter
Backyad & Kids pool 45 pcs
Eucalyptus Degulpta
Location
Quantity
Specification
Trunks Height
Trunks Diameter
Pedestrian & Drop off area 7 pcs
300-400cm
Location Quantity
Specification
Trunks Height
Trunks Diameter
Drop off area & 1st floor 16 pcs
700-800cm 40-60cm
200-300cm
75-100 liter
Crown Rootball
Crown Rootball
Crown Rootball
TREE & PALM
C
Cytarexylum Spinosum
Location
Quantity
Specification
Trunks Height
Trunks Diameter
Crown Rootball Kidspool 45 pcs
700-800cm 15-20cm
300-500cm
Cerbera Mangas
Location Quantity
Specification
Trunks Height
Trunks Diameter
Rootball Cabanas 7 pcs
80-120cm : : :
600-700cm 40-40cm
300-500cm

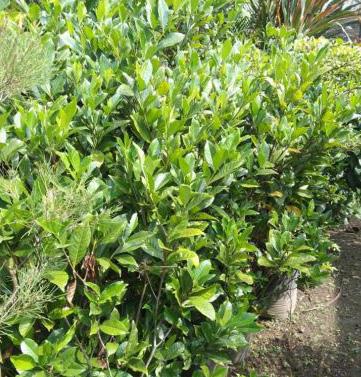

Gardenia Carinata
Location
Quantity
Specification
Trunks Height
Trunks Diameter
Crown Rootball Kidspool 9 pcs
200-250cm 8-10cm
Location
Quantity
Specification
Trunks Height
Diameter
Crown
Trunks
Crown Rootball
TREE & PALM

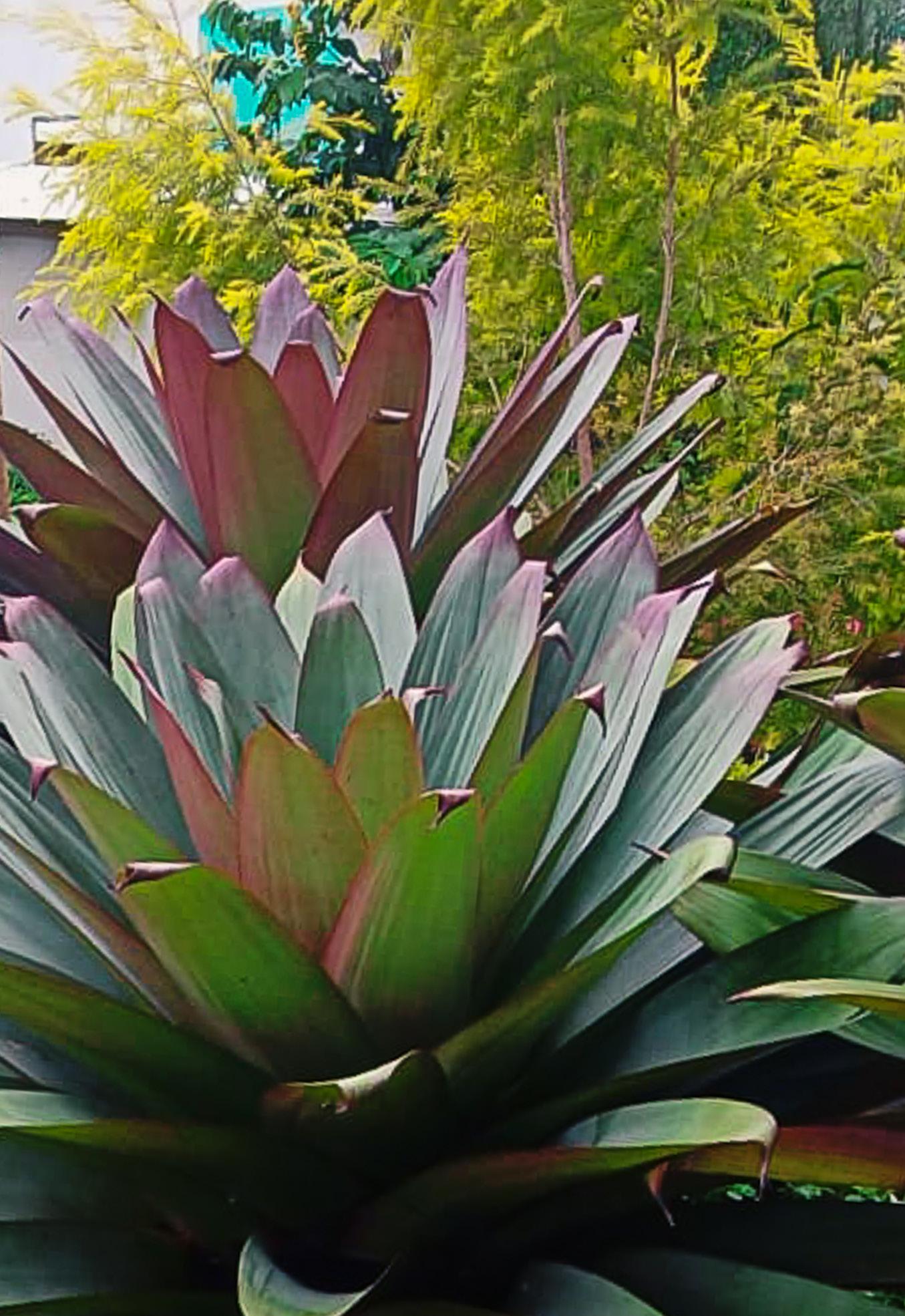

Bromelia Giant
Location Quantity
Specification
Trunks Height
Trunks Diameter
Drop off area 22 pcs
700-800cm 15-20cm
300-500cm
80-100cm
Cyrtosperma Merkusi
Location Quantity
Specification
Trunks Height
Trunks Diameter
Crown Rootball Backyard 7 pcs
600-700cm 40-40cm
300-500cm
80-120cm

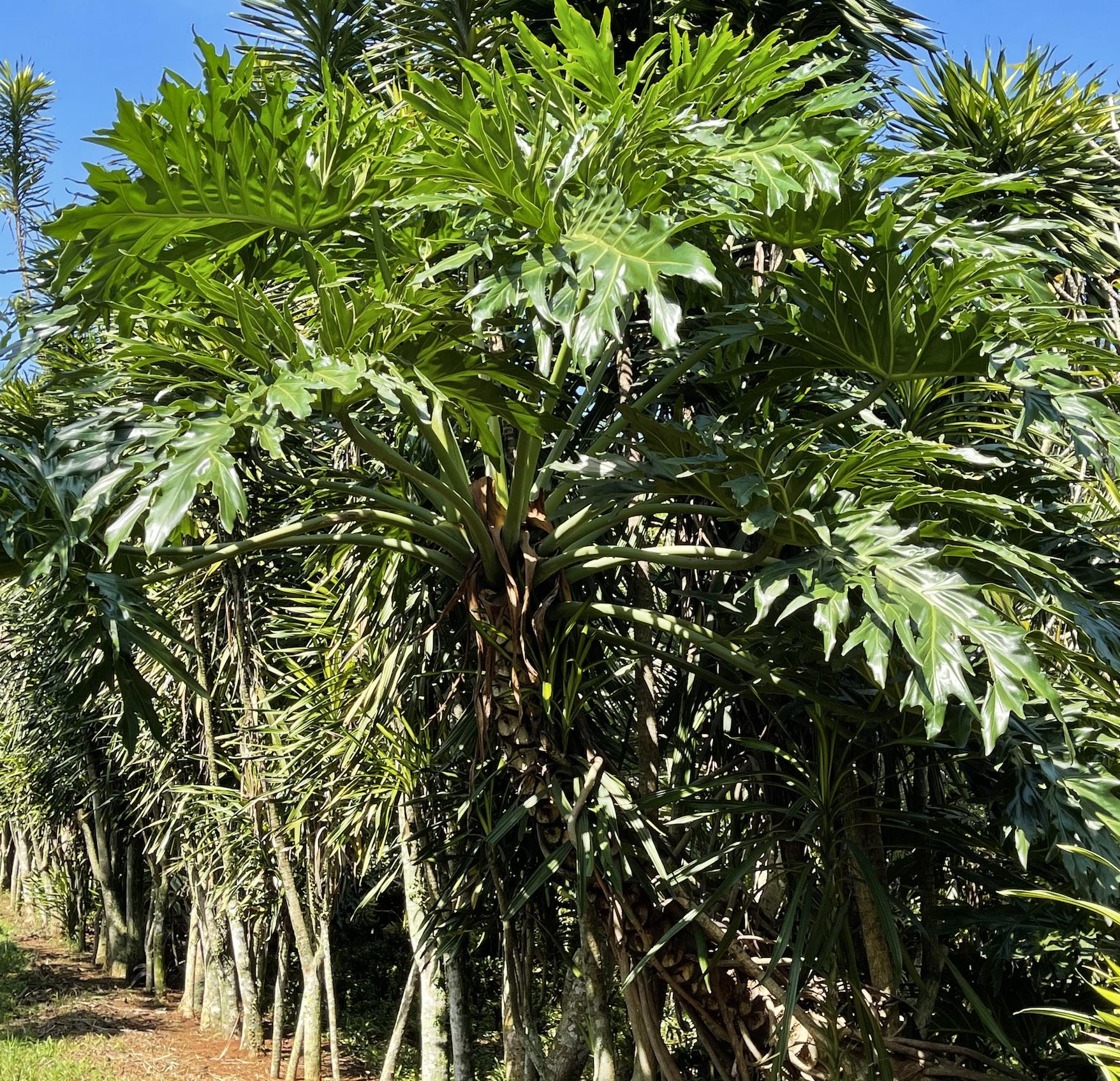

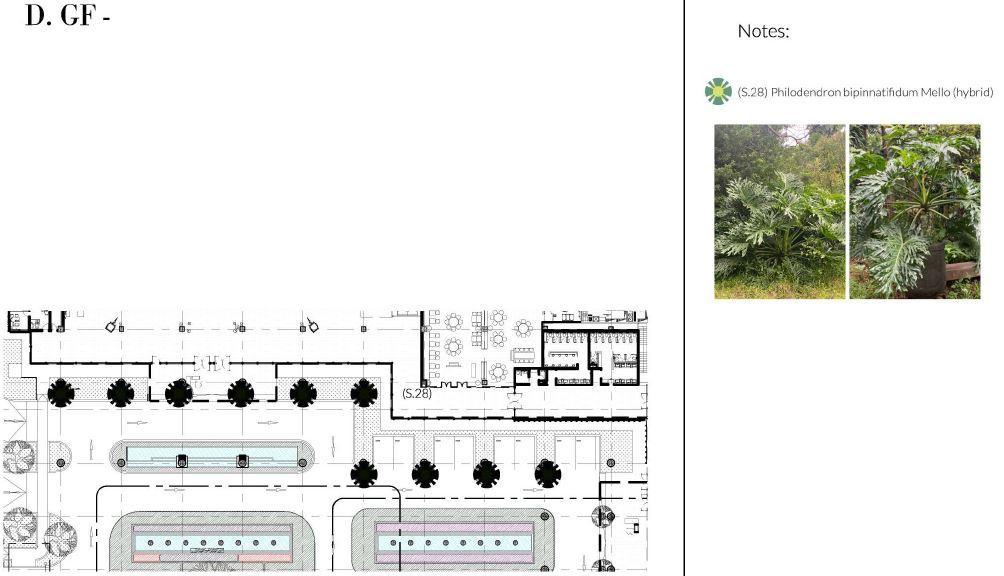

Philodendron Bifinatifidum
Location
Quantity
Specification
Trunks Height
Trunks Diameter
Crown Rootball
Location Quantity
Specification
Trunks Height
Trunks Diameter
Drop off, Lagoon , Main pool & Kidspool 9 pcs
200-250cm 8-10cm
200-250cm 40cm
Drop off & Convention hall 20 pcs
400cm
80-100cm
Crown Rootball
Crown Rootball
TREE & PALM

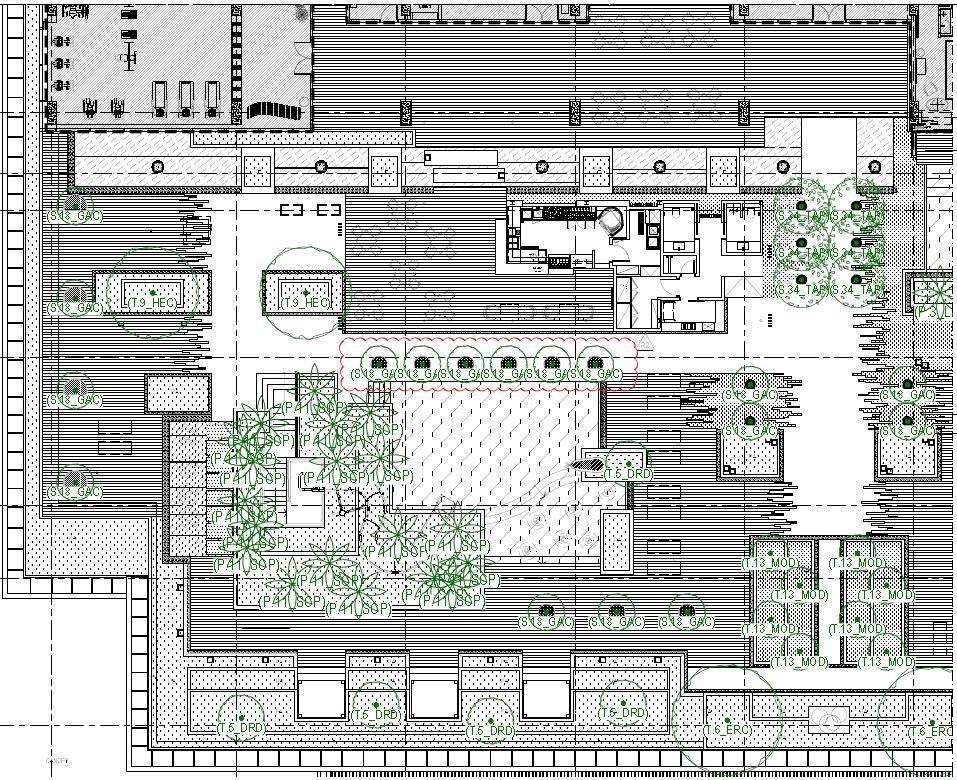

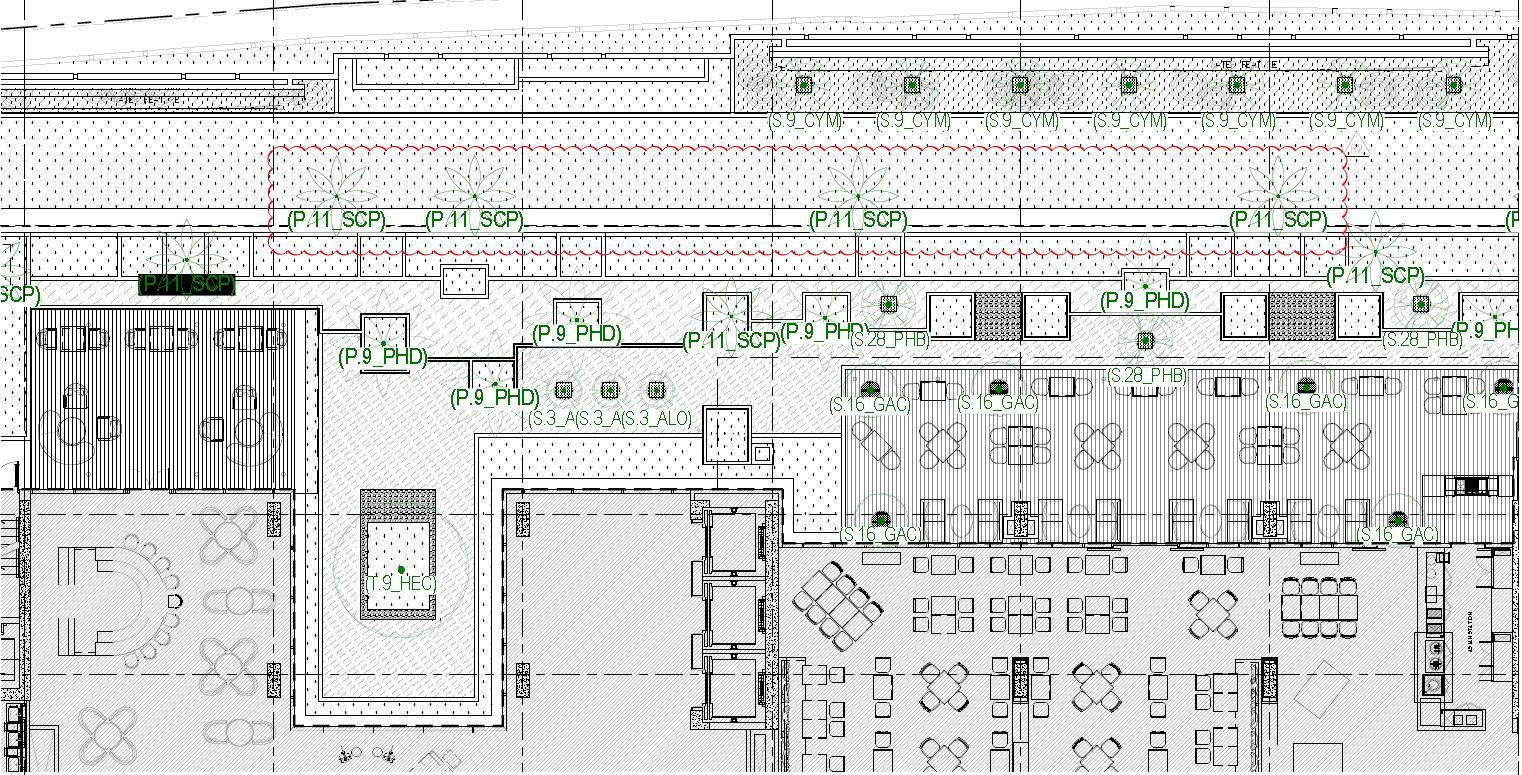

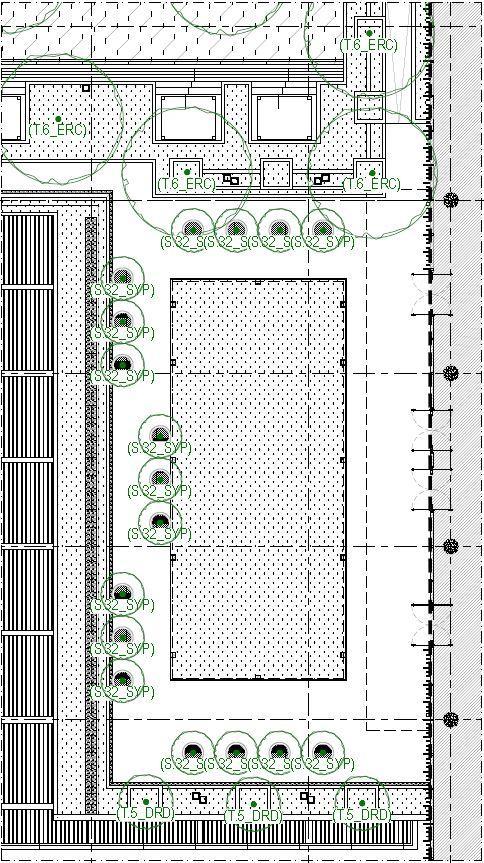

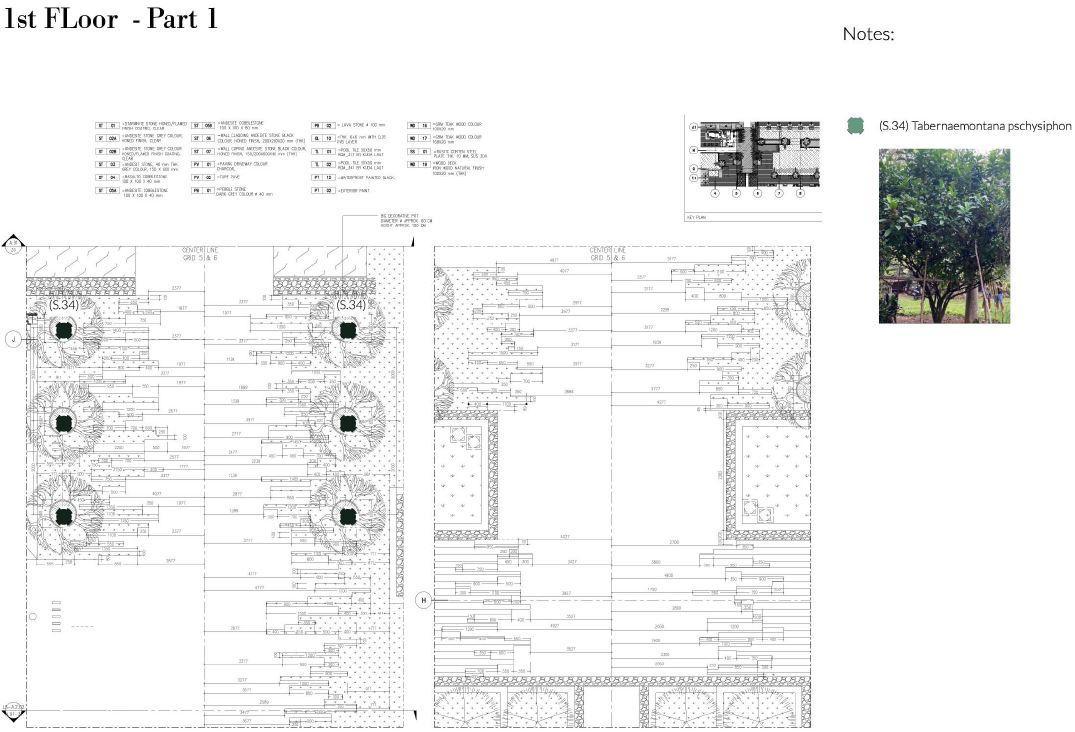

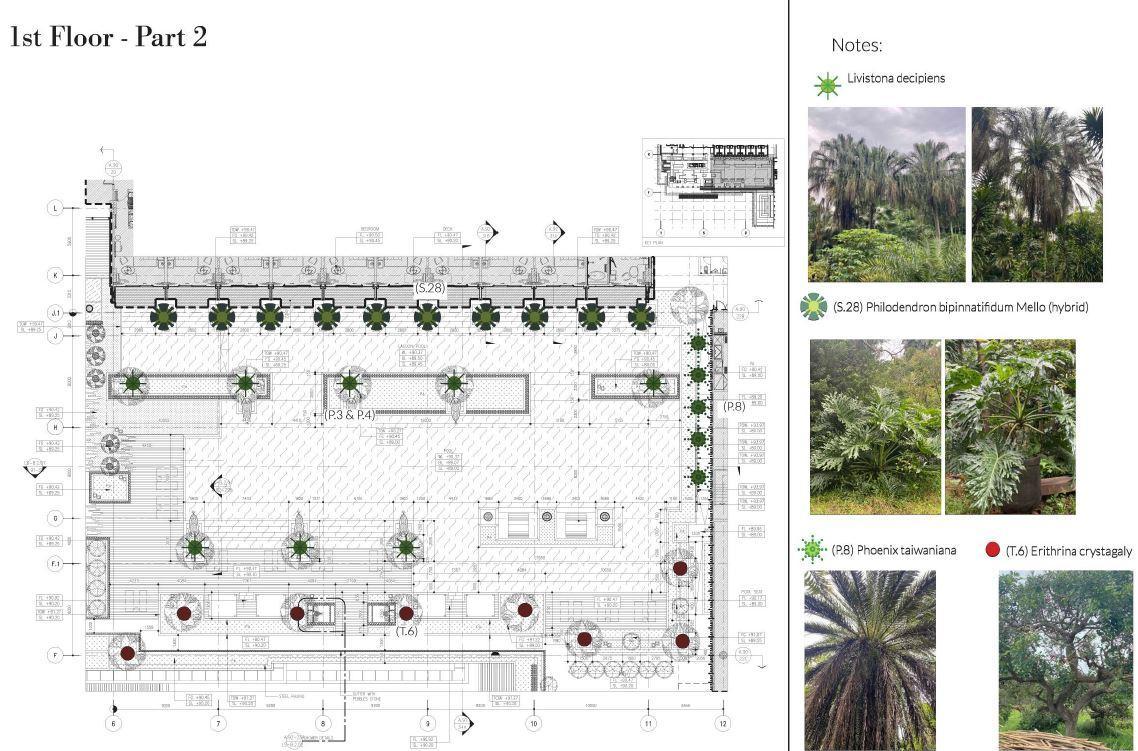

SHRUBS PLANTING PLAN - GROUND FLOOR
SHRUBS PLANTING PLAN - 1ST FLOOR
SHRUB PLANTING LEGEND :
- Agapanthus praecox
- Spathoglottis plicata
- Neomarica caerulea (ASN) mix 33%:33%:33%
- Aglaia odorata
- Tabernaemontana corymbosa 'dwarf'
- Cuphea (ATC) mix 33%:33%:33%
- Syngonium
- Colocasia esculenta
- Alocasia amazonica
- Calathea ornata (SCAC) mix 25%:25%:25%:25%
- Alocasia macrorrhiza
- Alocasia plumbea nigra (ALO) mix 50%:50%
Pennisetum purpureums (PEP)
Bougainvillea white (BOG)
- Philodendron selloum L size
- Philodendron selloum M size
- Syngonium
- Calathea ornata
- Dieffenbachia (DIF) (PPSCS) mix 20%:20%:20%:20%:20%
Trachelospermum sp (TRL)
A Agapanthus Praecox
Aglaia Odorata
Tabernaemontana Corymbosa Dwarft
Chupea
B C D
LEGEND
E Neomarcia
Gardenia Jasminoides
Murraya Min-amin
F G
LEGEND
A Spathoglotis White
Cantella Asiatica
Alocasia Black steam
Alocasia Burgundy
Alocasia Machrorriza
Calathea strip
A Bougenvilia white flower
Synggonium
Alocasia Amazonica
Scindapsus B C D LEGEND E Celocasia
Philodendron Soledad
Philodendron Selloum

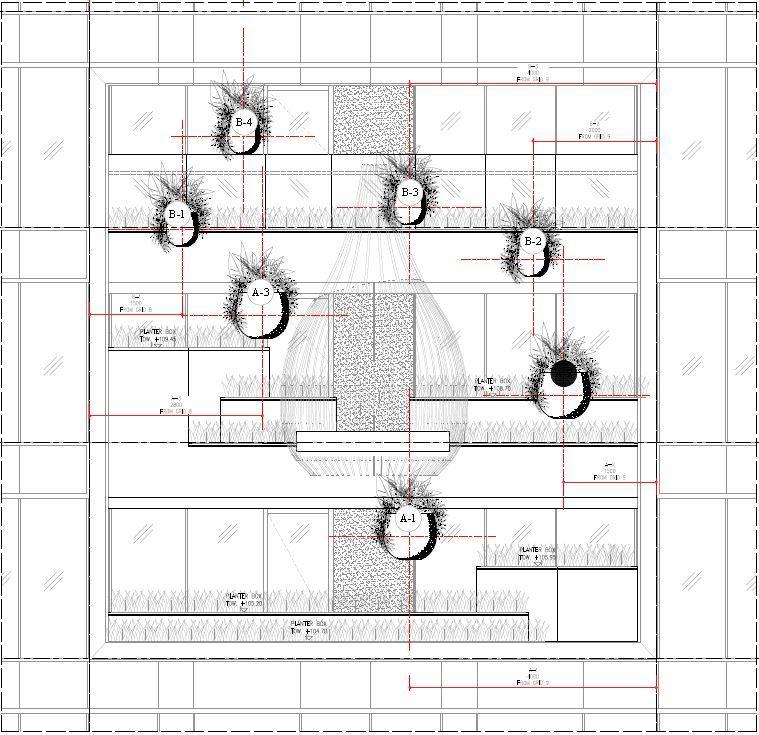

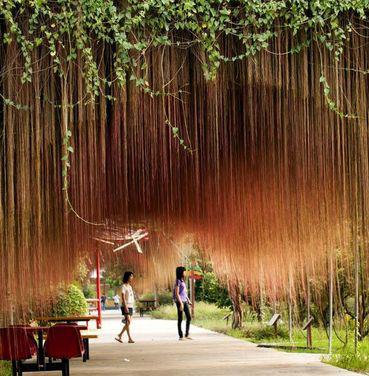

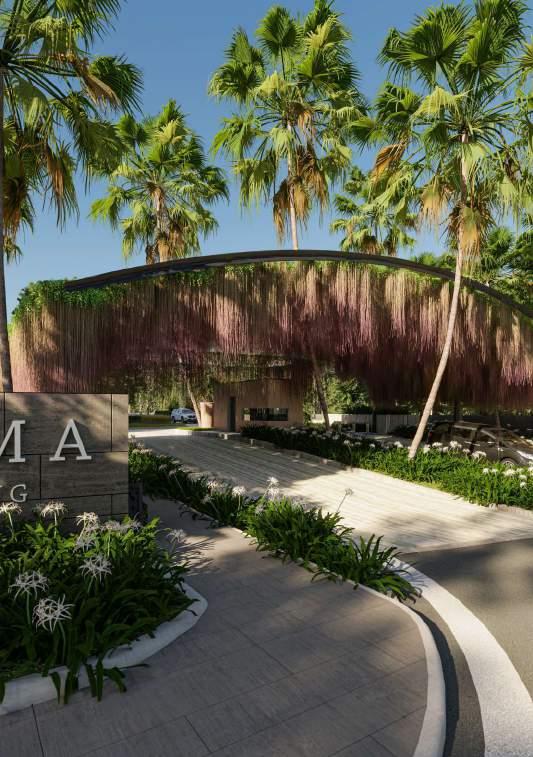

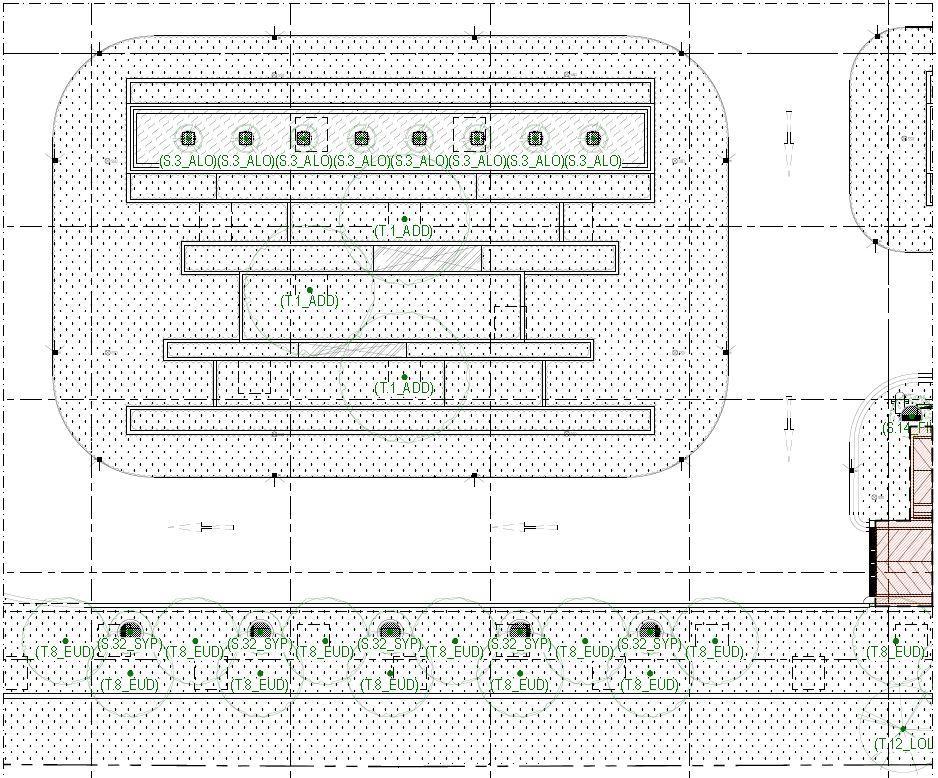

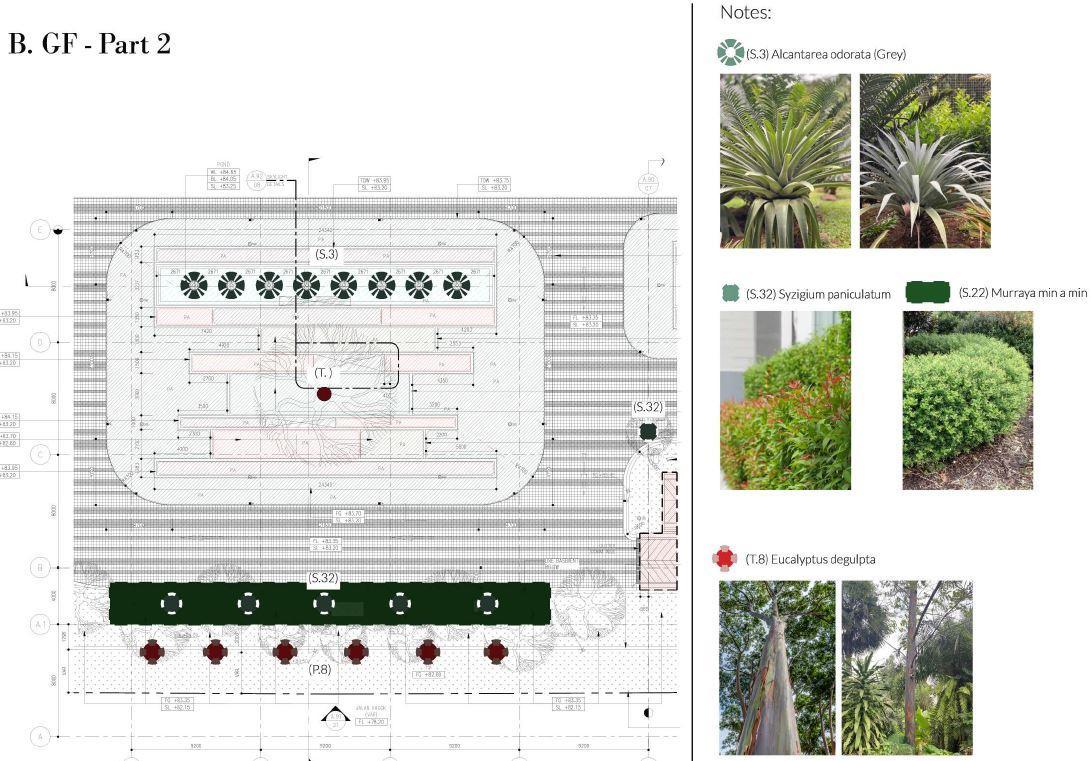

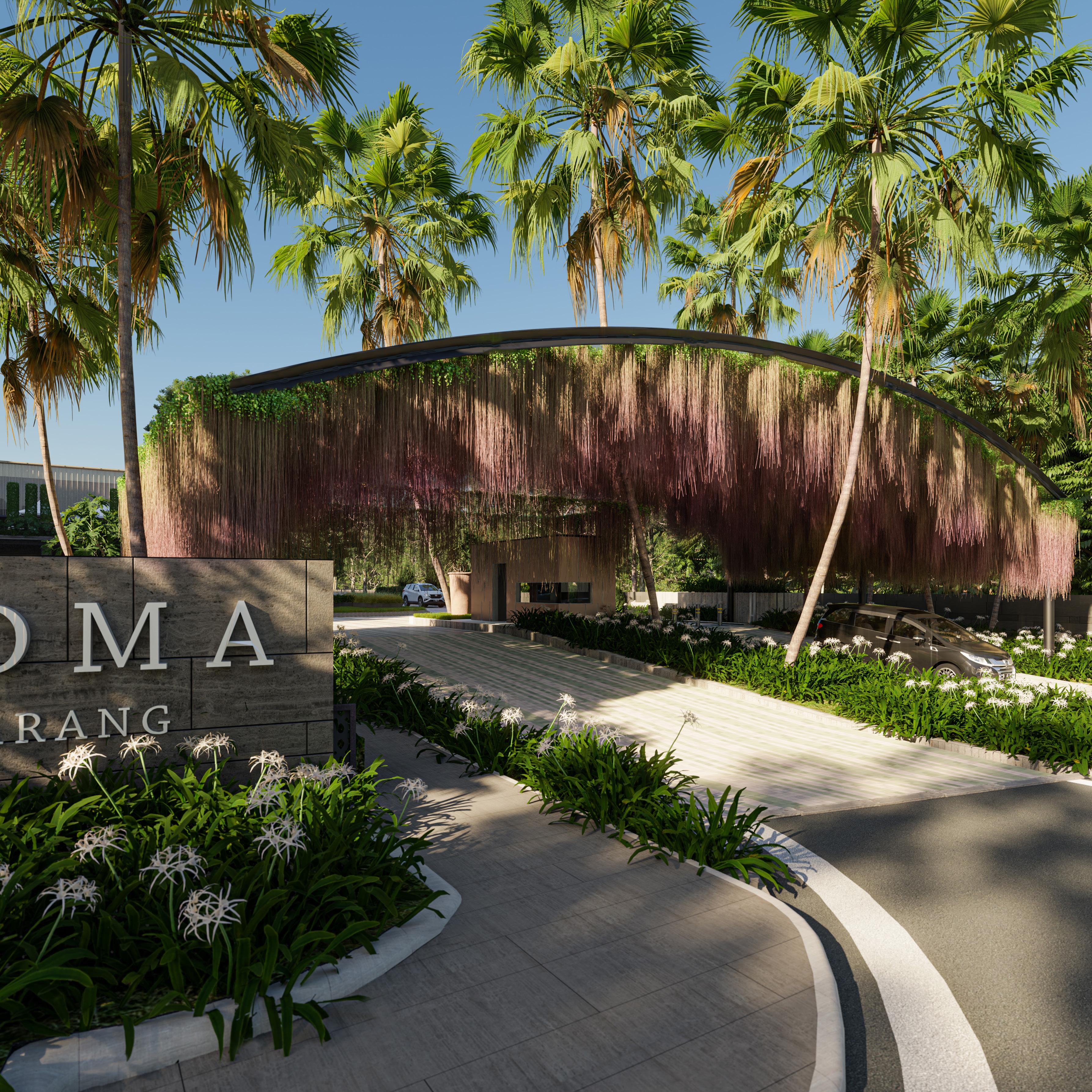

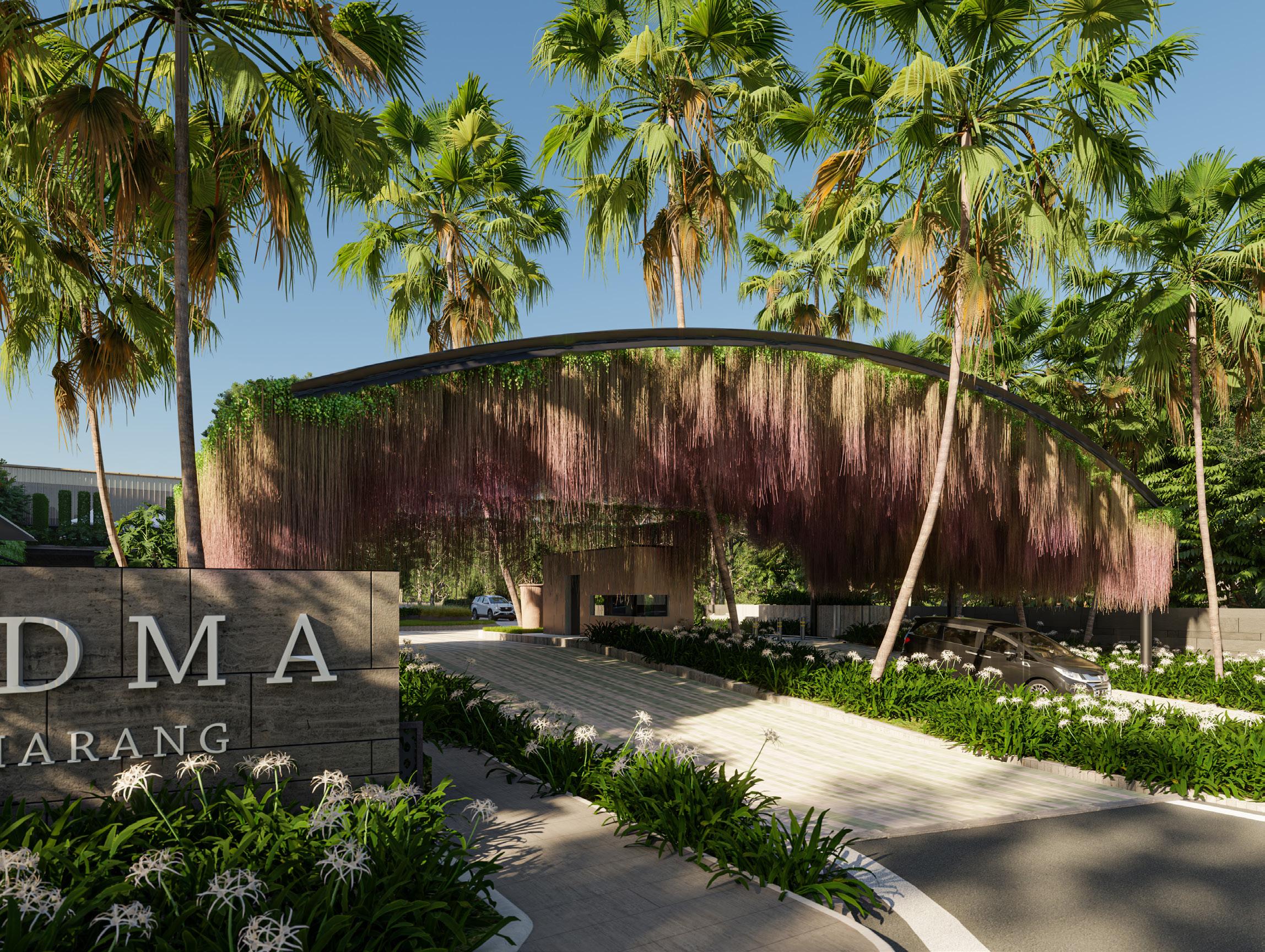

HANGING PLANT GATE
(T.12_CIS)
(T.8_EUD) (T.8_EUD)
N HANGING PLANT GATE ENTRANCE GATE
(T.8_EUD)
(T.12_CIS)
(T.8_EUD)
(T.8_EUD)
(T.12_CIS)
(T.8_EUD)
(T.8_EUD)
(P.11_SCP) (P.11_SCP)
(P.11_SCP) (P.11_SCP)
(P.4_LID)
(T.5_BIN)
(T.9_MOD)
(T.9_MOD)
(S.28_PHB)
(T.5_BIN)
(P.4_LID) (P.4_LID)
(T.5_BIN)
(T.5_BIN)
(P.4_LID)
(P.4_LID) (P.4_LID)
(P.4_LID) (P.4_LID) (P.4_LID) (P.4_LID)
(S.28_PHB)
(P.4_LID) (P.4_LID)
(P.4_LID) (P.4_LID) (P.4_LID)
(T.5_BIN) (S.32_GAS) (S.32_GAS)
(S.28_PHB)
(S.32_GAS) (S.32_GAS) (S.32_GAS) (S.32_GAS) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (T.1_CHO)
(S.3_BRO)(S.3_BRO)(S.3_BRO)(S.3_BRO)(S.3_BRO)(S.3_BRO)(S.3_BRO)(S.3_BRO)
(P.4_LID) (P.4_LID)
(P.4_LID) (P.4_LID) (P.4_LID)
(T.5_BIN) (T.5_BIN) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD)
(T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.1_CHO) (T.1_CHO) (T.8_EUD)
(T.9_MOD)
(T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS)

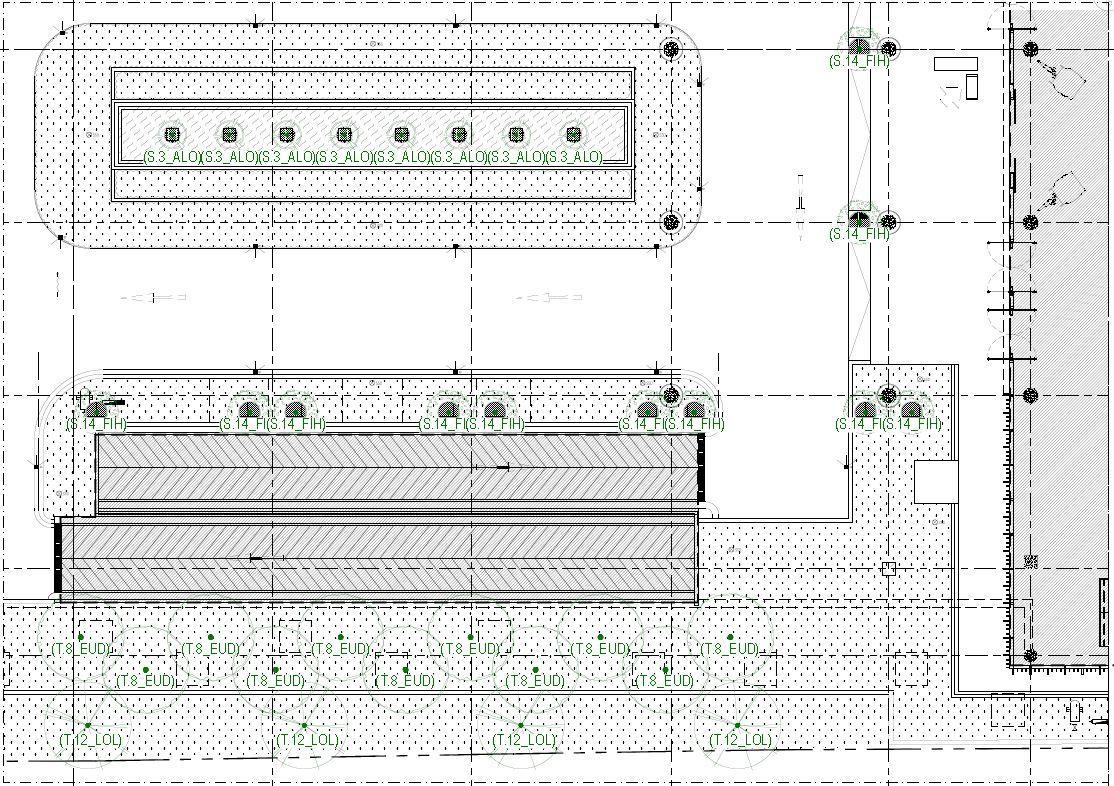

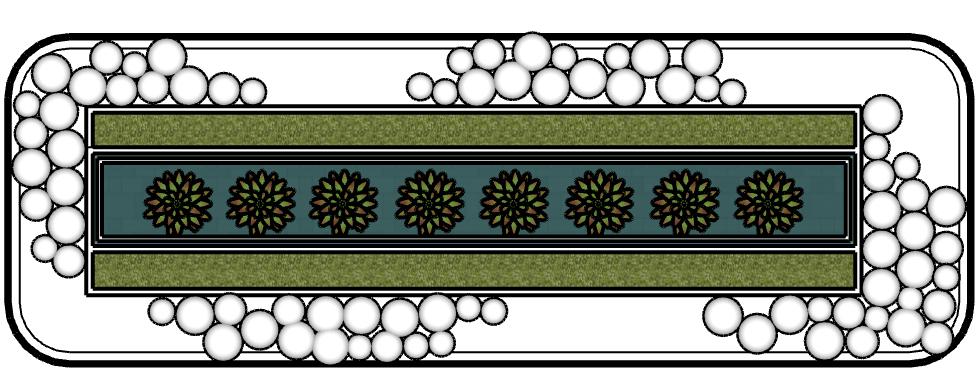

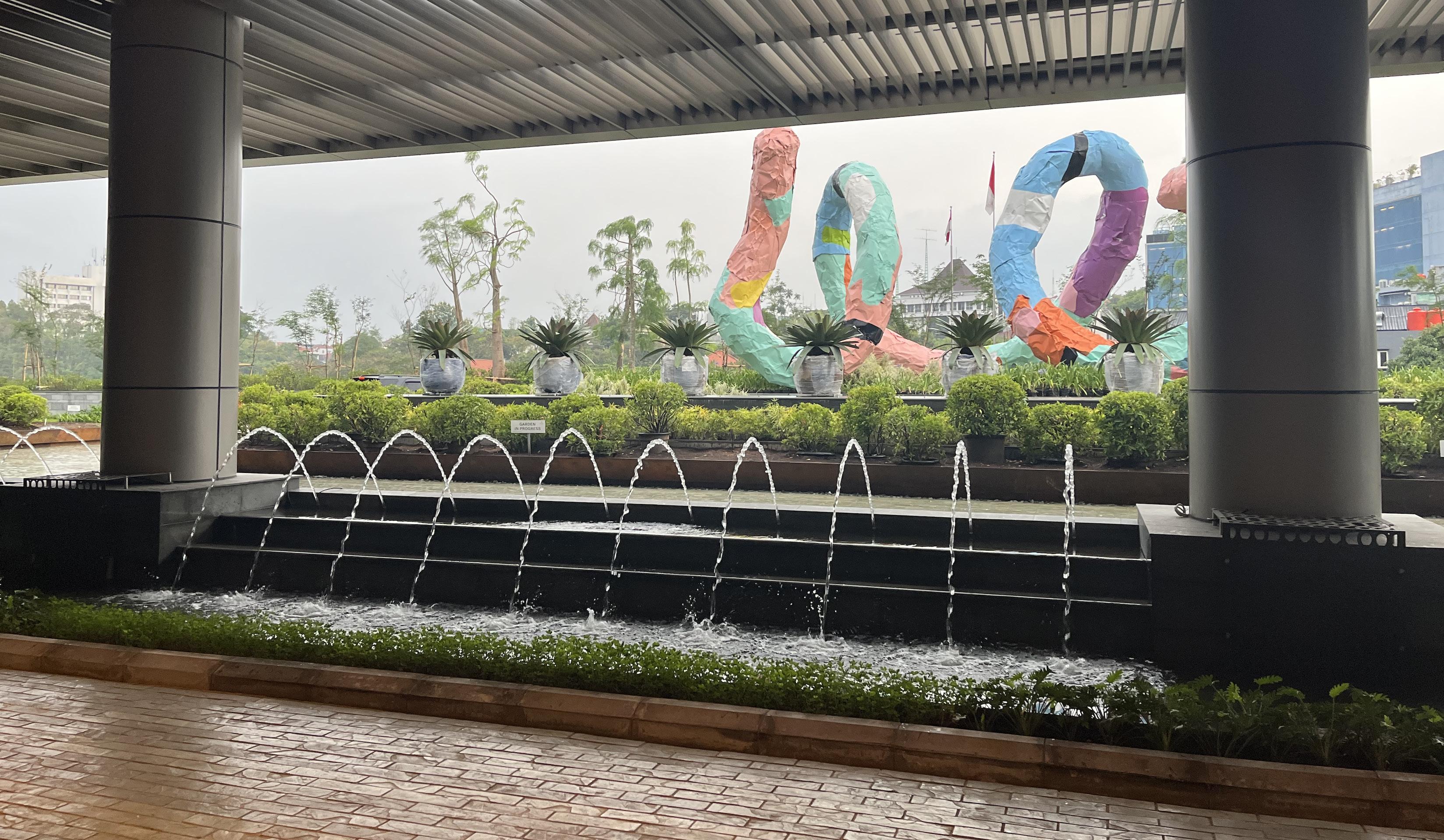

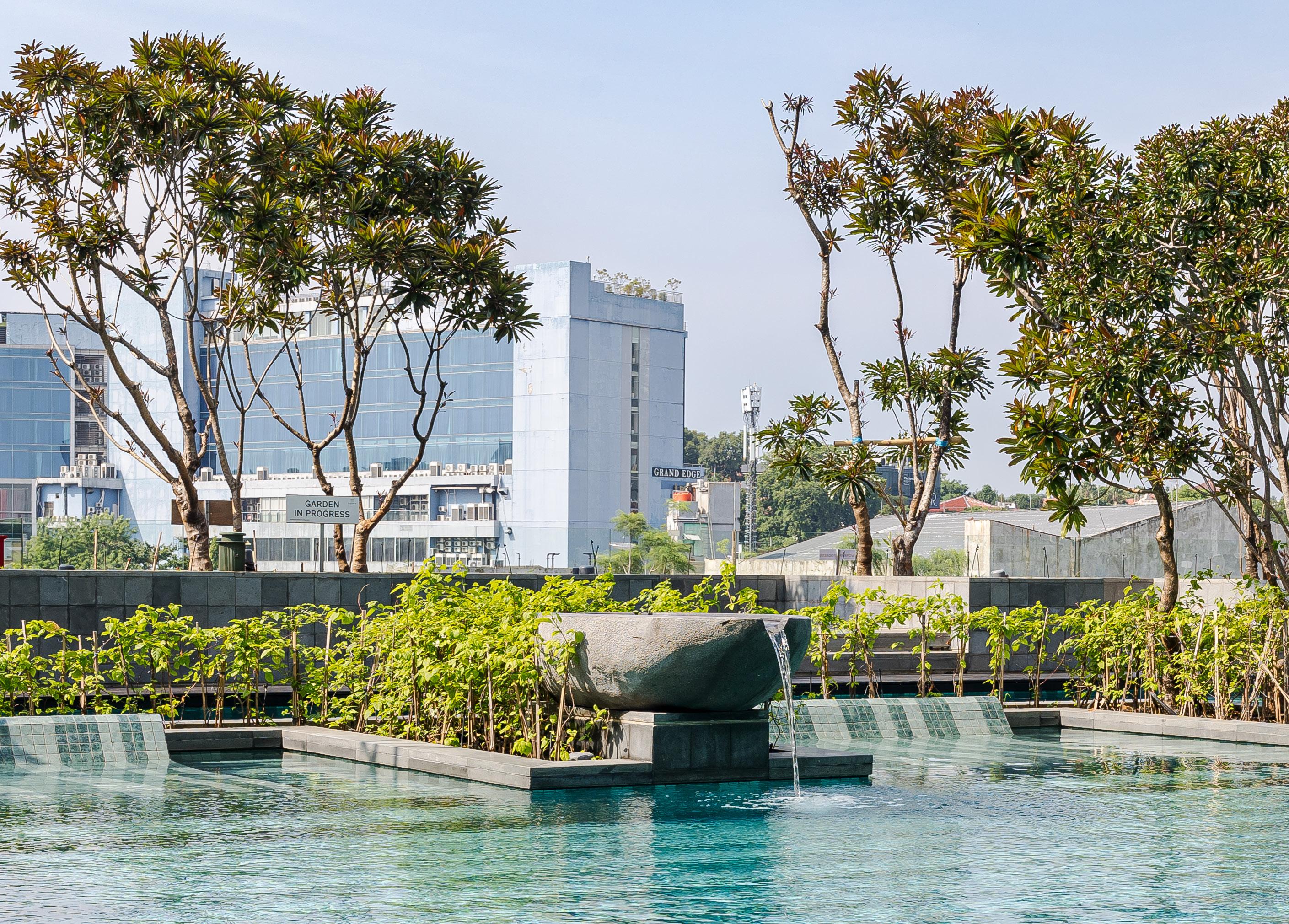

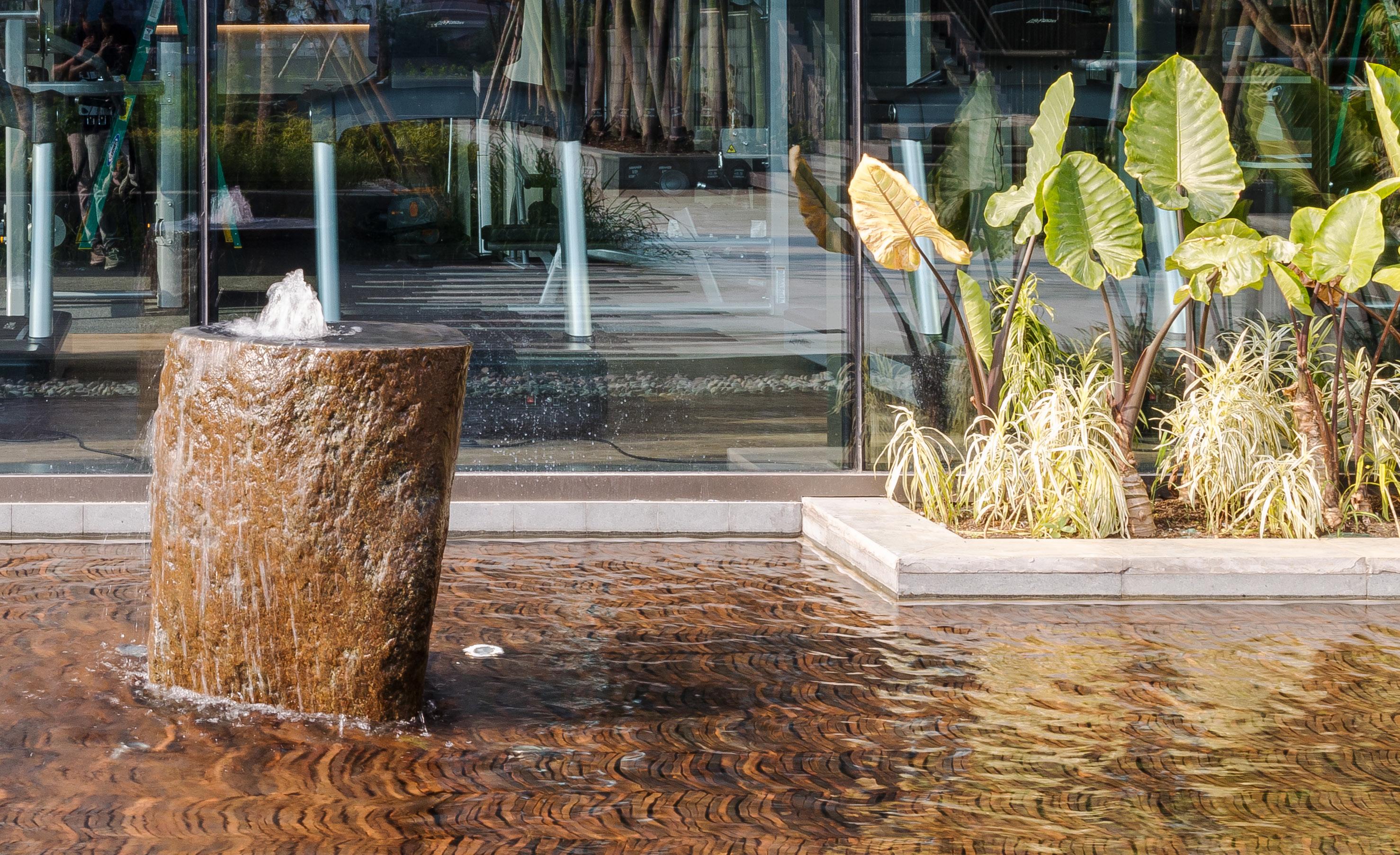

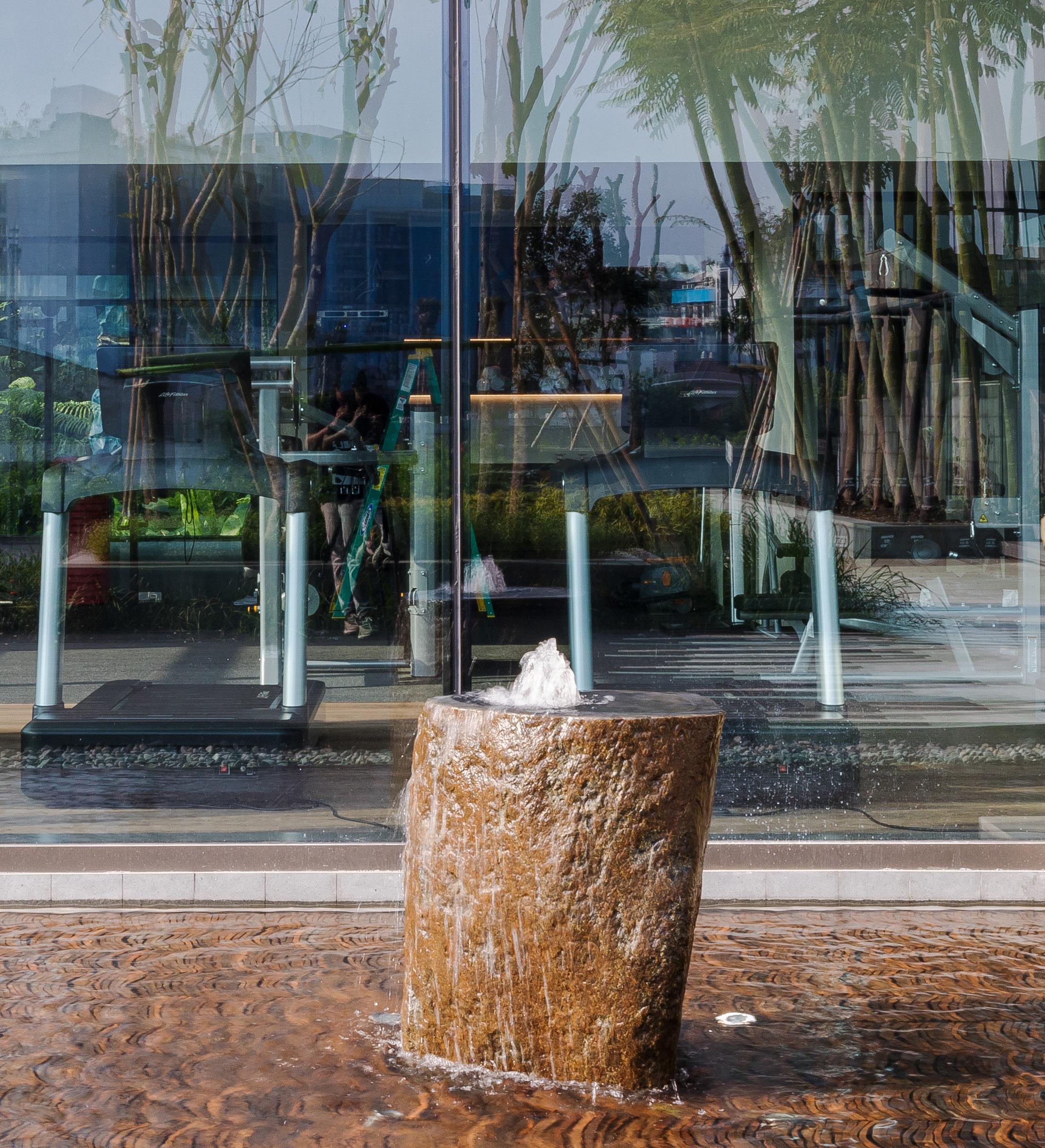

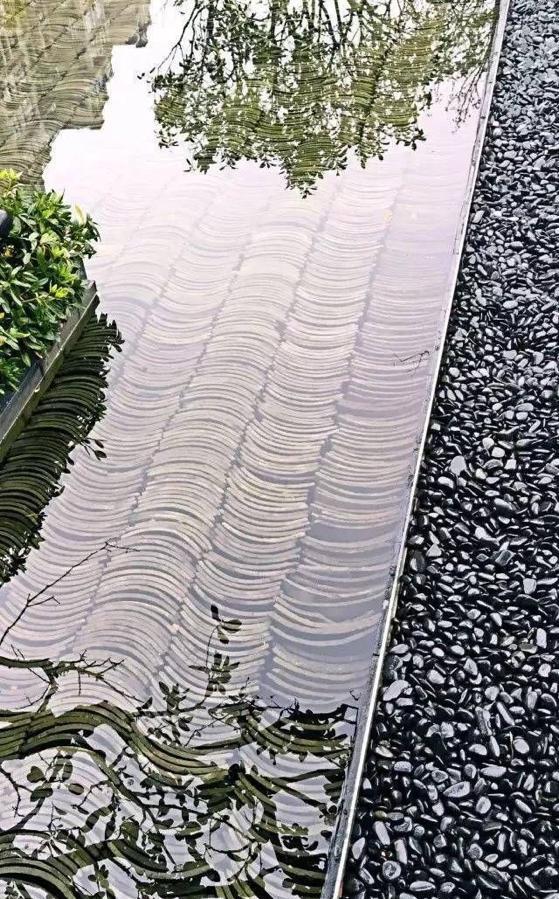

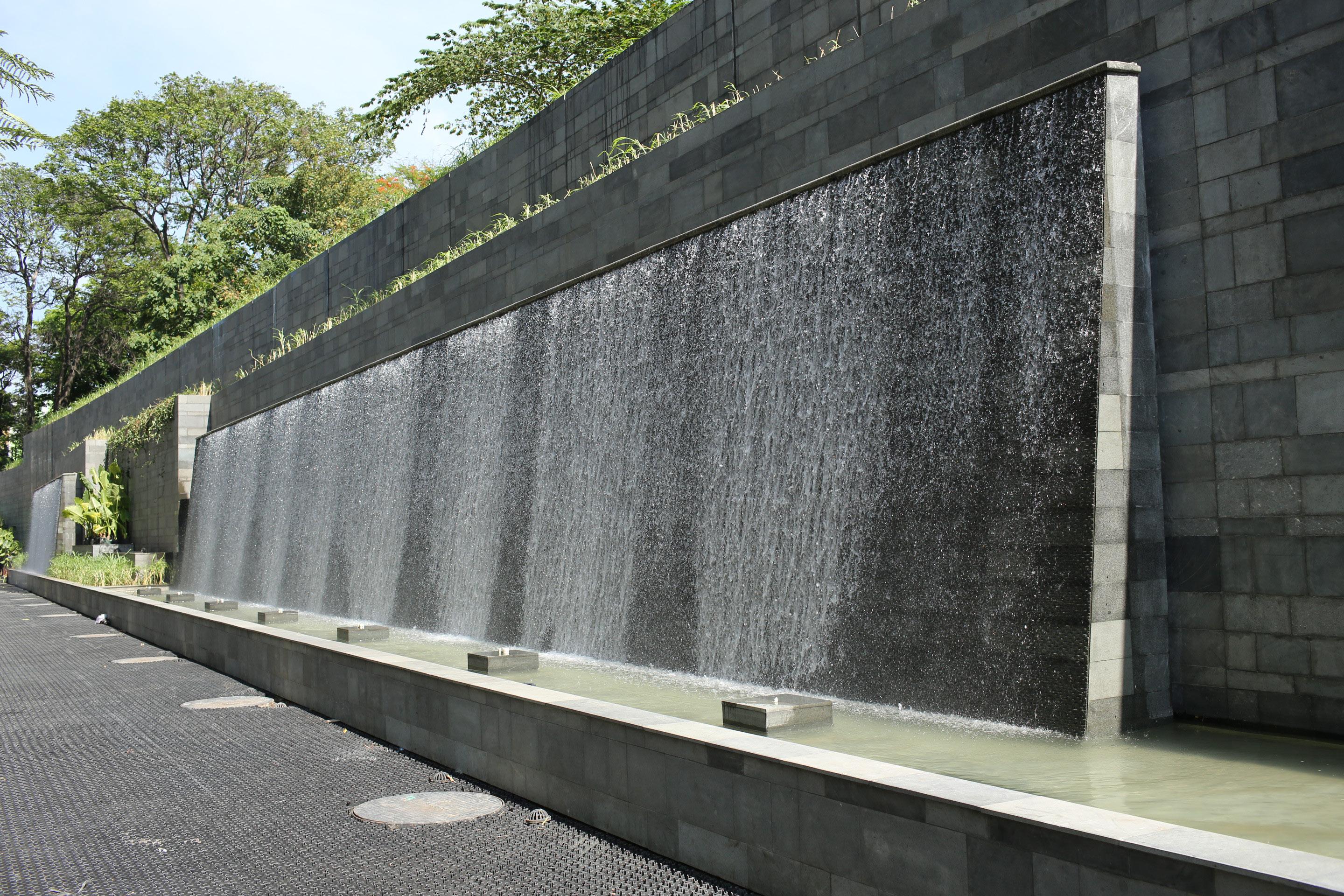

WATER FEATURE
WATER FEATURE
GARDENIA CARINATA
PHILODENDRON BIPINNATIFIDUM 3NOS/GROUP
GARCINIA SUBELLIPTICA (CYLINDER)
A Chorisia Sp
Bromelia Giant Line Edges

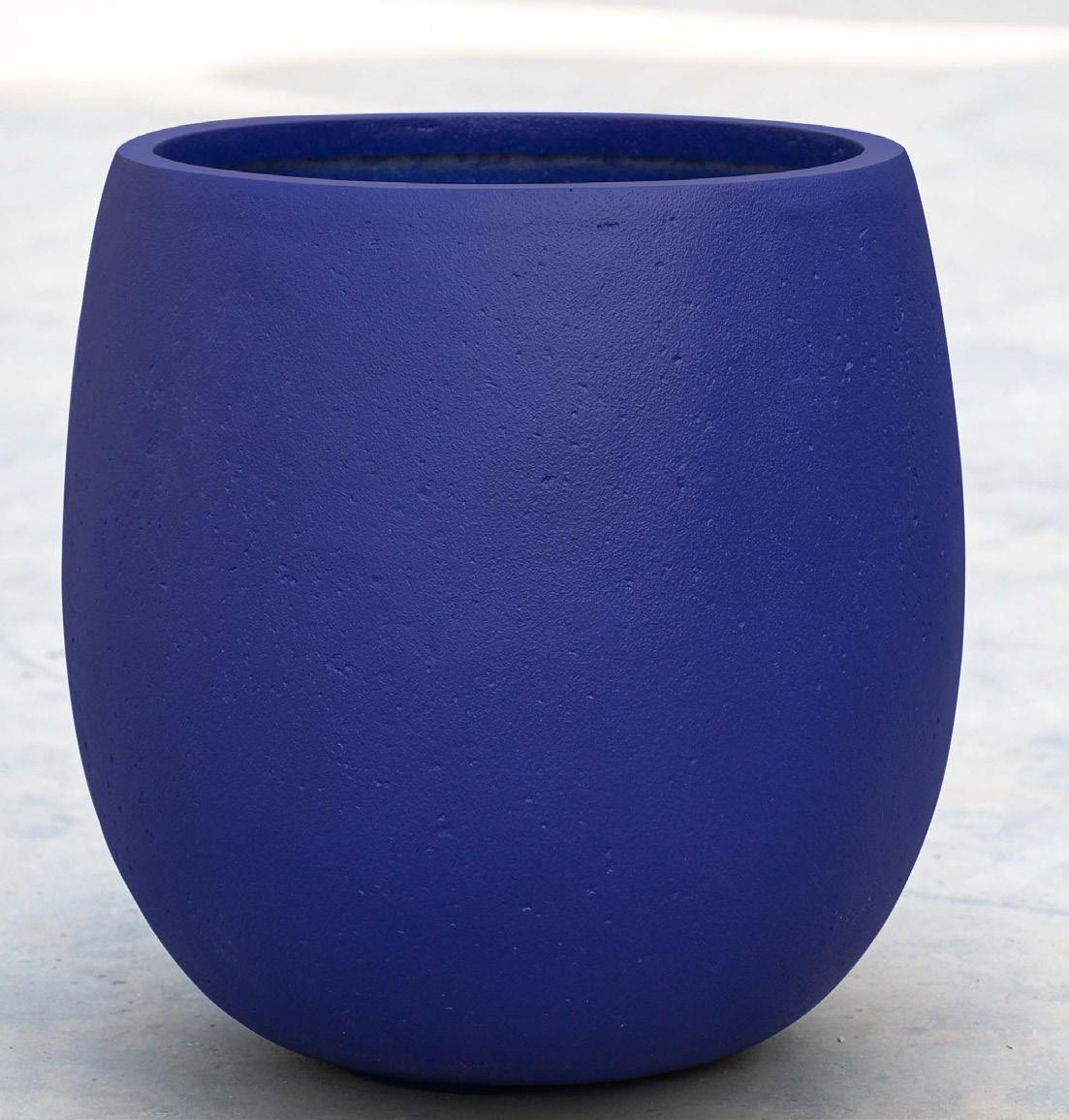

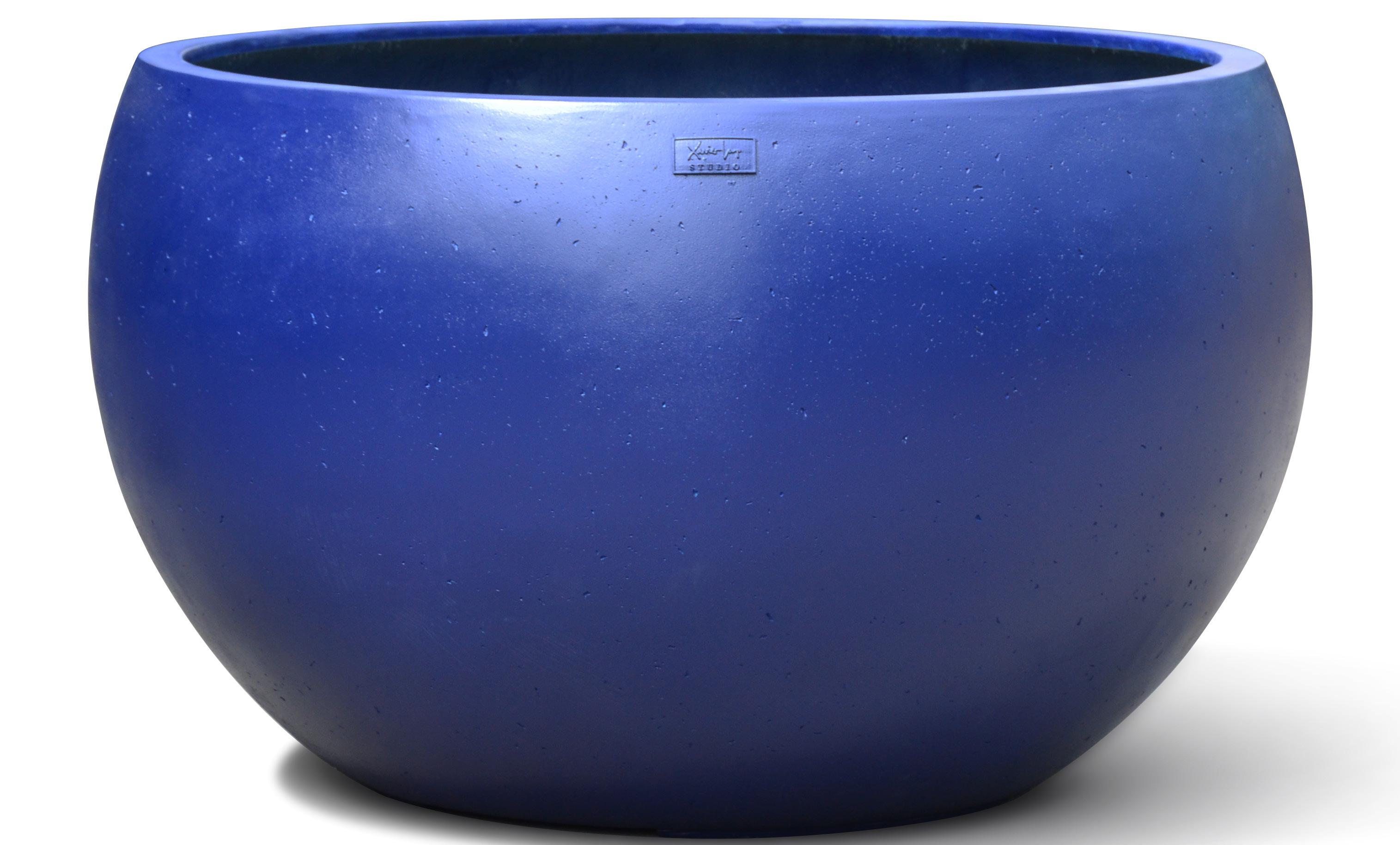

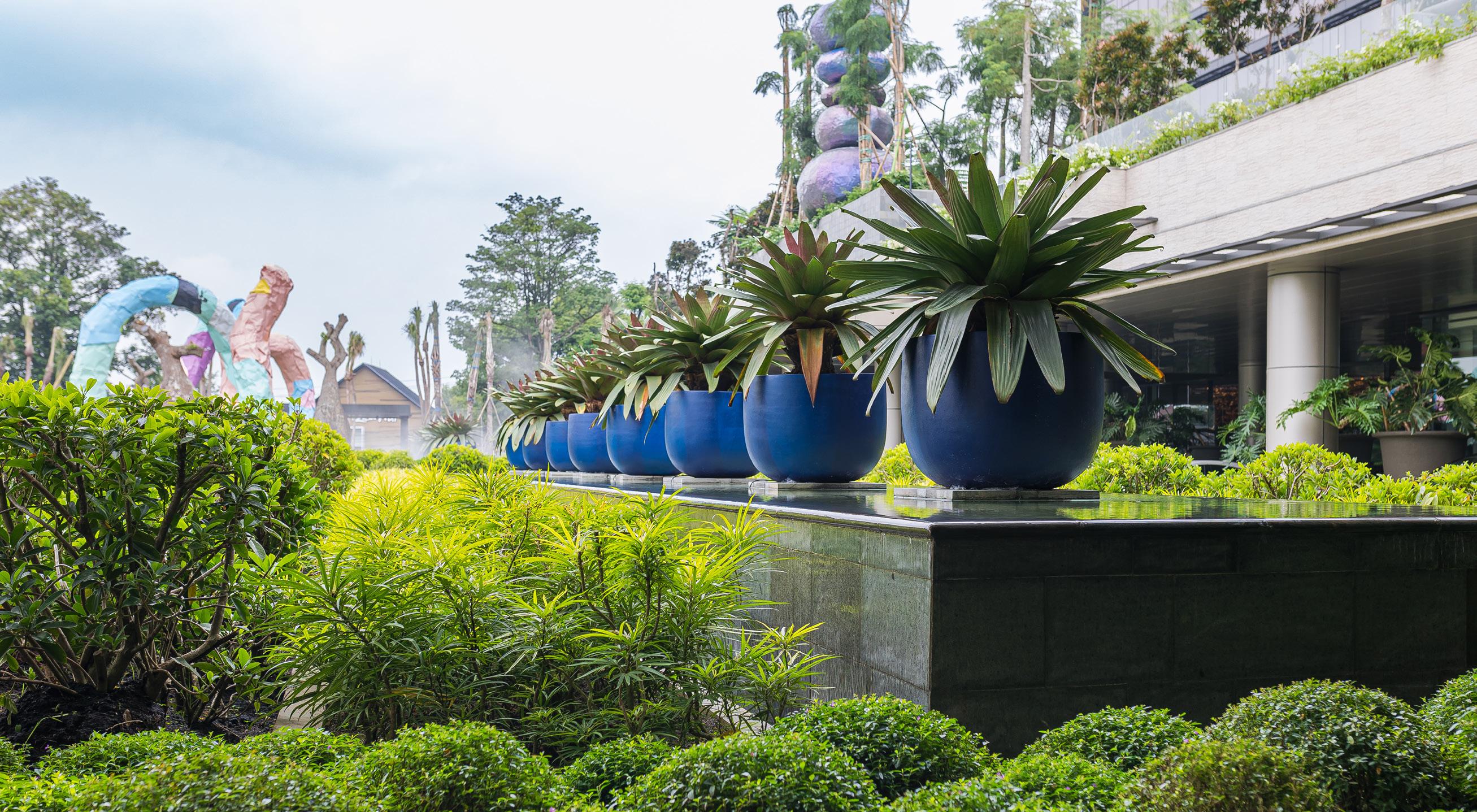

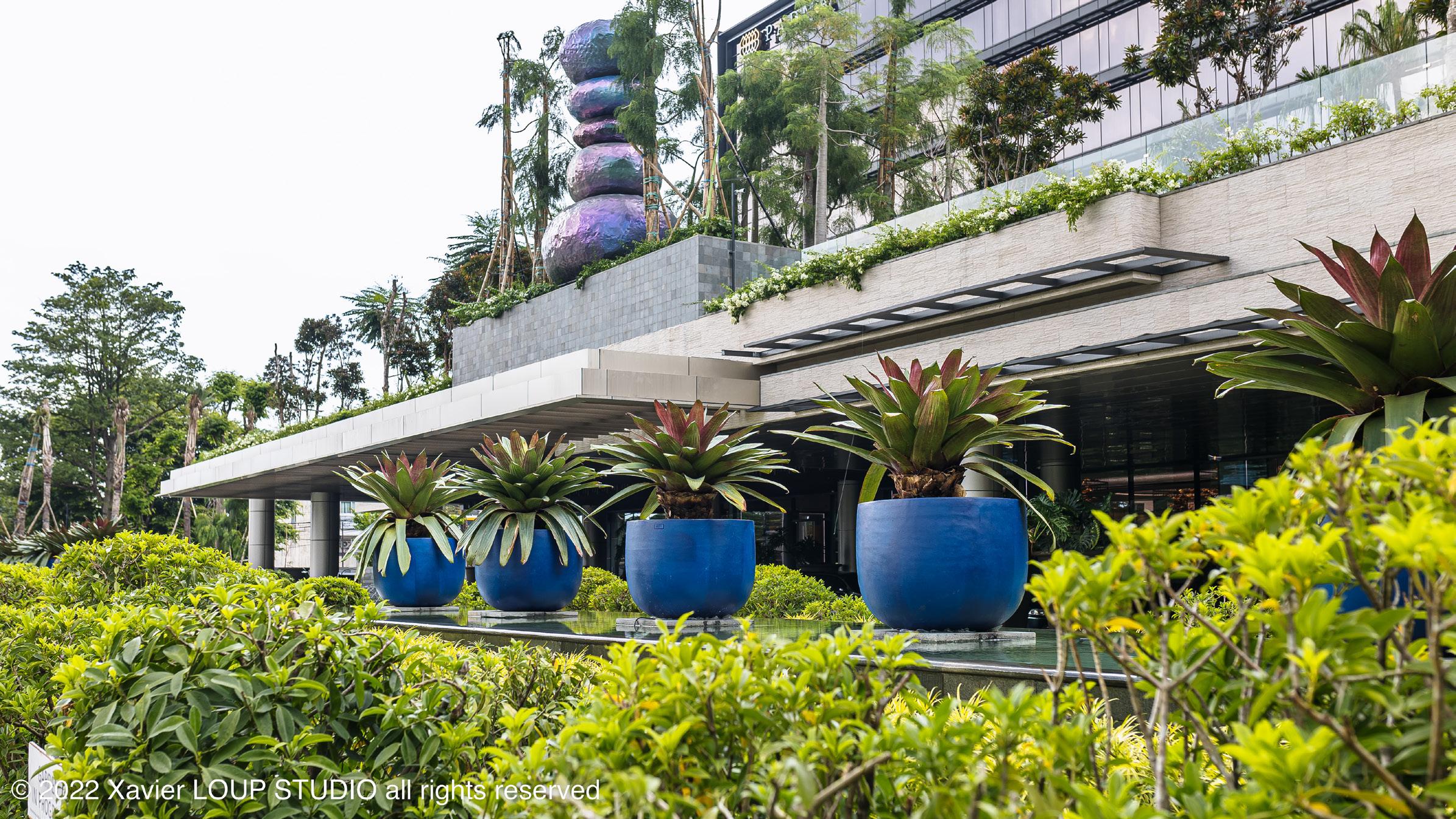

Blue pots

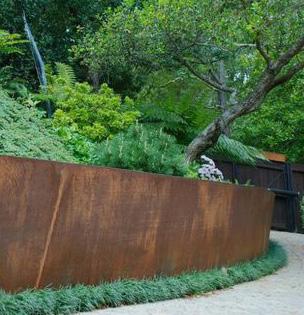

Corteen planter
LEGEND
A Osmoxylon
Bougenvillea
Dracenae Alba
Agapanthus Praecox
African Jasmine
Chupea
LEGEND
A Osmoxylon
Soleirolia Soleirolii
African Jasmine
Chupea
LEGEND
(S.28_PHB)
LOBBY POND
DAY DINING POND
(P.11_SCP)
(P.11_SCP) (P.11_SCP) (P.11_SCP)
(P.11_SCP)
(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)(P.11_SCP)(P.11_SCP)(P.11_SCP)(P.11_SCP)
(P.11_SCP)
(S.9_CYM) (S.9_CYM) (S.9_CYM) (S.9_CYM) (S.9_CYM) (S.9_CYM) (S.3_BRO) (S.3_BRO) (S.3_BRO)(P.11_SCP)
(S.3_BRO)(S.3_BRO)(S.3_BRO) (S.16_GAC) (S.16_GAC)
(S.16_GAC) (S.16_GAC)
(S.9_CYM) (S.3_BRO)(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)(P.11_SCP) (P.11_SCP)
(S.16_GAC)
(S.16_GAC)
TREE LEGENDS :
LIVISTONA DECIPIENS
(P.4_LID)
(S.9_CYM)
(P.11_SCP) (P.11_SCP)
(P.11_SCP)
(P.11_SCP) (P.11_SCP)
SCHIZOLOBIUM PARAHYBA 2NOS/GROUP
SCHIZOLOBIUM PARAHYBA 3NOS/GROUP
(P.11_SCP) (P.11_SCP)
(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)(P.11_SCP)(P.11_SCP)(P.11_SCP)
(S.3_BRO)
(T.14_MIH)
(S.3_BRO) (P.11_SCP)
CITHAREXYLUM SPINOSUM 'ARUMDALU' 2NOS/GROUP (T.12_CIS)
MILINGTONIA HORTENSIS
MILINGTONIA HORTENSIS 3NOS/GROUP
EUCALYPTUS DELGUPTA (T.8_EUD) (T.14_MIH)
SCHIZOLOBIUM PARAHYBA BROMELIA SP
CYRTOSPERMA MERKUSI
(S.9_CYM)
(S.16_GAC)
GARDENIA CARINATA
(P.11_SCP)
(S.16_GAC) (S.16_GAC)
(S.16_GAC)
(S.3_BRO)
(S.16_GAC)
(S.16_GAC) (S.16_GAC)
(P.11_SCP)(P.11_SCP)(P.11_SCP)
(P.11_SCP)(S.3_BRO)
(S.16_GAC)
(S.9_CYM)
(P.11_SCP)
(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)
(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)
A Terracota

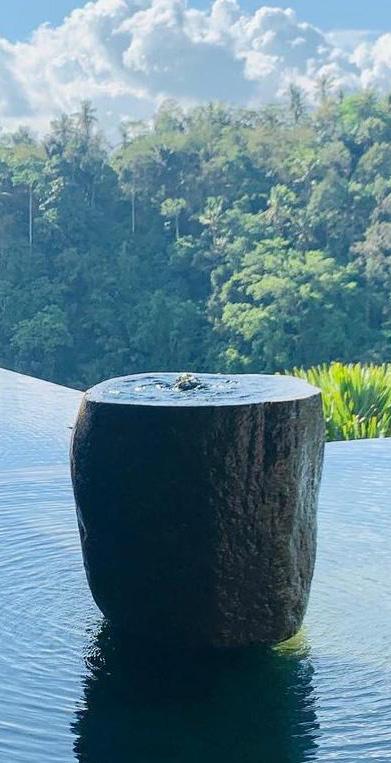

Waterspout Bowl
White fish
LEGEND

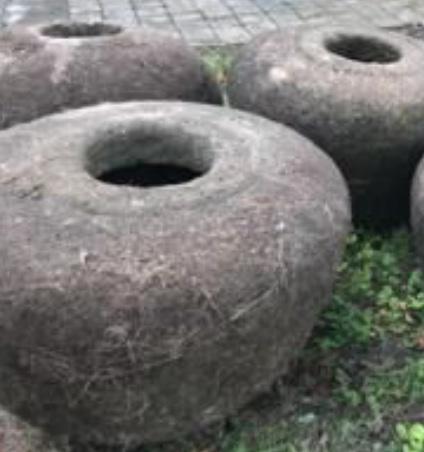

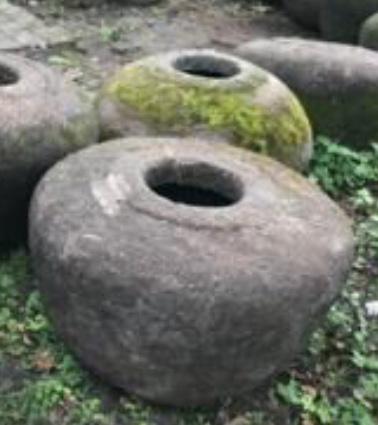

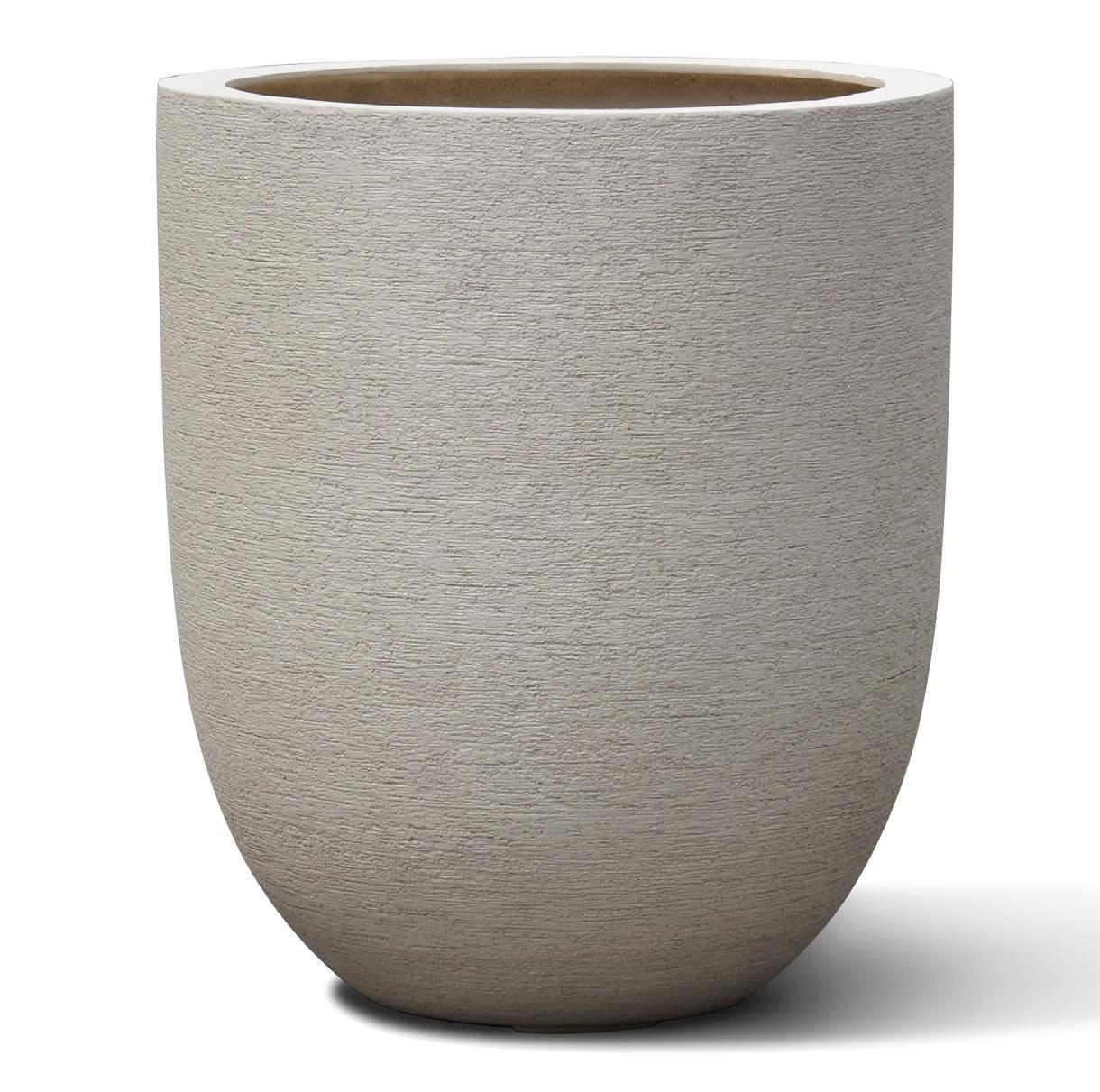

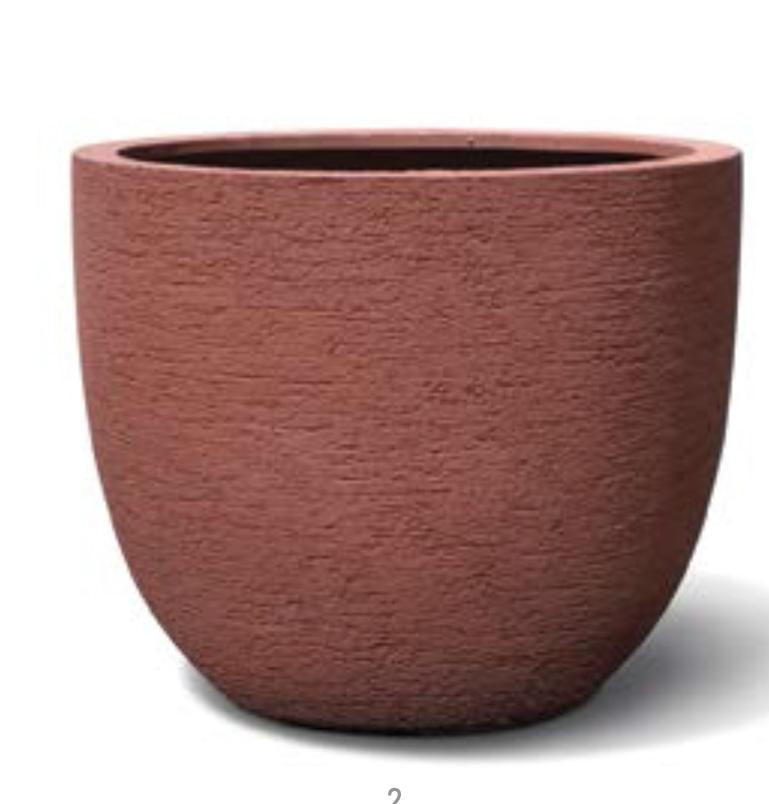

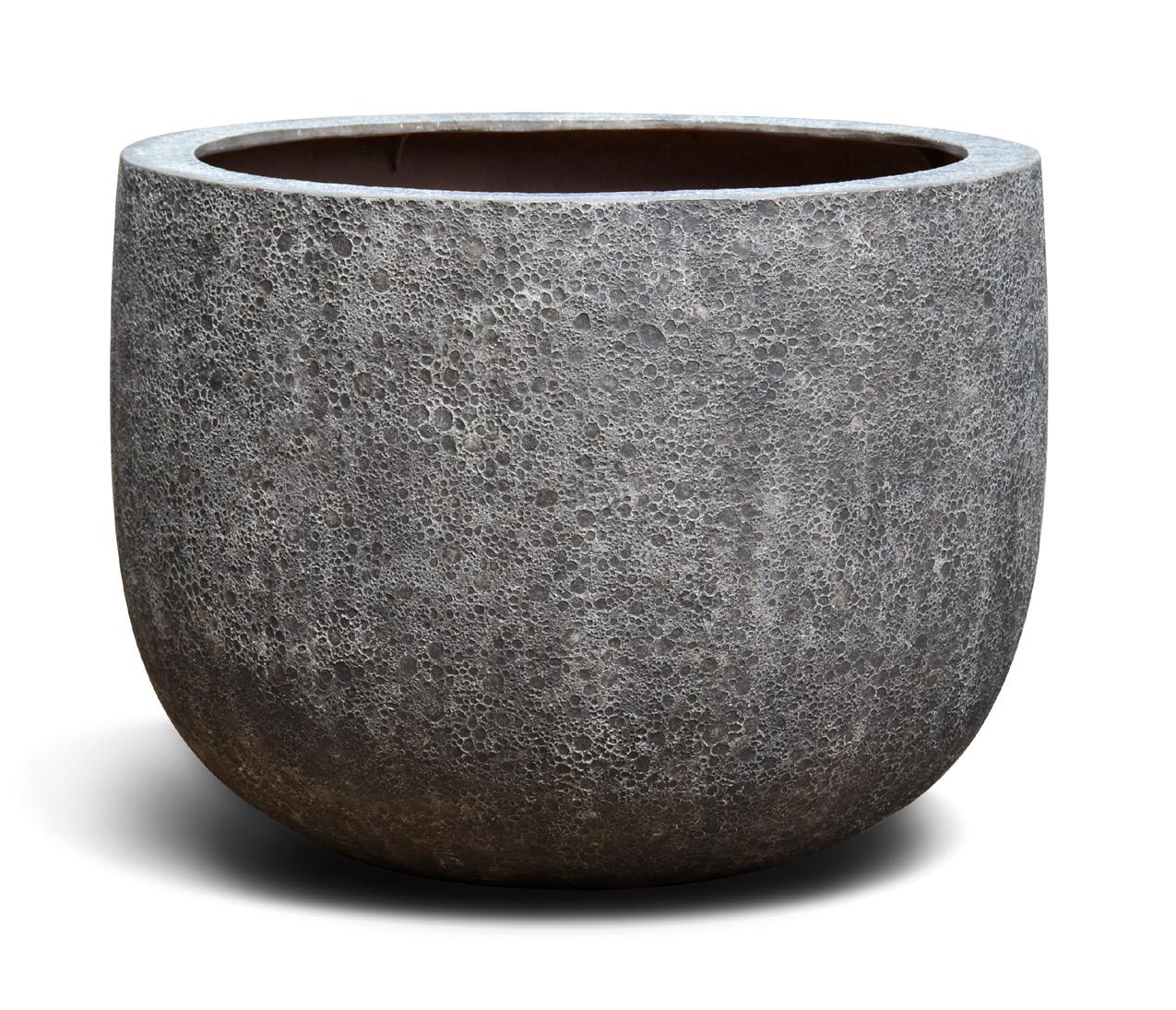

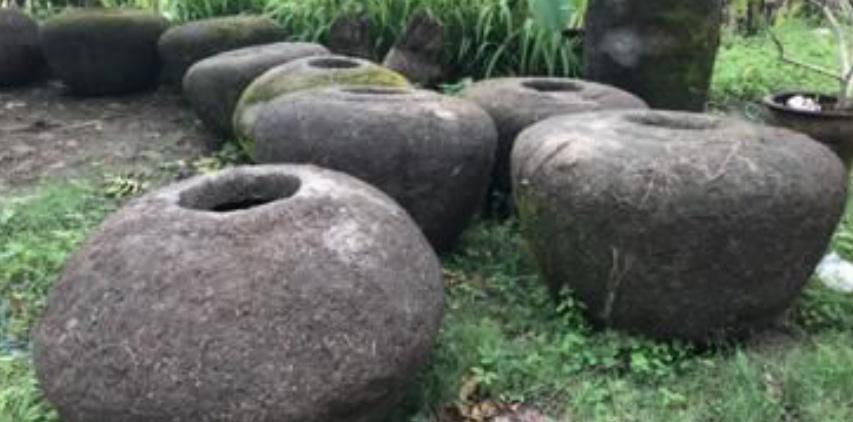

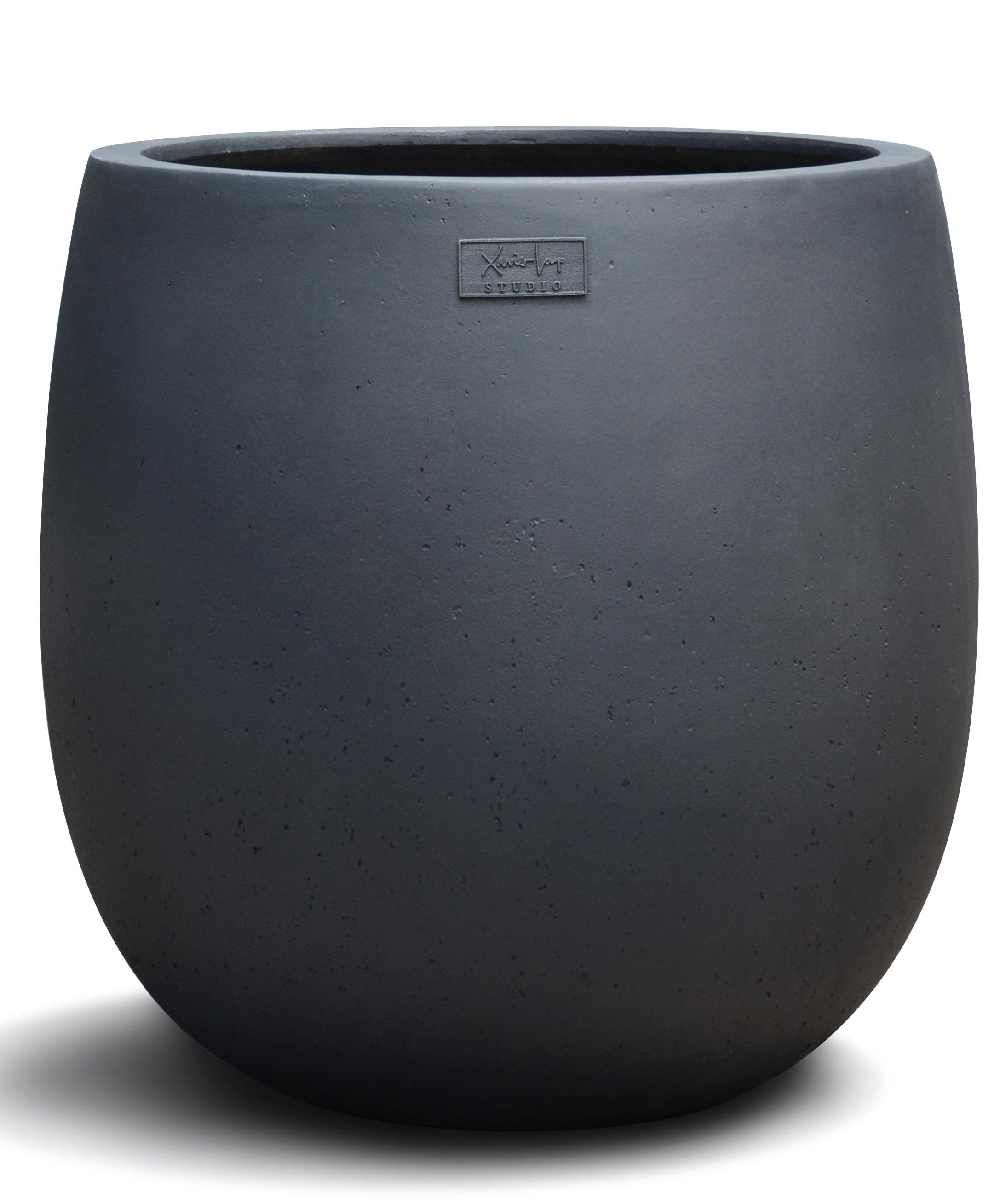

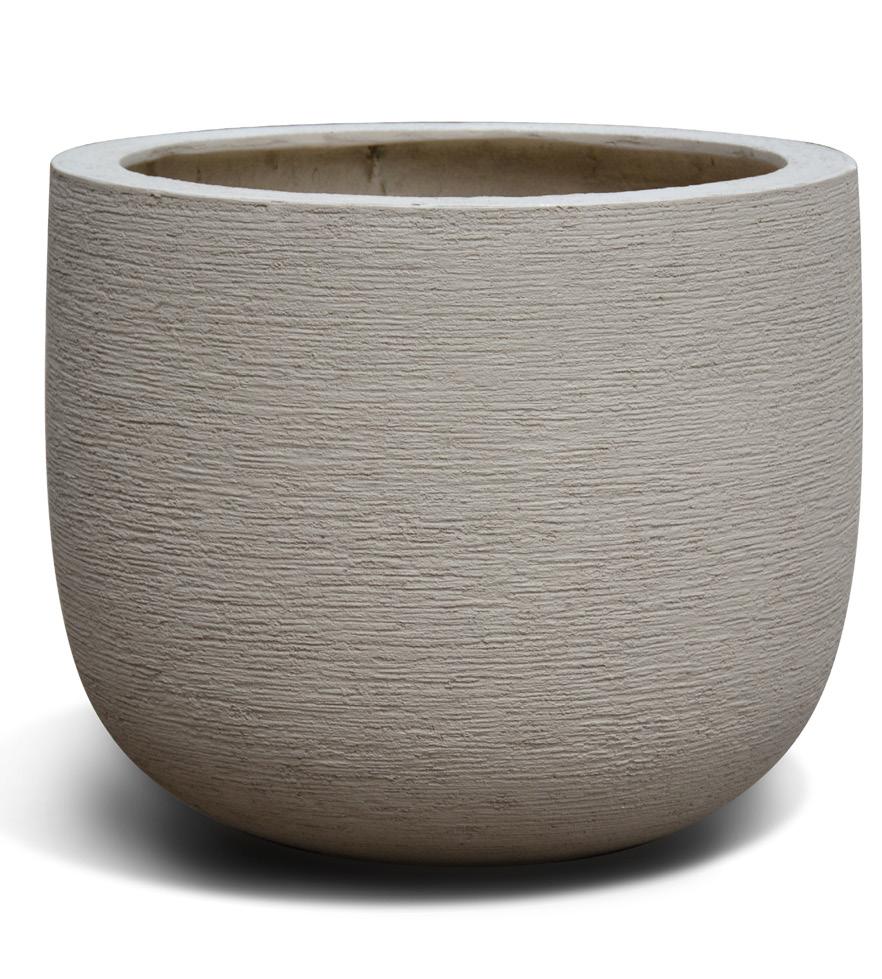

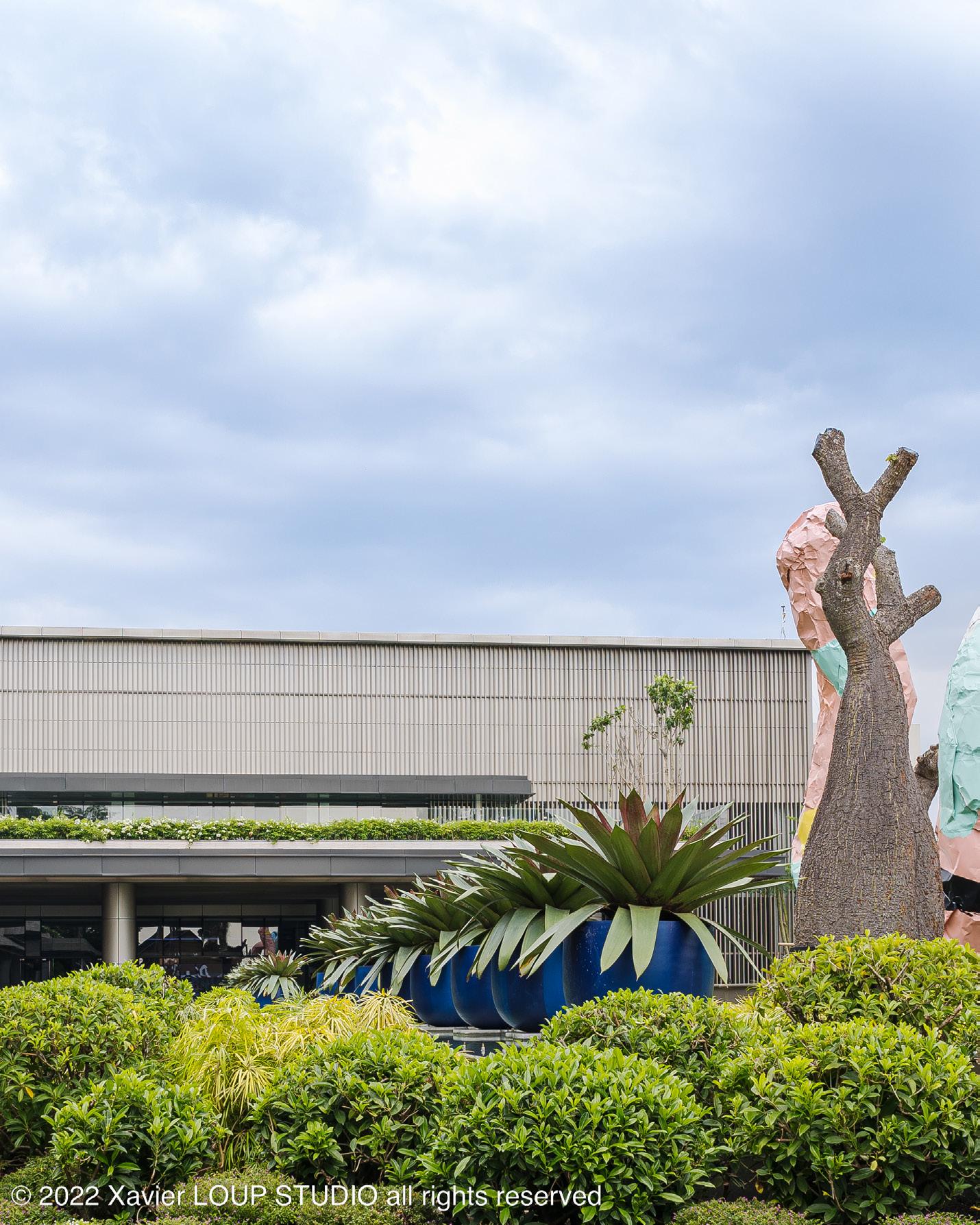

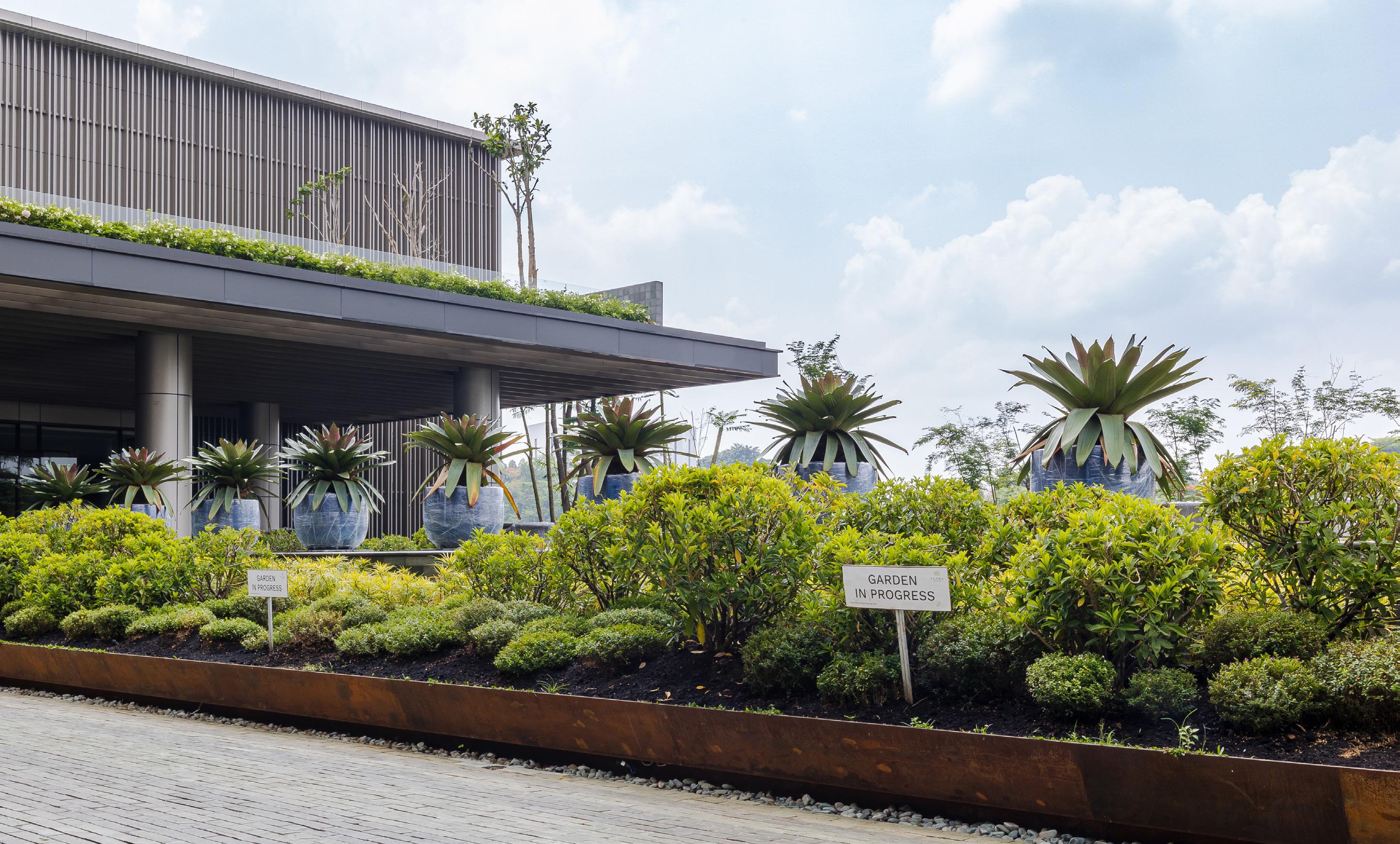

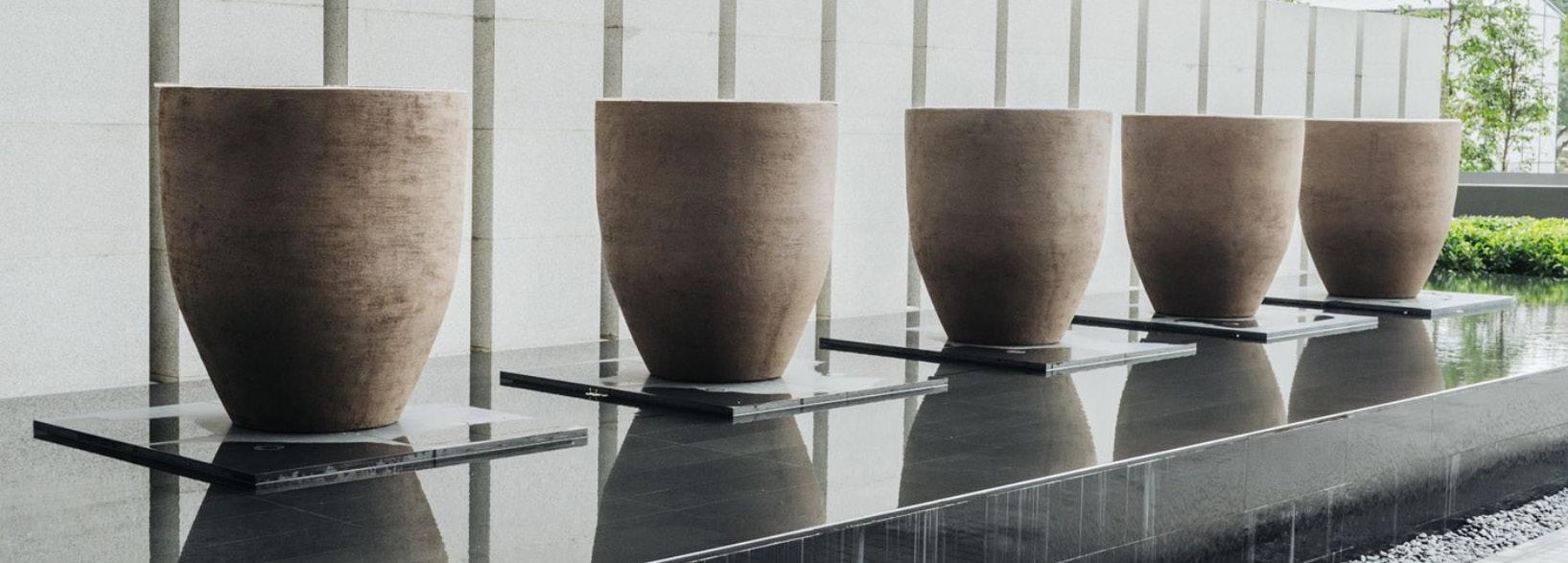

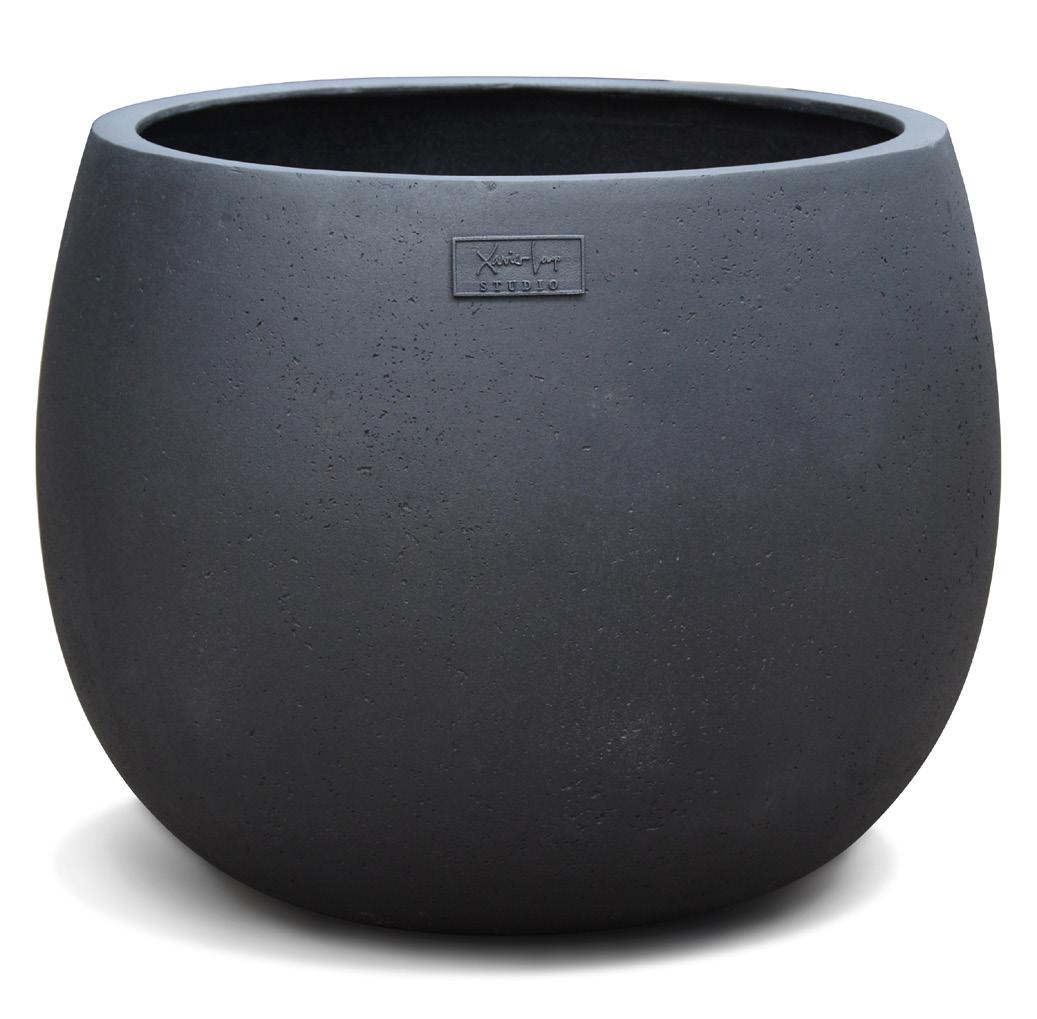

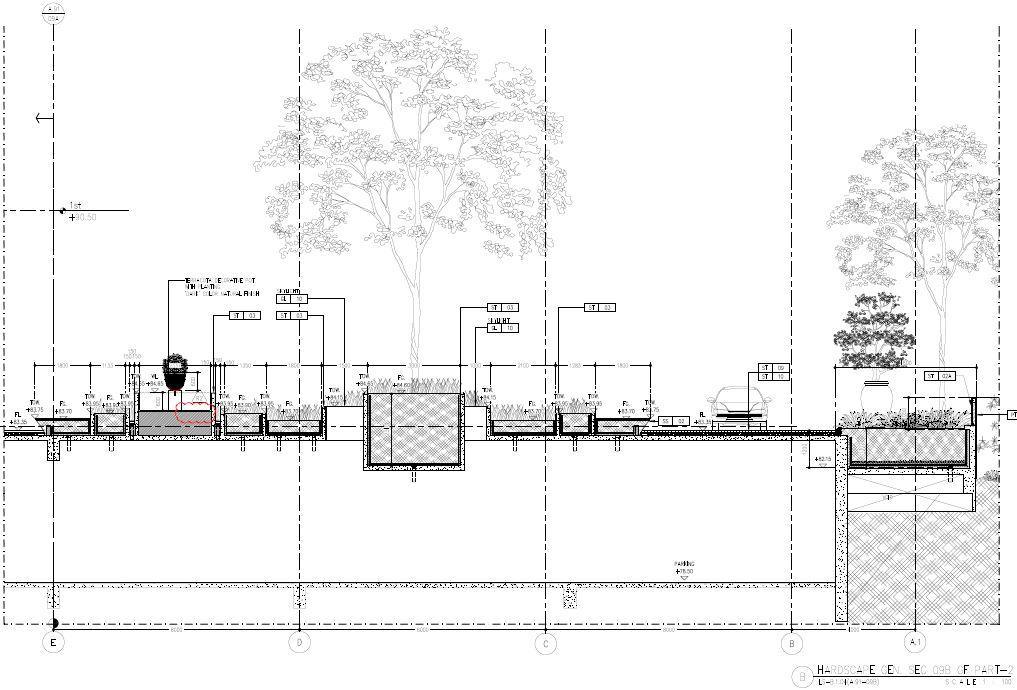

DECORATIVE POTS

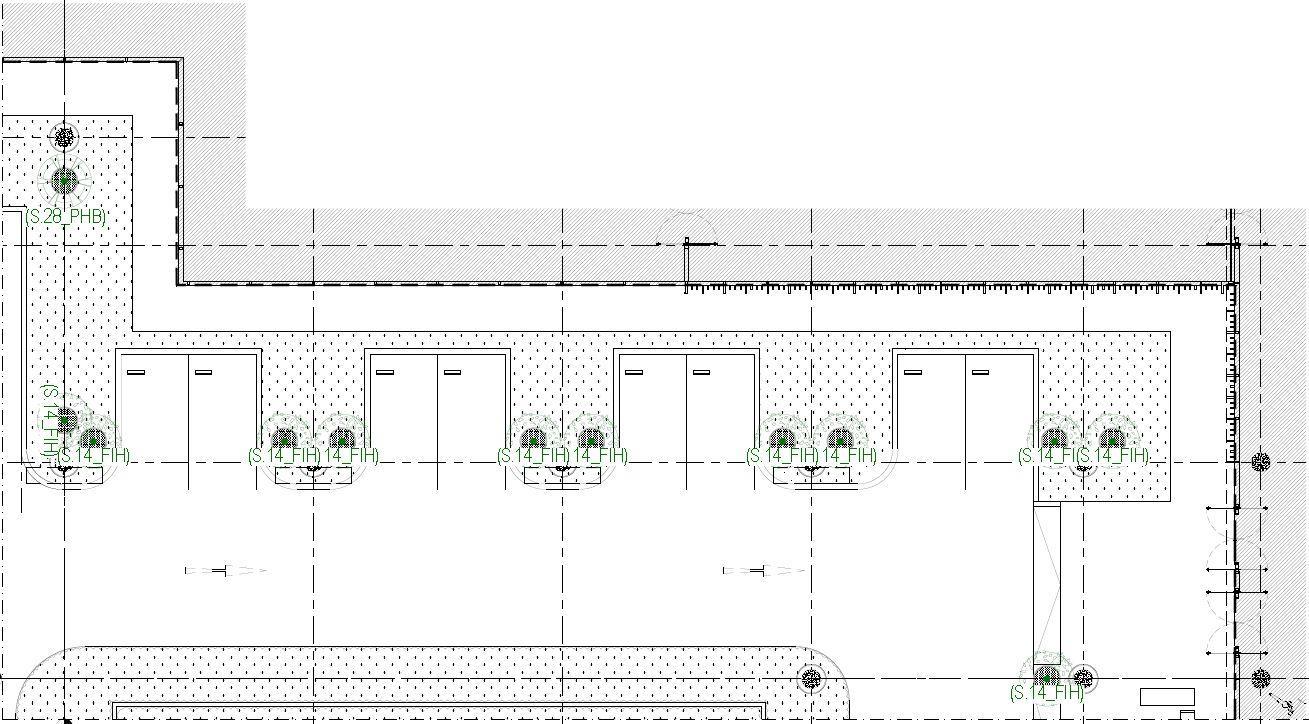

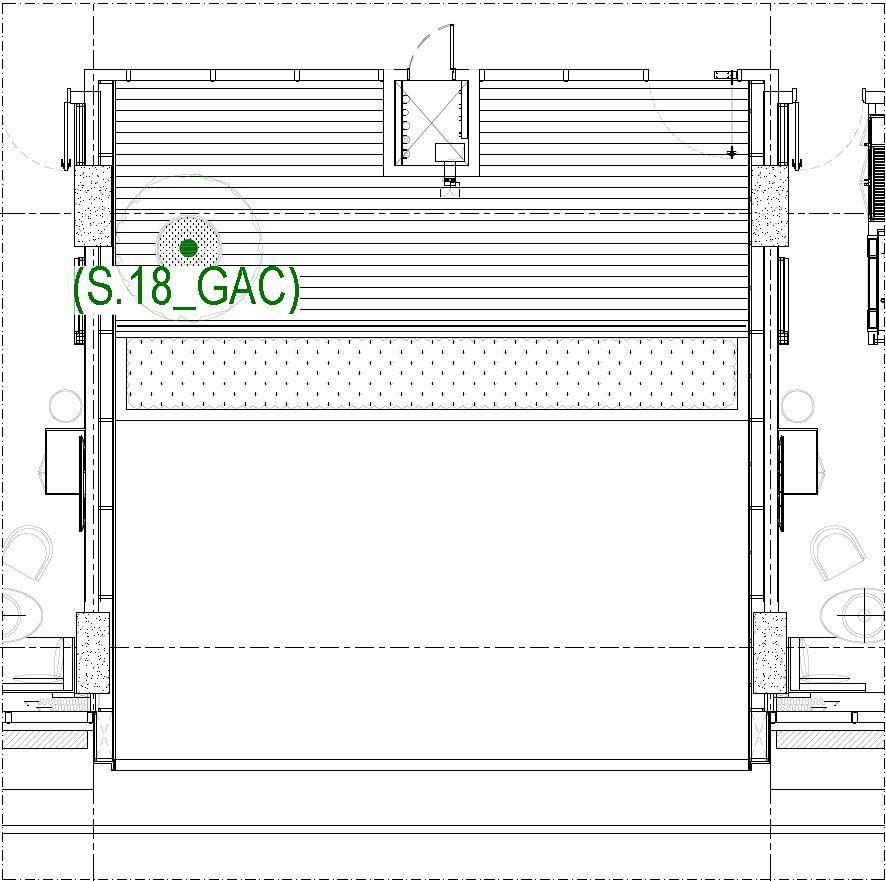

DECORATIVE POTS PLAN - GROUND FLOOR
(S.18_GAC)
(S.18_GAC)(S.18_GAC)(S.18_GAC)(S.18_GAC)(S.18_GAC)
(P.11_SCP)(P.11_SCP) (P.11_SCP)
(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)
(S.18_GAC) (S.18_GAC) (S.18_GAC)
(P.3_LID) (P.3_LID) (P.3_LID) (P.3_LID) (T.13_MOD)
(T.5_CEM) (T.5_CEM)
(T.13_MOD) (T.13_MOD) (T.13_MOD) (T.13_MOD) (T.13_MOD)
(P.3_LID) (P.3_LID) (P.3_LID) (P.3_LID)
DECORATIVE
(S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (S.28_PHB) (P.3_LID) (P.3_LID) (P.3_LID) (P.3_LID) (P.3_LID) (P.3_LID)
(T.5_CEM)
(S.32_GAS)(S.32_GAS)(S.32_GAS)
(S.32_GAS) (S.32_GAS) (S.32_GAS)
(S.32_GAS)
(S.32_GAS)
(S.32_GAS)
(S.32_GAS)
(PHR)(PHR)(PHR) (GAC) (GAC)
(S.32_GAS)
(S.32_GAS)(S.32_GAS)(S.32_GAS)(S.32_GAS)
TREE LEGENDS :
LIVISTONA DECIPIENS
(P.3_LID)
(P.11_SCP)
(P.11_SCP) (P.11_SCP)
(T.5_CEM) (S.18_GAC)
SCHIZOLOBIUM PARAHYBA 2NOS/GROUP
SCHIZOLOBIUM PARAHYBA 3NOS/GROUP
GARDENIA CARINATA 'BIG LEAVES' 2NOS/GROUP (GAC)
(S.32_GAS)
(T.13_MOD)
(S.28_PHB)
SCHIZOLOBIUM PARAHYBA CERBERA MANGHAS GARDENIA CARINATA 'SMALL LEAVES'
MORINGA DROUHADI
PHILODENDRON BIPINNATIFIDUM 3NOS/GROUP GARCINIA SUBELLIPTICA (CYLINDER)
PHOENIX ROEBELENII (PHR)
TABERNAEMONTANA PSCHYSIPHON
(S.34_TAP)
5th FLOOR
6th FLOOR
7th FLOOR Layout Layout Layout
DECORATIVE POTS PLAN - SKYDECK FLOOR
5th - 7th FLOOR
Location
Quantity
Dimension
Material
Surface
Type
Drop off (GF) & Convetion Hall (1st Floor)
53 pcs
d (150cm)
h (180cm)
Lite (Polyresin)
Machiato - Sand
Please follow our design

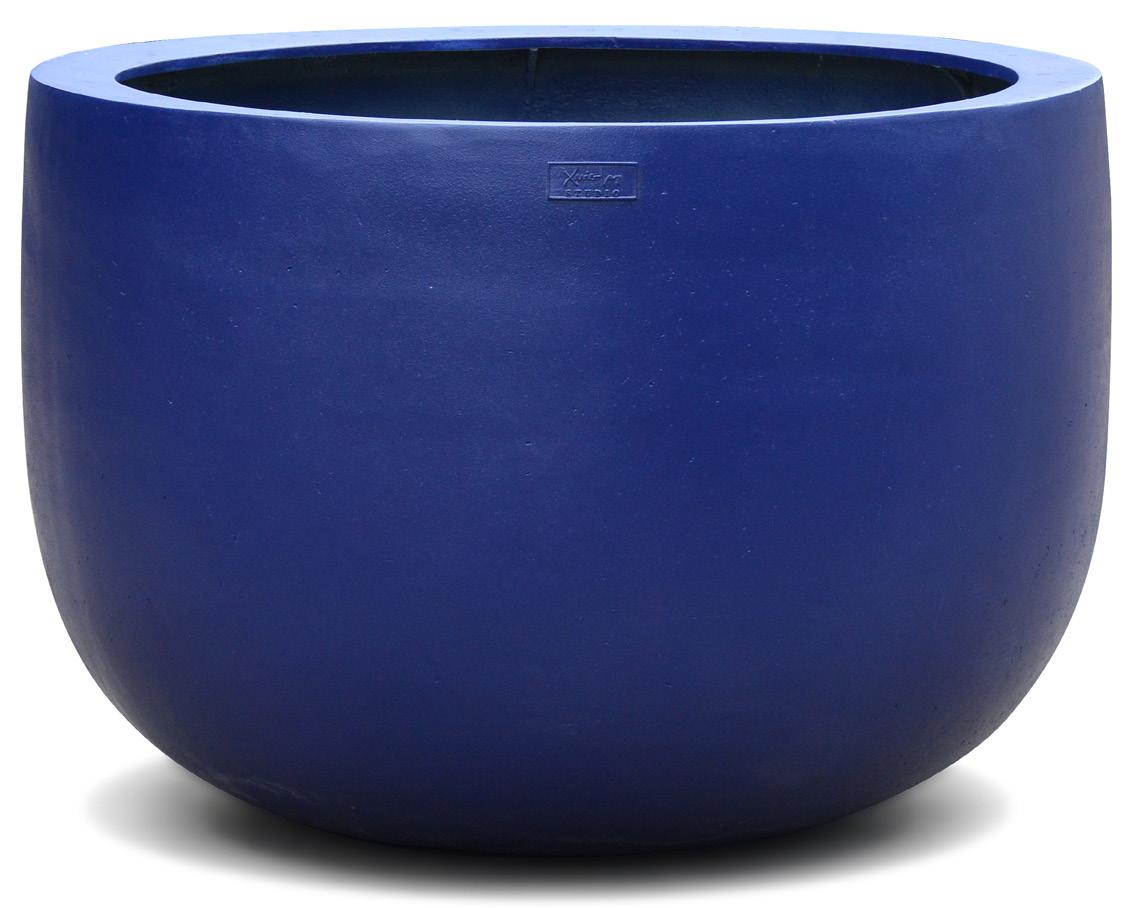

Location
Quantity
Dimension
Material
Surface
Type
Drop off (GF)
16 pcs
d (90cm)
h (70cm)
Lite (Polyresin)
Blue klein - Concrete

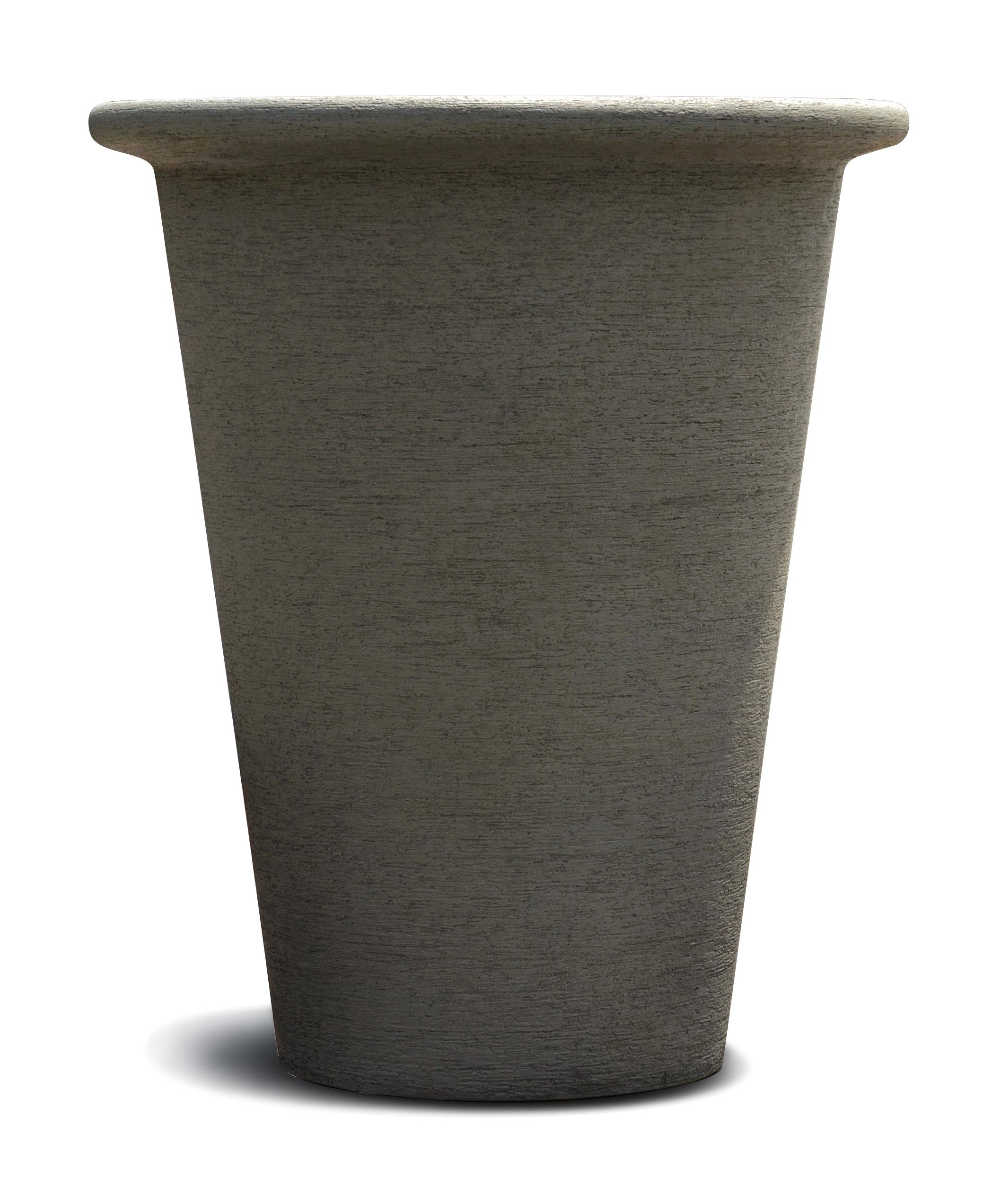

U Pot (LCE.0988.2090)
Location
Quantity
Dimension
Material
Surface
Type : : : : : : Pond
3 pcs
d (72cm)
h (56cm)

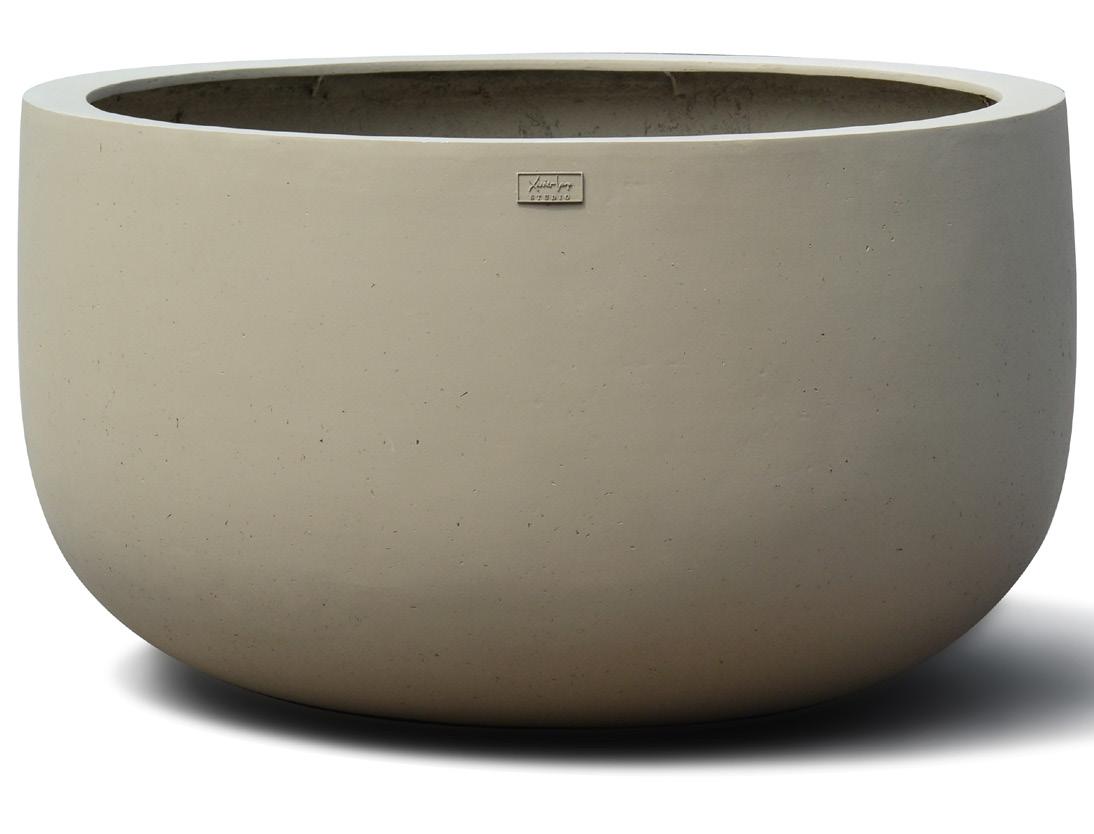

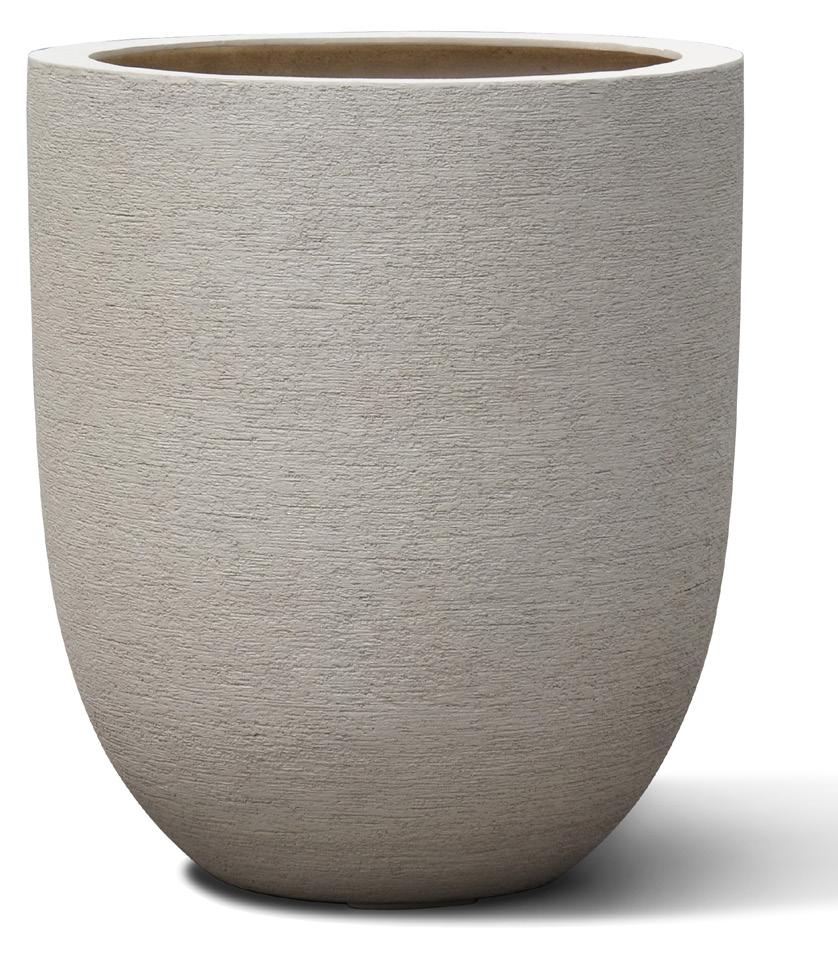

Sabbia Sand U Pot LCE.0988.2090
- Backyard (GF)
Lite (Polyresin)
Location
Quantity
Dimension
Material
Surface
Type
(GF)
3 pcs
d (120cm)
h (70cm)
Lite (Polyresin)
Sabbia Concrete

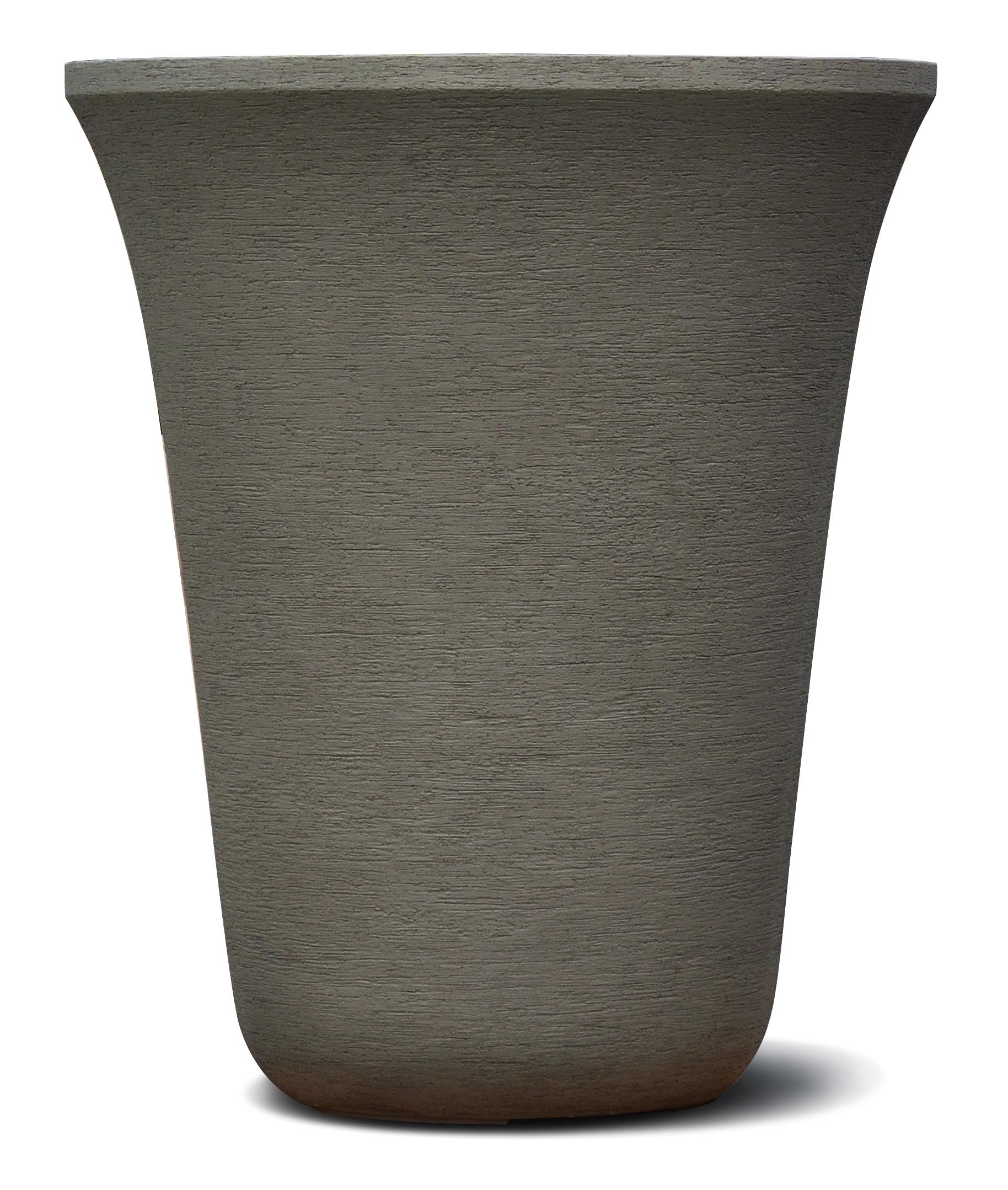

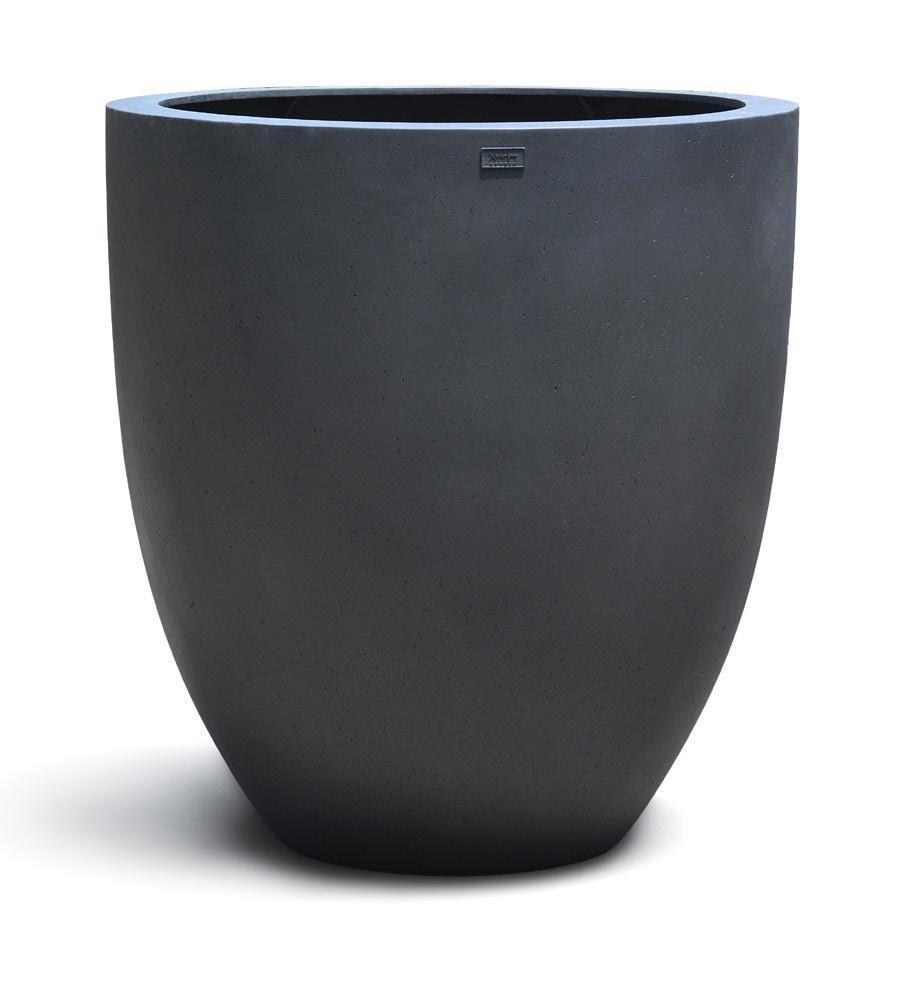

Location
Quantity
Dimension Material
Surface
Type
Pond (GF) , Yoga Area & Kids Pool Area (1st floor)
16 pcs
d (120cm)
h (130cm)
Lite (Polyresin)
Charcoal Concrate
Please follow our design
(S.9_CYM) (S.9_CYM) (S.9_CYM) (S.9_CYM)
(P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP) (P.11_SCP)(P.11_SCP)(P.11_SCP)(P.11_SCP)(P.11_SCP)
(S.3_BRO) (P.11_SCP) (P.11_SCP) (P.11_SCP)
(P.11_SCP)
(S.3_BRO)(S.3_BRO)
(S.3_BRO)
(S.16_GAC) (S.16_GAC)
SCHIZOLOBIUM
SCHIZOLOBIUM 2NOS/GROUP
SCHIZOLOBIUM 3NOS/GROUP
3NOS/GROUP
Kids Pool (1st Floor)
13 pcs
d (150cm)
h (180cm)
Lite (Polyresin)
Machiato - Sand
Please follow our design
Location
10 pcs
d (112cm)
h (67cm)

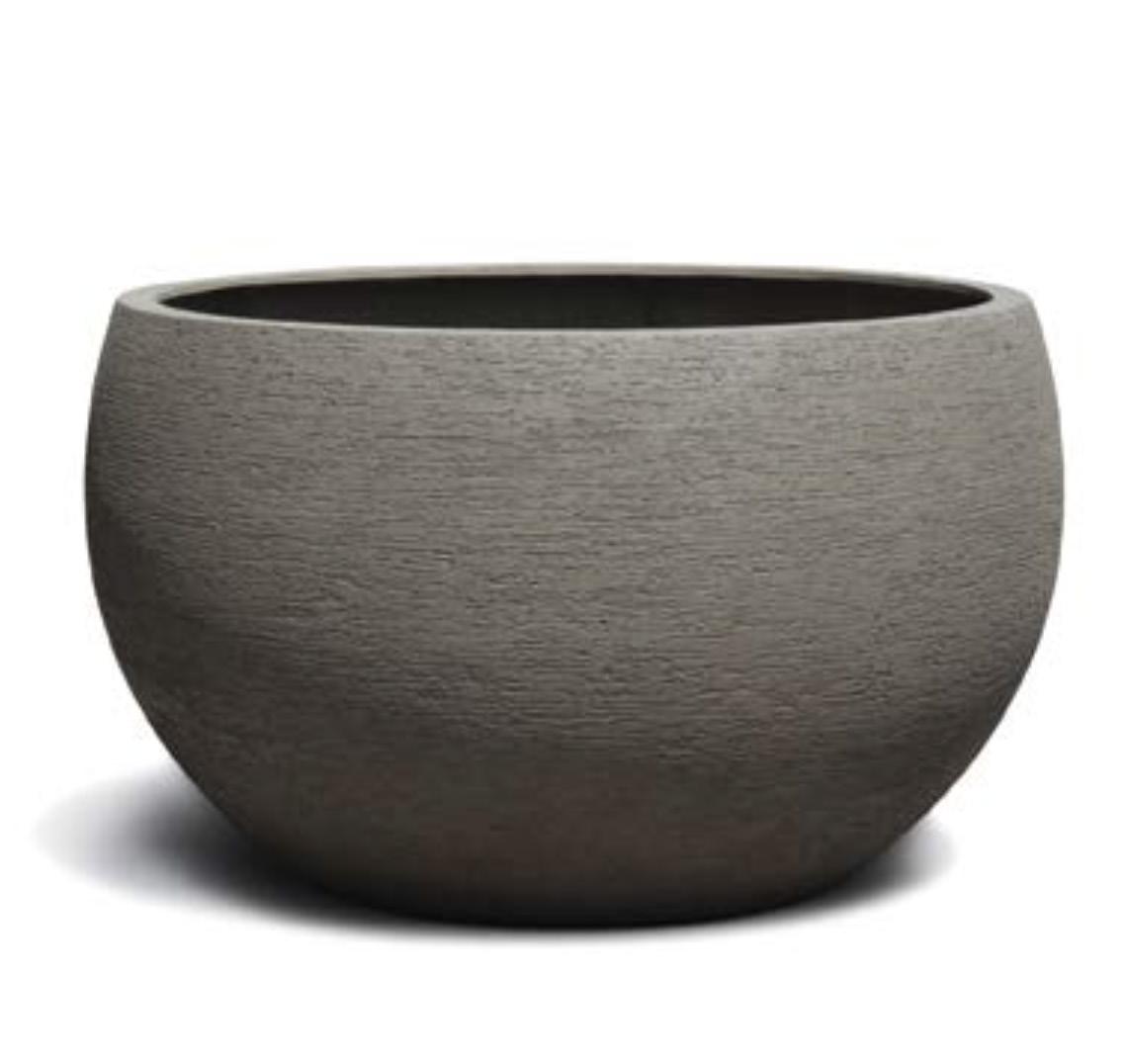

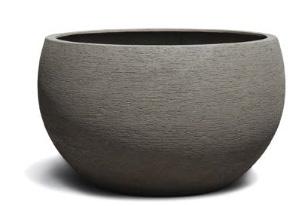

Grand Bowl LSA.0705.3112
Lite (Polyresin)
Blue Klein - Concrete
Location
Quantity
Dimension
5th-7th Floor
3 pcs
d (110cm)
h (65cm)
Surface
Type
LCE.0261.3110
Lite (Polyresin)
Dark Grey Lava
Wide Egg Pot
5th FLOOR
6th FLOOR
7th FLOOR Layout Layout Layout
5th-7th Floor
4 pcs
d (75cm)
h (75cm)
Lite (Polyresin)
High Ballon (LCE.0810.4075)
Carcoal - Concrete

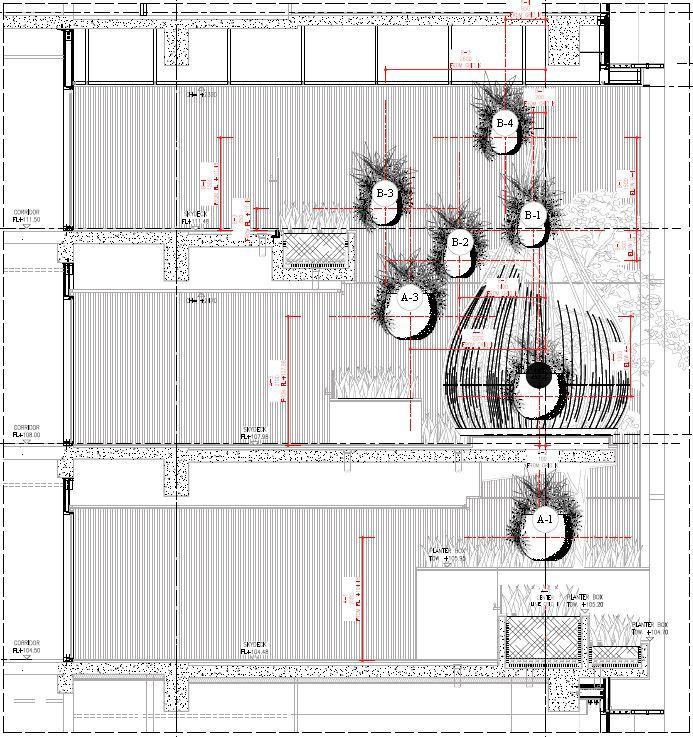

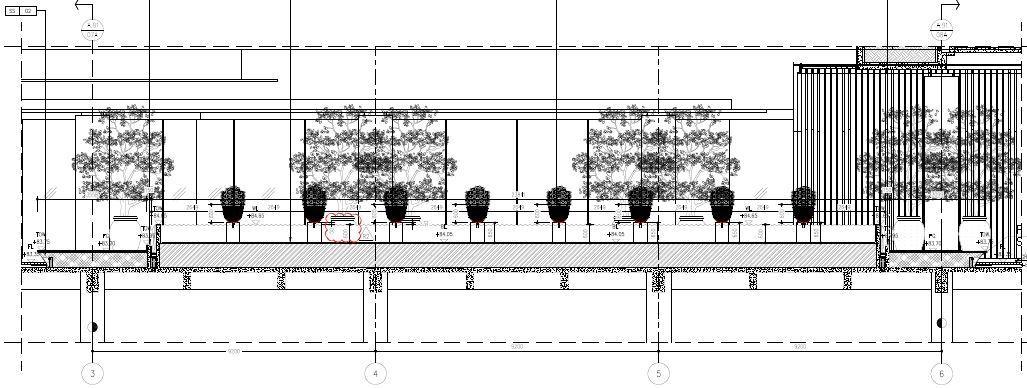

DECORATIVE POTS TYPE - J (HANGING POT)
Location
Quantity
Dimension
Material
Surface
Type : : : : : : 5th-7th Floor
3pcs
d (55cm)
h (45cm)
Lite (Polyresin)
Carcoal - Concrete
Med High Balloon ( LCE.0811.3055)
ARCHITECTURAL:
PT. INDAH BUMI LESTARI
JL. PADMA NO. 1 LEGIAN, BALI 80361 INDONESIA
6 RAFFLES BOULEVARD #04-100 MARINA SQUARE , SINGAPORE 039594 TEL 63383988 FAX 63379989
PT. LINEAMARCA DINAMIKA www.lineamarca.com
CIVIL & STRUCTURAL ENGINEER :
MECHANICAL & ELECTRICAL ENGINEER : DP ARCHITECTS PTE LTD
PT. GISTAMA INTISEMESTA
JL. PURI KENCANA BLOK K7 NO. 2E-F1 JAKARTA 11610
PT. DUTA PRATAMA ENGINEERING
Phone : 021-2254 1600 / 2943 1122, Fax : 021-5891 0069
e-mail : dpept.me@gmail.com / ptdpe.me@yahoo.com
ACOUSTIC CONSULTANT : PT. LITAC
Jl. Cemara No. 13, Kebayoran Baru, Jakarta 12110 E: litac@centrin.net.id | W: www.litac-consultant.com
LANDSCAPE ARCHITECT : QUANTITY SURVEYOR : ARCADIS
SPECIAL LIGHTING CONSULTANT : PT. LUMINA GROUP Intiland Tower, 12A Floor Jl. Jendral Sudirman Kav. 32, Jakarta 10220, Indonesia
Level 18 Ratu Plaza Office Tower Jalan Jenderal Sudirman Kav 9, Jakarta 10270, Indonesia
CONSTRUCTION MANAGEMENT :
PROJECT TITLE KEY PLAN
ARCHITECT OF RECORD : INDONESIA
ARCHITECTURAL & ENGINEERING CONSULTANTS CIPTA PRIMA SEJAHTERA
Jl. Dr. Wahidin 62 A. Semarang 50254, Email cpssmg@yahoo.co.id Phone (62 - 24) 8505278, Phone / Fax. (62 - 24) 8315435 pt
PADMA HOTEL
AT JALAN SULTAN AGUNG, SEMARANG
DRAWING TITLE

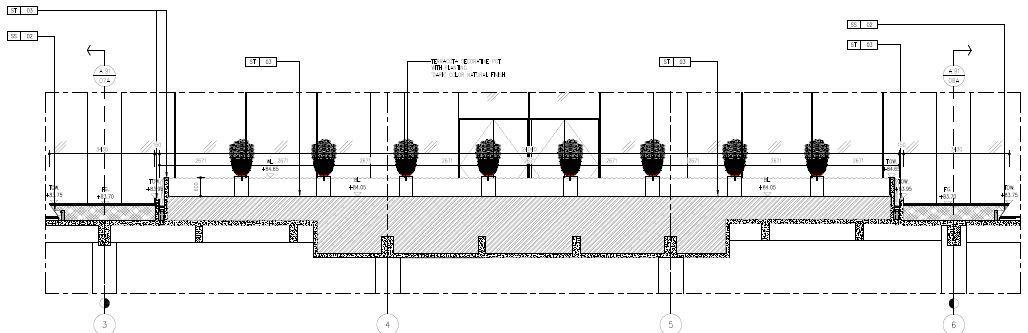

HANGING POT POSITION DETAIL 3 5-7TH FLOOR SKYDECK
DATE DRAWN
SCALE DESIGNED CONTRACT APPROVED
DEVELOPMENT
JOB NO.
01.12.2020 DRAWING (DD) AS SHOWN LA.12
DRAWING NO. -
STAGE CHECKED
REV.
Location
Main Entrance (GF) 3 pcs
d (160cm)
h (100cm)
Machiato - Sand
Shape similar U Pot
LST.0989.2120
DECORATIVE POTS
TYPE - L (ENTRANCE POT)
(T.14_MIH)
(T.12_CIS)
(T.14_MIH)
(T.14_MIH)
(T.14_MIH)
(T.14_MIH)
(P.4_LID)
(P.4_LID) (P.4_LID)
(P.11_SCP)
(P.11_SCP) (P.11_SCP)
(P.11_SCP)
(T.5_BIN)
(T.5_BIN)
(T.5_BIN)
(T.5_BIN)
(P.4_LID)
(P.4_LID)
(P.4_LID)
(S.28_PHB)
(T.12_CIS) (T.12_CIS)
(P.4_LID) (P.4_LID) (P.4_LID)
(P.4_LID) (P.4_LID) (P.4_LID)
(T.5_BIN) (T.5_BIN)
(P.4_LID) (P.4_LID)
(T.9_MOD) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.15_CAF)
(S.28_PHB)
(S.28_PHB)
(S.32_GAS)
(T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD)

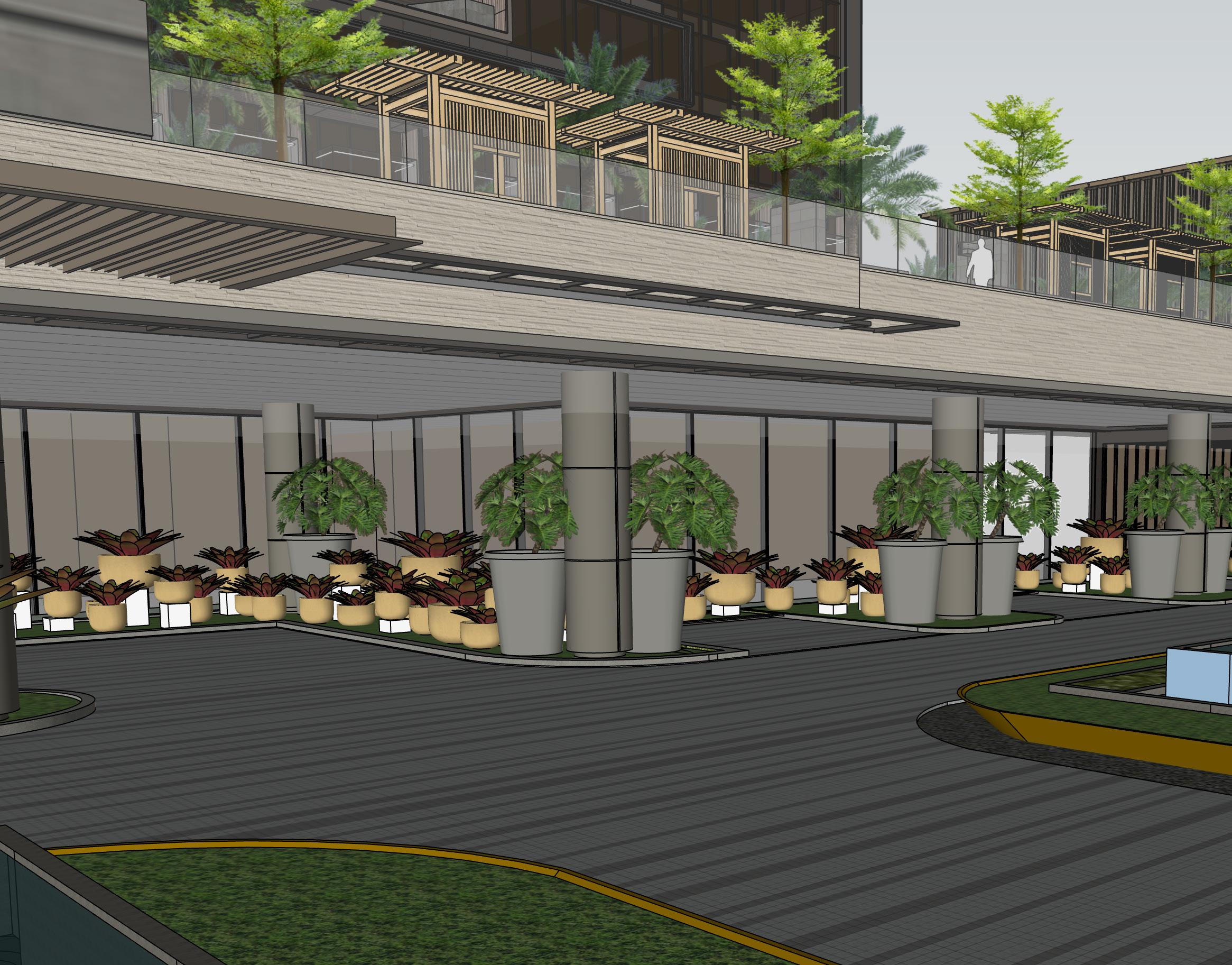

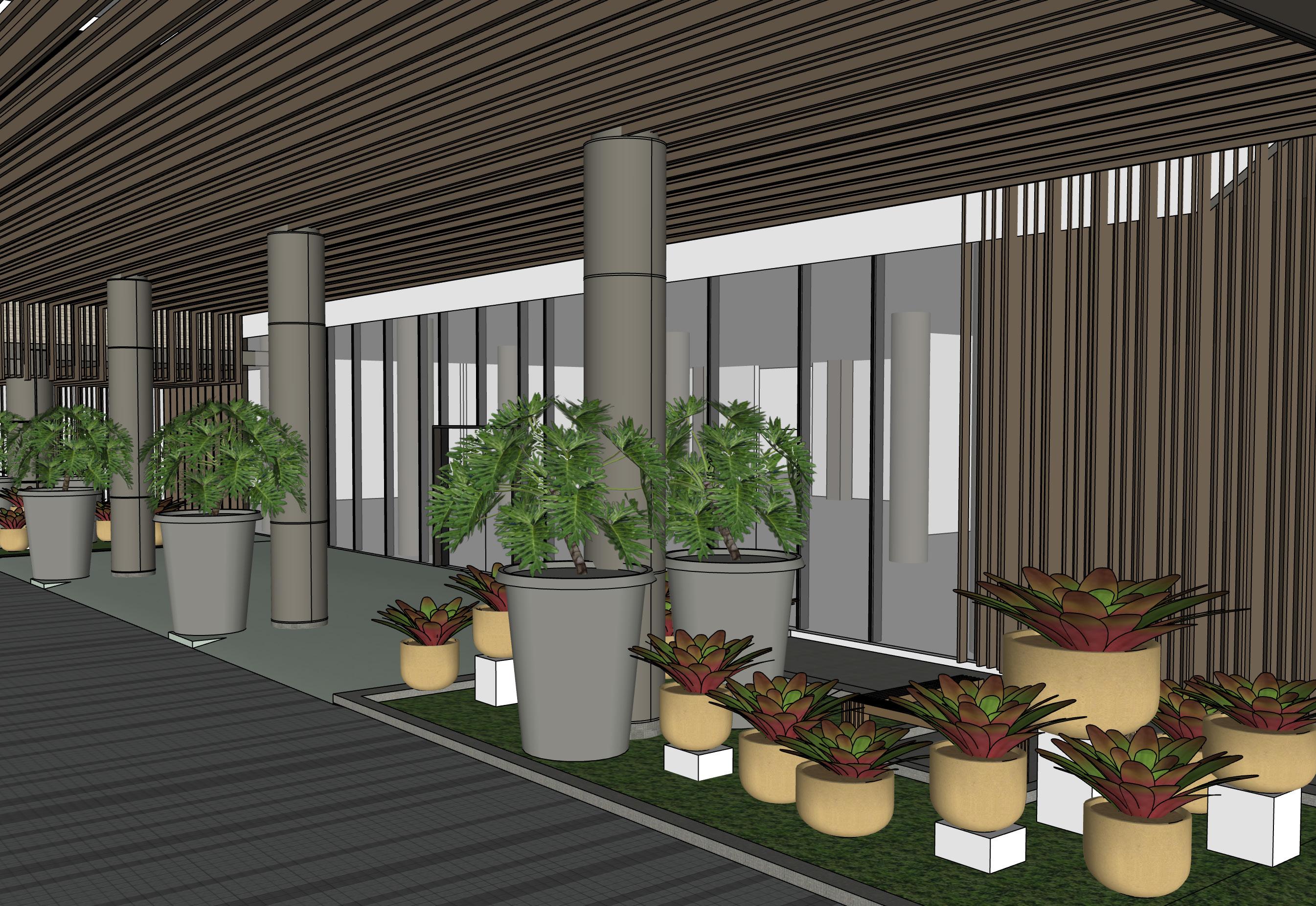

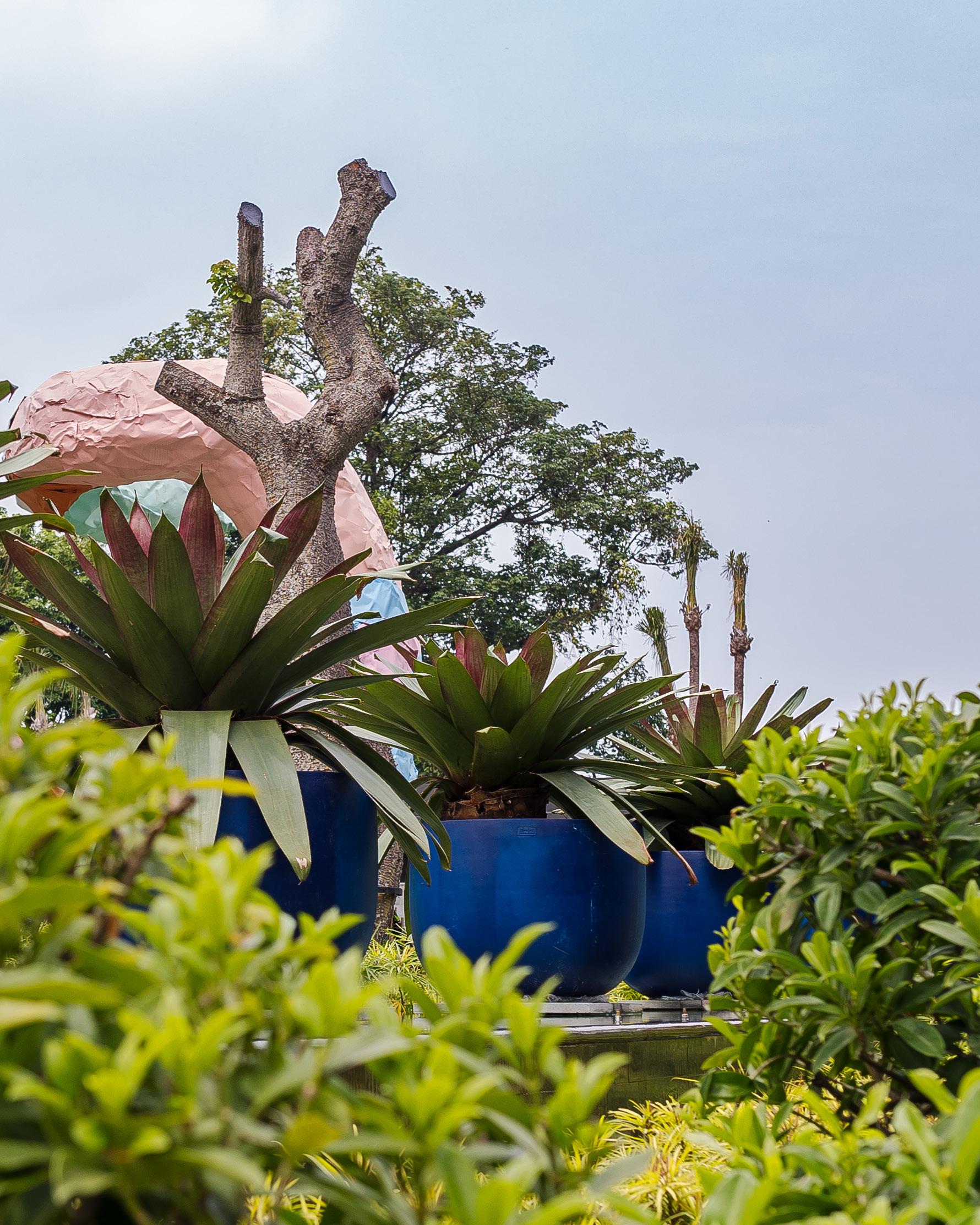

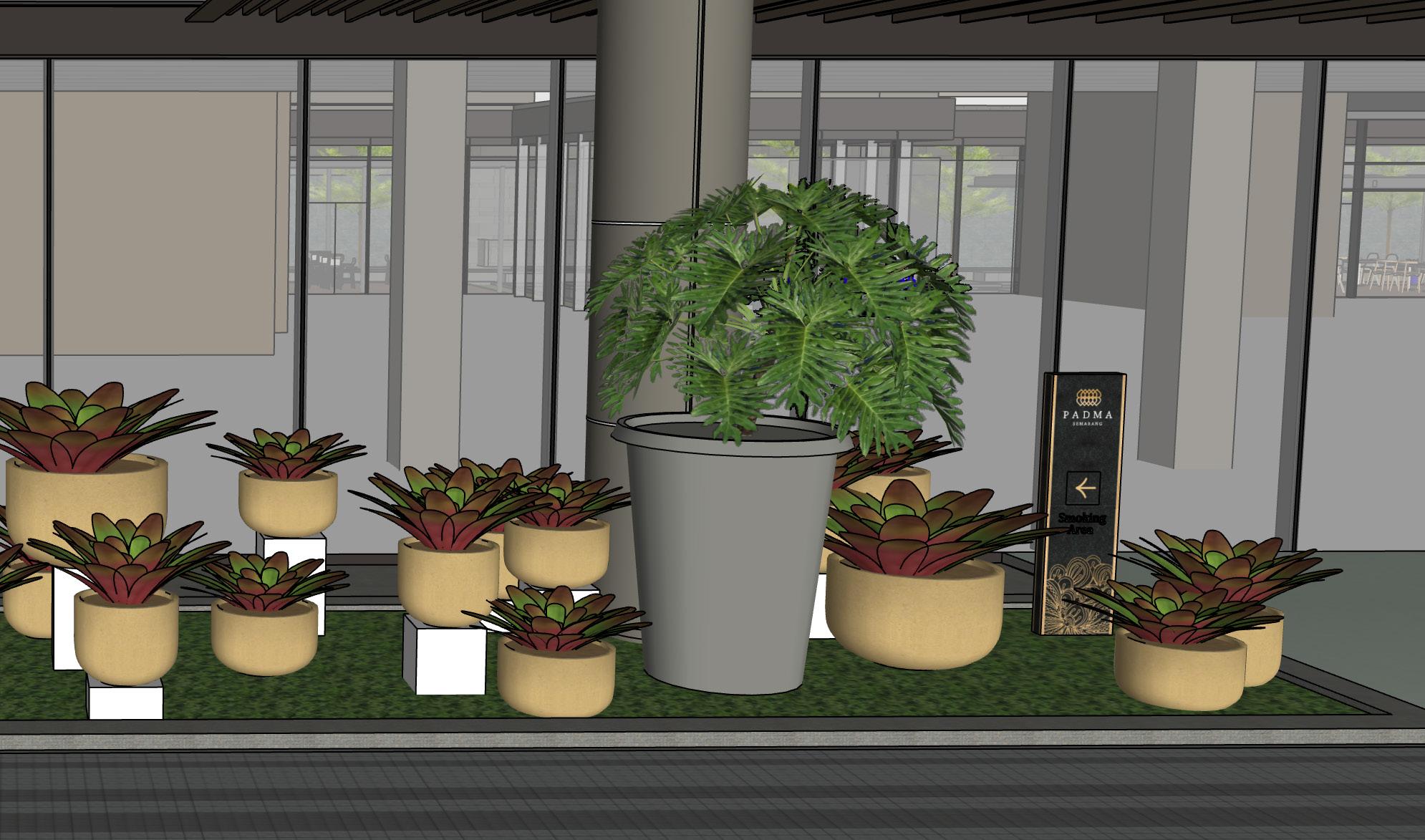

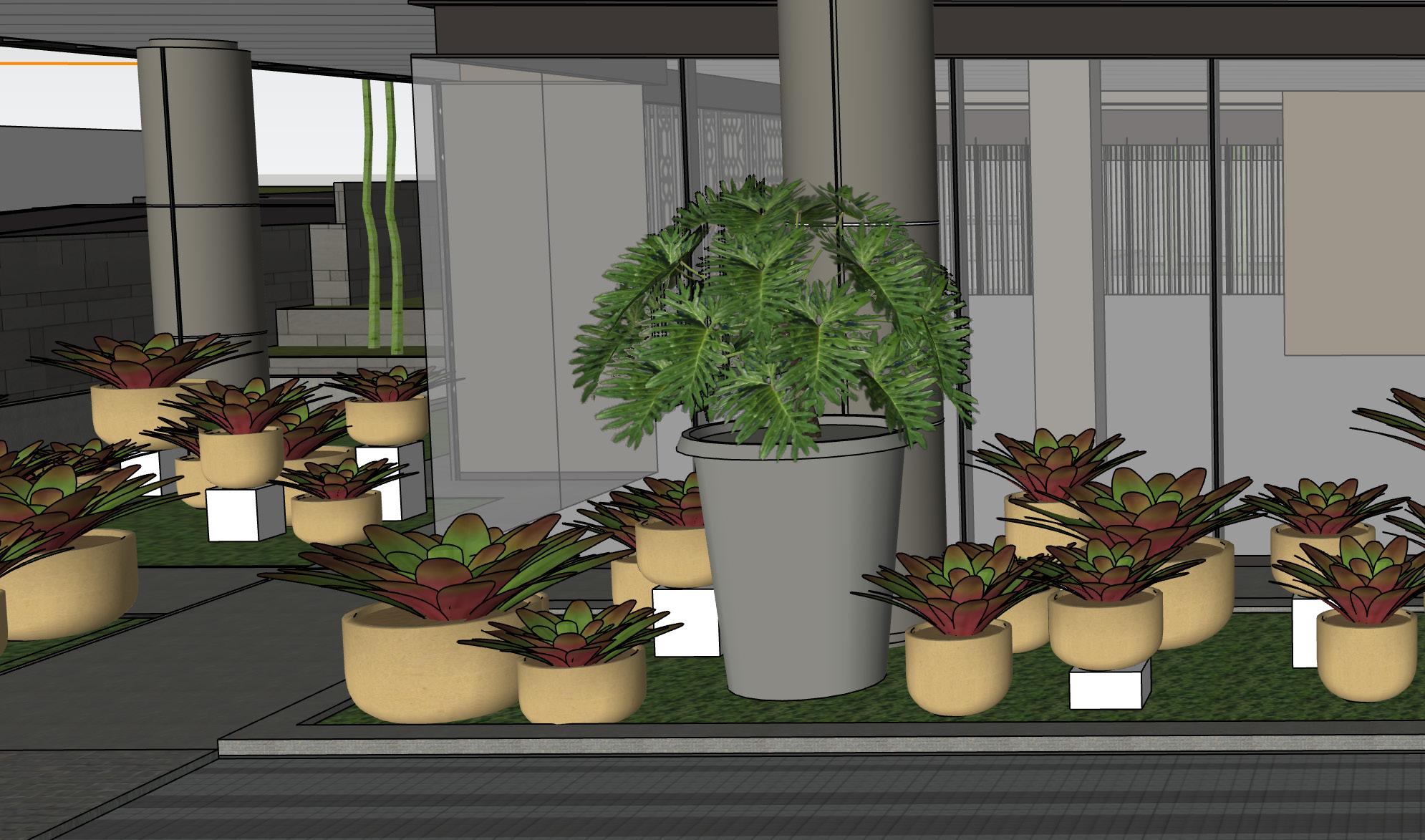

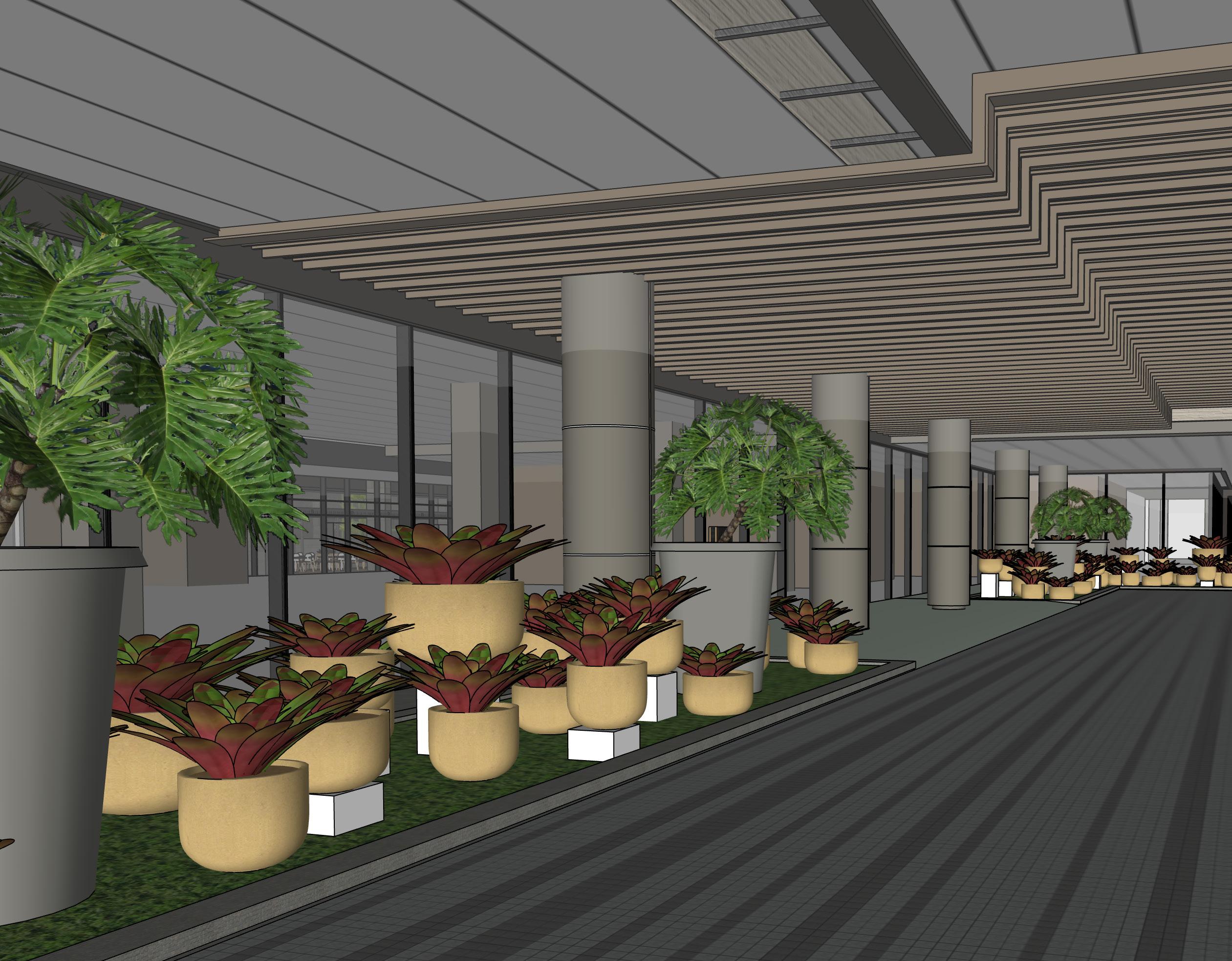

BROMELIAD POTS LAYOUT
(S.32_GAS) (S.32_GAS) (S.32_GAS) (S.32_GAS) (S.32_GAS) (S.32_GAS) (T.9_MOD) (T.9_MOD)
(T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.12_CIS) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD) (T.8_EUD)
DECORATIVE POTS
TYPE - M (BROMELIA COLLECTION)
Location
Quantity
Dimension
Material
Surface
Type
Main Lobby & Lobby Convention Hall (GF)
25 pcs
d (112cm)
h (67cm)
Grand Bowl (LSA.0705.3112)
Lite (Polyresin)
Machiato - Sand
Location
Quantity
Dimension
Material
Surface
Type
Main Lobby & Lobby Convention Hall (GF)
60pcs
d (70cm)
h (46cm)
Lite (Polyresin)
Machiato - Sand Grand Bowl (LSA.0705.3112)
DECORATIVE POTS
TYPE - N (BROMELIA COLLECTION)
DECORATIVE POTS TYPE - O (BROMELIA COLLECTION)
Location
Quantity
Dimension
75 pcs d (65cm) h (54cm) Lite (Polyresin)
Machiato - Sand New Egg POT (LSA.0233.4065)
Location
Quantity
Dimension
6 pcs
w (60cm)
l (60cm)
h (80cm)
Material
Reflacting Pond
Riverstone
Location
Quantity
Dimension Material
10 pcs
w (201cm)
l (95cm)
h (40cm)
Main Pool and Kids Pool
Riverstone
w (130cm)
l (40cm)
h (16cm)
Shower
Riverstone

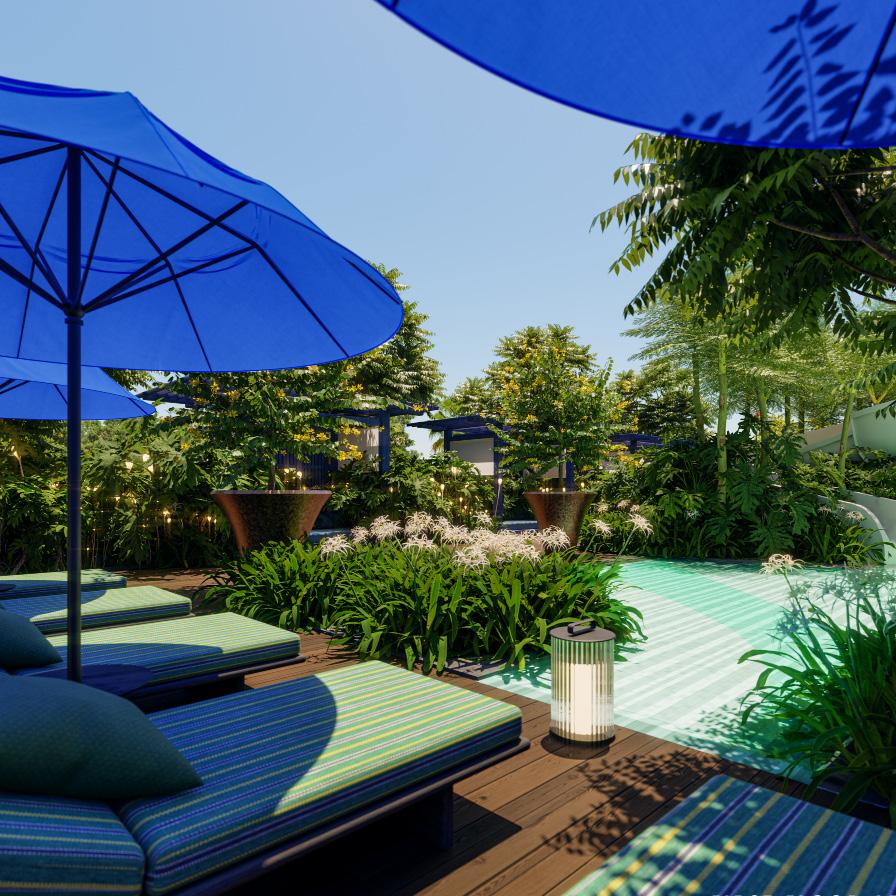

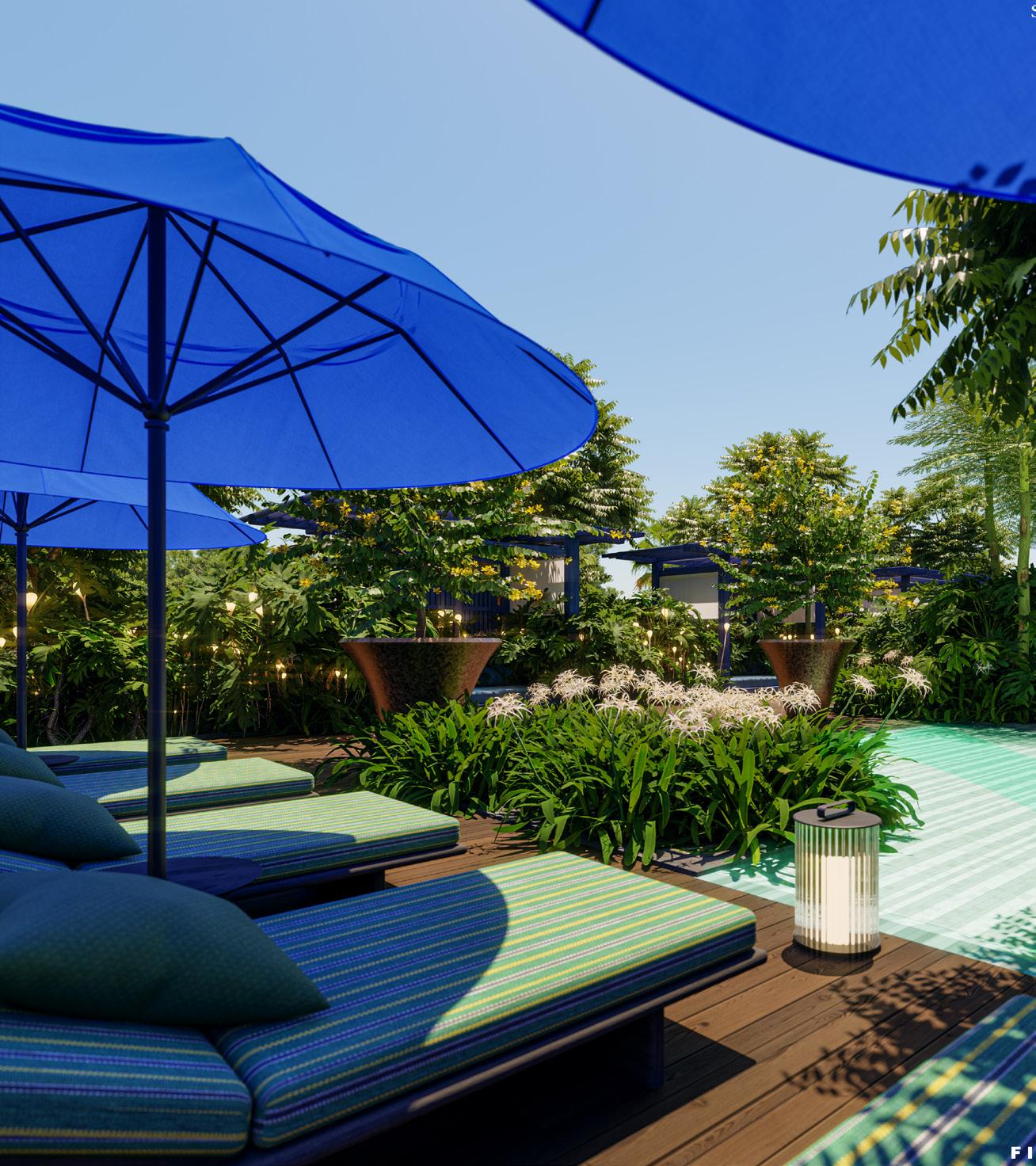

FURNITURE
LEGEND
Side Table
Seating Sofa 1
Seating Sofa 2
Armchair 1
Armchair 2
Center Table
Dining Table
Dining Chair 1
Dining Chair 2
Cabana
Daybed
Sunbrella
Cabana
Daybed
Sunbrella
Side Table
Seating Sofa 1
Seating Sofa 2
Armchair 1
Armchair 2
Center Table
Dining Table
Dining Chair 1
Dining Chair 2
OUTDOOR FURNITURE - SKYDECK FLOOR LAYOUT
5th FLOOR LAYOUT
7th FLOOR LAYOUT
6th FLOOR LAYOUT
Location
Furniture
Quantity
Dimension
Material
Main Pool & Kids Pool Area

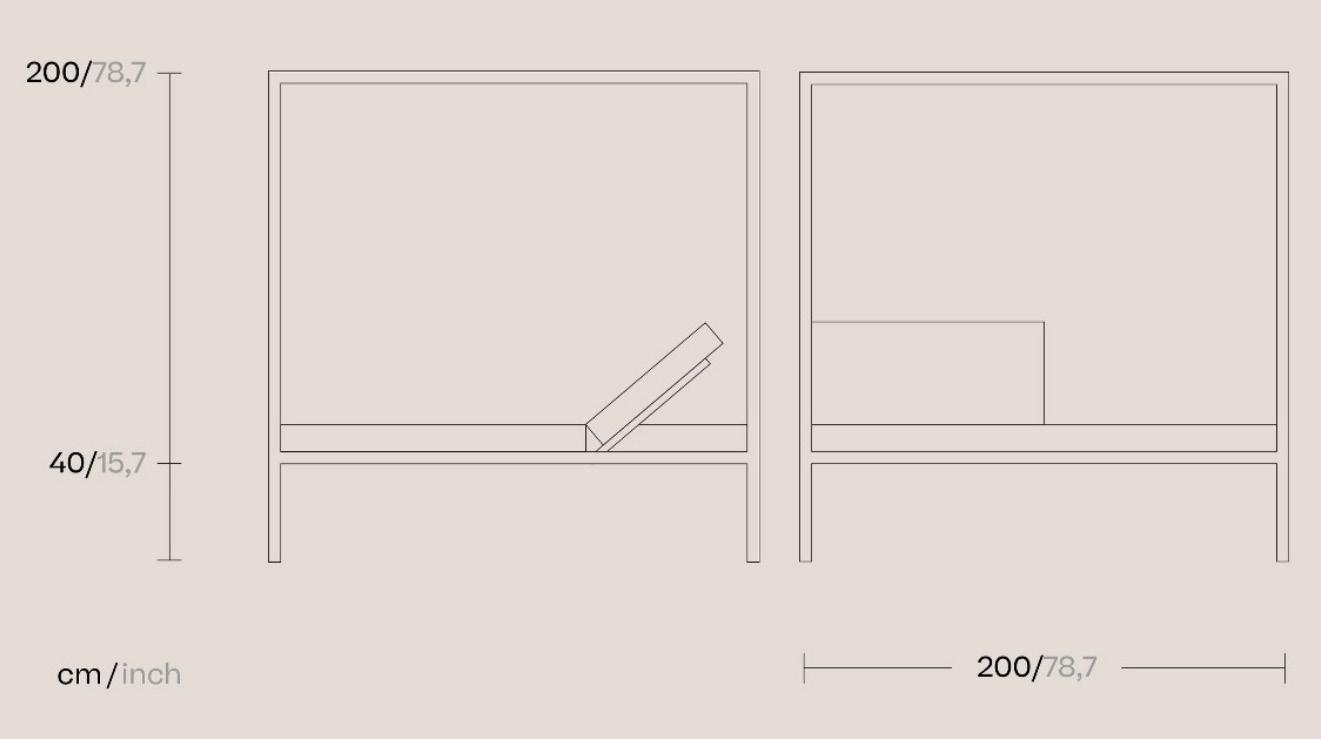

Landscape Daybed - KETTAL
9 pcs
w (200cm)
l (200cm)
h (240cm)
Structure +Back Panel - Indigo 094
Daybed Cushion - Artic Laminate 295
Curtain - Chade Brown 802
Cushion (45x45) - Caribbean Laminate
298
Ceiling Fabric - Ebony Bronze 796
9 Frontal Spot Lights
Location
Furniture
Quantity
Dimension
Main Pool, Kids Pool & Yoga Area

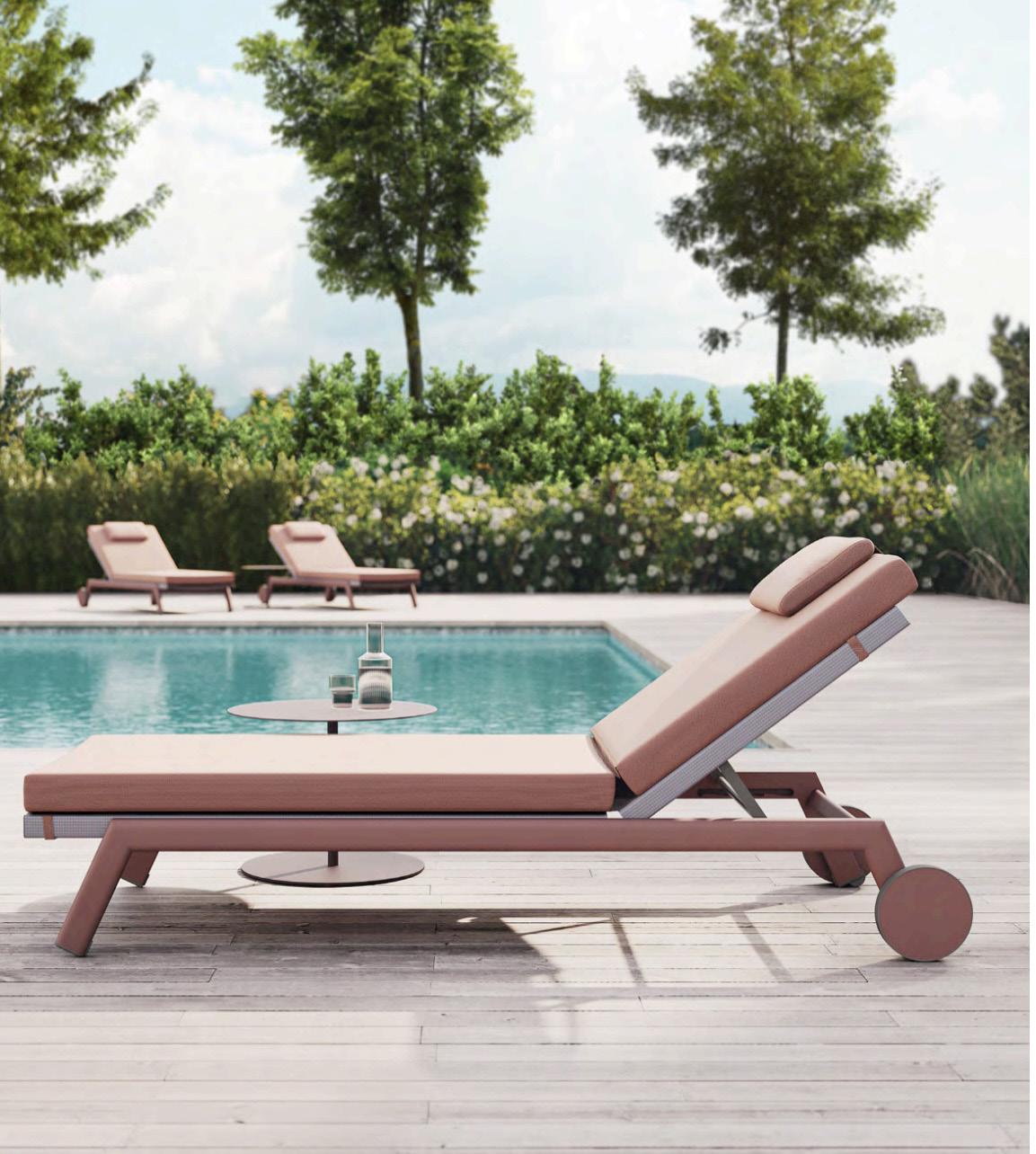

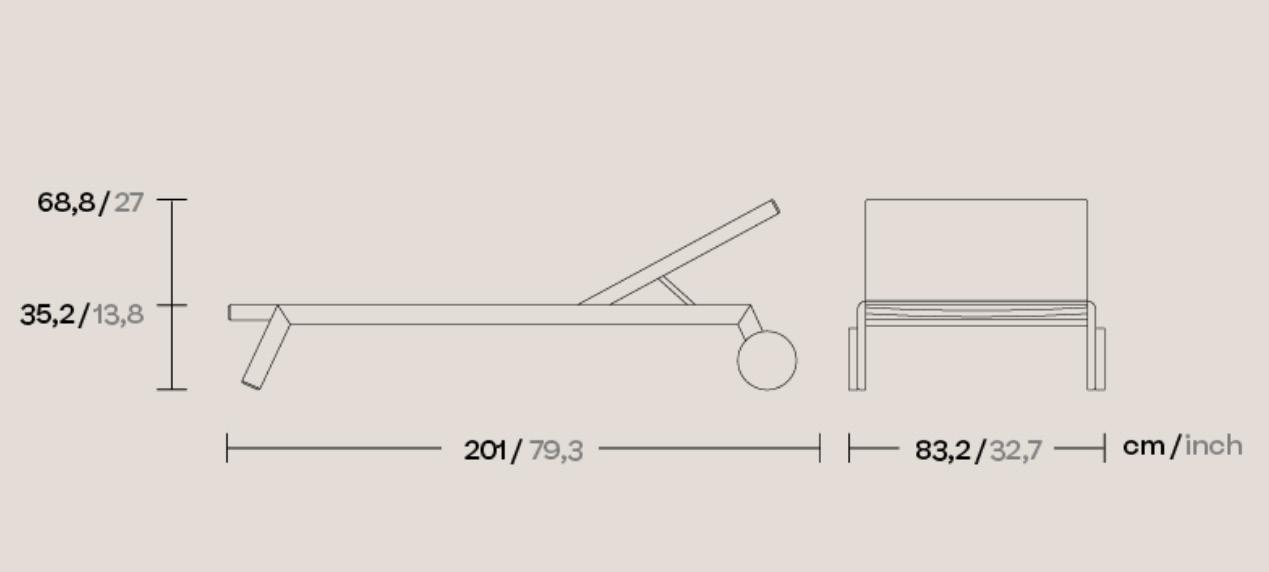

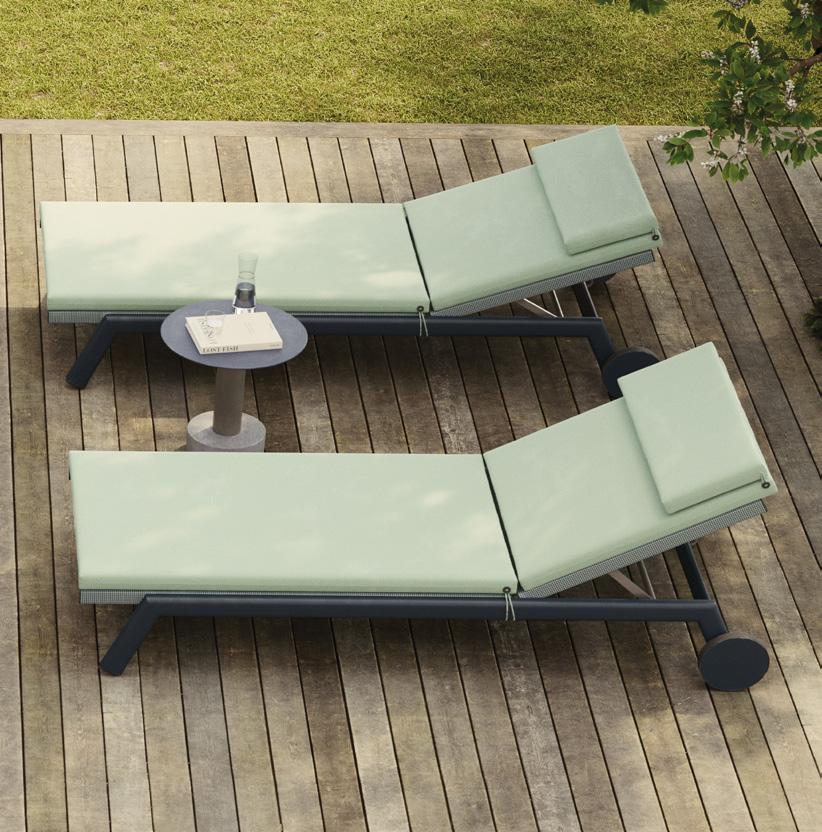

Molo Deckchair with Wheels - KETTAL
20 pcs
w ( 83.2cm)
l (201cm)
h ( 68.8cm)
Material
Structure - Cobalt 089

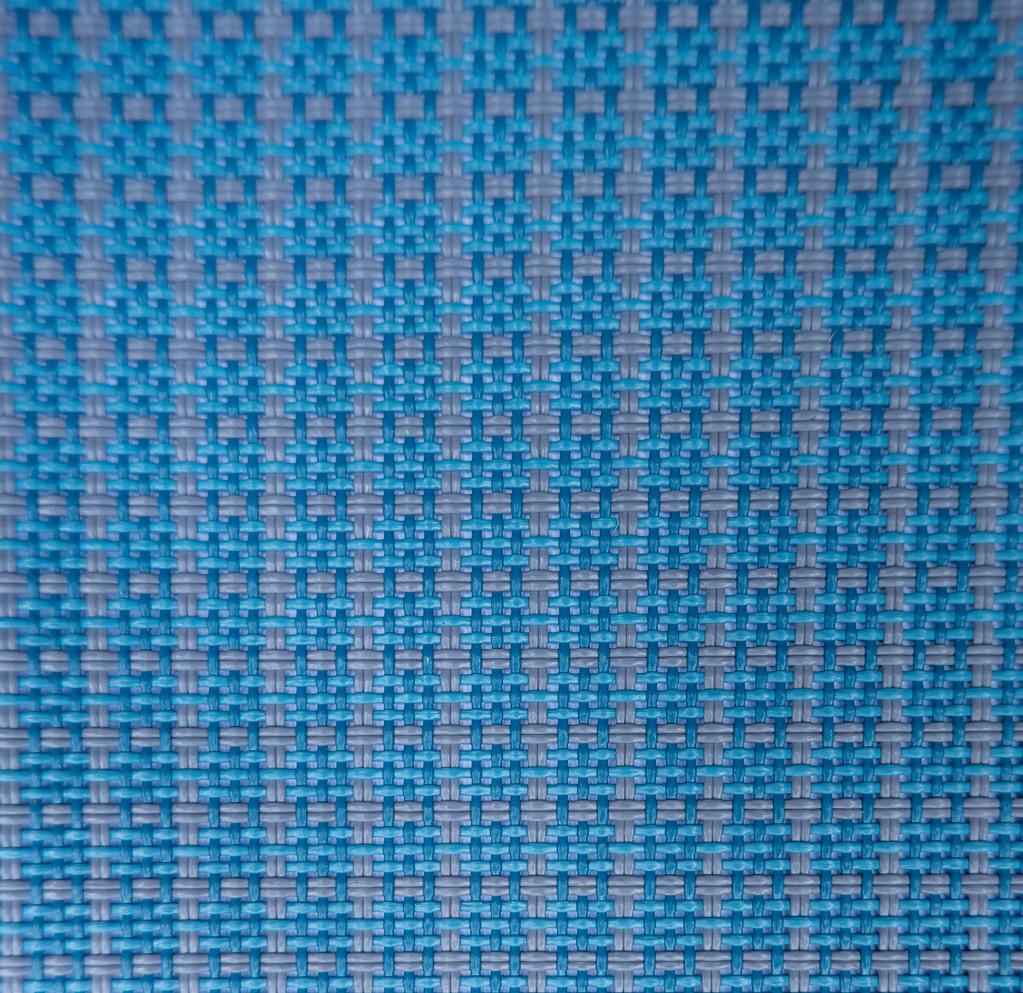

Mesh Fabric - Winter Sea 569
Cushion - Caribbean Laminate 298
Cushion (45x45) - Fjord Laminate 248

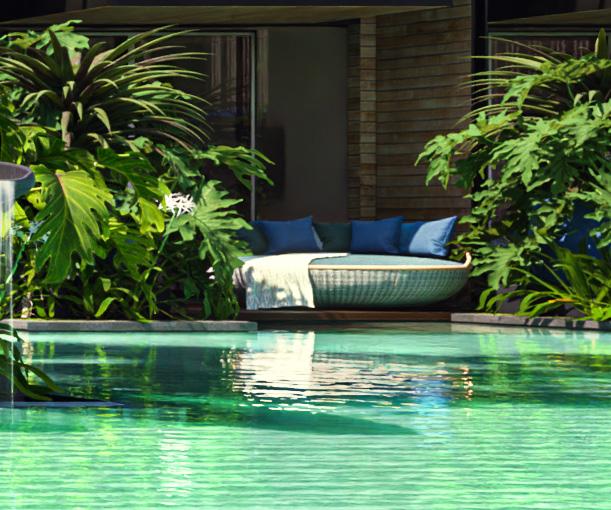

OUTDOOR FURNITURE DAYBED
Location
Furniture
Quantity
Dimension
Material : :
Main Pool, Kids Pool & Yoga Area
13 pcs
Ø (330m)
h (258cm)

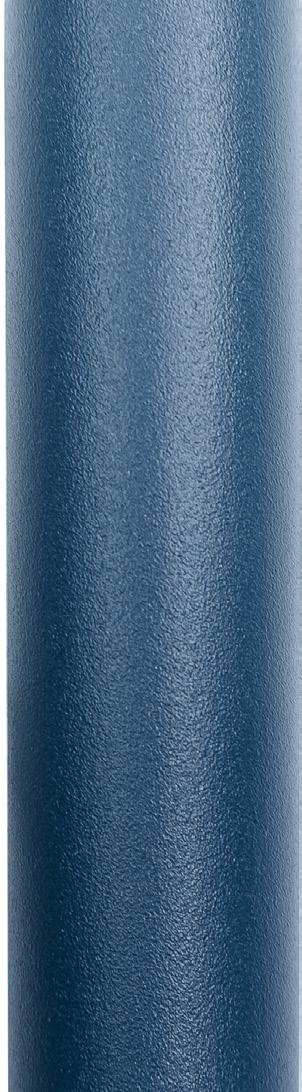

Structure (alumunium with terrain paint) - Indigo 094
Fabric - Winter Sea 569
Concrete Base 90 kg

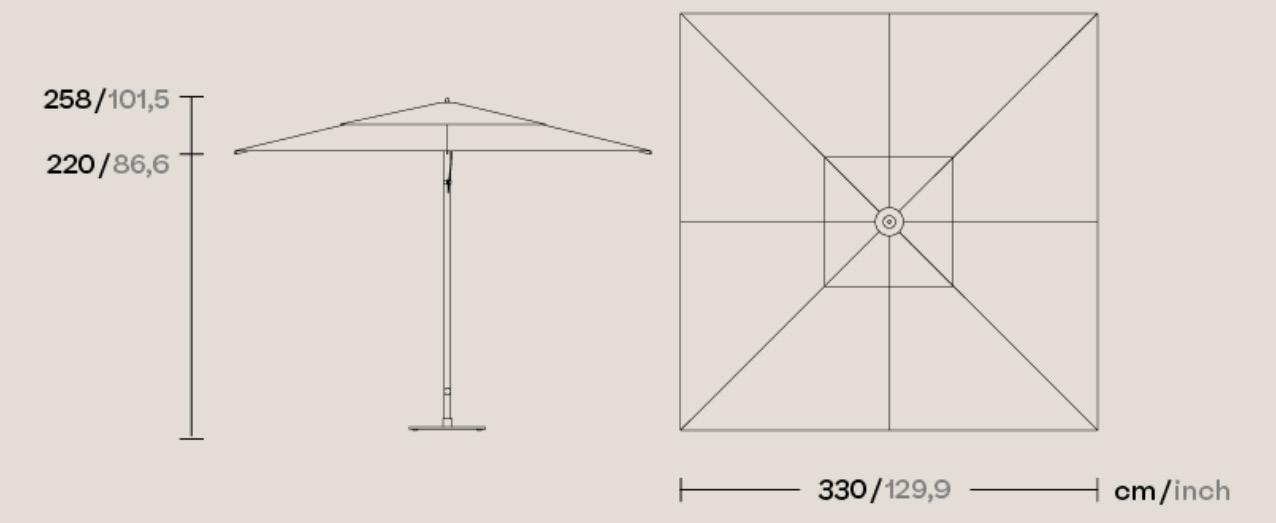

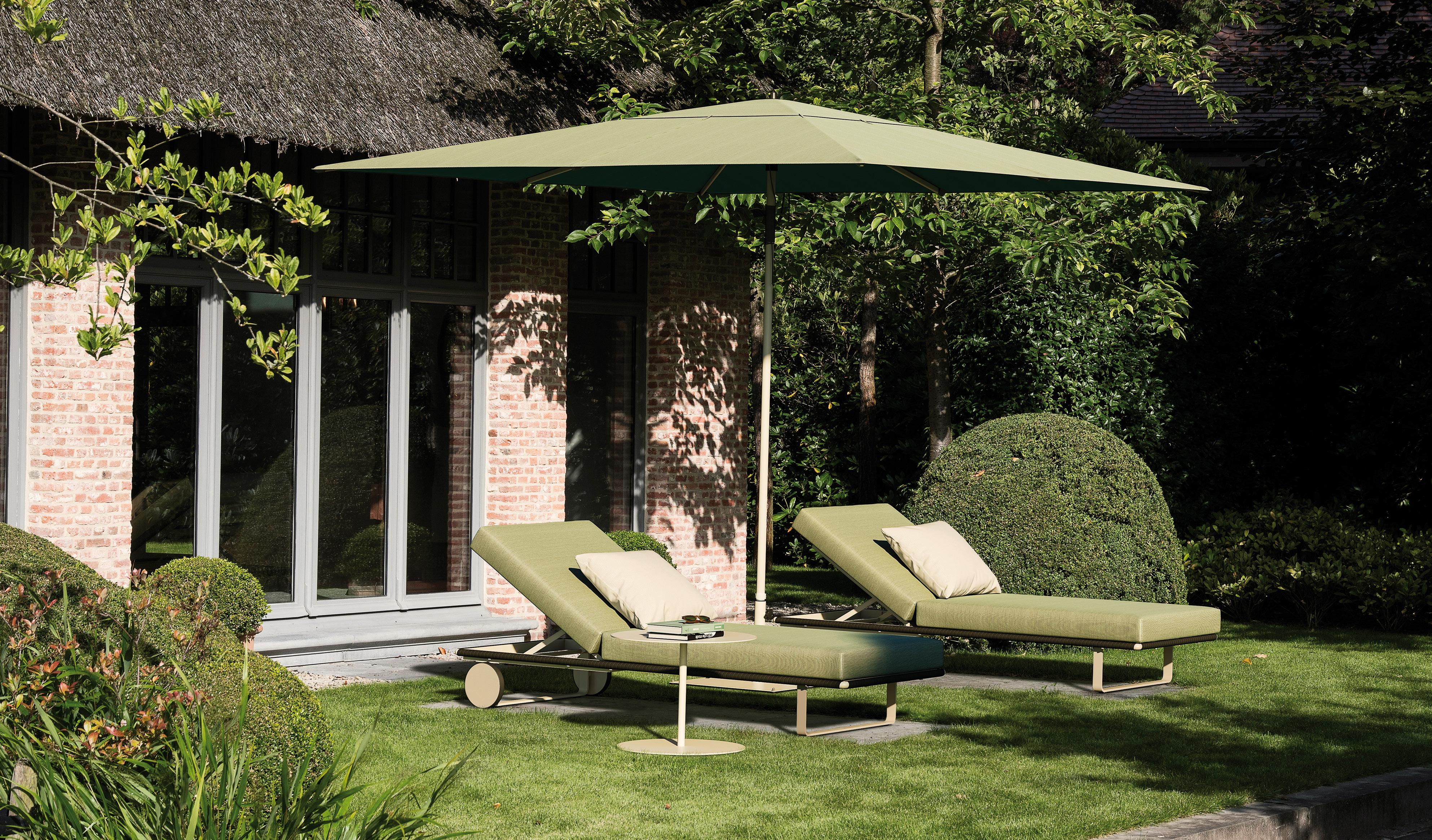

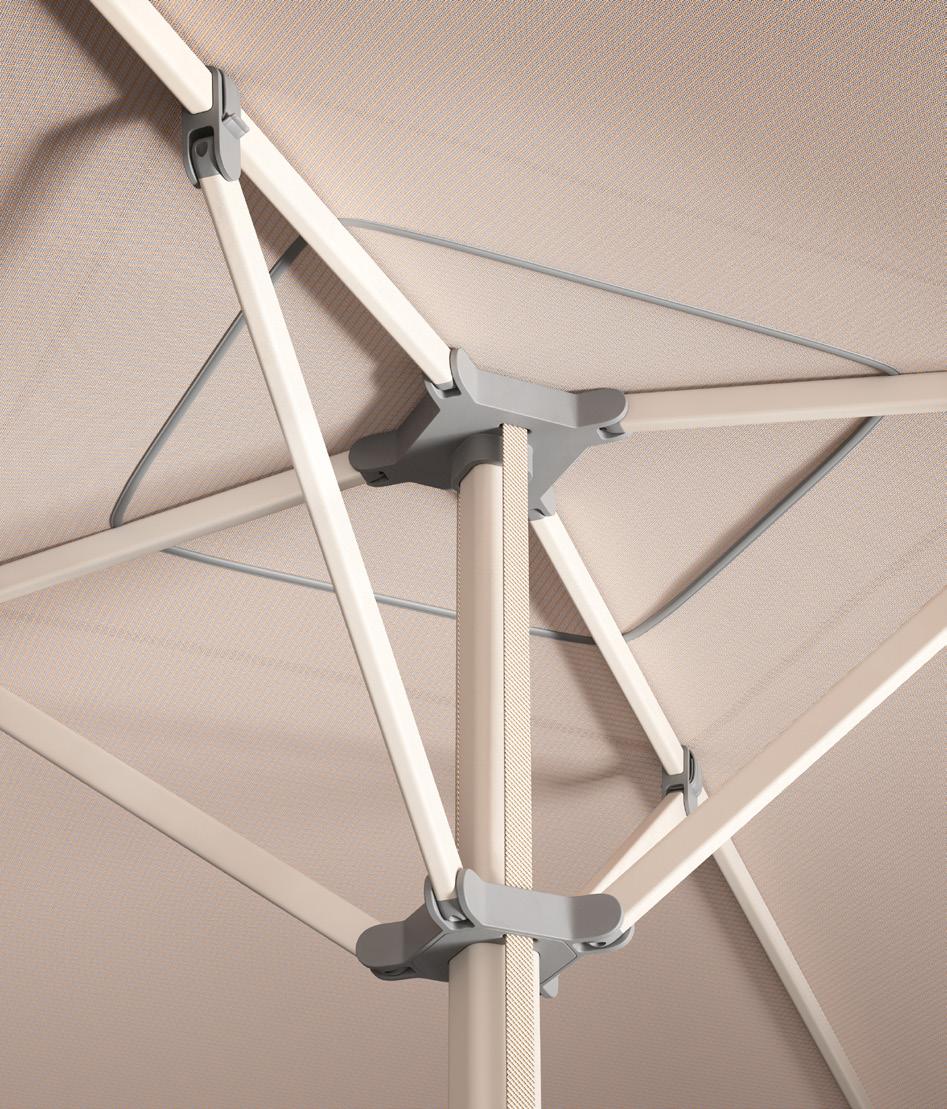

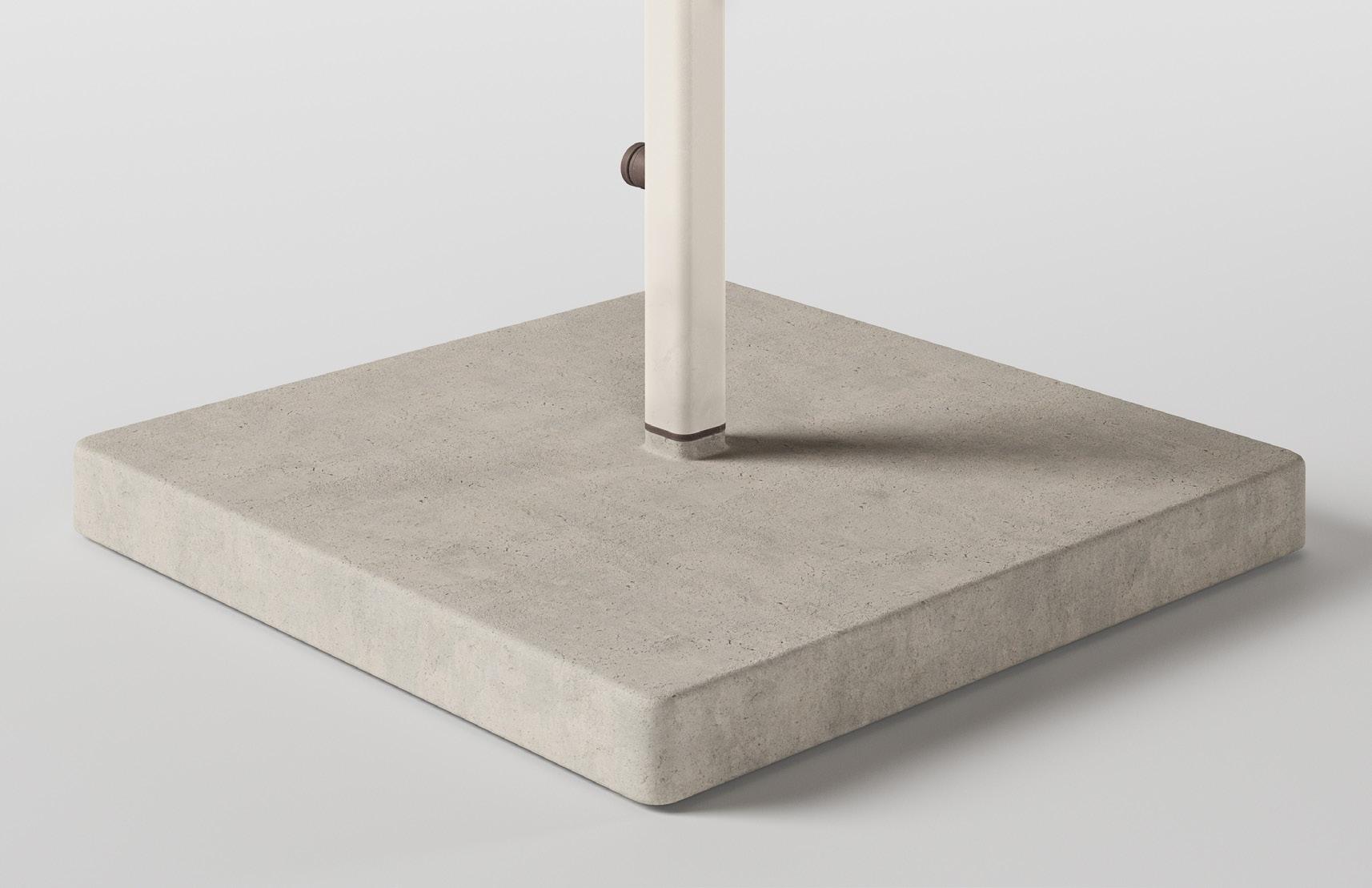

Meteo L Telescopic Parasol + Concrete Base 90 kg
Parallels
Location
Furniture
Quantity
Dimension
Material
Main Pool & Kids Pool Area

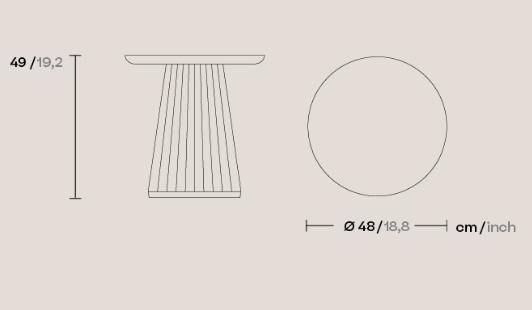

Cala Side Table 48
28 pcs
Ø (48cm)
h (49cm)
Table Top (alumunium with terrain paint) - Indigo 094
Legs (alumunium with terrain paint) - Cobalt 089
OUTDOOR FURNITURE SIDE TABLE
Location
Furniture
Quantity
Dimension
Material
Lagoon Pool (Balcony) Area

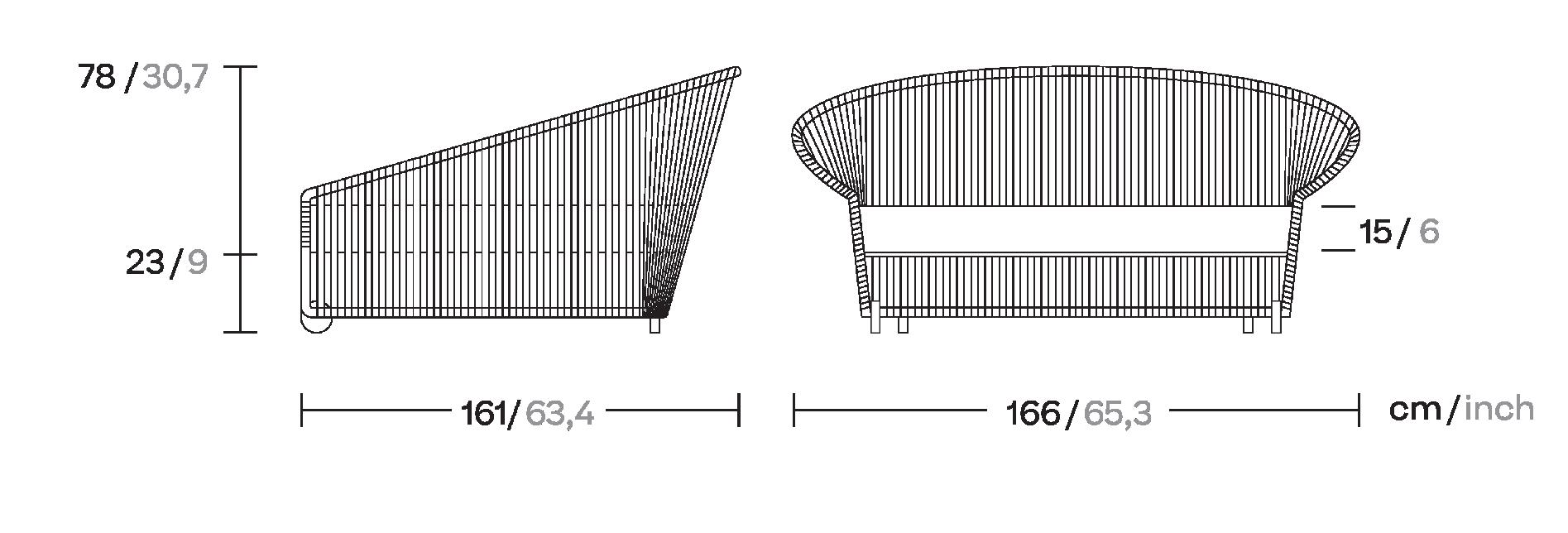

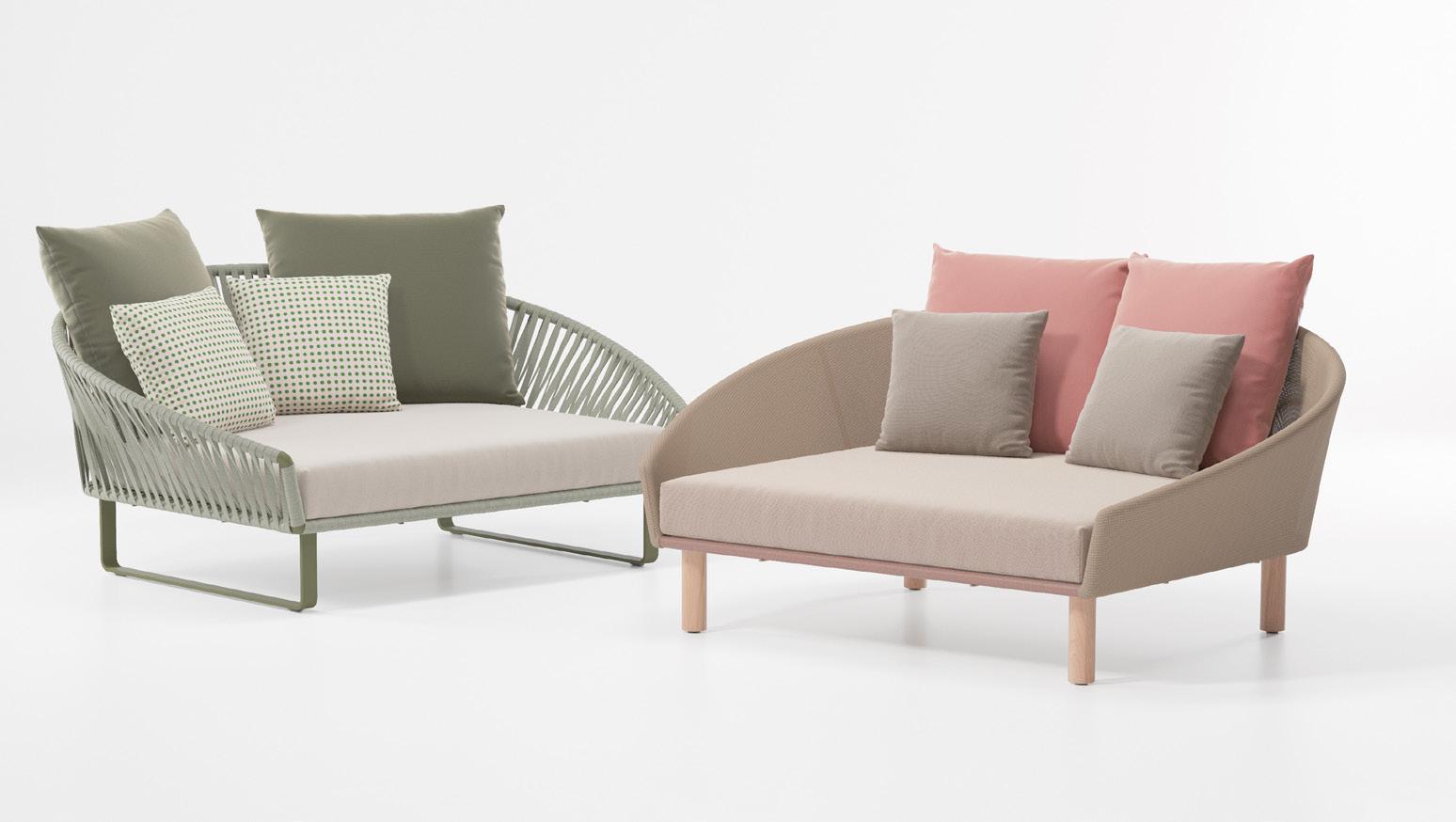

Bitta Daybed - KETTAL
10 pcs
w (125cm)
l (166cm)
h (78cm)
Structure - Cobalt 089

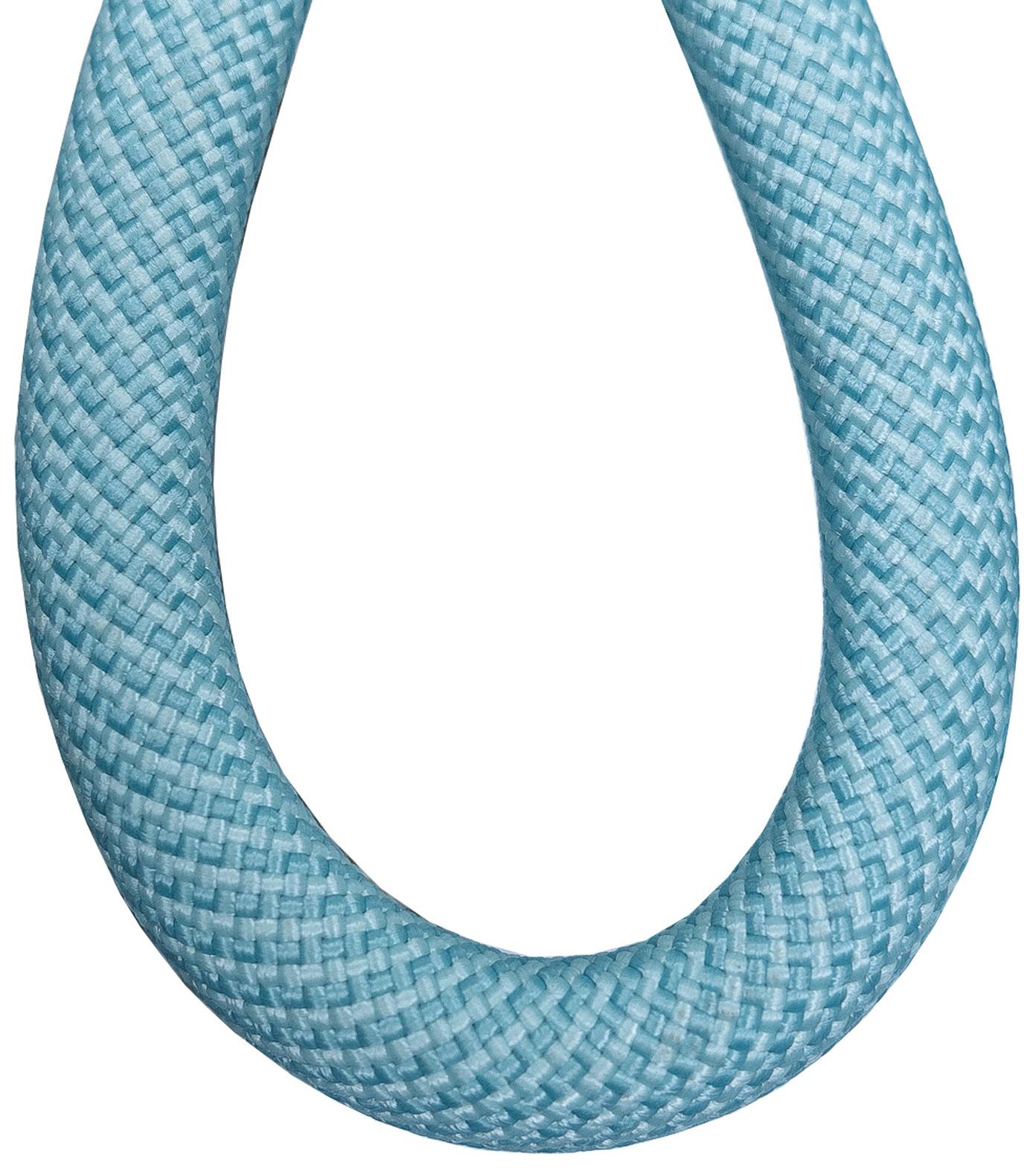

Rope - Blue River 422
Seat Cushion - Caribbean Laminate 298
Cushion(65x65) - Cerulean Laminated 314
Cushion (45x45) - Artic Laminate 295

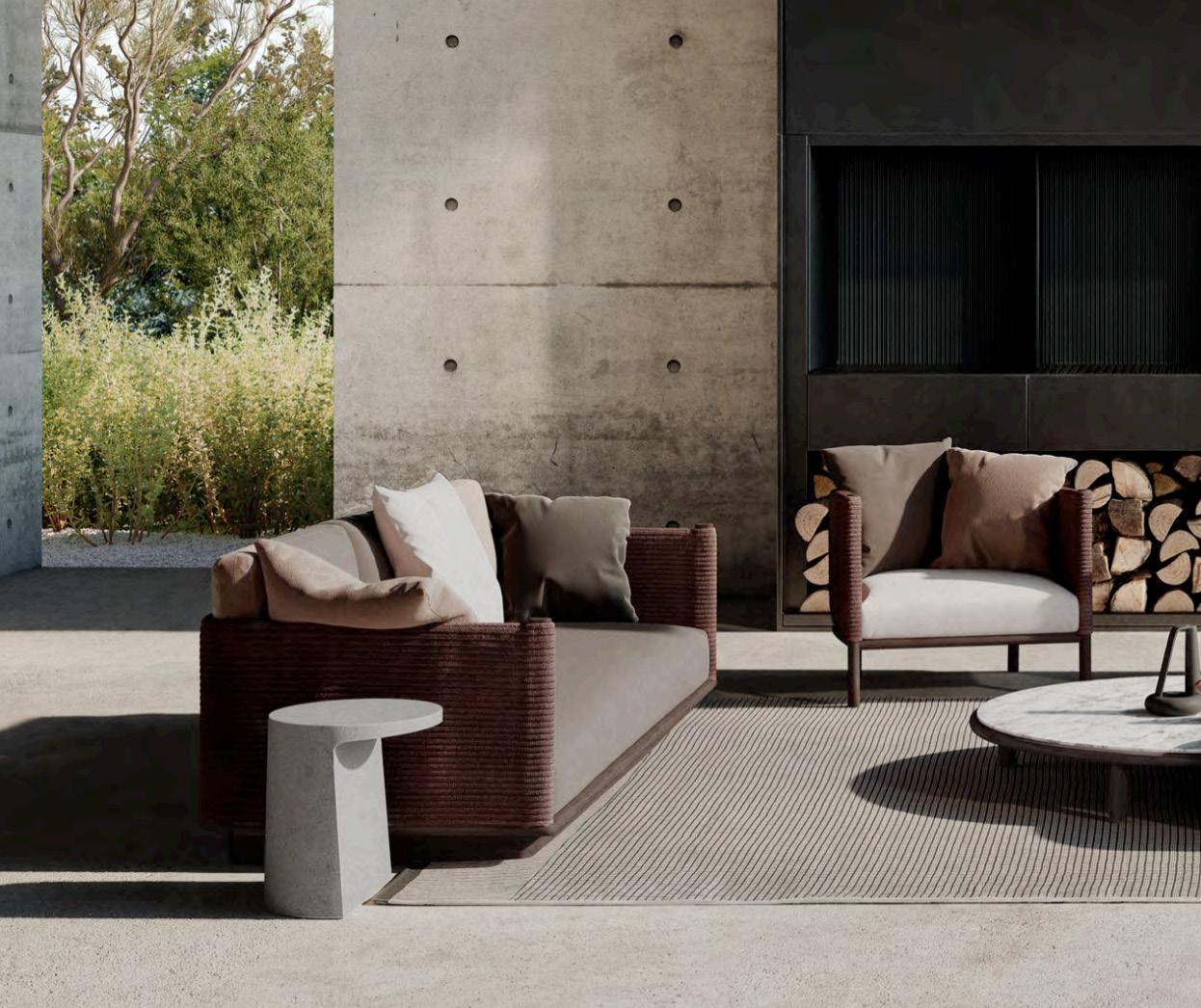

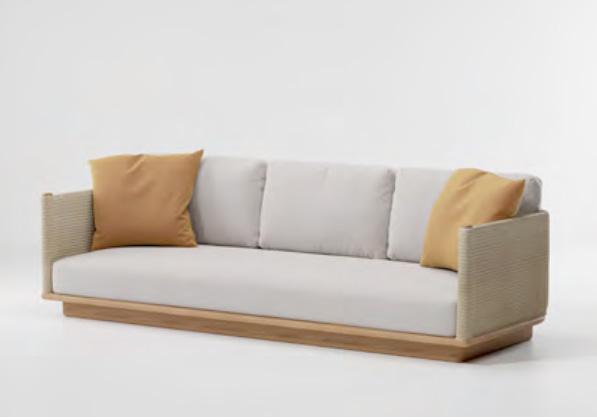

Location
Furniture
Quantity
Dimension
Main Pool & Kids Pool Area
3 pcs
w (250cm)
l (95cm)
h (52cm)
Material
Mesh - Soga Ivy 465
Seats & Backrest - Cosmos 28L-28T
55x55 Cushion - Nautica 26L-26T

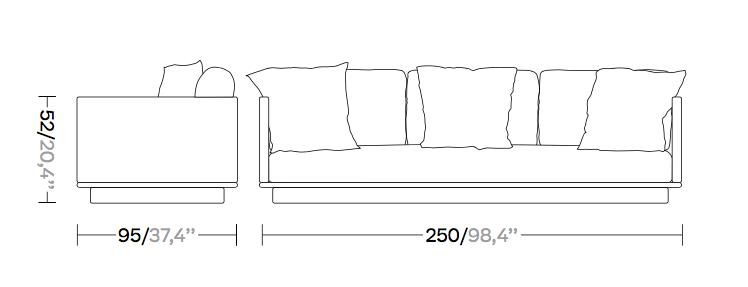

Giro 3 Seaters Sofa - KETTAL
Location
Furniture
Quantity
Dimension
14 pcs
w ( 82.5cm)
l ( 105.2cm)
h ( 152.3cm)
Material
Structure - Cobalt 089
Ropes - Blue River 422
Seat Cushion - Caribbean Laminate 298
Back Cushion - Artic Laminate 295

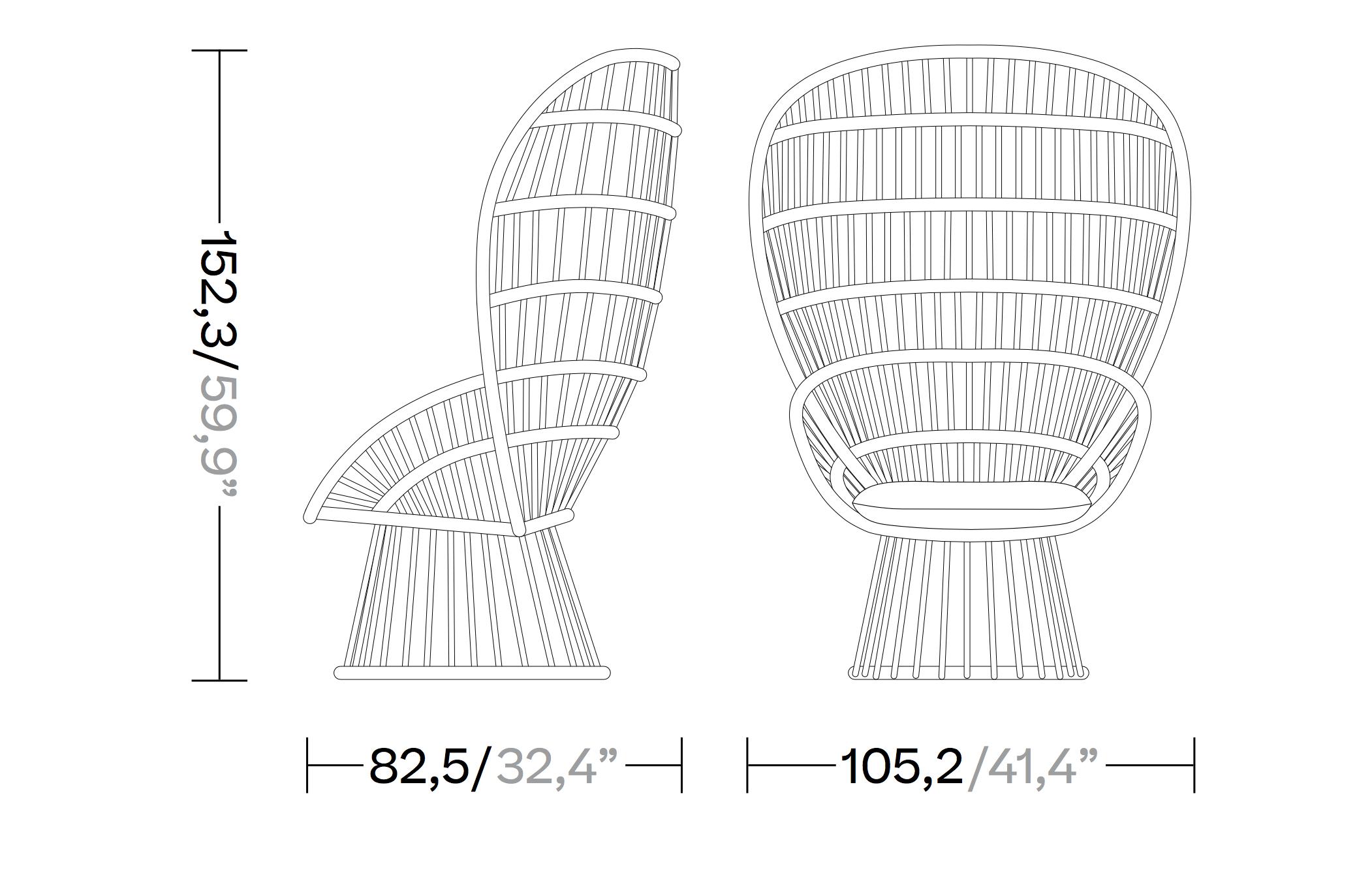

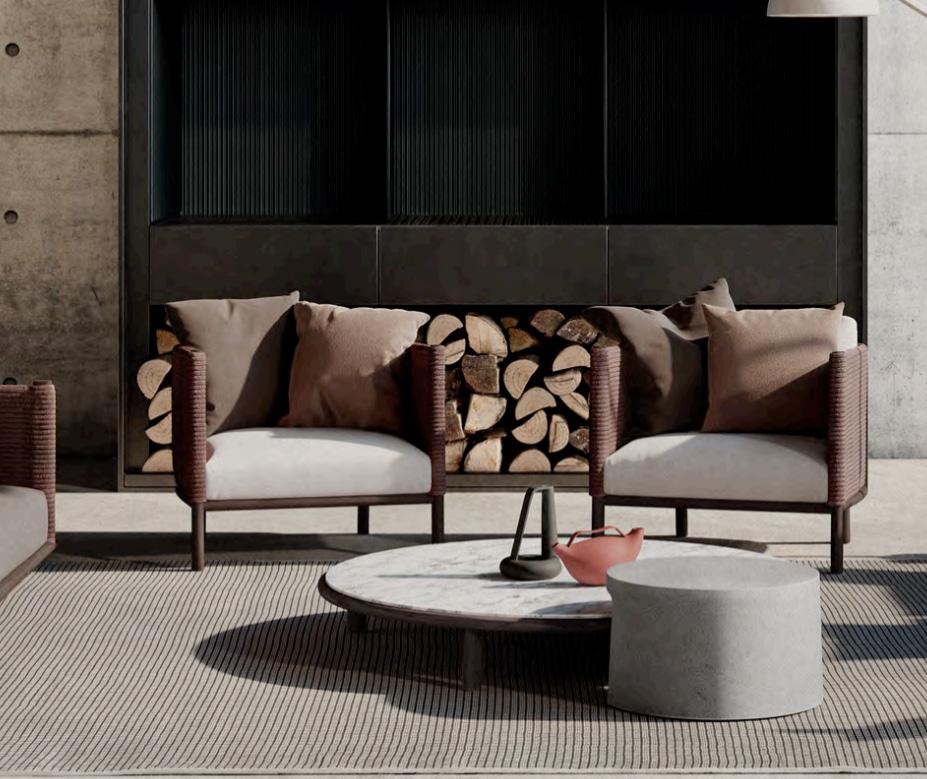

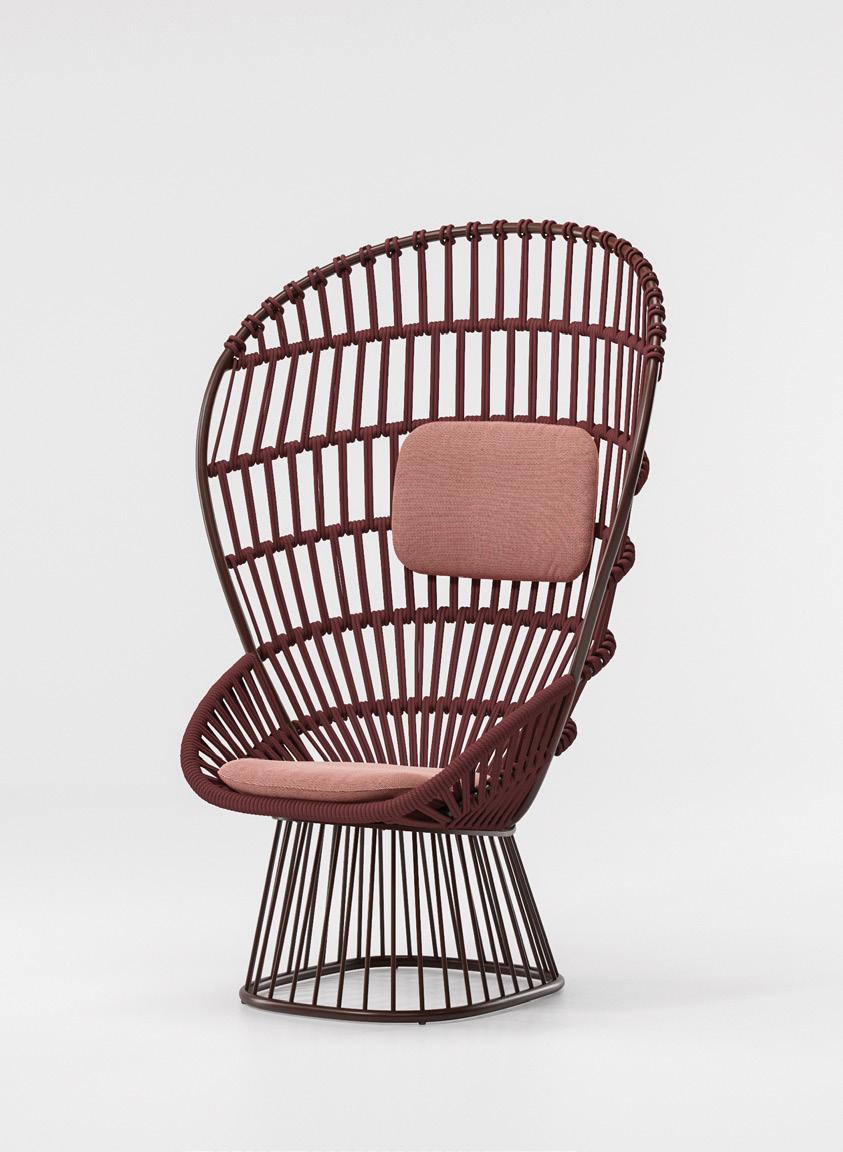

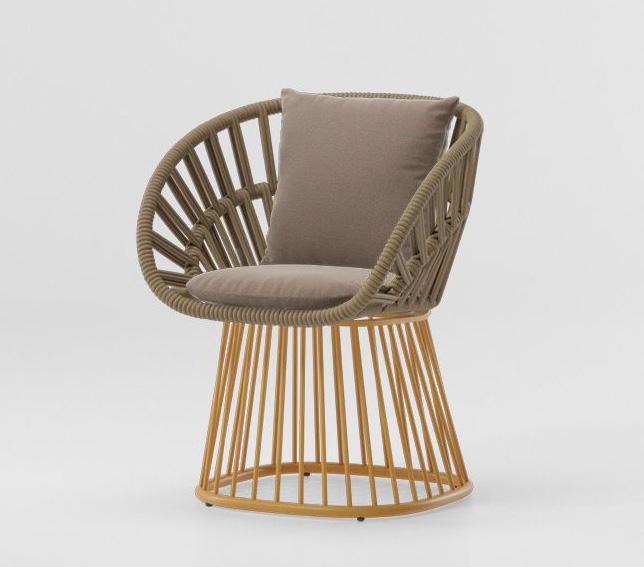

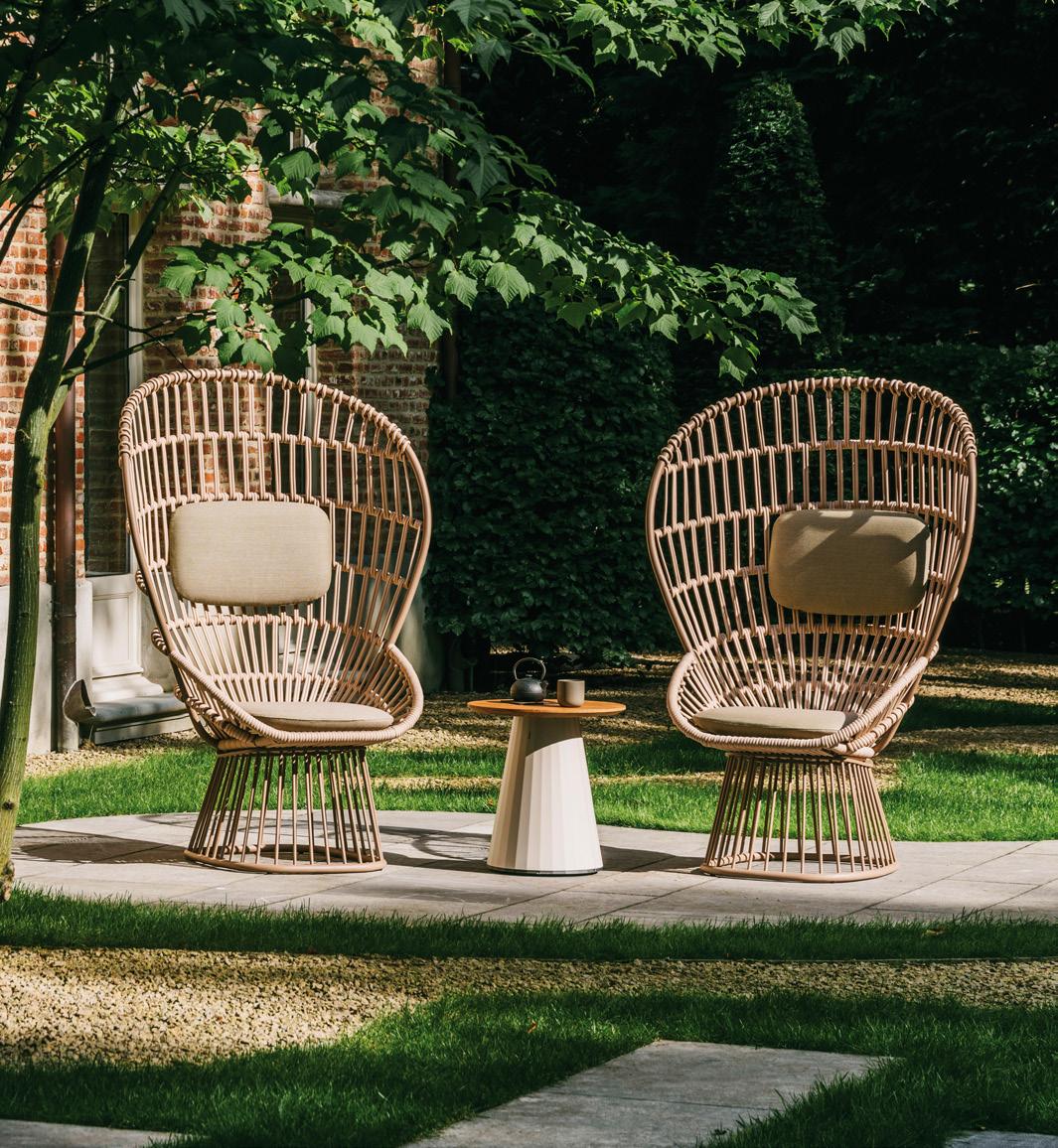

Cala Armchair Club- KETTAL
Location
Furniture
Quantity
Dimension
Main Pool & Kids Pool Area

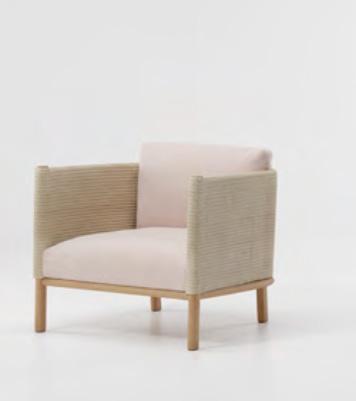

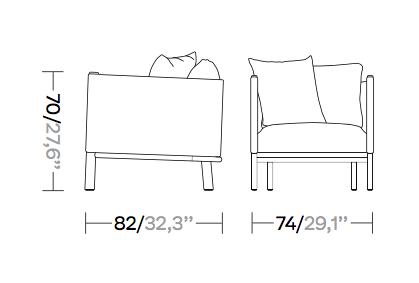

Giro Armchair - KETTAL
4 pcs
w (82cm)
l (74cm)
h (70cm)
Material
Mesh - Soga Ivy 465
Seats & Backrest - Cosmos 28L-28T
55x55 Cushion - Nautica 26L-26T
Location
Furniture
Quantity
Dimension
Material
Main Pool & Kids Pool Area

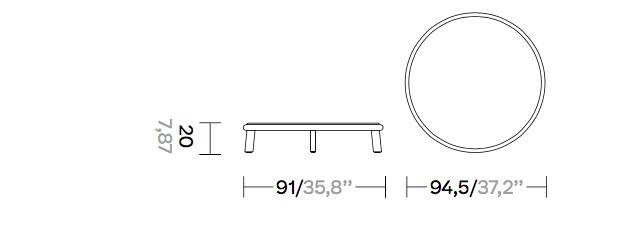

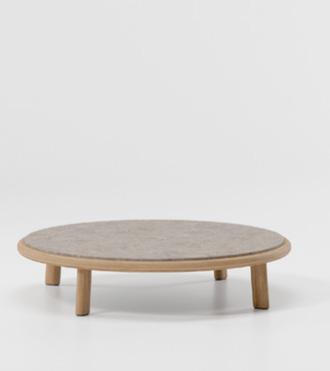

Giro Center Table - KETTAL
2 pcs
Ø (330m)
h (70cm)
Top table - Du Gent Grey
Legs - Teak
Location
Furniture
Quantity
Dimension
Material
Semi outdoor

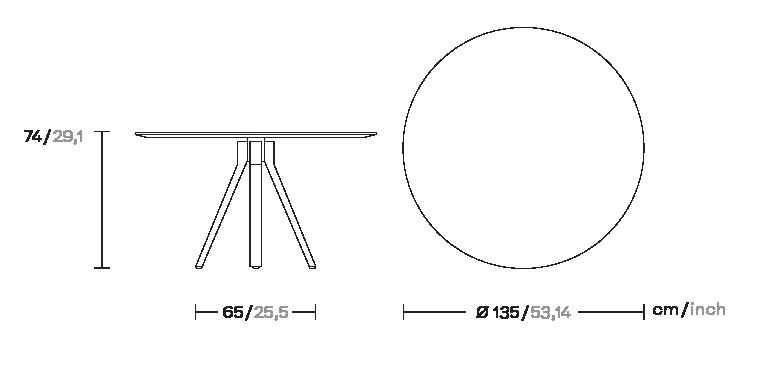

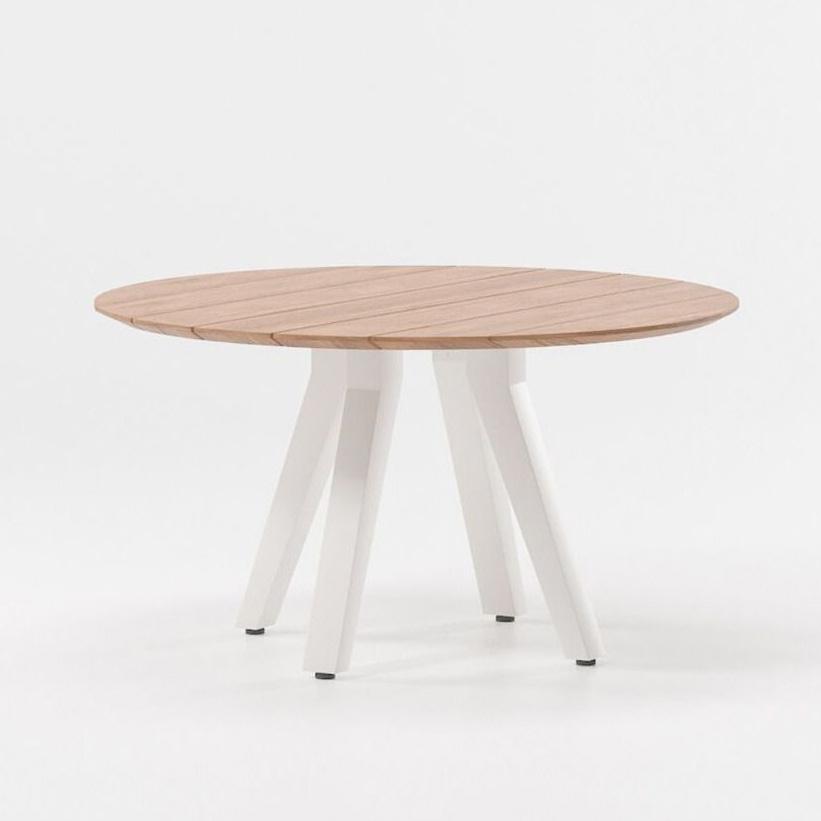

Vieques Dining Table 90 Round - KETTAL 14 pcs
Ø (135cm)
h (74 cm)
Table top (alumunium with terrain paint)Indigo 094
Legs (alumunium with terrain paint) - Cobalt 089
OUTDOOR FURNITURE DINING TABLE

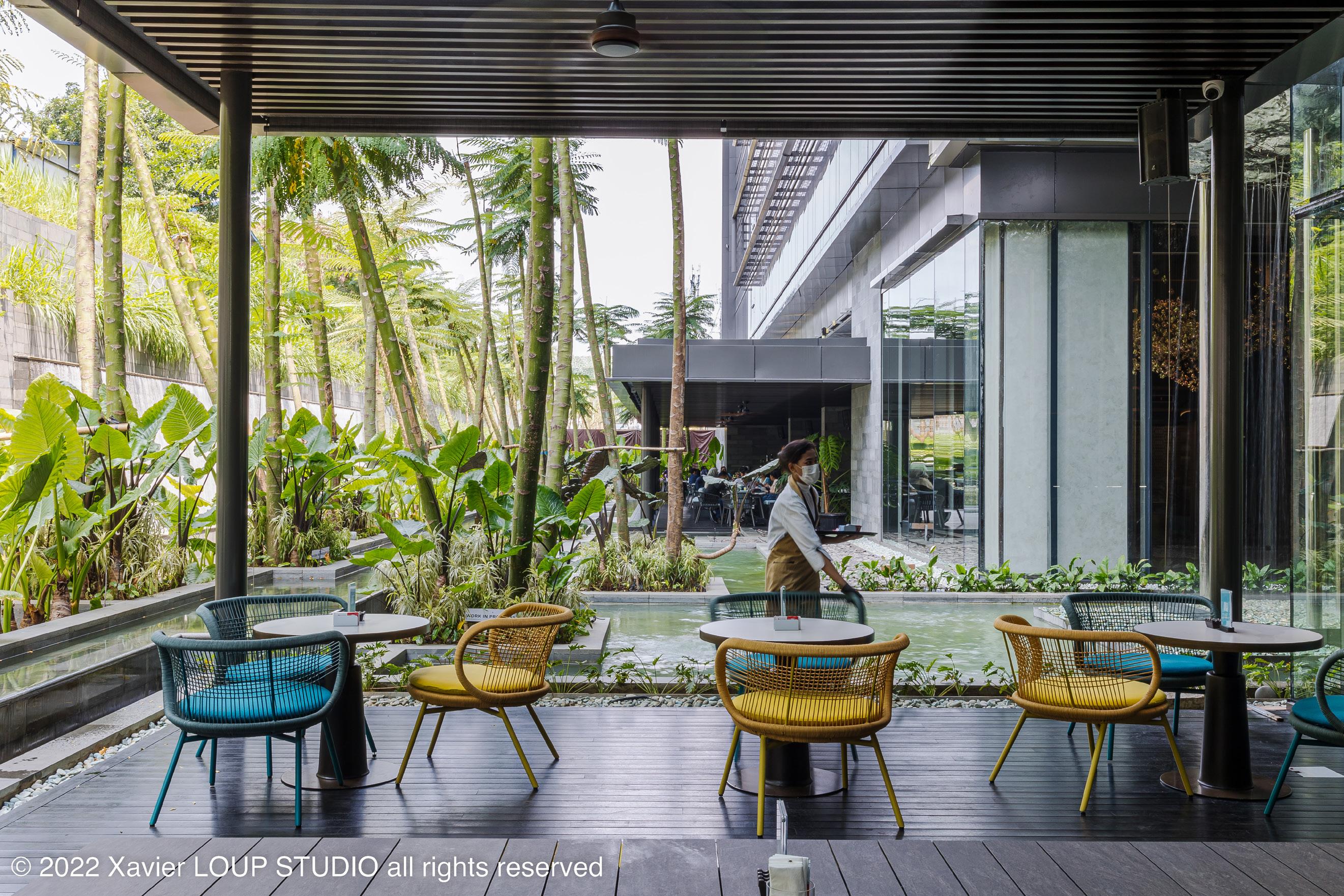

Location
Furniture
Quantity
Dimension Material
Semi outdoor

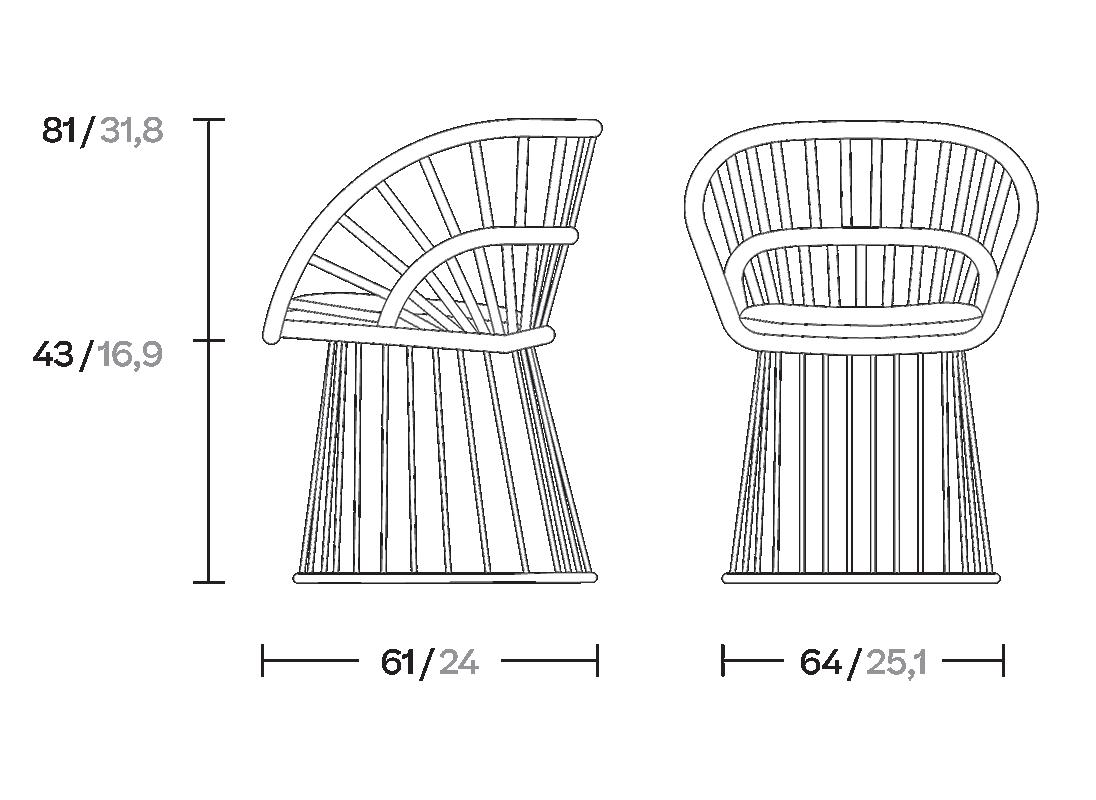

Cala Alu Legs Dining Chair - KETTAL
25 pcs
w (64cm)
l (61cm)
h (81cm)
Legs & Bucket (alumunium with terrain paint) in Aquamarine 107
Seats & Back Cushion in Caribbean Laminate 298
Rope in Romantika

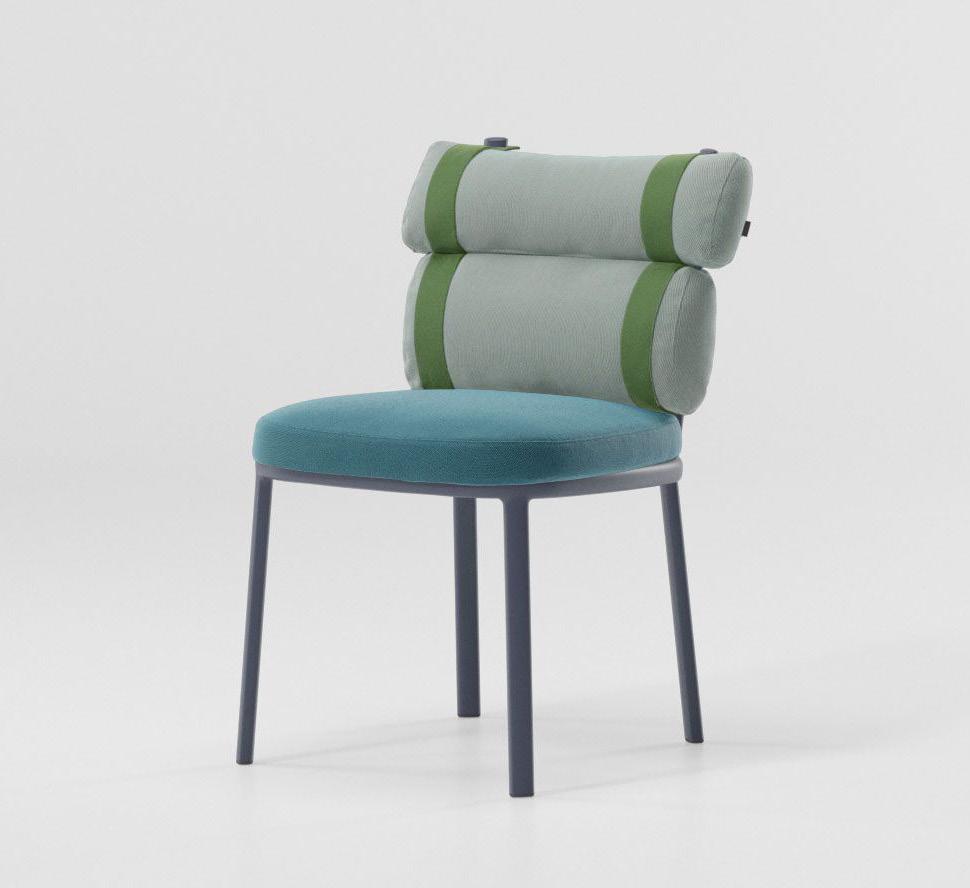

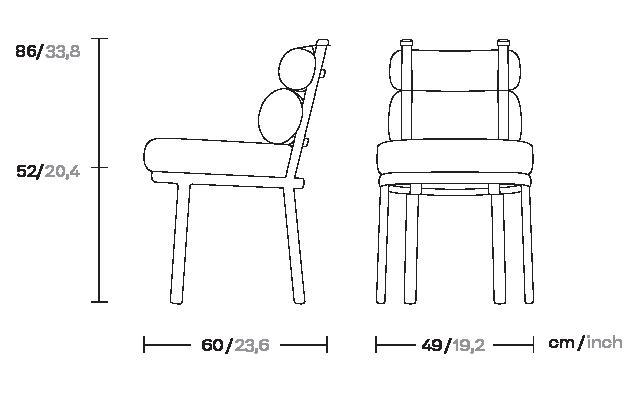

Location
Furniture
Quantity
Dimension
Material Semi outdoor - KETTAL
25 pcs
w (60cm)
l (49cm)
h (86cm)
Structure (alumunium with terrain paint) - Aquamarine
Seat & Roll Cushion - Caribbean Laminate 298
Strap - Green Stripe 039

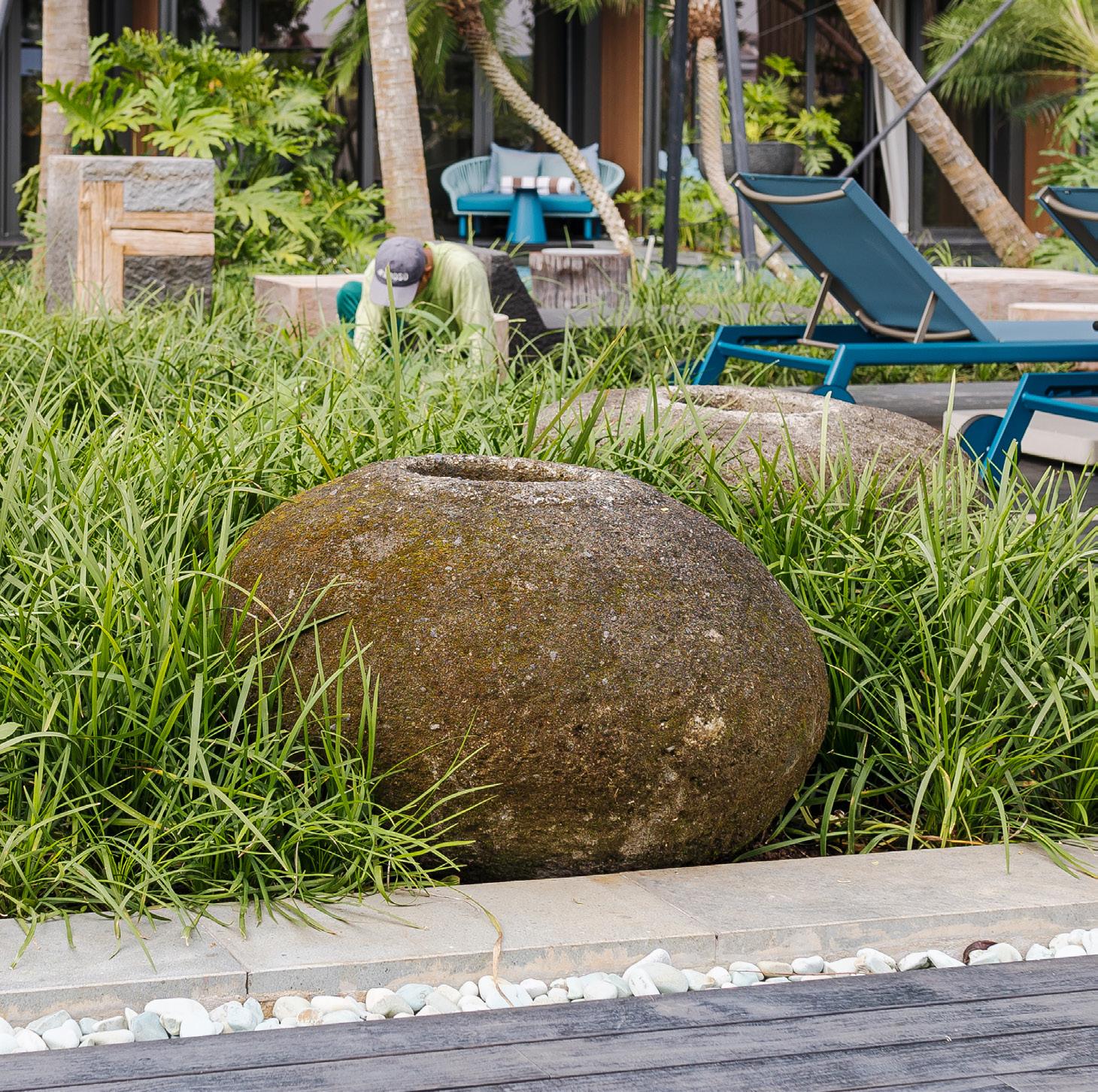

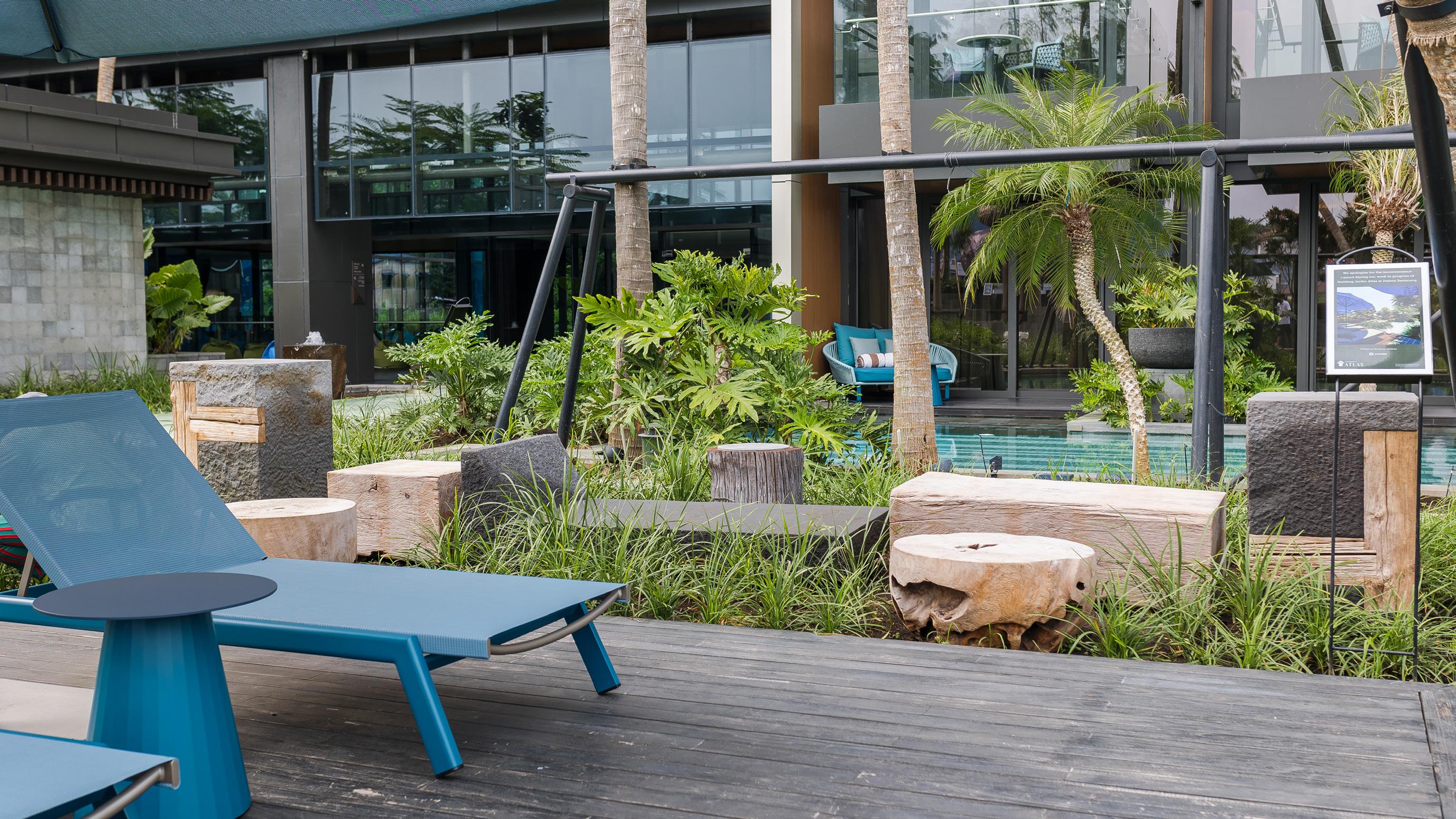

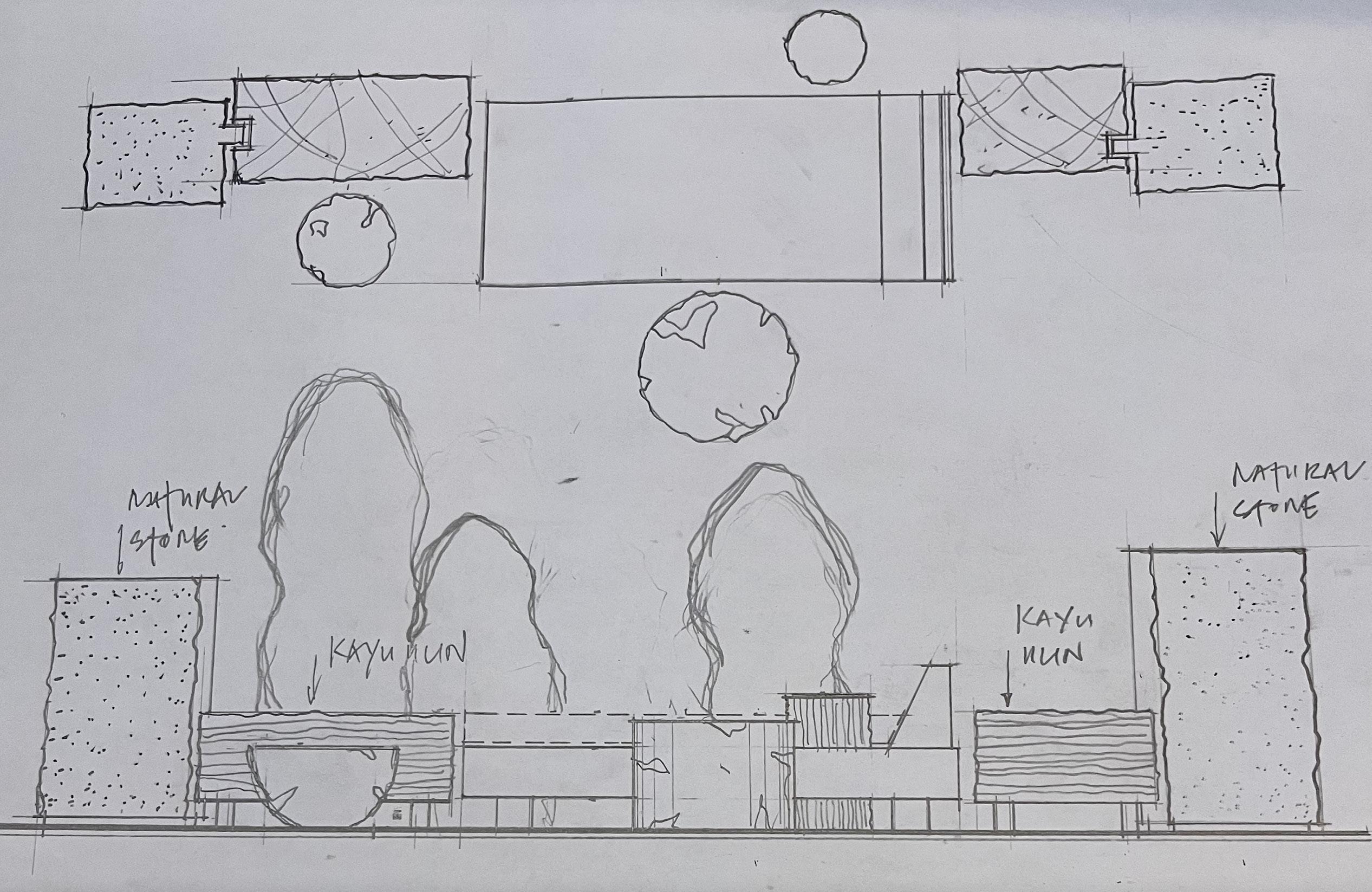

NATURAL ACCENT
A Organic Long Bench
Ulin Coffee Table ( 1set)
Organic Ulin Coffee Table
Organic Pedestal
Organic Wall Art

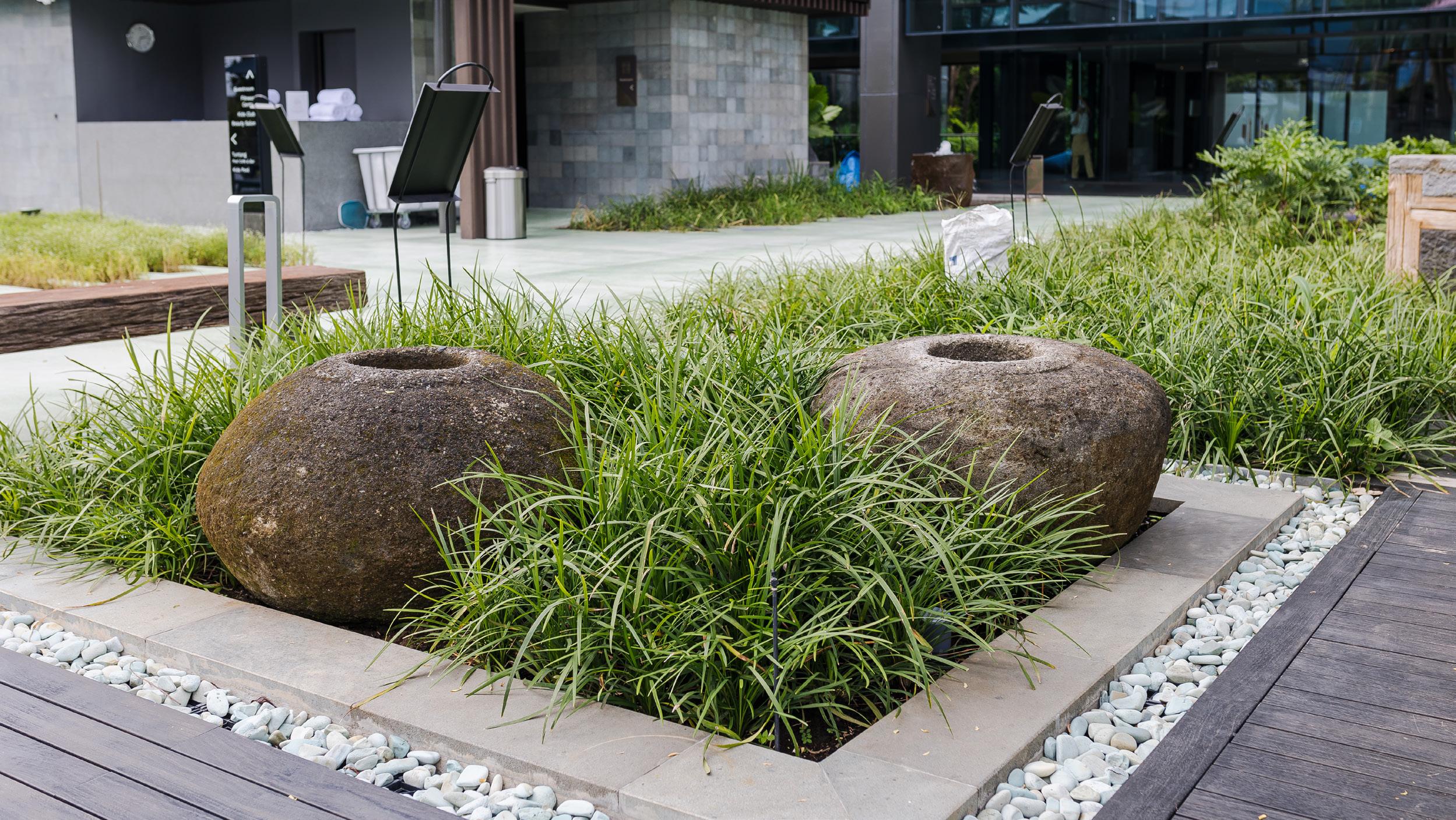

Stone Sculpture
Stone Candleholder
Stone Bench
Natural Stone

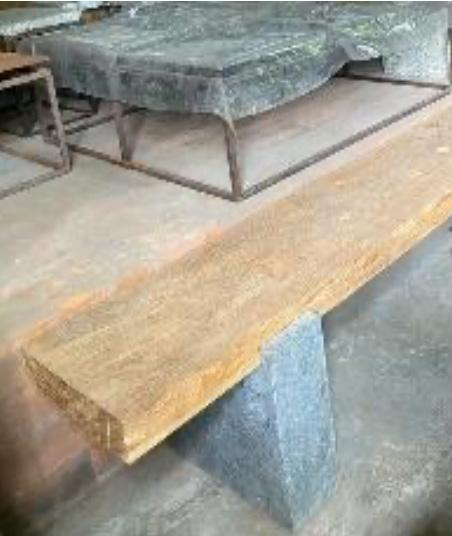

Ulin Bench
Organic Teakroot Table
Organic Side table
Stone Decorative Pots
Big Organic Coffe Table
Stool Chair
NATURAL ACCENT - 1ST FLOOR
Location
Furniture
Quantity
Dimension
Outdoor & Semi Outdoor1st floor
5 pcs w ( 36cm)
l (250 - 450cm)
h ( 42cm)
Material
Maverick Lee Studio
Teakwood with Belgium Bluestone

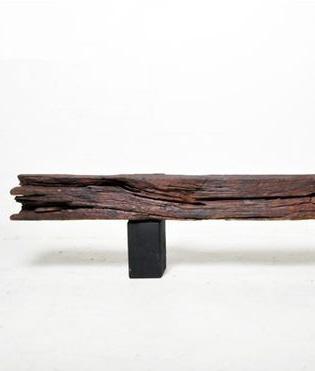

NATURAL ACCENT LONG BENCH (A1,A2,A3,A4)
Location
Furniture
Quantity Dimension
2 Set (4 pcs)
w ( 80cm)
l (90cm)
h ( 32cm)
Ulin Wood
Location
Maverick Lee Studio
10 pcs
dia (45- 56cm)
h ( 38cm)
Ulin Wood
NATURAL ACCENT

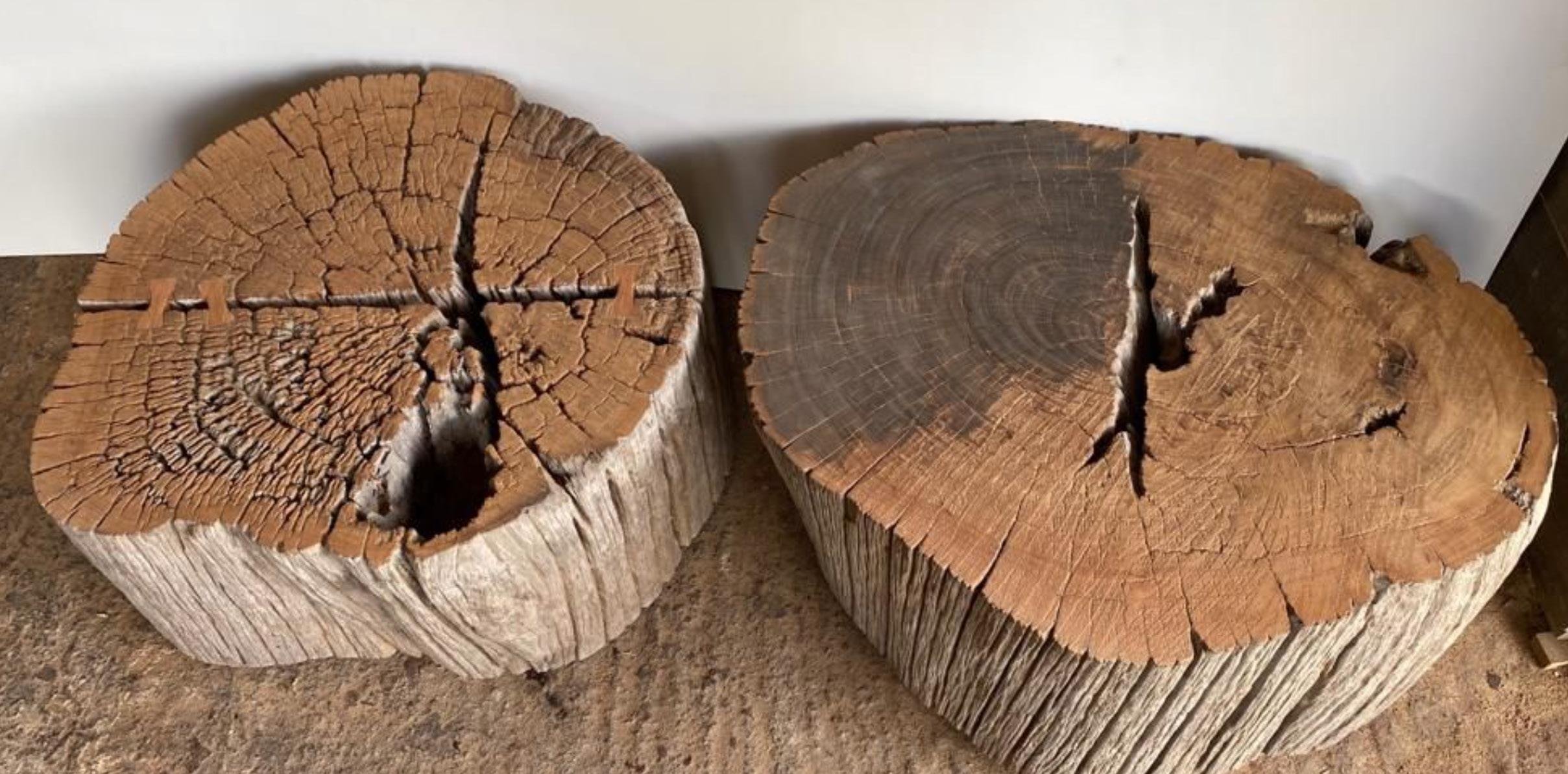

ULIN COFFEE TABLE ( B)

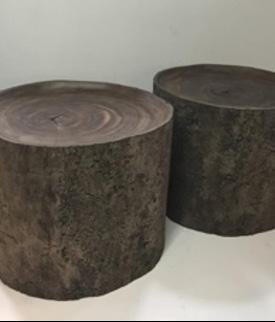

NATURAL ACCENT
ORGANIC ULIN COFFEE TABLE (C1,C2)
Location
Furniture
Quantity
3 pcs
dia (35cm)
h ( 95cm)
Ulin Wood
Location
Furniture
NATURAL ACCENT ORGANIC PEDESTAL (D)
NATURAL ACCENT STONE CANDLE HOLDER (G)
NATURAL ACCENT ORGANIC WALL-ART(E)
Location
Furniture
Quantity
Dimension
Material
Maverick
Teakroot
NATURAL ACCENT
STONE SCULPTURE WITH STONE BASE (F)
Location
Furniture
Quantity
Dimension
1 pcs
w ( 83.2cm)
l (201cm)
h ( 68.8cm)
River stone
Outdoor Main Pool
Maverick Lee Studio

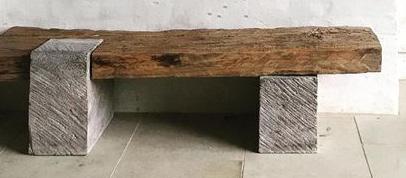

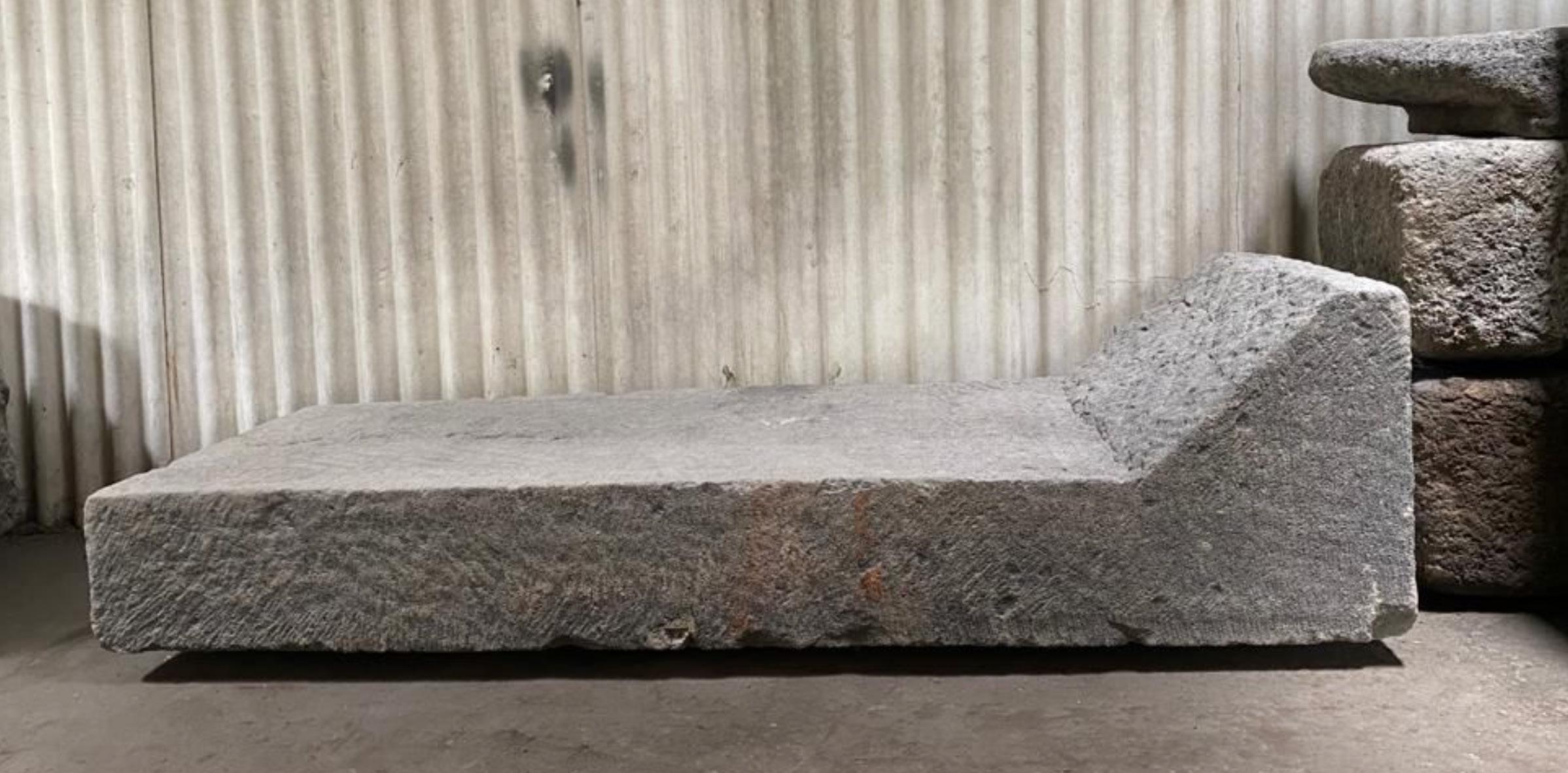

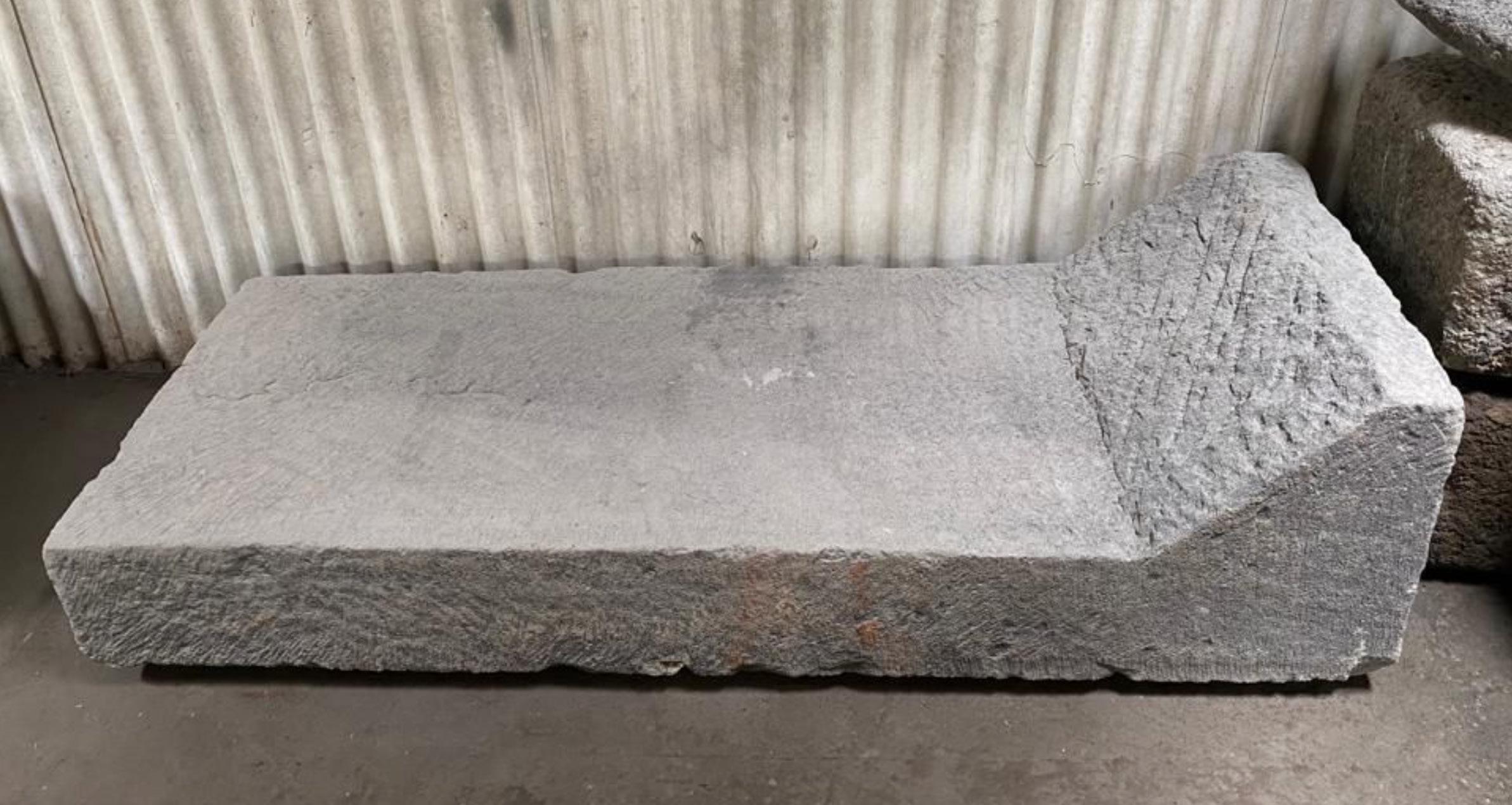

NATURAL ACCENT STONE BENCH (I)
NATURAL ACCENT NATURAL STONE BLOCK WITH WOOD INLAY (J1,J2)
Location
Furniture Quantity
Outdoor 1st floor
Maverick Lee Studio 2 pcs w ( 50-60cm) h ( 75-90cm)
NATURAL ACCENT
ULIN BENCH (K1,K2)
Location
Location
Outdoor Main Pool
Maverick Lee Studio
2 pcs
l (201cm)
h ( 68.8cm)
Teak Root
Location Furniture Quantity
Outdoor 1st floor
Maverick Lee Studio
1 pcs
dia ( 48cm) h ( 45cm)
NATURAL ACCENT

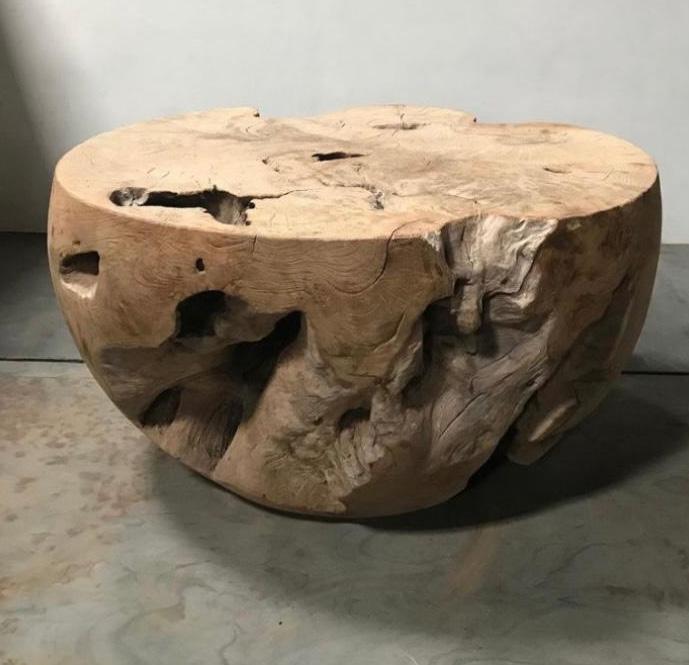

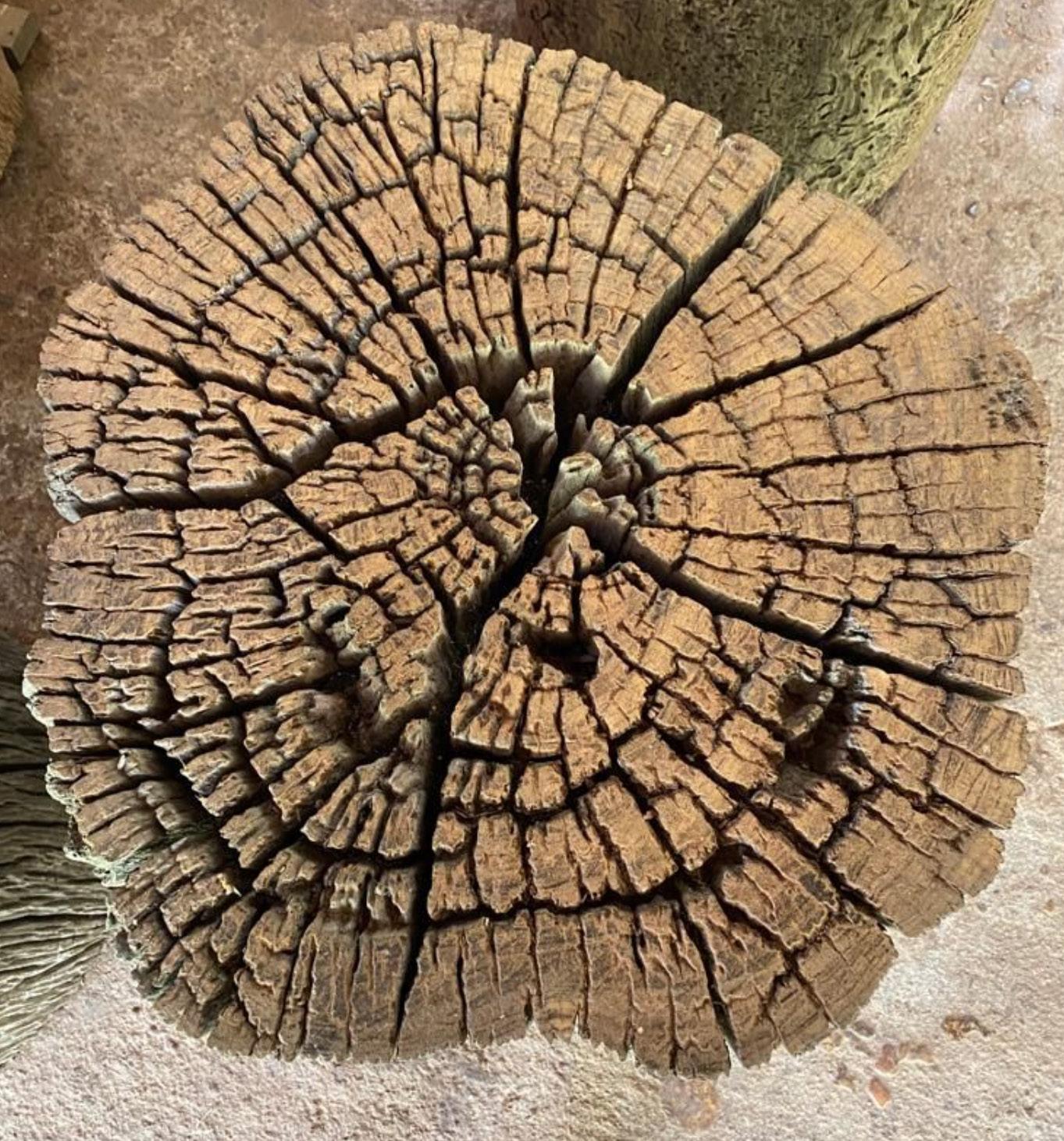

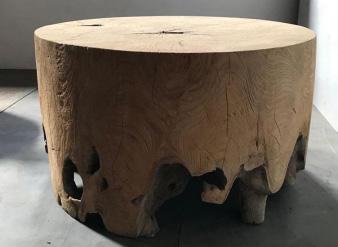

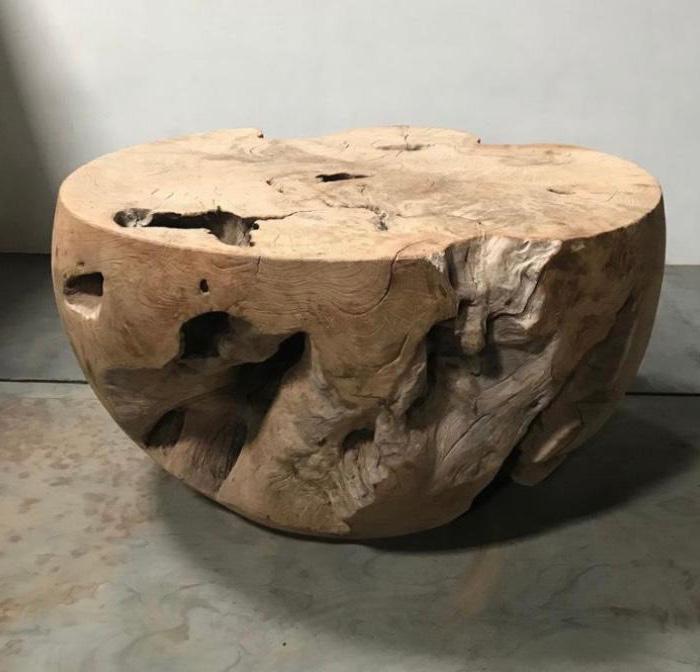

TEAKROOT COFFEE TABLE (L1,L2)
NATURAL ACCENT
ORGANIC KAYU ULIM SIDE TABLE WITH STONE INLAY (M)
Location
Furniture
Quantity
Dimension
w ( 60cm) l (60cm)
h ( 50cm)
Maverick Lee Studio
NATURAL
WOOD SIDE TABLE(O)
Location
Maverick

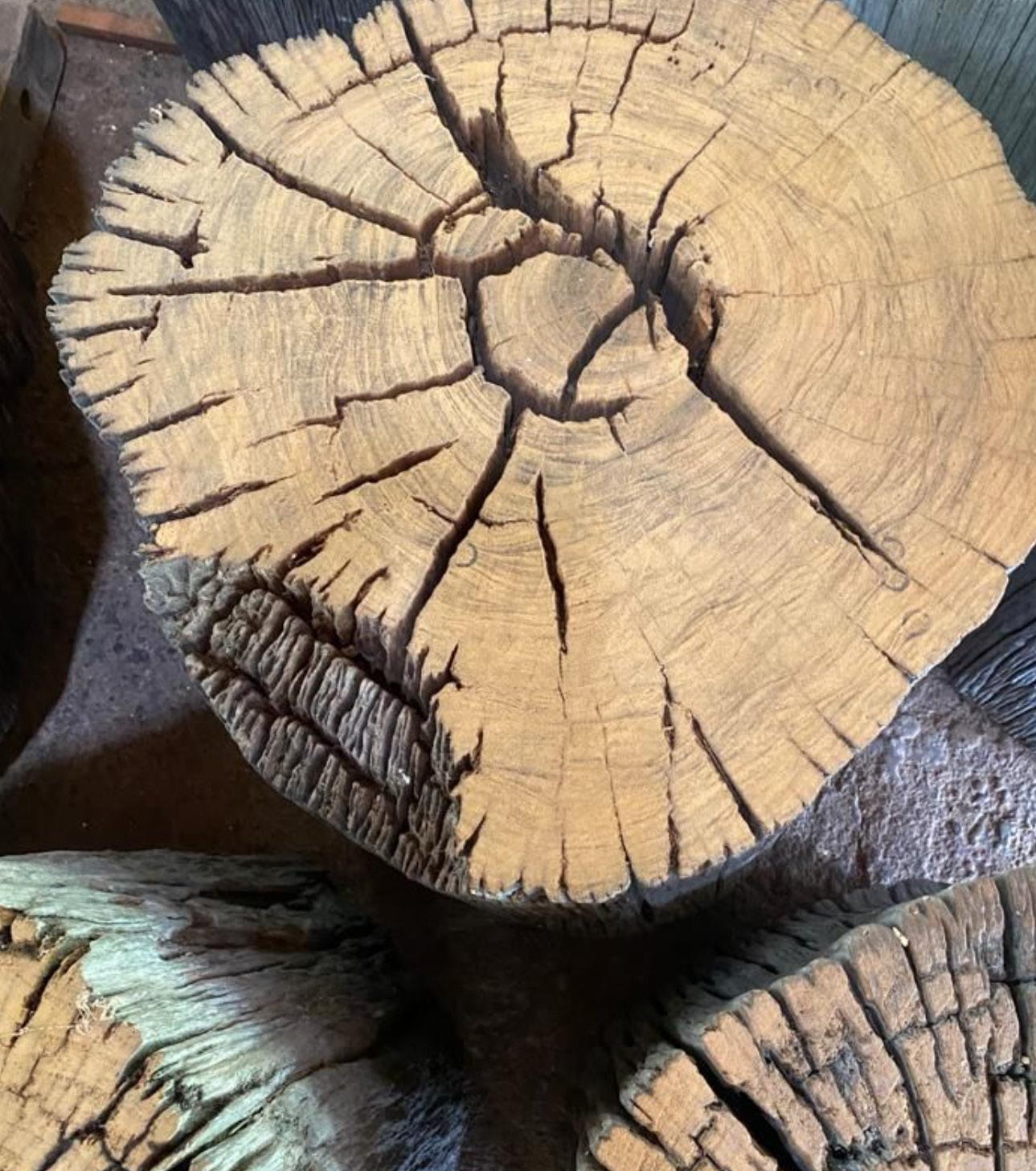

NATURAL ACCENT STOOL CHAIR (P)
ARTWORKS
BROMELIA SP
CYRTOSPERMA MERKUSI
GARDENIA CARINATA
PHILODENDRON BIPINNATIFIDUM 3NOS/GROUP
GARCINIA SUBELLIPTICA (CYLINDER) MILINGTONIA HORTENSIS 3NOS/GROUP
ARTWORKS AREA LAYOUT
Name
Artist
Location
Quantity
Dimension
Material
Color
Finishing
Concept

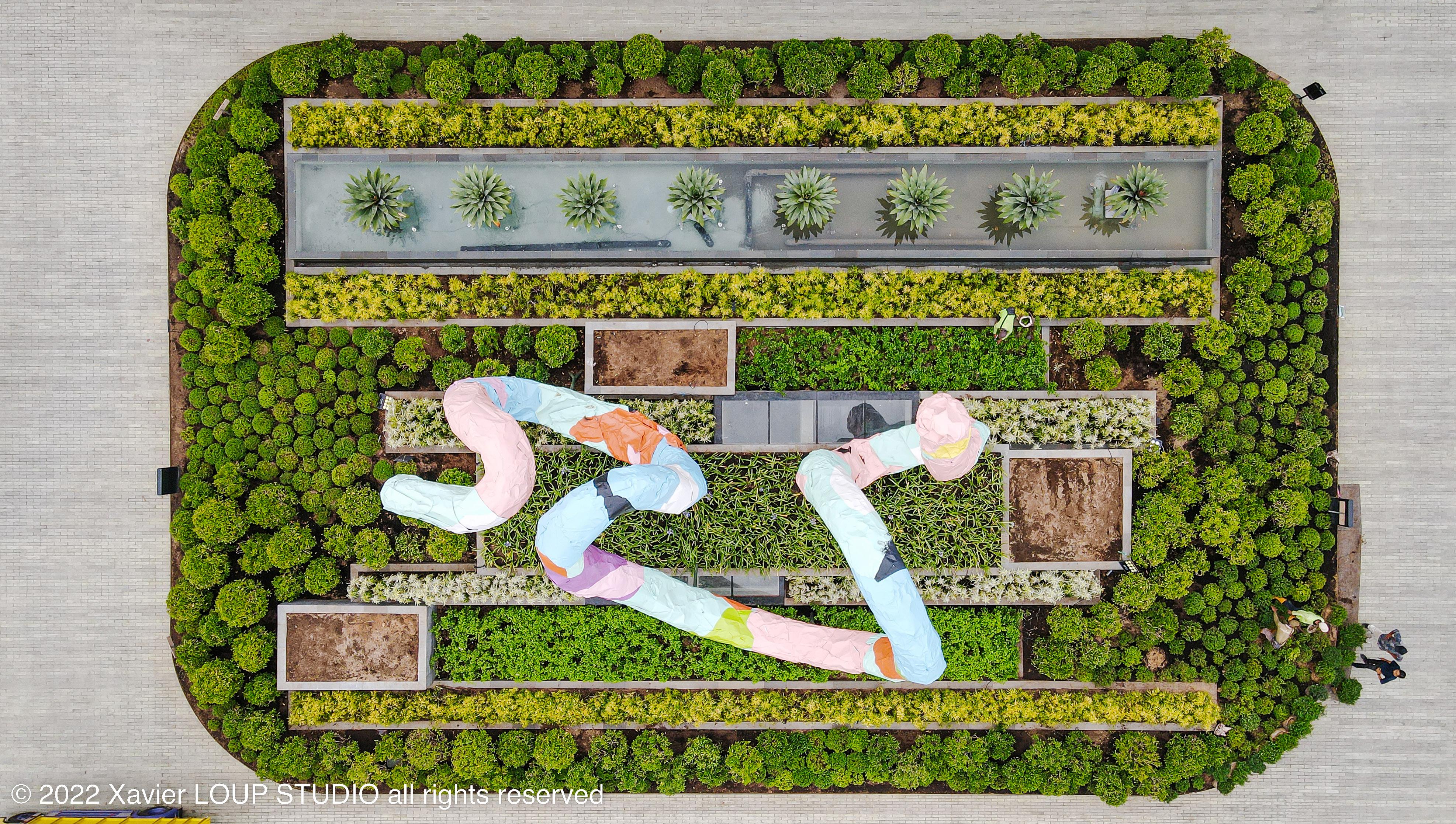

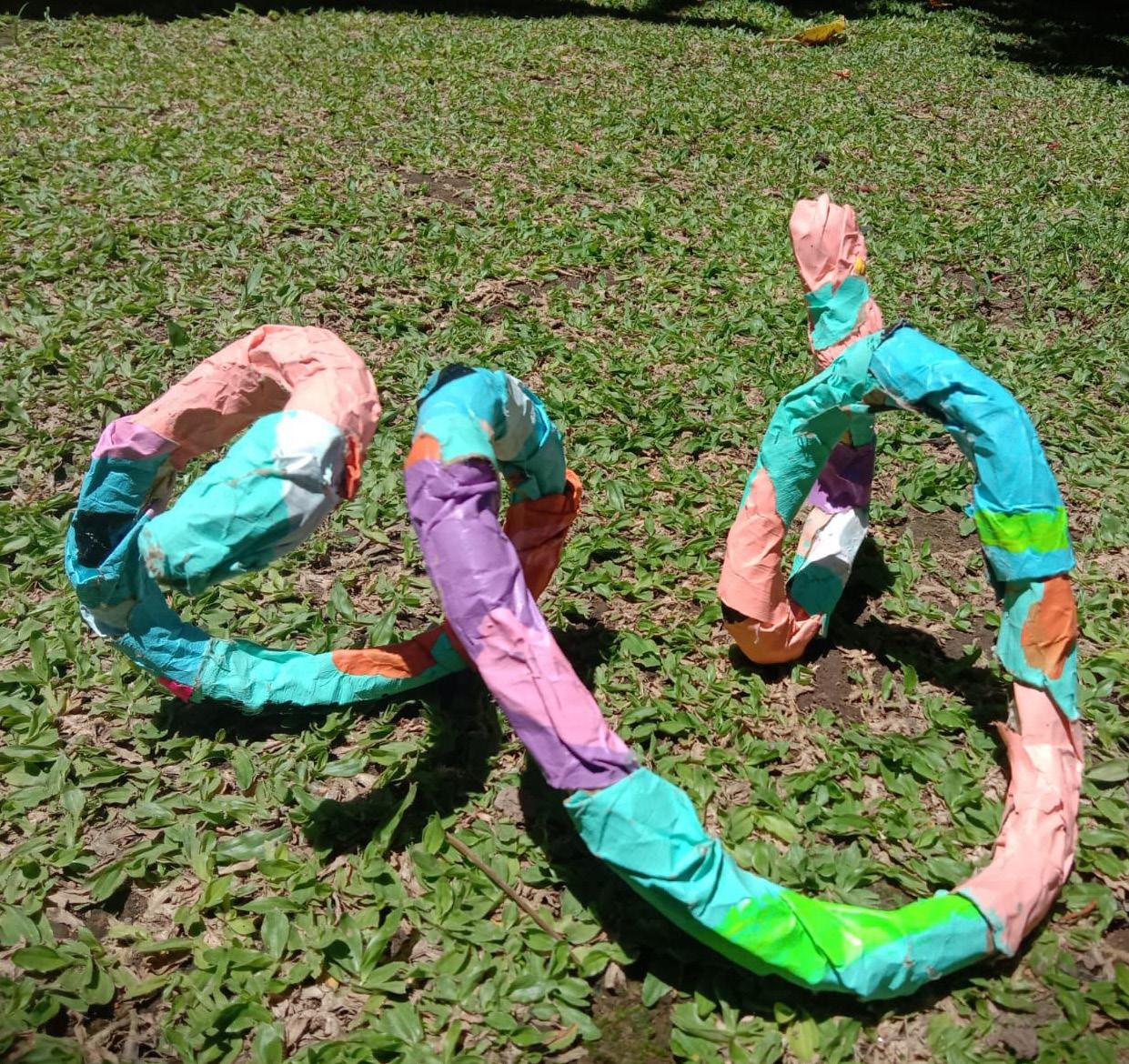

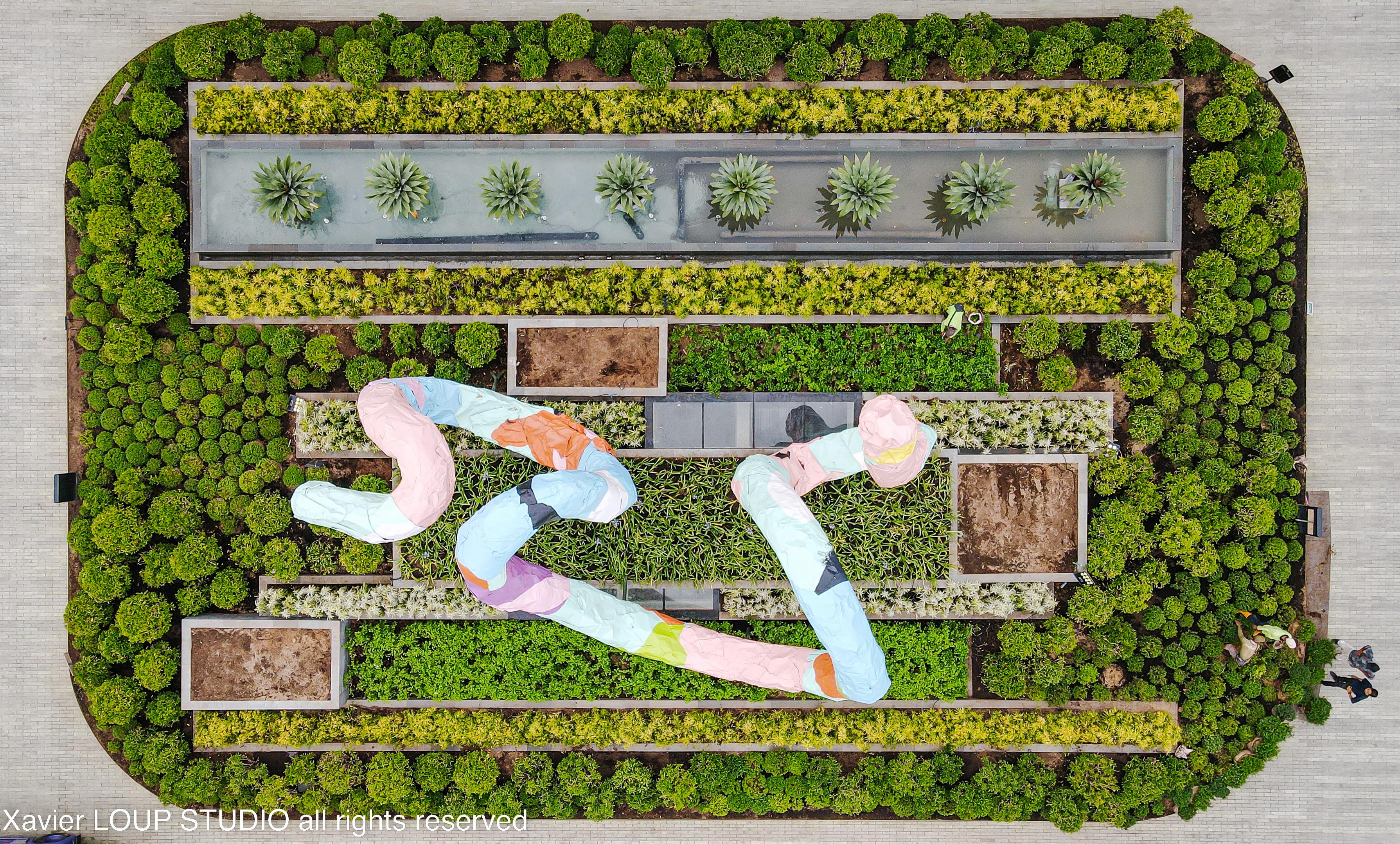

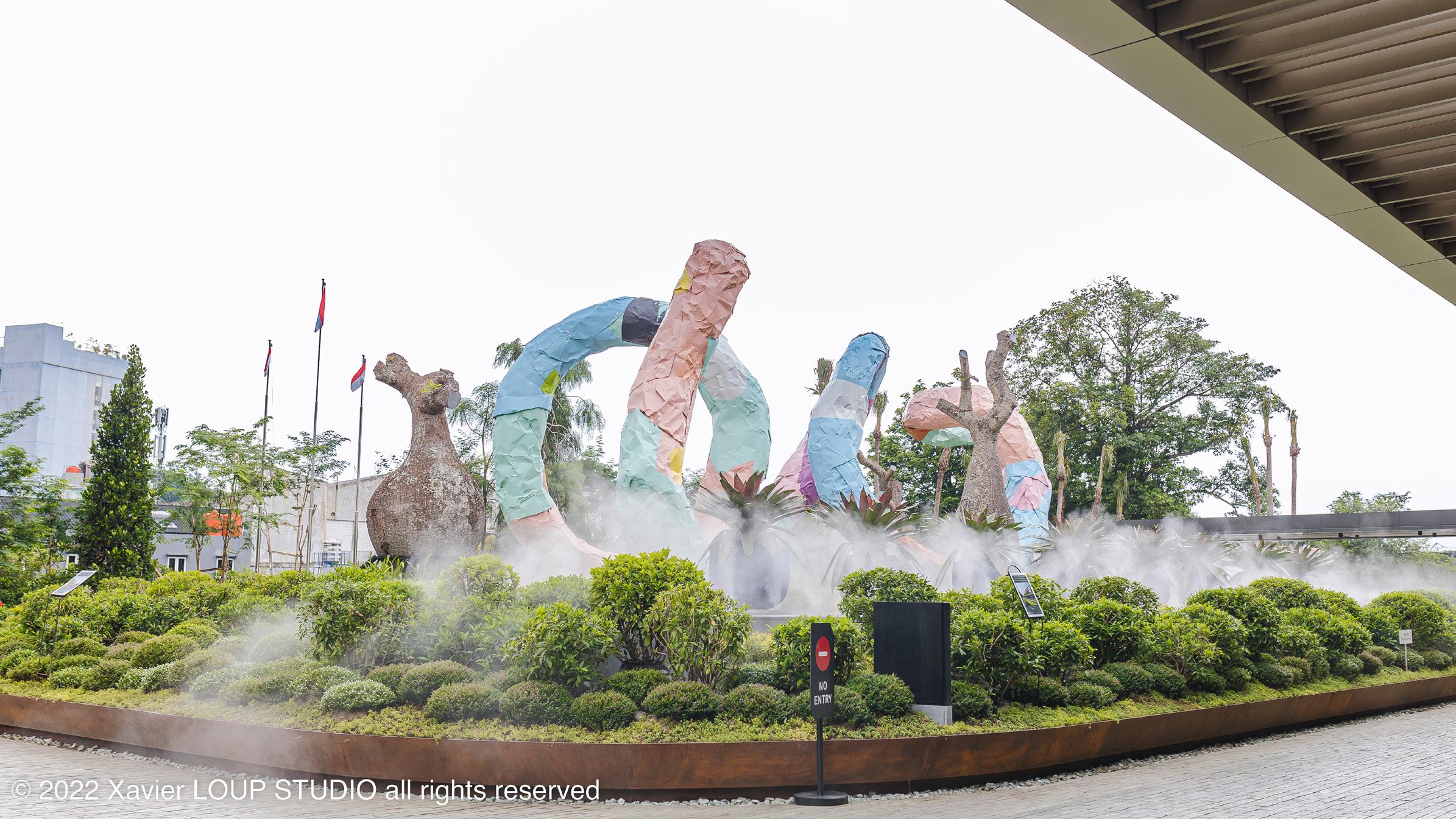

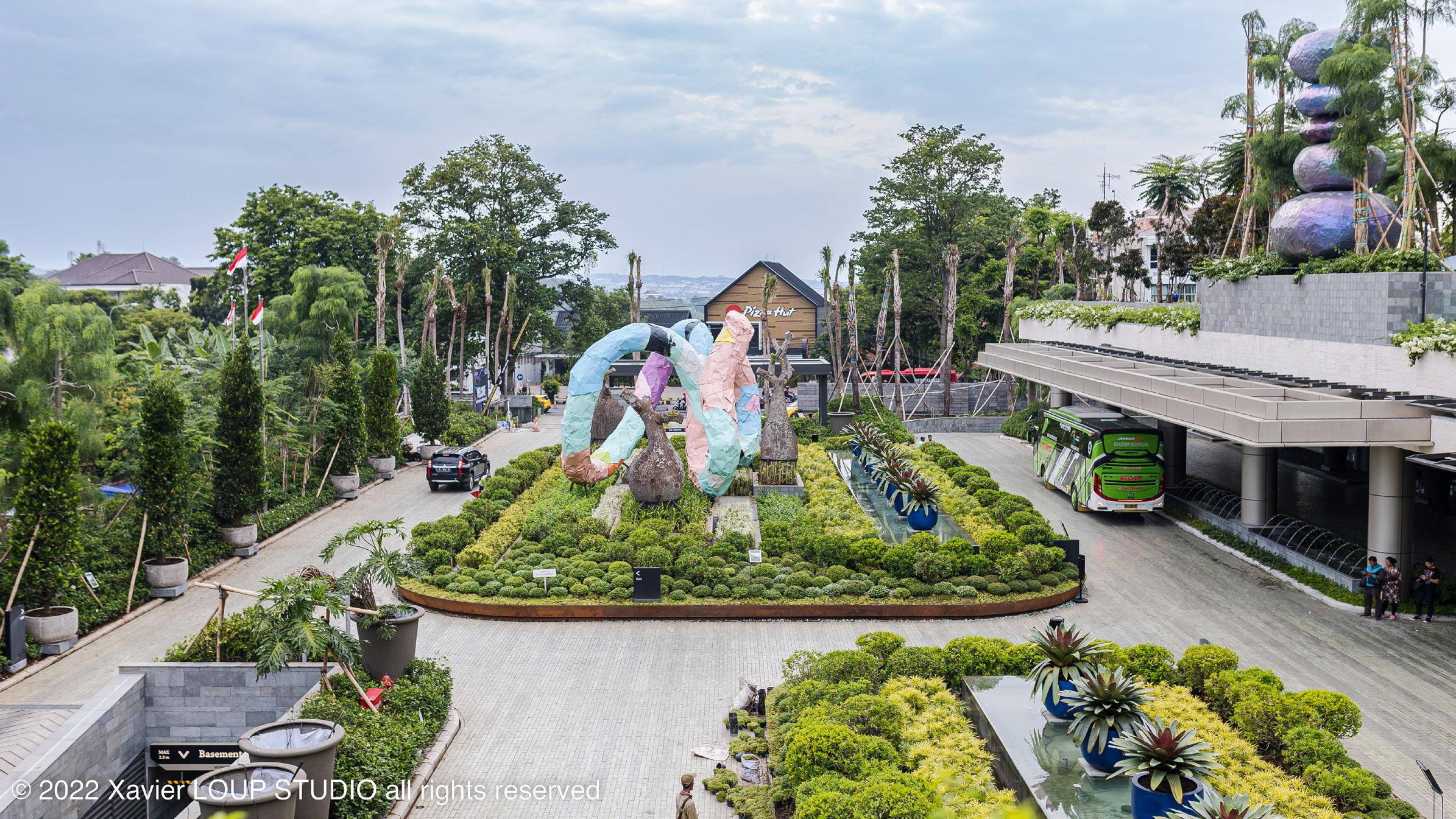

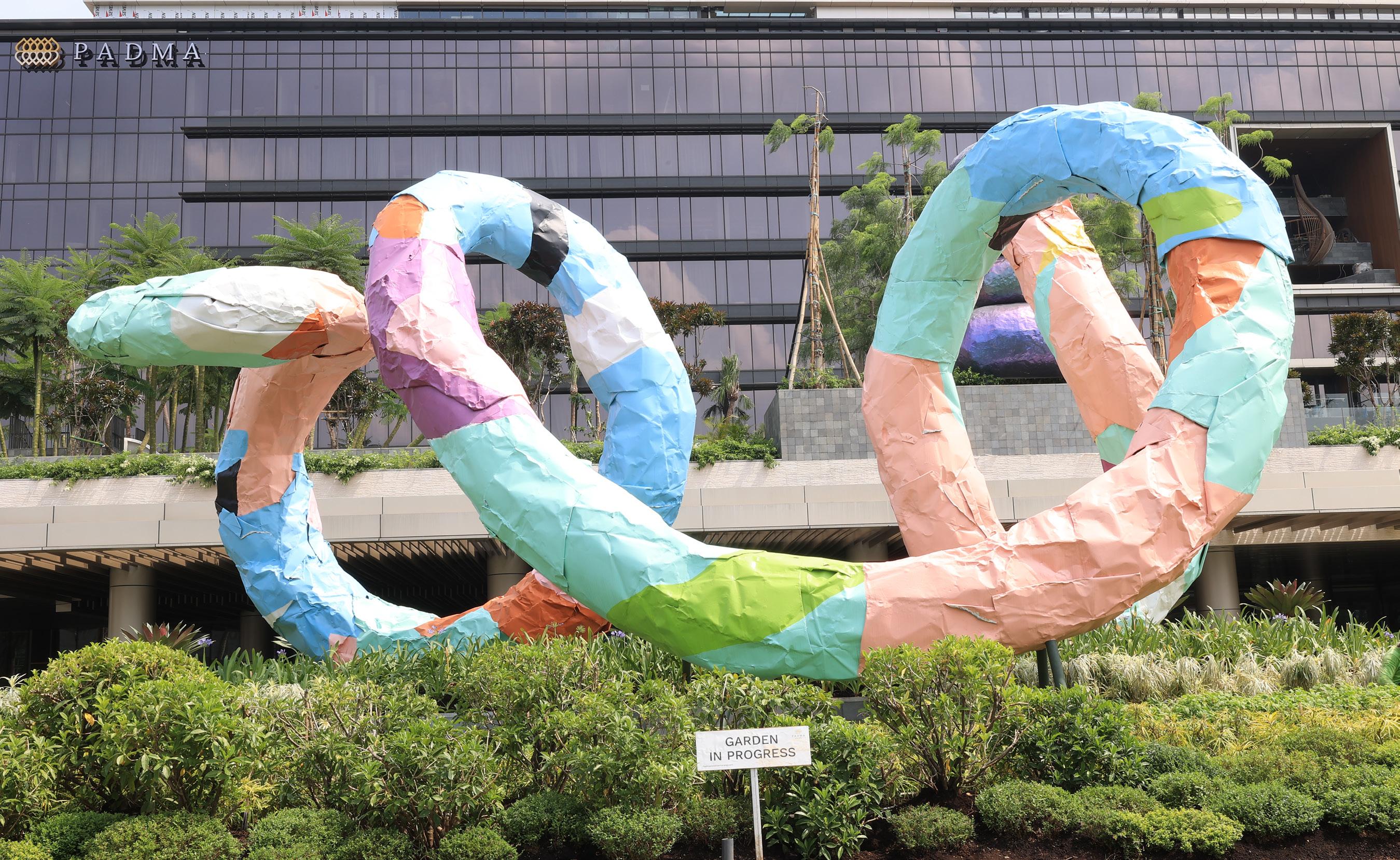

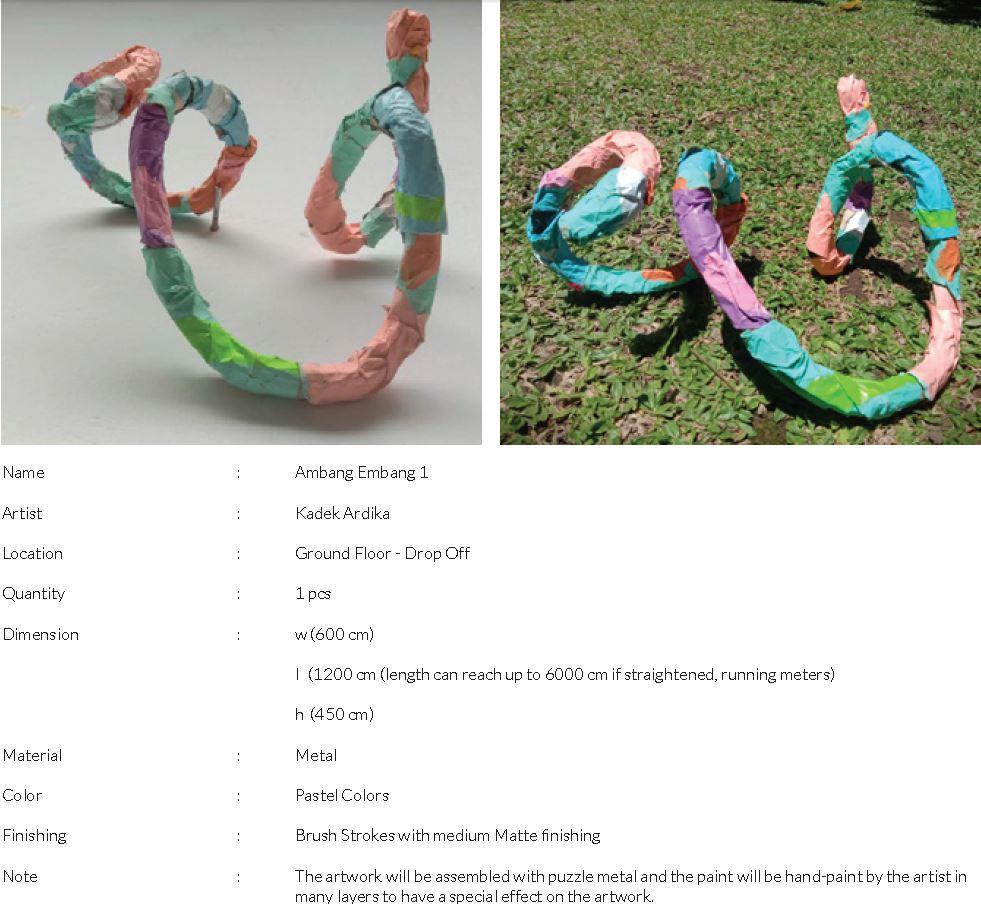

Ambang Embang 1
Kadek Ardika
Ground Floor - Drop Off
1 pcs
w (600 cm)
l (1200 cm (length can reach up to 6000 cm if straightened, running meters)
h (450 cm)
Metal
Pastel Colors
Brush Strokes with medium Matte finishing
Ambang (threshold) literally means something that is in between empty space. Embang is a place that has been intentionally left vacant. So Ambang-Embang in this context has the meaning of a space that is intentionally left blank, it is a space not a place, neither here nor there and not an entity that can be simply pointed at, something that is always moving towards and not as an arrival. In the context of this artwork, visually the presence of form does not present a concrete form that can be pointed out, but an absurd form that is used as a bridge to understand the emptiness or absence.
The artist in this context is inspired by Balinese Hindu customs, culture or religion, in the sense that the concreteness of entrenched traditional ceremonies wrapped in a belief is essentially a way to believe in that emptiness or nothingness. By believing in the law of KARMA (the result of actions) with that means that we live and do not fully for the current space but we live in spaces of nothingness or empty spaces that we fully know that we build as a form of belief.
Similarly, the symbol of PADMA as a symbol of the holiness of God (nothingness) and the meaning of the essence of Padma is represented by flowers, and flowers are a means of prayer activities in faith. So Ambang-Embang can be analogized as a flower that aesthetically has a beautiful shape in a concrete space, and only the scent of flowers is able to deliver prayer in an empty space to embrace that nothingness, so it can be said that physical form (existence) is a bridge to understand essential non-physical or non-existent which we call belief.
Name
Artist
Location
Quantity
Dimension
Material
Color
Finishing
Concept

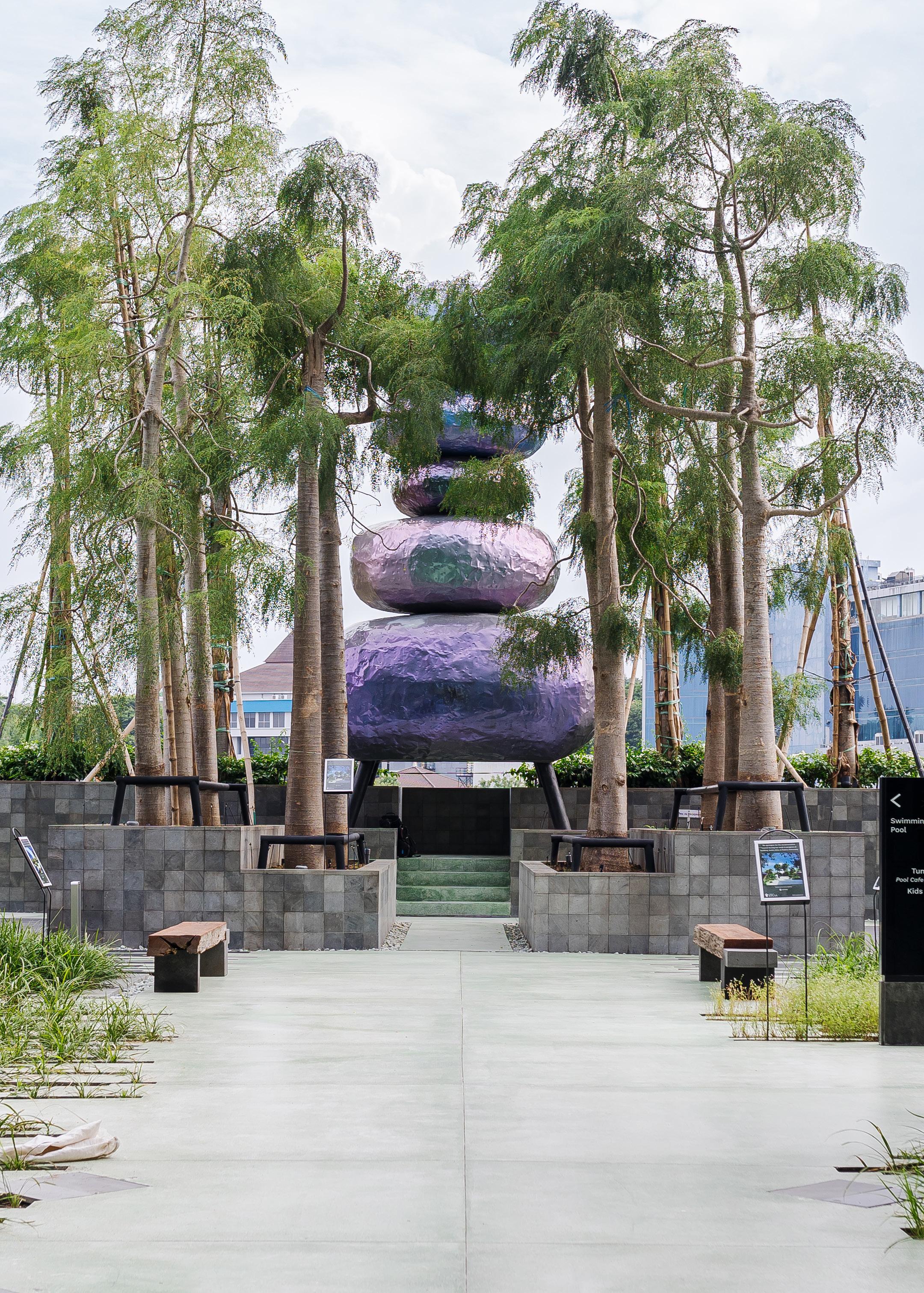

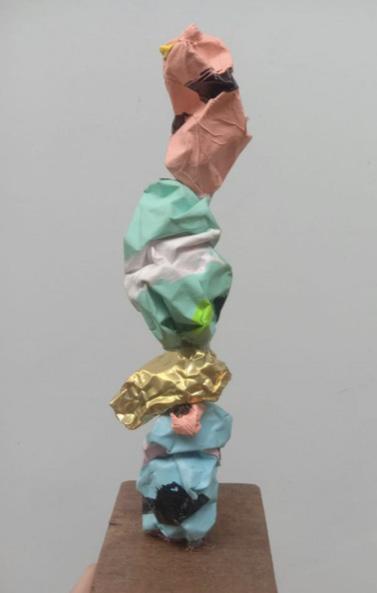

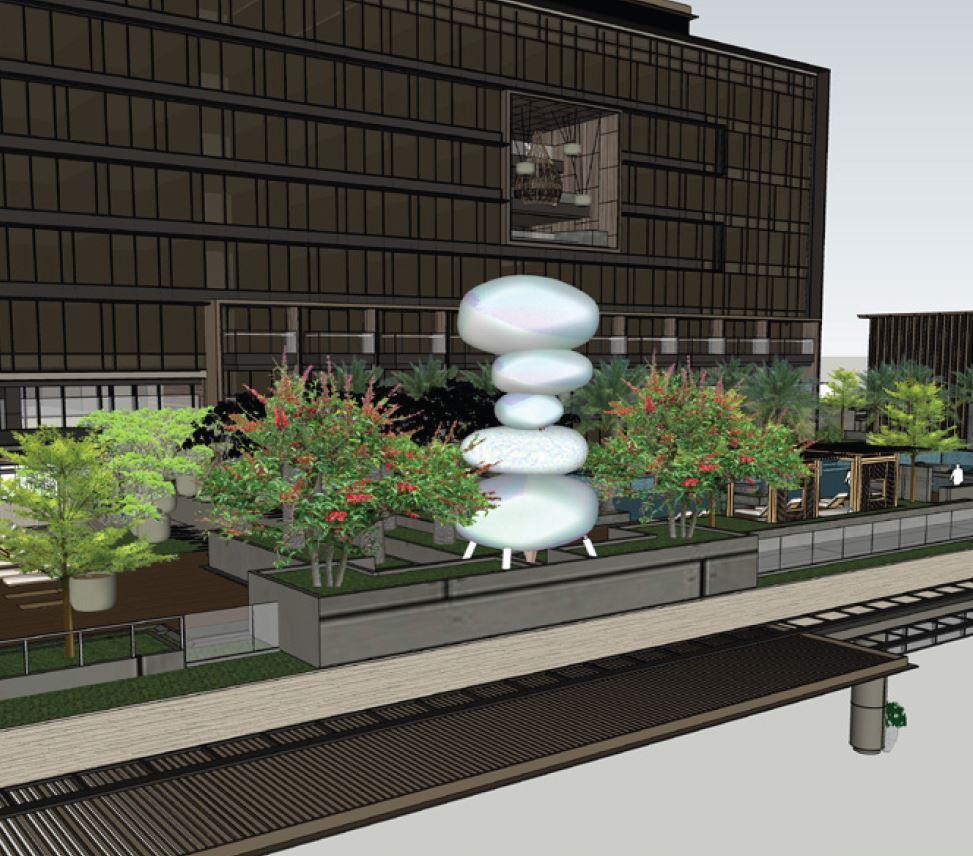

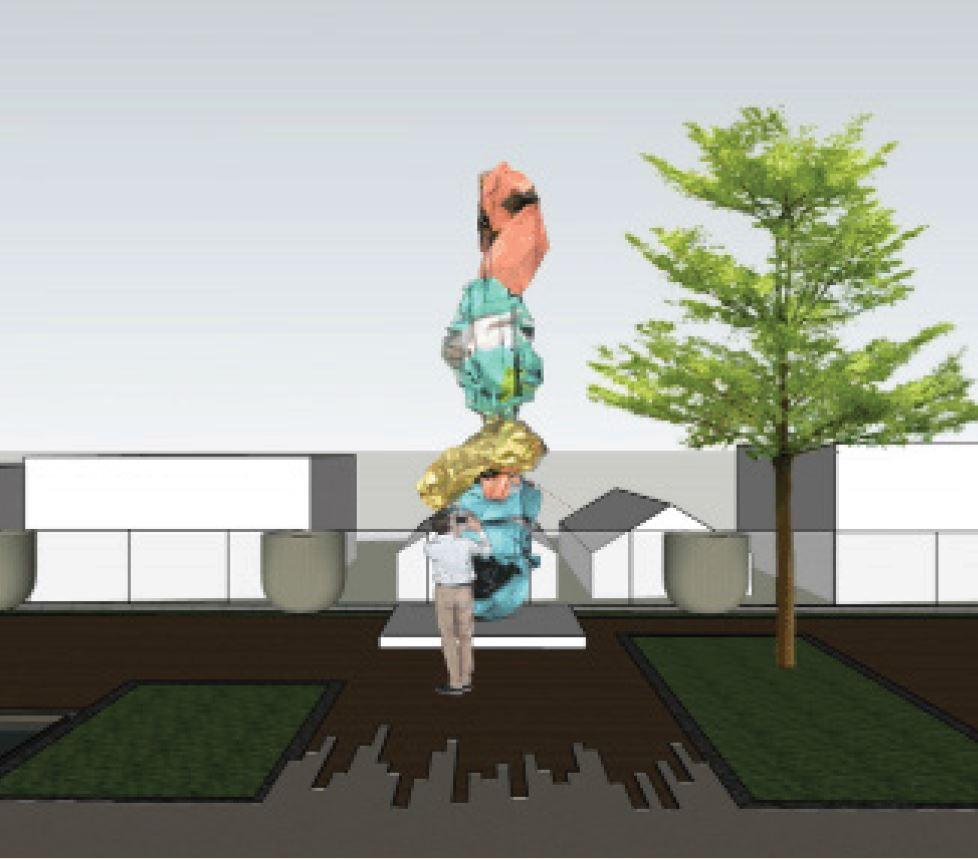

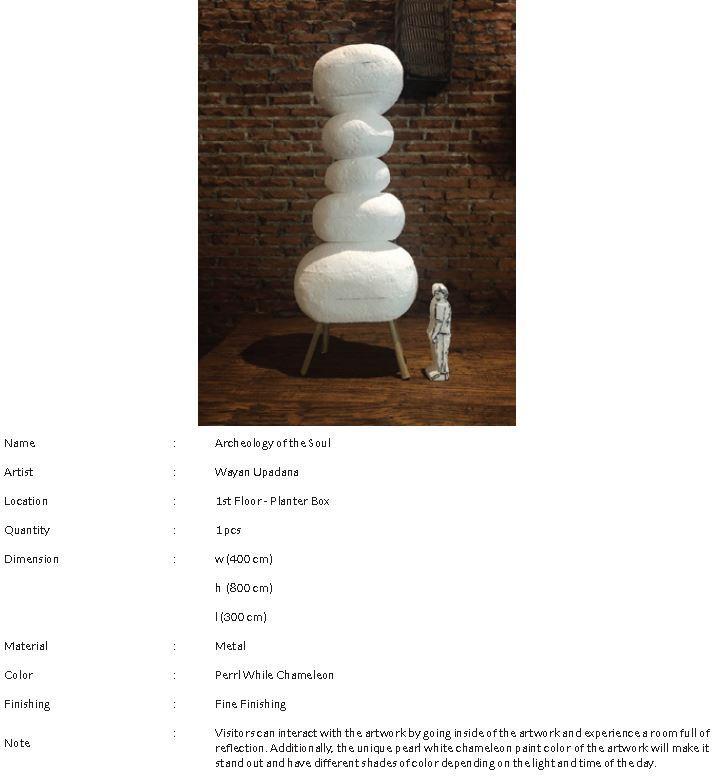

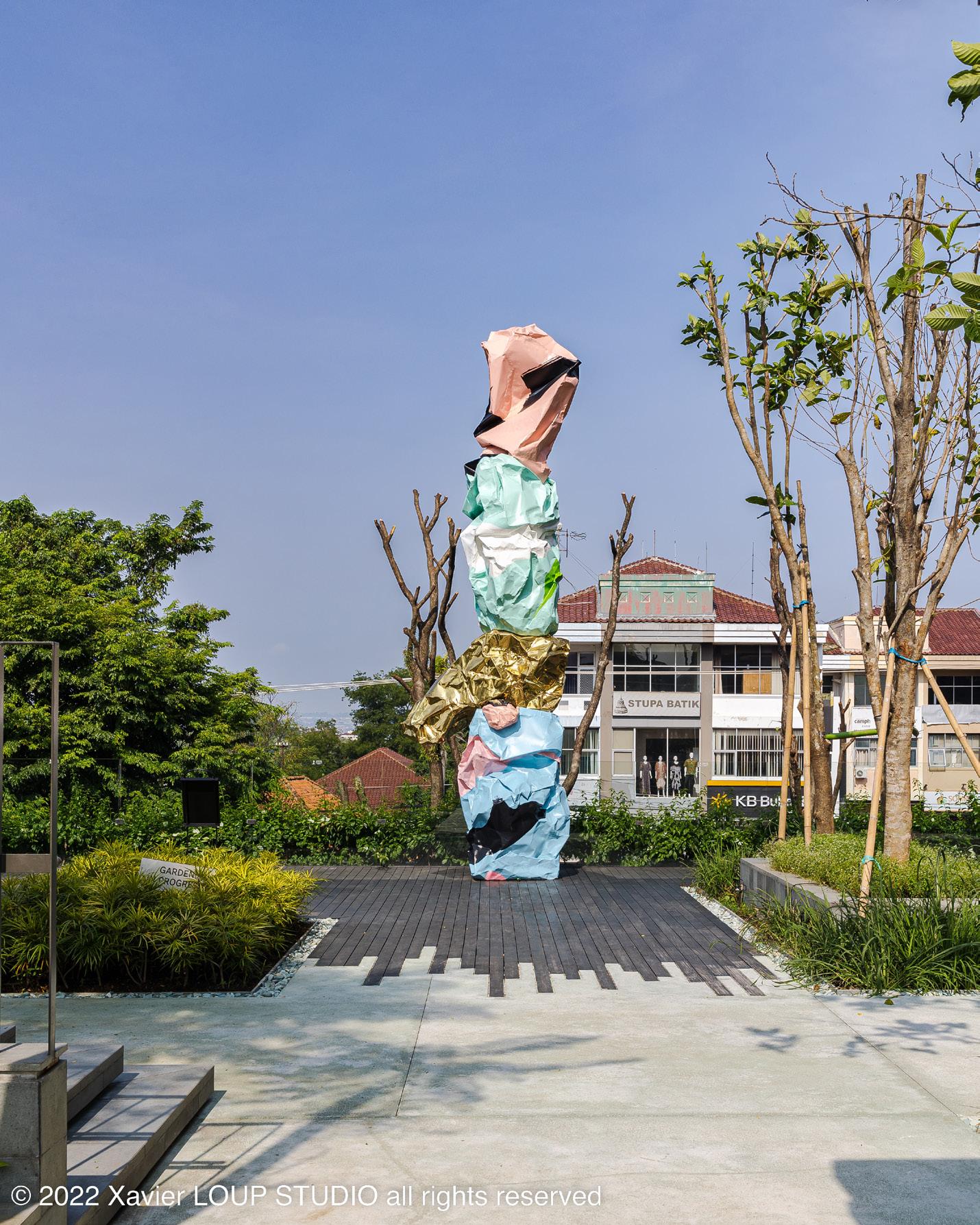

Archeology of the Soul
Wayan Upadana

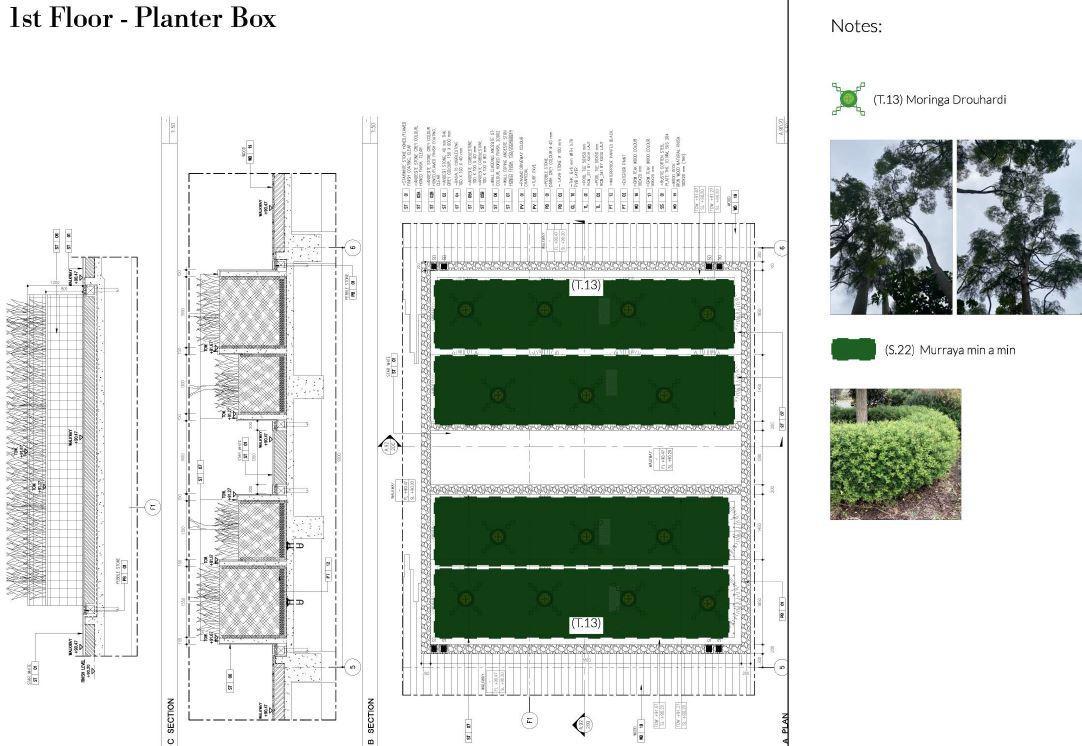

1st Floor - Planter Box
1 pcs
w (400 cm)
h (800 cm)
l (300 cm)
Metal
Perrl While Chameleon
Fine Finishing
This artwork was inspired by the shape of the stone arranged in such a way like a pagoda or Meru (a sacred building in Bali), in Semarang itself we can find a pagoda that stands majestically, namely the Avalokitesvara Buddhagaya Watugong Pagoda, which is about 12 km from the city center of Semarang, or about 9 km from Hotel Padma Semarang. The name Watugong apparently comes from a stone shaped like a gong. The stone is now placed in the Vihara. the origin of the Watugong turns out to have two versions. that is, from the perspective of the Javanese chronicle and the Buddhists
Based on the book Babad Tanah Jawa, Watugong was discovered by Sunan Kalijaga. “In this version Watugong was found when Sunan Kalijaga was on a journey to find soko guru (the pillar of the teacher).”
According to another version, the inventor was Goei Thwan Ling, a wealthy man. He was the owner of the land that now stands at Watugong Buddhist Temple. “Goei Thwan Ling is the inventor of the second version. Then the Watugong Vihara was built.
This is very interesting for me as a stimulant in creating this artwork. Besides that, we can also interact with this artwork, by entering at the bottom of the artwork there is a room with an infinity mirror and a hole that goes through to the top, where we can also see the sky from inside the statue and the light coming from above is expected to give a certain effect. So the audience is expected to feel a certain atmosphere when entering the artwork.
Archeology of the Soul is the excavation of the consciousness of the soul, the true Self. The soul here is described as a stacked stone, balanced, still and silent. Where in the Soul itself there is a space to recognize the Self. This artwork is expected to give an artistic, monumental, contrasting impression as well as blend with the surrounding environment, interactive, dynamic and also contemplative.
Name
Artist
Location
Quantity
Dimension
Material
Color
Finishing
Concept

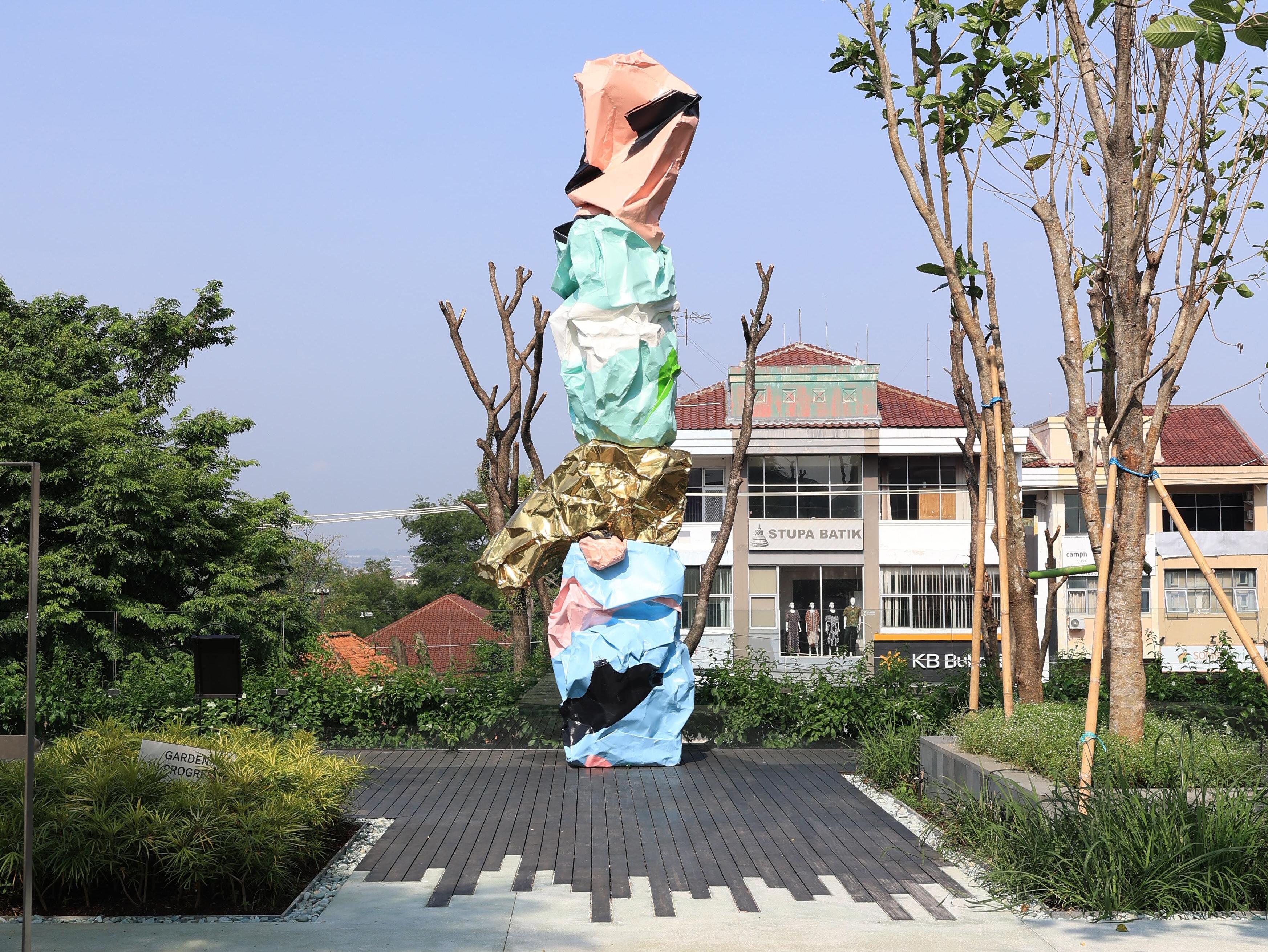

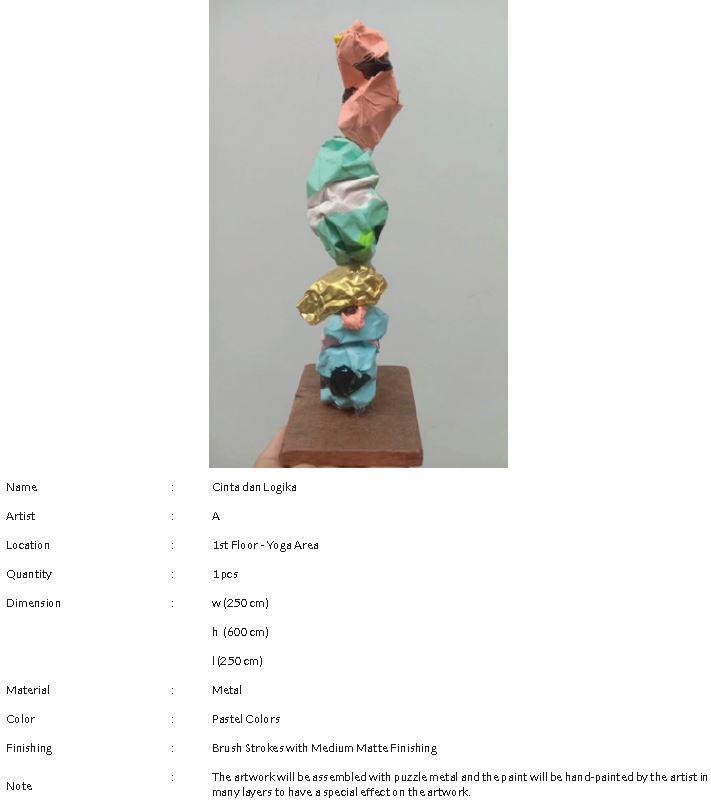

Cinta dan Logika
Kadek Ardika
1st Floor - Yoga Area
1 pcs
w (250 cm)
h (600 cm)
l (250 cm)
Metal
Pastel Colors
Brush Strokes with Medium Matte Finishing
Love and logic are two areas that will always fill the spaces of human life, where the two spaces will always touch each other and be turbulent and do not rule out colliding with each other in the process of perfecting a life for each individual, both spiritual and spiritual life. material.
Love has an area of love, as a form of sacrifice, service, something that is unconditional (a liberating value). Meanwhile, logic is a reasoning skill and an attempt to establish measures to separate valid and invalid conclusions (true or incorrect). Love is driven by the heart which is essentially a form of sincerity, while logic is driven by a lump of flesh called the brain which relies on accuracy and precision of thinking.
If love is another name for a belief, while logic is a form of knowledge that will try and only be able to close us to a belief (belief in God), then only love/belief can embracing this nothingness (God).
In the context of this artwork, love and logic are seen as opposing fields but do not defeat or demean each other, they are a form of turmoil that will always be a battlefield in every individual who is in the process of seeking self-reliance autonomously. He is a form of inner conversation, namely a long conversation in which there are various negotiations to create a balance in life.

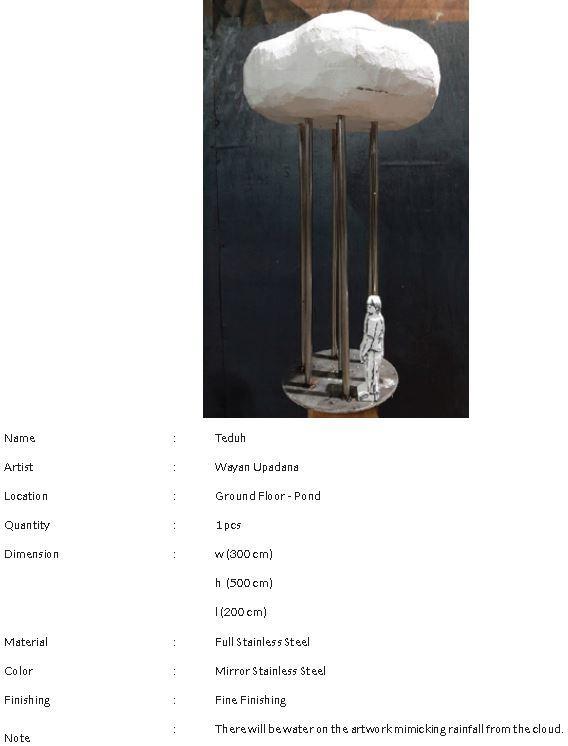

Color
Finishing
Concept
Ground Floor - Pond
1 pcs
w (300 cm)
h (500 cm)
l (200 cm)
Full Stainless Steel
Mirror Stainless Steel
Fine Finishing

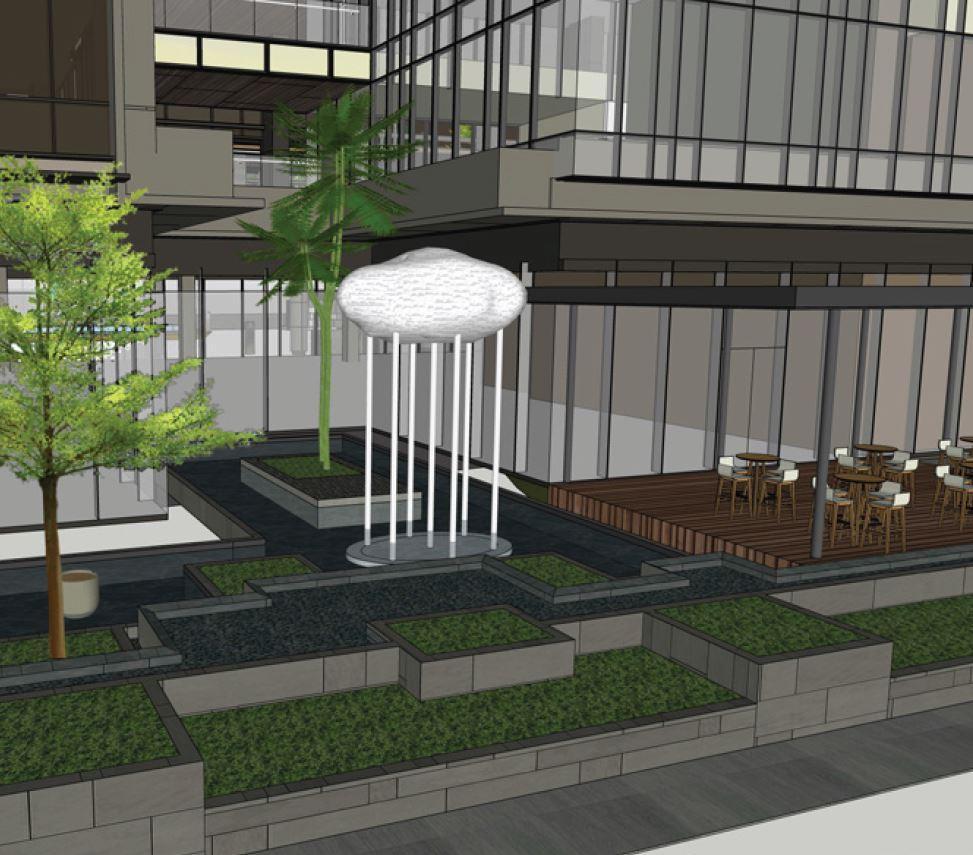

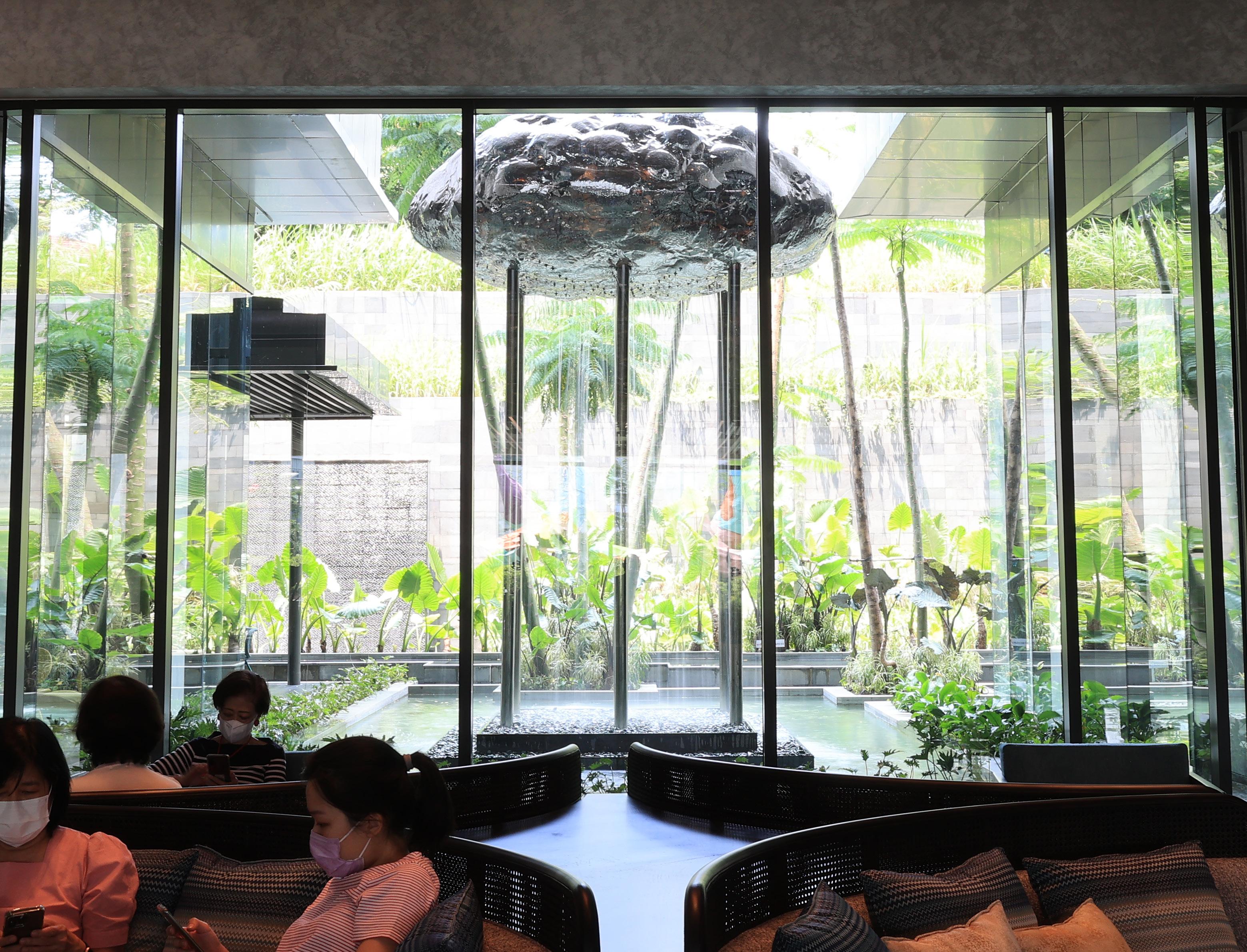

The sky is always changing, as the seasons change, dry and rainy. Indonesia, which is located on the equator, has the privilege of receiving sunlight throughout the year. In the rainy season we can observe how the moving clouds decorate the sky and always change like a timeless painting.
Teduh’s artwork is in the form of a cloud with strong supports, the vertical pillars of the cloud are the strength and values of spirituality and the shape of the cloud as something soft is a depiction of the soul. Drops of water like rain falling from the clouds are a blessing.
This artwork is not only a description of nature, but also the spiritual values that exist in humans, which continue to grow, change over time. Like rain water, from water vapor it becomes cloudy which then falls into rain and seeps into the soil giving fertility. This work is an awareness of a life process that continues to revolve.
Teduh
Wayan Upadana
Name
Artist
Location Quantity Dimension
Material
Color
Finishing
Note
1st Floor - Pool Area
1 pcs
w (35 cm)
h (350cm)
l (760 cm)
Black Lava Stone
Paint
3D Art CNC on Lava stone

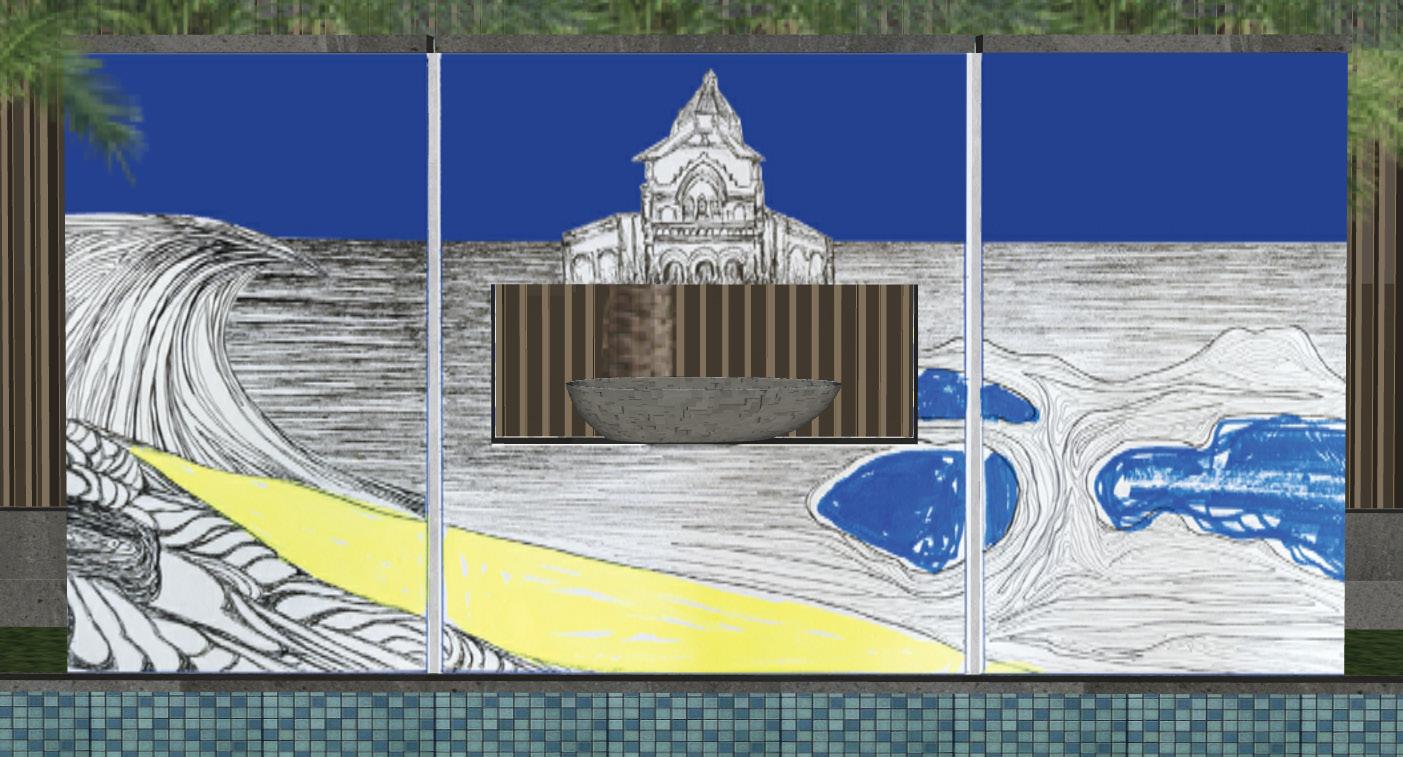

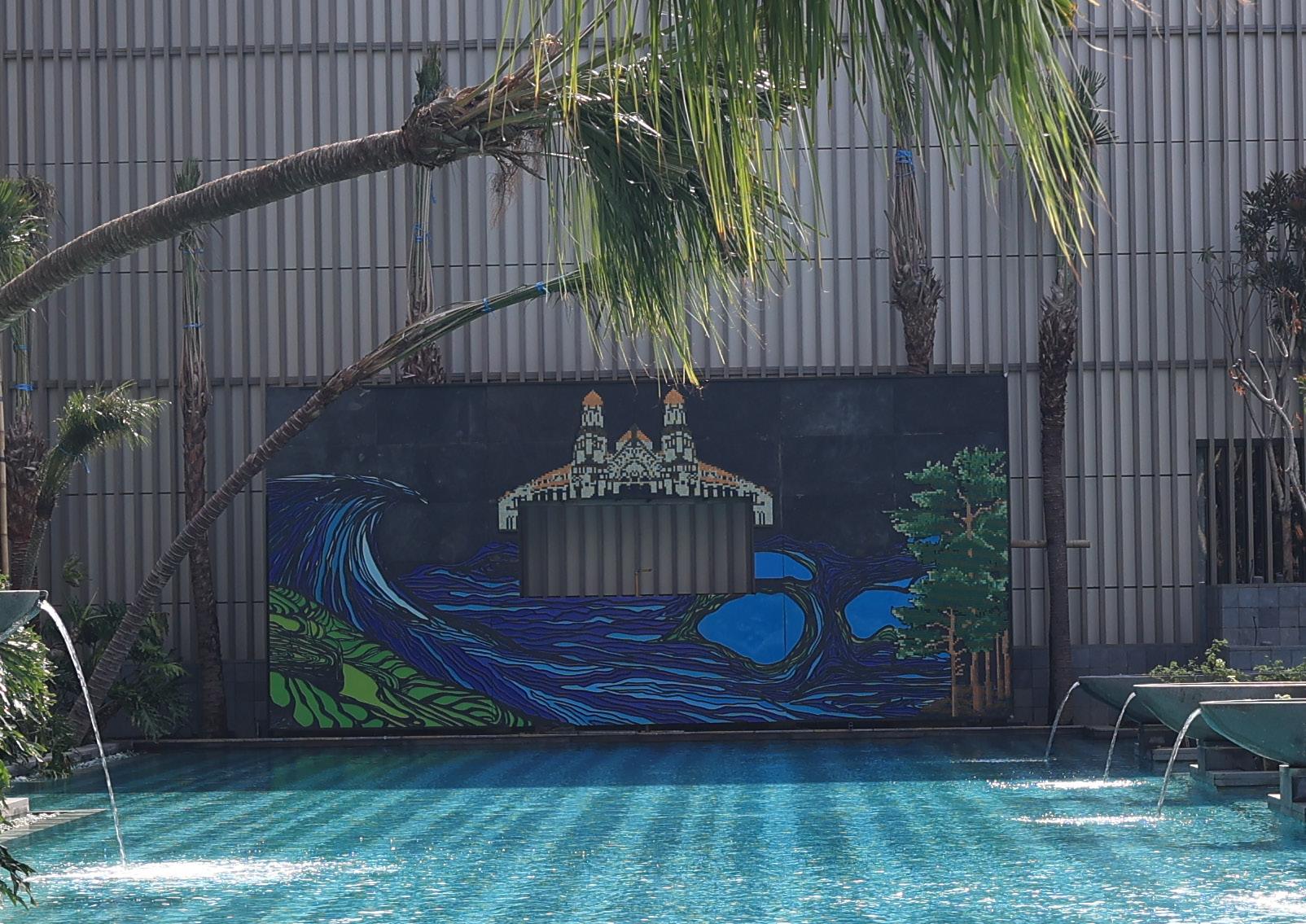

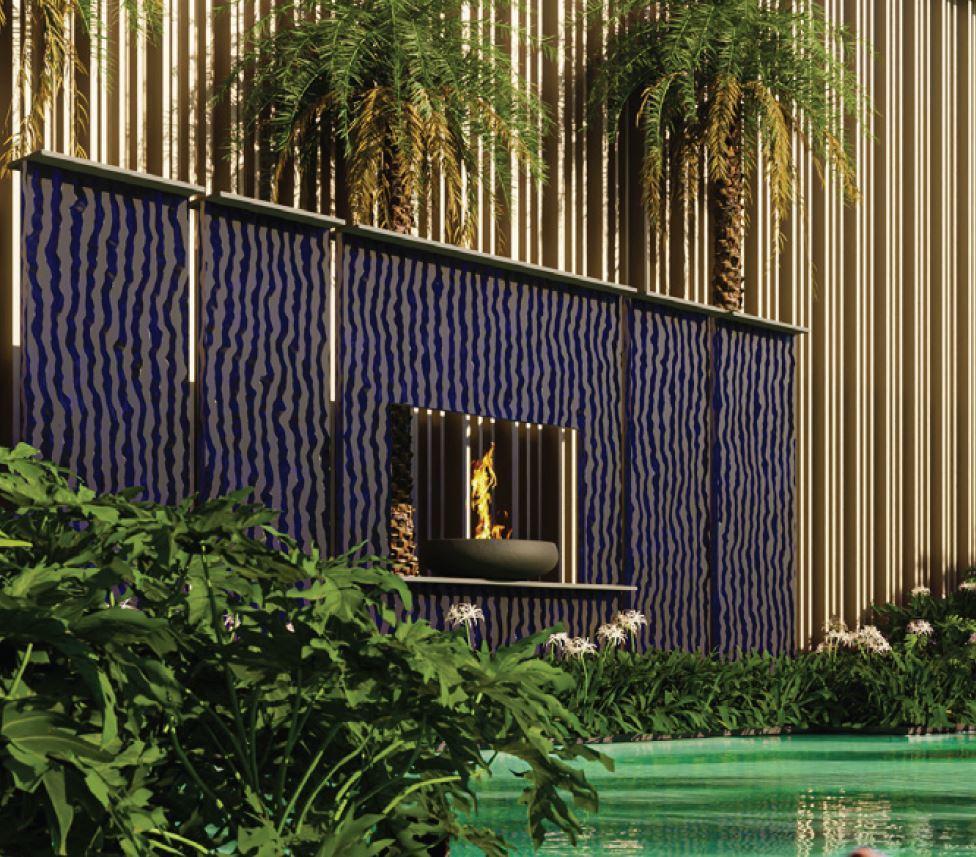

Wall Treatment as an Artwork. The concept is to bring the 4 characteristics of 4 Padma Hotels in Indonesia as 1 masterpiece modern collage .
- UBUD : Rice Fields
- LEGIAN : Beach
- BANDUNG : Forest
- SEMARANG : Urban
World of Padma
Xavier LOUP Studio & YAZ

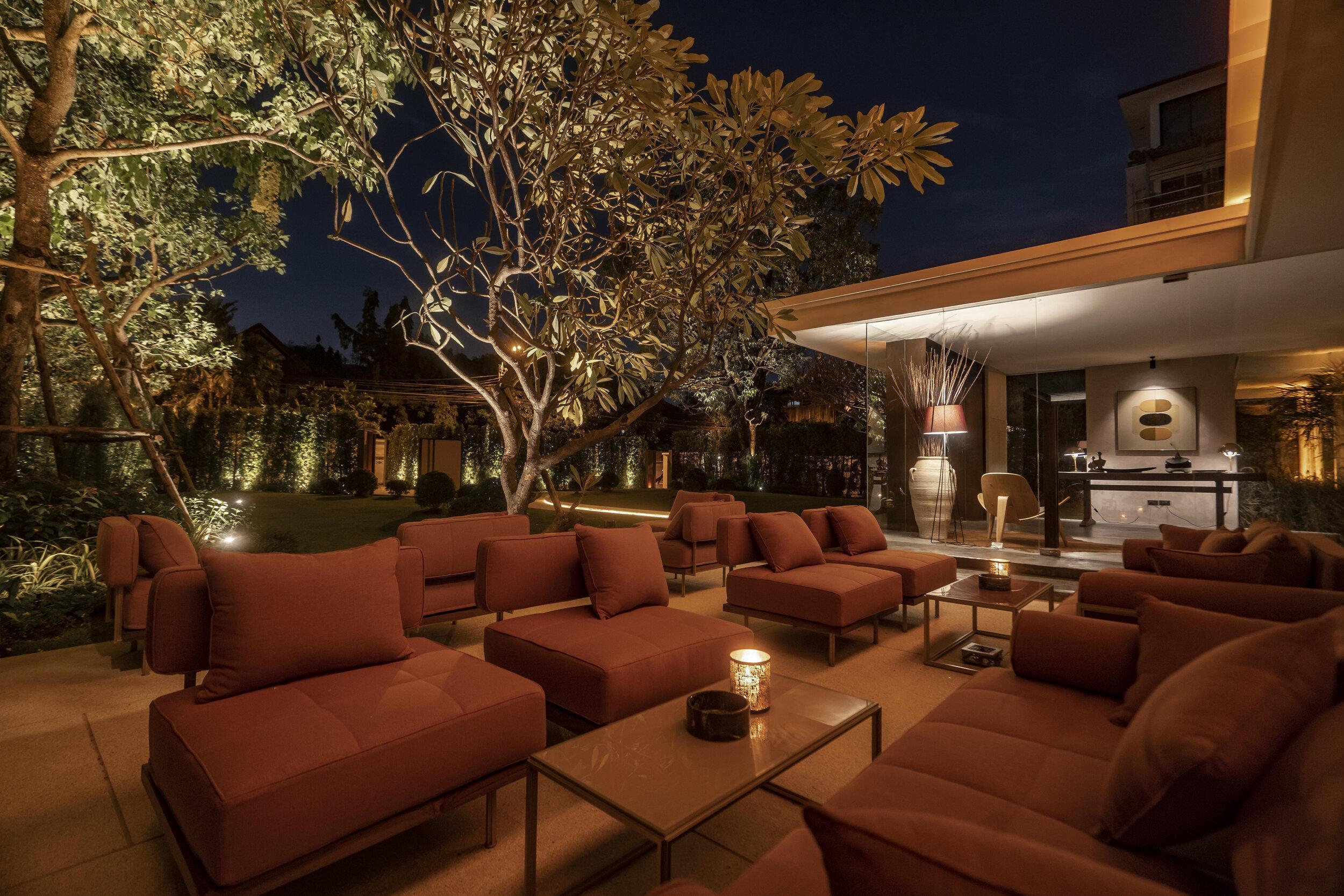

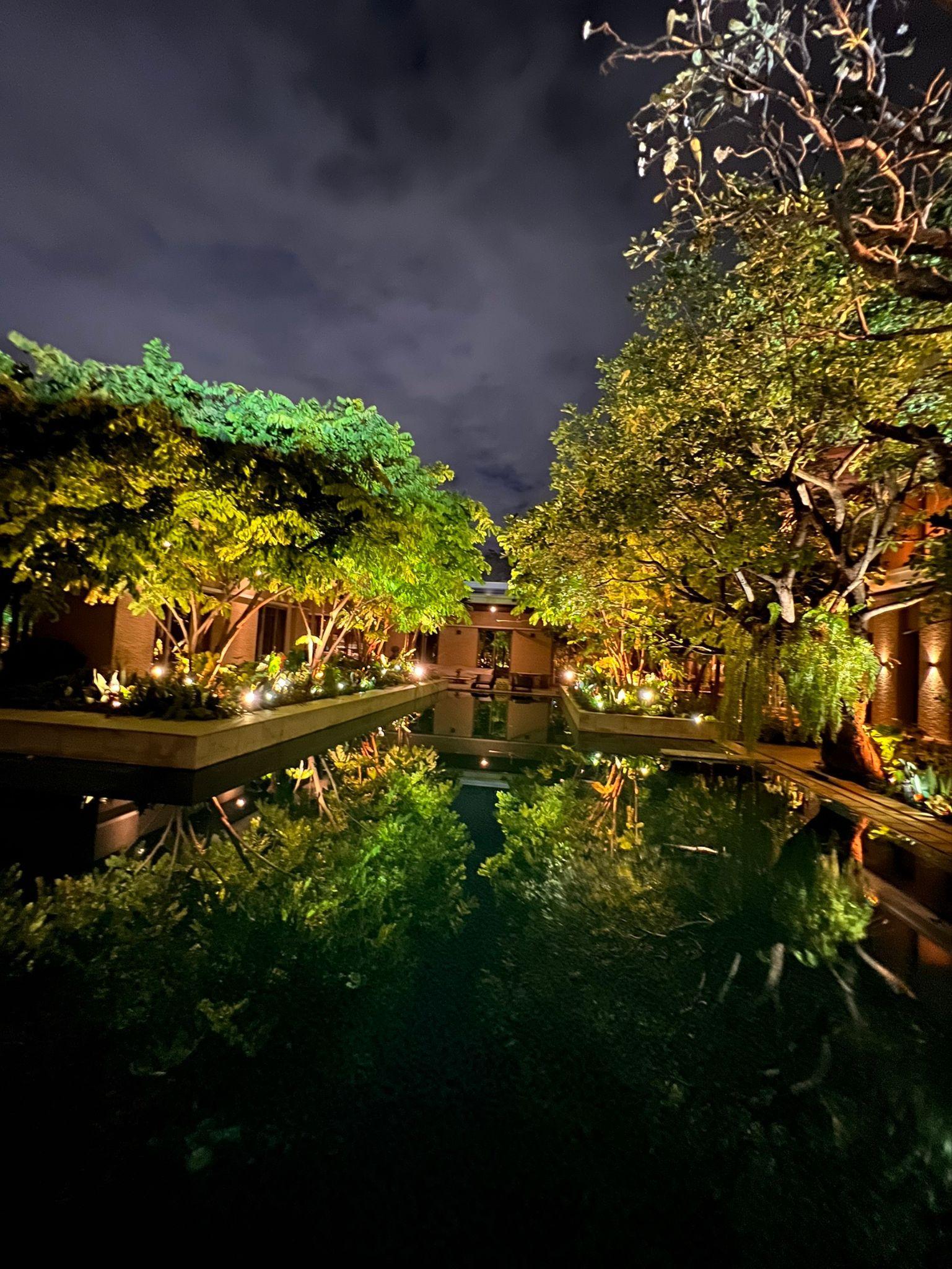

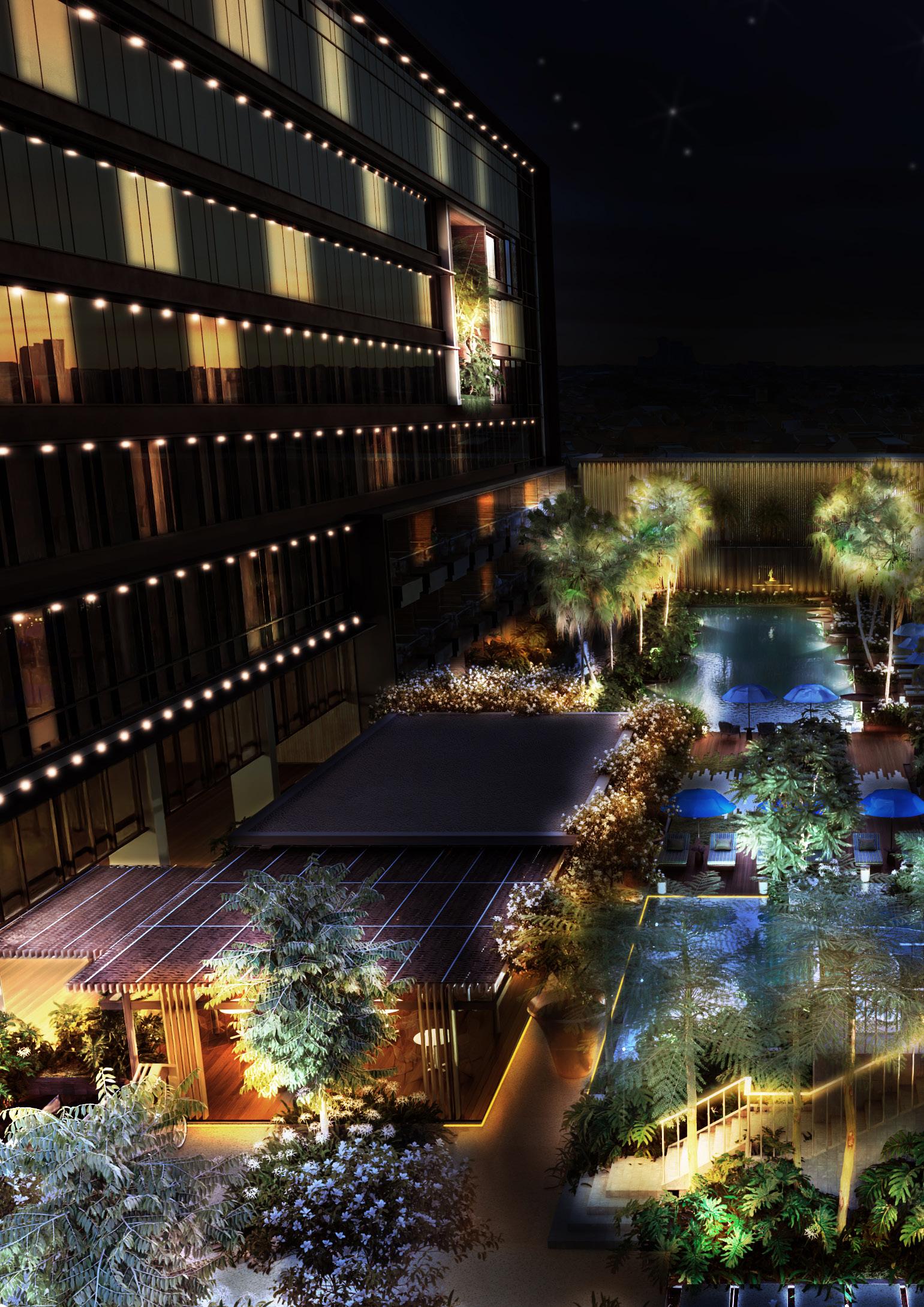

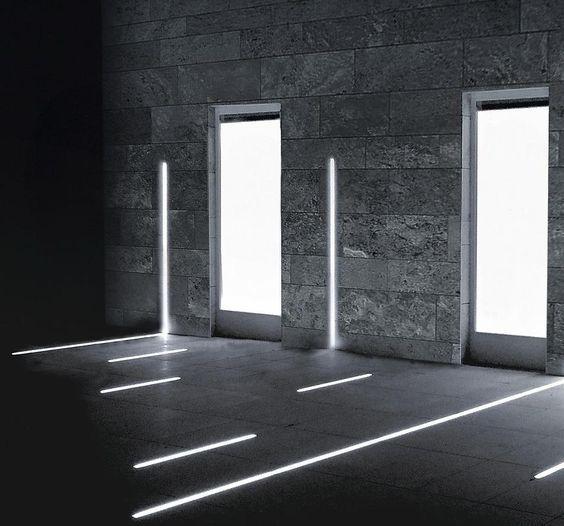

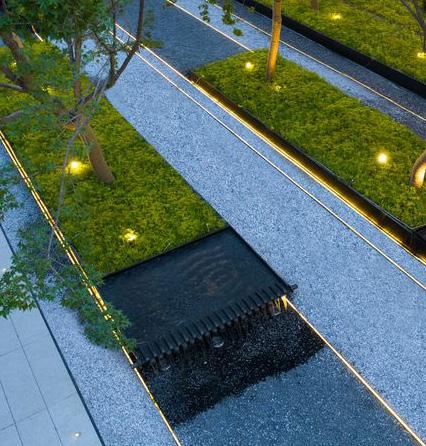

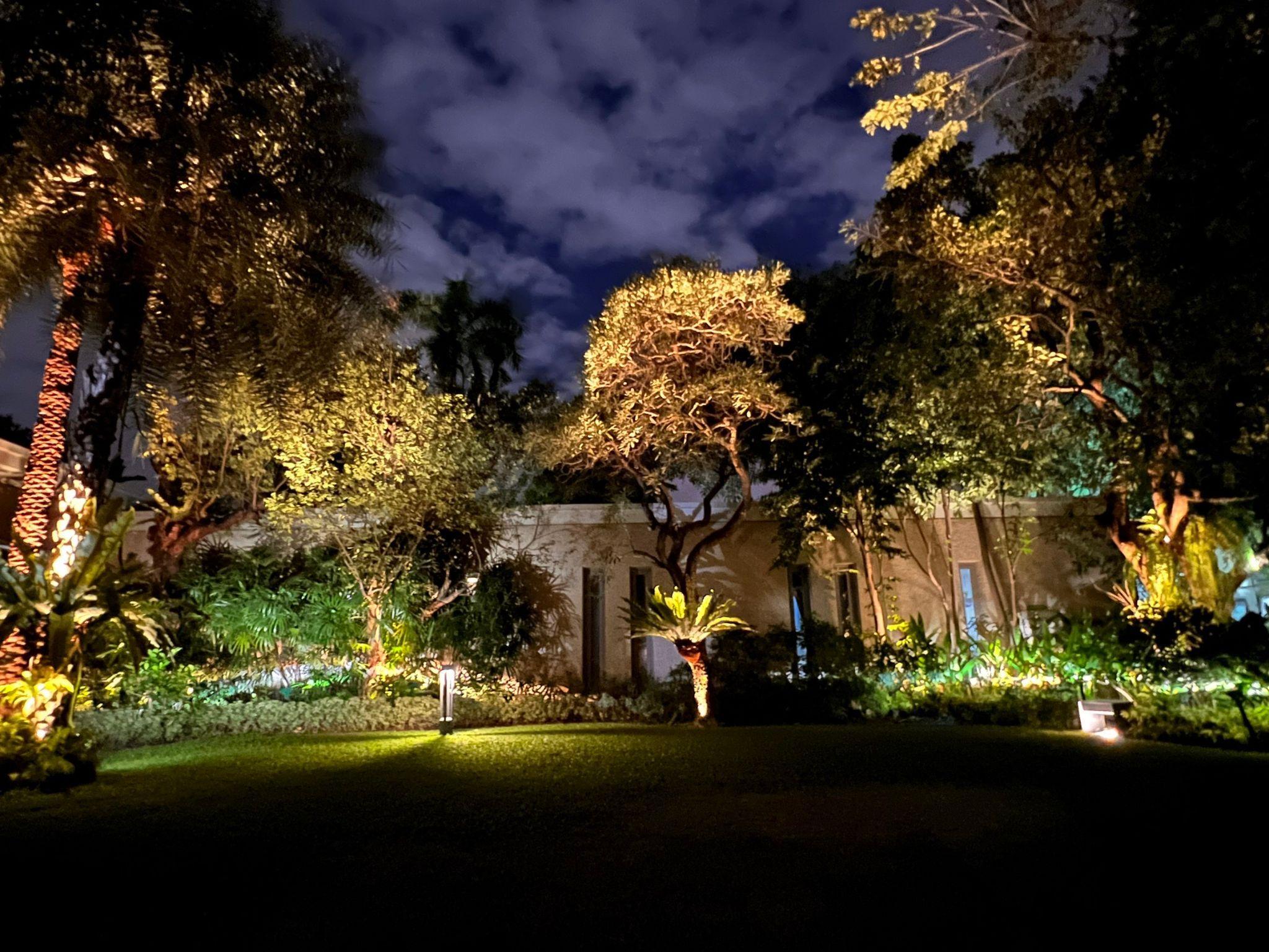

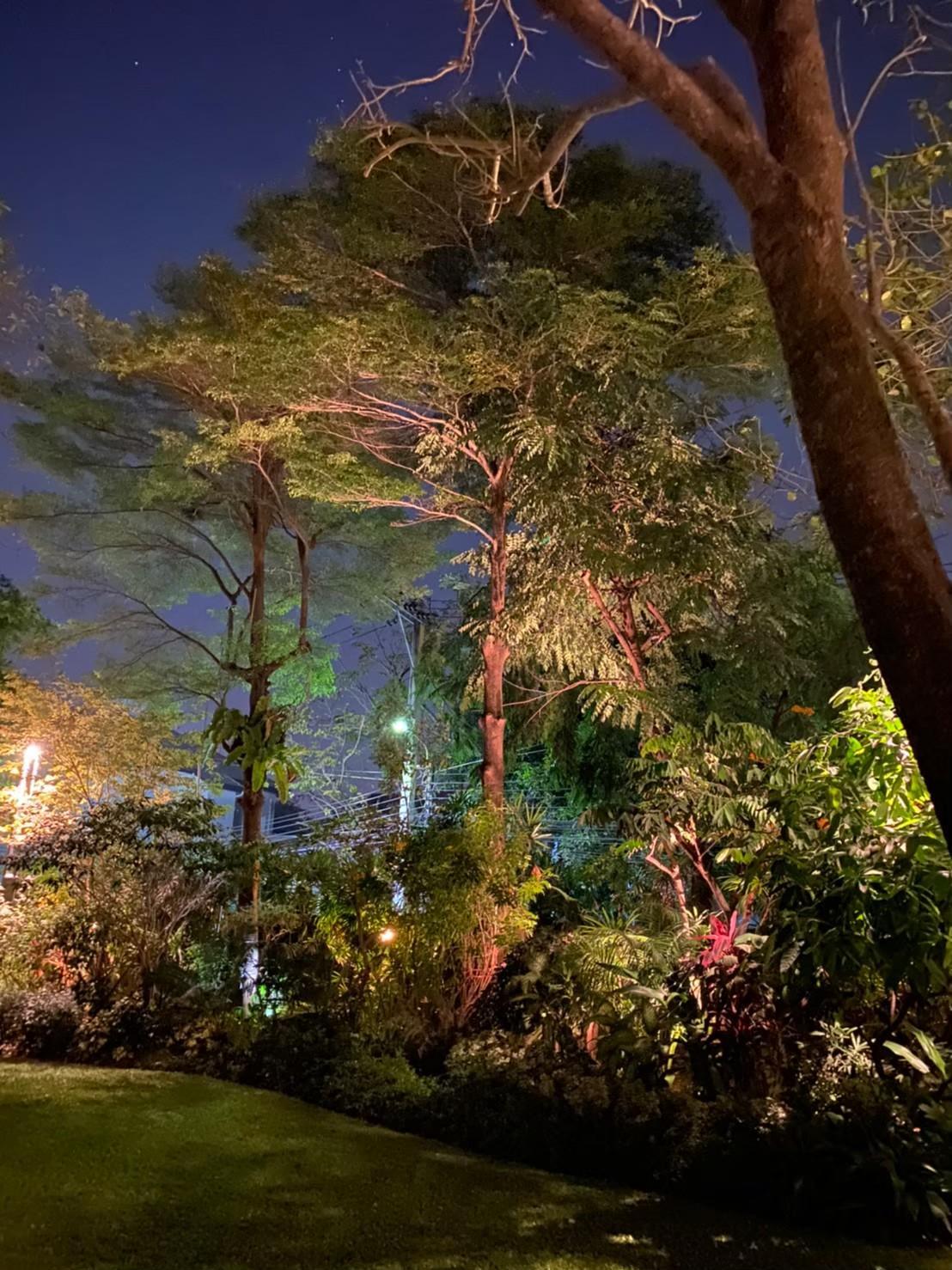

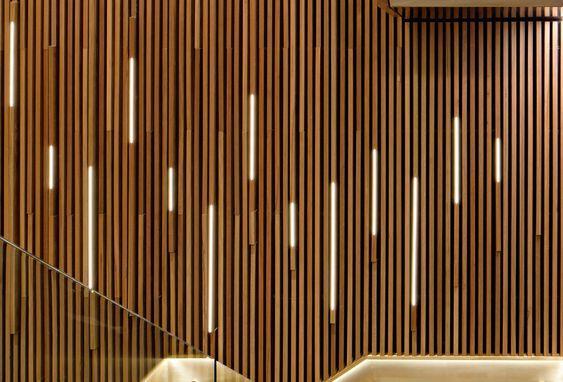

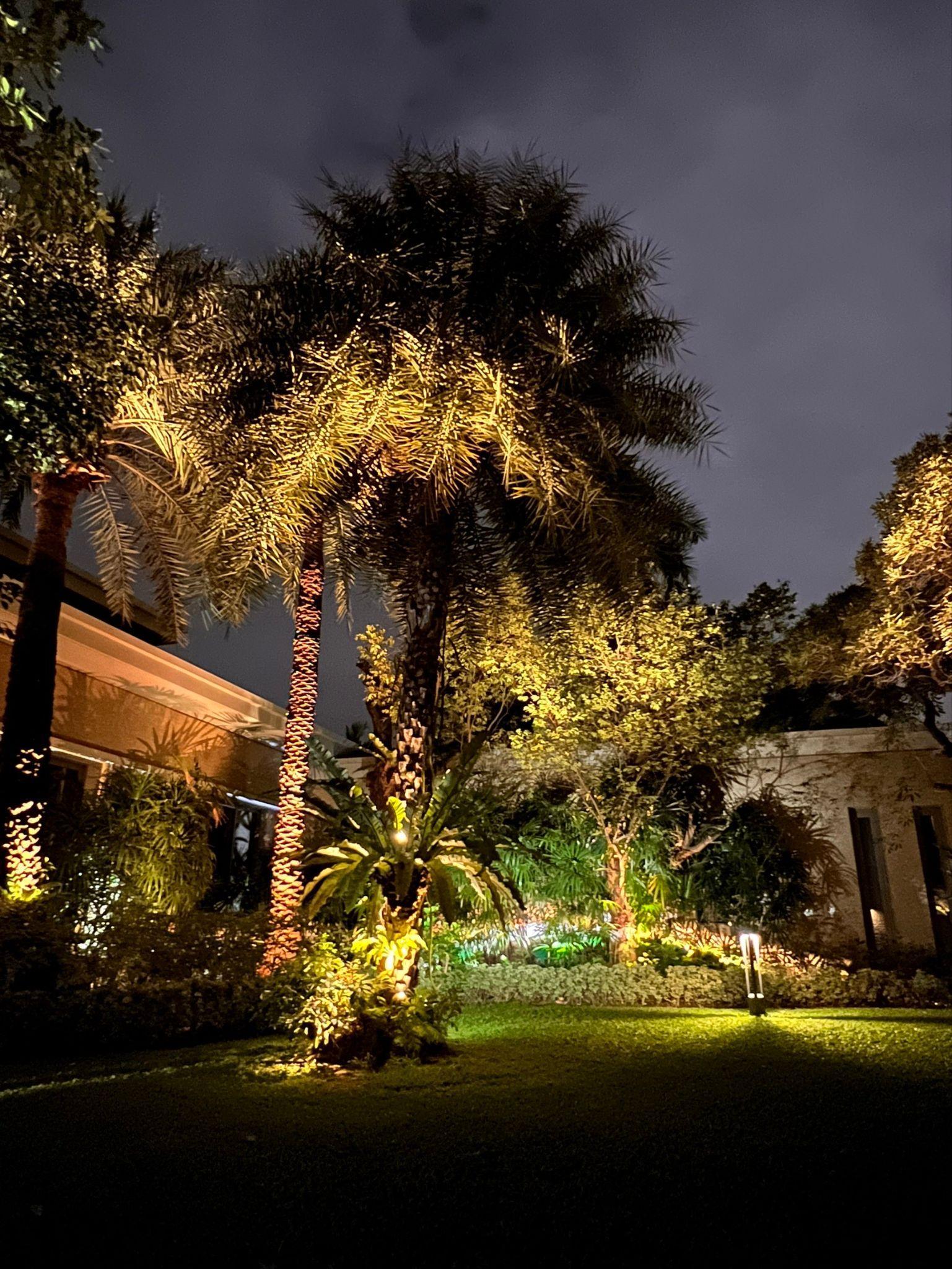

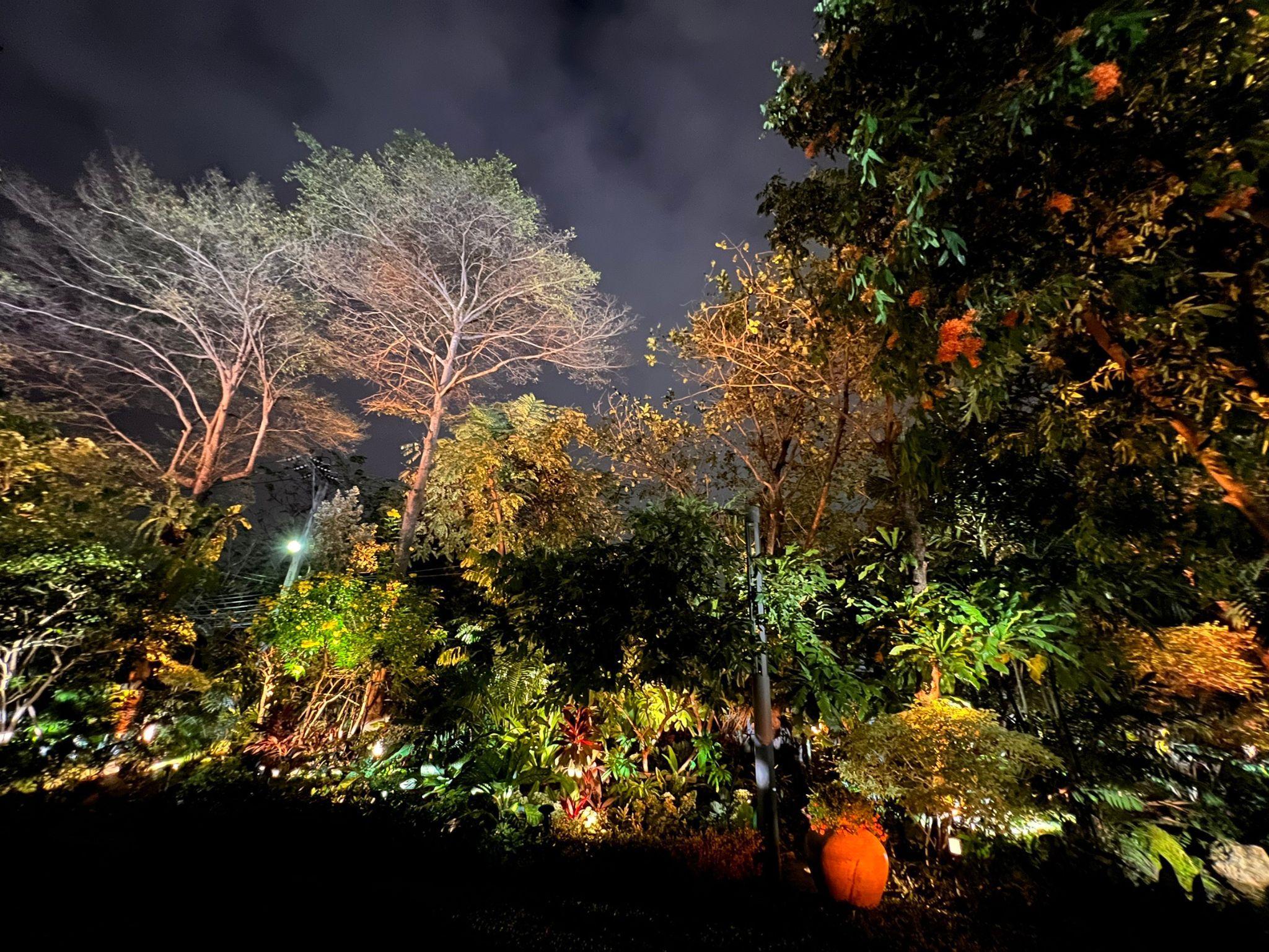

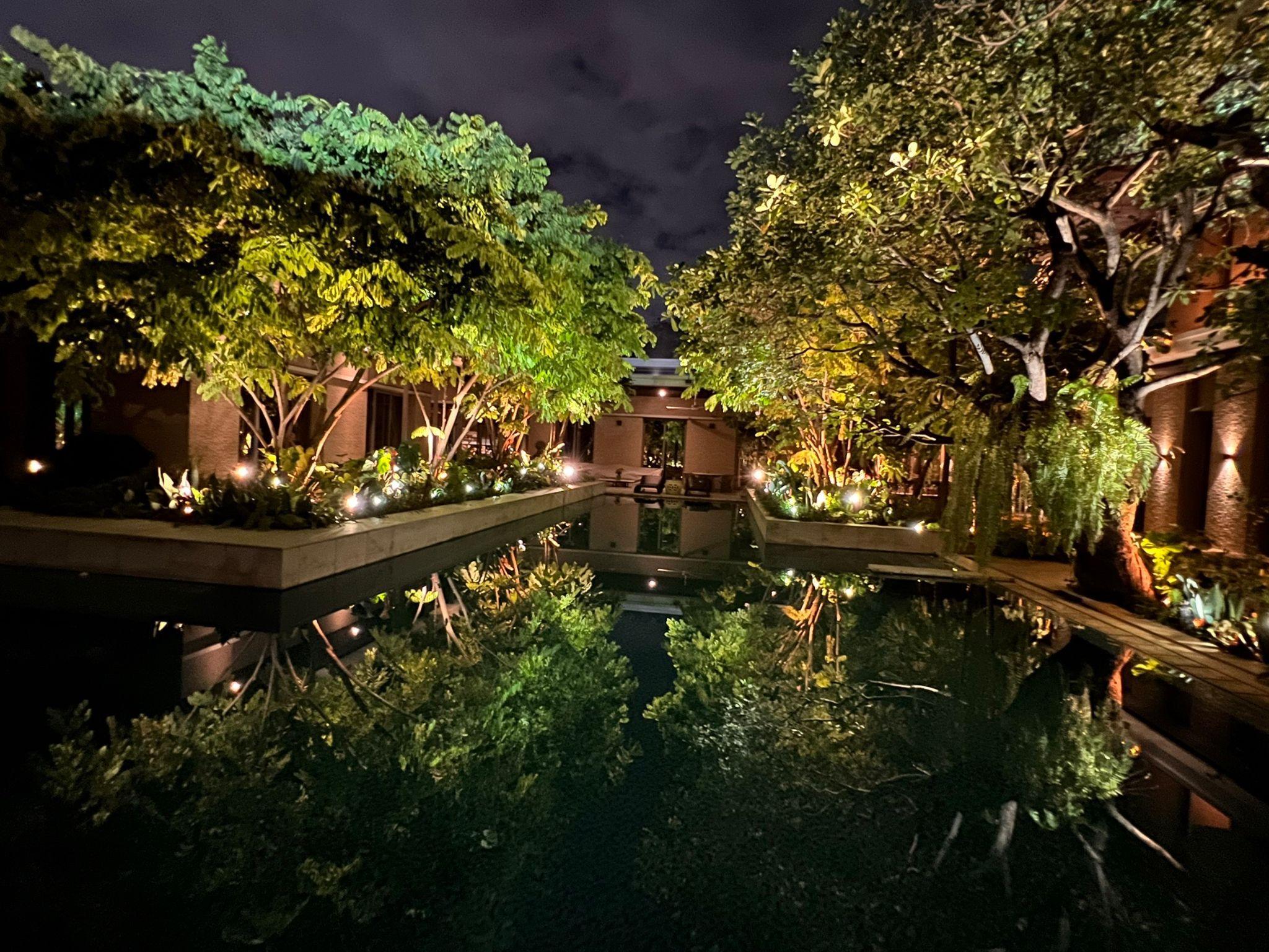

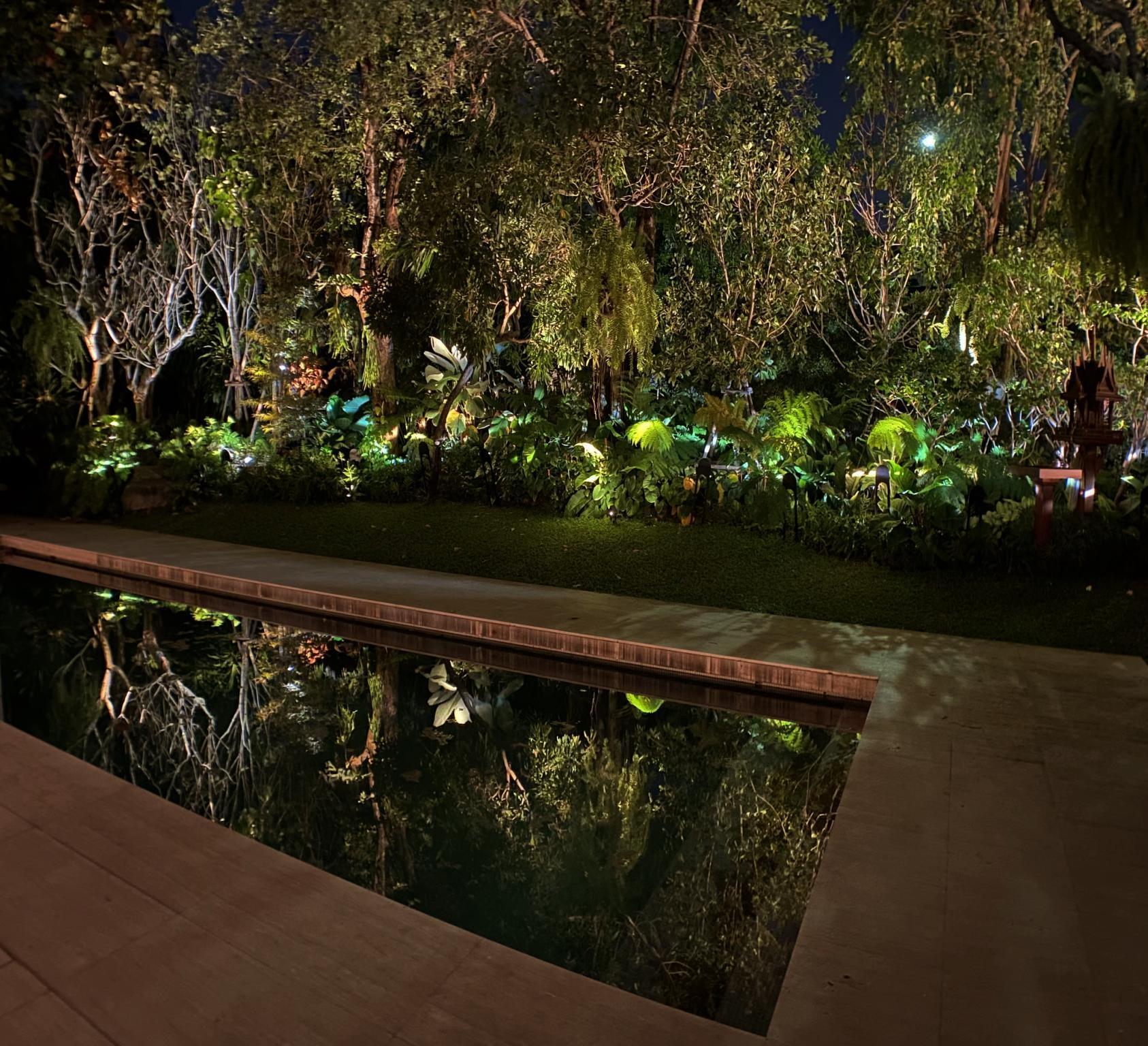

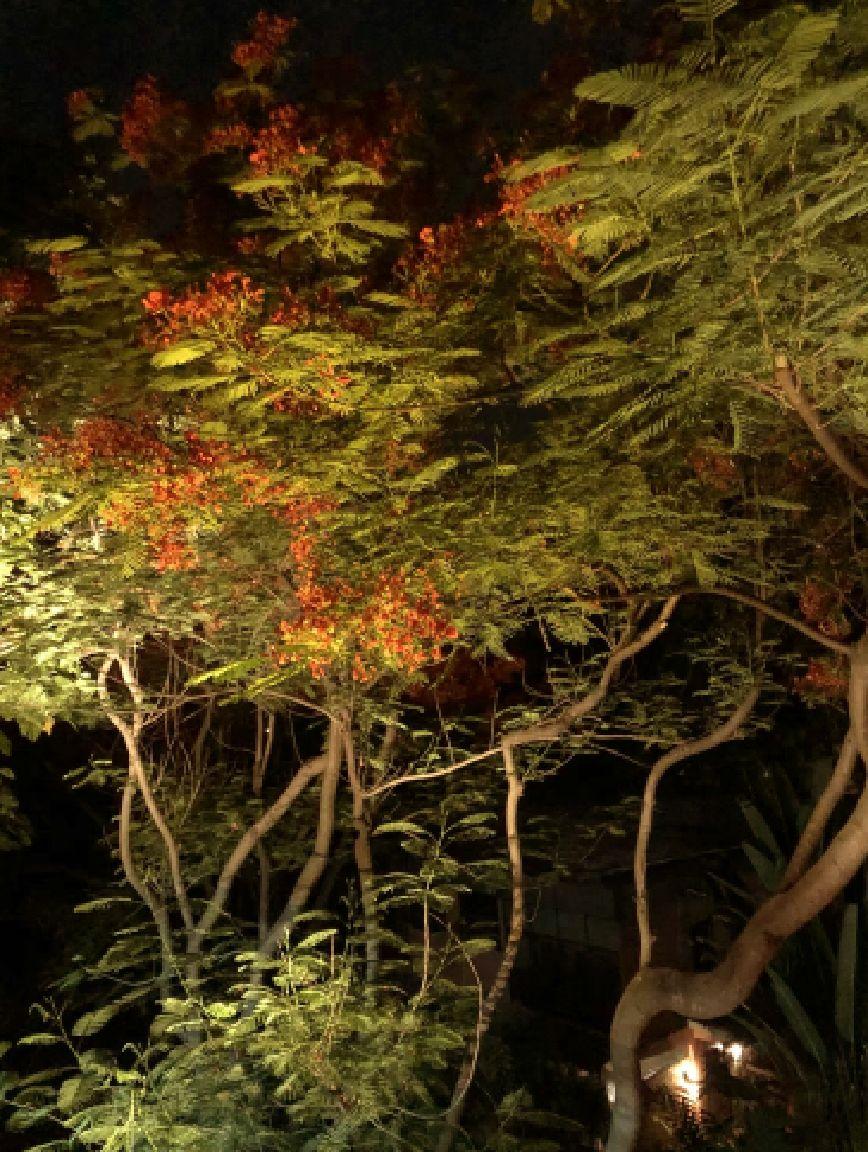

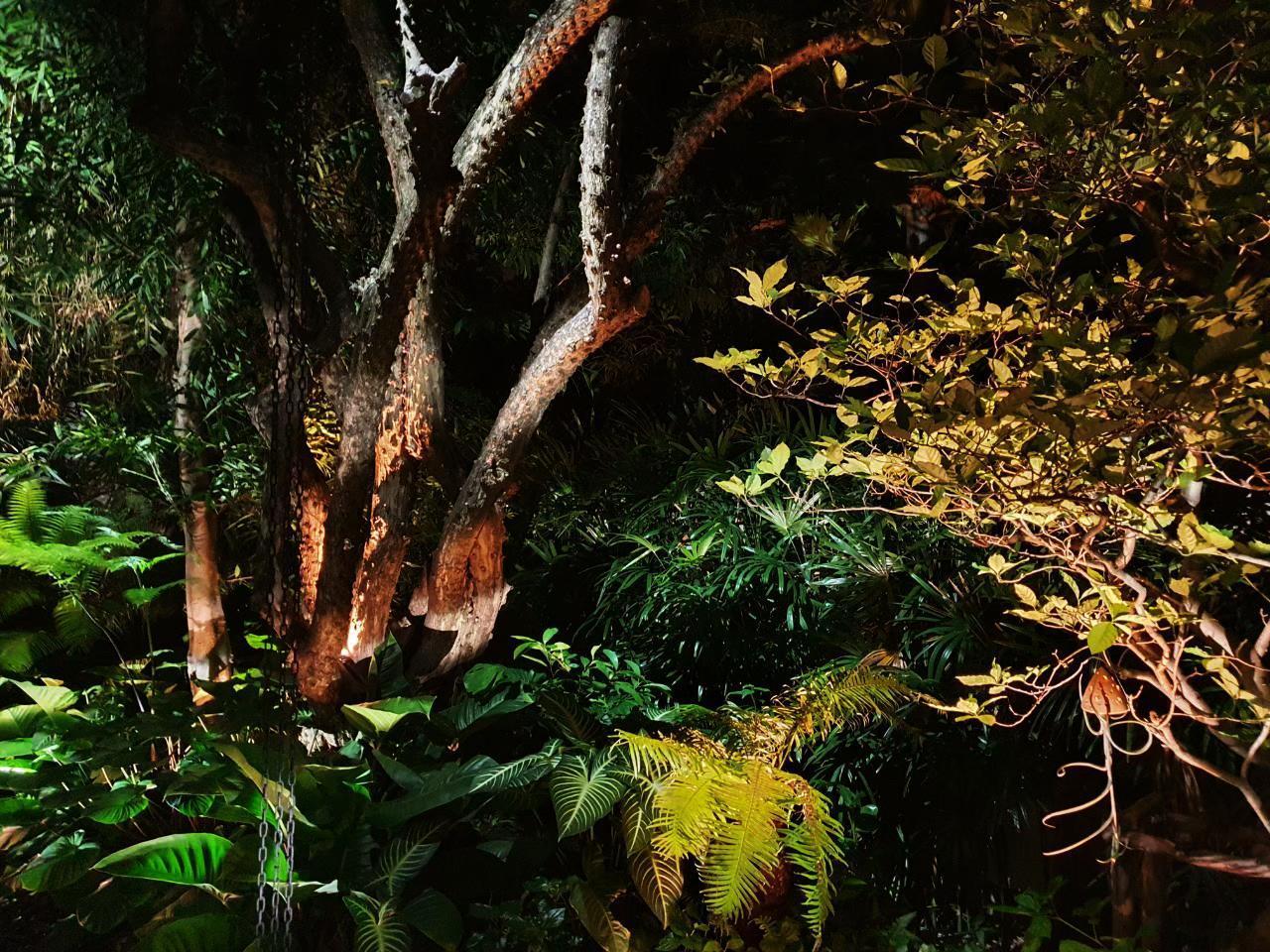

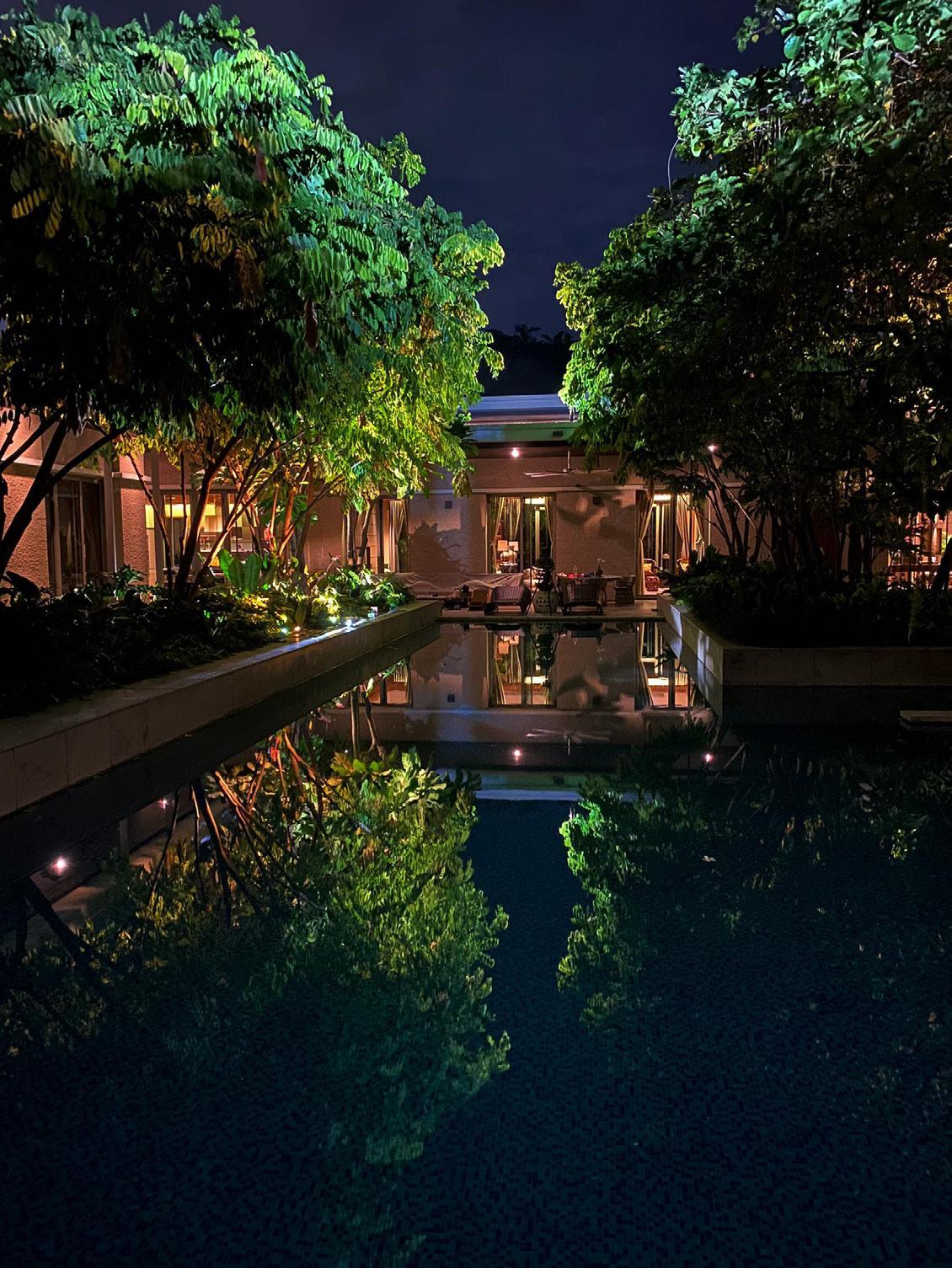

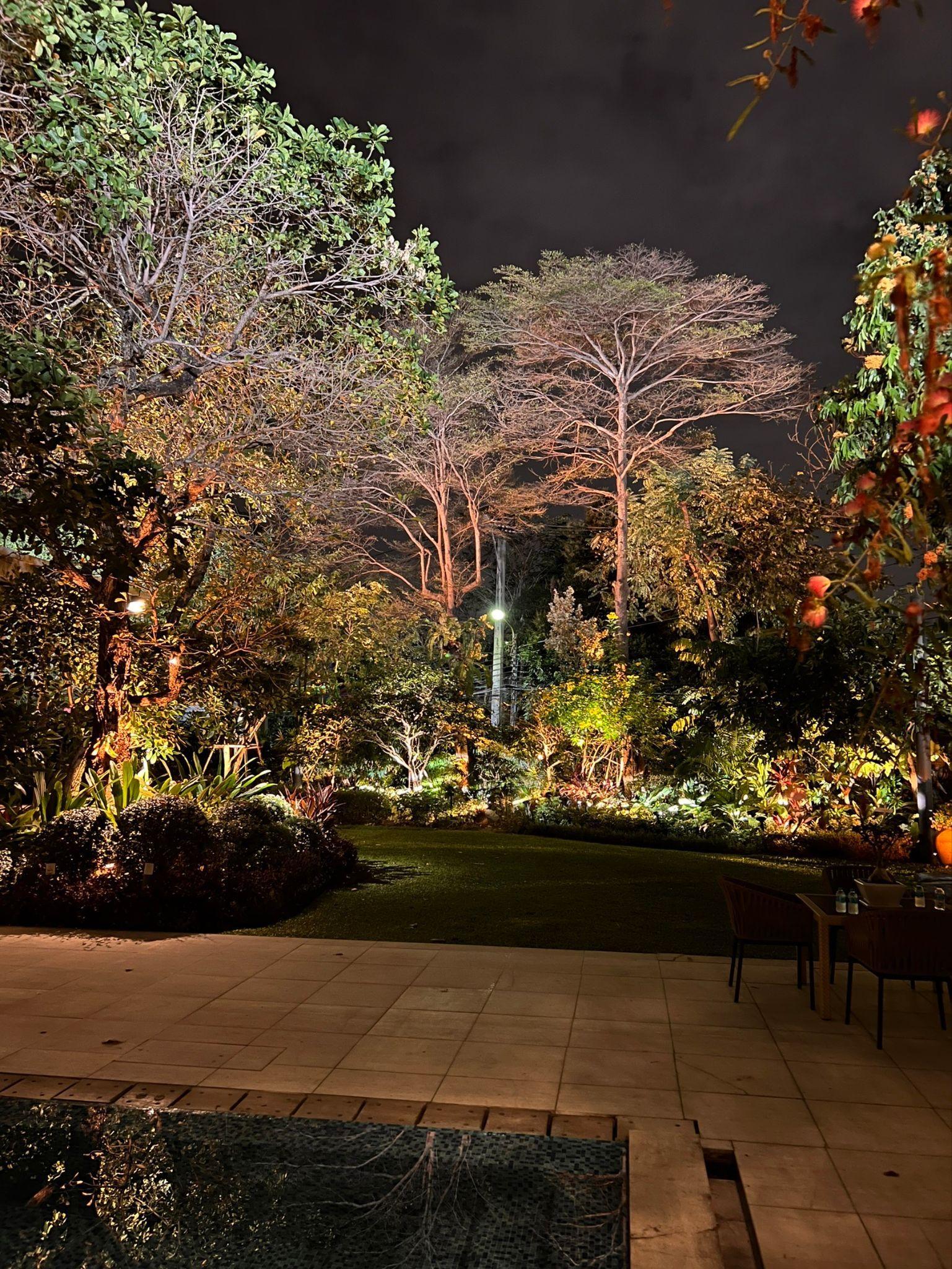

LIGHTING

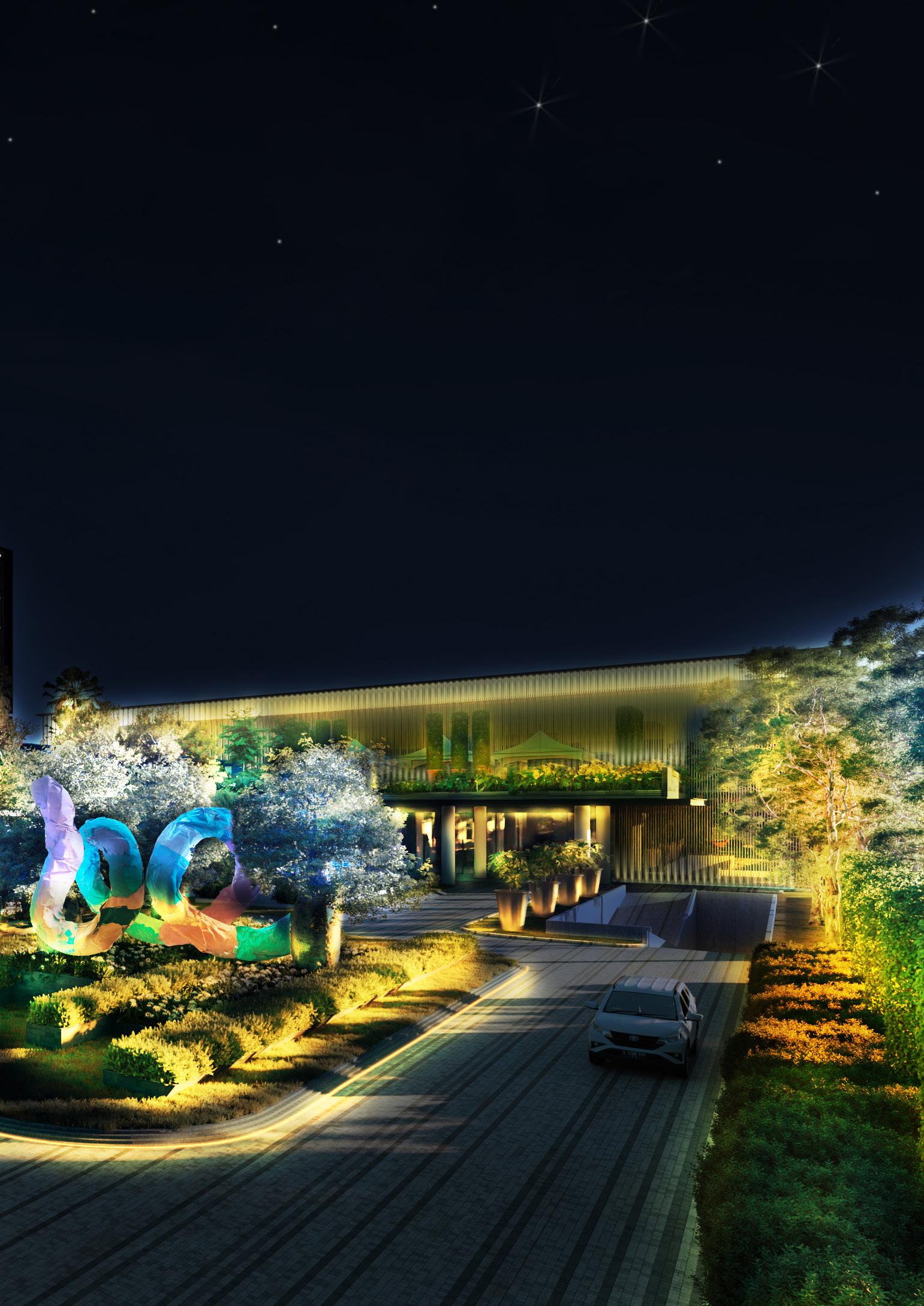

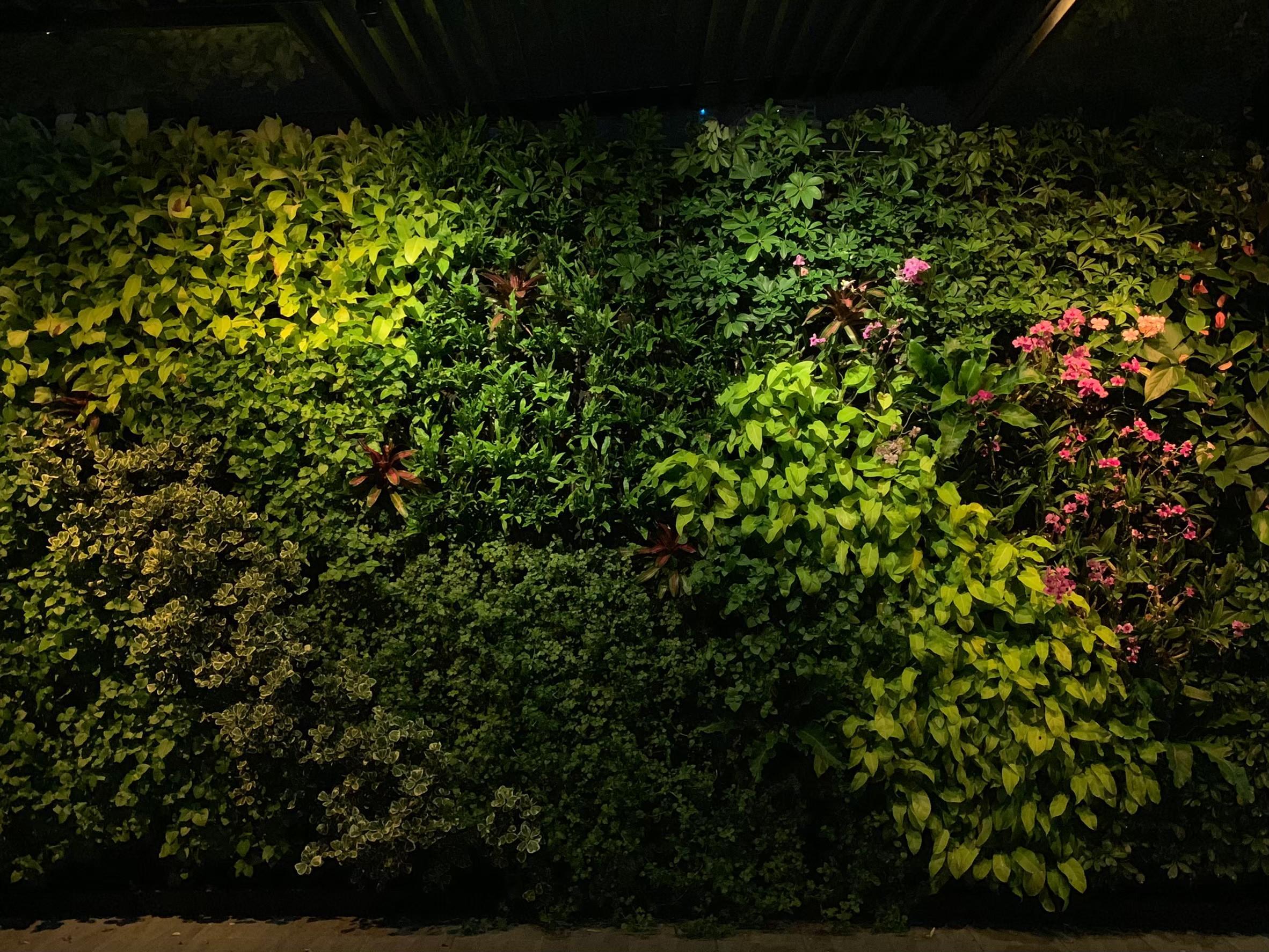

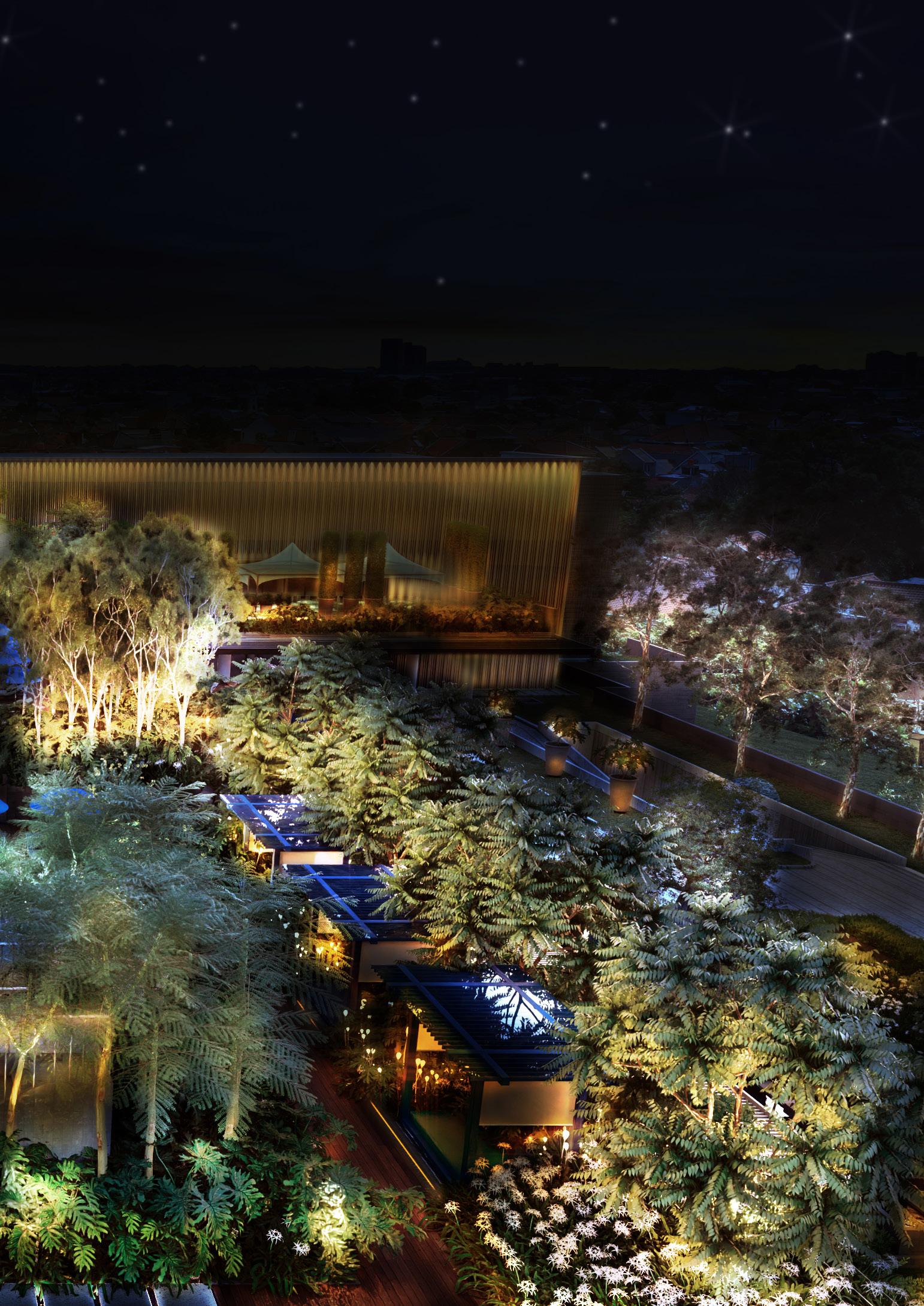

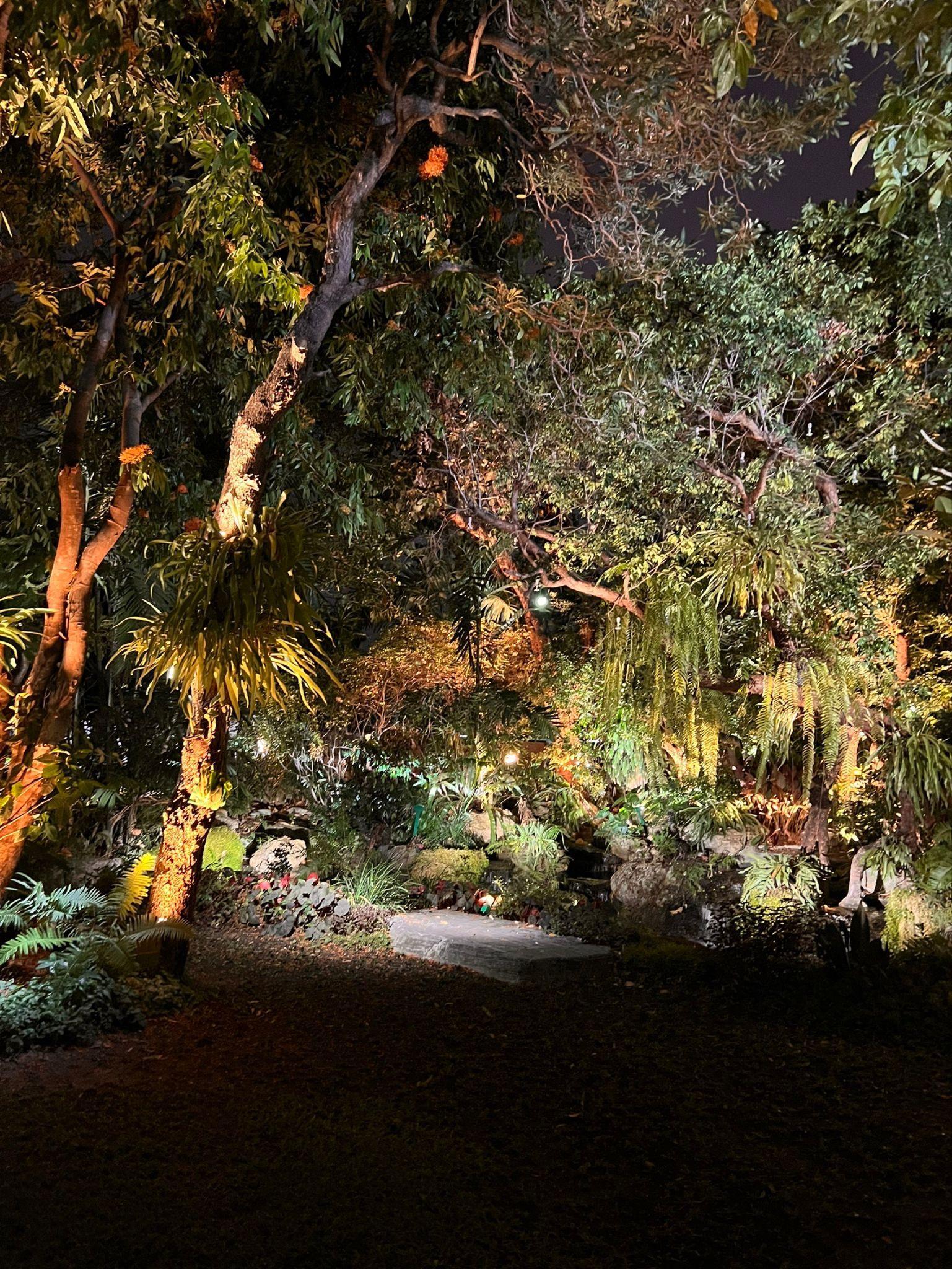

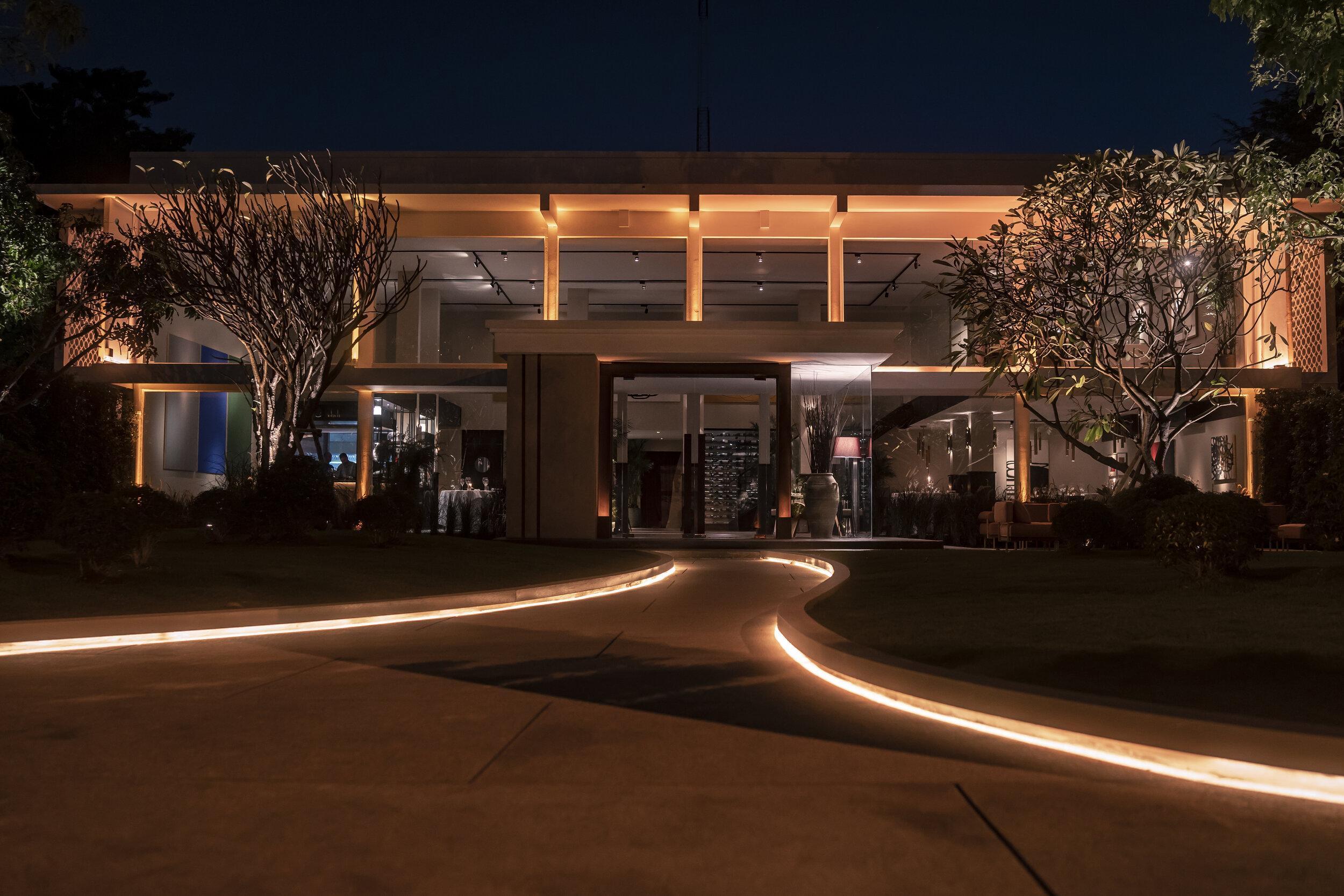

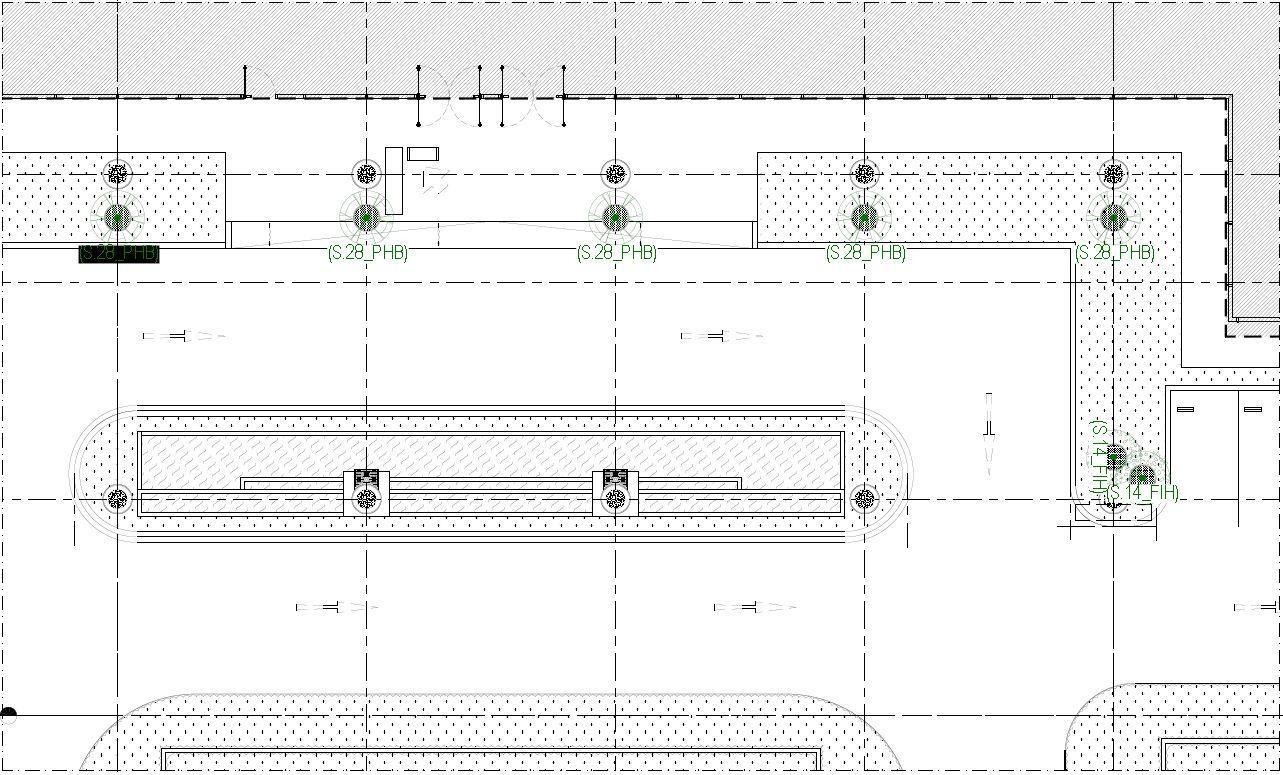

LIGHTING - GROUND FLOOR
G FLOOR LANDSCAPE
© 2021 MATTEO MESSERVY ALL RIGHTS
© 2021 MATTEO MESSERVY ALL RIGHTS RESERVED
FLOOR LANDSCAPE
T.5_DRD
S.14_FIH
S.28_PHB
PART 1

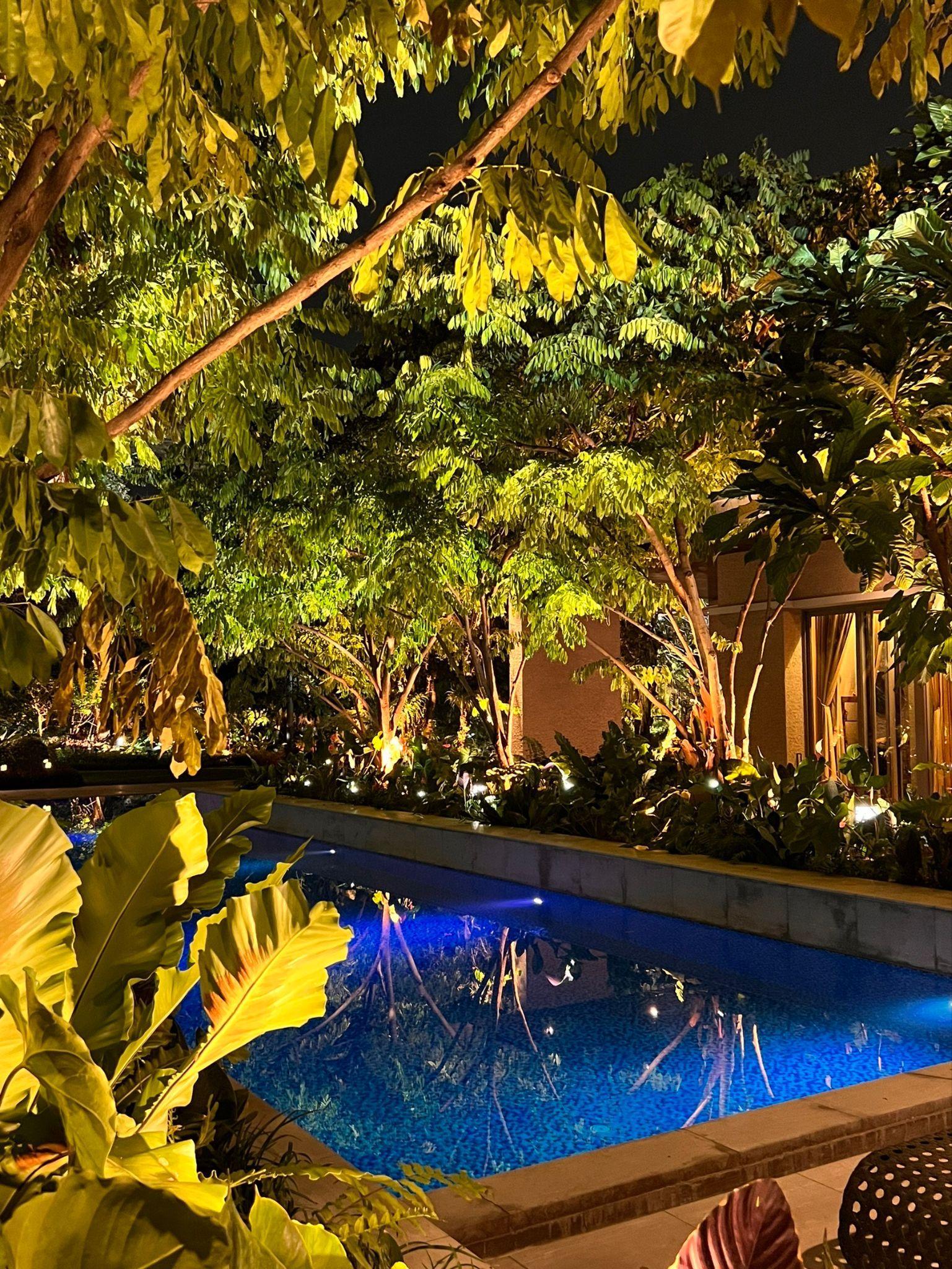

LIGHTING - 1 ST FLOOR

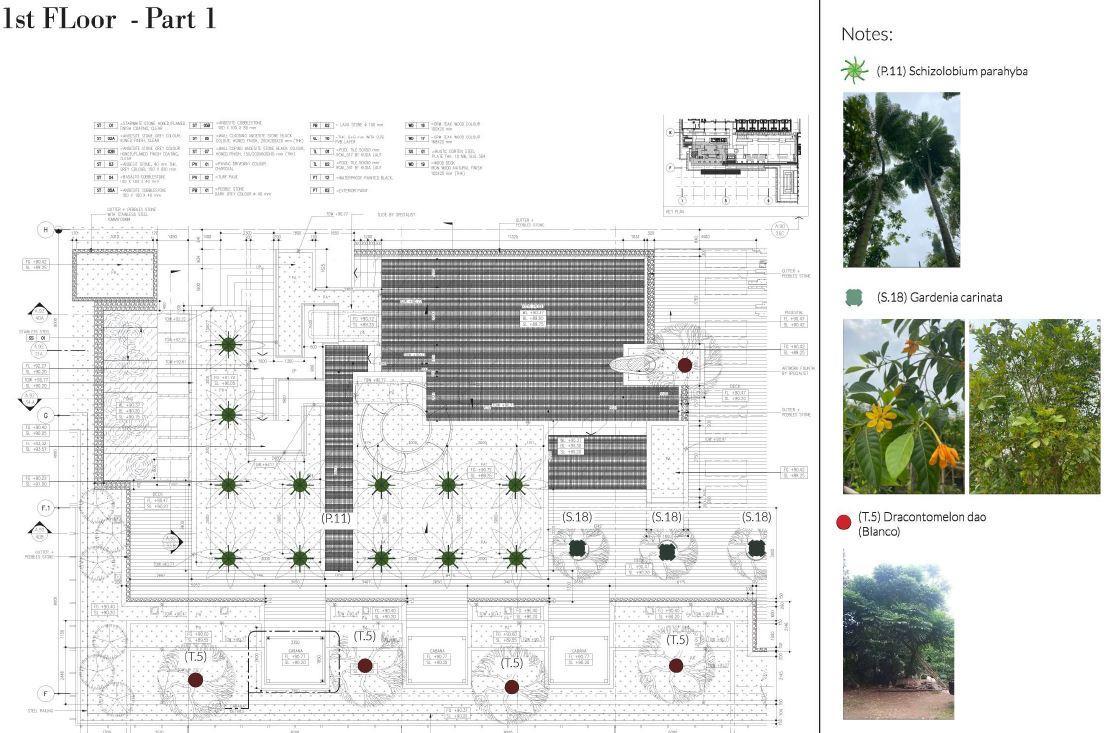

1st FLOOR LANDSCAPE
GUEST ROOM
G FLOOR LANDSCAPE
P.4_LID
T.5_DRD S.14_FIH
FLOOR LANDSCAPE
G
P.4_LID
LIGHTING
- 5 TH ,6 TH & 7 TH
FLOOR
G FLOOR LANDSCAPE
S.14_FIH
P.4_LID T.5_DRD
Downlight LANDSCAPE ARTWORK

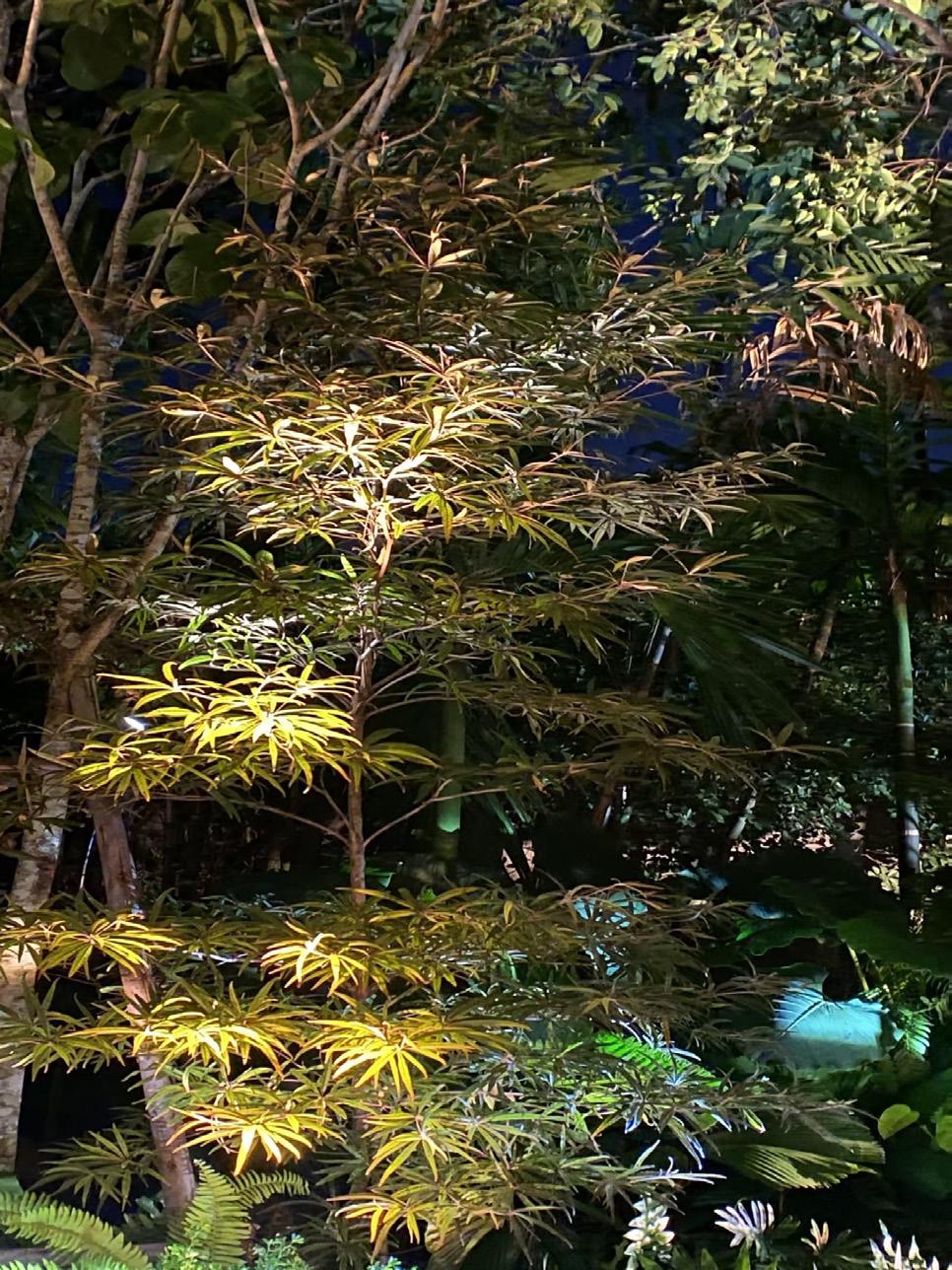

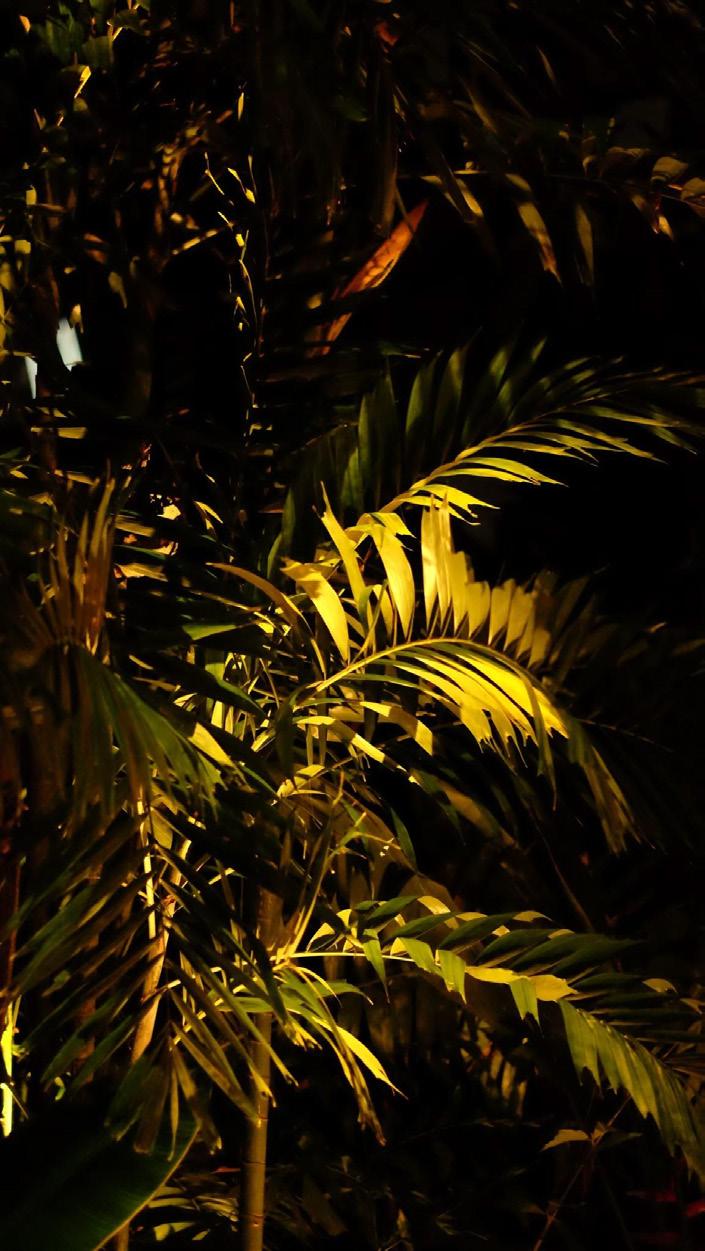

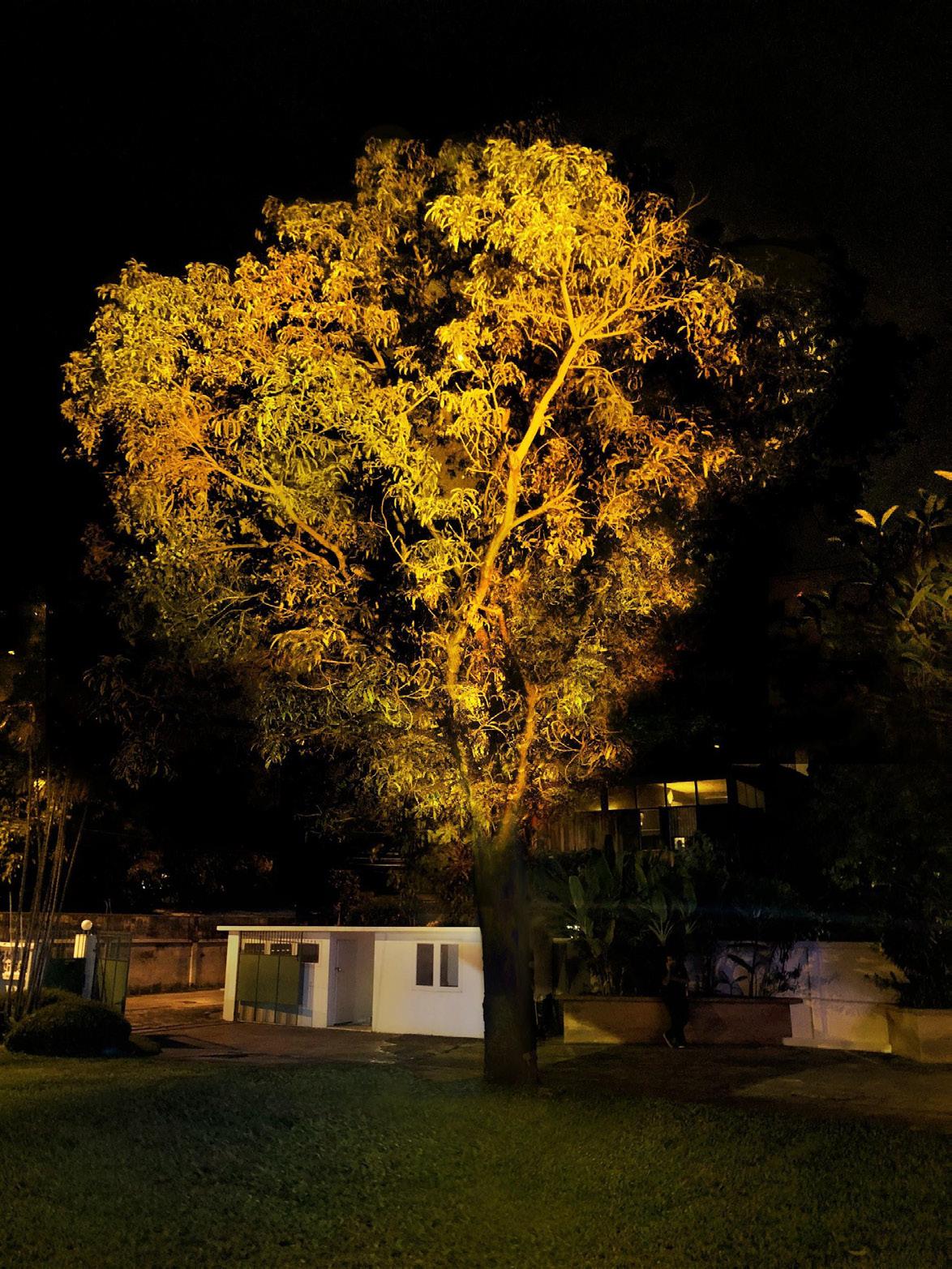

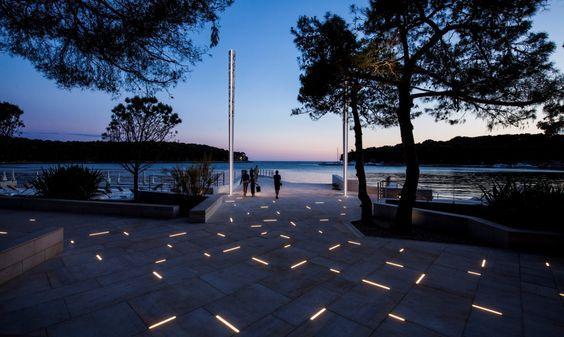

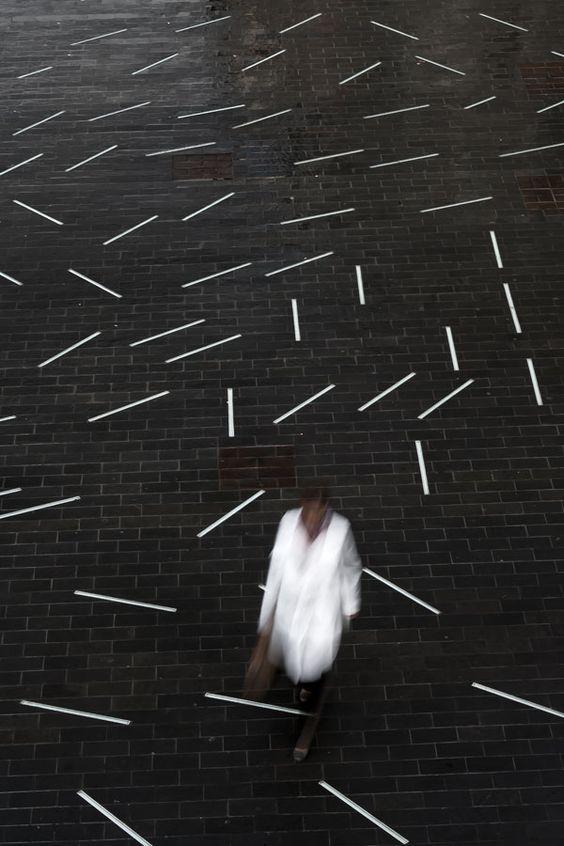

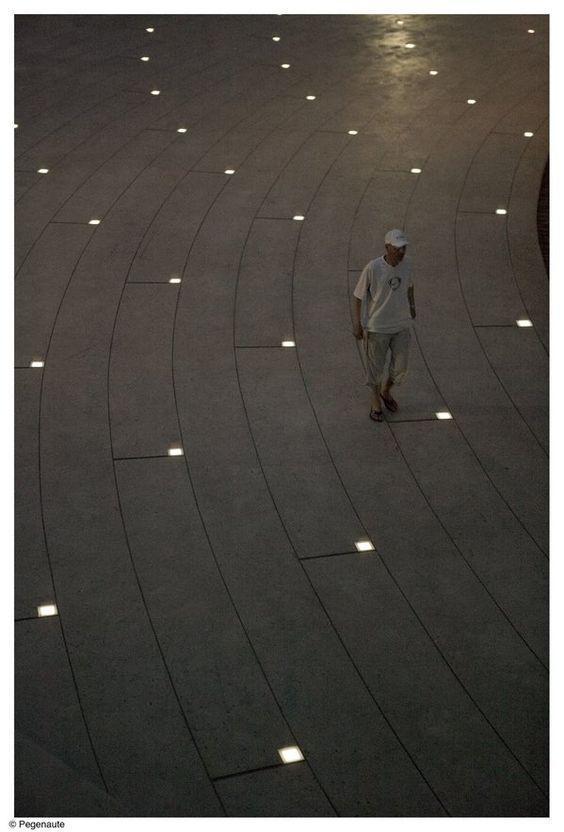

In-ground uplight
3000K Neon flex
1800K Neon flex
Asymmetric spotlight
Narrow beam spotlight
Mini spotlight
180D spotlight
High power spotlight
Name: Location: Dimension: Material: Color: Finishing: Matte finishing Note: with puzzle metal hand-paint by the have a special effect
In-ground uplight
3000K Neon flex
1800K Neon flex
Asymmetric spotlight
Narrow beam spotlight
Mini spotlight
180D spotlight
High power spotlight

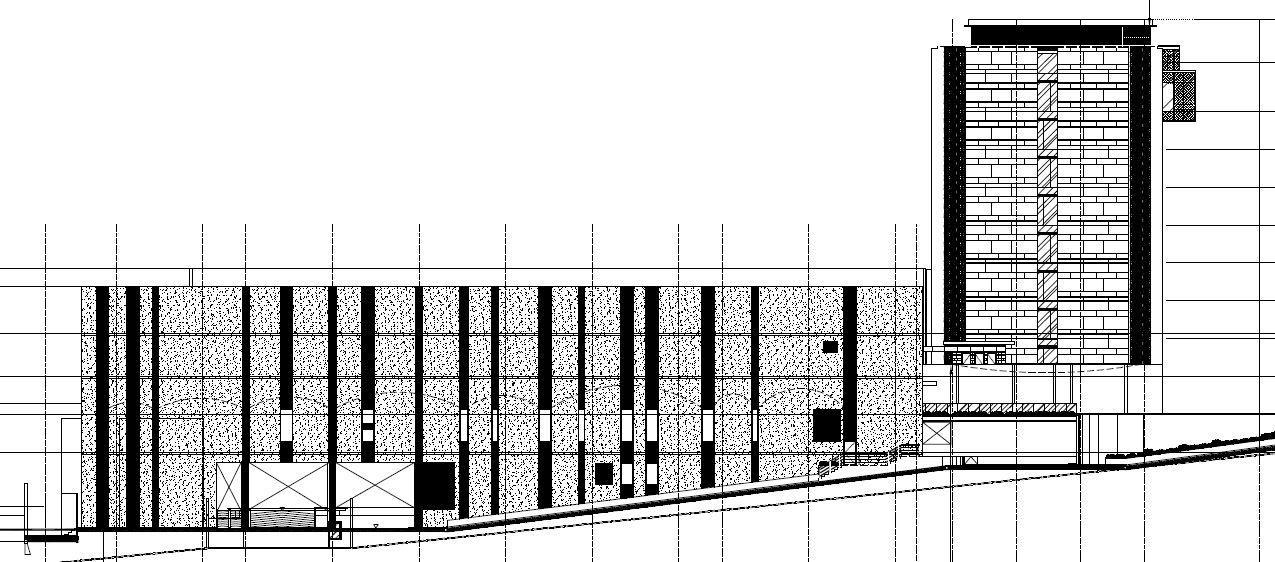

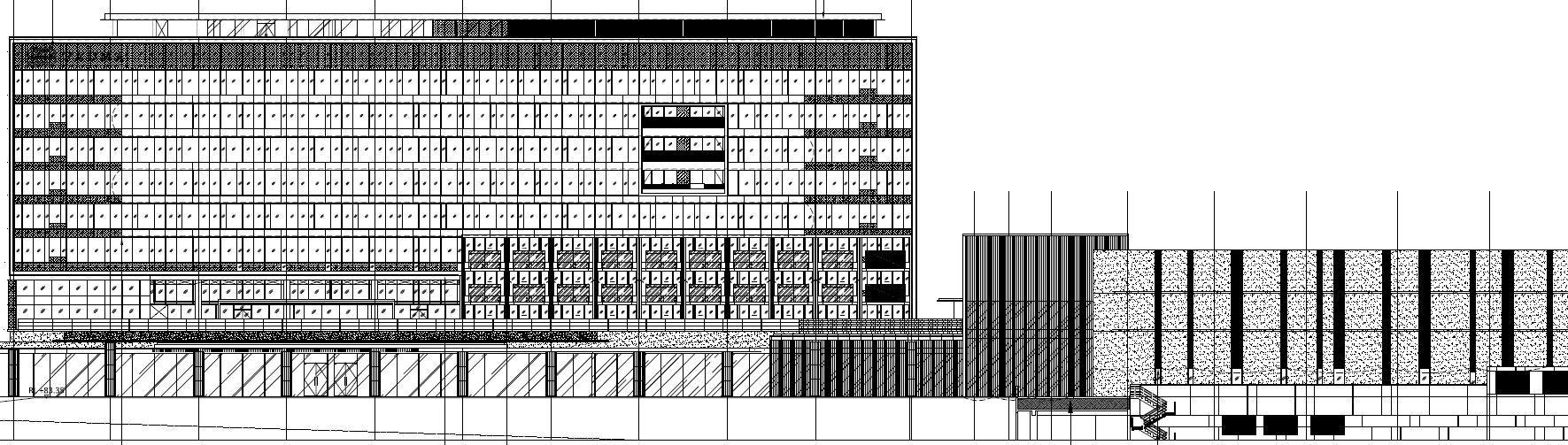

ELEVATION 1

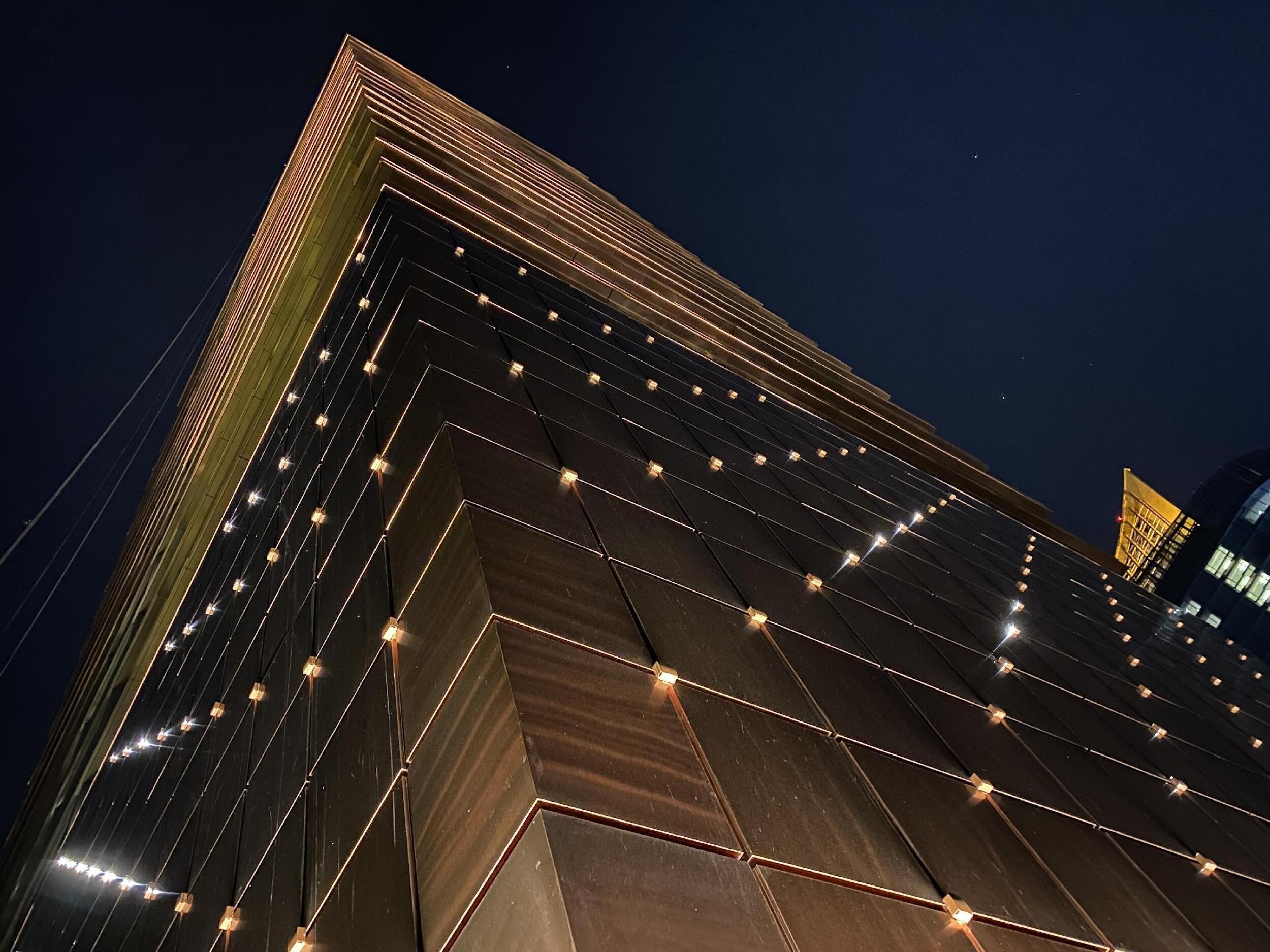

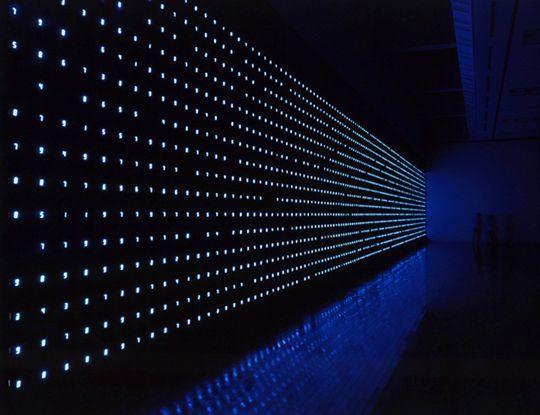

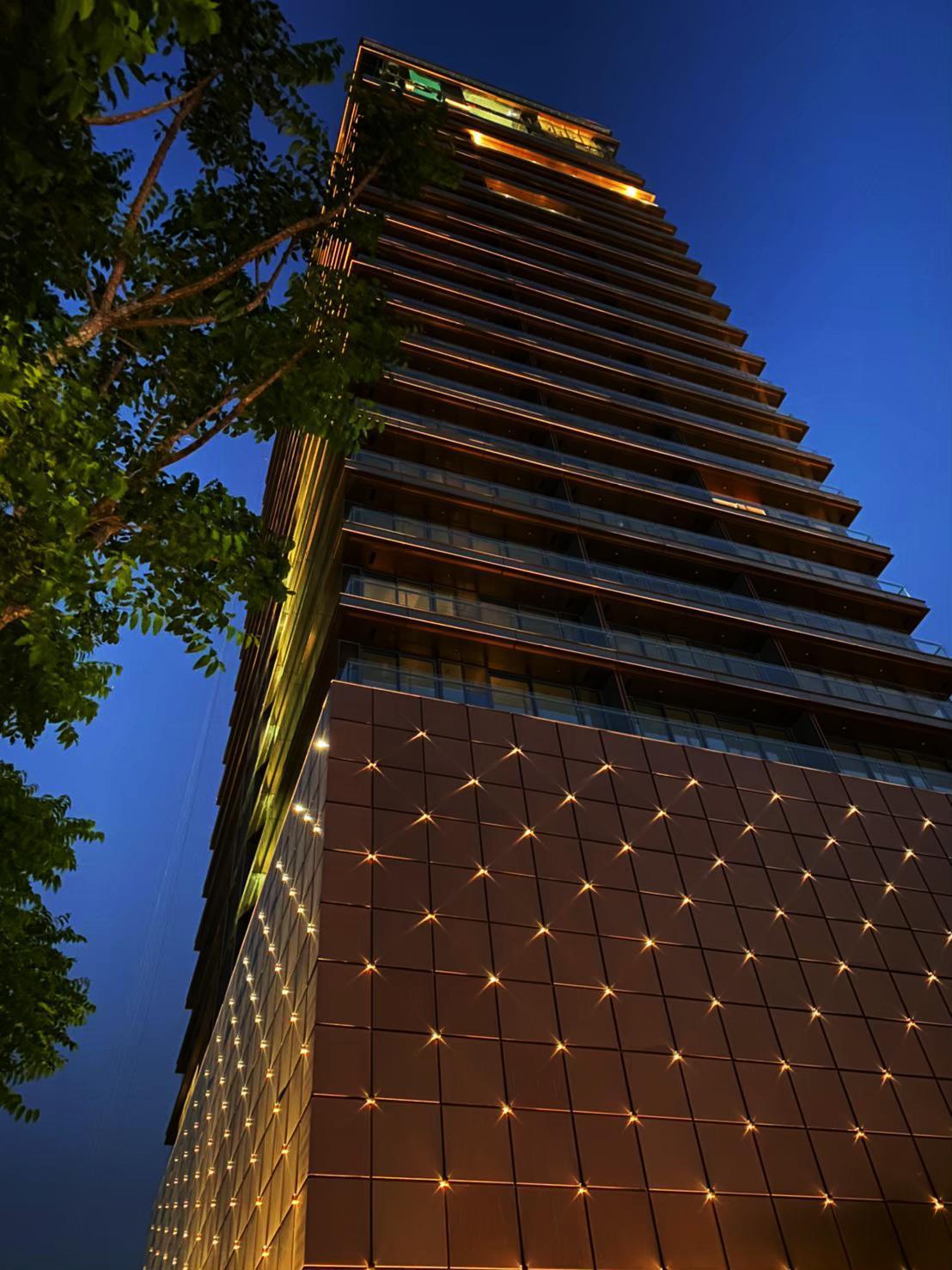

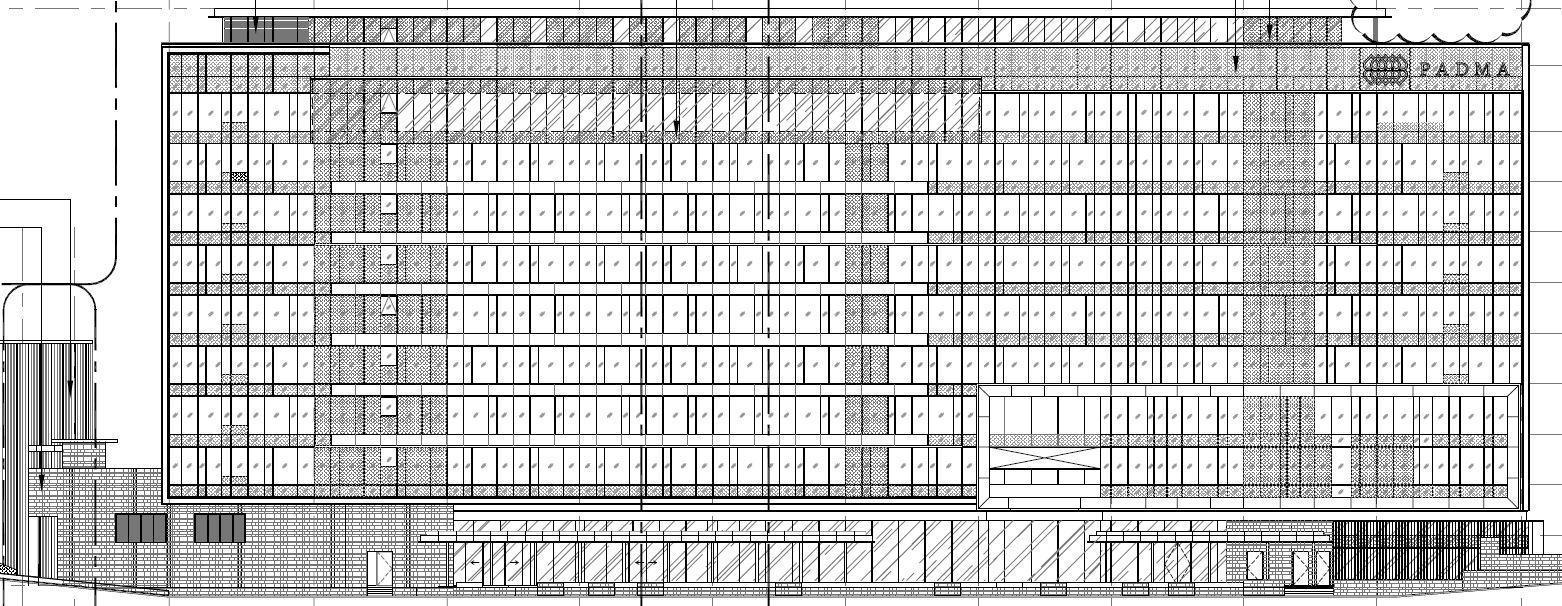

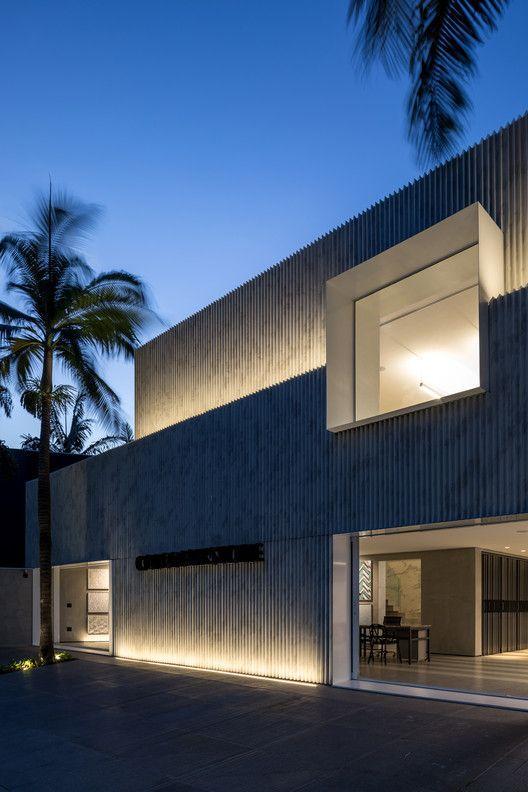

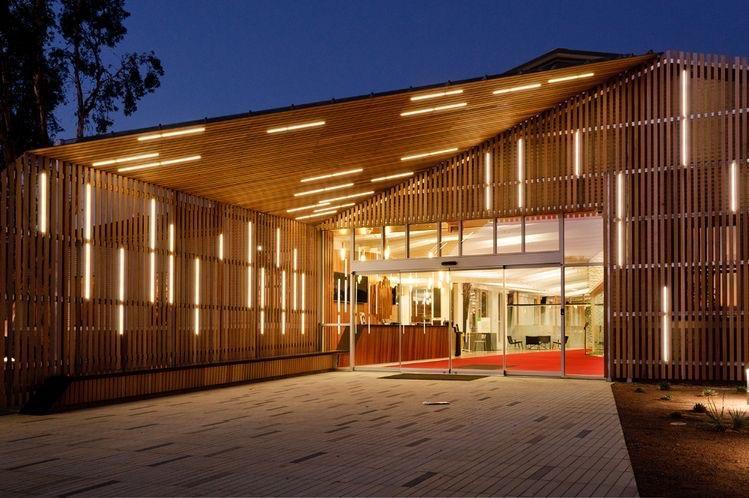

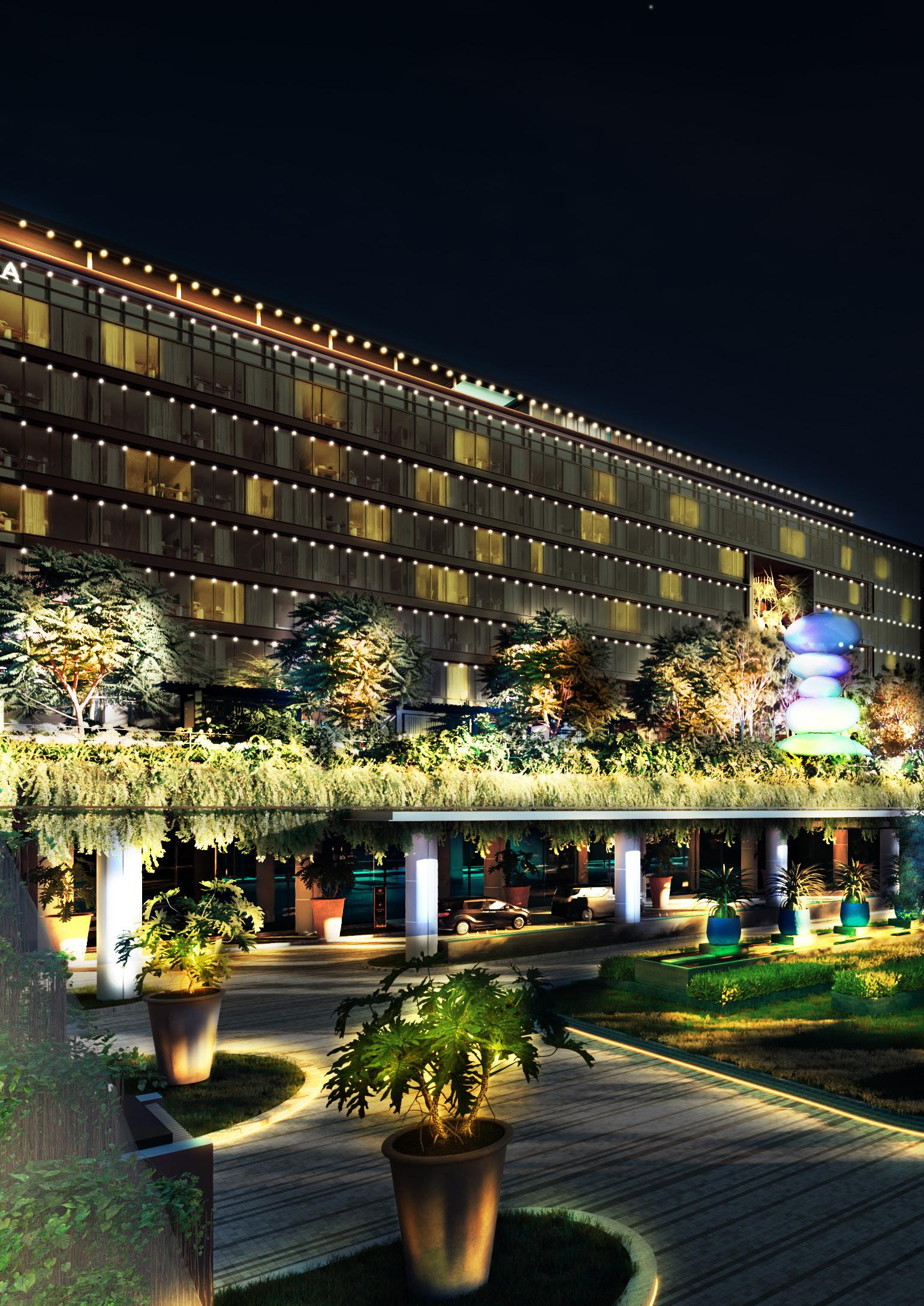

FACADE LIGHTING
ELEVATION 1
ELEVATION 1
FACADE LIGHTING
FACADE LIGHTING
Neon
light
Asymmetric spotlight
180D spotlight LED Pixel
OUTDOOR LUXURY PTE.LTD
138 CECIL STREET CECIL COURT, 18TH FLOOR
SINGAPORE 069538
UEN NO. 201736576H
CUSTOMER@XAVIERLOUPSTUDIO.COM
IN COLLABORATION WITH
