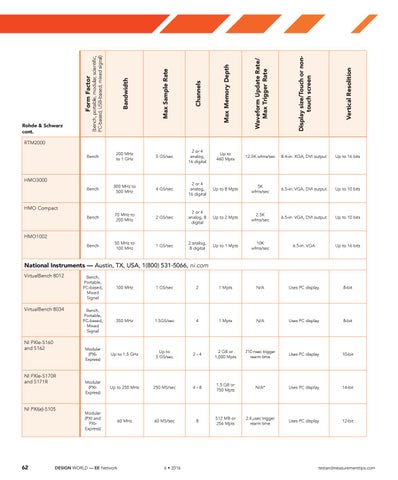

Max Sample Rate
Channels
Max Memory Depth
Waveform Update Rate/ Max Trigger Rate
Display size/Touch or nontouch screen
Vertical Resolition
Bench
200 MHz to 1 GHz
5 GS/sec
2 or 4 analog, 16 digital
Up to 460 Mpts
12.5K wfms/sec
8.4-in. XGA, DVI output
Up to 16 bits
Bench
300 MHz to 500 MHz
4 GS/sec
2 or 4 analog, 16 digital
Up to 8 Mpts
5K wfms/sec
6.5-in. VGA, DVI output
Up to 10 bits
Bench
70 MHz to 200 MHz
2 GS/sec
2 or 4 analog, 8 digital
Up to 2 Mpts
2.5K wfms/sec
6.5-in. VGA, DVI output
Up to 10 bits
Bench
50 MHz to 100 MHz
1 GS/sec
2 analog, 8 digital
Up to 1 Mpts
10K wfms/sec
6.5-in. VGA
Up to 16 bits
Form Factor
Bandwidth
(bench, portable, modular, scientific, PC-based, USB-based, mixed signal)
Rohde & Schwarz cont. RTM2000
HMO3000
HMO Compact
HMO1002
National Instruments — Austin, TX, USA, 1(800) 531-5066, ni.com VirtualBench 8012
VirtualBench 8034
NI PXIe-5160 and 5162
NI PXIe-5170R and 5171R
NI PXI(e)-5105
62
Buyers Guide 3.indd 62
Bench, Portable, PC-based, Mixed Signal
100 MHz
1 GS/sec
2
1 Mpts
N/A
Uses PC display
8-bit
Bench, Portable, PC-based, Mixed Signal
350 MHz
1.5GS/sec
4
1 Mpts
N/A
Uses PC display
8-bit
Modular (PXIExpress)
Up to 1.5 GHz
Up to 5 GS/sec
2-4
2 GB or 1,000 Mpts
710 nsec trigger rearm time
Uses PC display
10-bit
Modular (PXIExpress)
Up to 250 MHz
250 MS/sec
4-8
1.5 GB or 750 Mpts
N/A*
Uses PC display
14-bit
Modular (PXI and PXIExpress)
60 MHz
60 MS/sec
8
512 MB or 256 Mpts
2.4 μsec trigger rearm time
Uses PC display
12-bit
