MULTIPLYING PARKING SPACE WITH WOHR MULTIPARKER SERIES

Urban spaces in India are undeniably getting jam-packed with the accelerating rise in the number of vehicles on the road. A massive contributor to this undesirable state of affairs is the shortage of available parking spaces.

Multilevel car parking is a car parking solution which is significantly underused in Indian metros, tier-1 and tier-2 cities. The obvious advantages of automated multilevel car parking systems are leading to the increased adoption and popularity of these systems.

When a greater number of parking spaces are required, Wohr recommends the Multiparker range of automatic car parking systems.

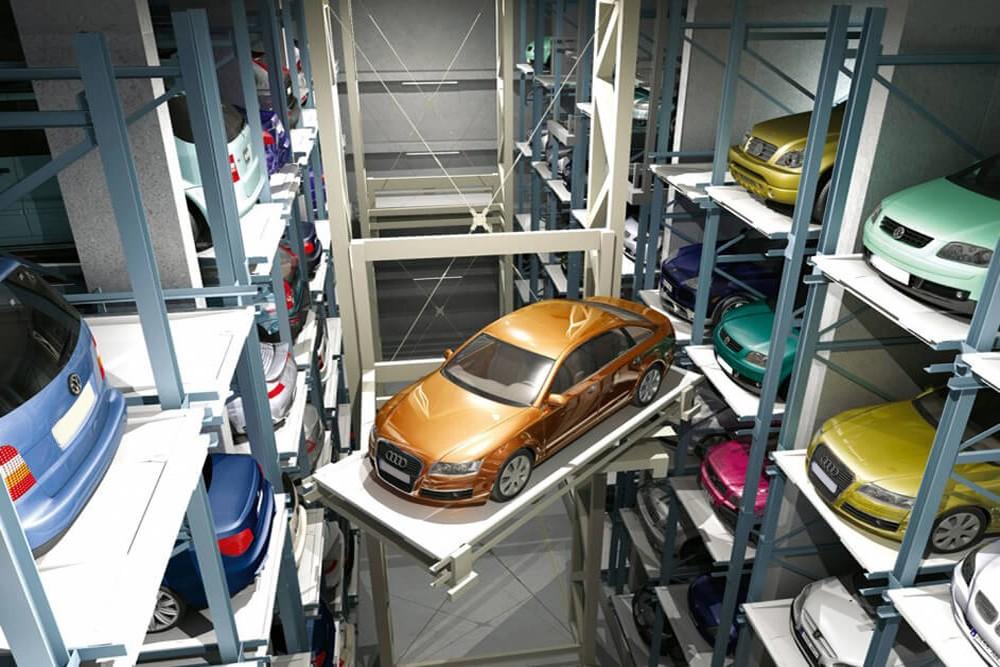

In these systems, shuttles or storage and retrieval units transport vehicles along all three axes of motion. The aim is to gain the most amount of parking space in order to accommodate a large number of vehicles using the principle of horizontal and vertical stacking of cars within the parking rack.

BENEFITS OF MULTIPARKER CAR PARKING SYSTEMS • • • • • • • • • • • • • •

Automatic operation parking system for 10 to 100+ cars Available in tower and pit version Varied lengths of systems available Multiple arrangements of rows - up to 3 rows behind one another Easily adaptable to specific project requirements Increase safety for users and cars Customizable transfer area arrangement Quick change pallet system for fast access times No ramps or driving lanes required No need for costly illumination and ventilation Different car heights possible Car weights up to 2,500 kg supported Easy to operate with numerous control options - RFID chip, remote control Suitable for public parking and residential/office buildings

THE MULTIPARKER SERIES Wohr’s Multiparker Series comes with a range of models which include:

Multiparker 710 This is a car parking system that is especially suited for wider structures. The transportation of the car is carried out crosswise. A turntable unit can be added to the Multiparker 710 - this parallelly turns the car towards the exit while transporting and lifting the vehicle.

This system is available in both tower and pit configurations and provides 2 to 8 parking levels. It can also be installed in an arrangement of multiple rows consisting of up to 2 parking rows behind one another.

THE MULTIPARKER SERIES Multiparker 720 The Multiparker 720 from Wohr provides space multiplying parking in a structure inspired by a high-rack shelving system and is especially suitable for areas with smaller floor plans that have high structures. The car is transported in a cross-wise manner. A turntable can be added which parallelly turns the car towards the exit while transporting and lifting the vehicle.

This system comes in both tower and pit versions offering up to 50 levels of parking space and can be installed in an arrangement of multiple rows of 2 parking rows one behind the other.

THE MULTIPARKER SERIES

Multiparker 730 This automated parking system from Wohr multiplies parking spaces by stacking cars next to and on top of each other on a high rack. It allows for the crosswise parking of 3 rows on both sides of the shuttle. The shuttles operate independently and parallelly at every level for quick access between the parking spaces and the lift. High performance is ensured by the use of an integrated quick pallet change system that parallelly replaces the loaded and empty pallets.

THE MULTIPARKER SERIES

Multiparker 740 This offering in the Multiparker series has been designed particularly for narrow and long floor plan areas. The Multiparker 740 works on the time-tested principle of stacking cars side to side and on top of each other in a high-rack storage system. It offers length-wise parking next to the storage and retrieval system. The ideal system configuration comes with 3 parking rows on both sides of the storage and retrieval system with up to 8 parking levels one on top of the other.

THE MULTIPARKER SERIES

Multiparker 750 This mechanical parking system is ideal for the construction of a high-racking system made of concrete and is available in tower or pit versions.

This is a multilevel car parking solution that is especially cost-effective when installed in underground structures and in areas with small footprints - all while providing parking spaces on up to 30 parking levels.

THE MULTIPARKER SERIES

Multiparker 760 The Multiparker 760 is best for construction as a high rack made of concrete and is available in both tower and pit versions. Multiparker 760 multiplies car parking spaces on every level and is ideal when bigger floor plan areas are available, but the layout features fewer parking levels.

CONCLUSION The need for the utilization of multilevel automated car parking systems is imperative and increasing every day. With scarce land and a drastically increasing vehicle population, multilevel parking systems are the way to go! Wohr has been in the business of designing and commissioning efficient, safe and dependable parking systems for decades now.

As one of the world’s foremost car parking systems manufacturers, Wohr brings together a diverse range of semi-automated and fully automatic parking systems including stack parking systems, puzzle parking systems, tower parking solutions, hydraulic parking system , smart parking system,parking platforms and turntables. With its global expertise, exhaustive range, top-class manufacturing and quality standards, Wohr is the ideal choice for your automated parking systems.
