EVENT WRAP-UP

wire Düsseldorf ... a record!

Some 2,700 wire and Tube exhibitors from more than 60 countries filled the halls April 15-19 at the Messe Fairgrounds. This wrap-up presents comments from the organizers as well as exhibitors, and a range of equipment presented at the event is shown in the equipment feature.

What a great trade fair season!

It’s hard to disagree with that official perspective from Messe Düsseldorf, which in its wrap-up of wire Düsseldorf pointed out that there were 1,500 exhibitors from 60 countries on 67,400 sq m. That made the 2024 staging at the Fairgrounds the largest ever in its nearly 40-year history.

The sister event, Tube Düsseldorf, saw 1,200 exhibitors from 54 countries. Collectively, the week-long events presented the most comprehensive technology presentation ever for the fields.

4 6 W I R E J O U R N A L I N T E R N AT I O N A L J U N E 2 0 2 4

“The world seems to turn faster and we turn with it,” said Daniel Ryfisch, director of wire, tube & flow technologies. “Every two years our industries get together here in Düsseldorf – the community stands by its location on the Rhine. We are very grateful for this and are working consistently to ensure that wire and Tube will also remain their industries’ No. 1 trade fairs in the future.”

The press release noted that while the exhibits continued to present the latest advances in technology and services, the event also included a solid educational program. “For

W W W. W I R E N E T. O R G

EVENT WRAP-UP

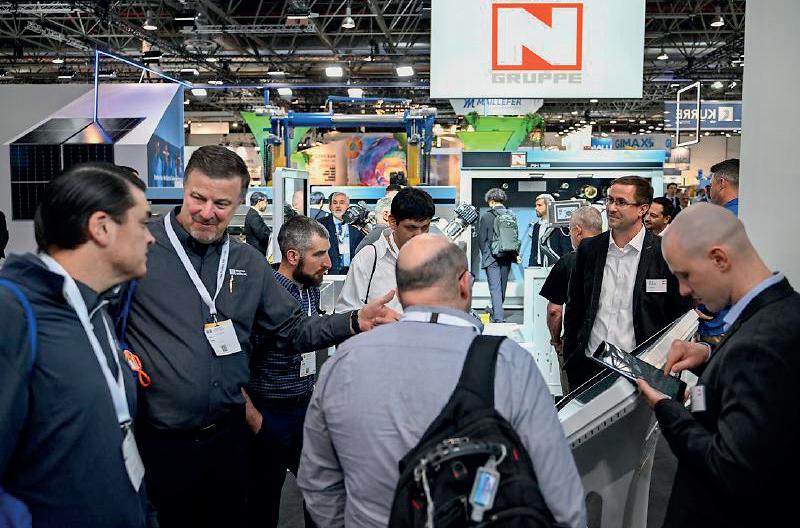

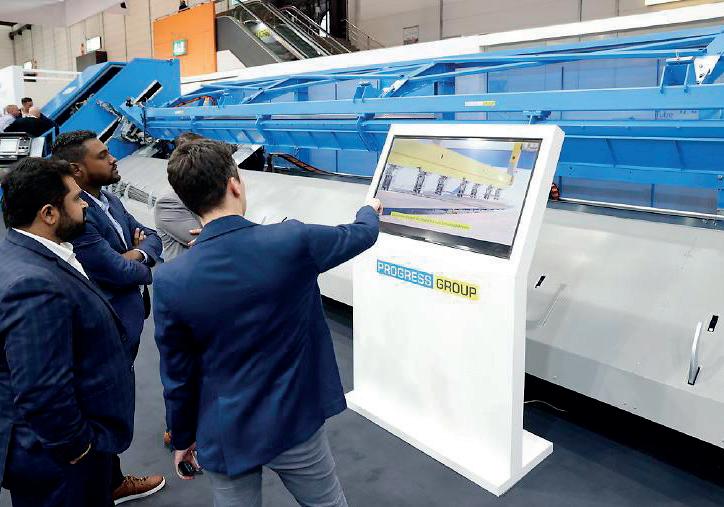

Photos courtesy of Messe Düsseldorf.

Photographer C. Tillman

W W W. W I R E N E T. O R G

J U N E 2 0 2 4 W I R E J O U R N A L I N T E R N AT I O N A L

47

F E AT U R E

Equipment at wire Düsseldorf

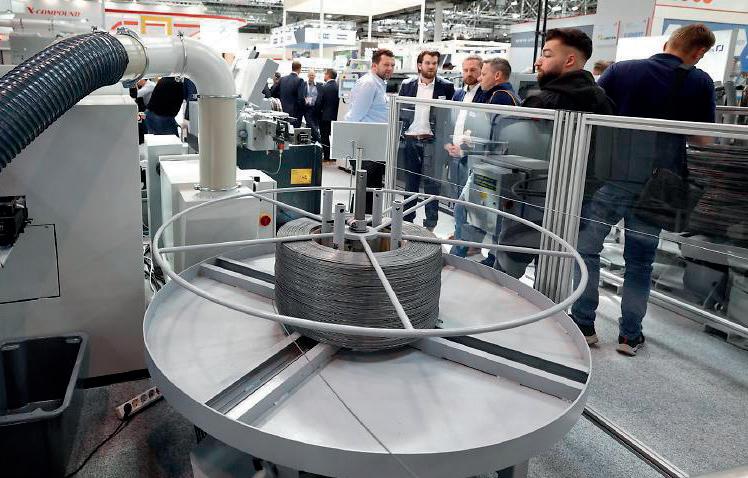

Messe Düsseldorf/C. Tillmann

BETA SISTEMI SRL ITALY Beta Sistemi’s MB24 is a powerful drawing machine’s platform up to 48-wires for high-speed operation and mass production of medium-sized wires. Up to 12-wires in one row of capstans. Drawing capstans onto two rows with separate haul-offs to provide a perfectly straight and aligned wire path. Solid frame in electro-welded and stress

This feature presents some of the equipment that was shown at the Fairgrounds on April 15-19. Some companies chose to highlight their philosophy and/or focus, but either way, they provide a taste of the show floor. Other “new” entries are in the Products section, and more will follow in July.

speed drawing and severe heat dissipation. The machine structure is monolithic, made of electro-welded normalized sheet metal, requiring no foundations. The drawing section is at the front, while the transmission system and auxiliary systems are at the back. It features a built-in coolant tank for efficient discharge flow and can connect to centralized or autonomous coolant systems. The drawing section includes ceramic capstans for wire alignment, with separate pulling rings and coil separation systems. Die holders are designed for easy cleaning and constant wire alignment. The transmission system uses hardened steel gears and includes a pneumatic disc brake for emergencies. The annealing section has four steps: pre-annealing, annealing, cooling, and drying, with precise control of annealing current. It includes multiple annealing axes with detachable flanges and automatic wear monitoring for brush replacement. Annealing occurs in a nitrogen-protected atmosphere, followed by efficient cooling and drying systems. For tinned wires, there’s a wetting system and automatic innovative cleaning device for each annealer’s contact cylinder. Transmission to each annealing ring is via servo-ventilated AC motors, ensuring precise alignment and speed control. Beta Sistemi Srl, www.betasistemi.it.

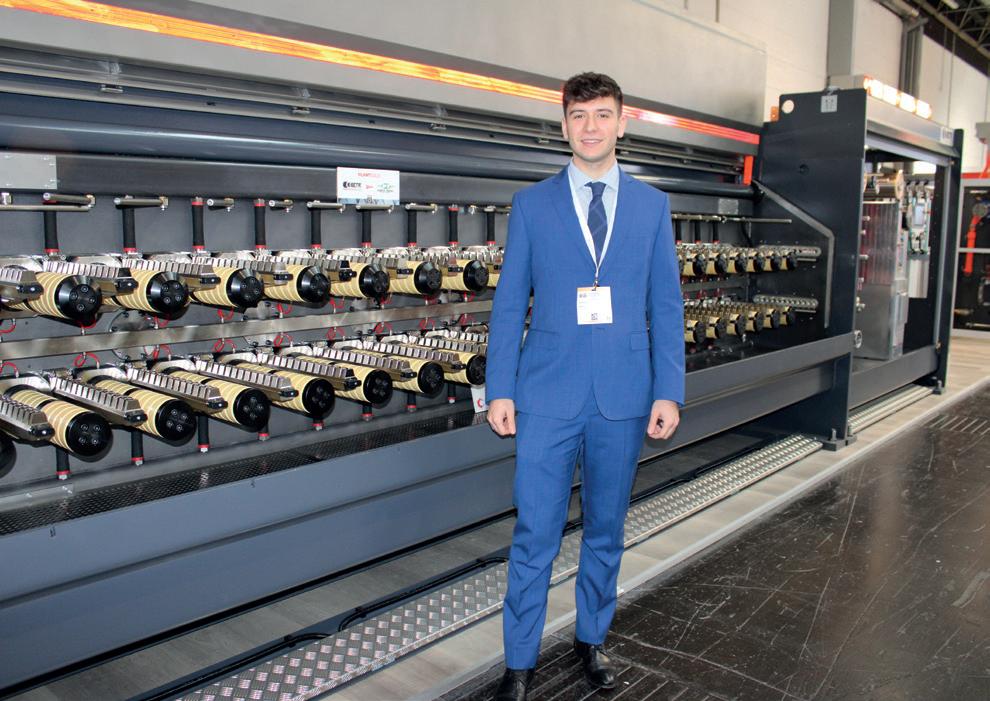

Beta Sistemi Srl’s Alessio Marin by the company’s MB 24 wiredrawing system.

EURODRAW WIRE EQUIPMENT ITALY

relieved heavy steel plates. Reliable mechanical transmission with independent main power chain and largely oversized helical gears, suitable to sustain long term heavy working conditions. Enhance lubrication system for high-

Eurodraw Wire Equipment displayed two interesting machines at wire Düsseldorf. The MTX wire drawing machine, the first truly “plug-and-play” dry drawing line that features an integrated electrical cabinet, water refriger-

5 4 W I R E J O U R N A L I N T E R N AT I O N A L J U N E 2 0 2 4

W W W. W I R E N E T. O R G

F E AT U R E

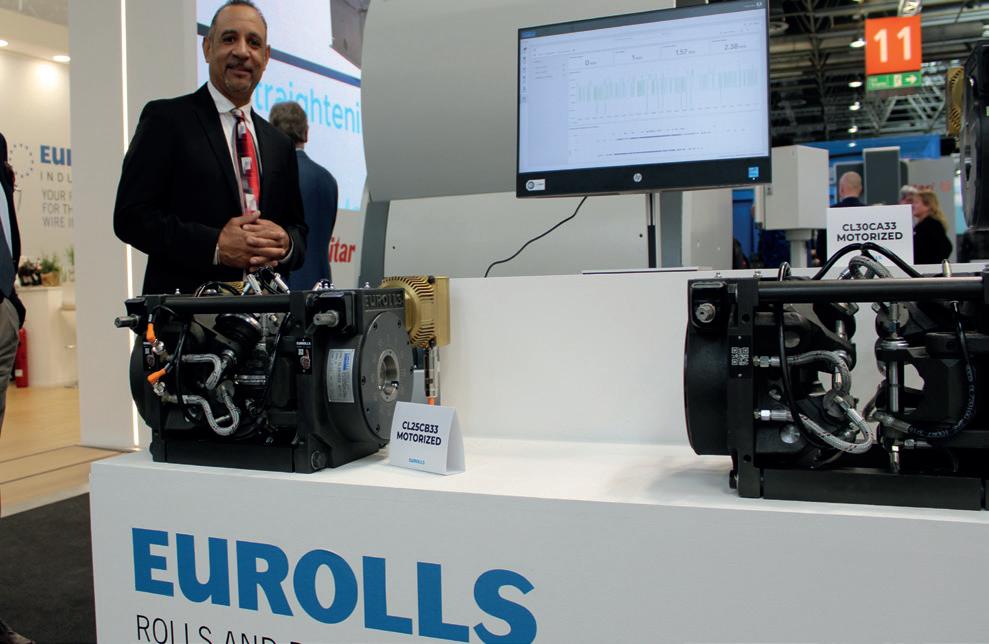

North America Sales Manage Steve Nichols by Eurolls’s CL30CA33 motorized rolling cassette.

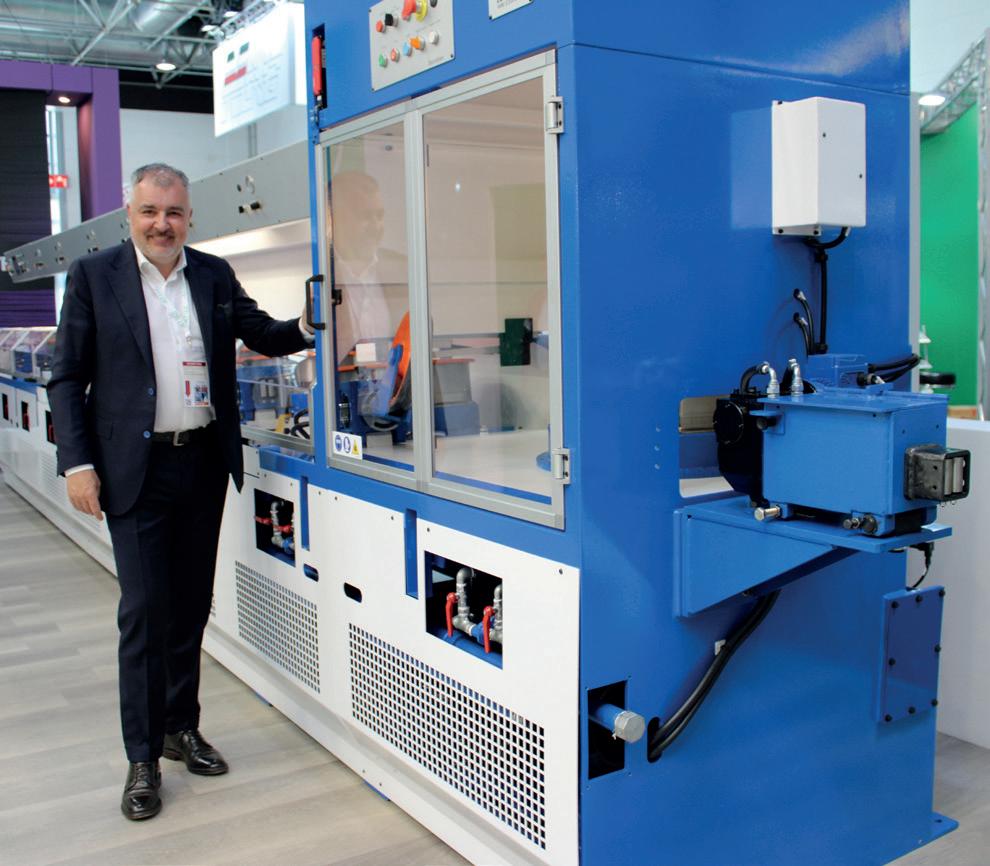

Eurodraw Managing Director Lorenzo Fachinelli by the company’s “plug-and-play” MTX wiring system. ation system and air compressor, all installed on board the machine. Just one connection is required: electrical power.

This type of machine is pre commissioned at the manufacturer factory, so, once it is positioned at the client factory, it is just necessary to connect power and it is ready to go.

The MTX type machine features the well-known Eurodraw “Alucool” capstan cooling system that ensures optimum wire cooling and high production speeds. The second machine on display was a section of a low relaxation PC Strand line. The latest model of the CLR strander has been updated with smart wire break detection systems, improved wire tensioning control systems and extended enclosure of the spool. With such new systems, bow damage in case of wire break are extremely reduced, improving the overall efficiency of the line. The Eurodraw product line includes double twist stranders and closers for the production of wire ropes up to 12 mm in diameter. Low power consumption, high production speeds and large spool size loading capability without compromising speed, makes a double twist strander or closer the most efficient and eco-friendly choice for the factory of the future. Eurodraw Wire Equipment, www.eurowire.com.

EUROLLS SPA ITALY Founded in 1987, Eurolls SpA is recognized for the design and production of steel rolls and accessories for tungsten carbide rolls, wire cassettes and a large range of machinery for the wire industry. Its four plants are located in Italy with subsidiaries and branches spread across the USA, Brazil, Mexico and China. The company’s Eurolls’s CA and CB rolling cassettes (CL25CB33 and CL30CA33) are mostly used to process low carbon wire for the construction industry. These cassettes are normally

W W W. W I R E N E T. O R G

mounted on one or more drafts machines, where the wire is reduced and/or deformed, used as a base for lattice girders, mesh, or generally reinforced concrete application.

Each model can cover different ranges on entry and exit wires according to several parameters which will be evaluated from time to time. These rolls are provided with new surface coatings that increase their life and improve the quality of the final product. The sizing, forming and reducing rolls made of either tungsten carbide or steel are used to produce smooth or ribbed wire for use in the construction sector. Profiling rolls are tungsten carbide rolls that are demanded for wire ribbing or indenting, and roll holders are made of steel and hold the sizing, forming, reducing, and profiling rolls. Eurolls has produced and sold more than 10,000 cassettes all over the world. The company has also carried out new developments in this sector which consists of an implementation of the quality of rolls surface utilizing special coatings leading to improved life span.

Eurolls SpA, www.eurolls.com.

GEO REINIGUNGSTECHNIK GERMANY When it comes to explaining its equipment, GEO Reinigungstechnik (GEO), represented in the U.S. by Cable Consultants Corporation, reports that a company must first know its objective when it comes to cleaning a surface. The solution (equipment) of course is essential, but the correct solution is far from a matter of selecting the latest equipment. Consider that the surface of deformed material is often far away from a smooth, “ideal” surface, and can be filled with residual drawing lubricating material. Particulate contamination also often causes problems in downstream processes. Cleaning usually aims to reduce or remove this contamination. Whether mechanical or aqueous, the individual cleaning methods have their respective strengths to achieve the desired result.

Economical mechanical wire cleaning with brushes, textiles and microfibers remove trouble causing contamination from the visible surface by mechanical friction at

J U N E 2 0 2 4 W I R E J O U R N A L I N T E R N AT I O N A L

55
