RR Residence

SPACE FOR WALLS

RR Residence Bali, Indonesia

SPACE FOR WALLS

RR Residence is an exemplary Tropical Contemporary Villa that masterfully fuses cutting-edge modern design with the rich, natural splendor of its coastal tropical environment. The villa is characterized by its expansive, open-plan interiors and seamless integration between indoor and outdoor spaces, enhancing the connection with the surrounding landscape.

By melding traditional tropical architectural elements—such as natural materials and passive cooling strategies—with sophisticated contemporary features like clean lines and minimalistic detailing, RR Residence establishes a harmonious and elegant retreat that complements its verdant, coastal backdrop.

RR RESIDENCE -BALI

SPACE FOR WALLS

Planter Box

The east side underwent subtraction to create corridor and terrace in each bedroom

Kids Bedroom Master Bedroom Corridor

Kids Bedroom Master Bedroom Kids Room Access to the Rooftop

The east side underwent subtraction to create corridor and big open space for the family room

The basement is only half the land area with a position that is not completely embedded in the ground

Master Bedroom Prayer Room Planter Box

Family Room

Ofce Servis & Staff Area BOH

Pool Garden

Massing

Concept

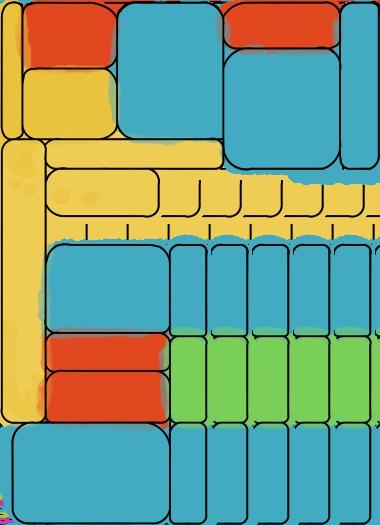

Program

Circulation

The building consist of one mass with three oors: semi basement, ground oor, and upper oor. The facade of the main building faces east side. The main entrance could be accessed through the west stairs of the building.

This house is a villa with a contemporary tropical style that maximizes natural lighting to enter the room, a long corridor with openings, then there is a swimming pool and a jacuzzi connected to a wooden deck.

The basement oor is used as a staff and service, the rst is used as the main room and master bedroom, and the second oor is used for bedrooms and kids area.

A corridor connects the ground oor and the upper oor.

On the ground oor, a corridor connects the circulation through a pool deck and semi-open lounge.

Bioclimatica Glass window openings surround all sides of the building so light can optimally enter the room.

The green area in the form of an inner court is given by providing planter boxes in several area.

RR RESIDENCE -BALI

SPACE FOR WALLS

Spatial Planning Basement

Staff Area

Panel & Linen Area

Stairs Area to Ground Floor Area Staff Kitchen

Laundry Area Pump Room Storage

Staff Bedroom

Staff Bedroom

Corridor Shoes Storage

Staff Bathroom

Outdoor Stairs to Ground Floor Parking Area

Pump Room

8

7 Parking Area

6

9

5 2 1

5 6

B

6 9

8 9 3 10

Basement Floor Level FFL -3.465 252.92 mm

10

4

3

1. Parking Area 2. Staff Bathroom 3. Home Assistant Bedroom 4. Driver Bedroom 5. Staff Area 6. Kitchen Staff 7. Laundry 8. Linen & Panel Room 9. Storage 10. Pump Room

2

10

1

RR RESIDENCE -BALI

SPACE FOR WALLS

Spatial Planning Grond Floor

6

4

Bathroom

12

Bathroom Ofce Prayer room Master bedroom

Lounge

Stair area Planter box for plants

3

7

5

Pool deck Pool

Kitchen & dining room Stairs area to basement Living Room

Jacuzzi

11 4 9

1

2

Landscape Feature - Aracaceae - Philodendron - Spathiphyllum Wallisii

3

10

5 6 7

2

8

10 8

GF

Ground Floor Level FFL +0.000 361.56 mm 1. Living Room 2. Kitchen & Dining Room 3. Prayer Room 4. Prayer Bathroom 5. Master Bedroom 1 6. Master Bathroom 1 7. Lounge 8. Pool 9. Jacuzzi 10. Pool Deck 11. Garden 12. Ofce

11

Landscape Feature - Jasmin Manga - Philodendron - Maranta Zebrina - Spathiphyllum Wallisii

12

1

9

RR RESIDENCE -BALI

SPACE FOR WALLS

Spatial Planning Upper Floor & Rooftop

2

5 Bedroom

Bathroom

Bathroom

Terrace

Stair to rooftop kids room

4

1

Bedroom

3

Corridor Stairs from gf to uf

6

Corridor Bedroom

Terrace

Bathroom Planter box Bathroom

Terrace

Bedroom

5 10

9

8

3

4

7

7 2

UF 3

6 1

3

3

Upper Floor Level FFL -3.465 258.86 mm 1. Master Bedroom 2 2. Master Bathroom 2 3. Terrace 4. Bedroom 1 5. Bathroom 1 6. Kids Room 7. Bedroom 2 8. Bathroom 2 9. Master Bedroom 3 10. Master Bathroom 3

Rooftop

8

9

10

3

1. Rooftop Bale

1

RR RESIDENCE -BALI

SPACE FOR WALLS

09 10

11

12

13

Longitudinal Section

01

02

03

06

04

05

01. Master Bathroom 1 02. Master Bedroom 1 03. Corridor 04. Dining Room & Kitchen 05. Living Room 06. Kitchen Staff 07. Staff Bedroom 08. Car Park 09. Bedroom 1 10. Bedroom 2 11. Bathroom 2 12. Master Bathroom 2 13. Master Bedroom 3

07 08

RR RESIDENCE -BALI

SPACE FOR WALLS

Cross Section 05

01. Car Park 02. Jacuzzi 03. Deck Terrace 04. Living Room 05. Master Bedroom 3 06. Lounge 07. Entrance

04 06

07 03

02 01

RR RESIDENCE -BALI

SPACE FOR WALLS

RR RESIDENCE -BALI

SPACE FOR WALLS

RR RESIDENCE -BALI

SPACE FOR WALLS

Landscape Features Verdant Stairway: Tropical Landscape Design

Dracaena Marginata Livistona Chinensis Monstera Deliciosa Jaburan Variegata

The upper floor balcony area is enhanced by a planter box filled with tropical plants, which adds a vibrant, green touch and creates a refreshing, exotic ambiance.

Phoenix sylvestris

Jaburan Variegata Livistona Chinensis Monstera Deliciosa

Cycas Rumphii Jaburan Variegata

A planter box has been strategically placed beneath the stair landing, serving as a focal point for a palm tree. This thoughtful arrangement imparts a lush, tropical impression to the interior, seamlessly blending with the overall decor to evoke a sense of exotic tranquillity.

Jasmin Manga Philodendron Alpinia Purpurata Spathiphyllum Wallisii To the east and north, the landscape area is overwhelmingly dominated by a rich tapestry of tropical plants, their greenery foliage creating a dense, verdant canopy that contrasts strikingly with the more arid surroundings and evokes a sense of lush, untamed paradise.

In the stairwell, planter boxes are arranged horizontally along the stairs, creating a visually appealing sequence that leads from the basement up to the ground oor. This arrangement not only enhances the aesthetic of the space but also introduces a touch of greenery that guides the eye upward and adds a refreshing natural element to the transition between levels.

RR RESIDENCE -BALI

SPACE FOR WALLS

RR RESIDENCE -BALI

SPACE FOR WALLS

R House

Living Room & Kitchen

The RR Residence living room and kitchen are designed with a modern aesthetic, catering to the needs of a large family of 8-12 people who frequently gather together. The expansive facade is lined with windows that can be fully opened or closed, seamlessly integrating the interior with the outdoor environment. This design choice enhances the connection between indoor and outdoor spaces, featuring an exposed staircase that visually and functionally links the living areas to the garden, pool, and overall house. The result is a harmonious indoor-outdoor space that fosters a strong, inviting relationship with the surrounding landscape.

RR RESIDENCE -BALI

A

SPACE FOR WALLS

PLAN 1. TV Cabinet & Artwork Shelf 2. 3 Seater Sofa 3. 9 Seater Sofa & Round Table 4. Pantry

4 2

1 3

1

TV Cabinet & Artwork Shelf Teak wood 3MM Brass steel 2MM Top table ceramic tile 120 x 240 MM ex. Calacatta

2 3 Seater Sofa Sofa platform teak wood with natural nishing Sofa 3 seater

3 9 Seater Sofa & Round Table Top table ceramic tile 120 x 240 MM ex. Calacatta Teak wood with natural nishing Sofa 9 seater Sofa platform teak wood with natural nishing

4 Kitchen Pantry Teak wood with wall nishing ex. Dulux

Top table ceramic tile 120 x 240 MM ex. Calacatta

The furniture is arranged to ensure an unobstructed ow of movement, allowing all family members to gather Teak wood with natural nishing

comfortably and interact easily within the space.

Kitchen Zink ex. Quartz Stone Fridge

RR RESIDENCE -BALI

SPACE FOR WALLS Section A

RR RESIDENCE -BALI

SPACE FOR WALLS

Master Bedroom The master bedroom interior harmoniously blends contemporary and tropical styles, creating a serene and inviting atmosphere. The space is dominated by rich teak wood materials, which add warmth and elegance while enhancing the tropical aesthetic. The combination of modern design elements with the natural beauty of teak creates a sophisticated yet relaxed retreat.

Kids Bedroom On the second oor, the children's room and seating area blend contemporary style with warm wooden materials. The sleek wooden nishes create a modern, inviting atmosphere, combining comfort and design seamlessly.

RR RESIDENCE -BALI

SPACE FOR WALLS

RR RESIDENCE -BALI

SPACE FOR WALLS

Details 1 2

Master Bedroom

3

FFL +0.000

4 5

W7

1 Hollow Galvalum 30 x 40 mm 2 Gypsum White Paint Finish

3 Support Structure for Sliding Track 4 Cove Curtain 5 Cove Lighting 6 Hollow Metal 20 x 40 mm 7 Gypsum White Paint Finish

6

Refer to Detail

7

RR RESIDENCE -BALI

SPACE FOR WALLS

Ceiling Upper Floor + 7.300 1 12

Ceiling Upper Floor 11 + 6.700

2 3

10

9

4

8

6 5

7

6

Ceiling Ground Floor + 3.700

Ceiling Ground Floor + 3.000

Details 1

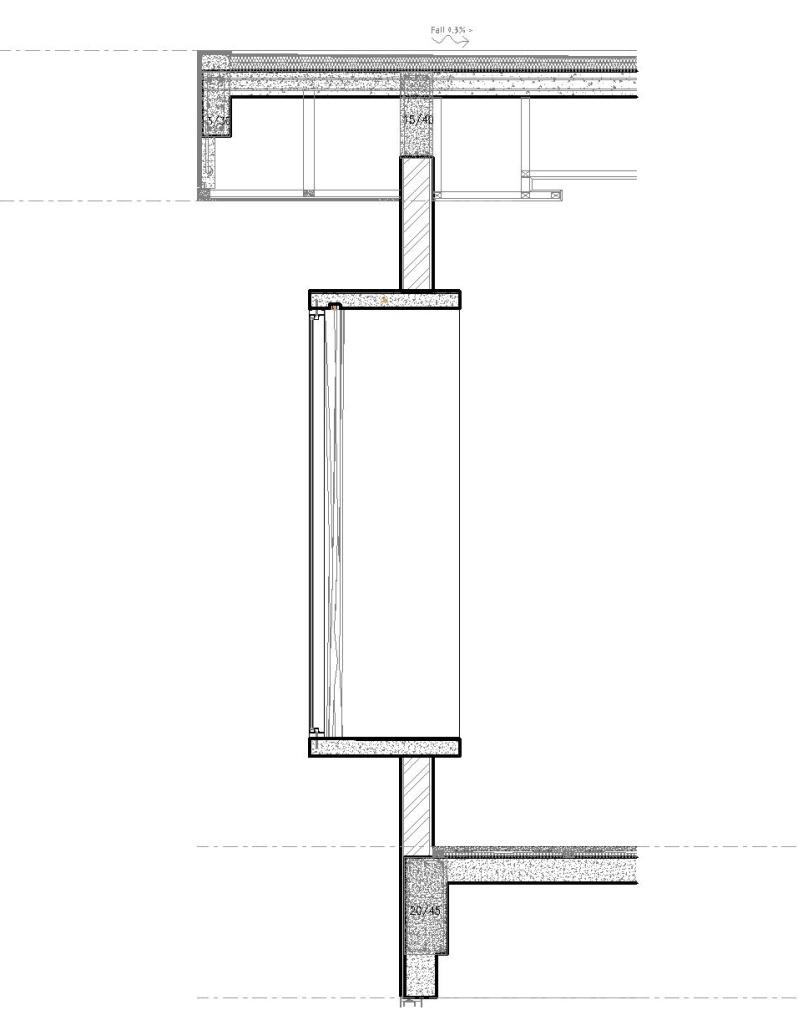

Concrete oor slab layer structure 2 Beam ref. to Engineering 3 30/40 mm metal galvalum structure 4 Gypsum board 10 mm with paint nish 5 Concealed light ref. to interior drawing 6 Concrete structure with smooth cement render with white paint nish 7 Fixed window by other vendor 8 Teak wood 10/50 9 8 mm plywood black paint nish 10 30/50 wood batten structure 11 Metail ashing with paint nish 12 Exterior weather shield paint (TBD)

RR RESIDENCE -BALI
