Soft Close Drawer Slides

Features:

• Full extension side mount ball bearing slides with soft-close technology • Suitable for wooden cabinets • Easy to install • Material: hardened cold rolled steel • Loading capacity: 35kg

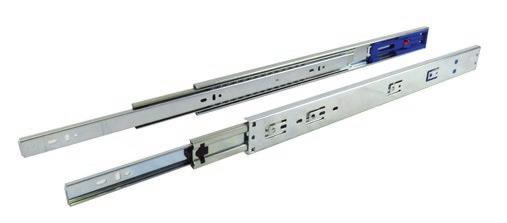

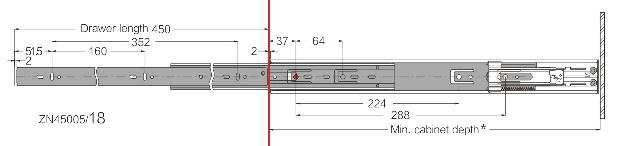

450MM SOFT-CLOSE DRAWER SLIDE

• Drawer Slide Length: 450mm • Minimum Cabinet Depth: 454mm • Minimum Side Clearance: 12.7mm

Finish: Bright Chrome Black Code:

DR450SC DRB450SC

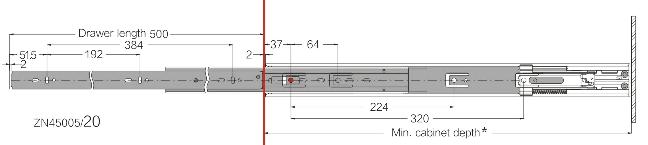

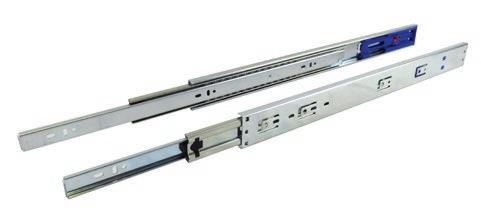

500MM SOFT-CLOSE DRAWER SLIDE

• Drawer Slide Length: 500mm • Minimum Cabinet Depth: 504mm • Minimum Side Clearance: 12.7mm

Finish: Bright Chrome Black Code:

DR500SC DRB500SC

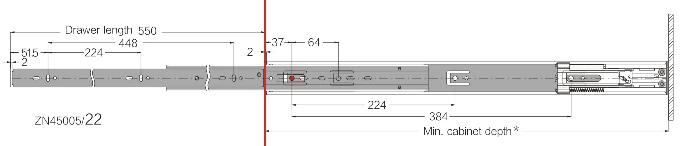

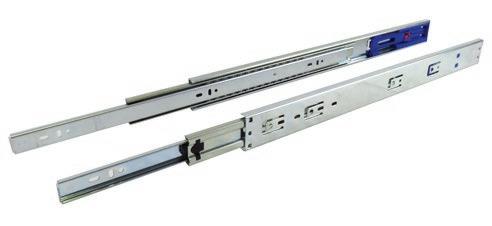

550MM SOFT-CLOSE DRAWER SLIDE

• Drawer Slide Length: 550mm • Minimum Cabinet Depth: 554mm • Minimum Side Clearance: 12.7mm

Finish: Bright Chrome Black Code:

DR550SC DRB550SC
