STUDIO 4A: STUDENT’S CONCRETE TREE HOUSE

Technical Drawings

ALONG WITH THE PROGRAM FUNCTION, THIS PROJECT HAD AN EMPHASIS ON SYSTEMS INTERGRATIONS. SYSTEMS THAT WERE INTERGRATED INTO THIS PROJECT WERE STRUCTURAL SYSTEMS, WATER COLLECTION, ACTIVE AND PASSIVE COOLING AND A GRID THAT COULD COMBINE AND SUSTAIN THESE SYSTEMS WITHIN AN ORGANIC FORM SUCH AS THIS ONE.

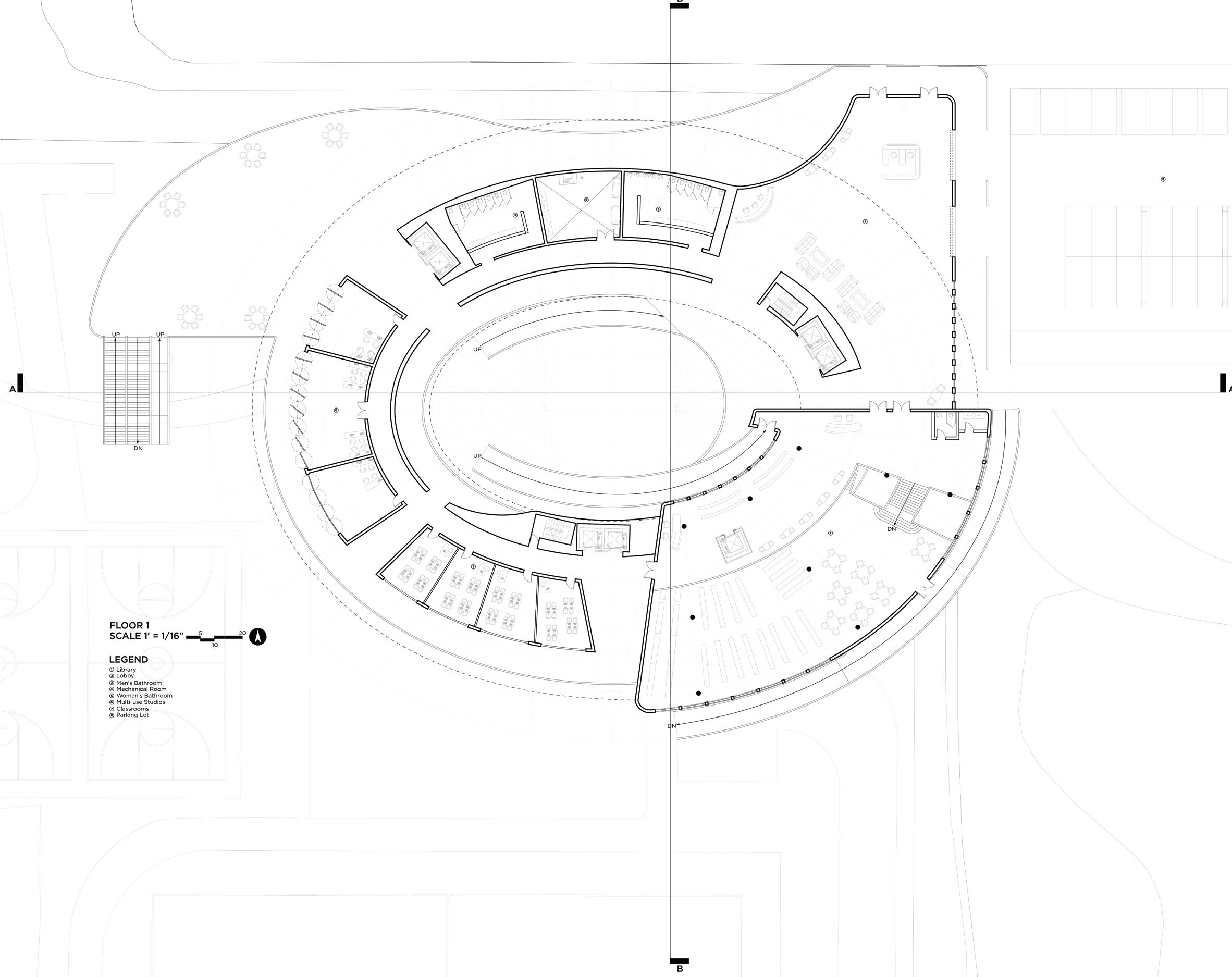

GROUND FLOOR

DETAILED SECTION

STUDIO 3B : Y-JUNCTION

FREEWAY INTERSECTIONS

THE Y-JUNCTION MIMICS THE 101 AND 110 INTERSECTION, CREATING A HIGHWAY FOR INTERACTIVE ART. THIS MUSEUM ‘S FORM CONTINUES WITH THE THEME OF DRIVING PATHS BY HAVING A FLOOR PLAN SIMILAR TO A Y-JUNCTION, BUT WITH A 3-DIMENTIONAL FORM THAT IS REMINICENT OF THE 101-110 FREEWAY INTERSECTION, MEANT TO BE A FREEWAY FOR ART TO BE DISPLAYED AND INTERACTED WITH.
