ABOUT ME I’m Whit, a Master of Architecture candidate from Oklahoma City with a passion for design and technology. Whether through creative exploration or technical diligence, I seek to solve problems creatively, innovatively, and efficiently. My professional experience includes several internships working on government projects such as VA hospitals, K-12 schools, public parks, and more. Through my education and experience I’ve developed skills in 3D modeling, BIM, project coordination, visualization, fabrication, and more. I’m currently looking for a firm where I can continue learning, contribute to meaningful work, and push the boundaries of how architecture shapes our communites.

WORK EXPERIENCE

RECOGNITIONS

Fall 2024 Graduate Teaching Assistant University of Oklahoma - Norman, OK Supported students though teaching, proving feedback, and facilitating communication betwen students and faculty.

Design Studio Award

Architectural Intern Summer 2024 GH2 Architects - Oklahoma City, OK Worked on schematic design, design developement, code analysis, and project management on a host of public and private projects.

Summer 2022 & 2023 Architectural Intern Spur Design - Oklahoma City, OK Worked on construction documents, code analysis, design, and design development on many federal projects ranging from healthcare to housing.

2019 - Present Photography / Graphic Design Freelance - Norman, OK Years of experience in photography and graphic design, including crafting merchandise and other promotional materials.

EDUCATION 2024-Present M.Arch - Master of Architecture University of Oklahoma - Norman, OK Graduate studies include environmental psycology, construction administration, and building systems integration.

2020-2024 B.S. in Architectural Studies University of Oklahoma - Norman, OK Undergraduate studies include architecture, astronomy, envrionmental and climate science, and structural engineering.

Spring 2023 AIA Rome Program - Rome, Italy Spring 2023 Study Abroad in Rome, Italy. Studies include Italian languange and culture, architectural history, perception, and observation.

Fall 2023

Scholarship awarded by studio professors.

Project voted 2nd Place in studio by a panel of architecture professionals. (page 6) Student Design Innitiative

Spring 2022

Independent design innitative recognized by Gibb's College newsletter, Oculus. (page 28) President’s Honor Roll

4x Semesters

Achieved a 4.0 grade point average for four semesters. Recognized by the University of Oklahoma President.

SKILLS Softwares

Technical Skills

• • • • • • •

• • • • • • •

Revit Enscape AutoCAD Rhinoceros 3D Photoshop Illustrator Indesign

Drafting Rending Graphic Design Photography 3D Modeling 3D Printing Woodworking

Phone: (405)-620-5344 Email: barrett.w.hull-1@ou.edu Portfolio: http://tiny.cc/76bzwz Website: www.whithulldesigns.com Linkedin: www.linkedin.com/in/whit-hull

TABLE OF CONTENTS “If you wish to make an apple pie from scratch, you must first invent the universe.”

- Carl Sagan, Cosmos

1 2 3 4 5

ECOSCAPE.

pg. 6

Dallas, TX, USA Residential/Mixed Use A multi-family affordable housing project located in the Vickery Meadow community in Dallas, TX.

GROW NORMAN.

pg. 14

Norman, OK, USA Community/Education Facility A community learning and service center located in Norman, OK to help inform and allow residents to grow food within an urban setting.

NEAT.

pg. 20

Norman, OK, USA Recreational/Medical Facility Equine Assisted Therapy Center located in Norman, OK designed to support theraputic riding for patients with various disabilities.

PERSONAL PROJECTS. Sink Extenders Drafting Table

pg. 26 pg. 28 pg. 30

PHOTOGRAPHY. Astronomical Coming Soon

pg. 32 pg.32 pg. 36

ECOSCAPE Use: Residential/Mixed-Use Location: Dallas, TX Fall 2023 Ecoscape is a conceptual multi-family affordable housing project located in the Vickery Meadow community of Dallas, TX. This innovative development is designed with a focus on sustainability, community engagement, and universal accessibility. This approach fosters inclusivity, with design elements that encourage social interaction and cultural enrichment within indoor and outdoor communal spaces. The structure features a robust mass timber frame, ensuring both sustainability and structural integrity, while the exterior wall design incorporates recycled brick and galvanized corrugated steel, highlighting the project's commitment to eco-friendly materials. Ecoscape is driven to respond to the AIA Framework for Design Excellence, integrating renewable energy sources and water-efficient strategies to minimize environmental impact.

6

01

FLOOR PLAN Typical

MASSING EXPLORATIONS Final Iteration

Ecoscape serves as a dynamic nexus for community engagement, seamlessly extending the adjacent library’s community outreach. Grounded in the ethos of inclusivity and c onnectivity, the structure acts as a vibrant hub for diverse user groups.

The deliberate choice of design elements, such as sloped roofs mirroring neighboring residences, creates a visual harmony with its surrounding context and seeks to evoke a subconscious sense of home and shelter.

SOUTH ELEVATION From Park Ln

EAST ELEVATION From Library

FULLY ACCESSIBLE APARTMENTS

2 BEDROOM UNIT

The accessible apartment units in Ecoscape are designed to meet ADA and universal design standards, ensuring they are easily navigable and comfortable for all residents. Features like no-step entries, wide doorways, and adaptable living spaces make the units accessible to people with various abilities, promoting independence.

All units feature a large accessible bathroom and kitchen and an intuitive and easy to navigate layout. By adhering to these standards, Ecoscape emphasizes its commitment to inclusivity and creating a welcoming environment for a diverse community.

SUSTAINABLE DESIGN STRATEGIES

1 6

DESIGN FOR RESOURCES Prioritizes recycled materials and a modular construction approach, reducing waste and resource consumption.

DESIGN FOR EQUITABLE COMMUNITIES Fosters social equity by offering affordable, accessible housing, providing diverse residents with quality living spaces.

2 7

DESIGN FOR ENERGY Incorporates passive solar design and renewable energy sources. Aims for net-zero energy consumption.

DESIGN FOR DISCOVERY Offers educational sapces and features, encouraging residents and visitors to learn about its environmental strategies.

3 8

DESIGN FOR WA Employs rainwater water fixtures, mini promoting conserv

DESIGN FOR CH Designed to be ad accommodating fu expansions to mee

WATER r harvesting and efficient imizing water use and vation.

HANGE daptable and capable of uture changes in use or et community needs.

78% CO2 REDUCTION

+

4 9

DESIGN FOR INTEGRATION A harmony with local context creates a seamless transition between Ecoscape and the library.

DESIGN FOR ECOSYSTEMS Incorporates rain gardens and bioswales, enhancing biodiversity and managing stormwater.

5 10

DESIGN FOR ECONOMY The use of recyclable, local materials ensures economic viability and long-term sustainability.

DESIGN FOR WELL-BEING Natural light, superior air quality, and connection to outdoor spaces in Ecoscape support physical and mental well-being.

ECOSCAPE. ROOF SYSTEM Standing Seam Metal

CLT BALCONIES 5-Ply CLT

BEAM SYSTEM Glulam

COLUMN GRID GLulam

FLOOR SYSTEM Concrete on CLT SLAB 6" Concrete Slab FOUNDATIONS Isolated Concrete Footings

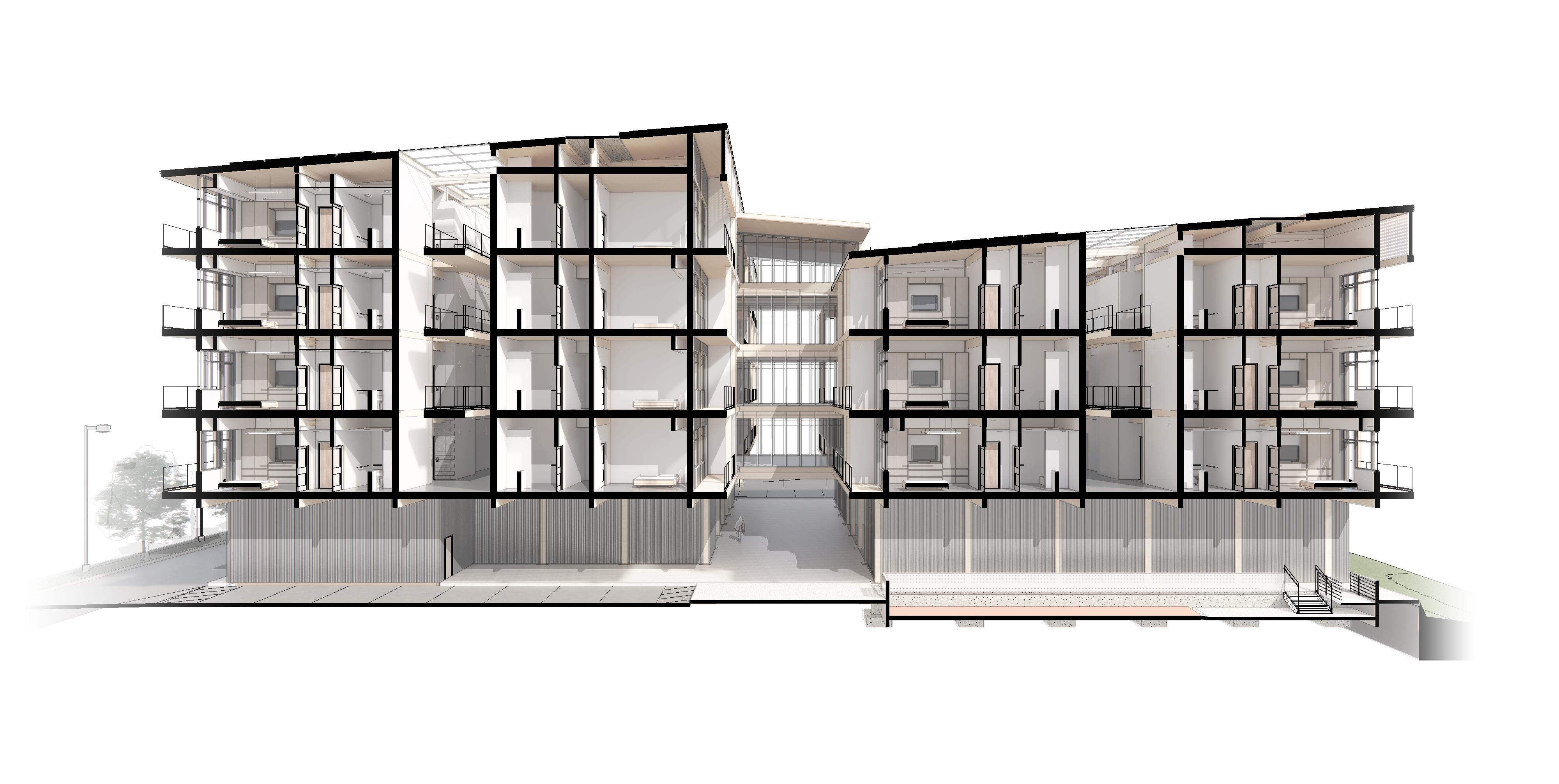

MASS TIMBER STRUCTURAL SYSTEM The structural system for Ecpscape consists of primarily mass timber, combining both functionality and sustainability. Engineered for efficiency and aesthetic warmth, mass timber provides a structural backbone that aligns with the project's eco-conscious ethos. The exterior wall section showcases a dynamic composition, integrating glazing, galvanized corrugated steel, and mass timber. This juxtaposition not only enhances the building's aesthetic appeal but also communicates its commitment to sustainable and resilient materials.

The design achieves a balance between transparency and privacy, responding to the varied needs of the user group while maintaining a visual connection with the surrounding community.

12

WALL SECTION Exterior

GROW N "NORMAN CENTER FOR URBAN FARMING" Use: Community/Education Location: Norman, OK Spring 2022 Grow Norman is a visionary center for urban farming situated in Norman, OK, designed to be a cornerstone for sustainability and agricultural education within an urban setting. At its core, Grow Norman aims to educate the community on sustainable technologies and the importance of urban agriculture. Through hands-on learning spaces and demonstration gardens, the center encourages local residents to explore the possibilities of growing food in urban environments. Its design not only addresses the practical aspects of urban farming but also serves as a model for environmental stewardship, demonstrating how buildings can coexist harmoniously with nature. By integrating advanced sustainable technologies and farming practices, Grow Norman seeks to inspire a new generation of urban farmers and eco-conscious citizens.

14

NORMAN

1. STARTING CONDITIONS

2. DIVISION

4. SHIFTING

3. EXCAVATION

5. ROTATION

03 15

"NORMAN CENTER FOR URBAN FARMING" Use: Community/Education Location: Norman, OK Spring 2022

GROW NORMAN 6

MULTI-FUNTIONAL BUILDING PROGRAM

18

19

13

11

16

16

Grow Norman integrates a greenhouse, café, and multifunctional spaces to foster an understanding of sustainable urban practices. Central to its design is a year-round operational greenhouse, complemented by a café serving locally sourced produce. The facility features expansive areas dedicated to educational events, art exhibitions focused on sustainability, and workshops that promote environmental awareness. Architecturally, the space is characterized by openness and accessibility, including a rooftop garden that demonstrates green infrastructure practices. This center aims to be a resource for the community, encouraging active engagement with sustainable living and urban agriculture.

15 3 1 16

2

5 4

10

14

14

3

12

7

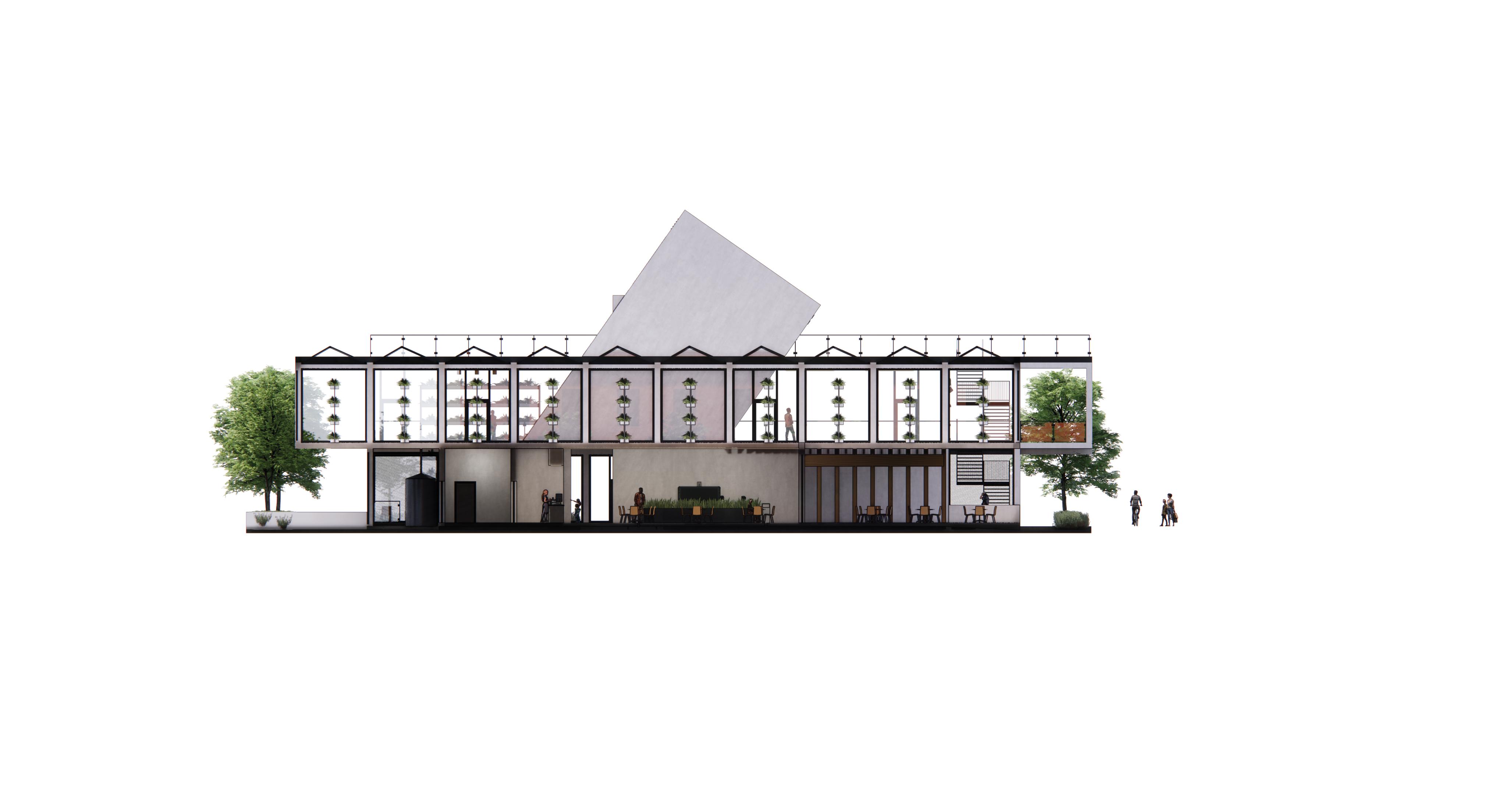

SECTION A

SECTION B

17

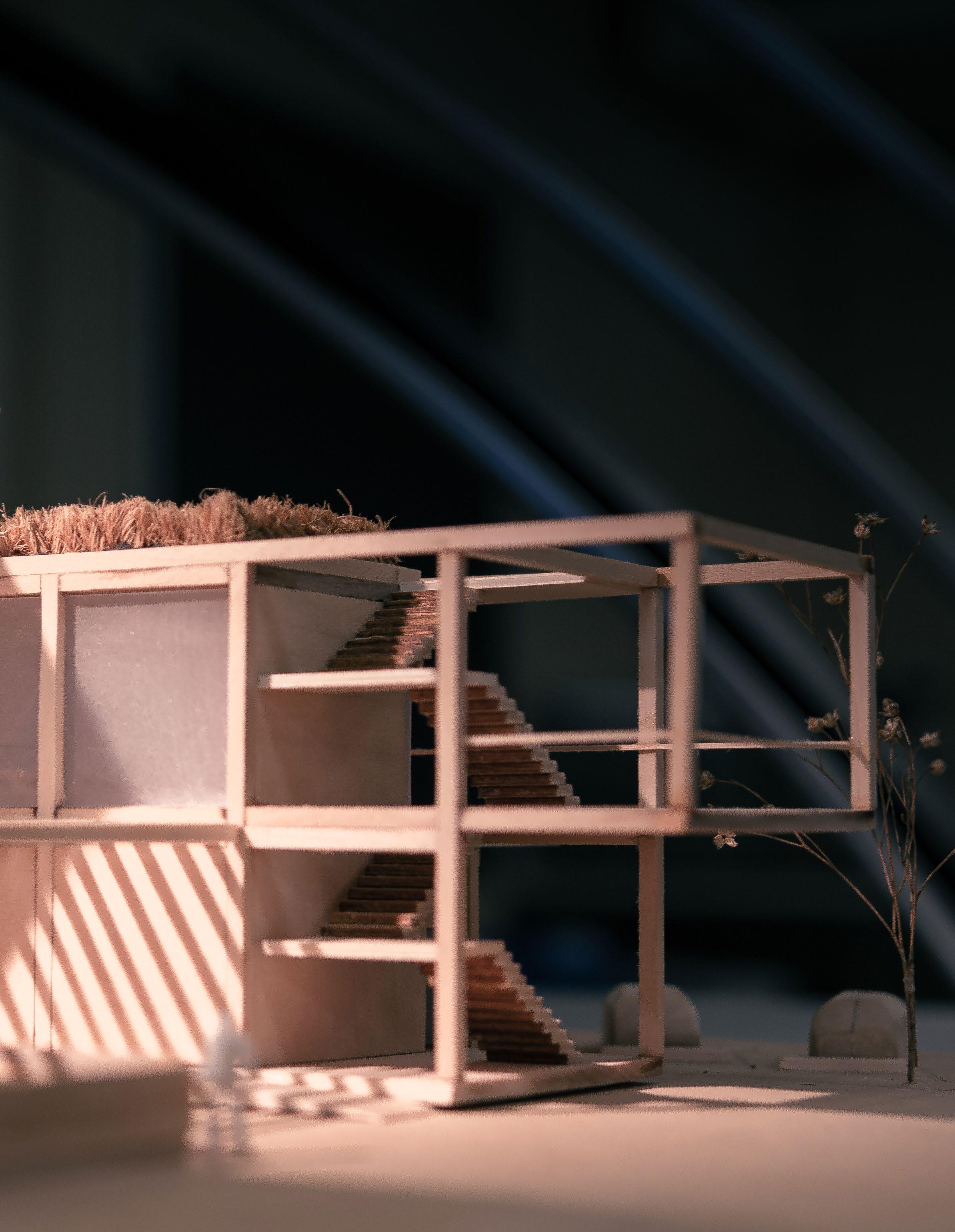

MODELMAKING The model was constructed with a deliberate choice of materials to represent different elements of the design accurately. For the surfaces intended to mimic glazing, a translucent material was used, while the roofing is depicted with a textured substance to suggest a green roof. Precision in the assembly was achieved through methods such as laser cutting for the clean lines and intricate details, ensuring a high level of accuracy and consistency throughout the model.

NEA "NORMAN EQUINE ASSISTED THERAPY CENTER" Use: Recreational/Medical Facility Location: Norman, OK Fall 2021 The Norman Equine Assisted Therapy Center, or NEAT, is designed for healing between individuals with disabilities and horses, offering a seamless and accessible experience. With a thoughtful layout that includes therapy rooms, stables, and observation areas, the center fosters tranquility and connection. Natural materials like wood are featured throughout, enhancing the therapeutic environment with warmth and structural resilience. The integration of natural light and thoughtful circulation supports a calming and intuitive journey through the space, ensuring the center is attuned to the needs of both visitors and equine residents. It stands as a purposeful blend of architecture and therapy, creating a serene backdrop for recovery and wellness.

20

AT 03

ACCESSIBLE AND INTUITIVE CIRCULATION

15

2

1

10

9

3

8

4

7

5

6

17

11

11

16

12

14

11

11

11

11

13

NEAT incorporates a covered ramp from the parking area to the main entrance, enhancing easy access for all visitors. From the entrance, the design naturally branches out, leading to the stables, the main building, and a riding area and paddock intended for therapeutic use. Viewing areas are also integrated into the layout, providing spaces where families and therapists can observe sessions without intruding on the activities.

These viewing spaces also allow patients and visitors to connect with the horse without having to get too close.

The layout is driven by the practical needs of therapy sessions in mind, ensuring smooth flow and accessibility throughout the facility.

22

DESIGN FOR NON-HUMAN OCCUPANTS Designing for non-human occupants, such as horses, presents unique challenges that require a deep understanding of animal behavior and needs. The primary consideration is creating spaces that are safe, comfortable, and conducive to the well-being of the animals. This involves considering factors like adequate space for movement, proper ventilation to ensure a healthy environment, and materials that are durable yet non-harmful if interacted with. Additionally, the design must account for the ease of care and maintenance, facilitating efficient daily operations for caregivers. Understanding these aspects is crucial to developing a facility that supports the therapeutic activities of equine-assisted therapy centers, where the interaction between humans and horses is central to the program's success.

STRUCTURAL DESIGN The structural design integrates exposed steel and wood, balancing structural integrity with aesthetic qualities. Steel ensures durability and provides essential support, while wood adds a natural element that softens the industrial feel of steel. This combination addresses the building's functional needs while contributing to a visually appealing environment, suited to the therapeutic context of the center.

ROOF SYSTEM Standing Seam Metal

WALLS Interior and Exterior

STRUCTURE HSS and Timber Framing

FOUNDATIONS 7" Slab-on-grade

24

PERSONAL PROJECTS

04 26

Architecture is a field that combines various design disciplines, from 3D modeling to woodworking. This broad skill set is not only applicable within architecture but can also be valuable when applied to other areas, offering opportunities for continuous practice and learning. By utilizing architectural skills in different contexts, one can contribute to improving the built environment across diverse scales. This approach not only broadens an architect's experience but also fosters innovation and versatility in design practices, enhancing both personal growth and the quality of projects in the architectural field and beyond.

SINK EXTENDERS IMPROVING USABILITY WITH 3D DESIGN

OPTION #1 39.20

OPTION #2

CIRCULAR TWO PARTS SPOUT + GASKET

SHAPED TO PROFILE TWO PARTS SPOUT + GASKET

39.80 b.

a.

b.

38.11

39.20

a.

PRINT IN THIS ORIENTATION

OPTION #3

PRINT IN THIS ORIENTATION

OPTION #4

CIRCULAR THREE PARTS SPOUT + CLAMP + GASKET

SHAPED TO PROFILE THREE PARTS GASKET RED PARTS SHOULD BE PRINTED IN TPU / NINJAFLEX INCREASE OR DEACREAS INNER DIAMETER OF GASKET FOR PROPER FIT.

93.00

LENGTH OF SPOUT MAY NEED TO BE INCREASED, BUT TOO MUCH COULD INHIBIT SENSOR

PRINT IN THIS ORIENTATION

DESIGN CHALLENGE Since first arriving in Gould Hall, I and many other students have been bothered by the poorly coordinated faucets in the restrooms. The issue is that the faucets do not have enough water pressure, and don't extend far enough over the sink basin for you to wash your hands without them coming into contact with the back of the basin. An obvious yet expensive solution to this problem would be to replace the faucets, however, using design and fabrication skills learned in the very same building, I was able to come up with a solution that costs next to nothing and is very easy to implement. I 3D printedand tested nearly a dozen prototypes until reaching a form that was able to snugly fit on the existing faucets, not inhibit the sensor, and functionally extend the flow of water.

28

PRINT IN THIS ORIENTATION

FIT TO PROFILE OF EXISTING FAUCETS

FUNCTIONALLY EXTENDS FLOW OF WATER

DAMAGE FROM HANDS COLLIDING WITH BACK OF BASIN

DRAFTING TABLE CUSTOM DESIGNED & HANDMADE DRAFTING TABLE

PROJECT DESCRIPTION Entering architecture school, I thought it would be a fun and useful exercise to design and build my own drafting table that contains all the features I could want. A web-based 3D modeling tool called TinkerCAD was used to model a buildable version based on surfaced, dimensional lumber. The table was then built out of solid red oak wood in my father’s woodshop.

30

ASTRO PHOTOGRAPHY

05

Astrophotography captures the awe-inspiring intersection of art and science, reflecting the vastness and beauty of the cosmos through the lens of human curiosity. This section showcases a series of images that not only celebrate the celestial wonders but also inspire my architectural designs, drawing parallels between the infinite possibilities of space and the potential of human creativity on Earth. Each photograph is a reminder of our place in the universe and the boundless inspiration it provides for pushing the limits of design and imagination.

"MILKY WAY" Subject: Milky Way Core Location: Black Mesa State Park Summer 2020

"STAR TRAILS" Subject: Polaris Location: Black Mesa State Park Fall 2022

"ANDROMEDA" Subject: Andromeda Galaxy Location: Black Mesa State Park Fall 2022

"CYGNUS" Subject: Gamma Cygni Location: Black Mesa State Park Summer 2023

COMING SOON

"CAPSL OBSERBATORY" Use: Astronomy/Astrophotography Location: Jones, OK Coming 2024 The design of the "CAPSL" observatory draws inspiration from the pioneering spirit and aesthetics of early spacecraft, particularly the Mercury capsule, which marked humanity's initial forays into manned spaceflight. This influence is reflected in the observatory's compact, efficient form, echoing the capsule's iconic silhouette and functional design. By integrating elements reminiscent of these early explorations into space, "CAPSL" not only serves as a personal space for astronomical observation but also as a tribute to the ingenuity and ambition of space pioneers. The project merges historical inspiration with modern architectural techniques, creating a space that is both a functional observatory and a symbol of human curiosity and exploration.

THE LIGHT POLLUTION PROBLEM Within the context of architecture, light pollution emerges as a critical environmental and design challenge, reflecting the unintended consequences of urban development on our natural nightscapes. Architects and urban planners increasingly recognize the need to balance artificial lighting with ecological and astronomical considerations, aiming to mitigate the adverse effects of light pollution. This involves the strategic use of lighting in buildings and public spaces to enhance safety and aesthetics while minimizing light spill and skyglow that obscure the stars.

Sustainable design principles, such as shielded lighting fixtures and the adoption of lighting ordinances, play a pivotal role in addressing these concerns. By integrating these practices, architecture can contribute to reducing light pollution, preserving dark skies for future generations, and enhancing the quality of both our built and natural environments. This holistic approach underscores the responsibility of architects to not only create visually appealing and functional spaces but also to consider the broader environmental impact of their designs on the night sky and overall ecological health.

PROJECT SITE

39
