PREMIUM ENTRY DOORS

Your front door is more than an entryway.

It’s where your story begins.

At Waudena, we build doors that bring together strength, style, and thoughtful design. With decades of experience behind us, we focus on quality and reliability you can count on every time you come home.

Choose Waudena for a door that fits your life, feels like home, and stands the test of time.

MADE FOR THE MOMENTS THAT MATTER Your front door is part of everyday life, from quiet mornings to cherished homecomings. Built strong and made to last, it helps frame the memories that begin right at your doorstep. It’s the strength and style that keeps up with your busy home.

STRENGTH YOU CAN COUNT ON Built tough to face whatever life brings, these doors protect your home and provide peace of mind. They stand strong through storms, seasons, and daily life so you can focus on what matters most.

DESIGNED TO FIT YOUR LIFE Your home should feel like you, and your door should fit your style and needs. With a wide range of materials, finishes, and design options, you can create an entryway that welcomes you home and reflects your unique taste.

TABLE OF CONTENTS Sometimes the smallest details create the most lasting impressions. Let us help you design your dream entryway and ensure you don’t miss a single detail. Create an entrance that reflects your style and welcomes you home.

BUILT FOR EVERYDAY LIFE..........................................6 QUALITY YOU CAN TRUST.......................................... 8 DOOR SERIES OVERVIEW.......................................... 10 Timbergrain Fiberglass....................................................... 12 Weston™ Brushed Smooth Fiberglass.............................. 14 Weston™ Flush-Glazed Brushed Smooth Fiberglass.... 16 Norwood Textured Steel.................................................... 18 WestGuard Smooth Steel................................................. 20 Cambridge Smooth Steel.................................................. 22 Valueline Smooth Steel..................................................... 23

CHOOSE YOUR GLASS STYLE.................................. 24 Divided Lites Collection.................................................... 26 Privacy Glass Collection................................................... 48 Decorative Glass Collection............................................. 70 Clear Glass........................................................................... 96 Enclosed Blinds..................................................................102 Vented Glass.......................................................................104 4-Foot Wide Doors............................................................105

THE FINISHING TOUCH............................................106 Trilennium ® Multi-Point Lock..........................................108 Panolock ® + Multi-Point Lock...........................................109 Decorative & Smart Hardware......................................... 110 Woodgrain Finishes........................................................... 114 Paint Colors........................................................................ 116 Custom Colors.................................................................... 118 Pet Doors............................................................................. 119 Storm Doors....................................................................... 120 Frame Types.........................................................................121

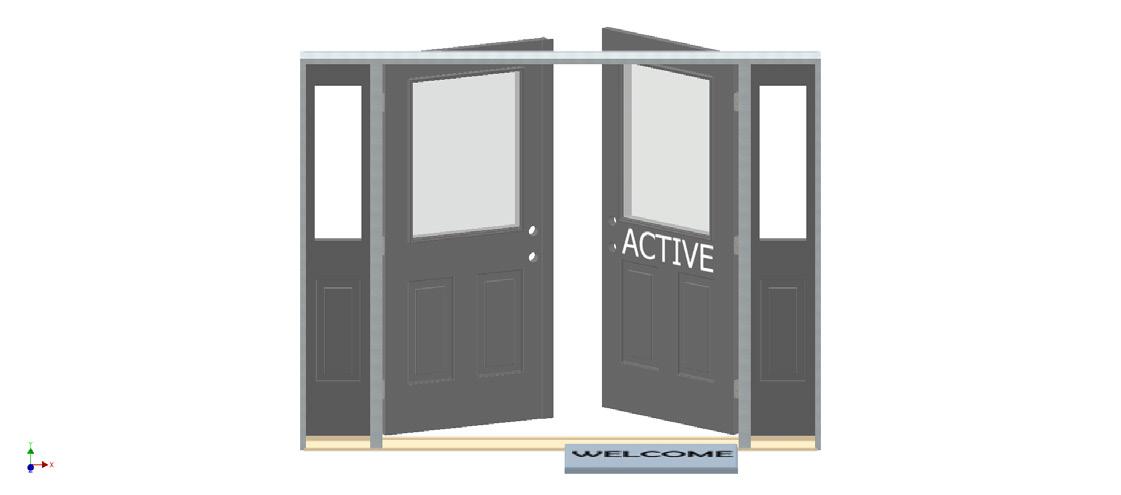

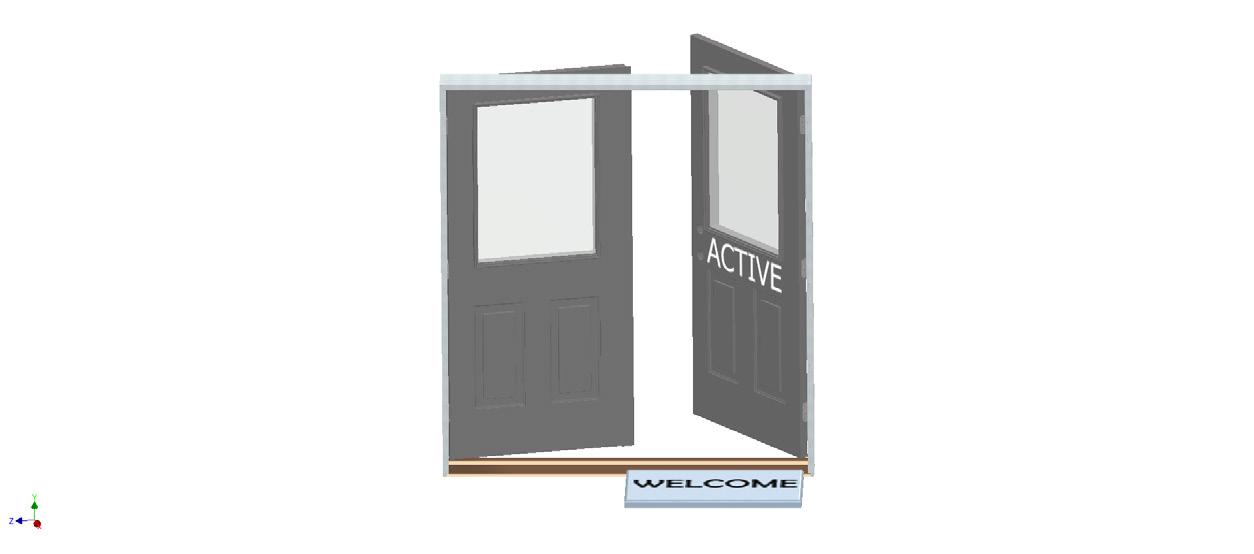

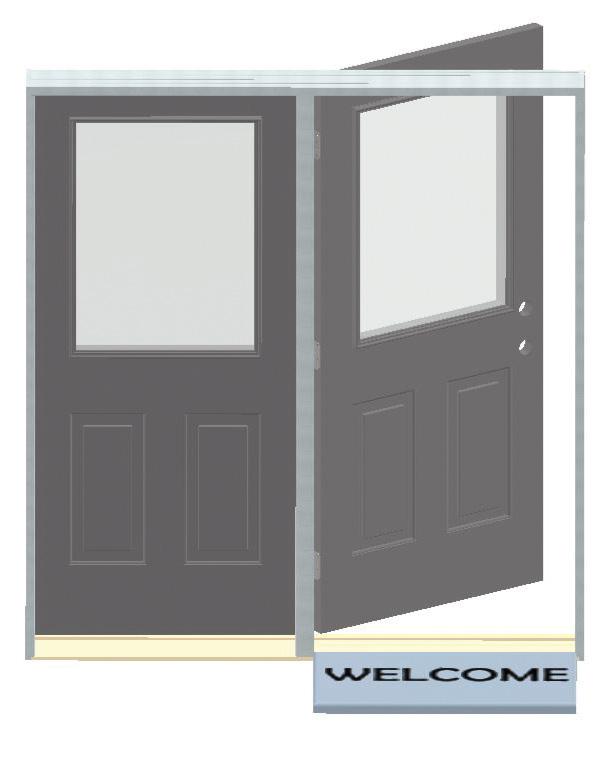

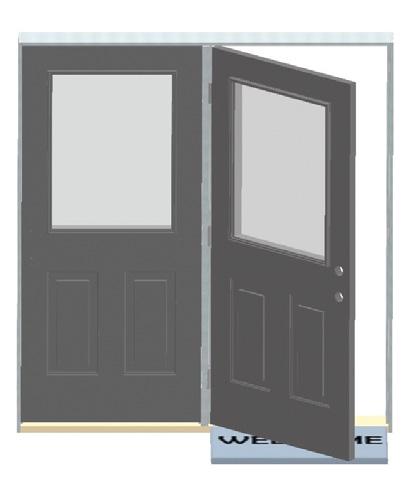

SWING OPTIONS....................................................... 123 OPENING SPECIFICATIONS...................................... 126

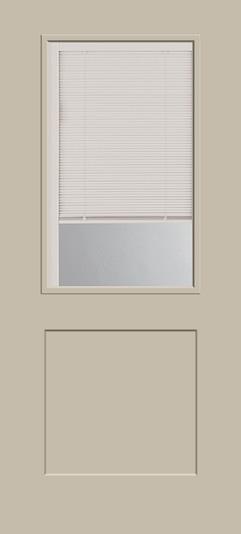

BLINDS

page 102

BROWNSTONE

CHINCHILLA page 54

CLEAR

page 96

CROSSWALK

CUMULUS

page 50

page 74

page 56

FROSTED

HARRISON

HEARTLAND

INTERNAL GRILLES ARTS & CRAFTS

INTERNAL GRILLES COLONIAL

INTERNAL GRILLES PRAIRIE

MARTIEL

MONTEREY

OXFORD page 88

page 62

RAIN

REGENCY

VAPOR

VENTED GLASS

WATERSIDE

BLANCA

page 58

page 76

page 72

page 78

page 34

MICRO-GRANITE

MISTIFY

SIMULATED DIVIDED LITES

STREAMED

page 60

page 36

page 82

page 66

MOHAVE page 84

TOPAZ

page 92

page 86

page 68

page 28

page 104

page 80

page 32

page 90

page 94

BUILT FOR EVERYDAY LIFE Your entry door is key to your home’s comfort and safety. We design every door system with durable materials and advanced features that keep your home energy efficient, strong against weather, and secure from threats. Whether it’s everyday performance or enhanced protection, our doors provide lasting peace of mind for your family and home.

ENHANCED ENERGY EFFICIENCY WITH POLYURETHANE FOAM CORE Keep your home comfortable throughout the year with an insulating polyurethane foam core. This thermal barrier helps maintain a consistent indoor temperature by trapping air and resisting heat flow, improving energy efficiency and lowering energy bills. Many of our styles meet ENERGY STAR requirements, ensuring long-term energy savings and reliable comfort.

LASTING STRENGTH WITH WEATHER-RESISTANT MATERIALS Your door is built to handle everything from freezing winters to scorching summers. The materials resist warping, cracking, and rot, so you don’t have to worry about swelling, sticking, or unexpected repairs. Its long-term durability keeps your home protected with less maintenance.

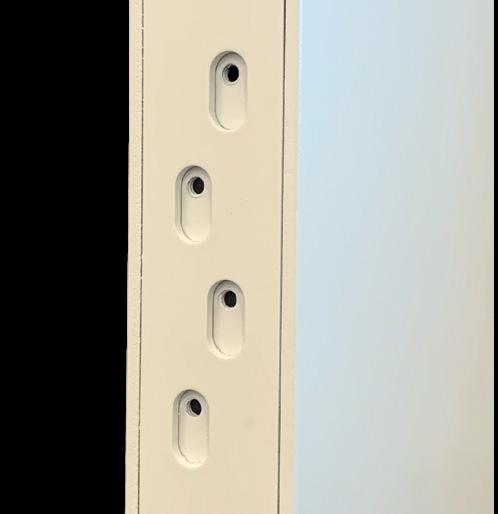

FIT AND FUNCTION FOR YEARS TO COME WITH ADJUSTABLE HINGE As houses settle and respond to seasonal weather changes, it can cause doors to shift, leading to drafts, difficulty opening and closing, and unnecessary wear. The adjustable hinge plate system* makes it easy to maintain a perfect fit, allowing you to make quick adjustments without professional help. These adjustments ensure a tight seal and smooth operation, keeping your entryway secure and weathertight year after year.

* Not available on Valueline series or fire-rated Weston series.

BUILT STRONG WITH REINFORCED CONSTRUCTION Our steel and fiberglass entry doors are built to protect your home with durable construction that resists impact and wear. A concealed steel reinforcement plate behind the frame strengthens the lock area to help prevent forced entry. Whether you choose steel or fiberglass, every door is designed to enhance security and give you peace of mind. Advanced door edges of Timbergrain series to ensure long-term durability.

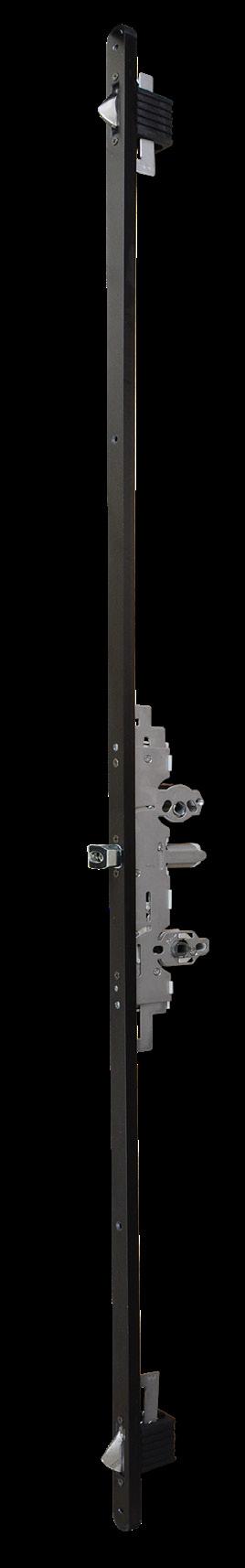

GREATER SECURITY WITH MULTI-POINT LOCKING OPTIONS Upgrade to multi-point locking hardware for added security at several points along the frame. It adds strength across the door frame to resist break-ins and keeps the door tightly in place, improving stability and protection.

PEACE OF MIND WITH FIRE-RATED DOOR OPTIONS Select door styles can be labeled for fire ratings to provide protection between your house and garage. Steel doors are available with fire ratings up to 90 minutes. Select fiberglass doors can be labeled for 20 minutes ‡ , offering an additional layer of safety and peace of mind in an emergency.

‡ Reference product configurator for availability. Fixed hinge only.

QUALITY YOU CAN TRUST At the heart of every door we make is a commitment to quality. From carefully selected materials to precision manufacturing and thoughtful details, each part of our door system works together to protect your home and create an entryway you can count on. Quality craftsmanship means your entryway enhances your home’s curb appeal and offers lasting value and reliable performance.

MORE NATURAL LIGHT & VISIBILITY WITH MODERN GLASS OPTIONS Enhance your home’s curb appeal with stylish glass doors that maximize natural light and create a bright, welcoming atmosphere. Choose between two styles:

Framed Glass: Features a sleek, visible frame surrounding the glass, offering a timeless look.

e Fr a m

le s

Frameless Glass: With no visible frame, this modern style offers clean lines and more glass exposure, allowing more natural light to fill your home and creating a brighter, more open space. (refer to page 16)

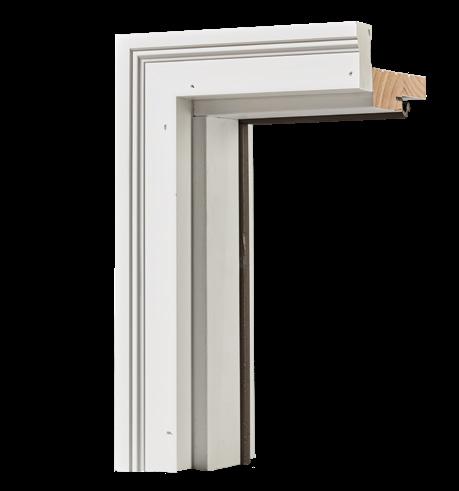

ROT-RESISTANT STRENGTH WITH DURA-FRAME JAMB The base of your door frame is made from naturally rot-resistant Alaskan Yellow Cypress to protect against moisture and insects. Its one-piece design (up to 12") creates a clean, sturdy frame backed by a limited lifetime warranty.

SMOOTH OPERATION WITH BALL-BEARING HINGES Ball-bearing hinges reduce squeaks and eliminate grinding dust for a smoother door opening and closing, perfect for busy households. Available in various finishes, they combine everyday function with lasting beauty.

LASTING BEAUTY WITH LIFETIME WARRANTY Everyday life can be tough on a door—kids, pets, and delivery drivers handling boxes. Our durable steel and fiberglass doors help your entryway stay flawless despite the wear and tear of daily life. Plus, with a limited lifetime warranty*, you can enjoy beauty and peace of mind for years.

YEAR-ROUND PERFORMANCE WITH AUTO-ADJUSTING SILL Our Z-Articulating Cap Sill® adjusts automatically for a consistent seal against wind, water, and insects. The continuous sill design strengthens the system and helps prevent drafts or water leaks.

EASY MAINTENANCE FOR LONG-TERM BEAUTY Every part of your entry door is built to stay looking great with less effort. Our low-maintenance components resist peeling, rust, rot, and warping over time. That means less upkeep and a door that continues to enhance your home’s appearance year after year.

* Valueline series has a 10-year limited warranty.

DOOR SERIES OVERVIEW First impressions matter. Our exterior doors bring beauty and strength to your home’s entryway. Choose from steel and fiberglass door series, each available in a variety of styles designed to reflect your personal style and complement your home’s unique character.

TIMBERGRAIN FIBERGLASS

WESTON BRUSHED SMOOTH FIBERGLASS

WESTON FLUSH-GLAZED BRUSHED SMOOTH FIBERGLASS

MATERIAL

high-impact molded fiberglass skin

high-impact brushed smooth fiberglass skin

WOOD GRAINS AVAILABLE

Cherry, Mahogany, Fir, Oak, Knotty Alder

n/a

Charred Black, Tofino, Barrel Oak, Toffee, Sunbleached Oak, Chai Cedar, Cinnamon Walnut

COLORS AVAILABLE

11 woodgrain finishes, 45 paint colors, custom paint colors

7 woodgrain finishes, 45 paint colors, custom paint colors

45 paint colors, custom paint colors

DOOR EDGE

4" full-length engineered hinge & lock stiles, composite top & bottom rails

engineered wood/composite stiles, composite top & bottom rails

4" full-length engineered hinge & lock stiles, composite top & bottom rails

INNER CORE

enhanced energy efficiency with insulating polyurethane foam core

ADJUSTABILITY

adjustable hinge plate system, auto-adjusting sill

FIRE RATING

n/a

20 minutes on select styles and sizes (fixed hinge only)

WARRANTY

Limited Lifetime

DOOR SERIES

SURFACE

NORWOOD TEXTURED STEEL

WESTGUARD SMOOTH STEEL

CAMBRIDGE SMOOTH STEEL

VALUELINE SMOOTH STEEL

MATERIAL

22-gauge steel

20-gauge steel

22-gauge steel

24-gauge steel

WOOD GRAINS AVAILABLE

Oak

n/a

COLORS AVAILABLE

11 woodgrain finishes, 45 paint colors, custom paint colors

45 paint colors, custom paint colors

DOOR EDGE

full steel-edge perimeter: reinforced edges for enhanced strength and Grade 40 security rating

INNER CORE

enhanced energy efficiency with insulating polyurethane foam core

ADJUSTABILITY

adjustable hinge plate system, auto-adjusting sill

auto-adjusting sill

FIRE RATING

up to 90 minutes

WARRANTY

Limited Lifetime

10-year Limited

DOOR SERIES

SURFACE

DOOR SERIES

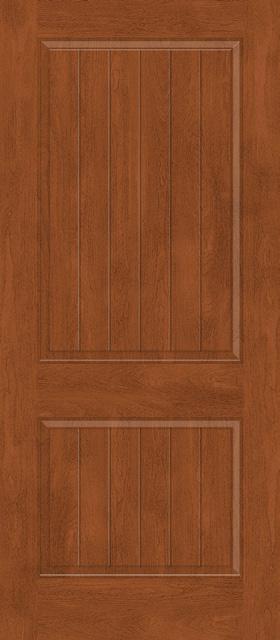

TIMBERGRAIN FIBERGLASS Experience the warmth and character of real wood with the strength and durability of fiberglass. You’ll find the perfect traditional to rustic look to match your home’s style. These doors offer the beauty of real wood without the upkeep, providing long-lasting curb appeal and reliable performance.

Authentic Wood-Like Appearance in Five Species Choose from Knotty Alder, Mahogany, Cherry, Fir, and Oak. Crisp shadow lines and lifelike graining replicate the texture of real wood, adding warmth and character to your entryway.

Durability That Resists Rot and Moisture Damage Premium hardwood edges replicate the look of a real wood door while resisting rot and decay. Composite top and bottom rails prevent moisture absorption and won’t rot over time, helping your door maintain its appearance and function.

Smooth Operation with Adjustable Hinge Plate System As your home settles and seasons change, doors can shift, causing drafts or making them difficult to open and close. Timbergrain doors let you adjust the fit yourself, maintaining a tight seal and smooth operation year after year.

Strength and Stability for Lasting Performance Four-inch reinforced stiles keep your door straight and secure, preventing warping or bowing caused by temperature changes, so it stays aligned and reliable.

Confidence Backed by a Lifetime Warranty A limited lifetime warranty gives you peace of mind that your Timbergrain door will remain a beautiful, dependable part of your home for years.

Rustic KNOTTY ALDER

Other panel configurations and sizes may be available; reference product configurator for availability. Availability based on 3/0 width.  6/8 height  7/0 height  8/0 height

24AT

Knotty Alder 

24AT

8/0 height

24PAT

Knotty Alder 

24PAT

8/0 height

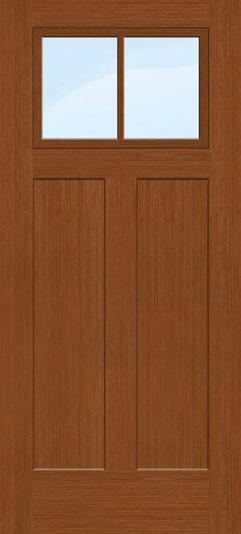

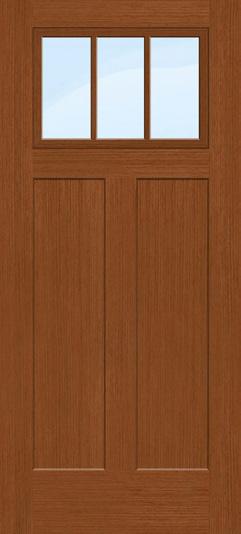

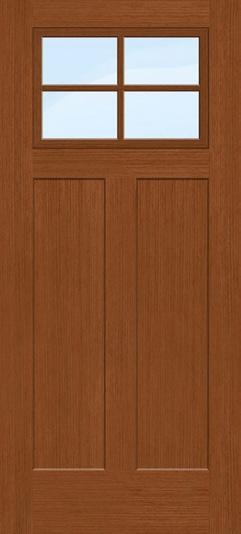

Craftsman FIR

DENTIL SHELF

Available on doors with glass, as its integrated into the glass frame.

11F

Fir 

11F

8/0 height



8/0 height

34PAT-R

Rustic CHERRY

34AT-R

Cherry 

34AT-R

8/0 height

Cherry 

8/0 height

Classic CHERRY

Classic OAK

Cherry, Mahogany, Oak 

C500

Cherry 

C550

8/0 height Cherry 

C501

C551

Cherry 

8/0 height Cherry 

Classic MAHOGANY

Cherry  Oak 

8/0 height

3/6 x 8/0 only Cherry

24NP

3/6 x 8/0 only Cherry

24WP

3/6 x 8/0 only Cherry

DOOR SERIES

WESTON ™ BRUSHED SMOOTH FIBERGLASS Weston doors offer the perfect balance of beauty and performance. With a design that mimics the elegance of real wood, these fiberglass doors bring lasting durability and a sophisticated look to your home. Weston doors withstand any climate, creating a strong entryway that resists warping, cracking, and rotting, requiring minimal upkeep.

Authentic Wood-Like Finish with a Brushed Texture Weston’s distinctive brushed finish mimics the natural texture of a wood door, adding a warm, sophisticated feel to your home. Unlike smooth fiberglass doors, this unique surface brings depth and charm, enhancing your curb appeal with a modern take on classic style. Smooth Operation with Adjustable Hinge Plate System † As your home settles and seasons change, doors can shift, causing drafts or making them difficult to open and close. Weston doors let you adjust the fit yourself, maintaining a tight seal and smooth operation year after year.

The unique brushed finish mimics the natural texture of wood

Enhanced Energy Efficiency with Insulating Core The insulating polyurethane foam core helps regulate indoor temperature, reducing heating and cooling costs while keeping your home more comfortable year-round. Added Protection with Fire-Rated Options Select Weston styles ‡ feature fire-rated options that provide a 20-minute fire barrier to help slow fire between your house and garage, offering extra protection for your home and family. Beauty That Lasts with a Lifetime Warranty Daily use is no match for Weston’s tough fiberglass surface, which resists dents, scuffs, and scratches. A limited lifetime warranty gives you long-term confidence that your entryway will continue to look great and perform well.

† Not available on fire-rated doors. ‡ Reference product configurator for availability.

Detail of adjustable hinge plate system

TRADITIONAL STYLES

#& / & / 

& / & / 

8/0 height

#& / & / 

#& / & / &

8/0 height

SHAKER STYLES

24F

# / 

24F

8/0 height

# /  Option: dentil shelf

8/0 height

# Weston available with fire rating up to 20 minutes in 6/8 height only & Available with woodgrain finish Other panel configurations and sizes may be available; reference product configurator for availability. Availability based on 3/0 width.  6/8 height  7/0 height  8/0 height

37F

# / 

37F

8/0 height

51F

# / 

51F

8/0 height

DOOR SERIES

WESTON ™ FLUSHGLAZED BRUSHED SMOOTH FIBERGLASS Fill your entryway with natural light using flush-glazed (frameless) glass. This modern style features clean lines and no visible frame, creating a sleek look with more glass exposure. The result is greater visibility and a welcoming feel that brightens your home.

GLASS OPTIONS: CLEAR LOW-E

RAIN

BLC

LERN

GRILLE PATTERN

GLASS OPTIONS

WESTON Brushed Smooth

BLANCA

FIBERGLASS DOORS 606F-FLG

none

Blanca, Clear Low-E, Rain



686-FLG

none

Blanca, Clear Low-E, Rain



865-FLG

none

Blanca, Clear Low-E, Rain



984F-FLG

none

Blanca, Clear Low-E, Rain



FIBERGLASS DOORS WITH DIVIDED LITES 606F-FLG

4L, 8L, 9LP, 12L, 3LHSDLW

Blanca, Clear Low-E, Rain



606F-FLG

4LH, 10L, 15L, 4LHSDLW

Blanca, Clear Low-E, Rain



606F-FLG

Blanca, Clear Low-E, Rain



686-FLG

8L, 9LP, 12L, 4LSDLW

Blanca, Clear Low-E, Rain



686-FLG

6L, 18L

Blanca, Clear Low-E, Rain



686-FLG

4L, 4LH, 10L, 15L, 3LHSDLW

Blanca, Clear Low-E, Rain



865-FLG

2L, 3L, 4L, 6L, 9LP

Blanca, Clear Low-E, Rain



984F-FLG

4L, 6L, 9L, 9LP

Blanca, Clear Low-E, Rain



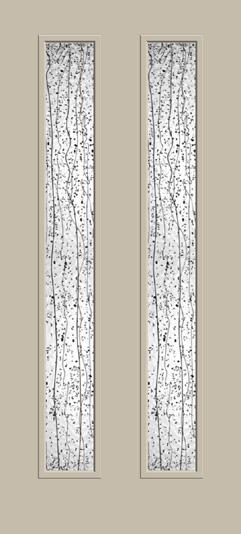

FIBERGLASS SIDELITES 422F-FLG

none

Blanca, Clear Low-E, Rain



461-FLG

none

Blanca, Clear Low-E, Rain



694-FLG

none

Blanca, Clear Low-E, Rain



FIBERGLASS SIDELITES WITH DIVIDED LITES

422F-FLG

Blanca, Clear Low-E, Rain



422F-FLG

2L, 3LP, 4L, 3LSDLW

Blanca, Clear Low-E, Rain



422F-FLG

4LSDLW, 5L

Blanca, Clear Low-E, Rain



461-FLG

Blanca, Clear Low-E, Rain



694-FLG

2L, 3LSDLW

Blanca, Clear Low-E, Rain



694-FLG

Blanca, Clear Low-E, Rain



694-FLG

3LP, 4L, 5L, 4LSDLW

Blanca, Clear Low-E, Rain



FLG = Style available with flush-glazed glass. Other panel configurations and sizes may be available; reference product configurator for availability. Availability charts based on 3/0 width for doors and 14" for sidelites.  6/8 height  7/0 height  8/0 height Door panel imagery shown as outside view (OSV).

Detail of frameless glass

606F-FLG

606F-FLG 8/0 height

686-FLG

686-FLG 8/0 height

865-FLG

865-FLG 8/0 height

984F-FLG

Refer to Simulated Divided Lites pages for additional images.

606F-4LSDLFLG

422F-FLG

606F-8LSDLFLG 8/0 height

422F-FLG 8/0 height

694-FLG

686-3LHSDLWFLG

694-FLG 8/0 height

686-6LSDLFLG 8/0 height

461-FLG

865-2LSDL-FLG

865-9LPSDLFLG 8/0 height

984F-9LSDLFLG

461-FLG 8/0 height

DOOR SERIES

NORWOOD TEXTURED STEEL Enjoy the warmth of wood with the strength of steel. Norwood doors feature a deeply embossed Oak grain texture that captures the beauty of real wood. Designed for durability and low maintenance, this series offers lasting performance, security, and curb appeal.

Wood-Like Texture with a Realistic Oak Grain Finish The Oak grain texture gives these steel doors the natural look of real wood. It adds character and charm to your entryway while delivering the strength and durability of steel. Durable Construction for Lasting Performance Norwood doors are made from strong 22-gauge steel that stands up to dents, warping, and cracking. A rust-resistant galvanized finish protects in high moisture and coastal areas, while a composite lock block keeps hardware secure without swelling or absorbing moisture. Smooth Operation with Adjustable Hinge Plate System As your home settles and seasons change, doors can shift, causing drafts or making them difficult to open and close. Norwood doors let you adjust the fit yourself, maintaining a tight seal and smooth operation year after year.

The insulating foam core keeps your home comfortable year-round

Extra Protection with Full Steel-Edge Design A full steel-edge perimeter reinforces the door for added strength and security, helping protect against forced entry. This design meets the industry’s highest standard with a Grade 40 security rating, giving your home reliable protection that lasts. Enhanced Energy Efficiency with Insulating Core The insulating polyurethane foam core helps regulate indoor temperature, reducing heating and cooling costs while keeping your home more comfortable year-round. Peace of Mind with Lifetime Warranty A limited lifetime warranty gives you lasting confidence in your door’s performance and appearance. 18

Detail of adjustable hinge plate system and full steel-edge design

TRADITIONAL STYLES

8/0 height





 # / 

SHAKER STYLES

 Option: dentil shelf



8/0 height

24PAT 



# / 

# Architecturally correct graining Other panel configurations and sizes may be available; reference product configurator for availability. Availability based on 3/0 width.  6/8 height  7/0 height  8/0 height

11F

24F



31F

 Option: dentil shelf

DENTIL SHELF

DOOR SERIES

WESTGUARD SMOOTH STEEL WestGuard doors are built tough to handle busy homes and hardworking spaces. Made with extra-thick 20-gauge steel, they stand strong against dents, warping, and corrosion. A galvanized finish protects against rust, even in coastal or high-moisture areas. These doors are ideal for high-traffic areas and even meet commercial-grade standards, so you get dependable performance and lasting protection.

Extra Protection with Full Steel-Edge Design A full steel-edge perimeter reinforces the door for added strength and security, helping protect against forced entry. This design meets the industry’s highest standard with a Grade 40 security rating, giving your home reliable protection that lasts. Enhanced Energy Efficiency with Insulating Core The insulating polyurethane foam core helps regulate indoor temperature, reducing heating and cooling costs while keeping your home more comfortable year-round. Smooth Operation with Adjustable Hinge Plate System As your home settles and seasons change, doors can shift, causing drafts or making them difficult to open and close. WestGuard doors let you adjust the fit yourself, maintaining a tight seal and smooth operation year after year.

The insulating foam core keeps your home comfortable year-round

Added Protection with Fire-Rated Options Fire-rated options provide up to 90 minutes of protection to help slow the spread of fire between your house and garage. These doors meet residential building codes in many areas and give you extra peace of mind. Just look for the fire symbol to find available styles. ADA-Friendly Options for Accessible Design Most styles are available with 10" bottom rails to meet ADA accessibility standards, supporting ease of use in residential and light commercial settings. Peace of Mind with Lifetime Warranty A limited lifetime warranty gives you lasting confidence in your door’s performance and appearance. 20

Detail of adjustable hinge plate system and full steel-edge design

DENTIL SHELF

TRADITIONAL STYLES

Also available in 4/0 width, refer to page 105.

8/0 height



24AT 



24F

31F

37F

8/0 height

SHAKER STYLES



11F



11F

8/0 height

24F



8/0 height

 Option: dentil shelf



51S



51S

8/0 height

Other panel configurations and sizes may be available; reference product configurator for availability. Availability based on 3/0 width.  6/8 height  7/0 height  8/0 height

Custom Capabilities Tailor your door to fit your specific needs. WestGuard doors can be customized with special lock options, face bore, or edge prep, which are often required for commercial applications.

Closer & Panic Bar Preps Options are available to add preps for door closers and panic bars, making these doors even more versatile for entryways. Also available in Cambridge and Norwood door series.

CLOSER BLOCK

PANIC PREP & CLOSER PLATES

HEAD & FOOT BOLT

MULTI-PURPOSE PREP

DOOR SERIES

CAMBRIDGE SMOOTH STEEL Classic style meets everyday strength. Cambridge doors feature a smooth, clean surface that delivers a sleek, modern look to fit a variety of home designs. These doors resist daily wear and tear while providing durable, energy-efficient protection and lasting curb appeal. Built to stand up to whatever life brings, Cambridge doors help create a welcoming entryway that adds value and beauty to your home for years.

Durable Construction with Heavy-Duty 22-gauge Steel Cambridge doors are made from tough 22-gauge steel and resist dents, warping, and cracking. A rust-resistant galvanized finish adds protection in coastal or high-moisture areas, while a composite lock block keeps hardware secure without swelling or absorbing moisture. Extra Protection with Full Steel-Edge Design A full steel-edge perimeter reinforces the door for added strength and security, helping protect against forced entry. This design meets the industry’s highest standard with a Grade 40 security rating, giving your home reliable protection that lasts. Enhanced Energy Efficiency with Insulating Core The insulating polyurethane foam core helps regulate indoor temperature, reducing heating and cooling costs while keeping your home more comfortable year-round.

The insulating foam core keeps your home comfortable year-round

Smooth Operation with Adjustable Hinge Plate System As your home settles and seasons change, doors can shift, causing drafts or making them difficult to open and close. Cambridge doors let you adjust the fit yourself, maintaining a tight seal and smooth operation year after year. Added Protection with Fire-Rated Options Fire-rated options provide up to 90 minutes of protection to help slow the spread of fire between your house and garage. These doors meet residential building codes in many areas and give you extra peace of mind. Just look for the fire symbol to find available styles. Peace of Mind with Lifetime Warranty A limited lifetime warranty gives you lasting confidence in your door’s performance and appearance.

Detail of adjustable hinge plate system and full steel-edge design

DENTIL SHELF

TRADITIONAL STYLES



8/0 height



8/0 height

24AT 

24PAT 

 Option: dentil shelf

 Option: dentil shelf

Other panel configurations and sizes may be available; reference product configurator for availability. Availability based on 3/0 width.  6/8 height  7/0 height  8/0 height





8/0 height



SHAKER STYLES



11F



11F

8/0 height

24F



8/0 height

 Option: dentil shelf

31F

37F 



D-1

D-24

D-31

D-60

24F

51S

8/0 height

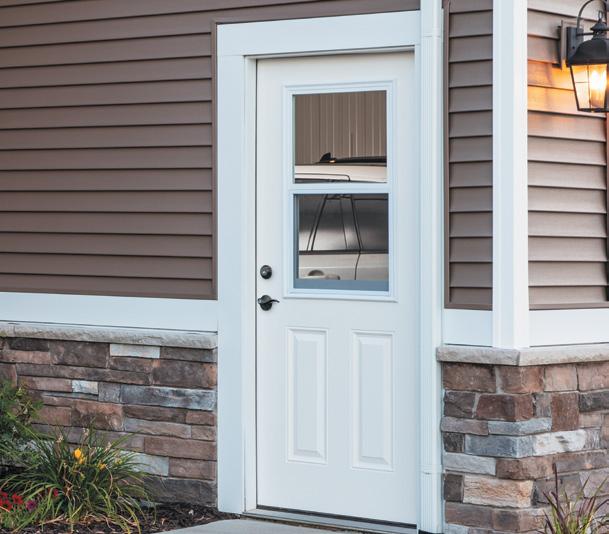

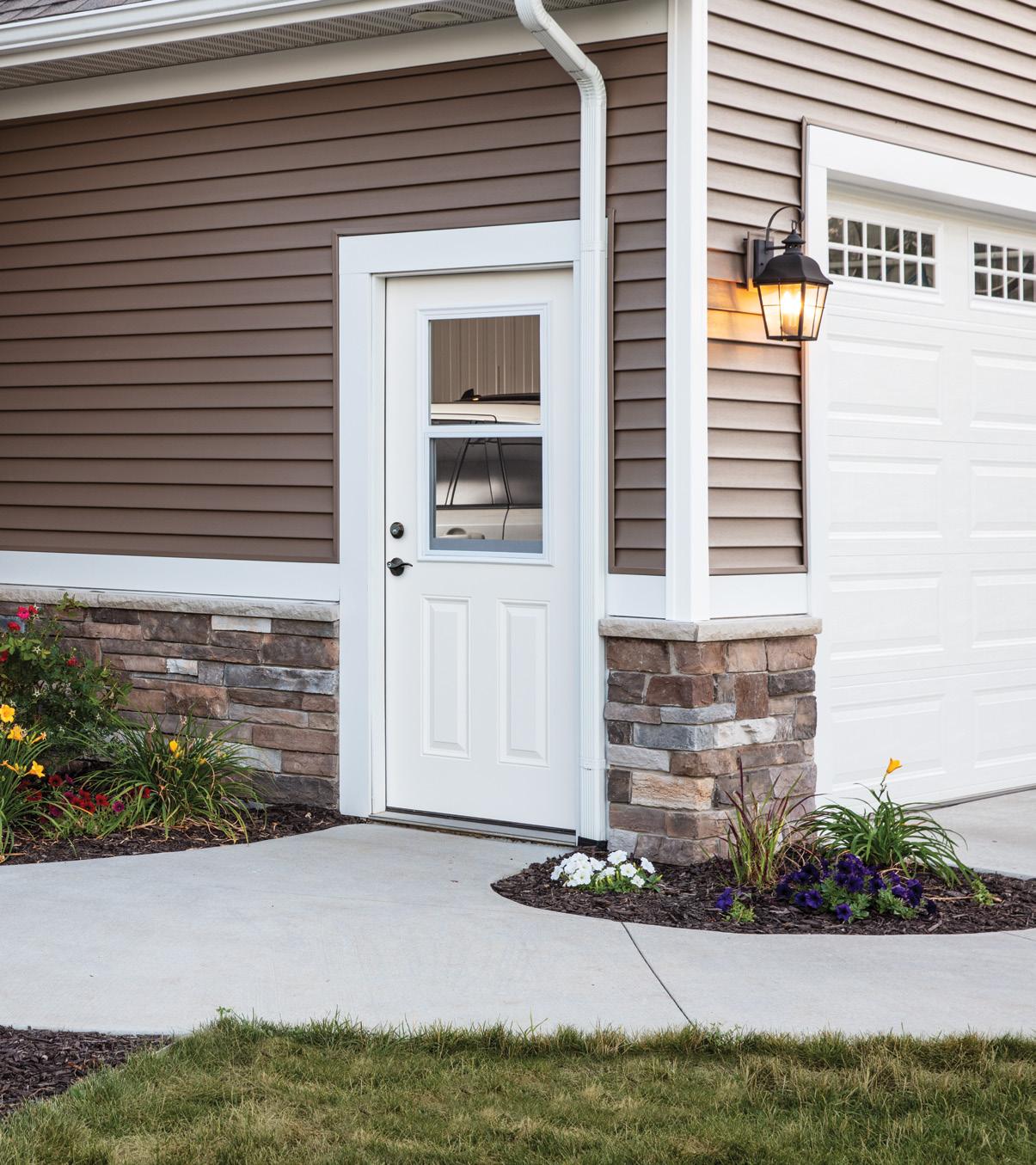

VALUELINE SMOOTH STEEL Ideal for home and garage entryways, these 24-gauge steel doors offer energy efficiency and curb appeal at a value. Backed by a 10-year limited warranty. 



 Option: dentil shelf



CHOOSE YOUR GLASS STYLE Embrace the natural light and transform your entryway with handcrafted doorglass. Our timeless designs create curb appeal, offer privacy, and personalize your home. Each piece of handcrafted glass is unique, just like you.

GRILLES & DIVIDED LITES

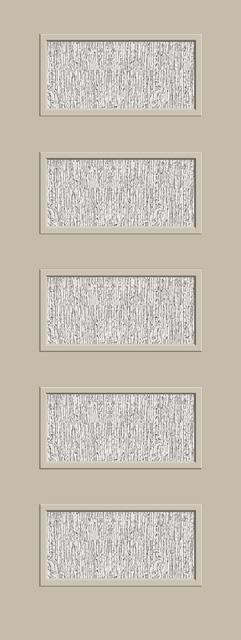

PRIVACY GLASS

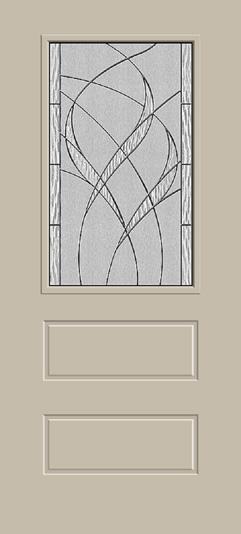

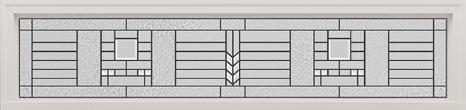

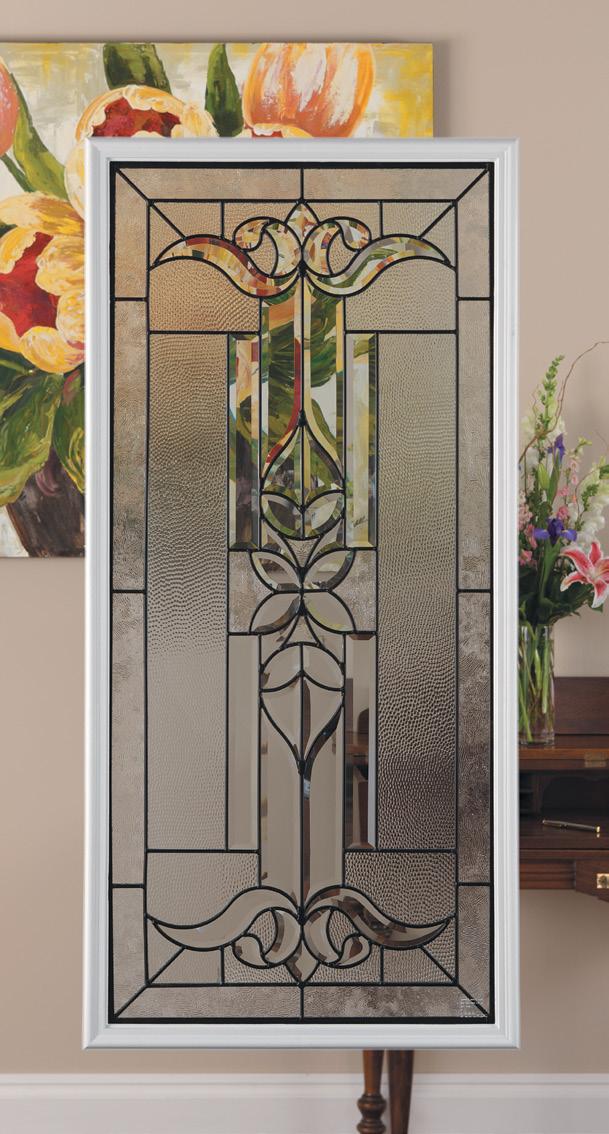

DECORATIVE GLASS

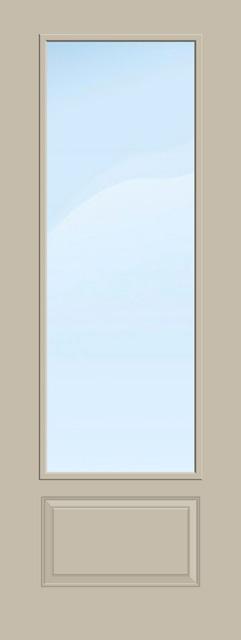

CLEAR GLASS

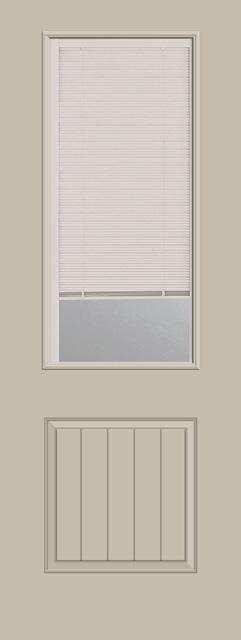

ENCLOSED BLINDS

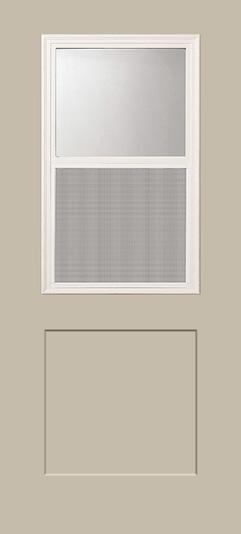

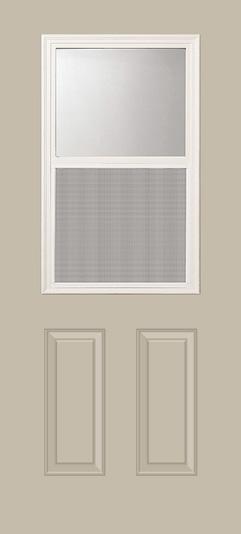

VENTED LITES

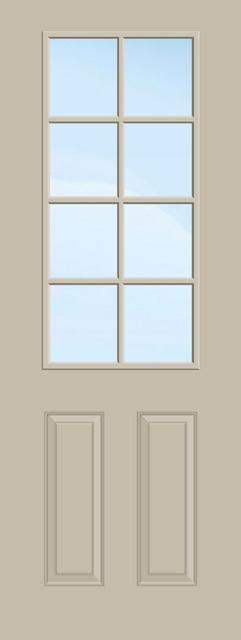

DIVIDED LITES COLLECTION Add a bold look to your home with grille patterns in your entry or patio doors, sidelites, and transoms. Choose from numerous divided lite types and patterns to fit your home’s architectural style.

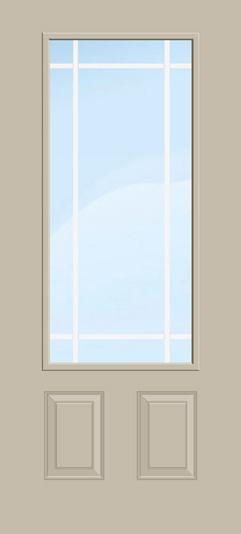

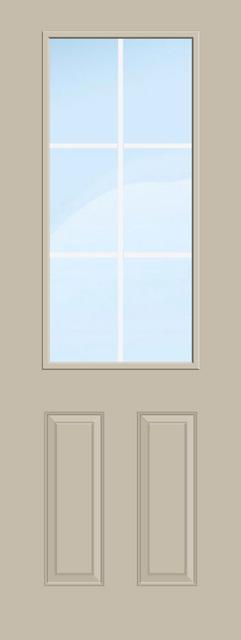

COLONIAL INTERNAL GRILLES

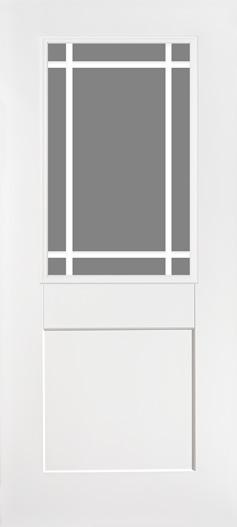

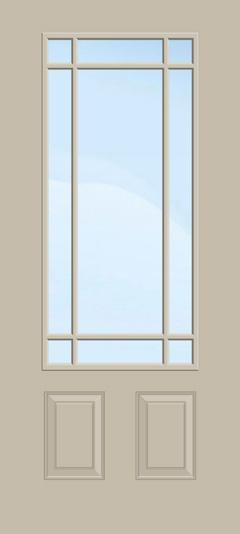

PRAIRIE INTERNAL GRILLES

ARTS & CRAFTS INTERNAL GRILLES

TIMBERGRAIN SIMULATED DIVIDED LITES

CONTEMPORARY SIMULATED DIVIDED LITES

CONTEMPORARY SIMULATED DIVIDED LITES WITH GLASS

MODERN WIDE SIMULATED DIVIDED LITES

MODERN NARROW SIMULATED DIVIDED LITES

INTERNAL GRILLES

COLONIAL Internal grilles are placed between two panes of insulated glass, offering the look of divided lites with easier cleaning. Choose from patterns and grille colors to suit your home’s style. Additional configurations are available on following pages.

PRIVACY RATING: 1 less privacy

more privacy



10L



12L, 18L



15L



2L, 3L, 4L









648





FIBERGLASS DOORS





















69-2L

69-3L

70-5L

648-6L

 

STEEL SIDELITES

TIMBERGRAIN Oak



TIMBERGRAIN Mahogany



STEEL DOORS

TIMBERGRAIN Knotty Alder

4L, 4LH, 6L, 8L

CAMBRIDGE Smooth

GRILLE PATTERN

TIMBERGRAIN Fir

SYMPHONY

TIMBERGRAIN Cherry

ARTISAN BROWN

WESTON Woodgrain Finish

IVY LEAGUE

VALUELINE Smooth

VERANDA

NORWOOD Textured

HEARTH STONE

WESTGUARD Smooth

CLASSIC WHITE

WESTON Brushed Smooth

GRILLE COLOR OPTIONS:



FIBERGLASS SIDELITES

2L, 3L, 4L











5 (direct set)



5 (direct set)



690



Other panel configurations and sizes may be available; reference product configurator for availability. Availability charts based on 3/0 width for doors and 14" for sidelites.  6/8 height  7/0 height  8/0 height Door panel imagery shown as outside view (OSV).

22-4L

22-4LH

22-4L

22-4LH

22-6L

22-8L

22-10L

22-8L

8/0 height

23-2L

23-3L

23-4L

23-5L

3-2L

3-3L

3-4L

3-5L

690-5L

22-12L

8/0 height

23-2L

8/0 height

5-6L

direct set

3-2L

8/0 height

22-15L

22-18L

8/0 height

23-3L

23-4L

8/0 height

3-3L

8/0 height

3-4L

8/0 height

3-6L

8/0 height

23-6L

8/0 height

5-7L

direct set 8/0 height

Optional dentil shelf on Craftsman doors.

INTERNAL GRILLES

COLONIAL Additional details and configurations are available on previous pages.



3L, 4L, 6L, 8L, 12L



3L, 6L, 8L, 12L







25P





25P





25P

12L

3L, 6L, 8L, 12L

TIMBERGRAIN Oak



STEEL DOORS

TIMBERGRAIN Mahogany



VALUELINE Smooth

CAMBRIDGE Smooth

GRILLE PATTERN



865-3L

3L, 4L or 6L

866-FL-4L 3L, 4L or 6L

FIBERGLASS DOORS







866-4L

3L, 4L or 6L

866F-6L

3L, 4L or 6L

866P-6L

3L, 4L or 6L

 







201



3L, 12L



201

4L, 6L, 8L











201

4LH, 10L, 15L

201P

4LH, 10L, 15L



201P

3L, 12L



201P

4L, 6L, 8L

502S

4L, 9L



606S

4L, 4LH, 6L, 8L, 10L, 15L



864

3L, 4L, 6L

865

3L, 4L, 6L

866

3L, 6L



866



866-FL

3L, 4L, 6L



866F

3L, 4L, 6L



866P

3L, 4L, 6L



984F

3L, 6L, 8L, 12L

984F



 

  



864-3L



8/0 height 3L, 4L or 6L

















STEEL SIDELITES

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



TIMBERGRAIN Cherry

WESTON Woodgrain Finish 

NORWOOD Textured



WESTGUARD Smooth

WESTON Brushed Smooth

864-3L

3L, 4L or 6L

FIBERGLASS SIDELITES

























461









461-2L

864-4L

8/0 height 3L, 4L or 6L

865-6L

8/0 height 3L, 4L or 6L

2-4L

4L or 9L

25-3L

8/0 height

25-4L

4L or 9L

25-4L

8/0 height

25P-4L 4L or 9L

4L or 9L

63-9L

502S-9L

63-6L

984F-8L

984F-12L

8/0 height

4L or 9L

984F-9L

34-2L

4L or 9L

25P-12L

8/0 height

201P-12L

38-2L

606S-10L

606S-15L

34-3L

34-4L

8/0 height

Grid patterns shown are available in all styles.

20-3L

20-4L

201-6L

201-8L

38-4L

Grid patterns shown are available in all styles.

201-4L

8/0 height

201-4LH 8/0 height

201P-6L

8/0 height

201P-8L

8/0 height

Grid patterns shown are available in all styles.

8/0 height

38-2L 8/0 height

38-3L 8/0 height

38-4L 8/0 height

38-5L

8/0 height

INTERNAL GRILLES

PRAIRIE Prairie grilles showcase strong geometric patterns and clean lines inspired by Frank Lloyd Wright’s iconic architecture. They capture the flat, open landscapes of the Midwest prairie, bringing a timeless and distinctive look to your entryway. PRIVACY RATING: 1 less privacy

more privacy



 



FIBERGLASS DOORS

2-9LP



20-9LP



22-9LP



23-6LP



25-9LP





25P-9LP



63-9LP



69-6LP



201-9LP



 

















 

Detail of internal grille bar 



201P-9LP





502S-9LP



606S-9LP





864-9LP



865-9LP



866-9LP



866F-9LP



866P-9LP



984F-9LP













STEEL SIDELITES 3-6LP

FIBERGLASS SIDELITES





5-6LP (direct set)



34-6LP











38-6LP













690-6LP

TIMBERGRAIN Oak



TIMBERGRAIN Mahogany



TIMBERGRAIN Knotty Alder



STEEL DOORS

TIMBERGRAIN Fir

WESTON Woodgrain Finish

SYMPHONY

WESTON Brushed Smooth

ARTISAN BROWN

VALUELINE Smooth

IVY LEAGUE

NORWOOD Textured

VERANDA

WESTGUARD Smooth

HEARTH STONE

CAMBRIDGE Smooth

CLASSIC WHITE

TIMBERGRAIN Cherry

GRILLE COLOR OPTIONS:



2-9LP

63-9LP

864-9LP

22-9LP

23-6LP

63-9LP

69-6LP

201-9LP

8/0 height

Option: dentil shelf

3-6LP

20-9LP

864-9LP

Option: dentil shelf 8/0 height

5-6LP

direct set

34-6LP

865-9LP

Option: dentil shelf

34-6LP

8/0 height

38-6LP

865-9LP

25-9LP

201-9LP

8/0 height

Option: dentil shelf 8/0 height

38-6LP

8/0 height

866-9LP

Option: dentil shelf

25-9LP

25P-9LP

201P-9LP

502S-9LP

606S-9LP

866P-9LP

984F-9LP

8/0 height

866F-9LP

Option: dentil shelf

8/0 height

690-6LP

INTERNAL GRILLES

ARTS & CRAFTS Arts & Crafts grilles feature clean, simple lines that complement the timeless charm of Arts & Crafts and Craftsman style homes. These grilles bring a handcrafted, authentic feel that enhances your entryway’s character and warmth. PRIVACY RATING: 1 less privacy

more privacy

GRILLE COLOR: CLASSIC WHITE

502S-4LAC

684-4LAC

3LAC OR 4LAC

686-3LAC

3LAC OR 4LAC

686-4LAC

8/0 height 3LAC OR 4LAC

984-3LAC

3LAC OR 4LAC

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

3LAC OR 4LAC

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

STEEL DOORS

FIBERGLASS DOORS

3LAC, 4LAC

201

3LAC, 4LAC



502S

3LAC, 4LAC



607

3LAC, 4LAC





684

3LAC, 4LAC



686

3LAC, 4LAC



984

3LAC, 4LAC





984F

3LAC, 4LAC





422

3LAC

694

3LAC

 



STEEL SIDELITES

607-3LAC

3LAC OR 4LAC

NORWOOD Textured

WESTGUARD Smooth

GRILLE PATTERN

201-3LAC

3LAC OR 4LAC

CAMBRIDGE Smooth

2-4LAC

3LAC OR 4LAC



FIBERGLASS SIDELITES

984-4LAC

 





8/0 height 3LAC OR 4LAC

984F-3LAC

3LAC OR 4LAC

422-3LAC 694-3LAC 694-3LAC 8/0 height

8/0 height

INTERNAL GRILLES

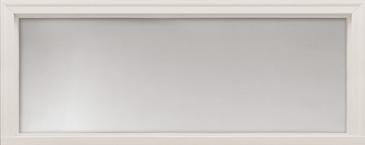

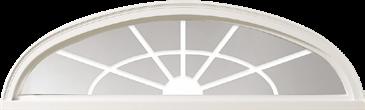

TRANSOMS Transoms allow extra light into the entryway and are available in several shapes: rectangle, half circle, and elliptical. The transoms are a direct-set profile with Low-E glass as standard.

PRIVACY RATING: 1 less privacy

more privacy

TR91 - 3L

TR91 - 6LP

TR91 - SUNBURST

TR89 - 3L

TR89 - 6LP

TR89 - SUNBURST

TR92 - 9LP

TR92 - SUNBURST

11-1/2" height

15-1/2" height

TR92 - 3L

20-5/8" height

TR96 - SUNBURST ELLIPTICAL 11-1/2" height

11-1/2" height

15-1/2" height

20-5/8" height

11-1/2" height

15-1/2" height

20-5/8" height

TR94 - SUNBURST ELLIPTICAL 15-1/2" height

TR99 - 5L

TR99 - SUNBURST

TR90 - 5L

TR90 - 6LP

TR90 - SUNBURST

TR98 - 9LP

TR98 - SUNBURST

TR95 - SUNBURST HALF CIRCLE

TR93 - SUNBURST HALF CIRCLE

11-1/2" height

15-1/2" height

TR98 - 5L

20-5/8" height

TR97 - SUNBURST ELLIPTICAL 20-5/8" height

11-1/2" height

15-1/2" height

20-5/8" height

call for height

15-1/2" height

20-5/8" height

call for height

SIMULATED DIVIDED LITES

TIMBERGRAIN The Timbergrain SDL collection is available in Cherry, Oak, Knotty Alder, Mahogany, and Fir species. They feature woodgrain bars to add depth and dimension to your front door. SDL doors capture the elegance of traditional divided lites with added energy performance. PRIVACY RATING: 1

less privacy

more privacy

MICRO-GRANITE

MISTIFY

RAIN

STREAMED

GRILLE PATTERN

GLASS OPTIONS

TIMBERGRAIN Mahogany

CUMULUS

TIMBERGRAIN Knotty Alder

CLEAR LOW-E

TIMBERGRAIN Fir

CHINCHILLA

TIMBERGRAIN Cherry

BLANCA

TIMBERGRAIN Oak

GLASS OPTIONS:

FIBERGLASS DOORS 20

4L, 6L, 8L, 9LP

All 8 Styles



4L, 6L, 8L, 9LP, 10L, 15L

All 8 Styles



4L, 6L

All 8 Styles

8L, 9LP

All 8 Styles



All 8 Styles



25P

4L, 6L

All 8 Styles



25P

8L, 9LP

All 8 Styles



25P

All 8 Styles



4L, 6L, 9L

All 8 Styles



201

10L, 15L

All 8 Styles



201

4L, 6L, 8L, 9LP

All 8 Styles



201P

10L, 15L

All 8 Styles



201P

4L, 6L, 8L, 9LP

All 8 Styles



601

4L, 8L

Clear Low-E, Rain



601P

4L, 8L

Clear Low-E, Rain



608

4L, 8L

Clear Low-E, Rain



648

Clear Low-E



864

2L, 3L, 4L, 6L

Clear Low-E, Rain

2L, 3L

All 8 Styles



3LP

All 8 Styles



4L, 6LP

All 8 Styles



2L, 3L, 4L, 6LP

All 8 Styles

3LP

38 690





Detail of divided lite bar for Fir grain



 FIBERGLASS SIDELITES







All 8 Styles







All 8 Styles



3LAC, 3LP

All 8 Styles

690

2L, 3L, 4L, 5L, 6LP

All 8 Styles



820

2L, 2LP, 4L

Clear Low-E, Rain



 





Detail of divided lite bar for Cherry, Oak, Mahogany, and Knotty Alder grain

864-2LSDL

Option: dentil shelf

864-2LSDL

864-3LSDL

Option: dentil shelf

864-3LSDL

864-4LSDL

Option: dentil shelf

864-4LSDL

Option: dentil shelf 8/0 height

25-4LSDL

25P-6LSDL

63-9LSDL

Grid patterns shown are available in all styles.

25-4LSDL 8/0 height

25-6LSDL 8/0 height

25P-8LSDL 8/0 height

Grid patterns shown are available in all styles.

864-6LSDL

8202LSDL

8202LPSDL

8204LSDL

864-6LSDL

8202LSDL

8202LPSDL

8204LSDL

Option: dentil shelf

Option: dentil shelf 8/0 height

332LSDL

25P-9LPSDL 8/0 height

8/0 height

648-4LSDL

333LSDL

332LSDL

8/0 height

6903LACSDL

333LPSDL

8/0 height

333LSDL

8/0 height

334LSDL

8/0 height

336LPSDL

8/0 height

SIMULATED DIVIDED LITES

less privacy

more privacy

MICRO-GRANITE

MISTIFY

RAIN

STREAMED

GRILLE PATTERN

GLASS OPTIONS

TIMBERGRAIN Mahogany

CUMULUS

TIMBERGRAIN Knotty Alder

CLEAR LOW-E

TIMBERGRAIN Fir

CHINCHILLA

TIMBERGRAIN Cherry

BLANCA

TIMBERGRAIN Oak

GLASS OPTIONS:

FIBERGLASS DOORS 20

4L, 6L, 8L, 9LP

All 8 Styles



4L, 6L, 8L, 9LP, 10L, 15L

All 8 Styles



4L, 6L

All 8 Styles

8L, 9LP

All 8 Styles



All 8 Styles



25P

4L, 6L

All 8 Styles



25P

8L, 9LP

All 8 Styles



25P

All 8 Styles



4L, 6L, 9L

All 8 Styles



201

10L, 15L

All 8 Styles



201

4L, 6L, 8L, 9LP

All 8 Styles



201P

10L, 15L

All 8 Styles



201P

4L, 6L, 8L, 9LP

All 8 Styles



601

4L, 8L

Clear Low-E, Rain



601P

4L, 8L

Clear Low-E, Rain



608

4L, 8L

Clear Low-E, Rain



648

Clear Low-E



864

2L, 3L, 4L, 6L

Clear Low-E, Rain

2L, 3L

All 8 Styles



3LP

All 8 Styles



4L, 6LP

All 8 Styles



2L, 3L, 4L, 6LP

All 8 Styles

3LP







382LSDL

383LPSDL

383LSDL

384LSDL

386LPSDL

382LSDL

383LSDL

384LSDL

385LSDL

386LPSDL

 FIBERGLASS SIDELITES







All 8 Styles







All 8 Styles



690

3LAC, 3LP

All 8 Styles

690

2L, 3L, 4L, 5L, 6LP

All 8 Styles



820

2L, 2LP, 4L

Clear Low-E, Rain



 





8/0 height

22-4LSDL

6902LSDL

201-4LSDL

22-6LSDL

6903LACSDL

6903LPSDL

201-6LSDL

22-8LSDL

6903LSDL

201P-8LSDL

22-9LPSDL

6904LSDL

6905LSDL

22-10LSDL

6906LPSDL

20-9LPSDL

601-4LSDL

8/0 height

201-6LSDL 8/0 height

201-8LSDL 8/0 height

608-8LSDL

Grid patterns shown are available in all styles.

201-4LSDL

22-15LSDL

201P-9LPSDL 8/0 height

Grid patterns shown are available in all styles.

201P-10LSDL 8/0 height

201P-15LSDL 8/0 height

SIMULATED DIVIDED LITES

CONTEMPORARY Contemporary SDL doors create a truly extraordinary front door that will enamor friends and family as they enter your home to create endless memories. Make a statement entry with these wider flat bars, available in 3.5" or 5.125" widths. PRIVACY RATING: 1

less privacy

more privacy

GLASS OPTIONS: CHINCHILLA

CLEAR LOW-E

CUMULUS

MICRO-GRANITE

MISTIFY

RAIN

STREAMED

SOLID PANEL

PANEL WITH GLASS

GLASS OPTIONS

TIMBERGRAIN Fir

BLANCA

FIBERGLASS DOORS F822

F822-G

All 8 Styles



F823

F823-G

All 8 Styles



F824

F824-G

All 8 Styles



F825

F825-G

All 8 Styles



F826

F826-G

All 8 Styles



F827

F827-G

All 8 Styles



F828

F828-G

All 8 Styles



F829

F829-G

All 8 Styles



F862

F862-G

All 8 Styles



F863

F863-G

All 8 Styles



F864

F864-G

All 8 Styles



F865

F865-G

All 8 Styles



F866

F866-G

All 8 Styles



F867

F867-G

All 8 Styles



F868

F868-G

All 8 Styles



F869

F869-G

All 8 Styles



F822-G-SL

F823-G-SL

F824-G-SL

F825-G-SL

F826-G-SL

F827-G-SL

F828-G-SL F829-G-SL

FIBERGLASS SIDELITES

F822-G-SL

All 8 Styles



F823-G-SL

All 8 Styles



F824-G-SL

All 8 Styles



F825-G-SL

All 8 Styles



F826-G-SL

All 8 Styles



F827-G-SL

All 8 Styles



F828-G-SL

All 8 Styles



F829-G-SL

All 8 Styles



F822

F862

F823

F863

F824

F864

F825

F865

F826

F866

F827

F867

F828

F868

F829

F869

8/0 height

F822-G

F823-G

F824-G

F825-G

F826-G

F827-G

F828-G

F829-G

F862-G

8/0 height

F863-G

8/0 height

F864-G

8/0 height

F865-G

8/0 height

F866-G

8/0 height

F867-G

8/0 height

F868-G

8/0 height

F869-G

8/0 height

SIMULATED DIVIDED LITES

MODERN WIDE Wide simulated divided lites elevate the beauty of an entryway while letting in natural light. The 3.5" wide bars are available in 3-lite and 4-lite horizontal patterns to make a statement and add dimension to any entryway.

PRIVACY RATING: 1

less privacy

more privacy

MICRO-GRANITE

MISTIFY

RAIN

STREAMED

GRILLE PATTERN

GLASS OPTIONS

STEEL DOORS

FIBERGLASS DOORS

3LHSDLW

All 8 Styles



3LHSDLW

All 8 Styles



4LHSDLW

All 8 Styles



3LHSDLW

All 8 Styles



3LHSDLW

All 8 Styles



201

3LHSDLW

All 8 Styles







201

4LHSDLW

All 8 Styles



606F-FLG

3LHSDLW

Blanca, Clear Low-E, Rain



606F-FLG

4LHSDLW

Blanca, Clear Low-E, Rain

606S

3LHSDLW

All 8 Styles



606S

4LHSDLW

All 8 Styles



686-FLG

3LHSDLW

Blanca, Clear Low-E, Rain



686-FLG

4LHSDLW

Blanca, Clear Low-E, Rain



984F

3LHSDLW

All 8 Styles





STEEL SIDELITES

WESTON Brushed Smooth

CUMULUS

NORWOOD Textured

CLEAR LOW-E

WESTGUARD Smooth

CHINCHILLA

CAMBRIDGE Smooth

BLANCA

WESTON Woodgrain Finish

GLASS OPTIONS:

FIBERGLASS SIDELITES

3LSDLW

All 8 Styles





4LSDLW

All 8 Styles





3LSDLW

All 8 Styles



3LSDLW

All 8 Styles



4LSDLW

All 8 Styles



422F-FLG

3LSDLW

Blanca, Clear Low-E, Rain



422F-FLG

4LSDLW

Blanca, Clear Low-E, Rain



694-FLG

3LSDLW

Blanca, Clear Low-E, Rain



694-FLG

4LSDLW

Blanca, Clear Low-E, Rain



 





Detail of wide divided lite bar with framed glass

22-3LHSDLW

22-4LHSDLW

686-4LHSDLWFLG

694-4LSDLWFLG

20-3LHSDLW

201-3LHSDLW

8/0 height

201-3LHSDLW 8/0 height

686-3LHSDLWFLG

686-4LHSDLWFLG

3-3LSDLW

25-3LHSDLW 8/0 height

3-4LSDLW

63-3LHSDLW 8/0 height

694-3LSDLW- 694-4LSDLWFLG FLG

984F-3LHSDLW 8/0 height

34-3LSDLW 8/0 height

8/0 height

606F-3LHSDLWFLG

38-3LSDLW

422F-3LSDLWFLG

606F-3LHSDLW-FLG 606S-4LHSDLW

38-3LSDLW

38-4LSDLW

8/0 height

Grid patterns shown are available in all styles.

8/0 height

422F-3LSDLWFLG 8/0 height

422F-4LSDLWFLG 8/0 height

SIMULATED DIVIDED LITES

MODERN NARROW Clean, simple, everlasting. Focusing on grids that allow in natural light, Modern Narrow Simulated Divided Lites are the perfect complement to any home exterior with their sleek look. Additional configurations are available on following pages.

PRIVACY RATING: 1

less privacy

more privacy

MICRO-GRANITE

MISTIFY

RAIN

STREAMED

GRILLE PATTERN

GLASS OPTIONS

STEEL DOORS

FIBERGLASS DOORS

4L, 6L, 8L, 9LP, 12L

All 8 Styles



4L, 4LH, 8L, 9LP, 10L, 12L, 15L

All 8 Styles



4L, 5L

All 8 Styles



201

4LH, 10L, 15L

All 8 Styles

201

4L, 8L, 9LP, 12L

All 8 Styles







201

All 8 Styles



606F-FLG

4L, 8L, 9LP, 12L

Blanca, Clear Low-E, Rain



606F-FLG

4LH, 10L, 15L

Blanca, Clear Low-E, Rain



606F-FLG

Blanca, Clear Low-E, Rain



606S

4L, 4LH, 8L, 9LP, 10L, 12L, 15L

686-FLG

8L, 9LP, 12L

Blanca, Clear Low-E, Rain



686-FLG

6L, 18L

Blanca, Clear Low-E, Rain



686-FLG

4L, 4LH, 10L, 15L

Blanca, Clear Low-E, Rain

All 8 Styles





422F-2LSDL-FLG

422F-3LPSDL-FLG

38-3LSDL

38-4LSDL

Grid patterns shown are available in all styles.

 STEEL SIDELITES

WESTON Brushed Smooth

CUMULUS

NORWOOD Textured

CLEAR LOW-E

WESTGUARD Smooth

CHINCHILLA

CAMBRIDGE Smooth

BLANCA

WESTON Woodgrain Finish

GLASS OPTIONS:

FIBERGLASS SIDELITES

2L, 3LP, 4L, 5L

All 8 Styles





2L, 3LP, 4L

All 8 Styles









All 8 Styles



All 8 Styles



422F-FLG

Blanca, Clear Low-E, Rain



422F-FLG

2L, 3LP, 4L

Blanca, Clear Low-E, Rain



422F-FLG

Blanca, Clear Low-E, Rain



694-FLG

Blanca, Clear Low-E, Rain



694-FLG

Blanca, Clear Low-E, Rain



694-FLG

3LP, 4L, 5L

Blanca, Clear Low-E, Rain





422F-2LSDL-FLG 8/0 height

422F-3LPSDL-FLG 8/0 height

38-4LSDL 8/0 height

Grid patterns shown are available in all styles.

38-5LSDL 8/0 height

22-4LHSDL 686-4LHSDL-FLG

22-4LSDL 686-4LSDL-FLG

686-6LSDL-FLG

686-18LSDL-FLG

3-2LSDL 694-2LSDL-FLG

3-3LPSDL 694-3LPSDL-FLG

8/0 height

606F-4LSDL-FLG

201-6LSDL

8/0 height

201-8LSDL

22-8LSDL 686-8LSDL-FLG

3-4LSDL 694-4LSDL-FLG

20-9LPSDL

22-9LPSDL 686-9LPSDL-FLG

3-5LSDL 694-5LSDL-FLG

22-10LSDL 686-10LSDL-FLG

694-3LSDLFLG 8/0 height

22-12LSDL 686-12LSDL-FLG

694-3LPSDLFLG 8/0 height

694-4LSDLFLG 8/0 height

20-12LSDL

23-4LSDL

23-5LSDL

201-10LSDL

606S-12LSDL

606S-15LSDL

22-15LSDL 686-15LSDL-FLG

694-5LSDLFLG 8/0 height

Grid patterns shown are available in all styles.

606F-4LHSDL-FLG 8/0 height

606F-4LSDL-FLG 8/0 height

606F-8LSDL-FLG 8/0 height

201-9LPSDL 8/0 height

8/0 height

Grid patterns shown are available in all styles.

8/0 height

SIMULATED DIVIDED LITES

PRIVACY RATING: 1

less privacy

more privacy

MICRO-GRANITE

MISTIFY

RAIN

STREAMED

GRILLE PATTERN

GLASS OPTIONS

STEEL DOORS

FIBERGLASS DOORS

4L, 6L, 9LP

All 8 Styles



8L, 12L

All 8 Styles



All 8 Styles



25P

4L, 6L, 9L, 9LP

All 8 Styles



8L, 12L

All 8 Styles



4L, 6L, 9LP

All 8 Styles





All 8 Styles



2L, 3L, 3LP

All 8 Styles



502S

4L, 6L, 9L, 9LP

All 8 Styles



865-FLG

2L, 3L, 4L, 6L, 9LP

Blanca, Clear Low-E, Rain

865

2L, 3L, 4L, 6L, 9LP

All 8 Styles

866

2L, 3L, 4L, 6L, 9LP

All 8 Styles



866F

2L, 3L, 4L, 6L, 9LP

All 8 Styles



866P

2L, 3L, 4L, 6L, 9LP

All 8 Styles



984F

8L, 12L

All 8 Styles



984F

4L, 6L, 9LP

All 8 Styles





984F

All 8 Styles





984F-FLG

4L, 6L, 9L, 9LP





 

69-2LSDL

 

Blanca, Clear Low-E, Rain





 STEEL SIDELITES

WESTON Brushed Smooth

CUMULUS

NORWOOD Textured

CLEAR LOW-E

WESTGUARD Smooth

CHINCHILLA

CAMBRIDGE Smooth

BLANCA

WESTON Woodgrain Finish

GLASS OPTIONS:

FIBERGLASS SIDELITES

2L, 3L, 3LP

All 8 Styles





All 8 Styles



461

All 8 Styles



461-FLG

Blanca, Clear Low-E, Rain



69-3LPSDL

69-3LSDL

865-2LSDL-FLG

865-3LSDL-FLG

866F-4LSDL

866F-6LSDL

866P-9LPSDL

Grid patterns shown are available in all styles. Optional dentil shelf on framed glass doors.

865-2LSDL

865-3LSDL

8/0 height

865-4LSDL 8/0 height

865-6LSDL 8/0 height

461-2LSDL 461-2LSDL-FLG

865-9LPSDL-FLG 8/0 height

Grid patterns shown are available in all styles. Optional dentil shelf on framed glass doors.

984F-4LSDL-FLG

25-4LSDL

25P-6LSDL

63-9LSDL

502S-9LSDL

984F-9LPSDL

984F-12LSDL

342LSDL

Grid patterns shown are available in all styles.

25-4LSDL 8/0 height

25-6LSDL 8/0 height

63-8LSDL 8/0 height

984F-9LPSDL 8/0 height

Grid patterns shown are available in all styles.

8/0 height

342LSDL

343LSDL

8/0 height

343LSDL

343LPSDL

8/0 height

343LPLSDL

344LSDL

8/0 height

PRIVACY GLASS COLLECTION Add dimension to your entryway with privacy glass. This type of glass adds style, privacy, and security to any living space. Choose from varying opacity levels to meet your family’s privacy needs.

BLANCA

CHINCHILLA

CUMULUS

FROSTED

MICRO-GRANITE

RAIN

STREAMED

VAPOR

PRIVACY GLASS

BLANCA Offering a high level of privacy and an understated backdrop, Blanca has a frosted, slightly stippled surface. The textured surface is enclosed in glass.

PRIVACY RATING: 9 less privacy

more privacy





461FB-BLC





502S-BLC



606-BLC



FIBERGLASS DOORS







606P-BLC







606S-BLC



607-BLC



684-BLC





686-BLC





692-BLC



694-BLC





694-1-BLC-L 694-1-BLC-R









865-BLC



866-FL-BLC



866F-BLC



422-BLC

461-BLC

690-BLC

692-BLC

694-BLC

8/0 height

  







866P-BLC



984-BLC



984F-BLC

















STEEL SIDELITES 422-BLC





866-BLC

984P-BLC

FIBERGLASS SIDELITES



461-BLC















690-BLC

TIMBERGRAIN Oak



461FA-BLC

TIMBERGRAIN Mahogany

461C-BLC

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry



WESTON Woodgrain Finish

NORWOOD Textured

2-BLC

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: BLC



692-BLC









694-BLC









8/0 height

2-BLC

461C-BLC

461FA-BLC

461FB-BLC

502S-BLC

606-BLC

606P-BLC

606S-BLC

607-BLC

684-BLC

686-BLC

692-BLC

694-BLC

694-1-BLC

694-1-BLC 8/0 height left or right

Option: dentil shelf

865-BLC

8/0 height Option: dentil shelf

Option: dentil shelf

866P-BLC

984-BLC

984F-BLC

984P-BLC

8/0 height

866F-BLC

Option: dentil shelf

8/0 height

Option: dentil shelf

left or right

8/0 height

866-BLC

866-FL-BLC

8/0 height

PRIVACY GLASS

CHINCHILLA As touchable as its namesake, Chinchilla’s fine lines and organic, fur-like texture create a striking wave pattern when seen from afar. It offers a high level of privacy with the textured glass surface exposed to the inside of the home. Additional configurations are available on following pages.

PRIVACY RATING: 9 less privacy

more privacy





461FB-CHA





502S-CHA



606-CHA



FIBERGLASS DOORS







606P-CHA

TIMBERGRAIN Oak



461FA-CHA

TIMBERGRAIN Mahogany

461C-CHA

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry



WESTON Woodgrain Finish

NORWOOD Textured

2-CHA

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: CHA







606S-CHA



607-CHA



651-CHA



651A-CHA



651B-1-CHA



651B-2-CHA



651B-12-CHA



651B-23-CHA



651B-24-CHA



651B-123-CHA



651B-135-CHA



651B-1234-CHA



651B-55-CHA







684-CHA





686-CHA





692-CHA



694-CHA







2-CHA

461C-CHA

461FA-CHA

461FB-CHA

502S-CHA

606-CHA

606P-CHA

606S-CHA

607-CHA

651-CHA

651A-CHA

651B-1-CHA

651B-2-CHA

651B-12-CHA

651B-23-CHA

651B-24-CHA

651B-123-CHA

651B-135-CHA

651B-1234-CHA

651B-55-CHA

684-CHA

686-CHA

692-CHA

694-CHA

8/0 height

PRIVACY GLASS

PRIVACY RATING: 9 less privacy

more privacy



840-CHA



840A-CHA



841-CHA



841A-CHA



842-CHA



842A-CHA-L 842A-CHA-R



843-CHA-L 843-CHA-R



843A-CHA



843B-CHA-L 843B-CHA-R



FIBERGLASS DOORS

865-CHA 866-CHA

 

866-FL-CHA



866F-CHA



 









984-CHA



984F-CHA









422-CHA

461-CHA

692-CHA

694-CHA

8/0 height







STEEL SIDELITES

FIBERGLASS SIDELITES

105-CHA





422-CHA









461-CHA









690-CHA

105-CHA



866P-CHA

984P-CHA

TIMBERGRAIN Oak



TIMBERGRAIN Mahogany



TIMBERGRAIN Knotty Alder

WESTON Woodgrain Finish



TIMBERGRAIN Fir

WESTON Brushed Smooth



STEEL DOORS

TIMBERGRAIN Cherry

NORWOOD Textured

694-1-CHA-L 694-1-CHA-R

CAMBRIDGE Smooth

WESTGUARD Smooth

GLASS CODE: CHA



692-CHA









694-CHA









8/0 height

694-1-CHA

840-CHA

840A-CHA

841A-CHA

842-CHA

842A-CHA

843A-CHA

843B-CHA

843B-CHA 8/0 height left or right

Option: dentil shelf

865-CHA

8/0 height Option: dentil shelf

Option: dentil shelf

866P-CHA

984-CHA

984F-CHA

984P-CHA

left or right

866F-CHA

Option: dentil shelf

8/0 height left or right

8/0 height

Option: dentil shelf

left or right

8/0 height

left or right

8/0 height

8/0 height left or right

8/0 height

841-CHA

843-CHA

left or right

866-CHA

8/0 height

8/0 height left or right

866-FL-CHA

8/0 height

PRIVACY GLASS

CUMULUS Whether soft wisps of clouds or a 30,000-foot view of mountainous terrain, Cumulus takes a view from afar and brings it down to earth in your entryway. The textured glass surface is exposed to the inside of the home.

PRIVACY RATING: 8 less privacy

more privacy





461FB-CMS





502S-CMS



606-CMS



FIBERGLASS DOORS







606P-CMS







606S-CMS



607-CMS



684-CMS





686-CMS





692-CMS



694-CMS





694-1-CMS-L 694-1-CMS-R









865-CMS 866-CMS





422-CMS

461-CMS

690-CMS

692-CMS

694-CMS

8/0 height

 

866-FL-CMS



866F-CMS



  







866P-CMS



984-CMS



984F-CMS







984P-CMS











STEEL SIDELITES 422-CMS

FIBERGLASS SIDELITES 

461-CMS















690-CMS

TIMBERGRAIN Oak



461FA-CMS

TIMBERGRAIN Mahogany

461C-CMS

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry



WESTON Woodgrain Finish

NORWOOD Textured

2-CMS

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: CMS



692-CMS









694-CMS









8/0 height

2-CMS

461C-CMS

461FA-CMS

461FB-CMS

502S-CMS

606-CMS

606P-CMS

606S-CMS

607-CMS

684-CMS

686-CMS

692-CMS

694-CMS

694-1-CMS

694-1-CMS 8/0 height left or right

Option: dentil shelf

865-CMS

8/0 height Option: dentil shelf

Option: dentil shelf

866P-CMS

984-CMS

984F-CMS

984P-CMS

8/0 height

866F-CMS

Option: dentil shelf

8/0 height

Option: dentil shelf

left or right

8/0 height

866-CMS

866-FL-CMS

8/0 height

PRIVACY GLASS

FROSTED Frosted glass blends privacy with natural light, something that will find itself at home in any architectural style. The translucent look allows light through while still offering a high level of privacy.

PRIVACY RATING: 9 less privacy

more privacy



651A-FSB





651B-1-FSB



651B-2-FSB



651B-12-FSB



651B-23-FSB



651B-24-FSB



651B-123-FSB



651B-135-FSB



651B-1234-FSB



651B-55-FSB









694-1-FSB-L 694-1-FSB-R



840-FSB





840A-FSB





841-FSB





841A-FSB





842-FSB





842A-FSB-L 842A-FSB-R





843-FSB-L 843-FSB-R





843A-FSB





843B-FSB-L 843B-FSB-R







FIBERGLASS DOORS

STEEL SIDELITES 105-FSB



TIMBERGRAIN Oak



TIMBERGRAIN Mahogany



TIMBERGRAIN Knotty Alder

WESTON Woodgrain Finish



TIMBERGRAIN Fir

WESTON Brushed Smooth



STEEL DOORS

TIMBERGRAIN Cherry

NORWOOD Textured

651-FSB

CAMBRIDGE Smooth

WESTGUARD Smooth

GLASS CODE: FSB

FIBERGLASS SIDELITES

842-FSB 8/0 height

842A-FSB left or right

842A-FSB 8/0 height left or right

651-FSB

651A-FSB

651B-1-FSB

651B-2-FSB

651B-12-FSB

651B-23-FSB

651B-24-FSB

651B-123-FSB

651B-135-FSB

651B-1234-FSB

651B-55-FSB

694-1-FSB

840-FSB

840A-FSB

841-FSB

841A-FSB

842-FSB

843-FSB

843A-FSB

843B-FSB

105-FSB

8/0 height

left or right

8/0 height

8/0 height left or right

8/0 height

left or right

8/0 height

8/0 height left or right

left or right

8/0 height

PRIVACY GLASS

MICRO-GRANITE Just as its name implies, Micro-Granite blends texture and pattern to create a surface reminiscent of small, textured, polished pebbles. It offers a high level of privacy with the textured surface enclosed in glass.

PRIVACY RATING: 9 less privacy

more privacy





461FB-MG





502S-MG



606-MG



TIMBERGRAIN Oak



461FA-MG

TIMBERGRAIN Mahogany

461C-MG

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry



WESTON Woodgrain Finish

NORWOOD Textured

2-MG

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: MG

FIBERGLASS DOORS







606P-MG







606S-MG



607-MG



684-MG





686-MG





692-MG



694-MG





694-1-MG-L 694-1-MG-R









865-MG



422-MG

866-FL-MG



866-MG



866F-MG



866P-MG



984-MG











984F-MG







984P-MG



461-MG

692-MG

694-MG

690-MG









STEEL SIDELITES

FIBERGLASS SIDELITES 

461-MG















690-MG



692-MG









694-MG









692-MG

422-MG

8/0 height

 

422-MG



8/0 height

694-MG

8/0 height

2-MG

461C-MG

461FA-MG

461FB-MG

606P-MG

606S-MG

607-MG

684-MG

694-MG

694-1-MG

866P-MG

984-MG

8/0 height

694-MG

866F-MG

Option: dentil shelf

8/0 height

Option: dentil shelf

left or right

502S-MG

606-MG

684-MG

686-MG

8/0 height

865-MG

606-MG

606P-MG

686-MG

692-MG

8/0 height

866-MG

866-FL-MG

8/0 height left or right

Option: dentil shelf

8/0 height Option: dentil shelf

Option: dentil shelf

984-MG

984F-MG

984P-MG

8/0 height

PRIVACY GLASS

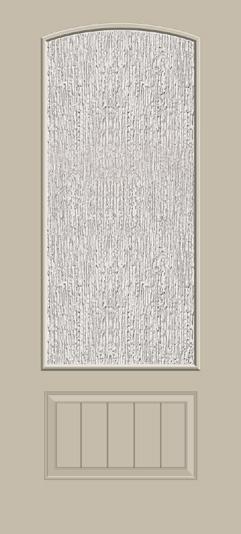

RAIN All that’s missing is the patter of raindrops. Rain features a vertical pattern and textured surface that creates the illusion of rain trickling down a window. It offers a high level of privacy with the textured surface enclosed in glass. Additional configurations are available on following pages.

PRIVACY RATING: 9 less privacy

more privacy



461FA-LERN





461FB-LERN





502S-LERN



FIBERGLASS DOORS



601-LERN



601P-LERN 606-LERN

 





606P-LERN

TIMBERGRAIN Oak

461C-LERN

TIMBERGRAIN Mahogany



TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry

VALUELINE Smooth



WESTON Woodgrain Finish

NORWOOD Textured

2-LERN

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: RN / LERN







606S-LERN



607-LERN



640-LERN



651-RN





651A-RN





651B-1-RN



651B-2-RN



651B-12-RN



651B-23-RN



651B-24-RN



651B-123-RN



651B-135-RN



651B-1234-RN



651B-55-RN



659-LERN



680-LERN



684-LERN 686-LERN





























692-LERN





694-LERN









651A-RN

651B-1-RN

651B-55-RN

659-LERN

680-LERN

8/0 height

2-LERN

461C-LERN

461FA-LERN

461FB-LERN

502S-LERN

601-LERN

601P-LERN

606-LERN

606P-LERN

606S-LERN

607-LERN

640-LERN

651-RN

651B-2-RN

651B-12-RN

651B-23-RN

651B-24-RN

651B-123-RN

651B-135-RN

651B-1234-RN

684-LERN

686-LERN

692-LERN

694-LERN

8/0 height

606-LERN

651-RN

8/0 height

651B-55-RN

8/0 height

PRIVACY GLASS

Additional configurations are available on previous pages.

left or right

694-1-LERN

840-RN

842A-RN

8/0 height left or right

PRIVACY RATING: 9 less privacy

more privacy

STEEL DOORS 









840-RN





840A-RN





841-RN





841A-RN





842-RN





842A-RN-L 842A-RN-R





843-RN-L 843-RN-R





843A-RN





843B-RN-L 843B-RN-R





TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

842-RN

864-LERN

8/0 height

left or right

865-LERN

8/0 height left or right



865-LERN



866-FL-LERN



866-LERN



866F-LERN



866P-LERN











937-LERN



937A-LERN



937C-LERN



984-LERN



984F-LERN





984P-LERN















866-LERN

Option: dentil shelf

8/0 height Option: dentil shelf

Option: dentil shelf

984F-LERN

984P-LERN









STEEL SIDELITES

FIBERGLASS SIDELITES

5-LERN (direct set)



105-RN





422-LERN











461-LERN





690-LERN

TIMBERGRAIN Knotty Alder

FIBERGLASS DOORS

694-1-LERN-L 694-1-LERN-R



692-LERN









694-LERN







820-LERN

TIMBERGRAIN Fir

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

VALUELINE Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

GLASS CODE: RN / LERN





8/0 height

840-RN

8/0 height

843-RN

left or right

866-FL-LERN

Option: dentil shelf

984P-LERN 8/0 height

841A-RN

842-RN

864-LERN

840A-RN

841-RN

843-RN

843A-RN

843A-RN 8/0 height

left or right

8/0 height left or right

Option: dentil shelf

8/0 height Option: dentil shelf

866P-LERN

937-LERN

937A-LERN

937C-LERN

984-LERN

8/0 height

8/0 height left or right

866F-LERN

Option: dentil shelf

5-LERN

direct set

Option: dentil shelf

105-RN

422-LERN

422-LERN 8/0 height

461-LERN

841-RN

841A-RN

843B-RN

8/0 height

690-LERN 692-LERN 692-LERN 694-LERN 694-LERN 820-LERN 8/0 height

8/0 height

PRIVACY GLASS

STREAMED The pronounced vertical pattern and strong ribbed texture creates the illusion of the organic flow of water in your entryway. Offers a high level of privacy. The textured glass surface is exposed to the inside of the home.

PRIVACY RATING: 9 less privacy

more privacy





461FB-STM





502S-STM



606-STM



FIBERGLASS DOORS







606P-STM







606S-STM



607-STM



684-STM





686-STM





692-STM



694-STM





694-1-STM-L 694-1-STM-R









865-STM





422-STM

461-STM

690-STM

692-STM

694-STM

8/0 height



866-FL-STM



866-STM



866F-STM



866P-STM



984-STM











984F-STM







984P-STM











STEEL SIDELITES 422-STM

FIBERGLASS SIDELITES 

461-STM















690-STM

TIMBERGRAIN Oak



461FA-STM

TIMBERGRAIN Mahogany

461C-STM

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry



WESTON Woodgrain Finish

NORWOOD Textured

2-STM

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: STM



692-STM









694-STM









8/0 height

2-STM

461C-STM

461FA-STM

461FB-STM

502S-STM

606-STM

606P-STM

606S-STM

607-STM

684-STM

686-STM

692-STM

694-STM

694-1-STM

694-1-STM 8/0 height left or right

Option: dentil shelf

865-STM

8/0 height Option: dentil shelf

Option: dentil shelf

866P-STM

984-STM

984F-STM

984P-STM

8/0 height

866F-STM

Option: dentil shelf

8/0 height

Option: dentil shelf

left or right

8/0 height

866-STM

866-FL-STM

8/0 height

PRIVACY GLASS

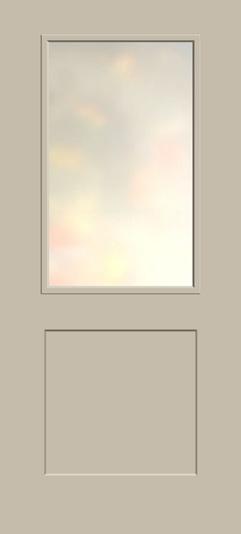

VAPOR Reminiscent of the Northern Lights, Vapor creates an ethereal play of light and shadow and a medium level of privacy for your entryway. The textured glass surface is exposed to the inside of the home.

PRIVACY RATING: 6 less privacy

more privacy





461FB-VPR





502S-VPR



606-VPR



FIBERGLASS DOORS







606P-VPR







606S-VPR



607-VPR



684-VPR





686-VPR





692-VPR



694-VPR





694-1-VPR-L 694-1-VPR-R









865-VPR 



866-VPR



866F-VPR



866P-VPR



984-VPR 984F-VPR



















422-VPR

690-VPR

692-VPR

694-VPR

8/0 height









STEEL SIDELITES 422-VPR





866-FL-VPR

984P-VPR

FIBERGLASS SIDELITES





690-VPR

TIMBERGRAIN Oak



461FA-VPR

TIMBERGRAIN Mahogany

461C-VPR

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir



STEEL DOORS

TIMBERGRAIN Cherry



WESTON Woodgrain Finish

NORWOOD Textured

2-VPR

CAMBRIDGE Smooth

WESTGUARD Smooth

WESTON Brushed Smooth

GLASS CODE: VPR

 

692-VPR







694-VPR













8/0 height

694-VPR 8/0 height

2-VPR

461C-VPR

461FA-VPR

461FB-VPR

502S-VPR

606-VPR

606P-VPR

606S-VPR

607-VPR

684-VPR

686-VPR

692-VPR

694-VPR

694-1-VPR

694-1-VPR 8/0 height left or right

Option: dentil shelf

865-VPR

8/0 height Option: dentil shelf

Option: dentil shelf

866P-VPR

984-VPR

984F-VPR

984P-VPR

8/0 height

866F-VPR

Option: dentil shelf

8/0 height

Option: dentil shelf

left or right

8/0 height

866-VPR

866-FL-VPR

8/0 height

DECORATIVE GLASS COLLECTION The beauty of handcrafted glass is that every piece is different, offering you aesthetic elements and various privacy levels. Choose from our diverse styles to accent the unique architectural style and decor of your home.

BROWNSTONE

CROSSWALK

HARRISON

HEARTLAND

MARTIEL

MISTIFY

MOHAVE

MONTEREY

OXFORD

REGENCY

TOPAZ

WATERSIDE

DECORATIVE GLASS

BROWNSTONE Stylish Brownstone can be elegantly integrated into the architectural styles of another era or matched with the simple, sleek lines of today. Beveling is the hallmark of this refined design. Brownstone offers a medium level of privacy.

PRIVACY RATING: 6 less privacy

more privacy

GLASS CODE: BRO

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-BRO



502S-BRO



606-BRO



 



606P-BRO







606S-BRO



607-BRO



684-BRO





686-BRO



692-BRO



984-BRO



984F-BRO







984P-BRO











STEEL SIDELITES

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Patina

FIBERGLASS SIDELITES

422-BRO







692-BRO











2-BRO

502S-BRO

606-BRO

606P-BRO

606S-BRO

607-BRO

684-BRO

686-BRO

692-BRO

984-BRO

984F-BRO

984P-BRO

8/0 height

422-BRO

8/0 height

692-BRO

8/0 height

692-BRO 8/0 height

DECORATIVE GLASS

CROSSWALK Modern design comes to life through strong linear lines interrupted by bold pops of gray glass. Crosswalk’s look is abstract, modern, and stylish, and it offers a high privacy level.

PRIVACY RATING: 8 less privacy

more privacy

GLASS CODE: CWK

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-CWK



502S-CWK



606-CWK



 



606P-CWK







606S-CWK



607-CWK



684-CWK





686-CWK





692-CWK



694-CWK



694-1-CWK-L 694-1-CWK-R













865-CWK





866-CWK



866F-CWK



866P-CWK



984-CWK

 





984F-CWK







984P-CWK









STEEL SIDELITES 422-CWK

FIBERGLASS SIDELITES 

461-CWK









690-CWK

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Nickel



692-CWK









694-CWK









2-CWK

502S-CWK

606-CWK

606P-CWK

606S-CWK

607-CWK

684-CWK

686-CWK

692-CWK

694-CWK

694-1-CWK

865-CWK

866P-CWK

984-CWK

984F-CWK

8/0 height

866-CWK

Option: dentil shelf

8/0 height Option: dentil shelf

Option: dentil shelf

984F-CWK

984P-CWK

8/0 height

866F-CWK

Option: dentil shelf

422-CWK

Option: dentil shelf

422-CWK 8/0 height

461-CWK

8/0 height

left or right

8/0 height

8/0 height left or right

690-CWK 692-CWK 692-CWK 694-CWK 694-CWK 8/0 height

8/0 height

DECORATIVE GLASS

HARRISON Harrison places a brilliant bevel cluster at its center and frames it with a translucent beveled glass design. Complement your home’s décor with a choice of patina or nickel finish. Harrison offers a medium privacy level.

PRIVACY RATING: 6 less privacy

more privacy

GLASS CODE: HRR

STEEL DOORS



606-HRR



TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

 



606P-HRR







606S-HRR



607-HRR



659-HRR



684-HRR





686-HRR



692-HRR



694-HRR



694-1-HRR-L 694-1-HRR-R



919-HRR



984-HRR



984F-HRR

















STEEL SIDELITES 422-HRR

TIMBERGRAIN Knotty Alder



502S-HRR

984P-HRR

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-HRR

FIBERGLASS SIDELITES 





690-HRR

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Nickel or Patina

 

692-HRR









694-HRR













2-HRR

502S-HRR

606-HRR

606P-HRR

606S-HRR

607-HRR

659-HRR

684-HRR

686-HRR

692-HRR

694-HRR

694-1-HRR

919-HRR

984-HRR

984F-HRR

984P-HRR

8/0 height

left or right

8/0 height

TR90-HRR

(14-3/0-14 only)

422-HRR

422-HRR 8/0 height

690-HRR

692-HRR

692-HRR 8/0 height

694-HRR

DECORATIVE GLASS

HEARTLAND When you think Craftsman style, you’re thinking Heartland. A patina finish and handcrafted, textured glass create a striking geometric pattern reminiscent of Arts and Crafts design. Four glass types create a bright entryway and medium privacy level. PRIVACY RATING: 5 less privacy

more privacy

GLASS CODE: HRT

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

FIBERGLASS DOORS

2-HRT



502S-HRT



606-HRT







606P-HRT







606S-HRT



607-HRT



684-HRT





686-HRT





692-HRT



694-HRT





694-1-HRT-L 694-1-HRT-R













864-HRT



866F-HRT



866P-HRT



984-HRT 984F-HRT

 





















STEEL SIDELITES 422-HRT



866-HRT

984P-HRT





865-HRT

FIBERGLASS SIDELITES 

461-HRT









690-HRT

TIMBERGRAIN Fir

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Patina



692-HRT









694-HRT









984-HRT 8/0 height

984F-HRT

984F-HRT 8/0 height

2-HRT

502S-HRT

606-HRT

606P-HRT

606S-HRT

607-HRT

684-HRT

686-HRT

692-HRT

694-HRT

694-1-HRT

865-HRT

866P-HRT

984-HRT

694-1-HRT 8/0 height left or right

8/0 height

864-HRT

Option: dentil shelf

8/0 height

8/0 height Option: dentil shelf

866-HRT

Option: dentil shelf

8/0 height

866F-HRT

Option: dentil shelf

8/0 height

Option: dentil shelf

left or right

TR90-HRT

(14-3/0-14 only)

984P-HRT

984P-HRT 8/0 height

422HRT

8/0 height

461HRT

690HRT

692HRT

8/0 height

694HRT

694HRT 8/0

DECORATIVE GLASS

MARTIEL Your design sophistication and love of all things European make Martiel the fitting choice for your home’s front door. Define your entryway with an elegant arrangement of clear beveled glass, textured glass, and patina finish caming. Martiel offers a medium privacy level. PRIVACY RATING: 4 less privacy

more privacy

GLASS CODE: MAR

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

FIBERGLASS DOORS

2-MAR



502S-MAR



606-MAR



 



606P-MAR







606S-MAR



607-MAR



684-MAR





686-MAR





692-MAR



694-MAR





694-1-MAR-L 694-1-MAR-R









984-MAR



984F-MAR







984P-MAR





864-MAR











STEEL SIDELITES 422-MAR

FIBERGLASS SIDELITES 





690-MAR

TIMBERGRAIN Fir

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Patina

 

692-MAR









694-MAR















2-MAR

502S-MAR

606-MAR

606P-MAR

606S-MAR

607-MAR

684-MAR

686-MAR

692-MAR

694-MAR

694-1-MAR

864-MAR

984-MAR

984F-MAR

984P-MAR

694-1-MAR 8/0 height left or right

8/0 height

Option: dentil shelf

8/0 height

left or right

8/0 height

TR90-MAR

(14-3/0-14 only)

422-MAR

422-MAR 8/0 height

690-MAR

692-MAR

692-MAR 8/0 height

694-MAR

694-MAR 8/0 height

DECORATIVE GLASS

MISTIFY Mistify is the playful combination of pattern and texture. The black drizzle pattern is fused to softly textured glass, resulting in a mesmerizing statement piece for any modern entryway and privacy for the home.

PRIVACY RATING: 6 less privacy

more privacy

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-MYB



461C-MYB



461FA-MYB





461FB-MYB





502S-MYB



606-MYB







606P-MYB







606S-MYB



607-MYB



684-MYB





686-MYB





692-MYB



694-MYB





694-1-MYB-L 694-1-MYB-R









865-MYB





866-MYB



866F-MYB



866P-MYB



984-MYB

 





984F-MYB







984P-MYB









STEEL SIDELITES 422-MYB

FIBERGLASS SIDELITES 





690-MYB

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

GLASS CODE: MYB

 

692-MYB





694-MYB















422MYB

8/0 height

692MYB

8/0 height

694MYB

8/0 height

2-MYB

461C-MYB

461FA-MYB

461FB-MYB

502S-MYB

606-MYB

606P-MYB

606S-MYB

607-MYB

684-MYB

686-MYB

692-MYB

694-MYB

694-1-MYB

694-1-MYB 8/0 height left or right

Option: dentil shelf

865-MYB

8/0 height Option: dentil shelf

Option: dentil shelf

866P-MYB

984-MYB

984F-MYB

984P-MYB

8/0 height

Option: dentil shelf

8/0 height

left or right

8/0 height

866-MYB

866F-MYB

Option: dentil shelf

8/0 height

DECORATIVE GLASS

MOHAVE Shades of the desert accent your home’s entry door. A blend of amber, bronze, and gray shades with a mix of translucent, clear, and textured glass make a truly rustic statement. Mohave features an oil-rubbed bronze finish and high privacy level. PRIVACY RATING: 7 less privacy

more privacy

GLASS CODE: MOH

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-MOH



502S-MOH



606-MOH



 



606P-MOH







606S-MOH



607-MOH



684-MOH





686-MOH





692-MOH



694-MOH





694-1-MOH-L 694-1-MOH-R









984-MOH



984F-MOH







984P-MOH





422-MOH













STEEL SIDELITES

FIBERGLASS SIDELITES 





690-MOH

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Oil-Rubbed Bronze

 

692-MOH









694-MOH















2-MOH

502S-MOH

606-MOH

606P-MOH

606S-MOH

607-MOH

684-MOH

686-MOH

692-MOH

694-MOH

694-1-MOH

984-MOH

984F-MOH

984P-MOH

8/0 height left or right

422-MOH

8/0 height

422-MOH 8/0 height

690-MOH

8/0 height

692-MOH

8/0 height

692-MOH 8/0 height

694-MOH

8/0 height

left or right

8/0 height

694-MOH 8/0 height

DECORATIVE GLASS

MONTEREY Monterey offers Craftsman design elements and a bit of modern style to your home’s entrance. Clear bevels provide visibility while the translucent, textured glass offers a mediumhigh privacy level. Choose a caming finish that complements your door hardware. PRIVACY RATING: 7 less privacy

more privacy

GLASS CODE: MNT

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-MNT



502S-MNT



606-MNT



 



606P-MNT







606S-MNT



607-MNT



684-MNT





686-MNT



694-MNT



694-1-MNT-L 694-1-MNT-R



865-MNT 

866F-MNT



866P-MNT



984-MNT 984F-MNT



 





















STEEL SIDELITES 422-MNT



866-MNT

984P-MNT

FIBERGLASS SIDELITES 

461-MNT









690-MNT

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Patina or Satin Nickel



692-MNT



694-MNT



 





 



2-MNT

502S-MNT

606-MNT

606P-MNT

684-MNT

686-MNT

694-MNT

694-1-MNT left or right

Option: dentil shelf

8/0 height Option: dentil shelf

Option: dentil shelf

866P-MNT

984-MNT

984F-MNT

984P-MNT

866F-MNT

8/0 height

Option: dentil shelf

8/0 height

606P-MNT

606S-MNT

865-MNT

8/0 height

607-MNT

866-MNT

8/0 height

TR90-MNT

(14-3/0-14 only)

422-MNT

422-MNT 8/0 height

461-MNT

690-MNT

692-MNT 8/0 height

694-MNT

DECORATIVE GLASS

OXFORD Oxford’s formal pattern of beveled glass, accented with gray shades, is the epitome of traditional design. The nickel caming complements door hardware, light fixtures, and interior furnishings. Oxford provides a medium level of privacy. PRIVACY RATING: 6 less privacy

more privacy

GLASS CODE: OXF

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-OXF



502S-OXF



606-OXF



 



606P-OXF







606S-OXF



607-OXF



684-OXF





686-OXF





692-OXF



694-OXF





694-1-OXF-L 694-1-OXF-R







984-OXF



984F-OXF







984P-OXF





422-OXF













STEEL SIDELITES

FIBERGLASS SIDELITES 





690-OXF

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Nickel

 

692-OXF









694-OXF















2-OXF

502S-OXF

606-OXF

606P-OXF

606S-OXF

607-OXF

684-OXF

686-OXF

692-OXF

694-OXF

694-1-OXF

984-OXF

984F-OXF

984P-OXF

8/0 height left or right

422-OXF

8/0 height

422-OXF 8/0 height

690-OXF

8/0 height

692-OXF

8/0 height

692-OXF 8/0 height

694-OXF

8/0 height

left or right

8/0 height

694-OXF 8/0 height

DECORATIVE GLASS

REGENCY The value you place on history makes Regency your perfect choice. Its deeply cut beveled glass and satin nickel or brass finish create a classic design that endures, just like the family treasures that lie within your home.

PRIVACY RATING: 6 less privacy

more privacy

GLASS CODE: REG CAMING FINISH: Brass or Satin Nickel

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany



502S-REG



606-REG



 



606P-REG







606S-REG



607-REG



659-REG



684-REG





686-REG





692-REG



694-REG





694-1-REG-L 694-1-REG-R









919-REG



984-REG



984F-REG







984P-REG



 







864-REG





 





STEEL SIDELITES

FIBERGLASS SIDELITES











692-REG











694-REG







690-REG

TIMBERGRAIN Knotty Alder

FIBERGLASS DOORS

2-REG

422-REG

TIMBERGRAIN Fir

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

NOTE: Indicated styles are only available with Satin Nickel caming.



2-REG

502S-REG

606-REG

606P-REG

606S-REG

607-REG

659-HRR

684-REG

686-REG

692-REG

694-REG

864-REG

919-REG

984-REG

984F-REG

694-1-REG left or right

694-1-REG

8/0 height - left or right Satin Nickel caming

8/0 height

Option: dentil shelf

8/0 height

8/0 height Satin Nickel caming

8/0 height

8/0 height Satin Nickel caming

984F-REG 8/0 height

TR90-REG

(14-3/0-14 only)

984P-REG

984P-REG 8/0 height

422-REG

422-REG 8/0 height

690-REG

692-REG

692-REG 8/0 height

694-REG

8/0 height Satin Nickel caming

DECORATIVE GLASS

TOPAZ If you appreciate attention to detail, you’ll like Topaz’s subtle pops of color, focal bevel cluster, and patina finish. These “jewels” combine to create a Craftsman-style doorglass that adds beauty to your home’s entryway and a high level of privacy. PRIVACY RATING: 9 less privacy

more privacy

GLASS CODE: TPZP

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

FIBERGLASS DOORS

2-TPZP



502S-TPZP



601 & 601P-TPZP 606-TPZP

 





606P-TPZP







606S-TPZP



607-TPZP



608-TPZP



648-TPZP







684-TPZP





686-TPZP



692-TPZP



694-TPZP



694-1-TPZP-L 694-1-TPZP-R



864-TPZP



866-TPZP



866F-TPZP



866P-TPZP



 



973 & 973P-TPZP



984-TPZP



984F-TPZP







984P-TPZP













STEEL SIDELITES 422-TPZP



865-TPZP

FIBERGLASS SIDELITES 

461-TPZP









690-TPZP

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

CAMING FINISH: Patina



692-TPZP





694-TPZP







422TPZP

8/0 height

461TPZP

690TPZP

692TPZP

8/0 height

2-TPZP

502S-TPZP

601-TPZP

601P-TPZP

606-TPZP

606P-TPZP

606S-TPZP

607-TPZP

608-TPZP

648-TPZP

684-TPZP

686-TPZP

692-TPZP

694-TPZP

694-1-TPZP left or right

Option: dentil shelf

865-TPZP

8/0 height Option: dentil shelf

Option: dentil shelf

973-TPZP

973P-TPZP

984-TPZP

984F-TPZP

984P-TPZP

8/0 height

864-TPZP

8/0 height

866-TPZP

8/0 height

866F-TPZP

8/0 height

866P-TPZP

8/0 height

DECORATIVE GLASS

WATERSIDE Natural, free-flowing movement extends the length of Waterside and brings to mind a flowing river or grasses swaying in the breeze. Waterside offers a high privacy level.

PRIVACY RATING: 8 less privacy

more privacy

GLASS CODE: WTS CAMING FINISH: Black Chrome

STEEL DOORS

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

TIMBERGRAIN Fir

FIBERGLASS DOORS

2-WTS



502S-WTS



606-WTS



 



606P-WTS







606S-WTS



607-WTS



684-WTS





686-WTS





692-WTS



694-WTS



694-1-WTS-L 694-1-WTS-R









984-WTS



984F-WTS







984P-WTS





422-WTS











STEEL SIDELITES

FIBERGLASS SIDELITES 





690-WTS

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

NOTE: The caming will appear lighter in color on the actual product; it will not be black.

 

692-WTS









694-WTS















2-WTS

502S-WTS

606-WTS

606P-WTS

606S-WTS

607-WTS

684-WTS

686-WTS

692-WTS

694-WTS

694-1-WTS

984-WTS

984F-WTS

984P-WTS

422-WTS

8/0 height

422-WTS 8/0 height

690-WTS

692-WTS

8/0 height

692-WTS 8/0 height

694-WTS

8/0 height

left or right

8/0 height left or right

8/0 height

694-WTS 8/0 height

CLEAR GLASS Clear glass creates an inviting entry by filling your home with natural light and offering a bright, open feel that connects indoor and outdoor spaces. This versatile option works equally well for both entry and patio doors, adding warmth and visibility wherever it’s used. PRIVACY RATING: 0 less privacy

more privacy

GLASS CODE: LE / CL Those noted as Low-E are also available in Clear.



















21-LE



23-LE



25-LE



25P-LE



61-LE





65-LE





68-LE





70-LE





92-LE



201-LE



 











201P-LE









461C-LE



461FA-LE





461FB-LE





502S-LE



601-LE

92-LE

201-LE

606S-LE

608-LE

201-LE

8/0 height



601P-LE



FIBERGLASS DOORS

20-LE

606S-LE

TIMBERGRAIN Oak



TIMBERGRAIN Mahogany



TIMBERGRAIN Knotty Alder

WESTON Woodgrain Finish



TIMBERGRAIN Fir

WESTON Brushed Smooth



STEEL DOORS 2-LE

TIMBERGRAIN Cherry

VALUELINE Smooth



NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

Additional configurations are available on following pages.

 

608-LE



648-LE



651-LE





651A-LE



651B-1-LE



651B-2-LE



651B-12-LE



651B-23-LE



8/0 height

648-LE

2-LE

25-LE

8/0 height

201P-LE

651-LE

20-LE

21-LE

25P-LE

61-LE

201P-LE

461C-LE

651-LE

651A-LE

2-LE

8/0 height

25P-LE

8/0 height

23-LE

25-LE

65-LE

68-LE

70-LE

461FB-LE

502S-LE

601-LE

601P-LE

651B-1-LE

651B-2-LE

651B-12-LE

651B-23-LE

21-LE

23-LE

61-LE

461FA-LE

651A-LE

8/0 height

651B-24-LE

651B-123-LE

840A-LE

841-LE

843A-LE

651B-135-LE

PRIVACY RATING: 0 less privacy

more privacy

GLASS CODE: LE / CL Those noted as Low-E are also available in Clear.

STEEL DOORS 



651B-123-LE



651B-135-LE



651B-1234-LE



651B-55-LE







694-1-LE-L 694-1-LE-R





840-LE





840A-LE





841-LE





841A-LE





842-LE





842A-LE-L 842A-LE-R





843-LE-L 843-LE-R





843A-LE





843B-LE-L 843B-LE-R





864-LE

TIMBERGRAIN Oak

TIMBERGRAIN Mahogany

TIMBERGRAIN Knotty Alder

841-LE

8/0 height

843B-LE

8/0 height

left or right

866P-LE

937-LE



865-LE



866-LE



866-FL-LE





866F-LE



866P-LE





 



937-LE



937A-LE



937C-LE



973-LE





973P-LE

8/0 height

FIBERGLASS DOORS

651B-24-LE

984F-LE

TIMBERGRAIN Fir

TIMBERGRAIN Cherry

WESTON Woodgrain Finish

WESTON Brushed Smooth

VALUELINE Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

Additional configurations are available on previous pages.

 







866F-LE

option: dentil shelf

651B-1234-LE

841A-LE

843B-LE

651B-55-LE

841A-LE

842-LE

8/0 height

864-LE

8/0 height left or right

option: dentil shelf

937A-LE

937C-LE

8/0 height

864-LE

694-1-LE

left or right

842-LE

8/0 height

865-LE

694-1-LE

840-LE

842A-LE

8/0 height left or right

left or right

865-LE

8/0 height left or right

866-LE

8/0 height option: dentil shelf

option: dentil shelf

8/0 height option: dentil shelf

option: dentil shelf

973-LE

973P-LE

984F-LE

8/0 height

840-LE

8/0 height

843-LE

840A-LE

843-LE

left or right

8/0 height left or right

866-FL-LE

option: dentil shelf

8/0 height option: dentil shelf

8/0 height

CLEAR GLASS

SIDELITES Brighten your entryway with natural light and create a more open, inviting space. Sidelites enhance curb appeal and bring the outdoors in, making your home feel larger and more welcoming.

0 less privacy

more privacy

GLASS CODE: LE / CL Those noted as Low-E are also available in Clear.

TIMBERGRAIN Mahogany

TIMBERGRAIN Oak



5-LE (direct set)



33-LE









38-LE











105-LE





 



461-LE







690-LE



820-LE

100



FIBERGLASS SIDELITES

4-LE

TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir

WESTON Woodgrain Finish



STEEL SIDELITES

TIMBERGRAIN Cherry

WESTON Brushed Smooth

VALUELINE Smooth

NORWOOD Textured

WESTGUARD Smooth

CAMBRIDGE Smooth

Additional configurations are available on previous pages.





4-LE

8/0 height

5-LE

direct set

5-LE

8/0 height direct set

33-LE

8/0 height

38-LE

461-LE

820-LE

38-LE

105-LE

8/0 height

820-LE

8/0 height

690-LE

CLEAR GLASS

TRANSOMS Transoms allow extra light into the entryway and are available in several shapes: rectangle, half circle, and elliptical. The transoms are a direct-set profile with Low-E glass as standard.

PRIVACY RATING: 0 less privacy

more privacy

TR91

11-1/2" height

TR89

15-1/2" height

TR92

20-5/8" height

TR99

TR96 ELLIPTICAL

TR90

TR94 ELLIPTICAL

TR98

TR97 ELLIPTICAL

11-1/2" height

15-1/2" height

20-5/8" height

11-1/2" height

TR95 HALF CIRCLE call for height

15-1/2" height

20-5/8" height

TR93 HALF CIRCLE call for height

101

ENCLOSED BLINDS Blinds enclosed between glass give you privacy and light control without dangling cords and endless dusting. Close your blinds for complete privacy and security or open them up to enjoy the outdoors. The levels of light and privacy are yours to control using our easy operator. PRIVACY RATING: 0



2-RLB

White









502S-RLB

All



606-RLB

All

606-RLB

White

606P-RLB

All

606P-RLB

White

606S-RLB

All



607-RLB

White



684-RLB

All



684-RLB

Tan



684-RLB

White



686-RLB

All



686-RLB

Tan & White



984-RLB

All



984-RLB

White



984F-RLB

All



984F-RLB

White



984P-RLB

All





984P-RLB

White





690-RLB

White





692-RLB

White





FIBERGLASS DOORS

 



 





 Easily adjust the light and privacy of your entryway.











































STEEL SIDELITES

102

TIMBERGRAIN Oak



TIMBERGRAIN Mahogany



TIMBERGRAIN Knotty Alder



TIMBERGRAIN Fir

WESTON Woodgrain Finish



STEEL DOORS

TIMBERGRAIN Cherry

WESTON Brushed Smooth

All

VALUELINE Smooth

2-RLB

BLIND COLOR

CAMBRIDGE Smooth

NORWOOD Textured

more privacy

WESTGUARD Smooth

less privacy

COLOR OPTIONS & GLASS CODES:

ESPRESSO RLBES

SLATE GRAY RLBSL

SILVER MOON RLBSI

FIBERGLASS SIDELITES  



TAN RLBTA

WHITE RLBWH

2-RLB

502S-RLB

606-RLB

606P-RLB

606S-RLB

607-RLB

684-RLB

686-RLB

984-RLB

984F-RLB

984P-RLB

8/0 height

690-RLB

8/0 height

692-RLB

103

VENTED GLASS Vents let you enjoy warm breezes when open, while shutting out cold wind and rain when closed. The UV-resistant frame keeps its appearance and the removable screen makes cleaning easy. With ten adjustment locations for latches, you have options for placement of the vent latch on the frame. PRIVACY RATING: 1 less privacy

more privacy

GLASS OPTIONS: Clear or Low-E

The glass frame is White and is not paintable or stainable.

WESTON Brushed Smooth 



61V







61V-12L







984FV





984FV-12L









2V-12L



25V



25V-12L

CAMBRIDGE Smooth 

25V

61V

984FV

2V-12L

25V-12L

61V-12L

984FV-12L

TIMBERGRAIN All Species

VALUELINE Smooth





NORWOOD Textured



WESTGUARD Smooth



STEEL DOORS

104

WESTON Woodgrain Finish

Adjust the vent opening to match your comfort level.

FIBERGLASS DOORS

4-FOOT WIDE DOORS Wide openings allow motorcycles, lawn mowers, snow blowers, small equipment, and other large items to pass through without requiring an overhead or double door. The 4/0 wide door is ideal for agricultural buildings, yard barns, garage service entrances, and ADA applications. PRIVACY RATING: 1

more privacy

GLASS OPTIONS

GRID PATTERN

WESTGUARD Smooth

less privacy

STEEL DOORS 1

no glass



Blanca, Chinchilla, Cumulus, Micro-Granite, Streamed, Vapor



Clear, Low-E, Rain

Internal Grilles

4L, 9L



Internal Grilles

9LP



Internal Grilles

12L

Clear, Low-E



Clear, Blanca, Chinchilla, Cumulus, Low-E, Micro-Granite, Rain, Streamed, Vapor



866-FL

Clear, Low-E, Rain



2-4L

2-9L

2-9LP

866-FL



Can be labeled for fire rating. Availability based on 4/0 width for doors.  6/8 height  7/0 height  8/0 height



105

THE FINISHING TOUCH Create a first impression that lasts. Our door accessories allow you to create an entryway that reflects your design personality, elevates curb appeal, and provides extra security to your home.

106

MULTI-POINT LOCKS

DECORATIVE & SMART HARDWARE

WOODGRAIN FINISHES

PAINT COLORS

PET DOORS

STORM DOORS

FRAME TYPES

SWING OPTIONS

107

TRILENNIUM ® MULTI-POINT LOCK Protect your home with a multi-point locking system that delivers exceptional strength, security, and peace of mind. Trilennium® delivers 3x the strength, 3x the security, and 3x the performance in an easy-to-use system. With top industry ratings for performance and forced entry protection, you can trust Trilennium to secure your home while enhancing its style.

TOP SECURITY & PERFORMANCE Three locking bolts engage at all times. Each bolt functions as a full deadbolt with the turn of a key or thumbturn, securing the door at multiple points. Trilennium® combines the strength of one solid locking unit with the added protection of three points of contact, helping protect your home and family.

TOP DEADBOLT

BUILT FOR REAL LIFE As your house settles, Trilennium® adjusts up to 3/16" to maintain proper alignment and smooth operation over time. Unlock easily with a single downward turn of the inside handle. Trilennium® is designed to perform without complicating your daily routine.

BLACK

SATIN NICKEL

CURVED

108

VICTORIAN BRONZE

BRIGHT BRASS

ECLIPSE

HANDLESET DEADBOLT

STYLISH HANDLESETS Choose from various stylish designs and finishes to complement your home’s aesthetic. BOTTOM DEADBOLT

RECTANGULAR

NOTE: Colors shown are as accurate as printing technologies allow. Images not to scale.

HORIZON

PINNACLE

ECLIPSE GRIP

PANOLOCK®+ MULTI-POINT LOCK PanoLock® + offers enhanced security with an easy-to-use multipoint locking system that pairs with most standard hardware, including electronic deadbolts. It’s a simple upgrade for better performance and peace of mind without changing your hardware style or routine.

ENHANCED SECURITY

TAPERED BOLT

A turn of the key or thumbturn activates the top and bottom tapered bolts, locking the door securely at multiple points for added protection.

STYLISH HANDLESET PanoLock ® + works with most standard hardware, including electronic deadbolts, allowing you to customize your door’s look with various handleset options. Explore decorative and smart options on the next page.

HANDLESET LATCH

BUILT FOR REAL LIFE Tapered bolts and adjustable roller strikes ensure smooth, effortless operation with everyday use. TAPERED BOLT

PEACE OF MIND Provides added security of multiple locking points, keeping your home and family safe.

109

DECORATIVE & SMART HARDWARE Schlage® door hardware offers the perfect blend of beauty and functionality to enhance your home. Choose from a variety of knobs, levers, and decorative trims in finishes that complement your door and overall décor. Whether you prefer a classic or a contemporary look, Schlage® has the perfect hardware to match your home’s aesthetic.

Smart Lock Convenience: Enjoy the ease of keyless entry, remote access, and the peace of mind that comes with knowing your door is securely locked, all from your smartphone.

Everyday Durability: Schlage ® hardware delivers reliable performance and lasting strength, ensuring peace of mind with everyday use.

FINISHES

MATTE BLACK

AGED BRONZE

SATIN NICKEL

110

CAMELOT HANDLESET

CENTURY HANDLESET

ANTIQUE BRASS

BRIGHT BRASS

INSIDE TRIM OPTIONS

OUTSIDE HANDLESETS

ADDISON HANDLESET

BRIGHT CHROME

PLYMOUTH HANDLESET

ACCENT LEVER

FLAIR LEVER

LATITUDE LEVER

ACCENT LEVER, CAMELOT TRIM

LATITUDE LEVER, ADDISON TRIM

LATITUDE LEVER, CENTURY TRIM

GEORGIAN KNOB

PLYMOUTH KNOB

SCHLAGE® Handleset with Deadbolt Outside Handlesets

Matte Black

Aged Bronze

Satin Nickel

Addison Handleset



Camelot Handleset



Century Handleset



Plymouth Handleset



Inside Trim Options

Bright Chrome

Antique Brass

Bright Brass



Matte Black

Aged Bronze

Satin Nickel

Antique Brass

Bright Brass

Accent Lever



Accent Lever, Camelot Trim



 



Flair Lever Georgian Knob



Latitude Lever



Latitude Lever, Addison Trim



Latitude Lever, Century Trim



Plymouth Knob

Bright Chrome



NOTE: Additional finish and handle options available by request. Colors shown are as accurate as printing technologies allow. Images not to scale.

111

ELECTRONIC LOCKS SCHLAGE® Electronic Lock Matte Black

Aged Bronze

Satin Nickel

Camelot Keyless Touchscreen, Accent Lever



Century Keyless Touchscreen, Latitude Lever



Electronic Lock Options

CAMELOT KEYLESS TOUCHSCREEN, ACCENT LEVER

CENTURY KEYLESS TOUCHSCREEN, LATITUDE LEVER

LOCKS

Bright Chrome

Antique Brass

Bright Brass



DEADBOLT OPTIONS

ACCENT LEVER

FLAIR LEVER

LATITUDE LEVER

ACCENT LEVER, CAMELOT TRIM

LATITUDE LEVER, ADDISON TRIM

LATITUDE LEVER, CENTURY TRIM

DEADBOLT, SINGLE CYLINDER

GEORGIAN KNOB

PLYMOUTH KNOB

DEADBOLT, DOUBLE CYLINDER

ADDISON DEADBOLT, CAMELOT DEADBOLT, CENTURY DEADBOLT, SINGLE CYLINDER SINGLE CYLINDER SINGLE CYLINDER

SCHLAGE® Lock - or - Lock with Deadbolt Locks (keyed or non-keyed)

Matte Black

Aged Bronze

Satin Nickel

Antique Brass

Bright Brass

Accent Lever



Accent Lever, Camelot Trim



Flair Lever



Georgian Knob



Latitude Lever



Latitude Lever, Addison Trim



Latitude Lever, Century Trim



Plymouth Knob Deadbolt Options

112

Bright Chrome

Matte Black

Aged Bronze

Satin Nickel

Antique Brass

Bright Brass

Deadbolt, Single Cylinder



Bright Chrome



Deadbolt, Double Cylinder



Addison Deadbolt, Single Cylinder



Camelot Deadbolt, Single Cylinder



Century Deadbolt, Single Cylinder



NOTE: Additional finish and handle options available by request. Colors shown are as accurate as printing technologies allow. Images not to scale.

ELECTRONIC DEADBOLTS

LOWER HANDLESET & INSIDE TRIM OPTIONS CAMELOT HANDLESET - INSIDE TRIM OPTIONS

CAMELOT

INSIDE ACCENT LEVER, CAMELOT TRIM

INSIDE GEORGIAN KNOB, CAMELOT TRIM

INSIDE FLAIR LEVER, CAMELOT TRIM

INSIDE MERANO LEVER, CAMELOT TRIM

INSIDE LATITUDE LEVER, CENTURY TRIM

CENTURY

ENCODE PLUS SMART WIFI DEADBOLT ™

CAMELOT HANDLESET

CENTURY HANDLESET

LOWER LOCK OPTIONS CAMELOT

CENTURY

KEYLESS TOUCHSCREEN DEADBOLT

ACCENT LEVER

FLAIR LEVER

LATITUDE LEVER

ACCENT LEVER, CAMELOT TRIM

LATITUDE LEVER, ADDISON TRIM

LATITUDE LEVER, CENTURY TRIM

GEORGIAN KNOB

PLYMOUTH KNOB

SCHLAGE® Electronic Deadbolt with Handleset - or - Lock Electronic Deadbolts

Matte Black

Camelot Encode Plus Smart WIFI Deadbolt ™

Aged Bronze

Satin Nickel



Century Encode Plus™ Smart WIFI Deadbolt



Camelot Keyless Touchscreen Deadbolt



Century Keyless Touchscreen Deadbolt



Lower Handleset & Inside Trim Options

Matte Black

Aged Bronze

Satin Nickel



Camelot Handleset & Interior Accent Lever, Camelot Trim Camelot Handleset & Interior Flair Lever, Camelot Trim Camelot Handleset & Interior Georgian Knob, Camelot Trim



Camelot Handleset & Interior Merano Lever, Camelot Trim Century Handleset & Interior Latitude Lever, Century Trim

Bright Chrome

Antique Brass

Bright Brass



Antique Brass

Bright Brass



Antique Brass

Bright Brass



Bright Chrome



Matte Black

Aged Bronze

Satin Nickel

Accent Lever



Accent Lever, Camelot Trim



Lower Lock Options

Flair Lever



Georgian Knob



Latitude Lever



Latitude Lever, Addison Trim



Latitude Lever, Century Trim



Plymouth Knob

Bright Chrome

NOTE: Additional finish and handle options available by request. Colors shown are as accurate as printing technologies allow. Images not to scale.

113

WOODGRAIN FINISHES A warm welcome. Woodgrain doors are the perfect solution for achieving the richness and beauty of wood without the upkeep. The natural warmth of wood creates a stunning first impression and enhances your home’s curb appeal. Colors are available in our wood-textured door series, including Norwood Steel and Timbergrain Fiberglass.

LIGHT OAK

HARMONY

COGNAC

PROVINCIAL

ESPRESSO

PAPRIKA

CABANA BROWN

STONEHEDGE GRAY

DARK WALNUT

OBSIDIAN

NOTE: Colors are as accurate as printing technologies allow; consult product samples before final selection. Swatches indicate color and finish only. Woodgrain finishes may include natural variations such as knots and character details not shown on samples.

SEDONA

114

EXCLUSIVE TO WESTON Unique to the Weston series, our proprietary finishing technology creates realistic grain, variation, and depth without the drawbacks of traditional methods. The result is a consistent, premium finish with the lasting durability and elegance Weston doors are known for.

CHARRED BLACK

TOFINO

BARREL OAK

TOFFEE

SUNBLEACHED OAK

CHAI CEDAR

CINNAMON WALNUT

116

PAINT COLORS Color has the power to transform the look of your home. It can set the mood, create space, and even boost the value of your home. Choose a color that stands out while complementing your home’s color palette. Our color collections are about expressing your personality and creating a home that truly represents those who live inside it. From bold and energetic to neutral and serene, every door arrives factory-finished and ready to make an impression.

FOREVER HOME COLLECTION

PICKET FENCE 101

LINEN 103

VERANDA 105

QUIET NOOK 109

HEARTH STONE 111

HORIZON GRAY 113

GARDEN GATE 115

GATHERING PLACE 117

KEEPSAKE 126

ARTISAN BROWN 128

TRADITIONS 131

OLD WORLD 132

COURTYARD 134

HEIRLOOM 136

SUMMER DAY 147

LAKESHORE 149

BONFIRE 151

FLANNEL GRAY 153

FERN 155

DAYDREAM 157

PARK AVENUE 166

NOBLE 168

IVY LEAGUE 170

WINDSOR CASTLE 172

RUBY RED 174

SYMPHONY 176

WANDERLUST 187

RED VELVET 189

GROOVY GREEN 191

SOULFUL BLUE 193

PEACE N LOVE 195

OFF THE RECORD 197

CRUMB CAKE 107

TREASURED LEGACY COLLECTION

CLASSIC WHITE 120

BEACH HOUSE 123

HEART OF GOLD 124

COZY COTTAGE COLLECTION

SHIPLAP WHITE 141

HOMESPUN 143

PEACEFUL PORCH 145

STATELY RETREAT COLLECTION

OXFORD WHITE 160

ABBEY STONE 162

FRENCH MANOR 164

RETRO REVIVAL COLLECTION

HAPPY DAYS 181

FREE SPIRIT 183

FLOWER POWER 185

NOTE: Colors shown are as accurate as printing technologies allow.

117

CUSTOM COLORS Make your entryway stand out with a color that’s all your own, whether a bold statement or a timeless favorite. Our custom color program gives you the freedom to choose any SherwinWilliams® paint color, and your door will arrive factory-finished in the color you select, with no painting required once it reaches your home.

CHOOSE A COLOR THAT IS AUTHENTICALLY YOU.

RAIN CLOUD SW 9639

ROOKWOOD TERRA COTTA

DEEP SEA DIVE

SW 2803

SW 7618

SUN DRIED TOMATO

GRIZZLE GRAY

BOSC PEAR

BURGUNDY

SW 7068

SW 6390

SW 6300

SW 7585 Examples of Sherwin-Williams® custom colors.

118

NAVAL

SUN DRIED TOMATO

BY SHERWIN-WILLIAMS ® SW 6244

BY SHERWIN-WILLIAMS ® SW 7585

NOTE: Colors swatches are as close as printing technologies allow. Custom colors are available for paint finishes and clad frames. Custom colors are not available for woodgrain finishes.

PET DOORS Give your pet the freedom to come and go. A built-in pet door makes it easy for your cat or dog to enjoy fresh air and exercise without relying on you to open the door. It’s a practical way to support their routine and independence while keeping your home comfortable.

Durable Aluminum Frame: Built to handle everyday use Control Pet’s Access: Secure closing panel lets you control when your pet can go outside Weather-Resistant: Magnetic, flexible flap(s) help seal out drafts and weather Size Options: Choose the perfect size door for your pet:

• Extreme Weather Aluminum Pet Door™ Available in medium, large, and extra-large sizes • Freedom® Aluminum Pet Door Available in a small size with a single flap

MEASURE YOUR PET Make sure your pet is standing M easure the width of your pet’s chest M easure the height from your pet’s shoulders to the bottom of chest Pet’s Size

Pet Door Size

Product

Small

Freedom® Aluminum

Medium

Extreme Weather Aluminum

<8"

<12"

<40 lbs

Large

Extreme Weather Aluminum

<10"

<16"

<100 lbs

Extra Large

Extreme Weather Aluminum

<13"

<24"

<220 lbs

Width

Height

Weight

<4"

<7"

<15 lbs

SELECT YOUR EXTERIOR DOOR Exterior Door

Pet Door Size

Panel #

Panel Description

Small

Medium

Large

Extra Large

Flush

yes

Flush with Half Lite

yes

866-FL

Flush with Craftsman Lite

yes

651A

Flush with Horizontal Top Lite

yes

119

STORM DOORS Elevate your entryway with a storm door that balances airflow, natural light, and protection. Our storm doors are crafted with durable construction to enhance your home’s security while preserving its beauty and style. Narrow rails are designed to showcase your entry door, offering a sleek, elegant look that complements your home’s design.

AVAILABLE STYLES

100 SERIES Full View

108 SERIES

Full View, Self-Storing with FlexScreen®

120 SERIES

3/4 Lite, Self-Storing with FlexScreen®

COLOR OPTIONS Our storm doors feature a scratch-resistant, powder-coated finish that delivers exceptional color retention and durability, ensuring your door looks stunning for years with minimal upkeep.

WHITE

TAN

MOCHA

BLACK

108 Series, full view self-storing storm door, in White

Premium Frame: The 1-1/4" thick, dent-resistant aluminum frame offers strength and long-lasting protection while adding a touch of sophistication to your home. More Natural Light: Narrow rails maximize natural light, highlighting the beauty of your entry door. Fiberglass Screen: The durable, non-glare fiberglass screen resists dents, ensuring a clear view.

120

NOTE: Colors swatches are as close as printing technologies allow.

Effortless Closing: A smooth, self-closing mechanism ensures reliable operation and peace of mind. Safety Glass: Heat-tempered safety glass provides enhanced protection and is three times stronger than standard glass. Simple Installation: Designed for quick and easy installation, with both left and right outswing options.

FRAME TYPES Protect your home with durable, low-maintenance door frames that provide long-lasting performance and stability. Choose from various frame types and trim options to enhance the beauty and functionality of your entry door while safeguarding your home from the elements.

DURA-FRAME™ Durable Wood Frame: Primed wood jamb with Alaskan Yellow Cypress resists moisture, rot, and insect damage. Strong One-Piece Design: The one-piece design provides solid support and lasting stability. Long-Lasting Protection: Built to withstand the elements, offering reliable performance for years.

DURA-TECH FRAME Durable Vinyl Frame: PVC bonded to the Dura-Frame™ wood jamb for extra protection against moisture and rot. Color Options: Available in all paint and stain colors to complement your home’s design.



Trim Options: Optional brickmold with nail-free attachment for a clean look. Gaps: Optional 4" trimmable brickmold covers gaps between siding and  Covers the door frame common on door replacements, creating a finished appearance.

DURA-PLAST ™ FRAME Composite Frame System: Poly-fiber composite frame won’t absorb moisture, ensuring durability without warping, splintering, or rotting. Color Options: Available in all paint and stain options to match your home’s style. Long-lasting Strength: Built to resist moisture, maintaining strength and durability over time.

STEEL FRAME Superior Strength: Ideal for light commercial applications, providing longlasting performance. Fire-Resistant: 90-minute fire rating for added safety and peace of mind. Easy Installation: Accommodates varying wall thicknesses, allowing setup after finishing walls and flooring. Customizable Finish: The white frame can be painted after installation. Trim Options: Optional steel casing provides a clean, finished look. 121

CLAD FRAME Durable Aluminum Cladding: .092” thick extruded aluminum protects against the elements while maintaining a sleek look. Strong, Reliable Base: Built on the sturdy Dura-Frame™ for added durability. Color Options: Powder-coated finish ensures long-lasting color. Available in standard and custom colors. Trim Options: Select from various profiles to create a refined, finished appearance.

CLAD FRAME – COLOR OPTIONS

CLASSIC WHITE 120

OXFORD WHITE 160

LINEN 103

VERANDA 105

HEARTH STONE 111

GARDEN GATE 115

NOBLE 168

ARTISAN BROWN 128

IVY LEAGUE 170

RUBY RED 174

SYMPHONY 176

CUSTOM COLOR

CLAD FRAME – TRIM OPTIONS

BRICKMOLD

122

MODERN NOSING

NOTE: Colors swatches are as close as printing technologies allow.

ACCESSORY BRICKMOLD

NARROWLINE NOSING

SWING OPTIONS A well-designed front entry door can provide curb appeal and add value to any home. Choose between a single or double door, and select your door swing direction (inswing or outswing) to suit your entryway. You can also opt for sidelites or an overhead transom for added style and increased natural light. Additional configurations are available on following pages.

SINGLE DOOR INSWING

HINGE LEFT RIGHT HAND

SINGLE DOOR OUTSWING

HINGE RIGHT LEFT HAND

SINGLE DOOR WITH FIXED SIDELITE - INSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

SINGLE DOOR WITH TWO FIXED SIDELITES - INSWING

HINGE LEFT RIGHT HAND

NOTE: Viewed from exterior.

HINGE RIGHT LEFT HAND

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

SINGLE DOOR WITH FIXED SIDELITE - OUTSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

SINGLE DOOR WITH TWO FIXED SIDELITES - OUTSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

123

FRENCH/DOUBLE DOOR INSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

FRENCH/DOUBLE DOOR WITH FIXED SIDELITE - INSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

FRENCH/DOUBLE DOOR WITH TWO FIXED SIDELITES - INSWING

HINGE LEFT RIGHT HAND

124

HINGE RIGHT LEFT HAND

FRENCH/DOUBLE DOOR OUTSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

FRENCH/DOUBLE DOOR WITH FIXED SIDELITE - OUTSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

FRENCH/DOUBLE DOOR WITH TWO FIXED SIDELITES - OUTSWING

HINGE LEFT RIGHT HAND

HINGE RIGHT LEFT HAND

PATIO/GARDEN PATIO UNIT CENTER HINGED - INSWING

XO (OPERABLE-FIXED, HLIS)

OX (FIXED-OPERABLE, HRIS)

PATIO/GARDEN PATIO UNIT JAMB HINGED - INSWING

OX (FIXED-OPERABLE, HLIS)

XO (OPERABLE-FIXED, HRIS)

FRENCH/DOUBLE DOOR INSWING

SOXS (SIDELITE-FIXED-OPERABLESIDELITE, HLIS) NOTE: Viewed from exterior.

SXOS (SIDELITE-OPERABLE-FIXEDSIDELITE, HRIS)

PATIO/GARDEN PATIO UNIT CENTER HINGED - OUTSWING

OX (FIXED-OPERABLE, HLOS)

XO (OPERABLE-FIXED, HROS)

PATIO/GARDEN PATIO UNIT JAMB HINGED - OUTSWING

XO (OPERABLE-FIXED), HLOS)

OX (FIXED-OPERABLE, HROS)

FRENCH/DOUBLE DOOR OUTSWING

SXOS (SIDELITE-OPERABLE-FIXEDSIDELITE, HLOS)

SOXS (SIDELITE-FIXED-OPERABLESIDELITE, HROS)

125

OPENING SPECIFICATIONS NEW CONSTRUCTION UNITS – Wood and Extruded Aluminum Clad Frames (Inswing) Description

Actual Frame Width Size

Stud-to-Stud Rough Width Dimension Width Dimension Opening Minimum (Outside Brickmold) (Outside Modern Nosing)

Opening Dimensions for Single, Double & Patio Doors 2'6" Single Door

31-1/2"

32-1/2"

34"

32-5/8"

2'8" Single Door

33-1/2"

34-1/2"

36"

34-5/8"

2'10" Single Door

35-1/2"

36-1/2"

38"

36-5/8"

3'0" Single Door

37-1/2"

38-1/2"

40"

38-5/8"

3'6" Single Door

43-1/2"

44-1/2"

46"

44-5/8"

4'0" Single Door

49-1/2"

50-1/2"

52"

50-5/8"

5'0" Double Door

62"

63"

64-1/2"

63-1/8"

5'4" Double Door

66"

67"

68-1/2"

67-1/8"

5'4" Patio Door

67"

68"

69-1/2"

68-1/8"

5'6" Double Door (2/10 Active, 2/8 Less Active)

68"

69"

70-1/2"

69-1/8"

5'6" Double Door (3/0 Active, 2/6 Less Active)

68"

69"

70-1/2"

69-1/8"

5'10" Double Door (3/0 Active, 2/10 Less Active)

72"

73"

74-1/2"

73-1/8"

6'0" Double Door

74"

75"

76-1/2"

75-1/8"

6'0" Patio Door

75"

76"

77-1/2"

76-1/8"

Opening Dimensions for Door(s) with Fixed Sidelites or Direct Set Glass (Inswing)

126

Sidelite Size

12"

14"

12"

14"

12"

14"

12"

14"

2'6" Single Door w/ 1 Sidelite

45"

47"

46"

48"

47-1/2"

49-1/2"

46-1/8"

48-1/8"

2'8" Single Door w/ 1 Sidelite

47"

49"

48"

50"

49-1/2"

51-1/2"

48-1/8"

50-1/8"

2'10" Single Door w/ 1 Sidelite

49"

51"

50"

52"

51-1/2"

53-1/2"

50-1/8"

52-1/8"

3'0" Single Door w/ 1 Sidelite

51"

53"

52"

54"

53-1/2"

55-1/2"

52-1/8"

54-1/8"

5'4" Double Door w/ 1 Sidelite

79-1/2" 81-1/2"

80-1/2"

82-1/2"

82"

84"

80-5/8"

82-5/8"

6'0" Double Door w/ 1 Sidelite

87-1/2" 89-1/2"

88-1/2"

90-1/2"

90"

92"

88-5/8"

90-5/8"

2'6" Single Door w/ 2 Sidelites

58-1/2" 62-1/2"

59-1/2"

63-1/2"

61"

65"

59-5/8"

63-5/8"

2'8" Single Door w/ 2 Sidelites

60-1/2" 64-1/2"

61-1/2"

65-1/2"

63"

67"

61-5/8"

65-5/8"

2'10" Single Door w/ 2 Sidelites

62-1/2" 66-1/2"

63-1/2"

67-1/2"

65"

69"

63-5/8"

67-5/8"

3'0" Single Door w/ 2 Sidelites

64-1/2" 68-1/2"

65-1/2"

69-1/2"

67"

71"

65-5/8"

69-5/8"

5'4" Double Door w/ 2 Sidelites

93"

97"

94"

98"

95-1/2"

99-1/2"

94-1/8"

98-1/8"

6'0" Double Door w/ 2 Sidelites

101"

105"

102"

106"

103-1/2"

107-1/2"

102-1/8"

106-1/8"

NOTE: F or single clad outswing units, add 1/4" to the UDW shown above. For double doors that are both clad and outswing, add 3/8" to the UDW shown above. For primed wood outswing units, add 5/8" to outside brickmold width. For steel frames, add 1" to nominal width and 1/2" to nominal height for rough opening.

For sidelite units that are both clad and outswing, add 1/4" to the UDW shown above. For double doors that have wood jambs but are also outswing, add 1/8" to UDW shown above. For masonry construction, add 1/4" to outside brickmold dimension shown.

Actual Frame Height / UDH (Rough Opening Height) 6'8"

7'0"

8'0"

Units with Standard Sill 81-3/4" UDH (82" RO) Inswing

85-3/4" UDH (86" RO) Inswing

97-3/4" UDH (98" RO) Inswing

81-1/4" UDH (81-1/2" RO) Outswing

85-1/4" UDH (85-1/2” RO) Outswing

97-1/4" UDH (97-1/2" RO) Outswing

Units with ADA Sill 80-3/4" UDH (81" RO) Inswing or Outswing

84-3/4" UDH (85" RO) Inswing or Outswing

96-3/4" UDH (97" RO) Inswing or Outswing

81" UDH (81-1/4" RO) Clad Outswing

85" UDH (85-1/4" RO) Clad Outswing

97" UDH (97-1/4" RO) Clad Outswing

NOTES: Outside Brickmold height is 1-1/4" more than RO height. Outside Modern Nosing height is 5/16" more than RO height. Outside Narrowline Nosing is equal to unit dimension.

Replacement (Remodeler) Units

Transom Rough Openings Sizes for 6'8" Doors

Rough Opening (stud to stud) for inswing & outswing doors

Transom Type

Rough Rough Opening Opening Widths Heights

Unit Size

TR-98

102-5/8"

102-3/8"

TR-97

102-5/8"

102-3/8"

102-5/8"

102-3/8"

97-3/4"

97-1/4"

93-3/4"

93-1/4"

TR-92 TR-89/90/94 TR-96/99

see above chart

TR-91

93-3/4"

93-1/4"

TR-95

varies

TR-93

varies

Hinging / Handing Diagram Opening Dimensions for Single Remodeler Units Size (nominal) 2'5" x 6'7" Single Door

Interior

Fits these existing openings 'A' Widths

'B', 'C' Heights

Min.

Max.

Min.

Max.

29-5/8"

30-1/2"

80"

80-1/2"

2'7" x 6'7" Single Door

31-5/8"

32-1/2"

80"

80-1/2"

2'9" x 6'7" Single Door

33-5/8"

34-1/2"

80"

80-1/2"

2'11" x 6'7" Single Door

35-5/8"

36-1/2"

80"

80-1/2"

Exterior

HINGED RIGHT/LEFT HAND INSWING

Exterior

HINGED LEFT/RIGHT HAND INSWING Interior

Interior

Exterior

HINGED RIGHT/LEFT HAND OUTSWING

NOTE: For 6'11" heights, ADD 4" to rough openings shown. We reserve the right, without notice, to make changes in specifications, construction, design, details, and pricing at any time in such a manner as we may consider necessary or advisable. Corrections to reflect any such changes shall be included in subsequent printings of this publication.

Exterior

HINGED LEFT/RIGHT HAND OUTSWING

127

Welcome home. Your front door is more than just an entrance. It’s the start of daily routines, where you welcome guests and the backdrop to life’s everyday moments. With durable materials, thoughtful design, and styles matching your vision, our doors help create a home that feels safe, beautiful, and entirely yours. Let your story start here.

waudena.com ML1029.2 | 0726 Waudena® reserves the right to change the product features and specifications without prior notice. Photography used herein may not represent current product offering. Door panel imagery shown as outside view (OSV) within. Waudena® is a registered trademark of Wausau Supply Co. For California Residents Only WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
