WAU - W113TH ST APARTMENT - Design Book

West 113th Street Apartment

Concept Design Book

Discovery

Discovery

6

Building

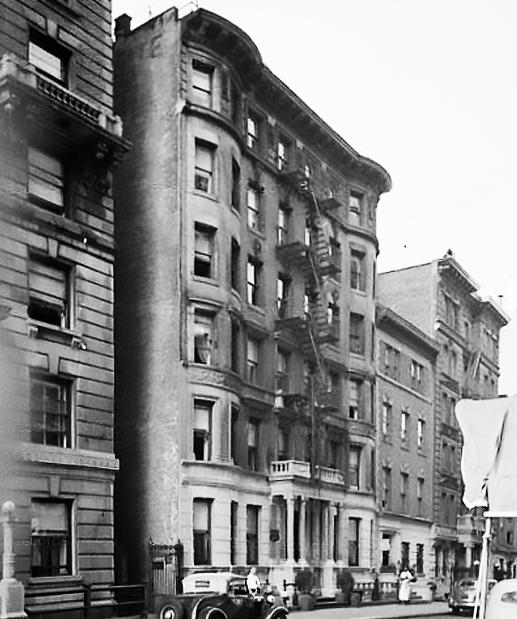

The apartment is located within the Altamonte, a 6-story Colonial revival style building located at 606 West 113th Street, in the Upper West Side of Manhattan, New York. It was built in 1898 after designs from Louis and John Brant, in the vicinity to the Columbia University campus, and is part of an ensemble of buildings and streets now called the Morningside Heights Historic District.

7

Discovery

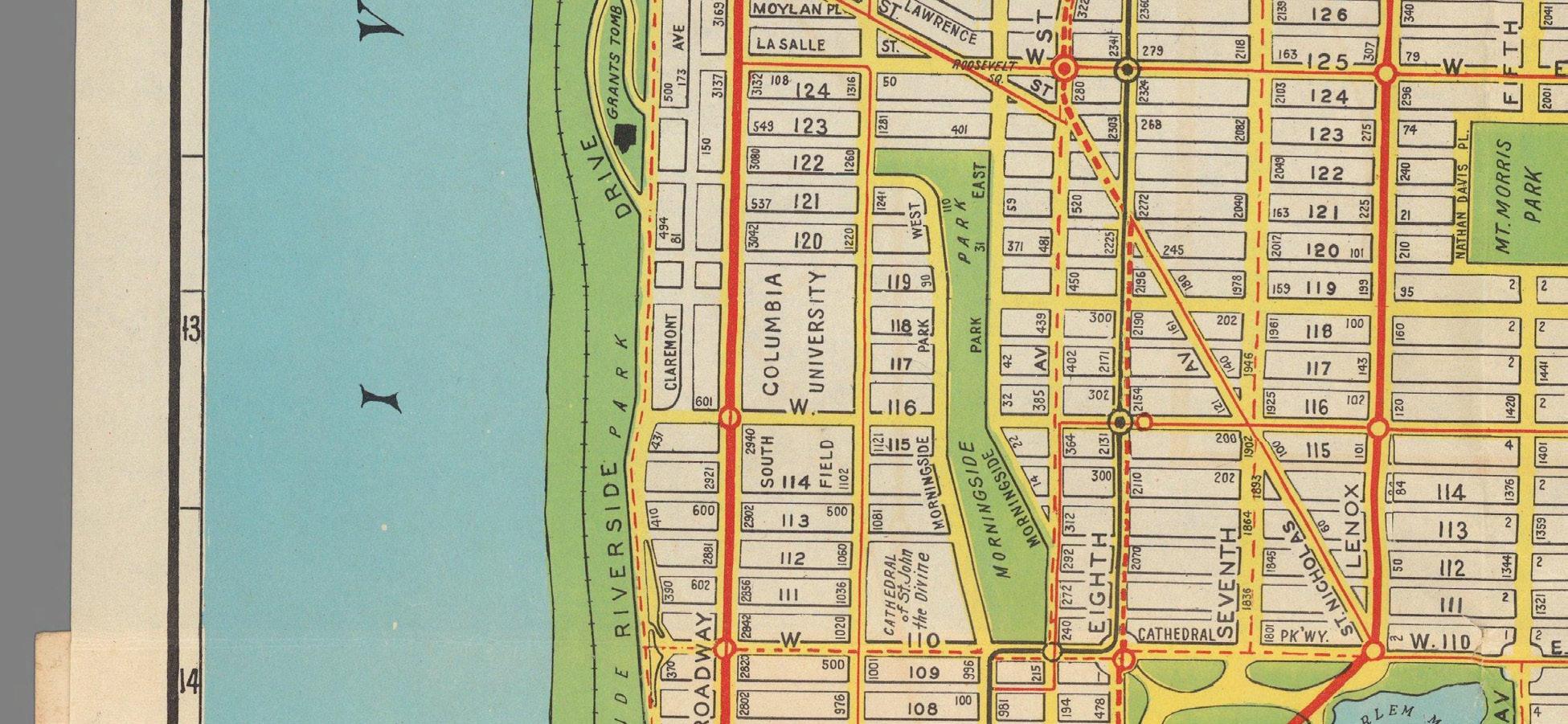

MORNINGSIDE HEIGHTS HISTORICAL DISTRICT

8

Location

The Morningside Heights Historical District consists of 115 buildings.

Designated as a historical district in 2017, the majority of the residential and institutional buildings included were built around the turn of the 20th century, which coincided with the relocation of Columbia University in the 1890s. Located on a large plateau, this area is known as the “acropolis” of New York.

9

Discovery

Apartment C

Apartment D

10

Pre-existing Unit Plans

The apartment originally consisted of two separate adjacent units that were later combined. The result is a long and linear apartment with a reduced width at the midsection to allow for light and air requirements. This building typology emerged between the tenement housing acts of 1879 and 1901 and were commonly known as “dumbbell” tenement buildings after the shape of the building footprint.

11

Discovery

Laundry

Bath B

Office

Bedroom B Bedroom C

Storage

12

Existing Unit Plan

Dining

Kitchen

Bath A Bedroom A Living Entry

0

2’

6’

10’

13

Discovery

14

Observations Based on the existing apartment layout, three problem areas were diagnosed.

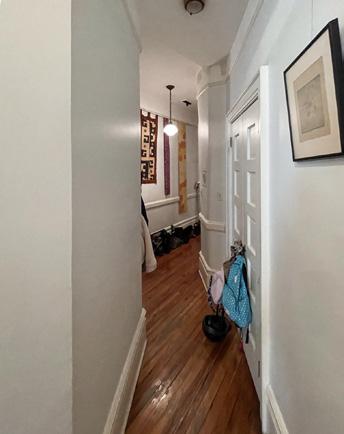

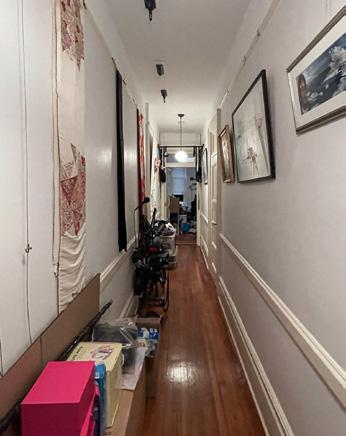

The first was the long dark hallway, which came about as a result of combining two separate apartments.

Bringing more natural light into this space became crucial in improving the experience of the new entry of the apartment.

Original apartment division

Entryway moved

15

Discovery

16

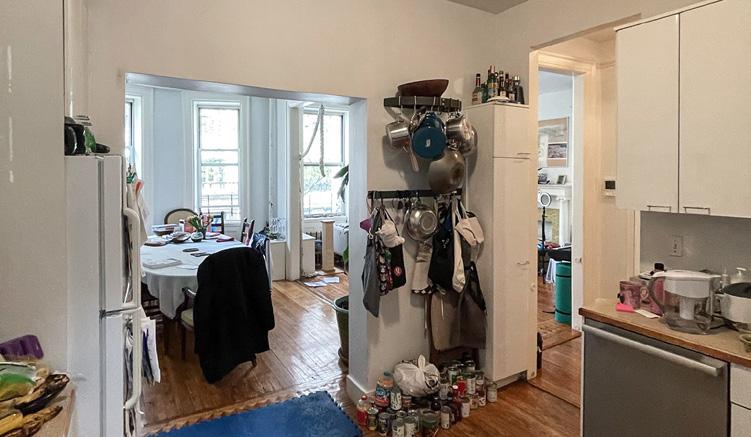

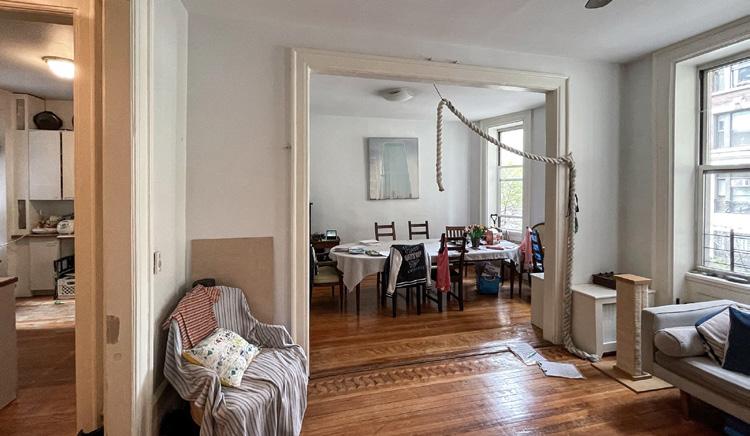

Observations The second area of concern was the subdivided shared space, which was split up into four quadrants by partition walls, making up the foyer, kitchen, dining room, and living room.

Removing these partitions was identified early to allow for a more open plan living concept and create a greater contrast between public and private spaces.

1

2

3

4

17

Discovery

18

Observations

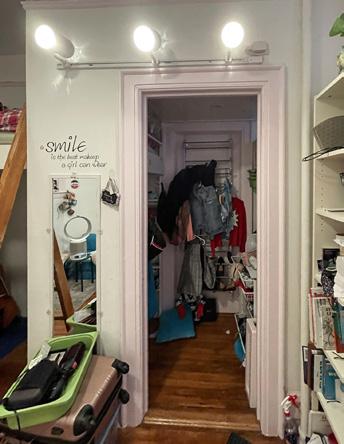

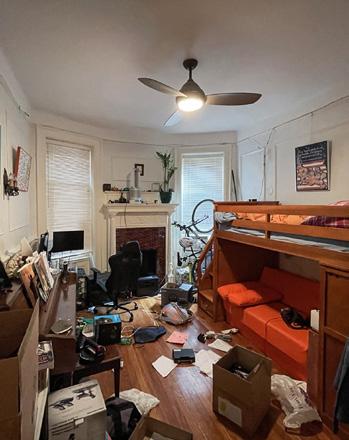

The third observation was the scattered storage space throughout the apartment. This needed to be optimized and organized for ease of use and to eliminate a feeling of clutter.

19

Concept Design

Concept Design

Option 1 - Orthogonal

Option 2 - Flared

Option 3 - Cut

22

Design Schemes

Three plan design iterations were explored to reorganize the space and maximize natural light, storage, and circulation. Each scheme focuses on using the hallway as the central organizing spine running throughout the length of the unit.

23

Concept Design

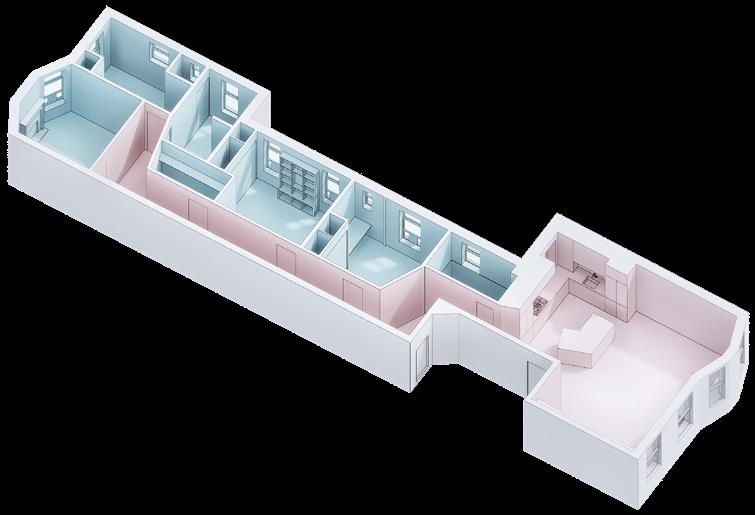

Private

Public

24

Option 1 - Orthogonal

Option 1, the “Orthogonal” scheme embraces the linear form of the hallway and is therefore closest to the existing plan. Storage is neatly reorganized in bands perpendicular to the hallway, maximizing the area of each bedroom.

25

Concept Design

Private

Public

26

Option 2 - Flared

Option 2, the “Flared” scheme, improves the flow of circulation by flaring the corridor at junctures and openings. This move allows the long and narrow space to feel brighter and more spacious. Storage areas are concentrated in the storage room and closets.

27

Concept Design

Private

Public

28

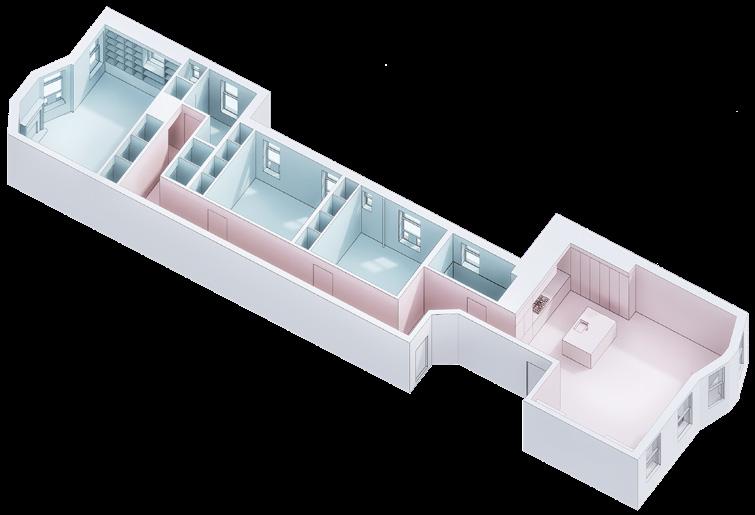

Option 3 - Cut

Option 3, the “Cut” scheme, brings together the optimized storage space in the orthogonal option and the expanded corridor of the flared option.

The entry corner and kitchen are cut with a singular gesture that reorients movement from the new entrance into the shared space and allows natural light to penetrate deep into the corridor. Additionally, the partition separating the hallway and bedrooms is thickened to create a storage wall accessible from both public and private spaces.

29

Selected Scheme

Selected Scheme

Laundry

Office Bath B Bedroom B

Bedroom C

34

B

Plan

Kitchen

Dining

Bath A

Bedroom A

Living Entry

35

Selected Scheme

36

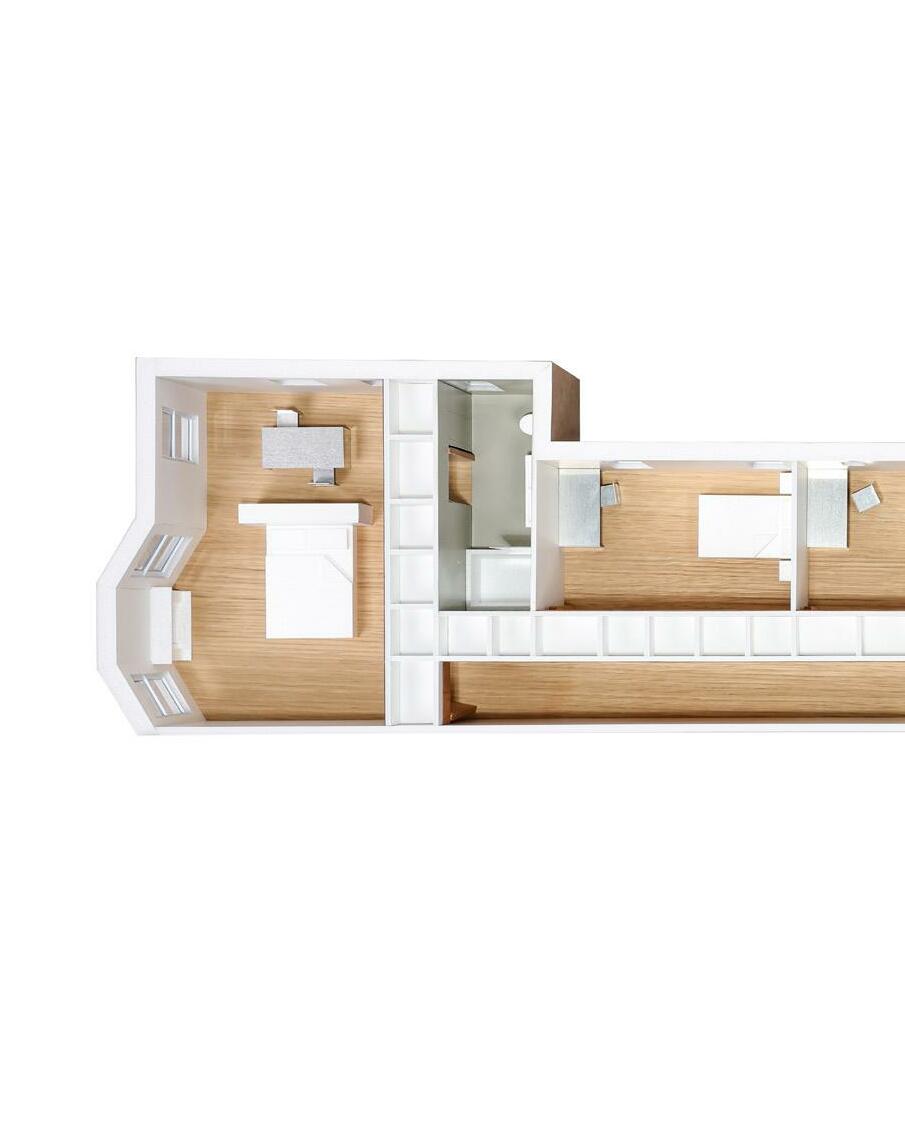

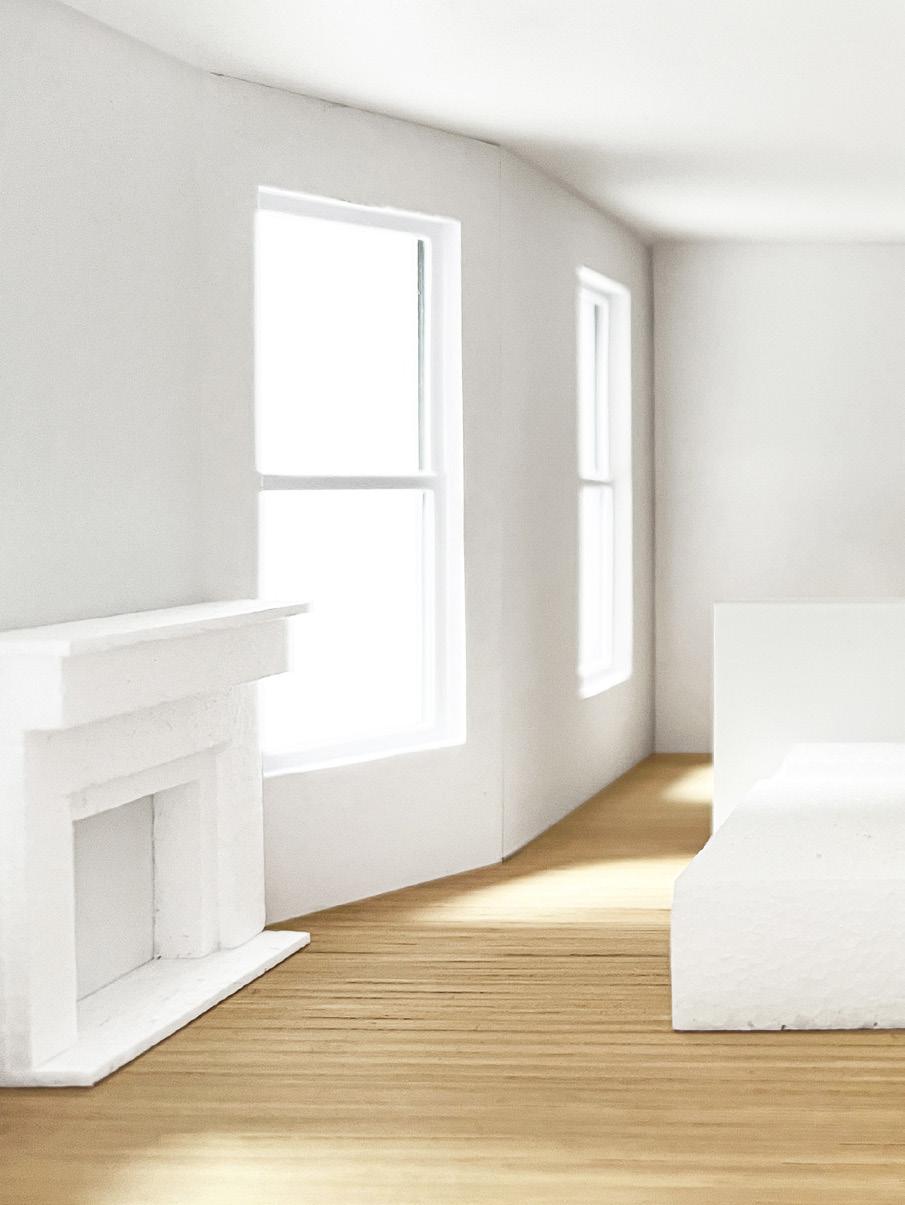

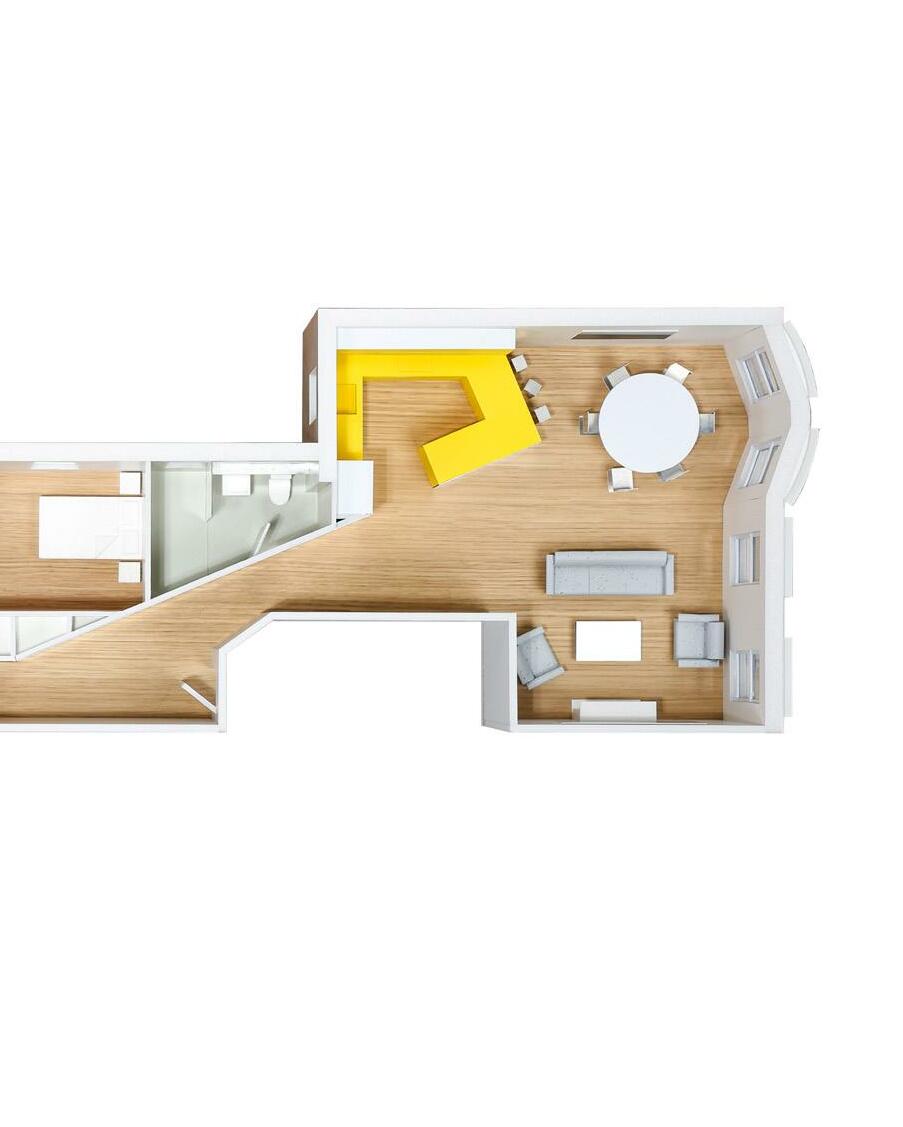

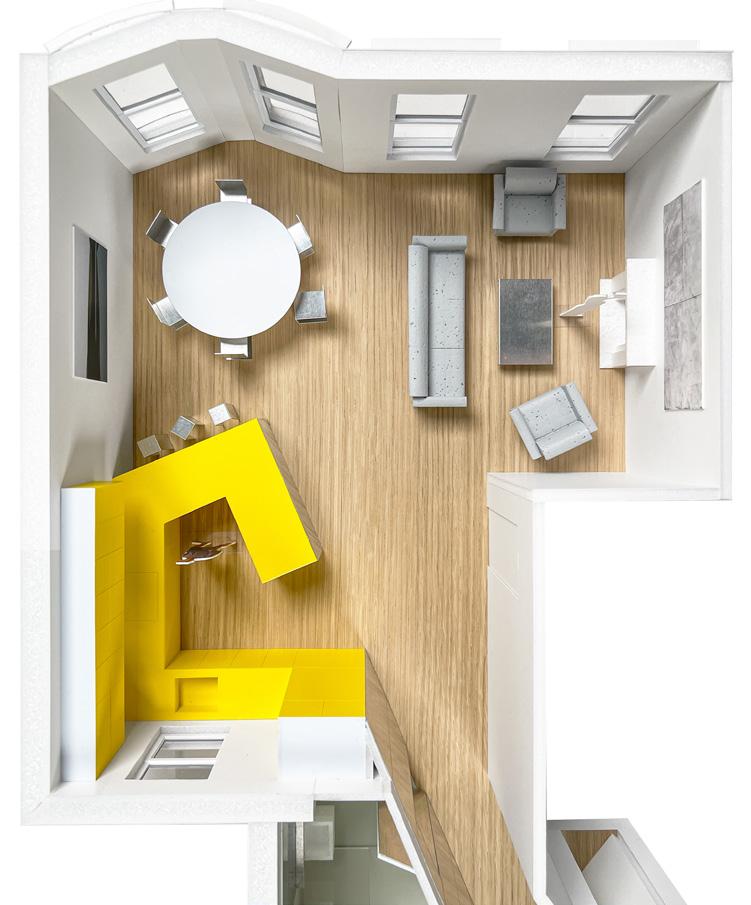

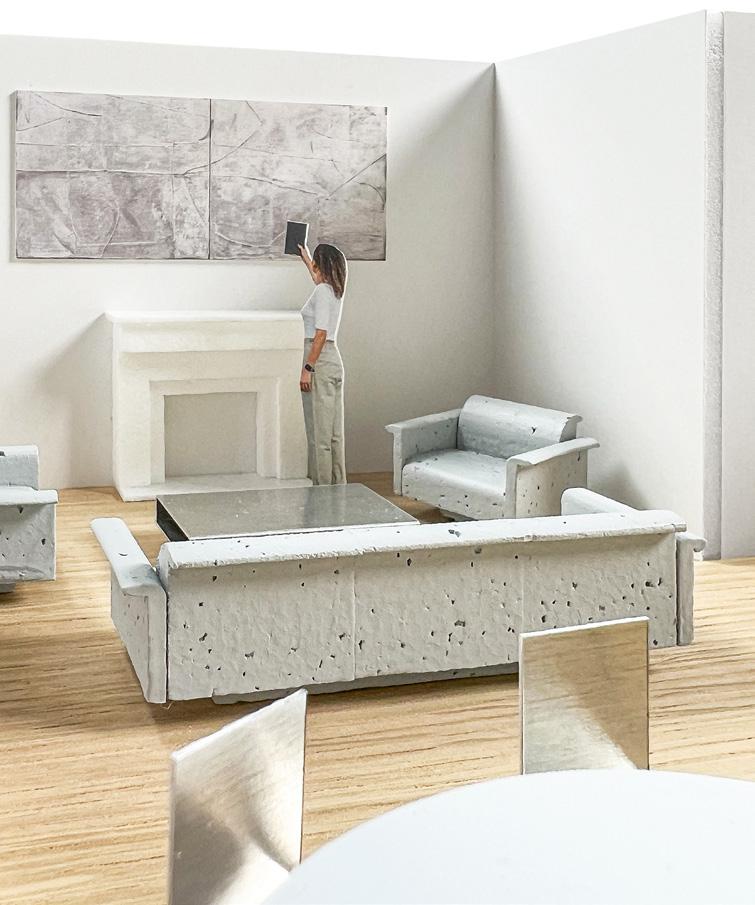

Model

37

Selected Scheme

40

The Cut

The Cut scheme opens up the end of the hallway to the living room, which allows more sunlight to filter through, improving the experience of walking through this space. The oblique wall resulting from the cut also reorients movement, directing one from the entrance to the shared space.

41

Selected Scheme

42

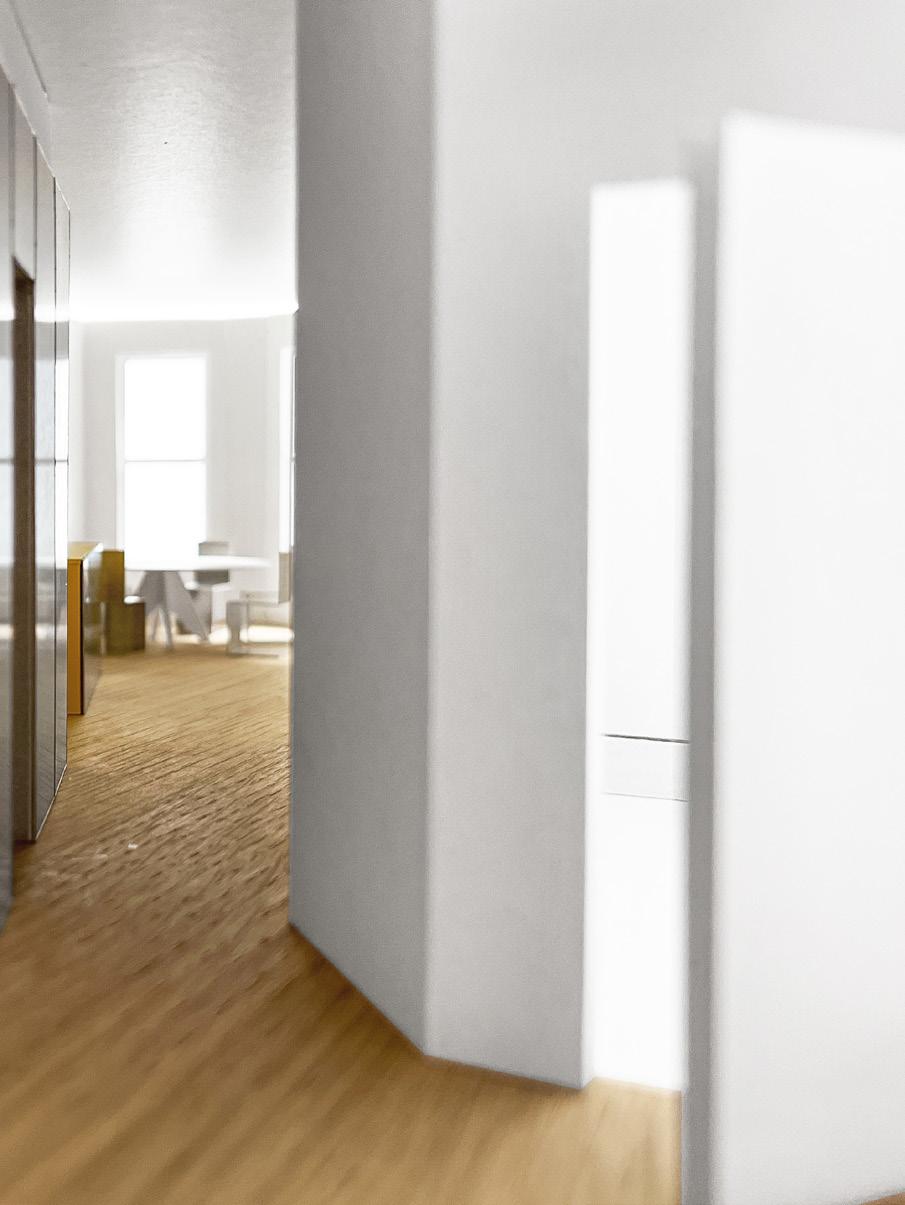

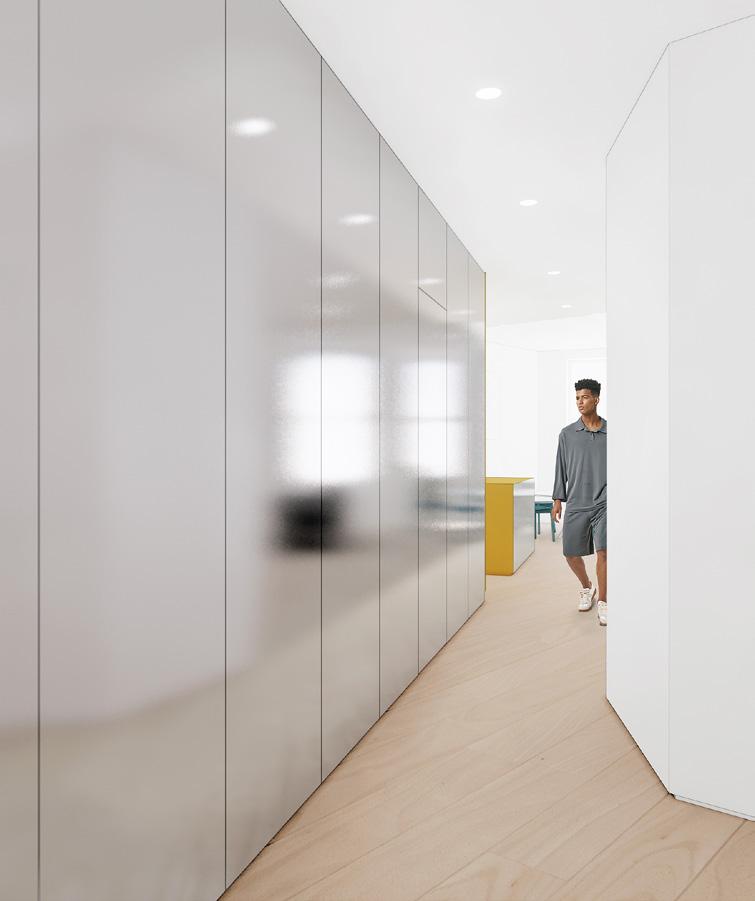

Hallway

43

Selected Scheme

44

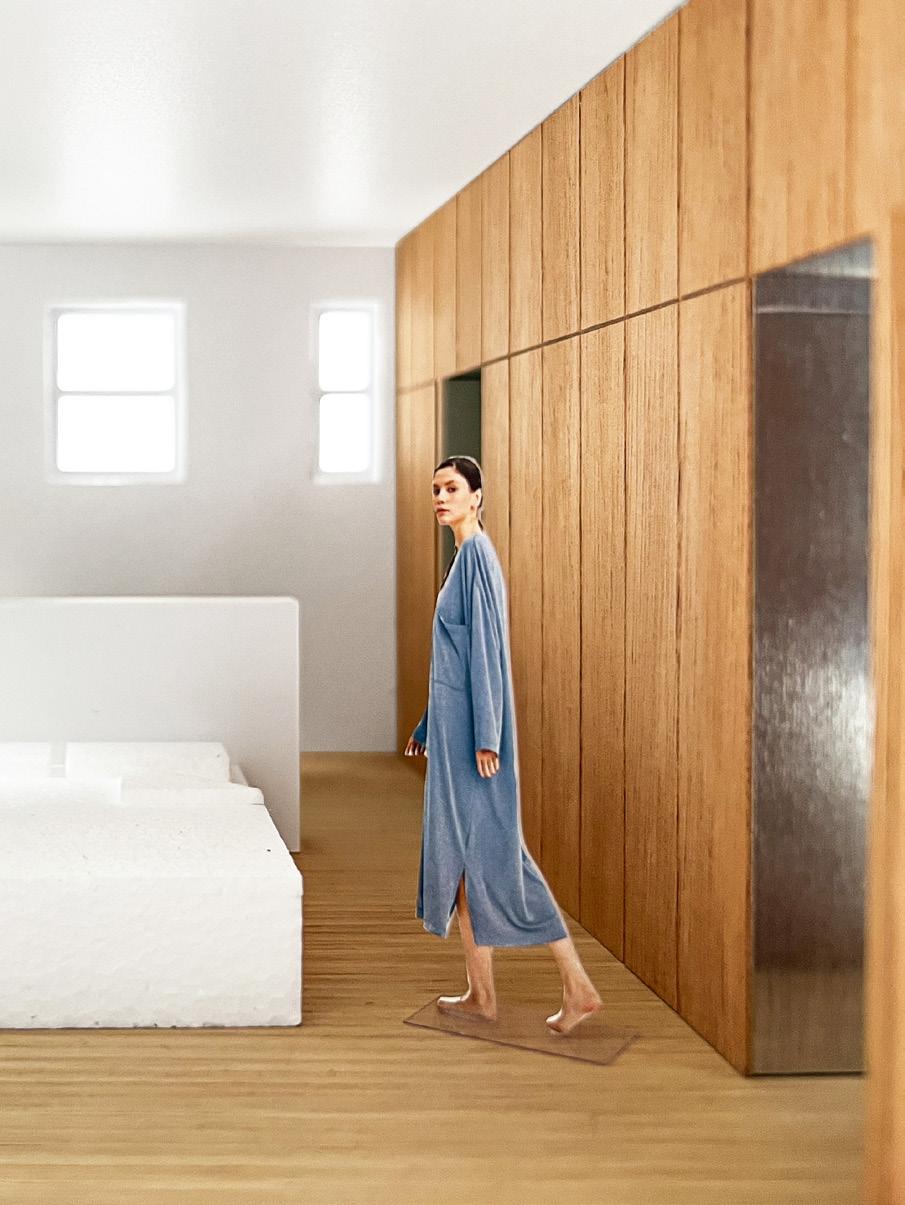

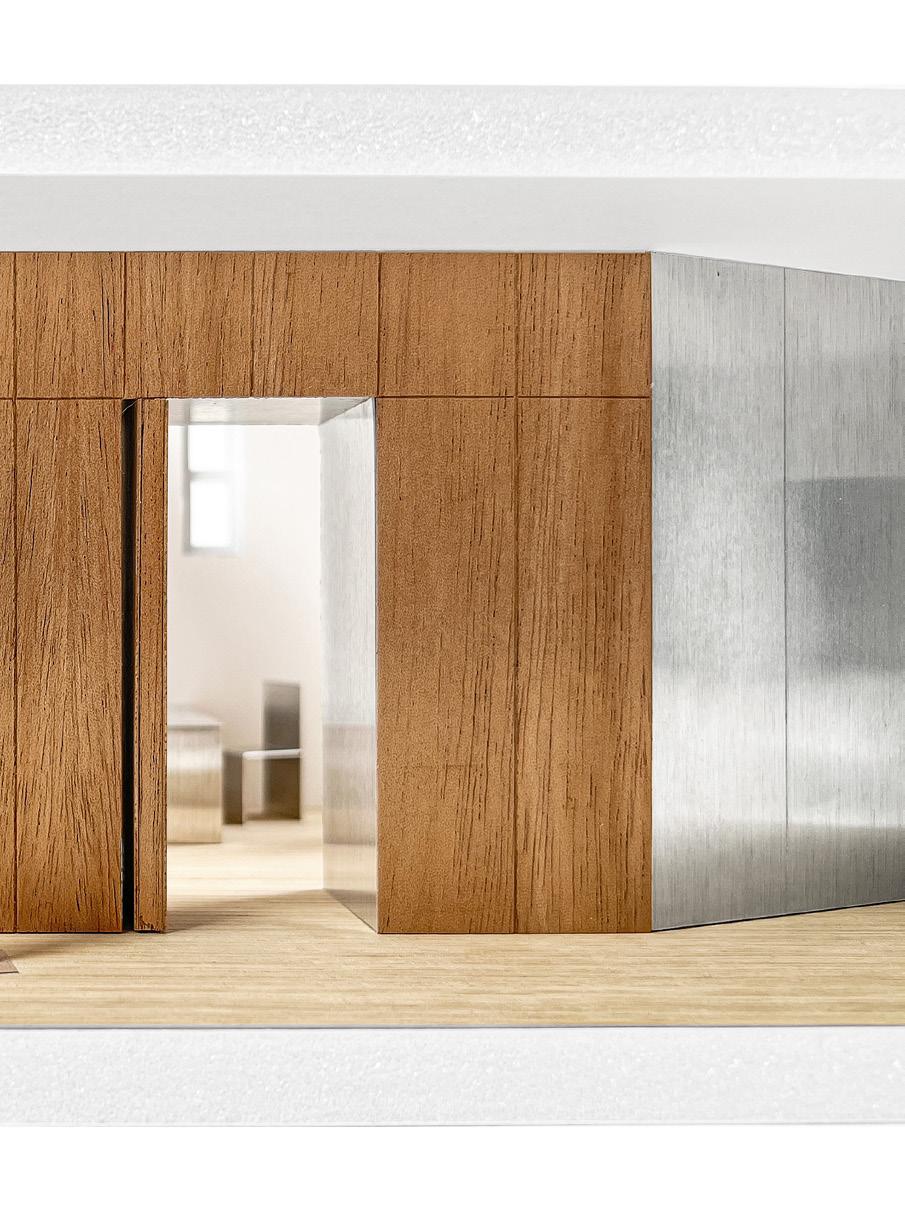

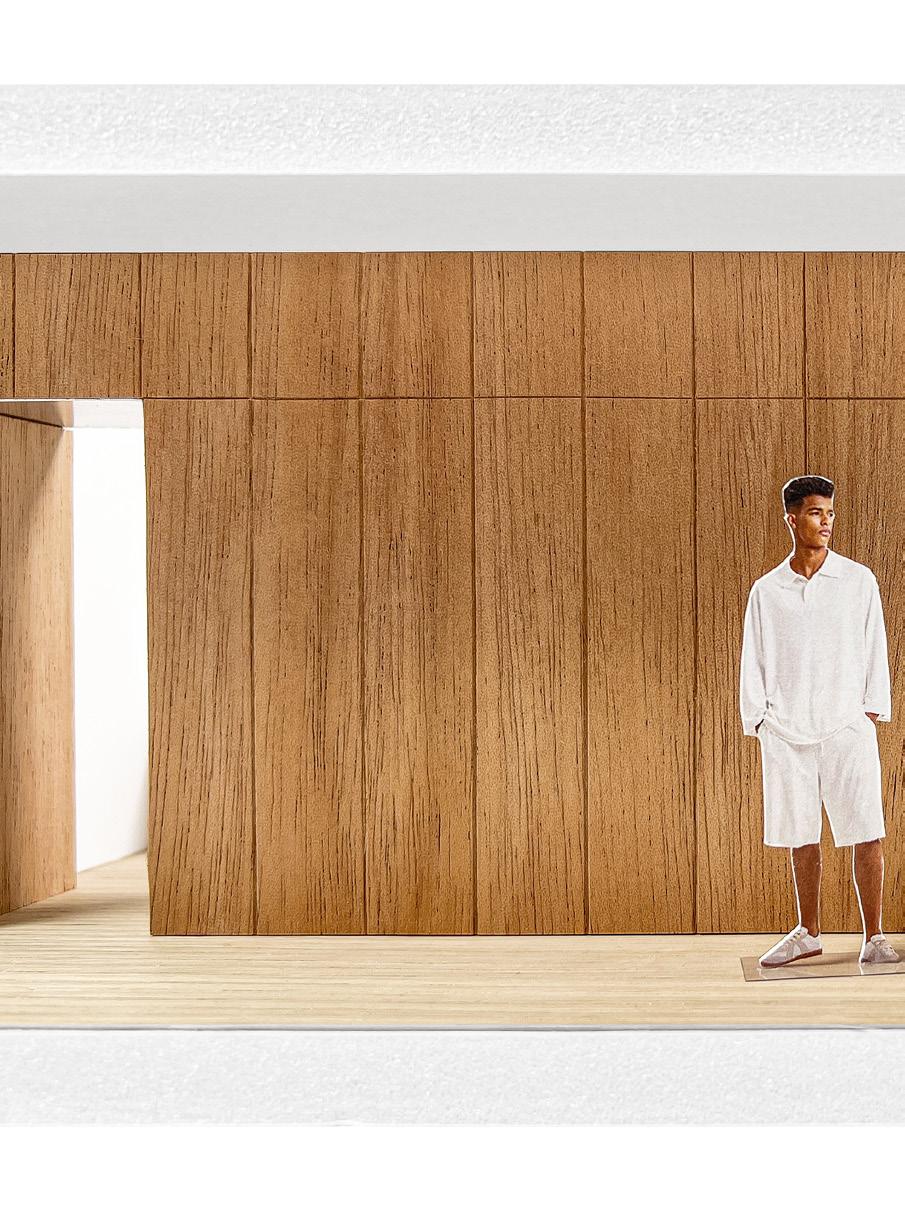

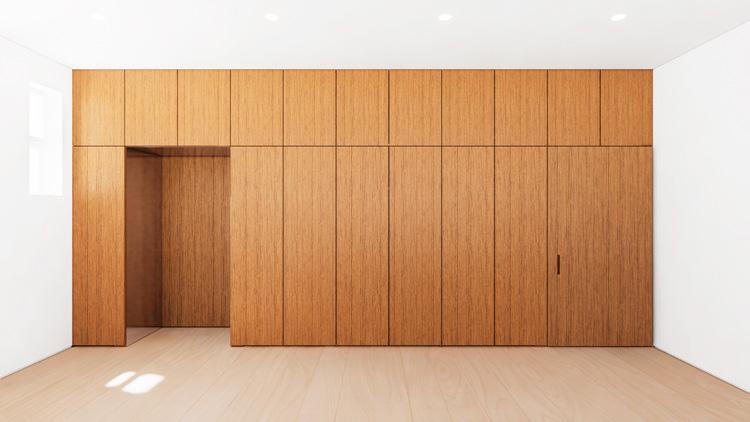

The Storage Wall

Integrated along the hallway is the storage wall, which acts as a spatial divide and a consolidated storage solution. The wall’s dark walnut wood finish creates a strong contrast with the aluminum hallway cut, creating a change of atmosphere transitioning from public to private spaces.

45

Selected Scheme

48

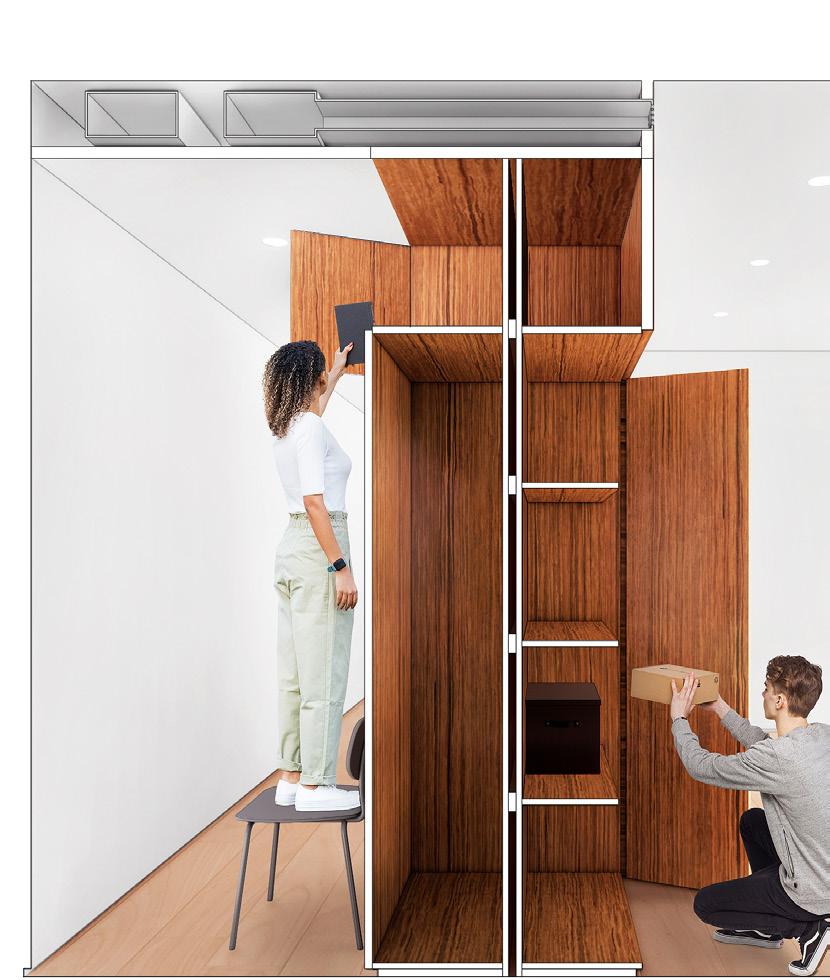

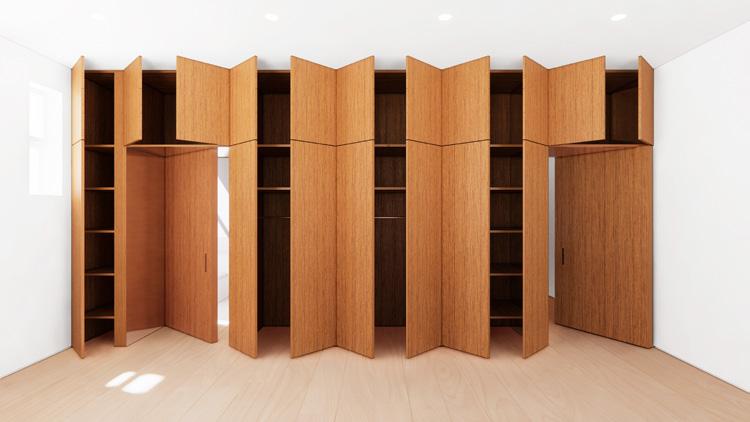

The Storage Wall

The storage wall allows for four different configurations: Configuration A acts as a door portal; configuration B opens up to the hallway; configuration C opens up to both spaces; and cofiguration D is open to the bedroom.

A

B

C

D

49

Selected Scheme

50

The Storage Wall

51

Selected Scheme

52

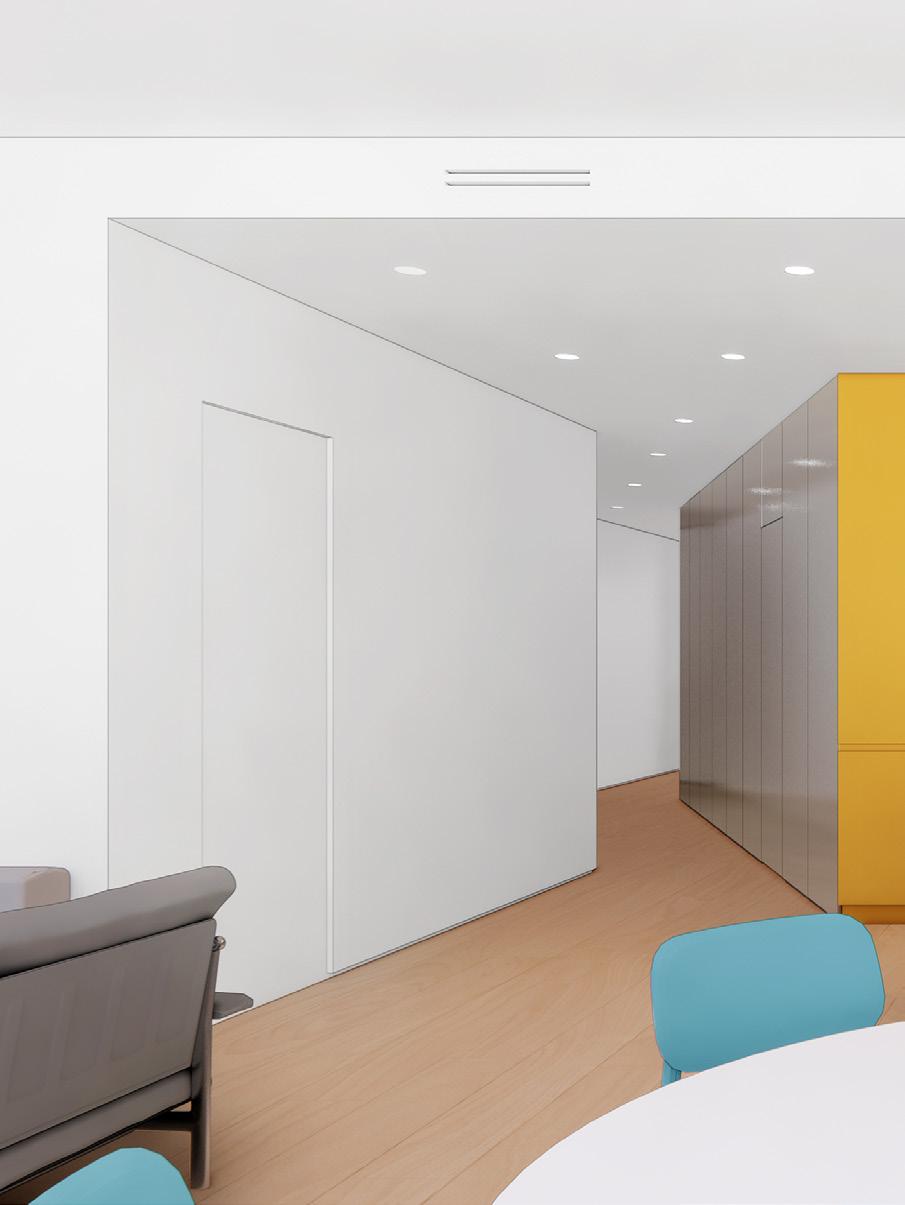

HVAC System

Above the hallway and kitchen, the ceiling is dropped by 12 inches to accommodate an integrated HVAC system. Dropping the ceiling not only keeps the HVAC system out of sight, but also provides a clear hierarchy of spaces in the apartment.

53

Selected Scheme

Dark Grey Glass Tile

Walnut Millwork

White Oak Flooring

Anodized Aluminum

54

Light Grey Glass Tile Yellow Laminate Kitchen

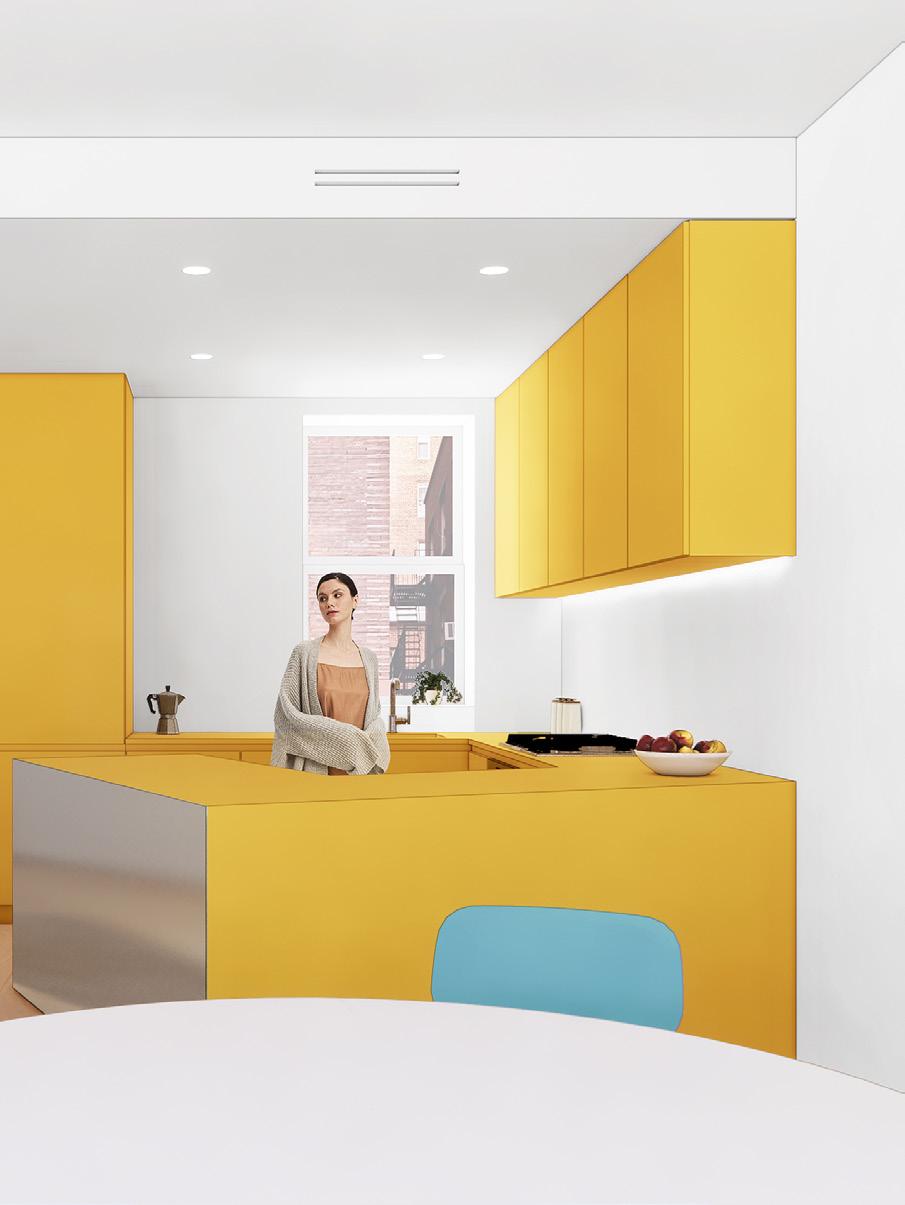

The Cut

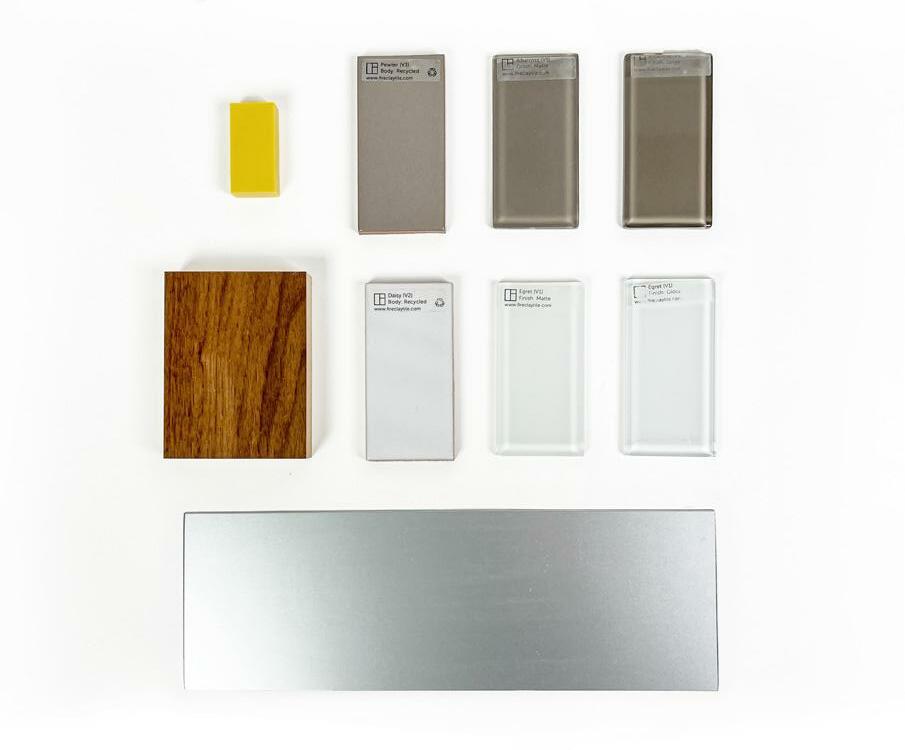

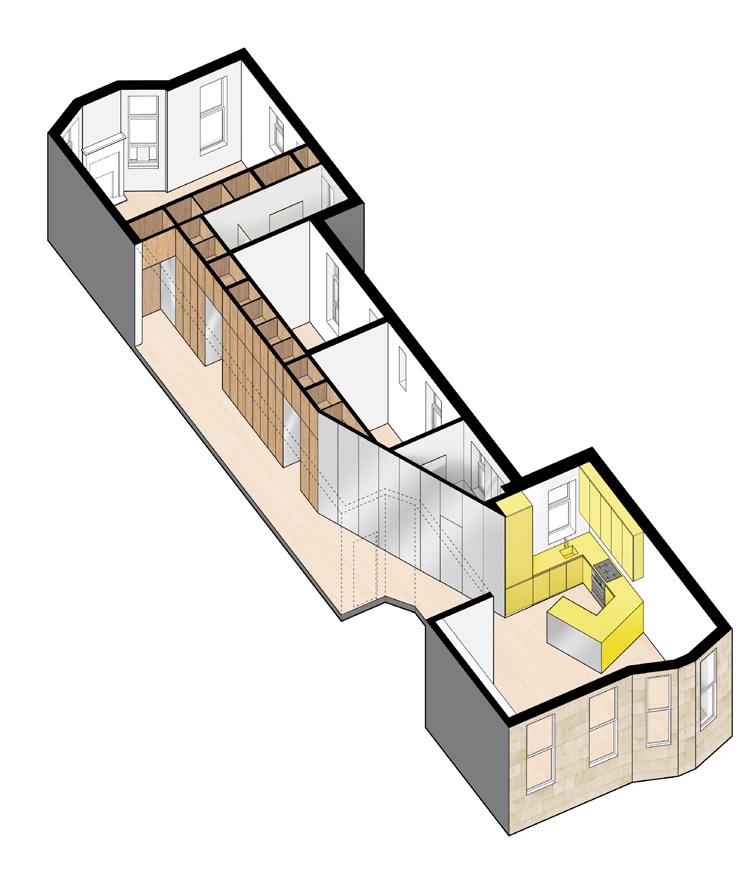

The choice of materials were carefully selected to emphasize the formal strategies of the “Cut” scheme and work to represent the different zones throughout the apartment: the yellow kitchen finish draws focus to the shared open space and expresses the playfulness of the new counter configuration; the aluminum panels emphasize the cut that opens up the hallway to the kitchen; and the walnut wood texture of the storage wall brings in a domestic atmosphere towards the private bedrooms.

55

Selected Scheme

56

Materials

57

Selected Scheme

60

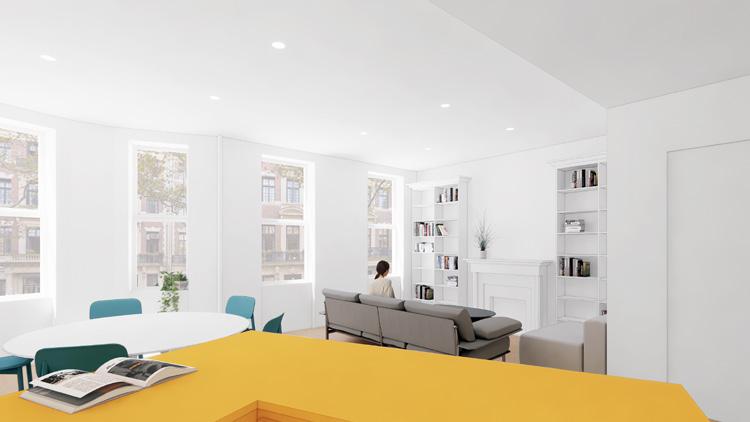

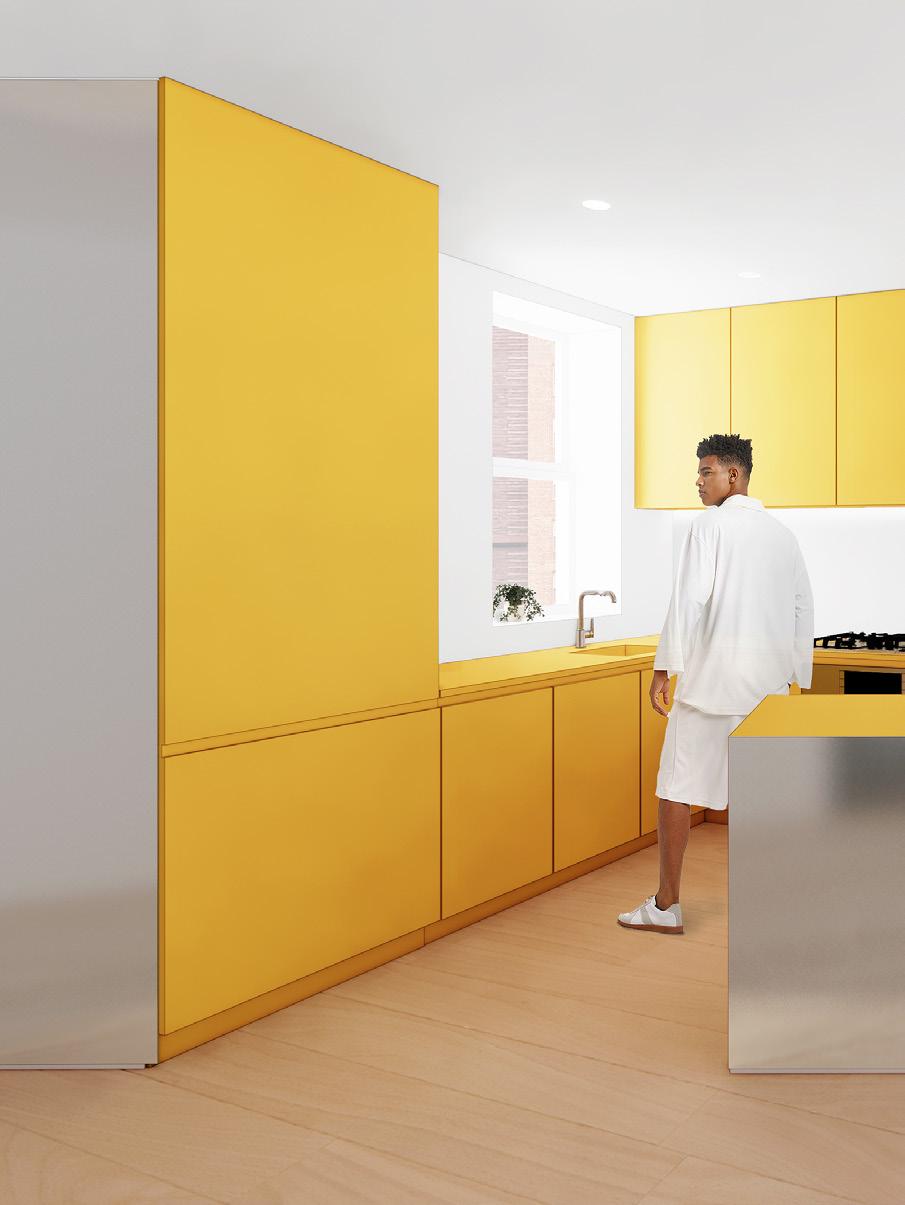

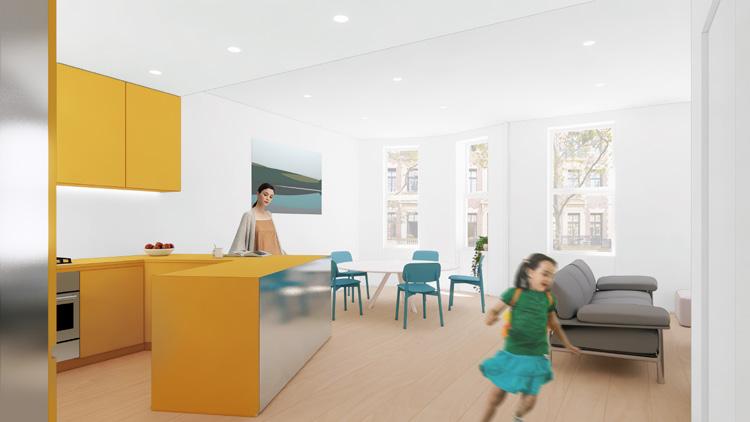

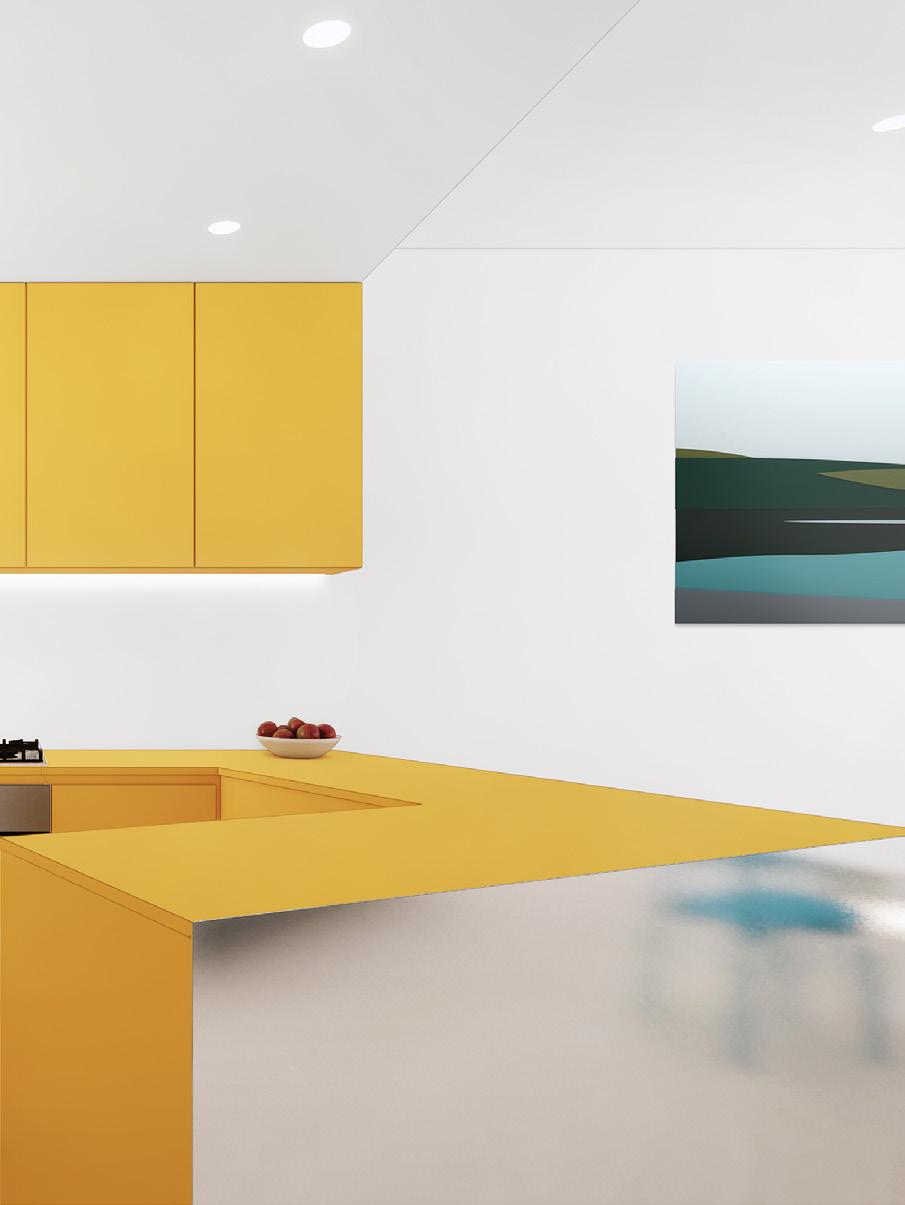

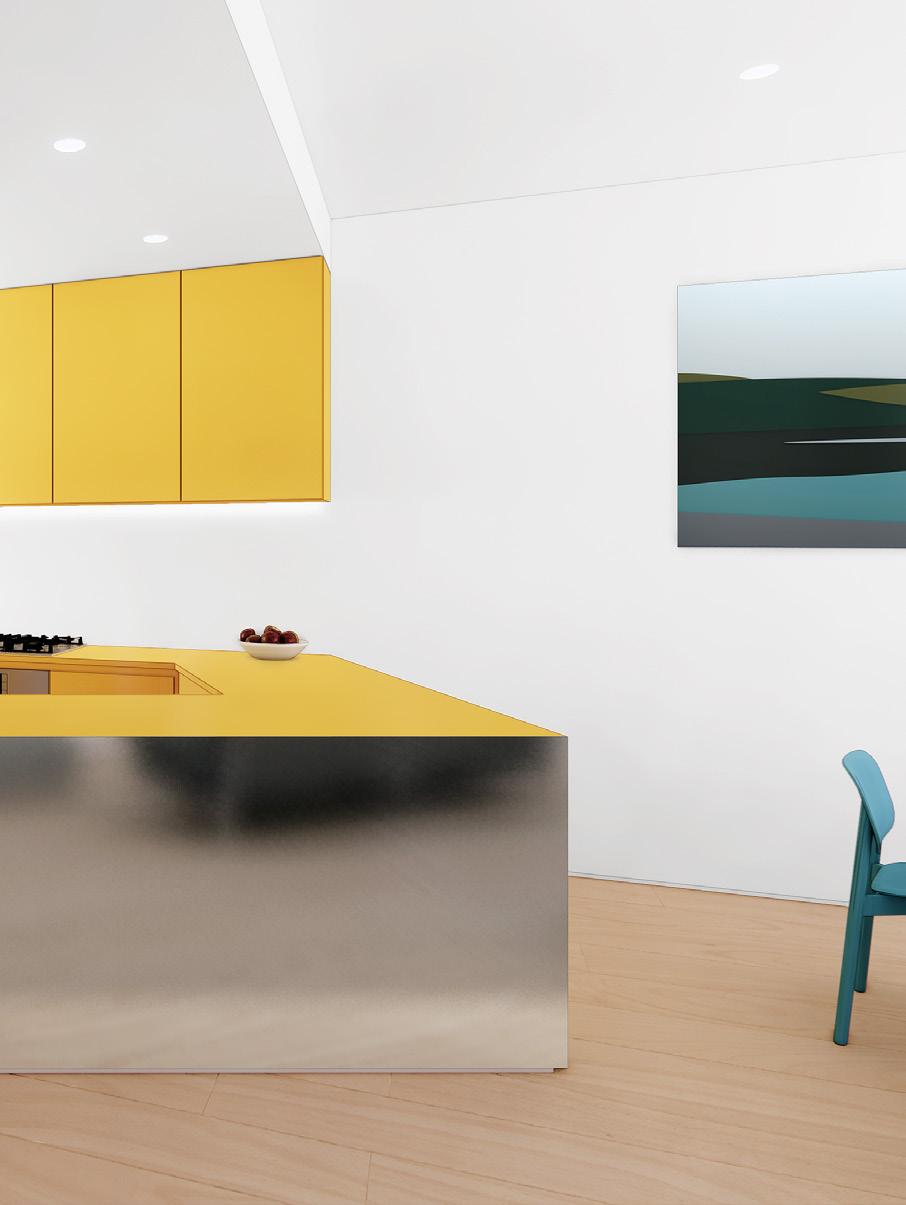

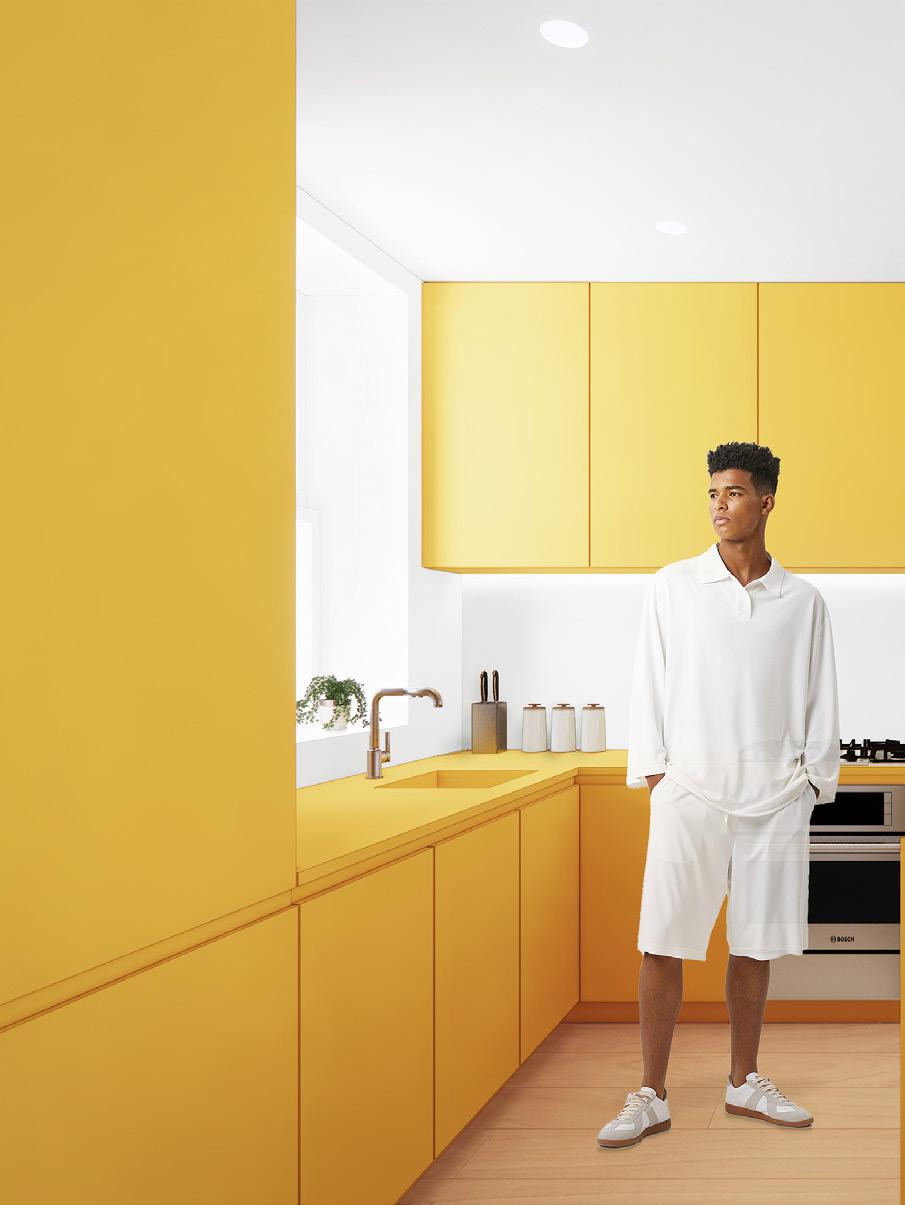

Kitchen and Living Room

The open plan of the kitchen and living room, previously subdivided by partition walls, offers a large and brightly lit space to accommodate communal living and dining. The kitchen acts as a pivotal element that projects into the dining area and reorients itself towards the living area, forming a continuous flow of spaces.

61

Selected Scheme

62

Kitchen and Living Room

63

64

65

Selected Scheme

66

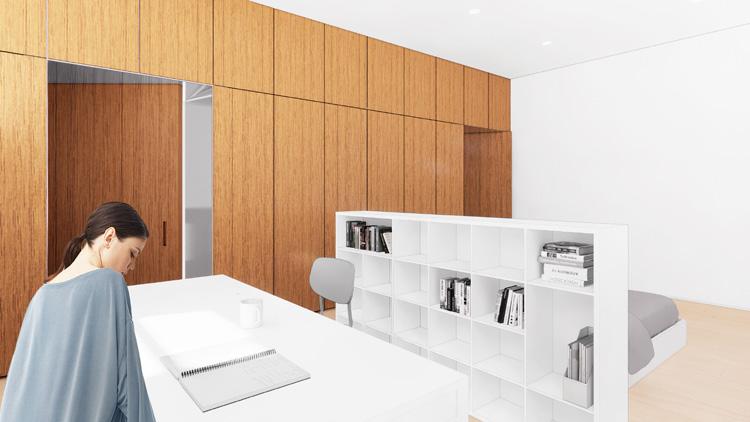

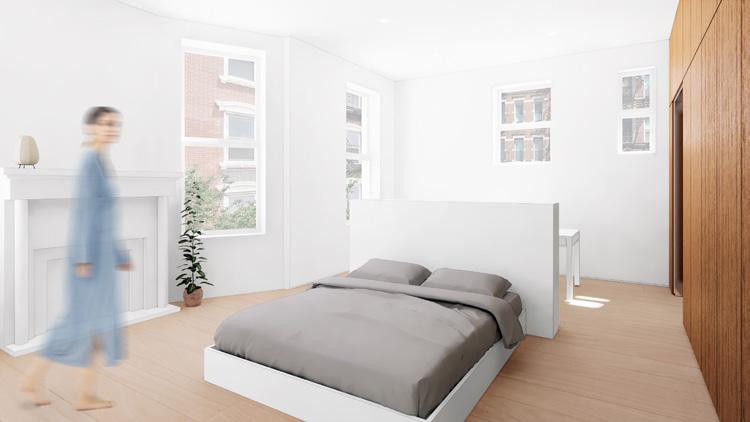

Bedroom

The master bedroom responds to the culture of emerging home offices that have become so prevalent in cities today. Spaces of work and rest are programmatically combined but visually separated by a screen that doubles as both a headboard and bookshelf.

67

Selected Scheme

68

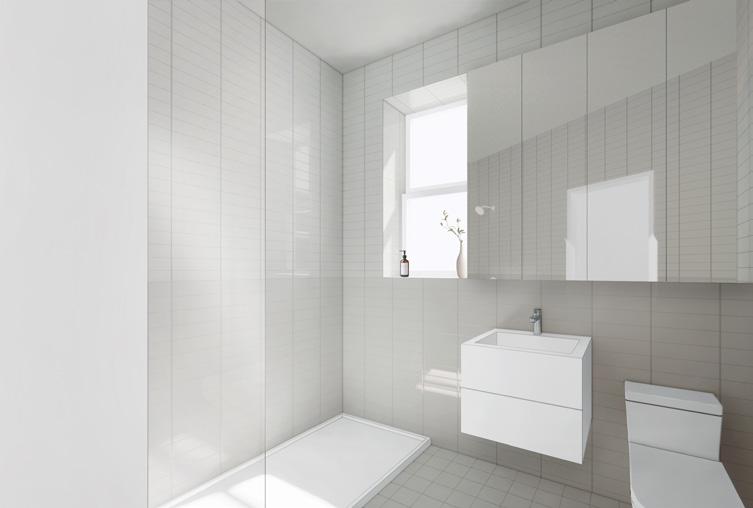

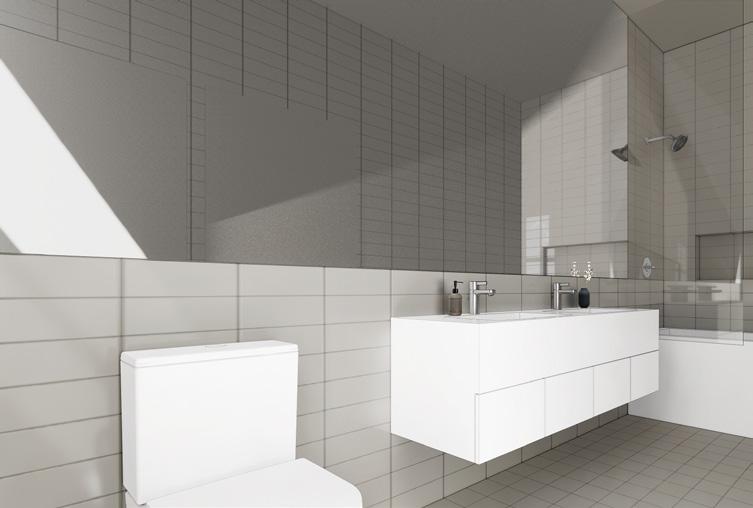

Bathrooms

69
