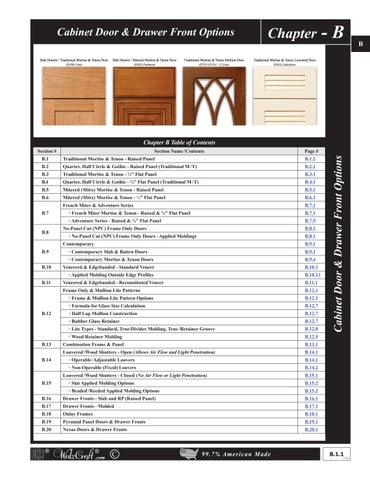

Chapter B - Cabinet Door & Drawer Front Options by WalzCraft

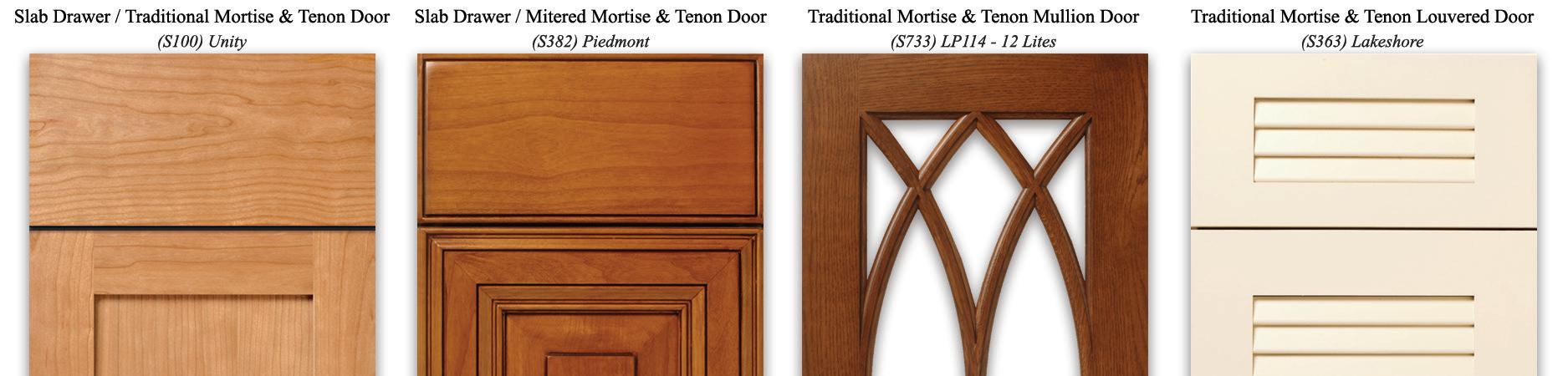

Cabinet Door & Drawer Front Options

Chapter - B

Chapter B Table of Contents Section Name / Contents

Page #

B.1

Traditional Mortise & Tenon - Raised Panel

B.1.2

B.2

Quarter, Half Circle & Gothic - Raised Panel (Traditional M / T)

B.2.1

B.3

Traditional Mortise & Tenon - ¼" Flat Panel

B.3.1

B.4

Quarter, Half Circle & Gothic - ¼" Flat Panel (Traditional M / T)

B.4.1

B.5

Mitered (Mitre) Mortise & Tenon - Raised Panel

B.5.1

B.6

Mitered (Mitre) Mortise & Tenon - ¼" Flat Panel

B.6.1

French Miter & Adventure Series

B.7.1

B.7

B.8

◦ French Miter Mortise & Tenon - Raised & ¼" Flat Panel

B.7.1

◦ Adventure Series - Raised & ¼" Flat Panel

B.7.5

No-Panel Cut (NPC) Frame Only Doors

B.8.1

◦ No-Panel Cut (NPC) Frame Only Doors - Applied Moldings

B.8.1

Contemporary B.9 B.10 B.11

B.12

B.13 B.14

B.9.1

◦ Contemporary Slab & Batten Doors

B.9.1

◦ Contemporary Mortise & Tenon Doors

B.9.4

Veneered & Edgebanded - Standard Veneer

B.10.1

◦ Applied Molding Outside Edge Profiles

B.10.13

Veneered & Edgebanded - Reconstituted Veneer

B.11.1

Frame Only & Mullion Lite Patterns

B.12.1

◦ Frame & Mullion Lite Pattern Options

B.12.1

◦ Formula for Glass Size Calculation

B.12.7

◦ Half Lap Mullion Construction

B.12.7

◦ Rubber Glass Retainer

B.12.7

◦ Lite Types - Standard, True/Divider Molding, True / Retainer Groove

B.12.8

◦ Wood Retainer Molding

B.12.9

Combination Frame & Panel

B.13.1

Louvered / Wood Shutters - Open (Allows Air Flow and Light Penetration)

B.14.1

◦ Operable /Adjustable Louvers

B.14.1

◦ Non-Operable (Fixed) Louvers

B.14.2

Louvered / Wood Shutters - Closed (No Air Flow or Light Penetration) B.15

B.15.1

◦ Slat Applied Molding Options

B.15.2

◦ Beaded / Reeded Applied Molding Options

B.15.2

B.16

Drawer Fronts - Slab and RP (Raised Panel)

B.16.1

B.17

Drawer Fronts - Molded

B.17.1

B.18

Onlay Frames

B.18.1

B.19

Pyramid Panel Doors & Drawer Fronts

B.19.1

B.20

Nexus Doors & Drawer Fronts

B.20.1

.com

99.7% American Made

Cabinet Door & Drawer Front Options

Section #

B.1.1

V18.2

Traditional Mortise & Tenon - Raised Panel

Cabinet Door & Drawer Front Options

Style: 10

Style: 20

PC: 101 Frame: PC101 x 0.6 Min. Size: 8x8

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾

[203.2mm x 203.2mm]

[263.5mm x 247.7mm]

Style: 1010

Style: 2020

PC: 103 Frame: PC103 x 0.6 Min. Size: 13¾x8

[203.2mm x 247.7mm]

Style: 4000

PC: 106 Frame: PC106 x 0.6 Min. Size: 8x11½

[263.5mm x 292.1mm]

[203.2mm x 292.1mm]

Style: 7000

Style: 2525

PC: 106 Frame: PC106 x 0.6 Min. Size: 8x11½

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾

[304.8mm x 285.8mm]

[203.2mm x 292.1mm]

[203.2mm x 247.7mm]

Style: 7070

Style: 2001L

PC: 109 Frame: PC109 x 0.6 Min. Size: 12x14½

Style: 2001R

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾

[304.8mm x 368.3mm]

[294.5mm x 247.7mm]

Style: 1090

PC: 107 Frame: PC107 x 0.6 Min. Size: 115/8x913/16 [295.3mm x 249.2mm]

Style: 2222

PC: 106 Frame: PC106 x 0.6 Min. Size: 8x11½ [203.2mm x 292.1mm]

Style: 1080

PC: 111 Frame: PC111 x 0.6 Min. Size: 115/8x115/8 [295.3mm x 295.3mm]

Style: 2500

PC: 104 Frame: PC104 x 0.6 Min. Size: 12x11¼

Style: 2200

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾

PC: 106 Frame: PC106 x 0.6 Min. Size: 8x11½

[349.3mm x 203.2mm]

Style: 2000

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾

[203.2mm x 247.7mm]

Style: 2070L

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾ [203.2mm x 247.7mm]

Style: 2201L

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾ [203.2mm x 247.7mm]

Style: 2070R

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾ [203.2 mm x 247.7mm]

Style: 2201R

PC: 102 Frame: PC102 x 0.6 Min. Size: 8x9¾ [203.2mm x 247.7mm]

► For PRICING ► See Section B.1 in our current Wholesale Pricing Catalog. B.1.2
