Murphys Spray & Blast Equipment Product Guide

PRODUCT GUIDE www.sprayandblast.com.au 1800 140 888

A PREMIERE EQUIPMENT SUPPLIER TO THE SURFACE COATING AND ABRASIVE BLASTING INDUSTRIES. Murphys Spray & Blast Equipment is your one-stop shop when it comes to preparing and coating surfaces. Murphys supply, hire and service a complete range of surface preparation, re-finishing and application equipment, including: Wet and dry abrasive blasting Spray equipment Line marking Coating test equipment Custom solutions With a team of highly trained technicians in Western Australia, and sales staff in Perth and Melbourne, Murphys can tailor solutions to suit any spray or blast application.

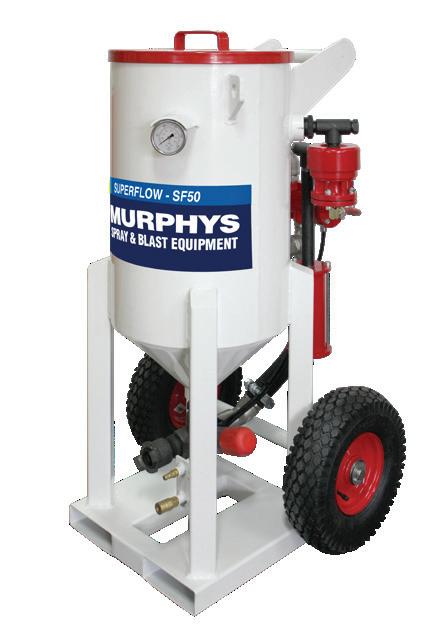

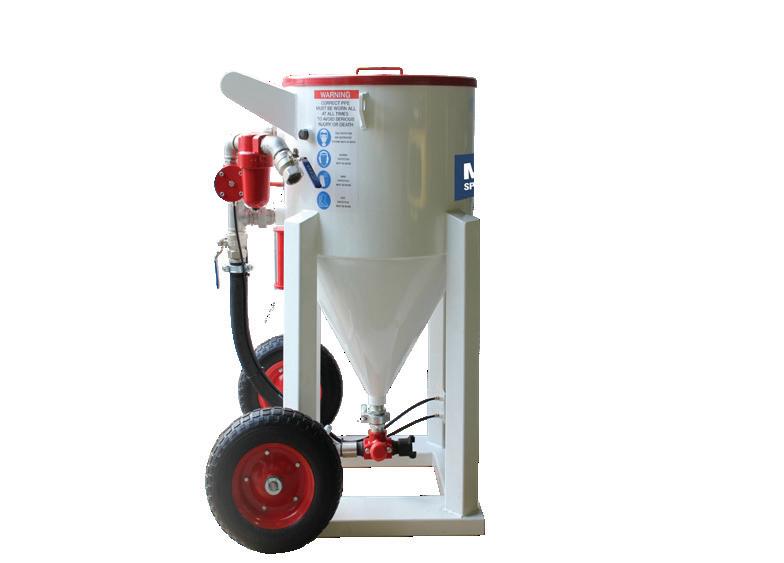

The SuperFlow blast pot line-up offers a high production, reliable and operator safe blasting system, guaranteed to increase productivity and profitability on every project.

Even the finest abrasives will flow smoothly and uninterrupted.

Unique Design Easy Maintenance High Productivity Available in four sizes from a 20L vessel up to 200L

2

Murphys Spray and Blast Equipment is the Authorised Australian distributor for torbo wet abrasive blasting systems.

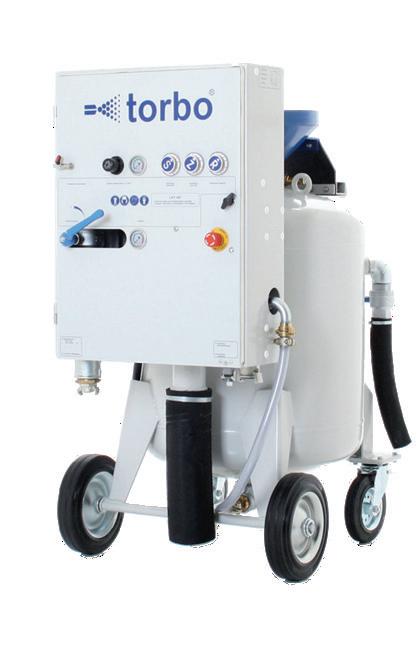

The most universal wet abrasive blasting system on the market! Torbo can be used in a large range of applications, for example: Concrete Hazardous Material Remediation Brick/Facades Monuments Offshore/Petrochemical Marine

Murphys Spray and Blast Equipment is the Authorised Australian distributor for Titan and Speeflo spray equipment.

Titan and Speeflo are complementary brands that together offer an impressive array of paint sprayers, line stripers, equipment and accessories to the professional painting contractor and maintenance segment of the market.

Phone: 1800 140 888

Contents 1

Spray Pumps & Machines

Titan Impact® Series Titan Impact 440 Titan Impact 540 Titan Impact 740 Titan Impact 1040

12 12 12 13

Titan Impact® X Series Titan Impact X 540I

13

Wagner Control Pro Series Wagner Control Pro 350 Extra

13

Air Assisted Airless Wagner F230 AirCoat SprayPack

14

Wagner ProSpray Series Wagner ProSpray PS 3.20 Wagner ProSpray PS 3.21 Wagner ProSpray PS 3.23 Wagner ProSpray PS 3.25 Wagner ProSpray PS 3.29 Wagner ProSpray PS 3.31 Wagner ProSpray PS 3.34 Wagner ProSpray PS 3.39

15 15 15 15 16 16 16 16

Wagner SuperFinish Series Wagner SuperFinish SF21 Pro Wagner SuperFinish SF23 Pro 2-in-1 Wagner SuperFinish SF33 Pro

17 17 17

Wagner PlastCoat Series Wagner PlastCoat PC 1025 Pro Wagner PlastCoat PC 1030

18 18

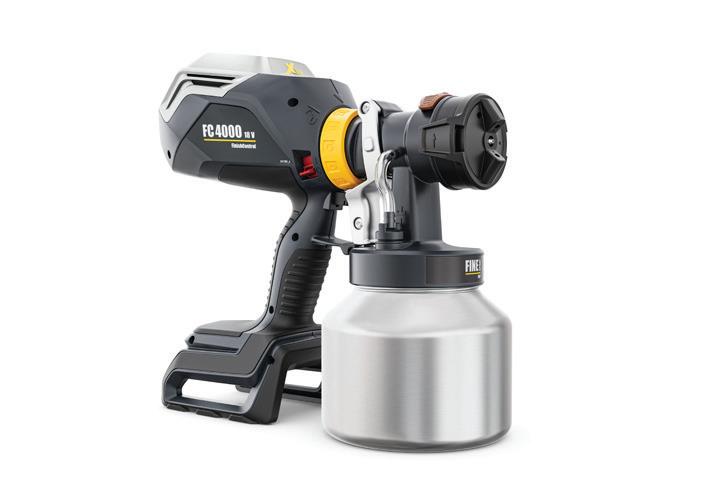

Wagner FinishControl Series Wagner FinishControl FC 3500 Wagner FinishControl FC 4000 18V Wagner FinishControl FC 5000 Wagner FinishControl FC 5500

19 19 19 20

Wagner FineCoat Series Wagner FineCoat 9700 Wagner FineCoat 9900 Plus

20 21

Titan Elite® Petrol Pumps Titan Elite 3500

21

www.sprayandblast.com.au

3

1

Airless Pumps & Machines Cont’d

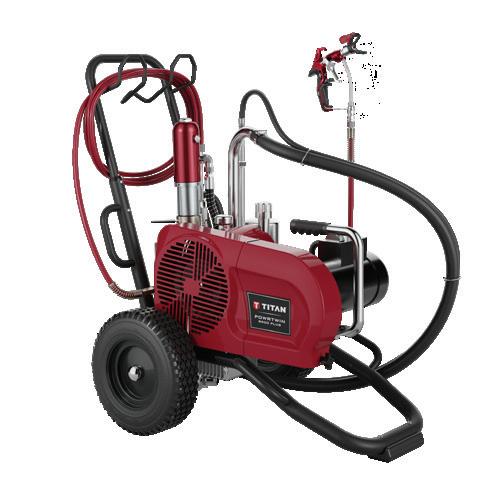

Titan PowrTwin™ Petrol Pumps Titan PowrTwin 4900 Plus Titan PowrTwin 6900 Plus Titan PowrTwin 8900 Plus

21 22 22

Titan PowrTwin™ DI Petrol Pumps Titan PowrTwin 6900 Plus DI Titan PowrTwin 12000 Plus DI

22 23

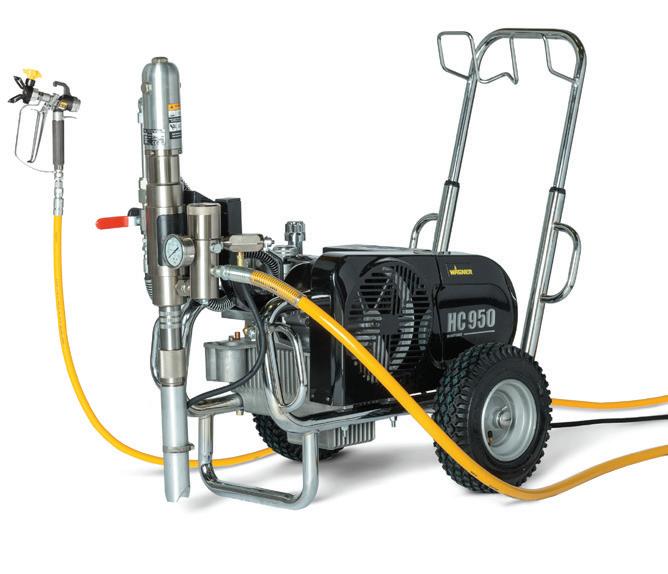

Wagner HeavyCoat Series HeavyCoat 950E

23

Titan Hydra X Series Titan Hydra X 4540 Titan Hydra X 7230

24 24

Titan AirCoat/PowrCoat/Speeflo Series Titan AirCoat 423 Titan AirCoat 620 Titan PowrCoat 630 Titan PowrCoat 1045 Titan PowrCoat 1064 Titan PowrCoat 1072 Titan Speeflo Admiral 40:1 Titan Speeflo Admiral 60:1

25 25 25 26 26 26 26 27

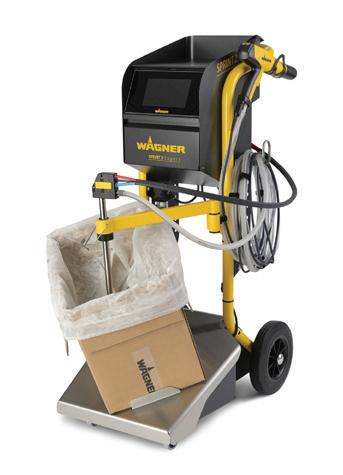

Wagner Sprint 2 Series Wagner Sprint 2 B Wagner Sprint Expert B W

27 27

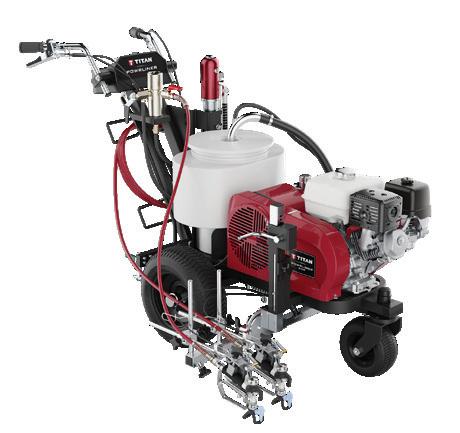

Titan PowrLiner Series Titan PowrLiner 850 Titan PowrLiner 3500 Titan PowrLiner 3500 72V Titan PowrLiner 4955 Titan PowrLiner 5500 Titan PowrLiner 6955 Titan PowrLiner 8955 Titan LazyLiner Elite Titan SideStriper

28 28 28 29 29 29 29 29 30

Borum Industrial Linemarkers

30

2

Spray Equipment

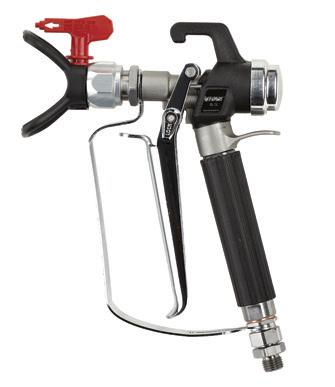

Airless Spray Guns Titan LX-80 In-Line Titan RX-80

4

30 30

Phone: 1800 140 888

2

Spray Equipment Cont’d

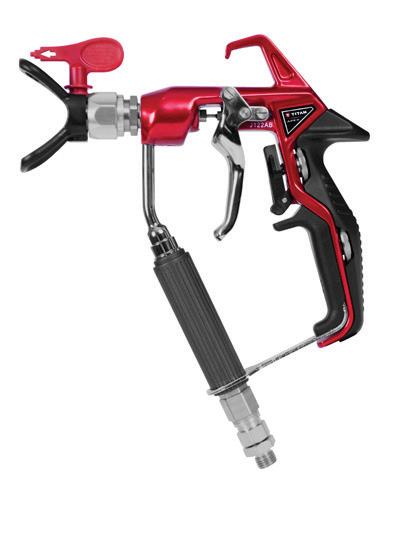

Titan RX-Pro Wagner Vector Grip Titan S-3 Titan RX-Apex Titan Mastic M-8 Titan S-7 Wagner PROTEC GM1-530

30 31 31 31 31 32 32

Aircoat Guns Wagner AC4600 Binks AA4400M

32 33

Electrostatic Guns GM5000 EA Low Pressure

33

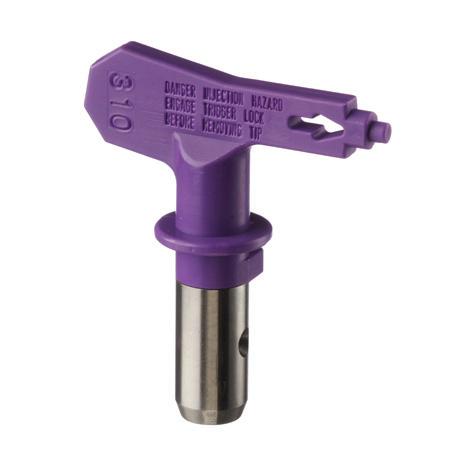

Airless Spray Tips Titan WideSpray™ Titan SC-6+ Titan HEA Wagner HEA Pro Titan SC-6+ Synergy Fine Finish Wagner TradeTip 3 Fine Finish Wagner TradeTip 3 Titan TR1 High Pressure Titan TR1 Line Striping

34 35 35 36 36 36 37 37 38

Airless Accessories

38

Paint Accessories

46

3

Conventional Spray Equipment

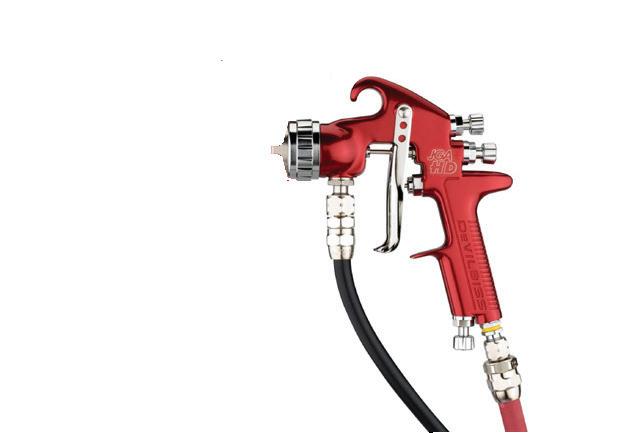

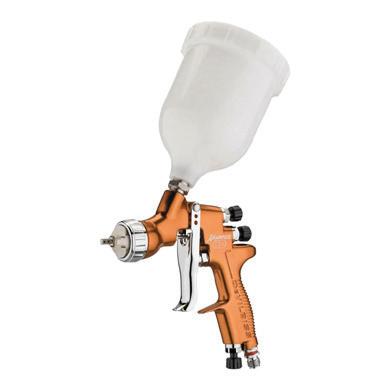

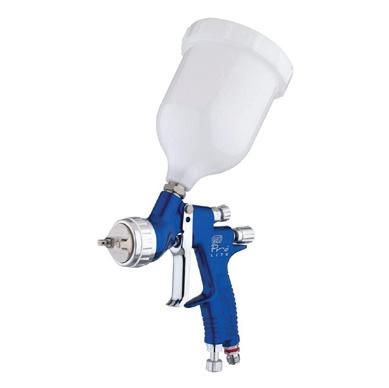

Gravity Guns DeVilbiss GFG Pro DeVilbiss Advance HD Conventional DeVilbiss Advance HD Conventional G430 DeVilbiss JGX-502 DeVilbiss GTI Pro Lite Conventional DeVilbiss Advance HD Trans-Tech© Star 106 Mini Gun DeVilbiss SGK

50 50 50 51 51 51 51 52

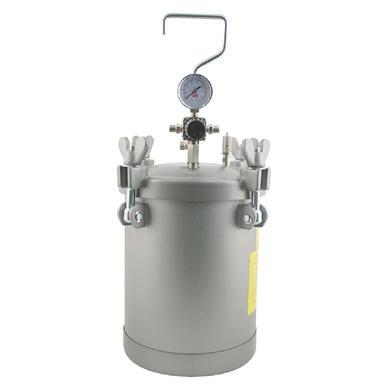

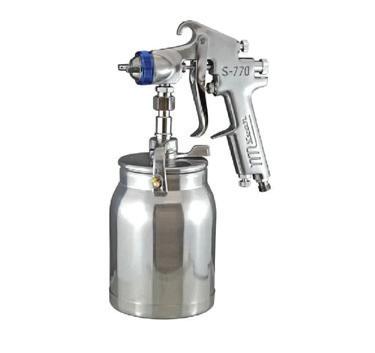

Pressure Guns Start S770 Tomcat 100 Conventional Panther 200 Conventional DeVilbiss Advance HD Trans-Tech© DeVilbiss JGA HD DeVilbiss Advance HD P497

52 52 52 53 53 53

www.sprayandblast.com.au

5

3

Conventional Spray Equipment Cont'd

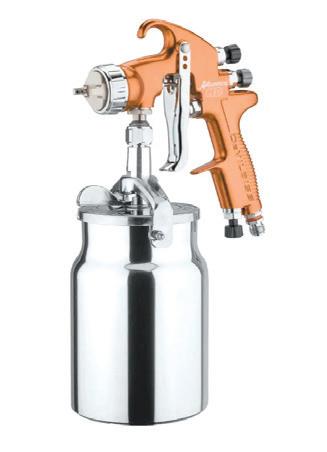

Suction Guns Start S770 DeVilbiss Advance HD Trans-Tech© DeVilbiss Advance HD Conventional S430 Pressure Pots

53 54 54 54

Accessories

57

4

Blast Equipment

SuperFlow Blast Pot SuperFlow SF-20 SuperFlow SF-50 SuperFlow SF-100 SuperFlow SF-200

60 61 61 61

FatBoy Blast Pot FatBoy 1T FatBoy 2T

62 62

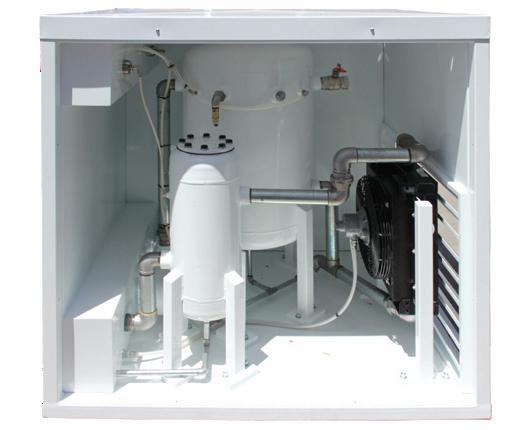

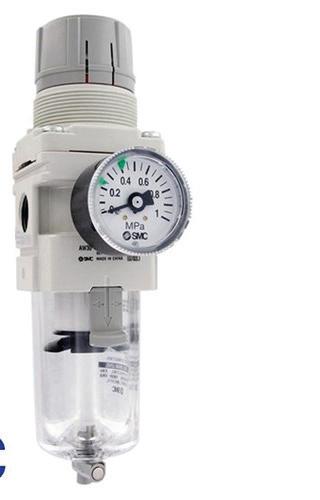

Compressed Air Treatment

63

Portable Ventilator

64

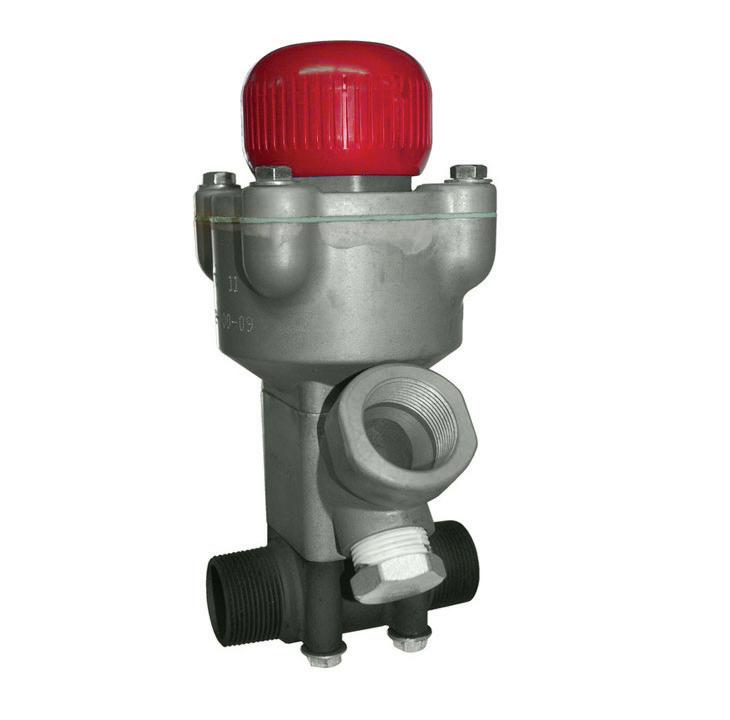

Spares & Accessories Remote Control Valves Remote Control Handles Abrasive Metering Valves Air Filtration & Manifolds Pop Up Valve & Seating Rings Climate Control Safety Gear Breathing Filter Cartridges Dust Filters Blast Hoses Blasting Nozzles Rubbers & Gaskets Safety Clips & Screws Nozzle Holders Couplings

65 67 68 70 71 72 73 78 79 80 82 89 89 90 91

5

Vapour Blasting

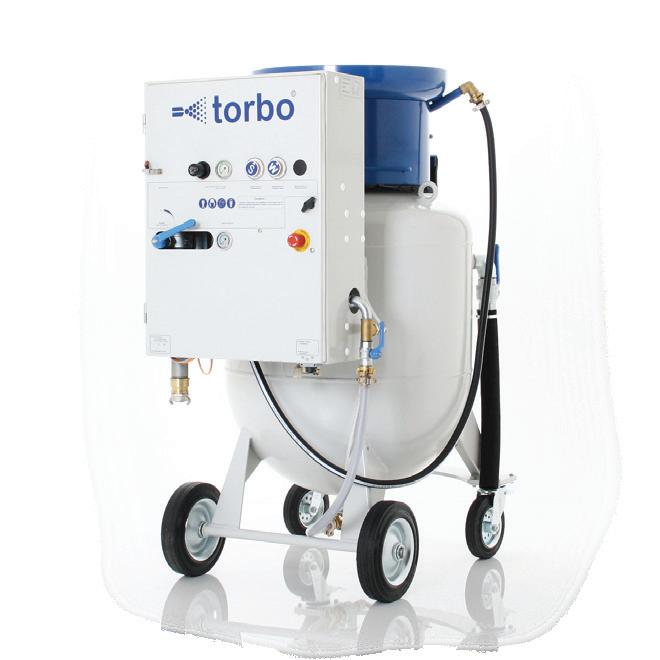

torbo® torbo Softline S torbo L120 torbo XL120 torbo XL320

6

94 95 95 95

Phone: 1800 140 888

5

Vapour Blasting Cont'd

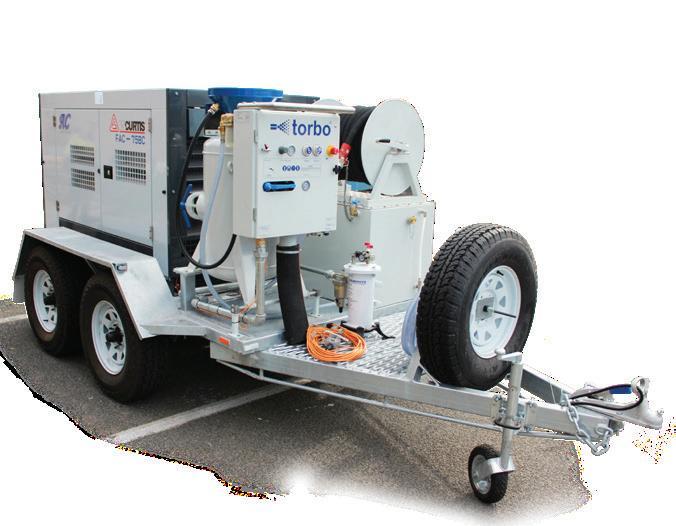

torbo Trailer torbojet

96 96

B Vapor® Blast Cabinets B VAPOR Mini B B VAPOR B2 B VAPOR BCON B VAPOR Classic

96 97 97 97

6

Safety Equipment

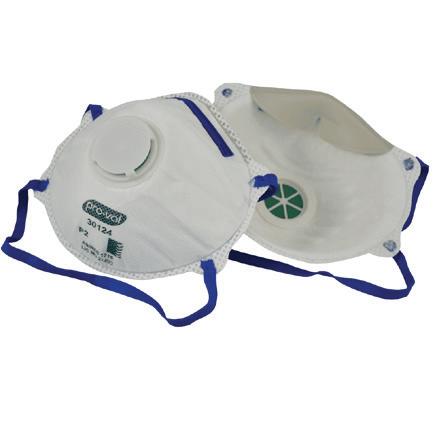

Disposable Masks P2 Respirator Sundström SR64 Protective Dust Hood

98 98

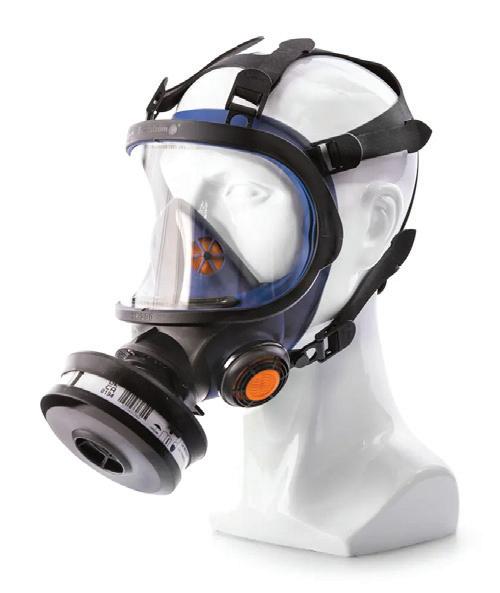

Half & Full Face Masks Sundström SR100 Silicon Half Mask Sundström Box Kits Sundström SR200 Full Face Mask Sundström SR200 Airline Sundström SR307 Compressed Air Attachment Sundström SR500/200 Fan Unit with Full Face Mask Sperian MPV Air Fed Visor

99 99 99 100 100 101 102

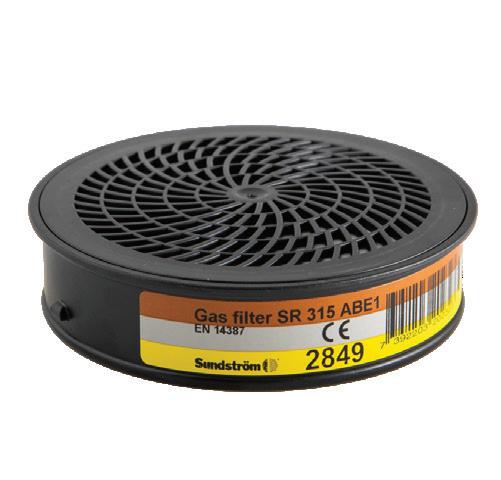

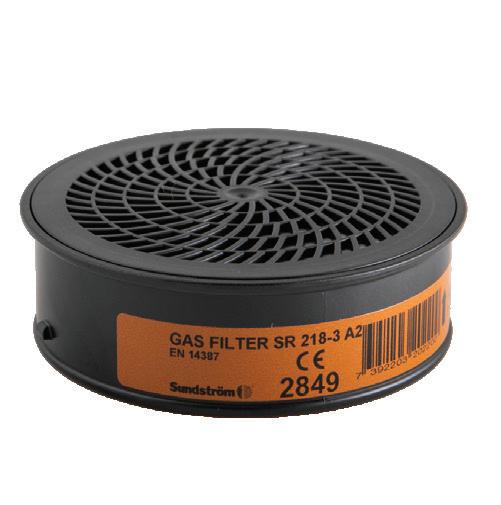

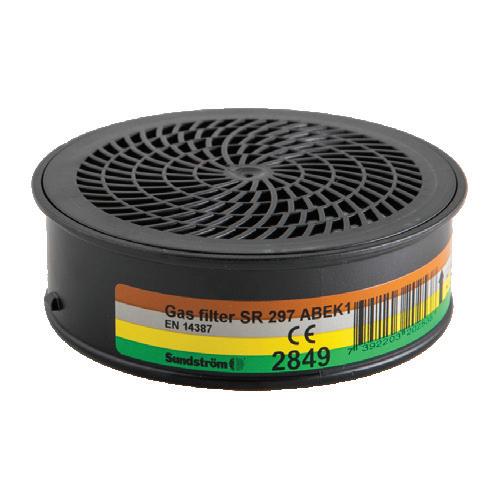

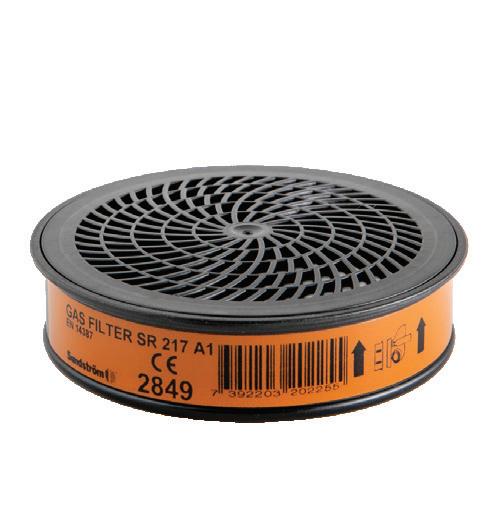

Gas Filters Sundström SR 217 Gas Filter A1 Sundström SR 218 Gas Filter A2 Sundström SR 294 Gas Filter ABE2 Sundström SR 297 Gas Filter ABEK1 Sundström SR 299-2 Gas/Particle Filter ABEJ1HgP3 Sundström SR 315 Gas Filter ABE1 Sundström SR 510 Particle Filter P3 Sundström SR 515 Gas Filter ABE1 Sundström SR 518 Gas Filter A2 Sundström SR 597 Gas Filter A1B2E2K1 Sundström Pre Filter (221-1)

102 102 102 103 103 103 103 104 104 104 104

Accessories

105

7

Test Equipment

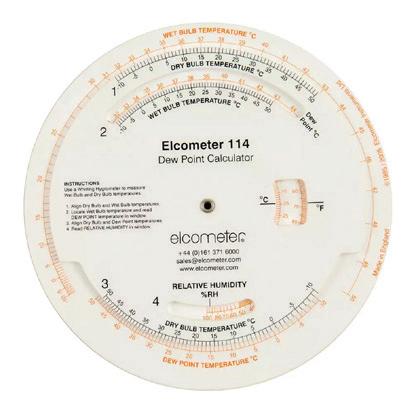

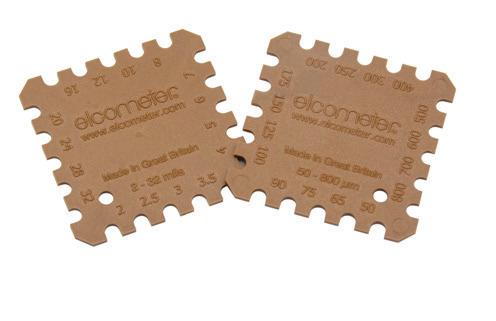

Elcometer 112 Wet Film Comb Elcometer 113 Magnetic Thermometer Elcometer 114 Dewpoint Calculator Elcometer 124 Testex® Replica Tape Elcometer 125 Surface Comparators Elcometer 154 Plastic Wet Film Gauge Elcometer 166 Whirling & Sling Hygrometer

www.sprayandblast.com.au

114 114 114 114 115 115 115

7

7

Test Equipment Cont'd

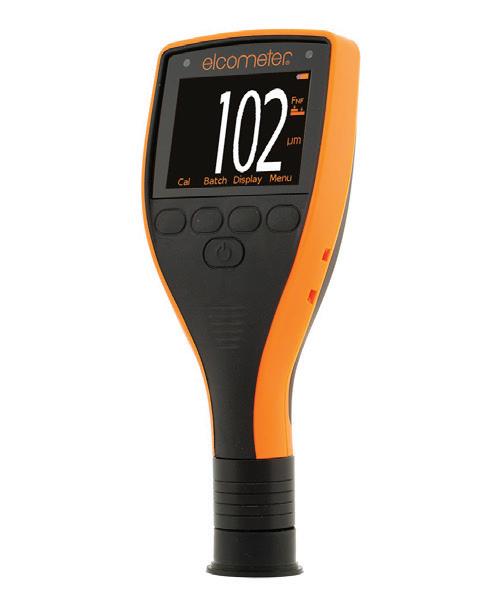

Elcometer 224 Digital Surface Profile Gauge Elcometer 266 DC Elcometer 270 Pinhole Detector Elcometer 319 Dewpoint Meter Elcometer 456

8

Fittings

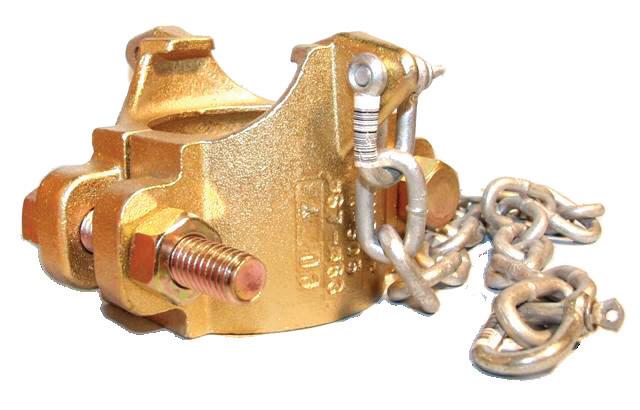

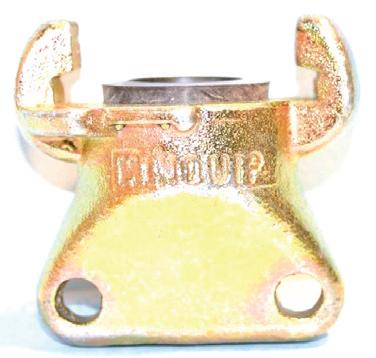

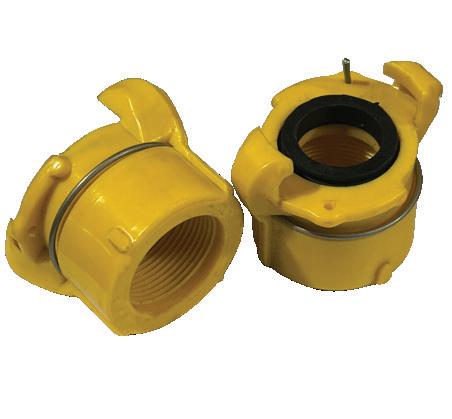

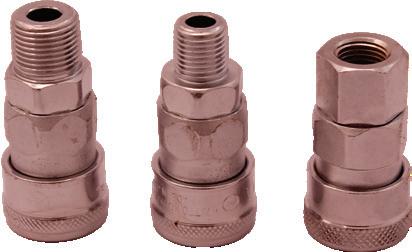

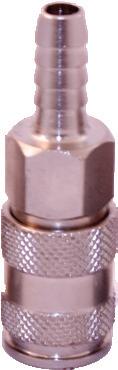

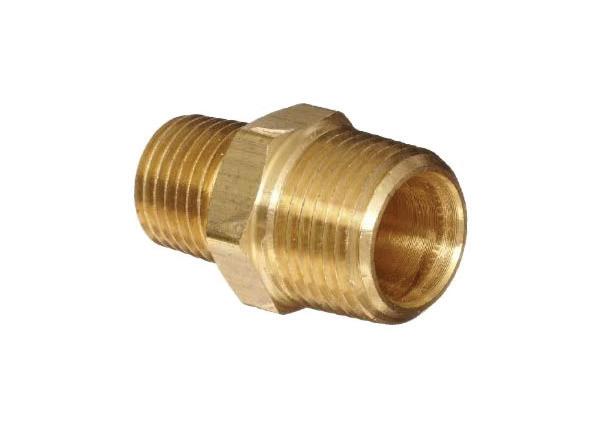

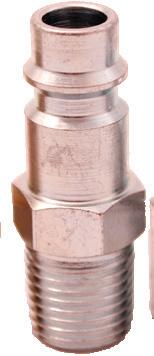

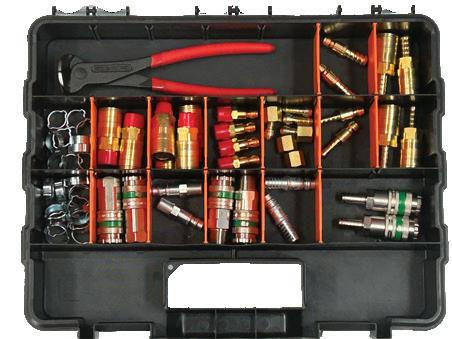

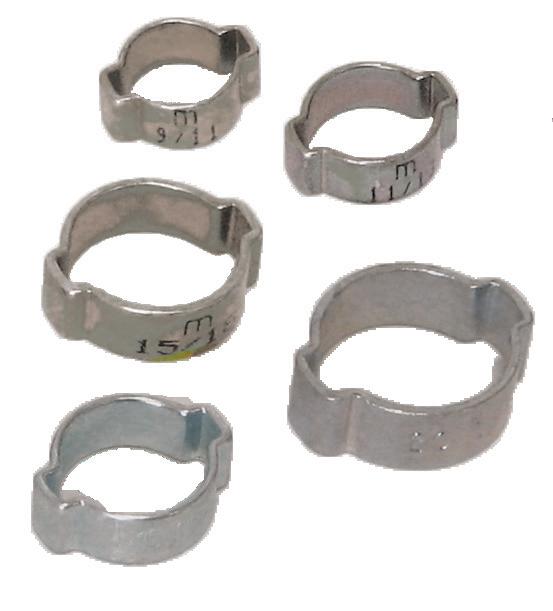

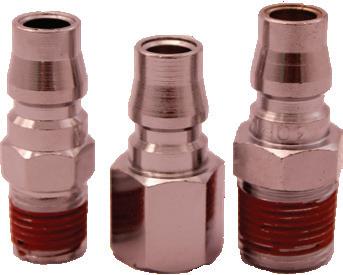

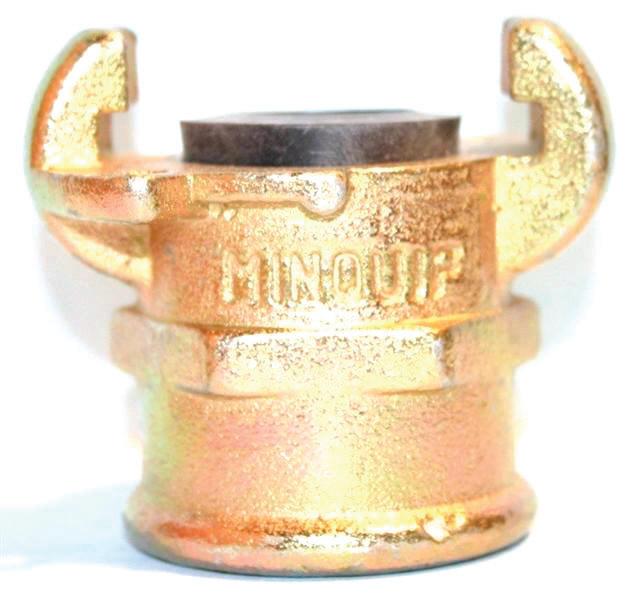

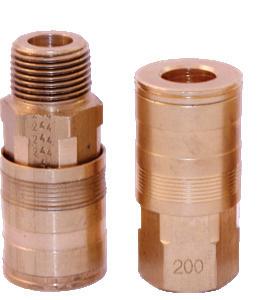

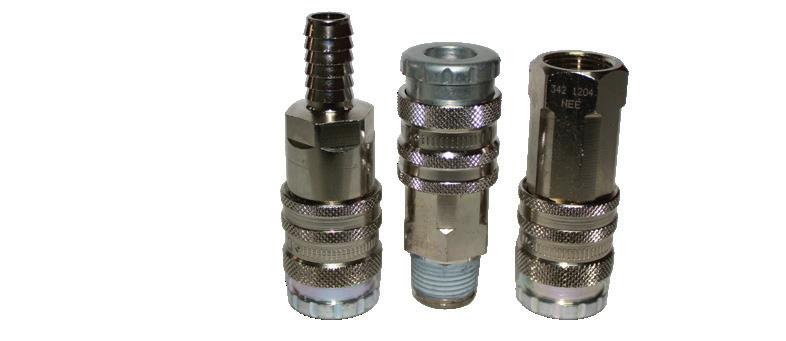

Claw Couplings Clamps & Rubbers Air Quick Release Couplings & Adaptors J-Mac Couplings & Adaptors Barbed Fittings Ryco 200 Series Ryco 500 Series Hex Sleeves, Plugs & Caps Reducing Bushes Hex Nipples Swivel Union & Ball Valves Tee Pieces & Elbows

118 119 120 120 121 122 122 123 124 125 125 126

Accessories

128

9

Hoses

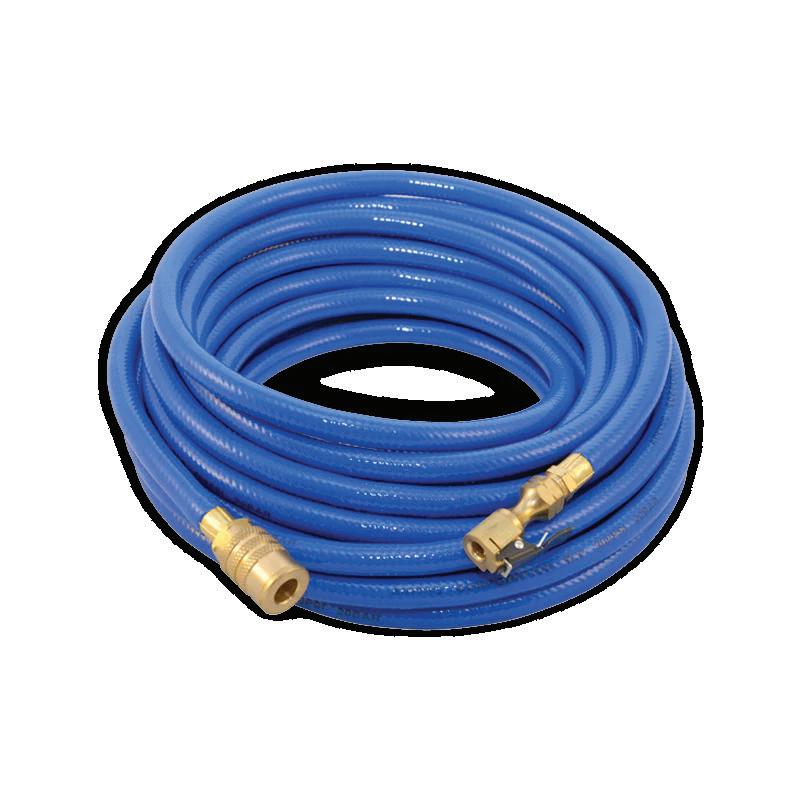

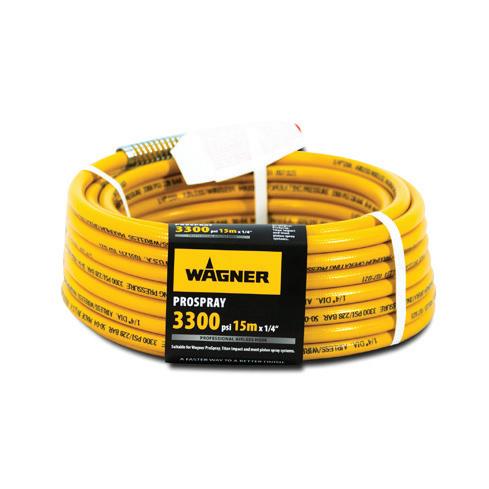

Airless Spray Whip Hose Airless Spray Hose Air Hose Bull Hose Breathing Hose Duplex Hose Nyliner Fluid Hose Natural Nylon Fluid Hose Deadman Hose Standard Blast Hose Heavy Wall Light Weight Blast Hose

130 130 131 131 132 132 132 132 133 133 134

Accessories

135

10

Air Tools

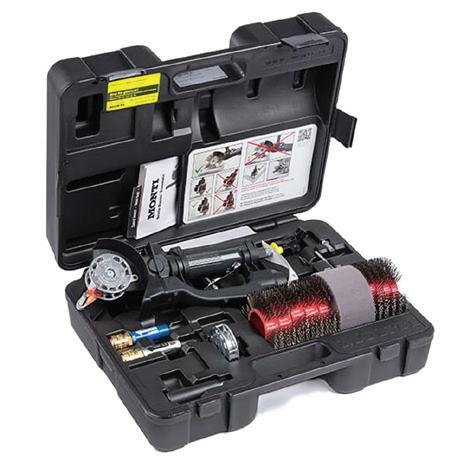

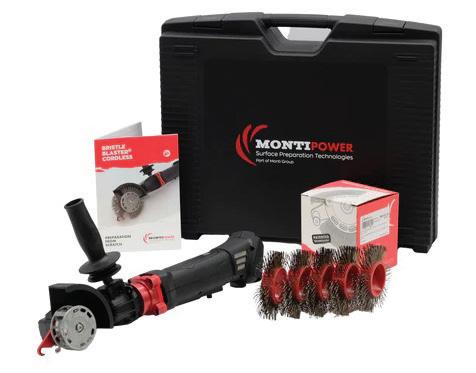

Bristle Blaster® Electric Bristle Blaster® Pneumatic Bristle Blaster® Cordless Wire Brush Eraser Wheel Adaptor Wheel

8

115 116 116 116 116

136 136 137 137 137 137

Phone: 1800 140 888

10

Air Tools Cont'd

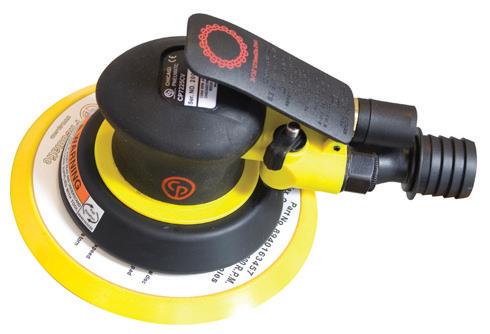

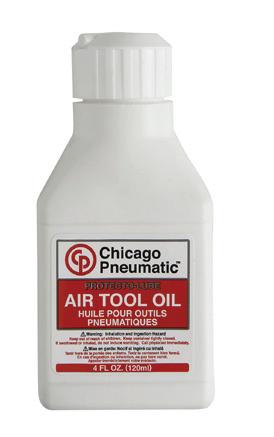

Accelerator Bar 7225 CVE 6” Palm Sander Air Tool Oil Knock Out Moisture Separator Micromist Accessories 3/4 Fog Lubricator Filter Regulator Air Regulator SMC Air Regulator

11

138 138 138 138 138 139 139 139 139

Abrasives

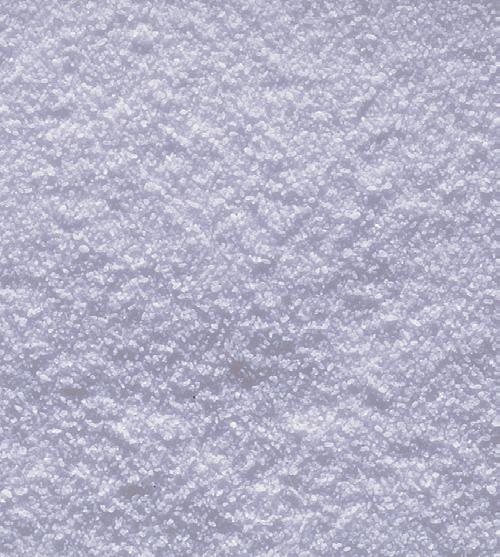

Aluminium Oxide Bicarbonate Soda Limestone (Calcium Carbonate Limestone) Chilled Iron Grit Crushed Glass Glass Bead Plastic Media Premium Indian Garnet Indian Garnet GMA Garnet Steel Grit Steel Shot Stainless Steel Shot Steel Cut Wire

www.sprayandblast.com.au

140 140 140 141 141 141 142 142 142 142 143 143 143 143

9

About us Murphys Spray and Blast Equipment continue to be a market leader in providing products & services to the industrial coatings sector for over 40 years. We support businesses Australia wide through our sales team and distribution bases in Wangara WA and Hallam VIC. We offer a broad range of specialised equipment for the blast and spray sector. Brands such as Titan, Wagner and more recently, have become the distributor of Borum products.

We are committed to quality, excellence and customer satisfaction. We provide repairs and equipment hire for blasting and spraying equipment through our Wangara site. Our team of experts can easily diagnose repairs and get you going in no time!

Our Brands

10

Phone: 1800 140 888

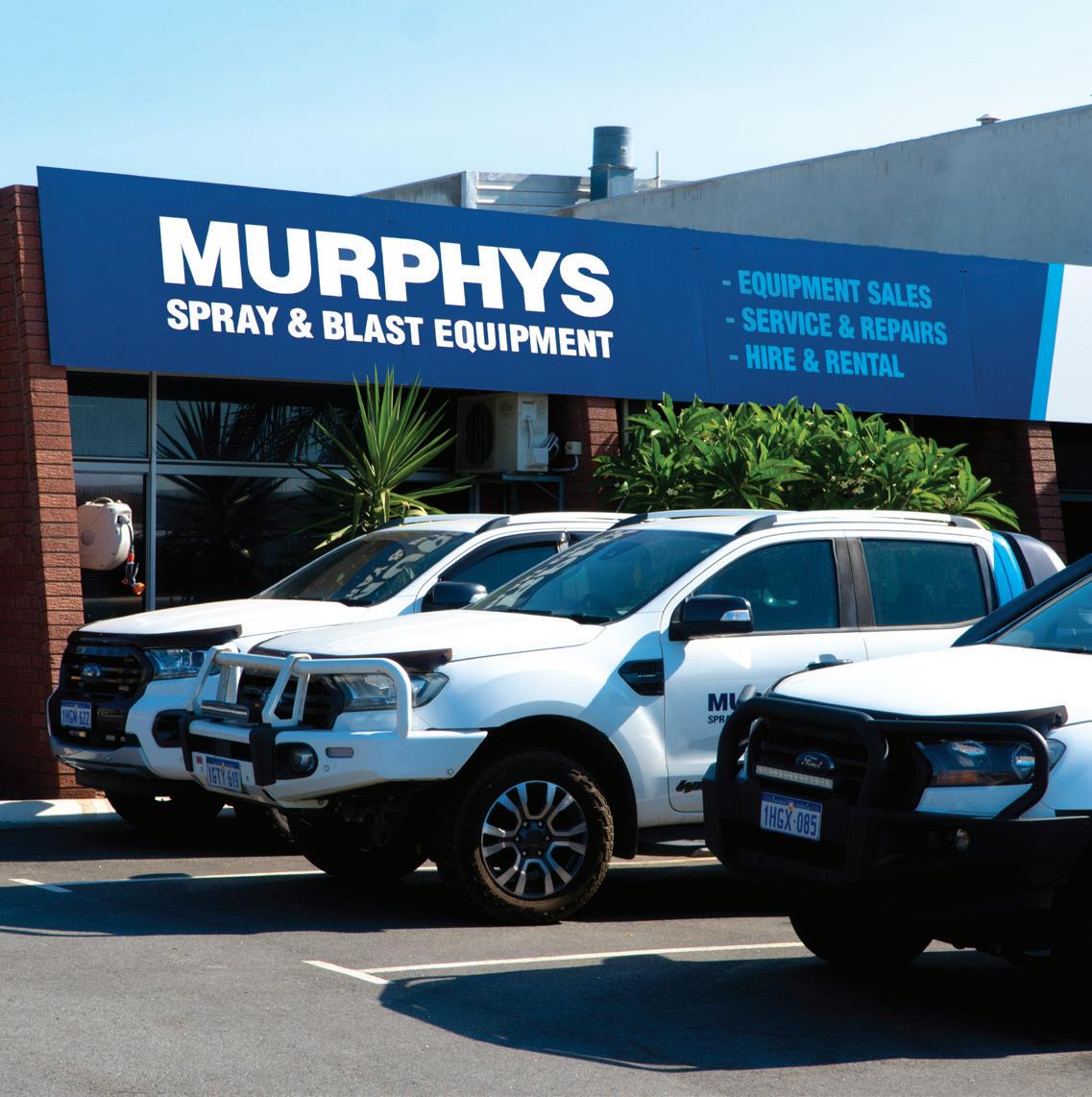

OUR SHOW ROOM

www.sprayandblast.com.au

11

SPRAY PUMPS & MACHINES

Spray Pumps & Machines

1

Electric Pumps Titan Impact® Series

These high-performance and heavy-duty electric airless paint sprayers are designed for sustained operation on a wide variety of projects, from a single room in a house to a warehouse or manufacturing facility. The Impact Series electric airless sprayers are durable with jobsite features that keep contractors spraying.

Titan Impact 400 XTRA Skid

T/2413527

Max Tip Size

0.021”

Max Pressure

3300 psi

Max Flow Rate

2.0 L/min

Max Hose Length

30m

Weight

13.6 kg

Motor Rating

0.875 HP

Rec. Annual Usage

6,000 L

The Titan Impact 400 is ideally suited for residential, property maintenance, and small commercial applications. This high performance electric airless sprayer will apply all standard primers, paints and architectural coatings efficiently.

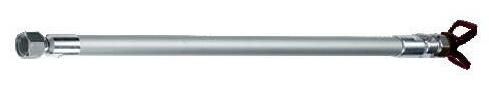

Comes complete with RX-80 Gun, 517 & 313 HEA reversible tip, 12" extension pole and 1/4” x 15m airless hose.

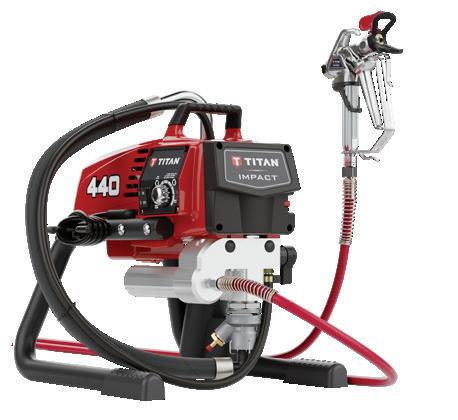

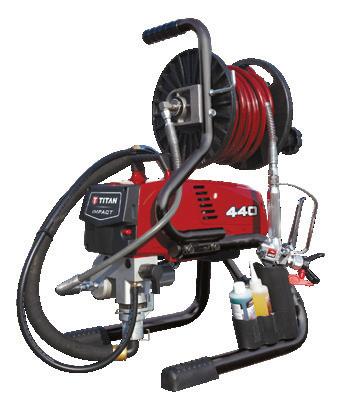

Titan Impact 440 Skid Low Rider

T/0532038 T/0532038C

Max Tip Size

0.023”

Max Pressure

3300 psi

Max Flow Rate

2.2 L/min

Max Hose Length

90m

Weight

16.3 - 25.8 kg

Motor Rating

0.875 HP

Rec. Annual Usage

8,000 L

Best suited for residential, property maintenance and small commercial applications. The 440 will apply all standard architectural primers, paints and coatings efficiently.

Comes complete with RX-80 Gun, 517 TR1 reversible tip and 1/4” x 15m airless hose.

Titan Impact 540 Skid Low Rider

T/0532039 T/0532039C

Max Tip Size

0.024”

Max Pressure

3300 psi

Max Flow Rate

2.3 L/min

Max Hose Length

90m

Weight

16.3 - 25.8 kg

Motor Rating

1.2 HP

Rec. Annual Usage

10,000 L

12

Best suited for residential, property maintenance, rental, and light commercial applications and is equipped with digital technology for improved efficiency. It sprays stains, lacquers, enamels, latex, and other low and medium viscosity coatings.

Comes complete with RX-Pro Gun, 517 TR1 reversible tip and 1/4” x 15m airless hose.

Phone: 1800 140 888

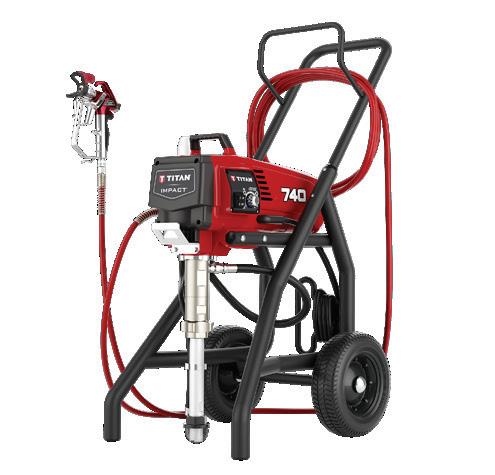

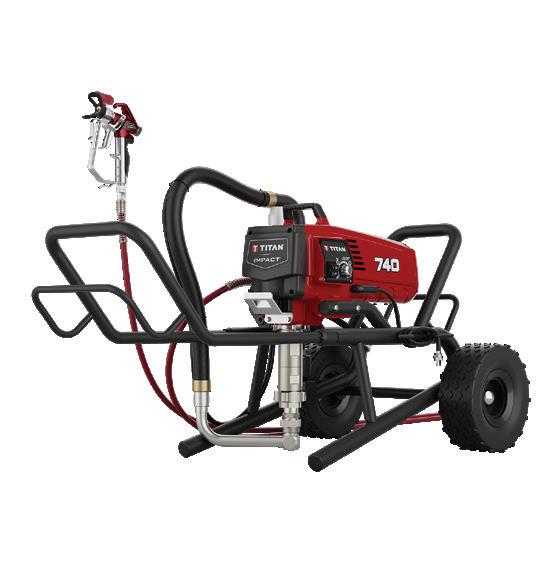

Titan Impact 740 Low Rider

T/0532041

Max Tip Size

0.029”

Max Pressure

3300 psi

Max Flow Rate

3.03 L/min

Max Hose Length

90m

Weight

36.7 kg

Motor Rating

2.0 HP

Rec. Annual Usage

20,000 L

1

Designed for extended, heavy-duty performance on larger residential and commercial projects. This is the sprayer contractors turn to when the time comes to enter the big leagues. Sprays stains, lacquers, enamels, latex and block fillers Comes complete with RX-Pro Gun, 517 TR1 reversible tip and 1/4” x 15m airless hose.

Spray Pumps & Machines

Titan Impact 1040 High Rider

T/0532042

Max Tip Size (1 Gun)

0.033”

Max Tip Size (2 Guns) 0.021" Max Pressure

3300 psi

Max Flow Rate

4.36 L/min

Max Hose Length

90m

Weight

44.4 kg

Motor Rating

2.5 HP

Rec. Annual Usage

40,000 L

For big projects requiring large tip sizes or more than one spray gun operating from a single unit. This workhorse is perfect for large residential, commercial and industrial applications. Sprays stains, lacquers, enamels, latex and block fillers Comes complete with RX-Pro Gun, 517 TR1 reversible tip and 1/4” x 15m airless hose.

Titan Impact® X Series The Titan Impact X range represents a new generation of airless paint sprayers engineered for professional contractors who demand performance, versatility and smart technology. These sprayers are part of Titan’s reimagined and re-engineered lineup, designed to multiply productivity with innovations like the DuraLife™ HE Brushless Motor for consistent power and minimal maintenance and Logix™ Adaptive Pressure Control, which automatically adjusts pump speed for optimal spray performance across different tip sizes and applications supported by the MyTitan app using IntelliSync™ technology.

Titan Impact X 540I Skid

T/2433263

Max Tip Size

0.023”

Max Pressure

3300 psi

Max Flow Rate

2.04 L/min

Max Hose Length

30m

Weight

13.6 kg

Motor Rating

1.2 HP Brushless

Rec. Annual Usage

10,000 L

www.sprayandblast.com.au

Step up to the neXt level with the Impact X 540I. Featuring powerful Impact X Series performance and paired with Titan’s exclusive IntelliSync® Technology allowing you to take full advantage of connected sprayer operation in MyTitan.

New MaxFX™ No Tools Fluid Section changes in minutes on the job with just your hands.

Comes complete with RX-80 Gun, 517 HEA reversible tip and 1/4” x 15m airless hose.

13

Wagner Control Pro Series 1

Ideal for those larger-sized projects around the house, including interior and exterior walls, weather boards, wooden fences, garage doors, window shutters, lattice work, pergolas, cane furniture and much more. The Control Pro range of pumps will spray both water based and solvent based materials. Whether painting a fence or an entire house, Control Pro sprayers provide simplified operation and clean up, with the technology to provide years of trouble free operation.

Spray Pumps & Machines

Wagner Control Pro 350 Extra Skid

W/2371063

Max Tip Size

0.019”

Max Pressure

1600 psi

Max Flow Rate

1.5 L/min

Weight

7.6 kg

Motor Rating

600 W

Ideal for small to medium sized projects, new work or small renovations. A very compact and practical unit.

Comes complete with a 15m hose, metal spray gun, 1x CP HEA 311, 1x CP HEA 515, 1x CP HEA 619 spray tips, tip guard, 30cm extension pole, pressure gauge, and 1x white & 1x red gun filter kit. The unit comes skid-mounted and is lightweight with a built-in handle for easy movement.

Pack Includes

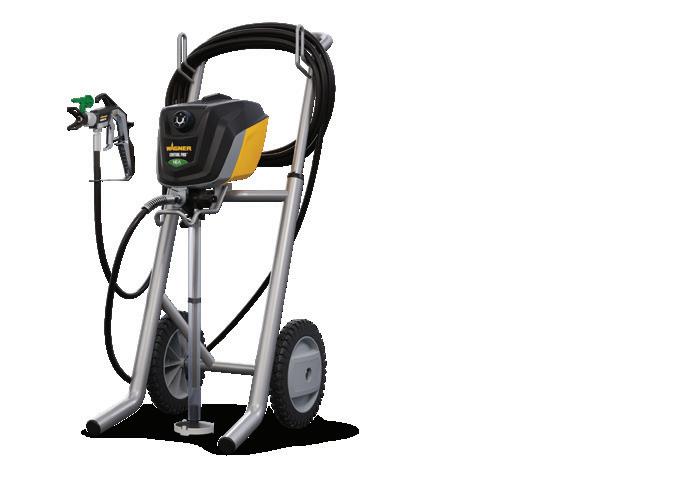

Wagner Control Pro 350 Extra Cart

W/2371067

Max Tip Size

0.019”

Max Pressure

1600 psi

Max Flow Rate

1.5 L/min

Weight

13 kg

Motor Rating

600 W

Ideal for small to medium sized projects, new work or small renovations. Telescopic cart allows for easy transportation and storage of the unit.

Comes complete with a 15m hose, metal spray gun, 1x CP HEA 311, 1x CP HEA 515, 1x CP HEA 619 spray tips, tip guard, 30cm extension pole, pressure gauge, and 1x white & 1x red gun filter kit. The unit comes cart-mounted with wheels with a built-in handle for easy movement.

Pack Includes

Wagner Air Assisted Airless Wagner AirCoat Fine Finishing Systems enables the completion of mirror finish projects with a minimum of fuss. The combination of low pressure airless paint atomisation through a fine tip, with the added benefits of air to optimise the spray pattern and provide fan control, makes these systems the ultimate finishing tools for all applications where a superior finish is required.

Wagner F230 AirCoat SprayPack W/0524009P Max Fluid Pressure

2800 psi

Max Air Pressure

30 psi

Flow Rate

1.25 L/min

Weight

40.6 kg

Motor Rating

1000 W

14

The ideal solution for contractors who want to achieve the perfect finish with far less overspray than an airless system Comes complete on trolley with F230 Airless Diaphragm Unit, Compressor, 10 metre ultra flexible dual Hose Package with protective cover, AC4600 Premium AirCoat Gun with green Air Cap and Base, 2 x AirCoat Tips (309 & 411), plus TT3 Reversible Tip Base and Seal (for use with standard airless tips: TT3, FF, HEA).

Phone: 1800 140 888

Wagner SprayPack Series Wagner AirCoat Fine Finishing Systems enables the completion of mirror finish projects with a minimum of fuss. The combination of low pressure airless paint atomisation through a fine tip, with the added benefits of air to optimise the spray pattern and provide fan control, makes these systems the ultimate finishing tools for all applications where a superior finish is required.

1

Wagner SprayPack 18V W/2472274 0.017”

Max Pressure

1600 psi

Max Flow Rate

0.9 L/min

Max Hose Length

15m

Weight (inc. Battery)

6 kg

Hopper Size

4.7 L

The cordless spray solution designed for professional contractors who demand flexibility, effciency and professional-grade results. Use it as a backpack, stationary or side-carry.

Spray Pumps & Machines

Max Tip Size

Comes with SprayPack 18V base unit, 2x Bosch 4Ah ProCORE 18V batteries and Bosch charger GAL 18V-40, left & right backpack carrying straps, 7.5m DN4 airless hose, Vector Pro 4-finger airless gun, HEA pressure gauge, 90o connection, 515 HEA Pro tip, 211 HEA Pro tip, extra fine (red) gun filter, fine (yellow) gun filter.

Wagner ProSpray Series Designed for maximum reliability with perfectly matched features to suit a huge variety of applications. From smaller pumps for lighter work right up to larger pumps for higher viscosity materials, larger work sites or for running multiple guns. Features include Digital Electronic Spray Control, brushless DC motor, auto-oiler, self-adjusting packings and a high pressure filter.

Wagner ProSpray PS 3.20 Skid

W/2413422

Max Tip Size

0.021”

Max Pressure

3000 psi

Max Flow Rate

2.0 L/min

Max Hose Length

30m

Weight

13.6 kg

Motor Rating

1.3 HP

Rec. Annual Usage

6,000 L

Excellent value for money. This affordable unit is ideal for those who only spray occasionally or who need a reliable pump for spraying small areas.

Comes complete on skid with professional flexible suction system, pressure gauge, 15m airless hose, Vector Pro airless gun, 517 HEA Pro tip and base, tool kit and pump protection start-up pack.

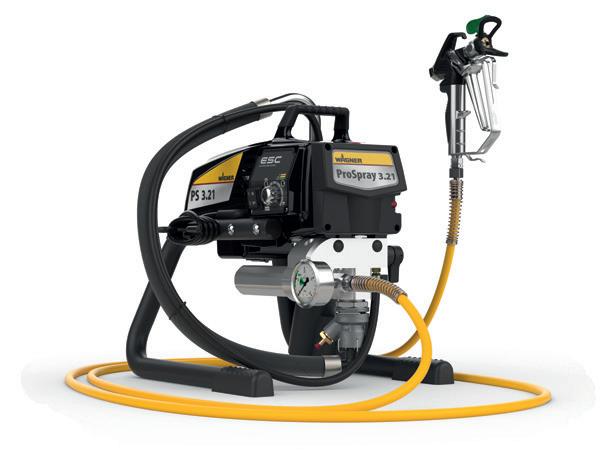

Wagner ProSpray PS 3.21 Skid

W/0558009

Max Tip Size

0.023”

Max Pressure

3200 psi

Max Flow Rate

2.2 L/min

Max Hose Length

60m

Weight

17.9 kg

Motor Rating

1.4 HP

Rec. Annual Usage

8,000 L

www.sprayandblast.com.au

Ideal for small jobs or as a second unit.

A compact solution for small to medium airless applications.

Comes complete on skid with flexible suction system, high pressure filter, HEA pressure gauge, inlet valve depressor, Vector Grip airless gun, 15 metre airless hose, 517 HEA Pro tip and base, tool kit and pump protection start-up pack.

15

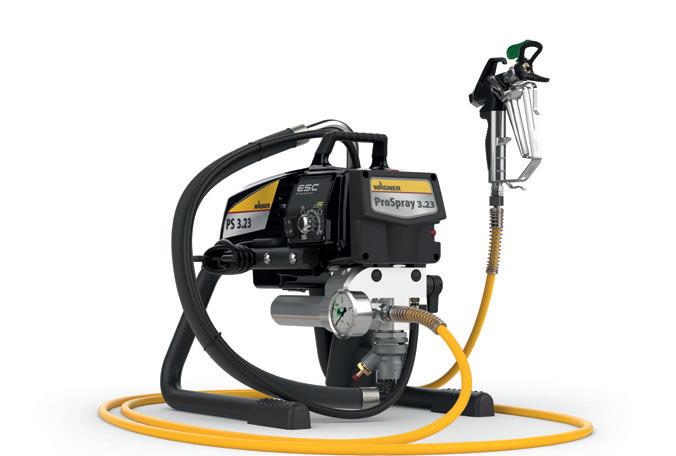

Wagner ProSpray PS 3.23

Spray Pumps & Machines

1

Skid

W/0558010

Max Tip Size

0.024”

Max Pressure

3200 psi

Max Flow Rate

2.3 L/min

Max Hose Length

90m

Weight

17.9 kg

Motor Rating

1.4 HP

Rec. Annual Usage

10,000 L

Ideal for one gun, residential, commercial and maintenance applications.

Comes complete on skid with flexible suction system, high pressure filter, HEA pressure gauge, inlet valve depressor, Vector Grip airless gun, 15 metre airless hose, 517 HEA Pro tip and base, tool kit and pump protection start-up pack.

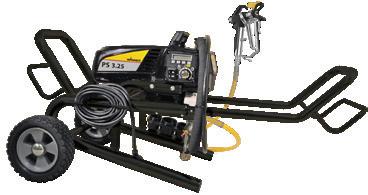

Wagner ProSpray PS 3.25 Skid Low Boy High Boy

W/0558011 W/0558013 W/0558012

Max Tip Size

0.027”

Max Pressure

3200 psi

Max Flow Rate

2.6 L/min

Max Hose Length

90m

Weight

17.9 - 27.4 kg

Motor Rating

1.5 HP

Rec. Annual Usage

13,000 L

Ideal for medium residential, commercial and maintenance applications.

Comes complete on skid with flexible suction system, high pressure filter, inlet valve depressor, Vector Grip airless gun, 15 metre airless hose, HEA Pro tip 517, 517 TradeTip 3 and base, tool kit and pump protection start-up pack.

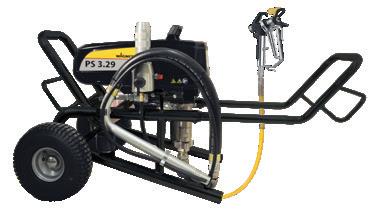

Wagner ProSpray PS 3.29 Low Boy High Boy

W/0558015 W/0558014

Max Tip Size

0.029”

Max Pressure

3200 psi

Max Flow Rate

3.0 L/min

Max Hose Length

90m

Weight

43.5 kg

Motor Rating

2.3 HP

Rec. Annual Usage

20,000 L

Ideal for large production residential, roofing, medium commercial or medium maintenance applications.

Comes complete with flexible (low boy) or rigid (high boy) suction system, high pressure filter, Vector Grip airless gun, 15 metre airless hose, HEA Pro tip 517, 517 TradeTip 3 and base, tool kit and pump protection start-up pack.

Wagner ProSpray PS 3.31 High Boy

W/0558016

Max Tip Size 1 Gun

0.032”

Max Tip Size 2 Guns

0.021”

Max Pressure

3200 psi

Max Flow Rate

3.8 L/min

Max Hose Length

90m

Weight

43.5 kg

Motor Rating

2.5 HP

Rec. Annual Usage

26,000 L

16

Ideal for large production residential, roofing, medium commercial or medium maintenance applications. Suitable for projects requiring more than one gun to be used.

Comes complete with rigid suction system, high pressure filter, Vector Grip airless gun, 15 metre airless hose, HEA Pro tip 517, 517 TradeTip 3 and base, tool kit and pump protection start-up pack.

Phone: 1800 140 888

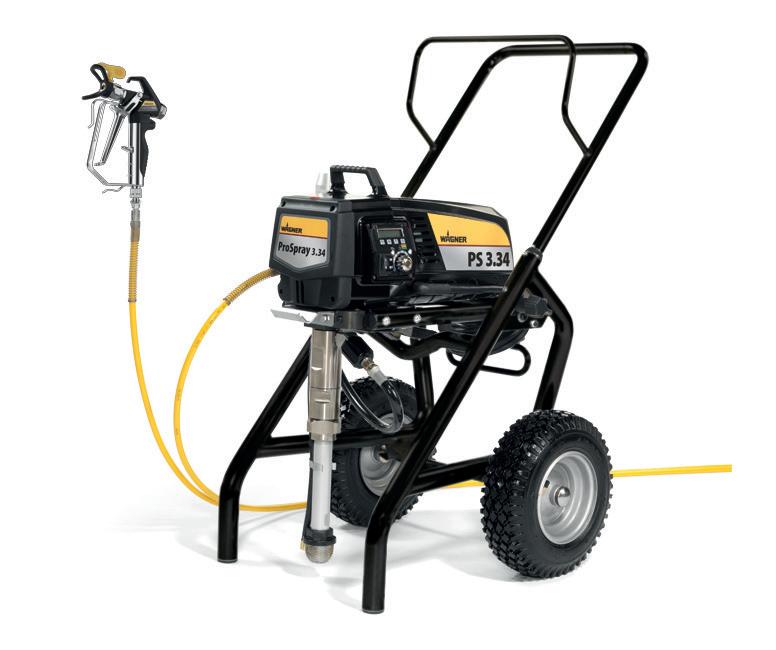

Wagner ProSpray PS 3.34 High Boy

W/0558017

Max Tip Size 1 Gun

0.034” 0.023”

Max Pressure

3200 psi

Max Flow Rate

4.5 L/min

Max Hose Length

90m

Weight

47.6 kg

Motor Rating

2.6 HP

Rec. Annual Usage

34,000 L

Comes complete with rigid suction system, high pressure filter, Vector Grip airless gun, 15 metre airless hose, HEA Pro tip 517, 517 TradeTip 3 and base, tool kit and pump protection start-up pack.

Spray Pumps & Machines

Max Tip Size 2 Guns

1 Ideal for large production residential, roofing, medium commercial or medium maintenance applications. Suitable for projects requiring more than one gun to be used.

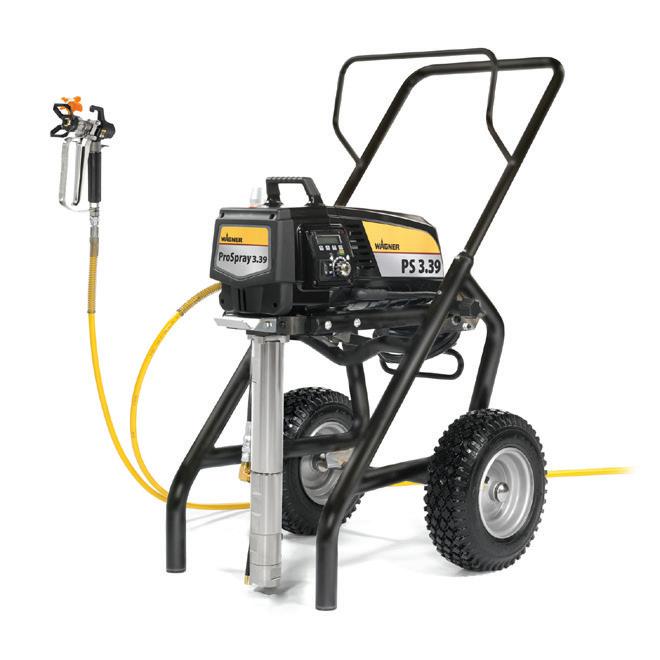

Wagner ProSpray PS 3.39 High Boy

W/0558018

Max Tip Size 1 Gun

0.039”

Max Tip Size 2 Guns

0.026”

Max Pressure

3200 psi

Max Flow Rate

5.0 L/min

Max Hose Length

90m

Weight

50 kg

Motor Rating

2.9 HP

Rec. Annual Usage

40,000 L

Ideal for large production residential, roofing, commercial, maintenance, industrial applications and projects requiring more than one gun to be used. Can also spray high viscosity materials such as non-aggregate texture coatings and plaster based products, including filling compounds.

Comes complete with rigid suction system, high pressure filter, AG 14 airless spray gun, 15 metre 1/2” airless hose, 3/8” whip hose, HEA Pro tip 621, 2SpeedTip 527/235, tool kit and pump protection start-up pack.

Wagner SuperFinish Series Wagner’s patented QLS (quality long stroke) technology provides superior performance, eliminating pulsation for smooth application. The longer stroke of the diaphragm allows the application of a wide range of materials, from thin stains and lacquers to higher viscosity coatings. The low stroke frequency puts less stress on internal components, significantly extending the service life and keeping maintenance costs low. The valves are made from wear-resistant carbide and the diaphragm is made of solvent resistant polyamide.

Wagner SuperFinish SF21 Pro Flexible Suction 3.7L Hopper 2-in-1

W/2437316F W/2437316H W/2437316SP

Max Tip Size 1 Gun

0.021”

Max Pressure

3000 psi

Max Flow Rate

2.1 L/min

Max Hose Length

30m

Weight

23.6 kg

Motor Rating

1.2 HP

Rec. Annual Usage

6,000 L

www.sprayandblast.com.au

Comes complete on single-position skid including flexible suction system (flex) or 3.7L hopper (hopper), 15m high pressure DN6 airless hose, Vector Pro airless gun and base, HEA Pro Tip 517 (flex) or Fine Finish 310 tip (hopper) and HEA Pressure gauge.

2-in-1 variant comes with both flexible suction and 3.7L hopper, 517 HEA Pro tip and 310 Fine Finish tip.

17

Wagner SuperFinish SF23 Pro 2-in-1

Spray Pumps & Machines

1

5L Hopper

W/2395486H5

Max Tip Size 1 Gun

0.023”

Max Pressure

3625 psi

Max Flow Rate

2.6 L/min

Max Hose Length

90m

Weight

27 kg

Motor Rating

1.7 HP

Rec. Annual Usage

8,000 L

Versatile and robust, the perfect allrounder for multiple application types.

Comes complete on collapsible cart including both flexible suction system and 5 litre hopper, 15m airless hose, Vector Pro airless gun and base, 517 HEA Pro tip, 310 Fine Finish tip, HEA pressure gauge & tool kit.

5L hopper & 310 Fine Finish Tip

Wagner SuperFinish SF33 Pro Flexible Suction 20L Hopper

W/2388260F W/2388260H20

Max Tip Size 1 Gun

0.033”

Max Pressure

3625 psi

Max Flow Rate

4.3 L/min

Max Hose Length

90m

Weight

50 kg

Motor Rating

2.9 HP

Rec. Annual Usage

35,000 L

Ideal for large production residential, roofing, commercial, maintenance and industrial applications. Suitable for projects requiring more than one gun to be used.

Comes complete on single-postion cart including HEA pressure gauge, flexible suction system (aluminium), 15m airless hose, Vector Pro 4-finger airless gun, 517 HEA Pro tip and base.

Wagner PlastCoat Series Screw driven machines for aggregate based products such as acrylic based renders, textures, waterproofing, grouting and fireproofing compounds. The PlastCoat units are suitable for a huge variety of applications, such as thermal insulation, textured plaster and paint, acrylic based renders, smoothing and structuring, waterproofing, concrete repair and much more, and will ensure a uniform coating quality.

Wagner PlastCoat PC 1025 Pro SprayPack

W/2416348

Voltage

240v/50Hz

Max Delivery Radius

40m

Max Delivery Height

20m

Max Grain Size

6 mm

Max Pressure

580 psi

Weight

59kg

Motor Rating

3.1 HP

18

High performance and durable for harsh application envrioments with only 3 buttons for easy control. Powered by a brushless motor. Compact in size & pneumatic tyres for mobility on construction sites.

Comes complete on trolley with 50 litre hopper, 15 metre DN25 plaster hose with air hose, pneumatic spray lance with 6mm texture tip, tool bag which includes cleaning balls, needle and stator.

Requires min. 12 cfm compressor (Compressor not included). 15 amp power requirement is needed.

Phone: 1800 140 888

Wagner PlastCoat PC 1030 W/2361588

Voltage

240v/50Hz

Max Delivery Radius

50m

Max Delivery Height

30m

Max Grain Size

6 mm

Max Pressure

580 psi

Weight

59kg

Motor Rating

2.9 HP

1

Ultra portable and compact system for spraying interior/exterior acrylic texture, cement based render and plaster filler up to 6mm grain size.

Comes complete on Trolley, with 50 litre Hopper, 10 metre x 25mm Hose, Automatic Spray Lance with Integrated Switch, 2 x 25mm cleaning balls, toolbox, silicon spray and cleaning kit. Standard spray pack setup is for acrylic texture products and the PC 1030 is supplied with an 8mm nozzle.

Spray Pumps & Machines

SprayPack

Requires min. 12 cfm compressor (Compressor not included). 15 amp power requirement is needed.

Wagner FinishControl Series This latest generation turbine was developed with quality and functionality at the forefront. With 60% higher air volume and 30% greater coverage than other low pressure devices, Wagner’s XVLP units provide excellent atomisation performance.

Wagner XVLP systems (consisting of a turbine and various spray attachments) allow for varnishes, high viscosity lacquers and standard water based paints to be sprayed with a quality finish that a painting professional would expect.

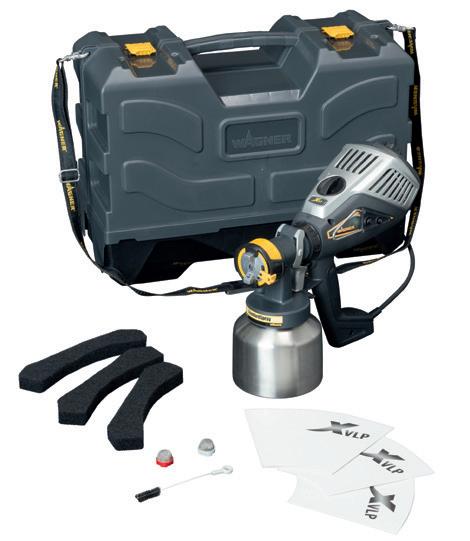

Wagner FinishControl FC 3500 W/2349396 Container Size

1L

Weight

2.3 kg

Motor Rating

700 W

Paint Capacity

1L StandardSpray

Portable and compact handheld sprayer, ideal for smaller projects, repairs and touch ups.

Fully equipped, the FC 3500 comes in a handy carry case including turbine and Standard Spray Attachment (with 1ltr metal container). It is fitted with a comfortable carry strap for easy handling.

The shoulder strap can be attached to either the unit or the case. It also comes with a cleaning brush, 30 mesh filter for high viscosity materials, 50 mesh filter for low viscosity materials, 3 replacement air filters and 3 filling funnels.

Wagner FinishControl FC 4000 18V W/2455374 Max Pressure

3 psi

Weight (excl. Battery)

1.3 kg

Weight (incl. Battery)

1.9 kg

Atomising Power

370 W

Paint Capacity

1L FineSpray

www.sprayandblast.com.au

Lightweight, ergonomic and highly powerful handheld sprayer perfect for professionals.

Compatible with Bosch Professional 18V, Bosch ProCORE 18V batteries and AMPShare platform.

Kit includes FC 4000 18V unit with FineSpray attachment (with 1ltr metal container, 2x Bosch ProCORE 18V 4.0Ah batteries, Bosch charger GAL4018V, carry bag, feed tube filter fine and cleaning set.

19

Wagner FinishControl FC 5000

Spray Pumps & Machines

1

W/2338846 Container Size

1L

Weight

8 kg

Motor Rating

1400 W

Paint Capacity

1L Standard & 1L FineSpray

A step up from the handheld XVLP sprayer, this stationary unit is also ideal for smaller projects, repairs and touch ups, as well as fine finishing work.

Kit includes FC 5000 XVLP unit with two spray attachments - StandardSpray attachment, FineSpray attachment (both with 1ltr metal container) and 5m air hose with metal handle.

Wagner FinishControl FC 5500 W/2422986 Max Pressure

4 psi

Weight

6.6 kg

Motor Rating

1150 W

Paint Capacity

1L Standard

The ultimate choice when it comes to painting, touch-up or renovation work.

Solvent or water based paints, stains, varnish, oils and primers can be applied.

With additional spray attachments, it is also possible to use emulsion paints, making this handy paint sprayer very versatile.

Kit includes FC 5500 XVLP unit with StandardSpray attachment 1ltr metal container and 5m air hose.

Wagner XVLP Accessories Wagner FinishControl FineSpray Attachment 1L W/2430385 FineSpray attachment with 1 litre stainless steel container and precision round nozzle.

Ideally suitable for glazes and low-viscosity materials. Included as standard with FC 4000 18V & FC 5000.

Patented Click & Paint® technology.

Wagner FinishControl StandardSpray Attachment 1L W/2430386 StandardSpray attachment with Visco-Tec slot nozzle and 1 litre stainless steel container.

For spraying a variety of materials. Included as standard with FC 3500, FC 5000 & FC 5500.

Patented Click & Paint® technology.

Wagner FinishControl WallSpray Attachment 1L W/24303857 WallSpray attachment with 1.4 litre plastic container. Designed for spraying water based acrylic paints.

Patented Click & Paint® technology.

20

Phone: 1800 140 888

Wagner FineCoat Series 1

HVLP spray technology operates by harnessing the airflow produced by the turbine to move into the container and then to the gun nozzle. The solvent-resistant HVLP gun Ultra is designed for applying standard solvent-based and water-thinnable paints.

Wagner FineCoat FC 9700 W/2426601 1150 W

Air Pressure

4 psi

Hose Length

7.6 m

Gun

Ultra

Projector Set

#4 1.8mm

Weight

6.8kg

The powerful turbine enables a wide range of interior and exterior applications, which can be extended with additional accessories. With the solvent-resistant HVLP gun, all common water – and solvent-based paints can be processed.

Spray Pumps & Machines

Power

Kit includes FC 9700 unit with 7.6m air hose, Ultra HVLP gun & cup.

Wagner FineCoat FC 9900 Plus W/0276049 Turbine

5-stage

Air Pressure

10 psi

Hose Length

9m

Gun

Maxum II

Projector Set

#3 1.3mm

Weight

15kg

Ideal for a wide spectrum of uses, indoors or out. The perfect fine finishing unit for use with solvent based paints and can also handle most acrylic house paints.

Comes complete with 5-stage Turbine, 9 metre Air Hose with Swivel, #3 Projector Set, Maxum II Gun with 1 litre pressure pot, and Dual Air Filtration.

Petrol Pumps Titan Elite® Petrol Series

Titan Elite gas-powered sealed hydraulic paint sprayers help you produce the highest quality results no matter what the jobsite conditions are. Featuring the revolutionary PermaStroke Technology™, which has no pistons, packings, cylinders or clutch to replace and backed by the WearGuard® Elite Warranty, they are simple to operate and field serviceable, keeping contractors on the job.

Titan Elite 3500 High Rider

T/0537012

Max Tip Size

0.027”

Max Pressure

3300 psi

Max Flow Rate

2.8 L/min

Max Hose Length

90m

Weight

47 kg

Motor Rating

4.0 HP GX120

Rec. Annual Usage

15,000 L

www.sprayandblast.com.au

Ideally suited for new construction, residential repaint and small commercial projects where electricity is not readily available. Sprays standard architectural primers and paints quickly, easily and efficiently.

Comes complete on Cart including Pressure Gauge, Rigid Suction System, 15 metre Airless Hose, RX-Pro Airless Gun, 517 Tip and Base.

21

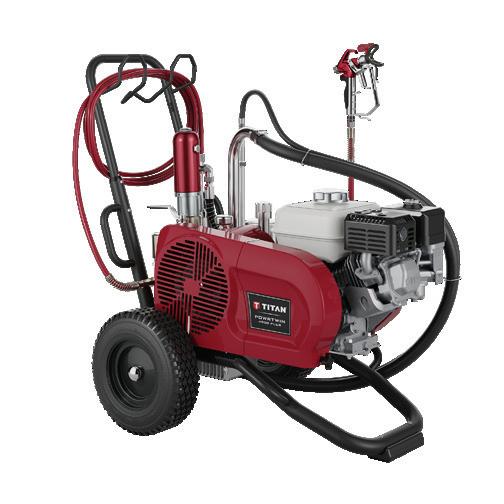

Titan PowrTwin™ Series 1

Titan PowrTwin hydraulic piston sprayers have a well-earned reputation for durability and dependability among serious contractors for large scale residential, commercial and industrial applications and multi-gun usage.

Spray Pumps & Machines

Titan PowrTwin 4900 Plus Petrol Electric

T/0290012 T/0290012-E

Max Tip Size 1 Gun

0.044” (Petrol)

Max Tip Size 2 Guns

0.031” (Petrol)

Max Pressure

3300 psi

Max Flow Rate

5.7 L/min

Max Hose Length

90m

Weight

59 kg

Motor Rating

5.5 HP GX160

Designed and built for contractors who are serious about completing large scale painting projects quickly and profitably.

Connect up to 3 guns to keep a crew spraying.

Comes complete on Heavy Duty Trolley with telescopic handle, Speeflo® HydraDrive™ Piston Pump with Severe Service™ Fluid Section, RX-Pro Airless Gun, 15 metre 1/4” Hose, 517 TR1 Reversible Airless Tip & Base.

Recommended for up to 1,100 L/week.

Titan PowrTwin 6900 Plus Petrol Electric

T/0290013 T/0290028

Max Tip Size 1 Gun

0.050” (Petrol)

Max Tip Size 2 Guns

0.035” (Petrol)

Max Pressure

3300 psi

Max Flow Rate

8.5 L/min

Max Hose Length

120m

Weight

63 kg

Motor Rating

4.8 HP GX160

The PowrTwin 6900 Plus is ideal for professionals who want the slow-stroking power and maximum durability. Connect up to 4 guns to keep a crew spraying.

Comes complete on Heavy Duty Trolley with telescopic handle, Speeflo® HydraDrive™ Piston Pump with Severe Service™ Fluid Section, RX-Pro Airless Gun, 15 metre 1/4” Hose, 517 TR1 Reversible Airless Tip & Base.

Recommended for up to 1,500 L/week.

Titan PowrTwin 8900 Plus Petrol Electric

T/0290018 T/0290027

Max Tip Size 1 Gun

0.054”

Max Tip Size 2 Guns

0.038”

Max Pressure

3300 psi

Max Flow Rate

9.5 L/min

Max Hose Length

120m

Weight

70 kg

Motor Rating

6.5 HP GX200

22

Designed and built for contractors who are serious about completing large scale painting projects quickly and profitably.

Connect up to 4 guns to keep a crew spraying.

Comes complete on Heavy Duty Trolley with telescopic handle, Speeflo® HydraDrive™ Piston Pump with Severe Service™ Fluid Section, RX-Pro Airless Gun, 15 metre 1/4” Hose, 517 TR1 Reversible Airless Tip & Base.

Recommended for up to 1,800 L/week.

Phone: 1800 140 888

Titan PowerTwin DI Series 1

With its efficient siphon system, the PowrTwin DI (direct immersion) units include a submersed foot valve capable of spraying very heavy coatings. In addition, its EZ swing frame makes this the most convenient gas hydraulic system on the market today.

Titan PowrTwin 6900 Plus DI T/0290021 T/0290029

Max Tip Size 1 Gun

0.050”

Max Tip Size 2 Guns

0.035”

Max Pressure

3300 psi

Max Flow Rate

8.5 L/min

Max Hose Length

120m

Weight

86 kg

Motor Rating

4.8 HP GX160

Submersed foot valve create the most efficient siphon system on the market today allowing the spraying of very heavy coatings. Additionally, our EZ swing frame makes this the most efficient and convenient to use gas hydraulic system

Spray Pumps & Machines

Petrol Electric

Comes complete on Heavy Duty Trolley with telescopic handle, Speeflo® HydraDrive™ Piston Pump with Severe Service™ Fluid Section, RX-Apex NonFilter Gun, TR1 517 Tip, 3/8” x 50’ Airless Hose

Titan PowrTwin 12000 Plus DI Petrol

T/0290023

Max Tip Size 1 Gun

0.058”

Max Tip Size 2 Guns

0.040”

Max Pressure

3600 psi

Max Flow Rate

11.9 L/min

Max Hose Length

120m

Weight

88 kg

Motor Rating

8.3 HP GX270

The flagship of the DI series, this model is recommended for very large scale projects where up to 6 guns may be needed, or application of very heavy coatings.

Comes complete on Heavy Duty EZ Swing Frame, Speeflo® HydraDrive™ Piston Pump with Severe Service™ Fluid Section, Apex non-filtered premium Airless Gun, 15 metre 3/8” Hose, 517 TR1 Reversible Airless Tip & Base.

Wagner HeavyCoat Series The material pump of the HeavyCoat units is driven indirectly by hydraulics. This has the advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps.

The high suction power improves the application of high viscosity materials.

Wagner HeavyCoat 950E W/0528505 Max Tip Size 1 Gun

0.052”

Max Tip Size 2 Guns

0.023”

Max Pressure

3625 psi

Max Flow Rate

6.6 L/min

Max Hose Length

90m

Material pH Range

3.5-9 pH

Weight

83 kg

Motor Rating

4.7 HP

www.sprayandblast.com.au

Ideal for high viscosity materials, multigun use and working at heights. Sprays bituminous and intumescent coatings.

Comes complete on Heavy Duty Trolley, High Flow Hydraulic Piston Pump, AG-14 Premium Airless Gun, 15 metre 3/8” Hose, Airless Tip, Base and Tool Set.

23

Titan Hydra X Series

Spray Pumps & Machines

1

With a Direct Immersion System that means no transfer pumps, flexible siphon tubes, or air compressors needed, the Hydra X Series from Titan maximises your efficiency on the jobsite.

Featuring limit-sensing hydraulics for better control and interchangeable fluid sections, an AutoLift™ system raises and lowers the fluid section with the push of a button.

Our Titan Hydra X units are custom builds and can be customised to suit individual needs.

For any enquiries, please contact our team on 1800 140 888 or email us at sales@sprayandblast.com.au.

Titan Hydra X 4540 Petrol

T/2412275

Max Tip Size 1 Gun

0.067”

Max Tip Size 2 Guns

0.041”

Max Pressure

4500 psi

Max Flow Rate

15.1 L/min

Max Hose Length

90m

Weight

177 kg

Motor Rating

11.7 HP GX390

The new Hydra X roofing and protective coatings sprayer combines the power and pressure needed to spray the toughest coatings. Use if you’re primarily spraying: acrylic elastomeric roof coatings, asphalt emulsion, zinc coatings, commercial architectural coatings.

Comes complete on Heavy Duty balanced cart with 12” pneumatic types, HydrastrokeTM technology Piston Pump with Severe Service™ Fluid Section.

AutoLift™ system to raise fluid section easily to change drums or pails.

Titan Hydra X 7230 Petrol

T/2412277

Max Tip Size 1 Gun

0.065”

Max Tip Size 2 Guns

0.035”

Max Pressure

7250 psi

Max Flow Rate

10.6 L/min

Max Hose Length

120m

Weight

177 kg

Motor Rating

11.7 HP GX390

24

The new Hydra X roofing and protective coatings sprayer combines the power and pressure needed to spray the toughest coatings. Use if you’re primarily spraying: silicone, epoxy & elastomeric Comes complete on Heavy Duty balanced cart with 12” pneumatic types, HydrastrokeTM technology Piston Pump with Severe Service™ Fluid Section.

AutoLift™ system to raise fluid section easily to change drums or pails.

Phone: 1800 140 888

Airless Pneumatic

1

Titan AirCoat/PowrCoat/Speeflo Series The durability, reliability and ease of operation that you need are built in to each unit. Severe Service™ means twice the life with half the maintenance. PowrCoat Sprayers have been used throughout the world, providing their owners with dependable, efficient operation.

Cart Bare Pail Bare Cart SprayPack

T/0533423C T/0533423-PAIL T/0533423GH

Ratio

23:1

Max Tip Size

0.021”

Min Air Requirement

16 scfm

Max Pressure

2670 psi

Max Flow Rate

1.9 L/min

Spray Pumps & Machines

Titan AirCoat 423

Ideal for light industry, fabrication, cabinetry and applications where a superior fine finish is required.

Bare comes complete on trolley.

Spraypack comes complete on Trolley with 15m 1/4” Airless Hose, RX-Pro Airless Gun, 517 TR1 Tip and Tip Base.

Titan AirCoat 620 Cart Bare

T/0533620C

Ratio

20:1

Stroke Length

4.98”

Min Air Requirement

18 scfm

Max Pressure

2320 psi

Max Flow Rate

4.88 L/min

Great for virtually any fine finishing application – solvent and water based paints, primers, varnishes, polyurethanes, stains and lacquers, slow-setting 2k materials and UV hardening materials.

Comes complete on trolley.

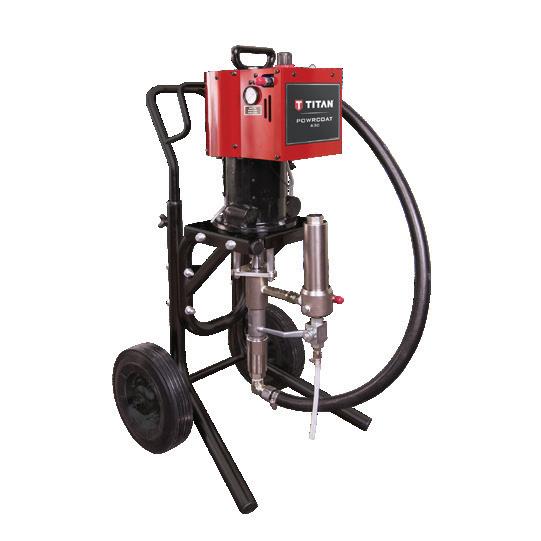

Titan PowrCoat 630 Cart Bare Cart SprayPack

T/0533630C T/0533630GH

Ratio

30:1

Stroke Length

4”

Min Air Requirement

25 scfm

Max Pressure

3480 psi

Max Flow Rate

5.5 L/min

Fluid Output

61cc

www.sprayandblast.com.au

So tough they are virtually indestructible.

Severe Service means twice the life with half the maintenance.

Bare comes complete on trolley.

Spraypack comes complete on a trolley (can be converted to wall mount) with Flexible Suction Hose, High Pressure Filter (50 mesh), Prime Spray Valve, Air Regulator with Water Trap & Auto-drain, Automatic Air Motor Lubricator, Earthing wire & clamp. Includes 15m 1/4” Airless Hose, RX-Pro Airless Gun, 517 TR1 Tip and Tip Base.

25

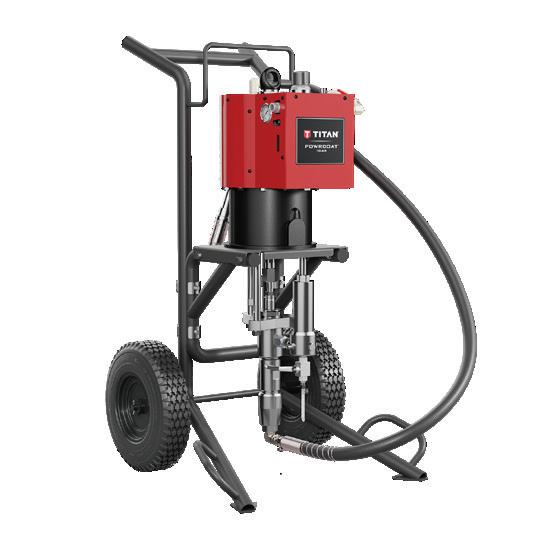

Titan PowrCoat 1045

Spray Pumps & Machines

1

Cart SprayPack

T/05331045C

Ratio

45:1

Stroke Length

4.75”

Min Air Requirement

43 scfm

Max Pressure

4500 psi

Max Flow Rate

23 L/min

Fluid Output

253cc

So tough they are virtually indestructible.

Severe Service means twice the life with half the maintenance.

Comes complete on a trolley (can be converted to wall mount) with Flexible Suction Hose, High Pressure Filter (50 mesh), Prime Spray Valve, Air Regulator with Water Trap & Auto-drain, Automatic Air Motor Lubricator, Earthing wire & clamp. Includes 15m 1/4” Airless Hose, S-7 Airless Gun, 517 TR1 High Pressure Tip & High Pressure Tip Base.

Titan PowrCoat 1064 Cart SprayPack

T/05331064C

Ratio

64:1

Stroke Length

4.75”

Min Air Requirement

57.7 scfm

Max Pressure

6400 psi

Max Flow Rate

18 L/min

Fluid Output

188cc

So tough they are virtually indestructible.

Severe Service means twice the life with half the maintenance.

Comes complete on a trolley (can be converted to wall mount) with Flexible Suction Hose, High Pressure Filter (50 mesh), Prime Spray Valve, Air Regulator with Water Trap & Auto-drain, Automatic Air Motor Lubricator, Earthing wire & clamp. Includes 15m 3/8” Airless Hose with 1/4” Whip, S-7 Airless Gun, 517 TR1 High Pressure Tip & High Pressure Tip Base.

Titan PowrCoat 1072 Cart SprayPack

T/05331072C

Ratio

72:1

Stroke Length

4.75”

Min Air Requirement

65 scfm

Max Pressure

7200 psi

Max Flow Rate

15 L/min

Fluid Output

167cc

So tough they are virtually indestructible.

Severe Service means twice the life with half the maintenance.

Comes complete on a trolley (can be converted to wall mount) with Flexible Suction Hose, High Pressure Filter (50 mesh), Prime Spray Valve, Air Regulator with Water Trap & Auto-drain, Automatic Air Motor Lubricator, Earthing wire & clamp. Includes 15m 3/8” Airless Hose with 1/4” Whip, S-7 Airless Gun, 517 TR1 High Pressure Tip & High Pressure Tip Base.

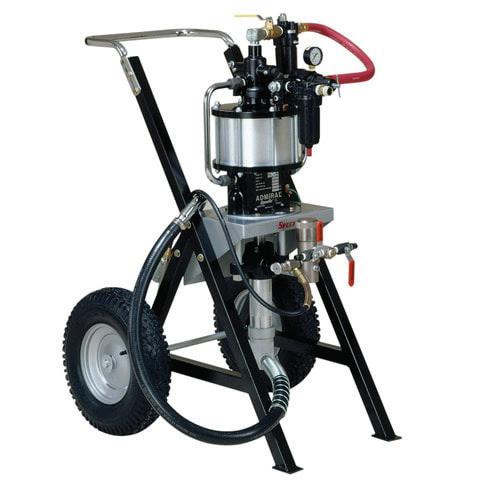

Titan Speeflo Admiral 40:1 Cart SprayPack

T/941-441

Ratio

40:1

Max Tip @ 2000 psi

0.57"

Min Air Requirement

40 scfm

Max Pressure

4000 psi

Max Flow Rate

26

15.1 L/min

The Admiral 40:1 is a high production unit used for spraying heavy viscosity materials such as coal tars, high-solids, epoxies, high build tank linings and below grade waterproofing. Extra pressure capability for hard to atomise coatings or long hoses.

Comes complete with 15m 1/4" Airless Hose, Titan S7 Gun and Tip

Phone: 1800 140 888

Titan Speeflo Admiral 60:1 T/860-461-CE

Ratio

60:1

Max Tip @ 2000 psi

0.47"

Min Air Requirement

53 scfm

Max Pressure

6000 psi

Max Flow Rate

10.1 L/min

1

The Admiral 60:1 is an extra high-pressure unit for heavy protective coatings such as high builds, high solids coatings, cold applied roofing and mastics. Great for towers and extra-long hoses or for use at lower airless pressures with only 50 psi of inbound air, the most efficient level for an air compressor.

Spray Pumps & Machines

Cart SprayPack

Complete with 15 mtr 1/4" Airless Hose and Titan S7 Gun and Tip

Powder Coating Wagner Sprint 2 Series

Fast, precise and efficient - this is how manual powder coating has to work today. The Sprint 2 product family is the new generation of our manual powder coating units: The manual units combine proven elements with new, innovative components and assistance functions that offer even more options. For excellent manual coating results.

Wagner Sprint 2 B Trolley

W/2465744

Control Unit

WACON Sprint 2 XE

Powder Gun

PEM-X1

Protection Class

IP64 80 °C

ATEX Certification

PTB 12 ATEX 5001

DSO Function

YES

Sprint 2 is the new generation of our manual powder coating unit: The new development combines proven components of the previous product family with new, innovative components and assistance functions that offer even more options. With the PEM-X1, excellent manual coating results and high-quality surfaces can be achieved.

DSO function = reduces overcharge effects such as orange peel or edge buildup at the touch of a button.

Wagner Sprint 2 Expert B W Trolley

W/2473752

Control Unit

WACON Sprint 2 Expert

Powder Gun

PEM-X1

Protection Class

IP54 80 °C

ATEX Certification

PTB 24 ATEX 5003

DSO Function

YES

www.sprayandblast.com.au

The Sprint 2 Expert B manual powder system offers unique additional functions for special requirements.

Clever assistance functions such as the WAGNER wizard and DSO (Digital Surface Optimizer) as well as options for process documentation make every user an expert in manual coating in no time at all.

DSO function = reduces overcharge effects such as orange peel or edge buildup at the touch of a button.

27

Line Marking 1 Titan PowrLiner Series

Spray Pumps & Machines

Precise lines, curves and circles, without retouching or time consuming manual marking. Now the choice in line marking equipment could not be easier. The versatile range of petrol powered piston, hydraulic piston and diaphragm pump line markers provide the professional contractor with all the power, reliability and options needed to get the job done on time with minimum fuss.

Titan PowrLiner 850 Petrol

T/0290005

Max Tip Size 1 Gun

0.021”

Max Pressure

3000 psi

Max Flow Rate

1.25 L/min

Weight

29.5 kg

Motor Rating

1.6 HP 4 Stroke

For entry level painting contractors and linemarkers, sports field managers and maintenance contractors.

Comes complete on Three-Wheeler Trolley with Flexible Suction System, removable LX-40 Spray Gun (for stencilling), 417 TR1 Line Striping Tip, Tip Guard and 15 metre Airless Hose. Pull start.

Titan PowrLiner 3500 Petrol

T/0537015

Max Tip Size 1 Gun

0.027”

Max Pressure

3300 psi

Max Flow Rate

2.8 L/min

Weight

64.4 kg

Motor Rating

Honda® GX120

For medium sized projects on all parking lots and sports fields.

Comes complete with one gun on threewheeler trolley with lock in front jockey wheel, flexible suction system, removeable RX-80 Gun, 419 TR1 Line Striping tip and 517 TR1 tip (for stencilling), tip guard, 15 metre airless hose and quick release gun holder for stencil work.

Titan PowrLiner 3500 72V Electric 72V Battery 72V Charger

T/2445730B T/2445452 T/2445453

Max Tip Size 1 Gun

0.027”

Max Pressure

3300 psi

Max Flow Rate

2.8 L/min

Weight (w/o Battery)

84 kg

Weight (w/ Battery)

91 kg

Motor Rating

Honda® eGX 72V

28

Brushless DC motor is reliable and durable, extremely quiet performance allows for extended work hours.

Comes complete with one gun on threewheeler trolley with lock in front jockey wheel, flexible suction system, removeable RX-80 Gun, 419 TR1 Line Striping tip, tip guard, 15 metre airless hose, quick release gun holder for stencil work, Honda eGX 72V battery and charger.

Phone: 1800 140 888

Titan PowrLiner 4955 Petrol

T/0290052H

Max Tip Size 1 Gun

0.033”

Max Tip Size 2 Guns

0.025”

Max Pressure

3300 psi

Max Flow Rate

4.73 L/min

Weight

149 kg

Motor Rating

Honda® GX120

1

For full-time duty on parking lots and sports fields.

Spray Pumps & Machines

Comes complete with two Guns on ThreeWheeler Trolley with lock in front jockey wheel, 45 litre Hopper, second gun kit (S-3 gun, hose and tip kit for wider or dual lines), Flexible Suction System, 419 TR1 Line Striping Tip, Tip Guard, 15 metre Airless Hose with Hose Rack and Quick Release Gun Holder for Stencil Work.

Titan PowrLiner 5500 Petrol

T/2468737

Max Tip Size 1 Gun

0.036”

Max Tip Size 2 Guns

0.025”

Max Pressure

3300 psi

Max Flow Rate

4.7 L/min

Weight

103 kg

Motor Rating

Honda® GX160

For medium sized projects on all parking lots and sports fields.

Comes complete with one gun on threewheeler trolley with lock in front jockey wheel, flexible suction system, removeable RX-80 Gun, 419 TR1 Line Striping tip and 517 TR1 tip (for stencilling), 2 tip guards, 15 metre and 1.8 metre airless hose and quick release gun holder for stencil work.

Titan PowrLiner 6955 Petrol

T/0290053H

Max Tip Size 1 Gun

0.050”

Max Tip Size 2 Guns

0.033”

Max Pressure

3300 psi

Max Flow Rate

7.95 L/min

Weight

151.5 kg

Motor Rating

Honda® GX160

For large scale, full-time duty on airports, roads, parking lots and sports fields.

Comes complete with two Guns on ThreeWheeler Trolley with lock in front jockey wheel, 45 litre Hopper, second gun kit (S-3 gun, hose and tip kit for wider or dual lines), Flexible Suction System, 419 TR1 Line Striping Tip, Tip Guard, 15 metre Airless Hose with Hose Rack and Quick Release Gun Holder for Stencil Work.

Titan PowrLiner 8955 Petrol

T/0290054H

Max Tip Size 1 Gun

0.054”

Max Tip Size 2 Guns

0.038”

Max Pressure

3300 psi

Max Flow Rate

9.5 L/min

Weight

151.5 kg

Motor Rating

Honda® GX160

For large scale, full-time duty on airports, roads, parking lots and sports fields.

Comes complete with two Guns on ThreeWheeler Trolley with lock in front jockey wheel, 45 litre Hopper, second gun kit (S-3 gun, hose and tip kit for wider or dual lines), Flexible Suction System, 419 TR1 Line Striping Tip, Tip Guard, 15 metre Airless Hose with Hose Rack and Quick Release Gun Holder for Stencil Work.

Titan LazyLiner Elite T/0290040 Take a load off and increase productivity up to four times. An economical way to grow your business. Compatible with PowrLiner 3500 and up, as well as Graco® 3900 and up.

www.sprayandblast.com.au

Includes 200-Watt lamp coil charging system, engine protection bumper bar, heavy-duty pneumatic tyres, multi-position seat (forward/back, side to side) and height adjustable foot pedals.

29

Titan SideStriper

Spray Pumps & Machines

1

T/0555000 Unique three-wheel design, the Side Striper rolls straight and does the job of striping between parked cars in a pinch. Simply insert the gun from your favourite striper into the gun clamp, adjust the gun position and finish up.

Borum

Works with any airless striper.

Line Markers

Borum is one of the world’s leading line marking machine and equipment manufacturers. They supply best-in-class, easy to-operate line marking machines to large international companies, as well as small family-owned operators around the world. Over the past years, Borum has built up a global network of sales staff and service technicians, to ensure that you get great local service and sound advice. We are proud distributors of Borum products for Australia and New Zealand. Borum line marking machines and equipment ensure maximum uptime, high profitability, excellent operator comfort and reliability.

All Borum machines can be supplied to work with either cold paint, hot thermoplastic or two-component cold plastic and a variety of application methods. From cities and highways to motorways and mega-roads or airports, there’s a Borum machine designed to meet your line marking needs. Each model offers a variety of features to meet varying capacity and application requirements.

For all Borum related queries, please contact our team on 1800 140 888 or email us at sales@sprayandblast.com.au.

30

Phone: 1800 140 888

Notes

1

Spray Pumps & Machines

www.sprayandblast.com.au

31

SPRAY EQUIPMENT

2

Spray Guns Spray Equipment

Guns for everyday spraying to high pressure industrial jobs, designed with the operator in mind.

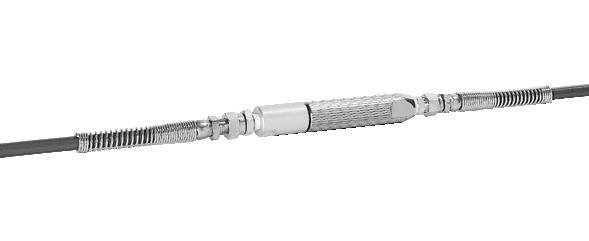

Titan LX-70 In-Line Gun In-line Gun

T/550-475

• • • • •

All metal construction “In-line” design is a natural extension to any pole In-handle filter Swivel reduces hose kinks and ensures effortless control Pressure rate at 3600 PSI

Titan RX-80 2 Finger

T/0538008

4 Finger

T/0538007

The RX-80™ is an innovative spray gun built for the way you work with a revolutionary new design for comfort and control.

• Comfort Grip™ - Ergonomic design brings added comfort.

• Longer Life Packing Kit Lasts longer with improved performance.

• Onboard Tools - Smart tools that make jobsite life easier.

• Pressure rate at 3600 PSI

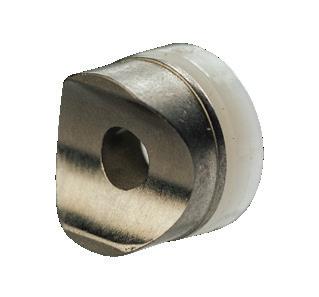

Comes with 517 SC-6 reversible tip

The RX-Pro® is a revolutionary spray gun built for the way you work.

Ergonomically designed with comfort and control to take the pain out of painting.

• Ultra-light Trigger - 30% lighter than the competitors trigger pull decreasing fatigue.

• FingerPrint Grip® - Customise the grip to comfortably fit any painter’s hand.

• Infinity Packing® - 2X the gun life by reversing the seat and changing the ball.

• Pressure rate at 3600 PSI

Comes with 517 SC-6 reversible tip

Titan RX-Pro 2 & 4 Finger Trigger

32

T/0538020

Phone: 1800 140 888

Wagner Vector Grip 2 Finger & 4 Finger Trigger

W/0538048

Durable and ergonomic new design with interchangeable hand grips (exclusive to Wagner) to customise handle size.

• Ultra light trigger pull • Wagner exclusive wrench built into trigger guard • Ladder and chair hooks all built into trigger guard.

• Different sized hand grips available to purchase separately.

• Pressure rate at 3600 PSI

High performance Airless Gun complete with Filter, Swivel, 517 TradeTip 3, Base and both 2 and 4-finger triggers included.

• • •

Stainless steel fluid passages In-handle filter Tungsten carbide ball valve & seat ensures long life and durability Easy 4 finger trigger pull 1/4” swivel reduces hose kinks Pressure rated at 3900 PSI

Comes with 517 SC-6 reversible tip

The RX-Apex™ is a premium spray gun built for high volume commercial and industrial work. With ergonomics in mind, this gun will be sure to fit nicely in your hand.

• All-Day Trigger®- 28% lighter trigger pull force and 74% less hold force.

• FingerPrint+ Grip™ - Fully adjustable grip delivers maximum customisation.

• Infinity Packing® - get 2X the gun life by reversing the seat and changing the ball.

• Free-Flow Swivel - Only direct feed airless gun with built-in swivel.

• Pressure rated at 5000 PSI

Comes with 517 SC-6 reversible tip

•

Includes tip Guard

2

Titan S-3 T/550-250

• • •

Spray Equipment

4 Finger

Titan RX-Apex Without Filter

T/0538070

With Filter

T/0538075

Titan Mastic M-8 4 Finger

T/0289014

• • •

www.sprayandblast.com.au

Straight line fluid passage allows max flow rate Angled handle for increased comfort Lightweight metal construction Pressure rated at 7700 psi

33

Titan S-7 4 Finger 1/4" Swivel

T/550-260

4 Finger 3/8" Swivel

T/550-270

Spray Equipment

2

The Titan S-7 airless spray gun is the work horse series of Titan's airless spray gun line up. Designed with all metal stainless steel construction that keeps internal and external wear to a minimum.

• Stainless steel fluid passages • In-handle filter • Easy four-finger trigger pull • 1/4" swivel reduces hose kinks • Pressure rated at 7700 psi

Comes with 517 high pressure tip and tip guard

With filter, ProfiTip nozzle holder, and rotary fitting. Can also be used with insulating handle for heated product.

• Excellent spraying for optimum coating results • Lightest gun of its class!

• Compact design combined with perfect ergonomics and low trigger force for fatigue-free working • Uncompromising quality for maximum reliable working performance • Fast nozzle and filter change guarantees high availability • Pressure rate at 7680 PSI

Includes PROTEC Tip and Guard

Wagner PROTEC GM1-530 4 Finger

W/2349287

Aircoat Guns High grade all round system for the application of all water based and solvent based lacquers (such as acrylic, 2-component, lacquer, stains and varnishes). The perfect combination to help achieve a superior finish. Benefits include high coating speed, uniform application of materials, soft run out at edges and a reduced working pressure.

Wagner AC4600 Red Air Cap

W/0394157

Green Air Cap

W/0394158

34

The combination of an innovative Tip and three different Air Caps makes the Wagner AirCoat gun range a high grade all round system for the application of all water based and solvent based lacquers (such as acrylic, 2 component, lacquer, stains and varnishes).

• Uniform application of material • Soft run out at edges • Less overspray than with airless or airspray products • Reduced working pressure of 870 PSI

Comes with a green air cap for water & solvent based materials or red air cap for solvent based materials.

Phone: 1800 140 888

Binks AA4400M HLVP Air Cap

B/0909-4400-HF0000

HLVP Air Cap & Twist Tip

B/0909-4400-HT0000

The Binks AA4400M air assisted airless spray gun has been designed with the operator and environment in mind. This new gun will handle the toughest spray jobs in all industrial markets whilst providing the best fit, feel and comfort operators demand.

The spray gun is available with either HVLP or Trans-Tech© air caps operating at lower fluid and air pressures than competitors to achieve an exceptionally fine finish with superior paint savings and low energy consumption.

• • • •

Lightweight and Operator friendly design with lighter trigger pull tension Easy to remove “in-line” needle assembly for quick maintenance Adjustable needle packing and “balanced” air valve design Solid forged gun body for maximum durability and longer life

2

Electrostatic technology is used in many varied industries including automotive, furniture and steel manufacturing, as well as general on-site commercial usage for metal hand rails, steel doors, pipes and vents, etc.

The major attractions of this technology are the incredible labour and paint savings achieved. When coupled with the ease of operation and consistent film builds able to be achieved, this system is well worth considering.

HOW DOES IT WORK? An electrostatic field is generated between the electrode in the gun head and the grounded work object. The paint particles are charged and attracted by the grounded object. This effect increases the efficiency significantly compared to non-electrostatic systems. The “wrap-around” effect allows the operator to paint items such as pipes or hand rails without changing position.

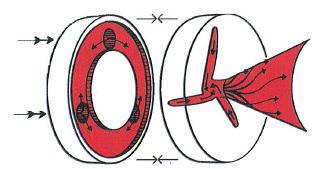

MULTI-SWIRL SYSTEM Wagner has developed a unique multi-swirl system. As paint passes through the nozzle it starts a swirling motion.

This produces a soft spray pattern with an increased “wrap-around” effect.

GM5000 EA Low Pressure Electrostatic Air Spray Gun EA Low Pressure

W/2309870

www.sprayandblast.com.au

•

Comes with flat spray air cap retainer. Requires hose package and control unit. To be run with a Double Diaphragm Pump or Pressure Pot.

Comes with a green air cap for water & solvent based materials or red air cap for solvent based materials.

35

Spray Equipment

Electrostatic Guns

Airless Spray Tips 2

Understanding Spray Tips

Airless spray tips are a key component to the successful operation of an airless spray system. They define the spray pattern, control the flow of the coating being sprayed & ultimately tell the pump how hard it must work. A proper understanding of airless tips is critical to the success of any airless application.

When beginning a project, choosing the right tip size & fan width will determine how profitable you will be through both coating consumption & production time. If the tip size being used is wrong — by either choice or through wear — mil thicknesses will be too heavy & the finish will be unprofessional.

As wear occurs, the pattern size decreases & the orifice size increases. You will find that you have to make more passes to cover the same area. There is no standard rate of tip wear due to the variation of the abrasiveness of all coatings. Replace your tips after 378 litres; it’s one of the most profitable things you can do.

517 = 10 inch Fan & 17 thou Orifice NOZZLE ANGLE The first digit on the tip indicates the nozzle angle. It is also used as a guide to work out the fan width; simply double the number: 4 = 40° 8 inch 5 = 50° 10 inch 6 = 60° 12 inch

ORIFICE DIAMETER The next two digits indicate the nozzle or orifice diameter. This determines the flow volume (the amount of paint that will be applied).

Angle 50°

Spray Width 225mm

Spray Equipment

It is important to remember that the orifice size, in conjunction with the fan-width size, determines the spray characteristics of the tip.

17 = 0.017” (17 thou orifice)

300mm

Titan SC-6+ Wide Spray Reversible Tip Titan’s SC-6+ Reversible spray tips have a long-lasting orifice that provides you more usable tip life, spraying a consistent film thickness and wasting less paint. These spray tips come in the widest variety of sizes used to spray coatings such as latex paint in residential or commercial applications.

Titan WideSpray™ Tip & Seal Reversible Tip

T/661-XXXX

Titan’s WideSpray spray tips have a long-lasting orifice that provides you more usable tip life, spraying a consistent film thickness and wasting less paint.

• • • •

Available in:

36

1219

1221

1223

1225

1227

1229

1231

1233

1235

1237

Perfect for high production applications.

Increase production up to 100% Widespray will save you time and money.

Maximum working pressure is 5000 psi

T/661-XXXX where ‘XXXX’ is size of the tip

Phone: 1800 140 888

Titan SC-6+ Reversible Tip Titan’s SC-6+ Reversible spray tips have a long-lasting orifice that provides you more usable tip life, spraying a consistent film thickness and wasting less paint. These spray tips come in the widest variety of sizes used to spray coatings such as latex paint in residential or commercial applications.

2

ORIFICE SIZE 0.007

0.009

0.011

0.013

0.015

0.017

111

113

115

117

0.019

0.021

0.023

0.025

0.027

0.029

0.031

0.033

0.035

20o

207

209

211

213

215

217

219

221

223

225

227

229

231

233

235

30

o

307

309

311

313

315

317

319

321

323

325

327

329

331

333

335

40o

407

411

413

415

417

419

421

423

425

427

429

433

435

511

513

515

517

519

521

523

525

527

617

619

621

623

625

50o 60

o

70O

721

80O

821

531

0.039

0.043

439

443

535

Spray Equipment

FAN SIZE

10o

635

823

Titan SC-6+ Tip & Seal Reversible Tip

T/662-XXX

New ergonomic design assures comfort when rotating to spray or reverse position for cleaning. The exclusive flow indicator shows whether the tip is in spray or clean position.

• • •

The SC-6+ is contructed of the highest quality tungsten carbide assuring longest life, durability and fewer passes for better coverage.

Up to 22% wider fan pattern Fits all Titan and most other industry spray gun guards Maximum working pressure is 5000 psi

T/662-XXX where ‘XXX’ is size of the tip from chart above.

HEA Airless Spray Tip

ORIFICE SIZE 0.013

o

211

213

30o

311

313

40

411

413

20

FAN SIZE

HEA tip technology starts with a Pre-Tip, which is positioned in front of the actual atomisation tip. This Pre-Tip atomises the material being sprayed at the same delivery volume and working speed found in traditional airless devices.

The structure of the tip creates a very soft, feathered spray pattern. The result is better coverage of overlapping strokes, less paint build-up at the start and end of each pass and an overall better surface quality.

0.011

0.015

0.017

0.019

415

417

50o

515

517

519

60

615

617

619

o

o

The ideal spraying distance from the object is always 300mm.

Titan HEA Tip Reversible Tip

T/330-XXX

The revolutionary spray technology of Titan’s line of tips puts paint where it belongs while decreasing overspray and extending the life of the pump.

•

• •

Optimised to spray all architectural paints and coatings at 1,000 psi at production speed Decreases overspray up to 55% allowing contractors to spray more Maximum Working Pressure: 5000 PSI

T/330-XXX where ‘XXX’ is size of the tip from table above

www.sprayandblast.com.au

37

Wagner HEA Pro Tip Reversible Tip

W/0554XXX

2

The revolutionary spray technology of Wagner’s line of tips puts paint where it belongs while decreasing overspray and extending the life of the pump.

•

• •

Optimised to spray all architectural paints and coatings at 1,000 psi at production speed Decreases overspray up to 55% allowing contractors to spray more Maximum Working Pressure: 5000 PSI

Fine Finish

ORIFICE SIZE

Fine Finish tips are made for finish work such as cabinetry, woodwork and metal. These tips were designed to be used with stains, lacquers, light-bodied clear finishes and other fine-finish materials.

FAN SIZE

Spray Equipment

W/0554XXX where ‘XXX’ is size of the tip from table above

0.008

0.010

0.012

0.014

20o

208

210

212

214

30

o

308

310

312

314

40o

408

410

412

414

510

512

514

50

o

60

o

612

Titan SC-6+ Synergy Fine Finish Tip Reversible Tip

T/671-XXX

Titan's SC-6+ Synergy Fine Finish tips are made for finish work such as cabinetry, woodwork and metal.

These tips were designed to be used with stains, lacquers, semi gloss / gloss enamels and other fine-finish materials.

• •

Up to 27% smaller particle size than standard tip Maximum Working Pressure: 5000 PSI

T/671-XXX where ‘XXX’ is size of the tip from table above

Wagner TradeTip 3 Fine Finish Reversible Tip

38

W/0554XXX

Wagner's TradeTip 3 Fine Finish tips are made for finish work such as cabinetry, woodwork and metal.

These tips were designed to be used with stains, lacquers, semi gloss / gloss enamels and other fine-finish materials.

• •

Up to 27% smaller particle size than standard tip Maximum Working Pressure: 5000 PSI

W/0554XXX where ‘XXX’ is size of the tip from table above

Phone: 1800 140 888

TradeTip 3

ORIFICE SIZE

Paint is pumped at high pressure through the tip and the tip core atomises and shapes the spray fan. Wagner tips are extremely durable - manufactured from carbide and stainless steel to reduce wear and enable a constant spray angle. Another advantage of TradeTip 3 tips is the ease of cleaning; just twist and rinse without any tools.

FAN SIZE

20o

0.011

0.013

0.015

0.017

0.019

0.021

0.023

211

213

215

217

219

221

223

321

323

421

423

30o

313

40

413

o

50o

419 515

517

0.025

325

2

519

60o 70O 80O

815

819

Wagner TradeTip 3 Reversible Tip

W/0553XXX

•

•

Wide range of capabilities: Primers, acrylics, enamels, flame and corrosion protection Maximum Working Pressure: 5000 PSI

Spray Equipment

A Long-lasting product with a great spray pattern. Sprays typically between 2,400 - 3,000 psi.

W/0553XXX where ‘XXX’ is size of the tip from table above

TR1 High Pressure Tip

ORIFICE SIZE 0.011 10o

FAN SIZE

Creates a consistent fan pattern width from the first litre to the last that is a longer lasting HP Tip. TR1 tips spray a uniform paint thickness for the life of the tip creating less wasted paint. The max pressure for these tips is 7700 psi.

20o 30o

211

0.013

0.015

0.017

0.019

113

115

117

119

213

215

217

219

313

315

317

319

0.021

0.043

221

40o 50o

543

Titan TR1 High Pressure Tip Reversible Tip

T/696-XXX

• • •

Maximum Working Pressure: 7700 PSI The best overall performing tip in the industry An orifice that outlasts competitive tips delivering consistent film thickness and less wasted paint

T/696-XXX where ‘XXX’ is size of the tip from table above

www.sprayandblast.com.au

39

TR1 Line Striping Tips Creates a consistent fan pattern width from the first litre to the last that is a longer lasting HP Tip. TR1 tips spray a uniform paint thickness for the life of the tip creating less wasted paint. The max pressure for these tips is 7700 psi.

FAN PATTERN WIDTH (INCH)

2

ORIFICE SIZE 0.015

0.017

0.019

2

215

217

219

4

415

417

419

6

0.021

421

619

8

0.023

0.043

443 623

821

Titan TR1 Line Striping Tip T/697-XXX

Spray Equipment

Reversible Tip

Titan’s line striping tips are built to provide the performance to exceed contractor expectations and increase profit. The industry’s best performing fan pattern with razor sharp lines and consistent line width from the first litre to the last.

• • •

•

Uniform film build for the life of the tip Less wasted paint equals more profit New easy-to-read tip sizes 421 = 4” stripe (30cm from the surface) with a 0.021” orifice Maximum Working Pressure: 5000 PSI

T/697-XXX where ‘XXX’ is size of the tip from table above

Airless Accessories Titan Seals SC6 Tip Seal

T/651-020

SC6 Tip Retainer

T/651-040

• •

Solvent resistant tip seal All metal retainer

Design allows guard to be installed without tools Seal cavity on safety guard has large “flats” for quick and easy installation of seal 7700 PSI Guard to suit H/D 721-XXX Tips

HD Guard Head Guard Titan Thread “G”

T/661-027

•

Head Guard Wagner Thread “F”

T/661-028

• • •

Head Guard SC6 SC6 Base Head Assy Titan

T/0289228

•

SC6 Base Head Assy Wagner

T/661-015

• •

40

Design allows guard to be installed without tools Seal cavity on safety guard has large “flats” for quick and easy installation of seal 5000 PSI

Phone: 1800 140 888

Flat & Adjustable Tip Guard Flat & Adjustable Tip Guard

T/450-100A

• • •

Design allows guard to be installed without tools Seal cavity on safety guard has large “flats” for quick and easy installation of seal 5000 PSI

2

Swivel Head 7/8” G Thread - Titan/Graco

T/0538029

1/4” NPS - Wagner

T/0538205

•

Spray Equipment

•

For use with Titan Gun Extensions and Extension Poles Permits a 260° rotation for greater spraying versatility and accessibility

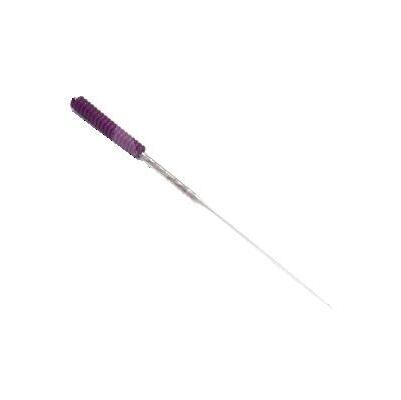

Titan Tip Cleaners Tip Cleaner Pk of 12

E/36-703/00-K12

•

Helps remove unwanted particulars from tip orifice

T/711-612

•

Used with adjustable and flat tips.

•

Plasma welded joints for stability against mechanical stress of all kinds Durable and consistent To fit Titan S3, S7, RX range and Wagner Vector range.

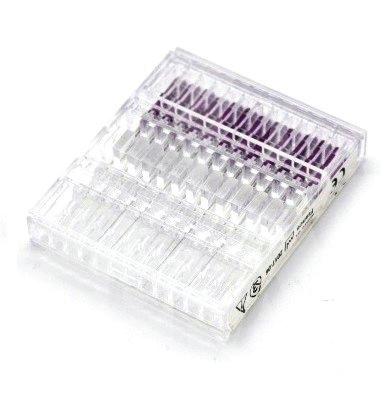

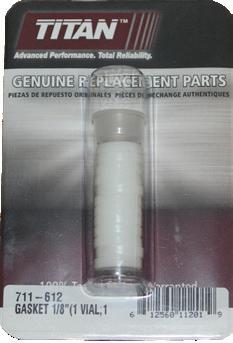

Titan Gasket Vial Gasket Vial 1/8 (Packet of 12)

Titan & Wagner Gun Filter GREEN 30 Mesh Push In (No PKG)

T/581-059

WHITE 60 Mesh Push In (No PKG)

T/581-060

YELLOW 100 Mesh Push In (No PKG)

T/581-062

RED 150 Mesh Push In (NO PKG)

T/581-061

www.sprayandblast.com.au

• •

41

Titan Gun Filter

Spray Equipment

2

GREEN 30 Mesh Screw In (No PKG)

T/540-030

GREEN 30 Mesh Twin Pack

T/500-200-030

WHITE 60 Mesh Screw In (No PKG)

T/540-060

WHITE 60 Mesh Twin Pack

T/500-200-060

YELLOW 100 Mesh Screw In (No PKG)

T/540-100

YELLOW 100 Mesh Twin Pack

T/500-200-100

RED 150 Mesh Screw In (NO PKG)

T/540-150

RED 150 Mesh Twin Pack

T/500-200-150

•

•

Reverse thread design prevents filter from unscrewing when handle is removed for cleaning and replacement.

To fit Titan LX80, LX80 Platinum

Tip Filter Adaptor Gun Adaptor Wagner to Graco

G/181-085B

Tip Filter 100 Mesh Fine

G/205-264B

Tip Filter 60 Mesh Coarse

G/205-265B

Allows you to clean filter without de-pressurrising

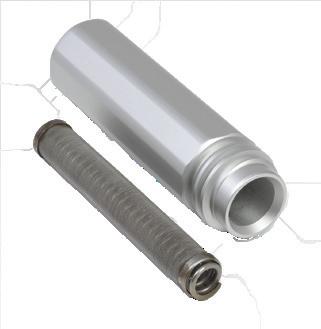

Titan Pump Manifold Filters Coarse 30 Mesh

T/730-067-30

Medium 60 Mesh

T/730-067-60

Fine 100 Mesh

T/730-067-100

Titan Pump Manifold Filters Filter Assembly Manifold 6000 PSI

T/920-605

Filter Assembly PowrLiner

T/930-515

Titan Pump Manifold Filters Spring - Suit Titan

T/757-105

Spring - Suit Graco

G/171-941B

42

•

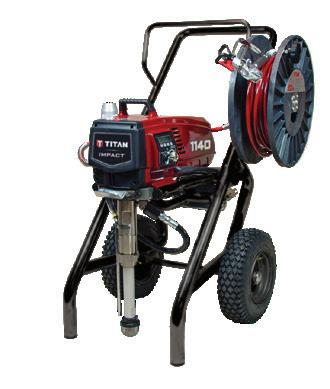

For use on Titan Impact 4401140 pumps.

Phone: 1800 140 888

Titan Pump Inlet Screens Mesh Coarse Suit 840, 1140. 850, 1150 Pumps

T/710-046

Mesh Coarse Suit Small Titan Pumps

T/700-805

Mesh Fine Suit Small Titan Pumps

T/700-900

Rock Catcher Ass 1

T/103-627

Titan inlet screens are designed from stainless steel materials for long life and maximum protection.

2

Spray Equipment

Titan Aluminium Gun Extension 5” (12cm) 7/8’ G Thread Extension

T/2418848

•

10” (25cm) 7/8’ G Thread Extension

T/2418850

•

20” (50cm) 7/8’ G Thread Extension

T/2418851

30” (76cm) 7/8’ G Thread Extension

T/2418852

Operating Pressure 3600 PSI G Thread Suit Titan, Graco and Wagner

Titan Stainless Steel Gun Extension 12” (30cm) 7/8’ G Thread Extension

T/611-281

•

18” (45cm) 7/8’ G Thread Extension

T/611-282

•

24” (60cm) 7/8’ G Thread Extension

T/611-283

Operating Pressure 7700 PSI G Thread Suit Titan, Graco and Wagner

Titan Pole Extension 3' (91cm) Heavy Duty Pole w/ Guard

T/2418862

6' (182cm) Heavy Duty Pole w/ Guard

T/2418863

Telescoping Pole Only

T/310-938

These lightweight aluminium extensions are constructed with inner core ribs which reinforce the poles and greatly increase their rigidity. The inner core rib construction allows different length poles to be easily coupled together up to 12', while maintaining the proper rigidity to suit most job conditions.

• Suit Titan, Graco and Wagner Guns • Pressure rated at 3600 psi

Titan In-Line Gun Filter In-Line Filter 3600 PSI

www.sprayandblast.com.au

T/550-223

Nothing destroys a piston or a gun tip faster than debris in the coating. That’s why you need the best paint filters available. TITAN gun filters and manifold filters are designed for long life and maximum protection.

• Made from stainless steel for strength and service • Wide variety of mesh sizes from 10 to 100 • Engineered for durability and long life

43

Titan Hydraulic Filters T/451-220

Suit PowrTwin and PowrLiner Pumps

Bypass Valve

T/700-258

Bypass Valve 1/2 Large

T/945-600

The thimble parts of this product use the real tungsten ball. Its wear resistance is much better than ceramic balls, carbide balls.

It’s durable, safe and stable.

Hydraulic Filters

2

Spray Equipment

Titan Bypass Valve

Titan models: 440e, 440hp, 440i, 440 xc, 440ix, 440 Impact, 660e, 660ex, 660xc, 640i, 640ix, 640 Impact, 740i, 740ix, 740 Impact, 840i, 840ix, 840 Impact, 1140i, 1140ixSprayTech

Titan Bleed Valve Bleed Valve STL/NKL PLT 1/8 NPT F Outlet

T/944-620

Fits: PowrLiner 6000, PowrLiner 5000, PowrLiner 4000, Hydra M4000, Hydra M2000, PowrTwin 5500, PowrTwin 4500

Titan Bleed Valve Bleed Valve

T/944-030

High Pressure Swivels H/P Swivel 1/4M NPS x 1/4F NPS 7500psi

E/70-220/2

H/P Swivel 1/4F NPS x 3/8M BSP 7500psi

E/70-520/1

44

Fits: PowrTwin 6900 Plus DI, PowrTwin 4900 Plus, PowrLiner 4955, PowrLiner 4900, Powrliner 4900 XLT, PowrLiner 4950, PowrLiner 5000 , Powrliner 6000 , PowrLiner 6900, PowrLiner 6900 XLT, PowrLiner 6950, PowrLiner 6955, PowrLiner 8900, PowrLiner 8900 XLT, PowrLiner 8955 PowrBeast 4700, 4700T, 7700, 9700.

Phone: 1800 140 888

Titan High Pressure Swivels Gun to Hose / Hose to Pump 1/4” (.63cm) NPS (F) x 1/4” (.63cm) NPS (M)

T/500-428

Hose to Hose 1/4” (.63cm) NPS (M) x 1/4” (.63cm) NPS (M)

T/500-424

Working Pressure 5000 PSI

2

Titan LS-10 Liquid Shield Cleans and protects your spray systems against rust, corrosion and premature wear.

• With -30°C antifreeze protection.

• Environmentally friendly

T/0297055

The Titan Pump Shield is a protector against paint overspray and helps keep paint from sticking to your spray system.

Cleanup is as easy as a quick wipe-down with a wet cloth when you are finished for the day. Apply the Pump Shield before each use and it will keep your sprayer looking great.

Tip Clean 1L

W/2400216

Tip Clean 200mL

W/0097108

Increases the life of your spray tips. Removes colour and contamination from your airless spray tips. Offers optimal protection for all airless tips.

Spray Equipment

T/314-482

946mL Bottle

Titan Pump Shield 355mL Bottle

Wagner Tip Clean

The 200mL hourglass bottle is a safe and convenient method for storage of your tips

Titan Piston Lube Piston Lube 237mL

T/314-480

Piston Lube 946mL

T/700-926

Specially formulated to prevent materials from adhering to the piston rod. Suitable for use with most airless piston pumps.

•

www.sprayandblast.com.au

Reduces premature wear on cylinders, rods, packings

45

Titan AirCare Air Care 950mL

T/311-101

2

Pneumatic equipment lubricant storage protector. Contains premium additives to extend life of equipment

Titan Inner Feed Pressure Roller T/310-934

Instead of dipping the roller into the paint, why not feed the paint into the roller? You get the best of both application worlds, increasing the speed and efficiency of your work.

• Up to 40% faster than standard roller application • The roller never leaves the surface • Easy to use and easy to clean up

T/310-049

The spray roller works great on rough or porous surfaces like stucco and concrete block where the material needs to be sprayed and back rolled. Now you can spray and roll at the same time • Saves both time and money • Ideal for porous and rough surfaces • Spray on the down stroke and roll on the up stroke

9” (23cm) x 3/8” (.81cm) NAP

T/312-037-9

9” (23cm) x 3/4” (1.9cm) NAP

T/312-075-9

Replacement roller cover for water based paints only

12” (30cm) x 3/8” (.81cm) NAP

T/312-075-12

Spray Equipment

23cm (9”) Roller Head

Titan Spray Roller 9” Spray Roller Head Assembly

Titan Roller Head

Titan Angle Adaptor Assembly Angle Adaptor Assembly - Titan

T/0509907

• • • •

46

Adapt any extension pole to any standard airless gun Allows pole to extend from the gun at the same angle as the handle Greater efficiency and comfort Pressure rated at 3600 PSI

Phone: 1800 140 888

Titan Suction Hose Suit 440, 640, 740, 450e, 650e, 750e

T/704-300

1” Suction Hose Complete 40:1

T/103-808A

1” Suction Hose Complete 60:1

T/103-808B

1” Suction Hose Complete 200L

T/103-808C

•

Suction hose with rockcatcher built into hose

2

1” Suction ASSY MSBE Built Hydraulic T/103-808D

Suction Hose T/704-300-WKS

1" x 1.25m Suction Hose

T/103-808-WKS

Suit 440, 640, 740, 450e, 650e, 750e

T/704-300-AM

•

Murphys Spray and Blast built suction hoses made for airless sprayers

Spray Equipment

Suction Hose w/o Bypass

Titan High Pressure Fluid Gauge Fluid Gauge Kit 1/4 x 1/4 Complete Glass

T/730-397

Fluid Gauge Only - Glass Face

T/730-394

High pressure fluid gauge add-on accessory

Titan Reel-EZ Hose Reel Reel-EZ 16 Cart Mount 30m

T/769-100

Reel-EZ 10 Skid Mount 15m

T/769-200

www.sprayandblast.com.au

The Reel EZ virtually eliminates hose hassles and increases your production. The Reel EZ 16 mounts to the frame of all Titan & Speeflo cart style paint sprayers with a heavy duty universal mounting bracket. The Reel EZ 10 mounts to the frame of all the Titan skid style paint sprayers such as the Impact 440. Both the Reel EZ 16 & the Reel EZ 10 mount to most major manufacturer’s paint sprayers with similar designs.

• Reel EZ 16 can hold up to 30m of 1/4” airless hose • Reel EZ 10 can hold up to 15m of 1/4” airless hose • Both rated at 3600 PSI

47

Paint Accessories

Spray Equipment

2

Mixing Cups 385mL Mixing Cup

D/MC-0385

600mL Mixing Cup

D/MC-1-K50

1.4L Mixing Cup

D/MC-14

2.3L Mixing Cup

D/MC-23

DeVilbiss easy-to-use, disposable mixing cups are ideal for pre mixing paint prior to spray applications.

• Handy, disposable, easy stacking mixing cups.

• Made from solvent resistant clear polypropylene.

• Permanently marked with 2:1, 3:1 and 4:1 mix ratios.

• Calibrated with a 0-600 volumetric measurement scale.

Titan Paint Hopper 45L Paint Hopper

T/759-130

Hopper Accessory

T/704-453

•

Hopper with squeeze table for material-gabs and agitator The smooth, easily cleanable container is solvent resistant

•

Taped Masking Film Dispenser 550mm x 33mtr

PA/00051

•

Refills 550mm x 33mtr

PA/00051A

•

Dispenser 1.8m x 33m

PA/00051B

Refills 1.8m x 33m

PA/00051C

Dispenser 2.6m x 17m

PA/00051D

Refills 2.6m x 17m

PA/00051E

•

Breathable, anti-static SMS fabric Elasticated hood, waist, wrist & ankles 3-thread overlocked seams

Paint Stirrers Paint Stirrer 4-10L

PA/00061A

Paint Stirrer 10-20L

PA/00061B

Paint Stirrer 20L H/D

PA/00061C

• •

Drill operated paint stirrer Suitable for both trade and DIY customers.

•

Premium quality masking paper ideal for both the paint and automotive industries.

Protects surface areas from paint splatter and drips

Wagner Masking Paper 6” Masking Paper 3pk (144mm)

W/MASKPAP6

12” Masking Paper 3pk (288mm)

W/MASKPAP12 •

48

Phone: 1800 140 888

Hood Calico Elastic Hood Calico Elastic

SAF/AC-248A

• • •

Lightweight and comfortable Absorbs sweat Keeps overspray off your head!

2

Universal Fabric Sock Universal Fabric Sock

SAF/41-1497B

Spray Equipment

SMS Coveralls - Box of 50 SMS Coverall Medium

SAF/OV-WSP-0002-50

•

SMS Coverall Large

SAF/OV-WSP-0003-50

•

SMS Coverall XL

SAF/OV-WSP-0004-50

SMS Coverall XXL

SAF/OV-WSP-0005-50

SMS Coverall XXXL

SAF/OV-WSP-0007-50

•

Breathable, anti-static SMS fabric Elasticated hood, waist, wrist & ankles 3-thread overlocked seams

Wire Brush Wire Brush w/ Scraper

PA/00080

• • •

Heavy duty 4 row wire brush and scraper tip.

Contoured natural timber handle.

Removes paint, rust and scale.

Fabric Roller Covers 100mm Fabric Roller Covers 10pk

PA/00020

100mm Foam Roller Covers 10pk

PA/00020B

100mm Mohair Roller Covers 10pk

PA/00020C

• • •

Suitable for all paints For low sheen and matt finishes Made from fabric

100mm Microfibre Roller Covers 10pk PA/00020D

www.sprayandblast.com.au

49

Nook & Cranny Frames Nook & Cranny Roller Frame 100mm PA/00021A

2

• • • •

100mm long handle frame Ideal for easy application Helps you achieve smooth finish Easy to clean and re-useable

Spray Equipment

Utility Synthetic Brush Synthetic Brush 25mm

PA/00003

•

Synthetic Brush 50mm

PA/00003A

•

Synthetic Brush 100mm

PA/00003B

• •

100% Synthetic filament, plastic handle.

Ideal for general purpose paint jobs.

Suits Acrylic or Enamel paints.

Economical DIY use.

Wood Handle Radiator Brush 25mm Wood Handle Economy

PA/00006-E

25mm Wood Handle

PA/00006

50mm Wood Handle Economy

PA/00006B-E

50mm Wood Handle

PA/00006B

63mm Wood Handle

PA/00006C

•

Bristle angle machined into timber handle helps durability

Wagner Furno 300 Heat Gun Furno 300

W/2359351

This DIY heat tool is ideally suited for small projects or light work in and around the home.

A safe and effective alternative to using a blow torch.

Wagner Furno 750 Heat Gun Furno 750

50

W/2359361

DIY & trade electronic heat gun with ergonomic and compact design for increased comfort. The dynamic LCD screen allows for specific heat control & variable temperature range making it precise, safe & efficient.

Phone: 1800 140 888

Notes 2

Spray Equipment

www.sprayandblast.com.au

51

3

CONVENTIONAL SPRAY EQUIPMENT Gravity Guns

Conventional Spray Equipment

DeVilbiss GFG Pro Gravity Spray Gun GFG Pro Gravity Gun 1.4mm

D/GFGPRO-C1-14

The DeVilbiss GFG Pro has a new ergonomic gun body with improved ‘fit and feel’. Offering first class atomisation and material distribution, and a newly designed air valve for smooth trigger control.

• •

The C1 Air Cap has been developed to replace the existing 186+.

With a greatly improved spray performance it’s ideally suited for all base and clearcoat applications, in conjunction with the new 1.4 and 1.6 fluid tips.

DeVilbiss Advance HD Conventional Gravity Spray Gun Advance HD Gun 1.4mm

D/ADV-G430-14

Advance HD Gun 1.8mm

D/ADV-G430-18

The DeVilbiss Advance HD (High Demand) spray guns provide exceptional atomisation for coating wood, metal, plastic, ceramic and composite substrates with most types of solvent, waterborne, high solids and 2K materials.

• • •

Robust, Lightweight and work friendly design for High Demand outputs Stainless Steel tips, needles and fluid passageways as standard Contoured handle design – Greatly reduces RSI and operator fatigue

DeVilbiss Advance HD Conventional G430 Gravity Spray Gun Advance HD G430 Gun 1.2mm

D/ADV-G430-1.2

Advance HD G430 Gun 1.4mm

D/ADV-G430-1.4

Advance HD G430 Gun 1.6mm

D/ADV-G430-1.6

Advance HD G430 Gun 1.8mm

D/ADV-G430-1.8

52

The DeVilbiss Advance HD Gravity Spray Guns deliver high performance with both compliant and conventional air atomising options, making them ideal for a wide range of industrial spray finishing applications. Designed for versatility, these spray guns are compatible with nearly all industrial solvent-based and water-based paints, coatings, lubricants, dyes, stains, varnishes, lacquers and adhesives.

• •

•

Robust, lightweight, and ergonomically designed for high-demand performance Stainless steel tips, needles, and fluid passageways come standard for enhanced durability and corrosion resistance.

CE marked and fully ATEX approved

Phone: 1800 140 888

DeVilbiss JGX-502 Gravity Spray Gun Advance HD Gun 1.4mm

D/JGX-502-143-14-G

Advance HD Gun 1.8mm

D/JGX-502-143-18-G

The JGX-502 air spray gun, an improved version of the JGX-501, is a product of the latest finishing technology developed in Japan, in cooperation with DEVILBISS in the USA, a pioneer and current leader in the finishing industry for more than 120 years.

•

•

•

The JGX-502 provides a quality finish with both metallic and Pearl Mica paints.

All fluid passages in the JGX-502 spray gun are made from stainless steel, making it suitable for all types of materials.

Outstanding atomisation is achieved and it weighs only 430g

3

Pro Lite Gun 1.4mm

D/PROLT-PTE20-14

Extensive range of stainless steel, hardened and tungsten carbide fluid tips and needles for all types of industrial applications

• •

Conventional Spray Equipment

DeVilbiss GTI Pro Lite Conventional Gravity Spray Gun Coaxial trigger air valve design for lighter trigger pull and improved air flow Drop forged aluminium gun body and removable air baffle for a longer working life.

DeVilbiss Advance HD Trans-Tech® Gravity Spray Gun Advance Gravity Gun 1.2mm

D/ADV-G510-12

Advance Gravity Gun 1.3mm

D/ADV-G510-13

Advance Gravity Gun 1.4mm

D/ADV-G510-14

Advance Gravity Gun 1.6mm

D/ADV-G510-16

Advance Gravity Gun 1.8mm

D/ADV-G510-18

The Devilbiss Advance HD HVLP & Trans-tech Gravity Spray Gun will cover fast and with very high material savings. The Advance HD Air Caps provide outstanding atomisation for handling all solvent, waterborne, high solids and 2K materials.

• • • • • •

Robust and lightweight for High Demand outputs Balanced air valve design for improved air flow Superior finish with paint savings and transfer efficiency Contoured handle design reduces operator fatigue Stainless Steel tips, needles and fluid passageways CE marked and fully ATEX approved

Star 106 Mini Gravity Spray Gun 1.2mm Star Mini 106 Gun

www.sprayandblast.com.au

STAR/S770S-1

A very high quality small gravity fed industrial touch up spray gun. These have a sophisticated needle assembly giving an excellent even spray pattern & finish. These little gravity spray guns are very well accepted within the panel trade as they have very few problems with paint clogging or wastage due to the design. Very fine adjustment controls make for ease of use.

• • • • • •

Fluid Tip: 1.2mm Air Pressure: 35 PSI/2.5 BAR Air Consumption: 150 l/min Fluid Out Put: 160 ml/min Max Pattern Width: 120mm Suitable for: Metallic, Primer, Automotive 2 Pak, 2 Pak Basecoat, Polyurethane, 2 Pak Top Coat, Lacquer and Enamel

53

DeVilbiss SGK Gravity Spray Gun 1.4mm SGK Gravity Gun

D/SGK-505-622-14

1.6mm SGK Gravity Gun

D/SGK-600-SS

Conventional Spray Equipment

3

Heavy duty spray gun for high production. They can be fed either by pressure tanks or low pressure pumps. Renders paint economy reducing waste and pollution with lower air volume consumption. Super light trigger pull, ideal for continuous work. Hardened stainless steel needle for less wear and anodised aluminium baffle with thread for air cap ring. Paint passages in body are stainless steel, making the gun compatible for waterborne paints.

• • • •

Fluid Tip & Needle size: 1.4mm Required Pressure: 35-45PSI Flow Rate: 300-840 cc/min Stainless Steel fluid passasge

Pressure Guns Star S770 Pressure Spray Gun Spray Gun Head Only 3mm

STAR/S770H-5

Star guns deliver an optimum result and superior atomisation, at an affordable price.

• • • •

Nozzle Size: 3mm Required Pressure: 50-70PSI Air Consumption: 6.89cf/m Spray Pattern: 235mm

Tomcat 100 Conventional Pressure Spray Gun 1.5mm Tomcat 15CFM

W/T100C-15-2466

1.8mm Tomcat 14CFM

W/T100C-18-2263

1.8mm Tomcat 3 Cap

W/T100C-18-2266-3

2.2mm Tomcat 14.5CFM

W/T100C-22-2267

2.2mm Tomcat 15CFM

W/T100C-22-2167

2.8mm Tomcat 14CFM

W/T100C-28-2168

An economical general purpose conventional air spray gun for spraying a wide range of coatings.

Designed for production use, the Tomcat is perfect for all coatings from thin to thick, stains to glue. Can also be used with internal mix nozzles as well as carbide tipped fluid nozzles for abrasives.

•

• •

This gun features a selfadjusting needle packing, inexpensive nozzle replacement and rugged construction.

Air Inlet: 1/4” BSP Fluid Inlet: 3/8” BSP

Panther 200 Conventional Pressure Spray Gun 1.4mm Panther 21 CFM

W/P200C-14-2797

1.8mm Panther 21 CFM

W/P200C-18-2064T

1.8mm Panther 21 CFM

W/P200C-18-2797

2.2mm Panther 22 CFM

W/P200C-22-2064T

2.8mm Panther 19 CFM

W/P200C-28-2062T

54

A general purpose conventional air spray gun for the corrosion control market. Designed for spraying in harsh environments, this gun has the break-up power to atomise heavy, high solids coatings. The gun body is anodised PTFE to aid in clean-up and to extend the life of the gun.

• • •

Includes 1 x needle/nozzle kit.

Air Inlet: 1/4” BSP Fluid Inlet: 3/8” BSP

Phone: 1800 140 888

DeVilbiss Advance HD Trans-Tech® Pressure Spray Gun ADV Trans Tech Pressure Feed Gun 1.2mm

D/ADV-P510-12

ADV Trans Tech Pressure Feed Gun 1.4mm

D/ADV-P510-14

ADV Trans Tech Pressure Feed Gun 1.8mm

D/ADV-P510-18

DeVilbiss Advance HD Trans-Tech pressure feed spray gun has a balanced air valve design for lighter trigger pull and improved air flow.

Trans-Tech Compliant air caps provide superior finish with less over spray.

• • •

•

Robust, Lightweight and work friendly design for High Demand outputs Balanced air valve design for lighter trigger pull and improved air flow Trans-Tech Compliant and HVLP air caps provide superior finish with the best possible paint savings and transfer efficiency Stainless Steel tips, needles and fluid

3

Conventional Spray Equipment

DeVilbiss JGA HD Pressure Spray Gun JGA HD Pressure Gun 1.8mm

D/JGAPHD-C3-18

•

JGA HD Pressure Gun 1.8mm Head Only

D/JGAPHD-C1-18

• • • •

Renowned DeVilbiss Atomisation Quality Genuine fast application rates Forged aluminium gun body for long life service Light smooth trigger action to reduce operator fatigue Balanced air valve design to improve air flow characteristics.

•

• • • •

With a greatly improved spray performance it’s ideally suited for all base and clearcoat applications, in conjunction with the new 1.4 and 1.6 fluid tips.

Also available with 1.8 though some higher flow set ups suit the C2.

1.4 most suits basecoat / metallic 1.6 suits cellulose colour or synthetic / all purpose set up 1.8 suits primer

DeVilbiss Advance HD P497 Pressure Spray Gun Advance HD P497 1.0mm

D/ADV-P497-10

Advance HD P497 1.2mm

D/ADV-P497-12

Advance HD P497 1.4mm

D/ADV-P497-14

Advance HD P497 1.6mm

D/ADV-P497-16

Advance HD P497 1.8mm

D/ADV-P497-18

Advance HD P497 2.0mm

D/ADV-P497-20

Advance HD P497 2.2mm

D/ADV-P497-22

Advance HD P497 2.8mm

D/ADV-P497-28

www.sprayandblast.com.au

The DeVilbiss Advance HD pressure feed spray guns are mid-sized, conventional guns specifically designed for use with paint pressure pots and double-diaphragm pumps.

They deliver superior finishing quality across a range of industrial paint applications, ensuring outstanding results every time.

• • • • •

Wide range of conventional air caps for superior atomisation and finish.

Robust, lightweight construction designed for high-demand performance.

Stainless steel tips, needles, and fluid passageways for durability.

Contoured handle for reduced fatigue and improved control.

CE marked and fully ATEX approved for compliance and safety.

55

Suction Guns Star SS770 Suction Spray Gun

Conventional Spray Equipment

3

1.5mm Spray Gun

STAR/S770S-1

2mm Spray Gun

STAR/S770S-3

2.5mm Spray Gun

STAR/S770S-4

3mm Spray Gun

STAR/S770S-5

Ideal for acrylic lacquer, furniture • lacquer, primer filler, industrial enamel and primer.

• The S770 Series spray gun is a popular conventional high pressure spray gun that provides extremely fine atomisation for the DIYer and professional.

• • •

Nozzle Size: 1.5mm to 3.0mm Required Pressure: 50-70PSI Air Consumption: 8.83CFM Spray Pattern: 260mm Pot Size: 1L

Anest Iwata N77 2Spray Suction Spray Gun 1.5mm Spray Gun

I/N77.1PS

2mm Spray Gun

I/N77.2PS

2.5mm Spray Gun

I/N77.3PS

3mm Spray Gun

I/N77.4PS

A versatile, well-balanced spray gun available with 4 different size heads. Designed for medium to large jobs, it features a polished body for easy cleaning, stainless steel fluid passages for compatibility with solvent and waterborne paints and a built-in air adjuster for precise control. Ideal for use with acrylics, enamels, primers, glues, epoxy and 2K paints.

• • • • •

Nozzle Size: 1.5mm to 3.0mm Required Pressure: 45PSI Air Consumption: up to 460 L/min Spray Pattern: 260-330mm Pot Size: 1L

Supplied with a 1L suction pot.

DeVilbiss Advance HD Trans-Tech® Suction Spray Gun Advanced Suction Spray Gun

D/ADV-S510-XX

The Advance HD Spray Gun is designed with both high volume, low pressure (HVLP) technology or EPA compliant, Trans-Tech technology.

The gun is suitable for use with both water-based and solvent based coating materials.

• •

Available in 1.4mm, 1.8mm, 2.2mm fluid tips and needles Available in tungsten carbide, suitable for more abrasive materials

The gun has a “no baffle” design which reduces the number of parts and makes cleaning easier. The gun also features a self adjusting needle packing assembly made of PTFE.

DeVilbiss Advance HD Conventional Suction Spray Gun ADV Conv Suction Gun 1.4mm

D/ADV-S430-14

ADV Conv Suction Gun 1.8mm

D/ADV-S430-18

56

The DeVilbiss Advance HD pressure feed spray guns are mid-sized, conventional guns specifically designed for use with paint pressure pots and double-diaphragm pumps.

They deliver superior finishing quality across a range of industrial paint applications, ensuring outstanding results every time.

• • • •

Wide range of conventional air caps for superior atomisation and finish.

Robust, lightweight construction designed for high-demand performance.

Stainless steel tips, needles, and fluid passageways for durability.

CE marked and fully ATEX approved for compliance and safety.

Phone: 1800 140 888

Pressure Pots Samson 2L Samson Pressure Pot Pot w/ Hoses & Fittings

B/S810

The Samson 2 litre Pressure Pot, complete with hoses, is lightweight, easy to carry 2 litre pot for those times when a suction cup is not large enough. Also included is a regulator and gauge for accurate pressure settings and a belt hook/ carry handle for ease of use.

Complete with hoses, is lightweight, easy to carry 2 litre pot for those times when a suction cup is not large enough.

Also included is a regulator and gauge for accurate pressure settings and a belt hook.

Simple in design and versatile in operation, this economically priced pressure pot is tough enough to hold up to daily industrial and automotive operation and is designed for easy use and cleaning.

Includes bypass regulator and gauge.

3

Pot Only

W/PT-2P

Conventional Spray Equipment

Wagner 2L Pressure Pot

DeVilbiss 2.3L DeVilbiss KBII Pressure Pot KBII Pressure Pot

D/KB-555

Wide-base design provides greater stability and wide cup mouth makes cleaning simple. The pistol grip carrying handle feels just like the handle of a spraygun while a removable handle is also included to hook on the painters belt.

• •

The 4 Litre Compact Pressure Pot is a convenient size for intermediate to larger job applications or where the product must be applied shortly after mixing.

•

Supplied with air regulator, Teflon coated heavy duty patented seamless pot construction and aluminium pot liner.

The 10L Compact Pressure Pot, ideal for small production applications where product requirement is larger than a standard spray gun pot or where pot life is short.

•

Supplied with air regulators, constructed with a patented seamless one piece shell, Teflon lined and are fully compliant with Australian Standard AS4343.

• •

2.3 Litre capacity (30PSI) Familiar gun grip handle plus belt hook for operator convenience At the job controls with lid mounted pressure gauge KB disposable liners make cleaning and colour changes fast and simple

Star 4L Pressure Pot Star Pressure Pot

STAR/02104

Star 10L Pressure Pot Star Pressure Pot

www.sprayandblast.com.au

STAR/02105

57

Wagner 10L Pressure Pot Automatic Agitated Pot

W/PT-10A

Manual Agitated Pot

W/PT-10H

Conventional Spray Equipment

3

Complete with paint tank, pneumatic motor, air regulator, safety valve, outlet valve, paint exit hole. Seamless steel body construction of pressure tank for long durability. Teflon finish inside the inner tank for different viscosities. Air-actuated paint-stirring keeps paint from depositing at the tank bottom.

• • •

Capacity 10L Regulator included Max Pressure: 80PSI

•

Constructed from heavy gauge steel with forged steel clamps Carbon steel plated range covers all industrial applications Higher pressure rating for heavier materials Inner liners reduce cleaning time and save coating material

Binks 10L Galvanised Pressure Pot Galvanised Pressure Pot

D/83C-210

The Binks pressure pot is 10 litres, features a zinc plated shell & lid, and has a single regulator for the tank. This is appropriate for solvent based materials and is ASME rated.

Disposable liners are available for easy cleaning.

• • •

Wagner 20L Pressure Pot Automatic Agitated Pot

W/PT-20A

Manual Agitated Pot

W/PT-20H

58

Complete with paint tank, pneumatic motor, air regulator, safety valve, outlet valve, paint exit hole. Seamless steel body construction of pressure tank for long durability. Teflon finish inside the inner tank for different viscosities. Air-actuated paint-stirring keeps paint from depositing at the tank bottom.

• • •

Capacity 20L Regulator included Max Pressure: 80PSI

Phone: 1800 140 888

Accessories Spraybooth Filter Paper

Cup Filters

1m x 10.38m Disposable Paper

B/20-79-02

Cup Filter 5pk

0.9m x 9.24m Disposable Paper

B/20-72-29

3

STAR/SA32

Conventional Spray Equipment

Drip Free Diaphragms

Filter Media

DeVilbiss Drip Free Diaphragm

40m x 1.5m Wide (E)

SUN/FILTER MEDIA (E)

20m x 2.1m Wide (H)

SUN/FILTER MEDIA H-2.1

20m x 1.5m Wide (E)

SUN/FILTER MEDIA 20MTR

D/KR-115

Gravity Cup Filter DeVilbiss Cup Filter

D/KGP-5-K5

Exhaust Paint Stop 20m x 0.5m Wide

SUN/FIBREGLASS MEDIA 2

20m x 0.75m Wide

SUN/FIBREGLASS MEDIA3

20m x 1m Wide

SUN/FIBREGLASS MEDIA 3

20m x 1.5m Wide

SUN/FIBREGLASS MEDIA 1

Viscosity Cups Viscosity Cup 2pk

www.sprayandblast.com.au

D/7000-114-K2

59

VSA In-Line Filter

Whirlwind Filter

Fluid Filter Inlet Kit

D/VSA-512

Replacement 60 Micron Green Filter

D/VSA-3

Replacement 112 Micron Blue Filter

D/VSA-4

Replacement 280 Micron White Filter

D/VSA-5

Disposable Whirlwind Filter

D/HAF-507

Conventional Spray Equipment

3

Gun Cleaning Brushes 17 Piece Cleaning Kit

STAR/03151

In Line Air Adjusting Valve In-Line Air Adjusting Valve

D/HAV-501

Spray Gun Lube SSL 10 Spray Gun Lube

D/SSL-10

Spray Gun Cleaning Kit Professional Spray Gun Cleaning Kit

D/KK-4584

Gravity Gun Stand Gravity Spray Gun Holder

Gun Cleaning Brushes 3/8” Diameter Cleaning Brush

D/42884-214B

5/8” Diameter Cleaning Brush

D/42884-215B

60

STAR/03100

Phone: 1800 140 888

Pressure Pot Liners

DeVilbiss 1L Suction Pot

Disposable Pressure Pot Liners

1L Suction Pot

D/PT-78

D/KR-566-1-B

3 DeVilbiss Gravity Cups

Spray Gun Service Kit

568mL Acetal Build

D/GFC-501

JGA, JGV, GFG, GTI Service Kit

1L Aluminium Build

D/GFC-502

Conventional Spray Equipment

www.sprayandblast.com.au

D/KK-4558

61

BLAST EQUIPMENT 4

Blast Pots SuperFlow Blast Pot

Blast Equipment

The SuperFlow blast pot combines our 40 years of experience in the blast cleaning industry to produce a high production, reliable and operator safe blasting system guaranteed to increase your productivity and profitability on every project.

The SuperFlow blast pot has been designed specifically to provide high productivity and ease of maintenance.

Package A consists of: A pressure vessel blast pot, Deadman Handle, 20m Twinline Hose (10m for SF-20 model), Abrasive Saver Valve and Moisture Separator.

Package B consists of: All items listed in Package A plus 20m Lightweight Blast Hose (10m for SF-20 model), Nylon Hose Holder, Nylon Hose Coupling, #6 OR #7 Tungsten Carbide Nozzle (#4 short venturi for SF-20 model).

Package C consists of: All items listed in Package A & B plus Breathing Air Filter, Blasting Helmet, Cold Air Tube, 20m Breathing Air Line (10m for SF-20 model), Leather/Cotton Blast Suit and Blasting Gloves.

SuperFlow SF-20 Blast Pot Package A

SB/BP-201063

Package B

SB/BP-201067

Package C

SB/BP-201071

62

The baby of the range the SF-20 is still fitted with full flow 1 1/4” piping so the blast power is as strong as the rest of the range. Ideal for loading into a cherry picker with one or two bags of abrasive to get to reach those difficult to reach areas where full power blasting is required.

•

•

The SuperFlow SF-20 is fitted with 1 1/4" RAV125 inlet valve, silencer, moisture separator, sbrasive save valve, twinline and deadman control handle.

Unit can be supplied as pot only or as a complete blast pot package with Blast Helmet, Breathing Air Filter, 10m Breathing Airline, 10m Lightweight Fitted Blast Hose and Short Venturi Tungsten Nozzle with Aluminium Jacket.

Phone: 1800 140 888

SuperFlow SF-50 Blast Pot Package A

SB/BP-201062

Package B

SB/BP-201066

Package C

SB/BP-201070

Although small the SF-50 is still fitted with full size piping and fitting making it ideal for those small blasting projects that need to be completed as quickly as possible but do not require a full sized industrial unit.

•

•

Fitted with 1 1/4" RAV125 inlet valve, silencer, moisture separator and abrasive saver valve as standard the SF-50 has all the features of the larger machines in a slimline, compact design and with an abrasive capacity of 50 litres you’ll be able to get plenty of work done before refilling is required.

Unit can be supplied as pot only or as a complete blast pot package with Blast Helmet, Breathing Air Filter, 20m Breathing Airline, 20m Lightweight Fitted Blast Hose and #5 Tungsten Nozzle with Aluminium Jacket.

4

Package A

SB/BP-201061

Package B

SB/BP-201065

Package C

SB/BP-201069

The SF-100 is ideally sized for easy on site relocation or for use on small blastrooms where long blasting times are not required.

•

•

Blast Equipment

SuperFlow SF-100 Blast Pot Fitted with 1 1/2” RAV125 inlet valve, silencer, moisture separator and abrasive saver valve as standard the SF-100 is the perfect height to allow the operator to quickly and easily manually load abrasive.

Complete blast pot package with Blast Helmet, Breathing Air Filter, 20m Breathing Airline, 20m Lightweight Fitted Blast Hose and #6 Tungsten Nozzle with Aluminium Jacket.

SuperFlow SF-200 Blast Pot Package A

SB/BP-201060

Package B

SB/BP-201064

Package C

SB/BP-201068

As the blasting industries most popular sized machine the SF-200 is perfect for blast room applications using recyclable abrasives or for open blasting with expendable abrasives.

•

•

www.sprayandblast.com.au

Fitted with 1 1/2” RAV125 inlet valve, silencer, moisture separator and abrasive saver valve as standard the SF-200 has a large 200 litre capacity allowing for long periods of uninterrupted blasting.

Complete blast pot package with Blast Helmet, Breathing Air Filter, 20m Breathing Airline, 20m Lightweight Fitted Blast Hose and #7 Tungsten Nozzle with Aluminium Jacket.

63

FatBoy Blast Pot The Fat Boy series of blast pots have been designed and built specifically for high production open blast and blastroom applications. Combining bulk abrasive storage capacities and multiple outlets the Fat Boy series provides extended blasting times to maximise productivity and increase profitability. Incorporating many safety features the Fat Boy series keeps operators safe and ensures compliance with the strictest of worksite safety requirements.

4

If your blasting requirement is for high productivity and extended blasting times, without stopping to refill with abrasive, there is a FatBoy blast pot perfectly suited for your application.

Our FatBoy blast pots come complete in a package or alternatively can be customised to suit individual needs. For any enquiries, please contact our team on 1800 140 888 or email us at sales@sprayandblast.com.au.

Blast Equipment

Package A consists of: Blast Pot, 1 1/2” piping, RAV125 Control Valve, Normally Closed Valve, Isolator Valve, Jumbo Silencer, Deadman Handle, 20 meter Twinline Hose and Feed Hopper.

FatBoy 1T Skid Vessel Package A

SB/BP-201000

The baby of the FatBoy series the 1 Tonne Skid Blast Pot can hold 1000kg of garnet abrasive. Perfect for mid sized projects that can be completed in a few hours. Easy setup of blast hose and remotes makes relocation to other sites quick and easy. Suitable for use with all recycled or expendable abrasives.

FatBoy 2T Skid Vessel Package A

64

SB/BP-202000

The FatBoy 2 Tonne Skid Blast Pot can hold a generous 2000kg of garnet abrasive. Standard set up is for 2 operators but additional outlet port permits third operator to be added if required. Perfect for mid sized projects that can be completed in a few hours. Easy setup of blast hose and remotes makes relocation to other sites quick and easy.

Suitable for use with all recyclable or expendable abrasives.

Phone: 1800 140 888

Compressed Air Treatment Moisture and oil in the compressed air used for blasting can cause many problems. Wet compressed air will cause clogging of the abrasive in the blasting pot and result in the pot having to be cleaned out. When using steel abrasives this is a major problem as the steel grit particles can rust together and form a solid block of steel.

Wet air also leads to contamination of the freshly blasted work surface. The moist air will create flash rusting in a very short time and lead to rejected surface preparation.

4

For any enquiries, please contact our team on 1800 140 888 or email us at sales@sprayandblast.com.au.

Air Pig SB/AP-BP-301369

Air Pig 2x2” 4x1 Ports Ball Valves Only

SB/AP-BP-301369-B

Air Pig 2x2” 4x1 Ports Fitted Complete

SB/AP-BP-301369-C

Air Pig 2x2” 4x1 Ports Fitted Complete Nitto Fitted

SB/AP-BP-301369-C-NITO

Air Pig 2x2” 4x1 Ports No S/V with Nitto

SB/AP-BP-301369-NSV

Air Pig 2x2” 4x1 Ports No S/V with Rycos

SB/AP-BP-301369-RSV

These manifolds are designed for industrial applications so that multiple tools can be run off a single air supply and also isolated as required. Ideal for mobile applications such as ship building and large fabrication facilities.

Blast Equipment

Air Pig 2x2” 4x1 Ports

Air Prep System 275 CFM Complete

SB/AF-BP-201094

400 CFM No Covers & Frame

SB/AF-BP-201095-C

400 CFM No Covers

SB/AF-BP-201095-B

400 CFM Complete

SB/AF-BP-201095

400 CFM 2-Stage

SB/AF-BP-400-2S

800 CFM No Covers & Frame

SB/AF-BP-201596-C

800 CFM Complete

SB/AF-BP-201596

1200 CFM Complete

SB/AF-BP-201097

Unique 3 stage system, unlike others, the Murphy’s Air Prep has a pre-filtration knockout system that removes a percentage of moist air prior to entry into the after-cooler, this is to maximise the efficiency of the after-cooler.

Knock Out Moisture Separator 400 CFM Bare

SB/AF-BP-301170

400 CFM Complete

SB/AF-BP-301170-C

800 CFM Bare

SB/AF-BP-301333

800 CFM Complete

SB/AF-BP-301333-C

www.sprayandblast.com.au

Remove the unwanted water from your air supply with a knock out moisture trap. High capacity large cartridge for effective filtration.

Available in 400CFM & 800CFM bare or complete with fittings

65

Portable Ventilator Dust Portable Ventilator

4

10,000 CFM Electric 415V

SB/VF-BP-0001

5,000 CFM 15amp Electric

SB/VF-BP-0002

5,000 CFM 15amp Electric w/ Sock

SB/VF-BP-0002-C

10,000 CFM Air Operated

SB/VF-BP-801113

10,000 CFM Air Operated w/ Sock

SB/VF-BP-801113-C

Blast Equipment

CONSUMABLES Portable Dust Sock 10m x 500mm Entrance

SB/DF-BP-801018

Portable Dust Sock 4m x 500mm Entrance

SB/DF-BP-801018-4

Portable Dust Sock 3m x 500mm Entrance

SB/DF-BP-801018-3

Flexible Dust Hose 10m x 500mm Positive Pressure

SB/VF-BP-801110

Flexible Dust Hose 10m x 500mm Negative Pressure

SB/VF-BP-801110-NEG

66

The Porta-Blast portable ventilator is a convenient, movable fan suitable for local ventilation of enclosed blasting areas. The unit can be placed directly in the work area or outside and ducted to the working area.

The portable ventilator is 500mm in diameter and is available with air driven or electric drive fan.

Single phase motor produces approximately 5,000 cfm and three phase motor produces approximately 10,000 cfm.

A dust sock suitable for capture of nuisance dust is available as optional accessory.

Phone: 1800 140 888

Accessories & Spares Remote Control Valves

Enhance operational continuity and save costs with minimal maintenance and in compliance with environmental regulations. Valve Remote Control solutions are custom-made and scalable solutions for hydraulic, electro-hydraulic, electric & pneumatic actuation that meet your specific marine applications.​​​​​​​​​​​​​​​​​​​​​

4

Compact Remote Valve CRV w/ Fittings

SB/RC-BP-301001

Simple and reliable this control valve is suitable for use with all abrasive and blast pot set up types.

Blast Equipment

Lightweight, sturdy and reliable the Compact Remote Valve is an air operated inlet/exhaust valve which is easily retro fitted to control systems and allows quick start and stop response to the remote control handle. The valve can be serviced without removing it from the blast pot, eliminating costly down time, maintenance costs and ensures the operator spends more time blasting.

Spare Parts Minor Seal Kit

SB/RC-BP-301001-SK

Diaphragm (Pack of 3)

SB/RC-BP-301001-6

Major Seal Kit

SB/RC-BP-301001SKM

Exhaust Pad (Pack of 3)

SB/RC-BP-301001-11

RAV125 Inlet Valve RAV125 1” 1/4 Inlet Valve

SB/RC-BP-301002

RAV125 1” 1/2 Inlet Valve

SB/RC-BP-302002

Normally closed air operated inlet valve with 1 1/4” ports ensures minimal air pressure loss. Contains no springs to close. The blasting industries favourite remote control valve. Simple springless design ensures continuous reliable service for thousands of cycles. Removable end caps provides quick and simple access to the valve interior for servicing. Fitment of mini ball valve allows the valve to be deactivated in case of emergency.

Use in conjunction with RAV125 Outlet Valve.

Spare Parts RAV125 Seal Kit

RAV125 1” 1/2 Seal Kit

SB/RC-BP-301002-SK

SB/RC-BP-302002-SK

RAV125 Outlet Valve RAV125 3/4" Outlet Valve

SB/RC-BP-301487

RAV125 1” Outlet Valve & Manifold

SB/RC-BP-301488

The blasting industries favourite remote control valve. Simple springless design ensures continuous reliable service for thousands of cycles. Removable end caps provides quick and simple access to the valve interior for servicing. Exhaust air noise is greatly reduced by fitment of silencer to top cover.

Use in conjunction with RAV125 Inlet Valve.

Spare Parts RAV125 3/4" Outlet Valve Seal Kit

www.sprayandblast.com.au

SB/RC-BP-301487-SK

RAV125 1" Outlet Seal Kit

SB/RC-BP-301488-SK

67

Combination Valve Combination Valve

SB/RC-BP-301005

This valve is a one piece normally closed air inlet and outlet valve. A short length of blast hose is used for the blow down function that eliminates any abrasive coming into contact with the valve. As no abrasive passes through the valve there is no wear on the valve thus providing years of trouble free service.

Large internal bore reduces air pressure loss through the valve which results in less pressure drop at the nozzle.

4 Spare Parts Combination Seal Kit

SB/RC-BP-301005-SK

RAV50 Mini Combination Valve Blast Equipment

RAV50 Mini Combination Valve

SB/RC-BP-301171

The RAV50 Mini Combination Valve allows for ease of installation and maintenance with only one valve requiring removal for quick change over of respective diaphragms, gaskets and o rings, meaning down time is kept to an absolute minimum.

Supplied complete with exhaust silencer.

Same reliable design as the RAV125 Inlet/Outlet Valve but fitted with 1/2” threaded ports for fitment to smaller blast pots.

Spare Parts Mini Combination Seal Kit

SB/RC-BP-301171-SK

Auto Air Valve 25mm (1”) Ports

SB/RC-BP-301006

32mm (1.25”) Ports

SB/RC-BP-301007

38mm (1.5”) Ports

SB/RC-BP-301008

Used on pressure hold pots for the starting and stopping of the air supply through the pusher line and blast hose. The Auto Air Valve is ideal for use with multiple outlet and bulk blast machines and provides the on/ off supply of compressed air to the pusher line to allow independent operation or blow down function.

Utilised in conjunction with the Normally Closed Valve.

Spare Parts Repair Kit for Auto Air Valve 1.5”

SB/RC-BP-301429

Repair Kit for Auto Air Valve 1.25”

SB/RC-BP-301428

Repair Kit for Auto Air Valve 1”

SB/RC-BP-301427

Silencer Silencer 3/4"

SB/RC-BP-301009

Exhaust 1"

SB/RC-BP-400001

Exhaust High Flow 1/2"

SB/RC-BP-400000

Reduce the noise level of exhausting compressed air from the blast pot with this simple rugged silencer.

Easily dismantles for clean out if blocked.

Reduce the noise of the compressed air exiting the blast pot when depressurising.

68

Simple lightweight screw on design allows quick and easy replacement when worn out.

Phone: 1800 140 888

Remote Control Handles RAV Pneumatic Deadman Handle Pneumatic Deadman Handle

SB/RC-BP-301013

Air bleed type control handle simply designed for easy operation.

The RAV Pneumatic remote control handle is lightweight, tough and reliable and is used in combination with a blast pot remote valve and up to 40 meters of twinline hose.

The handle will only activate once the operator makes a deliberate two step action to fold down the safety lock and pushes down the lever.

4

Spare Parts Service Repair Kit

SB/RC-BP-301013-SK

RAV Electric Deadman Handle Electric Deadman Handle

SB/RC-BP-301014

When using blast hoses over 40 meters long the RAV Electric remote handle will provide instant activation of the pot remote valve and eliminate the delay encountered with pneumatic handles. The handle operates on 12V DC supply.

The handle will only activate once the operator makes a deliberate two step action to fold down the safety lock and pushes down the lever.

Blast Equipment

Recommended for use when the blast hose exceeds 40 meters long.

Provides instant activation of the remote valves with no time delay.

Spare Parts Service Repair Kit

SB/RC-BP-301014-SK

CRV Pneumatic Deadman Handle Pneumatic Deadman Handle

SB/RC-BP-301015

Closed type control handle ruggedly designed.

This non air bleed type deadman handle is recommended for use with the Combination Valve. The internal 3 way normally closed valve provides a fast activation and deactivation response time.

The handle will only activate once the operator makes a deliberate two step action to fold down the safety lock and pushes down the lever.

Deadman Handle Large Electric Deadman Handle

SB/RC-BP-301016-E

Non Bleed Deadman Handle

SB/RC-BP-301016

www.sprayandblast.com.au

For use in general blast yards, site operations, fabrication & construction yards. Can be used off shore, such as oil and gas maintenance projects.

The handle will only activate once the operator makes a deliberate two step action to fold down the safety lock and pushes down the lever.

69

Ball Stop Wedge Pneumatic Ball Stop Handle

SB/RC-BP-301174

Wedge & Plate Assembly

SB/RC-BP-301532

Ball & Strap

SB/RC-BP-301360

Pneumatic Ball Stop Handle

SB/RC-BP-301174-W

Dual Switch w/ 1m Cable

SB/RC-BP-301219

The Ball Stop Pneumatic Control Handle is designed as a basic deadman device which allows the operator to operate the blast without the need to hold down a lever or handle.

This means the Ball Stop handle can lead to reduced operator fatigue.

4

Blast Equipment

Blast Light Blast Light Assembly w/ Lamp & 3.5m Cable 12 VDC

SB/BL-BP-301093

Blast Light Assembly w/ 30m Cable

SB/BL-BP-301093-A

Battery Pack Complete w/ Pouch & Belt

SB/BL-BP-301502

Cable 2 Core (per/metre)

SB/BL-BP-0003

Blast Light Glass

SB/BL-BP-301094

Increased visibility increases productivity. These rugged 12V DC blast lights are made from lightweight cast aluminium and fitted with a replaceable glass. Particularly effective when blasting in enclosed areas.

Instead of guessing where they should blast, and consequently blasting areas already blasted, the operators will blast only in the correct areas; saving time, abrasive consumption and energy.

The perfect solution for blasting in areas with poor visibility, such as inside and under ship blocks and inside tanks. Powered by a 12VDC LED lamp this cost effective solution will make a huge difference in productivity.

Abrasive Metering Valves Sand Valve Flat Sand Valve

SB/VA-BP-301025

Abrasive metering valve suitable for all expendable abrasives. 45 degree design aids abrasive flow into airstream and reduces wear on valve.

The Sand Valve is the perfect valve for metering expendable abrasives, ie garnet, crushed glass and minerals slags to the blast nozzle.

Spare Parts Repair Kit Suit 1”1/2

70

SB/VA-BP-301025-SK

The 45 degree free flow design of the valve ensures a consistent uninterrupted abrasive flow which results in higher productivity and less abrasive wastage.

In case of foreign particle blockage the Sand Valve is fitted with a removable clean out plate to provide quick easy access and reduce maintenance downtime.

Phone: 1800 140 888

Mini Sand Valve Flat Sand Valve

SB/VA-BP-301172

The Mini Sand Valve is designed for use on smaller sized blast pots and is fitted with 0.5” threaded ports.

Internal plate and stem are manufactured from stainless steel to increase valve life.

Precise metering of all abrasive types is achieved with this valve to reduce abrasive wastage.

4 Abrasive Saver Valve Abrasive Saver Valve

SB/VA-BP-301026

Abrasive metering valve suitable for all abrasive types. Screw in metering knob allows very precise abrasive metering and reduces abrasive consumption. Low profile height permits fitting to almost any blast pot.

1 1/2” X 1 1/4” pipe nipple.

To reduce maintenance costs the valve internals are made from tungsten carbide, hardened steel and polyurethane.

Spare Parts Repair Kit

SB/VA-BP-301026-SK

Body Abrasive Saver Valve

SB/VA-BP-301026-8

Pipe Nipple 1.25” x 1.25”

SB/VA-BP-301026-10

Pipe Nipple 1.5” x 1.25”

SB/VA-BP-301026-10A

Pipe Nipple 1.5” x 1.5”

SB/VA-BP-301026-10B

Normally Closed Valve - Tungsten Normally Closed Valve 1.25”

SB/VA-BP-301027

Similar operation to the minor valve except also has abrasive shut off feature. Can be set up on pressure hold pot to seal the tank and shut off abrasive flow, or on standard pot to shut off abrasive flow to the blast hose when the remote control handle is released to reduce abrasive wastage. Fitted with tungsten carbide internal sleeve to allow use with any abrasive.

The perfect valve for instant start/stop blast nozzle activation.

Ideally suited for multiple outlet blast machines the Normally Closed Valve allows each operator independent blasting on/off control of their nozzle.

The Normally Closed Valve can also be utilised to allow abrasive cut off giving the operator an air only blow down feature, very handy in blast room scenarios to ensure valuable abrasive does not leave the room with the work piece.

Spare Parts Major Kit Suit Tungsten Carbide

www.sprayandblast.com.au

SB/VA-BP-301036

Seal Kit

SB/VA-BP-301224

71

Blast Equipment

Reduce abrasive consumption and save money. The Abrasive Saver Valve will save a fortune in wasted abrasive. The screw in plunger permits very accurate adjustment to allow just the right amount of abrasive to the blast nozzle.

The valve is ideally suited to all fine abrasive types, ie glass beads, garnet, aluminium oxide, plastic media, ceramic beads etc.

Normally Closed Valve - Urethane Normally Closed Valve 1.25”

SB/VA-BP-301029

4

Similar operation to the minor valve except also has abrasive shut off feature. Can be set up on pressure hold pot to seal the tank and shut off abrasive flow, or on standard pot to shut off abrasive flow to the blast hose when the remote control handle is released to reduce abrasive wastage. Fitted with urethane internal sleeve, recommended for use with softer abrasives, ie plastic, glass beads, ceramic etc.

The perfect valve for instant start/stop blast nozzle activation.

Ideally suited for multiple outlet blast machines the Normally Closed Valve allows each operator independent blasting on/off control of their nozzle.

The Normally Closed Valve can also be utilised to allow abrasive cut off giving the operator an air only blow down feature, very handy in blast room scenarios to ensure valuable abrasive does not leave the room with the work piece.

Spare Parts Major Kit Suit Urethane

SB/VA-BP-301035

Urethane Sleeve

SB/VA-BP-301029-4

Blast Equipment

TVII Normally Closed Valve - Tungsten Carbide TVII Normally Closed Valve 1.25”

SB/VA-BP-301027

TVII Normally Closed Valve 1.5”

SB/VA-BP-301784

The TVII is ideal for multiple outlet use and is easily adaptable to most existing blasting systems. A lower overall profile allows for more room between the valve and blast pot for easy access.

The TVII is a normally closed, self sealing, abrasive metering valve with instant, smooth response to either pneumatic or electric deadman controls.

This fail-safe valve shuts off abrasive flow to the nozzle and seals the tank at the same instant. A remote abrasive cutoff is available, allowing the operator to stop the flow of air.

The clean-out feature provides a quick and easy to clear the blast hose and blasting area of abrasive.

TVII Normally Closed Valve - Urethane TVII Normally Closed Valve 1.25”

SB/VA-BP-301029

TVII Normally Closed Valve 1.5”

SB/VA-BP-301784-U

The TVII is ideal for multiple outlet use and is easily adaptable to most existing blasting systems. A lower overall profile allows for more room between the valve and blast pot for easy access.

The TVII is a normally closed, self sealing, abrasive metering valve with instant, smooth response to either pneumatic or electric deadman controls.

The Isolator Valve is a great maintenance time saving device.

Fitted above the abrasive metering valve it permits the metering valve to be removed from the blast pot for service, without the need to empty the abrasive from the pot, which saves a huge amount of time.

The isolator valve is particularly useful for bulk blasters and multiple outlet blast pots as it allows each individual abrasive metering valve to be removed from the pot without affecting the other outlets. Fitted with 1.5” ports to ensure unrestricted abrasive flow.

This fail-safe valve shuts off abrasive flow to the nozzle and seals the tank at the same instant. A remote abrasive cutoff is available, allowing the operator to stop the flow of air.

The clean-out feature provides a quick and easy to clear the blast hose and blasting area of abrasive.

Isolator Valve Isolator Valve

SB/VA-BP-301217

Isolator Valve Diaphragm

SB/VA-BP-301380

72

Phone: 1800 140 888

Air Filtration & Manifolds Moisture Separator 32mm (1.25”) NB Ports

SB/AF-BP-301097

38mm (1.5”) NB Ports

SB/AF-BP-301103

Remove moisture from the airstream before it gets into the blast pot and avoid timely down time and clean outs. Moisture separator removes moisture, oil and particulate.

Always a problem for blasting operations is the presence of moisture in the compressed air supply.

4

Spare Parts Service Kit

SB/AF-BP-301103-SK

1 Operator

SB/AF-BP-300005

2 Operator

SB/AF-BP-300006

4 Operator

SB/AF-BP-300007

Ensure clean, breathable air during abrasive blasting operations with the Micromist Respirator Airline Filter.

Designed to integrate seamlessly with your existing Respirator Airline Filter Assembly, this advanced filter provides additional particulate filtration, removing fine dust, oil mist and moisture from the compressed air supply.

Ideal for high-dust environments like sandblasting, the Micromist filter enhances operator safety by delivering purified air to the respirator, helping meet stringent workplace health standards.

Its compact design and easy installation make it a reliable upgrade for any air-fed respirator system.

Engineered for high-performance respiratory protection, the Micromist Respirator Airline Filter features a high-efficiency media designed to capture ultra-fine oil mist, water vapor and submicron particles from compressed air systems. This advanced filtration unit enhances the quality of breathing air supplied to air-fed respirators, making it ideal for demanding environments such as sandblasting, painting and industrial cleaning.

Built for precision and durability, the Micromist filter supports clean air output and helps maintain optimal performance in sensitive downstream applications. Its compact design integrates easily with standard airline filter assemblies, providing an essential layer of protection for operators working in high-particulate or oil-laden conditions.

Blast Equipment

Micromist Kit

Micromist Kit Micromist Element AMD Suit 1/2" SB/AF-BP-EL250 Micromist Element AMD Suit 1/2" SB/AF-BP-EL350 Micromist Element AMD Suit 3/4" SB/AF-BP-EL450 Micromist Element AMD Suit 1"

www.sprayandblast.com.au

SB/AF-BP-EL550

73

Pop Up Valve & Seating Rings Standard Pop Up Valves & Seating Rings

4

Pop Up Valve Cone Top

SB/PV-BP-301037

Pop Up Valve Flat Top

SB/PV-BP-301038

Seating Ring - Large

SB/SR-BP-301040

Pop Up Valve Mini

SB/PV-BP-301099

Seating Ring Mini

SB/SR-BP-301228

• • •

Internal stem pop up valve for use with blast pots with 1” internal piping.

Mini pop up valve. For use with small blast pots fitted with 1/2” internal piping.

Seating Rings are manufactured from synthetic rubber with a Shore hardness of 55 - 65.

Blast Equipment

Sleeved Pop Up Valve Pop Up Valve Flat Top Sleeved

SB/PV-BP-301039

Seating Ring - Large

SB/SR-BP-301040

Large Pop up valve with External Sleve to suit a standard blast machine

S Series Pop Up Valves & Seating Rings S Series Pop Up Valve & Shaft Large

SB/PV-BP-301164

S Series Pop Up Seating Ring Large

SB/SR-BP-301225

Large Pop-Up Seating Ring for 3.5-20 cu.ft S-Series Blast Pots

Climate Control Nova Hot Air Tube RPB Climate Control Tube

SB/AF-NV-4000-20

Regulates the temperature of the air entering the blasting helmet. Increase or decrease the temperature of the air by up to 17 degrees Celsius.

Spare Parts Nova 2000 Belt

SB/AF-NV-2022

Nova Cold Air Tube RPB Cold Air Tube Assembly

SB/AF-NV-4000-01

Spare Parts Nova 2000 Belt

74

SB/AF-NV-2022

The Cold Air Tube Assembly cools compressed breathing air coming into respirators by as much as 32°F (18°C). The Cold Air Tube helps to maximise worker comfort and increase productivity whilst working in hot climates.

The Cold Air Tube is fitted with an airflow regulator which allows the user to adjust the outgoing air temperature.

Phone: 1800 140 888

Hot/Cool Air Tube RPB C40 Hot/Cool Air Tube

SB/AF-NV-03-502

C40 air flow device will cool the incoming air by as much as 52°F (29°C) and heat by 30°F (17°C).

4

Aluminium Cool Air Tube Aluminium Cool Air Tube

SB/AF-BP-501034

The aluminium air cooler is used to cool the incoming hot air supply from the compressor prior to it entering the helmet. The cooler will reduce the temperature of the incoming air supply up to 32°F (18°C). This cooler incoming air ensures maximum operator comfort in hot climates.

When the blaster is comfortable productivity increases.

Blast Equipment

Breathing Tube Helmet Breathing Tube Helmet

SB/BH-BT-100000

This flexible breathing hose allows easy movement in all directions while delivering a steady flow of clean air from the climate control tube to your helmet respirator.

Designed for comfort and safety, it features built-in noise reduction to help protect operators from hearing damage during blasting work.

SB/BH-BP-501027

A great safety device also for use where there are many blasters working closely together and there is a likelihood of blasters accidentally blasting each other.

SB/BH-NV-2002L

Often worn in blast rooms using steel abrasive grit.

Safety Gear Hi-Vis Cape Yellow Hi-Vis Cape

Leather Cape Nova Leather Cape

www.sprayandblast.com.au

75

Nylon Cape

Blast Equipment

4

Nova Outer & Inner Nylon Cape

SB/BH-NV-2002

Nova 3 Nylon Cape

SB/BH-NV-3-750

Nylon cape for RPB NOVA 2000, comes with Inner Bib.

Blast Gloves Black & Gold Blast Gloves

SB/BLASTGLOVES16

Hot Shot Red Blast Gloves

SB/BLASTGLOVES16-2

Pro Choice Tigga Blast Gloves

SB/BLASTGLOVES-TIG

Protect your hands while blasting blast gloves. Comfortable and durable, these gloves help you get the job done.

Nozzle Pressure Gauge Complete w/ 3 Needles

SB/NZ-BP-301571

The pressure gauge kit contains all items needed to successfully measure the pressure of your Clemco Blast Nozzle. Simply insert the needle directly into the blast hose just before the nozzle holder to get a reading. This kit can also be used to measure the pressure in your air line from your air compressor.

35kg Screen

SB/BS-BP-301291

•

100kg Screen

SB/BS-BP-301292

Screen sieves foreign matter out of the abrasive

200kg Screen

SB/BS-BP-301293

400kg Screen

SB/BS-BP-301294

•

Lid keeps moisture, rain, dew, etc – out of the blast machine

Blast Pot Screen

Blast Pot Lid 35kg Lid

SB/BL-BP-301295

100kg Lid

SB/BL-BP-301296

200kg Lid

SB/BL-BP-301297

400kg Lid

SB/BL-BP-301298

76

Phone: 1800 140 888

Leather/Cotton Blasting Suit Small

SB/OC-BP-501005

Medium

SB/OC-BP-501006

Large

SB/OC-BP-501007

Extra Large

SB/OC-BP-501008

XX Large

SB/OC-BP-501009

XXX Large

SB/OC-BP-501010

•

•

Heavy duty half leather fronted abrasive blasting suit (leather front extends from the waist down) Most commonly used when blasting with steel grit media

4

Nylon/Cotton Blasting Suit SB/OC-BP-501011

Large

SB/OC-BP-501012

Extra Large

SB/OC-BP-501013

XX Large

SB/OC-BP-501014

XXX Large

SB/OC-BP-501015

XXXX Large

SB/OC-BP-501016

• • •

Robust nylon zipper with protective cover Heavy duty nylon gives extra protection to the arms and fronts of legs Elasticated waist for comfort fit

Blast Equipment

Medium

RPB Nova 3 Blast Helmet Nova 3 w/ C40 Climate Control

SB/BH-NV-3-715-50

Nova 3 w/ Constant Flow Valve

SB/BH-NV-3-711-50

The RPB® Nova 3® series respirator combines breakthrough protection technology with advanced comfort & functionality, surpassing even the most rigorous industry standards and the demands of the most quality-conscious companies.

Designed to optimise safety and productivity, and to minimise worker downtime, the helmet has many features that maximise its lifetime value.

RPB Nova 2000 Blast Helmet Nova 2000 w/ Cool Tube

SB/BH-NV-2000CT

Nova 2000 w/ Constant Flow Reg

SB/BH-NV-2000CE

www.sprayandblast.com.au

The Nova 2000 has been designed for blasting professionals. It has been approved to Respiratory Protection standards worldwide, including NIOSH, CE, and AS/ NZS. On top of being approved to Respiratory Protection Standards, the NOVA 2000 also provides an Assigned Protection Factor of APF1000.

77

Accessories and Spare Parts for Nova 2000 NOVA 2000 LENSES

4

NOVA 2000 BREATHING TUBES

Nova 2000 Outer Visors Titan/Old Style Nova

SB/BH-BP-0015

Breathing Tube Helmet

SB/BH-BT-100000

Nova 2000 Inner Visors Nova/Titan - Pack of 20

SB/BH-BP-2018

Adaptor for Sound Deadening Hose

SB/BH-NV-20214C03-035

Nova 2000 Inner Visors Nova/Titan - Pack of 50

SB/BH-BP-2018-K50

Nova Hot Air Tube

SB/AF-NV-4000-20

Nova 2000 Outer Lens - Pack of 50

SB/BH-BP-2031-K50

Nova Cold Air Tube

SB/AF-NV-4000-01

Nova 2000 Outer Lens - Pack of 100

SB/BH-BP-2031

Aluminium Cold Air Tube

SB/AF-BP-501034

Nova 2000 Outer Lens - Pack of 1000

SB/BH-BP-2031 -1000

Nova 2000 Tear Off Lens - Pack of 50

SB/BH-NV-2017

NOVA 2000 ACCESSORIES

Nova 2000 Inner Lens Tinted - Pack of 10

SB/BH-NV-2018-T

Nova 2000 Window Frame Gasket

SB/BH-NV-2003

Nova 2000 Window Visor Frame (New)

SB/BH-NV-2004

Nova 2000 Visor Latch & Screws

SB/BH-NV-2008

Blast Equipment

CLIMATE CONTROL Aluminium Cool Air Tube

SB/AF-BP-501034

Nova 2000 Head Dome & Side Wings (Small)

SB/BH-NV2009/10SH

Nova Cool Air Tube

SB/AF-NV-4000-01

Nova 2000 Head Dome & Side Wings (Standard)

SB/BH-NV2009/10

Cool Air Tube

SB/AF-CT-100000

Nova 2000 Head Dome & Side Wings (Large)

SB/BH-NV2009/10LH

Nova Hot Air Tube

SB/AF-NV-4000-20

Nova 2000 Nova Side Wings Pair (Medium)

SB/BH-NV-2010-M

Climate Control Device RPB-C40

SB/AF-NV-03-502

Nova 2000 Nova Side Wings Pair (Large)

SB/BH-NV-2010-L

Nova 2000 Inner Bib

SB/BH-NV-2012

Nova 2000 Cape Cover Band

SB/BH-NV-2013

NOVA 2000 CAPES Nylon Outer & Inner Cape

SB/BH-BC-100000

Nova Outer & Inner Cape

SB/BH-NV-2002

Nova Leather Cape

SB/BH-NV-2002L

Nylon Hi Viz Safety Cape

SB/BH-BP-501027

78

Phone: 1800 140 888

Accessories and Spare Parts for Nova 3 NOVA 3 BLAST HELMETS

BREATHING HOSES CONT’D

Nova 3 Blast Helmet w/ Cool Tube

SB/BH-NV-3-703-50

10m w/ Ryco Fittings

SB/AF-BP-0071B

Nova 3 Blast Helmet w/ Constant Flow Valve

SB/BH-NV-3-711-50

20m w/ Ryco Fittings

SB/AF-BP-0071A

Nova 3 Blast Helmet w/ C40 Climate Control

SB/BH-NV-3-715-50

Nova 3 Breathing Tube

SB/BH-NV-2021B

NOVA 3 LENSES

RESPIRATORS AIRLINE FILTERS Respirators Airline Filter MSBE-1

SB/AF-BP-100000

Respirators Airline Filter MSBE-1 w/ Micro Mist

SB/AF-BP-100010

SB/BH-BP-3-722

Respirators Airline Filter MSBE-2 w/ Micro Mist

SB/AF-BP-100020

Nova 3 Outer Visors - Pack of 50

SB/BH-BP-3-724

Respirators Airline Filter MSBE-4 w/ Micro Mist

SB/AF-BP-100040

Nova 3 Inner Lens Tinted - Pack of 10

SB/BH-NV-3-722-T

Respirators Airline Filter MSBE-6 w/ Micro Mist

SB/AF-BP-100060

Nova 3 Tear Off Lens - Pack of 50

SB/BH-NV-3-725

Radex Airline Filter Only

SB/AF-BP-04-900

Radex Airline Filter w/ Micro Mist (1 Operator)

SB/AF-BP-04 -900A

Radex Dual Airline Filter w/ Micro Mist

SB/AF-BP-04 -900B

Radex Airline Filter Complete (6 Operator)

SB/AF-BP-04-906

NOVA 3 ACCESSORIES

Blast Equipment

Nova 3 Inner Lens - Pack of 10

4

Nova 3 Inner Gasket

SB/BH-NV-3-721

Nova 3 Inner Lens Frame

SB/BH-NV-3-723

Nova 3 Visor Kit (incl. Hinge & Latch)

SB/BH-NV-3-726

AIR FILTER CARTRIDGE

Nova 3 Visor Mount Latch Kit

SB/BH-NV-3-727/8

Air Filter Cartridge Flanged

SB/AF-BP -100000-1

Nova 3 Side Padding Frames L&R

SB/BH-NV-3-731

CPF Cartridge

SB/AF-BP-501025

Nova 3 Side Padding Foam (Standard)

SB/BH-NV-3732-A10

APF3100 Cartridge (Suits Radex/Bullard)

SB/AF-BP-APF3100

Nova 3 Side Padding Foam (Large)

SB/BH-NV-3732-A15

Air Filter Cartridge AFC100 Single Slot

SB/AF-BP-AFC100

Nova 3 Side Padding Foam (XL)

SB/BH-NV-3732-A20

Nova 3 Side Padding Covers - Pack of 5

SB/BH-NV-3-733

MICRO MIST ELEMENTS

Nova 3 Head Liner Kit

SB/BH-NV-3-734

Micro Mist Element AMD to Suit 1/2

SB/AF-BP-EL250

Nova 3 Nylon Nova Cape 28

SB/BH-NV-3-751

Micro Mist Element AMD to Suit 1/2

SB/AF-BP-EL350

Nova 3 Nylon Nova Cape 38

SB/BH-NV-3-759

Micro Mist Element AMD to Suit 3/4

SB/AF-BP-EL450

BREATHING HOSES

OTHER

10m w/ Dual Act Fittings

SB/AF-BP-0071D

Base Assy Suit Radex Breathing Bottle

SB/AF-BP-04-923

20m w/ Dual Act Fittings

SB/AF-BP-0071

Regulator Complete Single Outlet

SB/AF-BP -100000-2

30m w/ Dual Act Fittings

SB/AF-BP-0071E

O-Ring - Kit of 2

SB/AF-BP -100000-8

40m w/ Dual Act Fittings

SB/AF-BP-0071 -40A

10m w/ Nitto Fittings

SB/AF-BP-0071-NIT

20m w/ Nitto Fittings

SB/AF-BP-0071C

www.sprayandblast.com.au

79

Respirator Airline Filters Radex Respirator Airline Filter

4

Radex Airline Filter Only

SB/AF-BP-04-900

Radex Airline Filter 1 Operator w/ Micro Mist

SB/AF-BP-04-900A

Radex Airline Filter 2 Operator w/ Micro Mist

SB/AF-BP-04-900B

Radex Airline Filter Complete 6 Operators

SB/AF-BP-04-906

The RPB 04-900 Radex is a robust and versatile airline filter with exceptional filtration capacity.

The large, 6-stage filter cartridge removes moisture, odour and particulates to 0.5 micron from the compressed air stream, providing clean, safe, breathable air.

• Filter only has 4 bolts to remove to change the filter every 3 months which saves you time

Blast Equipment

MSBE Respirator Airline Filter Respirators Airline Filter Only

SB/AF-BP-100000

Respirators Airline Filter MSBE 1 Operator w/ Micro Mist

SB/AF-BP-100010

Respirators Airline Filter MSBE 2 Operators w/ Micro Mist

SB/AF-BP-100020

Respirators Airline Filter MSBE 4 Operators w/ Micro Mist

SB/AF-BP-100040

Respirators Airline Filter MSBE 6 Operators w/ Micro Mist

SB/AF-BP-100060

The respirator airline filter are designed to reduce odours, oil and water mist from compressed air stream prior to wearing the respirator helmets.

Available as filter only or with micro mist to support up to 6 operators.

Breathing Filter Cartridges Cartridge Flanged MSBE Cartridge Flanged MSBE

80

SB/AF-BP-100000-1

Offers extended service life and high-performance filtration, thanks to premium materials manufactured to strict standards.

Its increased surface area enhances the absorption of water, oils and odours, while natural fibre felts efficiently capture oils from the airstream, allowing cleaner air to pass through to the next stages of moisture and odour removal.

Phone: 1800 140 888

APF3100 Cartridge - Suit Radex/Bullard APF3100 Air Filter Cartridge

SB/AF-BP-APF3100

The APF3100 Air Filter Cartridge can offer extended filter life.

Quality filtration materials which are manufactured to exacting standards ensure the most efficient and effective filtration in every cartridge. Materials with greater surface area provide increased absorption of water, oils and odours. The natural fibre felts very efficiently absorb oils from the air stream allowing air to flow through to the further stages of moisture and odour removal.

4

AFC100 Single Slot Cartridge AFC100 Air Filter Cartridge

SB/AF-BP-AFC100

Blast Equipment

The AFC100 Air Filter Cartridge can offer extended filter life.

Quality filtration materials which are manufactured to exacting standards ensure the most efficient and effective filtration in every cartridge. Materials with greater surface area provide increased absorption of water, oils and odours. The natural fibre felts very efficiently absorb oils from the air steam allowing air to flow through to the further stages of moisture and odour removal.

The AFC100 can multi fit many brands of Air Filter Suit Clemco Filter

Double Slot Filter Cartridge Double Slot Filter Cartridge

www.sprayandblast.com.au

SB/AF-BP-501025

Reduce odour, oil, water mist from the compressed air stream before entering the operators’ respirator helmet thus keeping the fresh air in the helmet.

81

Dust Filters Farr Type Filter Cartridge Farr Type Filter Cartridge

SB/DF-BP-801004

• • • •

4

Square flange cap for easy installation of filters Largest filter area Highest filtration efficiencies Best pulse clean effects on filter media

Perfect for • Metal working, Fume, Powder coating • Shot Blasting, Mixing, Grinding, Mining industry, Chemical • Replacement Filter for Farr Gold Series® dust collectors

Blast Equipment

Cartridge Filter with Cellulose Media Cabinet Filer Cellulose Open/Close

SB/DF-BP-801001

Blast Cabinet Filter Element Open/Close

SB/DF-BP-801002

• • •

Lowest energy consumption to save cost Great filter surface and airflow Uniform pleat spacing is maintained

Perfect for • Widest applications, dry and granular shaped particulate • Metal working • Shot Blasting • Mining industry • Chemical • Gas turbine

Polair Cartridge Polair Cartridge

SB/DF-BP-801014

• • • •

Reinforced PA or aluminium top with 3 lugs for secure filters Greatest filter area Highest filtration efficiencies Best pulse clean effects on cartridges

Perfect for • Metal working, Fume, Powder Coating • Shot Blasting, Mixing, Grinding • Mining industry, Chemical

82

Phone: 1800 140 888

Blast Hoses Standard Blast Hose Heavy Wall SB/HB-BP-301042-A

20m Blast Hose 13mm ID x 34mm OD

SB/HB-BP-301042

Per Metre Blast Hose 19mm ID x 38mm OD

SB/HB-BP-301372-A

20m Blast Hose 19mm ID x 38mm OD

SB/HB-BP-301372

Per Metre Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043-A

20m Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043

Per Metre Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045-A

20m Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045

20m Blast Hose 38mm ID x 58mm OD

SB/HB-BP-301047

Standard heavy wall blast hose manufactured from a tough abrasive resistant natural rubber inner liner for maximum blast hose life. Anti static compound dissipates static from the hose.

4

Working pressure 10 bar Bursting pressure 30 bar.

Tough outer wrapping prevents damage to the hose even when used in the most demanding environments such as shipyards and construction work sites.

Fitted Hose w/ Nozzle Holder & Coupling

Blast Equipment

Per Metre Blast Hose 13mm ID x 34mm OD

Fitted Hose w/ Nozzle Holder & Coupling 20m Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043-C

20m Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045-C

Fitted Extension Hose w/ Steel Couplings 20m Blast Hose 19mm ID x 38mm OD

SB/HB-BP-301372-D

20m Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043-D

20m Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045-D

www.sprayandblast.com.au

Fitted Extension Hose w/ Nylon Couplings

83

Light Weight Blast Hoses

Blast Equipment

4

Per Metre Light Weight Blast Hose 13mm ID x 28mm OD

SB/HB-BP-301049-A

20m Light Weight Blast Hose 13mm ID x 28mm OD

SB/HB-BP-301049

Per Metre Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-A

10m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-B

20m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222

Per Metre Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050-A

10m Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050-B

20m Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050

Per Metre Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-A

20m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052

20m Light Weight Blast Hose 38mm ID x 55mm OD

SB/HB-BP-301054

Fitted Hose w/ Nozzle Holder & Coupling 10m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-10B

10m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-B

20m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-C

Light weight blast hose manufactured from a 100% natural virgin rubber inner liner to provide maximum hose life.

Reinforced with 2 and 4 ply of synthetic cord and tough outer cover. Our light weight blast hose is approx, 25-30% lighter than equivalent ID standard blast hose.

Reduce operator fatigue and increase productivity by using our Light Weight range of blast hoses. Approx. 30% lighter than standard hose this hose will allow operators to blast longer and reduce tiredness.

Manufactured from a tough abrasive resistant natural rubber inner liner for maximum blast hose life. Anti static compound dissipates static from the hose.

Fitted Hose w/ Nozzle Holder & Coupling

Working pressure 10 bar Bursting pressure 30 bar.

Tough outer wrapping prevents damage to the hose even when used in the most demanding environments such as shipyards and construction work sites.

Fitted Extension Hose w/ Nylon Couplings 20m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-D

20m Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050-C

20m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-CS

84

Fitted Extension Hose w/ Nylon Couplings

Phone: 1800 140 888

Blasting Nozzle Tungsten Carbide Nozzles 2” UNC Thread 32mm Entry Diameter BORE SIZE

LENGTH

#3 4.8mm

140mm

#4 6.35mm

140mm

SB/NZ-BP-301075

#5 8.0mm

150mm

SB/NZ-BP-301076

#6 9.5mm

175mm

SB/NZ-BP-301077

#7 11mm

205mm

SB/NZ-BP-301078

#8 12.5mm

235mm

SB/NZ-BP-301079

#9 16mm

235mm

SB/NZ-BP-301176

235mm

SB/NZ-BP-301177

#10 19mm

25mm Entry Diameter 140mm

6.35mm

140mm

8.0mm

150mm

9.5mm

175mm

11mm

205mm

12.5mm

235mm

4

Tungsten carbide long venturi nozzles are particularly suitable for use with steel abrasives, expendable slag abrasives and crushed glass.

The wide throat entry design increases productivity by up to 15% compared to standard venturi nozzles.

Blast Equipment

4.8mm

Recognised as the industry standard for general blasting applications tungsten venturi nozzles are extremely durable for use in applications where rough handling is unavoidable, providing maximum resistance to impact or flexing.

Tungsten Carbide Venturi Nozzles with Acetal Jacket 2” UNC Thread 32mm Entry Diameter BORE SIZE

LENGTH

#3 4.8mm

140mm

SB/NZ-BP-301140

#4 6.35mm

140mm

SB/NZ-BP-301141

#5 8.0mm

150mm

SB/NZ-BP-301142

#6 9.5mm

175mm

SB/NZ-BP-301143

#7 11mm

205mm

SB/NZ-BP-301144

#8 12.5mm

235mm

SB/NZ-BP-301145

#9 16mm

235mm

#10 19mm

235mm

www.sprayandblast.com.au

85

Tungsten Carbide Venturi Nozzles with Duragrip Sleeve 2” UNC Thread 32mm Entry Diameter

Blast Equipment

4

BORE SIZE

LENGTH

4.8mm

140mm

6.35mm

140mm

8.0mm

150mm

9.5mm

175mm

11mm

205mm

12.5mm

235mm

16mm

235mm

19mm

235mm

Tungsten Carbide Venturi Nozzles with Rubber Jacket 2” UNC Thread 32mm Entry Diameter BORE SIZE

LENGTH

6.35mm

140mm

8.0mm

150mm

9.5mm

175mm

11mm

205mm

12.5mm

235mm

Silicon Carbide Venturi Nozzles with Acetal Jacket 2” UNC Thread 32mm Entry Diameter BORE SIZE

LENGTH

4.8mm

140mm

6.35mm

140mm

SB/NZ-BP-301149

8.0mm

150mm

SB/NZ-BP-301150

9.5mm

175mm

SB/NZ-BP-301151

11mm

205mm

SB/NZ-BP-301152

12.5mm

235mm

SB/NZ-BP-301153

25mm Entry Diameter

86

4.8mm

115mm

6.35mm

140mm

Phone: 1800 140 888

Sialon Venturi Nozzles with Acetal Jacket 2” UNC Thread 32mm Entry Diameter BORE SIZE

LENGTH

#4 6.35mm

140mm

SB/NZ-BP-301321

#5 8.0mm

150mm

SB/NZ-BP-301322

#6 9.5mm

175mm

SB/NZ-BP-301323

#7 11mm

205mm

SB/NZ-BP-301324

#8 12.5mm

235mm

SB/NZ-BP-301325

4

Boron Carbide Venturi Nozzles with Aluminium Jacket & Rubber Sleeve 2” UNC Thread 32mm Entry Diameter LENGTH

4.8mm

135mm

6.35mm

140mm

8.0mm

145mm

9.5mm

170mm

11mm

195mm

12.5mm

Blast Equipment

BORE SIZE

205mm 25mm Entry Diameter

4.8mm

135mm

6.35mm

140mm

8.0mm

145mm

9.5mm

170mm

11mm

195mm

12.5mm

220mm

XL Performance Boron Carbide Venturi Liner with Aluminium Jacket & Rubber Sleeve 2” UNC Thread 32mm Entry Diameter BORE SIZE

LENGTH

#4 6.35mm

350mm

#5 8.0mm

350mm

#6 9.5mm

350mm

#7 11mm

350mm

#8 12.5mm

350mm

#9 16mm

350mm

www.sprayandblast.com.au

SB/NZ-BP-290003 SB/NZ-BP-290005

87

Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System 2” UNC Thread 25mm Entry Diameter

4

BORE SIZE

LENGTH

#4 6.35mm

150mm

SB/NZ-BP-301311

#5 8.0mm

160mm

SB/NZ-BP-301312

#6 9.5mm

170mm

SB/NZ-BP-301313

#7 11mm

210mm

SB/NZ-BP-301314

#8 12.5mm

235mm

SB/NZ-BP-301315

Tungsten Carbide 45o Angled Nozzles with Aluminium Jacket 2” UNC Thread

Blast Equipment

25mm Entry Diameter BORE SIZE

LENGTH

4 X 1 1/4"

6.35mm

SB/NZ-BP-301199

4 X 1 5/16"

8mm

SB/NZ-BP-301200

6 X 1 3/8"

9.5mm

SB/NZ-BP-301201

4 X 2 1/4"

6.35mm

SB/NZ-BP-301205

4 X 3 1/4"

6.35mm

SB/NZ-BP-301211

5 X 3 5/16"

8mm

SB/NZ-BP-301212

6 X 3 3/8"

9.5mm

SB/NZ-BP-301213

Tungsten Carbide Venturi Liner with Aluminium Jacket & Water Jet System NPSM Thread 25mm Entry Diameter BORE SIZE 1 X 9.5mm

LENGTH 88mm 13mm Entry Diameter

1 X 6.35mm

54mm

1 X 8mm

54mm

1 X 9.5mm

54mm

Boron Carbide 40o Banana Blast Nozzles with Aluminium Jacket 2” UNC Thread

25mm Entry Diameter

88

BORE SIZE

LENGTH

#4 6.35mm

115mm

SB/NZ-BP-301330

#5 8mm

115mm

SB/NZ-BP-301331

#6 9.5mm

115mm

SB/NZ-BP-301332

#7 11mm

115mm

SB/NZ-BP-301333

Phone: 1800 140 888

Tungsten Carbide Double Venturi Nozzles with Aluminium & Steel Jacket 2” UNC Thread 25mm Entry Diameter BORE SIZE

LENGTH

#4 6.35mm

146mm

SB/NZ-BP-301525

#5 8mm

162mm

SB/NZ-BP-301526

#6 9.5mm

176mm

SB/NZ-BP-301527

#7 11mm

216mm

SB/NZ-BP-301528

#8 12.5mm

235mm

SB/NZ-BP-301529

4

Tungsten Carbide Liner with Aluminium Jacket ‘Stick Up’ Nozzles 2” UNC Thread For 1” (25mm) ID Blast Hoses 25mm Entry Diameter LENGTH

6.35mm

110mm

8mm

110mm

9.5mm

110mm

Blast Equipment

BORE SIZE

For 1 1/4” (32mm) ID Blast Hoses 25mm Entry Diameter 8mm

115mm

9.5mm

115mm

11mm

115mm

12.5mm

115mm

Tungsten Carbide Liner with Aluminium Jacket Spin Blast Nozzles 2” NPSM Thread Thread 13mm Entry Diameter BORE SIZE

LENGTH

#4 6.35mm

55mm

#5 8mm

55mm

8mm

85mm

#6 9.5mm

55mm

9.5mm

108mm

SB/NZ-BP-301253 SB/NZ-BP-301255

Tungsten Carbide Liner with Aluminium Jacket Hollo-Blast Nozzles 30mm Entry Diameter BORE SIZE

LENGTH

12.5mm

82mm

16mm

97mm

TIP 4.3mm

23.5mm

www.sprayandblast.com.au

89

Tungsten Carbide Liner with Aluminium Jacket “360o” Blast Nozzle 2” UNC Thread 30mm Entry Diameter BORE SIZE

LENGTH

75mm

32mm

SB/NZ-BP-301270

TIP

42mm

SB/NZ-BP-301271

4

Tungsten Carbide Short Venturi Liner with Aluminium Jacket 2” UNC Thread

Blast Equipment

32mm Entry Diameter BORE SIZE

LENGTH

6.35mm

85mm

8mm

85mm

9.5mm

85mm

11mm

85mm

12.5mm

85mm 25mm Entry Diameter

4.8mm

85mm

6.35mm

85mm

8mm

85mm

9.5mm

85mm

11mm

85mm

12.5mm

85mm

Tungsten Carbide Straight Bore Nozzle NPSM Thread

13mm Entry Diameter

90

BORE SIZE

LENGTH

3.2mm

45mm

4.8mm

45mm

6.35mm

45mm

8mm

45mm

9.5mm

45mm

11mm

45mm

12.5mm

45mm

Phone: 1800 140 888

Boron Carbide Straight Bore Nozzle NPSM Thread

13mm Entry Diameter BORE SIZE

LENGTH

3.2mm

45mm

4.8mm

45mm

6.35mm

45mm

8mm

45mm

9.5mm

45mm

11mm

45mm

12.5mm

45mm

4

Short Straight Bore Nozzle with Aluminium Jacket NPSM Thread

25mm Entry Diameter LENGTH

12.5mm

50mm

Blast Equipment

BORE SIZE

Tungsten Carbide Flanged Nozzle with Aluminium Jacket 19mm Entry Diameter BORE SIZE

LENGTH

9.5mm

86mm

Nozzle Tester Blast Nozzle Orifice Test Gauge Blast Nozzle Orifice Test Gauge

www.sprayandblast.com.au

SB/NZ-NT-100000

A fast and reliable way to measure the orifice size of abrasive blasting nozzles. Regular use of this gauge helps identify nozzle wear, which can lead to reduced nozzle pressure and lower blasting efficiency. Detecting wear early ensures optimal venturi performance, helping maintain consistent productivity and surface preparation quality.

91

Rubbers & Gaskets Nozzle Rubber Gaskets

4

Stepped Nozzle Washer 25mm (1.0”) - pkt 10

SB/NZ-BP-301086

Stepped Nozzle Washer 32mm (1.25”) - pkt 10

SB/NZ-BP-301087

Brass & Steel Hose Coupling Gaskets

Blast Equipment

Metal Pot Mini Coupling Gasket Suit 13mm Coupling

SB/HC-BP-301753

Metal Pot Coupling Gasket Metal Pot Coupling Gasket Suit 13mm Coupling - pkt 10

SB/HC-BP-301089

Metal Pot Coupling Gasket Suit 1” 1/4 and 1” 1/2 Coupling - pkt 10

SB/HC-BP-301090

Nylon Hose & Pot Coupling Gasket Hose Coupling Rubber Suit Nylon Hose Coupling #1 - pkt 10

SB/HC-BP-301091

Coupling Rubber Suit Nylon Hose Coupling #2, 3 - pkt 10

SB/HC-BP-301092

Screws, Clips & Whip Check Self Tapper Blast Hose Screws 1/2 Self Tapper Light Wall Blast Hose Screw

SB/SCREW1/2

5/8 Self Tapper Heavy Wall Blast Hose Screw

SB/SCREW5/8

Safety Clips Safety Clip

SB/11/001/00

Safety Clip Pack of 10

SB/11/001/10

Safety Clip Pack of 50

SB/11/001/50

Safety Clip Pack of 100

SB/11/001/100

92

Couplings not included

Phone: 1800 140 888

Whip Check Small Whip Check

SB/WC1

Medium Whip Check

SB/WC2

Safety whip restraint for blast hoses in case couplings accidentally disconnect during blast operation.

• •

Small Whip Check suits hoses 3/8 to 1” 1/4 Medium Whip Check suits hoses 1” 1/4 to 2

4 Nozzle Holders Aluminium Nozzle Holders SB/NZ-BP-301060

Aluminium Nozzle Holder 2 48mm ID. Fine

SB/NZ-BP-301061

Aluminium Nozzle Holder 3 54mm (2.187”) ID. Contractor

SB/NZ-BP-301062

Aluminium Nozzle Holder 1/2 28mm ID. Fine

SB/NZ-BP-301305

Aluminium Nozzle Holder 1/2 34mm ID. Fine

SB/NZ-BP-301306

Aluminium Nozzle Holder 138mm ID. Fine

SB/NZ-BP-301307

Aluminium Nozzle Holder 2 48mm ID. Fine

SB/NZ-BP-301308

Aluminium Nozzle Holder 3 54mm ID. Fine

SB/NZ-BP-301309

Light weight, yet extremely tough, aluminium nozzle holders provide quick and easy attachment of blast nozzles to the blast hose.

Ideal for use where knocking or damage is likely to occur.

Blast Equipment

Aluminium Nozzle Holder 1 38mm (1.5”) ID. Contractor

Precision cast alloy moulding ensures tight size accuracy. Fitted with an internal raised thread to ensure tight and secure fitting to the blast hose.

Nylon Nozzle Holders Nylon Nozzle Holder 0 28mm OD

SB/NZ-BP-301174

Nylon Nozzle Holder 1 38mm OD

SB/NZ-BP-301056

Nylon Nozzle Holder 2 48mm OD

SB/NZ-BP-301057

Nylon Nozzle Holder 3 54mm OD

SB/NZ-BP-301058

Light weight, yet extremely tough, nylon nozzle holders provide quick and easy attachment of blast nozzles to the blast hose.

Ideal for use where knocking or damage is likely to occur.

Injection moulding ensures tight size accuracy. Fitted with an internal raised thread to ensure tight and secure fitting to the blast hose.

Clemco NHP Nylon Nozzle Holder NHP1 Nylon Nozzle Holder 38mm OD

SB/NZ-CL-04126

NHP2 Nylon Nozzle Holder 48mm OD

SB/NZ-CL-04127

NHP3 Nylon Nozzle Holder 54mm OD

SB/NZ-CL-04128

www.sprayandblast.com.au

The Clemco fibre-reinforced nylon nozzle holder attaches to the end of a blast hose and holds a contractor-thread blast nozzle.

• Fibre-reinforced nylon material springs back from most impacts that would dent or deform metal nozzle holders • Lighter weight than metal nozzle holders • Precision dimensions • Large thread makes changing nozzle easy

93

Nozzle Holder with Claw Steel Nozzle Holder with Claw 50mm

TORBO/22787

4 Couplings

Blast Equipment

Clemco CQP Nylon Quick Coupling Nylon CQP 3/4 Clemco Hose Coupling

SB/HC-CL-11395

Nylon CQP 1 Clemco Hose Coupling

SB/HC-CL-08412

Nylon CQP 2 Clemco Hose Coupling

SB/HC-CL-08413

Nylon CQP 3 Clemco Hose Coupling

SB/HC-CL-08414

Nylon CQP 4 Clemco Hose Coupling

SB/HC-CL-07714

The Clemco fibre-reinforced nylon quick couplings attach to blast hose to facilitate connecting blast hose to blast machine, blast hose to blast hose, and blast hose to quick-coupling nozzle holders.

• Fibre-reinforced nylon material springs back from most impacts that would dent or deform metal couplings • Built-in lock-springs eliminate need for safety pins • Lighter weight than metal couplings • Injection moulded for precise dimensions, ensuring positive fit

Nylon Hose Coupling Nylon Hose Coupling 3/4mm OD

SB/HC-BP-301420

Nylon Hose Coupling 1 38mm OD

SB/HC-BP-301063

Nylon Hose Coupling 2 48mm OD

SB/HC-BP-301064

Nylon Hose Coupling 3 54mm OD

SB/HC-BP-301065

Tough, precision injection moulded, nylon couplings are fitted with an internal thread to ensure an air tight fit onto the blast hose.

Light weight, corrosion proof and durable. Supplied with locking pin and fixing screws. Light weight, yet extremely tough, nylon hose couplings provide quick and easy attachment of the blast hose to the blast pot, or another blast hose.

Precision injection moulding ensures very tight dimensional accuracy. Fitted with an internal raised thread the nylon hose coupling fits tightly and securely to the blast hose. An integral spring locking pin locks into the mating coupling and prevents the couplings accidentally separating

94

Phone: 1800 140 888

Metal Hose Coupling Gunmetal Hose #0 Gunmetal Hose Coupling 28mm OD (40mm CLAW)

SB/HC-BP-301067

Gunmetal Hose Coupling suit 34mm OD (45mm CLAW)

SB/HC-BP-301409

#2 Gunmetal Hose Coupling 48mm OD

SB/HC-BP-301069

#3 Gunmetal Hose Coupling 54mm OD

SB/HC-BP-301070

The toughest of all couplings, metal hose couplings are available in steel and gunmetal materials.

4

Steel Hose Steel Hose Coupling - 38mm (1.5”) ID.

SB/HC-BP-301438

Steel Hose Coupling - 48mm (1.875”) ID.

SB/HC-BP-301071

Steel Hose Coupling - 54mm (2.187”) ID.

SB/HC-BP-301439

Blast Equipment

Nylon Threaded Coupling Nylon Threaded Coupling 1.25” BSP

SB/HC-BP-301381

Manufactured from injection moulded nylon, all couplings are identical ensuring they accurately coupled together every time.

Threaded Coupling Gunmetal Hose

Threaded couplings are available in steel or gunmetal to meet specific needs. When used in steel grit blasting applications the gun metal threaded couplings will provide maximum durability.

Gunmetal Threaded Coupling 13mm BSP (40mm CLAW)

SB/HC-BP-301072

Gunmetal Threaded Coupling BTC-0 13mm (45mm CLAW)

SB/HC-BP-301494

Gunmetal Threaded Coupling 1.25” BSP

SB/HC-BP-301073

Gunmetal Threaded Coupling 1.5” BSP

SB/HC-BP-301074

In applications where the risk of explosion must be eliminated, as far as is possible, the brass couplings offer a non sparking solution.

Steel Threaded Coupling 1.25” BSP

SB/HC-BP-301223

Steel Threaded Coupling 1.5” BSP

Precision investment casting to ensure quality repeatability with CNC machined internal threads with safety pin holes.

SB/HC-BP-301440

Steel Hose

www.sprayandblast.com.au

95

VAPOUR BLASTING 5

torbo

®

Vapour Blasting

torbo ENGINEERING KEIZERS GmbH is a developer and manufacturer of torbo vapour blasting systems with over 50 years of experience and a global partner network. The torbo blasting systems permit virtually dust-free, eco-friendly and effective sandblasting. This special blasting process therefore meets the highest standards of precise and specific cleaning performance.

The term wet abrasive blasting is also known as vapour blasting, vapour abrasive blasting, wet sandblasting, dustless blasting and wet blasting.

For any enquiries, please contact our team on 1800 140 888 or email us at sales@sprayandblast.com.au.

60%

LESS ABRASIVE CONSUMPTION

200M BLAST RANGE

100% SUSTAINABLE

4 -50°C 95% TEMPERATURE RANGE

torbo Softline S Softline Complete

TORBO/24001

Capacity

60 L

Compressor Connection

58-147 PSI

Consumption of Blast Media

14.4-144 L/h

Consumption of Water

3.6-36 L/h

Dimensions (HxWxL) approx.

990 x 570 x 520mm

Weight Empty approx.

115-130 kg

Permissible Total Weight

350 kg

96

The Torbo SoftLine S is a compact and mobile wet abrasive blasting unit, specifically designed for gentle and effective cleaning of delicate surfaces such as monuments, facades and natural stone Thanks to its control, the blasting media mixture (80% abrasive and 20% water) is metered independently of the compressed air. This allows for a surfacematched, optimal fine adjustment of both parameters.

Comes complete with 20m Hose set.

DUST FREE

Phone: 1800 140 888

torbo L120 L120 Bare No Quickstop

TORBO/24004-NQ-B

L120 Complete

TORBO/24004

L120 Complete No Quickstop

TORBO/24004-NQ

Capacity

120 L

Compressor Connection

58 - 145 PSI

Consumption of Blast Media

14.4-384 L/h

Consumption of Water

3.6-96 L/h

Dimensions (HxWxL) approx.

1,240 x 830 x 660mm

Weight Empty approx.

140-185 kg

Permissible Total Weight

1,000 kg

The special feature of the torbo L120 is its many and diverse types of use.

This system, specially designed for all-round requirements, distinguishes itself in everyday use. Ideal for removing stubborn encrustations, concrete sludge, paint coatings and even for after-fire remediation on sensitive surfaces

5

Comes complete with 20m Hose set.

torbo XL120 TORBO/24004-XL-NQ

Capacity

120 L

Compressor Connection

58-145 PSI

Consumption of Blast Media

14.4-384 L/h

Consumption of Water

3.6-96 L/h

Dimensions (HxWxL) approx.

1,360 x 1,100 x 730mm

Weight Empty approx.

215-300 kg

Permissible Total Weight

1,000 kg

Vapour Blasting

XL120 Complete

The XL version has enough power for any refurbishment and can do with less blasting media than you think. It shows its strength during concrete and steel refurbishment. Particularly well-suited for large-scale restoration projects, including shipyards, bridges and industrial facilities, where both power and precision are required Comes complete with 20m Hose set.

torbo XL320 XL320 Complete

TORBO/24005

Capacity

320 L

Compressor Connection

58-145 PSI

Consumption of Blast Media

14.4-384 L/h

Consumption of Water

3.6-96 L/h

Dimensions (HxWxL) approx.

1,500 x 1,100 x 760mm

Weight Empty approx.

220-315 kg

Permissible Total Weight

1,000 kg

The torbo system XL320 shows its strengths in difficult situations. With no trouble at all it can deal with the removal of concrete sludge,the stripping of old coats of paint and the deburring and descaling of metals, as well as the removal of layers of oxidation on steel.

You can work without problems even at differences in height of up to 200 m.

Comes complete with 20m Hose set.

97

torboTrailer

5

AC37 265cfm AC37 XL 265cfm AC37 390cfm

TORBO/AC37-1 TORBO/AC37-2 TORBO/AC37-DUAL

Capacity

120 L

Compressor Connection

58 - 145 PSI

Consumption of Blast Media

14.4-384 L/h

Consumption of Water

3.6-96 L/h

Dimensions (HxWxL) approx.

1,780 x 1,790 x 4.808mm

Weight Empty approx.

1,200 - 1,320 kg

Permissible Total Weight

1,400 - 2,000 kg

The Torbo trailer Comes with a L120 Unit, A 265CFM compressor, 250L water tank, 40 metres of 25x40mm blast hose, 50 metres of electric deadman cable, 1x electric deadman handle, 1x blast nozzle.

While others are still setting up and connecting components, you and your torbocar are already in operation and then on your way home when others are still breaking down.

These trailers are custom built, contact Murphy’s Spray & Blast on 1800 140 888 for more information

Accessories Vapour Blasting

torbojet 7250 PSI Pistol

TORBO/22860

7250 PSI Pistol & Hose

TORBO/22808

B Vapor® Blast Cabinets Introducing B Vapor, the brand redefining surface finishing with cutting-edge vapour blasting technology. The B Vapor Blast Cabinet doesn’t just look futuristic—it delivers next-level performance.

Using a simple combination of air, water and fine glass pearls, this machine produces stunning results that traditional methods can’t match. Dull, grey parts emerge with a radiant satin mirror finish, often looking even better than when new. Engineered with precision and designed for ease of use, the B Vapor Blast Cabinet is packed with features that make blasting faster, easier and more efficient. Experience the unmatched quality of premium vapour blasting with B Vapor.

For any enquiries, please contact our team on 1800 140 888 or email us at sales@sprayandblast.com.au.

B VAPOR Mini B Submersible

SB/BVAP-201257

External Dimensions

76x63x165cm

Internal Dimensions

66x57x61cm

Weight

65kg

Max. Size of Workpiece 80kg CFM

37CFM @ 90 psi

Open or Closed Loop

Open

CFM

37CFM @ 90 psi

Polishing & Abrasive Cleaning

Manual Push Pedal

Touch Screen

No

98

The Mini B is the smallest in the range and is ideal for small restoration projects.

Perfect where space is restricted. All B Vapor cabinets are made of 304 stainless steel.

With the dual air pressure gauges, monitor the main incoming air pressure and regulate the pressure on the blast gun with the precise pilot regulator.

Phone: 1800 140 888

B VAPOR B2 Open Submersible Closed Submersible

SB/BVAP-201258 SB/BVAP-201259

External Dimensions

109x84x165cm

Internal Dimensions

80x80x70cm

Weight

100kg

Max. Size of Workpiece 120kg CFM

37CFM @ 90 psi

Open or Closed Loop

Open (Open Sub) Closed (Closed Sub)

CFM

37CFM @ 90 psi

Water Capacity

133 L (Open Sub) 178 L (Closed Sub)

Polishing & Abrasive Cleaning

Manual Push Pedal

Touch Screen

No

The B2 cabinets are made for larger restorations and factory workshops with an option of open or closed-loop filtration.

Units are manually operated with no automatic selection.

With the dual air pressure gauges, monitor the main incoming air pressure and regulate the pressure on the blast gun with the precise pilot regulator.

5

B VAPOR BCON SB/BVAP-201260 SB/BVAP-201261

External Dimensions

104x85x170cm

Internal Dimensions

70x80x74cm

Weight

160-165kg

Max. Size of Workpiece 120kg CFM

37CFM @ 90 psi

Open or Closed Loop

Closed

CFM

37CFM @ 90 psi

Water Capacity

177 L

Polishing & Abrasive Cleaning

Auto 3 Push Clean

Touch Screen

Yes

The BCON is the allrounder of machines capable of taking on small and large blasting jobs. Comes closed loop with automatic cleaning for extended run times.

Vapour Blasting

E Submersible ES Slurry

Cabinet operations are controlled via colour touch-screen on BCON & CLASSIC models. Integrated PLC works directly with the touch screen for easy operation.

A 3-stage water closed loop system removes waste from water. Clean and filtered water is reused for the window washer and wash-down gun to eliminate wastage.

B VAPOR Classic E Submersible ES Slurry

SB/BVAP-201262 SB/BVAP-201263

External Dimensions

138x104x171cm

Internal Dimensions

100x74x100cm

Weight

200kg

Max. Size of Workpiece 170kg CFM

37CFM @ 90 psi

Open or Closed Loop

Closed

CFM

37CFM @ 90 psi

Water Capacity

323 L

Polishing & Abrasive Cleaning

Auto 3 Push Clean

Touch Screen

Yes

The Classic is the largest in the range, available with a slurry pump for high production work with the ability to house a workpiece of up to 170kg for those extralarge jobs.

Cabinet operations are controlled via colour touch-screen on BCON & CLASSIC models. Integrated PLC works directly with the touch screen for easy operation.

A 3-stage water closed loop system removes waste from water. Clean and filtered water is reused for the window washer and wash-down gun to eliminate wastage.

99

SAFETY EQUIPMENT Disposable Masks 6

While the Occupational Safety and Health Administration (OSHA) sets personal protective equipment (PPE) standards for dry abrasive blasting, there is no broad industry standard covering wet or vapour abrasive blasting. Given this gap, many working on wet or vapour abrasive blasting sites don’t completely understand the proper PPE that should be used in these situations.

Safety Equipment

When dry blasting first became popular, many operators employed just a face shield to keep the dust out of their eyes. With the amount of dust in the air, however, it quickly became clear that respiratory issues could become a concern, and standards were set to require respirators when dry blasting.

Compared to dry blasting, wet and vapour abrasive blasting reduces dust significantly, causing people to question whether or not a respirator is required. However, any blasting operation will create some dust, whether from the substrate being blasted or the media used for the blasting.

Even if a small amount of media is being used, there could be kickback from the surface.

Less dust still requires protective gear, particularly if the dust might contain hazardous materials like asbestos or lead.

P2 Respirator With Valve 10pk

SAF/DUSTMASK2VPC

• • •

Disposable mask Elastic head band Supplied in box of 50

Sundström SR 64 Protective Dust Hood Cloth Head Harness, PC Visor

SAF/170-00212

The Sundstrom SR64 Protective Hood is designed for use together with Sundström half masks and full face masks with filters or the SR 307 compressed air attachment, and with the SR 90 Airline. The hood provides protection against dust and particles, and against a minor amount of splashing and dripping.

Note: This hood provides protection from nuisance dust and small splashes: it does not offer protection against toxic or corrosive materials

100

Phone: 1800 140 888

Half & Full Face Masks Sundström SR 100 Silicone Half Mask Small / Medium

SAF/100-03218

Medium / Large

SAF/100-03217

• •

• •

Tested and licensed to AS1716 V shaped adjustable elastic head harness with dished crown plate for comfortable, secure fit Can be fitted with compressed air attachment for airline use Filters not included

6 Sundström Box Kits SAF/171-06152

SR 900 Basic Box w/ 297 Filter

SAF/171-06153

SR 100 Box Kit S/M w/ ABE1 Filter

SAF/171-05466

SR 100 Box Kit M/L w/ ABE1 Filter

SAF/171-05465

SR 200 Box Kit Plastic Visor

SAF/171-05947

SR 200 Box Kit Glass Visor

SAF/171-06026

SR900 basic box includes; Half Mask SR900, A1 217 OR ABEK1 297 filter, SR510 P3 filter, 5x SR221 pre-filter, cleaning cloth and storage box.

SR100 box kits includes; Half Mask SR100, Gas filter ABE1, Particle filter P3, Pre-filter holder, Pre-filter

Safety Equipment

SR 900 Basic Box w/ 217 Filter

SR200 box kits includes; Full Mask SR200 PC or LG visor, SR510 P3 filter, SR297 ABEK1 filter, 5x SR221 pre-filter, cleaning cloth and SR344 storage box.

Sundström Head Harness Black Cradle SR 200 Natural Rubber Head

SAF/180-03659

•

Elastic head harness (single) that suits half masks SR 90-3 and SR 100.

Sundström SR 200 Full Face Mask Cloth Head Harness Suits Plastic Visor

SAF/110-04179

Cloth Head Harness Suits Glass Visor

SAF/110-04213

Rubber Head Harness Suits Plastic Visor

SAF/110-04852

SR 200 Cloth Head Harness

SAF/181-04182

SR 200 Full Face Mask: Uncompromising protection, ultimate comfort. Crafted with precision, this top-of-the-line mask offers unmatched defense.

Made from high-quality materials, it ensures a secure fit and reliable protection. The wide face seal, large crown plate and adjustable head harness provide personalised comfort. Lightweight and fatigue-free, it's the ideal choice for professionals seeking comprehensive respiratory protection.

101

Sundström SR 200 Protective Film (10)

Safety Equipment

6

SR 200 Protective Film (10) PC Visor

SAF/181-04419

SR 200 Protective Film (10) Glass Visor

SAF/181-05609

Low-cost, disposable, clear plastic film Clings easily to the full face mask visor Protects against splashes, dust, spray etc. Can be stacked: once film is dirty, just tear off to expose next clear layer

Sundström SR 200 Visor SR 200 Visor Polycarbonate

SAF/181-04180

SR 200 Laminated Glass Visor

SAF/181-04214

Replacement Visor for the Sundström SR200 Full Face Mask.

Sundström SR 200 Head Harness (Cloth) SR 200 Head Harness (Cloth)

SAF/181-04419

• •

Replacement Cloth Head Harness for the Sundstrom SR200 Full Face Mask.

Replaces either the rubber cradle or cloth/fabric one.

Sundström SR 200 Airline SR 200 Airfed Full Face Mask, PC Visor

102

SAF/120-04978

The SR200 Airline comprises an SR200 full face mask supplied with air form an external source through a hose and a regulator on the user’s belt.

Phone: 1800 140 888

Sundström SR 307 Compressed Air Attachment Compressed Air Attachment

SAF/125-01353

Enables a given facepiece to be used as either a filtering device or a protective device supplied with compressed air. Designed for connection to Sundström half masks and full face masks.

Sundström SR 500/200 Fan Unit with Full Face Mask HD Battery & Full Face PCV 550

SAF/190-05630

HD Battery & Full Face Glass 550

SAF/190-05877

6

The Sundström® powered air purifying respirator (PAPR) is an alternative to negative-pressure filter respirators in situations where these are recommended.

The fan-assisted air flow may be of benefit during extended periods of work in warm conditions.

Safety Equipment

The fan can be used with Sundström hoods, face shields or full face masks.

SR200 Silicone facepiece Heavy duty use, full time exposure, long term work in areas requiring very high protection levels

Sundström SR 500/200 Fan Unit Fan Unit w/ Standard Battery

SAF/190-06161

The SR 500 is a battery-powered fan that, together with a filter and an approved head top, is included in the Sundström fan-assisted respiratory protective device systems.

The human interface may consist of a hood, face shield, half mask or full face mask. The fan is equipped with a filter, and the filtered air is fed through a hose to the human interface. The pressure then generated prevents surrounding pollutants from penetrating into the mask.

Sperian Complete Respirator Box Kit Complete Respirator Box Kit

D/MPV-620-DCF-100SPW

A respiratory system that cools the face and reduces fogging ideal when applying two-pack paint.

Air passes through an airline to the face piece or hood, with the continuous flow creating increased pressure inside. This pressure cools the users face and reduces fogging, a common problem in many working situations.

103

Sperian MPV Air-Fed Visor MPV Mask & Belt

D/MPV-623-1007972

Breathing air is gentle and quietly dispersed through the tough, lightweight visor at a positive pressure.

6 Gas Filters Filter for protection against gases and fumes with optimised adsorption.

Sundström SR 217 Gas Filter A1 Safety Equipment

Gas Filter A1 (217)

SAF/131-01359

Filter for protection against gases and fumes with optimised adsorption.

Gas filter SR 217, Class 1 are designed for use with Sundström half masks and full face masks.

The filter are of type A and provide protection against organic gases and vapours, such as solvents, with boiling points > +65oC.

Sundström SR 218 Gas Filter A2 Gas Filter A2 (218)

SAF/136-00023

Used against organic gas and vapour with a boiling point above +65°C,such as solvents. The filter fits into the filter attachment of Sundström’s half and full face masks. An SR510 particle filter can be snapped onto the front of the filter. Two identical A1 filters can also be used with the SR500 PAPR by using filter adaptors

Sundström SR 294 Gas Filter ABE2 Gas Filter ABE2 (294)

SAF/135-01354

Type A protects against organic gases and vapours, such as solvents, with boiling points > +65 °C. Type B protects against inorganic gases and vapours, such as chlorine, hydrogen sulphide and hydrogen cyanide.

Type E protects against acidic gases and vapours, such as sulphur dioxide and hydrogen fluoride.

104

Phone: 1800 140 888

Sundström SR 297 Gas Filter ABEK1 Gas Filter ABEK1 (297)

SAF/137-00770

Used against vapour from organic gases whose boiling point exceeds +65°C (150F), for inorganic gas, for acid gas and vapour, and for ammonia Pressure drop: At 30 l/min: 70–80 Pa (standards : <100 Pa), At 95 l/min: 270–300 Pa (standards requirement: <400 Pa)

Sundström SR 299-2 Gas/Particle Filter ABEK1HgP3 Gas Filter A1B2E2K1 SR597

SAF/133-00479

6

A1 part is used against organic gas and vapour, such as solvents, whose boiling point is greater than +65°C B2 part is used against inorganic gas and vapour, such as chlorine, hydrogen sulphide and hydrogen cyanide

Safety Equipment

E2 part is used against acid gas and vapour, such as sulphure dioxide and hydrogen fluoride K1 part is used against ammonia and certain amines, such as ethylene diamine

Sundström SR 315 Gas Filter ABE1 Gas Filter ABE1 (315)

SAF/131-01350

Used against vapour from organic gases whose boiling point exceeds +65°C (150F), for inorganic gas, and for acid gas and vapour The filter contains 78 g of activated carbon Pressure drop: At 30 l/min: 45–50 Pa (standards requirement: <100 Pa), At 95 l/min: 200 – 220 Pa (standards requirement: <400 Pa)

Sundström SR 510 Particle Filter P3 R Particle Filter P3 SR510

SAF/140-00026

The Sundstrom Filter SR510 P3 is a particle filter that can be used for all types of wet and dry particles, aerosols, mists, bacteria, viruses, mould, fibres such as asbestos.

The SR510 can be used with Sundström half and full face masks.

The Sundstrom SR510 is a high performance particle filter class P3. The filter flange features an O-ring that optimises the seal to the front rim of Sundström gas filters.

105

Sundström SR 515 Gas Filter ABE1 Gas Filter ABE1 SR515

SAF/192-04995

A1 part is used against organic gas and vapour, such as solvents, whose boiling point is greater than +65oC B1 part is used against inorganic gas and vapour, such as chlorine, hydrogen sulphide and hydrogen cyanide E1 part is used against acid gas and vapour, such as sulphure dioxide and hydrogen fluoride

Safety Equipment

6

Sundström SR 518 Gas Filter A2 Gas Filter A2 SR518

SAF/191-04994

Used against organic gas and vapour with a boiling point above +65oC ,such as solvents. The filter is screwed directly into the fan unit of SR500 or SR500ex PAPR.

Sundström SR 597 Gas Filter A1BE2K1 Gas Filter A1B2E2K1 SR597

SAF/193-04996

A1 part is used against organic gas and vapour, such as solvents, whose boiling point is greater than +65°C B2 part is used against inorganic gas and vapour, such as chlorine, hydrogen sulphide and hydrogen cyanide E2 part is used against acid gas and vapour, such as sulphure dioxide and hydrogen fluoride K1 part is used against ammonia and certain amines, such as ethylene diamine

Sundström Pre Filter (221-1) Pre Filter (221-1)

SAF/140-00027

221-1 Pre Filter Protects The Main Filter Against Premature Clogging

By Larger Particles.

Should Always Be Used For Particle, Gas & Combined Filter.

Approved to AS/NZS1716:2003

106

Phone: 1800 140 888

Accessories Sundström Pre Filter Holder Black Pre Filter Holder Black

SAF/180-05854

Put together with pre filter SR 221 on gas-, particle- or combined filter.

Use also for fit test.

6 Sundström Half Mask Storage Pouch Storage Pouch

SAF/170-04292

Stores half mask with essential accessories • Keeps mask and accessories dust free • Practical carry strap attached • Lid attached to carry strap • ID label for owner’s name

Safety Equipment

Sundström Plastic Half Mask Storage Pouch Plastic Storage Pouch

SAF/170-02820

Plastic storage box with carry strap and lid for half mask, filters and accessories

Sundström Full Face Mask Storage Box Plastic Storage Pouch

SAF/170-05776

Plastic storage box with carry strap and lid for full face mask, filters and accessories.

• Keeps mask and accessories dust free • Practical carry strap attached • Lid attached to carry strap • ID label for owner’s name

107

Sundström Cleaning Napkins Single Pack

SAF/170-00010A

Box of 50

SAF/170-00010

Individually sealed antiseptic cleaning tissues for respirator hygiene. Impregnated with cleaning agent.

Each tissue individually sealed.

Impregnated with antiseptic cleaning agent.

6

Sperian Waist & Carbon Pack Waistband & Carbon Pack

D/MPV-518-1011675

Disposable Filter

D/MPV-22-1001672

• Total inward leakage less than 0.05%: for improved user safety.

• Low flow alarm.

• Activated carbon filter to retain odours.

• Simplified care and maintenance.

Safety Equipment

*Housing not included

Visor Cover Visor Cover

D/MPV-1

Visor Disposable Cover Kit of 10

D/MPV-1-1001732-K10

Visor Cover Kit of 50

D/MPV-1-K50

Integral Visor Kit of 10

D/MPV-44-K10

Integral Visor Kit of 50

D/MPV-44-K50

Inner Clear Replaceable Visor

D/MPV-478

Inner Clear Replaceable Visor Kit of 5, DTVS1504/5

D/MPV-478-1001775-K5

• •

• • • • •

Self-adhesive visor covers can be easy applied and torn off.

Excellent protection and can be used for a variety of masks,easily disposable and reliant.

Quick and Easy to use.

Convienient.

High quality.

Protects from scratching or overspray of paint and chemicals.

Extends mask visor life span.

Membrane Kit Membrane Kit (Inh & Exh Valves Only)

SAF/180-03701

SR 100 Membrane Kit (incl. Valve Covers)

SAF/180-03658

SR 200 Membrane Kit (Inh & Exh Valves)

SAF/181-04183

• •

• • • • •

108

Self-adhesive visor covers can be easily applied and torn off.

Excellent protection and can be used for a variety of masks,easily disposable and reliant.

Quick and Easy to use.

Convienient.

High quality.

Protects from scratching or overspray of paint and chemicals.

Extends mask visor life span.

Phone: 1800 140 888

Safety Glasses Clear Safety Glasses

SAF/SG-CL-0002

Smoked Safety Glasses

SAF/SG-SM-0003

Safety Glasses Micro

SAF/SG-SM-0004

Safety Glasses Transition Day/Night

SAF/SG-TN-0001

These lenses are intended for indoor and outdoor use where no optical radiation hazards exist other than solar radiation.

• This product is rated for medium impact under AS/ NZ 1337

Dust Goggles Dust Goggles

SAF/516880

• • •

Clear economy Cotton Bound face seal All round ventilation for greater, 100% UV protection

Ear Plugs Uncorded (Box of 200)

SAF/312-1261

•

Ear Plugs Corded (Box of 200)

SAF/312-1262

Ear Plugs Classic Platinum (Box of 200)

SAF/312-1263

Ear Muffs Class 5-31dB

SAF/EM-PC-1000000

Ear Muffs Hard Hat Class 5-26dB

SAF/EM-PC-1000001

Max bell shape single use earplug offers maximum inear comfort The worlds most used polyurethane earplug Improved design easier to insert, reduces tendency to back out of the ear

6

Ear Protection

•

Safety Equipment

•

Bionic Face Shield Bionic Face Shield

SAF/FS-SP-1000000

Face Shield High Impact Visor Only SAF/FS-SP-1011623 Replacement Polycarbonate Visor

SAF/FS-SP-1000001

A revolutionary face shield designed for rugged jobs.

Extremely lightweight and highly adjustable for all-day comfort it’s perfect for workers exposed to impact, chemical splash and airborne debris.

Hood Calico Elastic Hood Calico Elastic

SAF/AC-248A

• • •

Lightweight and comfortable Absorbs sweat Keeps overspray off your head!

109

Universal Fabric Sock Universal Fabric Sock

SAF/41-1497B

Blast Suits

Safety Equipment

6

Leather/Cotton Small

SB/OC-BP-501005

Leather/Cotton Medium

SB/OC-BP-501006

Leather/Cotton Large

SB/OC-BP-501007

Leather/Cotton XL

SB/OC-BP-501008

Leather/Cotton XXL

SB/OC-BP-501009

Leather/Cotton XXXL

SB/OC-BP-501010

Nylon/Cotton Medium

SB/OC-BP-501011

Nylon/Cotton Large

SB/OC-BP-501012

Nylon/Cotton XL

SB/OC-BP-501013

Nylon/Cotton XXL

SB/OC-BP-501014

Nylon/Cotton XXXL

SB/OC-BP-501015

Nylon/Cotton XXXXL

SB/OC-BP-501016

Abrasive blasting suits are available leather fronted or long life nylon fronted for maximum operator safety & long life.

Coveralls Coverall Orange/Blue Large

SAF/OV-RMC-0003

•

Coverall Orange/Blue XL

SAF/OV-RMC-0004

•

Coverall Orange/Blue XXL

SAF/OV-RMC-0005

Coverall Orange/Blue XXXL

SAF/OV-RMC-0006

•

Breathable, anti-static SMS fabric Elasticated hood, waist, wrist & ankles 3-thread overlocked seams

SMS Coveralls - Box of 50 SMS Coverall Medium

SAF/OV-WSP-0002-50

•

SMS Coverall Large

SAF/OV-WSP-0003-50

•

SMS Coverall XL

SAF/OV-WSP-0004-50

SMS Coverall XXL

SAF/OV-WSP-0005-50

SMS Coverall XXXL

SAF/OV-WSP-0007-50

110

•

Breathable, anti-static SMS fabric Elasticated hood, waist, wrist & ankles 3-thread overlocked seams

Phone: 1800 140 888

Latex Disposable Glove Medium 100pk

SAF/GLOVELATEX

Large 100pk

SAF/GLOVELATEX1

Extra Large 100pk

SAF/GLOVELATEX2

Nitrile Disposable Gloves Disposable Glove Medium 120pk

SAF/GL-NT-001-M

Disposable Glove Large 120pk

SAF/GL-NT-001-L

Disposable Glove XL 120pk

SAF/GL-NT-001-XL

Resistant to chemicals, punctures and abrasions that may occur in manufacturing settings.

6

Super Lite Orange Disposable Glove 100pk

SAF/GL-NBR-10

Safety Equipment

Super Lite Orange Glove Resistant to chemicals, punctures and abrasions that may occur in manufacturing settings.

Nitrile Coated Gloves Coated Medium (Green)

SAF/GL-NN-192-08

Coated 3XL

SAF/GL-NN-192-12

• • •

Beaded Cuff – Providing additional strength & preventing liquid roll off Superior barrier protection over latex and vinyl Our gloves are designed with a fully textured finish to give the user greater sensitivity and further enhance their grip wherever it is needed

Nitrile Chemical Gauntlet Gloves Chemical Gauntlet Small

SAF/GL-NT-007-S

Chemical Gauntlet Medium

SAF/GL-NT-008-M

Chemical Gauntlet Large

SAF/GL-NT-009-L

Chemical Gauntlet XL

SAFGL-NT-010-XL

• •

•

100% Nitrile for maximum chemical and abrasion resistance.

Also offers good resistance to oils, greases, hydrocarbon derivatives and aromatic or chlorinated solvents.

Individually packaged for hygiene.

111

Seamless Nylon Gloves

6

Seamless Nylon Medium

SAF/GLOVENINJA

Seamless Nylon Large

SAF/GLOVENINJA1

Seamless Nylon XL

SAF/GLOVENINJA2

The original Ninja Gloves Seamless Nylon Machine Knit with HPT Foam Coating Palm. The Ninja Proprietary Hydropellent Coating provides superior gripping power in wet and dry conditions, while repelling liquids to offer the ultimate wet and dry grip the Ninja HPT Gloves great hand protection for people in the automotive and petrochemical industries.

Stinga Gloves Stinga Size 8

SAF/GL-STINGA-M

Stinga Size 9

SAF/GL-STINGA-L

• •

Safety Equipment

•

Comfortable and water repellent.

Seamless nylon shell with PVC foam palm.

Bare hand technology in a new multipurpose work glove.

Sand Grip Glove Sand Grip Large

SAF/GL-SD-L

• • •

Lightweight, low lint polyester machine knit liner Ultra thin nitrile sand grip palm Nitrile Coating provides superior gripping power in wet and dry conditions yet retains superior feel

DexiPro Gloves DexiPro Medium

SAF/GL-BNNL-08

• •

•

•

Lightweight lint free nylon machine knit with LYCRATM LYCRATM infusion for improved dexterity and contour to hand shape with ultra thin nitrile foam palm Nitrile Coating provides superior gripping power in wet and dry conditions yet retains superior feel Extra long 20mm cuff

Knitted Cotton Gloves With PVC Dots

SAF/GLOVES

Without PVC Dots

SAF/GLOVES2

• • • • •

112

Knitted poly/cotton With or without polka dot palm and fingers Bleached for clean appearance Knitted poly/cotton for ventilation and enhanced breathability Economical protection suitable for a wide range of work applications

Phone: 1800 140 888

Rigger Gloves Rigger Large

SAF/GLOVERIG

Rigger XL

SAF/GLOVERIG1

• • •

Winged thumb & Stitch free palm Colour coded cuffs for easy size identification Split back provides a lighter and more flexible fit

SpectraKnight Cut 5 Glove SpectrKnight Size 9

SAF/GL-CR5-09

SpectrKnight Size 10

SAF/GL-CR5-10

SpectrKnight Size 11

SAF/GL-CR5-11

•

• •

Knitted 13 gauge glove in Spectra, polyamide, composite fibre and elasthane Conforms snugly to the hand for good dexterity Seamless knit construction eliminates uncomfortable seams that can rub, tear or chafe

6

Double Palm Leather Glove SB/GL-NV-07-701

•

• •

Knitted 13 gauge glove in Spectra, polyamide, composite fibre and elasthane Conforms snugly to the hand for good dexterity Seamless knit construction eliminates uncomfortable seams that can rub, tear or chafe

Safety Equipment

Double Palm Leather

Glove Clip Glove Clip

SAF/GLOVE-CLIP

Attach easily to belt loops, pockets, etc. to prevent misplacing gloves.

SAF/CT10075

Barricade Tapes warn against hazards or dangerous work zones. The durable, yet lightweight tape comes in easy to use rolls so that it can be put up quickly to block off large areas of danger. Wrap it around poles and barrels, or staple it to wood. When the hazard is removed, roll up the tape for reuse.

Caution Tape Caution Tape 100m x 75mm

113

Danger Tape Danger Tape 100m x 75mm

Safety Equipment

6

SAF/DT10075

Barricade Tapes warn against hazards or dangerous work zones. The durable, yet lightweight tape comes in easy to use rolls so that it can be put up quickly to block off large areas of danger. Wrap it around poles and barrels, or staple it to wood. When the hazard is removed, roll up the tape for reuse.

600mm x 450mm

SUN/SIGNS-0001

600mm x 450mm Swing Stand

SUN/SIGNS-0002

Please contact Murphys Spray and Blast Equipment on 1800 140 888 for other signs

Custom Signs

Containment Sheeting 2m x 45m 150GSM UV Retardant

SB/CS-SM-15245

2m x 45m 260GSM UV Retardant

SB/CS-SM-25245

2m x 45m 215GSM Flame Retardant

SB/CS-SM-20245

4m x 45m 215GSM Flame Retardant

SB/CS-SM-25445

114

Heavy-duty containment sheeting designed for longer projects in harsher conditions.

• 45m in length • Available in various resistant grades

Phone: 1800 140 888

Notes

6

Safety Equipment 115

TEST EQUIPMENT Elcometer 112 Wet Film Comb Wet Film Comb 25-3000 µm

TEST/B112-- - - 1B

7

These hexagonal precision formed stainless steel wet film combs are long lasting and reusable and are supplied in a range of thickness’s measuring up to 3000 µm (120 mils).

Elcometer 113 Magnetic Thermometer

Test Equipment

113 Magnetic Thermometer 0oC to 120oC

TEST/G113-- - - 2

The Elcometer 113 Magnetic Thermometer continuously indicates the surface temperature of steel and other magnetic material.

• Do not require batteries but do require time to adjust to the temperature.

Elcometer 114 Dewpoint Calculator 114 Dewpoint Calculator

TEST/G114-- - - 2

This provides accurate values of Dewpoint and Relative Humidity (RH) from the wet and dry bulb temperatures measured by a Whirling or Sling Hygrometer.

Elcometer 124 Testex® Replica Tape Elcometer 122 Coarse

TEST/E122-- - - B

Elcometer 122 X-Coarse

TEST/E122-- - - C

116

Elcometer 122 Testex Tape consists of foam with a noncompressible backing. The foam side is rubbed into the surface providing a permanent mould of the peak-to-valley profile, which can then be measured using the Elcometer 124 Thickness Gauge.

Phone: 1800 140 888

Elcometer 125 Surface Comparators Grit Surface Comparator

TEST/E125-- - - 1

These extremely durable comparators allow the estimation of surface roughness of either grit and shot blasted surfaces.

Using the Elcometer 125 surface comparators as a reference the blasted profile can be compared to the four reference profile grades in each comparator.

• Profiles are recorded in microns.

• 4 Roughness Values per Comparator

Elcometer 154 Plastic Wet Film Comb Plastic Wet Film Comb

TEST/B154-- - - 1

These hexagonal precision formed stainless steel wet film combs are long lasting and reusable and are supplied in a range of thickness’s measuring up to 3000 µm (120 mils).

7

Elcometer 166 Whirling & Sling Hygrometer 166A Whirling Hygrometer - Metric oC

TEST/G116A- - - - 1

116A Wicks Pack of 5

TEST/1164489-

These instruments are designed to determine the dewpoint and relative humidity at any given time.

Test Equipment

Elcometer 224 Digital Surface Profile Gauge Model B

TEST/E224C-BI

Model T

TEST/E224C-TI

The Elcometer 224 is available in two different models: Model B and Model T. Each gauge provides the user with increasing functionality - from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alphanumeric batching and Bluetooth® communication.

117

Elcometer 266 DC Holiday Detector w/ Calibration Certificate

TEST/D266-- - - 4C

Holiday Detector w/ 30KV Handle

TEST/D266-30KV

HANDLES 5KV Handle w/ Calibration Certificate

TEST/T26620033-1C

15KV Handle w/ Calibration Certificate

TEST/T26620033-2C

30KV Handle w/ Calibration Certificate

TEST/T26620033-4C

The Elcometer 266 revolutionises high voltage DC testing of coatings porosity detection making it safer, easier and more reliable than ever before.

The Elcometer 266 does not include the probe handle. Select the required handle.

WIRE BRUSH ELECTRODE 250mm Wire Brush Electrode

TEST/99926621

500mm Wire Brush Electrode

TEST/99926622

7 Elcometer 270 Pinhole Detector

Test Equipment

Pinhole Detector 9 67.5 & 90V w/ Certificate

TEST/D270-- - - 4C

The Elcometer 270 range utilises the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector

Elcometer 319 Dewpoint Meter Standard Gauge

TEST/G319-- - - S

Top Gauge

TEST/G319-- - -T

Magnetic Surface Temperature Probe

TEST/T31920162

This rugged gauge is designed to measure and record all relevant climatic parameters required to determine whether the conditions are suitable for painting. The Elcometer 319 can be used as a hand-held gauge or a stand alone data logger - ideal for monitoring climatic conditions over a period of time.

Elcometer 456 Elcometer 456 Dual Ferrous & Non-Ferrous Basic Integral

TEST/A456CFNFBI1

Elcometer 456 Dual Ferrous & Non-Ferrous Basic Separate

TEST/A456CFNFBS

Elcometer 456 Dual Ferrous & Non-Ferrous Standard Separate

TEST/A456CFNFSS

Elcometer 456 Dual Ferrous & Non-Ferrous Top Separate

TEST/A456CFNFTS

Elcometer New 456 Ferrous Basic Integral

TEST/A456CFBI1

Elcometer New 456 Ferrous Basic Separate

TEST/A456CFBS

Elcometer New 456 Ferrous Standard Separate

TEST/A456CFSS

Elcometer New 456 Ferrous Top Separate

TEST/A456CFTS

118

The Elcometer 456 dry film thickness gauge is available in three different models.

Each coating thickness gauge provides the user with increasing functionality – from the entry level Elcometer 456 Model B, to the top of the range Elcometer 456 Model T. Separate coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.made for mobile devices

Phone: 1800 140 888

Elcometer 456 Probe Range F1 Probe Ferrous 0-1500µm

TEST/T456CF1S

F1 Probe Non-Ferrous 0-1500µm

TEST/T456CFN1S

F1 Probe Ferrous 90° 0-1500µm

TEST/T456CF1R

F1 Probe Non-Ferrous 90° 0-1500µm

TEST/T456CFN1R

F3 Probe Ferrous 0-13mm

TEST/T456CF3S

•

•

Ferrous coating thickness gauge probes measure non magnetic coatings on ferromagnetic substrates.

Elcometer 456 coating thickness ferrous gauges accept any ferrous probe

Other probe combinations are available on request

Brass Wet Film Gauge Triangular Wet Film Gauge

TEST/B154-- - - 8

• • •

Re usable 25 - 3200 µm Used in accordance with; ISO2808 7B, AS3894-3 Standards

7

Coating Thickness Standard Coating Thickness Standard F-0-500 µm

TEST/0525

•

• • •

Test Equipment

•

Used for calibrating and checking the accuracy of all coating thickness instruments Consists of a zero and four coated plates in a leatherette folder Plates included: 0, 75, 150, 250 and 500 micrometres Plate size: 35mm x 35mm Base material: Ferrous

Certified Precision Foil Sets Foil Set 0-1500µm 0-60 mils

TEST/T99022255-1

Foil Set 0-1500µm 0-60 mils (C)

TEST/T99022255-1C

Please note larger range available please phone for more information.

Mitutoyo Dial Thickness Gauge Dial Thickness Gauge Certified

TEST/E124-3M (CERT)

• •

• •

Measuring force 1.4N or less Wide range of applications with various types of measuring faces (on the spindle and anvil) Easy to reach lifting lever Flat Anv

119

FITTINGS Claw Couplings Claw Coupling Blank

Hose Tail Claw Coupling

Claw Coupling Blank A Type

10mm Tail A Type

F/00010C

13mm Tail A Type

F/00010F

19mm Tail A Type

F/00010I

25mm Tail A Type

F/00010L

31mm Tail A Type

F/00010O

F/00010

8

Fittings

Male Threaded Claw Coupling 10mm Male A Type

F/00010A

13mm Male A Type

F/00010D

19mm Male A Type

F/00010G

25mm Male A Type

F/00010J

Male Threaded Claw Coupling

31mm Male A Type

F/00010M

31mm Male S Type

F/00011A

38mm Male S Type

F/00011D

50mm Male S Type

F/00011G

75mm Male S Type

F/00011J

Female Threaded Claw Coupling 10mm Female A Type

F/00010B

13mm Female A Type

F/00010E

Male Threaded Claw Coupling

19mm Female A Type

F/00010H

31mm Female S Type

F/00011B

25mm Female A Type

F/00010K

38mm Female S Type

F/00011E

50mm Female S Type

F/00011H

75mm Female S Type

F/00011K

120

Phone: 1800 140 888

Hose Tail Claw Coupling

Spud Connections

31mm Tail S Type

F/00011C

Spud 2” Tail & Wing Nut

F/00014

38mm Tail S Type

F/00011F

F/00014B

50mm Tail S Type

F/00011I

Spud 2” Adaptor Male BSP to Female BSP

75mm Tail S Type

F/00011L

Clamps & Rubbers Safety Clamp

8 A Type Claw Rubbers

2” Surelock Safety Clamp

F/00011N

1” A Type Safety Clamp

F/00013

1/2” A Type Safety Clamp

F/00013B

3/4” A Type Safety Clamp

F/00013A

A Type Claw Rubbers

F/00012

Fittings

2” Surelock Seals 2” Surelock Seals

F/00012M

2 Bolt Saddle Clamp 2 Bolt Saddle Clamp SL22

F/00039

2 Bolt Saddle Clamp SL34

F/00040

2 Bolt Saddle Clamp SL40

F/00041

2 Bolt Saddle Clamp SL49

F/00042

121

Air Quick Release Couplings & Adaptors Double Action Couplings

Double Action Adaptors

3/8" Coupling Tail

F/CEJN-103421004

3/8" Adaptor Tail

F/CEJN-103425004

1/2" Coupling Tail

F/CEJN-103421005

1/4" Adaptor Male

F/CEJN-103425152

1/4" Coupling Male

F/CEJN-103421152

3/8" Adaptor Male

F/CEJN-103425154

3/8" Coupling Male

F/CEJN-103421154

1/4" Adaptor Female

F/CEJN-103425202

1/2" Coupling Male

F/CEJN-103421155

3/8" Adaptor Female

F/CEJN-103425204

1/4" Coupling Female

F/CEJN-103421202

3/8" Coupling Female

F/CEJN-103421204

8

Nitto Adaptors Nitto Couplings F/20SF

1/4" Male Coupling

F/20SM

3/8" Male Coupling

F/30SM

F/20PM

1/4" Female Adaptor

F/20PF

3/8" Male Adaptor

F/30PM

Fittings

1/4" Female Coupling

1/4" Male Adaptor

J-Mac Couplings & Adaptors J-Mac Couplings

J-Mac Barbed Adaptors

1/2" Coupling Female 2 Button

F/320F4

1/4" Barb Adaptor

F/31T4

1/4" Coupling Male 2 Button

F/320M4

5/16" Barb Adaptor

F/31T5

3/8" Coupling Tail 2 Button

F/320T6

3/8" Barb Adaptor

F/31T6

1/2" Barb Adaptor

F/31T8

122

Phone: 1800 140 888

Barbed Fittings Barbed Male

Nut & Tail 1/4” Tail x 1/4” Nut BSP

F/4TN4

1/4” Tail x 1/4” Male BSP

F/4TM4

1/4” Tail x 3/8” Nut BSP

F/4TN6

1/4” Tail x 5/16” Male BSP

F/5TM4

5/16” Tail x 1/4” Nut BSP

F/5TN4

1/4” Tail x 3/8” Male BSP

F/6TM4

5/16” Tail x 3/8” Nut BSP

F/5TN6

3/8” Tail x 3/8” Male BSP

F/6TM6

3/8” Tail x 1/4” Nut BSP

F/6TN4

1/2” Tail x 1/4” Male BSP

F/8TM4

3/8” Tail x 3/8” Nut BSP

F/6TN6

1/2” Tail x 1/2” Male BSP

F/8TM8

1/2” Tail x 1/2” Nut BSP

F/8TN8

1/2” Tail x 3/4” Male BSP

F/8TM12

3/4” Tail x 3/4” Male BSP

F/12TM12

1” Tail x 1” Male NPT

F/16TM16NPT

8 Hose Joiner 1/4” Barb Hose Joiner

F/4DET

5/16” Barb Hose Joiner

F/5DET

3/8” Barb Hose Joiner

F/6DET

1/2” Barb Hose Joiner

F/8DET

Fittings 123

Ryco 200 Series Ryco Couplings

Fittings

8

Ryco Tail Couplings

1/4" Automatic Coupling Female

F/RYCO 200

5/16" Automatic Coupling Tail

F/RYCO 240

1/4" Automatic Coupling Male

F/RYCO 201

3/8" Automatic Coupling Tail

F/RYCO 241

3/8" Automatic Coupling Female

F/RYCO 243

1/4" Automatic Coupling Tail

F/RYCO 245

3/8" Automatic Coupling Male

F/RYCO 244

Ryco Barbed Adaptors

Ryco Adaptors

1/4" Barb Adaptor

F/RYCO 205

Adaptor Male

F/RYCO 202

5/16" Barb Adaptor

F/RYCO 206

Adaptor Female

F/RYCO 203

3/8" Barb Adaptor

F/RYCO 206A

Ryco 500 Series Automatic Coupling

Automatic Coupling

1/4" Automatic Coupling Female

F/RYCO-CEJN 500

3/8" Hose Barb Coupling

1/4" Automatic Coupling Male

F/RYCO-CEJN 501

Barb Adaptors

Adaptors 1/8" Adaptor Male

124

F/RYCO-CEJN 541

F/RYCO-CEJN 504

5/16" Barb Adaptor

F/RYCO-CEJN-505

5/16" Barb Adaptor

F/RYCO-CEJN-506

3/8" Barb Adaptor

F/RYCO-CEJN-506A

Phone: 1800 140 888

Hex Sleeves, Plugs & Caps Steel Plugs

Hexagon Taper Plug

1/8" Steel

F/PG-ST-0003

1/8” BSP Male

F/HP2

1/4" Steel

F/PG-ST-0006

1/4” BSP Male

F/HP4

3/8" Steel

F/PG-ST-0010

3/8” BSP Male

F/HP6

1/2" Steel

F/PG-ST-0013

1/2” BSP Male

F/HP8

3/4" Steel

F/PG-ST-0020

3/4” BSP Male

F/HP9

1" Steel

F/PG-ST-0025

1” Black Steel Male

F/HP11

1 1/4" Steel

F/PG-ST-0032

25mm Black Steel

F/00070E

1 1/2" Steel

F/PG-ST-0040

40mm Black Steel

F/00070G

2" Steel

F/PG-ST-0050

2 1/2" Steel

F/PG-ST-0065

3" Steel

F/PG-ST-0080

4" Steel

F/PG-ST-0100

8 Hexagon Sleeves

Blanking Cap 1/4” BSP Nut

F/N4C

3/8” BSP Nut

F/N6C

Hexagon Sleeve 1/8”

F/3120/2

Hexagon Sleeve 1/4”

F/3120/4

Hexagon Sleeve 3/8”

F/3120/6

Fittings 125

Reducing Bushes

Fittings

8

Steel Reducing Bush

Reducing Hex Nipples

1/4" Male x 1/8" Female

F/RB-ST-0603

1/4" x 1/8" Steel

F/RN-ST-0603

3/8" Male x 1/8" Female

F/RB-ST-1003

3/8" x 1/8" Steel

F/RN-ST-1003

3/8" Male x 1/4" Female

F/RB-ST-1006

3/8" x 1/4" Steel

F/RN-ST-1006

1/2" Male x 1/8" Female

F/RB-ST-1303

1/2" x 1/8" Steel

F/RN-ST-1303

1/2" Male x 1/4" Female

F/RB-ST-1306

1/2" x 1/4" Steel

F/RN-ST-1306

1/2" Male x 3/8" Female

F/RB-ST-1310

1/2" x 3/8" Steel

F/RN-ST-1310

3/4" Male x 1/4" Female

F/RB-ST-2006

3/4" x 1/4" Steel

F/RN-ST-2006

3/4" Male x 3/8" Female

F/RB-ST-2010

3/4" x 3/8" Steel

F/RN-ST-2010

3/4" Male x 1/2" Female

F/RB-ST-2013

3/4" x 3/8" 7500psi

F/RN-ST-2010-HP

1" Male x 1/2" Female

F/RB-ST-2513

3/4" x 1/2" Steel

F/RN-ST-2013

1" Male x 3/4" Female

F/RB-ST-2520

3/4" x 1/2" 7500psi

F/RN-ST-2013-HP

1 1/4" Male x 3/4" Female

F/RB-ST-3220

1" x 1/2" Steel

F/RN-ST-2513

1 1/4" Male x 1" Female

F/RB-ST-3225

1" x 3/4" Steel

F/RN-ST-2520

1 1/2" Male x 3/4" Female

F/RB-ST-4020

1 1/4" x 3/4" Steel

F/RN-ST-3220

1 1/2" Male x 1" Female

F/RB-ST-4025

1 1/4" x 1" Steel

F/RN-ST-3225

1 1/2" Male x 1 1/4" Female

F/RB-ST-4032

1 1/2" x 3/4" Steel

F/RN-ST-4020

2" Male x 3/4" Female

F/RB-ST-5020

1 1/2" x 1" Steel

F/RN-ST-4025

2" Male x 1" Female

F/RB-ST-5025

1 1/2" x 1 1/4" Steel

F/RN-ST-4032

2" Male x 1 1/4" Female

F/RB-ST-5032

2" x 3/4" Steel

F/RN-ST-5020

2" Male x 1 1/2" Female

F/RB-ST-5040

2" x 1" Steel

F/RN-ST-5025

2 1/2" Male x 2" Female

F/RB-ST-6550

2" x 1 1/4" Steel

F/RN-ST-5032

3" Male x 2" Female

F/RB-ST-8050

2" x 1 1/2" Steel

F/RN-ST-5040

3" Male x 2 1/2" Female

F/RB-ST-8065

2 1/2" x 2" Steel

F/RN-ST-6550

4" Male x 2" Female

F/RB-ST-9050

3" x 2" Steel

F/RN-ST-8050

4" Male x 3" Female

F/RB-ST-9080

3" x 2 1/2" Steel

F/RN-ST-8065

4" x 2" Steel

F/RN-ST-9050

4" x 2 1/2" Steel

F/RN-ST-9065

4" x 3" Steel

F/RN-ST-9080

Reducing Hex Nipples Black 1 1/4” x 1” Black Steel

F/RN-BS-MM-3225

1 1/2” x 1” Black Steel

F/RN-BS-MM-4025

1 1/2” x 1 1/4” Black Steel

F/RN-BS-MM-4032

2” x 1 1/4” Black Steel

F/RN-BS-MM-5032

2” x 1 1/2” Black Steel

F/RN-BS-MM-5040

126

Phone: 1800 140 888

Hex Nipples Hex Nipples Black Steel

Hex Nipples

3/4” Black Steel

F/00050

1/8" Steel

F/HN-ST-MM-0003

1” Black Steel

F/00050A

1/4" Steel

F/HN-ST-MM-0006

1 1/4” x 1 1/4” Black Steel

F/00050C

3/8" Steel

F/HN-ST-MM-0010

1 1/2” x 1 1/2” Black Steel

F/00050D

1/2" Steel

F/HN-ST-MM-0013

2” x 2” Black Steel

F/00050H

3/4" Steel

F/HN-ST-MM-0020

1" Steel

F/HN-ST-MM-0025

1 1/4" Steel

F/HN-ST-MM-0032

1 1/2" Steel

F/HN-ST-MM-0040

2" Steel

F/HN-ST-MM-0050

2 1/2" Steel

F/HN-ST-MM-0065

3" Steel

F/HN-ST-MM-0080

4" Steel

F/HN-ST-MM-0100

8

Fittings

Swivel Union & Ball Valves Swivel Adaptors

Barrel Union

Swivel Adaptor 1/4 NPT (M) 1/4” NPS (F)

F/12-402B

Swivel Adaptor 1/4 NPT (M) 3/8” NPS (F)

F/12-403B

Swivel Adaptor 3/8 NPT (M) 1/4” NPS (F)

F/12-404B

Swivel Adaptor 3/8 NPT (M) 3/8” NPS (F)

F/12-405B

Swivel Adaptor 3/8 NPT (M) 1/2” NPS (F)

F/12-406B

Swivel Adaptor 1/2 NPT (M) 3/8” NPS (F)

F/12-407B

Swivel Adaptor 1/2 NPT (M) 1/2” NPS (F)

F/12-465B

3/4” x 3/4” m/F Swivel Adaptor NFT

F/12-467

1/8" Steel

F/UN-ST-FF-0003

1/4" Steel

F/UN-ST-FF-0006

3/8" Steel

F/UN-ST-FF-0010

1/2" Steel

F/UN-ST-FF-0013

3/4" Steel

F/UN-ST-FF-0020

1" Steel

F/UN-ST-FF-0025

1 1/4" Steel

F/UN-ST-FF-0032

1 1/2" Steel

F/UN-ST-FF-0040

2" Steel

F/UN-ST-FF-0050

127

High Pressure Ball Valves

Ball Valves

1/4” High Pressure Steel 7250 PSI

F/23-100018

1/4" Brass Nickel Plated

F/BV-FF-0006

3/8” High Pressure 7250 PSI

F/23-100019

1/4" T Handle

F/BV-FF-0006-T

1/2” High Pressure Steel 7250 PSI

F/23-100020

1/4" Mini Logic

F/BV-FF-0006-MINI

3/8" Brass Nickel Plated

F/BV-FF-0010

3/8" T Handle

F/BV-FF-0010-T

3/8" Mini Logic

F/BV-FF-0010-MINI

1/2" Brass Nickel Plated

F/BV-FF-0013

3/4" Brass Nickel Plated

F/BV-FF-0020

1" Brass Nickel Plated

F/BV-FF-0025

1 1/4" Brass Nickel Plated

F/BV-FF-0032

1 1/2" Brass Nickel Plated

F/BV-FF-0040

2" Brass Nickel Plated

F/BV-FF-0050

2 1/2" Brass Nickel Plated

F/BV-FF-0065

3" Brass Nickel Plated

F/BV-FF-0080

Fittings

8

Tee Pieces & Elbows Male Tee

Female Tee Steel

1/4” BSP Taper

F/M4A

1/8" Steel

F/TE-ST-FF-0003

3/8” BSP Taper

F/M6A

1/4" Steel

F/TE-ST-FF-0006

3/8" Steel

F/TE-ST-FF-0010

1/2" Steel

F/TE-ST-FF-0013

3/4" Steel

F/TE-ST-FF-0020

1" Steel

F/TE-ST-FF-0025

1 1/4" Steel

F/TE-ST-FF-0032

1 1/2" Steel

F/TE-ST-FF-0040

2" Steel

F/TE-ST-FF-0050

2 1/2" Steel

F/TE-ST-FF-0065

3" Steel

F/TE-ST-FF-0080

4" Steel

F/TE-ST-FF-0100

128

Phone: 1800 140 888

Female Tee Black Steel

Elbow 45oC - Male to Female

3/8” Tee Black Steel

F/00051A

1/4” (M) - 1/4” (F)

F/4M4F-45J

1/2” Tee Black Steel

F/00051B

3/8” (M) - 3/8” (F)

F/6M6F-45J

3/4” Tee Black Steel

F/00051C

1” Tee Black Steel

F/00051D

1 1/4” Tee Black Steel

F/00051E

Male Elbow 90oC Steel Elbow 90oC F/EB-ST-FF-0003

1/4" F/F Steel

F/EB-ST-FF-0006

3/8" F/F Steel

F/EB-ST-FF-0010

1/2" F/F Steel

F/EB-ST-FF-0013

3/4" F/F Steel

F/EB-ST-FF-0020

1" F/F Steel

F/EB-ST-FF-0025

1 1/4" F/F Steel

F/EB-ST-FF-0032

1 1/2" F/F Steel

F/EB-ST-FF-0040

2" F/F Steel

F/EB-ST-FF-0050

2 1/2" F/F Steel

F/EB-ST-FF-0065

3" F/F Steel

F/EB-ST-FF-0080

4" F/F Steel

F/EB-ST-FF-0100

F/RYCO S49-1

Male to Male Elbow 3/4” Steel

F/RYCO S49-4

1” NPT Male to 1” NPT Female

F/ELBOW 1 INCH NPT

8

Female Elbow 90oC Black 3/4” Female to Female Black Steel

F/00053A

1 1/4” Female to Female Black Steel

F/00053E

1 1/2” Female to Female Black Steel

F/00053F

Fittings

1/8" F/F Steel

Male Elbow 90o 1/4” Steel

129

Accessories Titan Pressure Gauge

Thread Tape

1/4 Filled Liquid Glass

12mm x 10m White PTFE Tape

T/730-397

Gauges

Fittings

8

F/THREAD TAPE

Super Clamp

Gauge 145psi B/Ent 1/8 40mm

F/25-1052

17-19mm Super Clamp

F/HC-SC019

Gauge 145psi R/Ent 1/8 40mm

F/25-1075

24-26mm Super Clamp

F/HC-SC022

26-28mm Super Clamp

F/HC-SC028

29-31mm Super Clamp

F/HC-SC031

32-35mm Super Clamp

F/HC-SC035

50mm Liquid Filled Gauge 230psi Back Ent

F/25-1240

Pannel Mount Bracket Suit 50mm

F/25-1240PM

63mm Liquid Filled Gauge 350psi BotEnt

F/25-1425

34-37mm Super Clamp

F/HC-SC037

63mm Liquid Filled Gauge 350psi B/Ent

F/25-1545

44-47mm Super Clamp

F/HC-SC047

Gauge 1/8 0-60 Bottom 1.5 Dial

F/28-1358B

46-49mm Super Clamp

F/HC-SC049

Gauge 1/4 0-60 Bottom 1.5 Dial

F/28-721B

48-51mm Super Clamp

F/HC-SC051

Gauge 1/4 0-100 Bottom 2 Dial

F/28-759B

Gauge 1/4 0-160 Bottom 2 Dial

F/28-766B

Gauge Liquid Filled Glass Faced

T/730-394

Gauge 40mm 1/8" Rear Entry

SMC/G36-K10-01-X7

Gauge 40mm 1/4" Rear Entry

SMC/G40-K10-02

Gauge 50mm 1/8" Rear Entry 140psi

SMC/G50-K10-01

Gauge 50mm 1/4" Rear Entry 140psi

SMC/G50-K10-02

O Clip

Hose Clamp Hose Clamp 8-16mm

F/HC-WD-0816

Hose Clip 12-20mm

F/HC-WD-1220

Hose Clamp 16-27mm

F/HC-WD-1627

Hose Clip 20-32mm

F/HC-WD-2032

Hose Clip 27-40mm

F/HC-WD-2740

Hose Clamp Banding Per MM

F/HC-SS-BAND-1

Hose Clamp Buckle

F/HC-SS-BUCK-1

130

5/16”

F/OTK-0709

7/16”

F/OTK-0911

1/2”

F/OTK-1113

9/16”

F/OTK-1315

5/8”

F/OTK-1519

3/4”

F/OTK-1720

OTK 151 PC Kit with Pincers

F/OTK-KIT

F/OTK-KIT

Phone: 1800 140 888

Breathing & Deadman Hose Re-Fit Kit Box Kit Complete

F/BDAT-KIT

Kit includes -Cejn double acting -Fittings -Genuine Ryco fittings -OTK clips -Pliers

Ryco Breathing & Deadman Hose Re-Fit Kit Box Kit Complete

F/BDAT-KIT-RYCO

Kit includes -Cejn double acting -Fittings -Genuine Ryco fittings -OTK clips -Auto couplings -Nut & tails -Barb 1/4” adaptor -Pliers

8

Nitto Airline Kit Box Kit Complete

F/BDAT-ACC-N

Kit includes -Couplings -Adaptors -OTK clips -Pliers

Fittings

Airless Connection Kit 7500 PSI Box Kit Complete

F/BDAT-AIRLESS-HP

Kit includes -4x 1/4"-1/4" hex nipple -4x 3/8"-3/8" hex nipple -4x 1/4"-3/8" hex nipple -4x 3/8"-1/2" hex nipple -3x 1/4"-1/2" hex nipple -2x 1/2"-1/2" hex nipple -2x 3/4"-3/4" hex nipple -2x 1/8"-1/4" hex nipple -2x 3/8"-1/2" hex nipple -1x 3/4"-1" hex nipple -2x 3/4" x 3/8" reducing nipple -1x 1" x 1/2" reducing nipple

131

z

HOSES Airless Spray Whip Hose 3300 PSI 3/16” x 0.9m

T/550-240

3/16” x 1.5m

T/316-506

3/16” x 2.7m

T/550-222

The purpose of the whip hose is to protect the main hose from every-day wear. Whip hoses are generally a bit lighter than the main hose which reduces fatigue.

These whip hoses are Female to Male connector types.

6000 PSI 1/4” x 1.5m

H/MPPA12

1/4” x 3m

H/MPPA12-B

9 Airless Spray Hose 3300 PSI 1/4" x 15m Rayon Braid

W/0154015

1/4" x 30m Rayon Braid

W/0154025

Hoses

4000 PSI 3/16” x 7.5m Nylon Braid

H/MPPA11

3/8” x 15m Nylon Braid

H/MPPA13

6000 PSI 1/4” x 5m Wire Braid

H/MPPA14-5

1/4” x 7.5m Wire Braid

H/MPPA15

1/4” x 15m Wire Braid

H/MPPA14

3/8” x 1.5m Wire Braid

H/MPPA16-1.5

3/8” x 3m Wire Braid

H/MPPA16-3

3/8” x 7.5m Wire Braid

H/MPPA16-7.5

3/8” x 15m Wire Braid

H/MPPA16

7250 PSI 3/4” x 15m Wire Braid

H/MPPA40

1/2” x 15m Wire Braid

H/MPPA28

7500 PSI 1/4” x 1.5m Wire Braid

H/MPPA25B

1/4” x 15m Wire Braid

H/MPPA25

3/8” x 2m Wire Braid

H/MPPA26-2

3/8” x 2m Wire Braid Black

H/MPPA26-2B

3/8” x 15m Wire Braid

H/MPPA26

3/8” x 15m Wire Braid Black

H/MPPA26B

132

To suit most airless paint sprayers with different rated PSI hoses available • Solid urethane construction designed to withstand time and pressure • Easy to coil and uncoil • Wide variety of diameters and lengths • Urethane cover is bonded to an inner nylon braid making it highly flexible and kink resistant • Conductive tube design for proper grounding

Phone: 1800 140 888

Air Hose 1/4” ID Hose Per Metre

H/AIR-0001

1.5m w/ Nuts & Tails

H/AIR-0001A

5m w/ Nuts & Tails

H/AIR-0001B

10m w/ Nuts & Tails

H/AIR-0001C

15m w/ Nuts & Tails

H/AIR-0001D

20m w/ Nuts & Tails

H/AIR-0001E

Air hoses can supply power to cylinders and vacuum pumps as well as funnel compressed air to jackhammers, staplers and impact tools. They can even be used to provide vehicle functionality for mobile equipment and can also be used in areas of agriculture, mining and drilling.

5/16” ID Hose Per Metre

H/AIR-0002

1.5m w/ Nuts & Tails

H/AIR-0002A

5m w/ Nuts & Tails

H/AIR-0002B

10m w/ Nuts & Tails

H/AIR-0002C

15m w/ Nuts & Tails

H/AIR-0002D

3/8” ID Hose Per Metre

H/AIR-0003

1.5m w/ Nuts & Tails

H/AIR-0003A

5m w/ Nuts & Tails

H/AIR-0003B

10m w/ Nuts & Tails

H/AIR-0003C

15m w/ Nuts & Tails

H/AIR-0003D

20m w/ Nuts & Tails

H/AIR-0003E

20m w/ Nitto Fittings

H/AIR-0003E-NITTO

20m w/ Ryco Fittings

H/AIR-0003E-RYCO

30m w/ Ryco Fittings

H/AIR-0003F-RYCO

40m w/ Nitto Fittings

H/AIR-0003G-NITTO

H/AIR-0003E-RYCO

9

1/2” ID Hose Per Metre

H/AIR-0004

H/AIR-0003G-NITTO

Hoses

Bull Hose 25MM Hose Per Metre 300 PSI

H/BULL-0002A

10m w/ Coupling 300 PSI

H/BULL-0002

20m w/ Coupling 300 PSI

H/BULL-0002B

Hose for both paint and air lines complete with fittings. Available in a wide range of lengths.

50MM Hose Per Metre 300 PSI

H/BULL-0005A

5m w/ Coupling 300 PSI

H/BULL-0005-5

10m w/ Coupling 300 PSI

H/BULL-0005B

20m w/ Coupling 300 PSI

H/BULL-0005

133

Breathing Hose 10m w/ Dual Act Fittings

SB/AF-BP-0071D

10m w/ Nitto Fittings

SB/AF-BP-0071-NIT

10m w/ Ryco Fittings

SB/AF-BP-0071B

20m w/ Dual Act Fittings

SB/AF-BP-0071

20m w/ A Type Minsup

SB/AF-BP-0071M

20m w/ Nitto Fittings

SB/AF-BP-0071C

20m w/ Ryco Fittings

SB/AF-BP-0071A

30m w/ Dual Act Fittings

SB/AF-BP-0071E

40m w/ Dual Act Fittings

SB/AF-BP-0071-40A

Providing compressed air supply to protective apparatus such as respirators when working with hazardous substances.

Duplex Hose

9

Hose Per Metre

H/DUPLEX-0001

1.5m w/ Fittings

H/DUPLEX-0001A

3m w/ Fittings

H/DUPLEX-0001A-3

5m w/ Fittings

H/DUPLEX-0001B

7.5m w/ Fittings

H/DUPLEX-0001BB

10m w/ Fittings

H/DUPLEX-0001C

15m w/ Fittings

H/DUPLEX-0001D

20m w/ Fittings

H/DUPLEX-0001E

25m with Fittings

H/DUPLEX-0001F

Nyliner Fluid Hose

Hoses

1/4” Hose Per Metre

H/FLUID-0001

1.5m w/ Nuts & Tails

H/FLUID-0001A

5m w/ Nuts & Tails

H/FLUID-0001B

10m w/ Nuts & Tails

H/FLUID-0001C

15m w/ Nuts & Tails

H/FLUID-0001D

3/8” Hose Per Metre

H/FLUID-0002

1.5m w/ Nuts & Tails

H/FLUID-0002A

5m w/ Nuts & Tails

H/FLUID-0002B

10m w/ Nuts & Tails

H/FLUID-0002C

15m w/ Nuts & Tails

H/FLUID-0002D

Natural Nylon Fluid Hose 1/4” Hose Per Metre

H/FLUID-0004

3/8” Hose Per Metre

134

H/FLUID-0005

Hose for both paint and air lines complete with fittings. Available in a wide range of lengths.

Phone: 1800 140 888

Deadman Hose Hose Per Metre

SB/RC-BP-301368

10m w/ Ryco Fittings

SB/RC-BP-0012-10B

20m Hose

SB/RC-BP-301368-20

20m w/ Ryco Fittings

SB/RC-BP-0012C

20m w/ Nitto Fittings

SB/RC-BP-0012

20m Extension w/ Ryco Fittings

SB/RC-BP-0012EXT

Bonded, heavy duty, twin rubber hose, color coded for safety

20m w/ Ryco Fittings & RLX Handle SB/RC-BP-0012D 30m w/ Ryco Fittings

SB/RC-BP-0012-30B

40m Hose

SB/RC-BP-301368-40

40m w/ Ryco Fittings

SB/RC-BP-0012-40B

Standard Blast Hose Heavy Wall Per Metre Blast Hose 13mm ID x 34mm OD

SB/HB-BP-301042-A

20m Blast Hose 13mm ID x 34mm OD

SB/HB-BP-301042

Per Metre Blast Hose 19mm ID x 38mm OD

SB/HB-BP-301372-A

20m Blast Hose 19mm ID x 38mm OD

SB/HB-BP-301372

Per Metre Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043-A

20m Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043

Per Metre Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045-A

20m Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045

20m Blast Hose 38mm ID x 58mm OD

SB/HB-BP-301047

Standard heavy wall blast hose manufactured from a tough abrasive resistant natural rubber inner liner for maximum blast hose life. Anti static compound dissipates static from the hose.

9

Working pressure 10 bar Bursting pressure 30 bar.

Tough outer wrapping prevents damage to the hose even when used in the most demanding environments such as shipyards and construction work sites.

Fitted Hose w/ Nozzle Holder & Coupling

Hoses

Fitted Hose w/ Nozzle Holder & Coupling 20m Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043-C

20m Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045-C

Fitted Extension Hose w/ Steel Couplings 20m Blast Hose 19mm ID x 38mm OD

SB/HB-BP-301372-D

20m Blast Hose 25mm ID x 48mm OD

SB/HB-BP-301043-D

20m Blast Hose 32mm ID x 55mm OD

SB/HB-BP-301045-D

Fitted Extension Hose w/ Nylon Couplings

135

Light Weight Blast Hoses

9

Per Metre Light Weight Blast Hose 13mm ID x 28mm OD

SB/HB-BP-301049-A

20m Light Weight Blast Hose 13mm ID x 28mm OD

SB/HB-BP-301049

Per Metre Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-A

10m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-B

20m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222

Per Metre Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050-A

10m Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050-B

20m Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050

Per Metre Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-A

20m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052

20m Light Weight Blast Hose 38mm ID x 55mm OD

SB/HB-BP-301054

Fitted Hose w/ Nozzle Holder & Coupling 10m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-10B

10m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-B

20m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-C

Hoses

Fitted Extension Hose w/ Nylon Couplings 20m Light Weight Blast Hose 19mm ID x 34mm OD

SB/HB-BP-301222-D

20m Light Weight Blast Hose 25mm ID x 40mm OD

SB/HB-BP-301050-C

20m Light Weight Blast Hose 32mm ID x 48mm OD

SB/HB-BP-301052-CS

Suction Hose 1/2” Hose Per Metre

H/SUCTION-0001

3/4” Hose Per Metre

H/SUCTION-0002

1” Hose Per Metre

H/SUCTION-0003

136

Light weight blast hose manufactured from a 100% natural virgin rubber inner liner to provide maximum hose life.

Reinforced with 2 and 4 ply of synthetic cord and tough outer cover. Our light weight blast hose is approx, 25-30% lighter than equivalent ID standard blast hose.

Reduce operator fatigue and increase productivity by using our Light Weight range of blast hoses. Approx. 30% lighter than standard hose this hose will allow operators to blast longer and reduce tiredness.

Manufactured from a tough abrasive resistant natural rubber inner liner for maximum blast hose life. Anti static compound dissipates static from the hose.

Fitted Hose w/ Nozzle Holder & Coupling

Working pressure 10 bar Bursting pressure 30 bar.

Tough outer wrapping prevents damage to the hose even when used in the most demanding environments such as shipyards and construction work sites.

Fitted Extension Hose w/ Nylon Couplings

Phone: 1800 140 888

Accessories Heavy Duty Hose Cutters 51mm Hose Cutter

SUN/HOSECUTTERS-51

63mm Hose Cutter

SUN/HOSECUTTERS-63

Designed to cut through hoses with inbuilt steel core • Available in 2 different sizes

Blast Hose Repair Kit Blast Hose Repair Kit

SB/HB-HC-0001

Essentials to repair blast hoses in a convienient carrying case.

Kit includes 4x nylon couplings, 2x nylon nozzle holders, silicon & cauking gun, 50x L/W screws, 50x H/W screws, large hose cutter, 10x coupling rubbers and phillips head screw driver.

9

Blast Hose & Fittings Repair Kit Blast Hose & Fittings Repair Kit

SB/HB-HC-0002

Essentials to repair blast hoses and fittings in a convienient carrying case.

Hoses

Kit includes 4x nylon couplings, 2x nylon nozzle holders, 10x nozzle rubbers, silicon & cauking gun, 6x nut & tail 1/4", 1x barb 1/4" adaptor, silicon & caulking gun, auto coupling tail 3/8", 10x O-clip 5/8", 10x coupling rubbers, 2x breathing automatic coupling tails 3/8", 2x breathing automatic adaptor tail 3/8", 60x L/W screws, 50x H/W screws, large hose cutter and phillips head screwdriver

137

AIR TOOLS Monti MBX® Electric - Small MBX Small Tool

SB/BB-SE-1041-BMC

• • • • • • • • •

Drive Unit MBX® Electric MONTI Adaptor System 23 mm MONTI Adaptor System 11 mm 1 MBX® Belt, Steel, Coarse, Black, 23 mm 1 MBX® Belt, Steel, Coarse, Black, 11 mm 1 MBX® Belt, Steel, Medium, Ochre, 11 mm 1 MBX® Belt, Steel, Fine, Green, 11 mm 1 Vinyl Zapper® MONTI Blow Mould Case

Bristle Blaster® Electric - Large MBX Large Tool

SB/BB-SE-1360-BMC

10

• • • • •

Drive unit Bristle Blaster® Adaptor system for 23 mm-belts Accelerator bar for 23 mm-belts 10 Bristle Blaster® belts, 23 mm In a blow mold case

Bristle Blaster® Electric Double SB/BB-SE-1300-W-BMC

Air Tools

MBX Dual Tool

• • • • • • • • • •

Bristle Blaster® Double, electric, 900 W Dead Man’s Switch Protective cover Vibration absorbing handle Safety hook Extra internal thread for alternative handle position 2 x adapter for 23 mm discs Impact speed accelerator (stainless steel) for 2 x 23 mm discs 6 Bristle Blaster® discs (stainless steel), colour red, width 23 mm Supplied in impact-resistant plastic case

Bristle Blaster® Pneumatic - Large MBX Large Tool

SB/BB-SP-647-BMC

• • • • • • • •

138

Drive unit Bristle Blaster® Pneumatic with air cooling and noise reduction Adaptor systems for 23 mm- and 11 mm-belts Accelerator bars for 23 mm- and 11 mm-belts Air pressure regulators for 23 mm- and 11 mm-belts, with couplings and nipples Dust exhaust attachment 5 Bristle Blaster® belts, 23 mm 5 Bristle Blaster® belts, 11 mm In a blow mold case

Phone: 1800 140 888

Bristle Blaster® Cordless Cordless excl. Battery

SB/BB-SB-701-BMC

• • • • • • •

Bristle Blaster® Cordless including safety switch Anti-vibration handle Adapter for discs 23 mm Impact speed accelerator for 23 mm discs 5 Bristle Blaster® discs, red, width 23 mm Supplied in impact-resistant plastic case Battery & charger not included

Battery & Charger Kit 2pk Battery & Rapid Charger

SB/BB-ZU-600-2

4pk Battery & Rapid Duo Charger

SB/BB-ZU-600-4

OEM Battery System for the MontiPower® Cordless Bristle Blaster • 8.0ah Battery (typical endurance on a full charge is 20-25 minutes) • Fast charging Rapid Charger for a single battery

10

Wire Brush Coarse Red 11mm Blaster Wheel

SB/BB-BU-620

Coarse Red 23mm Blaster Wheel

SB/BB-BU-610

Coarse Stainless Steel Red 11mm

SB/BB-BU-672

Coarse Stainless Steel 23mm

SB/BB-BU-662

• •

•

Available as Carbon Steel or Stainless Steel Stainless steel belts are primarily used for specialty blasting of stainless steel and aluminium Used in conjunction with an accelerator bar to increase the impact speed of the wire to the surface

Air Tools

Eraser Wheel Eraser Wheel

SB/BB-ZU-010

The unique Eraser Wheel is designed with notched fingers that grab the edge of the vinyl and peels it form the surface.

11mm Adaptor Wheel

SB/BB-AS-012

23mm Adaptor Wheel

SB/BB-AS-009

High-quality aluminium die casting alloy. Central allen key bolt secures belt and adapter to drive unit.

Adaptor Wheel

139

Accelerator Bar 11mm Accelerator Bar

SB/BB-ZU-061

23mm Accelerator Bar

SB/BB-ZU-060

Accelerator Bar to suit steel or stainless steel belts for the Montipower Bristle Blaster drive units.

7225 CVE 6” Palm Sander Palm Sander Yellow 2.5mm

AT/00010

Palm Sander Red 5mm Orbit

AT/00011

Palm Sander Black 10mm

AT/00012

For operators working in body shops applications for final sanding, finishing, and pre-polishing processes who look for powerful & comfortable tools

Air Tool Oil

10

120mL Bottle

AT/OIL-00001

1L Bottle

AT/OIL-6290462

Anti-wear hydraulic oils are formulated with high quality, virgin refined base oils and hydrolytically-stable additives that provide excellent lubricating performance in hydraulic systems. They are compatible with all relevant metals and are recommended for use in all types of hydraulic applications.

Air Tools

Micromist Accessories Micro Mist Element AMD to Suit 1/2

SB/AF-BP-EL250

Micro Mist Element AMD to Suit 1/2

SB/AF-BP-EL350

Micro Mist Element AMD to Suit 3/4

SB/AF-BP-EL450

Series AMF odor removal filter efficiently removes odor in compressed air with an activated carbon element.

• Odor removal filter • Modular connection is possible for AMF150C to 550C • Removes odor and gas ingredients in compressed air

3/4 Fog Lubricator 3/4 Fog Lubricator

SMC/AL40-06-A

• •

• •

140

Excelon® design allows inline or modular installation Flow sensor provides a constant density of oil delivery over a wide range of flows All round (360°) visibility of sight-feed dome for ease of drip rate setting Micro-fog lubricators for best lubrication

Phone: 1800 140 888

Filter Regulator 1/4 Filter Regulator Gauge & Bracket Kit

SMC/3/4 FILTER REG

•

• •

Easy element replacement The element and the bowl are integrated. Replacement can be done in hand.

Energy-saving regulator Pressure drop: Max. 50% improvement Reduced required maintenance space: Max. 46% reduction

Air Regulator 3/4” Air Regulator

G/207-755B

Tee Handle 3/4” Air Regulator

G/207-755C

Repair Kit 3/4” Air Regulator

G/207-755A

Regulator PT Pot

D/HAR-502B

Air Regulator

D/HAR-555B

10

Air Regulator 1/4” Air Regulator

N/R07-200-RNKC

3/8” Air Regulator 66CFM

N/R72G3GKRMN

SMC Air Regulator SMC/AR20-02H-B

Regulator 3/8"

SMC/REG-AR30

Regulator 3/8" Grease Free

SMC/AR30-03G-X2400

Regulator 1/2" Grease Free

SMC/AR40-04B-X2400

Regualtor 1 1/2"

SMC/REG-AR825-14

Cap Regulator

SMC/AR52P-030

Air Tools

Regulator 1/4"

This combination Filter/ Regulator minimises space and piping by integrating the 2 units into one. Standard features include a relieving regulator, which can be quickly locked by pushing down on the adjustment knob.

There are many options, which include gauges, auto-drain, metal bowl and covers, different set pressures, etc.

141

ABRASIVES Aluminium Oxide

11

Brown 30 µm 320 Grade

SB/AB-AO-0320

Brown 53 µm 240 Grade

SB/AB-AO-0240

Brown 62 µm 220 Grade

SB/AB-AO-0220

Brown 74 µm 180 Grade

SB/AB-AO-0180

Brown 125 µm 120 Grade

SB/AB-AO-0120

Brown 150 µm 100 Grade

SB/AB-AO-0100

Brown 180 µm 80 Grade

SB/AB-AO-0080

Brown 250 µm 60 Grade

SB/AB-AO-0060

Brown 355 µm 46 Grade

SB/AB-AO-0046

Brown 500 µm 36 Grade

SB/AB-AO-0036

Brown 600 µm 30 Grade

SB/AB-AO-0030

Brown 710 µm 24 Grade

SB/AB-AO-0024

Brown 850 µm 20 Grade

SB/AB-AO-0020

Brown 1180 µm 16 Grade

SB/AB-AO-0016

White 89 µm 150 Grade

SB/AB-AO-0150-W

• • •

•

Manufactured ceramic abrasives Cost effective if contained and recycled Aluminium Oxide is a very hard, aggressive, high performance abrasive used in blast cabinets Aluminium Oxide is available in two grades: – brown for general industrial use – white for extended life and sanitary use

Bicarbonate Soda Packed in 22.68kg (50lb) Bag

SB/AB-BS-90250

• •

Abrasives

•

Soluble, fine, white crystalline media Used for de-painting and de-greasing applications, e.g. graffiti removal without damage to glass Requires special equipment for use

Limestone (Calcium Carbonate Limestone) 300mm 1 Tonne Bulka Bag

SB/AB-LD-0300

• • • •

•

142

Crushed, natural mineral Whitish to yellowish grey grains Low aggression, dusty media (wet blasting recommended) Can be used for removal of paint from timber or soft brick work surfaces e.g. heritage buildings Requires steep 60° cone blast machine for effective media flow

Phone: 1800 140 888

Chilled Iron Grit • • • •

White iron structure Harder & cleans at quicker rate than steel Used in air driven machines Ideal for etching structural steel & components

Applications include, Cleaning, stripping, descaling, surface preparation, etching, sand & rust removal and gang-saw stone cutting

Crushed Glass 0.2mm 1 Tonne Bulka Bag

SB/AB-CG-0002

0.0-0.3mm 25kg Bucket

SB/AB-CG-0003-25KG

0.0-0.3mm 1 Tonne Bulka Bag

SB/AB-CG-0003

0.3-0.8mm 25kg Bucket

SB/AB-CG-0308-25KG

0.3-0.8mm 1 Tonne Bulka Bag

SB/AB-CG-0308

0.85mm 25kg Bag

SB/AB-CG-00085 25KG

0.85mm 25kg Bags 1 Tonne

SB/AB-CG-0085 25KG 1T

0.85mm 1 Tonne Bulka Bag

SB/AB-CG-0085 B1T

0.85mm 1.5 Tonne Bulka Bag

SB/AB-CG-0085 B1.5T

0.8-1.5mm 25kg Bag

SB/AB-CG-0815-25KG

0.8-1.5mm 25kg Bags 1 Tonne

SB/AB-CG-0815 25kg 1T

0.8-1.5mm 1 Tonne Bulka Bag

SB/AB-CG-0815

1.5mm 25kg Bag

SB/AB-CG-15 25KG

1.5mm 1.5 Tonne Bulka Bag

SB/AB-CG-15 B1.5T

1.5-3.0mm 1 Tonne Bulka Bag

SB/AB-CG-1530

Fine 150-300µm 25kg Bag

SB/AB-CG-FINE 25KG

Fine 150-300µm 25kg Bags 1 Tonne

SB/AB-CG-FINE 25KG 1T

• • • • • •

Waste, recycled glass product White, yellow, brown or green glass particles Friable, tending to be very dusty Limited use for removal of thick, rubbery coatings Will not remove tight adherent millscale Non-recyclable

11

A Grade 25kg Bag

SB/AGB-A

800-400 µm 25kg Bag

SB/AGB-BL

C Grade 25kg Bag

SB/AGB-C

C Grade 25kg Bag

SB/AGB-04C

AA Grade 25kg Bag

SB/AGB-05AA

AB Grade 25kg Bag

SB/AGB-AB

AC Grade 25kg Bag

SB/AGB-AC

AD Grade 25kg Bag

SB/AGB-AD

AE Grade 25kg Bag

SB/AGB-AE

AE Grade 25kg Bag

SB/AGB-10AE

AH Grade 25kg Bag

SB/AGB-12AH

INDA Grade 25

SB/AGB-INDA

Drop On 20kg Bag

SB/AGB-DROP ON

• • • • • •

Abrasives

Glass Bead Manufactured glass abrasive Miniature, translucent glass spheres Spherical beads impart a satin or matte ‘shot peened’ finish to the work surface Widely used in hand cabinets for surface cleaning rather than surface etching Can be recycled Available Grades: A (850-600µm) B (600-425µm) C (425-250µm) AB (300-180µm) AC (250-150µm) AD (212-106µm) AE (150-90µm) AH (90-44µm) AI (<53µm) INDA (300-106µm)

143

Plastic Media Plastic Media Type II 20/30 25kg Bags

SB/AB-PM-2030

• •

Can be used in abrasive and non-abrasive applications Used for deflashing lighter components

Applications include, Deflashing, coating removal/ stripping, cleaning of machinery, marine vessels and aircraft frames

Premium Indian Garnet 30-60 Mesh 25kg Bags

SB/AB-GN-3060-25

30-60 Mesh 25kg Bags 1 Tonne

SB/AB-GN-3060-1T25

30-60 Mesh 1 Tonne Bulka Bag

SB/AB-GN-3060-B1T

80 Mesh 25kg Bags 1 Tonne

SB/AB-GN-80-1T25

80 Mesh 1 Tonne Bulka Bag

SB/AB-GN-80-B1T

11

Indian Garnet Abrasive boasts of a combination of high mineral purity, grain angularity and consistent sizing that ensures high precision cleaning without risk of damage from coarse particles and gives the most optimum cleaning rate and surface finish. The high specific gravity and toughness of garnet provides effective cleaning at relatively low air pressure and with minimal particle breakdown.

Indian Garnet 30-60 25kg Bags 1 Tonne

Abrasives

30-60 1 Tonne Bulk

SB/AB-GN-3060-1T25-NZ Indian Garnet Abrasive boasts of a combination of high mineral SB/AB-GN-3060-B1T-NZ purity, grain angularity and consistent sizing that ensures high precision cleaning without risk of damage from coarse particles and gives the most optimum cleaning rate and surface finish. The high specific gravity and toughness of garnet provides effective cleaning at relatively low air pressure and with minimal particle breakdown.

GMA Garnet 80 Mesh 25kg Bags 1 Tonne

SB/AGG 80MESH BULKA 1T

80 Mesh 1 Tonne Bulka Bag

SB/AGG 80MESH 25KG 1T

Newsteel 25kg Bag

SB/AGG NEWSTEEL 25KG

Newsteel 25kg Bags 1 Tonne

SB/AGG NEWSTEEL 25KG1T

Newsteel 2 Tonne Bulka Bag

SB/AGG NEWSTEEL BUKA2T

Premium 25kg Bags

SB/AGG PREMIUM 25KG

Premium 25kg Bags 1 Tonne

SB/AGG PREMIUM 25KG 1T

Premium 25kg Bags 2 Tonne

SB/AGG PREMIUM 25KG 2T

Premium 1 Tonne Bulka Bag

SB/AGG PREMIUM BUKA 1T

Premium 2 Tonne Bulka Bag

SB/AGG PREMIUM BUKA 2T

144

• • • • • • • •

General purpose blend of Australian Garnet Abrasive Will achieve a 50-100 micron profile Typical consumption rate 320 kg/hr Typical blasting rate 15-20 m2/hr Inert, natural mineral Pinkish to reddish-brown, sub-rounded grains High performance, low dust abrasive Economical, single use abrasive which may also be recycled

Phone: 1800 140 888

Steel Grit Steel Grit 16GH 25KG Bags

SB/ASA-STG016GH

Steel Grit 16GL 25KG Bags

SB/ASA-STG016GL

Steel Grit 25GH 25KG Bags

SB/ASA-STG025GH

Steel Grit 25GL 25KG Bags

SB/ASA-STG025GL

Steel Grit 40GH 25KG Bags

SB/ASA-STG040GH

Steel Grit 40GL 25KG Bags

SB/ASA-STG040GL

Steel Grit 50GH 25KG Bags

SB/ASA-STG050GH

Steel Grit 50GL 25KG Bags

SB/ASA-STG050GL

Steel Grit 80GH 25KG Bags

SB/ASA-STG080GH

Steel Grit 80GL 25KG Bags

SB/ASA-STG080GL

• • •

Angular medium Tougher and more aggressive than steel Available in three different hardware specs.

Applications include, Sand and rust removal, descaling, etching, cleaning, gang-saw stone cutting and pre-coat surface preparations

Steel Shot Steel Shot Grit S170 25kg Bags

SB/ASA-STS170

Steel Shot Grit S230 25kg Bags

SB/ASA-STS230

Steel Shot Grit S280 25kg Bags

SB/ASA-STS280

Steel Shot Grit S330 25kg Bags

SB/ASA-STS330

Steel Shot Grit S390 25kg Bags

SB/ASA-STS390

Steel Shot Grit S460 25kg Bags

SB/ASA-STS460

Steel Shot Grit S550 25kg Bags

SB/ASA-STS550

Steel Shot Grit S660 25kg Bags

SB/ASA-STS660

• • •

Extremely durable and dense medium Optimum resistance to fatigue and fracture Can be used in the majority of airless blast applications

Applications include, Sand, rust and paint removal, peening, descaling, deflashing, cleaning and pre-coat surface preparations

11

Stainless Steel Shot • • •

Cost effective medium due to its hardness Longer life & shorter blast time requirement Less dust and used in air & airless blasters

Abrasives

Applications include, Surface preparation, blast cleaning, peening, deburring, descaling, sand, rust & paint removal

Steel Cut Wire • • • •

Longer life than cast abrasives No hollows, splits, or twins Maintains size and shape longer than cast abrasives Produces dust free surfaces

Applications include, blast cleaning, descaling, rust removal, abrasive blasting, blast cutting, deburring, and roughing.

145

Notes

146

Phone: 1800 140 888

Notes

147

Murphys Spray and Blast Equipment continue to be a market leader in providing products & services to the industrial coatings sector for over 40 years. We support businesses Australia wide through our sales team and distribution bases in Wangara WA and Hallam VIC. We offer a broad range of specialised equipment for the blast and spray sector. Brands such as Titan, Wagner and more recently, have become the distributor of Borum products.

We are committed to quality, excellence and customer satisfaction. We provide repairs and equipment hire for blasting and spraying equipment through our Wangara site. Our team of experts can easily diagnose repairs and get you going in no time!

WA Showroom & Workshop 28 Baretta Road, Wangara WA 6065 P 1800 140 888 E sales@sprayandblast.com.au

MSBE-11-25 V1

SALES • SERVICE • SPARE PARTS • HIRE WA (Metro) WA (Regional) NSW/ACT/QLD/ VIC/TAS

M 0473 233 978 M 0407 170 179

E sales.wa@sprayandblast.com.au

M 0437 722 272

E sales.vic@sprayandblast.com.au

www.sprayandblast.com.au
