Product Guide & Data Sheet

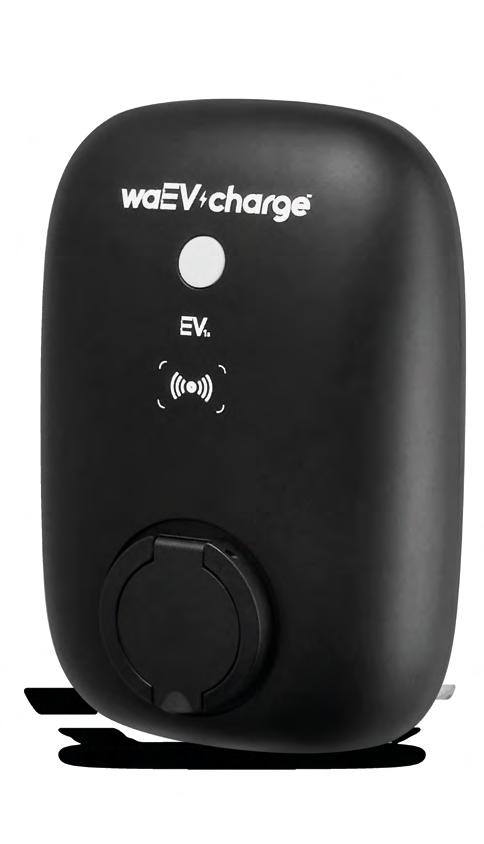

The EV1s

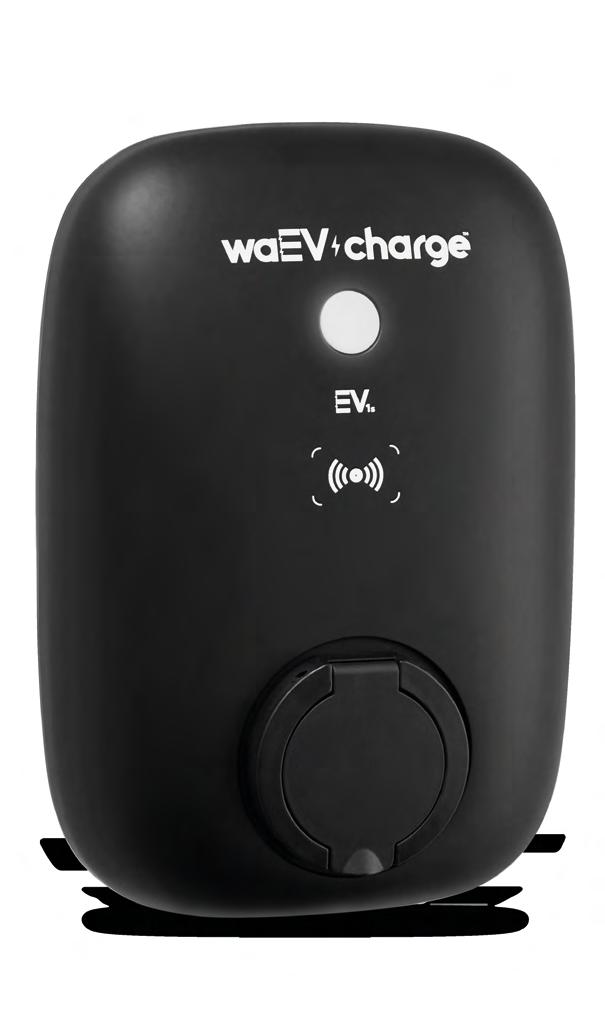

waEV-charge’s Untethered EV Charger

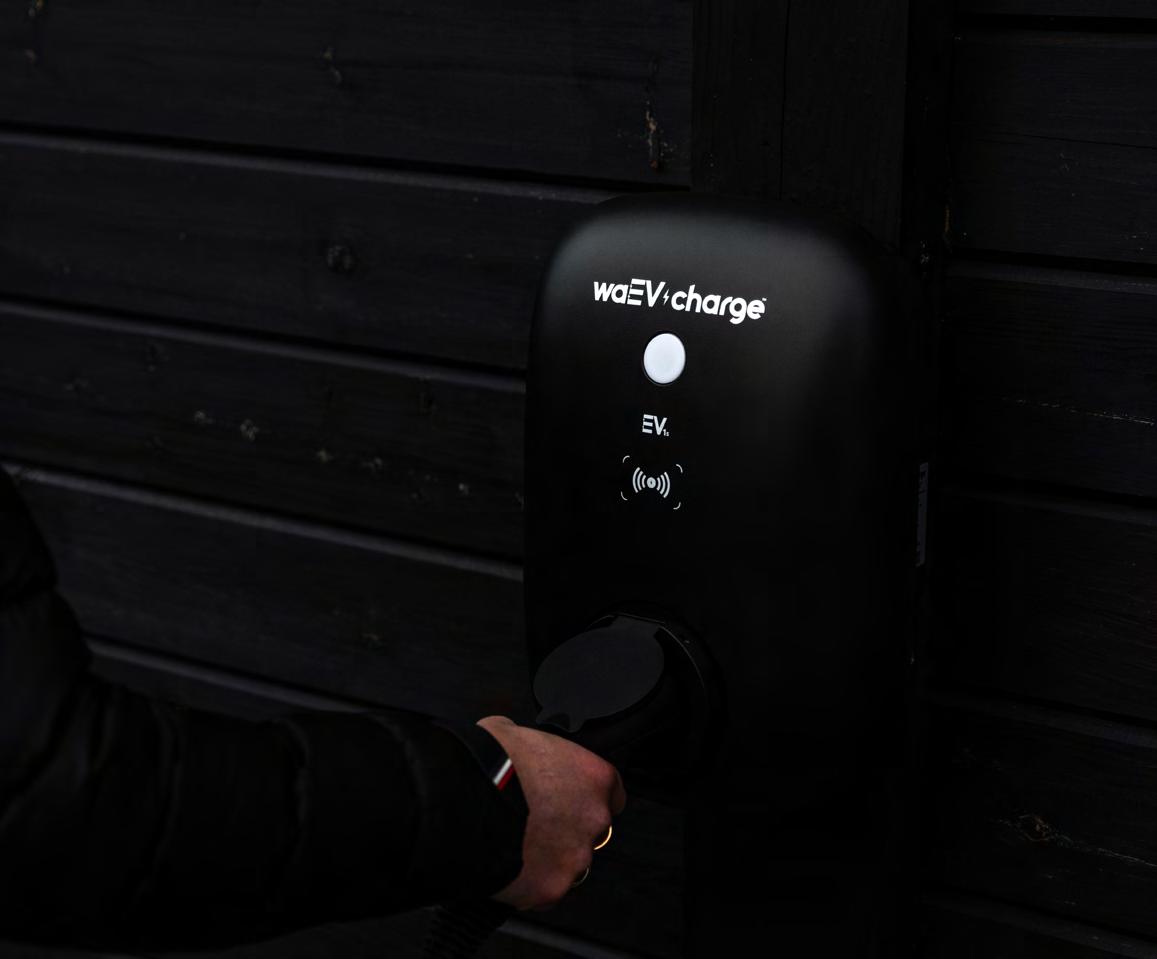

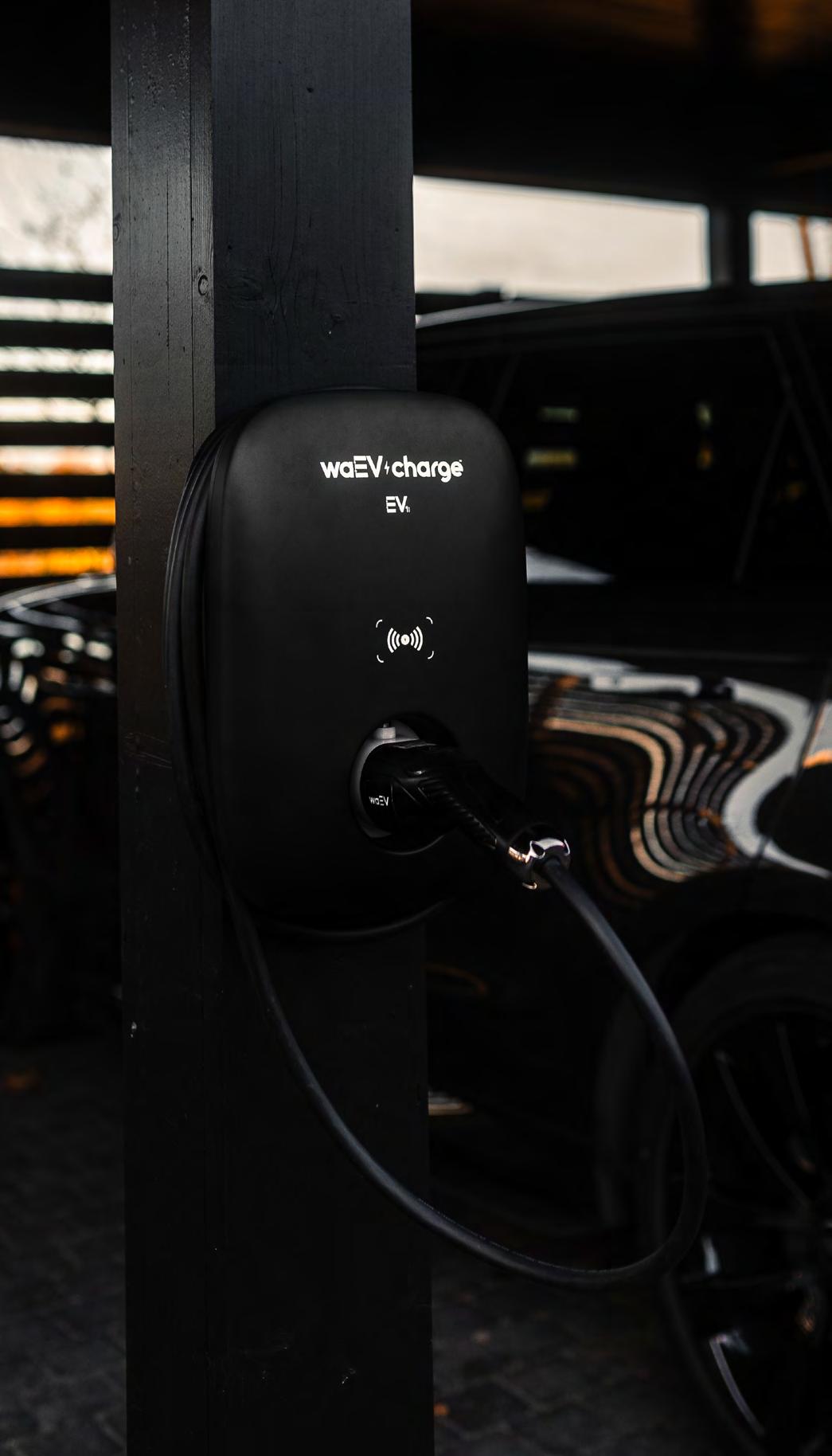

The EV1s - Untethered Flexibility...
The EV1s brings an untethered charging solution to the waEV-charge offerings, giving you the extra flexibility, you need. Say goodbye to cable length limitations, welcome the freedom to customise your charging experience.
A5 Landscape Stapled Booklet
Available in both 7.4kW and 22kW options, this is a fantastic solution to those wanting a cleaner aesthetic, but also encompasses all the amazing benefits and features of our other models. It’s the perfect blend.
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.

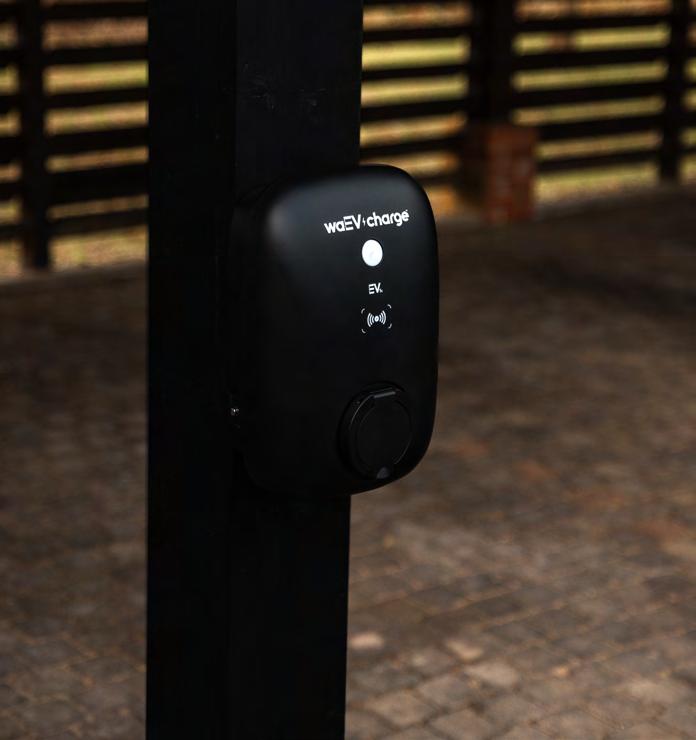

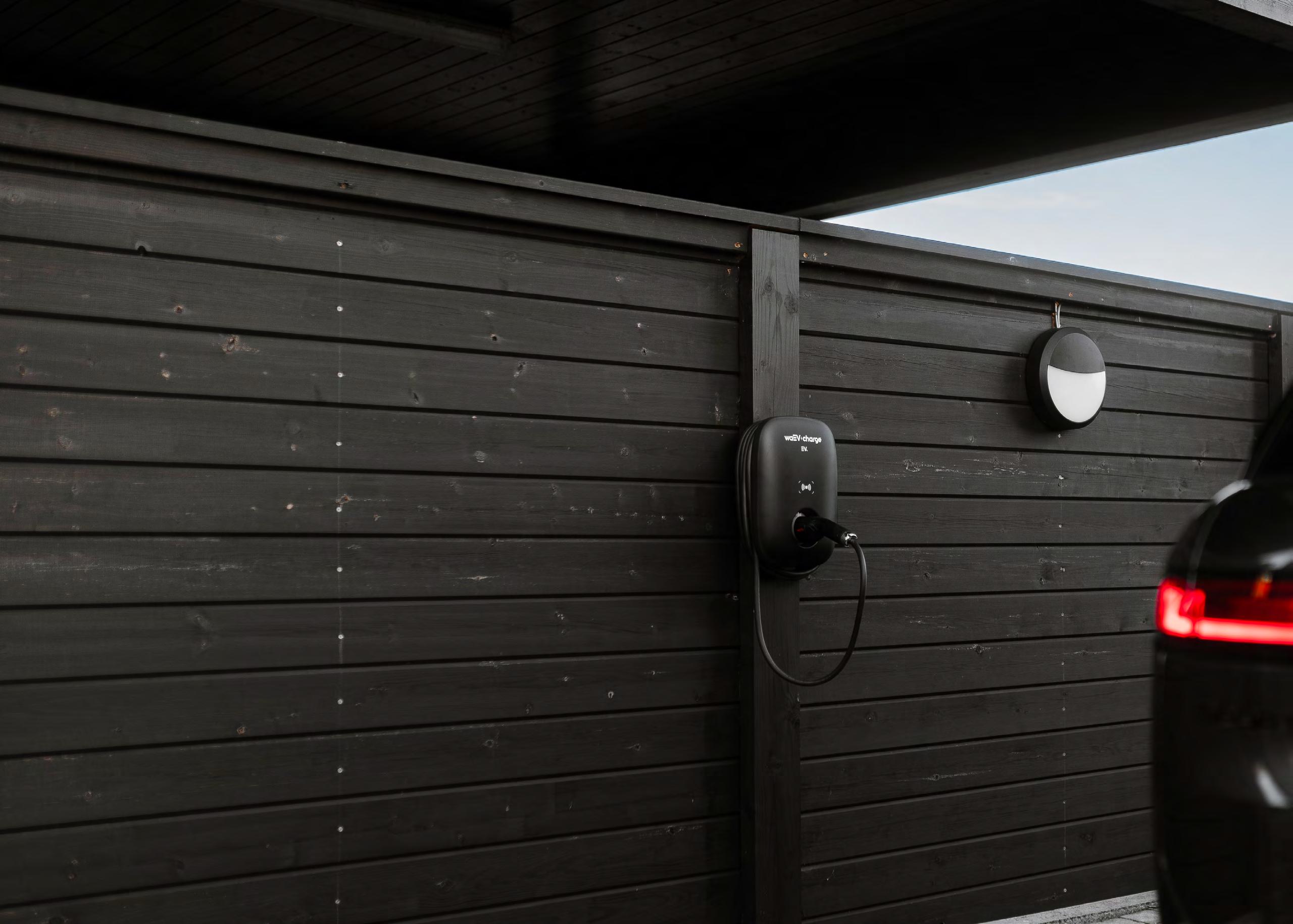

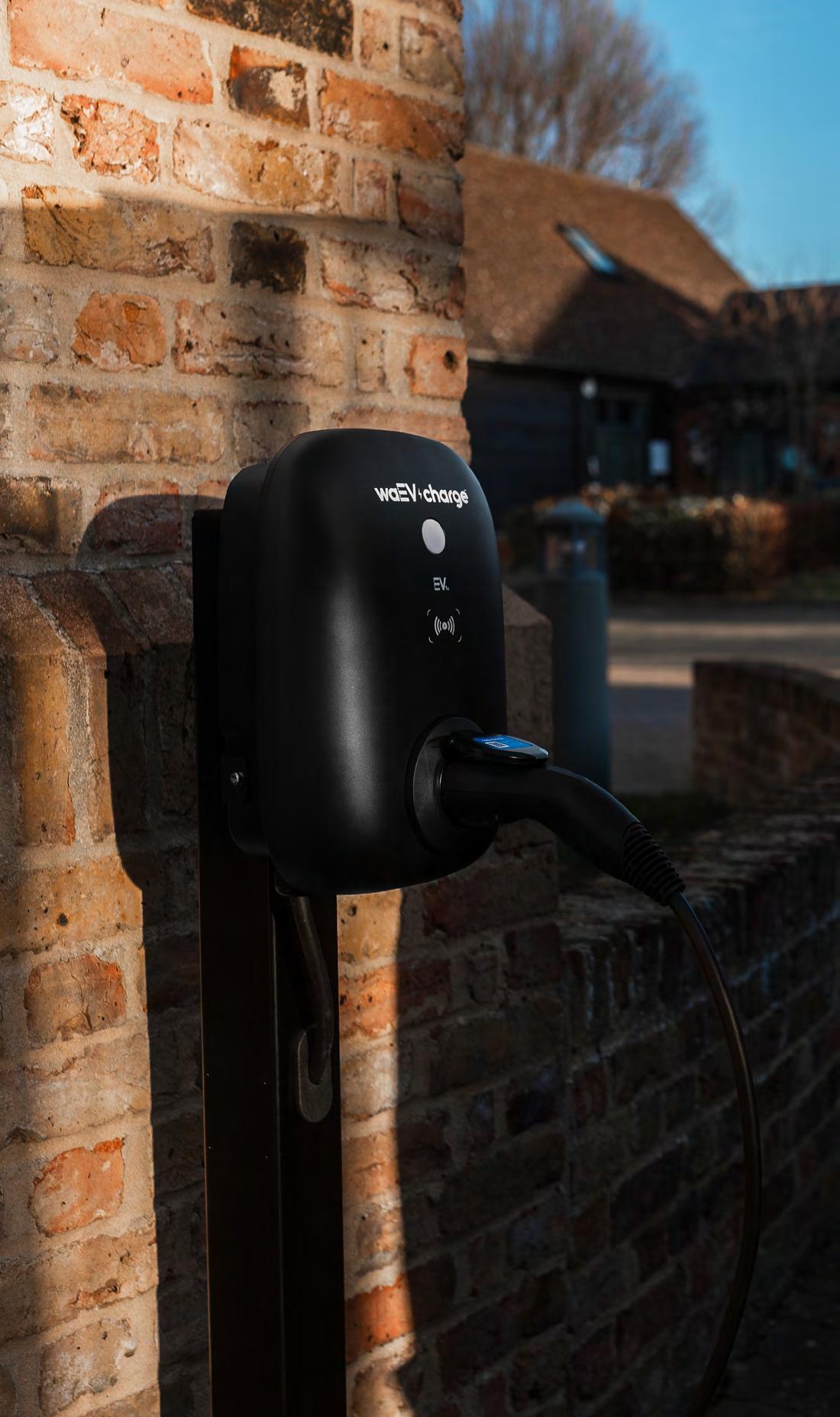

Make a Stand...

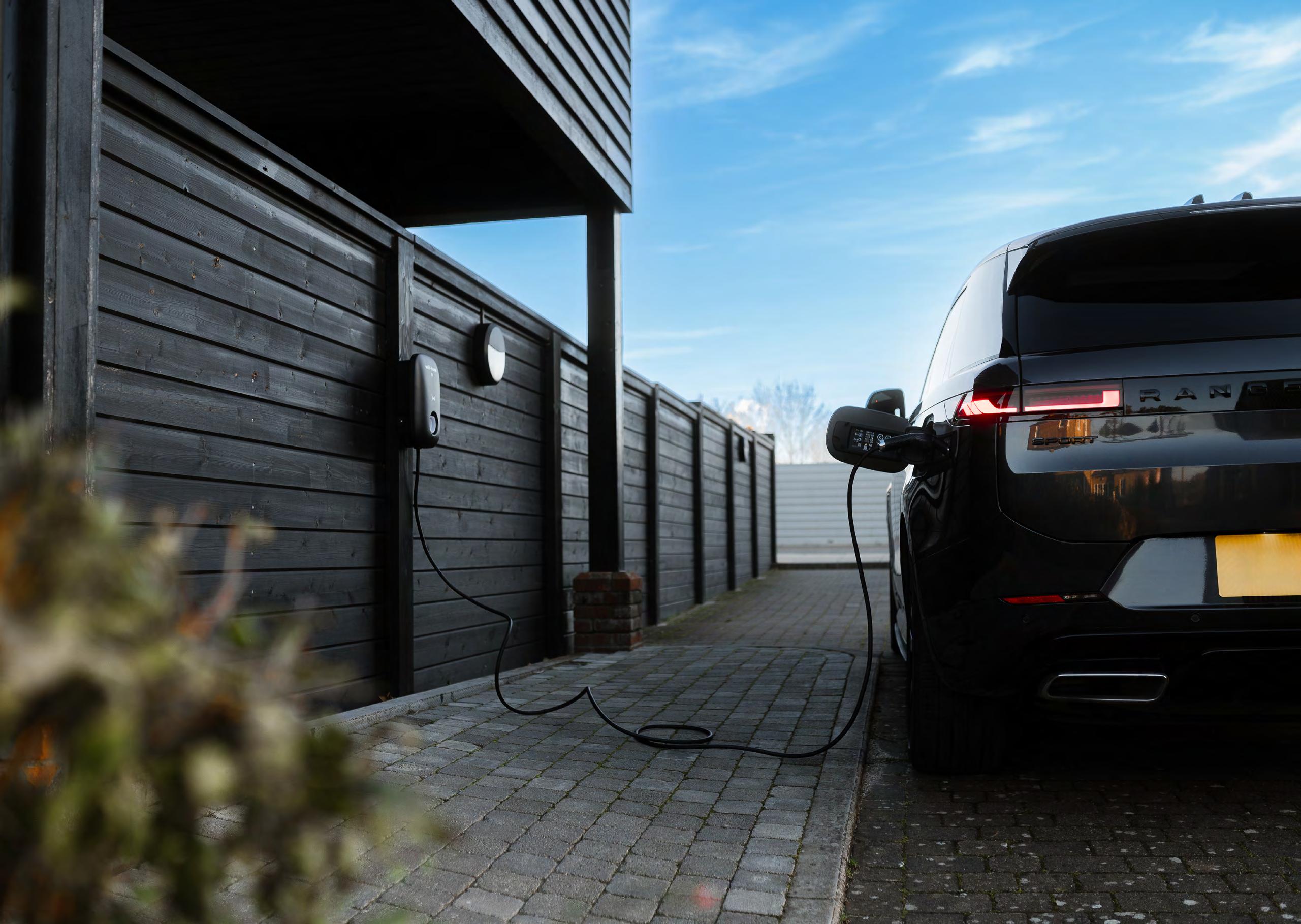

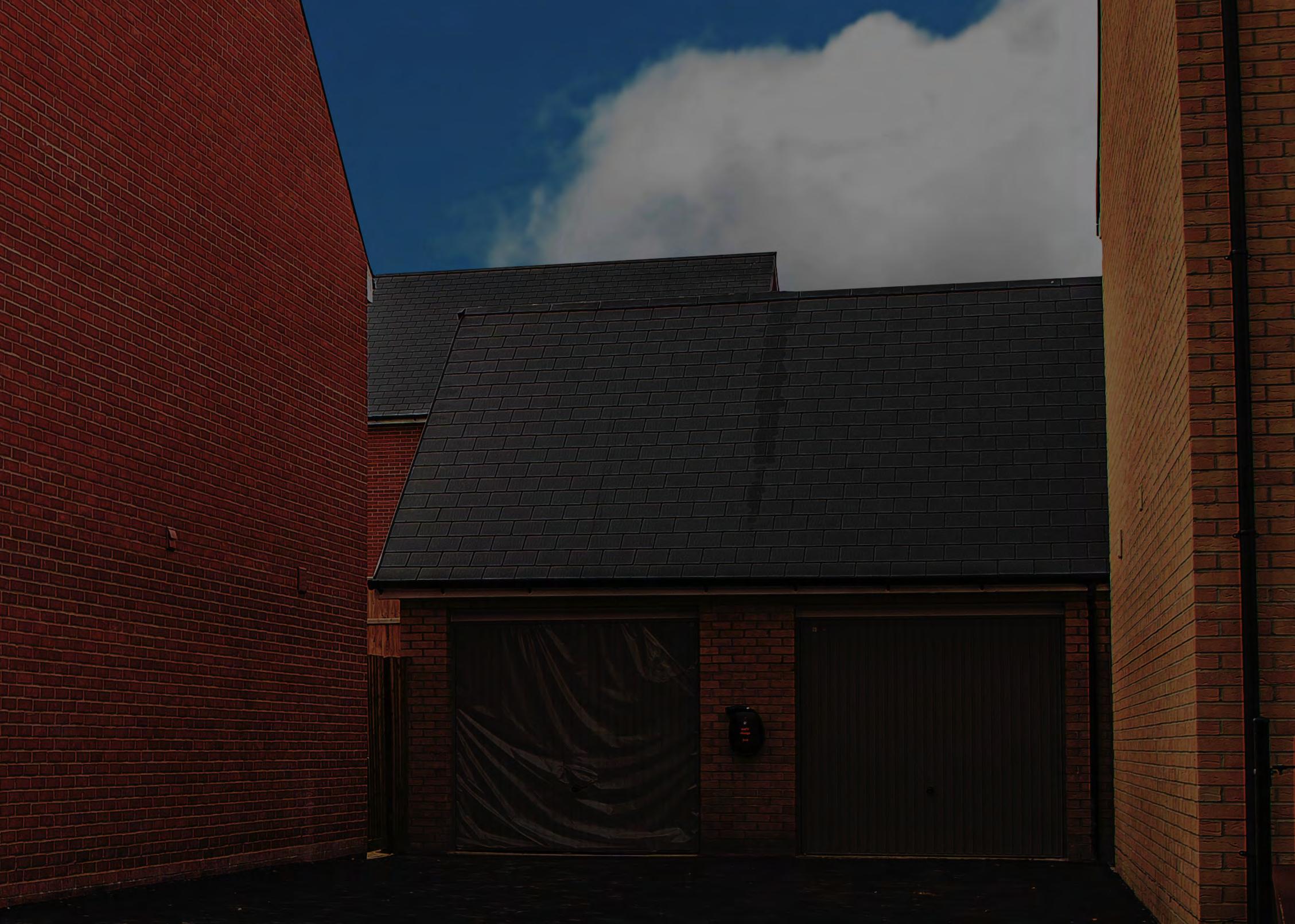

Whether you’re looking to install an EV charger on your driveway or at your workplace, our bespoke charger pedestal provides a convenient and secure way to do so. Plus, with its sleek and modern design, it’s sure to blend seamlessly into any space.
A5 Landscape Stapled Booklet
Choose waEV-charge’s pedestal for an easy and hassle-free installation of your EV charger. With it’s sturdy and reliable construction, you can rest assured your electric vehicle will always be charged and ready to go.
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Untethered.
Available in 7.4kW and 22kW.
3-Year Warranty.
Full Solar Integration. Charging Statistics.
Smart Charger Lock. Energy Tariff Integration.

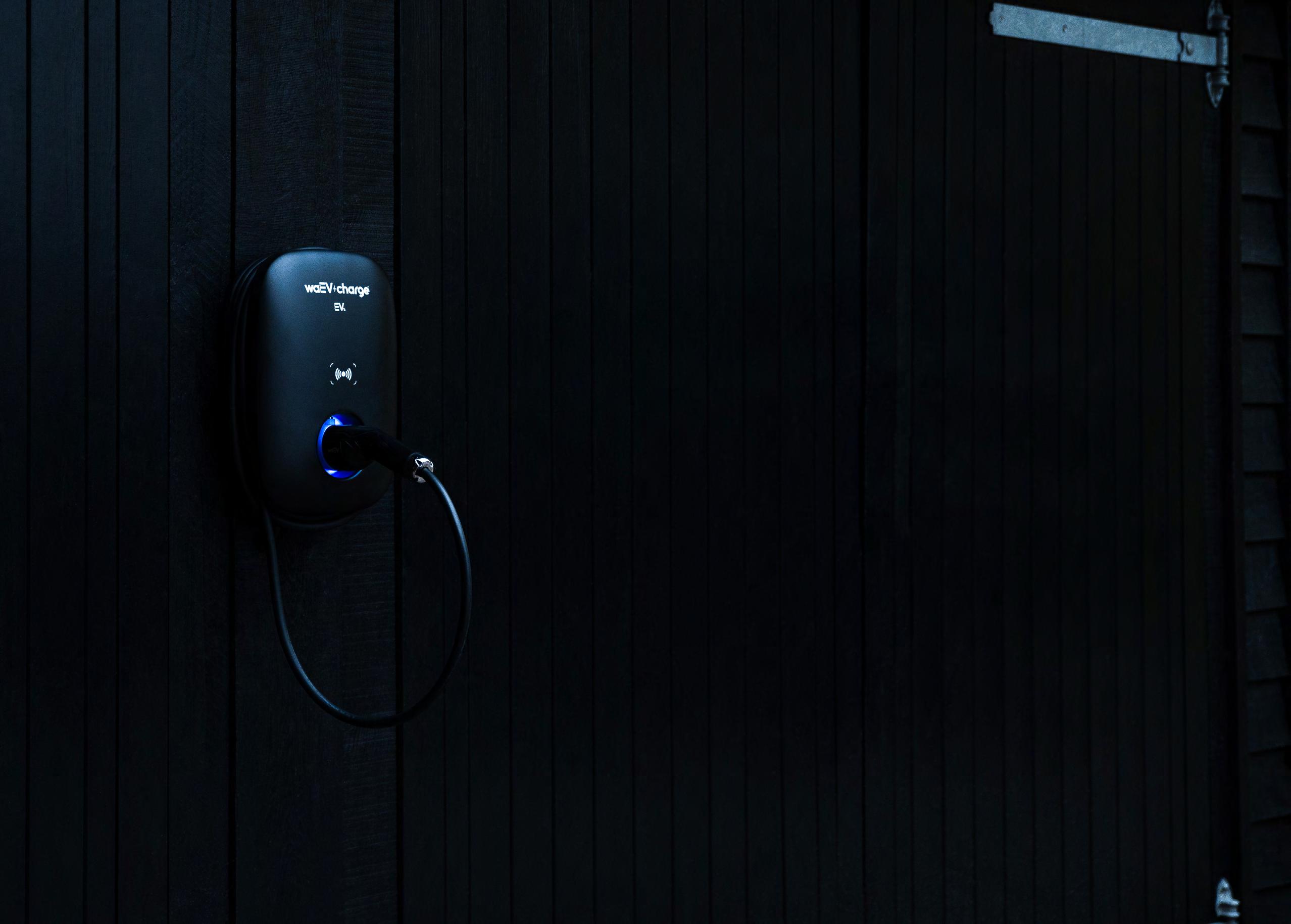

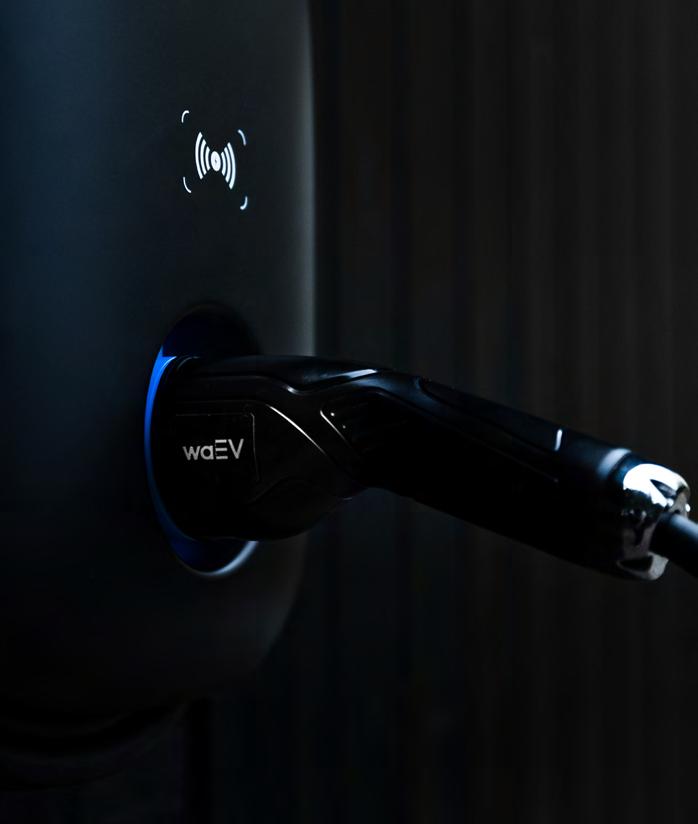

The EV1i

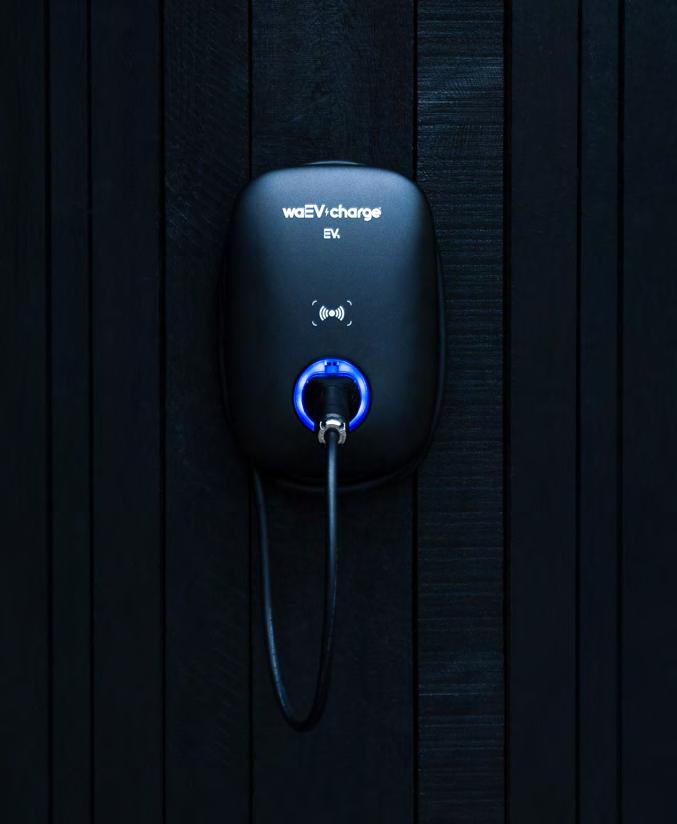

waEV-charge’s Tethered EV Charger

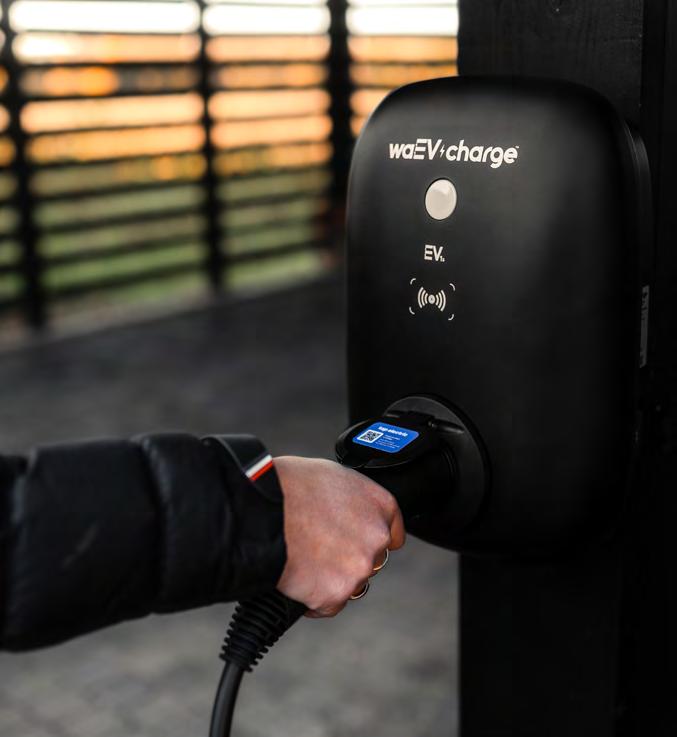

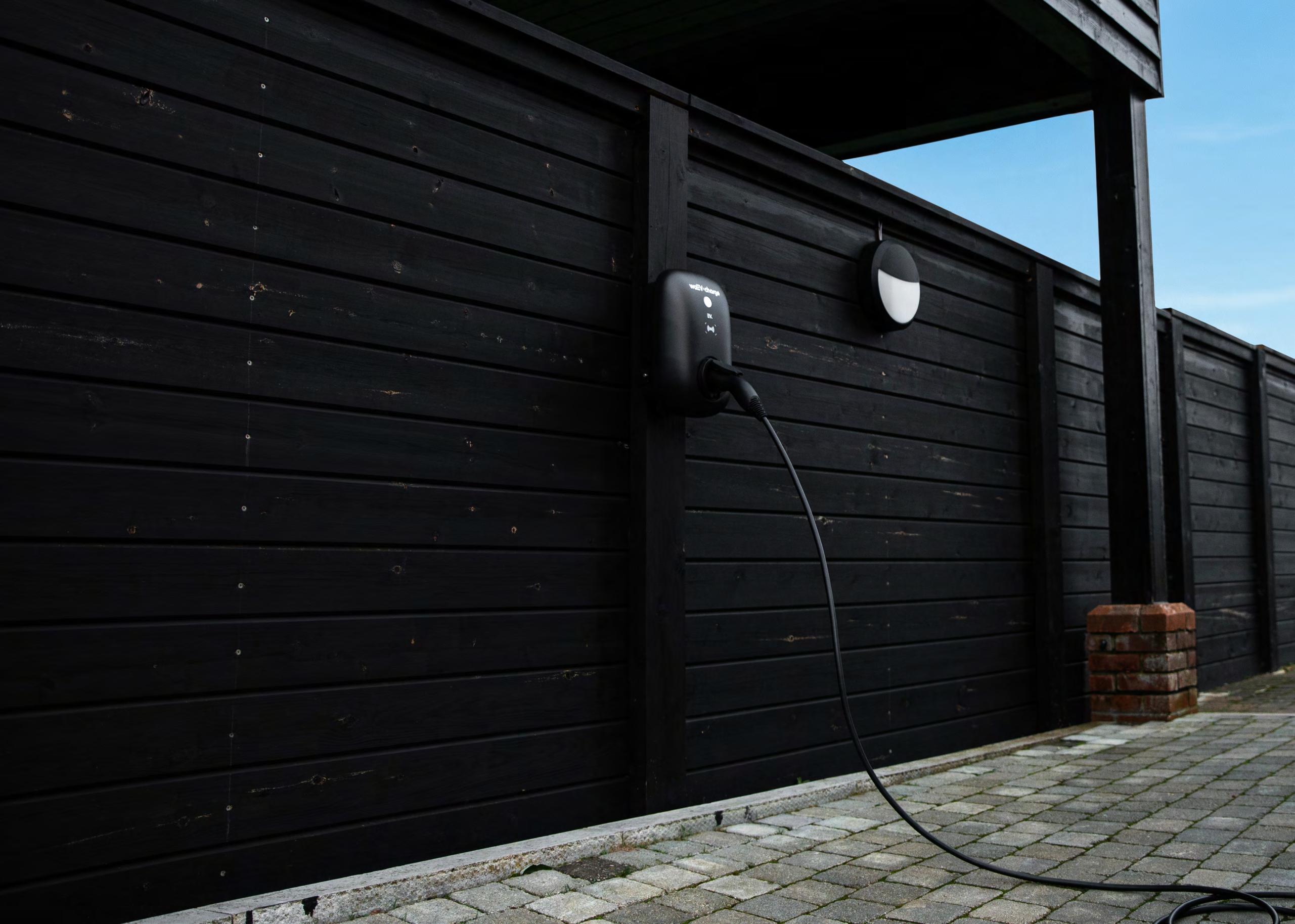

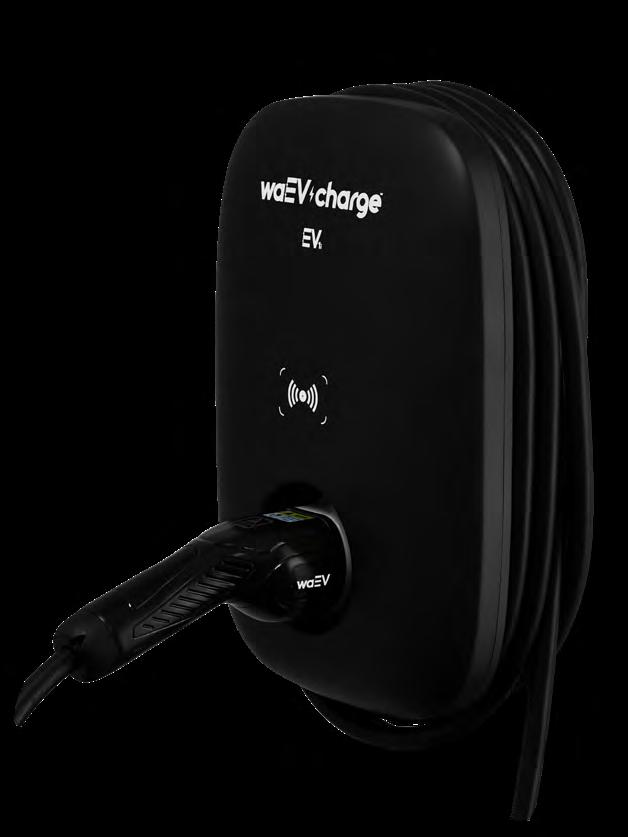

The EV1i - Tethered Convenience...
The waEV-charge EV1i charger has been built from the ground up with quality, safety & future EV technology at its core focus.
A5 Landscape Stapled Booklet
Our charger is both TUV CE & UKCA quality certified, OZEV (EVHS & WCS) approved and features PEN protection with no requirement for an earth rod, allowing for a quick and easy install.
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.

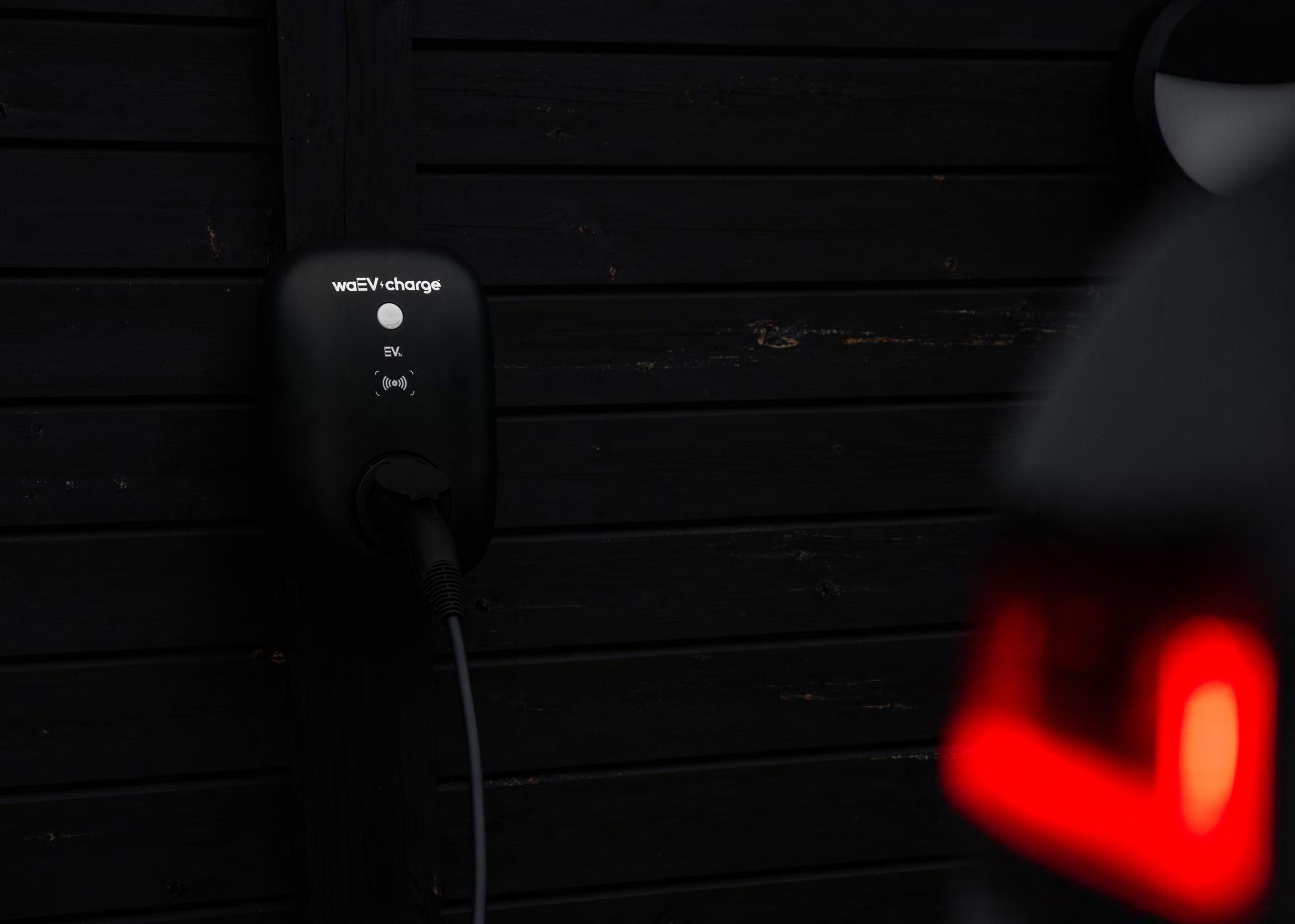

Sleek & Refreshing.
The EV1i charger by waEV-charge is the perfect solution for anyone looking for a modern & streamlined unit, yet at an affordable price. With it’s compact design and user-friendly features, the EV1i is easy to install and operate, making it the perfect choice for both home or commercial use.
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm

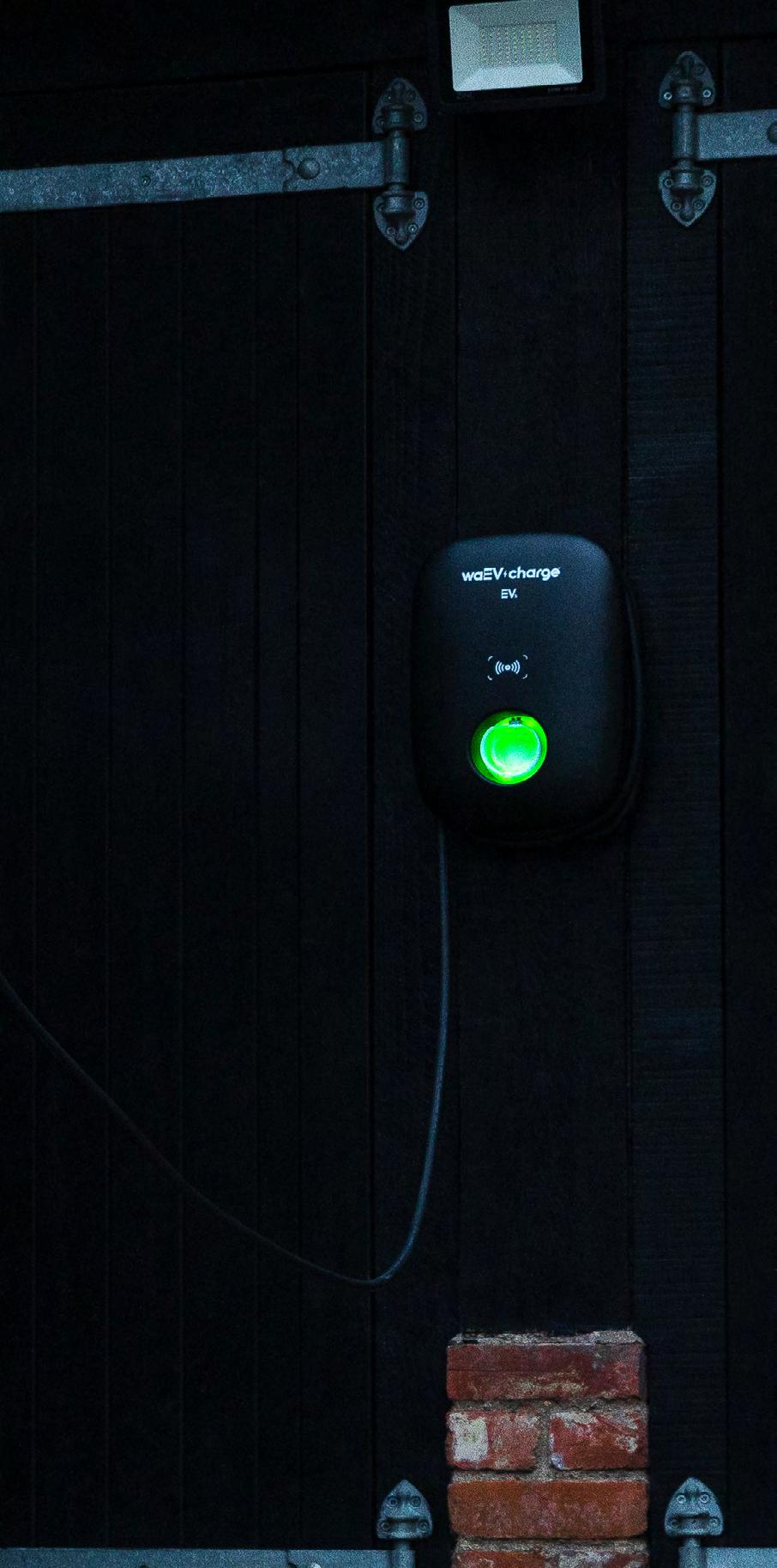

Our latest charger, the EV1i features an improved status light, making it easier to see from a distance. This means you can quickly and easily check the status of your charging session without having to be right next to the charger.
Size With Bleed: 216mm x 154mm
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Tethered Cable - 5m.
Available in 7.4kW and 22kW.
3-Year Warranty.
Full Solar Integration. Charging Statistics.
Smart Charger Lock. Energy Tariff Integration.

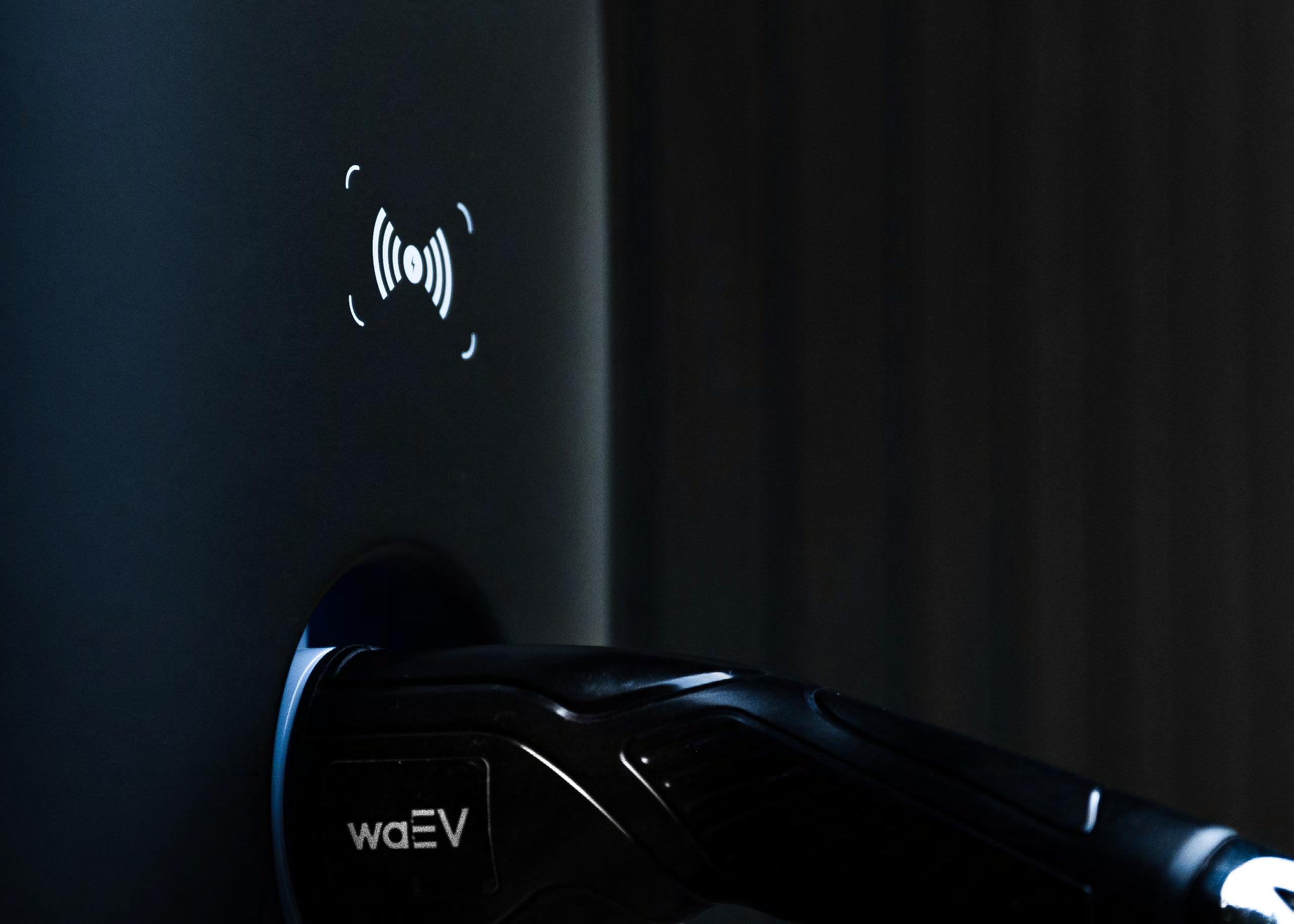

UK Based Integrated RFID Reader
OZEV Approved
EVSCP Compliant
3-Year Warranty
Powered by ev.energy
All Features
No Earth Rod Required
Simple Setup & Install
Fleet Management
Domestic & Commercial
Full Solar Integration
Smart Tariff Integration
Smart Schedule
Multi-Car Integration
Smart Charger Lock
Powered by Tap Electric
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Bleed Area
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines. Cut Line
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Safe Zone
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Company Values
What our team believes in.
Coming from a construction & engineering background, the waEV-charge team fully understand the challenges involved in supplying and installing EV chargers for both domestic and commercial environments.
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
From the initial enquiry, we assign you with a dedicated project manager who handles everything from quoting, logistics & aftercare, allowing you to focus on your development.
Size With Bleed: 216mm x 154mm
Bleed Area
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines. Cut Line
waEV-charge was born from the realisation there was a gap in the market for an industry specific, EV home charger supplier for house builders & developers.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Safe Zone
As part of a house builder group, we believe in making the process of supplying EV chargers as straight forward as possible and your dedicated project manager ensures this from your initial enquiry.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Our Team. Our Values. Our Future.
waEV-charge EV chargers are designed with the future in mind, meaning all components can be upgraded with future technology and with minimal further investment.
Our R&D team are constantly innovating and researching the latest EV tech so you can be assured you have a future proofed EV charger without having to replace the unit itself.
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
waEV-charge is compatible with all Plug-In Vehicles.
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept
A5
Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept

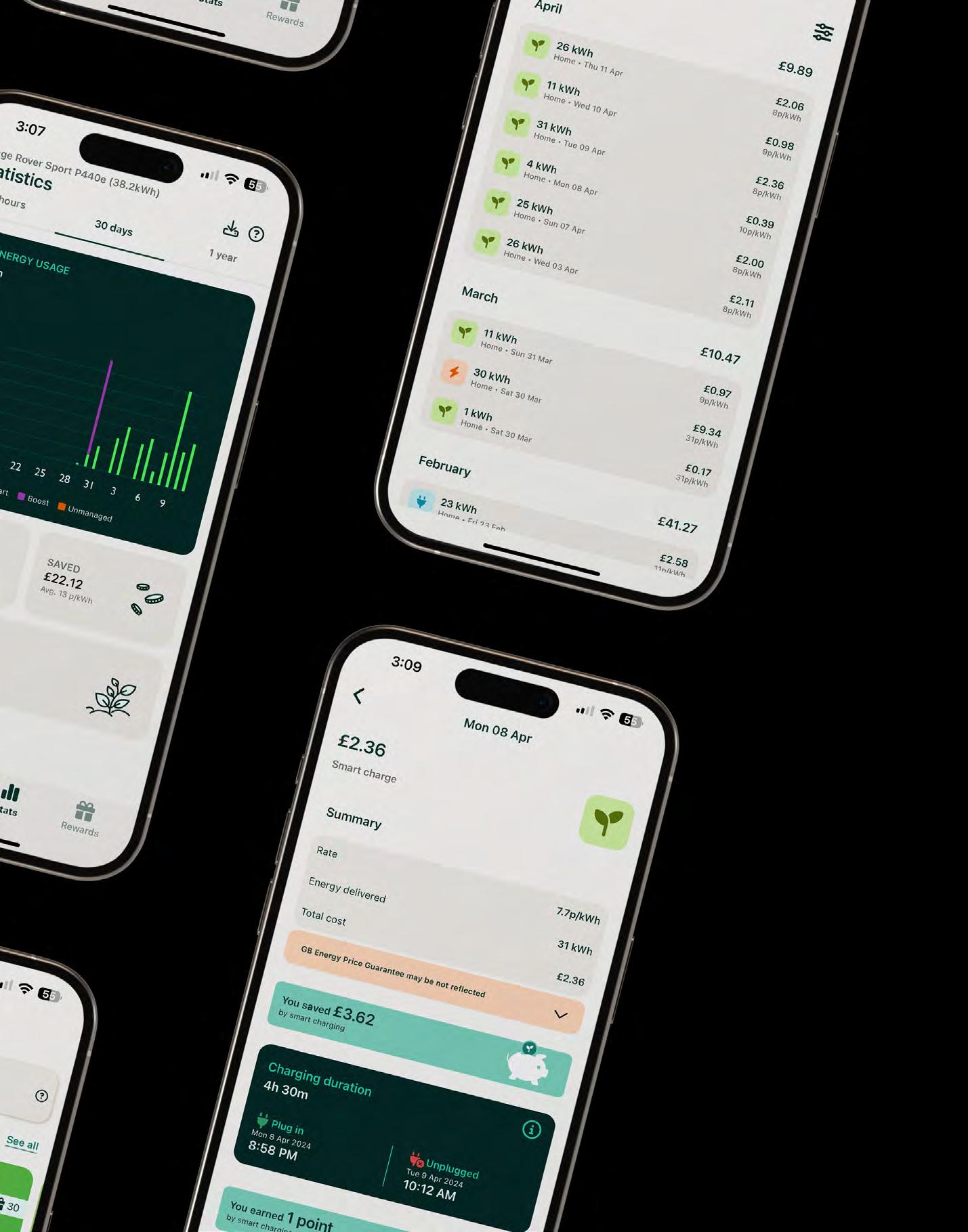

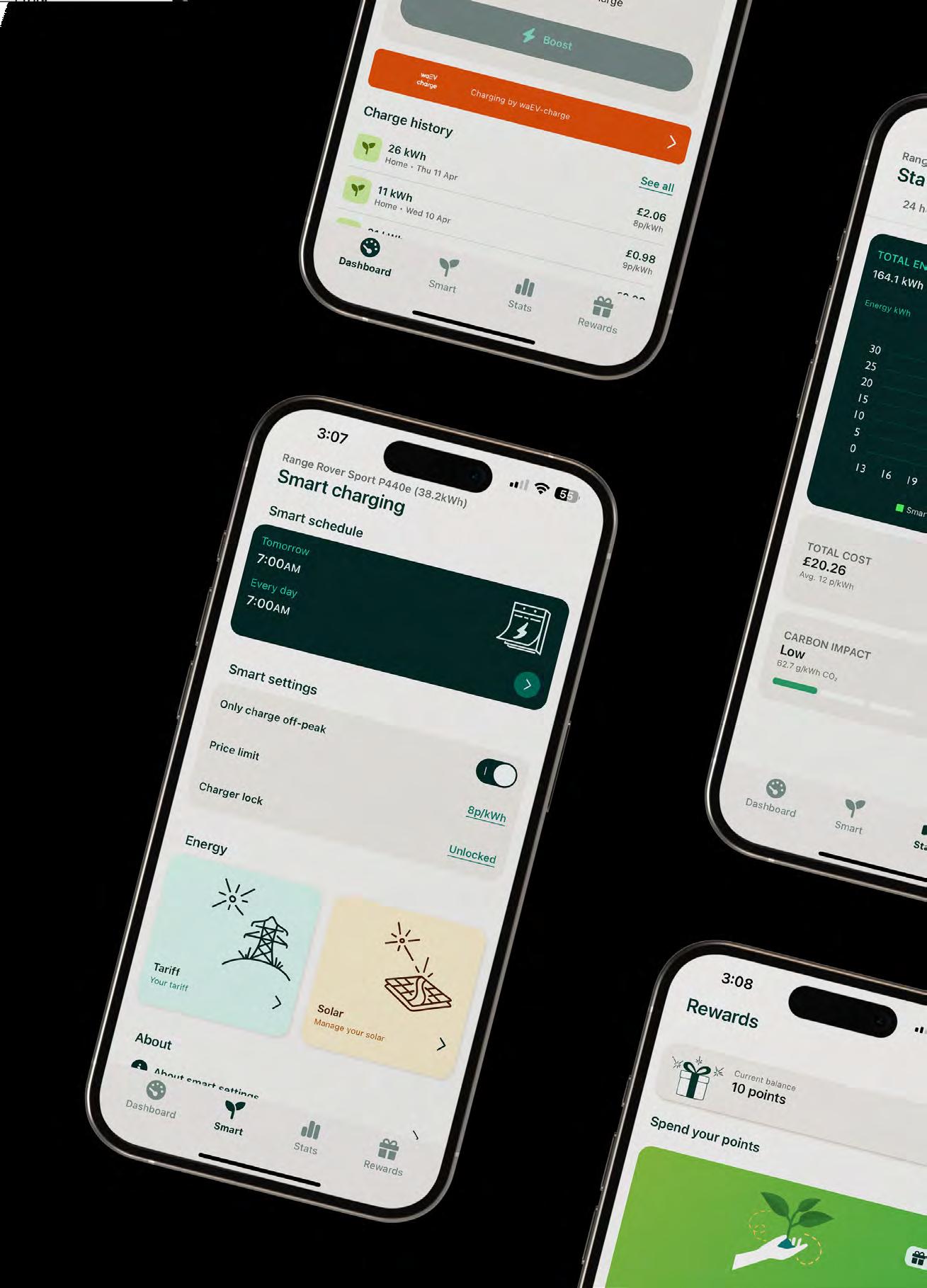

The industry-leading app for EV charging and solar integration.
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Bleed Area
A Powerful Companion.
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines. Cut Line

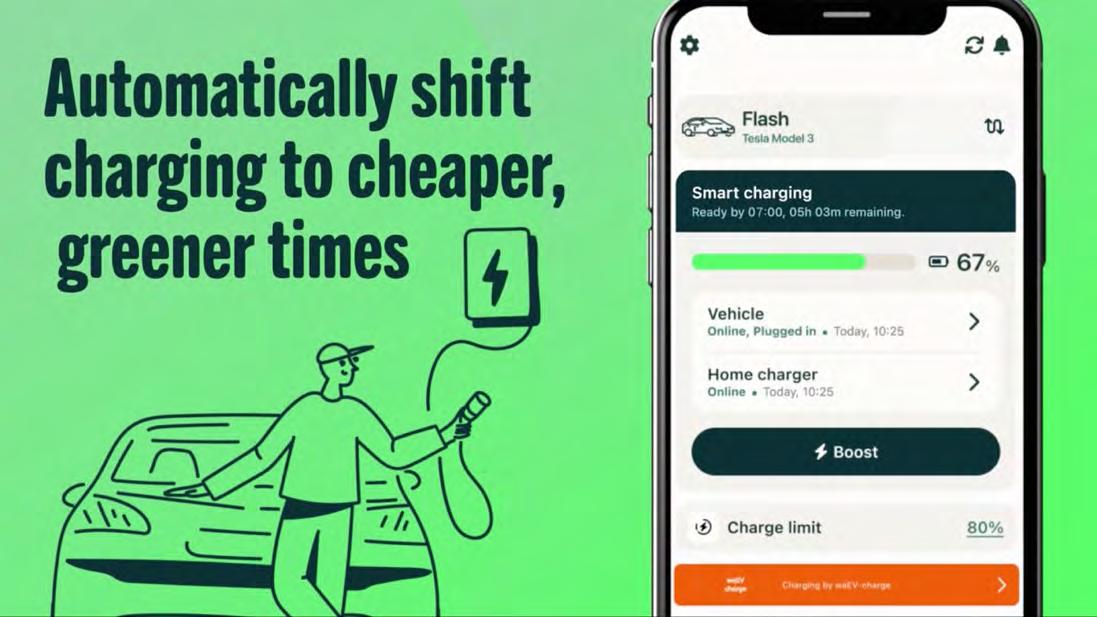

The waEV-charge EV charger, when paired with the ev.energy app, offers a smart and efficient charging solution for electric vehicle owners.
The app enhances the functionality of the waEV-charge by allowing users to schedule charging sessions at optimal times, such as during off-peak hours, to save on energy costs. It also helps reduce the environmental impact by prioritizing the use of renewable energy when possible.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off. Safe Zone
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
With real-time monitoring and detailed insights into energy usage, the ev.energy app ensures that the waEV-charge not only powers your vehicle efficiently but also aligns with sustainable practices, making EV ownership more convenient and eco-friendly.
A5 Landscape Stapled Booklet
App Features
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
The ev.energy app offers a range of features designed to enhance the experience of using the waEV-charge EV chargers. Key features include smart scheduling, which automatically sets charging times that align with off-peak electricity rates, and realtime monitoring, providing live updates on charging progress.
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
ev.energy includes: Included with ev.energy Solar:
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Only Mode
Match the charge rate of your vehicle to the amount of solar power being exported to the grid. This allows you to entirely self-consume the solar power you generate.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept
Smart Mode
Combine your zero-carbon Solar energy with your energy tariff to ensure your car is always charged for when you need it using the cheapest and greenest energy possible.
ev.energy Solar &
Experience zero-cost, zero-carbon footprint with ev.energy.
A5 Landscape Stapled Booklet

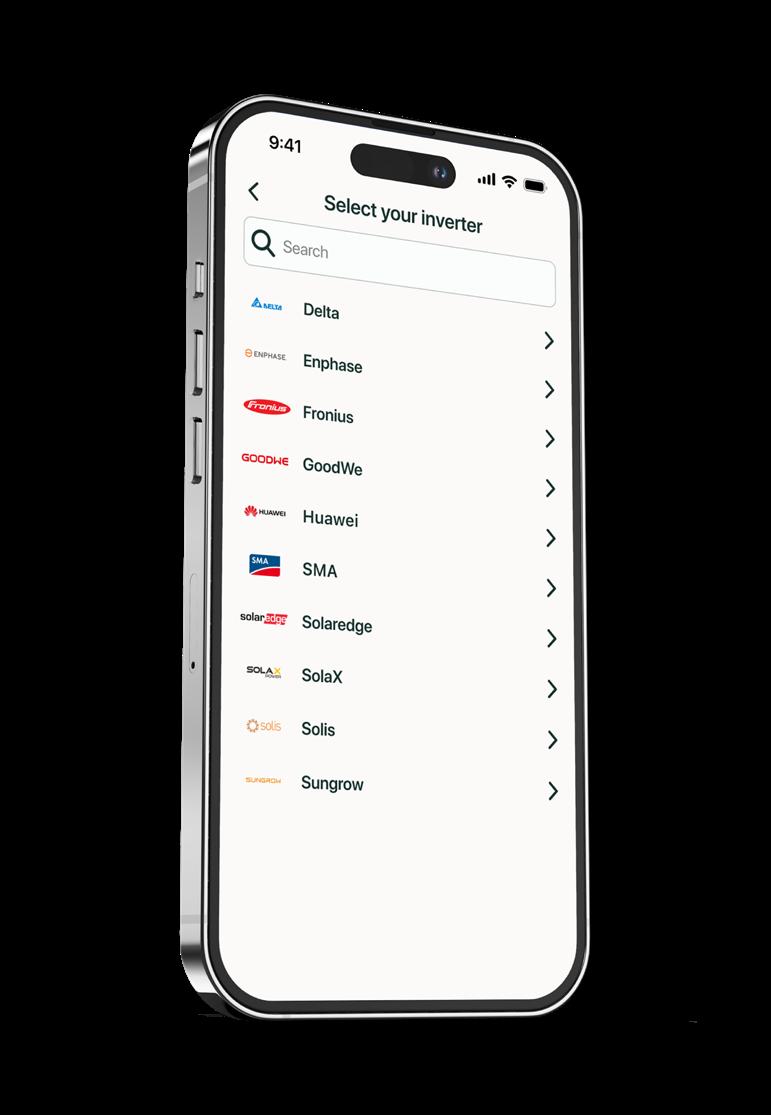

The ev.energy app seamlessly integrates with waEV-charge to support solar charging without the requirement for a CT clamp being installed, which allows you to maximise the use of renewable energy for your electric vehicle. This feature allows the app to prioritize energy generated from your home’s solar panels, charging your EV with clean, solar power whenever it’s available.
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Bleed Area
When solar energy isn’t sufficient, the app intelligently supplements it with grid electricity, ensuring your vehicle is always ready to go. This combination not only reduces reliance on non-renewable energy sources but also helps lower charging costs by making the most of your solar investment.
Solar Smart Charging
Automatically schedules EV charging to align with peak solar energy production and, if necessary, off-peak rates, maximising the use of renewable energy, reducing reliance on the grid and charging at the lowest possible cost.
Users are eligible to earn points for smart charging, which can be redeemed for vouchers, energy bill credits, carbon offsetting vouchers, or retailer discounts. Reward programme
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines. Cut Line
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Safe Zone
Continuously monitors solar production and adjusts charging times to ensure efficiency and cost savings*. Real-time optimization
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Easily connects with a wide range of leading EV models and chargers, without needing additional equipment. Universal compatibility
Free to download, easy to set up and use, offering complete control and monitoring of drivers’ charging sessions. User-friendly app

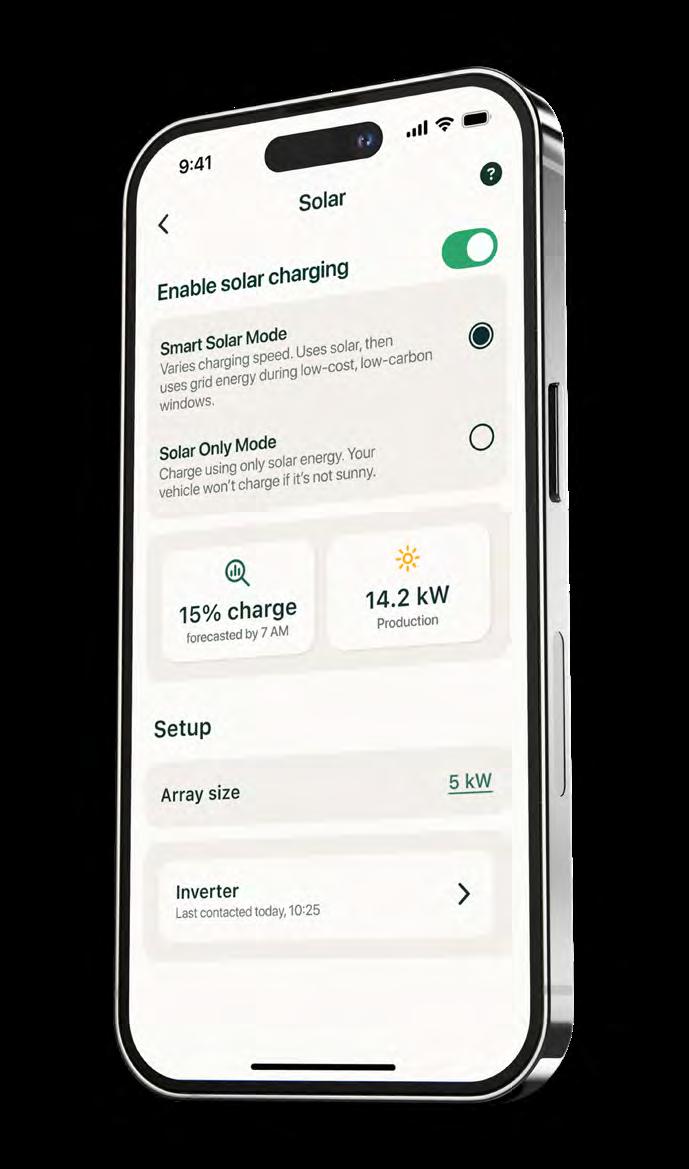

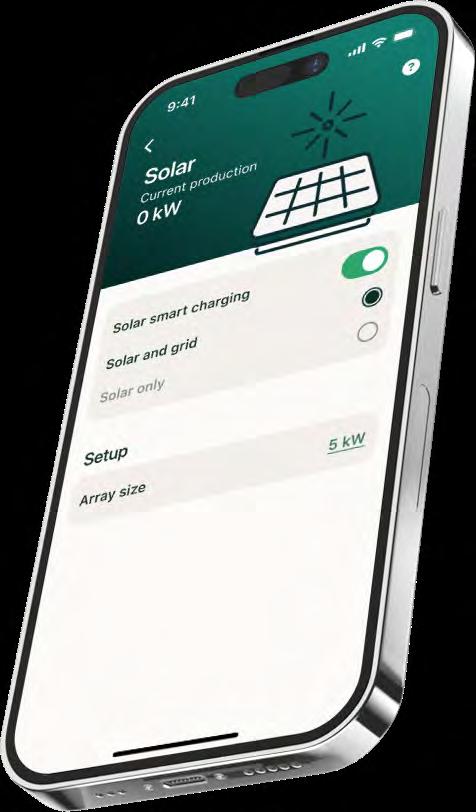

Solar Charging Modes
Empower your drivers to make the best use of their home solar setup,so they can reduce reliance on grid energy to charge their car. Our SOLAR solution optimizes smart charging to help drivers get the most out of their solar panels - providing the cleanest, greenest and most cost-effective charge.
A5 Landscape Stapled Booklet
ev.energy SOLAR integrates seamlessly with your drivers’ existing hardware setup and is accessed and managed through our user-friendly, top-rated app. You can offer this premium feature set as part of your program, or drivers can pay for access directly.
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Bleed Area
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
Charging
Cost and Carbon
Savings
Solar Only Solar Smart
Cut Line
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Exclusively uses surplus solar power; grid power is never used
Safe Zone
Adapts based on solar and grid conditions, optimizing for efficiency
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Free when sunlight is abundant, and has the lowest environmental impact possible
The most cost efficient way to charge since it uses grid power only when it’s as green and low-cost as possible
Fleet Lite Management
A5 Landscape Stapled Booklet
Fleet Optimisation
Home Charging for Employees, without the headache.
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Bleed Area
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines. Cut Line
Fleet Lite simplifies fleet charging and management by enabling businesses to monitor and track the charging expenses of their entire fleet. It provides detailed reports on energy usage, costs, and charging patterns, helping companies optimize charging schedules and reduce expenses.
Easily Track Expenses
Automatically track spending when charging your work car at home.
More Efficient Workflow
Employees can charge their car at home, ready for the next day.
Off-peak Charging Rates
Automatically track spending when charging your work car at home.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Safe Zone
Finances
Export your charging sessions for accounting. Session Export Track employee expenses and find out when they are charging.
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Ease of Charging
Make it easier for your employees to be ready in time.

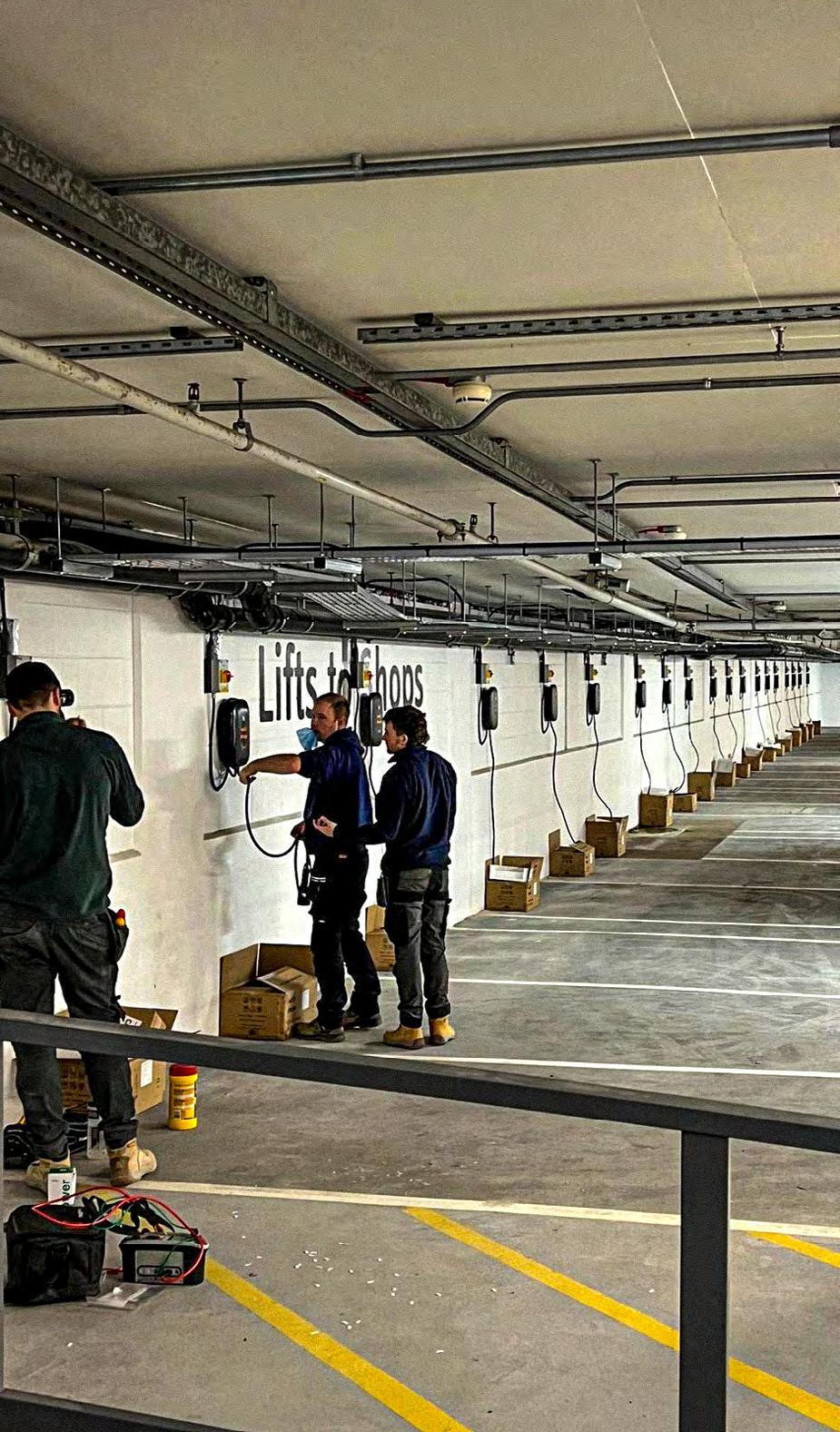

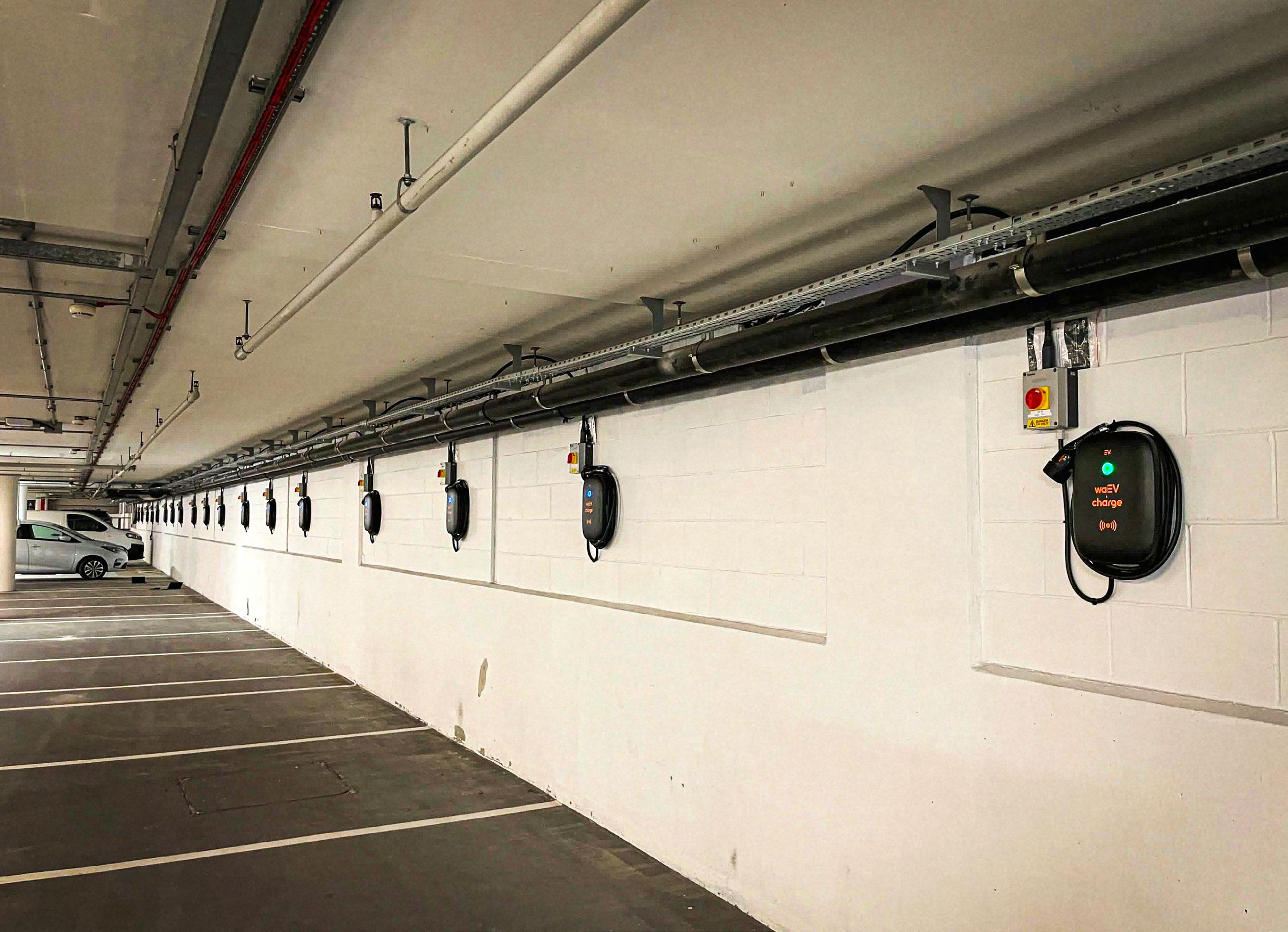

A Case Study with Toshi UK (Westfield Car Park)
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Toshi Ltd (EV Delivery Company)
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
waEV-charge EV1
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
19 chargers
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Toshi operates a luxury goods EV delivery fleet from Westfield Shopping Centre, London. Their requirement was for their fleet to be charged in a public, accessible underground car park.
Fleet Lite for Shared EV Charging was implemented to manage the site. Employees are supplied with RFID cards to authorise their charging sessions.
Charging data can then be exported from the platform for remote operational and accounting reporting.
Westfield Mall London, UK

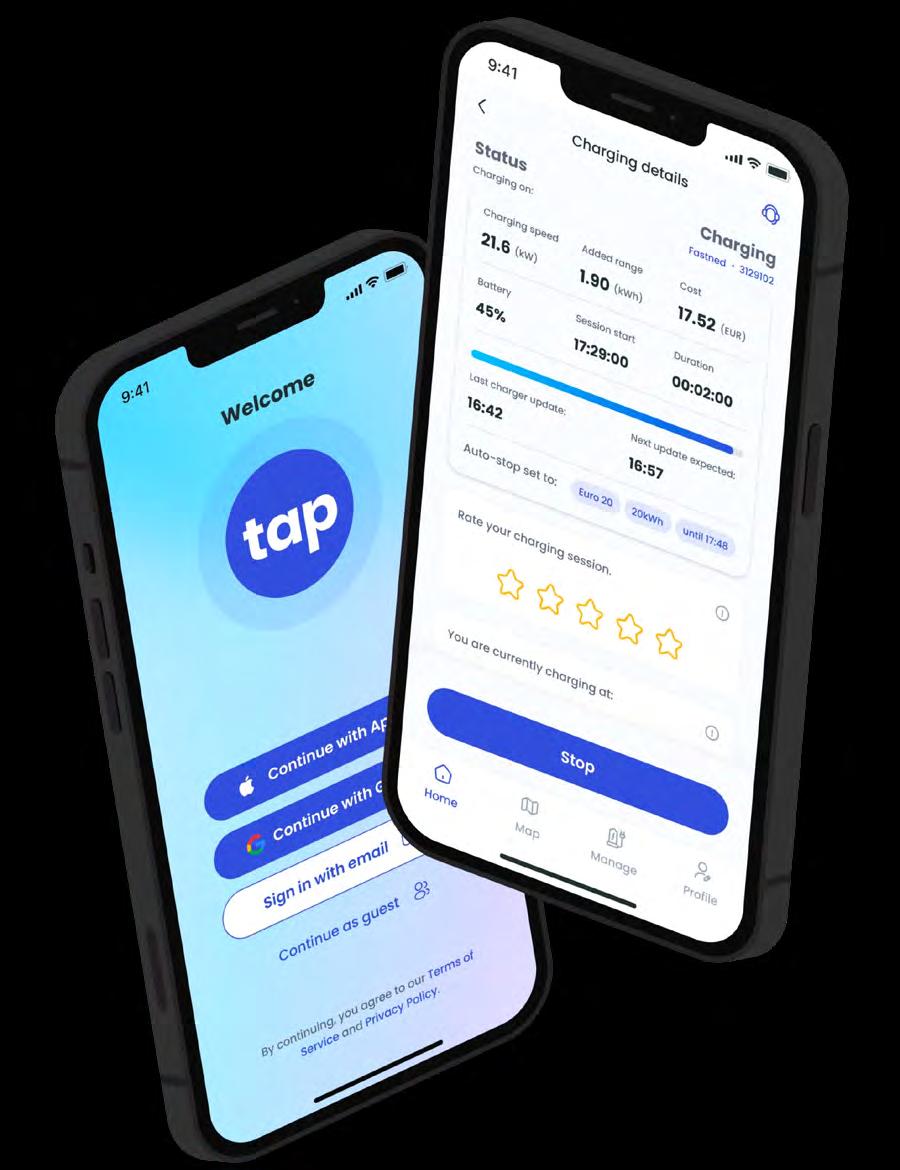

Tap Electric for Drivers
Simple, reliable & cheap.
Tap Electric, your driver-first EV charging app
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Getting started with the app
Bleed Area
1. Download the app and start charging right away.
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines.
2. Pay-as-you-go, or subscribe for discounted charging.
Cut Line
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Safe Zone
What your site administrator is in charge of:
The base price for charging.
What Tap can help you with:
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Access rights. Can’t see your charger in the app? Contact your site admin.
Internet quality. If your charger is offline, it may neeed a stronger internet signal.
Charging emergencies, i.e. cable is stuck in the charger.
Questions about payments or invoices.
Any other questions about the app

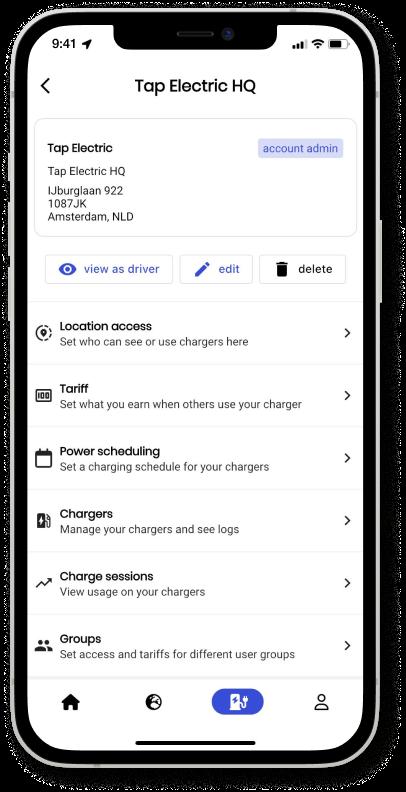

Tap Electric for Owners
Simple, reliable & free.
Collect payments for your EV charger with an app that drivers love.
A5 Landscape Stapled Booklet
Finished Size: 210mm x 148mm
Size With Bleed: 216mm x 154mm
Bleed Area
Getting started with the app
Getting started with the app
FOR OWNERS FOR DRIVERS
Always free.
You will need to extend your design to fill the bleed area. This area will be trimmed to make sure you don’t have any unwanted white lines. Cut Line
Connect your charger in one minute.
Set your tariff and configure who gets access.
Connect your bank account.
Download the app.
Start charging, no registration required.
This is where we aim to cut your design to the finished size. Any part of your design placed outside this area will be cut off.
Pay owner fee + transaction fee.
Safe Zone
The safe zone is 3mm inside of the cut line. Make sure all important elements and text are kept within this area.
Why choose Tap Electric?
You decide what you earn
You control who gets access
We pay out every month
It’s always free for owners
Drivers love our great features and network of public chargers Scan here to download the app or visit tapelectric.app
waEV-charge Products
Charger Model Manufacturer
waEV-charge EV1i
7.4kW
waEV-charge EV1i Solar 7.4kW
waEV-charge EV1i Smart Charger - 7.4kW - 5m
Tethered Cable - WIFI/LAN - Powered by ev. energy / Tap Electric
WAEVEV1i7WIFI
5070000255484
waEV-charge EV1i 22kW
waEV-charge EV1i Smart Charger - 7.4kW - 5m
Tethered Cable - WIFI/LAN - Solar Integrated - Powered by ev.energy / Tap Electric
waEV-charge EV1i Smart Charger - 22kW - 5m
Tethered Cable - WIFI/LAN - Powered by ev. energy / Tap Electric
WAEVEV1i7WIFIS
5070000255477
waEV-charge EV1s
7.4kW
waEV-charge EV1s Solar
7.4kW
waEV-charge EV1s Smart Charger - 7.4kW -
Untethered - WIFI/LAN - Powered by ev.energy / Tap Electric
WAEVEV1i22WIFI
5070000255491
waEV-charge EV1s 22kW
waEV-charge EV1s Smart Charger - 7.4kW -
Untethered - WIFI/LAN - Solar IntegratedPowered by ev.energy / Tap Electric
waEV-charge EV1s Smart Charger - 22kW -
Untethered - WIFI/LAN - Powered by ev.energy / Tap Electric
WAEVEV1s7WIFI
5065017152062
WAEVEV1s7WIFIS
5065017152116
WAEVEV1s22WIFI
5065017152130
Technical Data
Model waEV-charge EV1s & EV1i
Single Phase 7.4kW AC & Three Phase 22kW AC
Power Options
Charging Connector
Tethered cable length
Charging Protocol
Protection
Electrical Specifications
Physical Specifications
Physical Specifications
Standards and Compliance
Communication
Tethered, IEC 62196/Type 2 (standard) OR SAE J1772/Type 1W
5 Meters
Mode 3 (EN/IEC 61851)
PEN Fault Protection Built-in open PEN protection (detection + isolation) in compliance with Amendment No 1 of BS 7671:2018”. waEV-charge EV chargers can safely be installed without an earth-rod.
RCD Protection: Integrated 6mA DC RDC-DD, Type A RCD/MCB or RCBO required at source
AC Charging Output: 7.4kW, 32A@230V AC / 22kW, 32A@230V- 400V AC (Charging power may vary based on vehicle make and model)
Input Voltage: 230-400 ± 10% V AC
Input Frequency 50/60 Hz
Input Current: (max) 32A
Energy Monitoring: Power and energy monitoring via ev.energy smart app
Overcurrent Protection: Internal overcurrent protection
Dimensions (H x W x D): 361mm x 250mm x 100mm
Mounting Type: Wall mounted - Bracket & Mounting Bolts Colour: Black Weight: 7kW EV1 & EV1i – 4.4kg / 22kW EV1 & EV1i – 5.7kg Material: ABS composite
Operating Temperature: -30 to 50° C
Operating Humidity: Up to 95% RH, non-condensing
Environmental Protection: IP65
Certifications: TUV CE & UKCA
Safety Compliance: UVP, OVP, RDC-DD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection
EV Charging Compliance: EN 61851-1:2019, EN 61851-21:2002, EN 61851-22:2002
Onboard dynamic load balancing: via CT Clamp.
Status indication: Blue, Green, Red LED faceplate indicator
Comms Standard: Wi-Fi 802.11b/g/n @2.4 GHz, Bluetooth
Communication Protocol: OCPP 1.6/2.0
Network Security: WLAN with 256-Bit Encryption
waEV-charge and ev.energy
Save Money & Go Green with Smart EV Charging.
W: www.waevcharge.co.uk
