Wil D. Adames | Portfolio of Works by Wil D. Adames

P O R T F O L I O

2021- PRESENT WIL D. ADAMES

PARAMOUNT : MIXED-USE 347 HENRY ST : HIGH END RESIDENTIAL 14 HARBOR WATCH: SPORTS / RESIDENTIAL RESIDENTIAL WIL D. ADAMES : BIO / RESUME 7 WEST 18TH STREET : MULTI-MEDIA OFFICE INTRO 40-09 21ST STREET : OFFICE BUILDING RENOVATION COMMERCIAL 38 20 04 WA 06 14 28 PROFESSIONAL

CIVIC NIMBUS : MUSEUM OF ANIMATION MISC. VARIOUS PROJECTS: PHYSICAL MODELS / DIGITAL DRAWING CHAPEL OF HOPE : YOUNG ARCHITECTS COMPETITION SANCTUM NEXUS : A PI L GRI M A GE FOR SEOUL BRONX ANNEX : RE-INVENTING PUBLIC HOUSING RELIGIOUS 58 70 78 90 46 EXPERIMENTAL

My name is Wil D. Adames, an architectural designer, native of the Dominican Republic. I earned a Bachelor of Architecture from Pratt Institute’s School of Architecture, where I developed my skills and instinct as a designer.

My passion lies in the creation of innovative and experimental forms that create the possibility of spaces that influence both the user and their surroundings in an uplifting and dignifying manner, drawing constant inspiration from the human body, nature and the vast universe of the Mecha genre in Japanese Animation.

When not working, I enjoy spending time with friends and family, practicing the art of Budo, reading, learning about birds, rock climbing, watching baseball, anime, and exploring the worlds of Final Fantasy XIV.

WIL D.

BIO / RESUME 04

ADAMES:

Objective:

• To continue my path as an architectural designer in an innovative and creative studio where my work experience, design instincts and architectural knowledge can be engaged and further expanded.

Qualification:

• Respectful, Resourceful, Reliable

• Reputable Leadership, and Interpersonal Communication Skills

• Skilled Time Managing and Problem Solving skills.

• Dynamic Designer

Work Experience:

Gluck+ | Intermediate Architectural Designer

Summer 2022 - Present | Projects: Mix-Use (Residential + Retail)

• Develop exterior envelope construction details of the following systems: Precast Concrete Panels, Window Wall, Curtain wall.

• Design, 3D Model and Detail Interior Lobby Spaces

• Coordinate architectural design intent with multiple consultatns.

Murdock Solon Architects – Archiectural Designer

Summer 2018 - Present | Projects: Residential, Commercial

• Worked closely with the Principal and Project Managers in an array of projects. Coordinated directly with engineers, clients and expediters throughout all phases of design.

Education:

Pratt Institute | Brooklyn, New York

• Bachelors of Architecture – Summer 2016

• Dean’s List

BMCC | New York, New York

• Associate’s Degree Liberal Arts – Fall 2011

• President’s List

• Latino Honor Society

Languages:

• Bilingual: English & Spanish

Software Knowledge:

BIM:

Revit 2022

Drafting:

Modelling: 3D

Autocad 2022

Rhinoceros 7

Sketchup

Enscape

V-Ray

AI Systems:

ChatGPT

Midjourney

Dall-E

Stable Diffusion

Adobe Suite:

Rendering: Digital Markups: Productivity Apps.: Microsoft/ Google

Suite:

Photoshop

Illustrator

InDesign

Acrobat

Drawboard

Bluebeam

Priority Matrix

Slack

Word

Excell

Powerpoint

URBAN YARD

MURDOCK SOLON ARCHITECTS

BUILDING TYPE: COMMERCIAL | OFFICE

S.F.: 13,749

LOCATION: NEW YORK

PHASE: DESIGN DEVELOPMENT, CONSTRUCTION DOCUMENTS

ROLE: ARCHITECTURAL DESIGNER UNDER PM SUPERVISION

INVOLVEMENT: CONSTRUCTION DOCUMENT SET PRODUCTION, BIDDING, FILING, CONSULTANT / CLIENT COORDINATION

SOFTWARES USED: AUTOCAD, DRAWBOARD, ZOOM, GOTOMEETING, ADOBE SUITE, PRIORITY MATRIX

40-09 21ST STREET : OFFICE BUILDING RENOVATION

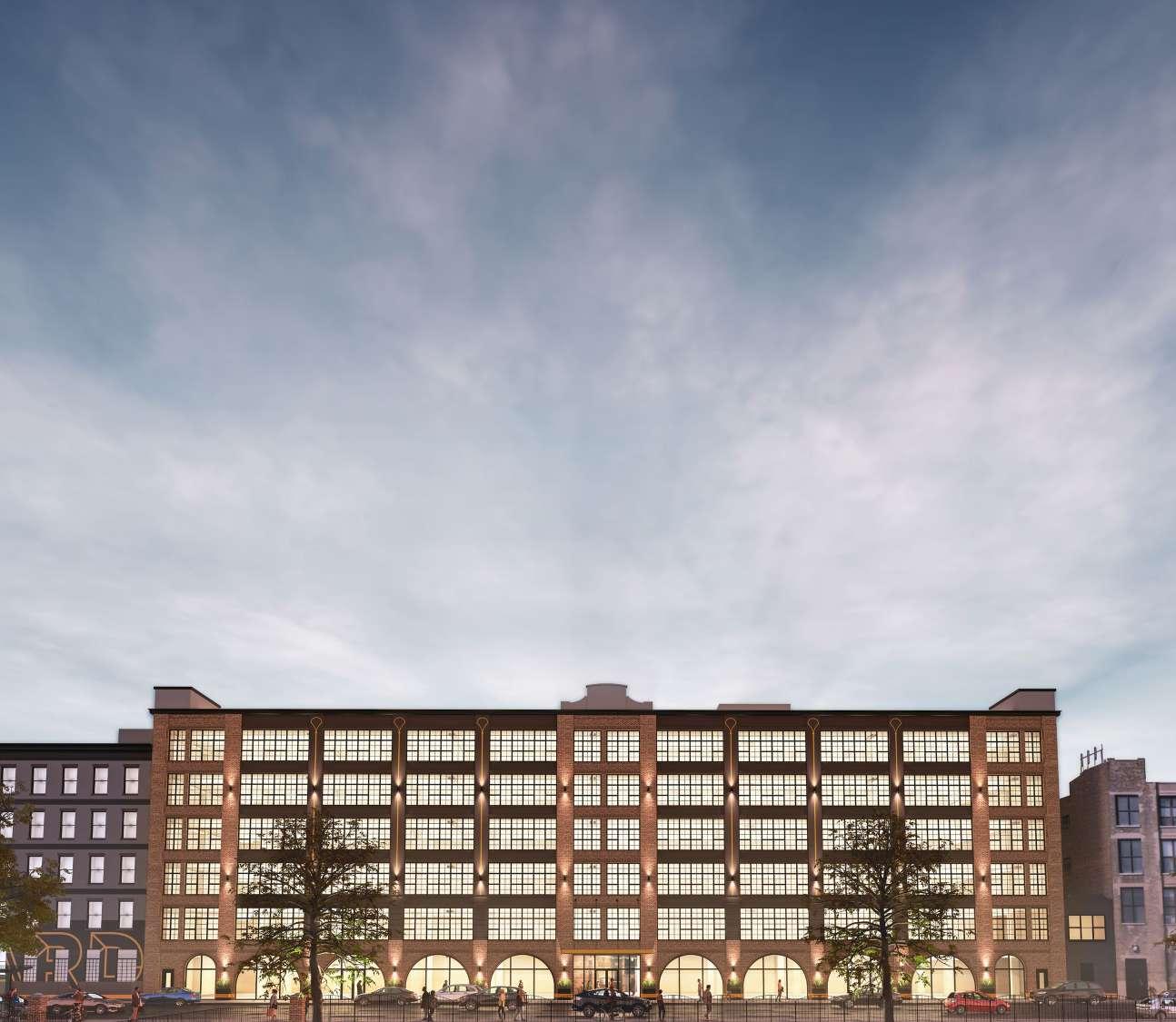

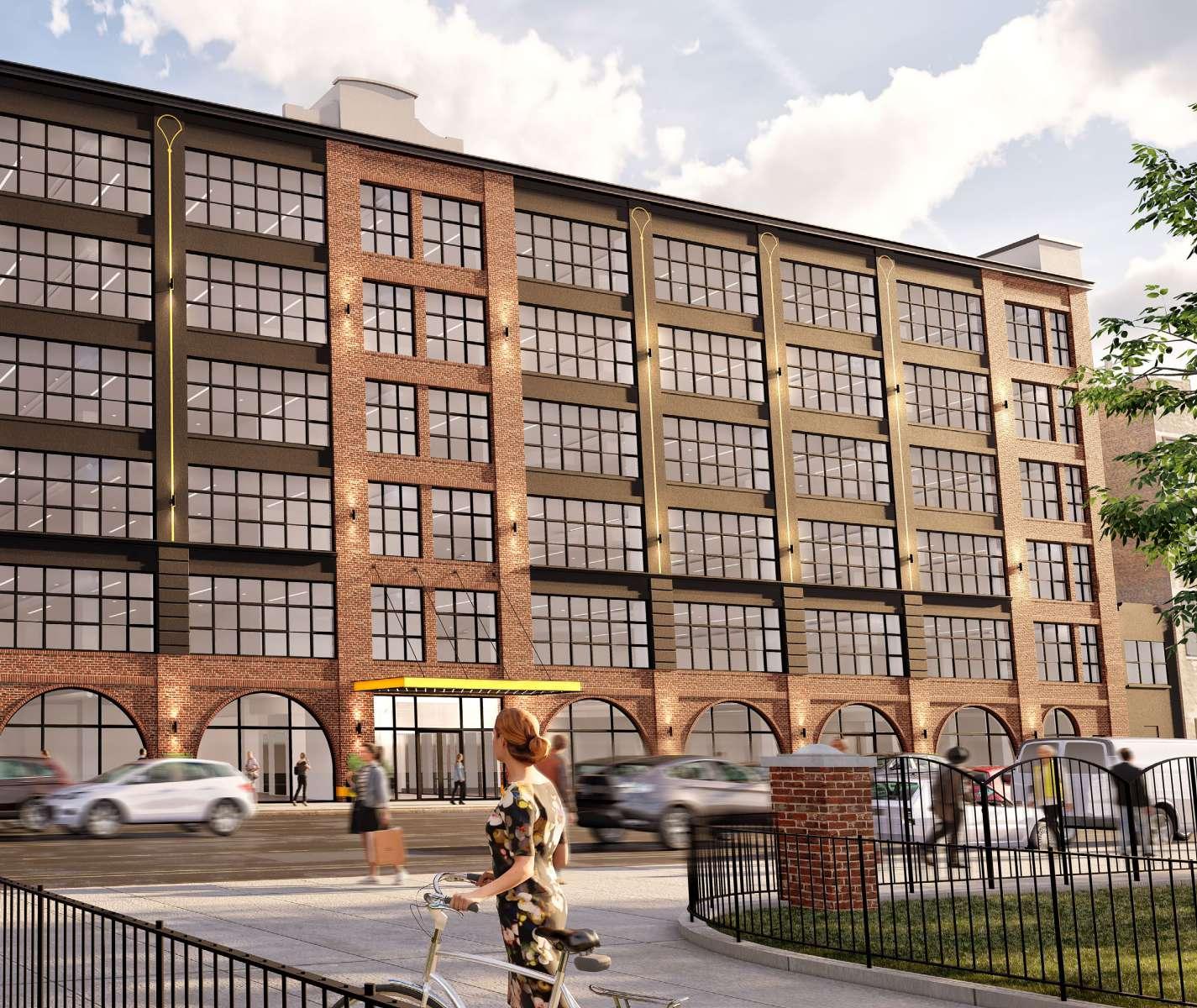

Rendering by: Input Creative Studio

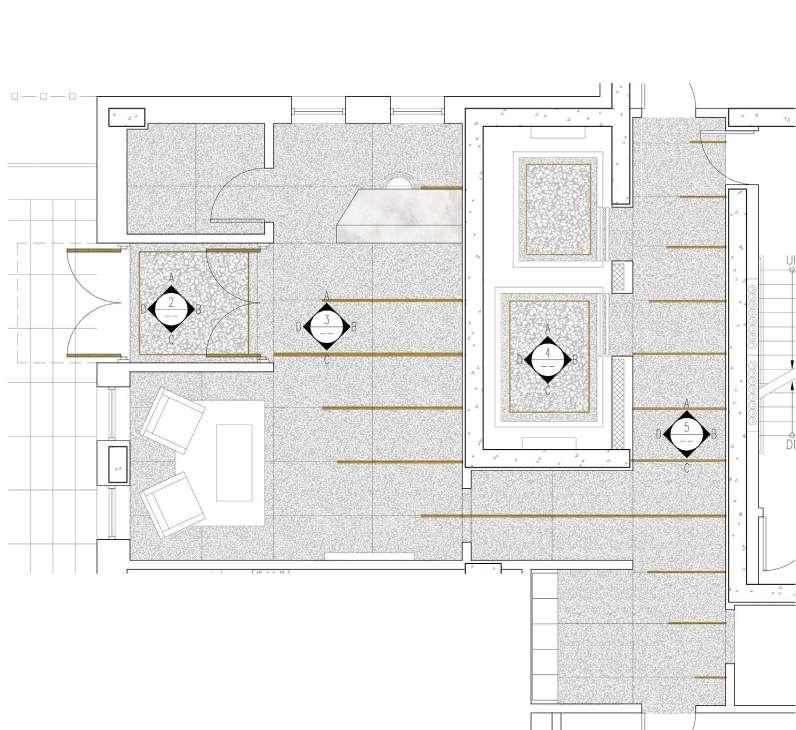

A B C D E F G H J K L 1 2 3 1 2 3 M A L M B C D E F G H J K UP (TO LANDING) (TO STORAGE) UP (TO LANDING) EM FLOOR) SPACE A (G) 4,471 SF 179 PERSONS 54'-9" 12'-2" ELEV. GURNEY ELEV. 14'-6" 7'-5" 15'-8" 5'-0" 35'-8" 14'-9" 8'-2" 8'-2" RECEPTION 41'-5" FIRE STAIR A G00 COMMERCIAL SPACE A G01 ADA W.C. G02 ADA W.C. G03 TEL. RM. G04 HALL G05 WATER RM. G06 FIRE PUMP G07 ACCESS TO 2HR RATED SHAFTWAY FIRE STAIR C G08 GROUND FL LOBBY G09 ADA W.C. G11 ADA W.C. G10 COMMERCIAL SPACE B G12 FIRE STAIR B G14 ELEC RM G13 COMM SPACE C G15 01 A301 02 A301 03 02 A401 01 04 17'-2" 02 A303 SPACE B (G) 5,473 SF 219 PERSONS 1.02 1.03 E.Q. E.Q. 17'-2" E.Q. E.Q. SEE DOOR SCHEDULE A602 SEE DOOR SCHEDULE A602 03 A105 02 A105 01 A105 ELEV 13.5 ELEV 14.0 ELEV 14.0 ELEV 14.0 ELEV 14.0 ELEV 14.0 ELEV 13.5 SIDEWALK CURB 6'-11" 9'-8" 10'-3" 7'-5" 7'-5" 10'-0" 6'-7" NEW CONC. SLAB 12'-3" 01 A213 FLOOR SLAB EXISTING TO REMAIN. FINISH TBD FLOOR SLAB EXISTING TO REMAIN. FINISH TBD 20'-3" 22'-9" 79'-8" 98'-11" CL CL 254'-0" 254'-10" 49'-1" 56'-8" VIF 8'-2" 12'-5" 8'-6" 27 1 N Exterior Rendering: by Input Creative Studio Floor Plan | 1st Floor

12'-8" 12'-0" 12'-0" 12'-0" 12'-0" 12'-0" 8'-0" 8'-0" ELEVATOR GURNEY ELEV. 11'-9" 11" 11'-1" 11" 11'-1" 11" 11'-1" 11" 11'-1" 11" 11'-1" 11" SECOND FLOOR 12'-8" A.F.F. THIRD FLOOR 24'-8" A.F.F. FOURTH FLOOR 36'-8" A.F.F. FIFTH FLOOR 48'-8" A.F.F. SIXTH FLOOR 60'-8" A.F.F. FIRST FLOOR 14.0 WATER TABLE 4.00 ROOF 73'-0" A.F.F. NAVD 0.00 2ND FLOOR 26.67 3RD FLOOR 38.67 4TH FLOOR 50.67 5TH FLOOR 62.67 6TH FLOOR 74.67 MACH. RM 01 82'-6" A.F.F. MACH. RM 02 94'-1" A.F.F. FIRST FLOOR 0'-0" A.F.F. LOBBY FUTURE PLAZA LVL 17.00 ELEVATOR GURNEY ELEV. ELEVATOR ELEVATOR ELEVATOR ELEVATOR REAR YARD ENT. 6.89 GURNEY ELEV. GURNEY ELEV. GURNEY ELEV. GURNEY ELEV. CORRUGATED METAL SCREEN T.O. ROOF LOBBY 76'-8" A.F.F. T.O. PARAPET 78'-1" A.F.F. T.O. PARAPET 92.07 MACH. RM 01 93.61 MACH. RM 02 108.09 T.O. ROOF LOBBY 90.67 FLOOR SLAB EXISTING TO REMAIN, TYP. FINISH TBD FLOOR SLAB EXISTING TO REMAIN, TYP. FINISH TBD FLOOR SLAB EXISTING TO REMAIN, TYP. FINISH TBD 8'-0" 8'-0" 8'-0" 8'-0" 8'-0" 8'-0" ELEVATOR ELEVATOR ELEVATOR ELEVATOR ELEVATOR ELEVATOR LOBBY SECOND FLOOR 12'-8" A.F.F. THIRD FLOOR 24'-8" A.F.F. FOURTH FLOOR 36'-8" A.F.F. FIFTH FLOOR 48'-8" A.F.F. SIXTH FLOOR 60'-8" A.F.F. ROOF 73'-0" A.F.F. MACH. RM 02 94'-1" A.F.F. FIRST FLOOR 0'-0" A.F.F. PASSENGER ELEV MACHINE T.O. ROOF LOBBY 76'-8" A.F.F. MACH. RM 01 82'-6" A.F.F. T.O. PARAPET 78'-1" A.F.F. 02 ELEVATOR SECTION Professional | 09 Cross Section | 02/A301

3'-8" LANDING 01 A503 01 A503 PITCH DIRECTION BRICK VENEER 04 A503 HM FRAMING CONCRETE OPEN LOBBY BEYOND CORRUGATED MTL CLADDING No. 1 UP UP INSIDE CAB 6'-8"W x 5'-5"D UP DN (ELEV MECH RM) (TO 6TH FL) UP GURNEY ELEV. MACHINE ROOM 01 ELEVATOR 05 A404 02 09 09 09 02 02 A406 02 A406 01 A406 01 A406 ELEV 90.67 ELEV 90.67 SHAFT ACCESS R02 ROOF LOBBY R01 02 A301 7.00 7.01 FPSC 7.03 7.04 02 11 ELEV 93.61 CORRUGATED METAL 90 MIN ACCESS HATCH 02 11 12 01 A405 02 A405 03 A405 10 04 A405 01 A407 01 02 03 04 05 06 07 01 02 03 04 05 06 01 A407 7.05 No. 2 DN MACHINE ROOM 02 01 02 03 04 05 06 07 09 10 11 12 13 14 15 16 17 18 20 21 22 23 24 25 26 27 28 08 19 GURNEY ELEV. 09 09 09 02 05 A404 ELEV 108.09 ELEV 90.67 ELEV 90.67 01 A503 A301 7.08 02 A405 01 A405 02 A406 02 A406 01 A406 01 A406 10 03 A405 04 A405 Plan + Elevation | Bulkhead

1'-4" V.I.F. 6" 8" 10" 10" 8" 5" 1'-4" V.I.F. 10" 8" 5" 1'-4" V.I.F. 6" 8" 1'-4" V.I.F. W10X26. SEE STRUCTURAL DWG, S-104 EXISTING ROOF SLAB TO REMAIN. LIGHT GAUGE METAL STUD WALL. SEE STR DWGS. SHEET MTL COUNTER FLASHING EXISTING ROOF SLAB TO REMAIN. BRICK TIES 3/4 GYP BOARD 1" MTL FURRING 6" LIGHT GAUGE MTL STUDS. SEE STR DWGS. BATT INSULATION 3/4" PLYWOOD SHEATHING WATERPROOFING MEMBRANE 2" RIGID INSULATION 1" AIRGAP BRICK VENEER NEW WATERPROOFING MEMBRANE TO OVERLAP EXISTING L4X4X3/8" STEEL ANGLE EXISTING BRICK PARAPET TO REMAIN. NIC. LIGHT GAUGE METAL STUD WALL. SEE STR DWGS. STONE BALLAST WATERPROOFING MEMBRANE 3" RIGID INSULATION 3/4" PLYWOOD SHEATHING 8" LIGHT GAUGE C JOIST SUPPORTED ON L4X4X3/8" STEEL ANGLE. SEE STR DWGS. 8" LIGHT GAUGE FRAMING. SEE STR DWGS. CONT. BACKER ROD & SEALANT, TYP. BLOCKING AS REQ'D. METAL FLASHING 10" CONCRETE ELEVATOR SHAFT. SEE STR DWGS. L 4X4X3/8" LEDGER. SEE STR DWGS. NEW PARAPET METAL CAP THROUGHOUT. TYP 2X WOOD PLATE STONE BALLAST WATERPROOFING MEMBRANE 3" RIGID INSULATION 3/4" PLYWOOD SHEATHING 8" LIGHT GAUGE C JOIST SUPPORTED ON L4X4X3/8" STEEL ANGLE. SEE STR DWGS. 1" FUR OUT CHANNEL 3/4" PTD. GYP. BOARD. PAINT TBD COMPRESSIBLE FILLER. SEE STR DWGS. METAL FLOOR DECK. SEE STR DWGS. SHEET MTL FLASHING & COUNTER FLASHING, TYP. CAULKING 2X WOOD PLATE STONE BALLAST WATERPROOFING MEMBRANE 3" RIGID INSULATION 3/4" PLYWOOD SHEATHING 8" LIGHT GAUGE C JOIST SUPPORTED ON L4X4X3/8" STEEL ANGLE. SEE STR DWGS. NEW PARAPET METAL CAP THROUGHOUT. TYP COMPRESSIBLE FILLER. SEE STR DWGS. METAL FLOOR DECK. SEE STR DWGS. EXISTING ROOF SLAB TO REMAIN. BRICK VENEER 1" AIR GAP 2" RIGID INSULATION WATERPROOFING MEMBRANE 10" CONCRETE SHAFT. SEE STR. DWGS. 1/2" PTD. CORRUGATED METAL 1" FURRING STRIP 2" RIGID INSULATION WATERPROOFING MEMBRANE 10" CONCRETE SHAFT. SEE STR. DWGS. SHEET MTL FLASHING & COUNTER FLASHING, TYP. BRICK TIES 10" CONCRETE ELEVATOR SHAFT. SEE STR DWGS. 1" Z FURRING STRIP SHEET MTL FLASHING & COUNTER FLASHING, TYP. PASSENGER ELEVATOR SHAFT GURNEY ELEVATOR SHAFT GURNEY ELEVATOR BULKHEAD PASSENGER ELEVATOR BULKHEAD MECHANICAL SHAFTWAY STAIRWAY SHAFT NEW PARAPET METAL CAP THROUGHOUT. TYP 1/2" PTD. CORRUGATED METAL 1" FURRING STRIP 2" RIGID INSULATION WATERPROOFING MEMBRANE 3/4" SHEATING 6" LIGHT GAUGE MTL STUDS. SEE STR DWGS. BATT INSULATION 1" MTL FURRING 3/4" GYP BOARD 1" Z FURRING STRIP SHEET MTL FLASHING & COUNTER FLASHING, TYP. 04 A503 EXISTING ROOF SLAB TO REMAIN. Professional | 11 Section Detail | Bulkhead

E.Q. E.Q. E.Q. E.Q. CT2 3'-6" VIF 3'-10" VIF 3'-10" VIF 12'-2" VIF 3'-9 1/2" VIF CL 3'-6" 9" CL 3'-6" 9" 11'-9" 11'-9" 4'-0" FUTURE FLOOR SIGNAGE LOCATION WALL WASH. SEE LIGHTING SCHEDULE, LT2 CL WD1 4'-6" 10" 5'-6" 2'-6" 9'-11" VIF MT1 P3 P3 MT3 8" MT1 MT1 MT1 WD1 WD1 37'-0 1/2" VIF RECESSED LED TAPE LIGHT. LT1 3/4" PLYWOOD BLOCK AS REQD. 8" 3" ELEVATOR DOOR SIGNAGE ELEVATOR DOOR SIGNAGE LED STRIP UNDERNEATH, LT6 LOW OUTPUT WALL MOUNTED LINEAR FIX BY ELITE LIGHTING,LT7 MT1 CEILING PAINT, P1. SEE A-603 FLOOR, CT1. SEE A-603. 11'-9" VIF Int. Elevation 1st Floor Lobby

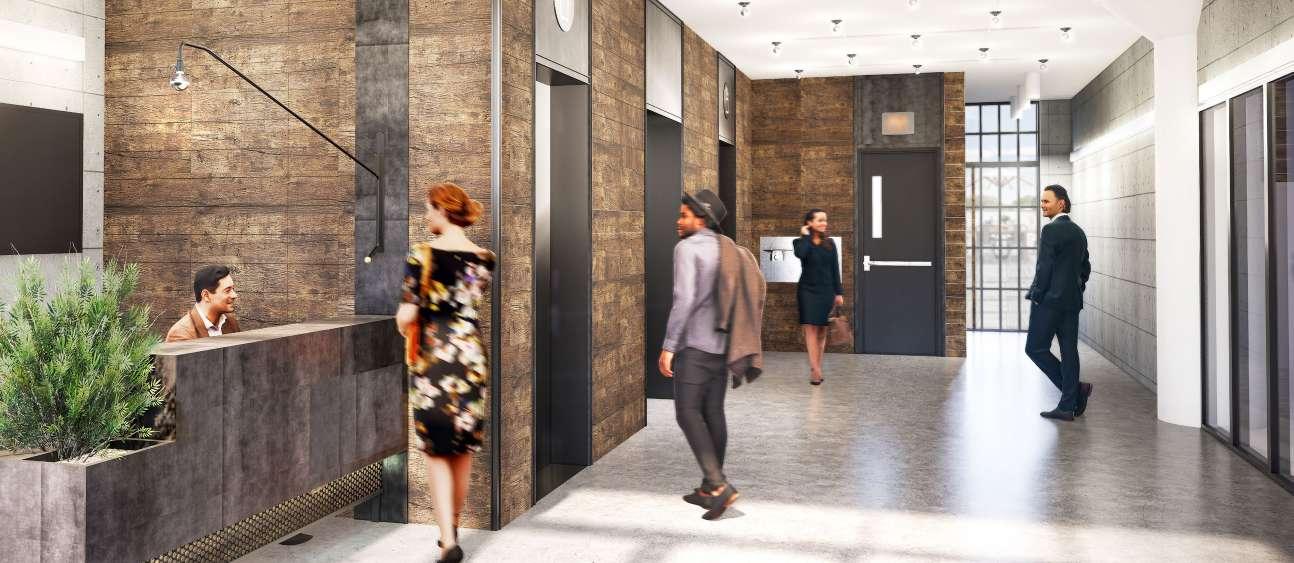

by: Input Creative Studio | 1st Floor Lobby

Renderings

FIN. FLOOR 0'-0" T.O. DOOR 8'-0", TYP. 6" VIF 3'-0" VIF 6" VIF 4'-2" VIF 19'-6 1/2" VIF 9'-2" VIF CT2 P1 CT2 ELEVATOR DOOR SIGNAGE ELEVATOR DOOR SIGNAGE MT1 CEILING PAINT, P1. SEE A-603 FLOOR, CT1. SEE A-603. P1 11'-9" VIF 4'-2" VIF 6" VIF 3'-0" VIF 6" VIF Professional | 13

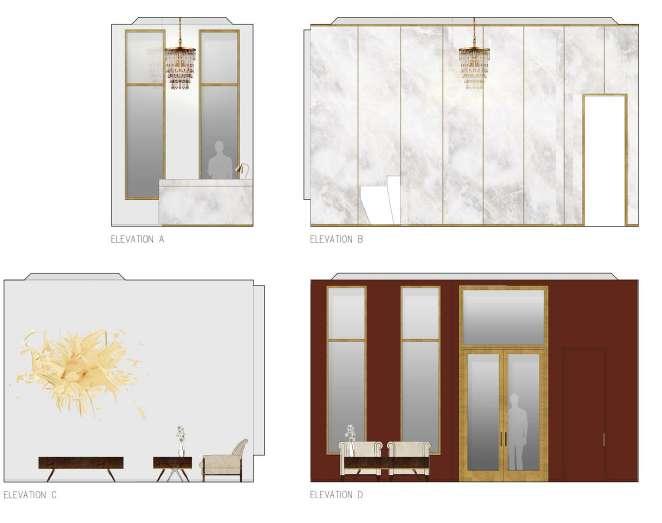

Int. Elevation | Typ. Floor Lobby

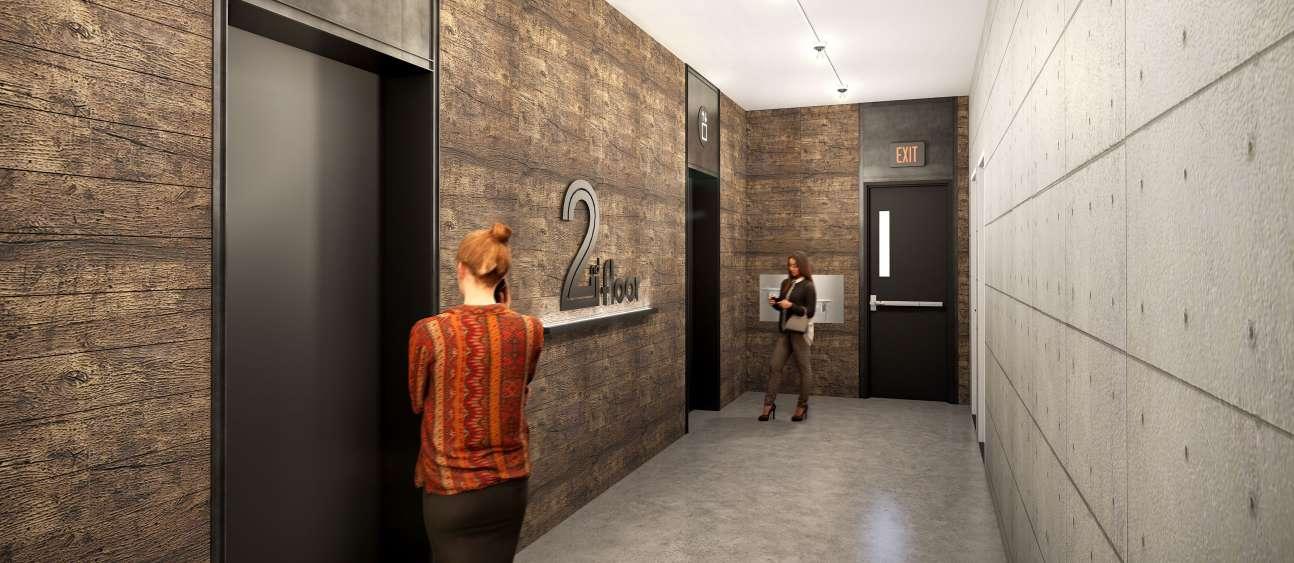

Renderings by: Input Creative Studio | Typ. Lobby

UPPERCUT STUDIOS

MURDOCK SOLON ARCHITECTS

BUILDING TYPE: COMMERICIAL | OFFICE

S.F.: 3,845

LOCATION: NEW YORK

PHASE: DESIGN DEVELOPMENT, CONSTRUCTION DOCUMENTS

ROLE: ARCHITECTURAL DESIGNER UNDER PM SUPERVISION

INVOLVEMENT: 3D MODELLING, CONSTRUCTION DOCUMENT SET PRODUCTION, FINISHES / LIGHTING / APPLIANCE RESEARCH & DESIGN, CONSULTANT COORDINATION

SOFTWARES USED: AUTOCAD, RHINOCEROS, DRAWBOARD, ZOOM, GOTOMEETING, ADOBE SUITE

7 WEST 18TH STREET : MULTI-MEDIA OFFICE

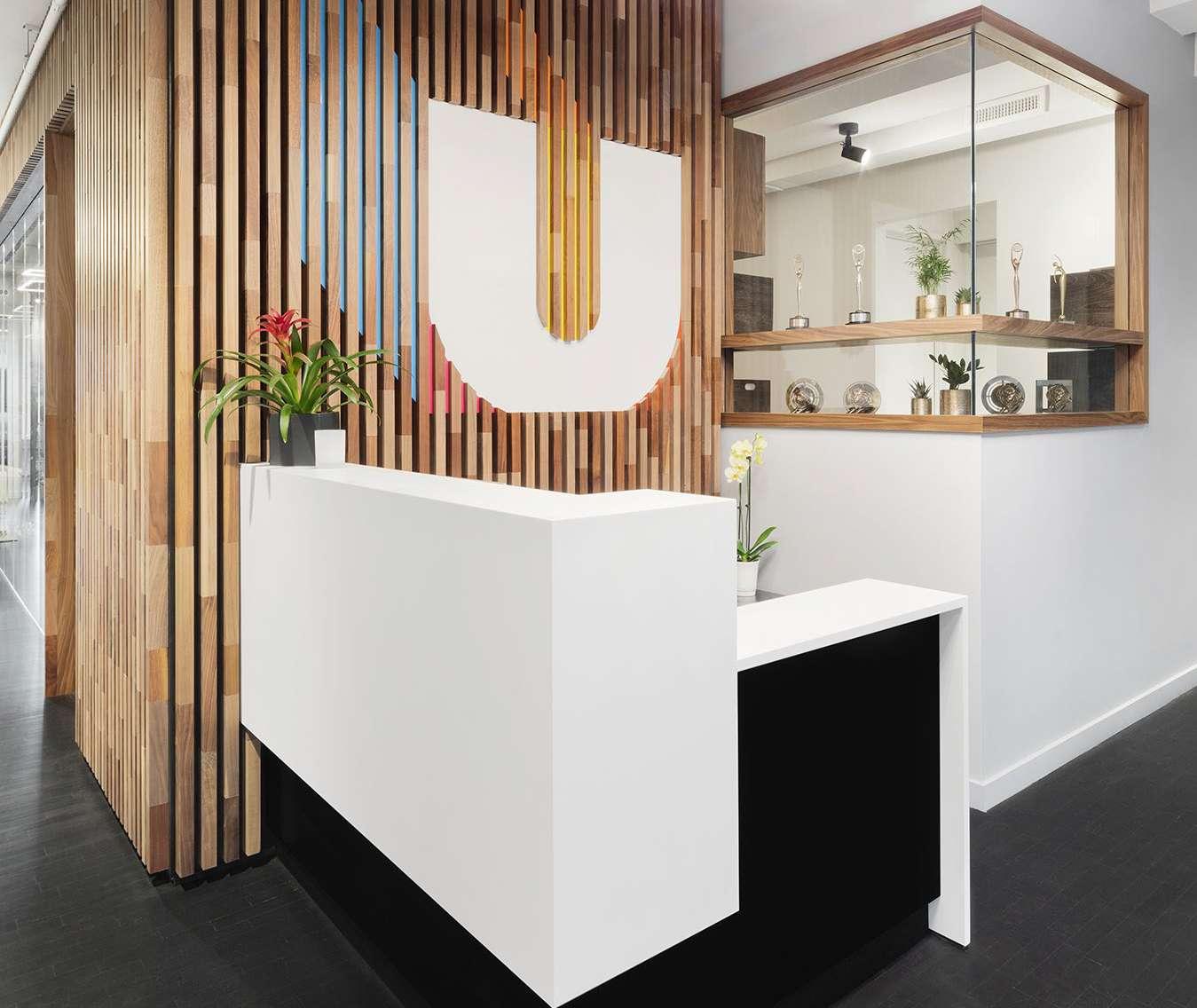

Photography by: Emily Sidoti | Front Desk

30" REF. DW DW ICE STORAGE. CL 4 CL 3 CL 2 CL 1 CL B CL A B A CL CL DN UP DN UP ADJACENT BUILDING: LOT 31 ADJACENT BUILDING: LOT 36 FREIGHT PASSENGER STORAGE. STORAGE. STORAGE. OVEN/ MICRO ADA SINK 30" REF. 30"X48" 24"x30" RACK 24"x30" RACK shelves WINE 5'-2 1/2" 4'-4 1/4" 5'-0 1/4" 4'-7 1/2" 3'-0" 12'-0" 5'-5" 9'-7 1/2" 18'-8 3/4" EDIT RM 02 820 EDIT RM 03 819 BATH 818 BATH 817 LOUNGE 811 RECEPTION 808 EDIT RM 01 801 EDIT RM 04 814 PANTRY 813 EDIT RM 05 812 EDIT RM 06/FLAME RM 805 MACHINE RM 804 EDIT RM 07 802 MECH RM 816 NO WORK PRODUCTION 807 6'-8 1/2" 17'-10 1/4" 14'-4 1/2" 16'-4 1/2" 19'-10 1/2" 16'-0" 5'-7" 9'-4" 6'-6" 5'-9" 6'-1" 7'-1" 7'-10" 5'-4 1/2" 16'-11 1/2" 16'-9" FOYER 803 TRASH RM EX. PROD. 01 809 EX. PROD. 02 810 1'-0" 7'-4" 9'-3 1/2" 3'-9" 6'-0" 11'-5 3/4" 12'-7 1/2" 48'-7" 79'-8" 18'-10 1/4" 5'-5 1/4" 12'-3 1/2" 11'-4" 8'-8 1/2" 18'-0" 12'-8" 14'-2" 15'-3 1/4" 3'-8" 02 A200 2E 1N A303 3S 4W 6E 5N A303 7S 8W 01 A300 05 A304 06 07 2E 1N A305 3S 4W 2E 1N A304 3S 4W BREAKOUT RM. 815 01 A200 01 A201 03 A201 D.01 D.23 D.20 D.21 D.16 D.13 D.14 D.12 D.11 D.07 D.06 D.05 D.03 D.02 D.09 D.10 01 01 03 02 03 01 01 3'-2 3/8" 13'-7 3/4" D.04 D.00 D.24 D.15 D.17 D.19 D.18 LINE OF BEAM ABOVE LINE OF BEAM ABOVE D.08 CLOSET 821 MECH. CLOSET 806 D.22 STAIR A 800 NO WORK 4'-4" 01 ACCESS PANEL DOOR. NEED OF NEW ACCESS PANEL TO BE COORDINATED W/ BLDG MANAGEMENT/ ENGINEERS. 3'-2 1/4" 04 04 01 04 02 03 02 03 04A 04 04 WD-02 WD-02 MTL-01 MTL-01 T-01 T-01 PATCH AND SKIMCOAT WALL GC TO BUILD CONTINUOUS RECESS IN SHELVING FOR STONE SHELF AND TACKBOARD. ONLY MILLWORK TO BE SUPPLIED BY OTHERS. REFER TO ELEVATIONS 01 A307 01 A306 01 A202 02 A201 04A Floor Plan | 8th Floor

Professional | 17

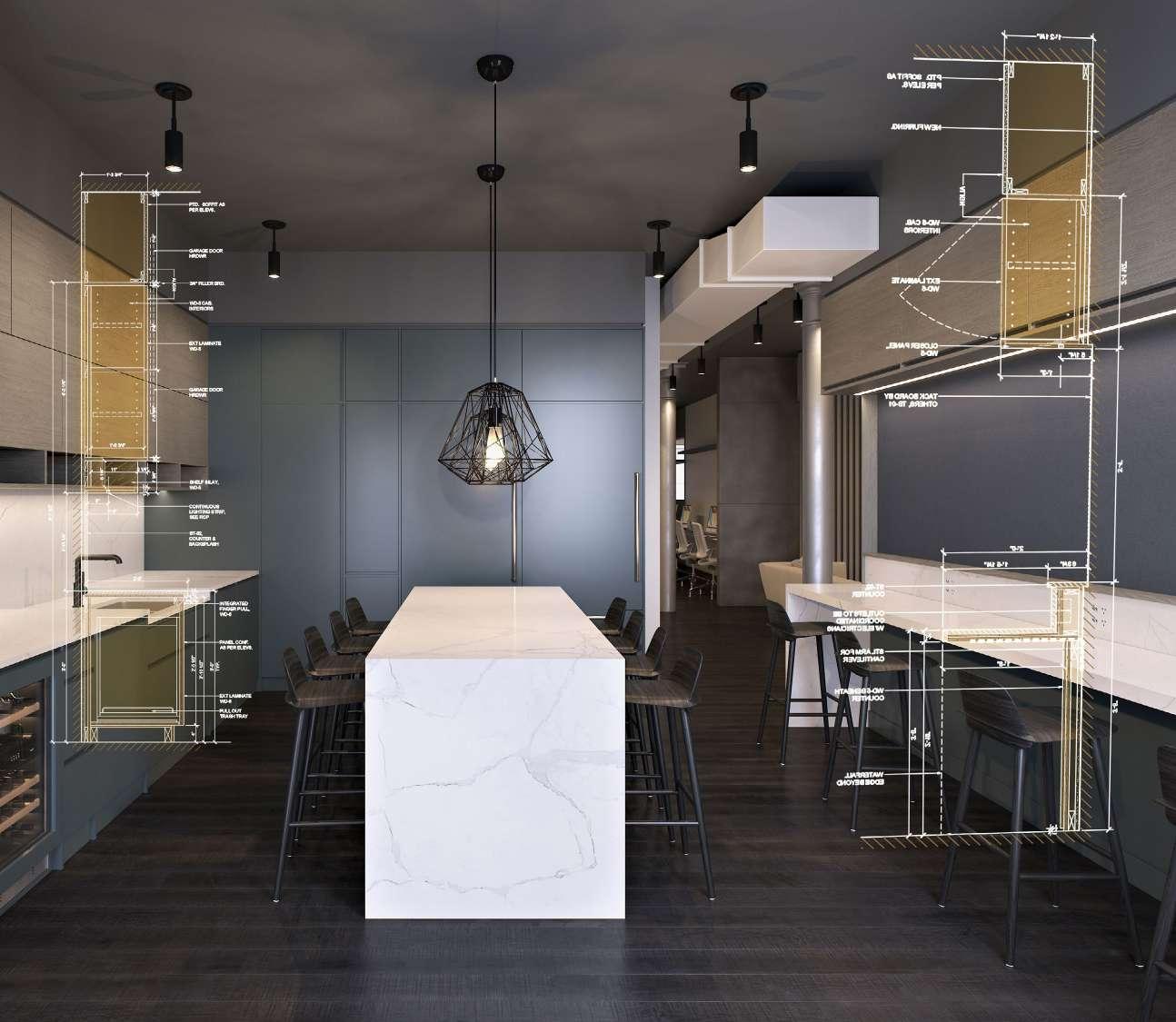

Base Rendering by: 1Equals2 Millwork Dtls | Pantry

Section Rendering Hybrid by: Wil D. Adames

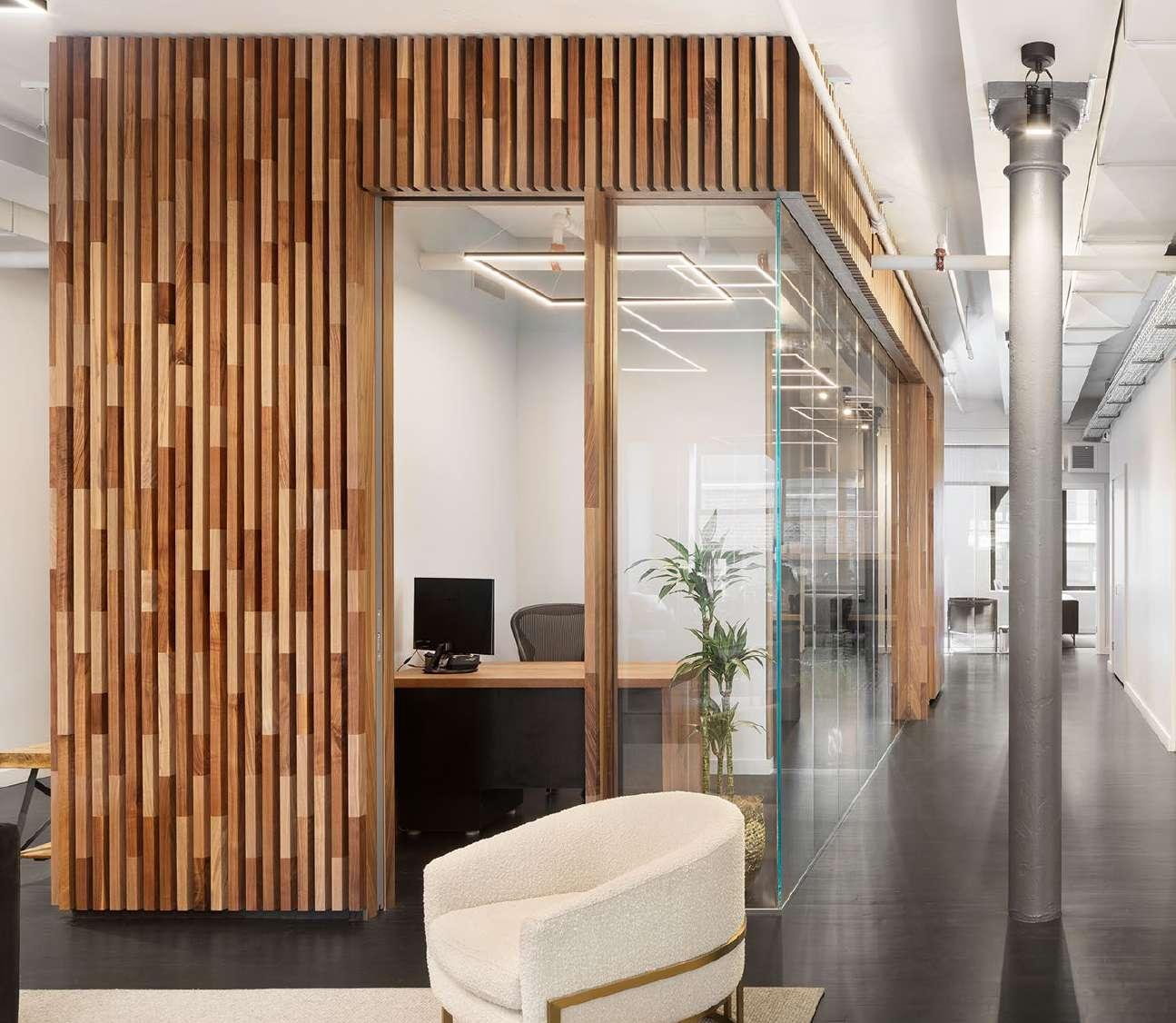

Photography by: Emily Sidoti | Lounge

SCALE: 02 WALL CONDITION_B 1-1/2"=1'-0" SCALE: 01 WALL CONDITION_A 1-1/2"=1'-0" SCALE: 03 WALL CONDITION_C 1-1/2"=1'-0" SCALE: 04 WALL CONDITION_D 1-1/2"=1'-0" 3/8" EXTERIOR B.O. SLAB 11'-10" A.F.F. DATUM 9'-0" A.F.F. 0'-0" A.F.F. B.O. BEAM 10'-4" A.F.F. RECEPTION RM 808 PRODUCTION RM 807 T.O. SHELF 7'-3" A.F.F. T.O. DESKTOP 2'-6" A.F.F. T.O. MTL. SILL 4'-6" A.F.F. SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. EX. PROD. 01 RM 809 EX. PROD. 02 RM 810 RECEPTION RM 808 PRODUCTION RM 807 EX. PROD. 01/02 INTERIOR EXTERIOR EX. PROD. 01/02 INTERIOR 10 3/4" 1'-1 1/2" 10 3/4" 1'-2 1/2" 10 3/4" 10 3/4" 1'-10" 1/2" 1'-11" 1'-11" 1'-1" 2 1/4" 2" CL 4" SEE PLAN 1'-3 3/4" 2 1/2" 2 1/2" SEE PLAN 1/2" SEE ELEVATION CL 4" 4 1/2" SCALE: 05 WALL CONDITION_E 3"=1'-0" SCALE: 07 CORNER CONDITION_B 1-1/2"=1'-0" SCALE: 06 CORNER CONDITION_A 1-1/2"=1'-0" SCALE: 08 CORNER CONDITION_C 1-1/2"=1'-0" SCALE: 09 POCKET DOOR DONDITION 1-1/2"=1'-0" SCALE: 10 CORNER CONDITION_C 1-1/2"=1'-0" SEE WALL TYPE SCHDL. PRODUCTION RM 807 EXTERIOR SEE WALL TYPE SCHDL. PRODUCTION RM 807 EX PROD. 01 RM 809 RECEPTION RM 808 SEE WALL TYPE SCHDL. EX PROD. 01 RM 809 RECEPTION RM 808 EX PROD. 01 RM 809 EXTERIOR EXTERIOR EX PROD. 02 RM 810 2" 6" CL CL SEE DOOR SCHDL. 1/2" REVEAL 2" WOOD VENEER, WD-3 REVEAL DETAIL @ 3"=1'-0" REVEAL DETAIL @ 3"=1'-0" REVEAL DETAIL @ 3"=1'-0" 1/4" 1/2" REVEAL METAL CLADDING MTL-01 METAL CLADDING ADHESIVE 5/8" GWB 3/4" PLYWOOD BACKING BATT INSULATION PTD. GWB. SEE FINISH SCHEDULE 1/2" REVEAL METAL WINDOW FRAME. MTL-01 PTD. GWB. SEE FINISH SCHEDULE PTD. GWB. SEE FINISH SCHEDULE PTD. GWB. SEE FINISH SCHEDULE PTD. GWB. SEE FINISH SCHEDULE WOOD SHELF. WD-3 1/2" REVEAL CHANNEL PTD. TO MATCH WALL FINISH. SEE FINISH SCHDL. 1/2" REVEAL CHANNEL PTD. TO MATCH WALL FINISH. SEE FINISH SCHDL. 1/2" REVEAL CHANNEL PTD. TO MATCH WALL FINISH. SEE FINISH SCHDL. METAL CLADDING MTL-01 METAL WINDOW FRAME. MTL-01 METAL CLADDING MTL-01 2" GROMMET 18" RAKK, ACC-4 PAINT TO MATCH WALL. SEE FINISH SCHDL. PTD. WOOD FRAME TO MATCH WOOD CLADDING. SEE FINISH SCHDL. 1/2" REVEAL 1/2" REVEAL 1/2" REVEAL 1/2" REVEAL SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. SEE WALL TYPE SCHDL. PAINT TO MATCH WALL. SEE FINISH SCHDL. 1"X1-1/2" WOOD CLADDING WD-02 SCREW FASTENING AS REQUIRED 1/2" WOOD BOARD STAINED TO MATCH WD-02 LINE OF 2"X2" CLADDING BEYOND MTL CHANNEL FOR 1/2" GLASS 1/2" GLASS. SEE FINISH SCHDL. GL-1 PTD. WOOD DOOR. SEE FINISH SCHDL. PTD. WOOD DOOR. SEE DOOR SCHDL. 1/2" GLASS. SEE FINISH SCHDL. GL-1 POCKET DOOR MECHANISM. SEE HRDWR SCHDL. METAL CLADDING MTL-01 LINE OF SHELF. SEE ELEVATION. LINE OF SHELF. SEE ELEVATION. LINE OF SHELF. SEE ELEVATION. 3/4" 1" PTD. GWB. SEE FINISH SCHEDULE PTD. GWB. SEE FINISH SCHEDULE 3/4" PLYWOOD BACKING. BATT INSULATION WOOD SHELF. WD-3 WOOD SHELF. WD-3 BLOCKING AS REQ'D FINISH TO MATCH WD VENEER, WD-3 FINISH TO MATCH WD VENEER, WD-3 CONTINUOUS METAL FRAME. MTL-01 DOOR FRAME TO BE COORDINATED WITH ABOVE WOOD CLADDING LOCATION. PTD. 1/4" REVEAL TO MATCH WALL. SEE FINISH SCHDL. WD DOOR FRAME PTD. TO MATCH WOOD CLADDING ABOVE. 3" 7" 1 1/2" SCREW FASTENING AS NECESSARY. 1"X1-1/2" WOOD CLADDING WD-02 1/2" WOOD BOARD STAINED TO MATCH WD-02 METAL CLADDING MTL-01 PTD. WOOD FRAME TO MATCH WOOD CLADDING. SEE FINISH SCHDL. PTD. WOOD FRAME TO MATCH WOOD CLADDING. SEE FINISH SCHDL. PTD. GWB. SEE FINISH SCHEDULE POCKET DOOR MECHANISM. SEE HRDWR SCHDL. POLYMER STRIP AT JAMB. BUTT JOINT. 1/2" GLASS. SEE FINISH SCHDL. GL-1 1/2" GLASS. GL-1 METAL BASE, B-4 METAL BASE, B-4 METAL BASE, B-2 METAL BASE, B-2 1 2 1 4 VERTICAL SUPPORT @ WOOD SHELVES. MTL-3 MW-8 MW-7 MILLWORK AS PER SCHDL. SUPPLIED BY OTHERS, INSTALLED BY GC. GC TO PROVIDE WALL, GLASS; AND COORDINATE INSTALLATION. Professional | 19 Millwork Dtls | Office

SQUASH BARN

MURDOCK SOLON ARCHITECTS

BUILDING TYPE: RESIDENTIAL | WELLNESS HYBRID

S.F.: 3,954

LOCATION: MAINE

PHASE: DESIGN DEVELOPMENT, CONSTRUCTION DOCUMENTS

ROLE: ARCHITECTURAL DESIGNER UNDER PM SUPERVISION

INVOLVEMENT: 3D MODELLING, CONSTRUCTION DOCUMENT SET PRODUCTION, FACADE / GLAZING RESEARCH & DESIGN, CONSULTANT COORDINATION

SOFTWARES USED: AUTOCAD, RHINOCEROS, PHOTOSHOP, GOTOMEETING, ADOBE SUITE

14 HARBOR WATCH: SPORTS / RESIDENTIA L

1Equals2

Rendering by:

8'-0" 12'-0 1/4" A 1 CL CL CL CL CL CL LC LC LC LC LC B C D 2 3 4 4.5 1 2 3 4 4.5 CL CL CL REF. RNG. 90" T.V. D EBATHROOM SI N K F A UCET METAL D E7 BATHROOM SI N K F A UCET METAL DW BAR OVEN PAN. DW DN UP H.B. 22'-0" 19'-3 3/4" 21'-3 3/4" 4'-11 1/2" 3'-3 1/2" 3'-3 1/2" 55'-11 1/2" 5'-0 1/2" 5'-5" 8'-2 1/2" 36'-11 1/2" FAMILY ROOM 102 KITCHEN 101 DINING ROOM 100 LIVING ROOM 104 SQUASH COURT 103 GYM 105 BATHROOM 1 107 BATHROOM 2 108 19'-4" 1'-6 1/4" 62'-4 3/4" OUT-TO-OUT 1'-6 1/4" 18'-0" 18'-0" 18'-0" 57'-0 1/2" OUT-TO-OUT EXPOSED TRUSS ABOVE SEE ELEV. FOR WINDOW HEIGHT ROOF ABOVE TERRACE ELEV:. +1'-0" 7'-6" MUDROOM 106 LANDING A.F.F. ELEV:. +1'-0" 3'-4" 11'-0" 3'-4" 3'-2" 3'-4" 9'-0" 2'-0" 2'-6" 5'-7 1/2" 4'-4" 48" LOW WALL 8'-10 1/2" 1'-6" 1'-2 3/4" 4'-11 3/4" 2'-7 1/4" 3'-0" 1'-0" 2'-0" 3'-4" 2'-0" 2'-6" 2'-9 1/4" 3'-6 1/2" 10" 1'-8" 2'-10" 4'-6" PROPOSED TRASH/RECYCLING SHOOT LOCATION MECHANICAL EQUIPMENT. SEE MECH DWGS. EXPOSED TRUSS ABOVE EXPOSED TRUSS ABOVE EXPOSED TRUSS ABOVE EXPOSED TRUSS ABOVE EXPOSED TRUSS ABOVE 5'-3 3/4" 6'-2 1/2" MIRROR WALL PROPOSED TRASH RECEPTICLE LOCATION 1'-7 1/2" 3'-4 1/8" 1'-8 5/8" 3'-3 1/8" 1'-4 1/8" 1'-4 1/8" 1'-4 1/8" STEEL POST FOR GLASS DOOR LATERAL LOAD. SEE STRUCTURAL DRAWINGS FOR MORE INFO, TYP. A702 01 10 09 08 07 06 05 04 03 02 01 100.1 101.1 105.2 105.3 100.2 104.1 105.1 106.1 108.1 107.1 107.2 107.3 108.2 108.3 103.1 01 A400 01 A402 04 03 07 04 06 2'-0" 22'-0" 18'-8" 18'-8" 1'-6 1/2" 04 05 03 GLASS BACKWALL BY ANDERSON COURTS 02 WOOD FLOORING BY ANDERSON COURTS CHASE FOR MECHANICAL DUCTS HVAC LINEAR GRILL PER MECH. HVAC LINEAR GRILL PER MECH. 2E 1N A404 3S 4W 01 A301 01 A300 01 A302 6'-1 1/4" 6'-9 1/2" 1'-8 3/4" 1'-8 1/2" 13'-8 3/4" 01 A401 ROOF BELOW RETAINER WALL. SEE STRUCT. DWGS. RETAINER WALL. SEE STRUCT. DWGS. MW-8 A700, A701 MW-6 A701 MW-4 A701 MW-10 A700 MW-9 A700 MW-7 A701 MW-5 A701 WD-01 WD-02 WD-01 WD-01 WD-01 WD-01 WD-01 WD-04 A703 02 A703 01 1'-11" 1'-11" 18'-4 1/2" 8'-0" 12'-0 1/4" 12'-0" VANISHING EDGE LAP POOL 01-02 A503 12'-0 1/4" 75'-0" 3'-11 1/2" 1'-6" 106.2 MW-11 A702 VESUVIO 110 OUTDOOR PIZZA OVEN BY FORNO BRAVO 02 A406 01 A406 ST-03 ST-03 WD-04 01-02 A505 Floor Plan | 1st Floor Front Facade

3" 2'-8 1/4" 5'-0 5/8" 8'-47/8" 2'-71/8" 11'-33/8" 2'-71/4" 4'-23/4" 4'-15/8" SCALE: 03 SLIDING DOOR ELEVATION_BELLOW UPPER WINDOW 1/2"=1'-0" SCALE: 04 UPPER WINDOW ELEVATION_ABOVE SLIDING DOOR 1/2"=1'-0" 7'-3 5/8" 2'-4" 3" 3'-9 3/8" 3'-8 3/8" 2'-4" 3'-9 3/8" 3'-8 3/8" 3/8" 3/8" 3/8" 3" 15'-0 3/4" 20'-2 5/8" 01 A502 07 A501 05 A502 02 A502 104.1 SEE DOOR SCHDL SEE DOOR SCHDL 14 13 20 19 15 16 17 18 SCALE: 05 UPPER WINDOW @ SLIDING DOOR DTL 3"=1'-0" EXTERIOR LIVING ROOM 1" SCREEN FRAME BY MARVIN WINDOW ASSEMBLIES BY MARVIN 1X PTD TRIM FLASHING WINDOW ASSEMBLIES BY MARVIN MARVIN CLAD ULTIMATE MULTI SLIDE DOOR WITH SCREENCMMSD20080 MULLION CAP TO MATCH MARVIN WD FINISH. 6 3/4" 4 1/2" 1" 1" 5" 3 3/4" 1" 4 3/4" SEE A502, #6 SEE A502, #6 HSS 5x3x1/4, PER STRUCTURAL 1X PTD TRIM 1X PTD TRIM FLASHING MINIMUM REQ. FOR INSTALLATION SCALE: 01 WINDOW GLASS JAMB DTL. 3"=1'-0" - CEDAR SHAKE SIDING - WATERPROOFING MEMBRANE - 3/4" EXTERIOR GRADE PLYWOOD - 2x6 WOOD STUDS, 16" O.C. - CLOSED CELL SPRAY FOAM INSULATION - 5/8" SHEETROCK FIRECODE C CORE GYPSUM PANELS (ON INTERIOR SIDE) - VERIFY FINISH MATERIAL WITH INTERIOR ELEVATIONS HSS 5x3x1/4, PER STRUCTURAL WINDOW ASSEMBLIES BY MARVIN SEE A502, #6 SEE A502, #6 SEE A502, #6 1/2" 5 5/8" SEE A502, #6 SEE A502, #6 SEE A502, #6 HSS 5x3x1/4, PER STRUCTURAL EXTERIOR INTERIOR 6 11/16" 4 1/2" 1 1/8" 1 1/8" 4 5/8" 5 5/8" 4 5/8" 16" O.C. 16" O.C. MULLION CAP TO MATCH MARVIN WD FINISH. 1/2" 1/2" 1/2" 1/2" Z BEAD REVEAL 1/2" Z BEAD REVEAL 1X PTD TRIM 1X PTD TRIM CEDAR SHAKES SIDING SEE PARTITION TYPES EXTERIOR LIVING ROOM 1/2" LEVELING SHIMS (3) 14" LVL PER STRUCTURAL WATERPROOFING MEMBRANEBY DELTA FASSADE OR APPROVED EQ SCALE: 02 LIVING ROOM SLIDING DOOR 3"=1'-0" HEAD AND SADDLE DETAIL @ 4 1 8 1x3 TRIM PTD FLASHING WALL MTD COVE LIGHT, SEE LIGHTING PLANS GWB, PAINTED MARVIN CLAD ULTIMATE MULTI SLIDE DOOR WITH SCREEN CMMSD20080 BR METAL PAN OVER W.P. 3/4" EXT GRADE PLYWOOD FUR OUT LEVELING SHIM FLASHING BEAD OF CAULK WD THRESHOLD TO MATCH FLOOR FINISH Professional | 23 Window Dtls | Front Facade

WOOD SHINGLE, WATERPROOFING MEMBRANE, 1/2" PLYWOOD ROOF SHEETING, 5-1/2" RIGID INSULATION, 1/2" PLYWOOD ROOF SHEETING, 3" LAMINATED DECKING, 5"X6-7/8" GLULAM SCISSOR TRUSS

KITCHEN 101 VARIES GRADE 12 3 12 6 CL 9'-0" 4'-5" 8'-10" SQUASH COURT 103 1'-7"

PLAY

3'-0" 4'-0" 6'-0" 15'-0" OUTDOOR BRICK PIZZA OVEN

TRASH ROOM B-06 SPACE B-01

INSULATION 01 A300 01 A302

ELEV @ 50.10 11'-6 3/4" A.F.F./T.O. ROOF EAVE ELEV @ 28.10 - 10'-4 3/4" A.F.F. / BASEMENT ELEV @ 64.45 25'-11 1/4" A.F.F./T.O. ROOF ELEV @ 58.55 20'-0 1/2" A.F.F./T.O. ROOF EAVE ELEV @ 38.50 0'-0" A.F.F. / 1ST FL ELEV @ 55.15 16'-7 3/4" A.F.F./T.O. ROOF ELEV @ 48.70 10'-2 1/2" A.F.F./T.O. BEAM ELEV @ 56.95 18'-5 1/2" A.F.F./T.O. COLM-U.S. TRUSS ELEV @ 54.30 15'-9 3/4" A.F.F./RAFTER WORK POINT ELEV @ 63.50 25'-0" A.F.F./T.O. TRUSS 18'-6" MIN CLNG HGHT A B ROOF MAKEUP:

2'-0" 1'-7 1/2" LINE OF BEYOND 01-02 A503 01 A500 Cross Section | 01/A300 Section Dtl | 03/A500

CLOSED CELL SPRAY FOAM

PTD. GWB B05.1 B01.2

107.1 108.1 MUDROOM 107 02 A500 CLOSED CELL SPRAY FOAM INSULATION MIRROR WALL 10'-2 1/2" B01.3 C D ROOF MAKEUP: WOOD SHINGLE, WATERPROOFING MEMBRANE, 1/2" PLYWOOD ROOF SHEETING, 5-1/2" RIGID INSULATION, 1/2" PLYWOOD ROOF SHEETING, 4" LAMINATED DECKING, 5"X16-1/2" GLULAM JOIST 04 A500 03 A500 05 A500

ROOF TRUSS DESIGN DTLS. OF SOFFIT BEYOND SEE A-505 FOR POOL DTLS. 10" 1'-2" 8'-0" 10" 2'-0" 10" ELEV @ 33.00 -5'-6" A.F.F. / B.O. LAP POOL 106.2 SCALE: 05 SCALE: 06 1 1/2"=1'-0" SLIDING DOOR BY MARVIN. SEE A-501 FOR DETAILS. 5X17 8 GLULAM BEAM. SEE STRUCT. 6X6 PSL WINDOW HEAD. SEE STRUCT. SPRAYED FOAM INSULATION 2 X WD BLOCK 5X16-1/2" GLULAM RAFTER (EXPOSED EAVE) WATERPROOFING MEMBRANE, TYP. SHINGLE SHAKE SIDING SEE. ELEV. INTERIOR EXTERIOR 3'-0" DRIP EDGE - WOOD SHINGLE - WATERPROOFING MEMBRANE - 1/2" PLYWOOD ROOF SHEETING - 5-1/2" RIGID INSULATION - 1/2" PLYWOOD ROOF SHEETING - 3" LAMINATED DECKING - 5"X16-1/2" GLULAM JOIST Professional | 25

SEE STR. DWGS FOR

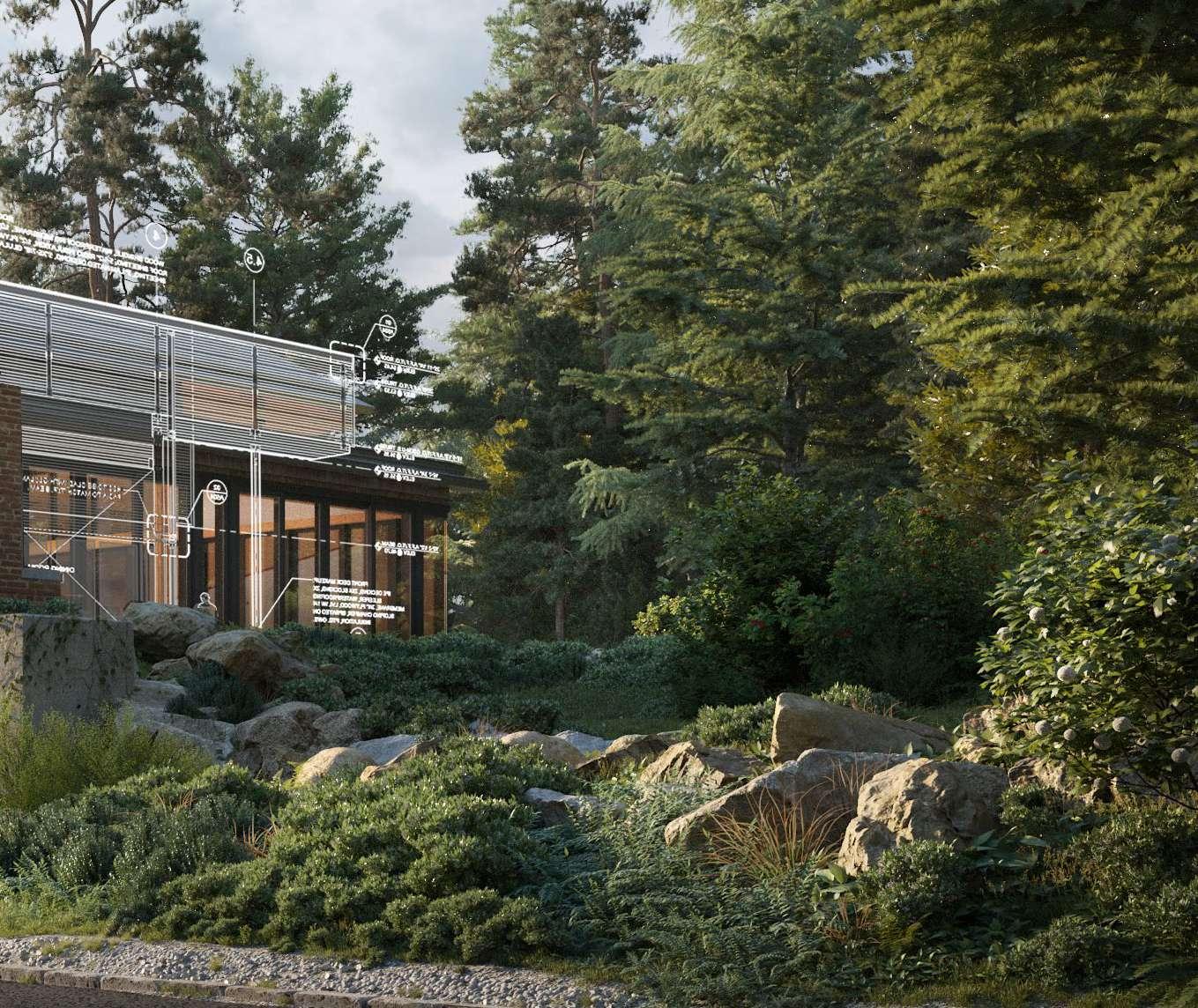

Section | Rear Approach Base Rendering by: 1Equals2 Section Rendering Hybrid by:

Wil D. Adames

Professional | 27

BUILDING 5

ROMINES ARCHITECTURE

BUILDING TYPE: RESIDENTIAL

LOCATION: BROOKLYN

PHASE: DESIGN DEVELOPMENT TO CONSTRUCTION DOCUMENT

ROLE: ARCHITECTURAL DESIGNER

INVOLVEMENT: 3D MODELLING, CONSTRUCTION DOCUMENT SET PRODUCTION, FACADE / GLAZING RESEARCH & DESIGN, CONSULTANT COORDINATION

SOFTWARES USED: AUTOCAD, SKETCHUP, PHOTOSHOP, ILLUSTRATOR, ACROBAT

347 HENRY ST : HIGH END RESIDENTIAL

S.F.: 20, 657

Rendering by: Williams New York

Rendering by: Williams New York | West Facing Facade

KEY NOTES GENERAL NOTES LEGEND Professional | 31 Ext. Elevation | East Facing Facade

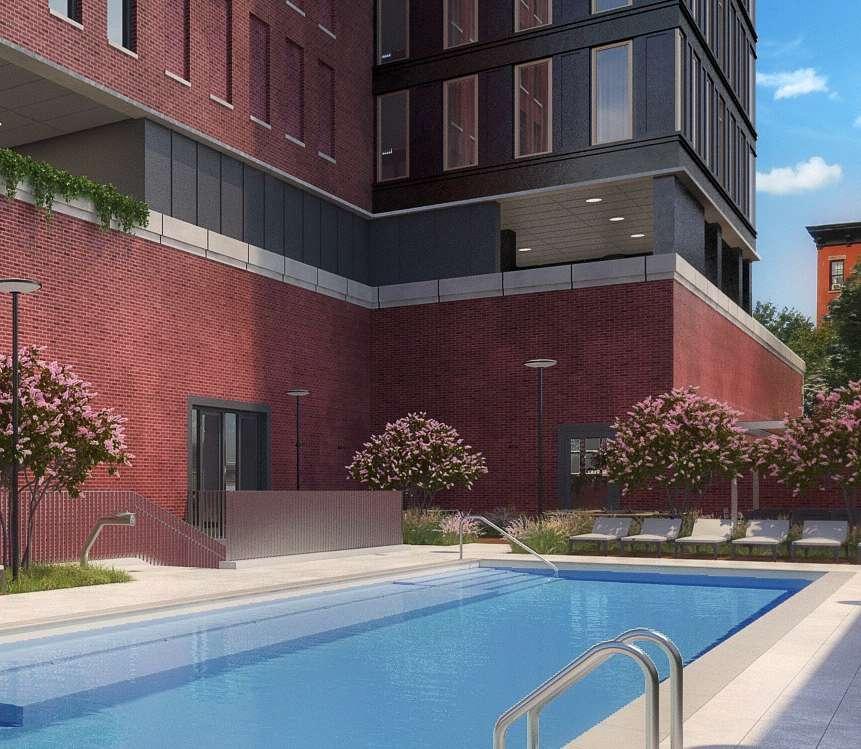

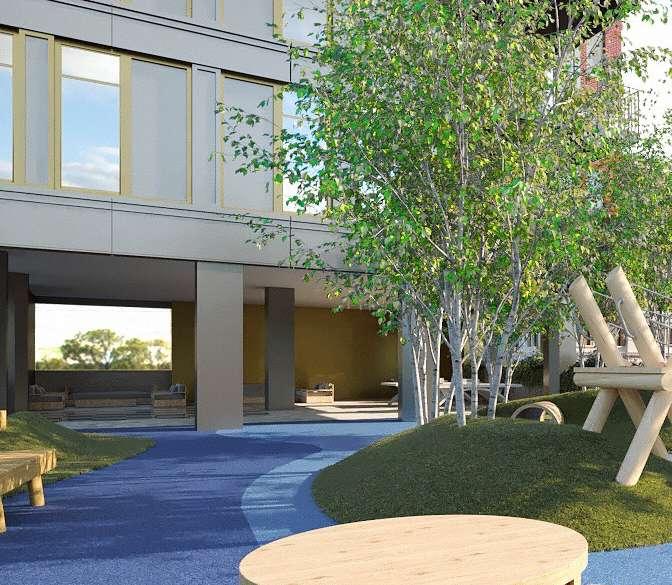

Rendering by: Williams New York | South Facing Facade + Playground

Professional | 33 Window + Cladding Dtls | Metal Facade

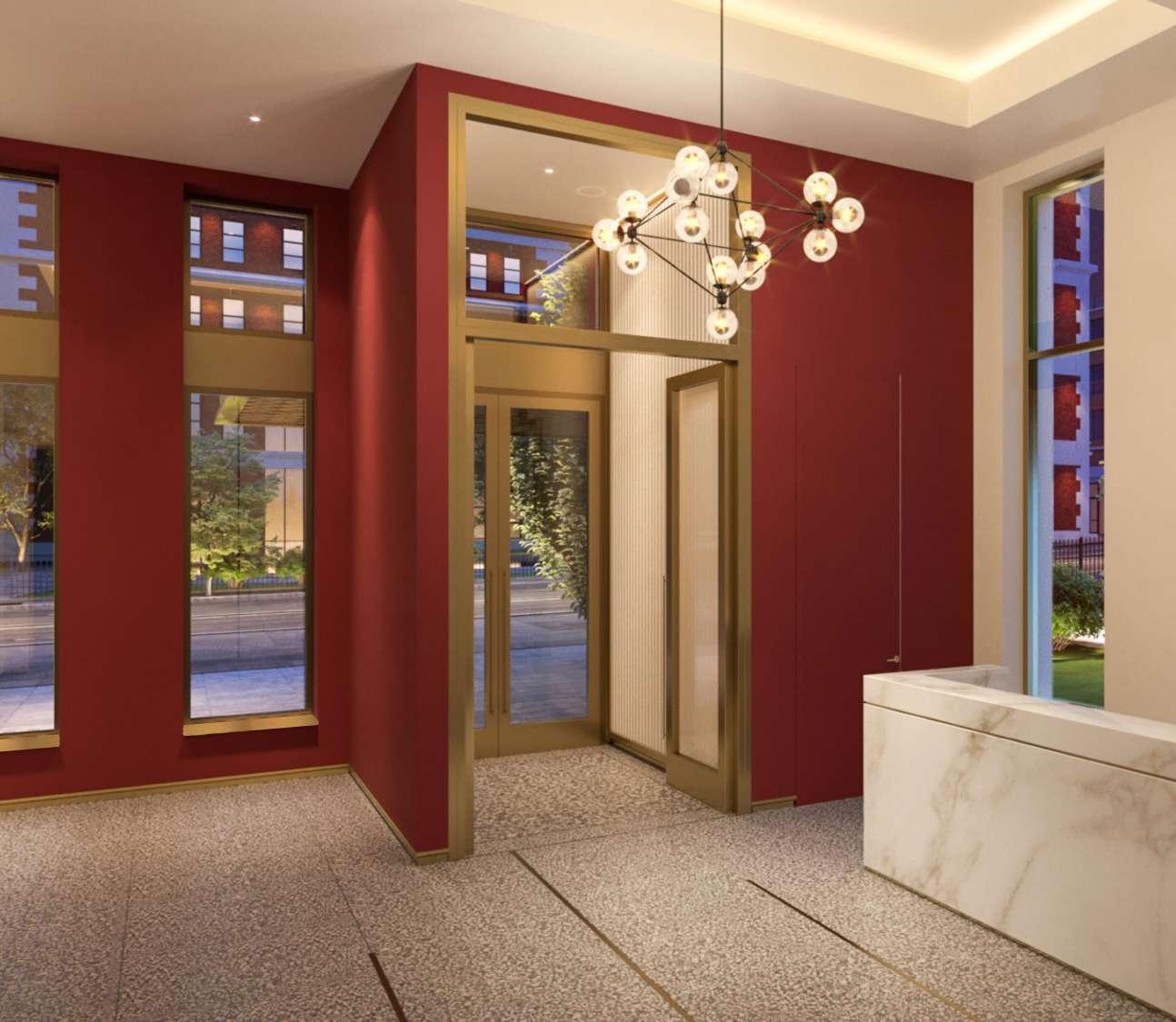

Rendering by: Williams New York | Lobby

04.05.2017 LICH Building 5, Brooklyn, 55 Washington Street, Suite 709 ROMINES ARCHITECTURE PLLC grouNd FL LoBBY 102 CoNCIerge vestIBuLe 101 HALLwAY 104 Professional | 35 Int. Elevation + Plan Lobby

Floor Plan | 3rd-7th Floor 1 2 3

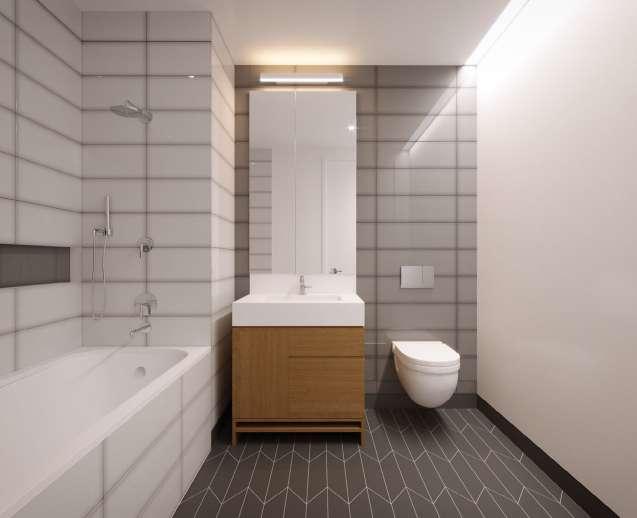

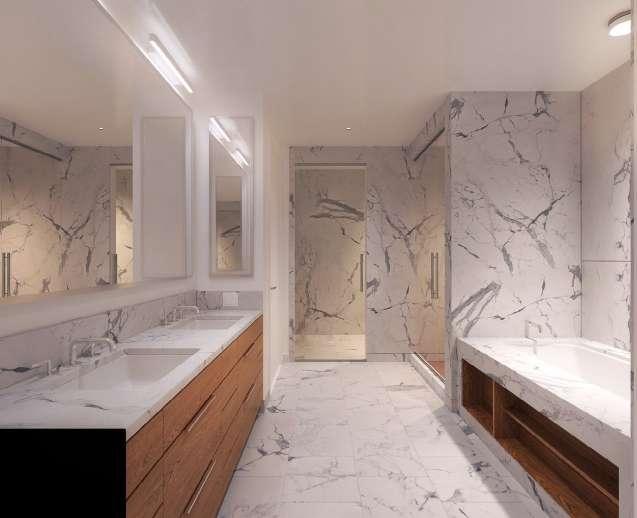

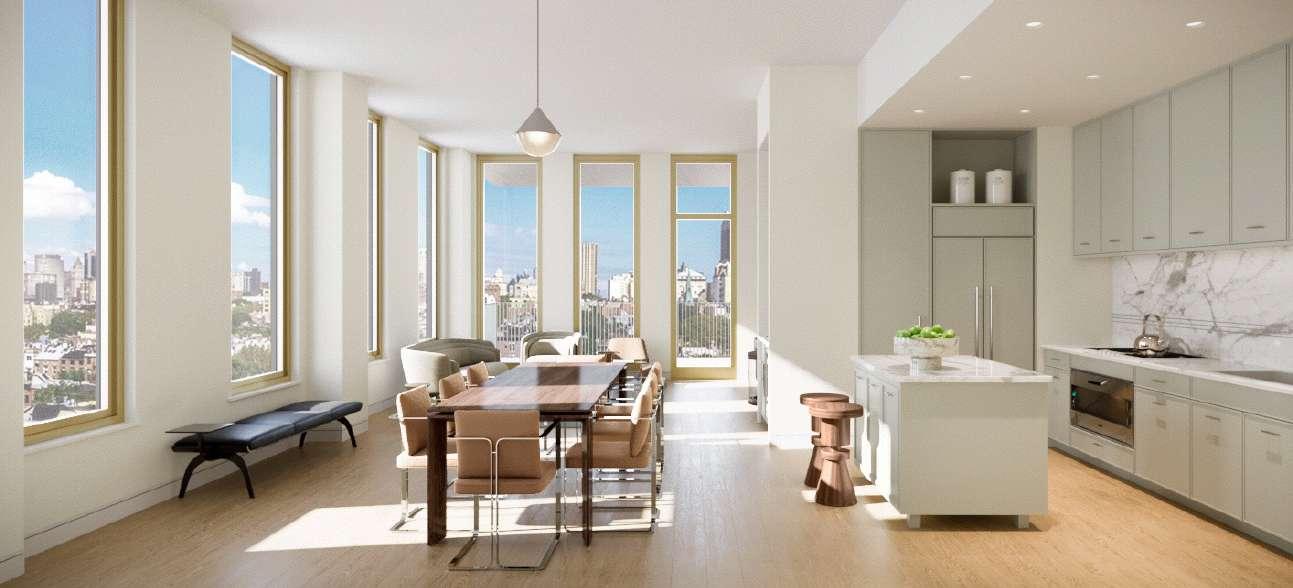

Professional | 37 Rendering by: Williams New York | 3 BR Apt: Bath Rendering by: Williams New York | 3 BR Apt: M. Bath Rendering by: Williams New York | 3 BR Apt: Kitchen/Living/Dining 1 2 3

PARAMOUNT GLUCK+

BUILDING TYPE: MIXED-USE

S.F.: 28, 794 SF

LOCATION: NEW JERSEY

PHASE: CONSTRUCTION DOCUMENTS

ROLE: ARCHITECTURAL DESIGNER UNDER PM SUPERVISION

INVOLVEMENT: PRODUCE CONSTRUCTION DOCUMENT LEVEL DETAILS FOR MULTIPLE FACADES. DESIGN, 3D MODEL, RENDER AND DETAIL MAIN LOBBY

SOFTWARES USED: AUTOCAD, BLUEBEAM, RHINOCEROS 3D, ENSCAPE PHOTOSHOP, ILLUSTRATOR, INDESIGN

PARAMOUNT : MIXED-USE

Rendering by: Lifang

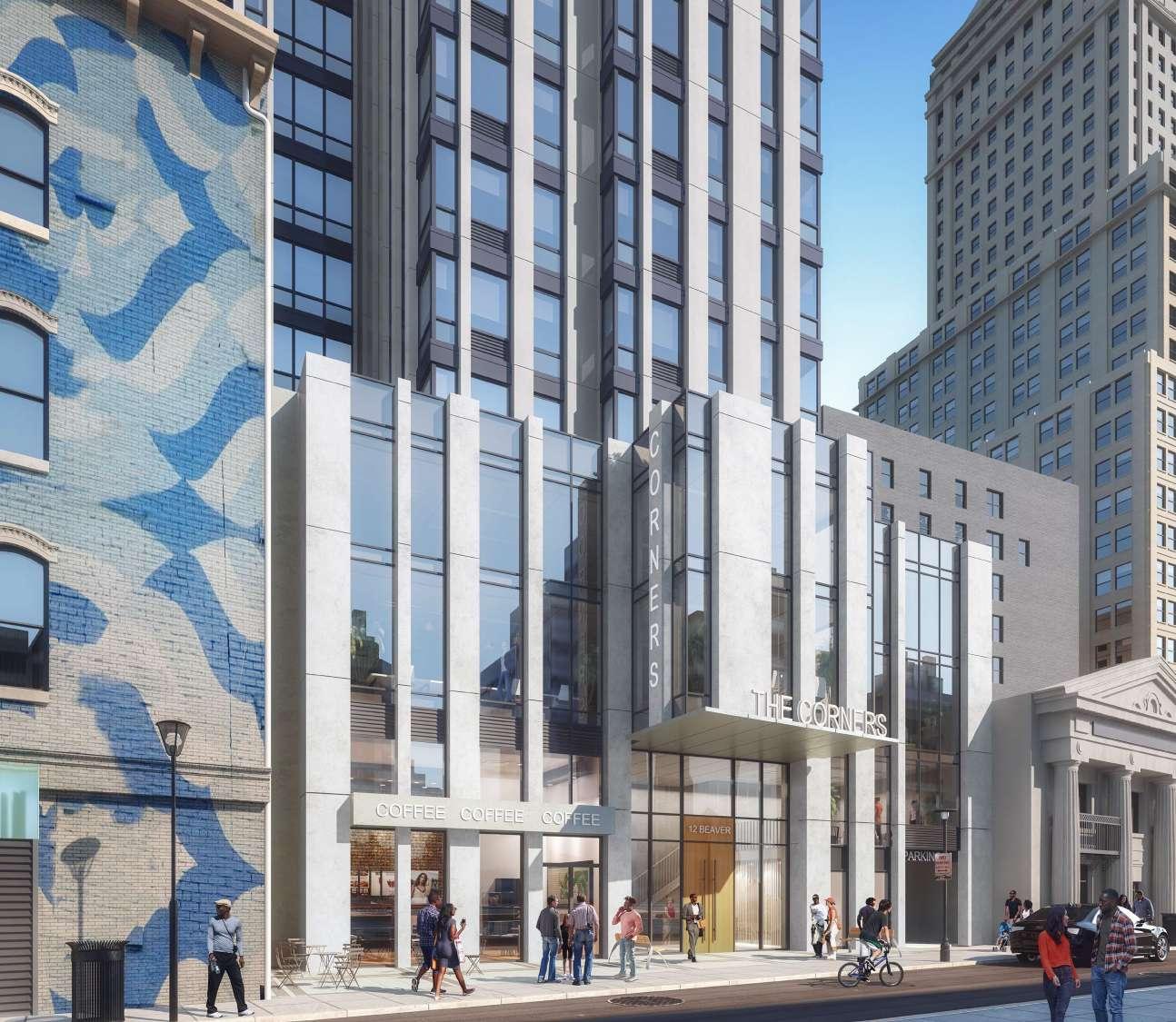

Exterior Rendering by: Lifang

PARKING 12 BEAVER X A716 A421 A421 A421 A421 7 A421 A421 7 A421 A421 6 A443 5 A443 2 A443 3 A443 4 A443 X A716 TYP A716 TYP A716 TYP 10 A716 TYP 5 A446 TYP A443 4 A443 A443 A443 5 A443 6 A443 1 A442 TYP A442 TYP 1-5 A445 5 A441 TYP 9 A716 TYP 8 A716 TYP 10 A716 TYP 8 A442 5 A441 TYP 13 A716 TYP 4 A442 TYP 12 A716 11 A716 16 A716 RECESSED LETTERS CAST INTO PANEL COFFEE COFFEE COFFEE 5 A441 TYP 13 A716 3 A446 TYP 2 A446 TYP 3 A446 TYP 2 A446 TYP A442 TYP 6 A442 TYP 4 A442 TYP PARKING 12 BEAVER X A716 5 A421 9 A421 8 A421 6 A421 7 A421 5 A421 A421 9 A421 6 A443 5 A443 2 A443 3 A443 4 A443 X A716 TYP 9 A716 TYP 8 A716 TYP 10 A716 TYP 5 A446 TYP 3 A443 A443 4 A443 5 A443 5 A443 6 A443 A442 TYP 2 A442 TYP 1-5 A445 A441 TYP 9 A716 TYP 8 A716 TYP 10 A716 TYP A442 A441 TYP 13 A716 TYP A442 TYP 12 A716 11 A716 16 A716 RECESSED LETTERS CAST INTO PANEL COFFEE COFFEE COFFEE A441 TYP 13 A716 A446 TYP 2 A446 TYP A446 TYP A446 TYP 6 A442 TYP 6 A442 TYP 4 A442 TYP Professional | 41 Facade Drawings | Entrance

Section Detail | Glazin + Precast

Professional | 43 Section Detail | Entrance Canopy

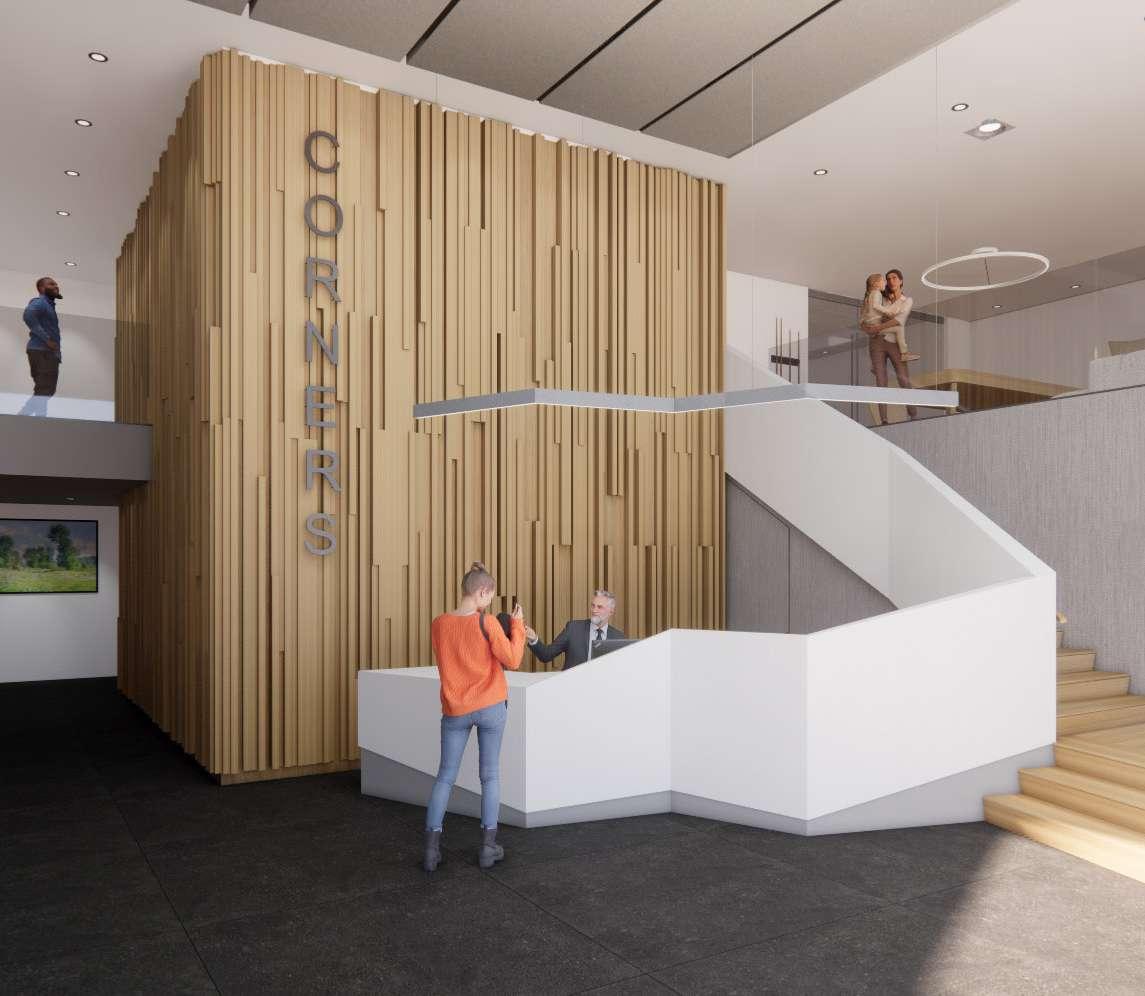

Interior Rendering Lobby

SECTION - 1ST FLOOR LOBBY SCALE: 1/2" 1' 0" 1 SECTION - 1ST FLOOR LOBBY SCALE: 1/2" 1' 0" 2 T.O. RESIDENTIAL FIN FLR 1ST FL. B.O. GYP GLG 8'-4" A.F.F. T.O. FIN FLR 1ST FL MEZZ. B.O. ENTRANCE CANOPY 7'-5" A.F.F. B.O. GYP GLG 8'-4" A.F.F. T.O. FIN FLR 1ST FL. B.O. GYP GLG 8'-4" A.F.F. T.O. FIN FLR 1ST FL MEZZ. B.O. ENTRANCE CANOPY 7'-5" A.F.F. B.O. GYP GLG 8'-4" A.F.F. D4A 1 A706 D4A D4A D5 D6 D5 D5 D5 D6 4 A722 D4A D4A D4A L5 L5 D10 D6 1 A612 A612 4 A722 L9-L9A L9-L9A PT-13 PT-17 PT-17 SS-04 TL-15 SEE SIGNAGE PACKAGE FOR FONT SIZE, SPACING AND PROFILE. CORRIDOR M105 BEYOND CORRIDOR 104 BEYOND B.O. SLAB SEE STR. DWG. B.O. SLAB SEE STR. DWG. B.O. SLAB SEE STR. DWG. A722 2 A723 2 A723 GAME ROOM M102 BEYOND P8 L9-L9A CORDS 7 A722 IGL-04 2 706 3 706 2 A706 B-01/PT-17 1 A723 3 A723 A723 SIM WD-02 WD-02 AXXX 2 A723 SIM 2 AXXX 3 AXXX 3B AXXX PT-18 3 AXXX 3B AXXX WD-02 SEE 1/A-613 FOR NOTES SS-04 SS-04 PT-18 Professional | 45 Interior Elev | Lobby

BRONX ANNEX:

RE-INVENTING PUBLIC HOUSING

BUILDING TYPE: RESIDENTIAL

LOCATION: BRONX, NEW YORK

CRITICS: F. BIEHLE

IN CONTRUBUTION WITH: F. SOTELO

INVOLVEMENT: CONCEPT DESIGN, 3D MODEL, GRAPHICS COORDINATION, RENDERING.

SOFTWARES USED: RHINOCEROS, ENSCAPE, PHOTOSHOP, ILLUSTRATOR

S.F.: 300,000+

46 BRONX ANNEX: RE-INVENTING PUBLIC HOUSING

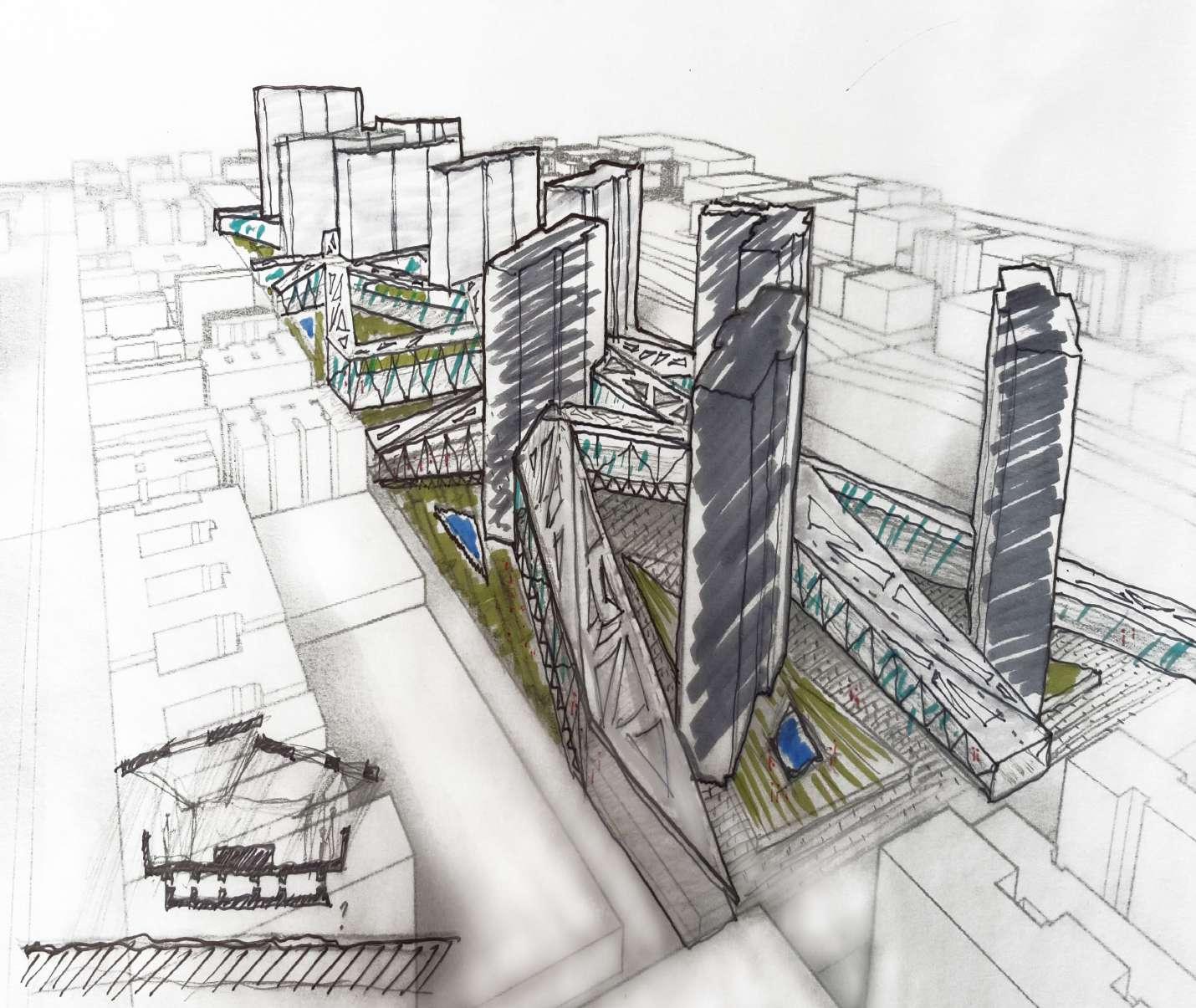

Sketch | Re-connecting Context

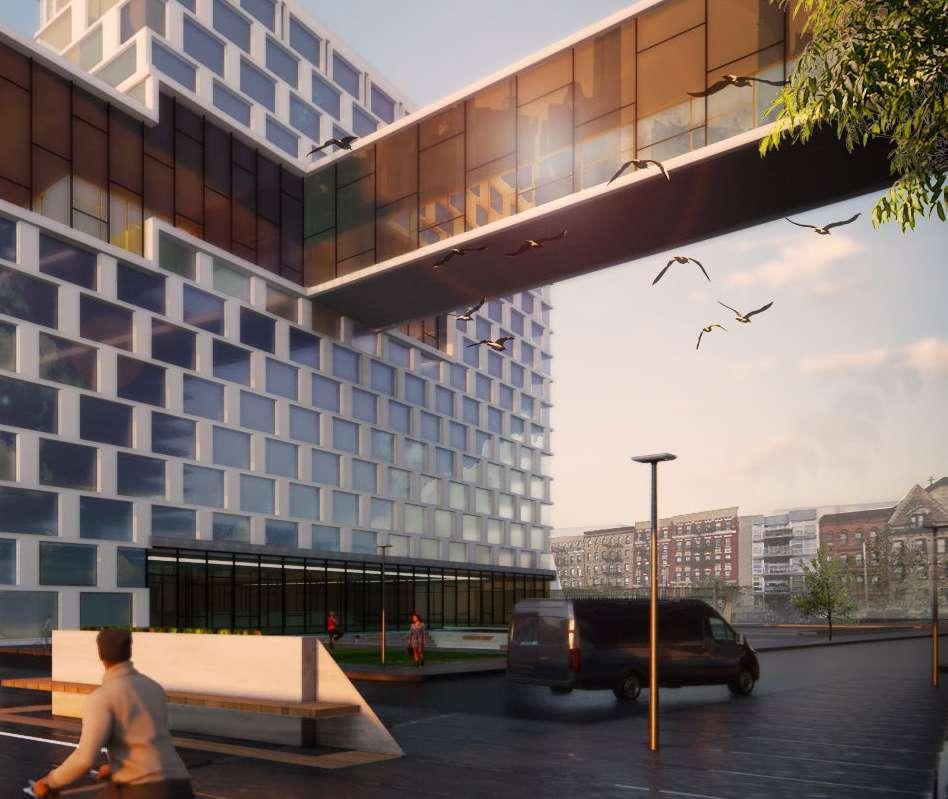

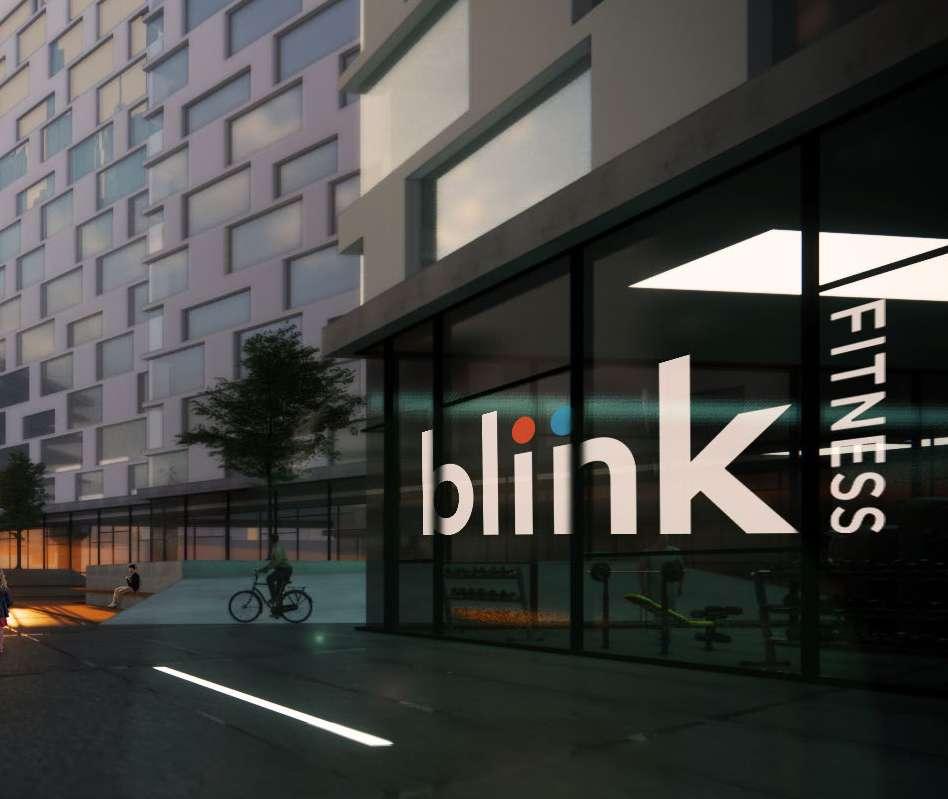

Rendering | Promenade + Senior Annex

Experimental | 49

Over the last fifty years, low-income housing projects have been the center of much controversy. Although capable of housing a great number of tenants and amenities, their lack of properly defined integration with the urban context, has overtime characterized them as anti-urban.

Our project attempts to re-contextualize the site with the surrounding urban fabric by activating the ground conditions with a series of commercial, recreational and small industrial places known as makerhoods, created for the creativity and financial independence for the community.

This idea of re-contextualization, is further emphasized by the extension of the existing buildings which create additional housing, indoor/ outdoor recreational areas, and a new set of private and semi-private spaces that act as public courtyards for the tenants and visitors alike.

In addition to this, a series of bridges were introduced on the East side of the complex, which annex the residential areas to multi-programmatic spaces that hold daycares, senior housing and other amenities that further promote multi-generational living as the keystone for a strong and healthy community.

BLDG HGHT 148’-0” A.F.F ADJ. BLDG HGHT 77’-0” A.F.F Site Section + Plan | Land Use + Ajd. Bldg Hghts

PUBLIC SEMI PUBLIC PRIVATE SINGLE FAMILY MIXED USE COMMERCIAL MULTI FAMILY INSTITUTIONAL INDUSTRIAL SEMI PRIVATE LOT LINE PUBLIC SEMI PUBLIC PRIVATE SINGLE FAMILY MIXED USE COMMERCIAL MULTI FAMILY INSTITUTIONAL INDUSTRIAL SEMI PRIVATE LOT LINE Experimental | 51

Diagrams |

Methods of Re-Connection + Enclosure

1 2 3 4 5 6 2 1 3 4 5 6 Living Units Residential Static Active Passive Makerhood Commercial Institutional Shared Kitchens Communal Rooms Computer Fitness Multi-Purpose Crafts Bingo Hall Rest Terrace Experimental | 53 Diagrams | Ground Activation + Use + Senior Annex

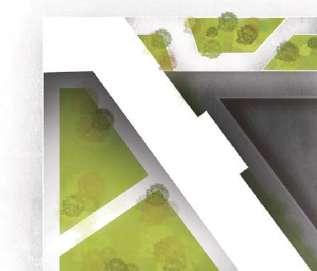

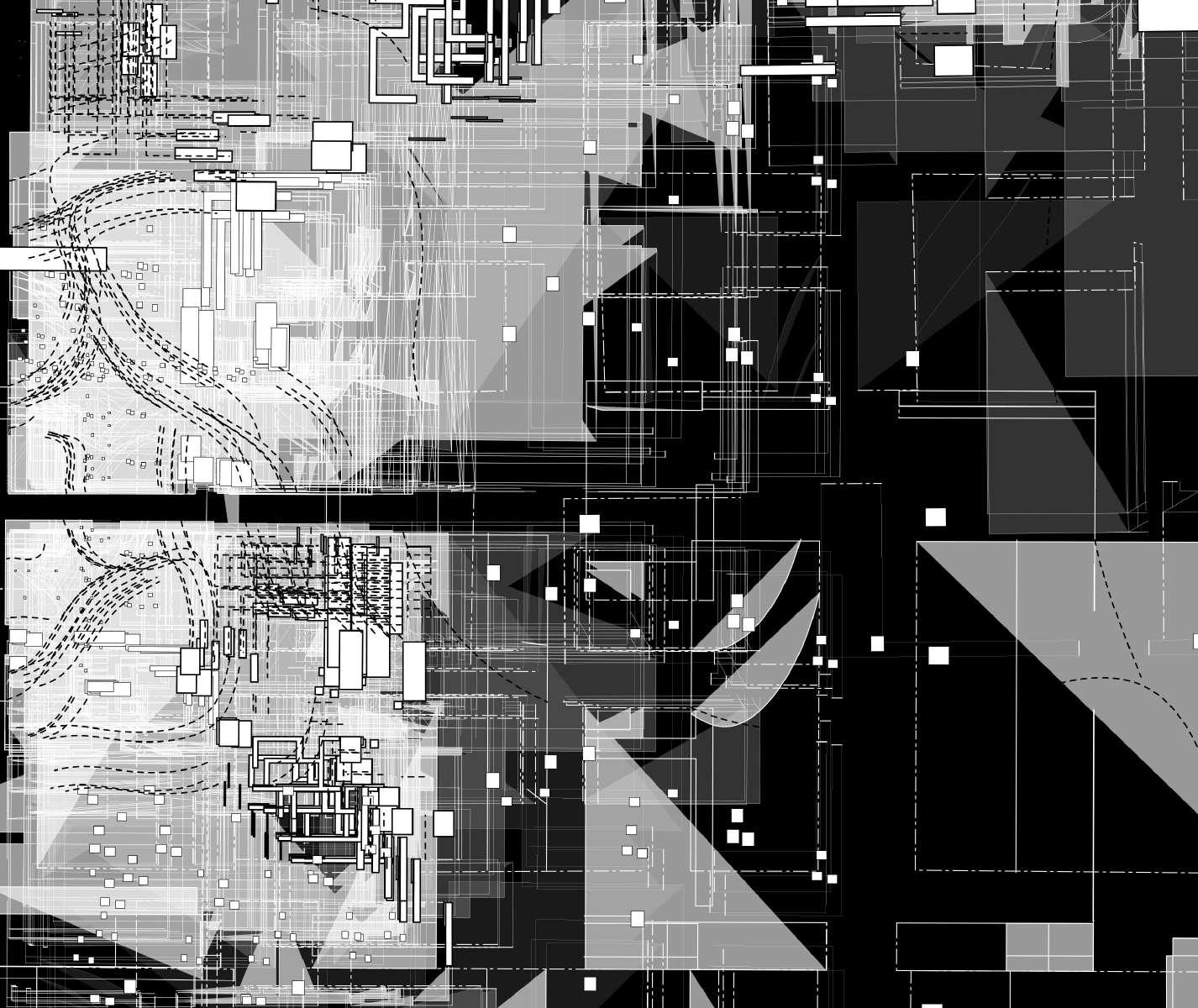

Site Plan | Typ. Floor Plans + Communal Programs

Experimental | 55

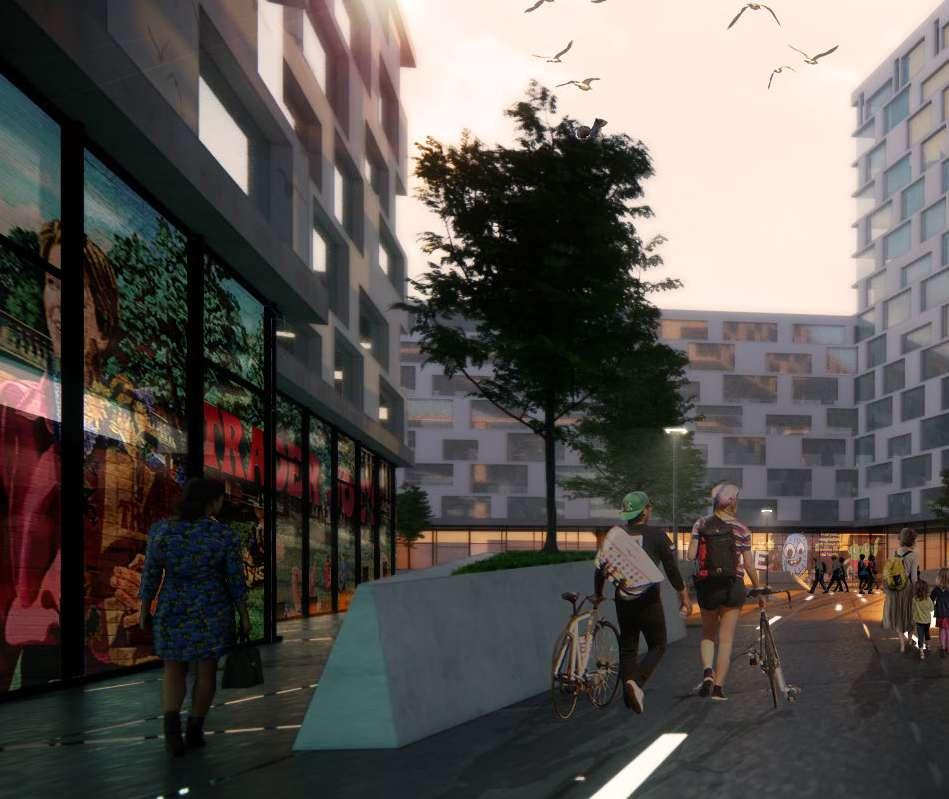

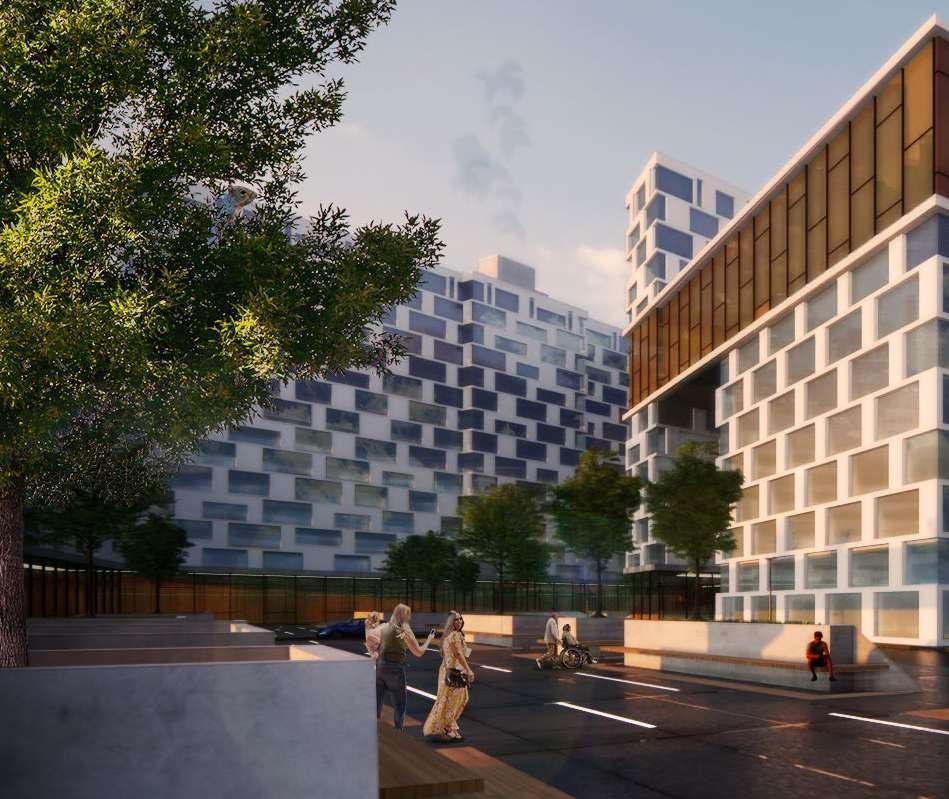

Rendering | Promenade at Dusk

Experimental | 57

SANCTUM NEXUS:

A PILGRIMAGE FOR SEOUL

BUILDING TYPE: RELIGIOUS

LOCATION: SEOUL, SOUTH KOREA

CRITICS: K. BAUSMAN, J. SZOT

IN CONTRIBUTION WITH: H. MOON

INVOLVEMENT: CONCEPT DESIGN, 3D MODEL, GRAPHICS COORDINATION, SCULPTURE, PHYSICAL MODEL

SOFTWARES USED: RHINOCEROS, PHOTOSHOP, ILLUSTRATOR

S.F.: 300,000+

SANCTUM NEXUS : A PIL GRIMAGE FOR SEOUL

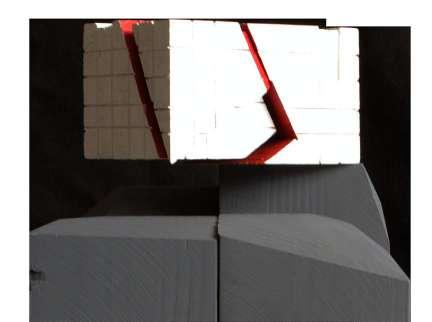

Form Studies Isolation Break

South Korea’s rapid rise to urbanization after its independence from Japan in 1945, made the country perfect soil for both Christianity to take root, and technology to thrive. Although home to 11 of the world’s largest congregations, the current church typology seems to blur the lines between the vernacular and the commercial, and by this failing to architecturally represent the importance of Christianity to the country.

In order to fully comprehend the cultural, social and technological impact Christianity had in South Korea, we believe a new church typology should be introduced. One that would integrate the country’s rich technology, with its communal gathering traditions, and create by this a nexus, a point of reflection and celebration of the country’s past for future generations.

As a vehicle to carry on this typological experiment, we crafted forms representing our strategies for deconstructing the current interpretation of the church. As they developed, these form studies acted as a catalog of methods that we then applied in our design, ranging from the programmatic organization of our site, to the moments we wanted to celebrate, and the formal aesthetic that we wanted to exhibit throughout.

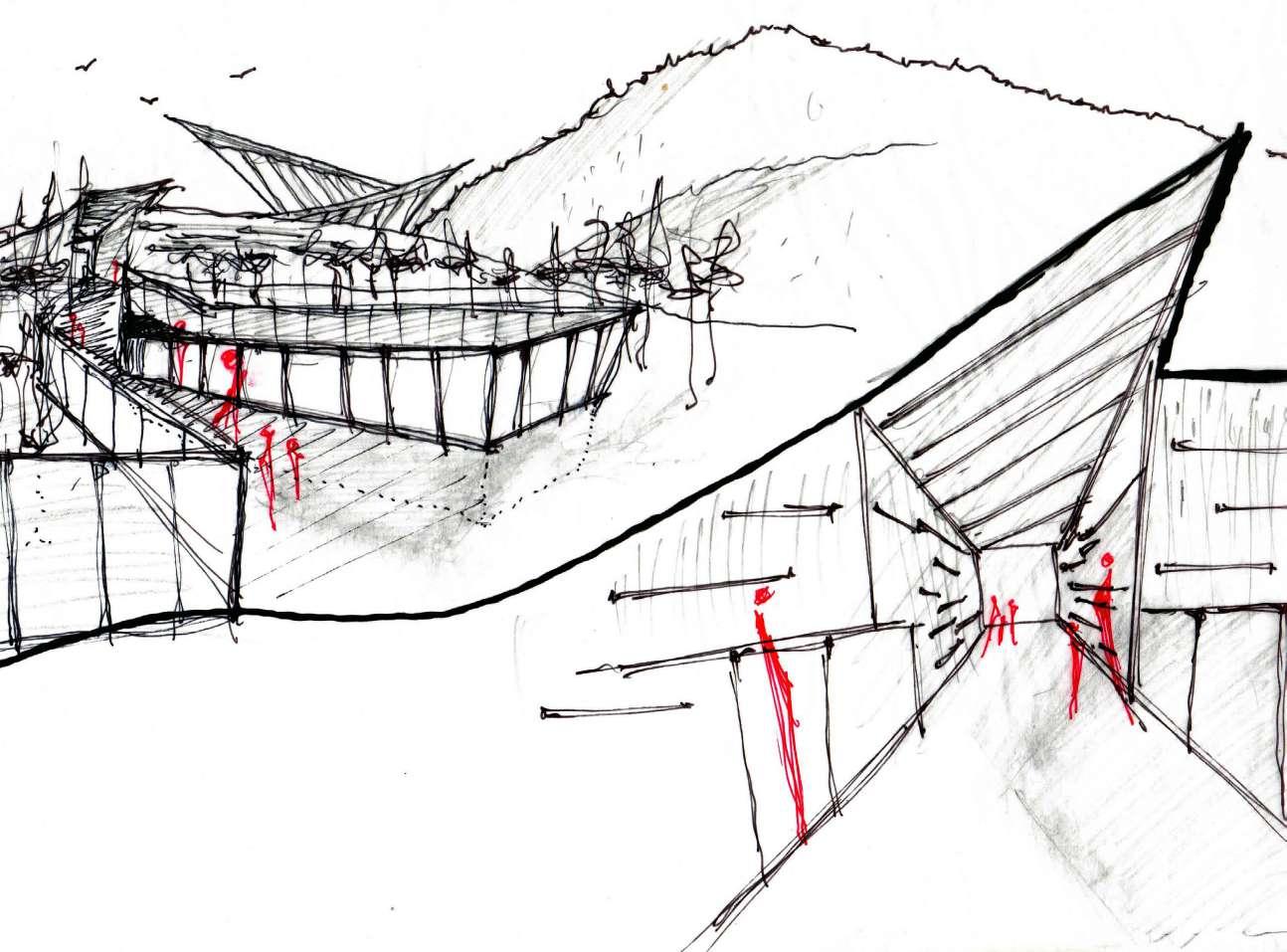

Experimental | 61 Sketch | City on a Hill, Approach

PARKING GARAGE

- 100,000 SF (500 CARS CAPACITY)

NORTH CHAPEL

- 50,000 SF

- STEEL FRAME CONSTRUCTION

- WOOD & ALUMINUM CLADDED

- SWITCHABLE SMART GLASS PROJECTION SCREENS

- FULL CHOIR SPACE

- BROADCAST CAPABLE

UPPER LEVEL: SMALL CHAPEL + OUTDOOR TERRACE

- 20,000 SF

- STEEL FRAME CONSTRUCTION

- WOOD & ALUMINUM CLADDED

- FUNCTIONS AS MAIN ALTAR IN CONVINATION WITH OUTDOOR TERRACE

BRIDGES

- STEEL FRAME TRUSS BRIDGE

THEOLOGICAL SEMINARY

- 20,000 SF EDUCATION CENTER

- 20’000 SF LIVING UNITS

- 5,000 SF BROADCASTING STATION

- 5,000 SF CAFETERIAS

- STEEL FRAME CONSTRUCTION

- WOOD & ALUMINUM CLADDED

PRAYER (MEDITATION) ROOMS

- 3,200 SF PRAYER (MEDITATION) ROOMS

LOWER LEVEL: UNDERGROUND CATHEDRAL

- 30,000 SF (12,000 SEATS)

- STEEL FRAME CONSTRUCTION

- FULL PERFORMANCE SPACE

- BROADCAST CAPABLE

- SWITCHABLE SMART GLASS PROJECTION SCREENS

- PARKING GARAGE ACCESS

- SWITCHABLE SMART GLASS PROJECTION SCREENS

- PARKING GARAGE ACCESS

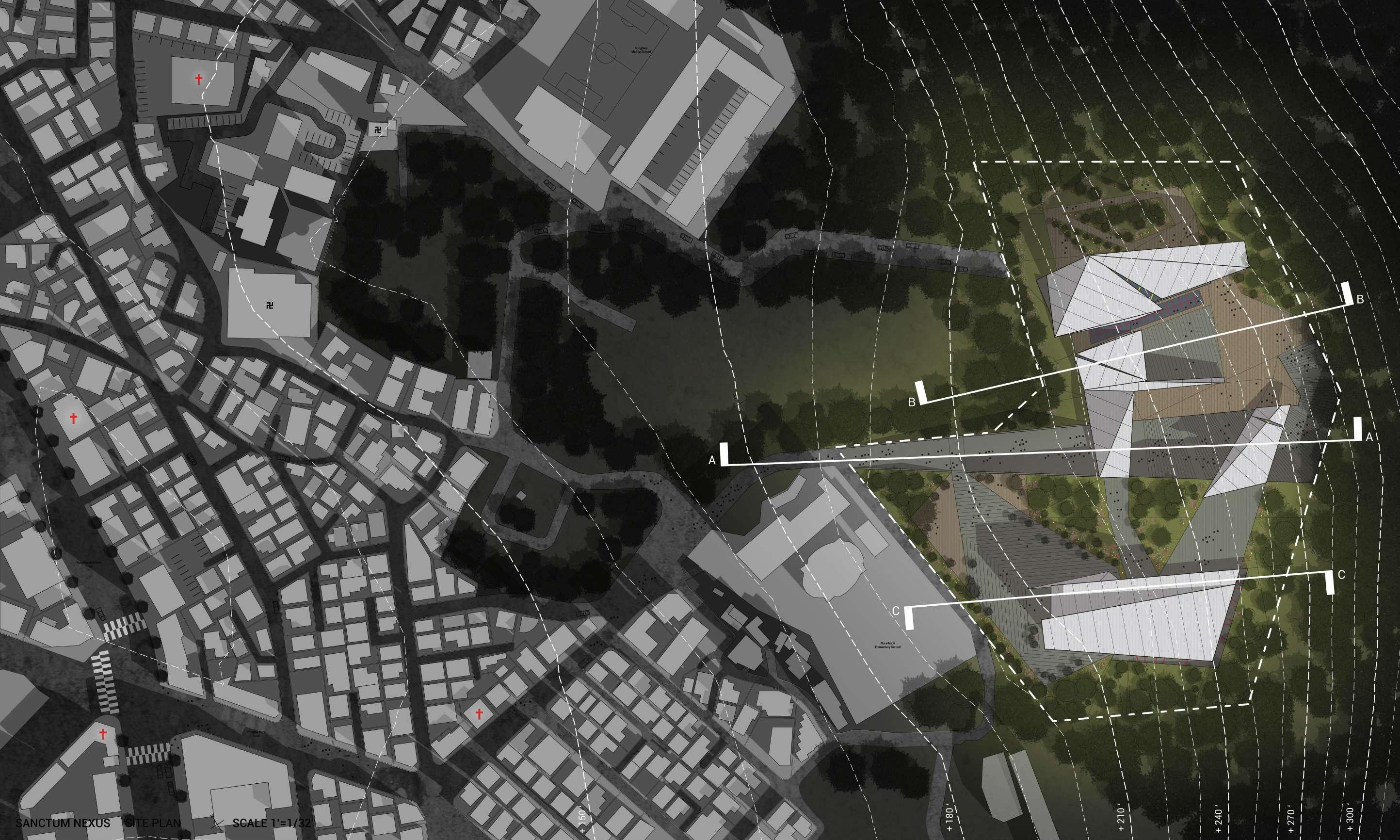

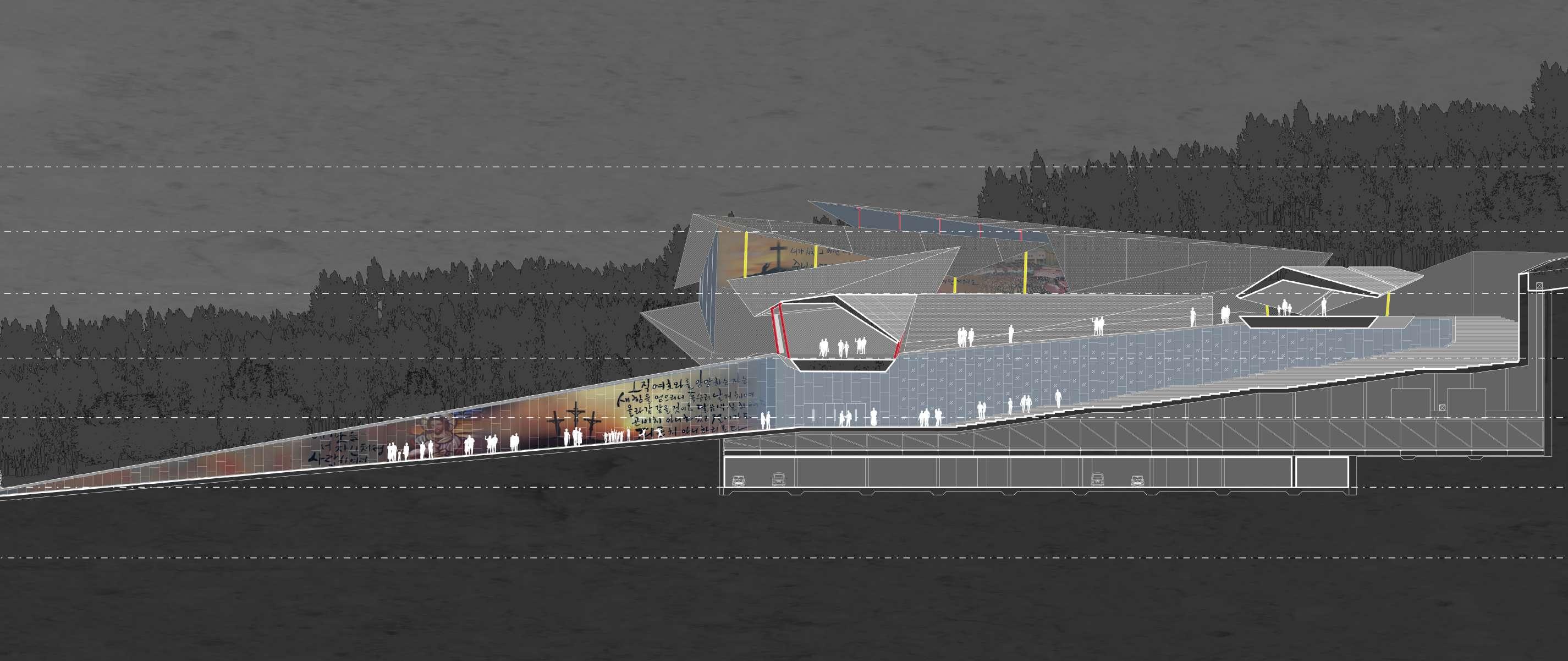

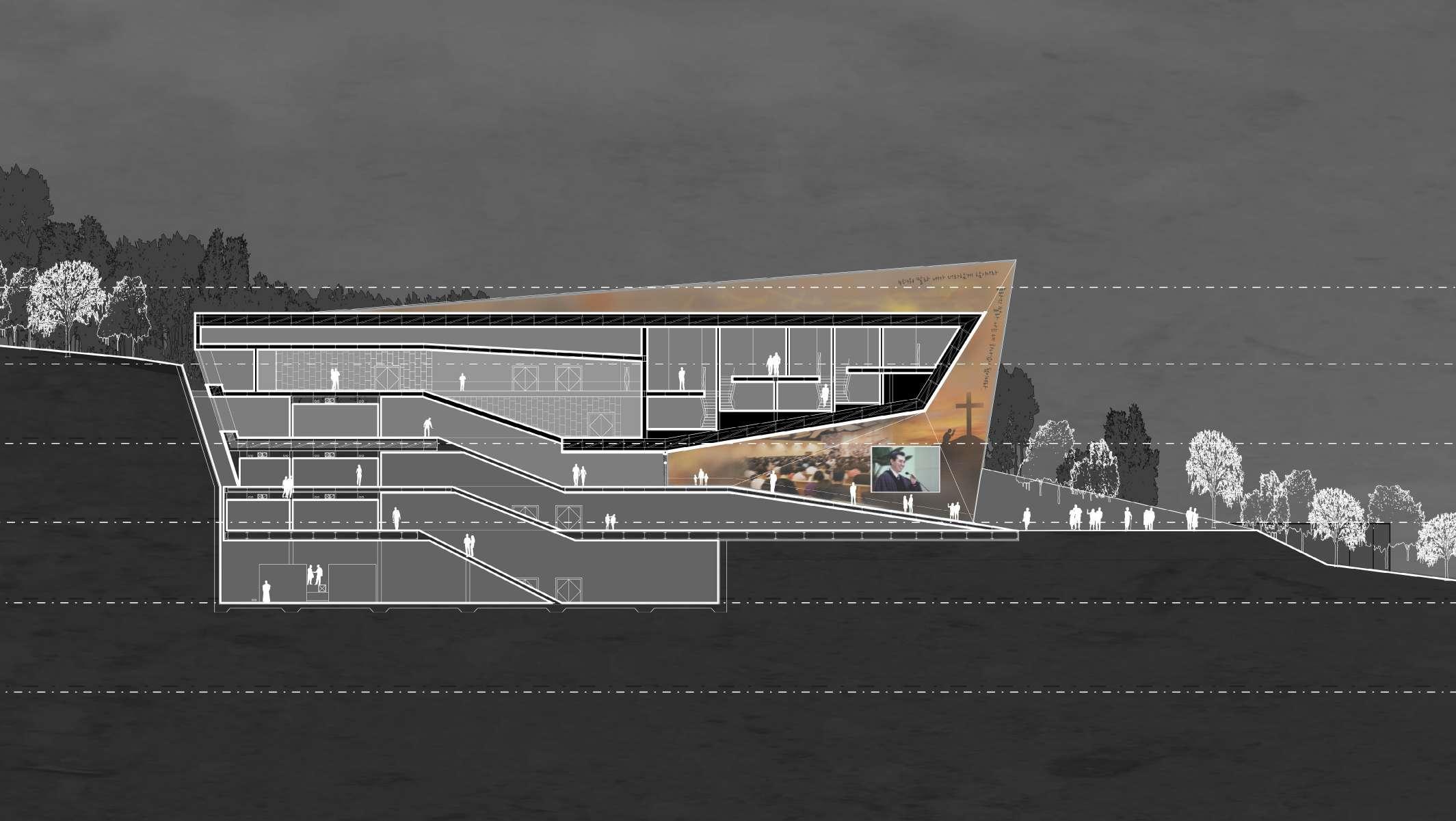

Site Plan | Overall Program

Experimental | 63 +180’ +210’ +240’ +270’

+ 330’ Above sea level + 300’ Above sea level + 270’ Above sea level + 240’ Above sea level + 210’ Above sea level + 180’ Above sea level + 150’ Above sea level Section | A-A

Smart

Glass Projection Screen

Steel Truss Structural System Metal Clad Facade

Experimental | 65

Retaining Wall

+ 300’ Above sea level + 270’ Above sea level + 240’ Above sea level + 210’ Above sea level + 180’ Above sea level + 150’ Above sea level Section | C-C Prayer Room Light-Well

Experimental | 67

Enlarged Plan | Prayer Rooms + Living Units Smart Glass Projection Screen

1 3 2

Steel Truss Structural System 1. Lobby 2. Prayer Rooms 3. Living Units

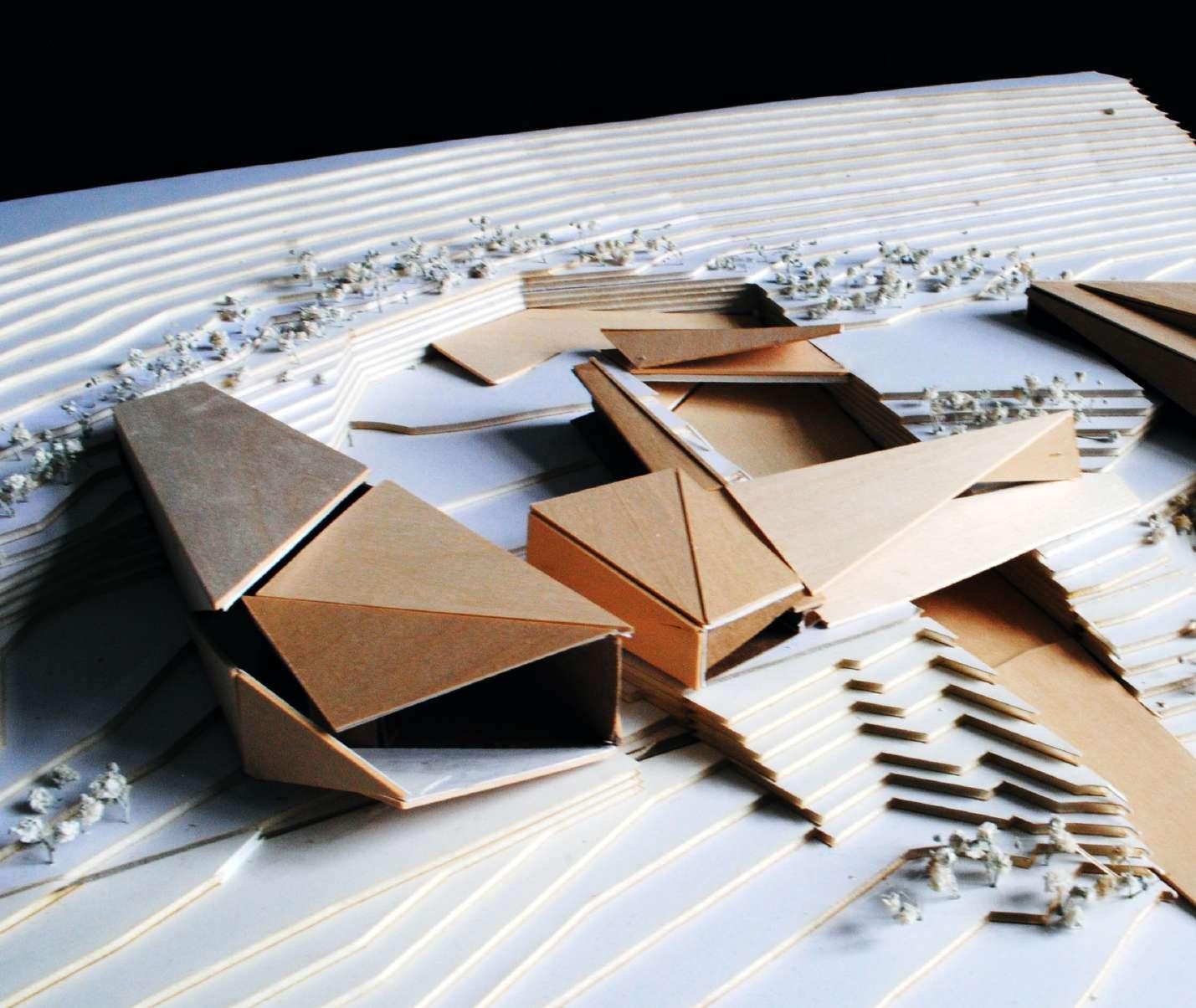

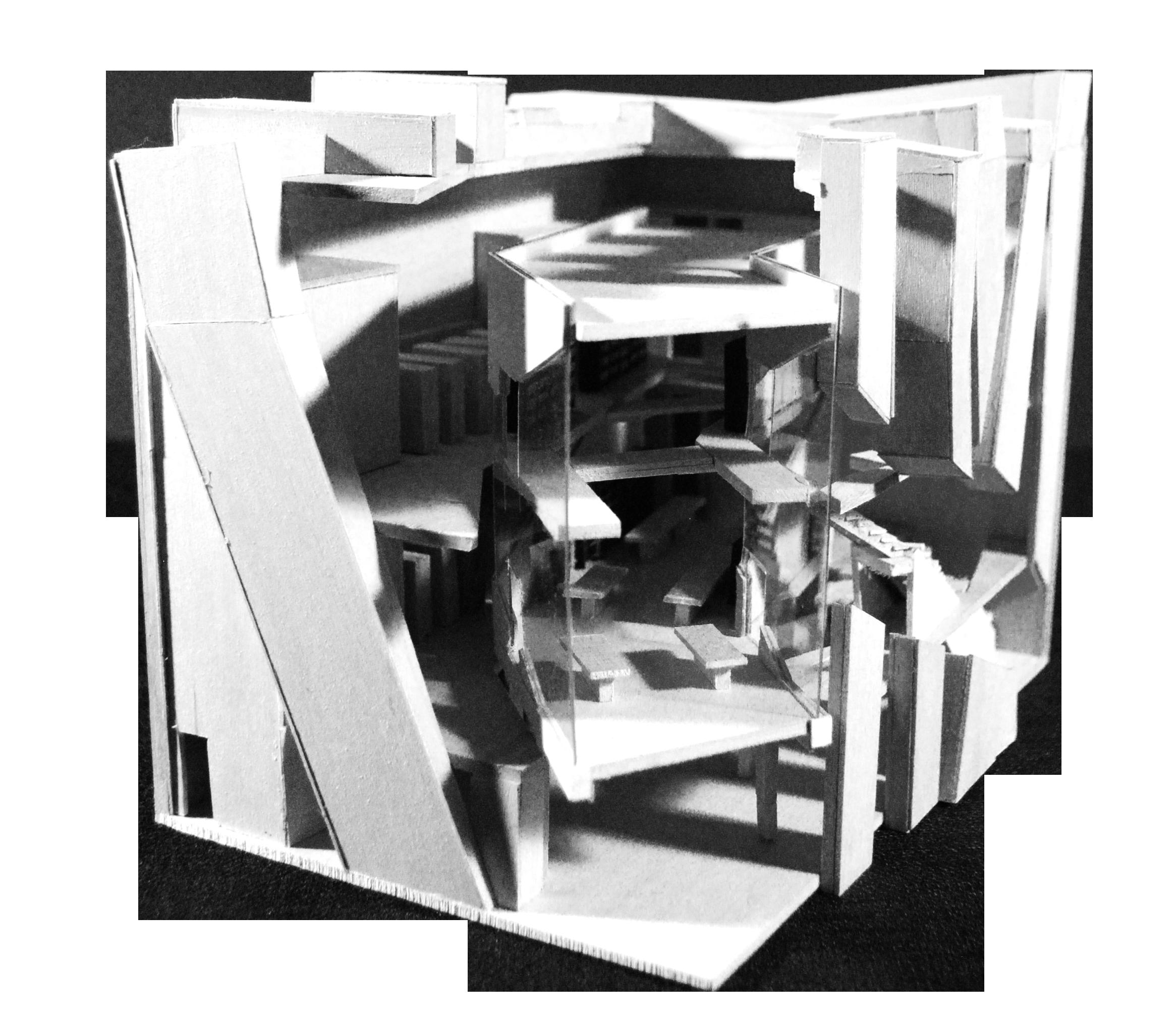

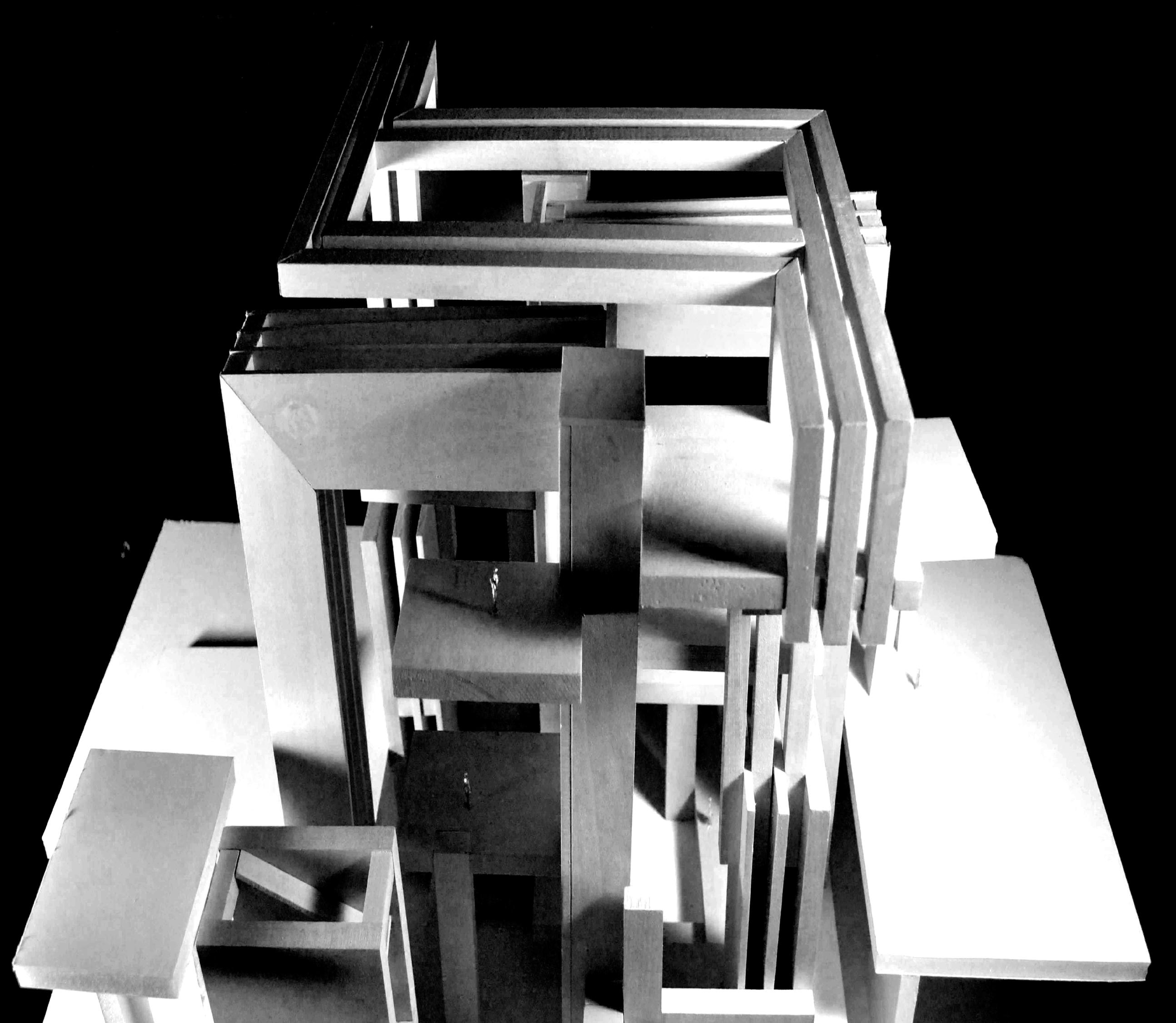

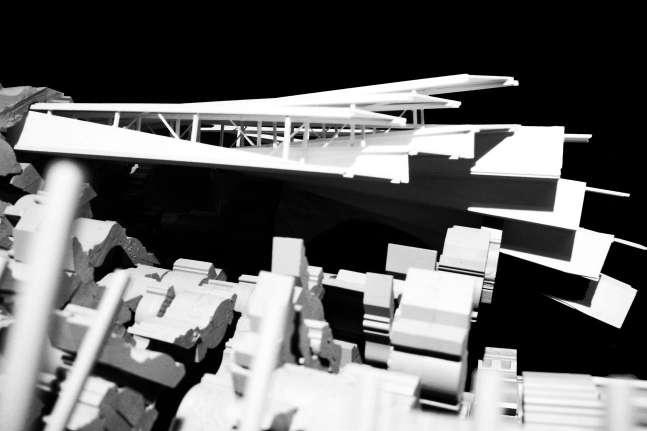

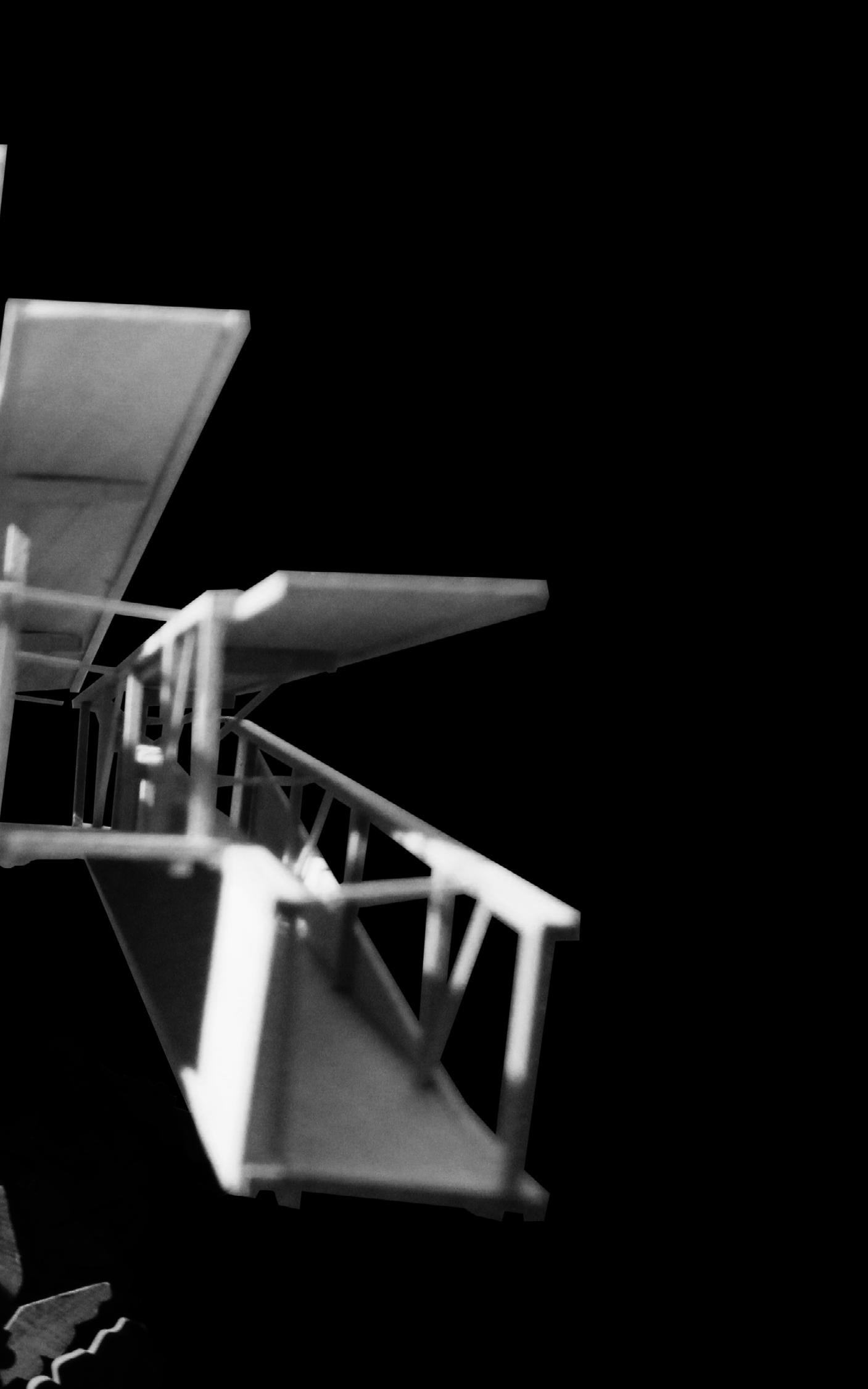

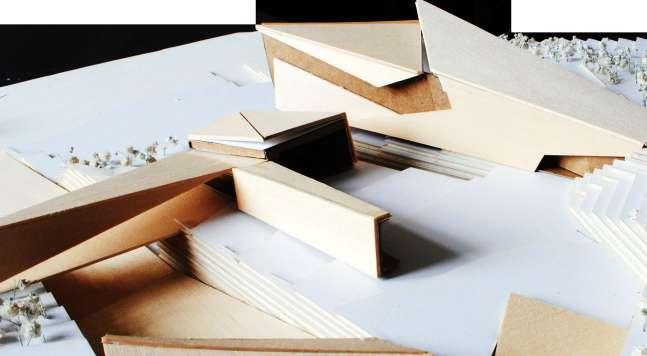

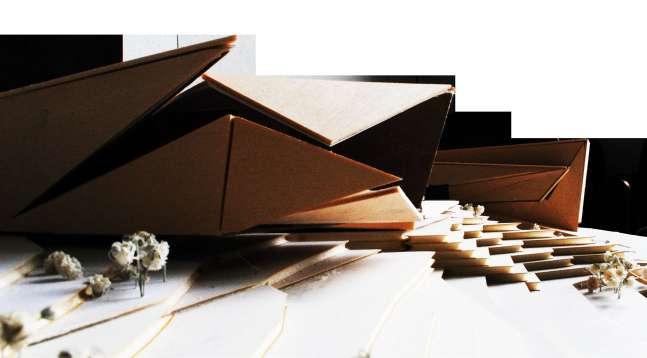

Physical Model | Birds Eye View

Experimental | 69

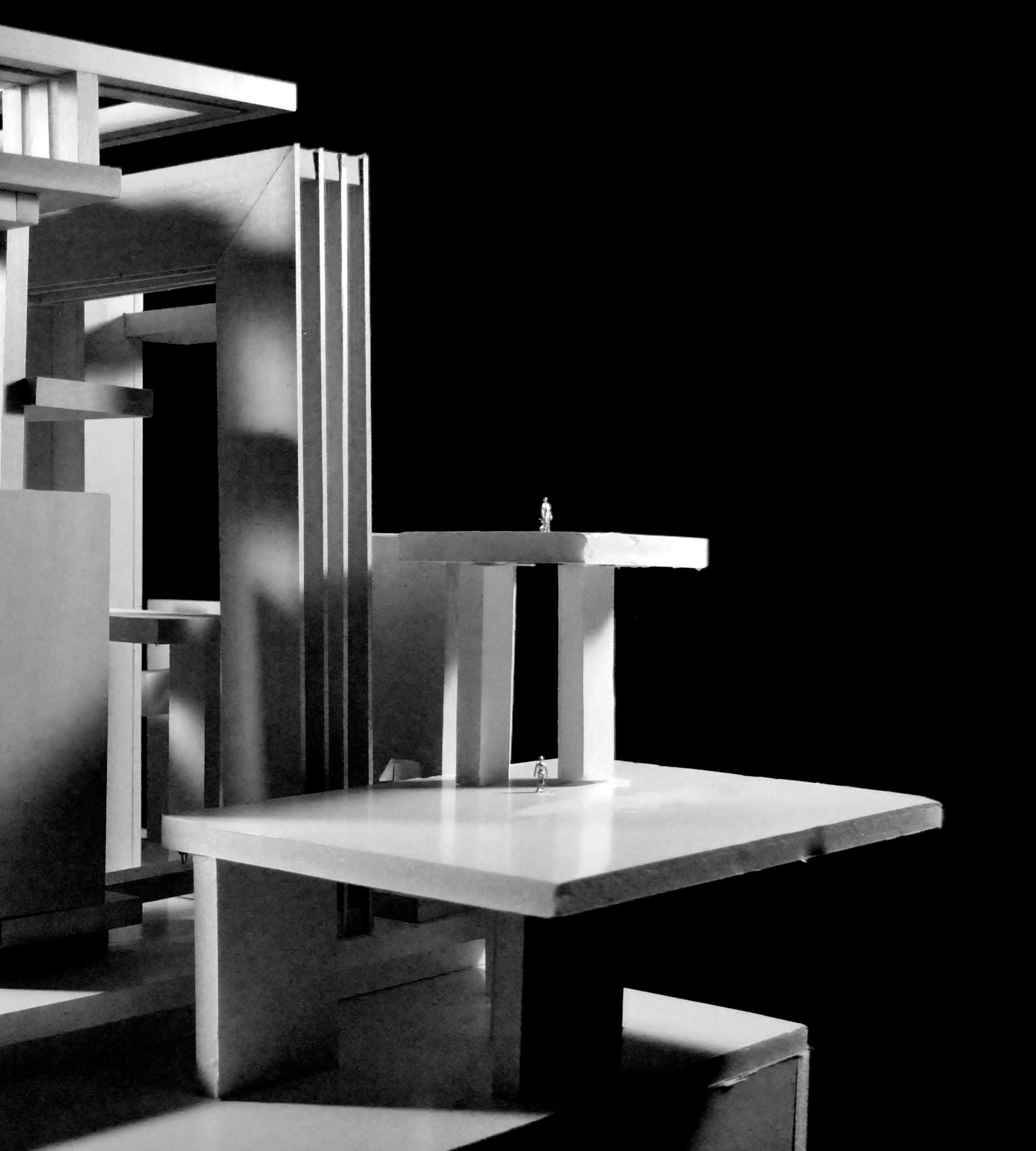

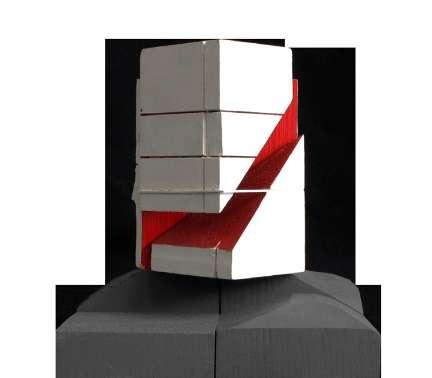

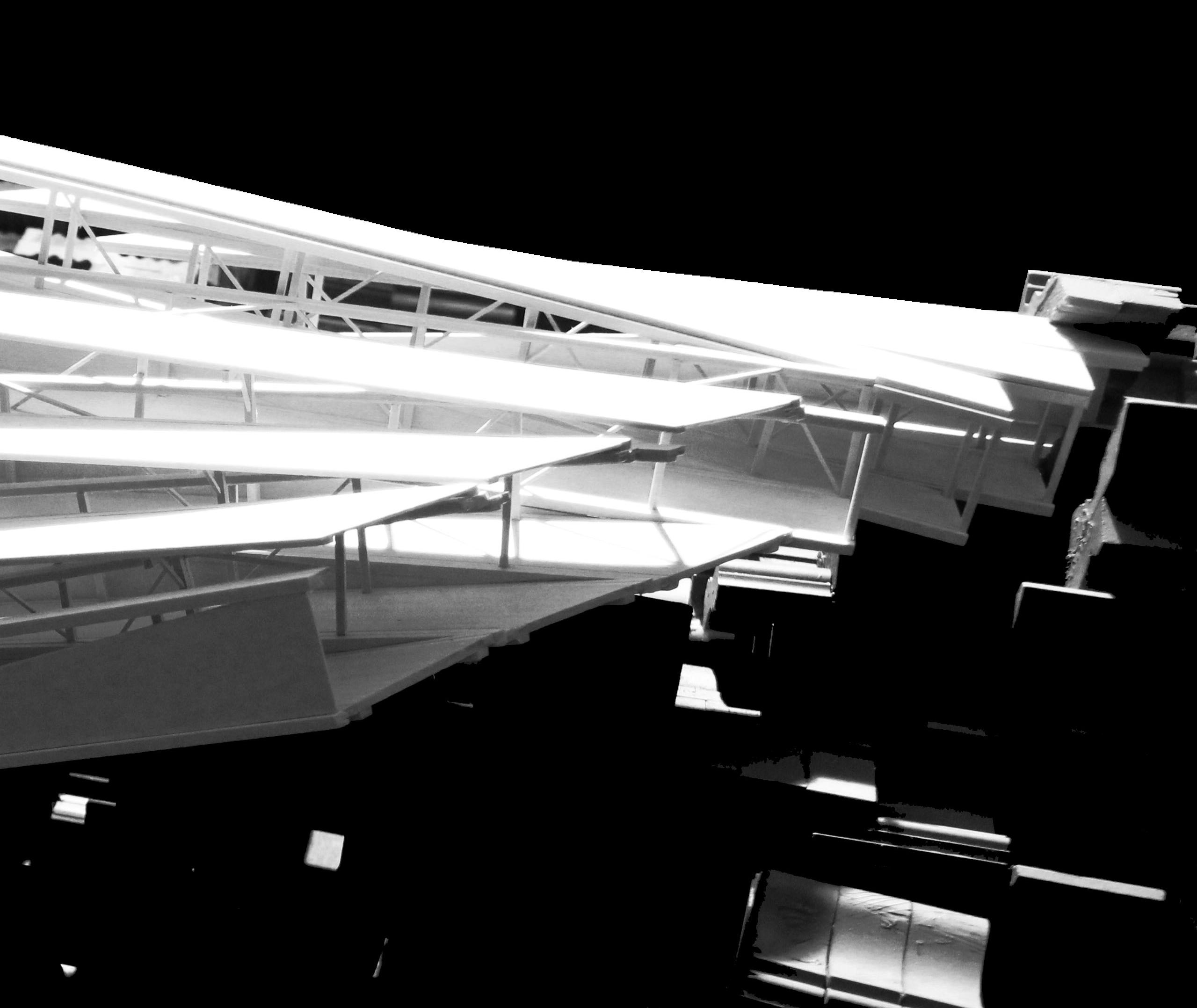

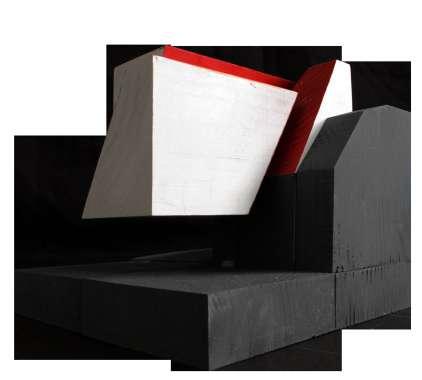

Physical Model North Chapel Physical Model Smal Chapel + Outdoor Terrace + North Chapel Physical Model Theology Seminary

TUMAINI CHAPEL:

RWANDA CHAPEL/YOUNG ARCHITECTS COMPETITION

BUILDING TYPE: RELIGIOUS

LOCATION: RWANDA, EAST AFRICA

IN CONTRIBUTION WITH: F. SOTELO / W. SUELDO

INVOLVEMENT: CONCEPT DESIGN, 3D MODEL, GRAPHICS COORDINATION

SOFTWARES USED: RHINOCEROS, PHOTOSHOP, ILLUSTRATOR, SLACK

S.F.: 5,000+/-

CHAPEL OF HOPE: YOUNG ARCHITECTS COMPETITION

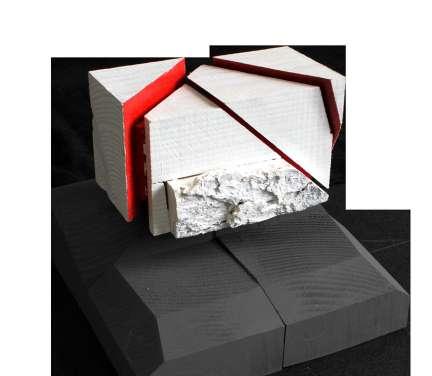

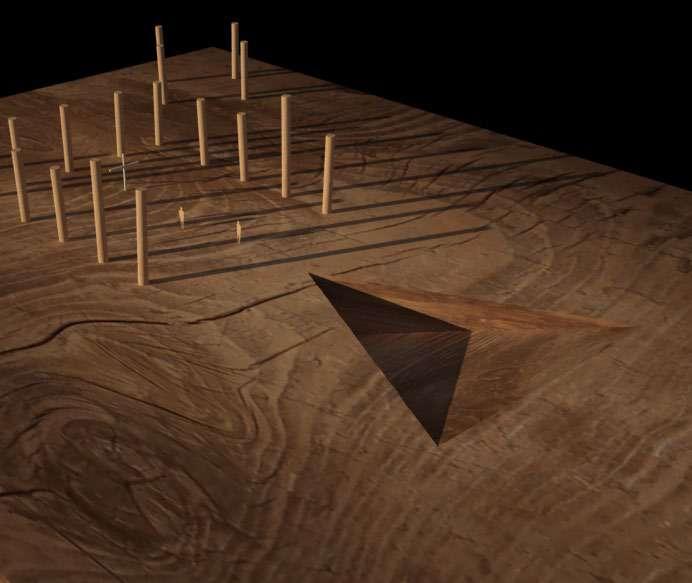

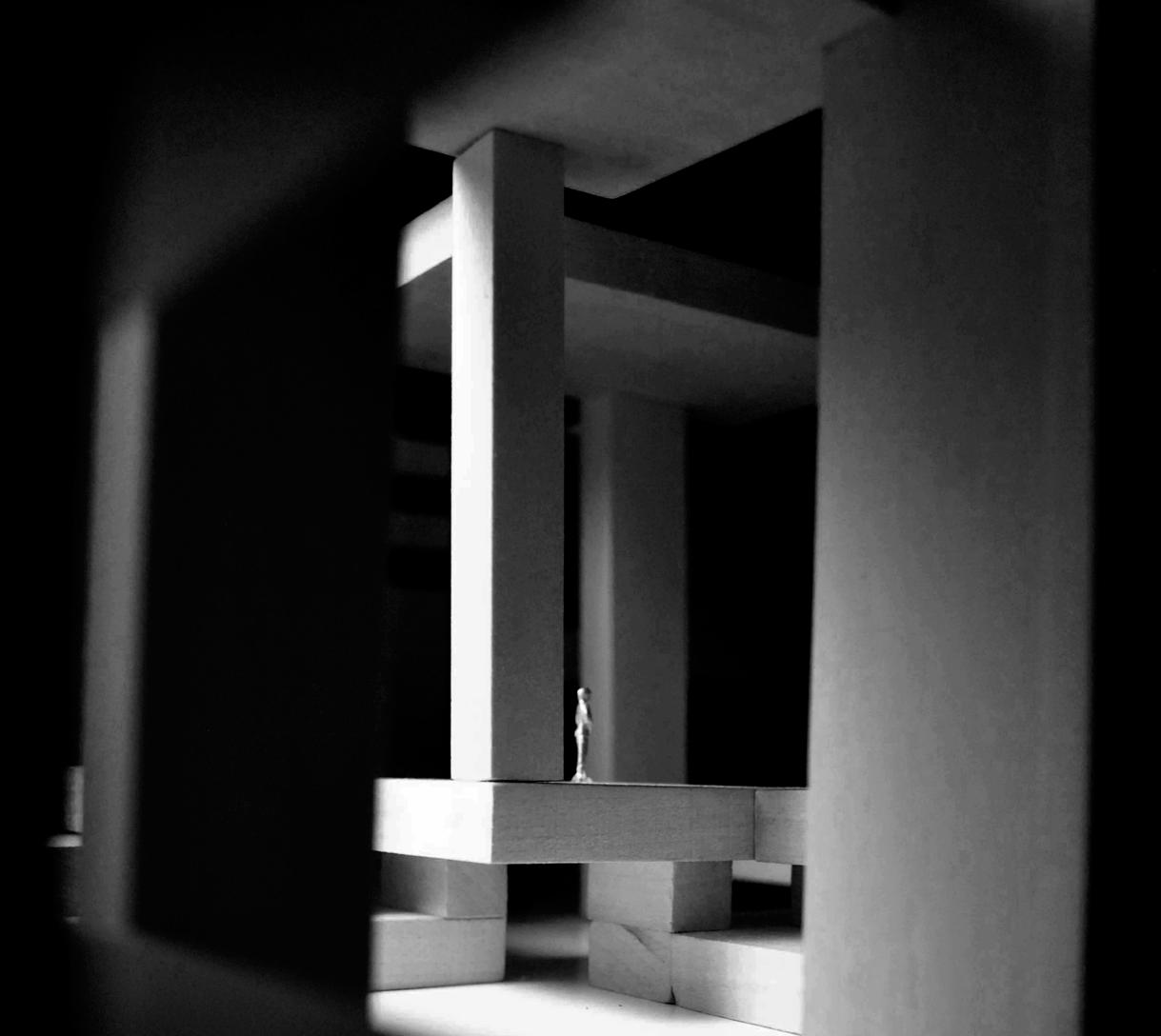

Conceptual Model | Shadow Study

Chapel of Hope

In life we’re continually surrounded by the rhythms of forces that seem to perpetuate throughout history, never fully disclosing it’s beginning nor its end. We are born under chaotic, social, political, geographical, and sin-filled forces that create for us a landscape which we are then given the task to forge, and out this chaos bring forth beauty, life.

Some two thousand years ago a man by the name of Jesus, described in the Scriptures as a “man of sorrows and acquainted with grief” was born into this chaos, and brought forth through his sacrifice, new life. Intervening in our lives forever. For the good of men.

It is this humble, yet powerful intervention, that has inspired our design. Our Tumaini Chapel hopes to represent the beauty of the people of Rukomo, Rwanda, by creating a place where its beautiful landscapes, it’s painful history, and the new life found in Christ can be displayed. A pilgrimage where the tensions between living among the familiar, and the sublime can be explored in the presence of our mortality, and the eternal triune God.

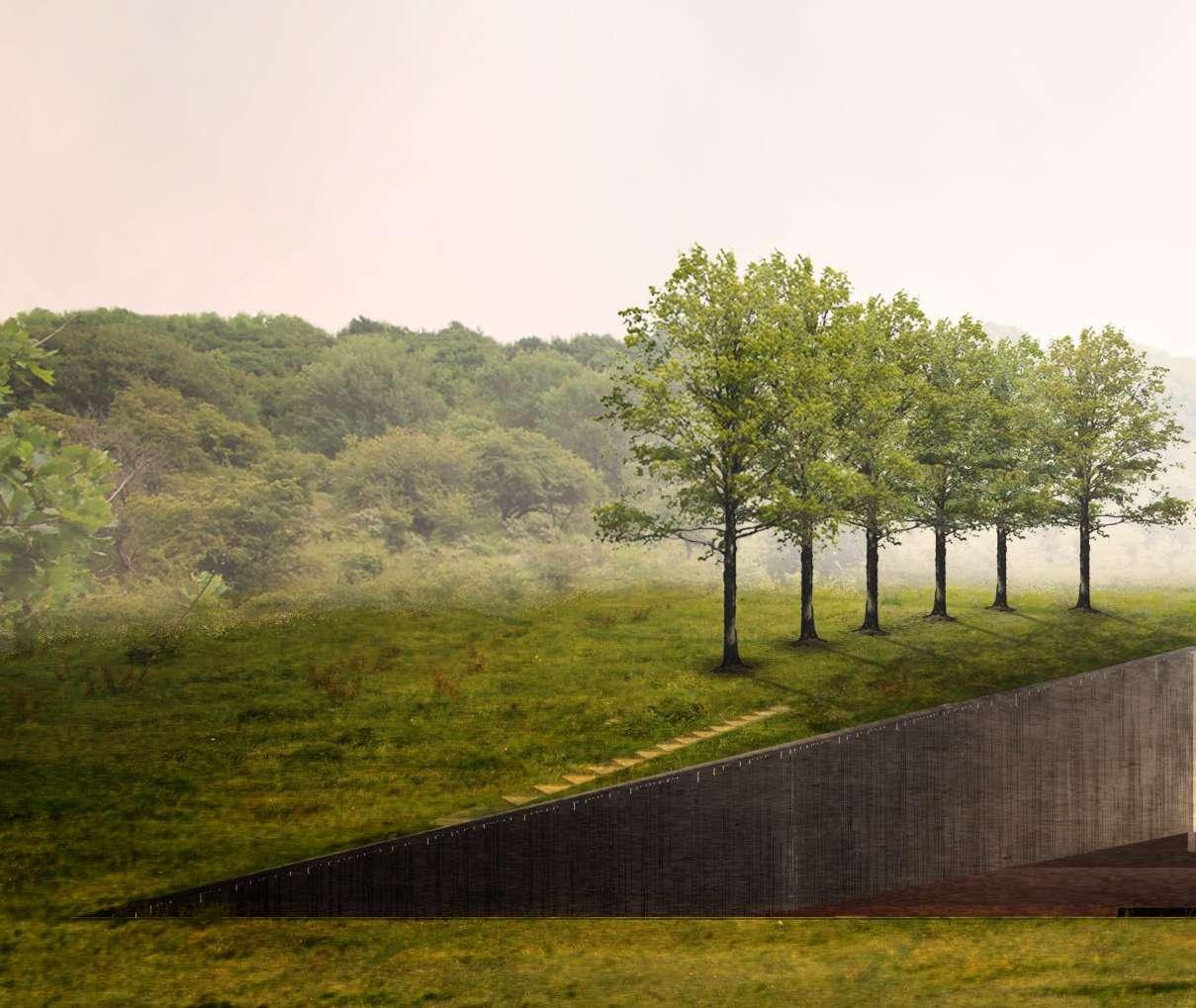

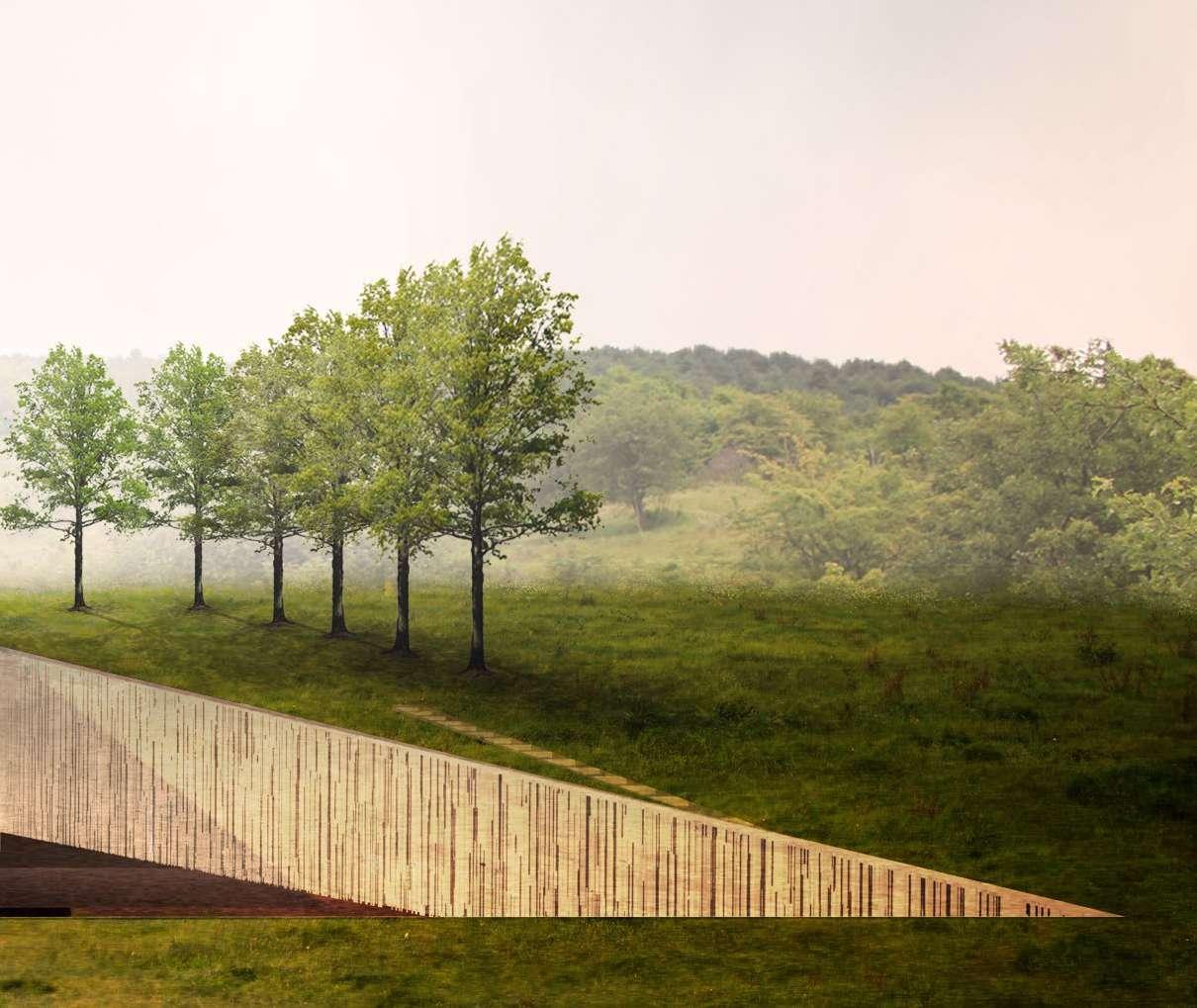

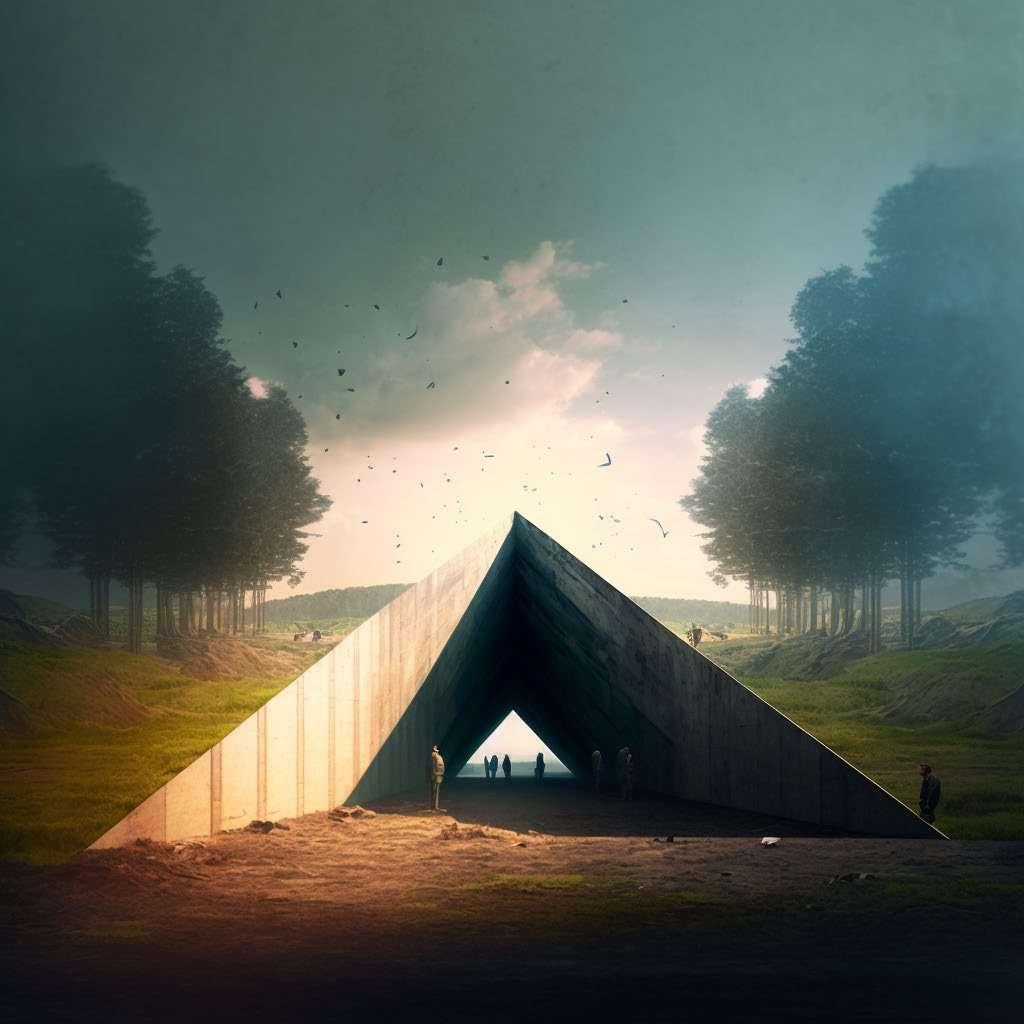

Rendering | Approach

Experimental | 73

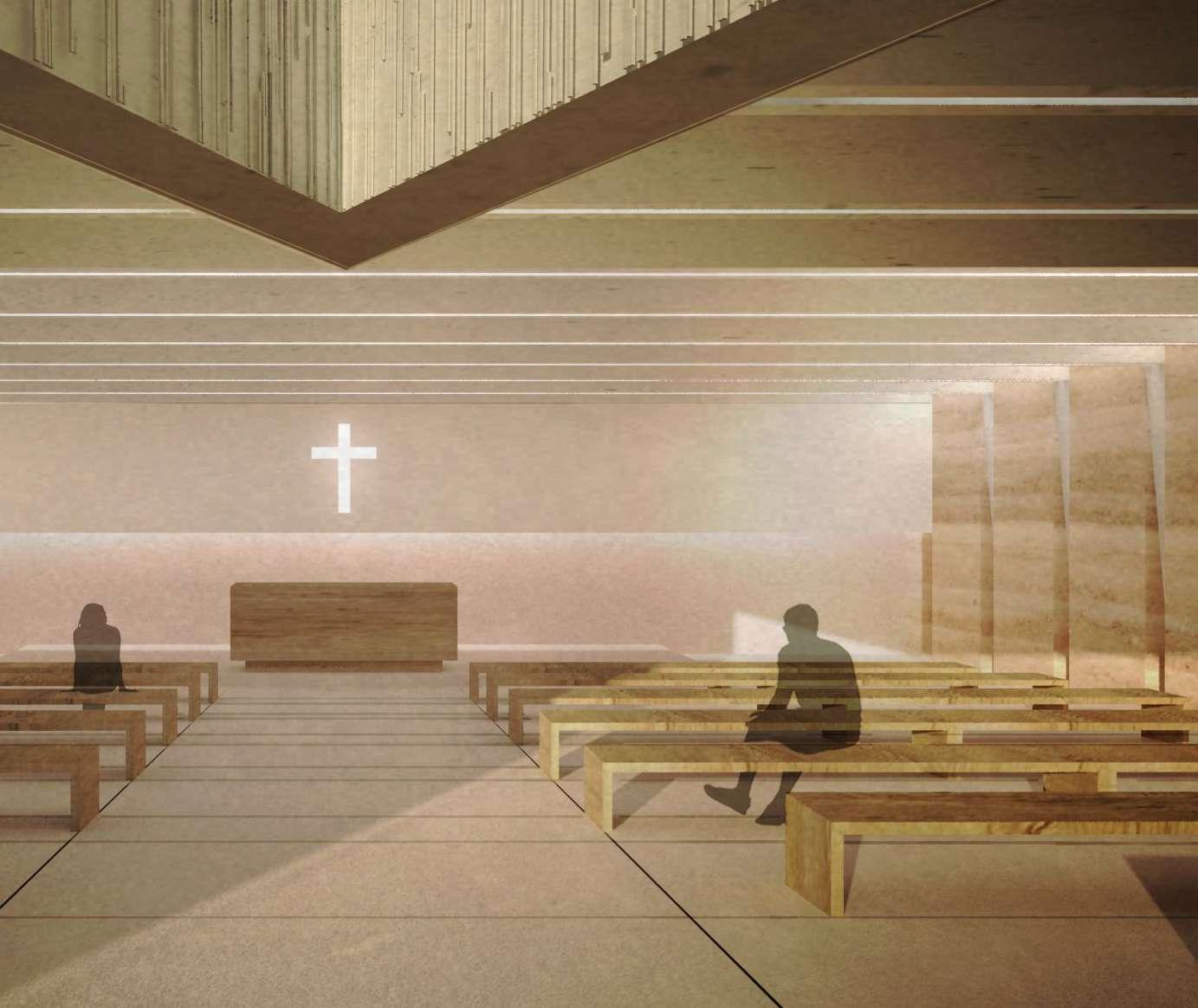

Rendering | Chapel Interior Diagram | Excavate + Structure + In-fill Excavate Concrete Beam Structure Bearing Walls Infill

Experimental | 75

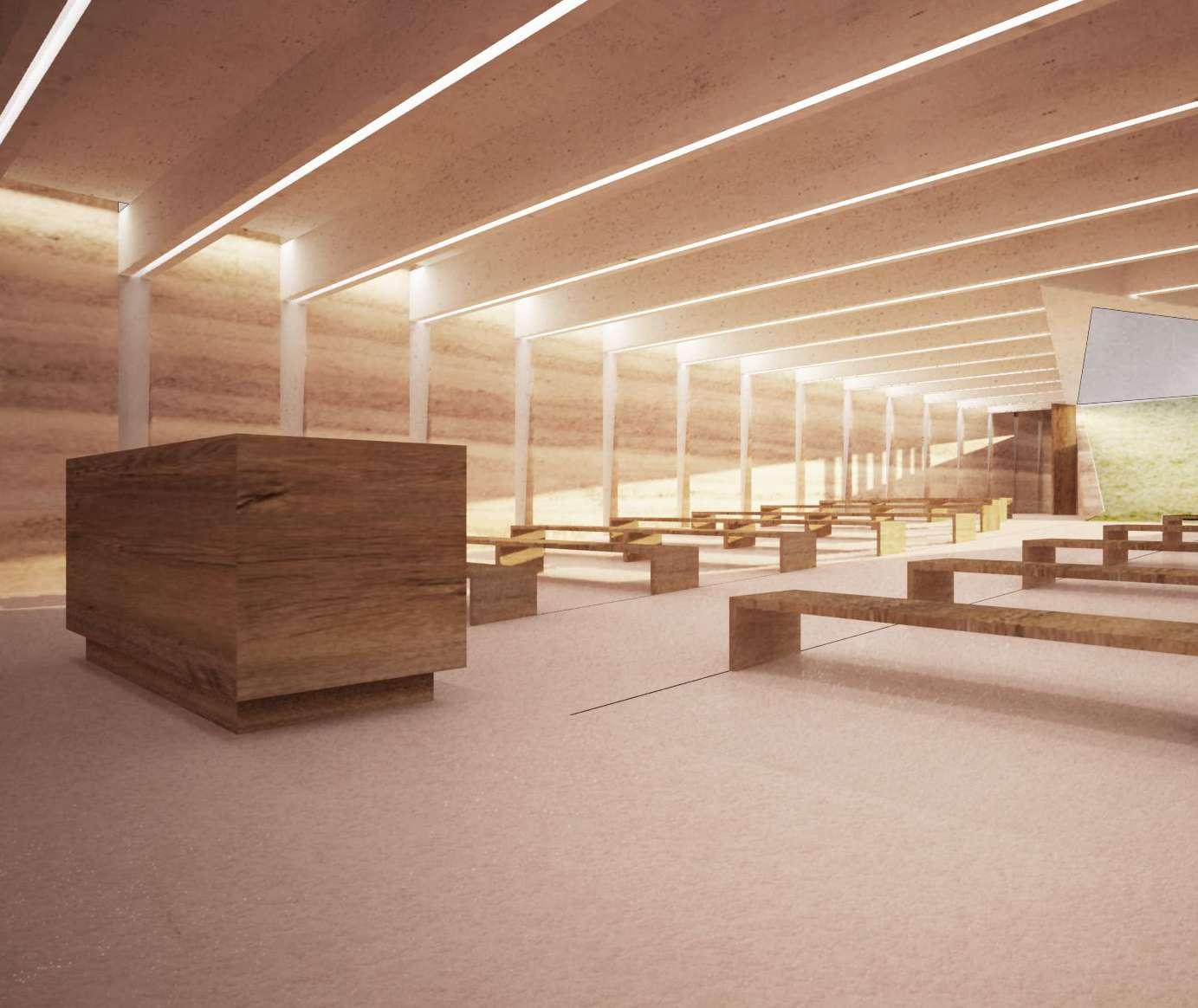

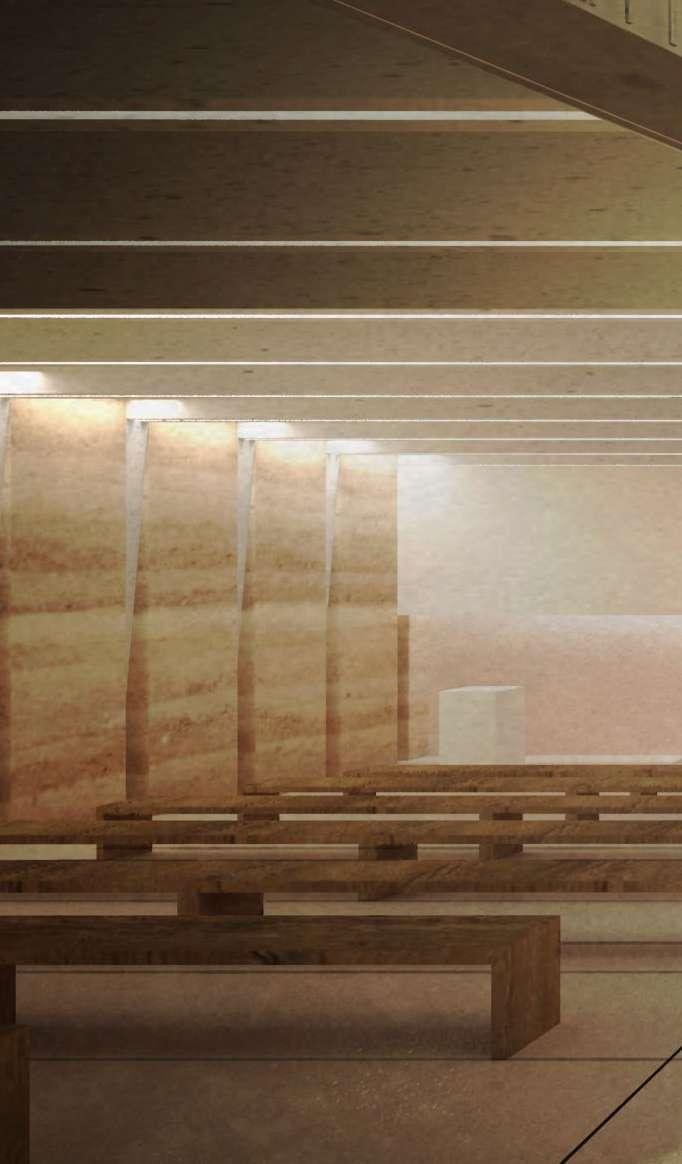

Rendering | Chapel Interior

Experimental | 77

Diagram | Structural Composition Tapered Concrete Column Rammed Earth Walls Concrete Beam Polished Concrete

NIMBUS:

MUSEUM OF ANIMATION

BUILDING TYPE: CIVIC

LOCATION: NEW YORK, NEW YORK

CRITICS: M. RAKATANSKY

INVOLVEMENT: CONCEPT DESIGN, DRAFTING, 3D MODEL, GRAPHICS COORDINATION, PHYSICAL MODEL, RENDERINGS

SOFTWARES USED: AUTOCAD, RHINOCEROS, PHOTOSHOP, ILLUSTRATOR

S.F.: 3,750 SF

NIMBUS : MUSEUM OF ANIMATION

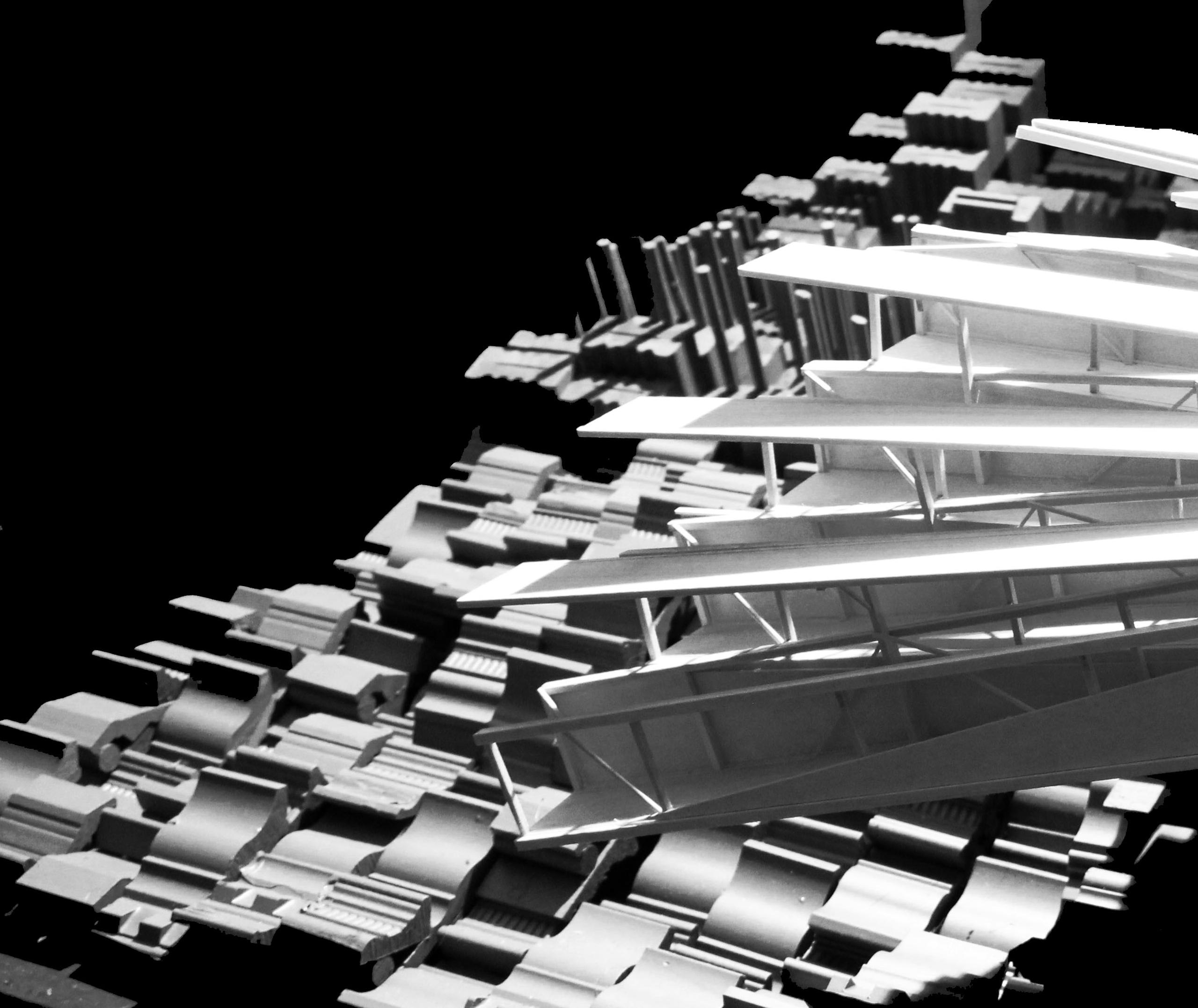

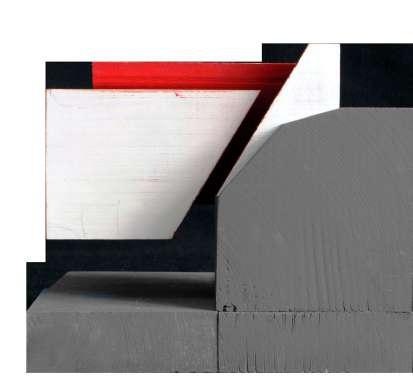

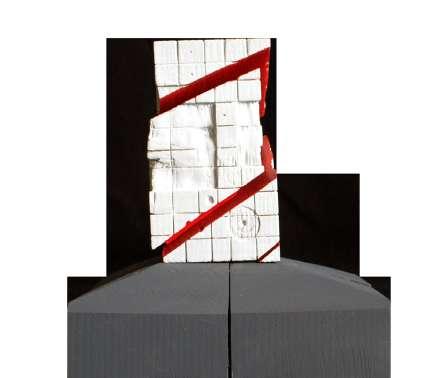

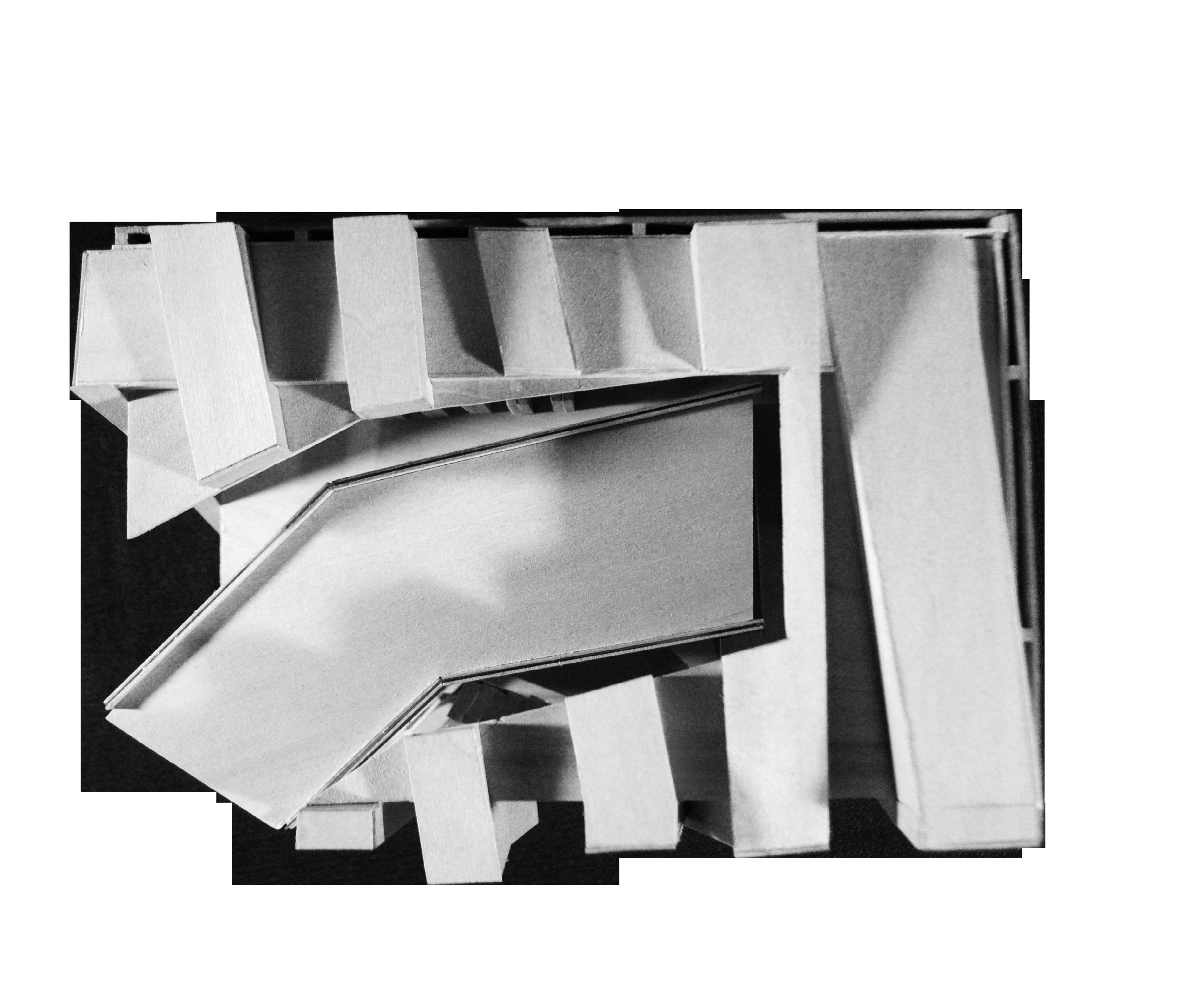

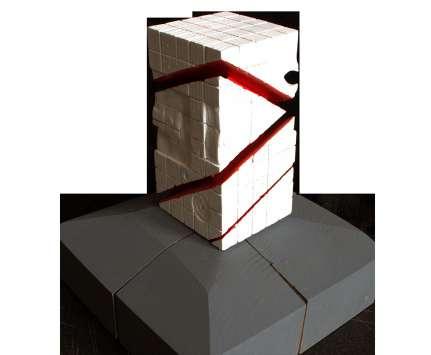

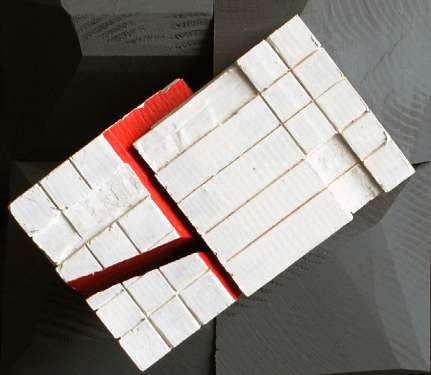

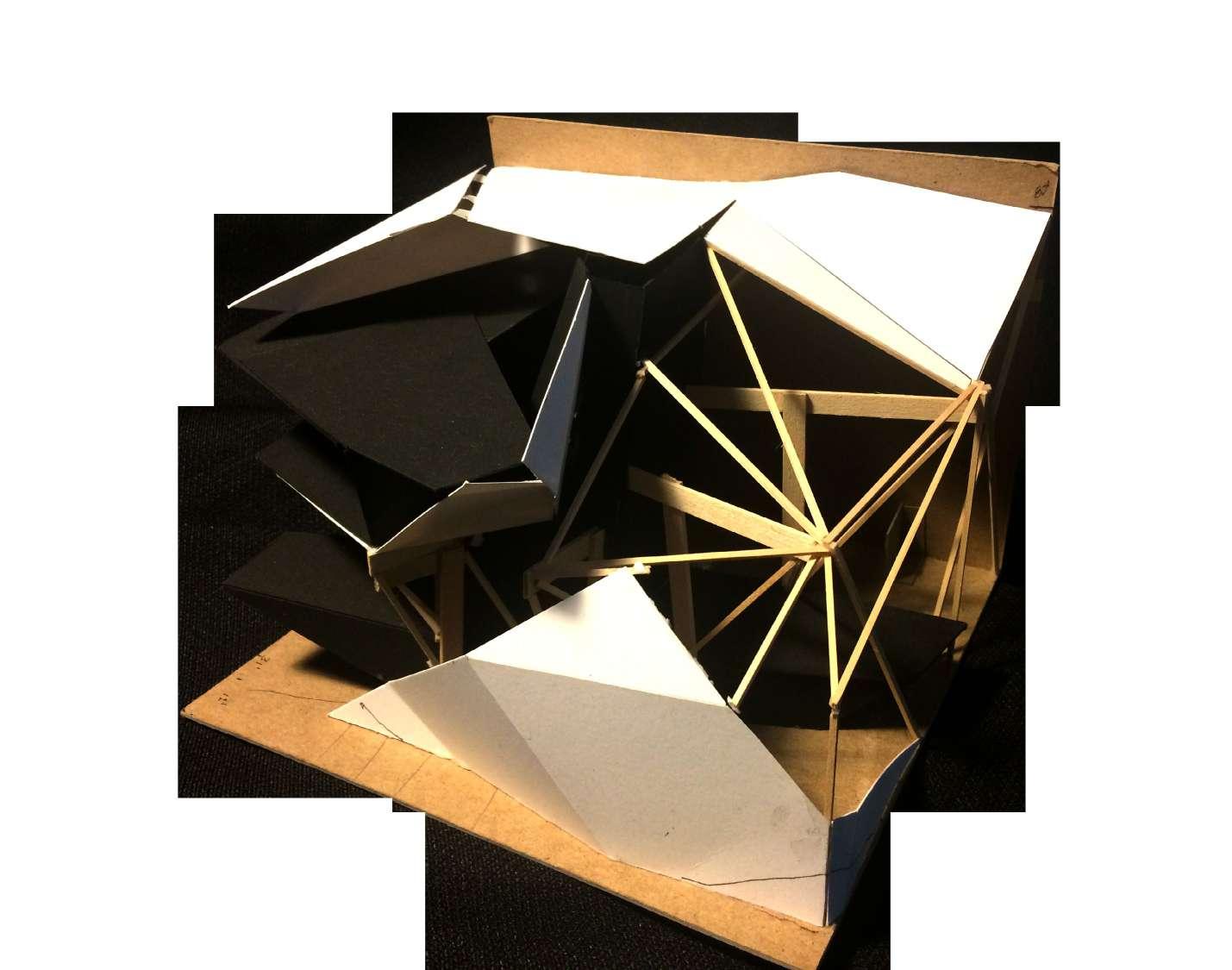

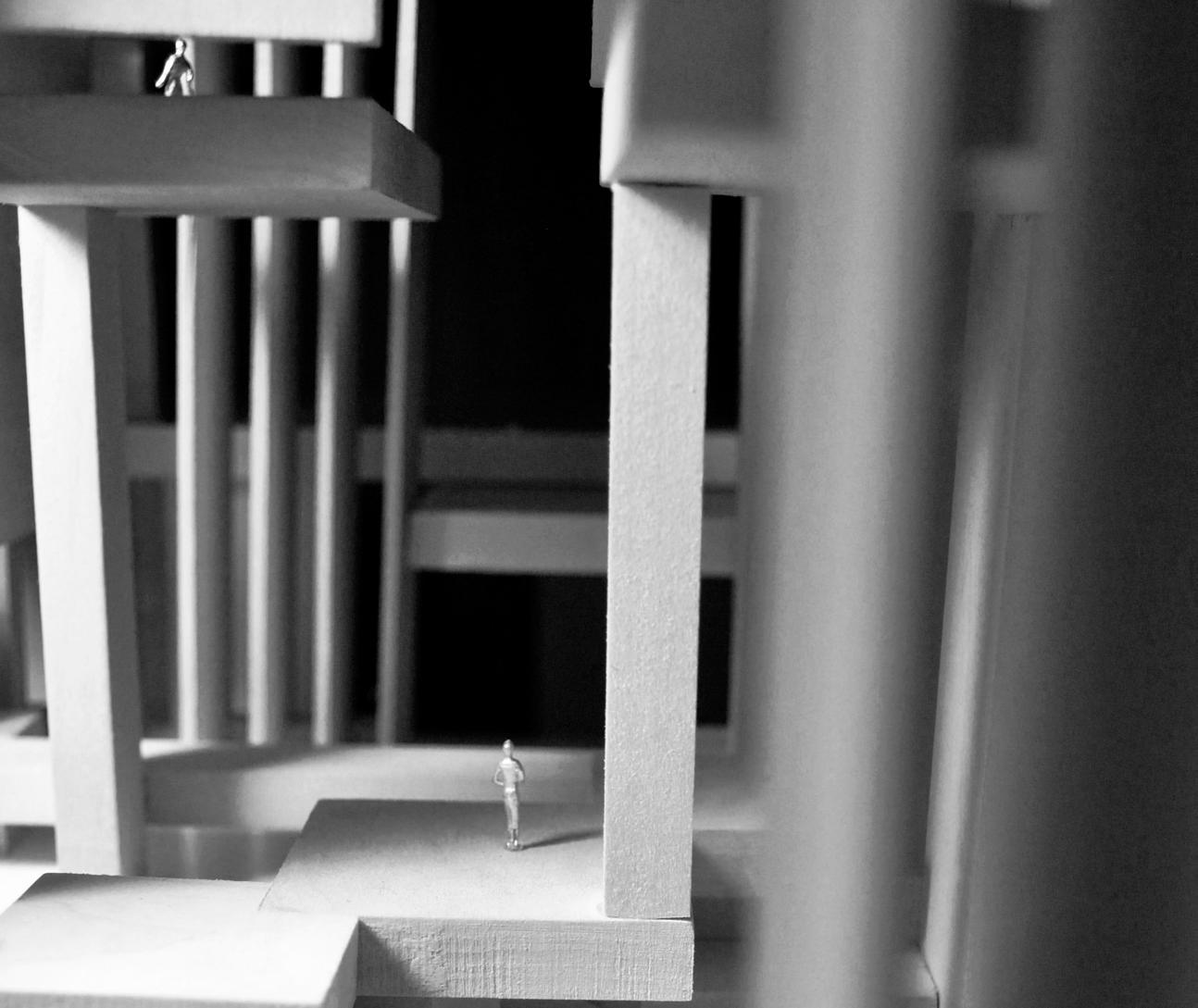

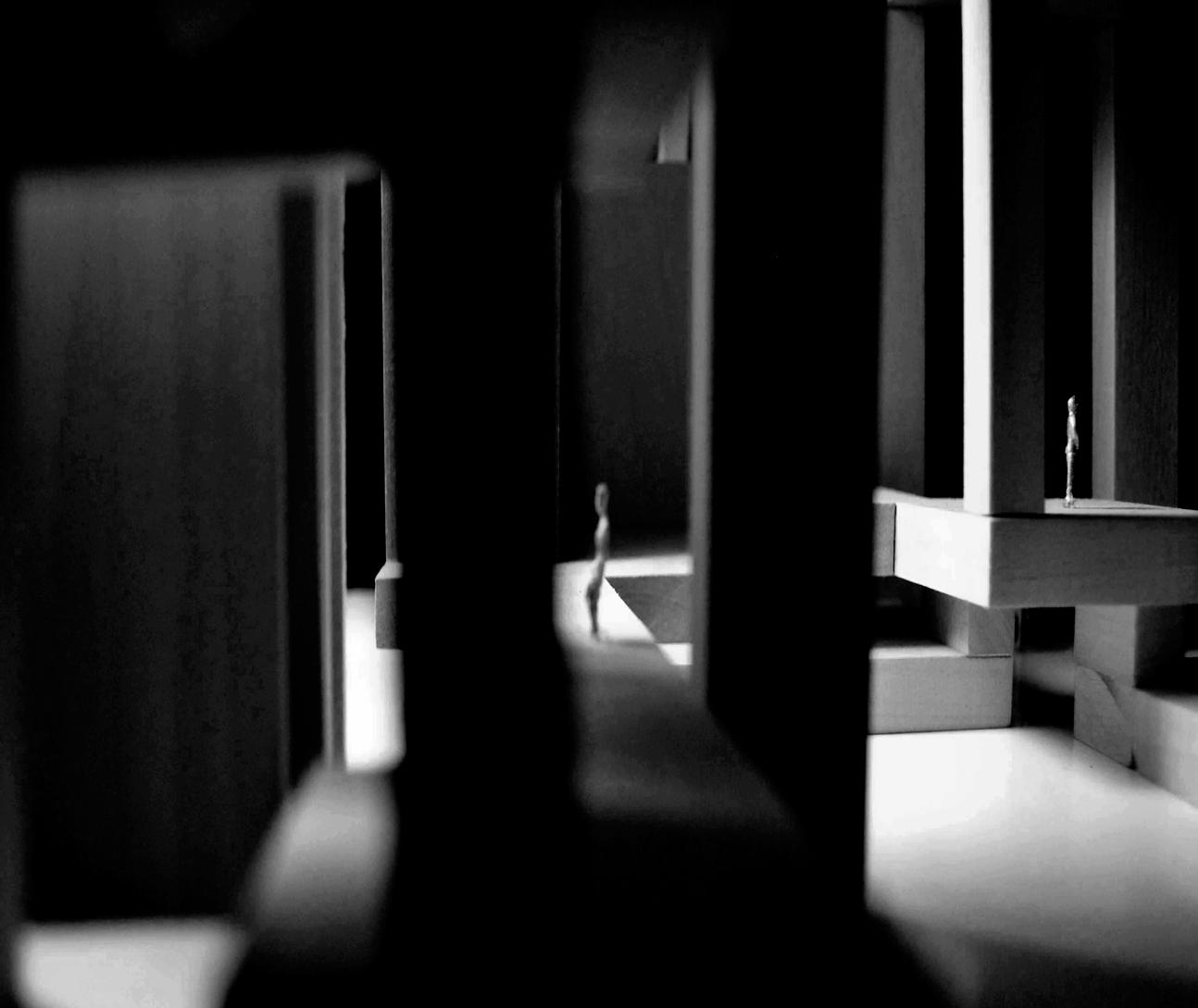

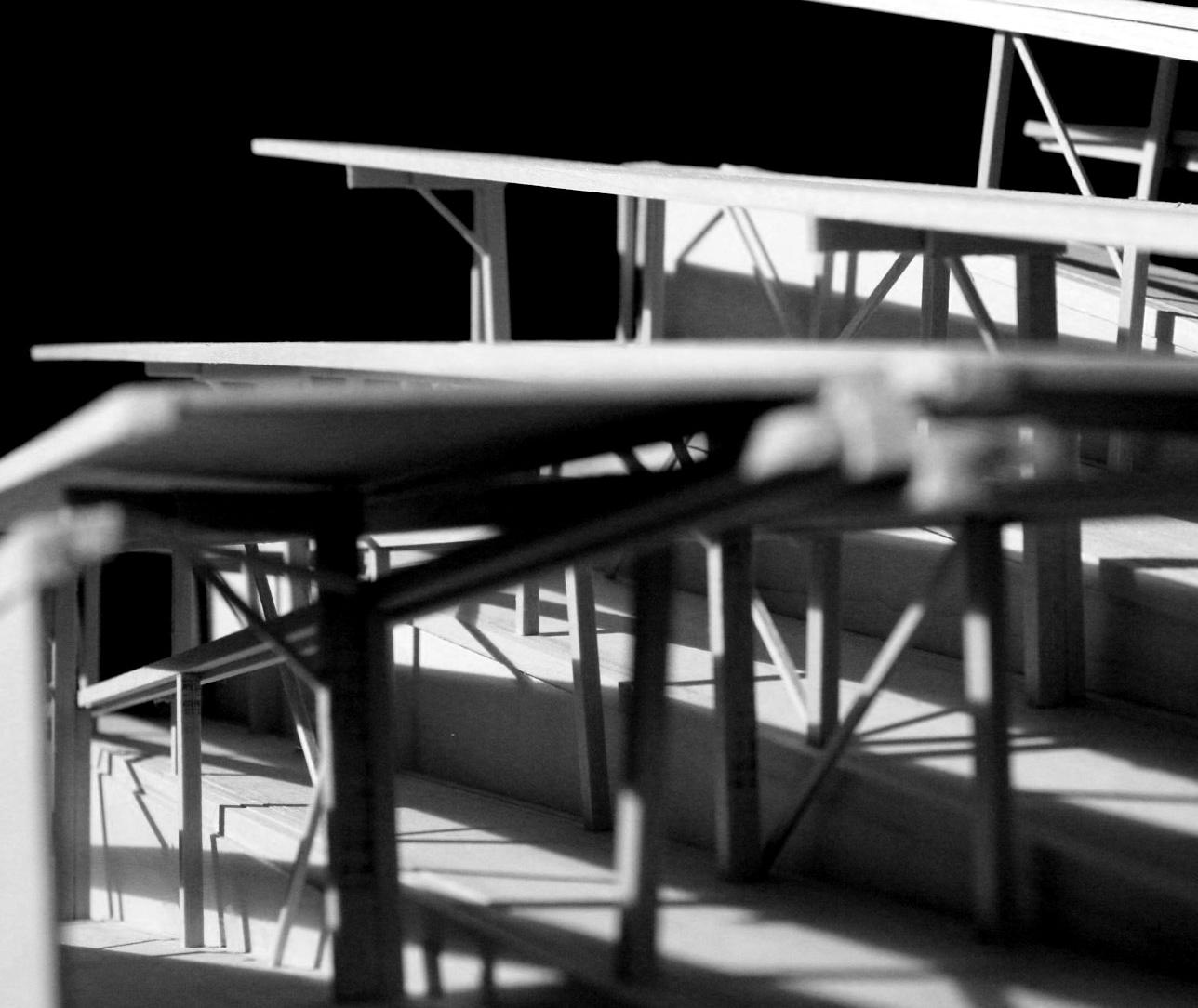

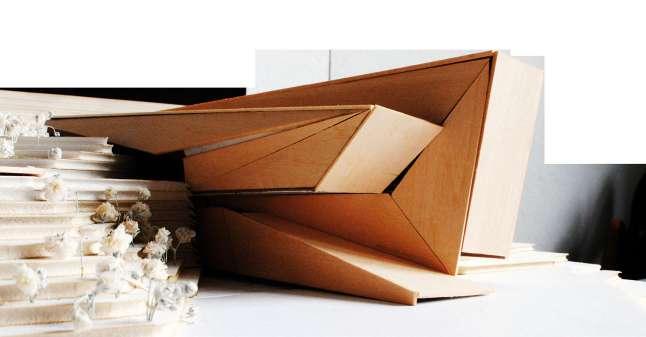

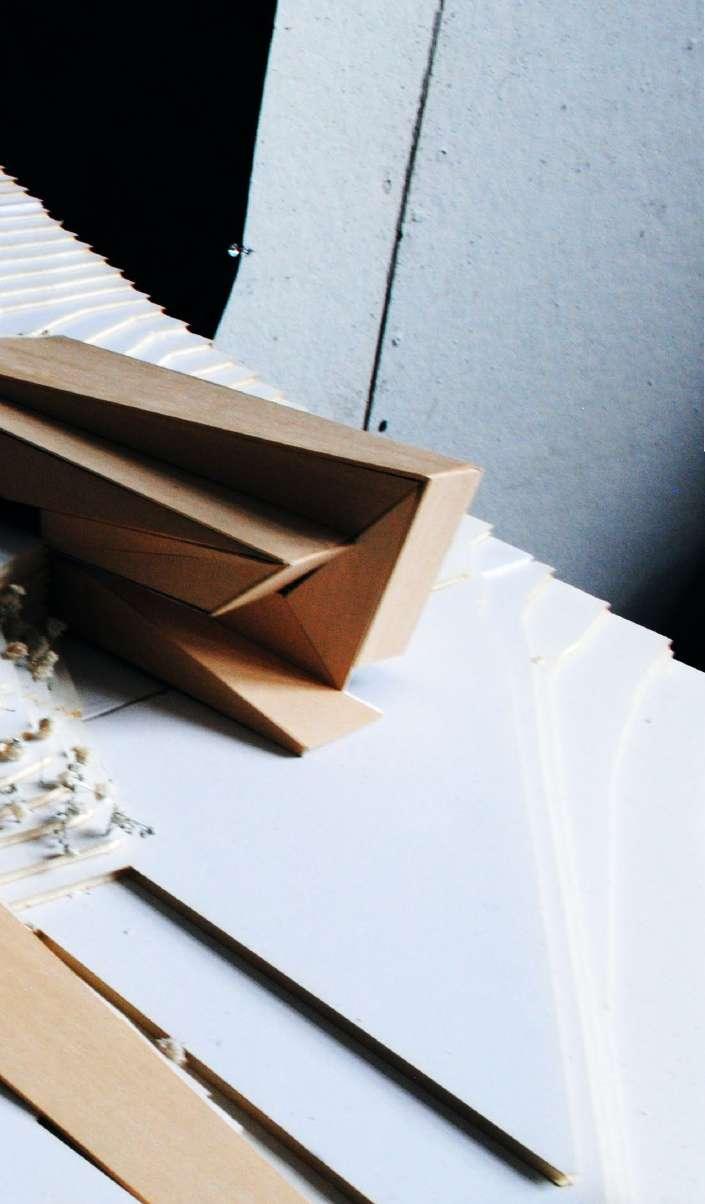

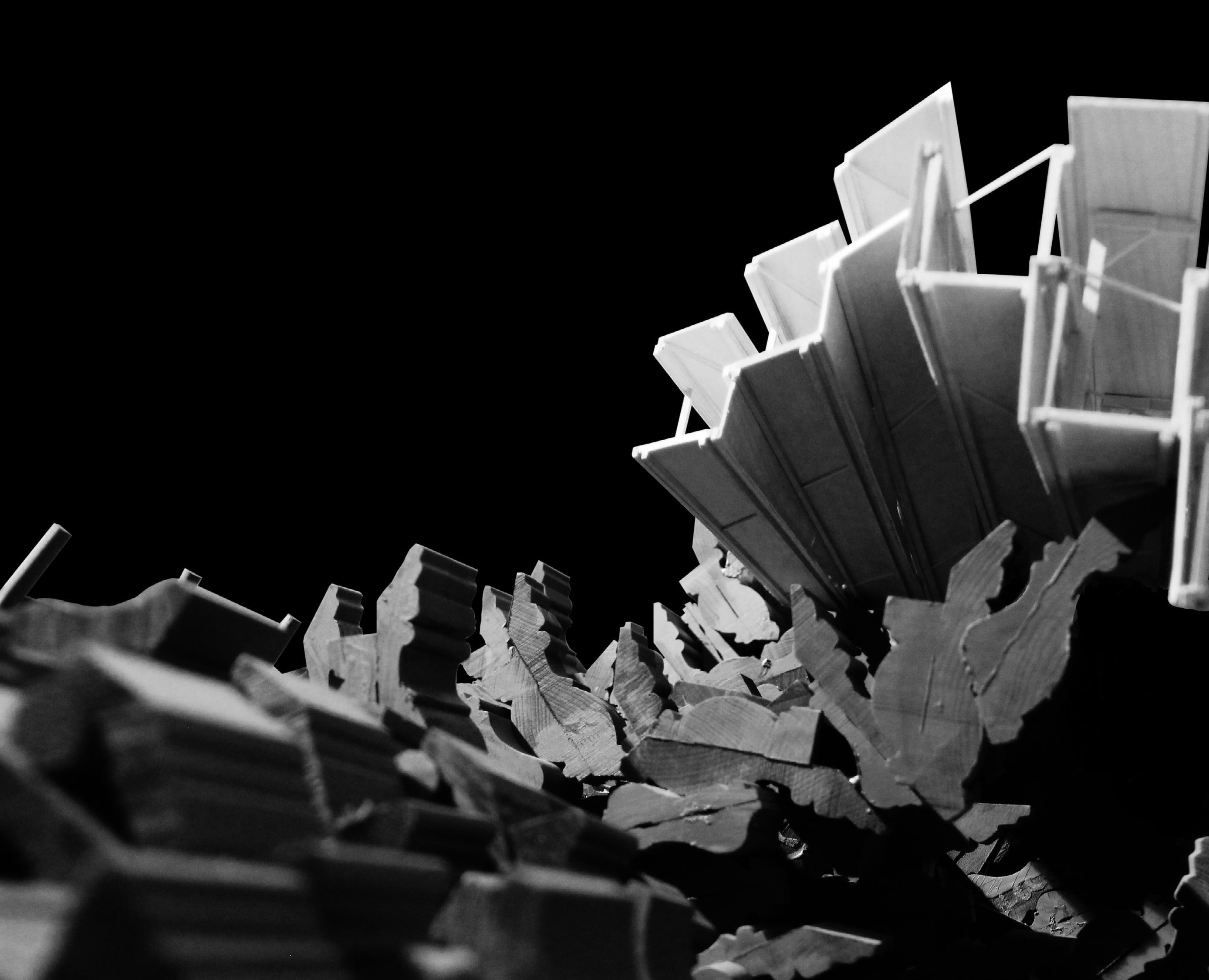

Sketch Model | Structures + Motion

In the world of animation, so much of the focus as the spectator centers around the finished product. With little to no insight on the creative process and the individuals tasked with giving life to what is intrinsically inanimate.

Taking in mind my previous observation, when tasked to create a museum of animation, the following questions served as a catalyst to start my exploration.

• What should a space that celebrates both animation and animator look like?

• How could the visitor, and the in-house artists interact within?

• How would these factors affect the building’s program and envelope?

The vehicle for my experiment became Nimbus, a museum tasked with reflecting outside the beauty of what’s whitin. Throughout the museum, the spotlight is shared between 3 main elements, the animators, the animation, and the visitor or beholder.

First the artists and their studios are programmatically placed in a way that both onlookers and visitors can admire the process of animation. In addition to this, spaces for learning are created alongside the artist’s studios, giving the visitor multiple ways of interacting with both the art and the artist, allowing both to integrate themselves as part of the exhibit. Secondly, the animation and their artifacts are placed in chronological order throughout, giving the visitor a taste of the history of animation to date, as well as access to multiple studios and styles of animation. Lastly, the movie theater, the culmination of the building’s program, floats above all creating the outward effect of a building suspended in the clouds, which is further accentuated by the geometrical texture on the facade.

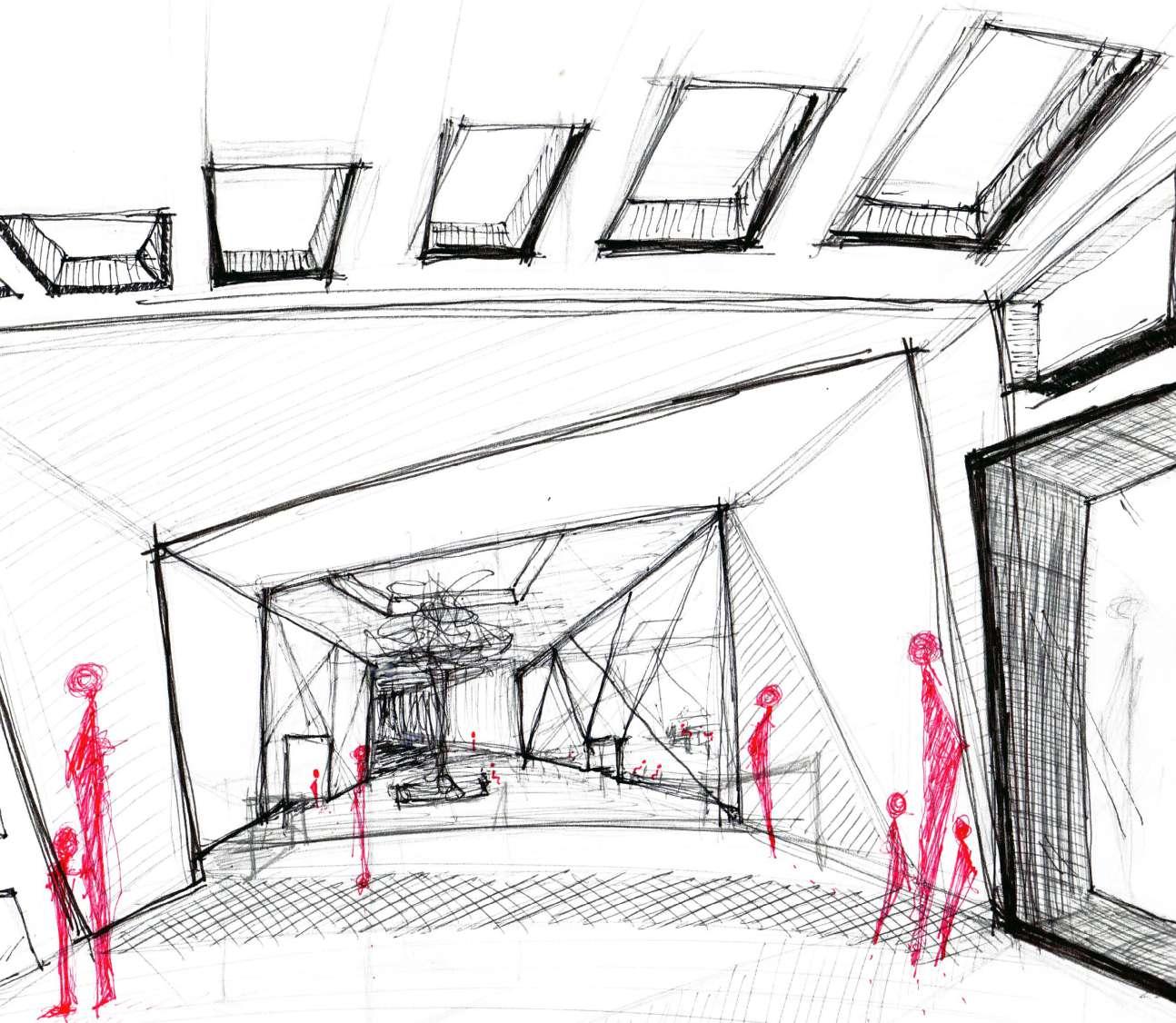

Experimental | 81 Conceptual Sketch | Promenade

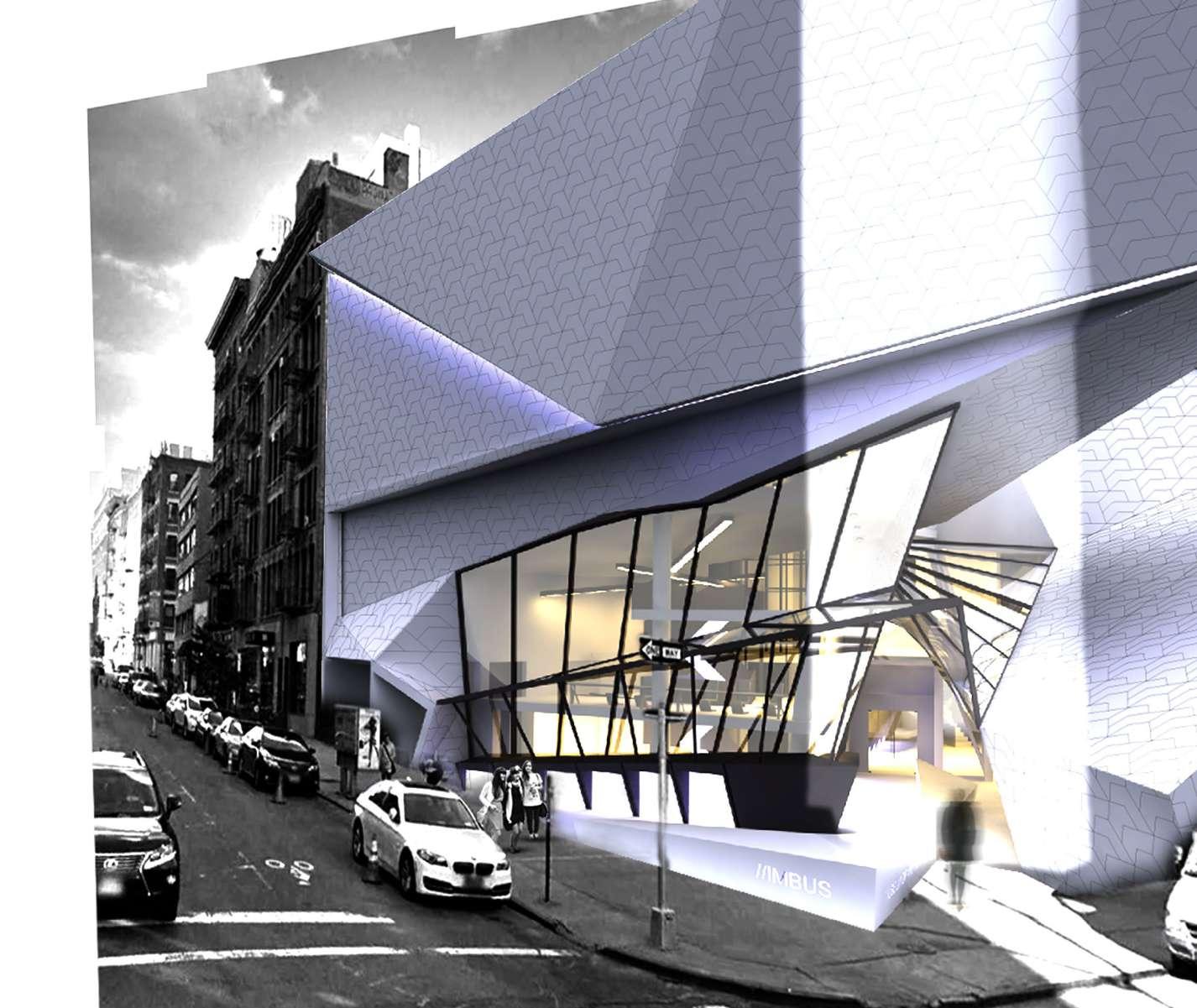

Exterior Rendering | Approach

Experimental | 83

HOWARD ST.

LAFAYETTE ST.

CENTRE ST.

HESTER ST.

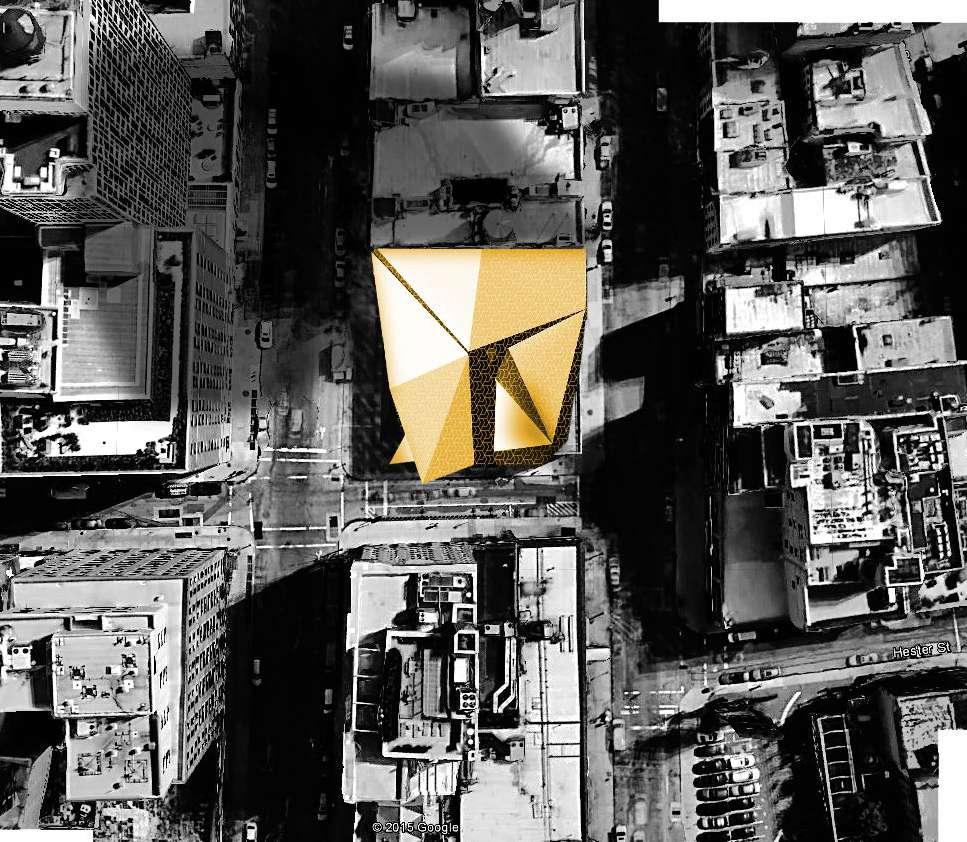

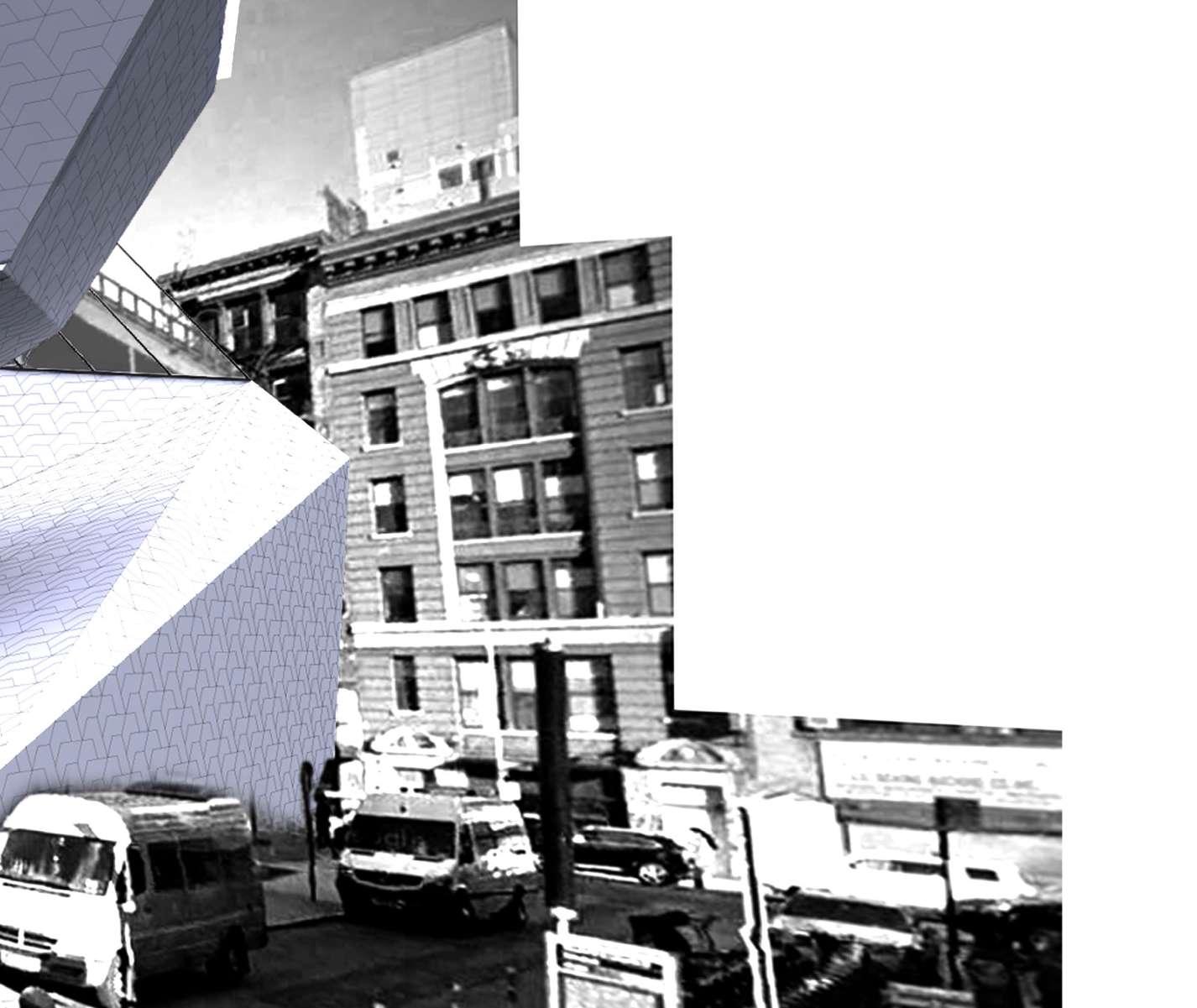

Site Plan | Surroundings

4th Floor

- Game Arcade

- Museum Store - Lounge 02

Rigid Aluminum Facade

3rd Floor

- Exhibit Space B - Class Room - Lounge 01

- Main Theater

- Stop Motion Studio

Acoustical Panels

2nd Floor

- Exhibit Space A - Library

- CGI Studio

- Conference Room

- Sound Booth - Office 02

Mezzanine

- Hand Drafting Studio 02

Steel + Glass Awning | Skylight

1st Floor

- Manga Cafe - Promenade - Lobby

- Handrafting Studio 01

- Loading Dock

- Coat Rm

- Rest Room

Private: Offices, Library

Semi-Public: Exhibitions Spaces, Classroom, Theater

Public: Cafe, Promenade

Exploded Axonometric | Program

Experimental | 85

GROUND FLOOR 0’-0” A.F.F OFFICE MEZZ. 01 10’-0” A.F.F OFFICE MEZZ. 02 20’-0” A.F.F 2ND FLOOR 15’-0” A.F.F 3RD FLOOR 31’-0” A.F.F 4TH FLOOR 47’-4” A.F.F ADJ. BLDG HGHT 60’-0” A.F.F T.O. ROOF 80’-0” A.F.F ADJ. BLDG HGHT 117’-0” A.F.F Section Perspective | Theather + Office + Store

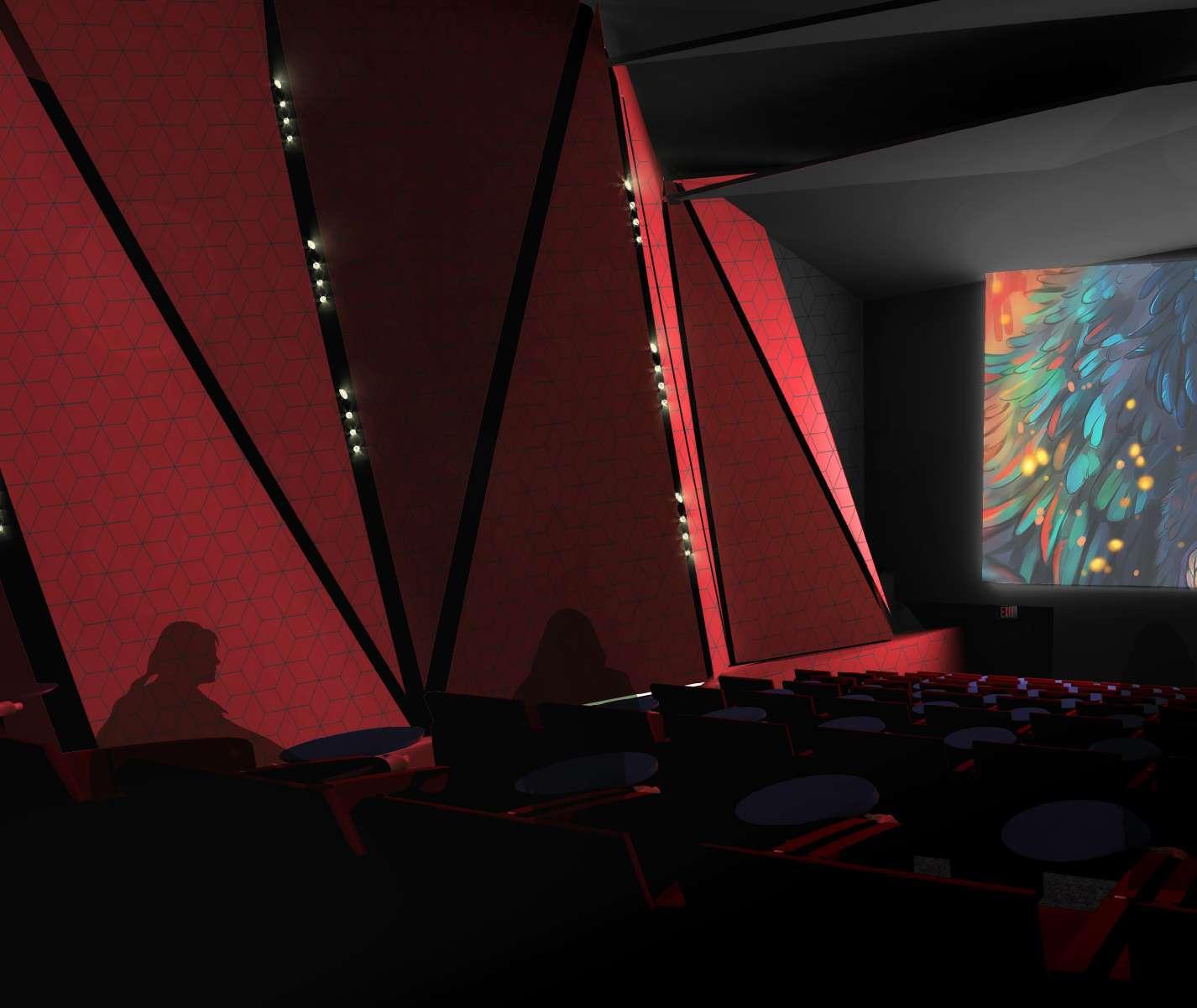

Hexagonal Acoustical Wall Panels Acoustical Ceiling Panels Rigid Aluminum Facade

DW Experimental | 87 Floor Plan | 1st + 2nd 1 2 1 2 3 6 7 4 5 6 4 3 5 4

1. Exhibit Space A 2. Library 3. CGI Studio 4. Conf Rm. 5. Sound Booth 6. HD Studio 02 1. Manga Cafe 2. Promenade 3. Lobby 4. HD Studio 01 5. Loading Dock 6. Coat Rm 7. Gundam
