CARDIOVASCULAR squyd
HAEMOSTASIS VALVES

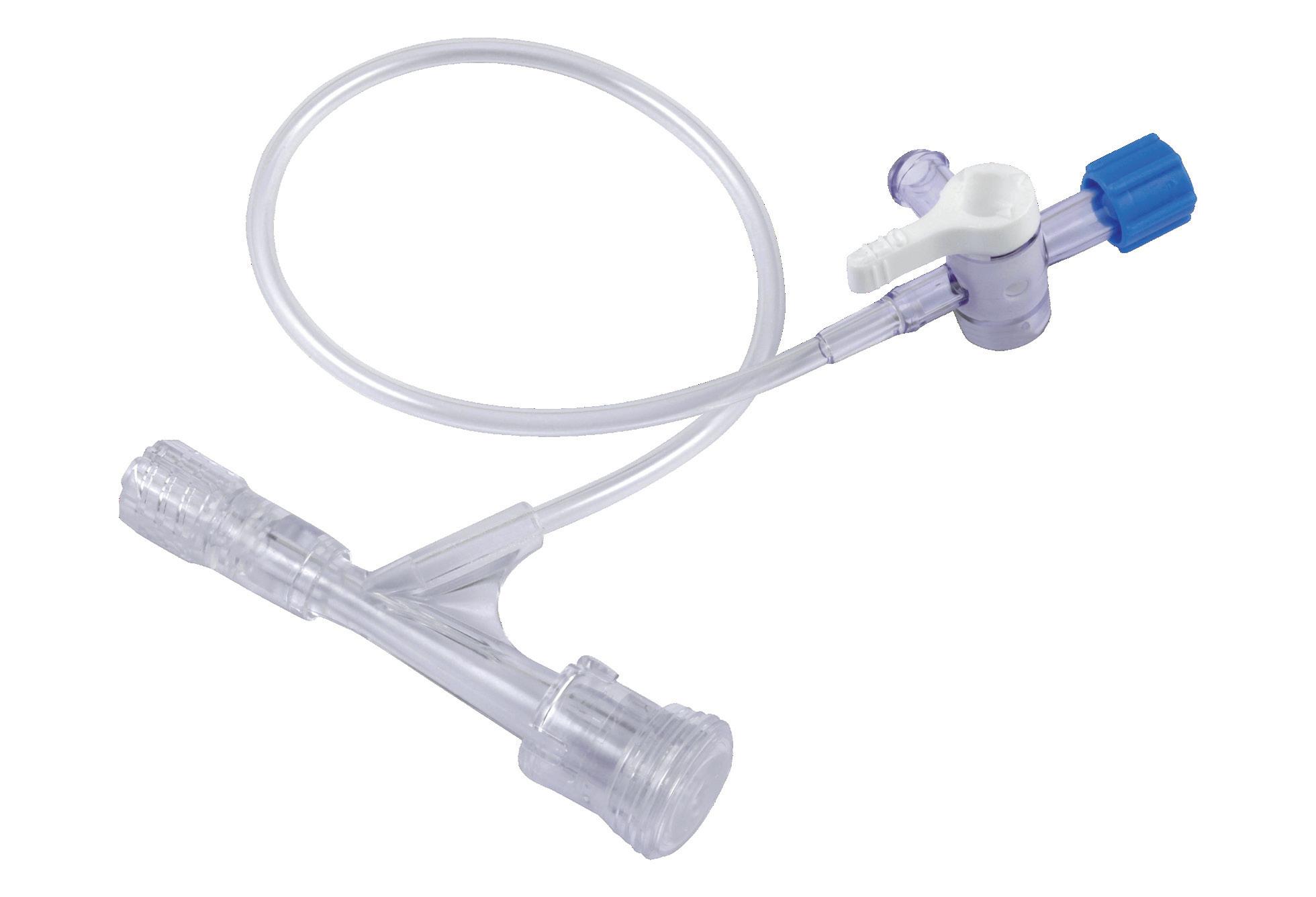

PUSH-PULL HAEMOSTASIS VALVE
• Push-pull system
• Silicone valve
• 7F / 2,33 mm inner lumen
2
CONNECTION LINE AND STOPCOCK
BUTTON
FEATURES & BENEFITS
PUSH-PULL SYSTEM
• Single-handed operation
• Minimized devices manipulation with sealed valve
• Limited blood loss
SILICONE VALVE
• Non-aggressive material
• Preserves catheter coatings
WITH OR WITHOUT CONNECTION LINE
• Numerous configurations adapted to your needs
(1) Haemostasis valve strength measured in vitro applying the injection pressure through the connection line.
REFERENCES
References Description
00270NA
00270NB
Haemostasis valve with a 20 cm connection line
Guidewire introducer
Haemostasis valve with a 20 cm connection line
Guidewire introducer
Twisting torque device
00270NC Haemostasis valve with a 50 cm connection line
Guidewire introducer
Haemostasis valve without connection line
00270ND
00270NE
Guidewire introducer
Plastic peelable insertion tool
Haemostasis valve with a 50 cm connection line
Guidewire introducer
Twisting torque device
Packaging
3 squyd
Components specifications Y connector Inner lumen compatibility 7F / 0.092" / 2,33 mm maximum Pressure strength(1) after introducing a device 8 atm / 811 kPa. maximum Guidewire introducer Outer diameter 2.7 F / 0.90mm Inner lumen diameter 1.9 F / 0.025’’ / 0.63mm Usable length 10 cm Plastic peelable insertion tool Length 9 cm Inner diameter 3.4 F / 0.044’’ / 1.13mm Torque device Guidewire compatibility From 0.010’’ / 0,25 mm to 0.035’’ / 0,89 mm maximum
10/box
